Correct as required.

11. Turn the engine off and wait more than

15 minutes. Check the oil level with the
dipstick. Add engine oil if necessary.

After the operation

1. Install the engine undercover into posi-

tion as the following steps.
a. Pull the center of the small plastic clip

out.

b. Hold the engine undercover into posi-

tion.

c. Insert the clip through the undercover

into the hole in the frame, then push
the center of the clip in to lock the clip
in place.

d. Install the other bolts that hold the

undercover in place. Be careful not to
strip the bolts or over-tighten them.

2. Lower the vehicle carefully to the

ground.

3. Dispose of waste oil and filter properly.

WARNING

.

Prolonged and repeated contact with
used engine oil may cause skin cancer.

.

Try to avoid direct skin contact with
used oil. If skin contact is made, wash

thoroughly with soap or hand cleaner
as soon as possible.

.

Keep used engine oil out of reach of
children.

When checking or replacement is required,
we recommend an INFINITI retailer for
servicing.

CAUTION

.

It is recommended that you use only
Genuine NISSAN Matic S ATF. Do
not mix with other fluids.

.

Using automatic transmission fluid
other than Genuine NISSAN Matic S
ATF or equivalent may cause dete-
rioration in driveability and auto-
matic transmission durability, and
may damage the automatic transmis-
sion. Damage caused by the use of
fluid other than as recommended is
not covered by the INFINITI’s New
Vehicle Limited Warranty.

Do-it-yourself

8-9

AUTOMATIC TRANSMISSION
FLUID (ATF)

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

8-10

Do-it-yourself

For further brake fluid information, see
“Capacities and recommended fluids/lubri-
cants” (P.10-2) of this manual.

WARNING

.

Use only new fluid from a sealed
container. Old, inferior or contami-
nated fluid may damage the brake
system. The use of improper fluids
can damage the brake system and
affect the vehicle’s stopping ability.

.

Clean the filler cap before removing.

.

Brake fluid is poisonous and should
be stored carefully in marked con-
tainers out of the reach of children.

CAUTION

Do not spill the fluid on painted surfaces.
This will damage the paint. If fluid is
spilled, wash the surface with water.

JVM0731X

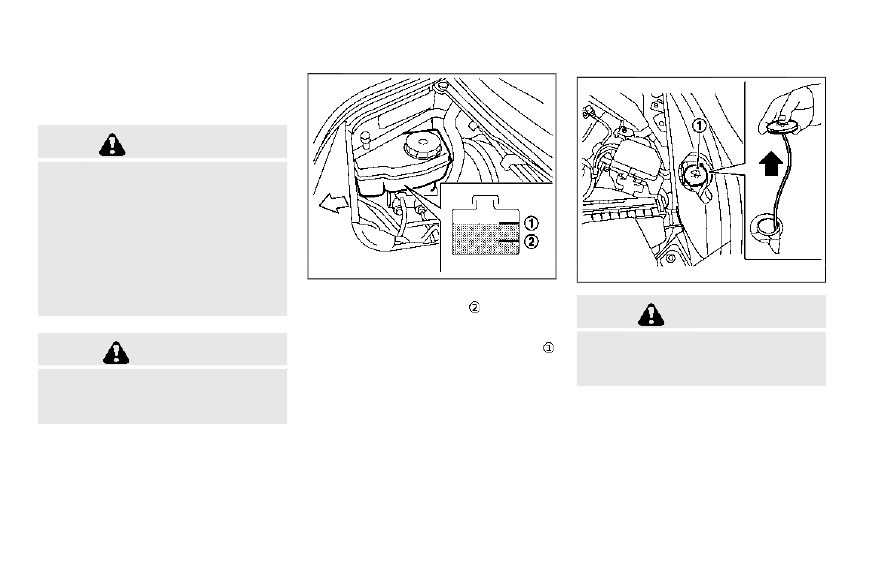

Check the fluid level in the reservoir. If the
fluid is below the MIN line

or the brake

warning light comes on, add Genuine
NISSAN Super Heavy Duty Brake Fluid or
equivalent

DOT 3

fluid up to the MAX line

.

If fluid must be added frequently, the system
should be checked. It is recommended you
visit an INFINITI retailer for this service.

JVM0253X

WARNING

Antifreeze is poisonous and should be
stored carefully in marked containers
out of the reach of children.

Fill the window washer fluid reservoir per-
iodically. Add window washer fluid when the
low window washer fluid warning appears in
the vehicle information display.
To fill the window washer fluid reservoir, lift
the cap off the reservoir and pour the
window washer fluid into the reservoir
opening.

BRAKE FLUID

WINDOW WASHER FLUID

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

To check the window washer fluid level, use
your finger to plug the hole

of the cap/

tube assembly, then remove it from the
reservoir. If there is no fluid in the tube,
add fluid.
Add a washer solvent to the washer for
better cleaning. In the winter season, add a
windshield washer antifreeze. Follow the
manufacturer’s instructions for the mixture
ratio.
Refill the reservoir more frequently when
driving conditions require an increased
amount of window washer fluid.
Recommended fluid is Genuine NISSAN
Windshield Washer Concentrate Cleaner &
Antifreeze or equivalent.

CAUTION

.

Do not substitute engine anti-freeze
coolant for window washer solution.
This may result in damage to the
paint.

.

Do not fill the window washer re-
servoir with washer fluid concen-
trates at full strength. Some methyl
alcohol based washer fluid concen-
trates may permanently stain the
grille if spilled while filling the win-
dow washer reservoir.

.

Pre-mix washer fluid concentrates
with water to the manufacturer’s
recommended levels before pouring
the fluid into the window washer
reservoir. Do not use the window
washer reservoir to mix the washer
fluid concentrate and water.

.

Keep the battery surface clean and dry.

Clean the battery with a solution of
baking soda and water.

.

Make certain the terminal connections

are clean and securely tightened.

.

If the vehicle is not to be used for 30 days

or longer, disconnect the negative (−)
battery terminal cable to prevent dis-
charging it.

NOTE:

Care should be taken to avoid situations
that can lead to potential battery discharge
and potential no-start conditions such as:

1.

Installation or extended use of electro-
nic accessories that consume battery
power when the engine is not running
(Phone chargers, GPS, DVD players,
etc.)

2.

Vehicle is not driven regularly and/or
only driven short distances.

In these cases, the battery may need to be
charged to maintain battery health.

WARNING

.

Do not expose the battery to flames
or electrical sparks. Hydrogen gas
generated by the battery is explosive.
Do not allow battery fluid to contact
your skin, eyes, fabrics, or painted

Do-it-yourself

8-11

BATTERY

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

8-12

Do-it-yourself

surfaces. After touching a battery or
battery cap, do not touch or rub your
eyes. Thoroughly wash your hands. If
the acid contacts your eyes, skin or
clothing, immediately flush with
water for at least 15 minutes and
seek medical attention.

.

Do not operate the vehicle if the fluid
in the battery is low. Low battery
fluid can cause a higher load on the
battery which can generate heat,
reduce battery life, and in some cases
lead to an explosion.

.

When working on or near a battery,
always wear suitable eye protection
and remove all jewelry.

.

Battery posts, terminals and related
accessories contain lead and lead
compounds. Wash hands after hand-
ling.

.

Keep the battery out of the reach of
children.

DI0137MA

CHECKING BATTERY FLUID LE-
VEL

Check the fluid level in each cell (remove the
battery cover if it is necessary). It should be
between the UPPER LEVEL

and LOWER

LEVEL

lines.

If it is necessary to add fluid, add only
distilled water to bring the level to the
indicator in each filler opening.

Do not

overfill.

SDI1480C

1. Remove the cell plugs

.

2. Add distilled water up to the UPPER

LEVEL

line.

If the side of the battery is not clear,
check the distilled water level by looking
directly above the cell; the condition
indicates OK and the conditions

needs

more to be added.

3. Tighten cell plugs

.

Vehicles operated in high temperatures or
under severe conditions require frequent
checks of the battery fluid level.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

JUMP STARTING

If jump starting is necessary, see “Jump
starting” (P.6-5). If the engine does not start
by jump starting, the battery may have to be
replaced. It is recommended you visit an
INFINITI retailer for this service.

CAUTION

.

Do not ground accessories directly to
the battery terminal. Doing so will
bypass the variable voltage control
system and the vehicle battery may
not charge completely.

.

Use electrical accessories with the
engine running to avoid discharging
the vehicle battery.

The variable voltage control system mea-
sures the amount of electrical discharge
from the battery and controls voltage gen-
erated by the generator.

JVM0655X

1.

Water pump

2.

Alternator

3.

Drive belt auto-tensioner

4.

Crankshaft pulley

5.

Air conditioner compressor

WARNING

Be sure the ignition switch is in the OFF
or LOCK position before servicing drive
belts. The engine could rotate unexpect-
edly.

1. Visually inspect each belt for signs of

unusual wear, cuts, fraying or looseness.

Do-it-yourself

8-13

VARIABLE VOLTAGE CONTROL SYSTEM

DRIVE BELTS

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

8-14

Do-it-yourself

If the belt is in poor condition or loose,
have it replaced or adjusted. It is recom-
mended you visit an INFINITI retailer for
this service.

2. Have the belts checked regularly for

condition and tension in accordance with
the maintenance schedule shown in the
“9. Maintenance and schedules” section.

WARNING

Be sure the engine and the ignition
switch are off and that the parking
brake is engaged securely.

CAUTION

Be sure to use the correct socket to
remove the spark plugs. An incorrect
socket can damage the spark plugs.

SDI2020

REPLACING SPARK PLUGS

If replacement is required, it is recommended
you visit an INFINITI retailer for this service.

Iridium-tipped spark plugs

It is not necessary to replace the iridium-
tipped spark plugs as frequently as the
conventional type spark plugs since they will
last much longer. Follow the maintenance
schedule shown in the “9. Maintenance and
schedules” section, but do not reuse them by
cleaning or regapping.

Always replace spark plugs with recom-
mended or equivalent ones.

SPARK PLUGS

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

.

Operating the engine with the air
cleaner removed can cause you or
others to be burned. The air cleaner
not only cleans the air, it stops flame
if the engine backfires. If it isn’t
there, and the engine backfires, you
could be burned. Do not drive with
the air cleaner removed, and be care-
ful when working on the engine with
the air cleaner removed.

.

Never pour fuel into the throttle body
or attempt to start the engine with
the air cleaner removed. Doing so
could result in serious injury.

The filter element should not be cleaned and
reused. Replace it according to the main-
tenance schedule shown in the “9. Main-
tenance and schedules” section. When
replacing the filter, wipe the inside of the
air cleaner housing and the cover with a
damp cloth.
When maintenance is required, it is recom-
mended you contact an INFINITI retailer for
servicing.

CLEANING

If your windshield is not clear after using the
windshield washer or if a wiper blade
chatters when running, wax or other materi-
al may be on the blade or windshield.
Clean the outside of the windshield with a
washer solution or a mild detergent. Your
windshield is clean if beads do not form
when rinsing with clear water.
Clean each blade by wiping it with a cloth
soaked in a washer solution or a mild
detergent. Then rinse the blade with clear
water. If your windshield is still not clear
after cleaning the blades and using the
wiper, replace the blades.
Worn windshield wiper blades can damage
the windshield and impair driver vision.

When a washer nozzle is clogged

It is recommended you see an INFINITI
retailer if a washer nozzle is clogged or any
malfunction occurs. Do not attempt to clean
the nozzle using a needle or a pin. Doing so
may damage the nozzle.

Do-it-yourself

8-15

AIR CLEANER

WINDSHIELD WIPER BLADES

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

8-16

Do-it-yourself

SDI2048

REPLACING

Replace the wiper blades if they are worn.
Before replacing the wiper blades, the wiper
should be in the fully up position to avoid
scratching the engine hood or damaging the
wiper arm. To pull up the wiper arm, see
“Wiper and washer switch” (P.2-32).

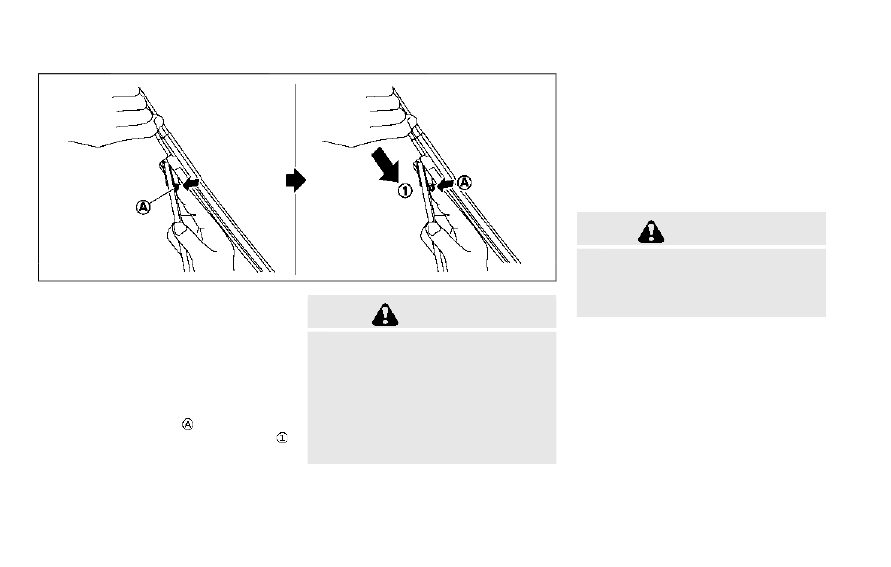

1. Pull the wiper arm.
2. Push the release tab

, and then move

the wiper blade down the wiper arm
while pushing the release tab to remove.

3. Insert the new wiper blade onto the

wiper arm until a click sounds.

4. Rotate the wiper blade so the dimple is in

the groove.

CAUTION

.

After wiper blade replacement, re-
turn the wiper arm to its original
position;

otherwise it may be damaged when
the hood is opened.

.

Make sure the wiper blades contact
the glass; otherwise the arm may be
damaged from wind pressure.

If the brakes do not operate properly, have
the brakes checked. It is recommended you
visit an INFINITI retailer for this service.

SELF-ADJUSTING BRAKES

Your vehicle is equipped with self-adjusting
brakes.
The disc-type brakes self-adjust every time
the brake pedal is applied.

WARNING

Have your brake system checked if the
brake pedal height does not return to
normal. It is recommended you visit an
INFINITI retailer for this service.

BRAKE PAD WEAR WARNING

The disc brake pads have audible wear
warnings. When a brake pad requires repla-
cement, it will make a high pitched scraping
sound when the vehicle is in motion. This
scraping sound will first occur only when the
brake pedal is depressed. After more wear of
the brake pad, the sound will always be
heard even if the brake pedal is not
depressed. Have the brakes checked as soon
as possible if the wear warning sound is
heard.

BRAKES

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Under some driving or climate conditions,
occasional brake squeak, squeal or other
noise may be heard. Occasional brake noise
during light to moderate stops is normal and
does not affect the function or performance
of the brake system.

Proper brake inspection intervals should be
followed.

For additional information, see the

maintenance schedule shown in the “9.
Maintenance and schedules” section.

JVM0255X

JVM0734X

ENGINE COMPARTMENT

WARNING

Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or electronic con-
trol units or cause a fire.

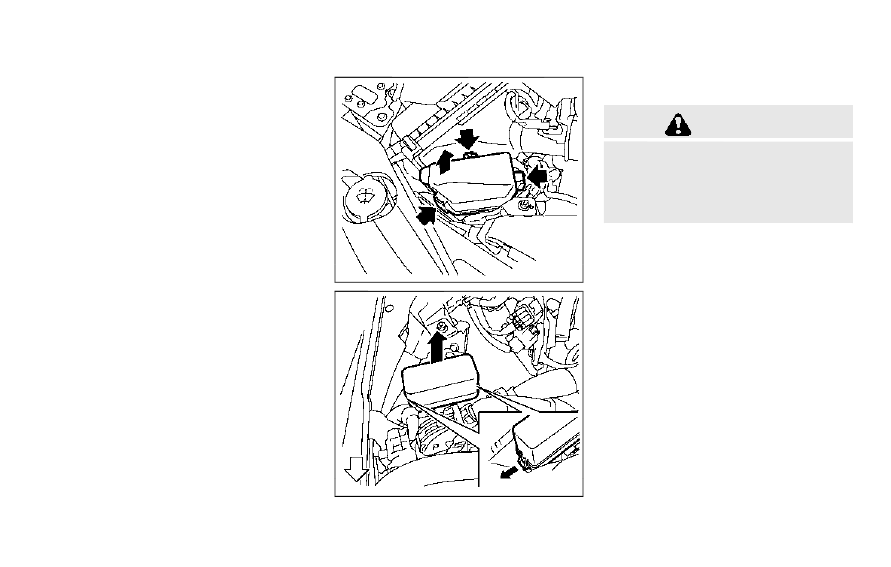

If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch is placed in

the OFF or LOCK position and the
headlight switch is in the OFF (if so
equipped) or AUTO position and the
headlights are OFF.

2. Open the engine hood.
3. Remove the fuse/fusible link holder

cover.

4. Remove the fuse with the fuse puller.

Do-it-yourself

8-17

FUSES

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

8-18

Do-it-yourself

SDI1754

5. If the fuse is open

, replace it with a

new fuse

. Spare fuses are stored in the

passenger compartment fuse box.

6. If a new fuse also opens, have the

electrical system checked and repaired.
It is recommended you visit an INFINITI
retailer for this service.

Fusible links

If any electrical equipment does not operate
and fuses are in good condition, check the
fusible links. If any of these fusible links are
melted, replace only with genuine INFINITI
parts.

JVM0256X

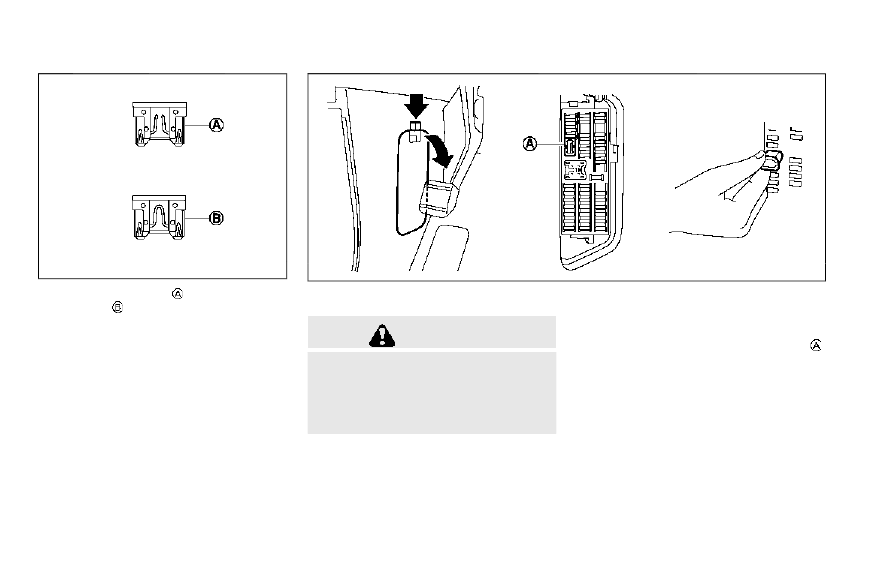

PASSENGER COMPARTMENT

WARNING

Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or electronic con-
trol units or cause a fire.

If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch is placed in

the OFF or LOCK position and the
headlight switch is in the OFF (if so

equipped) or AUTO position and the
headlights are OFF.

2. Open the fuse box lid.
3. Remove the fuse with the fuse puller

.

4. If the fuse is open, replace it with a new

fuse.

5. If a new fuse also opens, have the

electrical system checked and repaired.
It is recommended you visit an INFINITI
retailer for this service. Spare fuses are
stored in the fuse box.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

JVM0257X

Extended storage fuse switch (if so
equipped)

To reduce battery drain, the extended
storage fuse switch comes from the factory
switched off. Prior to delivery of your
vehicle, the switch is pushed in (switched
on) and should always remain on.
If the extended storage fuse switch is not
pushed in (switched on), the “Shipping Mode
On, Push Storage Fuse” warning may appear
in the vehicle information display. See “19.
Extended storage fuse warning” (P.2-22).
If any electrical equipment does not operate,
remove the extended storage fuse switch
and check for an open fuse.

NOTE:

If the extended storage fuse switch mal-
functions or if the fuse is open, it is not
necessary to replace the switch. In this case,
remove the extended storage fuse switch
and replace it with a new fuse of the same
rating.
How to remove the extended storage fuse
switch:

1. To remove the extended storage fuse

switch, be sure the ignition switch is in
the OFF or LOCK position.

2. Be sure the headlights are off. (See

“Headlight switch” (P.2-36) or “Autolight
system” (P.2-36).)

3. Remove the fuse box cover.
4. Pinch the locking tabs

found on each

side of the storage fuse switch.

5. Pull the storage fuse switch straight out

from the fuse box

.

CAUTION

Be careful not to allow children to
swallow the battery and removed parts.

Do-it-yourself

8-19

INTELLIGENT KEY BATTERY
REPLACEMENT

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

8-20

Do-it-yourself

WAI0070X

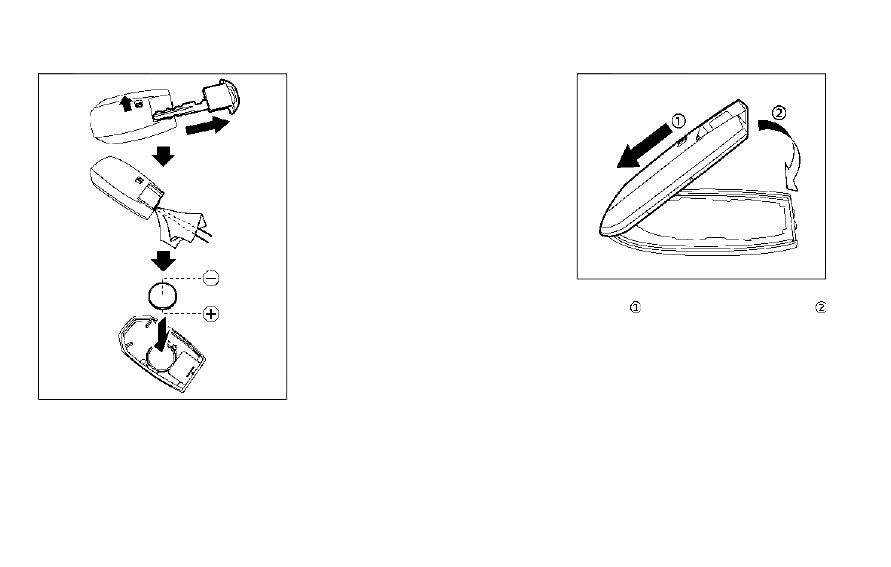

To replace the battery:
1. Release the lock knob at the back of the

Intelligent Key and remove the mechan-
ical key.

2. Insert a flat-blade screwdriver wrapped

with a cloth into the slit of the corner and
twist it to separate the upper part from

the lower part.

3. Replace the battery with a new one.

Recommended battery:
CR2032 or equivalent

.

Do not touch the internal circuit and

electric terminals as it could cause a
malfunction.

.

Hold the battery by the edges. Hold-

ing the battery across the contact
points will seriously deplete the sto-
rage capacity.

.

Make sure that the + side faces the

bottom of the case.

WAI0071X

4. Align the tips of the upper and lower

parts

, and then push them together

until it is securely closed.

5. Operate the buttons to check its opera-

tion.

If you need any assistance for replacement,
it is recommended you visit an INFINITI
retailer for this service.

FCC Notice:

For USA

FCC ID: KR5TXN7

This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and (2)

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

this device must accept any interference
received, including interference that may
cause undesired operation.

Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority
to operate the equipment.

This equipment complies with FCC radiation
exposure limits set forth for portable use
conditions.

For Canada

This device complies with Industry Canada
licence-exempt RSS standard(s). Operation
is subject to the following two conditions:
(1) this device may not cause interference,
and (2) this device must accept any inter-
ference, including interference that may
cause undesired operation of the device.

Do-it-yourself

8-21

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

8-22

Do-it-yourself

WAI0375X

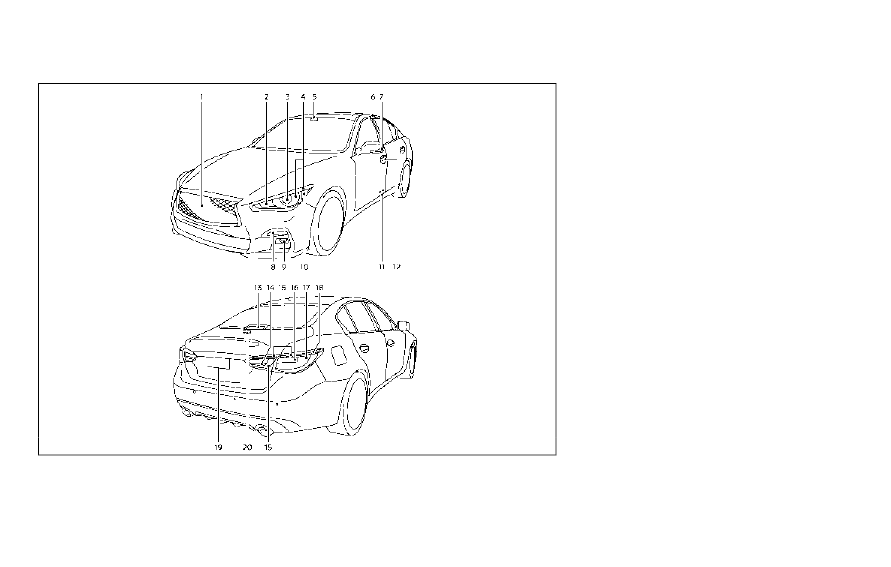

1.

Emblem light (if so equipped)

2.

Headlight (high-beam)

3.

Headlight (low-beam)

4.

Parking light, daytime running light

5.

Map light

6.

Rear personal light

7.

Side turn signal light

8.

Front turn signal light

9.

Fog light

10. Front side marker light
11. Step light
12. Courtesy light
13. High-mounted stop light
14. Back-up light
15. Tail light
16. Rear turn signal light
17. Tail/stop light
18. Rear side marker light
19. License plate light
20. Trunk light

HEADLIGHTS

If replacement is required, it is recommended
you visit an INFINITI retailer for this service.
Fog may temporarily form inside the lens of
the exterior lights in the rain or in a car wash.
A temperature difference between the inside
and the outside of the lens causes the fog.

LIGHTS

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

This is not a malfunction. If large drops of
water collect inside the lens, it is recom-
mended you visit an INFINITI retailer for this
service.

EXTERIOR AND INTERIOR LIGHTS

Item

Wattage (W)

Bulb No.

Headlight*

High/Low beams

LED

Front turn signal light*

LED

Front fog light*

LED

Parking light*/Daytime running light*

LED

Front side marker light*

LED

Side turn signal light*

LED

Emblem light (if so equipped)

LED

Rear combination light*

back-up

LED

turn signal

LED

tail

LED

tail/stop

LED

side marker

LED

License plate light*

LED

Map light*

LED

Rear personal light

8

Vanity mirror light*

1.8

Step light

5

Console box light*

2

Inside door handle light* (if so equipped)

LED

Door trim light* (if so equipped)

LED

Front cup holder light*

LED

Footwell light*

LED

Trunk light

3.4

Courtesy light*

LED

Do-it-yourself

8-23

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

8-24

Do-it-yourself

Item

Wattage (W)

Bulb No.

High-mounted stop light*

LED

*: It is recommended you visit an INFINITI
retailer for replacement.
NOTE: It is recommended that you check
with the Parts Department at an INFINITI
retailer for the latest information about
parts.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

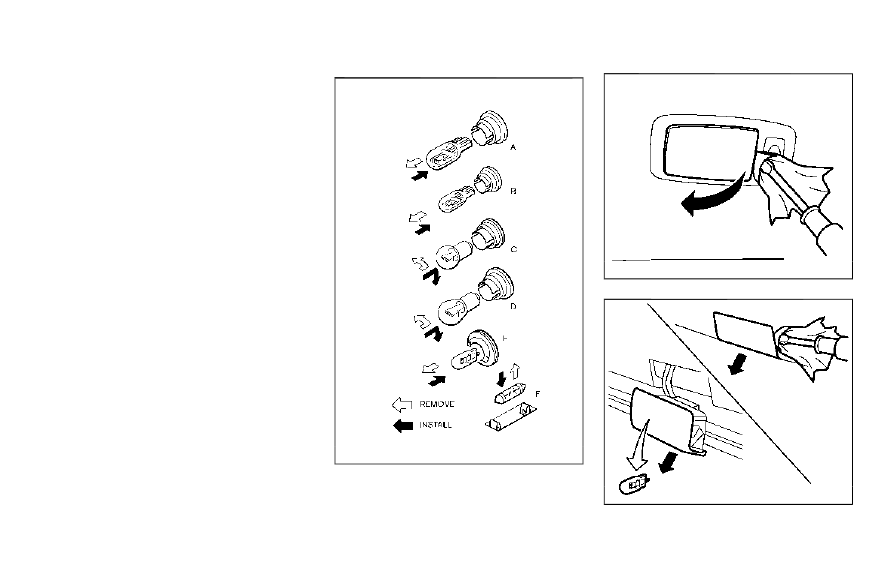

Replacement procedures

All other lights are either type A, B, C, D, E or
F. When replacing a bulb, first remove the
lens and/or cover.

SDI1679

SDI2031

Rear personal light

SDI2330

Step light

Do-it-yourself

8-25

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

8-26

Do-it-yourself

SDI1258A

Trunk light

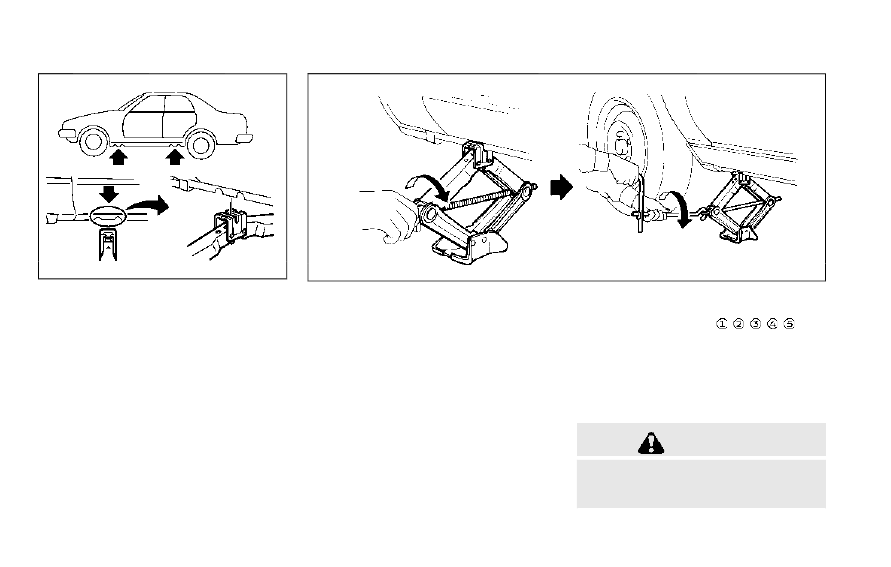

If you have a flat tire, see “Flat tire” (P.6-3).

TIRE PRESSURE

Tire Pressure Monitoring System
(TPMS)

WARNING

Radio waves could adversely affect
electric medical equipment. Those who
use a pacemaker should contact the
electric medical equipment manufacturer
for the possible influences before use.

This vehicle is equipped with the Tire
Pressure Monitoring System (TPMS). It
monitors tire pressure of all tires except the
spare. When the low tire pressure warning
light is lit and the “Tire Pressure Low - Add
Air” warning appears in the vehicle informa-
tion display, one or more of your tires is
significantly under-inflated.
The TPMS will activate only when the
vehicle is driven at speeds above 16 MPH
(25 km/h). Also, this system may not detect
a sudden drop in tire pressure (for example a
flat tire while driving).
For more details, see “Low tire pressure
warning light” (P.2-14),“Tire Pressure Mon-
itoring System (TPMS)” (P.5-5) and “Tire

Pressure Monitoring System (TPMS)” (P.6-
3).

Tire inflation pressure

Check the pressure of the tires (in-
cluding the spare) often and always
prior to long distance trips. The
recommended tire pressure specifica-
tions are shown on the Tire and
Loading Information label under the
“Cold Tire Pressure” heading. The Tire
and Loading Information label is
affixed to the driver side center pillar.
Tire pressures should be checked
regularly because:

.

Most tires naturally lose air over

time.

.

Tires can lose air suddenly when

driven over potholes or other ob-
jects or if the vehicle strikes a curb
while parking.

The tire pressures should be checked
when the tires are cold. The tires are
considered COLD after the vehicle
has been parked for 3 or more hours,
or driven less than 1 mile (1.6 km) at
moderate speeds.

WHEELS AND TIRES

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

TPMS with Tire Inflation Indicator
provides visual and audible signals
outside the vehicle for inflating the
tires to the recommended COLD tire
pressure. (See “TPMS with Tire Infla-
tion Indicator” (P.5-8) about the
TPMS with Tire Inflation Indicator.)

Incorrect tire pressure, including un-
der inflation, may adversely affect
tire life and vehicle handling.

WARNING

.

Improperly inflated tires can fail
suddenly and cause an accident.

.

The Gross Vehicle Weight rat-
ing (GVWR) is located on the F.
M.V.S.S./C.M.V.S.S. label. The
vehicle weight capacity is indi-
cated on the Tire and Loading
Information label. Do not load
your vehicle beyond this capa-
city. Overloading your vehicle
may result in reduced tire life,
unsafe operating conditions
due to premature tire failure,
or unfavorable handling char-

acteristics and could also lead
to a serious accident. Loading
beyond the specified capacity
may also result in failure of
other vehicle components.

.

Before taking a long trip, or
whenever you heavily load your
vehicle, use a tire pressure
gauge to ensure that the tire
pressures are at the specified
level.

.

For additional information re-
garding tires, refer to “Impor-
tant Tire Safety Information”
(US) or “Tire Safety Informa-
tion” (Canada) in the Warranty
Information Booklet.

Do-it-yourself

8-27

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

8-28

Do-it-yourself

SDI2567

Tire and Loading Information label

Seating capacity: The maximum
number of occupants that can be
seated in the vehicle.
Vehicle load limit: See “Vehicle
loading information” (P.10-17).

Original size: The size of the tires
originally installed on the vehicle
at the factory.
Cold tire pressure: Inflate the
tires to this pressure when the
tires are cold. Tires are consid-
ered COLD after the vehicle has

been parked for 3 or more hours,
or driven less than 1 mile (1.6 km)
at moderate speeds. The recom-
mended cold tire inflation is set
by the manufacturer to provide
the best balance of tire wear,
vehicle handling, driveability, tire
noise, etc., up to the vehicle’s
GVWR.
Tire size — see “Tire labeling”
(P.8-30).
Spare tire size or compact spare
tire size (if so equipped)

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SDI1949

Checking the tire pressure

1. Remove the valve stem cap from

the tire.

2. Press the pressure gauge squarely

onto the valve stem. Do not press
too hard or force the valve stem
sideways, or air will escape. If the
hissing sound of air escaping from
the tire is heard while checking the
pressure, reposition the gauge to
eliminate this leakage.

3. Remove the gauge.

4. Read the tire pressure on the

gauge stem and compare it to the
specification shown on the Tire
and Loading Information label.

5. Add air to the tire as needed. If too

much air is added, press the core of
the valve stem briefly with the tip
of the gauge stem to release
pressure. Recheck the pressure
and add or release air as needed.

6. Install the valve stem cap.
7. Check the pressure of all other

tires, including the spare.

8. Check the pressure when driving

the vehicle at speeds of 100 MPH
(160 km/h) or higher where it is
legal to do so.

WARNING

.

Driving at high speeds, 100
MPH (160 km/h) or higher
sustained where it is legal to
do so, can cause tires to have
excessive heat build up, which
may result in a tire failure

causing loss of control, crash,
injuries or even death. Some
high-speed rated tires require
inflation pressure adjustment
for high-speed operation.
When speed limits and road
conditions allow vehicle driving
at high speeds, make sure tires
are rated to support high speed
operation, tires are in optimal
conditions and pressure is ad-
justed to correct cold inflation
pressure for high speed opera-
tion.

.

Tires require adjustment to the
inflation pressure when driving
the vehicle at speeds of 100
MPH (160 km/h) or higher
where it is legal to do so. See
recommended tire inflation
chart for correct operating
pressure.

.

After vehicle high speed opera-
tion has ended, readjust the tire
pressure to the recommended
cold inflation pressure. (See
“Checking the tire pressure”

Do-it-yourself

8-29

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

8-30

Do-it-yourself

(P.8-29).)

Size

Cold Tire In-
flation Pres-

sure

Front Original Tire:
P225/55RF17 95V

35 psi, 240
kPa

Front Original Tire:
P225/50RF18 94V

35 psi, 240
kPa

Front Original Tire:
P245/40RF19 94V

35 psi, 240
kPa

Front Original Tire:
245/40RF19 94W

35 psi, 240
kPa

Rear Original Tire:
P225/55RF17 95V

35 psi, 240
kPa

Rear Original Tire:
P225/50RF18 94V

35 psi, 240
kPa

Rear Original Tire:
P245/40RF19 94V

35 psi, 240
kPa

Rear Original Tire:
245/40RF19 94W

35 psi, 240
kPa

Rear Original Tire:
265/35RF19 94W

35 psi, 240
kPa

Recommended tire inflation pressures
at speeds of 100 MPH (160 km/h) or
higher where it is legal to do so.

Size

Cold Tire In-
flation Pres-

sure

Front Original Tire:
P225/55RF17 95V

38 psi, 260
kPa

Front Original Tire:
P225/50RF18 94V

41 psi, 280
kPa

Front Original Tire:
P245/40RF19 94V

42 psi, 290
kPa

Front Original Tire:
245/40RF19 94W

42 psi, 290
kPa

Rear Original Tire:
P225/55RF17 95V

38 psi, 260
kPa

Rear Original Tire:
P225/50RF18 94V

41 psi, 280
kPa

Rear Original Tire:
P245/40RF19 94V

42 psi, 290
kPa

Rear Original Tire:
245/40RF19 94W

42 psi, 290
kPa

Rear Original Tire:
265/35RF19 94W

42 psi, 290
kPa

SDI1575

Example

TIRE LABELING

Federal law requires tire manufac-
turers to place standardized informa-
tion on the sidewall of all tires. This
information identifies and describes
the fundamental characteristics of
the tire and also provides the tire
identification number (TIN) for safety
standard certification. The TIN can be
used to identify the tire in case of a
recall.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SDI1606

Example

Tire size (example: P215/60R16

94H)
1. P: The “P” indicates the tire is

designed for passenger vehicles.
(Not all tires have this informa-
tion.)

2. Three-digit number (215): This

number gives the width in milli-
meters of the tire from sidewall
edge to sidewall edge.

3. Two-digit number (60): This num-

ber, known as the aspect ratio,
gives the tire’s ratio of height to

width.

4. R: The “R” stands for radial.

F: The “F” after “R” indicates Self-
Supporting type run-flat tire.

5. Two-digit number (16): This num-

ber is the wheel or rim diameter in
inches.

6. Two- or three-digit number (94):

This number is the tire’s load index.
It is a measurement of how much
weight each tire can support. You
may not find this information on all
tires because it is not required by
law.

7. H: Tire speed rating. You should

not drive the vehicle faster than
the tire speed rating.

JVM0694X

Example

TIN (Tire Identification Number) for

a new tire (example: DOT XX XX XXX
XXXX)
1. DOT: Abbreviation for the “De-

partment of Transportation”. The
symbol can be placed above, be-
low or to the left or right of the
Tire Identification Number.

2. Two-digit code: Manufacturer’s

identification mark

3. Two-digit code: Tire size
4. Three-digit code: Tire type code

(Optional)

Do-it-yourself

8-31

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

8-32

Do-it-yourself

5. Four numbers represent the week

and year the tire was built. For
example, the numbers 3103
means the 31st week of 2003. If
these numbers are missing, then
look on the other sidewall of the
tire.

Tire ply composition and material

The number of layers or plies of
rubber-coated fabric in the tire.
Tire manufacturers also must indicate
the materials in the tire, which include
steel, nylon, polyester, and others.

Maximum permissible inflation

pressure
This number is the greatest amount of
air pressure that should be put in the
tire. Do not exceed the maximum
permissible inflation pressure.

Maximum load rating

This number indicates the maximum
load in kilograms and pounds that can
be carried by the tire. When replacing
the tires on the vehicle, always use a
tire that has the same load rating as
the factory installed tire.

Term of “tubeless” or “tube type”

Indicates whether the tire requires an
inner tube (“tube type”) or not (“tube-
less”).

The word “radial”

The word “radial” is shown, if the tire
has radial structure.

Manufacturer or brand name

Manufacturer or brand name is
shown.

Other tire-related terminology:

In addition to the many terms that are
defined throughout this section, In-
tended Outboard Sidewall is (1) the
sidewall that contains a whitewall,
bears white lettering or bears manu-
facturer, brand and/or model name
molding that is higher or deeper than
the same molding on the other side-
wall of the tire, or (2) the outward
facing sidewall of an asymmetrical
tire that has a particular side that
must always face outward when
mounted on a vehicle.

TYPES OF TIRES

WARNING

.

When changing or replacing tires, be
sure all four tires are of the same type
(Example: Summer, All Season or
Snow) and construction. An INFINITI
retailer may be able to help you with
information about tire type, size,
speed rating and availability.

.

Replacement tires may have a lower
speed rating than the factory
equipped tires, and may not match
the potential maximum vehicle speed.
Never exceed the maximum speed
rating of the tire.

.

Replacing tires with those not origin-
ally specified by INFINITI could affect
the proper operation of the TPMS.

.

For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety
Information” (Canada) in the War-
ranty Information Booklet.

All season tires

INFINITI specifies all season tires on some
models to provide good performance all

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

year, including snowy and icy road condi-
tions. All Season tires are identified by ALL
SEASON and/or M&S (Mud and Snow) on
the tire sidewall. Snow tires have better
snow traction than All Season tires and may
be more appropriate in some areas.

Summer tires

INFINITI specifies summer tires on some
models to provide superior performance on
dry roads. Summer tire performance is
substantially reduced in snow and ice. Sum-
mer tires do not have the tire traction rating
M&S on the tire sidewall.
If you plan to operate your vehicle in snowy
or icy conditions, INFINITI recommends the
use of SNOW tires or ALL SEASON tires on
all four wheels.

Snow tires

If snow tires are needed, it is necessary to
select tires equivalent in size and load rating
to the original equipment tires. If you do not,
it can adversely affect the safety and
handling of your vehicle.
Generally, snow tires will have lower speed
ratings than factory equipped tires and may
not match the potential maximum vehicle
speed. Never exceed the maximum speed
rating of the tire.
If you install snow tires, they must be the

same size, brand, construction and tread
pattern on all four wheels.
For additional traction on icy roads, studded
tires may be used. However, some U.S.
states and Canadian provinces prohibit their
use. Check local, state and provincial laws
before installing studded tires. Skid and
traction capabilities of studded snow tires,
on wet or dry surfaces, may be poorer than
that of non-studded snow tires.

Run-flat tires (if so equipped)

Your vehicle is equipped with run-flat tires.
You can continue driving to a safe location
even if they are punctured. Always use run-
flat tires of the specified size on all four
wheels. Mixing tire sizes or construction may
reduce vehicle handling stability. If neces-
sary, contact an INFINITI retailer for assis-
tance.
Frequently check the tire pressure and adjust
pressure of each tire properly. The tire
pressure can be also checked in the vehicle
information display.
It can be difficult to tell if a run-flat tire is
under-inflated or flat. Check the tire pres-
sures as described earlier in this section. If
the tire becomes under-inflated while driv-
ing, the low tire pressure warning light will
illuminate. If the tire becomes flat while
driving, the low tire pressure warning light

and the “Flat Tire - Visit dealer” warning will
appear.

Low tire pressure:

If the vehicle is being driven with low tire
pressure, the low tire pressure warning light
will illuminate.

Flat tire:

If the vehicle is being driven with one or more
flat tires, the low tire pressure warning light
will illuminate continuously and a chime will
sound for 10 seconds. A “Flat Tire - Visit
dealer” warning also appears in the vehicle
information display.
The chime will only sound at the first
indication of a flat tire and the warning light
will illuminate continuously. When the flat
tire warning is activated, have the system
reset and the tire checked, and replaced if
necessary. It is recommended you visit an
INFINITI retailer for these services. Even if
the tire is inflated to the specified COLD tire
pressure, the warning light will continue to
illuminate until the system is reset by an
INFINITI retailer.
If the low tire pressure warning light illumi-
nates continuously and the “Flat Tire - Visit
dealer” warning appears in the vehicle
information display:

.

Do not exceed 50 MPH (80 km/h).

Do-it-yourself

8-33

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

8-34

Do-it-yourself

.

Increase your following distance to allow

for increased stopping distances.

.

Avoid sudden maneuvers, hard cornering

and hard braking.

WARNING

.

Although you can continue driving
with a punctured run-flat tire, re-
member that vehicle handling stabi-
lity is reduced, which could lead to an
accident and personal injury. Also,
driving a long distance at high speeds
may damage the tire.

.

Do not drive at speeds above 50
MPH (80 km/h) and do not drive
more than approximately 93 miles
(150 km) with a punctured run-flat
tire. The actual distance the vehicle
can be driven on a flat tire depends on
outside temperature, vehicle load,
road conditions and other factors.

.

Drive safely at reduced speeds. Avoid
hard cornering or braking, which may
cause you to lose control of the
vehicle.

.

If you detect any unusual sounds or
vibrations while driving with a punc-
tured run-flat tire, pull off the road
to a safe location and stop the vehicle

as soon as possible. The tire may be
seriously damaged and need to be
replaced.

CAUTION

.

Never install tire chains on a punctu-
red run-flat tire, as this could damage
your vehicle.

.

Avoid driving over any projection or
pothole, as the clearance between
the vehicle and the ground is smaller
than normal.

.

Do not enter an automated car wash
with a punctured run-flat tire.

.

It is recommended you have the
punctured tire inspected by an
INFINITI retailer or other authorized
repair shop. Replace the tire as soon
as possible if the tire is seriously
damaged.

TIRE CHAINS

CAUTION

Tire chains/cables should not be in-
stalled on 265/35RF19 tires. Doing so
will cause damage to the vehicle. If you
plan to use tire chains/cables, you
should install 245/40RF19 tires on your
vehicle.

Use of tire chains may be prohibited accord-
ing to location. Check the local laws before
installing tire chains. When installing tire
chains, make sure they are the proper size
for the tires on your vehicle and are installed
according to the chain manufacturer’s sug-
gestions.

Use only SAE Class S chains.

Class

“S” chains are used on vehicles with re-
stricted tire to vehicle clearance. Vehicles
that can use Class “S” chains are designed to
meet the SAE standard minimum clearances
between the tire and the closest vehicle
suspension or body component required to
accommodate the use of a winter traction
device (tire chains or cables). The minimum
clearances are determined using the factory
equipped tire size. Other types may damage
your vehicle. Use chain tensioners when
recommended by the tire chain manufac-
turer to ensure a tight fit. Loose end links of

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

the tire chain must be secured or removed to
prevent the possibility of whipping action
damage to the fenders or underbody. If
possible, avoid fully loading your vehicle
when using tire chains. In addition, drive at
a reduced speed. Otherwise, your vehicle
may be damaged and/or vehicle handling
and performance may be adversely affected.

Tire chains must be installed only on the
rear wheels and not on the front wheels.

Never install tire chains on a TEMPORARY
USE ONLY spare tire (if so equipped). Never
install tire chains on a punctured run-flat tire
(if so equipped), as this could damage your
vehicle.
Do not use tire chains on dry roads. Driving
with tire chains in such conditions can cause
damage to the various mechanisms of the
vehicle due to some overstress.

SDI1662

CHANGING WHEELS AND TIRES

Tire rotation (models equipped with
same size tires on all wheels)

INFINITI recommends rotating the
tires at the specified interval shown
in the maintenance schedule. (See the
“9. Maintenance and schedules” sec-
tion. For tire replacing procedure, see
“Jacking up the vehicle and replacing
tires” (P.8-38).)

As soon as possible, tighten the
wheel nuts to the specified torque
with a torque wrench.

Wheel nut tightening torque:

80 ft-lb (108 N·m)

The wheel nuts must be kept tigh-
tened to the specification at all times.
It is recommended that wheel nuts be
tightened to the specification at each
tire rotation interval.

WARNING

.

After rotating the tires, check
and adjust the tire pressure.

.

Do not include the T-type spare
tire or any other small size
spare tire in the tire rotation.

.

For additional information re-
garding tires, refer to “Impor-
tant Tire Safety Information”
(US) or “Tire Safety Informa-
tion” (Canada) in the Warranty
Information Booklet.

After the ignition switch is placed in
the ON position, it may take a period
of time for the tire pressure to be
displayed in the vehicle information

Do-it-yourself

8-35

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

8-36

Do-it-yourself

display while the vehicle is driven.
Depending on the radio wave circum-
stance, tire pressure may not cor-
rectly be displayed.

Tire rotation (models equipped with
different size tires on front and rear)

Tires cannot be rotated on this vehi-
cle, as front tires are a different size
from rear tires.
A pin is on the front brake rotor to
prevent the rear wheels from being
installed in place of the front wheels.
The spare tire can be installed in place
of the front and rear wheels. When
installing the spare tire in the front
wheel, the hole in the spare tire wheel
must be aligned with the pin on the
brake rotor.

WARNING

.

If your vehicle is equipped with
different size front and rear
tires, never install the rear
tire/wheel on the front of the
vehicle. Doing so can damage

the vehicle or tire. Damage to
the tire may result in a sudden
loss of air pressure which may
cause loss of vehicle control in
some driving conditions and
cause a collision and personal
injury.

.

For additional information re-
garding tires, refer to “Impor-
tant Tire Safety Information”
(US) or “Tire Safety Informa-
tion” (Canada) in the Warranty
Information Booklet.

After the ignition switch is placed in
the ON position, it may take a period
of time for the tire pressure to be
displayed in the vehicle information
display while the vehicle is driven.
Depending on the radio wave circum-
stance, tire pressure may not cor-
rectly be displayed.

SDI1663

: Wear indicator
: Wear indicator location mark. The
locations are shown by “

”, “TWI”,

etc. depending on tire types.

Tire wear and damage

WARNING

.

Tires should be periodically in-
spected for wear, cracking, bul-
ging or objects caught in the
tread. If excessive wear, cracks,
bulging or deep cuts are found,
the tire(s) should be replaced.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

.

The original tires have built-in
tread wear indicators. When
wear indicators are visible, the
tire(s) should be replaced.

.

Tires degrade with age and use.
Have tires, including the spare,
over 6 years old checked by a
qualified technician, because
some tire damage may not be
obvious. Replace the tires as
necessary to prevent tire failure
and possible personal injury.

.

Improper service of the spare
tire may result in serious perso-
nal injury. If it is necessary to
repair the spare tire, it is re-
c o m m e n d e d y o u v i s i t a n
INFINITI retailer for this ser-
vice.

.

For additional information re-
garding tires, refer to “Impor-
tant Tire Safety Information”
(US) or “Tire Safety Informa-
tion” (Canada) in the Warranty
Information Booklet.

Replacing wheels and tires

When replacing a tire, use the same size,
tread design, speed rating and load carrying
capacity as originally equipped. (See “Speci-
fications” (P.10-8) for recommended types
and sizes of tires and wheels.)
After the ignition switch is placed in the ON
position, it may take a period of time for the
tire pressure to be displayed in the vehicle
information display while the vehicle is
driven. Depending on the radio wave circum-
stance, tire pressure may not correctly be
displayed.

WARNING

.

The use of tires other than those
recommended or the mixed use of
tires of different brands, construc-
tion (bias, bias-belted, radial or run-
flat), or tread patterns can adversely
affect the ride, braking, handling,
ground clearance, body-to-tire clear-
ance, tire chain clearance, speed-
ometer calibration, headlight aim
and bumper height. Some of these
effects may lead to accidents and
could result in serious personal injury.

.

For Two-Wheel Drive (2WD) models,
if your vehicle was originally

equipped with 4 tires that were the
same size and you are only replacing
2 of the 4 tires, install the new tires
on the rear axle. Placing new tires on
the front axle may cause loss of
vehicle control in some driving condi-
tions and cause an accident and
personal injury.

.

If the wheels are changed for any
reason, always replace with wheels
which have the same off-set dimen-
sion. Wheels of a different off-set
could cause premature tire wear,
degrade vehicle handling character-
istics and/or interference with the
brake discs/drums. Such interference
can lead to decreased braking effi-
ciency and/or early brake pad/shoe
wear. See “Wheels and tires” (P.10-
9) of this manual for wheel off-set
dimensions.

.

Since the spare tire is not equipped
with the TPMS, when a spare tire is
mounted or a wheel is replaced, the
TPMS will not function and the low
tire pressure warning light will flash
for approximately 1 minute. The light
will remain on after 1 minute. Have
your tires replaced and/or TPMS
system reset as soon as possible. It
is recommended you visit an INFINITI
retailer for these services.

Do-it-yourself

8-37

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

8-38

Do-it-yourself

.

Replacing tires with those not origin-
ally specified by INFINITI could affect
the proper operation of the TPMS.

.

The TPMS sensor may be damaged if
it is not handled correctly. Be careful
when handling the TPMS sensor.

.

When replacing the TPMS sensor, the
ID registration may be required. It is
r e c o m m e n d e d y o u c o n t a c t a n
INFINITI retailer for ID registration.

.

Do not use a valve stem cap that is
not specified by INFINITI. The valve
stem cap may become stuck.

.

Be sure that the valve stem caps are
correctly fitted. Otherwise the valve
may be clogged up with dirt and
cause a malfunction or loss of pres-
sure.

.

Do not install a damaged or deformed
wheel or tire even if it has been
repaired. Such wheels or tires could
have structural damage and could fail
without warning.

.

The use of retread tire is not recom-
mended.

.

For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety
Information” (Canada) in the War-

ranty Information Booklet.

Intelligent All-Wheel Drive (AWD)
models

CAUTION

.

Always use tires of the same type,
size, brand, construction (bias, bias-
belted or radial), and tread pattern
on all four wheels. Failure to do so
may result in a circumference differ-
ence between tires on the front and
rear axles which will cause excessive
tire wear and may damage the trans-
mission, transfer case and differential
gears.

.

ONLY use spare tires specified for
the Intelligent AWD model.

If excessive tire wear is found, it is recom-
mended that all four tires be replaced with
tires of the same size, brand, construction
and tread pattern. The tire pressure and
wheel alignment should also be checked and
corrected as necessary. It is recommended
you visit an INFINITI retailer for this service.

Wheel balance

Unbalanced wheels may affect vehicle hand-
ling and tire life. Even with regular use,
wheels can get out of balance. Therefore,
they should be balanced as required.

Wheel balance service should be performed
with the wheels off the vehicle. Spin
balancing the wheels on the vehicle could
lead to mechanical damage.

For additional information regarding tires,
refer to “Important Tire Safety Information”
(US) or “Tire Safety Information” (Canada) in
the INFINITI Warranty Information Booklet.

Care of wheels

See “Cleaning exterior” (P.7-2) for details
about care of the wheels.

JACKING UP THE VEHICLE AND
REPLACING TIRES

Your vehicle is equipped with run-flat tires
and you can continue driving to a safe
location even if they are punctured. (See
“Run-flat tires” (P.6-4) and “Run-flat tires”
(P.8-33).)
This section contains the information about
the vehicle jack-up procedures and the tire
replacement.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

NOTE:

Jacking tools are not equipped as standard
with this vehicle. It is recommended you
contact an INFINITI retailer about acquiring
the tools.

WARNING

.

Make sure the parking brake is
securely applied and the transmission
into the P (Park) position.

.

Never change tires when the vehicle
is on a slope, ice or slippery areas.
This is hazardous.

.

Never change tires if oncoming traf-
fic is close to your vehicle. Wait for
professional road assistance.

MCE0001A

Blocking wheels

Place suitable blocks

at both the front and

back of the wheel diagonally opposite the
flat tire to prevent the vehicle from moving
when it is jacked up.

WARNING

Be sure to block the wheel as the vehicle
may move and result in personal injury.

Jacking up the vehicle and removing
a tire

WARNING

.

Never get under the vehicle while it is
supported only by the jack. If it is
necessary to work under the vehicle,
support it with safety stands.

.

Use the correct jack-up points. Never
use any other part of the vehicle for
jack support.

.

Never jack up the vehicle more than
necessary.

.

Never use blocks on or under the jack.

.

Do not start or run the engine while
vehicle is on the jack, as it may cause
the vehicle to move. This is especially
true for vehicles with limited slip
differentials.

.

Do not allow passengers to stay in
the vehicle while it is on the jack.

Carefully read the caution label attached to
the jack body and the following instruc-
tions.

Do-it-yourself

8-39

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

8-40

Do-it-yourself

CE1089-A

Jack-up point

1. Place the jack directly under the jack-up

point as illustrated so the top of the jack
contacts the vehicle at the jack-up point.
Align the jack head between the two
notches in the front or the rear as shown.
Also fit the groove of the jack head
between the notches as shown.

The jack should be used on level firm
ground.

SCE0504

2. Loosen each wheel nut one or two turns

by turning counterclockwise with the
wheel nut wrench.

Do not remove the

wheel nuts until the tire is off the
ground.

3. Carefully raise the vehicle until the tire

clears the ground. To lift the vehicle,
securely hold the jack lever and rod with
both hands as shown above. Remove the
wheel nuts, and then remove the tire.

Installing a tire

1. Clean any mud or dirt from the surface

between the wheel and hub.

2. Carefully put the tire on and tighten the

wheel nuts finger tight.

3. With the wheel nut wrench, tighten

wheel nuts alternately and evenly in the
sequence illustrated ( ,

,

,

,

) until

they are tight.

4. Lower the vehicle slowly until the tire

touches the ground. Then, with the
wheel nut wrench, tighten the wheel
nuts securely in the sequence as illu-
strated. Lower the vehicle completely.

WARNING

.

Incorrect wheel nuts or improperly
tightened wheel nuts can cause the
wheel to become loose or come off.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     11      12      13      14     ..
