5-106

Starting and driving

2.

This device must accept any interfer-
ence received, including interference
that may cause undesired operation.

FCC Warning

Changes or modification not expressly ap-
proved by the party responsible for com-
pliance could void the user’s authority to
operate the equipment.

For Canada:

This device complies with Industry Canada
licence-exempt RSS standard(s). Operation
is subject to the following two conditions:

1.

This device may not cause interference,
and

2.

This device must accept any interfer-
ence, including interference that may
cause undesired operation of the device.

WARNING

Failure to follow the warnings and
instructions for proper use of the FEB
system could result in serious personal
injury or death.

.

The FEB system is a supplemental aid
to the driver. It is not a replacement
for the driver’s attention to traffic
conditions or responsibility to drive
safely. It cannot prevent accidents
due to carelessness or dangerous
driving techniques.

.

The FEB system does not function in
all driving, traffic, weather and road
conditions.

The FEB system can assist the driver when
there is a risk of a forward collision with the
vehicle ahead in the traveling lane.

JVS1123X

The FEB system uses a radar sensor
located behind the lower grille of the front
bumper to measure the distance to the
vehicle ahead in the same lane.

FORWARD EMERGENCY BRAKING (FEB)

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

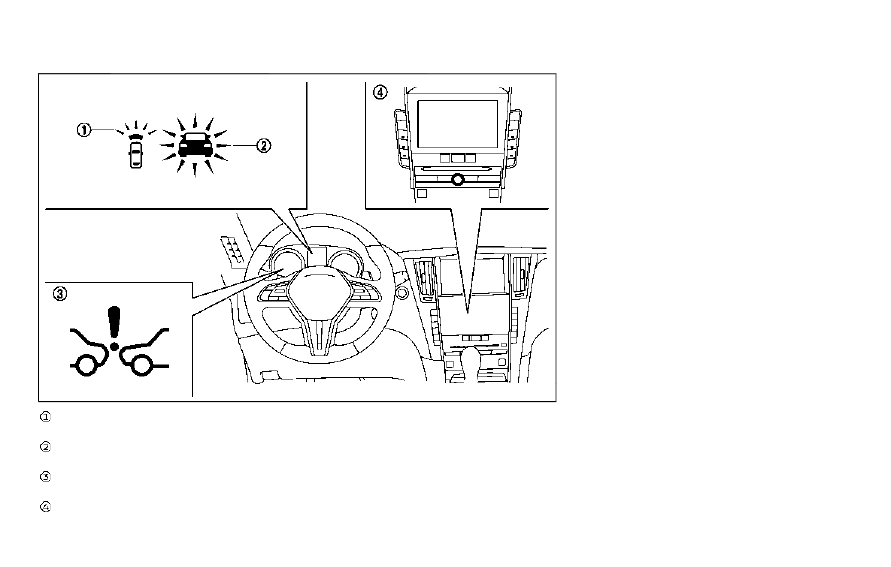

JVS0846X

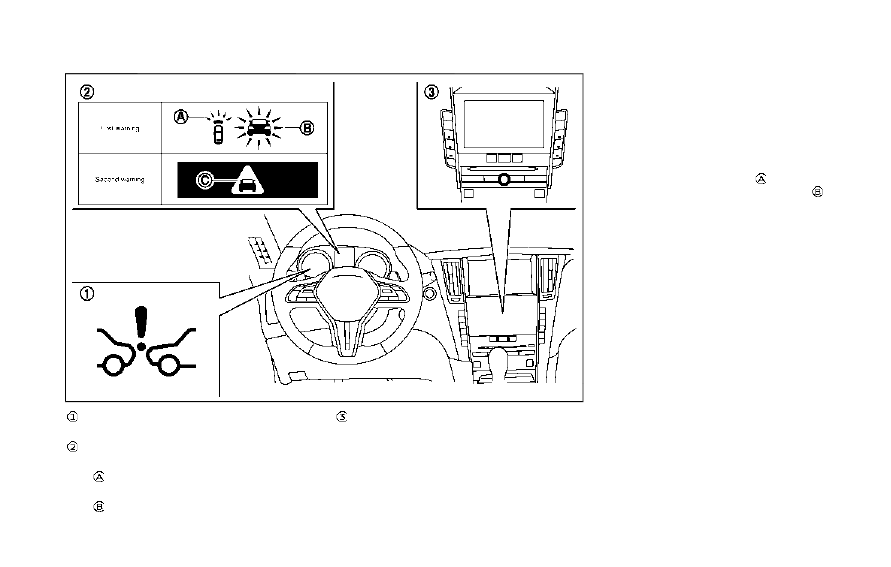

FEB system warning light (on the
instrument panel)
Indicators and warnings (on the vehicle
information display)

Driver assist system forward indica-

tor

Vehicle ahead detection indicator

Lower display

FEB SYSTEM OPERATION

The FEB system operates at speeds above
approximately 3 MPH (5 km/h).
If a risk of a forward collision is detected, the
FEB system will provide the first warning to
the driver by flashing the driver assist system
forward indicator (orange)

and the vehicle

ahead detection indicator (orange)

, and

providing an audible warning. In addition,
the FEB system pushes the accelerator
pedal up. If the driver releases the accel-
erator pedal, then the system applies partial
braking.
If the driver applies the brakes quickly and
forcefully after the warning, and the FEB
system detects that there is still the possi-
bility of a forward collision, the system will
automatically increase the braking force.
If a forward collision is imminent and the
driver does not take action, the FEB system
issues the second visual (red) and audible
warning and automatically applies harder
braking.

NOTE:

The vehicle’s stop lights come on when
braking is performed by the FEB system.

Depending on vehicle speed and distance to
the vehicle ahead, as well as driving and
roadway conditions, the system may help
the driver avoid a forward collision or may

Starting and driving

5-107

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-108

Starting and driving

help mitigate the consequences of a collision
should one be unavoidable.
If the driver is handling the steering wheel,
accelerating or braking, the FEB system will
function later or will not function.
The automatic braking will cease under the
following conditions:

.

When the steering wheel is turned as far

as necessary to avoid a collision.

.

When the accelerator pedal is depressed.

.

When there is no longer a vehicle de-

tected ahead.

If the FEB system has stopped the vehicle,
the vehicle will remain at a standstill for
approximately 2 seconds before the brakes
are released.

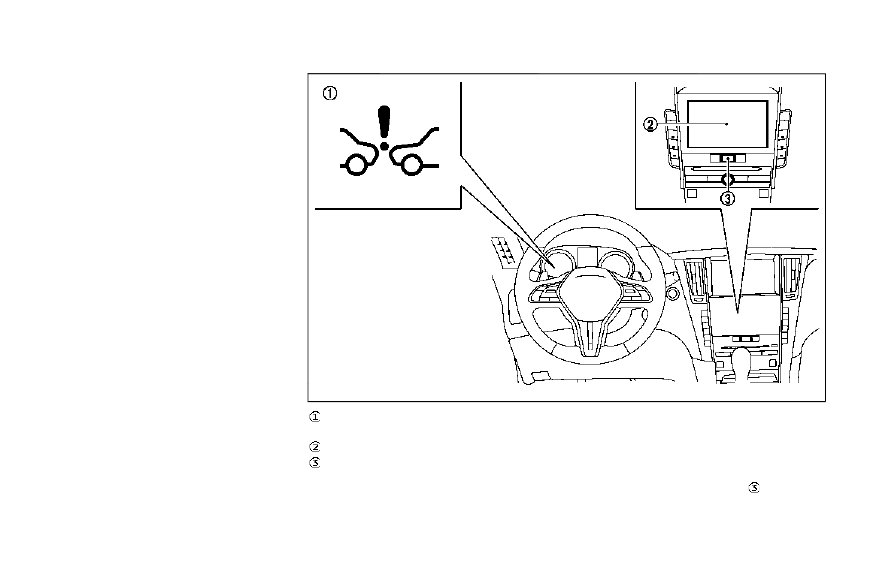

JVS0847X

FEB system warning light (on the
instrument panel)
Lower display
MENU button

TURNING THE FEB SYSTEM ON/
OFF

Perform the following steps to turn the FEB
system on or off.
1. Push the MENU button

and touch

[Driver Assistance] on the lower display

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

.

2. Touch [Emergency Assist].
3. Touch [Emergency Braking] to turn the

system ON/OFF.

When the FEB system is turned off, the FEB
system warning light (orange)

illuminates.

The FEB system will be automatically turned
ON when the engine is restarted.
The displayed keys on the lower display may
vary depending on models, specifications
and software versions.

NOTE:

The PFCW system is integrated into the
FEB system. There is not a separate selec-
tion in the display for the PFCW system.
When the FEB is turned off, the PFCW
system is also turned off.

FEB SYSTEM LIMITATIONS

WARNING

Listed below are the system limitations
for the FEB system. Failure to operate
the vehicle in accordance with these
system limitations could result in serious
injury or death.

.

The FEB system cannot detect all
vehicles under all conditions.

.

The radar sensor does not detect the
following objects:

— Pedestrians, animals or obstacles

in the roadway

— Oncoming vehicles

— Crossing vehicles

.

The radar sensor has some perfor-
mance limitations. If a stationary
vehicle is in the vehicle’s path, the
FEB system will not function when
the vehicle is driven at speeds over
approximately 45 MPH (70 km/h).

.

The radar sensor may not detect a
vehicle ahead in the following condi-
tions:

— Dirt, ice, snow or other material

covering the radar sensor.

— Interference by other radar

sources.

— Snow or road spray from travel-

ing vehicles.

— If the vehicle ahead is narrow (e.g.

motorcycle)

— When driving on a steep downhill

slope or roads with sharp curves.

.

In some road or traffic conditions, the
FEB system may unexpectedly push
the accelerator pedal up or apply
partial braking. When acceleration is
necessary, continue to depress the
accelerator pedal to override the
system.

.

The system is designed to automati-
cally check the sensor’s functionality,
within certain limitations. The system
may not detect some forms of ob-
struction of the sensor area such as
ice, snow, stickers, for example. In
these cases, the system may not be
able to warn the driver properly. Be
sure that you check, clean and clear
the sensor area regularly.

.

The FEB system may react to:

— objects on the roadside (traffic

sign, guardrail, vehicle, etc.)

Starting and driving

5-109

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-110

Starting and driving

— objects above road (low bridge,

traffic sign, etc.)

— objects on the road surface (rail-

road track, grate, steel plate, etc.)

— objects in the parking garage

(beam, etc.)

— vehicles or objects in adjacent

lane or close to the vehicle

.

Braking distances increase on slip-
pery surfaces.

.

Excessive noise will interfere with the
warning chime sound, and the chime
may not be heard.

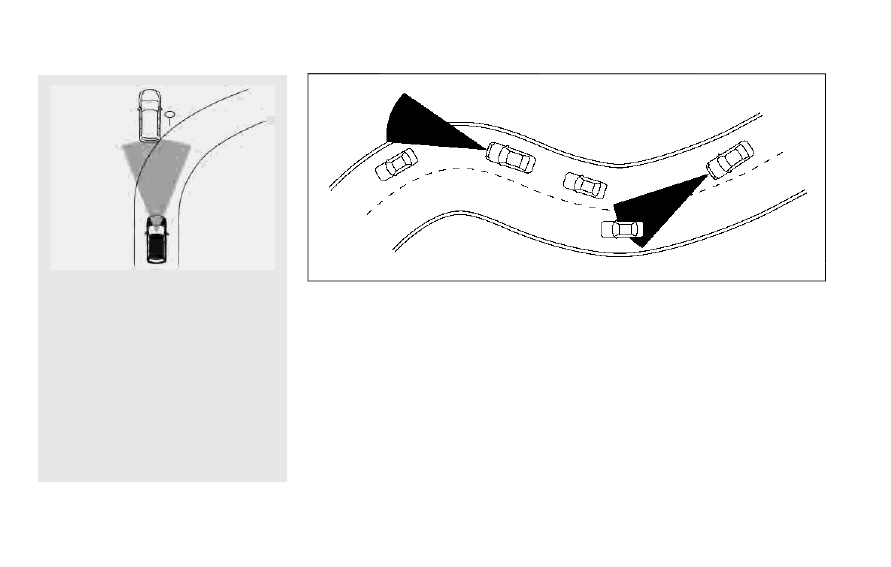

SSD0253

When driving on some roads, such as wind-
ing, hilly, curved, narrow roads, or roads
which are under construction, the radar
sensor may detect vehicles in a different
lane, or may temporarily not detect a vehicle
traveling ahead. This may cause the FEB
system to work inappropriately.
The detection of vehicles may also be
affected by vehicle operation (steering man-
euver or traveling position in the lane, etc.) or
vehicle condition.

If this occurs, the system

may warn you by blinking the system
indicator and sounding the chime unexpect-
edly. You will have to manually control the
proper distance away from the vehicle
traveling ahead.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

JVS0848X

FEB system warning light (on the
instrument panel)
Driver assist system forward indicator
(on the vehicle information display)

SYSTEM TEMPORARILY UNA-
VAILABLE

Condition A

When the radar sensor picks up interference
from another radar source, making it im-
possible to detect a vehicle ahead, the FEB

system is automatically turned off. The FEB
system warning light (orange)

and the

driver assist system forward indicator (or-
ange)

will illuminate.

Action to take:

When the above conditions no longer exist,
the FEB system will resume automatically.

Condition B

Under the following conditions, making it
impossible to detect a vehicle ahead, the
FEB system is automatically turned off.
The FEB system warning light (orange)
and the driver assist system forward indi-
cator (orange)

will illuminate and the

“front radar obstruction” warning message
will appear in the vehicle information display.

.

When the sensor area of the front

bumper is covered with dirt or is ob-
structed

Action to take:

If the FEB system warning light (orange)
comes on, stop the vehicle in a safe place,
place the shift lever in the P (Park) position
and turn the engine off. Clean the radar
cover on lower grille with a soft cloth, and
restart the engine. If the FEB system warn-
ing light continues to illuminate, have the
FEB system checked. It is recommended you
visit an INFINITI retailer for this service.

Starting and driving

5-111

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-112

Starting and driving

.

When driving on roads with limited road

structures or buildings (for example, long
bridges, deserts, snow fields, driving next
to long walls)

Action to take:

When the above conditions no longer exist,
the FEB system will resume automatically.

Condition C

When the accelerator pedal actuator detects
that the internal motor temperature is high,
the FEB system is automatically turned off.
The FEB system warning light (orange)
and the driver assist system forward indi-
cator (orange)

will illuminate and the

“Unavailable High Accelerator Temperature”
warning message will appear in the vehicle
information display.

Action to take:

When the above conditions no longer exist,
the FEB system will resume automatically.

SYSTEM MALFUNCTION

If the FEB system malfunctions, it will be
turned off automatically, a chime will sound,
the FEB system warning light (orange)
and the driver assist system forward indi-
cator (orange)

will illuminate and the

system “malfunction” warning message will
appear in the vehicle information display.

Action to take:

If the FEB system warning light (orange)
comes on, stop the vehicle in a safe location
and place the shift lever in the P (Park)
position. Turn the engine off and restart the
engine. If the warning light continues to
illuminate, have the FEB system checked. It
is recommended you visit an INFINITI re-
tailer for this service.

JVS1123X

SYSTEM MAINTENANCE

The sensor

is located behind the lower

grille of the front bumper.
To keep the system operating properly, be
sure to observe the following:

.

Always keep the sensor area of the front

bumper clean.

.

Do not strike or damage the areas around

the sensor.

.

Do not cover or attach stickers or similar

objects on the front bumper near the
sensor area. This could cause failure or
malfunction.

.

Do not attach metallic objects near the

sensor area (brush guard, etc.). This

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

could cause failure or malfunction.

.

Do not alter, remove or paint the front

bumper. It is recommended you contact
an INFINITI retailer before customizing
or restoring the front bumper.

FCC Notice:

For USA:

This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:

1.

This device may not cause harmful
interference, and

2.

This device must accept any interfer-
ence received, including interference
that may cause undesired operation.

FCC Warning

Changes or modification not expressly ap-
proved by the party responsible for com-
pliance could void the user’s authority to
operate the equipment.

For Canada:

This device complies with Industry Canada
licence-exempt RSS standard(s). Operation
is subject to the following two conditions:

1.

This device may not cause interference,
and

2.

This device must accept any interfer-
ence, including interference that may
cause undesired operation of the device.

WARNING

Failure to follow the warnings and
instructions for proper use of the PFCW
system could result in serious injury or
death.

.

The PFCW system helps warn the
driver before a collision but will not
avoid a collision. It is the driver’s
responsibility to stay alert, drive
safely and be in control of the vehicle
at all times.

The PFCW system can help alert the driver
when there is a sudden braking of a second
vehicle traveling in front of the vehicle ahead
in the same lane.

JVS1123X

The PFCW system uses a radar sensor
located behind the lower grille of the front
bumper to measure the distance to a second
vehicle ahead in the same lane.

Starting and driving

5-113

PREDICTIVE FORWARD
COLLISION WARNING (PFCW)

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-114

Starting and driving

JVS0849X

Driver assist system forward indicator
(on the vehicle information display)
Vehicle ahead detection indicator (on
the vehicle information display)
FEB system warning light (on the
instrument panel)
Lower display

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

JVS0294X

PFCW SYSTEM OPERATION

The PFCW system operates at speeds above
approximately 3 MPH (5 km/h).
If there is a potential risk of a forward
collision, the PFCW system will warn the
driver by blinking the driver assist system
forward indicator and the vehicle ahead
detection indicator, and sounding an audible
alert.

Starting and driving

5-115

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-116

Starting and driving

JVS0847X

FEB system warning light (on the
instrument panel)
Lower display
MENU button

TURNING THE PFCW SYSTEM
ON/OFF

Perform the following steps to turn the
PFCW system on or off.
1. Push the MENU button

and touch

[Driver Assistance] on the lower display

.

2. Touch [Emergency Assist].
3. Touch [Emergency Braking] to turn the

system ON/OFF.

When the PFCW system is turned off, the
FEB system warning light (orange)

illumi-

nates.
The displayed keys on the lower display may
vary depending on models, specifications
and software versions.

NOTE:

The PFCW system is integrated into the
FEB system. There is not a separate selec-
tion in the display for the PFCW system.
When the FEB is turned off, the PFCW
system is also turned off.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

JVS0295X

Illustration A

JVS0296X

Illustration B

JVS0297X

Illustration C

Starting and driving

5-117

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-118

Starting and driving

JVS0298X

Illustration D

PFCW SYSTEM LIMITATIONS

WARNING

Listed below are the system limitations
for the PFCW system. Failure to operate
the vehicle in accordance with these
system limitations could result in serious
injury or death.

.

The PFCW system cannot detect all
vehicles under all conditions.

.

The radar sensor does not detect the
following objects:

— Pedestrians, animals or obstacles

in the roadway

— Oncoming vehicles

— Crossing vehicles

.

(Illustration A) The PFCW system
does not function when a vehicle
ahead is a narrow vehicle, such as a
motorcycle.

.

The radar sensor may not detect a
vehicle ahead in the following condi-
tions:

— Snow or heavy rain

— Dirt, ice, snow or other material

covering the radar sensor

— Interference by other radar

sources

— Snow or road spray from travel-

ling vehicles.

— Driving in a tunnel

— (Illustration B) When the vehicle

ahead is being towed.

— (Illustration C) When the distance

to the vehicle ahead is too close,
the beam of the radar sensor is
obstructed.

— (Illustration D) When driving on a

steep downhill slope or roads with
sharp curves.

.

The system is designed to automati-
cally check the sensor’s functionality,
within certain limitations. The system
may not detect some forms of ob-
struction of the sensor area such as
ice, snow, stickers, for example. In
these cases, the system may not be
able to warn the driver properly. Be
sure that you check, clean and clear
the sensor area regularly.

.

Excessive noise will interfere with the
warning chime sound, and the chime

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

may not be heard.

SSD0253

When driving on some roads, such as wind-
ing, hilly, curved, narrow roads, or roads
which are under construction, the radar
sensor may detect vehicles in a different
lane, or may temporarily not detect a vehicle
traveling ahead. This may cause the PFCW
system to work inappropriately.
The detection of vehicles may also be
affected by vehicle operation (steering man-
euver or traveling position in the lane, etc.) or
vehicle condition.

If this occurs, the system

may warn you by blinking the system
indicator and sounding the chime unexpect-
edly. You will have to manually control the
proper distance away from the vehicle
traveling ahead.

Starting and driving

5-119

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-120

Starting and driving

JVS0848X

FEB system warning light (on the
instrument panel)
Driver assist system forward indicator
(on the vehicle information display)

SYSTEM TEMPORARILY UNA-
VAILABLE

Condition A

When the radar sensor picks up interference
from another radar source, making it im-
possible to detect a vehicle ahead, the

PFCW system is automatically turned off.
The FEB system warning light (orange)
and the driver assist system forward indi-
cator (orange)

will illuminate.

Action to take:

When the above conditions no longer exist,
the PFCW system will resume automatically.

Condition B

Under the following conditions, making it
impossible to detect a vehicle ahead, the
PFCW system is automatically turned off.
The FEB system warning light (orange)
and the driver assist system forward indi-
cator (orange)

will illuminate and the

“front radar obstruction” warning message
will appear in the vehicle information display.

.

When the sensor area of the front

bumper is covered with dirt or is ob-
structed

Action to take:

If the FEB warning light (orange)

comes

on, stop the vehicle in a safe place, place the
shift lever in the P (Park) position and turn
the engine off. Clean the radar cover on
lower grille with a soft cloth, and restart the
engine. If the FEB warning light (orange)
continues to illuminate, have the PFCW
system checked. It is recommended you visit
an INFINITI retailer for this service.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

.

When driving on roads with limited road

structures or buildings (for example, long
bridges, deserts, snow fields, driving next
to long walls)

Action to take:

When the above conditions no longer exist,
the PFCW system will resume automatically.

NOTE:

If the FEB system stops working, the PFCW
system will also stop working.

SYSTEM MALFUNCTION

If the PFCW malfunctions, it will be turned
off automatically, a chime will sound, the
FEB system warning light (orange)

and

the driver assist system forward indicator
(orange)

will illuminate, and the system

“malfunction” message will appear in the
vehicle information display.

Action to take:

If the FEB system warning light (orange)
comes on, stop the vehicle in a safe location,
turn the engine off and restart the engine. If
the warning light continues to illuminate,
have the PFCW system checked. It is
recommended you visit an INFINITI retailer
for this service.

JVS1123X

SYSTEM MAINTENANCE

The sensor

is located behind the lower

grille of the front bumper.
To keep the system operating properly, be
sure to observe the following:

.

Always keep the sensor area of the front

bumper clean.

.

Do not strike or damage the areas around

the sensor.

.

Do not cover or attach stickers or similar

objects on the front bumper near the
sensor area. This could cause failure or
malfunction.

.

Do not attach metallic objects near the

sensor area (brush guard, etc.). This

could cause failure or malfunction.

.

Do not alter, remove or paint the front

bumper. It is recommended you contact
an INFINITI retailer before customizing
or restoring the front bumper.

FCC Notice:

For USA:

This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:

1.

This device may not cause harmful
interference, and

2.

This device must accept any interfer-
ence received, including interference
that may cause undesired operation.

FCC Warning

Changes or modification not expressly ap-
proved by the party responsible for com-
pliance could void the user’s authority to
operate the equipment.

For Canada:

This device complies with Industry Canada
licence-exempt RSS standard(s). Operation
is subject to the following two conditions:

1.

This device may not cause interference,
and

2.

This device must accept any interfer-
ence, including interference that may
cause undesired operation of the device.

Starting and driving

5-121

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-122

Starting and driving

CAUTION

During the first 1,200 miles (2,000 km),
follow these recommendations to obtain
maximum engine performance and en-
sure the future reliability and economy
of your new vehicle.

Failure to follow these recommendations
may result in shortened engine life and
reduced engine performance.

.

Avoid driving for long periods at constant

speed, either fast or slow. Do not run the
engine over 4,000 rpm.

.

Do not accelerate at full throttle in any

gear.

.

Avoid quick starts.

.

Avoid hard braking as much as possible.

Follow these easy-to-use Fuel Efficient
Driving Tips to help you achieve the most
fuel economy from your vehicle.
1. Use smooth accelerator and brake pedal

application.

.

Avoid rapid starts and stops.

.

Use smooth, gentle accelerator and

brake application whenever possible.

.

Maintain constant speed while com-

muting and coast whenever possible.

2. Maintain constant speed.

.

Look ahead to try and anticipate and

minimize stops.

.

Synchronizing your speed with traffic

lights allows you to reduce your
number of stops.

.

Maintaining a steady speed can mini-

mize red light stops and improve fuel
efficiency.

3. Use air conditioning (A/C) at higher

vehicle speeds.

.

Below 40 MPH (64 km/h), it is more

efficient to open windows to cool the
vehicle due to reduced engine load.

.

Above 40 MPH (64 km/h), it is more

efficient to use A/C to cool the
vehicle due to increased aerodynamic
drag.

.

Recirculating the cool air in the cabin

when the A/C is on reduces cooling
load.

4. Drive at economical speeds and dis-

tances.

.

Observing the speed limit and not

exceeding 60 MPH (97 km/h) (where
legally allowed) can improve fuel
efficiency due to reduced aerody-
namic drag.

.

Maintaining a safe following distance

behind other vehicles reduces unne-
cessary braking.

.

Safely monitoring traffic to anticipate

changes in speed permits reduced
braking and smooth acceleration
changes.

.

Select a gear range suitable to road

conditions.

5. Use cruise control.

.

Using cruise control during highway

driving helps maintain a steady speed.

.

Cruise control is particularly effective

in providing fuel savings when driving
on flat terrains.

6. Plan for the shortest route.

.

Utilize a map or navigation system to

determine the best route to save time.

7. Avoid idling.

.

Shutting off your engine when safe

for stops exceeding 30-60 seconds
saves fuel and reduces emissions.

BREAK-IN SCHEDULE

FUEL EFFICIENT DRIVING TIPS

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

8. Buy an automated pass for toll roads.

.

Automated passes permit drivers to

use special lanes to maintain cruising
speed through the toll and avoid
stopping and starting.

9. Winter warm up.

.

Limit idling time to minimize impact to

fuel economy.

.

Vehicles typically need no more than

30 seconds of idling at start-up to
effectively circulate the engine oil
before driving.

.

Your vehicle will reach its ideal oper-

ating temperature more quickly while
driving versus idling.

10. Keeping your vehicle cool.

.

Park your vehicle in a covered parking

area or in the shade whenever possi-
ble.

.

When entering a hot vehicle, opening

the windows will help to reduce the
inside temperature faster, resulting in
reduced demand on your A/C system.

.

Keep your engine tuned up.

.

Follow the recommended scheduled

maintenance.

.

Keep the tires inflated to the correct

pressure. Low tire pressure increases tire
wear and lowers fuel economy.

.

Keep the wheels in correct alignment.

Improper alignment increases tire wear
and lowers fuel economy.

.

Use the recommended viscosity engine

oil. (See “Engine oil and oil filter recom-
mendation” (P.10-6).)

If any malfunction occurs in the Intelligent
All-Wheel Drive (AWD) system while the
engine is running, warning messages appear
in the vehicle information display.

JVS0228M

If the “AWD Error” warning

appears, there

may be a malfunction in the Intelligent AWD
system. Reduce vehicle speed and have the

Starting and driving

5-123

INCREASING FUEL ECONOMY

INTELLIGENT ALL-WHEEL
DRIVE (AWD) (if so equipped)

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-124

Starting and driving

system checked as soon as possible. It is
recommended you visit an INFINITI retailer
for this service.
The “AWD High Temp.” (high temperature)
warning

may appear while trying to free a

stuck vehicle due to increased oil tempera-
ture. The driving mode may change to Two-
Wheel Drive (2WD). If this warning is
displayed, stop the vehicle with the engine
idling, as soon as it is safe to do so. Then if
the warning turns off, you can continue
driving.
The “Tire Size Incorrect” warning

may

appear if there is a large difference between
the diameters of front and rear wheels. Pull
off the road in a safe area, with the engine
idling. Check that all tire sizes are the same,
that the tire pressure is correct and that the
tires are not excessively worn.
If any warning message continues to be
displayed, have your vehicle checked as soon
as possible. It is recommended you visit an
INFINITI retailer for this service.

WARNING

.

For AWD equipped vehicles, do not
attempt to raise two wheels off the
ground and shift the transmission to
any drive or reverse position with the
engine running. Doing so may result

in drivetrain damage or unexpected
vehicle movement which could result
in serious vehicle damage or personal
injury.

.

Do not attempt to test an AWD
equipped vehicle on a 2-wheel dy-
namometer (such as the dynam-
ometers used by some states for
emissions testing) or similar equip-
ment even if the other two wheels are
raised off the ground. Make sure that
you inform the test facility personnel
that your vehicle is equipped with
AWD before it is placed on a dynam-
ometer. Using the wrong test equip-
ment may result in drivetrain damage
or unexpected vehicle movement
which could result in serious vehicle
damage or personal injury.

CAUTION

.

Do not operate the engine on a free
roller when any of the wheels are
raised.

.

If the “AWD Error” warning appears
while driving there may be a mal-
function in the AWD system. Reduce
the vehicle speed and have your
vehicle checked as soon as possible.

It is recommended you visit an
INFINITI retailer for this service.

.

If the “AWD Error” warning remains
on after the above operation, have
your vehicle checked as soon as
possible. It is recommended you visit
an INFINITI retailer for this service.

.

The power train may be damaged if
you continue driving with the “AWD
Error” warning on.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SD1006MA

WARNING

.

Do not stop or park the vehicle over
flammable materials such as dry
grass, waste paper or rags. They
may ignite and cause a fire.

.

Never leave the engine running while
the vehicle is unattended.

.

Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious accidents.

.

To help avoid risk of injury or death
through unintended operation of the
vehicle and/or its systems, do not
leave children, people who require the
assistance of others or pets unat-
tended in your vehicle. Additionally,
the temperature inside a closed ve-
hicle on a warm day can quickly
become high enough to cause a sig-
nificant risk of injury or death to
people and pets.

.

Safe parking procedures require that
both the parking brake be applied
and the transmission placed into P
(Park). Failure to do so could cause

the vehicle to move unexpectedly or
roll away and result in an accident.

.

Make sure the automatic transmis-
sion shift lever has been pushed as far
forward as it can go and cannot be
moved without depressing the foot
brake pedal.

1. Firmly apply the parking brake.
2. Move the shift lever to the P (Park)

position.

3. To help prevent the vehicle from rolling

into the street when parked on a sloping
drive way, it is a good practice to turn the
wheels as illustrated.

.

HEADED DOWNHILL WITH CURB:

Turn the wheels into the curb and
move the vehicle forward until the
curb side wheel gently touches the
curb.

.

HEADED UPHILL WITH CURB:

Turn the wheels away from the curb
and move the vehicle back until the
curb side wheel gently touches the
curb.

.

HEADED UPHILL OR DOWNHILL,

NO CURB:
Turn the wheels toward the side of
the road so the vehicle will move away
from the center of the road if it

Starting and driving

5-125

PARKING/PARKING ON HILLS

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-126

Starting and driving

moves.

4. Push the ignition switch to the OFF

position.

ELECTRIC POWER STEERING
TYPE

WARNING

.

If the engine is not running or is
turned off while driving, the power
assist for the steering will not work.
Steering will be harder to operate.

.

When the power steering warning
light illuminates with the engine run-
ning, the power assist for the steer-
ing will cease operation. You will still
have control of the vehicle but the
steering will be harder to operate.

The electric power steering is designed to
provide power assist while driving to oper-
ate the steering wheel with light force.
When the steering wheel is operated re-
peatedly or continuously while parking or
driving at a very low speed, the power assist
for the steering wheel will be reduced. This is
to prevent overheating of the electric power
steering and protect it from getting da-
maged. While the power assist is reduced,
steering wheel operation will become heavy.
When the temperature of the electric power
steering goes down, the power assist level
will return to normal. Avoid repeating such

steering wheel operations that could cause
the electric power steering to overheat.
You may hear a sound when the steering
wheel is operated quickly. However, this is
not a malfunction.
If the power steering warning light illumi-
nates while the engine is running, it may
indicate the electric power steering is not
functioning properly and may need servicing.
It is recommended you have the electric
power steering checked by an INFINITI
retailer. (See “Power steering warning light”
(P.2-16).)
When the power steering warning light
illuminates with the engine running, the
power assist for the steering will cease
operation. You will still have control of the
vehicle. However, greater steering effort is
needed, especially in sharp turns and at low
speeds.

DIRECT ADAPTIVE STEERING
TYPE

WARNING

.

When the power steering warning
light illuminates with the engine run-
ning, the power assist for the steer-
ing will cease operation. You will still

POWER STEERING

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

have control of the vehicle, but the
steering will be harder to operate.

.

If wheels or tires other than the
INFINITI recommended ones are
used, Direct Adaptive Steering may
not operate properly and the power
steering warning light may illumi-
nate.

.

Do not modify the vehicle’s suspen-
sion. If suspension parts such as
shock absorbers, struts, springs, sta-
bilizer bars, bushings and wheels are
not INFINITI recommended for your
vehicle or are extremely deteriorated,
Direct Adaptive Steering may not
operate properly and the power
steering warning light may illumi-
nate.

.

Do not modify the vehicle’s steering.
If steering parts are not INFINITI
recommended for your vehicle or are
extremely deteriorated, Direct Adap-
tive Steering may not operate prop-
erly and the power steering warning
light may illuminate.

.

If the VDC warning light illuminates,
the power steering warning light may
also illuminate at the same time. Stop
the vehicle in a safe location, turn the
engine off and restart the engine. If
the power steering warning light

continues to illuminate, have the
system checked. It is recommended
you visit an INFINITI retailer for this
service. For VDC system, see “Vehicle
Dynamic Control (VDC) system”
(P.5-131).

CAUTION

.

Do not place the ignition switch is in
the ON position while the steering
wheel or a tire is removed.

.

Do not turn the steering wheel as
much as possible while the ignition
switch is in any position other than
the ON position.

.

Installing an accessory on the steer-
ing wheel, or changing the steering
wheel, may reduce the steering per-
formance.

Direct Adaptive Steering is designed to
control the steering force and steering angle
according to the vehicle speed and amount
of turning of the steering wheel.
The steering characteristic can be selected
using the INFINITI Drive Mode Selector. See
“INFINITI Drive Mode Selector” (P.5-21).
If the VDC system is turned off, the setting

of steering becomes standard mode.
If the power steering warning light illumi-
nates while the engine is running, it may
indicate that Direct Adaptive Steering is not
functioning properly and may need servicing.
It is recommended you have the system
checked by an INFINITI retailer. (See “Power
steering warning light” (P.2-16).)
When the power steering warning light
illuminates with the engine running, the
power assist for the steering will cease
operation. You will still have control of the
vehicle. However, greater steering effort will
be needed, especially in sharp turns and at
low speeds.
If Direct Adaptive Steering is malfunction-
ing, the steering wheel may turn slightly even
when driving on a straight road.
Under the following conditions, the steering
wheel may turn slightly even when driving on
a straight road. This is due to a protection
mechanism for Direct Adaptive Steering. The
steering wheel will return to the normal
position after the protection mechanism is
deactivated.

Condition A

.

When the engine is stalled or likely to be

stalled

.

When the steering wheel is held in the full

lock position or when the front tire
touches an obstruction.

Starting and driving

5-127

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-128

Starting and driving

.

When the battery is discharged

To return the steering wheel to the normal
position, stop the vehicle in a safe location
and stop operating the steering wheel. Then
drive the vehicle for a short period of time.

Condition B

.

When the steering wheel is operated

repeatedly or continuously while parking
or driving at a very low speed. In this
case, the power assist for the steering
wheel will be reduced.

To return the steering wheel to the normal
position, stop the vehicle in a safe location
and wait for a period of time, without
operating the steering wheel, until the
temperature of Direct Adaptive Steering
cools down. Avoid repeated steering wheel
operations that could cause Direct Adaptive
Steering to overheat.
When the vehicle is tested on the 2-wheel
dynamometer, the power steering warning
light may illuminate. To turn off the power
steering warning light, stop the vehicle in a
safe location, turn the engine off, restart the
engine, and then drive the vehicle for a
period of time.
The following conditions do not indicate a
malfunction of Direct Adaptive Steering.

.

You may notice wider steering play when

the ignition switch is in the OFF or ACC
position compared to when it is in the

ON position.

.

After the engine is started, the steering

wheel may turn slightly even when
driving on a straight road. To return to
the normal position, drive the vehicle on
a straight road for a period of time.

.

After the engine is started, the steering

wheel may move if the steering wheel
was turned to the fully locked position
while the ignition switch was in the OFF
position.

.

After the vehicle is tested on the 4-wheel

dynamometer, the steering wheel may
turn slightly even when driving on a
straight road. To return the steering
wheel to the normal position, drive the
vehicle on a straight road for a period of
time.

You may hear a noise under the following
conditions. However, this is not a malfunc-
tion.

.

When the engine is started or stopped.

.

When the steering wheel is turned in the

full lock position.

BRAKING PRECAUTIONS

The brake system has two separate hydrau-
lic circuits. If one circuit malfunctions, you
will still have braking at two wheels.

Vacuum assisted brakes

The brake booster aids braking by using
engine vacuum. If the engine stops, you can
stop the vehicle by depressing the brake
pedal. However, greater foot pressure on
the brake pedal will be required to stop the
vehicle and the stopping distance will be
longer.

Using the brakes

Avoid resting your foot on the brake pedal
while driving. This will cause overheating of
the brakes, wearing out the brake and pads
faster and reduce gas mileage.
To help save the brakes and to prevent the
brakes from overheating, reduce speed and
downshift to a lower gear before going
down a slope or long grade. Overheated
brakes may reduce braking performance and
could result in loss of vehicle control.

WARNING

.

While driving on a slippery surface,
be careful when braking, accelerating

BRAKE SYSTEM

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

or downshifting. Abrupt braking or
accelerating could cause the wheels
to skid and result in an accident.

.

If the engine is not running or is
turned off while driving, the power
assist for the brakes will not work.
Braking will be harder.

Wet brakes

When the vehicle is washed or driven
through water, the brakes may get wet. As
a result, your braking distance will be longer
and the vehicle may pull to one side during
braking.
To dry brakes, drive the vehicle at a safe
speed while lightly tapping the brake pedal
to heat-up the brakes. Do this until the
brakes return to normal. Avoid driving the
vehicle at high speeds until the brakes
function correctly.

PARKING BRAKE BREAK-IN

Break in the parking brake shoes whenever
the stopping effect of the parking brake is
weakened or whenever the parking brake
shoes and/or drums/rotors are replaced, in
order to assure the best braking perfor-
mance.
This procedure is described in the vehicle
service manual. It is recommended you visit

an INFINITI retailer for this service.

BRAKE ASSIST

When the force applied to the brake pedal
exceeds a certain level, the Brake Assist is
activated generating greater braking force
than a conventional brake booster even with
light pedal force.

WARNING

The Brake Assist is only an aid to assist
braking operation and is not a collision
warning or avoidance device. It is the
driver’s responsibility to stay alert, drive
safely and be in control of the vehicle at
all times.

ANTI-LOCK BRAKING SYSTEM
(ABS)

WARNING

.

The Anti-lock Braking System (ABS)
is a sophisticated device, but it
cannot prevent accidents resulting
from careless or dangerous driving
techniques. It can help maintain ve-
hicle control during braking on slip-
pery surfaces. Remember that
stopping distances on slippery sur-

Starting and driving

5-129

BRAKE ASSIST

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-130

Starting and driving

faces will be longer than on normal
surfaces even with ABS. Stopping
distances may also be longer on
rough, gravel or snow covered roads,
or if you are using tire chains. Always
maintain a safe distance from the
vehicle in front of you. Ultimately,
the driver is responsible for safety.

.

Tire type and condition may also
affect braking effectiveness.

— When replacing tires, install the

specified size of tires on all four
wheels.

— When installing a spare tire, make

sure that it is the proper size and
type as specified on the Tire and
Loading Information label. See
“Tire and loading information la-
bel” (P.10-13) of this manual.

— For detailed information, see

“Wheels and tires” (P.8-26) of
this manual.

The Anti-lock Braking System (ABS) controls
the brakes so the wheels do not lock during
hard braking or when braking on slippery
surfaces. The system detects the rotation
speed at each wheel and varies the brake
fluid pressure to prevent each wheel from
locking and sliding. By preventing each

wheel from locking, the system helps the
driver maintain steering control and helps to
minimize swerving and spinning on slippery
surfaces.

Using the system

Depress the brake pedal and hold it down.
Depress the brake pedal with firm steady
pressure, but do not pump the brakes. The
ABS will operate to prevent the wheels from
locking up. Steer the vehicle to avoid
obstacles.

WARNING

Do not pump the brake pedal. Doing so
may result in increased stopping dis-
tances.

Self-test feature

The ABS includes electronic sensors, electric
pumps, hydraulic solenoids and a computer.
The computer has a built-in diagnostic
feature that tests the system each time you
start the engine and move the vehicle at a
low speed in forward or reverse. When the
self-test occurs, you may hear a “clunk”
noise and/or feel a pulsation in the brake
pedal. This is normal and does not indicate a
malfunction. If the computer senses a mal-

function, it switches the ABS off and
illuminates the ABS warning light on the
instrument panel. The brake system then
operates normally, but without anti-lock
assistance.
If the ABS warning light illuminates during
the self-test or while driving, have the
vehicle checked. It is recommended you visit
an INFINITI retailer for this service.

Normal operation

The ABS operates at speeds above 3 to 6
MPH (5 to 10 km/h).
When the ABS senses that one or more
wheels are close to locking up, the actuator
rapidly applies and releases hydraulic pres-
sure. This action is similar to pumping the
brakes very quickly. You may feel a pulsation
in the brake pedal and hear a noise from
under the hood or feel a vibration from the
actuator when it is operating. This is normal
and indicates that the ABS is operating
properly. However, the pulsation may indi-
cate that road conditions are hazardous and
extra care is required while driving.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The Vehicle Dynamic Control (VDC) system
uses various sensors to monitor driver inputs
and vehicle motion. Under certain driving
conditions, the VDC system helps to perform
the following functions.

.

Controls brake pressure to reduce wheel

slip on one slipping drive wheel so power
is transferred to a non slipping drive
wheel on the same axle.

.

Controls brake pressure and engine out-

put to reduce drive wheel slip based on
vehicle speed (traction control function).

.

Controls brake pressure at individual

wheels and engine output to help the
driver maintain control of the vehicle in
the following conditions:
— understeer (vehicle tends to not follow

the steered path despite increased
steering input)

— oversteer (vehicle tends to spin due to

certain road or driving conditions).

The VDC system can help the driver to
maintain control of the vehicle, but it cannot
prevent loss of vehicle control in all driving
situations.
When the VDC system operates, the VDC
warning light

in the instrument panel

flashes so note the following:

.

The road may be slippery or the system

may determine some action is required to
help keep the vehicle on the steered path.

.

You may feel a pulsation in the brake

pedal and hear a noise or vibration from
under the hood. This is normal and
indicates that the VDC system is working
properly.

.

Adjust your speed and driving to the road

conditions.

See “Vehicle Dynamic Control (VDC) warn-
ing light” (P.2-17).
If a malfunction occurs in the system, the
VDC warning light

illuminates in the

instrument panel. The VDC system automa-
tically turns off.
The VDC OFF switch is used to turn off the
VDC system. The VDC off indicator light
illuminates to indicate the VDC system is off.
When the VDC switch is used to turn off the
system, the VDC system still operates to
prevent one drive wheel from slipping by
transferring power to a non slipping drive
wheel. The VDC warning light

flashes if

this occurs. All other VDC functions are off,
except for brake force distribution, and the
VDC warning light

will not flash. The

VDC system is automatically reset to on
when the ignition switch is placed in the off
position then back to the on position.
See “Vehicle Dynamic Control (VDC) warn-
ing light” (P.2-17) and “Vehicle Dynamic
Control (VDC) off indicator light” (P.2-17).
The computer has a built-in diagnostic

feature that tests the system each time you
start the engine and move the vehicle
forward or in reverse at a slow speed. When
the self-test occurs, you may hear a “clunk”
noise and/or feel a pulsation in the brake
pedal. This is normal and is not an indication
of a malfunction.
VDC operation is reduced when the INFINITI
Drive Mode Selector is used to select the
SPORT+ mode (if so equipped). The VDC
system may not operate in the same circum-
stances when compared to operation in the
standard mode. To help prevent accidents
drive carefully, avoid careless or dangerous
driving techniques and be especially careful
when driving and cornering on slippery
surfaces.

BRAKE FORCE DISTRIBUTION

During braking while driving through turns,
the system optimizes the distribution of
force to each of the four wheels depending
on the radius of the turn.

WARNING

.

The VDC system is designed to help
the driver maintain stability but does
not prevent accidents due to abrupt
steering operation at high speeds or
by careless or dangerous driving

Starting and driving

5-131

VEHICLE DYNAMIC CONTROL
(VDC) SYSTEM

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-132

Starting and driving

techniques. Reduce vehicle speed and
be especially careful when driving and
cornering on slippery surfaces and
always drive carefully.

.

The brake force distribution system
may not be effective depending on
the driving condition. Always drive
carefully and attentively.

.

Do not modify the vehicle’s suspen-
sion. If suspension parts such as
shock absorbers, struts, springs, sta-
bilizer bars, bushings and wheels are
not INFINITI recommended for your
vehicle or are extremely deteriorated,
the VDC system may not operate
properly. This could adversely affect
vehicle handling performance, and
the VDC warning light

may

illuminate.

.

If brake related parts such as brake
pads, rotors and calipers are not
INFINITI recommended or are extre-
mely deteriorated, the VDC system
may not operate properly and the
VDC warning light

may illumi-

nate.

.

If engine control related parts are not
INFINITI recommended or are extre-
mely deteriorated, the VDC warning
light

may illuminate.

.

When driving on extremely inclined
surfaces such as higher banked cor-
ners, the VDC system may not oper-
ate properly and the VDC warning
light

may illuminate. Do not drive

on these types of roads.

.

When driving on an unstable surface
such as a turntable, ferry, elevator or
ramp, the VDC warning light

may

illuminate. This is not a malfunction.
Restart the engine after driving onto
a stable surface.

.

If wheels or tires other than the
INFINITI recommended ones are
used, the VDC system may not oper-
ate properly and the VDC warning
light

may illuminate.

.

The VDC system is not a substitute
for winter tires or tire chains on a
snow covered road.

This system senses driving based on the
driver’s steering and acceleration/braking
patterns, and controls brake pressure at
individual wheels to help smooth vehicle
response.
When the SPORT mode is selected by the
INFINITI Drive Mode Selector, the amount
of brake control provided by the active trace
control is reduced.
When the PERSONAL mode is selected, the
active trace control can be set to ON
(enabled) or OFF (disabled). See “INFINITI
Drive Mode Selector” (P.5-21).
When the VDC OFF switch is used to turn
off the VDC system, the active trace control
is also turned off.

ACTIVE TRACE CONTROL

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

JVS0249X

When the active trace control is operated
and the “Chassis Control” mode is selected in
the trip computer, the active trace control
graphics are shown in the vehicle informa-
tion display. (See “Trip computer” (P.2-27).)
If the chassis control warning message
appears in the vehicle information display,
it may indicate that the active trace control
is not functioning properly. It is recom-
mended you have the system checked by
an INFINITI retailer. (See “27. Chassis con-
trol warning” (P.2-23).)

WARNING

The active trace control may not be
effective depending on the driving con-
dition. Always drive carefully and atten-
tively.

When the active trace control is operating,
you may feel a pulsation in the brake pedal
and hear a noise. This is normal and indicates
that the active trace control is operating
properly. You may also feel deceleration
when the active trace control is operating.
However, this is not a malfunction.

Even if the active trace control is set to OFF,
some functions will remain on to assist the
driver (for example, avoidance scenes).

Starting and driving

5-133

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-134

Starting and driving

WARNING

.

Never rely solely on the hill start
assist system to prevent the vehicle
from moving backward on a hill.
Always drive carefully and atten-
tively. Depress the brake pedal when
the vehicle is stopped on a steep hill.
Be especially careful when stopped
on a hill on frozen or muddy roads.
Failure to prevent the vehicle from
rolling backwards may result in a loss
of control of the vehicle and possible
serious injury or death.

.

The hill start assist system is not
designed to hold the vehicle at a
standstill on a hill. Depress the brake
pedal when the vehicle is stopped on
a steep hill. Failure to do so may
cause the vehicle to roll backwards
and may result in a collision or serious
personal injury.

.

The hill start assist system may not
prevent the vehicle from rolling back-
wards on a hill under all load or road
conditions. Always be prepared to
depress the brake pedal to prevent
the vehicle from rolling backwards.
Failure to do so may result in a
collision or serious personal injury.

The hill start assist system automatically
keeps the brakes applied to help prevent the
vehicle from rolling backwards in the time it
takes the driver to release the brake pedal
and apply the accelerator when the vehicle is
stopped on a hill.
The hill start assist system will operate
automatically under the following condi-
tions:

.

The transmission is shifted to a forward

or reverse gear.

.

The vehicle is stopped completely on a hill

by applying the brake.

The maximum holding time is 2 seconds.
After 2 seconds the vehicle will begin to roll
back and the hill start assist system will stop
operating completely.
The hill start assist system will not operate
when the transmission is shifted to the N
(Neutral) or P (Park) position or on a flat and
level road.

The chassis control is an electric control
module that includes the following func-
tions:

.

Log-in function (See “Log-in function”

(P.3-15).)

.

INFINITI Drive Mode Selector (See

“INFINITI Drive Mode Selector” (P.5-
21).)

.

Active Lane Control (if so equipped) (See

“Active Lane Control” (P.5-25).)

.

Active Trace Control (See “Active trace

control” (P.5-132).)

HILL START ASSIST SYSTEM

CHASSIS CONTROL

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SSD0602

The sonar system sounds a tone to warn the
driver of obstacles near the bumper. When
the [Auto Show Sonar Image] key is turned
on in the [Parking Sonar] settings, the sonar
indicator will also appear on the upper
display. (See “Sonar indicator” (P.5-137).)

WARNING

.

The sonar system is a convenience
but it is not a substitute for proper
parking.

.

The driver is always responsible for
safety during parking and other
maneuvers. Always look around and

check that it is safe to do so before
parking.

.

Read and understand the limitations
of the sonar system as contained in
this section. The colors of the sonar
indicator indicates different dis-
tances to the object.

.

Inclement weather or ultrasonic
sources such as an automatic car
wash, a truck’s compressed-air
brakes or a pneumatic drill may affect
the function of the system; this may
include reduced performance or a
false activation.

.

The sonar system is designed as an
aid to the driver in detecting large
stationary objects to help avoid da-
maging the vehicle.

.

The sonar system is not designed to
prevent contact with small or moving
objects. Always move slowly. The
system will not detect small objects
below the bumper, and may not
detect objects close to the bumper
or on the ground.

.

The sonar system may not detect the
following objects: fluffy objects such
as snow, cloth, cotton, glass-wool,
etc.; thin objects such as rope, wire
and chain, etc.; or wedge-shaped
objects.

.

The front and rear sonar detect the
distance between the vehicle and the
obstacle by detecting the sound wave
reflected from the surface of an
obstacle. When there is a sound such
as horn, or an ultrasonic source (such
as sonar of other vehicles) around the
vehicle, the sonar may not detect
objects properly.

If your vehicle sustains damage to the
bumper fascia, leaving it misaligned or bent,
the sensing zone may be altered causing
inaccurate measurement of obstacles or

Starting and driving

5-135

FRONT AND REAR SONAR
SYSTEM (if so equipped)

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-136

Starting and driving

false alarms.

CAUTION

.

Excessive noise (such as audio system
volume or an open vehicle window)
will interfere with the tone and it may
not be heard.

.

Keep the sonar sensors (located on
the bumper fascia) free from snow,
ice and large accumulations of dirt.
Do not clean the sonar with sharp
objects. If the sensors are covered,
the accuracy of the sonar function
will be diminished.

SYSTEM OPERATION

The system detects front obstacles when the
shift lever is in the D (Drive) position or N
(Neutral) position. The system detects both
front and rear obstacles when the shift lever
is in the R (Reverse) position.
The system may not detect objects at speeds
above 6 MPH (10 km/h) and may not detect
certain angular or moving objects.
The sonar system detects obstacles up to
3.9 ft (1.2 m) from the bumper with a
decreased coverage area at the outer cor-
ners of the bumper. Refer to the illustration
for approximate zone coverage areas. As

you move closer to the obstacle, the rate of
the tone increases. When the obstacle is less
than 11.8 in (30 cm) away, the tone will
sound continuously.
The sensitivity level of the corner/center
sonar can be adjusted (higher or lower) on
the lower display.
The intermittent tone will stop in 3 seconds
when an obstacle is detected by only the
corner sensor and the distance does not
change.

JVS0246X

SONAR SYSTEM SETTINGS

Perform the following steps to set up the
sonar function.
1. Push the MENU button

and touch

[Settings] on the lower display.

2. Touch [Parking Sonar].
The displayed keys on the lower display may
vary depending on models, specifications
and software versions.
For the details of the available settings, see
“Turning on and off the sonar function” (P.4-
27).

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WAF0289X

Example (bird’s-eye view)

WAF0288X

Example (rear view)

SONAR INDICATOR

When the corner of the vehicle moves closer
to an object, the corner sensor indicator
appears on the upper display.
When the center of the vehicle moves close
to an object, the center sensor indicator
appears on the upper display.

SONAR LIMITATIONS

WARNING

Listed below are the system limitations
for the sonar system. Failure to operate
the vehicle in accordance with these
system limitations could result in serious
injury or death.

.

Read and understand the limitations
of the sonar system as contained in
this section. Inclement weather may
affect the function of the sonar
system; this may include reduced
performance or a false activation.

.

The sonar system is deactivated at
speeds above 6 MPH (10 km/h). It is
reactivated at lower speeds.

.

Inclement weather or ultrasonic
sources such as an automatic car
wash, a truck’s compressed-air
brakes or a pneumatic drill may affect

the function of the sonar system; this
may include reduced performance or
a false activation.

.

The sonar system is not designed to
prevent contact with small or moving
objects. Always move slowly. The
system will not detect small objects
below the bumper or on the ground.

.

The sonar system may not detect the
following objects: fluffy objects such
as snow, cloth, cotton, glass-wool,
etc.; thin objects such as rope, wire
and chain, etc.; or wedge-shaped
objects; complex-shaped objects or
multiple objects in close.

.

The sonar system may not detect
objects at speed above 3 MPH (5
km/h) and may not detect certain
angular or moving objects.

.

The sonar system may not operate in
the following conditions:

— When rain, snow, ice, dirt, etc.

adheres to the sonar.

— When a loud sound is heard in the

area around the vehicle.

— When the surface of the obstacle

is diagonal to the front or rear of
the vehicle.

Starting and driving

5-137

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     9      10      11      12     ..
