5-74

Starting and driving

vehicle to the desired speed, push the SET/
COAST (-) switch and release it. (The cruise
indicator (green) will illuminate.) Take your
foot off the accelerator pedal. Your vehicle
will maintain the set speed.

.

To pass another vehicle,

depress the

accelerator pedal. When you release the
pedal, the vehicle will return to the
previously set speed.

.

The vehicle may not maintain the set

speed on winding or hilly roads. If this
happens, drive without the cruise con-
trol.

To cancel the preset speed,

follow any of

these methods:
1. Push the CANCEL switch.
2. Tap the brake pedal.
3. Turn the MAIN switch off.
After any of the above operations is per-
formed, the color of the cruise indicator will
change from green to white.

.

If you depress the brake pedal while

pushing the RESUME/ACCELERATE
(+) or SET/COAST (-) switch and reset
at the cruising speed, the cruise control
will disengage. Turn the MAIN switch off
once and then turn it on again.

.

The cruise control will automatically

cancel if the vehicle slows more than 8
MPH (13 km/h) below the set speed.

.

If you move the shift lever to N (Neutral)

position, the cruise control will be can-
celed.

To reset at a faster cruising speed,

use one

of the following methods:

.

Depress the accelerator pedal. When the

vehicle attains the desired speed, push
and release the SET/COAST (-) switch.

.

Push and hold the RESUME/ACCELER-

ATE (+) switch. When the vehicle attains
the speed you desire, release the switch.

.

Push, then quickly release the RESUME/

ACCELERATE (+) switch. Each time you
do this, the set speed will increase by
about 1 MPH (1.6 km/h).

To reset at a slower cruising speed,

use one

of the following methods:

.

Lightly tap the brake pedal. When the

vehicle attains the desired speed, push
the SET/COAST (-) switch and release it.

.

Push and hold the SET/COAST (-)

switch. Release the switch when the
vehicle slows down to the desired speed.

.

Push, then quickly release the SET/

COAST (-) switch. Each time you do this,
the set speed will decrease by about 1
MPH (1.6 km/h).

To resume the preset speed,

push and

release the RESUME/ACCELERATE (+)
switch. The vehicle will resume the last set
cruising speed when the vehicle speed is over

25 MPH (40 km/h).

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Failure to follow the warnings and
instructions for proper use of the ICC
system could result in serious injury or
death.

.

ICC is not a collision avoidance or
warning device. For highway use only
and it is not intended for congested
areas or city driving. Failure to apply
the brakes could result in an accident.

.

Always observe posted speed limits
and do not set the speed over them.

.

Always drive carefully and atten-
tively when using either cruise con-
trol mode. Read and understand the
Owner’s Manual thoroughly before
using the cruise control. To avoid
serious injury or death, do not rely
on the system to prevent accidents or
to control the vehicle’s speed in
emergency situations. Do not use
cruise control except in appropriate
road and traffic conditions.

.

In the conventional (fixed speed)
cruise control mode, a warning chime
will not sound to warn you if you are
too close to the vehicle ahead. Pay
special attention to the distance
between your vehicle and the vehicle

ahead of you or a collision could
occur.

The ICC system maintains a selected dis-
tance from the vehicle in front of you within
the speed range of 0 to 90 MPH (0 to 144
km/h) up to the set speed. The set speed can
be selected by the driver between 20 to 90
MPH (32 to 144 km/h).
The vehicle travels at a set speed when the
road ahead is clear.
The ICC system can be set to one of two
cruise control modes.

.

Vehicle-to-vehicle distance control

mode:
For maintaining a selected distance
between your vehicle and the vehicle in
front of you up to the preset speed.

.

Conventional (fixed speed) cruise control

mode:
For cruising at a preset speed.

Starting and driving

5-75

INTELLIGENT CRUISE CONTROL
(ICC) (if so equipped)

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-76

Starting and driving

JVS0834X

Displays and indicators
ICC switches
MAIN (ON·OFF) switch

Always confirm the setting in the ICC system
display.
For the vehicle-to-vehicle distance control
mode, see “Vehicle-to-vehicle distance con-

trol mode” (P.5-77).
For the conventional (fixed speed) cruise
control mode, see “Conventional (fixed
speed) cruise control mode” (P.5-91).

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

JVS0835X

HOW TO SELECT THE CRUISE
CONTROL MODE

Selecting the vehicle-to-vehicle
distance control mode

To choose the vehicle-to-vehicle distance
control mode

, quickly push and release the

MAIN switch

.

Selecting the conventional (fixed
speed) cruise control mode

To choose the conventional (fixed speed)
cruise control mode

, push and hold the

MAIN switch

for longer than approxi-

mately 1.5 seconds. See “Conventional (fixed

speed) cruise control mode” (P.5-91).

VEHICLE-TO-VEHICLE DIS-
TANCE CONTROL MODE

In the vehicle-to-vehicle distance control
mode, the ICC system automatically main-
tains a selected distance from the vehicle
traveling in front of you according to that
vehicle’s speed (up to the set speed), or at
the set speed when the road ahead is clear.

JVS1123X

The system is intended to enhance the
operation of the vehicle when following a
vehicle traveling in the same lane and
direction.
If the radar sensor

detects a slower

moving vehicle ahead, the system will reduce
the vehicle speed so that your vehicle
follows the vehicle in front at the selected
distance.
The system automatically controls the throt-
tle and applies the brakes (up to approxi-
mately 40% of vehicle braking power) if
necessary.
The detection range of the sensor is approxi-
mately 650 ft (200 m) ahead.

Starting and driving

5-77

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-78

Starting and driving

Vehicle-to-vehicle distance control
mode operation

The vehicle-to-vehicle distance control
mode is designed to maintain a selected
distance and reduce the speed to match the
slower vehicle ahead; the system will de-
celerate the vehicle as necessary and if the
vehicle ahead comes to a stop, the vehicle
decelerates to a standstill. However, the ICC
system can only apply up to approximately
40% of the vehicle’s total braking power.
This system should only be used when traffic
conditions allow vehicle speeds to remain
fairly constant or when vehicle speeds
change gradually. If a vehicle moves into
the traveling lane ahead or if a vehicle
traveling ahead rapidly decelerates, the
distance between vehicles may become
closer because the ICC system cannot
decelerate the vehicle quickly enough. If this
occurs, the ICC system will sound a warning
chime and blink the system display to notify
the driver to take necessary action.
The system will cancel and a warning chime
will sound if the speed is below approxi-
mately 15 MPH (24 km/h) and a vehicle is
not detected ahead. The system will also
disengage when the vehicle goes above the
maximum set speed.
See “Approach warning” (P.5-84).

The following items are controlled in the
vehicle-to-vehicle distance control mode:

.

When there are no vehicles traveling

ahead, the vehicle-to-vehicle distance
control mode maintains the speed set
by the driver. The set speed range is
between approximately 20 and 90 MPH
(32 and 144 km/h).

.

When there is a vehicle traveling ahead,

the vehicle-to-vehicle distance control
mode adjusts the speed to maintain the
distance, selected by driver, from the
vehicle ahead. The adjusting speed range
is up to the set speed. If the vehicle
ahead comes to a stop, the vehicle
decelerates to a standstill within the
limitations of the system. The system
will cancel once it judges a standstill with
a warning chime.

.

When the vehicle traveling ahead has

moved out from its lane of travel, the
vehicle-to-vehicle distance control mode
accelerates and maintains vehicle speed
up to the set speed.

The ICC system does not control vehicle
speed or warn you when you approach
stationary and slow moving vehicles. You
must pay attention to vehicle operation to
maintain proper distance from vehicles
ahead when approaching toll gates or traffic
congestion.

SSD0254

When driving on the freeway at a set speed
and approaching a slower traveling vehicle
ahead, the ICC system will adjust the speed
to maintain the distance, selected by the
driver, from the vehicle ahead. If the vehicle
ahead changes lanes or exits the freeway,
the ICC system will accelerate and maintain
the speed up to the set speed. Pay attention
to the driving operation to maintain control
of the vehicle as it accelerates to the set
speed.
The vehicle may not maintain the set speed
on winding or hilly roads. If this occurs, you
will have to manually control the vehicle
speed.
Normally when controlling the distance to a

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

vehicle ahead, this system automatically
accelerates or decelerates your vehicle ac-
cording to the speed of the vehicle ahead.
Depress the accelerator to properly accel-
erate your vehicle when acceleration is
required for a lane change. Depress the
brake pedal when deceleration is required
to maintain a safe distance to the vehicle
ahead due to its sudden braking or if a
vehicle cuts in. Always stay alert when using
the ICC system.

JVS0836X

Vehicle-to-vehicle distance control
mode switches

The system is operated by a MAIN switch
and four control switches, all mounted on
the steering wheel.
1. RESUME/ACCELERATE (+) switch:

Resumes set speed or increases speed
incrementally.

2. SET/COAST (-) switch:

Sets desired cruise speed, reduces speed
incrementally.

3. CANCEL switch:

Deactivates the system without erasing
the set speed.

4. MAIN switch:

Master switch to activate the system

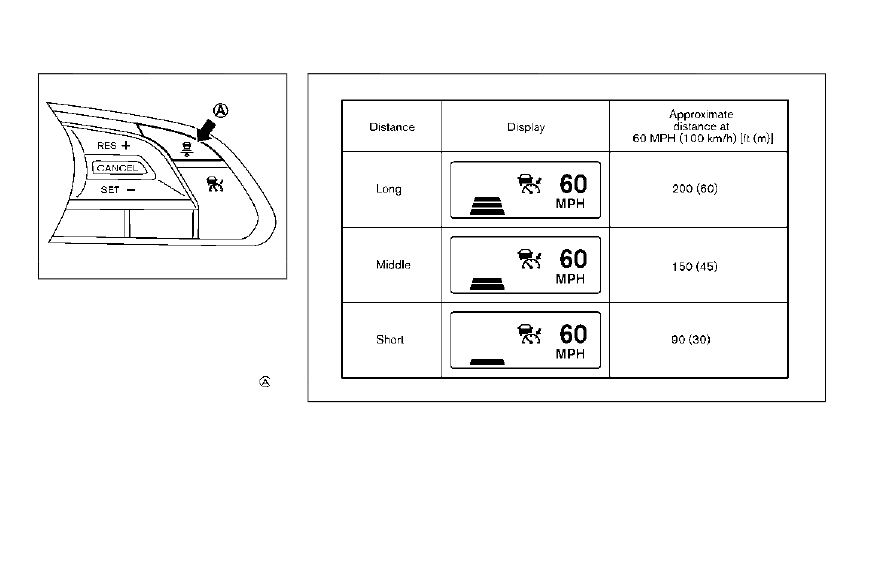

5. DISTANCE switch:

Changes the vehicle’s following distance:

.

Long

.

Middle

.

Short

Starting and driving

5-79

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-80

Starting and driving

JVS0220X

Vehicle-to-vehicle distance control
mode display and indicators

The display is located between the speed-
ometer and tachometer.
1. This indicator indicates the ICC system

status depending on a color.

.

Intelligent Cruise Control system ON

indicator (white):
Indicates that the MAIN switch is ON.

.

Intelligent Cruise Control system set

indicator (green):
Indicates that cruising speed is set

.

Intelligent Cruise Control system

warning (orange):

Indicates that there is a malfunction in
the ICC system.

2. Vehicle ahead detection indicator:

Indicates whether it detects a vehicle in
front of you.

3. Set vehicle speed indicator:

Indicates the set vehicle speed.
For Canadian models, the speed is dis-
played in km/h.

4. Set distance indicator:

Displays the selected distance between
vehicles set with the DISTANCE switch.

JVS0837X

Operating vehicle-to-vehicle dis-
tance control mode

To turn on the cruise control,

quickly push

and release the MAIN switch

on. The

Intelligent Cruise Control (ICC) system ON
indicator (white), set distance indicator and
set vehicle speed indicator come on and in a
standby state for setting.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

JVS0838X

To set cruising speed,

accelerate your

vehicle to the desired speed, push the SET/
COAST (-) switch and release it. (The ICC
system set indicator (green), vehicle ahead
detection indicator, set distance indicator
and set vehicle speed indicator come on.)
Take your foot off the accelerator pedal.
Your vehicle will maintain the set speed.

WAF0280X

When the SET/COAST (-) switch is pushed
under the following conditions, the system
cannot be set and the ICC indicators will
blink for approximately 2 seconds:

.

When traveling below 20 MPH (32

km/h) and the vehicle ahead is not
detected

.

When the shift lever is not in the D (Drive)

or manual shift mode

.

When the parking brake is applied

.

When the brakes are operated by the

driver

When the SET/COAST (-) switch is pushed
under the following conditions, the system
cannot be set.

A warning chime will sound and the “cur-
rently unavailable” warning message ap-
pears in the vehicle information display.

.

When the INFINITI Drive Mode Selector

is turned to the SNOW mode (To use the
ICC system, turn the INFINITI Drive
Mode Selector to a mode other than
the SNOW mode, push the MAIN switch
to turn off the ICC and reset the ICC
switch by pressing the MAIN switch
again.)
For details about the INFINITI Drive
Mode Selector, see “INFINITI Drive
Mode Selector” (P.5-21).

.

When the VDC system is off (To use the

ICC system, turn on the VDC system.
Push the MAIN switch to turn off the
ICC system and reset the ICC switch by
pushing the MAIN switch again.)
For details about the VDC system, see
“Vehicle Dynamic Control (VDC) system”
(P.5-131).

.

When ABS or VDC (including the traction

control system) is operating

.

When a wheel is slipping (To use the ICC

system, make sure the wheels are no
longer slipping.)

Starting and driving

5-81

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-82

Starting and driving

JVS0210X

System set display with vehicle ahead
System set display without vehicle
ahead

The driver sets the desired vehicle speed
based on the road conditions. The ICC
system maintains the set vehicle speed,
similar to standard cruise control, as long
as no vehicle is detected in the lane ahead.
The ICC system displays the set speed.

Vehicle detected ahead:

When a vehicle is detected in the lane ahead,
the ICC system decelerates the vehicle by
controlling the throttle and applying the
brakes to match the speed of a slower
vehicle ahead. The system then controls the

vehicle speed based on the speed of the
vehicle ahead to maintain the driver selected
distance.

NOTE:

.

The stoplights of the vehicle come on

when braking is performed by the ICC
system.

.

When the brake operates, a noise may be

heard. This is not a malfunction.

When a vehicle ahead is detected, the
vehicle ahead detection indicator comes on.
The ICC system will also display the set
speed and selected distance.

Vehicle ahead not detected:

When a vehicle is no longer detected ahead,
the ICC system gradually accelerates your
vehicle to resume the previously set vehicle
speed. The ICC system then maintains the
set speed.
When a vehicle is no longer detected the
vehicle ahead detection indicator turns off.
If a vehicle ahead appears during accelera-
tion to the set vehicle speed or any time the
ICC system is in operation, the system
controls the distance to that vehicle.
When a vehicle is no longer detected under
approximately 15 MPH (24 km/h), the
system will be canceled.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

JVS0211X

When passing another vehicle,

the set speed

indicator will flash when the vehicle speed
exceeds the set speed. The vehicle detect
indicator will turn off when the area ahead
of the vehicle is open. When the pedal is
released, the vehicle will return to the
previously set speed.
Even though your vehicle speed is set in the
ICC system, you can depress the accelerator
pedal when it is necessary to accelerate your
vehicle rapidly.

How to change the set vehicle
speed

To cancel the preset speed,

use any of these

methods:

.

Push the CANCEL switch. The set vehicle

speed indicator will go out.

.

Tap the brake pedal. The set vehicle

speed indicator will go out.

.

Turn the MAIN switch off. Both the

Intelligent Cruise Control system set
indicator (green) and set vehicle speed
indicator will go out.

To reset at a faster cruising speed,

use one

of the following methods:

.

Depress the accelerator pedal. When the

vehicle attains the desired speed, push
and release the SET/COAST (-) switch.

.

Push and hold the RESUME/ACCELER-

ATE (+) switch. The set vehicle speed will
increase by approximately 5 MPH (5
km/h for Canada).

.

Push, then quickly release the RESUME/

ACCELERATE (+) switch. Each time you
do this, the set speed will increase by
approximately 1 MPH (1 km/h for Ca-
nada).

To reset at a slower cruising speed,

use one

of the following methods:

.

Lightly tap the brake pedal. When the

vehicle attains the desired speed, push

the SET/COAST (-) switch and release it.

.

Push and hold the SET/COAST (-)

switch. The set vehicle speed will de-
crease by approximately 5 MPH (5 km/h
for Canada).

.

Push, then quickly release the SET/

COAST (-) switch. Each time you do this,
the set speed will decrease by approxi-
mately 1 MPH (1 km/h for Canada).

To resume the preset speed,

push and

release the RESUME/ACCELERATE (+)
switch. The vehicle will resume the last set
cruising speed when the vehicle speed is over
20 MPH (32 km/h).

Starting and driving

5-83

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-84

Starting and driving

JVS0839X

How to change the set distance to
the vehicle ahead

The distance to the vehicle ahead can be
selected at any time depending on the traffic
conditions.
Each time the DISTANCE switch

is

pushed, the set distance will change to long,
middle, short and back to long again in that
sequence.

JVS0250M

.

The distance to the vehicle ahead will

change according to the vehicle speed.
The higher the vehicle speed, the longer
the distance.

.

If the engine is stopped, the set distance

becomes “long”. (Each time the engine is
started, the initial setting becomes
“long”.)

Approach warning

If your vehicle comes closer to the vehicle
ahead due to rapid deceleration of that
vehicle or if another vehicle cuts in, the
system warns the driver with the chime and
ICC system display. Decelerate by depres-
sing the brake pedal to maintain a safe

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

vehicle distance if:

.

The chime sounds.

.

The vehicle ahead detection indicator and

set distance indicator blink.

The warning chime may not sound in some
cases when there is a short distance be-
tween vehicles. Some examples are:

.

When the vehicles are traveling at the

same speed and the distance between
vehicles is not changing

.

When the vehicle ahead is traveling

faster and the distance between vehicles
is increasing

.

When a vehicle cuts in near your vehicle

The warning chime will not sound when:

.

Your vehicle approaches other vehicles

that are parked or moving slowly.

.

The accelerator pedal is depressed, over-

riding the system.

NOTE:

The approach warning chime may sound
and the system display may blink when the
radar sensor detects objects on the side of
the vehicle or on the side of the road. This
may cause the ICC system to decelerate or
accelerate the vehicle. The radar sensor may
detect these objects when the vehicle is
driven on winding roads, narrow roads, hilly
roads or when entering or exiting a curve. In
these cases you will have to manually

control the proper distance ahead of your
vehicle.

Also, the sensor sensitivity can be affected
by vehicle operation (steering maneuver or
driving position in the lane) or traffic or
vehicle condition (for example, if a vehicle is
being driven with some damage).

Automatic cancellation

A chime sounds under the following condi-
tions and the control is automatically can-
celed.

.

When the vehicle ahead is not detected

and your vehicle is traveling below the
speed of 15 MPH (24 km/h)

.

When the system judges the vehicle is at

standstill

.

When the shift lever is not in the D

position or Manual mode

.

When the parking brake is applied

.

When the INFINITI Drive Mode Selector

is turned to the SNOW mode

.

When the VDC system is turned off

.

When ABS or VDC (including the traction

control system) operates

.

When distance measurement becomes

impaired due to adhesion of dirt or
obstruction to the sensor

.

When a wheel slips

.

When the radar signal is temporarily

interrupted

Vehicle-to-vehicle distance control
mode limitations

WARNING

Listed below are the system limitations
for the ICC system. Failure to operate
the vehicle in accordance with these
system limitations could result in serious
injury or death.

.

The system is primarily intended for
use on straight, dry, open roads with
light traffic. It is not advisable to use
the system in city traffic or con-
gested areas.

.

This system will not adapt automati-
cally to road conditions. This system
should be used in evenly flowing
traffic. Do not use the system on
roads with sharp curves, or on icy
roads, in heavy rain or in fog.

.

As there is a performance limit to the
distance control function, never rely
solely on the ICC system. This system
does not correct careless, inattentive
or absent-minded driving, or over-
come poor visibility in rain, fog, or

Starting and driving

5-85

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-86

Starting and driving

other bad weather. Decelerate the
vehicle speed by depressing the brake
pedal, depending on the distance to
the vehicle ahead and the surround-
ing circumstances in order to main-
tain a safe distance between vehicles.

.

If the vehicle ahead comes to a stop,
the vehicle decelerates to a standstill
within the limitations of the system.
The system will cancel once it judges
that the vehicle has come to a
standstill and sound a warning chime.
To prevent the vehicle from moving,
the driver must depress the brake
pedal.

.

Always pay attention to the opera-
tion of the vehicle and be ready to
manually control the proper follow-
ing distance. The vehicle-to-vehicle
distance control mode of the ICC
system may not be able to maintain
the selected distance between vehi-
cles (following distance) or selected
vehicle speed under some circum-
stances.

.

The system may not detect the
vehicle in front of you in certain road
or weather conditions. To avoid ac-
cidents, never use the ICC system
under the following conditions:

— On roads where the traffic is

heavy or there are sharp curves

— On slippery road surfaces such as

on ice or snow, etc.

— During bad weather (rain, fog,

snow, etc.)

— When rain, snow or dirt adhere to

the system sensor

— On steep downhill roads (the

vehicle may go beyond the set
vehicle speed and frequent brak-
ing may result in overheating the
brakes)

— On repeated uphill and downhill

roads

— When traffic conditions make it

difficult to keep a proper distance
between vehicles because of fre-
quent acceleration or deceleration

.

In some road or traffic conditions, a
vehicle or object can unexpectedly
come into the sensor detection zone
and cause automatic braking. You
may need to control the distance
from other vehicles using the accel-
erator pedal. Always stay alert and
avoid using the ICC system when it is
not recommended in this section.

The radar sensor will not detect the follow-
ing objects:

.

Stationary and slow moving vehicles

.

Pedestrians or objects in the roadway

.

Oncoming vehicles in the same lane

.

Motorcycles traveling offset in the travel

lane

The sensor generally detects the signals
returned from the vehicle ahead. Therefore,
if the sensor cannot detect the reflection
from the vehicle ahead, the ICC system may
not maintain the selected distance.
The following are some conditions in which
the sensor cannot detect the signals:

.

When the snow or road spray from

traveling vehicles reduces the sensor’s
visibility

.

When excessively heavy baggage is

loaded in the rear seat or the trunk of
your vehicle

The ICC system is designed to automatically
check the sensor’s operation within the
limitation of the system. When the sensor
is covered with dirt or is obstructed, the
system will automatically be canceled. If the
sensor is covered with ice, a transparent or
translucent vinyl bag, etc., the ICC system
may not detect them. In these instances, the
vehicle-to-vehicle distance control mode
may not cancel and may not be able to
maintain the selected following distance

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

from the vehicle ahead. Be sure to check and
clean the sensor regularly.

SSD0252

The detection zone of the radar sensor is
limited. A vehicle ahead must be in the
detection zone for the vehicle-to-vehicle
distance detection mode to maintain the
selected distance from the vehicle ahead.
A vehicle ahead may move outside of the
detection zone due to its position within the
same lane of travel. Motorcycles may not be
detected in the same lane ahead if they are
traveling offset from the centerline of the
lane. A vehicle that is entering the lane ahead
may not be detected until the vehicle has
completely moved into the lane.

If this

occurs, the ICC system may warn you by
blinking the system indicator and sounding
the chime. The driver may have to manually

control the proper distance away from
vehicle traveling ahead.

Starting and driving

5-87

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-88

Starting and driving

SSD0253

When driving on some roads, such as wind-
ing, hilly, curved, narrow roads, or roads
which are under construction, the radar
sensor may detect vehicles in a different
lane, or may temporarily not detect a vehicle
traveling ahead. This may cause the ICC
system to decelerate or accelerate the
vehicle.
The detection of vehicles may also be
affected by vehicle operation (steering man-
euver or traveling position in the lane, etc.) or
vehicle condition.

If this occurs, the ICC

system may warn you by blinking the
system indicator and sounding the chime
unexpectedly. You will have to manually
control the proper distance away from the

vehicle traveling ahead.

JVS0840X

Vehicle information display
MAIN switch

System temporarily unavailable

Condition A:

Under the following conditions, the ICC
system is automatically canceled. The chime
will sound and the “currently unavailable”
warning message will appear in the vehicle
information display.

.

When the VDC is turned off

.

When the ABS or VDC (including the

traction control system) operates

.

When a tire slips

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

.

When the INFINITI Drive Mode Selector

is turned to the SNOW mode

.

When the radar signal is temporarily

interrupted

Action to take:

When the conditions listed above are no
longer present, turn the ICC system back on
to use the system.

JVS0221X

ICC system warning

Condition B:

Under the following conditions, making it
impossible to detect a vehicle ahead, the ICC
system is automatically canceled.
The chime will sound, the ICC system
warning (orange) and the “front radar ob-
struction” warning message will appear in
the vehicle information display.

.

When the radar sensor area of the front

bumper is covered with dirt or is ob-
structed

Action to take:

If the warning (orange) or warning message
appears, stop the vehicle in a safe place,

place the shift lever in the P (Park) position
and turn the engine off. When the radar
signal is temporarily interrupted, clean the
sensor area of the front bumper and restart
the engine. If the warning (orange) or
warning message continues to be displayed,
have the system checked. It is recommended
you visit an INFINITI retailer for this service.

.

When driving on roads with limited road

structures or buildings (for example, long
bridges, deserts, snow fields, driving next
to long walls)

Action to take:

When the above conditions no longer exist,
the ICC system will resume automatically.

Condition C:

When the ICC system is not operating
properly, the chime sounds and the ICC
system warning (orange) will appear.

Action to take:

If the warning appears, stop the vehicle in a
safe place and place the shift lever in the P
(Park) position. Turn the engine off, restart
the engine, resume driving and set the ICC
system again.

If it is not possible to set the system or the
warning stays on, it may indicate that the
ICC system is malfunctioning. Although the
vehicle is still driveable under normal con-
ditions, have the vehicle checked. It is

Starting and driving

5-89

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-90

Starting and driving

recommended you visit an INFINITI retailer
for this service.

JVS1123X

System maintenance

The sensor for the ICC system

is located

behind the lower grille of the front bumper.
To keep the ICC system operating properly,
be sure to observe the following:

.

Always keep the sensor area of the front

bumper clean.

.

Do not strike or damage the areas around

the sensor.

.

Do not cover or attach stickers or similar

objects on the front bumper near the
sensor area. This could cause failure or
malfunction.

.

Do not attach metallic objects near the

sensor area (brush guard, etc.). This

could cause failure or malfunction.

.

Do not alter, remove or paint the front

bumper. It is recommended you contact
an INFINITI retailer before customizing
or restoring the front bumper.

FCC Notice:

For USA:

This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:

1.

This device may not cause harmful
interference, and

2.

This device must accept any interfer-
ence received, including interference
that may cause undesired operation.

FCC Warning

Changes or modification not expressly ap-
proved by the party responsible for com-
pliance could void the user’s authority to
operate the equipment.

For Canada:

This device complies with Industry Canada
licence-exempt RSS standard(s). Operation
is subject to the following two conditions:

1.

This device may not cause interference,
and

2.

This device must accept any interfer-
ence, including interference that may
cause undesired operation of the device.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CONVENTIONAL (fixed speed)
CRUISE CONTROL MODE

This mode allows driving at a speed between
25 to 90 MPH (40 to 144 km/h) without
keeping your foot on the accelerator pedal.

WARNING

.

In the conventional (fixed speed)
cruise control mode, a warning chime
does not sound to warn you if you are
too close to the vehicle ahead, as
neither the presence of the vehicle
ahead nor the vehicle-to-vehicle dis-
tance is detected.

.

Pay special attention to the distance
between your vehicle and the vehicle
ahead of you or a collision could
occur.

.

Always confirm the setting in the ICC
system display.

.

Do not use the conventional (fixed
speed) cruise control mode when
driving under the following condi-
tions:

— when it is not possible to keep the

vehicle at a set speed

— in heavy traffic or in traffic that

varies in speed

— on winding or hilly roads

— on slippery roads (rain, snow, ice,

etc.)

— in very windy areas

.

Doing so could cause a loss of vehicle
control and result in an accident.

JVS0841X

Conventional (fixed speed) cruise
control switches

1. RESUME/ACCELERATE (+) switch:

Resumes set speed or increases speed
incrementally.

2. SET/COAST (-) switch:

Sets the desired cruise speed, reduces
speed incrementally.

3. CANCEL switch:

Deactivates the system without erasing
the set speed.

4. MAIN switch:

Master switch to activate the system.

Starting and driving

5-91

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-92

Starting and driving

JVS0301X

Conventional (fixed speed) cruise
control mode display and indicators

The display is located in the vehicle informa-
tion display.
1. Cruise indicator:

This indicator indicates the condition of
ICC system depending on a color.

.

Cruise control ON indicator (white):

Indicates that the MAIN switch is ON.

.

Cruise control set indicator (green):

Displays while the vehicle speed is
controlled by the conventional (fixed
speed) cruise control mode of the ICC
system.

.

Cruise control system warning (or-

ange):
Indicates that there is a malfunction in
the ICC system.

2. Set vehicle speed indicator:

This indicator indicates the set vehicle
speed.
For Canadian models, the speed is dis-
played in km/h.

JVS0842X

Operating conventional (fixed
speed) cruise control mode

To turn on the conventional (fixed speed)
cruise control mode,

push and hold the

MAIN switch

for longer than about 1.5

seconds.
When pushing the MAIN switch on, the
conventional (fixed speed) cruise control
mode display and indicators are displayed
in the vehicle information display. After you
hold the MAIN switch on for longer than
about 1.5 seconds, the ICC system display
turns off. The cruise indicator appears. You
can now set your desired cruising speed.
Pushing the MAIN switch again will turn the

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

system completely off.
When the ignition switch is placed in the
OFF position, the system is also automati-
cally turned off.
To use the ICC system again, quickly push
and release the MAIN switch (vehicle-to-
vehicle distance control mode) or push and
hold it (conventional cruise control mode)
again to turn it on.
When the Distance Control Assist (DCA)
system is on, the conventional (fixed speed)
cruise control mode cannot be turned on
even though the MAIN switch is pushed and
held.
To turn on the conventional (fixed speed)
cruise control mode, turn off the DCA
system. See “Distance Control Assist
(DCA)” (P.5-95).

CAUTION

To avoid accidentally engaging cruise
control, make sure to turn the MAIN
switch off when not using the ICC
system.

JVS0843X

To set cruising speed,

accelerate your

vehicle to the desired speed, push the SET/
COAST (-) switch and release it. (The color
of the cruise indicator changes to green and
set vehicle speed indicator comes on.) Take
your foot off the accelerator pedal. Your
vehicle will maintain the set speed.

.

To pass another vehicle,

depress the

accelerator pedal. When you release the
pedal, the vehicle will return to the
previously set speed.

.

The vehicle may not maintain the set

speed when going up or down steep hills.
If this happens, manually maintain vehi-
cle speed.

To cancel the preset speed,

use any of the

following methods:
1. Push the CANCEL switch. The vehicle

speed indicator will turn off.

2. Tap the brake pedal. The vehicle speed

indicator will turn off.

3. Turn the MAIN switch off. Both the

cruise indicator and vehicle speed indi-
cator will turn off.

To reset at a faster cruising speed,

use one

of the following three methods:
1. Depress the accelerator pedal. When the

vehicle attains the desired speed, push
and release the SET/COAST (-) switch.

2. Push and hold the RESUME/ACCELER-

ATE (+) switch. When the vehicle attains
the desired speed, release the switch.

3. Push, then quickly release the RESUME/

ACCELERATE (+) switch. Each time you
do this, the set speed will increase by
about 1 MPH (1.6 km/h).

To reset at a slower cruising speed,

use one

of the following three methods:
1. Lightly tap the brake pedal. When the

vehicle attains the desired speed, push
the SET/COAST (-) switch and release it.

2. Push and hold the SET/COAST (-)

switch. Release the switch when the
vehicle slows down to the desired speed.

Starting and driving

5-93

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-94

Starting and driving

3. Push, then quickly release the SET/

COAST (-) switch. Each time you do this,
the set speed will decrease by about 1
MPH (1.6 km/h).

To resume the preset speed,

push and

release the RESUME/ACCELERATE (+)
switch. The vehicle will resume the last set
cruising speed when the vehicle speed is over
25 MPH (40 km/h).

System temporarily unavailable

A chime sounds under the following condi-
tions and the control is automatically can-
celed.

.

When the vehicle slows down more than

8 MPH (13 km/h) below the set speed

.

When the shift lever is not in the D (Drive)

or manual shift mode

.

When the parking brake is applied.

.

When the VDC operates (including the

traction control system)

.

When a wheel slips

JVS0306X

Warning

When the system is not operating properly,
the chime sounds and the color of the cruise
indicator will change to orange.

Action to take:

If the color of the cruise indicator changes to
orange, stop the vehicle in a safe place and
place the shift lever in the P (Park) position.
Turn the engine off, restart the engine,
resume driving and then perform the setting
again.

If it is not possible to set or the indicator
stays on, it may indicate that the system is
malfunctioning. Although the vehicle is still
driveable under normal conditions, have the

vehicle checked. It is recommended you visit
an INFINITI retailer for this service.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Failure to follow the warnings and
instructions for proper use of the DCA
system could result in serious personal
injury or death.

.

Always drive carefully and atten-
tively when using the DCA system.
Read and understand the Owner’s
Manual thoroughly before using the
DCA system. To avoid serious injury
or death, do not rely on the system to
prevent accidents or to control the
vehicle’s speed in emergency situa-
tions. Do not use the DCA system
except in appropriate road and traffic
conditions.

.

This system is only an aid to assist the
driver and is not a collision warning or
avoidance device. It is the driver’s
responsibility to stay alert, drive
safely and be in control of the vehicle
at all times.

.

As there is a performance limit to the
distance control function, never rely
solely on the DCA system. This sys-
tem does not correct careless, inat-
tentive or absent-minded driving, or
overcome poor visibility in rain, fog,
or other bad weather. Decelerate the

vehicle speed by depressing the brake
pedal, depending on the distance to
the vehicle ahead and the surround-
ing circumstances in order to main-
tain a safe distance between vehicles.

.

Always pay attention to the opera-
tion of the vehicle and be ready to
manually decelerate to maintain the
proper following distance. The DCA
system may not be able to decelerate
the vehicle under some circum-
stances.

.

This system only brakes and moves
the accelerator pedal upward to help
assist the driver to maintain a follow-
ing distance from the vehicle ahead.
Acceleration should be operated by
the driver.

.

The DCA system does not control
vehicle speed or warn you when you
approach stationary and slow moving
vehicles. You must pay attention to
vehicle operation to maintain proper
distance from vehicles ahead.

.

The DCA system automatically de-
celerates your vehicle to help assist
the driver to maintain a following
distance from the vehicle ahead.
Manually brake when deceleration is
required to maintain a safe distance
upon sudden braking by the vehicle

ahead or when a vehicle suddenly
appears in front of you. Always stay
alert when using the DCA system.

.

If the vehicle ahead comes to a stop,
the vehicle decelerates to a standstill
within the limitations of the system.
The system will cancel with a warning
chime once it judges that the vehicle
has come to a standstill. To prevent
the vehicle from moving, the driver
must depress the brake pedal.

Starting and driving

5-95

DISTANCE CONTROL ASSIST
(DCA) (if so equipped)

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-96

Starting and driving

JVS1123X

The DCA system is intended to assist the
driver in keeping a following distance from
the vehicle ahead traveling in the same lane
and direction.
If the radar sensor

detects a slower

moving vehicle ahead, the system will reduce
the vehicle speed to help assist the driver to
maintain a following distance.
The system automatically controls the throt-
tle and applies the brakes (up to approxi-
mately 40% of vehicle braking power) if
necessary.
The detection range of the sensor is approxi-
mately 650 ft (200 m) ahead.

JVS0844X

Dynamic driver assistance switch
Driver assist system forward indicator
(green) (on the vehicle information dis-
play)
Vehicle ahead detection indicator (on
the vehicle information display)
Lower display

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DCA SYSTEM OPERATION

WARNING

Failure to follow the warnings and
instructions for proper use of the DCA
system could result in serious personal
injury or death.

.

When the vehicle ahead detection
indicator is not illuminated, system
will not control the vehicle or warn
the driver.

.

Never place your foot under the
brake pedal. Your foot may be caught
when the system controls the brake.

.

Depending on the position of the
accelerator pedal, the system may
not be able to assist the driver to
release the accelerator pedal appro-
priately.

The DCA system brakes and moves the
accelerator pedal upward according to the
distance from and the relative speed of the
vehicle ahead to help assist the driver in
maintaining a following distance. The sys-
tem will decelerate as necessary and if the
vehicle ahead comes to a stop, the vehicle
decelerates to a standstill. However, the
DCA system can only apply up to approxi-

mately 40% of the vehicle’s total braking
power. If a vehicle moves into the traveling
lane ahead or if a vehicle traveling ahead
rapidly decelerates, the distance between
vehicles may become closer because the
DCA system cannot decelerate the vehicle
quickly enough. If this occurs, the DCA
system will sound a warning chime and blink
the system display to notify the driver to
take necessary action.
See “Approach warning” (P.5-99).

Starting and driving

5-97

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-98

Starting and driving

JVS0244X

System set display with a vehicle ahead
System set display without a vehicle
ahead
System set display with a vehicle ahead
(brake operation is necessary)

The DCA system helps assist the driver to
keep a following distance to the vehicle
ahead by braking and moving the accelera-
tor pedal upward in the normal driving
condition.

When a vehicle ahead is detected:

The vehicle ahead detection indicator ap-
pears.

When the vehicle approaches a vehicle
ahead:

.

If the driver’s foot is not on the accel-

erator pedal, the system activates the
brakes to decelerate smoothly as neces-
sary. If the vehicle ahead comes to a
stop, the vehicle decelerates to a stand-
still within the limitations of the system.

.

If the driver’s foot is on the accelerator

pedal, the system moves the accelerator
pedal upward to assist the driver to
release the accelerator pedal.

When brake operation by the driver is
required:

The system alerts the driver by a warning
chime and blinking the vehicle ahead detec-
tion indicator. If the driver’s foot is on the
accelerator pedal after the warning, the

system moves the accelerator pedal upward
to assist the driver to switch to the brake
pedal.

NOTE:

.

The stop lights of the vehicle come on

when braking is performed by the DCA
system.

.

When the brake operates, a noise may be

heard. This is not a malfunction.

Overriding the system:

The following driver’s operation overrides
the system operation.

.

When the driver depresses the accelera-

tor pedal even further while the system is
moving the accelerator pedal upward,
the DCA system control of the accel-
erator pedal is canceled.

.

When the driver’s foot is on the accel-

erator pedal, the brake control by the
system is not operated.

.

When the driver’s foot is on the brake

pedal, neither the brake control nor the
alert by the system operates.

.

When the Intelligent Cruise Control (ICC)

system is set, the DCA system will be
inactive.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Approach warning

If your vehicle comes closer to the vehicle
ahead due to rapid deceleration of that
vehicle or if another vehicle cuts in, the
system warns the driver with the chime and
DCA system display. Decelerate by depres-
sing the brake pedal to maintain a safe
vehicle distance if:

.

The chime sounds.

.

The vehicle ahead detection indicator

blinks.

.

The driver assist system forward indica-

tor (orange) blinks.

The warning chime may not sound in some
cases when there is a short distance be-
tween vehicles. Some examples are:

.

When the vehicles are traveling at the

same speed and the distance between
vehicles is not changing

.

When the vehicle ahead is traveling

faster and the distance between vehicles
is increasing

.

When a vehicle cuts in near your vehicle

The driver assist system forward indicator
(orange) blinks and the warning chime will
not sound when your vehicle approaches
vehicles that are parked or moving slowly.

NOTE:

The approach warning chime may sound

and the driver assist system forward in-
dicator (orange) may blink when the radar
sensor detects objects on the side of the
vehicle or on the side of the road. This may
cause the DCA system to decelerate or
accelerate the vehicle. The radar sensor
may detect these objects when the vehicle
is driven on winding roads, narrow roads,
hilly roads or when entering or exiting a
curve. In these cases you will have to
manually control the proper distance ahead
of your vehicle.

Also, the sensor sensitivity can be affected
by vehicle operation (steering maneuver or
driving position in the lane) or traffic or
vehicle condition (for example, if a vehicle is
being driven with some damage).

Starting and driving

5-99

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-100

Starting and driving

JVS0845X

Dynamic driver assistance switch
Driver assist system forward indicator
(green) (on the vehicle information dis-
play)
Lower display

TURNING THE DCA SYSTEM ON/
OFF

To turn on the DCA system, push the
dynamic driver assistance switch

on the

steering wheel after starting the engine. The
driver assistance switch indicator

in the

vehicle information display will appear. Push

the dynamic driver assistance switch

again

to turn off the DCA system. The driver
assistance switch indicator

will turn off.

The system will start to operate after the
vehicle speed is above approximately 3 MPH
(5 km/h).
The dynamic driver assistance switch

is

used for the DCA, Active Lane Control (if so
equipped), Lane Departure Prevention (LDP)
and Blind Spot Intervention (BSI) systems.
When the dynamic driver assistance switch

is pushed, Active Lane Control, LDP and

BSI systems will also turn on or off simulta-
neously. The DCA system can be individually
set to on or off on the lower display

. If the

system is set to off, the system will not turn
on even if the dynamic driver assistance
switch

is pushed to on. To set the system

to on or off on the display, see “How to
enable/disable the DCA system” (P.5-101).
When the conventional (fixed speed) cruise
control mode is operating, the DCA system
will not operate. (To use the DCA system,
turn the conventional (fixed speed) cruise
control mode off, then push the dynamic
driver assistance switch.)
For details about the conventional (fixed
speed) cruise control mode, see “Intelligent
Cruise Control (ICC)” (P.5-75).
When the engine is turned off, the DCA
system is automatically turned off.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

JVS0246X

HOW TO ENABLE/DISABLE THE
DCA SYSTEM

Perform the following steps to enable or
disable the DCA system.
1. Push the MENU button

and touch

[Driver Assistance] on the lower display.

2. Touch [Forward Assist].
3. Touch [Distance Control] to enable or

disable the system.

The displayed keys on the lower display may
vary depending on models, specifications
and software versions.

JVS0225X

DCA SYSTEM DISPLAY AND IN-
DICATORS

The display is located between the speed-
ometer and tachometer.
1. Driver assist system forward indicator

.

Driver assist system forward indicator

(green):
Indicates that the DCA system is ON.

.

Driver assist system forward indicator

(orange):
Indicates whether there is a malfunc-
tion in the DCA system.

2. Vehicle ahead detection indicator:

Indicates whether it detects a vehicle in

front of you.

DCA SYSTEM LIMITATIONS

WARNING

Listed below are the system limitations
of the DCA system. Failure to operate
the vehicle in accordance with these
system limitations could result in serious
injury or death.

.

This system will not adapt automati-
cally to road conditions. Do not use
the system on roads with sharp
curves, or on icy roads, in heavy rain
or in fog.

.

The DCA system will not apply brake
control while the driver’s foot is on
the accelerator pedal.

.

As there is a performance limit to the
distance control function, never rely
solely on the DCA system. This sys-
tem does not correct careless, inat-
tentive or absent-minded driving, or
overcome poor visibility in rain, fog,
or other bad weather. Decelerate the
vehicle speed by depressing the brake
pedal, depending on the distance to
the vehicle ahead and the surround-
ing circumstances in order to main-
tain a safe distance between vehicles.

Starting and driving

5-101

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-102

Starting and driving

.

The system may not detect the
vehicle in front of you in certain road
or weather conditions. To avoid ac-
cidents, never use the DCA system
under the following conditions:

— On roads with sharp curves

— On slippery road surfaces such as

on ice or snow, etc.

— During bad weather (rain, fog,

snow, etc.)

— When rain, snow or dirt adhere to

the system sensor

— On steep downhill roads (fre-

quent braking may result in over-
heating the brakes)

— On repeated uphill and downhill

roads

.

In some road or traffic conditions, a
vehicle or object can unexpectedly
come into the sensor detection zone
and cause automatic braking. You
may need to control the distance
from other vehicles using the accel-
erator pedal. Always stay alert and
avoid using the DCA system when it
is not recommended in this section.

The radar sensor will not detect the follow-
ing objects:

.

Stationary and slow moving vehicles

.

Pedestrians or objects in the roadway

.

Oncoming vehicles in the same lane

.

Motorcycles traveling offset in the travel

lane

The following are some conditions in which
the sensor cannot detect the signals:

.

When the snow or road spray from

traveling vehicles reduces the sensor’s
visibility

.

When excessively heavy baggage is

loaded in the rear seat or the trunk room
of your vehicle

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SSD0252

The detection zone of the sensor is limited. A
vehicle ahead must be in the detection zone
for the system to operate.
A vehicle ahead may move outside of the
detection zone due to its position within the
same lane of travel. Motorcycles may not be
detected in the same lane ahead if they are
traveling offset from the centerline of the
lane. A vehicle that is entering the lane ahead
may not be detected until the vehicle has
completely moved into the lane.

If this

occurs, the system may warn you by blink-
ing the system indicator and sounding the
chime. The driver may have to manually
control the proper distance away from
vehicle traveling ahead.

Starting and driving

5-103

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-104

Starting and driving

SSD0253

When driving on some roads, such as wind-
ing, hilly, curved, narrow roads, or roads
which are under construction, the sensor
may detect vehicles in a different lane, or
may temporarily not detect a vehicle travel-
ing ahead. This may cause the system to
work inappropriately.
The detection of vehicles may also be
affected by vehicle operation (steering man-
euver or traveling position in the lane, etc.) or
vehicle condition.

If this occurs, the system

may warn you by blinking the system
indicator and sounding the chime unexpect-
edly. You will have to manually control the
proper distance away from the vehicle
traveling ahead.

JVS0826X

Vehicle information display
Dynamic driver assistance switch

SYSTEM TEMPORARILY UNA-
VAILABLE

Condition A

Under the following conditions, the DCA
system is automatically canceled. The chime
will sound and the “currently unavailable”
warning message will appear in the vehicle
information display. The system will not be
able to be set.

.

When the VDC system is off (To use the

DCA system, turn on the VDC, then push
the dynamic driver assistance switch

.)

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

For details about the VDC system, see
“Vehicle Dynamic Control (VDC) system”
(P.5-131)

.

When the VDC or ABS (including the

traction control system) operates

.

When the INFINITI Drive Mode Selector

is turned to the SNOW mode (To use the
DCA system, turn the INFINITI Drive
Mode Selector to a mode other than the
SNOW mode, then turn on the dynamic
driver assistance switch

.) For details

about the INFINITI Drive Mode Selector,
see “INFINITI Drive Mode Selector” (P.5-
21)

.

When the radar signal is temporarily

interrupted

Action to take:

When the conditions listed above are no
longer present, turn the DCA system back on
to use the system.

Condition B

Under the following conditions, making it
impossible to detect a vehicle ahead, the
DCA system is automatically canceled.
The chime will sound, the driver assist
system forward indicator (orange) and the
“front radar obstruction” warning message
will appear in the vehicle information display.

.

When the radar sensor area of the front

bumper is covered with dirt or is ob-
structed

Action to take:

If the driver assist system forward indicator
(orange) and the warning message appear,
stop the vehicle in a safe place, place the
shift lever in the P (Park) position and turn
the engine off. When the radar signal is
temporarily interrupted, clean the sensor
area of the front bumper and restart the
engine. If the warning message continues to
be displayed, have the DCA system checked.
It is recommended you visit an INFINITI
retailer for this service.

.

When driving on roads with limited road

structures or buildings (for example, long
bridges, deserts, snow fields, driving next
to long walls)

Action to take:

When the above conditions no longer exist,
the DCA system will resume automatically.

SYSTEM MALFUNCTION

When the DCA system is not operating
properly, the chime sounds, the driver assist
system forward indicator (orange) and the
system “malfunction” warning message will
appear in the vehicle information display.

Action to take:

If the driver assist system forward indicator
(orange) and the warning message appear,
stop the vehicle in a safe place and place the
shift lever in the P (Park) position. Turn the
engine off, restart the engine, and turn on
the DCA system again.

If it is not possible to set the system or the
indicator stays on, it may indicate that the
system is malfunctioning. Although the
vehicle is still driveable under normal con-
ditions, have the vehicle checked. It is
recommended you visit an INFINITI retailer
for this service.

SYSTEM MAINTENANCE

The sensor for the DCA system is common
with the Intelligent Cruise Control (ICC)
system and is located behind the lower grille
of the front bumper.
For the sensor maintenance, see “Intelligent
Cruise Control (ICC)” (P.5-75).

FCC Notice:

For USA:

This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:

1.

This device may not cause harmful
interference, and

Starting and driving

5-105

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     8      9      10      11     ..
