This could cause an accident.

.

Do not use oil or grease on the wheel
studs or nuts. This could cause the
nuts to become loose.

.

As soon as possible, tighten the wheel

nuts to the specified torque with a
torque wrench.
Wheel nut tightening torque:

80 ft-lb (108 N·m)

The wheel nuts must be kept tigh-
tened to specification at all times. It
is recommended that wheel nuts be
tightened to specifications at each
lubrication interval.

.

Adjust tire pressure to the COLD

pressure.
COLD pressure:

After the vehicle has been parked for
three hours or more or driven less
than 1 mile (1.6 km).

COLD tire pressures are shown on
the Tire and Loading Information
label affixed to the driver side center
pillar.

Securely store the jacking tools in the
vehicle.

Do-it-yourself

8-41

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

9-2

Maintenance and schedules

Some day-to-day and regular maintenance
is essential to maintain your vehicle in good
mechanical condition, as well as its emission
and engine performance.
It is the owner’s responsibility to make sure
that the scheduled maintenance, as well as
general maintenance, is performed.
As the vehicle owner, you are the only one
who can ensure that your vehicle receives
the proper maintenance. You are a vital link
in the maintenance chain.

GENERAL MAINTENANCE

General maintenance includes those items
which should be checked during normal day-
to-day operation. They are essential for
proper vehicle operation. It is your respon-
sibility to perform these procedures regularly
as prescribed.
Performing general maintenance checks re-
quires minimal mechanical skill and only a
few general automotive tools.
These checks or inspections can be done by
yourself, a qualified technician or, if you
prefer, an INFINITI retailer.

SCHEDULED MAINTENANCE

The maintenance items listed in this section
are required to be serviced at regular inter-
vals. However, under severe driving condi-
t i o n s , a d d i t i o n a l o r m o r e f r e q u e n t
maintenance will be required.

WHERE TO GO FOR SERVICE

If maintenance service is required or your
vehicle appears to malfunction, have the
systems checked and serviced. It is recom-
mended you visit an INFINITI retailer for this
service.
INFINITI technicians are well-trained spe-
cialists and are kept up to date with the
latest service information through technical
bulletins, service tips and training programs.
They are completely qualified to work on
INFINITI vehicles

before

work begins.

If your vehicle is involved in a collision, it is
recommended that you ask your INFINITI
retailer where the nearest INFINITI Certified
Collision Center is located, or go to http://
collision.infinitiusa.com.
You can be confident that an INFINITI
retailer’s service department can perform
the service needed to meet the maintenance
requirements on your vehicle.

During the normal day-to-day operation of
the vehicle, general maintenance should be
performed regularly as prescribed in this
section. If you detect any unusual sounds,
vibrations or smells, be sure to check for the
cause and have it checked promptly. In
addition, it is recommended you visit an
INFINITI retailer if you think that repairs are
required.
When performing any checks or mainte-
nance work, closely observe “Maintenance
precautions” (P.8-2) of this manual.

EXPLANATION OF GENERAL
MAINTENANCE ITEMS

Additional information on the following
items with “*” is found in the “8. Do-it-
yourself” section of this manual.

Outside the vehicle

The maintenance items listed here should be
performed from time to time, unless other-
wise specified.

Doors and engine hood:

Check that all doors

and the engine hood, operate properly. Also
ensure that all latches lock securely. Lubri-
cate hinges, latches, latch pins, rollers and
links if necessary. Make sure that the
secondary latch keeps the hood from open-
ing when the primary latch is released.
When driving in areas using road salt or

MAINTENANCE REQUIREMENT

GENERAL MAINTENANCE

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

other corrosive materials, check lubrication
frequently.

Lights*:

Clean the headlights on a regular

basis. Make sure that the headlights, stop
lights, tail lights, turn signal lights, and other
lights are all operating properly and installed
securely. Also check headlight aim.

Road wheel nuts (lug nuts)*:

When checking

the tires, make sure no wheel nuts are
missing, and check for any loose wheel nuts.
Tighten if necessary.

Tire rotation*:

Rotate tires at the specified

interval shown in the maintenance schedule.
If your vehicle is equipped with different
sized tires in the front and rear, tires cannot
be rotated.

Tires*:

Check the pressure with a gauge

often and always prior to long distance trips.
If necessary, adjust the pressure in all tires,
including the spare, to the pressure speci-
fied. Check carefully for damage, cuts or
excessive wear.

Tire Pressure Monitoring System (TPMS)
transmitter components:

Replace the TPMS

transmitter grommet seal, valve core and
cap when the tires are replaced due to wear
or age.

Wheel alignment and balance:

If the vehicle

should pull to either side while driving on a
straight and level road, or if you detect
uneven or abnormal tire wear, there may be

a need for wheel alignment.
If the steering wheel or seat vibrates at
normal highway speeds, wheel balancing
may be needed.
For additional information regarding tires,
refer to “Important Tire Safety Information”
(US) or “Tire Safety Information” (Canada) in
the INFINITI Warranty Information Booklet.

Windshield:

Clean the windshield on a

regular basis. Check the windshield at least
every six months for cracks or other damage.
Have a damaged windshield repaired by a
qualified repair facility. It is recommended
that you have a damaged windshield re-
paired by an INFINITI retailer, or an INFINITI
Certified Collision Center. To locate a colli-
sion center in your area, refer to http://
collision.infinitiusa.com.

Windshield wiper blades*:

Check for cracks

or wear if they do not wipe properly.

Inside the vehicle

The maintenance items listed here should be
checked on a regular basis, such as when
performing scheduled maintenance, cleaning
the vehicle, etc.

Accelerator pedal:

Check the pedal for

smooth operation and make sure the pedal
does not catch or require uneven effort.
Keep the floor mat away from the pedal.

Automatic transmission P (Park) mechan-
ism:

On a fairly steep hill, check that your

vehicle is held securely with the shift lever in
the P (Park) position without applying any
brakes.

Brake pedal:

Check the pedal for smooth

operation. If the brake pedal suddenly goes
down further than normal, the pedal feels
spongy or the vehicle seems to take longer to
stop, have your vehicle checked immediately.
It is recommended you visit an INFINITI
retailer for this service. Keep the floor mat
away from the pedal.

Brakes:

Check that the brakes do not pull the

vehicle to one side when applied.

Parking brake:

Check the parking brake

operation regularly. The vehicle should be
securely held on a fairly steep hill with only
the parking brake applied. If the parking
brake needs adjusted, it is recommended you
visit an INFINITI retailer for this service.

Seats:

Check seat position controls such as

seat adjusters, seatback recliner, etc. to
ensure they operate smoothly and that all
latches lock securely in every position. Check
that the head restraints move up and down
smoothly and that the locks (if so equipped)
hold securely in all latched positions.

Seat belts:

Check that all parts of the seat

belt system (for example, buckles, anchors,
adjuster and retractors) operate properly

Maintenance and schedules

9-3

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

9-4

Maintenance and schedules

and smoothly, and are installed securely.
Check the belt webbing for cuts, fraying,
wear or damage.

Steering wheel:

Check for changes in the

steering conditions, such as excessive free
play, hard steering or strange noises.

Warning lights and chimes:

Make sure that

all warning lights and chimes are operating
properly.

Windshield defroster:

Check that the air

comes out of the defroster outlets properly
and in sufficient quantity when operating
the heater or air conditioner.

Windshield wiper and washer*:

Check that

the wipers and washer operate properly and
that the wipers do not streak.

Under the hood and vehicle

The maintenance items listed here should be
checked periodically (for example, each time
you check the engine oil or refuel).

Battery*:

Check the fluid level in each cell. It

should be between the MAX and MIN lines.
Vehicles operated in high temperatures or
under severe condition require frequent
checks of the battery fluid level.

NOTE:

Care should be taken to avoid situations
that can lead to potential battery discharge
and potential no-start conditions such as:

1.

Installation or extended use of electro-
nic accessories that consume battery
power when the engine is not running
(Phone chargers, GPS, DVD players,
etc.)

2.

Vehicle is not driven regularly and/or
only driven short distances.

In these cases, the battery may need to be
charged to maintain battery health.

Brake fluid level*:

Make sure that the brake

fluid level is between the MAX and MIN lines
on the reservoir.

Engine coolant level*:

Check the coolant

level when the engine is cold.

Intercooler coolant level*:

Check the coolant

level when the engine is cold.

Engine drive belts*:

Make sure that no belt is

frayed, worn, cracked or oily.

Engine oil level*:

Check the level after

parking the vehicle on a level spot and
turning off the engine. Wait more than 15
minutes for the oil to drain back into the oil
pan.

Exhaust system:

Make sure there are no

loose supports, cracks or holes. If the sound
of the exhaust seems unusual or there is a
smell of exhaust fumes, immediately have
the exhaust system inspected. It is recom-
mended you visit an INFINITI retailer for this
service. (See “Precautions when starting and

driving” (P.5-4).)

Fluid leaks:

Check under the vehicle for fuel,

oil, water or other fluid leaks after the
vehicle has been parked for a while. Water
dripping from the air conditioner after use is
normal. If you should notice any leaks or if
gasoline fumes are evident, check for the
cause and have it corrected immediately.

Radiator and hoses:

Check the front of the

radiator and clean off any dirt, insects,
leaves, etc., that may have accumulated.
Make sure the hoses have no cracks, defor-
mation, rot or loose connections.

Underbody:

The underbody is frequently

exposed to corrosive substances such as
those used on icy roads or to control dust. It
is very important to remove these sub-
stances, otherwise rust will form on the
floor pan, frame, fuel lines and around the
exhaust system. At the end of winter, the
underbody should be thoroughly flushed
with plain water, being careful to clean
those areas where mud and dirt may accu-
mulate. For additional information, see
“Cleaning exterior” (P.7-2).

Windshield washer fluid*:

Check that there

is adequate fluid in the reservoir.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The following descriptions are provided to
give you a better understanding of the
scheduled maintenance items that should
be regularly checked or replaced. The main-
tenance schedule indicates at which mile-
age/time intervals each item requires
service.
In addition to scheduled maintenance, your
vehicle requires that some items be checked
during normal day-to-day operation. Refer
to “General maintenance” (P.9-2).
Items marked with “*” are recommended by
INFINITI for reliable vehicle operation. You
are not required to perform maintenance on
these items in order to maintain the warran-
ties which come with your vehicle. Other
maintenance items and intervals are re-
quired.
When applicable, additional information can
be found in the “8. Do-it yourself” section of
this manual.

NOTE:

INFINITI does not advocate the use of non-
OEM approved aftermarket flushing sys-
tems and strongly advises against perform-
ing these services on an INFINITI product.
Many of the aftermarket flushing systems
use non-OEM approved chemicals or sol-
vents, the use of which has not been
validated by INFINITI.

For recommended fuel, lubricants, fluids,

grease, and refrigerant, refer to “Capacities
and recommended fluids/lubricants” (P.10-
2) of this manual.

EMISSION CONTROL SYSTEM
MAINTENANCE

Drive belts*:

Check engine drive belts for wear, fraying or
cracking and for proper tension. Replace any
damaged drive belts.

Engine air filter:

Replace at specified intervals. When driving
for prolonged periods in dusty conditions,
check/replace the filter more frequently.

Engine coolant*:

Replace coolant at the specified interval.
When adding or replacing coolant, be sure to
use only Genuine NISSAN Long Life Anti-
freeze/Coolant (blue) or equivalent with the
proper mixture. (Refer to “Engine cooling
system” (P.8-3) to determine the proper
mixture for your area.)

NOTE:

Mixing any other type of coolant or the use
of non-distilled water may reduce the
recommended service interval of the cool-
ant.

Intercooler coolant:

Intercooler coolant is maintenance-free.

Engine oil and oil filter:

Replace engine oil and oil filter at the
specified intervals. For recommended oil
grade and viscosity refer to “Capacities and
recommended fluids/lubricants” (P.10-2).

Engine valve clearance*:

Inspect only if valve noise increases. Adjust
valve clearance if necessary.

Evaporative emissions control vapor lines*:

Check vapor lines for leaks or looseness.
Tighten connections or replace parts as
necessary.

Fuel lines*:

Check the fuel hoses, piping and connections
for leaks, looseness, or deterioration. Tight-
en connections or replace parts as necessary.

Spark plugs:

Replace at specified intervals. Install new
plugs of the type as originally equipped.

CHASSIS AND BODY MAINTE-
NANCE

Brake lines and cables:

Visually inspect for proper installation.
Check for chafing, cracks, deterioration,
and signs of leaking. Replace any deterio-
rated or damaged parts immediately.

Brake pads, rotors, drums and linings:

Maintenance and schedules

9-5

EXPLANATION OF SCHEDULED
MAINTENANCE ITEMS

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

9-6

Maintenance and schedules

Check for wear, deterioration and fluid
leaks. Replace any deteriorated or damaged
parts immediately.

Exhaust system:

Visually inspect the exhaust pipes, muffler
and hangers for leaks, cracks, deterioration,
and damage. Tighten connections or replace
parts as necessary.

In-cabin microfilter:

Replace at specified intervals. When driving
for prolonged periods in dusty conditions,
replace the filter more frequently.

Propeller shaft(s):

Check for damage, looseness, and grease
leakage. (4WD/AWD/RWD)

Steering gear and linkage, axle and suspen-
sion parts, drive shaft boots:

Check for damage, looseness, and leakage
of oil or grease. Under severe driving condi-
tions, inspect more frequently.

Tire rotation:

Rotate tires at the specified interval. When
rotating tires, check for damage and uneven
wear. Replace if necessary. If your vehicle is
equipped with different sized tires in the
front and rear, tires cannot be rotated.

Transmission fluid/oil, differential oil and
transfer case oil:

Visually inspect for signs of leakage at

specified intervals.

To help ensure smooth, safe and economical
driving, INFINITI provides two maintenance
schedules that may be used, depending upon
the conditions in which you usually drive.
These schedules contain both distance and
time intervals, up to 120,000 miles
(192,000 km)/144 months. For most peo-
ple, the odometer reading will indicate when
service is needed. However, if you drive very
little, your vehicle should be serviced at the
regular time intervals shown in the schedule.

After 120,000 miles (192,000 km)/144
months, continue maintenance at the same
mileage/time intervals.

ADDITIONAL MAINTENANCE
ITEMS FOR SEVERE OPERATING
CONDITIONS

Additional maintenance items for severe
operating conditions;

should be performed

on vehicles that are driven under especially
demanding conditions. Additional mainte-
nance items should be performed if you
primarily operate your vehicle under the
following conditions:

.

Repeated short trips of less than 5 miles

(8 km).

.

Repeated short trips of less than 10 miles

(16 km) with outside temperatures re-
maining below freezing.

MAINTENANCE SCHEDULES

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

.

Operating in hot weather in stop-and-go

“rush hour” traffic.

.

Extensive idling and/or low speed driving

for long distances, such as police, taxi or
door-to-door delivery use.

.

Driving in dusty conditions.

.

Driving on rough, muddy or salt spread

roads.

.

Using a car-top carrier.

If your vehicle is mainly operated under the
severe conditions, follow the severe main-
tenance intervals shown in the maintenance
schedule.

OIL CONTROL SYSTEM

Your vehicle is equipped with oil control
system. It calculates engine oil and filter
change interval based on driving conditions.
Driving in severe conditions will shorten the
engine oil and filter change interval. When
the oil replacement indicator appears in the
vehicle information display, the engine oil
and filter need to be replaced.

Maintenance and schedules

9-7

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

9-8

Maintenance and schedules

The following shows the maintenance schedule.
Choose the maintenance schedule needed based on your vehicle driving conditions.

After 120,000 miles (192,000 km)/144 months, continue maintenance at the same mileage/time interval.

5,000 Miles/6 Months/8,000 Km

Standard maintenance:

.

Perform tire rotation (1)

Severe maintenance:

.

Inspect brake pads and rotors

.

Inspect exhaust system

.

Inspect steering gear and linkage

.

Inspect axle and suspension parts

.

Inspect propeller shaft (AWD models)

.

Inspect drive shaft boots (AWD models)

(1) If your vehicle is equipped with different sized
tires in the front and rear, tires cannot be rotated.

10,000 Miles/12 Months/16,000
Km

Standard maintenance:

.

Inspect brake lines and cables

.

Inspect brake pads and rotors

.

Inspect propeller shaft (AWD models)

.

Inspect drive shaft boots (AWD models)

.

Inspect stop lamp switch and brake pedal
position switch (1)

.

Inspect transfer fluid (2)

.

Inspect differential gear oil (2)

.

Replace engine oil and filter (3)

.

Perform tire rotation (4)

Severe maintenance:

.

Inspect brake pads and rotors

.

Inspect exhaust system

.

Inspect steering gear and linkage

.

Inspect axle and suspension parts

.

Inspect propeller shaft (AWD models)

.

Inspect drive shaft boots (AWD models)

.

Replace brake fluid

(1) Inspect the clearance between the brake pedal
and the switches.
(2) If using a car-top carrier, or driving on rough or
muddy roads, change (not just inspect) oil at every
20,000 miles (32,000 km) or 24 months.
(3) If the oil replacement indicator is displayed,
change the engine oil and filter as soon as
possible. After replacing the engine oil, reset the
display.
(4) If your vehicle is equipped with different sized
tires in the front and rear, tires cannot be rotated.

STANDARD MAINTENANCE

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

15,000 Miles/18 Months/24,000
Km

Standard maintenance:

.

Inspect Intelligent Key battery

.

Replace In-cabin microfilter

.

Perform tire rotation (1)

Severe maintenance:

.

Inspect brake pads and rotors

.

Inspect exhaust system

.

Inspect steering gear and linkage

.

Inspect axle and suspension parts

.

Inspect propeller shaft (AWD models)

.

Inspect drive shaft boots (AWD models)

(1) If your vehicle is equipped with different sized
tires in the front and rear, tires cannot be rotated.

20,000 Miles/24 Months/32,000
Km

Standard maintenance:

.

Inspect brake lines and cables

.

Inspect brake pads and rotors

.

Inspect EVAP vapor lines and fuel lines

.

Inspect exhaust system

.

Inspect propeller shaft (AWD models)

.

Inspect drive shaft boots (AWD models)

.

Inspect steering gear and linkage

.

Inspect axle and suspension parts

.

Inspect stop lamp switch and brake pedal
position switch (1)

.

Inspect transfer fluid

.

Inspect differential gear oil

.

Replace brake fluid

.

Replace engine oil and filter (2)

.

Perform tire rotation (3)

Severe maintenance:

.

Inspect brake pads and rotors

.

Inspect exhaust system

.

Inspect steering gear and linkage

.

Inspect axle and suspension parts

.

Inspect propeller shaft (AWD models)

.

Inspect drive shaft boots (AWD models)

.

Replace brake fluid

.

Replace transfer fluid

.

Replace differential gear oil

(1) Inspect the clearance between the brake pedal
and the switches.
(2) If the oil replacement indicator is displayed,
change the engine oil and filter as soon as
possible. After replacing the engine oil, reset the
display.
(3) If your vehicle is equipped with different sized
tires in the front and rear, tires cannot be rotated.

Maintenance and schedules

9-9

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

9-10

Maintenance and schedules

25,000 Miles/30 Months/40,000
Km

Standard maintenance:

.

Perform tire rotation (1)

Severe maintenance:

.

Inspect brake pads and rotors

.

Inspect exhaust system

.

Inspect steering gear and linkage

.

Inspect axle and suspension parts

.

Inspect propeller shaft (AWD models)

.

Inspect drive shaft boots (AWD models)

(1) If your vehicle is equipped with different sized
tires in the front and rear, tires cannot be rotated.

30,000 Miles/36 Months/48,000
Km

Standard maintenance:

.

Inspect brake lines and cables

.

Inspect brake pads and rotors

.

Inspect propeller shaft (AWD models)

.

Inspect drive shaft boots (AWD models)

.

Inspect stop lamp switch and brake pedal
position switch (1)

.

Inspect transfer fluid

.

Inspect differential gear oil

.

Replace air cleaner filter (2)

.

Replace engine oil and filter (3)

.

Replace In-cabin microfilter

.

Replace Intelligent Key battery

.

Perform tire rotation (4)

Severe maintenance:

.

Inspect brake pads and rotors

.

Inspect exhaust system

.

Inspect steering gear and linkage

.

Inspect axle and suspension parts

.

Inspect propeller shaft (AWD models)

.

Inspect drive shaft boots (AWD models)

.

Replace brake fluid

(1) Inspect the clearance between the brake pedal
and the switches.
(2) If operating mainly in dusty conditions, more
frequent maintenance may be required.
(3) If the oil replacement indicator is displayed,
change the engine oil and filter as soon as
possible. After replacing the engine oil, reset the
display.
(4) If your vehicle is equipped with different sized
tires in the front and rear, tires cannot be rotated.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

35,000 Miles/42 Months/56,000
Km

Standard maintenance:

.

Perform tire rotation (1)

Severe maintenance:

.

Inspect brake pads and rotors

.

Inspect exhaust system

.

Inspect steering gear and linkage

.

Inspect axle and suspension parts

.

Inspect propeller shaft (AWD models)

.

Inspect drive shaft boots (AWD models)

(1) If your vehicle is equipped with different sized
tires in the front and rear, tires cannot be rotated.

40,000 Miles/48 Months/64,000
Km

Standard maintenance:

.

Inspect brake lines and cables

.

Inspect brake pads and rotors

.

Inspect drive belts (1)

.

Inspect EVAP vapor lines and fuel lines

.

Inspect exhaust system

.

Inspect propeller shaft (AWD models)

.

Inspect drive shaft boots (AWD models)

.

Inspect steering gear and linkage

.

Inspect axle and suspension parts

.

Inspect stop lamp switch and brake pedal
position switch (2)

.

Inspect transfer fluid

.

Inspect differential gear oil

.

Replace brake fluid

.

Replace engine oil and filter (3)

.

Perform tire rotation (4)

Severe maintenance:

.

Inspect brake pads and rotors

.

Inspect exhaust system

.

Inspect steering gear and linkage

.

Inspect axle and suspension parts

.

Inspect propeller shaft (AWD models)

.

Inspect drive shaft boots (AWD models)

.

Replace brake fluid

.

Replace transfer fluid

.

Replace differential gear oil

(1) Replace the drive belts if found damaged.
(2) Inspect the clearance between the brake pedal
and the switches.
(3) If the oil replacement indicator is displayed,
change the engine oil and filter as soon as
possible. After replacing the engine oil, reset the
display.
(4) If your vehicle is equipped with different sized
tires in the front and rear, tires cannot be rotated.

Maintenance and schedules

9-11

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

9-12

Maintenance and schedules

45,000 Miles/54 Months/72,000
Km

Standard maintenance:

.

Replace In-cabin microfilter

.

Replace Intelligent Key battery

.

Perform tire rotation (1)

Severe maintenance:

.

Inspect brake pads and rotors

.

Inspect exhaust system

.

Inspect steering gear and linkage

.

Inspect axle and suspension parts

.

Inspect propeller shaft (AWD models)

.

Inspect drive shaft boots (AWD models)

(1) If your vehicle is equipped with different sized
tires in the front and rear, tires cannot be rotated.

50,000 Miles/60 Months/80,000
Km

Standard maintenance:

.

Inspect brake lines and cables

.

Inspect brake pads and rotors

.

Inspect drive belts (1)

.

Inspect propeller shaft (AWD models)

.

Inspect drive shaft boots (AWD models)

.

Inspect stop lamp switch and brake pedal
position switch (2)

.

Inspect transfer fluid

.

Inspect differential gear oil

.

Replace engine oil and filter (3)

.

Perform tire rotation (4)

Severe maintenance:

.

Inspect brake pads and rotors

.

Inspect exhaust system

.

Inspect steering gear and linkage

.

Inspect axle and suspension parts

.

Inspect propeller shaft (AWD models)

.

Inspect drive shaft boots (AWD models)

.

Replace brake fluid

(1) Replace the drive belts if found damaged.
(2) Inspect the clearance between the brake pedal
and the switches.
(3) If the oil replacement indicator is displayed,
change the engine oil and filter as soon as
possible. After replacing the engine oil, reset the
display.
(4) If your vehicle is equipped with different sized
tires in the front and rear, tires cannot be rotated.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

55,000 Miles/66 Months/88,000
Km

Standard maintenance:

.

Perform tire rotation (1)

Severe maintenance:

.

Inspect brake pads and rotors

.

Inspect exhaust system

.

Inspect steering gear and linkage

.

Inspect axle and suspension parts

.

Inspect propeller shaft (AWD models)

.

Inspect drive shaft boots (AWD models)

(1) If your vehicle is equipped with different sized
tires in the front and rear, tires cannot be rotated.

60,000 Miles/72 Months/96,000
Km

Standard maintenance:

.

Inspect brake lines and cables

.

Inspect brake pads and rotors

.

Inspect drive belts (1)

.

Inspect EVAP vapor lines and fuel lines

.

Inspect exhaust system

.

Inspect propeller shaft (AWD models)

.

Inspect drive shaft boots (AWD models)

.

Inspect steering gear and linkage

.

Inspect axle and suspension parts

.

Inspect stop lamp switch and brake pedal
position switch (2)

.

Inspect transfer fluid

.

Inspect differential gear oil

.

Replace air cleaner filter (3)

.

Replace brake fluid

.

Replace engine oil and filter (4)

.

Replace In-cabin microfilter

.

Replace Intelligent Key battery

.

Perform tire rotation (5)

Severe maintenance:

.

Inspect brake pads and rotors

.

Inspect exhaust system

.

Inspect steering gear and linkage

.

Inspect axle and suspension parts

.

Inspect propeller shaft (AWD models)

.

Inspect drive shaft boots (AWD models)

.

Replace brake fluid

.

Replace transfer fluid

.

Replace differential gear oil

(1) Replace the drive belts if found damaged.
(2) Inspect the clearance between the brake pedal
and the switches.
(3) If operating mainly in dusty conditions, more
frequent maintenance may be required.
(4) If the oil replacement indicator is displayed,
change the engine oil and filter within two weeks
or less than 500 miles (800 km).
(5) If your vehicle is equipped with different sized
tires in the front and rear, tires cannot be rotated.

Maintenance and schedules

9-13

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

9-14

Maintenance and schedules

65,000 Miles/78 Months/104,000
Km

Standard maintenance:

.

Perform tire rotation (1)

Severe maintenance:

.

Inspect brake pads and rotors

.

Inspect exhaust system

.

Inspect steering gear and linkage

.

Inspect axle and suspension parts

.

Inspect propeller shaft (AWD models)

.

Inspect drive shaft boots (AWD models)

(1) If your vehicle is equipped with different sized
tires in the front and rear, tires cannot be rotated.

70,000 Miles/84 Months/112,000
Km

Standard maintenance:

.

Inspect brake lines and cables

.

Inspect brake pads and rotors

.

Inspect drive belts (1)

.

Inspect propeller shaft (AWD models)

.

Inspect drive shaft boots (AWD models)

.

Inspect stop lamp switch and brake pedal
position switch (2)

.

Inspect transfer fluid

.

Inspect differential gear oil

.

Replace engine oil and filter (3)

.

Perform tire rotation (4)

Severe maintenance:

.

Inspect brake pads and rotors

.

Inspect exhaust system

.

Inspect steering gear and linkage

.

Inspect axle and suspension parts

.

Inspect propeller shaft (AWD models)

.

Inspect drive shaft boots (AWD models)

.

Replace brake fluid

(1) Replace the drive belts if found damaged.
(2) Inspect the clearance between the brake pedal
and the switches.
(3) If the oil replacement indicator is displayed,
change the engine oil and filter as soon as
possible. After replacing the engine oil, reset the
display.
(4) If your vehicle is equipped with different sized
tires in the front and rear, tires cannot be rotated.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

75,000 Miles/90 Months/120,000
Km

Standard maintenance:

.

Replace In-cabin microfilter

.

Replace Intelligent Key battery

.

Perform tire rotation (1)

Severe maintenance:

.

Inspect brake pads and rotors

.

Inspect exhaust system

.

Inspect steering gear and linkage

.

Inspect axle and suspension parts

.

Inspect propeller shaft (AWD models)

.

Inspect drive shaft boots (AWD models)

(1) If your vehicle is equipped with different sized
tires in the front and rear, tires cannot be rotated.

80,000 Miles/96 Months/128,000
Km

Standard maintenance:

.

Inspect brake lines and cables

.

Inspect brake pads and rotors

.

Inspect drive belts (1)

.

Inspect EVAP vapor lines and fuel lines

.

Inspect exhaust system

.

Inspect propeller shaft (AWD models)

.

Inspect drive shaft boots (AWD models)

.

Inspect steering gear and linkage

.

Inspect axle and suspension parts

.

Inspect stop lamp switch and brake pedal
position switch (2)

.

Inspect transfer fluid

.

Inspect differential gear oil

.

Replace brake fluid

.

Replace engine oil and filter (3)

.

Perform tire rotation (4)

Severe maintenance:

.

Inspect brake pads and rotors

.

Inspect exhaust system

.

Inspect steering gear and linkage

.

Inspect axle and suspension parts

.

Inspect propeller shaft (AWD models)

.

Inspect drive shaft boots (AWD models)

.

Replace brake fluid

.

Replace transfer fluid

.

Replace differential gear oil

(1) Replace the drive belts if found damaged.
(2) Inspect the clearance between the brake pedal
and the switches.
(3) If the oil replacement indicator is displayed,
change the engine oil and filter as soon as
possible. After replacing the engine oil, reset the
display.
(4) If your vehicle is equipped with different sized
tires in the front and rear, tires cannot be rotated.

Maintenance and schedules

9-15

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

9-16

Maintenance and schedules

85,000 Miles/102 Months/
136,000 Km

Standard maintenance:

.

Perform tire rotation (1)

Severe maintenance:

.

Inspect brake pads and rotors

.

Inspect exhaust system

.

Inspect steering gear and linkage

.

Inspect axle and suspension parts

.

Inspect propeller shaft (AWD models)

.

Inspect drive shaft boots (AWD models)

(1) If your vehicle is equipped with different sized
tires in the front and rear, tires cannot be rotated.

90,000 Miles/108 Months/
144,000 Km

Standard maintenance:

.

Inspect brake lines and cables

.

Inspect brake pads and rotors

.

Inspect drive belts (1)

.

Inspect propeller shaft (AWD models)

.

Inspect drive shaft boots (AWD models)

.

Inspect stop lamp switch and brake pedal
position switch (2)

.

Inspect transfer fluid

.

Inspect differential gear oil

.

Replace air cleaner filter (3)

.

Replace engine oil and filter (4)

.

Replace In-cabin microfilter

.

Replace Intelligent Key battery

.

Perform tire rotation (5)

Severe maintenance:

.

Inspect brake pads and rotors

.

Inspect exhaust system

.

Inspect steering gear and linkage

.

Inspect axle and suspension parts

.

Inspect propeller shaft (AWD models)

.

Inspect drive shaft boots (AWD models)

.

Replace brake fluid

(1) Replace the drive belts if found damaged.
(2) Inspect the clearance between the brake pedal
and the switches.
(3) If operating mainly in dusty conditions, more
frequent maintenance may be required.
(4) If the oil replacement indicator is displayed,
change the engine oil and filter as soon as
possible. After replacing the engine oil, reset the
display.
(5) If your vehicle is equipped with different sized
tires in the front and rear, tires cannot be rotated.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

95,000 Miles/114 Months/
152,000 Km

Standard maintenance:

.

Perform tire rotation (1)

Severe maintenance:

.

Inspect brake pads and rotors

.

Inspect exhaust system

.

Inspect steering gear and linkage

.

Inspect axle and suspension parts

.

Inspect propeller shaft (AWD models)

.

Inspect drive shaft boots (AWD models)

(1) If your vehicle is equipped with different sized
tires in the front and rear, tires cannot be rotated.

100,000 Miles/120 Months/
160,000 Km

Standard maintenance:

.

Inspect brake lines and cables

.

Inspect brake pads and rotors

.

Inspect drive belts (1)

.

Inspect EVAP vapor lines and fuel lines

.

Inspect exhaust system

.

Inspect propeller shaft (AWD models)

.

Inspect drive shaft boots (AWD models)

.

Inspect steering gear and linkage

.

Inspect axle and suspension parts

.

Inspect stop lamp switch and brake pedal
position switch (2)

.

Inspect transfer fluid

.

Inspect differential gear oil

.

Replace brake fluid

.

Replace engine oil and filter (3)

.

Perform tire rotation (4)

Severe maintenance:

.

Inspect brake pads and rotors

.

Inspect exhaust system

.

Inspect steering gear and linkage

.

Inspect axle and suspension parts

.

Inspect propeller shaft (AWD models)

.

Inspect drive shaft boots (AWD models)

.

Replace brake fluid

.

Replace transfer fluid

.

Replace differential gear oil

(1) Replace the drive belts if found damaged.
(2) Inspect the clearance between the brake pedal
and the switches.
(3) If the oil replacement indicator is displayed,
change the engine oil and filter as soon as
possible. After replacing the engine oil, reset the
display.
(4) If your vehicle is equipped with different sized
tires in the front and rear, tires cannot be rotated.

Maintenance and schedules

9-17

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

9-18

Maintenance and schedules

105,000 Miles/126 Months/
168,000 Km

Standard maintenance:

.

Replace In-cabin microfilter

.

Replace Intelligent Key battery

.

Perform tire rotation (1)

.

Replace spark plugs (2) (3)

.

Replace engine coolant* (4)

Severe maintenance:

.

Inspect brake pads and rotors

.

Inspect exhaust system

.

Inspect steering gear and linkage

.

Inspect axle and suspension parts

.

Inspect propeller shaft (AWD models)

.

Inspect drive shaft boots (AWD models)

(1) If your vehicle is equipped with different sized
tires in the front and rear, tires cannot be rotated.
(2) Performed based on the number of miles only.
(3) Replace spark plug when the plug gap exceeds
0.043 in (1.1 mm) even if within specified periodic
replacement mileage.
(4) First replacement interval is 105,000 miles
(168,000 km) or 84 months. After first replace-
ment, replace every 75,000 miles (120,000 km)
or 60 months.
*: Maintenance items and intervals with "*" are
recommended by INFINITI for reliable vehicle
operation. The owner need not perform such
maintenance in order to maintain the emission
warranty or manufacturer recall liability. Other
maintenance items and intervals are required.

110,000 Miles/132 Months/
176,000 Km

Standard maintenance:

.

Inspect brake lines and cables

.

Inspect brake pads and rotors

.

Inspect drive belts (1)

.

Inspect propeller shaft (AWD models)

.

Inspect drive shaft boots (AWD models)

.

Inspect stop lamp switch and brake pedal
position switch (2)

.

Inspect transfer fluid

.

Inspect differential gear oil

.

Replace engine oil and filter (3)

.

Perform tire rotation (4)

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Severe maintenance:

.

Inspect brake pads and rotors

.

Inspect exhaust system

.

Inspect steering gear and linkage

.

Inspect axle and suspension parts

.

Inspect propeller shaft (AWD models)

.

Inspect drive shaft boots (AWD models)

.

Replace brake fluid

(1) Replace the drive belts if found damaged.
(2) Inspect the clearance between the brake pedal
and the switches.
(3) If the oil replacement indicator is displayed,
change the engine oil and filter as soon as
possible. After replacing the engine oil, reset the
display.
(4) If your vehicle is equipped with different sized
tires in the front and rear, tires cannot be rotated.

115,000 Miles/138 Months/
184,000 Km

Standard maintenance:

.

Perform tire rotation (1)

Severe maintenance:

.

Inspect brake pads and rotors

.

Inspect exhaust system

.

Inspect steering gear and linkage

.

Inspect axle and suspension parts

.

Inspect propeller shaft (AWD models)

.

Inspect drive shaft boots (AWD models)

(1) If your vehicle is equipped with different sized
tires in the front and rear, tires cannot be rotated.

120,000 Miles/144 Months/
192,000 Km

Standard maintenance:

.

Inspect brake lines and cables

.

Inspect brake pads and rotors

.

Inspect drive belts (1)

.

Inspect EVAP vapor lines and fuel lines

.

Inspect exhaust system

.

Inspect propeller shaft (AWD models)

.

Inspect drive shaft boots (AWD models)

.

Inspect steering gear and linkage

.

Inspect axle and suspension parts

.

Inspect stop lamp switch and brake pedal
position switch (2)

.

Inspect transfer fluid

.

Inspect differential gear oil

.

Replace air cleaner filter (3)

.

Replace brake fluid

.

Replace engine oil and filter (4)

.

Replace In-cabin microfilter

.

Replace Intelligent Key battery

.

Perform tire rotation (5)

Maintenance and schedules

9-19

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

9-20

Maintenance and schedules

Severe maintenance:

.

Inspect brake pads and rotors

.

Inspect exhaust system

.

Inspect steering gear and linkage

.

Inspect axle and suspension parts

.

Inspect propeller shaft (AWD models)

.

Inspect drive shaft boots (AWD models)

.

Replace brake fluid

.

Replace transfer fluid

.

Replace differential gear oil

(1) Replace the drive belts if found damaged.
(2) Inspect the clearance between the brake pedal
and the switches.
(3) If operating mainly in dusty conditions, more
frequent maintenance may be required.
(4) If the oil replacement indicator is displayed,
change the engine oil and filter within two weeks
or less than 500 miles (800 km).
(5) If your vehicle is equipped with different sized
tires in the front and rear, tires cannot be rotated.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

10 Technical and consumer information

Capacities and recommended fluids/lubricants ..... 10-2

Fuel information ....................................................... 10-4
Engine oil and oil filter recommendation ........... 10-6
Air conditioning system refrigerant and
oil recommendations ................................................ 10-7

Specifications .................................................................. 10-8

Engine .......................................................................... 10-8
Wheels and tires ........................................................ 10-9
Dimensions ............................................................... 10-10

When traveling or registering in
another country ............................................................. 10-11
Vehicle identification ................................................... 10-11

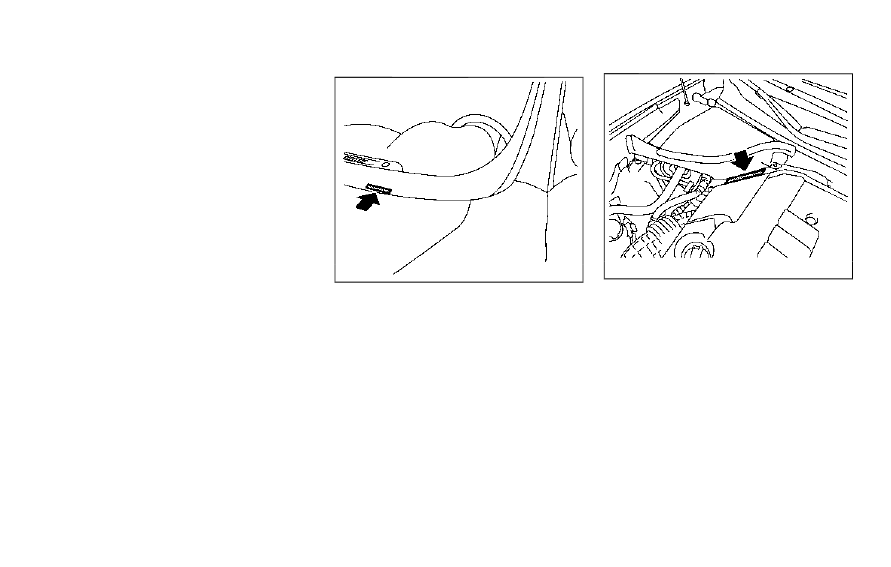

Vehicle Identification Number (VIN) plate ....... 10-11
Vehicle identification number
(chassis number) ...................................................... 10-11

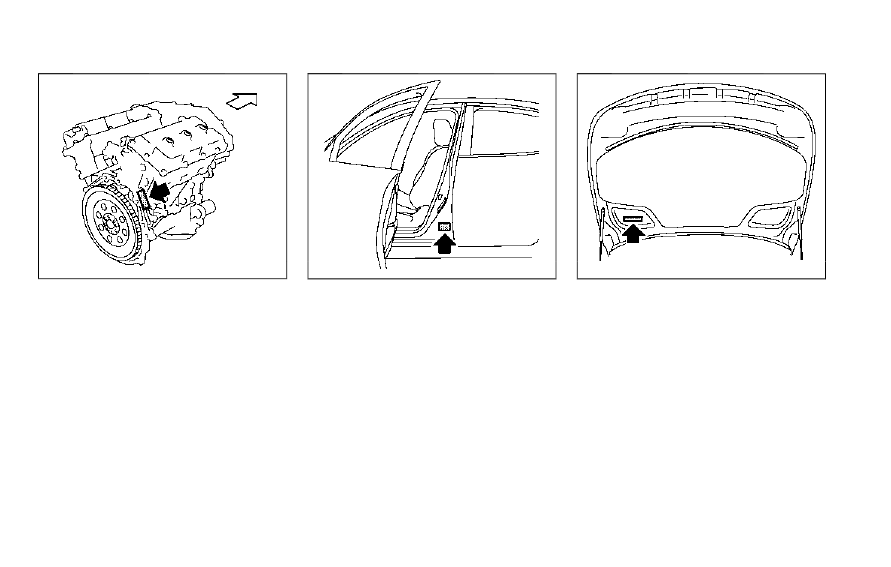

Engine serial number ............................................. 10-12

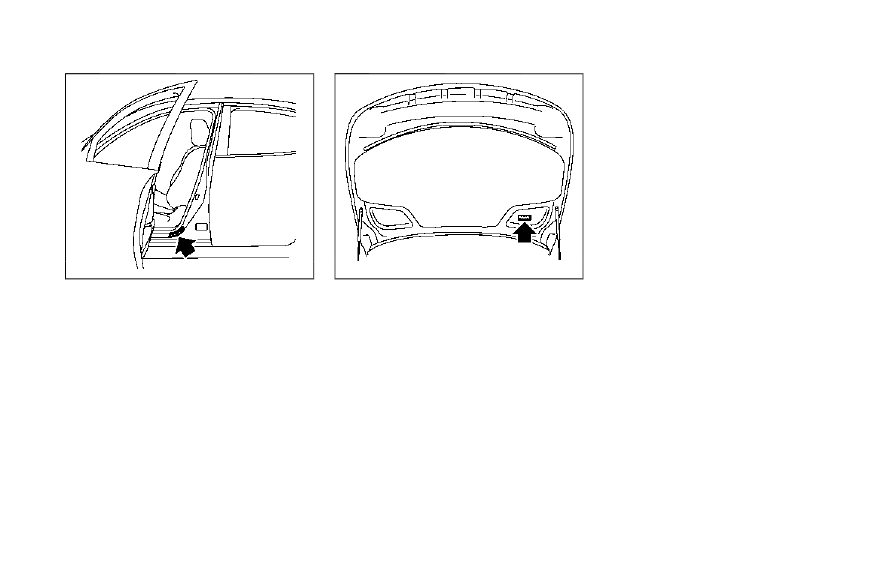

F.M.V.S.S./C.M.V.S.S. certification label ........ 10-12
Emission control information label ................... 10-12
Tire and loading information label .................... 10-13
Air conditioner specification label ..................... 10-13

Installing front license plate ..................................... 10-15
Removing air deflectors ............................................ 10-16
Vehicle loading information ...................................... 10-17

Terms ........................................................................ 10-17
Vehicle load capacity .......................................... 10-18
Loading tips ........................................................... 10-19
Measurement of weights ................................... 10-19

Towing a trailer ........................................................... 10-20

Flat towing ............................................................. 10-20

Uniform tire quality grading .................................... 10-20

Treadwear .............................................................. 10-20
Traction AA, A, B and C ..................................... 10-21
Temperature A, B and C .................................... 10-21

Emission control system warranty ......................... 10-21
Reporting safety defects .......................................... 10-22
Readiness for Inspection/Maintenance (I/M)
test (US only) ................................................................ 10-23
Event Data Recorders (EDR) ................................... 10-24
Owner’s Manual/Service Manual
order information ........................................................ 10-24

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

10-2

Technical and consumer information

The following are approximate capacities. The actual refill capacities may be a little different. When refilling, follow the procedure
instructed in the “8. Do-it-yourself” section to determine the proper refill capacity.

Fluid type

Capacity (approximate)

Recommended Fluids/Lubricants

Metric

Measure

US

Measure

Imperial

Measure

Fuel

76 L

20 gal

16-5/8 gal

ā

See “Fuel information” (P.10-4).

Engine oil

*1

Drain and refill

*1

: For additional information,

see “Engine oil” (P.8-7).

Two-Wheel
Drive (2WD)
model

With oil filter
change

5.3 L

5-5/8 qt

4-5/8 qt

ā

Genuine “NISSAN Motor Oil 0W-20 SP” (or equivalent) is recommended.

ā

If the above motor oil (or engine oil) is not available, a synthetic 0W-20 GF-

6 SP motor oil (or engine oil) may be used. Damage caused by the use of
motor oil (or engine oil) other than as recommended is not covered under
INFINITI’s New Vehicle Limited Warranty. For additional information, see
“Engine oil and oil filter recommendation” (P.10-6).

Without oil filter
change

5.1 L

5-3/8 qt

4-1/2 qt

All-Wheel
Drive (AWD)
model

With oil filter
change

5.9 L

6-1/4 qt

5-1/4 qt

Without oil filter
change

5.7 L

6 qt

5 qt

Engine coolant

Total (with reservoir)
Standard and premium grade

9.3 L

9-7/8 qt

8-1/8 qt

ā

Pre-diluted Genuine NISSAN Long Life Antifreeze/Coolant (blue) or

equivalent

Total (with reservoir)
Sport grade

10.4 L

11 qt

9-1/8 qt

Reservoir

0.5 L

1/2 qt

1/2 qt

Intercooler coolant

Total (with reservoir)

3.2 L

3-3/8 qt

2-7/8 qt

Reservoir

0.4 L

3/8 qt

3/8 qt

Automatic Transmission Fluid (ATF)

ā

Genuine NISSAN Matic S ATF or equivalent

ā

INFINITI recommends using Genuine NISSAN Matic S ATF (or equivalent)

ONLY in INFINITI automatic transmissions. Do not mix with other fluids.
Using fluids that are not equivalent to Genuine NISSAN Matic S ATF may
damage the automatic transmission. Damage caused by the use of fluids
other than as recommended is not covered under the INFINITI’s New
Vehicle Limited Warranty.

Differential gear oil

Front

ā

Genuine NISSAN Differential Oil Hypoid Super GL-5 80W-90 or

equivalent conventional (non-synthetic) oil.

Rear

ā

Genuine NISSAN HYPOID FLUID·S1 GL-5 75W-80 or equivalent

Transfer fluid

ā

Genuine NISSAN Matic J ATF or equivalent

ā

INFINITI recommends using Genuine NISSAN Matic J ATF (or equivalent)

ONLY in INFINITI transfers. Do not mix with other fluids. Using fluids that
are not equivalent to Genuine NISSAN Matic J ATF may damage the
transfer. Damage caused by the use of fluids other than as recommended is
not covered under the INFINITI’s New Vehicle Limited Warranty.

Brake fluid

Refill to the proper oil level according to the

instructions in the “8. Do-it-yourself” section.

ā

Genuine NISSAN Super Heavy Duty Brake Fluid

*2

or equivalent DOT 3

*2

: Available in mainland U.S.A. through an INFINITI retailer.

Multi-purpose grease

ā

NLGI No. 2 (Lithium soap base)

CAPACITIES AND RECOMMENDED
FLUIDS/LUBRICANTS

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Fluid type

Capacity (approximate)

Recommended Fluids/Lubricants

Metric

Measure

US

Measure

Imperial

Measure

Air conditioning system refrigerant

ā

HFO-1234yf (R-1234yf)

For additional information, see “Vehicle identification” (P.10-11) for air
conditioner specification label.

Air conditioning system oil

ā

NISSAN A/C System Oil SP-A2 (PAG) or exact equivalent

Window washer fluid

ā

Genuine NISSAN Windshield Washer Concentrate Cleaner & Antifreeze or

equivalent

Technical and consumer information

10-3

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

10-4

Technical and consumer information

FUEL INFORMATION

Use unleaded premium gasoline with an
octane rating of at least 91 AKI (Anti-Knock
Index) number (Research octane number 96).
INFINITI recommends the use of unleaded
premium gasoline with 93 AKI number
(Research octane number 98) to obtain the
maximum vehicle performance and the best
driveability.
If unleaded premium gasoline is not avail-
able, unleaded regular gasoline with an
octane rating of at least 87 AKI number
(Research octane number 91) may be tem-
porarily used, but only under the following
precautions:

.

Have the fuel tank filled only partially

with unleaded regular gasoline, and fill
up with unleaded premium gasoline as
soon as possible.

.

Avoid full throttle driving and abrupt

acceleration.

Use unleaded premium gasoline for max-
imum vehicle performance.

CAUTION

.

Using a fuel other than that specified
could adversely affect the emission
control system, and may also affect
warranty coverage.

.

Under no circumstances should a
leaded gasoline be used, because this
will damage the three-way catalyst.

.

Do not use a fuel containing more
than 15% ethanol in your vehicle.
Your vehicle is not designed to run on
a fuel containing more than 15%
ethanol. Using a fuel containing more
than 15% ethanol in a vehicle not
specifically designed for a fuel con-
taining more than 15% ethanol can
adversely affect the emission control
devices and systems of the vehicle.
Damage caused by such fuel is not
covered by the INFINITI’s New Vehi-
cle Limited Warranty.

.

Do not use fuel that contains the
octane booster methylcyclopentadie-
nyl manganese tricarbonyl (MMT).
Using fuel containing MMT may
adversely affect vehicle performance
and vehicle emissions. Not all fuel
dispensers are labeled to indicate
MMT content, so you may have to
consult your gasoline retailer for
more details. Note that Federal and
California laws prohibit the use of
MMT in reformulated gasoline.

.

U.S. government regulations require
ethanol dispensing pumps to be iden-
tified by a small, square, orange and

black label with the common abbre-
viation or the appropriate percen-
tage for that region.

Gasoline specifications

INFINITI recommends using gasoline that
meets the World-Wide Fuel Charter
(WWFC) specifications where it is available.
Many of the automobile manufacturers
developed this specification to improve
emission system and vehicle performance.
Ask your service station manager if the
gasoline meets the World-Wide Fuel Char-
ter (WWFC) specifications.

Reformulated gasoline

Some fuel suppliers are now producing
reformulated gasolines. These gasolines are
specially designed to reduce vehicle emis-
sions. INFINITI supports efforts towards
cleaner air and suggests that you use
reformulated gasoline when available.

Gasoline containing oxygenates

Some fuel suppliers sell gasoline containing
oxygenates such as ethanol, MTBE and
methanol with or without advertising their
presence. INFINITI does not recommend the
use of fuels of which the oxygenate content
and the fuel compatibility for your INFINITI
cannot be readily determined. If in doubt, ask

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

your service station manager.
If you use oxygenate-blend gasoline, please
take the following precautions as the usage
of such fuels may cause vehicle performance
problems and/or fuel system damage.

.

The fuel should be unleaded and have an

octane rating no lower than that re-
commended for unleaded gasoline.

.

If an oxygenate-blend, excepting a

methanol blend, is used, it should con-
tain no more than 15% oxygenate.

.

If a methanol blend is used, it should

contain no more than 5% methanol
(methyl alcohol, wood alcohol). It should
also contain a suitable amount of ap-
propriate cosolvents and corrosion in-
hibitors. If not properly formulated with
appropriate cosolvents and corrosion
inhibitors, such methanol blends may
cause fuel system damage and/or vehi-
cle performance problems. At this time,
sufficient data is not available to ensure
that all methanol blends are suitable for
use in INFINITI vehicles.

If any undesirable driveability problems such
as engine stalling or hard hot starting are
experienced after using oxygenate-blend
fuels, immediately change to a non-oxyge-
nate fuel or a fuel with a low blend of MTBE.

Take care not to spill gasoline during
refueling. Gasoline containing oxygenates

can cause paint damage.

E-15 fuel

E-15 fuel is a mixture of approximately 15%
fuel ethanol and 85% unleaded gasoline. E-
15 can only be used in vehicles designed to
run on E-15 fuel. Do not use E-15 in your
vehicle. U.S. government regulations require
fuel ethanol dispensing pumps to be identi-
fied with small, square, orange and black
label with the common abbreviation or the
appropriate percentage for that region.

E-85 fuel

E-85 fuel is a mixture of approximately 85%
fuel ethanol and 15% unleaded gasoline. E-
85 can only be used in a Flexible Fuel Vehicle
(FFV). Do not use E-85 fuel in your vehicle.
U.S. government regulations require fuel
ethanol dispensing pumps to be identified
by a small, square, orange and black label
with the common abbreviation or the appro-
priate percentage for that region.

Fuel containing MMT

MMT, or methylcyclopentadienyl manga-
nese tricarbonyl, is an octane boosting
additive. INFINITI does not recommend the
use of fuel containing MMT. Such fuel may
adversely affect vehicle performance, in-
cluding the emissions control system. Note
that while some fuel pumps label MMT

content, not all do, so you may have to
consult your gasoline retailer for more de-
tails.

Aftermarket fuel additives

INFINITI does not recommend the use of any
aftermarket fuel additives (Example: fuel
injector cleaner, octane booster, intake valve
deposit removers, etc.) which are sold com-
mercially. Many of these additives intended
for gum, varnish or deposit removal may
contain active solvent or similar ingredients
that can be harmful to the fuel system and
engine.

Octane rating tips

Using unleaded gasoline with an octane
rating lower than recommended above can
cause persistent, heavy spark knock. (Spark
knock is a metallic rapping noise.) If severe,
this can lead to engine damage. If you
detect a persistent heavy spark knock even
when using gasoline of the stated octane
rating, or if you hear steady spark knock
while holding a steady speed on level roads,
it is recommended you have an INFINITI
retailer correct the condition. Failure to
correct the condition is misuse of the
vehicle, for which INFINITI is not respon-
sible.

Incorrect ignition timing will result in knock-
ing, after-run or overheating. This in turn

Technical and consumer information

10-5

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

10-6

Technical and consumer information

may cause excessive fuel consumption or
damage to the engine. If any of the above
symptoms are encountered, have your ve-
hicle checked. It is recommended you visit an
INFINITI retailer for servicing.

However, now and then you may notice
light spark knock for a short time while
accelerating or driving up hills. This is no
cause for concern, because you get the
greatest fuel benefit when there is light
spark knock for a short time under heavy
engine load.

WAJ0357X

API certification mark
API service symbol

ENGINE OIL AND OIL FILTER
RECOMMENDATION

Selecting the correct oil

It is essential to choose the correct grade,
quality, and viscosity engine oil to ensure
satisfactory engine life and performance,
see “Capacities and recommended fluids/
lubricants” (P.10-2). INFINITI recommends
the use of an energy conserving oil in order
to improve fuel economy.
Select only engine oils that meet the Amer-
ican Petroleum Institute (API) certification

or International Lubricant Standardization
and Approval Committee (ILSAC) certifica-
tion and SAE viscosity standard. These oils
have the API certification mark on the front
of the container. Oils which do not have the
specified quality label should not be used as
they could cause engine damage.

Oil additives

INFINITI does not recommend the use of oil
additives. The use of an oil additive is not
necessary when the proper oil type is used
and maintenance intervals are followed.
Oil which may contain foreign matter or has
been previously used should not be used.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Oil viscosity

The engine oil viscosity or thickness changes
with temperature. Because of this, it is
important that the engine oil viscosity be
selected based on the temperatures at which
the vehicle will be operated before the next
oil change. Choosing an oil viscosity other
than that recommended could cause serious
engine damage.

Selecting the correct oil filter

Your new vehicle is equipped with a high-
quality genuine NISSAN oil filter. When
replacing, use the genuine oil filter or its
equivalent for the reason described in
change intervals.

Change intervals

The oil and oil filter change intervals for your
engine are based on the use of the specified
quality oils and filters. Oil and filter other
than the specified quality, or oil and filter
change intervals longer than recommended
could reduce engine life. Damage to engines
caused by improper maintenance or use of
incorrect oil and filter quality and/or vis-
cosity is not covered by the new INFINITI
vehicle limited warranties.
Your engine was filled with a high quality
engine oil when it was built. You do not have
to change the oil before the first recom-

mended change interval. Oil and filter
change intervals depend upon how you use
your vehicle. Operation under the following
conditions may require more frequent oil and
filter changes.

AIR CONDITIONING SYSTEM RE-
FRIGERANT AND OIL RECOM-
MENDATIONS

The air conditioner system in your INFINITI
vehicle must be charged with the refriger-
ant HFO-1234yf (R-1234yf) and NISSAN
A/C System Oil SP-A2 (PAG) or the exact
equivalents.

CAUTION

The use of any other refrigerant or oil
will cause severe damage to the air
conditioning system and will require the
replacement of all air conditioner system
components.

The refrigerant HFO-1234yf (R-1234yf) in
your INFINITI vehicle does not harm the
earth’s ozone layer. Although this refrigerant
does not affect the earth’s atmosphere,
certain government regulations require the
recovery and recycling of any refrigerant
during automotive air conditioner system

service. Air conditioner system should only
be serviced by trained and certified techni-
cians to ensure proper and safe operation
(SAE J2845). An INFINITI retailer has the
trained technicians and equipment needed
to recover and recycle your air conditioner
s y s t e m r e f r i g e r a n t . O n l y n e w a n d
SAEJ2842 certified evaporator(s) shall be
used as replacement parts.
A damaged or leaking air conditioning
evaporator shall never be repaired or re-
placed with one removed from a used or
salvaged vehicle. To replace a damaged or
leaking evaporator, use only new and SAE
J2842 certified evaporator(s). It is recom-
mended that you visit an INFINITI retailer
when servicing your air conditioner system.

Technical and consumer information

10-7

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

10-8

Technical and consumer information

ENGINE

Model

VR30DDTT

Type

Gasoline, 4-cycle

Cylinder arrangement

6-cylinder, V-slanted at 60°

Bore × Stroke

in (mm)

3.386× 3.386
(86.0 × 86.0)

Displacement

cu in (cm

3

)

182.88 (2,997)

Firing order

1-2-3-4-5-6

Idle speed

rpm

No adjustment is necessary.

Ignition timing
(B.T.D.C.)

degree/rpm

Spark plug

DILKAR8K8G

Spark plug gap (Normal)

in (mm)

0.031 (0.8)

Camshaft operation

Timing chain

This spark ignition system complies with the Canadian standard ICES-002.

STI0425

SPECIFICATIONS

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WHEELS AND TIRES

Road wheel

Type

Size

Offset in (mm)

Conventional

17 × 7.5J

1.77 (45)

18 × 7.5J

1.77 (45)

19 × 8.5J

1.97 (50)

19 × 9J

1.85 (47)

19 × 9.5J

1.97 (50)

Tire

Type

Size

Pressure PSI (kPa) [Cold]

Conventional

P225/55RF17 95V

35 (240)

P225/50RF18 94V

P245/40RF19 94V

245/40RF19 94W

Front: 245/40RF19 94W
Rear: 265/35RF19 94W

Technical and consumer information

10-9

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

10-10

Technical and consumer information

DIMENSIONS

in (mm)

Overall length (with front license plate)

189.6 (4,815)

Overall length (without front license plate)

189.1 (4,803)

Overall width

71.8 (1,824)

Overall height

56.8 (1,443)*1

57.2 (1,453)*2

Front tread

60.8 (1,544)*3
60.4 (1,534)*4

60.9 (1,547)*5
60.6 (1,539)*6

Rear tread

61.8 (1,570)*3, *5

61.4 (1,560)*4, *6

Wheelbase

112.2 (2,850)

*1: Two-Wheel Drive (2WD) models
*2: Intelligent All-Wheel Drive (AWD) models
*3: 17 × 7.5J and 18 × 7.5J wheel models
*4: 19 × 8.5J wheel models
*5: 17 × 7.5J wheel with Intelligent All-Wheel Drive (AWD) models
*6: 19 × 9J wheel (front) /19 × 9.5J wheel (rear) models

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If you plan to travel in another country,

you

should first find out if the fuel available is
suitable for your vehicle’s engine.
Using fuel with too low an octane rating may
cause engine damage. All gasoline vehicles
must be operated with unleaded gasoline.
Therefore, avoid taking your vehicle to areas
where appropriate fuel is not available.

When transferring the registration of your
vehicle to another country, state, province
or district,

it may be necessary to modify the

vehicle to meet local laws and regulations.
The laws and regulations for motor vehicle
emission control and safety standards vary
according to the country, state, province or
district; therefore, vehicle specifications may
differ.

When any vehicle is to be taken into
another country, state, province or district
and registered, its modifications, transpor-
tation, and registration are the responsi-
bility of the user. INFINITI is not responsible
for any inconvenience that may result.

STI0716

VEHICLE IDENTIFICATION NUM-
BER (VIN) PLATE

The vehicle identification number plate is
attached as shown. This number is the
identification for your vehicle and is used in
the vehicle registration.

STI0717

VEHICLE IDENTIFICATION NUM-
BER (chassis number)

The number is stamped as shown in the
engine compartment.

Technical and consumer information

10-11

WHEN TRAVELING OR REGISTERING
IN ANOTHER COUNTRY

VEHICLE IDENTIFICATION

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

10-12

Technical and consumer information

STI0509

ENGINE SERIAL NUMBER

The number is stamped on the engine as
shown.

STI0718

F.M.V.S.S./C.M.V.S.S. CERTIFICA-
TION LABEL

The Federal/Canadian Motor Vehicle Safety
Standards (F.M.V.S.S./C.M.V.S.S.) certifica-
tion label is affixed as shown. This label
contains valuable vehicle information, such
as: Gross Vehicle Weight Ratings (GVWR),
Gross Axle Weight Rating (GAWR), month
and year of manufacture, Vehicle Identifica-
tion Number (VIN), etc. Review it carefully.

STI0719

EMISSION CONTROL INFORMA-
TION LABEL

The emission control information label is
attached as shown.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

JVT0220X

TIRE AND LOADING INFORMA-
TION LABEL

The cold tire pressure is shown on the Tire
and Loading Information label affixed to the
pillar as illustrated.

STI0721

AIR CONDITIONER SPECIFICA-
TION LABEL

The air conditioner specification label is
attached as shown.

Technical and consumer information

10-13

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

10-14

Technical and consumer information

Air conditioner specification label symbols:

Symbol Name

Reference

Graphic

Caution

ISO 7000 0434

Air Conditioning System (MAC) ISO 2575 D01

MAC System Lubricant Type
(PAG–POE)

Requires Registered Technician
to Service MAC System

Flammable Refrigerant

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

JVT0530X

Use the following steps to mount the license
plate:
Before mounting the license plate, confirm
that the following parts are enclosed in the
plastic bag.
Only use the recommended mounting posi-
tion, otherwise the radar sensor (Intelligent
Cruise Control (ICC) system) (if so equipped)
obstruction may result.

.

License plate bracket

.

J-nut × 2

.

Screw × 2

.

Screw grommet × 2

1. Park the vehicle on flat, level ground.
2. Locate the center position

as illu-

strated. Position the license plate brack-
et at a distance of approximately 0.91 in
(23 mm)

from the bottom of the

bumper. Hold the license plate bracket
in place.

3. Mark the center of the hole

with a felt-

tip pen.

4. Carefully drill two pilot holes using a

0.35 in (9 mm) drill bit at the marked
locations.

(Be sure that the drill only

goes through the bumper fascia.)

5. Insert grommets into the hole on the

fascia.

6. Insert a flat-blade screwdriver into the

Technical and consumer information

10-15

INSTALLING FRONT LICENSE PLATE

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

10-16

Technical and consumer information

grommet hole to add 90° turn onto the
part

.

7. Install the license plate bracket with

screws.

STI0623

Left side

This vehicle is equipped with air deflectors in
front of the front wheels. The deflectors will
change the air flow to help improve aero-
dynamic performance.
When transporting your vehicle on a trailer,
the air deflectors may interfere with a steep
slope to a trailer bed. In this case, remove the
deflectors from the undercover of the ve-
hicle.
1. Loosen three screws as shown and

remove the left-side air deflector

.

2. Tighten the removed screw

in its

original position.

3. Perform the same procedure to remove

the right-side air deflector.

4. Store the two air deflectors and four

screws to reinstall in the reverse order.

5. When reinstalling, make sure all six

screws are firmly tightened on both air
deflectors.

REMOVING AIR DEFLECTORS

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

.

It is extremely dangerous to
ride in a cargo area inside the
vehicle. In a collision, people
riding in these areas are more
likely to be seriously injured or
killed.

.

Do not allow people to ride in
any area of vehicle that is not
equipped with seats and seat
belts.

.

Be sure everyone in your vehicle
is in a seat and using a seat belt
properly.

TERMS

It is important to familiarize yourself
with the following terms before load-
ing your vehicle:

.

Curb Weight (actual weight of

your vehicle) - vehicle weight in-
cluding: standard and optional
equipment, fluids, emergency
tools, and spare tire assembly. This
weight

does not

include passen-

gers and cargo.

.

GVW (Gross Vehicle Weight) -

curb weight plus the combined
weight of passengers and cargo.

.

GVWR (Gross Vehicle Weight Rat-

ing) - maximum total combined
weight of the unloaded vehicle,
passengers, luggage, hitch, trailer
tongue load and any other op-
tional equipment. This information
is located on the F.M.V.S.S./C.M.
V.S.S. label.

.

GAWR (Gross Axle Weight Rating)

- maximum weight (load) limit
specified for the front or rear axle.
This information is located on the
F.M.V.S.S./C.M.V.S.S. label.

.

GCWR (Gross Combined Weight

Rating) - The maximum total
weight rating of the vehicle, pas-
sengers, cargo, and trailer.

.

Vehicle Capacity Weight, Load

limit, Total load capacity - max-
imum total weight limit specified
of the load (passengers and cargo)
for the vehicle. This is the max-
imum combined weight of occu-

pants and cargo that can be
loaded into the vehicle. If the
vehicle is used to tow a trailer,
the trailer tongue weight must be
included as part of the cargo load.
This information is located on the
Tire and Loading Information la-
bel.

.

Cargo capacity - permissible

weight of cargo, the weight of
total occupants weight subtracted
from the load limit.

Technical and consumer information

10-17

VEHICLE LOADING INFORMATION

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

10-18

Technical and consumer information

STI0365

VEHICLE LOAD CAPACITY

Do not exceed the load limit of your
vehicle shown as “The combined
weight of occupants and cargo” on
the Tire and Loading Information
label. Do not exceed the number of
occupants shown as “Seating Capa-
city” on the Tire and Loading Infor-
mation label.
To get “the combined weight of
occupants and cargo”, add the weight
of all occupants, then add the total
luggage weight. Examples are shown
in the illustration.

Steps for determining correct load
limit

1.

Locate the statement “The com-
bined weight of occupants and
cargo should never exceed XXX
kg or XXX lbs” on your vehicle’s
placard.

2.

Determine the combined weight of
the driver and passengers that will
be riding in your vehicle.

3.

Subtract the combined weight of
the driver and passengers from
XXX kg or XXX lbs.

4.

The resulting figure equals the
available amount of cargo and
luggage load capacity. For exam-
ple, if the XXX amount equals
1400 lbs. and there will be five
150 lb. passengers in your vehicle,
the amount of available cargo and
luggage load capacity is 650 lbs.
(1400 − 750 (5 x 150) = 650 lbs or
640 − 340 (5 x 70) = 300 kg.)

5.

Determine the combined weight of
luggage and cargo being loaded on
the vehicle. That weight may not
safely exceed the available cargo
and luggage load capacity calcu-
lated in Step 4.

6.

If your vehicle will be towing a
trailer, load from your trailer will
be transferred to your vehicle.
Consult this manual to determine
how this reduces the available
cargo and luggage load capacity
of your vehicle.

Before driving a loaded vehicle, con-
firm that you do not exceed the Gross
Vehicle Weight Rating (GVWR) or the
Gross Axle Weight Rating (GAWR)

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

for your vehicle. (See “Measurement
of weights” (P.10-19).)
Also check tires for proper inflation
pressures. See the Tire and Loading
Information label.

LOADING TIPS

.

The GVW must not exceed GVWR

or GAWR as specified on the F.M.
V.S.S./C.M.V.S.S. certification la-
bel.

.

Do not load the front and rear axle

to the GAWR. Doing so will exceed
the GVWR.

WARNING

.

Properly secure all cargo to help
prevent it from sliding or shift-
ing. Do not place cargo higher
than the seatbacks. In a sudden
stop or collision, unsecured car-
go could cause personal injury.

.

Do not load your vehicle any
heavier than the GVWR or the
m a x i m u m f r o n t a n d r e a r
GAWRs. If you do, parts of

your vehicle can break, tire
damage could occur, or it can
change the way your vehicle
handles. This could result in loss
of control and cause personal
injury.

.

Overloading could not only
shorten the life of your vehicle
and the tires, but also could
lead to hazardous vehicle hand-
ling and long braking distance.
This may cause a premature tire
malfunction, which could result
in a serious accident and perso-
nal injury. Failures caused by
overloading are not covered by
the vehicle’s warranty.

MEASUREMENT OF WEIGHTS

Secure loose items to prevent weight
shifts that could affect the balance of
your vehicle. When the vehicle is
loaded, drive to a scale and weigh
the front and the rear wheels sepa-
rately to determine axle loads. Indivi-
dual axle loads should not exceed
either of the gross axle weight ratings

(GAWR). The total of the axle loads
should not exceed the gross vehicle
weight rating (GVWR). These ratings
are given on the vehicle certification
label. If weight ratings are exceeded,
move or remove items to bring all
weights below the ratings.

Technical and consumer information

10-19

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

10-20

Technical and consumer information

Do not tow a trailer with your
vehicle.

FLAT TOWING

Towing your vehicle with all four wheels on
the ground is sometimes called flat towing.
This method is sometimes used when towing
a vehicle behind a recreational vehicle, such
as a motor home.

CAUTION

.

Failure to follow these guidelines can
result in severe transmission damage.

.

Whenever flat towing your vehicle,
always tow forward, never back-
ward.

.

DO NOT tow any Automatic Trans-
mission (AT) vehicle with all four
wheels on the ground (flat towing).
Doing so WILL DAMAGE internal
transmission parts due to lack of
transmission lubrication.

.

DO NOT tow any All-Wheel Drive
(AWD) vehicle with any of the wheels
on the ground. Doing so may cause
serious and expensive damage to the
powertrain.

.

For emergency towing procedures
refer to “Towing recommended by

INFINITI” (P.6-9).

Automatic Transmission

All-Wheel Drive (AWD) models:

Do not tow an AWD vehicle with any of the
wheels on the ground.

Two-Wheel Drive (2WD) models:

To tow a vehicle equipped with an automatic
transmission, an appropriate vehicle dolly

MUST

be placed under the towed vehicle’s

drive wheels.

Always

follow the dolly man-

ufacturer’s recommendations when using
their product.

DOT (Department Of Transportation) Qual-
ity Grades: All passenger car tires must
conform to federal safety requirements in
addition to these grades.
Quality grades can be found where applic-
able on the tire sidewall between tread
shoulder and maximum section width. For
example:

Treadwear 200 Traction AA Temperature A

TREADWEAR

The treadwear grade is a comparative rating
based on the wear rate of the tire when
tested under controlled conditions on a
specified government test course. For ex-
ample, a tire graded 150 would wear one
and one-half (1 1/2) times as well on the
government course as a tire graded 100.
The relative performance of tires depends
upon actual conditions of their use, however,
and may depart significantly from the norm
due to variations in driving habits, service
practices and differences in road character-
istics and climate.

TOWING A TRAILER

UNIFORM TIRE QUALITY GRADING

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

TRACTION AA, A, B AND C

The traction grades, from highest to lowest,
are AA, A, B and C. Those grades represent
the tire’s ability to stop on wet pavement as
measured under controlled conditions on
specified government test surfaces of as-
phalt and concrete. A tire marked C may
have poor traction performance.

WARNING

The traction grade assigned to this tire is
based on straight-ahead braking trac-
tion tests, and does not include accel-
eration, cornering, hydroplaning, or peak
traction characteristics.

TEMPERATURE A, B AND C

The temperature grades A (the highest), B,
and C, representing the tire’s resistance to
the generation of heat and its ability to
dissipate heat when tested under controlled
conditions on a specified indoor laboratory
test wheel. Sustained high temperature can
cause the material of the tire to degenerate
and reduce tire life, and excessive tempera-
ture can lead to sudden tire failure. The
grade C corresponds to a level of perfor-
mance which all passenger car tires must
meet under the Federal Motor Vehicle

Safety Standard No. 109. Grades B and A
represent higher levels of performance on
the laboratory test wheel than the minimum
required by law.

WARNING

The temperature grade for this tire is
established for a tire that is properly
inflated and not overloaded. Excessive
speed, under-inflation, or excessive
loading, either separately or in combina-
tion, can cause heat build-up and possi-
ble tire failure.

Your INFINITI is covered by the following
emission warranties.

For USA:

.

Emission Defects Warranty

.

Emissions Performance Warranty

Details of these warranties may be found
with other vehicle warranties in your War-
ranty Information Booklet that comes with
your INFINITI. If you did not receive a
Warranty Information Booklet, or it has
become lost, you may obtain a replacement
by writing to:

.

INFINITI Division

Nissan North America, Inc.
Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003

For Canada:

Emission Control System Warranty
Details of these warranties may be found
with other vehicle warranties in your War-
ranty and Roadside Assistance Information
that comes with your INFINITI. If you did not
receive a Warranty and Roadside Assistance
Information, or it has become lost, you may
obtain a replacement by writing to:

.

Nissan Canada Inc.

5290 Orbitor Drive
Mississauga, Ontario,

Technical and consumer information

10-21

EMISSION CONTROL SYSTEM
WARRANTY

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

10-22

Technical and consumer information

L4W 4Z5

For USA
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you
should immediately inform the Na-
tional Highway Traffic Safety Admin-
istration (NHTSA) in addition to
notifying INFINITI.
If NHTSA receives similar complaints,
it may open an investigation, and if it
finds that a safety defect exists in a
group of vehicles, it may order a recall
and remedy campaign. However,
NHTSA cannot become involved in
individual problems between you,
your retailer, or INFINITI.
To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at 1-
888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.
gov; or write to: Administrator,
NHTSA, 400 Seventh Street, SW.,
Washington DC 20590. You can also
obtain other information about motor
vehicle safety from http://www.
safercar. gov.
You may notify INFINITI by contact-

ing our Consumer Affairs Depart-
ment, toll-free, at 1-800-662-6200.
For Canada
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you
should immediately inform Transport
Canada in addition to notifying
INFINITI.
If Transport Canada receives com-
plaints, it may open an investigation,
and if it finds that a safety defect
exists in a group of vehicles, it may
request that INFINITI conduct a recall
campaign. However, Transport Cana-
da cannot become involved in indivi-
dual problems between you, your
retailer, or INFINITI.
You may contact Transport Canada’s
Defect Investigations and Recalls Di-
vision toll free at 1-800-333-0510.
You may also report safety defects
online at:
https://wwwapps.tc.gc.ca/Saf-Sec-
Sur/7/PCDB-BDPP/fc-cp.aspx?lan-
g=eng (English speakers) or https://

REPORTING SAFETY DEFECTS

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

wwwapps.tc.gc.ca/Saf-Sec-Sur/7/
PCDB-BDPP/fc-cp.aspx?lang=fra
(French speakers).
Additional information concerning
motor vehicle safety may be obtained
from Transport Canada’s Road
Safety Information Centre at 1-
800-333-0371 or online at www.tc.
gc.ca/ roadsafety (English speakers)
or www.tc.gc.ca/securiteroutiere
(French speakers).
To notify INFINITI of any safety
concerns please contact our Consu-
mer Information Centre toll free at 1-
800- 361-4792.

WARNING

A vehicle equipped with Intelligent All-
Wheel Drive (AWD) should never be
tested using a two wheel dynamometer
(such as the dynamometers used by
some states for emissions testing), or
similar equipment. Make sure you inform
test facility personnel that your vehicle
is equipped with AWD before it is placed
on a dynamometer. Using the wrong test
equipment may result in transmission
damage or unexpected vehicle move-
ment which could result in serious vehicle
damage or personal injury.

Due to legal requirements in some states/
areas, your vehicle may be required to be in
what is called the “ready condition” for an
Inspection/Maintenance (I/M) test of the
emission control system.
The vehicle is set to the “ready condition”
when it is driven through certain driving
patterns. Usually, the “ready condition” can
be obtained by ordinary usage of the vehicle.
If a powertrain system component is re-
paired or the battery is disconnected, the
vehicle may be reset to a “not ready condi-
tion”. Before taking the I/M test, check the
vehicle’s inspection/maintenance test readi-

ness condition. Place the ignition switch in
the ON position without starting the engine.
If the Malfunction Indicator Light (MIL)
comes on steady for 20 seconds and then
blinks for 10 seconds, the I/M test condition
is “not ready”. If the MIL does not blink after
20 seconds, the I/M test condition is
“ready”.
It is recommended you visit an INFINITI
retailer to set the “ready condition” or to
prepare the vehicle for testing.

Technical and consumer information

10-23

READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST (US only)

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

10-24

Technical and consumer information

This vehicle is equipped with an Event Data
Recorder (EDR). The main purpose of an
EDR is to record, in certain crash or near
crash-like situations, such as an air bag
deployment or hitting a road obstacle, data
that will assist in understanding how a
vehicle’s systems performed. The EDR is
designed to record data related to vehicle
dynamics and safety systems for a short
period of time, typically 30 seconds or less.
The EDR in this vehicle is designed to record
such data as:

.

How various systems in your vehicle were

operating;

.

Whether or not the driver and passenger

safety belts were buckled/fastened;

.

How far (if at all) the driver was depres-

sing the accelerator and/or brake pedal;
and,

.

How fast the vehicle was traveling.

.

Sounds are not recorded.

These data can help provide a better under-
standing of the circumstances in which
crashes and injuries occur.
NOTE: EDR data are recorded by your
vehicle only if a nontrivial crash situation
occurs; no data are recorded by the EDR
under normal driving conditions and no
personal data (e.g. name, gender, age and
crash location) are recorded. However, other
parties, such as law enforcement, could

combine the EDR data with the type of
personally identifying data routinely ac-
quired during a crash investigation.
To read data recorded by an EDR, special
equipment is required and access to the
vehicle or the EDR is needed. In addition to
the vehicle manufacturer and INFINITI re-
tailer, other parties, such as law enforce-
ment, that have the special equipment, can
read the information if they have access to
the vehicle or the EDR. EDR data will only be
accessed with the consent of the vehicle
owner or lessee or as otherwise required or
permitted by law.

Genuine INFINITI Service Manual for this
model year and prior can be purchased. A
genuine INFINITI Service Manual is the best
source of service and repair information for
your vehicle. This manual is the same one
used by the factory-trained technicians
working at INFINITI retailers. Genuine
INFINITI Owner’s Manuals can also be
purchased.

For USA:

For current pricing and availability of genu-
ine

INFINITI Service Manuals

, contact:

www.infiniti-techinfo.com

For current pricing and availability of genu-
ine

INFINITI Owner’s Manuals

, contact:

1-800-247-5321

For Canada:

To purchase a copy of a genuine INFINITI
Service Manual or Owner’s Manual for this
model year and prior, contact an INFINITI
retailer. For the phone number and location
of an INFINITI retailer in your area call the
INFINITI Satisfaction Center at 1-800-361-
4792 and a bilingual INFINITI representative
will assist you.

EVENT DATA RECORDERS (EDR)

OWNER’S MANUAL/SERVICE
MANUAL ORDER INFORMATION

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

FUEL INFORMATION

Use unleaded premium gasoline with an
octane rating of at least 91 AKI (Anti-Knock
Index) number (Research octane number 96).
INFINITI recommends the use of unleaded
premium gasoline with 93 AKI number
(Research octane number 98) to obtain the
maximum vehicle performance and the best
driveability.
If unleaded premium gasoline is not avail-
able, unleaded regular gasoline with an
octane rating of at least 87 AKI number
(Research octane number 91) may be tem-
porarily used, but only under the following
precautions:

.

Have the fuel tank filled only partially

with unleaded regular gasoline, and fill
up with unleaded premium gasoline as
soon as possible.

.

Avoid full throttle driving and abrupt

acceleration.

Use unleaded premium gasoline for max-
imum vehicle performance.

CAUTION

.

Using a fuel other than that specified
could adversely affect the emission

control system, and may also affect
warranty coverage.

.

Under no circumstances should a
leaded gasoline be used, because this
will damage the three-way catalyst.

.

Do not use a fuel containing more
than 15% ethanol. Your vehicle is not
designed to run on a fuel containing
more than 15% ethanol. Using a fuel
containing more than 15% ethanol in
a vehicle not specifically designed for
a fuel containing more than 15%
ethanol can adversely affect the
emission control devices and systems
of the vehicle. Damage caused by
such fuel is not covered by the
INFINITI’s New Vehicle Limited War-
ranty.

.

Do not use fuel that contains the
octane booster methylcyclopentadie-
nyl manganese tricarbonyl (MMT).
Using fuel containing MMT may
adversely affect vehicle performance
and vehicle emissions. Not all fuel
dispensers are labeled to indicate
MMT content, so you may have to
consult your gasoline retailer for
more details. Note that Federal and
California laws prohibit the use of
MMT in reformulated gasoline.

.

U.S. government regulations require
ethanol dispensing pumps to be iden-
tified by a small, square, orange and
black label with the common abbre-
viation or the appropriate percen-
tage for that region.

ENGINE OIL RECOMMENDA-
TION:

See “Capacities and recommended fluids/
lubricants” (P.10-2) for engine oil and oil
filter recommendation.

COLD TIRE PRESSURES:

The label is typically located on the driver
side center pillar or on the driver’s door. For
additional information, see “Wheels and
tires” (P.8-26).

NEW VEHICLE BREAK-IN PRO-
CEDURES RECOMMENDATION:

During the first 1,200 miles (2,000 km) of
vehicle use, follow the recommendations
outlined in the “Break-in schedule” (P.5-
122) of this Owner’s Manual. Follow these
recommendations for the future reliability
and economy of your new vehicle.

GAS STATION INFORMATION

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     12      13      14
