Infiniti Q50 (2023 year). Manual in english - page 7





AROUND VIEW

®

MONITOR SYS-

TEM LIMITATIONS

WARNING

Listed below are the system limitations
for Around View

®

Monitor. Failure to

operate the vehicle in accordance with
these system limitations could result in
serious injury or death.

.

Do not use the Around View

®

Moni-

tor with the outside mirrors in the
stored position, and make sure that
the trunk lid is securely closed when
operating the vehicle using the
Around View

®

Monitor.

.

The apparent distance between ob-
jects viewed on the Around View

®

Monitor differs from the actual dis-
tance.

.

The cameras are installed on the
front grille, the outside mirrors and
above the rear license plate. Do not
put anything on the vehicle that
covers the cameras.

.

When washing the vehicle with high
pressure water, be sure not to spray
it around the cameras. Otherwise,
water may enter the camera unit

causing water condensation on the
lens, a malfunction, fire or an electric
shock.

.

Do not strike the cameras. They are
precision instruments. Doing so could
cause a malfunction or cause damage
resulting in a fire or an electric shock.

WAE0220X

There are some areas where the system will
not show objects and the system does not
warn of moving objects. When in the front or
rear view display, an object below the
bumper or on the ground may not be viewed

. When in the bird’s-eye view, a tall object

near the seam

of the camera viewing

areas will not appear in the monitor.

Monitor, climate, audio, phone and voice recognition systems

4-23

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-24

Monitor, climate, audio, phone and voice recognition systems

The following are operating limitations and
do not represent a system malfunction:

.

The screen displayed on the Around

View

®

Monitor will automatically return

to the previous screen 3 minutes after
the CAMERA button has been pushed
while the shift lever is in a position other
than the R (Reverse) position.

.

There may be a delay when switching

between views.

.

When the temperature is extremely high

or low, the screen may not display
objects clearly.

.

When strong light is directly shines on the

camera, objects may not be displayed
clearly.

.

The screen may flicker under fluorescent

light.

.

The colors of objects on the Around

View

®

Monitor may differ somewhat

from the actual color of objects.

.

Objects on the monitor may not be clear

and the color of the object may differ in a
dark environment.

.

There may be differences in sharpness

between each camera view of the bird’s-
eye view.

.

When activating the Around View

®

Monitor, the icons and the messages
may not be displayed for a while.

.

If dirt, rain or snow accumulates on the

camera, the Around View

®

Monitor may

not display objects clearly. Clean the
camera.

.

Do not use wax on the camera lens. Wipe

off any wax with a clean cloth that has
been dampened with a diluted mild
cleaning agent, then wipe with a dry
cloth.

JVH1633X

System temporarily unavailable

When the

icon is displayed on the

screen, there will be abnormal conditions in
the Around View

®

Monitor. This will not

hinder normal driving operation but the
system should be inspected. It is recom-
mended that you visit an INFINITI retailer
for this service.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

JVH1634X

When the

icon is displayed on the

screen, the camera image may be receiving
temporary electronic disturbances from sur-
rounding devices. This will not hinder normal
driving operation but the system should be
inspected. It is recommended that you visit
an INFINITI retailer for this service.

WAE0235X

SYSTEM MAINTENANCE

CAUTION

.

Do not use alcohol, benzine or thinner
to clean the camera. This will cause
discoloration.

.

Do not damage the camera as the
monitor screen may be adversely
affected.

If dirt, rain or snow accumulates on any of
the cameras

, the Around View

®

Monitor

may not display objects clearly. Clean the
camera by wiping with a cloth dampened

with a diluted mild cleaning agent and then
wiping with a dry cloth.

Monitor, climate, audio, phone and voice recognition systems

4-25

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-26

Monitor, climate, audio, phone and voice recognition systems

WARNING

Failure to follow the warnings and
instructions for proper use of the sonar
function as outlined in this section could
result in serious injury or death.

.

The sonar is a convenience feature. It
is not a substitute for proper parking.

.

This function is designed as an aid to
the driver in detecting large station-
ary objects to help avoid damaging
the vehicle.

.

The driver is always responsible for
safety during parking and other
maneuvers.

.

Always look around and check that it
is safe to move before parking.

.

Read and understand the limitations
of the sonar as contained in this
section.

The sonar function helps to inform the driver
of large stationary objects around the
vehicle when parking by issuing an audible
and visual alert.

WAE0193X

1. Upper touch-screen display (upper dis-

play)

2. Sonar indicator
3. Lower touch-screen display (lower dis-

play)

4. CAMERA button

5. MENU button

CAMERA AIDING SONAR FUNCTION
(for models with Around View

®

Monitor)

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SONAR SYSTEM OPERATION

When the camera is first activated with the
bird’s-eye view on the upper display, red
markers will flash. This indicates that the
sonar system is activated.
The system gives the tone for front objects
when the shift lever is in the D (Drive)
position and both front and rear objects
when the shift lever is in the R (Reverse)
position.
When the camera image is shown on the
upper display, the system shows the sonar
indicator regardless of the shift lever posi-
tion.
The system is deactivated at speeds above 6
MPH (10 km/h). It is reactivated at lower
speeds.
The colors of the sonar indicators and the
distance guide lines in the front, front-wide,
rear and rear-wide views indicate different
distances to the object.
When the objects are detected, the indicator
(green) appears and blinks and the tone
sounds intermittently. When the vehicle
moves closer to the object, the color of the
indicator turns yellow and the rate of the
blinking and the rate of the tone increase.
When the vehicle is very close to the object,
the indicator stops blinking and turns red,
and the tone sounds continuously.

The intermittent tone will stop after 3
seconds when an object is detected by only
the corner sonar and the distance does not
change.
The tone will stop when the object is no
longer near the vehicle.

WAE0236X

TURNING ON AND OFF THE SO-
NAR FUNCTION

When the Sonar/MOD key

is touched, the

indicator light

on the key will turn off and

the sonar will turn off temporarily. The
Moving Object Detection (MOD) system will
also be turned off at the same time. See
“Moving Object Detection (MOD)” (P.4-31).
When the Sonar/MOD key

is touched

again, the indicator light

will turn on and

the sonar will turn back on.
In the cases below, the sonar will be turned
back on automatically:

.

When the shift lever is in the R (Reverse)

position.

Monitor, climate, audio, phone and voice recognition systems

4-27

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-28

Monitor, climate, audio, phone and voice recognition systems

.

When the CAMERA button is pushed

and a screen other than the camera view
is shown on the display.

.

When vehicle speed decreases below

approximately 5 MPH (8 km/h).

.

When the ignition switch is placed in the

OFF position and turned back to the ON
position again.

To prevent the sonar system from activating
altogether, use the sonar system settings
menu.

Sonar system settings

The camera aiding sonar function settings
can be changed using the following proce-
dures.
1. Push the MENU button.
2. Touch [Settings] on the lower display.
3. Touch [Parking Sonar].
The displayed keys on the lower display may
vary depending on models, specifications
and software versions.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Available setting items:

Setting item

Action

Parking Sonar

Parking Sonar

When this item is turned on, the front and rear sonar is activated.
When this item is turned off (indicator turns off), the front and rear sonar is
deactivated. The amber markers are displayed at the corners of the vehicle icon.
When the Around View

®

Monitor is activated next time after placing the

ignition switch in the ON position, a gray sonar icon will briefly flash on the
upper display, indicating that the sonar system is off.

Auto Show Sonar Image

When the sonar detects an object while this item is turned on, the Around View

®

Monitor will interrupt the current view in the display to show the surround area
of the vehicle.

Front Only

When this item is turned on, only the front sonar is activated. The amber
markers are displayed at the rear corners of the vehicle icon.

Distance

Adjust the sensitivity level of the sonar.

Volume

Adjust the tone volume of the sonar.

NOTE:

Do not adjust any of the Parking Sonar settings while the vehicle is moving. Make sure the parking brake is firmly applied.

Monitor, climate, audio, phone and voice recognition systems

4-29

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-30

Monitor, climate, audio, phone and voice recognition systems

SONAR SYSTEM LIMITATIONS

WARNING

Listed below are the system limitations
for the sonar function. Failure to operate
the vehicle in accordance with these
system limitations could result in serious
injury or death.

.

Inclement weather or ultrasonic
sources such as an automatic car
wash, a truck’s compressed-air
brakes or a pneumatic drill may affect
the function of the system, including
reduced performance or a false acti-
vation.

.

The system is not designed to pre-
vent contact with small or moving
objects.

.

The system will not detect small
objects below the bumper, and may
not detect objects close to the bum-
per or on the ground.

.

The system may not detect the
following objects:

— Fluffy objects such as snow,

cloth, cotton, grass or wool.

— Thin objects such as rope, wire or

chain.

— Wedge-shaped objects.

.

If your vehicle sustains damage to the
bumper fascia, leaving it misaligned
or bent, the sensing zone may be
altered causing inaccurate measure-
ment of objects or false alarms.

CAUTION

Excessive noise (such as audio system
volume or an open vehicle window) will
interfere with the tone and it may not be
heard.

System temporarily unavailable

When the amber markers are displayed at
the corners of the vehicle icon and the
function cannot be activated from the
Parking sonar settings menu (the setting
items are grayed out), the sonar system may
be malfunctioning.

SYSTEM MAINTENANCE

CAUTION

Keep the surface of the sonar (located on
the front and rear bumper fascia) free
from accumulations of snow, ice and dirt.
Do not scratch the surface of the sonar
when cleaning. If the sensors are cov-
ered, the accuracy of the sonar function
will be diminished.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WAE0192X

1. Upper touch-screen display (upper dis-

play)

2. Lower touch-screen display (lower dis-

play)

3. CAMERA button

4. MENU button

WARNING

Failure to follow the warnings and
instructions for proper use of the Mov-
ing Object Detection system could result
in serious injury or death.

.

The MOD system is not a substitute
for proper vehicle operation and is
not designed to prevent contact with
the objects surrounding the vehicle.
When maneuvering, always use the
outside mirror and rearview mirror
and turn and check the surrounding
to ensure it is safe to maneuver.

.

The system is deactivated at speeds
above 6 MPH (10 km/h). It is reacti-
vated at lower speeds.

.

The MOD system is not designed to
detect the surrounding stationary
objects.

The Moving Object Detection (MOD) system
can inform the driver of the moving objects
surrounding the vehicle when driving out of
garages, maneuvering into parking lots and
in other such instances.
The MOD system detects moving objects by
using image processing technology on the
image shown on the display.

Monitor, climate, audio, phone and voice recognition systems

4-31

MOVING OBJECT DETECTION
(MOD) (if so equipped)

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-32

Monitor, climate, audio, phone and voice recognition systems

MOD SYSTEM OPERATION

The MOD system will turn on automatically
under the following conditions:

.

When the shift lever is in the R (Reverse)

position.

.

When the CAMERA button is pushed to

activate the camera view on the display.

.

When vehicle speed decreases below

approximately 5 MPH (8 km/h) and the
camera screen is displayed.

The MOD system operates in the following
conditions when the camera view is dis-
played:

.

When the shift lever is in the P (Park) or N

(Neutral) position and the vehicle is
stopped, the MOD system detects mov-
ing objects in the bird’s-eye view. The
MOD system will not operate if the
outside mirrors are moving in or out, in
the stowed position, or if either front
door is opened.

.

When the shift lever is in the D (Drive)

position and the vehicle speed is below
approximately 5 MPH (8 km/h), the
MOD system detects moving objects in
the front view or front-wide view.

.

When the shift lever is in the R (Reverse)

position and the vehicle speed is below
approximately 5 MPH (8 km/h), the
MOD system detects moving objects in

the rear view or rear-wide view.

The MOD system will not operate if the
trunk lid is open.
The MOD system does not detect moving
objects in the front-side view. The MOD icon
is not displayed on the screen when in this
view.

WAE0240X

Bird’s-eye view

WAE0237X

Front view / rear view

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WAE0238X

Rear and front-side views

WAE0239X

Front-wide view / rear-wide view

When the MOD system detects moving
objects near the vehicle, a chime will be
heard and a yellow frame will be displayed
on the view where the objects are detected.
While the MOD system continues to detect
moving objects, the yellow frame continues
to be displayed.

NOTE:

While the sonar/Back-up Collision Inter-
vention (BCI) system (if so equipped) is
beeping, the MOD system does not chime.

In the bird’s-eye view, the yellow frame

is

displayed on each camera image (front, rear,
right, left) depending on where moving
objects are detected.
The yellow frame

is displayed on each

view in the front view, front-wide view, rear
view and rear-wide view modes.
A green MOD icon

is displayed in the view

where the MOD system is operative. A white
MOD icon

is displayed in the view where

the MOD system is not operative.
If the MOD system is turned off, the MOD
icon

is not displayed.

WAE0236X

TURNING THE MOD SYSTEM ON
AND OFF

When the MOD is active and the Sonar/
MOD key

is touched, the MOD system will

turn off temporarily and the indicator

will

turn off. (A camera-aiding sonar will turn off
at the same time.) When the Sonar/MOD
key

is touched again, the indicator

will

turn on and the MOD system will turn back
on.
To enable or disable the MOD system, use
the camera settings menu.

Monitor, climate, audio, phone and voice recognition systems

4-33

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-34

Monitor, climate, audio, phone and voice recognition systems

MOD function setting

The MOD function settings can be changed
using the following procedures.
1. Push the MENU button.
2. Touch [Settings] on the lower display.
3. Touch [Camera].
4. Touch [Camera].

Available setting items:

Moving Object Detection:

When this item is turned on, the MOD
system is activated. When this item is turned
off (indicator turns off), the MOD system is
deactivated.

WAE0213X

When the MOD system is deactivated, the
MOD icon

will disappear.

When the sonar is turned off on the settings
menu as well, the Sonar/MOD key

will

disappear.

MOD Volume:

Adjust the volume of the chime.

MOD SYSTEM LIMITATIONS

WARNING

Listed below are the system limitations
for MOD. Failure to operate the vehicle
in accordance with these system limita-
tions could result in serious injury or
death.

.

Excessive noise (for example, audio
system volume or open vehicle win-
dow) will interfere with the chime
sound, and it may not be heard.

.

The MOD system performance will be
limited according to environmental
conditions and surrounding objects
such as:

— When there is low contrast be-

tween background and the mov-
ing objects.

— When there is blinking source of

light.

— When strong light such as an-

other vehicle’s headlight or sun-
light is present.

— When camera orientation is not in

its usual position, such as when
mirror is folded.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

— When there is dirt, water drops or

snow on the camera lens.

— When the position of the moving

objects in the display is not chan-
ged.

.

The MOD system might detect flow-
ing water droplets on the camera
lens, white smoke from the muffler,
moving shadows, etc.

.

The MOD system may not function
properly depending on the speed,
direction, distance or shape of the
moving objects.

.

If your vehicle sustains damage to the
parts where the camera is installed,
leaving it misaligned or bent, the
sensing zone may be altered and the
MOD system may not detect objects
properly.

.

When the temperature is extremely
high or low, the screen may not
display objects clearly. This is not a
malfunction.

WAE0235X

SYSTEM MAINTENANCE

CAUTION

.

Do not use alcohol, benzine or thinner
to clean the camera. This will cause
discoloration.

.

Do not damage the camera as the
monitor screen may be adversely
affected.

If dirt, rain or snow accumulates on any of
the cameras

, the MOD system may not

operate properly. Clean the camera by
wiping with a cloth dampened with a diluted

mild cleaning agent and then wiping with a
dry cloth.

Monitor, climate, audio, phone and voice recognition systems

4-35

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-36

Monitor, climate, audio, phone and voice recognition systems

JVH1940X

Right side

CENTER VENTILATORS

Open/close the ventilator by moving the
control to either direction.

:

Moving the control to this direction will
open the ventilator.

:

Moving the control to this direction will
close the ventilator.

Adjust the air flow direction of the ventilator
by moving the center knob (up/down, left/
right) until the desired position is achieved.

JVH1941X

Right side

SIDE VENTILATORS

Open/close the ventilator by moving the
control to either direction.

:

Moving the control to this direction will
open the ventilator.

:

Moving the control to this direction will
close the ventilator.

Adjust the air flow direction of the ventilator
by moving the center knob (up/down, left/
right) until the desired position is achieved.

JVH1942X

REAR VENTILATORS

Open/close the ventilators by moving the
control to either direction.

:

Moving the control to this direction will
open the ventilators.

:

Moving the control to this direction will
close the ventilators.

Adjust the air flow direction of each venti-
lator by moving the center knob (up/down,
left/right) until the desired position is
achieved.

VENTILATORS

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

.

The heater and air conditioner oper-
ate only when the engine is running.

.

Never leave children or adults who
would normally require the support
of others alone in the vehicle. Pets
should not be left alone either. They
could unknowingly activate switches
or controls and inadvertently become
involved in a serious accident and
injure themselves. On hot, sunny
days, temperatures in a closed vehicle
could quickly become high enough to
cause severe or possibly fatal injuries
to people or animals.

.

Do not use the recirculation mode for
long periods as it may cause the
interior air to become stale and the
windows to fog up.

.

Do not adjust the heating and air
conditioning controls while driving so
that full attention may be given to
vehicle operation.

The heater and air conditioner operate when
the engine is running. The air blower will
operate even if the engine is turned off and
the ignition switch is placed in the ON
position.

NOTE:

.

Odors from inside and outside the

vehicle can build up in the air conditioner
unit. Odor can enter the passenger
compartment through the ventilators.

.

When parking, set the heater and air

conditioner controls to turn off air
recirculation to allow fresh air into the
passenger compartment. This should
help reduce odors inside the vehicle.

.

Vehicles with an automatic climate con-

trol system will automatically adjust the
passenger compartment to be the set
appropriate temperature when the re-
mote engine start feature (if so
equipped) is used.

Monitor, climate, audio, phone and voice recognition systems

4-37

HEATER AND AIR CONDITIONER

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-38

Monitor, climate, audio, phone and voice recognition systems

WAE0214X

1.

” Temperature control increase

button (driver’s side)

2.

” Temperature control decrease

button (driver’s side)

3.

AUTO button

4.

” Fan speed increase button

5.

” Fan speed decrease button

6.

” Manual air flow control button

7.

Lower touch-screen display (lower dis-
play)

8.

MENU button

9.

CLIMATE button

10. “

” Temperature control increase

button (front passenger’s side)

11. “

” Temperature control decrease

button (front passenger’s side)

12. “

” Air recirculation button

13. “

” Front defroster button

14. “

” Rear defroster button

(See “Rear window and outside mirror

defroster switch” (P.2-35).)

15. ON/OFF button

AUTOMATIC AIR CONDITIONER

NOTE:

The heater and air conditioning system
settings can be linked and memorized for
each of the Intelligent Keys. Refer to the
INFINITI InTouch

TM

Owner’s Manual.

Automatic operation (AUTO)

The AUTO mode may be used year-round as
the system automatically controls the air
conditioner to a constant temperature, air
flow distribution and fan speed after the
desired temperature is set manually.

Cooling and dehumidified heating (AUTO):

1. Push the AUTO button.

The indicator light on the button will
illuminate. When the CLIMATE button is
pushed, the climate screen will be dis-
played on the lower display and “AUTO”
will appear on the climate screen.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2. Push the temperature control buttons

(driver’s side) to set the preferred tem-
perature.

.

When the DUAL mode is turned on,

you can individually set temperatures
for the driver’s side and front passen-
ger’s side, using the temperature
control buttons on the corresponding
side. (To turn on the DUAL mode,
touch [DUAL].).

.

The temperature of the passenger

compartment will be maintained
automatically. Air flow distribution
and fan speed will also be controlled
automatically.

A visible mist may be seen coming from the
ventilators in hot, humid conditions as the air
is cooled rapidly. This does not indicate a
malfunction.

Heating (A/C off):

The air conditioner does not activate in this
mode. Use this mode when you only need to
heat.
1. Push the CLIMATE button.

The climate screen will be displayed on
the lower display.

2. Touch [A/C]. The [A/C] indicator will

turn off. See “Operations on touch panel
screen” (P.4-40).

3. Push the temperature control buttons

(driver’s side) to set the preferred tem-
perature.

.

When the DUAL mode is turned on,

you can individually set temperatures
for the driver’s side and front passen-
ger’s side, using the temperature
control buttons on the corresponding
side. (To turn on the DUAL mode,
touch [DUAL].).

.

The temperature of the passenger

compartment will be maintained
automatically. Air flow distribution
and fan speed will also be controlled
automatically.

NOTE:

.

Do not set the temperature lower than

the outside air temperature. Otherwise
the system may not work properly.

.

This mode is not recommended if the

windows fog up.

Dehumidified defrosting/defogging:

1. Push the “

” front defroster button.

The indicator light on the button will
illuminate.

2. Push the temperature control buttons on

the driver’s side to set the preferred
temperature.

NOTE:

.

To quickly remove ice from the outside

of the windows, push the “

” fan

speed increase button and set it to the
maximum position.

.

As soon as possible after the windshield

is cleaned, push the AUTO button to
return to the AUTO mode.

.

When the “

” front defroster button

is pushed, the air conditioner will auto-
matically be turned on at outside tem-
peratures above 23°F (-5°C) to defog
the windshield, and the air recirculate
mode will automatically be turned off.
The outside air circulation mode will be
selected to improve the defrosting per-
formance.

Manual operation

The manual mode can be used to control the
heater and air conditioner to your desired
settings.

Fan speed control:

Push the “

” fan speed increase button

to increase the fan speed.
Push the “

” fan speed decrease button to

decrease the fan speed.
Push the AUTO button to change the fan
speed to the automatic mode.

Monitor, climate, audio, phone and voice recognition systems

4-39

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-40

Monitor, climate, audio, phone and voice recognition systems

Air flow control:

Push the “

” manual air flow control

button to change the air flow mode.

:

Air flows from the center and side
ventilators.

:

Air flows from the center and side
ventilators, and foot outlets.

:

Air flows mainly from the foot outlets.

:

Air flows from the defroster and foot
outlets.

Temperature control:

Push the “

” temperature control increase

button or the “

” temperature control

decrease button to set the desired tempera-
ture.
When the DUAL mode is on, you can
individually set temperatures for the driver’s
side and front passenger’s side.

Air intake control:

.

Push the “

” air recirculation button to

recirculate interior air inside the vehicle.
The indicator light on the “

” air

recirculation button will illuminate.

.

Push the “

” air recirculation button

twice to draw outside air into the
passenger compartment. The indicator
light on the “

” air recirculation button

will turn off.

.

To control the air intake automatically,

push and hold the “

” air recirculation

button. The indicator lights will flash
twice, and then the air intake will switch
to automatic control.
The air intake mode can also be con-
trolled automatically by touching [Auto
Recirc] (if so equipped). The indicator
light on [Auto Recirc] will illuminate. (See
“Operations on touch panel screen” (P.4-
40).)

Turning the system off

Push the ON/OFF button.

Operations on touch panel screen

Heater and air conditioner can be operated
on the touch panel screen. Push the CLI-
MATE button to switch the lower display to
the climate screen.
For details of the touch panel operation on
the lower display, see the separate INFINITI
InTouch

TM

Owner’s Manual.

WAE0215X

Example

The following control keys are available.
(Availability of the item depends on the
model and specifications.)

Available items:

.

Touch to change the air flow mode.

.

“-

” / “

+”

Touch to change the fan speed.

.

[DUAL]

Touch to turn the DUAL mode on/off.
(See “DUAL mode setting” (P.4-41).)

.

[Steering Heater] (if so equipped)

Touch to turn the steering wheel heater
on/off. (See “Heated steering wheel”

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(P.2-46).)

.

[A/C]

Touch to turn the air conditioner on/off.
(See “Automatic operation (AUTO)”
(P.4-38).)

.

[Auto Recirc] (if so equipped)

Touch to turn the auto-recirculation
mode on/off. (See “Advanced Climate
Control System” (P.4-41).)

.

[

] or [

] (if so equipped)

Touch to turn the seat heater on/off.
(See “Heated seats” (P.2-44).)

DUAL mode setting

Touch [DUAL] to turn on/off the DUAL
mode. When the DUAL mode is set, the
temperature for the driver seat and the front
passenger seat can be adjusted indepen-
dently. When the DUAL mode is on, the
indicator light is on and “DUAL” appears.

Advanced Climate Control System
(if so equipped)

The Advanced Climate Control System
keeps the air inside of the vehicle clean,
using the automatic air circulation control
with the exhaust gas/outside odor detection
sensor and with ion control.

WAE0219X

[Auto Recirc]:
Touch to turn on the automatic air
recirculation mode.
Plasmacluster

®

icon:

Indicates the Plasmacluster

®

ion emis-

sion status.

Automatic air recirculation control with the
exhaust gas/outside odor detection sensor:

The Advanced Climate Control system
comes with an exhaust gas detection/out-
side odor sensor. When the automatic air
circulation control is activated, the sensor
detects odors outside the vehicle such as
pulp or chemicals, and exhaust gas such as
gasoline or diesel. When such odors or gases
are detected, the display and the system

automatically change from the fresh air
mode to the recirculation mode.
When the automatic air circulation control
mode is on, for the first 5 minutes, the air
recirculation mode is selected to prevent
dust, dirt and pollen from entering the
vehicle and to clean the air inside of the
vehicle.
After 5 minutes, the sensor detects exhaust
gas and automatically alternates between
the air recirculation mode and the fresh air
mode.

NOTE:

The automatic air recirculation mode can be
activated under the following conditions.

.

The air flow control is not in the wind-

shield defrosting mode (the indicator
light on

is turned off).

.

The outside temperature is approxi-

mately 32 °F (0 °C) or above.

Ion control:

The Advanced Climate Control system unit
generates highly concentrated Plasmaclus-
ter

®

ions into the air blown from the

ventilators to reduce odor absorbed into
the interior trim and to suppress airborne
bacteria. The high-density Plasmacluster

®

ions also have a proven skin moisture
preserving effect.

Monitor, climate, audio, phone and voice recognition systems

4-41

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-42

Monitor, climate, audio, phone and voice recognition systems

The Plasmacluster

®

icon on the climate

screen indicates the status of the Plas-
macluster

®

ion emission from the system

and changes with the amount of the air flow.

CLIMATE SETTINGS

Climate settings can be changed on the
climate settings screen on the lower display.
1. Push the MENU button and touch [Set-

tings] on the lower display.

2. Touch [Others].
3. Touch [Climate].
The displayed keys on the lower display may
vary depending on models, specifications
and software versions.

Available settings:

.

Left/Right Seat Heater

The driver’s seat and front passenger
seat temperature settings for the auto-
matic seat heating control mode can be
changed separately. (See “Heated seats”
(P.2-44).)

.

Steering Wheel Heater

The steering wheel heater can be turned
on/off. (See “Heated steering wheel”
(P.2-46).)

.

Auto Steering Wheel Heater

The automatic control mode for the
steering wheel heater can be turned
on/off. When this item is turned on, the

steering wheel heater will turn on auto-
matically if the temperature inside the
vehicle compartment is low at the time
when the ignition switch is turned on.
Regardless of the temperature, the
steering wheel heating will turn off after
30 minutes.
If the steering wheel heater is manually
turned on/off by touching [Steering
Wheel Heater] on the climate settings
screen, the automatic steering wheel
heating control mode will be canceled
and the system will return to the manual
mode.

NOTE:
If the surface temperature of the steer-
ing wheel is above the temperature at
which the system is designed to operate,
the system will not heat the steering
wheel. This is not a malfunction.

5GC0006X

JVH0520X

OPERATING TIPS

When the engine coolant temperature and
outside air temperature are low, the air flow
from the foot outlets may not operate.
However, this is not a malfunction. After
the coolant temperature warms up, the air
flow from the foot outlets will operate

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

normally.

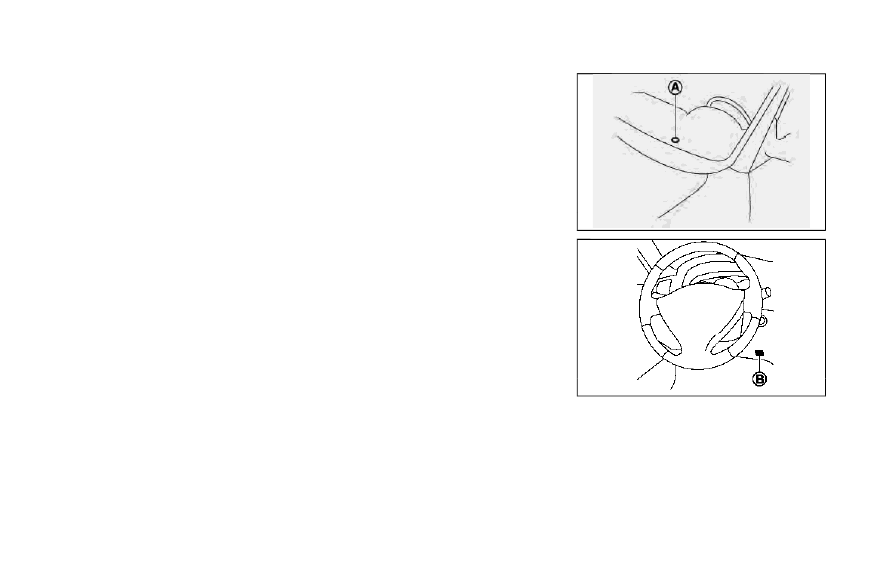

The sensors

and

, located on the

instrument panel, help maintain a constant
temperature. Do not put anything on or
around the sensors.

SERVICING AIR CONDITIONER

WARNING

The air conditioner contains refrigerant
under high pressure. To avoid personal
injury, any air conditioner service should
be done only by an experienced techni-
cian with the proper equipment.

The air conditioner system in your vehicle is
charged with a refrigerant designed with the
environment in mind.

This refrigerant will not harm the earth’s
ozone layer.

However, it may contribute in a

small part to global warming.
Special charging equipment and lubricant
are required when servicing your vehicle’s air
conditioner. Using improper refrigerants or
lubricants will cause severe damage to the
air conditioner system. (See “Air conditioning
system refrigerant and oil recommenda-
tions” (P.10-7).)
An INFINITI retailer will be able to service

your environmentally friendly air conditioner
system.

In-cabin microfilter

With Advanced Climate Control system:

The air conditioning system is equipped with
a natural grape seed polyphenol filter which
collects and neutralizes dirt, pollen, dust, etc.
To make sure that the air conditioner heats,
defogs and ventilates efficiently, replace the
filter in accordance with the specified main-
tenance intervals shown in the “9. Main-
tenance and schedules” section. To replace
the filter, contact an INFINITI retailer.
The filter should be replaced if the air flow
decreases significantly or if windows fog up
easily when operating the heater or air
conditioner.

Without Advanced Climate Control system:

The air conditioning system is equipped with
an in-cabin microfilter that collects dirt,
pollen, dust, etc.
To make sure that the air conditioner heats,
defogs and ventilates efficiently, replace the
filter in accordance with the specified main-
tenance schedule shown in the “9. Main-
tenance and schedules” section. To replace
the filter, contact an INFINITI retailer.
The filter should be replaced if the air flow
decreases significantly or if windows fog up

easily when operating the heater or air
conditioner.

Monitor, climate, audio, phone and voice recognition systems

4-43

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-44

Monitor, climate, audio, phone and voice recognition systems

WINDOW ANTENNA

The antenna pattern is printed inside the
rear window.

CAUTION

.

Do not place metalized film near the
rear window glass or attach any
metal parts to it. This may cause poor
reception or noise.

.

When cleaning the inside of the rear
window, be careful not to scratch or
damage the rear window antenna.
Lightly wipe along the antenna with
a dampened soft cloth.

JVH0641X

SATELLITE RADIO ANTENNA

There is a satellite radio antenna on the rear
part of the vehicle roof.

CAUTION

.

A buildup of ice on the satellite radio
antenna can affect satellite radio
performance. Remove the ice to re-
store satellite radio reception.

.

When removing snow from the roof,
do not apply strong force to the
satellite radio antenna. That may
cause broken satellite radio antenna
and roof panel dent.

.

When using a high pressure car wash,
keep the high pressure nozzle away
from the satellite radio antenna. The
seal may be deformed or damaged.

.

The radio performance may be af-
fected if cargo carried on the roof
blocks the radio signal. If possible, do
not put cargo near the satellite radio
antenna.

ANTENNA

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

When installing a car phone or a CB radio in
your vehicle, be sure to observe the follow-
ing cautions, otherwise the new equipment
may adversely affect the electronic control
modules and electronic control system har-
ness.

WARNING

.

A cellular phone should not be used
for any purpose while driving so full
attention may be given to vehicle
operation. Some jurisdictions prohibit
the use of cellular phones while
driving.

.

If you must make a call while your
vehicle is in motion, the hands-free
cellular phone operational mode (if so
equipped) is highly recommended.
Exercise extreme caution at all times
so full attention may be given to
vehicle operation.

.

If a conversation in a moving vehicle
requires you to take notes, pull off
the road to a safe location and stop
your vehicle before doing so.

CAUTION

.

Keep the antenna as far away as
possible from the electronic control
modules.

.

Keep the antenna wire more than 8 in
(20 cm) away from the electronic
control system harness. Do not route
the antenna wire next to any harness.

.

Adjust the antenna standing-wave
ratio as recommended by the manu-
facturer.

.

Connect the ground wire from the CB
radio chassis to the body.

.

For details, it is recommended you
visit an INFINITI retailer.

Monitor, climate, audio, phone and voice recognition systems

4-45

CAR PHONE OR CB RADIO

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5 Starting and driving

Precautions when starting and driving ...................... 5-4

Exhaust gas (carbon monoxide) .............................. 5-4
Three-way catalyst ..................................................... 5-5
Tire Pressure Monitoring System (TPMS) ........... 5-5
Avoiding collision and rollover ................................. 5-9
Off-road recovery ....................................................... 5-9
Rapid air pressure loss ............................................... 5-9
Drinking alcohol/drugs and driving ..................... 5-10
Intelligent All-Wheel Drive (AWD) driving
safety precautions (AWD models) ....................... 5-10

Push-button ignition switch ........................................ 5-11

Operating range for engine start function ........ 5-12
Push-button ignition switch operation ............... 5-12
Push-button ignition switch positions ................ 5-13
Emergency engine shut off .................................... 5-13
Intelligent Key battery discharge .......................... 5-14

Before starting the engine ........................................... 5-14
Starting the engine ......................................................... 5-15

Remote engine start (if so equipped) .................. 5-15

Driving the vehicle .......................................................... 5-16

Automatic transmission ........................................... 5-16

Parking brake .................................................................. 5-20
INFINITI Drive Mode Selector .................................... 5-21

STANDARD mode .................................................... 5-22
SPORT+ mode (if so equipped) ............................. 5-22

SPORT mode ............................................................ 5-22
SNOW mode ............................................................ 5-22
ECO mode ................................................................. 5-22
PERSONAL mode ................................................... 5-24

Active Lane Control (if so equipped) ........................ 5-25

Active Lane Control operation ............................ 5-27
Turning Active Lane Control ON/OFF ............ 5-28
How to enable/disable Active
Lane Control ............................................................. 5-29
Active Lane Control limitations ......................... 5-30
System temporarily unavailable .......................... 5-31
System malfunction ................................................ 5-32
System maintenance .............................................. 5-32

Lane Departure Warning (LDW)/Lane Departure
Prevention (LDP) (if so equipped) ............................. 5-33

LDW system operation ......................................... 5-35
How to enable/disable the LDW system ........ 5-35
LDP system operation (if so equipped) ............ 5-35
Turning the LDP system ON/OFF (if
so equipped) ............................................................. 5-36
How to enable/disable the LDP system (if
so equipped) ............................................................. 5-37
LDW/LDP system limitations ............................. 5-37
System temporarily unavailable .......................... 5-39
System malfunction ................................................ 5-39

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

System maintenance ............................................... 5-40

Blind Spot Warning (BSW) (if so equipped) ........... 5-40

BSW system operation ............................................ 5-42
How to enable/disable the BSW system ........... 5-43
BSW system limitations .......................................... 5-43
BSW driving situations ........................................... 5-44
System temporarily unavailable ............................ 5-47
System malfunction .................................................. 5-47
System maintenance ................................................ 5-47

Blind Spot Intervention

®

(BSI) (if so equipped) ..... 5-50

BSI system operation ............................................... 5-52
Turning the BSI system ON/OFF ........................ 5-53
How to enable/disable the BSI system .............. 5-54
BSI system limitations ............................................. 5-54
BSI driving situations ............................................... 5-56
System temporarily unavailable ........................... 5-60
System malfunction .................................................. 5-61
System maintenance ................................................ 5-61

Back-up Collision Intervention (BCI) (if
so equipped) ..................................................................... 5-63

BCI system operation .............................................. 5-65
Turning the BCI system ON/OFF ........................ 5-67
How to enable/disable the BCI system (if
so equipped) ................................................................ 5-68
BCI system limitations ............................................. 5-69
System temporarily unavailable ............................ 5-70
System malfunction .................................................. 5-71
System maintenance ................................................ 5-71

Cruise control (if so equipped) .................................... 5-72

Precautions on cruise control .............................. 5-72
Cruise control operations ..................................... 5-73

Intelligent Cruise Control (ICC) (if so equipped) .... 5-75

How to select the cruise control mode ............. 5-77
Vehicle-to-vehicle distance control mode ....... 5-77
Conventional (fixed speed) cruise
control mode ............................................................ 5-91

Distance Control Assist (DCA) (if so equipped) ..... 5-95

DCA system operation .......................................... 5-97
Turning the DCA system ON/OFF ................. 5-100
How to enable/disable the DCA system ...... 5-101
DCA system display and indicators ................ 5-101
DCA system limitations ...................................... 5-101
System temporarily unavailable ....................... 5-104
System malfunction ............................................. 5-105
System maintenance ........................................... 5-105

Forward Emergency Braking (FEB) ....................... 5-106

FEB system operation ........................................ 5-107
Turning the FEB system ON/OFF ................. 5-108
FEB system limitations ....................................... 5-109
System temporarily unavailable ........................ 5-111
System malfunction .............................................. 5-112
System maintenance ............................................ 5-112

Predictive Forward Collision
Warning (PFCW) .......................................................... 5-113

PFCW system operation ..................................... 5-115
Turning the PFCW system ON/OFF .............. 5-116
PFCW system limitations ................................... 5-118
System temporarily unavailable ....................... 5-120

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

System malfunction ................................................ 5-121
System maintenance .............................................. 5-121

Break-in schedule ......................................................... 5-122
Fuel Efficient Driving Tips .......................................... 5-122
Increasing fuel economy ............................................. 5-123
Intelligent All-Wheel Drive (AWD) (if
so equipped) ................................................................... 5-123
Parking/parking on hills .............................................. 5-125
Power steering .............................................................. 5-126

Electric power steering type ................................ 5-126
Direct Adaptive Steering type ............................. 5-126

Brake system ................................................................. 5-128

Braking precautions ............................................... 5-128
Parking brake break-in .......................................... 5-129

Brake assist .................................................................... 5-129

Brake assist ............................................................... 5-129
Anti-lock Braking System (ABS) ......................... 5-129

Vehicle Dynamic Control (VDC) system ................. 5-131

Brake force distribution ......................................... 5-131

Active trace control ...................................................... 5-132
Hill Start Assist system .............................................. 5-134

Chassis control ............................................................. 5-134
Front and rear sonar system (if so equipped) ...... 5-135

System operation ................................................. 5-136
Sonar system settings ........................................ 5-136
Sonar indicator ....................................................... 5-137
Sonar limitations ................................................... 5-137
System temporarily unavailable ....................... 5-138
System maintenance ........................................... 5-138

Cold weather driving .................................................. 5-139

Freeing a frozen door lock ................................ 5-139
Antifreeze ............................................................... 5-139
Battery .................................................................... 5-139
Draining of coolant water ................................. 5-139
Tire equipment ...................................................... 5-139
Special winter equipment .................................. 5-140
Driving on snow or ice ........................................ 5-140
Engine block heater (if so equipped) .............. 5-140

Active noise cancellation/Active
sound enhancement .................................................... 5-141

Active noise cancellation .................................... 5-142
Active sound enhancement ............................... 5-142

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-4

Starting and driving

WARNING

.

Do not leave children or adults who
would normally require the support
of others alone in your vehicle. Pets
should not be left alone either. They
could accidentally injure themselves
or others through inadvertent opera-
tion of the vehicle. Also, on hot,
sunny days, temperatures in a closed
vehicle could quickly become high
enough to cause severe or possibly
fatal injuries to people or animals.

.

Closely supervise children when they
are around cars to prevent them from
playing and becoming locked in the
trunk where they could be seriously
injured. Keep the car locked, with the
rear seatback and trunk lid securely
latched when not in use, and prevent
children’s access to car keys.

EXHAUST GAS (carbon monoxide)

WARNING

.

Do not breathe exhaust gases; they
contain colorless and odorless carbon
monoxide. Carbon monoxide is dan-
gerous. It can cause unconsciousness
or death.

.

If you suspect that exhaust fumes are
entering the vehicle, drive with all
windows fully open, and have the
vehicle inspected immediately.

.

Do not run the engine in closed spaces
such as a garage.

.

Do not park the vehicle with the
engine running for any extended
length of time.

.

Keep the trunk lid closed while driv-
ing, otherwise exhaust gases could be
drawn into the passenger compart-
ment. If you must drive with the
trunk lid open, follow these precau-
tions:

1) Open all the windows.

2) Set the air recirculation to off and

the fan control to high to circulate
the air.

.

If electrical wiring or other cable
connections must pass to a trailer
through the seal on the trunk lid or
the body, follow the manufacturer’s
recommendation to prevent carbon
monoxide entry into the vehicle.

.

The exhaust system and body should
be inspected by a qualified mechanic
whenever:

— The vehicle is raised for service.

— You suspect that exhaust fumes

are entering into the passenger
compartment.

— You notice a change in the sound

of the exhaust system.

— You have had an accident invol-

ving damage to the exhaust sys-
tem, underbody, or rear of the
vehicle.

PRECAUTIONS WHEN STARTING
AND DRIVING

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

THREE-WAY CATALYST

The three-way catalyst is an emission con-
trol device installed in the exhaust system.
Exhaust gases in the three-way catalyst are
burned at high temperatures to help reduce
pollutants.

WARNING

.

The exhaust gas and the exhaust
system are very hot. Keep people,
animals or flammable materials away
from the exhaust system compo-
nents.

.

Do not stop or park the vehicle over
flammable materials such as dry
grass, waste paper or rags. They
may ignite and cause a fire.

CAUTION

.

Do not use leaded gasoline. Deposits
from leaded gasoline seriously reduce
the three-way catalyst’s ability to
help reduce exhaust pollutants.

.

Keep your engine tuned up. Malfunc-
tions in the ignition, fuel injection, or
electrical systems can cause overrich

fuel flow into the three-way catalyst,
causing it to overheat. Do not keep
driving if the engine misfires, or if
noticeable loss of performance or
other unusual operating conditions
are detected. Have the vehicle in-
spected promptly. It is recommended
you visit an INFINITI retailer for this
service.

.

Avoid driving with an extremely low
fuel level. Running out of fuel could
cause the engine to misfire, damaging
the three-way catalyst.

.

Do not race the engine while warming
it up.

.

Do not push or tow your vehicle to
start the engine.

TIRE PRESSURE MONITORING
SYSTEM (TPMS)

Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recom-
mended by the vehicle manufacturer on the
vehicle placard or tire inflation pressure
label. (If your vehicle has tires of a different
size than the size indicated on the vehicle
placard or tire inflation pressure label, you
should determine the proper tire inflation
pressure for those tires.)

As an added safety feature, your vehicle has
been equipped with a Tire Pressure Mon-
itoring System (TPMS) that illuminates a low
tire pressure telltale when one or more of
your tires is significantly under-inflated.
Accordingly, when the low tire pressure
telltale illuminates, you should stop and
check your tires as soon as possible, and
inflate them to the proper pressure. Driving
on a significantly under-inflated tire causes
the tire to overheat and can lead to tire
failure. Under-inflation also reduces fuel
efficiency and tire tread life, and may affect
the vehicle’s handling and stopping ability.
For models with run-flat tires, if the vehicle
is being driven with one or more flat tires,
the low tire pressure warning light will
illuminate continuously and a chime will
sound for 10 seconds. The flat tire warning
will also appear in the vehicle information
display. The chime will only sound at the first
indication of a flat tire, and the warning light
will illuminate continuously. When the flat
tire warning is activated, it is recommended
you have the system reset and the tire
checked and replaced if necessary by an
INFINITI retailer. Even if the tire is inflated
to the specified COLD tire pressure, the
warning light will continue to illuminate until
the system is reset by an INFINITI retailer.
Your vehicle can be driven for a limited time
on a flat tire. See “Run-flat tires” (P.8-33).

Starting and driving

5-5

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-6

Starting and driving

Please note that the TPMS is not a sub-
stitute for proper tire maintenance, and it is
the driver’s responsibility to maintain correct
tire pressure, even if under-inflation has not
reached the level to trigger illumination of
the TPMS low tire pressure telltale.
Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate
when the system is not operating properly.
The TPMS malfunction indicator is com-
bined with the low tire pressure telltale.
When the system detects a malfunction, the
telltale will flash for approximately one
minute and then remain continuously illumi-
nated. This sequence will continue upon
subsequent vehicle start-ups as long as the
malfunction exists. When the malfunction
indicator is illuminated, the system may not
be able to detect or signal low tire pressure
as intended. TPMS malfunctions may occur
for a variety of reasons, including the
installation of replacement or alternate tires
or wheels on the vehicle that prevent the
TPMS from functioning properly. Always
check the TPMS malfunction telltale after
replacing one or more tires or wheels on your
vehicle to ensure that the replacement or
alternate tires and wheels allow the TPMS
to continue to function properly.

Additional information

.

Since the spare tire (if so equipped) is not

equipped with the TPMS, the TPMS
does not monitor the tire pressure of
the spare tire.

.

The TPMS will activate only when the

vehicle is driven at speeds above 16
MPH (25 km/h). Also, this system may
not detect a sudden drop in tire pressure
(for example a flat tire while driving).

.

The low tire pressure warning light does

not automatically turn off when the tire
pressure is adjusted. After the tire is
inflated to the recommended pressure,
the vehicle must be driven at speeds
above 16 MPH (25 km/h) to activate the
TPMS and turn off the low tire pressure
warning light. Use a tire pressure gauge
to check the tire pressure.

.

The “Tire Pressure Low - Add Air”

warning appears in the vehicle informa-
tion display when the low tire pressure
warning light is illuminated and low tire
pressure is detected. The “Tire Pressure
Low - Add Air” warning turns off when
the low tire pressure warning light turns
off.
The “Tire Pressure Low - Add Air”
warning does not appear if the low tire
pressure warning light illuminates to
indicate a TPMS malfunction.

.

The “Flat Tire - Visit dealer” warning (if

so equipped) appears in the vehicle
information display when the low tire
pressure warning light is illuminated and
one or more flat tires are detected.

.

Tire pressure rises and falls depending on

the heat caused by the vehicle’s opera-
tion and the outside temperature. Do not
reduce the tire pressure after driving
because the tire pressure rises after
driving. Low outside temperature can
lower the temperature of the air inside
the tire which can cause a lower tire
inflation pressure. This may cause the
low tire pressure warning light to illumi-
nate. If the warning light illuminates in
low ambient temperature, check the tire
pressure for all four tires.

.

You can also check the pressure of all

tires (except the spare tire) in the vehicle
information display. (See “Vehicle infor-
mation display” (P.2-19).)

.

After the ignition switch is placed in the

ON position, it may take a period of time
for the tire pressure to be displayed while
the vehicle is driven. Depending on the
radio wave circumstance, tire pressure
may not correctly be displayed.

For additional information, see “Low tire
pressure warning light” (P.2-14) and “Tire
Pressure Monitoring System (TPMS)” (P.6-
3).

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

.

Radio waves could adversely affect
electric medical equipment. Those
who use a pacemaker should contact
the electric medical equipment man-
ufacturer for the possible influences
before use.

.

If the low tire pressure warning light
illuminates while driving, avoid sud-
den steering maneuvers or abrupt
braking, reduce vehicle speed, pull
off the road to a safe location and
stop the vehicle as soon as possible.
Driving with under-inflated tires may
permanently damage the tires and
increase the likelihood of tire failure.
Serious vehicle damage could occur
and may lead to an accident and
could result in serious personal injury.
Check the tire pressure for all four
tires. Adjust the tire pressure to the
recommended COLD tire pressure
shown on the Tire and Loading
Information label to turn the low tire
pressure warning light OFF. If the
light still illuminates while driving
after adjusting the tire pressure, a
tire may be flat or the TPMS may be
malfunctioning. If you have a flat tire,
replace it with a spare tire (if so

equipped) as soon as possible. If no
tire is flat and all tires are properly
inflated, it is recommended you con-
sult an INFINITI retailer.

.

For models with run-flat tires,
although you can continue driving
with a punctured run-flat tire, re-
member that vehicle handling stabi-
lity is reduced, which could lead to an
accident and personal injury. Also,
driving a long distance at high speeds
may damage the tires.

— Do not drive at speeds above 50

MPH (80 km/h) and do not drive
more than approximately 93 miles
(150 km) with a punctured run-
flat tire. The actual distance the
vehicle can be driven on a flat tire
depends on outside temperature,
vehicle load, road conditions and
other factors.

— If you detect any unusual sounds

or vibrations while driving with a
punctured run-flat tire, pull off
the road to a safe location and
stop the vehicle as soon as possi-
ble. The tire may be seriously
damaged and need to be replaced.

.

Since the spare tire is not equipped
with the TPMS, when a spare tire is
mounted or a wheel is replaced, the

TPMS will not function and the low
tire pressure warning light will flash
for approximately 1 minute. The light
will remain on after 1 minute. Have
your tires replaced and/or TPMS
system reset as soon as possible. It
is recommended you visit an INFINITI
retailer for these services.

.

Replacing tires with those not origin-
ally specified by INFINITI could affect
the proper operation of the TPMS.

.

Do not inject any tire liquid or aerosol
tire sealant into the tires, as this may
cause a malfunction of the tire pres-
sure sensors.

CAUTION

.

The TPMS may not function properly
when the wheels are equipped with
tire chains or the wheels are buried in
snow.

.

Do not place metalized film or any
metal parts (antenna, etc.) on the
windows. This may cause poor recep-
tion of the signals from the tire
pressure sensors, and the TPMS will
not function properly.

Starting and driving

5-7

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-8

Starting and driving

Some devices and transmitters may tem-
porarily interfere with the operation of the
TPMS and cause the low tire pressure
warning light to illuminate. Some examples
are:

.

Facilities or electric devices using similar

radio frequencies are near the vehicle.

.

If a transmitter set to similar frequencies

is being used in or near the vehicle.

.

If a computer (or similar equipment) or a

DC/AC converter is being used in or near
the vehicle.

Low tire pressure warning light may illumi-
nate in the following cases.

.

If the vehicle is equipped with a wheel

and tire without TPMS.

.

If the TPMS has been replaced and the ID

has not been registered.

.

If the wheel is not originally specified by

INFINITI.

FCC Notice:

For USA:

This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and (2)
this device must accept any interference
received, including interference that may
cause undesired operation.

NOTE:

Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority
to operate the equipment.

For Canada:

This device complies with Industry Canada
licence-exempt RSS standard(s). Operation
is subject to the following two conditions:

1.

This device may not cause interference,
and

2.

This device must accept any interfer-
ence, include interference that may
cause undesired operation of the device.

TPMS with Tire Inflation Indicator

When adding air to an under-inflated tire,
the TPMS with Tire Inflation Indicator
provides visual and audible signals outside
the vehicle to help you inflate the tires to the
recommended COLD tire pressure.

Vehicle set-up:

1. Park the vehicle in a safe and level place.
2. Apply the parking brake and place the

shift lever in the P (Park) position.

3. Place the ignition switch in the ON

position. Do not start the engine.

Operation:

1. Add air to the tire.
2. After a few seconds, the hazard indica-

tors will start flashing.

3. When the designated pressure is

reached, the horn beeps once and the
hazard indicators stop flashing.

4. Perform the above steps for each tire.

.

If the tire is over-inflated more than

approximately 4 psi (30 kPa), the horn
beeps and the hazard indicators flash 3
times. To correct the pressure, push the
core of the valve stem on the tire briefly
to release pressure. When the pressure
reaches the designated pressure, the
horn beeps once.

.

If the hazard indicator does not flash

within approximately 15 seconds after
starting to inflate the tire, it indicates
that the Tire Inflation Indicator is not
operating.

.

The TPMS will not activate the Tire

Inflation Indicator under the following
conditions:
— If there is interference from an ex-

ternal device or transmitter

— The air pressure from the inflation

device such as those using a power
socket is not sufficient to inflate the
tire

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

— If an electrical equipment is being used

in or near the vehicle

— There is a malfunction in the TPMS

system

— There is a malfunction in the horn or

hazard indicators

.

If the Tire Inflation Indicator does not

operate due to TPMS interference, move
the vehicle about 3 ft (1 m) backward or
forward and try again.

If the Tire Inflation Indicator is not working,
use a tire pressure gauge.

AVOIDING COLLISION AND
ROLLOVER

WARNING

Failure to operate this vehicle in a safe
and prudent manner may result in loss of
control or an accident.

Be alert and drive defensively at all times.
Obey all traffic regulations. Avoid excessive
speed, high speed cornering, or sudden
steering maneuvers, because these driving
practices could cause you to lose control of
your vehicle.

As with any vehicle, a loss of

control could result in a collision with other
vehicles or objects, or cause the vehicle to

rollover, particularly if the loss of control
causes the vehicle to slide sideways.

Be

attentive at all times, and avoid driving when
tired. Never drive when under the influence
of alcohol or drugs (including prescription or
over-the-counter drugs which may cause
drowsiness). Always wear your seat belt as
outlined in the “Seat belts” (P.1-12) of this
manual, and also instruct your passengers to
do so.
Seat belts help reduce the risk of injury in
collisions and rollovers.

In a rollover crash,

an unbelted or improperly belted person is
significantly more likely to be injured or
killed than a person properly wearing a seat
belt.

OFF-ROAD RECOVERY

If driving the right side or left side wheels
may unintentionally leave the road surface.
Maintain control of the vehicle by following
the procedure below. Please note that this
procedure is only a general guide. The vehicle
must be driven as appropriate based on the
conditions of the vehicle, road and traffic.
1. Remain calm and do not overreact.
2. Do not apply the brakes.
3. Maintain a firm grip on the steering

wheel with both hands and try to hold
a straight course.

4. When appropriate, slowly release the

accelerator pedal to gradually slow the
vehicle.

5. If there is nothing in the way, steer the

vehicle to follow the road while the
vehicle speed is reduced. Do not attempt
to drive the vehicle back onto the road
surface until vehicle speed is reduced.

6. When it is safe to do so, gradually turn

the steering wheel until both tires return
to the road surface. When all tires are on
the road surface, steer the vehicle to stay
in the appropriate driving lane.

.

If you decide that it is not safe to

return the vehicle to the road surface
based on vehicle, road or traffic
conditions, gradually slow the vehicle
to a stop in a safe place off the road.

RAPID AIR PRESSURE LOSS

Rapid air pressure loss or a “blow-out” can
occur if the tire is punctured or is damaged
due to hitting a curb or pothole. Rapid air
pressure loss can also be caused by driving
on under-inflated tires.
Rapid air pressure loss can affect the
handling and stability of the vehicle, espe-
cially at highway speeds.
Help prevent rapid air pressure loss by
maintaining the correct air pressure and
visually inspect the tires for wear and

Starting and driving

5-9

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     5      6      7      8     ..
