will automatically open or close all the way.
To stop the roof, push the switch once more
while it is opening or closing.

Operating moonroof with Intelli-
gent Key (if so equipped)

The moonroof can be opened by pushing the
UNLOCK button on the Intelligent Key. This
function will not operate while the moonroof
timer is activated or when the moonroof
need to be initialized. For details about the
Intelligent Key button usage, see “How to
use remote keyless entry system” (P.3-16).

Opening:

To open the sunroof, push the UNLOCK
button on the Intelligent Key for about 3
seconds after the door is unlocked.
To stop opening, release the

button.

Auto reverse function

WARNING

There are some small distances immedi-
ately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., inside
the vehicle before closing the moonroof.

If the control unit detects something caught
in the moonroof when it is closing, the
moonroof will be immediately opened.
The auto reverse function can be activated
when the moonroof is closed by automatic
operation when the ignition switch is in the
ON position or for about 45 seconds after
the ignition switch is pushed to the OFF
position.
If the moonroof cannot be closed automa-
tically when the auto reverse function
activates due to a malfunction, push and
hold the moonroof switch to the close
position

.

Depending on the environment or driving
conditions, the auto reverse function may
be activated if an impact or load similar to
something being caught in the moonroof
occurs.

If the moonroof does not operate

If the moonroof does not operate properly,
perform the following procedure to initialize
the moonroof operation system.
1. If the moonroof is open, close it fully by

repeatedly pushing the moonroof switch
to the close position

to tilt the moon-

roof up.

2. Push and hold the switch to the close

position

.

3. Release the moonroof switch after the

moonroof moves slightly up and down.

4. Push and hold the switch to the open

position

to fully tilt the moonroof

down.

5. Check if the moonroof switch operates

normally.

If the moonroof does not operate properly
after performing the procedure above, have
your moonroof checked and repaired. It is
recommended you visit an INFINITI retailer
for this service.

Instruments and controls

2-57

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-58

Instruments and controls

JVI0656X

MAP LIGHTS

Push the button as illustrated to turn the
light on or off.

JVI0726X

CONSOLE LIGHT (if so equipped)

The console light will turn on whenever the
front parking lights or headlights are illumi-
nated.

SIC3250

PERSONAL LIGHTS

Push the button as illustrated to turn the
light on or off.

INTERIOR LIGHTS

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

JVI0657X

INTERIOR LIGHT CONTROL
SWITCH

ON switch

When the ON switch

is pushed in, the map

lights and rear personal lights will illuminate.
When the switch is pushed off, the lights will
not illuminate, regardless of the condition.

DOOR OFF switch

When the DOOR OFF switch

is not

pushed in, the map lights and rear personal
lights will illuminate under the following
conditions:

.

ignition switch is switched to the OFF

position
— remain on for about 15 seconds.

.

doors are unlocked by pushing the UN-

LOCK button on the Intelligent Key or
one touch unlock sensor with the ignition
switch in the LOCK position
— remain on for about 15 seconds.

.

any door is opened and then closed with

the ignition switch in the LOCK position
— remain on for about 15 seconds.

.

any door is opened

— remain on while the door is opened.

When the door is closed, the lights go
off.

When the DOOR OFF switch

is pushed in,

the map and rear personal lights will not
illuminate under the above condition. The
map and rear personal lights can be turned
on only with the ON switch

.

The lights will also turn off after a period of
time when the lights remain illuminated
after the ignition switch has been pushed
to the OFF or LOCK position to prevent the
battery from becoming discharged.

When [Lamp ON when Door Unlocks] is set
to OFF on the lower display (see the
INFINITI InTouch

TM

Owner’s Manual), the

lights will illuminate under the following
condition:

.

any door is opened with the ignition

switch in any position
— remain on while the door is opened.

When the door is closed, the lights go
off.

CAUTION

Do not use for extended periods of time
with the engine stopped. This could
result in a discharged battery.

Instruments and controls

2-59

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-60

Instruments and controls

SIC3869

The light on the vanity mirror will turn on
when the cover on the vanity mirror is
opened.
When the cover is closed, the light will turn
off.

The lights will also turn off after a period of
time when the lights remain illuminated to
prevent the battery from becoming dis-
charged.

The light illuminates when the trunk lid is
opened. When the trunk lid is closed, the
light will turn off.

The light will also turn off after a period of
time when the light remains illuminated
after the ignition switch has been pushed
to the OFF or LOCK position to prevent the
battery from becoming discharged.

SIC4328

When the doors are unlocked by pushing the
UNLOCK button on the Intelligent Key or
touching the one touch unlock sensor with
the ignition switch in the LOCK position, the
courtesy light

will illuminate.

To activate or deactivate the courtesy light,
set [Lamp ON when Door Unlocks] on the
lower display. See the INFINITI InTouch

TM

Owner’s Manual.

VANITY MIRROR LIGHTS

TRUNK LIGHT

COURTESY LIGHT

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The HomeLink

®

Universal Transceiver pro-

vides a convenient way to consolidate the
functions of up to three individual hand-held
transmitters into one built-in device.
HomeLink

®

Universal Transceiver:

.

Will operate most Radio Frequency (RF)

devices such as garage doors, gates,
home and office lighting, entry door
locks and security systems.

.

Is powered by your vehicle’s battery. No

separate batteries are required. If the
vehicle’s battery is discharged or is
disconnected, HomeLink

®

will retain all

programming.

When the HomeLink

®

Universal Transceiver

is programmed, retain the original trans-
mitter for future programming procedures
(Example: new vehicle purchases). Upon
sale of the vehicle, the programmed
HomeLink

®

Universal Transceiver buttons

should be erased for security purposes. For
additional information, refer to “Program-
ming HomeLink

®

” (P.2-61).

WARNING

.

Do not use the HomeLink

®

Universal

Transceiver with any garage door
opener that lacks safety stop and
reverse features as required by fed-
eral safety standards. (These stan-

dards became effective for opener
models manufactured after April 1,
1982). A garage door opener which
cannot detect an object in the path of
a closing garage door and then auto-
matically stop and reverse, does not
meet current federal safety stan-
dards. Using a garage door opener
without these features increases the
risk of serious injury or death.

.

During the programming procedure
your garage door or security gate will
open and close (if the transmitter is
within range). Make sure that people
or objects are clear of the garage
door, gate, etc. that you are pro-
gramming.

.

Your vehicle’s engine should be
turned off while programming the
HomeLink

®

Universal Transceiver.

Do not breathe exhaust gases; they
contain colorless and odorless carbon
monoxide. Carbon monoxide is dan-
gerous. It can cause unconsciousness
or death.

PROGRAMMING HomeLink

®

If you have any questions or are having
difficulty programming your HomeLink

®

buttons, refer to the HomeLink

®

web site

at: www.homelink.com or call 1-800-355-
3515.

NOTE:

It is also recommended that a new battery
be placed in the hand-held transmitter of
t h e d e v i c e b e i n g p r o g r a m m e d t o
HomeLink

®

for quicker programming and

accurate transmission of the radio-fre-
quency.

1. Position the end of your hand-held

transmitter 1-3 in (26-76 mm) away
from the HomeLink

®

surface, keeping

the HomeLink

®

indicator light

in view.

Instruments and controls

2-61

HomeLink

®

UNIVERSAL TRANSCEIVER

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-62

Instruments and controls

JVI0428X

2. Using both hands, simultaneously press

and hold the desired HomeLink

®

button

and handheld transmitter button. DO
NOT release until the HomeLink

®

indi-

cator light

flashes slowly and then

rapidly. When the indicator light flashes
rapidly, both buttons may be released.
(The rapid flashing indicates successful
programming.)

NOTE:
Some devices to be programmed may
require you to replace Step 2 with the
cycling procedure noted in the “Pro-
gramming HomeLink

®

for Canadian cus-

tomers and gate openers” (P.2-63).

JVI0429X

3. Press and hold the programmed

HomeLink

®

button and observe the in-

dicator light.

.

If the indicator light

is solid/con-

tinuous, programming is complete
and your device should activate when
the HomeLink

®

button is pressed and

released.

.

If the indicator light

blinks rapidly

for two seconds and then turns to a
solid/continuous light, continue with
Steps 4-6 for a rolling code device. A
second person may make the follow-
ing steps easier. Use a ladder or other
device. Do not stand on your vehicle
to perform the next steps.

4. At the receiver located on the garage

door opener motor in the garage, locate
the “learn” or “smart” button (the name
and color of the button may vary by
manufacturer but it is usually located
near where the hanging antenna wire is
attached to the unit). If there is difficulty
locating the button, reference the garage
door opener’s manual.

5. Press and release the “learn” or “smart”

button.

NOTE:
Once the button is pressed, you have
approximately 30 seconds to initiate the
next step.

6. Return to the vehicle and firmly press

and hold the programmed HomeLink

®

button for two seconds and release.
Repeat the “press/hold/release” se-
quence up to 3 times to complete the
programming process. HomeLink

®

should now activate your rolling code
equipped device.

7. If you have any questions or are having

difficulty programming your HomeLink

®

buttons, refer to the HomeLink

®

web

site at: www.homelink.com or call 1-
800-355-3515.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PROGRAMMING HomeLink

®

FOR

CANADIAN CUSTOMERS AND
GATE OPENERS

Canadian radio-frequency laws require
transmitter signals to “time-out” (or quit)
after several seconds of transmission –
which may not be long enough for
HomeLink

®

to pick up the signal during

programming. Similar to this Canadian law,
some U.S. gate operators are designed to
“time-out” in the same manner.
If you live in Canada or you are having
difficulties programming a gate operator or
garage door opener by using the “Program-
ming HomeLink

®

” procedures, replace “Pro-

gramming HomeLink

®

” Step 2 with the

following:

NOTE:

When programming a garage door opener,
etc., unplug the device during the “cycling”
process to prevent possible damage to the
garage door opener components.

Step 2: Using both hands, simultaneously
press and hold the desired HomeLink

®

button and the hand-held transmitter but-
ton. During programming, your hand-held
transmitter may automatically stop trans-
mitting. Continue to press and hold the
desired HomeLink

®

button while you press

and re-press (“cycle”) your hand-held trans-

mitter every two seconds until the frequency
signal has been learned. The HomeLink

®

indicator light will flash slowly and then
rapidly after several seconds upon success-
ful programming.

DO NOT

release until the

HomeLink

®

indicator light flashes slowly and

then rapidly. When the indicator light flashes
rapidly, both buttons may be released. The
rapid flashing indicates successful program-
ming.
Proceed with “Programming HomeLink

®

step 3 to complete.
Remember to plug the device back in when
programming is completed.

OPERATING THE HomeLink

®

UNIVERSAL TRANSCEIVER

The HomeLink

®

Universal Transceiver, after

it is programmed, can be used to activate the
programmed device. To operate, simply
press and release the appropriate pro-
grammed HomeLink

®

Universal Transceiver

button. The amber indicator light will illumi-
nate while the signal is being transmitted.
For convenience, the hand-held transmitter
of the device may also be used at any time.

PROGRAMMING TROUBLE-
SHOOTING

If the HomeLink

®

does not quickly learn the

hand-held transmitter information:

.

replace the hand-held transmitter bat-

teries with new batteries.

.

position the hand-held transmitter with

its battery area facing away from the
HomeLink

®

surface.

.

press and hold both the HomeLink

®

and

hand-held transmitter buttons without
interruption.

.

position the hand-held transmitter 1-3 in

(26-76 mm) away from the HomeLink

®

surface. Hold the transmitter in that
position for up to 15 seconds. If
HomeLink

®

is not programmed within

that time, try holding the transmitter in
another position - keeping the indicator
light in view at all times.

If you have any questions or are having
difficulty programming your HomeLink

®

buttons, refer to the HomeLink

®

web site

at: www.homelink.com or 1-800-355-
3515.

Instruments and controls

2-63

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-64

Instruments and controls

CLEARING THE PROGRAMMED
INFORMATION

The following procedure clears the pro-
grammed information from both buttons.
Individual buttons cannot be cleared. How-
ever, individual buttons can be repro-
grammed, see “Reprogramming a single
HomeLink

®

button” (P.2-64).

To clear all programming

1. Press and hold the two outer HomeLink

®

buttons until the indicator light begins to
flash in approximately 10 seconds. Do
not hold for longer than 20 seconds.

2. Release both buttons.
HomeLink

®

is now in the programming mode

and can be programmed at any time begin-
ning with “Programming HomeLink

®

” - Step

1.

REPROGRAMMING A SINGLE
HomeLink

®

BUTTON

To reprogram a HomeLink

®

Universal Trans-

ceiver button, complete the following.
1. Press and hold the desired HomeLink

®

button.

Do not

release the button.

2. The indicator light will begin to flash

after 20 seconds. Without releasing the
HomeLink

®

button, proceed with “Pro-

gramming HomeLink

®

” - Step 1.

For questions or comments, contact
HomeLink

®

at: www.homelink.com or 1-

800-355-3515.
The HomeLink

®

Universal Transceiver but-

ton has now been reprogrammed. The new
device can be activated by pushing the
HomeLink

®

button that was just pro-

grammed. This procedure will not affect
any other programmed HomeLink

®

buttons.

IF YOUR VEHICLE IS STOLEN

If your vehicle is stolen, you should change
the codes of any non-rolling code device that
has been programmed into HomeLink

®

.

Consult the Owner’s Manual of each device
or call the manufacturer or retailer of those
devices for additional information.

When your vehicle is recovered, you will
need to reprogram the HomeLink

®

Univer-

sal Transceiver with your new transmitter
information.

FCC Notice:

For USA:

This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and (2)
this device must accept any interference
received, including interference that may
cause undesired operation.

NOTE:

Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority
to operate the equipment.

For Canada:

This device complies with Industry Canada
licence-exempt RSS standard(s). Operation
is subject to the following two conditions:
(1) this device may not cause interference,
and (2) this device must accept any inter-
ference, including interference that may
cause undesired operation of the device.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3 Pre-driving checks and adjustments

Keys ...................................................................................... 3-2

Intelligent Key .............................................................. 3-2
Valet hand-off ............................................................. 3-4

Doors .................................................................................... 3-4

Locking with mechanical key ................................... 3-4
Locking with inside lock knob ................................. 3-5
Locking with power door lock switch ................... 3-5
Automatic door locks ................................................. 3-5
Child safety rear door lock ....................................... 3-6

Intelligent Key system ..................................................... 3-6

Intelligent Key operating range ............................... 3-8
Door locks/unlocks precaution .............................. 3-9
Intelligent Key operation ........................................... 3-9
Battery saver system ............................................... 3-13
Warning signals ......................................................... 3-13
Troubleshooting guide ............................................. 3-14
Log-in function .......................................................... 3-15

Remote keyless entry system ...................................... 3-15

How to use remote keyless entry system .......... 3-16

Remote engine start (if so equipped) ........................ 3-19

Remote engine start operating range ................ 3-20
Remote starting the engine .................................. 3-20
Extending engine run time ..................................... 3-20
Canceling a remote engine start ........................... 3-21

Conditions the remote engine start will
not work .................................................................... 3-21

Hood .................................................................................. 3-22
Trunk lid ............................................................................ 3-22

Trunk lid release switch ......................................... 3-23
Trunk open request switch ................................... 3-23
TRUNK button ......................................................... 3-23
Trunk release power cancel switch .................... 3-24
Interior trunk lid release ........................................ 3-24

Fuel-filler door ................................................................ 3-25

Opening the fuel-filler door ................................. 3-25
Fuel-filler cap ........................................................... 3-25

Tilt/telescopic steering ................................................. 3-27

Manual operation (if so equipped) ..................... 3-28
Electric operation (if so equipped) ..................... 3-28

Sun visors ......................................................................... 3-29
Mirrors .............................................................................. 3-29

Inside mirror .............................................................. 3-29
Outside mirrors ....................................................... 3-30
Vanity mirror ............................................................ 3-32

Memory seat (if so equipped) ..................................... 3-33

Entry/exit function ................................................. 3-33
Memory storage ...................................................... 3-33
System operation .................................................... 3-34

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3-2

Pre-driving checks and adjustments

A key number plate is supplied with your
keys. Record the key number and keep it in a
safe place (such as your wallet), not in the
vehicle. If you lose your keys, it is recom-
mended you visit an INFINITI retailer for
duplicates by using the key number. INFINITI
does not record any key numbers so it is very
important to keep track of your key number
plate.
A key number is only necessary when you
have lost all keys and do not have one to
duplicate from. If you still have a key, it can
be duplicated without knowing the key
number.

WAD0067X

Type A (if so equipped)

WAD0068X

Type B (if so equipped)

1.

Intelligent Keys (2)

2.

Mechanical keys (inside the Keys) (2)

3.

Key number plate (1)

INTELLIGENT KEY

Your vehicle can only be driven with the
Intelligent Keys which are registered to your
vehicle’s Intelligent Key system components
and INFINITI Vehicle Immobilizer System
components. As many as 4 Intelligent Keys
can be registered and used with one vehicle.
The new keys must be registered by an
INFINITI retailer prior to use with the
Intelligent Key system and INFINITI Vehicle
Immobilizer System of your vehicle. Since the
registration process requires erasing all
memory in the Intelligent Key components
when registering new keys, be sure to take
all Intelligent Keys that you have to the
INFINITI retailer.
It is possible that the Intelligent Key func-
tions become canceled. Contact an INFINITI
retailer.

CAUTION

.

Be sure to carry the Intelligent Key
with you when driving. The Intelli-
gent Key is a precision device with a
built-in transmitter. To avoid dama-
ging it, please note the following.

KEYS

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

— The Intelligent Key is water re-

sistant; however, wetting may
damage the Intelligent Key. If the
Intelligent Key gets wet, immedi-
ately wipe until it is completely
dry.

— Do not bend, drop or strike it

against another object.

— If the outside temperature is

below 14°F (−10°C), the battery
of the Intelligent Key may not
function properly.

— Do not place the Intelligent Key

for an extended period in a place
where temperatures exceed
140°F (60°C).

— Do not change or modify the

Intelligent Key.

— Do not use a magnet key holder.

— Do not place the Intelligent Key

near an electric appliance such as
a television set or personal com-
puter.

— Do not allow the Intelligent Key

to come into contact with water
or salt water, and do not wash it
in a washing machine. This could
affect the system function.

.

If an Intelligent Key is lost or stolen,
INFINITI recommends erasing the ID
code of that Intelligent Key. This will
prevent the Intelligent Key from un-
authorized use to unlock the vehicle.
For information regarding the eras-
ing procedure, it is recommended you
visit an INFINITI retailer.

WAD0069X

Mechanical key

To remove the mechanical key, release the
lock knob at the back of the Intelligent Key.
To install the mechanical key, firmly insert it
into the Intelligent Key until the lock knob
returns to the lock position.
Use the mechanical key to lock or unlock the
driver’s door, glove box and trunk pass-
through lid if equipped with a key cylinder.
See “Doors” (P.3-4), “Glove box” (P.2-51)
and “Trunk pass-through” (P.1-7).

Pre-driving checks and adjustments

3-3

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3-4

Pre-driving checks and adjustments

CAUTION

Always carry the mechanical key in-
stalled in the key.

VALET HAND-OFF

When you have to leave a key with a valet,
give them the Intelligent Key itself and keep
the mechanical key with you to protect your
belongings.
To prevent the glove box and the trunk from
being opened during valet hand-off, follow
the procedures below.
1. Push the trunk release power cancel

switch to the OFF (cancel) side.

2. Remove the mechanical key from the

Intelligent Key.

3. Lock the glove box and the trunk pass-

through with the mechanical key.

4. Hand the Intelligent Key to the valet,

keeping the mechanical key in your
pocket or bag for insertion into the
Intelligent Key when you retrieve your
vehicle.

See “Trunk lid” (P.3-22), “Glove box” (P.2-
51) and “Trunk pass-through” (P.1-7).

WARNING

.

Always have the doors locked while
driving. Along with the use of seat
belts, this provides greater safety in
the event of an accident by helping to
prevent persons from being thrown
from the vehicle. This also helps keep
children and others from unintention-
ally opening the doors, and will help
keep out intruders.

.

Before opening any door, always look
for and avoid oncoming traffic.

.

To help avoid risk of injury or death
through unintended operation of the
vehicle and or its systems, including
entrapment in windows or inadver-
tent door lock activation, do not
leave children, people who require
the assistance of others or pets
unattended in your vehicle. Addition-
ally, the temperature inside a closed
vehicle on a warm day can quickly
become high enough to cause a sig-
nificant risk of injury or death to
people and pets.

SPA2457

LOCKING WITH MECHANICAL
KEY

To lock the driver’s door, turn the driver’s
door key cylinder to the front of the vehicle

.

To unlock the driver’s door, turn the driver’s
door key cylinder to the rear of the vehicle

.

To lock or unlock the other doors and the
trunk lid, use the Intelligent Key function
(one touch unlock sensor, request switch or
UNLOCK button). (See “Intelligent Key sys-
tem” (P.3-6).)

DOORS

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPA2726

LOCKING WITH INSIDE LOCK
KNOB

To lock the door individually, move the inside
lock knob to the lock position

then close

the door.
To unlock, move the inside lock knob to the
unlock position

.

When locking the door without an Intelli-
gent Key, be sure not to leave the Intelligent
Key inside the vehicle.

JVP0319X

LOCKING WITH POWER DOOR
LOCK SWITCH

Operating the power door lock switch will
lock or unlock all the doors and trunk lid. The
switches are located on the driver’s and
front passenger’s door armrests.
To lock the doors and trunk lid, push the
power door lock switch to the lock position

with the driver’s or front passenger’s door

open, then close the door.

When locking the door this way, be certain
not to leave the Intelligent Key inside the
vehicle.

To unlock the doors including the fuel-filler
door and trunk lid, push the power door lock

switch to the unlock position

.

Lockout protection

When the power door lock switch is moved
to the lock position and any door open, all
doors will lock and unlock automatically.
With the Intelligent Key left in the vehicle
and any door open, all doors will unlock
automatically and a chime will sound after
the door is closed.
These functions help to prevent the Intelli-
gent Key from being accidentally locked
inside the vehicle.

AUTOMATIC DOOR LOCKS

.

All doors and trunk lid lock automatically

when the vehicle speed reaches 15 MPH
(24 km/h).

.

All doors and trunk lid unlock automati-

cally when the ignition switch is placed in
the OFF position or when the shift lever
is moved to the P (Park) position, if
selected.

The automatic unlock function can be
deactivated or activated.

To deactivate or

activate the automatic door unlock system,
perform the following procedure:
1. Close all doors.
2. Place the ignition switch in the ON

position.

Pre-driving checks and adjustments

3-5

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3-6

Pre-driving checks and adjustments

3. Within 20 seconds of performing Step 2,

push and hold the power door lock
switch to the

position (UNLOCK)

for more than 5 seconds.

4. When activated, the hazard indicator will

flash twice. When deactivated, the ha-
zard indicator will flash once.

5. The ignition switch must be placed in the

OFF and ON position again between
each setting change.

When the automatic door unlock system is
deactivated, the doors do not unlock when
the ignition switch is placed in the OFF
position. To unlock the door manually, use
the inside lock knob or the power door lock
switch (driver’s or front passenger’s side).
The automatic door unlock function can be
changed on the lower display. (See the
INFINITI InTouch

TM

Owner’s Manual.)

SPA2536

CHILD SAFETY REAR DOOR
LOCK

The child safety rear door lock helps prevent
doors from being opened accidentally, espe-
cially when small children are in the vehicle.

When the levers are in the lock position

,

the rear doors can be opened only from the
outside.

To disengage, move the levers to the unlock
position

.

WARNING

.

Radio waves could adversely affect
electric medical equipment. Those
who use a pacemaker should contact
the electric medical equipment man-
ufacturer for the possible influences
before use.

.

The Intelligent Key transmits radio
waves when the buttons are pushed.
The FAA advises that the radio
waves may affect aircraft navigation
and communication systems. Do not
operate the Intelligent Key while on
an airplane. Make sure the buttons
are not operated unintentionally
when the unit is stored during a
flight.

The Intelligent Key system can operate all
the doors and the trunk lid using the remote
controller function, using one touch unlock
function or pushing the request switch on
the vehicle without taking the key out from a
pocket or purse. The operating environment
and/or conditions may affect the Intelligent
Key system operation.
Be sure to read the following before using
the Intelligent Key system.

INTELLIGENT KEY SYSTEM

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CAUTION

.

Be sure to carry the Intelligent Key
with you when operating the vehicle.

.

Never leave the Intelligent Key in the
vehicle when you leave the vehicle.

The Intelligent Key is always communicating
with the vehicle as it receives radio waves.
The Intelligent Key system transmits weak
radio waves. Environmental conditions may
interfere with the operation of the Intelligent
Key system under the following operating
conditions.

.

When operating near a location where

strong radio waves are transmitted, such
as a TV tower, power station and broad-
casting station.

.

When in possession of wireless equip-

ment, such as a cellular telephone,
transceiver, and CB radio.

.

When the Intelligent Key is in contact

with or covered by metallic materials.

.

When any type of radio wave remote

control is used nearby.

.

When the Intelligent Key is placed near

an electric appliance such as a personal
computer.

.

When the vehicle is parked near a parking

meter.

In such cases, correct the operating condi-
tions before using the Intelligent Key func-
tion or use the mechanical key.
Although the life of the battery varies
depending on the operating conditions, the
battery’s life is approximately 2 years. If the
battery is discharged, replace it with a new
one.
When the Intelligent Key battery is almost
discharged, see “Intelligent Key battery dis-
charge” (P.5-14) to start the engine.
Since the Intelligent Key is continuously
receiving radio waves, if the key is left near
equipment which transmits strong radio
waves, such as signals from a TV and
personal computer, the battery life may
become shorter.
For information regarding replacement of a
battery, see “Intelligent Key battery replace-
ment” (P.8-19).
As many as 4 Intelligent Keys can be
registered and used with one vehicle. For
information about the purchase and use of
additional Intelligent Keys, contact an
INFINITI retailer.

CAUTION

.

Do not allow the Intelligent Key,
which contains electrical compo-
nents, to come into contact with
water or salt water. This could affect
the system function.

.

Do not drop the Intelligent Key.

.

Do not strike the Intelligent Key
sharply against another object.

.

Do not change or modify the Intelli-
gent Key.

.

Wetting may damage the Intelligent
Key. If the Intelligent Key gets wet,
immediately wipe until it is comple-
tely dry.

.

Do not place the Intelligent Key for
an extended period in an area where
temperatures exceed 140°F (60°C).

.

If the outside temperature is below
14°F (−10°C), the battery of the
Intelligent Key may not function
properly.

.

Do not attach the Intelligent Key
with a key holder that contains a
magnet.

.

Do not place the Intelligent Key near
equipment that produces a magnetic
field, such as a TV, audio equipment

Pre-driving checks and adjustments

3-7

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3-8

Pre-driving checks and adjustments

and personal computers.

If an Intelligent Key is lost or stolen, INFINITI
recommends erasing the ID code of that
Intelligent Key from the vehicle. This may
prevent the unauthorized use of the Intelli-
gent Key to operate the vehicle. For infor-
mation regarding the erasing procedure,
contact an INFINITI retailer.

JVP0225X

INTELLIGENT KEY OPERATING
RANGE

The Intelligent Key functions can only be
used when the Intelligent Key is within the
specified operating range from the one
touch unlock sensor/door request switch
and trunk open request switch

.

When the Intelligent Key battery is dis-
charged or strong radio waves are present
near the operating location, the Intelligent
Key system’s operating range becomes nar-
rower, and the Intelligent Key may not
function properly.
The operating range is within 31.50 in (80
cm) from each one touch unlock sensor/door

handle request switch

and trunk open

request switch

.

If the Intelligent Key is too close to the door
glass, handle or rear bumper, the one touch
unlock sensor and request switches may not
function.
When the Intelligent Key is within the
operating range, it is possible for anyone
who does not carry the Intelligent Key to use
the one touch unlock sensor or request
switches to lock or unlock the doors and
open the trunk lid.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WAD0070X

DOOR LOCKS/UNLOCKS PRE-
CAUTION

.

Do not push the door handle request

switch with the Intelligent Key held in
your hand as illustrated. The close dis-
tance to the door handle will cause the
Intelligent Key system to have difficulty
recognizing that the Intelligent Key is
outside the vehicle.

.

Within 2 seconds after the door are

locked using the door handle request
switch, make sure that the doors have
been securely locked by operating the
door handles. If you keep holding the
door handle for more than 2 seconds
after locking the doors using the door

handle request switch, the door will be
unlocked.

.

To prevent the Intelligent Key from being

left inside the vehicle or the trunk, make
sure you carry the key with you and then
lock the doors or the trunk.

.

The Intelligent Key system (opening/

closing doors with the door handle
request switch or one touch unlock
sensor) can be set to remain inactive.
(See the INFINITI InTouch

TM

Owner’s

Manual.)

.

The door cannot be unlocked using one

touch unlock operation after locking the
door within 2 seconds. To unlock the
door, release the one touch unlock
sensor once and touch it again.

.

If a large amount of water runs down on

the door handle (for example, when
washing the vehicle or in a heavy rain),
the door may unlock if the Intelligent Key
is within the range of operation. To
prevent the door from being unlocked,
the Intelligent Key should be away from
the vehicle more than 7 ft (2 m).

.

Do not hold and pull the door handle

quickly. The door will be unlocked but will
not open. Release the door handle once
and pull it again to open the door.

.

If you pull the door handle with your

gloved hand, the one touch unlock
operation may not function.

WAD0071X

INTELLIGENT KEY OPERATION

You can lock or unlock the doors without
taking the key out from your pocket or bag.

Pre-driving checks and adjustments

3-9

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3-10

Pre-driving checks and adjustments

JVP0233X

When you carry the Intelligent Key with you,
you can lock all doors by pushing the door
handle request switch

(driver’s or front

passenger’s) within the range of operation.

WAD0066X

You can also unlock the corresponding door
by touching the one touch unlock sensor
(driver’s or front passenger’s) within the
range of operation, and can unlock the other
doors using the door handle request switch

.

When you lock or unlock the doors or the
trunk lid, the hazard indicator will flash and
the horn (or the outside chime) will sound as
a confirmation. For details, see “Setting
hazard indicator and horn mode” (P.3-18).

CAUTION

.

After locking the doors using the
request switch, make sure that the
doors have been securely locked by
operating the door handles.

.

When locking the doors using the
request switch, make sure to have the
Intelligent Key in your possession
before operating the request switch
to prevent the Intelligent Key from
being left in the vehicle.

.

The request switch and one touch
unlock sensor are operational only
when the Intelligent Key has been
detected by the Intelligent Key sys-
tem.

Welcome light and farewell light
function

When you lock or unlock the doors and fuel-
filler door, front and rear side marker lights,
parking lights, tail lights and the license plate
light will illuminate for a period of time. The
welcome light and farewell light function can
be disabled. For information about disabling
the welcome light and farewell light func-
tion, see the INFINITI InTouch

TM

Owner’s

Manual.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Lockout protection

To prevent the Intelligent Key from being
accidentally locked in the vehicle, lockout
protection is equipped with the Intelligent
Key system.
When the driver’s side door is open, the
doors are locked, and then the Intelligent
Key is put inside the vehicle and all the doors
are closed; the lock will automatically unlock
and the door buzzer sounds.

NOTE:

The doors may not lock when the Intelligent
Key is in the same hand that is operating the
request switch to lock the door. Put the
Intelligent Key in a purse, pocket or your
other hand.

CAUTION

The lockout protection may not function
under the following conditions:

.

When the Intelligent Key is placed on
top of the instrument panel.

.

When the Intelligent Key is placed
inside the glove box or a storage bin.

.

When the Intelligent Key is placed
inside the door pockets.

.

When the Intelligent Key is placed

inside or near metallic materials.

JVP0233X

Locking doors, trunk lid and fuel-
filler door

1. Push the ignition switch to the OFF

position and make sure you carry the
Intelligent Key with you.*1

2. Close all the doors.*2
3. Push the door handle request switch

(driver’s or front passenger’s)

while

carrying the Intelligent Key with you.*3

4. All the doors, trunk lid and fuel-filler door

will lock.

5. The hazard indicator flashes twice and

the outside chime sounds twice.

*1: Doors will lock with the Intelligent Key

Pre-driving checks and adjustments

3-11

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3-12

Pre-driving checks and adjustments

while the ignition switch is in the ACC
or ON position.

*2: Doors will not lock with the Intelligent

Key while the driver’s door is open.

*3: Doors will not lock by pushing the door

handle request switch with the Intelli-
gent Key inside the vehicle. However,
when an Intelligent Key is inside the
vehicle, doors can be locked with
another registered Intelligent Key.

WAD0066X

Unlocking doors and fuel-filler door

1. Touch the one touch unlock sensor

(driver’s or front passenger’s) while car-
rying the Intelligent Key with you.

2. The hazard indicator flashes once and

the outside chime sounds once. The
corresponding door will unlock.

3. Push the door handle request switch

within 1 minute.

4. The hazard indicator flashes once and

the outside chime sounds once again. All
the doors, trunk lid and fuel-filler door
will unlock.

All doors, trunk lid and fuel-filler door will be
locked automatically unless one of the

following operations is performed within 1
minute after pushing the request switch or
touch unlock operation while the doors are
locked.

.

Opening any door

.

Pushing the ignition switch

During this 1-minute time period, if the
UNLOCK

button on the Intelligent Key

is pushed, all doors will be locked automa-
tically after another 1 minute.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WAD0072X

JVP0563X

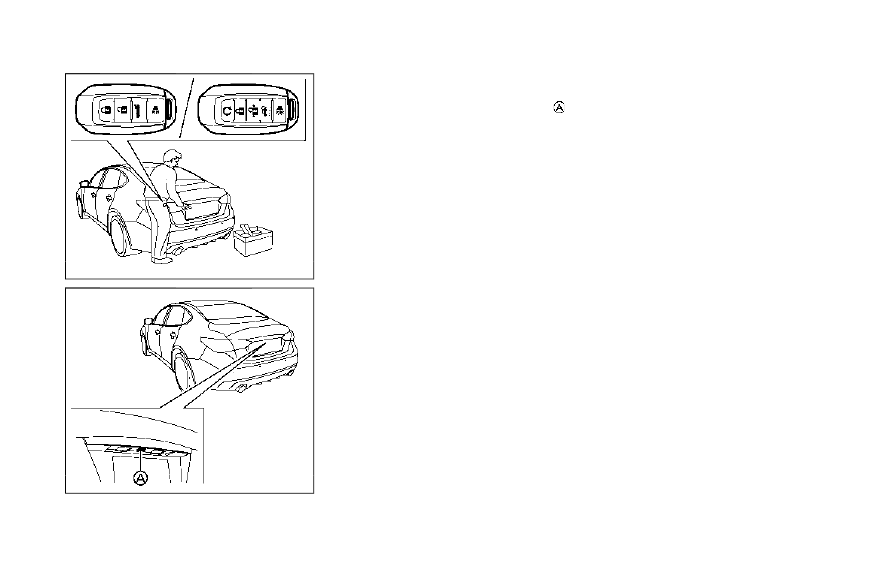

Opening trunk lid

1. Push the trunk open request switch

for

more than 1 second while carrying the
Intelligent Key with you.

2. The trunk will unlatch. An outside chime

will sound four times.

3. Raise the trunk lid to open the trunk.

Lockout protection:

To prevent the Intelligent Key from being
accidentally locked in the trunk, lockout
protection is equipped with the Intelligent
Key system.
When the trunk lid is closed with the
Intelligent Key inside the trunk, the outside
chime will sound and the trunk will open.

BATTERY SAVER SYSTEM

When all the following conditions are met
for a period of time, the battery saver
system will cut off the power supply to
prevent battery discharge.

.

The ignition switch is in the ACC position,

and

.

All doors are closed, and

.

The shift lever is in the P (Park) position.

WARNING SIGNALS

To help prevent the vehicle from moving
unexpectedly by erroneous operation of the
Intelligent Key listed on the following chart
or to help prevent the vehicle from being
stolen, chime or beep sounds inside and
outside the vehicle and a warning displays in
the vehicle information display.
When a chime or beep sounds or the warning
displays, be sure to check the vehicle and
Intelligent Key.
See “Troubleshooting guide” (P.3-14) and
“Vehicle information display” (P.2-19).

Pre-driving checks and adjustments

3-13

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3-14

Pre-driving checks and adjustments

TROUBLESHOOTING GUIDE

Symptom

Possible cause

Action to take

When pushing the ignition
switch to stop the engine

The SHIFT P warning appears on the
display and the inside warning chime
sounds continuously.

The shift lever is not in the P (Park)
position.

Shift the shift lever to the P (Park)
position.

When shifting the shift lever to
the P (Park) position.

The inside warning chime sounds continu-
ously.

The ignition switch is in the ACC or
ON position.

Push the ignition switch to the OFF
position.

When opening the driver’s door
to get out of the vehicle

The inside warning chime sounds continu-
ously.

The ignition switch is in the ACC
position.

Push the ignition switch to the OFF
position.

When closing the door after
getting out of the vehicle

The NO KEY warning appears on the
display, the outside chime sounds 3 times
and the inside warning chime sounds for a
few seconds.

The ignition switch is in the ACC or
ON position.

Push the ignition switch to the OFF
position.

The SHIFT P warning appears on the
display and the outside chime sounds
continuously.

The ignition switch is in the ACC or
OFF position and the shift lever is not
in the P (Park) position.

Move the shift lever to the P (Park)
position and push the ignition switch to
the OFF position.

When closing the door with the
inside lock knob turned to
LOCK

The outside chime sounds for a few
seconds and all the doors unlock.

The Intelligent Key is inside the
vehicle or trunk.

Carry the Intelligent Key with you.

When pushing the request
switch or LOCK button on the
Intelligent Key to lock the door

The outside chime sounds for a few
seconds.

The Intelligent Key is inside the
vehicle or trunk.

Carry the Intelligent Key with you.

A door is not closed securely.

Close the door securely.

When closing the trunk lid

The outside chime sounds for approxi-
mately 10 seconds and the trunk lid opens.

The Intelligent Key is inside the trunk. Carry the Intelligent Key with you.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOG-IN FUNCTION

After setting up the user information, the
system will automatically recognize the user
upon turning on the vehicle.
There will be a personalized welcome greet-
ing and screen prompt to log-in.
This feature allows 4 drivers to use their
own registration, drive mode, driving posi-
tion, air conditioner, and auto settings and
memorizes these custom settings.
The log-in user can be changed on the
welcome greeting screen or the User Profiles
screen. For more details, see the INFINITI
InTouch

TM

Owner’s Manual.

The log-in function is linked to the following
items:

.

Meter

.

Audio

.

Navigation system display (if so

equipped)

.

Navigation settings (if so equipped)

.

Air conditioner

.

Memory seat (if so equipped)

.

Engine/Transmission

.

Steering

.

Suspension (if so equipped)

.

Active trace control system

.

Driver assistance* (if so equipped)

.

Vehicle settings

*: except for the Forward Emergency Brak-
ing (FEB) system

WARNING

The Intelligent Key transmits radio
waves when the buttons are pushed.
The FAA advises that the radio waves
may affect aircraft navigation and com-
munication systems. Do not operate the
Intelligent Key while on an airplane.
Make sure the buttons are not operated
unintentionally when the unit is stored
during a flight.

It is possible to lock/unlock all doors and
fuel-filler door, open the trunk lid, activate
the panic alarm and open the windows by
pushing the buttons on the Intelligent Key
from outside the vehicle.

Before locking the doors, make sure the
Intelligent Key is not left in the vehicle.

The remote keyless entry function can
operate at a distance of approximately 33
ft (10 m) from the vehicle. (The effective
distance depends upon the conditions
around the vehicle.)
As many as 4 Intelligent Keys can be used
with one vehicle. For information concerning
the purchase and use of additional Intelli-
gent Keys, contact an INFINITI retailer.
The buttons on the Intelligent Key will not

Pre-driving checks and adjustments

3-15

REMOTE KEYLESS ENTRY SYSTEM

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3-16

Pre-driving checks and adjustments

operate when:

.

the distance between the Intelligent Key

and the vehicle is over 33 ft (10 m).

.

the Intelligent Key battery is discharged.

After locking with the remote keyless entry
function, pull the door handle to make sure
the doors are securely locked.
The LOCK/UNLOCK operating range varies
depending on the environment. To securely
operate the lock and unlock buttons, ap-
proach the vehicle to about 3 ft (1 m) from
the door.

WAD0074X

Type A (if so equipped)

WAD0075X

Type B (if so equipped)

LOCK button
UNLOCK button
TRUNK button
PANIC button
Remote engine start button

HOW TO USE REMOTE KEYLESS
ENTRY SYSTEM

When you lock or unlock the doors or the
trunk lid, the hazard indicator will flash and
the horn (or the outside chime) will sound as
a confirmation. For details, see “Setting
hazard indicator and horn mode” (P.3-18).

Locking doors, trunk lid and fuel-
filler door

1. Push the ignition switch to the OFF

position and make sure you carry the
Intelligent Key with you.*1

2. Close all the doors.
3. Push the LOCK

button

on the

Intelligent Key.

4. All the doors, trunk lid and fuel-filler door

will lock.

5. The hazard indicator flashes twice and

the horn chirps once.

*1: Doors will lock with the Intelligent Key

while the ignition switch is in the ACC
or ON position.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Unlocking doors, trunk lid and fuel-
filler door

1. Push the UNLOCK

button

on the

Intelligent Key once.

2. The hazard indicator flashes once. The

driver’s door will unlock.

3. Push the UNLOCK

button

on the

Intelligent Key again within 1 minute.

4. The hazard indicator flashes once again.

All the doors, trunk lid and the fuel-filler
door will unlock.

All doors, trunk lid and the fuel-filler door
will be locked automatically unless one of
the following operations is performed within
1 minute after pushing the UNLOCK
button on the Intelligent Key while the doors
are locked. If during this 1-minute time
period, the UNLOCK

button on the

Intelligent Key is pushed, all doors will be
locked automatically after another 1 minute.

.

Opening any door

.

Pushing the ignition switch

Opening windows (if so equipped)

The UNLOCK

button

operation also

allows you to open the window that is
equipped with the automatic open/close
function. (See “Power windows” (P.2-53).)
To open the window, push the door UN-

LOCK

button on the Intelligent Key

for

about 3 seconds

after the door is

unlocked.
To stop opening, release the UNLOCK
button

.

If the window open operation is stopped in
mid-operation while pushing the UNLOCK

button

, release and push the

UNLOCK

button

again until the

window opens completely.
Window cannot be closed using the Intelli-
gent Key.

Opening moonroof (if so equipped)

The moonroof can be opened by pushing the
UNLOCK

button

on the Intelligent

Key. This function will not operate while the
moonroof timer is activated or when the
moonroof needs to be initialized.
To open the moonroof, push the UNLOCK

button

on the Intelligent Key for

about 3 seconds after the door is unlocked.
To stop opening, release the UNLOCK
button

.

Opening trunk lid

1. Push the TRUNK

button

on the

Intelligent Key for more than 1 second.

2. The trunk will unlatch.

3. Raise the trunk lid to open the trunk.

Using panic alarm

If you are near your vehicle and feel
threatened, you may activate the alarm to
call attention as follows:
1. Push the PANIC

button

on the key

for

more than 1 second.

2. The theft warning alarm and headlights

will stay on for 25 seconds.

3. The panic alarm stops when:

.

It has run for 25 seconds, or

.

Any of the buttons on the Intelligent

Key are pushed. (Note: PANIC
button

or TRUNK

button

should be pushed for more than 1
second.)

Remote engine start (if so equipped)

The remote engine start

button

is on

the Intelligent Key if the vehicle has remote
engine start function. This function allows
the engine to start from outside the vehicle.
See “Remote engine start” (P.3-19) for more
details.

Pre-driving checks and adjustments

3-17

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3-18

Pre-driving checks and adjustments

Setting hazard indicator and horn
mode

This vehicle is set in hazard indicator and
horn mode when you first receive the vehicle.
In hazard indicator and horn mode, when the
LOCK

button

is pushed, the hazard

indicator flashes twice and the horn chirps
once. When the UNLOCK

button

is

pushed, the hazard indicator flashes once.
If horns are not necessary, the system can be
switched to the hazard indicator mode.
In hazard indicator mode, when the LOCK

button

is pushed, the hazard indicator

flashes twice. When the UNLOCK
button

is pushed, neither the hazard

indicator nor the horn operates.

Hazard indicator and horn mode:

DOOR LOCK

DOOR UNLOCK

TRUNK UNLOCK

Intelligent Key system

(Using door handle or trunk

request switch)

HAZARD -

twice

OUTSIDE CHIME -

twice

HAZARD -

once

OUTSIDE CHIME -

once

HAZARD - none
OUTSIDE CHIME -

4

times

Remote keyless entry system

(Using

,

or

button)

HAZARD -

twice

HORN -

once

HAZARD -

once

HORN - none

HAZARD - none
HORN - none

Hazard indicator mode:

DOOR LOCK

DOOR UNLOCK

TRUNK UNLOCK

Intelligent Key system

(Using door handle or trunk

request switch)

HAZARD -

twice

OUTSIDE CHIME -
none

HAZARD - none
OUTSIDE CHIME -
none

HAZARD - none
OUTSIDE CHIME -
none

Remote keyless entry system

(Using

,

or

button)

HAZARD -

twice

HORN - none

HAZARD - none
HORN - none

HAZARD - none
HORN - none

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Switching procedure:

To switch the hazard indicator and horn
(chime) operation, push the LOCK

and

UNLOCK

buttons on the Intelligent

Key simultaneously for more than 2 seconds.

.

When the hazard indicator mode is set,

the hazard indicator flashes 3 times.

.

When the hazard indicator and horn

mode is set, the hazard indicator flashes
once and the horn chirps once.

WARNING

To avoid risk of injury or death, do not
use the remote engine start function
when the vehicle is in an enclosed area
such as a garage.

WAD0076X

The remote engine start

button is on the

Intelligent Key if the vehicle has remote
engine start function. This function allows
the engine to start from outside the vehicle.
Automatic climate control system will auto-
matically adjust the passenger compartment
to be the set appropriate temperature when
the remote engine start function is used.
Laws in some local communities may restrict
the use of remote engine starters. For
example, some laws require a person using
remote engine start to have the vehicle in
view. Check local regulations for any re-
quirements.
Other conditions may affect the remote
engine start function. See “Conditions the

Pre-driving checks and adjustments

3-19

REMOTE ENGINE START (if so equipped)

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3-20

Pre-driving checks and adjustments

remote engine start will not work” (P.3-21).
Other conditions can affect the performance
of the Intelligent Key transmitter. See “In-
telligent Key system” (P.3-6) for additional
information.

REMOTE ENGINE START OPER-
ATING RANGE

The remote engine start function can only be
used when the Intelligent Key is within the
specified operating range from the vehicle.
When the Intelligent Key battery is dis-
charged or other strong radio wave sources
are present near the operating location, the
Intelligent Key operating range becomes
narrower, and the Intelligent Key may not
function properly.
The remote engine start operating range is
approximately 197 ft (60 m) from the
vehicle.

REMOTE STARTING THE ENGINE

To use the remote start function to start the
engine, perform the following:
1. Aim the Intelligent Key at the vehicle.
2. Push the LOCK

button to lock all

doors.

3. Within 5 seconds push and hold the

remote engine start

button until

the turn signal lights flash and the tail

lights illuminate. If the vehicle is not
within view, push and hold the remote
engine start

button for at least 2

seconds.

The following events will occur when the
engine starts:

.

The front parking lights will turn on and

remain on as long as the engine is
running.

.

The doors will be locked and the air

conditioner system may turn on.

.

The engine will continue to run for about

10 minutes. Repeat the steps to extend
the time for an additional 10 minutes.
See “Extending engine run time” (P.3-
20).

.

The rear window glass and outside mirror

defroster may turn on automatically
when the outside air temperature, the
interior temperature and the engine
coolant temperature are low.

Depress and hold the brake pedal, then place
the ignition switch in the ON position before
driving. For further instructions, see “Driving
the vehicle” (P.5-16).

EXTENDING ENGINE RUN TIME

The remote engine start function can be
extended one time by performing the steps
listed in “Remote starting the engine” (P.3-
20). Run time will be calculated as follows:

.

The first 10 minute run time will start

when the remote engine start function is
performed.

.

The second 10 minutes will start imme-

diately when the remote engine start
function is performed. For example, if
the engine has been running for 5
minutes, and 10 minutes are added, the
engine will run for a total of 15 minutes.

.

Extending engine run time will count

towards the two remote engine start
limit.

A maximum of two remote engine starts, or
a single start with an extension, are allowed
between ignition cycles.
The ignition switch must be cycled to the ON
position and then back to the OFF position
before the remote engine start procedure
can be used again.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CANCELING A REMOTE ENGINE
START

To cancel a remote engine start, perform one
of the following:

.

Aim the Intelligent Key at the vehicle and

push and hold the remote engine start

button until the parking lights turn

off.

.

Turn on the hazard warning flashers.

.

Cycle the ignition switch ON and then

OFF.

.

The extended engine run time has ex-

pired.

.

The first 10 minute timer has expired.

.

The engine hood has been opened.

.

The shift lever is moved out of P (Park).

.

The alarm sounds due to illegal entry into

the vehicle.

.

The ignition switch is pushed without an

Intelligent Key in the vehicle.

.

The ignition switch is pushed with an

Intelligent Key in the vehicle but the
brake pedal is not depressed.

CONDITIONS THE REMOTE EN-
GINE START WILL NOT WORK

The remote engine start will not operate if
any of the following conditions are present:

.

The ignition switch is placed in the ON

position.

.

The hood is not securely closed.

.

The hazard warning lights are on.

.

The engine is still running. The engine

must be completely stopped. Wait at
least 6 seconds if the engine goes from
running to off. This is not applicable
when extending engine run time.

.

The remote engine start

button is

not pushed and held for at least 2
seconds.

.

The remote engine start

button is

not pushed and held within 5 seconds of
pushing the LOCK button.

.

The brake pedal is depressed.

.

The doors are not closed and locked.

.

The trunk is open.

.

The Intelligent Key warning message is

displayed in the vehicle information dis-
play.

.

The alarm sounds due to illegal entry into

the vehicle.

.

Two remote engine starts, or a single

remote engine start with an extension,
have already been used.

.

The vehicle is not in P (Park).

.

The remote engine start function has

been switched to OFF in the settings
menu on the lower display. For additional
information, see the INFINITI InTouch

TM

Owner’s Manual.

The remote engine start may display a
warning or indicator in the vehicle informa-
tion display. For an explanation of the
warning or indicator, see “Indicators for
operation” (P.2-21).

Pre-driving checks and adjustments

3-21

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3-22

Pre-driving checks and adjustments

JVP0234X

1. Pull the hood lock release handle

located below the instrument panel; the
hood will then spring up slightly.

2. Pull the lever

up at the front of the

hood with your fingertips and raise the
hood.

3. When closing the hood, slowly close the

hood down to latch both the right and
left locks. Push the hood down to lock
the hood securely into place.

WARNING

.

Make sure the hood is completely
closed and latched before driving.
Failure to do so could cause the hood
to fly open and result in an accident.

.

If you see steam or smoke coming
from the engine compartment, to
avoid injury do not open the hood.

WARNING

.

Do not drive with the trunk lid open.
This could allow dangerous exhaust
gases to be drawn into the vehicle.
See “Exhaust gas (carbon monoxide)”
(P.5-4) of this manual.

.

Closely supervise children when they
are around cars to prevent them from
playing and becoming locked in the
trunk where they could be seriously
injured. Keep the car locked, with the
trunk closed, when not in use, and
prevent children’s access to Intelli-
gent Keys.

HOOD

TRUNK LID

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

JVP0202X

TRUNK LID RELEASE SWITCH

The trunk lid release switch

is located on

the instrument panel.
To open the trunk lid, push the release
switch. To close, push the trunk lid down.

JVP0563X

TRUNK OPEN REQUEST SWITCH

The trunk lid can be opened by pushing the
trunk open request switch

when the

Intelligent Key is within the operating range
of the trunk lock/unlock function regardless
of the inside lock knob position.
The trunk lid can be opened by pushing the
trunk open request switch

even if the

Intelligent Key is not within the operating
range of the trunk lock/unlock function,
when all doors are unlocked by the power
door lock system, and the automatic unlock
function.
(See “Intelligent Key system” (P.3-6).)

TRUNK BUTTON

The trunk lid can be opened by pushing the
TRUNK

button on the Intelligent Key for

more than 1 second.
The trunk lid can be opened by pushing the
trunk open request switch

even if the

Intelligent Key is not within the operating
range of the trunk lock/unlock function,
when all doors are unlocked by the power
door lock system, and the automatic unlock
function.
(See “Remote keyless entry system” (P.3-
15).)

Pre-driving checks and adjustments

3-23

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3-24

Pre-driving checks and adjustments

JVP0203X

TRUNK RELEASE POWER CAN-
CEL SWITCH

When the switch located inside the glove
box is in the OFF position

, the power to

the trunk lid will be canceled and the trunk lid
cannot be opened by the trunk lid release
switch, the trunk open request switch or the
TRUNK button on the Intelligent Key.
When you have to leave the vehicle with a
valet and want to keep your belongings safe
in the glove box and the trunk, push this
switch to OFF and lock the glove box with
the mechanical key. Then leave the vehicle
and the Intelligent Key with the valet and
keep the mechanical key with you.

(See “Keys” (P.3-2).)
To connect the power to the trunk lid, push
the switch to the ON

position.

SPA2768

INTERIOR TRUNK LID RELEASE

WARNING

Closely supervise children when they are
around cars to prevent them from play-
ing and becoming locked in the trunk
where they could be seriously injured.
Keep the car locked, with the trunk lid
securely latched, when not in use, and
prevent children’s access to Intelligent
Keys.

The interior trunk lid release mechanism
allows opening of the trunk lid in the event

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     3      4      5      6     ..
