1-54

Safety — Seats, seat belts and supplemental restraint system

restraint being used. If the front passenger
air bag status light is not illuminated (in-
dicating that the air bag might inflate in a
crash), it could be that the child restraint or
seat belt is not being used properly. Make
sure that the child restraint is installed
properly, the seat belt is used properly and
the occupant is positioned properly. If the
front passenger air bag status light is still not
illuminated, reposition the occupant or child
restraint in a rear seat.
If the front passenger air bag status light will
not illuminate even though you believe that
the child restraint, the seat belts and the
occupant are properly positioned, it is re-
commended that you take your vehicle to an
INFINITI retailer. An INFINITI retailer can
check the system status by using a special
tool. However, until you have confirmed
with your retailer that your air bag is work-
ing properly, reposition the occupant or child
restraint in a rear seat.
The INFINITI Advanced Air Bag System and
front passenger air bag status light will take
a few seconds to register a change in the
passenger seat status. This is normal system
operation and does not indicate a malfunc-
tion.

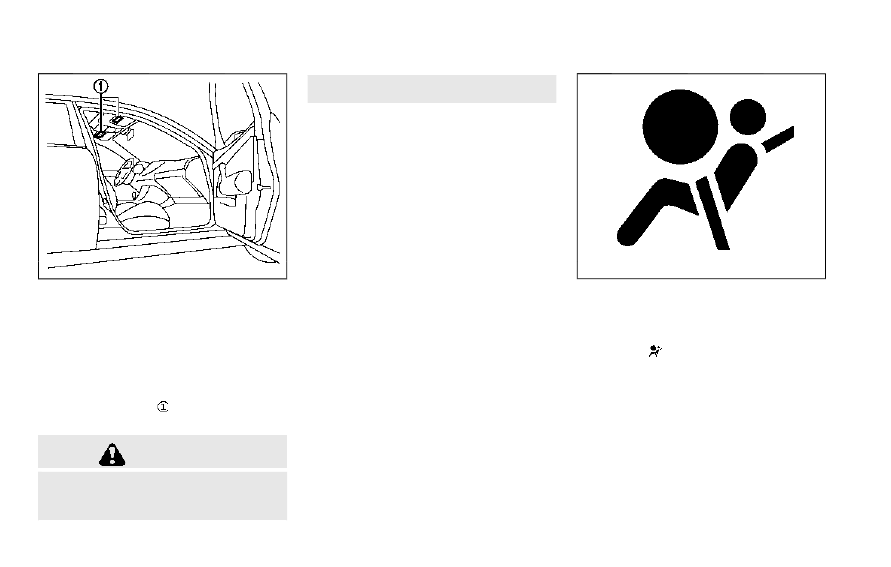

If a malfunction occurs in the front passen-
ger air bag system, the supplemental air bag
warning light

, located in the meter and

gauges area of the instrument panel, will be

illuminated (blinking or steadily lit). Have the
system checked. It is recommended you visit
an INFINITI retailer for this service.

Normal operation:

In order for the occupant classification
sensor system to classify the front passen-
ger based on weight, please follow the
precautions and steps outlined below:

Precautions

.

Make sure that there are no objects

weighing over 9.1 lbs (4 kg) hanging on
the seat or placed in the seatback pocket.

.

Make sure that a child restraint or other

object is not pressing against the rear of
the seatback.

.

Make sure that a rear passenger is not

pushing or pulling on the back of the
front passenger seat.

.

Make sure that the front passenger seat

or seatback is not forced back against an
object on the seat or floor behind it.

.

Make sure that there is no object placed

under the front passenger seat.

.

Make sure that the front passenger seat

head restraint does not contact the roof
when adjusting the front passenger seat.

Steps

1. Adjust the seat as outlined in “Seats”

(P.1-2). Sit upright, leaning against the
seatback, and centered on the seat

cushion with your feet comfortably ex-
tended to the floor.

2. Make sure there are no objects on your

lap.

3. Fasten the seat belt as outlined in “Seat

belts” (P.1-12). Front passenger seat belt
buckle status is monitored by the occu-
pant classification sensor system, and is
used as an input to determine occupancy
status. So, it is highly recommended that
the front passenger fastens his/her seat
belt.

4. Remain in this position for 30 seconds

allowing the system to classify the front
passenger before the vehicle is put into
motion.

5. Ensure proper classification by checking

the front passenger air bag status light.

NOTE:

This vehicle’s occupant classification sensor
system generally keeps the classification
locked during driving, so it is important that
you confirm that the front passenger is
properly classified prior to driving. How-
ever, the occupant classification sensor may
recalculate the weight of the occupant
under some conditions (both while driving
and when stopped), so the front passenger
seat occupant should continue to remain
seated as outlined above.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Troubleshooting:

If you think the front passenger air bag
status light is incorrect:
1. If the light is ON with an adult occupying

the front passenger seat:

.

Occupant is a small adult - the air bag

status light is functioning as intended.
The front passenger air bag is sup-
pressed.

However, if the occupant is not a small
adult, then this may be due to the
following conditions that may be inter-
fering with the weight sensors:

.

Occupant is not sitting upright, lean-

ing against the seatback, and cen-
tered on the seat cushion with his/her
feet comfortably extended to the
floor.

.

A child restraint or other object press-

ing against the rear of the seatback.

.

A rear passenger pushing or pulling on

the back of the front passenger seat.

.

Forcing the front seat or seatback

against an object on the seat or floor
behind it.

.

An object placed under the front

passenger seat.

.

An object placed between the seat

cushion and center console or be-
tween the seat cushion and the door.

If the vehicle is moving, please come to a
stop when it is safe to do so. Check and
correct any of the above conditions.
Restart the vehicle and wait 1 minute.

NOTE:

A system check will be performed during
which the front passenger air bag status
light will remain lit for about 7 seconds
initially.

If the light is still ON after this, the
person should be advised not to ride in
the front passenger seat and the vehicle
should be checked as soon as possible. It
is recommended you visit an INFINITI
retailer for this service.

2. If the light is OFF with a small adult, child

or child restraint occupying the front
passenger seat:
This may be due to the following condi-
tions that may be interfering with the
weight sensors:

.

Small adult or child is not sitting

upright, leaning against the seatback,
and centered on the seat cushion with
his/her feet comfortably extended to
the floor.

.

The child restraint is not properly

installed as outlined in “Child re-
straints” (P.1-22).

.

An object weighing over 9.1 lbs (4 kg)

hanging on the seat or placed in the

seatback pocket.

.

A child restraint or other object press-

ing against the rear of the seatback.

.

A rear passenger pushing or pulling on

the back of the front passenger seat.

.

Forcing the front seat or seatback

against an object on the seat or floor
behind it.

.

An object placed under the front

passenger seat.

.

An object placed between the seat

cushion and center console.

.

The front passenger seat head re-

straint contacting the roof.

If the vehicle is moving, please come to a
stop when it is safe to do so. Check and
correct any of the above conditions.
Restart the vehicle and wait 1 minute.

NOTE:

A system check will be performed during
which the front passenger air bag status
light will remain lit for about 7 seconds
initially.

If the light is still OFF after this, the small
adult, child or child restraint should be
repositioned in the rear seat and the
vehicle should be checked by an INFINITI
retailer as soon as possible.

3. If the light is OFF with no front passen-

ger and no objects on the front passen-

Safety — Seats, seat belts and supplemental restraint system

1-55

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-56

Safety — Seats, seat belts and supplemental restraint system

ger seat, the vehicle should be checked
as soon as possible. It is recommended
you visit an INFINITI retailer for this
service.

Other supplemental front-impact
air bag precautions

WARNING

.

Do not place any objects on the
steering wheel pad or on the instru-
ment panel. Also, do not place any
objects between any occupant and
the steering wheel or instrument
panel. Such objects may become
dangerous projectiles and cause in-
jury if the front air bags inflate.

.

Do not place objects with sharp edges
on the seat. Also, do not place heavy
objects on the seat that will leave
permanent impressions in the seat.
Such objects can damage the seat or
occupant classification sensors
(weight sensors). This can affect the
operation of the air bag system and
result in serious personal injury.

.

Do not use water or acidic cleaners
(hot steam cleaners) on the seat. This
can damage the seat or occupant
classification sensors. This can also

affect the operation of the air bag
system and result in serious personal
injury.

.

Immediately after inflation, several
front air bag system components will
be hot. Do not touch them; you may
severely burn yourself.

.

No unauthorized changes should be
made to any components or wiring of
the air bag system. This is to prevent
accidental inflation of the supple-
mental air bag or damage to the
supplemental air bag system.

.

Do not make unauthorized changes
to your vehicle’s electrical system,
suspension system or front end struc-
ture. This could affect proper opera-
tion of the front air bag system.

.

Tampering with the air bag system
may result in serious personal injury.
Tampering includes changes to the
steering wheel and the instrument
panel assembly by placing material
over the steering wheel pad and
above the instrument panel or by
installing additional trim material
around the air bag system.

.

Removing or modifying the front
passenger seat may affect the func-
tion of the air bag system and result
in serious personal injury.

.

Modifying or tampering with the
front passenger seat may result in
serious personal injury. For example,
do not change the front seats by
placing material on the seat cushion
or by installing additional trim mate-
rial, such as seat covers, on the seat
that is not specifically designed to
assure proper air bag operation.
Additionally, do not stow any objects
under the front passenger seat or the
seat cushion and seatback. Such
objects may interfere with the proper
operation of the occupant classifica-
tion sensors.

.

No unauthorized changes should be
made to any components or wiring of
the seat belt system. This may affect
the front air bag system. Tampering
with the seat belt system may result
in serious personal injury.

.

It is recommended you visit an
INFINITI retailer for work on and
around the front air bag. It is also
recommended you visit an INFINITI
retailer for installation of electrical
equipment. The Supplemental Re-
straint System (SRS) wiring har-
nesses* should not be modified or
disconnected. Unauthorized electrical
test equipment and probing devices
should not be used on the air bag

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

system.

.

A cracked windshield should be re-
placed immediately by a qualified
repair facility. A cracked windshield
could affect the function of the
supplemental air bag system.

*

The SRS wiring harness connectors are
yellow and orange for easy identifica-
tion.

When selling your vehicle, we request that
you inform the buyer about the front air bag
system and guide the buyer to the appro-
priate sections in this Owner’s Manual.

SSS0521

FRONT SEAT-MOUNTED SIDE-
IMPACT SUPPLEMENTAL AIR
BAG AND ROOF-MOUNTED
CURTAIN SIDE-IMPACT AND
ROLLOVER SUPPLEMENTAL AIR
BAG SYSTEMS

The side air bags are located in the outside
of the seatback of the front seats. The
curtain air bags are located in the side roof
rails.

All of the information, cautions and

warnings in this manual apply and must be
followed.

The side air bags and curtain air

bags are designed to inflate in higher
severity side collisions, although they may

inflate if the forces in another type of
collision are similar to those of a higher
severity impact. They are designed to inflate
on the side where the vehicle is impacted.
They may not inflate in certain side collisions.
Curtain air bags are also designed to inflate
in certain types of rollover collisions or near
rollovers. As a result, certain vehicle move-
ments may cause the curtain air bags to
inflate.
Vehicle damage (or lack of it) is not always
an indication of proper supplemental side air
bag and curtain side-impact air bag opera-
tion.
When side air bags and curtain air bags
inflate, a fairly loud noise may be heard,
followed by release of smoke. This smoke is
not harmful and does not indicate a fire.
Care should be taken not to inhale it, as it
may cause irritation and choking. Those with
a history of a breathing condition should get
fresh air promptly.
Side air bags, along with the use of seat
belts, help to cushion the impact force on the
chest of the front occupants. Curtain air
bags help to cushion the impact force to the
head of occupants in the front and rear
outboard seating positions in all rows. They
can help save lives and reduce serious
injuries. However, an inflating side air bags
and curtain air bags may cause abrasions or

Safety — Seats, seat belts and supplemental restraint system

1-57

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-58

Safety — Seats, seat belts and supplemental restraint system

other injuries. Side air bags and curtain air
bags do not provide restraint to the lower
body.
The seat belts should be correctly worn and
the driver and passenger seated upright as
far as practical away from the side air bag.
Rear seat passengers should be seated as far
away as practical from the door finishers
and side roof rails. The side air bags and
curtain air bags inflate quickly in order to
help protect the occupants. Because of this,
the force of the side air bags and curtain air
bags inflating can increase the risk of injury if
the occupant is too close to, or is against,
these air bag modules during inflation. The
side air bag will deflate quickly after the
collision is over.
The curtain air bag will remain inflated for a
short time.

The side air bags and curtain air bags
operate only when the ignition switch is in
the ON position.

After pushing the ignition switch to the ON
position, the supplemental air bag warning
light illuminates. The air bag warning light
will turn off after about 7 seconds if the
systems are operational.

WARNING

.

Do not place any objects near the
seatback of the front seats. Also, do
not place any objects (an umbrella,
bag, etc.) between the front door
finisher and the front seat. Such
objects may become dangerous pro-
jectiles and cause injury if side air bag
inflates.

.

Right after inflation, several side air
bags and curtain air bag system
components will be hot. Do not touch
them; you may severely burn your-
self.

.

No unauthorized changes should be
made to any components or wiring of
side air bag and curtain air bags. This
is to prevent damage to or accidental
inflation of the side air bag and
curtain air bag systems.

.

Do not make unauthorized changes
to your vehicle’s electrical system,
suspension system or side panel. This
could affect proper operation of the
side air bag and curtain air bag
systems.

.

Tampering with the air bag system
may result in serious personal injury.
For example, do not change the front

seats by placing material near the
seatback or by installing additional
trim material, such as seat covers,
around the side air bags.

.

It is recommended you visit an
INFINITI retailer for work on and
around the side air bag and curtain
air bag. It is also recommended you
visit an INFINITI retailer for installa-
tion of electrical equipment. The
Supplemental Restraint System
(SRS) wiring harnesses* should not
be modified or disconnected. Un-
authorized electrical test equipment
and probing devices should not be
used on the side-impact air bag
system.

*

The SRS wiring harness connectors are
yellow and orange for easy identifica-
tion.

When selling your vehicle, we request that
you inform the buyer about the side air bag
and curtain air bag systems and guide the
buyer to the appropriate sections in this
Owner’s Manual.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SEAT BELTS WITH PRETEN-
SIONERS (front seats)

WARNING

.

The pretensioners cannot be reused
after activation. They must be re-
placed together with the retractor
and buckle as a unit.

.

If the vehicle becomes involved in a
collision but a pretensioner is not
activated, be sure to have the pre-
tensioner system checked and, if
necessary, replaced. It is recom-
mended you visit an INFINITI retailer
for this service.

.

No unauthorized changes should be
made to any components or wiring of
the pretensioners. This is to prevent
damage to or accidental activation of
the pretensioner system. Tampering
with the pretensioner system may
result in serious personal injury.

.

It is recommended you visit an
INFINITI retailer for work on and
around the pretensioner system. It is
also recommended you visit an
INFINITI retailer for installation of
electrical equipment. Unauthorized
electrical test equipment and probing

devices should not be used on the
pretensioner system.

.

If you need to dispose of the preten-
sioner or scrap the vehicle, it is
recommended you visit an INFINITI
retailer for this service. Correct pre-
tensioner disposal procedures are set
forth in the appropriate INFINITI
Service Manual. Incorrect disposal
procedures could cause personal in-
jury.

The pretensioner system may activate with
the supplemental air bag system in certain
types of collisions. Working with the seat
belt retractor, it helps tighten the seat belt
when the vehicle becomes involved in certain
types of collisions, helping to restrain front
seat occupants.
The pretensioner is encased with the seat
belt retractor. These seat belts are used the
same way as conventional seat belts.
When a pretensioner seat belt activates,
smoke is released and a loud noise may be
heard. The smoke is not harmful, and it does
not indicate a fire. Care should be taken not
to inhale it as it may cause irritation and
choking. Those with a history of a breathing
condition should get fresh air promptly.
After pretensioner activation, load limiters
allow the seat belt to release webbing (if

necessary) to reduce forces against the
chest.
The supplemental air bag warning light
is used to indicate malfunctions in the
pretensioner system. (See “Supplemental
air bag warning light” (P.1-60) for more
details.) If the operation of the supplemental
air bag warning light indicates there is a
malfunction, have the system checked. It is
recommended you visit an INFINITI retailer
for this service.
When selling your vehicle, we request that
you inform the buyer about the seat belt
pretensioners and guide the buyer to the
appropriate sections in this Owner’s Manual.

Safety — Seats, seat belts and supplemental restraint system

1-59

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-60

Safety — Seats, seat belts and supplemental restraint system

SSS1016

SUPPLEMENTAL AIR BAG
WARNING LABELS

Warning labels about the supplemental
front-impact air bag systems are placed in
the vehicle as shown in the illustration.

SRS air bag

The warning labels

are located on the

surface of the sun visors.

WARNING

Do not use a rear-facing child restraint
on a seat protected by an air bag in front
of it. If the air bag deploys, it may cause

serious injury or death.

SPA1097

SUPPLEMENTAL AIR BAG
WARNING LIGHT

The supplemental air bag warning light,
displaying

in the instrument panel,

monitors the circuits for the air bag systems,
pretensioners and all related wiring.
When the ignition switch is in the ON
position, the supplemental air bag warning
light illuminates for about 7 seconds and
then turns off. This means the SRS air bag
systems are operational.
If any of the following conditions occur, the
air bag and/or pretensioner systems need
servicing:

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

.

The supplemental air bag warning light

remains on after approximately 7 sec-
onds.

.

The supplemental air bag warning light

flashes intermittently.

.

The supplemental air bag warning light

does not come on at all.

Under these conditions, the air bag or
pretensioner systems may not operate prop-
erly. They must be checked and repaired. It is
recommended you visit an INFINITI retailer
for this service.

WARNING

If the supplemental air bag warning light
is on, it could mean that the front air
bag, side air bag, curtain air bag and/or
pretensioner systems will not operate in
an accident. To help avoid injury to
yourself or others, have your vehicle
checked as soon as possible. It is recom-
mended you visit an INFINITI retailer for
this service.

REPAIR AND REPLACEMENT
PROCEDURE

The front air bags, side air bags, curtain air
bags and pretensioners are designed to
activate on a one-time-only basis. As a
reminder, unless it is damaged, the supple-
mental air bag warning light will remain
illuminated after inflation has occurred.
These systems should be repaired and/or
replaced as soon as possible. It is recom-
mended you visit an INFINITI retailer for this
service.
When maintenance work is required on the
vehicle, the front air bags, side air bags,
curtain air bags, pretensioners and related
parts should be pointed out to the person
conducting the maintenance. The ignition
switch should always be in the LOCK
position when working under the hood or
inside the vehicle.

WARNING

.

Once a front air bag, side air bag, or
curtain air bag has inflated, the air
bag module will not function again
and must be replaced. Additionally,
the activated pretensioner must also
be replaced. The air bag module and
pretensioner should be replaced. It is

recommended you visit an INFINITI
retailer for this service. However, the
air bag module and pretensioner
system cannot be repaired.

.

The front air bag, side air bag, curtain
air bag and the pretensioner system
should be inspected if there is any
damage to the front end or side
portion of the vehicle. It is recom-
mended you visit an INFINITI retailer
for this service.

.

If you need to dispose of the supple-
mental air bag or pretensioner or
scrap the vehicle, it is recommended
you visit an INFINITI retailer. Correct
supplemental air bag and seat belt
pretensioner system disposal proce-
dures are set forth in the appropriate
INFINITI Service Manual. Incorrect
disposal procedures could cause per-
sonal injury.

.

If there is an impact to your vehicle
from any direction, your Occupant
Classification Sensor (OCS) should be
checked by an INFINITI retailer to
verify it is still functioning correctly.
The OCS should be checked even if no
air bags deploy as a result of the
impact. Failure to verify proper OCS
function may result in an improper air
bag deployment resulting in injury or

Safety — Seats, seat belts and supplemental restraint system

1-61

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2 Instruments and controls

Cockpit ................................................................................. 2-3
Instrument panel ............................................................... 2-5
Meters and gauges .......................................................... 2-6

Speedometer and odometer ..................................... 2-7
Tachometer ................................................................... 2-8
Engine coolant temperature gauge ....................... 2-8
Fuel gauge ..................................................................... 2-9

Warning lights, indicator lights and
audible reminders ............................................................ 2-10

Checking lights ........................................................... 2-11
Warning/indicator lights (red) ............................... 2-11
Warning/indicator lights (yellow) ......................... 2-13
Warning/indicator lights (other) ........................... 2-17
Audible reminders ..................................................... 2-18

Vehicle information display .......................................... 2-19

Indicators for operation .......................................... 2-21
Indicators for maintenance .................................... 2-25
Trip computer ............................................................. 2-27
Clock and outside air temperature ....................... 2-29

Security systems ............................................................ 2-30

Vehicle Security System ......................................... 2-30
INFINITI Vehicle Immobilizer System .................. 2-31

Wiper and washer switch ............................................. 2-32

Rain-sensing auto wiper system ........................... 2-34

Rear window and outside mirror
defroster switch ............................................................. 2-35
Headlight and turn signal switch ............................... 2-35

Headlight switch ..................................................... 2-36
Turn signal switch ................................................... 2-42
Fog light switch ....................................................... 2-43

Horn ................................................................................... 2-43
Vehicle Dynamic Control (VDC) OFF switch ........ 2-44
Heated seats (if so equipped) .................................... 2-44

Operation with switch ........................................... 2-45
Operation with touch screen ............................... 2-45
AUTO mode setting ............................................... 2-45

Heated steering wheel (if so equipped) ................... 2-46
Power outlets .................................................................. 2-46
Emergency Call (SOS) button (if so equipped) ...... 2-47

Emergency support ................................................ 2-47

Storage ............................................................................. 2-49

Cup holders ............................................................... 2-49
Soft bottle holder ................................................... 2-50
Sunglasses holder ................................................... 2-50
Glove box ................................................................... 2-51
Console box .............................................................. 2-51
Card holder ............................................................... 2-52
Storage box .............................................................. 2-52

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Coat hooks .................................................................. 2-52
Trunk hooks ................................................................ 2-53

Windows ........................................................................... 2-53

Power windows ......................................................... 2-53

Moonroof (if so equipped) ........................................... 2-56

Power moonroof ....................................................... 2-56

Interior lights .................................................................... 2-58

Map lights ................................................................... 2-58
Console light (if so equipped) ................................ 2-58
Personal lights ............................................................ 2-58
Interior light control switch .................................... 2-59

Vanity mirror lights ....................................................... 2-60
Trunk light ........................................................................ 2-60

Courtesy light ................................................................. 2-60
HomeLink

®

Universal Transceiver ............................. 2-61

Programming HomeLink

®

..................................... 2-61

Programming HomeLink

®

for Canadian

customers and gate openers ............................... 2-63
Operating the HomeLink

®

Universal Transceiver ............................................. 2-63
Programming troubleshooting ............................ 2-63
Clearing the programmed information ............. 2-64
Reprogramming a single
HomeLink

®

button .................................................. 2-64

If your vehicle is stolen .......................................... 2-64

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

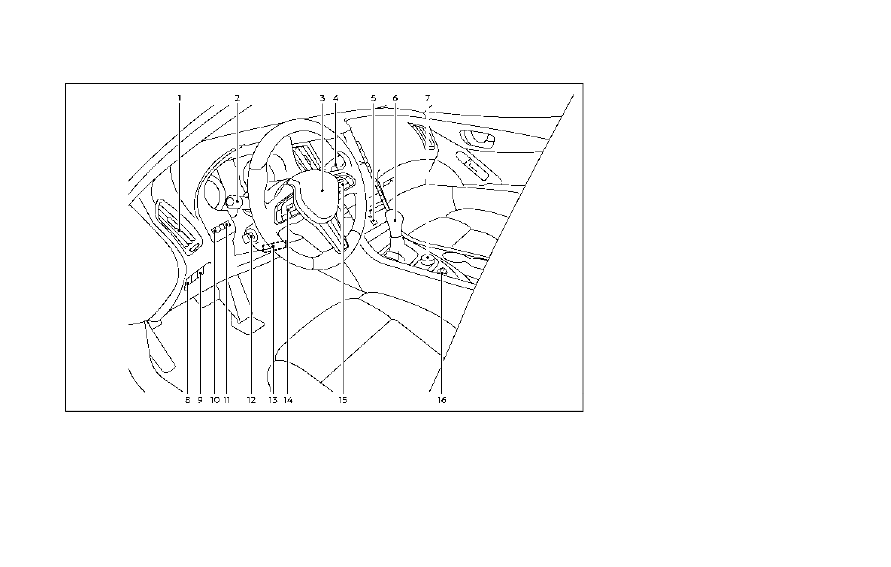

WAA0093X

1.

Side ventilator (P.4-36)

2.

Headlight, fog light and turn signal
switch (P.2-35)

3.

Steering wheel
— Horn (P.2-43)
— Driver supplemental air bag (P.1-42)

— Heated steering wheel (if so
equipped) (P.2-46)
— Power steering (P.5-126)

4.

Windshield wiper and washer switch
(P.2-32)

5.

Hazard warning flasher switch (P.6-2)

6.

Shift lever (P.5-16)

7.

INFINITI controller*

8.

Vehicle Dynamic Control (VDC) OFF
switch (P.2-44, P.5-131)

9.

Trunk lid release switch (P.3-23)

10. Instrument brightness control switch

(P.2-42)

11. TRIP/RESET switch for twin trip od-

ometer (P.2-7)

12. Electric tilting/telescopic steering

wheel switch (P.3-27)

13. Manual tilting/telescopic steering

wheel lever (P.3-27)

14. Steering-wheel-mounted controls (left

side)
— Audio control steering switch*
— Hands-Free Phone System switch*
— Voice recognition system switch*

15. Steering-wheel-mounted controls

(right side)
— Trip computer switch (P.2-27)
— Cruise control switches (if so
equipped) (P.5-72)
— Intelligent Cruise Control (ICC)
switches (if so equipped) (P.5-75)
— Dynamic driver assistance switch (if
so equipped) (P. 5-25, P.5-33, P.5-50,
P.5-95)

Instruments and controls

2-3

COCKPIT

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-4

Instruments and controls

16. INFINITI Drive Mode Selector (P.5-21)
*:

Refer to the INFINITI InTouch

TM

Own-

er’s Manual.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

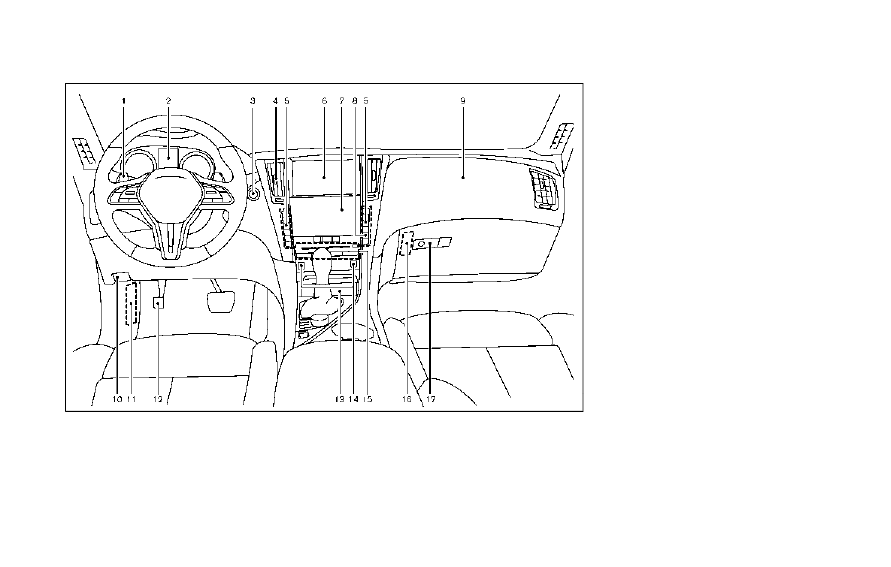

JVC0969X

1.

Paddle shifter (if so equipped) (P.5-18)

2.

Meters and gauges (P.2-6)
— Clock (P.2-29)

3.

Push-button ignition switch (P.5-11)

4.

Center ventilator (P.4-36)

5.

Automatic climate control system
(P.4-37)

6.

Upper touch screen display* (upper
display) and Navigation system* (if so
equipped)
— RearView Monitor (if so equipped)
(P.4-3)

— Around View

®

Monitor (if so

equipped) (P.4-12)

7.

Lower touch screen display* (lower
display)

8.

Rear window and outside mirror
defroster switch (P.2-35)

9.

Front passenger supplemental air bag
(P.1-42)

10. Hood release handle (P.3-22)
11. Fuse box cover (P.8-17)
12. Parking brake (P.5-20)
13. Storage box (P.2-52) and power outlet

(P.2-46)

14. Seat heater switch (if so equipped)

(P.2-44)

15. Audio system*
16. Trunk release power cancel switch

(P.3-24)

17. Glove box (P.2-51)
*:

Refer to the INFINITI InTouch

TM

Own-

er’s Manual.

Instruments and controls

2-5

INSTRUMENT PANEL

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-6

Instruments and controls

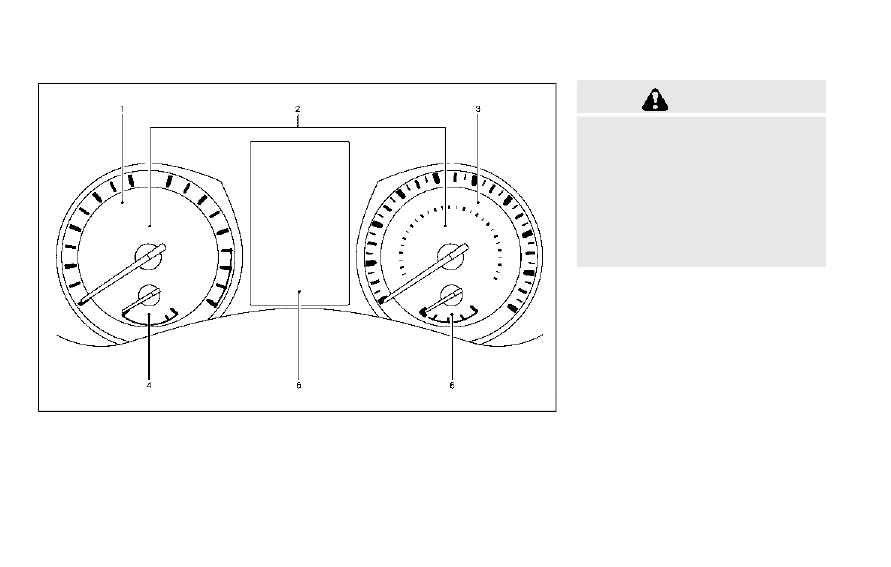

JVC0428X

1.

Tachometer* (P.2-8)

2.

Warning and indicator lights (P.2-10)

3.

Speedometer* (P.2-7)

4.

Engine coolant temperature gauge*
(P.2-8)

5.

Vehicle information display (P.2-19)/

Odometer/twin trip odometer (P.2-7)

6.

Fuel gauge* (P.2-9)

*: The needle indicators may move slightly
after the ignition switch is placed in the
OFF position. This is not a malfunction.

CAUTION

.

For cleaning, use a soft cloth, dam-
pened with water. Never use a rough
cloth, alcohol, benzine, thinner or any
kind of solvent or paper towel with a
chemical cleaning agent. They will
scratch or cause discoloration to the
lens.

.

Do not spray any liquid such as water
on the meter lens. Spraying liquid
may cause the system to malfunction.

METERS AND GAUGES

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

JVI0636X

Speedometer

SPEEDOMETER AND OD-
OMETER

Speedometer

The speedometer indicates vehicle speed in
miles per hour (MPH) and kilometers per
hour (km/h).

JVI0637X

Odometer/twin trip odometer

Odometer/twin trip odometer

The odometer

and twin trip odometer

are displayed in the vehicle information
display when the ignition switch is in the
ON position.
The odometer records the total distance the
vehicle has been driven.
The twin trip odometer records the distance
of individual trips.

Changing the display:

Pushing the TRIP RESET switch

under the

combination meter panel changes the dis-
play as follows:
TRIP A

?

TRIP B

?

TRIP A

Resetting the trip odometer:

Pushing the TRIP RESET switch

for more

than 1 second resets the trip odometer to
zero.

Instruments and controls

2-7

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-8

Instruments and controls

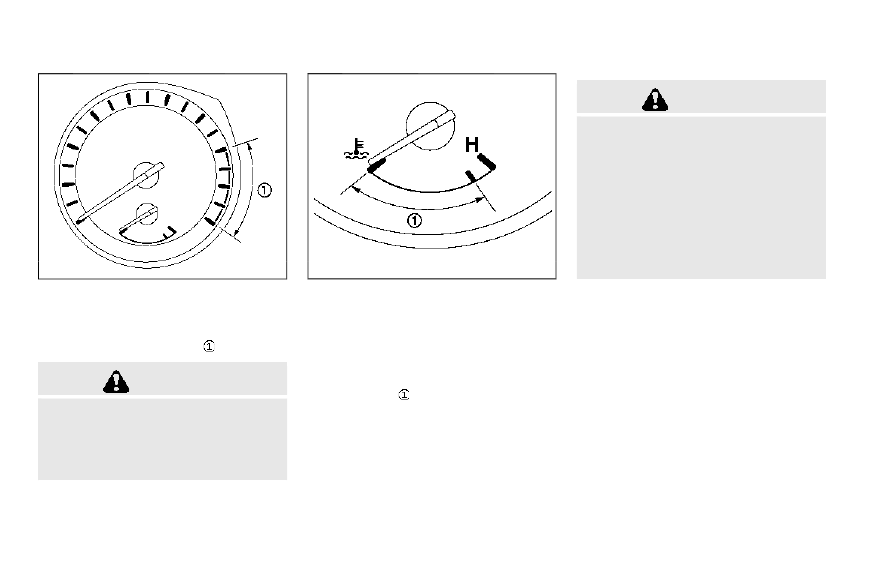

WAC0191X

TACHOMETER

The tachometer indicates engine speed in
revolutions per minute (RPM).

Do not rev

the engine into the red zone

.

CAUTION

When engine speed approaches the red
zone, shift to a higher gear or reduce
engine speed. Operating the engine in
the red zone may cause serious engine
damage.

JVI0639X

ENGINE COOLANT TEMPERA-
TURE GAUGE

The gauge indicates the engine coolant
temperature.
The engine coolant temperature is within the
normal range when the gauge needle points
within the zone

shown in the illustration.

The engine coolant temperature varies with
the outside air temperature and driving
conditions.

CAUTION

If the gauge indicates the engine coolant
temperature is near the hot (H) end of
the normal range, reduce vehicle speed
to decrease the temperature. If the
gauge is over the normal range, stop
the vehicle as soon as safely possible and
let the engine idle. If the engine is
overheated, continued operation of the
vehicle may seriously damage the engine.
See “If your vehicle overheats” (P.6-7)
for immediate action required.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

JVI0640X

FUEL GAUGE

The gauge indicates the

approximate

fuel

level in the tank.
The gauge may move slightly during braking,
turning, acceleration, or going up or down
hills.
The gauge needle returns to “0” (Empty)
after the ignition switch is pushed to the
OFF position.

Refill the fuel tank before the gauge
registers “0” (Empty).

The low fuel warning light

illuminates on

the meter when the fuel level is getting low.
Refuel as soon as it is convenient, preferably
before the gauge reaches “0”. There will be a

small reserve of fuel in the tank when the
fuel gauge needle reaches “0”.
The

indicates that the fuel-filler door is

located on the right side of the vehicle.

CAUTION

.

If the vehicle runs out of fuel, the
malfunction indicator light (MIL) may
come on. Refuel as soon as possible.
After a few driving trips, the
light should turn off. If the light
remains on after a few driving trips,
have the vehicle inspected. It is
recommended you visit an INFINITI
retailer for this service.

.

For additional information, see “Mal-
function Indicator Light (MIL)” (P.2-
15).

Instruments and controls

2-9

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-10

Instruments and controls

Warning/indicator lights (red)

Warning/indicator lights (yellow)

Warning/indicator lights (other)

Brake warning light

Anti-lock Braking System (ABS) warning
light

ECO drive indicator light

Charge warning light

Forward Emergency Braking (FEB) sys-
tem warning light

Exterior light indicator

Master warning light

Front passenger air bag status light

Front fog light indicator light

Seat belt warning light and chime

Low fuel warning light

High beam assist indicator light (if so
equipped)

Security indicator light

Low tire pressure warning light

High beam indicator light

Supplemental air bag warning light

Malfunction Indicator Light (MIL)

Turn signal/hazard indicator lights

Master warning light

Power steering warning light

Vehicle Dynamic Control (VDC) off in-
dicator light
Vehicle Dynamic Control (VDC) warning
light

WARNING LIGHTS, INDICATOR
LIGHTS AND AUDIBLE REMINDERS

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CHECKING LIGHTS

With all doors closed, apply the parking
brake, fasten the seat belts and place the
ignition switch in the ON position without
starting the engine. The following lights (if
so equipped) will come on:

,

or

,

,

,

The following lights (if so equipped) will
come on briefly and then go off:

,

or

,

,

,

If any light does not come on or operates in a
way other than described, it may indicate a
burned-out bulb and/or a system malfunc-
tion. It is recommended you have the system
checked by an INFINITI retailer.

WARNING/INDICATOR LIGHTS
(red)

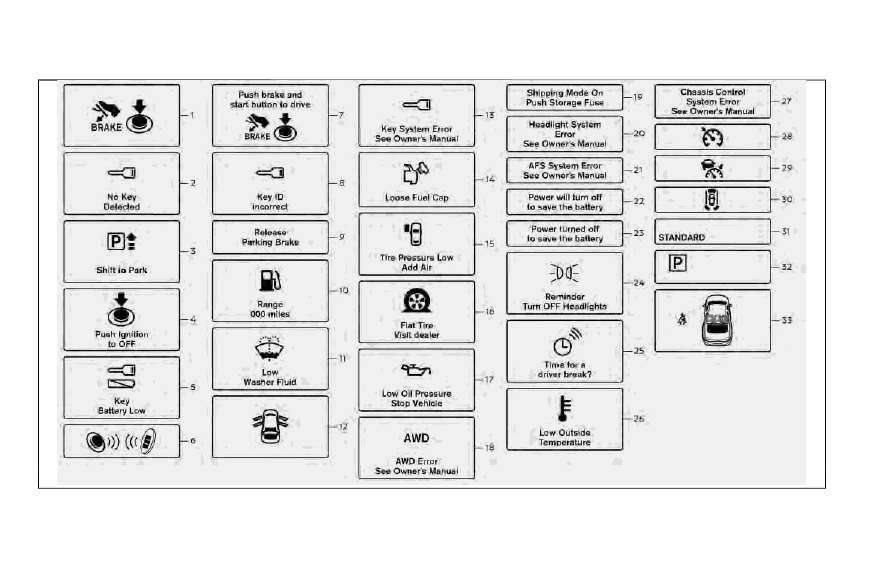

See “Vehicle information display” (P.2-19).

or

Brake warning light

This light functions for both the parking
brake and the foot brake systems.

Parking brake indicator:

When the ignition switch is in the ON
position, the light comes on when the
parking brake is applied.

Low brake fluid warning light:

When the ignition switch is in the ON
position, the light warns of a low brake fluid
level. If the light comes on while the engine is
running with the parking brake not applied,
stop the vehicle and perform the following:
1. Check the brake fluid level. If brake fluid

is necessary, add fluid and have the
system checked. It is recommended you
have this service performed by an
INFINITI retailer. (See “Brake fluid”
(P.8-10).)

2. If the brake fluid level is correct, have the

warning system checked. It is recom-
mended you have this service performed
by an INFINITI retailer.

Anti-lock Braking System (ABS) warning
indicator:

When the parking brake is released and the
brake fluid level is sufficient, if both the
brake warning light and the Anti-lock Brak-
ing System (ABS) warning light illuminate, it
may indicate the ABS is not functioning
properly. Have the brake system checked,
and if necessary repaired. It is recommended
you visit an INFINITI retailer for this service.
(See “Anti-lock Braking System (ABS) warn-
ing light” (P.2-13).)

WARNING

.

Your brake system may not be work-
ing properly if the warning light is on.
Driving could be dangerous. If you
judge it to be safe, drive carefully to
the nearest service station for re-
pairs. Otherwise, have your vehicle
towed because driving it could be
dangerous.

.

Pressing the brake pedal with the
engine stopped and/or low brake
fluid level may increase your stopping
distance and braking will require
greater pedal effort as well as pedal
travel.

.

If the brake fluid level is below the
minimum or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked. It is
recommended you visit an INFINITI
retailer for this service.

Charge warning light

If the light comes on while the engine is
running, it may indicate the charging system
is not functioning properly. Turn the engine
off and check the alternator belt. If the belt is
loose, broken, missing or if the light remains

Instruments and controls

2-11

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-12

Instruments and controls

on, have your vehicle serviced immediately. It
is recommended you visit an INFINITI re-
tailer for this service.

CAUTION

Do not continue driving if the alternator
belt is loose, broken or missing.

Master warning light

When the ignition switch is in the ON
position, the master warning light illumi-
nates when a warning message appears in
the vehicle information display.
See “Vehicle information display” (P.2-19).

Seat belt warning light and

chime

For driver and front passenger:

The light and chime remind you to fasten the
driver and front passenger seat belts.
The light illuminates whenever the ignition
switch is placed in the ON position, and will
remain illuminated until the front seat belts
are fastened.
When the vehicle speed exceeds 10 MPH
(15 km/h), the light will blink for about 95

seconds and then turn ON until the front
seat belts are securely fastened.
When the ignition switch is placed in the ON
position, the chime will sound for about 6
seconds unless the driver’s seat belt is
securely fastened.
When the vehicle speed exceeds 10 MPH
(15 km/h), the chime will sound unless the
front seat belts are securely fastened. The
chime will continue to sound for about 95
seconds until the front seat belts are fas-
tened.
See “Seat belts” (P.1-12).

For rear passengers:

The seat belt warning light for the rear
passengers (common with the warning light
for the driver and front passenger) will
illuminate whenever the ignition switch is
placed in the ON position, and will remain
illuminated for approximately 65 seconds
unless all the rear passenger’s seat belts are
fastened (even if the rear seats are not
occupied).
The warning light for the rear passengers
will turn off when all the rear seat belts are
fastened or the rear seat belt warning on the
vehicle information display turns off after
approximately 65 seconds. (If other warning
interrupts the rear seat belt warning, the
warning will be paused. After the warning
resumes, it will continue to appear until a

combined total of 65 seconds pass.) See “33.
Rear seat belt warning” (P.2-24).
If a rear passenger seat belt is fastened then
unfastened at a vehicle speed less than
approximately 10 MPH (15 km/h), the
warning light will illuminate. When the
vehicle speed exceeds approximately 10
MPH (15 km/h), the warning light will blink
and the chime will sound.
The chime will turn off when the unfastened
rear passenger seat belt is fastened again or
after the chime sounds for approximately 65
seconds. (The chime will be paused if other
warning chime interrupts. After the chime
resumes, it will continue to sound until a
combined total of 65 seconds pass.)
See “Seat belts” (P.1-12).

Security indicator light

The light blinks when the ignition switch is in
the ACC, OFF or LOCK position. This
function indicates the security system
equipped on the vehicle is operational.
If the security system is malfunctioning, this
light will remain on while the ignition switch
is in the ON position. For additional informa-
tion, see “Security systems” (P.2-30).

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Supplemental air bag warning

light

After pushing the ignition switch to the ON
position, the supplemental air bag warning
light will illuminate. The supplemental air bag
warning light will turn off after about 7
seconds if the supplemental front air bag
and supplemental side air bag, curtain side-
impact air bag systems and/or pretensioner
seat belt are operational.
If any of the following conditions occur, the
supplemental front air bag, supplemental
side air bag, supplemental curtain side-
impact air bag and pretensioner seat belt
needs servicing.

.

The supplemental air bag warning light

remains on after approximately 7 sec-
onds.

.

The supplemental air bag warning light

flashes intermittently.

.

The supplemental air bag warning light

does not come on at all.

It is recommended you visit an INFINITI
retailer for these services.
Unless checked and repaired, the Supple-
mental Restraint Systems and/or the pre-
tensioner seat belt may not function
properly.
For additional information, see “Supplemen-

tal restraint system” (P.1-42).

WARNING

If the supplemental air bag warning light
is on, it could mean that the front air
bag, side air bag, curtain air bag systems
and/or pretensioner seat belt will not
operate in an accident. To help avoid
injury to yourself or others, have your
vehicle checked. It is recommended you
visit an INFINITI retailer for this service.

WARNING/INDICATOR LIGHTS
(yellow)

See “Vehicle information display” (P.2-19).

or

Anti-lock Braking

System (ABS) warning light

When the ignition switch is in the ON
position, the Anti-lock Braking System
(ABS) warning light illuminates and then
turns off. This indicates the ABS is opera-
tional.
If the ABS warning light illuminates while the
engine is running, or while driving, it may
indicate the ABS is not functioning properly.
Have the system checked. It is recommended
you visit an INFINITI retailer for this service.

If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system then
operates normally, but without anti-lock
assistance. (See “Brake system” (P.5-128).)

Forward Emergency Braking

(FEB) system warning light

This light comes on when the ignition switch
is placed in the ON position. It turns off after
the engine is started.
This light illuminates when the FEB system is
set to OFF on the lower display.
If the light illuminates when the FEB system
is ON, it may indicate that the system is
unavailable. See “Forward Emergency Brak-
ing (FEB)” (P.5-106) for more details.

Front passenger air bag status

light

The front passenger air bag status light
(

) located on the instrument panel will be

lit and the passenger front air bag will be
OFF depending on how the front passenger
seat is being used.
For front passenger air bag status light
operation, see “INFINITI Advanced Air Bag
System (front seats)” (P.1-48).

Instruments and controls

2-13

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-14

Instruments and controls

Low fuel warning light

This light illuminates when the fuel in the
tank is getting low. Refuel as soon as it is
convenient, preferably before the fuel gauge
reaches the 0 (empty) position.

There will be a small reserve of fuel remain-
ing in the tank when the fuel gauge reaches
the 0 position.

Low tire pressure warning light

Your vehicle is equipped with a Tire Pressure
Monitoring System (TPMS) that monitors
the tire pressure of all tires except the spare
tire (if so equipped).
The low tire pressure warning light warns of
low tire pressure and flat tire (if so equipped)
or indicates that the TPMS is not functioning
properly.
After the ignition switch is placed in the ON
position, this light illuminates for about 1
second and turns off.

Low tire pressure warning:

If the vehicle is being driven with low tire
pressure, the warning light will illuminate.
The “Tire Pressure Low - Add Air” warning
also appears in the vehicle information dis-
play.
When the low tire pressure warning light

illuminates, you should stop and adjust the
tire pressure to the recommended COLD tire
pressure shown on the Tire and Loading
Information label. The low tire pressure
warning light does not automatically turn
off when the tire pressure is adjusted. After
the tire is inflated to the recommended
pressure, the vehicle must be driven at
speeds above 16 MPH (25 km/h) to activate
the TPMS and turn off the low tire pressure
warning light. Use a tire pressure gauge to
check the tire pressure.
The “Tire Pressure Low - Add Air” warning is
active as long as the low tire pressure
warning light remains illuminated.
For additional information, see “Vehicle
information display” (P.2-19), “Tire Pressure
Monitoring System (TPMS)” (P.5-5) and
“Tire Pressure Monitoring System (TPMS)”
(P.6-3).

Flat tire warning (if so equipped):

The flat tire warning warns of a flat tire.
If the vehicle is being driven with one or more
flat tires, the low tire pressure warning light
will illuminate continuously and a chime will
sound for 10 seconds. A “Flat Tire - Visit
dealer” warning also appears in the vehicle
information display.
The chime will only sound at the first
indication of a flat tire and the warning light
will illuminate continuously. When the flat

tire warning is activated, have the system
reset and the tire checked, and replaced if
necessary. It is recommended you visit an
INFINITI retailer for these services. Even if
the tire is inflated to the specified COLD tire
pressure, the warning light will continue to
illuminate until the system is reset by an
INFINITI retailer.
Your vehicle can be driven for a limited time
on a flat tire. See “Run-flat tires” (P.6-4).

TPMS malfunction:

If the TPMS is not functioning properly, the
low tire pressure warning light will flash for
approximately 1 minute when the ignition
switch is placed in the ON position. The light
will remain on after the 1 minute. Have the
system checked. It is recommended you visit
an INFINITI retailer for this service. The “Tire
Pressure Low - Add Air” warning does not
appear if the low tire pressure warning light
illuminates to indicate a TPMS malfunction.
For additional information, see “Tire Pres-
sure Monitoring System (TPMS)” (P.5-5).

WARNING

.

Radio waves could adversely affect
electric medical equipment. Those
who use a pacemaker should contact
the electric medical equipment man-

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

ufacturer for the possible influences
before use.

.

If the light does not illuminate with
the ignition switch pushed ON, have
the vehicle checked as soon as possi-
ble. It is recommended you visit an
INFINITI retailer for this service.

.

If the light illuminates while driving,
avoid sudden steering maneuvers or
abrupt braking, reduce vehicle speed,
pull off the road to a safe location
and stop the vehicle as soon as
possible. Driving with under-inflated
tires may permanently damage the
tires and increase the likelihood of
tire failure. Serious vehicle damage
could occur and may lead to an
accident and could result in serious
personal injury. Check the tire pres-
sure for all four tires. Adjust the tire
pressure to the recommended COLD
tire pressure shown on the Tire and
Loading Information label to turn the
low tire pressure warning light OFF.
If the light still illuminates while
driving after adjusting the tire pres-
sure, a tire may be flat or the TPMS
may be malfunctioning. If you have a
flat tire, replace it with a spare tire (if
so equipped) as soon as possible. If no
tire is flat and all tires are properly
inflated, it is recommended you con-

sult an INFINITI retailer.

.

For models with run-flat tires,
although you can continue driving
with a punctured run-flat tire, re-
member that vehicle handling stabi-
lity is reduced, which could lead to an
accident and personal injury. Also,
driving a long distance at high speeds
may damage the tires.

— Do not drive at speeds above 50

MPH (80 km/h) and do not drive
more than approximately 93 miles
(150 km) with a punctured run-
flat tire. The actual distance the
vehicle can be driven on a flat tire
depends on outside temperature,
vehicle load, road conditions and
other factors.

— If you detect any unusual sounds

or vibrations while driving with a
punctured run-flat tire, pull off
the road to a safe location and
stop the vehicle as soon as possi-
ble. The tire may be seriously
damaged and need to be replaced.

.

Since the spare tire is not equipped
with the TPMS, when a spare tire is
mounted or a wheel is replaced, the
TPMS will not function and the low
tire pressure warning light will flash
for approximately 1 minute. The light

will remain on after the 1 minute.
Have your tires replaced and/or
TPMS system reset as soon as pos-
sible. It is recommended you visit an
INFINITI retailer for these services.

.

Replacing tires with those not origin-
ally specified by INFINITI could affect
the proper operation of the TPMS.

CAUTION

.

The TPMS is not a substitute for the
regular tire pressure check. Be sure to
check the tire pressure regularly.

.

If the vehicle is being driven at speeds
of less than 16 MPH (25 km/h), the
TPMS may not operate correctly.

.

Be sure to install the specified size of
tires to the four wheels correctly.

Malfunction Indicator Light

(MIL)

If the malfunction indicator light comes on
steady or blinks while the engine is running,
it may indicate a potential emission control
malfunction.
The malfunction indicator light may also

Instruments and controls

2-15

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-16

Instruments and controls

come on steady if the fuel-filler cap is loose
or missing, or if the vehicle runs out of fuel.
Check to make sure the fuel-filler cap is
installed and closed tightly, and that the
vehicle has at least 3 US gallons (11.4 liters)
of fuel in the fuel tank.
After a few driving trips, the

light should

turn off if no other potential emission
control system malfunction exists.
If this indicator light remains on for 20
seconds and then blinks for 10 seconds
when the engine is not running, it indicates
that the vehicle is not ready for an emission
control system inspection/maintenance test.
(See “Readiness for Inspection/Mainte-
nance (I/M) test (US only)” (P.10-23).)

Operation:

The malfunction indicator light will come on
in one of two ways:

.

Malfunction indicator light on steady —

An emission control system malfunction
has been detected. Check the fuel-filler
cap if the Loose Fuel Cap warning
appears in the vehicle information dis-
play. If the fuel-filler cap is loose or
missing, tighten or install the cap and
continue to drive the vehicle. The
light should turn off after a few driving
trips. If the

light does not turn off

after a few driving trips, have the vehicle
inspected. It is recommended you visit an

INFINITI retailer for this service. You do
not need to have your vehicle towed to
the retailer.

.

Malfunction indicator light blinking — An

engine misfire has been detected which
may damage the emission control sys-
tem.
To reduce or avoid emission control
system damage:
1) Do not drive at speeds above 45

MPH (72 km/h).

2) Avoid hard acceleration or decelera-

tion.

3) Avoid steep uphill grades.
4) If possible, reduce the amount of

cargo being hauled or towed.

The malfunction indicator light may stop
blinking and remain on.
Have the vehicle inspected. It is recom-
mended you visit an INFINITI retailer for
this service. You do not need to have
your vehicle towed to the retailer.

CAUTION

Continued vehicle operation without
having the emission control system
checked and repaired as necessary could
lead to poor driveability, reduced fuel
economy, and possible damage to the

emission control system.

Master warning light

When the ignition switch is in the ON
position, the master warning light illumi-
nates when a warning message appears in
the vehicle information display.
See “Vehicle information display” (P.2-19).

Power steering warning light

Models with Direct Adaptive Steering :

When the ignition switch is in the ON
position, the power steering warning light
illuminates. After starting the engine, the
power steering warning light stays on for a
few seconds and turns off. This indicates
that Direct Adaptive Steering is operational.
Drive the vehicle after the power steering
warning light turns off.
If the power steering warning light illumi-
nates while driving, pull off the road to a
safe location and stop the vehicle. If the
power steering warning light turns off, you
can drive again. If the power steering
warning light continues to illuminate, it is
recommended you have Direct Adaptive
Steering checked by an INFINITI retailer.
(See “Direct Adaptive Steering type” (P.5-

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

126).)

Models with electric power steering :

When the ignition switch is in the ON
position, the power steering warning light
illuminates. After starting the engine, the
power steering warning light turns off. This
indicates the electric power steering is
operational.
If the power steering warning light illumi-
nates while the engine is running, it may
indicate the electric power steering is not
functioning properly and may need servicing.
It is recommended you have the electric
power steering checked by an INFINITI
retailer.
When the power steering warning light
illuminates with the engine running, the
power assist to the steering will cease
operation but you will still have control of
the vehicle. At this time, greater steering
efforts are required to operate the steering
wheel, especially in sharp turns and at low
speeds.
See “Electric power steering type” (P.5-126).

Vehicle Dynamic Control

(VDC) off indicator light

When the ignition switch is placed in the ON
position, the light will come on and then turn
off.

The light comes on when the VDC off switch
is pushed to OFF. This indicates that the
VDC system and traction control system are
not operating.

Vehicle Dynamic Control

(VDC) warning light

When the ignition switch is in the ON
position, the Vehicle Dynamic Control
(VDC) warning light illuminates and then
turns off.
The light will blink when the VDC system or
the traction control system is operating, thus
alerting the driver that the vehicle is nearing
its traction limits. The road surface may be
slippery.
When the VDC warning light illuminates
when the VDC system is turned on, this light
alerts the driver to the fact that the VDC
system’s fail-safe mode is operating, for
example the VDC, active trace control func-
tion, Brake Force Distribution or hill start
assist system may not be functioning prop-
erly. Have the system checked. It is recom-
mended you visit an INFINITI retailer for this
service. If a malfunction occurs in the
system, the VDC system function will be
canceled but the vehicle is still driveable. For
additional information, see “Vehicle Dynamic
Control (VDC) system” (P.5-131).

WARNING/INDICATOR LIGHTS
(other)

See “Vehicle information display” (P.2-19).

ECO drive indicator light

When the ignition switch is placed in the ON
position, the light will come on and then turn
off.
When the INFINITI Drive Mode Selector is
turned to the ECO mode, the ECO drive
indicator light will illuminate, blink or remain
off depending on the accelerator pedal
operation to help assist the driver to drive
economically. For more details, see “ECO
mode” (P.5-22).

Exterior light indicator

This indicator illuminates when the headlight
switch is turned to the AUTO,

or

position and the front parking lights, instru-
ment panel lights, rear combination lights,
license plate lights or headlights are on. The
indicator turns off when these lights are
turned off.

Front fog light indicator light

The front fog light indicator light illuminates
when the front fog lights are on. (See “Fog
light switch” (P.2-43).)

Instruments and controls

2-17

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-18

Instruments and controls

High beam assist indicator

light (if so equipped)

The indicator light illuminates when the
headlights come on while the headlight
switch is in the AUTO position or
position (for Canada) with the high beam
selected. This indicates that the high beam
assist system is operational. (See “High
beam assist” (P.2-38).)

High beam indicator light

This light comes on when the headlight high
beam is on and goes out when the low beam
is selected.

Turn signal/hazard indicator

lights

The light flashes when the turn signal switch
lever or hazard switch is turned on.

AUDIBLE REMINDERS

Door lock warning chime

When the chime sounds, be sure to check
both the vehicle and the Intelligent Key. (See
“Troubleshooting guide” (P.3-14).)

Light reminder chime

A chime will sound when the driver side door
is opened with the headlight switch in the

or

position and the ignition switch in

the ACC, OFF or LOCK position.
Turn the headlight switch to the OFF (if so
equipped) or the AUTO position when you
leave the vehicle.

Parking brake reminder chime

The parking brake reminder chime will sound
if the vehicle is driven at more than 4 MPH (7
km/h) with the parking brake applied. Stop
the vehicle and release the parking brake.

Brake pad wear warning

The disc brake pads have audible wear
warnings. When a brake pad requires repla-
cement, it will make a high pitched scraping
sound when the vehicle is in motion. This
scraping sound will first occur only when the
brake pedal is depressed. After more wear of
the brake pad, the sound will always be
heard even if the brake pedal is not

depressed. Have the brakes checked as soon
as possible if the warning sound is heard.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

JVI0641X

The vehicle information display

is located

between the tachometer and the speed-
ometer, and it displays the warnings and
information. The following items are also
displayed if the vehicle is equipped with
them:

.

Automatic Transmission (AT)

— “Driving the vehicle” (P.5-16)

.

All-Wheel Drive (AWD)

— “Intelligent All-Wheel Drive (AWD)”

(P.5-123)

.

Cruise control

— “Cruise control” (P.5-72)

.

Intelligent Cruise Control (ICC)

— “Intelligent Cruise Control (ICC)” (P.5-

75)

.

Active Lane Control

— “Active Lane Control” (P.5-25)

.

Lane Departure Warning (LDW)/Lane

Departure Prevention (LDP)
— “Lane Departure Warning (LDW)/

Lane Departure Prevention (LDP)”
(P.5-33)

.

Blind Spot Warning (BSW)

— “Blind Spot Warning (BSW)” (P.5-40)

.

Blind Spot Intervention

®

(BSI)

— “Blind Spot Intervention

®

(BSI)” (P.5-

50)

.

Back-up Collision Intervention (BCI)

— “Back-up Collision Intervention (BCI)”

(P.5-63)

.

Distance Control Assist (DCA)

— “Distance Control Assist (DCA)” (P.5-

95)

.

Forward Emergency Braking (FEB)

— “Forward Emergency Braking (FEB)”

(P.5-106)

.

Predictive Forward Collision Warning

(PFCW)
— “Predictive Forward Collision Warning

(PFCW)” (P.5-113)

.

Active trace control

— “Active trace control” (P.5-132)

.

Intelligent Key system

— “Intelligent Key system” (P.3-6)

Instruments and controls

2-19

VEHICLE INFORMATION DISPLAY

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-20

Instruments and controls

WAC1028X

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INDICATORS FOR OPERATION

1. Engine start operation indicator

This indicator appears when the shift lever is
in the P (Park) position.
This indicator means that the engine will
start by pushing the ignition switch with the
brake pedal depressed. You can start the
engine directly in any position of the ignition
switch.

2. NO KEY warning

The warning appears when the door is
closed with the Intelligent Key left outside
the vehicle and the ignition switch in the
ACC or ON position. Make sure that the
Intelligent Key is inside the vehicle.
See “Intelligent Key system” (P.3-6) for more
details.

3. SHIFT “P” warning

This warning appears when the ignition
switch is pushed to stop the engine with
the shift lever in any position except the P
(Park) position.
If this warning appears, move the shift lever
to the P (Park) position or push the ignition
switch to the ON position.
An inside warning chime will also sound. (See
“Troubleshooting guide” (P.3-14).)

4. Push Ignition to OFF warning

This warning appears when the shift lever is
moved to the P (Park) position with the
ignition switch in the ACC position after the
SHIFT “P” warning appears.
To push the ignition switch to the OFF
position, perform the following procedure:

.

SHIFT “P” warning

?

(Move the shift

lever to “P”)

?

Push Ignition to OFF

warning

?

(Push the ignition switch

?

ignition switch position is turned to ON)

?

Push Ignition to OFF warning

?

(Push the ignition switch

?

ignition

switch position is turned to OFF)

5. Intelligent Key battery discharge
indicator

This indicator appears when the Intelligent
Key battery is running out of power.
If this indicator appears, replace the battery
with a new one. (See “Intelligent Key battery
replacement” (P.8-19).)

6. Engine start operation for Intel-
ligent Key system indicator

This indicator appears when the Intelligent
Key battery is running out of power and
when the Intelligent Key System and vehicle
are not communicating normally.

If this indicator appears, touch the ignition
switch with the Intelligent Key while depres-
sing the brake pedal. (See “Intelligent Key
battery discharge” (P.5-14).)

7. Remote engine start indicator (if
so equipped)

This indicator appears when the engine has
been started using the remote engine start
function. To start the vehicle, depress the
brake pedal and place the ignition switch in
the ON position.
For more details, see “Remote engine start”
(P.3-19).

8. Key ID Incorrect warning

This warning appears when the ignition
switch is pushed from the LOCK position
and the Intelligent Key cannot be recognized
by the system. You cannot start the engine
with an unregistered key. Use the registered
Intelligent Key.
See “Intelligent Key system” (P.3-6).

9. Parking brake release warning

This warning appears when the vehicle
speed is above 4 MPH (7 km/h) and the
parking brake is applied.

Instruments and controls

2-21

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-22

Instruments and controls

10. Low fuel warning

This warning appears when the fuel level in
the tank is getting low. Refuel as soon as it is
convenient, preferably before the fuel gauge
reaches the empty (0) position.

There is a small reserve of fuel remaining in
the tank when the fuel gauge reaches the
empty (0) position.

11. Low washer fluid warning

This warning appears when the washer tank
fluid is at a low level. Add washer fluid as
necessary. (See “Window washer fluid” (P.8-
10).)

12. Door/trunk open warning

This warning appears if any of the doors
and/or the trunk lid are open or not closed
securely. The vehicle icon indicates which
door or the trunk lid is open on the display.

13. Intelligent Key system warning

This warning appears if there is a malfunc-
tion in the Intelligent Key system.
If this warning appears while the engine is
stopped, the engine cannot be started. If this
warning appears while the engine is running,
the vehicle can be driven. However, in these
cases, have the system checked as soon as
possible. It is recommended you visit an
INFINITI retailer for this service.

14. Loose Fuel Cap warning

This warning appears when the fuel-filler
cap is not tightened correctly after the
vehicle has been refueled. (See “Fuel-filler
cap” (P.3-25).)

15. Tire Pressure Low - Add Air
warning

This warning appears when the low tire
pressure warning light in the meter illumi-
nates and low tire pressure is detected. The
warning appears each time the ignition
switch is placed in the ON position as long
as the low tire pressure warning light
remains illuminated. If this warning appears,
stop the vehicle and adjust the pressure to
the recommended COLD tire pressure
shown on the Tire and Loading Information
label. (See “Low tire pressure warning light”
(P.2-14) and “Tire Pressure Monitoring
System (TPMS)” (P.5-5).)

16. Flat Tire - Visit dealer warning
(if so equipped)

This warning appears when the low tire
pressure warning light in the meter illumi-
nates and one or more flat tires are detected
while driving. A chime also sounds for
approximately 10 seconds. (See “Low tire
pressure warning light” (P.2-14) and “Tire
Pressure Monitoring System (TPMS)” (P.5-

5).)

17. Low oil pressure warning

This warning appears if low engine oil
pressure is detected. If the warning appears
during normal driving, pull off the road in a
safe area, stop the engine immediately and
call an INFINITI retailer or other authorized
repair shop.
The low oil pressure warning is not designed
to indicate a low oil level. Use the dipstick to
check the oil level. (See “Engine oil” (P.8-7).)

18. All-Wheel Drive (AWD) warning
(if so equipped)

This warning appears when the Intelligent
All-Wheel Drive (AWD) system is not func-
tioning properly while the engine is running.
The displayed message will vary depending
on the condition of the AWD system mal-
function. (See “Intelligent All-Wheel Drive
(AWD)” (P.5-123).)

19. Extended storage fuse warning
(if so equipped)

This warning may appear if the extended
storage fuse switch is not pushed in
(switched on). When this warning appears,
push in (switch on) the extended storage
fuse switch to turn off the warning. For
more information, see “Extended storage

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

fuse switch” (P.8-19).

20. Headlight warning

This warning appears if the LED headlights
are malfunctioning. It is recommended you
have the system checked by an INFINITI
retailer.

21. Adaptive Front lighting System
(AFS) warning (if so equipped)

This warning appears when the Adaptive
Front lighting System (AFS) is not function-
ing properly. It is recommended you have the
system checked by an INFINITI retailer.
(See “Adaptive Front lighting System (AFS)”
(P.2-41).)

22. Power will turn off to save the
battery warning

This warning appears after a period of time
if the shift lever has not moved from the “P”
(Park) position with the ignition switch in the
ACC or ON position.

23. Power turned off to save the
battery warning

This warning appears after the ignition
switch is automatically turned OFF to save
the battery.

24. Light reminder warning

This warning appears when the driver side
door is opened with the headlight switch is
left ON and the ignition switch is placed in
the ACC, OFF or LOCK position. Place the
headlight switch in the OFF (if so equipped)
or AUTO position. For additional informa-
tion, see “Headlight and turn signal switch”
(P.2-35).

25. “TIMER” indicator

This indicator appears when the set “TIMER”
indicator activates. You can set the time for
up to 6 hours in the [Alarms] under the
[Settings] menu on the lower display. (See
the INFINITI InTouch

TM

Owner’s Manual.)

26. Low outside temperature
warning

This warning appears if the outside tem-
perature is below 37°F (3°C). The warning
can be set not to be displayed in the [Alarms]
under the [Settings] menu on the lower
display. (See the INFINITI InTouch

TM

Own-

er’s Manual.)

27. Chassis control warning

This warning appears if Active Lane Control
(if so equipped), the active trace control
system and/or chassis control are not
functioning properly. It is recommended

you have the system checked by an INFINITI
retailer. (See “Active Lane Control” (P.5-25),
“Active trace control” (P.5-132) and “Chassis
control” (P.5-134).)

28. Cruise indicator

Models without Intelligent Cruise Control
(ICC) system:

This indicator shows the cruise control
system status. The status is shown by the
color.
See “Cruise control” (P.5-72) for details.

Models with Intelligent Cruise Control (ICC)
system:

This indicator shows the conventional (fixed
speed) cruise control mode status. The
status is shown by the color.
See “Conventional (fixed speed) cruise con-
trol mode” (P.5-91) for details.

29. Intelligent Cruise Control (ICC)
system ON indicator (if so
equipped)

This indicator shows the Intelligent Cruise
Control (ICC) system status. The status is
shown by the color. (See “Intelligent Cruise
Control (ICC)” (P.5-75).)

Instruments and controls

2-23

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-24

Instruments and controls

30. Driver assist system indicator

This indicator shows the status of the
following systems (if so equipped).

.

Lane Departure Warning (LDW)

.

Lane Departure Prevention (LDP)

.

Blind Spot Warning (BSW)

.

Blind Spot Intervention

®

(BSI)

.

Distance Control Assist (DCA)

.

Forward Emergency Braking (FEB)

.

Predictive Forward Collision Warning

(PFCW)

For more details, see “Lane Departure
Warning (LDW)/Lane Departure Prevention
(LDP)” (P.5-33), “Blind Spot Warning
(BSW)” (P.5-40), “Blind Spot Intervention

®

(BSI)” (P.5-50), “Distance Control Assist
(DCA)” (P.5-95), “Forward Emergency Brak-
ing (FEB)” (P.5-106) and “Predictive For-
ward Collision Warning (PFCW)” (P.5-113).
The figure and color of this indicator will
change depending on the conditions of the
above systems. (In each section, the name of
this indicator is referred to as, “driver assist
system lane indicator”, “driver assist system
blind spot indicator” or “driver assist system
forward indicator” depending on the sys-
tems.)

31. INFINITI Drive Mode Selector
indicator

When a driving mode is selected using the
INFINITI Drive Mode Selector, the selected
mode indicator is displayed.

.

PERSONAL

.

SPORT

.

SPORT+ (if so equipped)

.

STANDARD

.

ECO

.

SNOW

(See “INFINITI Drive Mode Selector” (P.5-
21).)

32. Automatic Transmission (AT)
position indicator

This indicator shows the automatic shift
position.
In the manual shift mode, when the trans-
mission does not shift to the selected gear
due to a transmission protection mode, the
AT position indicator will blink and a chime
will sound.
See “Automatic transmission” (P.5-16) for
further details.

33. Rear seat belt warning

This warning appears after the ignition
switch is placed in the ON position. If any
of the rear passenger’s seat belts is not
fastened, the rear seat belt warning will be
displayed in red to show which seat belt is
not fastened (even if the rear seats are not
occupied). The seat icon illuminates in red
until the corresponding rear passenger’s seat
belt is fastened. The warning will automati-
cally turn off after approximately 65 sec-
onds. (If other warning interrupts the rear
seat belt warning, the warning will be
paused. After the warning resumes, it will
continue to appear until a combined total of
65 seconds pass.) The seat icon will turn
green if the passenger is buckled. If a rear
passenger seat belt is fastened then unfas-
tened at a vehicle speed less than approxi-
mately 10 MPH (15 km/h), the rear seat belt
warning will appear. When the vehicle speed
exceeds approximately 10 MPH (15 km/h),
the rear seat belt warning will appear and
the chime will sound. The warning will turn
off when the unfastened rear passenger
seat belt is fastened again or automatically
turn off in approximately 65 seconds (com-
bined total). For precautions on seat belt
usage, see “Seat belts” (P.1-12).

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

















Content      ..     1      2      3      4      ..
