236

SERVICING AND MAINTENANCE



F11

5 Amp Tan

Supply Secondary Loads

F14

7.5 Amp Brown

WCAC Supply Pump

F15

40 Amp Orange

Brake Control Module Pump

F16

5 Amp Tan

Engine Control Module Power, Automatic Transmission

F17

30 Amp Green

Power Control Module Engine

F18

30 Amp Green

Power All-Wheel Drive

F19

7.5 Amp Brown

Air Conditioner Compressor

F20

5 Amp Tan

Electronic Power Four-Wheel Drive

F21

15 Amp Blue

Fuel Pump

F22

10 Amp Red

Supply Primary Loads

Cavity

Maxi Fuse

Cartridge Fuse

Mini Fuse

Description

If Equipped *

CarManuals2.com

SERVICING AND MAINTENANCE

237

F23

20 Amp Yellow

(Customer Installed)

Power Outlet (Battery Powered)

F24

15 Amp Blue

Electronic Unit Supply Automatic Transmission

F30

30 Amp Green

Heated Windshield *

F82

20 Amp Blue

Control Module Engine

F83

40 Amp Green

Air Conditioning Fan

F84

20 Amp Yellow

Power Outlet (Ignition Powered)

F87

5 Amp Tan

Gear Selector Automatic Transmission

F88

7.5 Amp Brown

Heated Outside Mirrors

F89

30 Amp Pink

Heated Rear Window

F90

5 Amp Tan

IBS Sensor (Battery State of Charge)

Cavity

Maxi Fuse

Cartridge Fuse

Mini Fuse

Description

If Equipped *

8

CarManuals2.com

238

SERVICING AND MAINTENANCE



Body Computer Fuse Center

The controller is located at the left side of the steering column at the bottom of the instrument panel.
For the fuse replacement see an authorized dealer.

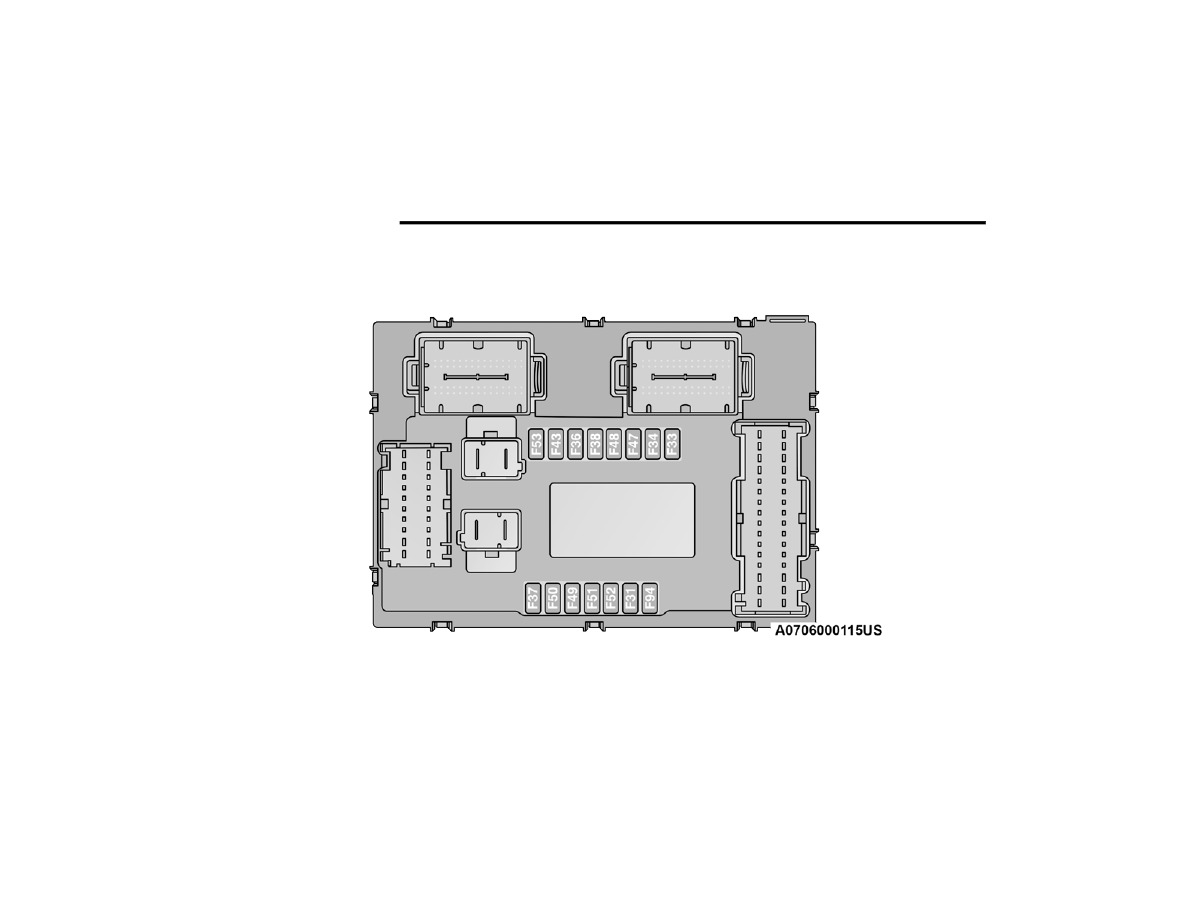

Body Controller Fuse Cavities

CarManuals2.com

SERVICING AND MAINTENANCE

239

Cavity

Mini Fuse

Description

F31

7.5 Amp Brown

Fan Air Conditioning, Power Socket

F33

20 Amp Yellow

Power Window Front (Passenger Side)

F34

20 Amp Yellow

Power Window Front (Driver’s Side)

F36

15 Amp Blue

Supply Uconnect System, Air Conditioning, USB Port, Rear lateral ceiling light in case of open roof, EOBD port

F37

10 Amp Red

System Power Forward Collision Warning Plus, All-Wheel Drive (AWD), IPC, Central stack switches, Brake Pedal Switch (NC)

F38

20 Amp Yellow

Central Locking

F42

7.5 Amp Brown

BSM - Brake Control Module, EPS - Electric Power-Assisted Steering

F43

20 Amp Yellow

Bi-directional Pump Washer

F47

20 Amp Yellow

Power Rear Window (Driver Side)

F48

20 Amp Yellow

Power Rear Window (Passenger Side)

F49

7.5 Amp Brown

Supply ParkSense, Spot Lights Front Dome, Internal Electrochromic Mirror, Heated Front Seats, SGW, Sunroof Motor.

F50

7.5 Amp Brown

Supply Air Bag

F51

7.5 Amp Brown

Air Conditioning Compressor, Plaque Automatic Transmission, Rear Camera, Air Conditioning, LDW - Lane Departure Warning,

ASS - Auxiliary Stack Switch, DSU - Drive Selector Unit, Reverse gear switch, side mirrors and rear window defrost

F53

7.5 Amp Brown

Supply IPC/Starter Device/System Keyless Enter ‘n Go™ , Brake Pedal Switch (NA), EPB - Electric Parking Brake

8

CarManuals2.com

240

SERVICING AND MAINTENANCE



Rear Cargo Fuse/Relay Distribution Unit

To access the fuses, remove the access door from the left rear panel of the rear cargo area. Push on the left side of the access door to unhinge and remove.

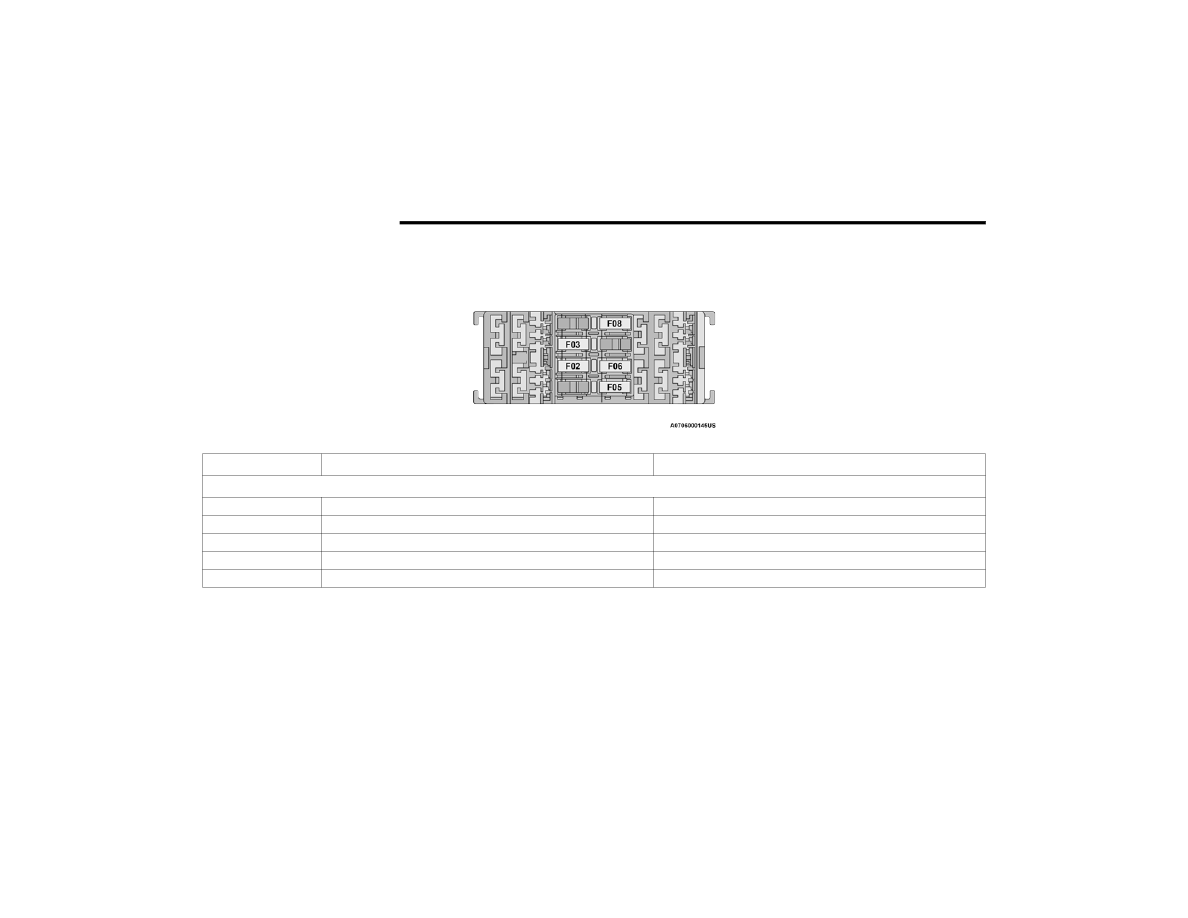

Rear Cargo Fuse Cavities

Cavity

Mini Fuse

Description

If Equipped *

F2

F3

20 Amp Yellow

Electric Sunroof

F5

30 Amp Green

Power Seat (driver side) *

F6

7.5 Amp Brown

Power Seat (driver side) Lumbar Adjustment *

F8

20 Amp Yellow

Heating Front Seats

CarManuals2.com

SERVICING AND MAINTENANCE

241

BULB REPLACEMENT

General Information

Before you replace a bulb, check the contacts to be sure they are not oxidized.

Replace the bulbs with the same type and wattage.

After replacing a light bulb, always check the correct orientation.

Before replacing a bulb that is not functioning, check that the fuse is intact.

NOTE:

Lens fogging can occur under certain atmospheric conditions. This will usually clear as atmospheric conditions change to allow the condensation to change back into a vapor.

Turning the lamps on will usually accelerate the clearing process.

Replacement Bulbs, Names, And Part Numbers

In the instance a bulb needs to be replaced, this section includes bulb description and replacement part numbers. All of the inside bulbs are brass or glass-wedge base.

Aluminum base bulbs are not approved.

NOTE:

See an authorized dealer for LED bulb replacement.

Interior Lamps

Lamp Name

Lamp Number

Front Courtesy Light

C5W

Front Courtesy Lights (Sun Visors)

C5W

Rear Dome Light (Models Without Retractable Roof)

C5W

Rear Interior Lights (Models With Retractable Roof)

C5W

Interior Lights

W5W

Dome Light (Glove Compartment)

W5W

8

CarManuals2.com

242

SERVICING AND MAINTENANCE



Exterior Lamps

Lamp Name

Lamp Number

Low Beam/High Beam Headlamps

HIR2

Optional Low Beam/High Bean Headlamps

LED

Front Position/Daytime Running Lights (DRL)

LED

Front Direction Indicator Lamps

WY21W

Fog Lamps (Halogen)

H11

Fog Lamps (LED)

LED

Side Indicators (Side View Mirror)

WY5W

Side Marker

LED

Tail/Brake Lights

LED

Turn Indicators

WY21W

Center High Mounted Stop Lamp (CHMSL)

LED

Reverse

P21W

License Plate Lamp

W5W

CarManuals2.com

SERVICING AND MAINTENANCE

243

Replacing Exterior Bulbs

Headlamps

Front Lamps

Hi/Lo Beam Light Halogen

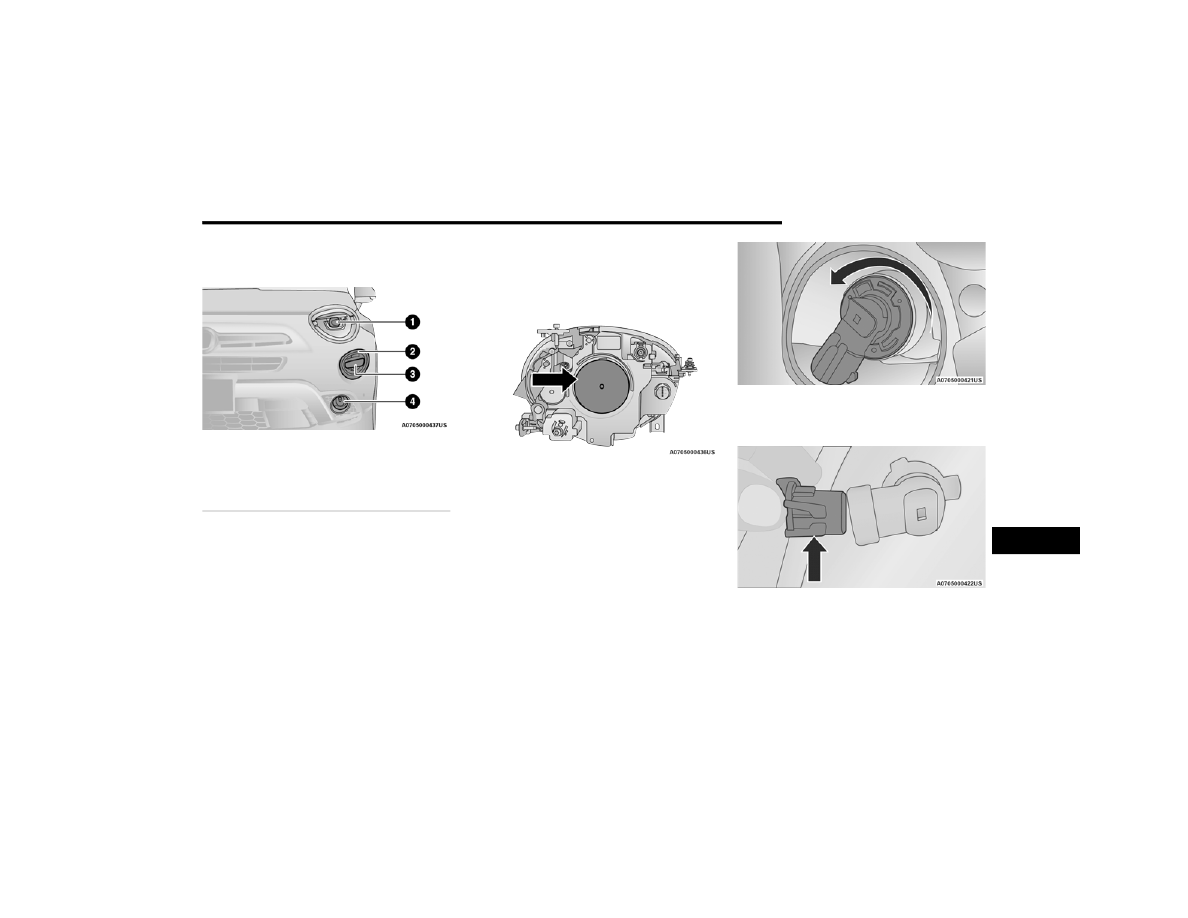

See the following steps for bulb replacement:
1. Open the engine compartment and remove the

headlamp bulb cap.

Headlamp Bulb Cap

2. Rotate the headlamp bulb socket counterclockwise then

pull outwards.

Headlamp Bulb Socket

3. Release the locking tab on the headlamp bulb connector

and remove the bulb and socket.

Headlamp Bulb Connector

1 — Headlamps
2 — Daytime Running Lamps
3 — Directional Indicators
4 — Fog Lamps — If Equipped

8

CarManuals2.com

244

SERVICING AND MAINTENANCE



4. Install the new headlamp bulb making sure it is properly

locked.

5. Install the headlamp bulb and socket; align the tabs and

turn it clockwise making sure it is properly locked.

Headlamp Bulb Connector

LED Main Beam/Dipped Beam Headlights/Fog Lights —

If Equipped
For replacing these bulbs, contact an authorized

dealership.

Side Lights/Daytime Running Lights (DRL)
The side lights/Daytime Running Lights (DRL) are

LED-type. To replace them, contact an authorized

dealership.
Side Marker
Side marker lights are LED-type. For replacing these bulbs,

contact an authorized dealer
Front Direction Indicator Lamp

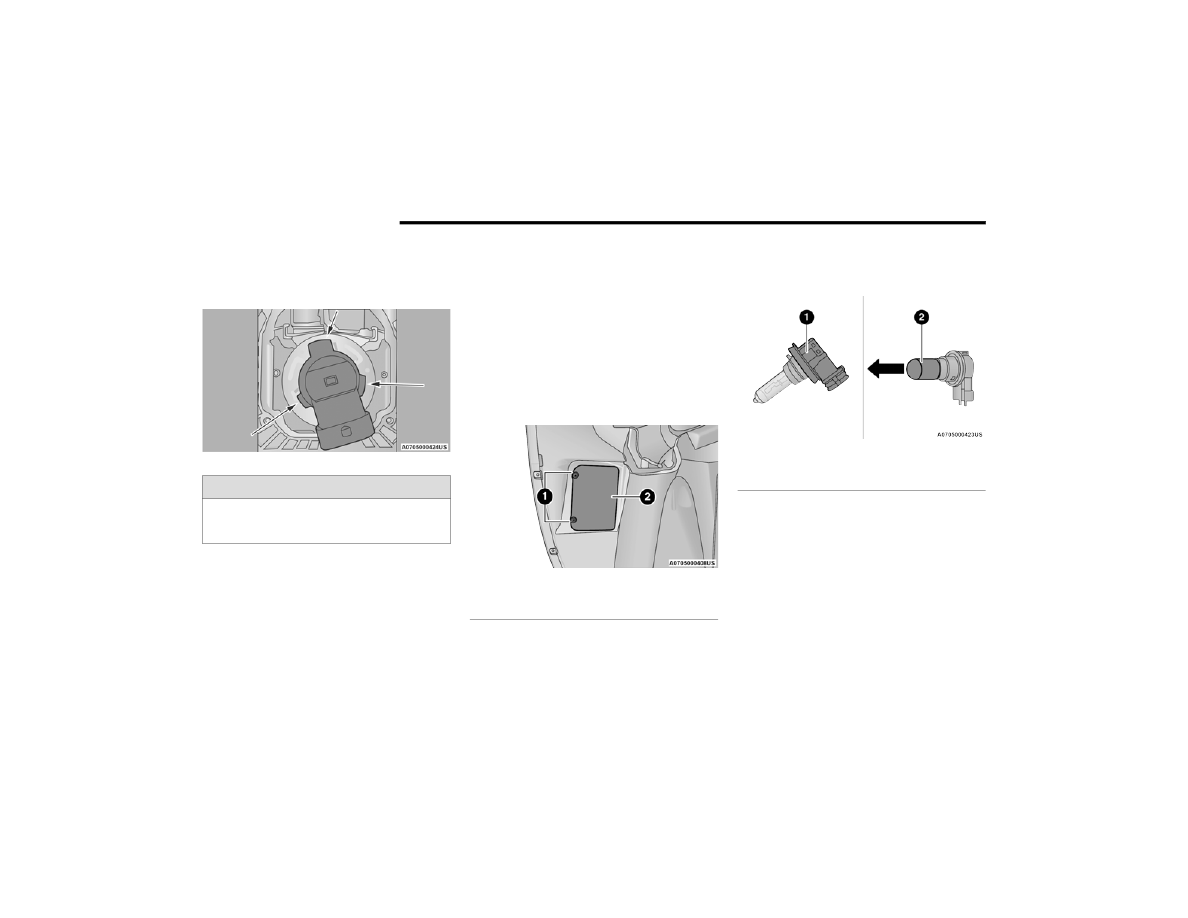

See the following steps for bulb replacement:
1. Turn the front wheels completely.
2. Use a suitable tool to remove the access door.

Light Access

3. Turn the bulb and bulb holder assembly counter

-

clockwise and then remove it sliding it outwards.

4. Replace the bayonet-fitted bulb.

Bulb Assembly

5. Finally, refit the access door, fully tightening screws.

WARNING!

Carry out the operation of replacing lamps only with the

engine off. Also make sure that the engine is cold, to

avoid the danger of burns.

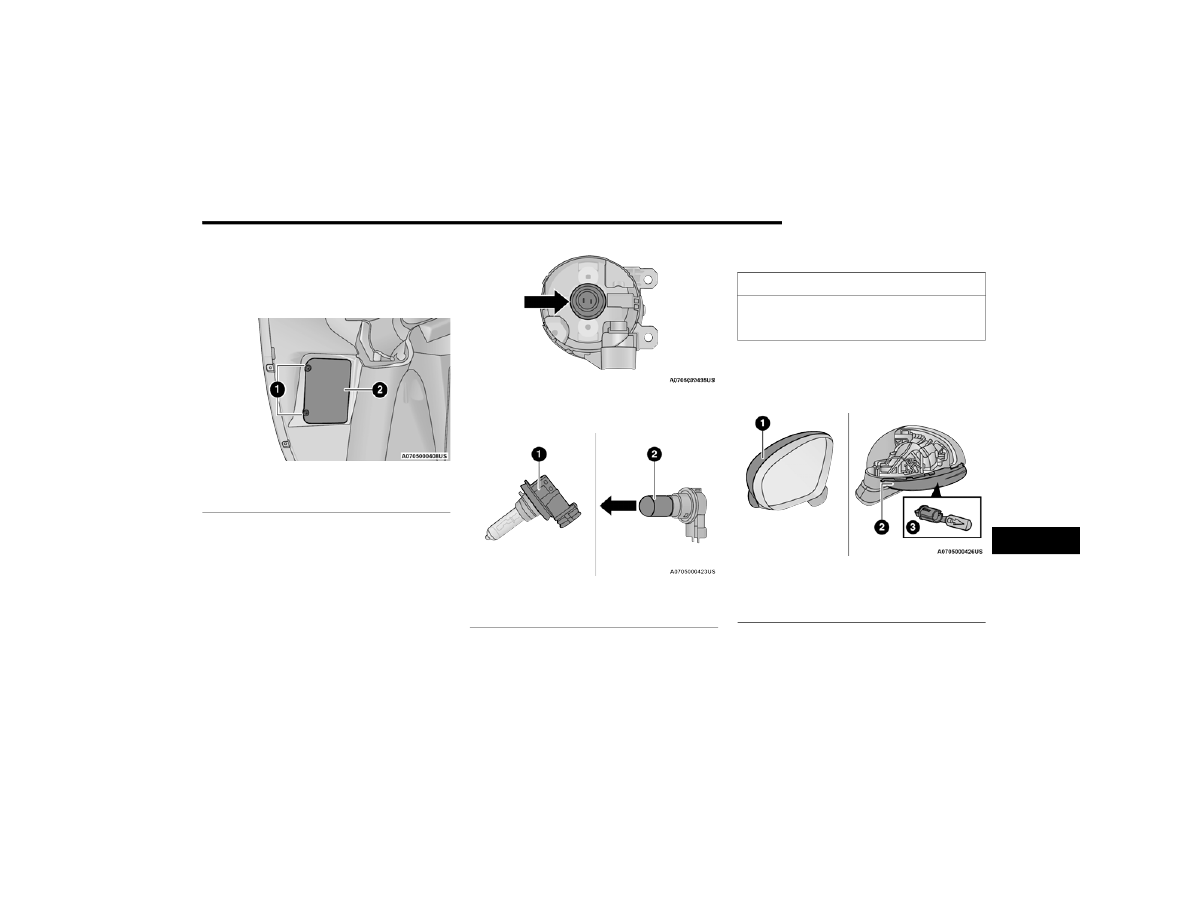

1 — Screws
2 — Access Door

1 — Bulb Holder
2 — Bulb

CarManuals2.com

SERVICING AND MAINTENANCE

245

Fog Lights (Halogen)
See the following steps for bulb replacement:
1. Turn the front wheels completely.
2. Use a suitable tool to remove the access door.

Fog Light Access

3. Turn the bulb and bulb holder assembly counter

-

clockwise and then remove it sliding it outwards.

Fog Lamp Bulb Location

4. Replace the bayonet-fitted bulb.

Bulb Assembly

5. Finally, refit the inspection door, fully tightening fixing

screws.

Side Indicators on External Rear View Mirrors –

If Equipped

See the following steps for bulb replacement:
1. Remove the mirror cap on the outside rear view

mirror.

Mirror Cap

2. Remove the transparent lens assembly as shown.

1 — Screws
2 — Access Door

1 — Bulb Holder
2 — Bulb

CAUTION!

The procedure is described as a guideline. For the

replacement of the lamp it is recommended that you

contact an authorized dealer.

1 — Mirror Cover
2 — Side Indicator Lens
3 — Side Indicator Bulb Location

8

CarManuals2.com

246

SERVICING AND MAINTENANCE



3. Remove the bulb socket and bulb from the

transparent lens assembly by rotating the socket

counterclockwise.

4. Remove the bulb from the bulb socket by pulling the

bulb straight out.

5. Insert the new bulb, making sure that it is locked into

place

6. Reinstall the socket into the transparent lens

assembly.

7. Reinstall the cover on the outside rear view mirror,

making sure it is locked into place.

Rear Tail Lamps

Tail Light

Tail Lamps
The tail lights are LED-type. For replacing these bulbs,

contact an authorized dealership.
Brake Lights
The brake lights are LED-type. For replacing these bulbs,

contact an authorized dealership.
Side Marker
Side marker lights are LED-type. For replacing these bulbs,

contact an authorized dealer
3th Stop Lamp
The CHMSL is LED. For their replacement see an

authorized dealer.
Reversing Light & Rear Direction Indicators
See the following steps for bulb replacement:
1. Open liftgate
2. Using a suitable tool, undo the two inboard screws,

then release the light cluster from the respective pin

fasteners pulling it carefully.

Tail Light Screws

3. Disconnect the connector, then undo the two screws

to access the bulbs.

Tail Light Access

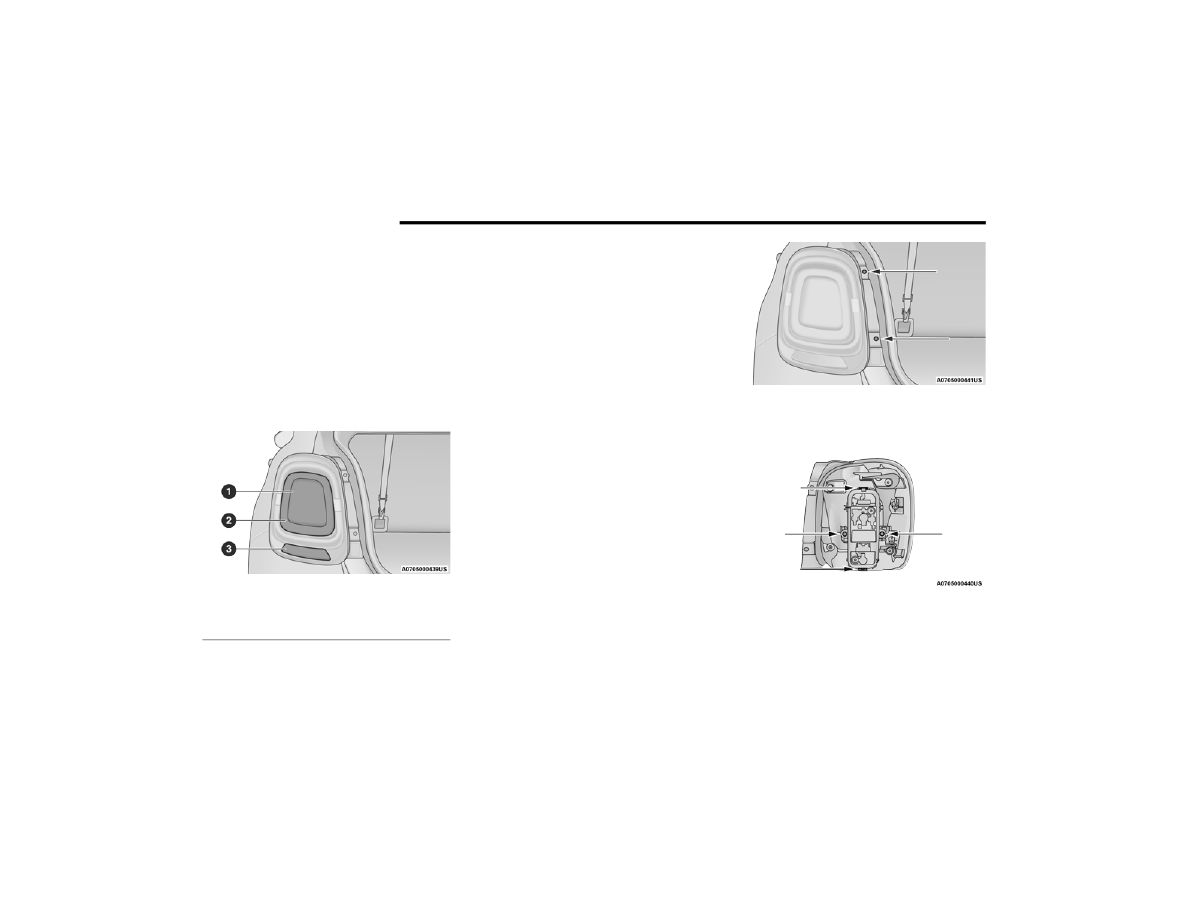

1 — Tail lights/Brake Lights
2 — Direction indicator
3 — REVERSE lights

CarManuals2.com

SERVICING AND MAINTENANCE

247

4. Locate faulty bulb and press slightly and turn at the

same time: counterclockwise to extract; clockwise to

install.

5. Reposition the bulb holder assembly in the headlight

body, proceed until you hear the tabs click.

6. Reinstall tail lamp assembly and close liftgate.
License Plate Lights
See the following steps for bulb replacement:
To replace the bulbs proceed as follows:

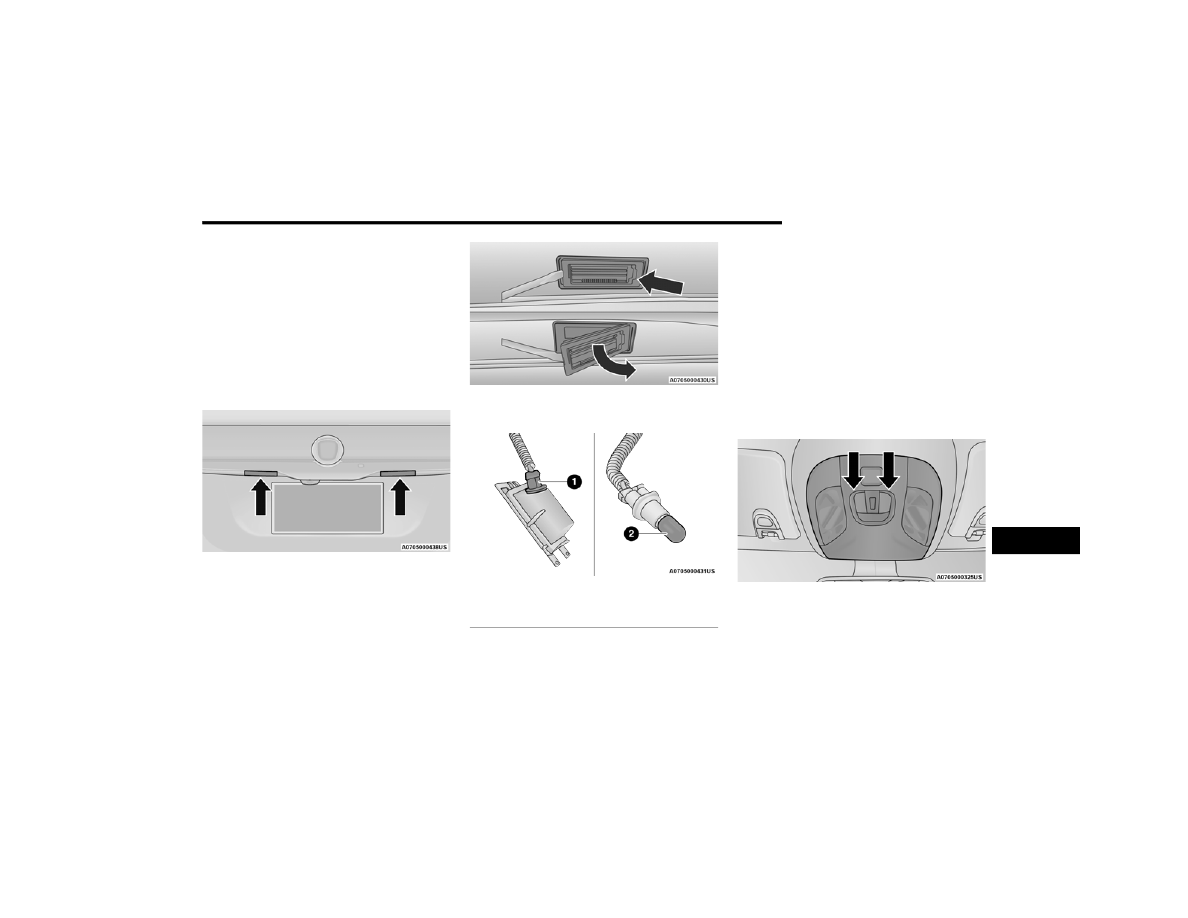

1. Using a suitable tool remove the license plate lens.

License Plate Light Location

License Plate Light

2. Remove the bulbs from the individual side contacts.

Lamp Assembly

3. Insert the new bulbs, and ensure that they are

properly locked between the contacts.

4. Reinstall the license plate lens.

NOTE:

If removing the license plate lens using a suitable tool, be

sure to cover the tip of the suitable tool with a cloth so no

damage is done to the lenses or the vehicle paint.

Replacing Interior Bulbs

Front Courtesy Light
See the following steps for bulb replacement:

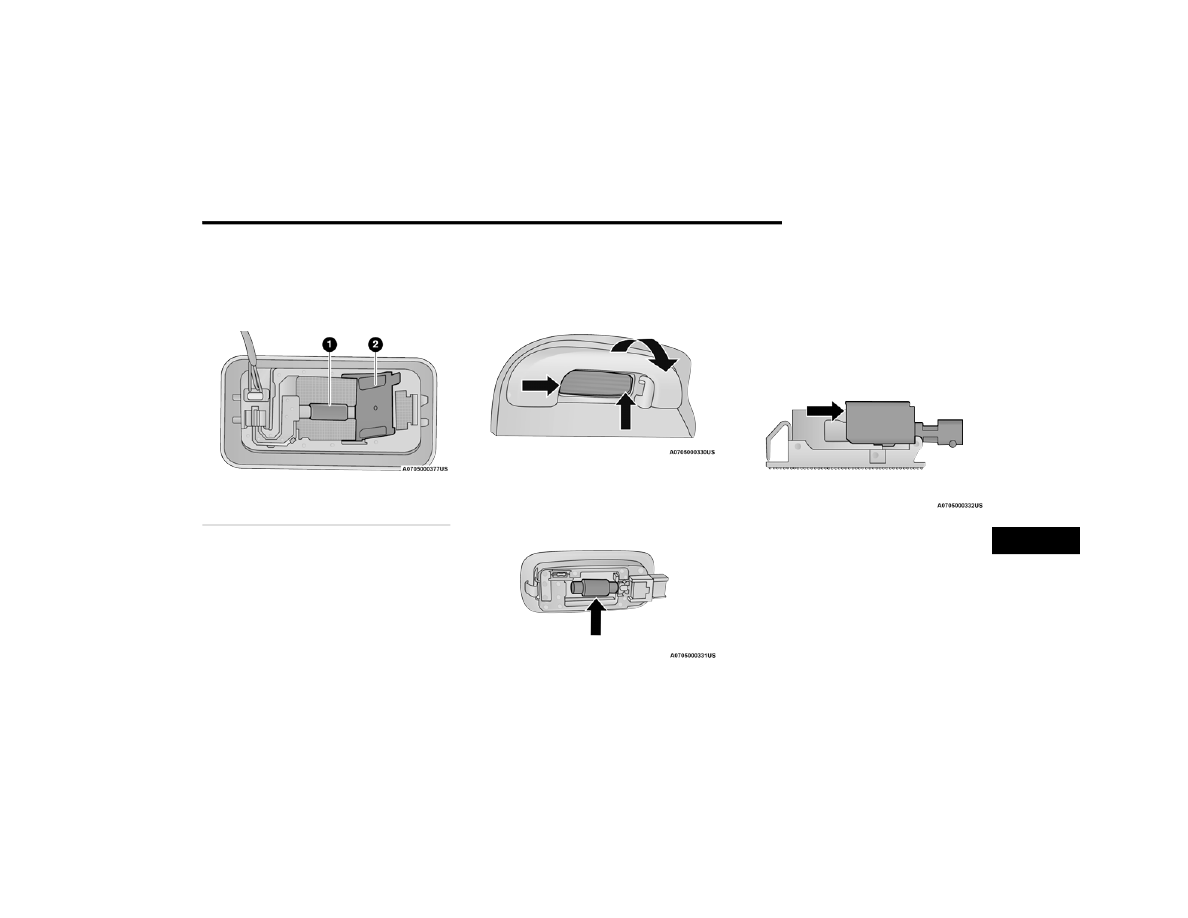

1. Using a suitable tool remove the front courtesy light

as shown.

Front Courtesy Light Housing

1 — Bulb Holder
2 — Bulb

8

CarManuals2.com

248

SERVICING AND MAINTENANCE



2. Release the retainer clips and bulb housing as

shown.

Front Courtesy Bulb Housing

3. Replace the bulbs by pulling straight out of bulb

housing.

Front Courtesy Bulb Housing

4. Insert the new bulbs, making sure that they are

properly locked.

5. Reassemble the bulb housing and courtesy light

housing making sure that they are properly locked.

6. Install the front courtesy light making sure that it is

properly locked.

Dome Light Vanity Mirror
See the following steps for bulb replacement:

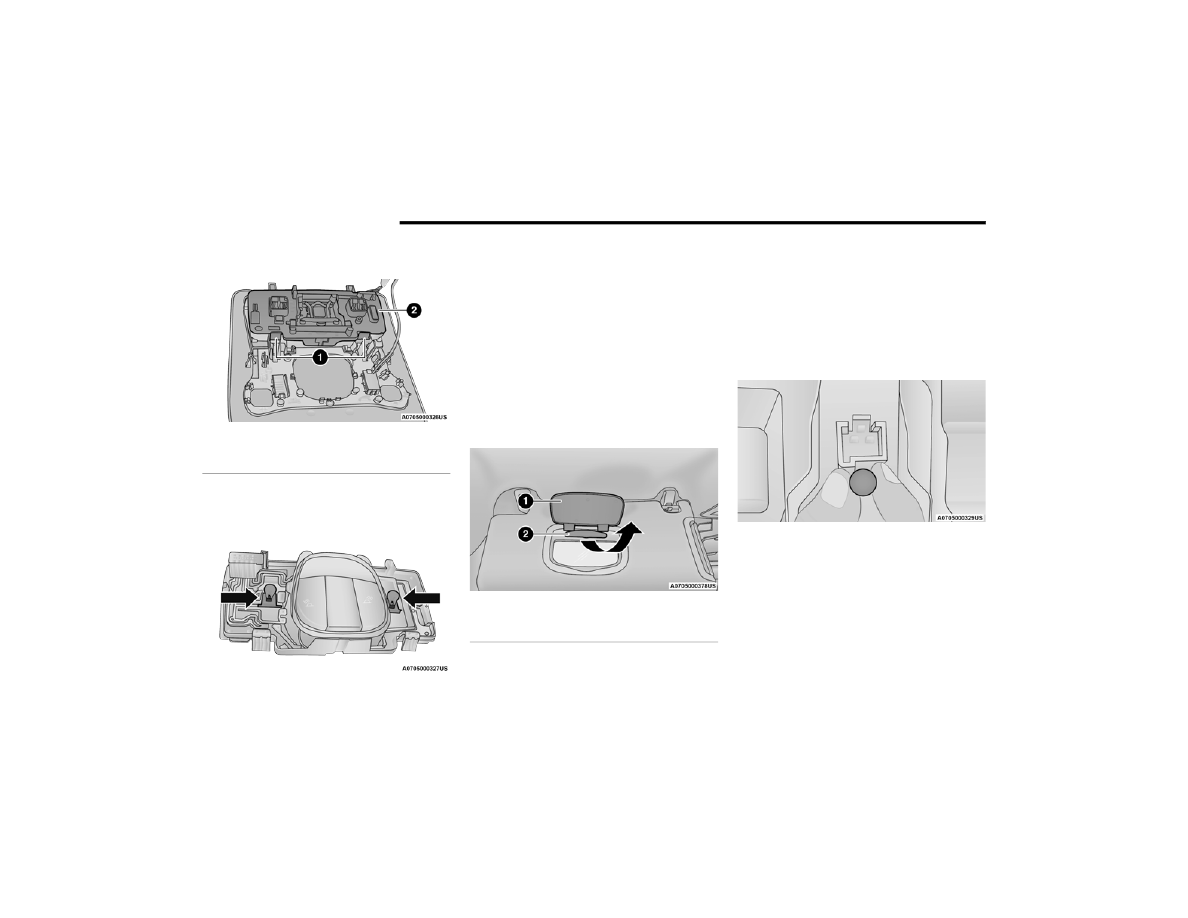

1. Lift the cover of the mirror and pull out the visor

mirror light cover.

2. Replace the bulb, releasing it from the side contacts,

and then insert the new bulb, making sure that it is

properly locked between the contacts.

Visor Mirror Cover

3. Reinstall the visor mirror light cover making sure that

it is properly locked.

4. Finally lower the visor mirror cover to the mirror.
Dome Light Glove Compartment
See the following steps for bulb replacement:
1. Open the glove compartment.
2. Place your fingers inside the light assembly, pull the

bulb to replace it.

Bulb Removal/Installation

3. Insert the new bulb, making sure it is properly locked.

1 — Retaining Clips
2 — Bulb Housing

1 — Visor Mirror Cover
2 — Visor Mirror Light

CarManuals2.com

SERVICING AND MAINTENANCE

249

Rear Dome Light — Without Retractable Roof
See the following steps for bulb replacement:
1. Using a suitable tool release the lamp assembly at

both the ends.

2. Open the flap and replace the bulb.

Rear Dome Light

3. Insert the new bulb, locking it between the contacts.
4. Reinstall the dome light.

Dome Light
See the following steps for bulb replacement:
1. Lower the handle in the direction shown to remove

the dome light.

Retractable Roof Light

2. Replace the bulb by removing it from the side

contacts.

Bulb

3. Insert the new bulb, locking it between the contacts.
4. Reinstall the dome light.
Interior Cargo Lights
See the following steps for bulb replacement:
1. Open the luggage compartment and remove the

dome light assembly.

2. Open the light cover and replace the bulb.

Light Cover

3. Close the light cover over the bulb.
4. Reinstall the dome light in its correct position.

1 — Bulb
2 — Flap

8

CarManuals2.com

250

SERVICING AND MAINTENANCE



TIRES

T

IRE

 S

AFETY

 I

NFORMATION



Tire safety information will cover aspects of the following

information: Tire Markings, Tire Identification Numbers,

Tire Terminology and Definitions, Tire Pressures, and Tire

Loading.

Tire Markings

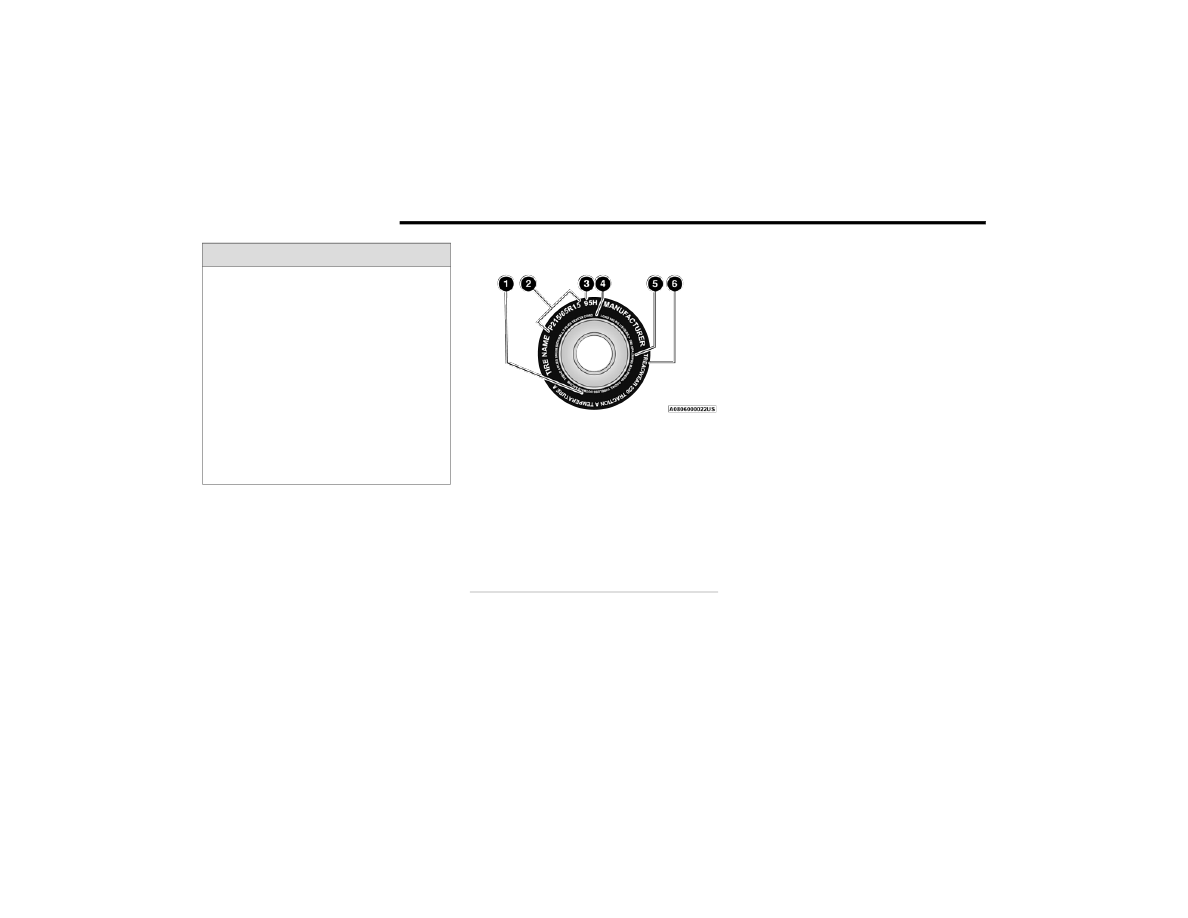

Tire Markings

NOTE:

P (Passenger) — Metric tire sizing is based on US design

standards. P-Metric tires have the letter “P” molded

into the sidewall preceding the size designation.

Example: P215/65R15 95H.

European — Metric tire sizing is based on European

design standards. Tires designed to this standard have

the tire size molded into the sidewall beginning with the

section width. The letter "P" is absent from this tire size

designation.

Example: 215/65R15 96H.

LT (Light Truck) — Metric tire sizing is based on US

design standards. The size designation for LT-Metric

tires is the same as for P-Metric tires except for the

letters “LT” that are molded into the sidewall preceding

the size designation.

Example: LT235/85R16.

Temporary spare tires are designed for temporary

emergency use only. Temporary high pressure compact

spare tires have the letter “T” or “S” molded into the

sidewall preceding the size designation.

Example: T145/80D18 103M.

High flotation tire sizing is based on US design stan

-

dards and it begins with the tire diameter molded into

the sidewall.

Example: 31x10.5 R15 LT.

WARNING!

Before proceeding with the lamp replacement, wait

for the lamp to cool: DANGER OF BURNS!

Modifications or repair of the electrical system

performed incorrectly and without taking into

account the technical characteristics can cause

malfunctions with the risk of fire.

Halogen lamps contain gas under pressure, in the

event of breakage be careful of the projection of

fragments of glass.

Halogen lamps must be handled by touching only the

metallic part. If the transparent bulb is in contact

with the fingers, reduces the intensity of the emitted

light and you can also affect the life of the lamp. In

case of accidental contact, rub the bulb with a cloth

dampened with alcohol and allow to dry.

1 — US DOT Safety Standards Code

(TIN)
2 — Size Designation
3 — Service Description
4 — Maximum Load
5 — Maximum Pressure
6 — Treadwear, Traction and

Temperature Grades

CarManuals2.com

SERVICING AND MAINTENANCE

251

TIRE SIZING CHART

EXAMPLE:

Example Size Designation: P215/65R15XL 95H, 215/65R15 96H, LT235/85R16C, T145/80D18 103M, 31x10.5 R15 LT
P = Passenger car tire size based on US design standards, or
"....blank...." = Passenger car tire based on European design standards, or
LT = Light truck tire based on US design standards, or
T or S = Temporary spare tire or
31 = Overall diameter in inches (in)
215, 235, 145 = Section width in millimeters (mm)
65, 85, 80 = Aspect ratio in percent (%)

Ratio of section height to section width of tire, or

10.5 = Section width in inches (in)
R = Construction code

"R" means radial construction, or

"D" means diagonal or bias construction

15, 16, 18 = Rim diameter in inches (in)
Service Description:
95 = Load Index

A numerical code associated with the maximum load a tire can carry

H = Speed Symbol

A symbol indicating the range of speeds at which a tire can carry a load corresponding to its load index under certain operating conditions

The maximum speed corresponding to the speed symbol should only be achieved under specified operating conditions (i.e., tire pressure, vehicle loading, road conditions, and

posted speed limits)

8

CarManuals2.com

252

SERVICING AND MAINTENANCE



Tire Identification Number (TIN)

The TIN may be found on one or both sides of the tire; however, the date code may only be on one side. Tires with white sidewalls will have the full TIN, including the date code, located

on the white sidewall side of the tire. Look for the TIN on the outboard side of black sidewall tires as mounted on the vehicle. If the TIN is not found on the outboard side, then you will

find it on the inboard side of the tire.

Load Identification:
Absence of the following load identification symbols on the sidewall of the tire indicates a Standard Load (SL) tire:

XL = Extra load (or reinforced) tire, or

LL = Light load tire or

C, D, E, F, G = Load range associated with the maximum load a tire can carry at a specified pressure

Maximum Load – Maximum load indicates the maximum load this tire is designed to carry
Maximum Pressure – Maximum pressure indicates the maximum permissible cold tire inflation pressure for this tire

EXAMPLE:

EXAMPLE:

DOT MA L9 ABCD 0301
DOT = Department of Transportation

This symbol certifies that the tire is in compliance with the US Department of Transportation tire safety standards and is approved for highway use

MA = Code representing the tire manufacturing location (two digits)
L9 = Code representing the tire size (two digits)
ABCD = Code used by the tire manufacturer (one to four digits)

CarManuals2.com

SERVICING AND MAINTENANCE

253

Tire Terminology And Definitions

03 = Number representing the week in which the tire was manufactured (two digits)

03 means the 3rd week

01 = Number representing the year in which the tire was manufactured (two digits)

01 means the year 2001

Prior to July 2000, tire manufacturers were only required to have one number to represent the year in which the tire was manufactured.

Example: 031 could represent the 3rd week of 1981 or 1991

Term

Definition

B-pillar

The vehicle B-pillar is the structural member of the body located behind the front door.

Cold Tire Inflation Pressure

Cold tire inflation pressure is defined as the tire pressure after the vehicle has not been driven for at

least three hours, or driven less than 1 mile (1.6 km) after sitting for a minimum of three hours.

Inflation pressure is measured in units of psi (pounds per square inch) or kPa (kilopascals).

Maximum Inflation Pressure

The maximum inflation pressure is the maximum permissible cold tire inflation pressure for this tire.

The maximum inflation pressure is molded into the sidewall.

Recommended Cold Tire Inflation Pressure

Vehicle manufacturer's recommended cold tire inflation pressure as shown on the tire placard.

Tire Placard

A label permanently attached to the vehicle describing the vehicle’s loading capacity, the original

equipment tire sizes and the recommended cold tire inflation pressures.

EXAMPLE:

8

CarManuals2.com

254

SERVICING AND MAINTENANCE



Tire Loading And Tire Pressure

NOTE:

The proper cold tire inflation pressure is listed on the

driver’s side B-pillar or the rear edge of the driver's side

door.
Check the inflation pressure of each tire, including the

spare tire (if equipped), at least monthly and inflate to the

recommended pressure for your vehicle.

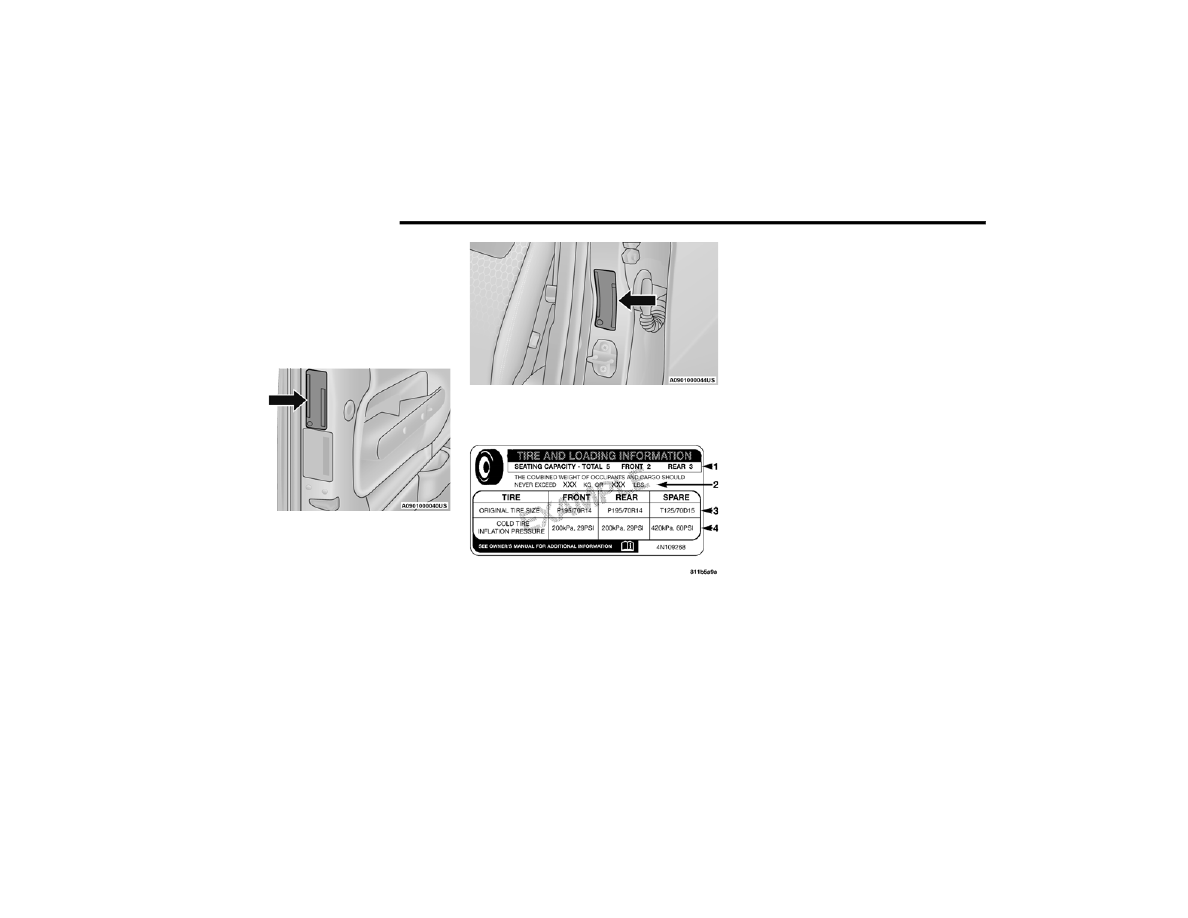

Example Tire Placard Location (Door)

Example Tire Placard Location (B-pillar)

Tire And Loading Information Placard

Tire And Loading Information Placard

This placard tells you important information about the:
1. Number of people that can be carried in the vehicle.
2. Total weight your vehicle can carry.
3. Tire size designed for your vehicle.
4. Cold tire inflation pressures for the front, rear, and

spare tires.

Loading

The vehicle maximum load on the tire must not exceed the

load carrying capacity of the tire on your vehicle. You will

not exceed the tire's load carrying capacity if you adhere to

the loading conditions, tire size, and cold tire inflation

pressures specified on the Tire And Loading Information

Placard

Ú

page 96.

NOTE:

Under a maximum loaded vehicle condition, Gross Axle

Weight Rating (GAWR) for the front and rear axles must

not be exceeded.
For further information on GAWR, vehicle loading, and

trailer towing

Ú

page 96.

To determine the maximum loading conditions of your

vehicle, locate the statement “The combined weight of

occupants and cargo should never exceed XXX kg or

XXX lbs” on the Tire And Loading Information Placard.

The combined weight of occupants, cargo/luggage and

trailer tongue weight (if applicable) should never exceed

the weight referenced here.

CarManuals2.com

SERVICING AND MAINTENANCE

255

Steps For Determining Correct Load Limit—

(1) Locate the statement “The combined

weight of occupants and cargo should

never exceed XXX kg or XXX lbs.” on your

vehicle's placard.
(2) Determine the combined weight of

the driver and passengers that will be

riding in your vehicle.
(3) Subtract the combined weight of the

driver and passengers from XXX kg or

XXX lbs.

(4) The resulting figure equals the

available amount of cargo and luggage

load capacity. For example, if “XXX”

amount equals 1400 lbs. and there will

be five 150 lb passengers in your

vehicle, the amount of available cargo

and luggage load capacity is 650 lbs.

(1400-750 (5x150) = 650 lbs.)
(5) Determine the combined weight of

luggage and cargo being loaded on the

vehicle. That weight may not safely

exceed the available cargo and luggage

load capacity calculated in Step 4.
(6) If your vehicle will be towing a trailer,

load from your trailer will be transferred

to your vehicle. Consult this manual to

determine how this reduces the

available cargo and luggage load

capacity of your vehicle.

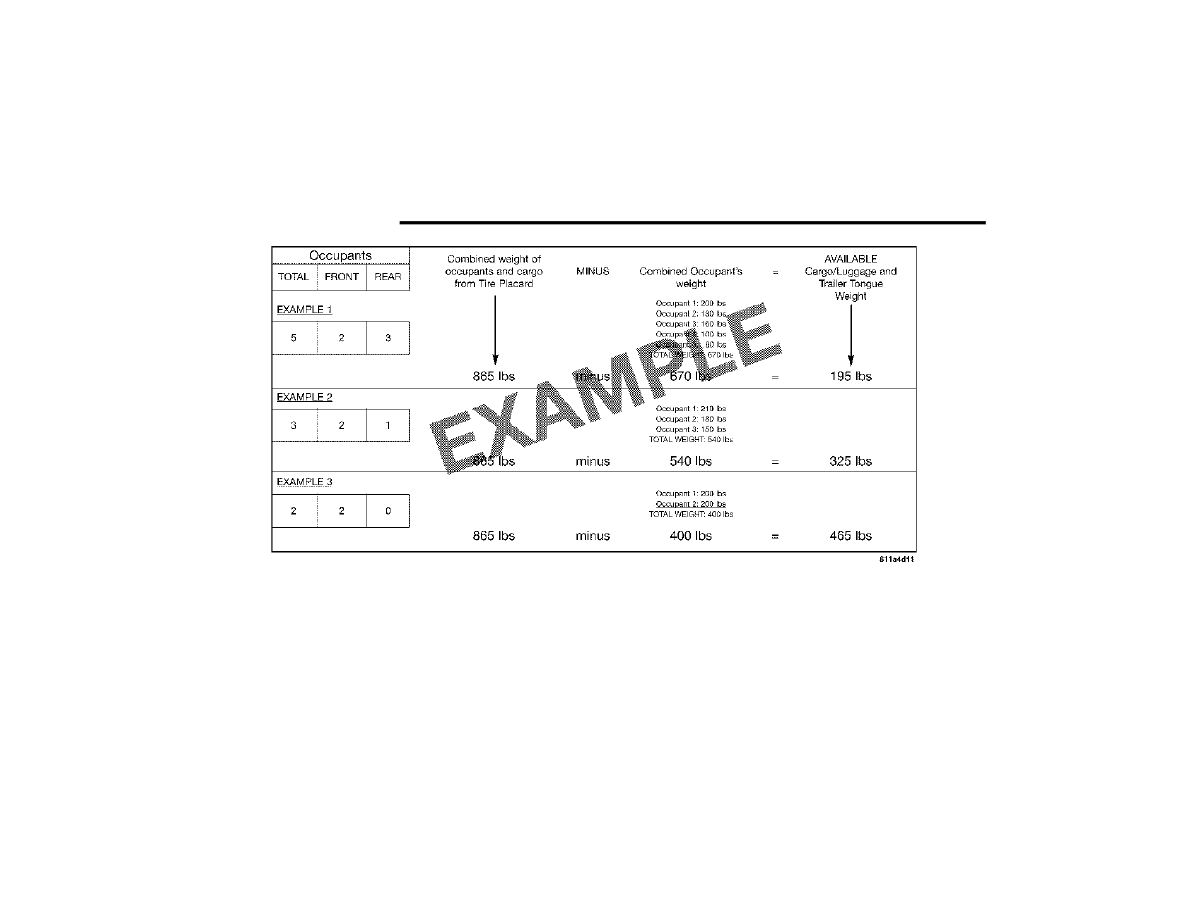

Metric Example For Load Limit
For example, if “XXX” amount equals 635 kg and there will

be five 68 kg passengers in your vehicle, the amount of

available cargo and luggage load capacity is 295 kg

(635-340 (5x68) = 295 kg) as shown in step 4.

NOTE:

If your vehicle will be towing a trailer, load from your

trailer will be transferred to your vehicle. The following

table shows examples on how to calculate total load,

cargo/luggage, and towing capacities of your vehicle

with varying seating configurations and number and

size of occupants. This table is for illustration purposes

only and may not be accurate for the seating and load

carry capacity of your vehicle.

For the following example, the combined weight of

occupants and cargo should never exceed 865 lb

(392 kg).

8

CarManuals2.com

256

SERVICING AND MAINTENANCE



CarManuals2.com

SERVICING AND MAINTENANCE

257

(Continued)

T

IRES

 — G

ENERAL

 I

NFORMATION



Tire Pressure

Proper tire inflation pressure is essential to the safe and

satisfactory operation of your vehicle. Four primary areas

are affected by improper tire pressure:

Safety

Fuel Economy

Tread Wear

Ride Comfort and Vehicle Stability

Safety

Both underinflation and overinflation affect the stability of

the vehicle and can produce a feeling of sluggish response

or over responsiveness in the steering.

NOTE:

Unequal tire pressures from side to side may cause

erratic and unpredictable steering response.

Unequal tire pressure from side to side may cause the

vehicle to drift left or right.

Fuel Economy
Underinflated tires will increase tire rolling resistance

resulting in higher fuel consumption.
Tread Wear
Improper cold tire inflation pressures can cause abnormal

wear patterns and reduced tread life, resulting in the need

for earlier tire replacement.

Ride Comfort And Vehicle Stability
Proper tire inflation contributes to a comfortable ride.

Overinflation produces a jarring and uncomfortable ride.

Tire Inflation Pressures

The proper cold tire inflation pressure is listed on the

driver's side B-pillar or rear edge of the driver's side door.
At least once a month:

Check and adjust tire pressure with a good quality

pocket-type pressure gauge. Do not make a visual judg

-

ment when determining proper inflation. Tires may look

properly inflated even when they are under-inflated.

Inspect tires for signs of tire wear or visible damage.

Inflation pressures specified on the placard are always

“cold tire inflation pressure”. Cold tire inflation pressure is

defined as the tire pressure after the vehicle has not been

driven for at least three hours, or driven less than 1 mile

(1.6 km) after sitting for a minimum of three hours. The

cold tire inflation pressure must not exceed the maximum

inflation pressure molded into the tire sidewall.

WARNING!

Overloading of your tires is dangerous. Overloading can

cause tire failure, affect vehicle handling, and increase

your stopping distance. Use tires of the recommended

load capacity for your vehicle. Never overload them.

WARNING!

Improperly inflated tires are dangerous and can

cause collisions.

Underinflation increases tire flexing and can result in

overheating and tire failure.

Overinflation reduces a tire's ability to cushion shock.

Objects on the road and chuckholes can cause

damage that result in tire failure.

Overinflated or underinflated tires can affect vehicle

handling and can fail suddenly, resulting in loss of

vehicle control.

Unequal tire pressures can cause steering problems.

You could lose control of your vehicle.

Unequal tire pressures from one side of the vehicle

to the other can cause the vehicle to drift to the

right or left.

Always drive with each tire inflated to the recom

-

mended cold tire inflation pressure.

WARNING!

CAUTION!

After inspecting or adjusting the tire pressure, always

reinstall the valve stem cap. This will prevent moisture

and dirt from entering the valve stem, which could

damage the valve stem.

8

CarManuals2.com

258

SERVICING AND MAINTENANCE



Check tire pressures more often if subject to a wide range

of outdoor temperatures, as tire pressures vary with

temperature changes.
Tire pressures change by approximately 1 psi (7 kPa) per

12°F (7°C) of air temperature change. Keep this in mind

when checking tire pressure inside a garage, especially in

the Winter.
Example: If garage temperature = 68°F (20°C) and the

outside temperature = 32°F (0°C) then the cold tire

inflation pressure should be increased by 3 psi (21 kPa),

which equals 1 psi (7 kPa) for every 12°F (7°C) for this

outside temperature condition.
Tire pressure may increase from 2 to 6 psi (13 to 40 kPa)

during operation. DO NOT reduce this normal pressure

build up or your tire pressure will be too low.

Tire Pressures For High Speed Operation

The manufacturer advocates driving at safe speeds and

within posted speed limits. Where speed limits or

conditions are such that the vehicle can be driven at high

speeds, maintaining correct tire inflation pressure is very

important. Increased tire pressure and reduced vehicle

loading may be required for high-speed vehicle operation.

Refer to an authorized tire dealer or original equipment

vehicle dealer for recommended safe operating speeds,

loading and cold tire inflation pressures.

Radial Ply Tires

Tire Repair
If your tire becomes damaged, it may be repaired if it

meets the following criteria:

The tire has not been driven on when flat.

The damage is only on the tread section of your tire

(sidewall damage is not repairable).

The puncture is no greater than ¼ of an inch (6 mm).

Consult an authorized tire dealer for tire repairs and

additional information.
Damaged Run Flat tires, or Run Flat tires that have

experienced a loss of pressure should be replaced

immediately with another Run Flat tire of identical size and

service description (Load Index and Speed Symbol).

Replace the tire pressure sensor as well as it is not

designed to be reused.

Run Flat Tires — If Equipped

Run Flat tires allow you the capability to drive 50 miles

(80 km) at 50 mph (80 km/h) after a rapid loss of inflation

pressure. This rapid loss of inflation is referred to as the

Run Flat mode. A Run Flat mode occurs when the tire

inflation pressure is of/or below 14 psi (96 kPa).

Once a Run Flat tire reaches the Run Flat mode it has

limited driving capabilities and needs to be replaced

immediately. A Run Flat tire is not repairable. When a Run

Flat tire is changed after being driven under a Run Flat

mode 14 psi (96 kPa) condition, please replace the TPMS

sensor as it is not designed to be reused.

NOTE:

TPMS sensor must be replaced after driving the vehicle on

a flat tire condition.
It is not recommended driving a vehicle loaded at

full capacity or to tow a trailer while a tire is in the

Run Flat mode.
See

Ú

page 169.

Tire Spinning

When stuck in mud, sand, snow, or ice conditions, do not

spin your vehicle's wheels above 30 mph (48 km/h) or for

longer than 30 seconds continuously without stopping.
For further information

Ú

page 212.

WARNING!

High speed driving with your vehicle under maximum

load is dangerous. The added strain on your tires could

cause them to fail. You could have a serious collision.

Do not drive a vehicle loaded to the maximum capacity

at continuous speeds above 75 mph (120 km/h).

WARNING!

Combining radial ply tires with other types of tires on

your vehicle will cause your vehicle to handle poorly.

The instability could cause a collision. Always use radial

ply tires in sets of four. Never combine them with other

types of tires.

WARNING!

Fast spinning tires can be dangerous. Forces generated

by excessive wheel speeds may cause tire damage or

failure. A tire could explode and injure someone.

Do not spin your vehicle's wheels faster than 30 mph

(48 km/h) for more than 30 seconds continuously

when you are stuck, and do not let anyone near a

spinning wheel, no matter what the speed.

CarManuals2.com

SERVICING AND MAINTENANCE

259

Tread Wear Indicators

Tread wear indicators are in the original equipment tires to

help you in determining when your tires should be

replaced.

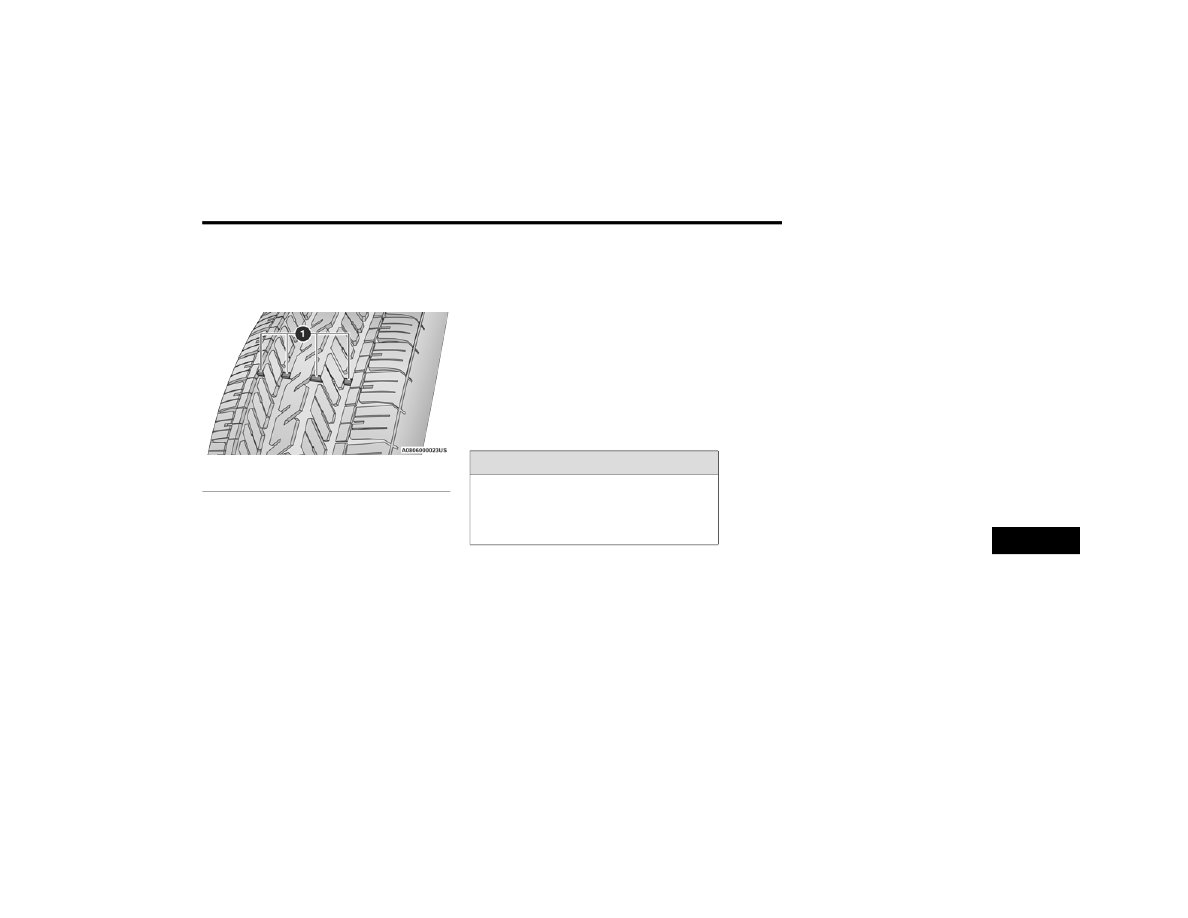

Tire Tread

These indicators are molded into the bottom of the tread

grooves. They will appear as bands when the tread depth

becomes 1/16 of an inch (1.6 mm). When the tread is

worn to the tread wear indicators, the tire should be

replaced.
For further information

Ú

page 259.

Life Of Tire

The service life of a tire is dependent upon varying factors

including, but not limited to:

Driving style.

Tire pressure - Improper cold tire inflation pressures

can cause uneven wear patterns to develop across the

tire tread. These abnormal wear patterns will reduce

tread life, resulting in the need for earlier tire replace

-

ment.

Distance driven.

Performance tires, tires with a speed rating of V or

higher, and Summer tires typically have a reduced

tread life. Rotation of these tires per the vehicle sched

-

uled maintenance is highly recommended.

NOTE:

Wheel valve stem must be replaced as well when installing

new tires due to wear and tear in existing tires.
Keep dismounted tires in a cool, dry place with as little

exposure to light as possible. Protect tires from contact

with oil, grease, and gasoline.

Replacement Tires

The tires on your new vehicle provide a balance of many

characteristics. They should be inspected regularly for

wear and correct cold tire inflation pressures. The

manufacturer strongly recommends using tires equivalent

to the originals in size, quality and performance when

replacement is needed

Ú

page 259. Refer to the Tire And

Loading Information Placard or the Vehicle Certification

Label for the size designation of your tire. The Load Index

and Speed Symbol for your tire will be found on the original

equipment tire sidewall.
See the Tire Sizing Chart example for more information

relating to the Load Index and Speed Symbol of a tire

Ú

page 251.

It is recommended to replace the two front tires or two rear

tires as a pair. Replacing just one tire can seriously affect

your vehicle’s handling. If you ever replace a wheel, make

sure that the wheel’s specifications match those of the

original wheels.
It is recommended you contact an authorized tire dealer or

original equipment dealer with any questions you may

have on tire specifications or capability. Failure to use

equivalent replacement tires may adversely affect the

safety, handling, and ride of your vehicle.

1 — Tread Wear Indicators

WARNING!

Tires and the spare tire should be replaced after six

years, regardless of the remaining tread. Failure to

follow this warning can result in sudden tire failure. You

could lose control and have a collision resulting in

serious injury or death.

8

CarManuals2.com

260

SERVICING AND MAINTENANCE



T

IRE

 T

YPES

All Season Tires — If Equipped

All Season tires provide traction for all seasons (Spring,

Summer, Autumn, and Winter). Traction levels may vary

between different all season tires. All season tires can be

identified by the M+S, M&S, M/S or MS designation on the

tire sidewall. Use all season tires only in sets of four;

failure to do so may adversely affect the safety and

handling of your vehicle.

Summer Or Three Season Tires —

If Equipped

Summer tires provide traction in both wet and dry

conditions, and are not intended to be driven in snow or on

ice. If your vehicle is equipped with Summer tires, be

aware these tires are not designed for Winter or cold

driving conditions. Install Winter tires on your vehicle when

ambient temperatures are less than 40°F (5°C) or if

roads are covered with ice or snow. For more information,

contact an authorized dealer.
Summer tires do not contain the all season designation or

mountain/snowflake symbol on the tire sidewall. Use

Summer tires only in sets of four; failure to do so may

adversely affect the safety and handling of your vehicle.

Snow Tires

Some areas of the country require the use of snow tires

during the Winter. Snow tires can be identified by a

mountain/snowflake symbol on the tire sidewall.

If you need snow tires, select tires equivalent in

size and type to the original equipment tires.

Use snow tires only in sets of four; failure to do

so may adversely affect the safety and handling

of your vehicle.

Snow tires generally have lower speed ratings than what

was originally equipped with your vehicle and should not

be operated at sustained speeds over 75 mph

(120 km/h). For speeds above 75 mph (120 km/h) refer

to original equipment or an authorized tire dealer for

recommended safe operating speeds, loading and cold

tire inflation pressures.
While studded tires improve performance on ice, skid and

traction capability on wet or dry surfaces may be poorer

than that of non-studded tires. Some states prohibit

studded tires; therefore, local laws should be checked

before using these tire types.

S

PARE

 T

IRES

 — I

F

 E

QUIPPED



NOTE:

For vehicles equipped with Tire Service Kit instead of a

spare tire, please refer to “Tire Service Kit” in

“In Case Of Emergency” for further information.

WARNING!

Do not use a tire, wheel size, load rating, or speed

rating other than that specified for your vehicle.

Some combinations of unapproved tires and wheels

may change suspension dimensions and perfor

-

mance characteristics, resulting in changes to

steering, handling, and braking of your vehicle. This

can cause unpredictable handling and stress to

steering and suspension components. You could

lose control and have a collision resulting in serious

injury or death. Use only the tire and wheel sizes with

load ratings approved for your vehicle.

Never use a tire with a smaller load index or capacity,

other than what was originally equipped on your

vehicle. Using a tire with a smaller load index could

result in tire overloading and failure. You could lose

control and have a collision.

Failure to equip your vehicle with tires having

adequate speed capability can result in sudden tire

failure and loss of vehicle control.

CAUTION!

Replacing original tires with tires of a different size may

result in false speedometer and odometer readings.

WARNING!

Do not use Summer tires in snow/ice conditions. You

could lose vehicle control, resulting in severe injury or

death. Driving too fast for conditions also creates the

possibility of loss of vehicle control.

CarManuals2.com

SERVICING AND MAINTENANCE

261

For restrictions when towing with a spare tire designated

for temporary emergency use

Ú

page 101.

Spare Tire Matching Original Equipped Tire

And Wheel — If Equipped

Your vehicle may be equipped with a spare tire and wheel

equivalent in look and function to the original equipment

tire and wheel found on the front or rear axle of your

vehicle. This spare tire may be used in the tire rotation for

your vehicle. If your vehicle has this option, refer to an

authorized tire dealer for the recommended tire rotation

pattern.

Compact Spare Tire — If Equipped

The compact spare is for temporary emergency use only.

You can identify if your vehicle is equipped with a compact

spare by looking at the spare tire description on the Tire

And Loading Information Placard located on the driver’s

side door opening or on the sidewall of the tire. Compact

spare tire descriptions begin with the letter “T” or “S”

preceding the size designation.

Example: T145/80D18 103M.
T, S = Temporary Spare Tire

Since this tire has limited tread life, the original equipment

tire should be repaired (or replaced) and reinstalled on

your vehicle at the first opportunity.
Do not install a wheel cover or attempt to mount a

conventional tire on the compact spare wheel, since the

wheel is designed specifically for the compact spare tire.

Do not install more than one compact spare tire and wheel

on the vehicle at any given time.

Collapsible Spare Tire — If Equipped

The collapsible spare is for temporary emergency use only.

You can identify if your vehicle is equipped with a

collapsible spare by looking at the spare tire description

on the Tire And Loading Information Placard located on

the driver’s side door opening or on the sidewall of the tire.
Collapsible spare tire description

example: 165/80-17 101P.
Since this tire has limited tread life, the original equipment

tire should be repaired (or replaced) and reinstalled on

your vehicle at the first opportunity.

Inflate collapsible tire only after the wheel is properly

installed to the vehicle. Inflate the collapsible tire using

the electric air pump before lowering the vehicle.
Do not install a wheel cover or attempt to mount a

conventional tire on the collapsible spare wheel, since the

wheel is designed specifically for the collapsible spare tire.

Full Size Spare — If Equipped

The full size spare is for temporary emergency use only.

This tire may look like the originally equipped tire on the

front or rear axle of your vehicle, but it is not. This spare

tire may have limited tread life. When the tread is worn to

the tread wear indicators, the temporary use full size

spare tire needs to be replaced. Since it is not the same as

your original equipment tire, replace (or repair) the original

equipment tire and reinstall on the vehicle at the first

opportunity.

CAUTION!

Because of the reduced ground clearance, do not take

your vehicle through an automatic car wash with a

compact or limited use temporary spare installed.

Damage to the vehicle may result.

WARNING!

Compact and collapsible spares are for temporary

emergency use only. With these spares, do not drive

more than 50 mph (80 km/h). Temporary use spares

have limited tread life. When the tread is worn to the

tread wear indicators, the temporary use spare tire

needs to be replaced. Be sure to follow the warnings,

which apply to your spare. Failure to do so could result

in spare tire failure and loss of vehicle control.

WARNING!

Compact and Collapsible spares are for temporary

emergency use only. With these spares, do not drive

more than 50 mph (80 km/h). Temporary use spares

have limited tread life. When the tread is worn to the

tread wear indicators, the temporary use spare tire

needs to be replaced. Be sure to follow the warnings,

which apply to your spare. Failure to do so could result

in spare tire failure and loss of vehicle control.

8

CarManuals2.com

262

SERVICING AND MAINTENANCE



Limited Use Spare — If Equipped

The limited use spare tire is for temporary emergency use

only. This tire is identified by a label located on the limited

use spare wheel. This label contains the driving limitations

for this spare. This tire may look like the original equipped

tire on the front or rear axle of your vehicle, but it is not.

Installation of this limited use spare tire affects vehicle

handling. Since it is not the same as your original

equipment tire, replace (or repair) the original equipment

tire and reinstall on the vehicle at the first opportunity.

W

HEEL

 A

ND

 W

HEEL

 T

RIM

 C

ARE



All wheels and wheel trim, especially aluminum and

chrome plated wheels, should be cleaned regularly using

mild (neutral Ph) soap and water to maintain their luster

and to prevent corrosion. Wash wheels with the same

soap solution recommended for the body of the vehicle

and remember to always wash when the surfaces are not

hot to the touch.

Your wheels are susceptible to deterioration caused by

salt, sodium chloride, magnesium chloride, calcium

chloride, etc., and other road chemicals used to melt ice

or control dust on dirt roads. Use a soft cloth or sponge

and mild soap to wipe away promptly. Do not use harsh

chemicals or a stiff brush. They can damage the wheel’s

protective coating that helps keep them from corroding

and tarnishing.

When cleaning extremely dirty wheels including excessive

brake dust, care must be taken in the selection of tire and

wheel cleaning chemicals and equipment to prevent

damage to the wheels. Mopar® Wheel Treatment or

Mopar® Chrome Cleaner or their equivalent is

recommended or select a non-abrasive, non-acidic

cleaner for aluminum or chrome wheels.

NOTE:

If you intend parking or storing your vehicle for an

extended period after cleaning the wheels with wheel

cleaner, drive your vehicle and apply the brakes to remove

the water droplets from the brake components. This

activity will remove the red rust on the brake rotors and

prevent vehicle vibration when braking.
Dark Vapor Chrome, Black Satin Chrome, or Low Gloss

Clear Coat Wheels

WARNING!

Limited use spares are for emergency use only.

Installation of this limited use spare tire affects vehicle

handling. With this tire, do not drive more than the

speed listed on the limited use spare wheel. Keep

inflated to the cold tire inflation pressures listed on your

Tire And Loading Information Placard located on the

driver’s side B-pillar or the rear edge of the driver’s side

door. Replace (or repair) the original equipment tire at

the first opportunity and reinstall it on your vehicle.

Failure to do so could result in loss of vehicle control.

CAUTION!

Avoid products or automatic car washes that use acidic

solutions or strong alkaline additives or harsh brushes.

Many aftermarket wheel cleaners and automatic car

washes may damage the wheel's protective finish. Such

damage is not covered by the New Vehicle Limited

Warranty. Only car wash soap, Mopar® Wheel Cleaner

or equivalent is recommended.

CAUTION!

Do not use scouring pads, steel wool, a bristle brush,

metal polishes or oven cleaner. These products may

damage the wheel's protective finish. Such damage is

not covered by the New Vehicle Limited Warranty. Only

car wash soap, Mopar® Wheel Cleaner or equivalent is

recommended.

CAUTION!

If your vehicle is equipped with these specialty wheels,

DO NOT USE wheel cleaners, abrasives, or polishing

compounds. They will permanently damage this finish

and such damage is not covered by the New Vehicle

Limited Warranty. HAND WASH ONLY USING MILD SOAP

AND WATER WITH A SOFT CLOTH. Used on a regular

basis; this is all that is required to maintain this finish.

CarManuals2.com

SERVICING AND MAINTENANCE

263

(Continued)

S

NOW

 T

RACTION

 D

EVICES



Use of traction devices require sufficient tire-to-body clearance. Due to limited clearance, the following snow traction devices are recommended. Follow these recommendations to

guard against damage:

Snow traction device must be of proper size for the tire, as recommended by the snow traction device manufacturer.

No other tire sizes are recommended for use with the snow traction device.

Please follow the table for the recommended tire size, axle and snow traction device:

Trim Level

Axle

Tire/Wheel Size

Snow Traction Device

(Maximum Projection Beyond Tire Profile Or Equivalent)

ALL

Front

215/55R17
215/60R16

7 mm Cable Chain

WARNING!

Using tires of different size and type (M+S, Snow)

between front and rear axles can cause unpredictable

handling. You could lose control and have a collision.

CAUTION!

To avoid damage to your vehicle or tires, observe the

following precautions:

Because of restricted traction device clearance

between tires and other suspension components, it

is important that only traction devices in good condi

-

tion are used. Broken devices can cause serious

damage. Stop the vehicle immediately if noise occurs

that could indicate device breakage. Remove the

damaged parts of the device before further use.

Install device as tightly as possible and then

retighten after driving about ½ mile (0.8 km).

Autosock traction devices do not require

retightening.

Do not exceed 30 mph (48 km/h).

Drive cautiously and avoid severe turns and large

bumps, especially with a loaded vehicle.

Do not drive for a prolonged period on dry pavement.

Observe the traction device manufacturer’s instruc

-

tions on the method of installation, operating speed,

and conditions for use. Always use the suggested

operating speed of the device manufacturer’s if it is

less than 30 mph (48 km/h).

Do not use traction devices on a compact spare tire.

CAUTION!

8

CarManuals2.com

264

SERVICING AND MAINTENANCE



T

IRE

 R

OTATION

 R

ECOMMENDATIONS



The tires on the front and rear of your vehicle operate at

different loads and perform different steering, handling,

and braking functions. For these reasons, they wear at

unequal rates.
These effects can be reduced by timely rotation of tires.

The benefits of rotation are especially worthwhile with

aggressive tread designs such as those on On/Off Road

type tires. Rotation will increase tread life, help to

maintain mud, snow, and wet traction levels, and

contribute to a smooth, quiet ride.
For the proper maintenance intervals

Ú

page 217

The reasons for any rapid or unusual wear should be

corrected prior to rotation being performed.
The suggested rotation method is the “forward cross”

shown in the following diagram. This rotation pattern does

not apply to some directional tires that must not be

reversed.

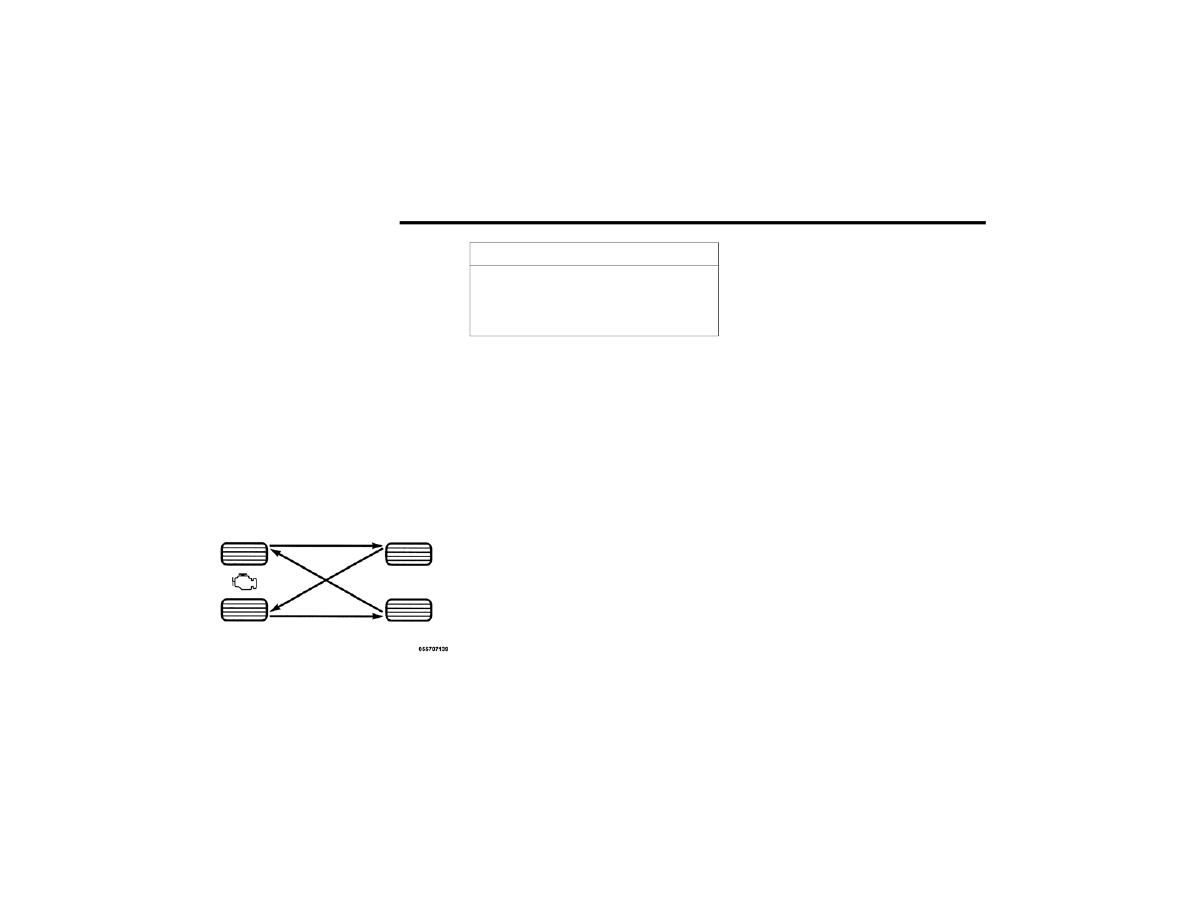

Tire Rotation (Forward Cross)

DEPARTMENT OF TRANSPORTATION

UNIFORM TIRE QUALITY GRADES

The following tire grading categories

were established by the National

Highway Traffic Safety Administration.

The specific grade rating assigned by the

tire's manufacturer in each category is

shown on the sidewall of the tires on

your vehicle.
All passenger vehicle tires must conform

to Federal safety requirements in

addition to these grades.

T

READWEAR

The Treadwear grade is a comparative

rating, based on the wear rate of the tire

when tested under controlled conditions

on a specified government test course.

For example, a tire graded 150 would

wear one and one-half times as well on

the government course as a tire

graded 100. The relative performance of

tires depends upon the actual

conditions of their use, however, and

may depart significantly from the norm

due to variations in driving habits,

service practices, and differences in

road characteristics and climate.

CAUTION!

Proper operation of four-wheel drive vehicles depends

on tires of equal size, type and circumference on each

wheel. Any difference in tire size can cause damage to

the power transfer unit. Tire rotation schedule should

be followed to balance tire wear.

CarManuals2.com

SERVICING AND MAINTENANCE

265

T

RACTION

 G

RADES

The Traction grades, from highest to

lowest, are AA, A, B, and C. These grades

represent the tire's ability to stop on wet

pavement, as measured under

controlled conditions on specified

government test surfaces of asphalt and

concrete. A tire marked C may have poor

traction performance.

T

EMPERATURE

 G

RADES

The Temperature grades are A (the

highest), B, and C, representing the tire's

resistance to the generation of heat and

its ability to dissipate heat, when tested

under controlled conditions on a

specified indoor laboratory test wheel.

Sustained high temperature can cause

the material of the tire to degenerate

and reduce tire life, and excessive

temperature can lead to sudden tire

failure. The grade C corresponds to a

level of performance, which all

passenger vehicle tires must meet

under the Federal Motor Vehicle Safety

Standard No. 109. Grades B and A

represent higher levels of performance

on the laboratory test wheel, than the

minimum required by law.

STORING THE VEHICLE

If you are storing your vehicle for more than three weeks,

we recommend that you take the following steps to

minimize the drain on your vehicle's battery:

Disconnect the negative cable from battery.

Any time you store your vehicle or keep it out of service

(i.e., vacation) for two weeks or more, run the air condi

-

tioning system at idle for about five minutes in the

fresh air and high blower setting. This will ensure

adequate system lubrication to minimize the possibility

of compressor damage when the system is started

again.

NOTE:

When the vehicle has not been started or driven for at

least 30 days, an Extended Park Start Procedure is

required to start the vehicle

Ú

page 68.

BODYWORK

P

ROTECTION

 F

ROM

 A

TMOSPHERIC



A

GENTS



Vehicle body care requirements vary according to

geographic locations and usage. Chemicals that make

roads passable in snow and ice and those that are

sprayed on trees and road surfaces during other seasons

are highly corrosive to the metal in your vehicle. Outside

parking, which exposes your vehicle to airborne

contaminants, road surfaces on which the vehicle is

operated, extreme hot or cold weather and other extreme

conditions will have an adverse effect on paint, metal trim,

and underbody protection.

WARNING!

The traction grade assigned to this tire is based on

straight-ahead braking traction tests, and does not

include acceleration, cornering, hydroplaning, or

peak traction characteristics.

WARNING!

The temperature grade for this tire is established for a

tire that is properly inflated and not overloaded.

Excessive speed, under-inflation, or excessive loading,

either separately or in combination, can cause heat

buildup and possible tire failure.

8

CarManuals2.com

266

SERVICING AND MAINTENANCE



The following maintenance recommendations will enable

you to obtain maximum benefit from the corrosion

resistance built into your vehicle.

What Causes Corrosion?

Corrosion is the result of deterioration or removal of paint

and protective coatings from your vehicle.
The most common causes are:

Road salt, dirt and moisture accumulation.

Stone and gravel impact.

Insects, tree sap and tar.

Salt in the air near seacoast localities.

Atmospheric fallout/industrial pollutants.

B

ODY

 A

ND

 U

NDERBODY

 M

AINTENANCE

Cleaning Headlights

Your vehicle is equipped with plastic headlights and fog

lights that are lighter and less susceptible to stone

breakage than glass headlights.
Plastic is not as scratch resistant as glass and therefore

different lens cleaning procedures must be followed.
To minimize the possibility of scratching the lenses and

reducing light output, avoid wiping with a dry cloth.

To remove road dirt, wash with a mild soap solution

followed by rinsing.
Do not use abrasive cleaning components, solvents, steel

wool or other aggressive material to clean the lenses.

P

RESERVING

 T

HE

 B

ODYWORK

Washing

Wash your vehicle regularly. Always wash your vehicle

in the shade using Mopar® Car Wash, or a mild car

wash soap, and rinse the panels completely with water.

If insects, tar, or other similar deposits have accumu

-

lated on your vehicle, use Mopar® Super Kleen Bug

and Tar Remover to remove.

Use a high quality cleaner wax, such as Mopar®

Cleaner Wax to remove road film, stains and to protect

your paint finish. Use precautions to not scratch the

paint.

Avoid using abrasive compounds and power buffing

that may diminish the gloss or thin out the paint finish.

Special Care

If you drive on salted or dusty roads or if you drive near

the ocean, hose off the undercarriage at least once a

month.

It is important that the drain holes in the lower edges

of the doors, rocker panels, and trunk be kept clear

and open.

If you detect any stone chips or scratches in the paint,

touch them up immediately.

If your vehicle is damaged due to a collision or similar

cause that destroys the paint and protective coating,

have your vehicle repaired as soon as possible.

If you carry special cargo such as chemicals, fertilizers,

de-icer salt, etc., be sure that such materials are well

packaged and sealed.

If a lot of driving is done on gravel roads, consider mud

or stone shields behind each wheel.

Use Mopar® Touch Up Paint on scratches as soon as

possible. An authorized dealer has touch up paint to

match the color of your vehicle.

INTERIORS

S

EATS

 A

ND

 F

ABRIC

 P

ARTS

Use Mopar® Total Clean to clean fabric upholstery and

carpeting.

CAUTION!

Do not use abrasive or strong cleaning materials

such as steel wool or scouring powder that will

scratch metal and painted surfaces.

Use of power washers exceeding 1,200 psi

(8,274 kPa) can result in damage or removal of

paint and decals.

CarManuals2.com

SERVICING AND MAINTENANCE

267

Seat Belt Maintenance

Do not bleach, dye or clean the belts with chemical

solvents or abrasive cleaners. This will weaken the fabric.
If the belts need cleaning, use a mild soap solution or

lukewarm water. Do not remove the belts from the vehicle

to wash them. Dry with a soft cloth.
Sun damage can also weaken the fabric. Replace the belts

if they appear frayed or worn or if the buckles do not work

properly.

P

LASTIC

 A

ND

 C

OATED

 P

ARTS

Use Mopar® Total Clean to clean vinyl upholstery.

Cleaning Plastic Instrument Cluster

Lenses

The lenses in front of the instruments in this vehicle are

molded in clear plastic. When cleaning the lenses, care

must be taken to avoid scratching the plastic.
Clean with a wet soft cloth. A mild soap solution may be

used, but do not use high alcohol content or abrasive

cleaners. If soap is used, wipe clean with a clean damp

cloth. Dry with a soft cloth.

L

EATHER

 S

URFACES

Mopar® Total Clean is specifically recommended for

leather upholstery.
Your leather upholstery can be best preserved by regular

cleaning with a damp soft cloth. Small particles of dirt can

act as an abrasive and damage the leather upholstery and

should be removed promptly with a damp cloth. Stubborn

soils can be removed easily with a soft cloth and Mopar®

Total Clean.

Care should be taken to avoid soaking your leather

upholstery with any liquid. Please do not use polishes, oils,

cleaning fluids, solvents, detergents, or ammonia-based

cleaners to clean your leather upholstery.

NOTE:

If equipped with light colored leather, it tends to show any

foreign material, dirt, and fabric dye transfer more so than

darker colors. The leather is designed for easy cleaning,

and the manufacturer recommends Mopar® total care

leather cleaner applied on a cloth to clean the leather

seats as needed.

G

LASS

 S

URFACES



All glass surfaces should be cleaned on a regular basis

with Mopar® Glass Cleaner, or any commercial

household-type glass cleaner. Never use an abrasive type

cleaner. Use caution when cleaning the inside rear

window equipped with electric defrosters or windows

equipped with radio antennas. Do not use scrapers or

other sharp instruments that may scratch the elements.
When cleaning the rearview mirror, spray cleaner on the

towel or cloth that you are using. Do not spray cleaner

directly on the mirror.

WARNING!

Do not use volatile solvents for cleaning purposes.

Many are potentially flammable, and if used in closed

areas they may cause respiratory harm.

WARNING!

A frayed or torn seat belt could rip apart in a collision

and leave you with no protection. Inspect the seat belt

system periodically, checking for cuts, frays, or loose

parts. Damaged parts must be replaced immediately.

Do not disassemble or modify the seat belt system.

If your vehicle is involved in a collision, or if you have

questions regarding seat belt or retractor conditions,

take your vehicle to an authorized FCA dealer or

authorized FCA Certified Collision Care Program facility

for inspection.

CAUTION!

Direct contact of air fresheners, insect repellents,

suntan lotions, or hand sanitizers to the plastic,

painted, or decorated surfaces of the interior may

cause permanent damage. Wipe away immediately.

Damage caused by these type of products may not

be covered by your New Vehicle Limited Warranty.

CAUTION!

Do not use alcohol and alcohol-based and/or

ketone-based cleaning products to clean leather

upholstery, as damage to the upholstery may result.

8

CarManuals2.com















Content      ..     6      7      8      9     ..
