SAFETY



(Continued)

Enhanced Seat Belt Use Reminder System

(BeltAlert)

Driver And Passenger BeltAlert — If Equipped

BeltAlert is a feature intended to remind the

driver and outboard front seat passenger (if

equipped with outboard front passenger seat

BeltAlert) to buckle their seat belts. The Belt

Alert feature is active whenever the ignition switch is in the

START or ON/RUN position.
Initial Indication
If the driver is unbuckled when the ignition switch is first in

the START or ON/RUN position, a chime will signal for a

few seconds. If the driver or outboard front seat passenger

(if equipped with outboard front passenger seat BeltAlert)

is unbuckled when the ignition switch is first in the START

or ON/RUN position the Seat Belt Reminder Light will turn

on and remain on until both outboard front seat belts are

buckled. The outboard front passenger seat BeltAlert is

not active when an outboard front passenger seat is

unoccupied.
BeltAlert Warning Sequence
The BeltAlert warning sequence is activated when the

vehicle is moving above a specified vehicle speed range

and the driver or outboard front seat passenger is

unbuckled (if equipped with outboard front passenger

seat BeltAlert) (the outboard front passenger seat

BeltAlert is not active when the outboard front passenger

seat is unoccupied). The BeltAlert warning sequence

starts by blinking the Seat Belt Reminder Light and

sounding an intermittent chime.

Once the BeltAlert warning sequence has completed, the

Seat Belt Reminder Light will remain on until the seat belts

are buckled. The BeltAlert warning sequence may repeat

based on vehicle speed until the driver and occupied

outboard front seat passenger seat belts are buckled.

The driver should instruct all occupants to buckle their

seat belts.
Change Of Status
If the driver or outboard front seat passenger (if equipped

with outboard front passenger seat BeltAlert) unbuckles

their seat belt while the vehicle is traveling, the BeltAlert

warning sequence will begin until the seat belts are

buckled again.
The outboard front passenger seat BeltAlert is not active

when the outboard front passenger seat is unoccupied.

BeltAlert may be triggered when an animal or other items

are placed on the outboard front passenger seat or when

the seat is folded flat (if equipped). It is recommended that

pets be restrained in the rear seat (if equipped) in pet

harnesses or pet carriers that are secured by seat belts,

and cargo is properly stowed.
BeltAlert can be activated or deactivated by an authorized

dealer. FCA US LLC does not recommend deactivating

BeltAlert.

NOTE:

If BeltAlert has been deactivated and the driver or

outboard front seat passenger (if equipped with outboard

front passenger seat BeltAlert) is unbuckled the Seat Belt

Reminder Light will turn on and remain on until the driver

and outboard front seat passenger seat belts are buckled.

Lap/Shoulder Belts

All seating positions in your vehicle are equipped with

lap/shoulder belts.
The seat belt webbing retractor will lock only during very

sudden stops or collisions. This feature allows the

shoulder part of the seat belt to move freely with you

under normal conditions. However, in a collision the seat

belt will lock and reduce your risk of striking the inside of

the vehicle or being thrown out of the vehicle.

WARNING!

Relying on the air bags alone could lead to more

severe injuries in a collision. The air bags work with

your seat belt to restrain you properly. In some colli

-

sions, the air bags won’t deploy at all. Always wear

your seat belt even though you have air bags.

In a collision, you and your passengers can suffer

much greater injuries if you are not properly buckled

up. You can strike the interior of your vehicle or other

passengers, or you can be thrown out of the vehicle.

Always be sure you and others in your vehicle are

buckled up properly.

It is dangerous to ride in a cargo area, inside or

outside of a vehicle. In a collision, people riding in

these areas are more likely to be seriously injured or

killed.

CarManuals2.com

SAFETY

173

(Continued)

Do not allow people to ride in any area of your vehicle

that is not equipped with seats and seat belts.

Be sure everyone in your vehicle is in a seat and

using a seat belt properly. Occupants, including the

driver, should always wear their seat belts whether or

not an air bag is also provided at their seating posi

-

tion to minimize the risk of severe injury or death in

the event of a crash.

Wearing your seat belt incorrectly could make your

injuries in a collision much worse. You might suffer

internal injuries, or you could even slide out of the

seat belt. Follow these instructions to wear your seat

belt safely and to keep your passengers safe, too.

Two people should never be belted into a single seat

belt. People belted together can crash into one

another in a collision, hurting one another badly.

Never use a lap/shoulder belt or a lap belt for more

than one person, no matter what their size.

WARNING!

WARNING!

A lap belt worn too high can increase the risk of injury

in a collision. The seat belt forces won’t be at the

strong hip and pelvic bones, but across your

abdomen. Always wear the lap part of your seat belt

as low as possible and keep it snug.

A twisted seat belt may not protect you properly. In a

collision, it could even cut into you. Be sure the seat

belt is flat against your body, without twists. If you

can’t straighten a seat belt in your vehicle, take it to

an authorized dealer immediately and have it fixed.

A seat belt that is buckled into the wrong buckle will

not protect you properly. The lap portion could ride

too high on your body, possibly causing internal inju

-

ries. Always buckle your seat belt into the buckle

nearest you.

A seat belt that is too loose will not protect you prop

-

erly. In a sudden stop, you could move too far

forward, increasing the possibility of injury. Wear

your seat belt snugly.

A seat belt that is worn under your arm is dangerous.

Your body could strike the inside surfaces of the

vehicle in a collision, increasing head and neck

injury. A seat belt worn under the arm can cause

internal injuries. Ribs aren’t as strong as shoulder

bones. Wear the seat belt over your shoulder so that

your strongest bones will take the force in a collision.

A shoulder belt placed behind you will not protect you

from injury during a collision. You are more likely to

hit your head in a collision if you do not wear your

shoulder belt. The lap and shoulder belt are meant to

be used together.

A frayed or torn seat belt could rip apart in a collision

and leave you with no protection. Inspect the seat

belt system periodically, checking for cuts, frays, or

loose parts. Damaged parts must be replaced imme

-

diately. Do not disassemble or modify the seat belt

system. If your vehicle is involved in a collision, or if

you have questions regarding seat belt or retractor

conditions, take your vehicle to an authorized FCA

dealer or authorized FCA Certified Collision Care

Program facility for inspection.

WARNING!

6

CarManuals2.com

174

SAFETY



Lap/Shoulder Belt Operating Instructions

1. Enter the vehicle and close the door. Sit back and

adjust the seat.

2. The seat belt latch plate is above the back of the front

seat, and next to your arm in the rear seat (for

vehicles equipped with a rear seat). Grab the latch

plate and pull out the seat belt. Slide the latch plate

up the webbing as far as necessary to allow the seat

belt to go around your lap.

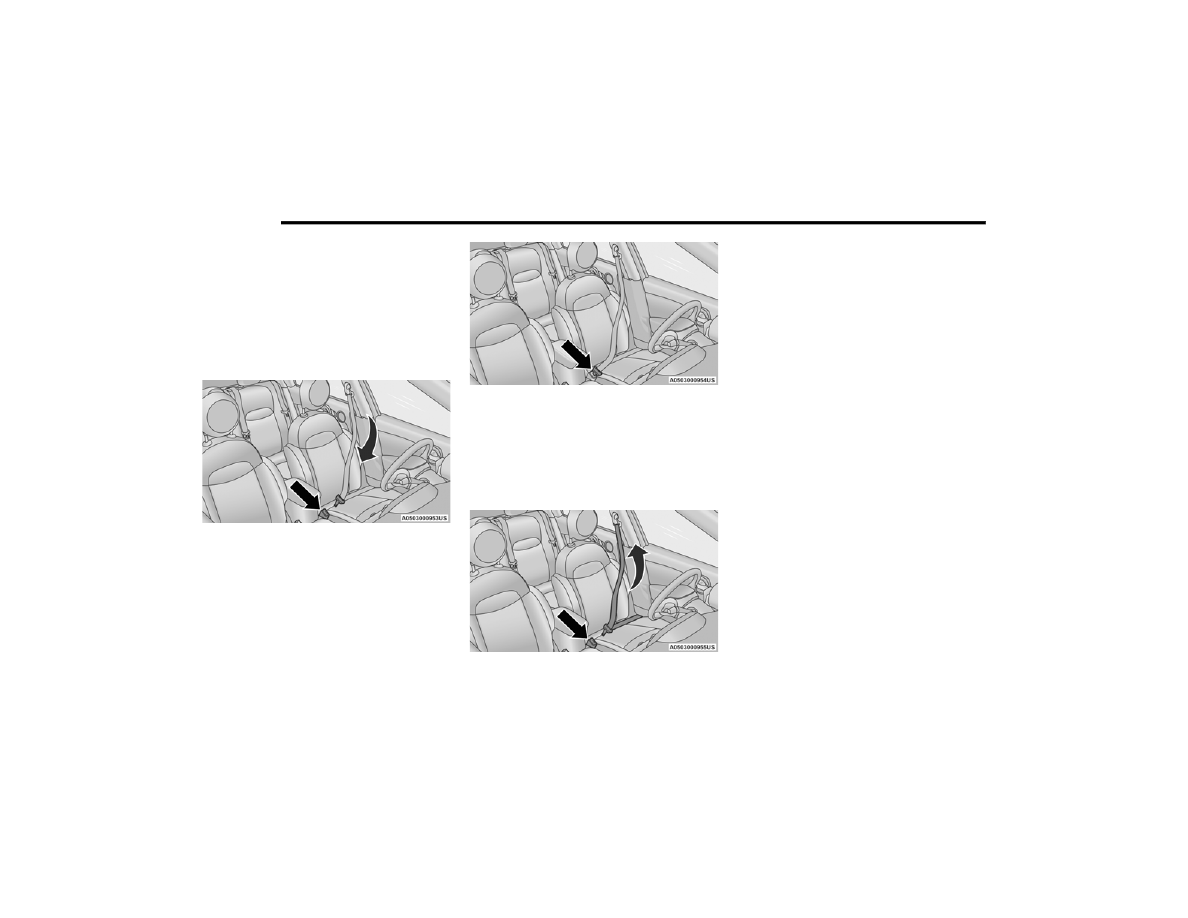

Pulling Out The Latch Plate

3. When the seat belt is long enough to fit, insert the

latch plate into the buckle until you hear a “click.”

Inserting Latch Plate Into Buckle

4. Position the lap belt so that it is snug and lies low

across your hips, below your abdomen. To remove

slack in the lap belt portion, pull up on the shoulder

belt. To loosen the lap belt if it is too tight, tilt the latch

plate and pull on the lap belt. A snug seat belt

reduces the risk of sliding under the seat belt in a

collision.

Positioning The Lap Belt

5. Position the shoulder belt across the shoulder and

chest with minimal, if any slack so that it is

comfortable and not resting on your neck. The

retractor will withdraw any slack in the shoulder belt.

6. To release the seat belt, push the red button on the

buckle. The seat belt will automatically retract to its

stowed position. If necessary, slide the latch plate

down the webbing to allow the seat belt to retract

fully.

Lap/Shoulder Belt Untwisting Procedure

Use the following procedure to untwist a twisted lap/

shoulder belt.
1. Position the latch plate as close as possible to the

anchor point.

2. At about 6 to 12 inches (15 to 30 cm) above the

latch plate, grab and twist the seat belt webbing

180 degrees to create a fold that begins immediately

above the latch plate.

3. Slide the latch plate upward over the folded webbing.

The folded webbing must enter the slot at the top of

the latch plate.

4. Continue to slide the latch plate up until it clears the

folded webbing and the seat belt is no longer twisted.

CarManuals2.com

SAFETY

175

Adjustable Upper Shoulder Belt Anchorage

In the driver and outboard front passenger seats, the top

of the shoulder belt can be adjusted upward or downward

to position the seat belt away from your neck. Push or

squeeze the anchorage button to release the anchorage,

and move it up or down to the position that serves you

best.

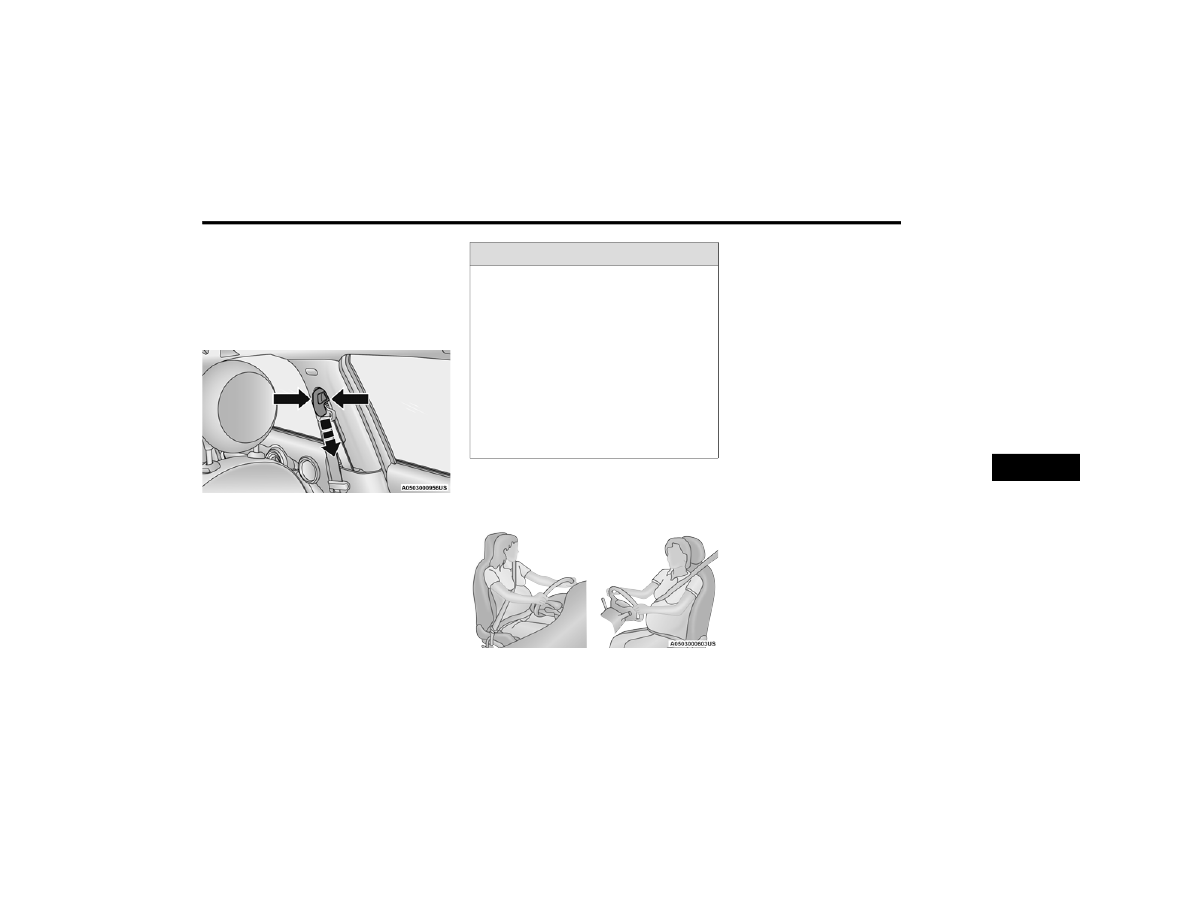

Adjustable Anchorage Up

As a guide, if you are shorter than average, you will prefer

the shoulder belt anchorage in a lower position, and if you

are taller than average, you will prefer the shoulder belt

anchorage in a higher position. After you release the

anchorage button, try to move it up or down to make sure

that it is locked in position.

NOTE:

The adjustable upper shoulder belt anchorage is equipped

with an Easy Up feature. This feature allows the shoulder

belt anchorage to be adjusted in the upward position

without pushing or squeezing the release button. To verify

the shoulder belt anchorage is latched, pull downward on

the shoulder belt anchorage until it is locked into position.

Seat Belts And Pregnant Women

Seat Belts And Pregnant Women

Seat belts must be worn by all occupants including

pregnant women: the risk of injury in the event of an

accident is reduced for the mother and the unborn child if

they are wearing a seat belt.
Position the lap belt snug and low below the abdomen and

across the strong bones of the hips. Place the shoulder

belt across the chest and away from the neck. Never place

the shoulder belt behind the back or under the arm.

Seat Belt Pretensioner

The front outboard seat belt system is equipped with

pretensioning devices that are designed to remove slack

from the seat belt in the event of a collision. These devices

may improve the performance of the seat belt by removing

slack from the seat belt early in a collision. Pretensioners

work for all size occupants, including those in child

restraints.

NOTE:

These devices are not a substitute for proper seat belt

placement by the occupant. The seat belt still must be

worn snugly and positioned properly.
The pretensioners are triggered by the Occupant Restraint

Controller (ORC). Like the air bags, the pretensioners are

single use items. A deployed pretensioner or a deployed

air bag must be replaced immediately.

WARNING!

Wearing your seat belt incorrectly could make your

injuries in a collision much worse. You might suffer

internal injuries, or you could even slide out of the

seat belt. Follow these instructions to wear your seat

belt safely and to keep your passengers safe, too.

Position the shoulder belt across the shoulder and

chest with minimal, if any slack so that it is comfort

-

able and not resting on your neck. The retractor will

withdraw any slack in the shoulder belt.

Misadjustment of the seat belt could reduce the

effectiveness of the safety belt in a crash.

Always make all seat belt height adjustments when

the vehicle is stationary.

6

CarManuals2.com

176

SAFETY



Energy Management Feature

The front outboard seat belt system is equipped with an

Energy Management feature that may help further reduce

the risk of injury in the event of a collision. The seat belt

system has a retractor assembly that is designed to

release webbing in a controlled manner.

Switchable Automatic Locking Retractors

(ALR)

The seat belts in the passenger seating positions are

equipped with a Switchable Automatic Locking Retractor

(ALR) which is used to secure a child restraint system

Ú

page 193.

The figure below illustrates the locking feature for each

seating position.

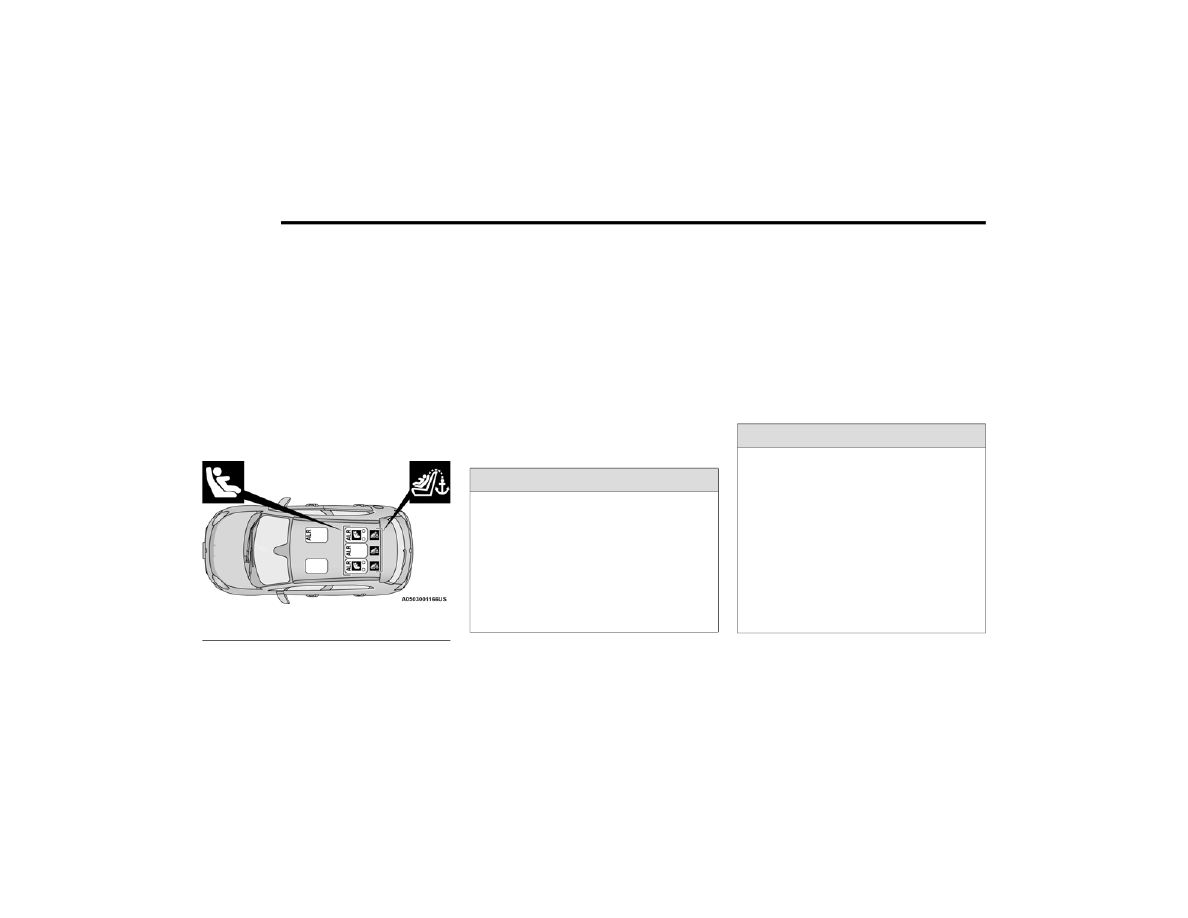

Switchable Automatic Locking Retractor (ALR) Locations

If the passenger seating position is equipped with an ALR

and is being used for normal usage, only pull the seat belt

webbing out far enough to comfortably wrap around the

occupant’s mid-section so as to not activate the ALR. If the

ALR is activated, you will hear a clicking sound as the seat

belt retracts. Allow the webbing to retract completely in

this case and then carefully pull out only the amount of

webbing necessary to comfortably wrap around the

occupant’s mid-section. Slide the latch plate into the

buckle until you hear a "click."
In Automatic Locking Mode, the shoulder belt is

automatically pre-locked. The seat belt will still retract to

remove any slack in the shoulder belt. Use the Automatic

Locking Mode anytime a child restraint is installed in a

seating position that has a seat belt with this feature.

Children 12 years old and under should always be properly

restrained in the rear seat of a vehicle with a rear seat.

How To Engage The Automatic Locking Mode
1. Buckle the combination lap and shoulder belt.
2. Grab the shoulder portion and pull downward until

the entire seat belt is extracted.

3. Allow the seat belt to retract. As the seat belt retracts,

you will hear a clicking sound. This indicates the seat

belt is now in the Automatic Locking Mode.

How To Disengage The Automatic Locking Mode
Unbuckle the combination lap/shoulder belt and allow it

to retract completely to disengage the Automatic Locking

Mode and activate the vehicle sensitive (emergency)

locking mode.

ALR — Switchable Automatic Locking Retractor

WARNING!

Never place a rear-facing child restraint in front of an

air bag. A deploying passenger front air bag can

cause death or serious injury to a child 12 years or

younger, including a child in a rear-facing child

restraint.

Never install a rear-facing child restraint in the front

seat of a vehicle. Only use a rear-facing child

restraint in the rear seat. If the vehicle does not have

a rear seat, do not transport a rear-facing child

restraint in that vehicle.

WARNING!

The seat belt assembly must be replaced if the

switchable Automatic Locking Retractor (ALR)

feature or any other seat belt function is not working

properly when checked according to the procedures

in the Service Manual.

Failure to replace the seat belt assembly could

increase the risk of injury in collisions.

Do not use the Automatic Locking Mode to restrain

occupants who are wearing the seat belt or children

who are using booster seats. The locked mode is only

used to install rear-facing or forward-facing child

restraints that have a harness for restraining the

child.

CarManuals2.com

SAFETY

177

S

UPPLEMENTAL

 R

ESTRAINT

 S

YSTEMS



(SRS)

Some of the safety features described in this section may

be standard equipment on some models, or may be

optional equipment on others. If you are not sure, ask an

authorized dealer.
The air bag system must be ready to protect you in a

collision. The Occupant Restraint Controller (ORC)

monitors the internal circuits and interconnecting wiring

associated with the electrical Air Bag System

Components. Your vehicle may be equipped with the

following Air Bag System Components:

Air Bag System Components

Occupant Restraint Controller (ORC)

Air Bag Warning Light

Steering Wheel and Column

Instrument Panel

Knee Impact Bolsters

Driver and Front Passenger Air Bags

Seat Belt Buckle Switch

Supplemental Side Air Bags

Supplemental Knee Air Bags

Front and Side Impact Sensors

Seat Belt Pretensioners

Seat Track Position Sensors

Air Bag Warning Light

The Occupant Restraint Controller (ORC)

monitors the readiness of the electronic parts

of the air bag system whenever the ignition

switch is in the AVV/START or MAR/ACC/ON/

RUN position. If the ignition switch is in the STOP/OFF/

LOCK position the air bag system is not on and the air bags

will not inflate.
The ORC contains a backup power supply system that may

deploy the air bag system even if the battery loses power

or it becomes disconnected prior to deployment.
The ORC turns on the Air Bag Warning Light in the

instrument panel for approximately four to eight seconds

for a self-check when the ignition switch is in the MAR/

ACC/ON/RUN position. After the self-check, the Air Bag

Warning Light will turn off. If the ORC detects a

malfunction in any part of the system, it turns on the Air

Bag Warning Light, either momentarily or continuously. A

single chime will sound to alert you if the light comes on

again after initial startup.
The ORC also includes diagnostics that will illuminate the

instrument panel Air Bag Warning Light if a malfunction is

detected that could affect the air bag system. The

diagnostics also record the nature of the malfunction.

While the air bag system is designed to be maintenance

free, if any of the following occurs, have an authorized

dealer service the air bag system immediately.

The Air Bag Warning Light does not come on during the

four to eight seconds when the ignition switch is first in

the MAR/ACC/ON/RUN position.

The Air Bag Warning Light remains on after the four to

eight-second interval.

The Air Bag Warning Light comes on intermittently or

remains on while driving.

NOTE:

If the speedometer, tachometer, or any engine related

gauges are not working, the Occupant Restraint Controller

(ORC) may also be disabled. In this condition the air bags

may not be ready to inflate for your protection. Have an

authorized dealer service the air bag system immediately.

Redundant Air Bag Warning Light

If a fault with the Air Bag Warning Light is

detected, which could affect the Supplemental

Restraint System (SRS), the Redundant Air Bag

Warning Light will illuminate on the instrument

panel. The Redundant Air Bag Warning Light will stay on

until the fault is cleared. In addition, a single chime will

sound to alert you that the Redundant Air Bag Warning

Light has come on and a fault has been detected. If the

Redundant Air Bag Warning Light comes on intermittently

or remains on while driving have an authorized dealer

service the vehicle immediately

Ú

page 58.

WARNING!

Ignoring the Air Bag Warning Light in your instrument

panel could mean you won’t have the air bag system to

protect you in a collision. If the light does not come on

as a bulb check when the ignition is first turned on,

stays on after you start the vehicle, or if it comes on as

you drive, have an authorized dealer service the air bag

system immediately.

6

CarManuals2.com

178

SAFETY



Front Air Bags

This vehicle has front air bags and lap/shoulder belts for

both the driver and front passenger. The front air bags are

a supplement to the seat belt restraint systems. The driver

front air bag is mounted in the center of the steering

wheel. The passenger front air bag is mounted in the

instrument panel, above the glove compartment. The

words “SRS AIRBAG” or “AIRBAG” are embossed on the air

bag covers.

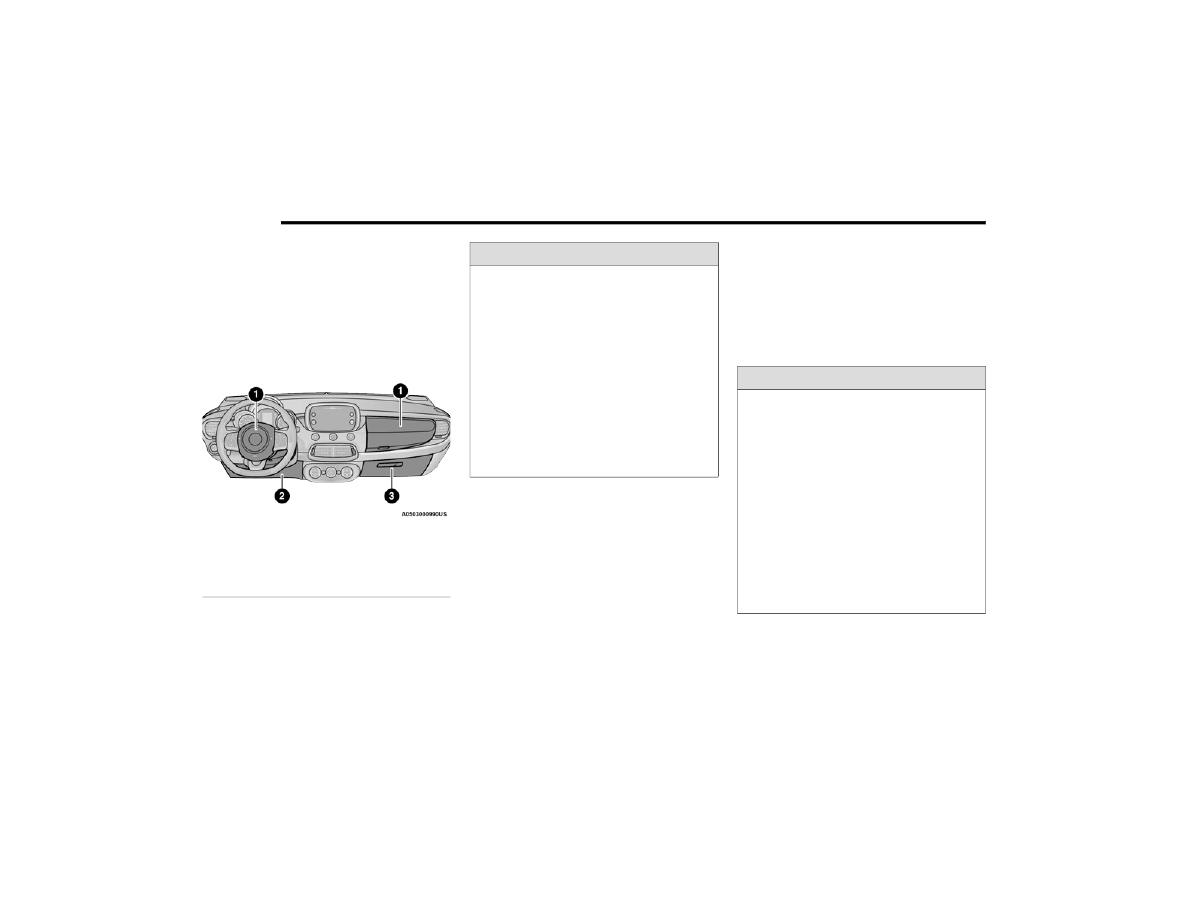

Front Air Bag/Knee Impact Bolster Locations

Driver And Passenger Front Air Bag

Features

The Advanced Front Air Bag system has multistage driver

and front passenger air bags. This system provides output

appropriate to the severity and type of collision as

determined by the Occupant Restraint Controller (ORC),

which may receive information from the front impact

sensors (if equipped) or other system components.
The first stage inflator is triggered immediately during an

impact that requires air bag deployment. A low energy

output is used in less severe collisions. A higher energy

output is used for more severe collisions.

This vehicle may be equipped with a driver and/or front

passenger seat belt buckle switch that detects whether

the driver or front passenger seat belt is buckled. The seat

belt buckle switch may adjust the inflation rate of the

Advanced Front Air Bags.
This vehicle may be equipped with driver and/or front

passenger seat track position sensors that may adjust the

inflation rate of the Advanced Front Air Bags based upon

seat position.

1 — Driver And Passenger Front Air Bags
2 — Driver Knee Impact Bolster/Supplemental Driver

Knee Air Bag
3 — Passenger Knee Impact Bolster

WARNING!

Being too close to the steering wheel or instrument

panel during front air bag deployment could cause

serious injury, including death. Air bags need room to

inflate. Sit back, comfortably extending your arms to

reach the steering wheel or instrument panel.

Never place a rear-facing child restraint in front of an

air bag. A deploying passenger front air bag can

cause death or serious injury to a child 12 years or

younger, including a child in a rear-facing child

restraint.

Never install a rear-facing child restraint in the front

seat of a vehicle. Only use a rear-facing child

restraint in the rear seat. If the vehicle does not have

a rear seat, do not transport a rear-facing child

restraint in that vehicle.

WARNING!

No objects should be placed over or near the air bag

on the instrument panel or steering wheel because

any such objects could cause harm if the vehicle is in

a collision severe enough to cause the air bag to

inflate.

Do not put anything on or around the air bag covers

or attempt to open them manually. You may damage

the air bags and you could be injured because the air

bags may no longer be functional. The protective

covers for the air bag cushions are designed to open

only when the air bags are inflating.

Relying on the air bags alone could lead to more

severe injuries in a collision. The air bags work with

your seat belt to restrain you properly. In some colli

-

sions, air bags won’t deploy at all. Always wear your

seat belts even though you have air bags.

CarManuals2.com

SAFETY

179

Front Air Bag Operation

Front Air Bags are designed to provide additional

protection by supplementing the seat belts. Front air bags

are not expected to reduce the risk of injury in rear, side,

or rollover collisions. The front air bags will not deploy in all

frontal collisions, including some that may produce

substantial vehicle damage — for example, some pole

collisions, truck underrides, and angle offset collisions.
On the other hand, depending on the type and location of

impact, front air bags may deploy in crashes with little

vehicle front-end damage but that produce a severe initial

deceleration.
Because air bag sensors measure vehicle deceleration

over time, vehicle speed and damage by themselves are

not good indicators of whether or not an air bag should

have deployed.
Seat belts are necessary for your protection in all

collisions, and also are needed to help keep you in

position, away from an inflating air bag.
When the Occupants Restraint Controller (ORC) detects a

collision requiring the front air bags, it signals the inflator

units. A large quantity of non-toxic gas is generated to

inflate the front air bags.
The steering wheel hub trim cover and the upper

passenger side of the instrument panel separate and fold

out of the way as the air bags inflate to their full size. The

front air bags fully inflate in less time than it takes to blink

your eyes. The front air bags then quickly deflate while

helping to restrain the driver and front passenger.

Knee Impact Bolsters

The Knee Impact Bolsters help protect the knees of the

driver and front passenger, and position the front

occupants for improved interaction with the front air bags.

Supplemental Driver Knee Air Bag

This vehicle is equipped with a Supplemental Driver Knee

Air Bag mounted in the instrument panel below the

steering column. The Supplemental Driver Knee Air Bag

provides enhanced protection during a frontal impact by

working together with the seat belts, pretensioners, and

front air bags.

Supplemental Side Air Bags

Supplemental Seat-Mounted Side Air Bags (SABs)
This vehicle is equipped with Supplemental Seat-Mounted

Side Air Bags (SABs).
Supplemental Seat-Mounted Side Air Bags (SABs) are

located in the outboard side of the front seats. The SABs

are marked with a “SRS AIRBAG” or “AIRBAG” on a label or

on the seat trim on the outboard side of the seats.

The SABs may help to reduce the risk of occupant injury

during certain side impacts, in addition to the injury

reduction potential provided by the seat belts and body

structure.

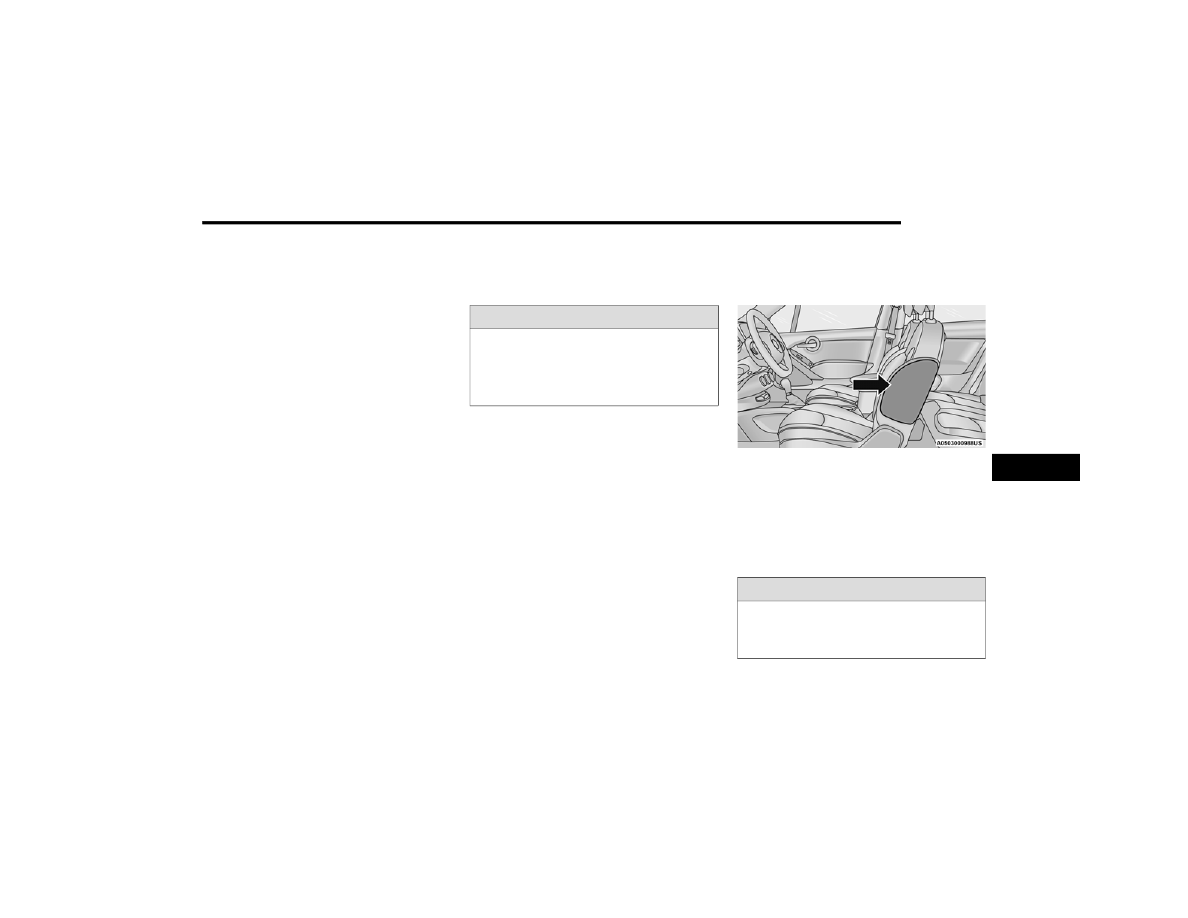

Front Supplemental Seat-Mounted Side Air Bag

When the SAB deploys, it opens the seam on the outboard

side of the seatback’s trim cover. The inflating SAB

deploys through the seat seam into the space between the

occupant and the door. The SAB moves at a very high

speed and with such a high force that it could injure

occupants if they are not seated properly, or if items are

positioned in the area where the SAB inflates. Children are

at an even greater risk of injury from a deploying air bag.

WARNING!

Do not drill, cut, or tamper with the knee impact

bolsters in any way.

Do not mount any accessories to the knee impact

bolsters such as alarm lights, stereos, citizen band

radios, etc.

WARNING!

Do not use accessory seat covers or place objects

between you and the Side Air Bags; the performance

could be adversely affected and/or objects could be

pushed into you, causing serious injury.

6

CarManuals2.com

180

SAFETY



Supplemental Side Air Bag Inflatable Curtains (SABICs)
This vehicle is equipped with Supplemental Side Air Bag

Inflatable Curtains (SABICs).
Supplemental Side Air Bag Inflatable Curtains (SABICs)

are located above the side windows. The trim covering the

SABICs is labeled “SRS AIRBAG” or “AIRBAG.”

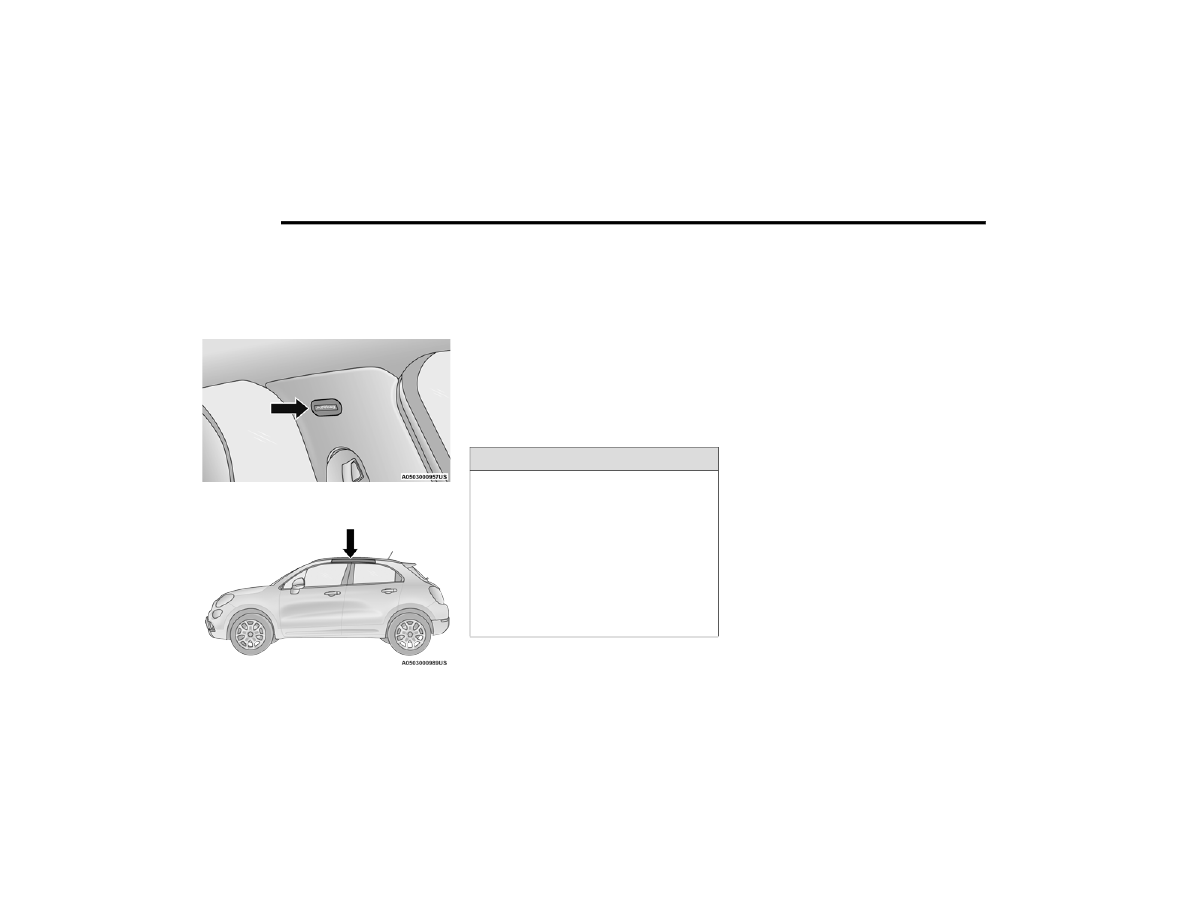

Supplemental Side Air Bag Inflatable Curtain (SABIC)

Label Location

Supplemental Side Air Bag Inflatable Curtain (SABIC)

SABICs may help reduce the risk of head and other injuries

to front and rear seat outboard occupants in certain side

impacts, in addition to the injury reduction potential

provided by the seat belts and body structure.
The SABIC deploys downward, covering the side windows.

An inflating SABIC pushes the outside edge of the

headliner out of the way and covers the window. The

SABICs inflate with enough force to injure occupants if

they are not belted and seated properly, or if items are

positioned in the area where the SABICs inflate. Children

are at an even greater risk of injury from a deploying air

bag.
The SABICs may help reduce the risk of partial or complete

ejection of vehicle occupants through side windows in

certain side impact events.

Side Impacts
The Side Air Bags are designed to activate in certain side

impacts. The Occupant Restraint Controller (ORC)

determines whether the deployment of the Side Air Bags

in a particular impact event is appropriate, based on the

severity and type of collision. The side impact sensors aid

the ORC in determining the appropriate response to

impact events. The system is calibrated to deploy the Side

Air Bags on the impact side of the vehicle during impacts

that require Side Air Bag occupant protection. In side

impacts, the Side Air Bags deploy independently; a left

side impact deploys the left Side Air Bags only and a

right-side impact deploys the right Side Air Bags only.

Vehicle damage by itself is not a good indicator of whether

or not Side Air Bags should have deployed.
The Side Air Bags will not deploy in all side collisions,

including some collisions at certain angles, or some side

collisions that do not impact the area of the passenger

compartment. The Side Air Bags may deploy during angled

or offset frontal collisions where the front air bags deploy.
Side Air Bags are a supplement to the seat belt restraint

system. Side Air Bags deploy in less time than it takes to

blink your eyes.

WARNING!

Do not mount equipment, or stack luggage or other

cargo up high enough to block the deployment of the

SABICs. The trim covering above the side windows

where the SABIC and its deployment path are located

should remain free from any obstructions.

In order for the SABICs to work as intended, do not

install any accessory items in your vehicle which

could alter the roof. Do not add an aftermarket

sunroof to your vehicle. Do not add roof racks that

require permanent attachments (bolts or screws) for

installation on the vehicle roof. Do not drill into the

roof of the vehicle for any reason.

CarManuals2.com

SAFETY

181

NOTE:

Air bag covers may not be obvious in the interior trim, but

they will open during air bag deployment.
Rollover Events
Side Air Bags and seat belt pretensioners are designed to

activate in certain rollover events. The Occupant Restraint

Controller (ORC) determines whether deployment in a

particular rollover event is appropriate, based on the

severity and type of collision. Vehicle damage by itself is

not a good indicator of whether or not Side Air Bags and

seat belt pretensioners should have deployed.
The Side Air Bags and seat belt pretensioners will not

deploy in all rollover events. The rollover sensing system

determines if a rollover event may be in progress and

whether deployment is appropriate. In the event the

vehicle experiences a rollover or near rollover event, and

deployment is appropriate, the rollover sensing system will

deploy the side air bags and seat belt pretensioners on

both sides of the vehicle.
The SABICs may help reduce the risk of partial or complete

ejection of vehicle occupants through side windows in

certain rollover or side impact events.

Air Bag System Components

NOTE:

The Occupant Restraint Controller (ORC) monitors the

internal circuits and interconnecting wiring associated

with electrical Air Bag System Components listed below:

Occupant Restraint Controller (ORC)

Air Bag Warning Light

Steering Wheel and Column

Instrument Panel

Knee Impact Bolsters

Driver and Front Passenger Air Bags

Seat Belt Buckle Switch

Supplemental Side Air Bags

Supplemental Knee Air Bags

Front and Side Impact Sensors

Seat Belt Pretensioners

Seat Track Position Sensors

WARNING!

Occupants, including children, who are up against or

very close to Side Air Bags can be seriously injured or

killed. Occupants, including children, should never

lean on or sleep against the door, side windows, or

area where the side air bags inflate, even if they are

in an infant or child restraint.

Seat belts (and child restraints where appropriate)

are necessary for your protection in all collisions.

They also help keep you in position, away from an

inflating Side Air Bag. To get the best protection from

the Side Air Bags, occupants must wear their seat

belts properly and sit upright with their backs against

the seats. Children must be properly restrained in a

child restraint or booster seat that is appropriate for

the size of the child.

WARNING!

Side Air Bags need room to inflate. Do not lean

against the door or window. Sit upright in the center

of the seat.

Being too close to the Side Air Bags during deploy

-

ment could cause you to be severely injured or killed.

Relying on the Side Air Bags alone could lead to more

severe injuries in a collision. The Side Air Bags work with

your seat belt to restrain you properly. In some colli

-

sions, Side Air Bags won’t deploy at all. Always wear

your seat belt even though you have Side Air Bags.

6

CarManuals2.com

182

SAFETY



If A Deployment Occurs

The front air bags are designed to deflate immediately

after deployment.

NOTE:

Front and/or side air bags will not deploy in all collisions.

This does not mean something is wrong with the air bag

system.
If you do have a collision which deploys the air bags, any

or all of the following may occur:

The air bag material may sometimes cause abrasions

and/or skin reddening to the occupants as the air bags

deploy and unfold. The abrasions are similar to friction

rope burns or those you might get sliding along a carpet

or gymnasium floor. They are not caused by contact

with chemicals. They are not permanent and normally

heal quickly. However, if you haven’t healed signifi

-

cantly within a few days, or if you have any blistering,

see your doctor immediately.

As the air bags deflate, you may see some smoke-like

particles. The particles are a normal by-product of the

process that generates the non-toxic gas used for air

bag inflation. These airborne particles may irritate the

skin, eyes, nose, or throat. If you have skin or eye irrita

-

tion, rinse the area with cool water. For nose or throat

irritation, move to fresh air. If the irritation continues,

see your doctor. If these particles settle on your

clothing, follow the garment manufacturer’s instruc

-

tions for cleaning.

Do not drive your vehicle after the air bags have deployed.

If you are involved in another collision, the air bags will not

be in place to protect you.

NOTE:

Air bag covers may not be obvious in the interior trim,

but they will open during air bag deployment.

After any collision, the vehicle should be taken to an

authorized dealer immediately.

Enhanced Accident Response System

In the event of an impact, if the communication network

remains intact, and the power remains intact, depending

on the nature of the event, the Occupant Restraint

Controller (ORC) will determine whether to have the

Enhanced Accident Response System perform the

following functions:

Cut off fuel to the engine (if equipped).

Cut off battery power to the electric motor (if equipped).

Flash hazard lights as long as the battery has power.

Turn on the interior lights, which remain on as long as

the battery has power or for 15 minutes from the inter

-

vention of the Enhanced Accident Response System.

Unlock the power door locks.

Your vehicle may also be designed to perform any of these

other functions in response to the Enhanced Accident

Response System:

Turn off the Fuel Filter Heater, Turn off the HVAC Blower

Motor, Close the HVAC Circulation Door

Cut off battery power to the:

Engine

Electric Motor (if equipped)

Electric power steering

Brake booster

Electric park brake

Automatic transmission gear selector

Horn

Front wiper

NOTE:

After an accident, remember to cycle the ignition to the

STOP (OFF/LOCK) position and remove the key from the

ignition switch to avoid draining the battery. Carefully

check the vehicle for fuel leaks in the engine compartment

and on the ground near the engine compartment and fuel

tank before resetting the system and starting the engine.

If there are no fuel leaks or damage to the vehicle elec

-

trical devices (e.g. headlights) after an accident, reset the

system by following the procedure described below. If you

have any doubt, contact an authorized dealer.

WARNING!

Deployed air bags and seat belt pretensioners cannot

protect you in another collision. Have the air bags, seat

belt pretensioners, and the seat belt retractor

assemblies replaced by an authorized dealer

immediately. Also, have the Occupant Restraint

Controller System serviced as well.

CarManuals2.com

SAFETY

183

Enhanced Accident Response System Reset Procedure

After the event occurs, when the system is active, a message regarding fuel cutoff is displayed. Turn the ignition switch from ignition AVV/START or MAR/ACC/ON/RUN to ignition

STOP/OFF/LOCK. Carefully check the vehicle for fuel leaks in the engine compartment and on the ground near the engine compartment and fuel tank before resetting the system and

starting the engine.
Depending on the nature of the event the left and right turn signal lights, located in the instrument panel, may both be blinking and will continue to blink. In order to move your vehicle

to the side of the road, you must follow the system reset procedure.

Customer Action

Customer Will See

NOTE:

Each step MUST BE held for at least two seconds
1. Turn ignition STOP/OFF/LOCK. (Turn Signal Switch Must be placed in Neutral State).

2. Turn ignition MAR/ACC/ON/RUN.

Right turn light BLINKS.
Left turn light is OFF.

3. Turn right turn signal switch ON.

Right turn light is ON SOLID.
Left turn light BLINKS.

4. Place turn signal in neutral state.

Right turn light is OFF.
Left turn light BLINKS.

5. Turn left turn signal switch ON.

Right turn light BLINKS.
Left turn light is ON SOLID.

6. Place turn signal in neutral state.

Right turn light BLINKS.
Left turn light is OFF.

6

CarManuals2.com

184

SAFETY



If a reset procedure step is not completed within 60 seconds, then the turn signal lights will blink and the reset procedure must be performed again in order to be successful.

7. Turn right turn signal switch ON.

Right turn light is ON SOLID.
Left turn light BLINKS.

8. Place turn signal in neutral state.

Right turn light is OFF.
Left turn light BLINKS.

9. Turn left turn signal switch ON.

Right turn light is ON SOLID.
Left turn light is ON SOLID.

10. Turn left turn signal switch OFF. (Turn Signal Switch Must be placed in Neutral State).

Right turn light is OFF.
Left turn light is OFF.

11. Turn ignition STOP/OFF/LOCK.
12. Turn ignition MAR/ACC/ON/RUN. (Entire sequence needs to be completed within

one minute or sequence will need to be repeated).

System is now reset and the engine may be started.

Turn hazard flashers OFF (Manually).

Customer Action

Customer Will See

NOTE:

Each step MUST BE held for at least two seconds

CarManuals2.com

SAFETY

185

Maintaining Your Air Bag System

Event Data Recorder (EDR)

This vehicle is equipped with an event data recorder

(EDR). The main purpose of an EDR is to record, in certain

crash or near crash-like situations, such as an air bag

deployment or hitting a road obstacle, data that will assist

in understanding how a vehicle’s systems performed. The

EDR is designed to record data related to vehicle

dynamics and safety systems for a short period of time,

typically 30 seconds or less. The EDR in this vehicle is

designed to record such data as:

How various systems in your vehicle were operating;

Whether or not the driver and passenger safety belts

were buckled/fastened;

How far (if at all) the driver was depressing the acceler

-

ator and/or brake pedal; and,

How fast the vehicle was traveling.

These data can help provide a better understanding of the

circumstances in which crashes and injuries occur.

NOTE:

EDR data are recorded by your vehicle only if a non-trivial

crash situation occurs; no data are recorded by the EDR

under normal driving conditions and no personal data

(e.g., name, gender, age, and crash location) are recorded.

However, other parties, such as law enforcement, could

combine the EDR data with the type of personally identi

-

fying data routinely acquired during a crash investigation.

To read data recorded by an EDR, special equipment is

required, and access to the vehicle or the EDR is needed.

In addition to the vehicle manufacturer, other parties,

such as law enforcement, that have the special

equipment, can read the information if they have access

to the vehicle or the EDR.

C

HILD

 R

ESTRAINTS



Everyone in your vehicle needs to be buckled up at all

times, including babies and children. Every state in the

United States, and every Canadian province, requires that

small children ride in proper restraint systems. This is

the law, and you can be prosecuted for ignoring it.
Children 12 years or younger should ride properly buckled

up in a rear seat, if available. According to crash statistics,

children are safer when properly restrained in the rear

seats rather than in the front.

WARNING!

Modifications to any part of the air bag system could

cause it to fail when you need it. You could be injured

if the air bag system is not there to protect you.

Do not modify the components or wiring, including

adding any kind of badges or stickers to the steering

wheel hub trim cover or the upper passenger side of

the instrument panel. Do not modify the front fascia/

bumper, vehicle body structure, or add aftermarket

side steps or running boards.

It is dangerous to try to repair any part of the air bag

system yourself. Be sure to tell anyone who works on

your vehicle that it has an air bag system.

Do not attempt to modify any part of your air bag

system. The air bag may inflate accidentally or may

not function properly if modifications are made. Take

your vehicle to an authorized dealer for any air bag

system service. If your seat, including your trim cover

and cushion, needs to be serviced in any way

(including removal or loosening/tightening of seat

attachment bolts), take the vehicle to an authorized

dealer. Only manufacturer approved seat accesso

-

ries may be used. If it is necessary to modify the air

bag system for persons with disabilities, contact an

authorized dealer.

WARNING!

In a collision, an unrestrained child can become a

projectile inside the vehicle. The force required to hold

even an infant on your lap could become so great that

you could not hold the child, no matter how strong you

are. The child and others could be badly injured or

killed. Any child riding in your vehicle should be in a

proper restraint for the child’s size.

6

CarManuals2.com

186

SAFETY



There are different sizes and types of restraints for children from newborn size to the child almost large enough for an adult safety belt. Always check the child seat Owner’s Manual to

make sure you have the correct seat for your child. Carefully read and follow all the instructions and warnings in the child restraint Owner’s Manual and on all the labels attached to

the child restraint.
Before buying any restraint system, make sure that it has a label certifying that it meets all applicable Safety Standards. You should also make sure that you can install it in the vehicle

where you will use it.

NOTE:

For additional information, refer to http://www.nhtsa.gov/parents-and-caregivers or call 1-888-327-4236.

Canadian residents should refer to Transport Canada’s website for additional information: http://www.tc.gc.ca/en/services/road/child-car-seat-safety.html.

Summary Of Recommendations For Restraining Children In Vehicles

Child Size, Height, Weight Or Age

Recommended Type Of Child Restraint

Infants and Toddlers

Children who are two years old or younger and who have

not reached the height or weight limits of their child

restraint

Either an Infant Carrier or a Convertible Child Restraint,

facing rearward in a rear seat of the vehicle

Small Children

Children who are at least two years old or who have

outgrown the height or weight limit of their rear-facing child

restraint

Forward-Facing Child Restraint with a five-point Harness,

facing forward in a rear seat of the vehicle

Larger Children

Children who have outgrown their forward-facing child

restraint, but are too small to properly fit the vehicle’s

seat belt

Belt Positioning Booster Seat and the vehicle seat belt,

seated in a rear seat of the vehicle

Children Too Large for Child Restraints

Children 12 years old or younger, who have outgrown the

height or weight limit of their booster seat

Vehicle Seat Belt, seated in a rear seat of the vehicle

CarManuals2.com

SAFETY

187

Infant And Child Restraints

Safety experts recommend that children ride rear-facing in

the vehicle until they are two years old or until they reach

either the height or weight limit of their rear-facing child

restraint. Two types of child restraints can be used

rear-facing: infant carriers and convertible child seats.
The infant carrier is only used rear-facing in the vehicle.

It is recommended for children from birth until they

reach the weight or height limit of the infant carrier.

Convertible child seats can be used either rear-facing or

forward-facing in the vehicle. Convertible child seats often

have a higher weight limit in the rear-facing direction than

infant carriers do, so they can be used rear-facing by

children who have outgrown their infant carrier but are still

less than at least two years old. Children should remain

rear-facing until they reach the highest weight or height

allowed by their convertible child seat.

Older Children And Child Restraints

Children who are two years old or who have outgrown their

rear-facing convertible child seat can ride forward-facing

in the vehicle. Forward-facing child seats and convertible

child seats used in the forward-facing direction are for

children who are over two years old or who have outgrown

the rear-facing weight or height limit of their rear-facing

convertible child seat. Children should remain in a

forward-facing child seat with a harness for as long as

possible, up to the highest weight or height allowed by the

child seat.

All children whose weight or height is above the

forward-facing limit for the child seat should use a

belt-positioning booster seat until the vehicle’s seat belts

fit properly. If the child cannot sit with knees bent over the

vehicle’s seat cushion while the child’s back is against the

seatback, they should use a belt-positioning booster seat.

The child and belt-positioning booster seat are held in the

vehicle by the seat belt.

WARNING!

Never place a rear-facing child restraint in front of an

air bag. A deploying passenger front air bag can

cause death or serious injury to a child 12 years or

younger, including a child in a rear-facing child

restraint.

Never install a rear-facing child restraint in the front

seat of a vehicle. Only use a rear-facing child

restraint in the rear seat. If the vehicle does not have

a rear seat, do not transport a rear-facing child

restraint in that vehicle.

WARNING!

Improper installation can lead to failure of an infant

or child restraint. It could come loose in a collision.

The child could be badly injured or killed. Follow the

child restraint manufacturer’s directions exactly

when installing an infant or child restraint.

After a child restraint is installed in the vehicle, do

not move the vehicle seat forward or rearward

because it can loosen the child restraint attach

-

ments. Remove the child restraint before adjusting

the vehicle seat position. When the vehicle seat has

been adjusted, reinstall the child restraint.

When your child restraint is not in use, secure it in the

vehicle with the seat belt or LATCH anchorages, or

remove it from the vehicle. Do not leave it loose in

the vehicle. In a sudden stop or accident, it could

strike the occupants or seatbacks and cause serious

personal injury.

6

CarManuals2.com

188

SAFETY



Children Too Large For Booster Seats

Children who are large enough to wear the shoulder belt

comfortably, and whose legs are long enough to bend over

the front of the seat when their back is against the

seatback, should use the seat belt in a rear seat. Use this

simple 5-step test to decide whether the child can use the

vehicle’s seat belt alone:
1. Can the child sit all the way back against the back of

the vehicle seat?

2. Do the child’s knees bend comfortably over the front

of the vehicle seat while the child is still sitting all the

way back?

3. Does the shoulder belt cross the child’s shoulder

between the neck and arm?

4. Is the lap part of the belt as low as possible, touching

the child’s thighs and not the stomach?

5. Can the child stay seated like this for the whole trip?

If the answer to any of these questions was “no,” then the

child still needs to use a booster seat in this vehicle. If the

child is using the lap/shoulder belt, check seat belt fit

periodically and make sure the seat belt buckle is latched.

A child’s squirming or slouching can move the belt out of

position. If the shoulder belt contacts the face or neck,

move the child closer to the center of the vehicle, or use a

booster seat to position the seat belt on the child correctly.

Recommendations For Attaching Child Restraints

WARNING!

Never allow a child to put the shoulder belt under an

arm or behind their back. In a crash, the shoulder belt

will not protect a child properly, which may result in

serious injury or death. A child must always wear both

the lap and shoulder portions of the seat belt correctly.

Restraint Type

Combined Weight of the

Child + Child Restraint

Use Any Attachment Method Shown With An “X” Below

LATCH – Lower Anchors

Only

Seat Belt Only

LATCH – Lower Anchors +

Top Tether Anchor

Seat Belt + Top Tether

Anchor

Rear-Facing Child Restraint

Up to 65 lb (29.5 kg)

X

X

Rear-Facing Child Restraint

More than 65 lb (29.5 kg)

X

Forward-Facing Child

Restraint

Up to 65 lb (29.5 kg)

X

X

Forward-Facing Child

Restraint

More than 65 lb (29.5 kg)

X

CarManuals2.com

SAFETY

189

Lower Anchors And Tethers For CHildren

(LATCH) Restraint System

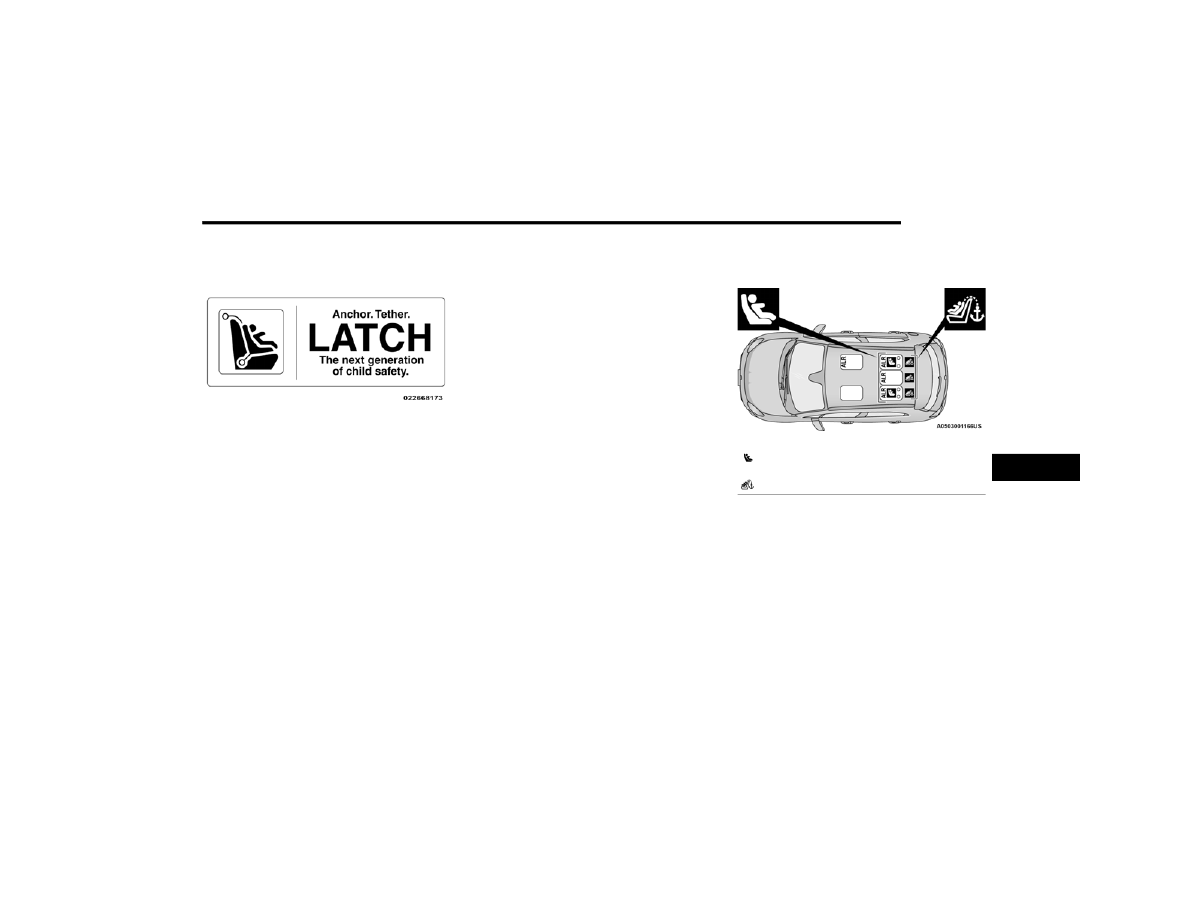

LATCH Label

Your vehicle is equipped with the child restraint anchorage

system called LATCH, which stands for Lower Anchors and

Tethers for CHildren. The LATCH system has three vehicle

anchor points for installing LATCH-equipped child seats.

There are two lower anchorages located at the back of the

seat cushion where it meets the seatback and one top

tether anchorage located behind the seating position.

These anchorages are used to install LATCH-equipped

child seats without using the vehicle’s seat belts. Some

seating positions may have a top tether anchorage but no

lower anchorages. In these seating positions, the seat belt

must be used with the top tether anchorage to install the

child restraint. Please see the following table for more

information.

LATCH Positions For Installing Child

Restraints In This Vehicle

LATCH Positions

 Lower Anchorage Symbol

(2 Anchorages Per Seating Position)

 Top Tether Anchorage Symbol

6

CarManuals2.com

190

SAFETY



Frequently Asked Questions About Installing Child Restraints With LATCH

What is the weight limit (child’s weight + weight of the child

restraint) for using the LATCH anchorage system to attach

the child restraint?

65 lb (29.5 kg)

Use the LATCH anchorage system until the combined

weight of the child and the child restraint is 65 lb

(29.5 kg). Use the seat belt and tether anchor instead

of the LATCH anchorage system once the combined

weight is more than 65 lb (29.5 kg).

Can the LATCH anchorages and the seat belt be used

together to attach a rear-facing or forward-facing child

restraint?

No

Do not use the seat belt when you use the LATCH

anchorage system to attach a rear-facing or forward-facing

child restraint.
Booster seats may be attached to the LATCH anchorages if

allowed by the booster seat manufacturer. See your

booster seat owner’s manual for more information.

Can a child seat be installed in the center position using

the inner LATCH lower anchorages from the outboard

seating positions?

No

Use the seat belt and tether anchor to install a child seat

in the center seating position.

Can two child restraints be attached using a common

lower LATCH anchorage?

No

Never “share” a LATCH anchorage with two or more child

restraints. If the center position does not have dedicated

LATCH lower anchorages, use the seat belt to install a child

seat in the center position next to a child seat using the

LATCH anchorages in an outboard position.

CarManuals2.com

SAFETY

191

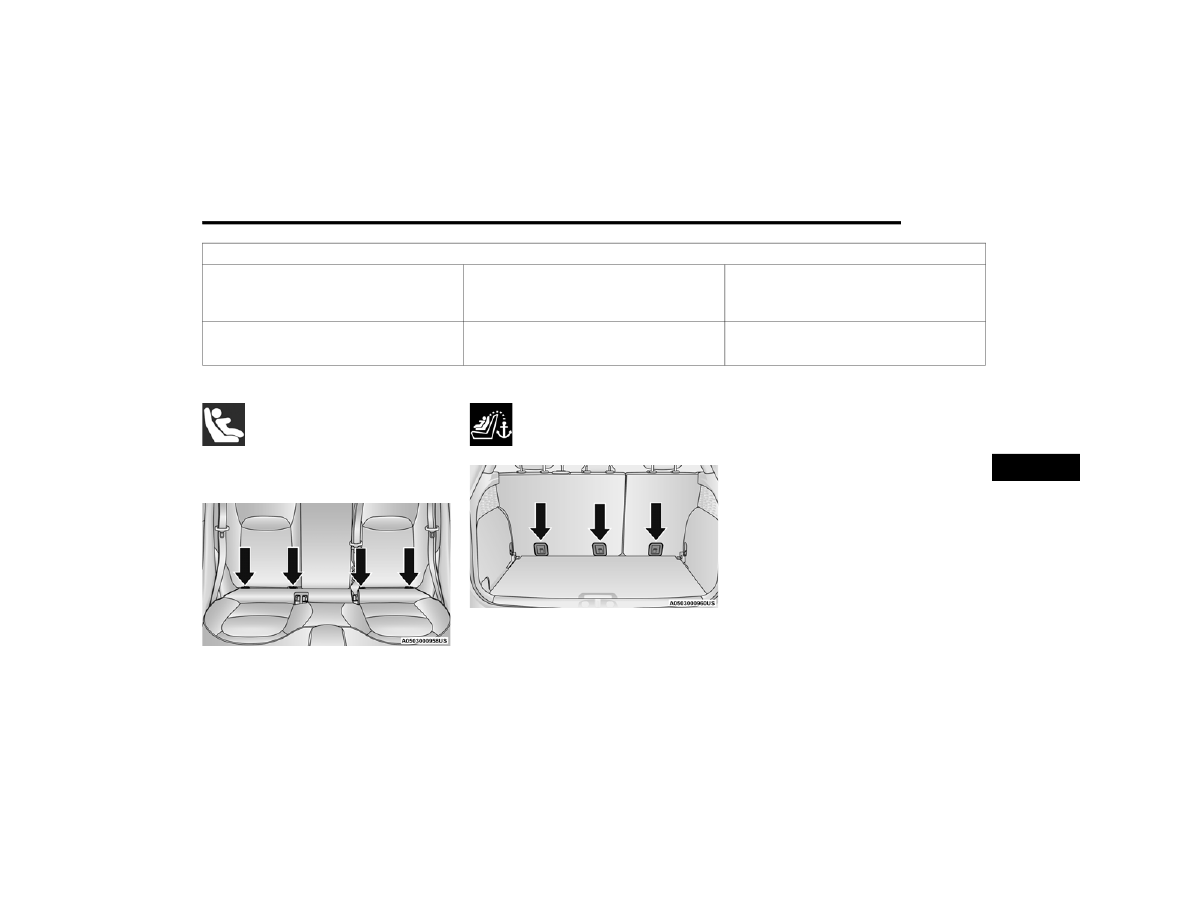

Locating The LATCH Anchorages

The lower anchorages are round bars that are

found at the rear of the seat cushion where it

meets the seatback, below the anchorage

symbols on the seatback. They are just visible

when you lean into the rear seat to install the child

restraint. You will easily feel them if you run your finger

along the gap between the seatback and seat cushion.

Lower Anchorage Location

Locating The Upper Tether Anchorages

There are tether strap anchorages behind each

rear seating position located on the back of the

seat.

Tether Anchorage Locations

LATCH-compatible child restraint systems will be equipped

with a rigid bar or a flexible strap on each side. Each will

have a hook or connector to attach to the lower anchorage

and a way to tighten the connection to the anchorage.

Forward-facing child restraints and some rear-facing child

restraints will also be equipped with a tether strap. The

tether strap will have a hook at the end to attach to the top

tether anchorage and a way to tighten the strap after it is

attached to the anchorage.

Can the rear-facing child restraint touch the back of the

front passenger seat?

Yes

The child seat may touch the back of the front passenger

seat if the child restraint manufacturer also allows

contact. See your child restraint owner’s manual for more

information.

Can the rear head restraints be removed?

Yes

The head restraints can be removed in each seating

position if they interfere with the installation of the child

restraint

Ú

page 25.

Frequently Asked Questions About Installing Child Restraints With LATCH

6

CarManuals2.com

192

SAFETY



Center Seat LATCH:

Always follow the directions of the child restraint

manufacturer when installing your child restraint. Not all

child restraint systems will be installed as described here.

To Install A LATCH-Compatible Child

Restraint

If the selected seating position has a Switchable

Automatic Locking Retractor (ALR) seat belt, stow the seat

belt, following the instructions below. See

Ú

page 193 to

check what type of seat belt each seating position has.

1. Loosen the adjusters on the lower straps and on the

tether strap of the child seat so that you can more

easily attach the hooks or connectors to the vehicle

anchorages.

2. Place the child seat between the lower anchorages

for that seating position. If the second row seat can

be reclined, you may recline the seat and/or raise the

head restraint (if adjustable) to get a better fit. If the

rear seat can be moved forward and rearward in the

vehicle, you may wish to move it to its rear-most

position to make room for the child seat. You may

also move the front seat forward to allow more room

for the child seat.

3. Attach the lower hooks or connectors of the child

restraint to the lower anchorages in the selected

seating position.

4. If the child restraint has a tether strap, connect it to

the top tether anchorage. See

Ú

page 195 for

directions to attach a tether anchor.

5. Tighten all of the straps as you push the child

restraint rearward and downward into the seat.

Remove slack in the straps according to the child

restraint manufacturer’s instructions.

6. Test that the child restraint is installed tightly by

pulling back and forth on the child seat at the belt

path. It should not move more than 1 inch (25.4 mm)

in any direction.

How To Stow An Unused Switchable-ALR

(ALR) Seat Belt:

When using the LATCH attaching system to install a child

restraint, stow all ALR seat belts that are not being used

by other occupants or being used to secure child

restraints. An unused belt could injure a child if they play

with it and accidentally lock the seat belt retractor. Before

installing a child restraint using the LATCH system, buckle

the seat belt behind the child restraint and out of the

child’s reach. If the buckled seat belt interferes with the

child restraint installation, instead of buckling it behind

the child restraint, route the seat belt through the child

restraint belt path and then buckle it. Do not lock the seat

belt. Remind all children in the vehicle that the seat belts

are not toys and that they should not play with them.

WARNING!

Do not install a child restraint in the center position

using the LATCH system. This position is not

approved for installing child seats using the LATCH

attachments. You must use the seat belt and tether

anchor to install a child seat in the center seating

position.

Never use the same lower anchorage to attach more

than one child restraint. See

Ú

page 192 for typical

installation instructions.

CarManuals2.com

SAFETY

193

Installing Child Restraints Using The

Vehicle Seat Belt

Child restraint systems are designed to be secured in

vehicle seats by lap belts or the lap belt portion of a

lap/shoulder belt.

The seat belts in the passenger seating positions are

equipped with a Switchable Automatic Locking Retractor

(ALR) that is designed to keep the lap portion of the seat

belt tight around the child restraint so that it is not

necessary to use a locking clip. The ALR retractor can be

“switched” into a locked mode by pulling all of the webbing

out of the retractor and then letting the webbing retract

back into the retractor. If it is locked, the ALR will make a

clicking noise while the webbing is pulled back into the

retractor.

See the “Automatic Locking Mode” description

Ú

page 176 for additional information on ALR.

Please see the table below and the following sections for

more information.

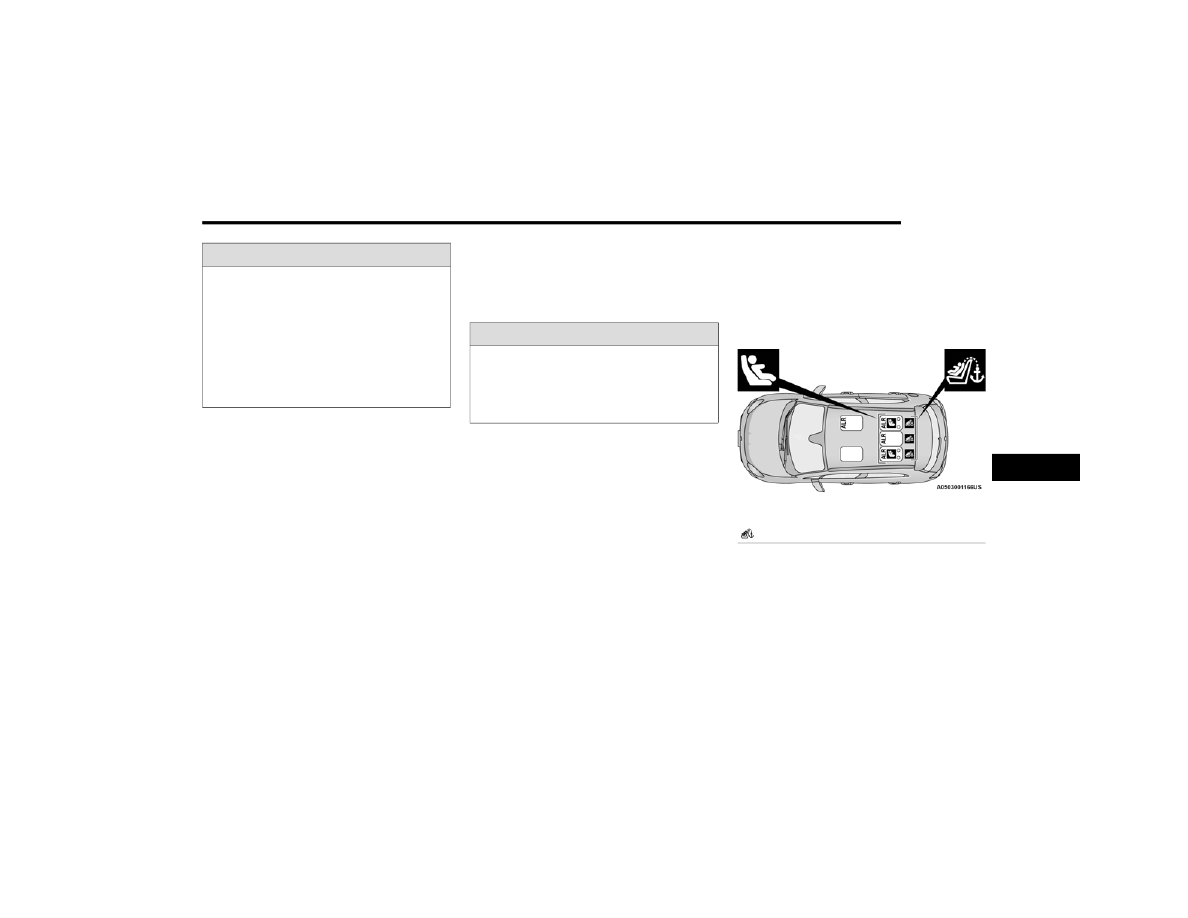

Lap/Shoulder Belt Systems For Installing

Child Restraints In This Vehicle

Automatic Locking Retractor (ALR) Locations

WARNING!

Improper installation of a child restraint to the LATCH

anchorages can lead to failure of the restraint. The

child could be badly injured or killed. Follow the child

restraint manufacturer’s directions exactly when

installing an infant or child restraint.

Child restraint anchorages are designed to withstand

only those loads imposed by correctly-fitted child

restraints. Under no circumstances are they to be

used for adult seat belts, harnesses, or for attaching

other items or equipment to the vehicle.

WARNING!

Improper installation or failure to properly secure a

child restraint can lead to failure of the restraint.

The child could be badly injured or killed.

Follow the child restraint manufacturer’s directions

exactly when installing an infant or child restraint.

ALR — Switchable Automatic Locking Retractor

 Top Tether Anchorage Symbol

6

CarManuals2.com

194

SAFETY



Frequently Asked Questions About Installing Child Restraints With Seat Belts

What is the weight limit (child’s weight + weight of the

child restraint) for using the Tether Anchor with the seat

belt to attach a forward-facing child restraint?

Weight limit of the Child Restraint

Always use the tether anchor when using the seat belt to

install a forward-facing child restraint, up to the

recommended weight limit of the child restraint.

Can the rear-facing child restraint touch the back of the

front passenger seat?

Yes

Contact between the front passenger seat and the child

restraint is allowed, if the child restraint manufacturer

also allows contact.

Can the rear head restraints be removed?

Yes

The head restraints can be removed in each seating

position if they interfere with the installation of the child

restraint

Ú

page 25.

Can the buckle stalk be twisted to tighten the seat belt

against the belt path of the child restraint?

No

Do not twist the buckle stalk in a seating position with an

ALR retractor.

CarManuals2.com

SAFETY

195

Installing A Child Restraint With A

Switchable Automatic Locking Retractor

(ALR):

Child restraint systems are designed to be secured in

vehicle seats by lap belts or the lap belt portion of a lap/

shoulder belt.

1. Place the child seat in the center of the seating

position. If the second row seat can be reclined, you

may recline the seat and/or raise the head restraint

(if adjustable) to get a better fit. If the rear seat can

be moved forward and rearward in the vehicle, you

may wish to move it to its rear-most position to make

room for the child seat. You may also move the front

seat forward to allow more room for the child seat.

2. Pull enough of the seat belt webbing from the

retractor to pass it through the belt path of the

child restraint. Do not twist the belt webbing in the

belt path.

3. Slide the latch plate into the buckle until you hear a

“click.”

4. Pull on the webbing to make the lap portion tight

against the child seat.

5. To lock the seat belt, pull down on the shoulder part

of the belt until you have pulled all the seat belt

webbing out of the retractor. Then, allow the webbing

to retract back into the retractor. As the webbing

retracts, you will hear a clicking sound. This means

the seat belt is now in the Automatic Locking mode.

6. Try to pull the webbing out of the retractor. If it is

locked, you should not be able to pull out any

webbing. If the retractor is not locked, repeat step 5.

7. Finally, pull up on any excess webbing to tighten the

lap portion around the child restraint while you push

the child restraint rearward and downward into the

vehicle seat.

8. If the child restraint has a top tether strap and the

seating position has a top tether anchorage, connect

the tether strap to the anchorage and tighten the

tether strap. See

Ú

page 195 for directions to attach

a tether anchor.

9. Test that the child restraint is installed tightly by

pulling back and forth on the child seat at the belt

path. It should not move more than 1 inch (25.4 mm)

in any direction.

Any seat belt system will loosen with time, so check the

belt occasionally, and pull it tight if necessary.

Installing Child Restraints Using The Top

Tether Anchorage:

WARNING!

Improper installation or failure to properly secure a

child restraint can lead to failure of the restraint.

The child could be badly injured or killed.

Follow the child restraint manufacturer’s directions

exactly when installing an infant or child restraint.

WARNING!

Do not attach a tether strap for a rear-facing car seat to

any location in front of the car seat, including the seat

frame or a tether anchorage. Only attach the tether

strap of a rear-facing car seat to the tether anchorage

that is approved for that seating position, located

behind the top of the vehicle seat. See

Ú

page 189 for

the location of approved tether anchorages in your

vehicle.

6

CarManuals2.com

196

SAFETY



(Continued)

1. Look behind the seating position where you plan to

install the child restraint to find the tether

anchorage. If the seat can be moved, you may need

to move the seat forward to provide better access to

the tether anchorage. If there is no top tether

anchorage for that seating position, move the child

restraint to another position in the vehicle if one is

available.

2. Route the tether strap to provide the most direct path

for the strap between the anchor and the child seat.

If your vehicle is equipped with adjustable rear head

restraints, raise the head restraint, and where

possible, route the tether strap under the head

restraint and between the two posts. If not possible,

lower the head restraint and pass the tether strap

around the outboard side of the head restraint.

3. Attach the tether strap hook of the child restraint to

the top tether anchorage as shown in the diagram.

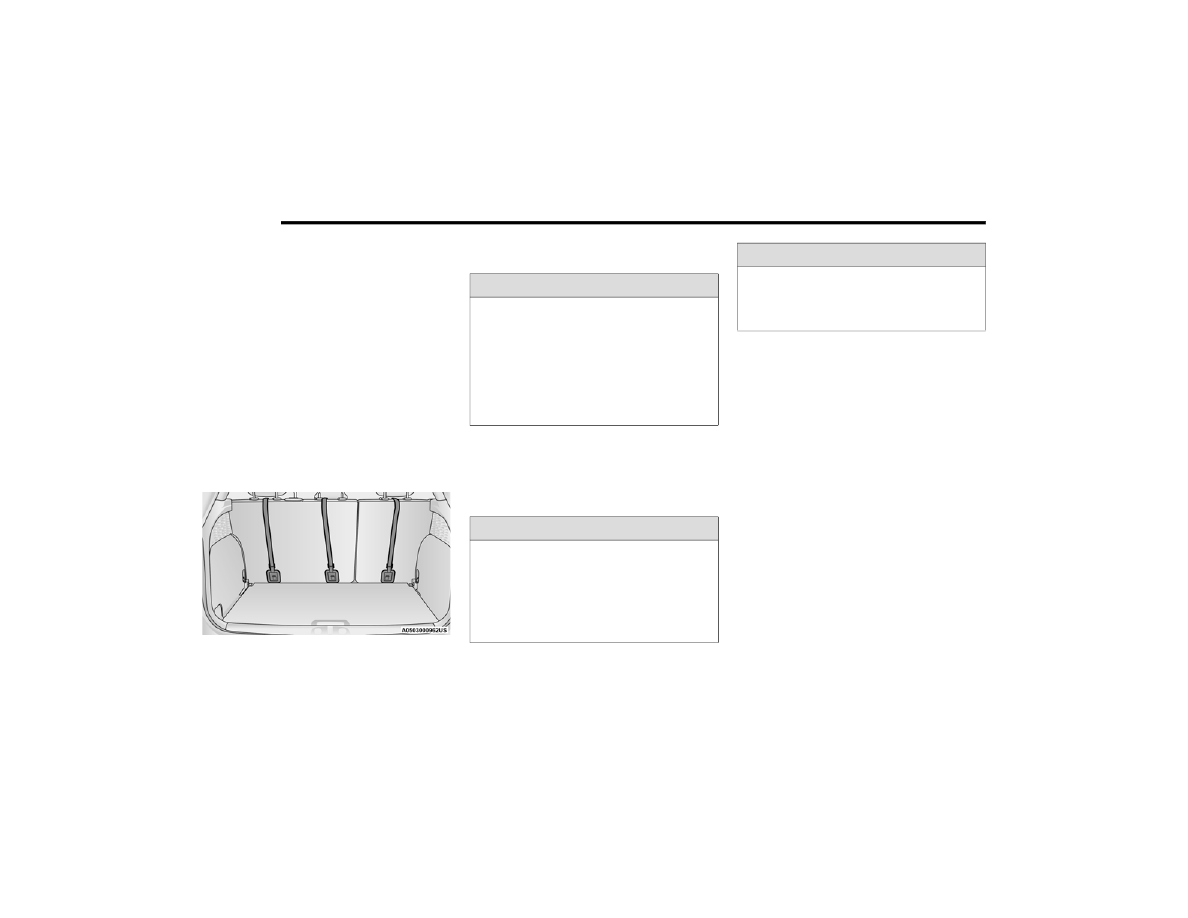

Tether Anchorage Locations

4. Remove slack in the tether strap according to the

child restraint manufacturer’s instructions.

SAFETY TIPS

T

RANSPORTING

 P

ASSENGERS

NEVER TRANSPORT PASSENGERS IN THE CARGO AREA.

T

RANSPORTING

 P

ETS



Air Bags deploying in the front seat could harm your pet.

An unrestrained pet will be thrown about and possibly

injured, or injure a passenger during panic braking or in a

collision.
Pets should be restrained in the rear seat (if equipped) in

pet harnesses or pet carriers that are secured by seat

belts.

C

ONNECTED

 V

EHICLES

Privacy of any wireless and wired communications cannot

be assured. Third parties may unlawfully intercept

information and private communications without your

consent. For further information, refer to “Data Collection

& Privacy” in your Uconnect Owner’s Manual Supplement

or “Onboard Diagnostic System (OBD II) Cybersecurity”

Ú

page 66.

WARNING!

An incorrectly anchored tether strap could lead to

increased head motion and possible injury to the

child. Use only the anchorage position directly behind

the child seat to secure a child restraint top tether

strap.

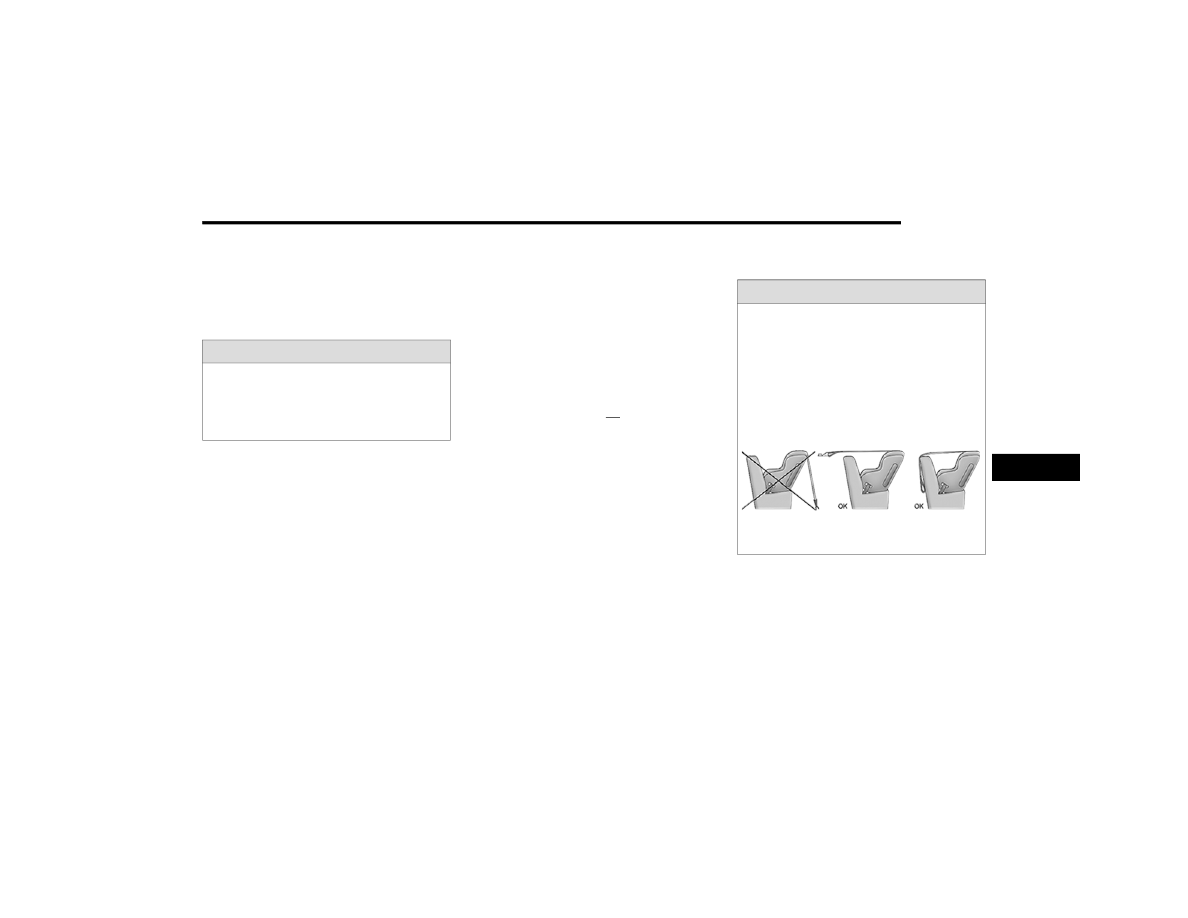

If your vehicle is equipped with a split rear seat,

make sure the tether strap does not slip into the

opening between the seatbacks as you remove slack

in the strap.

WARNING!

Do not leave children or animals inside parked vehi

-

cles in hot weather. Interior heat buildup may cause

serious injury or death.

It is extremely dangerous to ride in a cargo area,

inside or outside of a vehicle. In a collision, people

riding in these areas are more likely to be seriously

injured or killed.

Do not allow people to ride in any area of your vehicle

that is not equipped with seats and seat belts.

Be sure everyone in your vehicle is in a seat and

using a seat belt properly.

WARNING!

CarManuals2.com

SAFETY

197

(Continued)

S

AFETY

 C

HECKS

 Y

OU

 S

HOULD

 M

AKE



I

NSIDE

 T

HE

 V

EHICLE



Seat Belts

Inspect the seat belt system periodically, checking for

cuts, frays, and loose parts. Damaged parts must be

replaced immediately. Do not disassemble or modify the

system.
If your vehicle is involved in a collision, or if you have

questions regarding the seat belt or retractor conditions,

take your vehicle to an authorized FCA dealer or

authorized FCA Certified Collision Care Program facility for

inspection.

Air Bag Warning Light

The Air Bag Warning Light will turn on for four to

eight seconds as a bulb check when the

ignition switch is first placed in the ON/RUN

position. If the light is either not on during

starting, stays on, or turns on while driving, have the

system inspected at an authorized dealer as soon as

possible. After the bulb check, this light will illuminate with

a single chime when a fault with the Air Bag System has

been detected. It will stay on until the fault is removed.

If the light comes on intermittently or remains on while

driving, have an authorized dealer service the vehicle

immediately

Ú

page 171.

Defroster

Check operation by selecting the defrost mode and place

the blower control on high speed. You should be able to

feel the air directed against the windshield. See an

authorized dealer for service if your defroster is

inoperable.

Floor Mat Safety Information

Always use floor mats designed to fit your vehicle. Only use

a floor mat that does not interfere with the operation of the

accelerator, brake or clutch pedals. Only use a floor mat

that is securely attached using the floor mat fasteners so

it cannot slip out of position and interfere with the

accelerator, brake or clutch pedals or impair safe

operation of your vehicle in other ways.

WARNING!

It is not possible to know or to predict all of the possible

outcomes if your vehicle’s systems are breached. It may

be possible that vehicle systems, including safety

related systems, could be impaired or a loss of vehicle

control could occur that may result in an accident

involving serious injury or death.

WARNING!

An improperly attached, damaged, folded, or stacked

floor mat, or damaged floor mat fasteners may cause

your floor mat to interfere with the accelerator, brake, or

clutch pedals and cause a loss of vehicle control. To

prevent SERIOUS INJURY or DEATH:

 ALWAYS securely attach your floor mat

using the floor mat fasteners. DO NOT

install your floor mat upside down or turn

your floor mat over. Lightly pull to confirm

mat is secured using the floor mat fasteners on a

regular basis.

 ALWAYS REMOVE THE EXISTING FLOOR

MAT FROM THE VEHICLE before installing

any other floor mat. NEVER install or stack

an additional floor mat on top of an

existing floor mat.

6

CarManuals2.com

198

SAFETY



(Continued)

P

ERIODIC

 S

AFETY

 C

HECKS

 Y

OU

 S

HOULD



M

AKE

 O

UTSIDE

 T

HE

 V

EHICLE

Tires

Examine tires for excessive tread wear and uneven wear

patterns. Check for stones, nails, glass, or other objects

lodged in the tread or sidewall. Inspect the tread for cuts

and cracks. Inspect sidewalls for cuts, cracks, and bulges.

Check the lug nuts/bolt torque for tightness. Check the

tires (including spare) for proper cold inflation pressure.

Lights

Have someone observe the operation of brake lights and

exterior lights while you work the controls. Check turn

signal and high beam indicator lights on the instrument

panel.

Door Latches

Check for proper closing, latching, and locking.

Fluid Leaks

Check area under the vehicle after overnight parking for

fuel, coolant, oil, or other fluid leaks. Also, if gasoline

fumes are detected or if fuel or brake fluid leaks are

suspected, the cause should be located and corrected

immediately.

ONLY install floor mats designed to fit your vehicle.

NEVER install a floor mat that cannot be properly

attached and secured to your vehicle. If a floor mat

needs to be replaced, only use a FCA approved floor

mat for the specific make, model, and year of your

vehicle.

ONLY use the driver’s side floor mat on the driver’s

side floor area. To check for interference, with the

vehicle properly parked with the engine off, fully

depress the accelerator, the brake, and the clutch

pedal (if present) to check for interference. If your

floor mat interferes with the operation of any pedal,

or is not secure to the floor, remove the floor mat

from the vehicle and place the floor mat in your

trunk.

ONLY use the passenger’s side floor mat on the

passenger’s side floor area.

WARNING!

ALWAYS make sure objects cannot fall or slide into

the driver’s side floor area when the vehicle is

moving. Objects can become trapped under acceler

-

ator, brake, or clutch pedals and could cause a loss

of vehicle control.

NEVER place any objects under the floor mat (e.g.,

towels, keys, etc.). These objects could change the

position of the floor mat and may cause interference

with the accelerator, brake, or clutch pedals.

If the vehicle carpet has been removed and

re-installed, always properly attach carpet to the floor

and check the floor mat fasteners are secure to the

vehicle carpet. Fully depress each pedal to check for

interference with the accelerator, brake, or clutch

pedals then re-install the floor mats.

It is recommended to only use mild soap and water

to clean your floor mats. After cleaning, always check

your floor mat has been properly installed and is

secured to your vehicle using the floor mat fasteners

by lightly pulling mat.

WARNING!

CarManuals2.com

SAFETY

199

E

XHAUST

 G

AS



The best protection against carbon monoxide entry into

the vehicle body is a properly maintained engine exhaust

system.
Whenever a change is noticed in the sound of the exhaust

system, when exhaust fumes can be detected inside the

vehicle, or when the underside or rear of the vehicle is

damaged, have an authorized dealer inspect the complete

exhaust system and adjacent body areas for broken,

damaged, deteriorated, or mispositioned parts. Open

seams or loose connections could permit exhaust fumes

to seep into the passenger compartment. In addition,

inspect the exhaust system each time the vehicle is raised

for lubrication or oil change. Replace as required.

C

ARBON

 M

ONOXIDE

 W

ARNINGS



WARNING!

Exhaust gases can injure or kill. They contain carbon

monoxide (CO), which is colorless and odorless.

Breathing it can make you unconscious and can

eventually poison you. To avoid breathing (CO), follow

these safety tips:

Do not run the engine in a closed garage or in

confined areas any longer than needed to move your

vehicle in or out of the area.

If you are required to drive with the trunk/liftgate/

rear doors open, make sure that all windows are

closed and the climate control BLOWER switch is set

at high speed. DO NOT use the recirculation mode.

If it is necessary to sit in a parked vehicle with the

engine running, adjust your heating or cooling

controls to force outside air into the vehicle. Set the

blower at high speed.

WARNING!

Carbon monoxide (CO) in exhaust gases is deadly.

Follow the precautions below to prevent carbon

monoxide poisoning:

Do not inhale exhaust gases. They contain carbon

monoxide, a colorless and odorless gas, which can

kill. Never run the engine in a closed area, such as a

garage, and never sit in a parked vehicle with the

engine running for an extended period. If the vehicle

is stopped in an open area with the engine running

for more than a short period, adjust the ventilation

system to force fresh, outside air into the vehicle.

Guard against carbon monoxide with proper mainte

-

nance. Have the exhaust system inspected every

time the vehicle is raised. Have any abnormal condi

-

tions repaired promptly. Until repaired, drive with all

side windows fully open.

6

CarManuals2.com

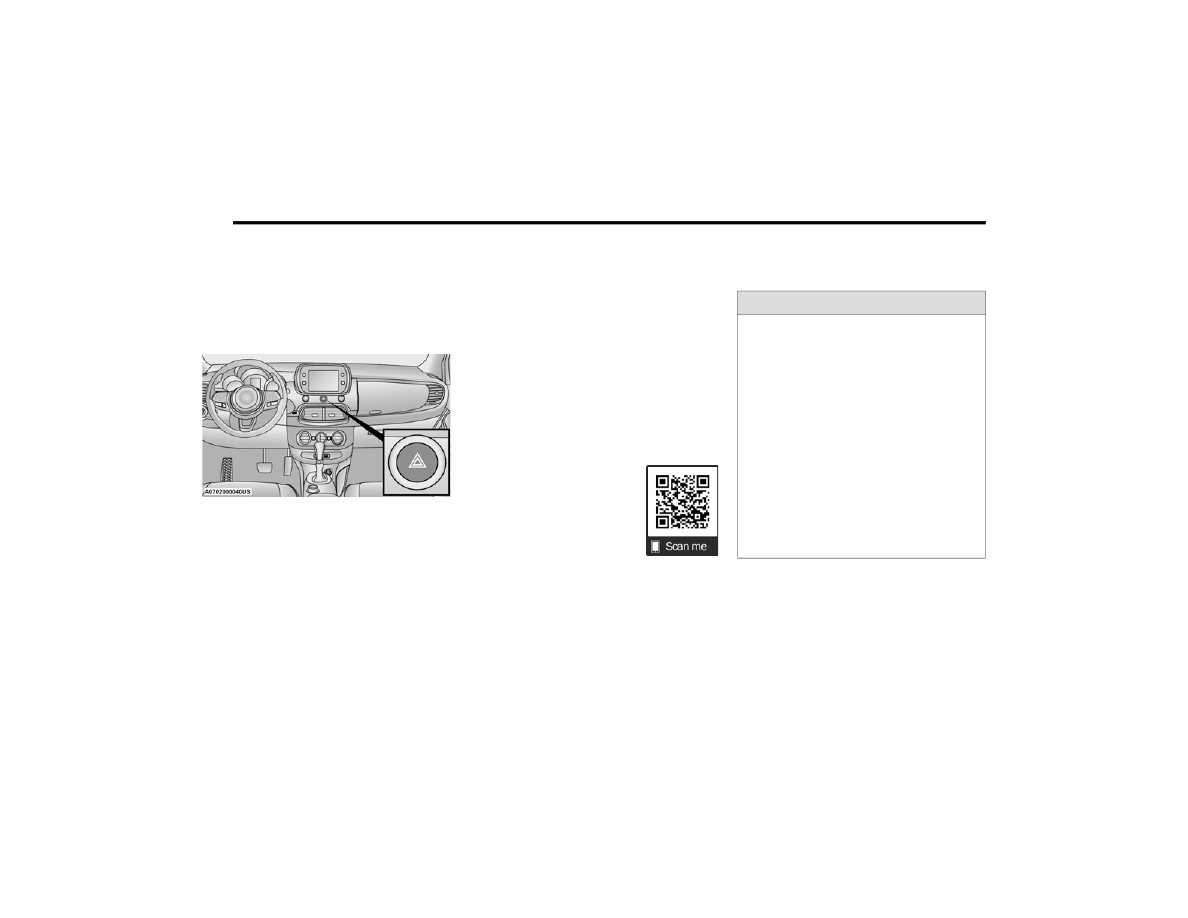

200

IN CASE OF EMERGENCY

HAZARD WARNING FLASHERS

The Hazard Warning Flashers button is located on the

switch bank below the radio.

Hazard Warning Flasher Button

Push the button to turn on the Hazard Warning Flashers.

When the button is activated, all directional turn signals

will flash on and off to warn oncoming traffic of an

emergency. Push the button a second time to turn off the

Hazard Warning Flashers.

This is an emergency warning system and it should not be

used when the vehicle is in motion. Use it only when your

vehicle is disabled or signaling a safety hazard warning for

other motorists.
When you must leave the vehicle to seek assistance, the

Hazard Warning Flashers will continue to operate even

though the ignition is placed in OFF mode.

NOTE:

With extended use the Hazard Warning Flashers may wear

down your battery.

JACKING AND TIRE CHANGING

Use this QR code to access your digital

experience.

WARNING!

Do not attempt to change a tire on the side of the

vehicle close to moving traffic. Pull far enough off the

road to avoid the danger of being hit when operating

the jack or changing the wheel.

Being under a jacked-up vehicle is dangerous. The

vehicle could slip off the jack and fall on you. You

could be crushed. Never put any part of your body

under a vehicle that is on a jack. If you need to get

under a raised vehicle, take it to a service center

where it can be raised on a lift.

Never start or run the engine while the vehicle is on

a jack.

The jack is designed to be used as a tool for changing

tires only. The jack should not be used to lift the

vehicle for service purposes. The vehicle should be

jacked on a firm level surface only. Avoid ice or slip

-

pery areas.

CarManuals2.com

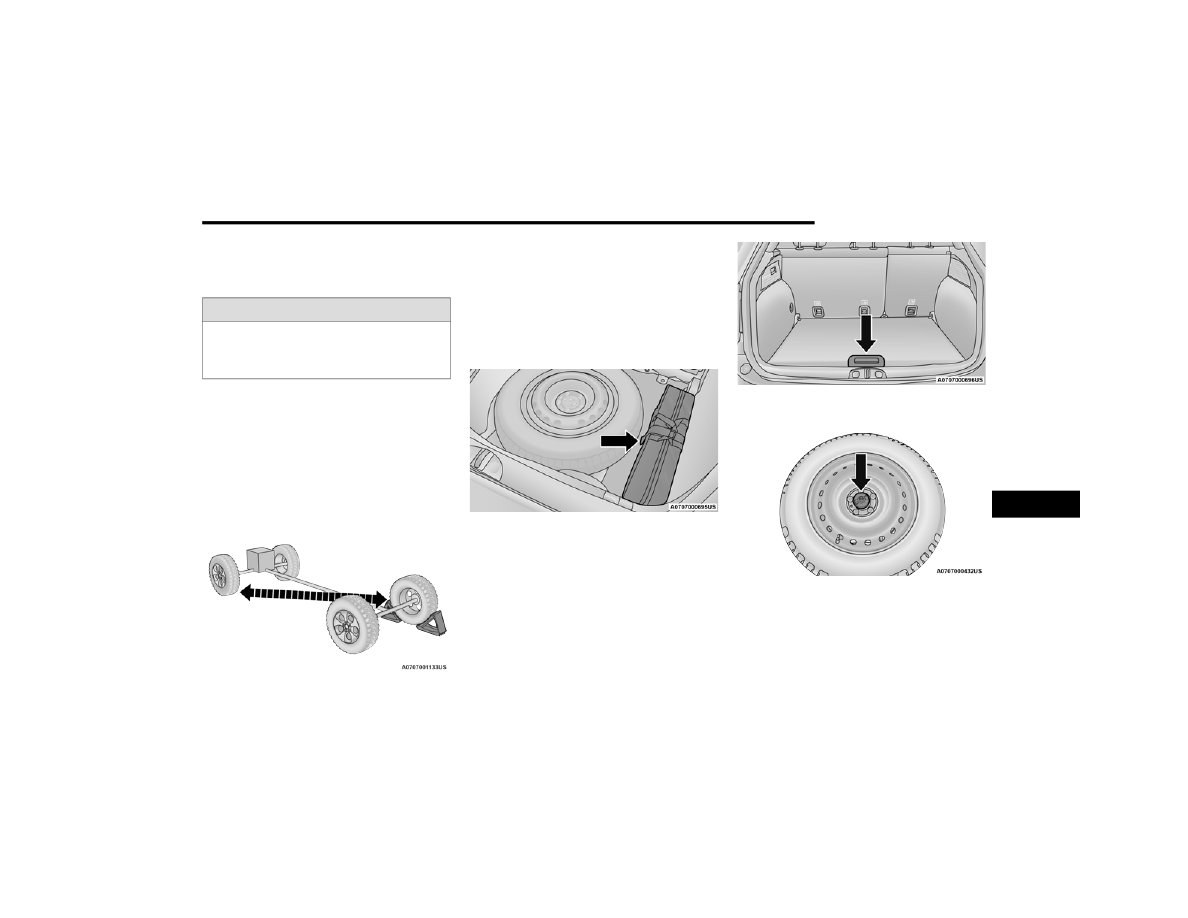

IN CASE OF EMERGENCY

201

P

REPARATIONS

 F

OR

 J

ACKING



1. Park on a firm, level surface. Avoid ice or slippery

areas.

2. Turn on the Hazard Warning Flashers.
3. Apply the Electric Park Brake.
4. Place the gear selector into PARK (P).
5. Turn the ignition to STOP mode.
6. Block both the front and rear of the wheel diagonally

opposite of the jacking position. For example, if the

driver’s front wheel is being changed, block the

passenger’s rear wheel.

Wheel Blocked Example

NOTE:

Passengers should not remain in the vehicle when the

vehicle is being raised or lifted.

J

ACK

 L

OCATION

/S

PARE

 T

IRE

S

TOWAGE

 — I

F

 E

QUIPPED

The jack and tools are located in the rear storage

compartment, under the load floor.

Jack And Tools Location

1. Open the liftgate.
2. Lift the access cover using the load floor handle.

Load Floor Handle

3. Remove the fastener securing the spare tire.

Spare Tire Fastener

WARNING!

Do not attempt to change a tire on the side of the

vehicle close to moving traffic. Pull far enough off the

road to avoid being hit when operating the jack or

changing the wheel.

7

CarManuals2.com

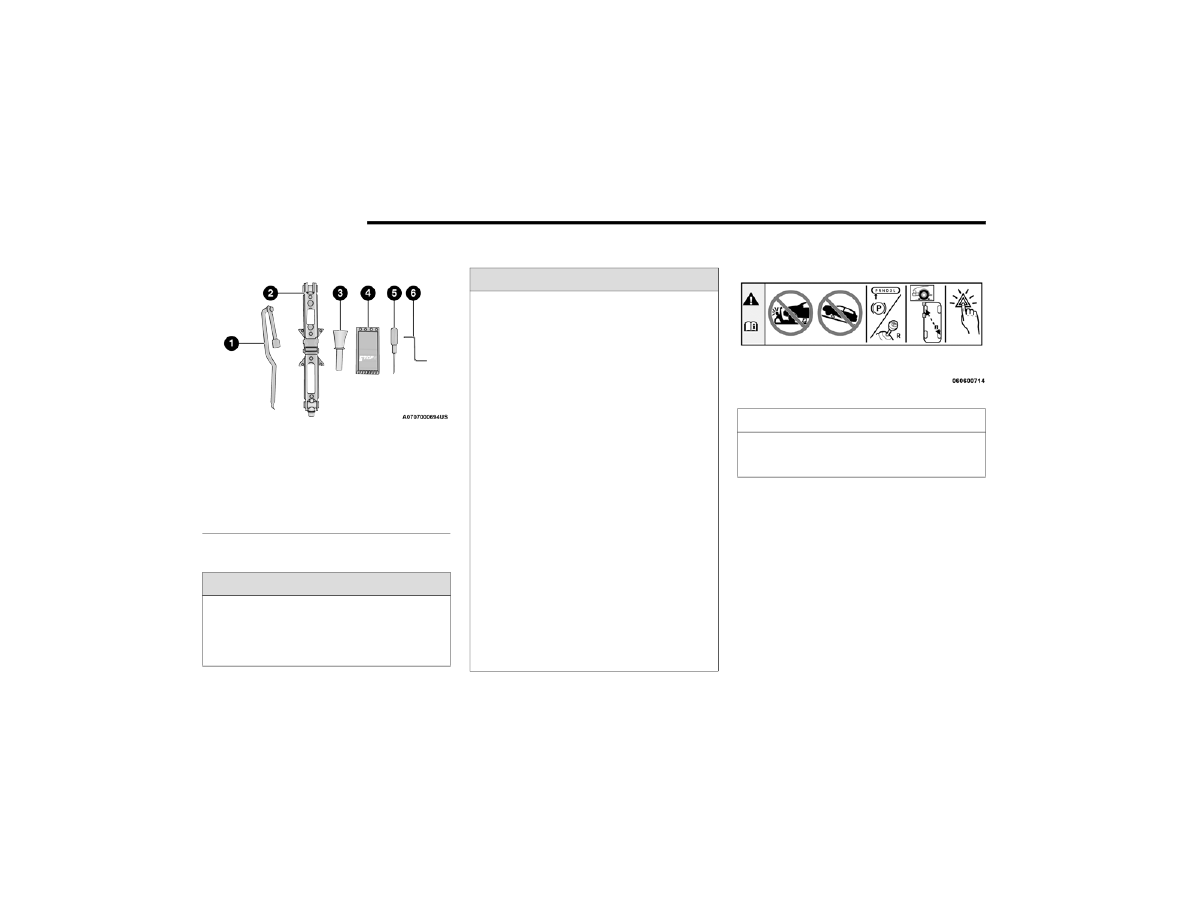

202

IN CASE OF EMERGENCY



4. Remove the jack, wheel bolt wrench, and wheel

chocks (if equipped).

Jack And Tools

5. Remove the spare tire.

J

ACKING

 I

NSTRUCTIONS



Jack Warning Label

1. Remove the spare tire, jack, and wheel bolt wrench.
2. If equipped with wheels where the center cap covers

the wheel bolts, use the wheel bolt wrench to pry the

center cap off carefully before raising the vehicle.

3. Before raising the vehicle, use the wheel bolt wrench

to loosen, but not remove, the wheel bolts on the

wheel with the flat tire. Turn the wheel bolts counter

-

clockwise one turn while the wheel is still on the

ground.

1 — Wheel Bolt Wrench
2 — Jack
3 — Emergency Funnel
4 — Wheel Chock (If Equipped)
5 — Screwdriver
6 — Emergency Allen Key

WARNING!

A loose tire or jack thrown forward in a collision or hard

stop could endanger the occupants of the vehicle.

Always stow the jack parts and the spare tire in the

places provided. Have the deflated (flat) tire repaired or

replaced immediately.

WARNING!

Carefully follow these tire changing warnings to help

prevent personal injury or damage to your vehicle:

Always park on a firm, level surface as far from the

edge of the roadway as possible before raising the

vehicle.

Turn on the Hazard Warning Flashers.

Apply the parking brake and place an automatic

transmission in PARK.

Block the wheel diagonally opposite of the wheel to

be raised.

Never start or run the engine with the vehicle on

a jack.

Do not let anyone sit in the vehicle when it is on

a jack.

Do not get under the vehicle when it is on a jack. If

you need to get under a raised vehicle, take it to a

service center where it can be raised on a lift.

Only use the jack in the positions indicated and for

lifting this vehicle during a tire change.

If working on or near a roadway, be extremely careful

of motor traffic.

To assure that spare tires, flat or inflated, are

securely stowed, spares must be stowed with the

valve stem facing the ground.

CAUTION!

Do not attempt to raise the vehicle by jacking on

locations other than those indicated in the Jacking

Instructions for this vehicle.

CarManuals2.com

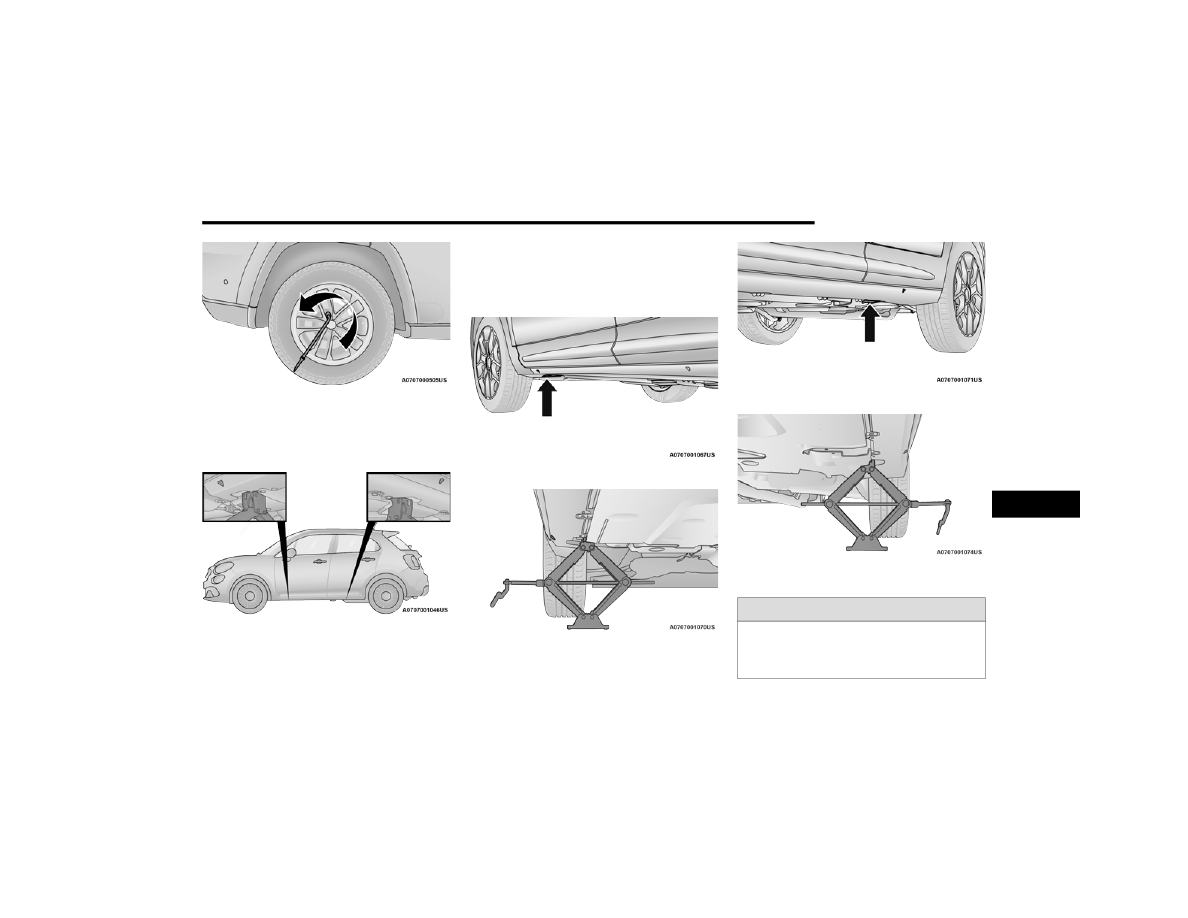

IN CASE OF EMERGENCY

203

Loosen The Wheel Bolt

NOTE:

Placement for the front and rear jacking locations are

critical. See the following images for proper jacking loca

-

tions.

Front And Rear Jacking Locations

4. Place the jack underneath the lift area that is closest

to the flat tire. Turn the jack screw clockwise to firmly

engage the jack saddle with the lift area of the sill

flange, centering the jack saddle inside the cutout in

the sill cladding.

Front Lifting Point

Front Jacking Location

Rear Lifting Point

Rear Jacking Location

5. Raise the vehicle just enough to remove the flat tire.

WARNING!

Raising the vehicle higher than necessary can make the

vehicle less stable. It could slip off the jack and hurt

someone near it. Raise the vehicle only enough to

remove the tire.

7

CarManuals2.com















Content      ..     4      5      6      7     ..
