140

MULTIMEDIA



DISCONNECTING OR DELETING A PHONE OR

AUDIO DEVICE

Uconnect 4/4 NAV With 7-inch Display

1. Press the Uconnect Phone Pairing or Settings

button.

2. Press the Paired Phones or Audio Sources button.
3. Press the Settings button located to the right of the

device name for a different phone or audio device

than the currently connected device or press the

preferred Connected Phone from the list.

4. The option’s pop-up will be displayed.
5. Press the Disconnect Device or the Delete Device

button on the touchscreen.

6. Press the X to exit out of the Settings screen.

MAKING A PHONE OR AUDIO DEVICE A

FAVORITE

1. On the Paired Phone/Audio Sources screen, press

the Settings button located to the right of the device

name for a different phone or audio device than the

currently connected device or press the preferred

“Connected Phone” from the list.

2. The option’s pop-up will be displayed.
3. Press the Make Favorite button on the touchscreen;

you will see the chosen device move to the top of

the list.

4. Press the X to exit out of the Settings screen.

PHONEBOOK DOWNLOAD (AUTOMATIC

PHONEBOOK TRANSFER FROM MOBILE

PHONE) — IF EQUIPPED

If supported by your phone, Uconnect Phone has the

ability to download contact names and number entries

from the mobile phone’s phonebook. Specific Bluetooth®

Phones with Phonebook Access Profile may support this

feature. Your mobile phone may receive a pop-up asking

for permission for the Uconnect system to access your

messages and contacts. Selecting “Ok” or “Allow” will sync

your contacts with the Uconnect system.

See the Uconnect website, UconnectPhone.com, for

supported phones.

To call a name from a downloaded mobile phonebook,

Ú

page 144.

Automatic download and update of a phonebook, if

supported, begins as soon as the Bluetooth® wireless

phone connection is made to the Uconnect Phone, for

example, after you start the vehicle.

A maximum of 5,000 contact names with four numbers

per contact will be downloaded and updated every time

a phone is connected to the Uconnect Phone.

Depending on the maximum number of entries

downloaded, there may be a short delay before the

latest downloaded names can be used. Until then, if

available, the previously downloaded phonebook is

available for use.

Only the phonebook of the currently connected mobile

phone is accessible.

This downloaded phonebook cannot be edited or

deleted on the Uconnect Phone. These can only be

edited on the mobile phone. The changes are

transferred and updated to Uconnect Phone on the

next phone connection.

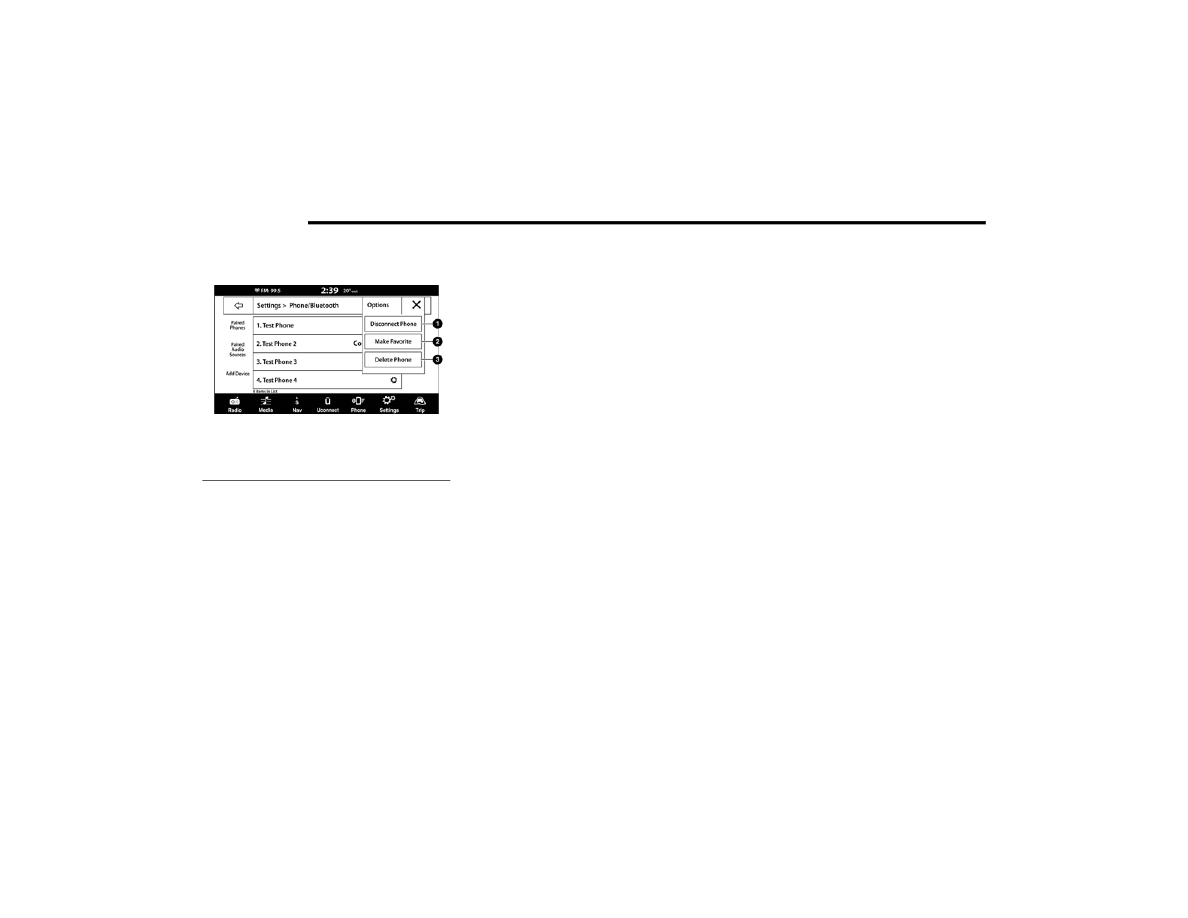

1 — Disconnect Device or Disconnect Phone
2 — Make Favorite
3 — Delete Device/Phone

CarManuals2.com

MULTIMEDIA

141

MANAGING YOUR FAVORITES — IF EQUIPPED

There are two ways you can add an entry to your favorites:
1. After loading the mobile phonebook, press the

Favorites button on the touchscreen, and then press

one of the +Add Favorite Contact buttons that

appears on the list.

2. After loading the mobile phonebook, select

“Contacts” from the Phone main screen, and then

select the appropriate number. Press the Down Arrow

button or the Settings Gear button next to the

selected number to display the option’s pop-up. In the

pop-up, select “Add to Favorites”.

NOTE:

If the Favorites list is full, you will be asked to remove an

existing favorite.

TO REMOVE A FAVORITE — IF EQUIPPED

1. To remove a Favorite, select “Favorites” from the

Phone main screen.

2. Next, select the Down Arrow icon or the Settings Gear

icon next to the contact you want to remove from your

favorites. This will bring up the options for that

Favorite contact.

3. Deselect the Star icon to delete the Favorite.

Phone Call Features

The following features can be accessed through the

Uconnect Phone if the feature(s) are available and

supported by Bluetooth® on your mobile service plan. For

example, if your mobile service plan provides three-way

calling, this feature can be accessed through the

Uconnect Phone. Check with your mobile service provider

for the features that you have.
Listed are the phone options with Uconnect:

Redial

Dial by pressing in the number

Voice Commands (Dial by Saying a Name, Call by

Saying a Phonebook Name, Redial or Call Back)

Favorites

Mobile Phonebook

Recent Call Log

SMS Message Viewer

CALL CONTROLS

The touchscreen allows you to control the following call

features:

Uconnect 4/4 NAV With 7-inch Display

Other phone call features include:

End Call

Hold/Unhold/Resume

Swap two active calls

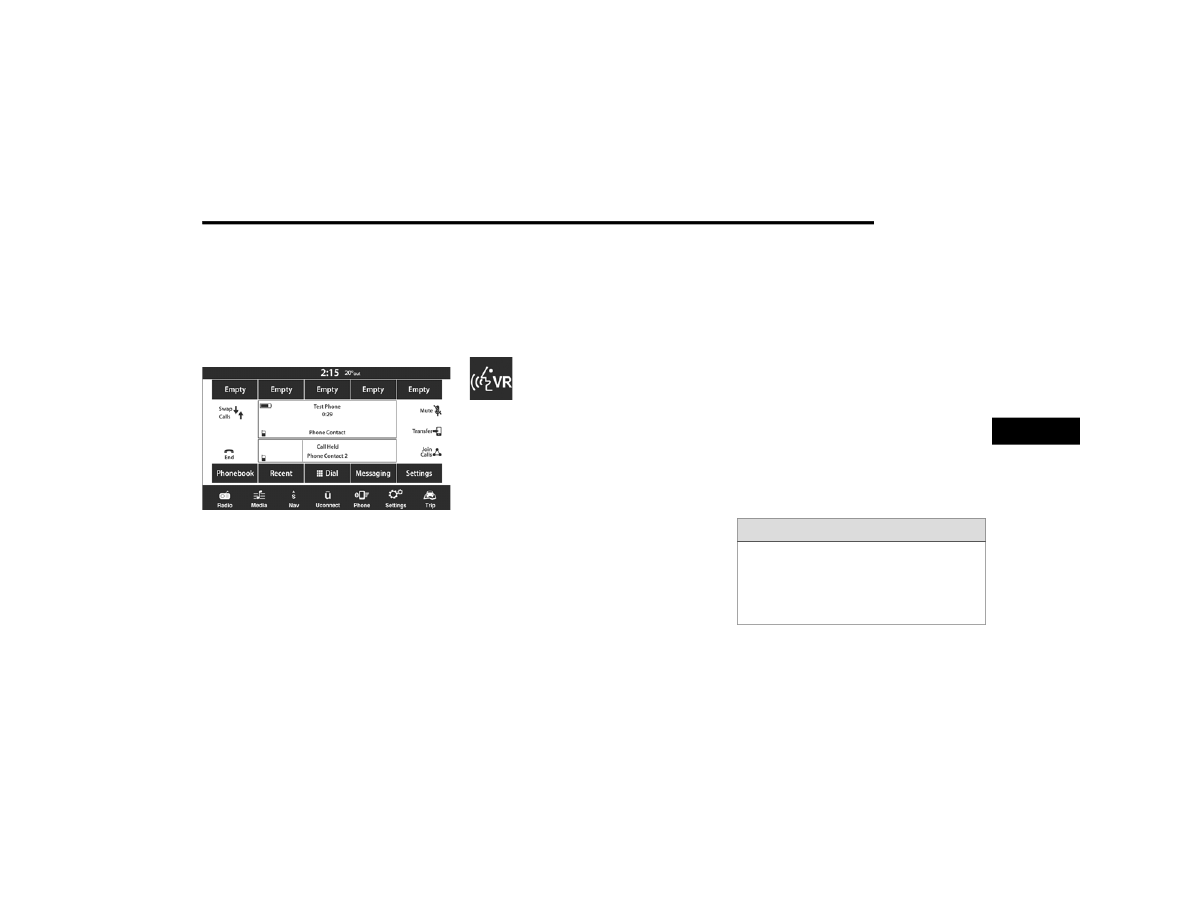

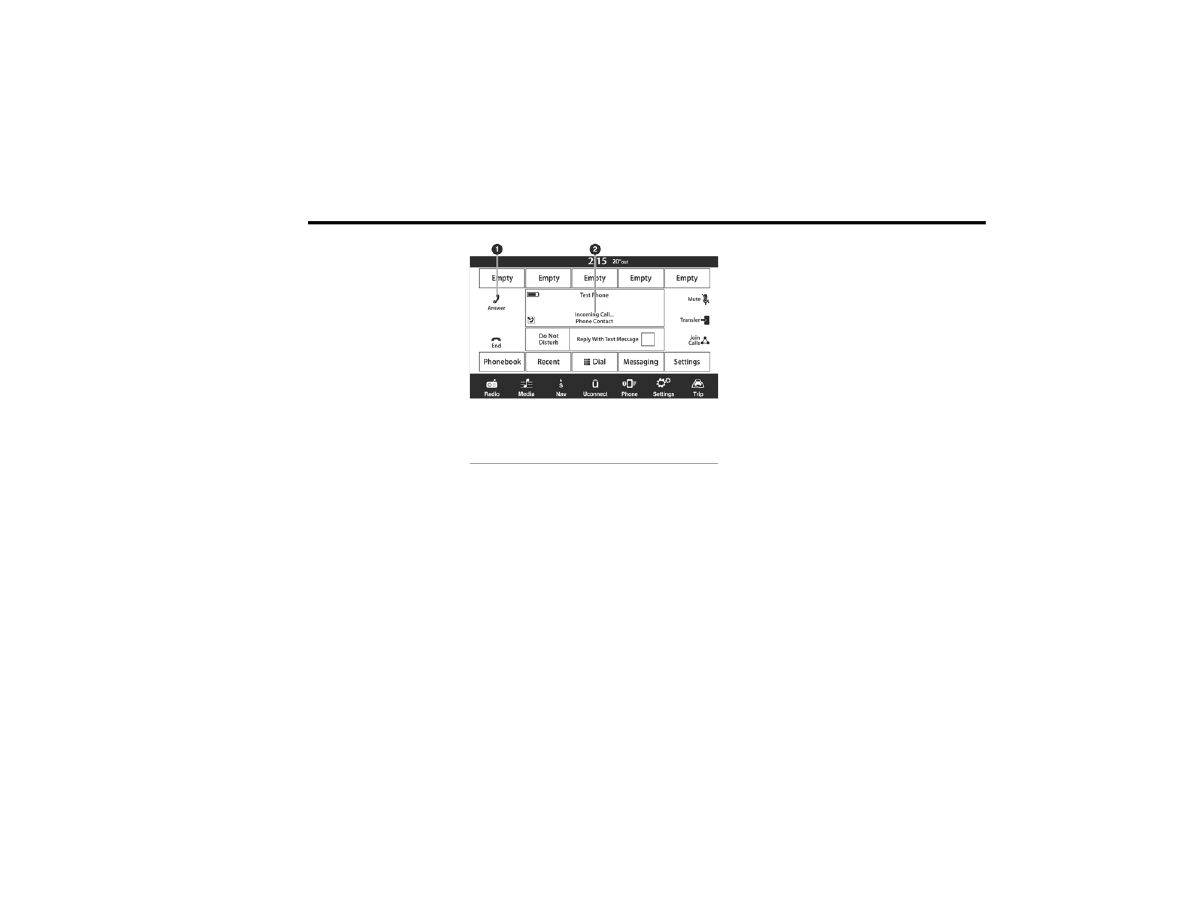

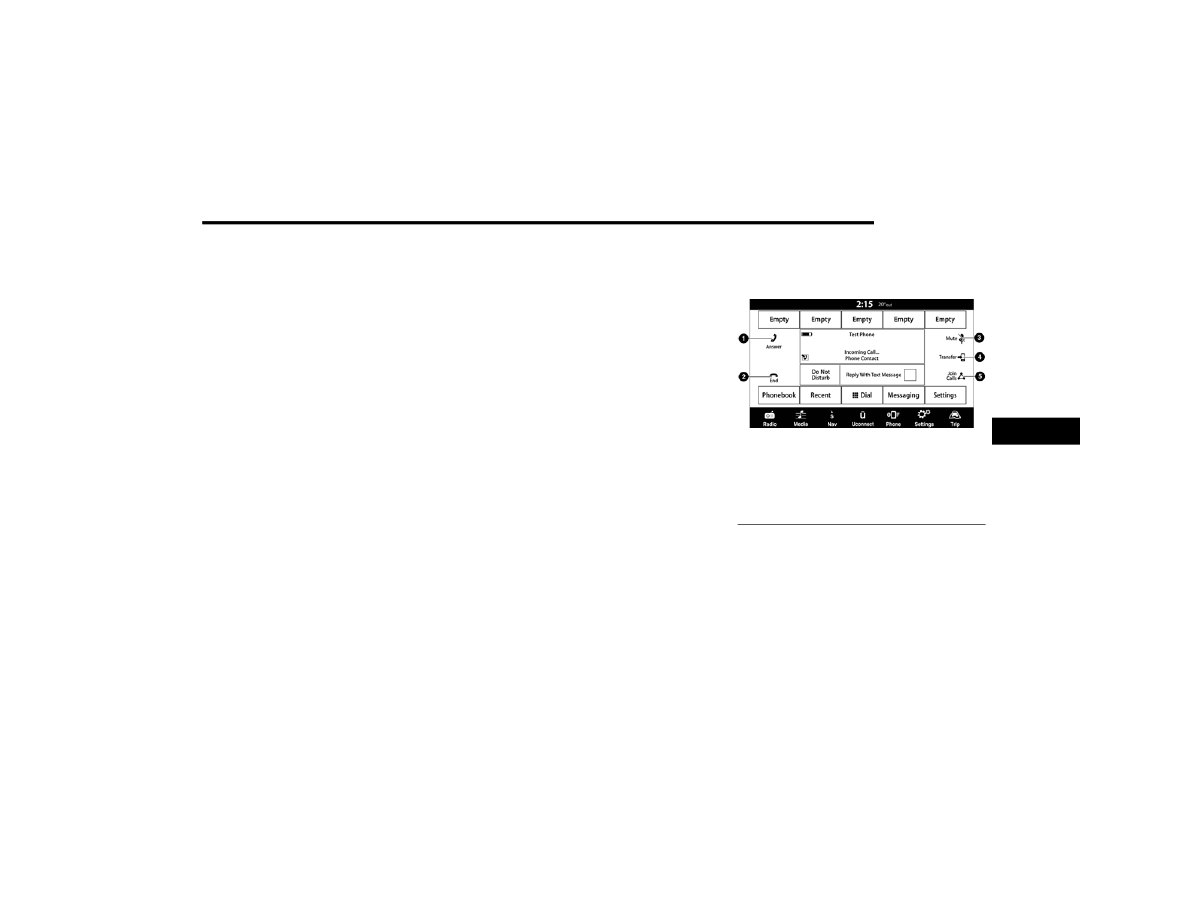

1 — Answer
2 — End
3 — Mute/Unmute
4 — Transfer
5 — Join Calls

5

CarManuals2.com

142

MULTIMEDIA



KEY PAD NUMBER ENTRY

1. Press the Phone button.
2. Press the Dial/Keypad button on the touchscreen.
3. The Touch-Tone screen will be displayed.
4. Use the numbered buttons on the touchscreens to

enter the number and press “Dial/Call”.

RECENT CALLS — IF EQUIPPED

You may browse a list of the most recent of each of the

following call types:

All Calls

Incoming Calls or Calls Received

Outgoing Calls or Calls Made

Missed Calls

These can be accessed by pressing the Recent Calls

button on the phone main screen.
You can also push the VR button on your steering wheel

and perform the operation. For example, say “Show my

incoming calls”.

ANSWER OR IGNORE AN INCOMING CALL —

NO CALL CURRENTLY IN PROGRESS

When you receive a call on your mobile phone, the

Uconnect Phone will interrupt the vehicle audio system.

Push the Phone button on the steering wheel, press the

Answer button on the touchscreen.
You can also press the Caller ID box to place the current

call on hold or answer the incoming call.

Uconnect 4/4 NAV With 7-inch Display

ANSWER OR IGNORE AN INCOMING CALL —

CALL CURRENTLY IN PROGRESS

If a call is currently in progress and you have another

incoming call, you will hear the same network tones for

call waiting that you normally hear when using your mobile

phone. Push the Phone button on the steering wheel,

press the Answer button on the touchscreen, or press the

Caller ID box to place the current call on hold and answer

the incoming call.

NOTE:

Phones that are compatible with the Uconnect system in

the market today do not support rejecting an incoming call

when another call is in progress. Therefore, the user can

only answer an incoming call or ignore it.

DO NOT DISTURB

With Do Not Disturb, you can disable notifications from

incoming calls and texts, allowing you to keep your eyes on

the road and hands on the wheel. For your convenience,

there is a counter display to keep track of your missed

calls and text messages while Do Not Disturb is active.
Do Not Disturb can automatically reply with a text

message, a call, or both when declining an incoming call

and send it to voicemail.
Automatic reply messages can be:

“I am driving right now, I will get back to you shortly”.

Create a custom auto reply message up to

160 characters.

NOTE:

Only the first 25 characters can be seen on the

touchscreen while typing a custom message.
While in Do Not Disturb, Conference Call can be selected

so you can still place a second call without being

interrupted by incoming calls.

NOTE:

Reply with text message is not compatible with

iPhone® devices.

Auto reply with text message is only available on

phones that support Bluetooth® Message Access

Profile (MAP).

PLACE/RETRIEVE A CALL FROM HOLD

During an active call, press the Hold or Call On Hold button

on the Phone main screen.

1 — Answer Button
2 — Caller ID Box

CarManuals2.com

MULTIMEDIA

143

MAKING A SECOND CALL WHILE CURRENT

CALL IS IN PROGRESS

You can place a call on hold by pressing the Hold button

on the Phone main screen, then dial a number from the

keypad (if supported by your mobile phone), recent calls,

SMS Inbox or from the phonebooks.

TOGGLING BETWEEN CALLS

Uconnect 4/4 NAV With 7-inch Display

If two calls are in progress (one active and one on hold),

press the Swap Calls button on the phone main screen.

Only one call can be placed on hold at a time.
You can also push the Phone button to toggle between the

active and held phone call.

JOIN CALLS

When two calls are in progress (one active and one on

hold), press the Join/Merge Calls button on the Phone

main screen to combine all calls into a conference call.

CALL TERMINATION

To end a call in progress, momentarily press the End Call

button on the touchscreen or the Phone End button on the

steering wheel. Only the active call(s) will be terminated

and if there is a call on hold, it will become the new active

call.

REDIAL

Push the VR button and after the “Listening”

prompt and the following beep, say “Redial.”
The Uconnect Phone will call the last number

that was dialed from your mobile phone.

CALL CONTINUATION

Call continuation is the progression of a phone call on the

Uconnect Phone after the vehicle ignition has been

switched to OFF.

NOTE:

The call will remain within the vehicle audio system until

the phone becomes out of range for the Bluetooth®

connection. It is recommended to press the Transfer

button on the touchscreen when leaving the vehicle.

Advanced Phone Connectivity

TRANSFER CALL TO AND FROM MOBILE

PHONE

The Uconnect Phone allows ongoing calls to be

transferred from your mobile phone without terminating

the call. To transfer an ongoing call from your connected

mobile phone to the Uconnect Phone or vice versa, press

the Transfer button on the Phone main screen.

Things You Should Know About Uconnect

Phone

VOICE COMMAND

For the best performance:

Always wait for the beep before speaking

Speak normally, without pausing, just as you would

speak to a person sitting a few feet/meters away

from you

Ensure that no one other than you is speaking during a

voice command period

Low-To-Medium Blower Setting

Low-To-Medium Vehicle Speed

Low Road Noise

Smooth Road Surface

Fully Closed Windows

Dry Weather Conditions

WARNING!

ALWAYS drive safely with your hands on the wheel. You

have full responsibility and assume all risks related to

the use of the Uconnect features and applications in

this vehicle. Only use Uconnect when it is safe to do so.

Failure to do so may result in an accident involving

serious injury or death.

5

CarManuals2.com

144

MULTIMEDIA



Even though the system is designed for many languages

and accents, the system may not always work for some.

NOTE:

It is recommended that you do not store names in your

Favorites phonebook while the vehicle is in motion.
Number and name recognition rate is optimized when the

entries are not similar. You can say “O” (letter “O”) for

“0” (zero).
Even though international dialing for most number

combinations is supported, some shortcut dialing number

combinations may not be supported.
Audio Performance
Audio quality is maximized under:

Low-To-Medium Blower Setting

Low-To-Medium Vehicle Speed

Low Road Noise

Smooth Road Surface

Fully Closed Windows

Dry Weather Conditions

Operation From The Driver's Seat

Performance such as audio clarity, echo, and loudness to

a large degree rely on the phone and network, and not the

Uconnect Phone.
Echo at the far end can sometimes be reduced by lowering

the in-vehicle audio volume.

Phone Voice Commands
Making and answering hands-free phone calls is easy with

Uconnect. When the Phonebook button is illuminated on

your touchscreen, your system is ready. Check

UconnectPhone.com for mobile phone compatibility and

pairing instructions.

Push the Phone button

 and wait for the beep to say a

command. See some examples:

“Call John Smith”

“Dial 123 456 7890”

“Redial” (call previous outgoing phone number)

“Call back” (call previously answered incoming phone

number)

Did You Know: When providing a Voice Command, push
the Phone button

 and say “Call”, then pronounce the

name exactly as it appears in your phonebook. When a

contact has multiple phone numbers, you can say

“Call John Smith work”.
Voice Text Reply — If Equipped
Uconnect can announce incoming text messages.
Push the VR button

 or Phone button

 and say:

1. “Listen” to have the system read an incoming text

message. (Must have compatible mobile phone

paired to Uconnect system.)

2. “Reply” after an incoming text message has been

read.
Listen to the Uconnect prompts. After the beep, re

-

peat one of the predefined messages and follow the

system prompts.

NOTE:

Only use the numbering listed in the provided table.

Otherwise, the system will not transpose the message.
Did You Know: Your mobile phone must have the full

implementation of the Message Access Profile (MAP) to

take advantage of this feature. For details about MAP, visit

UconnectPhone.com.
Apple® iPhone® iOS 5 or later supports reading incoming

text messages only. For further information on how to

enable this feature on your Apple® iPhone®, refer to your

iPhone® “User Manual”.
Did You Know: Voice Text Reply is not compatible with

iPhone®, but if your vehicle is equipped with Siri® Eyes

Free, you can use your voice to send a text message.

PRE-DEFINED VOICE TEXT REPLY RESPONSES

Yes.

Stuck in traffic.

See you later.

No.

Start without

me.

I’ll be late.

Okay.

Where are you?

I will be 5 <or

10, 15, 20, 25,

30, 45, 60>

minutes late.

Call me.

Are you there

yet?

I’ll call you later.

I need

directions.

See you in 5 <or

10, 15, 20, 25,

30, 45, 60>

minutes.

I’m on my way.

Can’t talk right

now.

I’m lost.

Thanks.

CarManuals2.com

MULTIMEDIA

145

Siri® Eyes Free — If Equipped
When used with your Apple® iPhone® connected to your

vehicle via Bluetooth®, Siri lets you use your voice to send

text messages, select media, place phone calls and much

more. Siri uses your natural language to understand what

you mean and responds back to confirm your requests.

The system is designed to keep your eyes on the road and

your hands on the wheel by letting Siri help you perform

useful tasks.
To enable Siri, push and hold, then release the Uconnect

Voice Recognition (VR) button on the steering wheel. After

you hear a double beep, you can ask Siri to play podcasts

and music, get directions, read text messages, and many

other useful requests.

BLUETOOTH® COMMUNICATION LINK

Mobile phones may lose connection to the Uconnect

Phone. When this happens, the connection can generally

be re-established by restarting the mobile phone. Your

mobile phone is recommended to remain in Bluetooth®

ON mode.

POWER-UP

After switching the ignition key from OFF to either the ON/

RUN or ACC position, or after a language change, you must

wait at least 15 seconds prior to using the system

Ú

page 277.

ANDROID AUTO™ & APPLE CARPLAY® —

IF EQUIPPED

A

NDROID

 A

UTO

™

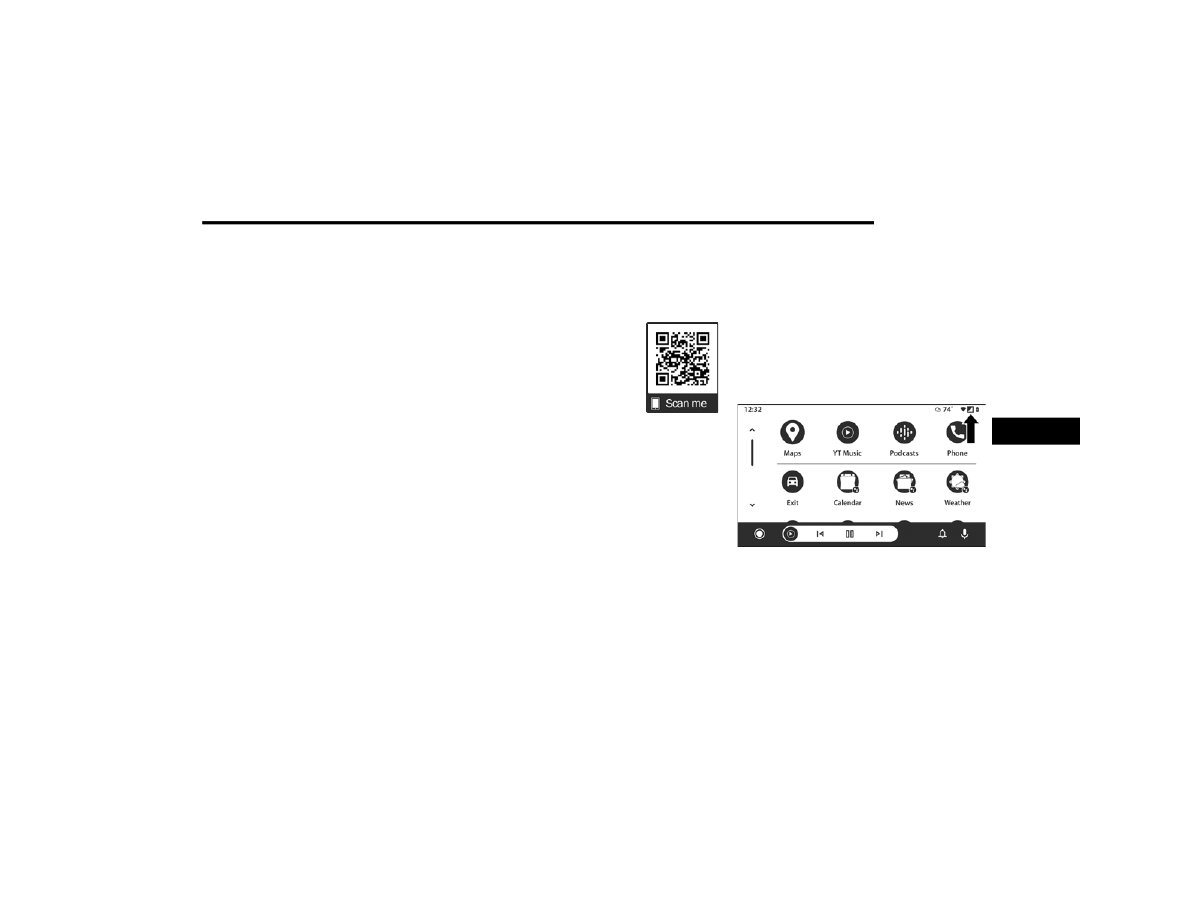

  Use this QR code to access your digital

experience.
Android Auto™ is a feature of your

Uconnect system, and your Android™

6.0 or higher powered smartphone

with a data plan, that allows you to

project your smartphone and a number

of its apps onto the touchscreen radio

display. Android Auto™ brings you useful information, and

organizes it into simple cards that appear just when they

are needed. Android Auto™ can be used with speech

technology, the steering wheel controls, the knobs and

buttons on your radio faceplate, and the radio display’s

touchscreen to control many of your apps. To use

Android Auto™, perform the following procedure:

NOTE:

Feature availability depends on your carrier and mobile

phone manufacturer. Some Android Auto™ features may

or may not be available in every region and/or language.

1. Download the Android Auto™ app from the Google

Play store on your Android™-powered smartphone.

2. Connect your Android™-powered smartphone to

one of the media USB ports in your vehicle. If the

Android Auto™ app was not downloaded, the first

time you plug your device in the app begins to

download. Your vehicle should be in PARK the first

time you use the app.

NOTE:

Be sure to use the factory-provided USB cable that came

with your phone, as aftermarket cables may not work.

Android Auto™ And LTE Data Coverage

NOTE:

To use Android Auto™, make sure you are in an area with

cellular coverage. Android Auto™ may use cellular data

and your cellular coverage is shown in the upper right

corner of the radio screen. Data plan rates apply.

5

CarManuals2.com

146

MULTIMEDIA



3. Once the device is connected and recognized, the

Phone icon on the drag & drop menu bar changes to

the Android Auto™ icon.

NOTE:

Android Auto™ is set to launch immediately once a

compatible device is connected. You can also launch it by

pressing the Android Auto™ icon on the touchscreen.
Once Android Auto™ is up and running on your Uconnect

system, the following features can be utilized using your

smartphone’s data plan:

Google Maps™ for navigation

YouTube Music, Spotify, iHeart Radio, etc. for music

Hands-free calling and texting for communication

Various compatible apps

Maps

Push and hold the Voice Recognition (VR)

button on the steering wheel until the beep or

tap the Microphone icon to ask Google to take

you to a desired destination by voice. You can

also touch the Navigation icon in Android Auto™ to access

other navigation apps.
While using Android Auto™, Google Maps™ provides

voice-guided:

Navigation

Live traffic information

Lane guidance

For further information, refer to www.android.com/auto/

(US) or https://www.android.com/intl/en_ca/auto/

(Canada).
For further information on the navigation function, please

refer to https://support.google.com/android or https://

support.google.com/androidauto/.

Music

Android Auto™ allows you to access and

stream your favorite music with apps like

YouTube Music, iHeartRadio, and Spotify.

Using your smartphone’s data plan, you can

stream endless music on the road.

NOTE:

Music apps, playlists, and stations must be set up on your

smartphone prior to using Android Auto™ for them to work

with Android Auto™.

NOTE:

To see the track details for the music playing through

Android Auto™, select the Uconnect system’s media

screen.
For further information, refer to https://

support.google.com/androidauto.

Communication

With Android Auto™ connected, push and hold

the VR button on the steering wheel to activate

voice recognition specific to Android Auto™.

This allows you to send and reply to text

messages, have incoming text messages read out loud,

and place and receive hands-free calls.

Apps

The Android Auto™ App displays all the compatible apps

that are available to use with Android Auto™, every time it

is launched. You must have the compatible app

downloaded, and you must be signed in to the app through

your mobile device for it to work with Android Auto™.
Refer to https://play.google.com/store/apps/ to see the

latest list of available apps for Android Auto™.

Android Auto™ Voice Command

NOTE:

Feature availability depends on your carrier and mobile

phone manufacturer. Some Android Auto™ features may

or may not be available in every region and/or language.
Android Auto™ allows you to use your voice to interact with

Android™ best-in-class speech technology through your

vehicle’s voice recognition system, and use your

smartphone’s data plan to project your Android™-powered

smartphone and a number of its apps onto your Uconnect

touchscreen. Connect your Android™ 6.0 or higher to one

of the media USB ports, using the factory-provided USB

cable, and press the new Android Auto™ icon that

replaces your Phone icon on the main menu bar to begin

Android Auto™.

CarManuals2.com

MULTIMEDIA

147

Push and hold the VR button on the steering wheel, or

press and hold the Microphone icon within Android Auto™,

to activate Android™ VR, which recognizes natural voice

commands, to use a list of your smartphone’s features:

Maps

Music

Phone

Text Messages

Additional Apps

NOTE:

To use Android Auto™ on your car display, you’ll need

an Android™ phone running Android™ 6.0 or higher, an

active data plan, and the Android Auto™ app.

To wirelessly use Android Auto™ on your car display,

you need a compatible Android™ smartphone with an

active data plan. You can check which smartphones

are compatible at g.co/androidauto/requirements.

Android™ is a trademark of Google Inc.

A

PPLE

 C

AR

P

LAY

®

 Use this QR code to access your digital

experience.
Uconnect works seamlessly with Apple

CarPlay®, the smarter, more secure

way to use your iPhone® in the car, and

stay focused on the road. Use your

Uconnect Touchscreen display, the

vehicle's knobs and controls, and your

voice with Siri to get access to Apple Music®, Maps,

Messages, and more.

NOTE:

Feature availability depends on your carrier and mobile

phone manufacturer. Some Apple CarPlay® features may

or may not be available in every region and/or language.
To use Apple CarPlay®, make sure you are using iPhone®

5 or later, have Siri enabled in Settings, ensure your

iPhone® is unlocked for the very first connection only, and

then use the following procedure:
1. Connect your iPhone® to one of the media USB

ports in your vehicle.

NOTE:

Be sure to use the factory-provided Lightning cable that

came with your phone, as aftermarket cables may not

work.

2. Once the device is connected and recognized, the

Phone icon on the drag & drop menu bar changes to

the Apple CarPlay® Icon.

NOTE:

Apple CarPlay® is set to launch immediately. You can also

launch it by pressing the Apple CarPlay® icon on the

touchscreen.

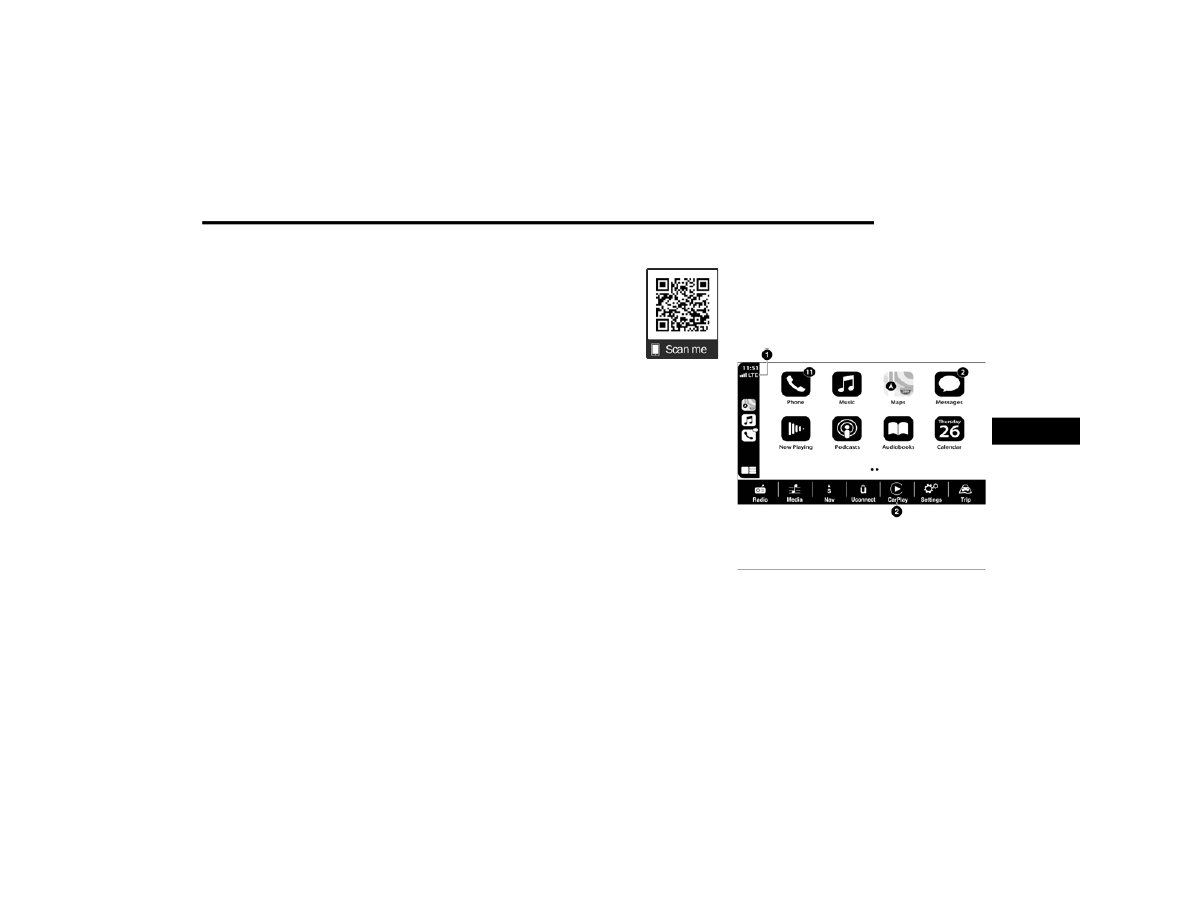

Apple CarPlay® And LTE Data Coverage

1 — LTE Data Coverage
2 — Apple CarPlay® Icon

5

CarManuals2.com

148

MULTIMEDIA



NOTE:

To use Apple CarPlay®, make sure that cellular data is

turned on, and that you are in an area with cellular

coverage. Your data and cellular coverage is shown on the

left side of the radio screen. Data plan rates apply.
Once Apple CarPlay® is up and running on your Uconnect

system, the following features can be utilized using your

iPhone® data plan:

Phone

Music

Messages

Maps

Phone

With Apple CarPlay®, push and hold the VR

button on the steering wheel to activate a Siri

voice recognition session. You can also press

and hold the Home button within Apple

CarPlay® to start talking to Siri. This allows you to make

calls or listen to voicemail as you normally would using Siri

on your iPhone®.

NOTE:

Only temporarily pushing the VR button on the steering

wheel launches a built-in Uconnect VR session, not a

Siri session, and it will not function with Apple CarPlay®.

Music

Apple CarPlay® allows you to access all your

artists, playlists, and music from iTunes® or

any third party application installed on your

device. Using your iPhone® data plan, you can

also use select third party audio apps including music,

news, sports, podcasts, and more.

Messages

Push and hold the VR button on the steering

wheel to activate a Siri voice recognition

session. Apple CarPlay® allows you to use Siri

to send or reply to text messages. Siri can also

read incoming text messages, but drivers will not be able

to read messages, as everything is done via voice.

Maps

Push and hold the VR button on the steering

wheel until the beep or tap the Microphone

icon to ask Apple® Siri to take you to a

desired destination by voice. You can also

touch the Navigation icon in Apple CarPlay® to access

Apple® Maps.

Apps

The Apple CarPlay® App plays all compatible apps that are

available to use, every time it is launched. You must have

the compatible app downloaded, and you must be signed

in to the app through your mobile device for it to work with

Apple CarPlay®.
Refer to http://www.apple.com/ios/carplay/ (US) or

https://www.apple.com/ca/ios/carplay/ (Canada) to see

the latest list of available apps for Apple CarPlay®.

Apple CarPlay® Voice Command

NOTE:

Feature availability depends on your carrier and mobile

phone maker. Some Apple CarPlay® features may not be

available in every region and/or language.
Apple CarPlay® allows you to use your voice to interact

with Siri through your vehicle’s voice recognition system,

and use your smartphone’s data plan to project your

iPhone® and a number of its apps onto your Uconnect

touchscreen.

CarManuals2.com

MULTIMEDIA

149

Connect your iPhone® 5 or higher to one of the media

USB ports, using the factory-provided Lightning cable, and

press the new Apple CarPlay® icon that replaces your

Phone icon on the main menu bar to begin Apple

CarPlay®. Push and hold the VR button on the steering

wheel, or press and hold the Home button within

Apple CarPlay®, to activate Siri, which recognizes natural

voice commands to use a list of your iPhone® features:

Phone

Music

Messages

Maps — If Equipped

Additional Apps — If Equipped

NOTE:

Apple CarPlay® is a trademark of Apple® Inc. iPhone® is

a trademark of Apple® Inc., registered in the US and other

countries. Apple® terms of use and privacy statements

apply.

A

NDROID

 A

UTO

™ A

ND

 A

PPLE



C

AR

P

LAY

® T

IPS

 A

ND

 T

RICKS

Android Auto™ And Apple CarPlay® Automatic Bluetooth®

Pairing
After connecting to Android Auto™ or Apple CarPlay® for

the first time and undergoing the setup procedure, the

smartphone pairs to the Uconnect system via Bluetooth®

without any setup required every time it is within range, if

Bluetooth® is turned on.

NOTE:

Apple CarPlay® uses a USB connection while Android

Auto™ uses both USB and Bluetooth® connections to

function. The connected device is unavailable to other

devices when connected using Android Auto™ or

Apple CarPlay®.
Multiple Devices Connecting To The Uconnect System —

If Equipped
It is possible to have multiple devices connected to the

Uconnect system. For example, if using Android Auto™/

Apple CarPlay®, the connected device will be used to

place hands-free phone calls or send hands-free text

messages. However, another device can also be paired to

the Uconnect system, via Bluetooth®, as an audio source,

so the passenger can stream music.

NOTE:

Apple CarPlay® and Android Auto™ can only be launched

from the front and center console USB ports.

NAVIGATION MODE — IF EQUIPPED

N

AVIGATION

 M

AIN

 M

ENU

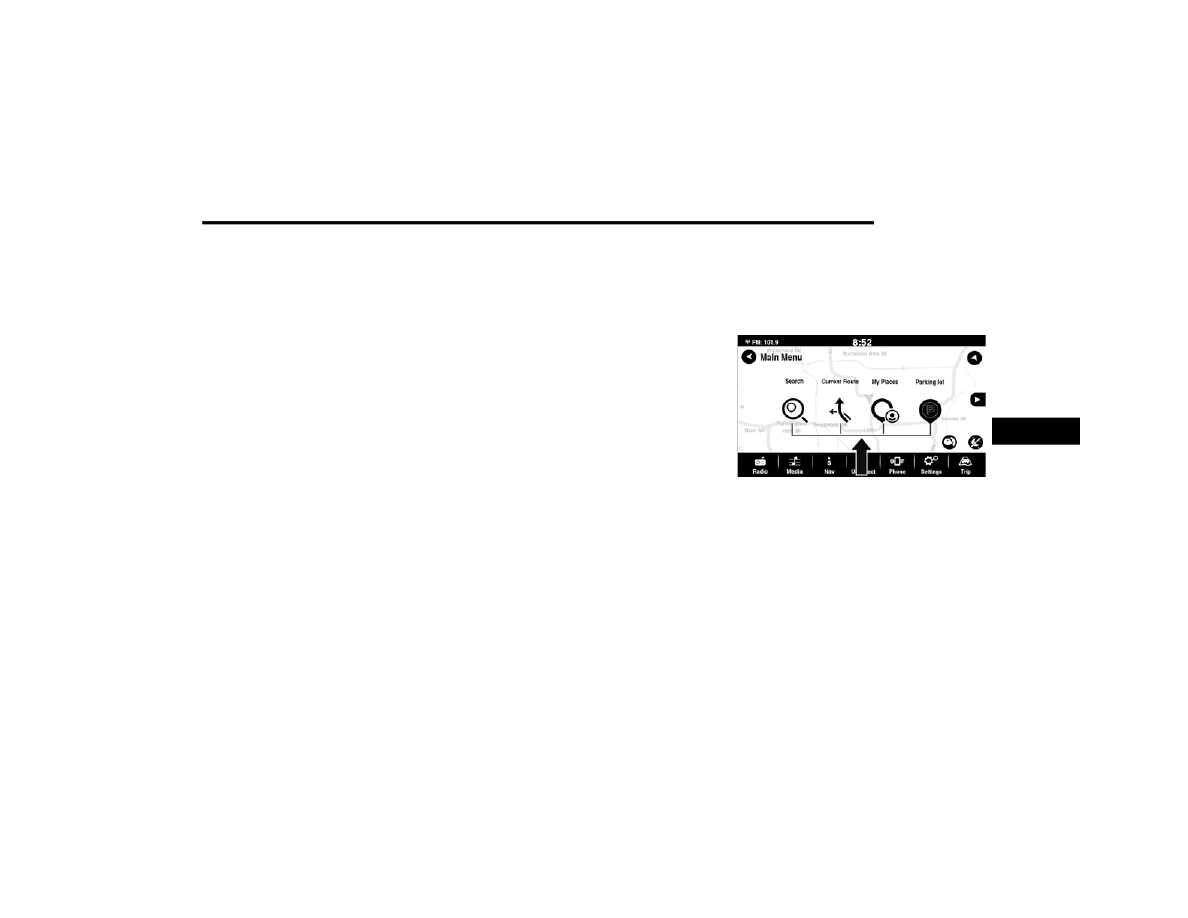

To access the Navigation system, press the Nav button on

the touchscreen.

Navigation Main Menu

5

CarManuals2.com

150

MULTIMEDIA



Search

Press to search for a Point Of Interest (POI) or

specific address.

Current Route

Press to view and edit the current route. This menu option

is only available when navigating to a destination.

My Places

Press to select from a list of saved destinations, including

the saved Home address, Work address, and

Recent destinations.

Parking

Press to open the map view with the nearest

parking locations.

Gas Station

Press to open the map view with the nearest

gas station locations.

Settings

Press to open up the settings menu and alter map and

route settings.

Help

Press to open up the help menu.

CarManuals2.com

MULTIMEDIA

151

N

AVIGATING

 A R

OUTE

Navigation Route View

Once a route is programmed, the map view will be

displayed and highlight the route as a light blue bar. The

route tracker is on the right side of the screen and shows

the time and distance to the final destination. It also

indicates stops and other points of interest along the way

with icons that move closer as you near them.

The direction distance is displayed at the top of the

screen, and the main menu can be accessed at any time

by pressing the Menu button: the four white dots in the

bottom left-hand corner of the screen. The route will

continue to display behind the menu as you travel along it.

S

EARCH

Search

To search for a destination and start navigation, follow

these steps:
1. While in the Navigation Main Menu, press the

Search button.

2. If searching using an address, begin typing the

address on the keyboard. If searching the name of a

destination, press “Point of Interest” first before

typing.

3. Select the location from the list. The display will

switch to the map view and will show the location of

the selected destination.

4. Press the Navigate button — the red steering wheel

icon — to begin navigating to the selected location.

NOTE:

Pressing the More button, the three dot icon, next to the

Navigate button brings up the options to add the desti

-

nation to the My Places menu, add the destination to the

current route, and more. Within More, you can use the

destination as a starting point and view information about

the location.

C

URRENT

 R

OUTE

From the Navigation Main Menu, press the Current Route

button on the touchscreen and select one of the following

to adjust or change your current route.

NOTE:

Current Route can only be selected from the Navigation

Main Menu if the navigation system is currently navigating

to a destination.

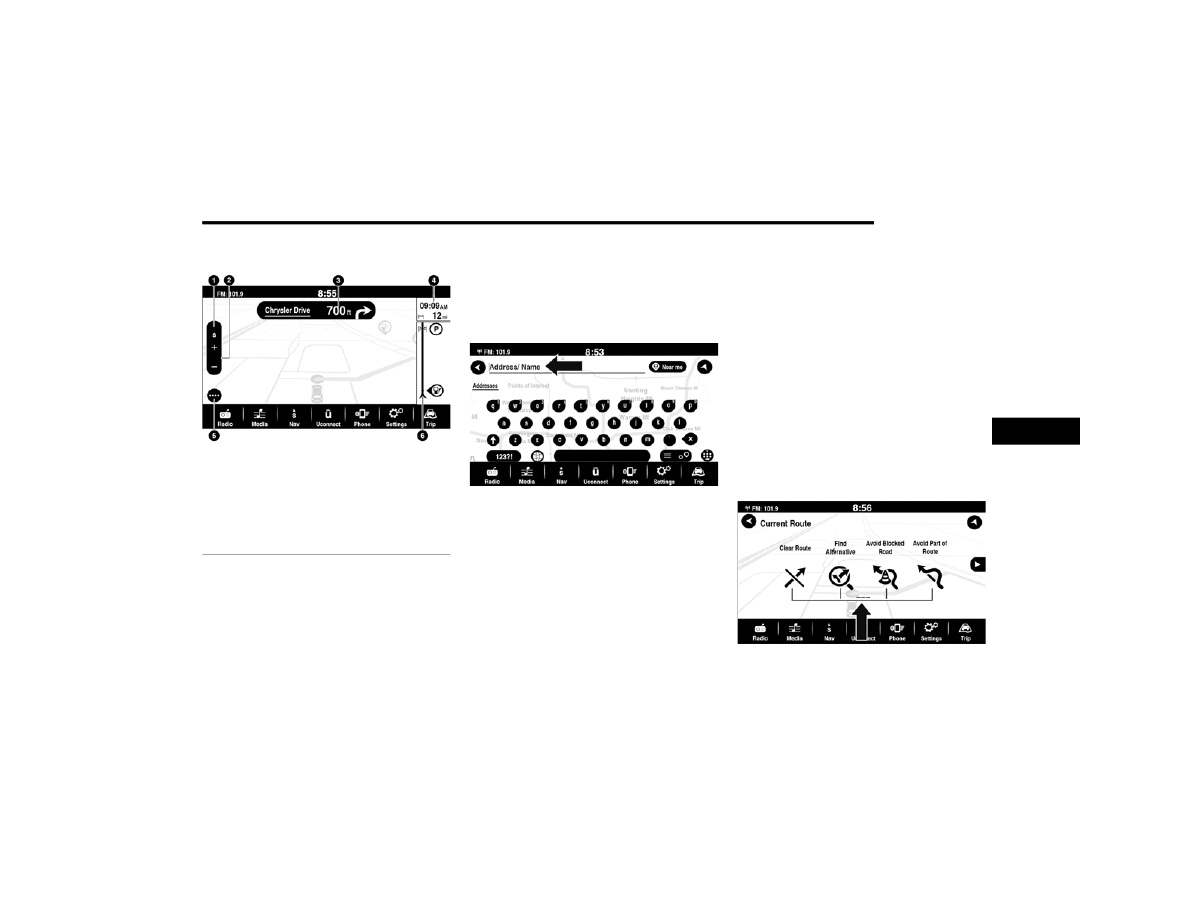

Current Route Options

1 — Navigation View Button
2 — Zoom Button
3 — Next Turn Instructions
4 — Arrival Time and Distance
5 — Main Menu Button
6 — Points Of Interest On Route

5

CarManuals2.com

152

MULTIMEDIA



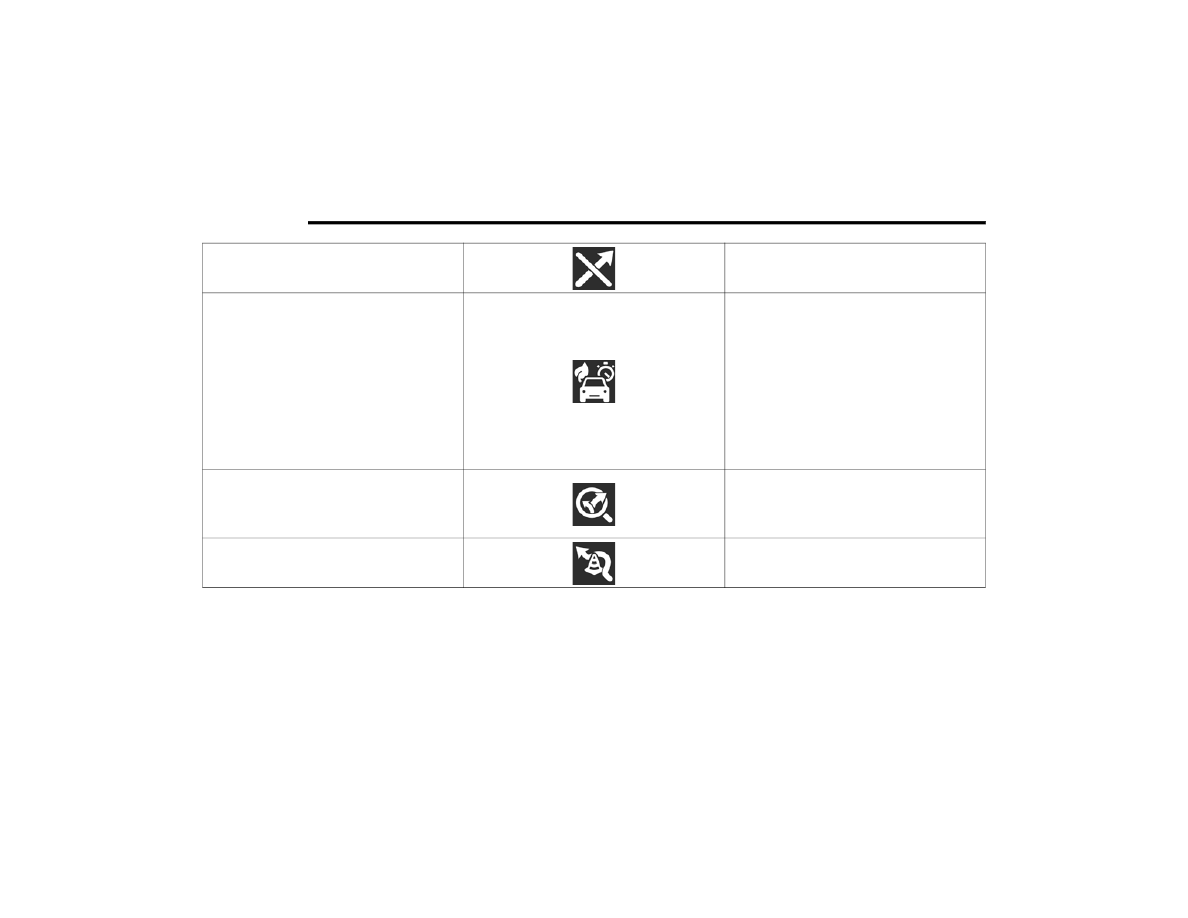

Clear Route

Press this button on the touchscreen to clear the current

route from the Navigation system.

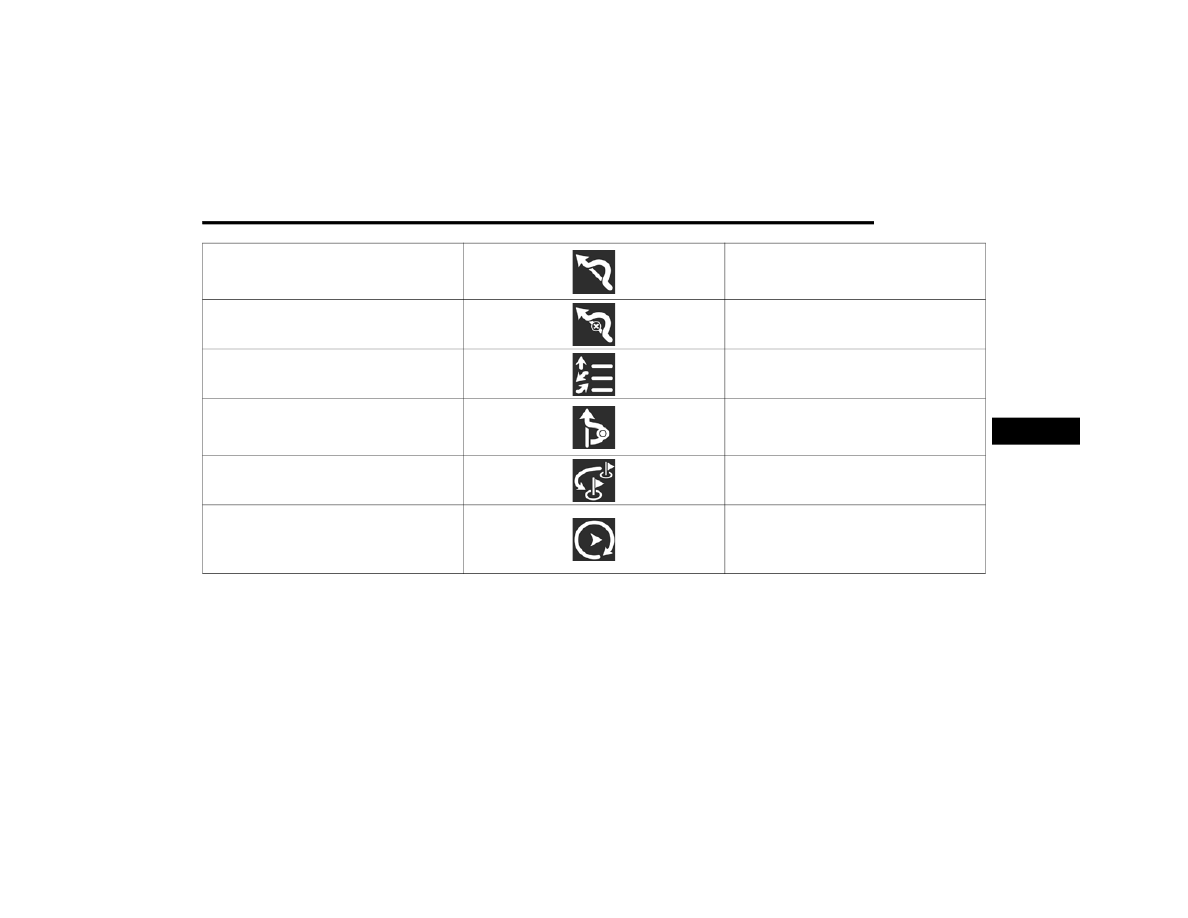

Change Route Type

Press this button on the touchscreen to change the

current routes type to one of the following options:

Fastest route: routes the vehicle to the destination

using the roads that will take the least amount of time.

Shortest route: routes the vehicle to the destination

using the roads that will be the shortest amount of total

distance traveled.

Most eco-friendly route: routes the vehicle to the

destination using the roads that will use the least

amount of fuel.

Avoid interstate highways: routes the vehicle to the

destination avoiding all interstate highways.

Find Alternative

Press this button on the touchscreen to view an overhead

view of your route, along with several others to choose

from. Each with the time difference between your current

route and these new ones. Select the colored button that

corresponds to the new route you want to take.

Avoid Blocked Road

Press this button on the touchscreen to select a road you

wish to avoid on your route that is blocked.

CarManuals2.com

MULTIMEDIA

153

Avoid Part Of Route

Press this button on the touchscreen to bring up the list of

directions for your current route. Select the part of the

route you wish to avoid and the system will reroute the

navigation track to your destination.

Avoid On This Route

Press this button on the touchscreen to select certain

types of roads to avoid on your navigational route.

Show Instructions

Press this button on the touchscreen to view the directions

of your route in list form.

Add Stop To Route

Press this button on the touchscreen to add an additional

stop to your current route. Pressing the Search button will

bring up the keyboard where you can type in the address

or name of the destination you wish to add.

Reorder Stops

Press this button on the touchscreen to reorder the

different stops on the current route.

Play Route Preview

Press this button on the touchscreen to begin a simulated

preview of what your route will look like. The vehicle icon

will begin traveling along your route until it reaches its

destination. You can also end the preview by returning to

the Current Route menu and selecting Stop Route Preview.

5

CarManuals2.com

154

MULTIMEDIA



M

Y

 P

LACES

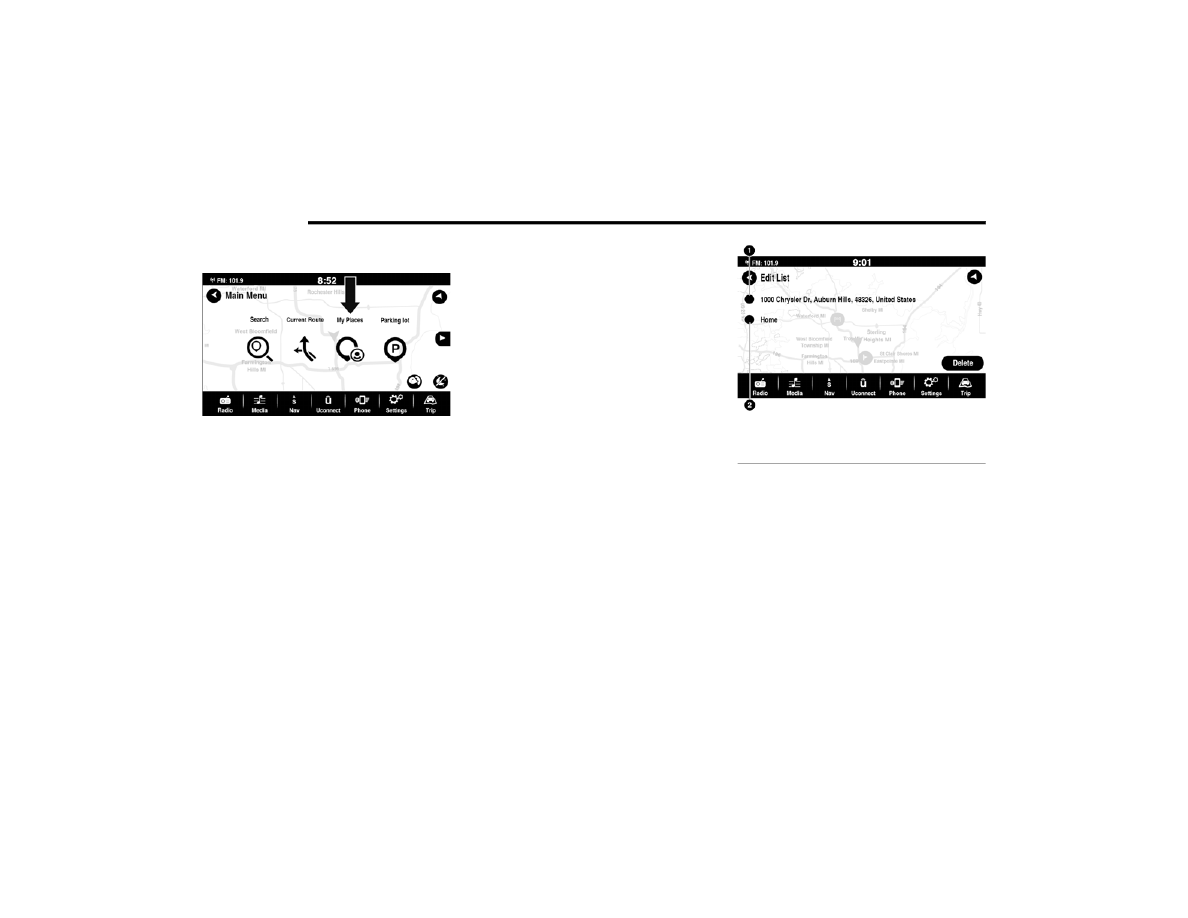

My Places

From the Navigation Main Menu, press the My Places

button on the touchscreen to display a list of saved

destinations. The following destinations are selectable

along with any other destinations that have been saved.

Home
Press the Home button to navigate to the saved Home

destination. If no Home destination is saved, the

Navigation system will ask you to search for the

destination to save as your Home destination.
Work
Press the Work button to navigate to the saved Work

destination. If no Work destination is saved, the

Navigation system will ask you to search for the

destination to save as your Work destination.
Recent Destinations
Press Recent Destinations button on the touchscreen to

display a list of destinations the Navigation system has

recently routed to for you to select.

NOTE:

The Add and Edit List buttons allow you to add, remove,

and reorder destinations that appear within the list.

Editing My Places

1 — Recent Destination Button
2 — Home Button

CarManuals2.com

MULTIMEDIA

155

P

ARKING

Searching For Parking

From the Navigation Main Menu, press the Parking button

on the touchscreen to bring up a view of your current

location on the map. Within this map view, blue “P” icons

will appear pointing out the locations of nearby parking lots.

Press the desired parking lot icon to bring up the location,

and select the steering wheel icon to navigate to it.

G

AS

 S

TATIONS

Searching For Gas Stations

From the Navigation Main Menu, press the Gas Stations

button on the touchscreen to bring up a view of your

current location on the map. Within this map view, white

“Gas Station” icons will appear pointing out the locations

of nearby gas stations. Press the desired gas station icon

to bring up its location, and select the steering wheel icon

to navigate to it.

S

ETTINGS

Navigation Settings

5

CarManuals2.com

156

MULTIMEDIA

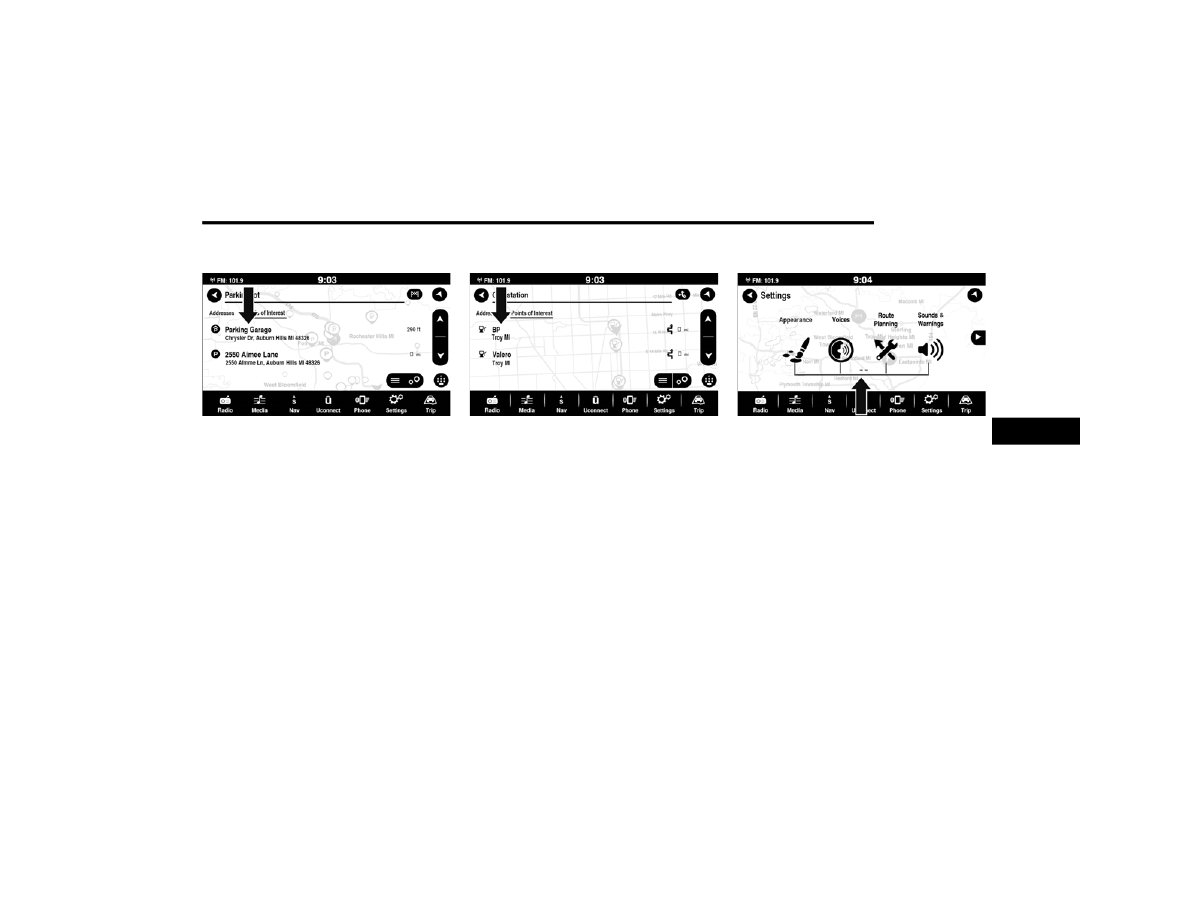

From the Navigation Main Menu, press the Settings button to open up the Settings menu. The following settings categories are selectable within the Settings Main Menu:

Appearance

Press this button to adjust the appearance settings of the

Navigation system. The appearance settings allow you to

alter whether or not the system switches to night colors

when it is dark, change the arrival information that is

displayed, change what appears on the route (i.e. highway

exits), when the system automatically zooms, and adjust

the guidance view style from 3D, 2D and whether or not to

show the 3D car icon.

Voices

Press this button to adjust what the Navigation system

calls out while navigating. The voices settings allow you to

turn on and off whether the system reads early

instructions, sign information, road numbers, street

names, and foreign street names out loud.

Route Planning

Press this button to adjust the route planning features of

the Navigation system. The route planning settings allow

you to change whether or not the system will prompt you

when a faster route is available, which type of route it

should plan when setting one (i.e. fastest, shortest, most

eco-friendly, or to avoid interstate highways), and what to

avoid on every route.

CarManuals2.com

MULTIMEDIA

157

RADIO OPERATION AND MOBILE PHONES

Under certain conditions, the mobile phone being on in

your vehicle can cause erratic or noisy performance from

your radio. This condition may be lessened or eliminated

by repositioning the mobile phone within the vehicle.

This condition is not harmful to the radio. If your radio

performance does not satisfactorily improve from

repositioning the mobile phone, it is recommended that

the volume be turned down or off during mobile phone

operation when not using the Uconnect system.

R

EGULATORY

 A

ND

 S

AFETY



I

NFORMATION

US/CANADA
Exposure to Radio Frequency Radiation
The radiated output power of the internal wireless radio is

far below the FCC and IC radio frequency exposure limits.

Nevertheless, the wireless radio will be used in such a

manner that the radio is 8 inches (20 cm) or further from

the human body.

The internal wireless radio operates within guidelines

found in radio frequency safety standards and

recommendations, which reflect the consensus of the

scientific community.
The radio manufacturer believes the internal wireless

radio is safe for use by consumers. The level of energy

emitted is far less than the electromagnetic energy

emitted by wireless devices such as mobile phones.

However, the use of wireless radios may be restricted in

some situations or environments, such as aboard

airplanes. If you are unsure of restrictions, you are

encouraged to ask for authorization before turning on

the wireless radio

Ú

page 277.

Sounds & Warnings

Press this button to adjust how the Navigation system

should warn you during a route. The sounds and warnings

settings allows you to set the warning type the system will

sound, and whether or not to warn you when the vehicle is

traveling above the speed limit.

System

Press this button to reset the Navigation system. This will

reset the Navigation system to its factory setting and

remove all saved data.

Help

Press the question mark icon to enter the Help menu.

Within the Help menu, you may view the About page that

displays system information.

5

CarManuals2.com

158

(Continued)

SAFETY

SAFETY FEATURES

A

NTI

-L

OCK

 B

RAKE

 S

YSTEM

 (ABS)

The ABS provides increased vehicle stability and brake

performance under most braking conditions. The system

automatically prevents wheel lock and enhances vehicle

control during braking.
The ABS performs a self-check cycle to ensure that the

ABS is working properly each time the vehicle is started

and driven. During this self-check, you may hear a slight

clicking sound as well as some related motor noises.
The ABS is activated during braking when the system

detects one or more wheels are beginning to lock.

Road conditions such as ice, snow, gravel, bumps, railroad

tracks, loose debris, or panic stops may increase the

likelihood of ABS activation(s).
You also may experience the following normal

characteristics when the ABS activates:

The ABS motor noise or clicking sounds (you may

continue to hear for a short time after the stop).

Brake pedal pulsations.

A slight drop of the brake pedal at the end of the stop.

The ABS is designed to function with the Original

Equipment Manufacturer (OEM) tires. Modification may

result in degraded ABS performance.

Anti-Lock Brake System (ABS) Warning

Light

The yellow ABS Warning Light will turn on when the ignition

is placed in the ON/RUN mode and may stay on for as long

as four seconds.
If the ABS Warning Light remains on or comes on while

driving, it indicates that the anti-lock portion of the brake

system is not functioning and that service is required.

However, the conventional brake system will continue to

operate normally if the ABS Warning Light is on.
If the ABS Warning Light is on, the brake system should be

serviced as soon as possible to restore the benefits of

Anti-Lock Brakes. If the ABS Warning Light does not come

on when the ignition is placed in ON/RUN mode, have the

light repaired as soon as possible.

WARNING!

The ABS contains sophisticated electronic equip

-

ment that may be susceptible to interference caused

by improperly installed or high output radio transmit

-

ting equipment. This interference can cause possible

loss of anti-lock braking capability. Installation of

such equipment should be performed by qualified

professionals.

Pumping of the Anti-Lock Brakes will diminish their

effectiveness and may lead to a collision. Pumping

makes the stopping distance longer. Just press firmly

on your brake pedal when you need to slow down or

stop.

The ABS cannot prevent the natural laws of physics

from acting on the vehicle, nor can it increase

braking or steering efficiency beyond that afforded

by the condition of the vehicle brakes and tires or the

traction afforded.

The ABS cannot prevent collisions, including those

resulting from excessive speed in turns, following

another vehicle too closely, or hydroplaning.

The capabilities of an ABS equipped vehicle must

never be exploited in a reckless or dangerous

manner that could jeopardize the user’s safety or the

safety of others.

WARNING!

CarManuals2.com

SAFETY

159

E

LECTRONIC

 B

RAKE

 C

ONTROL

 (EBC)

S

YSTEM



Your vehicle is equipped with an advanced Electronic

Brake Control (EBC) system. This system includes

Anti-Lock Brake System (ABS), Brake Assist System (BAS),

Dynamic Steering Torque (DST), Electronic Brake Force

Distribution (EBD), Electronic Stability Control (ESC),

Electronic Roll Mitigation (ERM), Hill Start Assist (HSA),

and Traction Control System (TCS). These systems work

together to enhance both vehicle stability and control in

various driving conditions.

Brake System Warning Light

The red Brake System Warning Light will turn on when the

ignition is placed in the ON/RUN mode and may stay on for

as long as four seconds.
If the Brake System Warning Light remains on or comes on

while driving, it indicates that the brake system is not

functioning properly and that immediate service is

required. If the Brake System Warning Light does not

come on when the ignition is placed in the ON/RUN mode,

have the light repaired as soon as possible.

Brake Assist System (BAS)

The BAS is designed to optimize the vehicle’s braking

capability during emergency braking maneuvers. The

system detects an emergency braking situation by sensing

the rate and amount of brake application and then applies

optimum pressure to the brakes. This can help reduce

braking distances. The BAS complements the Anti-Lock

Brake System (ABS). Applying the brakes very quickly

results in the best BAS assistance. To receive the benefit

of the system, you must apply continuous braking

pressure during the stopping sequence (do not “pump”

the brakes). Do not reduce brake pedal pressure unless

braking is no longer desired. Once the brake pedal is

released, the BAS is deactivated.

Dynamic Steering Torque (DST)

DST is a feature of the ESC and Electric Power Steering

(EPS) modules that provides torque at the steering wheel

for certain driving conditions in which the ESC module is

detecting vehicle instability. The torque that the steering

wheel receives is only meant to help the driver realize

optimal steering behavior in order to reach/maintain

vehicle stability. The only notification the driver receives

that the feature is active is the torque applied to the

steering wheel.

NOTE:

The DST feature is only meant to help the driver realize the

correct course of action through small torques on the

steering wheel, which means the effectiveness of the DST

feature is highly dependent on the driver’s sensitivity and

overall reaction to the applied torque. It is very important

to realize that this feature will not steer the vehicle,

meaning the driver is still responsible for steering the

vehicle.

Electronic Brake Force Distribution (EBD)

EBD manages the distribution of the braking torque

between the front and rear axles by limiting braking

pressure to the rear axle. This is done to prevent overslip of

the rear wheels to avoid vehicle instability, and to prevent

the rear axle from entering ABS before the front axle.

WARNING!

The Brake Assist System (BAS) cannot prevent the

natural laws of physics from acting on the vehicle, nor

can it increase the traction afforded by prevailing road

conditions. BAS cannot prevent collisions, including

those resulting from excessive speed in turns, driving on

very slippery surfaces, or hydroplaning. The capabilities

of a BAS-equipped vehicle must never be exploited in a

reckless or dangerous manner, which could jeopardize

the user's safety or the safety of others.

6

CarManuals2.com

160

SAFETY



Electronic Roll Mitigation (ERM)

ERM anticipates the potential for wheel lift by monitoring

the driver’s steering wheel input and the speed of the

vehicle. When ERM determines that the rate of change of

the steering wheel angle and vehicle’s speed are

sufficient to potentially cause wheel lift, it then applies the

appropriate brake and may also reduce engine power to

lessen the chance that wheel lift will occur. ERM can only

reduce the chance of wheel lift occurring during severe or

evasive driving maneuvers; it cannot prevent wheel lift

due to other factors, such as road conditions, leaving the

roadway, striking objects or other vehicles.

Electronic Stability Control (ESC)

ESC enhances directional control and stability of the

vehicle under various driving conditions. ESC corrects for

oversteering or understeering of the vehicle by applying

the brake of the appropriate wheel(s) to counteract these

conditions. Engine power may also be reduced to help the

vehicle maintain the desired path.

Oversteer - when the vehicle is turning more than

appropriate for the steering wheel position.

Understeer - when the vehicle is turning less than

appropriate for the steering wheel position.

ESC uses sensors in the vehicle to determine the vehicle

path intended by the driver and compares it to the actual

path of the vehicle. When the actual path does not match

the intended path, ESC applies the brake of the

appropriate wheel to assist in counteracting the oversteer

or understeer condition.
The ESC Activation/Malfunction Indicator Light located in

the instrument cluster will start to flash as soon as the ESC

system becomes active. The ESC Activation/Malfunction

Indicator Light also flashes when the TCS is active. If the

ESC Activation/Malfunction Indicator Light begins to flash

during acceleration, ease up on the accelerator and apply

as little throttle as possible. Be sure to adapt your speed

and driving to the prevailing road conditions.

WARNING!

Many factors, such as vehicle loading, road conditions

and driving conditions, influence the chance that wheel

lift or rollover may occur. ERM cannot prevent all wheel

lift or rollovers, especially those that involve leaving the

roadway or striking objects or other vehicles. The

capabilities of an ERM-equipped vehicle must never be

exploited in a reckless or dangerous manner which

could jeopardize the user's safety or the safety of

others.

WARNING!

Electronic Stability Control (ESC) cannot prevent the

natural laws of physics from acting on the vehicle, nor

can it increase the traction afforded by prevailing road

conditions. ESC cannot prevent accidents, including

those resulting from excessive speed in turns, driving

on very slippery surfaces, or hydroplaning. ESC also

cannot prevent accidents resulting from loss of

vehicle control due to inappropriate driver input for

the conditions. Only a safe, attentive, and skillful

driver can prevent accidents. The capabilities of an

ESC equipped vehicle must never be exploited in a

reckless or dangerous manner which could jeopardize

the user’s safety or the safety of others.

Vehicle modifications, or failure to properly maintain

your vehicle, may change the handling characteris

-

tics of your vehicle, and may negatively affect the

performance of the ESC system. Changes to the

steering system, suspension, braking system, tire

type and size or wheel size may adversely affect ESC

performance. Improperly inflated and unevenly worn

tires may also degrade ESC performance. Any vehicle

modification or poor vehicle maintenance that

reduces the effectiveness of the ESC system can

increase the risk of loss of vehicle control, vehicle

rollover, personal injury and death.

CarManuals2.com

SAFETY

161

ESC Operation Modes
To disable ESC and other active safety systems, follow the

instruction provided.
There are two operation modes of active safety systems

on the vehicle:

ESC On

Partial Off

ESC On
All active safety systems are enabled. This is the normal

operating mode when driving a vehicle.
This mode should be used in most driving conditions.

The system will be in "ESC On" mode every time the

engine is started

NOTE:

You are advised to select "Partial Off " mode only for

specific driving requirements.
Partial Off

By pressing the ESC OFF

 button located below the

radio screen when driving, the intervention of the ESC and

TCS systems is limited to braking action on the single

wheels.
The other systems remain enabled. Activation of this

mode is indicated by the warning lamp on the instrument

panel switching on (if equipped, together with a message

on the display).

To restore "ESC On" operating mode, press the button

below the radio screen again.
"ESC On" mode will automatically reactivate every time the

engine is started.

NOTE:

When traveling on snowy roads with snow chains, it may

be helpful to activate "Partial Off" mode: in these condi

-

tions, you can obtain better traction by slipping the drive

wheels.

Hill Start Assist (HSA)

HSA is designed to mitigate roll back from a complete stop

while on an incline. If the driver releases the brake while

stopped on an incline, HSA will continue to hold the brake

pressure for a short period. If the driver does not apply the

throttle before this time expires, the system will release

brake pressure and the vehicle will roll down the hill as

normal.

The following conditions must be met in order for HSA to

activate:

The feature must be enabled.

The vehicle must be stopped.

The parking brake must be off.

The driver door must be closed.

The vehicle must be on a sufficient grade.

The gear selection must match vehicle uphill direction

(i.e., vehicle facing uphill is in forward gear; vehicle

backing uphill is in REVERSE gear).

HSA will work in REVERSE gear and all forward gears.

The system will not activate if the transmission is in

PARK or NEUTRAL. For vehicles equipped with a

manual transmission, if the clutch is pressed, HSA will

remain active.

WARNING!

When in “Partial Off” mode, the TCS functionality of

ESC, except for the limited slip feature described in the

Traction Control System (TCS) section, has been

disabled and the ESC OFF Indicator Light will be

illuminated. When in “Partial Off” mode, the engine

power reduction feature of TCS is disabled, and the

enhanced vehicle stability offered by the ESC system is

reduced.

WARNING!

There may be situations where the Hill Start Assist

(HSA) will not activate and slight rolling may occur, such

as on minor hills or with a loaded vehicle, or while

pulling a trailer. HSA is not a substitute for active driving

involvement. It is always the driver’s responsibility to be

attentive to distance to other vehicles, people, and

objects, and most importantly brake operation to

ensure safe operation of the vehicle under all road

conditions. Your complete attention is always required

while driving to maintain safe control of your vehicle.

Failure to follow these warnings can result in a collision

or serious personal injury.

6

CarManuals2.com

162

SAFETY



Disabling And Enabling HSA

This feature can be turned on or turned off. To change the

current settings in the instrument cluster display see

Ú

page 53.

Traction Control System (TCS)

The TCS monitors the amount of wheel spin of each of the

driven wheels. If wheel spin is detected, the TCS may apply

brake pressure to the spinning wheel(s) and/or reduce

vehicle power to provide enhanced acceleration and

stability. A feature of the TCS, Brake Limited Differential

(BLD) functions similarly to a limited slip differential and

controls the wheel spin across a driven axle. If one wheel

on a driven axle is spinning faster than the other, the

system will apply the brake of the spinning wheel. This will

allow more vehicle torque to be applied to the wheel that

is not spinning. BLD may remain enabled even if TCS and

ESC are in reduced modes.

AUXILIARY DRIVING SYSTEMS

B

LIND

 S

POT

 M

ONITORING

 (BSM) —

I

F

 E

QUIPPED



BSM uses two radar sensors, located inside the rear

fascia/bumper, to detect highway licensable vehicles

(automobiles, trucks, motorcycles, etc.) that enter the

blind spot zones from the rear/front/side of the vehicle.

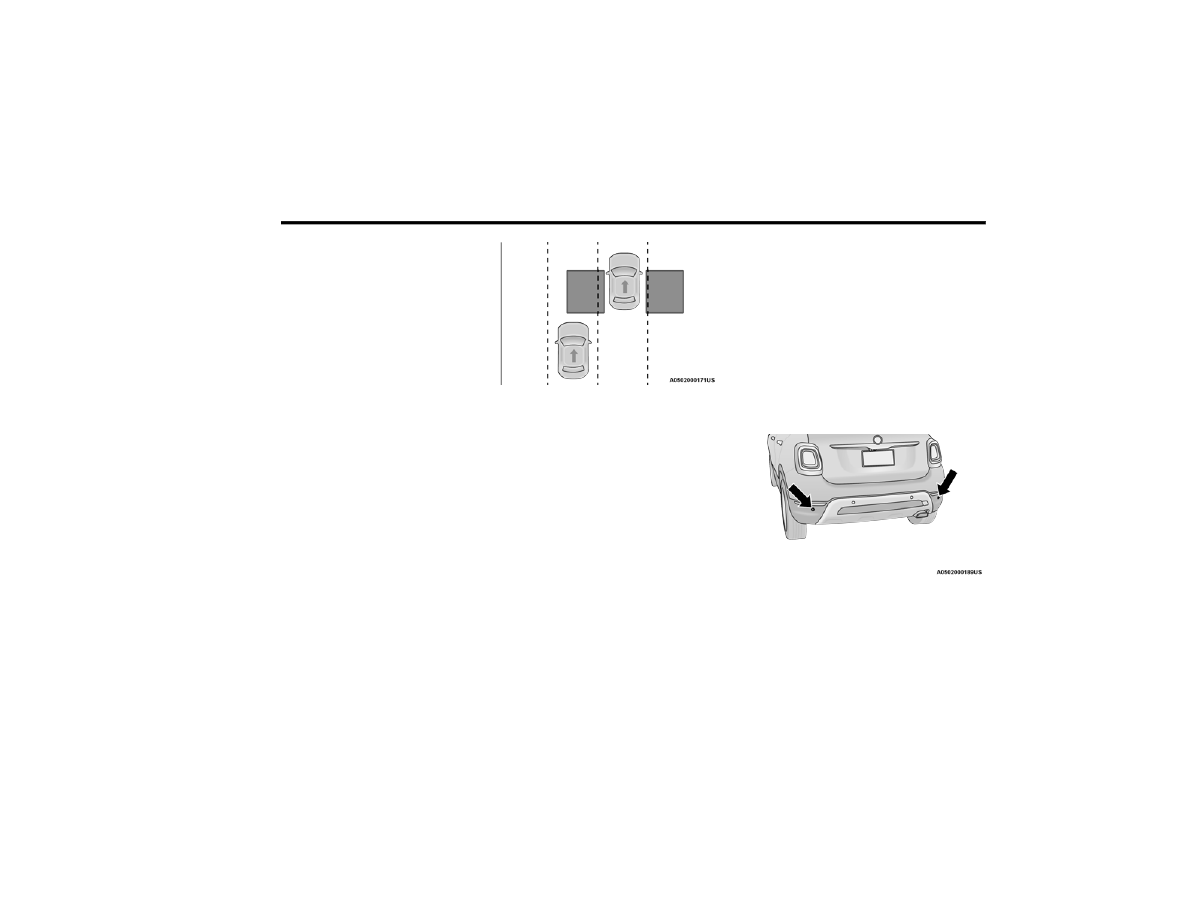

Rear Detection Zones

When the vehicle is started, the BSM Warning Light will

momentarily illuminate in both outside rearview mirrors to

let the driver know that the system is operational. The

BSM system sensors operate when the vehicle is in any

forward gear and enters standby mode when the vehicle is

in PARK.
The BSM detection zone covers approximately one lane

width on both sides of the vehicle, 10 ft (3 m). The zone

length starts at the outside mirror and extends

approximately 20 ft (6 m) beyond the rear fascia/bumper

of the vehicle. The BSM system monitors the detection

zones on both sides of the vehicle when the vehicle speed

reaches approximately 6 mph (10 km/h) or higher and will

alert the driver of vehicles in these areas.

NOTE:

The BSM system DOES NOT alert the driver about

rapidly approaching vehicles that are outside the

detection zones.

If a trailer is connected to the vehicle, it is necessary to

deactivate BSM system manually by settings menu to

avoid a misdetection

Ú

page 106.

The area on the rear fascia/bumper where the radar

sensors are located must remain free of snow, ice, and

dirt/road contamination so that the BSM system can

function properly. Do not block the radar sensors located

on the rear fascia/bumper with foreign objects

(bumper stickers, bicycle racks, etc.).

Rear Sensor Locations

CarManuals2.com

SAFETY

163

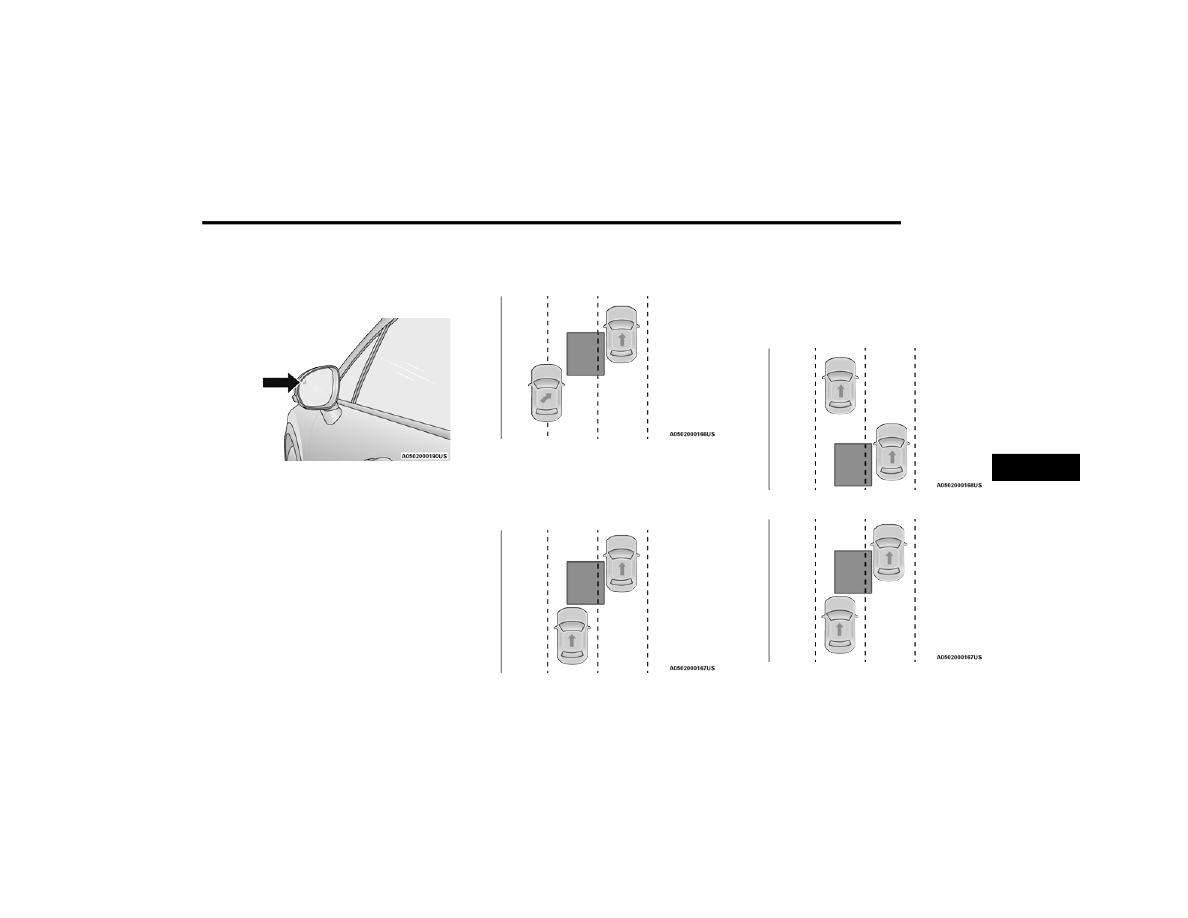

The BSM system notifies the driver of objects in the

detection zones by illuminating the BSM warning light

located in the outside mirrors, in addition to sounding an

audible (chime) alert (whenever the turn signal is

activated) and reducing the radio volume

Ú

page 164.

BSM Warning Light

The BSM system monitors the detection zone from three

different entry points (side, rear, front) while driving to see

if an alert is necessary. The BSM system will issue an alert

during these types of zone entries.

Entering From The Side
Vehicles that move into your adjacent lanes from either

side of the vehicle.

Side Monitoring

Entering From The Rear
Vehicles that come up from behind your vehicle on either

side and enter the rear detection zone with a relative

speed of less than 31 mph (50 km/h).

Rear Monitoring

Overtaking Traffic
If you pass another vehicle slowly with a relative speed

less than 15 mph (25 km/h) and the vehicle remains in

the blind spot for approximately 1.5 seconds, the warning

light will be illuminated. If the difference in speed between

the two vehicles is greater than 15 mph (25 km/h), the

warning light will not illuminate.

Overtaking/Approaching

Overtaking/Passing

6

CarManuals2.com

164

SAFETY



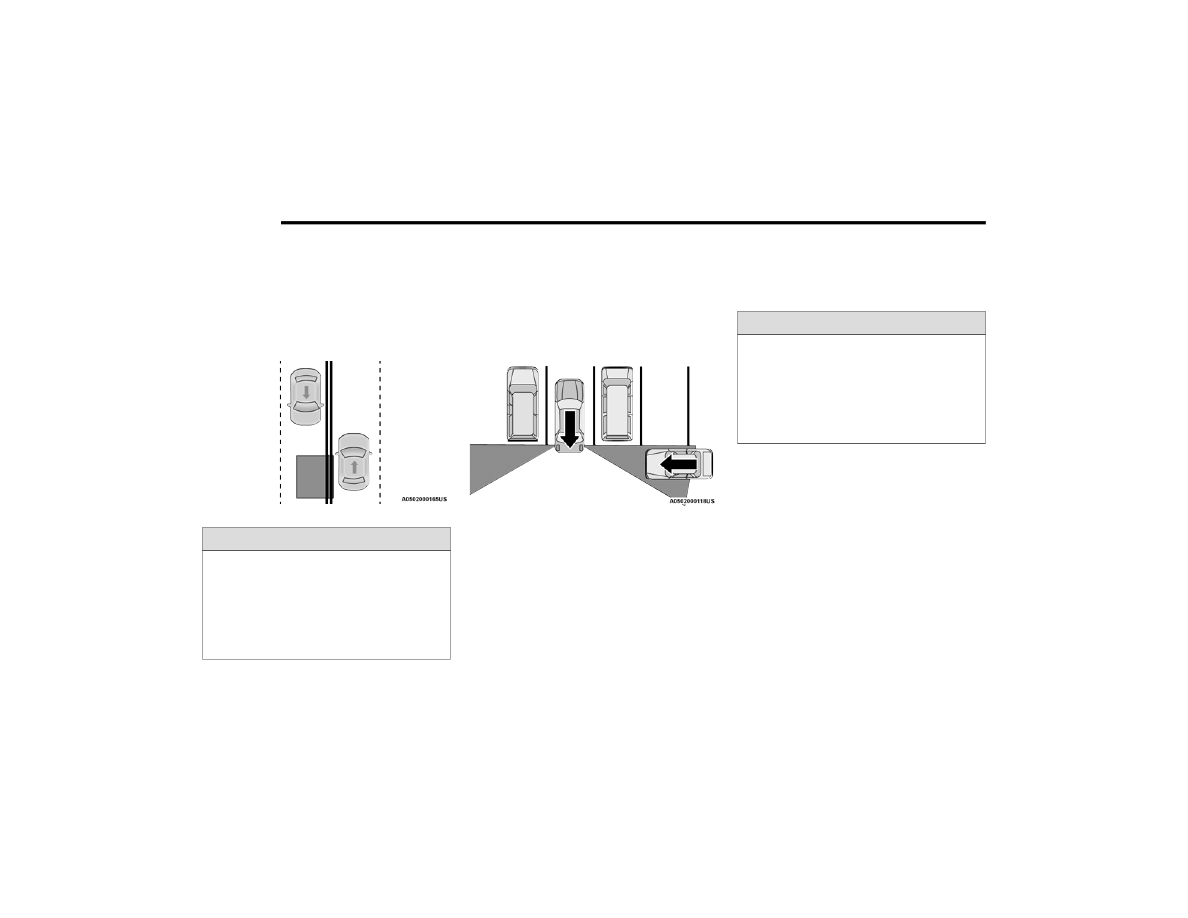

The BSM system is designed not to issue an alert on

stationary objects such as guardrails, posts, walls, foliage,

berms, etc. However, occasionally the system may alert on

such objects. This is normal operation and your vehicle

does not require service.
The BSM system will not alert you of objects that are

traveling in the opposite direction of the vehicle in

adjacent lanes

Ú

page 277.

Opposing Traffic

Rear Cross Path (RCP)

RCP is intended to aid the driver when backing out of

parking spaces where their vision of oncoming vehicles

may be blocked. Proceed slowly and cautiously out of the

parking space until the rear end of the vehicle is exposed.

The RCP system will then have a clear view of the cross

traffic and if an oncoming vehicle is detected, alert the

driver.

RCP Detection Zones

RCP monitors the rear detection zones on both sides of

the vehicle, for objects that are moving toward the side of

the vehicle with a minimum speed of approximately 1 mph

(2 km/h), to objects moving a maximum of approximately

22 mph (35 km/h), such as in parking lot situations.
When RCP is on and the vehicle is in REVERSE, the driver

is alerted using both the visual and audible alarms,

including reducing the radio volume.

NOTE:

In a parking lot situation, oncoming vehicles can be

blocked by vehicles parked on either side. If the sensors

are blocked by other structures or vehicles, the system will

not be able to alert the driver.

Blind Spot Modes

Blind Spot has three selectable modes of operation that

are available in the Uconnect system.
Blind Spot Alert Lights Only
When operating in Blind Spot Alert mode, the BSM system

will provide a visual alert in the appropriate side view

mirror based on a detected object. However, when the

system is operating in Rear Cross Path (RCP) mode, the

system will respond with both visual and audible alerts

when a detected object is present. Whenever an audible

alert is requested, the radio is muted.

WARNING!

The Blind Spot Monitoring system is only an aid to help

detect objects in the blind spot zones. The BSM system

is not designed to detect pedestrians, bicyclists, or

animals. Even if your vehicle is equipped with the BSM

system, always check your vehicle’s mirrors, glance

over your shoulder, and use your turn signal before

changing lanes. Failure to do so can result in serious

injury or death.

WARNING!

RCP is not a backup aid system. It is intended to be

used to help a driver detect an oncoming vehicle in a

parking lot situation. Drivers must be careful when

backing up, even when using RCP. Always check

carefully behind your vehicle, look behind you, and be

sure to check for pedestrians, animals, other vehicles,

obstructions, and blind spots before backing up.

Failure to do so can result in serious injury or death.

CarManuals2.com

SAFETY

165

Blind Spot Alert Lights/Chime
When operating in Blind Spot Alert Lights/Chime mode,

the BSM system will provide a visual alert in the

appropriate side view mirror based on a detected object.

If the turn signal is then activated, and it corresponds to

an alert present on that side of the vehicle, an audible

chime will also be sounded. Whenever a turn signal and

detected object are present on the same side at the same

time, both the visual and audible alerts will be issued. In

addition to the audible alert, the radio (if on) will also be

muted.

NOTE:

Whenever an audible alert is requested by the BSM

system, the radio is also muted.
When the system is in RCP, the system will respond with

both visual and audible alerts when a detected object is

present. Whenever an audible alert is requested, the radio

is also muted. Turn/hazard signal status is ignored; the

RCP state always requests the chime.
Blind Spot Alert Off
When the BSM system is turned off, there will be no visual

or audible alerts from either the BSM or RCP systems.

NOTE:

The BSM system will store the current operating mode

when the vehicle is shut off. Each time the vehicle is

started the previously stored mode will be recalled

and used.

Blind Spot Monitoring Fault Warnings

Blinded Sensor
In the case of a blinded sensor:

BSM Mirror Warning Lights are turned on continuously.

An instrument cluster message will display “Blind Spot

Monitoring Unavailable - Wipe Rear Bumper Corners.”

NOTE:

The rear fascia/bumper must be clean and free of any

obstructing debris.
System Not Available
In the case of the system being temporarily unavailable:

BSM Mirror Warning Lights are turned on continuously.

An instrument cluster message will display “Blind Spot

Monitoring Temporarily Unavailable.”

In the case of the system being completely unavailable:

A chime will turn on.

An instrument cluster message will display “Blind Spot

Monitoring Unavailable - Service Required.”

NOTE:

The vehicle must be taken to the nearest authorized

dealer for service.

F

ULL

 B

RAKE

 C

ONTROL

 S

YSTEM

 W

ITH



M

ITIGATION

 - I

F

 E

QUIPPED

The Full Brake Control system with Mitigation provides the

driver with audible warnings (through the radio), visual

warnings (within the instrument cluster display), and may

apply a brake jerk to warn the driver when it detects a

potential frontal collision. The warnings and limited

braking are intended to provide the driver with enough

time to react, avoid or mitigate the potential collision.

NOTE:

The Full Brake Control system monitors the information

from the forward looking sensors as well as the Elec

-

tronic Brake Controller (EBC), to calculate the proba

-

bility of a forward collision. When the system

determines that a forward collision is probable, the

driver will be provided with audible and visual warnings

and may provide a brake jerk warning.

If the driver does not take action based upon these

progressive warnings, then the system will provide a

limited level of active braking to help slow the vehicle

and mitigate the potential forward collision. If the driver

reacts to the warnings by braking and the system deter

-

mines that the driver intends to avoid the collision by

braking but has not applied sufficient brake force, the

system will compensate and provide additional brake

force as required.

6

CarManuals2.com

166

SAFETY



After the end of the intervention of automatic braking, the

transmission may remain in last gear stored; therefore the

car could lurch forward, once the brakes release a few

seconds later. If the Full Brake Control system event stops

the vehicle completely, the system will hold the vehicle at

standstill for two seconds and then release the brakes.
If a Full Brake Control system event begins at a speed

below 26 mph (42 km/h), the system may provide the

maximum braking possible to mitigate the potential

forward collision. If the Full Brake Control system event

stops the vehicle completely, the system will hold the

vehicle at standstill for two seconds and then release the

brakes.

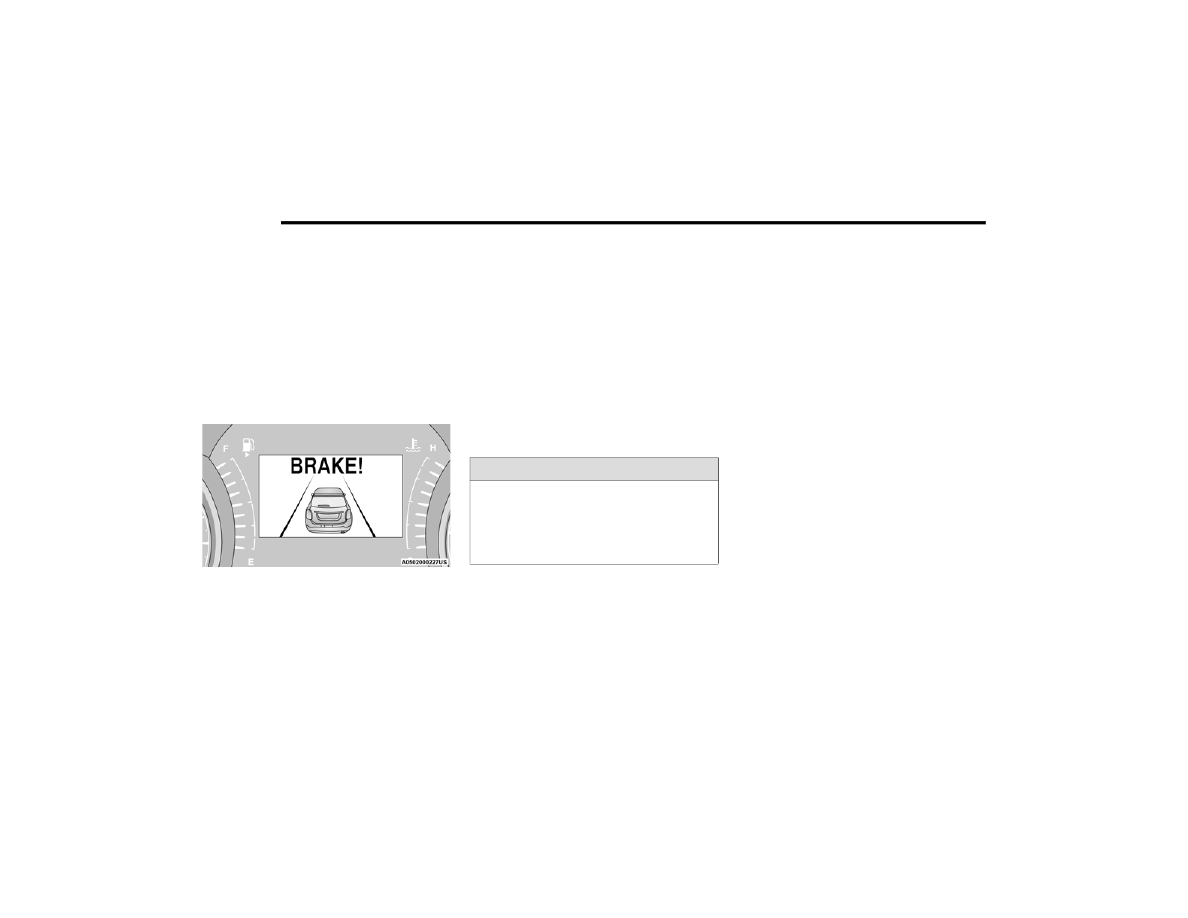

Full Brake Control System Message

When the system determines a collision with the vehicle in

front of you is no longer probable, the warning message

will be deactivated

Ú

page 277.

NOTE:

The minimum speed for Full Brake Control system

activation is 3 mph (5 km/h).

The Full Brake Control system alerts may be triggered

on objects other than vehicles such as guardrails or

sign posts based on the course prediction. This is

expected and is a part of normal Full Brake Control

system activation and functionality.

The Full Brake Control system is intended for on-road

use only. If the vehicle is taken off-road, the Full Brake

Control system should be deactivated to prevent

unnecessary warnings to the surroundings.

Turning Full Brake Control System

On Or Off

The Full Brake Control system menu setting is located in

the Uconnect Settings

Ú

page 106.

NOTE:

The default status of Full Brake Control system is

“Warning + Active Braking.” This allows the system to warn

you of a possible collision with the vehicle in front of you

and enable the active braking.

Changing the Full Brake Control system status to “Off”

deactivates the system, so no warning or active braking

will be available in case of a possible collision.

Changing the Full Brake Control system status to

“Only Warning” prevents the system from providing

limited active braking, or additional brake support if

the driver is not braking adequately in the event of a

potential frontal collision, but maintains the audible

and visual warnings.

Changing the status of the system is possible when the

vehicle is stopped or moving.

NOTE:

The Full Brake Control system state is kept in memory

from one key cycle to the next. It will remain the same

when the vehicle is turned off and is restarted.

WARNING!

The Full Brake Control System is not intended to avoid a

collision on its own, nor can the Full Brake Control

System detect every type of potential collision. The driver

has the responsibility to avoid a collision by controlling

the vehicle via braking and steering. Failure to follow this

warning could lead to serious injury or death.

CarManuals2.com

SAFETY

167

Changing Full Brake Control System

Sensitivity

By changing the settings on the menu of the Uconnect

system, you can change the sensitivity of the system by

choosing one of the following three options: "Near",

"Medium" or "Far"

Ú

page 106.

The default option is "Medium". This setting provides that

the system notify the driver of a possible accident with the

vehicle ahead of it when the latter is at a standard

distance, intermediate between the other two possible

settings.
By setting the sensitivity of the system to "Far", the system

will warn the driver of a possible accident with the vehicle

in front when the latter is at a greater distance, giving you

the chance to act on the brakes in a more limited and

gradual way. This setting gives the driver the maximum

possible time of reaction to prevent a possible accident.
By changing the option to "Near", the system will warn the

driver of a possible accident with the vehicle ahead of it

when the latter is a reduced distance. This setting offers a

reaction time to the driver lower than the settings

"Medium" and "Far", in the case of a potential accident,

which will provide a more dynamic driving experience.
The setting of the sensitivity of the system is maintained in

memory when the engine is switched off.

Full Brake Control System Limited Warning

If the instrument cluster display reads “Brake Control

Limited Functionality” or “Brake Control Limited

Functionality Clean Front Windshield” momentarily, there

may be a condition that limits Full Brake Control system

functionality. Although the vehicle is still drivable under

normal conditions, the active braking may not be fully

available. Once the condition that limited the system

performance is no longer present, the system will return to

its full performance state. If the problem persists, see an

authorized dealer.

Service Full Brake Control System Warning

If the system turns off, and the instrument cluster display

displays “Service Brake Control”.
This indicates there is an internal system fault. Although

the vehicle is still drivable under normal conditions, have

the system checked by an authorized dealer.
“Brake Control Front Radar Sensor Temporarily Blocked”

Warning
The “Brake Control Front Radar Sensor Temporarily

Blocked” warning will display when conditions temporarily

limit system performance. This most often occurs at times

of poor visibility, such as in snow or heavy rain. The system

may also become temporarily blinded due to obstructions,

such as mud, dirt or ice. In these cases, the instrument

cluster display will display “Brake Control Front Radar

Sensor Temporarily Blocked” and the system will

deactivate.

The “Brake Control Front Radar Sensor Temporarily

Blocked” message can sometimes be displayed while

driving in highly reflective areas (i.e. tunnels with reflective

tiles, or ice and snow). The system will recover after the

vehicle has left these areas. Under rare conditions, when

the radar is not tracking any vehicles or objects in its path

this warning may temporarily occur.
If weather conditions are not a factor, the driver should

examine the sensor. It may require cleaning or removal of

an obstruction. The sensor is located behind the lower

grille. In absence of visible obstructions on the fascia/

bumper, it could be necessary to wipe off the radar directly

on the surface, after having the radar cover removed. It’s

recommended that an authorized dealer performs this

operation.

NOTE:

If the “Brake Control Front Radar Sensor Temporarily

Blocked” message occurs frequently (e.g. more than

once on every trip) without any snow, rain, mud, or

other obstruction, have the radar sensor realigned at

an authorized dealer.

Installing a snow plow, front-end protector, an after

-

market grille or modifying the grille is not recom

-

mended. Doing so may block the sensor and inhibit

Full Brake Control system operation.

6

CarManuals2.com

168

SAFETY



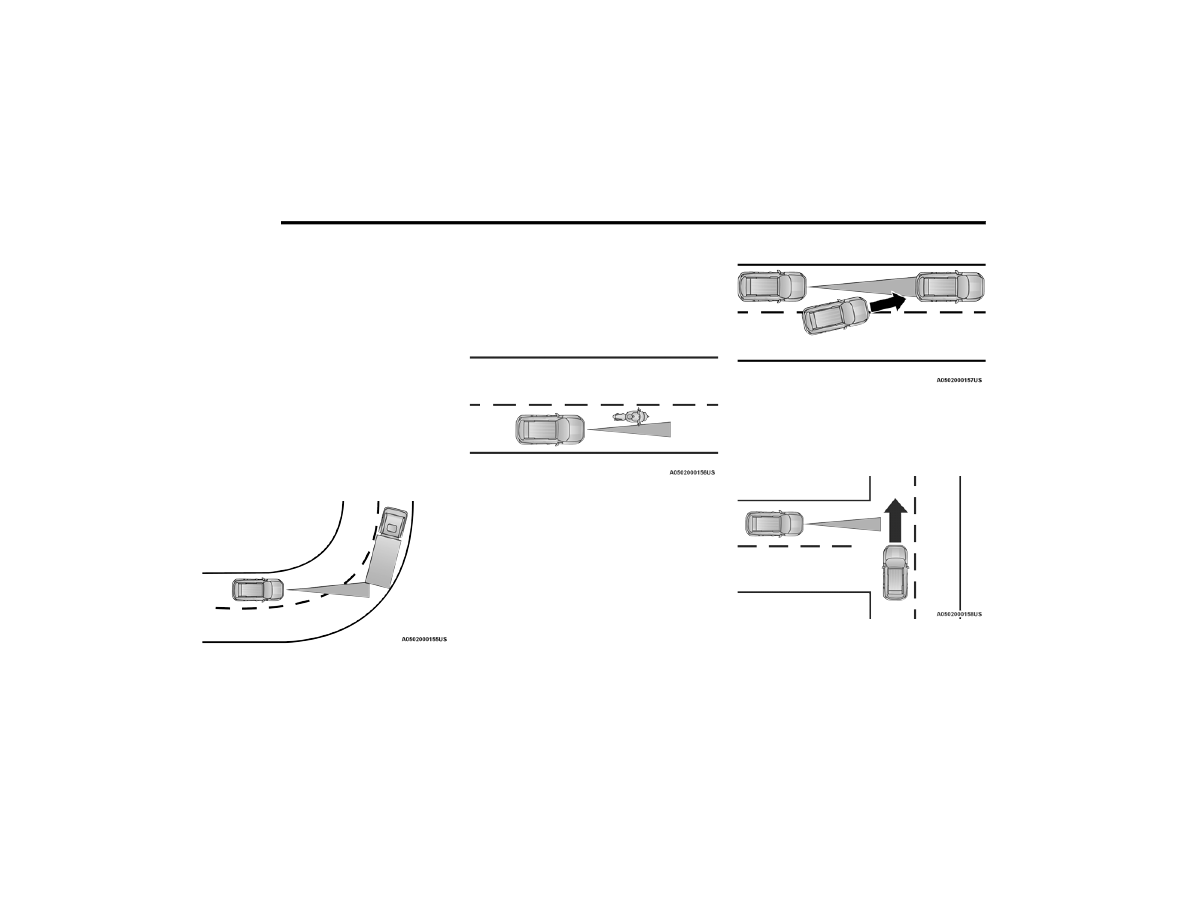

Precautions While Driving With Full Brake

Control System

In certain driving conditions, such as:

Driving in the vicinity of a curve

Small vehicles and/or not aligned to the lane

Lane changing of other vehicles

Passing of vehicles in an oncoming intersection

The intervention of the system could be unexpected or

delayed. The driver must therefore always pay particular

attention, while maintaining control of the car to drive in

complete safety.
Driving In The Vicinity Of A Curve
Entering or exiting a large curve, the system could detect

the presence of a vehicle that is in front of the car, but that

does not preside in the same lane. In cases such as this,

the system might respond.

Driving In The Vicinity Of A Curve

Small Vehicles And/Or Not Aligned To The Lane
The system is not able to detect the presence of vehicles

that are in front of the car but placed outside the field of

action of the radar sensor and could therefore not react in

the presence of small vehicles such as bicycles or

motorcycles.

Small Vehicles And/Or Not Aligned To The Lane

Lane Changing Of Other Vehicles
Vehicles that suddenly change lanes, while standing in the

traffic lane of their car and inside the field of action of the

radar sensor may cause the intervention of the system.

Lane Changing Of Other Vehicles

Passing Of Vehicles In An Oncoming Intersection
The system could temporarily react to a vehicle that

crossed the range of the radar sensor, in an oncoming

intersection.

Passing Of Vehicles In An Oncoming Intersection

CarManuals2.com

SAFETY

169

T

IRE

 P

RESSURE

 M

ONITORING

 S

YSTEM



(TPMS)

The Tire Pressure Monitoring System

(TPMS) will warn the driver of a low tire

pressure based on the vehicle

recommended cold tire pressure.
The tire pressure will vary with

temperature by about 1 psi (7 kPa) for

every 12° F (6.5° C). This means that

when the outside temperature

decreases, the tire pressure will decrease. Tire pressure

should always be set based on cold inflation tire pressure.

This is defined as the tire pressure after the vehicle has

not been driven for at least three hours, or driven less than

1 mile (1.6 km) after a three hour period. The cold tire

inflation pressure must not exceed the maximum inflation

pressure molded into the tire sidewall. The tire pressure

will also increase as the vehicle is driven, this is normal

and there should be no adjustment for this increased

pressure.
See

Ú

page 250 on how to properly inflate the

vehicle's tires.
The TPMS will warn the driver of a low tire pressure if the

tire pressure falls below the low pressure warning limit for

any reason, including low temperature effects, or natural

pressure loss through the tire.

The TPMS will continue to warn the driver of low tire

pressure as long as the condition exists, and will not turn

off until the tire pressure is at or above the recommended

cold tire pressure on the placard. Once the low tire

pressure warning (Tire Pressure Monitoring System

Warning Light) illuminates, you must increase the tire

pressure to the recommended cold tire pressure in order

for the Tire Pressure Monitoring System Warning Light to

turn off. The system will automatically update and the Tire

Pressure Monitoring System Warning Light will turn off

once the system receives the updated tire pressures. The

vehicle may need to be driven for up to 20 minutes above

15 mph (24 km/h) in order for the TPMS to receive this

information.
For example, your vehicle may have a recommended cold

(parked for more than three hours) tire pressure of 30 psi

(207 kPa). If the ambient temperature is 68° F (20° C)

and the measured tire pressure is 27 psi (186 kPa), a

temperature drop to 20° F (-7° C) will decrease the tire

pressure to approximately 23 psi (159 kPa). This tire

pressure is sufficiently low enough to turn on the Tire

Pressure Monitoring System Warning Light. Driving the

vehicle may cause the tire pressure to rise to

approximately 27 psi (186 kPa), but the Tire Pressure

Monitoring System Warning Light will still be on. In this

situation, the Tire Pressure Monitoring System Warning

Light will turn off only after the tires are inflated to the

vehicle’s recommended cold tire pressure value

Ú

page 277.

NOTE:

The TPMS is not intended to replace normal tire care

and maintenance, or to provide warning of a tire failure

or condition.

The TPMS should not be used as a tire pressure gauge

while adjusting your tire pressure.

Driving on a significantly underinflated tire causes the

tire to overheat and can lead to tire failure. Underinfla

-

tion also reduces fuel efficiency and tire tread life, and

may affect the vehicle’s handling and stopping ability.

CAUTION!

The TPMS has been optimized for the original equip

-

ment tires and wheels. TPMS pressures and warnings

have been established for the tire size equipped on

your vehicle. Undesirable system operation or sensor

damage may result when using replacement equip

-

ment that is not of the same size, type, and/or style.

Aftermarket wheels can cause sensor damage. Using

aftermarket tire sealants may cause the Tire Pressure

Monitoring System (TPMS) sensor to become inoper

-

able. After using an aftermarket tire sealant it is

recommended that you take your vehicle to an autho

-

rized dealership to have your sensor function checked.

After inspecting or adjusting the tire pressure, always

reinstall the valve stem cap. This will prevent moisture

and dirt from entering the valve stem, which could

damage the Tire Pressure Monitoring System sensor.

6

CarManuals2.com

170

SAFETY



The TPMS is not a substitute for proper tire mainte

-

nance, and it is the driver’s responsibility to maintain

correct tire pressure using an accurate tire gauge, even

if underinflation has not reached the level to trigger illu

-

mination of the Tire Pressure Monitoring System

Warning Light.

Seasonal temperature changes will affect tire pres

-

sure, and the TPMS will monitor the actual tire pres

-

sure in the tire.

Base System

This is the TPMS Warning Light located in the

instrument cluster.

The TPMS uses wireless technology with wheel rim

mounted electronic sensors to monitor tire pressure

levels. Sensors, mounted to each wheel as part of the

valve stem, transmit tire pressure readings to the receiver

module.

NOTE:

It is particularly important for you to check the tire

pressure in all of the tires on your vehicle regularly and to

maintain the proper pressure.
The TPMS consists of the following components:

Receiver module.

Four Tire Pressure Monitoring System sensors.

Tire Pressure Monitoring System Warning Light.

TIRE PRESSURE MONITORING SYSTEM LOW

PRESSURE WARNINGS

The Tire Pressure Monitoring System Warning Light will

illuminate in the instrument cluster, an acoustic signal will

be activated, and the “Check left or right front/rear tire”

text message will display when one or more of the four

active road tire pressures are low. Should this occur, you

should stop as soon as possible, check the inflation

pressure of each tire on your vehicle, and inflate each tire

to the vehicle’s recommended cold placard pressure

value. The system will automatically update and the Tire

Pressure Monitoring Warning Light will extinguish once the

updated tire pressures have been received. The vehicle

may need to be driven for up to 20 minutes above 15 mph

(24 km/h) to receive this information.

CHECK TPMS WARNINGS

The Tire Pressure Monitoring System Warning Light will

flash on and off for 75 seconds and remain on solid when

a system fault is detected, an audible chime will be

activated and the “Service Tire Pressure Monitoring

System” text message will display. If the ignition is cycled,

this sequence will repeat providing the system fault still

exists. The Tire Pressure Monitoring System Warning Light

will turn off when the fault condition no longer exists.

A system fault can occur with any of the following

scenarios:

Jamming due to electronic devices or driving next to

facilities emitting the same radio frequencies as the

TPMS sensors.

Installing some form of aftermarket window tinting that

affects radio wave signals.

Snow or ice around the wheels or wheel housings.

Using tire chains on the vehicle.

Using wheels/tires not equipped with TPMS sensors.

NOTE:

Your vehicle may be equipped with a compact spare wheel

and tire assembly.

The compact spare tire does not have a Tire Pressure

Monitoring System sensor. Therefore, the TPMS will not

monitor the tire pressure in the compact spare tire.

If you install the compact spare tire in place of a road

tire that has a pressure below the low-pressure

warning limit, upon the next ignition cycle, a chime will

sound and the Tire Pressure Monitoring System

Warning Light will still turn on due to the low tire.

However, after driving the vehicle for up to 20 minutes

above 15 mph (24 km/h), the Tire Pressure Monitoring

System Warning Light will flash on and off for

75 seconds and then remain on solid.

This occurs for each subsequent ignition cycle, a chime

will sound and the Tire Pressure Monitoring System

Warning Light will flash on and off for 75 seconds and

then remain on solid.

Once you repair or replace the original road tire and

reinstall it on the vehicle in place of the compact spare

tire, the TPMS will update automatically and the Tire

Pressure Monitoring System Warning Light will turn off,

as long as no tire pressure is below the low-pressure

warning limit in any of the four active road tires.

The vehicle may need to be driven for up to 20 minutes

above 15 mph (24 km/h) in order for the TPMS to

receive this information.

CarManuals2.com

SAFETY

171

OCCUPANT RESTRAINT SYSTEMS

Some of the most important safety features in your vehicle

are the restraint systems:

O

CCUPANT

 R

ESTRAINT

 S

YSTEMS

Seat Belt Systems

Supplemental Restraint Systems (SRS) Air Bags

Child Restraints

Some of the safety features described in this section may

be standard equipment on some models, or may be

optional equipment on others. If you are not sure, ask an

authorized dealer.

I

MPORTANT

 S

AFETY

 P

RECAUTIONS

Please pay close attention to the information in this

section. It tells you how to use your restraint system

properly, to keep you and your passengers as safe as

possible.
Here are some simple steps you can take to minimize the

risk of harm from a deploying air bag:
1. Children 12 years old and under should always ride

buckled up in the rear seat of a vehicle with a rear

seat.

2. A child who is not big enough to wear the vehicle seat

belt properly must be secured in the appropriate child

restraint or belt-positioning booster seat in a rear

seating position

Ú

page 185.

3. If a child from 2 to 12 years old (not in a rear-facing

child restraint) must ride in the front passenger seat,

move the seat as far back as possible and use the

proper child restraint

Ú

page 185.

4. Never allow children to slide the shoulder belt behind

them or under their arm.

5. You should read the instructions provided with your

child restraint to make sure that you are using it

properly.

6. All occupants should always wear their lap and

shoulder belts properly.

7. The driver and front passenger seats should be

moved back as far as practical to allow the front air

bags room to inflate.

8. Do not lean against the door or window. If your vehicle

has side air bags, and deployment occurs, the side air

bags will inflate forcefully into the space between

occupants and the door and occupants could be

injured.

9. If the air bag system in this vehicle needs to be

modified to accommodate a disabled person, see

Ú

page 273 for customer service contact

information.

S

EAT

 B

ELT

 S

YSTEMS

Buckle up even though you are an excellent driver, even

on short trips. Someone on the road may be a poor driver

and could cause a collision that includes you. This can

happen far away from home or on your own street.
Research has shown that seat belts save lives, and they

can reduce the seriousness of injuries in a collision.

Some of the worst injuries happen when people are

thrown from the vehicle. Seat belts reduce the possibility

of ejection and the risk of injury caused by striking the

inside of the vehicle. Everyone in a motor vehicle should

be belted at all times.

WARNING!

Never place a rear-facing child restraint in front of an

air bag. A deploying passenger front air bag can

cause death or serious injury to a child 12 years or

younger, including a child in a rear-facing child

restraint.

Never install a rear-facing child restraint in the front

seat of a vehicle. Only use a rear-facing child

restraint in the rear seat. If the vehicle does not have

a rear seat, do not transport a rear-facing child

restraint in that vehicle.

6

CarManuals2.com















Content      ..     3      4      5      6     ..
