108

MULTIMEDIA



Language

Display

When the Language button is pressed on the touchscreen, the system displays the different language options. Once an option is selected, the system will display in the chosen

language. The available setting is:

NOTE:

Depending on the vehicle’s options, feature settings may vary.

Setting Name

Description

Language

This setting will change the language of the Uconnect system. The available languages

are English, Français, and Español.

After pressing the Display button on the touchscreen, the following settings will be available:

NOTE:

Depending on the vehicle’s options, feature settings may vary.

Setting Name

Description

Display Mode

This setting will allow you to set the brightness manually or have the system set

it automatically. The “Auto” setting has the system automatically adjust the display

brightness. The “Manual” setting will allow the user to adjust the brightness of the

display.

Display Brightness With Headlights ON

This setting will allow you to set the brightness when the headlights are on. To access this

setting, Display Mode must be set to Manual. The “+” setting will increase the brightness;

the “-” will decrease the brightness.

CarManuals2.com

MULTIMEDIA

109

Units

Display Brightness With Headlights OFF

This setting will allow you to set the brightness when the headlights are off. To access this

setting, Display Mode must be set to Manual. The “+” setting will increase the brightness;

the “-” will decrease the brightness.

Touchscreen Beep

This setting will allow you to adjust the touchscreen beep. The setting options are

“On” or “Off”.

Setting Name

Description

When the Units button is pressed on the touchscreen, the system displays the different measurement options. The selected unit of measurement will display in the instrument

cluster display and Navigation system (if equipped). The available settings are:

NOTE:

Depending on the vehicle’s options, feature settings may vary.

Setting Name

Description

Units

This setting will change the unit of measurement between “US”, “Metric”, and “Custom”.

Custom

This setting changes the “Distance” (mi or km), “Fuel Consumption” (MPG [US],

MPG [UK], L/100 km, or km/L), “Pressure” (psi, kPa, or bar), and “Temperature”

(°C or °F) units of measurement independently.

5

CarManuals2.com

110

MULTIMEDIA



Voice

When the Voice button is pressed on the touchscreen, the system displays the options related to the vehicle’s Voice Recognition feature.

NOTE:

Depending on the vehicle’s options, feature settings may vary.

Setting Name

Description

Voice Response Length

This setting will change the response length for the Voice Recognition system. The “Brief”

setting provides a shortened audio description from the system. The “Detailed” setting

provides the full audio description from the system.

Show Command List

This setting will allow you to turn the Command List on or off. The “Always” setting will

always show the Command List. The “With Help” setting will show the Command List and

provide a brief description of what the command does. The “Never” setting will turn the

Command List off.

CarManuals2.com

MULTIMEDIA

111

Clock & Date

When the Clock & Date button is pressed on the touchscreen, the system displays the different options related to the vehicle’s internal clock.

NOTE:

Depending on the vehicle’s options, feature settings may vary.

Setting Name

Description

Sync Time With GPS

This setting will sync the time to the GPS receiver in the system. The system will control

the time via the GPS location.

Time Format

This setting will allow you to set the time format (AM/PM). Sync Time With GPS must be

off for this setting to be available. The “12 hrs” setting will set the time to a 12-hour

format. The “24 hrs” setting will set the time to a 24-hour format.

Set Time Hours

This setting will allow you to set the hours. Sync Time With GPS must be off for this

setting to be available. The “+” setting will increase the hours. The “-” setting will

decrease the hours.

Set Time Minutes

This setting will allow you to set the minutes. Sync Time With GPS must be off for this

setting to be available. The “+” setting will increase the minutes. The “-” setting will

decrease the minutes.

Show Time in Status Bar

This setting will place the time in the radio’s status bar.

Set Date (MM/DD/YY)

This setting will allow you to set the date.

5

CarManuals2.com

112

MULTIMEDIA



Safety & Driving Assistance

After pressing the Safety & Driving Assistance button on the touchscreen, the following settings will be available:

NOTE:

Depending on the vehicle’s options, feature settings may vary.

Setting Name

Description

Brake Control

Full Brake Control System includes Advanced Brake Assist (ABA). The ABA applies

additional brake pressure when the driver requests insufficient brake pressure to

avoid a potential frontal collision. When the “Only Warning” option is selected, a chime

sounds alerting you of a possible collision with the vehicle in front of you and more

brake pressure is needed. When the “Warning + Active Braking” option is selected, it

applies the brakes to slow your vehicle in case of a potential forward collision and

sounds an audible chime to alert you. Changing the Full Brake Control System status

to “Off” prevents the system from warning you of a possible collision with the vehicle in

front of you.

Brake Control Sensitivity

The Full Brake Control System Sensitivity setting determines at what relative distance the

vehicle directly in front of you needs to be at before the system warns you of a possible

collision, based on the option selected. “Far” gives you the most amount of reaction time,

whereas “Near” gives you the least amount of reaction time, based on the distance

between the two vehicles. “Med” gives you a reaction time in between Near and Far.

LaneSense Warning

The LaneSense Warning setting determines at what distance the Lane Control system

warns you, through steering wheel feedback, of a possible lane departure.

LaneSense Strength

This feature allows you to set the lane control strength to “Low”, “Med”, or “High”.

Park Assist

The Park Assist system setting scans for objects behind the vehicle when the

transmission gear selector is in REVERSE and the vehicle speed is less than 7 mph

(11 km/h), when enabled. It provides an alert (audible and/or visual) to indicate the

proximity to other objects. The system can be enabled with “Sound” or “Sound + Display.”

CarManuals2.com

MULTIMEDIA

113

Front Park Assist Volume

This setting will allow you to adjust the Front Park Assist Volume to “Low”, “Medium”,

or “High”.

Rear Park Assist Volume

This setting will allow you to adjust the Rear Park Assist Volume to “Low”, “Medium”,

or “High”.

Blind Spot Assist

When the Blind Spot Assist feature is selected, the Blind Spot Monitor (BSM) system is

activated and shows a visual alert in the outside mirrors, or it shows a visual alert in the

outside mirrors and sounds an audible alert when the turn signal is on. When “Off” is

selected, the BSM system is deactivated. If your vehicle has experienced any damage in

the area where the sensor is located, even if the fascia/bumper is not damaged, the

sensor may have become misaligned. Take your vehicle to an authorized dealer to verify

sensor alignment. A sensor that is misaligned results in the BSM not operating to

specification.

Rear View Camera Delay

The Rear View Camera Delay setting determines whether or not the screen displays the

rear view image with dynamic grid lines for up to 10 seconds after the vehicle is shifted

out of REVERSE. This delay is canceled if the vehicle’s speed exceeds 8 mph (13 km/h),

the transmission is shifted into PARK, or the ignition is switched to the OFF position.

Active Rear View Camera Guidelines

The Active Rear View Camera Guidelines feature overlays the Rear View Camera image

with active, or dynamic, grid lines to help illustrate the width of the vehicle and its

projected backup path, based on the steering wheel position when the option is checked.

A dashed center line overlay indicates the center of the vehicle to assist with parking or

aligning to a hitch/receiver.

Rain Sensing Wipers

This setting will allow you to turn the rain sensing wipers on or off.

Setting Name

Description

5

CarManuals2.com

114

MULTIMEDIA



Mirrors

Brakes

After pressing the Mirrors button on the touchscreen, the following setting will be available:

NOTE:

Depending on the vehicle’s options, feature settings may vary.

Setting Name

Description

Auto Folding Side Mirrors

This setting will allow you to turn the auto folding side mirrors on or off.

After pressing the Brakes button on the touchscreen, the following settings will be available:

NOTE:

Depending on the vehicle’s options, feature settings may vary.

Setting Name

Description

Brake Service

Selecting the Brake Service feature will display a pop-up asking whether or not you would

like to retract the park brakes for brake system service.

Auto Park Brake

This setting will allow you to turn the auto park brake on or off.

CarManuals2.com

MULTIMEDIA

115

Lights

After pressing the Lights button on the touchscreen, the following settings will be available:

NOTE:

Depending on the vehicle’s options, feature settings may vary.

Setting Name

Description

Interior Ambient Lights

When this feature is selected, it allows the adjustment of the brightness of the interior

ambient lighting.

Headlight Sensitivity

This setting will allow you to adjust the headlight sensitivity between “1”, “2”, or “3”

with 1 being the least sensitive and 3 being the most sensitive.

Headlight Off Delay

This setting will allow you to set the headlight off delay to “0”, “30”, “60”, or

“90” seconds.

Greeting Lights

This setting will allow you to turn the greeting lights on or off.

High Beam Control

This setting will allow you to turn the high beam control on or off.

Daytime Running Lights

When the Daytime Running Lights feature is selected, the daytime running lights can be

turned “On” or “Off”. This feature is only available if allowed by law in the country of the

vehicle purchase.

Cornering Lights

When this feature is selected, if the steering wheel rotation angle is large or the turn

signal indicators are on, a light (incorporated in the fog light) turns on, on the relevant

side to improve visibility at night.

Flash Lights With Lock

This setting will allow you to turn the flash lights with lock on or off.

5

CarManuals2.com

116

MULTIMEDIA



Doors & Locks

After pressing the Doors & Locks button on the touchscreen, the following settings will be available:

NOTE:

Depending on the vehicle’s options, feature settings may vary.

Setting Name

Description

Auto Door Locks

When this feature is selected, all doors will lock automatically when the vehicle reaches a

speed of 15 mph (24 km/h).

Auto Unlock On Exit

When the Auto Unlock On Exit feature is selected, all doors will unlock when the vehicle is

stopped and the transmission is in the PARK or NEUTRAL position and the driver's door is

opened.

Flash Lights With Lock

This setting will allow you to turn the flash lights with lock on or off.

Sound Horn With Lock

This setting will allow you to set the Sound Horn With Lock feature “Off”, “1st Press”, or

“2nd Press”.

Sound Horn With Remote Start

This setting will allow you to turn horn with remote start on or off.

Keyless Entry

This feature allows you to lock and unlock the vehicle’s door(s) without having to press

the key fob Lock or Unlock button.

Remote Door Unlock

When “Driver Door” is programmed, only the driver’s door will unlock on the first push

of the key fob Unlock button; you must push the key fob Unlock button twice to unlock

the passengers’ doors. When “All Doors” is programmed, all of the doors will unlock on

the first press of the key fob Unlock button.

If “All Doors” is programmed, all doors will unlock no matter which Passive

Entry-equipped door handle is grasped. If “Driver Door” is programmed, only the

driver’s door will unlock when the driver’s door is grabbed. Touching the handle more

than once will only result in the driver’s door unlocking. If the driver’s door is opened,

the interior door lock/unlock switch can be used to unlock all doors (or use key fob).

CarManuals2.com

MULTIMEDIA

117

Seats & Comfort/Auto-On Comfort Systems

Audio

When the Seats & Comfort/Auto-On Comfort Systems button is pressed on the touchscreen, the system displays the option related to the vehicle’s comfort systems when remote

start has been activated or the vehicle has been started.

NOTE:

Depending on the vehicle’s options, feature settings may vary.

Setting Name

Description

Auto-On Driver Heat Seat & Steering Wheel

This setting will activate the vehicle’s comfort system and heated seats or heated steering

wheel when the vehicle is remote started or ignition is started. The “Off” setting will not

activate the comfort systems. The “Remote Start” setting will only activate the comfort

systems when using Remote Start. The “All Start” setting will activate the comfort systems

whenever the vehicle is started.

When the Audio button is pressed on the touchscreen, the system displays options related to the vehicle’s sound system. These settings can change the audio location within the

vehicle, adjust the bass or treble levels, and auto-play settings from an audio device or smartphone.

NOTE:

Depending on the vehicle’s options, feature settings may vary.

Setting Name

Description

Balance/Fade

This setting will adjust audio levels from specific speakers in the front/back and left/right

of the vehicle. The Speaker icon can be moved to set audio location.

Equalizer

This setting will adjust the “Bass”, “Mid”, and “Treble” ranges of the audio.

Speed Adjusted Volume

This setting will adjust audio volume as speeds increase. At a higher setting, the volume

will increase more as the vehicle speeds up. The available settings are “Off”, “1”, “2”, and

“3”.

5

CarManuals2.com

118

MULTIMEDIA



Engine Off Options

AUX Volume Offset

This setting will tune the audio levels from a device connected through the AUX port. The

available settings are “+” and “-”.

Auto Play

This setting will automatically begin playing audio from a connected device.

Surround Sound

This setting will turn the Surround Sound system on or off.

Loudness

This setting will improve sound quality at lower volumes when enabled.

Auto-On Radio

This setting will have the radio automatically turn on when the vehicle is in ON/RUN or will

recall whether it was on or off at last ignition OFF. The available options are “On”, “Off”,

and “Last Recall”.

Setting Name

Description

When the Engine Off Options button is pressed on the touchscreen, the system will display settings concerning electronics during vehicle shut off.

NOTE:

Depending on the vehicle’s options, feature settings may vary.

Setting Name

Description

Radio Off Delay

This setting will keep the radio on after the vehicle has been shut off. The available

options are “0 MIN” and “20 MIN”

Headlight Off Delay

This setting will allow you to set the amount of time the headlights remain on after the

vehicle has been turned off. The available settings are “0 sec”, “30 sec”, “60 sec”, and

“90 sec”.

CarManuals2.com

MULTIMEDIA

119

Phone/Bluetooth®

WARNING!

Any voice commanded system should be used only in safe driving conditions following all applicable laws. Your attention should be focused on safely operating the vehicle.

Failure to do so may result in a collision causing serious injury or death.

When the Phone/Bluetooth® button is pressed on the touchscreen, the system displays the options related to Bluetooth® connectivity from an external audio device or smartphone.

The list of paired audio devices or smartphones can be accessed from this menu.

NOTE:

Depending on the vehicle’s options, feature settings may vary.

Setting Name

Description

Do Not Disturb

This setting will open the Do Not Disturb settings menu. The settings are “Auto Reply”

(both, text, call), “Auto Reply Message” (custom, default), and “Custom Auto Reply

Message” (create message).

Paired Phones And Audio Devices

This setting will show the list of paired phones and audio devices.

Phone Pop-ups Displayed In Cluster

This setting will activate phone message pop-ups in the Instrument Cluster Display.

5

CarManuals2.com

120

MULTIMEDIA



SiriusXM® Setup

When the SiriusXM® Setup button is pressed on the touchscreen, the system displays options related to SiriusXM® satellite radio. These settings can be used to skip specific radio

channels and restart favorite songs from the beginning.

NOTE:

A subscription to SiriusXM® satellite radio is required for these settings to be functional.

Depending on the vehicle’s options, feature settings may vary.

Setting Name

Description

Tune Start

This setting will play the current song from the beginning when you tune to a music

channel using one of the 12 presets.

Channel Skip

This setting allows you to set channels that you wish to skip. A channel list will display of

the skipped channels.

Subscription Info

This menu provides SiriusXM® subscription information. SiriusXM® Travel Link is a

separate subscription.

CarManuals2.com

MULTIMEDIA

121

Restore Settings

Clear Personal Data

When the Restore Settings button is pressed on the touchscreen, the system will display the setting related to resetting the system back to its default.

NOTE:

Depending on the vehicle’s options, feature settings may vary.

Setting Name

Description

Restore Settings To Default

When this feature is selected, it will reset Display, Clock, Audio, and Radio Settings to

their defaults.

When he Clear Personal Data button is pressed on the touchscreen, the system will display the option to clear personal data saved to the system.

NOTE:

Depending on the vehicle’s options, feature setting’s may vary.

Setting Name

Description

Clear Personal Data

When this feature is selected, it will remove personal data including Bluetooth® devices

and presets.

5

CarManuals2.com

122

MULTIMEDIA



UCONNECT INTRODUCTION

S

YSTEM

 O

VERVIEW

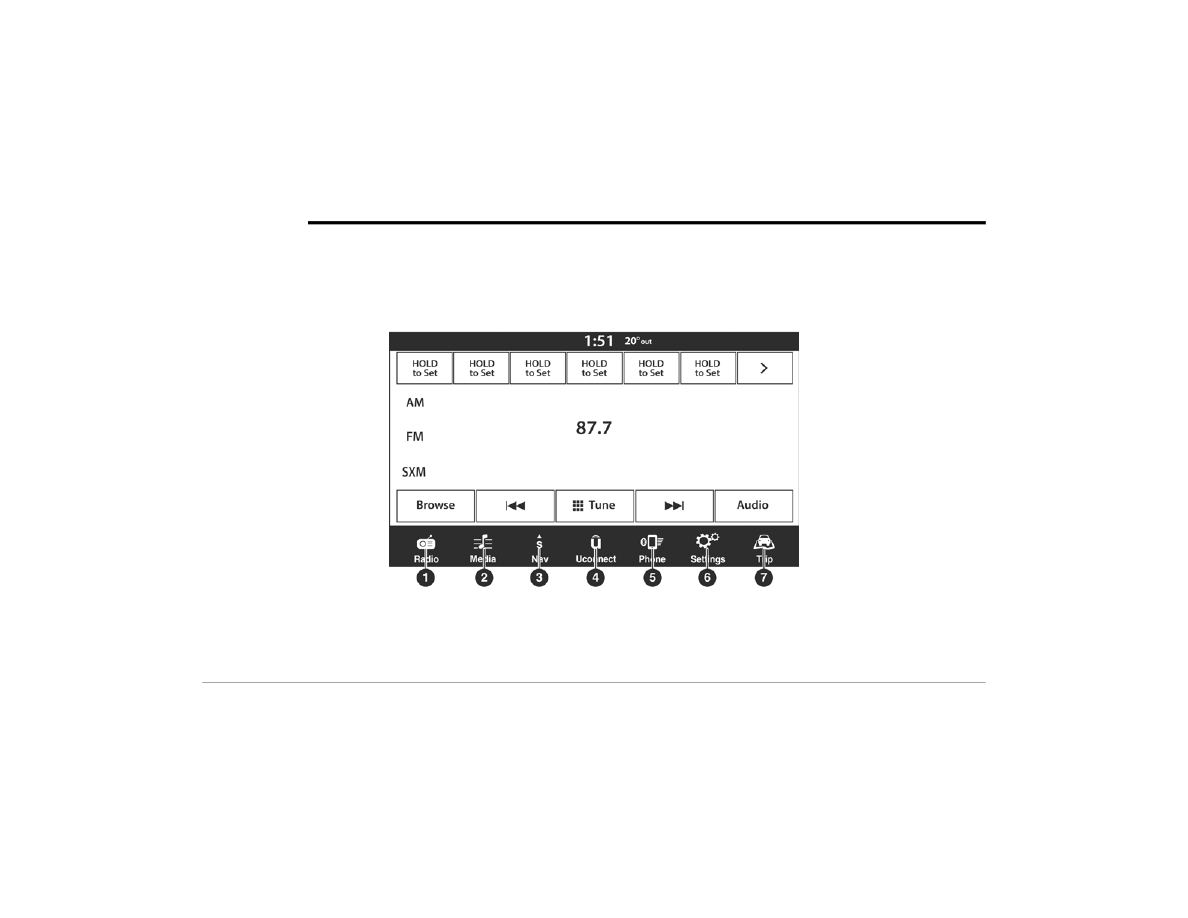

Uconnect 4/4 NAV With 7-inch Display

1 — Radio Button

5 — Phone Button

2 — Media Button

6 — Settings Button

3 — Nav Button

7 — Trip Button

4 — Uconnect Button

CarManuals2.com

MULTIMEDIA

123

NOTE:

Uconnect screen images are for illustration purposes only and may not reflect exact software for your vehicle.

Feature

Description

Radio/Media

Press the Radio button or Media button to enter Radio Mode/Media Mode and access

the radio functions and external audio sources

Ú

page 125.

Phone

Press the Phone button to enter Phone Mode and access the hands-free phone system

Ú

page 136.

Settings

Press the Settings button to access the Uconnect Settings

Ú

page 106.

Uconnect

Press the Uconnect button to access a list of the available Uconnect apps.

Trip

Press the Trip button on the touchscreen to view the car’s trip information. This function

is composed of the “Instant Info” items (“Range” and “Current fuel consumption”)

and the two separate trips called “Trip A” and “Trip B” for monitoring the

vehicle’s “complete journey” in a reciprocally independent manner.

Nav (Navigation) — If Equipped

Press the Nav button to enter Navigation Mode and use the system’s built-in Navigation

software

Ú

page 149.

5

CarManuals2.com

124

MULTIMEDIA



D

RAG

 & D

ROP

 M

ENU

 B

AR



The Uconnect features and services in the main menu bar

are easily customized for your preference. Simply follow

these steps:

Uconnect 4/4 NAV With 7-inch Display Drag & Drop

1. Press the Uconnect

 button to open the

App screen.

2. Press and hold, then drag the selected app to replace

an existing shortcut in the main menu bar.

NOTE:

This feature is only available if the vehicle is in PARK.

Push the ENTER/BROWSE button on the faceplate to accept a highlighted selection on

the screen. Rotate the TUNE/SCROLL rotary knob to scroll through a list or tune a

radio station.

Push the SCREEN OFF button on the faceplate to turn the screen on or off.

Push the MUTE button on the faceplate to turn the audio of the radio system off.

Push it again to turn the audio back on.

Rotate the rotary knob to adjust the volume. Push the VOLUME & On/Off button on the

faceplate to turn the system on or off.

NOTE:

Push and hold the VOLUME & On/Off button for approximately 10 seconds to reset the

radio manually. Doing this can also recover the radio screen from freezing or being stuck.

Feature

Description

CarManuals2.com

MULTIMEDIA

125

S

AFETY

 A

ND

 G

ENERAL

 I

NFORMATION



Safety Guidelines

Please read this manual carefully before using the system.

It contains instructions on how to use the system in a safe

and effective manner.
Do NOT attach any object to the touchscreen. Doing so

can result in damage to the touchscreen.
Please read and follow these safety precautions. Failure to

do so may result in injury or property damage.

Glance at the screen only when safe to do so.

If prolonged viewing of the screen is required, park in a

safe location and set the parking brake.

Stop use immediately if a problem occurs. Failure to do

so may cause injury or damage to the product. See an

authorized dealer for repair.

Ensure the volume level of the system is set to a

level that still allows you to hear outside traffic and

emergency vehicles.

Safe Usage Of The Uconnect System

The Uconnect system is a sophisticated electronic

device. Do not let young children use the system.

Permanent hearing loss may occur if you play your

music or sound system at loud volumes. Exercise

caution when setting the volume on the system.

Keep drinks, rain and other sources of moisture away

from the system. Besides damage to the system,

moisture can cause electric shocks as with any

electronic device.

NOTE:

Many features of this system are speed dependent.

For your own safety, it is not possible to use some of the

touchscreen features while the vehicle is in motion.

Care And Maintenance

Do not press the touchscreen with any hard or sharp

objects (pen, USB stick, jewelry, etc.), which could

scratch the surface.

Do not spray any liquid or chemicals directly on the

screen! Use a clean and dry microfiber lens cleaning

cloth in order to clean the touchscreen.

If necessary, use a lint-free cloth dampened with a

cleaning solution, such as isopropyl alcohol or an

isopropyl alcohol and water solution ratio of 50:50.

Be sure to follow the solvent manufacturer's

precautions and directions

Ú

page 277.

UCONNECT MODES

S

TEERING

 W

HEEL

 A

UDIO

 C

ONTROLS



The remote sound system controls are located on the rear

surface of the steering wheel at the three and nine o’clock

positions.

Remote Sound System Controls

The right-hand control is a rocker-type switch with a push

button in the center and controls the volume and mode of

the sound system. Pushing the top of the rocker switch will

increase the volume, and pushing the bottom of the rocker

switch will decrease the volume.

WARNING!

ALWAYS drive safely with your hands on the steering

wheel. You have full responsibility and assume all risks

related to the use of the Uconnect features and

applications in this vehicle. Only use Uconnect when it

is safe to do so. Failure to do so may result in an

accident involving serious injury or death.

5

CarManuals2.com

126

MULTIMEDIA



Pushing the right-hand control’s center button will make

the radio switch between the various modes available

(AM/FM/SXM or Media, etc.).
The left-hand control is a rocker-type switch with a push

button in the center. The function of the left-hand control

is different depending on which mode you are in.
The following describes the left-hand control operation in

each mode:

Radio Operation

Pushing the top of the switch will seek up for the next

available station and pushing the bottom of the switch will

seek down for the next available station.
The button located in the center of the left-hand control

will tune to the next preset station that you have

programmed in the radio presets.

Media Mode

Pushing the top of the switch skips to the next track on the

selected media (AUX/USB/Bluetooth®). Pushing the

switch up twice will go forward two tracks. Pushing the

bottom switch goes to the beginning of the current track,

or the beginning of the previous track if it is within eight

seconds after the current track begins to play. Double

pressing the bottom button switch will skip to the previous

track if it is after eight seconds into the current track.

R

ADIO

 M

ODE



Radio Controls

Uconnect 4/4 NAV With 7-inch Display

The radio is equipped with the following modes:

AM

FM

SiriusXM® Satellite Radio (if equipped)

Press the Radio button on the touchscreen to enter the

Radio Mode. The different tuner modes, AM, FM, and SXM,

can then be selected by pressing the corresponding

button in Radio Mode.
Volume & On/Off Control
Push the VOLUME & On/Off control knob to turn on and off

the Uconnect system.
The electronic volume control turns continuously

(360 degrees) in either direction, without stopping.

Turning the VOLUME & On/Off control knob clockwise

increases the volume, and counterclockwise decreases it.
When the audio system is turned on, the sound will be set

at the same volume level as last played.
Mute Button
Push the MUTE button to mute or unmute the system.
Tune/Scroll Control
Turn the rotary TUNE/SCROLL control knob clockwise to

increase or counterclockwise to decrease the radio station

frequency. Push the ENTER/BROWSE button to choose a

selection.

1 — Radio Bands
2 — Preset Radio Stations
3 — View Next Preset Radio Stations
4 — Status Bar
5 — Browse Button
6 — Seek Down
7 — Tune Button
8 — Seek Up
9 — Audio Settings
10 — Bottom Menu Bar

CarManuals2.com

MULTIMEDIA

127

Seek
The Seek Up and Down functions are activated by pressing

the double arrow buttons on the touchscreen to the right

and left of the radio station display or by pushing the left

steering wheel audio control button up or down.

Seek Up

 and Seek Down

Press and release the Seek Up

 or Seek Down



button to tune the radio to the next available station or

channel. During a Seek Up/Down function, if the radio

reaches the starting station after passing through the

entire band two times, the radio will stop at the station

where it began.

Fast Seek Up

 and Fast Seek Down

Press and hold, and then release the Seek Up

 or

Seek Down

 button to advance the radio through the

available stations or channels at a faster rate. The radio

stops at the next available station or channel when the

button on the touchscreen is released.

NOTE:

Pressing and holding either the Seek Up

 or

Seek Down

 button will scan the different frequency

bands at a slower rate.
Direct Tune
Press the Tune button located at the bottom of the radio

screen to directly tune to a desired radio station or

channel.

Press the available number button on the touchscreen to

begin selecting a desired station. Once a number has

been entered, any numbers that are no longer possible

(stations that cannot be reached) will become

deactivated/grayed out.
Undo
You can backspace an entry by pressing the
Back

 button on the touchscreen.

GO
Once the last digit of a station has been entered, press

“Ok”. The Direct Tune screen will close, and the system will

automatically tune to that station.

RADIO VOICE COMMANDS

Use your voice to quickly get to the AM, FM, or SiriusXM®

Satellite Radio stations you would like to hear.

(Subscription or included SiriusXM® Satellite Radio trial

required.)

Push the VR button

 on the steering wheel and wait for

the beep to say a command. See an example:

“Tune to ninety-five-point-five FM”

“Tune to Satellite Channel Hits 1”

Did You Know: At any time, if you are not sure of what

to say or want to learn a Voice Command, push the
VR button

 and say “Help”. The system provides you

with a list of commands.

SiriusXM® Satellite Radio Mode —

If Equipped

Uconnect 4/4 NAV With 7-inch Display Changing To

SiriusXM®

NOTE:

Some SiriusXM® features are not supported by all

SiriusXM® channels or content, for example song and

artist favorites, sport game notifications, tune start, and

others.
SiriusXM® Satellite Radio uses direct satellite-to-receiver

broadcasting technology to provide clear, coast-to-coast

radio content. SiriusXM® is a subscription-based service.
Visit https://www.siriusxm.com/phx/getlogin or review

your SiriusXM® Radio pamphlet in your Owner’s Manual

kit for more information.

5

CarManuals2.com

128

MULTIMEDIA



SiriusXM® services require subscriptions, sold separately

after the trial included with the new vehicle purchase. If

you decide to continue your service at the end of your trial

subscription, the plan you choose will automatically renew

and bill at then-current rates until you call SiriusXM® at

866-635-2349 to cancel. See SiriusXM® Customer

Agreement for complete terms at www.siriusxm.com (US)

or www.siriusxm.ca (Canada).
All fees and programming subject to change. SiriusXM®

satellite service is available only to those at least 18 and

older in the 48 contiguous US and D.C. Our SiriusXM®

satellite service is also available in Canada and Puerto

Rico (with coverage limitations). SiriusXM® Internet radio

service is available throughout their satellite service area

and in AK. © 2022 SiriusXM® Radio Inc. SiriusXM® and

all related marks and logos are trademarks of SiriusXM®

Radio Inc.
This functionality is only available for radios equipped with

a Satellite receiver. In order to receive satellite radio, the

vehicle needs to be outside with a clear view to the sky.
If the screen shows “Acquiring Signal”, you might have to

change the vehicle’s position in order to receive a signal.

In most cases, the satellite radio does not receive a signal

in underground parking garages or tunnels.
No Subscription
Radios equipped with a Satellite receiver require a

subscription to the SiriusXM® Service. When the radio

does not have the necessary subscription, the radio is

able to receive the Preview channel only.

Acquiring SiriusXM® Subscription
To activate the SiriusXM® Satellite Radio subscription, US

residents visit https://www.siriusxm.com/phx/getlogin or

call: 1-800-643-2112
Canadian residents visit https://www.siriusxm.ca/ or call:

1-888-539-7474.

NOTE:

You will need to provide the SiriusXM® ID (RID) located at

the bottom of the Channel 0 screen.
The Satellite Mode is activated by a press of the SXM

button on the touchscreen.
When in Satellite Mode:

The SXM button on the touchscreen is highlighted.

The SiriusXM® Presets are displayed at the top of the

screen.

The SiriusXM® Channel Number is displayed in the

center.

The Program Information is displayed at the bottom of

the Channel Number.

The SiriusXM® function buttons are displayed below

the Program Information.

Tuning is done by operating the TUNE/SCROLL Knob or by

Direct Tune, similar to other Radio Bands.
In addition to the tuning operation functions common to

all radio modes, the replay, Traffic/Weather button, and

Favorite button functions are available in SiriusXM®

Mode.

Uconnect 4/4 NAV With 7-inch Display SiriusXM®

Satellite Radio

1 — Browse
2 — Replay
3 — Seek Down Button
4 — Direct Tune Button
5 — Seek Up Button
6 — Audio Settings Button

CarManuals2.com

MULTIMEDIA

129

REPLAY

Replay provides a means to store and replay up to 22 minutes of music audio and 48 minutes of talk radio. Once the channel is switched, content in replay memory is lost.
Press the Replay button on the touchscreen. The Play/Pause, Rewind/Forward and Live buttons will display at the top of the screen, along with the replay time.
You can exit by pressing the Replay button on the touchscreen any time during the Replay Mode.

Play/Pause

Press the Pause/Play button on the touchscreen to pause

the playing of live or rewound content at any time. Play can

be resumed by pressing the Pause/Play button again on

the touchscreen.

Rewind

Press the Rewind button on the touchscreen to rewind the

content in steps of five seconds. Pressing the Rewind

button on the touchscreen for more than two seconds

rewinds the content. The radio begins playing the content

at the point at which the press is released.

Forward

Each press of the Forward button on the touchscreen

forwards the content in steps of five seconds. Forwarding

of the content can only be done when the content is

previously rewound, and therefore, cannot be done for live

content. A continuous press of the Forward button on the

touchscreen also forwards the content. The radio begins

playing the content at the point at which the press is

released.

Live

Press the Live button on the touchscreen to resume the

playing of live content.

5

CarManuals2.com

130

MULTIMEDIA



FAVORITES

Press the Favorites button on the touchscreen to activate

the favorites menu, which will time out within 20 seconds

in absence of user interaction.
You can exit the Favorites Menu by a press of the X button.
The Favorites feature enables you to set a favorite artist or

song that is currently playing. The radio then uses this

information to alert you when either the favorite artist or

song is being played at any time by any of the SiriusXM®

Channels.
The maximum number of favorites that can be stored in

the Radio is 50.
Favorite Artist: While the song is playing, to set a favorite

artist, press the Favorites button on the touchscreen and

then the Favorite Artist button on the touchscreen.
Favorite Song: While the song is playing, to set a favorite

song, press the Favorites button on the touchscreen and

then the Favorite Song button on the touchscreen.

BROWSE IN SXM

Uconnect 4/4 NAV With 7-inch Display Browse Button

Press the Browse button on the touchscreen to edit

Presets, Favorites, Game Zone, and Jump settings, along

with providing the SiriusXM® Channel List.
This Screen contains many submenus. You can exit

submenus to return to a parent menu by pressing the

Back arrow.

All
Press the All button on the Browse Screen. When pressing

the All button, the following categories become available:

Channel List: Press the Channel List to display all the

SiriusXM® Channel Numbers. You can scroll the

Channel List by pressing the Up and Down arrows,

located on the right side of the screen. Scrolling can

also be done by operating the Tune/Scroll knob.

Genre List: Press the Genre button on the touchscreen

to display a list of Genres. You can select any desired

Genre by pressing the Genre List. The radio tunes to a

channel with the content in the selected Genre.

Presets — If Equipped
Press the Presets button (if equipped) located at the left of

the Browse screen.
You can scroll the Presets list by pressing the Up and

Down arrows located at the right side of the screen.

Scrolling can also be done by operating the TUNE/SCROLL

knob as well.
Preset Selection
A preset can be selected by pressing any of the listed

Presets, or by pushing the ENTER/BROWSE button on the

TUNE/SCROLL knob to select the currently highlighted

Preset. When selected, the Radio tunes to the station

stored in the Preset.

1 — All Button
2 — Presets Button
3 — Favorites Button
4 — Game Zone Button

CarManuals2.com

MULTIMEDIA

131

Deleting A Preset
A preset can be deleted in the Presets Browse screen by

pressing the Trash Can icon for the corresponding preset.
Favorites
Press the Favorites button on the Browse screen.
The Favorites menu provides a means to edit the Favorites

list and to configure the Alert Settings, along with

providing a list of Channels currently airing any of the

items in the Favorites list.
You can scroll the Favorites list by pressing the Up and

Down arrows located at the right side of the screen.

Scrolling can also be done by operating the TUNE/SCROLL

knob as well.
Remove Favorites
Press the Remove Favorites tab at the top of the screen.

Press the Delete All button on the touchscreen to delete

all of the Favorites or press the Trash Can icon next to the

Favorite to be deleted.
Alert Settings
Press the Alert Settings tab at the top of the Favorites

screen. The Alert Settings menu allows you to choose from

a visual alert or audible and visual alert when one of your

favorites is airing on any of the SiriusXM® channels.
Game Zone
Press the Game Zone button, located at the left of the

Browse screen. This feature provides you with the ability to

select teams, edit the selection, and set alerts.

On-Air
Press the On-Air tab at the top of the screen. The On-Air list

provides a list of Channels currently airing any of the items

in the Selections list, and pressing any of the items in the

list tunes the radio to that channel.
Select Team — If Equipped
Press the Select Team button on the touchscreen to

activate the League Scroll list. Press the chosen league

and a scroll list of all teams within the league will appear,

then you can select a team by pressing the corresponding

box. A check mark appears for all teams that are chosen.
Remove Selection/Trash Can Icon
Press the Remove Selection tab at the top of the screen.

Press the Delete All button on the touchscreen to delete

all of the selections or press the Trash Can icon next to the

selection to be deleted.
Alert Settings
Press the Alert Setting tab at the top of the screen.

The Alert Settings menu allows you to choose from “Alert

me to on-air games upon start” or “Alert upon score

update” or both when one or more of your selections is

airing on any of the SiriusXM® channels.
Tune Start
Tune Start begins playing the current song from the

beginning when you tune to a music channel using one of

the 12 presets. This feature occurs the first time the

preset is selected during that current song.

Setting Presets

Uconnect 4/4 NAV With 7-inch Display Radio Presets

The Presets are available for all Radio Modes, and are

activated by pressing any of the Preset buttons, located at

the top of the screen.
When you are on a station that you wish to save as a

preset, press and hold the numbered button on the

touchscreen for more than two seconds.
The Radio stores up to 12 presets in each of the

Radio Modes.
A total of six presets will appear on the screen. You can

switch between the radio presets list by pressing the Arrow

button located in the upper right of the radio touchscreen.

5

CarManuals2.com

132

MULTIMEDIA



PRESET FEATURES — IF EQUIPPED

Browse In AM/FM
When in either AM or FM, the Browse Screen provides a

means to edit the Presets List and is entered by pushing

the ENTER/BROWSE button.
Scrolling Preset List
Once in the Browse Presets screen, you can scroll the

preset list by rotation of the TUNE/SCROLL knob or by

pressing the Up or Down Arrow keys, located on the right

of the screen.
Preset Selection From List
A preset can be selected by pressing any of the listed

Presets, or by pushing the ENTER/BROWSE button on the

TUNE/SCROLL knob to select the currently highlighted

Preset.
When selected, the radio tunes to the station stored in the

Presets.

Deleting Presets
A preset can be deleted in the Presets Browse screen by

pressing the Trash Can icon for the corresponding preset.
Return To Main Radio Screen
You can return to the Main Radio Screen by pressing

the X button or the Back Arrow button when in the Browse

Presets screen.

Audio Settings

Press the Audio button within the settings main menu to

activate the Audio Settings screen.
The audio settings can also be accessed on the Radio

Mode screen by pressing the Audio button. You can return

to the Radio screen by pressing the X button.

Uconnect 4/4 NAV With 7-inch Display

1 — Balance/Fade
2 — Equalizer
3 — Speed Adjusted Volume
4 — Surround Sound
5 — Loudness
6 — AUX Volume Offset
7 — Radio Off With Door

CarManuals2.com

MULTIMEDIA

133

Audio Setting

Description

Balance/Fade

Press the Balance/Fade button on the touchscreen to balance audio between the front

speakers or fade the audio between the rear and front speakers. Press the Front, Rear,

Left or Right button or press and drag the red Speaker icon to adjust the Balance/Fade.

Equalizer

Press the + or - button or press and drag the level bar to increase or decrease each of the

equalizer bands. The level value, which spans between plus or minus nine, is displayed at

the top of each of the bands.

Speed Adjusted Volume

The Speed Adjusted Volume is adjusted by selecting from “Off”, “1”, “2”, and “3”. This alters

the automatic adjustment of the audio volume with variation to vehicle speed. Volume

increases automatically as speed increases to compensate for normal road noise.

Surround Sound — If Equipped

When Surround Sound is on, you can hear audio coming from every direction as in a

movie theatre or home theatre system.

Loudness — If Equipped

When Loudness is on, the sound quality at lower volumes improves.

AUX Volume Offset

The AUX Volume Offset is adjusted by pressing + and - buttons. This alters the AUX input

audio volume. The level value, which spans between plus or minus three, is displayed

above the adjustment bar.

Radio Off With Door — If Equipped

The Radio Off With Door feature, when activated, keeps the radio on until the driver or

passenger door is opened or until the “Radio Off Delay” selected time has expired.

5

CarManuals2.com

134

MULTIMEDIA



M

EDIA

 M

ODE



Operating Media Mode

Uconnect 4/4 NAV With 7-inch Display Operating Media Mode

Audio Source Selection

Once in Media Mode, press the Source or Source Select

button on the touchscreen and the desired mode button

on the touchscreen. USB, AUX, and Bluetooth® are the

Media sources available. When available, you can select

the Browse button on the touchscreen to be given these

options:

Now Playing

Artists

Albums

Genres

Songs

Playlists

Folders

You can press the Source, Pause/Play, or the Info button

on the touchscreen for artist information on the current

song playing.

Types of Media Modes

USB MODE

Overview
USB Mode is entered by inserting a USB device into the

USB port, by selecting the USB button on the left side of

the touchscreen, or by selecting the Source Select/Select

Source button and then selecting USB 1 or 2 (if equipped).

BLUETOOTH® MODE

Overview
Bluetooth® Streaming Audio or Bluetooth® Mode is

entered by pairing a Bluetooth® device, containing music,

to the Uconnect system.
Before proceeding, the Bluetooth® device must be

paired to the Uconnect Phone to communicate with the

Uconnect system.
To access Bluetooth® Mode, press the Bluetooth® button

on the left side of the touchscreen or under the Source

Select/Select Source button (if equipped).

Uconnect 4/4 NAV With 7-inch Display Select Source

1 — Select Source
2 — Repeat
3 — Track Time
4 — Shuffle
5 — Info
6 — Browse
7 — Tracks

CarManuals2.com

MULTIMEDIA

135

AUX MODE

Overview
Auxiliary Mode (AUX) is entered by inserting an AUX device

using a cable with a 3.5 mm audio jack into the AUX port

or by pressing the AUX button on the left side of the

touchscreen, or under the Source Select button (if

equipped).
To insert an Auxiliary device, gently insert the Auxiliary

device cable into the AUX port. If you insert an Auxiliary

device with the ignition and the radio on, the unit will

switch to AUX Mode and begin to play.
Controlling The Auxiliary Device
The control of the Auxiliary device (e.g., selecting playlists,

play, fast forward, etc.) cannot be provided by the radio;

use the device controls instead. Adjust the volume with

the VOLUME & On/Off rotary knob or MUTE button, or

MUTE button with the volume of the attached device.

NOTE:

The radio unit is acting as the amplifier for audio output

from the Auxiliary device. Therefore, if the volume control

on the Auxiliary device is set too low, there will be insuffi

-

cient audio signal for the radio unit to play the music on

the device.

Seek Up

 /Seek Down

In USB Mode, press the Seek Up button on the

touchscreen for the next selection on the USB device.

Press and release the Seek Down button on the

touchscreen to return to the beginning of the current

selection, or to return to the beginning of the previous

selection if the USB device is within the first three seconds

of the current selection.

In Bluetooth® Mode, press and release the Seek Up

button on the touchscreen for the next selection on the

Bluetooth® device. Press and release the Seek Down

button on the touchscreen to return to the beginning of

the current selection, or return to the beginning of the

previous selection if the Bluetooth® device is within the

first second of the current selection.
Browse
In USB Mode, press the Browse button on the touchscreen

to display the browse window. In USB Mode, the left side

of the browse window displays a list of ways you can

browse through the contents of the USB device. If

supported by the device, you can browse by Folder, Artist,

Playlist, Album, Song, etc. Press the desired button on the

touchscreen on the left side of the screen. The center of

the browse window shows items and their sub-functions,

which can be scrolled through by pressing the Up and

Down buttons to the right. The TUNE/SCROLL knob can

also be used to scroll.
Media Mode
In USB Mode, press the MEDIA button on the touchscreen

to select the desired audio source: USB.
In Bluetooth® Mode, press the MEDIA button on the

touchscreen to select the desired audio source:

Bluetooth®.
In AUX Mode, press the MEDIA button on the touchscreen

to select the desired audio source: AUX.

Repeat
In USB Mode, press the Repeat button on the touchscreen

to toggle the repeat functionality. The Repeat button on

the touchscreen is highlighted when active. The Radio will

continue to play the current track, repeatedly, as long as

the repeat is active. Press the Repeat button again to

enter Repeat All. The radio will continue to play all the

current tracks, repeatedly, as long as the repeat function

is active. To cancel Repeat, press the Repeat button a

third time.
Shuffle
In USB Mode, press the Shuffle button on the touchscreen

to play the selections on the USB device in random order

to provide an interesting change of pace. Press the Shuffle

button on the touchscreen a second time to turn this

feature off.
Audio
Audio settings can be accessed by pressing the

Audio button

Ú

page 126.

Info
In USB Mode, press the Info button on the touchscreen

to display the current track information. Press the Info

or X button on the touchscreen a second time to cancel

this feature.

5

CarManuals2.com

136

MULTIMEDIA



Tracks
In USB Mode, press the Tracks button on the touchscreen

to display a pop-up with the Song List. The song currently

playing is indicated by an arrow and lines above and below

the song title. When in the Tracks List screen you can

rotate the Tune/Scroll knob to highlight a track (indicated

by the line above and below the track name) and then

push the Enter/Browse knob to start playing that track.
In Bluetooth® Mode, if the Bluetooth® device supports

this feature, press the Tracks button on the touchscreen

to display a pop-up with the Song List. The currently

playing song is indicated by a red arrow and lines above

and below the song title.
Pressing the Tracks button on the touchscreen while the

pop-up is displayed will close the pop-up.

MEDIA VOICE COMMANDS

Uconnect offers connections via USB, Bluetooth®, and

auxiliary (AUX) ports. Voice operation is only available for

connected USB and AUX devices.

Push the VR button

 located on the steering wheel.

After the beep, say one of the following commands and

follow the prompts to switch your media source or choose

an artist:

“Change source to Bluetooth®”

“Change source to AUX”

“Change source to USB”

“Play artist Beethoven”; “Play album Greatest Hits”;

“Play song Moonlight Sonata”; “Play genre Classical”

Did You Know: Press the Browse button on the

touchscreen to see all of the music on your USB device.

Your Voice Command must match exactly how the artist,

album, song, and genre information is displayed.

P

HONE

 M

ODE



Overview

Uconnect Phone is a voice-activated, hands-free,

in-vehicle communications system. It allows you to dial a

phone number with your mobile phone.
The feature supports the following:
Voice Activated Features

Hands-Free dialing via Voice (“Call John Smith Mobile”

or “Dial 248-555-1212”).

Hands-Free text-to-speech listening of your incoming

SMS messages.

Hands-Free Text Message Replying: Forward one of

18 predefined SMS messages to incoming calls/

text messages.

Redialing last dialed numbers (“Redial”).

Calling Back the last incoming call number

(“Call Back”).

Viewing call logs on screen (“Show Incoming Calls,”

“Show Outgoing Calls,” “Show Missed Calls,” or

“Show Recent Calls”).

Searching Contacts phone number

(“Search for John Smith Mobile”).

Screen Activated Features

Dialing via Keypad using touchscreen.

Viewing and Calling contacts from Phonebooks

displayed on the touchscreen.

Setting Favorite Contact phone numbers so they are

easily accessible on the Main Phone screen.

Viewing and Calling contacts from Recent Call logs.

Reviewing your recent Incoming SMS Messages.

Pairing up to 10 phones/audio devices for easy access

to connect to them quickly.

NOTE:

Your phone must be capable of SMS messaging via Blue

-

tooth® for messaging features to work properly.
Your mobile phone’s audio is transmitted through your

vehicle’s audio system; the system will automatically mute

your radio when using the Uconnect Phone.
For Uconnect customer support:

US visit UconnectPhone.com or call 877-855-8400

Canada visit UconnectPhone.com or call

800-465-2001 (English) or (French) call

800-387-9983

Uconnect Phone allows you to transfer calls between the

system and your mobile phone as you enter or exit your

vehicle and enables you to mute the system's microphone

for private conversation.

CarManuals2.com

MULTIMEDIA

137

The Phone feature is driven through your Bluetooth®

“Hands-Free Profile” mobile phone. Uconnect features

Bluetooth® technology — the global standard that enables

different electronic devices to connect to each other

without wires or a docking station. Ensure you phone is

turned on with Bluetooth® active and has been paired to

the Uconnect system. Up to 10 mobile phones or audio

devices are allowed to be linked to the system. Only one

linked (or paired) mobile phone and one audio device can

be used with the system at a time.
Phone Button

The Phone button on your steering wheel is

used to get into the Phone Mode and make

calls, show recent, incoming or outgoing calls,

view phonebook, etc. When you push the

button you will hear a BEEP. The BEEP is your signal to give

a command.
Voice Command Button

The Voice Command button on your steering

wheel is only used for “barge in” and when you

are already in a call or want to make another

call.

The button on your steering wheel is also used to access

the Voice Commands for the Uconnect Voice Command

features if your vehicle is equipped.

Phone Operation

OPERATION

Voice commands can be used to operate the Uconnect

Phone and to navigate its menu structure. Voice

commands are required after most Uconnect Phone

prompts. There are two general methods for how

Voice Command works:
1. Say compound commands like

“Call John Smith mobile”.

2. Say the individual commands and allow the system to

guide you to complete the task.

You will be prompted for a specific command and then

guided through the available options.

Prior to giving a voice command, one must wait for the

beep, which follows the “Listen” prompt or another

prompt.

For certain operations, compound commands can be

used. For example, instead of saying “Call” and then

“John Smith” and then “mobile”, the following

compound command can be said:

“Call John Smith mobile.”

For each feature explanation in this section, only the

compound command form of the voice command is

given. You can also break the commands into parts and

say each part of the command when you are asked for

it. For example, you can use the compound command

form voice command “Search for John Smith,” or you

can break the compound command form into two voice

commands: “Search Contacts” and when asked, “John

Smith.” Please remember, the Uconnect Phone works

best when you talk in a normal conversational tone, as

if speaking to someone sitting a few feet/meters away

from you.

NATURAL SPEECH

Your Uconnect Phone Voice system uses a Natural

Language Voice Recognition (VR) engine.
Natural speech allows the user to speak commands in

phrases or complete sentences. The system filters out

certain non-word utterances and sounds such as “ah”

and “eh.” The system handles fill-in words such as

“I would like to”.
The system handles multiple inputs in the same phrase or

sentence such as “make a phone call” and “to Kelly

Smith”. For multiple inputs in the same phrase or

sentence, the system identifies the topic or context and

provides the associated follow-up prompt such as

“Who do you want to call?” in the case where a phone call

was requested but the specific name was not recognized.
The system utilizes continuous dialog. When the system

requires more information from the user, it will ask a

question to which the user can respond without pushing

the Voice Command button on the steering wheel.

WARNING!

ALWAYS drive safely with your hands on the steering

wheel. You have full responsibility and assume all risks

related to the use of the Uconnect features and

applications in this vehicle. Only use Uconnect when it

is safe to do so. Failure to do so may result in an

accident involving serious injury or death.

5

CarManuals2.com

138

MULTIMEDIA



HELP COMMAND

If you need assistance at any prompt, or if you want to

know your options at any prompt, say “Help” following the

beep.
To activate the Uconnect Phone from idle, simply push the

Phone button (if active) on your steering wheel and say a

command or say “Help”. All Phone sessions begin with a

push of the VR button or the Phone button.

CANCEL COMMAND

At any prompt, after the beep, you can say “Cancel” and

you will be returned to the main menu.
You can also push the VR button or Phone button on your

steering wheel when the system is listening for a

command and be returned to the main or previous menu.

PAIR (LINK) UCONNECT PHONE TO A MOBILE

PHONE

Use this QR code to access your digital

experience.
To begin using your Uconnect Phone,

you must pair your compatible

Bluetooth®-enabled mobile phone.

Mobile phone pairing is the process of

establishing a wireless connection

between a cellular phone and the

Uconnect system.
To complete the pairing process, you will need to

reference your mobile phone’s manual. Please visit

UconnectPhone.com for complete mobile phone

compatibility information.

Uconnect 4/4 NAV With 7-inch Display

NOTE:

You must have Bluetooth® enabled on your phone to

complete this procedure.

The vehicle must be in PARK or at a standstill.

Follow the following steps to pair your phone:
1. Place the ignition in the ACC or ON/RUN position.
2. Press the Phone button.

NOTE:

If there are no phones currently connected with

the system, a pop-up will appear asking if you

would like to pair a mobile phone.

This pop-up only appears when the user enters

Phone Mode and no other device(s) have previ

-

ously been paired. If the system has a phone previ

-

ously paired, even if no phone is currently

connected with the system, this pop-up will not

appear.

3. Select “Yes” to begin the pairing process.
4. Search for available devices on your

Bluetooth®-enabled mobile phone.

Press the Settings button on your mobile phone.

Select “Bluetooth®” and ensure it is enabled.

Once enabled, the mobile phone will begin to

search for Bluetooth® connections.

NOTE:

During the pairing procedure, you may receive a pop-up on

your touchscreen asking you to make sure the PIN on the

touchscreen matches the PIN from the pop-up on your

mobile phone.
5. If “No” is selected, and you still would like to pair a

mobile phone, press the Phone Pairing or Settings

button from the Uconnect Phone main screen.

Press the Paired Phones button or the Add Device

button.

Search for available devices on your

Bluetooth®-enabled mobile phone. When

prompted on the phone, select “Uconnect” and

accept the connection request.

6. Uconnect Phone will display an in-progress screen

while the system is connecting.

7. When your mobile phone finds the Uconnect system,

select “Uconnect.”

CarManuals2.com

MULTIMEDIA

139

8. When prompted on the mobile phone, accept the

connection request from Uconnect.

9. When the pairing process has successfully

completed, the system will prompt you to choose

whether or not this is your favorite phone. Selecting

“Yes” will make this phone the highest priority. This

phone will take precedence over other paired phones

within range and will connect to the Uconnect system

automatically when entering the vehicle. Only one

mobile phone and/or one Bluetooth® audio device

can be connected to the Uconnect system at a time.

If “No” is selected, simply select “Uconnect” from the

mobile phone/audio device Bluetooth® screen, and

the Uconnect system will reconnect to the

Bluetooth® device.

NOTE:

For phones which are not made a favorite, the phone

priority is determined by the order in which it was paired.

The most recent phone paired will have the higher priority.

NOTE:

During the pairing procedure, you may receive a pop-up on

your mobile phone for the Uconnect system to access your

“messages” and “contacts”. Selecting “Ok” or “Allow” will

sync your contacts with the Uconnect system.
You can also use the VR command “Show Paired Phones”

to bring up the Paired Phone screen from any screen on

the radio.

NOTE:

Software updates on your phone or the Uconnect system

may interfere with the Bluetooth® connection. If this

happens, simply repeat the pairing process. However, first

make sure to delete the device from the list of phones on

your Uconnect system. Next, be sure to remove Uconnect

from the list of devices in your phone’s Bluetooth®

settings.

PAIR A BLUETOOTH® STREAMING AUDIO

DEVICE

1. Press the Media button on the touchscreen to begin.
2. Change the source to “Bluetooth®”.
3. Press the Bluetooth® button on the touchscreen to

display the Paired Audio Devices screen.

4. Press the Add Device button on the touchscreen.

NOTE:

If there is no device currently connected with the system,

a pop-up will appear.
5. Search for available devices on your

Bluetooth®-enabled audio device. When prompted

on the device, confirm the PIN shown on the

Uconnect screen.

6. Uconnect Phone will display an in-process screen

while the system is connecting.

7. When the pairing process has successfully

completed, the system will prompt you to choose

whether or not this is your favorite device. Selecting

“Yes” will make this device the highest priority. This

device will take precedence over other paired devices

within range.

NOTE:

For devices which are not made a favorite, the device

priority is determined by the order in which it was paired.

The most recent device paired will have the higher priority.
You can also use the VR command “Show Paired Phones”

to bring up a list of paired audio devices.

CONNECTING TO A PARTICULAR MOBILE

PHONE OR AUDIO DEVICE AFTER PAIRING

Uconnect Phone will automatically connect to the highest

priority paired phone and/or Audio Device within range.

If you need to choose a particular phone or audio device

follow these steps:
1. Press the Settings button on the touchscreen.
2. Press the Paired Phones or Audio Sources button.
3. Press to select the particular phone or the particular

audio device. A pop-up menu will appear; press

“Connect Phone”.

4. Press the X to exit out of the Settings screen.

5

CarManuals2.com















Content      ..     2      3      4      5     ..
