44



P

OWER

 O

UTLETS



There is one 12 Volt (13 Amp) power outlet in this vehicle,

located under the climate controls. This power outlet can

power mobile phones, electronics and other low power

devices.
This power outlet is located in front of the gear selector.

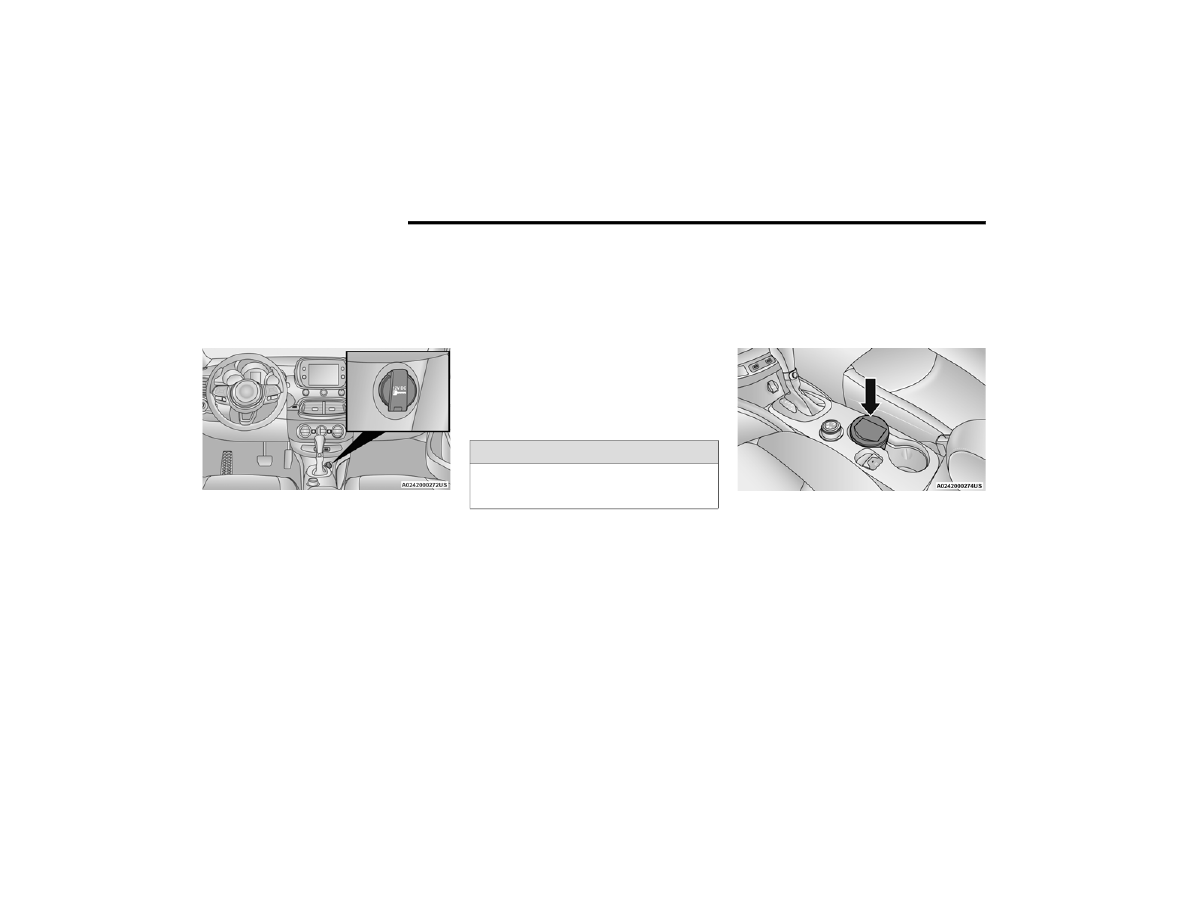

12 Volt Power Outlet

NOTE:

The power outlet can be changed to battery powered

at all times by switching the power outlet Engine

Compartment Fuses/Distribution Unit fuse from

location F84 to F23.

Do not exceed the maximum power of 160 W (13 Amp)

at 12 Volts. If the 160 W (13 Amp) power rating is

exceeded, the fuse protecting the system will need to

be replaced.

Power outlets are designed for accessory plugs only.

Do not insert any other object in the power outlet as

this will damage the outlet and blow the fuse. Improper

use of the power outlet can cause damage not covered

by your new vehicle warranty.

Power Outlet Fuse Location:
F84 Fuse 20A Yellow Instrument Panel Power Outlet.

C

IGAR

 L

IGHTER

 — I

F

 E

QUIPPED



The cigar lighter is located on the instrument panel, below

the climate controls. To activate the cigar lighter, push and

release the knob. After a few seconds the knob

automatically returns to its initial position, and the cigar

lighter is ready for use.

NOTE:

Always check that the cigar lighter is switched off.

Do not connect devices with power higher than 180 W

to the socket. Do not damage the socket by using

unsuitable adapters.

A

SHTRAY

 — I

F

 E

QUIPPED

NOTE:

Ashtrays can be purchased at an authorized dealer

through Mopar® parts.
The ashtray is a plastic container that can be placed into

one of the cup holders.

Ashtray Location

WARNING!

When the cigar lighter is in use it becomes very hot. To

avoid serious injury, handle the cigar lighter with care.

Always check that the cigar lighter has turned off.

CarManuals2.com

45

G

RAB

 H

ANDLES

The grab handles are located immediately above the

doors. The rear handles are equipped with hooks for dress

hangers.

Rear Grab Handle Assembly

WINDOWS

P

OWER

 W

INDOW

 C

ONTROLS

The window controls on the driver's door control all the

door windows.

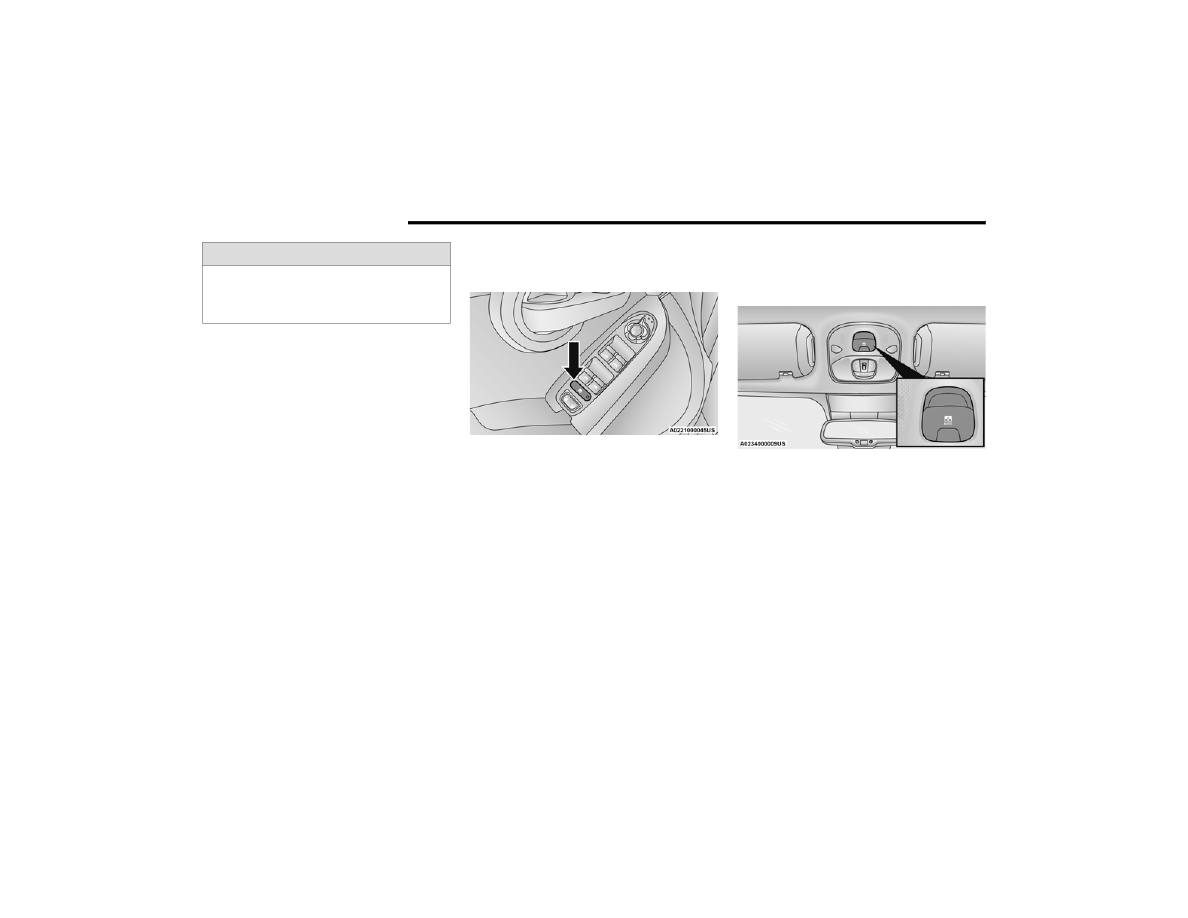

Power Window Switches

The passenger door windows can also be operated by

using the single window controls on the passenger door

trim panel. The window controls will operate only when the

ignition is in the ON/RUN position.

NOTE:

The power window switches will remain active for up to

three minutes after the ignition is placed in the OFF

position. Opening either front door will cancel this feature.

Automatic Window Features

Auto-Down Feature
The driver and passenger door power window switches

have an Auto-Down feature. Push the window switch down

briefly, then release, and the window will go down

automatically.
To stop the window from going all the way down during the

Auto-Down operation, pull up or push down on the switch

briefly when the window has reached the desired position.
Auto-Up Feature With Anti-Pinch Protection
The driver and front passenger power door window

switches have an Auto-Up feature.
Lift the window switch up briefly and release; the window

will go up automatically.
To stop the window from going all the way up during the

Auto-Up operation, pull up or push down on the switch

briefly.
To close the window part way, lift the window switch briefly

and release it when you want the window to stop.
If the window runs into any obstacle during auto-closure, it

will reverse direction and then go back down. Remove the

obstacle and use the window switch again to close the

window.

NOTE:

Any impact due to rough road conditions may trigger the

auto-reverse function unexpectedly during auto-closure.

If this happens, pull the switch lightly and hold to close the

window manually.

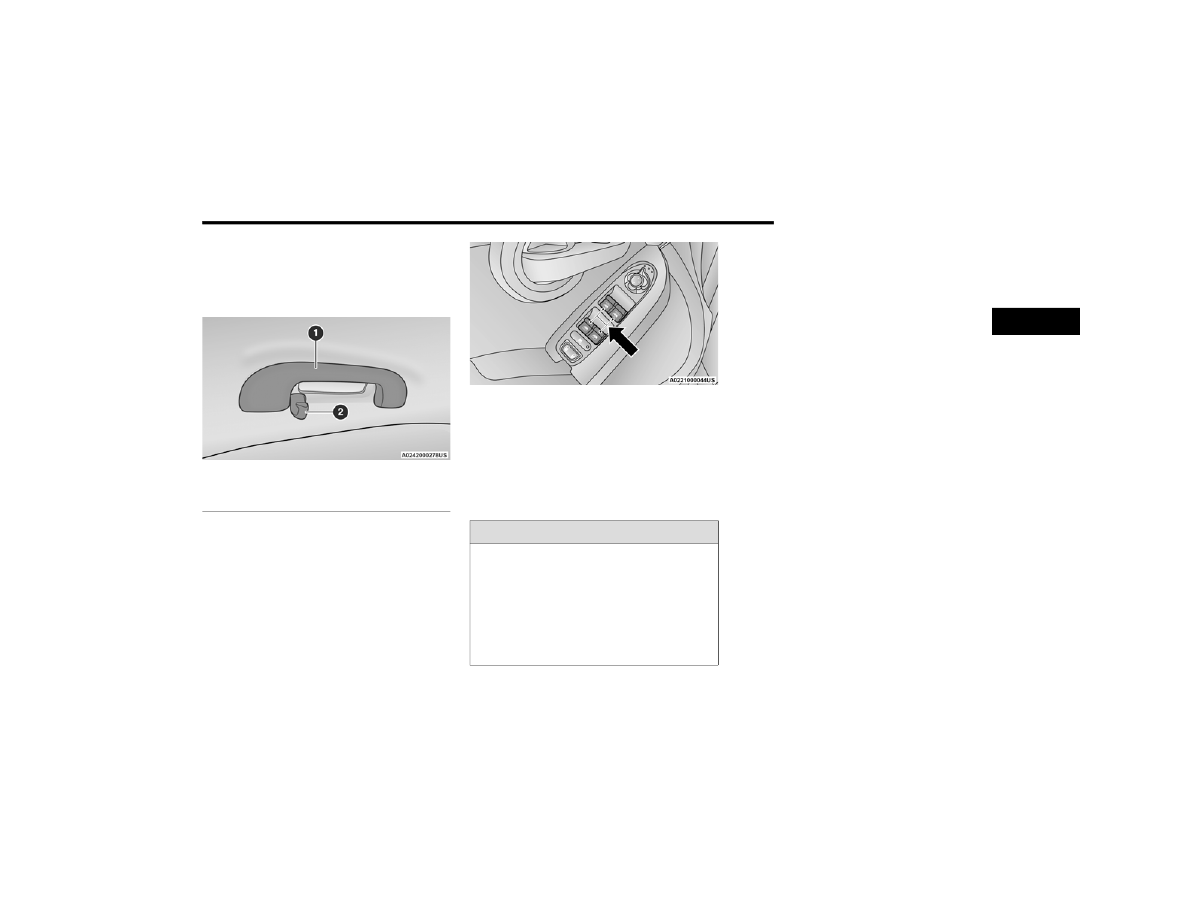

1 — Grab Handle
2 — Hook

WARNING!

Never leave children unattended in a vehicle, and do

not let children play with power windows. Do not leave

the key fob in or near the vehicle, or in a location

accessible to children, and do not leave the Keyless

Enter ‘n Go™ Ignition in the ON/RUN position.

Occupants, particularly unattended children, can

become entrapped by the windows while operating the

power window switches. Such entrapment may result in

serious injury or death.

2

CarManuals2.com

46



Reset Auto-Up

Should the Auto-Up feature be interrupted and stop

working, the feature will need to be reset. To reset

Auto-Up:
1. Pull the window switch up to close the window

completely and continue to hold the switch up for an

additional two seconds after the window is closed.

2. Push the window switch down firmly to open the

window completely and continue to hold the switch

down for an additional two seconds after the window

is fully open.

NOTE:

All doors must be closed before beginning the Auto-Up

reset procedure.

Window Lockout Switch

The window lockout switch on the driver's door trim panel

allows you to disable the window controls on the rear

passenger doors. To disable the window controls, push

and release the window lockout button (the indicator light

on the switch will turn on). To enable the window controls,

push and release the window lockout switch again (the

indicator light on the switch will turn off).

Window Lockout Switch

Wind Buffeting

Wind buffeting can be described as the perception of

pressure on the ears or a helicopter-type sound in the

ears. Your vehicle may exhibit wind buffeting with the

windows down, or the sunroof (if equipped) in certain open

or partially open positions. This is a normal occurrence

and can be minimized. If the buffeting occurs with the rear

windows open, open the front and rear windows together

to minimize the buffeting. If the buffeting occurs with the

sunroof open, adjust the sunroof opening to minimize the

buffeting or open any window.

POWER FOLDING ROOF — IF EQUIPPED

If your vehicle is equipped with a Power Folding Roof, the

control switch can be found on the overhead console.

Power Folding Roof Open/Close Switch

NOTE:

The Power Folding Roof is non-removable.

The Power Folding Roof will not open in temperatures

below -2°F (-18°C) or above 176°F (80°C).

The Power Folding Roof will not operate at vehicle

speeds above 62 mph (100 km/h).

WARNING!

There is no auto-reverse protection when the window is

almost closed. To avoid personal injury be sure to clear

your arms, hands, fingers and all objects from the

window path before closing.

CarManuals2.com

47

NOTE:

A slight pause in audio may be heard when opening and

closing the Power Folding Roof as a result of the Uconnect

system switching between Power Roof Closed and Power

Roof Open audio modes.

O

PENING

 T

HE

 P

OWER

 F

OLDING

 R

OOF

Express Mode
Push the open/close switch and release it within one-half

second and the power roof will open automatically from

any position. The power roof will open fully and stop

automatically. Push the open/close switch and release it

within one-half second and the sunroof will close

automatically from any position and it stops 7.9 inches

(20 cm) before full closure. For full closure, push and hold

the open/close switch.
During Express Open or Express Close operation, any

other movement of the power roof switch will stop the

sunroof.
Manual Mode
To open the power roof manually, push and hold the open/

close switch to the full open position, then release. To

close the power roof manually, push and hold the open/

close switch to the fully closed position, then release.
Any release of the switch during open or close operation

will stop the power roof movement. The power roof will

remain in a partially opened position until the switch is

operated and held again.

C

LOSING

 T

HE

 P

OWER

 R

OOF

Express Mode
Push the close switch and release it within one-half

second. The power roof will close fully and stop

automatically. This is called “Express Close”. During

Express Close operation, any movement of the switch will

stop the power roof.
Manual Mode
To close the power roof manually, push and hold the close

switch. The power roof will move forward and

automatically stop at the fully closed position. Any release

of the switch will stop the movement. The power roof will

remain in a partially closed position until the switch is

pushed and held again.

P

OWER

 R

OOF

 M

AINTENANCE

Use only a non-abrasive cleaner and a soft cloth to clean

the window glass. For important information on cleaning

and caring for your vehicle

Ú

page 265.

I

GNITION

 O

FF

 O

PERATION

The power sliding roof switch can remain active in

Accessory Delay for up to approximately 10 minutes after

the vehicle’s ignition is placed in the OFF position.

Opening either front door will cancel this feature.

NOTE:

Ignition Off timing is programmable through the Uconnect

system

Ú

page 106.

WARNING!

Never leave children unattended in a vehicle, or with

access to an unlocked vehicle. Never leave the key

fob in or near the vehicle, or in a location accessible

to children. Do not leave the Keyless Enter ‘n Go™

Ignition in the ON/RUN position. Occupants, particu

-

larly unattended children, can become entrapped by

the power roof while operating the power roof switch.

Such entrapment may result in serious injury or

death.

In a collision, there is a greater risk of being thrown

from a vehicle with an open power roof. You could

also be seriously injured or killed. Always fasten your

seat belt properly and make sure all passengers are

also properly secured.

Do not allow small children to operate the power top.

Never allow your fingers, other body parts, or any

object, to project through the power roof opening.

Injury may result.

2

CarManuals2.com

48



R

ELEARN

 P

ROCEDURE

For vehicles equipped with a power sliding roof, there is a

relearn procedure that allows you to calibrate the power

roof when the “Express Mode” stops working. To reset the

power sliding roof, follow these steps:
1. Place the ignition in the RUN position, and start the

vehicle.

NOTE:

The engine must be running to perform the relearn

procedure.
2. Ensure the power sliding roof is in the fully closed

position.

3. Push and hold the open/close switch for 10 seconds.

This will put the power sliding roof into calibration

mode.

4. Continue holding down the close button while the

top goes fully open and then back to fully close.

5. Once the power sliding roof has stopped in the

fully closed position, release the open/close switch.

The power sliding roof is now reset and ready to use.

NOTE:

If the open/close switch is released anytime during the

relearning process, the relearn may not be complete, and

the procedure must be repeated.

HOOD

T

O

 O

PEN

 T

HE

 H

OOD

To open the hood, two latches must be released.
1. Pull the release lever located underneath the

driver’s side of the instrument panel.

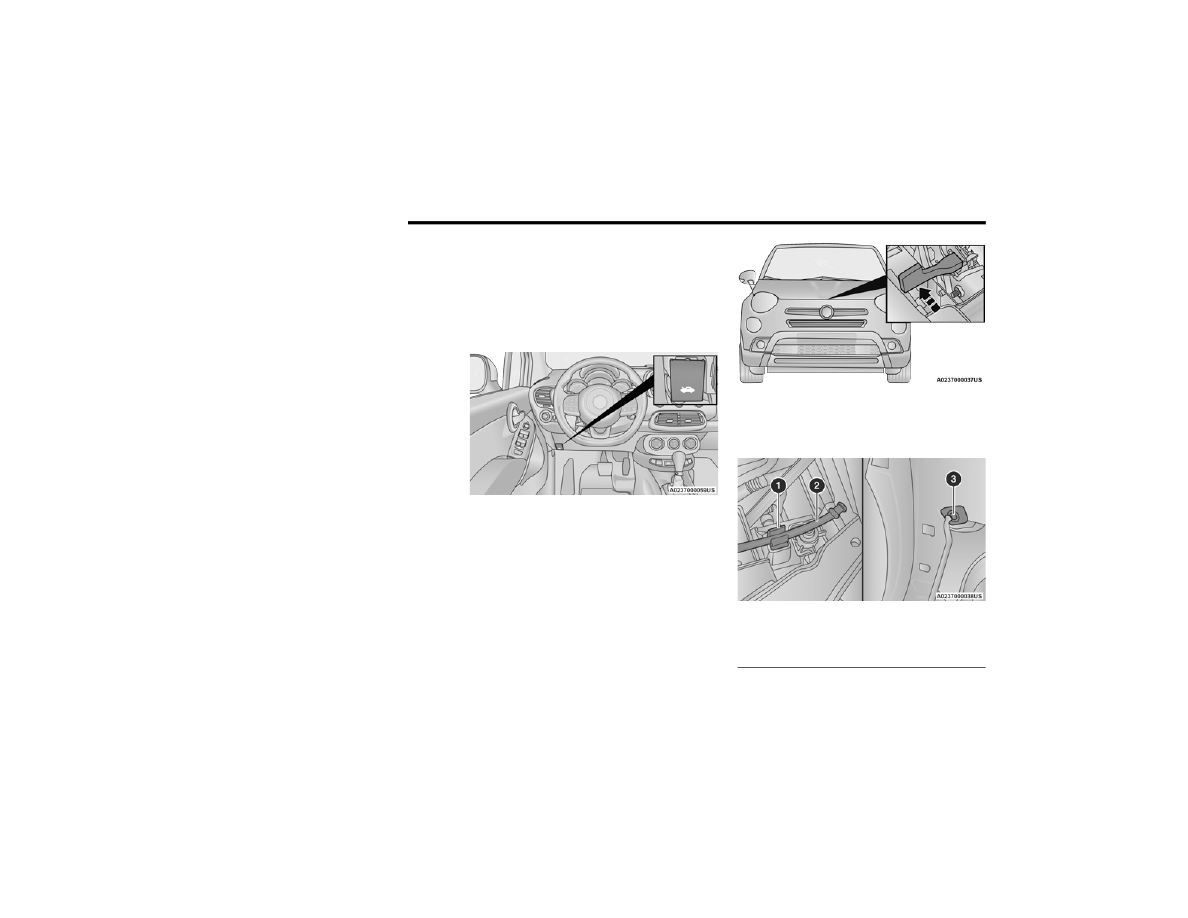

Hood Release Lever

2. Move to the outside of the vehicle and push the

safety latch release lever toward the passenger side

of the vehicle. The hood release lever is located

behind the center front edge of the hood.

Safety Latch Release Lever Location

3. Remove the support rod from the locking tab and

insert it into the seat located on the underside of the

hood. Be sure the rod is locked into position.

Hood Prop System

1 — Locking Tab
2 — Support Rod
3 — Support Rod Seat

CarManuals2.com

49

NOTE:

Vehicle must be at a stop and the gear selector must

be in PARK.

While lifting the hood, use both hands.

Before lifting the hood, check that the wiper arms are

not in motion and not in the lifted position.

T

O

 C

LOSE

 T

HE

 H

OOD

1. Hold up the hood with one hand and with the other

hand remove the support rod from its seat and

reinsert it into the locking tab.

2. Lower the hood to approximately 12 inches (30 cm)

from the engine compartment and drop it. Make sure

that the hood is completely closed.

LIFTGATE

T

O

 U

NLOCK

/O

PEN

 T

HE

 L

IFTGATE

To unlock the liftgate from the outside, push the electronic

liftgate release and pull the liftgate open with one fluid

motion.

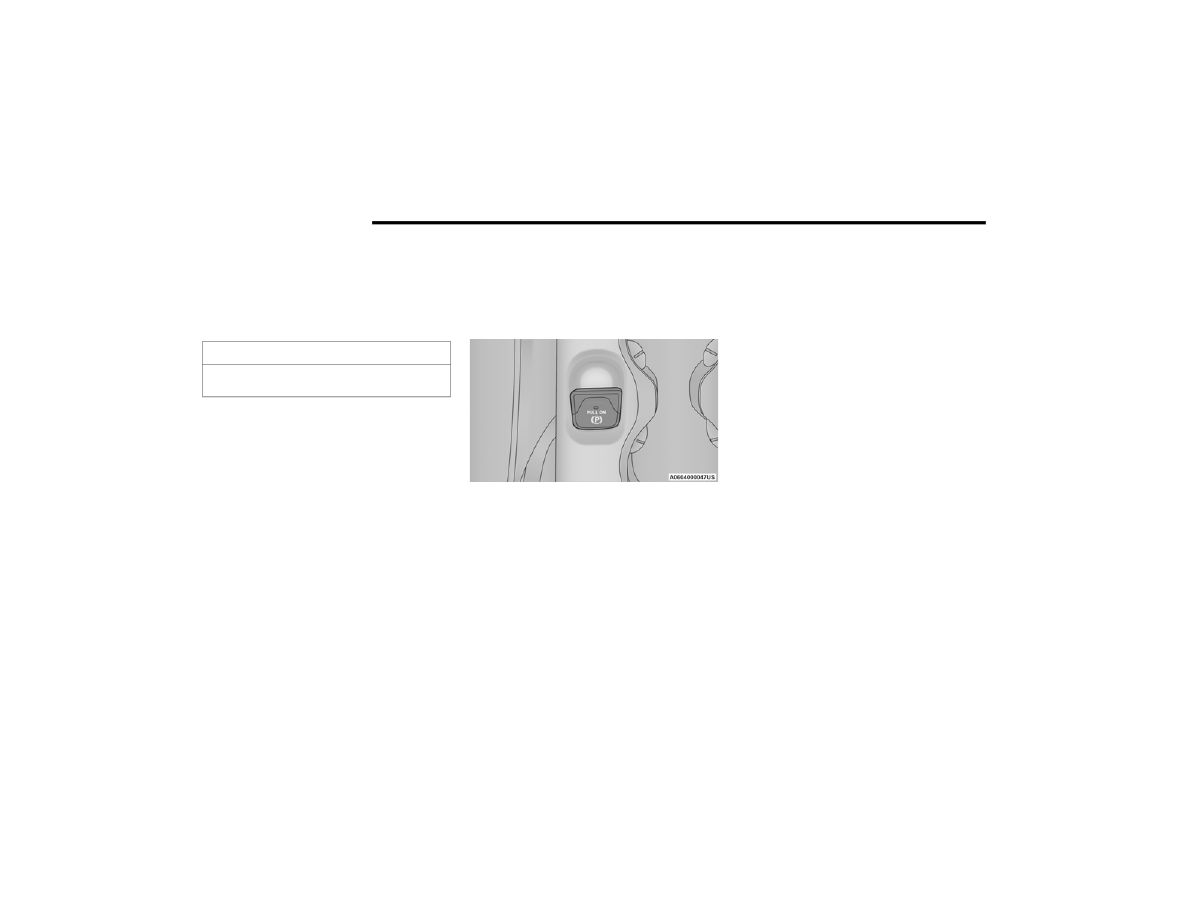

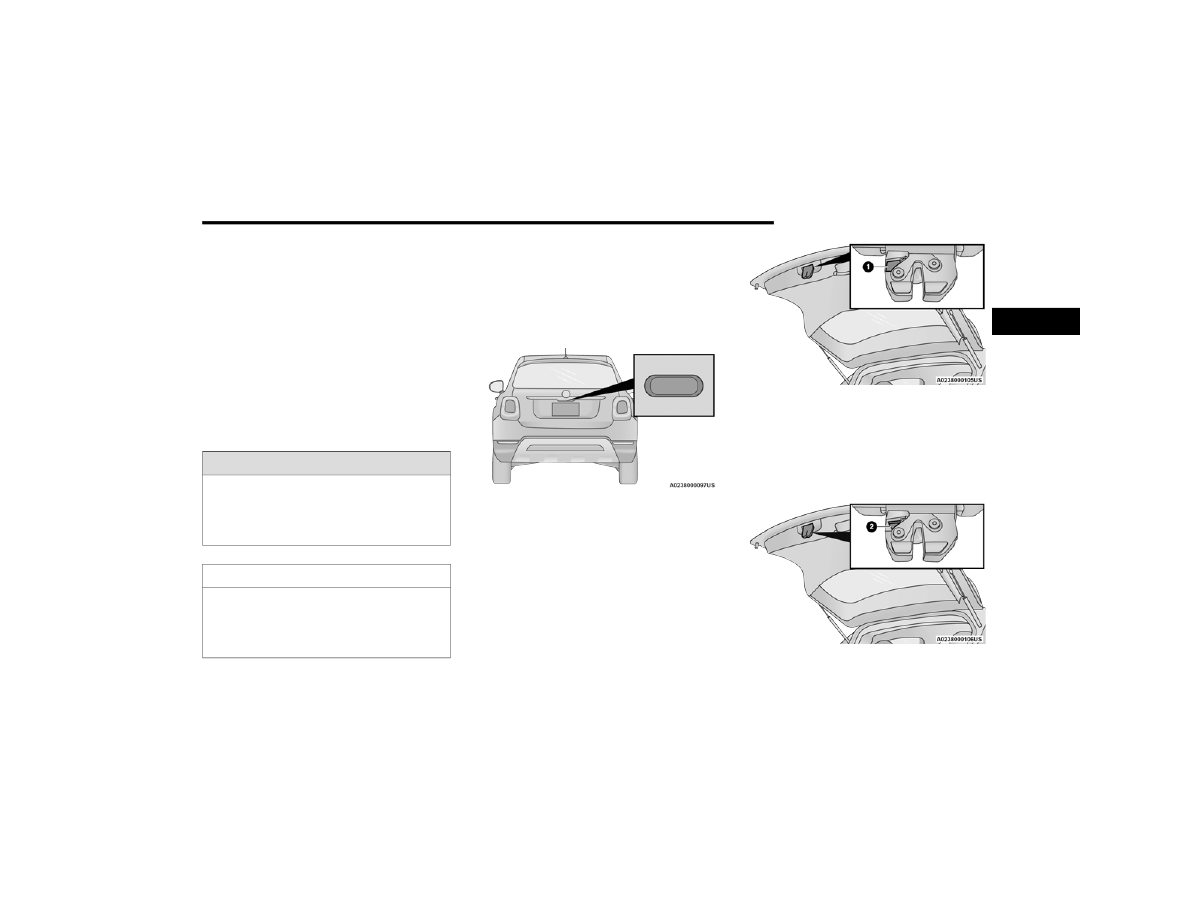

Electronic Liftgate Release

When opening the door, the interior dome light will

illuminate. The interior dome light will turn off

automatically by closing the liftgate

Ú

page 32.

If the liftgate is left open, the interior dome light will shut

off after a few minutes to conserve battery life.
Emergency Opening
Proceed as follows:
1. Lower the headrests and fold the seatbacks.

1 — Yellow Tab

2. Using the supplied screwdriver (located under cargo

floor in tool kit), remove the yellow tab from the

liftgate latching mechanism.

3. With the yellow tab removed, insert the screwdriver

into the now open release tab slot to trigger the

release of the liftgate.

2 — Release Tab Slot

WARNING!

Be sure the hood is fully latched before driving your

vehicle. If the hood is not fully latched, it could open

when the vehicle is in motion and block your vision.

Failure to follow this warning could result in serious

injury or death.

CAUTION!

To prevent possible damage, do not slam the hood to

close it. Lower hood to approximately 12 inches (30 cm)

and drop the hood to close. Make sure hood is fully

closed for both latches. Never drive vehicle unless hood

is fully closed, with both latches engaged.

2

CarManuals2.com

50



L

OCK

/C

LOSE

 T

HE

 L

IFTGATE

Grab the liftgate closing handle and lower the liftgate.

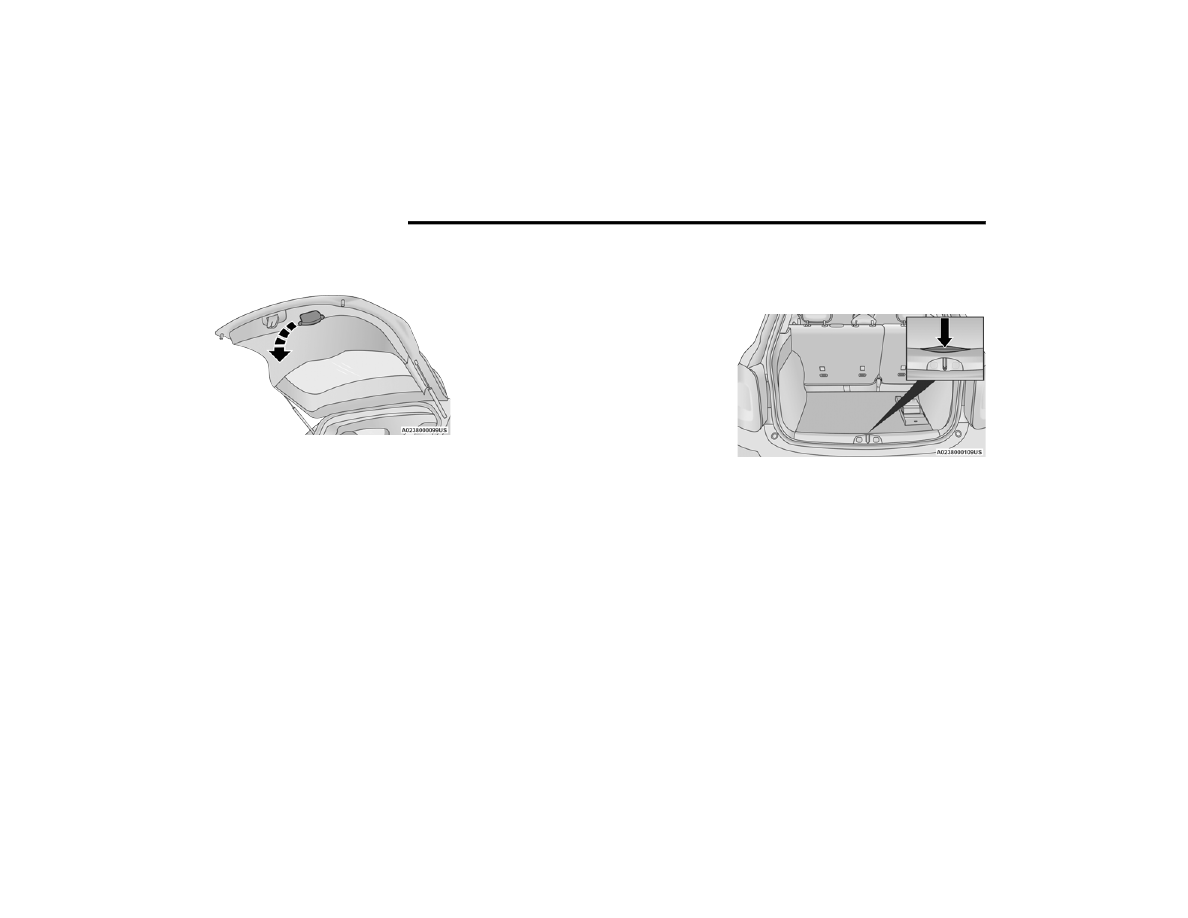

Liftgate Closing Handle

NOTE:

Before closing the liftgate, make sure to be in possession

of the key fob because the liftgate will be locked automat

-

ically.

C

ARGO

 A

REA

 F

EATURES

Cargo Load Floor — If Equipped
The vehicle is equipped with a load floor that can be

adjusted as needed.
Position 1 (Lowered Position):
This position allows you to make the load floor flat for ease

of loading/unloading objects from the cargo area. This

position also makes it possible to use the space below as

another compartment for storing fragile or smaller

objects.
Position 2 (Elevated Position):
When the rear seatbacks and front passenger seat are

folded flat, it creates space for objects of long dimensions.

This position is recommended only when transporting

objects, then move the load floor back to position 1.

NOTE:

With a full size spare, the floor will be at the elevated

position.

Access To The Loading Floor
To access the double load compartment, proceed as

follows:
1. Lift up on the load floor handle.

Load Floor Handle

CarManuals2.com

51

2. Place the desired objects inside the compartment.
3. Reposition the load floor.

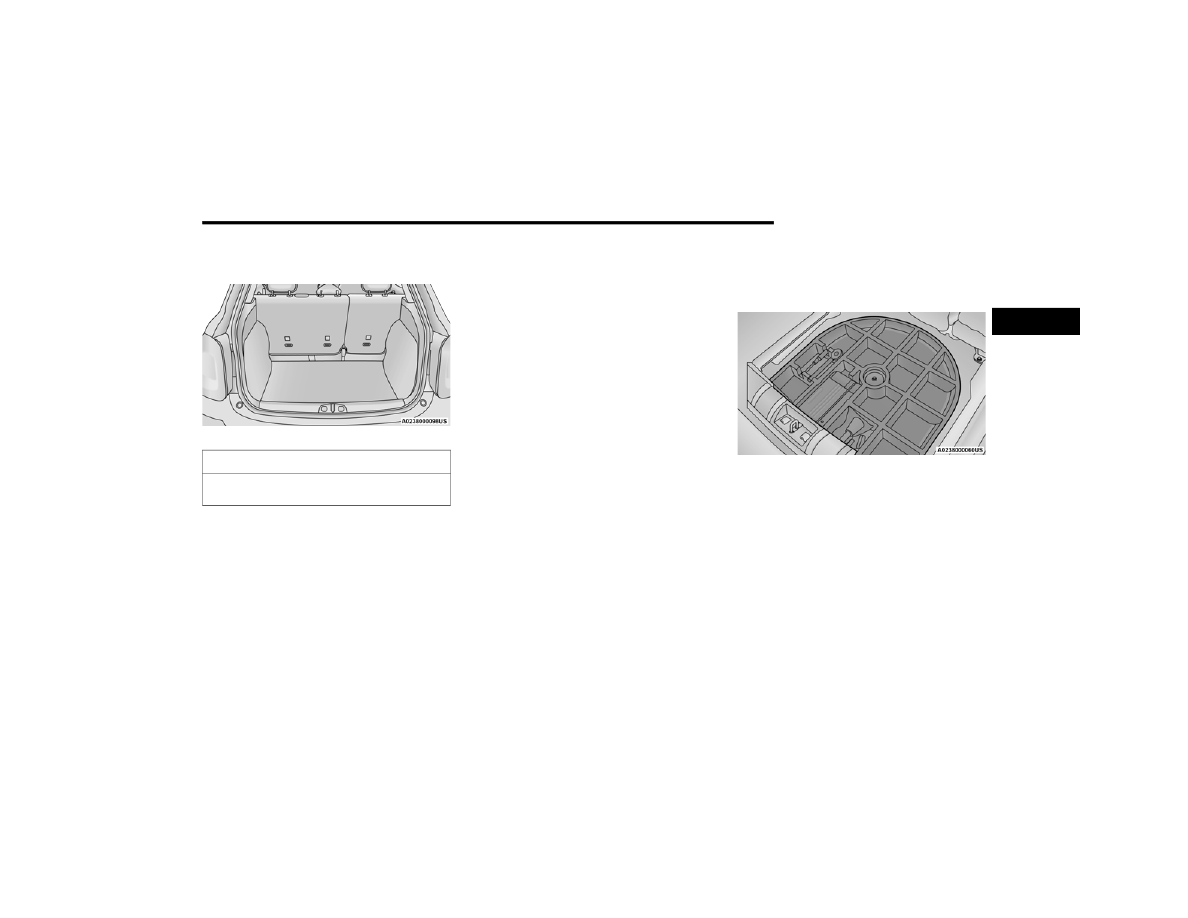

Cargo Area Storage

Displacement Load Floor
To position the load from the lower to the upper position,

proceed as follows:
1. Grab the load floor handle and lift up the load floor.
2. Correctly place the load floor on the side panel guides

and on the rear cross member.

Access To Tire Service Kit Or Spare Tire
To access the Tire Service Kit or spare tire and container

carrier, proceed as follows:
1. Grab the load floor handle and remove the floor.
2. Pull the tab and lift up on the carpet.

Cargo Box — If Equipped

The cargo area contains a preformed cargo box that can

be used for the storage of objects that allows you to obtain

a uniform level when loading.

Cargo Box

NOTE:

The cargo box is sized for a maximum capacity of

distributed weight equal to 242 lb (110 kg).

CAUTION!

The load floor must be arranged in a central position

with respect to cargo area.

2

CarManuals2.com

52

INSTRUMENT CLUSTER

NOTE:

The illumination of the graphics on the instrument cluster

may vary according to the version (Monocolor or Color

display).

Use this QR code to access your digital

experience.

CarManuals2.com

53

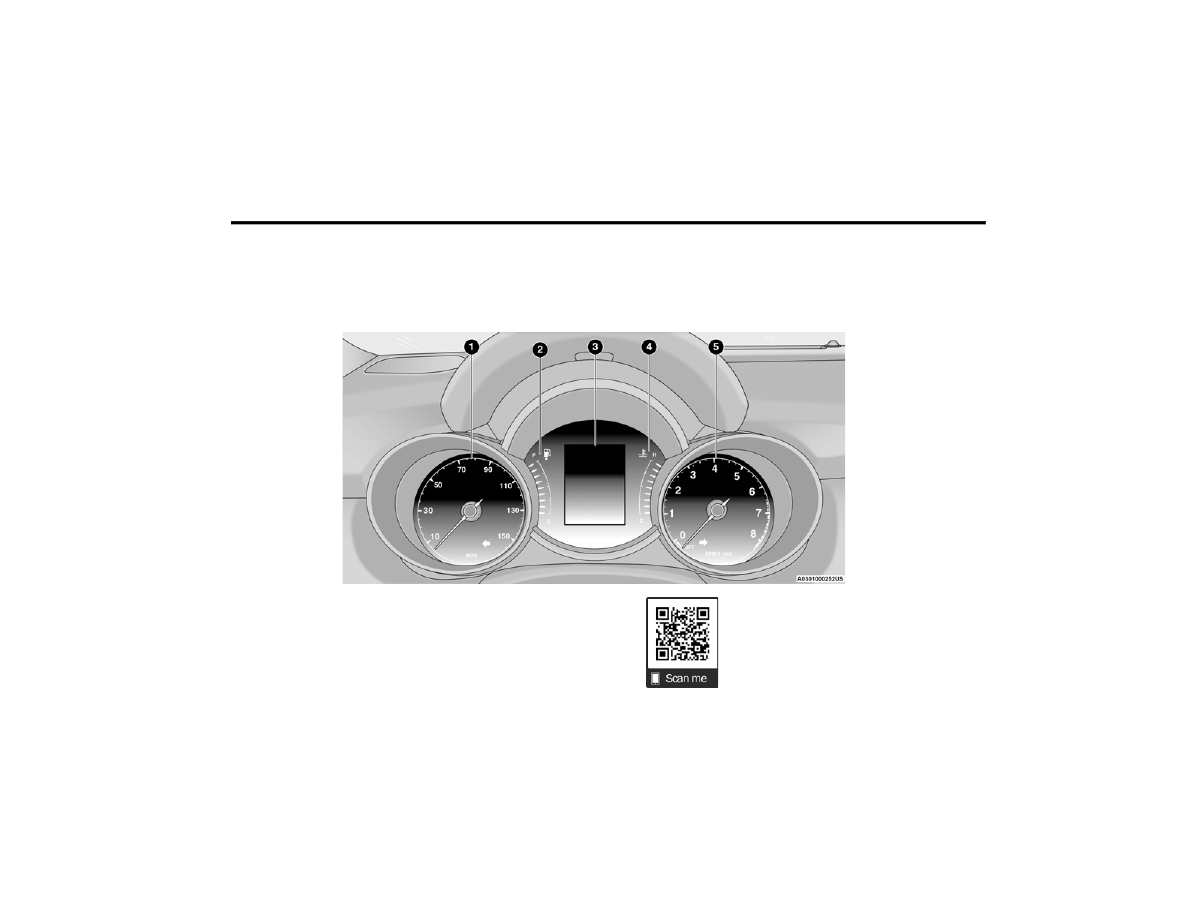

I

NSTRUMENT

 C

LUSTER

 D

ESCRIPTIONS

1. Speedometer

Indicates the speed of the car.

2. Fuel Level Gauge

The fuel gauge in the instrument panel indicates

the amount of fuel left in the tank.

The light comes on, together with a chime and the

display of a message in the instrument cluster

display, when the gas tank has 1.5 to 2 gallons

(5 to 7 liters) of fuel remaining.

3. Instrument Cluster Display

The vehicle can be equipped with multi functional

instrument cluster display which offers useful

information to the driver.

With the ignition in the OFF position (and the key

removed, for vehicles with a mechanical key),

opening/closing of a door will activate the instru

-

ment cluster display for viewing, and display the

total miles or kilometers in the odometer.

4. Engine Coolant Temperature

The temperature gauge on the instrument panel

displays the temperature of the engine coolant

and starts providing indications when the coolant

temperature exceeds approximately 122°F

(50°C). In the normal use of the car, the tempera

-

ture gauge can move in different directions based

on the use of the car. The light comes on, together

with a chime and the display of a message in the

instrument cluster display, to indicate an exces

-

sive increase in the temperature of the engine

coolant. Stop the engine and contact an autho

-

rized dealer.

5. Tachometer

Indicates the engine speed in Revolutions Per

Minute (RPM x 1000).

INSTRUMENT CLUSTER DISPLAY

The vehicle is equipped with multi functional instrument

cluster display which offers useful information to the

driver. With the ignition in the OFF position (and the key

removed, for vehicles with a mechanical key), opening/

closing of a door will activate the instrument cluster

display for viewing, and display the total miles or

kilometers in the odometer. The instrument cluster display

is designed to display important information about the

vehicle’s systems and features. Using a driver interactive

display located on the instrument panel, your instrument

cluster display can show you how systems are working and

give you warnings when they aren’t. The steering wheel

mounted controls allow you to scroll through and enter the

main menus and submenus. You can access the specific

information you want and make selections and

adjustments.

WARNING!

A hot engine cooling system is dangerous. You or others

could be badly burned by steam or boiling coolant. It is

recommended to call an authorized dealer for service if

your vehicle overheats

Ú

page 228.

CAUTION!

Driving with a hot engine cooling system could damage

your vehicle. If the temperature gauge reads “H,” pull

over and stop the vehicle. Idle the vehicle with the air

conditioner turned off until the pointer drops back into

the normal range. If the pointer remains on the “H,”

turn the engine off immediately and call an authorized

dealer for service.

3

CarManuals2.com

54



I

NSTRUMENT

 C

LUSTER

 D

ISPLAY



C

ONTROL

 B

UTTONS

The system allows the driver to select information by

pushing the following buttons mounted on the steering

wheel:

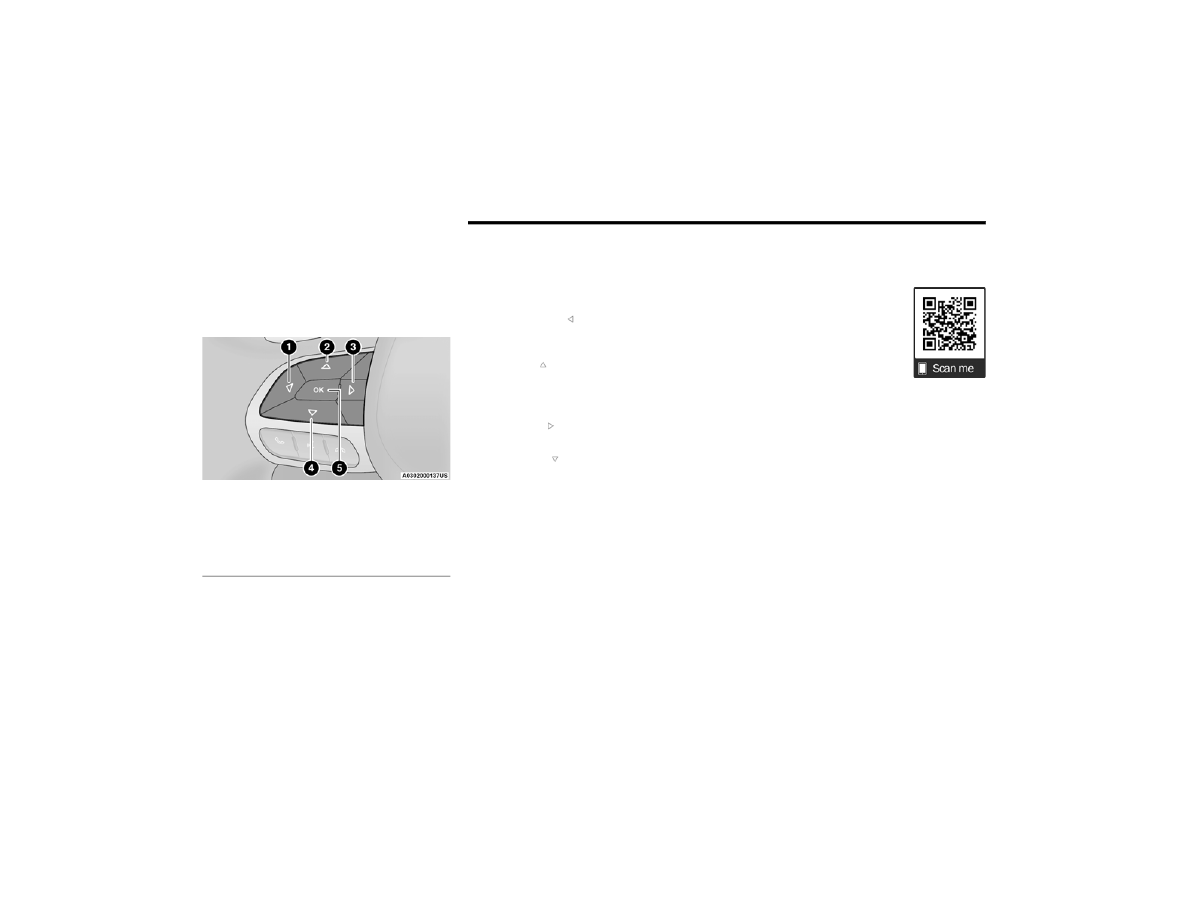

Instrument Cluster Display Control Buttons

The instrument cluster display features a driver interactive

display that is located in the instrument cluster. Pushing

the controls on the left side of the steering wheel allows

the driver to select vehicle information and Personal

Settings.

Push the back/left

 arrow button to access the infor

-

mation screens or submenu screens of a main menu

item.

Push the up

 arrow button to scroll upward through

the main menus and submenus (Speedometer, Trip,

Drive Mode Selector, Vehicle Info, Driver Assist, Audio,

Phone, Navigation, Messages, Settings).

Push the right

 arrow button to access the informa

-

tion screens or submenu screens of a main menu item.

Push the down

 arrow button to scroll downward

through the main menu and submenus (Speedometer,

Trip, Drive Mode Selector, Vehicle Info, Driver Assist,

Audio, Phone, Navigation, Messages, Settings).

Push the OK button to access/select the information

screens or submenu screens of a main menu item.

Push and hold the OK button for two seconds to reset

displayed/selected features that can be reset.

E

NGINE

 O

IL

 C

HANGE

 R

ESET

 —

I

F

 E

QUIPPED



Use this QR code to access your digital

experience.
Your vehicle may be equipped with an

engine oil change indicator system.

The “Change Engine Oil” message will

display in the instrument cluster

display. The engine oil change indicator

system is duty cycle based, which

means the engine oil change interval may fluctuate,

dependent upon your personal driving style.
Unless reset, this message will continue to display each

time you turn the ignition switch to the ON/RUN position.

To reset the oil change indicator system (after performing

the scheduled maintenance), refer to the following

procedure.
1. Turn the ignition switch to the ON position (do not

start the engine).

2. Fully push the accelerator pedal slowly, three times,

within 10 seconds.

3. Turn the ignition switch to the OFF position.

NOTE:

If the indicator message illuminates when you start the

vehicle, the oil change indicator system did not reset.

If necessary, repeat this procedure.

1 — Left Arrow Button
2 — Up Arrow Button
3 — Right Arrow Button
4 — Down Arrow Button
5 — OK Button

CarManuals2.com

55

I

NSTRUMENT

 C

LUSTER

 D

ISPLAY

 M

AIN



M

ENU

The Main Menu is composed of several options that can

be selected by using the control buttons.

NOTE:

The display mode of the menu items varies depending

on the type of display.

For some items, a submenu is provided.

In the Uconnect system, some items on the menu are

not shown on the instrument cluster display

Ú

page 53.

Instrument Cluster Display Menu/

Submenu Items

The Menu is composed of the following items:

Speedometer

Trip

Instantaneous Info

Trip A

Trip B

Drive Mode Selector — If Equipped

Auto mode

Sport mode

All Weather mode

Vehicle Info

Tire Pressure

Oil Temperature

Battery Voltage

Driver Assist — If Equipped

Lane Departure Warning

Adaptive Cruise Control

Stop/Start — If Equipped

Audio

Navigation — If Equipped

Messages

Settings— If Equipped

Display

Units

Clock and Date

Security

Safety & Assistance

Lights

Doors & Locks

Engine OFF Procedure

Speedometer

View and change the speedometer scale from mph to

km/h (km/h to mph).

Trip

This instrument cluster display menu item allows you to

view and select information about the "Trip Computer”:

Instantaneous info

View the distance to empty (miles or km).

View the instantaneous consumption (mpg, or

l/ 100km or km/l).

Trip A

View Trip A distance (miles or km).

View travel time A (hours/minutes/seconds).

View average consumption A (mpg, or l/ 100km or

km/l).

View average speed A (mph or km/h).

Trip B

View Trip B distance (miles or km).

View travel time B (hours/minutes/seconds).

View average consumption B (mpg, or l/ 100km or

km/l).

View average speed B (mph or km/h).

Drive Mode Selector

This instrument cluster display menu/submenu items

allows you to view and select information about the

"Drive Mode".

3

CarManuals2.com

56



Vehicle Info

Push and release the up

 or down

 arrow button until

"Vehicle Info" is highlighted in the instrument cluster
display. Push and release the right

 arrow button and

Coolant Temp will be displayed. Push the right

 or

left

 arrow button to scroll through the following

information displays:

Tire pressure

View the information relating to the Tire Pressure

Monitoring System (TPMS) (if equipped).

Oil Temperature

View the engine oil temperature.

Battery Voltage

View the voltage value (state of charge) of the

battery.

Driver Assist — If Equipped

This menu item allows you to change the settings (Notice

LaneSense and Intensity LaneSense) relating to the

LaneSense system (if equipped):

Notice LaneSense
By selecting this function, you can select the “readi

-

ness” of LaneSense, choosing between the options

"Near," "Medium," or "Far."

Intensity LaneSense
Using this function, you can select the force applied to

the steering wheel to keep the car in the roadway

through the electrical drive system due to LaneSense.

Stop/Start – If Equipped

Automatically stops the engine during a vehicle stop under

the right conditions to reduce fuel consumption.

Push and release the up

 or down

 arrow button until

the Stop/Start menu title is displayed in the instrument

cluster. This menu shows messages related to Stop/Start.

Only one message can be viewed at a time until the

condition is cleared.
When the Stop/Start is engaged (and the engine is off),

the associated hardware indicator light is turned on. When

the Stop/Start button on the central stack is pushed, a

Stop/Start status message will appear in the instrument

cluster display.

Audio

This menu item allows you to view the instrument cluster

display and the information present on the display of the

Uconnect system.
The information displayed is:

“Radio (AM or FM)”: view Radio Station Name (if

equipped), frequency, and graphical icon.

MP3: title display or song number playing.

USB: title display or song number playing.

Ipod: display the song title and graphic element.

Bluetooth®: displays the song title and a graphic

element.

SAT: displays the station name and a graphic element.

APP: displays strings and a graphic element.

Phone

This menu displays the current status of a phone

connected to the vehicle via Bluetooth®.
If no phone is connected, the menu will not function when

the OK button is pushed. Otherwise, if a phone is

connected, push the OK button to enter the menu. The

following items will display:

Recent calls: displays a list of the last 10 calls.

SMS reader: displays the last 10 text messages and if

they are read or unread.

Favorite numbers: displays a maximum of six favorite

numbers.

Navigation — If Equipped

If activated, this menu item will display navigation status

and directions.

Messages (Stored)

This menu item allows you to display the information

messages/malfunction stored.
The background color of the display varies according to

the priorities of the failure:

Failed Messages with low priority display in yellow.

Failed Messages with high priority display in red.

CarManuals2.com

57

Settings — If Equipped

This menu item allows you to change the settings for

the following:

Display

Units

Clock and Date

Security

Safety and Assistance

Lights

Doors and Locks

Engine OFF Procedure

Display
By selecting "Display," you can access the following

settings:

Screen Setup: Allows you to configure the display

screen.

Language: Allows you to select the language in which to

display the information/warnings.

Automatic Reset Trip B: Allows you to set the options to

reset the Trip B (never, always, every two hours or every

eight hours).

Phone Repetition: Allows you to select “On” or “Off”.

The instrument cluster display can also display the infor

-

mation concerning phone mode. The information that

can be displayed is the connection status of the mobile

phone (phone connected or disconnected), the active

telephone calls/incoming/on hold, and the manage

-

ment of double calls (first incoming second waiting, etc.).

Navigation Repetition: Allows you to select “On” or

“Off” on the instrument cluster display, information

relating to the navigation mode.

Units
By selecting the item "Units Of Measure,” you can select

the unit of measure used in the display.
Possible options are:

US

Metric

Custom

Clock And Date
By selecting the item "clock and date," you can adjust the

clock.
Possible options are:

Set Time: Adjust hours/minutes.

Set Format: Adjust the time format "12h" (12 hours) or

"24h" (24 hours).

Set Date: Adjust day/month/year.

Security
By selecting the item “Security,” you can make the

following adjustments:

Speed Warning: Set the vehicle speed limit (mph or

km/h), which the driver is notified through a visual and

acoustic signaling (display of a message and a symbol

on the display).

Seat Belt Buzzer: This function is only viewable when

the Seat Belt Reminder (SBR) system is active.

Hill Start Assist: Activation/Deactivation of the Hill Start

Assist system.

Safety And Assistance
By selecting the item "Safety & Assistance," you can make

the following adjustments:

Full Brake Control: A selection of operating modes of

the Full Brake Control system.

Full Brake Control Sensitivity: A selection of the

"readiness" of intervention of the Full Brake Control

system, based on the distance to the obstacle.

Park Assist: A selection of the type of information

provided by Park Assist.

Park Assist Vol.: A selection of the volume of acoustic

signals provided by Park Assist.

Rain Sensing Wipers: Enabling/disabling the automatic

operation of wipers in the event of rain.

LaneSense Warning — If Equipped: A selection of the

"readiness" of intervention of LaneSense.

3

CarManuals2.com

58



Warning Buzzer Volume: Increase or decrease the

volume of the buzzer by selecting “Low”, “Medium”,

or “High”.

Maintenance Brakes — If Equipped: Activation of the

procedure to carry out braking system maintenance.

Auto Park Brake — If Equipped: Enable/disable

auto-insertion of the Electric Parking Brake.

Lights
By selecting the item "Lights," you can make the following

adjustments:

Headlight Off Delay: Set the delay for headlight shutoff

after engine shutoff.

Headlight Sensitivity: Adjust the sensitivity of headlight

brightness.

Interior Ambient Lights: Increase or decrease the

brightness of the Interior Ambient Lights.

Greeting Lights: Enable/disable the vehicle’s Greeting

Lights.

Auto High Beam: Activate/deactivate the automatic

main beam headlights — If Equipped.

Daytime Lights: Activate/deactivate the daytime

running lights.

Cornering Lights: Activate/deactivate the cornering

lights — If Equipped.

Doors And Locks
By selecting the item "Doors & Locks," you can make the

following adjustments:

Auto Door Lock: Activate/deactivate the automatic

locking of the doors with the vehicle moving.

Auto Unlock On Exit: Automatic unlocking of the doors

when exiting the vehicle.

Flash Light With Lock: Activate the direction indicators

when closing the doors.

Sound Horn With Lock: Activate/deactivate the horn when

pushing the lock button on the Remote Keyless Entry.

The options are "Off," "First Press,” and "Second Press."

Horn With Remote Start: Activate/deactivate the horn

at the Remote Starting of the engine with the Remote

Keyless Entry.

Remote Door Unlock Without Passive Entry: Allows you

to choose whether to unlock all the doors or only the

driver’s side door on the first push of the unlock button

on the Remote Keyless Entry.

Door Unlock With Passive Entry: Allows you to open the

driver door only on the first push of the unlock button

on the Remote Keyless Entry or using the passive entry

handles on the doors or liftgates.

Passive Entry — If Equipped: Activate the automatic

locking of the doors.

Engine OFF Procedure — If Equipped: Allows you to turn

off the engine from the instrument cluster in the event

of an ignition switch failure. Instructions for turning off

the engine via the instrument cluster display controls

will display in the instrument cluster.

WARNING LIGHTS AND MESSAGES

The warning/indicator lights will illuminate in the

instrument panel together with a dedicated message and/

or acoustic signal when applicable. These indications are

indicative and precautionary and as such must not be

considered as exhaustive and/or alternative to the

information contained in the Owner’s Manual, which you

are advised to read carefully in all cases. Always refer to

the information in this chapter in the event of a failure

indication. All active telltales will display first if applicable.

The system check menu may appear different based upon

equipment options and current vehicle status. Some

telltales are optional and may not appear.

R

ED

 W

ARNING

 L

IGHTS

Air Bag Warning Light

This warning light will illuminate to indicate a

fault with the air bag, and will turn on for four to

eight seconds as a bulb check when the

ignition is placed in the ON/RUN position. This

light will illuminate with a single chime when a fault with

the air bag has been detected, it will stay on until the fault

is cleared. If the light is either not on during startup, stays

on, or turns on while driving, have the system inspected at

an authorized dealer as soon as possible.

Brake Warning Light

This warning light monitors various brake

functions, including brake fluid level and

parking brake application. If the brake light

turns on it may indicate that the parking brake

CarManuals2.com

59

is applied, that the brake fluid level is low, or that there is

a problem with the Anti-Lock Brake System reservoir.
If the light remains on when the parking brake has been

disengaged, and the fluid level is at the full mark on the

master cylinder reservoir, it indicates a possible brake

hydraulic system malfunction or that a problem with the

Brake Booster has been detected by the Anti-Lock Brake

System (ABS)/Electronic Stability Control (ESC) system. In

this case, the light will remain on until the condition has

been corrected. If the problem is related to the brake

booster, the ABS pump will run when applying the brake,

and a brake pedal pulsation may be felt during each stop.
The dual brake system provides a reserve braking capacity

in the event of a failure to a portion of the hydraulic

system. A leak in either half of the dual brake system is

indicated by the Brake Warning Light, which will turn on

when the brake fluid level in the master cylinder has

dropped below a specified level.
The light will remain on until the cause is corrected.

NOTE:

The light may flash momentarily during sharp cornering

maneuvers, which change fluid level conditions. The

vehicle should have service performed, and the brake

fluid level checked.
If brake failure is indicated, immediate repair is necessary.

Vehicles equipped with the Anti-Lock Brake System (ABS)

are also equipped with Electronic Brake Force Distribution

(EBD). In the event of an EBD failure, the Brake Warning

Light will turn on along with the ABS Light. Immediate

repair to the ABS system is required.
Operation of the Brake Warning Light can be checked by

turning the ignition switch from the OFF position to the

ON/RUN position. The light should illuminate for

approximately two seconds. The light should then turn off

unless the parking brake is applied or a brake fault is

detected. If the light does not illuminate, have the light

inspected by an authorized dealer.
The light also will turn on when the parking brake is

applied with the ignition switch in the ON/RUN position.

NOTE:

This light shows only that the parking brake is applied. It

does not show the degree of brake application.

Battery Charge Warning Light

This warning light will illuminate when the

battery is not charging properly. If it stays on

while the engine is running, there may be a

malfunction with the charging system. Contact

an authorized dealer as soon as possible.
This indicates a possible problem with the electrical

system or a related component.

Coolant Temperature Warning Light

This light warns of an overheated engine

condition. If the light turns on while driving,

safely pull over and stop the vehicle. If the

Air Conditioning (A/C) system is on, turn it off.

Also, shift the transmission into NEUTRAL and idle the

vehicle. If the temperature reading does not return to

normal, turn the engine off immediately and call for

service.

NOTE:

As the coolant temperature gauge approaches "H," this

indicator will illuminate and a single chime will sound.

Door Open Warning Light

This indicator will illuminate when one or more

door(s) are not fully closed.

NOTE:

If the vehicle is moving and a door is opened, there will

also be a single chime.

Drowsiness Detected Warning Light —

If Equipped

Driver drowsiness detection helps to avoid

crashes caused by fatigue by advising drivers

to take a break in time. Once Drowsy Driver is

detected, A pop-up will display continuously

until the driver presses the OK button to clear.
Once the pop-up message is cleared, it is stored until the

condition is no longer true.

WARNING!

Driving a vehicle with the red brake light on is

dangerous. Part of the brake system may have failed.

It will take longer to stop the vehicle. You could have a

collision. Have the vehicle checked immediately.

3

CarManuals2.com

60



Electric Power Steering (EPS) Fault

Warning Light

This warning light will turn on when there's a

fault with the EPS system

Ú

page 77.

Electronic Throttle Control (ETC) Warning

Light

This warning light will illuminate to indicate a

problem with the ETC system. If a problem is

detected while the vehicle is running, the light

will either stay on or flash depending on the

nature of the problem. Cycle the ignition when the vehicle

is safely and completely stopped and the transmission is

placed in the PARK position. The light should turn off. If the

light remains on with the vehicle running, your vehicle will

usually be drivable; however, see an authorized dealer for

service as soon as possible.

NOTE:

This light may turn on if the accelerator and brake pedals

are pressed at the same time.

If the light continues to flash when the vehicle is running,

immediate service is required and you may experience

reduced performance, an elevated/rough idle, or engine

stall and your vehicle may require towing. The light will

come on when the ignition is placed in the ON/RUN

position and remain on briefly as a bulb check. If the light

does not come on during starting, have the system

checked by an authorized dealer.

Hood Open Warning Light — If Equipped

This warning light will illuminate when the hood

is left open and not fully closed.

Oil Pressure Warning Light

This warning light will illuminate to indicate low

engine oil pressure. If the light turns on while

driving, stop the vehicle, shut off the engine as

soon as possible, and contact an authorized

dealer. A chime will sound when this light turns on.
Do not operate the vehicle until the cause is corrected.

This light does not indicate how much oil is in the engine.

The engine oil level must be checked under the hood.

Seat Belt Reminder Warning Light

This warning light indicates when the driver or

passenger seat belt is unbuckled. When the

ignition is first placed in the ON/RUN position

and if the driver’s seat belt is unbuckled, a

chime will sound and the light will turn on. When driving, if

the driver or front passenger seat belt remains unbuckled,

the Seat Belt Reminder Light will flash or remain on

continuously and a chime will sound

Ú

page 171.

Transmission Fault Warning Light

This light will illuminate (together with a

message in the instrument cluster display and

a buzzer) to indicate a transmission fault.

Contact an authorized dealer if the message

remains after restarting the engine.

Vehicle Security Warning Light —

If Equipped

This light will flash at a fast rate for

approximately 15 seconds when the vehicle

security system is arming, and then will flash

slowly until the vehicle is disarmed.

Liftgate Open Warning Light

This indicator will illuminate when the liftgate is

open and not fully closed.

Y

ELLOW

 W

ARNING

 L

IGHTS

Adaptive Cruise Control (ACC) Fault

Warning Light — If Equipped

This warning light will illuminate to indicate a

fault in the ACC system. Contact a local

authorized dealer for service

Ú

page 80.

WARNING!

Continued operation with reduced assist could pose a

safety risk to yourself and others. Service should be

obtained as soon as possible.

CarManuals2.com

61

Anti-Lock Brake System (ABS) Warning

Light

This warning light monitors the ABS. The light

will turn on when the ignition is placed in the

ON/RUN position and may stay on for as long

as four seconds.

If the ABS light remains on or turns on while driving, then

the Anti-Lock portion of the brake system is not

functioning and service is required as soon as possible.

However, the conventional brake system will continue to

operate normally, assuming the Brake Warning Light is not

also on.
If the ABS light does not turn on when the ignition is placed

in the ON/RUN position, have the brake system inspected

by an authorized dealer.

Audio System Failure Warning Light —

If Equipped

This light will illuminate to report a failure of

the Audio System. Contact an authorized

dealership as soon as possible.

Drive Mode System Overheating Warning

Light

This symbol appears, together with a dedicated

message on the display, in case of overheating

of the Drive Mode Selector system. In these

conditions, the Drive Mode Selector system can

still be used to select the required driving mode, but the

mode will be engaged only when the system cools down.
The symbol will stay on for as long as the overheating

condition persists.

Electric Park Brake Warning Light

This warning light will illuminate to indicate the

Electric Park Brake is not functioning properly

and service is required. Contact an authorized

dealer.

Electronic Stability Control (ESC) Active

Warning Light — If Equipped

This warning light will indicate when the ESC

system is Active. The ESC Indicator Light in the

instrument cluster will come on when the

ignition is placed in the ON/RUN position, and

when ESC is activated. It should go out with the engine

running. If the ESC Indicator Light comes on continuously

with the engine running, a malfunction has been detected

in the ESC system. If this warning light remains on after

several ignition cycles, and the vehicle has been driven

several miles (kilometers) at speeds greater than 30 mph

(48 km/h), see an authorized dealer as soon as possible

to have the problem diagnosed and corrected.

The ESC OFF Indicator Light and the ESC Indicator Light

come on momentarily each time the ignition is placed

in the ON/RUN position.

The ESC system will make buzzing or clicking sounds

when it is active. This is normal; the sounds will stop

when ESC becomes inactive.

This light will come on when the vehicle is in an

ESC event.

Electronic Stability Control (ESC) OFF

Warning Light — If Equipped

This warning light indicates the ESC is off.
Each time the ignition is turned to ON/RUN, the

ESC system will be on, even if it was turned off

previously.

Drowsiness Detected System Fault

Warning Light — If Equipped

This warning light will illuminate when the

Drowsiness Detected System is not operating

correctly and requires service. Please see an

authorized dealer.

External Light Failure Warning Light —

If Equipped

The External Light Failure Indicator will come

on when a failure to one of the following lights

is detected:

Direction Indicators

Backup Lights

Parking Lights

Daytime Running Lights

License Plate Lights

The failure relating to these lights could be:

One or more blown bulbs

A blown protection fuse

A break in the electrical connection

3

CarManuals2.com

62



Fuel Cutoff Failure Warning Light —

If Equipped

This light will illuminate if there is a fuel cutoff

failure. If this light illuminates, take it to an

authorized dealer and have them inspect it.

Fuel Level Sensor Failure Warning Light

This light illuminates when there is a fuel level

sensor failure. If this light illuminates, take it to

an authorized dealer and have them inspect it.

Loose Fuel Filler Cap Warning Light —

If Equipped

This warning light will illuminate when the fuel

filler cap is loose. Properly close the filler cap to

disengage the light. If the light does not turn

off, please see an authorized dealer.

Low Fuel Warning Light

When the fuel level reaches approximately

1.3–1.8 gal (5–7 L) this light will turn on, and

remain on until fuel is added.

LaneSense Warning Light —

If Equipped

The LaneSense Warning Light will be solid

yellow when the vehicle is approaching a lane

marker. The warning light will flash when the

vehicle is crossing the lane marker

Ú

page 92.

Service LaneSense Warning Light —

If Equipped

This warning light will illuminate when the

LaneSense system is not operating and

requires service. Please see an authorized

dealer.

Engine Check/Malfunction Indicator

Warning Light (MIL)

The Engine Check/Malfunction Indicator Light

(MIL) is a part of an Onboard Diagnostic System

called OBD II that monitors engine and

automatic transmission control systems.

This warning light will illuminate when the ignition is in

the ON/RUN position before engine start. If the bulb does

not come on when turning the ignition switch from OFF to

ON/RUN, have the condition checked promptly.
Certain conditions, such as a loose or missing gas cap,

poor quality fuel, etc., may illuminate the light after engine

start. The vehicle should be serviced if the light stays on

through several typical driving styles. In most situations,

the vehicle will drive normally and will not require towing.
When the engine is running, the MIL may flash to alert

serious conditions that could lead to immediate loss of

power or severe catalytic converter damage. The vehicle

should be serviced by an authorized dealer as soon as

possible if this occurs.

Service Warning Light — If Equipped

The “Maintenance Plan” includes vehicle

maintenance at fixed intervals. For further

information

Ú

page 216. This message is

displayed automatically along with the

warning light when the key is turned to RUN - 1,242 miles

(2,000 km) or 30 days before these deadlines, and

reappears every time the key is turned to RUN. The

indication will appear in miles or kilometers according to

the "Unit Of Measurement" settings. When the next

scheduled service is approaching and the key is turned to

RUN, the word “Service” will appear on the display,

WARNING!

A malfunctioning catalytic converter can reach higher

temperatures than in normal operating conditions.

This can cause a fire if you drive slowly or park over

flammable substances such as dry plants, wood,

cardboard, etc. This could result in death or serious

injury to the driver, occupants or others.

CAUTION!

Prolonged driving with the Malfunction Indicator Light

(MIL) on could cause damage to the vehicle control

system. It also could affect fuel economy and

driveability. If the MIL is flashing, severe catalytic

converter damage and power loss will soon occur.

Immediate service is required.

CarManuals2.com

63

followed by the number of miles or kilometers left.

Contact an authorized dealership. The operations in the

“Maintenance Plan” will be performed and the message

will be reset.

Service Stop/Start System Warning Light —

If Equipped

This warning light will illuminate when the

Stop/Start system is not functioning properly

and service is required. Contact an authorized

dealer for service.

Tire Pressure Monitoring System (TPMS)

Warning Light

The warning light switches on and a message is

displayed to indicate that the tire pressure is

lower than the recommended value and/or

that slow pressure loss is occurring. In these

cases, optimal tire duration and fuel consumption may not

be guaranteed.
Should one or more tires be in the condition mentioned

previously, the display will show the indications

corresponding to each tire.

Each tire, including the spare (if provided), should be

checked monthly when cold and inflated to the inflation

pressure recommended by the vehicle manufacturer on

the vehicle placard or tire inflation pressure label. If your

vehicle has tires of a different size than the size indicated

on the vehicle placard or tire inflation pressure label, you

should determine the proper tire inflation pressure for

those tires.
As an added safety feature, your vehicle has been

equipped with a TPMS that illuminates a low tire pressure

telltale when one or more of your tires is significantly

underinflated. Accordingly, when the low tire pressure

telltale illuminates, you should stop and check your tires

as soon as possible, and inflate them to the proper

pressure. Driving on a significantly underinflated tire

causes the tire to overheat and can lead to tire failure.

Underinflation also reduces fuel efficiency and tire tread

life, and may affect the vehicle’s handling and stopping

ability.
Please note that the TPMS is not a substitute for proper

tire maintenance, and it is the driver’s responsibility to

maintain correct tire pressure, even if underinflation has

not reached the level to trigger illumination of the TPMS

low tire pressure telltale.
Your vehicle has also been equipped with a TPMS

malfunction indicator to indicate when the system is not

operating properly. The TPMS malfunction indicator is

combined with the low tire pressure telltale. When the

system detects a malfunction, the telltale will flash for

approximately one minute and then remain continuously

illuminated. This sequence will continue upon subsequent

vehicle start-ups as long as the malfunction exists. When

the malfunction indicator is illuminated, the system may

not be able to detect or signal low tire pressure as

intended. TPMS malfunctions may occur for a variety of

reasons, including the installation of replacement or

alternate tires or wheels on the vehicle that prevent the

TPMS from functioning properly. Always check the TPMS

malfunction telltale after replacing one or more tires or

wheels on your vehicle to ensure that the replacement or

alternate tires and wheels allow the TPMS to continue to

function properly.

Transmission Temperature Warning Light

This light indicates that the transmission fluid

temperature is running hot. This may occur

with severe usage, such as trailer towing. If this

light turns on, safely pull over and stop the

vehicle. Then, shift the transmission into PARK and run

the engine at idle or slightly higher until the light turns off.

CAUTION!

Do not continue driving with one or more flat tires as

handling may be compromised. Stop the vehicle,

avoiding sharp braking and steering. If a tire puncture

occurs, repair immediately using the dedicated tire

repair kit and contact an authorized dealer as soon as

possible.

CAUTION!

The TPMS has been optimized for the original

equipment tires and wheels. TPMS pressures and

warning have been established for the tire size

equipped on your vehicle. Undesirable system

operation or sensor damage may result when using

replacement equipment that is not of the same size,

type, and/or style. Aftermarket wheels can cause

sensor damage. Using aftermarket tire sealants may

cause the Tire Pressure Monitoring System (TPMS)

sensor to become inoperable. After using an

aftermarket tire sealant it is recommended that you

take your vehicle to an authorized dealer to have your

sensor function checked.

3

CarManuals2.com

64



Y

ELLOW

 I

NDICATOR

 L

IGHTS

Exterior Bulb Failure Indicator Light —

If Equipped

This light will illuminate when there is a

malfunction in one of the exterior bulbs.

Full Brake Control System Indicator Light —

If Equipped

This telltale will turn on to warn you of a

possible collision with the vehicle in front of

you.

Full Brake Control System Off Indicator

Light — If Equipped

This indicator light illuminates to indicate that

the Full Brake Control System is off.

Fuel Cutoff Indicator Light —

If Equipped

This telltale will illuminate after an accident has

occurred, and the system has shut the fuel off.

Icy Road Condition Indicator Light —

If Equipped

This light will illuminate during an icy road

condition.

Immobilizer Fail/VPS Electrical Alarm

Indicator Light

This telltale will illuminate when the vehicle

security system system has detected an

attempt to break into the vehicle.

NOTE:

After cycling the ignition to the ON/RUN position, the

Vehicle Security Warning Light could illuminate if a

problem with the system is detected. This condition will

result in the engine being shut off after two seconds.

G

REEN

 I

NDICATOR

 L

IGHTS

Cruise Control Set Indicator Light

This light will turn on when the cruise control is

set to the desired speed

Ú

page 79.

Front Fog Indicator Light —

If Equipped

This indicator light will illuminate when the

front fog lights are on.

LaneSense Indicator Light —

If Equipped

The LaneSense indicator light illuminates solid

green when both lane markings have been

detected and the system is “armed” and ready

to provide visual and torque warnings if an

unintentional lane departure occurs

Ú

page 92.

Parking/Headlights On Indicator Light

This indicator light will illuminate when the

parking lights or headlights are turned on.

WARNING!

If you continue operating the vehicle when the

Transmission Temperature Warning Light is illuminated

you could cause the fluid to boil over, come in contact

with hot engine or exhaust components and cause

a fire.

CAUTION!

Continuous driving with the Transmission Temperature

Warning Light illuminated will eventually cause severe

transmission damage or transmission failure.

CarManuals2.com

65

Stop/Start Active Indicator Light —

If Equipped

This indicator light will illuminate when the

Stop/Start function is in “Autostop” mode.

Turn Signal Indicator Lights

When the left or right turn signal is activated,

the turn signal indicator will flash

independently and the corresponding exterior

turn signal lamps will flash. Turn signals can

be activated when the multifunction lever is moved

down (left) or up (right).

NOTE:

A continuous chime will sound if the vehicle is driven

more than 1 mile (1.6 km) with either turn signal on.

Check for an inoperative outside light bulb if either indi

-

cator flashes at a rapid rate.

Sport Mode Indicator Light

This light will turn on when Sport mode is

active.

W

HITE

 I

NDICATOR

 L

IGHTS

LaneSense Indicator Light — If Equipped

When the LaneSense system is ON, but not

armed, the LaneSense indicator light

illuminates solid white. This occurs when only

left, right, or neither lane line has been

detected. If a single lane line is detected, the system is

ready to provide only visual warnings if an unintentional

lane departure occurs on the detected lane line

Ú

page 92.

Light Sensor Failure Indicator Light

This light illuminates when there is light sensor

failure. If this light illuminates, have an

authorized dealer inspect it.

Speed Warning Indicator Light —

If Equipped

The indicator light will illuminate white along

with a notification text message (Speed

Warning Set to XX followed by unit). When the

set speed is exceeded, a single chime will

sound along with pop-up message of “Speed Warning

Exceeded.” Speed Warning can be turned on and off in the

instrument cluster display.
The number “55” is only an example of a speed that can

be set.

Idle Coasting Indicator Light

The Idle Coasting feature works by allowing

engine speeds to drop to idle, saving fuel. This

feature is a menu option. The indicator is only

seen when Idle Coasting is chosen and active.

B

LUE

 I

NDICATOR

 L

IGHTS

High Beam Indicator Light

This indicator light will illuminate to indicate

that the high beam headlights are on. With the

low beams activated, push the multifunction

lever forward (toward the front of the vehicle) to

turn on the high beams. Pull the multifunction lever

rearward (toward the rear of the vehicle) to turn off the

high beams. If the high beams are off, pull the lever toward

you for a temporary high beam on, "flash to pass"

scenario.

G

RAY

 I

NDICATOR

 L

IGHTS

Cruise Control Ready/Canceled Indicator

Light

This light will turn on when the cruise control

has been turned on, but not set, or canceled by

the driver

Ú

page 79.

3

CarManuals2.com

66



ONBOARD DIAGNOSTIC SYSTEM — OBD II

Your vehicle is equipped with a sophisticated Onboard

Diagnostic system called OBD II. This system monitors the

performance of the emissions, engine, and transmission

control systems. When these systems are operating

properly, your vehicle will provide excellent performance

and fuel economy, as well as engine emissions well within

current government regulations.
If any of these systems require service, the OBD II system

will turn on the Malfunction Indicator Light (MIL). It will

also store diagnostic codes and other information to

assist your service technician in making repairs. Although

your vehicle will usually be drivable and not need towing,

see an authorized dealer for service as soon as possible.

O

NBOARD

 D

IAGNOSTIC

 S

YSTEM

 (OBD II)

C

YBERSECURITY

Your vehicle is required to have an OBD II and a

connection port to allow access to information related to

the performance of your emissions controls. Authorized

service technicians may need to access this information to

assist with the diagnosis and service of your vehicle and

emissions system

Ú

page 106.

CAUTION!

Prolonged driving with the MIL on could cause further

damage to the emission control system. It could also

affect fuel economy and driveability. The vehicle

must be serviced before any emissions tests can be

performed.

If the MIL is flashing while the vehicle is running,

severe catalytic converter damage and power loss

will soon occur. Immediate service is required.

WARNING!

ONLY an authorized service technician should

connect equipment to the OBD II connection port in

order to read the VIN, diagnose, or service your

vehicle.

If unauthorized equipment is connected to the OBD II

connection port, such as a driver-behavior tracking

device, it may:

Be possible that vehicle systems, including

safety related systems, could be impaired or a

loss of vehicle control could occur that may

result in an accident involving serious injury or

death.

Access, or allow others to access, information

stored in your vehicle systems, including

personal information.

CarManuals2.com

67

EMISSIONS INSPECTION AND

MAINTENANCE PROGRAMS

In some localities, it may be a legal requirement to pass an

inspection of your vehicle's emissions control system.

Failure to pass could prevent vehicle registration.

For states that require an Inspection and

Maintenance (I/M), this check verifies the

Malfunction Indicator Light (MIL) is functioning

and is not on when the engine is running, and

that the OBD II system is ready for testing.
Normally, the OBD II system will be ready. The OBD II

system may not be ready if your vehicle was recently

serviced, recently had a depleted battery or a battery

replacement. If the OBD II system should be determined

not ready for the I/M test, your vehicle may fail the test.

Your vehicle has a simple ignition actuated test, which you

can use prior to going to the test station. To check if your

vehicle's OBD II system is ready, you must do the following:
1. Cycle the ignition switch to the ON position, but do

not crank or start the engine.

NOTE:

If you crank or start the engine, you will have to start this

test over.
2. As soon as you cycle the ignition switch to the ON

position, you will see the Malfunction Indicator Light

(MIL) symbol come on as part of a normal bulb check.

3. Approximately 15 seconds later, one of two things will

happen:

The MIL will flash for about 10 seconds and then

return to being fully illuminated until you turn OFF

the ignition or start the engine. This means that

your vehicle's OBD II system is not ready and you

should not proceed to the I/M station.

The MIL will not flash at all and will remain fully illu

-

minated until you place the ignition in the off posi

-

tion or start the engine. This means that your

vehicle's OBD II system is ready and you can

proceed to the I/M station.

If your OBD II system is not ready, you should see an

authorized dealer or repair facility. If your vehicle was

recently serviced or had a battery failure or replacement,

you may need to do nothing more than drive your vehicle

as you normally would in order for your OBD II system to

update. A recheck with the previously mentioned test

routine may then indicate that the system is now ready.
Regardless of whether your vehicle's OBD II system is

ready or not, if the MIL is illuminated during normal vehicle

operation you should have your vehicle serviced before

going to the I/M station. The I/M station can fail your

vehicle because the MIL is on with the engine running.

3

CarManuals2.com

68

STARTING AND OPERATING

STARTING THE ENGINE

Before starting your vehicle, adjust your seat, adjust the

inside and outside mirrors, fasten your seat belt, and if

present, instruct all other occupants to buckle their seat

belts.

Start the engine with the gear selector in the NEUTRAL or

PARK position. Apply the brake before shifting to any

driving range.

Normal Starting
Proceed as follows:
1. Set the Electric Park Brake (EPB) and put the gear

selector in the PARK or NEUTRAL position.

2. Press on the brake pedal, without pressing the

accelerator.

3. Press the START/STOP ignition button and release it

as soon as the engine is started.

4. If the engine does not start, place the ignition in the

OFF position and wait 10-15 seconds before

attempting to restart the engine.

T

IP

 S

TART

 F

EATURE



Do not press the accelerator. Briefly press the START/

STOP ignition button and release it. The starter motor will

continue to run but will automatically disengage when the

engine is running.

C

OLD

 W

EATHER

 O

PERATION



To ensure reliable starting under extreme cold conditions,

an externally powered electric block heater (if equipped) is

required below -20°F (-29°C).
To prevent possible engine damage while starting at low

temperatures, this vehicle will inhibit engine cranking

when the ambient temperature is less than -20°F (-29°C),

and the oil temperature sensor reading indicates an

engine block heater has not been used. The message

“Plug in Engine Heater” will be displayed in the instrument

cluster when the ambient temperature is below -4°F

(-20°C) at the time the engine is shut off as a reminder to

avoid possible crank delays at the next cold start.

E

XTENDED

 P

ARK

 S

TARTING

NOTE:

Extended Park condition occurs when the vehicle has not

been started or driven for at least 30 days.
1. Install a battery charger or jumper cables to the

battery to ensure a full battery charge during the

crank cycle.

2. Press the START/STOP ignition button and release it

when the engine starts.

3. If the engine fails to start within 10 seconds, place

the ignition in the OFF position, wait 10 to 15 seconds

to allow the starter to cool, then repeat the Extended

Park Starting procedure.

4. If the engine fails to start after eight attempts, allow

the starter to cool for at least 10 minutes, then repeat

the procedure.

WARNING!

Never leave children alone in a vehicle, or with

access to an unlocked vehicle.

Allowing children to be in a vehicle unattended is

dangerous for a number of reasons. A child or others

could be seriously or fatally injured. Children should

be warned not to touch the parking brake, brake

pedal or the gear selector.

Do not leave the key fob in or near the vehicle (or in

a location accessible to children), and do not leave

the ignition in the ON or RUN position. A child could

operate power windows, other controls, or move the

vehicle.

CAUTION!

To prevent damage to the starter, do not crank

continuously for more than 10 seconds at a time.

Wait 10 to 15 seconds before trying again.

CarManuals2.com

STARTING AND OPERATING

69

I

F

 E

NGINE

 F

AILS

 T

O

 S

TART



If the engine fails to start after you have followed the

“Normal Starting” and the “Cold Weather Operation”

procedure, and has not experienced an extended park

condition as identified in “Extended Park Starting”

procedure, it may be flooded. Push the accelerator pedal

all the way to the floor and hold it there. Crank the engine

for no more than 10 seconds. This should clear any excess

fuel in case the engine is flooded. Leave the ignition in the

RUN position, release the accelerator pedal and repeat

the “Normal Starting” procedure.

A

FTER

 S

TARTING

 — W

ARMING

 U

P

 T

HE



E

NGINE

Proceed as follows:

Travel slowly, letting the engine run at a reduced RPM,

without accelerating suddenly.

It is recommended to wait until the engine coolant

temperature gauge starts to rise for maximum perfor

-

mance.

S

TOPPING

 T

HE

 E

NGINE

To shut off the engine with vehicle speed greater than

5 mph (8 km/h), you must push and hold the ignition or

push the ENGINE START/STOP button three times

consecutively within a few seconds. The engine will shut

down, and the ignition will be placed in the RUN position.
Turning off the car (place the ignition from the RUN

position to the OFF position), the power supply to the

accessories are maintained for a period of three minutes.

NOTE:

If the vehicle fails to shut off using the ignition

Ú

page 53.

Opening the driver side door with the ignition in RUN will

sound a short chime that reminds the driver to place the

ignition to OFF.
When the ignition is in the OFF position, the window

switches remains active for three minutes. Opening a front

door will cancel this function.
After severe driving, idle the engine to allow the

temperature inside the engine compartment to cool

before shutting off the engine.

T

URBOCHARGER

 “C

OOL

 D

OWN

” —

I

F

 E

QUIPPED

This vehicle is equipped with an after-run pump to cool the

turbocharger after the engine is shut off. Depending on

the type of driving and the amount of cargo, the pump will

run for up to 10 minutes after the engine has been shut

off to circulate coolant through the turbocharger. Although

the pump is rubber-mounted for quiet operation, it is

normal to hear it running during this time.

ENGINE BREAK-IN RECOMMENDATIONS

A long break-in period is not required for the engine and

drivetrain (transmission and axle) in your vehicle.
Drive moderately during the first 300 miles (500 km).

After the initial 60 miles (100 km), speeds up to 50 or

55 mph (80 or 90 km/h) are desirable.
While cruising, brief full-throttle acceleration within the

limits of local traffic laws contributes to a good break-in.

WARNING!

Never pour fuel or other flammable liquid into the

throttle body air inlet opening in an attempt to start

the vehicle. This could result in flash fire causing

serious personal injury.

Do not attempt to push or tow your vehicle to get it

started. Vehicles equipped with an automatic trans

-

mission cannot be started this way. Unburned fuel

could enter the catalytic converter and once the

engine has started, ignite and damage the converter

and vehicle.

If the vehicle has a discharged battery, booster

cables may be used to obtain a start from a booster

battery or the battery in another vehicle. This type of

start can be dangerous if done improperly

Ú

page 208.

CAUTION!

To prevent damage to the starter, do not continuously

crank the engine for more than 10 seconds at a time.

Wait 10 to 15 seconds before trying again.

4

CarManuals2.com

70

STARTING AND OPERATING



Wide-open throttle acceleration in low gear can be

detrimental and should be avoided.
The engine oil installed in the engine at the factory is a

high-quality energy conserving type lubricant. Oil changes

should be consistent with anticipated climate conditions

under which vehicle operations will occur. For the

recommended viscosity and quality grades

Ú

page 271.

NOTE:

A new engine may consume some oil during its first few

thousand miles (kilometers) of operation. This should be

considered a normal part of the break-in and not inter

-

preted as a problem.

ELECTRIC PARK BRAKE (EPB)

Your vehicle is equipped with an EPB that offers simple

operation, and some additional features that make the

parking brake more convenient and useful.
The parking brake is primarily intended to prevent the

vehicle from rolling while parked. Before leaving the

vehicle, make sure that the parking brake is applied. Also,

be certain to leave the transmission in PARK.
The EPB switch is located in the center console.

You can engage the EPB in two ways;

Manually, by pulling up on the EPB switch momentarily

to apply.

Automatically, by enabling the Auto Park Brake feature

in the Customer Programmable Features section of the

Uconnect Settings.

Electric Park Brake Switch

To apply the EPB manually, pull up on the switch

momentarily. You may hear a sound from the back of the

vehicle while the EPB engages. Once the parking brake is

fully engaged, the BRAKE Warning Light in the instrument

cluster and an indicator on the switch will illuminate. If

your foot is on the brake pedal while you apply the EPB,

you may notice a small amount of brake pedal movement.

The EPB can be applied even when the ignition is in the

OFF position however, it can only be released when the

ignition is in the RUN position.

NOTE:

The EPB Warning Light will illuminate if the EPB switch is

held for longer than 60 seconds in either the released or

applied position. The light will extinguish upon releasing

the switch.
If the Auto Park Brake feature is enabled, the EPB will

automatically engage whenever the transmission is

moved into PARK, or with a manual transmission, when

the ignition switch is in the STOP/OFF position. If your foot

is on the brake pedal, you may notice a small amount of

brake pedal movement while the EPB is engaging.
The EPB will be automatically released if the driver’s seat

belt is buckled (in case of automatic transmission) and

driver's intention to start (in forward or reverse direction)

is recognized by the system
To release the EPB manually, the ignition must be in the

RUN position. Put your foot on the brake pedal, then push

the EPB switch down momentarily. You may hear a sound

from the back of the car while the parking brake

disengages. You may also notice a small amount of

movement in the brake pedal. Once the EPB is fully

disengaged, the BRAKE Warning Light in the instrument

cluster and the LED indicator on the switch will extinguish.

NOTE:

When parking on a hill, it is important to turn the front

wheels toward the curb on a downhill grade and away from

the curb on an uphill grade. Apply the EPB before placing

the gear selector in PARK, otherwise the load on the trans

-

mission locking mechanism may make it difficult to move

the gear selector out of PARK. The EPB should always be

applied whenever the driver is not in the vehicle.

CAUTION!

Never use Non-Detergent Oil or Straight Mineral Oil in

the engine or damage may result.

CarManuals2.com

STARTING AND OPERATING

71

If exceptional circumstances should make it necessary to

engage the EPB while the vehicle is in motion, maintain

upward pressure on the EPB switch for as long as

engagement is desired. The BRAKE Warning Light could

illuminate in case of the hydraulic system is not available.

The rear stop lamps will also be illuminated automatically

while the vehicle remains in motion.
To disengage the EPB while the vehicle is in motion,

release the switch. If the vehicle is brought to a complete

stop using the EPB, when the vehicle reaches

approximately 1.9 mph (3 km/h) the EPB will remain

engaged.

In the unlikely event of a malfunction of the EPB system, a

yellow EPB Warning Light will illuminate. This may be

accompanied by the Brake Warning Light flashing. In this

status, some EPB functionalities may be deactivated. In

this event, urgent service of the EPB system is required.

Do not rely on the EPB to hold the vehicle stationary.

A

UTO

 P

ARK

 B

RAKE

The EPB can be programmed to be applied automatically

whenever the vehicle speed is below 1.9 mph (3 km/h)

and the automatic transmission is placed in PARK, or

with a manual transmission, whenever the ignition is in

the OFF position. Auto Park Brake is enabled and disabled

by customer selection through the Customer

Programmable Features section of the Uconnect Settings.
Any single Auto Park Brake application can be bypassed by

pushing the EPB switch to the release position while the

transmission is placed in PARK and the ignition is in the

RUN position. In some cases, if the ignition is cycled from

ON/RUN to OFF and the gear selector is not firmly locked

in the PARK position, EPB applies automatically even if

Auto Park Brake has been previously disabled.

S

AFE

H

OLD

SafeHold is a safety feature of the EPB system that will

engage the parking brake automatically if the vehicle is

left unsecured while the ignition switch is in the RUN

position.
The EPB will automatically engage if all of the following

conditions are met:

Vehicle speed is below 1.9 mph (3 km/h).

There is no attempt to press the brake pedal or accel

-

erator pedal.

The seat belt is unbuckled.

The driver door is open.

The vehicle is not in the PARK position.

SafeHold can be temporarily bypassed by pushing the

EPB switch while the driver door is open and the brake

pedal is pressed. Once manually bypassed, SafeHold will

be enabled again once the vehicle reaches 12 mph

(20 km/h) or the ignition is cycled to the OFF position and

back to RUN position.

WARNING!

When exiting the vehicle, always remove the key fob

from the vehicle and lock your vehicle.

Never leave children alone in a vehicle, or with

access to an unlocked vehicle. Allowing children to

be in a vehicle unattended is dangerous for a

number of reasons. A child or others could be seri

-

ously or fatally injured. Children should be warned

not to touch the parking brake, brake pedal or the

transmission gear selector.

Do not leave the key fob in or near the vehicle (or in

a location accessible to children), and do not leave

the ignition in the ON or RUN position. A child could

operate power windows, other controls, or move the

vehicle.

Be sure the parking brake is fully disengaged before

driving; failure to do so can lead to brake failure and

a collision.

Always fully apply the parking brake when leaving

your vehicle, or it may roll and cause damage or

injury. Also be certain to leave the transmission in

PARK. Failure to do so may allow the vehicle to roll

and cause damage or injury.

CAUTION!

If the Brake System Warning Light remains on with the

parking brake released, a brake system malfunction is

indicated. Have the brake system serviced by an

authorized dealer immediately.

WARNING!

Driving the vehicle with the parking brake engaged, or

repeated use of the parking brake to slow the vehicle

may cause serious damage to the brake system. Be

sure the parking brake is fully disengaged before

driving; failure to do so can lead to brake failure and

a collision.

4

CarManuals2.com

72

STARTING AND OPERATING



(Continued)

B

RAKE

 S

ERVICE

 M

ODE

We recommend having your brakes serviced by an

authorized dealer. You should only make repairs for

which you have the knowledge and the right equipment.

You should only enter Brake Service Mode during brake

service.
When servicing your rear brakes, it may be necessary for

you or your technician to push the rear piston into the rear

caliper bore. With the EPB system, this can only be done

after retracting the EPB actuator. The actuator retraction

can be done easily by entering the Brake Service Mode.

This menu based system will guide you through the steps

necessary to retract the EPB actuator in order to perform

rear brake service.
Service Mode has requirements that must be met in order

to be activated:

The vehicle must be at a standstill.

The parking brake must be disabled.

The transmission must be in PARK or NEUTRAL.

The EPB switch not activated.

The ignition is in the ON/RUN position.

The brake pedal not pressed.

While in service mode, the EPB Warning Light will flash

continuously while the ignition is placed in the ON position.

NOTE:

A dedicated message will appear in the instrument cluster

if Brake Service Mode cannot be activated.

When brake service work is complete, the following steps

must be followed to reset the parking brake system to

normal operation:

Ensure the vehicle is at a standstill.

Press the brake pedal with moderate force.

Apply the EPB switch.

NOTE:

A dedicated message will appear in the instrument cluster

if Brake Service Mode cannot be deactivated.

AUTOMATIC TRANSMISSION

NOTE:

You must press and hold the brake pedal while shifting out

of PARK.
The transmission gear range (PRND) is displayed both

beside the gear selector and in the instrument cluster.

To select a gear range, push the lock button on the gear

selector and move the lever rearward or forward. You must

also press the brake pedal to shift the transmission out of

PARK (or NEUTRAL, when the vehicle is stopped or moving

at low speeds). Select the DRIVE range for normal driving.

WARNING!

You can be badly injured working on or around a motor

vehicle. Do only that service work for which you have

the knowledge and the right equipment. If you have any

doubt about your ability to perform a service job, take

your vehicle to a competent mechanic.

WARNING!

It is dangerous to shift out of PARK or NEUTRAL if the

engine speed is higher than idle speed. If your foot is

not firmly pressing the brake pedal, the vehicle could

accelerate quickly forward or in reverse. You could

lose control of the vehicle and hit someone or some

-

thing. Only shift into gear when the engine is idling

normally and your foot is firmly pressing the brake

pedal.

Unintended movement of a vehicle could injure

those in or near the vehicle. As with all vehicles, you

should never exit a vehicle while the engine is

running. Before exiting a vehicle, always come to a

complete stop, then apply the parking brake, shift

the transmission into PARK, and turn the ignition

OFF. When the ignition is in the OFF position, the

transmission is locked in PARK, securing the vehicle

against unwanted movement.

When exiting the vehicle, always make sure the igni

-

tion is in the OFF position, remove the key fob from

the vehicle, and lock the vehicle.

Never leave children alone in a vehicle, or with

access to an unlocked vehicle. Allowing children to

be in a vehicle unattended is dangerous for a

number of reasons. A child or others could be seri

-

ously or fatally injured. Children should be warned

not to touch the parking brake, brake pedal or the

transmission gear selector.

CarManuals2.com

STARTING AND OPERATING

73

G

EAR

 S

ELECTOR

The transmission gear selector has PARK, REVERSE,

NEUTRAL, DRIVE, and AutoStick (+/-) shift positions.

Manual shifts can be made using the AutoStick shift

control. Toggling the gear selector forward (-) or rearward

(+) while in the AutoStick position (beside the DRIVE

position) will manually select the transmission gear, and

will display the current gear in the instrument cluster as

1, 2, 3, etc.

NOTE:

If the gear selector cannot be moved to the PARK,

REVERSE, or NEUTRAL position (when pushed forward) it

is probably in the AutoStick (+/-) position (beside the

DRIVE position). In AutoStick mode, the transmission gear

(1, 2, 3, etc.) is displayed in the instrument cluster. Move

the gear selector to the right (into the DRIVE [D] position)

for access to PARK, REVERSE, and NEUTRAL.
The electronically-controlled transmission adapts its shift

schedule based on driver inputs, along with environmental

and road conditions. The transmission electronics are

self-calibrating; therefore, the first few shifts on a new

vehicle may be somewhat abrupt. This is a normal

condition, and precision shifts will develop within a few

hundred miles (kilometers).
The 9-speed transmission has been developed to meet

the needs of current and future FWD/AWD vehicles.

Software and calibration is refined to optimize the

customer’s driving experience and fuel economy. By

design, some vehicle and driveline combinations utilize

9th gear only in very specific driving situations and

conditions.

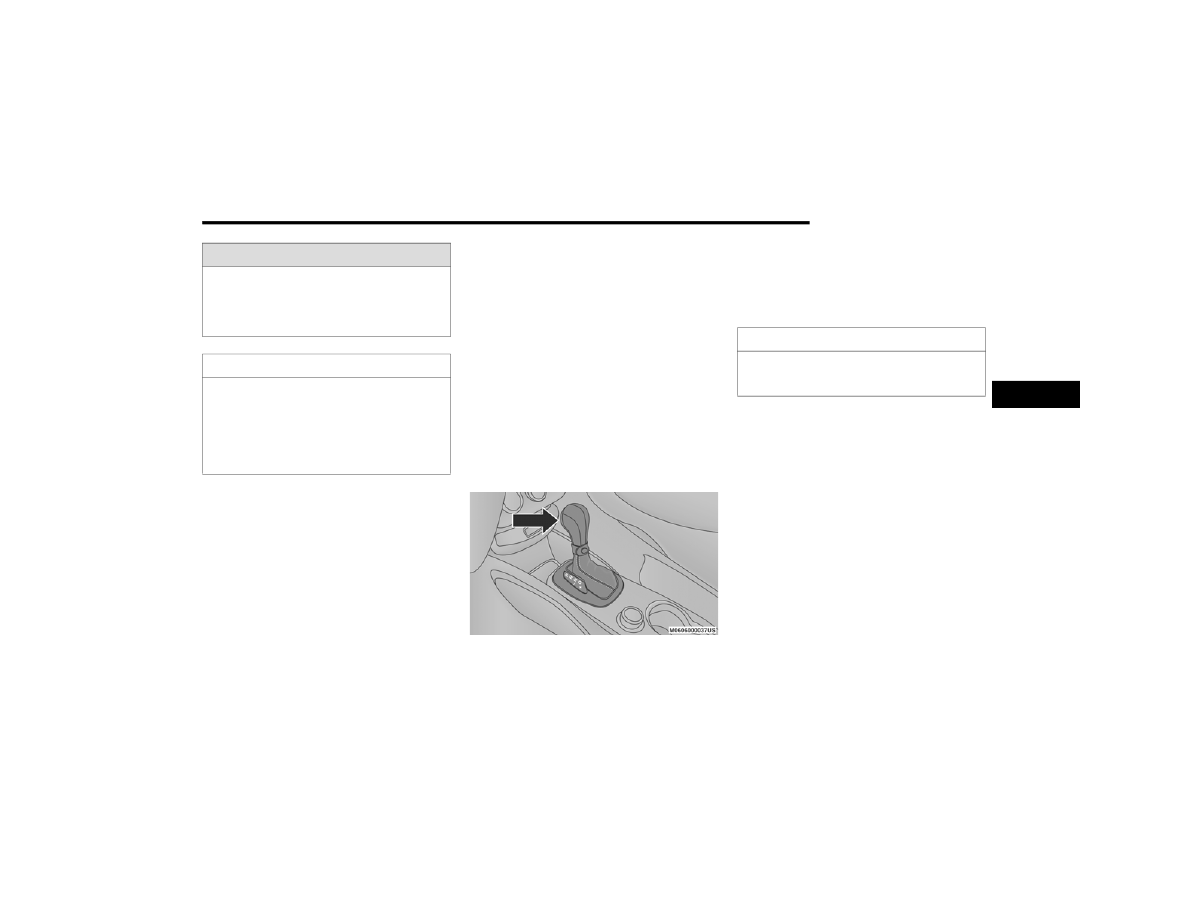

Gear Selector Lock Button

Only shift from DRIVE to PARK or REVERSE when the

accelerator pedal is released and the vehicle is stopped.

Be sure to keep your foot on the brake pedal when shifting

between these gears.
Do not press the accelerator pedal when shifting from

PARK or NEUTRAL into another gear range.

G

EAR

 R

ANGES

PARK (P)
The engine can be started in this range. Never attempt to

use PARK while the vehicle is in motion.
When parking on a hill, apply the EPB before shifting the

transmission to PARK, otherwise the load on the

transmission locking mechanism may make it difficult to

move the gear selector out of PARK. As an added

precaution, turn the front wheels toward the curb on a

downhill grade and away from the curb on an uphill grade.
When exiting the vehicle, always:

Apply the parking brake.

Shift the transmission into PARK.

Turn the engine off.

Remove the key fob.

Do not leave the key fob in or near the vehicle (or in

a location accessible to children), and do not leave

the ignition in the ON or RUN position. A child could

operate power windows, other controls, or move

the vehicle.

CAUTION!

Shift into or out of PARK or REVERSE only after the

vehicle has come to a complete stop.

Do not shift between PARK, REVERSE, NEUTRAL, or

DRIVE when the engine is above idle speed.

Before shifting into any gear, make sure your foot is

firmly pressing the brake pedal.

WARNING!

CAUTION!

After selecting any gear range, wait a moment to allow

the selected gear to engage before accelerating. This is

especially important when the engine is cold.

4

CarManuals2.com

74

STARTING AND OPERATING



(Continued)

The following indicators should be used to ensure that you

have properly engaged the transmission into the PARK

position:

When shifting into PARK, push the lock button on the

gear selector, and firmly move the gear selector all the

way forward until it stops and is fully seated.

Look at the transmission gear position display and

verify that it indicates the PARK position (P), and is not

blinking.

With the brake pedal released, verify that the gear

selector will not move out of PARK.

REVERSE (R)
This range is for moving the vehicle backward. Shift into

REVERSE only after the vehicle has come to a complete

stop.
NEUTRAL (N)
Use this range when the vehicle is standing for prolonged

periods with the engine running. The engine may be

started in this range. Apply the Electric Park Brake and

shift the transmission into PARK if you must exit the

vehicle.

WARNING!

Never use the PARK position as a substitute for the

parking brake. Always apply the parking brake fully

when exiting the vehicle to guard against vehicle

movement and possible injury or damage.

Your vehicle could move and injure you and others if

it is not in PARK. Check by trying to move the trans

-

mission gear selector out of PARK with the brake

pedal released. Make sure the transmission is in

PARK before exiting the vehicle.

It is dangerous to shift out of PARK or NEUTRAL if the

engine speed is higher than idle speed. If your foot is

not firmly pressing the brake pedal, the vehicle could

accelerate quickly forward or in reverse. You could

lose control of the vehicle and hit someone or some

-

thing. Only shift into gear when the engine is idling

normally and your foot is firmly pressing the brake

pedal.

Unintended movement of a vehicle could injure

those in or near the vehicle. As with all vehicles,

you should never exit a vehicle while the engine is

running. Before exiting a vehicle, always come to a

complete stop, then apply the parking brake, shift

the transmission into PARK, and turn the ignition

OFF. When the ignition is in the OFF position, the

transmission is locked in PARK, securing the vehicle

against unwanted movement.

When exiting the vehicle, always make sure the

ignition is in the OFF position, remove the key fob

from the vehicle, and lock the vehicle.

Never leave children alone in a vehicle, or with

access to an unlocked vehicle. Allowing children to

be in a vehicle unattended is dangerous for a

number of reasons. A child or others could be seri

-

ously or fatally injured. Children should be warned

not to touch the parking brake, brake pedal or the

transmission gear selector.

Do not leave the key fob in or near the vehicle (or in

a location accessible to children), and do not leave

the ignition in the ON or RUN position. A child could

operate power windows, other controls, or move the

vehicle.

CAUTION!

Before moving the transmission gear selector out of

PARK, you must turn the ignition to the ON/RUN posi

-

tion, and also press the brake pedal. Otherwise,

damage to the gear selector could result.

DO NOT race the engine when shifting from PARK or

NEUTRAL into another gear range, as this can

damage the drivetrain.

WARNING!

WARNING!

Do not coast in NEUTRAL and never turn off the ignition

to coast down a hill. These are unsafe practices that

limit your response to changing traffic or road

conditions. You might lose control of the vehicle and

have a collision.

CAUTION!

Towing the vehicle, coasting, or driving for any other

reason with the transmission in NEUTRAL can cause

severe transmission damage.
For Recreational Towing

Ú

page 103.

For Towing A Disabled Vehicle

Ú

page 213.

CarManuals2.com

STARTING AND OPERATING

75

DRIVE (D)
This range should be used for most city and highway

driving. It provides the smoothest upshifts and downshifts,

and the best fuel economy. The transmission

automatically upshifts through all forward gears.
When frequent transmission shifting occurs (such as

when operating the vehicle under heavy loading

conditions, in hilly terrain, traveling into strong head winds

or while towing a heavy trailer), use the AutoStick shift

control to select a lower gear. Under these conditions,

using a lower gear will improve performance and extend

transmission life by reducing excessive shifting and heat

buildup.
If the transmission temperature exceeds normal operating

limits, the transmission controller may modify the

transmission shift schedule, reduce engine torque, and/or

expand the range of torque converter clutch engagement.

This is done to prevent transmission damage due to

overheating.
If the transmission becomes extremely hot, the

Transmission Temperature Warning Light may illuminate

and the transmission may operate differently until the

transmission cools down.
During cold temperatures, transmission operation may be

modified depending on engine and transmission

temperature as well as vehicle speed. This feature

improves warm up time of the engine and transmission to

achieve maximum efficiency. Engagement of the torque

converter clutch, and shifts into EIGHTH or NINTH gear,

are inhibited until the transmission fluid is warm. Normal

operation will resume once the transmission temperature

has risen to a suitable level.

AutoStick
AutoStick is a driver-interactive transmission feature

providing manual shift control, giving you more control of

the vehicle. AutoStick allows you to maximize engine

braking, eliminate undesirable upshifts and downshifts,

and improve overall vehicle performance. This system can

also provide you with more control during passing, city

driving, cold slippery conditions, mountain driving, trailer

towing and many other situations.
Operation
When the gear selector is in the AutoStick position (beside

the DRIVE position), it can be moved forward and

rearward. This allows the driver to manually select the

transmission gear being used. Moving the gear selector

forward (-) triggers a downshift, and rearward (+) an

upshift. The current gear is displayed in the instrument

cluster.

NOTE:

In AutoStick mode, the transmission will only shift up or

down when the driver moves the gear selector rearward

(+) or forward (-), except as follows:

The transmission will automatically upshift lower and

higher when necessary to prevent engine overspeed.

The transmission will automatically downshift as the

vehicle slows (to prevent engine lugging) and will

display the current gear.

The transmission will automatically downshift to

FIRST or SECOND gear (depending on model) when

coming to a stop. After a stop, the driver should

manually upshift (+) the transmission as the vehicle

is accelerated.

You can start out (from a stop) in FIRST or SECOND

gear. Starting out in SECOND gear can be helpful in

snow or icy conditions. Tap the gear selector forward or

rearward to select the desired gear after the vehicle is

brought to a stop.

If a requested downshift would cause the engine to

overspeed, that shift will not occur.

The system will ignore attempts to upshift at too low of

a vehicle speed.

Avoid using Cruise Control when AutoStick is engaged

because the transmission will not shift automatically.

Transmission shifting will be more noticeable when

AutoStick is enabled.

The system may revert to automatic shift mode if a

fault or overheat condition is detected.

To disengage AutoStick mode, return the gear selector to

the DRIVE position. You can shift in or out of the AutoStick

position at any time without taking your foot off the

accelerator pedal.

WARNING!

Do not downshift for additional engine braking on a

slippery surface. The drive wheels could lose their grip

and the vehicle could skid, causing a collision or

personal injury.

4

CarManuals2.com















Content      ..      1      2      3      ..
