KEYS

K

EY

 F

OB



Your vehicle is equipped with a key fob which supports

Passive Entry, Remote Keyless Entry (RKE), Keyless

Enter ‘n Go™ (if equipped), and Remote Start

(if equipped). The key fob allows you to lock or unlock

the doors and liftgate or activate the Panic Alarm from

distances up to approximately 66 ft (20 m). In some

conditions, this distance can be reduced or increased.

The key fob does not need to be pointed at the vehicle to

activate the system. The key fob also contains an

emergency key, which is stored in the rear of the key fob.

NOTE:

The key fob’s wireless signal may be blocked if the key

fob is located next to a metallic object, mobile phone,

laptop, wireless charging pad, or other electronic

device. This may result in poor performance.

If the key fob’s battery is near depletion, the key fob

performance can be reduced.

Keyless Ignition Key Fob

In case the ignition switch does not change with the push

of a button, the key fob may have a low or fully depleted

battery. A low key fob battery can be verified by referring to

the instrument cluster, which will display directions to

follow

Ú

page 277.

To Unlock/Lock The Doors And Liftgate

Push and release the unlock button on the key fob once to

unlock the driver’s door, or twice within five seconds to

unlock all the doors and the liftgate. To lock all the doors

and the liftgate, push the lock button once.
When the doors are unlocked, the turn signals will flash

and the illuminated entry system will be activated. When

the doors are locked, the turn signals will flash and the

horn will chirp (if programmed in the Uconnect system).

NOTE:

If the vehicle is unlocked by a key fob, and no door is

opened within 60 seconds, the vehicle will relock and if

equipped, the security system will arm.
All doors can be programmed to unlock on the first push

of the unlock button within Uconnect Settings

Ú

page 106.

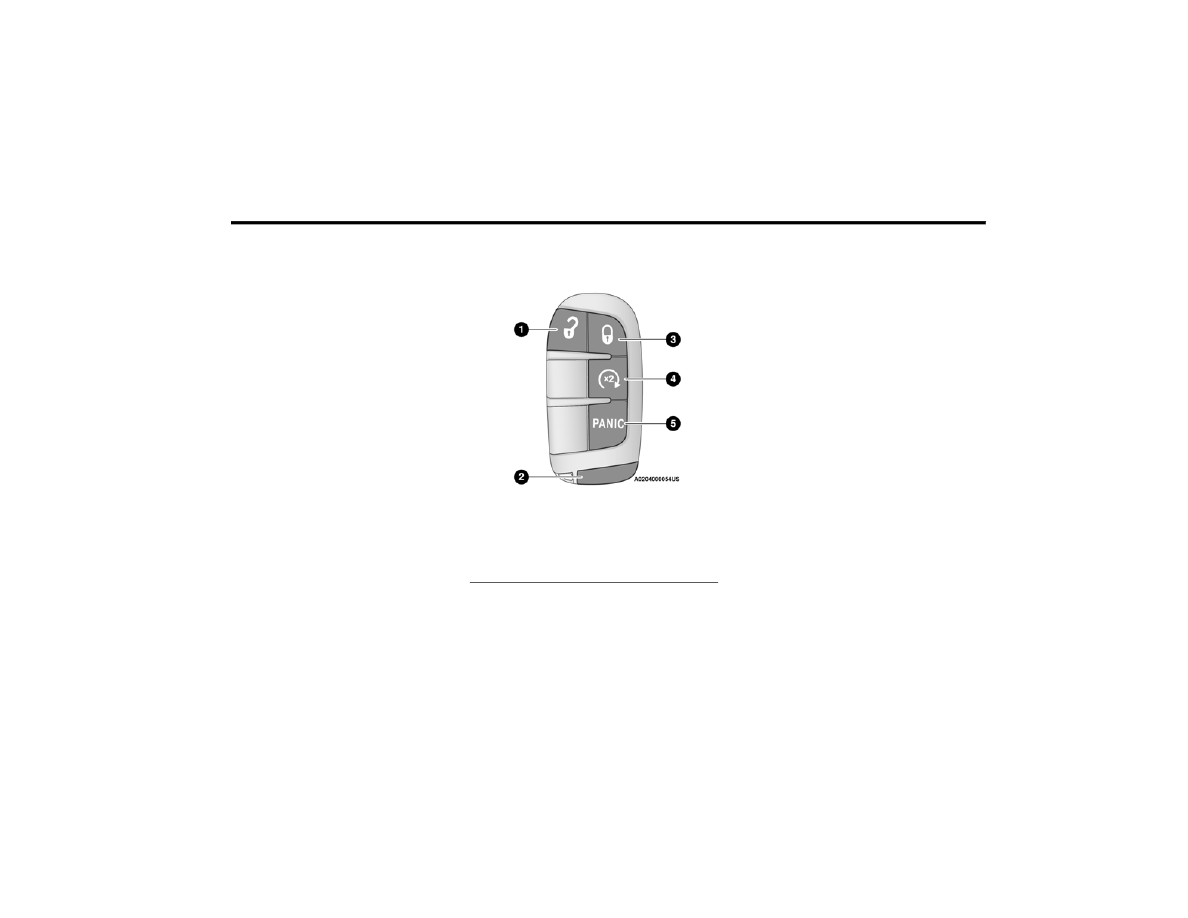

1 — Unlock
2 — Emergency Key
3 — Lock
4 — Remote Start
5 — PANIC

CarManuals2.com

13

Key Left Vehicle Feature — If Equipped

If a valid key fob is no longer detected inside the vehicle

while the vehicle’s ignition system is in the ON/RUN or

START position, the message “Key Fob Has Left The

Vehicle” will be shown in the instrument cluster display

along with an interior chime. An exterior audible and

visual alert will also be activated to warn the driver.
The vehicle’s horn will rapidly chirp three times along with

a single flash of the vehicle’s exterior lights.

NOTE:

The doors have to be open and then closed in order for

the vehicle to detect a key fob; the Key Left Vehicle

feature will not activate until all of the doors are closed.

These alerts will not be activated in situations where

either the vehicle’s engine is left running with the key

fob inside, or the key fob’s wireless signals are blocked.

Replacing The Battery In The Key Fob

The recommended replacement battery is one CR2032

battery.

NOTE:

Customers are recommended to use a battery

obtained from Mopar®. Aftermarket coin battery

dimensions may not meet the original OEM coin battery

dimensions.

Perchlorate Material — special handling may apply. See

www.dtsc.ca.gov/hazardouswaste/perchlorate for

further information.

Do not touch the battery terminals that are on the back

housing or the printed circuit board.

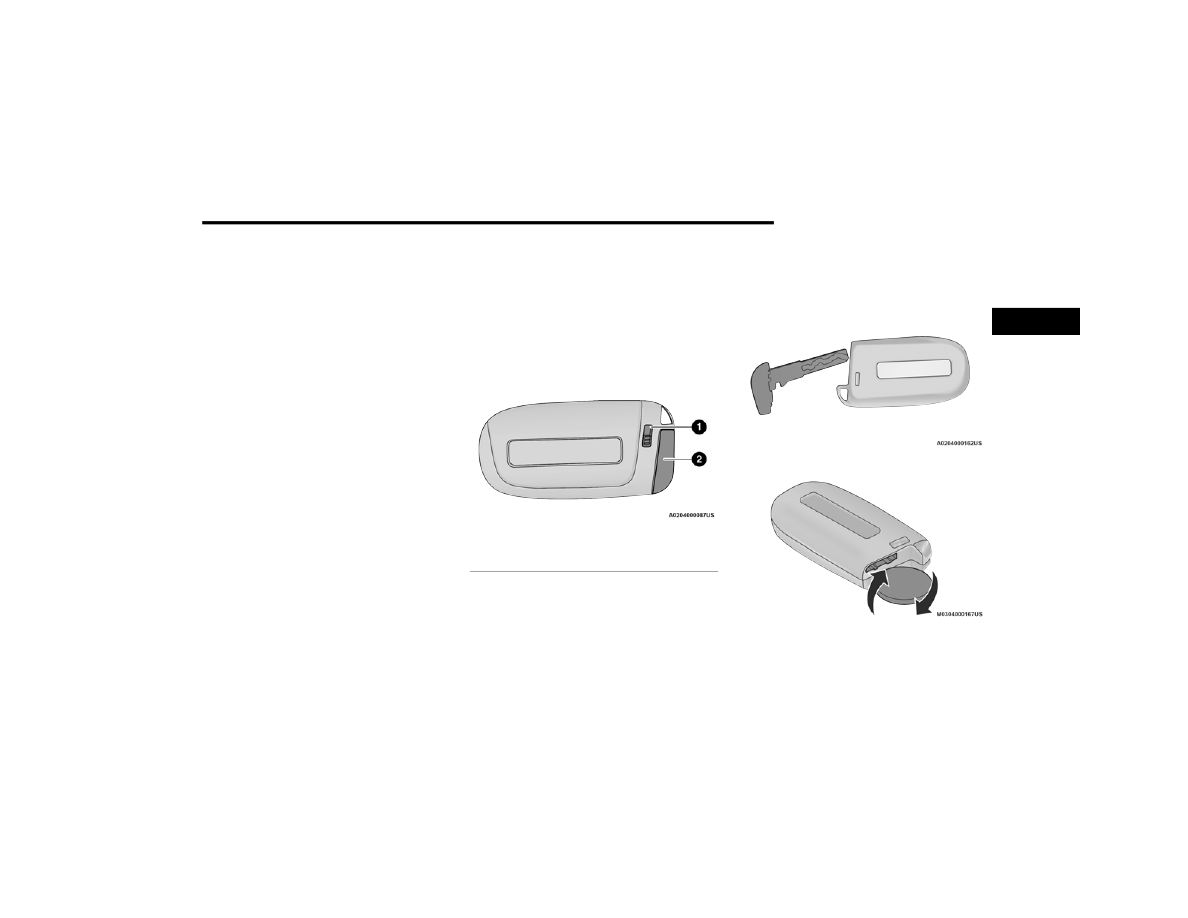

1. Remove the emergency key (2) by sliding the

emergency key release (1) on the back of the key fob

and pulling the emergency key out with your other

hand.

Emergency Key Removal

2. Separate the key fob halves using a flat-blade

screwdriver or a coin, and gently pry the two halves of

the key fob apart. Make sure not to damage the

seal during removal.

Emergency Key Removal

Separating Case With A Coin

1 — Emergency Key Release Button
2 — Emergency Key

2

CarManuals2.com

14



(Continued)

Key Fob Battery Replacement

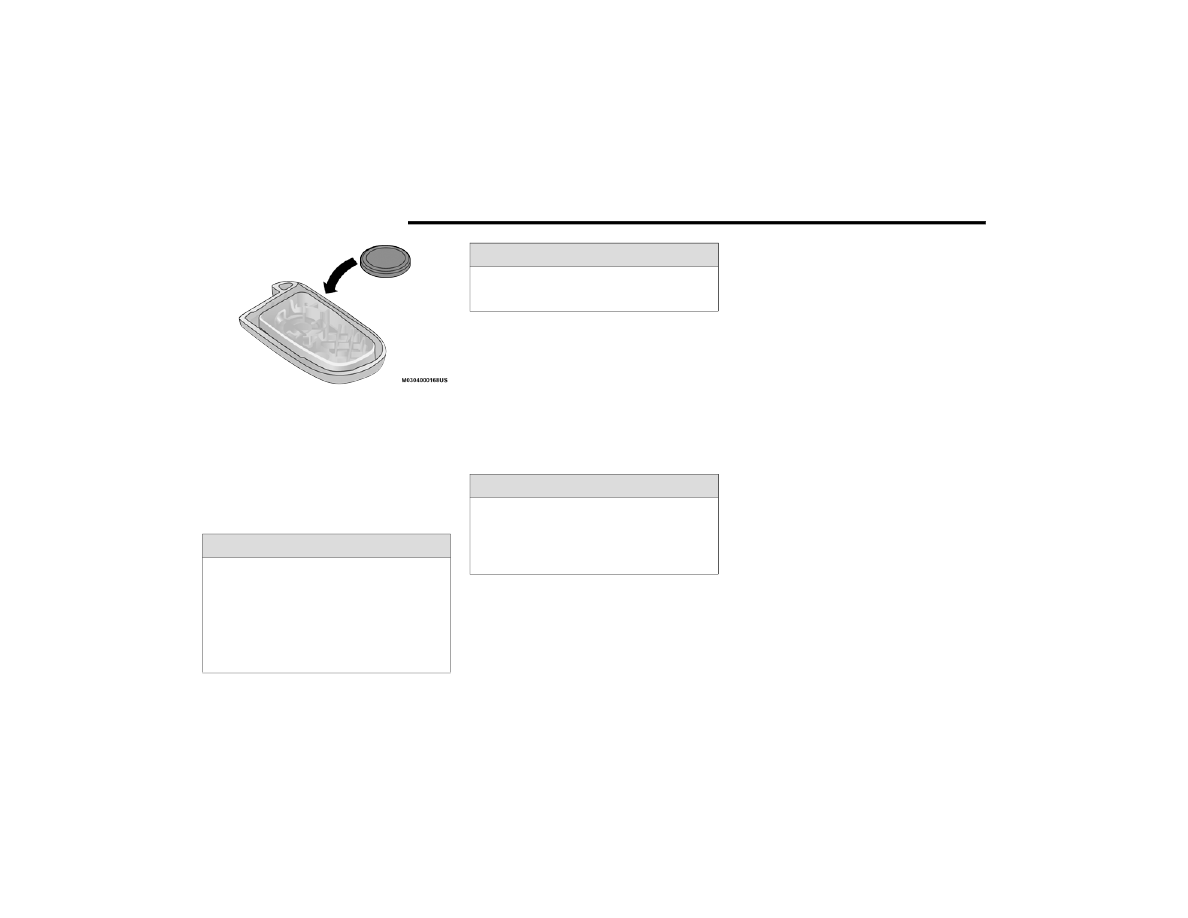

3. Remove the back cover to access and replace the

battery. When replacing the battery, match the (+)

sign on the battery to the (+) sign on the inside of the

battery clip, located on the back cover. Avoid touching

the new battery with your fingers. Skin oils may cause

battery deterioration. If you touch a battery, clean it

with rubbing alcohol.

4. To assemble the key fob case, snap the two halves

together.

Programming And Requesting Additional

Key Fobs

Programming the key fob may be performed by an

authorized dealer.

NOTE:

Once a key fob is programmed to a vehicle, it cannot be

repurposed and reprogrammed to another vehicle.

Only key fobs that are programmed to the vehicle elec

-

tronics can be used to start and operate the vehicle.

Duplication of key fobs may be performed at an authorized

dealer. This procedure consists of programming a blank

key fob to the vehicle electronics. A blank key fob is one

that has never been programmed.

NOTE:

When having the Sentry Key Immobilizer system

serviced, bring all vehicle keys with you to an autho

-

rized dealer.

Keys must be ordered to the correct key cut to match

the vehicle locks.

It is not mandatory to replace the key fob if a new emer

-

gency key is needed, and vice versa.

SENTRY KEY

The Sentry Key Immobilizer system prevents unauthorized

vehicle operation by disabling the engine. The system

does not need to be armed or activated. Operation is

automatic, regardless of whether the vehicle is locked or

unlocked.
The system uses a key fob, keyless push button ignition

and a Radio Frequency (RF) receiver to prevent

unauthorized vehicle operation. Therefore, only key fobs

that are programmed to the vehicle can be used to start

and operate the vehicle. The system will shut the engine

off in two seconds if an invalid key fob is used to start the

engine.
After placing the ignition switch in the ON/RUN position,

the Vehicle Security Light will turn on for three seconds for

a bulb check. If the light remains on after the bulb check,

it indicates that there is a problem with the electronics. In

addition, if the light begins to flash after the bulb check, it

indicates that someone used an invalid key fob to start the

engine. Either of these conditions will result in the engine

being shut off after two seconds.

WARNING!

The integrated key fob contains a coin cell battery.

Do not ingest the battery; there is a chemical burn

hazard. If the coin cell battery is swallowed, it can

cause severe internal burns in just two hours and

can lead to death.

If you think a battery may have been swallowed or

placed inside any part of the body, seek immediate

medical attention.

Keep new and used batteries away from children.

If the battery compartment does not close securely,

stop using the product and keep it away from children.

WARNING!

Always remove the key fobs from the vehicle and lock

all doors when leaving the vehicle unattended.

For vehicles equipped with Keyless Enter ‘n Go™,

always remember to place the ignition in the

OFF position when exiting the vehicle.

WARNING!

CarManuals2.com

15

(Continued)

If the Vehicle Security Light turns on during normal vehicle

operation (vehicle running for longer than 10 seconds), it

indicates that there is a fault in the electronics. Should

this occur, have the vehicle serviced as soon as possible

by an authorized dealer.

All of the key fobs provided with your new vehicle have

been programmed to the vehicle electronics

Ú

page 277.

NOTE:

A key fob that has not been programmed is also

considered an invalid key.

IGNITION SWITCH

K

EYLESS

 E

NTER

 ‘

N

 G

O

™ I

GNITION

This feature allows the driver to operate the ignition switch

with the push of a button as long as the key fob is in the

passenger compartment.

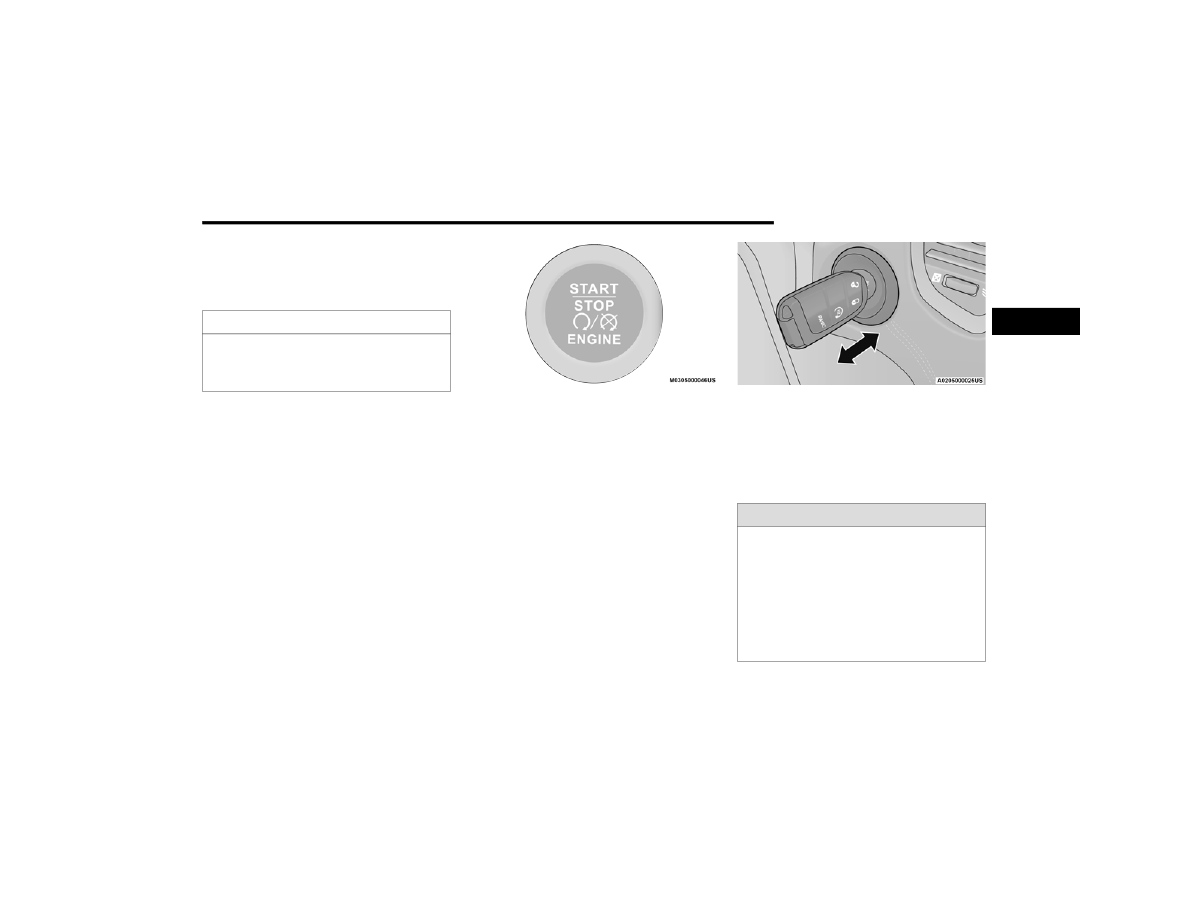

The START/STOP ignition button has three operating

positions. These positions are OFF, ON, and RUN.

START/STOP Ignition Button

The push button ignition can be placed in the following

positions:
OFF

The engine is stopped.

No electrical devices are available.

ON

The vehicle is not running.

Some electrical devices (power locks, alarm, etc.) are

still available.

RUN

Driving mode.

All electrical devices are available (e.g. climate

controls, heated seats, etc.).

NOTE:

The vehicle will not start if the key fob is located inside the

cargo area and the liftgate is opened.

Backup Starting Method

NOTE:

If the ignition switch does not change with the push of a

button, the key fob may have a low or depleted battery.

In this situation, a backup method can be used to operate

the ignition switch. Put the nose side (side opposite of the

emergency key) of the key fob against the START/STOP

ignition button and push to operate the ignition switch.

CAUTION!

The Sentry Key Immobilizer system is not compatible

with some aftermarket Remote Start systems. Use of

these systems may result in vehicle starting problems

and loss of security protection.

WARNING!

When leaving the vehicle, always remove the key fob

from the vehicle and lock your vehicle.

Never leave children alone in a vehicle, or with

access to an unlocked vehicle.

Allowing children to be in a vehicle unattended is

dangerous for a number of reasons. A child or others

could be seriously or fatally injured. Children should

be warned not to touch the parking brake, brake

pedal or the gear selector.

2

CarManuals2.com

16



NOTE:

For more information on proper engine starting proce

-

dures, see

Ú

page 68.

REMOTE START — IF EQUIPPED

This system uses the key fob to start the engine

conveniently from outside the vehicle while still

maintaining security. The system has a range

of approximately 328 ft (100 m).

Remote Start is used to defrost windows in cold weather,

and to reach a comfortable climate in all ambient

conditions before the driver enters the vehicle.

NOTE:

Obstructions between the vehicle and key fob may reduce

this range.

H

OW

 T

O

 U

SE

 R

EMOTE

 S

TART

Push and release the Remote Start button on the key fob

twice within five seconds. The vehicle doors will lock, the

parking lights will flash, and the horn will chirp twice (if

programmed). Then the engine will start and the vehicle

will remain in the Remote Start mode for a 15 minute

cycle. Pushing the Remote Start button a third time shuts

the engine off.

With Remote Start, the engine will only run for

15 minutes.

If an engine fault is present or fuel level is low, the

vehicle will start and then shut down in 10 seconds.

The parking lights will turn on and remain on during

Remote Start mode.

For security, power window and power sunroof opera

-

tion (if equipped) are disabled when the vehicle is in

the Remote Start mode.

The ignition must be placed in the ON/RUN position

before the Remote Start sequence can be repeated for

a third cycle.

All of the following conditions must be met before the

engine will remote start:

Gear Selector in PARK

Doors closed

Hood closed

Liftgate closed

Hazard switch off

Brake switch inactive (brake pedal not pressed)

Battery at an acceptable charge level

Panic button not pushed

System not disabled from previous Remote Start event

Vehicle Security Light flashing

Ignition in OFF position

Fuel level meets minimum requirement

Vehicle Security system is not signaling an intrusion

Malfunction Indicator Light (MIL) is not illuminated

Do not leave the key fob in or near the vehicle, or in

a location accessible to children, and do not leave

the ignition in the ON or RUN position. A child could

operate power windows, other controls, or move the

vehicle.

Do not leave children or animals inside parked vehi

-

cles in hot weather. Interior heat buildup may cause

serious injury or death.

CAUTION!

An unlocked vehicle is an invitation for thieves. Always

remove key fob from the vehicle and lock all doors

when leaving the vehicle unattended.

WARNING!

WARNING!

Do not start or run an engine in a closed garage or

confined area. Exhaust gas contains carbon

monoxide (CO) which is odorless and colorless.

Carbon monoxide is poisonous and can cause

serious injury or death when inhaled.

Keep key fobs away from children. Operation of the

Remote Start system, windows, door locks or other

controls could cause serious injury or death.

CarManuals2.com

17

T

O

 E

XIT

 R

EMOTE

 S

TART

 M

ODE

To drive the vehicle after starting the Remote Start

system, push and release the START/STOP ignition button

while pressing the brake pedal prior to the end of the

15 minute cycle.
The Remote Start system will turn the engine off with

another push and release of the Remote Start button on

the key fob, or if the engine is allowed to run for the entire

15 minute cycle. Once the ignition is placed in the ON/RUN

position, the climate controls will resume the previously set

operations (temperature, blower control, etc.).

NOTE:

For vehicles equipped with the Keyless Enter ‘n Go™ —

Passive Entry feature, the message “Remote Start

Active — Push Start Button” will display in the instru

-

ment cluster display until you push the START/STOP

ignition button.

To avoid unintentional shutdowns, the system will

disable for two seconds after receiving a valid Remote

Start request.

R

EMOTE

 S

TART

 F

RONT

 D

EFROST



A

CTIVATION

 — I

F

 E

QUIPPED

When Remote Start is active, and the outside ambient

temperature is 40°F (4.5°C) or below, the system will

automatically activate front defrost for 15 minutes or less.

The timing is dependent on the ambient temperature.

Once the timer expires, the system will automatically

adjust the settings depending on ambient conditions.

See “Remote Start Comfort Systems — If Equipped” in

the next section for detailed operation.

R

EMOTE

 S

TART

 C

OMFORT

 S

YSTEMS

 —

I

F

 E

QUIPPED

When Remote Start is activated, the front and rear defrost

will automatically turn on in cold weather. The heated

steering wheel and driver heated seat feature will turn on

if selected in the Comfort Menu screen within Uconnect

Settings

Ú

page 106. The vehicle will adjust the climate

control settings depending on the outside ambient

temperature.
Automatic Temperature Control (ATC) — If Equipped
The climate controls will be automatically adjusted to the

optimal temperature and mode settings depending on the

outside ambient temperature. This will occur until the

ignition is placed in the ON/RUN position where the

climate controls will resume their previous settings.

Manual Temperature Control (MTC) — If Equipped

In ambient temperatures at 40°F (4.5°C) or below, the

climate settings will default to maximum heat, with

fresh air entering the cabin. If the front defrost timer

expires, the vehicle will enter Mix Mode.

In ambient temperatures from 40°F (4.5°C) to 78°F

(26°C), the climate settings will be based on the last

settings selected by the driver.

In ambient temperatures at 78°F (26°C) or above, the

climate settings will default to MAX A/C, Bi-Level Mode,

with Recirculation on.

For more information on ATC, MTC, and climate control

settings, see

Ú

page 35.

NOTE:

These features will stay on through the duration of Remote

Start until the ignition is placed in the ON/RUN position.

The climate control settings will change if manually

adjusted by the driver while the vehicle is in Remote Start

mode, and exit automatic override. This includes the

OFF button on the climate controls, which will turn the

system off.

R

EMOTE

 S

TART

 W

INDSHIELD

 W

IPER



D

E

-I

CER

 A

ND

 R

EAR

 D

EFROST



A

CTIVATION

 — I

F

 E

QUIPPED

When Remote Start is active and the outside ambient

temperature is less than 40°F (4.4°C), the Windshield

Wiper De-Icer will activate. Exiting Remote Start will

resume its previous operation. If the Windshield Wiper

De-Icer was active, the timer and operation will continue.

WARNING!

Do not start or run an engine in a closed garage or

confined area. Exhaust gas contains carbon

monoxide (CO) which is odorless and colorless.

Carbon monoxide is poisonous and can cause

serious injury or death when inhaled.

Keep key fobs away from children. Operation of the

Remote Start system, windows, door locks or other

controls could cause serious injury or death.

2

CarManuals2.com

18



R

EMOTE

 S

TART

 C

ANCEL

 M

ESSAGE

 —

I

F

 E

QUIPPED

One of the following messages will display in the

instrument cluster if the vehicle fails to remote start or

exits Remote Start prematurely:

Remote Start Canceled — Door Open

Remote Start Canceled — Hood Open

Remote Start Canceled — Fuel Low

Remote Start Canceled — Liftgate Open

Remote Start Canceled — Too Cold

Remote Start Canceled — Time Expired

Remote Start Disabled — Start Vehicle To Reset

The message will stay active until the ignition is placed in

the ON/RUN position.

VEHICLE SECURITY SYSTEM — IF EQUIPPED

The Vehicle Security system monitors the vehicle doors,

hood, liftgate, and the Keyless Enter ‘n Go™ Ignition for

unauthorized operation. If something triggers the alarm,

the Vehicle Security system will provide the following

audible and visible signals:

The horn will pulse

The turn signals will flash

The Vehicle Security Light in the instrument cluster

will flash

NOTE:

If the vehicle is equipped with the Dead Lock Device, and

the Vehicle Security system is armed, interior switches for

door locks and liftgate release are disabled

Ú

page 21.

T

O

 A

RM

 T

HE

 S

YSTEM



Follow these steps to arm the Vehicle Security system:
1. Make sure the vehicle’s ignition is placed in the

OFF position.

2. Perform one of the following methods to lock the

vehicle:

Push the lock button on the interior power door

lock switch with the driver and/or passenger door

open.

Push the lock button on the exterior Passive Entry

door handle with a valid key fob available in the

same exterior zone

Ú

page 20.

Push the lock button on the key fob.

3. If any doors are open, close them.

T

O

 D

ISARM

 T

HE

 S

YSTEM



The Vehicle Security system can be disarmed using any of

the following methods:

Push the unlock button on the key fob.

Grab the Passive Entry door handle to unlock the door

Ú

page 20.

Cycle the ignition out of the OFF position to disarm the

system.

NOTE:

The driver's door key cylinder cannot arm or disarm the

Vehicle Security system.

The Vehicle Security system remains armed during lift

-

gate entry. If someone enters the vehicle through the

opened liftgate, then opens any door, the alarm will

sound.

When the Vehicle Security system is armed, the interior

power door lock switches will not unlock the doors.

The Vehicle Security system is designed to protect your

vehicle. However, you can create conditions where the

system will give you a false alarm. If one of the previously

described arming sequences has occurred, the Vehicle

Security system will arm, regardless of whether you are in

the vehicle or not. If you remain in the vehicle and open a

door, the alarm will sound. If this occurs, disarm the

Vehicle Security system.
If the Vehicle Security system is armed and the battery

becomes disconnected, the Vehicle Security system will

remain armed when the battery is reconnected; the

exterior lights will flash, and the horn will sound. If this

occurs, disarm the Vehicle Security system.

D

ISABLING

To completely disable the alarm (e.g. in the case of long

inactivity of the car), lock the doors by turning the

emergency key in the exterior door lock cylinder.

NOTE:

If the batteries in the key fob discharge in the event of a

failure to the system or to switch off the alarm, place the

ignition in the ON/RUN position.

CarManuals2.com

19

S

ECURITY

 S

YSTEM

 M

ANUAL

 O

VERRIDE

The Vehicle Security system will not arm if you lock the

doors using the manual door lock.

DOORS

M

ANUAL

 D

OOR

 L

OCKS

To lock each door from the inside, rotate the door lock

button on each door trim panel forward. To unlock the

doors from the inside, pull the inside door handle to the

first detent or rotate the door lock button until the lock

symbol is no longer visible.
If the lock symbol is visible when the door is shut, the door

will lock. Therefore, make sure the key fob is not inside the

vehicle before closing the door.

Manual Lock/Unlock Switch

NOTE:

The manual lock knob unlocks each individual door sepa

-

rately.

P

OWER

 D

OOR

 L

OCKS

The power door lock switches are located on each front

door panel. Push the switch to lock or unlock the doors

and liftgate.
Push the lock button on the driver or passenger door trim

panel to lock the doors.
With the doors locked, push the unlock button to unlock

the doors.

Power Lock/Unlock Switch

The doors can also be locked and unlocked with

the Keyless Enter ‘n Go™ — Passive Entry system

(if equipped).

1 — Door Unlocked
2 — Door Locked

WARNING!

When exiting the vehicle, always remove the key fob

from the vehicle and lock your vehicle.

Never leave children alone in a vehicle, or with

access to an unlocked vehicle.

Allowing children to be in a vehicle unattended is

dangerous for a number of reasons. A child or others

could be seriously or fatally injured. Children should

be warned not to touch the parking brake, brake

pedal or the gear selector.

Do not leave the key fob in or near the vehicle, or in

a location accessible to children, and do not leave

the Keyless Enter ‘n Go™ Ignition in the ON/RUN

position. A child could operate power windows, other

controls, or move the vehicle.

Do not leave children or animals inside parked vehi

-

cles in hot weather. Interior heat buildup may cause

serious injury or death.

CAUTION!

An unlocked car is an invitation. Always remove the key

from the ignition and lock all doors when leaving the

vehicle unattended.

2

CarManuals2.com

20



K

EYLESS

 E

NTER

 ‘

N

 G

O

™ — P

ASSIVE



E

NTRY

 (I

F

 E

QUIPPED

)

The Passive Entry system is an enhancement to the

vehicle’s Remote Keyless Entry system and a feature of

Keyless Enter ‘n Go™. This feature allows you to lock and

unlock the vehicle’s door(s) without having to push the

key fob lock or unlock buttons.

NOTE:

Passive Entry may be programmed on/off through

Uconnect Settings

Ú

page 106.

The key fob may not be detected by the vehicle Passive

Entry system if it is located next to a mobile phone,

laptop, or other electronic device; these devices may

interfere with the key fob’s wireless signal and prevent

the Passive Entry system from locking and unlocking

the vehicle.

If wearing gloves, if it has been raining/snowing, or

there is salt/dirt covering the Passive Entry door

handle, the unlock sensitivity can be affected, resulting

in a slower response time.

The doors may unlock when water is sprayed on the

Passive Entry door handles if the key fob is located

outside of the vehicle within 5 ft (1.5 m) of the handle.

If the vehicle is unlocked by the Passive Entry door

handle, and no door opens within 60 seconds, the

vehicle will relock and if equipped, the Vehicle Security

system will arm.

To Unlock From The Driver Or Passenger Side
With a valid Passive Entry key fob within 5 ft (1.5 m) of

the door handle, grab the handle to unlock the vehicle.

Grabbing the driver’s door handle will unlock the driver’s

door automatically. Grabbing the passenger door handle

will unlock all doors and the liftgate automatically.

Grab The Door Handle To Unlock

NOTE:

Either the driver door only or all doors will unlock when

you grab hold of the front driver’s door handle,

depending on the selected setting in the Uconnect

system

Ú

page 106.

All doors will unlock when the front passenger door

handle is grabbed regardless of the driver’s door

unlock preference setting.

Frequency Operated Button Integrated Key (FOBIK-Safe)
To minimize the possibility of unintentionally locking a

Passive Entry key fob inside your vehicle, the Passive Entry

system is equipped with an automatic door unlock

feature.
FOBIK-Safe only executes in vehicles with Passive Entry.

There are three situations that trigger a FOBIK-Safe search

in any Passive Entry vehicle:

A lock request is made by a valid Passive Entry key fob

while a door is ajar.

A lock request is made by the Passive Entry door

handle while a door is ajar.

A lock request is made by the door panel switch while

the door is ajar.

When any of these situations occur, after all ajar doors are

shut, the FOBIK-Safe search will be executed. If it detects

a Passive Entry key fob inside the car, and it does not

detect any Passive Entry key fobs outside the car, then the

car will unlock and alert the customer.

NOTE:

The vehicle will only unlock the doors when a valid Passive

Entry key fob is detected inside the vehicle, and no valid

Passive Entry key fob is detected outside the vehicle. The

vehicle will not unlock the doors when any of the following

conditions are met:

The doors are manually locked using the door lock

knobs.

There is a valid Passive Entry key fob outside the

vehicle and within 5 ft (1.5 m) of either Passive Entry

door handle.

CarManuals2.com

21

To Lock The Vehicle’s Doors And Liftgate
With one of the vehicle’s Passive Entry key fobs within 5 ft

(1.5 m) of either front door handles, pushing the Passive

Entry lock button will lock the vehicle.

Push The Door Handle Button To Lock

NOTE:

DO NOT grab the door handle, when pushing the door

handle lock button. This could unlock the door(s).

DO NOT Grab The Door Handle When Locking

NOTE:

After pushing the door handle button, you must wait

two seconds before you can lock or unlock the doors,

using any Passive Entry door handle. This is to allow

you to check if the vehicle is locked by pulling the door

handle without the vehicle unlocking.

The Passive Entry system will not operate if the key fob

battery is depleted.

The vehicle doors can also be locked by using the lock

button located on the vehicle’s interior door panel.
Activation/Deactivation Of Keyless Enter ‘n Go™
Keyless Enter ‘n Go™ can be activated or deactivated

through the instrument cluster display or through the

Uconnect system

Ú

page 277.

A

UTOMATIC

 D

OOR

 L

OCKS

 —

I

F

 E

QUIPPED



When the auto door lock feature is enabled, if all of the

doors are closed properly, the door locks will lock

automatically when the vehicle's speed exceeds 12 mph

(20 km/h). The auto door lock feature is enabled/disabled

within Uconnect Settings

Ú

page 106.

D

EAD

 L

OCK

 D

EVICE

 — I

F

 E

QUIPPED

The Dead Lock Device is a safety device that prevents the

use of the internal door handles of the vehicle and the

power door lock switch. This device prevents the doors

from opening within the passenger compartment.

The device works on all doors.

Arming The Device

The device is armed after two pushes of the lock button

on the key fob

For vehicles equipped with Passive Entry, the device

will also work by pushing the lock button on the driver’s

or passenger’s side exterior door handle

The arming of the device is indicated by three flashes of

the turn signals.

NOTE:

The device does not operate if one or more doors are

not properly closed.
Disarming The Device

The device will automatically disarm by pushing the

unlock button on the key fob

Placing the ignition in the ON/RUN position

For vehicles equipped with Passive Entry, the device

will also disarm by using the driver or passenger

Passive Entry door handle to unlock and open the door

C

HILD

-P

ROTECTION

 D

OOR

 L

OCK



S

YSTEM

 — R

EAR

 D

OORS

To provide a safer environment for small children riding in

the rear seats, the rear doors are equipped with a

Child-Protection Door Lock system.
To use the system, open each rear door, use a flat-blade

screwdriver (or emergency key) and rotate the dial to the

lock or unlock position. When the system on a door is

engaged, that door can only be opened by using the

outside door handle even if the inside door lock is in the

unlocked position.

2

CarManuals2.com

22



Child-Protection Door Lock Location

NOTE:

When the Child-Protection Door Lock system is

engaged, the door can only be opened by using the

outside door handle even though the inside door lock

is in the unlocked position.

After disengaging the Child-Protection Door Lock

system, always test the door from the inside to make

certain it is in the unlocked position.

After engaging the Child-Protection Door Lock system,

always test the door from the inside to make certain it

is in the locked position.

For emergency exit with the system engaged, rotate the

lock button to the unlocked position, lower the window,

and open the door with the outside door handle.

NOTE:

Always use this device when carrying children. After

engaging the child lock on both rear doors, check for

effective engagement by trying to open a door with the

internal handle. Once the Child-Protection Door Lock

system is engaged, it is impossible to open the doors from

inside the vehicle. Before getting out of the vehicle, be

sure to check that there is no one left inside.

STEERING WHEEL

M

ANUAL

 T

ILT

/T

ELESCOPING

 S

TEERING



C

OLUMN

This feature allows you to tilt the steering column upward

or downward. It also allows you to lengthen or shorten the

steering column. The tilt/telescoping lever is located

below the steering wheel at the end of the steering

column.

Tilt/Telescoping Lever

To unlock the steering column, push the tilt/telescoping

lever downward (toward the floor). To tilt the steering

column, move the steering wheel upward or downward as

desired. To lengthen or shorten the steering column, pull

the steering wheel outward or push it inward as desired.
To lock the steering column in position, pull the tilt/

telescoping lever upward until fully engaged.

WARNING!

Avoid trapping anyone in a vehicle in a collision.

Remember that the rear doors can only be opened from

the outside when the Child-Protection locks are

engaged.

WARNING!

Do not adjust the steering column while driving.

Adjusting the steering column while driving or driving

with the steering column unlocked, could cause the

driver to lose control of the vehicle. Failure to follow this

warning may result in serious injury or death.

CarManuals2.com

23

SEATS

Seats are a part of the Occupant Restraint system of the

vehicle.

M

ANUAL

 A

DJUSTMENT

 (F

RONT

 S

EATS

)

Manual Front Seat Forward/Rearward

Adjustment

Some models may be equipped with manual seats. The

seat can be adjusted forward or rearward by using a bar

located by the front of the seat cushion, near the floor.

Manual Seat Adjustment Levers

While sitting in the seat, lift up on the bar located under

the seat cushion and move the seat forward or rearward.

Release the bar once you have reached the desired

position. Then, using body pressure, move forward and

rearward on the seat to be sure that the seat adjusters

have latched.

Height Adjustment — If Equipped

The front driver seat height can be raised or lowered by

using a lever, located on the outboard side of the seat.

Pull upward on the lever to raise the seat height or push

downward on the lever to lower the seat height.

Recline Adjustment

To adjust the seatback, lift the lever located on the

outboard side of the seat, lean back to the desired

position and release the lever. To return the seatback,

lift the lever, lean forward and release the lever.

WARNING!

It is dangerous to ride in a cargo area, inside or

outside of a vehicle. In a collision, people riding in

these areas are more likely to be seriously injured

or killed.

Do not allow people to ride in any area of your vehicle

that is not equipped with seats and seat belts. In a

collision, people riding in these areas are more likely

to be seriously injured or killed.

Be sure everyone in your vehicle is in a seat and

using a seat belt properly.

WARNING!

Adjusting a seat while the vehicle is moving is

dangerous. The sudden movement of the seat could

cause you to lose control. The seat belt might not

be adjusted properly and you could be injured.

Adjust the seat only while the vehicle is parked.

Do not ride with the seatback reclined so that the

shoulder belt is no longer resting against your chest.

In a collision you could slide under the seat belt and

be seriously or even fatally injured. Use the recliner

only when the vehicle is parked.

1 — Forward/Rearward Adjustment Bar
2 — Seat Height Adjustment Lever (If Equipped)
3 — Recline Lever

WARNING!

Adjusting a seat while driving may be dangerous.

Moving a seat while driving could result in loss of

control which could cause a collision and serious

injury or death.

Seats should be adjusted before fastening the

seat belts and while the vehicle is parked. Serious

injury or death could result from a poorly adjusted

seat belt.

2

CarManuals2.com

24



(Continued)

M

ANUAL

 A

DJUSTMENT

 (R

EAR

 S

EATS

)

Manual Folding Second Row Seat

The manual folding split rear seat increases the storage of

the rear cargo area.

NOTE:

Prior to folding the rear seat down, it may be necessary

to position the front seat to its mid-track position.

Be sure that the front seats are fully upright and

positioned forward, this will allow the rear seat to

fold down easily.

You may experience deformation in the seat cushion

from the seat belt buckles if the seats are left folded for

an extended period of time. This is normal and by

simply unfolding the seats to the open position, over

time the seat cushion will return to its normal shape.

Cargo Area Enlargement

Folding both sides of the rear seat provides additional

storage in the rear cargo area.
Proceed as follows:
1. Remove the rear shelf (if equipped).
2. Fully lower the rear seat head restraints.
3. Move the safety belts to the outboard side of the seat.
4. Pull the seatback release lever to fold both sides of

the rear seatbacks completely forward.

Partial Enlargement Of The Cargo Area

Enlargement of the left side of the cargo area allows you

to carry a single passenger on the right side of the rear

seat, while the enlargement of the right side allows you to

carry two passengers.
Proceed as follows:
1. Remove the rear shelf (if equipped).
2. Fully lower the rear seat head restraints.
3. Move the safety belts to the outboard side of the seat

and rest them on the seat belt guide.

4. Pull the seatback release lever to fold the left or

right rear seatback completely forward.

Seatback Release Lever

Seatback Repositioning

NOTE:

If interference from the cargo area prevents the seatback

from fully locking, you will have difficulty returning the seat

to its proper position.
1. Move the safety belts to the seat belt guides on the

top edge of the seat to ensure the seatbacks

properly latch.

2. Lift the seatbacks, pushing them back until they lock

on both the latches. Verify the red notches are no

longer visible on the release lever. If the red notches

are visible, the seatback is not secure.

WARNING!

Do not pile luggage or cargo higher than the top of the

seatback. This could impair visibility or become a

dangerous projectile in a sudden stop or collision.

WARNING!

It is extremely dangerous to ride in a cargo area,

inside or outside of a vehicle. In a collision, people

riding in these areas are more likely to be seriously

injured or killed.

Do not allow people to ride in any area of your vehicle

that is not equipped with seats and seat belts.

Be sure everyone in your vehicle is in a seat and

using a seat belt properly.

WARNING!

CarManuals2.com

25

(Continued)

Rear Seat Latch

H

EATED

 S

EATS

 — I

F

 E

QUIPPED



The heated seat switches are located on the

instrument panel.

You can choose between two heating levels:

Press the heated seat button once to turn the

HI setting on.

Press the heated seat button a second time to turn the

LO setting on.

Press the heated seat button a third time to turn the

heating elements off.

If the HI-level setting is selected, the system will

automatically switch to LO-level after approximately

145 minutes of continuous operation. At that time, the

display will change from HI to LO, indicating the change.

The LO-level setting will turn off automatically after

approximately 60 minutes.

NOTE:

The timing may vary based on environmental tempera

-

ture.

The engine must be running for the heated seats to

operate.

For information on use with the Remote Start system, see

Ú

page 17.

H

EAD

 R

ESTRAINTS



Head restraints are designed to reduce the risk of injury by

restricting head movement in the event of a rear impact.

Head restraints should be adjusted so that the top of the

head restraint is located above the top of your ear.

WARNING!

Be certain that the seatback is securely locked into

position. If the seatback is not securely locked into

position the seat will not provide the proper stability for

child seats and/or passengers. An improperly latched

seat could cause serious injury.

WARNING!

Persons who are unable to feel pain to the skin because

of advanced age, chronic illness, diabetes, spinal cord

injury, medication, alcohol use, exhaustion or other

physical condition must exercise care when using the

seat heater. It may cause burns even at low tempera

-

tures, especially if used for long periods of time.

Do not place anything on the seat or seatback that

insulates against heat, such as a blanket or cushion.

This may cause the seat heater to overheat. Sitting in

a seat that has been overheated could cause serious

burns due to the increased surface temperature of

the seat.

WARNING!

All occupants, including the driver, should not

operate a vehicle or sit in a vehicle’s seat until the

head restraints are placed in their proper positions in

order to minimize the risk of neck injury in the event

of a crash.

Head restraints should never be adjusted while the

vehicle is in motion. Driving a vehicle with the head

restraints improperly adjusted or removed could

cause serious injury or death in the event of a

collision.

WARNING!

2

CarManuals2.com

26



(Continued)

Front Adjustment

Your vehicle is equipped with driver and passenger head

restraints.
To raise the head restraint, pull upward on the head

restraint. To lower the head restraint, push the adjustment

button, located on the base of the head restraint, and

push downward on the head restraint.

Front Head Restraint

Rear Adjustment

Your vehicle is equipped with two outboard head

restraints and one center head restraint for its rear

passengers. The rear head restraints can be raised or

lowered. When the center seat is being occupied, the head

restraint should be in the raised position. When there are

no occupants in the center seat, the head restraint can be

lowered for maximum visibility for the driver.

To raise the head restraint, pull upward on the head

restraint. To lower the head restraint, push the adjustment

button, located at the base of the head restraint, and push

downward on the head restraint.

Rear Head Restraint

Front Removal

To remove the head restraint recline the backrest of the

seat to avoid interference with the roof. Raise the head

restraint as far as it can go then push the release button

and adjustment button at the base of each post while

pulling the head restraint up. To reinstall the head

restraint, put the head restraint posts into the holes and

push downward. Then adjust it to the appropriate height.

NOTE:

Do not reposition the head restraint 180 degrees to the

incorrect position in an attempt to gain additional

clearance to the back of the head.

Rear Removal

To remove the head restraint, raise it as far as it can go

then push the release button and adjustment button at

the base of each post while pulling the head restraint up.

To reinstall the head restraint, put the head restraint posts

into the holes and push downward. Then adjust it to the

appropriate height.

NOTE:

Do not reposition the head restraint 180 degrees to the

incorrect position in an attempt to gain additional

clearance to the back of the head.

1 — Release Button
2 — Adjustment Button

1 — Adjustment Button
2 — Release Button

WARNING!

A loose head restraint thrown forward in a collision or

hard stop could cause serious injury or death to occu

-

pants of the vehicle. Always securely stow removed

head restraints in a location outside the occupant

compartment.

ALL the head restraints MUST be reinstalled in the

vehicle to properly protect the occupants. Follow the

reinstallation instructions prior to operating the

vehicle or occupying a seat.

WARNING!

A loose head restraint thrown forward in a collision or

hard stop could cause serious injury or death to occu

-

pants of the vehicle. Always securely stow removed

head restraints in a location outside the occupant

compartment.

CarManuals2.com

27

UCONNECT VOICE RECOGNITION

I

NTRODUCING

 V

OICE

 R

ECOGNITION

Start using Uconnect Voice Recognition with these helpful

quick tips. It provides the key Voice Commands and tips

you need to know to control your vehicle’s Voice

Recognition (VR) system.

Uconnect 4/4 NAV With 7-inch Display

G

ET

 S

TARTED

The

 VR button is used to activate/deactivate your

Voice Recognition system.

Helpful hints for using Voice Recognition:

Reduce background noise. Wind noise and passenger

conversations are examples of noise that may impact

recognition.

Speak clearly at a normal pace and volume while facing

straight ahead.

Each time you give a Voice Command, first push the

VR button, wait until after the beep, then say your

Voice Command.

You can interrupt the help message or system prompts

by pushing the VR button and saying a Voice Command

from the current category.

Uconnect Voice Command Buttons

B

ASIC

 V

OICE

 C

OMMANDS

The follwing basic Voice Commands can be given at any

point while using your Uconnect system.

Push the VR button

. After the beep, say:

“Cancel” to stop a current voice session.

“Help” to hear a list of suggested Voice Commands.

“Repeat” to listen to the system prompts again.

Notice the visual cues that inform you of your Voice

Recognition system’s status.

A

DDITIONAL

 I

NFORMATION

Uconnect are registered trademarks and Mopar Owner

Connect is a trademark of FCA US LLC. SiriusXM® and all

related marks and logos are trademarks of SiriusXM®

Radio Inc.

Ú

page 277.

For Uconnect system support, call 1-877-855-8400

(24 hours a day 7 days a week) or visit DriveUconnect.com

(US) or DriveUconnect.ca (Canada).

ALL the head restraints MUST be reinstalled in the

vehicle to properly protect the occupants. Follow the

reinstallation instructions prior to operating the

vehicle or occupying a seat.

WARNING!

1 — Push To Start Or Answer A Phone Call And Send Or

Receive A Text
2 — Push The Voice Recognition Button To Begin Radio,

Media, And Climate Functions

2

CarManuals2.com

28



MIRRORS

A

UTOMATIC

 D

IMMING

 M

IRROR

This mirror automatically adjusts for headlight glare from

vehicles behind you. You can turn the feature on or off by

pushing the button at the base of the mirror. A light to the

left of the button will illuminate to indicate when the

dimming feature is activated. The sensor to the right of the

button does not illuminate.

Automatic Dimming Button

NOTE:

This feature is disabled when the vehicle is in REVERSE.

I

LLUMINATED

 V

ANITY

 M

IRRORS

 —

I

F

 E

QUIPPED



An illuminated vanity mirror is located on each sun visor.

To use the mirror, rotate the sun visor down and swing the

mirror cover upward. The lights will turn on automatically.

Closing the mirror cover will turn the light off.

Vanity Mirror Light

Sun Visors Slide-On-Rod Feature

The sun visor Slide-On-Rod feature allows for additional

flexibility in positioning the sun visor to block out the sun.
1. Fold down the sun visor.
2. Unclip the visor from the center clip.
3. Pivot the sun visor toward the side window.
4. Extend the sun visor blade for additional sun

blockage.

NOTE:

The sun visor blade can also be extended while the sun

visor is against the windshield for additional sun blockage

through the front of the vehicle.

O

UTSIDE

 M

IRRORS



The outside mirror(s) can be adjusted to the center of

the adjacent lane of traffic to achieve the optimal view.

O

UTSIDE

 M

IRRORS

 W

ITH

 T

URN

S

IGNAL

 — I

F

 E

QUIPPED

Driver and passenger outside mirrors with turn signal

lighting contain LEDs, which are located in the upper outer

corner of each mirror.
The LEDs are turn signal indicators, which flash with the

corresponding turn signal lights in the front and rear of the

vehicle. Turning on the Hazard Warning flashers will also

activate these LEDs.

WARNING!

Vehicles and other objects seen in an outside convex

mirror will look smaller and farther away than they

really are. Relying too much on side convex mirrors

could cause you to collide with another vehicle or other

object. Use your inside mirror when judging the size or

distance of a vehicle seen in a side convex mirror.

CarManuals2.com

29

P

OWER

 M

IRRORS

The power mirror switch is located on the driver’s door trim

panel.
To adjust the mirror, rotate the mirror selection switch to

the left or to the right and then push the mirror adjustment

switch in the four directions indicated by arrows.

NOTE:

To adjust the power mirrors, the ignition must be in the

ON/RUN position.

Once the mirror is adjusted, rotate the control to the

neutral position to avoid accidental movements.

The power mirror switches will remain active for up to

three minutes after the ignition is placed in the OFF

position. Opening either front door will cancel this

feature.

Power Mirror Switch

F

OLDING

 M

IRROR

The exterior mirrors are hinged to allow the mirror to pivot

forward or rearward to help avoid damage. The mirror has

three detent positions: full forward, normal and full

rearward.

Folding Exterior Mirror

H

EATED

 M

IRRORS

 — I

F

 E

QUIPPED



These mirrors are heated to melt frost or ice.

This feature will be activated whenever you

turn on the rear window defroster (if equipped)

Ú

page 35.

EXTERIOR LIGHTS

H

EADLIGHT

 S

WITCH



The headlight switch is located on the left side of the

instrument panel. The headlight switch controls the

operation of the headlights, parking lights, daytime

running lights, fog lights and the dimming of the

instrument cluster and interior lighting.

Headlight Switch

Turning on the headlights will illuminate the instrument

cluster and the controls located on the instrument panel.

NOTE:

On vehicles sold in Canada, both the rear position lights

and Daytime Running Lights (DRLs) will turn on when the

headlight switch is rotated to the O (off) position.

1 — Mirror Selector Switch
2 — Mirror Adjustment Switch

1 — Rotate Headlight Control
2 — Ambient Lighting Control (If Equipped)
3 — Instrument Panel Dimmer Control
4 — Front Fog Light Switch (If Equipped)

2

CarManuals2.com

30



D

AYTIME

 R

UNNING

 L

IGHTS

 (DRL

S

) —

I

F

 E

QUIPPED



The Daytime Running Lights (DRLs), if enabled through

Uconnect Settings, will turn on when the ignition is placed

in the ON/RUN position and the park brake is not applied.

NOTE:

For vehicles sold in Canada, the Daytime Running

Lights will automatically deactivate when the front fog

lights are turned on.

On some vehicles, the Daytime Running Lights may

deactivate, or reduce intensity, on one side of the

vehicle (when a turn signal is activated on that side), or

on both sides of the vehicle (when the hazard warning

lights are activated).

H

IGH

 B

EAMS

To activate the high beam headlights, push the multifunction

lever forward (toward the front of the vehicle), and an

indicator will illuminate in the instrument cluster display.
To deactivate the high beam headlights, pull the

multifunction lever rearward (toward the rear of the vehicle).

High Beam And Turn Signal Controls

NOTE:

The headlights must be on for the high beams to activate.

A

UTOMATIC

 H

IGH

 B

EAM

 H

EADLAMP



C

ONTROL

 — I

F

 E

QUIPPED

The Automatic High Beam Headlamp Control system

provides increased forward lighting at night by automating

high beam control through the use of a digital camera

mounted on the windshield. This camera detects vehicle

specific light and automatically switches from high beams

to low beams until the approaching vehicle is out of view.

NOTE:

The Automatic High Beam Headlamp Control can be

turned on or off through Uconnect Settings

Ú

page 106.

Broken, muddy, or obstructed headlights and taillights

of vehicles in the field of view will cause headlights to

remain on longer (closer to the vehicle). Also, dirt, film,

and other obstructions on the windshield or camera

lens will cause the system to function improperly.

F

LASH

-T

O

-P

ASS



You can signal another vehicle with your headlights by

lightly pulling the multifunction lever toward you. This will

cause the high beam headlights to turn on, and remain on,

until the lever is released.

A

UTOMATIC

 H

EADLIGHTS

 — I

F

 E

QUIPPED



This system automatically turns the headlights on or off

according to ambient light levels. To turn the system on,

rotate the headlight switch clockwise to the last detent

(AUTO position) for automatic headlight operation.

To turn the automatic system off, move the headlight

switch out of the AUTO position.

NOTE:

The ignition must be in the ON/RUN or START position

before the headlights will come on in the automatic mode.

Light Sensor

The light sensor is equipped with an infrared LED, located

on the windshield. It detects changes in light intensity

outside the vehicle, based on the sensitivity of light set by

using the menu on the display or on the Uconnect system.
The higher the sensitivity, the lesser the amount of

external light required for controlling the lighting.

P

ARKING

 L

IGHTS

Rotate the headlight switch to the first position to turn on

the parking lights. The parking light indicator in the cluster

will illuminate.

H

EADLIGHT

 T

IME

 D

ELAY



This feature provides the safety of headlight illumination

for up to 90 seconds when leaving your vehicle in an unlit

area.
The time delay of the headlights is programmable

between 0, 30, 60 and 90 seconds within Uconnect

Settings

Ú

page 106.

Headlight Delay Activation
To activate the delay feature, place the ignition in the

OFF position while the headlights are still on. Then, turn off

the headlights within two minutes. The delay interval

begins when the headlight switch is turned off.

CarManuals2.com

31

Headlight Delay Deactivation
The feature is disabled by turning on the headlights, the

parking lights or by placing the ignition in the ON/RUN

position.
If you shut off the lights before the ignition is turned on,

they will turn off in the normal manner.

NOTE:

The lights must be turned off within two minutes of placing

the ignition in the OFF position to activate this feature.

F

RONT

 F

OG

 L

IGHTS

 — I

F

 E

QUIPPED



The front fog light switch is built into the headlight switch.

Front Fog Light Switch

To activate the front fog lights, turn on the parking lights or

the low beam headlights and push the fog light button on

the headlight switch. To turn off the front fog lights, push

the headlight switch a second time or turn off the

headlight switch.
An indicator light in the instrument cluster illuminates

when the fog lights are turned on.

NOTE:

The fog lights will operate with the low beam headlights

or parking lights on. Selecting the high beam head

-

lights will turn off the fog lights.

The fog lights also function as cornering lights.

Therefore there will be times when only one light is on.

If the ignition is placed in the OFF position with the fog

lights on, they will remain on when the ignition is placed

back in the ON/RUN position.

For vehicles sold in Canada, if the selector is moved to

the parking lights position and the front fog lights are

activated, the DRL will be deactivated and the front

parking lights will be activated. Once the front fog lights

are deactivated, the DRL will be activated again.

T

URN

 S

IGNALS



Move the multifunction lever up or down to activate the

turn signals. The arrows on each side of the instrument

cluster display flash to show proper operation.

L

ANE

 C

HANGE

 A

SSIST



Lightly push the multifunction lever up or down, without

moving beyond the detent, and the turn signal will flash

five times then automatically turn off.

C

OURTESY

 L

IGHTS

/A

PPROACHING



L

IGHTS

The courtesy lights feature allows you to activate the

low beam, parking lights, and side marker lights for

25 seconds when the vehicle is unlocked. The courtesy

lights feature can be activated or deactivated through

the Uconnect Settings. When a door is open with the

feature active, the activation of the lights is extended for

10 seconds. The feature is disabled when the vehicle is

locked or when the ignition is placed in the ON/RUN

position.

2

CarManuals2.com

32



INTERIOR LIGHTS

F

RONT

 C

OURTESY

 L

IGHT

The courtesy lights will automatically turn on when the

door is open or closed. The light switches in the overhead

console are for reading lamps.

Front Courtesy/Reading Lights

Push the driver or passenger light switch to operate the

reading lamps individually.

NOTE:

Before exiting the vehicle, make sure that the interior

lights are turned off. This will prevent the battery from

discharging once the doors are closed.

If a light is left on it will automatically be turned off after

approximately 15 minutes after the ignition is in the

OFF position.

Dome Light Timing

The dome light will automatically illuminate when the

doors are unlocked, the doors are opened or after the

doors are closed.
Timing Entering The Vehicle
The dome lights illuminate in the following ways:

When the doors are unlocked, the dome light will illumi

-

nate for approximately 27 seconds.

When one of the doors is opened, the dome light will

illuminate for approximately three minutes.

When the doors are closed, the dome light will auto

-

matically shut off after approximately 27 seconds.

NOTE:

The timing stops once the ignition is placed in the ON/RUN

position.
The dome light will turn off under any of the following

conditions:

The dome light is disabled when the ignition is placed

in the ON/RUN position.

The dome lights will turn off automatically when the

doors are locked.

The dome lights will automatically turn off after approx

-

imately 15 minutes of inactivity to preserve the battery.

Timing Exiting The Vehicle
The dome light will illuminate under the following

conditions when the ignition is placed in the OFF position:

The dome light will illuminate for 27 seconds after the

key fob is removed from the vehicle.

The opening of one of the doors (approximately three

minutes).

After closing a door (approximately 27 seconds).

The dome light timing is disabled when the doors are

locked.

Dimmer Controls

Rotate the ambient dimmer control upward or downward

to increase or decrease the brightness of the ambient light

located in the overhead console, lower instrument panel

lights, and cubby bin lights.
With the parking lights or headlights on, rotate the

instrument panel dimmer control upward or downward to

increase or decrease the brightness of the instrument

panel. At the top detent of the instrument panel dimmer,

all the interior lights will also illuminate. At the bottom

most setting of the thumb wheel, all the interior lights will

be turned to their lowest dimmable setting.

Headlight Switch

1 — Courtesy/Reading Lights
2 — Light Switches

1 — Ambient Light Control (If Equipped)
2 — Instrument Panel Dimmer

CarManuals2.com

33

Rear Dome Light — If Equipped

Push the switch on the rear dome light once to turn the

light on, the light will remain on at all times. Push the

switch a second time to turn the light off, the light will

remain off until a door is opened.

Rear Dome Light On/Off Switch

Retractable Roof Lights

For vehicles equipped with a retractable roof, there are

two interior lights located below the grab handles of the

rear doors.
The lights come on by opening any of the doors.

C

ARGO

 A

REA

 L

IGHTS

An interior light is located on the left side panel in the

cargo area.
This light automatically turns on/off when the liftgate is

opened and closed, regardless of the position of the

ignition.

NOTE:

In order to preserve the life of the battery, the light will turn

off after 15 minutes.

WINDSHIELD WIPERS AND WASHERS

The windshield wiper/washer controls are located on the

lever on the right side of the steering column. The front

wipers are operated by rotating a switch, located on the

end of the lever.

Windshield Wiper Lever

W

INDSHIELD

 W

IPER

 O

PERATION



Rotate the windshield wiper knob to one of the first two

detent positions for intermittent settings, the third detent

for low wiper operation and the fourth for high wiper

operation.
Windshield Washers
To use the washer, pull the lever toward you and hold.

If the lever is pulled while in the intermittent setting, the

wipers will turn on and operate for several wipe cycles

after the lever is released, and then resume the

intermittent interval previously selected.
If the lever is pulled while the wipers are in the off position,

the wipers will operate for several wipe cycles, then

turn off.

1 — Push Forward For Rear Washer
2 — Rotate For Rear Wiper Operation
3 — Rotate For Front Wiper Operation
4 — Pull For Front Washer
5 — Push Up For Mist

CAUTION!

Always remove any buildup of snow that prevents the

windshield wiper blades from returning to the parked

position. If the windshield wiper switch is turned off,

and the blades cannot return to the parked position,

damage to the wiper motor may occur.

WARNING!

Sudden loss of visibility through the windshield could

lead to a collision. You might not see other vehicles or

other obstacles. To avoid sudden icing of the windshield

during freezing weather, warm the windshield with the

defroster before and during windshield washer use.

2

CarManuals2.com

34



Mist
Push the lever upward to the Mist position and release for

a single wiping cycle.

NOTE:

The Mist feature does not activate the washer pump;

therefore, no washer fluid will be sprayed on the wind

-

shield. The washer function must be used in order to spray

the windshield with washer fluid.
For information on wiper care and replacement, see

Ú

page 226.

R

AIN

 S

ENSING

 W

IPERS

 — I

F

 E

QUIPPED



This feature senses moisture on the windshield and

automatically activates the wipers. Rotate the end of the

multifunction lever to one of two detent positions for

intermittent settings to activate this feature.

NOTE:

If the windshield wiper lever is rotated from the O (off)

position to the first intermittent setting or from the first

intermittent setting to the second intermittent setting, the

wipers will perform an immediate wipe cycle to clean the

windshield.

Rain Sensor Location

The sensitivity of the system can be adjusted with the

windshield wiper lever. Wiper delay position one is the

least sensitive, and wiper delay position two is the most

sensitive. Place the wiper switch in the O (off) position

when not using the system.

NOTE:

The Rain Sensing feature will not operate when the

wiper switch is in the low or high-speed position.

The Rain Sensing feature may not function properly

when ice or dried salt water is present on the wind

-

shield.

Products containing wax or silicone may reduce Rain

Sensing performance.

The Rain Sensing feature can be turned on and off

through Uconnect Settings

Ú

page 106.

The Rain Sensing system has protection features for the

wiper blades and arms, and will not operate under the

following conditions:

Transmission In NEUTRAL Position — When the ignition

is in the ON/RUN position, and the automatic transmis

-

sion is in the NEUTRAL position, the Rain Sensing

system will not operate until the wiper switch is moved,

vehicle speed is greater than 3 mph (5 km/h), or the

gear selector is moved out of the NEUTRAL position.

Remote Start Mode Inhibit — On vehicles equipped with

the Remote Start system, Rain Sensing wipers are not

operational when the vehicle is in the Remote Start

mode. Once the operator is in the vehicle and has

placed the ignition switch in the ON/RUN position, rain

sensing wiper operation can resume, if it has been

selected, and no other inhibit conditions exist.

Rain Sensing Wipers — Inhibition — When the user

changes the ignition position from OFF to ON/RUN with

the windshield wiper lever already in the intermittent

position, no wipe cycle is performed for safety reasons.

This temporary inhibition avoids accidental activations

of the wiping (e.g. during the hand washing of the wind

-

shield, blocking the blades in ice/snow conditions).

The user can activate the Rain Sensing Wipers in one of

the following ways:

Moving the lever from the O (off) position to the inter

-

mittent positions.

One Mist command actuation.

The vehicle speed exceeds 3 mph (5 km/h) and the

rain sensor detects the presence of rain.

CarManuals2.com

35

R

EAR

 W

INDOW

 W

IPER

/W

ASHER



The rear wiper/washer controls are located on the

windshield wiper lever on the right side of the steering

column. The rear wiper/washer is operated by rotating a

switch, located at the middle of the lever.

NOTE:

If the front wipers are moving and the vehicle is shifted in

REVERSE, the rear wiper will perform one round up to

clean the rear window.

Rotate the center portion of the lever upward to

the first detent for intermittent operation and to

the second detent for continuous rear wiper

operation.
To use the washer, push the lever forward and

hold while spray is desired. If the lever is

pushed while in the intermittent setting, the

wiper will turn on and operate for several wipe

cycles after the end of the lever is released, and then

resume the intermittent interval previously selected.

NOTE:

As a protective measure, the pump will stop if the switch

is held for more than 30 seconds. Once the lever is

released, the pump will resume normal operation.
If the lever is pushed while the wiper is in the off position,

the wiper will operate for several wipe cycles, then turn off.
If the rear wiper is operating when the ignition is placed in

the OFF position, the wiper will automatically return to the

parked position.

W

INDSHIELD

 W

IPER

 D

E

-I

CER

 —

I

F

 E

QUIPPED



Your vehicle may be equipped with a Windshield Wiper

De-Icer feature that may be activated under the following

conditions:

Activation By Rear Defrost — The Windshield Wiper

De-Icer will be activated automatically when the rear

defrost is turned on and the ambient temperature is

below 40°F (4.4°C).

Activation By Remote Start Operation — When Remote

Start is active and the outside ambient temperature is

less than 40°F (4.4°C), the Windshield Wiper De-Icer

will activate. Exiting Remote Start will resume its

previous operation. If the Windshield Wiper De-Icer was

active, the timer and operation will continue.

CLIMATE CONTROLS

The Climate Control system allows you to regulate the

temperature, air flow, and direction of air circulating

throughout the vehicle. The controls are located on the

touchscreen and on the instrument panel below the radio.

A

UTOMATIC

 C

LIMATE

 C

ONTROL



D

ESCRIPTIONS

 A

ND

 F

UNCTIONS

 —

I

F

 E

QUIPPED

Automatic Climate Controls

MAX A/C Setting

MAX A/C sets the system for maximum cooling

performance. Rotate the driver temperature

control adjust knob counterclockwise for

MAX A/C. Both driver and passenger temperature

displays will show MAX A/C LO. In MAX A/C, the blower speed

and mode position can be adjusted to desired user settings.

Pressing other settings will cause the MAX A/C operation to

switch to the selected setting and MAX A/C to exit.

CAUTION!

Failure to follow these cautions can cause damage to

the heating elements:

Use care when washing the inside of the rear

window. Do not use abrasive window cleaners on the

interior surface of the window. Use a soft cloth and a

mild washing solution, wiping parallel to the heating

elements. Labels can be peeled off after soaking

with warm water.

Do not use scrapers, sharp instruments, or abrasive

window cleaners on the interior surface of the

window.

Keep all objects a safe distance from the window.

2

CarManuals2.com

36



(Continued)

A/C Button

Push the A/C Control button to change the

current setting. The A/C indicator illuminates

when A/C is on. Pushing the AUTO control

button will cause the A/C operation to change

to AUTO mode and the A/C indicator will turn off.
The Air Conditioning (A/C) button allows the operator to

manually activate or deactivate the air conditioning

system. When the air conditioning system is turned on,

cool dehumidified air will flow through the outlets into the

cabin. For improved fuel economy, press the A/C button to

turn off the air conditioning and manually adjust the

blower and airflow mode settings. Also, make sure to

select only Panel, Bi-Level, or Floor modes.

NOTE:

If your air conditioning performance seems lower than

expected, check the front of the A/C condenser (located in

front of the radiator), for an accumulation of dirt or insects.

Clean with a gentle water spray from the front of the

radiator and through the condenser.

SYNC Button

Push the Sync button to toggle the Sync feature

on/off. The Sync indicator illuminates when

Sync is on. Sync synchronizes the passenger

temperature setting with the driver

temperature setting. Changing the passenger

temperature setting while in Sync mode will automatically

exit this feature and return to the separate management

of air temperatures in the two zones.

Recirculation Button

Press and release this button to change the

system between Recirculation mode and

outside air mode. The Recirculation indicator

illuminates when Recirculation is on.

Recirculation can be used when outside conditions such

as smoke, odors, dust, or high humidity are present.

Recirculation can be used in all modes. Recirculation may

be unavailable if conditions exist that could create fogging

on the inside of the windshield. Continuous use of the

Recirculation mode may make the inside air stuffy and

window fogging may occur. Extended use of this mode is

not recommended. Recirculation mode may automatically

adjust to optimize customer experience for warming,

cooling, dehumidification, etc.
In cold weather, use of Recirculation mode may lead to

excessive window fogging. The Recirculation feature may

be unavailable if conditions exist that could create fogging

on the inside of the windshield.

AUTO Button

Set your desired temperature and press AUTO.

AUTO will achieve and maintain your desired

temperature by automatically adjusting the

blower speed and air distribution. AUTO mode

is highly recommended for efficiency. Air Conditioning

(A/C) may be active during AUTO operation to improve

performance. Push the button on the faceplate to turn

AUTO on. The AUTO indicator illuminates when AUTO is on.

Toggling this function will cause the system to switch

between manual mode and automatic mode

Ú

page 40.

MAX Defrost Button

Push the MAX Defrost button to change the

current airflow setting to Defrost mode.

The MAX Defrost indicator illuminates when

MAX Defrost is on. Performing this function will

cause the automatic climate controls to change to manual

mode. The blower speed increases to full (all LEDs on)

when MAX Defrost mode is selected, the air conditioning

compressor is turned on (LED on), both driver and

passenger temperature controls are set to (HI), defrost

mode is selected (LED on), rear defroster is turned on

(LED on) and the air recirculation is turned off (LED off).

If the MAX Defrost mode is turned off, the climate system

will return to the previous setting.

Rear Defrost Button

Push the Rear Defrost button to turn on the

rear window defroster and the heated outside

mirrors (if equipped). The Rear Defrost

indicator illuminates when the rear window

defroster is on. The rear window defroster automatically

turns off after 20 minutes.

CAUTION!

Failure to follow these cautions can cause damage to

the heating elements:

Use care when washing the inside of the rear

window. Do not use abrasive window cleaners on the

interior surface of the window. Use a soft cloth and a

mild washing solution, wiping parallel to the heating

elements. Labels can be peeled off after soaking

with warm water.

CarManuals2.com

37

Driver And Passenger Temperature Knobs

The passenger temperature knob provides the passenger

with independent temperature control. The driver

temperature knob provides the driver with independent

temperature control. Rotate the adjustment knob to set

the desired temperature.
Rotating the temperature knob clockwise increases the

temperature.
Rotating the temperature knob counterclockwise

decreases the temperature.
The set temperature is shown on the display.
Turning the temperature knob completely in one direction

or the other activates the HI (maximum heating) or

LO (maximum cooling) functions shown in the display,

respectively. Rotate the driver temperature knob fully

counterclockwise for maximum A/C (LO).
To deactivate these functions, turn the temperature knob

to the desired temperature.

NOTE:

Rotating the passenger temperature control knob while in

Sync mode will automatically exit Sync.

Blower Control Knob

Blower Control is used to regulate the amount

of air forced through the Climate Control

system. Adjusting the blower will cause

automatic mode to switch to manual operation.

The speeds can be selected by rotating the Blower Control

adjustment knob.

Mode Control

Select Mode by pressing one of the Mode

buttons to change the airflow distribution

mode. The airflow distribution mode can be

adjusted so air comes from the instrument

panel outlets, floor outlets, defrost outlets and demist

outlets.

Front Defrost Button

Push and release the button on the faceplate

to change the current airflow setting to Defrost

mode. The Front Defrost indicator illuminates

when Front Defrost is on. Air comes from the

windshield and side window demist outlets. When the

defrost button is selected, the blower level may increase.

Use Defrost mode with maximum temperature settings for

best windshield and side window defrosting and

defogging. When toggling the front defrost mode button,

the Climate Control system will return to the previous

setting.

Panel Mode

Air comes from the outlets in the instrument

panel. Each of these outlets can be individually

adjusted to direct the flow of air. The air vanes

of the center outlets and outboard outlets can

be moved up and down or side to side to regulate airflow

direction. There is a shut-off wheel located below the air

vanes to shut off or adjust the amount of airflow from

these outlets.

Floor Mode

Air comes from the floor outlets. A slight

amount of air is directed through the defrost

and side window demister outlets.

Bi-Level Mode

Bi-Level Mode is obtained by pressing both the

Panel Mode button and the Floor Mode button,

activating them both. Air comes from the

instrument panel outlets and floor outlets.

A slight amount of air is directed through the defrost and

side window demister outlets.

NOTE:

Bi-Level Mode is designed under comfort conditions to

provide cooler air out of the panel outlets and warmer air

from the floor outlets.

Do not use scrapers, sharp instruments, or abrasive

window cleaners on the interior surface of the

window.

Keep all objects a safe distance from the window.

CAUTION!

2

CarManuals2.com

38



Mix Mode

Mix Mode is obtained by pressing both the

Defrost Mode button and the Floor Mode

button, activating them both. Air is directed

through the floor, defrost, and side window

demister outlets. This setting works best in cold or snowy

conditions that require extra heat to the windshield. This

setting is good for maintaining comfort while reducing

moisture on the windshield.

Hi-Level Mode

Hi-Level Mode is obtained by pushing the

Defrost Mode button and the Panel Mode

button. Air comes from the instrument panel

outlets and the defrost outlets. A slight amount

of air is directed through the side window demister outlets.

Tri-Level Mode

Tri-Level Mode is obtained by pressing the

Defrost Mode button, the Panel Mode button,

and the Floor Mode button. Air comes from the

instrument panel outlets, the defrost outlets,

and floor outlets. A slight amount of air is directed through

the side window demister outlets.

Climate Control Power Button

Press and release the Climate Control Power

button to turn the Climate Control on/off.

M

ANUAL

 C

LIMATE

 C

ONTROL



D

ESCRIPTIONS

 A

ND

 F

UNCTIONS

 —

I

F

 E

QUIPPED

Manual Climate Controls

MAX A/C Setting

Set the temperature control knob to the

MAX A/C setting to change the current setting

to the coldest output of air. Moving the

temperature control knob away from the

MAX A/C setting causes the MAX A/C operation to exit.

A/C Button

Push the A/C button to engage the Air

Conditioning (A/C). The A/C indicator

illuminates when A/C is on.

NOTE:

For Manual Climate Controls, if the system is in Mix,

Floor or Defrost Mode, the A/C can be turned off, but

the A/C system shall remain active to prevent fogging

of the windows.

If fog or mist appears on the windshield or side glass,

select Defrost mode, and increase blower speed if

needed.

If your air conditioning performance seems lower than

expected, check the front of the A/C condenser

(located in front of the radiator), for an accumulation of

dirt or insects. Clean with a gentle water spray from the

front of the radiator and through the condenser.

Recirculation Button

Push the Recirculation button to change the

system between recirculation mode and

outside air mode. The Recirculation indicator

and the A/C indicator illuminate when the

Recirculation button is pressed. Recirculation can be used

when outside conditions, such as smoke, odors, dust, or

humidity are present. Recirculation can be used in all

modes except for Defrost. Recirculation may be

unavailable if conditions exist that could create fogging on

the inside of the windshield. The A/C can be deselected

manually without disturbing the mode control selection.

Continuous use of the Recirculation mode may make

the inside air stuffy and window fogging may occur.

Extended use of this mode is not recommended.

CarManuals2.com

39

(Continued)

On systems with Manual Climate Controls, if equipped, the

Recirculation mode is not allowed in Defrost mode to

improve window clearing operation. Recirculation is

disabled automatically if this mode is selected. Attempting

to use Recirculation while in this mode causes the LED in

the control button to blink and then turns off.

Front Defrost Setting

Turn the mode control knob to the Front

Defrost mode setting. Air comes from the

windshield and side window demist outlets.

When the defrost button is selected, the blower

level may increase. Use Defrost mode with maximum

temperature settings for best windshield and side window

defrosting and defogging.

Rear Defrost Button

Push and release the Rear Defrost Control

button to turn on the rear window defroster and

the heated outside mirrors (if equipped). The

Rear Defrost indicator illuminates when the

rear window defroster is on. The rear window defroster

automatically turns off after 20 minutes.

Temperature Control

Temperature Control regulates the temperature of the air

forced through the climate system.
The temperature increases as you turn the temperature

control knob clockwise.
The temperature decreases as you turn the temperature

control knob counterclockwise.

Blower Control

Blower Control regulates the amount of air

forced through the climate control system.

There are seven blower speeds available. The

blower speed increases as you turn the blower

control knob clockwise from the lowest blower setting. The

blower speed decreases as you turn the blower control

knob counterclockwise.

Mode Control

Turn the mode control knob to adjust airflow

distribution. The airflow distribution mode can

be adjusted so air comes from the instrument

panel outlets, floor outlets, defrost outlets and

demist outlets.

Panel Mode

Air comes from the outlets in the instrument

panel. Each of these outlets can be individually

adjusted to direct the flow of air. The air vanes

of the center outlets and outboard outlets can

be moved up and down or side to side to regulate airflow

direction. There is a shut-off wheel located below the air

vanes to shut off or adjust the amount of airflow from

these outlets.

Bi-Level Mode

Air comes from the instrument panel outlets

and floor outlets. A slight amount of air is

directed through the defrost and side window

demister outlets.

NOTE:

Bi-Level mode is designed under comfort conditions to

provide cooler air out of the panel outlets and warmer air

from the floor outlets.

Floor Mode

Air comes from the floor outlets. A slight

amount of air is directed through the defrost

and side window demister outlets.

Mix Mode

Air comes from the floor, defrost, and side

window demister outlets. This setting works

best in cold or snowy conditions that require

extra heat to the windshield. This setting is

good for maintaining comfort while reducing moisture on

the windshield.

CAUTION!

Failure to follow these cautions can cause damage to

the heating elements:

Use care when washing the inside of the rear

window. Do not use abrasive window cleaners on the

interior surface of the window. Use a soft cloth and a

mild washing solution, wiping parallel to the heating

elements. Labels can be peeled off after soaking

with warm water.

Do not use scrapers, sharp instruments, or abrasive

window cleaners on the interior surface of the

window.

Keep all objects a safe distance from the window.

CAUTION!

2

CarManuals2.com

40



Climate Control OFF

To turn the Climate Controls off, turn the blower

control knob to the OFF (O) position.

A

UTOMATIC

 T

EMPERATURE

 C

ONTROL



(ATC)

Automatic Operation

1. Push the AUTO button on the front ATC panel and

the word “AUTO” will illuminate in the front ATC

display, along with two temperatures for the driver

and front passenger. The system will then automat

-

ically regulate the amount of airflow.

2. Adjust the temperature you would like the system to

maintain, by adjusting the driver, and passenger

temperatures. Once the desired temperature is

displayed, the system will achieve and automatically

maintain that comfort level.

3. When the system is set up for your comfort level, it is

not necessary to change the settings. You will

experience the greatest efficiency by simply allowing

the system to function automatically.

NOTE:

It is not necessary to move the temperature settings. The

system automatically adjusts the temperature, mode, and

fan speed to provide comfort as quickly as possible.
To provide you with maximum comfort in the automatic

mode, during cold start-ups, the blower fan will remain on

low until the engine warms up. The fan will engage

immediately if the Defrost mode is selected, or by

changing the front blower knob setting.

Manual Operation Override

This system offers a full complement of manual override

features. The AUTO symbol in the front ATC display will be

turned off when the system is being used in the manual

mode.

C

LIMATE

 V

OICE

 R

ECOGNITION

Adjust vehicle temperatures hands-free and keep

everyone comfortable while you keep moving ahead.

(If vehicle is equipped with climate control.)

Push the VR button

. After the beep, say one of the

following commands:

“Set the driver temperature to 70 degrees”

“Set the passenger temperature to 70 degrees”

Did You Know: Voice Command for Climate may only be

used to adjust the interior temperature of your vehicle.

Voice Command will not work to adjust the heated seats

or steering wheel if equipped.

O

PERATING

 T

IPS



Refer to the chart at the end of this section for suggested

control settings for various weather conditions.

Summer Operation

The engine cooling system must be protected with a

high-quality antifreeze coolant to provide proper corrosion

protection and to protect against engine overheating.

OAT coolant (conforming to MS.90032) is recommended.

Winter Operation

To ensure the best possible heater and defroster

performance, make sure the engine cooling system is

functioning properly and the proper amount, type, and

concentration of coolant is used. Use of the Air

Recirculation mode during Winter months is not

recommended, because it may cause window fogging.

Vacation/Storage

For information on maintaining the Climate Control system

when the vehicle is being stored for an extended period of

time, see

Ú

page 265.

Window Fogging

Vehicle windows tend to fog on the inside in mild, rainy,

and/or humid weather. To clear the windows, select

Defrost or Mix mode and increase the front blower speed.

Do not use the Recirculation mode without A/C for long

periods, as fogging may occur.

Outside Air Intake

Make sure the air intake, located directly in front of the

windshield, is free of obstructions, such as leaves. Leaves

collected in the air intake may reduce airflow, and if they

enter the air distribution box, they could plug the water

drains. In Winter months, make sure the air intake is clear

of ice, slush, and snow.

Cabin Air Filter

The Climate Control system filters out dust and pollen

from the air. Contact an authorized dealer to service your

cabin air filter, and to have it replaced when needed.

CarManuals2.com

41

System Maintenance

In Winter, the Climate Control system must be turned on

at least once a month for approximately 10 minutes.
Have the system inspected at an authorized dealer before

the Summer.

NOTE:

The system uses R-1234yf (refrigerant) which does not

pollute the environment in the event of accidental

leakage. Under no circumstances is the use of

R-134a (refrigerant) allowed.

Rapid Window Demisting (MAX-Defrost

Function)

Push the MAX-defrost button to activate (LED on) the

windshield and side window demisting function.
The Climate Control system carries out the following

operations:

Turns on the air conditioning compressor when

environmental conditions are suitable

Turns air recirculation off

Sets blower fan to the maximum speed and displays

the fan speed (Blower Control Indicator LED illumi

-

nated)

Directs air flow to windshield and front side window

diffusers

Activates the heated rear window defrost

Activates the heated windshield (if equipped)

When the function is activated, the AUTO button LED turns

off. With the function activated, the only possible manual

adjustments are pushing the A/C control button, adjusting

the fan speed and turning the heated rear window off.
When the Recirculation Control or AUTO buttons are

pushed, the Climate Control system will deactivate the

Front Defrost (MAX-DEF) function.
Selecting the footwell/windshield or only windshield

distribution activates the Climate Control system

compressor and the air recirculation is set to outside air

intake.
This logic guarantees optimum visibility at the windows.

Max-defrost is also available in manual mode.

Climate Control System Compressor

Push the A/C Control button to activate/deactivate the

compressor (activation is indicated by the LED on the

button turning on).
The system remembers that the compressor has been

turned off, even after the engine has stopped.
Pushing the A/C button will stop AUTO mode (AUTO LED

will turn off). To restore automatic control of compressor,

push the AUTO button again.

NOTE:

With the compressor off, air cannot be introduced to the

passenger compartment with a temperature lower than

the outside temperature. Under certain environmental

conditions, windows could fog rapidly since the air is

not dehumidified.

Windshield Wiper De-Icer — If Equipped

The Windshield Wiper De-Icer is a heating element located

at the base of the windshield.
It operates automatically once the following conditions

are met:

Activation By Front Defrost



The Windshield Wiper De-Icer activates automatically

during a cold weather manual start with full defrost,

and when the ambient temperature is below

33°F (0.6°C).

Activation By Rear Defrost



The Windshield Wiper De-Icer activates automatically

when the Rear Defrost is operating and the ambient

temperature is below 33°F (0.6°C).

Activation By Remote Start Operation



When the Remote Start is activated and the outside

ambient temperature is less than 33°F (0.6°C) the

Windshield Wiper De-Icer will activate. Exiting Remote

Start will resume its previous operation. If the Wind

-

shield Wiper De-Icer was active, the timer and opera

-

tion will continue.

Stop/Start System — If Equipped

While in an Autostop, the Climate Control system may

automatically adjust airflow to maintain cabin comfort.

Customer settings will be maintained upon return to an

engine running condition.

2

CarManuals2.com

42



Operating Tips Chart

INTERIOR STORAGE AND EQUIPMENT

S

TORAGE

Glove Compartments

The glove compartments are located on the passenger

side of the instrument panel.

Glove Compartments

To open the upper compartment, push in the button

located on the bottom side of the upper door. The door will

automatically open.

To close the upper compartment, push downward on the

door's surface to latch the door closed.
To open the lower glove compartment, pull outward on the

latch and lower the glove compartment door.

NOTE:

Do not insert objects in the glove compartments that

will not allow the compartment to fully close.

The glove compartments should be completely closed

while the vehicle is in motion.

Front Armrest

The front armrest is located between the front seats.
If your vehicle is equipped with an adjustable armrest, the

armrest can be adjusted by moving it in the direction

indicated by the arrows.

Front Armrest Handle

WEATHER

CONTROL SETTINGS

Hot Weather And

Vehicle Interior Is

Very Hot

Set the mode control to

 (Panel Mode),

 (MAX A/C)

on, and blower on high. Roll down

the windows for a minute to flush

out the hot air. Adjust the controls

as needed to achieve comfort.

Warm Weather

Turn

 (A/C) on and set

the mode control

to

 (Panel Mode).

Cool Sunny

Operate in

 (Bi-Level Mode).

Cool & Humid

Conditions

Set the mode control to

 (Mix

Mode) and turn

 (A/C) on to

keep windows clear.

Cold Weather

Set the mode control to

 (Floor

Mode). If windshield fogging

starts to occur, move the control

to

 (Mix Mode).

1 — Upper Glove Compartment Release Button
2 — Lower Glove Compartment Release Handle

CarManuals2.com

43

Storage Compartment

Push the storage handle and lift up the armrest to access

the storage compartment.

USB/M

EDIA

 P

LAYER

 C

ONTROL



Located below the heating ventilation and air conditioning

controls is the front USB ports.

Front USB Ports

This feature allows an external device to be plugged into

the USB port.

NOTE:

Charge unsupported devices with the Charge Only USB

ports. If an unsupported device is plugged into a Media

USB port, a message will display on the touchscreen that

the device is not supported by the system.

Rear Center Console USB Port — If Equipped
A third, charge only USB port is located on the back of the

center console.

Rear Center Console USB Port

NOTE:

Depending on vehicle configuration, the USB port may be

charge only or media file capable.

WARNING!

Do not operate this vehicle with a console compartment

lid in the open position. Driving with the console

compartment lid open may result in injury in a collision.

2

CarManuals2.com

















Content      ..      1       2         ..





//////////////////////////
