Fiat 500X (2023 year). Manual in english - page 3





76

STARTING AND OPERATING



T

RANSMISSION

 L

IMP

 H

OME

 M

ODE

Transmission function is electronically monitored for

abnormal conditions. If a condition is detected that could

result in transmission damage, Transmission Limp Home

Mode is activated. In this mode, the transmission may

operate only in a fixed gear, or may remain in NEUTRAL.

The Malfunction Indicator Light (MIL) may be illuminated.

Limp Home Mode may allow the vehicle to be driven to an

authorized dealer for service without damaging the

transmission.
In the event of a momentary problem, the transmission

can be reset to regain all forward gears by performing the

following steps:
1. Stop the vehicle.
2. Shift the transmission into PARK.
3. Turn the ignition OFF.
4. Wait approximately 10 seconds.
5. Restart the engine.
6. Shift into the desired gear range. If the problem is

no longer detected, the transmission will return to

normal operation.

NOTE:

Even if the transmission can be reset, we recommend that

you visit an authorized dealer at your earliest possible

convenience. An authorized dealer has diagnostic

equipment to assess the condition of your transmission.

If the transmission cannot be reset, authorized dealer

service is required.

I

GNITION

 P

ARK

 I

NTERLOCK

This vehicle is equipped with an Ignition Park Interlock,

which requires the transmission to be in PARK before the

ignition can be turned to the OFF position. Also, the

transmission is locked in PARK whenever the ignition is in

the OFF position.

B

RAKE

 T

RANSMISSION

 S

HIFT



I

NTERLOCK

 (BTSI) S

YSTEM

This vehicle is equipped with a BTSI that holds the

transmission gear selector in PARK unless the brakes are

applied. To shift the transmission out of PARK, the ignition

must be in the RUN position (engine running or not) and

the brake pedal must be pressed.
The brake pedal must also be pressed before pushing the

button on the gear selector to shift from NEUTRAL into

DRIVE or REVERSE when the vehicle is stopped or moving

at low speeds.

ALL-WHEEL DRIVE (AWD) — IF EQUIPPED

This feature provides on-demand All-Wheel Drive (AWD).

The system is automatic with no driver inputs or additional

driving skills required. Under normal driving conditions,

the front wheels provide most of the traction. If the front

wheels begin to lose traction, power is shifted

automatically to the rear wheels. The greater the front

wheel traction loss, the greater the power transfer to the

rear wheels.

Additionally, on dry pavement under heavy throttle input

(where one may have no wheel spin), torque will be sent to

the rear in a preemptive effort to improve vehicle launch

and performance characteristics.

DYNAMIC SELECTOR — IF EQUIPPED

The Dynamic Selector combines the capabilities of the

vehicle control systems, along with driver input, to provide

the best performance in all driving conditions.

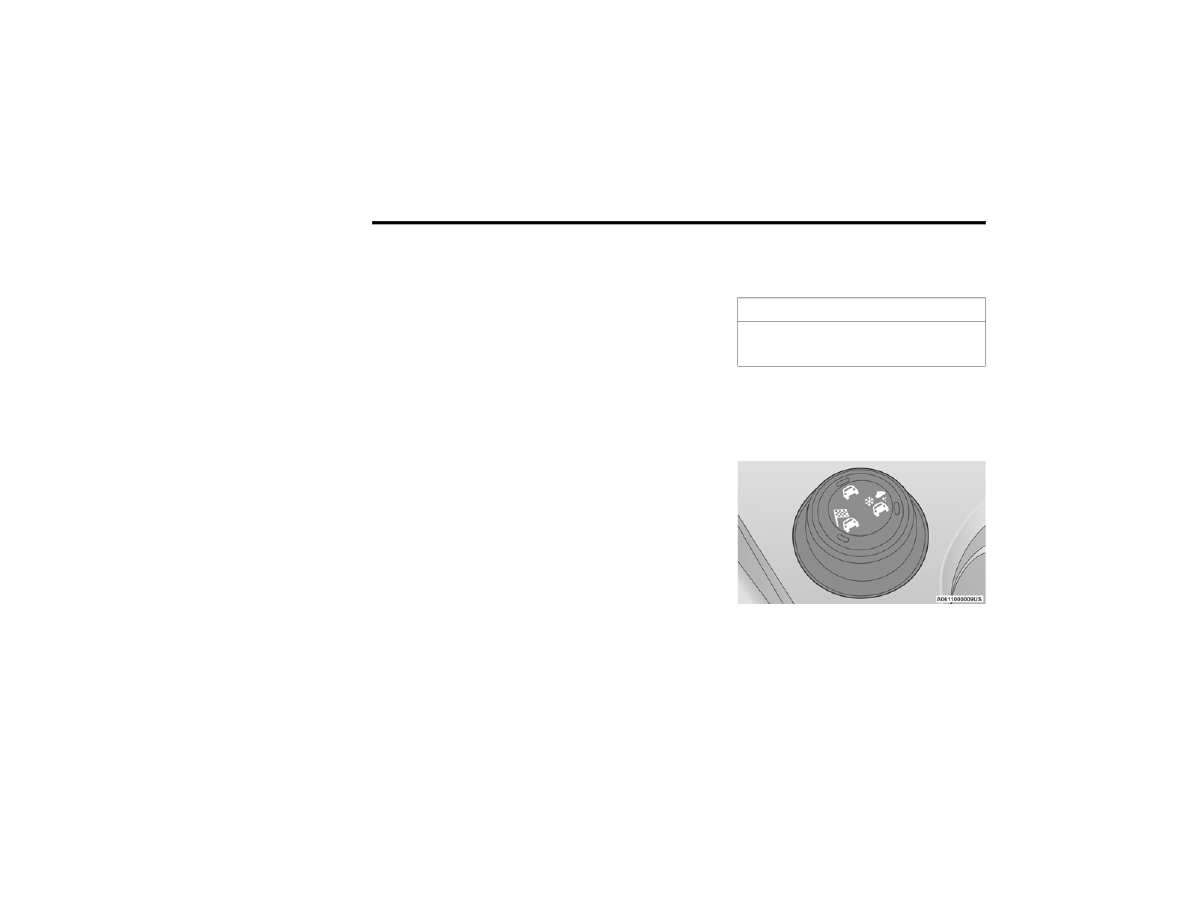

Dynamic Selector Switch

CAUTION!

All wheels must have the same size and type tires.

Unequal tire sizes must not be used. Unequal tire size

may cause failure of the power transfer unit.

CarManuals2.com

STARTING AND OPERATING

77

The Dynamic Selector consists of the following positions:
Auto Mode – This mode is designed for comfort and safety

in normal driving conditions. In versions equipped with

All-Wheel Drive, this mode also reduces fuel consumption

by automatically altering the distribution of torque

between the front and rear axle.
All Weather Mode – This mode offers increased traction

control and stability control for low traction conditions

such as driving on a dirt road or off-road as well as wet and

slippery roads.
Sport Mode – This mode is designed to increase steering

feedback to the driver with a slight increase in effort and

changes the transmission shift schedules for more

aggressive shifting. This driving mode is useful while

driving on twisty roads where more steering precision is

desired in spirited cornering.

W

ARNING

 M

ESSAGES

In the event of a system fault, the system automatically

defaults to “Auto” mode and a message will appear in the

instrument cluster display.
For further information

Ú

page 53.

ELECTRIC POWER STEERING

The electric power steering system will provide increased

vehicle response and ease of maneuverability. The power

steering system adapts to different driving conditions.

If the “SERVICE POWER STEERING” OR “POWER

STEERING ASSIST OFF - SERVICE SYSTEM” message and

a steering wheel icon are displayed on the instrument

cluster screen, it indicates that the vehicle needs to be

taken to the dealer for service. It is likely the vehicle has

lost power steering assistance

Ú

page 53.

NOTE:

Even if the power steering assistance is no longer oper

-

ational, it is still possible to steer the vehicle. Under

these conditions there will be a substantial increase in

steering effort, especially at low speeds and during

parking maneuvers.

If the condition persists, see an authorized dealer for

service.

STOP/START SYSTEM

The Stop/Start function was designed to reduce fuel

consumption. The system will stop the engine

automatically during a vehicle stop if the required

conditions are met. Releasing the brake pedal or pressing

the accelerator pedal will automatically restart the engine.

A

UTOMATIC

 M

ODE

The Stop/Start feature is enabled after every normal

customer engine start. At that time, the system will go into

STOP/START READY and if all other conditions are met,

can go into a STOP/START AUTOSTOP ACTIVE “Autostop”

mode.
To Activate The Autostop Mode, The Following Must Occur:

The system must be in STOP/START READY state.

A STOP/START READY message will be displayed in the

instrument cluster display within the Stop/Start

section

Ú

page 53.

The vehicle must be completely stopped.

The gear selector must be in a forward gear and the

brake pedal pressed.

The engine will shut down, the tachometer will move to the

zero position and the Stop/Start telltale will illuminate

indicating you are in Autostop. Customer settings will be

maintained upon return to an engine running condition.

WARNING!

Continued operation with reduced assist could pose a

safety risk to yourself and others. Service should be

obtained as soon as possible.

4

CarManuals2.com

78

STARTING AND OPERATING



P

OSSIBLE

 R

EASONS

 T

HE

 E

NGINE

 D

OES



N

OT

 A

UTOSTOP

Prior to engine shut down, the system will check many

safety and comfort conditions to see if they are fulfilled.

Detailed information about the operation of the Stop/Start

system may be viewed in the instrument cluster display

Stop/Start screen. In the following situations the engine

will not stop:

Driver’s seat belt is not buckled.

Driver’s door is not closed.

Battery temperature is too warm or cold.

Battery charge is low.

The vehicle is on a steep grade.

Cabin heating or cooling is in process and an accept

-

able cabin temperature has not been achieved.

HVAC is set to full defrost mode at a high blower speed.

HVAC set to MAX A/C.

Engine has not reached normal operating temperature.

The transmission is not in a forward gear.

Hood is open.

Vehicle is in 4WD Low transfer case mode (if equipped

with 4WD).

Brake pedal is not pressed with sufficient pressure with

vehicle in DRIVE position.

Accelerator pedal input.

Engine temperature is too high.

5 mph (8 km/h) threshold not achieved from previous

Autostop.

Steering angle is beyond threshold.

It may be possible for the vehicle to be driven several

times without the Stop/Start system going into a STOP/

START READY state under more extreme conditions of the

items listed previously.

T

O

 S

TART

 T

HE

 E

NGINE

 W

HILE

 I

N



A

UTOSTOP

 M

ODE

While in a forward gear, the engine will start when the

brake pedal is released or the throttle pedal is pressed.

The transmission will automatically re-engage upon

engine restart.
Conditions That Will Cause The Engine To Start

Automatically While In Autostop Mode:

The transmission gear selector is moved out of DRIVE

except in the PARK and NEUTRAL position.

To maintain cabin temperature comfort.

HVAC is set to full defrost mode.

HVAC system temperature or fan speed is manually

adjusted.

Battery voltage drops too low.

Low brake vacuum (e.g. after several brake pedal

applications).

Stop/Start OFF switch is pushed.

A Stop/Start system error occurs.

4WD system is put into 4WD Low mode

(if equipped with 4WD).

Conditions That Force An Application Of The Electric Park

Brake While In Autostop Mode:

The driver’s door is open and brake pedal released.

The driver’s door is open and the driver’s seat belt is

unbuckled.

The engine hood has been opened.

A Stop/Start system error occurs.

Steering wheel is beyond threshold.

If the Electric Park Brake is applied with the engine off, the

engine may require a manual restart and the Electric Park

Brake may require a manual release (press brake pedal

and push Electric Park Brake switch)

Ú

page 53.

T

O

 M

ANUALLY

 T

URN

 O

FF

 T

HE

 S

TOP

/

S

TART

 S

YSTEM

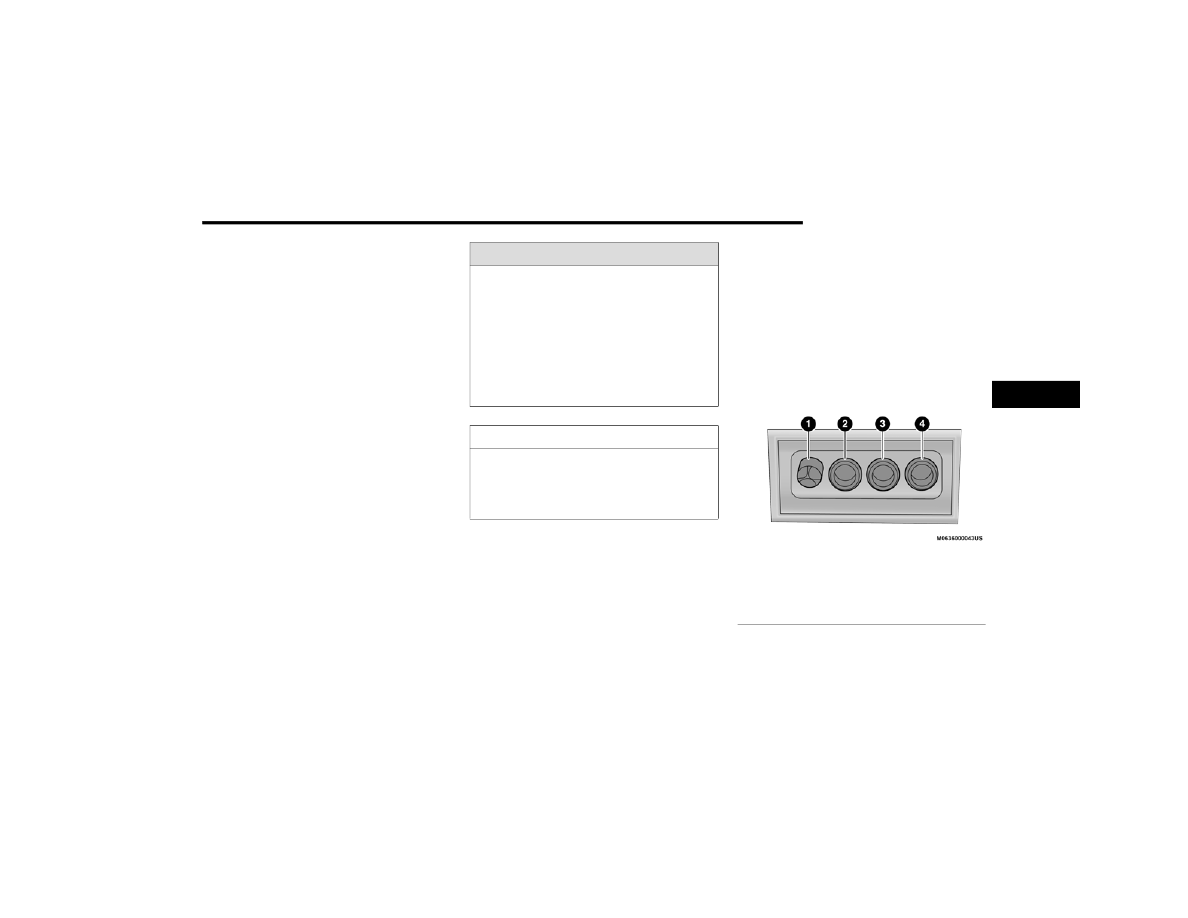

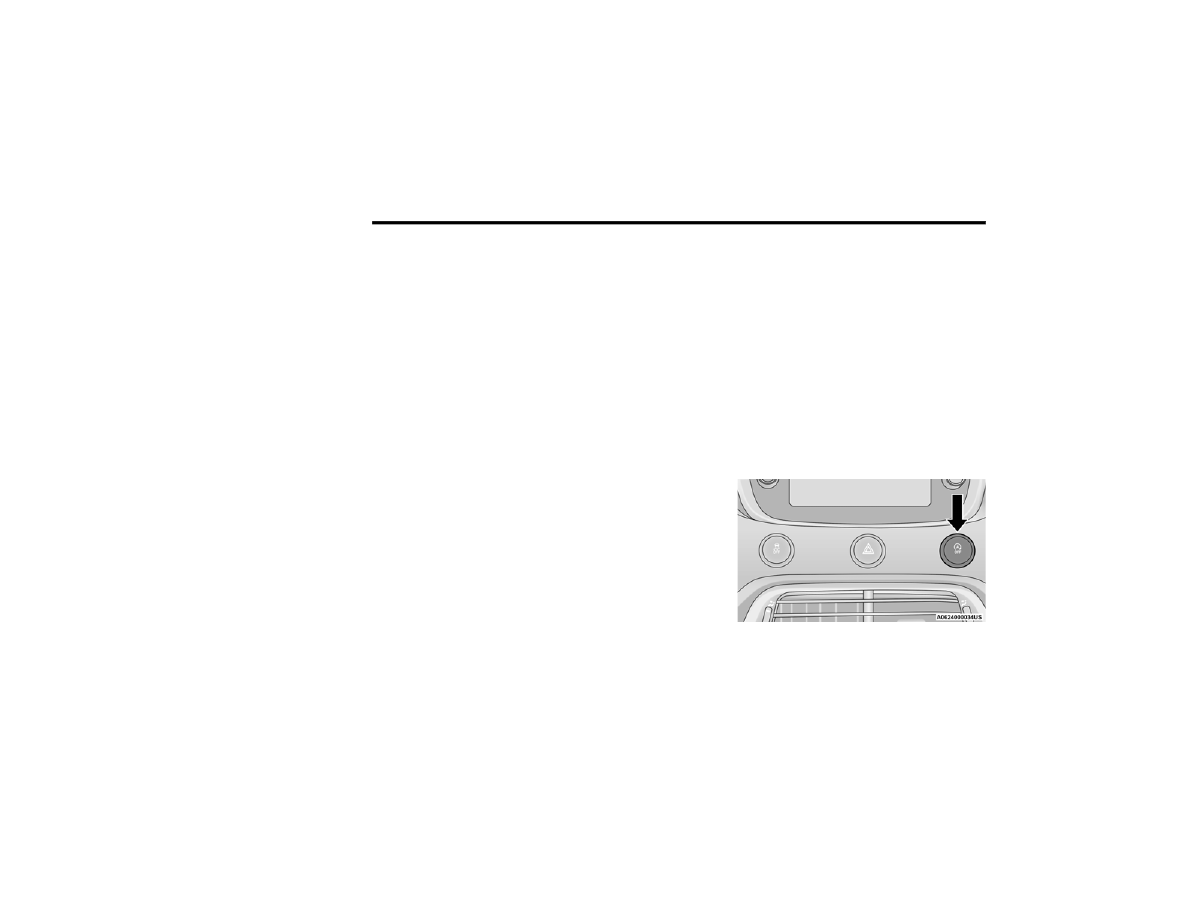

Stop/Start OFF Switch

CarManuals2.com

STARTING AND OPERATING

79

Push the Stop/Start OFF switch (located on the switch

bank). The light on the switch will illuminate. The “STOP/

START OFF” message will appear in the instrument cluster

display and the Autostop mode will be disabled

Ú

page 53.

NOTE:

The Stop/Start system will reset itself back to an ON

condition every time the ignition is turned off and back on.

T

O

 M

ANUALLY

 T

URN

 O

N

 T

HE

 S

TOP

/

S

TART

 S

YSTEM

Push the Stop/Start OFF switch (located on the switch

bank). The light on the switch will turn off.

S

YSTEM

 M

ALFUNCTION

If there is a malfunction in the Stop/Start system, the

system will not shut down the engine. A "SERVICE STOP/

START SYSTEM" message and a yellow Stop/Start telltale

will appear in the instrument cluster display

Ú

page 53.

If the “SERVICE STOP/START SYSTEM” message appears

in the instrument cluster display, have the system

checked by an authorized dealer.

CRUISE CONTROL SYSTEMS — IF EQUIPPED

Your vehicle may be equipped with the Cruise Control

system, or the Adaptive Cruise Control (ACC) system:

Cruise Control will keep your vehicle at a constant

preset speed.

Adaptive Cruise Control (ACC) will adjust the vehicle

speed up to the preset speed to maintain a distance

with the vehicle ahead.

NOTE:

In vehicles equipped with ACC, if ACC is not enabled,

Fixed Speed Cruise Control will not detect vehicles

directly ahead of you. Always be aware of the feature

selected.

Only one Cruise Control feature can operate at a time.

For example, if Fixed Speed Cruise Control is enabled,

Adaptive Cruise Control will be unavailable, and vice

versa.

C

RUISE

 C

ONTROL

When engaged, the Cruise Control takes over accelerator

operations at speeds greater than 20 mph (32 km/h).
The Cruise Control buttons are located on the right side of

the steering wheel.

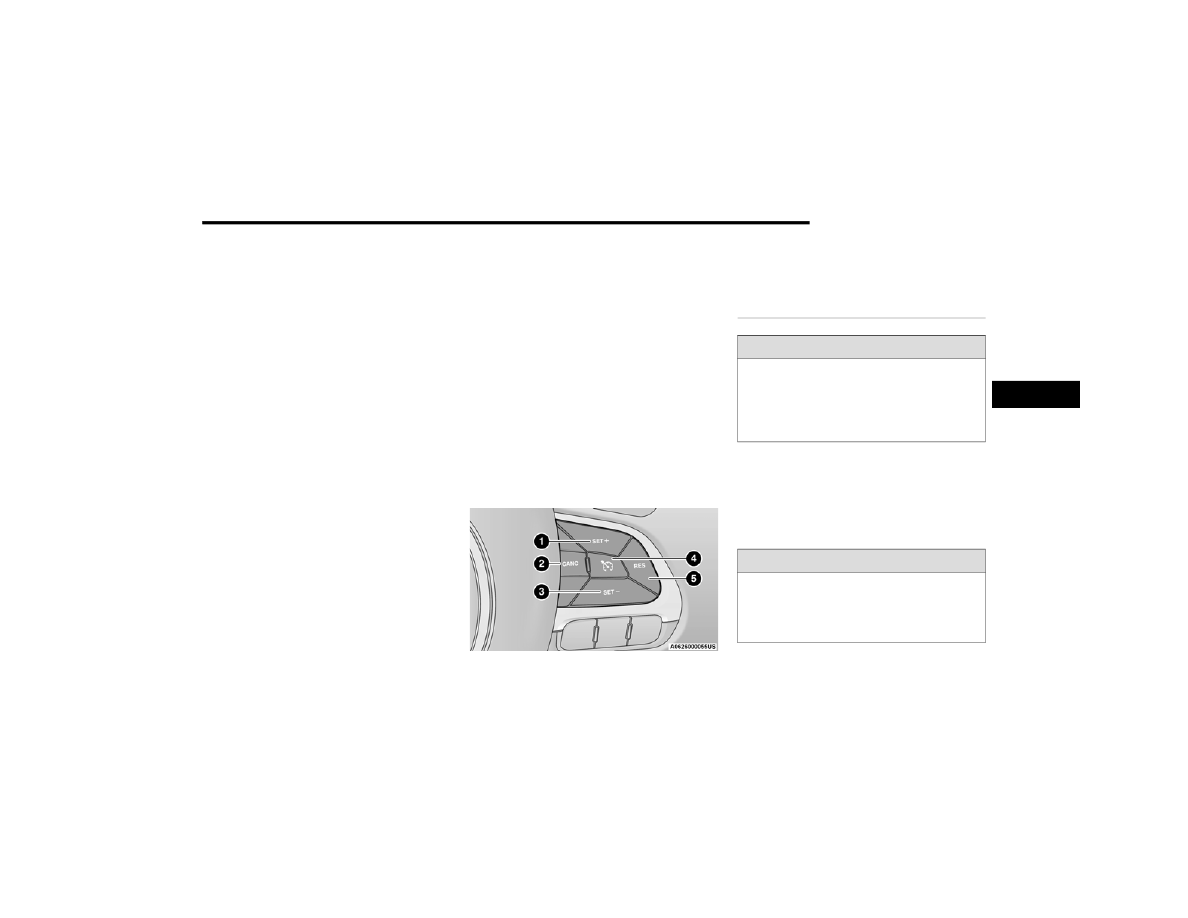

Cruise Control Buttons

To Activate

Push the on/off button to activate the Cruise Control. The

cruise indicator light in the instrument cluster display will

illuminate. To turn the system off, push the on/off button

a second time. The cruise indicator light will turn off. The

system should be turned off when not in use.

1 — SET (+)/Accel
2 — CANC/Cancel
3 — SET (-)/Decel
4 — On/Off
5 — RES/Resume

WARNING!

Cruise Control can be dangerous where the system

cannot maintain a constant speed. Your vehicle could

go too fast for the conditions, and you could lose control

and have an accident. Do not use Cruise Control in

heavy traffic or on roads that are winding, icy,

snow-covered or slippery.

WARNING!

Leaving the Cruise Control system on when not in use is

dangerous. You could accidentally set the system or

cause it to go faster than you want. You could lose

control and have an accident. Always ensure the system

is off when you are not using it.

4

CarManuals2.com

80

STARTING AND OPERATING



To Set A Desired Speed

Turn the Cruise Control on. When the vehicle has reached

the desired speed, push the SET (+) or SET (-) button and

release. Release the accelerator and the vehicle will

operate at the selected speed. A cruise indicator light,

along with set speed will also appear and stay on in the

instrument cluster when the speed is set.

To Vary The Speed Setting

To Increase Or Decrease The Set Speed
When the Cruise Control is set, you can increase speed by

pushing the SET (+) button, or decrease speed by pushing

the SET (-) button.
U.S. Speed (mph)

Pushing the SET (+), or SET (-) button once will result in

a 1 mph speed adjustment. Each subsequent tap of

the button results in an adjustment of 1 mph.

If the button is continually pushed, the set speed will

continue to adjust until the button is released, then the

new set speed will be established.

Metric Speed (km/h)

Pushing the SET (+), or SET (-) button once will result in

a 1 km/h speed adjustment. Each subsequent tap of

the button results in an adjustment of 1 km/h.

If the button is continually pushed, the set speed will

continue to adjust until the button is released, then the

new set speed will be established.

To Accelerate For Passing

While the Cruise Control is set, press the accelerator to

pass as you would normally. When the pedal is released,

the vehicle will return to the set speed.

USING CRUISE CONTROL ON HILLS

The transmission may downshift on hills to maintain the

vehicle set speed.
The Cruise Control system maintains speed up and down

hills. A slight speed change on moderate hills is normal.

On steep hills, a greater speed loss or gain may occur so it

may be preferable to drive without Cruise Control.

To Resume Speed

To resume a previously set speed, push the RES button

and release. Resume can be used at any speed above

20 mph (32 km/h).

Deactivation

A tap on the brake pedal, pushing the CANC button,

ESC intervention, brake control mitigation, Electronic Park

Brake intervention, or normal brake pressure while

slowing the vehicle will deactivate the Cruise Control

without erasing the set speed from memory.
Pushing the on/off button or placing the ignition in the

OFF position erases the set speed from memory.

A

DAPTIVE

 C

RUISE

 C

ONTROL

 (ACC)

Adaptive Cruise Control (ACC) increases the driving

convenience provided by Cruise Control while traveling on

highways and major roadways. However, it is not a safety

system and not designed to prevent collisions. Cruise

Control function performs differently if your vehicle is not

equipped with ACC

Ú

page 79.

ACC will allow you to keep Cruise Control engaged in light

to moderate traffic conditions without the constant need

to reset your speed. ACC utilizes a radar sensor and a

forward facing camera designed to detect a vehicle

directly ahead of you to maintain a set speed.

NOTE:

If the ACC sensor detects a vehicle ahead, ACC will

apply limited braking or accelerate (not to exceed the

original set speed) automatically to maintain a preset

following distance, while matching the speed of the

vehicle ahead.

Any chassis/suspension or tire size modifications to

the vehicle will affect the performance of the Adaptive

Cruise Control and Forward Collision Warning system.

Fixed Speed Cruise Control (ACC not enabled) will not

detect vehicles directly ahead of you. Always be aware

of the feature selected

Ú

page 277.

WARNING!

Cruise Control can be dangerous where the system

cannot maintain a constant speed. Your vehicle could

go too fast for the conditions, and you could lose control

and have an accident. Do not use Cruise Control in

heavy traffic or on roads that are winding, icy,

snow-covered or slippery.

CarManuals2.com

STARTING AND OPERATING

81

(Continued)

Adaptive Cruise Control (ACC) Operation

The Cruise Control buttons (located on the right side of the

steering wheel) operate the ACC system.

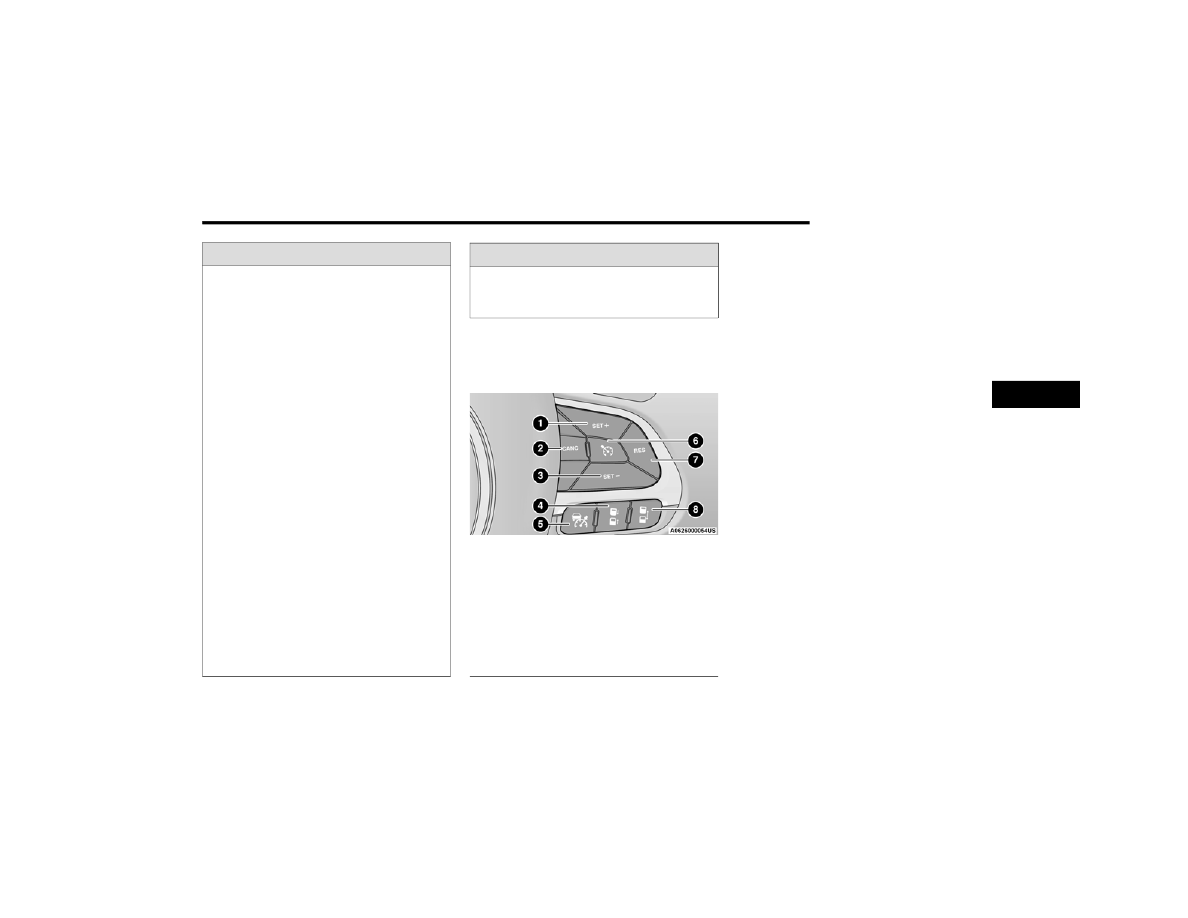

Adaptive Cruise Control Buttons

Adaptive Cruise Control (ACC) Menu

The instrument cluster display shows the current ACC

system settings. The information it displays depends on

ACC system status.
Push the Adaptive Cruise Control (ACC) on/off button until

one of the following shows in the instrument cluster display:
Adaptive Cruise Control Off
When ACC is deactivated, the display will read “Adaptive

Cruise Control Off.”
Adaptive Cruise Control Ready
When ACC is activated but the vehicle speed setting has

not been selected, the display will read “Adaptive Cruise

Control Ready.”
Adaptive Cruise Control Set
When the SET (+) or the SET (-) button is pushed, the

display will read “ACC SET.”
When ACC is set, the set speed will appear in the

instrument cluster display.
The ACC screen may display once again if any of the

following ACC activity occurs:

System Cancel

Driver Override

System Off

ACC Proximity Warning

ACC Unavailable Warning

The instrument cluster display will return to the last display

selected after five seconds of no ACC display activity.

WARNING!

Adaptive Cruise Control (ACC) is a convenience

system. It is not a substitute for active driver involve

-

ment. It is always the driver’s responsibility to be

attentive of road, traffic, and weather conditions,

vehicle speed, distance to the vehicle ahead and,

most importantly, brake operation to ensure safe

operation of the vehicle under all road conditions.

Your complete attention is always required while

driving to maintain safe control of your vehicle.

Failure to follow these warnings can result in a colli

-

sion and death or serious personal injury.

The ACC system:

Does not react to pedestrians, oncoming vehi

-

cles, and stationary objects (e.g., a stopped

vehicle in a traffic jam or a disabled vehicle).

Cannot take street, traffic, and weather condi

-

tions into account, and may be limited upon

adverse sight distance conditions.

Does not always fully recognize complex driving

conditions, which can result in wrong or missing

distance warnings.

You should turn the ACC system off:

When driving in fog, heavy rain, heavy snow, sleet,

heavy traffic, and complex driving situations (i.e., in

highway construction zones).

When entering a turn lane or highway off-ramp; when

driving on roads that are winding, icy, snow-covered,

slippery, or have steep uphill or downhill slopes.

When towing a trailer up or down steep slopes.

When circumstances do not allow safe driving at a

constant speed.

1 — SET (+)/Accel
2 — CANC/Cancel
3 — SET (-)/Decel
4 — Distance Setting Decrease
5 — Adaptive Cruise Control (ACC) On/Off
6 — Fixed Speed Cruise Control On/Off
7 — RES/Resume
8 — Distance Setting Increase

WARNING!

4

CarManuals2.com

82

STARTING AND OPERATING



Activating Adaptive Cruise Control (ACC)

The minimum set speed for the ACC system is 20 mph

(32 km/h).
When the system is turned on and in the ready state, the

instrument cluster display will read “ACC Ready.”
When the system is off, the instrument cluster display will

read “Adaptive Cruise Control (ACC) Off.”

NOTE:

You cannot engage ACC under the following conditions:

When in 4WD Low

When the brakes are applied

When the parking brake is applied

When the transmission is in PARK, REVERSE or

NEUTRAL

When the vehicle speed is below the minimum speed

range

When the brakes are overheated

When the Electronic Stability Control (ESC), Anti-Lock

Brake System (ABS), or other stability control systems

are operating or have just operated

During automatic braking by the Full Brake Control

system (if equipped)

When Cruise Control is activated

To Activate/Deactivate

Push and release the Adaptive Cruise Control (ACC) on/off

button. The ACC menu in the instrument cluster display

will read “ACC Ready.”
To turn the system off, push and release the Adaptive

Cruise Control (ACC) on/off button again. At this time, the

system will turn off and the instrument cluster display will

read “Adaptive Cruise Control (ACC) Off.”

To Set A Desired ACC Speed

When the vehicle reaches the speed desired, push the

SET (+) button or the SET (-) button and release. The

instrument cluster display will show the set speed.

NOTE:

Fixed Speed Cruise Control can be used without ACC

enabled. To change between the different modes, push

the ACC on/off button which turns the ACC and the Fixed

Speed Cruise Control off. Pushing the Fixed Speed Cruise

Control on/off button will result in turning on (changing to)

Fixed Speed Cruise Control mode.

ACC or Fixed Speed Cruise Control is set when the vehicle

speed is above 20 mph (32 km/h), the set speed shall be

the current speed of the vehicle. Neither system can be

set below 20 mph (32 km/h).

NOTE:

Keeping your foot on the accelerator pedal can cause

the vehicle to continue to accelerate beyond the set

speed. If this occurs, the message “Adaptive Cruise

Control Override” will display in the instrument cluster

display.

If you continue to accelerate beyond the set speed

while ACC is enabled, the system will not be controlling

the distance between your vehicle and the vehicle

ahead. The vehicle speed will only be determined by

the position of the accelerator pedal.

WARNING!

Leaving the Adaptive Cruise Control (ACC) system on

when not in use is dangerous. You could accidentally

set the system or cause it to go faster than you want.

You could lose control and have a collision. Always

ensure the system is off when you are not using it.

WARNING!

In Fixed Speed Cruise Control mode, the system will not

react to vehicles ahead. In addition, the proximity

warning does not activate and no alarm will sound even

if you are too close to the vehicle ahead since neither

the presence of the vehicle ahead nor the

vehicle-to-vehicle distance is detected. Be sure to

maintain a safe distance between your vehicle and the

vehicle ahead. Always be aware which mode is

selected.

CarManuals2.com

STARTING AND OPERATING

83

To Cancel

The following conditions cancel the system:

The brake pedal is applied.

The CANC button is pushed.

An Anti-Lock Brake System (ABS) event occurs.

The gear selector is removed from the DRIVE position.

The braking temperature exceeds normal range

(overheated).

The Electronic Stability Control/Traction Control

System (ESC/TCS) activates.

The vehicle parking brake is applied.

The driver switches ESC to Full Off mode.

To Turn Off

The system will turn off and erase the set speed in

memory if:

The Adaptive Cruise Control (ACC) on/off button is

pushed.

The Fixed Speed Cruise Control on/off button is

pushed.

The ignition is placed in the OFF position.

To Resume Speed

If there is a set speed in the memory, push the RES button

and then remove your foot from the accelerator pedal. The

instrument cluster display will show the last set speed.
ACC or Fixed Speed Cruise Control can only be resumed at

speeds above 20 mph (32 km/h).

NOTE:

ACC cannot be resumed if there is a stationary vehicle in

front of your vehicle in close proximity.

To Vary The Speed Setting

To Increase Or Decrease The Set Speed
After setting a speed, you can increase the set speed by

pushing the SET (+) button, or decrease speed by pushing

the SET (-) button.
U.S. Speed (mph)

Pushing the SET (+), or SET (-) button once will result in

a 1 mph speed adjustment. Each subsequent tap of

the button results in an adjustment of 1 mph.

If the button is continually pushed, the set speed will

continue to adjust in 5 mph increments until the button

is released. The new set speed is reflected in the instru

-

ment cluster display.

Metric Speed (km/h)

Pushing the SET (+), or SET (-) button once will result in

a 1 km/h speed adjustment. Each subsequent tap of

the button results in an adjustment of 1 km/h.

If the button is continually pushed, the set speed will

continue to adjust in 10 km/h increments until the

button is released. The new set speed is reflected in

the instrument cluster display.

NOTE:

When you override and push the SET (+) button or SET (-)

button, the new set speed will be the current speed of the

vehicle.
When ACC Is Active:

When you use the SET (-) button to decelerate, if the

engine’s braking power does not slow the vehicle suffi

-

ciently to reach the set speed, the brake system will

automatically slow the vehicle.

The ACC system maintains set speed when driving

uphill and downhill. However, a slight speed change on

moderate hills is normal. In addition, downshifting may

occur while climbing uphill or descending downhill. This

is normal operation and necessary to maintain set

speed. When driving uphill and downhill, the ACC

system will cancel if the braking temperature exceeds

normal range (overheated).

If Sport mode is chosen on the Dynamic Selector, the

ACC system will switch to Sport mode. The system will

become more reactive in case of acceleration.

WARNING!

The Resume function should only be used if traffic and

road conditions permit. Resuming a set speed that is

too high or too low for prevailing traffic and road

conditions could cause the vehicle to accelerate or

decelerate too sharply for safe operation. Failure to

follow these warnings can result in a collision and death

or serious personal injury.

4

CarManuals2.com

84

STARTING AND OPERATING



Setting The Following Distance In ACC

The specified following distance for ACC can be set by

varying the distance setting between four bars (longest),

three bars (long), two bars (medium) and one bar (short).

Using this distance setting and the vehicle speed, ACC

calculates and sets the distance to the vehicle ahead.

This distance setting will show in the instrument cluster

display.

Distance Settings

To increase the distance setting, push the Distance

Increase button and release. Each time the button is

pushed, the distance setting increases by one bar (longer).

If there is no vehicle ahead, the vehicle will maintain the

set speed. If a slower moving vehicle is detected in the

same lane, the instrument cluster display will show the

ACC Set With Target Detected Light. The system adjusts

vehicle speed automatically to maintain the distance

setting, regardless of the set speed.
The vehicle will then maintain the set distance until:

The vehicle ahead accelerates to a speed above the

set speed.

The vehicle ahead moves out of your lane or view of

the sensor.

The distance setting is changed.

The system disengages

Ú

page 82.

The maximum braking applied by ACC is limited; however,

the driver can always apply the brakes manually, if

necessary.

NOTE:

The brake lights will illuminate whenever the ACC system

applies the brakes.
A Proximity Warning will alert the driver if ACC predicts that

its maximum braking level is not sufficient to maintain the

set distance. If this occurs, a visual alert “BRAKE!” will

appear in the instrument cluster display and a chime will

sound while ACC continues to apply its maximum braking

capacity.

NOTE:

The “BRAKE!” screen in the instrument cluster display is a

warning for the driver to take action and does not neces

-

sarily mean that the Full Brake Control system is applying

the brakes autonomously.

Overtake Aid

When driving with ACC engaged and following a vehicle,

the system will provide an additional acceleration up to

the ACC set speed to assist in passing the vehicle.

This additional acceleration is triggered when the driver

utilizes the left turn signal and will only be active when

passing on the left hand side.

Display Warnings And Maintenance

“FRONT RADAR SENSOR TEMPORARILY

BLOCKED” WARNING

The “ACC Front Radar Sensor Temporarily Blocked”

warning will display and a chime will sound when

conditions temporarily limit system performance.
This most often occurs at times of poor visibility, such as

in snow or heavy rain. The ACC system may also become

temporarily blinded due to obstructions, such as mud, dirt

or ice. In these cases, the instrument cluster display will

read “ACC/FCW Unavailable Wipe Front Radar Sensor”

and the system will deactivate.
The “ACC Front Radar Sensor Temporarily Blocked”

message can sometimes be displayed while driving in

highly reflective areas (i.e. ice and snow, or tunnels with

reflective tiles). The ACC system will recover after the

vehicle has left these areas. Under rare conditions, when

the radar is not tracking any vehicles or objects in its path

this warning may temporarily occur.

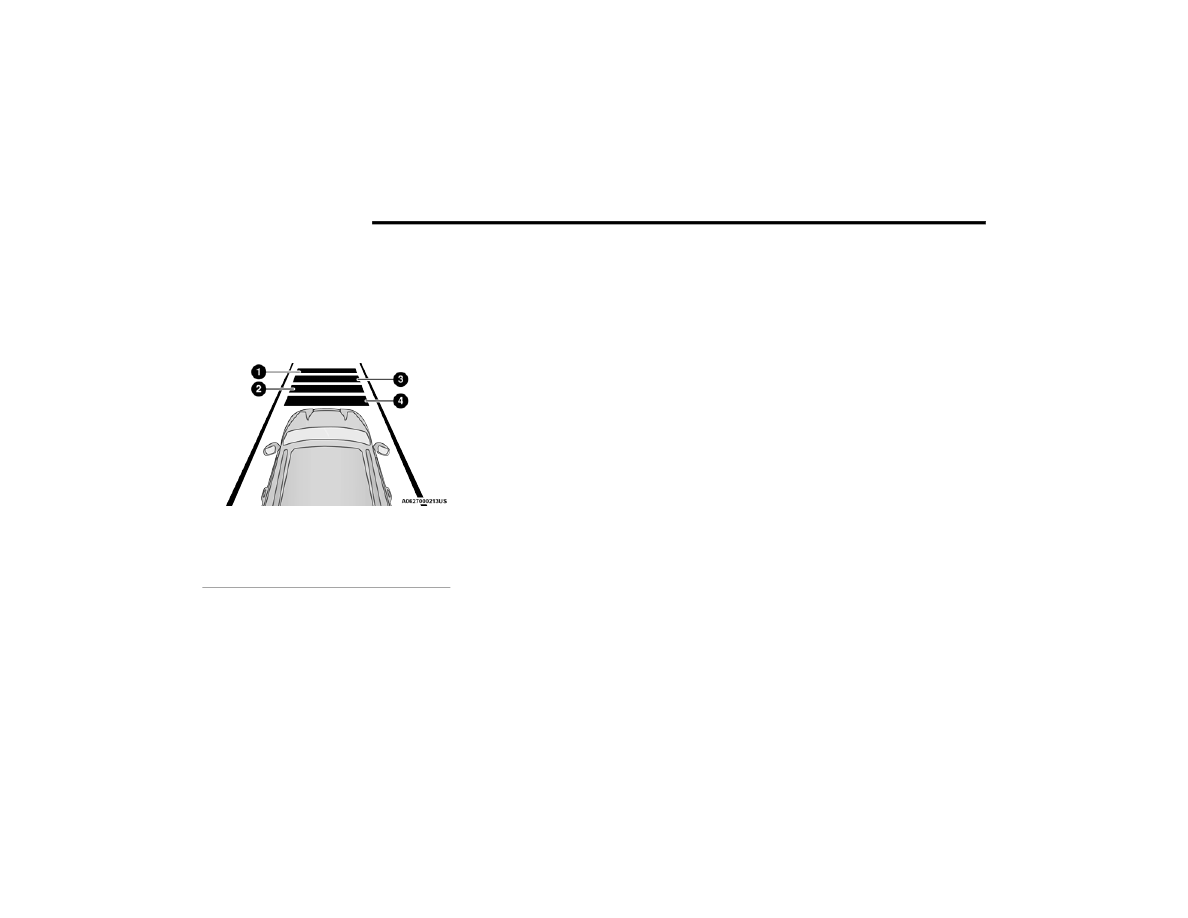

1 — Longest Distance Setting (Four Bars)
2 — Medium Distance Setting (Two Bars)
3 — Long Distance Setting (Three Bars)
4 — Short Distance Setting (One Bar)

CarManuals2.com

STARTING AND OPERATING

85

NOTE:

If the “ACC Front Radar Sensor Temporarily Blocked”

warning is active, Fixed Speed Cruise Control is still

available.
If weather conditions are not a factor, the driver should

examine the sensor. It may require cleaning or removal of

an obstruction. The sensor is located in the center of the

vehicle behind the lower grille.
To keep the ACC System operating properly, it is important

to note the following maintenance items:

Always keep the sensor clean. Carefully wipe the

sensor lens with a soft cloth. Do not use solvents or

abrasive substances.

Do not remove any screws from the sensor. Doing so

could cause an ACC system malfunction or failure and

require a sensor realignment.

If the sensor or front end of the vehicle is damaged due

to a collision, see an authorized dealer for service.

Do not attach or install any accessories near the

sensor, including transparent material or aftermarket

grilles. Doing so could cause an ACC system failure or

malfunction.

When the condition that deactivated the system is no

longer present, the system will return to the “Adaptive

Cruise Control Off” state and will resume function by

simply reactivating it.

NOTE:

If the “ACC Front Radar Sensor Temporarily Blocked”

message occurs frequently (e.g. more than once on

every trip) without any snow, rain, mud, or other

obstruction, have the radar sensor realigned at an

authorized dealer.

Installing a snow plow, front-end protector, an after

-

market grille or modifying the grille is not recom

-

mended. Doing so may block the sensor and inhibit

ACC/Full Brake Control System operation.

“CLEAN FRONT WINDSHIELD” WARNING

The “ACC/FCW Limited Functionality Wipe Front

Windshield” warning will display when conditions

temporarily limit system performance. This most often

occurs at times of poor visibility, such as in snow or heavy

rain and fog. The ACC system may also become

temporarily blinded due to obstructions, such as mud, dirt,

or ice on windshield and fog on the inside of glass. In these

cases, the instrument cluster display will read “ACC/FCW

Limited Functionality Wipe Front Windshield” and the

system will have degraded performance.

The “ACC/FCW Limited Functionality Wipe Front

Windshield” message can sometimes be displayed while

driving in adverse weather conditions. The ACC/Full Brake

Control system will recover after the vehicle has left these

areas. Under rare conditions, when the camera is not

tracking any vehicles or objects in its path this warning

may temporarily occur.
If weather conditions are not a factor, the driver should

examine the windshield and the camera located on the

back side of the inside rear view mirror. They may require

cleaning or removal of an obstruction.
When the condition that created limited functionality is no

longer present, the system will return to full functionality.

NOTE:

If the “ACC/FCW Limited Functionality Wipe Front Wind

-

shield” message occurs frequently (e.g. more than once

on every trip) without any snow, rain, mud, or other

obstruction, have the windshield and forward facing

camera inspected at an authorized dealer.

SERVICE ACC/FCW WARNING

If the system turns off, and the instrument cluster display

reads “ACC/FCW Limited Functionality Frontal Camera

Service Required” or “Cruise Control Service Required”,

there may be an internal system fault or a temporary

malfunction that limits ACC functionality. Although the

vehicle is still drivable under normal conditions, ACC will

be temporarily unavailable. If this occurs, try activating

ACC again later, following an ignition cycle. If the problem

persists, see an authorized dealer.

4

CarManuals2.com

86

STARTING AND OPERATING



Precautions While Driving With ACC

In certain driving situations, ACC may have detection

issues. In these cases, ACC may brake late or

unexpectedly. The driver needs to stay alert and may need

to intervene. The following are examples of these types of

situations:

TOWING A TRAILER

Towing a trailer is not recommended when using ACC.

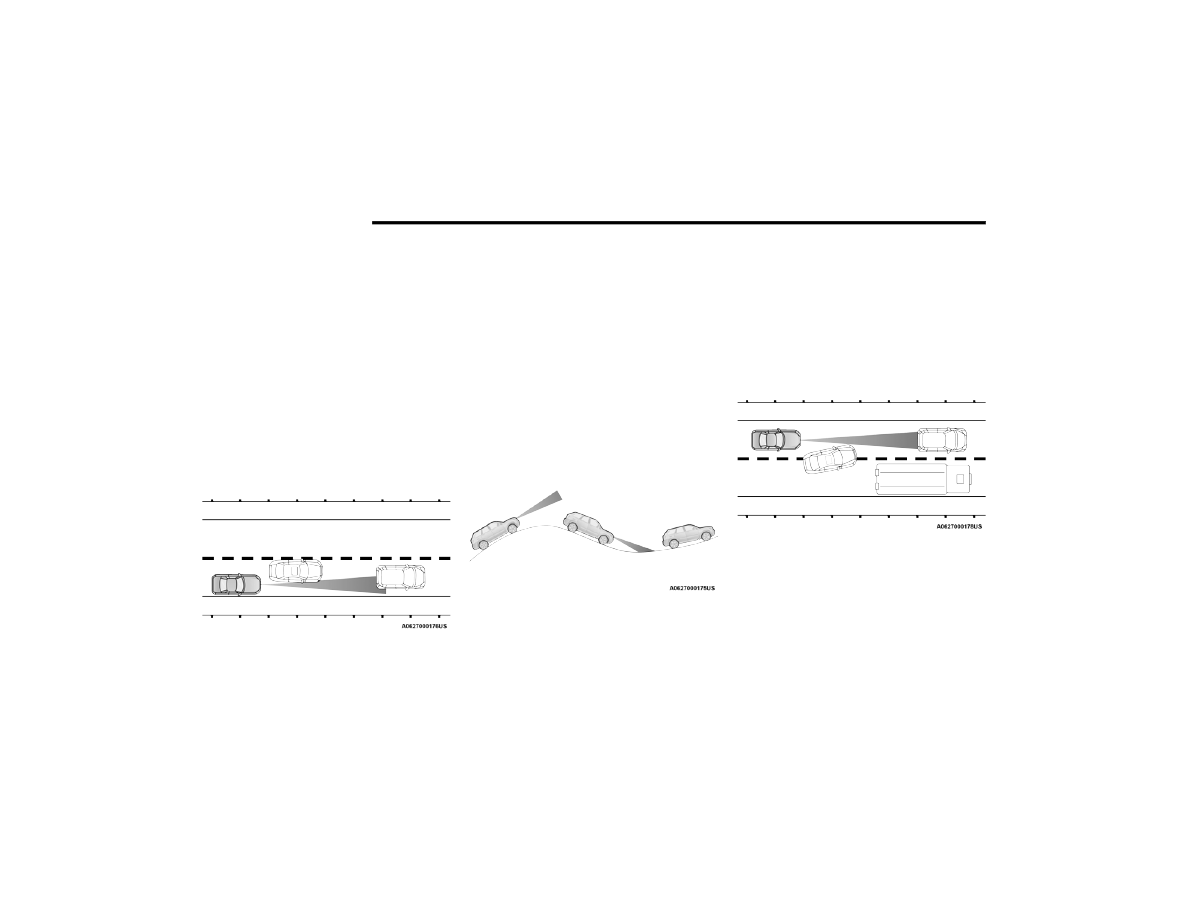

OFFSET DRIVING

ACC may not detect a vehicle in the same lane that is

offset from your direct line of travel, or a vehicle merging

in from a side lane. There may not be sufficient distance

to the vehicle ahead. The offset vehicle may move in and

out of the line of travel, which can cause your vehicle to

brake or accelerate unexpectedly.

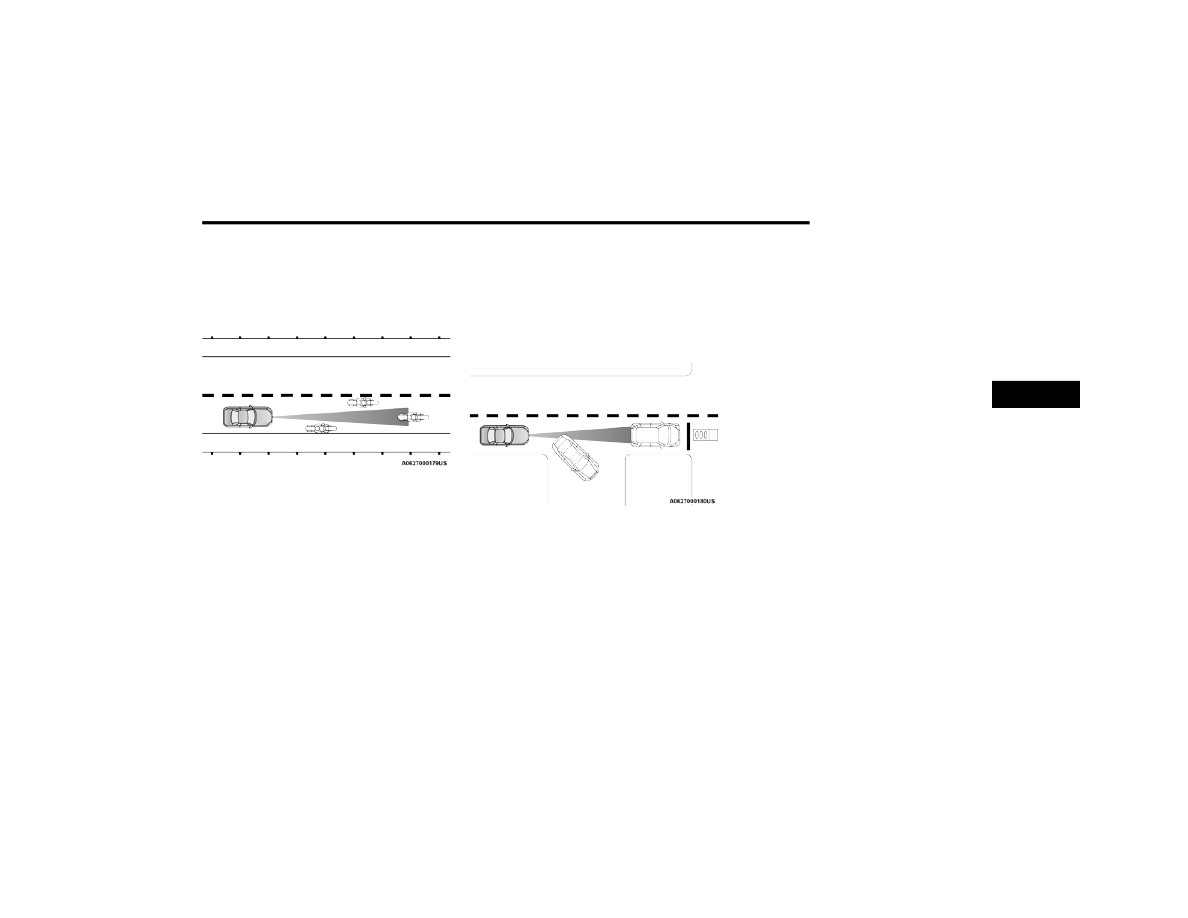

Offset Driving Condition Example

TURNS AND BENDS

When driving on a curve with ACC engaged, the system

may increase or decrease the vehicle speed for stability,

with no vehicle ahead detected. Once the vehicle is out of

the curve, the system will resume your original set speed.

This is a part of normal ACC system functionality.

NOTE:

On tight turns ACC performance may be limited.

USING ACC ON HILLS

ACC performance may be limited when driving on hills.

ACC may not detect a vehicle in your lane depending on

the speed, vehicle load, traffic conditions, and the

steepness of the hill.

ACC Hill Example

LANE CHANGING

ACC may not detect a vehicle until it is completely in the

lane in which you are traveling. In the following lane

changing example, ACC has not yet detected the vehicle

changing lanes and it may not detect the vehicle until it's

too late for the ACC system to take action. ACC may not

detect a vehicle until it is completely in the lane. There

may not be sufficient distance to the lane-changing

vehicle. Always be attentive and ready to apply the brakes

if necessary.

Lane Changing Example

CarManuals2.com

STARTING AND OPERATING

87

NARROW VEHICLES

Some narrow vehicles traveling near the outer edges of

the lane or edging into the lane are not detected until they

have moved fully into the lane. There may not be sufficient

distance to the vehicle ahead.

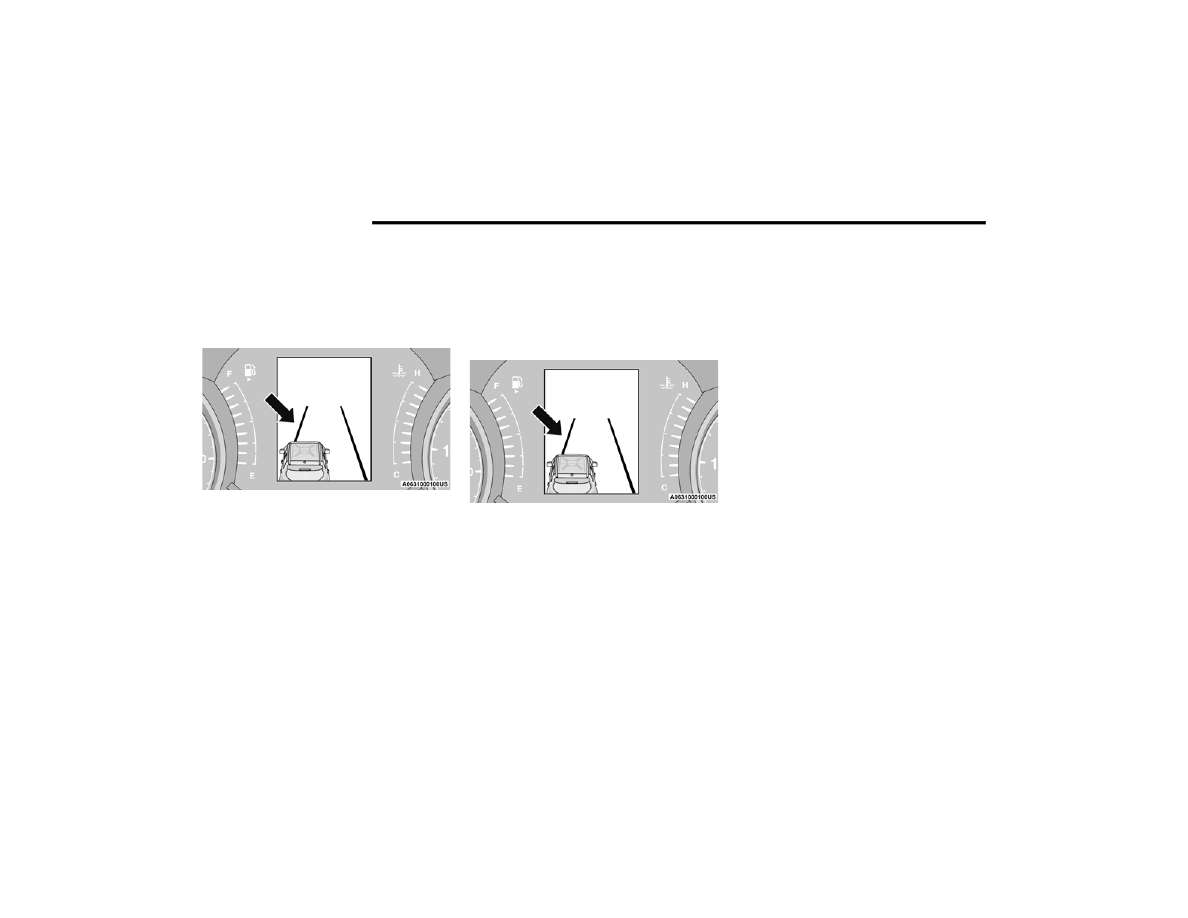

Narrow Vehicle Example

STATIONARY OBJECTS AND VEHICLES

ACC does not react to stationary objects or vehicles. For

example, ACC will not react in situations where the vehicle

you are following exits your lane and the vehicle ahead is

stopped in your lane. It will consider this stopped vehicle a

stationary object as it did not previously detect movement

from it. Always be attentive and ready to apply the brakes

if necessary.

Stationary Object And Stationary Vehicle Example

FRONT/REAR PARK ASSIST — IF EQUIPPED

The Park Assist system provides visual and audible

indications of the distance between the rear and/or front

fascia/bumper and a detected obstacle when backing up

or moving forward (e.g. during a parking maneuver).
For limitations of this system and recommendations, see

Ú

page 91.

Park Assist will retain the last system state (enabled or

disabled) from the last ignition cycle when the ignition is

changed to the ON/RUN position.
Park Assist is active when the gear selector is shifted to

REVERSE or to a forward gear and an obstacle is detected,

as long as the system is on. When the gear selector shifted

to NEUTRAL (or PARK in case of automatic gearbox), the

system becomes inactive. When the vehicle is moving

forward, the system will remain active until the vehicle

speed remains below approximately 11 mph (18 km/h).

Reducing the speed approximately below 9 mph

(15 km/h), the system will come back active. When the

vehicle is moving in REVERSE, the system will remain

active as long as the speed remains below the maximum

operating speed of 7 mph (11 km/h). When the maximum

speed limit is exceeded, the system is disabled and the

Park Assist switch LED will illuminate. The system will

become active again if the vehicle speed reduces below

approximately 6 mph (9 km/h).

4

CarManuals2.com

88

STARTING AND OPERATING



P

ARK

 A

SSIST

 S

ENSORS

The four Park Assist sensors, located in the rear fascia/

bumper, monitor the area behind the vehicle that is within

the sensors’ field of view. The sensors can detect

obstacles from approximately 12 inches (30 cm) up to

59 inches (150 cm) from the rear fascia/bumper in the

horizontal direction, depending on the location, type and

orientation of the obstacle.
The four Park Assist sensors, located in the front fascia/

bumper (if equipped), monitor the area in front of the

vehicle that is within the sensors’ field of view. The

sensors can detect obstacles from approximately

12 inches (30 cm) up to 39 inches (100 cm) from the front

fascia/bumper in the horizontal direction, depending on

the location, type and orientation of the obstacle.

P

ARK

 A

SSIST

 W

ARNING

 D

ISPLAY

The Park Assist Warning screen will only be displayed if

“Sound and Display” is selected from the Uconnect

system

Ú

page 106.

The Park Assist Warning screen is located within the

instrument cluster display. It provides visual warnings to

indicate the distance between the rear fascia/bumper

and/or front fascia/bumper and the detected obstacle

Ú

page 53.

P

ARK

 A

SSIST

 D

ISPLAY

The Park Assist warning screen will be displayed when an

obstacle is detected while the vehicle is in DRIVE or

REVERSE, as long as the vehicle speed is below 7 mph

(11 km/h) when in REVERSE and below 11 mph

(18 km/h) when in DRIVE. When the vehicle is in

REVERSE, the Park Assist warning screen will always be

displayed.
The system will indicate a detected obstacle by showing a

single arc in the left and/or right front or rear regions

based on the object’s distance and location relative to the

vehicle.
If an object is detected in the left and/or right front or rear

region, the display will show a single arc in the left and/or

right front or rear region and the system will produce a

tone. As the vehicle moves closer to the object, the display

will show the single arc moving closer to the vehicle and

the tone will change from a single 1/2 second tone to

slow, to fast, to continuous.

CarManuals2.com

STARTING AND OPERATING

89

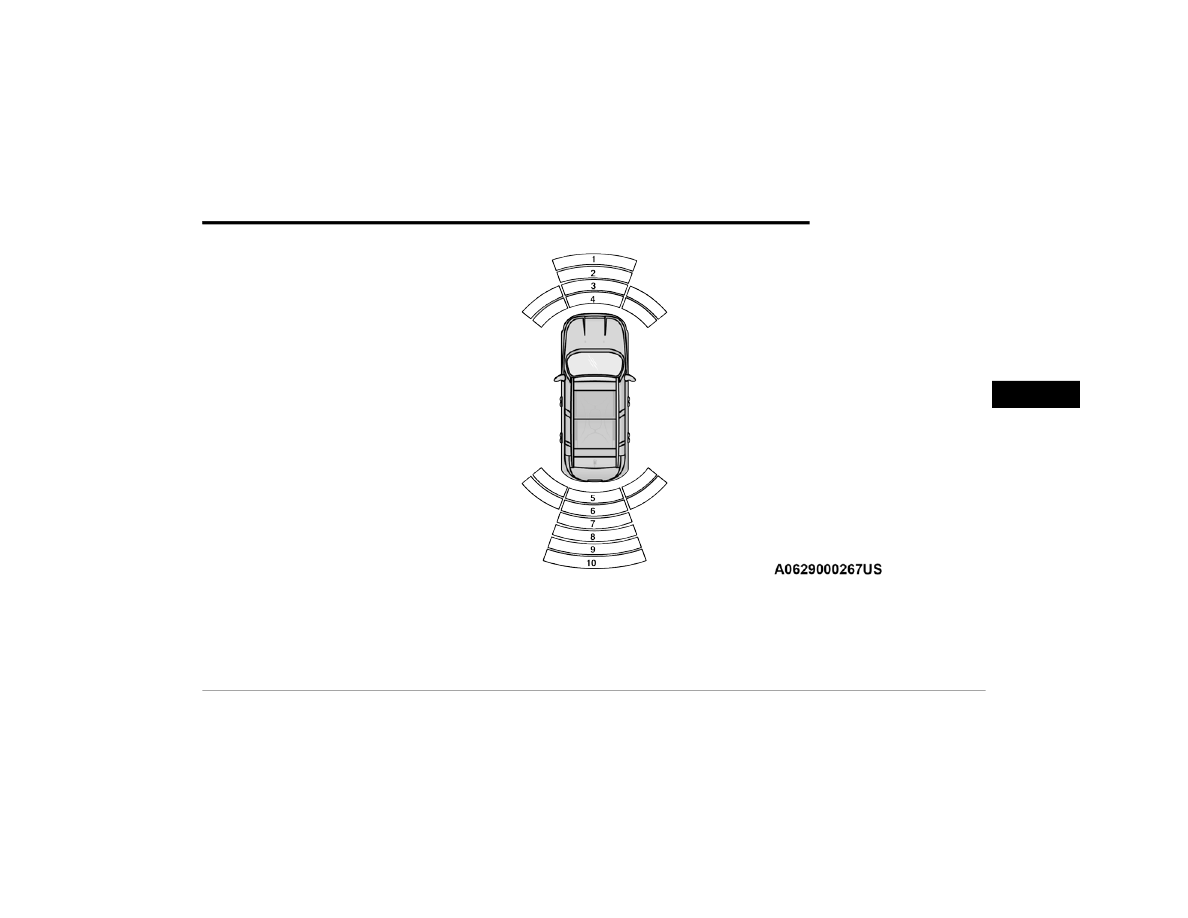

Front/Rear/Side ParkSense Arcs

1 — Slow Tone/Flashing Arc

6 — Fast Tone/Flashing Arc

2 — Fast Tone/Flashing Arc

7 — Fast Tone/Flashing Arc

3 — Fast Tone/Flashing Arc

8 — Slow Tone/Solid Arc

4 — Continuous Tone/Flashing Arc

9 — Slow Tone/Solid Arc

5 — Continuous Tone/Flashing Arc

10 — Slow Tone/Solid Arc

4

CarManuals2.com

90

STARTING AND OPERATING



The vehicle is close to the obstacle when the warning display shows one flashing arc and sounds a continuous tone. The following charts show the warning alert operation when the

system is detecting an obstacle:

NOTE:

Park Assist will reduce the volume of the radio, if on, when the system is sounding an audible tone.

WARNING ALERTS FOR REAR

Rear Distance

(inches/cm)

Greater than

59 inches (150 cm)

59-52 inches

(150-130 cm)

52-41 inches

(130-105 cm)

41-34 inches

(105-85 cm)

34-24 inches

(85-60 cm)

24-12 inches

(60-30 cm)

Less than 12 inches

(30 cm)

Arcs — Left

None

None

None

None

None

6th Flashing

5th Flashing

Arcs — Center

None

10th Solid

9th Solid

8th Solid

7th Flashing

6th Flashing

5th Flashing

Arcs — Right

None

None

None

None

None

6th Flashing

5th Flashing

Audible Alert Chime

None

Audible chime increases as the object gets closer to the vehicle

Continuous

Radio Volume

Reduced

No

Yes

WARNING ALERTS FOR FRONT

Front Distance

(inches/cm)

Greater than 39 inches

(100 cm)

39-32 inches

(100-80 cm)

32-24 inches

(80-60 cm)

24-12 inches

(60-30 cm)

Less than 12 inches

(30 cm)

Arcs — Left

None

None

None

3rd Flashing

4th Flashing

Arcs — Center

None

1st Solid

2nd Flashing

3rd Flashing

4th Flashing

Arcs — Right

None

None

None

3rd Flashing

4th Flashing

Audible Alert Chime

None

Audible chime increases as the object gets close to the vehicle

Continuous

Radio Volume Reduced

No

Yes

CarManuals2.com

STARTING AND OPERATING

91

Front Park Assist Audible Alerts
Park Assist will turn off the Front Park Assist audible alert

(chime) after approximately three seconds when an

obstacle has been detected, and the vehicle is stationary.

If the obstacle has been detected within less than

12 inches (30 cm), then the Park Assist will not turn off the

Front Park Assist audible alert.
Adjustable Chime Volume Settings
Front and Rear chime volume settings can be selected

from the Customer-Programmable Features section of the

Uconnect system

Ú

page 106.

If the Uconnect system is equipped, chime volume

settings will not be accessible from the instrument

cluster display.
The chime volume settings include low, medium, and high.
Park Assist will retain its last known configuration state

through ignition cycles.

E

NABLING

 A

ND

 D

ISABLING

 P

ARK



A

SSIST

Park Assist can be enabled and disabled with

the Park Assist switch, located on the

instrument panel below the Uconnect display,

next to the USB ports.

When the Park Assist switch is pushed to disable the

system, the instrument cluster display will show the

“Park Assist Disabled” message for approximately

five seconds

Ú

page 53.

The Park Assist switch LED will be on when the Park Assist

system is disabled or requires service. The Park Assist

switch LED will be off when the system is enabled.

If the Park Assist switch is pushed, and the system

requires service, the Park Assist switch LED will blink

momentarily, and then the LED will be on.

NOTE:

The rear sensors are automatically deactivated if a

trailer’s electric plug is inserted in the vehicle’s trailer elec

-

trical socket. The front sensors stay active and can provide

acoustic and visual warnings. The rear sensors are auto

-

matically reactivated when the trailer's cable plug is

removed.

S

ERVICE

 T

HE

 P

ARK

 A

SSIST

 S

YSTEM

During vehicle start up, when the Park Assist System has

detected a faulted condition, the instrument cluster

display will actuate a single chime, once per ignition cycle,

and it will show the "PARK ASSIST UNAVAILABLE WIPE

REAR SENSORS", "PARK ASSIST UNAVAILABLE WIPE

FRONT SENSORS", or the "PARK ASSIST UNAVAILABLE

SERVICE REQUIRED" message for five seconds.
If "PARK ASSIST UNAVAILABLE WIPE REAR SENSORS" or

"PARK ASSIST UNAVAILABLE WIPE FRONT SENSORS"

appears in the instrument cluster display make sure the

outer surface and the underside of the rear fascia/

bumper and/or front fascia/bumper is clean and clear of

snow, ice, mud, dirt or other obstruction and then cycle the

ignition. If the message continues to appear see an

authorized dealer.
If the "PARK ASSIST UNAVAILABLE SERVICE REQUIRED"

message appears in the instrument cluster display, see an

authorized dealer.

C

LEANING

 T

HE

 P

ARK

 A

SSIST

 S

YSTEM

Clean the Park Assist sensors with water, car wash soap

and a soft cloth. Do not use rough or hard cloths. Do not

scratch or poke the sensors. Otherwise, you could damage

the sensors.

P

ARK

 A

SSIST

 S

YSTEM

 U

SAGE



P

RECAUTIONS

NOTE:

Ensure that the outer surface and the underside of the

front and rear fascia/bumper are clean and clear of

snow, ice, mud, dirt or other obstruction to keep the

Park Assist system operating properly.

Jackhammers, large trucks, and other vibrations could

affect the performance of Rear Park Assist.

Clean the Park Assist sensors regularly, taking care not

to scratch or damage them. The sensors must not be

covered with ice, snow, slush, mud, dirt or debris.

Failure to do so can result in the system not working

properly. The Park Assist system might not detect an

obstacle behind the fascia/bumper, or it could provide

a false indication that an obstacle is behind the fascia/

bumper.

Objects such as bicycle carriers, etc., must not be

placed within 12 inches (30 cm) from the rear fascia/

bumper while driving the vehicle. Failure to do so can

result in the system misinterpreting a close object as a

sensor problem, causing a failure indication to be

displayed in the instrument cluster.

4

CarManuals2.com

92

STARTING AND OPERATING



(Continued)

If it is necessary to keep the trailer hitch and hitch ball

assembly mounted for a long period, it is possible to filter

out the trailer hitch and hitch ball assembly presence

within the sensor’s field of view. The filtering operation

must be performed only by an authorized dealer.

LANESENSE — IF EQUIPPED

L

ANE

S

ENSE

 O

PERATION

The LaneSense system is operational at speeds above

37 mph (60 km/h) and below 112 mph (180 km/h). The

LaneSense system uses a forward facing camera to detect

lane markings and measure vehicle position within the

lane boundaries.
When both lane markings are detected and the driver

drifts out of the lane (no turn signal applied), the

LaneSense system provides a haptic warning in the form

of torque applied to the steering wheel to prompt the

driver to remain within the lane boundaries. If the driver

continues to drift out of the lane, the LaneSense system

provides a visual warning through the instrument cluster

display to prompt the driver to remain within the lane

boundaries.

The driver may manually override the haptic warning by

applying force to the steering wheel at any time.
When only a single lane marking is detected and the driver

drifts across the lane marking (no turn signal applied), the

LaneSense system provides a visual warning through the

instrument cluster display to prompt the driver to remain

within the lane. When only a single lane marking is

detected, a haptic (torque) warning will not be provided.

NOTE:

When operating conditions have been met, the Lane

-

Sense system will monitor if the driver’s hands are on the

steering wheel and provides an audible warning to the

driver if removed. The system will cancel if the driver does

not return their hands to the wheel.

T

URNING

 L

ANE

S

ENSE

 O

N

 O

R

 O

FF

The LaneSense button is located on the end of

the turn signal stalk, located on the left side of

the steering column.

To turn the LaneSense system on, push the LaneSense

button once. A “Lane Sense On” message is shown in the

instrument cluster display.
To turn the LaneSense system off, push the LaneSense

button once.

NOTE:

The LaneSense system will retain the last system state (on

or off) from the last ignition cycle when the ignition is

changed to the ON/RUN position.

WARNING!

Drivers must be careful when backing up even when

using Park Assist. Always check carefully behind your

vehicle, look behind you, and be sure to check for

pedestrians, animals, other vehicles, obstructions,

and blind spots before backing up. You are respon

-

sible for safety and must continue to pay attention to

your surroundings. Failure to do so can result in

serious injury or death.

Before using Park Assist, it is strongly recommended

that the ball mount and hitch ball assembly be

disconnected from the vehicle when the vehicle is

not used for towing. Failure to do so can result in

injury or damage to vehicles or obstacles because

the hitch ball will be much closer to the obstacle than

the rear fascia when the vehicle sounds the contin

-

uous tone. Also, the sensors could detect the ball

mount and hitch ball assembly, depending on its size

and shape, giving a false indication that an obstacle

is behind the vehicle.

CAUTION!

Park Assist is only a parking aid and it is unable to

recognize every obstacle, including small obstacles.

Parking curbs might be temporarily detected or not

detected at all. Obstacles located above or below the

sensors will not be detected when they are in close

proximity.

The vehicle must be driven slowly when using

Park Assist in order to be able to stop in time when

an obstacle is detected. It is recommended that

the driver looks over his/her shoulder when

using Park Assist.

CAUTION!

CarManuals2.com

STARTING AND OPERATING

93

L

ANE

S

ENSE

 W

ARNING

 M

ESSAGE

The LaneSense system will indicate the current lane drift

condition through the instrument cluster display.
When the LaneSense system is on, the lane lines are gray

when both of the lane boundaries have not been detected

and the LaneSense telltale is solid white.

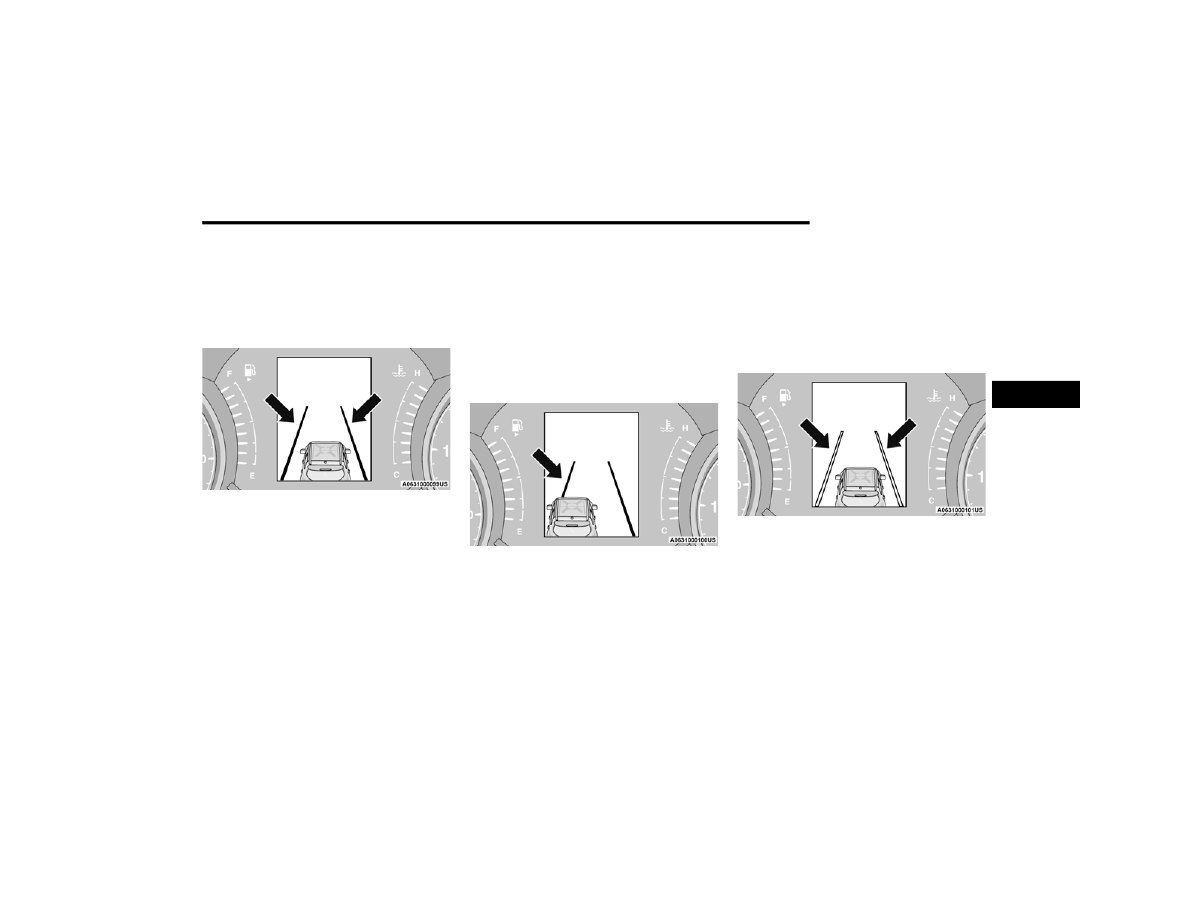

System On

(Gray Lines/White Telltale)

Left Lane Departure — Only Left Lane Detected

When the LaneSense system is on, the LaneSense tell

-

tale is solid white when only the left lane marking has

been detected and the system is ready to provide

visual warnings in the instrument cluster display if a

lane departure occurs.

When the LaneSense system senses the lane has been

approached and is in a lane departure situation, the

left lane line flashes yellow (on/off), and the Lane

-

Sense telltale changes from solid white to flashing

yellow.

Lane Approached

(Flashing Yellow Line/Flashing Yellow Telltale)

NOTE:

The LaneSense system operates with similar behavior for

a right lane departure when only the right lane marking

has been detected.

Left Lane Departure — Both Lanes Detected

When the LaneSense system is on, the lane lines turn

from gray to white to indicate that both of the lane

markings have been detected. The LaneSense telltale

is solid green when both lane markings have been

detected and the system is armed to provide visual

warnings in the instrument cluster display and a torque

warning in the steering wheel if a lane departure

occurs.

Lanes Sensed

(White Lines/Green Telltale)

4

CarManuals2.com

94

STARTING AND OPERATING



When the LaneSense system senses a lane drift situa

-

tion, the left lane line turns solid yellow. The LaneSense

telltale changes from solid green to solid yellow. At this

time torque is applied to the steering wheel in the

opposite direction of the lane boundary.
For example: If approaching the left side of the lane the

steering wheel will turn to the right.

Lane Sensed

(Solid Yellow Line/Solid Yellow Telltale)

When the LaneSense system senses the lane has been

approached and is in a lane departure situation, the

left lane line flashes yellow (on/off). The LaneSense

telltale changes from solid yellow to flashing yellow. At

this time torque is applied to the steering wheel in the

opposite direction of the lane boundary.
For example: If approaching the left side of the lane the

steering wheel will turn to the right.

Lane Approached

(Flashing Yellow Line/Flashing Yellow Telltale)

NOTE:

The LaneSense system operates with similar behavior for

a right lane departure.

C

HANGING

 L

ANE

S

ENSE

 S

TATUS

The LaneSense system has settings to adjust the intensity

of the torque warning and the warning zone sensitivity

(early/late) that you can configure through the Uconnect

system screen

Ú

page 106.

NOTE:

When enabled the system operates above 37 mph

(60 km/h) and below 112 mph (180 km/h).

Use of the turn signal suppresses the warnings.

The system will not apply torque to the steering wheel

whenever a safety system engages. (Anti-Lock Brakes,

Traction Control System, Electronic Stability Control,

Full Brake Control system, etc.).

CarManuals2.com

STARTING AND OPERATING

95

PARKVIEW REAR BACK UP CAMERA

The ParkView Rear Back Up Camera allows you to see an

on-screen image of the rear surroundings of your vehicle

when the gear selector is put into REVERSE. The image will

be displayed on the touchscreen display along with a note

to “Check Entire Surroundings” across the top of the

screen. After five seconds this note will disappear. The

ParkView camera is located on the rear of the vehicle

above the rear license plate.

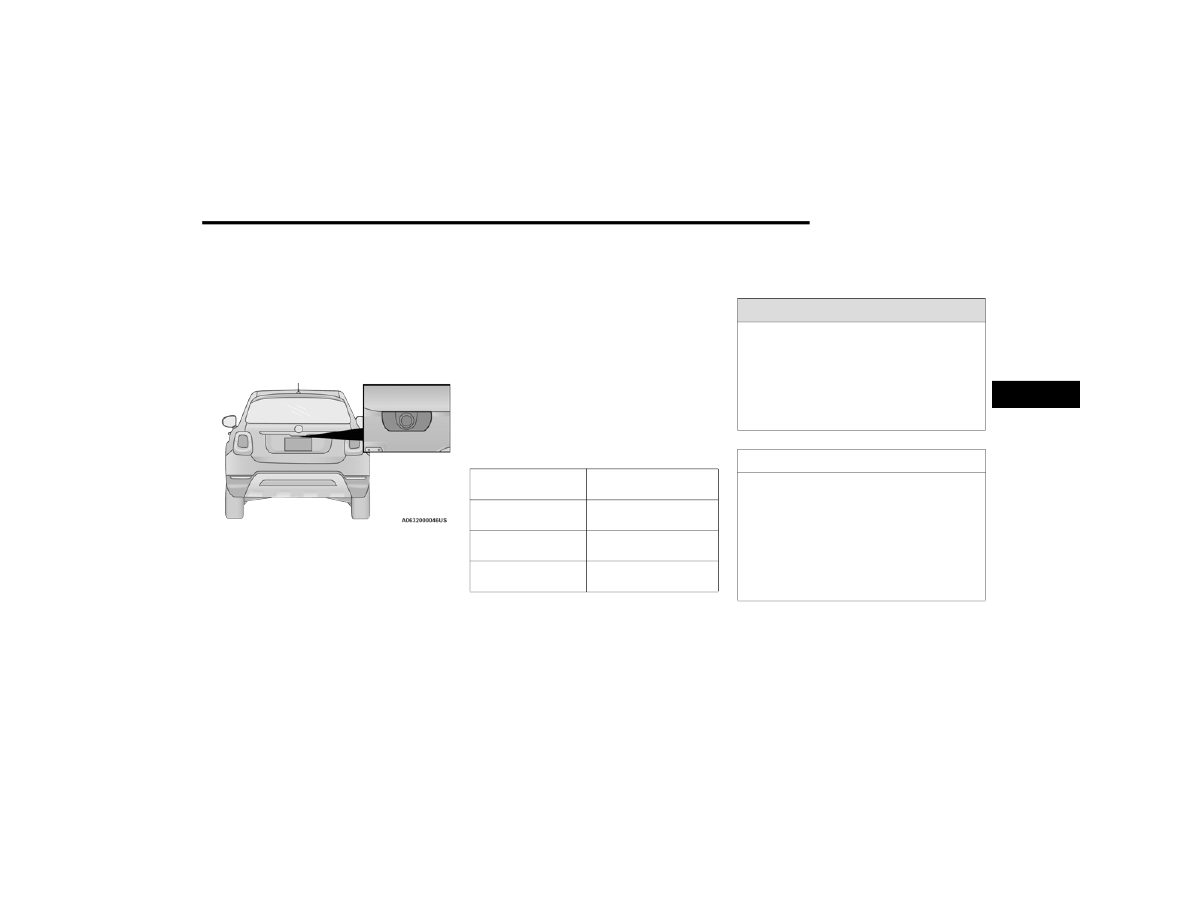

Back Up Camera Location

When the vehicle is shifted out of REVERSE with camera

delay turned off, the rear camera mode is exited and the

navigation or audio screen appears again.

When the vehicle is shifted out of REVERSE with camera

delay turned on, the camera image will continue to be

displayed for up to 10 seconds unless the vehicle speed

exceeds 8 mph (13 km/h), the vehicle is shifted into

PARK, or the ignition is placed in the OFF position.
A touchscreen button to disable the camera is available

when the vehicle is not in REVERSE. Display of the camera

image after shifting out of REVERSE can be disabled via

Uconnect Settings.
When enabled, active guidelines are overlaid on the image

to illustrate the width of the vehicle and its projected back

up path based on the steering wheel position.
Different colored zones indicate the distance to the rear of

the vehicle.
The following table shows the approximate distances for

each zone:

NOTE:

If snow, ice, mud, or any foreign substance builds up on

the camera lens, clean the lens, rinse with water, and dry

with a soft cloth. Do not cover the lens.

Zone

Distance To The Rear Of

The Vehicle

Red

0 - 1 ft

(0 - 30 cm)

Yellow

1 ft - 3 ft

(30 cm - 1 m)

Green

3 ft or greater

(1 m or greater)

WARNING!

Drivers must be careful when backing up even when

using the ParkView Rear Back Up Camera. Always

check carefully behind your vehicle, and be sure to

check for pedestrians, animals, other vehicles,

obstructions, or blind spots before backing up. You are

responsible for the safety of your surroundings and

must continue to pay attention while backing up.

Failure to do so can result in serious injury or death.

CAUTION!

To avoid vehicle damage, ParkView should only be

used as a parking aid. The ParkView camera is

unable to view every obstacle or object in your

drive path.

To avoid vehicle damage, the vehicle must be driven

slowly when using ParkView to be able to stop in time

when an obstacle is seen. It is recommended that

the driver look frequently over his/her shoulder when

using ParkView.

4

CarManuals2.com

96

STARTING AND OPERATING



(Continued)

REFUELING THE VEHICLE

The Capless Fuel system uses a flapper placed at the filler

pipe of the fuel tank; it opens and closes automatically

upon insertion/extraction of the fuel nozzle.
The Capless Fuel system is designed so that it prevents

the filling of an incorrect type of fuel.
Opening The Door
For filling, proceed as follows:
1. Open the door by pulling the tab outwards.

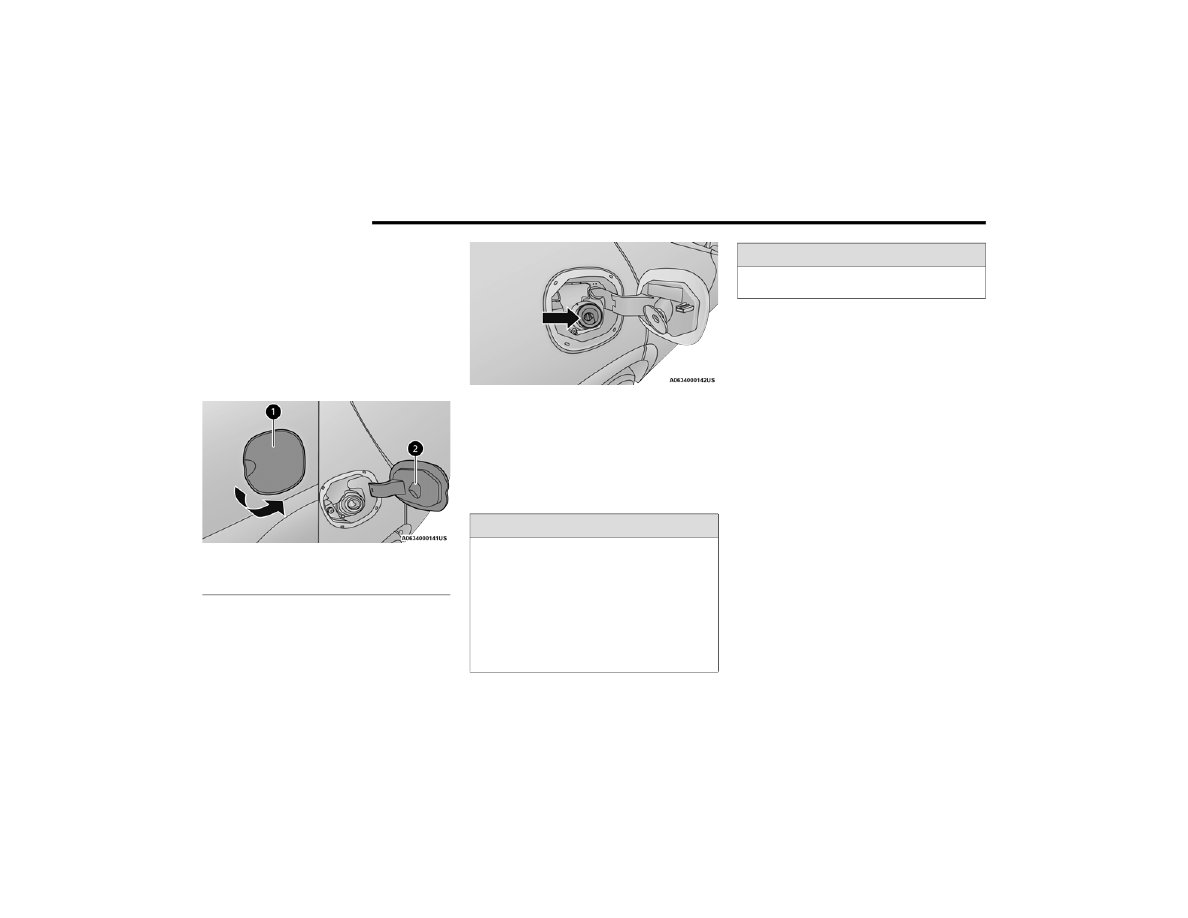

Filler Door

2. Insert the fuel nozzle in the filler pipe and proceed

with filling the fuel tank.

Filler Pipe

3. Fill the vehicle with fuel, and when the fuel nozzle

“clicks” or shuts off, the fuel tank is full.

NOTE:

Wait five seconds before removing the fuel nozzle to allow

fuel to drain from nozzle.
4. Pull the nozzle from the filler pipe and then close

the door.

VEHICLE LOADING

C

ERTIFICATION

 L

ABEL

As required by National Highway Traffic Safety

Administration regulations, your vehicle has a certification

label affixed to the driver's side door or pillar

Ú

page 254.

This label contains the month and year of manufacture,

Gross Vehicle Weight Rating (GVWR), Gross Axle Weight

Rating (GAWR) front and rear, and Vehicle Identification

Number (VIN). A Month-Day-Hour (MDH) number is

included on this label and indicates the Month, Day and

Hour of manufacture. The bar code that appears on the

bottom of the label is your VIN.

Gross Vehicle Weight Rating (GVWR)

The GVWR is the total permissible weight of your vehicle

including driver, passengers, vehicle, options and cargo.

The label also specifies maximum capacities of front and

rear axle systems (GAWR). Total load must be limited so

GVWR and front and rear GAWR are not exceeded.

Payload

The payload of a vehicle is defined as the allowable load

weight a truck can carry, including the weight of the driver,

all passengers, options and cargo.

1 — Fuel Filler Door
2 — Dust Cover

WARNING!

Do not affix objects/plugs to the end of the filler neck

other than what is provided on the car.

The use of objects/plugs do not comply with the

vehicle and may cause pressure increases inside the

tank, creating dangerous conditions.

Do not approach the neck of the tank with open

flames or lit cigarettes its an extreme fire hazard.

Also, avoid close contact with the filler pipe with your

face, do not inhale harmful vapors.

Do not use your mobile phone in the vicinity of the

pump fuel nozzle, it can be a possible risk of fire.

WARNING!

CarManuals2.com

STARTING AND OPERATING

97

Gross Axle Weight Rating (GAWR)

The GAWR is the maximum permissible load on the front

and rear axles. The load must be distributed in the cargo

area so that the GAWR of each axle is not exceeded.
Each axle GAWR is determined by the components in the

system with the lowest load carrying capacity (axle,

springs, tires or wheels). Heavier axles, or suspension

components sometimes specified by purchasers for

increased durability do not necessarily increase the

vehicle's GVWR.

Tire Size

The tire size on the Vehicle Certification Label represents

the actual tire size on your vehicle. Replacement tires

must be equal to the load capacity of this tire size.

Rim Size

This is the rim size that is appropriate for the tire size

listed.

Inflation Pressure

This is the cold tire inflation pressure for your vehicle for

all loading conditions up to full GAWR.

Curb Weight

The curb weight of a vehicle is defined as the total weight

of the vehicle with all fluids, including vehicle fuel, at full

capacity conditions, and with no occupants or cargo

loaded into the vehicle. The front and rear curb weight

values are determined by weighing your vehicle on a

commercial scale before any occupants or cargo are

added.

Loading

The actual total weight and the weight of the front and rear

of your vehicle at the ground can best be determined by

weighing it when it is loaded and ready for operation.
The entire vehicle should first be weighed on a commercial

scale to ensure that the GVWR has not been exceeded.

The weight on the front and rear of the vehicle should then

be determined separately to be sure that the load is

properly distributed over the front and rear axle. Weighing

the vehicle may show that the GAWR of either the front or

rear axles has been exceeded but the total load is within

the specified GVWR. If so, weight must be shifted from

front to rear or rear to front as appropriate until the

specified weight limitations are met. Store the heavier

items down low and be sure that the weight is distributed

equally. Stow all loose items securely before driving.
Improper weight distributions can have an adverse effect

on the way your vehicle steers and handles and the way

the brakes operate.

TRAILER TOWING

In this section you will find safety tips and information on

limits to the type of towing you can reasonably do with your

vehicle. Before towing a trailer, carefully review this

information to tow your load as efficiently and safely as

possible.
To maintain the New Vehicle Limited Warranty coverage,

follow the requirements and recommendations in this

manual concerning vehicles used for trailer towing.

C

OMMON

 T

OWING

 D

EFINITIONS

The following trailer towing related definitions will assist

you in understanding the following information:

Gross Vehicle Weight Rating (GVWR)

The GVWR is the total allowable weight of your vehicle.

This includes driver, passengers, cargo and tongue

weight. The total load must be limited so that you do

not exceed the GVWR

Ú

page 96.

Gross Trailer Weight (GTW)

The GTW is the weight of the trailer plus the weight of all

cargo, consumables and equipment (permanent or

temporary) loaded in or on the trailer in its "loaded and

ready for operation" condition.
The recommended way to measure GTW is to put your fully

loaded trailer on a vehicle scale. The entire weight of the

trailer must be supported by the scale.

WARNING!

Do not load your vehicle any heavier than the GVWR or

the maximum front and rear GAWR. If you do, parts on

your vehicle can break, or it can change the way your

vehicle handles. This could cause you to lose control.

Overloading can shorten the life of your vehicle.

4

CarManuals2.com

98

STARTING AND OPERATING



Gross Combination Weight Rating (GCWR)

The GCWR is the total allowable weight of your vehicle and

trailer when weighed in combination.

Gross Axle Weight Rating (GAWR)

The GAWR is the maximum capacity of the front and rear

axles. Distribute the load over the front and rear axles

evenly. Make sure that you do not exceed either front or

rear GAWR

Ú

page 96.

Tongue Weight (TW)

The TW is the downward force exerted on the hitch ball by

the trailer. You must consider this as part of the load on

your vehicle.

Frontal Area

The frontal area is the maximum height multiplied by the

maximum width of the front of a trailer.

Trailer Sway Control — Mechanical

The trailer sway control is a telescoping link that can be

installed between the hitch receiver and the trailer tongue

that typically provides adjustable friction associated with

the telescoping motion to dampen any unwanted trailer

swaying motions while traveling.

Weight-Carrying Hitch

A weight-carrying hitch supports the trailer tongue weight,

just as if it were luggage located at a hitch ball or some

other connecting point of the vehicle. These kinds of

hitches are commonly used to tow small and medium

sized trailers.

Weight-Distributing Hitch

A weight-distributing system works by applying leverage

through spring (load) bars. They are typically used for

heavier loads to distribute trailer tongue weight to the tow

vehicle's front axle and the trailer axle(s). When used in

accordance with the manufacturer's directions, it provides

for a more level ride, offering more consistent steering and

brake control thereby enhancing towing safety. The

addition of a friction/hydraulic sway control also dampens

sway caused by traffic and crosswinds and contributes

positively to tow vehicle and trailer stability. Trailer sway

control and a weight distributing (load equalizing) hitch

are recommended for heavier Tongue Weights (TW) and

may be required depending on vehicle and trailer

configuration/loading to comply with Gross Axle Weight

Rating (GAWR) requirements.

WARNING!

It is important that you do not exceed the maximum

front or rear GAWR. A dangerous driving condition can

result if either rating is exceeded.

WARNING!

An improperly adjusted Weight Distributing Hitch

system may reduce handling, stability, braking

performance, and could result in a collision.

Weight Distributing Systems may not be compatible

with Surge Brake Couplers. Consult with your hitch

and trailer manufacturer or a reputable Recreational

Vehicle dealer for additional information.

CarManuals2.com

STARTING AND OPERATING

99

T

RAILER

 H

ITCH

 C

LASSIFICATION

The following chart provides the industry standard for the maximum trailer weight a given trailer hitch class can tow and should be used to assist you in selecting the correct trailer hitch

for your intended towing condition.

T

RAILER

 T

OWING

 W

EIGHTS

 (M

AXIMUM

 T

RAILER

 W

EIGHT

 R

ATINGS

)

The following chart provides the maximum trailer weight ratings towable for your given drivetrain.

Trailer Hitch Classification Definitions

Class

Max. Trailer Hitch Industry Standards

Class I - Light Duty

2,000 lb (907 kg)

Class II - Medium Duty

3,500 lb (1,587 kg)

Class III - Heavy Duty

6,000 lb (2,722 kg)

Class IV - Extra Heavy Duty

10,000 lb (4,535 kg)

Refer to the “Trailer Towing Weights (Maximum Trailer Weight Ratings)” chart for the Maximum Gross Trailer Weight (GTW) towable for your given drivetrain.
All trailer hitches should be professionally installed on your vehicle.

Engine

Maximum GTW

Maximum Trailer TW (See Note)

1.3L Turbo AWD

2,000 lb (906 kg) with braked trailer

200 lb (90 kg)

Refer to local laws for maximum trailer towing speeds.

NOTE:

The trailer tongue weight must be considered as part of the combined weight of occupants and cargo and should never exceed the weight referenced on the Tire And Loading

Information Placard

Ú

page 250.

4

CarManuals2.com

100

STARTING AND OPERATING



(Continued)

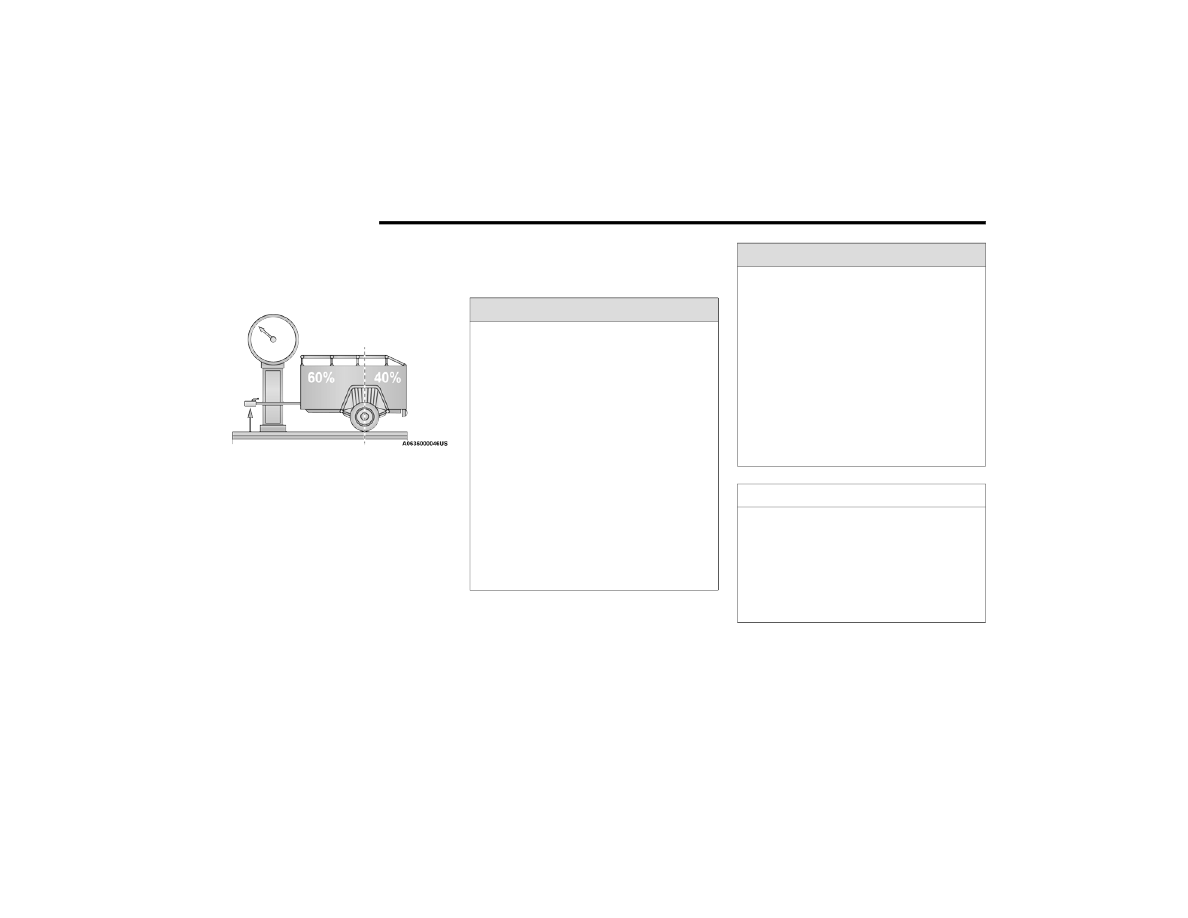

T

RAILER

 A

ND

 T

ONGUE

 W

EIGHT



Never exceed the maximum tongue weight stamped on

your bumper or trailer hitch.

Weight Distribution

Consider the following items when computing the weight

on the rear axle of the vehicle:

The tongue weight of the trailer.

The weight of any other type of cargo or equipment put

in or on your vehicle.

The weight of the driver and all passengers.

NOTE:

Remember that everything put into or on the trailer adds

to the load on your vehicle. Also, additional

factory-installed options or dealer-installed options must

be considered as part of the total load on your vehicle.

Refer to the Tire And Loading Information Placard for the

maximum combined weight of occupants and cargo for

your vehicle.

T

OWING

 R

EQUIREMENTS



To promote proper break-in of your new vehicle drivetrain

components, the following guidelines are recommended:

WARNING!

Improper towing can lead to a collision. Follow these

guidelines to make your trailer towing as safe as

possible:

Make certain that the load is secured in the trailer

and that it will not shift during travel. When trailering

cargo that is not fully secured, dynamic load shifts

can occur that may be difficult for the driver to

control. You could lose control of your vehicle and

have a collision.

When hauling cargo, or towing a trailer, do not over

-

load your vehicle or trailer. Overloading can cause a

loss of control, poor performance, or damage to

brakes, axle, engine, transmission, steering, suspen

-

sion, chassis structure, or tires.

Safety chains must always be used between your

vehicle and trailer. Always connect the chains to the

frame or hook retainers of the vehicle hitch. Cross

the chains under the trailer tongue and allow enough

slack for turning corners.

Vehicles with trailers should not be parked on a

grade. When parking, apply the parking brake on the

tow vehicle. Put the tow vehicle transmission in

PARK. Always block or "chock" the trailer wheels.

GCWR must not be exceeded.

Total weight must be distributed between the tow

vehicle and the trailer such that the following four

ratings are not exceeded:

GVWR

GTW

GAWR

Tongue weight rating for the trailer hitch utilized

CAUTION!

Do not tow a trailer at all during the first 500 miles

(805 km) the new vehicle is driven. The engine, axle

or other parts could be damaged.

Then, during the first 500 miles (805 km) that a

trailer is towed, do not drive over 50 mph (80 km/h)

and do not make starts at full throttle. This helps the

engine and other parts of the vehicle wear in at the

heavier loads.

WARNING!

CarManuals2.com

STARTING AND OPERATING

101

Towing Requirements — Tires

Do not attempt to tow a trailer while using a compact

spare tire.

Proper tire inflation pressures are essential to the safe

and satisfactory operation of your vehicle

Ú

page 257.

Check the trailer tires for proper tire inflation pressures

before trailer usage.

Check for signs of tire wear or visible tire damage

before towing a trailer

Ú

page 257.

For the proper tire replacement procedures

Ú

page 257. Replacing tires with a higher load carrying

capacity will not increase the vehicle's GVWR and

GAWR limits.

Towing Requirements — Trailer Brakes

Do not interconnect the hydraulic brake system or

vacuum system of your vehicle with that of the trailer.

This could cause inadequate braking and possible

personal injury.

An electronically actuated trailer brake controller is

required when towing a trailer with electronically actu

-

ated brakes. When towing a trailer equipped with a

hydraulic surge actuated brake system, an electronic

brake controller is not required.

Trailer brakes are recommended for trailers over

1,000 lb (453 kg) and required for trailers in excess of

2,000 lb (907 kg).

Towing Requirements — Trailer Lights And

Wiring (If Equipped)

Whenever you pull a trailer, regardless of the trailer size,

stoplights and turn signals on the trailer are required for

motoring safety.
The Trailer Tow Package may include a four- and seven-pin

wiring harness. Use a factory approved trailer harness and

connector.

NOTE:

Do not cut or splice wiring into the vehicles wiring harness.
The electrical connections are all complete to the vehicle

but you must mate the harness to a trailer connector.

Refer to the following illustrations.

NOTE:

Disconnect the trailer wiring connector from the vehicle

(or any other device plugged into the vehicle's electrical

connectors) before launching a boat into water.

Be sure to reconnect after clear from water area.

Four-Pin Connector

WARNING!

Do not connect trailer brakes to your vehicle's

hydraulic brake lines. It can overload your brake

system and cause it to fail. You might not have

brakes when you need them and could have

a collision.

Towing any trailer will increase your stopping

distance. When towing you should allow for addi

-

tional space between your vehicle and the vehicle

in front of you. Failure to do so could result in

a collision.

CAUTION!

If the trailer weighs more than 1,000 lb (453 kg)

loaded, it should have its own brakes and they should

be of adequate capacity. Failure to do this could lead to

accelerated brake lining wear, higher brake pedal

effort, and longer stopping distances.

1 — Ground
2 — Park
3 — Left Stop/Turn
4 — Right Stop/Turn

4

CarManuals2.com

102

STARTING AND OPERATING



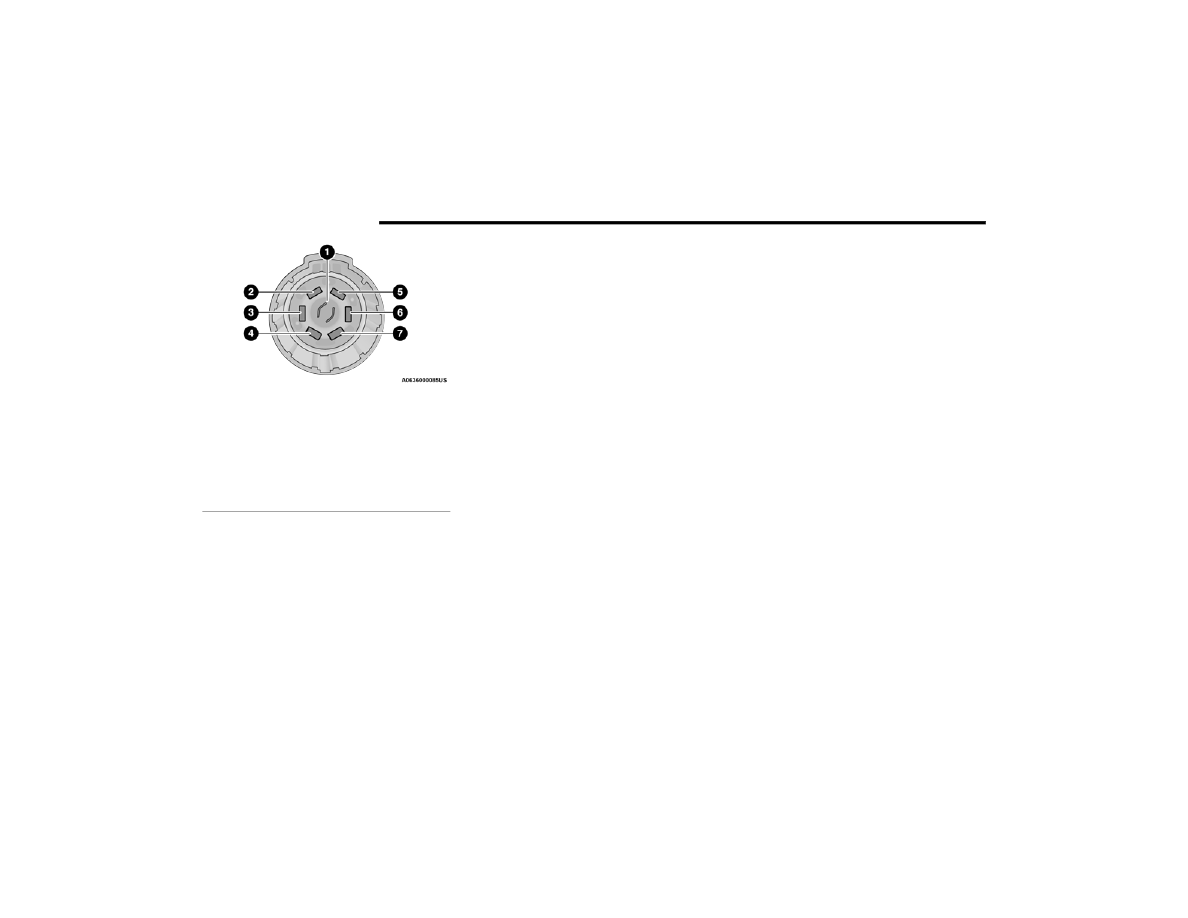

Seven-Pin Connector

T

OWING

 T

IPS

Before towing, practice turning, stopping, and backing the

trailer in an area located away from heavy traffic.

Automatic Transmission — If Equipped

Select the DRIVE range when towing. The transmission

controls include a drive strategy to avoid frequent shifting

when towing. However, if frequent shifting does occur

while in DRIVE, you can use the AutoStick shift control to

manually select a lower gear.

NOTE:

Using a lower gear while operating the vehicle under heavy

loading conditions will improve performance and extend

transmission life by reducing excessive shifting and heat

build up. This action will also provide better engine

braking.

AutoStick

When using the AutoStick shift control, select the

highest gear that allows for adequate performance and

avoids frequent downshifts. For example, choose “5” if

the desired speed can be maintained. Choose “4” or

“3” if needed to maintain the desired speed.

To prevent excess heat generation, avoid continuous

driving at high RPM. Reduce vehicle speed as neces

-

sary to avoid extended driving at high RPM. Return to a

higher gear or vehicle speed when grade and road

conditions allow.

Cruise Control — If Equipped

Do not use in hilly terrain or with heavy loads.

When using the Cruise Control, if you experience speed

drops greater than 10 mph (16 km/h), disengage until

you can get back to cruising speed.

Use Cruise Control in flat terrain and with light loads to

maximize fuel efficiency.

1 — Backup Lamps
2 — Running Lamps
3 — Left Stop/Turn
4 — Ground
5 — Battery
6 — Right Stop/Turn
7 — Electric Brakes

CarManuals2.com

STARTING AND OPERATING

103

RECREATIONAL TOWING (BEHIND MOTORHOME)

T

OWING

 T

HIS

 V

EHICLE

 B

EHIND

 A

NOTHER

 V

EHICLE



NOTE:

You must ensure that the Auto Park Brake feature is

disabled before towing this vehicle, to avoid inadvertent

Electric Park Brake engagement. The Auto Park Brake

feature is enabled or disabled via the Customer Program

-

mable Features in the Uconnect Settings.

All-Wheel Drive (AWD) Models

Recreational towing (with all four wheels on the ground, or

using a towing dolly) is NOT ALLOWED. This vehicle may be

towed on a flatbed or vehicle trailer provided all four

wheels are OFF the ground.

 Towing Condition

 Wheels Off The Ground

 All-Wheel Drive (AWD)

Flat Tow

NONE

NOT ALLOWED

Dolly Tow

REAR

NOT ALLOWED

FRONT

NOT ALLOWED

On Trailer

ALL

OK

NOTE:

When towing your vehicle, always follow applicable state and provincial laws. Contact state and provincial Highway Safety offices for additional details.

CAUTION!

Towing this vehicle with ANY of its wheels on the ground

can cause severe transmission and/or power transfer

unit damage. Damage from improper towing is not

covered under the New Vehicle Limited Warranty.

4

CarManuals2.com

104

STARTING AND OPERATING



DRIVING TIPS

D

RIVING

 O

N

 S

LIPPERY

 S

URFACES

Information in this section will aid in safe controlled

launches in adverse conditions.

Acceleration

Rapid acceleration on snow covered, wet, or other slippery

surfaces may cause the driving wheels to pull erratically to

the right or left. This phenomenon occurs when there is a

difference in the surface traction under the front (driving)

wheels.

Traction

When driving on wet or slushy roads, it is possible for a

wedge of water to build up between the tire and road

surface. This is hydroplaning and may cause partial or

complete loss of vehicle control and stopping ability. To

reduce this possibility, the following precautions should be

observed:

Slow down during rainstorms or when the roads are

slushy.

Slow down if the road has standing water or puddles.

Replace the tires when tread wear indicators first

become visible.

Keep tires properly inflated.

Maintain sufficient distance between your vehicle and

the vehicle in front of you to avoid a collision in a

sudden stop.

D

RIVING

 T

HROUGH

 W

ATER



Driving through water more than a few inches/

centimeters deep will require extra caution to ensure

safety and prevent damage to your vehicle.

Flowing/Rising Water

WARNING!

Rapid acceleration on slippery surfaces is dangerous.

Unequal traction can cause sudden pulling of the front

wheels. You could lose control of the vehicle and

possibly have a collision. Accelerate slowly and carefully

whenever there is likely to be poor traction (ice, snow,

wet, mud, loose sand, etc.).

WARNING!

Do not drive on or across a road or path where water is

flowing and/or rising (as in storm run-off). Flowing water

can wear away the road or path's surface and cause

your vehicle to sink into deeper water. Furthermore,

flowing and/or rising water can carry your vehicle away

swiftly. Failure to follow this warning may result in

injuries that are serious or fatal to you, your

passengers, and others around you.

CarManuals2.com

STARTING AND OPERATING

105

(Continued)

Shallow Standing Water

Although your vehicle is capable of driving through shallow

standing water, consider the following Cautions and

Warnings before doing so.

WARNING!

Driving through standing water limits your vehicle’s

traction capabilities. Do not exceed 5 mph (8 km/h)

when driving through standing water.

Driving through standing water limits your vehicle’s

braking capabilities, which increases stopping

distances. Therefore, after driving through standing

water, drive slowly and lightly press on the brake

pedal several times to dry the brakes.

Failure to follow these warnings may result in injuries

that are serious or fatal to you, your passengers, and

others around you.

CAUTION!

Always check the depth of the standing water before

driving through it. Never drive through standing

water that is deeper than the bottom of the tire rims

mounted on the vehicle.

Determine the condition of the road or the path that

is under water and if there are any obstacles in the

way before driving through the standing water.

Do not exceed 5 mph (8 km/h) when driving through

standing water. This will minimize wave effects.

Driving through standing water may cause damage

to your vehicle’s drivetrain components. Always

inspect your vehicle’s fluids (i.e., engine oil, transmis

-

sion, axle, etc.) for signs of contamination (i.e., fluid

that is milky or foamy in appearance) after driving

through standing water. Do not continue to operate

the vehicle if any fluid appears contaminated, as this

may result in further damage. Such damage is not

covered by the New Vehicle Limited Warranty.

Getting water inside your vehicle’s engine can cause

it to lock up and stall out, and cause serious internal

damage to the engine. Such damage is not covered

by the New Vehicle Limited Warranty.

CAUTION!

4

CarManuals2.com

106

MULTIMEDIA

UCONNECT SYSTEMS

For detailed information about your Uconnect 4/4 NAV

With 7-inch Display system

Ú

page 122.

NOTE:

Uconnect screen images are for illustration purposes only

and may not reflect exact software for your vehicle.

CYBERSECURITY

Depending on applicability, your vehicle may be able to

send or receive information from a wired or wireless

network. This information allows systems and features in

your vehicle to function properly.
Your vehicle may be equipped with certain security

features to reduce the risk of unauthorized and unlawful

access to vehicle systems and wireless communications.

Vehicle software technology continues to evolve over time

and FCA US LLC, working with its suppliers, evaluates and

takes appropriate steps as needed. As always, if you

experience unusual behavior, contact an authorized

dealer immediately,

Ú

page 273, or refer to your

Uconnect Radio Instruction Manual for additional contact

information.

The risk of unauthorized and unlawful access to your

vehicle systems may still exist, even if the most recent

version of vehicle software (such as Uconnect software) is

installed.

NOTE:

To help further improve user experience, features,

stability, etc., and minimize the potential risk of a security

breach, vehicle owners should routinely check

www.driveuconnect.com (US Residents) or www.driveuco

-

nnect.ca (Canadian Residents) to learn about available

Uconnect software updates.

UCONNECT SETTINGS

The Uconnect system uses a combination of buttons on

the touchscreen and buttons on the faceplate located on

the center of the instrument panel. These buttons allow

you to access and change the Customer Programmable

Features. Many features can vary by vehicle.
Buttons on the faceplate are located below and/or beside

the Uconnect system in the center of the instrument

panel. In addition, there is a SCROLL/ENTER control knob

located on the right side. Turn the control knob to scroll

through menus and change settings. Push the center of

the control knob one or more times to select or change a

setting.
Your Uconnect system may also have SCREEN OFF and

MUTE buttons on the faceplate.
Push the SCREEN OFF button on the faceplate to turn off

the Uconnect screen. Push the button again or tap the

screen to turn the screen on.
Press the Back Arrow button to exit out of a Menu or

certain option on the Uconnect system.

WARNING!

ONLY insert trusted media devices/components into

your vehicle. Media of unknown origin could possibly

contain malicious software, and if installed in your

vehicle, it may increase the possibility for vehicle

systems to be breached.

As always, if you experience unusual vehicle

behavior, contact an authorized dealer immediately.

CarManuals2.com

MULTIMEDIA

107

C

USTOMER

 P

ROGRAMMABLE

 F

EATURES

Uconnect 4/4 NAV With 7-inch Display Touchscreen

And Faceplate Buttons

For the Uconnect 4/4 NAV With 7-inch Display

Press the

 Uconnect button, then press the Settings

button on the touchscreen to display the menu setting

screen. In this mode, the Uconnect system allows you to

access programmable features.

NOTE:

Only one touchscreen area may be selected at a time.

Depending on the vehicle’s options, feature settings

may vary.

When making a selection, only press one button at a time

to enter the desired menu. Once in the desired menu,

press and release the preferred setting option until a

check mark appears next to the setting, showing that

setting has been selected. Once the setting is complete,

press the X button on the touchscreen to close out of the

settings screen. Pressing the Up or Down Arrow button on

the right side of the screen will allow you to toggle up or

down through the available settings.

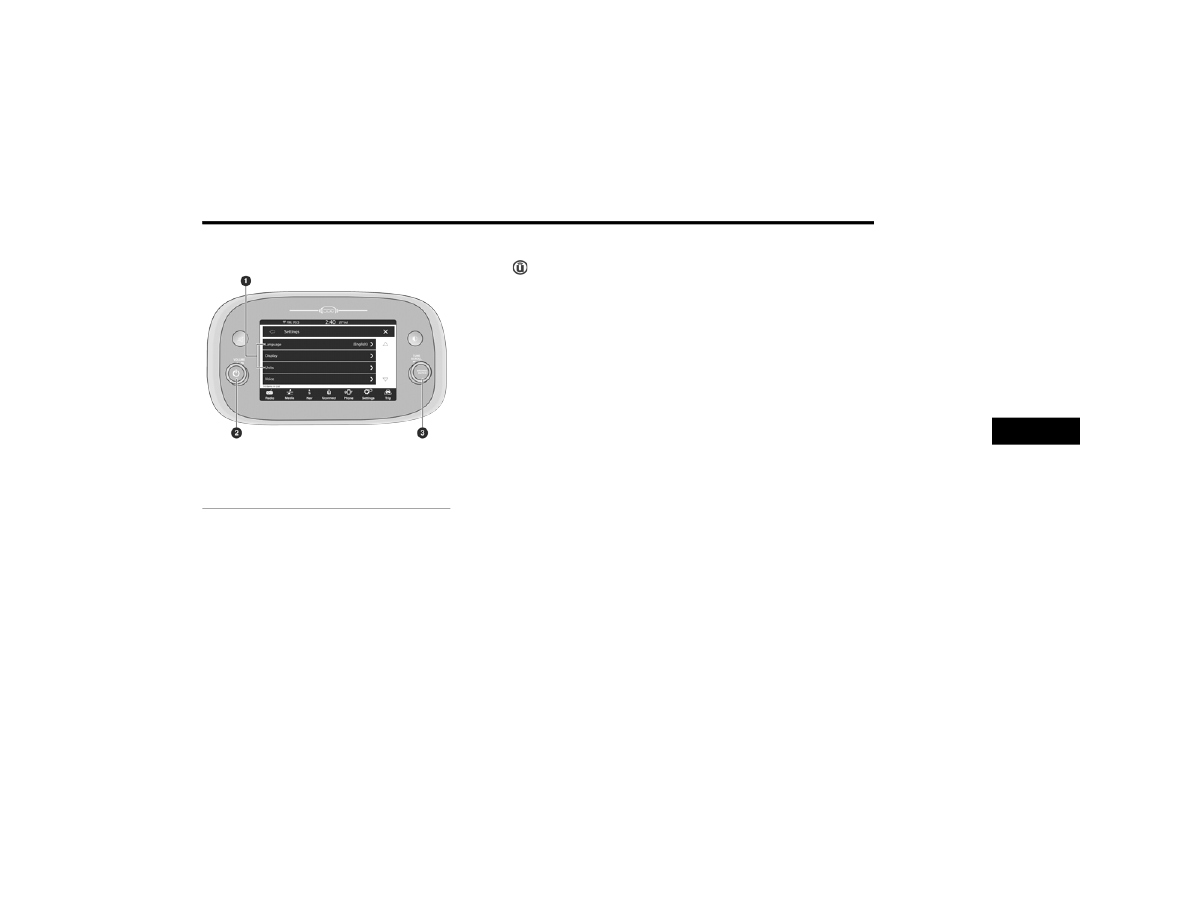

1 — Buttons On The Touchscreen
2 — Buttons On The Faceplate

5

CarManuals2.com

















Content      ..     1      2      3      4      ..
