179

(Continued)

MANUAL PARK RELEASE

See an authorized dealer to disengage the

manual park release lever.

TOWING A DISABLED

VEHICLE

This section describes procedures for towing a

disabled vehicle using a commercial towing

service.

The operators of the assistance vehicle must be

informed with regard to the vehicle's minimum

height from ground in order to avoid contact

between the ends of the fascia/bumper with the

equipment of the breakdown truck.

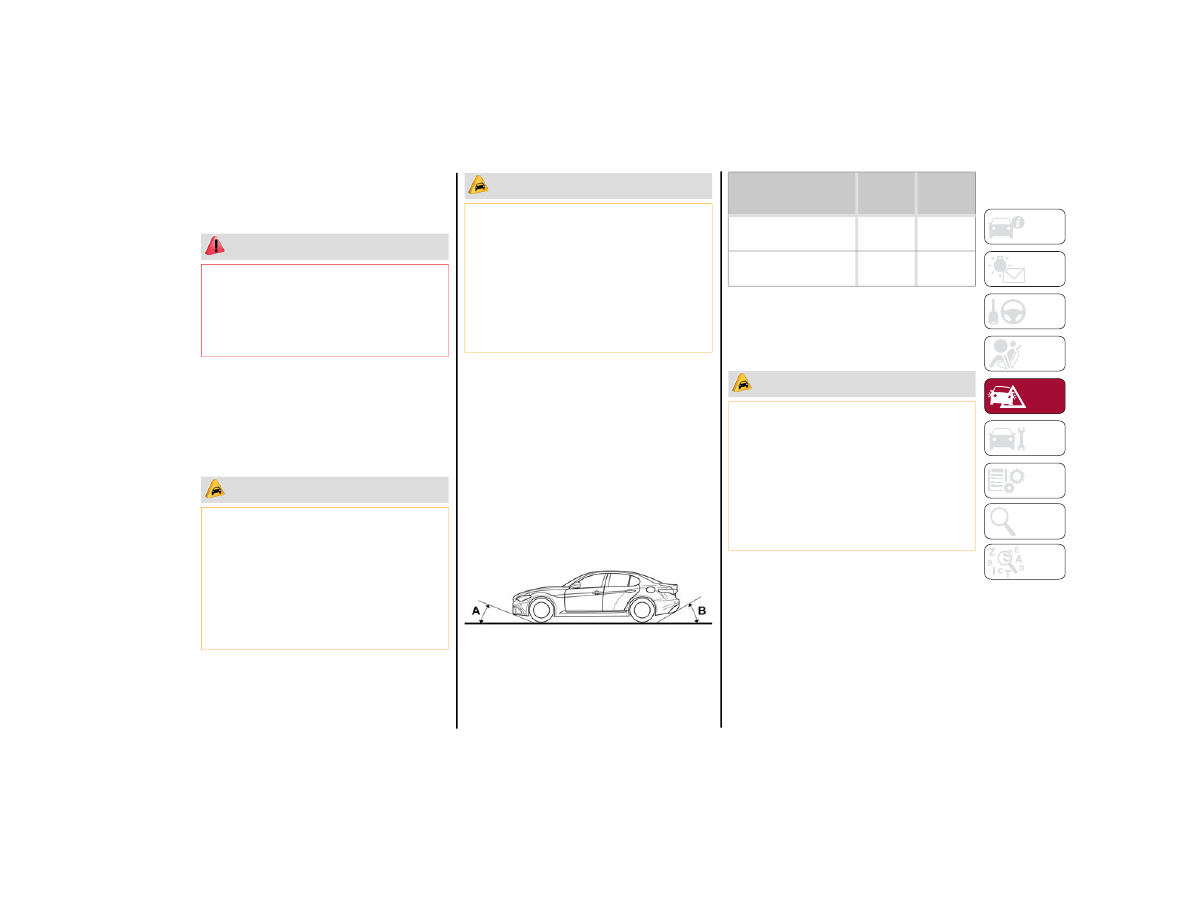

The following image illustrates the front and rear

attachment corners of the vehicle, to be taken

into consideration when loading the vehicle on

the assistance vehicle.

Front And Rear Loading Angles

R

EAR

 W

HEEL

 D

RIVE

 (RWD) M

ODELS

It is recommended to tow the vehicle with all four

wheels OFF the ground on the flatbed of a

roadside assistance vehicle.

If an assistance vehicle with a flatbed is not

available, the vehicle must be towed with the rear

wheels lifted from the ground using a trailer or

special equipment allowing lifting of the rear

wheels.

 WARNING!

A special tool is required to perform this

procedure. Damage to the vehicle or serious

injury or death may occur if the procedure is

performed improperly. Please contact an

authorized dealer to have this procedure

performed.

 CAUTION!

The vehicle should be transported with all

four wheels OFF the ground on the flatbed of

a roadside assistance vehicle. Avoid towing

with only the front (or rear) wheels lifted.

When towing with only the front (or rear)

wheels lifted, in addition to damaging the

body, it could damage the transmission.

Do not use sling-type equipment when

towing. Vehicle damage may occur.

When securing the vehicle to a flatbed truck,

do not attach to front or rear suspension

components. Damage to your vehicle may

result from improper towing.

Ensure that the Electric Park Brake is

released, and remain released, while being

towed.

Damage from improper towing is not covered

under the New Vehicle Limited Warranty.

 CAUTION!

RWD

Models

AWD

Models

A — Front Loading

Angle

12.880° 15.160°

B — Rear Loading

Angle

17.105° 18.400°

 CAUTION!

Do not use sling type equipment when

towing. Vehicle damage may occur.

When securing the vehicle to a flat bed truck,

do not attach to front or rear suspension

components. Damage to your vehicle may

result from improper towing.

Ensure that the Electric Park Brake is

released, and remains released, while being

towed.

CarManuals2.com

IN CASE O

F EM

ERGENCY

180

(Continued)

A

LL

 W

HEEL

 D

RIVE

 (AWD) M

ODELS

It is recommended to tow the vehicle with all four

wheels OFF the ground on the flatbed of a

roadside assistance vehicle.

TOW EYES

If the vehicle has been in an accident or has

broken down, a tow eye is provided in the tools

container located inside the luggage

compartment for vehicle towing. There are two

locations on the front fascia/bumper available

for Tow Eye installation, and one in the rear on

the passenger side. Towing is meant only for

short distances on a paved road surface.
Proceed as follows to use the tow eye:
1. Unhook the cap on the front (left or right side)

or rear fascia/bumper, pushing on the upper

part.

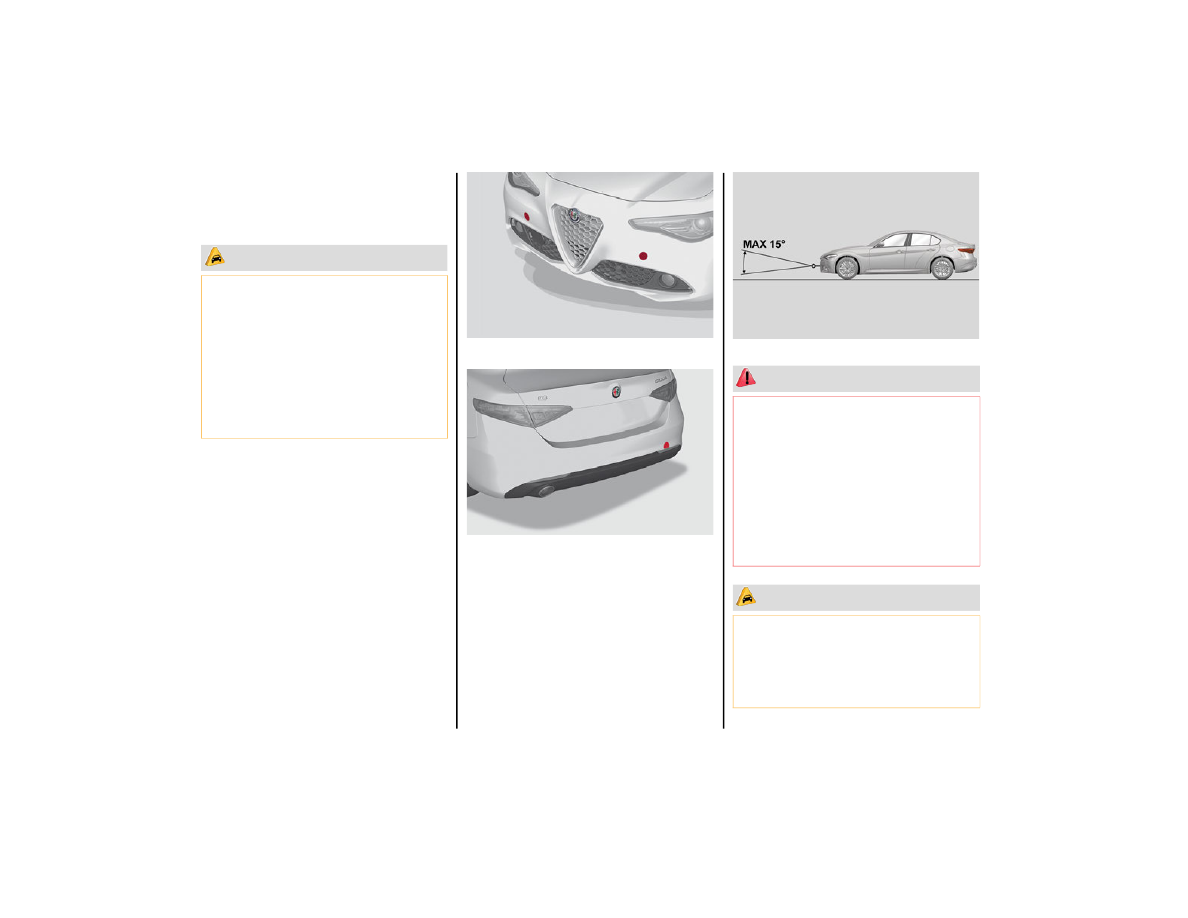

Front Tow Eye Cap Locations

Rear Tow Eye Cap Location

2. Remove the tow eye from its housing in the

trunk and carefully clean the threaded

housing on the vehicle before using it.

3. Tighten the vehicle's tow eye in place (about

11 turns).

NOTE:

The largest work angle of a tow cable to fix on the

tow hook must not exceed 15°.

Work Angle Of Tow Cable

 CAUTION!

DO NOT flat tow this vehicle. Damage to the

drivetrain will result.

DO NOT dolly tow this vehicle. Use of a towing

dolly can cause significant damage to your

vehicle.

Towing this vehicle in violation of the above

requirements can cause severe transmission

damage. Damage from improper towing is not

covered under the New Vehicle Limited

Warranty.

 WARNING!

Stand clear of vehicles when pulling with tow

eyes.

Do not use a chain with a tow eye. Chains

may break, causing serious injury or death.

Do not use a tow strap with a tow eye. Tow

straps may break or become disengaged,

causing serious injury or death.

Failure to follow proper tow eye usage may

cause components to break resulting in

serious injury or death.

 CAUTION!

The tow eye must be used exclusively for

roadside assistance operations. Only use the

tow eye with an appropriate device in

accordance with the highway code (a rigid

bar or rope) to flat tow the vehicle for a short

distance to the nearest service location.

CarManuals2.com

181

ENHANCED ACCIDENT

RESPONSE SYSTEM (EARS)

This vehicle is equipped with an Enhanced

Accident Response System.
This feature is a communication network that

takes effect in the event of an impact

Ú

page 155.

EVENT DATA RECORDER

(EDR)

This vehicle is equipped with an event data

recorder (EDR). The main purpose of an EDR is to

record data that will assist in understanding how

a vehicle’s systems performed under certain

crash or near crash-like situations, such as an air

bag deployment or hitting a road obstacle

Ú

page 157.

Tow eyes MUST NOT be used to tow vehicles

off the road or where there are obstacles.

In compliance with the above conditions,

towing with a tow eye must take place with

two vehicles (one towing, the other towed)

aligned as much as possible along the same

center line. Damage to your vehicle may

occur if these guidelines are not followed.

When towing, only use a facility that can tow

vehicles with low ground clearances as

extensive damage can result by using a

standard tow truck platform.

 CAUTION!

CarManuals2.com

182

SERVICING AN

D M

AINTENAN

CE

Correct servicing permits the performance of the

vehicle to be maintained over time, as well as

limited running costs and safeguarding the

efficiency of the safety systems.
This chapter explains how.

SCHEDULED SERVICING

Correct servicing is crucial for guaranteeing a

long life for the vehicle under the best conditions.
For this reason, Alfa Romeo has planned a series

of checks and services for your vehicle at fixed

intervals based on distance and time, as

described in the Scheduled Servicing Plan.
Before each service, it is always necessary to

carefully follow the instructions in the Scheduled

Servicing Plan (e.g. periodically check level of

fluids, tire pressure, etc.).
Scheduled Servicing is offered by an authorized

dealer according to a set time schedule. If, during

each operation, in addition to the ones

scheduled, the need arises for further

replacements or repairs, these may be carried

out with the owner’s explicit consent only.
NOTE:

Scheduled Servicing intervals are required by the

manufacturer. Failure to have them carried out

may invalidate the New Vehicle Limited Warranty.
You are advised to inform an authorized dealer of

any small operating irregularities without waiting

for the next service.

P

ERIODIC

 C

HECKS

Every month or every 600 miles (1,000 km) or

before long trips check and, if necessary, top off:

Engine coolant level.

Brake fluid level (if insufficient, see an

authorized dealer as soon as possible).

Windshield washer fluid level.

Tire inflation pressure and condition.

Operation of lighting system (headlights,

direction indicators, hazard warning lights,

etc.).

Operation of windshield washing/wiping

system and positioning/wear of wiper blades.

Inspect the CV/Universal joints.

Oil consumption of the engine depends on

conditions and driving style. For this reason, the

engine oil level must be checked every

1,860 miles (3,000 km), and top off if necessary

Ú

page 188.

H

EAVY

 U

SAGE

 O

F

 T

HE

 V

EHICLE

If the vehicle is used under one of the following

conditions:

Dusty roads.

Short, repeated journeys less than 4 miles

(7 km) at sub-zero outside temperatures.

Engine often idling or driving long distances at

low speeds or long periods of inactivity.

In the event of a long period of inactivity.

The following checks must be carried out more

often than indicated in the Scheduled Servicing

Plan:

Check cleanliness of hood and trunk locks,

cleanliness and lubrication of linkage.

Visually inspect conditions of: engine,

transmission, pipes and hoses (exhaust/fuel

system/brakes) and rubber elements

(sleeves/bushes, etc.).

Check battery charge and battery fluid level

(electrolyte).

Visually inspect conditions of the accessory

drive belts.

Check and, if necessary, change engine oil and

replace oil filter.

Check and, if necessary, replace cabin air

filter.

Check and, if necessary, replace engine air

cleaner.

Severe Duty All Models
Vehicles that are operated in a dusty and off-road

environment, or predominately at idle or very low

engine RPM are known as Severe Duty vehicles.

It is recommended that you change engine oil at

4,000 miles (6,500 km) or 350 hours of engine

run time.

CarManuals2.com

183

M

AINTENANCE

 P

LAN

 — 2.0L E

NGINE

Thousands Of Miles

10

20

30

40

50

60

70

80

90

100

110

120

130

140

150

Years

1

2

3

4

5

6

7

8

9 10 11 12 13 14 15

Thousands Of Kilometers

16

32

48

64

80

96

112

128

144

160

176

192

208

224

240

SOS back up battery replacement (if equipped).

1

Check battery charge status with the proper instrument.

Check tire condition/wear and adjust pressure, if

necessary. Check the tire repair kit recharge condition and

expiration date.

Check operation of lighting system (headlights, direction

indicators, hazard warning lights, trunk lid, passenger

compartment, glove compartment, instrument panel

warning lights, etc.).

Check and, if necessary, top up fluid levels.

Check engine control system operation (via diagnostic tool)
and, if equipped, engine oil degradation.

2

Visually inspect conditions of: exterior bodywork, underbody

protection, pipes and hoses (exhaust, fuel system, brakes),

rubber elements (sleeves, bushes, etc.).

Check position/wear of front windshield wiper blade.

Check operation of the windshield wiper/washer system

and adjust nozzles, if necessary.

Check cleanliness of hood and luggage compartment locks,

cleanliness and lubrication of linkage.

Visually inspect conditions and wear of front/rear disc brake

pads and operation of pad wear indicators.

Visually inspect the condition and tensioning of the

accessory drive belt(s).

CarManuals2.com

SERVICING AN

D M

AINTENAN

CE

184

(o) Recommended operations
(●) Mandatory operations

Change engine coolant.

Change engine oil and replace oil filter.

3

Replace transfer case oil (AWD models only).

Replace accessory drive belt(s).

Replace engine air cleaner.

4

Replace additional fuel filter (if equipped).

Change the brake fluid.

5

Replace cabin air filter.

4

o

o

o

o

o

o

o

o

Spark plug replacement.

6

1. The SOS back up battery must be replaced every five years, regardless of mileage.

2. If oil degradation ratio (data collectible from diagnostic device) is more than 80% (oil quality less than 20%) engine oil and filter replacement is recommended.

3. The actual interval for changing engine oil and replacing the engine oil filter depends on the vehicle usage conditions and is signaled by the warning light or message in the

instrument panel. In all cases, never exceed 1 year/10,000 miles (16,000 km).

4. If the vehicle is used in dusty areas, this cleaner must be replaced every 10,000 miles (16,000 km).

5. The brake fluid replacement has to be done every two years, irrespective of the mileage.

6. The spark plug change interval is 60,000 miles for NAFTA market or 60,000 km outside NAFTA. Yearly intervals do not apply.

Thousands Of Miles

10

20

30

40

50

60

70

80

90

100

110

120

130

140

150

Years

1

2

3

4

5

6

7

8

9 10 11 12 13 14 15

Thousands Of Kilometers

16

32

48

64

80

96

112

128

144

160

176

192

208

224

240

 WARNING!

You can be badly injured working on or around a motor vehicle. Do only service work for which you have the knowledge and the right equipment. If you

have any doubt about your ability to perform a service job, take your vehicle to a competent mechanic.

Failure to properly inspect and maintain your vehicle could result in a component malfunction and affect vehicle handling and performance. This could

cause an accident.

CarManuals2.com

185

M

AINTENANCE

 P

LAN

 — 2.9L E

NGINE

Thousands Of Miles

10

20

30

40

50

60

70

80

90

100

110

120

130

140

150

Years

1

2

3

4

5

6

7

8

9 10 11 12 13 14 15

Thousands Of Kilometers

16

32

48

64

80

96

112

128

144

160

176

192

208

224

240

SOS back up battery replacement (if equipped).

1

Check battery charge status with the proper instrument.

Check tire condition/wear and adjust pressure, if

necessary. Check the tire repair kit recharge condition and

expiration date.

Check operation of lighting system (headlights, direction

indicators, hazard warning lights, trunk lid, passenger

compartment, glove compartment, instrument panel

warning lights, etc.).

Check and, if necessary, top up fluid levels.

Check engine control system operation (via diagnostic tool).

Visually inspect conditions of: exterior bodywork, underbody

protection, pipes and hoses (exhaust, fuel system, brakes),

rubber elements (sleeves, bushes, etc.).

Check position/wear of front windshield wiper blade.

Check operation of the windshield wiper/washer system

and adjust nozzles, if necessary.

Check cleanliness of hood and luggage compartment locks,

cleanliness and lubrication of linkage.

Visually inspect conditions and wear of front/rear disc brake

pads and operation of pad wear indicators.

Visually inspect the brake discs surface and edge.

Brake pads/brake discs replacement.

2

CarManuals2.com

SERVICING AN

D M

AINTENAN

CE

186

(o) Recommended operations
(●) Mandatory operations

Visually inspect the condition and tensioning of the

accessory drive belt(s).

Change engine coolant.

Change engine oil and replace oil filter.

Replace accessory drive belt/s.

3

Replace engine air cleaner.

4

Replace additional fuel filter (if equipped).

Change the brake fluid.

5

Replace cabin air filter.

4

o

o

o

o

o

o

o

o

Spark plug replacement.

6

1. The SOS back up battery must be replaced every five years, regardless of mileage.

2. The actual interval for changing the brake pads and the carbon ceramic brake discs depends on the vehicle usage conditions and is signaled by the warning light or message

on the instrument panel. After each discs replacement, reset the warning light using the diagnostic socket.

3. Areas that are not dusty: recommended maximum mileage 36,000 miles (60,000 km). Regardless of the mileage, the belt must be replaced every four years. Dusty areas

and/or demanding use of the vehicle (cold climates, town use, long periods of idling): advised maximum mileage 18,000 miles (30,000 km). Regardless of the mileage, the

belt must be replaced every two years.

4. If the vehicle is used in dusty areas, this cleaner must be replaced every 10,000 miles (16,000 km).

5. The brake fluid replacement has to be done every two years, irrespective of the mileage.

6. The spark plug change interval is mileage-based only. Yearly intervals do not apply.

Thousands Of Miles

10

20

30

40

50

60

70

80

90

100

110

120

130

140

150

Years

1

2

3

4

5

6

7

8

9 10 11 12 13 14 15

Thousands Of Kilometers

16

32

48

64

80

96

112

128

144

160

176

192

208

224

240

 WARNING!

You can be badly injured working on or around a motor vehicle. Do only service work for which you have the knowledge and the right equipment. If you

have any doubt about your ability to perform a service job, take your vehicle to a competent mechanic.

Failure to properly inspect and maintain your vehicle could result in a component malfunction and affect vehicle handling and performance. This could

cause an accident.

CarManuals2.com

187

ENGINE COMPARTMENT

C

HECKING

 L

EVELS

 — 2.0L E

NGINE

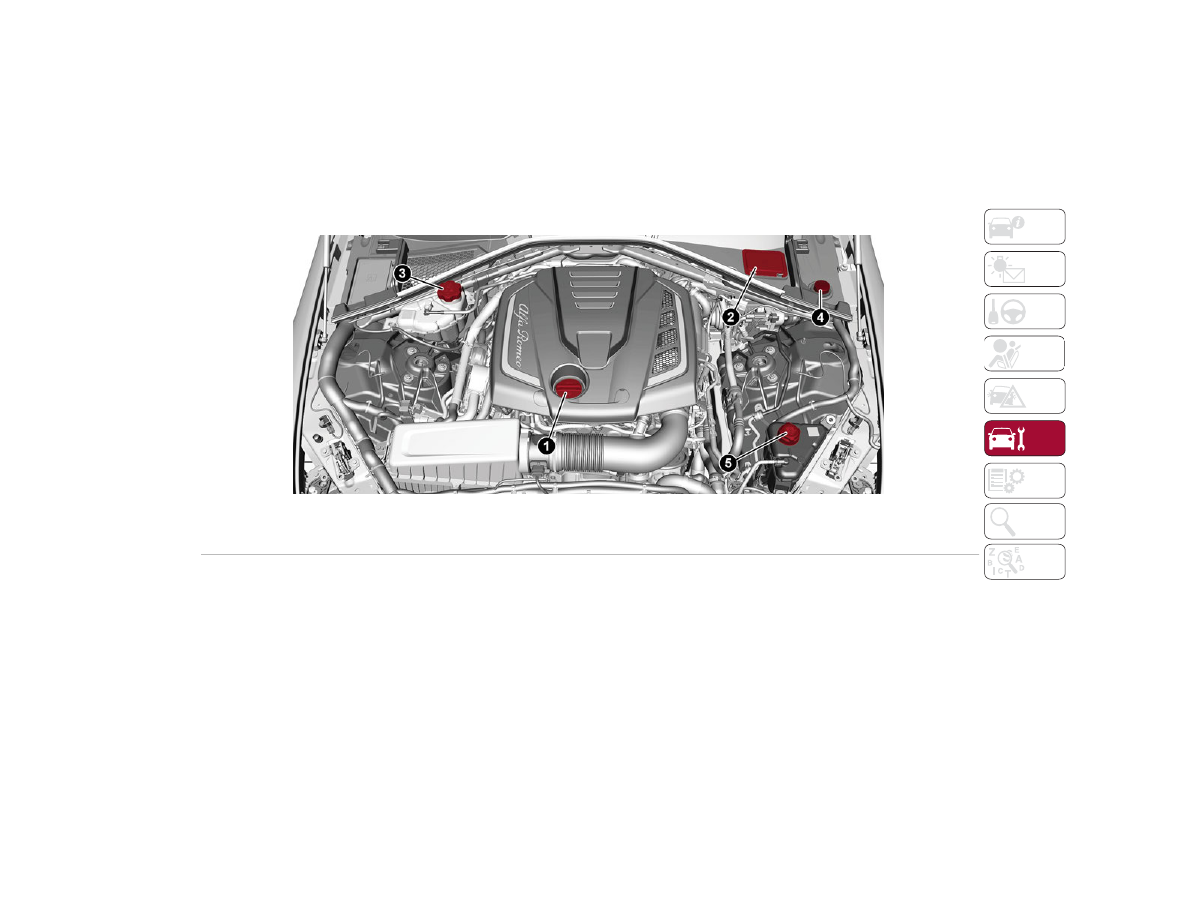

1 – Engine Oil Filler Cap

4 – Windshield/Headlights Washer Fluid Reservoir Cap

2 – Brake Fluid Reservoir Access Cover

5 – Intercooler Coolant Reservoir Cap

3 – Engine Coolant Reservoir Cap

CarManuals2.com

SERVICING AN

D M

AINTENAN

CE

188

C

HECKING

 L

EVELS

 — 2.9L E

NGINE



E

NGINE

 O

IL

The engine oil level can be seen on the

instrument cluster display every time the engine

is started, or on the Information and

Entertainment system display by activating on

the main menu (MENU button) the following

functions in sequence: “Vehicle Information”;

“Engine Oil”.

Check on the display using the 6 notches that the

oil level is between the MIN and MAX level:

1 notch MIN level, 6 notches MAX level.
NOTE:

Use care when filling under hood fluids such as

engine oil, windshield washer fluid, antifreeze

etc. to minimize spillage onto the top of the

engine. Any excess fluid that is spilled onto the

top of the engine should be removed using

compressed air or an absorbent cloth.

If the oil level is close to or below the MIN mark,

add oil gradually through the filler, (refer to

“Top-Up And Oil Level Indication Update On

Display” in this section) considering that each

notch shown on the display corresponds to

approximately 8.8 fl oz (250 ml).
The oil level can also be checked manually on

2.9L Engines.

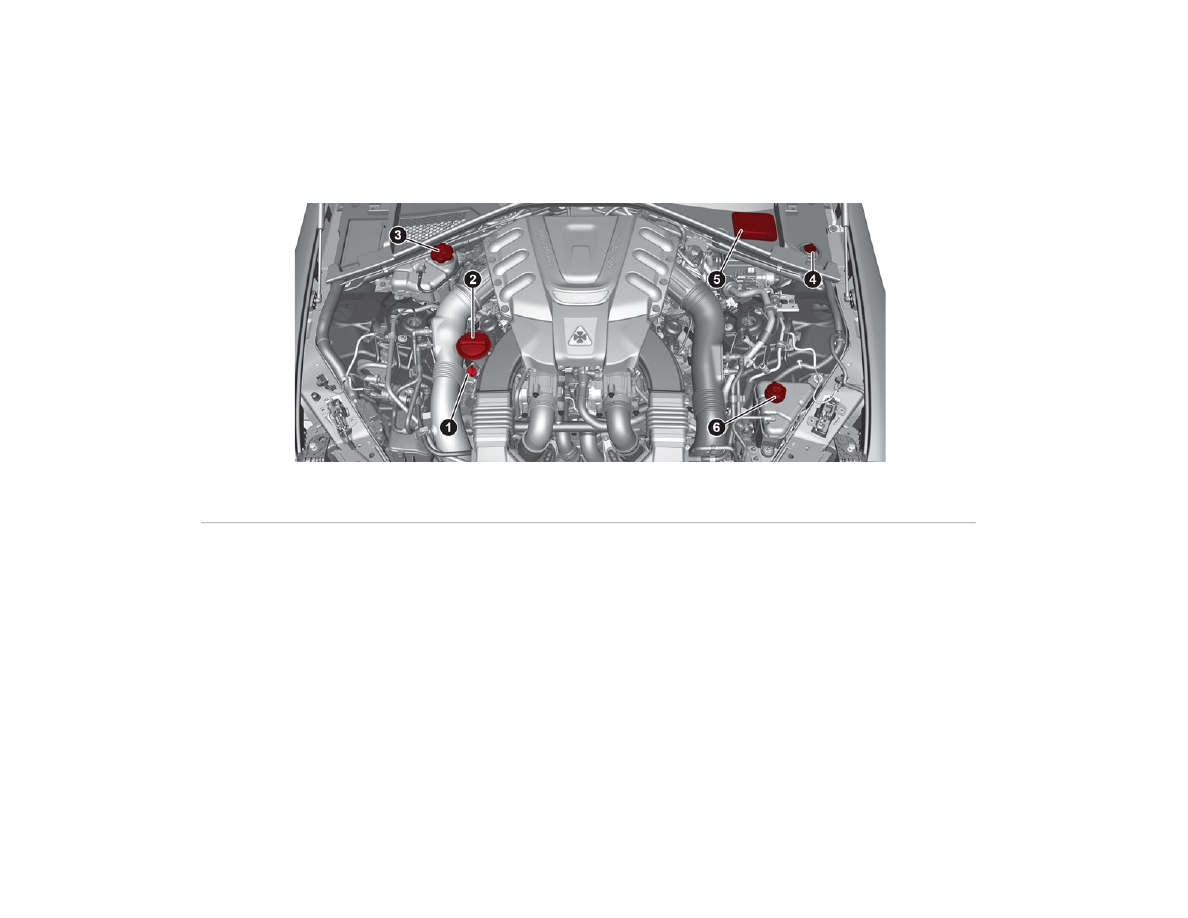

1 – Engine Oil Dipstick

4 – Windshield/Headlight Washer Fluid Reservoir Cap

2 – Engine Oil Filler

5 – Brake Fluid Reservoir Cap Access Cover

3 – Engine Coolant Reservoir Cap

6 – Intercooler Coolant Reservoir Cap

CarManuals2.com

189

NOTE:

Always reinstall the oil cap and tighten to proper

torque whenever it is removed to add oil to

engine. Never run the engine with cap removed

as this could cause oil to leak from engine.
Manual Oil Level Checking Procedure —

2.9L Engine
Check that the oil level is between the MIN and

MAX marks on dipstick, clean it with a lint-free

cloth and reinsert it. Extract the dipstick again

and check that the level is between the MIN and

MAX marks.
Top-Up And Oil Level Indication Update On

Display — 2.9L Engine
If an engine oil top-off is needed, in order to

ensure the correct indication of the oil level on

the display, proceed with the following process:

Leave the car on flat ground with the engine

running for approximately five minutes

(temperature higher than 198°F (90°C) and

shut the engine off.

Wait for five minutes, turn the ignition to the

ON mode without starting the engine and wait

for a few seconds.

NOTE:

If the level indication is not updated after the

previously described procedure, repeat the

engine adjustment, shut the engine off and wait

another five minutes before starting it again. If

the indication is not updated after the second

start, contact an authorized dealer.
Top-Up And Oil Level Indication Update On

Display — 2.0L Engine
If an engine oil top-off is needed, in order to

ensure the correct indication of the oil level on

the display, proceed with the following process:

Leave the car on flat ground with the engine

running for approximately five minutes

(temperature higher than 176°F (80°C) and

shut the engine off.

Start the engine again and idle it for about two

minutes.

NOTE:

If you have added the specified amount of oil and

the indicator is not reading “Full”, please contact

an authorized dealer.

E

NGINE

 C

OOLANT

If the level is too low, remove the cap of reservoir

and add the fluid described on

Ú

page 233.

W

ASHER

 F

LUID

 F

OR

 W

INDSHIELD

/

H

EADLIGHTS

The windshield and headlights washer fluid

reservoir has a telescopic filler.
If the level is too low, remove reservoir cap and lift

the filler. Then, add the fluid described on

Ú

page 233.

NOTE:

Use care when filling under hood fluids such as

engine oil, windshield washer fluid, antifreeze

etc. to minimize spillage onto the top of the

engine. Any excess fluid that is spilled onto the

top of the engine should be removed using

compressed air or an absorbent cloth.

 CAUTION!

Make sure not to add too much oil when

topping off the engine. Engine oil in excess

may damage the engine. Have the vehicle

checked. Never exceed the MAX level when

topping off engine oil. It is advisable to check

the oil level in intermediate steps using the oil

dipstick (2.9L Engine Only).

 CAUTION!

The oil level is not refreshed immediately on

the display after topping off. Consequently,

wait for the oil level to be refreshed on the

display and see the following procedures.

 WARNING!

If the engine oil is being topped up, wait for the

engine to cool down before loosening the filler

cap, particularly for vehicles with aluminum

cap (if equipped). WARNING: risk of burns!

 CAUTION!

The oil level must never exceed the MAX mark.
If the MAX mark is exceeded (last notch on the

right turns red) after the fill-up, go to an

authorized dealer as soon as possible to have

the oil in excess removed.
Do not add oil with specifications different

from those of the oil already in the engine.
Used engine oil and oil filters contain

substances which are harmful to the

environment. To change the oil and filters, we

advise you to contact an authorized dealer.

CarManuals2.com

SERVICING AN

D M

AINTENAN

CE

190

NOTE:

The headlight washing system will not work if the

liquid level is low (as indicated by the symbol on

the instrument cluster display). On vehicles

equipped with headlight washers, there is a refer

-

ence notch on the dipstick: ONLY the windshield/

rear window washer operates with the level below

this reference.

B

RAKE

 F

LUID

Check that the fluid is at the maximum level. If

the fluid level in the tank is low, contact an

authorized dealer to have the system checked.

A

UTOMATIC

 T

RANSMISSION

 A

CTIVATION



S

YSTEM

 O

IL

The transmission control oil level should only be

checked at an authorized dealer.

U

SEFUL

 A

DVICE

 F

OR

 E

XTENDING

 T

HE



L

IFE

 O

F

 Y

OUR

 B

ATTERY

To avoid draining your battery and make it last

longer, observe the following instructions:

When you park the car, ensure that the doors

and trunk are closed properly to prevent any

lights from remaining on inside the

passenger's compartment.

Do not keep accessories (e.g. radio, hazard

warning lights, etc.) switched on for a long time

when the engine is not running.

Before performing any operation on the

electrical system, disconnect the negative

battery cable.

If you wish to install electrical accessories after

purchasing the car that require permanent

electrical supply (e.g. alarm, etc.), or accessories

which influence the electrical supply

requirements, contact an authorized dealer,

whose qualified staff will evaluate the overall

electrical consumption.

NOTE:

After the battery is disconnected, the steering

must be initialized. The   warning light on the

instrument panel switches on to indicate this. To

carry out this procedure, simply turn the steering

wheel all the way from one end to the other, and

then turn it back to the central position.

B

ATTERY

The battery does not require the electrolyte to be

topped up with distilled water. A periodic check

carried out at an authorized dealer, however, is

necessary to check efficiency.
Follow the battery manufacturer's instructions for

maintenance.

Replacing The Battery
If necessary, replace the battery with another

original battery with the same specifications.

Follow the battery manufacturer’s instructions for

maintenance.

NOTE:

It will not be possible to open the trunk with a key

or by pushing the button in the passenger

compartment when the battery is disconnected.

So, always position the manual trunk opening

strap on the trunk lock before disconnecting the

battery

Ú

page 220.

 CAUTION!

If the charge level remains under 50% for a

long time, the battery may be damaged by

sulphation, reducing its capacity and

efficiency during a vehicle start. The battery is

also more prone to the risk of freezing (at

temperatures as high as 14°F (-10°C).

 WARNING!

Battery acid is a corrosive solution and can

burn or even blind you. Do not allow battery

acid to contact your eyes, skin, or clothing.

Do not lean over a battery when attaching

clamps

Ú

page 177. If acid splashes in eyes

or on skin, flush the area immediately with

large amounts of water.

Battery gas is flammable and explosive.

Keep flame or sparks away from the battery.

Do not use a booster battery or any other

booster source with an output greater than

12 Volts. Do not allow cable clamps to touch

each other.

Battery posts, terminals, and related

accessories contain lead and lead

compounds. Wash hands after handling.

CarManuals2.com

191

P

RESSURE

 W

ASHING

Cleaning the engine compartment with a high

pressure washer is not recommended.

BATTERY RECHARGING

I

MPORTANT

 N

OTES

NOTE:

Before using the charging device, always make

sure that it is appropriate for the installed

battery, with constant voltage (below 14.8 Volts)

and low amperage (maximum 15 Amps).

Recharge the battery in a well ventilated

environment.

Before using any devices to charge or to

maintain the charge of the battery, carefully

follow the instructions provided with the device

in order to properly and safely connect it to the

car battery.

You can recharge the battery without discon

-

necting the wires of the vehicle's electrical

system.

To reach the battery, remove the access panel

inside the trunk.

Battery Access Panel

Remove the protective cover and connect the

positive cable terminal of the charger (usually

red) to the positive terminal (+) of the battery.

Connect the negative terminal of the charger

(usually black) to nut next to the negative

terminal (-) of the battery.

Battery

The vehicle is equipped with an IBS (Intelligent

Battery Sensor), which is able to measure the

charge and discharge voltage and calculate the

charge level and the general condition of the

battery. The sensor is placed next to the negative

terminal (-) of the battery.
For a correct charge/discharge procedure, the

charge voltage must go through the IBS sensor.
1. Turn the charger on and follow the instruc

-

tions on the user's manual to completely

recharge the battery.

2. When the battery is charged, turn the charger

off before disconnecting it from the battery.

3. Disconnect the black cable terminal of the

battery charger and then the red cable

terminal.

 CAUTION!

Precautions have been taken to safeguard all

parts and connections however, the pressures

generated by these machines is such that

complete protection against water ingress

cannot be guaranteed.

 WARNING!

Never charge or recharge a frozen battery: it

may explode because of the nitrogen

trapped inside the ice crystals.

At all times while charging or recharging the

battery, make sure that any sparks or open

flames are kept sufficiently far away from the

battery.

1 — Protective Cover
2 — Negative Post (Nut)

CarManuals2.com

SERVICING AN

D M

AINTENAN

CE

192

4. Refit the protective cover of the positive

terminal of the battery and the access cover

to the battery compartment.

NOTE:

If a “quick-type” battery charger is used with the

battery fitted on the vehicle, before connecting it

disconnect both cables of the battery itself. Do

not use a “quick-type” battery charger to provide

the starting voltage.

VEHICLE MAINTENANCE

The following pages contain instructions on the

required maintenance from the technical

personnel who designed the vehicle.
In addition to these specific maintenance

instructions specified for routine scheduled

servicing, there are other components which may

require periodic maintenance or replacement

over the vehicle’s life cycle.

E

NGINE

 O

IL

Engine Oil Level Check
To ensure correct engine lubrication, the oil must

always be kept at the appropriate level.
Check the oil level at regular intervals, for

example every 1,864 miles (3,000 km).
It must be checked once full operating

temperature is reached.
The vehicle must also be parked on as level a

surface as possible.
The engine oil level can be checked using the

Information and Entertainment system. To

access the function, activate the main menu

(MENU button) and select the following options in

sequence: “Vehicle Information”; “Engine Oil”.

Changing The Engine Oil
For the correct servicing intervals

Ú

page 182.

Choice Of Engine Oil Type
To ensure optimal performance and maximum

protection in all operating conditions, it is

advisable to only use certified engine oils

Ú

page 233.

Additives For Engine Oil
It is strongly recommended not to use additives

(other than leak detection dyes) with the engine

oil.
The engine oil is a product designed especially for

the vehicle and its performance may be deteri

-

orated through the use of further additives.
Disposal Of Used Engine Oil And Filters
For disposal of used engine oil and filters, consult

the appropriate local regulations.
NOTE:

Inappropriate disposal of used engine oil may

seriously harm the environment.

E

NGINE

 O

IL

 F

ILTER

The engine oil filter should be replaced with a

new filter at every engine oil change.
Engine Oil Filter Selection
A full-flow type disposable oil filter should be used

for replacement. The quality of replacement

filters varies considerably. Only high quality

Mopar® certified filters should be used.

E

NGINE

 A

IR

 C

LEANER

Engine Air Cleaner Filter Selection
The quality of replacement filters varies consid

-

erably. Only high quality Mopar® certified filters

should be used.

A

IR

 C

ONDITIONING

 S

YSTEM



M

AINTENANCE

To ensure the best possible performance, the air

conditioning system must be checked and

undergo maintenance at an authorized dealer at

the beginning of the summer.

Replace The Cabin Air Cleaner
For the correct servicing intervals

Ú

page 182

For cabin air cleaner replacement, contact an

authorized dealer.

 CAUTION!

Do not use chemicals to clean the air

conditioning system, since the internal

components may be damaged. This kind of

damage is not covered by warranty.

 WARNING!

Use only refrigerants and compressor lubri

-

cants approved by the manufacturer for your

air conditioning system. Some unapproved

refrigerants are flammable and can explode,

injuring you. Other unapproved refrigerants or

lubricants can cause the system to fail, requir

-

ing costly repairs. Refer to Warranty Informa

-

tion Book, located in your owner’s information

kit, for further warranty information.

CarManuals2.com

193

L

UBRICATING

 M

OVING

 P

ARTS

 O

F

 T

HE



B

ODYWORK

Ensure that the locks and bodywork junction

points, including components such as the seat

guides, door hinges (and rollers), trunk and hood

are periodically lubricated with lithium-based

grease to ensure correct, silent operation and to

protect them from rust and wear.
Thoroughly clean the components, eliminating

every trace of dirt and dust. After lubricating,

eliminate excess oil and grease. Also pay

particular attention to the hood closing devices,

to ensure correct operation. During operations on

the hood, to be carried out with the engine cold,

also remember to check, clean and lubricate the

locking, release and safety devices.
Lubricate the external lock barrels twice a year.

Apply a small amount of high-quality lubricant

directly into the lock barrel.
If necessary, contact an authorized dealer as

soon as possible.

W

INDSHIELD

 W

IPER

Periodically clean the windshield and rear window

and rubber profile of the windshield wiper blades,

using a sponge or a soft cloth and a non-abrasive

detergent. This eliminates the salt or impurities

accumulated when driving.
Prolonged operation of the windshield window

wipers with dry glass may cause the deterioration

of the blades, in addition to abrasion of the

surface of the glass. To eliminate the impurities

on the dry glass, always operate the windshield

washers.

In the event of very low outdoor temperatures,

below 0°F (-17.8°C), ensure that the movement

of the rubber part in contact with the glass is not

obstructed. Use a suitable deicing product to

release it if required.
Avoid using the windshield wipers to remove frost

or ice.
Also avoid contact of the rubber profile of the

blades with petroleum derivatives such as engine

oil, gas, etc.

NOTE:

The life of the windshield wiper blades varies

according to the usage frequency. In any case, it

is advised to replace the blades approximately

once a year. When the blades are worn, noise,

marks on the glass or streaks of water may be

noticed. In the presence of these conditions,

clean the windshield wiper blades or, if neces

-

sary, replace them.

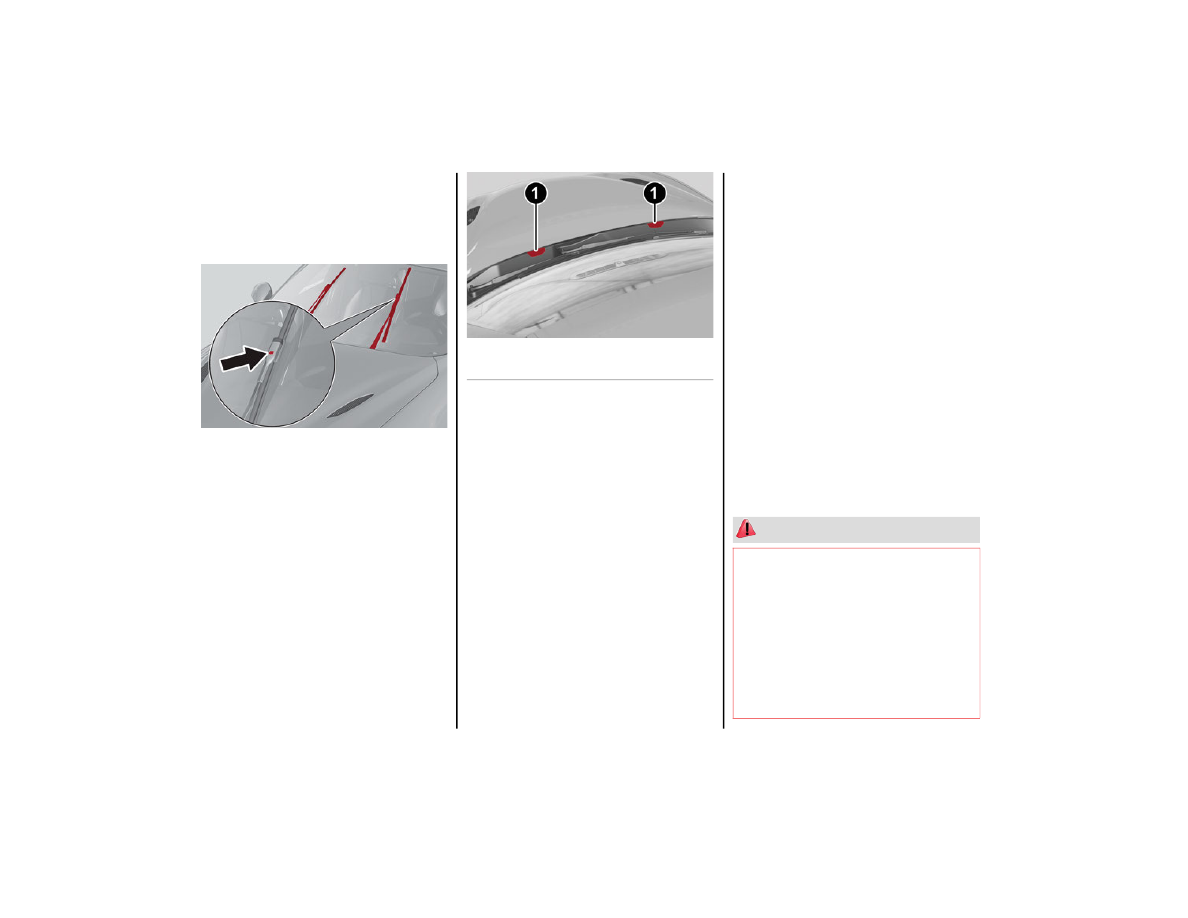

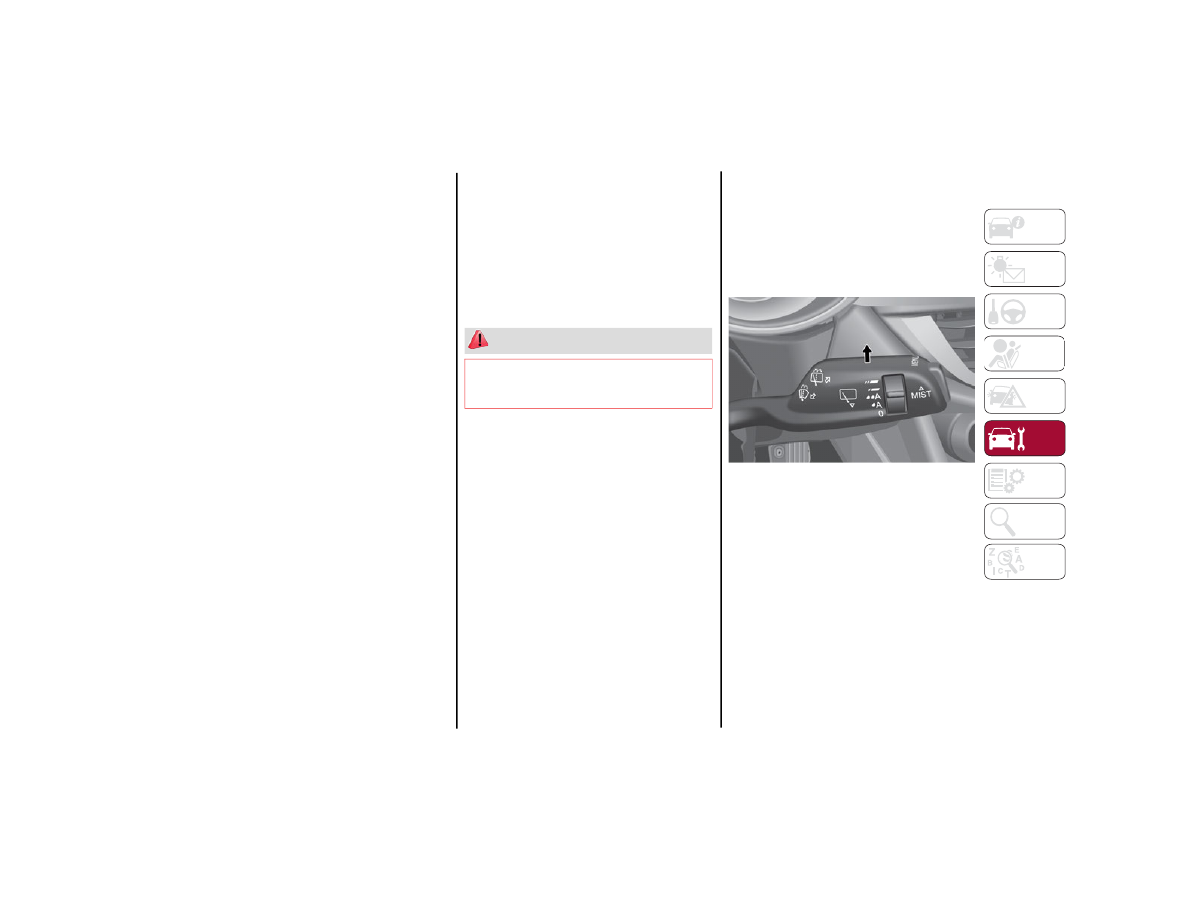

Raising The Windshield Wiper Blades (“Service

Position” Function)
The “service position” function allows the driver

to replace the windshield wiper blades more

easily. It is also recommended to activate this

function when it is snowing and to make it easier

to remove any dirt deposits in the area where the

blades are normally positioned, when washing.

Activation Of The Function

To activate this function, disable the windshield

wiper before setting the ignition device to OFF.
This function can only be activated within two

minutes of placing the ignition in OFF.
To activate this function, move the lever upward

for at least three seconds.

Windshield Wiper Stalk

Function Deactivation

The function is deactivated if:

More than two minutes passes before placing

the ignition in the STOP position after having

raised the lever and putting the wipers into

service position.

The ignition is placed in the ACC position and

the windshield wiper control is used.

If, after using the function, the ignition is set back

to ACC with the blades in a position other than

rest position (at the base of the windshield), they

will only return to rest position following a

command given using the stalk (stalk upwards,

into unstable position) or when a speed of 3 mph

(5 km/h) is exceeded.

 WARNING!

Driving with worn windshield wiper blades is a

serious hazard, because visibility is reduced in

bad weather conditions.

CarManuals2.com

SERVICING AN

D M

AINTENAN

CE

194

Replacing The Windshield Wiper Blades
Proceed as follows:
1. Raise the wiper arm, press tab of the attach

-

ment spring and remove the blade from the

arm.

Wiper Release Tab

2. Fit the new blade, inserting the tab in the

dedicated housing in the arm and checking

that it is locked.

3. Lower the wiper arm onto the windshield.
NOTE:

Do not operate the windshield wiper with the

blades lifted from the windshield.
Windshield Washer
The window washer nozzles are fixed. If there is

no jet of fluid, first check that there is fluid in the

reservoir.

Windshield Washers

Then, check that the nozzle holes are not

clogged; use a needle to unblock them if

necessary.

E

XHAUST

 S

YSTEM

Adequate maintenance of the engine exhaust

system represents the best protection against

leaks of carbon monoxide into the passenger

compartment.
If an unusual noise from the exhaust or the

presence of smoke in the passenger

compartment is identified, or if the underbody or

rear section of the vehicle have been damaged,

have the entire exhaust system and adjoining

bodywork areas checked at an authorized dealer

to identify any components which are broken,

damaged, worn or have moved from their correct

fitting position.

Open welding or loose connections may permit

exhaust gas to enter the passenger

compartment.
Have the exhaust system checked every time the

vehicle is raised. Replace the components where

necessary (for these operations, contact an

authorized dealer).
In normal operating conditions, the catalytic

converter does not require maintenance. To

ensure that it operates correctly, however, and

prevent it from getting damaged, it is extremely

important that the engine operates perfectly.
To minimize the risk of damaging the catalytic

converter, proceed as follows:

Do not stop the engine or deactivate the

ignition with gear engaged and vehicle in

motion.

Do not attempt to start the engine by bump

starting.

Do not persist in using the vehicle if idling is

very irregular or the operating conditions are

very notably irregular.

1 — Washer Nozzles

 WARNING!

Exhaust gases can injure or kill. They contain

carbon monoxide (CO), which is colorless and

odorless. Breathing it can make you

unconscious and can eventually poison you.

A hot exhaust system can start a fire if you

park over materials that can burn. Such

materials might be grass or leaves coming

into contact with your exhaust system. Do not

park or operate your vehicle in areas where

your exhaust system can contact anything

that can burn.

CarManuals2.com

195

E

NGINE

 C

OOLING

 S

YSTEM

Coolant Check
Your vehicle has two cooling systems and they

both need to be checked to ensure they are at

proper fill levels.
Check the engine coolant and intercooler coolant

level every oil change or before long trips.
If there are impurities in the engine coolant, the

system must be drained, flushed and refilled:

contact an authorized dealer.
Check the front part of the condenser for any

buildup of insects, leaves or other debris. Should

it be dirty, clean it by spraying delicately with

water.

Check the hoses of the engine/intercooler

cooling system to ensure that the rubber has not

deteriorated and that there are no cracks, tears,

cuts or obstructions in the expansion tank side

and radiator side connectors. Should there be

any doubt regarding leaks from the system (e.g. if

frequent top ups are required), have the seal

checked at an authorized dealer.
With the engine off and at normal operating

temperature, check that the cooling system

radiator cap is closed properly.

NOTE:

Before removing the coolant reservoir cap, wait

for the system to cool down.
Topping Up / Draining / Flushing The Engine/

Intercooler Coolant
If the engine coolant (antifreeze) is dirty, have

cleaning and flushing carried out at an authorized

dealer.
For the correct servicing intervals

Ú

page 182.

NOTE:

For topping up, use a fluid with the same

characteristics as those indicated on

Ú

page 233.

Do not use pure water, alcohol-based coolants,

corrosions inhibitors or additional anti-rust

products because they may be incompatible

with the engine coolant and cause the clogging

of the radiator. The use of propylene

glycol-based coolant is also not recommended.

Use care when filling under hood fluids such as

engine oil, windshield washer fluid, antifreeze

etc. to minimize spillage onto the top of the

engine. Any excess fluid that is spilled onto the

top of the engine should be removed using

compressed air or an absorbent cloth.

Engine Cooling/Intercooler System Cap
To prevent loss of engine coolant, make sure that

the expansion tank cap is closed. If it is open,

screw it completely until you reach/hear the click.
Periodically check the cap and clean it from any

foreign bodies that may have deposited on the

external surface.

 WARNING!

You or others can be badly burned by hot

engine coolant (antifreeze) or steam from

your radiator. If you see or hear steam

coming from under the hood, do not open the

hood until the radiator has had time to cool.

Never open a cooling system pressure cap

when the radiator or coolant bottle is hot.

Keep hands, tools, clothing, and jewelry away

from the radiator cooling fan when the hood

is raised. The fan starts automatically and

may start at any time, whether the engine is

running or not.

When working near the radiator cooling fan,

disconnect the fan motor lead or turn the

ignition to the OFF position. The fan is

temperature controlled and can start at any

time the ignition is in the ON position.

 WARNING!

Do not open hot engine cooling system.

Never add engine coolant (antifreeze) when

the engine is overheated. Do not loosen or

remove the cap to cool an overheated

engine. Heat causes pressure to build up in

the cooling system. To prevent scalding or

injury, do not remove the pressure cap while

the system is hot or under pressure.

Do not use a pressure cap other than the one

specified for your vehicle. Personal injury or

engine damage may result.

 WARNING!

Never add coolant with the engine hot or

overheated.

Do not attempt to cool an overheated engine

by loosening or removing the cap. The heat

causes a considerable increase in pressure

in the cooling system.

To prevent damage to the engine, only use

the engine cooling circuit caps provided.

CarManuals2.com

SERVICING AN

D M

AINTENAN

CE

196

Disposal Of Used Coolant
Disposal of engine/intercooler coolant is subject

to legal requirements: consult the appropriate

local regulations.
NOTE:

To prevent the fluid from being ingested by

children or animals, do not keep it in open

containers or pour it on the ground. If ingested,

contact a doctor immediately. Eliminate any

traces of fluid from the ground immediately.

When the vehicle stops after a short trip,

steam may be seen coming out from front of

the hood. This is a normal phenomenon which

is due to the presence of rain, snow or a lot of

moisture on the surface of the radiator.

With engine and system cold, do not top up

with coolant beyond the maximum level

indicated on the reservoir in the engine

compartment.

B

RAKING

 S

YSTEM

In order to guarantee the efficiency of the braking

system, periodically check its components; for

this operation, contact an authorized dealer.
For the correct servicing intervals

Ú

page 182.

NOTE:

Driving with your foot resting on the brake pedal

may compromise its efficiency, increasing the

risk of accidents. When driving, never keep your

foot on the brake pedal and don’t put unneces

-

sary strain on it to prevent the brakes from over

-

heating: excess pad wear may cause damage to

the braking system.

When an insufficient oil level is detected,

contact an authorized dealer to have the

system checked.

Always keep the cap of the brake fluid

reservoir (in the engine compartment)

completely closed.

A

UTOMATIC

 T

RANSMISSION

Use only a transmission oil with the same charac

-

teristics as those indicated on

Ú

page 234.

Special Additives
Do not use any type of additive with the

automatic transmission oil. The automatic

transmission oil is a product designed especially

for this vehicle and its performance may be

compromised through the use of further

additives.

Frequency Of Oil Changes
In normal vehicle operating conditions, it is not

necessary to change the transmission oil.

R

EPLACING

 T

HE

 B

ATTERY

If necessary, replace the battery with another

battery with the same specifications. It is advised

to contact an authorized dealer for replacement.

 WARNING!

Use only the manufacturer recommended

brake fluid

Ú

page 234. Using the wrong

type of brake fluid can severely damage your

brake system and/or impair its performance.

The proper type of brake fluid for your vehicle

is also identified on the original factory

installed hydraulic master cylinder reservoir.

To avoid contamination from foreign matter

or moisture, use only new brake fluid or fluid

that has been in a tightly closed container.

Keep the master cylinder reservoir cap

secured at all times. Brake fluid in an open

container absorbs moisture from the air

resulting in a lower boiling point. This may

cause it to boil unexpectedly during hard or

prolonged braking, resulting in sudden brake

failure. This could result in a collision.

Overfilling the brake fluid reservoir can result

in spilling brake fluid on hot engine parts,

causing the brake fluid to catch fire. Brake

fluid can also damage painted and vinyl

surfaces, care should be taken to avoid its

contact with these surfaces.

Do not allow petroleum-based fluid to

contaminate the brake fluid. Brake seal

components could be damaged, causing

partial or complete brake failure. This could

result in a collision.

 CAUTION!

Do not use chemical flushes in your

transmission as the chemicals can damage

your transmission components. Such damage

is not covered by the New Vehicle Limited

Warranty.

 CAUTION!

If a transmission fluid leak occurs, visit an

authorized dealer immediately. Severe

transmission damage may occur. An

authorized dealer has the proper tools to

adjust the fluid level accurately.

CarManuals2.com

197

(Continued)

NOTE:

Each time the 12V battery is reconnected, cycle

the steering wheel all the way to the left. Then

cycle the steering wheel all the way to the right to

allow the steering angle sensor to learn the

steering angle thresholds.
Follow the battery manufacturer's instructions for

maintenance.
NOTE:

It will not be possible to open the trunk with a key

or by pressing the button in the passenger

compartment when the battery is disconnected.

So, always position the manual trunk opening

strap on the trunk lock before disconnecting the

battery

Ú

page 220.

F

USES



General Information

The fuses protect electrical systems against

excessive current.
When a device does not work, you must check the

electrical circuit inside of the fuse for a break/

melt.
Also, please be aware that using power outlets for

extended periods of time with the engine off may

result in vehicle battery discharge.

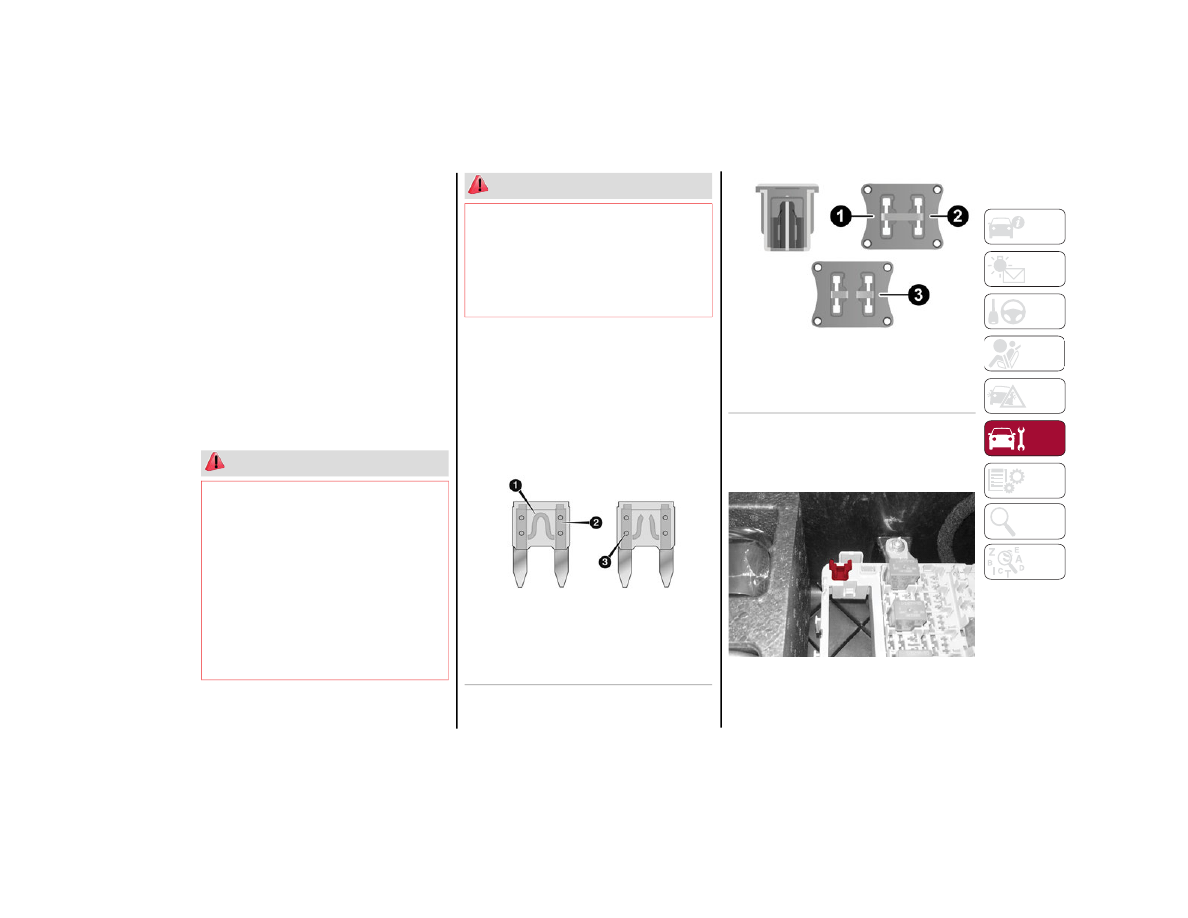

Blade Fuses

J-CASE Fuse

Fuse Extracting Pliers
To replace a fuse, use the pliers hooked to the

fuse box.

Fuse Box

Grab the pliers from the upper tabs, press them,

and extract the pliers pulling upwards.

 WARNING!

When replacing a blown fuse, always use an

appropriate replacement fuse with the same

amp rating as the original fuse. Never

replace a fuse with another fuse of higher

amp rating. Never replace a blown fuse with

metal wires or any other material. Do not

place a fuse inside a circuit breaker cavity or

vice versa. Failure to use proper fuses may

result in serious personal injury, fire and/or

property damage.

Before replacing a fuse, make sure that the

ignition is off and that all the other services

are switched off and/or disengaged.

If the replaced fuse blows again, contact an

authorized dealer.

If a general protection fuse for safety

systems (air bag system, braking system),

power unit systems (engine system,

transmission system) or steering system

blows, contact an authorized dealer.

1 — Electrical Circuit
2 — Blade Fuse With Good Electrical Circuit
3 — Blade Fuse With Bad Electrical Circuit

 WARNING!

1 — Electrical Circuit
2 — Case Fuse With Good Electrical Circuit
3 — Case Fuse With Bad Electrical Circuit

CarManuals2.com

SERVICING AN

D M

AINTENAN

CE

198

The pliers have two different ends, both of which

are specifically designed to remove the different

types of fuses present in the vehicle:

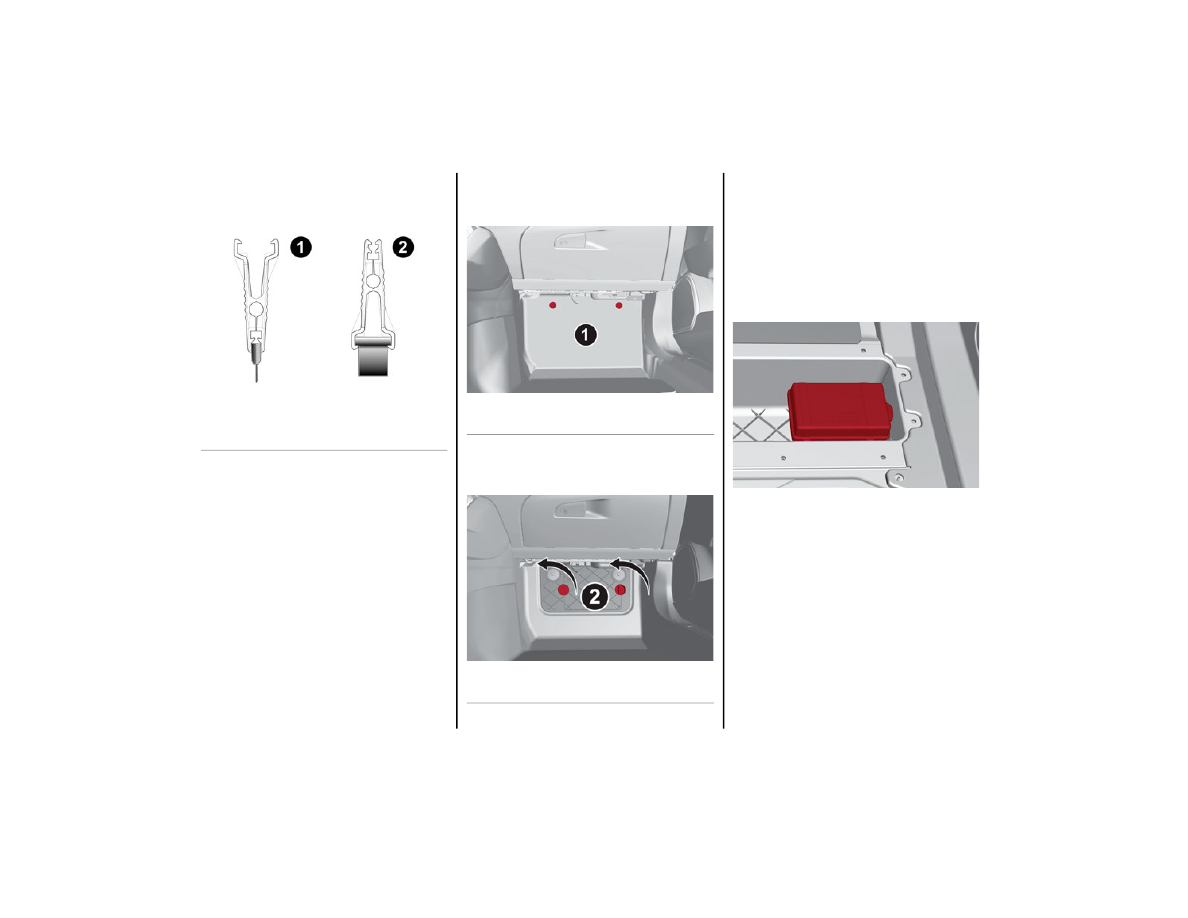

Fuse Extracting Pliers

After use, return the pliers to their proper position

using the following procedure:

Grab the pliers from the upper tabs and insert

them into their housing.

Push downward on the pliers into their housing

until they click into place.

Fuse Location

The fuses, which can be replaced by the user, are

grouped in two boxes below the passenger side

foot board and inside the trunk.

Control Unit Under Passenger Side

Footboard

To access the fuses, proceed as follows:

1. Lift the upper end of the footboard on the

passenger side, pulling to release the two

buttons.

Release Buttons On Footboard

2. Unscrewing the two hooks, remove the panel

pulling downward.

Release Hooks On Footboard

The fuses are freely accessible on the control

unit.
After replacing the fuse, make sure that panel

and footboard are correctly locked.

Luggage Compartment Fuse Box

To access the fuses, proceed as follows:
1. Lift the luggage compartment cover.
2. Remove the control unit cover.

Control Unit

The fuses are freely accessible on the control

unit.
The number identifying the electrical component

corresponding to each fuse is shown on the

cover.
After replacing a fuse, make sure that you have

closed cover correctly.

1 — MINI fuse
2 — J-CASE fuse

1 — Footboard

2 — Panel

CarManuals2.com

199

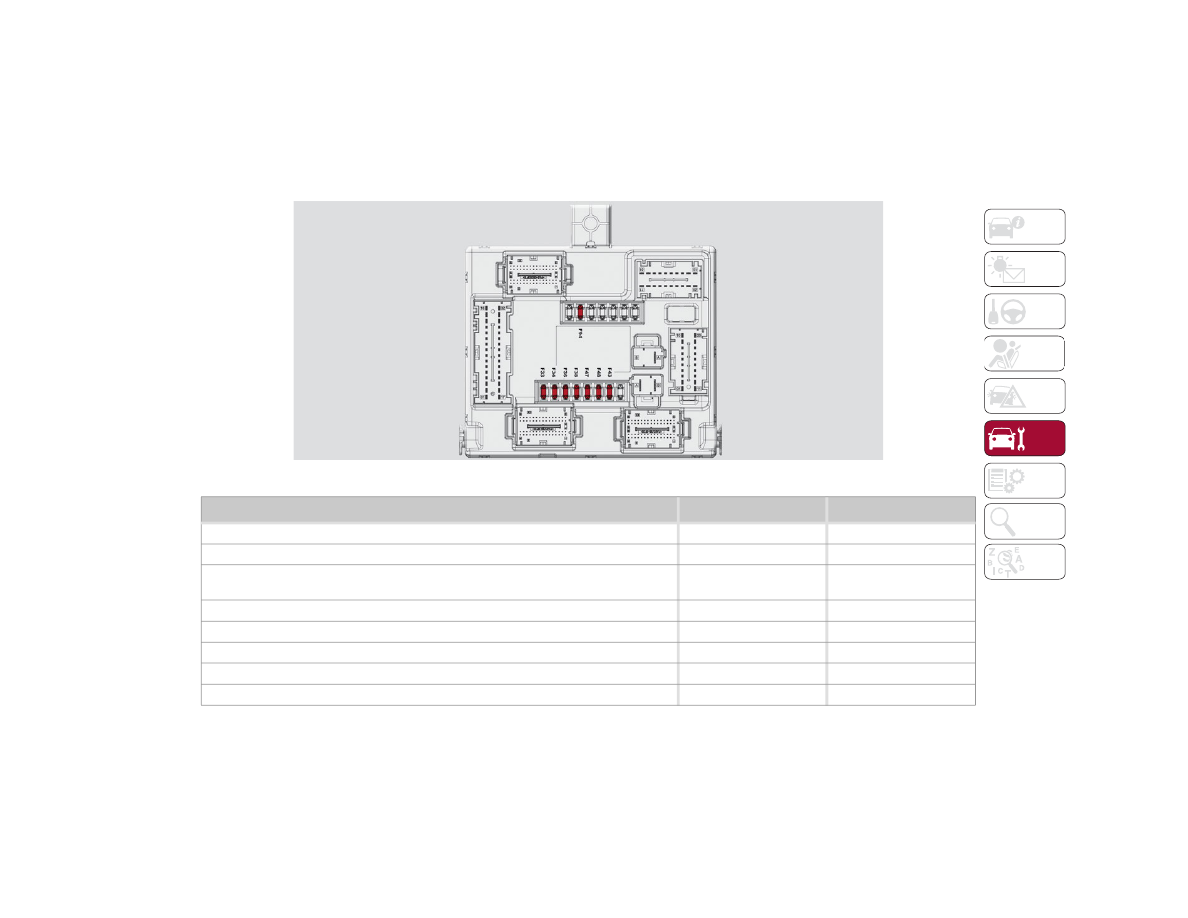

Control Unit Under Passenger Side Footboard

Passenger Side Control Unit

FUNCTION

FUSE

AMPERAGE

Front power window (driver side)

F33

25

Front power window (passenger side)

F34

25

Supply for Information and Entertainment system, Climate Control system, Alarm, Power

door mirror folding, EOBD system, USB port

F36

15

Safe Lock device (driver side door unlock – if equipped), Doors unlock, Central lock

F38

20

Windshield washer pump

F43

20

Rear left power window

F47

25

Rear right power window

F48

25

Heater rear window coil

F94

15

CarManuals2.com

SERVICING AN

D M

AINTENAN

CE

200

Under Hood Power Distribution Center

(PDC)

To access the fuses, remove the access door that

is located under the hood on the left side rear.

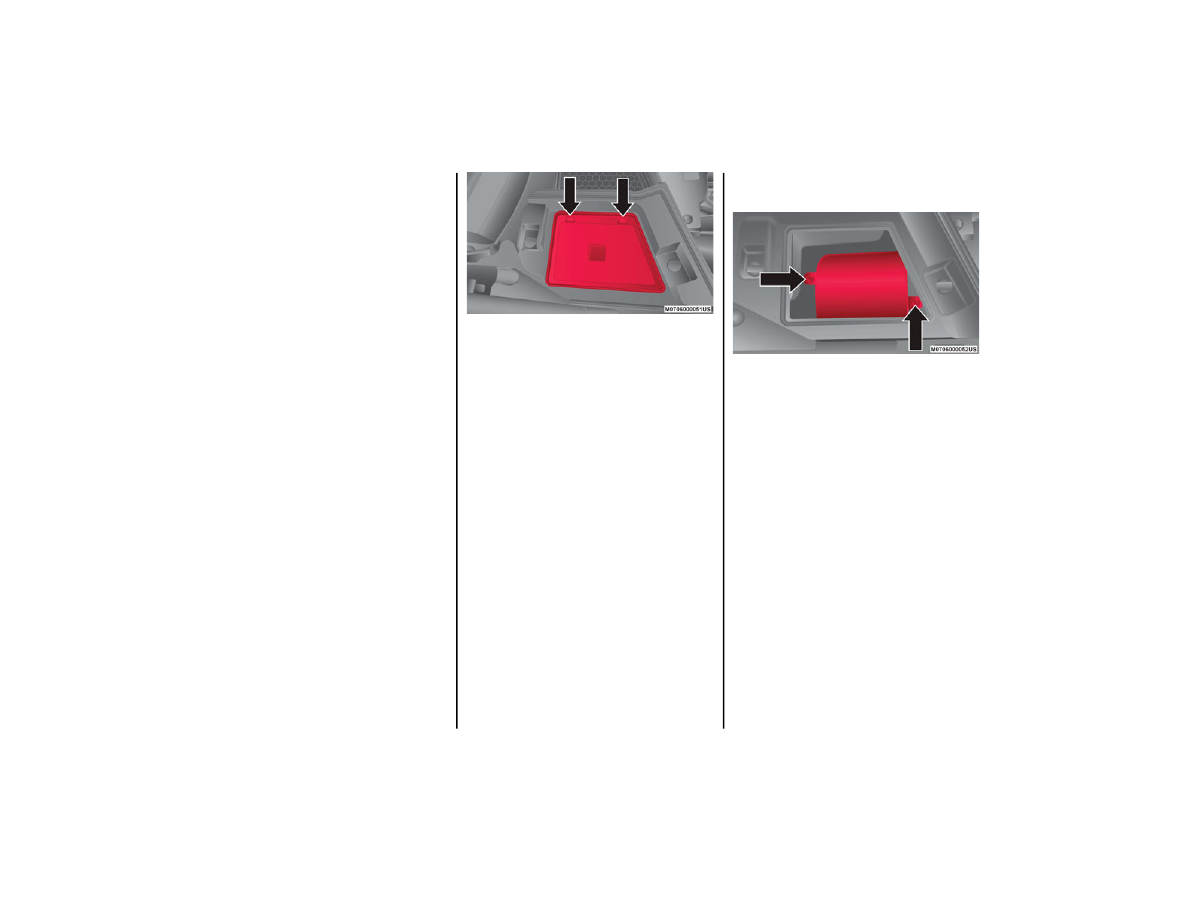

Under Hood Access Cover

To remove fuse cover, loosen the screws with a

suitable tool.

Under Hood Fuse Panel Cover

CarManuals2.com

201

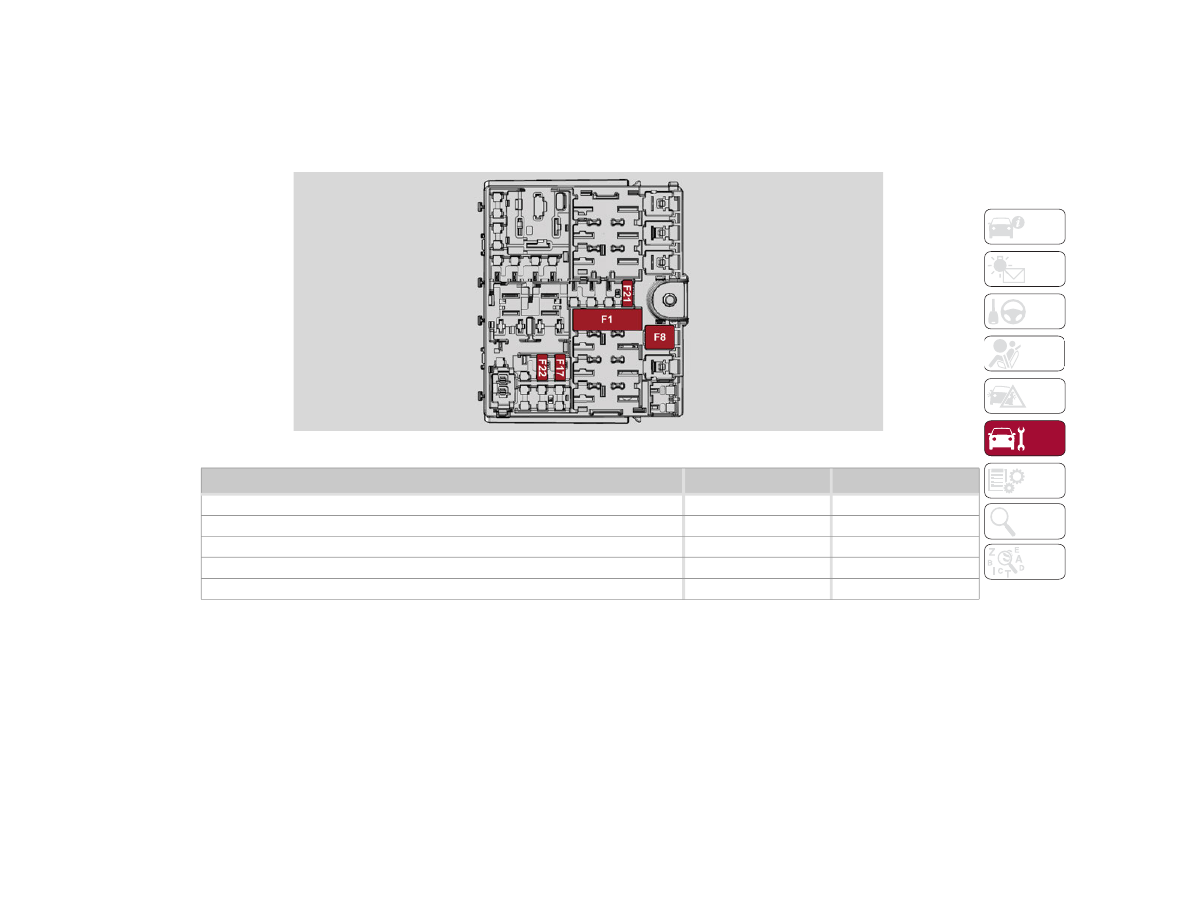

Under Hood Control Unit

FUNCTION

FUSE

AMPERAGE

Tow Hook Module (TTM)

F1

40

Hi-Fi system

F8

30

KL15/a USB Recharge (C070)

F17

7.5

I-Drive / USB / AUX port

F21

10

KL15/a 12 Volts Power outlet (R053)

F22

20

CarManuals2.com

SERVICING AN

D M

AINTENAN

CE

202

B

ULB

 R

EPLACEMENT

General Instructions

Before replacing a bulb, check the contacts for oxidation.

Replace blown bulbs with others of the same type and power.

After replacing a headlight bulb, always check its alignment.

When a light is not working, check that the corresponding fuse is intact before changing the bulb

Ú

page 197.

NOTE:

In some particular climate conditions, such as low temperature, humidity, or after washing the car, a thin condensation layer may form on the internal

surfaces of the front and rear headlights. This condensation will disappear after switching on the headlights.

Types Of Bulbs

The vehicle may be equipped with the following bulbs

Glass Bulbs (Type A): They are press-fitted. Pull to extract.

Bayonet-Type Bulbs (Type B): To remove them from their holder, press the bulb and turn it counterclockwise, then

extract it.

Tubular Bulbs (Type C): Release them from their contacts to remove.

Halogen Bulbs (Type D): To remove the bulb, turn the connector to the side and pull it out.

Halogen Bulbs (Type E): To remove the bulb, turn it counterclockwise.

Xenon Gas Discharge Bulb (Type F): to remove the bulb, contact an authorized dealer.

CarManuals2.com

203

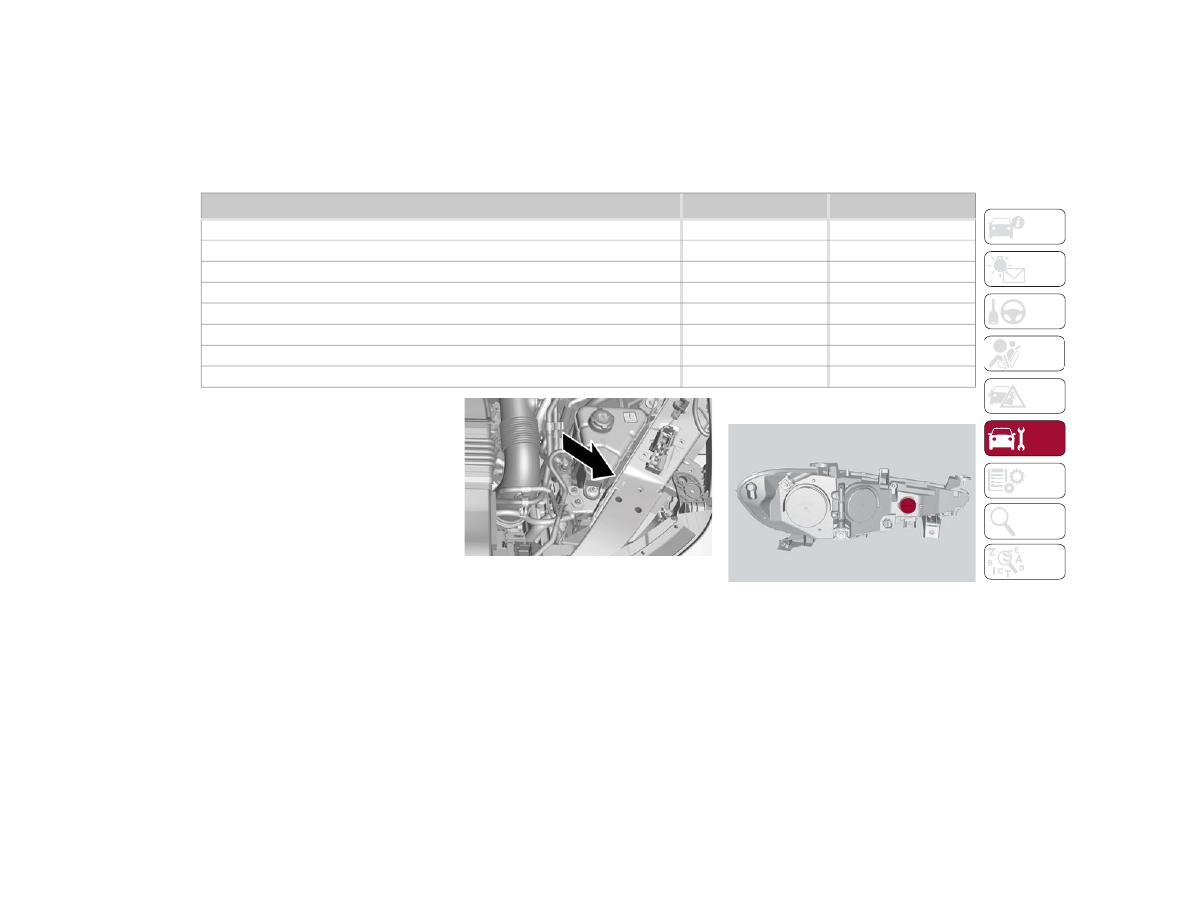

Replacement Bulbs

Replacing Exterior Bulbs

NOTE:

Only replace the bulb when the engine is off. Also

ensure that the engine is cold, to prevent the risk

of burns.
Direction Indicators
See the following steps to replace:
1. Operating inside the engine compartment,

remove the protective cover.

Protective Cover Location

2. Remove protective cover.

Protective Cover

Light bulbs

Type

Power

Front direction indicators

PY24W

24 W

Rear Fog lights

H11

55 W

Main beam headlights (Xenon gas discharge)

D5S

25 W

Main beam headlights (Xenon gas discharge)

D3S

35 W

Sun visor light

1.5CP

2.1 W

Glove compartment light

W5W

4 W

Trunk lid light

W5W

5 W

Puddle lights (under door panel)

W5W

5 W

CarManuals2.com

SERVICING AN

D M

AINTENAN

CE

204

3. Turn the bulb/connector assembly counter

-

clockwise, and then slide it off the headlight

body.

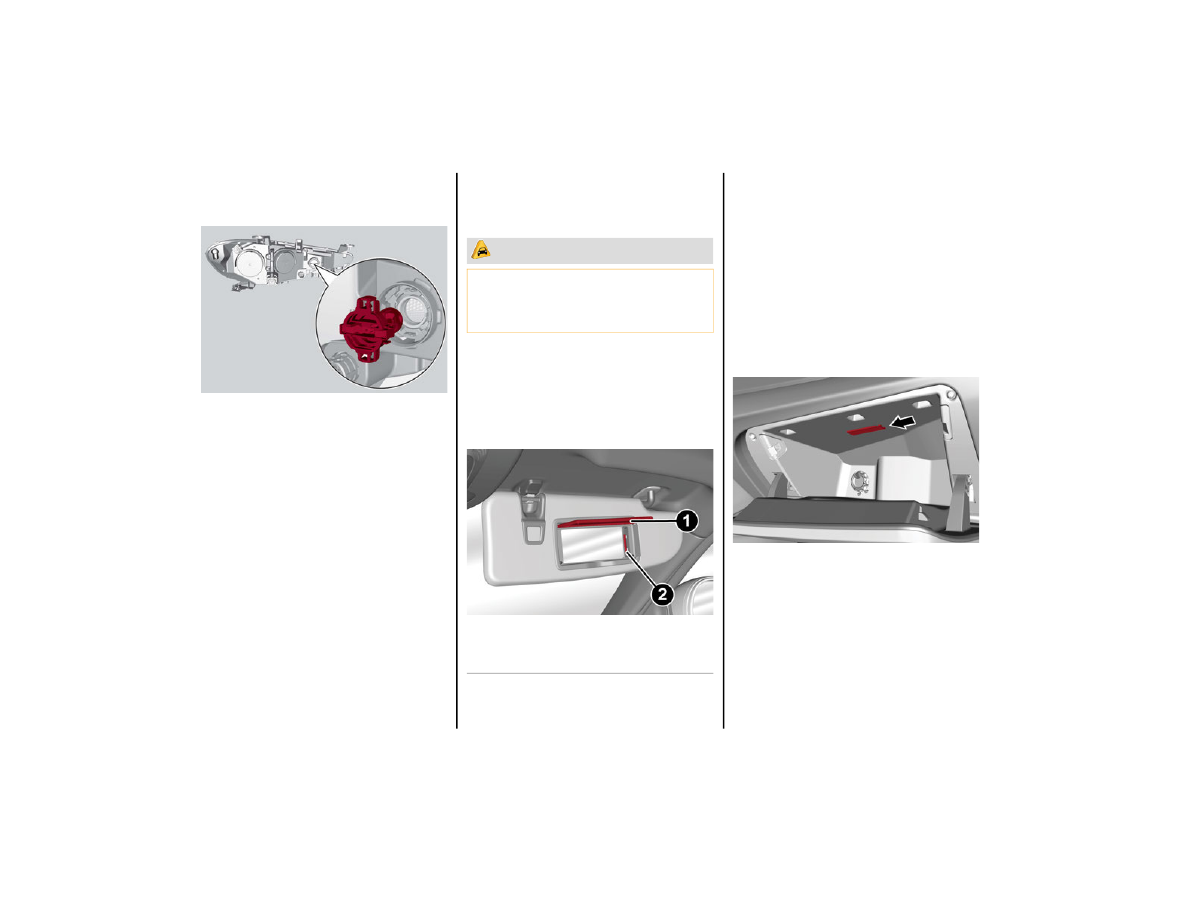

Bulb/Connector

4. Remove the bulb by sliding it off the bulb

holder.

5. Install the new bulb, making sure it is

correctly inserted in the bulb holder.

6. Insert the bulb/connector assembly in the

housing on the headlight body and turn it

clockwise, making sure that it is locked

correctly.

7. Install the protective cover.

Front Light Cluster with Main Beam Xenon Gas

Discharge Headlights
To replace the bulbs of the main beam

headlights, contact an authorized dealer.

Replacing Interior Bulbs

Courtesy Mirror Light
See the following steps to replace:
1. Lift the mirror cover and remove the lens,

using a suitable tool.

Sun Visor

2. Change the bulb, releasing it from the side

contacts, then insert the new bulb, making

sure that it is correctly fastened between the

contacts.

3. Install the lens, inserting it firstly on one side

and then pressing on the other side until it

clicks into place.

Glove Compartment Light
See below steps to replace:
1. Open the glove compartment.
2. Remove the courtesy light assembly, using a

suitable tool.

Courtesy Lamp Indent

 CAUTION!

Do not touch the new bulb with your fingers.

Oil contamination will severely shorten bulb

life. If the bulb comes in contact with any oily

surface, clean the bulb with rubbing alcohol.

1 — Mirror Cover
2 — Lens

CarManuals2.com

205

3. Open protective cover up and remove the

bulb pulling out of the connector.

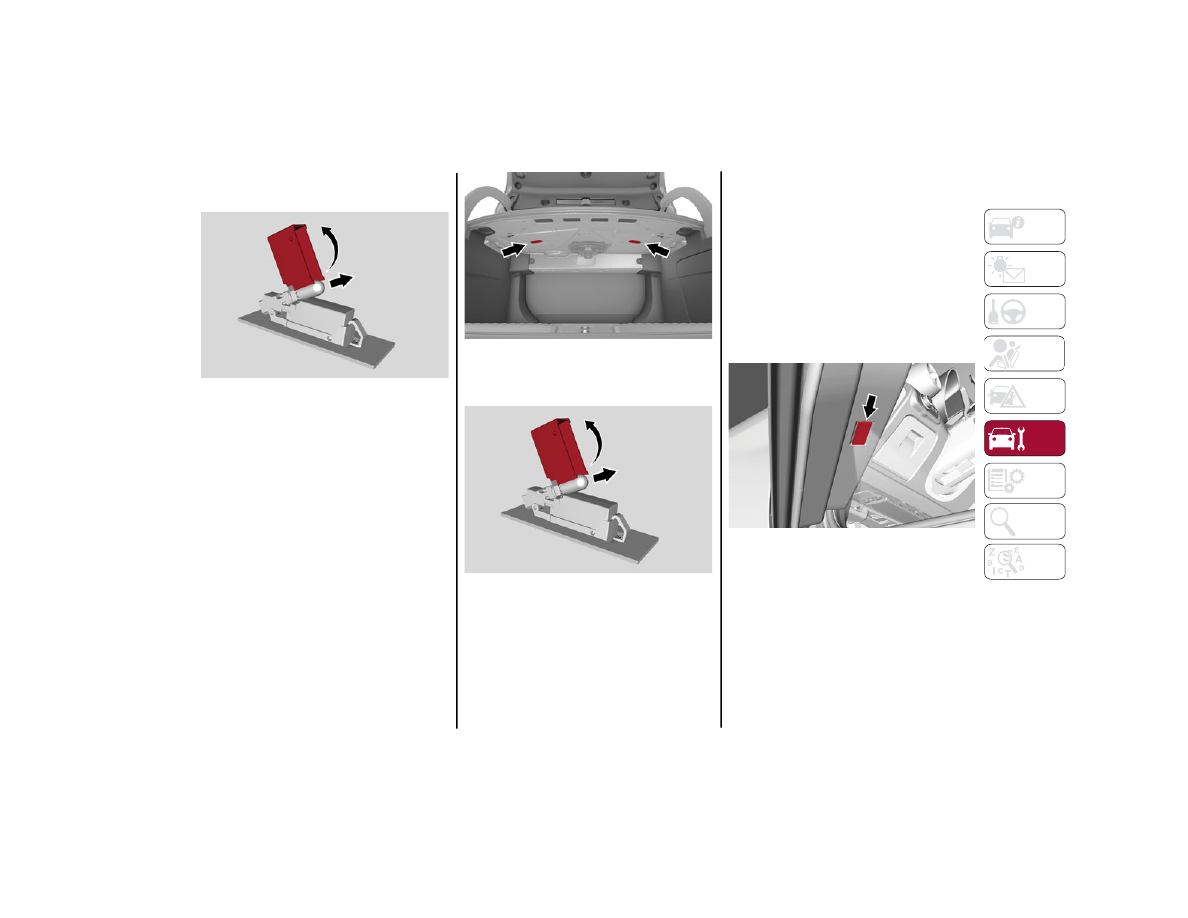

Cover And Bulb Removal Direction

4. Install bulb, making sure that it is correctly

inserted fully.

5. Close the protective cover on the lens.
6. Install courtesy light, inserting it first on one

side and then pressing on the other side until

it clicks into place.

Luggage Compartment Courtesy Lights
See the following steps to replace:
1. Open the trunk, and remove the trunk lamp

assembly using a suitable tool.

Ceiling Light Indent

2. Open protective cover up and remove the

bulb pulling out of the connector.

Cover And Bulb Removal Direction

3. Install bulb, making sure that it is correctly

inserted fully.

4. Close the protective cover on the lens.
5. Install trunk lamp in the correct position,

inserting it firstly on one side, and then

pressing on the other side until it clicks into

place.

Puddle Lights On Door Panel
See the following steps to replace:
1. Open the door and remove the puddle light

assembly, using a suitable tool.

Puddle Light Indent

CarManuals2.com

SERVICING AN

D M

AINTENAN

CE

206

2. Open protective cover up and remove the

bulb pulling out of the connector.

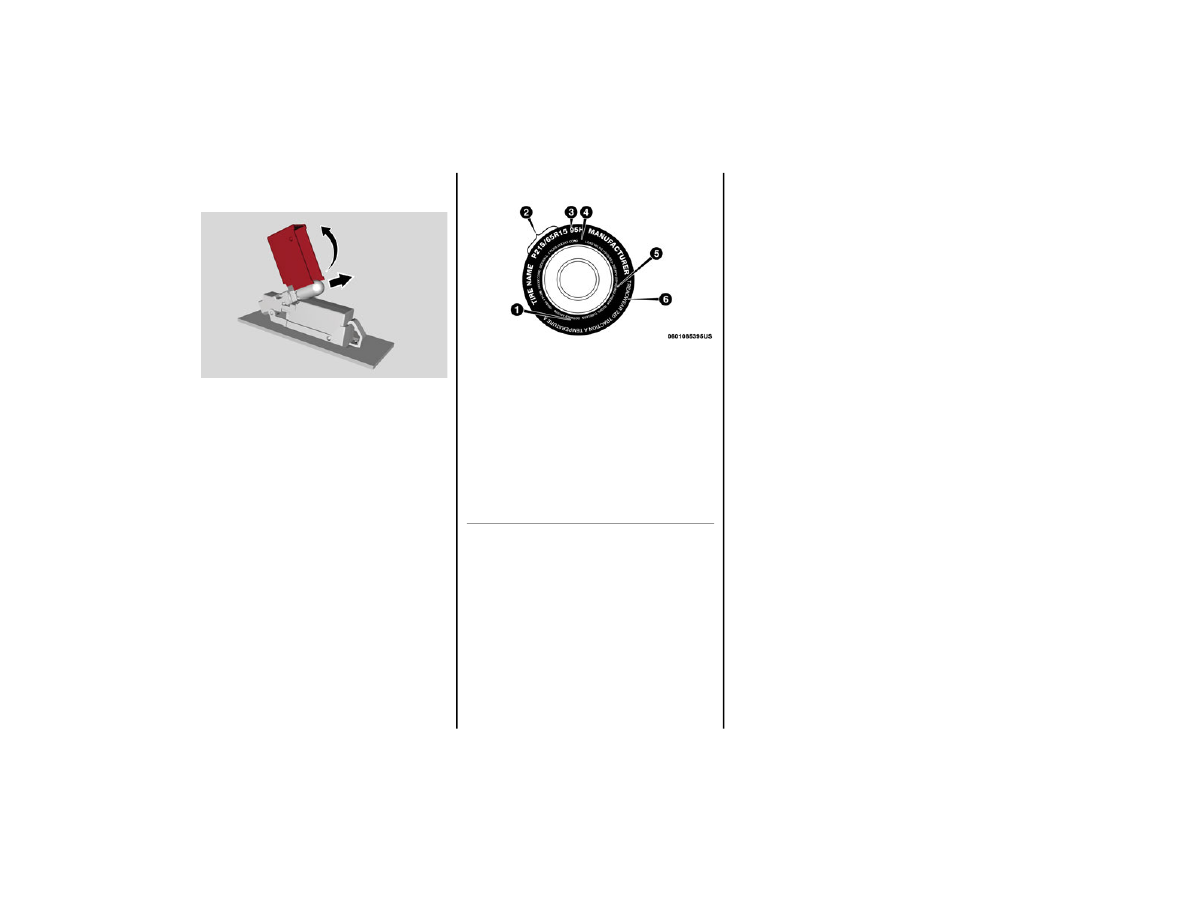

Cover And Bulb Removal Direction

3. Install bulb, making sure that it is correctly

inserted fully.

4. Close the protective cover on the lens.
5. Install puddle light in the correct position,

inserting it firstly on one side and then

pressing on the other side until it clicks into

place.

TIRES

T

IRE

 S

AFETY

 I

NFORMATION



Tire safety information will cover aspects of the

following information: Tire Markings, Tire Identifi

-

cation Numbers, Tire Terminology and

Definitions, Tire Pressures, and Tire Loading.

Tire Markings

Tire Markings

NOTE:

P (Passenger) — Metric tire sizing is based on

US design standards. P-Metric tires have the

letter “P” molded into the sidewall preceding

the size designation.

Example: P215/65R15 95H.

European — Metric tire sizing is based on

European design standards. Tires designed to

this standard have the tire size molded into the

sidewall beginning with the section width. The

letter "P" is absent from this tire size

designation.

Example: 215/65R15 96H.

LT (Light Truck) — Metric tire sizing is based on

US design standards. The size designation for

LT-Metric tires is the same as for P-Metric tires

except for the letters “LT” that are molded into

the sidewall preceding the size designation.

Example: LT235/85R16.

Temporary spare tires are designed for

temporary emergency use only. Temporary

high pressure compact spare tires have the

letter “T” or “S” molded into the sidewall

preceding the size designation.

Example: T145/80D18 103M.

High flotation tire sizing is based on US design

standards and it begins with the tire diameter

molded into the sidewall.

Example: 31x10.5 R15 LT.

1 — US DOT Safety Standards Code

(TIN)
2 — Size Designation
3 — Service Description
4 — Maximum Load
5 — Maximum Pressure
6 — Treadwear, Traction and

Temperature Grades

CarManuals2.com

207

Tire Sizing Chart

EXAMPLE:

Example Size Designation: P215/65R15XL 95H, 215/65R15 96H, LT235/85R16C, T145/80D18 103M, 31x10.5 R15 LT
P = Passenger car tire size based on US design standards, or
"....blank...." = Passenger car tire based on European design standards, or
LT = Light truck tire based on US design standards, or
T or S = Temporary spare tire or
31 = Overall diameter in inches (in)
215, 235, 145 = Section width in millimeters (mm)
65, 85, 80 = Aspect ratio in percent (%)

Ratio of section height to section width of tire, or

10.5 = Section width in inches (in)
R = Construction code

"R" means radial construction, or

"D" means diagonal or bias construction

15, 16, 18 = Rim diameter in inches (in)
Service Description:
95 = Load Index

A numerical code associated with the maximum load a tire can carry

H = Speed Symbol

A symbol indicating the range of speeds at which a tire can carry a load corresponding to its load index under certain operating conditions

The maximum speed corresponding to the speed symbol should only be achieved under specified operating conditions (i.e., tire pressure, vehicle

loading, road conditions, and posted speed limits)

Load Identification:

Absence of the following load identification symbols on the sidewall of the tire indicates a Standard Load (SL) tire:

XL = Extra load (or reinforced) tire, or

LL = Light load tire or

C, D, E, F, G = Load range associated with the maximum load a tire can carry at a specified pressure

CarManuals2.com

SERVICING AN

D M

AINTENAN

CE

208

Tire Identification Number (TIN)

The TIN may be found on one or both sides of the tire; however, the date code may only be on one side. Tires with white sidewalls will have the full TIN,

including the date code, located on the white sidewall side of the tire. Look for the TIN on the outboard side of black sidewall tires as mounted on the vehicle.

If the TIN is not found on the outboard side, then you will find it on the inboard side of the tire.

Tire Terminology And Definitions

Maximum Load – Maximum load indicates the maximum load this tire is designed to carry
Maximum Pressure – Maximum pressure indicates the maximum permissible cold tire inflation pressure for this tire

EXAMPLE:

DOT MA L9 ABCD 0301
DOT = Department of Transportation

This symbol certifies that the tire is in compliance with the US Department of Transportation tire safety standards and is approved for highway use

MA = Code representing the tire manufacturing location (two digits)
L9 = Code representing the tire size (two digits)
ABCD = Code used by the tire manufacturer (one to four digits)
03 = Number representing the week in which the tire was manufactured (two digits)

03 means the 3rd week

01 = Number representing the year in which the tire was manufactured (two digits)

01 means the year 2001

Prior to July 2000, tire manufacturers were only required to have one number to represent the year in which the tire was manufactured. Example: 031

could represent the 3rd week of 1981 or 1991

Term

Definition

B-pillar

The vehicle B-pillar is the structural member of the body located behind the front door.

Cold Tire Inflation Pressure

Cold tire inflation pressure is defined as the tire pressure after the vehicle has not been

driven for at least three hours, or driven less than 1 mile (1.6 km) after sitting for a

minimum of three hours. Inflation pressure is measured in units of PSI (pounds per

square inch) or kPa (kilopascals).

EXAMPLE:

CarManuals2.com

209

Tire Loading And Tire Pressure

NOTE:

The proper cold tire inflation pressure is listed on

the driver’s side B-pillar or the rear edge of the

driver's side door.
Check the inflation pressure of each tire,

including the spare tire (if equipped), at least

monthly and inflate to the recommended

pressure for your vehicle.

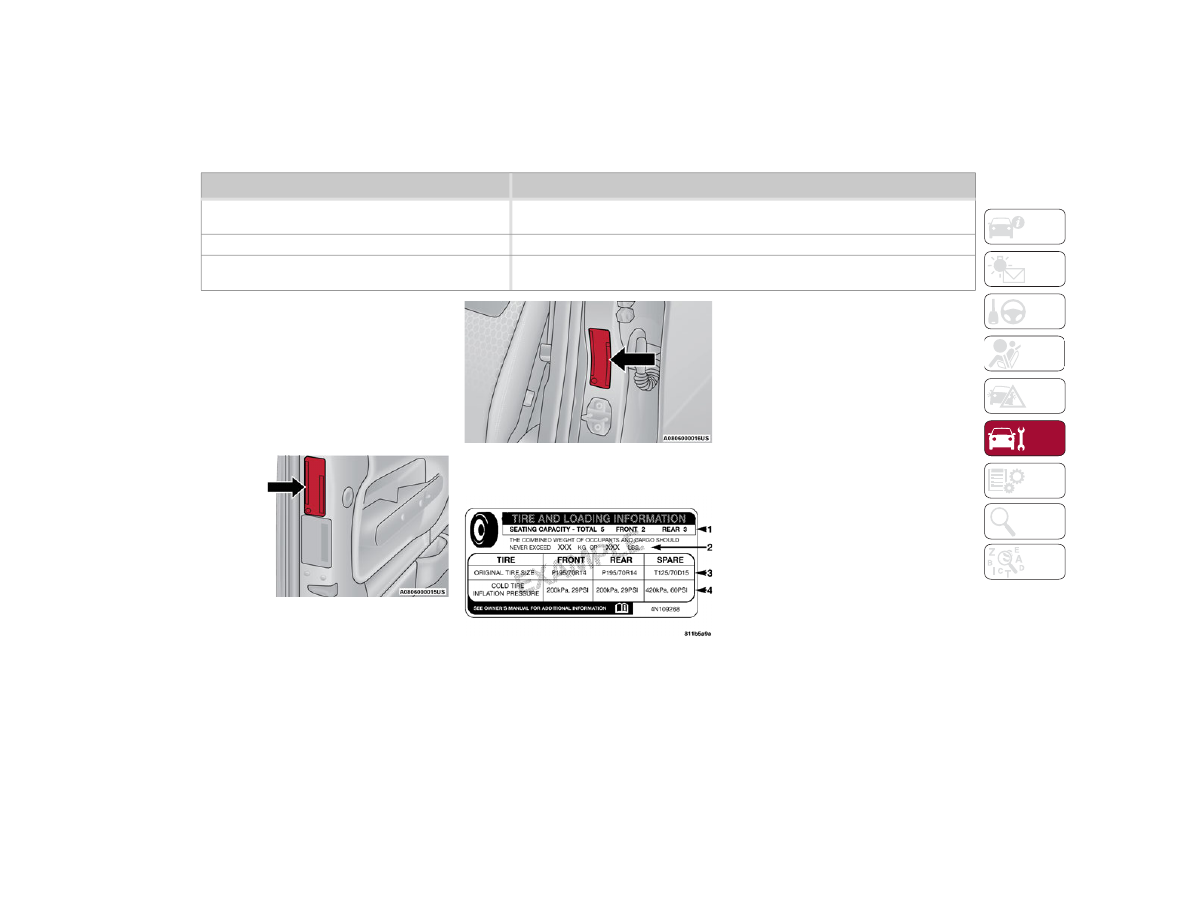

Example Tire Placard Location (Door)

Example Tire Placard Location (B-pillar)

Tire And Loading Information Placard

Tire And Loading Information Placard

This placard tells you important information

about the:
1. Number of people that can be carried in the

vehicle.

2. Total weight your vehicle can carry.
3. Tire size designed for your vehicle.
4. Cold tire inflation pressures for the front, rear,

and spare tires.

Loading

The vehicle maximum load on the tire must not

exceed the load carrying capacity of the tire on

your vehicle. You will not exceed the tire's load

carrying capacity if you adhere to the loading

conditions, tire size, and cold tire inflation

pressures specified on the Tire and Loading

Information placard

Ú

page 125.

NOTE:

Under a maximum loaded vehicle condition,

Gross Axle Weight Rating (GAWR) for the front and

rear axles must not be exceeded. For further

information on GAWR, vehicle loading, and trailer

towing

Ú

page 125.

Maximum Inflation Pressure

The maximum inflation pressure is the maximum permissible cold tire inflation pressure

for this tire. The maximum inflation pressure is molded into the sidewall.

Recommended Cold Tire Inflation Pressure

The manufacturer recommended cold tire inflation pressure as shown on the tire placard.

Tire Placard

A label permanently attached to the vehicle describing the vehicle’s loading capacity, the

original equipment tire sizes and the recommended cold tire inflation pressures.

Term

Definition

CarManuals2.com

SERVICING AN

D M

AINTENAN

CE

210

To determine the maximum loading conditions of

your vehicle, locate the statement “The combined

weight of occupants and cargo should never

exceed XXX kg or XXX lbs” on the Tire and Loading

Information placard. The combined weight of

occupants, cargo/luggage and trailer tongue

weight (if applicable) should never exceed the

weight referenced here.

Steps For Determining Correct Load

Limit—
(1) Locate the statement “The

combined weight of occupants and

cargo should never exceed XXX kg or

XXX lbs.” on your vehicle's placard.
(2) Determine the combined weight of

the driver and passengers that will be

riding in your vehicle.
(3) Subtract the combined weight of the

driver and passengers from XXX kg or

XXX lbs.

(4) The resulting figure equals the

available amount of cargo and luggage

load capacity. For example, if “XXX”

amount equals 1400 lbs. and there will

be five 150 lb passengers in your

vehicle, the amount of available cargo

and luggage load capacity is 650 lbs.

(1400-750 (5x150) = 650 lbs.)
(5) Determine the combined weight of

luggage and cargo being loaded on the

vehicle. That weight may not safely

exceed the available cargo and luggage

load capacity calculated in Step 4.
(6) If your vehicle will be towing a trailer,

load from your trailer will be transferred

to your vehicle. Consult this manual to

determine how this reduces the

available cargo and luggage load

capacity of your vehicle.

Metric Example For Load Limit
For example, if “XXX” amount equals 635 kg and

there will be five 68 kg passengers in your vehicle,

the amount of available cargo and luggage load

capacity is 295 kg (635-340 (5x68) = 295 kg) as

shown in step 4.
NOTE:

If your vehicle will be towing a trailer, load from

your trailer will be transferred to your vehicle.

The following table shows examples on how to

calculate total load, cargo/luggage, and

towing capacities of your vehicle with varying

seating configurations and number and size of

occupants. This table is for illustration

purposes only and may not be accurate for the

seating and load carry capacity of your vehicle.

For the following example, the combined

weight of occupants and cargo should never

exceed 865 lbs (392 kg).

CarManuals2.com















Content      ..     4      5      6      7     ..
