Alfa Romeo Giulia (2023 year). Manual in english - page 4





115

I

NDICATIONS

 O

N

 T

HE

 D

ISPLAY

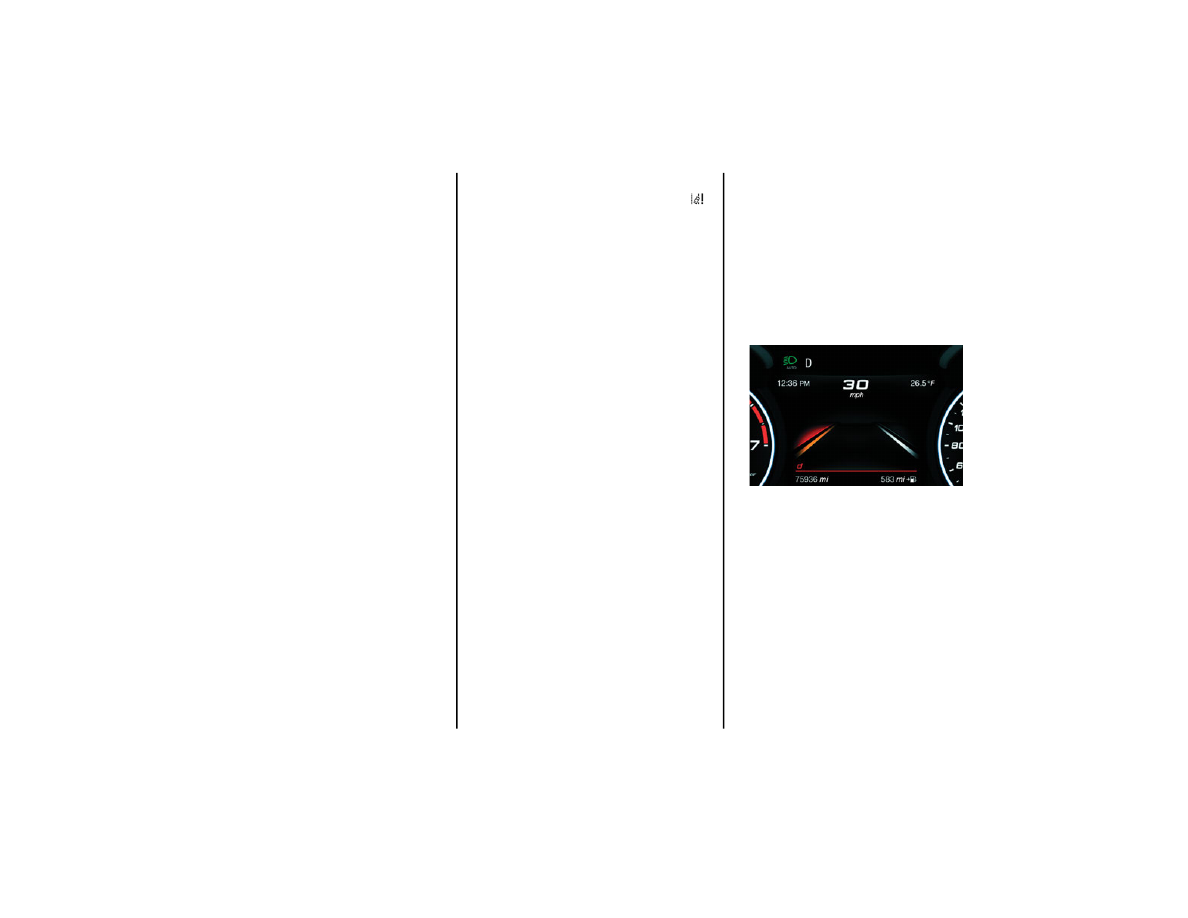

The system status is indicated by a white or green

icon in the instrument cluster display (similar to

the Adaptive Cruise Control (ACC) device) to the

left of the road sign indications provided by the

Traffic Sign Recognition (TSR) system.

A

CCEPTANCE

/R

EJECTION

 O

F

 T

HE



S

UGGESTED

 S

PEED

The system can be activated if the driver has

activated the following systems beforehand:

Adaptive Cruise Control (ACC)

Traffic Sign Recognition (TSR)

When these systems are active, a telltale will

display in the instrument cluster display

indicating the suggested speed provided by the

TSR system. The driver has the option to accept or

reject this using the RES/SET switch on the

steering wheel.
To accept the proposed speed and adjust the

speed set by ACC, move the RES/SET switch up or

down in the direction indicated in the telltale.
To reject the proposed speed, move the RES/SET

switch up or down in the direction opposite of the

arrow in the telltale. The ACC system will continue

to regulate to the previously set speed.
If the speed set by the ACC system is the same as

the speed detected by the TSR system, the speed

limit indicator on the instrument cluster display

will be highlighted with a green circle.

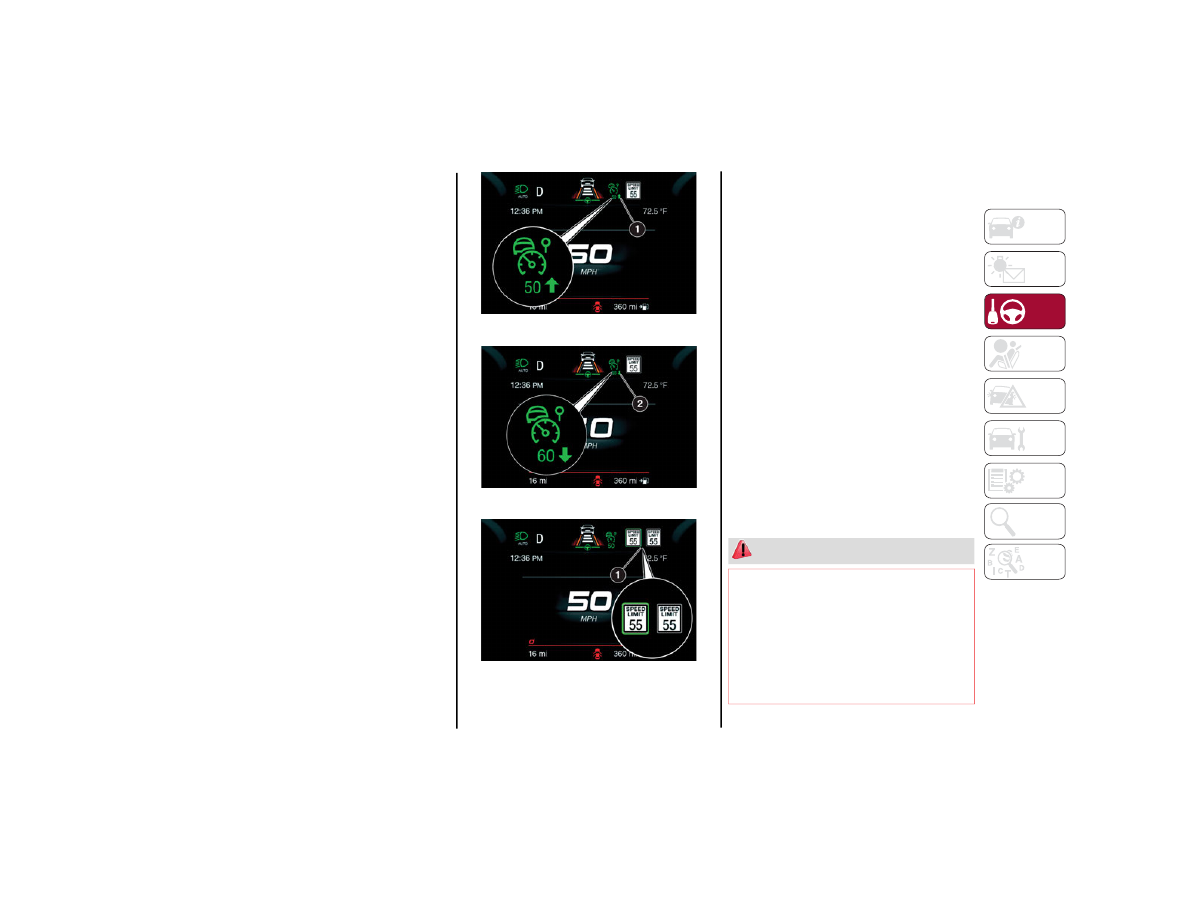

1 — Suggested Speed Higher Than Current Speed

2 — Suggested Speed Lower Than Current Speed

1 — Road Sign Recognized

PARKSENSE FRONT/REAR

PARK ASSIST SYSTEM —

IF EQUIPPED

The ParkSense system provides visual and

audible indications of the distance between the

rear, and if equipped, the front fascia/bumper

and a detected obstacle when backing up or

moving forward (e.g. during a parking maneuver).

The vehicle brakes may be automatically applied

and released when performing a reverse parking

maneuver if the system detects a possible

collision with an obstacle.
When the REVERSE gear is engaged and the

system is on, the front and rear sensors are

activated. If the vehicle moves from REVERSE to

a forward gear, the rear sensors are deactivated,

while the front sensors remain active until the

speed of 9 mph (15 km/h) is exceeded.
NOTE:

In certain operating conditions, the system could

start detecting an obstacle only after the vehicle

has moved slightly (a few inches).

 WARNING!

Drivers must be careful when backing up even

when using the ParkSense system. Always

check carefully behind your vehicle, and be

sure to check for pedestrians, animals, other

vehicles, obstructions, or blind spots before

backing up. You are responsible for the safety

of your surroundings and must continue to pay

attention while backing up. Failure to do so

can result in serious injury or death.

CarManuals2.com

STARTING AN

D O

PERA

TIN

G

116

P

ARK

S

ENSE

 S

ENSORS

The ParkSense sensors located in the rear

fascia/bumper and (if equipped) in the front

fascia/bumper, monitor the area in front and

behind the vehicle that is within the sensors’ field

of view. These sensors detect the presence of any

obstacles and warn the driver through an

acoustic signal and visual indications, which will

be displayed on the instrument cluster display.

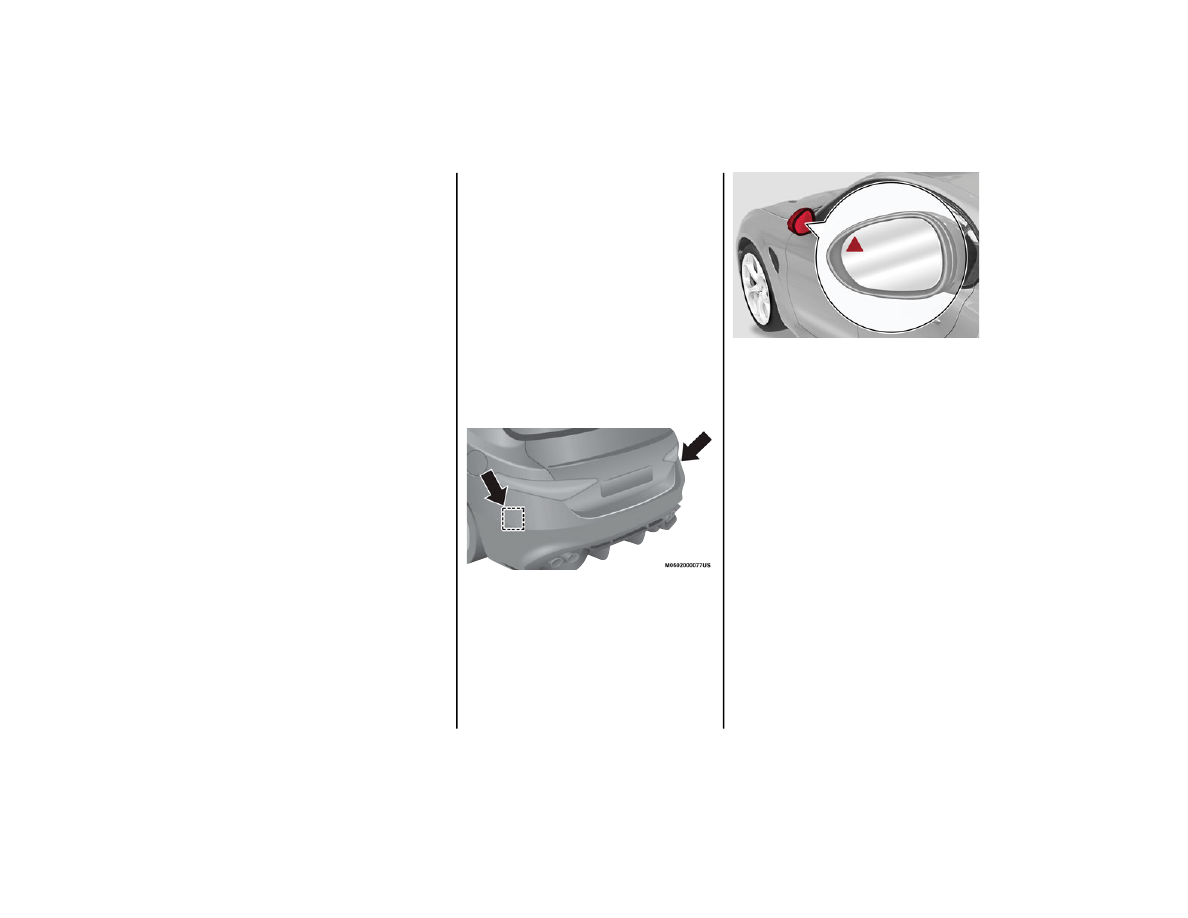

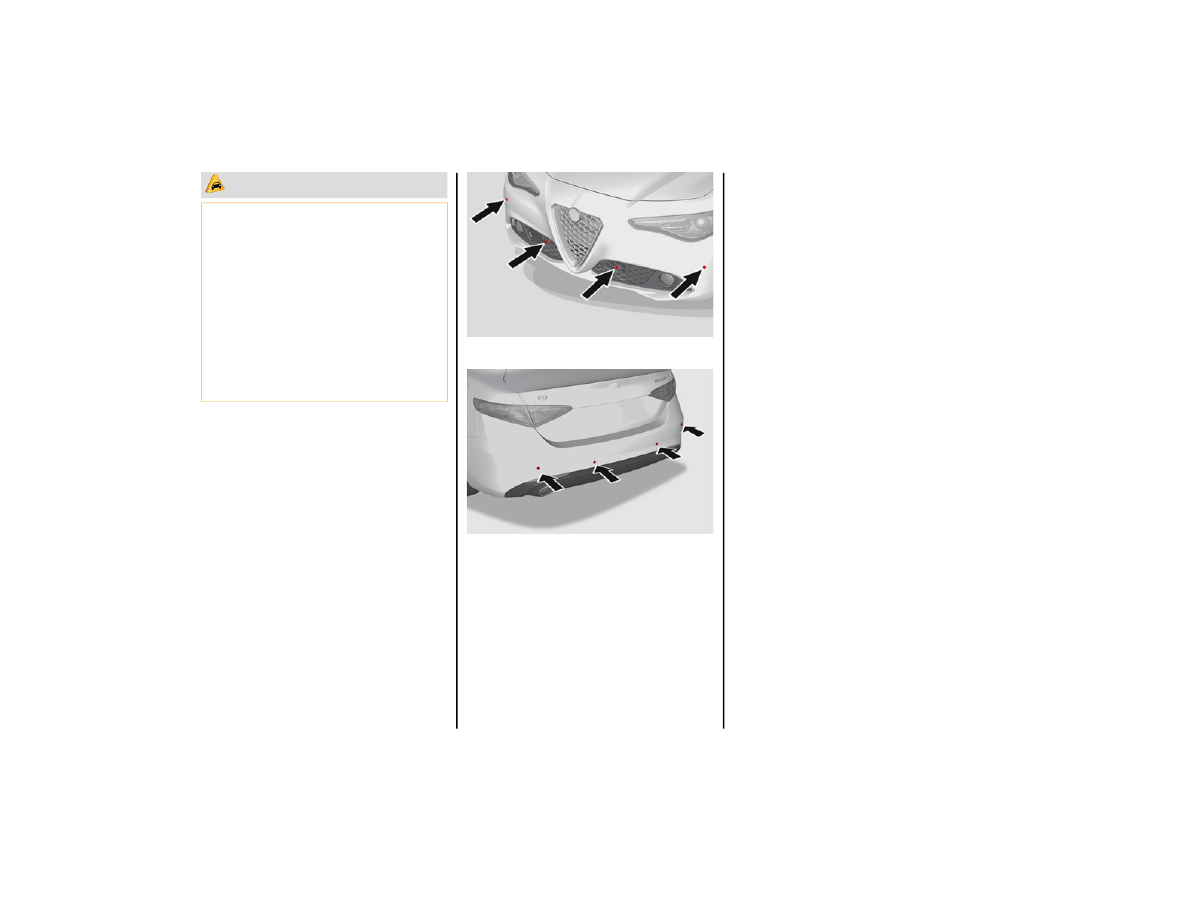

Front Sensor Location

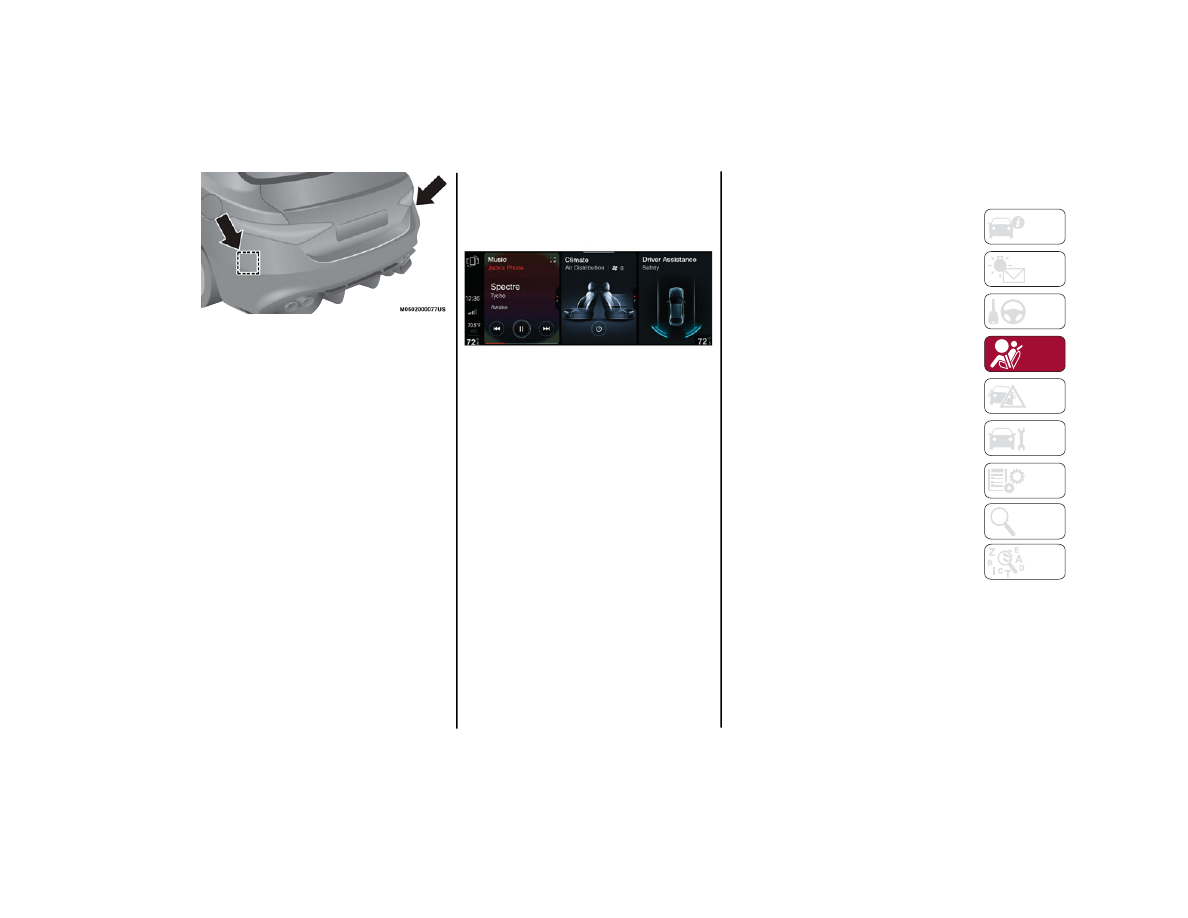

Rear Sensor Location

P

ARK

S

ENSE

 D

ISPLAY

The driver can select the type of warning they

would like to be displayed through the radio

system. To access the function on the main

menu, select in the following order:
1. Driver Assistance
2. ParkSense
3. Mode
4. Sound and Display

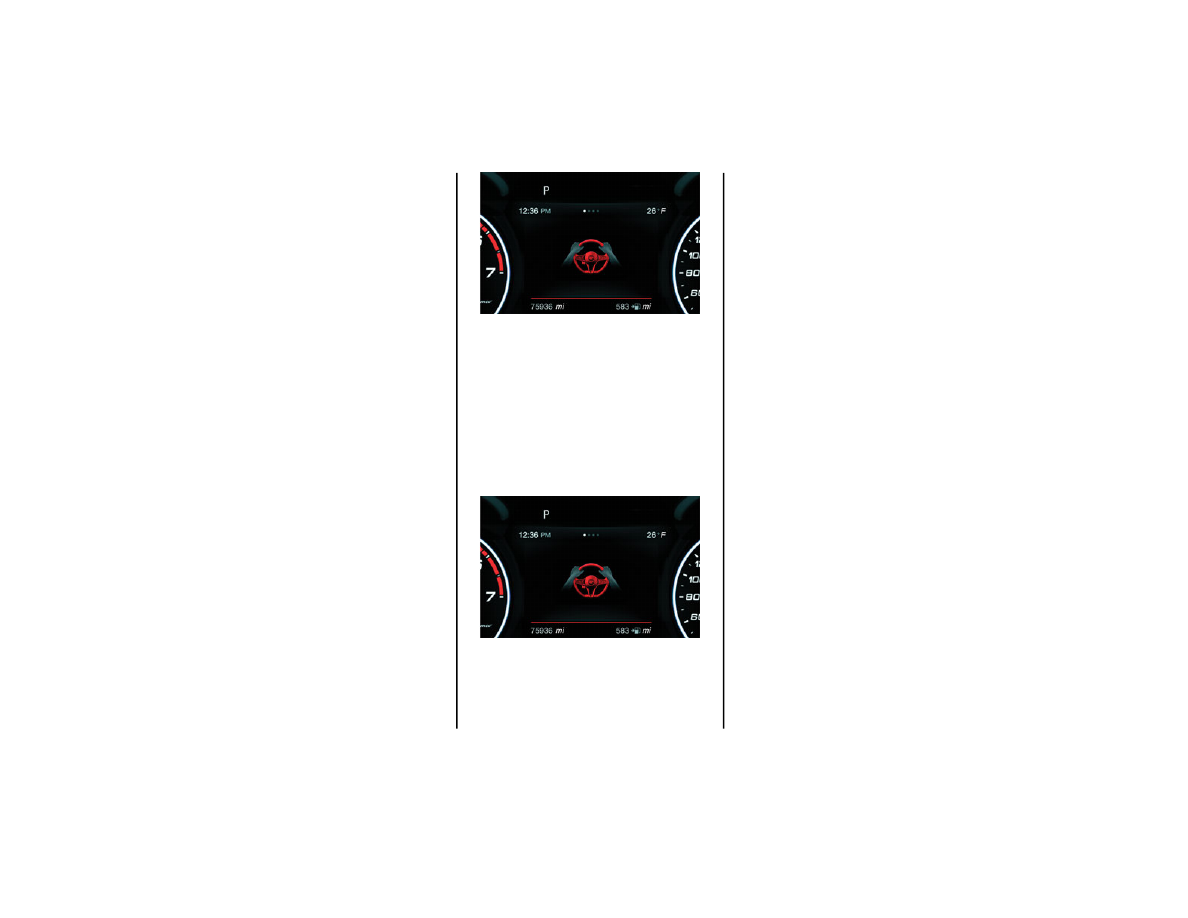

Visual Indications
The system indicates the presence of an obstacle

by displaying a single red arc in the detected

area, in relation to the distance of the object and

the position of the vehicle.
If the obstacle is detected in the front or rear

central area, a single red arc will be displayed as

the obstacle approaches, first constant, then

flashing, in addition to an acoustic signal.
If the obstacle is detected in the front or rear left

and/or right area, a single red flashing arc will be

shown in the corresponding area on the display

and the system will emit an acoustic signal, either

at frequent intervals or constantly.
In general, the vehicle is closer to the obstacle

when a single red flashing arc is shown on the

display and the acoustic signal becomes

continuous.

 CAUTION!

The ParkSense system is only a parking aid

and it is unable to recognize every obstacle,

including small obstacles. Parking curbs

might be temporarily detected or not

detected at all. Obstacles located above or

below the sensors will not be detected when

they are in close proximity.

The vehicle must be driven slowly when

using the ParkSense system in order to be

able to stop in time when an obstacle is

detected. It is recommended that the driver

looks over his/her shoulder when using the

ParkSense system.

CarManuals2.com

117

If several obstacles are detected simultaneously

in the front and rear area, the display will show all

of them, regardless of the area in which they were

detected.
It is not possible to exit from the display screen

while the vehicle is in REVERSE.
Acoustic Signal
In the presence of an obstacle at the front or the

rear of the vehicle, an acoustic signal with

variable frequency will sound:

The acoustic signal increases in frequency as

the distance between the vehicle and the

obstacle decreases.

The acoustic signal becomes continuous when

the distance between the vehicle and the

obstacle is less than 11 inches (30 cm), and

stops if the distance increases.

The acoustic signal is constant if the distance

between the vehicle and the obstacle is

unchanged.

NOTE:

If the sensors detect several front and rear obsta

-

cles, the closest obstacle is considered. An inter

-

mittent signal will sound if the obstacles are at

the same distance (front and rear).
When the system emits an acoustic signal, the

volume of the radio system, if activated, is

automatically lowered.
An acoustic signal will not sound if the vehicle is

in PARK.

E

NABLING

 A

ND

 D

ISABLING

 P

ARK

S

ENSE

For vehicles only equipped with rear sensors, to

turn the system off, push the ParkSense button

located to the left of the headlight switch. The

indicator light within the button will illuminate

when the system is turned off. Pushing the button

a second time will turn the system back on, and

the indicator light will turn off.

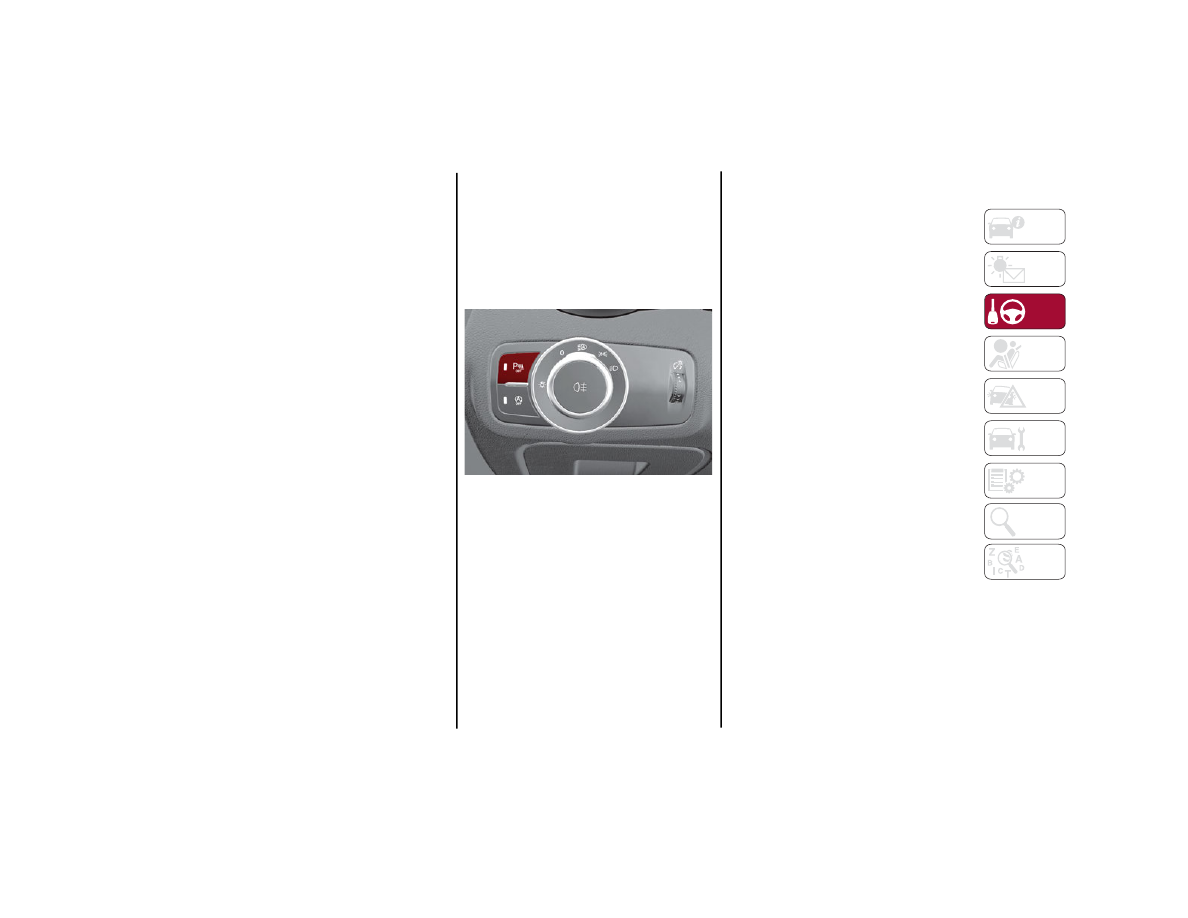

ParkSense On/Off Switch

For vehicles equipped with front and rear

sensors, to turn the front parking sensors off,

push the ParkSense button located to the left of

the headlight switch. The indicator light within the

switch will illuminate when the system is turned

off. Pushing the button a second time will turn the

front sensors back on, and the indicator light will

turn off.
NOTE:

Deactivation of both the front and rear parking

sensors can only be done through the radio

system.

The indicator light within the ParkSense system

switch will also be on in case of system failure. If

the switch is pushed with a system failure, the

indicator light will flash for approximately five

seconds. The light will then stay on constantly.
NOTE:

When the ignition is placed in the ON/RUN posi

-

tion, the ParkSense system keeps the last state

when the engine was stopped (activated or deac

-

tivated) in its memory.

P

ARK

S

ENSE

 W

ARNING

 D

ISPLAY

Parking sensor faults, if any, will be indicated

when REVERSE is engaged by a message on the

instrument cluster display

Ú

page 70.

In case of system failure, a dedicated message

appears on the instrument cluster for about five

seconds.

Cleaning The Front Or Rear Sensors: If the

display shows a message requiring the

sensors to be cleaned, make sure that the

outer surface and the underside of the front

and rear fascias/bumpers are free of debris

(e.g. snow, mud, ice, etc.). Once these areas

are clear, place the ignition in the OFF position,

then return it to ON/RUN. If the message is still

displayed, contact an authorized dealer.

Audio System Not Available: If the display

shows a message that the audio system is not

available, it means that the acoustic signal will

be emitted by the instrument panel, and not

through the vehicle’s speakers.

CarManuals2.com

STARTING AN

D O

PERA

TIN

G

118

(Continued)

P

ARK

S

ENSE

 S

YSTEM

 U

SAGE



P

RECAUTIONS

NOTE:

Some conditions may influence the performance

of the ParkSense system:

Reduced sensor sensitivity could be due to the

presence of ice, snow, mud, or thick paint on

the surface of the sensor.

The sensors may detect a false obstacle (echo

interference) due to mechanical interference,

for example when washing the vehicle or in

extreme weather.

The signals sent by the sensors can be altered

by the presence of ultrasonic systems (e.g.

pneumatic brake systems of trucks or

pneumatic drills) near the vehicle.

System performance can be influenced by the

position of the sensors. For example, due to a

change in the ride setting (caused by wear to

the shock absorbers or suspension), by

changing tires, overloading the vehicle or

operations that require the vehicle to be

lowered.

Be sure not to place bumper stickers or other

adhesives over the sensors as this will affect

system performance.

LANE DEPARTURE

WARNING (LDW) SYSTEM —

IF EQUIPPED

L

ANE

 D

EPARTURE

 W

ARNING

 O

PERATION

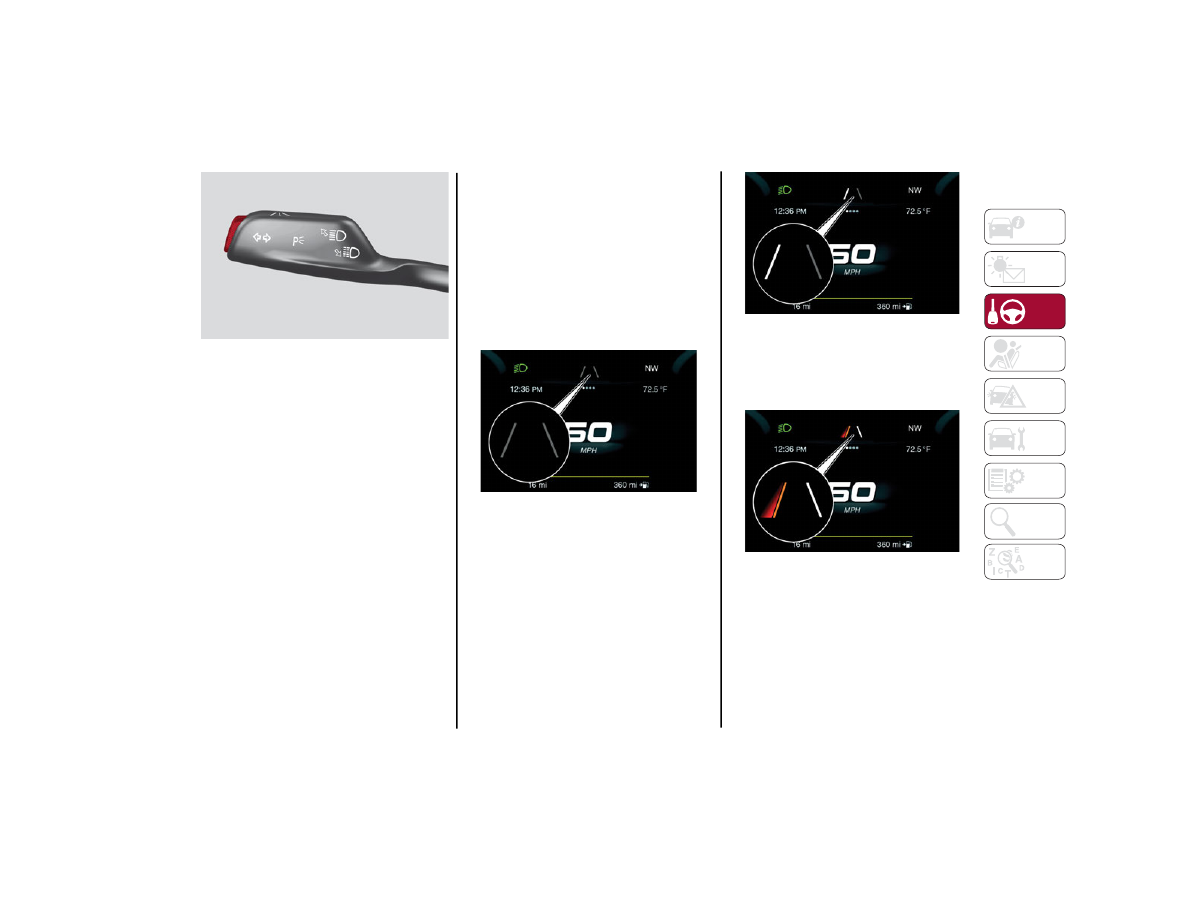

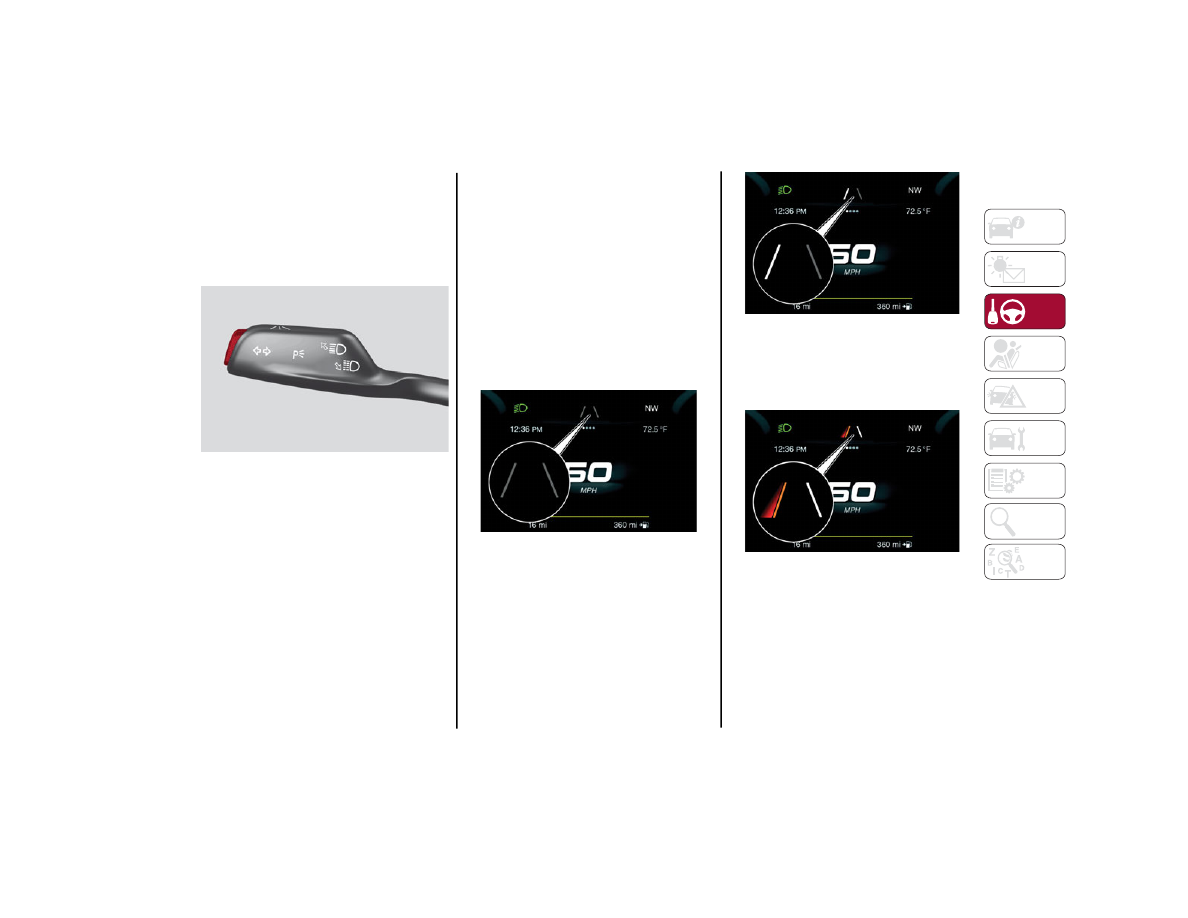

The Lane Departure Warning system uses a

forward looking camera located on the

windshield to detect lane markings and measure

vehicle position within the lane boundaries.
When one or both lane limits are detected and

the vehicle passes over one without an activated

turn signal, the system emits a visual as well as

an audible signal.
If the vehicle continues to go beyond the line of

the lane without any intervention from the driver,

the surpassed line will light up on the display (left

or right) to urge the driver to bring the vehicle

back into the limits of the lane.

 CAUTION!

Projecting loads on the roof of the vehicle

may interfere with the correct operation of

the camera. Before starting, make sure the

load is correctly positioned in order to not

cover the camera operating range.

Do not cover the operating range of the

camera with stickers or other objects.

Do not tamper with nor operate on the

camera. Do not close the openings in the

aesthetic cover located under the interior

rearview mirror. In the event of a failure of

the camera, contact an authorized dealer.

The camera may have limited or absent

operation due to weather conditions such as:

heavy rain, hail, thick fog, heavy snow, or

formation of ice layers on the windshield.

Camera operation may also be compromised

by the presence of dust, condensation, dirt

or ice on the windshield, by traffic conditions

(e.g. vehicles that are driving not aligned with

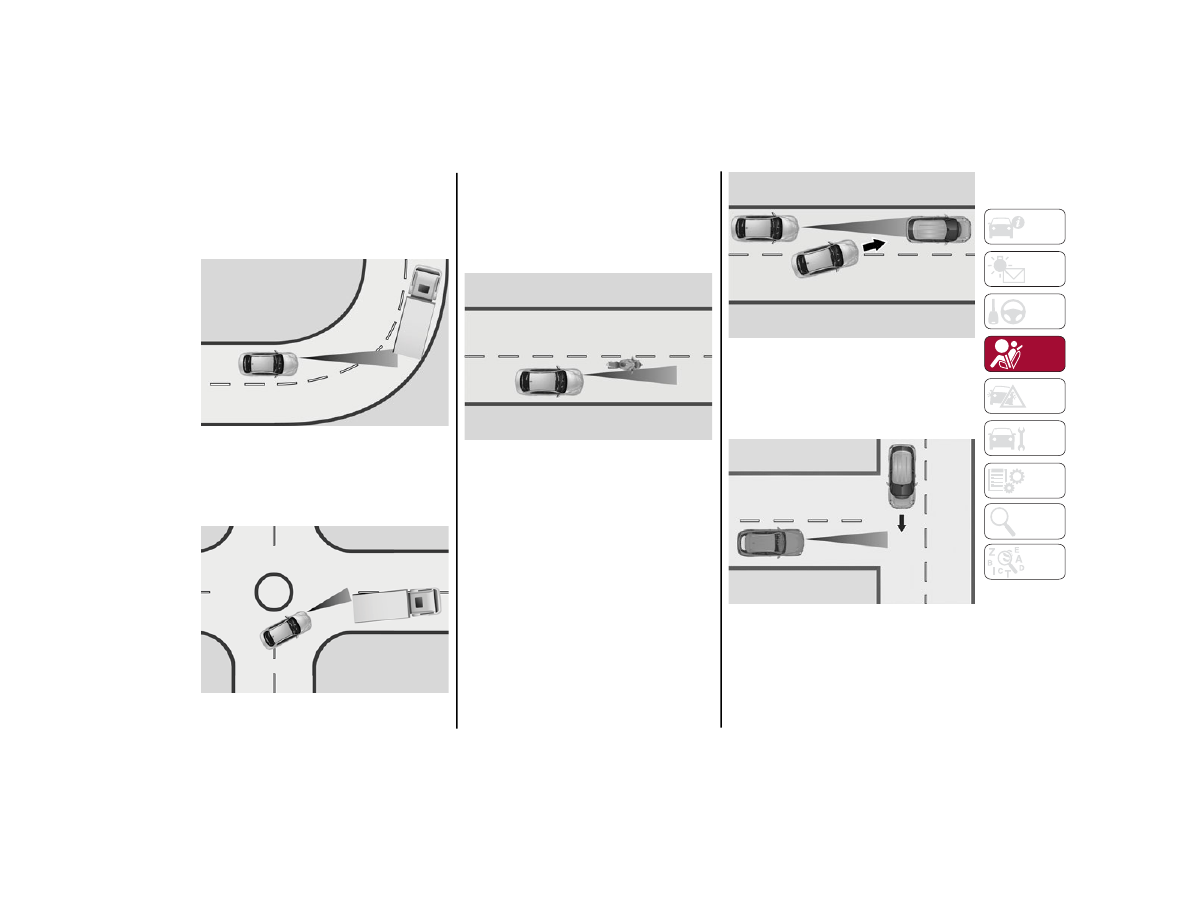

yours, vehicle driving in a transverse or

opposite way on the same lane, bend with a

small radius of curvature), by road surface

conditions and by driving conditions (e.g.

off-road driving). Make sure the windshield is

always clean. Use specific detergents and

clean cloths to avoid scratching the

windshield. The camera operation may also

be limited or absent in some driving, traffic

and road surface conditions.

If the windshield must be replaced due to

scratches, chipping or breakage, contact

exclusively your authorized dealer. Do not

replace the windshield on your own. It is

advisable to replace the windshield if it is

damaged in the area of the camera.

 CAUTION!

CarManuals2.com

119

T

URNING

 L

ANE

 D

EPARTURE

 W

ARNING



O

N

 O

R

 O

FF

The system is activated/deactivated by pushing

the button located on the end of the multifunction

lever, or through the “Driver Assistance” widget

using the radio system.

Lane Departure Warning System Activation/

Deactivation Button

NOTE:

The Lane Departure Warning system will retain

the last system state on or off from the last igni

-

tion cycle when the ignition is placed in the ON/

RUN position.
Activation Conditions
Once turned on, the system becomes active only

if the following conditions are met:

The vehicle speed is equal to or above 37 mph

(60 km/h) (the system is deactivated at

speeds equal to or greater than 110 mph

(180 km/h)).

The lane markings are visible at least on one

side.

There are suitable visibility conditions.

The road is straight or with wide radius bends.

A suitable distance is kept from the vehicle in

front.

The turn signal is not active.

L

ANE

 D

EPARTURE

 W

ARNING

 M

ESSAGE

The Lane Departure Warning system will indicate

the current lane drift condition through the

instrument cluster display.
When the system is on and the lane markings

have not been detected, the display shows two

grey lane lines.

Lane Markings Not Detected

Left Lane Departure — Only Left Lane Detected
When the system is active and only the left lane

marking has been detected, the detected lane

illuminates in white on the display; the system is

ready to provide visual warnings on the display in

the event of unintentional exiting of the lane (turn

signal not activated) to the left.

Left Lane Marking Detected

When the system detects that the vehicle has

approached the lane marking and is about to

pass it, the left line on the display illuminates in

yellow.

Left Lane Marking Approached

The system operates in the same way, but

mirrored, in the event of exiting the right lane

when only the right lane marking has been

detected.

CarManuals2.com

STARTING AN

D O

PERA

TIN

G

120

Left Lane Departure — Both Lanes Detected
When the system is active, both lane lines on the

display illuminate in white to indicate that both of

the lane markings have been detected.
When lane markings are detected, the system is

ready to provide indications in case the driver

unintentionally leaves the lane (turn signal not

activated).
As the Lane Departure Warning system detects

the lane markings while the vehicle is in motion,

it will adjust the display accordingly (from white to

yellow and vice versa, and increase their

thickness).
If a lane line is crossed, the driver is alerted by an

audible signal as well as the visual indication in

the instrument cluster. The signal is emitted

through the speakers on the side of the lane

marking which is being crossed (e.g. if the vehicle

is exceeding the left line of the lane, the audible

signal will come from the speakers on the left of

the vehicle).
Limited Operation Warning
If a message appears on the display, a condition

limiting the Lane Departure Warning system

operation may have occurred. This could be an

obstruction of the camera view, or a fault in the

system.
If an obstruction is detected, clean the area of the

windshield by the interior rearview mirror.
Although the vehicle can still be driven in normal

conditions, the system may not function properly.
When the conditions limiting the system are

corrected, it will go back to normal operation.

Should a fault persist, contact an authorized

dealer.

System Failure Warning
If the system turns off and the warning light

appears on the display, it means that there is a

system fault.
In this case, it is still possible to drive the vehicle,

but you are advised to contact an authorized

dealer as soon as possible.

C

HANGING

 L

ANE

 D

EPARTURE

 W

ARNING



S

TATUS

The system's sensitivity can be set through the

radio system. Sensitivity “High” or “Low” can be

selected.
To access the function, from the main menu

select the following in order:
1. Driver Assistance
2. Lane Departure Warning
3. Sensitivity

LANE KEEPING ASSIST

(LKA) SYSTEM —

IF EQUIPPED

The Lane Keeping Assist (LKA) system uses a

camera located on the windshield to detect the

lane markings and calculate the position of the

vehicle within such markings, in order to make

sure that the vehicle remains inside the lane. This

is an active system that will apply torque to the

steering wheel if it senses that the vehicle is

drifting out of the lane.

When one or both lane markings are detected

and the vehicle passes over one without a turn

signal being applied, the system will apply torque

to the steering wheel and a visual signal will be

displayed in the instrument cluster display. An

audible signal may also sound.
If the vehicle continues to go beyond the lane line

without any driver intervention, the surpassed

lane line (left or right) will light up on the

instrument cluster display to urge the driver to

bring the vehicle back inside the lane limits.

Lane Crossed

T

URNING

 L

ANE

 K

EEPING

 A

SSIST

 O

N

 O

R



O

FF

The system is activated/deactivated by pressing

the button at the end of the multifunction lever.

Each time the engine is started, the system

maintains the operating mode that was selected

when it was previously turned off.

CarManuals2.com

121

Activation/Deactivation Button

Activation Conditions
Once the activation button is pushed, the system

becomes active only if the following conditions

are met:

The car speed is higher than 37 mph (60 km/h).

(The system is deactivated at speeds equal to or

higher than 110 mph (180 km/h))

The lane limit lines are visible at least on one

side

There are suitable visibility conditions

The road is straight or with wide radius bends

A suitable distance is kept from the vehicle in

front

The turn signal (to indicate leaving the lane) is

not active

L

ANE

 K

EEPING

 A

SSIST

 W

ARNING



M

ESSAGE

The Lane Keeping Assist system also advises the

driver when the car changes lanes by showing

symbols and messages on the instrument cluster

display.

The message at the top of the display remains

active only until the main reconfigurable area of

the display is activated by pressing the TRIP

button located on the end of the windshield wiper

lever

Ú

page 66.

After activating the main reconfigurable area, the

Lane Keeping Assist system messages will be

shown in the instrument cluster display.
When the system is active and the lane markings

have not been detected, the display shows two

grey lane lines.

Lane Markings Not Detected

Left Lane Departure — Only Left Lane Detected
When the system is active and only, for example,

the left lane marking has been detected, the

detected lane lights up in white on the display.

The system is ready to provide visual warnings on

the display in the event of unintentional exiting of

the lane (turn signal indicator not activated) to

the left.

Left Lane Marking Detected

When the system detects that the vehicle has

approached the lane marking and is about to

pass it, the left line on the display lights up in

yellow.

Left Lane Marking Approached

NOTE:

The system operates in the same way, but

mirrored, in the event of exiting the right lane

when only the right lane marking has been

detected.

CarManuals2.com

STARTING AN

D O

PERA

TIN

G

122

Left Lane Departure — Both Lanes Detected
When the system is active, both lane lines on the

display illuminate in white to indicate the

successful detection of both limits.
When lane markings are detected, the system is

ready to provide indications in case the driver

unintentionally leaves the lane (turn signal not

activated).
As the Lane Keeping Assist system detects the

lane markings while the vehicle is in motion, it will

adjust the display accordingly (from white to

yellow and yellow to white, and increase their

thickness).
If a lane line is crossed, the driver is alerted by an

audible signal as well as the visual indication in

the instrument cluster. The signal is emitted

through the speakers on the side of the lane

marking which is being crossed (e.g. if the vehicle

is exceeding the left line of the lane, the audible

signal will come from the speakers on the left of

the vehicle).
Hands Presence On The Steering Wheel

Detection
The system is able to detect the presence of the

driver’s hands on the steering wheel.
When the system does not detect the presence of

hands on the steering wheel for a few seconds

(up to 6 seconds), a yellow indicator light will be

displayed on the instrument cluster display. No

acoustic warning will be emitted in this case.

Hand Presence On The Steering Wheel Not

Detected Display (Up To 6 Seconds)

When the system does not detect the presence of

hands on the steering wheel for a few seconds

(from 6 to 15 seconds), a red indicator light will

be displayed on the instrument cluster display. A

short acoustic signal will sound if hands are not

detected on the steering wheel for 6 to 12 sec-

onds. A continuous signal will sound if hands are

not detected on the steering wheel for 12 to

15 seconds.

Hand Presence On The Steering Wheel Not

Detected Display (6 To 15 Seconds)

After 15 seconds with the hands removed from

the steering wheel, the LKA system will be

deactivated and a dedicated message will be

shown on the instrument cluster display. A short

acoustic signal will sound in this case.
In any of the situations above where the hands

are removed from the steering wheel for more

than 6 seconds, it is necessary to reposition the

hands on the steering wheel.
Changing The System Sensitivity
The system's sensitivity can be set through the

radio system in the Driver Assistance menu.

Sensitivity “Early” or “Late” can be selected.
Changing The System Strength
The system’s strength can be set through the

radio system in the Driver Assistance menu.

Strength “Low” or “High” can be selected.
Limited Operation Warning
If a message appears on the display, a condition

limiting the LKA system operation may have

occurred. This could be an obstruction of the

camera view, or a fault in the system.
If an obstruction is detected, clean the area of the

windshield by the interior rearview mirror.
Although the vehicle can still be driven in normal

conditions, the system may not function properly.
When the conditions limiting the system are

corrected, it will go back to normal operation.

Should a fault persist, contact an authorized

dealer.

CarManuals2.com

123

(Continued)

System Failure Signaling
If the system turns off and   appears on the

display, it means that there is a system fault.
In this case, it is still possible to drive the vehicle,

but you are advised to contact an authorized

dealer as soon as possible.

REAR BACK UP CAMERA /

DYNAMIC GRIDLINES

The Rear Back Up Camera is located just under

the vehicle’s trunk lid, above the rear license

plate.

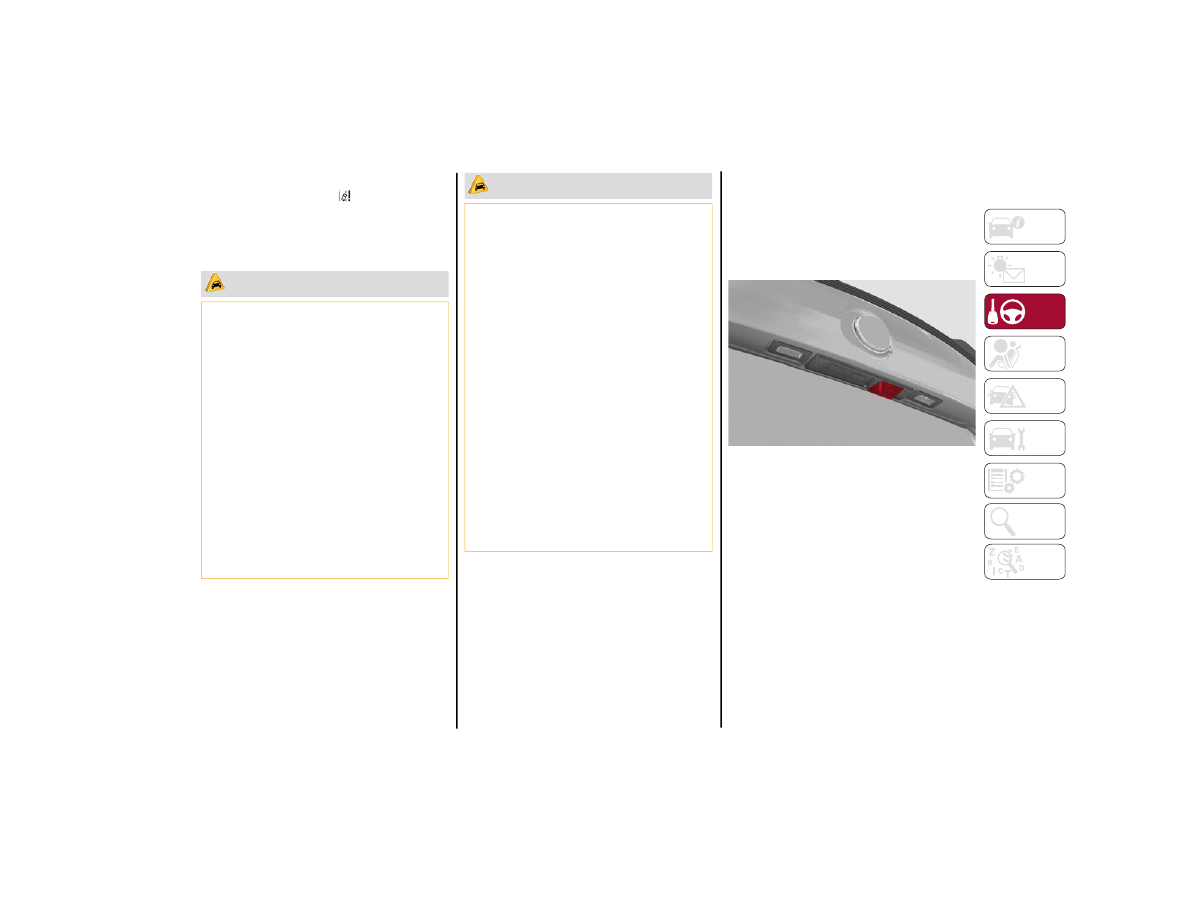

Rear Back Up Camera Location

Camera Activation/Deactivation
The Rear Back Up Camera can be activated and

deactivated through the radio system by selecting

the “Settings” option on the menu.
Once the Rear Back Up Camera is activated,

choose from one of the following options:

Activate

Switch-Off Delay

Camera Guidelines

 CAUTION!

Projecting loads on the roof of the vehicle

may interfere with the correct operation of

the camera. Before starting, make sure the

load is correctly positioned, in order not to

cover the camera operating range.

If the windshield must be replaced due to

scratches, chips or breakage, contact an

authorized dealer. Do not replace the

windshield on your own; there is risk of

malfunction. It is advisable to replace the

windshield if it is damaged in the area of the

camera.

Do not tamper with or operate on the

camera. Do not close the openings in the

aesthetic cover located under the interior

rearview mirror. In the event of a failure of

the camera, contact an authorized dealer

immediately.

Do not cover the operating range of the

camera with stickers or other objects. Also

pay attention to other objects on the hood

(e.g. a layer of snow) and make sure they do

not interfere with the camera.

The camera may have limited or absent

operation due to weather conditions such as:

heavy rain, hail, thick fog, heavy snow, or

formation of ice layers on the windshield.

Camera operation may also be compromised

by the presence of dust, condensation, dirt or

ice on the windshield, traffic conditions (e.g.

vehicles that are driving not aligned with

yours, vehicle driving in a transverse or

opposite way on the same lane, bend with a

small radius of curvature), or road surface

conditions and driving conditions (e.g.

off-road driving). Make sure the windshield is

always clean. Use specific detergents and

clean cloths to avoid scratching the

windshield. The camera operation may also

be limited or absent in some driving, traffic

and road surface conditions.

 CAUTION!

CarManuals2.com

STARTING AN

D O

PERA

TIN

G

124

(Continued)

When the vehicle is in REVERSE, the radio system

display will show the area behind the vehicle, as

seen by the Rear Back Up Camera, along with a

warning message.

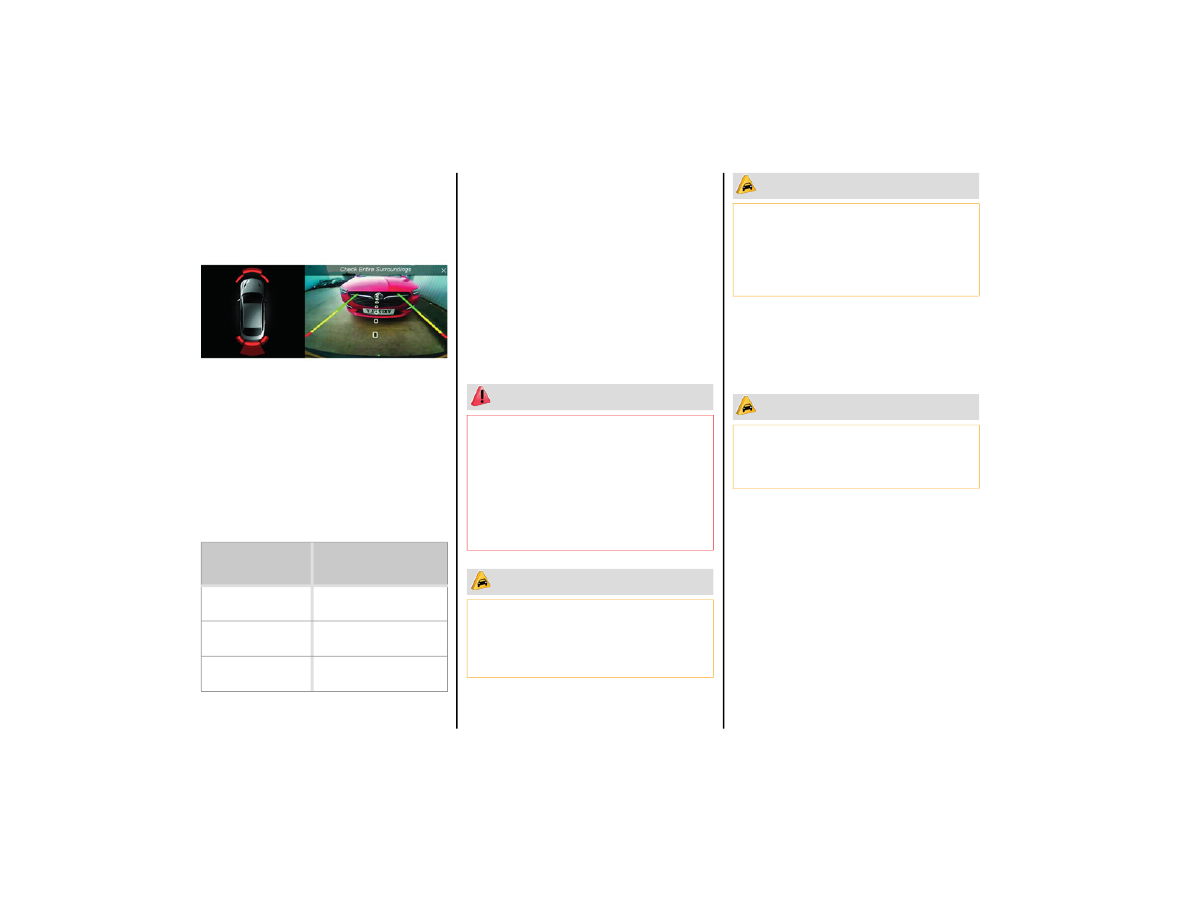

Rear Back Up Camera Display

When enabled in the radio settings, active

guidelines are overlaid on the image to illustrate

the width of the vehicle and its projected back up

path based on the steering wheel position. A

dashed center line overlay indicates the center of

the vehicle to assist with parking. Different

colored zones indicate the distance to the rear of

the vehicle. The following table shows the

approximate distances for each zone:

Messages On The Display
If the trunk lid is lifted, the camera will not detect

any obstacle behind the vehicle. The display will

show a dedicated warning message.
Make sure the trunk lid is closed by pushing next

to the lock until it clicks.
Important Notes

Ice, snow or mud on the surface of the camera

may reduce its sensitivity. It is important to

keep the camera surface clean, and free from

debris.

When parking, be aware of obstacles that may

be above or under the camera range.

REFUELING THE VEHICLE

Before refueling, make sure that the fuel type is

correct

Ú

page 230.

Also, stop the engine before refueling.

NOTE:

An inefficient catalytic converter leads to harmful

exhaust emissions, thus contributing to air pollu

-

tion.

R

EFUELING

 P

ROCEDURE



The fuel filler door is unlocked when the central

door locking system is unlocked. It is automat

-

ically locked when the central locking system is

applied.

Area

Distance From The

Rear Of The Vehicle

Red

0–11.8 inches

(0–30 cm)

Yellow

11.8 inches to 3.3 feet

(30 cm–1 m)

Green

3.3 feet or more

(1 m or more)

 WARNING!

Drivers must be careful when backing up even

when using the Rear Back Up Camera. Always

check carefully behind your vehicle, and be

sure to check for pedestrians, animals, other

vehicles, obstructions, or blind spots before

backing up. You are responsible for the safety

of your surroundings and must continue to pay

attention while backing up. Failure to do so

can result in serious injury or death.

 CAUTION!

To avoid vehicle damage, Rear Back Up

Camera should only be used as a parking

aid. The Rear Back Up Camera is unable to

view every obstacle or object in your drive

path.

To avoid vehicle damage, the vehicle must

be driven slowly when using the Rear Back

Up Camera to be able to stop in time when an

obstacle is seen. It is recommended that the

driver look frequently over his/her shoulder

when using the Rear Back Up Camera.

 CAUTION!

Never introduce leaded fuel to the tank, even

in small amounts in an emergency, as this

would damage the catalytic converter beyond

repair.

 CAUTION!

CarManuals2.com

125

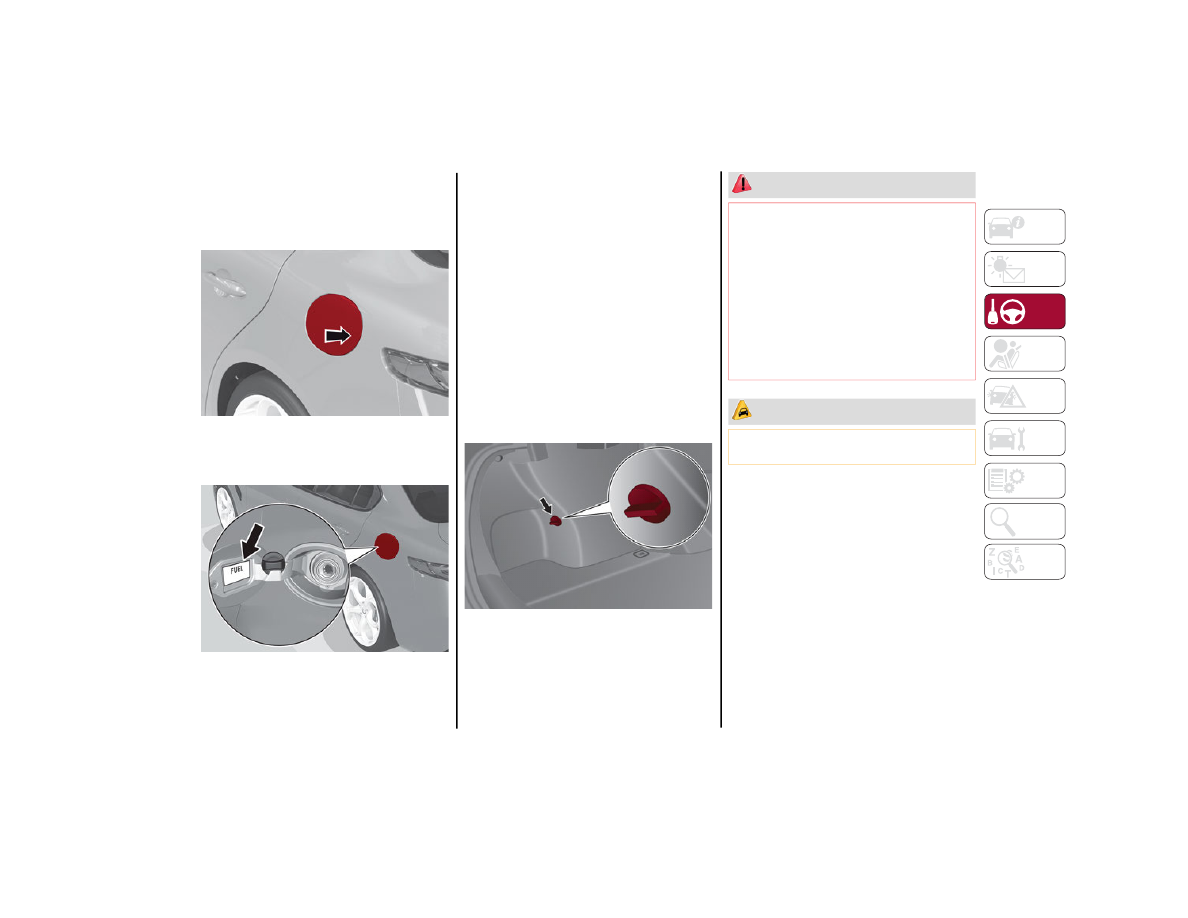

Opening The Fuel Filler Door
To refuel proceed as follows:
1. Open fuel filler door by pushing on the point

shown by the arrow.

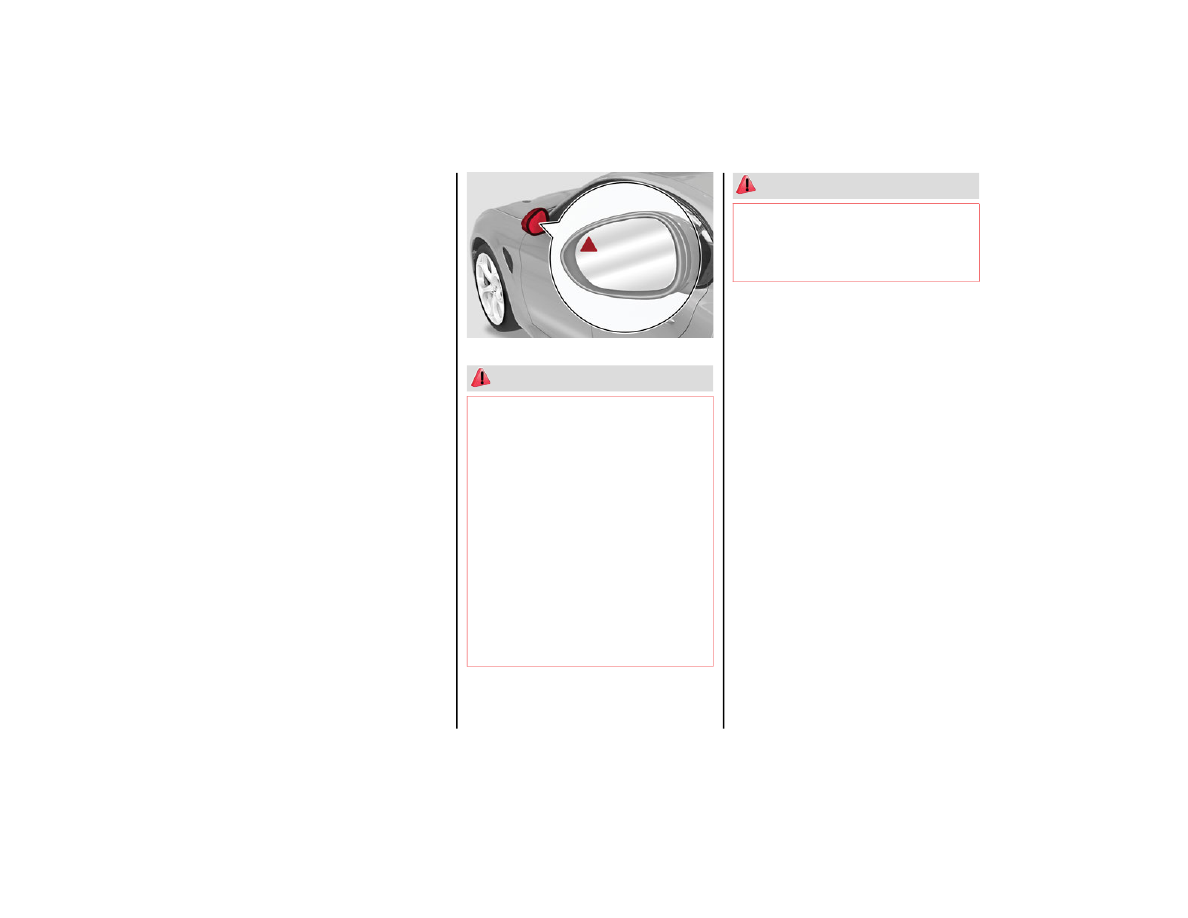

Fuel Door

The label indicates the fuel type (UNLEADED

FUEL = gasoline).

Fuel Door Label

2. Remove the fuel filler cap.
3. Insert the fuel nozzle fully into the filler pipe.
4. When the fuel nozzle “clicks” or shuts off,

before removing the nozzle, wait for at least

10 seconds in order for the fuel to flow inside

the tank.

5. Remove the fuel filler nozzle, tighten the gas

cap about a quarter turn until you hear one

click. This is an indication that the cap is prop

-

erly tightened.

Emergency Fuel Door Opening
In the event of an emergency, the fuel filler door

can be opened from inside the trunk.
Proceed as follows:
1. Open the trunk and locate the emergency fuel

filler release cap on the inside lining.

Fuel Door Release Cap

2. Open the cap, and pull the cord inside to

unlock the fuel filler door.

3. Open the fuel filler door by pushing on it (see

the previous instructions).

NOTE:

If the filler compartment is washed with a pres

-

sure washer, keep it at a distance of at least

8 inches (20 cm).

VEHICLE LOADING

C

ERTIFICATION

 L

ABEL

As required by National Highway Traffic Safety

Administration regulations, your vehicle has a

certification label affixed to the driver's side door

or pillar.
This label contains the month and year of

manufacture, Gross Vehicle Weight Rating

(GVWR), Gross Axle Weight Rating (GAWR) front

and rear, and Vehicle Identification Number (VIN).

 WARNING!

Never have any smoking materials lit in or

near the vehicle when the fuel door is open

or the tank is being filled.

Never add fuel when the engine is running.

This is in violation of most state and federal

fire regulations and may cause the MIL to

turn on.

A fire may result if gasoline is pumped into a

portable container that is inside of a vehicle.

You could be burned. Always place gas

containers on the ground while filling.

 CAUTION!

To avoid fuel spillage and overfilling, do not

“top off” the fuel tank after filling.

CarManuals2.com

STARTING AN

D O

PERA

TIN

G

126

A Month-Day-Hour (MDH) number is included on

this label and indicates the Month, Day and Hour

of manufacture. The bar code that appears on

the bottom of the label is your VIN.

Gross Vehicle Weight Rating (GVWR)

The GVWR is the total permissible weight of your

vehicle including driver, passengers, vehicle,

options and cargo. The label also specifies

maximum capacities of front and rear axle

systems (GAWR). Total load must be limited so

GVWR and front and rear GAWR are not

exceeded.

Payload

The payload of a vehicle is defined as the

allowable load weight a truck can carry, including

the weight of the driver, all passengers, options

and cargo.

Gross Axle Weight Rating (GAWR)

The GAWR is the maximum permissible load on

the front and rear axles. The load must be

distributed in the cargo area so that the GAWR of

each axle is not exceeded.
Each axle GAWR is determined by the

components in the system with the lowest load

carrying capacity (axle, springs, tires or wheels).

Heavier axles or suspension components

sometimes specified by purchasers for increased

durability do not necessarily increase the

vehicle's GVWR.

Tire Size

The tire size on the Vehicle Certification Label

represents the actual tire size on your vehicle.

Replacement tires must be equal to the load

capacity of this tire size.

Rim Size

This is the rim size that is appropriate for the tire

size listed.

Inflation Pressure

This is the cold tire inflation pressure for your

vehicle for all loading conditions up to full GAWR.

Curb Weight

The curb weight of a vehicle is defined as the total

weight of the vehicle with all fluids, including

vehicle fuel, at full capacity conditions, and with

no occupants or cargo loaded into the vehicle.

The front and rear curb weight values are

determined by weighing your vehicle on a

commercial scale before any occupants or cargo

are added.

Loading

The actual total weight and the weight of the front

and rear of your vehicle at the ground can best be

determined by weighing it when it is loaded and

ready for operation.
The entire vehicle should first be weighed on a

commercial scale to ensure that the GVWR has

not been exceeded. The weight on the front and

rear of the vehicle should then be determined

separately to be sure that the load is properly

distributed over the front and rear axle. Weighing

the vehicle may show that the GAWR of either the

front or rear axles has been exceeded but the

total load is within the specified GVWR. If so,

weight must be shifted from front to rear or rear

to front as appropriate until the specified weight

limitations are met. Store the heavier items down

low and be sure that the weight is distributed

equally. Stow all loose items securely before

driving.

Improper weight distributions can have an

adverse effect on the way your vehicle steers and

handles and the way the brakes operate.

TRAILER TOWING

Trailer towing is not recommended for this

vehicle.

SUGGESTIONS FOR

DRIVING

S

AVING

 F

UEL

The following are some suggestions which may

help you save fuel and lower the amount of

harmful emissions released into the atmosphere.
Vehicle Maintenance
Checks and operations should be carried out in

accordance with the Maintenance Plan

Ú

page 182.

Tires
Check the tire pressures at least once every four

weeks: if the pressure is too low, consumption

levels increase as resistance to rolling is higher.

 WARNING!

Do not load your vehicle any heavier than the

GVWR or the maximum front and rear GAWR. If

you do, parts on your vehicle can break, or it

can change the way your vehicle handles. This

could cause you to lose control. Overloading

can shorten the life of your vehicle.

CarManuals2.com

127

Unnecessary Loads
Do not travel with an overloaded trunk. The

weight of the vehicle and its arrangement greatly

affect fuel consumption and stability.
Electric Devices
Use electrical systems only for the amount of time

needed. The rear window defroster, additional

headlights, windshield wipers and heater blower

fan require a considerable amount of energy;

increasing the current uptake increases fuel

consumption (by up to +25% when city driving).
Climate Control System
Using the climate control system will increase

consumption: use standard ventilation when the

temperature outside permits.
Devices for Aerodynamic Control
The use of non-certified devices for aerodynamic

control may adversely affect air drag and

consumption levels.

D

RIVING

 S

TYLE

Starting
Do not warm up the engine at low or high revs

when the vehicle is stationary; this causes the

engine to warm up more slowly, thereby

increasing fuel consumption and emissions. It is

therefore advisable to drive off immediately,

slowly, avoiding high speeds: by doing this the

engine will warm up more quickly.
Unnecessary Actions
Avoid revving up when starting at traffic lights or

before stopping the engine. This action is

unnecessary and causes increased fuel

consumption and pollution.

Gear Selection
Use a high gear when traffic and road conditions

allow it. Using a low gear for faster acceleration

will increase fuel consumption. Improper use of a

high gear increases consumption, emissions and

engine wear.
Maximum Speed
Fuel consumption considerably increases as

speed increases. Maintain a constant speed,

avoiding unnecessary braking and acceleration,

which cost in terms of both fuel consumption and

emissions.
Acceleration
Accelerating violently severely affects

consumption and emissions: acceleration should

be gradual and should not exceed the maximum

torque.

C

ONDITIONS

 O

F

 U

SE

Cold Starting
Short trips and frequent cold starts will not allow

the engine to reach optimum operating

temperature. This results in a significant increase

in consumption levels (from +15 to +30% in city

driving) and emissions.
Traffic And Road Conditions
High fuel consumption is caused by heavy traffic,

for instance when traveling in traffic with frequent

use of low gears or in cities with many traffic

lights. Winding mountain roads and rough road

surfaces also adversely affect consumption.
Stops In Traffic
During prolonged stops (e.g. railway crossings),

turn off the engine.

T

RANSPORTING

 P

ASSENGERS

T

RANSPORTING

 A

NIMALS

The intervention of the airbags may be dangerous

for an animal on the front seat. It is therefore

advised to arrange animals on the rear seat

inside dedicated cages restrained by the

vehicle’s seat belts.
Keep in mind that, in the event of a sudden

braking or an accident, an inadequately

restrained animal may be projected within the

passenger compartment, risking injury to the

animal itself and the other occupants of the

vehicle.

 WARNING!

It is extremely dangerous to leave children in

a parked vehicle when the temperature

outside is very high. The heat inside the

passenger compartment may have serious,

or even fatal, consequences.

Never travel in the trunk of the vehicle. In the

event of an accident, anyone inside the trunk

would be at greater risk of serious or even

fatal injury.

Ensure that all the occupants of the vehicle

wear their seat belts correctly and that any

children are positioned correctly on the

dedicated child restraint systems.

CarManuals2.com

STARTING AN

D O

PERA

TIN

G

128

E

XHAUST

 G

AS

Exhaust emissions are very dangerous, and may

be lethal. They contain carbon monoxide, a

colorless, odorless gas which can cause fainting

and poisoning if inhaled.
To avoid inhaling carbon monoxide, take the

following measures:

Do not keep the engine running in closed

spaces.

If, for some reason (e.g. transporting bulky

loads), it is necessary to drive with the trunk

open, close all the windows and run the

climate control fan at maximum speed. DO

NOT activate air recirculation mode.

Should it be necessary to stay in the stationary

vehicle with engine running, adjust the

ventilation/heating system and operate the

fan in such a way that outside air will enter the

passenger compartment. Activate the

maximum fan speed.

Maintenance of the exhaust system provides the

best protection against leaks of carbon monoxide

into the passenger compartment.
Should an unusual noise from the exhaust

system or the presence of exhaust gas in the

passenger compartment be identified, or if the

underbody or rear section of the vehicle is

damaged, have the entire exhaust system and

bodywork areas checked to identify any

components which are broken, damaged, worn or

have moved from their correct fitting position. If

any of these things occur, contact an authorized

dealer.

Open welding or loose connections may permit

exhaust gas to enter the passenger

compartment.
Check the exhaust system each time the vehicle

is raised for lubrication or oil change operations.

Replace the components if necessary, contact an

authorized dealer.

P

ERFORMANCE

 — Q

UADRIFOGLIO

This vehicle is equipped with an engine capable

of delivering exceptionally fast acceleration and

speed:

Peak power: 505 HP at 6500 RPM.

Peak torque: 443 ft-lb at 2500–5000 RPM.

Top speed: 191 mph (307 km/h).

Acceleration from 0 to 60 mph (0 to 100 km/h):

3.8 seconds.

For safe driving, it is essential, particularly during

the first days of use, to get to know the car by

driving carefully and gradually discovering its

performance.

Driving On Race Tracks
Before driving on a track using a racing style, it is

necessary to:

Attend a race track driving course.

Check all liquid levels in the engine

compartment.

Have the car inspected at an authorized

dealer.

Remember that the car was not designed to be

driven exclusively on the race track and that this

use increases stress and component wear.
NOTE:

Quadrifoglio front brakes are equipped with NAO

type pads (Non-Asbestos Organic). These pads

are NOT suitable for high thermal loads (for

example track use).

CarManuals2.com

129

(Continued)

This very important section describes the safety

systems that your vehicle may be equipped with,

and provides instructions on how to use them

correctly.

ACTIVE SAFETY SYSTEMS

The vehicle may be equipped with the following

active safety devices:

Anti-Lock Brake System (ABS)

Active Torque Vectoring (ATV)

Dynamic Steering Torque (DST)

Drive Train Control (DTC)

Electronic Stability Control (ESC)

Hill Start Assist (HSA)

Panic Brake Assist (PBA)

Traction Control System (TCS)

For the operation of the systems, see the

following pages.

A

NTI

-L

OCK

 B

RAKE

 S

YSTEM

 (ABS)

An integral part of the braking system, the ABS

prevents one or more wheels from locking and

slipping in all road surface conditions, regardless

of the intensity of the braking action. The system

ensures that the vehicle can be controlled even

during emergency braking, allowing the driver to

optimize stopping distances.
The system intervenes during braking when the

wheels are about to lock, typically in emergency

braking or low-grip conditions where locking may

be more frequent.

The system also improves control and stability of

the vehicle when braking on a surface where the

grip of the left and right wheels varies, such as in

a corner.
The Electronic Braking Force Distribution (EBD)

system works with the ABS, allowing the brake

force to be distributed between the front and rear

wheels.
System Intervention
The ABS equipped on this vehicle is provided with

the "Brake-by-wire" (Integrated Brake System —

IBS) function. With this system, the command

given by pressing the brake pedal is not

transmitted hydraulically, but electrically.

Therefore, the light pulsation that is felt on the

pedal with the traditional system is no longer

noticeable.

A

CTIVE

 T

ORQUE

 V

ECTORING

 (ATV) —

I

F

 E

QUIPPED

The dynamic drive control is used to optimize and

balance the drive torque between the wheels of

the same axles. The ATV system improves the grip

in turns, sending more drive torque to the

external wheel.
Given that, in a turn, the external wheels of the

car travel more than the internal ones and

therefore turn faster, sending a higher thrust to

the external rear wheel allows for the car to be

more stable and to not suffer an "understeer"

condition. Understeer occurs when the vehicle is

turning less than appropriate for the steering

wheel position.

 WARNING!

The ABS contains sophisticated electronic

equipment that may be susceptible to

interference caused by improperly installed

or high output radio transmitting equipment.

This interference can cause possible loss of

anti-lock braking capability. Installation of

such equipment should be performed by

qualified professionals.

Pumping of the Anti-Lock Brakes will

diminish their effectiveness and may lead to

a collision. Pumping makes the stopping

distance longer. Just press firmly on your

brake pedal when you need to slow down or

stop.

The ABS cannot prevent the natural laws of

physics from acting on the vehicle, nor can it

increase braking or steering efficiency

beyond that afforded by the condition of the

vehicle brakes and tires or the traction

afforded.

The ABS cannot prevent collisions, including

those resulting from excessive speed in

turns, following another vehicle too closely,

or hydroplaning.

The capabilities of an ABS equipped vehicle

must never be exploited in a reckless or

dangerous manner that could jeopardize the

user’s safety or the safety of others.

 WARNING!

CarManuals2.com

SAFETY

130

D

YNAMIC

 S

TEERING

 T

ORQUE

 (DST)

DST uses the integration of the Electronic

Stability Control (ESC) system with the electric

power steering to increase the safety level of the

whole vehicle.
In critical situations (braking on surfaces with

different grip conditions), the ESC system

controls the steering through the DST function to

implement an additional torque contribution on

the steering wheel in order to suggest the most

correct maneuver to the driver.
The coordinated action of the brakes and

steering increases the sensation of safety and

control of the vehicle.
NOTE:

The DST feature is only meant to help the driver

realize the correct course of action through small

torques on the steering wheel, which means the

effectiveness of the DST feature is highly depen

-

dent on the driver’s sensitivity and overall reac

-

tion to the applied torque. It is very important to

realize that this feature will not steer the vehicle,

meaning the driver is still responsible for steering

the vehicle.

D

RIVE

 T

RAIN

 C

ONTROL

 (DTC) S

YSTEM

 —

I

F

 E

QUIPPED

Some models of this vehicle are equipped with an

All-Wheel Drive (AWD) system, which offers an

optimal drive for countless driving conditions and

road surfaces. The system reduces the slipping of

the tires to a minimum, automatically

redistributing the torque to the front and rear

wheels as needed.

To maximize fuel savings, the vehicle with AWD

automatically passes to Rear-Wheel Drive (RWD)

when the road and environmental conditions are

such that they wouldn't cause the tires to slip.

When the road and environmental conditions

require better traction, the vehicle automatically

goes to AWD mode.
NOTE:

If the system failure symbol switches on, after

starting the engine or while driving, it means that

the AWD system is not working properly. If the

warning message activates frequently, it is

recommended to carry out the maintenance

operations.

E

LECTRONIC

 S

TABILITY

 C

ONTROL

 (ESC)

The ESC system improves the directional control

and stability of the vehicle in various driving

conditions.
The ESC system corrects the vehicle’s understeer

and oversteer, distributing the brake force on the

appropriate wheels. The torque supplied by the

engine can also be reduced in order to maintain

control of the vehicle.

Oversteer

 occurs when the vehicle is turning

more than it should according to the angle of

the steering wheel.

Understeer

 occurs when the vehicle is turning

less than it should according to the angle of

the steering wheel.

The ESC system uses sensors installed on the

vehicle to determine the path that the driver

intends to follow and compares it with the

vehicle’s effective path. When the real path

deviates from the desired path, the ESC system

intervenes to counteract these conditions.

System Intervention
The intervention of the system is indicated by the

flashing of the ESC Warning Light on the

instrument panel, to inform the driver that the

vehicle stability and grip are critical.

 WARNING!

Electronic Stability Control (ESC) cannot

prevent the natural laws of physics from

acting on the vehicle, nor can it increase the

traction afforded by prevailing road

conditions. ESC cannot prevent accidents,

including those resulting from excessive

speed in turns, driving on very slippery

surfaces, or hydroplaning. ESC also cannot

prevent accidents resulting from loss of

vehicle control due to inappropriate driver

input for the conditions. Only a safe, attentive,

and skillful driver can prevent accidents. The

capabilities of an ESC equipped vehicle must

never be exploited in a reckless or dangerous

manner which could jeopardize the user’s

safety or the safety of others.

Vehicle modifications, or failure to properly

maintain your vehicle, may change the

handling characteristics of your vehicle, and

may negatively affect the performance of the

ESC system. Changes to the steering system,

suspension, braking system, tire type and

size or wheel size may adversely affect ESC

performance. Improperly inflated and

unevenly worn tires may also degrade ESC

performance. Any vehicle modification or

poor vehicle maintenance that reduces the

effectiveness of the ESC system can

increase the risk of loss of vehicle control,

vehicle rollover, personal injury and death.

CarManuals2.com

131

H

ILL

 S

TART

 A

SSIST

 (HSA)

This is an integral part of the ESC system and

facilitates starting on slopes, activating automat

-

ically in the following cases:

Uphill: vehicle stationary on a road with a

gradient higher than 5%, engine running,

brake pressed and transmission in NEUTRAL

(N) or gear other than REVERSE (R) engaged.

Downhill: vehicle stationary on a road with a

gradient higher than 5%, engine running,

brake pressed and REVERSE gear engaged.

When starting to move forward from a complete

stop, the ESC system control unit maintains the

braking pressure on the wheels until the engine

torque necessary for starting is reached, or in any

case for a maximum of two seconds, allowing

your right foot to be moved easily from the brake

pedal to the accelerator.
The system will automatically deactivate after two

seconds without starting, gradually releasing the

braking pressure. During this release stage, it is

possible to hear a typical mechanical brake

release noise, indicating the imminent movement

of the vehicle.

P

ANIC

 B

RAKE

 A

SSIST

 (PBA)

The PBA system is designed to improve the

vehicle’s braking capacity during emergency

braking.
The system detects emergency braking by

monitoring the speed and force with which the

brake pedal is pressed, and consequently applies

the optimal brake pressure. This can reduce the

braking distance; the PBA system therefore

complements the ABS.
Maximum assistance from the PBA system is

obtained by pressing the brake pedal very quickly.

In addition, the brake pedal should be pressed

continuously during braking, avoiding

intermittent presses, to get the most out of the

system. Do not reduce pressure on the brake

pedal until braking is no longer necessary.

The PBA system is deactivated when the brake

pedal is released.

T

RACTION

 C

ONTROL

 S

YSTEM

 (TCS)

The TCS automatically operates in the event of

slipping, loss of grip on wet roads (hydroplaning),

and acceleration on one or both drive wheels on

roads that are slippery, snowy, icy, etc. Depending

on the slipping conditions, two different control

systems are activated:

If the slipping involves both drive wheels, the

system intervenes, reducing the power

transmitted by the engine.

If the slipping only involves one of the drive

wheels, the Brake Limited Differential (BLD)

function is activated, automatically braking the

wheel which is slipping (the behavior of a

self-locking differential is simulated). This will

increase the engine torque transferred to the

wheel which isn't slipping.

 WARNING!

There may be situations where the Hill Start

Assist (HSA) will not activate and slight rolling

may occur, such as on minor hills or with a

loaded vehicle, or while pulling a trailer. HSA is

not a substitute for active driving involvement.

It is always the driver’s responsibility to be

attentive to distance to other vehicles, people,

and objects, and most importantly brake

operation to ensure safe operation of the

vehicle under all road conditions. Your

complete attention is always required while

driving to maintain safe control of your vehicle.

Failure to follow these warnings can result in a

collision or serious personal injury.

 WARNING!

The Panic Brake Assist (PBA) cannot prevent

the natural laws of physics from acting on the

vehicle, nor can it increase the traction

afforded by prevailing road conditions. PBA

cannot prevent collisions, including those

resulting from excessive speed in turns,

driving on very slippery surfaces, or

hydroplaning. The capabilities of a

PBA-equipped vehicle must never be exploited

in a reckless or dangerous manner, which

could jeopardize the user's safety or the safety

of others.

CarManuals2.com

SAFETY

132

System Intervention
The intervention of the system is indicated by the

flashing of the ESC Warning Light on the

instrument panel, to inform the driver that the

vehicle stability and grip are critical.

AUXILIARY DRIVING

SYSTEMS

The following auxiliary driving systems are

available in this vehicle:

Forward Collision Warning (FCW)

Tire Pressure Monitoring System (TPMS)

Driver Attention Assist (DAA)

The vehicle may also be fitted with the following

driving assistance systems:

Blind Spot Monitoring (BSM)

Active Blind Spot Assist (ABSA)

Lane Departure Warning (LDW)

Lane Keeping Assist (LKA)

Highway Assist System (HAS)

Traffic Jam Assist (TJA)

Adaptive Cruise Control (ACC)

Intelligent Speed Control (ISC)

Traffic Sign Recognition (TSR)

For the operation of the LDW, LKA, HAS, TJA, ACC,

ISC, or TSR systems, see

Ú

page 81.

NOTE:

When driving on two-way roads where there is no

lane dividing center line (e.g. on unpaved roads),

the use of the Active Blind Spot Assist (ABSA),

HAS, TJA, and LKA systems is strongly discour

-

aged as the system could detect the entire road

as single-lane dividing lines.
NOTE:

The driving assistance systems are designed to

aid in driving the car. The driver must always

maintain a sufficient level of attention to the

traffic and road conditions and control the trajec

-

tory of the car.

B

LIND

 S

POT

 M

ONITORING

 (BSM)

S

YSTEM

 — I

F

 E

QUIPPED



The BSM system uses two radar sensors, located

in the rear fascia/bumper (one on each side), to

detect the presence of other vehicles in the rear

side blind spots of your vehicle.

Rear Sensor Location

The system warns the driver about the presence

of other vehicles in the detection area by illumi

-

nating the BSM Warning Light located within the

door mirror on the side in which the other vehicle

was detected. If equipped, an audible chime will

also be heard to alert the driver (if option is

selected within the radio system).

BSM Indicator Light

When the engine is started, the warning light

illuminates briefly to signal the driver that the

system is active.
Sensors
The sensors are activated when any forward gear

is engaged at a speed higher than approximately

6 mph (10 km/h).
The sensors are temporarily deactivated when

the vehicle is stationary or the vehicle is in PARK.
The detection area of the system covers approxi

-

mately one lane on both sides of the vehicle.
This area begins from the door mirror and

extends for approximately 19 ft (6 m) towards the

rear part of the vehicle.
When the sensors are active, the system

monitors the detection areas on both sides of the

vehicle and warns the driver about the possible

presence of vehicles in these areas.

CarManuals2.com

133

While driving, the system monitors the detection

zone to check whether it is necessary to send a

signal to the driver on both sides. The system

monitors this detection zone in three different

situations:

When you are being overtaken by a vehicle.

When you are overtaking a vehicle.

When a vehicle approaches from the side.

NOTE:

The system does not alert the driver of the

presence of fixed objects (e.g. safety barriers,

poles, walls, etc.). However, in some circum

-

stances, the system may activate in the

presence of these objects. This is normal and

does not indicate a system malfunction.

The system does not alert the driver about the

presence of vehicles coming from the opposite

direction, in the adjacent lanes.

If a trailer is hitched to the car, the system

automatically deactivates.

Rear View
The system detects vehicles coming from the rear

part of your vehicle on both sides and entering

the rear detection area with a difference in speed

of less than 25 mph (40 km/h) in relation to your

vehicle.
Overtaking Vehicles
If another vehicle is overtaken slowly, with a

difference in speed of less than 15 mph (25 km/h)

and the vehicle stays in the blind spot for approxi

-

mately 1.5 seconds, the warning light on the door

mirror of the corresponding side illuminates.
If the difference in speed between the two

vehicles is greater than 15 mph (25 km/h), the

warning light does not illuminate

Ú

page 239.

Rear Cross Path Detection (RCP) System
The RCP system assists the driver during reverse

maneuvers in the case of reduced visibility.
The RCP system monitors the rear detection

areas on both sides of the vehicle to detect

objects moving toward the sides of the vehicle,

with a minimum speed between 1 mph (1 km/h)

and 2 mph (3 km/h) and objects moving at a

maximum speed of 21 mph (35 km/h), in areas

such as parking lots.
The system activation is signaled to the driver by

an audible warning.
NOTE:

If the sensors are covered by objects or

vehicles, the system may not work as intended.

For the system to operate correctly, the rear

fascia/bumper area where the radar sensors

are located must stay free from snow, ice and

dirt gathered from the road surface.

Do not cover the rear fascia/bumper area

where the radar sensors are located with any

object (e.g. adhesives, bike rack, etc.).

Operating Mode
The system may be activated/deactivated via the

radio system. To access the function, select the

following items on the main menu in sequence:
1. “Settings”
2. “Passive Safety”
3. “Blind Spot Alert”
“Blind Spot Alert”, “Visual” Mode
When the system is enabled, the warning light

within the door mirror on the side of the detected

object illuminates.
The visual warning on the mirror will blink if the

driver activates the turn signals, indicating a lane

change.
The warning light will be constant if the driver

stays in the same lane.

 WARNING!

The Blind Spot Monitoring system is only an

aid to help detect objects in the blind spot

zones. The BSM system is not designed to

detect pedestrians, bicyclists, or animals. Even

if your vehicle is equipped with the BSM

system, always check your vehicle’s mirrors,

glance over your shoulder, and use your turn

signal before changing lanes. Failure to do so

can result in serious injury or death.

 WARNING!

Rear Cross Path Detection (RCP) is not a back

up aid system. It is intended to be used to help

a driver detect an oncoming vehicle in a

parking lot situation. Drivers must be careful

when backing up, even when using RCP.

Always check carefully behind your vehicle,

look behind you, and be sure to check for

pedestrians, animals, other vehicles,

obstructions, and blind spots before backing

up. Failure to do so can result in serious injury

or death.

CarManuals2.com

SAFETY

134

(Continued)

“Blind Spot Alert” Function Deactivation
When the system is deactivated (“Blind Spot

Alert” mode off), the BSM or RCP systems will not

emit an audible or a visual warning.
The BSM system will store the operating mode

that was active when the engine was stopped.

Each time the engine is started, the operating

mode stored previously will be recalled and used.

A

CTIVE

 B

LIND

 S

POT

 A

SSIST

 (ABSA)

S

YSTEM

 — I

F

 E

QUIPPED



The Active Blind Spot Assist (ABSA) system

function is to help avoid/limit lateral collisions

with cars located in the blind spot zones, even

changing the vehicle’s trajectory in order to keep

it in the detected lane.
The system warns the driver about the presence

of other vehicles in the detection area by illumi

-

nating the warning light located within the door

mirror on the side in which the other vehicle was

detected. The system will also provide an

acoustic signal and/or vibration on the steering

wheel and/or counter-steering torque on the

steering wheel (if the respective item on the

“Driver Assistance” menu is set up and “Safety”

is selected on the radio system).
When the engine is started, the warning light

illuminates briefly to signal the driver that the

system is active (the warning light comes on even

if the system is activated through the radio

system menu).

ABSA Indicator Light

Sensors
The system uses two radar sensors, located in

the rear fascia/bumper (one for each side) to

detect the presence of vehicles (cars, trucks,

motorbikes, etc.) in the rear side blind spots of

the car.
The sensors are activated when any forward gear

is engaged at a speed higher than about 6 mph

(10 km/h), or when REVERSE (R) is engaged.
The sensors are temporarily deactivated when

the car is stationary and in PARK (P).
The detection area of the system covers about a

lane on both sides of the car around 10 ft (3 m).
This area begins from the door mirror and

extends for about 20 ft (6 m) towards the rear

part of the car.
When the sensors are active the system monitors

the detection areas on both sides of the car and

warns the driver about the possible presence of

cars in these areas.

 WARNING!

The accident risk persists despite the

application of torque to the steering wheel by

the ABSA system.

Applying a torque that corrects the steering

wheel alignment does not always prevent an

accident. It is always the driver's responsi

-

bility to steer, brake or accelerate, especially

after the ABSA system warning or after the

steering wheel torque intervention. The

driver is responsible for ensuring that there

are no pedestrians, other vehicles or objects

along the direction of the vehicle. Failure to

comply with these precautions may cause

serious accidents and injuries. The driver is

fully responsible for holding a safe distance

from the vehicle ahead respecting the

highway code in force in the respective

country.

In some cases, the system could apply an

improper torque to the steering wheel. This

application can be interrupted at anytime

turning the steering wheel in the opposite

direction.

 WARNING!

CarManuals2.com

135

Rear Sensor Location

While driving, the system monitors the detection

zone in three different situations:

When you are being overtaken by a vehicle;

When you are overtaking a vehicle;

When a vehicle approaches from the side;

to check if it is necessary to intervene in order to

keep the vehicle inside the lane on both sides.
NOTE:

The system does not signal the presence of fixed

objects (e.g. safety barriers, poles, walls, etc.).

However, in some circumstances, the system

may activate in the presence of these objects.

This is normal and does not indicate a system

malfunction.
The system does not warn the driver about the

presence of cars coming from the opposite direc

-

tion, in the adjacent lanes.
Activation/Deactivation
The system can be activated/deactivated using

the “Driver Assistance” menu in the radio system.

Select signal type, strength levels and sensitivity.

NOTE:

Vehicles with an active system will display the

following screen, on the radio system.

ABSA Menu Screen

System Intervention
The system intervenes in the following conditions:

the direction indicators have been turned on;

there is a vehicle in the adjacent lane on the

same side of the direction indicator (blind spot

area);

lane lines are not correctly detected;

the driver tries to change lanes unintentionally.

If the system detects the presence of a vehicle in

the rear side blind spots of the car, it applies a

torque on the steering wheel (if it has been set

through the “Settings” menu of the radio system),

in order to warn the driver of the need to keep the

car inside the lane and thus avoid collisions with

other vehicles.
The application of torque and vibration is

however only available with car speed between

37 mph (60 km/h) and 110 mph (180 km/h).

The application of torque, as well as of the

vibration, is suppressed/inhibited if:

The torque given by the driver of the steering

wheel is high

Lateral acceleration is high

The trailer is not connected to the correct

control module

At least one hand is not detected on the

steering wheel for longer than a specific time

The turn signal is turned off

NOTE:

The steering wheel torque is not applied if the

system is unable to detect a lane and if the direc

-

tion indicator for the appropriate side has not

been switched on.
The steering wheel detects the presence of the

driver’s hands by a capacitive sensor installed in

the steering wheel and by the applied torque

measured on the steering column.
System Availability
Aggressive driving of the car, or driving on the

median lines, will prevent the correct operation of

the system.
In case of intervention of the stability and braking

systems (FCW, ESC, ABS) they will prevent the

system from operating.
Lane change will disable the system for a certain

period of time.
The road must also comply with some specific

characteristics, such as:

Maximum/minimum lane width.

Clearly identified and defined double yellow

lines and, for a limited period of time, a lane

with a single demarcation line.

CarManuals2.com

SAFETY

136

NOTE:

In some cases, for a limited period of time, the

system may be activated by a lane with a single

median line.
In cases of good road surface conditions, the

system could correctly recognize other types of

valid lane markings (e.g. road edges, sidewalks,

etc.).
Hand Presence On The Steering Wheel Detection
The system is able to detect the presence of the

driver’s hands on the steering wheel.
When the system does not detect the presence of

hands on the steering wheel for zero to six

seconds, the following screen will be displayed on

the instrument cluster display. No acoustic

warning will be emitted in this case.

Hand Presence On The Steering Wheel Not

Detected Display (Up To Six Seconds)

When the system does not detect the presence of

hands on the steering wheel from 6 to 15 sec-

onds, the following screen will be displayed on

the instrument cluster display. A short acoustic

signal will sound if hands are not detected on the

steering wheel for 6 to 12 seconds. A continuous

signal will sound if hands are not detected on the

steering wheel for 12 to 15 seconds.

Hand Presence On The Steering Wheel Not

Detected Display (6 To 15 Seconds)

After 15 seconds with the hands removed from

the steering wheel, the LKA system will be

deactivated and a dedicated message will be

shown on the instrument cluster display. A short

acoustic signal will sound in this case.
In any of the previous situations where the hands

are removed from the steering wheel for more

than six seconds, it is necessary to reposition the

hands on the steering wheel.

Changing The System Sensitivity
The system's sensitivity can be set through the

radio system in the “Driver Assistance” menu and

then selecting “Comfort”. Sensitivity “High” or

“Low” can be selected.
Rear Cross Path Detection (RCP) System
The Rear Cross Path Detection (RCP) system

assists the driver during reverse maneuvers in

the case of reduced visibility.
When the ABSA system is active, the RCP system

monitors the rear detection areas on both sides of

the vehicle to detect objects moving towards the

sides of the vehicle at a minimum speed between

0.6 mph and 2 mph (1 km/h and 3 km/h) to

objects moving at a maximum speed of 22 mph

(35 km/h).
These are generally occurrences that happen in

parking areas.
The system activation is signaled to the driver by

means of a visual and audible warning.
NOTE:

If the sensors are covered by objects or vehicles,

the system may not work as intended.
Changing The System Sensitivity
To change the sensitivity and the strength of the

torque intervention on the steering wheel, refer to

the Information and Entertainment System

Owner’s Manual Supplement.

CarManuals2.com

137

D

RIVER

 A

TTENTION

 A

SSIST

 (DAA)

S

YSTEM

 — I

F

 E

QUIPPED

The Driver Attention Assist (DAA) system detects

when the driver is feeling fatigued and warns the

driver to pull over and take a break.

To Activate/Deactivate

The DAA system can be activated and deactivated

through the radio system by selecting the

following in order:
1. “Driver Assistance”
2. “Driver Attention Assist”

System Intervention

Using information from the front camera, the

system implements two operating logics:

The first operating logic takes the driving style

into account, observing the road and detecting

to what extent the driver can continue driving

with few lane crossing events.

The second operating logic measures the time

spent behind the wheel with the vehicle speed

above 40 mph (60 km/h) and below 110 mph

(180 km/h). If the “Standard” option is

selected, in these conditions, the “Dozy Driver”

message may appear after three hours of

driving. If the “Early” option is selected and

these conditions occur, the “Dozy Driver”

message will be displayed after two hours of

driving.

NOTE:

If the conditions described previously are not

detected continuously during the entire driving

period, the “Dozy Driver” message may be

displayed later than two or three hours. If the

driving style indicates that the driver is unable to

follow the road trajectory and respect the hori

-

zontal lane markings, the red symbol will appear

on the instrument cluster display to suggest that

the driver should stop for a break. An audible

signal will also sound.
If the driver accepts the suggestion provided by

the system by pushing the MENU button on the

multifunction lever, the message will disappear

from the display and the symbol will be displayed

in the dedicated area of the instrument cluster

display until the next engine shutdown.
If the driver ignores the warning provided by the

system and does not stop, the message will

continue to remain on the display, along with the

symbol.
NOTE:

In the event of a DAA system failure, an amber

symbol will appear in the instrument cluster

display along with a dedicated message.

If the ABS activates, “ABS ACTIVE” will display

in place of the DAA symbol and will remain

active until the ABS deactivates.

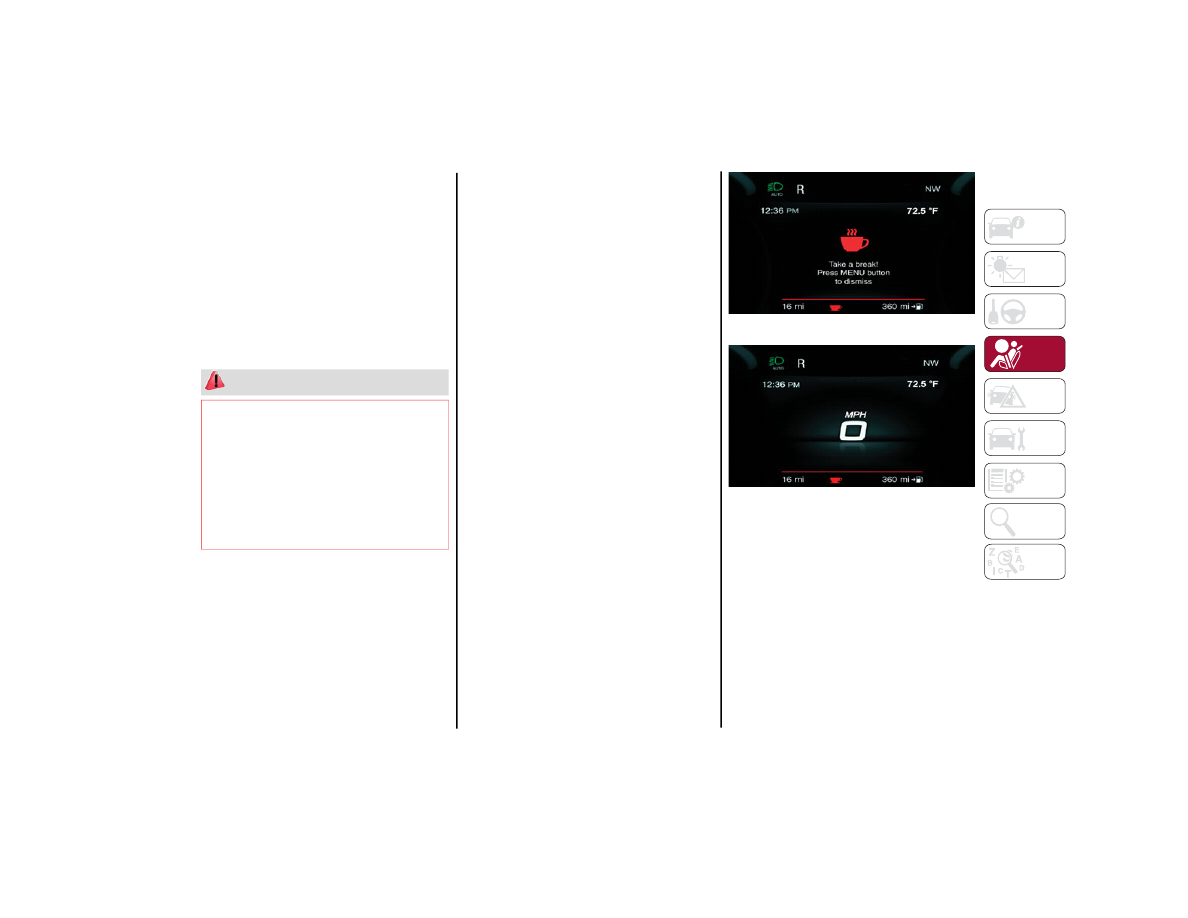

DAA Warning Message

DAA Warning Icon

Changing The System Sensitivity
The DAA system intervention sensitivity can be

adjusted through the radio system within the

“Driver Assistance” menu.
NOTE:

If “Race” mode (if equipped) is activated, the

DAA system will be automatically deactivated.

The system sensitivity cannot be changed in

the event of a camera system failure.

 WARNING!

The DAA system is an aid for driving and does

not relieve the driver of the responsibility of

driving the vehicle. Always drive alert and get

plenty of rest before driving. If you experience

fatigue while driving, do not wait for the DAA to

intervene with a warning. Choose a safe and

secure location where you can pull over safely

for a break. Only return to the road when you

are in the right physical and mental condition

to prevent endangering yourself and others.

CarManuals2.com

SAFETY

138

F

ORWARD

 C

OLLISION

 W

ARNING

 P

LUS



(FCW+) S

YSTEM

 — I

F

 E

QUIPPED

This is a driving assistance system composed of

a radar located behind the front fascia/bumper

and a camera located in the center of the

windshield.

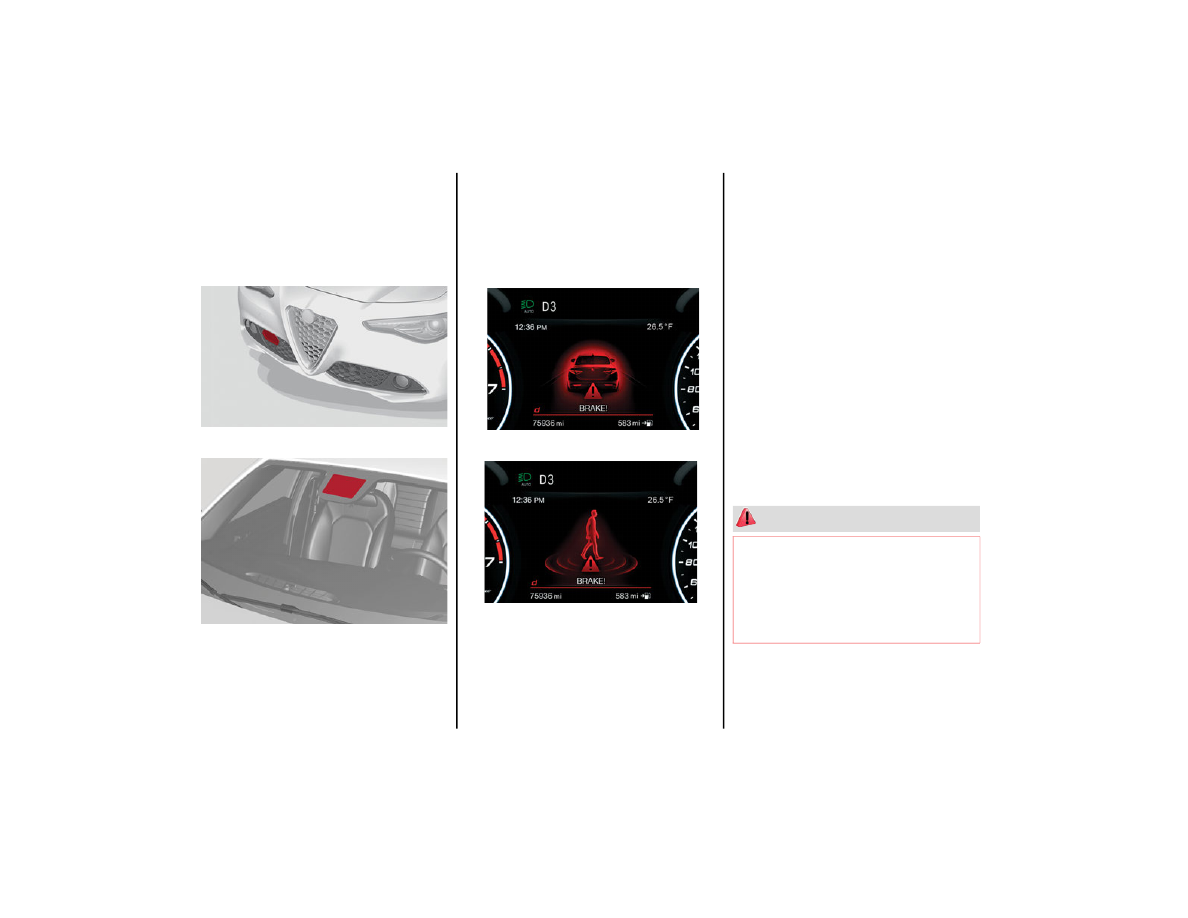

Front Fascia/Bumper Radar Location

Windshield Camera Location

In the event of an imminent collision, the system

intervenes by automatically applying the vehicle’s

brakes to prevent a the collision or reduce its

effects.
The system provides the driver with audible and

visual signals through specific messages on the

instrument cluster display.

Vehicle Brake Screen

Pedestrian Brake Screen

The system may lightly brake to warn the driver if

a potential front end collision is detected (limited

braking). Signals and limited braking are

intended to allow the driver time to intervene.
In situations with the risk of collision, if the

system detects no intervention by the driver, it

provides automatic braking to help slow the

vehicle and mitigate the potential front end

collision (automatic braking). If intervention by

the driver on the brake pedal is detected, but not

deemed sufficient, the system may intervene in

order to improve the reaction of the braking

system by reducing vehicle speed further

(additional assistance in braking stage).
The system will intervene automatically in case of

imminent collision or impact against a pedestrian

crossing the road (speed under 31 mph (50 km/h)).
NOTE:

For safety reasons, when the vehicle has

stopped, the brake calipers may remain blocked

for about two seconds. Make sure to press the

brake pedal if the vehicle moves slightly forward.

 WARNING!

Forward Collision Warning (FCW) is not

intended to avoid a collision on its own, nor

can FCW detect every type of potential

collision. The driver has the responsibility to

avoid a collision by controlling the vehicle via

braking and steering. Failure to follow this

warning could lead to serious injury or death.

CarManuals2.com

139

Engagement/Disengagement
The system may be disengaged (and engaged

again) in the “Driver Assistance” menu of the

Information and Entertainment System.
The system can be deactivated even with the

ignition device in the ON position.
NOTE:

The system status can be changed with car at a

standstill only.
Select from among three operating modes:

Warning And Braking: the system (if active), in

addition to the visual and audible warnings,

provides limited braking, automatic braking,

and additional assistance in braking stage

where the driver does not brake sufficiently in

the event of a potential front-end collision.

Only Warning: the system (if active), does not

provide limited braking, but guarantees

automatic braking or additional assistance in

braking stage where the driver does not brake

at all or not sufficiently enough in the event of

a potential front-end collision.

Disabled: the system does not provide visual

and audible warnings, limited braking,

automatic braking, or additional assistance in

braking stage. The system will therefore

provide no indication of a possible collision.

Activation/Deactivation
The Forward Collision Warning system is

activated whenever the engine is started

regardless of what is shown on the radio system.
Following a deactivation, the system will not warn

the driver about the possible collision with the

preceding vehicle, regardless of the setting

selected with the radio system.

NOTE:

Each time the engine is started, the system is

activated regardless of what setting was selected

when the engine was turned off.
The system is active:

Each time the engine is started

In the radio system

When the ignition is in the ON position

When the vehicle speed is between 2 mph

(4 km/h) and 124 mph (200 km/h)

When the front seat belts are fastened

NOTE:

If the seat belts of the front seats are not correctly

fastened, the system will not intervene on the

braking system (only audible and visual signals

will be provided).
Changing The System Sensitivity
The sensitivity of the system can be changed

through the radio system menu, choosing from

one of the following three options: "Near",

"Medium" or "Far". Refer to the description in the

Information and Entertainment System Owner’s

Manual Supplement for how to change the

settings.
The default setting is "Medium". With this setting,

the system warns the driver of a possible collision

with the vehicle in front when that vehicle is at a

standard distance, between that of the other two

settings.
With the system sensitivity set to "Far", the

system will warn the driver of a possible collision

with the vehicle in front when that vehicle is at a

greater distance, thus providing the possibility of

acting on the brakes more lightly and gradually.

This setting provides the driver with the maximum

possible reaction time to prevent a potential

collision.
NOTE:

The “Far” setting may result in a greater number

of FCW possible collision warnings experienced.
With the option set to "Near", the system will alert

the driver of a possible collision with the vehicle

in front when that vehicle is close. This setting

offers the driver a lower reaction time compared

to the "Medium" and "Far" settings, in the event of

a potential collision, but permits more dynamic

driving of the vehicle.
NOTE:

The “Near” setting may result in a lesser number

of FCW possible collision warnings experienced.
The system sensitivity setting is kept in the

memory when the engine is turned off.
System Limited Operation Warning
If a dedicated message is displayed, a condition

limiting the system operation may have occurred.

The possible reasons of this limitation are if

something is blocking the camera view, or a fault

is present.
If an obstruction is signaled, clean the area of the

windshield.
Although the vehicle can still be driven in normal

conditions, the system may be not completely

available.
When the conditions limiting the system

functions end, this will go back to normal and

complete operation. Should the fault persist,

contact an authorized dealer.

CarManuals2.com

SAFETY

140

System Failure Signaling
If the system turns off and a dedicated message

is shown on the display, it means that there is a

fault with the system.
In this case, it is still possible to drive the vehicle,

but you are advised to contact an authorized

dealer as soon as possible.
Radar Indication Not Available
If conditions are such that the radar cannot

detect obstacles correctly, the system is

deactivated and a dedicated message appears

on the display. This generally occurs in the event

of poor visibility, such as when it is snowing or

raining heavily.
The function of this system can also be

temporarily reduced due to obstructions such as

mud, dirt or ice on the fascia/bumper. In such

cases, a dedicated message will be shown on the

display and the system will be deactivated. This

message can sometimes appear in conditions of

high reflectivity (e.g. tunnels with reflective tiles

or ice or snow). When the conditions limiting the

system functions end, it will go back to normal

and complete operation.
In certain cases, this dedicated message could

be displayed when the radar is not detecting any

vehicles or objects within its view range.
If atmospheric conditions are not the reason

behind this message, check if the sensor is dirty.

It could be necessary to clean or remove any

obstructions in the area.
If the message appears frequently, even in the

absence of atmospheric conditions such as

snow, rain, mud or other obstructions, contact an

authorized dealer for a sensor alignment check.
In the absence of visible obstructions, manually

removing the decorative cover trim and cleaning

the radar surface could be required. Have this

operation performed at an authorized dealer.
NOTE:

It is recommended that you do not install devices,

accessories, or aerodynamic attachments in

front of the sensor or darken it in any way, as this

can compromise the correct functioning of the

system.
Frontal Collision Alarm With Active Braking —

If Equipped
If this function is selected, the brakes are

operated to reduce the speed of the vehicle in the

event of potential collision.
This function applies an additional braking

pressure if the braking pressure applied by the

driver does not suffice to prevent potential

collision.
The function is active with speed above 2 mph

(4 km/h).
NOTE:

When using an automatic car wash it is recom

-

mended to deactivate the system through the

settings of the radio system. The system may

detect the presence of a car, a wall or another

obstacle and activate.

Driving In Special Conditions
In certain driving conditions, system intervention

might be unexpected or delayed. The driver must

therefore be very careful, keeping control of the

vehicle.

Driving close to a bend.

The vehicle ahead is leaving a roundabout.

Vehicles with small dimensions and/or not

aligned in the driving lane.

Lane change by other vehicles.

Vehicles traveling at right angles to the vehicle.

NOTE:

In particularly complex traffic conditions, the

driver can deactivate the system manually

through the radio system.

If the driver presses the brake pedal fully or

makes an excessive steering maneuver during

system operation, the automatic braking

function may deactivate (e.g. to allow a

possible maneuver to avoid the obstacle).

The FCW system is automatically deactivated

when operating in race mode and a warning

message will be displayed on the instrument

cluster

Ú

page 239.

CarManuals2.com

141

Driving Close To A Bend
When entering or leaving a wide bend, the system

may detect a vehicle in front you, but not in the

same driving lane. In cases such as these, the

system may intervene.

Driving Around Wide Curves

The Vehicle Ahead Is Leaving A Roundabout
On a roundabout, the system could intervene if it

detects a vehicle ahead which is leaving the

roundabout.

Driving In Roundabouts

Vehicles With Small Dimensions And/Or Not

Aligned In The Driving Lane
The system cannot detect vehicles in front of you

but outside the range of the radar sensor and

may therefore not react in the presence of small

vehicles, such as bicycles or motorcycles.

Driving Near Small Vehicles

Lane Change By Other Vehicles
Vehicles suddenly changing lanes to enter the

same lane as your vehicle within the operating

range of the radar sensor, may cause the system

to intervene.

Other Vehicles Changing Lanes

Vehicles Traveling At Right Angles To The Vehicle
The system may temporarily react to a vehicle

that is passing through the radar sensor’s

operating range at right angles.

Other Vehicle Passing Through Radar Range

CarManuals2.com

SAFETY

142

T

IRE

 P

RESSURE

 M

ONITORING

 S

YSTEM



(TPMS)

The vehicle is equipped with a TPMS that sends

the inflation pressure information of each tire to

the control unit, and will signal the driver in the

event of insufficient tire pressure.

The TPMS uses wireless technology with wheel

rim mounted electronic sensors to monitor tire

pressure levels. Sensors, mounted to each wheel

as part of the valve stem, transmit tire pressure

readings to the receiver module.
Tire pressure will vary with temperature by

approximately 1 psi (7 kPa) for every 12°F

(6.5°C). This means that when the outside

temperature decreases, the tire pressure will

also decrease. Tire pressure should always be set

based on cold inflation tire pressure. This is

defined as the tire pressure after the vehicle has

not been driven for at least three hours, or driven

less than 1 mile (1.6 km) after a three hour

period. The cold tire inflation pressure must not

exceed the maximum inflation pressure molded

into the tire sidewall. The tire pressure will also

increase as the vehicle is driven. This is normal,

and there should be no adjustment for this

increased pressure. See

Ú

page 206 for

information on how to properly inflate the

vehicle’s tires.
The TPMS will signal the driver if pressure falls

below the warning limit for any reason, including

the effects of low temperature and normal loss of

pressure from the tire.
The TPMS will stop indicating insufficient tire

pressure when pressure is equal to or greater

than the prescribed cold inflation level.

Therefore, if insufficient tire pressure is indicated

by the (   ) warning light displaying in the

instrument cluster, increase the inflation

pressure up to the prescribed cold inflation value.

The system will automatically update, and the

Tire Pressure Monitoring System Warning Light

will turn off once the system receives the updated

tire pressures. The vehicle may need to be driven

for up to 20 minutes above 15 mph (24 km/h) in

order for the TPMS to receive this information.
NOTE:

The TPMS cannot indicate sudden tire pressure

drops (e.g. if a tire bursts). In this case, proceed

with caution and avoid abrupt steering.
Operating Example
For example, your vehicle may have a

recommended cold (parked for more than three

hours) placard pressure of 33 psi (227 kPa). If

the ambient temperature is 68°F (20°C), and the

measured tire pressure is 28 psi (193 kPa), a

temperature drop to 20°F (-7°C) will decrease

the tire pressure to approximately 24 psi

(165 kPa). This tire pressure is low enough to turn

on the Tire Pressure Monitoring System Warning

Light. Driving the vehicle may cause the tire

pressure to rise to approximately 28 psi

(193 kPa), but the Tire Pressure Monitoring

System Warning Light will still be on. In this

situation, the Tire Pressure Monitoring System

Warning Light will turn off only after the tires are

inflated to the vehicle’s recommended cold

placard pressure value.

 WARNING!

The system has not been designed to

prevent impacts and cannot detect possible

conditions leading to an accident in

advance. Failure to take into account this

warning may lead to serious or fatal injuries.

The system may activate, assessing the

trajectory of the vehicle, for the presence of

reflecting metal objects different from other

vehicles, such as safety barriers, road signs,

barriers before parking lots, tollgates, level

crossings, gates, railways, objects near road

constructions sites or higher than the vehicle

(e.g. a fly-over). In the same way, the system

may intervene inside multi-story parking lots

or tunnels, or due to a glare on the road

surface. These possible activations are a

consequence of the real driving scenario

coverage by the system and must not be

regarded as faults.

The system has been designed for road use

only. If the vehicle is driven on a track, the

system must be deactivated to avoid

unnecessary warnings. Automatic deacti

-

vation is signaled by the dedicated warning

light/symbol switching on in the instrument

panel

Ú

page 70.

CarManuals2.com

143

Insufficient Tire Pressure Indication
If an insufficient pressure value is detected on

one or more tires, the Tire Pressure Monitoring

System Warning Light in the instrument cluster

will display alongside the dedicated messages,

the system will highlight the tire or tires with

insufficient pressure graphically, and an acoustic

signal will be emitted.

In this case, stop the vehicle, check the inflation

pressure of each tire, and inflate the necessary

tire or tires to the correct cold inflation pressure

value, shown on the display or in the dedicated

TPMS menu.
TPMS Temporarily Disabled:
TPMS Check Message
When a system fault is detected, the Tire

Pressure Monitoring System Warning Light will

flash on and off for 75 seconds, and then remain

on solid. The system fault will also sound a chime.

If the ignition is cycled, this sequence will repeat,

provided that the system fault still exists. The Tire

Pressure Monitoring System Warning Light will

turn off when the fault condition no longer exists.

A system fault can occur due to any of the

following:

Jamming due to electronic devices or driving

next to facilities emitting the same radio

frequencies as the TPMS sensors.

Installing some form of aftermarket window

tinting that affects radio wave signals.

Packed snow or ice around the wheels or

wheel housings.

Using tire chains on the vehicle.

Using wheels/tires not equipped with TPMS

sensors.

After the punctured tire has been repaired with

the original tire sealant contained in the tire kit,

the previous condition must be restored so that

the Tire Pressure Monitoring System Warning

Light is off during normal driving.
TPMS Deactivation
The TPMS can be deactivated by replacing all four

wheel and tire assemblies (road tires) with wheel

and tire assemblies that do not have TPMS

sensors, such as when installing winter wheel

and tire assemblies on your vehicle.
To deactivate the TPMS, first replace all four

wheel and tire assemblies (road tires) with tires

not equipped with Tire Pressure Monitoring

System sensors. Then, drive the vehicle for

20 minutes above 15 mph (24 km/h). The TPMS

will chime, the Tire Pressure Monitoring System

Warning Light will flash on and off for 75 seconds

and then remain on. The instrument cluster will

display the “SERVICE TPM SYSTEM” message

and then display dashes (--) in place of the

pressure values.
Beginning with the next ignition switch cycle, the

TPMS will no longer chime or display the

“SERVICE TPM SYSTEM” message in the

instrument cluster. Instead, dashes (--) will

remain in place of the pressure values.
To reactivate the TPMS, replace all four wheel

and tire assemblies (road tires) with tires

equipped with TPMS sensors. Then, drive the

vehicle for up to 20 minutes above 15 mph

(24 km/h). The TPMS will chime, the Tire

Pressure Monitoring System Warning Light will

flash on and off for 75 seconds and then turn off.

The instrument cluster will display the “SERVICE

TPM SYSTEM” message and then display

pressure values in place of the dashes. On the

next ignition switch cycle the "SERVICE TPM

SYSTEM" message will no longer be displayed, as

long as no system fault exists.
NOTE:

The TPMS is not intended to replace normal

tire care and maintenance, or to provide

warning of a tire failure or condition.

 CAUTION!

The TPMS has been optimized for the original

equipment tires and wheels. TPMS pressures

and warning have been established for the

tire size equipped on your vehicle.

Undesirable system operation or sensor

damage may result when using replacement

equipment that is not of the same size, type,

and/or style. The TPMS sensor is not

designed for use on aftermarket wheels and

may contribute to a poor overall system

performance or sensor damage. Customers

are encouraged to use Original Equipment

Manufacturer (OEM) wheels to ensure proper

TPMS feature operation.

Using aftermarket tire sealants may cause the

Tire Pressure Monitoring System (TPMS)

sensor to become inoperable. After using an

aftermarket tire sealant it is recommended

that you take your vehicle to an authorized

dealer to have your sensor function checked.

After inspecting or adjusting the tire pressure

always reinstall the valve stem cap. This will

prevent moisture and dirt from entering the

valve stem, which could damage the TPMS

sensor.

CarManuals2.com

SAFETY

144

The TPMS should not be used as a tire

pressure gauge while adjusting your tire

pressure.

Driving on a significantly underinflated tire will

cause the tire to overheat, and can lead to tire

failure. Underinflation also reduces fuel

efficiency and tire tread life, and may affect the

vehicle’s handling and stopping ability.

The TPMS is not a substitute for proper tire

maintenance, and it is the driver’s responsi

-

bility to maintain correct tire pressure using an

accurate tire pressure gauge, even if underin

-

flation has not reached the level to trigger

illumination of the Tire Pressure Monitoring

System Warning Light.

Seasonal temperature changes will affect tire

pressure, and the TPMS will monitor the actual

tire pressure in the tire

Ú

page 239.

OCCUPANT RESTRAINT

SYSTEMS

Some of the most important safety features in

your vehicle are the restraint systems:

O

CCUPANT

 R

ESTRAINT

 S

YSTEMS



F

EATURES



Seat Belt Systems

Supplemental Restraint Systems (SRS) Air

Bags

Child Restraints

Some of the safety features described in this

section may be standard equipment on some

models, or may be optional equipment on others.

If you are not sure, ask an authorized dealer.

I

MPORTANT

 S

AFETY

 P

RECAUTIONS

Please pay close attention to the information in

this section. It tells you how to use your restraint

system properly, to keep you and your

passengers as safe as possible.
Here are some simple steps you can take to

minimize the risk of harm from a deploying air

bag:
1. Children 12 years old and under should

always ride buckled up in the rear seat of a

vehicle with a rear seat.

2. A child who is not big enough to wear the

vehicle seat belt properly must be secured in

the appropriate child restraint or belt-posi

-

tioning booster seat in a rear seating position

Ú

page 158.

3. If a child from 2 to 12 years old (not in a

rear-facing child restraint) must ride in the

front passenger seat, move the seat as far

back as possible and use the proper child

restraint

Ú

page 158.

4. Never allow children to slide the shoulder belt

behind them or under their arm.

5. You should read the instructions provided

with your child restraint to make sure that you

are using it properly.

6. All occupants should always wear their lap

and shoulder belts properly.

7. The driver and front passenger seats should

be moved back as far as practical to allow the

front air bags room to inflate.

8. Do not lean against the door or window. If

your vehicle has side air bags, and deploy

-

ment occurs, the side air bags will inflate

forcefully into the space between occupants

and the door and occupants could be injured.

9. If the air bag system in this vehicle needs to

be modified to accommodate a disabled

person, see

Ú

page 236 for customer

service contact information.

S

EAT

 B

ELT

 S

YSTEMS



Buckle up even though you are an excellent

driver, even on short trips. Someone on the road

may be a poor driver and could cause a collision

that includes you. This can happen far away from

home or on your own street.
Research has shown that seat belts save lives,

and they can reduce the seriousness of injuries in

a collision. Some of the worst injuries happen

when people are thrown from the vehicle. Seat

belts reduce the possibility of ejection and the

risk of injury caused by striking the inside of the

vehicle. Everyone in a motor vehicle should be

belted at all times.

 WARNING!

Never place a rear-facing child restraint in

front of an air bag. A deploying passenger

front air bag can cause death or serious

injury to a child 12 years or younger,

including a child in a rear-facing child

restraint.

Never install a rear-facing child restraint in

the front seat of a vehicle. Only use a

rear-facing child restraint in the rear seat. If

the vehicle does not have a rear seat, do not

transport a rear-facing child restraint in that

vehicle.

CarManuals2.com

145

(Continued)

Enhanced Seat Belt Use Reminder

System (BeltAlert)

Driver And Passenger BeltAlert — If Equipped

BeltAlert is a feature intended to remind

the driver and outboard front seat

passenger (if equipped with outboard

front passenger seat BeltAlert) to buckle

their seat belts. The BeltAlert feature is active

whenever the ignition switch is in the ON/RUN

position.
Initial Indication
If the driver is unbuckled when the ignition switch

is first in the ON/RUN position, a chime will signal

for a few seconds. If the driver or outboard front

seat passenger (if equipped with outboard front

passenger seat BeltAlert) is unbuckled when the

ignition switch is first in the ON/RUN position the

Seat Belt Reminder Light will turn on and remain

on until both outboard front seat belts are

buckled. The outboard front passenger seat

BeltAlert is not active when an outboard front

passenger seat is unoccupied.
BeltAlert Warning Sequence
The BeltAlert warning sequence is activated when

the vehicle is moving above a specified vehicle

speed range and the driver or outboard front seat

passenger is unbuckled (if equipped with

outboard front passenger seat BeltAlert) (the

outboard front passenger seat BeltAlert is not

active when the outboard front passenger seat is

unoccupied). The BeltAlert warning sequence

starts by blinking the Seat Belt Reminder Light

and sounding an intermittent chime. Once the

BeltAlert warning sequence has completed, the

Seat Belt Reminder Light will remain on until the

seat belts are buckled. The BeltAlert warning

sequence may repeat based on vehicle speed

until the driver and occupied outboard front seat

passenger seat belts are buckled. The driver

should instruct all occupants to buckle their seat

belts.
Change Of Status
If the driver or outboard front seat passenger (if

equipped with outboard front passenger seat

BeltAlert) unbuckles their seat belt while the

vehicle is traveling, the BeltAlert warning

sequence will begin until the seat belts are

buckled again.
The outboard front passenger seat BeltAlert is not

active when the outboard front passenger seat is

unoccupied. BeltAlert may be triggered when an

animal or other items are placed on the outboard

front passenger seat or when the seat is folded

flat (if equipped). It is recommended that pets be

restrained in the rear seat (if equipped) in pet

harnesses or pet carriers that are secured by seat

belts, and cargo is properly stowed.

Lap/Shoulder Belts

All seating positions in your vehicle are equipped

with lap/shoulder belts.
The seat belt webbing retractor will lock only

during very sudden stops or collisions. This

feature allows the shoulder part of the seat belt to

move freely with you under normal conditions.

However, in a collision the seat belt will lock and

reduce your risk of striking the inside of the

vehicle or being thrown out of the vehicle.

 WARNING!

Relying on the air bags alone could lead to

more severe injuries in a collision. The air

bags work with your seat belt to restrain you

properly. In some collisions, the air bags

won’t deploy at all. Always wear your seat

belt even though you have air bags.

In a collision, you and your passengers can

suffer much greater injuries if you are not

properly buckled up. You can strike the

interior of your vehicle or other passengers,

or you can be thrown out of the vehicle.

Always be sure you and others in your vehicle

are buckled up properly.

It is dangerous to ride in a cargo area, inside

or outside of a vehicle. In a collision, people

riding in these areas are more likely to be

seriously injured or killed.

Do not allow people to ride in any area of

your vehicle that is not equipped with seats

and seat belts.

Be sure everyone in your vehicle is in a seat

and using a seat belt properly. Occupants,

including the driver, should always wear their

seat belts whether or not an air bag is also

provided at their seating position to minimize

the risk of severe injury or death in the event

of a crash.

CarManuals2.com

SAFETY

146

(Continued)

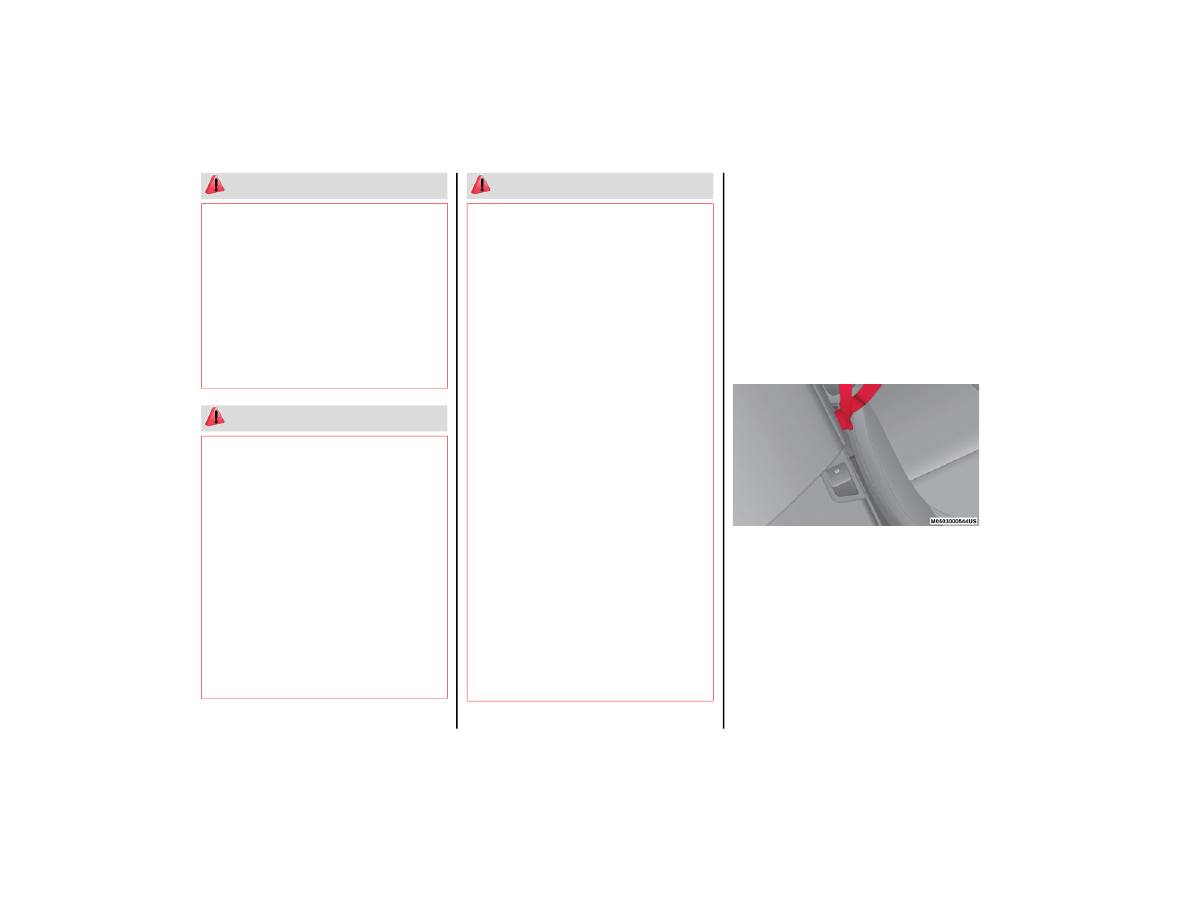

Lap/Shoulder Belt Operating Instructions

1. Enter the vehicle and close the door. Sit back

and adjust the seat.

2. The seat belt latch plate is above the back of

the front seat, and next to your arm in the

rear seat (for vehicles equipped with a rear

seat). Grab the latch plate and pull out the

seat belt. Slide the latch plate up the webbing

as far as necessary to allow the seat belt to

go around your lap.

3. When the seat belt is long enough to fit, insert

the latch plate into the buckle until you hear

a “click.”

Seat Belt Latch Plate Inserted Into Seat Belt

Buckle

4. Position the lap belt so that it is snug and lies

low across your hips, below your abdomen.

To remove slack in the lap belt portion, pull

up on the shoulder belt. To loosen the lap belt

if it is too tight, tilt the latch plate and pull on

the lap belt. A snug seat belt reduces the risk

of sliding under the seat belt in a collision.

Wearing your seat belt incorrectly could

make your injuries in a collision much worse.

You might suffer internal injuries, or you

could even slide out of the seat belt. Follow

these instructions to wear your seat belt

safely and to keep your passengers safe, too.

Two people should never be belted into a

single seat belt. People belted together can

crash into one another in a collision, hurting

one another badly. Never use a lap/shoulder

belt or a lap belt for more than one person,

no matter what their size.

 WARNING!

A lap belt worn too high can increase the risk of

injury in a collision. The seat belt forces won’t

be at the strong hip and pelvic bones, but

across your abdomen. Always wear the lap part

of your seat belt as low as possible and keep it

snug.

A twisted seat belt may not protect you

properly. In a collision, it could even cut into

you. Be sure the seat belt is flat against your

body, without twists. If you can’t straighten a

seat belt in your vehicle, take it to an authorized

dealer immediately and have it fixed.

A seat belt that is buckled into the wrong buckle

will not protect you properly. The lap portion

could ride too high on your body, possibly

causing internal injuries. Always buckle your

seat belt into the buckle nearest you.

 WARNING!

A seat belt that is too loose will not protect

you properly. In a sudden stop, you could

move too far forward, increasing the

possibility of injury. Wear your seat belt

snugly.

A seat belt that is worn under your arm is

dangerous. Your body could strike the inside

surfaces of the vehicle in a collision,

increasing head and neck injury. A seat belt

worn under the arm can cause internal

injuries. Ribs aren’t as strong as shoulder

bones. Wear the seat belt over your shoulder

so that your strongest bones will take the

force in a collision.

A shoulder belt placed behind you will not

protect you from injury during a collision. You

are more likely to hit your head in a collision

if you do not wear your shoulder belt. The lap

and shoulder belt are meant to be used

together.

A frayed or torn seat belt could rip apart in a

collision and leave you with no protection.

Inspect the seat belt system periodically,

checking for cuts, frays, or loose parts.

Damaged parts must be replaced

immediately. Do not disassemble or modify

the seat belt system. If your vehicle is

involved in a collision, or if you have

questions regarding seat belt or retractor

conditions, take your vehicle to an

authorized FCA dealer or authorized FCA

Certified Collision Care Program facility for

inspection.

 WARNING!

CarManuals2.com















Content      ..     2      3      4      5     ..
