Description

The Automatic Dual Zone Climate Control System

adjusts the temperature and air distribution

independently between the driver and passenger.
The system maintains the set temperature inside

the passenger compartment and compensates

for outside temperature change.
NOTE:

The reference temperature is 72°F (22°C) for

optimal comfort management.
The automatic setting will adjust the following to

maintain comfort within the passenger

compartment:

Air temperature from the driver/front

passenger side vents

Air distribution from the driver/front passenger

side vents

Fan speed (continuous variation of the air flow)

Compressor variations (for cooling/dehumid

-

ifying the air)

Air recirculation

The Climate Control system can also be operated

manually by using the buttons and knobs on the

faceplate.
Manual selections will override the automatic

settings, which are stored until the AUTO button is

pushed. If the system intervenes for safety

reasons, the automatic setting will take control of

the system.
The following operations will not deactivate the

automatic (AUTO) function:

Air Recirculation activation/deactivation

A/C activation/deactivation

SYNC function activation

Rear Window Defrost activation/deactivation

When in AUTO mode, the vehicle’s internal

temperature is controlled according to the set

temperature.
The following can be manually set or adjusted:

Driver/passenger air temperature

Blower speed (continuous variation)

Air distribution (seven positions for driver and

passenger)

A/C activation

Front Defrost

Air recirculation

Rear Defrost

System deactivation

A/C Compressor
Push the A/C button or the icon to activate or

deactivate the A/C compressor (indicator

illuminated when activated). The A/C compressor

will remain off even after the engine has stopped.
When the A/C compressor is turned off, the

system deactivates air recirculation to prevent

the windows from fogging up. If the climate

control system can maintain the temperature,

with the A/C turned off, the AUTO feature will

remain on and the AUTO button indicator light will

not switch off.
To restore automatic control of the A/C

compressor, push the A/C button or the AUTO

button. With the A/C compressor off, the air

speed can be set manually using the Air Speed

Adjustment Knob.
When the A/C compressor is on, and the engine

is running, air speed cannot be lower than the

minimum speed (only one indicator light is lit).
NOTE:

When the A/C is off, the Climate Control system

can not produce air that is colder than the current

outside temperature. Under certain environ

-

mental conditions, windows could fog up rapidly,

since the air is not dehumidified.

 CAUTION!

The system uses R1234yf refrigerant, which

does not pollute the environment in the event

of accidental leakage. Under no

circumstances, use R134a and R12 fluids,

which are incompatible with the components

of this system.

CarManuals2.com

GETTING TO KNO

W

 YOU

R VEHICLE

52

Air Recirculation And Air Quality System (AQS)

Air Recirculation is managed according

to the following operating mode:

Automatic engagement: indicator is

illuminated above the “A” on the Air Recircu

-

lation Button

Forced activation (air circulation always

activated): indicator illuminated above the

icon on the Air Recirculation Button

Forced deactivation (air recirculation always

off with intake of outside air): both indicators

not illuminated on the Air Recirculation Button

The three operating conditions are obtained by

pushing the Air Recirculation Button   in

sequence.
Enabling The Air Quality System (AQS) Function —

If Equipped
When the automatic recirculation function is

selected, the AQS function automatically

activates internal air recirculation when the

outside air is polluted (e.g. in heavy traffic and

tunnels).
At low external temperatures or in high humidity,

the automatic function turns off to avoid fogging

up the windows. The user can select the function

again by pushing the Air Recirculation Button.
In automatic operation, air recirculation will be

controlled by the system according to outside

environmental conditions.

NOTE:

With the AQS function active and after the

internal air recirculation system has been

functioning for a set amount of time, the

Climate Control System enables air intake to

cycle the air in the passenger compartment for

a set time. The AQS function is disabled during

the air changes.

The engagement of the recirculation system

makes it possible to reach the required

heating or cooling conditions faster. It is,

however, inadvisable to use it on rainy/cold

days as it can increase the possibility of the

windows fogging. When the outside

temperature is low, recirculation is forced off

to prevent the windows from fogging up.

Front Defrost

Air comes from the windshield and side

window demist outlets. Use Defrost

mode with maximum temperature

settings for best windshield and side

window defrosting and defogging.

Rear Defrost

Push the Rear Defrost button to activate

(indicator illuminated) the Rear Defrost.

The Rear Defrost will turn off after 20 minutes or

once the engine is turned off.
NOTE:

To avoid damage, do not apply stickers over the

interior heating filaments of the Rear Defrost.

Front Defrost And MAX-DEF Function

Push the MAX-DEF button (indicator

illuminated) to defrost the windshield

and side windows.

While in MAX-DEF function, the air conditioner

will:

Activate the air conditioner compressor when

the weather allows

Turn air recirculation off

Set the maximum air temperature (HI) on both

the driver and passenger side

Activate a blower speed based on the

temperature of the engine coolant

Adjust the air flow towards the windshield and

front side windows

Activate the Rear Window Defrost

Display the fan speed (indicators illuminated)

and current air distribution setting

NOTE:

The MAX-DEF function remains active for approx

-

imately three minutes once the engine coolant

reaches the proper temperature.
When the function is on, AUTO mode will

deactivate. The only manual operations possible

are adjusting blower speed and turning off the

Rear Window Defrost.
Pushing the   button switches off the MAX-DEF

function.

CarManuals2.com

53

Air Temperature Adjustment
Rotate the driver or passenger Temperature

Adjustment Knob clockwise for warmer

temperatures or counterclockwise for cooler

temperatures. The set temperatures are shown

on the radio system.
Push the SYNC button to sync the driver and

passenger air temperatures.
Rotate the passenger Temperature Adjustment

Knob to cancel the SYNC function. This will set a

new passenger side temperature.
Rotate the Temperature Adjustment Knob fully

clockwise to engage the HI (maximum heating)

setting or fully counterclockwise to engage the LO

(maximum cooling) setting. To deactivate these

functions, rotate the Temperature Adjustment

Knob to the desired temperature.
Rear passengers’ temperature is linked to driver

side selection.

AUTO Button
When the AUTO button is pushed (indicator

illuminated), the Climate Control system automat

-

ically adjusts the following settings:

Quantity and distribution of air flow in the

passenger compartment

The air conditioner

Air recirculation

Cancels any manual settings

Selecting the AUTO function illuminates the

indicator on the A/C button.
If air distribution or the fan speed is manually

adjusted, the AUTO button indicator turns off to

indicate that the Climate Control system is no

longer in AUTO mode.

After a manual adjustment, push the AUTO button

to resume the automatic system.

SYNC Button
Push the SYNC button (indicator illuminated) to

sync the passenger side air temperature with the

driver side air temperature.
This function makes temperature regulation

easier when the driver is traveling alone.
Turn the passenger Temperature Adjustment

Knob or push the passenger side Air Distribution

Selection Button to change the passenger side air

temperature and return to separate air

temperature management.

Blower Speed
Turn the Blower Speed Knob to increase or

decrease the blower speed. The speed is

displayed with lighted indicators in the radio

system display.

Maximum fan speed = all indicators

illuminated on the radio system display

Minimum fan speed = one indicator

illuminated on the radio system display

The fan can be turned off by rotating the Blower

Speed Knob counterclockwise to the off position

(all segments on the radio system display are

turned off).
NOTE:

To restore automatic control of the fan speed,

push the AUTO button.

Air Distribution Selection
Push the Air Distribution Selection button on the

faceplate to change the mode of air distribution.
NOTE:

In AUTO mode, the Climate Controls automatically

manage the air distribution. When set manually,

the respective symbols on the radio system indi

-

cate the air distribution setting.

Panel Mode

Air comes from the outlets in the

instrument panel to ventilate the chest

and face. Each of these outlets can be

individually adjusted to direct the flow of

air. The air vanes of the center outlets and

outboard outlets can be moved up and down or

side to side to regulate airflow direction. There is

a shut-off wheel located below the air vanes to

shut off or adjust the amount of airflow from

these outlets.

Bi-Level Mode

Air comes from the instrument panel

outlets and floor outlets. A slight

amount of air is directed through the

defrost and side window demister

outlets.
NOTE:

Bi-Level mode is designed under comfort condi

-

tions to provide cooler air out of the panel outlets

and warmer air from the floor outlets.

CarManuals2.com

GETTING TO KNO

W

 YOU

R VEHICLE

54

Floor Mode

Air comes from the floor outlets. A slight

amount of air is directed through the

defrost and side window demister

outlets. This setting heats the

passenger compartment the quickest.

Mix Mode

Air is directed through the floor, defrost,

and side window demister outlets. This

setting works best in cold or snowy

conditions that require extra heat to the

windshield. This setting is good for maintaining

comfort while reducing moisture on the

windshield.

Front Defrost And Panel Mode

Air flow is distributed between the

windshield demisting/defrosting vents

and side/central dashboard vents. This

setting allows air to flow to the

windshield on sunny days.

Front Defrost And Bi-Level Mode

 Air flow is distributed to all vents.

Switching The Climate Control System On/Off
To Turn Off The Climate Control System
Rotate the Air Speed Adjustment Knob

completely counterclockwise to turn off the

Climate Control system.
When the air conditioner is off:

Air recirculation is on

The A/C compressor is off

The fan is off

The heated rear window can be activated/

deactivated

NOTE:

The climate control system stores the previously

set temperatures and resumes operation when

any button on the system is pushed.
To Turn On The Climate Control System
To switch the climate control system on in

automatic mode, push the AUTO button.

Operating Mode

The Climate Control system can be activated in

different ways. It is recommended to use the

automatic function. Push the AUTO button and

set the desired temperatures.
The automatic system adjusts the temperature,

quantity, and distribution of air introduced into

the passenger compartment. It also controls air

recirculation and the activation of the air

conditioner.
At any time during automatic operation, you can

change the temperature, activate or deactivate

the Rear Defrost, activate SYNC, activate or

deactivate the air conditioner, and activate or

deactivate air recirculation. The system will

automatically adjust to the new settings.

Climate Control Display Settings

The Climate Control settings are visible on the

radio screen.
The display on the radio system is a pop up

window, which is activated by pushing the

buttons or turning the knobs on the Climate

Control system. The indicator lights located on

the number of buttons and knobs indicate that

the selected feature is on/off. If no operation is

performed for a predetermined time, the pop-up

will close on the display.

Humidity Sensor

The Humidity Sensor helps prevent the windows

from fogging up. The AUTO function (indicator

illuminated) must be on for the Humidity Sensor

to function.
When outside temperature is low, the system

may turn the compressor on and turn air recircu

-

lation off for safer driving.

Stop/Start

The Stop/Start system shuts off the engine when

the vehicle speed is 0 mph (0 km/h), as a fuel

conservation measure.
In order to maintain comfort in the cabin, the

Stop/Start feature will not activate if any of the

following conditions exist:

The climate control system is in AUTO mode

(indicator illuminated), and the vehicle has yet

to reach the set temperature

The climate control system is in LO maximum

cooling

The climate control system is in HI maximum

heating

The climate control system is in the MAX-DEF

status

When the Stop/Start system is active, the engine

will restart if the inside temperature changes

significantly, or if the LO setting, or MAX-DEF

setting, is activated.

CarManuals2.com

55

With the Stop/Start system on (engine is off), air

flow is reduced to keep the compartment comfort

conditions for longer.
Until the temperature drastically changes within

the cabin, the climate control system will

continue to maintain the temperature while the

engine is off. By deactivating the Stop/Start
system with the   button (located by the

headlight switch), the climate control system

operates normally according to the settings.
NOTE:

In harsh climate conditions, limit the use of the

Stop/Start system to prevent the compressor

from continuously switching on and off. This

will prevent rapid misting of the windows and

the accumulation of humidity in the passenger

compartment.

When the Stop/Start system is on, the climate

control system will always take air in from

outside, reducing the probability of the

windows fogging up.

System Maintenance

In winter months, the Climate Control system

must be turned on at least once a month for

approximately ten minutes.
Have the system inspected at an authorized

dealer before the summer.

INTERIOR STORAGE AND

EQUIPMENT

G

LOVE

 C

OMPARTMENT



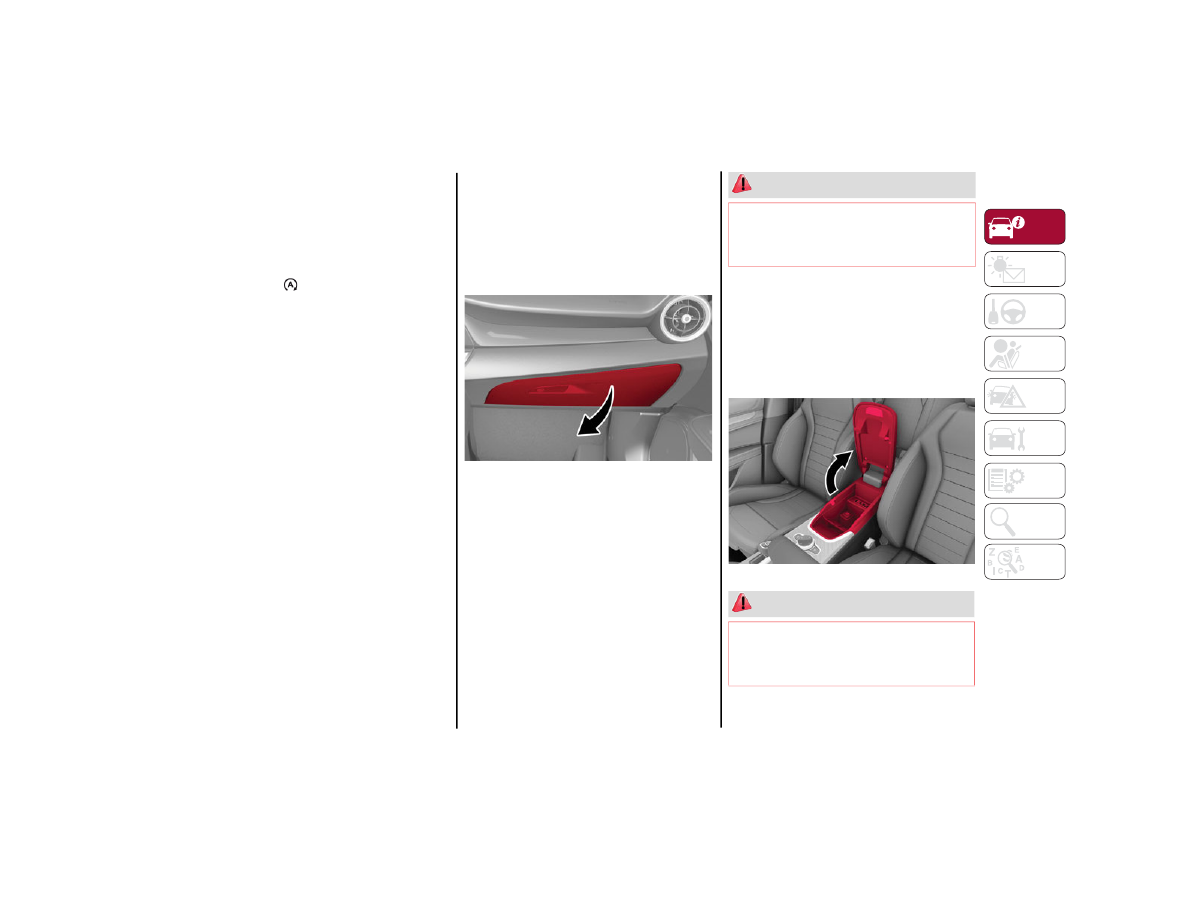

The glove compartment is located on the

passenger side of the instrument panel.

Opening The Glove Compartment

Pull the release handle to open the glove

compartment.
When the glove compartment is opened, a light

turns on to illuminate the inside of the

compartment.
NOTE:

If equipped with a lock, unlock the glove

compartment by placing the emergency key in

the lock on the handle.

Do not insert large objects that will prevent the

glove compartment from closing completely.

C

ENTER

 C

ONSOLE

The center console storage compartment is

located between the front seats.
To access the center console storage, push the

button under the front of the armrest to raise the

cover as shown in the following figure.

Center Console

 WARNING!

Do not operate this vehicle with a glove

compartment in the open position. Driving

with the glove compartment open may result

in injury in a collision.

 WARNING!

Do not operate this vehicle with a console

compartment lid in the open position. Driving

with the console compartment lid open may

result in injury in a collision.

CarManuals2.com

GETTING TO KNO

W

 YOU

R VEHICLE

56

P

OWER

 O

UTLET

Your vehicle is equipped with a 12 Volt (15 Amp)

power outlet that can be used to power cellular

phones, small electronics and other low powered

electrical accessories. The power outlet is labeled

with a key symbol to indicate how the outlet is

powered. Power outlets labeled with a key are

powered when the ignition is in the ON/RUN or

ACC position.
NOTE:

All accessories connected to powered outlets

should be removed or turned off when the vehicle

is not in use to protect the battery against

discharge.
115 Volt Power Inverter — If Equipped
The Power Inverter is located inside of the center

console. It can be used for small battery-powered

electrical appliances with powers up to 150 W

(e.g. cameras, video camera, tablets, razors,

etc.).
NOTE:

Do not connect devices with powers higher than

150 W to the socket. Do not damage the socket

by using unsuitable adapters.

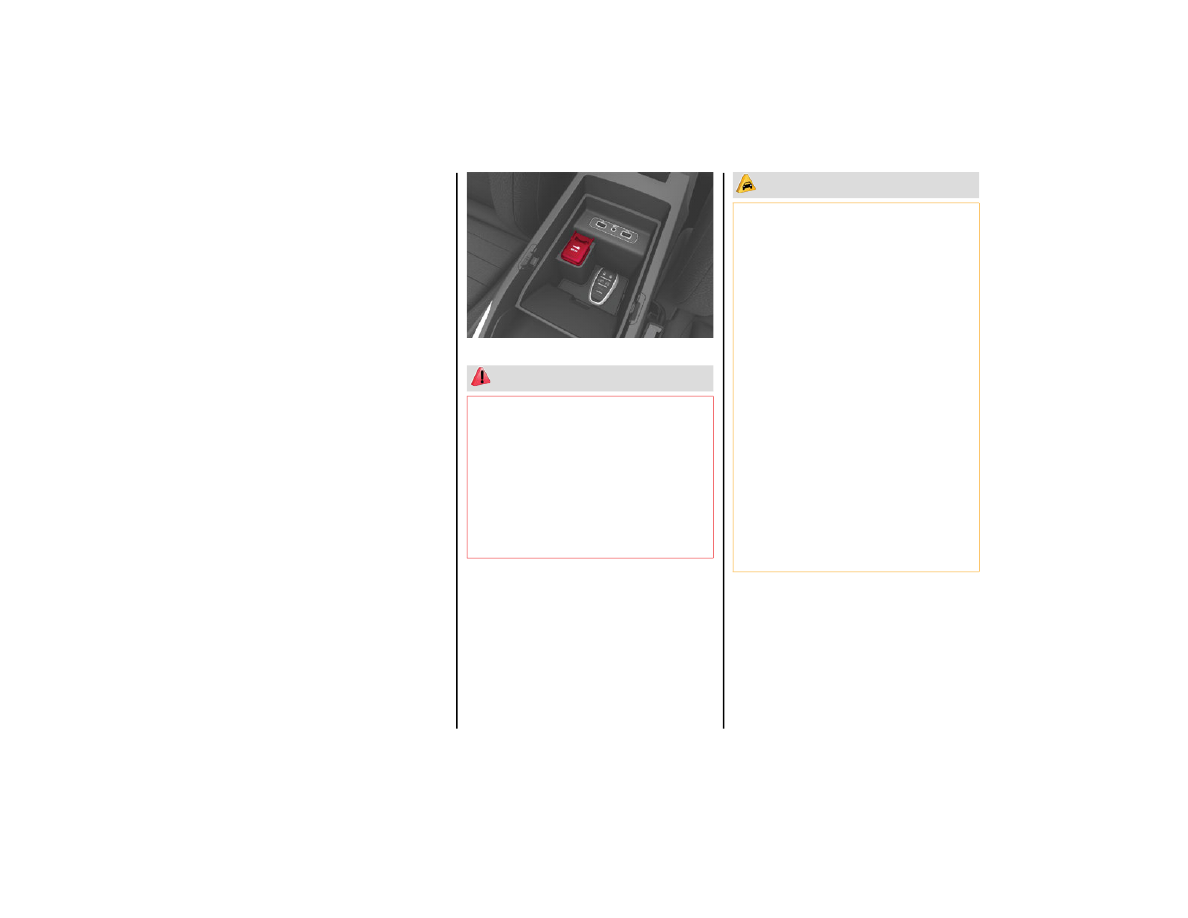

Center Console Power Outlet

 WARNING!

To avoid serious injury or death:

Only devices designed for use in this type of

outlet should be inserted into any 12 Volt

outlet.

Do not touch with wet hands.

Close the lid when not in use and while

driving the vehicle.

If this outlet is mishandled, it may cause an

electric shock and failure.

 CAUTION!

Power outlets are designed for accessory

plugs only. Do not insert any other object in

the power outlets as this will damage the

outlet and blow the fuse. Improper use of the

power outlet can cause damage not covered

by your New Vehicle Limited Warranty.

Many accessories that can be plugged in

draw power from the vehicle's battery, even

when not in use (i.e., cellular phones, etc.).

Eventually, if plugged in long enough, the

vehicle's battery will discharge sufficiently to

degrade battery life and/or prevent the

engine from starting.

Accessories that draw higher power (i.e.,

coolers, vacuum cleaners, lights, etc.) will

degrade the battery even more quickly. Only

use these intermittently and with greater

caution.

After the use of high power draw

accessories, or long periods of the vehicle

not being started (with accessories still

plugged in), the vehicle must be driven a

sufficient length of time to allow the

generator to recharge the vehicle's battery.

CarManuals2.com

57

W

IRELESS

 C

HARGING

 P

AD

 — I

F

 E

QUIPPED

Wireless Charging Pad

Your vehicle may be equipped with a 15W 3A Qi

wireless charging pad located inside of the center

console. This charging pad is designed to

wirelessly charge your Qi enabled mobile phone.

Qi is a standard that uses magnetic induction to

transfer power to your mobile device.
Your mobile phone must be designed for Qi

wireless charging.
NOTE:

Do not place the key fob or any other type of

metal/magnetized object inside the mobile

phone housing or near the wireless charging

pad.

Be sure to place the mobile device correctly

(display facing upward) on the wireless

charging pad.

The ignition must be in the ON/RUN position in

order for the phone to charge.

To avoid interference with the key fob search,

the wireless charging pad will stop charging

when any door is opened.

The following messages will display in the radio

system:

“Your Phone Is Being Charged” — The phone

has begun to charge.

“Phone Fully Charged” — The phone has

completed charging its battery.

“Foreign Object Detected” — The phone is not

enabled for wireless charging or an object that

is not permitted has been placed on the

wireless charging pad.

“Unavailable System” — There is a malfunction

with the wireless charging pad.

The driver can deactivate these messages

through the radio system. Refer to the

Information and Entertainment System Owner’s

Manual Supplement for further information.

POWER WINDOWS

P

OWER

 W

INDOW

 C

ONTROLS

The power window switches work with the ignition

in the ACC or ON/RUN position and for three

minutes after the ignition has been placed in the

OFF position. When one of the front doors is

opened, this operation is disabled.

The window controls on the driver's door control

all the door windows.

Power Window Switches

The passenger door windows can also be

operated by using the single window controls on

the passenger door trim panel.
To open the window part way (manually), push the

window switch down briefly and release. Push

past the detent to activate “continuous

automatic” operation.
If the button is pushed again, the window will stop

in the desired position.
Pull the window switch to the first detent to move

the window upward. Pull the window switch to the

second detent, and the window will go up

automatically.

 CAUTION!

The key fob should not be placed on the

charging pad or within 6 inches (15 cm) of it.

Doing so can cause excessive heat buildup

and damage to the fob. Placing the fob in

close proximity of the charging pad blocks the

fob from being detected by the vehicle and

prevents the vehicle from starting.

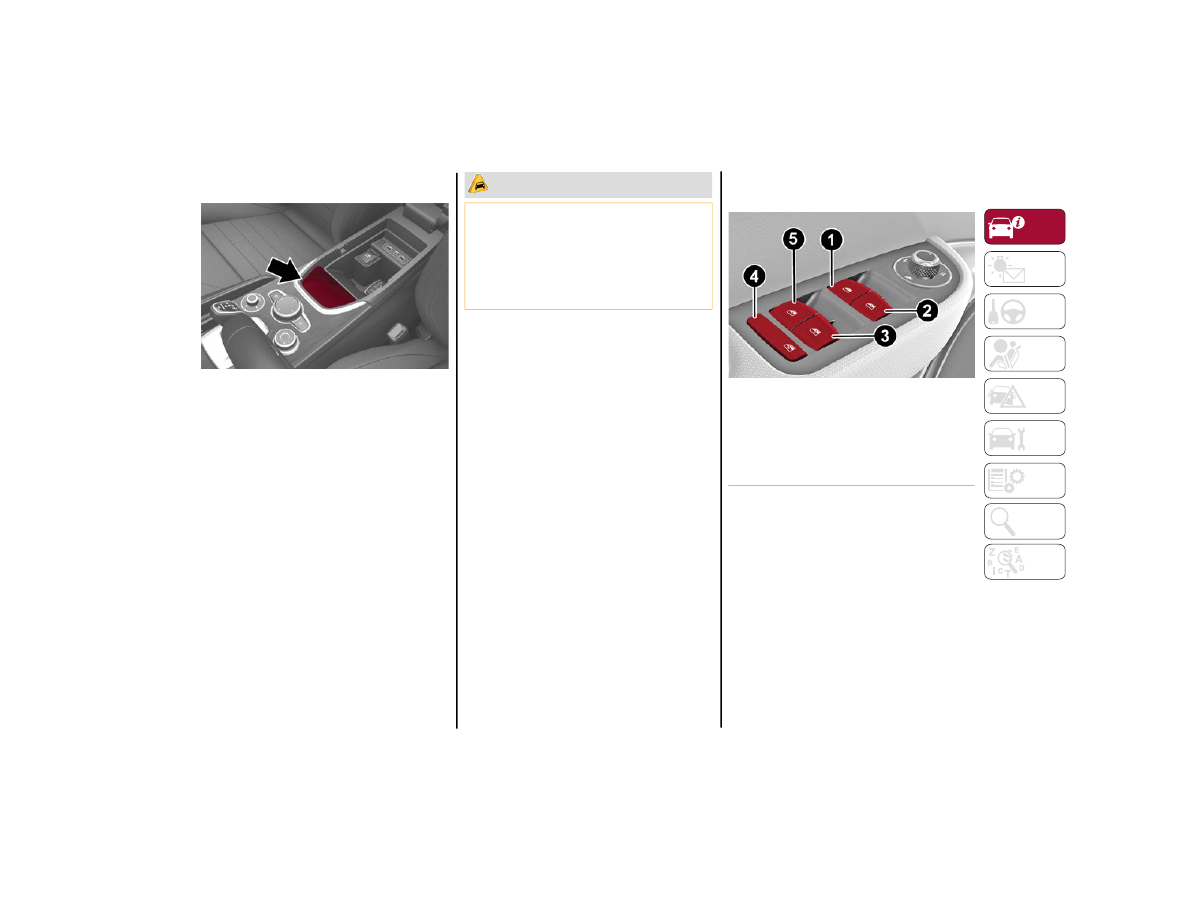

1 — Front Left Window Switch
2 — Front Right Window Switch
3 — Rear Right Window Switch
4 — Window Lockout Switch
5 — Rear Left Window Switch

CarManuals2.com

GETTING TO KNO

W

 YOU

R VEHICLE

58

To close the window, pull the window switch up.

To stop the window during Auto-Up operation,

push or pull the window switch again.

A

UTO

-U

P

 F

EATURE

 W

ITH

 A

NTI

-P

INCH



P

ROTECTION

The vehicle is equipped with an anti-pinch safety

device for closing the windows.
If the safety system senses any obstacle while

the window is closing, it will stop the window’s

movement and reverse it, depending on its

position.
This device is also useful if the windows are

activated accidentally by children inside the

vehicle.
The anti-pinch safety function is activated both

during the manual and the automatic operation

of the window.

When the anti-pinch system is activated, the

window closing is immediately interrupted. Then

the window closing is automatically reversed and

the window lowers by about 8 inches (20 cm) in

relation to the first stop position. The window

cannot be operated during this time.
NOTE:

In the event of an error, or if the anti-pinch protec

-

tion is activated three consecutive times, the

automatic closing operation of the window will be

deactivated. In order to restore the correct opera

-

tion of the system, the window must be lowered.

P

OWER

 W

INDOW

 S

YSTEM

 I

NITIALIZATION

If power supply is interrupted, the electric window

automatic operation must be reinitialized.
To perform the initialization procedure, which

must be done on each door with the doors closed,

manually fully close the window to be initialized.

W

IND

 B

UFFETING



Wind buffeting can be described as the

perception of pressure on the ears or a

helicopter-type sound in the ears. Your vehicle

may exhibit wind buffeting with the windows

down, or the sunroof (if equipped) in certain open

or partially open positions. This is a normal

occurrence and can be minimized. If the buffeting

occurs with the rear windows open, open the

front and rear windows together to minimize the

buffeting. If the buffeting occurs with the sunroof

open, adjust the sunroof opening to minimize the

buffeting or open any window.

POWER SUNROOF —

IF EQUIPPED

P

OWER

 S

UNROOF

The power sunroof consists of two glass panels

(the front one is power and the rear one fixed)

and is fitted with a power sunshade in the front,

as well as a manually operated sunshade in the

rear.
Operation of the sunroof is only possible with the

ignition placed in the ACC or ON/RUN position

Ú

page 22.

Sunroof And Power Shade Buttons

 WARNING!

Never leave children unattended in a vehicle,

and do not let children play with power

windows. Do not leave the key fob in or near

the vehicle, or in a location accessible to

children, and do not leave the keyless push

button ignition in the ACC or ON/RUN position.

Occupants, particularly unattended children,

can become entrapped by the windows while

operating the power window switches. Such

entrapment may result in serious injury or

death.

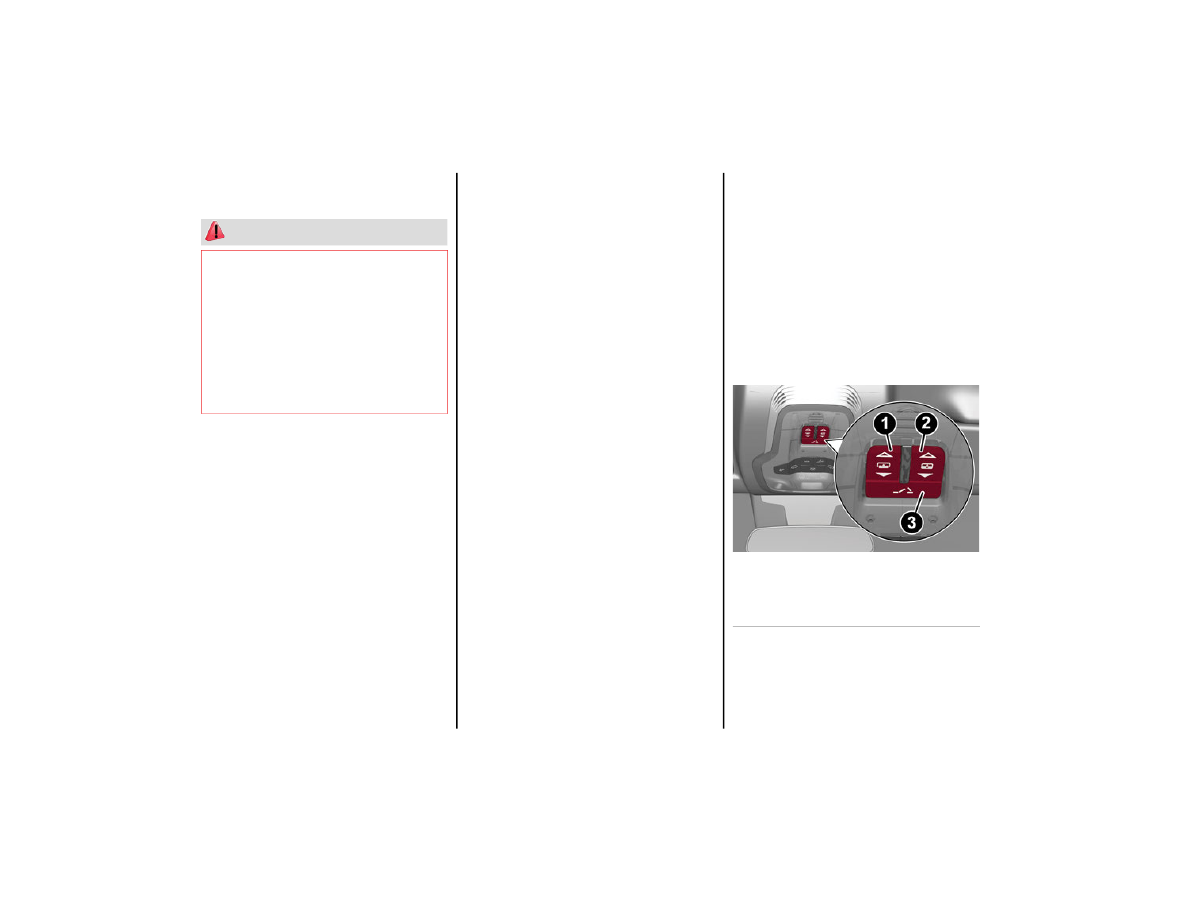

1 — Power Shade Open/Close
2 — Open/Close Button
3 — Vent Open/Close

CarManuals2.com

59

The sunroof has three preset positions:

Fully closed

Comfort (intermediate opening)

Fully open

NOTE:

You cannot have the sunshade closed when the

sunroof is open.

O

PENING

 A

ND

 C

LOSING

 T

HE

 S

UNROOF

To open the sunroofs front panel, push the open/

close button toward the rear of the vehicle to

open to the comfort position (half-way). Pushing

the button a second time will open to the fully

open position.
To close the sunroof, push the open/close button

toward the front of the vehicle. The roof will close

completely.
The automatic motion can be interrupted in any

position by pushing the open/close button again.

V

ENTING

 S

UNROOF

To bring the roof into vent position, push and

release the vent button.
This type of vent opening can be activated

regardless of the position of the sunroof. When

starting with the roof in the closed position,

pushing the vent button automatically causes the

sunroof to open to the vent position. If the roof is

already open, the button must be held until the

roof reaches the vent-opening position.
Pushing vent button again during automatic

movement of the roof will stop it.

S

UNSHADE

 O

PERATION

The front sunshade is power operated.
Push the Power Shade open/close button toward

the rear of the vehicle to open the front sun shade

to the three quarter open position. Pushing the

button a second time will open the sunshade

completely.
Push the Power Shade open/close button toward

the front of the vehicle to close the sun shade.
The automatic motion can be interrupted in any

position by pushing the Power Shade open/close

button again.
To open the rear sunshade, pull sunshade

manually toward the rear of the vehicle.

P

INCH

 P

ROTECT

 F

EATURE

The sunroof has an anti-pinch safety system

capable of detecting the presence of an obstacle

during the closing movement. If an obstacle is

detected, the system intervenes and the

movement of the sunroof is immediately reversed

into opening.

R

E

-I

NITIALIZATION

 P

ROCEDURE

Automatic operation of the sunroof must be

re-initialized in case of faulty sunroof operation. It

may also be necessary to re-initialize the sunroof

after the vehicle’s battery has been disconnected

and then reconnected.
NOTE:

The anti-pinch safety device is deactivated during

the re-initialization procedure.

 WARNING!

Never leave children unattended in a vehicle,

or with access to an unlocked vehicle. Never

leave the key fob in or near the vehicle, or in

a location accessible to children. Do not

leave the ignition of a vehicle equipped with

keyless ignition in the ON/RUN position.

Occupants, particularly unattended children,

can become entrapped by the power sunroof

while operating the power sunroof switch.

Such entrapment may result in serious injury

or death.

In a collision, there is a greater risk of being

thrown from a vehicle with an open sunroof.

You could also be seriously injured or killed.

Always fasten your seat belt properly and

make sure all passengers are also properly

secured.

Do not allow small children to operate the

sunroof. Never allow your fingers, other body

parts, or any object, to project through the

sunroof opening. Injury may result.

 CAUTION!

Do not open the sunroof if a luggage roof rack

or crossbars are fitted. Do not open the

sunroof if there is snow or ice on it: you may

damage it.

CarManuals2.com

GETTING TO KNO

W

 YOU

R VEHICLE

60

Proceed as follows:
1. With the ignition in the ON/RUN position,

make sure the sunroof glass is fully closed

(sunshade open).

2. Open the driver’s side door, and place the

ignition in the OFF position.

3. Within five seconds, place the ignition in the

ACC or ON/RUN position.

4. Within 10 seconds, push and hold the

sunroof close switch (forward). After 8 - 10

seconds of holding the switch, the re-initial

-

ization process will begin. Continue to hold

the switch while the sunroof motor cycles,

and the sunshade will fully close.

5. Once the sunroof glass and the power

sunshade have stopped motion, release the

sunroof close switch, then push and hold it

again within five seconds. Continue to hold

the switch while the sunshade fully opens,

the sunroof glass fully opens, followed by the

glass fully closing then the sunshade fully

closing.

6. Release the switch once the operations stop.

Re-initialization of the sunroof motor is now

complete.

NOTE:

If the switch is released prior to full completion of

the operations described, the entire re-initializa

-

tion procedure must be repeated from step 1.
7. Confirm express operations for the sunroof

glass and sunshade are functional for

opening and closing operations.

S

UNROOF

 M

AINTENANCE

Use only a non-abrasive cleaner and a soft cloth

to clean the glass panel. Periodically check for

and clear out any debris that may have collected

in the tracks.

HOOD

O

PENING

 T

HE

 H

OOD

To open the hood, two latches must be released.

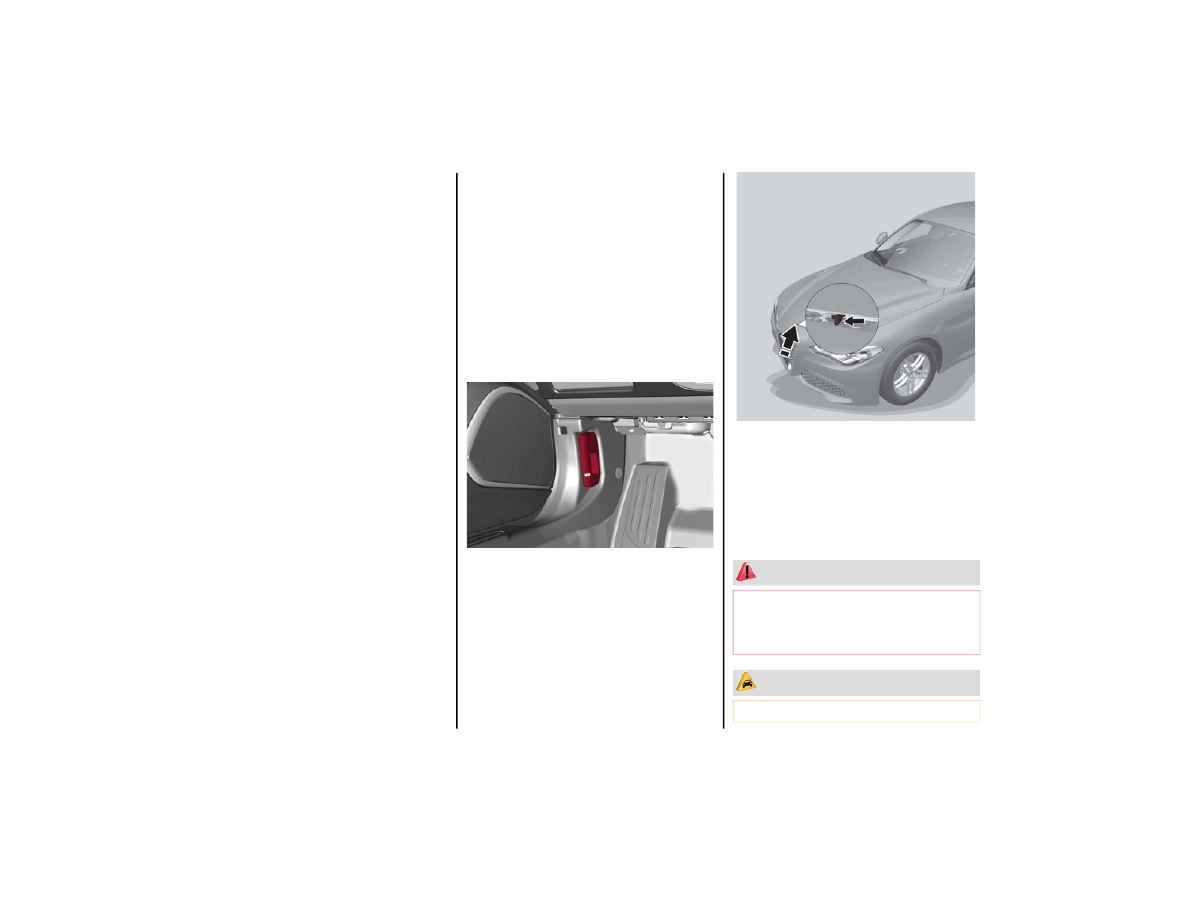

1. Pull the release lever located underneath the

driver’s side of the instrument panel.

Hood Release Lever

2. Lift the hood slightly. Move the underhood

latch from right to left to release the hood.

Release Hood Latch To The Left

3. Raise the hood completely. The operation is

assisted by the addition of two gas props

which hold it in the open position.

NOTE:

Use both hands to lift the hood. Before lifting,

check that the windshield wiper arms are not

raised from the windshield or in operation.

 WARNING!

Before opening the hood, apply the Electric

Park Brake (EPB) and place the gear selector

in PARK (P). Otherwise the vehicle may roll and

cause damage, serious injury, or death.

 CAUTION!

Do not tamper with the gas props.

CarManuals2.com

61

C

LOSING

 T

HE

 H

OOD

To close, lower the hood to approximately

16 inches (40 cm) from the engine compartment

then let it drop. Make sure that the hood is

completely closed and fully latched.
NOTE:

Since the hood is equipped with a double locking

system, one for each side, check that it is closed

on both its sides.

TRUNK

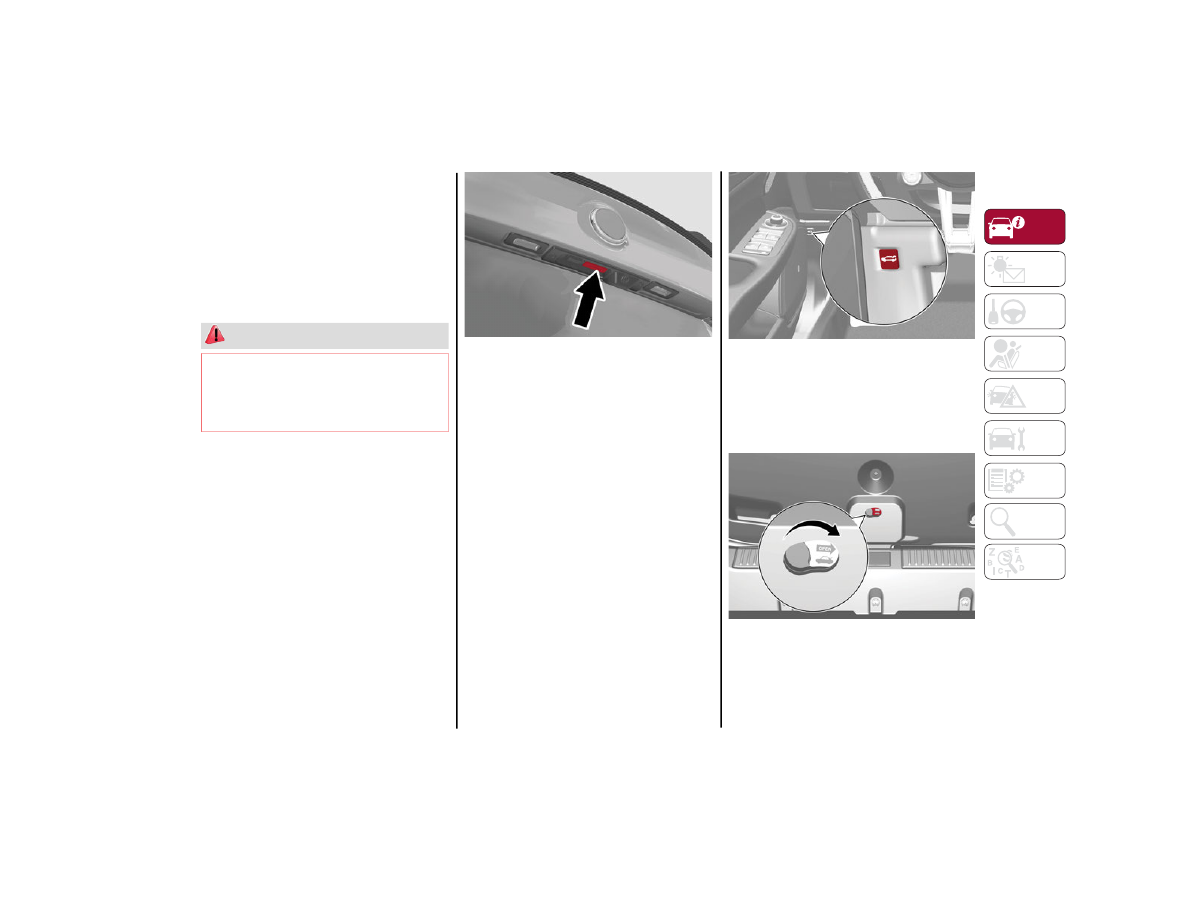

The trunk unlocking is electrically operated and is

deactivated when the vehicle is in motion.

O

PENING

Opening From The Outside
When unlocked, the trunk lid can be opened from

outside the vehicle using the exterior trunk lid

release button located between the plate lights.

Push the button until you hear a “click.” The trunk

lid can also be opened by quickly pushing the

trunk lid release button on the key fob twice.

Exterior Trunk Lid Release Button

The turn signal indicators will blink and the

interior lights will turn on when the trunk lid is

opened. They turn off automatically when the

trunk lid is closed.
The interior lights turn off automatically after a

few minutes if the trunk lid is left open.
Opening From The Inside
When unlocked, the trunk lid can be opened from

inside the vehicle using the interior trunk lid

release button, located under the dashboard

near the engine hood opening lever. Push the

trunk lid release button until you hear a “click.”

Interior Trunk Lid Release Button

Trunk Lid Emergency Release
In the event of an individual being locked inside

the trunk, the trunk can be opened by actuating a

glow-in-the-dark lever in the interior lock cover on

the trunk lid.

Emergency Release Button

Pull the lever in the direction indicated by the

arrow to open the trunk lid.

 WARNING!

Be sure the hood is fully latched before driving

your vehicle. If the hood is not fully latched, it

could open when the vehicle is in motion and

block your vision. Failure to follow this warning

could result in serious injury or death.

CarManuals2.com

GETTING TO KNO

W

 YOU

R VEHICLE

62

C

LOSING

Grip one of the trunk lid interior handles and pull

the trunk lid down until it is low enough to place

your hands on the exterior surface of the trunk.

Use your hands to then push the trunk lid down

until you hear the lock latch into place.

Trunk Lid Interior Handles

NOTE:

It will not be possible to open the trunk lid with

the key fob or by pushing the interior trunk lid

release button when the battery is disconnected.

Always position the manual trunk lid opening

strap on the trunk lid lock before disconnecting

the battery

Ú

page 220.

Before closing the trunk lid, make sure your key

fob is not inside the trunk. If the key fob is

detected, the trunk lid will latch then automati

-

cally unlock so that the key fob cannot be locked

in the trunk.

T

RUNK

 R

E

-I

NITIALIZATION

NOTE:

If the battery is disconnected or the protection

fuse blows, the trunk lid opening/closing mecha

-

nism must be re-initialized as follows:
1. Close all the doors and the trunk lid.
2. Push the lock button on the remote control.
3. Push the unlock button on the remote

control.

T

RUNK

 S

PECIFICATIONS



Access To The Tire Service Kit (Quadrifoglio

Models)
To access the Tire Service Kit, lift the carpet in the

trunk

Ú

page 171.

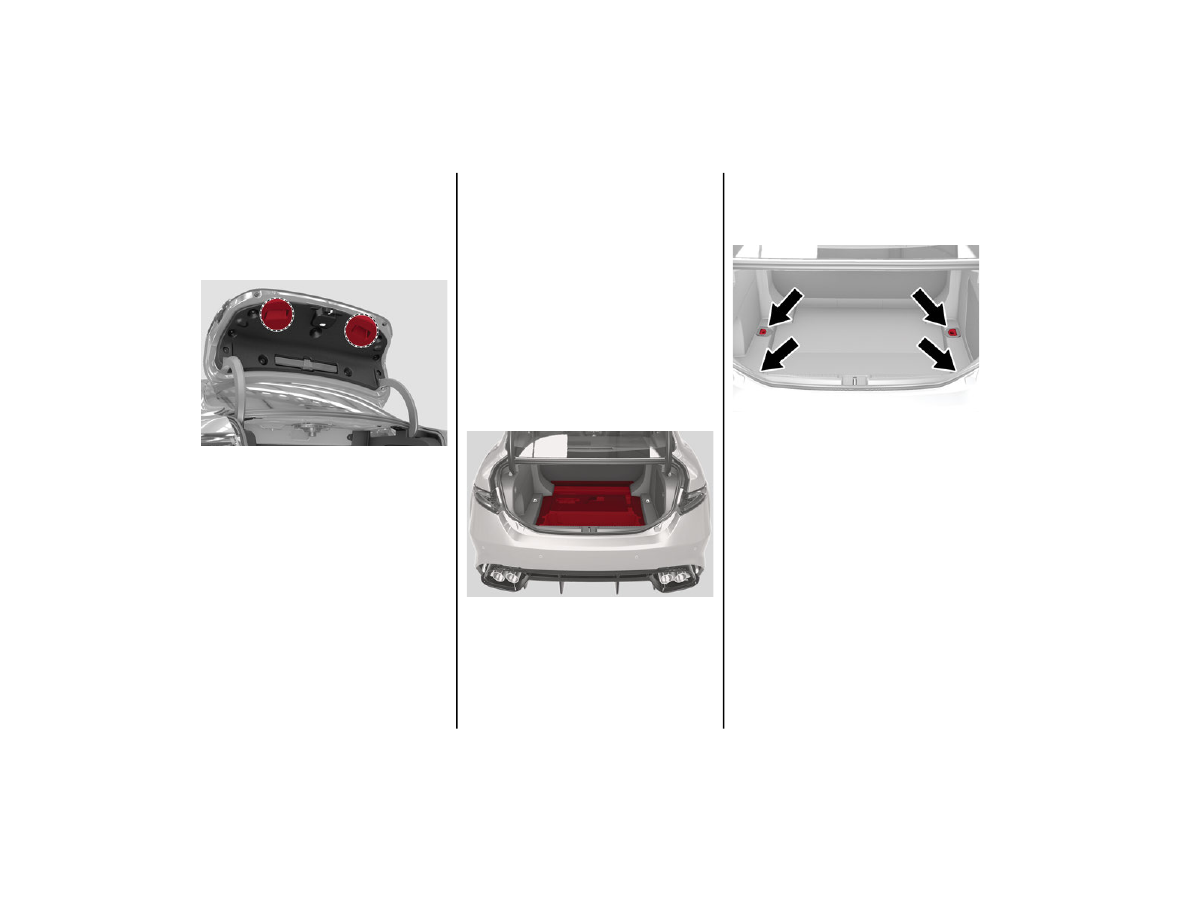

Cargo Area (Quadrifoglio Models)

Rear Cargo Tie–Downs — If Equipped
There are four hooks inside the trunk for

attaching the cargo net or cables which can

safely secure the cargo.

Rear Cargo Tie-Downs

NOTE:

Do not apply a load greater than 22 lb (10 kg) on

a single hook.
Cargo Net — If Equipped
This is useful for correctly arranging the cargo

and/or for transporting light materials.

CarManuals2.com

63

ENVIRONMENTAL

PROTECTION SYSTEMS

The following systems are used for reducing

engine emissions:

Catalytic Converter

Oxygen Sensors

Evaporation Control System

ACTIVE AERODYNAMIC

SPOILER (QUADRIFOGLIO

VEHICLES)

C

ARBON

 F

IBER

 A

CTIVE

 A

ERO

 F

RONT



S

POILER

This is an automatic device working at the vehicle

speed to regulate air flow in the lower part of the

vehicle. It allows higher reactivity at average

speeds and higher vehicle stability at high

speeds.
NOTE:

The Active Aero Spoiler is active in the Dynamic or

RACE mode of the Alfa DNA Pro Selector; it is not

active in any mode when external temperatures

are near or below zero.

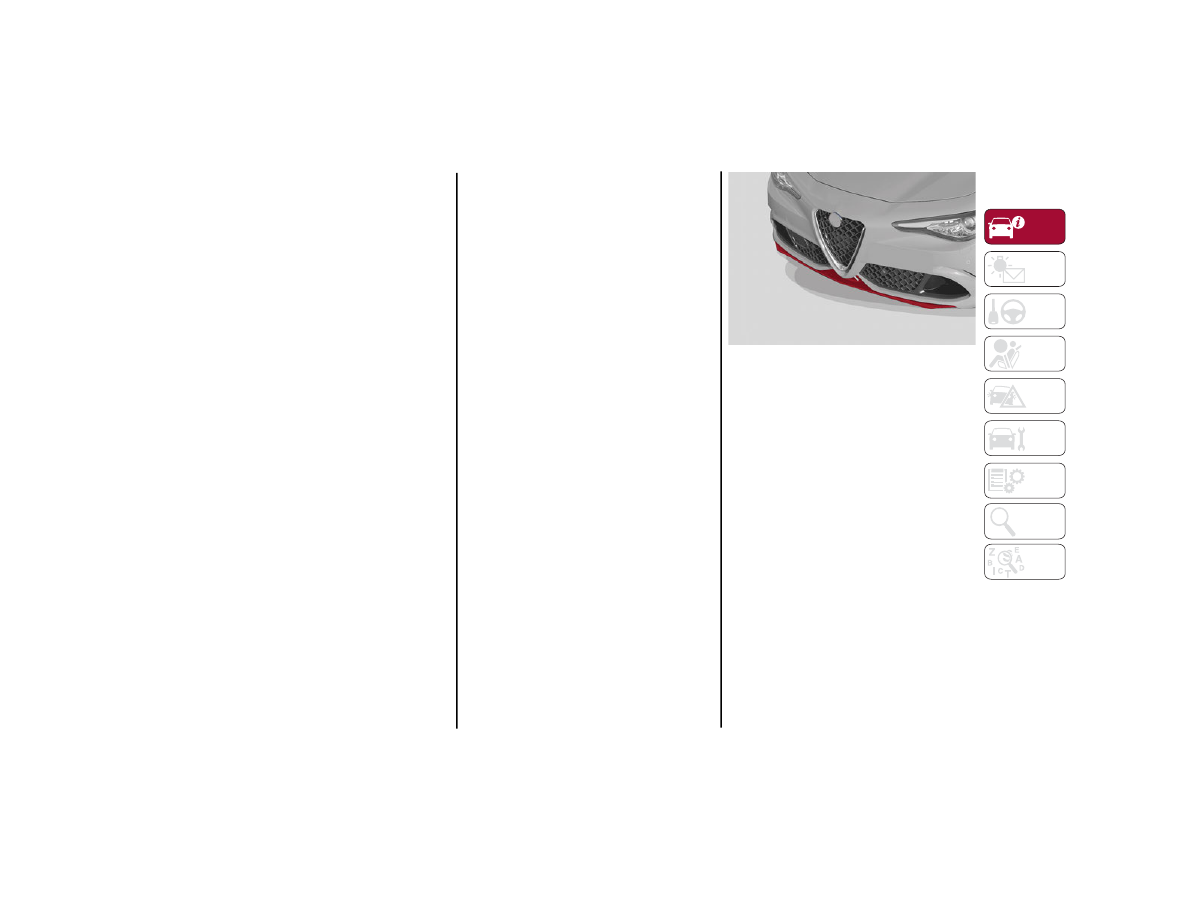

Front Fascia

If there is a fault, a generic failure icon will light up

on the instrument panel display, along with a

message that will identify the type of malfunction.

See an authorized dealer if a fault occurs.

CarManuals2.com

64

GETTING TO KNO

W

 YOU

R IN

STRUM

ENT PAN

EL

This section gives you all the information you need to understand and use the instrument panel correctly.

INSTRUMENT PANEL FEATURES

I

NSTRUMENT

 C

LUSTER

Base Model

CarManuals2.com

65

Quadrifoglio Model

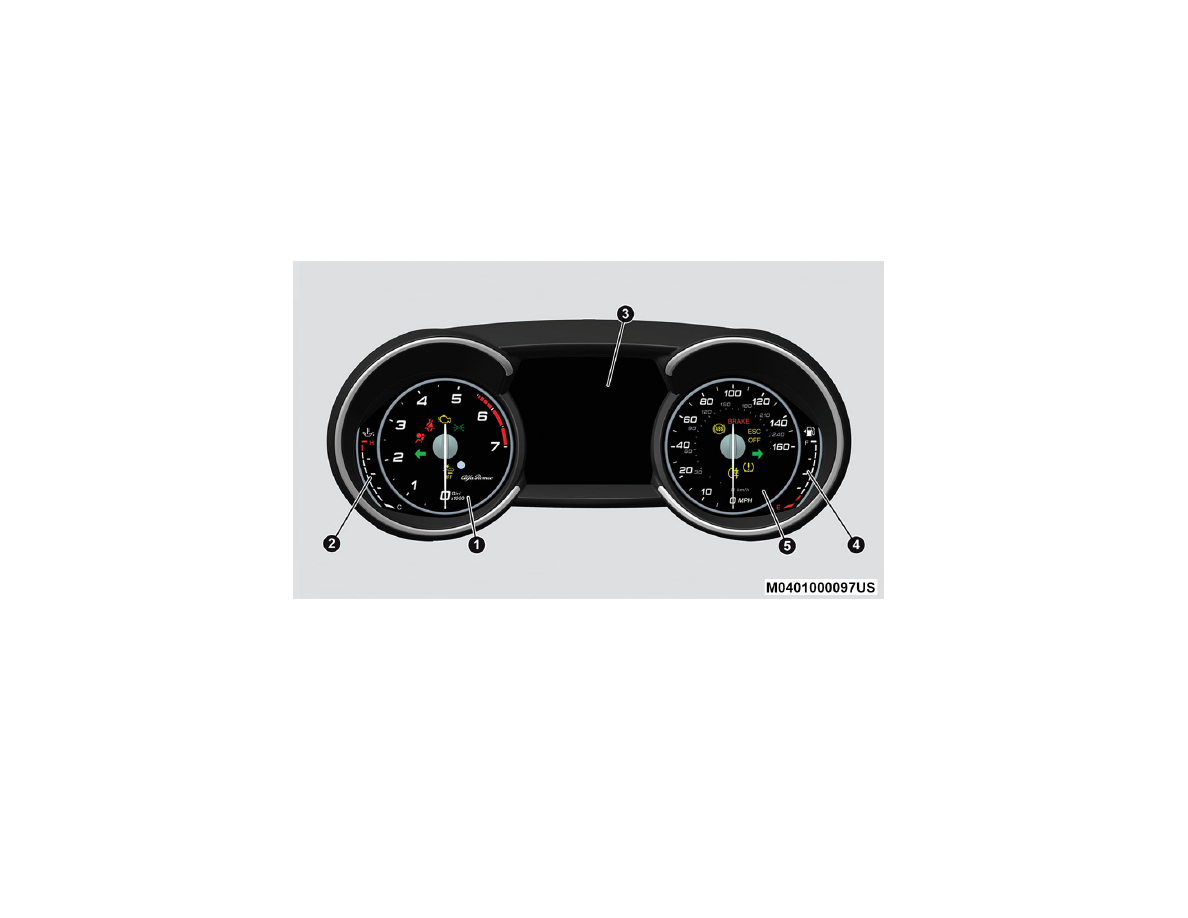

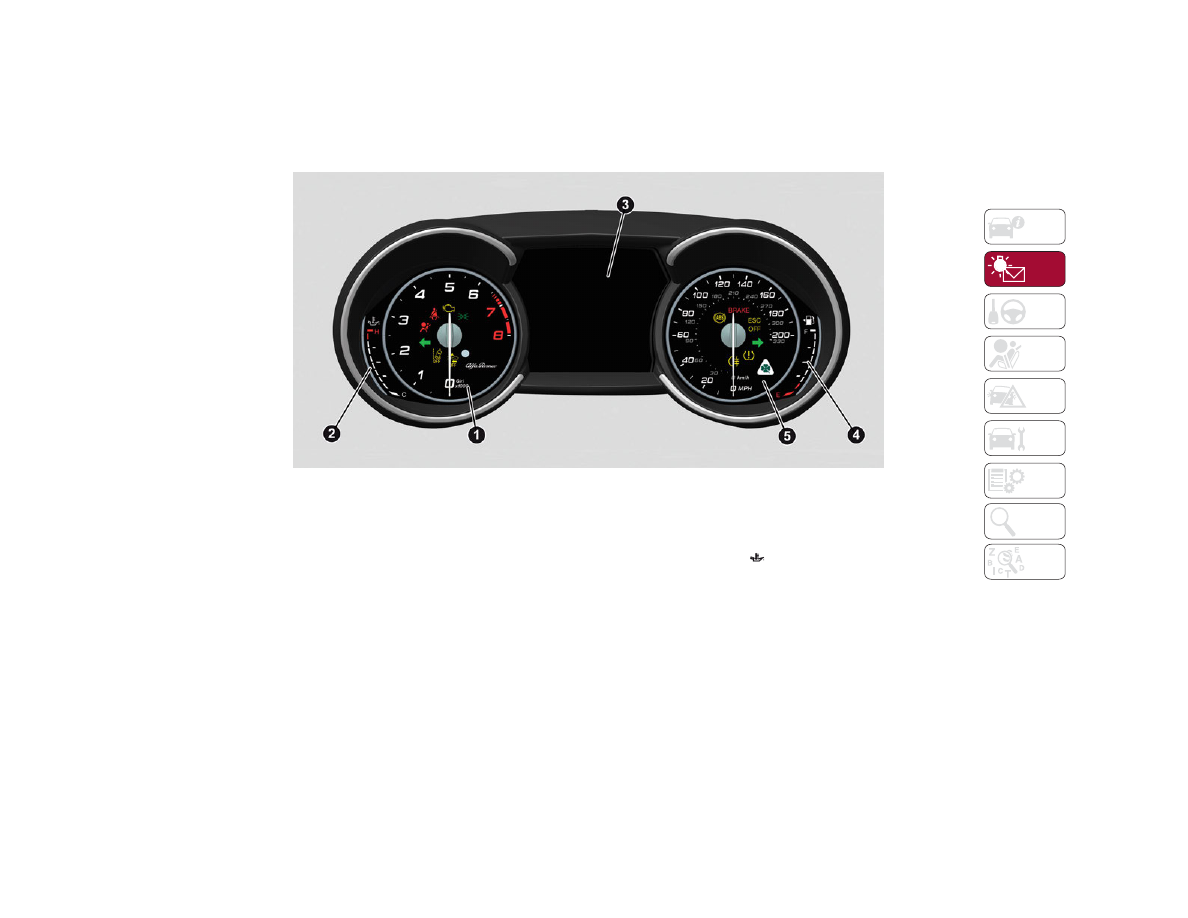

1. Tachometer
2. Digital Engine Oil Temperature Gauge With

Overheating Warning Light

3. Driver Interactive Display
4. Digital Fuel Level Gauge (The triangle on the

left side of the symbol indicates that the Fuel

Door Location is on the left side of the

vehicle)

5. Speedometer (Speed Indicator)

T

ACHOMETER

The Tachometer indicates the engine Revolutions

Per Minute (Giri).

Adjusting Instrument Panel Lighting

(Brightness Sensor)
Inside the Tachometer there is a light sensor

capable of detecting light and adjusting the

brightness of the instrument panel and the

Information and Entertainment System display.

E

NGINE

 O

IL

 T

EMPERATURE

 G

AUGE

The digital indicator monitors the temperature of

the engine oil and starts supplying indications

when the oil temperature reaches approximately

122°F (50°C).

Under normal usage, the temperature should

remain around the middle of the digital scale

according to the working conditions.
The   Engine Oil Temperature warning light will

turn on to signal the excessive increase of the

engine oil temperature.
In the event of excessive engine oil temperature,

stop the engine immediately and contact an

authorized dealer.

CarManuals2.com

GETTING TO KNO

W

 YOU

R IN

STRUM

ENT PAN

EL

66

F

UEL

 L

EVEL

 G

AUGE

The digital fuel gauge monitors the amount of

fuel in the tank.
When the   Fuel Level warning light turns on, a

low fuel message is displayed, and a chime will

sound when 2.3 Gallons (9.0 L) of fuel are left in

the tank.
As fuel is consumed, the white notch indicators

will disappear. The last one will become red,

together with the indication "E" (for empty) illumi

-

nating beneath the Fuel Level Warning Light to

indicate fuel must be added immediately.

Fuel Level Gauge

NOTE:

If the low fuel warning light turns on, refuel the

vehicle at your nearest fuel station.

S

PEEDOMETER

The speedometer shows the vehicle speed in

miles per hour and/or kilometers per hour

(mph/km/h).

INSTRUMENT CLUSTER

DISPLAY

I

NSTRUMENT

 C

LUSTER

 D

ISPLAY



D

ESCRIPTION

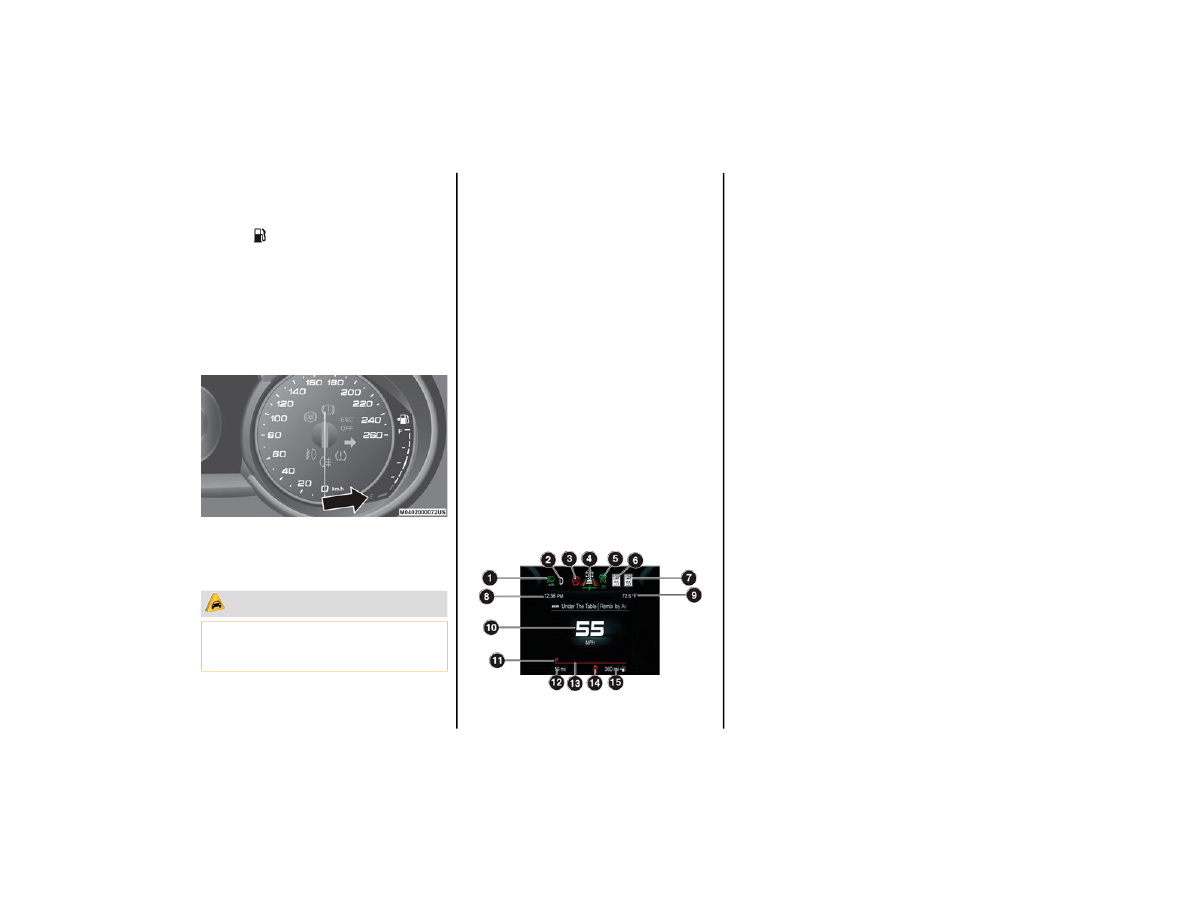

This vehicle is equipped with a driver interactive

display that is located in the instrument cluster.
When one or more of the doors have been

opened or closed and the ignition is in the OFF

position, the instrument cluster will display the

vehicle mileage for a few seconds.

R

ECONFIGURABLE

 I

NSTRUMENT

 C

LUSTER



D

ISPLAY

During operation, the instrument cluster display

is divided into multiple sections which show

driving data, warnings and failure indications.

Instrument Cluster Display

R

ECONFIGURABLE

 D

ISPLAY

 I

TEMS

1. External Lights (Low Beam/High Beam)

Display

2. Front, Side Anti-Collision Systems, Cruise

Control Change Information

3. Speed Limiter Display
4. Driving Assistance Systems (Forward Colli

-

sion Warning (FCW), Lane Departure Warning

(LDW), Highway Assist System (HAS)) Infor

-

mation Display

5. Adaptive Cruise Control (ACC) / Cruise

Control (CC) Information Display

6. Traffic Sign Information (TSI) / Speed Limiter

Information Display

7. Traffic Sign Information (TSI) Information

Display

8. Time
9. External Temperature
10. Main Display: Vehicle Speed Display, Trip

Computer Information, etc.
The screens can be selected, on rotation, by

pushing the MENU selection button on the

windshield wiper stalk.

 CAUTION!

Do not repeatedly travel with the fuel tank

almost empty, as this may damage the

catalytic converter.

CarManuals2.com

67

MENU Selection/Reset Button

Depending on the driving mode chosen using

the Alfa DNA (Dynamic, Natural, and Ad

-

vanced Efficiency) the screens can be graph

-

ically different. Navigation instructions and

call information can be set and displayed in

the Information and Entertainment System.
Home
The parameters shown on the display, for the

modes: Dynamic, Natural and Advanced Effi

-

ciency are:

Time

External Temperature

Current speed (shown only if the repeat

mode of the “Navigation” and “Phone”

functions have not been previously acti-

vated).

Range

In RACE mode (if equipped) the consumption

indication index is not active and a sports

gear shift indicator is displayed.

Instrument Cluster Display

Instrument Cluster Display

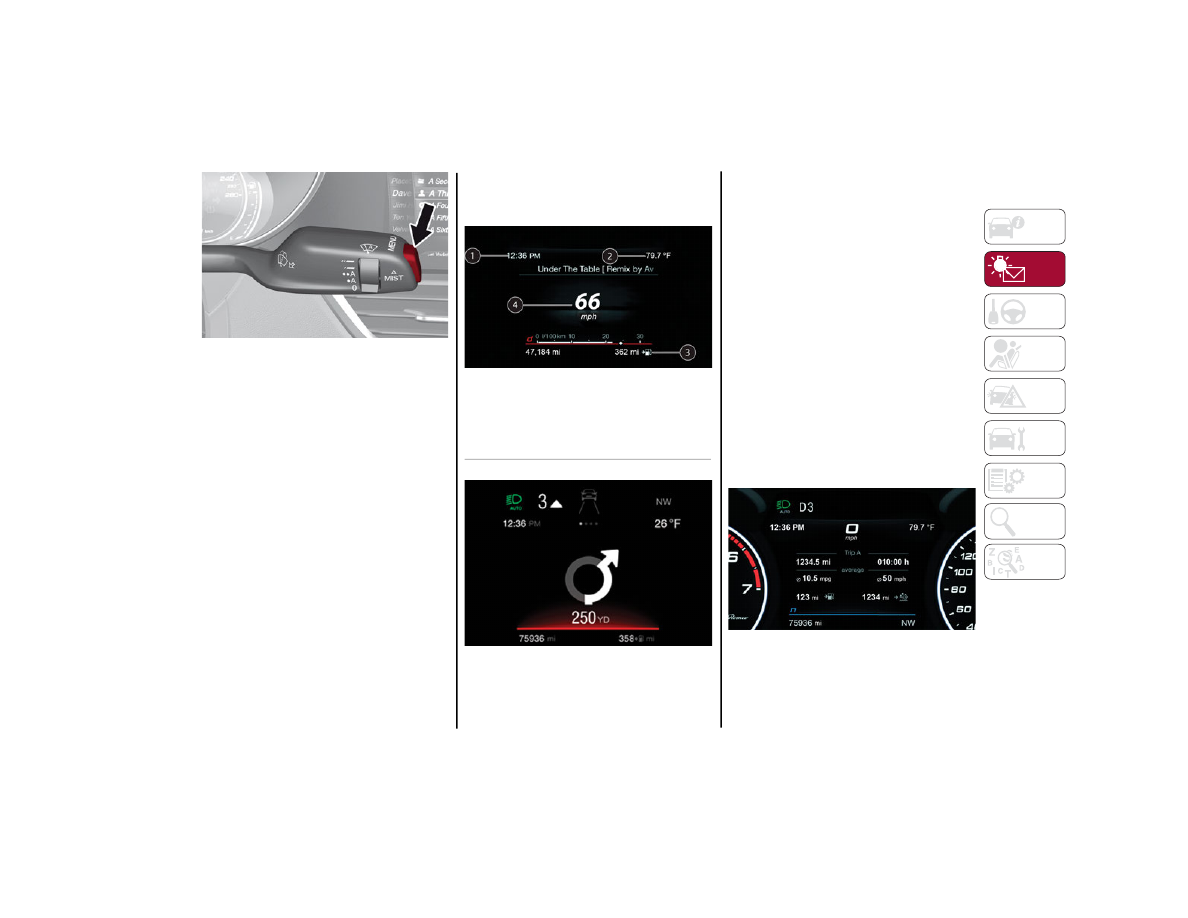

Trip A And B
For all driving modes (Dynamic, Natural, and

Advanced Efficiency) and with the ignition de

-

vice ON, the Trip computer can be used to dis

-

play the measurements regarding the

operating state of the vehicle. This function is

characterized by two separate records, called

Trip A and Trip B (the latter can be deactivat

-

ed by Information and Entertainment Sys

-

tem), where the complete journeys are

recorded in a reciprocally independent man

-

ner.
Trip A and Trip B are used to display the val

-

ues relating to:

Distance traveled

Average fuel consumption

Average speed

Active trip

Fuel consumption indicator

Instrument Cluster Display

To reset the values, press and hold down the

button on the windshield wiper stalk.

1 — Time
2 — Temperature
3 — Distance To Empty
4 — Speed

CarManuals2.com

GETTING TO KNO

W

 YOU

R IN

STRUM

ENT PAN

EL

68

Performance
The displayed parameters differ according to

the active mode. The modes which can be se

-

lected using the Alfa DNA system are:
Natural

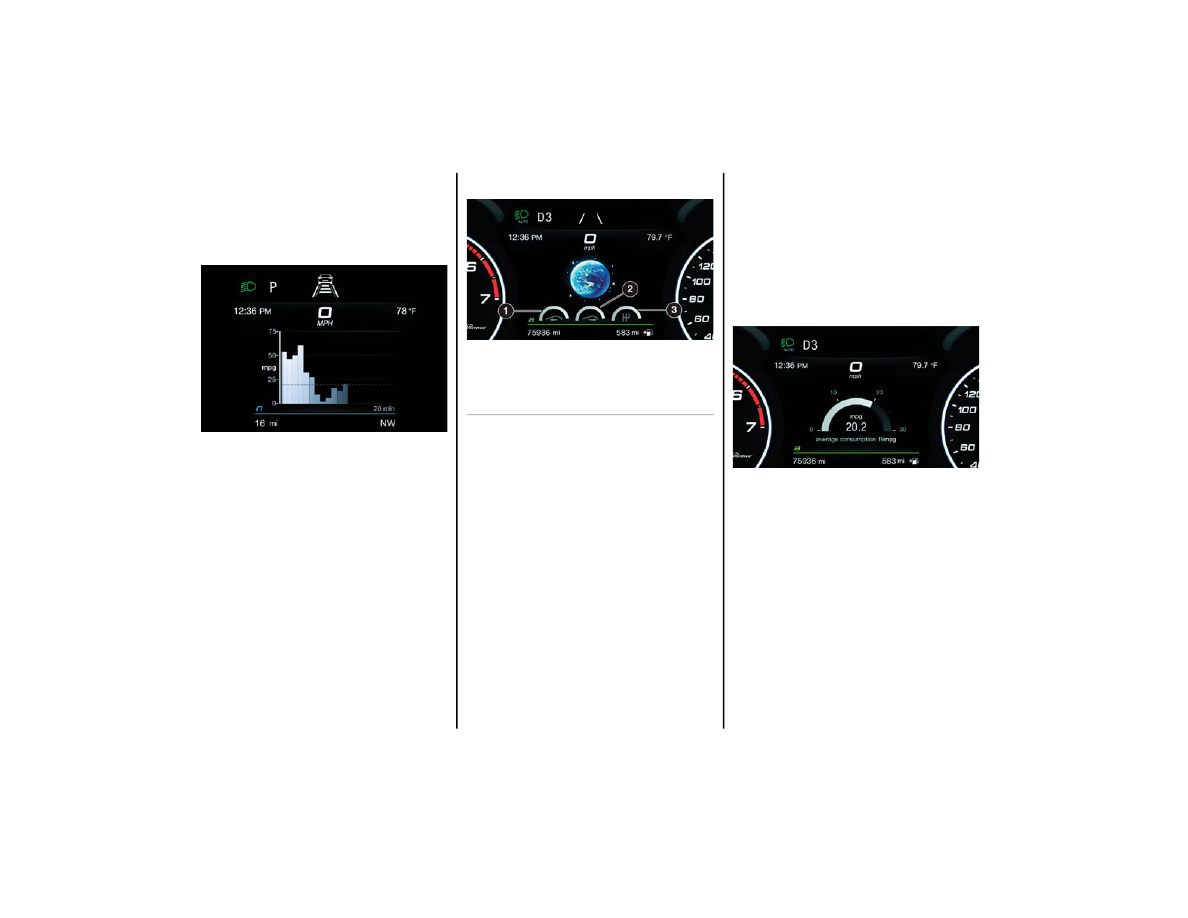

Efficiency Consumption Graph

The screen graphically reproduces some pa

-

rameters closely linked to the efficiency of

the driving style, with a view to limiting con

-

sumption.

Advanced Efficiency

Dynamic Driving Style

The three central icons, on the screen, indi

-

cate the effectiveness of the driving style

linked to the parameters of: acceleration, de

-

celeration and gear shift with a view to reduc

-

ing fuel consumption.
The graphic bar below the icons shows cur

-

rent consumption and the green line rep

-

resents the optimal area. The globe lights up

gradually according to lower consumption.
Alternative Performance
The displayed parameters vary depending on

the active mode. The modes can be selected

through the Alfa DNA™ system and are as fol

-

lows:

Natural and Advanced Efficiency
The display graphically shows the values of:

○ instantaneous consumption
○ average fuel consumption (based on

“Trip A”);

Below a certain speed value, when the accel

-

erator pedal is not pressed or in the event of

failure, dashes are displayed in place of the

consumption value ("– –. –").

Natural and Advanced Efficiency

Dynamic
The display graphically shows the values of:

○ accelerator pedal position (expressed

in percentage);

○ brake pedal position (expressed in

percentage);

○ engine coolant temperature (H = hot/

C = cold).

1 — Acceleration
2 — Deceleration
3 — Gear Shifts

CarManuals2.com

69

Dynamic

Race (If Equipped)

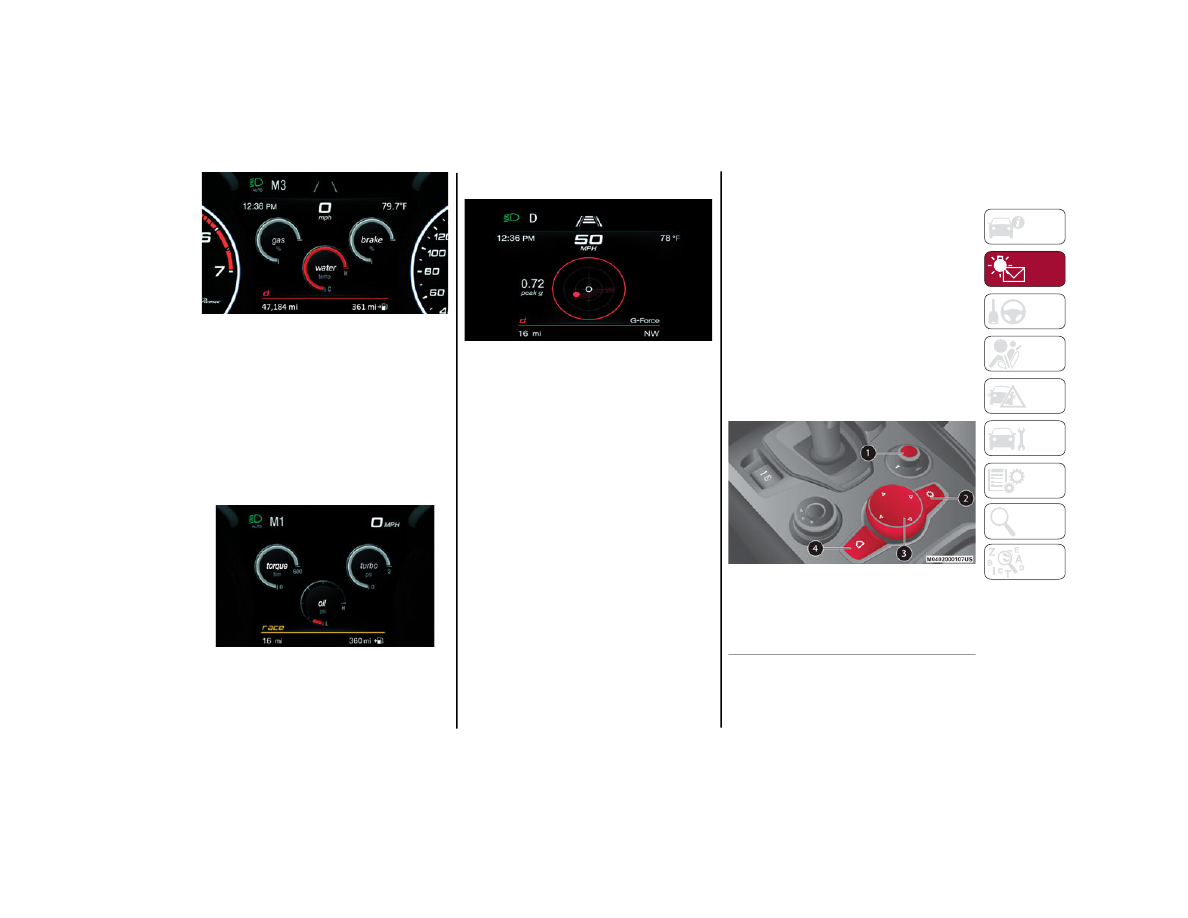

The display graphically shows the values of:

○ engine torque;
○ turbocharger pressure;
○ engine oil pressure (L = low pressure/

H= high pressure).

NOTE:

The engine torque and turbocharger pressure

values vary according to the engine type.

Race

Dynamic

Acceleration Gauge

The displayed parameters are related to vehi

-

cle stability, the graphs illustrate the trend of

the longitudinal/lateral accelerations (G-me

-

ter information), considering gravity accelera

-

tion as a reference unit.
Lateral acceleration peaks are also indicated.

11. Driving Mode Display (Alfa DNA System)
12. Distance Traveled (miles/km) display
13. Fuel Consumption
14. Warning Indications Display (e.g. danger of

ice, open doors, ABS operation, etc.)

15. Range

C

USTOMER

 P

ROGRAMMABLE

 S

ETTINGS

Multiple settings can be programmed by the user

using the radio. This section describes only the

basic settings:

Units & Language

Clock & Date

Cluster

To access the settings list in the radio, proceed as

follows:

Press the Home button to access the main

menu.

Select Settings from the main menu using the

Rotary Knob or by pressing Settings on the

touchscreen.

Rotary Knob

1 — ON/OFF Control And Volume Knob
2 — OPTION Button
3 — Rotary Pad
4 — Home Button

CarManuals2.com

GETTING TO KNO

W

 YOU

R IN

STRUM

ENT PAN

EL

70

Units & Language
The following settings can be modified under the

“Units & Language” menu:

Units: select US, Metric, or Custom. The

custom option allows for individual selection of

the unit measures

Language: change the language of the system

Restore Unit & Language Settings: restores the

factory settings

To access and change the setting, turn and push

the Rotary Pad or press the desired setting on the

touchscreen.
Clock & Date
The following settings can be modified under the

“Clock & Date” menu:

Sync With GPS Time (if equipped): activates or

deactivates the clock synchronization through

the GPS. If the function is deactivated, the

options Set Time and Set Date are enabled

Set Time: set the time manually

Time Format: set the time format to either a

12-hour or a 24-hour clock

Set Date: set the date manually

Restore Clock & Date Settings: restores the

factory settings

To access and change the setting, turn and push

the Rotary Pad or press the desired setting on the

touchscreen.

Cluster
The following settings can be modified when this

mode is selected:

Warning Buzzer Volume: set the volume of the

warning buzzer on seven levels

Trip B: activate or deactivate the Trip function

Show Phone Info: activate/deactivate

repetition of the phone function screens also

on the instrument panel display

Show Audio Info: activate/deactivate

repetition of the audio function screens (Radio

and Media) also on the instrument panel

display

Show Nav Info (if equipped): activate/

deactivate repetition of the navigator function

screens also on the instrument panel display

Digital speed on all screens: activate/deacti

-

vating of digital speed on the instrument panel

display screens other than the main screen

Consumption Bar: activate/deactivate the

consumption baron the display screens of the

instrument panel where it is available

Performance pages: choose, for each driving

mode, one of the two alternative contents

displayed in the screen

Custom areas: select which content to display

in each of the three customizable areas on the

display of the instrument panel: time, date,

outside temperature, radio information,

compass

Restore Cluster Settings: deletes the current

settings and restores the factory settings

To access and change the setting, turn and push

the Rotary Pad or press the desired setting on the

touchscreen.

WARNING LIGHTS AND

MESSAGES ON THE

INSTRUMENT PANEL

The following pages consist of warning lights and

messages.
NOTE:

The warning light turns on together with a

dedicated message and/or chime when

applicable. These indications are precau

-

tionary and as such must not be considered as

exhaustive and/or alternative to the

information contained in the Owner’s Manual,

which you are advised to read carefully in all

cases. Always refer to the information in this

section in the event of a failure indication.

The failure indicators appearing on the display

are divided into two categories: very serious

and less serious faults. Serious faults are

indicated by a repeated and prolonged

warning "cycle.” Less serious faults are

indicated by a warning "cycle" with a shorter

duration. You can stop the warning cycle in

both cases by pushing the button located on

the windshield wiper stalk. The instrument

panel warning light will stay on until the cause

of the failure is eliminated.

CarManuals2.com

71

R

ED

 W

ARNING

 L

IGHTS

Air Bag Warning Light

This warning light will illuminate to

indicate a fault with the air bag, and will

turn on for four to eight seconds as a

bulb check when the ignition is placed in

the ON/RUN or ACC/ON/RUN position. This light

will illuminate with a single chime when a fault

with the air bag has been detected, it will stay on

until the fault is cleared. If the light is either not on

during startup, stays on, or turns on while driving,

have the system inspected at an authorized

dealer as soon as possible.

Brake Warning Light

This warning light monitors various

brake functions, including brake fluid

level and parking brake application. If

the brake light turns on it may indicate

that the parking brake is applied, that the brake

fluid level is low, or that there is a problem with

the Anti-Lock Brake System reservoir.
If the light remains on when the parking brake

has been disengaged, and the fluid level is at the

full mark on the master cylinder reservoir, it

indicates a possible brake hydraulic system

malfunction or that a problem with the Brake

Booster has been detected by the Anti-Lock

Brake System (ABS) / Electronic Stability Control

(ESC) system. In this case, the light will remain on

until the condition has been corrected. If the

problem is related to the brake booster, the ABS

pump will run when applying the brake, and a

brake pedal pulsation may be felt during each

stop.

The dual brake system provides a reserve braking

capacity in the event of a failure to a portion of the

hydraulic system. A leak in either half of the dual

brake system is indicated by the Brake Warning

Light, which will turn on when the brake fluid level

in the master cylinder has dropped below a

specified level.
The light will remain on until the cause is

corrected.
NOTE:

The light may flash momentarily during sharp

cornering maneuvers, which change fluid level

conditions. The vehicle should have service

performed, and the brake fluid level checked.
If brake failure is indicated, immediate repair is

necessary.

Vehicles equipped with the Anti-Lock Brake

System (ABS) are also equipped with Electronic

Brake Force Distribution (EBD). In the event of an

EBD failure, the Brake Warning Light will turn on

along with the ABS Light. Immediate repair to the

ABS system is required.
Operation of the Brake Warning Light can be

checked by turning the ignition switch from the

OFF position to the ON/RUN position. The light

should illuminate for approximately two seconds.

The light should then turn off unless the parking

brake is applied or a brake fault is detected. If the

light does not illuminate, have the light inspected

by an authorized dealer.
The light also will turn on when the parking brake

is applied with the ignition switch in the ON/RUN

position.
NOTE:

This light shows only that the parking brake is

applied. It does not show the degree of brake

application.

Seat Belt Reminder Warning Light

When the ignition is first placed in the

ON/RUN position, if the driver’s seat

belt is unbuckled, a chime will sound

and the light will turn on. When driving,

if the driver or front passenger seat belt remains

unbuckled, the Seat Belt Reminder Light will flash

or remain on continuously and a chime will sound

Ú

page 144.

 WARNING!

If the warning light does not turn on when the

ignition is placed in the ON/RUN position or if

it stays on when driving (together with the

message on the display), there might be a

malfunction in the restraint systems; This

could mean the air bags or pretensioners

may not deploy in the event of an accident or,

they could deploy erroneously. This could

result in serious injuries or death. Have the

vehicle checked by qualified technician

immediately.

Driving a vehicle with a red brake warning

light on is dangerous. Part of the brake

system may have failed. It will take longer to

stop the vehicle in such circumstances. This

could result in a collision and serious injuries

or death. Have the vehicle checked by a

qualified technician immediately.

CarManuals2.com

GETTING TO KNO

W

 YOU

R IN

STRUM

ENT PAN

EL

72

Electronic Brake Force Distribution (EBD)

Failure

The simultaneous turning on of the

BRAKE (red) and ABS (amber) warning

lights with the engine on indicates

either a failure of the EBD system or

that the system is not available. In this case, the

rear wheels may suddenly lock and the vehicle

may swerve when braking abruptly.

Oil Temperature Warning Light

This warning light indicates engine oil

temperature is high.

Stop the vehicle and shut off the engine as soon

as possible. If the problem persists, contact an

authorized dealer.

A

MBER

 W

ARNING

 L

IGHTS

Anti-Lock Brake System (ABS) Warning

Light

This light monitors the ABS. The light will

turn on when the ignition is placed in

the ON/RUN position and may stay on

for as long as four seconds.

If the ABS light remains on or turns on while

driving, then the Anti-Lock portion of the brake

system is not functioning and service is required.

However, the conventional brake system will

continue to operate normally if the red BRAKE

warning light is not on.

If the ABS light is on, the brake system should be

serviced as soon as possible to restore the

benefits of Anti-Lock Brakes. If the ABS light does

not turn on when the ignition is placed in the ON/

RUN position, have the light inspected by an

authorized dealer.

Electronic Stability Control (ESC)

Indicator Light — If Equipped

When the ignition is cycled to ON, the

indicator light illuminates, but should

turn off as soon as the engine is started.

ESC System Intervention: Intervention by the

system is indicated by the flashing of the

indicator light: it indicates that the vehicle is in

critical stability and grip conditions.
ESC System Failure: If the indicator light does not

turn off, or if it stays on with the engine running,

a failure was found in the ESC system.
Hill Start Assist System Failure: The illumination

of the indicator light indicates a Hill Start Assist

system failure.
In these cases, contact an authorized dealer as

soon as possible.

Electronic Stability Control (ESC) OFF

Indicator Light — If Equipped

When the ignition is cycled to ON, the

indicator light illuminates, but should

turn off as soon as the engine is started.

The indicator light illuminates to indicate that

some active safety systems have been partially or

totally deactivated

Ú

page 129.

When the active safety systems are reactivated,

the indicator light turns off.

 WARNING!

If the warning light does not turn on when the

ignition is placed in the ON/RUN position or

if it stays on when driving (together with the

message on the display), there might be a

malfunction in the restraint systems; This

could mean the air bags or pretensioners

may not deploy in the event of an accident or,

they could deploy erroneously. This could

result in serious injuries or death. Have the

vehicle checked by qualified technician

immediately.

Driving a vehicle with a red brake warning

light on is dangerous. Part of the brake

system may have failed. It will take longer to

stop the vehicle in such circumstances. This

could result in a collision and serious injuries

or death. Have the vehicle checked by a

qualified technician immediately.

 WARNING!

Driving a vehicle with a red brake warning light

on is dangerous. Part of the brake system may

have failed. It will take longer to stop the

vehicle in such circumstances. This could

result in a collision and serious injuries or

death. Have the vehicle checked by a qualified

technician immediately.

CarManuals2.com

73

Tire Pressure Low Warning Light

The indicator light will illuminate to

indicate that the tire pressure is lower

than the recommended value and/or

that slow pressure loss is occurring. In

these cases, optimal tire duration and fuel

consumption may not be guaranteed.
In any situation in which the message on the

display is “See Manual”

Ú

page 142.

Tire Pressure Monitoring System (TPMS)

Warning Light

The warning light switches on and a

message is displayed to indicate that

the tire pressure is lower than the

recommended value and/or that slow

pressure loss is occurring. In these cases, optimal

tire duration and fuel consumption may not be

guaranteed.
Should one or more tires be in the condition

mentioned previously, the display will show the

indications corresponding to each tire.

Each tire, including the spare (if provided), should

be checked monthly when cold and inflated to the

inflation pressure recommended by the vehicle

manufacturer on the vehicle placard or tire

inflation pressure label. If your vehicle has tires of

a different size than the size indicated on the

vehicle placard or tire inflation pressure label, you

should determine the proper tire inflation

pressure for those tires.
As an added safety feature, your vehicle has been

equipped with a TPMS that illuminates a low tire

pressure telltale when one or more of your tires is

significantly underinflated. Accordingly, when the

low tire pressure telltale illuminates, you should

stop and check your tires as soon as possible,

and inflate them to the proper pressure. Driving

on a significantly underinflated tire causes the

tire to overheat and can lead to tire failure.

Underinflation also reduces fuel efficiency and

tire tread life, and may affect the vehicle’s

handling and stopping ability.
Please note that the TPMS is not a substitute for

proper tire maintenance, and it is the driver’s

responsibility to maintain correct tire pressure,

even if underinflation has not reached the level to

trigger illumination of the TPMS low tire pressure

telltale.
Your vehicle has also been equipped with a TPMS

malfunction indicator to indicate when the

system is not operating properly. The TPMS

malfunction indicator is combined with the low

tire pressure telltale. When the system detects a

malfunction, the telltale will flash for approxi

-

mately one minute and then remain continuously

illuminated. This sequence will continue upon

subsequent vehicle start-ups as long as the

malfunction exists. When the malfunction

indicator is illuminated, the system may not be

able to detect or signal low tire pressure as

intended. TPMS malfunctions may occur for a

variety of reasons, including the installation of

replacement or alternate tires or wheels on the

vehicle that prevent the TPMS from functioning

properly. Always check the TPMS malfunction

telltale after replacing one or more tires or wheels

on your vehicle to ensure that the replacement or

alternate tires and wheels allow the TPMS to

continue to function properly.

Rear Fog Lights

The indicator illuminates when the rear

fog light is activated.

Engine Check/Malfunction Indicator Light

(MIL)

In normal conditions, when the ignition

is cycled to ON, the indicator light

illuminates, but it should turn off as

soon as the engine is started.

 CAUTION!

Do not continue driving with one or more flat

tires as handling may be compromised. Stop

the vehicle, avoiding sharp braking and

steering. If a tire puncture occurs, repair

immediately using the dedicated tire repair kit

and contact an authorized dealer as soon as

possible.

 WARNING!

The TPMS has been optimized for the original

equipment tires and wheels. TPMS pressures

and warning have been established for the tire

size equipped on your vehicle. Undesirable

system operation or sensor damage may

result when using replacement equipment

that is not of the same size, type, and/or style.

Aftermarket wheels can cause sensor

damage. Using aftermarket tire sealants may

cause the Tire Pressure Monitoring System

(TPMS) sensor to become inoperable. After

using an aftermarket tire sealant it is

recommended that you take your vehicle to an

authorized dealership to have your sensor

function checked.

CarManuals2.com

GETTING TO KNO

W

 YOU

R IN

STRUM

ENT PAN

EL

74

The operation of the indicator light may be

checked by the traffic police using specific

devices. Comply with the laws and regulations of

the country where you are driving.
Under these conditions, the vehicle can continue

traveling at moderate speed but without

demanding excessive effort from the engine or

high speed. Prolonged use of the vehicle with the

indicator light on constantly may cause damage.

Contact an authorized dealer as soon as

possible.

Forward Collision Warning (FCW) System

This indicator light informs the driver

that the frontal collision alarm function

is not enabled.

Drive carefully and contact an authorized dealer

as soon as possible.

Fuel Reserve/Limited Range

The indicator light (or the symbol in the

display) illuminates when about

2.4 gallons (9 liters) of fuel is left in the

tank.

G

REEN

 I

NDICATOR

 L

IGHTS

Automatic High Beam Indicator Light —

If Equipped

This indicator light will illuminate when

the automatic high beam headlights are

activated.

Left Turn Signal Indicator Light

The instrument cluster directional arrow

will flash independently for the left turn

signal as selected, as well as the

exterior turn signal lamp(s) (front and

rear) as selected when the multifunction lever is

moved down (left). This directional arrow will

flash in conjunction with the right directional

arrow when the hazard warning light button is

pushed.

Parking/Headlights On Indicator Light

This indicator will illuminate when the

parking lights or headlights are turned

on.

Right Turn Signal Indicator Light

The instrument cluster directional arrow

will flash independently for the right

turn signal as selected, as well as the

exterior turn signal lamp(s) (front and

rear) as selected when the multifunction lever is

moved up (right). This directional arrow will flash

in conjunction with the left directional arrow

when the hazard warning light button is pushed.

B

LUE

 I

NDICATOR

 L

IGHTS

High Beam Indicator Light — If Equipped

This indicator shows that the high beam

headlights are on. Push the

multifunction control lever away from

you to switch the headlights to high

beam. Push the lever a second time to switch the

headlights back to low beam. Pull the lever

toward you for a temporary high beam on, “flash

to pass” scenario.

R

ED

 S

YMBOLS

Alfa Steering Torque (AST) Failure

The switching on of the telltale signals a

failure in the automatic steering

correction system.

Contact an authorized dealer to have the system

checked.

Alternator Failure

The switching on of the telltale with

engine on corresponds to an alternator

failure.

Contact an authorized dealer as soon as

possible.

Automatic Transmission Failure

The telltale turns on, together with a

buzzer warning, to indicate that the

automatic transmission is faulty.

Contact an authorized dealer as soon as

possible.

 CAUTION!

If, turning the ignition device to ON, the warning

 light does not turn on or if it turns on steadily

or flashing while driving (on some versions

together with the message on the display), imme

-

diate service is required. Prolonged driving with

the MIL on could cause damage to the vehicle.

 WARNING!

If the warning light flashes while driving,

contact an authorized dealer.

CarManuals2.com

75

Brake Disc Temperature

When the symbol turns on, it indicates

an excessive temperature of the brake

discs. Let the breaking system cool

down by reducing the speed.

Driver Attention Assist (DAA) System

Activation — If Equpped

The DAA system detects indications that

the driver is feeling fatigued and

illuminates this warning that the driver

should pull over and take a break.

Stop to pause while driving, pulling the car over in

safe conditions.

Door Open

The telltale turns on when one or more

doors are not completely shut. An

acoustic signal is activated with the

doors open and the car moving.

Close the doors properly.

Power Steering Failure

If the telltale remains on, you may not

have steering assistance and the effort

required to operate the steering wheel

may be increased; steering is, however,

possible.

NOTE:

After the battery is disconnected, the steering

wheel must be re-initialized. The Power Steering

Failure light on the instrument panel will illumi

-

nate to indicate this. To carry out this procedure,

simply turn the steering wheel all the way from

one end to the other, and then turn it back to the

central position.
Contact an authorized dealer as soon as possible.

Electronic Throttle Control (ETC) Warning

Light

This warning light, along with the related

message, signals a failure in the ETC.
If a failure is detected, the warning light

turns on while the engine is running.
Place the gear selector in the PARK (P) position

and the ignition in the off position: the warning

light should switch off. If the warning light stays

on with engine running, the vehicle can still be

driven.
If the warning light flashes with the engine

running, immediate intervention is required. A

loss of performance, irregular/high idling speed

or engine stopping might take place and the

vehicle may need to be towed.
Contact an authorized dealer as soon as possible

to have the failure eliminated.

Engine Coolant Temperature Too High

The telltale lights up when the engine

has overheated.

In normal driving conditions

: stop the

car, turn off the engine and check that the coolant

level in the reservoir is not below the MIN mark.

In this case, wait for the engine to cool down, then

slowly and carefully open the cap, fill with coolant

and check that the level is between the MIN and

MAX marks on the reservoir itself. Also check

visually for any fluid leaks. Contact an authorized

dealer if the telltale comes on when the engine is

started again.

If the vehicle is used under demanding conditions

(e.g. in high-performance driving):

 slow down

and, if the warning light stays on, stop the vehicle.

Stop for two or three minutes with the engine

running and slightly accelerated to facilitate

better coolant circulation, then turn the engine

off. Check that the coolant level is correct as

described previously.

Hood Cap Not Properly Shut

The telltale turns on when the hood cap

is not properly closed, along with the

icon, an image of the vehicle with an

open hood cap appears on the display.

A buzzer is heard when the hood cap is open and

the vehicle is moving.
Close the hood properly.

Insufficient Engine Oil Level

The telltale turns on, along with the

related message on the display, to

indicate low engine oil level.

Contact an authorized dealer to have the system

checked.

Low Engine Oil Pressure

This telltale indicates low engine oil

pressure. If the telltale turns on while

driving, stop the vehicle and shut off the

engine as soon as possible. A chime will

sound when this telltale turns on. Do not operate

the vehicle until the cause is corrected. This telltale

does not indicate how much oil is in the engine.

 CAUTION!

Driving the vehicle with this symbol on may

severely damage the gearbox, with resulting

breakage. The oil may also overheat: contact

with hot engine or with exhaust components

at high temperature could cause fires.

CarManuals2.com

GETTING TO KNO

W

 YOU

R IN

STRUM

ENT PAN

EL

76

NOTE:

Do not use the vehicle until the failure has been

solved. The turning on of the telltale does not indi

-

cate the amount of oil in the engine. The oil level

can be checked on the display upon entering the

vehicle and also by activating the “Oil level” func

-

tion on the Information and Entertainment

System.
Contact an authorized dealer as soon as

possible.

Trunk Lid Not Properly Shut

The telltale turns on when the trunk lid

is not properly closed, along with the

icon, an image of the vehicle with an

open trunk lid appears on the display.

A buzzer is heard when the trunk lid is open and

the vehicle is moving.
Close the trunk lid properly.

A

MBER

 S

YMBOLS

Engine Immobilizer Failure/Break-In

Attempt

Engine Immobilizer System Failure The

telltale will illuminate to report a failure

of the Engine Immobilizer system.

Break-In Attempt The telltale will illuminate when

the ignition is cycled to ON position, to indicate a

possible break-in attempt detected by the alarm

system.

Electronic Key Not Recognized The telltale will

illuminate when the engine is started and the

electronic key is not recognized by the system.
Alarm System Failure The telltale will illuminate to

report an alarm system failure.
Contact an authorized dealer as soon as

possible.

Fuel Cut-Off Indicator Light

The telltale will illuminate after an

accident has occurred and the system

has shut the fuel off.

For reactivating the fuel cut-off system

Ú

page 144. If it is not possible to restore the fuel

supply, contact an authorized dealer.

Park Sensors System Failure

The telltale will illuminate when the

system has failed or is not available.

Contact an authorized dealer to have the system

checked.

Engine Oil Change Required —

If Equipped

The telltale is illuminated only for a

limited time.

NOTE:

After the first indication, each time the engine is

started the symbol will continue to illuminate as

described previously until the oil is changed.

If the telltale flashes, this does not mean that

there is a fault on the vehicle, rather it simply

reports that it is now necessary to change the oil

as a result of regular use of the vehicle. The

deterioration of engine oil is accelerated by using

the vehicle for short drives, preventing the engine

from reaching operating temperature.
Contact an authorized dealer as soon as

possible.

Engine Oil Pressure Sensor Failure

The telltale will illuminate in the event of

engine oil pressure sensor failure.

Contact an authorized dealer as soon as

possible.

Engine Oil Level Sensor Failure

The telltale will illuminate in the event of

engine oil level sensor failure.

Contact an authorized dealer as soon as

possible.

 CAUTION!

If the LOW ENGINE OIL PRESSURE symbol

switches on when driving, stop the engine

immediately and contact an authorized dealer.

 CAUTION!

Deteriorated engine oil should be replaced as

soon as possible after the symbol is switched

on, and never more than 500 miles (805 km)

after it first switches on. Failure to observe the

above may result in severe damage to the

engine and invalidate the New Vehicle Limited

Warranty. When this symbol comes on, it does

not mean that the level of engine oil is low, so

if it flashes you do not need to top up the

engine oil.

CarManuals2.com

77

Forward Collision Warning (FCW) System

Failure — If Equipped

The telltale will illuminate in the case of

failure of the Forward Collision Warning

system.

Contact an authorized dealer as soon as possible.

Stop/Start System Failure

This telltale will illuminate to report a

Stop/Start system failure.

Contact an authorized dealer as soon as possible

to have the failure eliminated.

Rain Sensor Failure

The telltale will illuminate in the case of

failure of the automatic windshield

wiper.

Contact an authorized dealer as soon as possible.

Dusk Sensor Failure

The telltale will illuminate in the case of

failure of the automatic low beam

alignment.

Contact an authorized dealer as soon as possible.

Blind Spot Monitoring System Failure —

If Equipped

The telltale will illuminate in the event of

a Blind Spot Monitoring system failure.

Contact an authorized dealer as soon as possible.

Fuel Level Sensor Failure

The telltale will illuminate in the event of

fuel level sensor failure.

Contact an authorized dealer as soon as possible.

Exterior Lights Failure

The telltale will illuminate to indicate a

failure on the following lights: daytime

running lights (DRLs) / parking lights /

trailer turn signal indicators (if present) /

trailer lights (if present) / side lights / turn signal

indicators / rear fog light / reversing light / brake

lights / license plate lights.
The failure may be caused by a blown bulb, a

blown protection fuse, or an interruption of the

electrical connection.
Replace the bulb or the relevant fuse. Contact an

authorized dealer.

Keyless System Failure

The telltale will illuminate in the event of

keyless system failure.

Contact an authorized dealer as soon as possible.

Fuel Cut-Off System Failure

The telltale will illuminate in the event of

fuel cut-off system failure.

Contact an authorized dealer as soon as possible.

Lane Departure Warning (LDW) System

Failure — If Equipped

The telltale will illuminate in the event of

a fault in the Lane Departure Warning

system.

Contact an authorized dealer as soon as possible.

Automatic High Beam Headlights

Failure — If Equipped

The telltale will illuminate to report a

failure of the automatic high beam

headlights.

Contact an authorized dealer as soon as possible

to have the failure eliminated.

Automatic Transmission Fluid

Overheating

The telltale will illuminate in the case of

transmission overheating, after a partic

-

ularly demanding use. In this case an

engine performance limitation is carried

out.

Wait for the telltale to turn off with the engine off

or idling.

Audio System Failure

The telltale will illuminate to report a

failure of the audio system.

Contact an authorized dealer as soon as possible

to have the failure eliminated.

CarManuals2.com

GETTING TO KNO

W

 YOU

R IN

STRUM

ENT PAN

EL

78

Speed Limiter System Failure

While driving, the telltale will illuminate

to signal a Speed Limiter system failure.

Contact an authorized dealer as soon as possible

to have the failure eliminated.

Loose Fuel Filler Cap

Lights up if the fuel tank cap is open or

not properly closed.
Tighten the cap properly.

Electric Park Brake Failure

The telltale will illuminate and a

message will display to signal a failure

in the electric park brake system.

This failure may partially or completely block the

vehicle because the park brake could remain

activated even if automatically or manually

disengaged using the relevant controls. In these

circumstances, you can disengage the park

brake following the emergency disengagement

procedure

Ú

page 179.

If you are still able to drive the vehicle (park brake

is not engaged), drive to the nearest authorized

dealer and remember, when executing any

maneuvers/commands, that the electric park

brake is not operational.

Low Coolant Level — If Equipped

This telltale will illuminate to indicate

that the vehicle coolant level is low.

Service Adaptive Cruise Control (ACC)

System

This light will illuminate when the ACC is

not operating and needs service.

Contact an authorized dealer to have the system

checked.

Wear On Brake Pads

This light will illuminate when the brake

pads have reached their wear limit.

Contact an authorized dealer as soon as

possible.
NOTE:

Always use genuine parts or similar because the

Integrated Brake System (IBS) system could

detect anomalies.

Dynamic Drive Control System Failure

The telltale will illuminate to signal a

failure in the dynamic drive control

system.

Windshield Wiper Failure

Signals a windshield wiper failure.
Contact an authorized dealer.

Generic Indication

Signals information and failures.
The accompanying messages describe

the failure.

All Wheel Drive Failure

This telltale will illuminate along with an

accompanying message when the AWD

dynamic control system is temporarily

deactivated to prevent damage. The

traction system will work in RWD mode in this

instance.
Contact an authorized dealer as soon as possible

to have the failure eliminated.

Temporary All Wheel Drive Failure —

If Equipped

This telltale will illuminate to indicate

that the AWD dynamic control system is

temporarily deactivated to prevent

damage. The traction system will work

in RWD mode in this instance.
In the event that this telltale illuminates, reduce

the load to allow the system to cool down. The

AWD system will resume normal operation when

the symbol disappears from the display.

ABS Activation

This telltale will illuminate to indicate

that the ABS system has activated.

Adaptive Front Lighting System Failure

The telltale will illuminate to indicate the

automatic directional light system

failure.

Go to an authorized dealer to have the system

checked.

 WARNING!

If a failure is present with sharp braking, the

rear wheels may lock and the vehicle may

swerve.

CarManuals2.com

79

Soft Suspension Calibration Insertion —

If Equipped

The telltale will illuminate when the

most comfortable suspension setting is

activated.

Shock Absorbers Failure

While driving, if the telltale illuminates,

it signals a failure in the suspension

system.

Contact an authorized dealer to have the system

checked.

Windshield Washer Liquid Level

The telltale will illuminate to indicate

that the level of the windshield and

headlight washing fluid (if any) is low.

Always use liquid with the features indicated in

the “Fluids And Lubricants”

Ú

page 189.

Driver Attention Assist (DAA) System

Failure

The symbol comes on in the event of a

DAA system failure.

Contact an Alfa Romeo Dealership as soon as

possible to have the failure eliminated.

Highway Assist System (HAS)/Traffic Jam

Assist (TJA) System Failure

The symbol lights up in case of HAS or

TJA system failure.

Contact an Alfa Romeo Dealership as soon as

possible to have the failure eliminated.

G

REEN

 S

YMBOLS

Headlights

The telltale will illuminate when the

headlights are turned on.

Automatic Headlights

The symbol lights up when the

automatic headlights are on.

Stop/Start Operation

The telltale will illuminate in the case of

Stop/Start system intervention

(stopping the engine).

When the engine is restarted, the telltale will shut

off

Ú

page 94.

Cruise Control Activated

The telltale will illuminate when the

Cruise Control system is activated.

Adaptive Cruise Control System —

If Equipped

The symbol comes on when the

Adaptive Cruise Control system is

activated.

B

LUE

 S

YMBOLS

Automatic High Beam Headlights —

If Equipped

The telltale will illuminate when the

automatic high beam headlights are

activated.

High Beam Headlights

The telltale will illuminate when the high

beam headlights are activated.

ONBOARD DIAGNOSTIC

SYSTEM

Operation
The Onboard Diagnostic system (OBD) carries out

a continuous diagnosis of the components of the

vehicle related to emissions.
It also alerts the driver of when these

components are no longer in peak condition by

switching on the   warning light on the

instrument panel

Ú

page 70.

The aim of the OBD system (Onboard Diagnostic)

is to:

Monitor the efficiency of the system

Indicate an increase in emissions

Indicate the need to replace damaged

components

The vehicle also has a connector, which can

interface with appropriate tools, that makes it

possible to read the error codes stored in the

electronic control units together with a series of

specific parameters for engine operation and

diagnosis. This check can be carried out by an

authorized dealer.
NOTE:

After eliminating a fault, to check the system

completely, an authorized dealer is obliged to run

tests and, if necessary certain road tests.

CarManuals2.com

GETTING TO KNO

W

 YOU

R IN

STRUM

ENT PAN

EL

80

O

NBOARD

 D

IAGNOSTIC

 S

YSTEM

 (OBD II)

C

YBERSECURITY

Your vehicle is required to have OBD II and a

connection port to allow access to information

related to the performance of your emissions

controls. Authorized service technicians may

need to access this information to assist with the

diagnosis and service of your vehicle and

emissions system.

EMISSIONS INSPECTION

AND MAINTENANCE

PROGRAMS

In some localities, it may be a legal requirement

to pass an inspection of your vehicle's emissions

control system. Failure to pass could prevent

vehicle registration.

For states that require an Inspection

and Maintenance (I/M), this check

verifies the Malfunction Indicator Light

(MIL) is functioning and is not on when

the engine is running, and that the OBD II system

is ready for testing.
Normally, the OBD II system will be ready. The

OBD II system may not be ready if your vehicle

was recently serviced, recently had a depleted

battery or a battery replacement. If the OBD II

system should be determined not ready for the

I/M test, your vehicle may fail the test.
Your vehicle has a simple ignition actuated test,

which you can use prior to going to the test

station. To check if your vehicle's OBD II system is

ready, you must do the following:
1. Cycle the ignition switch to the ON position,

but do not crank or start the engine.

NOTE:

If you crank or start the engine, you will have to

start this test over.

2. As soon as you cycle the ignition switch to the

ON position, you will see the Malfunction Indi

-

cator Light (MIL) symbol come on as part of a

normal bulb check.

3. Approximately 15 seconds later, one of two

things will happen:

The MIL will flash for about 10 seconds

and then return to being fully illuminated

until you turn OFF the ignition or start the

engine. This means that your vehicle's

OBD II system is not ready and you should

not proceed to the I/M station.

The MIL will not flash at all and will remain

fully illuminated until you place the ignition

in the off position or start the engine. This

means that your vehicle's OBD II system is

ready and you can proceed to the I/M

station.

If your OBD II system is not ready, you should see

an authorized dealer or repair facility. If your

vehicle was recently serviced or had a battery

failure or replacement, you may need to do

nothing more than drive your vehicle as you

normally would in order for your OBD II system to

update. A recheck with the above test routine

may then indicate that the system is now ready.
Regardless of whether your vehicle's OBD II

system is ready or not, if the MIL is illuminated

during normal vehicle operation you should have

your vehicle serviced before going to the I/M

station. The I/M station can fail your vehicle

because the MIL is on with the engine running.

 WARNING!

ONLY an authorized service technician

should connect equipment to the OBD II

connection port in order to read the VIN,

diagnose, or service your vehicle.

If unauthorized equipment is connected to

the OBD II connection port, such as a

driver-behavior tracking device, it may:

Be possible that vehicle systems,

including safety related systems, could

be impaired or a loss of vehicle control

could occur that may result in an acci-

dent involving serious injury or death.

Access, or allow others to access, infor-

mation stored in your vehicle systems,

including personal information.

CarManuals2.com

81

STARTING THE ENGINE

Before starting the engine, be sure to adjust the

seat, the interior rearview mirror, the door

mirrors, and fasten the seat belt correctly.
Never press the accelerator pedal before starting

the engine.
If necessary, messages indicating the starting

procedure will be shown in the display.

S

TARTING

 P

ROCEDURE

Proceed as follows:
1. Apply the Electric Park Brake and set the gear

selector to PARK (P) or NEUTRAL (N).

2. Fully press the brake pedal without touching

the accelerator.

3. Briefly push the ignition button.
4. If the engine doesn't start within a few

seconds, you need to repeat the procedure. If

the problem persists, contact an authorized

dealer.

R

EMOTE

 S

TARTING

 S

YSTEM

This system uses the key fob to start the engine

conveniently from outside the vehicle while still

maintaining security. The system has a range of

at least 300 feet (91 meters).
The remote starting system also activates the

climate control, the heated seats (if equipped),

and the heated steering wheel (if equipped),

depending on temperatures outside and inside of

the vehicle.
NOTE:

Obstructions between the vehicle and key fob

may reduce this range.
How to use Remote Start
All of the following conditions must be met before

the engine will remote start:

Gear selector in PARK (P).

Doors closed.

Hood closed.

Trunk closed.

Hazard switch off.

Brake switch inactive (brake pedal not

pressed).

 WARNING!

When leaving the vehicle, always remove the

key fob from the vehicle and lock your

vehicle.

Never leave children alone in a vehicle, or

with access to an unlocked vehicle.

Allowing children to be in a vehicle

unattended is dangerous for a number of

reasons. A child or others could be seriously

or fatally injured. Children should be warned

not to touch the parking brake, brake pedal

or the transmission gear selector.

Do not leave the key fob in or near the

vehicle, or in a location accessible to

children. A child could operate power

windows, other controls, or move the vehicle.

Do not leave children or animals inside

parked vehicles in hot weather. Interior heat

buildup may cause serious injury or death.

 WARNING!

Never pour fuel or other flammable liquid

into the throttle body air inlet opening in an

attempt to start the vehicle. This could result

in flash fire causing serious personal injury.

Do not attempt to push or tow your vehicle to

get it started. Vehicles equipped with an

automatic transmission cannot be started

this way. Unburned fuel could enter the

catalytic converter and once the engine has

started, ignite and damage the converter and

vehicle.

If the vehicle has a discharged battery,

booster cables may be used to obtain a start

from a booster battery or the battery in

another vehicle

Ú

page 177. This type of

start can be dangerous if done improperly.

 CAUTION!

To prevent damage to the starter, do not

continuously crank the engine for more than

25 seconds at a time. Wait 60 seconds before

trying again.

CarManuals2.com

STARTING AN

D O

PERA

TIN

G

82

Battery at an acceptable charge level.

PANIC button not pushed.

System not disabled from previous remote

start event.

Vehicle alarm system indicator flashing.

Ignition in the OFF position.

Fuel level meets minimum requirement.

Remote Start Comfort Systems — If Equipped
When Remote Start is activated, the heated

steering wheel and driver heated seat features

will automatically turn on in cold weather.
These features will stay on through the duration

of remote start until the ignition is placed in the

ON/RUN position.
Remote Start Windshield Wiper De–Icer

Activation — If Equipped
When remote start is active and the outside

ambient temperature is less than 39°F (4°C),

the Windshield Wiper De-Icer will be enabled.

Exiting remote start will resume previous

operation, except if the Windshield Wiper De-Icer

is active.
The Windshield Wiper De-Icer timer and

operation will continue.

C

OLD

 W

EATHER

 O

PERATION

To prevent possible engine damage while starting

at low temperatures, this vehicle will inhibit

engine cranking when the ambient temperature

is less than –22°F (–30°C) and the oil

temperature sensor reading indicates an engine

block heater has not been used. An

externally-powered electric engine block heater is

available as optional equipment or from an

authorized dealer.

The message “Plug In Engine Heater” will be

displayed in the instrument cluster when the

ambient temperature is below 5°F (–15°C) at

the time the engine is shut off as a reminder to

avoid possible crank delays at the next cold start.

E

XTENDED

 P

ARK

 S

TARTING

If the vehicle has not been started or driven for at

least 30 days, see the following instructions:
To start the engine, proceed as follows:
1. Install a battery charger or jumper cables to

the battery to ensure a full battery charge

during the crank cycle

Ú

page 177.

2. Briefly push the ignition button.
3. If the engine does not start, wait five seconds

and let the starter cool down and then repeat

the starting procedure.

4. If the engine does not start after eight

attempts, let the starter cool down for at least

10 seconds, and then repeat the starting

procedure. If the problem persists, contact

an authorized dealer.

I

F

 E

NGINE

 F

AILS

 T

O

 S

TART

Starting the Engine with Key Fob Battery Run

Down or Drained
If the ignition does not respond when the button

is pushed, the key fob battery might be run down

or drained. Therefore, the system does not detect

the presence of the key fob in the vehicle, and will

display a dedicated message.
For more information on starting with a

discharged key fob battery

Ú

page 22.

 CAUTION!

Use of the recommended oil and adhering to

the prescribed oil change intervals is

important to prevent engine damage and

ensure satisfactory starting in cold conditions.

 WARNING!

Never pour fuel or other flammable liquid

into the throttle body air inlet opening in an

attempt to start the vehicle. This could result

in flash fire causing serious personal injury.

Do not attempt to push or tow your vehicle to

get it started. Vehicles equipped with an

automatic transmission cannot be started

this way. Unburned fuel could enter the

catalytic converter and once the engine has

started, ignite and damage the converter

and vehicle.

If the vehicle has a discharged battery,

booster cables may be used to obtain a start

from a booster battery or the battery in

another vehicle

Ú

page 177. This type of

start can be dangerous if done improperly.

 CAUTION!

To prevent damage to the starter, do not

continuously crank the engine for more than

25 seconds at a time. Wait 60 seconds before

trying again.

CarManuals2.com















Content      ..      1      2      3      ..
