19

In this section, you will find important information

to help you become familiar with the features

needed to operate your vehicle, and how they

function.

KEYS

K

EY

 F

OB



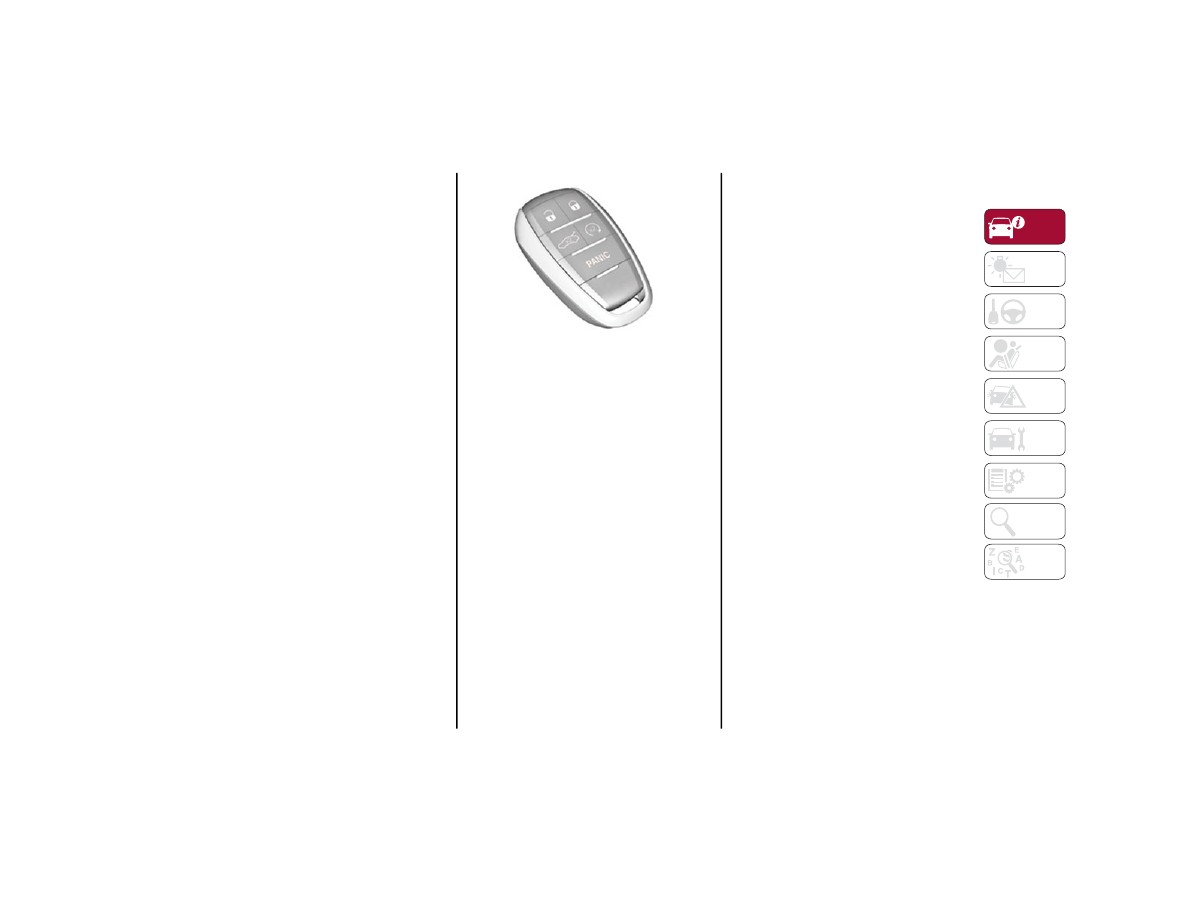

Your vehicle is equipped with a key fob which

supports Passive Entry, Remote Keyless Entry

(RKE), Remote Start (if equipped), and remote

trunk operation. The key fob allows you to lock or

unlock the doors and trunk lid. The key fob does

not need to be pointed at the vehicle to activate

the system. The key fob also contains an

emergency key, which is stored inside the key fob.
NOTE:

The key fob’s wireless signal may be blocked if

the key fob is located next to a mobile phone,

laptop, or other electronic device. This may

result in poor performance.

With ignition in the ON position and the vehicle

moving at 2 mph (4 km/h), all RKE commands

are disabled.

Key Fob

In case the ignition switch does not change with

the push of a button, the key fob may have a low

or fully depleted battery. A low key fob battery can

be verified by referring to the instrument cluster,

which will display directions to follow

Ú

page 239.

To Lock/Unlock The Doors And Trunk

Push and release the unlock button on the key

fob once to unlock the driver’s door, or twice

within five seconds to unlock all the doors and the

trunk lid. To lock all the doors and the trunk lid,

push the lock button once. If the trunk lid is open

when the lock button is pushed, the trunk lid will

lock when it is closed.
The current unlock setting can be changed

through the radio system menu, so that the

system unlocks:

All doors on the first push of the key fob unlock

button.

The driver door on the first push of the key fob

unlock button.

When the doors are locked/unlocked, the turn

signals will flash and the illuminated entry system

will be activated.
NOTE:

If one or more doors are open when the lock

button is pushed, or the trunk lid is open, the

doors will lock. The doors will unlock again auto

-

matically if the key is left inside the passenger

compartment, otherwise the doors will stay

locked.
Flashing of the turn signals upon locking/

unlocking the doors and activation of the courtesy

light upon unlocking the doors can be activated or

deactivated through the radio system. For further

information, refer to the Information and

Entertainment System Owner’s Manual

Supplement.
Trunk Lid Opening
Rapidly push the trunk lid key fob button twice to

open the trunk lid. The turn signals will flash to

indicate that the trunk lid has been opened.

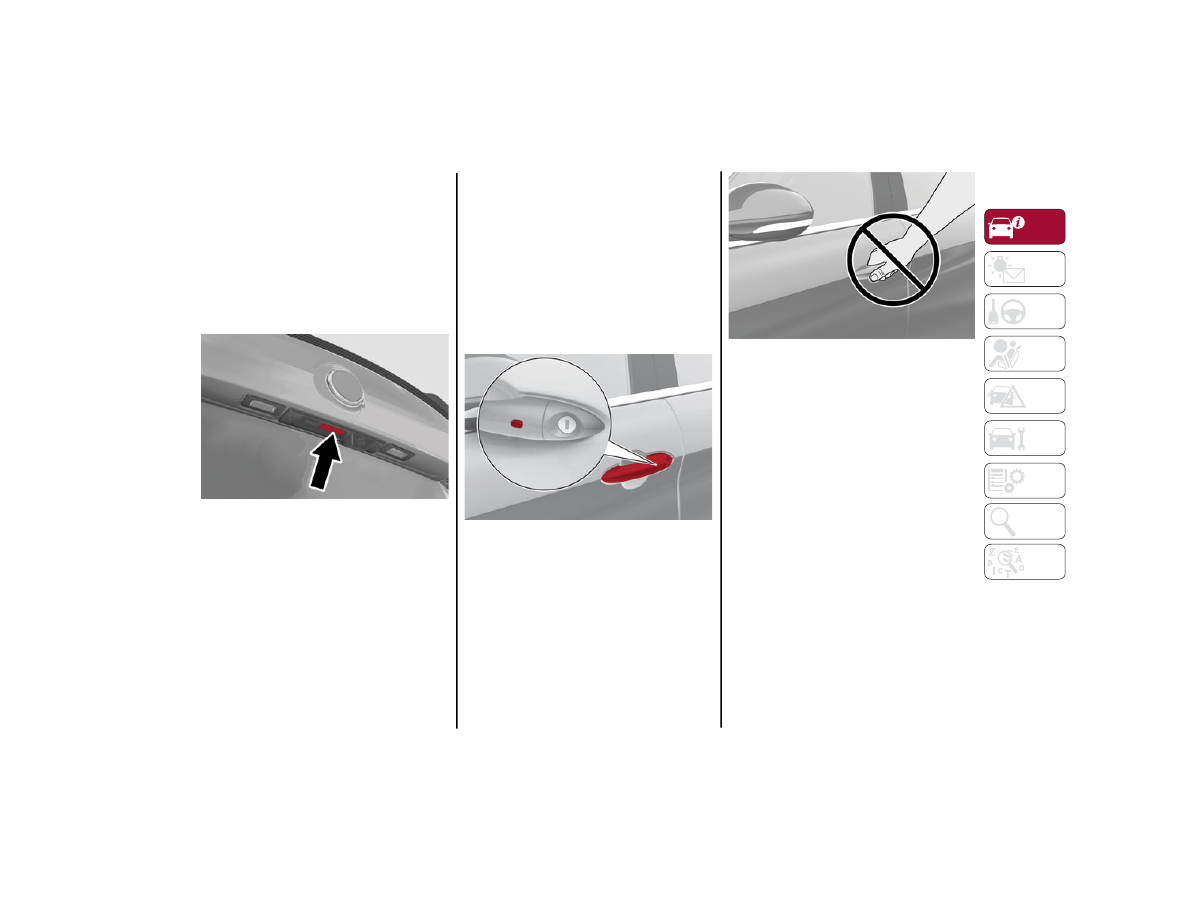

Locking/Unlocking Doors From The Outside In An

Emergency
If the battery is discharged or the key fob is

inoperable, you can lock or unlock the doors from

the outside by inserting the blade of the

emergency key, found inside the key fob, into the

door handle lock cylinder and turn the emergency

key as follows.

Lock — Turn the emergency key to the right

(clockwise)

Unlock — Turn the emergency key to the left

(counterclockwise)

CarManuals2.com

GETTING TO KNO

W

 YOU

R VEHICLE

20

Key Left Vehicle Feature — If Equipped

If a valid key fob is no longer detected inside the

vehicle while the vehicle’s ignition system is in

the ON/RUN or START position, the message

“Key Fob Has Left The Vehicle” will be shown in

the instrument cluster display along with an

interior chime. An exterior audible and visual alert

will also be activated to warn the driver.
The vehicle’s horn will rapidly chirp three times

along with a single flash of the vehicle’s exterior

lights.
NOTE:

The doors have to be open and then closed in

order for the vehicle to detect a key fob; the

Key Left Vehicle feature will not activate until

all of the doors are closed.

These alerts will not be activated in situations

where the vehicle’s engine is left running with

the key fob inside.

Replacing The Battery In The Key Fob

The recommended replacement battery is one

CR2032 battery.
NOTE:

Customers are recommended to use a battery

obtained from Mopar®. Aftermarket coin

battery dimensions may not meet the original

OEM coin battery dimensions.

Perchlorate Material — special handling may

apply. See www.dtsc.ca.gov/hazardouswaste/

perchlorate for further information.

Do not touch the battery terminals that are on

the back housing or the printed circuit board.

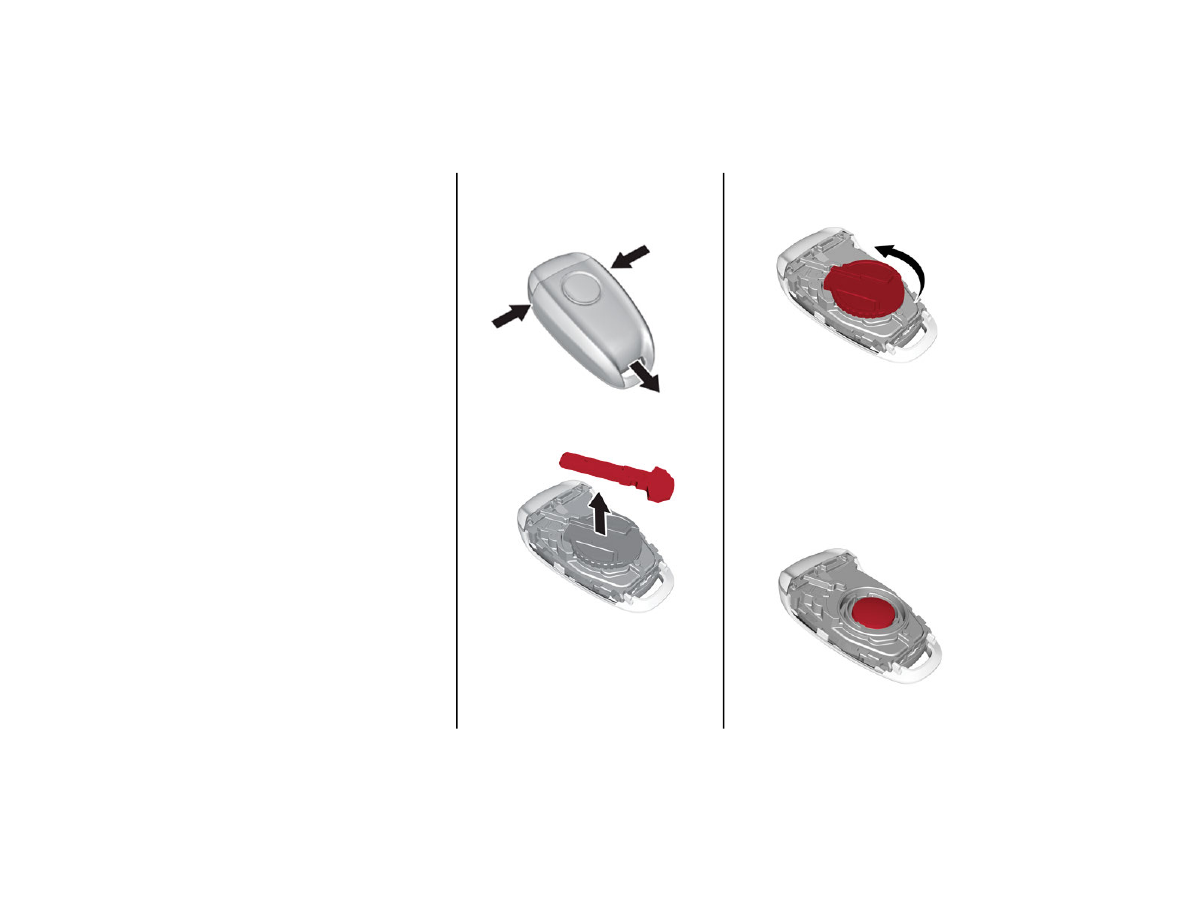

To replace the battery, proceed as follows:
1. Push the sides of the key fob inward and

extract the cover pulling downwards.

Key Fob Cover Removal

2. Remove the emergency key from its housing.

Removing Emergency Key

3. Remove the battery plug by rotating it coun

-

terclockwise.

Removing Battery Plug

4. Remove the battery from its slot and replace

it with a new one. When replacing the battery,

match the (+) sign on the battery to the (+)

sign on the inside of the battery clip, located

on the back cover. Avoid touching the new

battery with your fingers. Skin oils may cause

battery deterioration. If you touch a battery,

clean it with rubbing alcohol.

Battery Location

CarManuals2.com

21

Proceed in reverse order to reassemble the key

fob.

Programming And Requesting Additional

Key Fobs

Programming the key fob may be performed by an

authorized dealer.
NOTE:

Once a key fob is programmed to a vehicle, it

cannot be repurposed and reprogrammed to

another vehicle.

Only key fobs that are programmed to the

vehicle electronics can be used to start and

operate the vehicle.

Duplication of key fobs may be performed at an

authorized dealer. This procedure consists of

programming a blank key fob to the vehicle

electronics. A blank key fob is one that has never

been programmed.
NOTE:

When having the Engine Immobilizer system

serviced, bring all vehicle keys with you to an

authorized dealer.

Keys must be ordered to the correct key cut to

match the vehicle locks.

For Quadrifoglio models, if you need a

replacement key fob, contact an authorized

dealer.

ENGINE IMMOBILIZER

SYSTEM

The Engine Immobilizer system prevents

unauthorized vehicle operation by disabling the

engine. The system does not need to be armed or

activated. Operation is automatic, regardless of

whether the vehicle is locked or unlocked.
The system uses a key fob, keyless push button

ignition and a Radio Frequency (RF) receiver to

prevent unauthorized vehicle operation.

Therefore, only key fobs that are programmed to

the vehicle can be used to start and operate the

vehicle. The system will shut the engine off in two

seconds if an invalid key fob is used to start the

engine.
After placing the ignition switch in the ON/RUN

position, the Vehicle Security Light will turn on for

three seconds for a bulb check. If the light

remains on after the bulb check, it indicates that

there is a problem with the electronics. In

addition, if the light begins to flash after the bulb

check, it indicates that someone used an invalid

key fob to start the engine. Either of these

conditions will result in the engine being shut off

after two seconds.
If the Vehicle Security Light turns on during

normal vehicle operation (vehicle running for

longer than 10 seconds), it indicates that there is

a fault in the electronics. Should this occur, have

the vehicle serviced as soon as possible by an

authorized dealer.

All of the key fobs provided with your new vehicle

have been programmed to the vehicle

electronics.
NOTE:

A key fob that has not been programmed is also

considered an invalid key

Ú

page 239.

 WARNING!

The integrated key fob contains a coin cell

battery. Do not ingest the battery; there is a

chemical burn hazard. If the coin cell battery

is swallowed, it can cause severe internal

burns in just two hours and can lead to

death.

If you think a battery may have been

swallowed or placed inside any part of the

body, seek immediate medical attention.

Keep new and used batteries away from

children. If the battery compartment does

not close securely, stop using the product

and keep it away from children.

 CAUTION!

The battery replacement operation must be done

with care, in order not to damage the key fob.

 WARNING!

Always remove the key fobs from the vehicle

and lock all doors when leaving the vehicle

unattended.

Always remember to place the ignition in the

OFF position.

 CAUTION!

The Engine Immobilizer system is not

compatible with some aftermarket Remote

Start systems. Use of these systems may

result in vehicle starting problems and loss of

security protection.

CarManuals2.com

GETTING TO KNO

W

 YOU

R VEHICLE

22

IGNITION SWITCH

K

EYLESS

 P

USH

 B

UTTON

 I

GNITION

This feature allows the driver to operate the

ignition switch with the push of a button as long

as the key fob is in the passenger compartment.
The START/STOP ignition button has several

operating modes. These modes are OFF, ACC,

and ON/RUN.

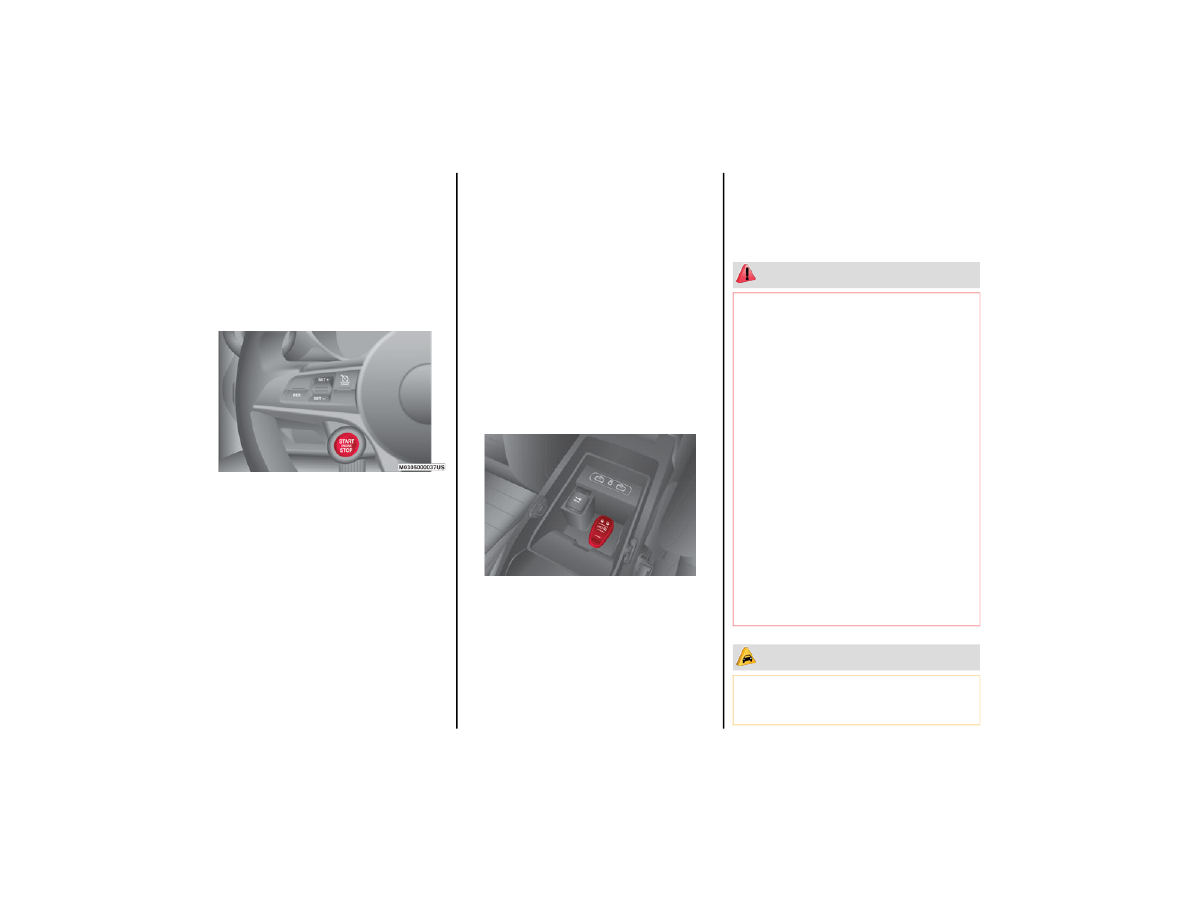

START/STOP Ignition Button

The push button ignition can be placed in the

following modes:
OFF

The engine is stopped

Steering is locked

Some electrical devices (e.g. central locking,

alarm, etc.) are still available

ACC

Engine is not started

Some electrical devices are available (e.g.

power windows)

ON/RUN

The engine will start (when foot is on the brake

pedal)

All electrical devices are available (e.g. climate

controls, etc.)

If the ignition switch does not change the mode

by pushing the button, the key fob may have a low

or depleted battery. In this situation, a backup

method can be used to operate the ignition

switch. Proceed as follows:
1. Lift the front armrest.
2. Lay the key fob on the indicated spot in the

bottom of the center console, positioning the

key fob as shown in the following image,

while pushing the START/STOP ignition

button to start the ignition.

Key Fob Placement Location

NOTE:

For more information on proper engine

starting procedures, see

Ú

page 81.

With the keyless ignition in the ACC position, if

30 minutes pass with the gear selector in

PARK and the engine off, the ignition will

automatically reset to the OFF position.

When opening the driver's door with the

ignition in the ACC position (engine not

running), a chime will sound to remind you to

place the ignition in the OFF position. In

addition to the chime, the message will display

“Ignition Or Accessory On” in the cluster.

 WARNING!

When exiting the vehicle, always make sure

the ignition is in the OFF position, remove the

key fob from the vehicle, and lock your

vehicle.

Never leave children alone in a vehicle, or

with access to an unlocked vehicle.

Allowing children to be in a vehicle

unattended is dangerous for a number of

reasons. A child or others could be seriously

or fatally injured. Children should be warned

not to touch the parking brake, brake pedal

or the gear selector.

Do not leave the key fob in or near the

vehicle, or in a location accessible to

children, and do not leave the keyless push

button ignition in the ON/RUN position. A

child could operate power windows, other

controls, or move the vehicle.

Do not leave children or animals inside

parked vehicles in hot weather. Interior heat

buildup may cause serious injury or death.

 CAUTION!

An unlocked vehicle is an invitation for thieves.

Always remove key fob from the vehicle and lock

all doors when leaving the vehicle unattended.

CarManuals2.com

23

REMOTE START —

IF EQUIPPED

This system uses the key fob to start the

engine conveniently from outside the

vehicle while still maintaining security.

NOTE:

Obstructions between the vehicle and key fob

may reduce this range

Ú

page 239.

H

OW

 T

O

 U

SE

 R

EMOTE

 S

TART

Push the Remote Start button on the key fob

twice within five seconds. The vehicle doors will

lock, the turn signals will flash twice, and the horn

will chirp twice. Pushing the Remote Start button

a third time shuts the engine off.
NOTE:

With Remote Start, the engine will only run for

15 minutes.

Remote Start can only be used twice.

If an engine fault is present or fuel level is low,

the vehicle will start and then shut down in 10

seconds.

The park lamps will turn on and remain on

during Remote Start mode.

For security, power window operation is

disabled when the vehicle is in the Remote

Start mode.

The ignition must be placed in the ACC position

before the Remote Start sequence can be

repeated for a third cycle.

All of the following conditions must be met before

the engine will remote start:

Gear selector in PARK

Doors closed

Hood closed

Trunk closed

Hazard switch off

Brake switch inactive (brake pedal not

pressed)

Battery at an acceptable charge level

Panic button not pushed

System not disabled from previous Remote

Start event

Vehicle Security system indicator flashing

Ignition in OFF position

Fuel level meets minimum requirement

Vehicle Security system is not signaling an

intrusion

Malfunction Indicator Light (MIL) is not

illuminated

T

O

 E

XIT

 R

EMOTE

 S

TART

 M

ODE

To drive the vehicle after starting the Remote

Start system, either push and release the unlock

button on the key fob to unlock the doors, or

unlock the vehicle using Passive Entry via the

door handles, and disarm the Vehicle Security

system (if equipped). Then, prior to the end of the

15 minute cycle, push and release the START/

STOP ignition button while pressing the brake

pedal.
The Remote Start system will turn the engine off

with another push and release of the Remote

Start button on the key fob, or if the engine is

allowed to run for the entire 15 minute cycle.

R

EMOTE

 S

TART

 C

OMFORT

 S

YSTEMS

 —

I

F

 E

QUIPPED

When Remote Start is activated, the heated

steering wheel and front heated seat features will

automatically activate when ambient

temperature is less than 39°F (4°C). These

features will stay on through the duration of

Remote Start.
NOTE:

This feature can be activated through the radio

system. Refer to the Information and Entertain

-

ment System Owner’s Manual Supplement for

further information.

 WARNING!

Do not start or run an engine in a closed

garage or confined area. Exhaust gas

contains Carbon Monoxide (CO) which is

odorless and colorless. Carbon Monoxide is

poisonous and can cause serious injury or

death when inhaled.

Keep key fobs away from children. Operation

of the Remote Start system, windows, door

locks or other controls could cause serious

injury or death.

CarManuals2.com

GETTING TO KNO

W

 YOU

R VEHICLE

24

VEHICLE SECURITY

SYSTEM — IF EQUIPPED

The Vehicle Security system monitors the vehicle

doors, hood, trunk, and the keyless push button

ignition for unauthorized operation. It also

monitors movement inside the passenger

compartment (volumetric protection — if

equipped), cutting of battery cables, and

unexpected lifting/tilting of the vehicle (anti-lift

protection — if equipped).
While the Vehicle Security system is armed,

interior switches for door locks and trunk release

are disabled.
If something triggers the alarm, the Vehicle

Security system will provide the following audible

and visible signals:

The horn will pulse

The turn signals will flash

The Vehicle Security Light in the instrument

cluster will flash

NOTE:

The Vehicle Security system is activated by the

Engine Immobilizer system, which is automati

-

cally activated when you get out of the vehicle

with the key fob and lock the doors.

T

O

 A

RM

 T

HE

 S

YSTEM

Follow these steps to arm the Vehicle Security

system:
1. Make sure the vehicle’s ignition is placed in

the OFF position.

2. Perform one of the following methods to lock

the vehicle:

Push the lock button on the interior power

door lock switch with the driver and/or

passenger door open.

Push the lock button on the exterior

Passive Entry door handle with a valid key

fob available in the same exterior zone

Ú

page 26.

Push the lock button on the key fob.

3. If any doors (or trunk lid) are open, close

them.

T

O

 D

ISARM

 T

HE

 S

YSTEM

The Vehicle Security system can be disarmed

using any of the following methods:

Push the unlock button on the key fob.

Grab the Passive Entry door handle to unlock

the door

Ú

page 26.

Cycle the ignition out of the OFF position to

disarm the system.

NOTE:

The driver's door key cylinder and trunk button

on the key fob cannot arm or disarm the

Vehicle Security system. Use of the door key

cylinder when the system is armed will sound

the alarm when the door is opened.

When the Vehicle Security system is armed,

the interior power door lock switches will not

unlock the doors.

The Vehicle Security system is designed to

protect your vehicle. However, you can create

conditions where the system will give you a false

alarm. If one of the previously described arming

sequences has occurred, the Vehicle Security

system will arm, regardless of whether you are in

the vehicle or not. If you remain in the vehicle and

open a door, the alarm will sound. If this occurs,

disarm the Vehicle Security system.
If the Vehicle Security system is armed and the

battery becomes disconnected, the Vehicle

Security system will remain armed when the

battery is reconnected; the exterior lights will

flash, and the horn will sound. If this occurs,

disarm the Vehicle Security system.
NOTE:

The alarm does not disarm when the doors are

unlocked by inserting the blade of the emergency

key (found inside the key fob) into the door

handle lock cylinder.

CarManuals2.com

25

(Continued)

V

OLUMETRIC

/A

NTI

-L

IFT

 P

ROTECTION

 —

I

F

 E

QUIPPED

To ensure the correct operation of the

Volumetric/Anti-Lift Protection system,

completely close the side windows.
To disable the function, push the Volumetric/

Anti-Lift Protection button before activating the

alarm.
When the function is disabled, the light on the

Volumetric/Anti-Lift Protection button flashes for

several seconds.

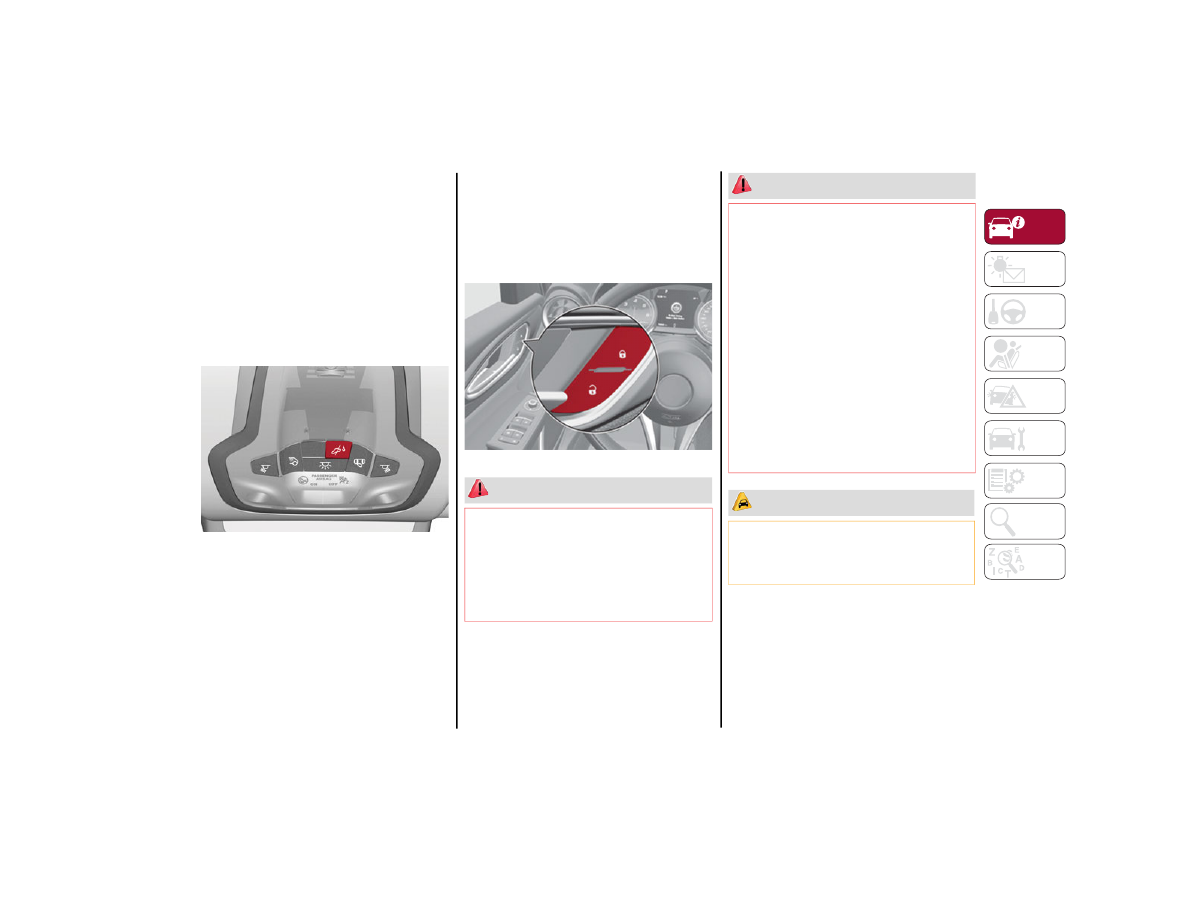

Volumetric/Anti-Lift Protection Button

Any disabling of the Volumetric/Anti-Lift

Protection must be repeated each time the

instrument panel is switched off.

DOORS

P

OWER

 D

OOR

 L

OCKS

The power door lock switches are located on each

front door panel. Push the switch to lock or unlock

the doors.

Door Lock And Unlock Switch Panel

 WARNING!

Do not leave children or animals inside

parked vehicles in hot weather. Interior heat

buildup may cause serious injury or death.

For personal security and safety in the event

of a collision, lock the vehicle doors as you

drive as well as when you park and leave the

vehicle.

Before exiting a vehicle, always shift the

automatic transmission into PARK, apply the

parking brake, turn the engine OFF, remove

the key fob from the vehicle and lock your

vehicle.

Never leave children alone in a vehicle, or

with access to an unlocked vehicle.

Allowing children to be in a vehicle

unattended is dangerous for a number of

reasons. A child or others could be seriously

or fatally injured. Children should be warned

not to touch the parking brake, brake pedal

or the gear selector.

Do not leave the key fob in or near the

vehicle, or in a location accessible to

children. A child could operate power

windows, other controls, or move the vehicle.

 CAUTION!

An unlocked vehicle is an invitation for thieves.

Always remove the key fob from the vehicle

and lock all of the doors when leaving the

vehicle unattended.

 WARNING!

CarManuals2.com

GETTING TO KNO

W

 YOU

R VEHICLE

26

L

OCKING

 T

HE

 D

OORS

 W

ITH

 A D

EPLETED



B

ATTERY

Proceed as follows to lock the doors if the vehicle

battery is depleted.
Rear Doors And Passenger Door
1. With the doors unlocked insert the emer

-

gency key from the key fob or a flat screw

-

driver into the manual release lock cylinder.

Door Lock Manual Release Lock Cylinder

2. Turn the manual release lock cylinder clock

-

wise for the right door locks or counterclock

-

wise for the left door locks.

3. Remove the key/screwdriver from the

manual release lock.

Proceed in one of the following ways to realign

the door lock device (only when the battery

charge has been restored):

Push the lock button on the key fob

Push the unlock button on the door panel

Unlock the driver’s door lock cylinder with the

emergency key

Operate the interior door handle

NOTE:

For the rear doors, if the Child-Protection Door

Lock system is engaged, and the previously

described manual locking procedure is carried

out, operating the interior handle will not open

the door. To open the door, the outside handle

must be used. The door central locking/unlocking

buttons are not deactivated when the

Child-Protection Door Lock system is engaged.

P

ASSIVE

 E

NTRY

 S

YSTEM



The Passive Entry system is an enhancement to

the vehicle’s key fob. This feature allows you to

lock and unlock the vehicle’s door(s) and trunk lid

without having to push the key fob lock or unlock

buttons.
NOTE:

Passive Entry may be programmed on/off

through the radio screen. Refer to the

Information and Entertainment System

Owner’s Manual Supplement for Passive Entry

settings.

The key fob may not be detected by the vehicle

Passive Entry system if it is located next to a

mobile phone, laptop, or other electronic

device; these devices may block the key fob’s

wireless signal and prevent the Passive Entry

system from locking/unlocking the vehicle.

If wearing gloves, or if it has been raining/

snowing on the Passive Entry door handle, the

unlock sensitivity can be affected, resulting in

a slower response time.

If the vehicle is unlocked by Passive Entry and

no door is opened within 60 seconds, the

vehicle will relock and (if equipped) will arm

the Vehicle Security system.

To Unlock From The Driver Or Passenger Side
With a valid Passive Entry key fob close to the

door handle, grab the handle to unlock the

vehicle. Grabbing the driver’s door handle will

unlock the driver door automatically. Grabbing

the passenger door handle will unlock all doors

and the trunk lid automatically.

Passive Entry Door Handle

CarManuals2.com

27

NOTE:

Either the driver door only or all doors will

unlock when you grab hold of the front driver’s

door handle, depending on the selected

setting in the radio. Refer to the Information

and Entertainment System Owner’s Manual

Supplement for Passive Entry settings.

All doors will unlock when the front passenger

door handle is grabbed regardless of the

driver’s door unlock preference setting.

Exterior Trunk Lid Release Switch

(Vehicles With Passive Entry)

Frequency Operated Button Integrated Key

(FOBIK-Safe)
To minimize the possibility of unintentionally

locking a Passive Entry key fob inside your

vehicle, the Passive Entry system is equipped

with an automatic door unlock feature which will

function if the ignition switch is in the OFF

position.

The vehicle will not unlock the doors if an

unauthorized key fob has been detected close to

the outside of the vehicle.
If the Passive Entry function is disabled through

the radio screen, the protections to avoid

accidentally leaving the key fob inside the vehicle

are deactivated.
To Lock The Vehicle’s Doors And Trunk Lid
With one of the vehicle’s Passive Entry key fobs

close to either front door handle, pushing the

Passive Entry lock button will lock the vehicle.

Passive Entry Lock Button

NOTE:

DO NOT grab the door handle when pushing the

door handle lock button. This could unlock the

door(s).

Do NOT Grab The Door Handle When Locking

NOTE:

After pushing the Passive Entry lock button,

wait two seconds before you can lock or unlock

the doors, using either Passive Entry door

handle. This is done to allow you to check if the

vehicle is locked by pulling the door handle

without the vehicle unlocking.

The Passive Entry system will not operate if the

key fob battery is depleted.

The vehicle doors and trunk lid can also be

locked by pushing the lock button on the key

fob or on the interior door lock.

CarManuals2.com

GETTING TO KNO

W

 YOU

R VEHICLE

28

To Unlock/Enter The Trunk
With one of the vehicle’s Passive Entry key fobs

close to the trunk, push the trunk lid release

button.

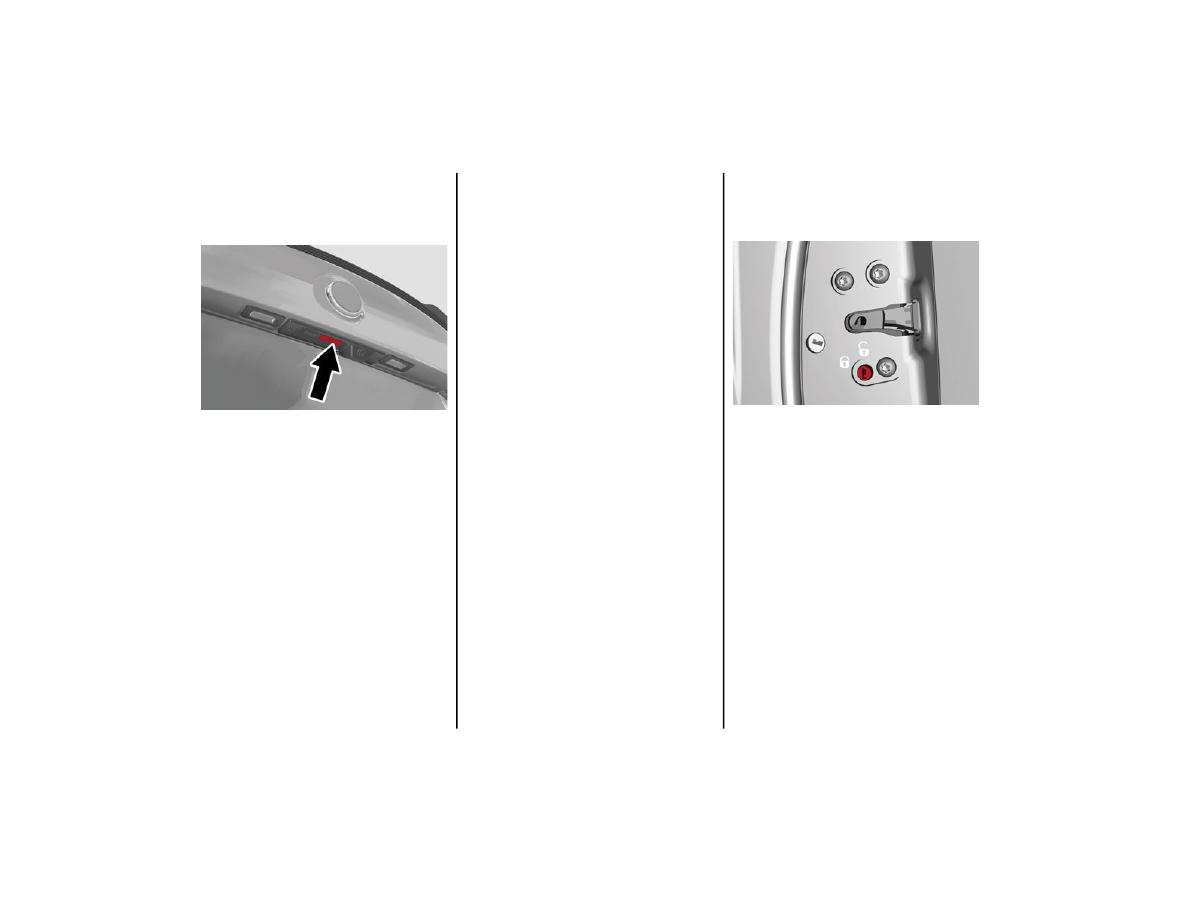

Trunk Lid Release Button

NOTE:

If the key fob is left inside of the trunk, and an

attempt is made to close it from outside, the

trunk lid will not lock. With the doors locked,

the trunk lid unlocked, and the key fob

detected inside the vehicle, the trunk lid will

unlock again and the lights will flash twice.

Before driving, make sure the trunk lid is

closed correctly.

To Lock The Trunk
With a valid Passive Entry key fob close to the

vehicle, push the Passive Entry trunk lid button,

which is located next to the exterior trunk lid

release button. All doors and the trunk lid will

lock. Door locking will activate the alarm as well.
NOTE:

The trunk lid may still be locked by pushing the

lock button on the key fob, pushing a Passive

Entry lock button on the front door handles, or

pushing the lock button on the interior door panel

of the vehicle

Ú

page 239.

A

UTOMATIC

 D

OOR

 L

OCKS

 — I

F

 E

QUIPPED



The auto door lock feature default condition is

enabled. When enabled, the door locks will lock

automatically when the vehicle's speed exceeds

12 mph (20 km/h). The auto door lock feature is

enabled/disabled through the radio screen.

Refer to the Information and Entertainment

System Owner’s Manual Supplement for further

information.

C

HILD

-P

ROTECTION

 D

OOR

 L

OCK



S

YSTEM

 — R

EAR

 D

OORS

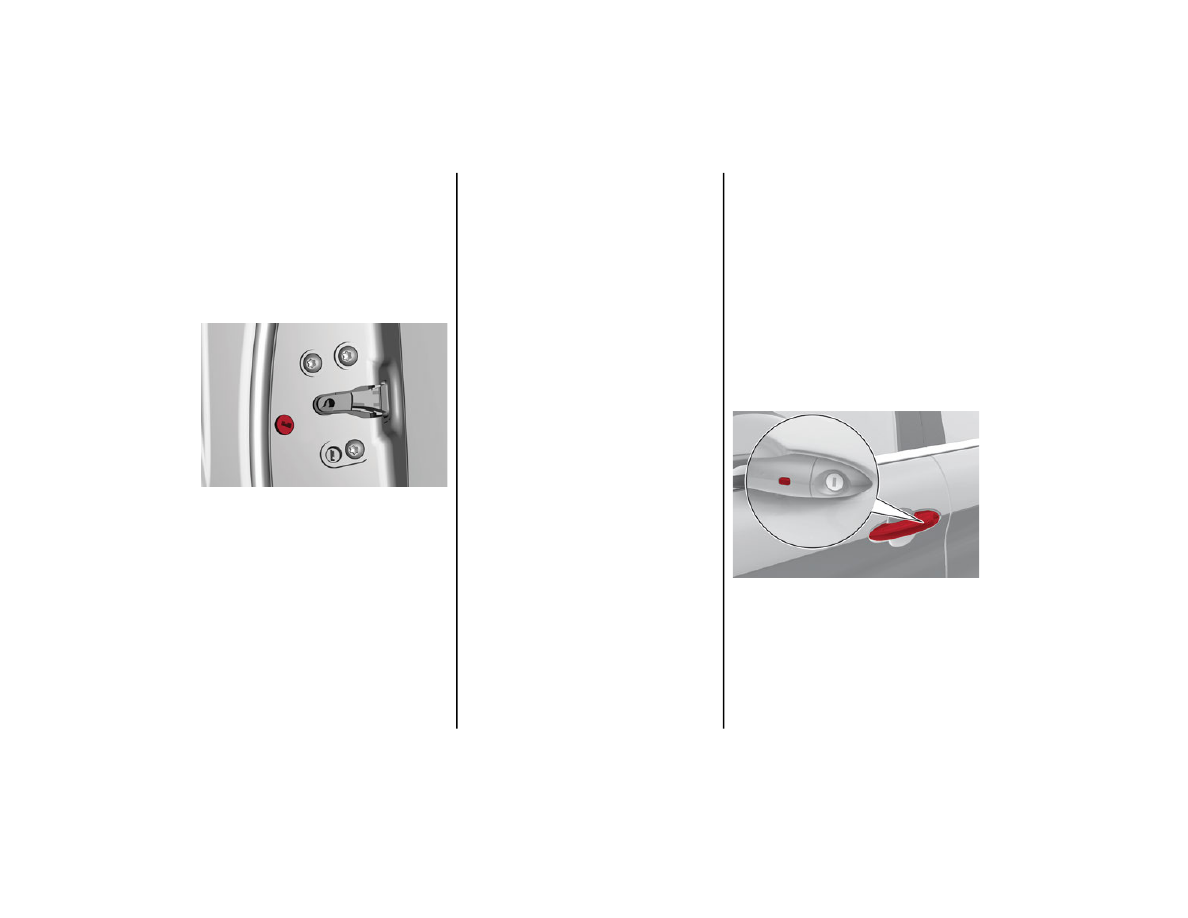

To provide a safer environment for small children

riding in the rear seats, the rear doors are

equipped with a Child-Protection Door Lock

system.

To use the system, open each rear door, use the

emergency key from the key fob or a flat

screwdriver and rotate the dial to the lock or

unlock position.

Child Safety Lock Positions

NOTE:

When the Child-Protection Door Lock system is

engaged, the door can be opened only by using

the outside door handle even though the

inside door lock is in the unlocked position.

After disengaging the Child-Protection Door

Lock system, always test the door from the

inside to make certain it is in the unlocked

position.

After engaging the Child-Protection Door Lock

system, always test the door from the inside to

make certain it is in the locked position.

For emergency exit with the system engaged,

pull up on the door lock knob (unlocked

position), roll down the window, and open the

door with the outside door handle.

CarManuals2.com

29

NOTE:

Always use this device when carrying children.

After engaging the child lock on both rear doors,

check for effective engagement by trying to open

a door with the internal handle. Once the

Child-Protection Door Lock system is engaged, it

is impossible to open the doors from inside the

vehicle. Before getting out of the vehicle, be sure

to check that there is no one left inside.

STEERING WHEEL

M

ANUAL

 T

ILT

/T

ELESCOPING

 S

TEERING



C

OLUMN

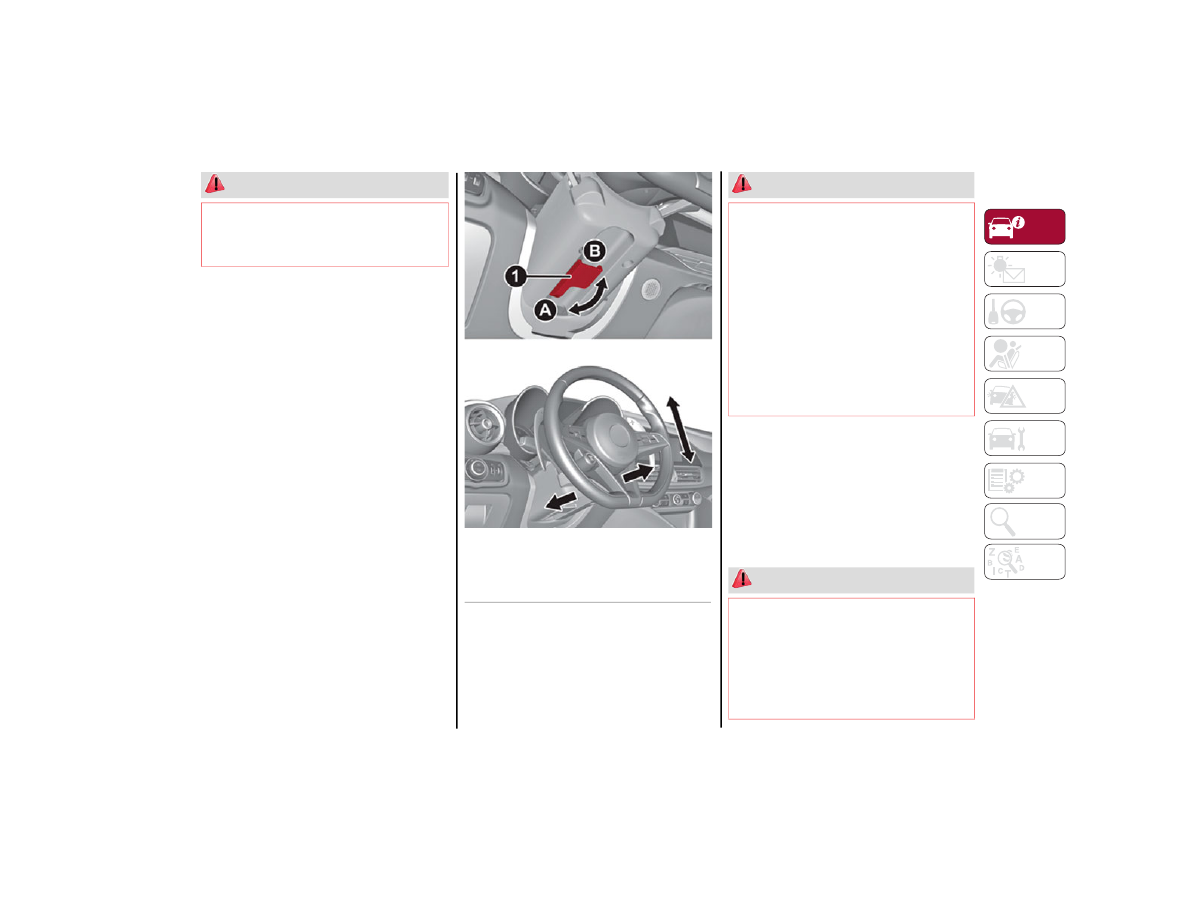

This feature allows you to tilt the steering column

upward or downward. It also allows you to

lengthen or shorten the steering column. The tilt/

telescoping lever is located below the steering

wheel at the end of the steering column.

Steering Wheel Adjustment

To unlock the steering column, push the tilt/

telescoping control handle down to the open

position. To tilt the steering column, move the

steering wheel upward or downward as desired.

To lengthen or shorten the steering column, pull

the steering wheel outward or push it inward as

desired. To lock the steering column in position,

push the tilt/telescoping control handle to the

closed position.

 WARNING!

Avoid trapping anyone in a vehicle in a

collision. Remember that the rear doors can

only be opened from the outside when the

Child-Protection locks are engaged (locked).

1 — Tilt/Telescoping Control Handle
A — Open
B — Closed

 WARNING!

Do not adjust the steering column while

driving. Adjusting the steering column while

driving or driving with the steering column

unlocked, could cause the driver to lose

control of the vehicle. Failure to follow this

warning may result in serious injury or death.

Do not place any objects on the steering

wheel (e.g. permanently fixed covers of any

type or material) which could interfere with

the capacitive hand detection sensor on the

steering wheel of the Active Blind Spot Assist

(ABSA), Lane Keeping Assist (LKA), Traffic

Jam Assist (TJA) or Highway Assist (HAS)

systems (if equipped).

 WARNING!

Do not install any aftermarket accessories to

the steering column or wheel such as a

steering wheel anti-theft locking device. Such

device may damage the steering wheel or

adversely affect steering system performance.

This may void the New Vehicle Limited

Warranty or lead to a collision resulting in

serious injury or death.

CarManuals2.com

GETTING TO KNO

W

 YOU

R VEHICLE

30

H

EATED

 S

TEERING

 W

HEEL

 — I

F

 E

QUIPPED

The steering wheel contains a heating

element that helps warm your hands in

cold weather. The heated steering

wheel has only one temperature setting.

The heated steering wheel may not turn on when

it is already warm.
NOTE:

Quadrifoglio vehicles equipped with Sparco

Racing Seats will not be equipped with the

heated steering wheel feature.
The heated steering wheel button is located on

the instrument panel and within the Comfort

screen of the radio system.

Press the heated steering wheel button once

to turn the heating element on.

Press the heated steering wheel button a

second time to turn the heating element off.

When the function is enabled, the indicator on

the button will illuminate.

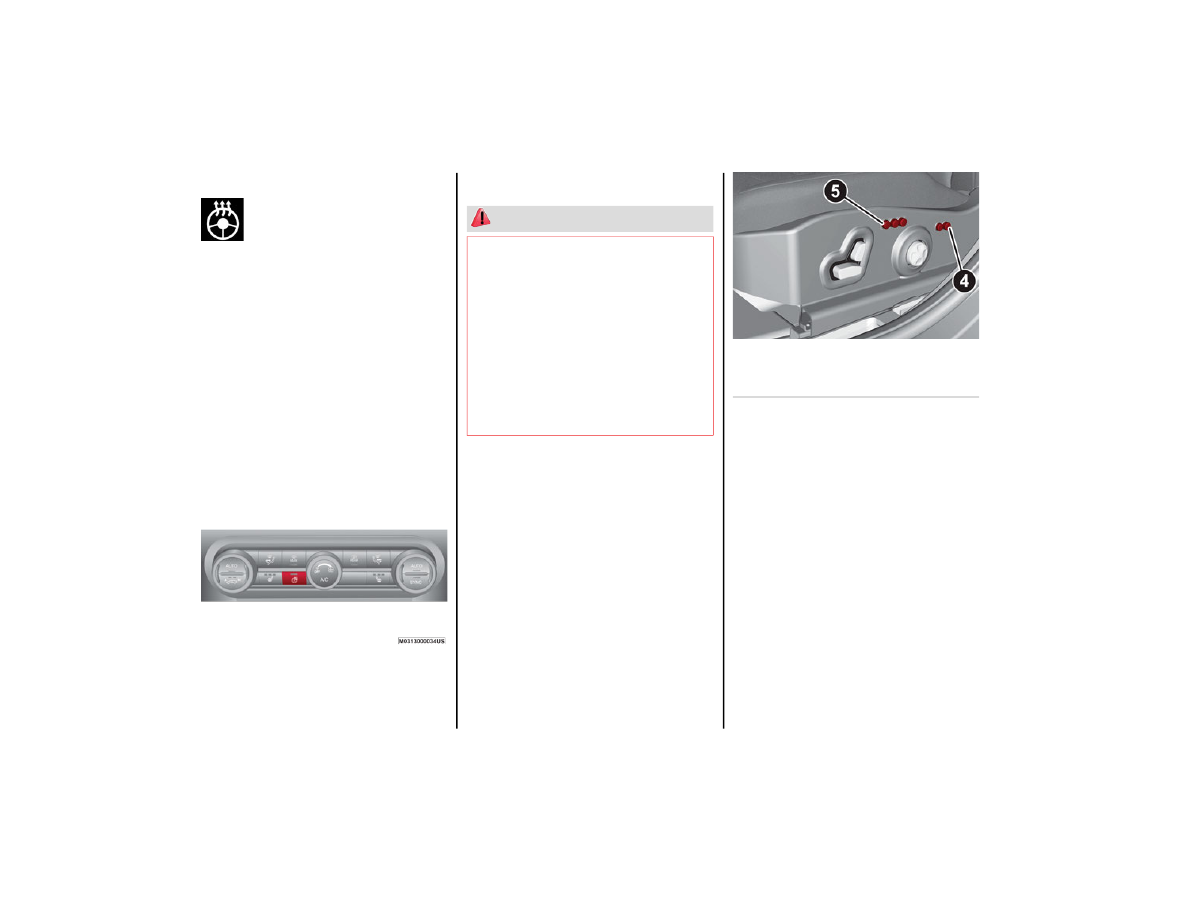

Heated Steering Wheel Button

NOTE:

The engine must be running for the heated

steering wheel to operate.

For information on use with the Remote Start

system, see

Ú

page 23.

DRIVER MEMORY

SETTINGS — IF EQUIPPED

This feature allows the driver to store up to three

different memory profiles for easy recall through

a memory switch. Each memory profile saves

desired position settings for the following

features:

Driver seat

Side mirrors

The memory setting switch is located on the

outboard side of the driver’s seat. The switch

consists of three buttons, one for each memory

profile.

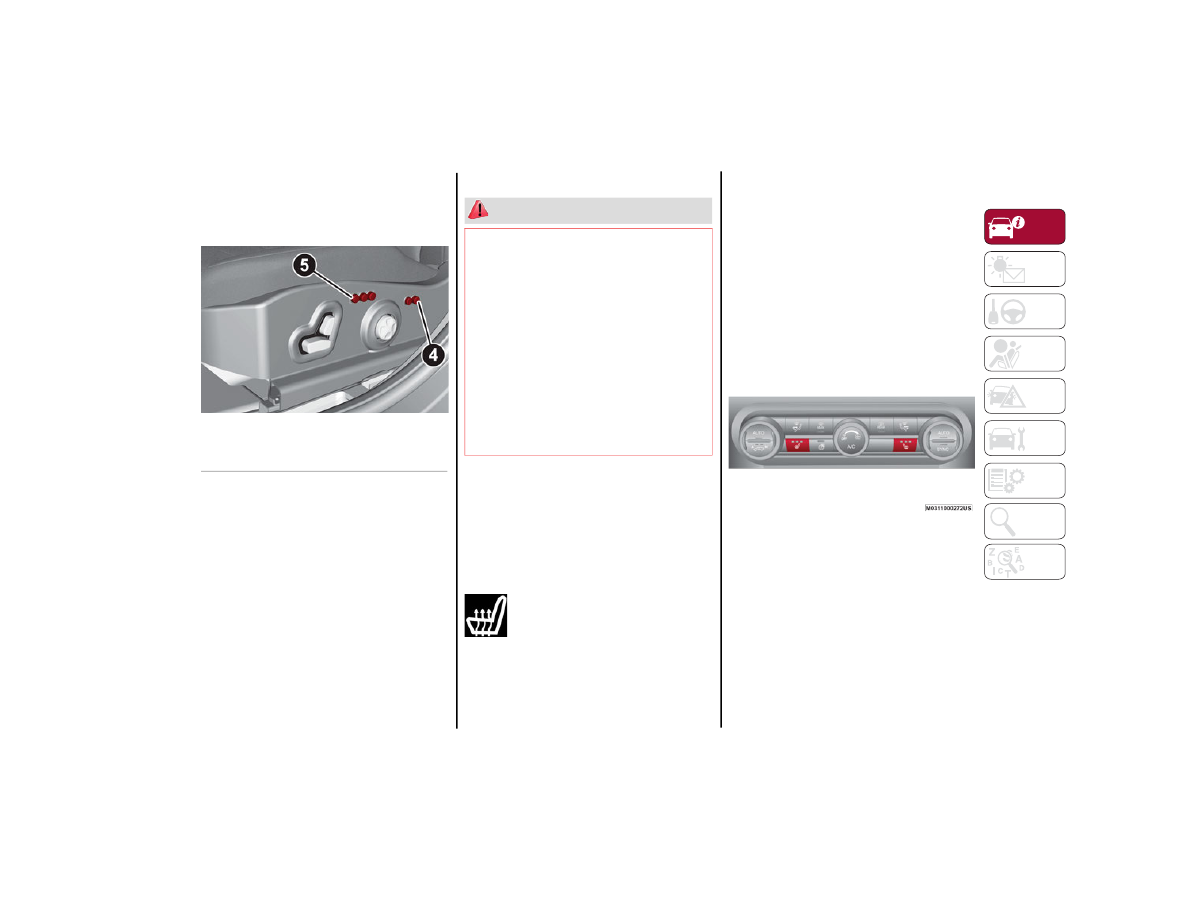

Seatback Width Adjustment

P

ROGRAMMING

 T

HE

 M

EMORY

 F

EATURE

To create a new memory profile, perform the

following:
1. Place the vehicle’s ignition in the ACC posi

-

tion (do not start the engine), and make sure

the driver’s door is closed.

NOTE:

A memory profile can also be set for three

minutes after the driver’s door has been opened.
2. Adjust all memory profile settings to desired

preferences, driver’s seat and mirror posi

-

tions.

3. Push and hold the memory button you want

to program for 1.5 seconds. A chime will

sound to indicate that the memory profile has

been saved successfully.

NOTE:

When a new profile as been set, the previously

set profile for that button will be overwritten.

 WARNING!

Persons who are unable to feel pain to the

skin because of advanced age, chronic

illness, diabetes, spinal cord injury,

medication, alcohol use, exhaustion, or other

physical conditions must exercise care when

using the steering wheel heater. It may

cause burns even at low temperatures,

especially if used for long periods.

Do not place anything on the steering wheel

that insulates against heat, such as a

blanket or steering wheel covers of any type

and material. This may cause the steering

wheel heater to overheat.

4 — Power Adjustable Bolster Buttons
5 — Driver Memory Settings Buttons

CarManuals2.com

31

M

EMORY

 P

OSITION

 R

ECALL

To recall a previously set position, push and

release the memory profile button assigned to

the desired positions.
NOTE:

Memory position recall can be done for approxi

-

mately three minutes after the doors have been

opened, and for approximately one minute after

the ignition is placed in the OFF position.

SEATS

Seats are a part of the Occupant Restraint system

of the vehicle.

S

PARCO

 R

ACING

 S

EATS

(Q

UADRIFOGLIO

 V

EHICLES

) — I

F

 E

QUIPPED

Manual Seat Adjustment

Adjusting The Seat Forward Or Rearward

The adjustment lever is at the front of the seat,

near the floor. Pull the bar upward to move the

seat forward or rearward. Release the bar once

the seat is in the desired position. Using body

pressure, move forward and rearward on the seat

to be sure that the seat adjusters have latched.

Adjusting The Seat Up Or Down

Push the height adjustment button upward or

downward to obtain your desired height.

Reclining The Seatback

To adjust the seatback, lift the recline lever

located on the outboard side of the seat, lean

back to the desired position and release the

lever. To return the seatback, lift the lever, lean

forward and release the lever.

 WARNING!

It is dangerous to ride in a cargo area, inside

or outside of a vehicle. In a collision, people

riding in these areas are more likely to be

seriously injured or killed.

Do not allow people to ride in any area of your

vehicle that is not equipped with seats and

seat belts. In a collision, people riding in

these areas are more likely to be seriously

injured or killed.

Be sure everyone in your vehicle is in a seat

and using a seat belt properly.

1 — Adjustment Lever
2 — Height Adjustment Button
3 — Recline Lever

 WARNING!

Adjusting a seat while driving may be

dangerous. Moving a seat while driving could

result in loss of control which could cause a

collision and serious injury or death.

Seats should be adjusted before fastening

the seat belts and while the vehicle is

parked. Serious injury or death could result

from a poorly adjusted seat belt.

Do not ride with the seatback reclined so

that the shoulder belt is no longer resting

against your chest. In a collision you could

slide under the seat belt, which could result

in serious injury or death.

 CAUTION!

Do not place any article under a power seat or

impede its ability to move as it may cause

damage to the seat controls. Seat travel may

become limited if movement is stopped by an

obstruction in the seat's path.

CarManuals2.com

GETTING TO KNO

W

 YOU

R VEHICLE

32

M

ANUAL

 A

DJUSTMENT

 (R

EAR

 S

EATS

)

The rear seats allow for three passengers.

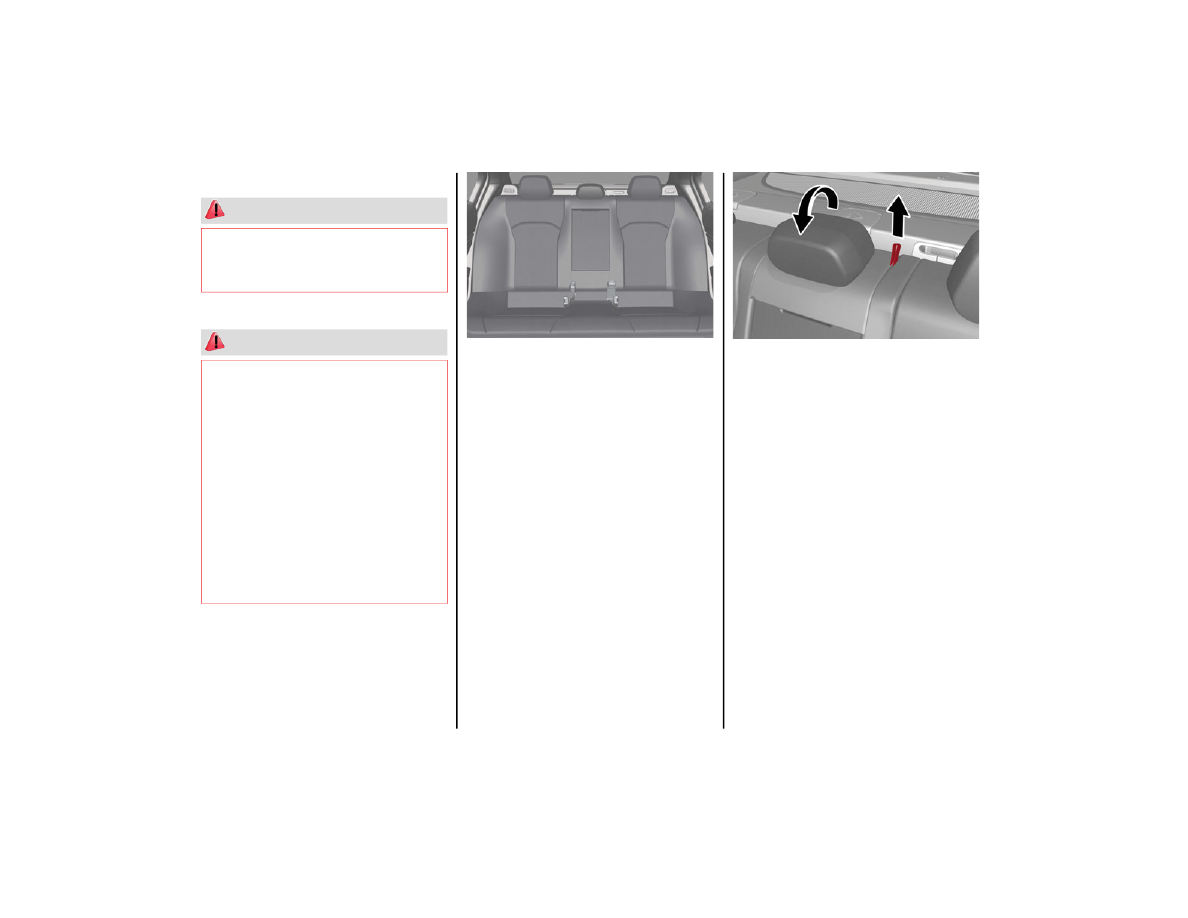

Rear Seat

Split Folding Rear Seat

The rear seatbacks can be folded forward to

provide an additional storage area.
Extending the right side of the trunk allows you to

carry two passengers on the left part of the rear

seat, while extending the left side allows you to

carry one passenger.
Center Seatback Section Tilting
The center seatback can be tilted forward for a

“Ski Pass-Through” feature from the trunk.

Before tilting the seatback, make sure that the

rear center seat belt is not fastened and that

there are not any objects in the middle part of the

cushion.
Using the release strap, release the center part of

the seatback from its housing and tilt it using the

head restraint.

Center Seatback Section Tilting

Center Seatback Section Repositioning
Using the head restraint, lift the center portion

upwards, accompanying it during its movement,

and lightly push to make sure that it is properly

attached. Make sure that the armrest is properly

attached by attempting to move it. If it is not

attached, repeat the operation.

To Lower Rear Seat
Either side of the rear seat can be lowered to

allow for extended cargo space and still maintain

some rear seating room.
NOTE:

Be sure that the front seats are fully upright and

positioned forward. This will allow the rear seat

-

back to fold down easily.
1. Completely lower the rear seat head

restraints

Ú

page 36.

2. Place the seat belt so that it doesn't impede

the movement of the seatback while tilting it.

 WARNING!

Do not pile luggage or cargo higher than the

top of the seatback. This could impair visibility

or become a dangerous projectile in a sudden

stop or collision.

 WARNING!

The center rear seat provides minimum space

and limited occupant use. The center rear seat

has no LATCH child restraint anchorage

system and may not be used for

LATCH-equipped child car seats. See

Ú

page 158 for further information on the

LATCH anchorage system.
The center rear seat has no adjustable head

restraint. No person should sit in the center

rear seat if the top of the seatback is below

the top of the person's ear or if the lap/

shoulder belt cannot be worn in the proper

position as described. See

Ú

page 144 for

lap/shoulder operating instructions. Failure to

follow this warning could result in serious

injury or death in the event of a collision.

CarManuals2.com

33

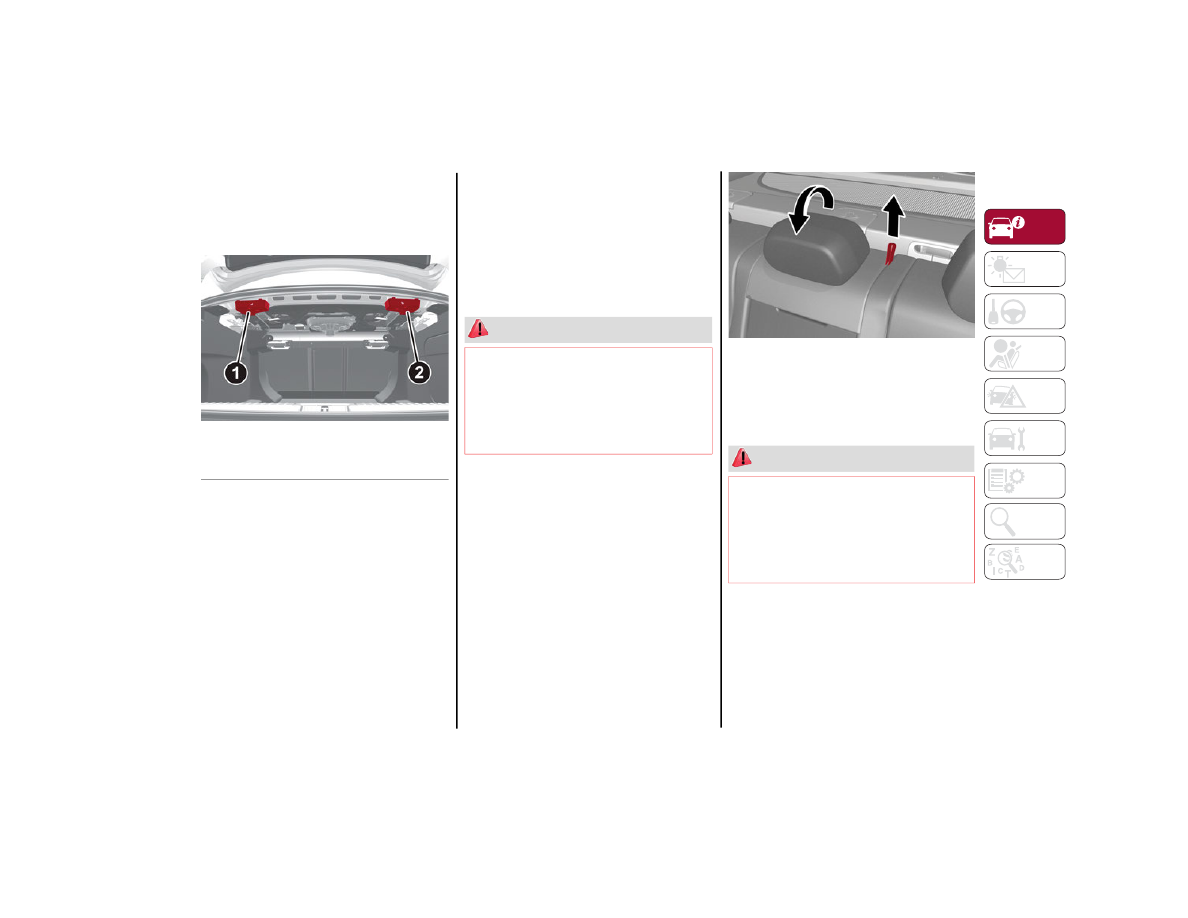

3. From inside the luggage compartment,

operate lever 1 to tilt the left part or lever 2 to

tilt the right part of the seatback; it will auto

-

matically tilt forward. If necessary, assist the

seatback during the initial stage of tilting.

Seat Release Levers

NOTE:

You may experience deformation in the seat

cushion from the seat belt buckles if the seats are

left folded for an extended period of time. This is

normal and by simply unfolding the seats to the

open position, over time the seat cushion will

return to its normal shape.

To Raise Rear Seat
Raise the rear seatback and lock it into place. If

interference from the cargo area prevents the

seatback from fully locking, you will have difficulty

returning the seat to its proper position.
NOTE:

Make sure the seat belts are in the front of the

seatback, and that they are not twisted, or

trapped behind the seatbacks.

Center Seatback Lowering
The center seatback can be folded forward for a

“Ski Pass-Through” feature from the trunk. Before

lowering the center seatback, make sure that the

rear center seat belt is not fastened and that

there are not any objects in the middle part of the

cushion.
Using the release strap, pull upward to release the

seatback and lower the center seatback forward.

Center Seatback Lowering

Center Seatback Repositioning
Using the head restraint, raise the center

seatback, and lightly push to make sure that it is

properly locked into place. If the seatback is not

locked, repeat the operation.

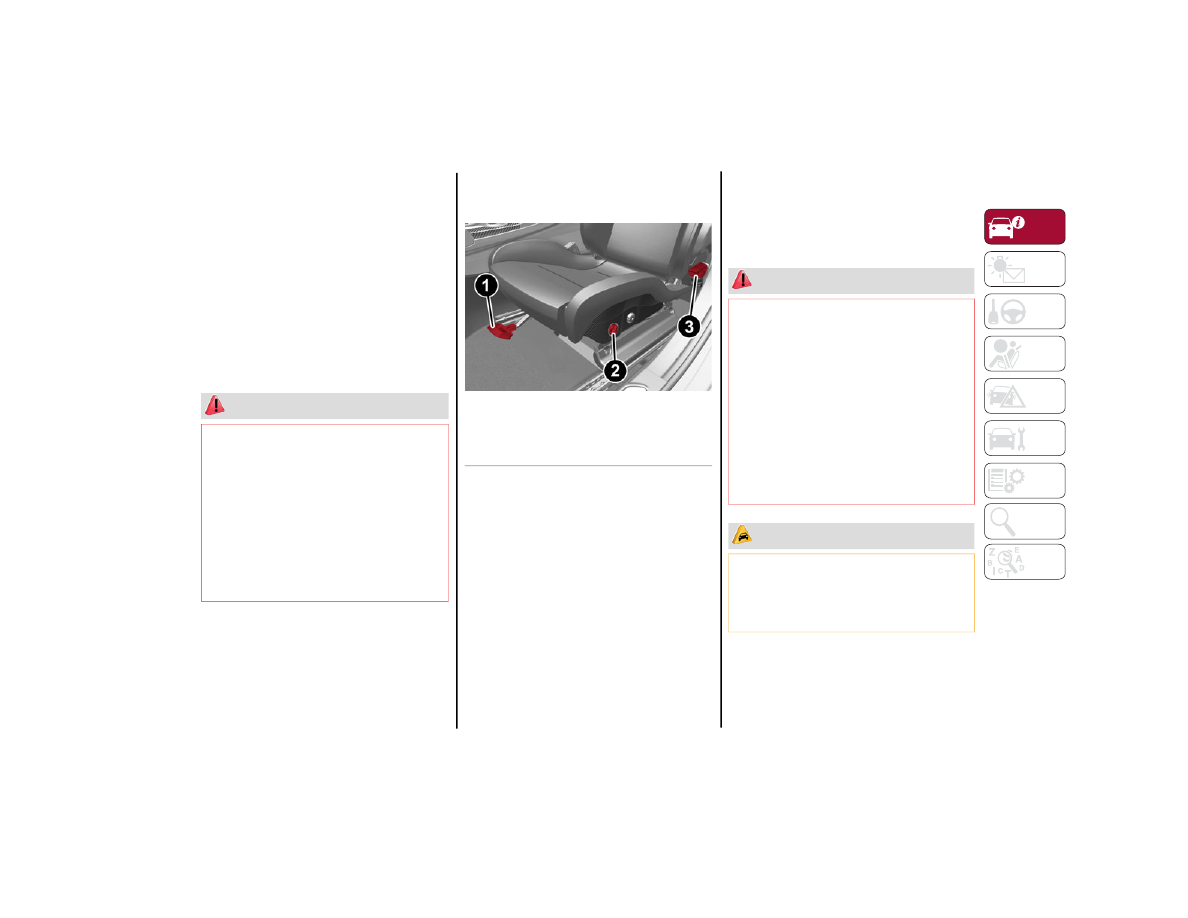

1 — Left Side Seat Release Lever
2 — Right Side Seat Release Lever

 WARNING!

Be certain that the seatback is securely locked

into position. If the seatback is not securely

locked into position the seat will not provide the

proper stability for child seats and/or passen

-

gers. In the event of a collision, an improperly

latched seatback could result in serious injury

or death.

 WARNING!

Be certain that the seatback is securely

locked into position. If the seatback is not

securely locked into position the seat will not

provide the proper stability for child seats

and/or passengers. In the event of a collision,

an improperly latched seatback could result in

serious injury or death.

CarManuals2.com

GETTING TO KNO

W

 YOU

R VEHICLE

34

P

OWER

 A

DJUSTMENT

 (F

RONT

 S

EATS

)

NOTE:

The seat layout may vary according to the vehicle

options.
The power seat switches are located on the

outboard side of the seat near the floor. Use

these switches to move the driver's seat up,

down, forward, rearward, or to recline the

seatback.

Power Seat Adjustment

Adjusting The Seat Forward Or Rearward

The seat can be adjusted both forward and

rearward by using the seat adjustment switch.

The seat will move in the direction of the switch.

Release the switch when the desired position has

been reached.

Adjusting The Seat Up Or Down

The height of the seats can be adjusted up or

down. Pull upward or push downward on the seat

switch, and the seat will move in the direction of

the switch. Release the switch when the desired

position is reached.

Tilting The Seat Up Or Down — If Equipped

The seat angle can be adjusted in four directions.

Lift or push the front part of seat switch to move

the front part of the seat in the corresponding

direction. Release the seat switch when the seat

has reached the desired position.

Reclining The Seatback

The angle of the seatback can be adjusted

forward or rearward by using the recline switch.

The seat will move in the direction of the switch.

Release the switch when the desired position is

reached.

Power Lumbar

The power lumbar switch is located on the

outboard side of the power seat. Push the switch

forward or rearward to increase or decrease the

lumbar support. Push the switch upward or

downward to raise or lower the lumbar support.

Seat Cushion Extension — If Equipped

Lift the adjustment lever and push the front of the

cushion forward or rearward to extend the

cushion by a few inches (centimeters).

Seat Cushion Extension

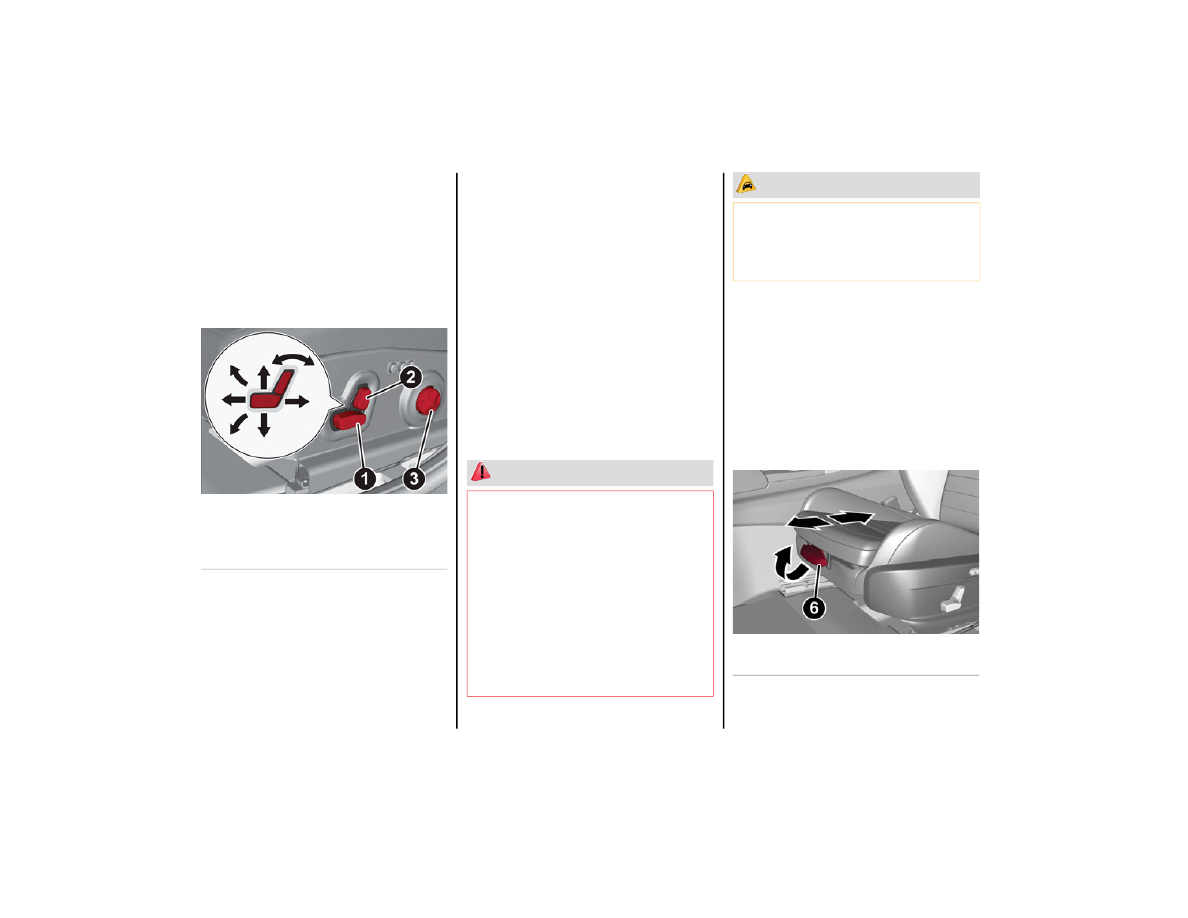

1 — Seat Adjustment
2 — Recline Adjustment
3 — Lumbar Adjustment

 WARNING!

Adjusting a seat while driving may be

dangerous. Moving a seat while driving could

result in loss of control which could cause a

collision and serious injury or death.

Seats should be adjusted before fastening

the seat belts and while the vehicle is

parked. Serious injury or death could result

from a poorly adjusted seat belt.

Do not ride with the seatback reclined so

that the shoulder belt is no longer resting

against your chest. In a collision you could

slide under the seat belt, which could result

in serious injury or death.

 CAUTION!

Do not place any article under a power seat or

impede its ability to move as it may cause

damage to the seat controls. Seat travel may

become limited if movement is stopped by an

obstruction in the seat's path.

6 — Adjustment Lever

CarManuals2.com

35

Power Bolster Adjustment — If Equipped

Push the power bolster adjustment buttons to

regulate the width of the seatback through the

lateral padding.

Seatback Width Adjustment

Easy Entry Function

The Easy Entry function is designed to move the

driver side seat forward automatically by

2.36 inches (60 mm) to make it easier for the

driver to get in and out of the car.
The movement is activated only if the seat is set

to a driving position which is in front of the B-pillar

of the vehicle.
The function is associated with power driver seats

for each of the three stored positions.
The Easy Entry function can be activated/

deactivated through the radio system. Refer to

the Information and Entertainment System

Owner’s Manual Supplement for further

information.

H

EATED

 S

EATS

 — I

F

 E

QUIPPED



For information on use with the Remote Start

system, see

Ú

page 23.

Front Heated Seats — If Equipped

NOTE:

Quadrifoglio vehicles equipped with Sparco

Racing Seats will not be equipped with the heated

seat feature.

A press of the heated seat buttons

located on the instrument panel, near

the climate controls, will select the heat

levels in order of highest to lowest. A

fourth push of the button will turn the heated seat

off.

NOTE:

The heated seat function can also be activated

through the radio system. Refer to the Informa

-

tion and Entertainment System Owner’s Manual

Supplement for further information.
You can select three heating levels:

Maximum — three LED indicators illuminated

on the buttons

Medium — two LED indicators illuminated on

the buttons

Minimum — one LED indicator illuminated on

the buttons

Heated Seat Buttons

NOTE:

After selecting a heating level, heat will be felt

within a few minutes.

The engine must be running for the heated

seats to operate.

The “minimum” setting is automatically

deactivated once a certain period of time has

elapsed.

4 — Power Adjustable Bolster Buttons
5 — Driver Memory Settings Buttons

 WARNING!

Persons who are unable to feel pain to the

skin because of advanced age, chronic

illness, diabetes, spinal cord injury,

medication, alcohol use, exhaustion or other

physical condition must exercise care when

using the seat heater. It may cause burns

even at low temperatures, especially if used

for long periods of time.

Do not place anything on the seat or

seatback that insulates against heat, such

as a blanket or cushion. This may cause the

seat heater to overheat. Sitting in a seat that

has been overheated could cause serious

burns due to the increased surface

temperature of the seat.

CarManuals2.com

GETTING TO KNO

W

 YOU

R VEHICLE

36

Rear Heated Seats — If Equipped

If equipped with rear heated seats, the

controls can be found on the rear of the

center console and will function the

same as the front heated seat controls.

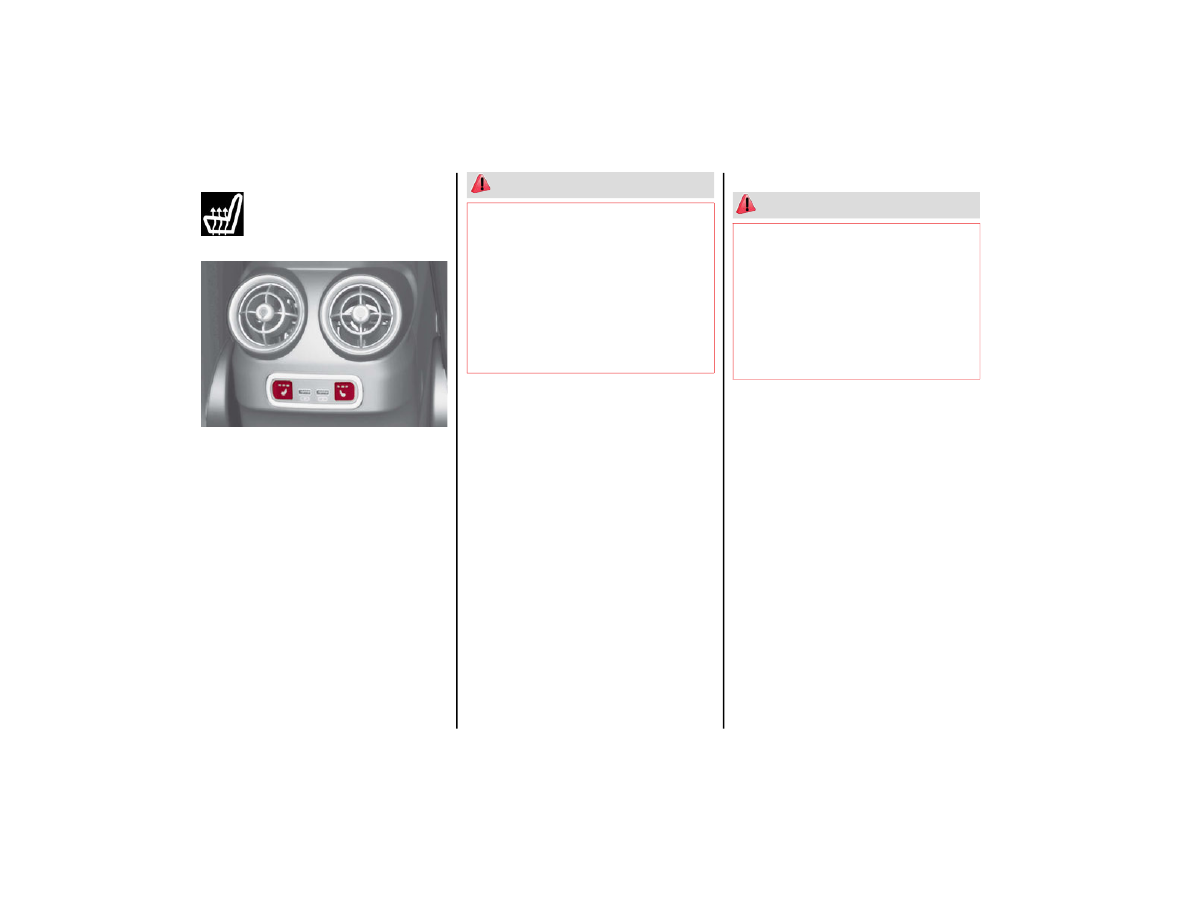

Rear Heated Seat Buttons

NOTE:

To preserve the battery charge, this function

cannot be activated when the engine is off.

H

EAD

 R

ESTRAINTS



Head restraints are designed to reduce the risk of

injury by restricting head movement in the event

of a rear impact. Head restraints should be

adjusted so that the top of the head restraint is

located above the top of your ear.

Sparco Racing Seat Head Restraints

(Quadrifoglio Vehicles) — If Equipped

Head restraints on Sparco Racing Seats (front

seats) are non-adjustable and non-removable.
The non-adjustable head restraints consist of a

trimmed foam covering over the upper structure

of the seatbacks and are intended to help protect

you and the passenger from neck injury.
Adjust the seatbacks to their upright, on-road

positions so that the head restraint is positioned

as close as possible to the back of your head.

Front Head Restraints

The front head restraints may be height- adjustable.
To raise the head restraint, pull up on the head

restraint until it clicks into place.
To lower the head restraint, push in the

adjustment button and lower the head restraint

to the desired height while holding the button.

Then, release the adjustment button.
NOTE:

To allow maximum visibility for the driver, if the

head restraints are not in use, lower the head

restraint all the way.

 WARNING!

A loose head restraint thrown forward in a

collision or hard stop could cause serious

injury or death to occupants of the vehicle.

Always securely stow removed head

restraints in a location outside the occupant

compartment.

ALL the head restraints MUST be reinstalled

in the vehicle to properly protect the

occupants. Follow the preceding reinstal

-

lation instructions prior to operating the

vehicle or occupying a seat.

 WARNING!

All occupants, including the driver, should

not operate a vehicle or sit in a vehicle’s seat

until the head restraints are placed in their

proper positions in order to minimize the risk

of neck injury in the event of a crash.

Head restraints should never be adjusted

while the vehicle is in motion. Driving a

vehicle with the head restraints improperly

adjusted or removed could cause serious

injury or death in the event of a collision.

CarManuals2.com

37

Rear Head Restraint Adjustment

The height of the outboard head restraints can be

adjusted. The head restraint of the center seat

can only be removed. The height cannot be

adjusted.
For upward adjustment, pull up on the head

restraint until it clicks into place.
For downward adjustment, push in the

adjustment button and lower the head restraint

while holding the button to the desired height.

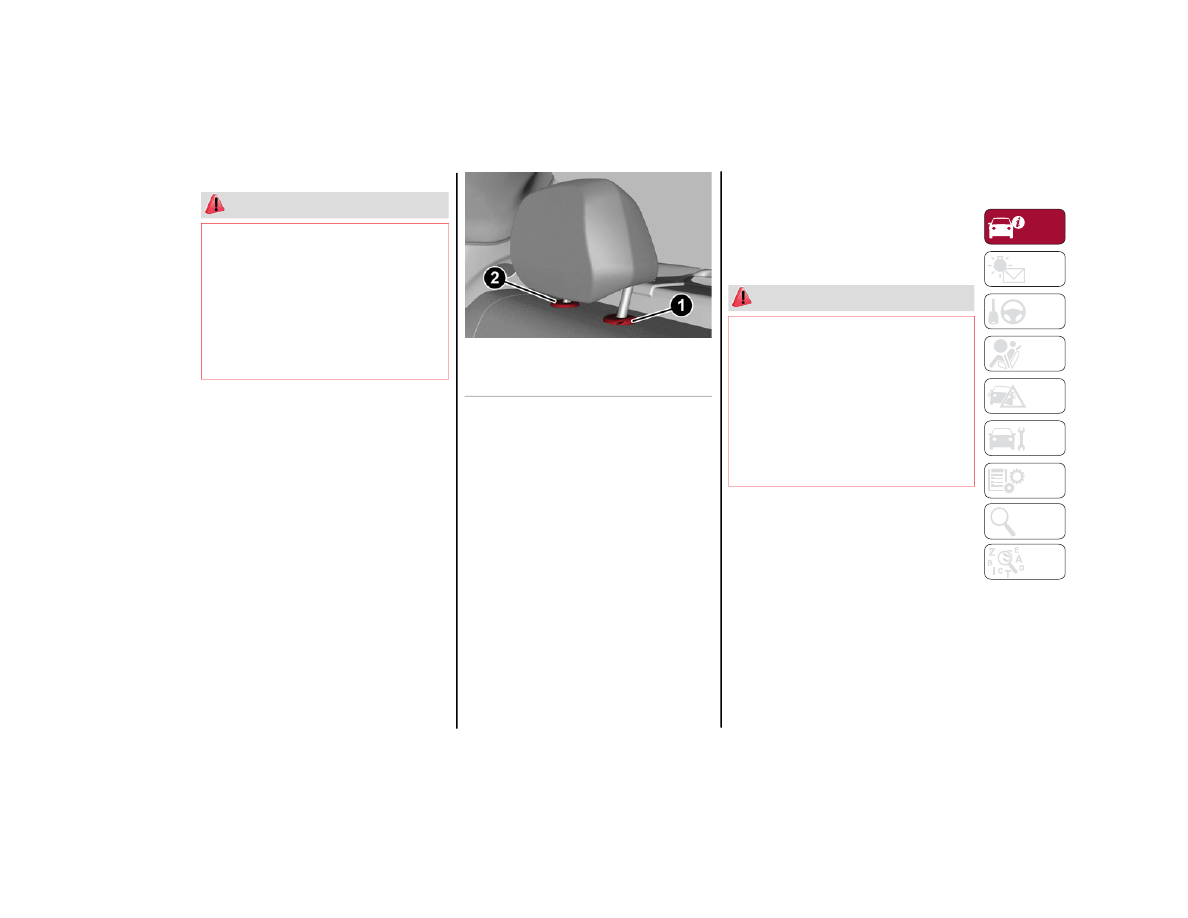

Rear Head Restraint

NOTE:

To allow maximum visibility for the driver, if the

head restraints are not in use, lower the head

restraint all the way.

Head Restraint Removal

To remove adjustable head restraints, proceed as

follows:
1. Raise the head restraints to their maximum

height.

2. Push the adjustment button and the release

button at the side of the two supports.

3. Remove the head restraints by pulling them

upwards.

To reinstall the head restraints, proceed as

follows:
1. Hold down both the adjustment button and

release button while placing the head

restraint post into the holes.

2. Then, reposition the head restraint to the

appropriate height for the passengers.

MIRRORS

A

UTOMATIC

 D

IMMING

 M

IRROR

The rearview mirror can be adjusted up, down,

left, and right. The mirror should be adjusted to

center on the view through the rear window.
This mirror automatically adjusts for headlight

glare from vehicles behind you.

 WARNING!

All occupants, including the driver, should

not operate a vehicle or sit in a vehicle’s seat

until the head restraints are placed in their

proper positions in order to minimize the risk

of neck injury in the event of a crash.

Head restraints should never be adjusted

while the vehicle is in motion. Driving a

vehicle with the head restraints improperly

adjusted or removed could cause serious

injury or death in the event of a collision.

1 — Adjustment Button
2 — Release Button

 WARNING!

A loose head restraint thrown forward in a

collision or hard stop could cause serious

injury or death to occupants of the vehicle.

Always securely stow removed head

restraints in a location outside the occupant

compartment.

ALL the head restraints MUST be reinstalled

in the vehicle to properly protect the

occupants. Follow the preceding reinstal

-

lation instructions prior to operating the

vehicle or occupying a seat.

CarManuals2.com

GETTING TO KNO

W

 YOU

R VEHICLE

38

You can turn the feature on or off by pushing the

button at the base of the mirror.

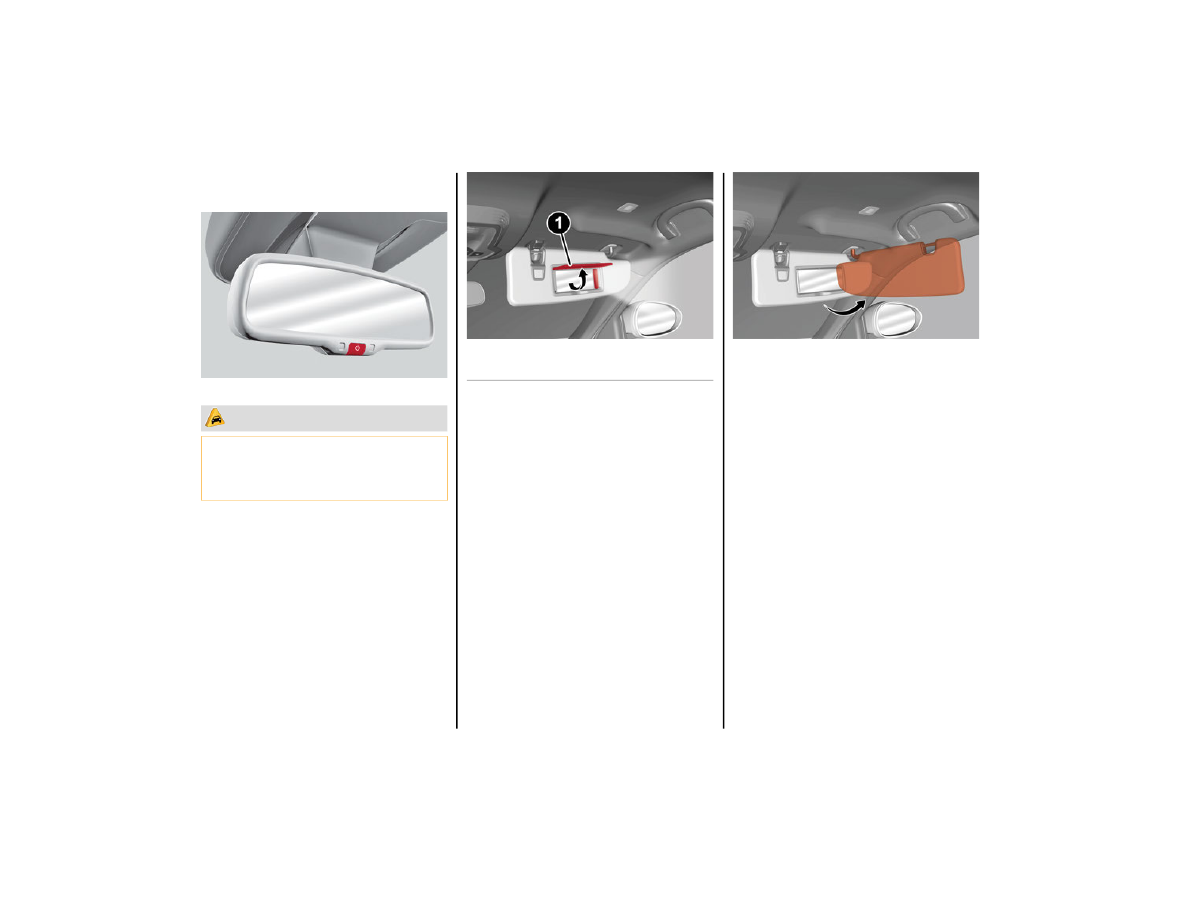

Electrochromic Mirror Power Button

V

ANITY

 M

IRROR

On the driver and passenger sun visor, there is a

light which illuminates the sun visor mirror when

folded down.

Sun Visor Mirror

The courtesy light turns on automatically by lifting

the cover.

Sun Visors

The sun visors are located at the sides of the

interior rearview mirror. They can be adjusted

forward and toward the side window.
To direct the visor toward the side window,

detach the visor from the interior rearview mirror

side hook and turn it towards the side window.
From this position, the sun visor can also be

extended toward the rear of the vehicle for

additional blockage of sunlight.
There are courtesy mirrors with lights on the back

of the sun visors.

Rotate Sun Visor Toward Passenger Window

NOTE:

A rear facing child restraint system should never

be fitted in the front passenger seat. Always

comply with the instructions on the sun visor

Ú

page 158.

O

UTSIDE

 P

OWER

 M

IRRORS

The power mirror switch is located on the driver’s

side door trim panel.
To adjust the power mirrors, first select the

desired mirror using the power mirror control.
To adjust the selected mirror, push the knob in

the direction desired.
NOTE:

Once adjustment is complete, rotate the knob

to the neutral position to prevent accidental

movements.

The power mirrors can be adjusted with the

ignition in the ACC or ON/RUN position.

 CAUTION!

To avoid damage to the mirror during cleaning,

never spray any cleaning solution directly onto

the mirror. Apply the solution onto a clean

cloth and wipe the mirror clean.

1 — Sun Visor Mirror Cover

CarManuals2.com

39

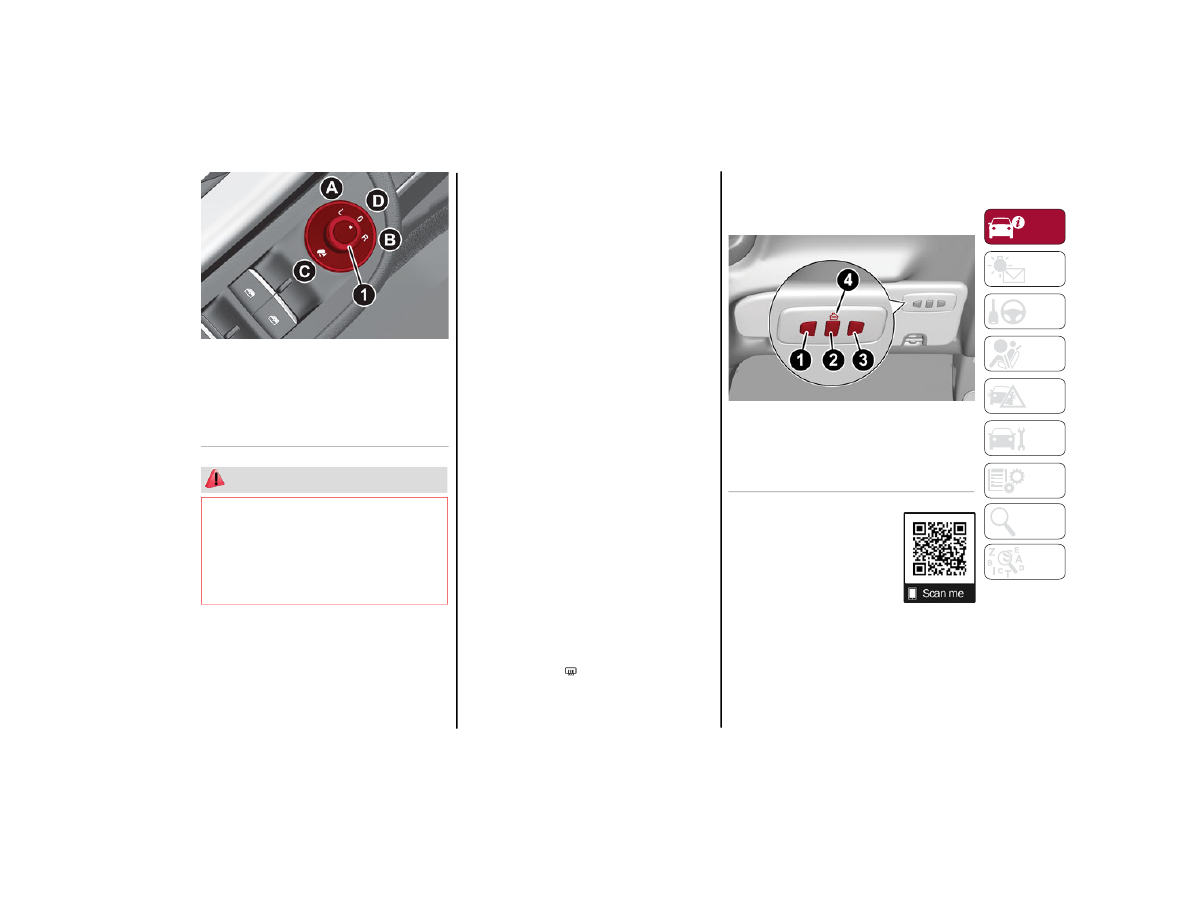

Power Mirror Control

P

OWER

 F

OLDING

 O

UTSIDE

 M

IRRORS

To fold the door mirrors in using the Power

Folding Mirror function, make sure the power

mirror control knob is in the neutral position, and

move the knob to the power folding position.

Move the knob again to return the mirrors to the

driving position.
If the power mirror control knob is moved again

during door mirror folding (from closed to open

position and vice versa), the movement direction

is reversed.
Automatic Power Folding Mirrors
The exterior mirrors will fold in when exiting the

vehicle (the ignition is OFF, all doors are closed,

and the doors are locked). The mirrors return to

the driving position when the vehicle is then

unlocked.
If the door mirrors were folded using the power

mirror control knob, they can only be returned to

the driving position by moving the knob to the

power folding position again.
NOTE:

The power folding operation can be enabled only

when the vehicle speed is lower than 31 mph

(50 km/h).

O

UTSIDE

 A

UTOMATIC

 D

IMMING

 M

IRRORS

 —

I

F

 E

QUIPPED

The outside mirrors will automatically dim for

glare from vehicles behind you. This feature is

controlled by the inside automatic dimming

mirror. The mirrors will automatically adjust for

headlight glare when the inside mirror adjusts.

H

EATED

 M

IRRORS



These mirrors are heated to melt frost or ice. This

feature will be activated whenever you push the

rear defrost button   in the climate controls.

UNIVERSAL GARAGE DOOR

OPENER (HOMELINK®)

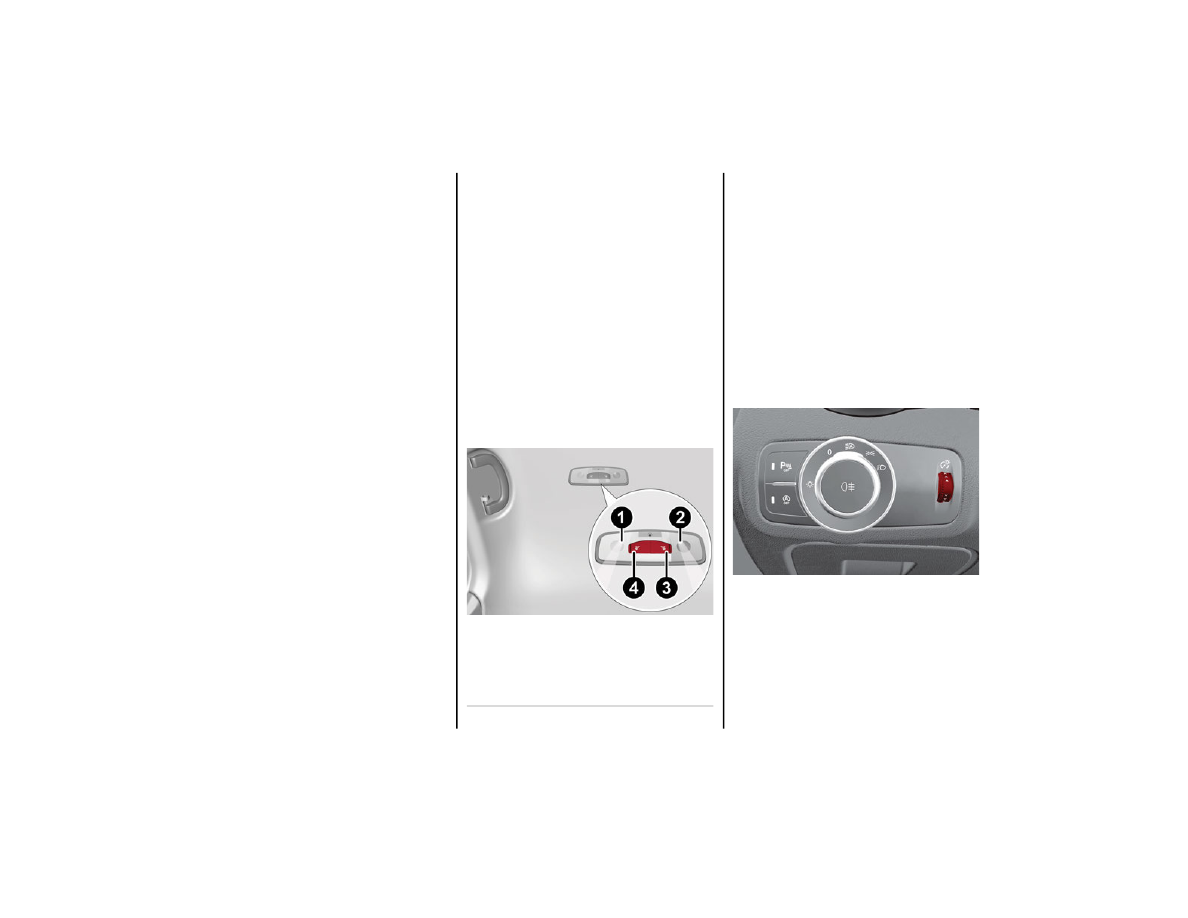

HomeLink® Buttons

Use this QR code to access your

digital experience.

HomeLink® replaces up to

three hand-held transmitters

that operate devices such as

garage door openers, motorized

gates, lighting, or home security systems. The

HomeLink® unit is powered by your vehicle’s

12 Volt battery.

The HomeLink® buttons that are located in the

overhead console or sunvisor designate the

three different HomeLink® channels.

1 — Power Mirror Control Knob
A — Left
B — Right
C — Power Folding Position
D — Neutral

 WARNING!

Vehicles and other objects seen in an outside

convex mirror will look smaller and farther

away than they really are. Relying too much on

side convex mirrors could cause you to collide

with another vehicle or other object. Use your

inside mirror when judging the size or distance

of a vehicle seen in a side convex mirror.

1 — HomeLink® Button 1
2 — HomeLink® Button 2
3 — HomeLink® Button 3
4 — HomeLink® Indicator

CarManuals2.com

GETTING TO KNO

W

 YOU

R VEHICLE

40

To operate HomeLink®, push and release any

of the programmed HomeLink® buttons.

These buttons will activate the devices they

are programmed to with each press of the

corresponding HomeLink® button.

The HomeLink® indicator light is located

above the center button.

NOTE:

HomeLink® is disabled when the Vehicle Security

system is active

Ú

page 239.

B

EFORE

 Y

OU

 B

EGIN

 P

ROGRAMMING



H

OME

L

INK

®

For efficient programming and accurate

transmission of the Radio Frequency (RF) signal,

it is recommended that a new battery be placed

in the hand-held transmitter of the device that is

being programmed to the HomeLink® system.

Make sure your hand-held transmitter is

programmed to activate the device you are trying

to program your HomeLink® button to.
Ensure that your vehicle is parked outside of the

garage before you begin programming.
It is recommended that you erase all the

channels of your HomeLink® before you use it for

the first time.

E

RASING

 A

LL

 T

HE

 H

OME

L

INK

®

C

HANNELS

To erase the channels, follow this procedure:
1. Place the ignition switch in the ON/RUN posi

-

tion.

2. Push and hold the two outside HomeLink®

buttons (I and III) for up to 20 seconds, or

until the HomeLink® indicator light flashes.

NOTE:

Erasing all channels should only be performed

when programming HomeLink® for the first time.

Do not erase channels when programming addi

-

tional buttons.

I

DENTIFYING

 W

HETHER

 Y

OU

 H

AVE

 A

R

OLLING

 C

ODE

 O

R

 N

ON

-R

OLLING

 C

ODE



D

EVICE

Before programming a device to one of your

HomeLink® buttons, you must determine

whether the device has a rolling code or

non-rolling code.
Rolling Code Devices
To determine if your device has a rolling code, a

good indicator is its manufacturing date.

Typically, devices manufactured after 1995 have

rolling codes. A device with a rolling code will also

have a “LEARN” or “TRAIN” button located where

the antenna is attached to the device. The button

may not be immediately visible when looking at

the device. The name and color of the button may

vary slightly by manufacturer.
NOTE:

The “LEARN” or “TRAIN” button is not the button

you normally use to operate the device.
Non-rolling Code Devices
Most devices manufactured before 1995 will not

have a rolling code. These devices will also not

have a “LEARN” or “TRAIN” button.

P

ROGRAMMING

 H

OME

L

INK

® T

O

 A

G

ARAGE

 D

OOR

 O

PENER

To program any of the HomeLink® buttons to

activate your garage door opener motor, proceed

as follows:
NOTE:

All HomeLink® buttons are programmed using

this procedure. You do not need to erase all chan

-

nels when programming additional buttons.
1. Place the ignition switch in the ON/RUN posi

-

tion.

2. Place the garage door opener transmitter

1 to 3 inches (3 to 8 cm) away from the

HomeLink® button you wish to program,

while keeping the HomeLink® indicator light

in view.

3. Push and hold the HomeLink® button you

want to program while you push and hold the

garage door opener transmitter button you

are trying to replicate.

4. Continue to hold both buttons and observe

the HomeLink® indicator light. The

HomeLink® indicator light will flash slowly

and then rapidly. Once this happens, release

both buttons.

NOTE:

Make sure the garage door opener motor is

plugged in before moving on to the rolling code/

non-rolling code final steps.

CarManuals2.com

41

Rolling Code Garage Door Opener Final Steps
NOTE:

You have 30 seconds in which to initiate rolling

code final step 2, after completing rolling code

final step 1.
1. At the garage door opener motor (in the

garage), locate the “LEARN” or “TRAIN”

button. This can usually be found where the

hanging antenna wire is attached to the

garage door opener motor. Firmly push and

release the “LEARN” or “TRAIN” button.

2. Return to the vehicle and push the

programmed HomeLink® button three times

(holding the button for two seconds each

time). If the garage door opener motor oper

-

ates, programming is complete.

3. Push the programmed HomeLink® button to

confirm that the garage door opener motor

operates. If the garage door opener motor

does not operate, repeat the final steps for

the rolling code procedure.

Non-Rolling Code Garage Door Opener Final

Steps
1. Push and hold the programmed HomeLink®

button and observe the HomeLink® indicator

light. If the HomeLink® indicator light stays

on constantly, programming is complete.

2. Push the programmed HomeLink® button to

confirm that the garage door opener motor

operates. If the garage door opener motor

does not operate, repeat the steps from the

beginning.

P

ROGRAMMING

 H

OME

L

INK

® T

O

 A

M

ISCELLANEOUS

 D

EVICE

The procedure on how to program HomeLink® to

a miscellaneous device follows the same

procedure as programming to a garage door

opener

Ú

page 40. Be sure to determine if the

device has a rolling code, or non-rolling code

before beginning the programming process.
NOTE:

Canadian Radio Frequency (RF) laws require

transmitter signals to time-out (or quit) after

several seconds of transmission, which may not

be long enough for HomeLink® to pick up the

signal during programming. Similar to this Cana

-

dian law, some U.S. gate operators are designed

to time-out in the same manner. The procedure

may need to be performed multiple times to

successfully pair the device to your HomeLink®

buttons.

R

EPROGRAMMING

 A S

INGLE



H

OME

L

INK

® B

UTTON

To reprogram a single HomeLink® button that

has been previously trained, without erasing all

the channels, proceed as follows. Be sure to

determine whether the new device you want to

program the HomeLink® button to has a rolling

code, or non-rolling code.
1. Place the ignition in the ON/RUN position,

without starting the engine.

2. Push and hold the desired HomeLink®

button until the HomeLink® indicator light

begins to flash after 20 seconds. Do not

release the button.

3. Without releasing the button, proceed with

Step 2 in “Programming HomeLink® To A

Garage Door Opener” and follow all

remaining steps.

C

ANADIAN

/G

ATE

 O

PERATOR



P

ROGRAMMING

For programming transmitters in Canada/United

States that require the transmitter signals to

“time-out” after several seconds of transmission:
Canadian Radio Frequency (RF) laws require

transmitter signals to time-out (or quit) after

several seconds of transmission, which may not

be long enough for HomeLink® to pick up the

signal during programming. Similar to this

Canadian law, some U.S. gate operators are

designed to time-out in the same manner.

 WARNING!

Your motorized door or gate will open and

close while you are programming the

universal transmitter. Do not program the

transmitter if people or pets are in the path

of the door or gate.

Do not run your vehicle in a closed garage or

confined area while programming the

transmitter. Exhaust gas from your vehicle

contains Carbon Monoxide (CO) which is

odorless and colorless. Carbon Monoxide is

poisonous when inhaled and can cause you

and others to be severely injured or killed.

CarManuals2.com

GETTING TO KNO

W

 YOU

R VEHICLE

42

It may be helpful to unplug the device during the

cycling process to prevent possible overheating

of the garage door or gate motor.
1. Place the ignition in the ON/RUN position.
2. Place the hand-held transmitter 1 to 3 inches

(3 to 8 cm) away from the HomeLink® button

you wish to program while keeping the

HomeLink® indicator light in view.

3. Continue to push and hold the HomeLink®

button while you push and release (cycle)

your hand-held transmitter every two

seconds until HomeLink® has successfully

accepted the frequency signal. The indicator

light will flash slowly and then rapidly when

fully trained.

4. Watch for the HomeLink® indicator to

change flash rates. When it changes, it is

programmed. It may take up to 30 seconds or

longer in rare cases. The garage door may

open and close while you are programming.

5. Push and hold the programmed HomeLink®

button and observe the indicator light.

NOTE:

If the indicator light stays on constantly,

programming is complete and the garage

door/device should activate when the

HomeLink® button is pushed.

• To program the two remaining HomeLink®

buttons, repeat each step for each

remaining button. DO NOT erase the chan-

nels.

If you unplugged the garage door opener/device

for programming, plug it back in at this time.

Reprogramming A Single HomeLink® Button

(Canadian/Gate Operator)
To reprogram a channel that has been previously

trained, follow these steps:
1. Place the ignition in the ON/RUN position.
2. Press and hold the desired HomeLink®

button until the indicator light begins to flash

after 20 seconds. Do not release the button.

3. Without releasing the button, proceed with

“Canadian/Gate Operator Programming”

Step 2 and follow all remaining steps.

S

ECURITY

It is advised to erase all channels before you sell

or turn in your vehicle.
To do this, push and hold the two outside buttons

for 20 seconds until the indicator flashes. Note

that all channels will be erased. Individual

channels cannot be erased.
The HomeLink® universal transmitter is disabled

when the Vehicle Security system is active.

T

ROUBLESHOOTING

 T

IPS

If you are having trouble programming

HomeLink®, here are some of the most common

solutions:

Replace the battery in the garage door opener

hand-held transmitter.

Push the LEARN button on the garage door

opener to complete the training for a rolling

code.

Did you unplug the device for programming

and remember to plug it back in?

If you have any problems, or require assistance,

please call toll-free 1-800-355-3515 or on the

Internet at HomeLink.com for information or

assistance.

EXTERIOR LIGHTS

H

EADLIGHT

 S

WITCH

The headlight switch is located on the left side of

the instrument panel, next to the steering wheel.

The headlight switch controls the operation of the

headlights, parking lights, instrument panel

lights, instrument panel light dimming, interior

lights and rear fog lights.

 WARNING!

Vehicle exhaust contains carbon monoxide,

a dangerous gas. Do not run your vehicle in

the garage while programming the

transmitter. Exhaust gas can cause serious

injury or death.

Your motorized door or gate will open and

close while you are programming the

universal transmitter. Do not program the

transmitter if people, pets or other objects

are in the path of the door or gate. Only use

this transmitter with a garage door opener

that has a “stop and reverse” feature as

required by Federal safety standards. This

includes most garage door opener models

manufactured after 1982. Do not use a

garage door opener without these safety

features.

CarManuals2.com

43

In addition, there are buttons for the ParkSense

system and Engine Stop/Start

Ú

page 81.

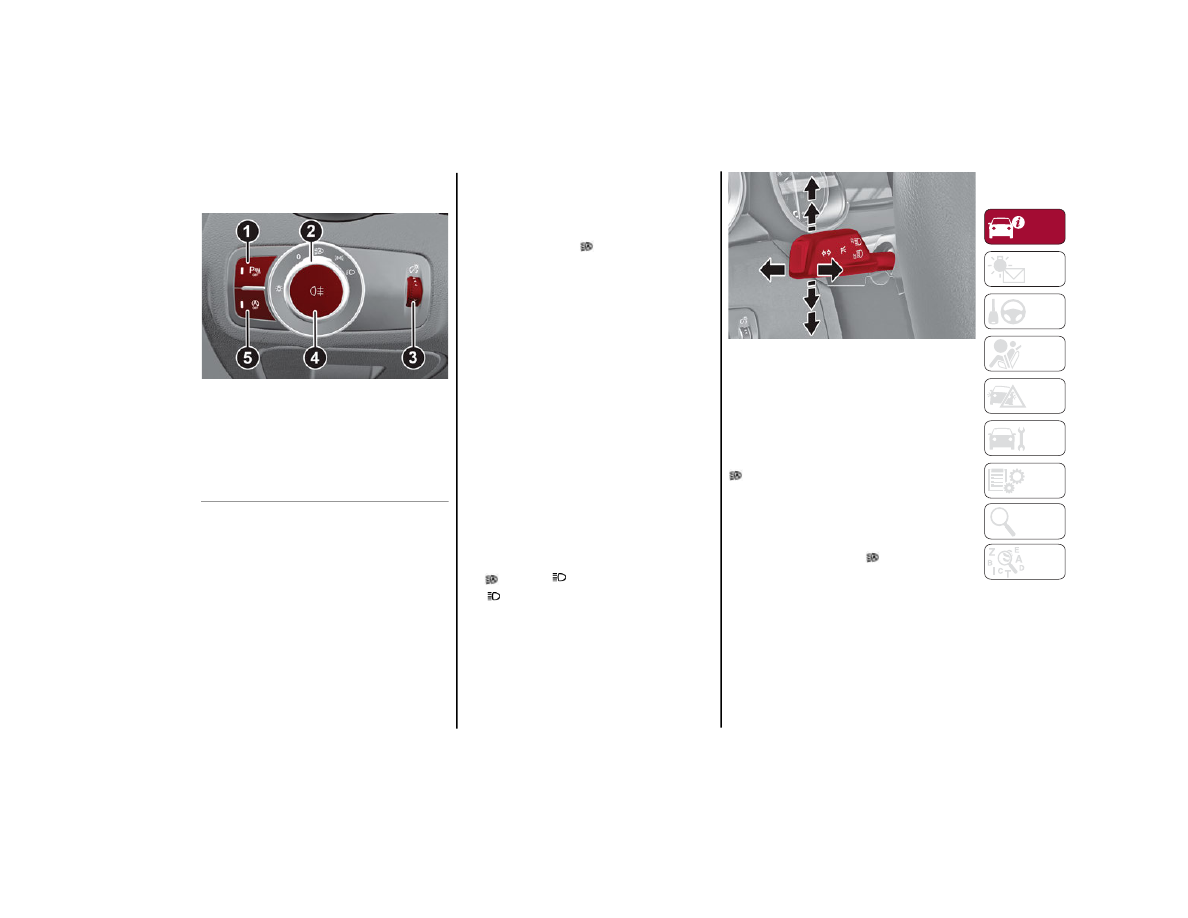

Headlight Switch

The instrument panel and the various controls on

the dashboard will be illuminated when the

exterior lights are turned on.
To turn on the headlights, rotate the headlight

switch clockwise. When the headlight switch is

on, the parking lights, taillights, license plate light

and instrument panel lights are also turned on. To

turn off the headlights, rotate the headlight

switch back to the O (off) position.

D

AYTIME

 R

UNNING

 L

IGHTS

 (DRL

S

)

The Daytime Running Lights (DRLs) (low intensity)

come on automatically whenever the ignition is

placed in the ON/RUN position, and the headlight

switch is turned to the   position, and the dusk

sensor detects sufficient external light.
On some vehicles, the Daytime Running Lights

may deactivate, or reduce intensity, on one side

of the vehicle (when a turn signal is activated on

that side), or on both sides of the vehicle (when

the hazard warning lights are activated).
The DRL can be activated/deactivated from the

radio system, by selecting the following functions

in sequence on the main MENU:
1. Settings
2. Lights
3. Daytime Running Lights
NOTE:

The Daytime Running Lights cannot be deacti

-

vated in Canadian markets.

H

IGH

 B

EAM

 H

EADLIGHTS

Push the multifunction lever towards the

instrument panel to switch the headlights to high

beams. The headlight switch must be turned to

the   (AUTO) or   (on) position.
The   High Beam Indicator on the instrument

panel will illuminate when the high beams are on.

Multifunction Lever

Pulling the multifunction lever back will turn the

low beams on.

A

UTOMATIC

 H

EADLIGHTS



This system automatically turns the headlights on

or off according to ambient light levels. To turn

the system on, rotate the headlight switch to the

 (AUTO) position.

NOTE:

The function can only operate with the ignition

placed in the ON/RUN position.
To turn the automatic headlights off, turn the

headlight switch out of the   (AUTO) position.

F

LASH

-T

O

-P

ASS

You can signal another vehicle with your

headlights by lightly pulling the multifunction

lever toward you. This will cause the high beam

headlights to turn on, and remain on, until the

lever is released.

1 — ParkSense Button
2 — Parking Lights, Daylight Running Lights,

Headlight Switch
3 — Instrument Panel Dimmer
4 — Rear Fog Light Button
5 — Engine Stop/Start Button

CarManuals2.com

GETTING TO KNO

W

 YOU

R VEHICLE

44

A

UTOMATIC

 H

IGH

 B

EAM

 H

EADLIGHTS

 —

I

F

 E

QUIPPED

The Automatic High Beam Headlights system

provides increased forward lighting at night by

automating high beam control through the use of

a camera mounted on the windshield. This

camera detects vehicle specific light and

automatically switches from high beams to low

beams until the approaching vehicle is out of

view.
This function is enabled with the radio system,

and can only be activated with the light switch

turned to   (AUTO).
If the high beam headlights are on, the blue icon/

indicator light   will illuminate in the instrument

panel.
When the speed is higher than 25 mph (40 km/h)

and the function is active, the lights will turn off if

the multifunction lever is pushed again.
When the speed is lower than 15 mph (25 km/h)

and the function is active, the function switches

the high beam headlights off.
If the high beam headlights are operated quickly

again (pushing the multifunction lever towards

the instrument panel), the icon/indicator light

will illuminate in the instrument panel, and the

high beam headlights will turn on constantly until

the speed exceeds 25 mph (40 km/h).
When the speed of 25 mph (40 km/h) is

exceeded again, the automatic functioning is

reactivated.
If the multifunction lever is pushed again with the

Automatic High Beam Headlights activated, the

Automatic High Beam Headlights function

deactivates.

To deactivate the automatic headlight function,

rotate the headlight switch to the   position.
NOTE:

If the system recognizes heavy traffic areas,

the automatic functions remain disabled

independently of the vehicle’s speed.

The Automatic High Beam functionality may

also be influenced by:

Reflections on road signs

Dim headlights from oncoming traffic

Poor weather conditions

Presence of dirt or other obstructions on

the sensor

Damage to the windshield

P

ARKING

 L

IGHTS

To turn on the parking lights and instrument

panel lights, rotate the headlight switch

clockwise to the   position. All of the parking

lights will turn on for eight minutes, and opening

the door activates an audible warning.
To leave only the lights on one side (right/left)

illuminated, move the multifunction lever

(located on the left side of the steering wheel) to

the side that you want to remain on. With the

parking lights on, the   indicator light on the

instrument panel will illuminate.
To turn off the parking lights, rotate the headlight

switch back to the O (off) position.

H

EADLIGHT

 O

FF

 D

ELAY

To assist when exiting the vehicle, the “Headlight

Off Delay” feature will leave the headlights on for

up to 90 seconds. This delay is initiated when the

ignition is placed in the OFF position while the

headlight switch is on, and then the headlight

switch is cycled off. Headlight delay can be

canceled by either turning on the headlights or

side lights, or by placing the ignition in the ON

position.
The function can be activated from the radio

system by selecting the following functions in

sequence on the main menu:
1. Settings
2. Lights
3. Headlight Off Delay

R

EAR

 F

OG

 L

IGHT

The rear fog lights may be operated as desired

when visibility is poor due to fog. The rear fog light

button is integrated with the headlight switch.
Push the   button to turn the rear fog lights on/

off.
The lights can be turned off by pushing the

button again or by turning the headlight switch to

the O (off) position and holding it there for a few

seconds.
NOTE:

The headlight switch must first be turned to the

parking lights or headlights position before the

rear fog light button can be pushed.
When the engine is stopped with the rear fog

lights on, they will remain off the next time the

engine is started.

CarManuals2.com

45

A

DAPTIVE

 F

RONTLIGHT

 S

YSTEM



(AFS F

UNCTION

) — I

F

 E

QUIPPED

This is a system combined with Xenon headlights

(Bi-Xenon 35 W headlamp if equipped) which

directs the headlights horizontally, and contin

-

uously and automatically adapts them to the

driving conditions around bends or when

cornering.
The system directs the headlights to light up the

road in the best way, taking into account the

speed of the vehicle and the bend or corner

angle, as well as the speed at which the steering

wheel is turned.
The adaptive lights are automatically activated

when the vehicle is started.

T

URN

 S

IGNALS



Move the multifunction lever up or down to

activate the turn signals. The arrows on each side

of the instrument cluster flash to show proper

operation.
The   or   turn signal will blink on the

instrument panel.

L

ANE

 C

HANGE

 A

SSIST

Lightly push the lever up or down once, without

moving beyond the detent, and the turn signal will

flash five times then automatically turn off.
To turn off the flashing before the end of the

cycle, move the lever in the opposite direction

until the first click (about half way).

S

TATIC

 B

ENDING

 L

IGHT

 F

UNCTION

(SBL) — I

F

 E

QUIPPED

The SBL function utilizes Light Emitting Diodes

(LEDs) in order to better illuminate the street and

increase the light angle while turning. This

function is enabled by rotating the light switch to

position   (on) or   (AUTO). The SBL LEDs

activate when the speed is below 25 mph

(40 km/h) and the steering radius is below

0.3 miles (500 m).
This function can be activated/deactivated on the

radio system by selecting the following functions

in sequence on the main menu:
1. Settings
2. Lights
3. Cornering Lights

INTERIOR LIGHTS

Courtesy lights are turned on when the front

doors are opened or when the dimmer control is

rotated to its farthest upward position. The glove

compartment light turns on automatically when

the glove compartment is opened and turn off

when it is closed. The door courtesy lights

illuminate when one of the front doors is opened,

and turn off when it is closed. The trunk courtesy

lights turn on automatically when the trunk is

opened and turn off when it is closed. All of these

lights turn on and off regardless of the ignition

status.

F

RONT

 M

AP

 R

EADING

 L

IGHTS

The front map/reading and overhead lights are

mounted in the overhead console. Each light can

be turned on by pushing the corresponding switch

on the console. These switches are backlit for

night time visibility. To turn the lights off, push the

switch a second time.

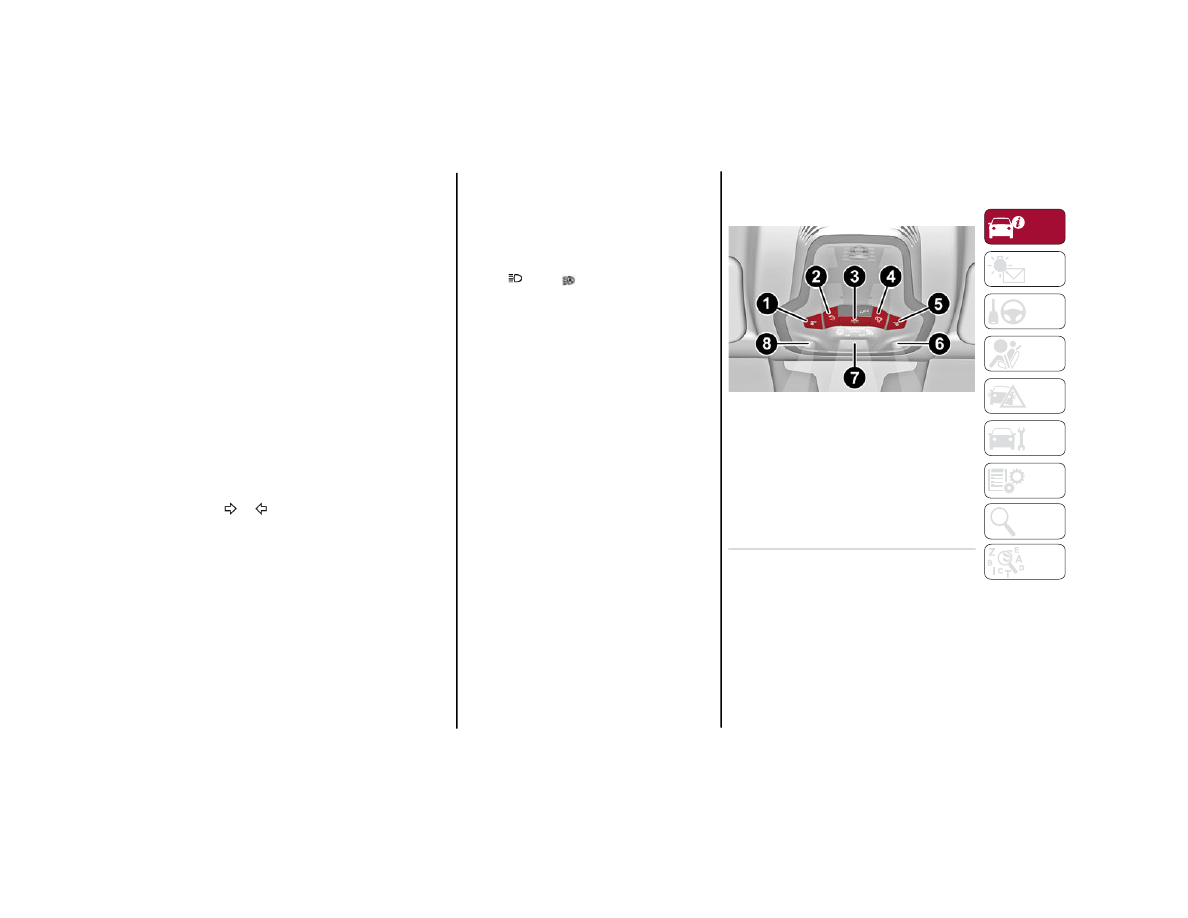

Overhead Console

NOTE:

Before getting out of the vehicle, ensure that the

overhead lights are off. This will prevent the

battery level from being drained once the doors

are closed. If a light is left on accidentally, the

overhead lights turn off automatically approxi

-

mately 15 minutes after the engine has been

turned off.

1 — Driver’s Reading/Map Light Switch
2 — Rear Overhead Lights Switch
3 — Overhead Lights Switch
4 — Front Map Reading Lights Switch
5 — Passenger’s Reading/Map Light Switch
6 — Passenger’s Reading/Map Light
7 — Center Reading/Map Light
8 — Driver’s Reading/Map Light

CarManuals2.com

GETTING TO KNO

W

 YOU

R VEHICLE

46

Overhead Light Timing
To assist getting in and out of the vehicle at night

or in poorly-lit areas, two timed modes are

available to keep the interior lighting on after the

engine is turned off.
Timing While Getting Into The Vehicle
The overhead lights will illuminate as follows:

For a few seconds when the doors are

unlocked.

For approximately three minutes when one of

the doors is opened.

For a few seconds when the doors are locked.

Timing is interrupted when the ignition is placed

in the ON/RUN position.
Exiting Overhead Light Timing
The overhead lights will turn off as follows:

After all doors are closed upon entering the

vehicle, the three minute timer will stop and a

second timer will start for the overhead lights.

This timing will end when the ignition is placed

in the ON/RUN position.

When the doors are locked.

After 15 minutes to preserve the battery.

Timing While Getting Out Of The Vehicle
After placing the ignition in the OFF position, the

overhead lights will turn on as follows:

For a few seconds after the engine stops.

For approximately three minutes when one of

the doors is opened.

For a few seconds when the last door is closed.

The timing ends automatically when the doors

are locked.

I

NTERIOR

 A

MBIENT

 L

IGHTING

The brightness of the interior passenger

compartment lights can be adjusted through the

radio system.
To access the adjustment function, on the main

menu select the following items in sequence:
1. Settings
2. Lights
3. Interior Ambient Lighting
The lights can be adjusted to seven different

levels of brightness.

R

EAR

 O

VERHEAD

 L

IGHT

The rear overhead lights are activated or

deactivated by two on/off switches located within

the lights on the ceiling above the rear seats.

Rear Overhead Light

The light turns on when a door is opened.
NOTE:

The light will turn off automatically after a few

minutes if a door is left open. To turn it on again,

open another door or close and reopen the same

door.

I

NSTRUMENT

 P

ANEL

 D

IMMER

 C

ONTROL



With the daytime running lights or headlights on,

push the dimmer control upward and hold to

increase the instrument panel brightness and the

control button icons. Push the dimmer control

downward and hold to decrease brightness.

Release the control when the desired brightness

level has been reached.

Dimmer Control

1 — Passenger Rear Overhead Light
2 — Driver Rear Overhead Light
3 — Driver Rear Overhead Light Switch
4 — Passenger Rear Overhead Light Switch

CarManuals2.com

47

WINDSHIELD WIPERS AND

WASHERS

The windshield wiper/washer lever is located on

the right side of the steering wheel.
The windshield wipers will only operate with the

ignition in the ACC or ON/RUN position.

W

INDSHIELD

 W

IPER

 O

PERATION



Rotating the switch to the Low Continuous Wiper

Speed position (2) activates the first (low) level

continuous speed of the windshield wipers in

manual mode.

Rotating the switch to the High Continuous Wiper

Speed position (1) activates the second (high)

level continuous speed of the windshield wipers

in manual mode.

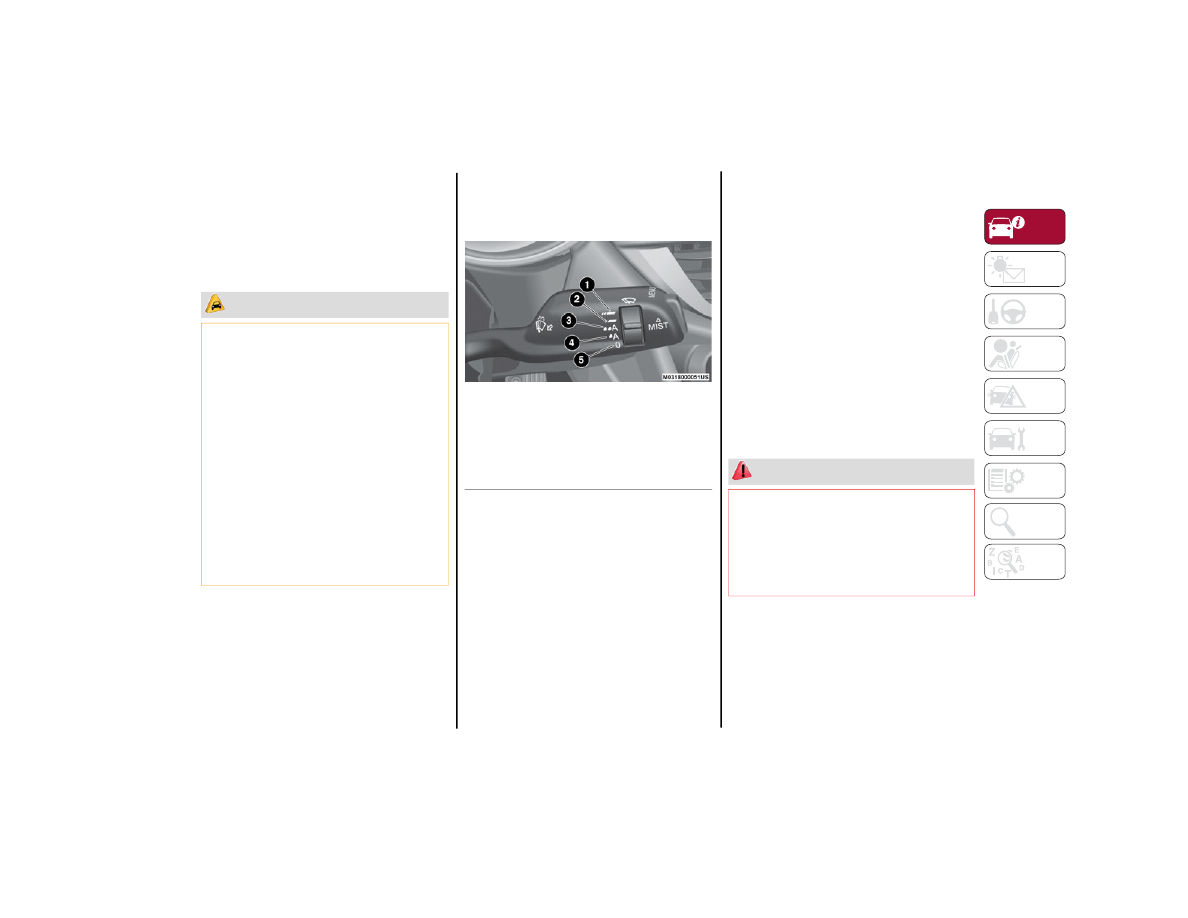

Windshield Wiper Switch

Rain Sensors
Rotating the switch to the Low Sensitivity Rain

Sensing position (4), activates the first, less

sensitive level of the Rain Sensing function.
Rotating the switch to the High Sensitivity Rain

Sensing position (3), activates the second, more

sensitive level of the Rain Sensing function

Ú

page 48.

Windshield Washer
To use the washer, pull the windshield wiper lever

toward the steering wheel and hold.

Both the windshield washer jet and the

windshield wiper will be activated. The wipers and

washers will continue to operate until you let go of

the lever.
The windshield wiper stops working three strokes

after the lever is released, followed by a final

stroke six seconds later to complete the cycle.
Mist
Push the lever upward to the MIST position and

release for a single wiping cycle.
NOTE:

The Mist feature does not activate the washer

pump; therefore, no washer fluid will be sprayed

on the windshield. The wash function must be

used in order to spray the windshield with washer

fluid.
For information on wiper care and replacement,

see

Ú

page 193.

 CAUTION!

Turn the windshield wipers off when driving

through an automatic car wash. Damage to

the windshield wipers may result if the wiper

control is left in any position other than off.

In cold weather, always turn off the wiper

switch and allow the wipers to return to the

PARK position before turning off the engine.

If the wiper switch is left on and the wipers

freeze to the windshield, damage to the

wiper motor may occur when the vehicle is

restarted.

Always remove any buildup of snow that

prevents the windshield wiper blades from

returning to the off position. If the windshield

wiper control is turned off and the blades

cannot return to the off position, damage to

the wiper motor may occur.

1 — High Continuous Wiper Speed
2 — Low Continuous Wiper Speed
3 — High Sensitivity Rain Sensing
4 — Low Sensitivity Rain Sensing
5 — Windshield Wiper Off

 WARNING!

Sudden loss of visibility through the

windshield could lead to a collision. You might

not see other vehicles or other obstacles. To

avoid sudden icing of the windshield during

freezing weather, warm the windshield with

the defroster before and during windshield

washer use.

CarManuals2.com

GETTING TO KNO

W

 YOU

R VEHICLE

48

R

AIN

 S

ENSING

 W

IPERS

This feature senses rain or snowfall on the

windshield and automatically activates the

wipers. The Rain Sensor is located behind the

interior rearview mirror.

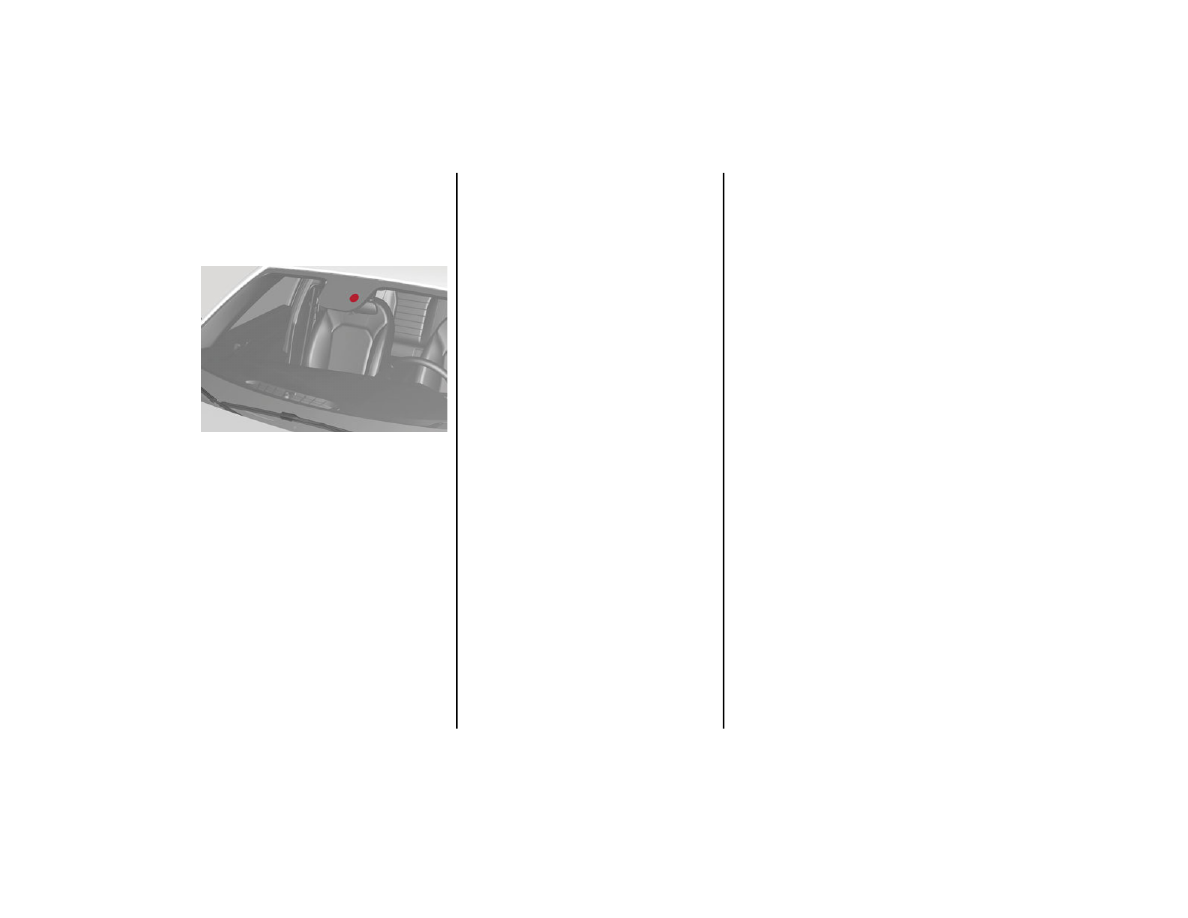

Rain Sensor

Rotate the end of the multifunction lever to one of

four settings to activate this feature.
The sensor has an adjustment range that varies

progressively from wiper still (no stroke) when the

windshield is dry, to wiper at continuous speed

(fast operation) with intense rain.
Activation
Rotating the wiper switch to the Low Sensitivity

Rain Sensing position (4) or High Sensitivity Rain

Sensing position (3) activates the rain sensor.
The activation of the rain sensor system is done

by tapping the wiper stalk upwards while the

switch is in the Low Sensitivity Rain Sensing

position (4) or High Sensitivity Rain Sensing

position (3).

The variation in sensitivity during rain sensor

operation is also signaled by a stroke of the

wiper.
If the windshield washer is used with the rain

sensor activated, the normal washing cycle is

performed, and then the rain sensor resumes its

normal automatic operation.
NOTE:

Keep the glass in the sensor area clean.

With the windshield wiper lever in the Low

Sensitivity Rain Sensing position (4) or High

Sensitivity Rain Sensing position (3), wiping

operates automatically and is disabled when

the outside temperature is below 32°F (0°C).

Deactivation
To turn off the Rain Sensing Wipers, use the wiper

switch or place the ignition in the OFF position.
In the event of malfunction of the rain sensor

while it is active, the windshield wiper operates

intermittently at a speed consistent with the

sensitivity setting of the rain sensor, whether or

not there is rain on the glass for as long as the

sensor failure is indicated on the display.
The sensor continues to operate and it is possible

to set the windshield wiper to continuous mode

(1 or 2). The failure indication remains on for as

long as the sensor is active.

The rain sensor is able to recognize and automat

-

ically adjust itself in the presence of the following

conditions:

Presence of dirt on the controlled surface (salt,

dirt, etc.).

Presence of streaks of water caused by the

worn window wiper blades.

Difference between day and night.

H

EADLIGHT

 W

ASHERS

 — I

F

 E

QUIPPED

The windshield wiper lever operates the headlight

washers when the ignition is in the ON position

and the headlights are turned on. To use the

headlight washers, pull the lever toward you and

release it. The headlight washers will spray a

timed high-pressure spray of washer fluid onto

each headlight lens. In addition, the windshield

washers will spray the windshield and the

windshield wipers will cycle.
NOTE:

The headlight washers work on every tenth wash

cycle request.

CLIMATE CONTROL

The Climate Control system allows you to regulate

the temperature, air flow, and direction of air

circulating throughout the vehicle. The controls

are located on the touchscreen and on the

instrument panel below the radio.

CarManuals2.com

49

A

UTOMATIC

 D

UAL

-Z

ONE

 C

LIMATE

 C

ONTROL

 S

YSTEM



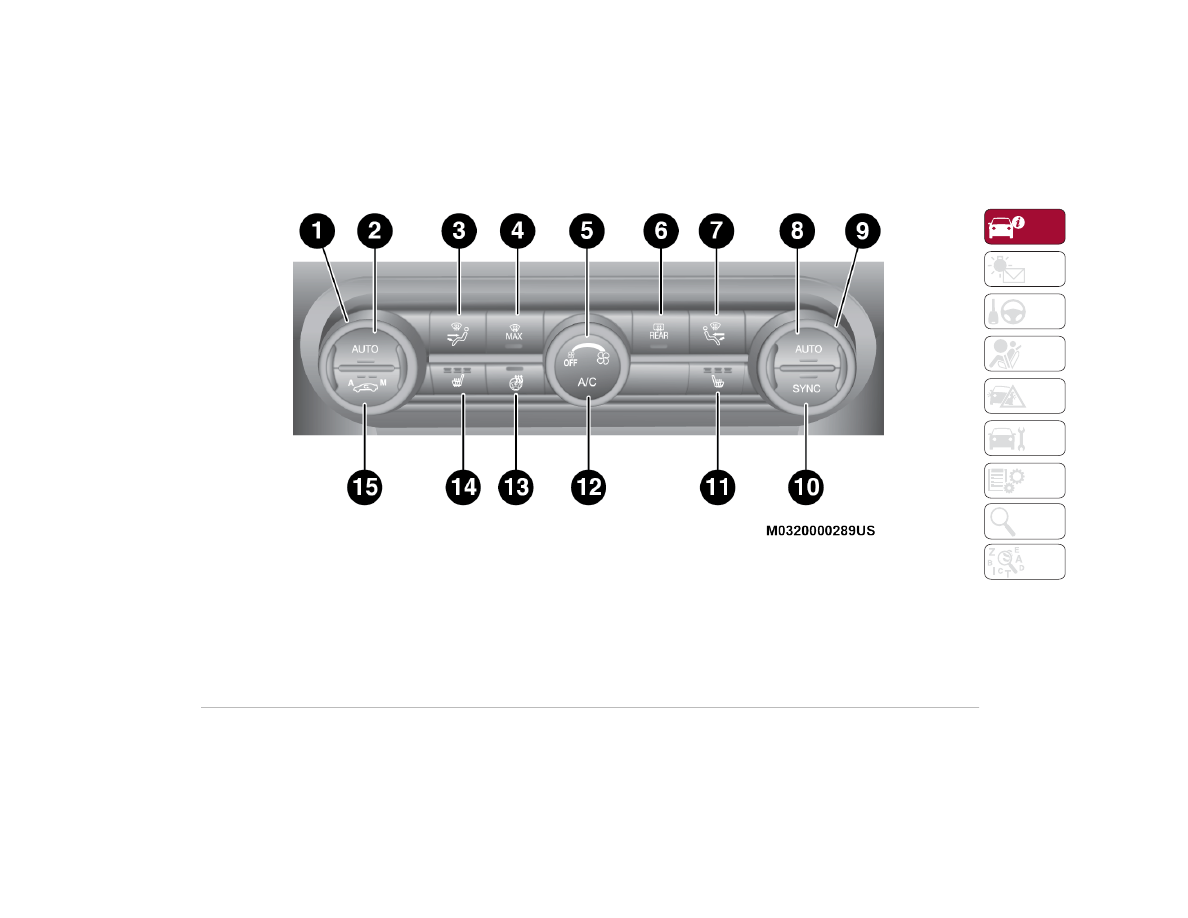

Automatic Climate Control System (Instrument Panel Controls)

1 — Driver Temperature Adjustment Knob

9 — Passenger Temperature Adjustment Knob

2 — Driver Side AUTO Button (Automatic Operation)

10 — SYNC Button (Set Temperature Alignment) Driver/Passenger Side

3 — Driver Side Air Distribution Selection Button

11 — Passenger Heated Seat Button — If Equipped

4 — Max Defrost Button

12 — Air Conditioning Button

5 — Blower Speed Adjustment Knob

13 — Steering Wheel Heater Button — If Equipped

6 — Rear Defrost Button

14 — Driver Side Heated Seat Button — If Equipped

7 — Passenger Side Air Distribution Selection Button

15 — Air Recirculation Button

8 — Passenger Side AUTO Button (Automatic Operation)

CarManuals2.com

GETTING TO KNO

W

 YOU

R VEHICLE

50

Touchscreen Controls

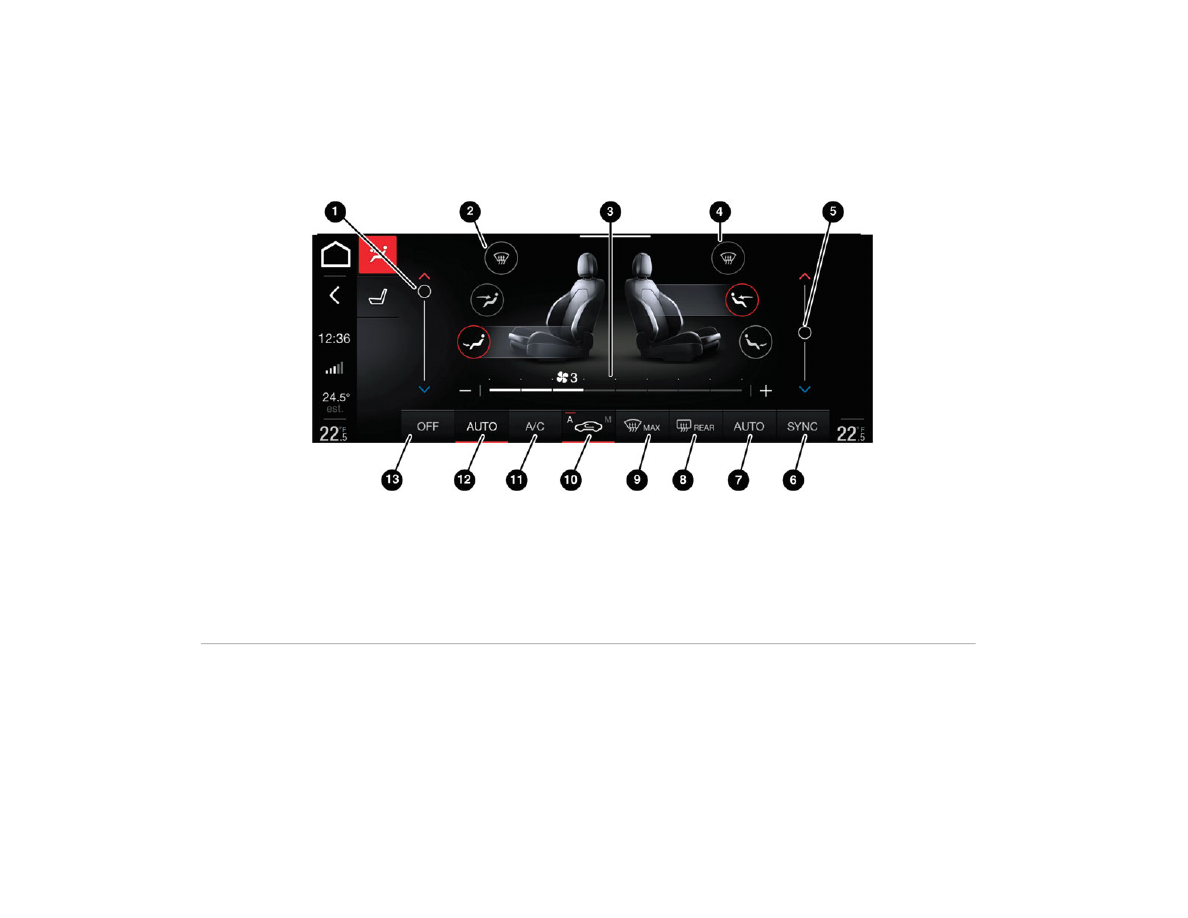

Automatic Climate Control System (Touchscreen Controls)

1 — Driver Side Temperature Adjustment Bar

8 — Heated Rear Window On/Off Button

2 — Driver Side Air Distribution Buttons

9 — MAX-DEF Activation/Deactivation Button (Rapid Defrosting/Demisting)

3 — Fan Speed Adjustment Button

10 — Air Recirculation On/Off Button

4 — Passenger Side Air Distribution Buttons

11 — Climate Control System Compressor On/Off Button

5 — Passenger Side Temperature Adjustment Bar

12 — Driver Side AUTO Button (Automatic Operation)

6 — SYNC Button

13 — Climate Control System On/Off Button

7 — Passenger Side AUTO Button (Automatic Operation)

CarManuals2.com

















Content      ..      1       2         ..





//////////////////////////
