147

5. Position the shoulder belt across the

shoulder and chest with minimal, if any slack

so that it is comfortable and not resting on

your neck. The retractor will withdraw any

slack in the shoulder belt.

6. To release the seat belt, push the red button

on the buckle. The seat belt will automatically

retract to its stowed position. If necessary,

slide the latch plate down the webbing to

allow the seat belt to retract fully.

Lap/Shoulder Belt Untwisting Procedure

Use the following procedure to untwist a twisted

lap/shoulder belt.
1. Position the latch plate as close as possible

to the anchor point.

2. At about 6 to 12 inches (15 to 30 cm) above

the latch plate, grab and twist the seat belt

webbing 180 degrees to create a fold that

begins immediately above the latch plate.

3. Slide the latch plate upward over the folded

webbing. The folded webbing must enter the

slot at the top of the latch plate.

4. Continue to slide the latch plate up until it

clears the folded webbing and the seat belt is

no longer twisted.

Second Row Center Seat Belt Operating

Instructions

Second Row Seat Belts

The second row center seat belt features a seat

belt with a mini-latch plate and buckle, which

allows the seat belt to detach from the lower

anchor when the seat is folded. The mini-latch

plate and regular latch plate can then be stored

out of the way in the parcel tray for added

convenience to open up utilization of the storage

areas behind the front seats when the seat is not

occupied.
1. Remove the mini-latch plate and regular latch

plate from its stowed position in the right rear

side trim panel.

2. Grab the mini-latch plate and pull the seat

belt over the seat.

3. Route the shoulder belt to the inside of the

right head restraint.

4. When the seat belt is long enough to fit, insert

the mini-latch plate into the mini-buckle until

you hear a “click.”

5. Sit back in seat. Slide the regular latch plate

up the webbing as far as necessary to allow

the seat belt to go around your lap.

6. When the seat belt is long enough to fit, insert

the latch plate into the buckle until you hear

a “click.”

7. Position the lap belt so that it is snug and lies

low across your hips, below your abdomen. To

remove slack in the lap belt portion, pull up

on the shoulder belt. To loosen the lap belt if

it is too tight, pull on the lap belt. A snug seat

belt reduces the risk of sliding under the seat

belt in a collision.

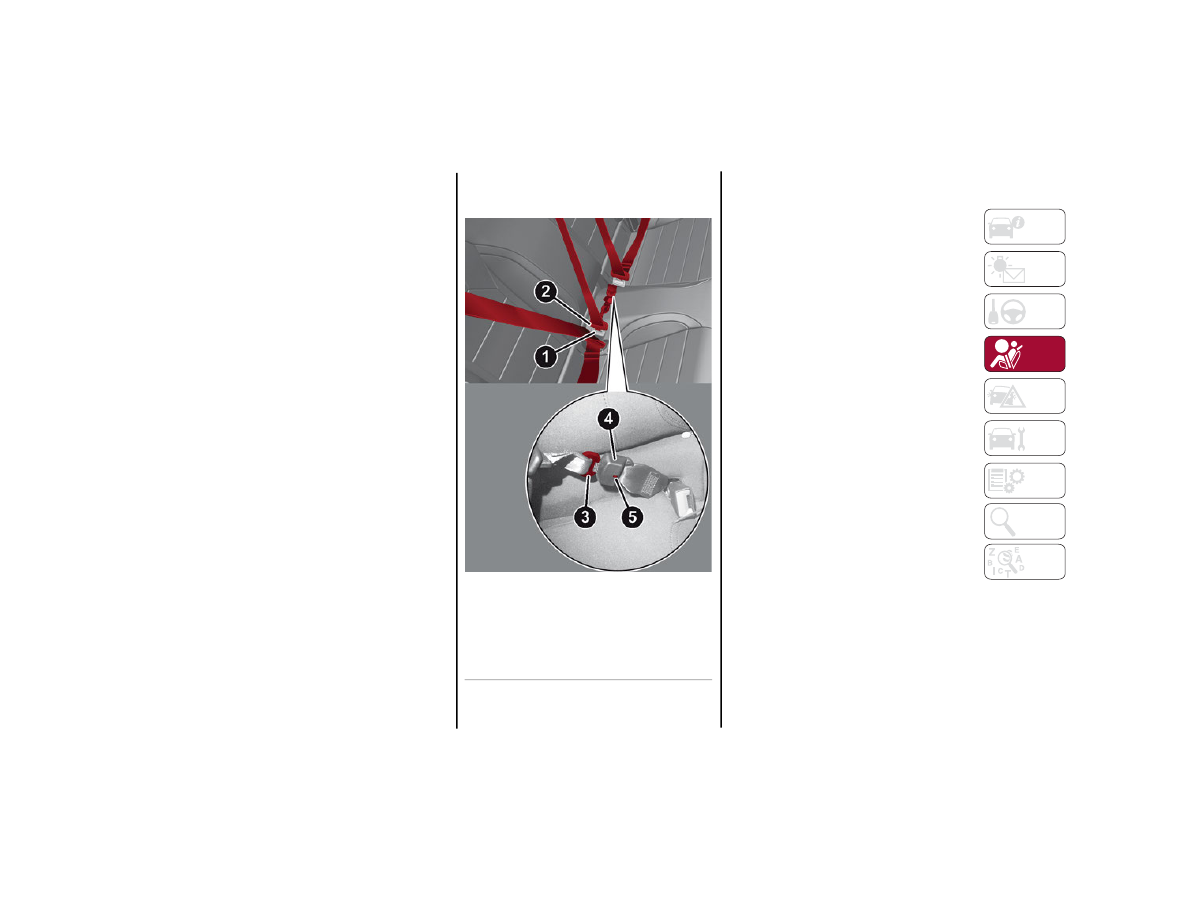

1 — Seat Belt Buckle
2 — Seat Belt Latch Plate
3 — Mini Latch Plate
4 — Mini Seat Belt Buckle
5 — Mini Buckle Release

CarManuals2.com

SAFETY

148

(Continued)

8. Position the shoulder belt on your chest so

that it is comfortable and not resting on your

neck. The retractor will withdraw any slack in

the seat belt.

9. To release the seat belt, push the red button

on the buckle.

10. To disengage the mini-latch plate from the

mini-buckle for storage, insert the regular

latch plate into the black button on the top of

the mini-buckle. The seat belt will automati

-

cally retract to its stowed position. If neces

-

sary, slide the latch plate down the webbing

to allow the seat belt to retract fully. Insert

the mini-latch plate and regular latch plate

into its stowed position.

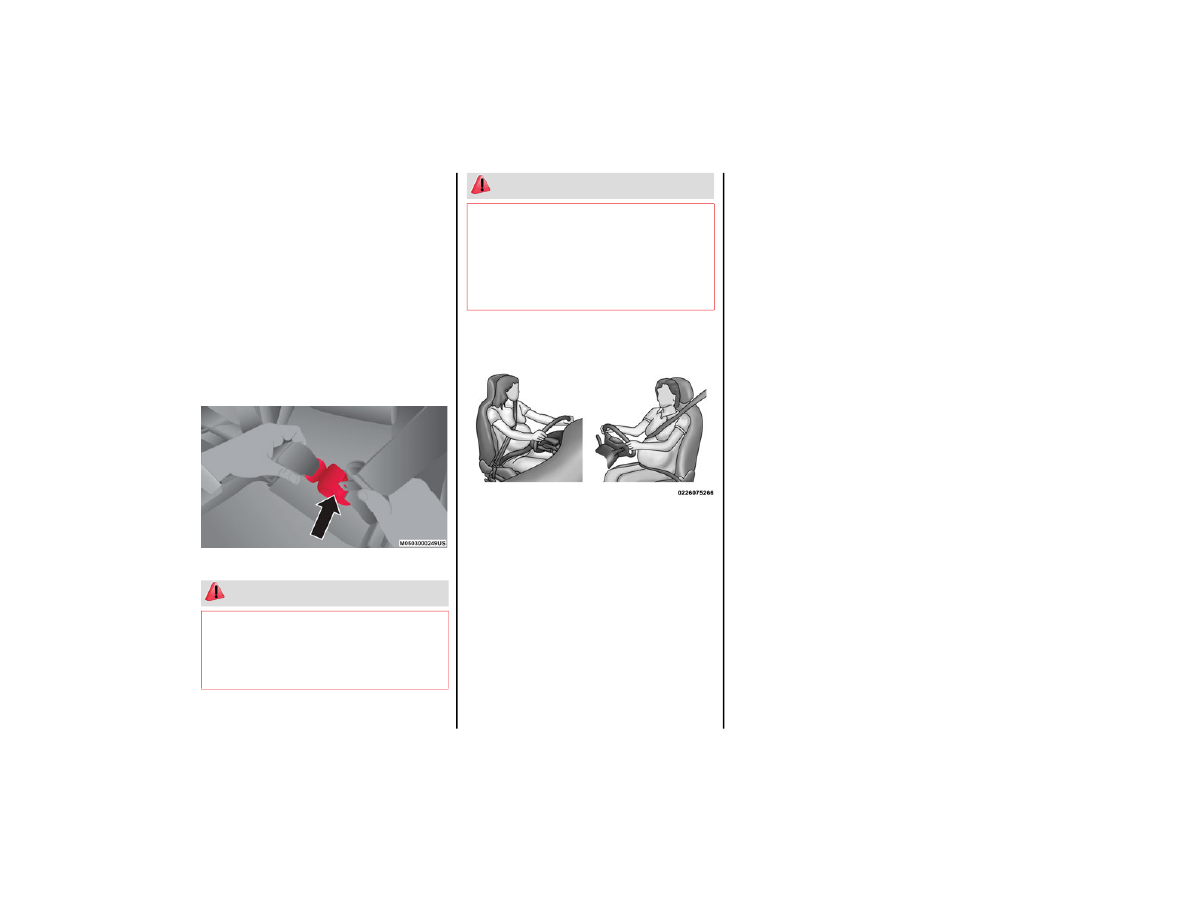

Detaching Mini-Buckle With Seat Belt Tongue

Seat Belts And Pregnant Women

Seat Belts And Pregnant Women

Seat belts must be worn by all occupants

including pregnant women: the risk of injury in

the event of an accident is reduced for the

mother and the unborn child if they are wearing a

seat belt.
Position the lap belt snug and low below the

abdomen and across the strong bones of the

hips. Place the shoulder belt across the chest and

away from the neck. Never place the shoulder

belt behind the back or under the arm.

Seat Belt Pretensioner

The front outboard seat belt system is equipped

with pretensioning devices that are designed to

remove slack from the seat belt in the event of a

collision. These devices may improve the

performance of the seat belt by removing slack

from the seat belt early in a collision. Preten

-

sioners work for all size occupants, including

those in child restraints.
NOTE:

These devices are not a substitute for proper seat

belt placement by the occupant. The seat belt still

must be worn snugly and positioned properly.
The pretensioners are triggered by the Occupant

Restraint Controller (ORC). Like the air bags, the

pretensioners are single use items. A deployed

pretensioner or a deployed air bag must be

replaced immediately.

Energy Management Feature

The front outboard seat belt system is equipped

with an Energy Management feature that may

help further reduce the risk of injury in the event

of a collision. The seat belt system has a retractor

assembly that is designed to release webbing in

a controlled manner.

 WARNING!

If the mini-latch plate and mini-buckle are not

properly connected when the seat belt is

used by an occupant, the seat belt will not be

able to provide proper restraint and will

increase the risk of injury in a collision.

When reattaching the mini-latch plate and

mini-buckle, ensure the seat belt webbing is

not twisted. If the webbing is twisted, follow

the preceding procedure to detach the

mini-latch plate and mini-buckle, untwist the

webbing, and reattach the mini-latch plate

and mini-buckle.

 WARNING!

CarManuals2.com

149

Switchable Automatic Locking Retractors

(ALR)

The seat belts in the passenger seating positions

are equipped with a Switchable Automatic

Locking Retractor (ALR) which is used to secure a

child restraint system. For additional information

on ALR, see

Ú

page 163. The figure below

illustrates the locking feature for each seating

position.

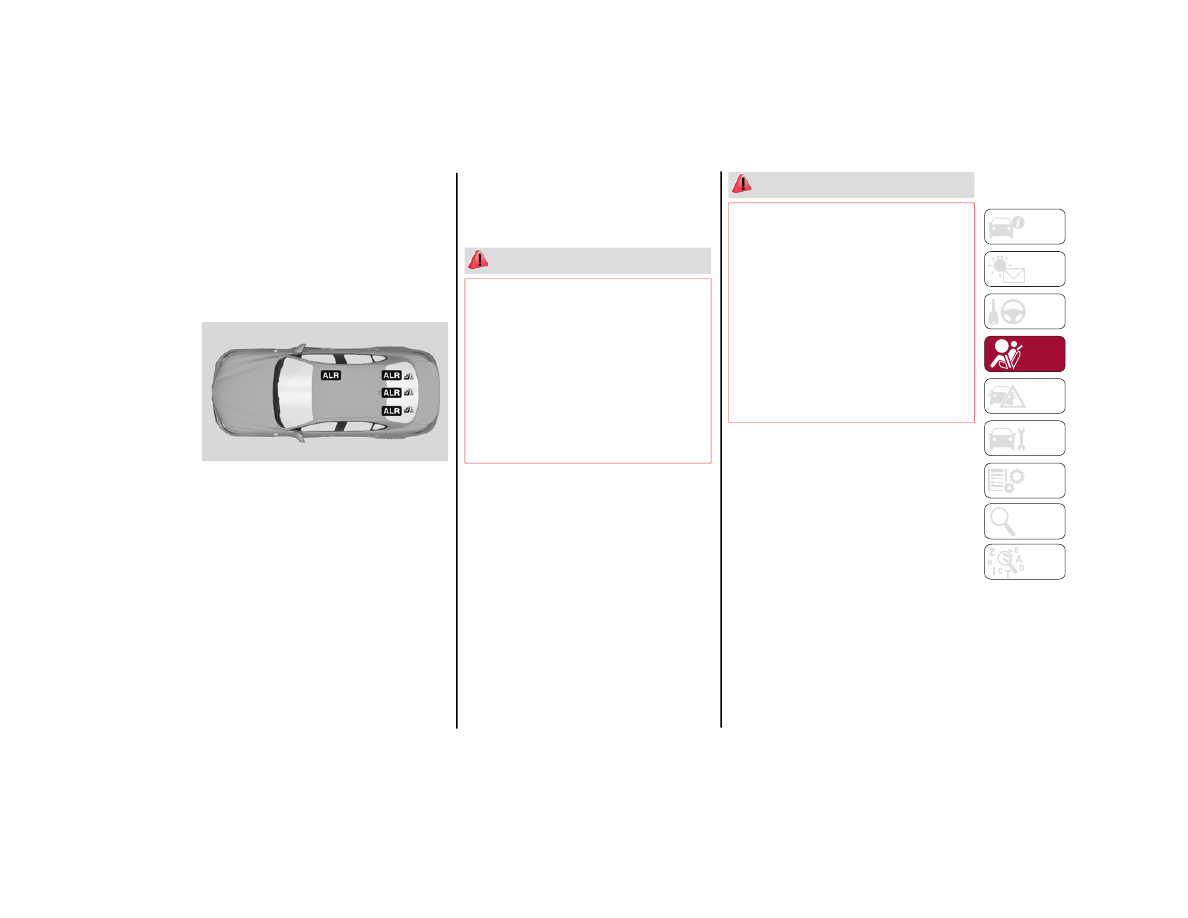

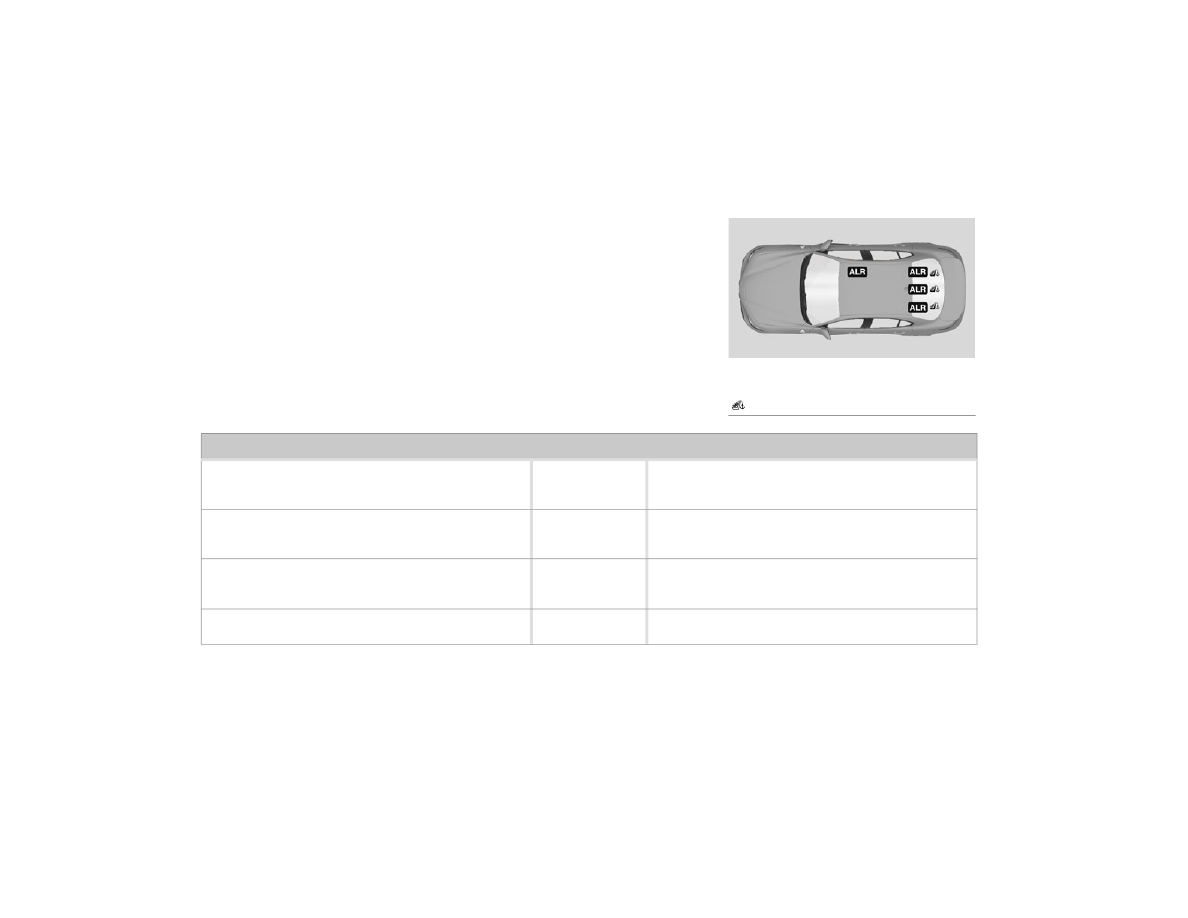

Switchable Automatic Locking Retractor (ALR)

Locations

If the passenger seating position is equipped with

an ALR and is being used for normal usage, only

pull the seat belt webbing out far enough to

comfortably wrap around the occupant’s

mid-section so as to not activate the ALR. If the

ALR is activated, you will hear a clicking sound as

the seat belt retracts. Allow the webbing to retract

completely in this case and then carefully pull out

only the amount of webbing necessary to

comfortably wrap around the occupant’s

mid-section. Slide the latch plate into the buckle

until you hear a "click."
In Automatic Locking Mode, the shoulder belt is

automatically pre-locked. The seat belt will still

retract to remove any slack in the shoulder belt.

Use the Automatic Locking Mode anytime a child

restraint is installed in a seating position that has

a seat belt with this feature. Children 12 years old

and under should always be properly restrained

in the rear seat of a vehicle with a rear seat.

How To Engage The Automatic Locking Mode
1. Buckle the combination lap and shoulder

belt.

2. Grab the shoulder portion and pull downward

until the entire seat belt is extracted.

3. Allow the seat belt to retract. As the seat belt

retracts, you will hear a clicking sound. This

indicates the seat belt is now in the Auto

-

matic Locking Mode.

How To Disengage The Automatic Locking Mode
Unbuckle the combination lap/shoulder belt and

allow it to retract completely to disengage the

Automatic Locking Mode and activate the vehicle

sensitive (emergency) locking mode.

S

UPPLEMENTAL

 R

ESTRAINT

 S

YSTEMS



(SRS)

Some of the safety features described in this

section may be standard equipment on some

models, or may be optional equipment on others.

If you are not sure, ask an authorized dealer.
The air bag system must be ready to protect you

in a collision. The Occupant Restraint Controller

(ORC) monitors the internal circuits and intercon

-

necting wiring associated with the electrical Air

Bag System Components. Your vehicle may be

equipped with the following Air Bag System

Components:

 WARNING!

Never place a rear-facing child restraint in

front of an air bag. A deploying passenger

front air bag can cause death or serious

injury to a child 12 years or younger,

including a child in a rear-facing child

restraint.

Never install a rear-facing child restraint in

the front seat of a vehicle. Only use a

rear-facing child restraint in the rear seat. If

the vehicle does not have a rear seat, do not

transport a rear-facing child restraint in that

vehicle.

 WARNING!

The seat belt assembly must be replaced if

the switchable Automatic Locking Retractor

(ALR) feature or any other seat belt function

is not working properly when checked

according to the procedures in the Service

Manual.

Failure to replace the seat belt assembly

could increase the risk of injury in collisions.

Do not use the Automatic Locking Mode to

restrain occupants who are wearing the seat

belt or children who are using booster seats.

The locked mode is only used to install

rear-facing or forward-facing child restraints

that have a harness for restraining the child.

CarManuals2.com

SAFETY

150

Air Bag System Components

Occupant Restraint Controller (ORC)

Air Bag Warning Light

Steering Wheel and Column

Instrument Panel

Knee Impact Bolsters

Driver and Front Passenger Air Bags

Seat Belt Buckle Switch

Supplemental Side Air Bags

Supplemental Knee Air Bags

Front and Side Impact Sensors

Seat Belt Pretensioners

Seat Track Position Sensors

Air Bag Warning Light

The Occupant Restraint Controller

(ORC) monitors the readiness of the

electronic parts of the air bag system

whenever the ignition switch is in the

START or ON/RUN position. If the ignition switch

is in the OFF position or in the ACC position, the

air bag system is not on and the air bags will not

inflate.
The ORC contains a backup power supply system

that may deploy the air bag system even if the

battery loses power or it becomes disconnected

prior to deployment.
The ORC turns on the Air Bag Warning Light in the

instrument panel for approximately four to eight

seconds for a self-check when the ignition switch

is first in the ON/RUN position. After the

self-check, the Air Bag Warning Light will turn off.

If the ORC detects a malfunction in any part of the

system, it turns on the Air Bag Warning Light,

either momentarily or continuously. A single

chime will sound to alert you if the light comes on

again after initial startup.
The ORC also includes diagnostics that will

illuminate the instrument panel Air Bag Warning

Light if a malfunction is detected that could affect

the air bag system. The diagnostics also record

the nature of the malfunction. While the air bag

system is designed to be maintenance free, if any

of the following occurs, have an authorized dealer

service the air bag system immediately.

The Air Bag Warning Light does not come on

during the four to eight seconds when the

ignition switch is first in the ON/RUN position.

The Air Bag Warning Light remains on after the

four to eight-second interval.

The Air Bag Warning Light comes on intermit

-

tently or remains on while driving.

NOTE:

If the speedometer, tachometer, or any engine

related gauges are not working, the Occupant

Restraint Controller (ORC) may also be disabled.

In this condition the air bags may not be ready to

inflate for your protection. Have an authorized

dealer service the air bag system immediately.

Redundant Air Bag Warning Light

If a fault with the Air Bag Warning Light

is detected, which could affect the

Supplemental Restraint System (SRS),

the Redundant Air Bag Warning Light

will illuminate on the instrument panel. The

Redundant Air Bag Warning Light will stay on until

the fault is cleared. In addition, a single chime will

sound to alert you that the Redundant Air Bag

Warning Light has come on and a fault has been

detected. If the Redundant Air Bag Warning Light

comes on intermittently or remains on while

driving have an authorized dealer service the

vehicle immediately.
For additional information regarding the

Redundant Air Bag Warning Light, see

Ú

page 70.

Front Air Bags

This vehicle has front air bags and lap/shoulder

belts for both the driver and front passenger. The

front air bags are a supplement to the seat belt

restraint systems. The driver front air bag is

mounted in the center of the steering wheel. The

passenger front air bag is mounted in the

instrument panel, above the glove compartment.

The words “SRS AIRBAG” or “AIRBAG” are

embossed on the air bag covers.

 WARNING!

Ignoring the Air Bag Warning Light in your

instrument panel could mean you won’t have

the air bag system to protect you in a collision.

If the light does not come on as a bulb check

when the ignition is first turned on, stays on

after you start the vehicle, or if it comes on as

you drive, have an authorized dealer service

the air bag system immediately.

CarManuals2.com

151

(Continued)

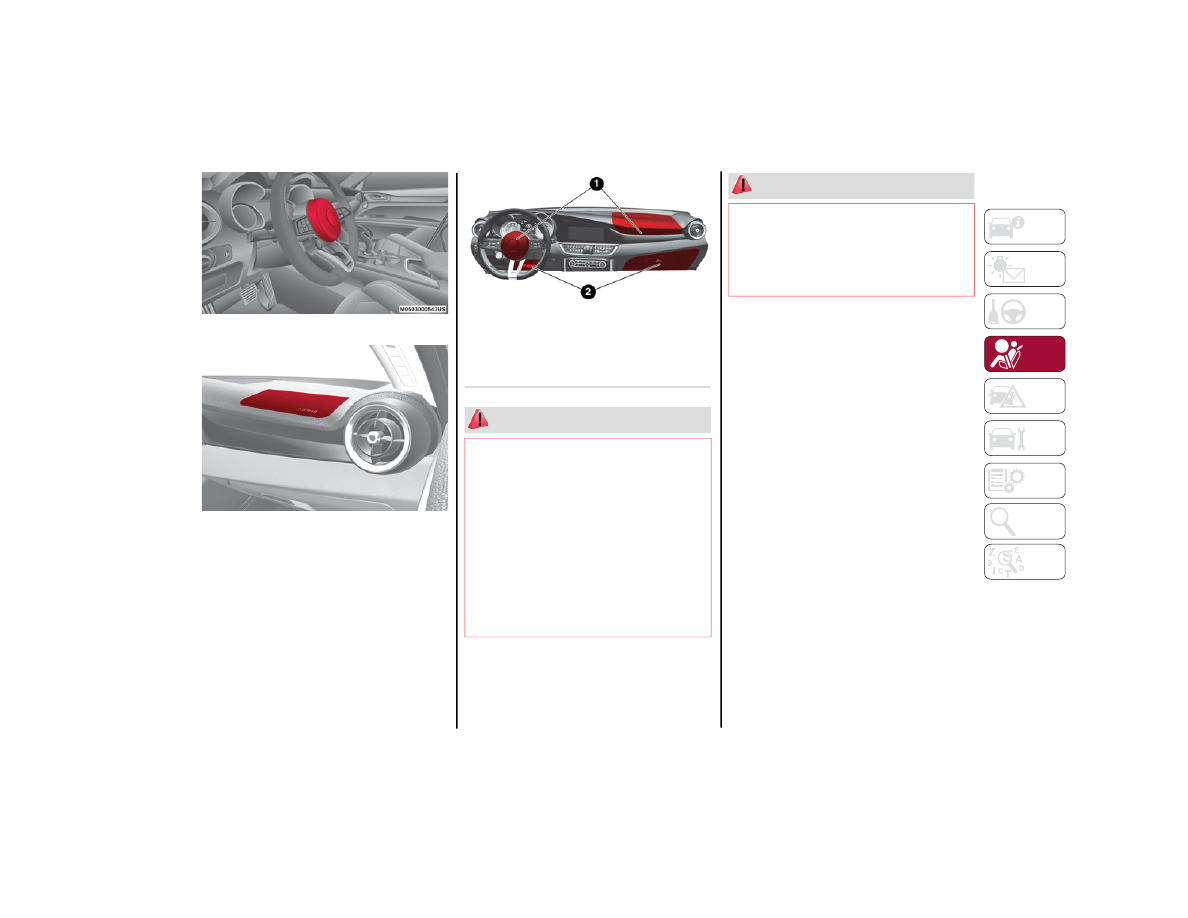

Driver Air Bag

Passenger Air Bag

Front Air Bag/Knee Bolster Locations

Driver And Passenger Front Air Bag

Features

The Advanced Front Air Bag system has

multistage driver and front passenger air bags.

This system provides output appropriate to the

severity and type of collision as determined by the

Occupant Restraint Controller (ORC), which may

receive information from the front impact sensors

(if equipped) or other system components.
The first stage inflator is triggered immediately

during an impact that requires air bag

deployment. A low energy output is used in less

severe collisions. A higher energy output is used

for more severe collisions.
This vehicle may be equipped with a driver and/

or front passenger seat belt buckle switch that

detects whether the driver or front passenger

seat belt is buckled. The seat belt buckle switch

may adjust the inflation rate of the Advanced

Front Air Bags.
This vehicle may be equipped with driver and/or

front passenger seat track position sensors that

may adjust the inflation rate of the Advanced

Front Air Bags based upon seat position.

1 — Driver And Passenger Front Air Bags
2 — Driver And Passenger Knee Impact

Bolsters/Supplemental Knee Air Bags

 WARNING!

Being too close to the steering wheel or

instrument panel during front air bag

deployment could cause serious injury,

including death. Air bags need room to

inflate. Sit back, comfortably extending your

arms to reach the steering wheel or

instrument panel.

Never place a rear-facing child restraint in

front of an air bag. A deploying passenger

front air bag can cause death or serious

injury to a child 12 years or younger,

including a child in a rear-facing child

restraint.

Never install a rear-facing child restraint in

the front seat of a vehicle. Only use a

rear-facing child restraint in the rear seat. If

the vehicle does not have a rear seat, do not

transport a rear-facing child restraint in that

vehicle.

 WARNING!

CarManuals2.com

SAFETY

152

Front Air Bag Operation

Front Air Bags are designed to provide additional

protection by supplementing the seat belts. Front

air bags are not expected to reduce the risk of

injury in rear, side, or rollover collisions. The front

air bags will not deploy in all frontal collisions,

including some that may produce substantial

vehicle damage — for example, some pole

collisions, truck underrides, and angle offset

collisions.
On the other hand, depending on the type and

location of impact, front air bags may deploy in

crashes with little vehicle front-end damage but

that produce a severe initial deceleration.

Because air bag sensors measure vehicle

deceleration over time, vehicle speed and

damage by themselves are not good indicators of

whether or not an air bag should have deployed.
Seat belts are necessary for your protection in all

collisions, and also are needed to help keep you

in position, away from an inflating air bag.
When the Occupant Restraint Controller (ORC)

detects a collision requiring the front air bags, it

signals the inflator units. A large quantity of

non-toxic gas is generated to inflate the front air

bags.
The steering wheel hub trim cover and the upper

passenger side of the instrument panel separate

and fold out of the way as the air bags inflate to

their full size. The front air bags fully inflate in less

time than it takes to blink your eyes. The front air

bags then quickly deflate while helping to restrain

the driver and front passenger.

Knee Impact Bolsters

The Knee Impact Bolsters help protect the knees

of the driver and front passenger, and position

the front occupants for improved interaction with

the front air bags.

Supplemental Driver And Front

Passenger Knee Air Bags

This vehicle is equipped with a Supplemental

Driver Knee Air Bag mounted in the instrument

panel below the steering column and a Supple

-

mental Passenger Knee Air Bag mounted in the

instrument panel below the glove compartment.

The Supplemental Knee Air Bags provide

enhanced protection during a frontal impact by

working together with the seat belts, preten

-

sioners, and front air bags.

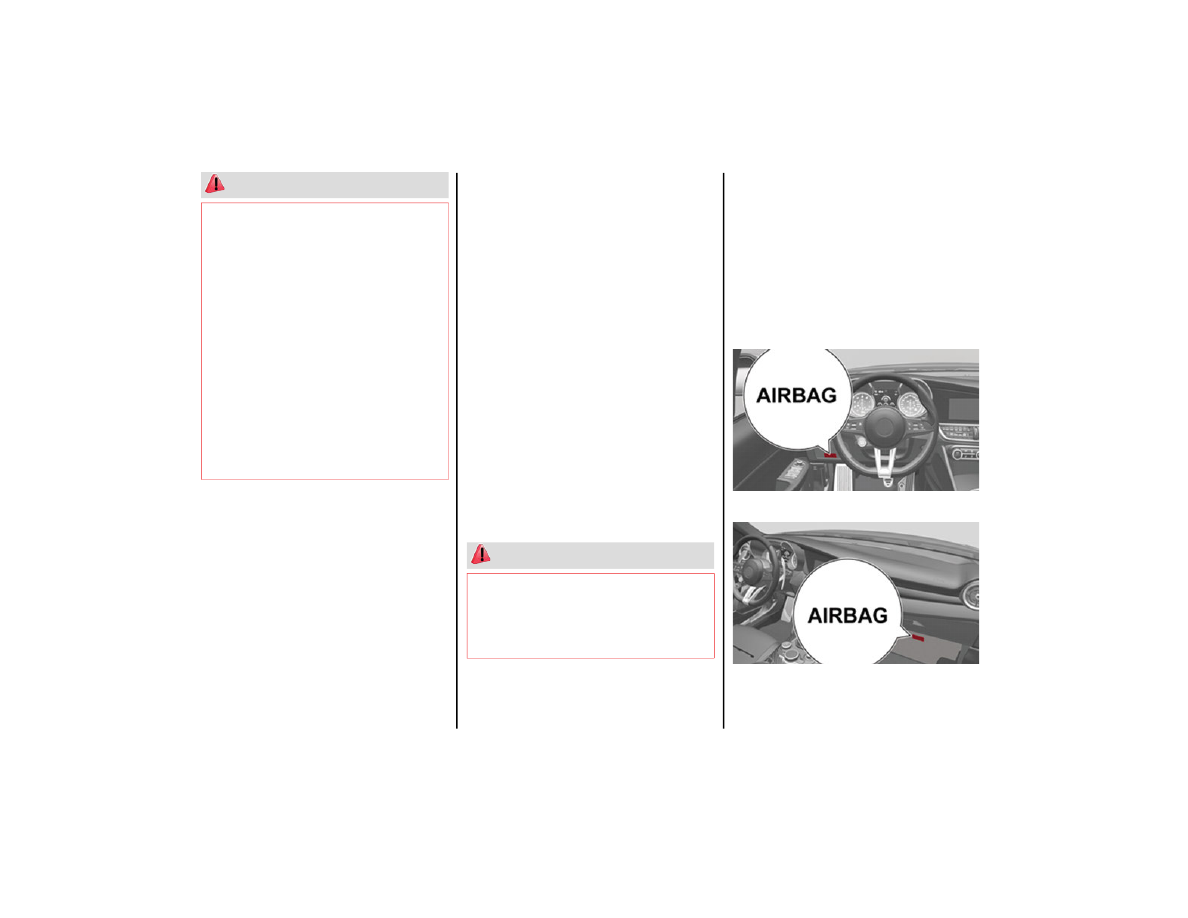

Driver Knee Air Bag

Front Passenger Knee Air Bag

 WARNING!

No objects should be placed over or near the

air bag on the instrument panel or steering

wheel because any such objects could cause

harm if the vehicle is in a collision severe

enough to cause the air bag to inflate.

Do not put anything on or around the air bag

covers or attempt to open them manually.

You may damage the air bags and you could

be injured because the air bags may no

longer be functional. The protective covers

for the air bag cushions are designed to open

only when the air bags are inflating.

Relying on the air bags alone could lead to

more severe injuries in a collision. The air

bags work with your seat belt to restrain you

properly. In some collisions, air bags won’t

deploy at all. Always wear your seat belts

even though you have air bags.

 WARNING!

Do not drill, cut, or tamper with the knee

impact bolsters in any way.

Do not mount any accessories to the knee

impact bolsters such as alarm lights, stereos,

citizen band radios, etc.

CarManuals2.com

153

Supplemental Side Air Bags

Supplemental Seat-Mounted Side Air Bags

(SABs)
This vehicle is equipped with Supplemental

Seat-Mounted Side Air Bags (SABs).
Supplemental Seat-Mounted Side Air Bags (SABs)

are located in the outboard side of the front

seats. The SABs are marked with a “SRS AIRBAG”

or “AIRBAG” on a label or on the seat trim on the

outboard side of the seats.
The SABs may help to reduce the risk of occupant

injury during certain side impacts, in addition to

the injury reduction potential provided by the seat

belts and body structure.

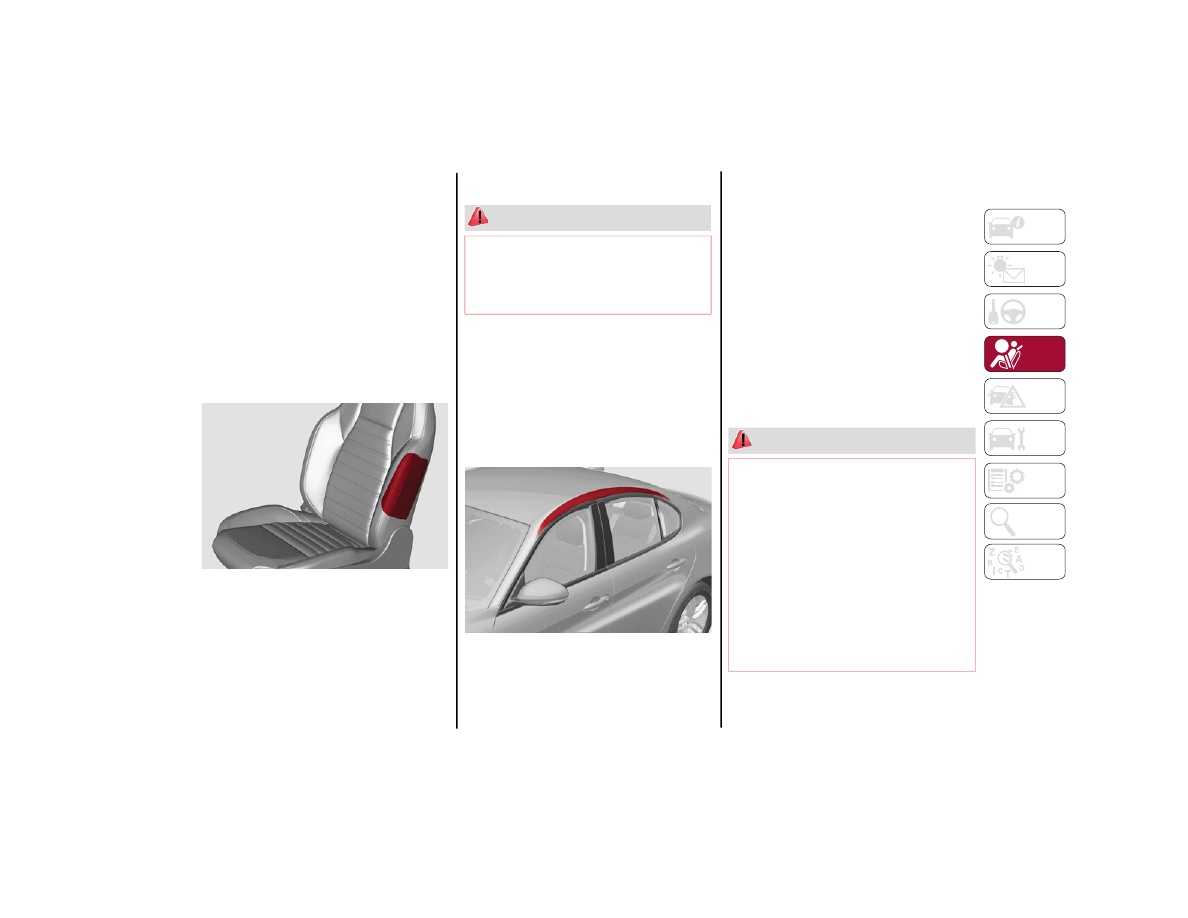

Front Supplemental Seat-Mounted Side Air Bag

When the SAB deploys, it opens the seam on the

outboard side of the seatback’s trim cover. The

inflating SAB deploys through the seat seam into

the space between the occupant and the door.

The SAB moves at a very high speed and with

such a high force that it could injure occupants if

they are not seated properly, or if items are

positioned in the area where the SAB inflates.

Children are at an even greater risk of injury from

a deploying air bag.

Supplemental Side Air Bag Inflatable Curtains

(SABICs)
This vehicle is equipped with Supplemental Side

Air Bag Inflatable Curtains (SABICs).
Supplemental Side Air Bag Inflatable Curtains

(SABICs) are located above the side windows. The

trim covering the SABICs is labeled “SRS AIRBAG”

or “AIRBAG.”

Supplemental Side Air Bag Inflatable Curtain

(SABIC) Location

SABICs may help reduce the risk of head and

other injuries to front and rear seat outboard

occupants in certain side impacts, in addition to

the injury reduction potential provided by the seat

belts and body structure.
The SABIC deploys downward, covering the side

windows. An inflating SABIC pushes the outside

edge of the headliner out of the way and covers

the window. The SABICs inflate with enough force

to injure occupants if they are not belted and

seated properly, or if items are positioned in the

area where the SABICs inflate. Children are at an

even greater risk of injury from a deploying air

bag.
The SABICs may help reduce the risk of partial or

complete ejection of vehicle occupants through

side windows in certain side impact events.

 WARNING!

Do not use accessory seat covers or place

objects between you and the Side Air Bags;

the performance could be adversely affected

and/or objects could be pushed into you,

causing serious injury.

 WARNING!

Do not mount equipment, or stack luggage or

other cargo up high enough to block the

deployment of the SABICs. The trim covering

above the side windows where the SABIC and

its deployment path are located should

remain free from any obstructions.

In order for the SABICs to work as intended,

do not install any accessory items in your

vehicle which could alter the roof. Do not add

an aftermarket sunroof to your vehicle. Do

not add roof racks that require permanent

attachments (bolts or screws) for installation

on the vehicle roof. Do not drill into the roof

of the vehicle for any reason.

CarManuals2.com

SAFETY

154

(Continued)

Side Impacts
The Side Air Bags are designed to activate in

certain side impacts. The Occupant Restraint

Controller (ORC) determines whether the

deployment of the Side Air Bags in a particular

impact event is appropriate, based on the

severity and type of collision. The side impact

sensors aid the ORC in determining the

appropriate response to impact events. The

system is calibrated to deploy the Side Air Bags

on the impact side of the vehicle during impacts

that require Side Air Bag occupant protection. In

side impacts, the Side Air Bags deploy

independently; a left side impact deploys the left

Side Air Bags only and a right-side impact deploys

the right Side Air Bags only. Vehicle damage by

itself is not a good indicator of whether or not

Side Air Bags should have deployed.
The Side Air Bags will not deploy in all side

collisions, including some collisions at certain

angles, or some side collisions that do not impact

the area of the passenger compartment. The Side

Air Bags may deploy during angled or offset

frontal collisions where the front air bags deploy.
Side Air Bags are a supplement to the seat belt

restraint system. Side Air Bags deploy in less time

than it takes to blink your eyes.

NOTE:

Air bag covers may not be obvious in the interior

trim, but they will open during air bag deploy

-

ment.

Rollover Events
Side Air Bags and seat belt pretensioners are

designed to activate in certain rollover events.

The Occupant Restraint Controller (ORC)

determines whether deployment in a particular

rollover event is appropriate, based on the

severity and type of collision. Vehicle damage by

itself is not a good indicator of whether or not

Side Air Bags and seat belt pretensioners should

have deployed.
The Side Air Bags and seat belt pretensioners will

not deploy in all rollover events. The rollover

sensing system determines if a rollover event

may be in progress and whether deployment is

appropriate. In the event the vehicle experiences

a rollover or near rollover event, and deployment

is appropriate, the rollover sensing system will

deploy the side air bags and seat belt preten

-

sioners on both sides of the vehicle.
The SABICs may help reduce the risk of partial or

complete ejection of vehicle occupants through

side windows in certain rollover or side impact

events.

Air Bag System Components

NOTE:

The Occupant Restraint Controller (ORC) moni

-

tors the internal circuits and interconnecting

wiring associated with electrical Air Bag System

Components listed below:

Occupant Restraint Controller (ORC)

Air Bag Warning Light

Steering Wheel and Column

Instrument Panel

Knee Impact Bolsters

 WARNING!

Occupants, including children, who are up

against or very close to Side Air Bags can be

seriously injured or killed. Occupants,

including children, should never lean on or

sleep against the door, side windows, or area

where the side air bags inflate, even if they

are in an infant or child restraint.

Seat belts (and child restraints where

appropriate) are necessary for your

protection in all collisions. They also help

keep you in position, away from an inflating

Side Air Bag. To get the best protection from

the Side Air Bags, occupants must wear their

seat belts properly and sit upright with their

backs against the seats. Children must be

properly restrained in a child restraint or

booster seat that is appropriate for the size

of the child.

 WARNING!

Side Air Bags need room to inflate. Do not

lean against the door or window. Sit upright

in the center of the seat.

Being too close to the Side Air Bags during

deployment could cause you to be severely

injured or killed.

Relying on the Side Air Bags alone could lead

to more severe injuries in a collision. The

Side Air Bags work with your seat belt to

restrain you properly. In some collisions, Side

Air Bags won’t deploy at all. Always wear your

seat belt even though you have Side Air Bags.

 WARNING!

CarManuals2.com

155

Driver and Front Passenger Air Bags

Seat Belt Buckle Switch

Supplemental Side Air Bags

Supplemental Knee Air Bags

Front and Side Impact Sensors

Seat Belt Pretensioners

Seat Track Position Sensors

If A Deployment Occurs

The front air bags are designed to deflate

immediately after deployment.
NOTE:

Front and/or side air bags will not deploy in all

collisions. This does not mean something is

wrong with the air bag system.
If you do have a collision which deploys the air

bags, any or all of the following may occur:

The air bag material may sometimes cause

abrasions and/or skin reddening to the

occupants as the air bags deploy and unfold.

The abrasions are similar to friction rope burns

or those you might get sliding along a carpet or

gymnasium floor. They are not caused by

contact with chemicals. They are not

permanent and normally heal quickly.

However, if you haven’t healed significantly

within a few days, or if you have any blistering,

see your doctor immediately.

As the air bags deflate, you may see some

smoke-like particles. The particles are a normal

by-product of the process that generates the

non-toxic gas used for air bag inflation. These

airborne particles may irritate the skin, eyes,

nose, or throat. If you have skin or eye irritation,

rinse the area with cool water. For nose or throat

irritation, move to fresh air. If the irritation

continues, see your doctor. If these particles

settle on your clothing, follow the garment

manufacturer’s instructions for cleaning.

Do not drive your vehicle after the air bags have

deployed. If you are involved in another collision,

the air bags will not be in place to protect you.

NOTE:

Air bag covers may not be obvious in the

interior trim, but they will open during air bag

deployment.

After any collision, the vehicle should be taken

to an authorized dealer immediately.

Enhanced Accident Response System

In the event of an impact, if the communication

network remains intact, and the power remains

intact, depending on the nature of the event, the

Occupant Restraint Controller (ORC) will

determine whether to have the Enhanced

Accident Response System perform the following

functions:

Cut off fuel to the engine (if equipped)

Cut off battery power to the electric motor (if

equipped)

Flash hazard lights as long as the battery has

power

Turn on the interior lights, which remain on as

long as the battery has power or for

15 minutes from the intervention of the

Enhanced Accident Response System

Unlock the power door locks

Your vehicle may also be designed to perform any

of these other functions in response to the

Enhanced Accident Response System:

Turn off the Fuel Filter Heater, Turn off the

HVAC Blower Motor, Close the HVAC

Circulation Door

Cut off battery power to the:

Engine

Electric Motor (if equipped)

Electric power steering

Brake booster

Electric park brake

Automatic transmission gear selector

Horn

Front wiper

Headlamp washer pump (if equipped)

NOTE:

After an accident, remember to cycle the ignition

to the OFF position and remove the key from the

ignition switch to avoid draining the battery. Care

-

fully check the vehicle for fuel leaks in the engine

compartment and on the ground near the engine

compartment and fuel tank before resetting the

system and starting the engine. If there are no

fuel leaks or damage to the vehicle electrical

devices (e.g. headlights) after an accident, reset

the system by following the procedure described

below. If you have any doubt, contact an autho

-

rized dealer.

 WARNING!

Deployed air bags and seat belt pretensioners

cannot protect you in another collision. Have

the air bags, seat belt pretensioners, and the

seat belt retractor assemblies replaced by an

authorized dealer immediately. Also, have the

Occupant Restraint Controller System serviced

as well.

CarManuals2.com

SA

FETY

156

Enhanced Accident Response System Reset Procedure

After the event occurs, when the system is active, a message regarding fuel cutoff is displayed. Turn the ignition switch from ignition ACC or ON/RUN to

ignition OFF. Carefully check the vehicle for fuel leaks in the engine compartment and on the ground near the engine compartment and fuel tank before

resetting the system and starting the engine.
Depending on the nature of the event the left and right turn signal lights, located in the instrument panel, may both be blinking and will continue to blink.

In order to move your vehicle to the side of the road, you must follow the system reset procedure.

Customer Action

NOTE:

Each step MUST BE held for at least two seconds

Customer Will See

1. Turn ignition OFF. (Turn Signal Switch Must be placed in Neutral State).

2. Turn ignition ACC/ON/RUN.

Right turn light BLINKS.

Left turn light is OFF.

3. Turn right turn signal switch ON.

Right turn light is ON SOLID.

Left turn light BLINKS.

4. Place turn signal in neutral state.

Right turn light is OFF.

Left turn light BLINKS.

5. Turn left turn signal switch ON.

Right turn light BLINKS.

Left turn light is ON SOLID.

6. Place turn signal in neutral state.

Right turn light BLINKS.

Left turn light is OFF.

7. Turn right turn signal switch ON.

Right turn light is ON SOLID.

Left turn light BLINKS.

8. Place turn signal in neutral state.

Right turn light is OFF.

Left turn light BLINKS.

9. Turn left turn signal switch ON.

Right turn light is ON SOLID.

Left turn light is ON SOLID.

10. Turn left turn signal switch OFF. (Turn Signal Switch Must be placed in

Neutral State).

Right turn light is OFF.

Left turn light is OFF.

11. Turn ignition OFF.

CarManuals2.com

157

(Continued)

If a reset procedure step is not completed within 60 seconds, then the turn signal lights will blink and the reset procedure must be performed again in order

to be successful.

Maintaining Your Air Bag System

Event Data Recorder (EDR)

This vehicle is equipped with an event data

recorder (EDR). The main purpose of an EDR is to

record, in certain crash or near crash-like

situations, such as an air bag deployment or

hitting a road obstacle, data that will assist in

understanding how a vehicle’s systems

performed. The EDR is designed to record data

related to vehicle dynamics and safety systems

for a short period of time, typically 30 seconds or

less. The EDR in this vehicle is designed to record

such data as:

How various systems in your vehicle were

operating;

Whether or not the driver and passenger safety

belts were buckled/fastened;

How far (if at all) the driver was depressing the

accelerator and/or brake pedal; and,

How fast the vehicle was traveling.

These data can help provide a better

understanding of the circumstances in which

crashes and injuries occur.
NOTE:

EDR data are recorded by your vehicle only if a

non-trivial crash situation occurs; no data are

recorded by the EDR under normal driving condi

-

tions and no personal data (e.g., name, gender,

age, and crash location) are recorded. However,

other parties, such as law enforcement, could

combine the EDR data with the type of personally

identifying data routinely acquired during a crash

investigation.

12. Turn ignition ACC/ON/RUN. (Entire sequence needs to be completed

within one minute or sequence will need to be repeated).

System is now reset and the engine may be started.

Turn hazard flashers OFF (Manually).

Customer Action

NOTE:

Each step MUST BE held for at least two seconds

Customer Will See

 WARNING!

Modifications to any part of the air bag system

could cause it to fail when you need it. You

could be injured if the air bag system is not

there to protect you. Do not modify the

components or wiring, including adding any

kind of badges or stickers to the steering wheel

hub trim cover or the upper passenger side of

the instrument panel. Do not modify the front

fascia/bumper, vehicle body structure, or add

aftermarket side steps or running boards.

It is dangerous to try to repair any part of the air

bag system yourself. Be sure to tell anyone who

works on your vehicle that it has an air bag

system.

Do not attempt to modify any part of your air

bag system. The air bag may inflate accidentally

or may not function properly if modifications

are made. Take your vehicle to an authorized

dealer for any air bag system service. If your

seat, including your trim cover and cushion,

needs to be serviced in any way (including

removal or loosening/tightening of seat

attachment bolts), take the vehicle to an

authorized dealer. Only manufacturer approved

seat accessories may be used. If it is necessary

to modify the air bag system for persons with

disabilities, contact an authorized dealer.

 WARNING!

CarManuals2.com

SA

FETY

158

To read data recorded by an EDR, special

equipment is required, and access to the vehicle

or the EDR is needed. In addition to the vehicle

manufacturer, other parties, such as law

enforcement, that have the special equipment,

can read the information if they have access to

the vehicle or the EDR.

C

HILD

 R

ESTRAINTS



Everyone in your vehicle needs to be buckled up

at all times, including babies and children. Every

state in the United States, and every Canadian

province, requires that small children ride in

proper restraint systems. This is the law, and you

can be prosecuted for ignoring it.
Children 12 years or younger should ride properly

buckled up in a rear seat, if available. According

to crash statistics, children are safer when

properly restrained in the rear seats rather than

in the front.

There are different sizes and types of restraints

for children from newborn size to the child almost

large enough for an adult safety belt. Always

check the child seat Owner’s Manual to make

sure you have the correct seat for your child.

Carefully read and follow all the instructions and

warnings in the child restraint Owner’s Manual

and on all the labels attached to the child

restraint.
Before buying any restraint system, make sure

that it has a label certifying that it meets all

applicable Safety Standards. You should also

make sure that you can install it in the vehicle

where you will use it.
NOTE:

For additional information, refer to http://

www.nhtsa.gov/parents-and-caregivers or call:

1–888–327–4236

Canadian residents should refer to Transport

Canada’s website for additional information:

http://www.tc.gc.ca/en/services/road/

child-car-seat-safety.html

Summary Of Recommendations For Restraining Children In Vehicles

 WARNING!

In a collision, an unrestrained child can

become a projectile inside the vehicle. The

force required to hold even an infant on your

lap could become so great that you could not

hold the child, no matter how strong you are.

The child and others could be badly injured or

killed. Any child riding in your vehicle should

be in a proper restraint for the child’s size.

Child Size, Height, Weight Or Age

Recommended Type Of Child Restraint

Infants and Toddlers

Children who are two years old or younger and

who have not reached the height or weight limits

of their child restraint

Either an Infant Carrier or a Convertible Child

Restraint, facing rearward in a rear seat of the

vehicle

Small Children

Children who are at least two years old or who

have outgrown the height or weight limit of their

rear-facing child restraint

Forward-Facing Child Restraint with a five-point

Harness, facing forward in a rear seat of the

vehicle

Larger Children

Children who have outgrown their forward-facing

child restraint, but are too small to properly fit

the vehicle’s seat belt

Belt Positioning Booster Seat and the vehicle

seat belt, seated in a rear seat of the vehicle

Children Too Large for Child Restraints

Children 12 years old or younger, who have

outgrown the height or weight limit of their

booster seat

Vehicle Seat Belt, seated in a rear seat of the

vehicle

CarManuals2.com

159

(Continued)

Infant And Child Restraints

Safety experts recommend that children ride

rear-facing in the vehicle until they are two years

old or until they reach either the height or weight

limit of their rear-facing child restraint. Two types

of child restraints can be used rear-facing: infant

carriers and convertible child seats.
The infant carrier is only used rear-facing in the

vehicle. It is recommended for children from birth

until they reach the weight or height limit of the

infant carrier. Convertible child seats can be used

either rear-facing or forward-facing in the vehicle.

Convertible child seats often have a higher weight

limit in the rear-facing direction than infant

carriers do, so they can be used rear-facing by

children who have outgrown their infant carrier

but are still less than at least two years old.

Children should remain rear-facing until they

reach the highest weight or height allowed by

their convertible child seat.

Older Children And Child Restraints

Children who are two years old or who have

outgrown their rear-facing convertible child seat

can ride forward-facing in the vehicle.

Forward-facing child seats and convertible child

seats used in the forward-facing direction are for

children who are over two years old or who have

outgrown the rear-facing weight or height limit of

their rear-facing convertible child seat. Children

should remain in a forward-facing child seat with

a harness for as long as possible, up to the

highest weight or height allowed by the child seat.
All children whose weight or height is above the

forward-facing limit for the child seat should use

a belt-positioning booster seat until the vehicle’s

seat belts fit properly. If the child cannot sit with

knees bent over the vehicle’s seat cushion while

the child’s back is against the seatback, they

should use a belt-positioning booster seat. The

child and belt-positioning booster seat are held in

the vehicle by the seat belt.

Children Too Large For Booster Seats

Children who are large enough to wear the

shoulder belt comfortably, and whose legs are

long enough to bend over the front of the seat

when their back is against the seatback, should

use the seat belt in a rear seat. Use this simple

5-step test to decide whether the child can use

the vehicle’s seat belt alone:
1. Can the child sit all the way back against the

back of the vehicle seat?

2. Do the child’s knees bend comfortably over

the front of the vehicle seat while the child is

still sitting all the way back?

 WARNING!

Never place a rear-facing child restraint in

front of an air bag. A deploying passenger

front air bag can cause death or serious

injury to a child 12 years or younger,

including a child in a rear-facing child

restraint.

Never install a rear-facing child restraint in

the front seat of a vehicle. Only use a

rear-facing child restraint in the rear seat. If

the vehicle does not have a rear seat, do not

transport a rear-facing child restraint in that

vehicle.

 WARNING!

Improper installation can lead to failure of an

infant or child restraint. It could come loose

in a collision. The child could be badly injured

or killed. Follow the child restraint

manufacturer’s directions exactly when

installing an infant or child restraint.

After a child restraint is installed in the

vehicle, do not move the vehicle seat forward

or rearward because it can loosen the child

restraint attachments. Remove the child

restraint before adjusting the vehicle seat

position. When the vehicle seat has been

adjusted, reinstall the child restraint.

When your child restraint is not in use,

secure it in the vehicle with the seat belt or

LATCH anchorages, or remove it from the

vehicle. Do not leave it loose in the vehicle. In

a sudden stop or accident, it could strike the

occupants or seatbacks and cause serious

personal injury.

 WARNING!

CarManuals2.com

SA

FETY

160

3. Does the shoulder belt cross the child’s

shoulder between the neck and arm?

4. Is the lap part of the belt as low as possible,

touching the child’s thighs and not the

stomach?

5. Can the child stay seated like this for the

whole trip?

If the answer to any of these questions was “no”,

then the child still needs to use a booster seat in

this vehicle. If the child is using the lap/shoulder

belt, check seat belt fit periodically and make

sure the seat belt buckle is latched. A child’s

squirming or slouching can move the belt out of

position. If the shoulder belt contacts the face or

neck, move the child closer to the center of the

vehicle, or use a booster seat to position the seat

belt on the child correctly.

Recommendations For Attaching Child Restraints

 WARNING!

Never allow a child to put the shoulder belt

under an arm or behind their back. In a crash,

the shoulder belt will not protect a child

properly, which may result in serious injury or

death. A child must always wear both the lap

and shoulder portions of the seat belt

correctly.

Restraint Type

Combined Weight

of the Child + Child

Restraint

Use Any Attachment Method Shown With An “X” Below

LATCH – Lower

Anchors Only

Seat Belt Only

LATCH – Lower

Anchors + Top

Tether Anchor

Seat Belt + Top

Tether Anchor

Rear-Facing Child

Restraint

Up to 65 lb

(29.5 kg)

X

X

Rear-Facing Child

Restraint

More than 65 lb

(29.5 kg)

X

Forward-Facing Child

Restraint

Up to 65 lb

(29.5 kg)

X

X

Forward-Facing Child

Restraint

More than 65 lb

(29.5 kg)

X

CarManuals2.com

161

Lower Anchors And Tethers For CHildren

(LATCH) Restraint System

LATCH Label

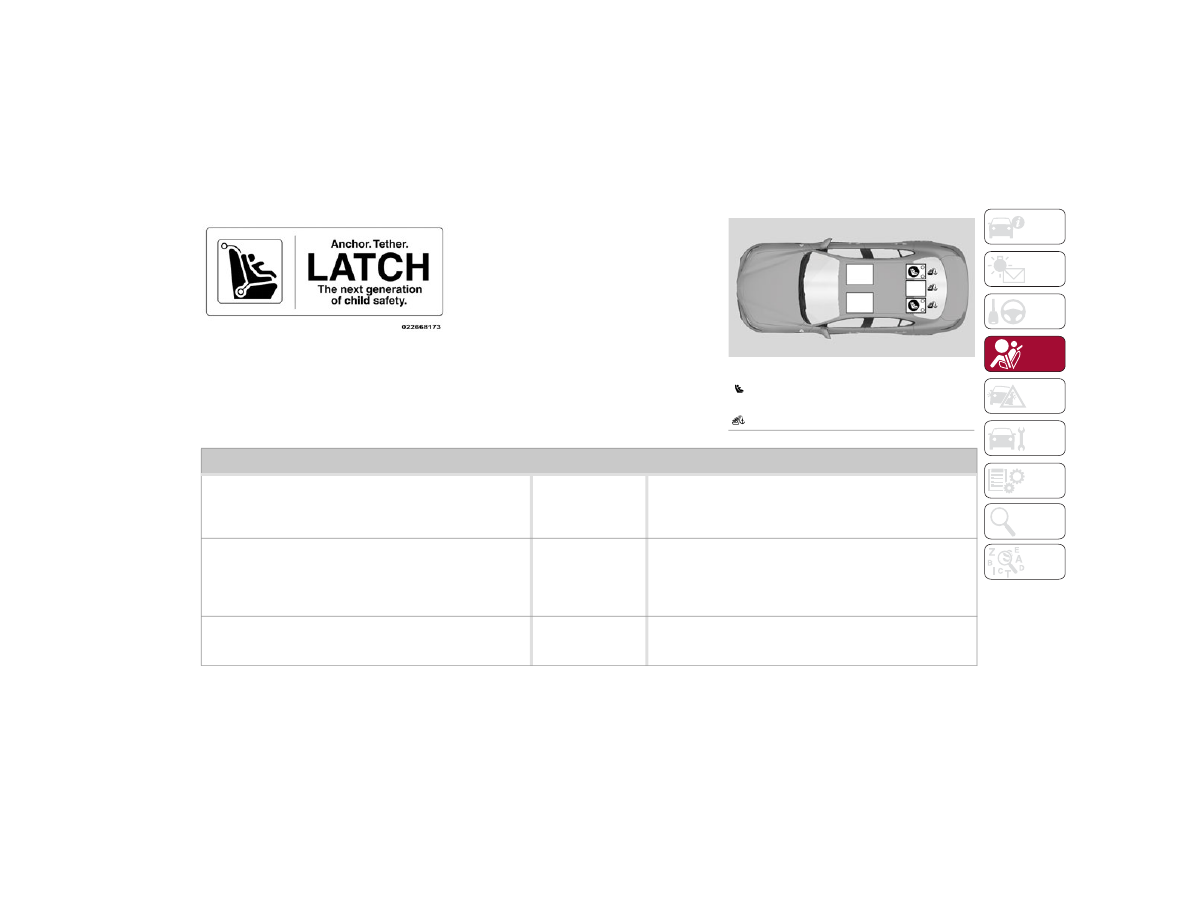

Your vehicle is equipped with the child restraint

anchorage system called LATCH, which stands for

Lower Anchors and Tethers for CHildren. The

LATCH system has three vehicle anchor points for

installing LATCH-equipped child seats. There are

two lower anchorages located at the back of the

seat cushion where it meets the seatback and

one top tether anchorage located behind the

seating position. These anchorages are used to

install LATCH-equipped child seats without using

the vehicle’s seat belts. Some seating positions

may have a top tether anchorage but no lower

anchorages. In these seating positions, the seat

belt must be used with the top tether anchorage

to install the child restraint. Please see the

following table for more information.

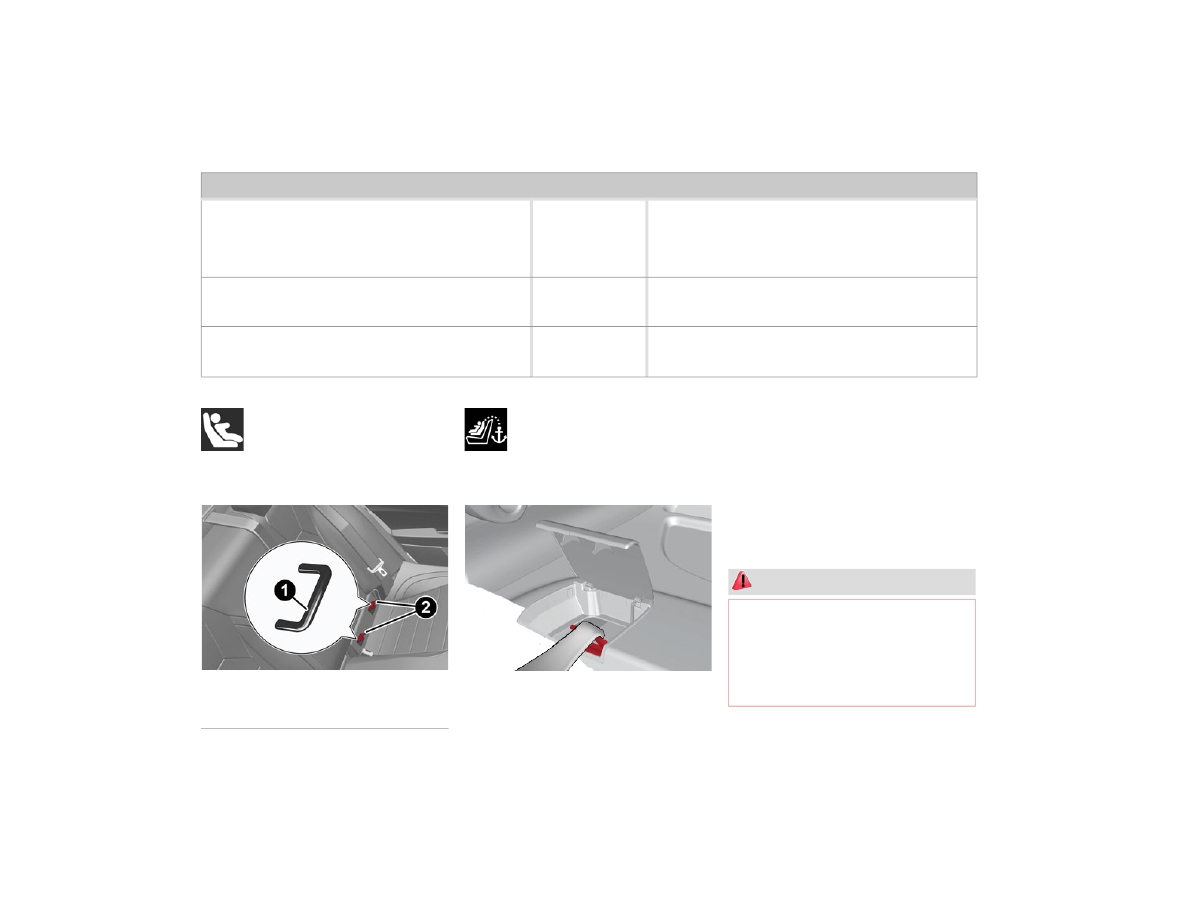

LATCH Positions For Installing Child

Restraints In This Vehicle

LATCH Positions

 Lower Anchorage Symbol

(2 Anchorages Per Seating Position)

 Top Tether Anchorage Symbol

Frequently Asked Questions About Installing Child Restraints With LATCH

What is the weight limit (child’s weight + weight of the child

restraint) for using the LATCH anchorage system to attach the

child restraint?

65 lbs

(29.5 kg)

Use the LATCH anchorage system until the combined weight of

the child and the child restraint is 65 lbs (29.5 kg). Use the

seat belt and tether anchor instead of the LATCH system once

the combined weight is more than 65 lbs (29.5 kg).

Can the LATCH anchorages and the seat belt be used together

to attach a rear-facing or forward-facing child restraint?

No

Do not use the seat belt when you use the LATCH anchorage

system to attach a rear-facing or forward-facing child restraint.

Booster seats may be attached to the LATCH anchorages if

allowed by the booster seat manufacturer. See your booster

seat owner’s manual for more information.

Can a child seat be installed in the center position using the

inner LATCH lower anchorages from the outboard seating

positions?

No

Use the seat belt and tether anchor to install a child seat in the

center seating position.

CarManuals2.com

SA

FETY

162

(Continued)

Locating The LATCH Anchorages

The lower anchorages are round bars

that are found at the rear of the seat

cushion where it meets the seatback.

Each anchorage is under a cover with

the anchorage symbol on it. Lift the cover to

access the lower anchorage.

LATCH Anchorage Locations

Locating The Upper Tether Anchorages

There are tether strap anchorages

behind each rear seating position

located in the panel between the rear

seatback and the rear window. They are

found under a plastic cover with the tether

anchorage symbol on it.

Upper Tether Anchorage Location

LATCH-compatible child restraint systems will be

equipped with a rigid bar or a flexible strap on

each side. Each will have a hook or connector to

attach to the lower anchorage and a way to

tighten the connection to the anchorage.

Forward-facing child restraints and some

rear-facing child restraints will also be equipped

with a tether strap. The tether strap will have a

hook at the end to attach to the top tether

anchorage and a way to tighten the strap after it

is attached to the anchorage.

Center Seat LATCH

Can two child restraints be attached using a common lower

LATCH anchorage?

No

Never “share” a LATCH anchorage with two or more child

restraints. If the center position does not have dedicated LATCH

lower anchorages, use the seat belt to install a child seat in the

center position next to a child seat using the LATCH anchorages

in an outboard position.

Can the rear-facing child restraint touch the back of the front

passenger seat?

Yes

The child seat may touch the back of the front passenger seat

if the child restraint manufacturer also allows contact. See your

child restraint owner’s manual for more information.

Can the rear head restraints be removed?

Yes

The head restraints can be removed in every rear seating

position if they interfere with the installation of the child

restraint

Ú

page 36.

Frequently Asked Questions About Installing Child Restraints With LATCH

1 — LATCH Anchorage Bar
2 — LATCH Anchorage Locations

 WARNING!

Do not install a child restraint in the center

position using the LATCH system. This

position is not approved for installing child

seats using the LATCH attachments. You

must use the seat belt and tether anchor to

install a child seat in the center seating

position.

CarManuals2.com

163

Always follow the directions of the child restraint

manufacturer when installing your child restraint.

Not all child restraint systems will be installed as

described here.

To Install A LATCH-Compatible Child

Restraint

If the selected seating position has a Switchable

Automatic Locking Retractor (ALR) seat belt, stow

the seat belt, following the instructions below.

See

Ú

page 163 to check what type of seat belt

each seating position has.
1. Loosen the adjusters on the lower straps and

on the tether strap of the child seat so that

you can more easily attach the hooks or

connectors to the vehicle anchorages.

2. Place the child seat between the lower

anchorages for that seating position. If the

second row seat can be reclined, you may

recline the seat and/or raise the head

restraint (if adjustable) to get a better fit. If

the rear seat can be moved forward and rear

-

ward in the vehicle, you may wish to move it

to its rear-most position to make room for the

child seat. You may also move the front seat

forward to allow more room for the child seat.

3. Attach the lower hooks or connectors of the

child restraint to the lower anchorages in the

selected seating position.

4. If the child restraint has a tether strap,

connect it to the top tether anchorage. See

Ú

page 165 for directions to attach a tether

anchor.

5. Tighten all of the straps as you push the child

restraint rearward and downward into the

seat. Remove slack in the straps according to

the child restraint manufacturer’s instruc

-

tions.

6. Test that the child restraint is installed tightly

by pulling back and forth on the child seat at

the belt path. It should not move more than

1 inch (25.4 mm) in any direction.

How To Stow An Unused Switchable-ALR

(ALR) Seat Belt:

When using the LATCH attaching system to install

a child restraint, stow all ALR seat belts that are

not being used by other occupants or being used

to secure child restraints. An unused belt could

injure a child if they play with it and accidentally

lock the seat belt retractor. Before installing a

child restraint using the LATCH system, buckle

the seat belt behind the child restraint and out of

the child’s reach. If the buckled seat belt

interferes with the child restraint installation,

instead of buckling it behind the child restraint,

route the seat belt through the child restraint belt

path and then buckle it. Do not lock the seat belt.

Remind all children in the vehicle that the seat

belts are not toys and that they should not play

with them.

Installing Child Restraints Using The

Vehicle Seat Belt

Child restraint systems are designed to be

secured in vehicle seats by lap belts or the lap

belt portion of a lap/shoulder belt.

Never use the same lower anchorage to

attach more than one child restraint. See

Ú

page 163 for typical installation

instructions.

 WARNING!

 WARNING!

Improper installation of a child restraint to

the LATCH anchorages can lead to failure of

the restraint. The child could be badly injured

or killed. Follow the child restraint

manufacturer’s directions exactly when

installing an infant or child restraint.

Child restraint anchorages are designed to

withstand only those loads imposed by

correctly-fitted child restraints. Under no

circumstances are they to be used for adult

seat belts, harnesses, or for attaching other

items or equipment to the vehicle.

 WARNING!

Improper installation or failure to properly

secure a child restraint can lead to failure of

the restraint. The child could be badly injured

or killed.

Follow the child restraint manufacturer’s

directions exactly when installing an infant or

child restraint.

CarManuals2.com

SA

FETY

164

The seat belts in the passenger seating positions

are equipped with a Switchable Automatic

Locking Retractor (ALR) that is designed to keep

the lap portion of the seat belt tight around the

child restraint so that it is not necessary to use a

locking clip. The ALR retractor can be “switched”

into a locked mode by pulling all of the webbing

out of the retractor and then letting the webbing

retract back into the retractor. If it is locked, the

ALR will make a clicking noise while the webbing

is pulled back into the retractor.

See the “Automatic Locking Mode” description

Ú

page 149 for additional information on ALR.

Please see the table below and the following

sections for more information.

Lap/Shoulder Belt Systems For Installing

Child Restraints In This Vehicle

Automatic Locking Retractor (ALR) Locations

ALR — Switchable Automatic Locking Retractor

 Top Tether Anchorage Symbol

Frequently Asked Questions About Installing Child Restraints With Seat Belts

What is the weight limit (child’s weight + weight of the child

restraint) for using the Tether Anchor with the seat belt to

attach a forward facing child restraint?

Weight limit of the

Child Restraint

Always use the tether anchor when using the seat belt to install

a forward facing child restraint, up to the recommended weight

limit of the child restraint.

Can the rear-facing child restraint touch the back of the front

passenger seat?

Yes

Contact between the front passenger seat and the child

restraint is allowed, if the child restraint manufacturer also

allows contact.

Can the rear head restraints be removed?

Yes

The head restraints can be removed in every rear seating

position if they interfere with the installation of the child

restraint

Ú

page 36.

Can the buckle stalk be twisted to tighten the seat belt against

the belt path of the child restraint?

No

Do not twist the buckle stalk in a seating position with an ALR

retractor.

CarManuals2.com

165

Installing A Child Restraint With A

Switchable Automatic Locking Retractor

(ALR):

Child restraint systems are designed to be

secured in vehicle seats by lap belts or the lap

belt portion of a lap/shoulder belt.

1. Place the child seat in the center of the

seating position. If the second row seat can

be reclined, you may recline the seat and/or

raise the head restraint (if adjustable) to get

a better fit. If the rear seat can be moved

forward and rearward in the vehicle, you may

wish to move it to its rear-most position to

make room for the child seat. You may also

move the front seat forward to allow more

room for the child seat.

2. Pull enough of the seat belt webbing from the

retractor to pass it through the belt path of

the child restraint. Do not twist the belt

webbing in the belt path.

3. Slide the latch plate into the buckle until you

hear a “click.”

4. Pull on the webbing to make the lap portion

tight against the child seat.

5. To lock the seat belt, pull down on the

shoulder part of the belt until you have pulled

all the seat belt webbing out of the retractor.

Then, allow the webbing to retract back into

the retractor. As the webbing retracts, you will

hear a clicking sound. This means the seat

belt is now in the Automatic Locking mode.

6. Try to pull the webbing out of the retractor. If

it is locked, you should not be able to pull out

any webbing. If the retractor is not locked,

repeat step 5.

7. Finally, pull up on any excess webbing to

tighten the lap portion around the child

restraint while you push the child restraint

rearward and downward into the vehicle seat.

8. If the child restraint has a top tether strap and

the seating position has a top tether

anchorage, connect the tether strap to the

anchorage and tighten the tether strap. See

Ú

page 165 for directions to attach a tether

anchor.

9. Test that the child restraint is installed tightly

by pulling back and forth on the child seat at

the belt path. It should not move more than

1 inch (25.4 mm) in any direction.

Any seat belt system will loosen with time, so

check the belt occasionally, and pull it tight if

necessary.

Installing Child Restraints Using The Top

Tether Anchorage:

1. Look behind the seating position where you

plan to install the child restraint to find the

tether anchorage. You may need to move the

seat forward to provide better access to the

tether anchorage. If there is no top tether

anchorage for that seating position, move the

child restraint to another position in the

vehicle if one is available.

 WARNING!

Improper installation or failure to properly

secure a child restraint can lead to failure of

the restraint. The child could be badly injured

or killed.

Follow the child restraint manufacturer’s

directions exactly when installing an infant or

child restraint.

 WARNING!

Do not attach a tether strap for a rear-facing

car seat to any location in front of the car seat,

including the seat frame or a tether

anchorage. Only attach the tether strap of a

rear-facing car seat to the tether anchorage

that is approved for that seating position,

located behind the top of the vehicle seat. See

Ú

page 163 for the location of approved tether

anchorages in your vehicle.

CarManuals2.com

SAFETY

166

2. Rotate or lift the cover to access the anchor

directly behind the seat where you are

placing the child restraint.

Upper Tether Anchorage Location

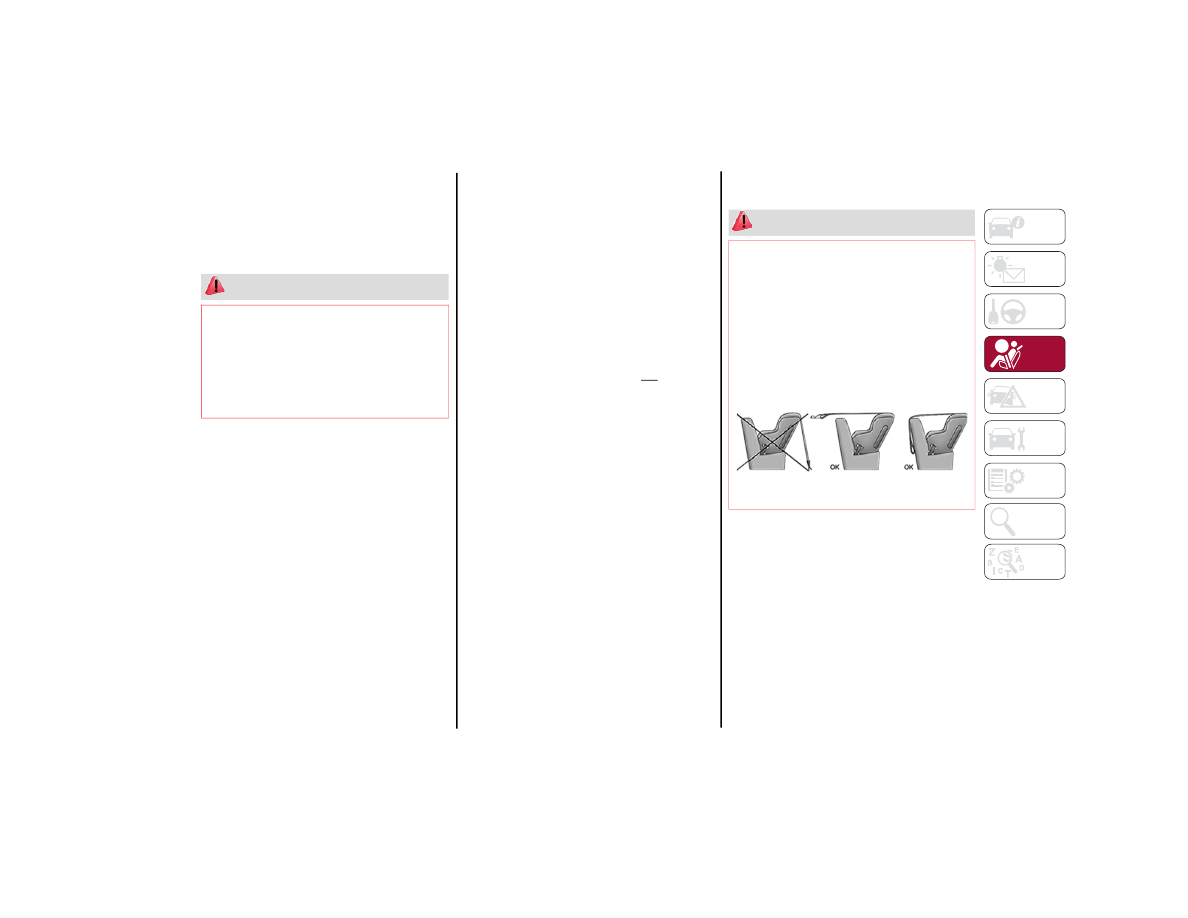

3. Route the tether strap to provide the most

direct path for the strap between the anchor

and the child seat. If your vehicle is equipped

with adjustable rear head restraints, raise

the head restraint, and where possible, route

the tether strap under the head restraint and

between the two posts. If not possible, lower

the head restraint and pass the tether strap

around the outboard side of the head

restraint.

4. Attach the tether strap hook of the child

restraint to the top tether anchorage as

shown in the diagram.

5. Remove slack in the tether strap according to

the child restraint manufacturer’s instruc

-

tions.

SAFETY TIPS

T

RANSPORTING

 P

ASSENGERS

NEVER TRANSPORT PASSENGERS IN THE CARGO

AREA.

T

RANSPORTING

 P

ETS



Air Bags deploying in the front seat could harm

your pet. An unrestrained pet will be thrown about

and possibly injured, or injure a passenger during

panic braking or in a collision.
Pets should be restrained in the rear seat (if

equipped) in pet harnesses or pet carriers that

are secured by seat belts.

C

ONNECTED

 V

EHICLES

Privacy of any wireless and wired communi

-

cations cannot be assured. Third parties may

unlawfully intercept information and private

communications without your consent. For

further information, refer to “Data Collection &

Privacy” in your Uconnect Owner’s Manual

Supplement or “Onboard Diagnostic System

(OBD II) Cybersecurity”

Ú

page 80.

1 — Tether Strap Hook
2 — Cover
3 — Tether Anchor

 WARNING!

An incorrectly anchored tether strap could

lead to increased head motion and possible

injury to the child. Use only the anchorage

position directly behind the child seat to

secure a child restraint top tether strap.

If your vehicle is equipped with a split rear

seat, make sure the tether strap does not

slip into the opening between the seatbacks

as you remove slack in the strap.

 WARNING!

Do not leave children or animals inside

parked vehicles in hot weather. Interior heat

buildup may cause serious injury or death.

It is extremely dangerous to ride in a cargo

area, inside or outside of a vehicle. In a

collision, people riding in these areas are

more likely to be seriously injured or killed.

Do not allow people to ride in any area of your

vehicle that is not equipped with seats and

seat belts.

Be sure everyone in your vehicle is in a seat

and using a seat belt properly.

 WARNING!

It is not possible to know or to predict all of the

possible outcomes if your vehicle’s systems

are breached. It may be possible that vehicle

systems, including safety related systems,

could be impaired or a loss of vehicle control

could occur that may result in an accident

involving serious injury or death.

CarManuals2.com

167

(Continued)

(Continued)

S

AFETY

 C

HECKS

 Y

OU

 S

HOULD

 M

AKE



I

NSIDE

 T

HE

 V

EHICLE



Seat Belts

Inspect the seat belt system periodically,

checking for cuts, frays, and loose parts.

Damaged parts must be replaced immediately.

Do not disassemble or modify the system.
If your vehicle is involved in a collision, or if you

have questions regarding the seat belt or

retractor conditions, take your vehicle to an

authorized FCA dealer or authorized FCA Certified

Collision Care Program facility for inspection.

Air Bag Warning Light

The Air Bag Warning Light will turn on for

four to eight seconds as a bulb check

when the ignition switch is first turned to

ON/RUN. If the light is either not on

during starting, stays on, or turns on while driving,

have the system inspected at an authorized

dealer as soon as possible. After the bulb check,

this light will illuminate with a single chime when

a fault with the Air Bag System has been

detected. It will stay on until the fault is removed.

If the light comes on intermittently or remains on

while driving, have an authorized dealer service

the vehicle immediately

Ú

page 144.

Defroster

Check operation by selecting the defrost mode

and place the blower control on high speed. You

should be able to feel the air directed against the

windshield. See an authorized dealer for service if

your defroster is inoperable.

Floor Mat Safety Information

Always use floor mats designed to fit your vehicle.

Only use a floor mat that does not interfere with

the operation of the accelerator, brake or clutch

pedals. Only use a floor mat that is securely

attached using the floor mat fasteners so it

cannot slip out of position and interfere with the

accelerator, brake or clutch pedals or impair safe

operation of your vehicle in other ways.

 WARNING!

An improperly attached, damaged, folded, or

stacked floor mat, or damaged floor mat

fasteners may cause your floor mat to

interfere with the accelerator, brake, or clutch

pedals and cause a loss of vehicle control. To

prevent SERIOUS INJURY or DEATH:

 ALWAYS securely attach your floor

mat using the floor mat fasteners. DO

NOT install your floor mat upside down

or turn your floor mat over. Lightly pull

to confirm mat is secured using the floor mat

fasteners on a regular basis.

 ALWAYS REMOVE THE EXISTING

FLOOR MAT FROM THE VEHICLE

before installing any other floor mat.

NEVER install or stack an additional

floor mat on top of an existing floor mat.

ONLY install floor mats designed to fit your

vehicle. NEVER install a floor mat that cannot

be properly attached and secured to your

vehicle. If a floor mat needs to be replaced,

only use a FCA approved floor mat for the

specific make, model, and year of your vehicle.

ONLY use the driver’s side floor mat on the

driver’s side floor area. To check for

interference, with the vehicle properly

parked with the engine off, fully press the

accelerator, the brake, and the clutch pedal

(if present) to check for interference. If your

floor mat interferes with the operation of any

pedal, or is not secure to the floor, remove

the floor mat from the vehicle and place the

floor mat in your trunk.

ONLY use the passenger’s side floor mat on

the passenger’s side floor area.

ALWAYS make sure objects cannot fall or

slide into the driver’s side floor area when

the vehicle is moving. Objects can become

trapped under accelerator, brake, or clutch

pedals and could cause a loss of vehicle

control.

NEVER place any objects under the floor mat

(e.g., towels, keys, etc.). These objects could

change the position of the floor mat and may

cause interference with the accelerator,

brake, or clutch pedals.

If the vehicle carpet has been removed and

re-installed, always properly attach carpet to

the floor and check the floor mat fasteners

are secure to the vehicle carpet. Fully press

each pedal to check for interference with the

accelerator, brake, or clutch pedals then

re-install the floor mats.

 WARNING!

CarManuals2.com

SAFETY

168

P

ERIODIC

 S

AFETY

 C

HECKS

 Y

OU

 S

HOULD



M

AKE

 O

UTSIDE

 T

HE

 V

EHICLE

Tires

Examine tires for excessive tread wear and

uneven wear patterns. Check for stones, nails,

glass, or other objects lodged in the tread or

sidewall. Inspect the tread for cuts and cracks.

Inspect sidewalls for cuts, cracks, and bulges.

Check the wheel nuts for tightness. Check the

tires (including spare) for proper cold inflation

pressure.

Lights

Have someone observe the operation of brake

lights and exterior lights while you work the

controls. Check turn signal and high beam

indicator lights on the instrument panel.

Door Latches

Check for proper closing, latching, and locking.

Fluid Leaks

Check area under the vehicle after overnight

parking for fuel, coolant, oil, or other fluid leaks.

Also, if gasoline fumes are detected or if fuel or

brake fluid leaks are suspected the cause should

be located and corrected immediately.

E

XHAUST

 G

AS



The best protection against carbon monoxide

entry into the vehicle body is a properly

maintained engine exhaust system.
Whenever a change is noticed in the sound of the

exhaust system, when exhaust fumes can be

detected inside the vehicle, or when the

underside or rear of the vehicle is damaged, have

an authorized dealer inspect the complete

exhaust system and adjacent body areas for

broken, damaged, deteriorated, or mispositioned

parts. Open seams or loose connections could

permit exhaust fumes to seep into the passenger

compartment. In addition, inspect the exhaust

system each time the vehicle is raised for

lubrication or oil change. Replace as required.

C

ARBON

 M

ONOXIDE

 W

ARNINGS



It is recommended to only use mild soap and

water to clean your floor mats. After cleaning,

always check your floor mat has been

properly installed and is secured to your

vehicle using the floor mat fasteners by

lightly pulling mat.

 WARNING!

 WARNING!

Exhaust gases can injure or kill. They contain

carbon monoxide (CO), which is colorless and

odorless. Breathing it can make you

unconscious and can eventually poison you. To

avoid breathing (CO), follow these safety tips:

Do not run the engine in a closed garage or in

confined areas any longer than needed to

move your vehicle in or out of the area.

If you are required to drive with the trunk/

liftgate/rear doors open, make sure that all

windows are closed and the climate control

BLOWER switch is set at high speed. DO NOT

use the recirculation mode.

If it is necessary to sit in a parked vehicle with

the engine running, adjust your heating or

cooling controls to force outside air into the

vehicle. Set the blower at high speed.

 WARNING!

Carbon monoxide (CO) in exhaust gases is

deadly. Follow the precautions below to

prevent carbon monoxide poisoning:

Do not inhale exhaust gases. They contain

carbon monoxide, a colorless and odorless

gas, which can kill. Never run the engine in a

closed area, such as a garage, and never sit

in a parked vehicle with the engine running

for an extended period. If the vehicle is

stopped in an open area with the engine

running for more than a short period, adjust

the ventilation system to force fresh, outside

air into the vehicle.

Guard against carbon monoxide with proper

maintenance. Have the exhaust system

inspected every time the vehicle is raised.

Have any abnormal conditions repaired

promptly. Until repaired, drive with all side

windows fully open.

When exiting the vehicle, always make sure

the ignition is in the OFF position, remove the

key fob from the vehicle, and lock your

vehicle.

CarManuals2.com

169

Have a flat tire or a burnt-out bulb?
At times, a problem such as these may interfere

with your driving experience.
The section on emergencies can help you to deal

with critical situations independently.

HAZARD WARNING

FLASHERS

The Hazard Warning Flashers button is located in

the switch bank below the radio screen.
Push the button once to turn the Hazard Warning

Flashers on. When the button is activated, all

directional turn signals will flash on and off to

warn oncoming traffic of an emergency. Push the

button a second time to turn the Hazard Warning

Flashers off.
This is an emergency warning system and it

should not be used when the vehicle is in motion.

Use it only when your vehicle is disabled or

signaling a safety hazard warning for other

motorists.
When you must leave the vehicle to seek

assistance, the Hazard Warning Flashers will

continue to operate even though the ignition is

cycled to OFF.

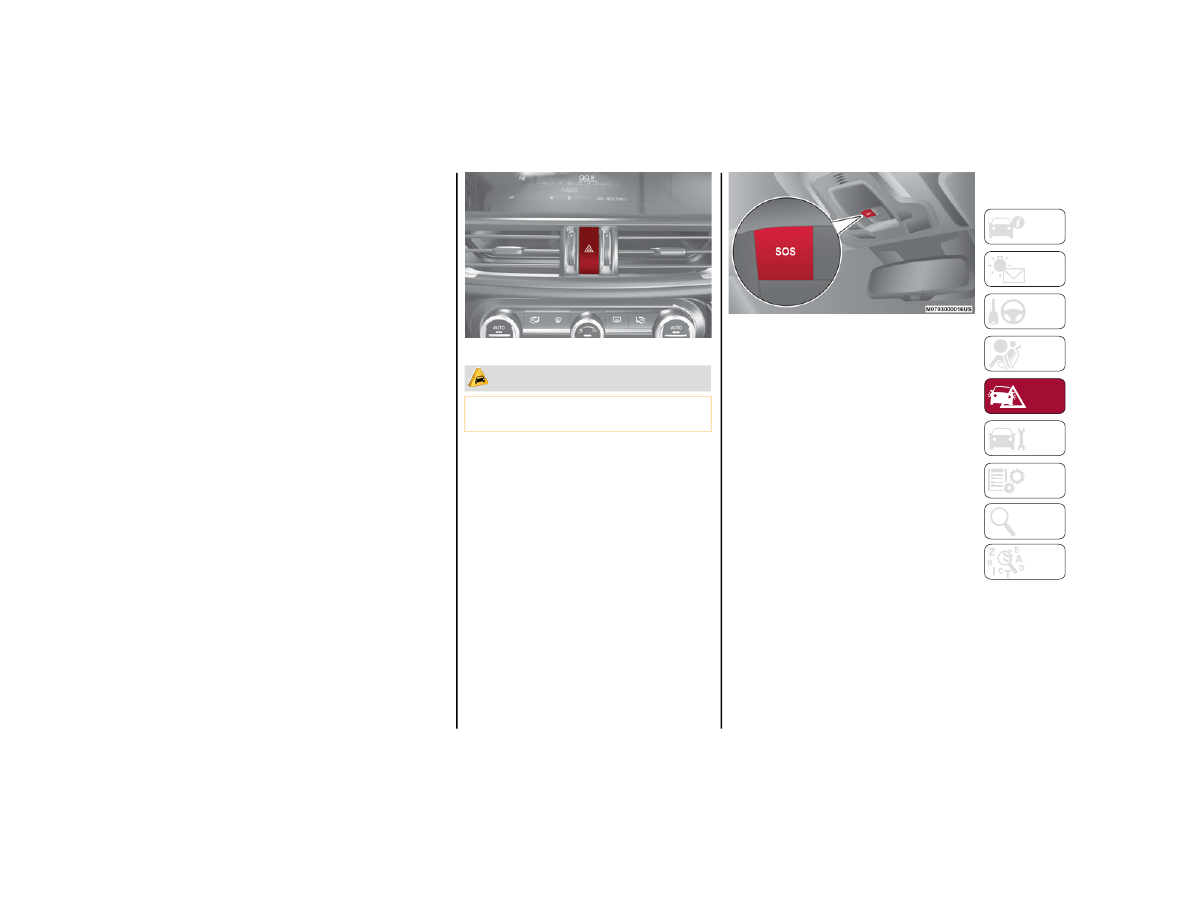

Hazard Warning Flashers Button

SOS EMERGENCY CALL —

IF EQUIPPED

Your vehicle has an on-board assistance feature

that is designed to provide support in case of an

accident and/or emergency. This feature is

automatically activated by air bag intervention, or

can be activated manually by pushing the button

located on the base of the rear view mirror.
NOTE:

SOS Emergency Call will only work with an

enabled network operator.

SOS Emergency Call Button

The SOS Emergency Call system automatically

forwards a call to emergency services in the event

of an accident with air bag intervention providing

that the ignition device is in RUN position and the

air bags are working. When the connection

between the vehicle and a public safety operator

is made, your vehicle will automatically transmit

location and vehicle information to the

emergency service operator.
Only a public safety operator can remotely end

the SOS Emergency Call and, if necessary, call the

vehicle back through the Emergency Call system.

Once the call has ended, you can still call the

emergency service operator to indicate additional

information by pushing the button again.
To Use SOS Emergency Call
Push and hold the SOS Emergency Call button for

a few seconds. The LED, located next to the SOS

button, will blink once and then stay on indicating

a call has been placed.

 CAUTION!

Prolonged use of the Hazard Warning Flashers

may discharge the vehicle’s battery.

CarManuals2.com

IN CASE O

F EM

ERGENCY

170

NOTE:

If the SOS EmergencySOS Emergency Call button

is accidentally pushed, there is a 10 second delay

before the call is placed. The system will issue a

verbal alert that a call is about to be made. To

cancel the call connection, push the SOS Emer

-

gency Call button again.
Once a connection between the vehicle and an

emergency service operator is made, the SOS

Emergency Call system will transmit the following

important vehicle information to the operator:

Indication that the occupant placed an SOS

Emergency Call.

The Vehicle Identification Number (VIN).

The last known GPS coordinates of the vehicle.

You will then be able to speak with the emergency

service operator to determine if additional help is

needed.
The SOS Emergency Call has priority over other

audio sources, which will be muted. If you have a

phone connected via Bluetooth®, it is discon

-

nected and reconnected at the end of the SOS

Emergency Call. Voice prompts will guide you

during the SOS Emergency Call. If a connection is

made between an emergency service operator

and your vehicle, emergency service operators

may record conversations and sounds within your

vehicle once a connection is made, and by using

the service you consent to having this information

shared.
NOTE:

If you have not subscribed to the SOS service or if

the service is not available or has expired, the

Connect system will display a dedicated screen

when the button is pressed informing you to

contact the national emergency number 9-1-1

(the respective graphic button will be displayed to

make the call if you have connected your mobile

phone via Bluetooth® The call to the national

emergency number 9-1-1 will be made via the

mobile phone by pressing red graphic button

shown on the Connect system display.

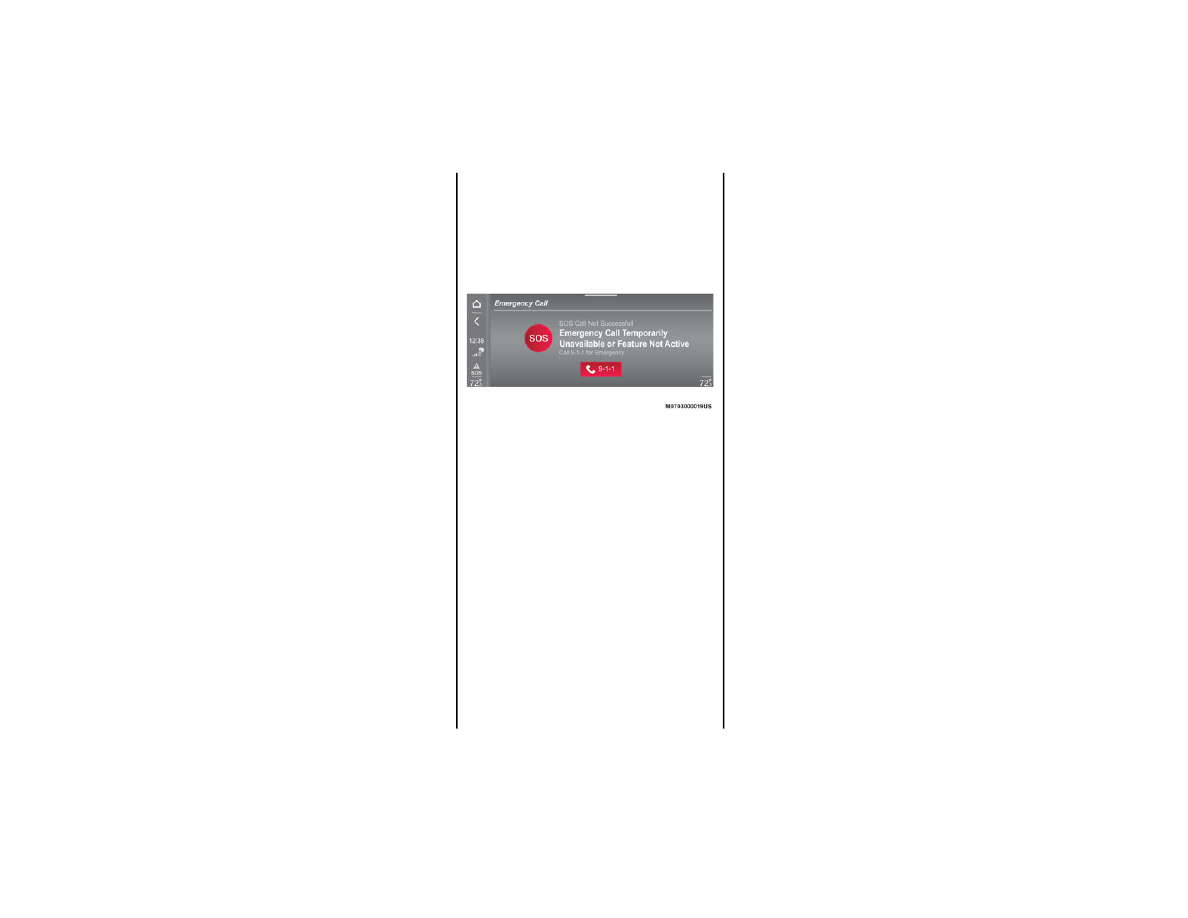

SOS Screen Message

SOS Emergency Call System Limitations
When the ignition switches to the RUN position,

the Emergency Call system runs a routine check.

During this check, a red indicator will illuminate

for about three seconds. This signal must not be

confused with a fault warning. In the event of a

malfunction, the red indicator would remain on. If

the SOS Emergency Call system detects a

malfunction, any of the following may occur at the

time the malfunction is detected:
NOTE:

The SOS Call function may not be available for the

first minute after the vehicle is started

The LED next to the SOS button will be contin

-

uously illuminated red.

The Emergency Call system is powered by its

own non-rechargeable battery to ensure

operation, even when the vehicle battery is

discharged or disconnected. When system

battery is discharged, the instrument cluster

display will show a special message, different

than other messages referring to other types

of faults. In this case, the system works only if

powered by the vehicle’s battery.

The instrument cluster will display a message

alerting you to contact the Service Network

along with a failure warning light.

Even if the SOS Emergency Call system is fully

functional, external or uncontrolled factors may

prevent or stop SOS Emergency Call operation.

These include, but are not limited to, the following

factors:

The key fob has been removed from the

vehicle, and the delayed accessories mode is

active.

The ignition is in OFF position.

The vehicle’s electrical systems are not intact.

The SOS Emergency Call system software and/

or hardware is damaged during a vehicle

collision.

There are network problems that could limit or

impair service operation (e.g., error by

operator, busy network, bad weather, etc.).

If the vehicle battery connection fails due to a

collision or accident, the system can support an

SOS Emergency Call for a limited period of time.

If the battery is disconnected for service, the

system turns off. In this case, it will be possible to

make an SOS Emergency Call only when the

battery is reconnected to the vehicle’s electrical

system.

CarManuals2.com

171

(Continued)

System Requirements

Vehicle must have an operable 4G network

connection.

Vehicle must be powered with a properly

functioning electrical system.

The ignition must be in the RUN or ACC

position.

Frequently Asked Questions:
What happens if I accidentally push the SOS

Emergency Call Button? You have 10 seconds

after pushing the emergency button to cancel the

call. To cancel the call, push the button again.

What type of information is sent when I make an

SOS Emergency Call from my vehicle? Certain

vehicle information, such as the VIN, is

transmitted along with last known GPS location.

Also note that emergency service operators may

record conversations and sounds within your

vehicle once a connection is made, and by using

the service you consent to having this information

shared.

When can I use the SOS Emergency Call

button? You can ONLY Use the SOS

Emergency Call button to make a call if

you or someone else needs emergency

assistance.

TIRE SERVICE KIT

D

ESCRIPTION

If a tire is punctured, you can make an emergency

repair using the Tire Service Kit located in the

trunk beneath the load floor.

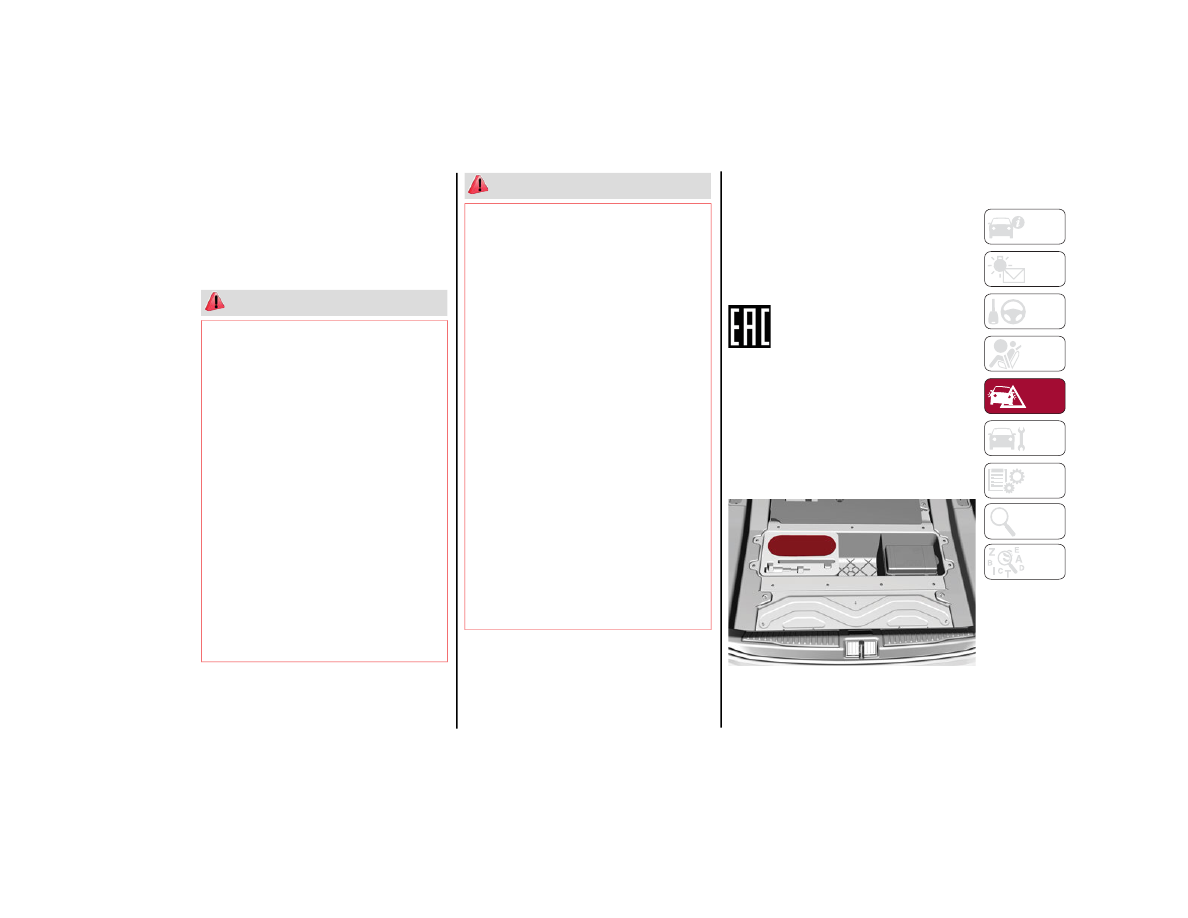

Tire Service Kit Location

 WARNING!

Never place anything on or near the vehicle’s

4G and GPS aerials. You could prevent 4G

and GPS signal reception, which can prevent

your vehicle from placing an emergency call.

An operable 4G network connection and a

GPS signal is required for the

SOS-Emergency Call system to function

properly.

Do not add any aftermarket electrical

equipment to the vehicle’s electrical system.

This may prevent your vehicle from sending a

signal to initiate an emergency call. To avoid

interference that can cause the

SOS-Emergency Call system to fail, never

add aftermarket equipment (e.g., two-way

mobile radio, CB radio, data recorder, etc.) to

your vehicle’s electrical system or modify the

antennas on your vehicle. IF YOUR VEHICLE

AND SYSTEM LOSES BATTERY POWER FOR

ANY REASON (INCLUDING DURING OR AFTER

AN ACCIDENT) THE SOS FEATURES, APPS

AND SERVICES AMONG OTHERS WILL NOT

OPERATE.

The Occupant Restraint Controller (ORC)

turns on the air bag warning light in the

instrument cluster if a malfunction in any

part of the air bag system is detected. If the

air bag warning light is illuminated, the air

bag system may not be working properly and

the SOS-Emergency Call system may not be

able to send a signal to an emergency

service operator. If the air bag warning light

is illuminated, contact the Service Network

to have the air bag system checked

immediately.

Ignoring the LED on the SOS-Emergency Call

button could mean you will not have

emergency call services if needed. If the LED

on SOS-Emergency Call button is illuminated

red, contact the Service Network to have the

emergency call system checked

immediately.

If anyone in the vehicle could be in danger

(e.g., fire or smoke is visible, dangerous road

conditions or location), do not wait for voice

contact from an emergency service operator.

All occupants should exit the vehicle

immediately and move to a safe location.

Failure to perform scheduled maintenance

and regularly inspect your vehicle may result

in vehicle damage, accident or injury.

 WARNING!

CarManuals2.com

IN CASE O

F EM

ERGENCY

172

(Continued)

The Tire Service Kit includes:

Sealant cartridge containing the sealing fluid.

Filler tube.

Adhesive label with the writing "Max. 50 mph

(80 km/h)”, to be attached in a position easily

visible to the driver (e.g. on the dashboard)

after repairing the tire.

Air compressor, complete with pressure gauge

and connectors.

An instruction pamphlet for reference in

prompt and correct use of the Tire Service Kit,

which must be then given to the personnel

dealing with the sealant-treated tire.

A pair of protective gloves.

Adaptors for inflating different elements.

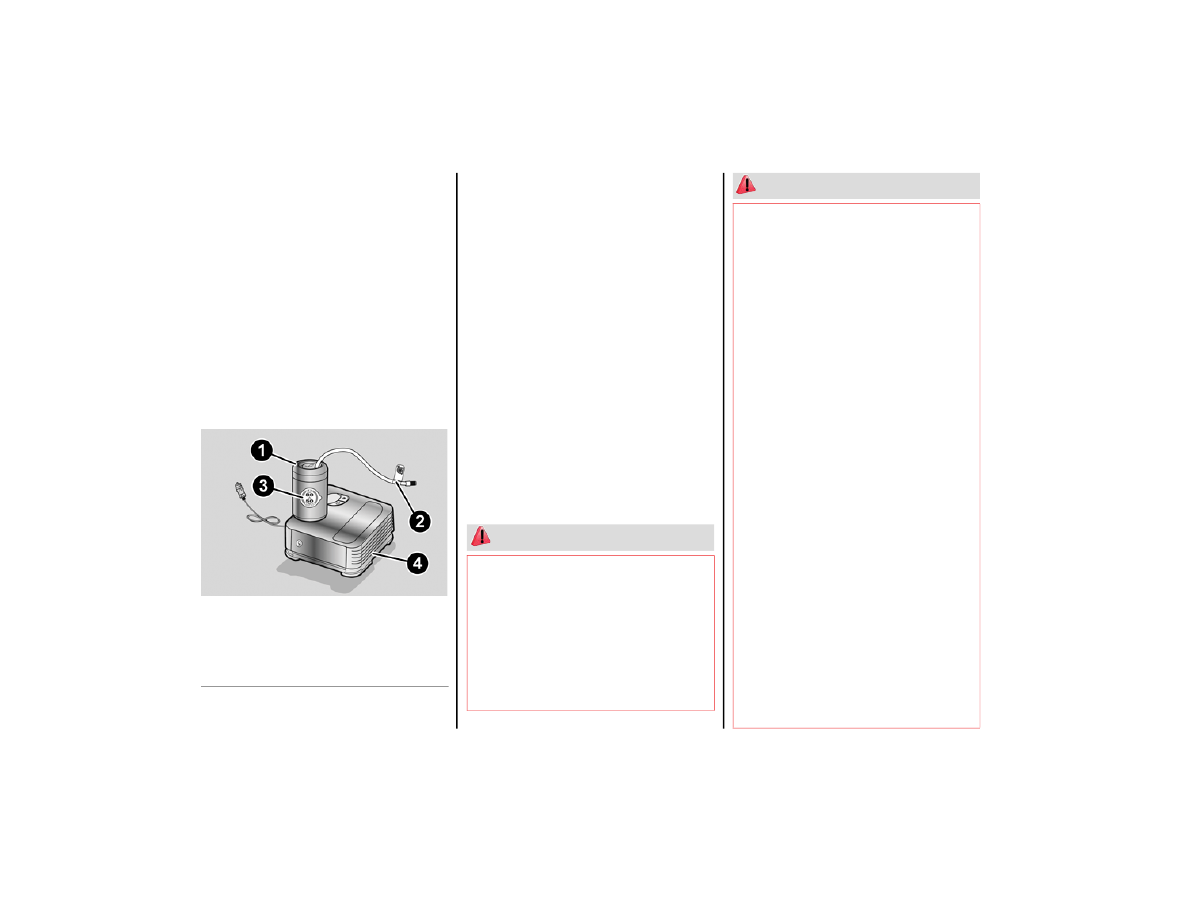

Tire Service Kit Components

NOTE:

The sealant is effective with external tempera

-

tures of between -40°F (-40°C) and 122°F

(50°C). The sealant has an expiration date.
To use the Tire Service Kit, proceed as follows:
1. Stop the vehicle in a position where you can

repair the tire safely. You should be as far as

possible from the side of the road, and in a posi

-

tion that is not dangerous for oncoming traffic.

Activate the Hazard Warning Flashers, remove

the safety triangle from the trunk, and place it at

a suitable distance from the vehicle to make

other drivers aware of your presence.

2. Verify that the valve stem (on the wheel with

the deflated tire) is in a position that is near

to the ground. This will allow the tire service

kit hoses to reach the valve stem and keep

the tire repair kit flat on the ground.

3. Place the gear selector to PARK (P).
4. Apply the Electric Park Brake and cycle the

engine OFF.

I

NFLATION

 P

ROCEDURE

1 — Sealant Cartridge
2 — Filler Tube
3 — Adhesive Label
4 — Air Compressor

 WARNING!

Do not attempt to seal a tire on the side of

the vehicle closest to traffic. Pull far enough

off the road to avoid the danger of being hit

when using the Tire Service Kit.

Do not use Tire Service Kit or drive the

vehicle under the following circumstances:

If the puncture in the tire tread is approx-

imately 1/4 inch (6 mm) or larger.

If the tire has any sidewall damage.

If the tire has any damage from driving

with extremely low tire pressure.

If the tire has any damage from driving

on a flat tire.

If the wheel has any damage.

If you are unsure of the condition of the

tire or the wheel.

Keep Tire Service Kit away from open flames

or heat sources.

A loose Tire Service Kit thrown forward in a

collision or hard stop could endanger the

occupants of the vehicle. Always stow the

Tire Service Kit in the place provided. Failure

to follow these warnings can result in injuries

that are serious or fatal to you, your

passengers, and others around you.

Take care not to allow the contents of Tire

Service Kit to come in contact with hair, eyes,

or clothing. Tire Service Kit sealant is harmful

if inhaled, swallowed, or absorbed through

the skin. It causes skin, eye, and respiratory

irritation. Flush immediately with plenty of

water if there is any contact with eyes or skin.

Change clothing as soon as possible, if there

is any contact with clothing.

Tire Service Kit Sealant solution contains

latex. In case of an allergic reaction or rash,

consult a physician immediately. Keep Tire

Service Kit out of reach of children. If

swallowed, rinse mouth immediately with

plenty of water and drink plenty of water. Do

not induce vomiting! Consult a physician

immediately.

 WARNING!

CarManuals2.com

173

To use your Tire Service Kit, proceed as follows:
1. Apply the Electric Park Brake.
2. Insert the sealant cartridge containing the

sealing fluid in the proper compressor holder,

pushing down hard. Unscrew the tire valve

cap, take out the filler tube and tighten the

fitting on the tire valve.

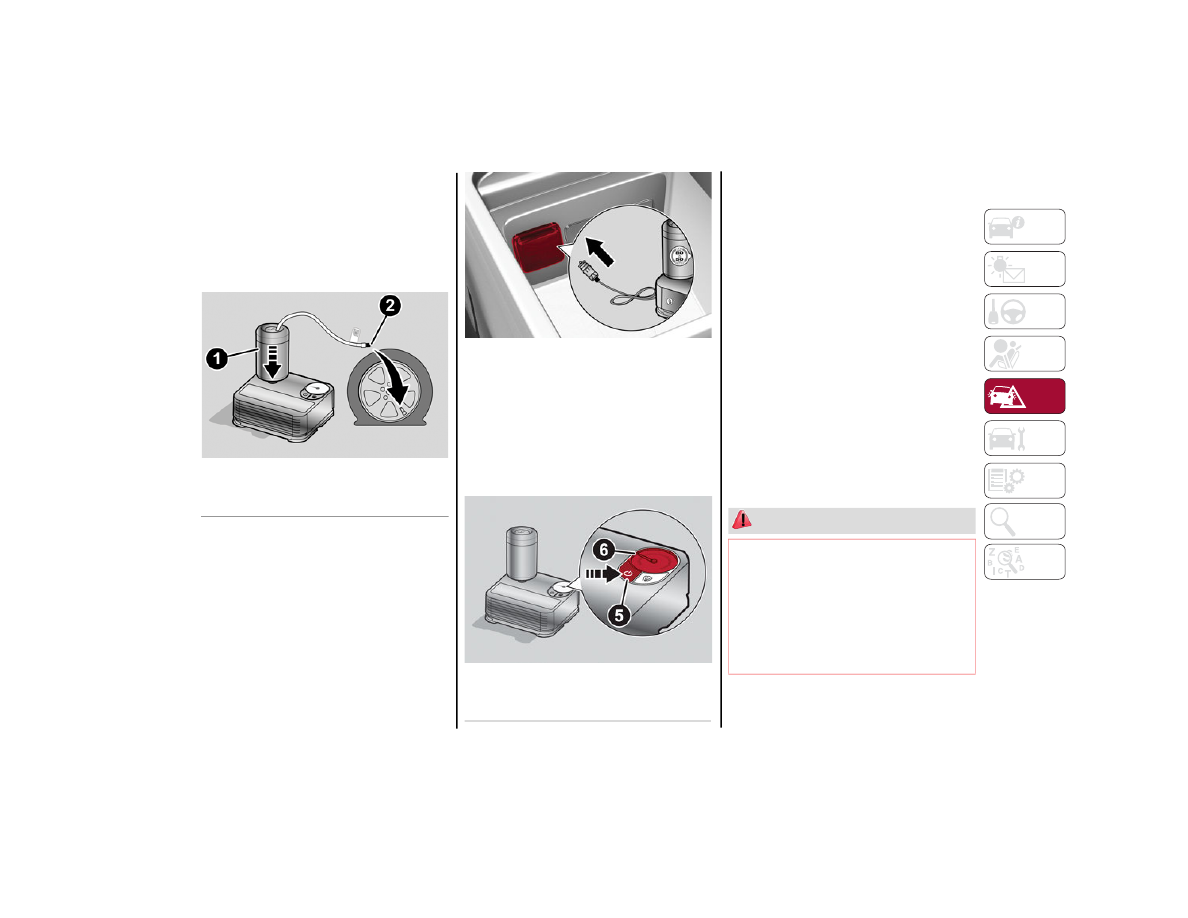

Attaching Filler Tube To Deflated Tire

3. Make sure the power switch of the

compressor is in the O (off) position.

4. Insert the plug into the power outlet in the

center console, then start the engine.

Center Console Power Outlet

5. Start the compressor by placing the power

switch in the I (on) position.

6. Inflate the tire to the pressure indicated on

the tire placard, located on the driver’s side

B-pillar or the rear edge of the driver’s side

door

Ú

page 209. In order to obtain a more

precise reading, check the pressure value on

pressure gauge with the compressor off.

Air Compressor

7. If the pressure is not at least 26.1 psi

(1.8 bar) after 15 minutes, disengage the

compressor from the valve and power outlet.

Then, move the vehicle forwards approxi

-

mately 33 ft (10 m) in order to distribute the

sealant inside the tire evenly, and then

repeat the inflation operation.

8. If you still cannot obtain a pressure of at least

26 psi (1.8 bar) within 15 minutes of turning

the compressor on, do not drive the vehicle,

and contact an authorized dealer.

9. Drive the vehicle for about 5 miles (8 km),

stop, apply the electric park brake, and

recheck the tire pressure.

10. If the pressure is less than 26 psi (1.8 bar),

DO NOT drive the vehicle, and see an autho

-

rized dealer.

11. If a pressure value of at least 26 psi (1.8 bar)

is detected, restore the correct pressure (with

engine running and electric park brake

applied), and drive immediately with great

care to an authorized dealer.

1 — Sealant Cartridge
2 — Filler Tube

5 — Power Switch
6 — Pressure Gauge

 WARNING!

Tire Service Kit is not a permanent flat tire

repair. Have the tire inspected and repaired or

replaced after using Tire Service Kit. Do not

exceed 50 mph (80 km/h) until the tire is

repaired or replaced. Failure to follow this

warning can result in injuries that are serious

or fatal to you, your passengers, and others

around you. Have the tire checked as soon as

possible at an authorized dealer.

CarManuals2.com

IN CASE O

F EM

ERGENCY

174

12. Apply the adhesive label from the sealant

bottle where it can be easily seen by the

driver as a reminder that the tire has been

treated with a Tire Service Kit, as well as not

to exceed the speed restriction for the

treated tire.

C

HECKING

 A

ND

 R

ESTORING

 T

IRE



P

RESSURE

The compressor can also be used to check and, if

necessary, restore the tire pressure.
Proceed as follows:
1. Release the quick connector and connect it

directly to the valve of the tire to be inflated.

2. Push the air release button.

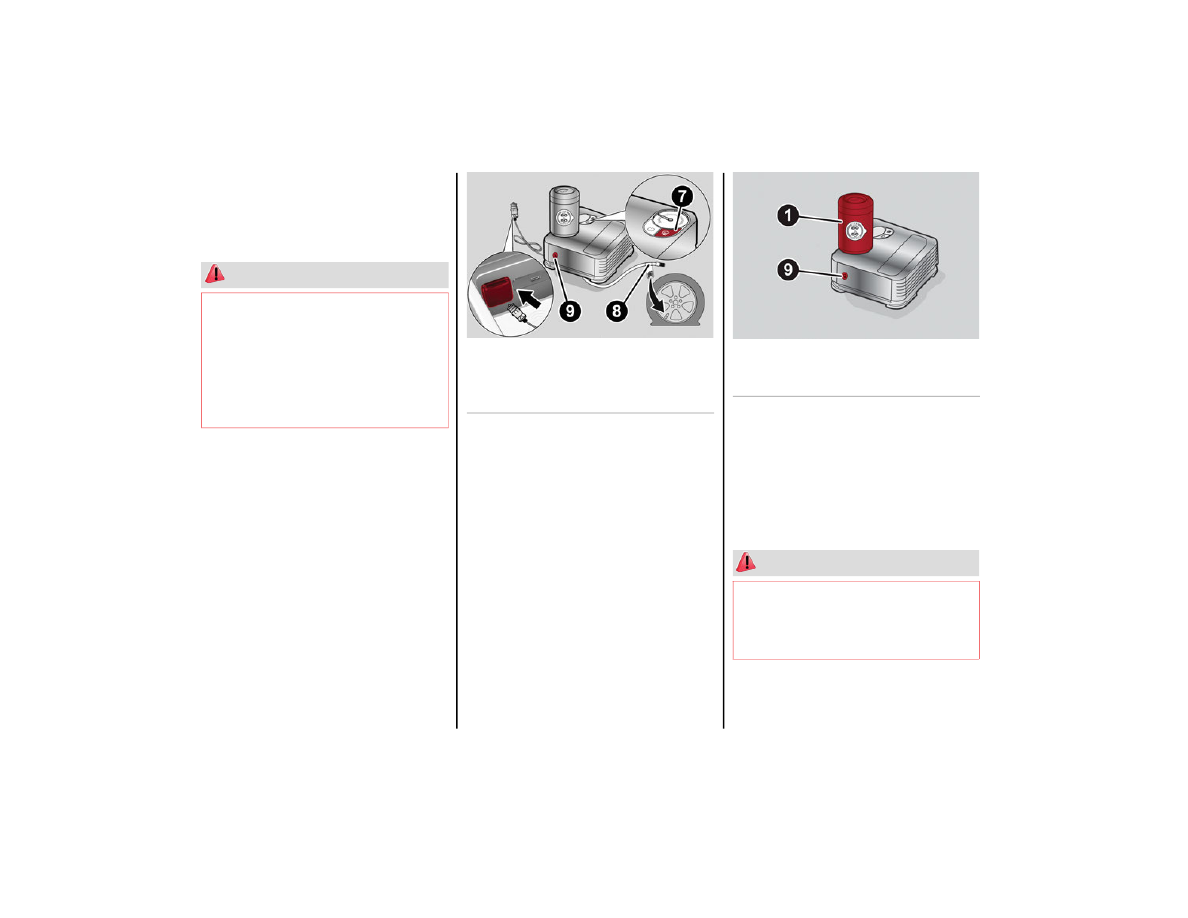

Air Compressor Components

S

EALANT

 C

ARTRIDGE

 R

EPLACEMENT

NOTE:

Only use original cartridges, which can be

purchased at an authorized dealer.
Proceed as follows:
1. Remove the sealant cartridge by pushing the

release button located on the side of the

compressor.

2. Insert the new sealant cartridge by pushing

downward firmly.

Sealant Cartridge Replacement

Run Flat Tires — If Equipped

Your vehicle may be equipped with “run flat”

tires. Run flat tires allow the driver to maintain

control of the vehicle after a puncture and to

continue driving safely for approximately

50 miles (80 km) at 50 mph (80 km/h). Tire

service should be obtained to avoid prolonged

run flat feature usage

Ú

page 214.

 WARNING!

Do not adhere the speed restriction sticker to

the padded area on the steering wheel.

Adhering the speed restriction sticker to the

padded area on the steering wheel is

dangerous because the air bag may not

operate (deploy) normally resulting in serious

injury. In addition, do not adhere the sticker to

areas where warning lights or the

speedometer cannot be viewed.

7 — Air Release Button
8 — Quick Connector
9 — Release Button

1 — Sealant Cartridge
9 — Release Button

 WARNING!

Do not exceed 50 mph (80 km/h) if the Tire

Pressure Monitoring Telltale Light is

illuminated. Vehicle handling and braking may

be reduced. You could have a collision and be

severely or fatally injured.

CarManuals2.com

175

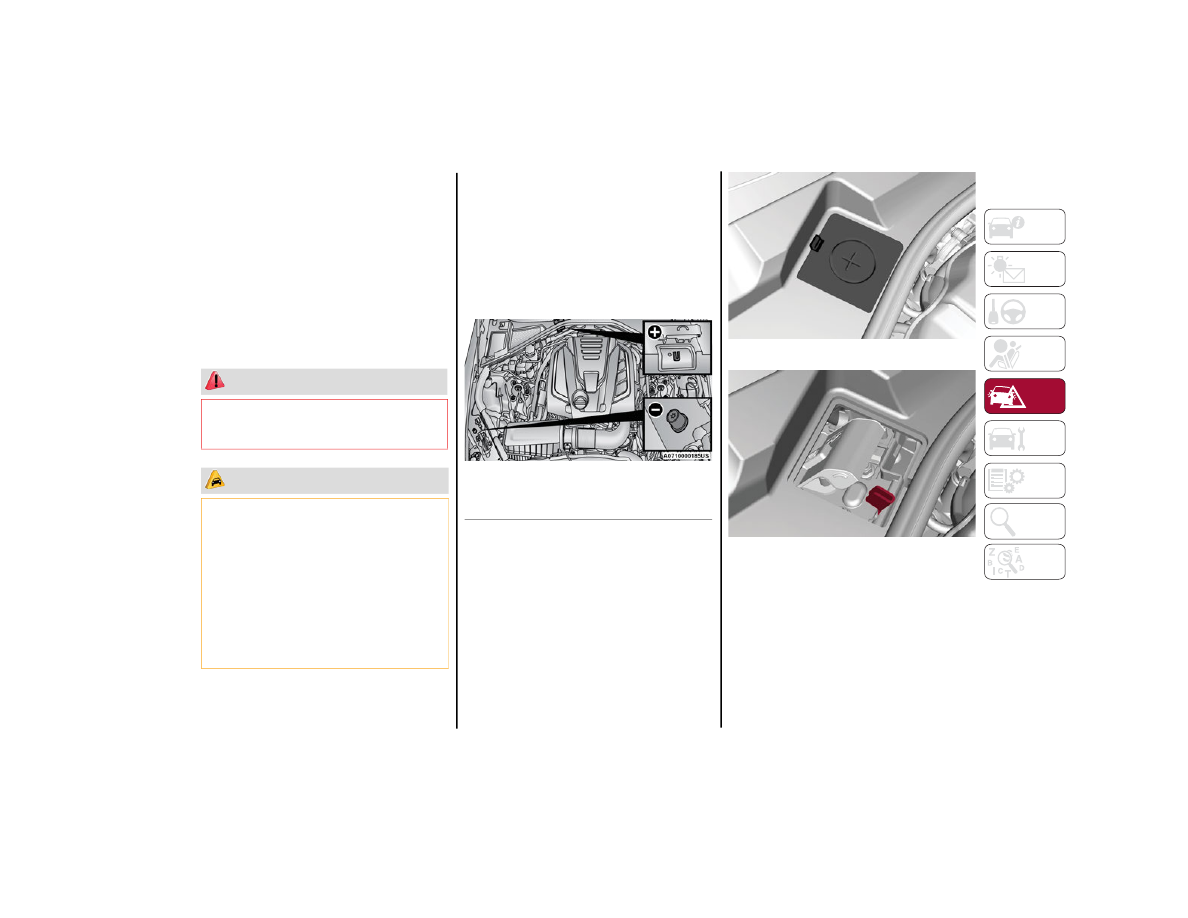

JUMP STARTING

If your vehicle has a discharged battery, it can be

jump started from the remote battery

connections by using a set of jumper cables and

a battery in another vehicle, or by using a portable

battery booster pack. Jump starting can be

dangerous if done improperly, so please follow

the procedures in this section carefully.
NOTE:

When using a portable battery booster pack,

follow the manufacturer's operating instructions

and precautions.

R

EMOTE

 B

ATTERY

 C

ONNECTION

 P

OSTS

Your vehicle is equipped with remote battery

connection posts for jump starting. Depending on

the vehicle model, remote post locations may

vary.

Non Quadrifoglio Model

The remote posts of the battery for jump starting

can be found inside the engine compartment.

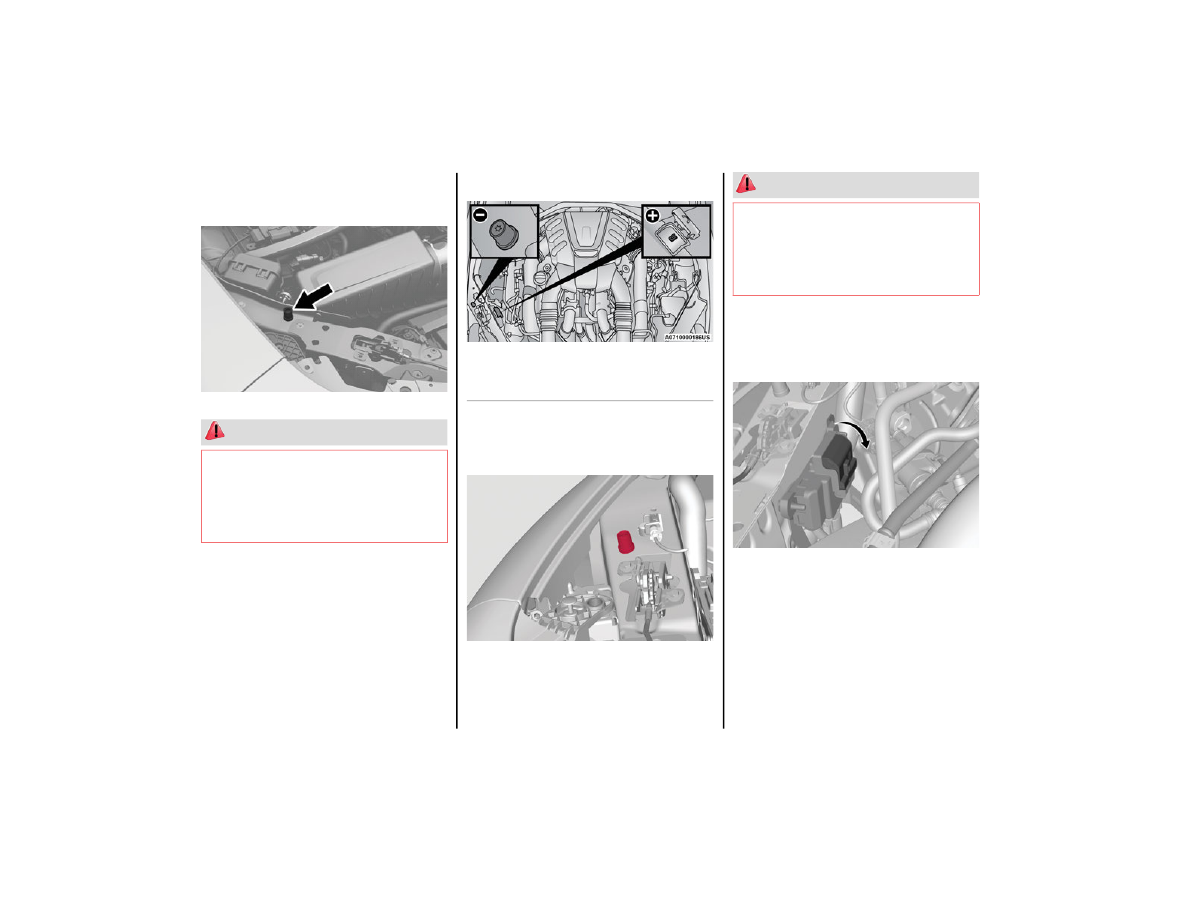

Remote Jump Starting Post Locations

The remote positive (+) post is located at the rear

of the engine compartment, which can be

accessed by removing the cowl cover, and

opening the spring loaded protective flap.

Protective Cowl Cover

Protective Flap And Remote Positive (+) Post

 WARNING!

Do not attempt jump starting if the battery is

frozen. It could rupture or explode and cause

personal injury.

 CAUTION!

Do not use the battery for jump starting the

vehicle. Improperly connecting the jumper

cables or booster pack to the battery can

result in electrical system and fuse failure.

Always use the remote battery connection

posts to jump start your vehicle.

Do not use a portable battery booster pack or

any other booster source with a system

voltage greater than 12 Volts or damage to

the battery, starter motor, alternator or

electrical system may occur.

Remote Positive (+) Post
Remote Negative (-) Post

CarManuals2.com

IN CASE O

F EM

ERGENCY

176

The remote negative (-) post is an exposed stud,

positioned next to the passenger side hood lock

on the upper frame rail.

Remote Negative (-) Post Location

To carry out the operation, you need to have the

correct cables to connect to the battery of

another vehicle or a portable battery booster

pack to the remote posts of the discharged

battery. Usually, these cables have terminals at

the ends and are identified by different sheath

colors (red = positive, black = negative).

Quadrifoglio Model

Remote Jump Starting Post Locations

The remote negative (-) post is an exposed stud,

positioned next to the passenger side hood lock

on the upper frame rail.

Remote Negative (-) Post Location

The remote positive (+) post is located next to the

passenger side hood lock on the inside of the

upper frame rail, and can be accessed by

removing the protective flap.

Remote Positive (+) Protective Flap

 WARNING!

Do not connect the jumper cable to the

negative (-) post of the discharged battery. The

resulting electrical spark could cause the

battery to explode and could result in serious

injury. Only use the specific ground point, do

not use any other exposed metal parts.

Remote Negative (-) Post
Remote Positive (+) Post

 WARNING!

Do not connect the jumper cable to the

negative (-) post of the discharged battery. The

resulting electrical spark could cause the

battery to explode and could result in serious

injury. Only use the specific ground point, do

not use any other exposed metal parts.

CarManuals2.com

177

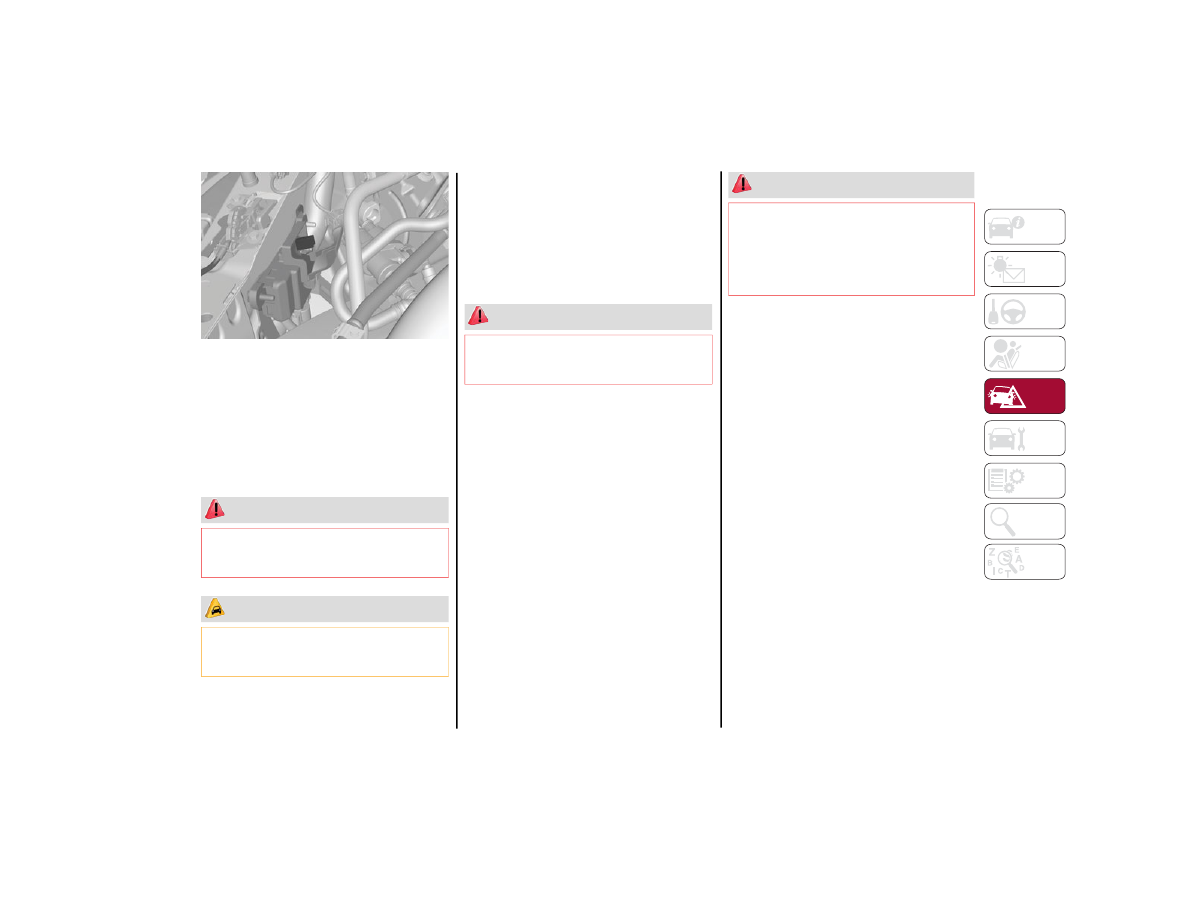

Remote Positive (+) Post Location

To carry out the operation, you need to have the

correct cables to connect to the battery of

another vehicle or a portable battery booster

pack to the remote posts of the discharged

battery. Usually, these cables have terminals at

the ends and are identified by different sheath

colors (red = positive, black = negative).

J

UMP

 S

TARTING

 P

ROCEDURE

Preparation For Jump Starting:
1. Firmly apply the park brake, and cycle the

ignition to OFF.

2. Turn off all electrical features in the vehicle.
3. If using another vehicle to jump start the

battery, park the vehicle within the jumper

cables reach, apply the park brake and make

sure the ignition is OFF.

Cable Connection
Proceed as follows to perform a jump starting

procedure:
1. Connect the positive (+) end of the jumper

cable to the remote positive (+) post of the

vehicle with the discharged battery.

2. Connect the opposite end of the positive (+)

jumper cable to the positive (+) post of the

booster battery.

3. Connect the negative (-) end of the jumper

cable to the negative (-) post of the booster

battery.

4. Connect the opposite end of the negative (-)

jumper cable to the remote negative (-) post

of the discharged vehicle.

5. Start the engine in the vehicle that has the

booster battery, let the engine idle a few

minutes, and then start the engine in the

vehicle with the discharged battery. If using a

portable battery booster pack, before starting

the vehicle, wait a few seconds after

completing the connection.

6. Once the engine is started, follow the discon

-

nection procedure.

Cable Disconnection
1. Disconnect the negative (-) end of the jumper

cable from the remote negative (-) post of the

vehicle with the discharged battery.

2. Disconnect the opposite end of the negative

(-) jumper cable from the negative (-) post of

the booster battery.

3. Disconnect the positive (+) end of the jumper

cable from the positive (+) post of the booster

battery.

4. Disconnect the opposite end of the positive

(+) jumper cable from the remote positive (+)

post of the vehicle with the discharged

battery, and reinstall the protective cap.

 WARNING!

Failure to follow this jump starting procedure

could result in personal injury or property

damage due to battery explosion.

 CAUTION!

Failure to follow these procedures could result

in damage to the charging system of the

booster vehicle or the discharged vehicle.

 WARNING!

Do not allow vehicles to touch each other as

this could establish a ground connection and

personal injury could result.

 WARNING!

Do not connect the jumper cable to the

negative (-) post of the discharged battery. The

resulting electrical spark could cause the

battery to explode and could result in serious

injury. Only use the specific ground point, do

not use any other exposed metal parts.

CarManuals2.com

IN CASE O

F EM

ERGENCY

178

If frequent jump starting is required to start your

vehicle, you should have the battery and charging

system inspected at an authorized dealer.

B

UMP

 S

TARTING

Never jump start the engine by pushing, towing or

coasting downhill.
NOTE:

You cannot start a vehicle with an automatic

transmission by pushing it.

IF YOUR ENGINE

OVERHEATS

Engine overheating may occur in situations of

extreme environmental temperatures, frequent

engine stops/starts, or driving in heavy traffic. If

the engine becomes overheated, the Engine

Temperature Warning Light in the instrument

cluster will illuminate along with a dedicated

message

Ú

page 70.

If the vehicle is overheating, it will need to be

serviced by an authorized dealer.
In any of the following situations, you can reduce

the potential for overheating by taking the

appropriate action.

On the highways — slow down.

In city traffic — while stopped, place the

transmission in NEUTRAL, but do not increase

engine idle speed.

NOTE:

There are steps that you can take to slow down

an impending overheat condition:

If your Air Conditioner (A/C) is on, turn it off.

The A/C system adds heat to the engine

cooling system and turning the A/C off can

help remove this heat.

You can also turn the temperature control to

maximum heat, the mode control to floor and

the blower control to high. This allows the

heater core to act as a supplement to the

radiator and aids in removing heat from the

engine cooling system.

If Steam Is Coming From The Engine

Compartment
Do not go near the front of the vehicle. Stop the

engine. Wait until the steam dissipates. Then,

open the hood and start the engine.
If Neither Coolant Nor Steam Is Escaping
Open the hood and idle the engine until it cools.
NOTE:

If the cooling fan does not operate while the

engine is running, the engine temperature will

increase. Stop the engine and contact an

authorized dealer.

If the engine continues to overheat or

frequently overheats, have the cooling system

inspected. The engine could be seriously

damaged unless repairs are made. Contact an

authorized dealer.

 CAUTION!

Accessories plugged into the vehicle power

outlets draw power from the vehicle’s battery,

even when not in use (i.e., cellular phones,

etc.). Eventually, if plugged in long enough

without engine operation, the vehicle’s battery

will discharge sufficiently to degrade battery

life and/or prevent the engine from starting.

 WARNING!

You or others can be badly burned by hot

engine coolant (antifreeze) or steam from your

radiator. If you see or hear steam coming from

under the hood, do not open the hood until

the radiator has had time to cool. Never try to

open a cooling system pressure cap when the

radiator or coolant bottle is hot.

 CAUTION!

Driving with a hot cooling system could

damage your vehicle. If temperature gauge

reads “H”, pull over and stop the vehicle. Idle

the vehicle with the air conditioner turned off

until the pointer drops back into the normal

range. If the pointer remains on the “H”, turn

the engine off immediately, and call for

service.

CarManuals2.com















Content      ..     3      4      5      6     ..
