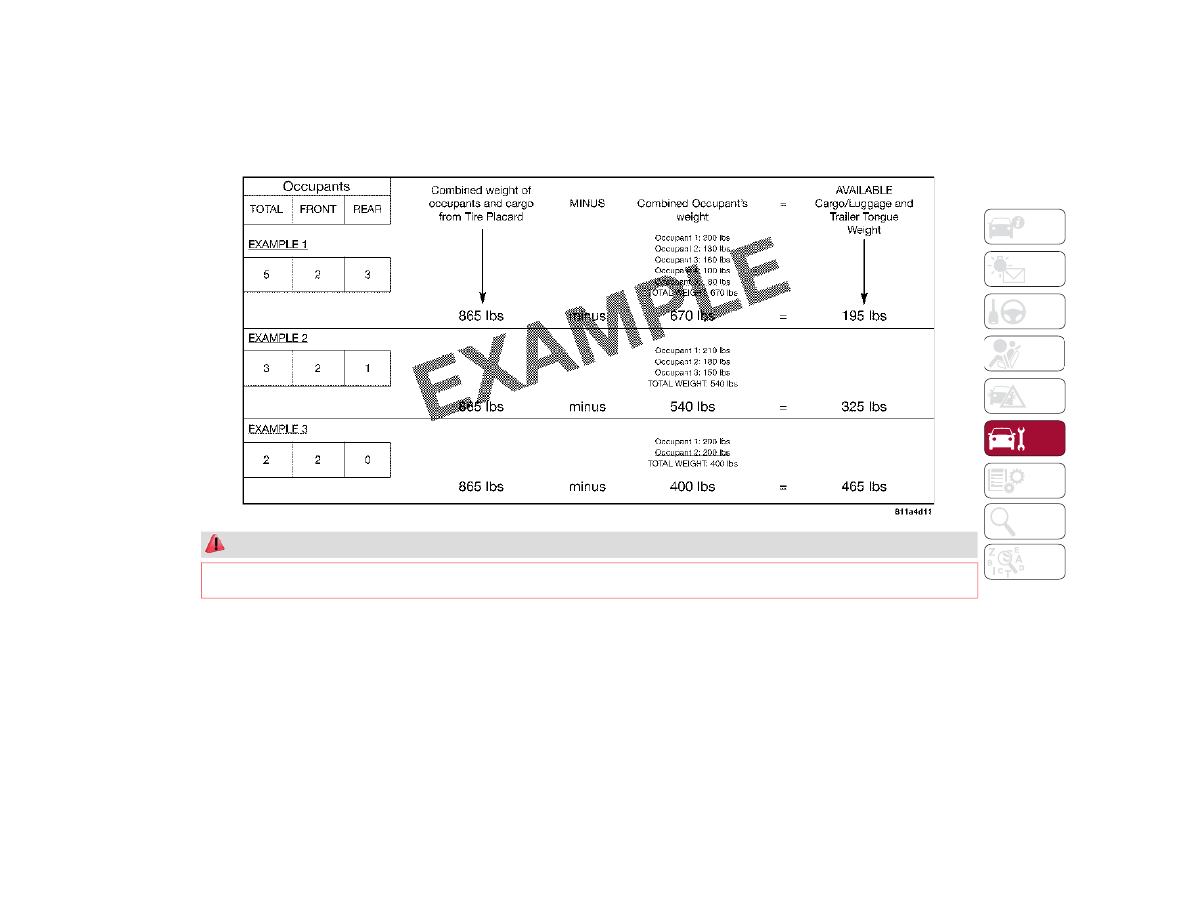

 WARNING!

Overloading of your tires is dangerous. Overloading can cause tire failure, affect vehicle handling, and increase your stopping distance. Use tires of the

recommended load capacity for your vehicle. Never overload them.

CarManuals2.com

SERVICING AN

D M

AINTENAN

CE

212

T

IRES

 — G

ENERAL

 I

NFORMATION



Tire Pressure

Proper tire inflation pressure is essential to the

safe and satisfactory operation of your vehicle.

Four primary areas are affected by improper tire

pressure:

Safety

Fuel Economy

Tread Wear

Ride Comfort and Vehicle Stability

Safety

Both underinflation and overinflation affect the

stability of the vehicle and can produce a feeling

of sluggish response or over responsiveness in

the steering.
NOTE:

Unequal tire pressures from side to side may

cause erratic and unpredictable steering

response.

Unequal tire pressure from side to side may

cause the vehicle to drift left or right.

Fuel Economy
Underinflated tires will increase tire rolling

resistance resulting in higher fuel consumption.
Tread Wear
Improper cold tire inflation pressures can cause

abnormal wear patterns and reduced tread life,

resulting in the need for earlier tire replacement.
Ride Comfort And Vehicle Stability
Proper tire inflation contributes to a comfortable

ride. Overinflation produces a jarring and

uncomfortable ride.

Tire Inflation Pressures

The proper cold tire inflation pressure is listed on

the driver's side B-pillar or rear edge of the

driver's side door.
At least once a month:

Check and adjust tire pressure with a good

quality pocket-type pressure gauge. Do not

make a visual judgment when determining

proper inflation. Tires may look properly

inflated even when they are under-inflated.

Inspect tires for signs of tire wear or visible

damage.

Inflation pressures specified on the placard are

always “cold tire inflation pressure”. Cold tire

inflation pressure is defined as the tire pressure

after the vehicle has not been driven for at least

three hours, or driven less than 1 mile (1.6 km)

after sitting for a minimum of three hours. The

cold tire inflation pressure must not exceed the

maximum inflation pressure molded into the tire

sidewall.
Check tire pressures more often if subject to a

wide range of outdoor temperatures, as tire

pressures vary with temperature changes.
Tire pressures change by approximately 1 psi

(7 kPa) per 12°F (7°C) of air temperature

change. Keep this in mind when checking tire

pressure inside a garage, especially in the Winter.
Example: If garage temperature = 68°F (20°C)

and the outside temperature = 32°F (0°C) then

the cold tire inflation pressure should be

increased by 3 psi (21 kPa), which equals 1 psi

(7 kPa) for every 12°F (7°C) for this outside

temperature condition.
Tire pressure may increase from 2 to 6 psi (13 to

40 kPa) during operation. DO NOT reduce this

normal pressure build up or your tire pressure will

be too low.

 WARNING!

Improperly inflated tires are dangerous and

can cause collisions.

Underinflation increases tire flexing and can

result in overheating and tire failure.

Overinflation reduces a tire's ability to

cushion shock. Objects on the road and

chuckholes can cause damage that result in

tire failure.

Overinflated or underinflated tires can affect

vehicle handling and can fail suddenly,

resulting in loss of vehicle control.

Unequal tire pressures can cause steering

problems. You could lose control of your

vehicle.

Unequal tire pressures from one side of the

vehicle to the other can cause the vehicle to

drift to the right or left.

Always drive with each tire inflated to the

recommended cold tire inflation pressure.

 CAUTION!

After inspecting or adjusting the tire pressure,

always reinstall the valve stem cap. This will

prevent moisture and dirt from entering the

valve stem, which could damage the valve

stem.

CarManuals2.com

213

Tire Pressures For High Speed Operation

The manufacturer advocates driving at safe

speeds and within posted speed limits. Where

speed limits or conditions are such that the

vehicle can be driven at high speeds, maintaining

correct tire inflation pressure is very important.

Increased tire pressure and reduced vehicle

loading may be required for high-speed vehicle

operation. Refer to an authorized tire dealer or

original equipment vehicle dealer for

recommended safe operating speeds, loading

and cold tire inflation pressures.

Recommended Cold Tire Inflation Pressures
For vehicle speeds below 100 mph (160 km/h),

recommended cold tire inflation pressures are

listed on the Tire And Loading Information

Placard located on driver’s side B-pillar or the rear

edge of the driver's side door.

When driving at speeds 100 mph (160 km/h)

and above, increased tire pressures and reduced

vehicle loading are required for high-speed

vehicle operation.
For driving speeds above 100 mph (160 km/h)

recommended cold tire inflation pressures are

listed in the following table under "High Speed

Tire Inflation Pressure". Vehicle loading condition

must not exceed 688 lb. (312kg) (driver + three

passengers + 88 lb. (40kg) luggage).

2.0L Engine

(*) All Season Tires, If Equipped
(**) Matching Rims/Tires

 WARNING!

High speed driving with your vehicle under max

-

imum load is dangerous. The added strain on

your tires could cause them to fail. You could

have a serious collision. Do not drive a vehicle

loaded to the maximum capacity at continuous

speeds above 75 mph (120 km/h).

 WARNING!

High speed driving with your vehicle under

maximum load is dangerous. The added strain

on your tires could cause them to fail. You

could have a serious collision.

Tires

Wheel

Recommended Cold Tire Inflation

Pressure

High Speed Tire Inflation Pressure

Front

Rear

Front

Rear

225/50 R17 94V *

17x7.5J

32 psi (220 kPa)

35 psi (240 kPa)

39 psi (270 kPa)

43 psi (300 kPa)

225/45 R18 91V *

18x8J

32 psi (220 kPa)

36 psi (250 kPa)

39 psi (270 kPa)

43 psi (300 kPa)

225/40 R19 93X

19x8J

35 psi (240 kPa)

39 psi (270 kPa)

39 psi (270 kPa)

43 psi (300 kPa)

225/40 R19 93Y **

19x8J **

35 psi (240 kPa)

39 psi (270 kPa)

255/35 R19 93Y **

19x9J**

35 psi (240 kPa)

42 psi (290 kPa)

CarManuals2.com

SERVICING AN

D M

AINTENAN

CE

214

2.9L Engine

(*) Recommended tire size when tire chains are necessary



Ú

page 218.

Radial Ply Tires

Tire Repair
If your tire becomes damaged, it may be repaired

if it meets the following criteria:

The tire has not been driven on when flat.

The damage is only on the tread section of your

tire (sidewall damage is not repairable).

The puncture is no greater than a ¼ of an inch

(6 mm).

Consult an authorized tire dealer for tire repairs

and additional information.

Damaged Run Flat tires, or Run Flat tires that

have experienced a loss of pressure should be

replaced immediately with another Run Flat tire

of identical size and service description (Load

Index and Speed Symbol). Replace the tire

pressure sensor as well as it is not designed to be

reused.

Run Flat Tires — If Equipped

Run Flat tires allow you the capability to drive

50 miles (80 km) at 50 mph (80 km/h) after a

rapid loss of inflation pressure. This rapid loss of

inflation is referred to as the Run Flat mode. A

Run Flat mode occurs when the tire inflation

pressure is of/or below 14 psi (96 kPa). Once a

Run Flat tire reaches the Run Flat mode it has

limited driving capabilities and needs to be

replaced immediately. A Run Flat tire is not

repairable. When a Run Flat tire is changed after

being driven under a Run Flat mode 14 psi

(96 kPa) condition, please replace the TPMS

sensor as it is not designed to be reused.
NOTE:

The TPMS sensor must be replaced after driving

the vehicle on a flat tire condition.

It is not recommended driving a vehicle loaded at

full capacity or to tow a trailer while a tire is in the

Run Flat mode.
See the Tire Pressure Monitoring System section

for more information

Ú

page 142.

Tire Spinning

When stuck in mud, sand, snow, or ice conditions,

do not spin your vehicle's wheels above 30 mph

(48 km/h) or for longer than 30 seconds contin

-

uously without stopping.

Tires

Wheel

Recommended Cold Tire Inflation

Pressure

High Speed Tire Inflation Pressure

Front

Rear

Front

Rear

245/35 Z R19 (93Y) XL

19x8.5J

35 psi (240 kPa)

-

42 psi (290 kPa)

265/35 R19 98V*

32 psi (220 kPa)

42 psi (290 kPa)

285/30 ZR19 (98Y) XL

19x10J

32 psi (220 kPa)

42 psi (290 kPa)

 WARNING!

Combining radial ply tires with other types of

tires on your vehicle will cause your vehicle to

handle poorly. The instability could cause a

collision. Always use radial ply tires in sets of

four. Never combine them with other types of

tires.

 WARNING!

Fast spinning tires can be dangerous. Forces

generated by excessive wheel speeds may

cause tire damage or failure. A tire could

explode and injure someone. Do not spin your

vehicle's wheels faster than 30 mph (48 km/h)

for more than 30 seconds continuously when

you are stuck, and do not let anyone near a

spinning wheel, no matter what the speed.

CarManuals2.com

215

(Continued)

Tread Wear Indicators

Tread wear indicators are in the original

equipment tires to help you in determining when

your tires should be replaced.

Tire Tread

These indicators are molded into the bottom of

the tread grooves. They will appear as bands

when the tread depth becomes a 1/16 of an inch

(1.6 mm). When the tread is worn to the tread

wear indicators, the tire should be replaced.
For further information

Ú

page 215.

Life Of Tire

The service life of a tire is dependent upon

varying factors including, but not limited to:

Driving style.

Tire pressure - Improper cold tire inflation

pressures can cause uneven wear patterns to

develop across the tire tread. These abnormal

wear patterns will reduce tread life, resulting in

the need for earlier tire replacement.

Distance driven.

Performance tires, tires with a speed rating of

V or higher, and Summer tires typically have a

reduced tread life. Rotation of these tires per

the vehicle scheduled maintenance is highly

recommended.

NOTE:

Wheel valve stem must be replaced as well when

installing new tires due to wear and tear in

existing tires.
Keep dismounted tires in a cool, dry place with as

little exposure to light as possible. Protect tires

from contact with oil, grease, and gasoline.

Replacement Tires

The tires on your new vehicle provide a balance of

many characteristics. They should be inspected

regularly for wear and correct cold tire inflation

pressures. The manufacturer strongly

recommends that you use tires equivalent to the

originals in size, quality and performance when

replacement is needed

Ú

page 215. Refer to the

Tire and Loading Information placard or the

Vehicle Certification Label for the size

designation of your tire. The Load Index and

Speed Symbol for your tire will be found on the

original equipment tire sidewall.

For more information relating to the Load Index

and Speed Symbol of a tire

Ú

page 207.

It is recommended to replace the two front tires or

two rear tires as a pair. Replacing just one tire can

seriously affect your vehicle’s handling. If you

ever replace a wheel, make sure that the wheel’s

specifications match those of the original wheels.
It is recommended you contact an authorized tire

dealer or original equipment dealer with any

questions you may have on tire specifications or

capability. Failure to use equivalent replacement

tires may adversely affect the safety, handling,

and ride of your vehicle.

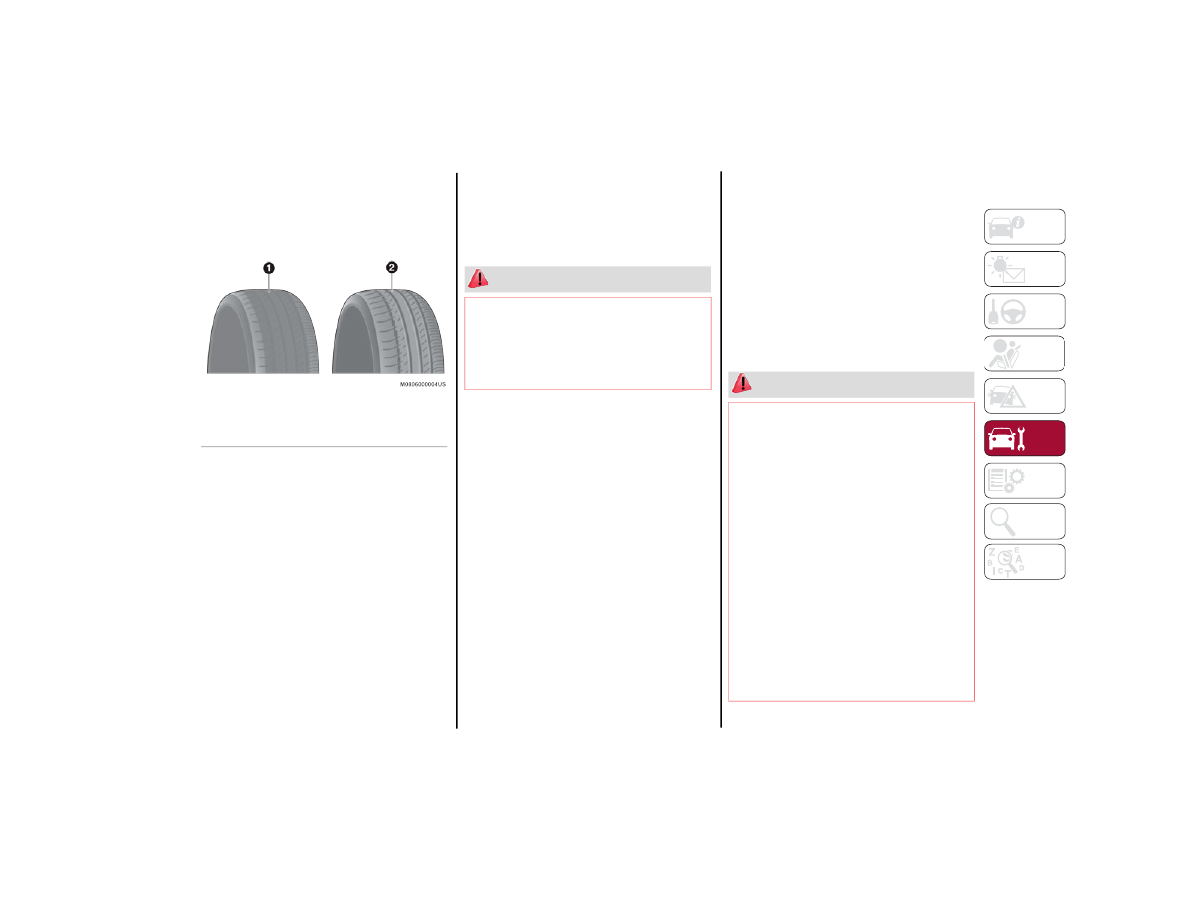

1 — Worn Tire
2 — New Tire

 WARNING!

Tires and the spare tire should be replaced

after six years, regardless of the remaining

tread. Failure to follow this warning can result

in sudden tire failure. You could lose control

and have a collision resulting in serious injury

or death.

 WARNING!

Do not use a tire, wheel size, load rating, or

speed rating other than that specified for

your vehicle. Some combinations of

unapproved tires and wheels may change

suspension dimensions and performance

characteristics, resulting in changes to

steering, handling, and braking of your

vehicle. This can cause unpredictable

handling and stress to steering and

suspension components. You could lose

control and have a collision resulting in

serious injury or death. Use only the tire and

wheel sizes with load ratings approved for

your vehicle.

Never use a tire with a smaller load index or

capacity, other than what was originally

equipped on your vehicle. Using a tire with a

smaller load index could result in tire

overloading and failure. You could lose

control and have a collision.

CarManuals2.com

SERVICING AN

D M

AINTENAN

CE

216

S

PARE

 T

IRES

 — I

F

 E

QUIPPED



NOTE:

For vehicles equipped with Tire Service Kit

instead of a spare tire, please refer to “Tire

Service Kit” in “In Case Of Emergency” for further

information.

Spare Tire Matching Original Equipped

Tire And Wheel — If Equipped

Your vehicle may be equipped with a spare tire

and wheel equivalent in look and function to the

original equipment tire and wheel found on the

front or rear axle of your vehicle. This spare tire

may be used in the tire rotation for your vehicle. If

your vehicle has this option, refer to an

authorized tire dealer for the recommended tire

rotation pattern.

Compact Spare Tire — If Equipped

The compact spare is for temporary emergency

use only. You can identify if your vehicle is

equipped with a compact spare by looking at the

spare tire description on the Tire and Loading

Information Placard located on the driver’s side

door opening or on the sidewall of the tire.

Compact spare tire descriptions begin with the

letter “T” or “S” preceding the size designation.

Example: T145/80D18 103M.
T, S = Temporary Spare Tire
Since this tire has limited tread life, the original

equipment tire should be repaired (or replaced)

and reinstalled on your vehicle at the first

opportunity.
Do not install a wheel cover or attempt to mount

a conventional tire on the compact spare wheel,

since the wheel is designed specifically for the

compact spare tire. Do not install more than one

compact spare tire and wheel on the vehicle at

any given time.

Full Size Spare — If Equipped

The full size spare is for temporary emergency

use only. This tire may look like the originally

equipped tire on the front or rear axle of your

vehicle, but it is not. This spare tire may have

limited tread life. When the tread is worn to the

tread wear indicators, the temporary use full size

spare tire needs to be replaced. Since it is not the

same as your original equipment tire, replace (or

repair) the original equipment tire and reinstall

on the vehicle at the first opportunity.

Limited Use Spare — If Equipped

The limited use spare tire is for temporary

emergency use only. This tire is identified by a

label located on the limited use spare wheel. This

label contains the driving limitations for this

spare. This tire may look like the original

equipped tire on the front or rear axle of your

vehicle, but it is not. Installation of this limited

use spare tire affects vehicle handling. Since it is

not the same as your original equipment tire,

replace (or repair) the original equipment tire and

reinstall on the vehicle at the first opportunity.

Failure to equip your vehicle with tires having

adequate speed capability can result in

sudden tire failure and loss of vehicle

control.

 CAUTION!

Replacing original tires with tires of a different

size may result in false speedometer and

odometer readings.

 CAUTION!

Because of the reduced ground clearance, do

not take your vehicle through an automatic car

wash with a compact or limited use temporary

spare installed. Damage to the vehicle may

result.

 WARNING!

 WARNING!

Compact and collapsible spares are for

temporary emergency use only. With these

spares, do not drive more than 50 mph

(80 km/h). Temporary use spares have limited

tread life. When the tread is worn to the tread

wear indicators, the temporary use spare tire

needs to be replaced. Be sure to follow the

warnings, which apply to your spare. Failure to

do so could result in spare tire failure and loss

of vehicle control.

CarManuals2.com

217

W

HEEL

 A

ND

 W

HEEL

 T

RIM

 C

ARE



All wheels and wheel trim, especially aluminum

and chrome plated wheels, should be cleaned

regularly using mild (neutral Ph) soap and water

to maintain their luster and to prevent corrosion.

Wash wheels with the same soap solution

recommended for the body of the vehicle and

remember to always wash when the surfaces are

not hot to the touch.
Your wheels are susceptible to deterioration

caused by salt, sodium chloride, magnesium

chloride, calcium chloride, etc., and other road

chemicals used to melt ice or control dust on dirt

roads. Use a soft cloth or sponge and mild soap to

wipe away promptly. Do not use harsh chemicals

or a stiff brush. They can damage the wheel’s

protective coating that helps keep them from

corroding and tarnishing.

When cleaning extremely dirty wheels including

excessive brake dust, care must be taken in the

selection of tire and wheel cleaning chemicals

and equipment to prevent damage to the wheels.

Select a non-abrasive, non-acidic cleaner for

aluminum or chrome wheels.

NOTE:

If you intend parking or storing your vehicle for an

extended period after cleaning the wheels with

wheel cleaner, drive your vehicle and apply the

brakes to remove the water droplets from the

brake components. This activity will remove the

red rust on the brake rotors and prevent vehicle

vibration when braking.

Dark Or Low Gloss Wheels

T

IRE

 T

YPES

All Season Tires — If Equipped

All Season tires provide traction for all seasons

(Spring, Summer, Autumn, and Winter). Traction

levels may vary between different all season tires.

All season tires can be identified by the M+S,

M&S, M/S or MS designation on the tire sidewall.

Use all season tires only in sets of four; failure to

do so may adversely affect the safety and

handling of your vehicle.

Summer Or Three Season Tires —

If Equipped

Summer tires provide traction in both wet and dry

conditions, and are not intended to be driven in

snow or on ice. If your vehicle is equipped with

Summer tires, be aware these tires are not

designed for Winter or cold driving conditions.

Install Winter tires on your vehicle when ambient

temperatures are less than 40°F (5°C) or if roads

are covered with ice or snow. For more

information, contact an authorized dealer.

 WARNING!

Limited use spares are for emergency use

only. Installation of this limited use spare tire

affects vehicle handling. With this tire, do not

drive more than the speed listed on the limited

use spare wheel. Keep inflated to the cold tire

inflation pressures listed on your Tire and

Loading Information Placard located on the

driver’s side B-pillar or the rear edge of the

driver’s side door. Replace (or repair) the

original equipment tire at the first opportunity

and reinstall it on your vehicle. Failure to do so

could result in loss of vehicle control.

 CAUTION!

Avoid products or automatic car washes that

use acidic solutions or strong alkaline

additives or harsh brushes. Many aftermarket

wheel cleaners and automatic car washes may

damage the wheel's protective finish. Such

damage is not covered by the New Vehicle

Limited Warranty. Only car wash soap is

recommended.

 CAUTION!

Do not use scouring pads, steel wool, a bristle

brush, metal polishes or oven cleaner. These

products may damage the wheel's protective

finish. Such damage is not covered by the New

Vehicle Limited Warranty. Only car wash soap

is recommended.

 CAUTION!

If your vehicle is equipped with these specialty

wheels, DO NOT USE wheel cleaners,

abrasives, or polishing compounds. They will

permanently damage this finish and such

damage is not covered by the New Vehicle

Limited Warranty. HAND WASH ONLY USING

MILD SOAP AND WATER WITH A SOFT CLOTH.

Used on a regular basis; this is all that is

required to maintain this finish.

CarManuals2.com

SERVICING AN

D M

AINTENAN

CE

218

Summer tires do not contain the all season

designation or mountain/snowflake symbol on

the tire sidewall. Use Summer tires only in sets of

four; failure to do so may adversely affect the

safety and handling of your vehicle.

Snow Tires

Some areas of the country require the use of

snow tires during the Winter. Snow tires can be

identified by a “mountain/snowflake” symbol on

the tire sidewall.

If you need snow tires, select tires

equivalent in size and type to the

original equipment tires. Use snow tires

only in sets of four; failure to do so may

adversely affect the safety and handling of your

vehicle.
Snow tires generally have lower speed ratings

than what was originally equipped with your

vehicle and should not be operated at sustained

speeds over 75 mph (120 km/h). For speeds

above 75 mph (120 km/h) refer to original

equipment or an authorized tire dealer for

recommended safe operating speeds, loading

and cold tire inflation pressures.

While studded tires improve performance on ice,

skid and traction capability on wet or dry surfaces

may be poorer than that of non-studded tires.

Some states prohibit studded tires; therefore,

local laws should be checked before using these

tire types.

S

NOW

 T

RACTION

 D

EVICES

Use of traction devices require sufficient

tire-to-body clearance. Follow these recommen

-

dations to guard against damage.
NOTE:

Traction device must be of proper size for the

tire, as recommended by the traction device

manufacturer.

Use on rear tires only.

Due to limited clearance, the following traction

devices are recommended:

For a 255/35R19 tire, use of a snow traction

device with a maximum projection of 7 mm

beyond the tire profile is recommended.

For 225/50R17, 225/45R18 or 225/40R19

tires, use of a snow traction device with a

maximum projection of 9 mm beyond the tire

profile is recommended.

For a 265/35R19 98V tire, use of a

zero-clearance snow traction device

recommended.

It is not possible to install traction devices on

285/30R19 tires.

 WARNING!

Do not use Summer tires in snow/ice

conditions. You could lose vehicle control,

resulting in severe injury or death. Driving too

fast for conditions also creates the possibility

of loss of vehicle control.

 CAUTION!

To avoid damage to your vehicle or tires,

observe the following precautions:

Because of restricted traction device

clearance between tires and other

suspension components, it is important that

only traction devices in good condition are

used. Broken devices can cause serious

damage. Stop the vehicle immediately if

noise occurs that could indicate device

breakage. Remove the damaged parts of the

device before further use.

Install device as tightly as possible and then

retighten after driving about ½ mile (0.8 km).

Autosock devices do not require

retightening.

Do not exceed 30 mph (48 km/h).

Drive cautiously and avoid severe turns and

large bumps, especially with a loaded

vehicle.

Do not drive for a prolonged period on dry

pavement.

Observe the traction device manufacturer’s

instructions on the method of installation,

operating speed, and conditions for use.

Always use the suggested operating speed of

the device manufacturer’s if it is less than

30 mph (48 km/h).

Do not use traction devices on a compact

spare tire.

CarManuals2.com

219

T

IRE

 R

OTATION

 R

ECOMMENDATIONS

Tires on the front and rear axles of vehicles

operate at different loads and perform different

steering, driving, and braking functions. For these

reasons, they wear at unequal rates. These

effects can be reduced by timely rotation of tires.

Rotation will increase tread life, maintain traction

levels and contribute to a smooth, quiet ride.
To resolve this problem, tires should be rotated at

each service interval (approximately every

10,000 miles [16,000km]). More frequent

rotation is permissible if desired. The reasons for

any rapid or unusual wear should be corrected

prior to rotation being performed.
Tire Rotations Not Recommended — If Equipped
Due to different size tires and wheels on front and

rear axles tire rotation is not possible for:

2.0T GME Engine Equipped with a 225/40R19

front and 255/35R19 rear tires

2.9L V6 Engine Equipped with 19” tires and

wheels

Tire rotation contributes to the preservation of the

grip and traction performance on wet, muddy or

snowy roads, guaranteeing optimal drivability of

the vehicle.
In the case of irregular wear of the tires identify

the cause and correct it as soon as possible, by

contacting an authorized dealer.
Tire Rotation for Directional Tires — If Equipped
Directional tires are equipped on the following:

2.0T GME Engine equipped with same size

tires and wheels on front and rear axles

The rotational direction of the tire must be taken

into consideration when rotating the tires. The

recommended rotation pattern for directional

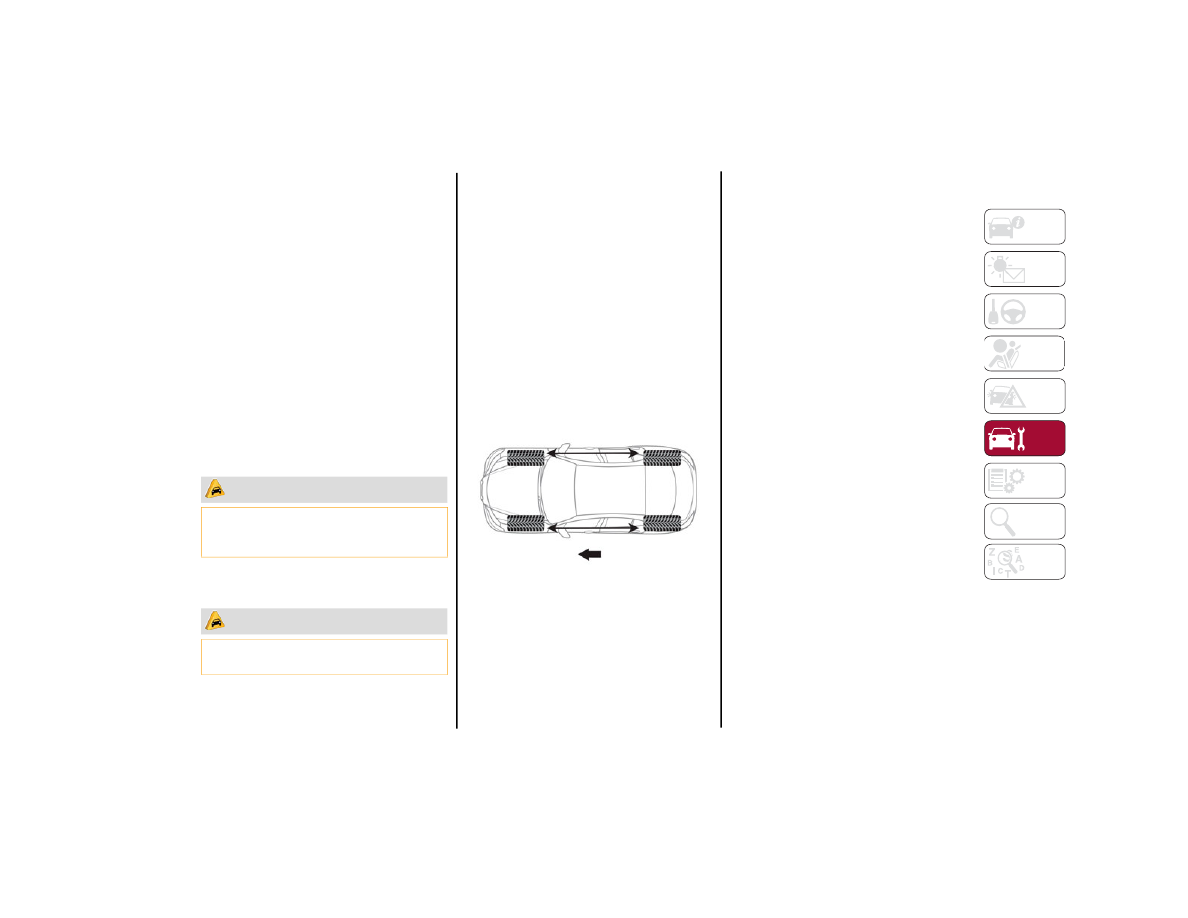

tires is shown in the following diagram.

Tire Rotation

All Wheel Drive (AWD) Models
It is recommended to avoid situations with a large

difference in wear between the front and rear

tires and to strictly use Winter tires of the sizes

given on the tire placard.

The AWD system and the original tires are

developed together to ensure the vehicle’s best

performance. When changing the tires, it is

recommended to us the same “AR” marked tires,

to maintain the same level of performance and

component life.

DEPARTMENT OF

TRANSPORTATION

UNIFORM TIRE QUALITY

GRADES

The following tire grading categories

were established by the National

Highway Traffic Safety Administration.

The specific grade rating assigned by

the tire's manufacturer in each

category is shown on the sidewall of the

tires on your vehicle.
All passenger vehicle tires must

conform to Federal safety requirements

in addition to these grades.

T

READWEAR

The Treadwear grade is a comparative

rating, based on the wear rate of the

tire when tested under controlled

conditions on a specified government

test course. For example, a tire graded

150 would wear one and one-half times

as well on the government course as a

tire graded 100. The relative

performance of tires depends upon the

 CAUTION!

Damage to the vehicle may occur if 225/

40R19 front and 255/35R19 rear tires are

rotated

 CAUTION!

Damage to the vehicle may occur if 19” front

and rear tires are rotated

CarManuals2.com

SERVICING AN

D M

AINTENAN

CE

220

actual conditions of their use, however,

and may depart significantly from the

norm due to variations in driving habits,

service practices, and differences in

road characteristics and climate.

T

RACTION

 G

RADES

The Traction grades, from highest to

lowest, are AA, A, B, and C. These

grades represent the tire's ability to

stop on wet pavement, as measured

under controlled conditions on

specified government test surfaces of

asphalt and concrete. A tire marked C

may have poor traction performance.

T

EMPERATURE

 G

RADES

The temperature grades are A (the

highest), B, and C, representing the

tire's resistance to the generation of

heat and its ability to dissipate heat,

when tested under controlled

conditions on a specified indoor

laboratory test wheel. Sustained high

temperature can cause the material of

the tire to degenerate and reduce tire

life, and excessive temperature can

lead to sudden tire failure. The grade C

corresponds to a level of performance,

which all passenger vehicle tires must

meet under the Federal Motor Vehicle

Safety Standard No. 109. Grades B and

A represent higher levels of

performance on the laboratory test

wheel, than the minimum required by

law.

STORING THE VEHICLE

If the vehicle is left inactive for longer than a

month, the following precautions should be

observed:

Park the vehicle in an area that is covered and

dry, and well-ventilated if possible. Slightly

open the windows.

Check that the Electric Park Brake is not

activated.

Carry out the procedure: “manual trunk

opening device” procedure described in this

paragraph.

Disconnect the negative battery terminal and

check the battery charge. Repeat this check

once every three months during storage.

If the battery is not disconnected from the

electrical system, check its state of charge

every 30 days.

Clean and protect the painted parts using

protective wax.

Clean and protect the shiny metal parts using

special compounds available commercially.

Sprinkle talcum powder on the windshield wiper

rubber blades, and lift them off the glass.

Cover the vehicle with a fabric or perforated

plastic sheet, paying particular care not to

damage the painted surface by dragging any

dust that may have accumulated on it. Do not

use compact plastic sheets, as they do not

allow humidity to evaporate from the surface

of the vehicle.

Inflate tires to +7.25 psi (+0.5 bar) above the

standard prescribed pressure and check it

periodically.

Do not drain the engine cooling system.

Any time the vehicle is left inactive for two

weeks or more, operate the air conditioning

system with engine idling for at least five

minutes, setting external air and with fan set to

maximum speed. This operation will ensure

appropriate lubrication for the system, thus

minimizing the possibility of damage to the

compressor when the system is operated again.

NOTE:

After placing the ignition in STOP and having

closed the driver side door, wait at least one

minute before disconnecting the electrical supply

from the battery. When reconnecting the elec

-

trical supply to the battery, make sure that the

ignition is in the STOP position and the driver side

door is closed.

 WARNING!

The traction grade assigned to this tire is

based on straight-ahead braking traction

tests, and does not include acceleration,

cornering, hydroplaning, or peak traction

characteristics.

 WARNING!

The temperature grade for this tire is

established for a tire that is properly inflated

and not overloaded. Excessive speed,

underinflation, or excessive loading, either

separately or in combination, can cause heat

buildup and possible tire failure.

CarManuals2.com

221

Manual Trunk Opening Device
Proceed as follows if the battery needs to be

disconnected:

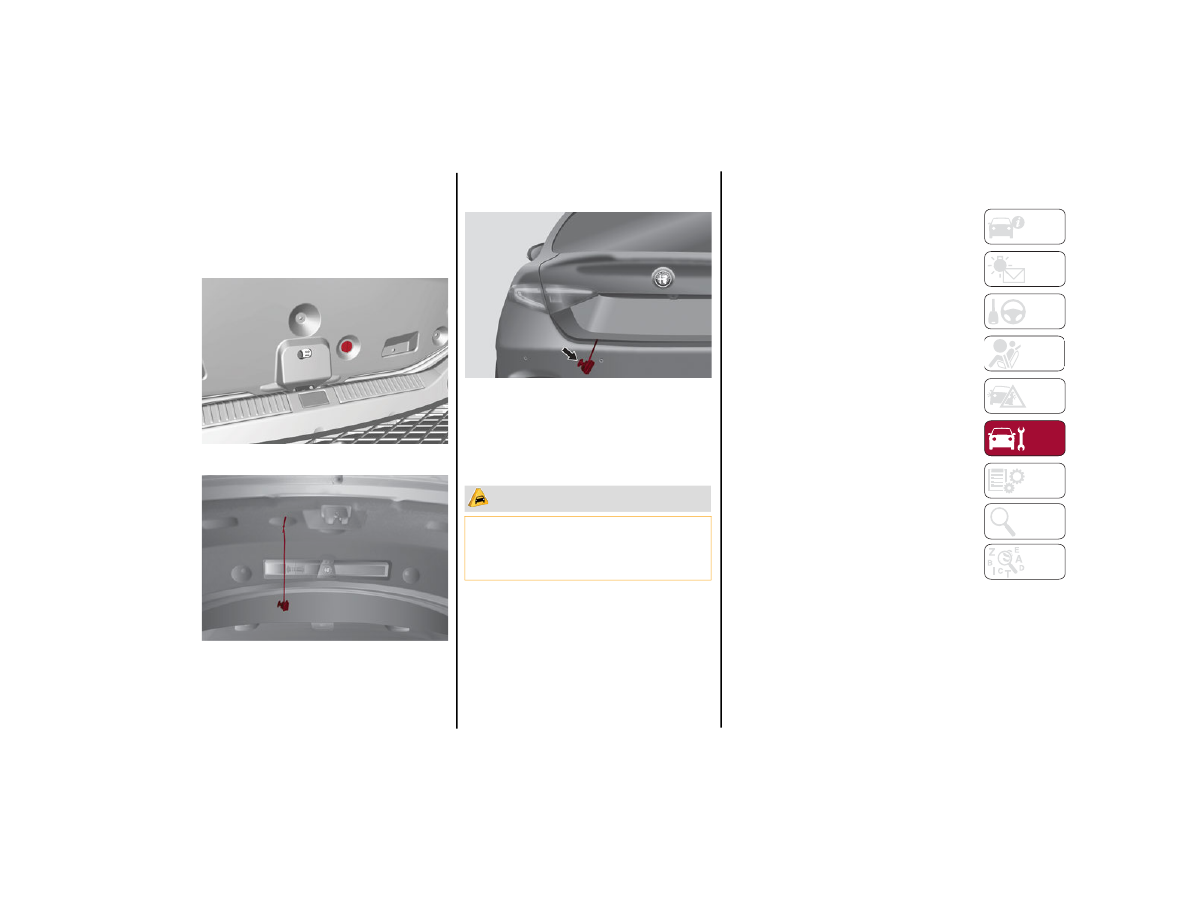

1. From the trunk interior covering, rotate the

plug counterclockwise of the lock and extract

the cord connected to it.

Trunk Compartment

Trunk Manual Release Cord

2. Make sure the free end of the cord remains

outside the trunk when closing the trunk lid.

Manual Release Cord Shown With Trunk Closed

3. The trunk can now be opened manually by

pulling the cord.

4. After releasing the trunk, rewind the strap

around the plug, put it back into its housing

and turn it clockwise.

BODYWORK

P

ROTECTION

 A

GAINST

 A

TMOSPHERIC



A

GENTS

The vehicle is equipped with the best available

technological solutions to protect the bodywork

against corrosion.

These include:

Painting products and systems which give the

vehicle resistance to corrosion and abrasion.

Use of galvanized (or pre-treated) steel sheets,

with high resistance to corrosion.

Spraying of plastic parts, with a protective

function in the more exposed points: under

door, inner wing, edges, etc.

Use of “open” boxed sections to prevent

condensation and pockets of moisture which

could favor the formation of rust inside.

Use of special films to protect against abrasion

in exposed areas (e.g. rear wing, doors, etc.).

C

ORROSION

 W

ARRANTY

Your vehicle is covered by Corrosion Warranty

against perforation due to rust of any original

element of the structure or bodywork. For the

general terms of this warranty, refer to the

Warranty Booklet.

P

RESERVING

 T

HE

 B

ODYWORK

Paint
Touch up abrasions and scratches immediately to

prevent the formation of rust.
Maintenance of paintwork consists of washing

the car: the frequency depends on the conditions

and environment where the car is used. For

example, it is advisable to wash the vehicle more

often in areas with high levels of atmospheric

pollution or salted roads.
Some parts of the vehicle may be covered with a

matte paint which, in order to be maintained

intact, requires special care.

 CAUTION!

The Manual Trunk Opening Device allows the

trunk to be opened without a key, even if the

vehicle is locked. Do not use this Device

unless the vehicle is parked in a secure area.

CarManuals2.com

SERVICING AN

D M

AINTENAN

CE

222

To correctly wash the vehicle, follow these

instructions:

If high pressure jets or cleaners are used to

wash the vehicle, keep a distance of at least

15 inches (40 cm) from the bodywork to avoid

damage or alteration. Build up of water could

cause damage to the vehicle in the long term.

To make it easier to remove any dirt deposits

in the area where the blades are normally

located it is recommended to position the

windshield wipers vertically (service position).

Wash the bodywork using a low pressure jet of

water if possible.

Wipe a sponge with a slightly soapy solution

over the bodywork, frequently rinsing the

sponge.

Rinse well with water and dry with a leather

chamois.

Dry the less visible parts (e.g. door frames, hood,

headlight frames, etc.) with special care, as water

may stagnate more easily in these areas. Do not

wash the car after it has been left in the sun or

with the hood hot: this may alter the shine of the

paintwork.
Exterior plastic parts must be cleaned in the

same way as the rest of the vehicle.
If washing the car in a service that moves the car,

for cars with automatic transmissions, PARK (P)

must be cut out. You have to shut off the engine

in the following conditions: car stopped,

transmission in NEUTRAL (N), push the starter

button for at least three seconds.
NOTE:

Avoid parking under trees; the resin dropped by

trees makes the paintwork go opaque and

increases the possibility of corrosion.

Windows
Use specific detergents and clean cloths to

prevent scratching or altering the transparency.

Front Headlights
Use a soft cloth soaked in water and detergent for

washing cars.
NOTE:

Never use aromatic substances (e.g. gasoline)

or ketones (e.g. acetone) for cleaning the

plastic lenses of the headlights.

When cleaning with a pressure washer, keep

the pressure washer at least eight inches

(20 cm) away from the headlights.

Engine Compartment
At the end of every Winter, wash the engine

compartment thoroughly, taking care not to aim

the jet of water directly at the electronic control

units or at the windshield wiper motors. Have this

operation performed at a specialized workshop.

For further information

Ú

page 191.

NOTE:

The washing should take place with the engine

cold and the ignition device in the STOP position.

After the washing operation, make sure that the

various protections (e.g. rubber caps and guards)

have not been removed or damaged.

INTERIORS

Periodically check the cleanliness of the interior,

beneath the mats, which could cause oxidation of

the sheet metal.

S

EATS

 A

ND

 F

ABRIC

 P

ARTS

Remove dust with a soft brush or a vacuum

cleaner. Rub the seats with a sponge moistened

with a solution of water and neutral detergent.
Cleaning heat press images on seats —

if equipped:
Due to the color, opacity and wear-resistant

protection with which the heat press images on

some seats are made, they may be subject to

temporary scratching if they are touched by finger

nails, keys, or other hard objects. In such cases, the

visible signs do not impair the profiled images, and

can easily be removed by wiping the affected area

with a microfiber cloth moistened with water (not

dry) to restore the seat to its original condition. The

microfiber cloth must not have been previously

soaked in other substances or detergents.

L

EATHER

 S

EATS

Remove the dry dirt with a chamois or slightly

damp cloth, without exerting too much pressure.
Remove any liquid or grease stains using an

absorbent dry cloth, without rubbing. Then clean

with a soft cloth or buckskin cloth dampened with

water and mild soap. If the stain persists, use

specific products and observe the instructions

carefully.
NOTE:

Never use alcohol. Make sure that the cleaning

products used contain no alcohol or alcohol deriv

-

atives, even in small quantities.

 CAUTION!

Wipe the rear window inside gently with a cloth

following the direction of the filaments to avoid

damaging the heating device.

CarManuals2.com

223

P

LASTIC

 A

ND

 C

OATED

 P

ARTS

Clean interior plastic parts with a damp cloth (if

possible made from microfiber), and a solution of

water and neutral, non-abrasive detergent.
To clean oily or persistent stains, use specific

products free from solvents and designed to

maintain the original appearance and color of the

components.
Remove any dust using a microfiber cloth, if

necessary moistened with water. The use of

paper tissues is not recommended as these may

leave residues.

A

LCANTARA

 P

ARTS

 — I

F

 E

QUIPPED

Alcantara parts maintenance procedure:

Treat the surface with a microfiber cloth

moistened with mild Marseille soap and water,

taking care to apply a uniform light pressure

over the entire area (do not rub vigorously).

Rinse and wring out the microfiber cloth, and

pass it over the entire area again.

Let it dry, and then brush gently with a soft

brush.

G

ENUINE

 L

EATHER

 S

URFACES

 —

I

F

 E

QUIPPED

Use only water and mild soap to clean these

parts. Never use alcohol or alcohol-based

products.
Before using a specific product for cleaning

interiors, make sure that it does not contain

alcohol and/or alcohol based substances.

C

ARBON

 F

IBER

 P

ARTS

To eliminate small scratches and marks on the

carbon, contact an authorized dealer. An

improperly performed operation may irreparably

damage the carbon.

 CAUTION!

Do not use “hard” synthetic brushes as they

can damage the fabric.

Do not clean small areas because it could

cause “aesthetic” differences between

treated and untreated areas.

Do not use alcohol or acetone-based

solvents.

CarManuals2.com

224

TECH

NICAL SPECIFICA

TIO

NS

For the enthusiasts, the technician, or those who

just want to know every detail of their vehicle,

useful information on understanding how your

vehicle works is contained in this chapter and

illustrated with data, tables, and graphics.

VEHICLE IDENTIFICATION

NUMBER (VIN)

The VIN is stamped on a plate on the front left

corner of the dashboard cover, which can be seen

from outside the vehicle, through the windshield.

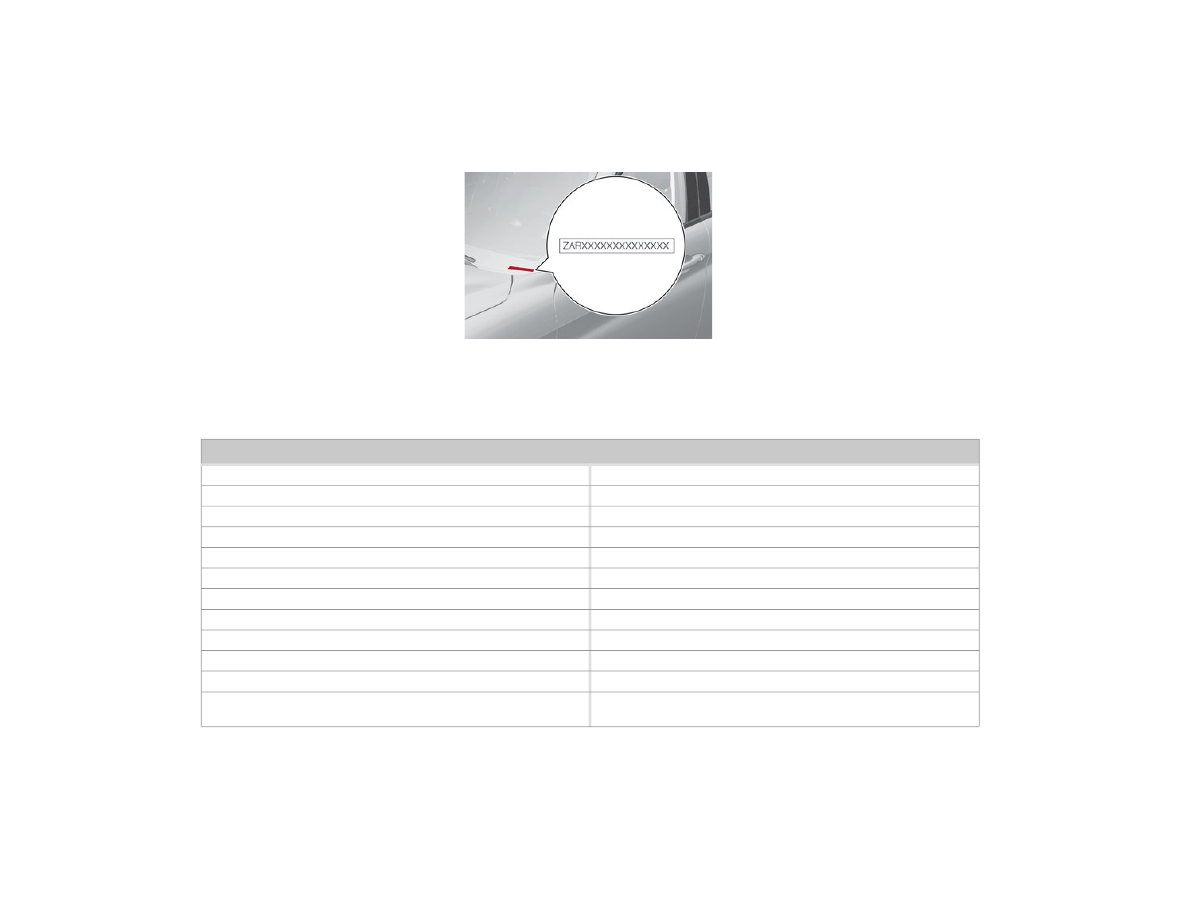

Windshield VIN Location

V

EHICLE

 I

DENTIFICATION

 N

UMBER

 (VIN)

P

LATE

The plates are located on the left side A-pillar and

contain data about:

Vehicle Identification Number (VIN).

Vehicle type (USA and Canada only).

Color code.

Place of manufacturing of the vehicle (USA and

Mexico only).

Vehicle manufacturing date.

Maximum permitted weights.

Permitted tire inflation pressure (USA and

Canada only).

ENGINE

2.0L Engine

Cycle

Four

Number and position of cylinders

4 inline

Piston bore and stroke (mm)

84 / 90

Total displacement (cm³)

1,995

Compression ratio

10:1

Maximum power (SAE) (HP)

280

Maximum power (kW)

209

Corresponding engine speed (RPM)

5,200

Maximum torque (SAE) (ft-lb)

295

Maximum torque (Nm)

400

Corresponding engine speed (RPM)

2,250 – 4,000

Fuel

87 Octane (R+M)/2 Method Minimum, 91 Recommended, ethanol

percentage is 0–15%

CarManuals2.com

225

POWER SUPPLY

TRANSMISSION

2.9L Engine

Cycle

Four

Number and position of cylinders

6 / V

Piston bore and stroke (mm)

86.5 × 82

Total displacement (cm³)

2,891

Compression ratio

9.3:1

Maximum power (SAE) (kW)

375

Maximum power (SAE) (HP)

505

Corresponding engine speed (RPM)

6,500

Maximum torque (SAE) (Nm)

600

Maximum torque (SAE) (ft-lb)

443

Corresponding engine speed (RPM)

2,500

Fuel

87 Octane (R+M)/2 Method Minimum, 91 Recommended, ethanol

percentage is 0–15%

Power Supply

2.0L Engine

Electronic timed sequential injection with knock control

2.9L Engine

Phased sequential electronic injection with knock control and variable

intake valve actuation

Model

Transmission

Traction

2.0L Engine

Eight forward gears

plus reverse

Rear-wheel drive or

All-wheel drive

2.9L Engine

Eight forward gears plus reverse

Rear

CarManuals2.com

TECH

NICAL SPECIFICA

TIO

NS

226

BRAKES

SUSPENSION

STEERING SYSTEM

Model

Front Brakes

Rear Brakes

Parking Brake

2.0L Engine and 2.9L Engine

Disc

Disc

Electric

 CAUTION!

Water, ice and salt spread on the roads may deposit on the brake discs, reducing braking efficiency the first time the brakes are applied.

To obtain the maximum efficiency of the braking system, a bedding-in period of about 300 miles (500 km) is needed: during this period it is better to

avoid sharp, repeated and prolonged braking.

Model

Front

Rear

2.0L Engine and 2.9L Engine

Independent wheel

double-wishbone suspension

Independent wheel with multi-link

system

Model

Curb-To-Curb Turning Circle

Type

2.0L Engine

35.50 ft (10.80 m)

Rack and pinion with electric power

steering

2.9L Engine

37.10 ft (11.30 m)

Rack and pinion with electric power

steering

CarManuals2.com

227

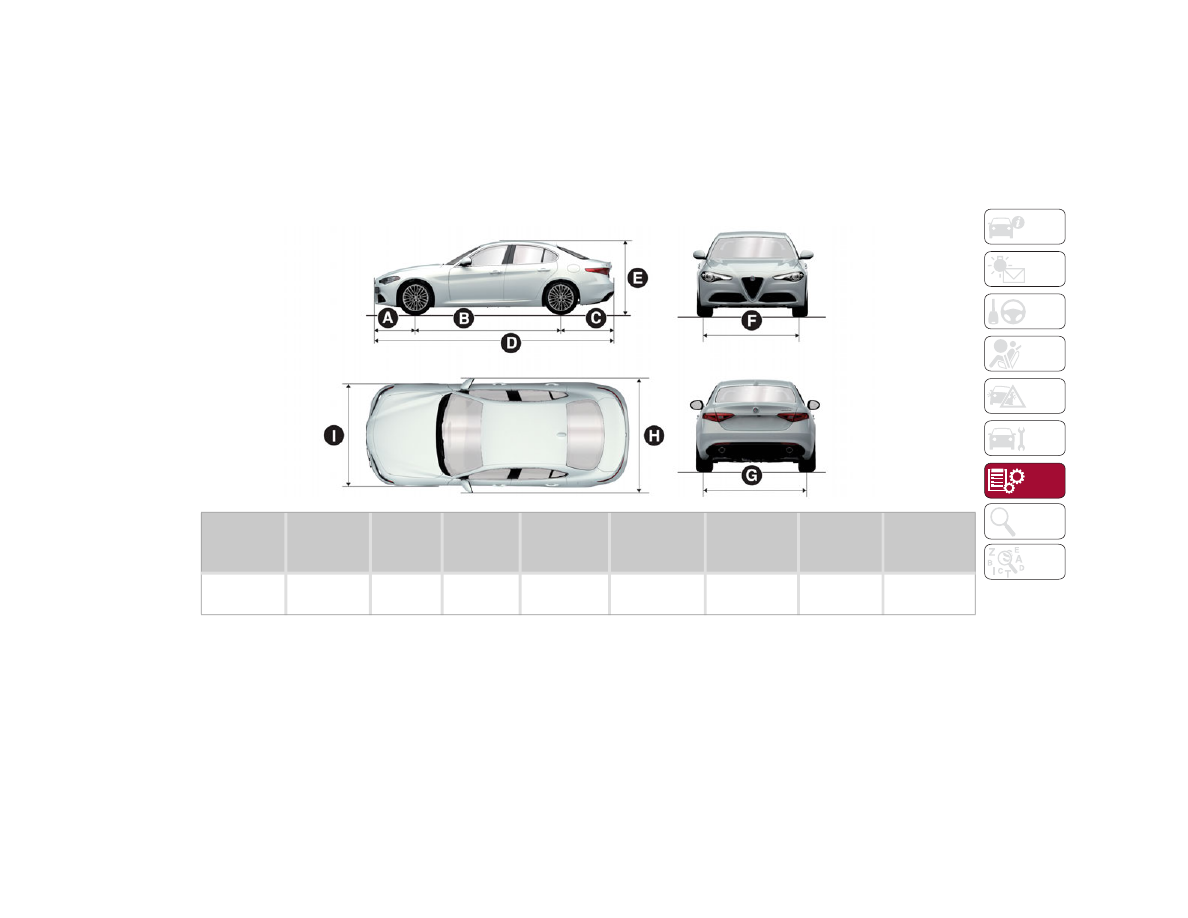

DIMENSIONS — 2.0L ENGINE

Dimensions are expressed in inches and refer to the vehicle equipped with its standard-supplied tires. Height is measured with vehicle unladen.

Small variations with respect to the reported values are possible depending on the dimensions of the rims.

A

Front

Overhang

B

Wheelbase

C

Rear

Overhang

D

Overall

Length

E

Overall Height

F

Front Track

G

Rear Track

H

Overall Width

(Incl. Mirrors)

I

Overall Width

(Excl. Mirrors)

31.30 inches

111.02 inches

40.47 inches 182.80 inches

56.54 inches

1

57.09 inches

2

1. RWD models

2. AWD models

61.30 inches

1

61.38 inches

2

63.98 inches

1

63.15 inches

2

79.69 inches

73.23 inches

CarManuals2.com

TECH

NICAL SPECIFICA

TIO

NS

228

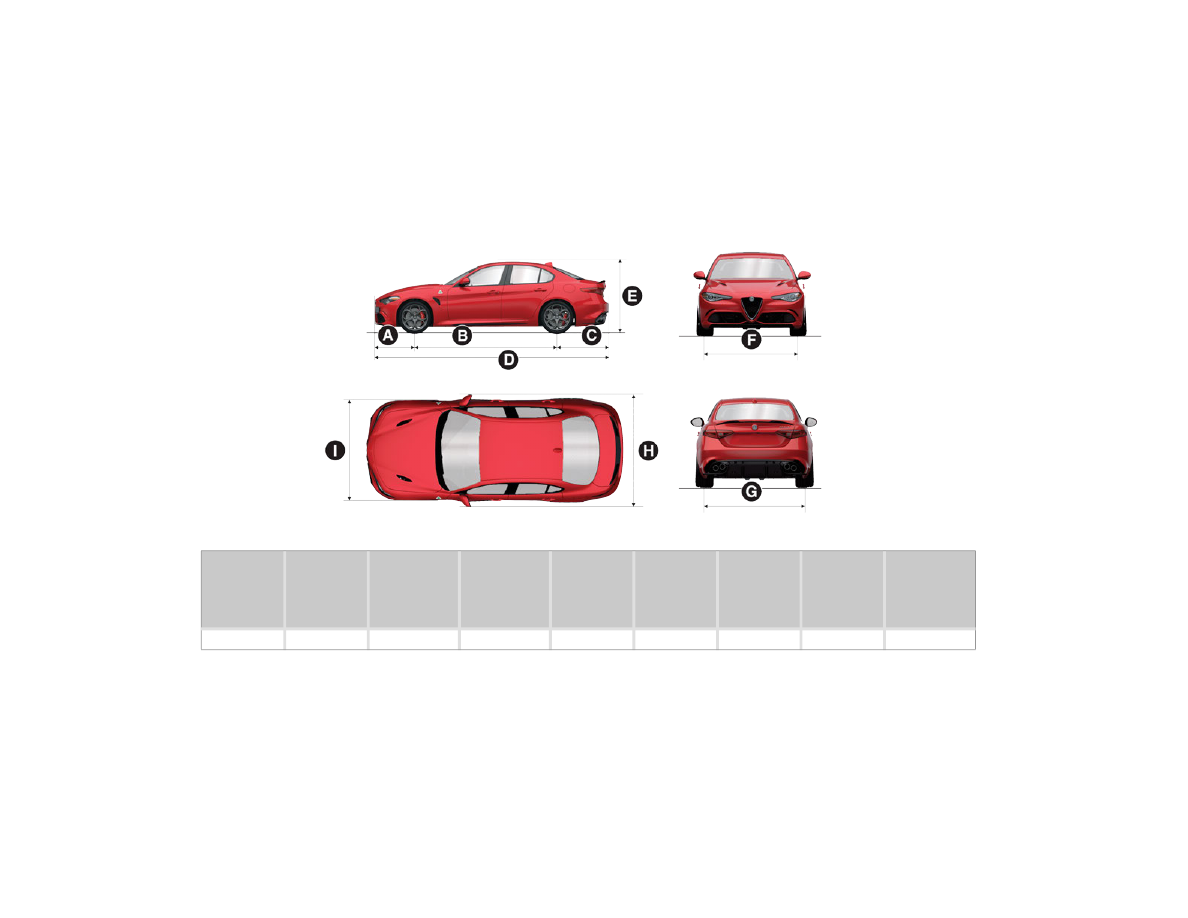

DIMENSIONS — 2.9L Engine

Dimensions are expressed in inches and refer to the vehicle equipped with its standard-supplied tires. Height is measured with vehicle unladen.

A

Front

Overhang

B

Wheelbase

C

Rear

Overhang

D

Overall

Length

E

Overall

Height

F

Front Track

G

Rear Track

H

Overall

Width (Incl.

Mirrors)

I

Overall Width

(Excl. Mirrors)

31.30 inches

111.02 inches

40.31 inches

182.64 inches

56.14 inches

61.22 inches

63.27 inches

79.69 inches

73.74 inches

CarManuals2.com

229

WEIGHTS — 2.0L ENGINE

WEIGHTS — 2.9L ENGINE

Weights (lbs)

AWD

RWD

Unloaded weight (with all fluids, fuel tank filled to 90% and without

optional equipment)

3,622

3,523

Payload including the driver

1

1. If special equipment is fitted (trailer towing equipment, etc.) the empty weight will increase and consequently the payload will decrease in relation to the maximum permitted

loads.

905

905

Maximum permitted loads

2

2. Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or on the load platform within the maximum permitted loads.

155

155

Front axle

2,205

2,205

Rear axle

2,646

2,646

Total

4,723

4,612

Weights (lbs)

2.9L Engine

Unloaded weight (with all fluids, fuel tank filled to 90% and without

optional equipment)

3,821

Payload including the driver

1

1. If special equipment is fitted (trailer towing equipment, etc.) the empty weight will increase and consequently the payload will decrease in relation to the maximum permitted

loads.

905

Maximum permitted loads

2

2. Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or on the load platform within the maximum permitted loads.

155

Front axle

2,260

Rear axle

2,646

Total

4,774

CarManuals2.com

TECH

NICAL SPECIFICA

TIO

NS

230

FUEL REQUIREMENTS

These engines are designed to meet all

emission regulations, and provide

satisfactory fuel economy and

performance when using high-quality

unleaded regular gasoline having a posted

octane number of 87 as specified by the

(R+M)/2 method. For optimal performance the

use of 91 or higher octane premium gasoline is

recommended in these engines.
While operating on gasoline with the required

octane number, hearing a light knocking sound

from the engine is not a cause for concern.

However, if the engine is heard making a heavy

knocking sound, see your dealer immediately.

Use of gasoline with a lower than recommended

octane number can cause engine failure and may

void or not be covered by the New Vehicle Limited

Warranty.
Poor quality gasoline can cause problems such

as hard starting, stalling, and hesitations. If you

experience these symptoms, try another brand of

gasoline before considering service for the

vehicle.

R

EFORMULATED

 G

ASOLINE



Many areas of the country require the use of

cleaner burning gasoline referred to as

“reformulated gasoline”. Reformulated gasoline

contains oxygenates and are specifically blended

to reduce vehicle emissions and improve air

quality.
The use of reformulated gasoline is

recommended. Properly blended reformulated

gasoline will provide improved performance and

durability of engine and fuel system components.

G

ASOLINE

/O

XYGENATE

 B

LENDS



Some fuel suppliers blend unleaded gasoline

with oxygenates such as ethanol.

Problems that result from using gasoline

containing more than 15% ethanol (E-15) or

gasoline containing methanol are not the respon

-

sibility of the manufacturer and not covered

under New Vehicle Limited Warranty.

CNG A

ND

 LP F

UEL

 S

YSTEM



M

ODIFICATIONS

Modifications that allow the engine to run on

Compressed Natural Gas (CNG) or Liquid

Propane (LP) may result in damage to the engine,

emissions, and fuel system components.

Problems that result from running CNG or LP are

not the responsibility of the manufacturer and not

covered under the New Vehicle Limited Warranty.

M

ETHYLCYCLOPENTADIENYL

 M

ANGANESE



T

RICARBONYL

 (MMT) I

N

 G

ASOLINE

MMT is a manganese-containing metallic

additive that is blended into some gasoline to

increase octane. Gasoline blended with MMT

provides no performance advantage beyond

gasoline of the same octane number without

MMT. Gasoline blended with MMT reduces spark

plug life and reduces emissions system

performance in some vehicles. The manufacturer

recommends that gasoline without MMT be used

in your vehicle. The MMT content of gasoline may

not be indicated on the gasoline pump; therefore,

you should ask your gasoline retailer whether the

gasoline contains MMT. MMT is prohibited in

Federal and California reformulated gasoline.

M

ATERIALS

 A

DDED

 T

O

 F

UEL



Besides using unleaded gasoline with the proper

octane rating, gasolines that contain detergents,

corrosion and stability additives are

recommended. Using gasolines that have these

additives will help improve fuel economy, reduce

emissions, and maintain vehicle performance.

Designated TOP TIER Detergent Gasoline

contains a higher level of detergents to

further aide in minimizing engine and fuel

system deposits. When available, the

usage of TOP TIER Detergent Gasoline is

recommended. Visit www.toptiergas.com for a list

of TOP TIER Detergent Gasoline retailers.
Indiscriminate use of fuel system cleaning agents

should be avoided. Many of these materials

intended for gum and varnish removal may

contain active solvents or similar ingredients.

These can harm fuel system gasket and

diaphragm materials.

 CAUTION!

DO NOT use E-85, gasoline containing metha

-

nol, or gasoline containing more than 15%

ethanol (E-15). Use of these blends may result

in starting and drivability problems, damage

critical fuel system components, cause emis

-

sions to exceed the applicable standard, and/

or cause the Malfunction Indicator Light to illu

-

minate. Please observe pump labels as they

should clearly communicate if a fuel contains

greater than 15% ethanol (E-15).

CarManuals2.com

231

F

UEL

 S

YSTEM

 C

AUTIONS

NOTE:

Intentional tampering with the emissions control system can result in civil penalties being assessed against you.

FLUID CAPACITIES

2.0L E

NGINE

 CAUTION!

Follow these guidelines to maintain your vehicle’s performance:

The use of leaded gasoline is prohibited by Federal law. Using leaded gasoline can impair engine performance and damage the emissions control

system.

An out-of-tune engine or certain fuel or ignition malfunctions can cause the catalytic converter to overheat. If you notice a pungent burning odor or some

light smoke, your engine may be out of tune or malfunctioning and may require immediate service. Contact an authorized dealer for service assistance.

The use of fuel additives, which are now being sold as octane enhancers, is not recommended. Most of these products contain high concentrations of

methanol. Fuel system damage or vehicle performance problems resulting from the use of such fuels or additives is not the responsibility of the

manufacturer and may void or not be covered under the New Vehicle Limited Warranty.

Component

US

Metric

Fuel Tank

15.3 gal

58 L

Fuel Tank Reserve

2.3 gal

9 L

Engine Cooling Cystem

2.2 gal

8.6 L

Intercooler Cooling System

1.1 gal

4.3 L

Engine Oil Sump And Filter

5.5 qt

5.2 L

Hydraulic Brake Circuit

0.9 qt

0.9 L

Windshield Washer Fluid Reservoir

1.1 gal

4.2 L

Automatic Transmission

9.9 qt (RWD Model) /

9.8 qt (AWD Model)

9.4 L (RWD Model) /

9.3 L (AWD Model)

Differentials And Reduction Gears RDU 195

0.9 qt

0.9 L

CarManuals2.com

TECH

NICAL SPECIFICA

TIO

NS

232

2.9L V6 E

NGINE

Differentials And Reduction Gears RDU 230-TV

RDU 230-LSD Differential - If Equipped

0.9 qt

0.9 L

RDU 210/215-LSD Differential - If Equipped

1.1 qt

1.1 L

AWD System FAD Transfer Case

0.5 qt

0.5 L

AWD System Transfer Case

0.7 qt

0.7 L

Component

US

Metric

Fuel Tank

15.3 gal

58 L

Fuel Tank Reserve

2.3 gal

9 L

Engine Cooling System

2.95 gal

11.2 L

Intercooler Cooling System

1.4 gal

5.5 L

Engine Sump And Filter

7.2 qt

7 L

Hydraulic Brake Circuit

0.9 qt

0.9 L

Windshield Washer Fluid Reservoir

1.1 gal

4.2 L

Automatic Transmission

Differentials And Reduction Gears RDU 195

Differentials And Reduction Gears RDU 230-TV

Main body: 0.8 qt

Left TV: 0.5 qt

Right TV: 0.6 qt

Main body: 0.8 L

Left TV: 0.5 L

Right TV: 0.6 L

RDU 230-LSD Differential

RDU 210-eLSD Differential (If Equipped)

RDU 210/215-LSD Differential

Component

US

Metric

CarManuals2.com

233

ENGINE FLUIDS AND LUBRICANTS

2.0L Engine

If lubricants conforming to the specific request are not available, products that meet the indicated specifications can be used to top up; in this case optimal

performance of the engine is not guaranteed.

2.9L Engine

If lubricants conforming to the specific request are not available, products that meet the indicated specifications can be used to top up; in this case optimal

performance of the engine is not guaranteed.

Features

Specification

Replacement interval

We recommend using Mopar® API SP/GF-6A

Certified SAE 0W-30 Full Synthetic Engine Oil

which meets the requirements of the

manufacturer Material Standard MS-13340.

Equivalent full synthetic 0W-30 API SP engine oil

can be used but must have the API Donut

Trademark.

The manufacturer Material Standard MS-13340

According to the Maintenance Plan

CAUTION!

Failure to use the recommended API SP/GF-6A

or equivalent oil can cause engine damage not

covered by the vehicle warranty.

Features

Specification

Replacement interval

5W-40

ACEA C3

API SN

FPT 9.55535-GH2

MS-12991

According to the Maintenance Plan

CarManuals2.com

TECH

NICAL SPECIFICA

TIO

NS

234

CHASSIS FLUIDS AND LUBRICANTS

2.0L Engine

2.9L Engine

Use

Features

Specification

Applications

Lubricants and greases

ZF 8HP 50 - Synthetic ATF

Automatic transmission

SAE 75W-85 Synthetic lubricant

FPW9.55550-DA9

Differential and reduction units

RDU 195; RDU 230-LSD; RDU

210-eLSD; RDU 210/215-LSD

SAE 75W-80 APL GL-5 Synthetic

lubricant

FPW9.55550-DA10

AWD System FAD transfer case

SAE 75W Synthetic lubricant

FPW9.55550-DA11

AWD System TRANSFER CASE

Brake fluid

DOT 4

MS.90039

Hydraulic brakes

Engine coolant

CUNA NC 956-16

ASTMD3306

MS.90032

Use rate 50% Not mixable with

different formulation products.

1

1. For particularly harsh climate conditions, a mixture of 60% product and 40% distilled water is recommended.

Windshield washer fluid

CUNA NC 956-11

MS.90043

To be used diluted or undiluted in

windshield washer/wiper systems

HVAC

R1234yf

Use

Features

Specification

Applications

Lubricants and greases

ZF 8HP 50 - Synthetic ATF

Automatic transmission

SAE 75W-85 API GL-5 Synthetic

lubricant

FPW9.55550-DA8

Differential and reduction units

RDU 230-TV / 2.9 V6 engine

Brake fluid

DOT 4

MS.90039

Hydraulic brakes

Engine coolant

CUNA NC 956-16

ASTMD3306

MS.90032

Use rate 50% Not mixable with

different formulation products.

1

CarManuals2.com

235

PERFORMANCE — 2.0L ENGINE

Top performance after the initial period of vehicle usage.

*Based on manufacturer testing.

PERFORMANCE — 2.9L ENGINE

Top performance after the initial period of vehicle usage.

*Based on manufacturer testing.

Windshield washer fluid

CUNA NC 956-11

MS.90043

To be used diluted or undiluted in

windshield washer/wiper systems

HVAC

R1234yf

1. For particularly harsh climate conditions, a mixture of 60% product and 40% distilled water is recommended.

Models

Maximum Speed mph

Acceleration From 0-60 mph

(0-100 km/h) Seconds

 RWD

149 *

5.5 *

 AWD

149 *

5.1 *

Use

Features

Specification

Applications

Maximum Speed mph

Acceleration From 0-60 mph (0-100 km/h) seconds

191 *

3.8 *

CarManuals2.com

236

CUSTO

MER A

SSISTANC

E

SUGGESTIONS FOR

OBTAINING SERVICE FOR

YOUR VEHICLE

P

REPARE

 F

OR

 T

HE

 A

PPOINTMENT

All work to be performed may not be covered by

the warranty. Discuss additional charges with the

service manager. Keep a maintenance log of your

vehicle's service history, as this can often provide

a clue to the current problem.

P

REPARE

 A L

IST

Make a written list of your vehicle's problems or

the specific work you want done. If you've had an

accident or work done that is not on your

maintenance log, let the service advisor know.

B

E

 R

EASONABLE

 W

ITH

 R

EQUESTS

If you list a number of items and you must have

your vehicle by the end of the day, discuss the

situation with the service advisor and list the

items in order of priority. At many authorized

dealers, you may obtain a rental vehicle

(additional charges may apply). If you need a

rental, it is advisable to make these

arrangements when you call for an appointment.

IF YOU NEED ASSISTANCE

FCA US LLC and its authorized dealers are vitally

interested in your satisfaction. We want you to be

happy with our products and services.

Warranty service must be done by an authorized

dealer. We strongly recommend that you take the

vehicle to an authorized dealer. They know your

vehicle the best, and are most concerned that

you get prompt and high quality service. FCA US

LLC's authorized dealers have the facilities,

factory-trained technicians, special tools, and the

latest information to ensure the vehicle is fixed

correctly and in a timely manner.
This is why you should always talk to an

authorized dealer’s service manager first. If for

some reason you are still not satisfied, talk to the

general manager or owner of the authorized

dealer. They want to know if you need assistance.

If an authorized dealer is unable to resolve the

concern, you may contact FCA US LLC's Customer

Assistance center.
Any communication to FCA US LLC’s customer

center should include the following information:

Owner's name and address

Owner's telephone number (mobile, home and

office)

Authorized dealer name

Vehicle Identification Number (VIN)

Vehicle delivery date and mileage

R

OADSIDE

 A

SSISTANCE

Available 24 hours, 7 days a week.
Call 1-855-299-1368 or visit

alfaromeo.rsahelp.com (USA)
Call 1-800-363-4869 or visit fca.roadsideaid.com

(Canada)

Who is Covered
You are covered by Roadside Assistance services

if you are a purchaser for use of the vehicle.

Roadside Assistance services last for five years or

60,000 miles on the odometer, whichever occurs

first, calculated from the start date of the Basic

Limited Warranty, as set forth in “section 2.1 E”.

1

1. Towing services provided through Cross Country Motor

Club, Inc., Medford, MA 02155, except in AK, CA, HI, OR,

WI, and WY, where services are provided by Cross

Country Motor Club of California, Inc., Thousand Oaks,

CA 91360.

What to Do
If your vehicle requires jump start assistance, out

of gas/fuel delivery, tire service, lockout service

or towing as a result of a mechanical breakdown,

dial toll-free: U.S.A.: 1-855-299-1368/Canada:

800-363-4869. Provide your name, Vehicle

Identification Number (VIN) required for covered

services, license plate number, and your location,

including the telephone number from which you

are calling. Briefly describe the nature of the

problem and answer a few simple questions. You

will be given the name of the service provider and

an estimated time of arrival. If you feel you are in

an “unsafe situation”, please let us know. With

your consent, we will contact local police or safety

authorities.
If Unable to Contact Roadside Assistance
If you are unable to contact Roadside Assistance

or unable to provide a valid Vehicle Identification

Number (VIN), and you obtain towing services on

your own, you may submit your original receipts

from the licensed towing or service facility for

services rendered within 30 days of the

occurrence. Be sure to include your VIN,

odometer mileage at the time of service, and

current mailing address. We will process the

CarManuals2.com

237

claim based on vehicle and service eligibility. If

eligible, we will reimburse you for the reasonable

amount actually paid, based on the usual and

customary charges for that service in the area

where they were provided. FCA US LLC’s determi

-

nation relating to reimbursement is final.

Correspondence should be mailed to:
FCA US LLC Customer Assistance
P.O. Box 9145
Medford, MA 02155
Attention Claims Department
FCA US LLC reserves the right to modify the terms

or discontinue the Roadside Assistance Program

at any time. The Roadside Assistance Program is

subject to restrictions and conditions of use,

which are determined solely by FCA US LLC.
Flat Tire Service
If you are inconvenienced by a flat tire, we will

dispatch a service provider to install your

vehicle’s temporary spare tire (if equipped) as

recommended in your Owner’s Manual. This is

not a permanent flat tire repair.
Out of Gas/Fuel Delivery
Drivers cannot always count on a gas station

being nearby, especially when traveling away

from home. We will dispatch a service provider to

deliver a small amount of fuel (maximum two

gallons) to get you to a nearby station. This

service is limited to two occurrences in a

12-month period.
Battery Jump Assistance
No time is a good time for a depleted battery. With

Roadside Assistance, you do not have to worry

about being stranded. We will dispatch a service

provider to provide you with a battery jump

anytime, day or night.

Lockout Service
Whether the keys are locked in your vehicle or

frozen locks are keeping you from getting on your

way, help is just a phone call away. This service is

limited to providing access to the vehicle’s

seating area. It does not cover the cost of

replacement keys.
Towing Service
Our towing service gives you peace of mind and

confidence. If your vehicle becomes disabled as a

result of a mechanical breakdown, Roadside

Assistance will dispatch a towing service to

transport your vehicle to the closest authorized

Chrysler, Dodge, Jeep®, or Ram dealer. If you

choose to go to another dealer, you will be

responsible for the cost if the extra distance

exceeds 10 miles.

A

LFA

 R

OMEO

 C

USTOMER

 C

ENTER

P.O. Box 21–8004
Auburn Hills, MI 48321–8004
Phone: 1-844-Alfa-USA (1-844-253-2872)

A

LFA

 R

OMEO

 C

USTOMER

 C

ARE



(C

ANADA

)

P.O. Box 1621
Windsor, Ontario N9A 4H6
Phone: 1-877-230-0563 (English) Phone:

1-877-515-9112 (French)

C

USTOMER

 A

SSISTANCE

 F

OR

 T

HE



H

EARING

 O

R

 S

PEECH

 I

MPAIRED

(TDD/TTY)

To assist customers who have hearing difficulties,

FCA US LLC has installed special TDD (Telecom

-

munication Devices for the Deaf) equipment at its

customer center. Any hearing or speech impaired

customer, who has access to a TDD or a conven

-

tional teletypewriter (TTY) in the United States,

can communicate with FCA US LLC by dialing

1-800-380-2479.
Canadian residents with hearing difficulties that

require assistance can use the special needs

relay service offered by Bell Canada. For TTY

teletypewriter users, dial 711 and for Voice

callers, dial 1-800-855-0511 to connect with a

Bell Relay Service operator.

S

ERVICE

 C

ONTRACT



You may have purchased a service contract for a

vehicle to help protect you from the high cost of

unexpected repairs after FCA US LLC's New

Vehicle Limited Warranty expires. The Mopar®

Vehicle Protection plans are the ONLY vehicle

extended protection plans authorized, endorsed

and backed by FCA US LLC to provide additional

protection beyond your vehicle’s warranty. If you

purchased a Mopar® Vehicle Protection Plan, you

will receive Plan Provisions and an Owner Identifi

-

cation Card in the mail within three weeks of the

vehicle delivery date. If you have any questions

about the service contract, call the FCA US LLC’s

Service Contract National Customer Hotline at

1-800-521-9922 (Canadian residents, call

1-877-230-0563 English / 1-877-515-9112

French).
FCA US LLC is not responsible for any service

contract you may have purchased from another

manufacturer. If you require service after the FCA

US LLC New Vehicle Limited Warranty expires,

please refer to the contract documents, and

contact the person listed in those documents.

CarManuals2.com

CUSTO

MER A

SSISTANC

E

238

We appreciate that you have made a major

investment when you purchased the vehicle. An

authorized dealer has also made a major

investment in facilities, tools, and training to

assure that you are absolutely delighted with the

ownership experience.

WARRANTY INFORMATION

See the Warranty Information available online,

for the terms and provisions of FCA US LLC and

FCA Canada Inc. warranties applicable to this

vehicle and market.
Use this QR code to access your

digital experience.

REPORTING SAFETY

DEFECTS

I

N

 T

HE

 50 U

NITED

 S

TATES

 A

ND



W

ASHINGTON

, D.C.

If you believe that your vehicle has a

defect that could cause a crash or

cause injury or death, you should

immediately inform the National

Highway Traffic Safety Administration

(NHTSA) in addition to notifying FCA US

LLC.
If NHTSA receives similar complaints, it

may open an investigation, and if it

finds that a safety defect exists in a

group of vehicles, it may order a recall

and remedy campaign. However,

NHTSA cannot become involved in

individual problems between you, an

authorized dealer or FCA US LLC.
To contact NHTSA, you may call the

Vehicle Safety Hotline toll free at

1-888-327-4236 (TTY:

1-800-424-9153); or go to http://

www.safercar.gov; or write to: Adminis

-

trator, NHTSA, 1200 New Jersey

Avenue, SE., West Building,

Washington, D.C. 20590. You can also

obtain other information about motor

vehicle safety from http://

www.safercar.gov.

I

N

 C

ANADA

If you believe that your vehicle has a

safety defect, you should contact the

Customer Service Department

immediately. Canadian customers who

wish to report a safety defect to the

Canadian government should contact

Transport Canada, Motor Vehicle

Defect Investigations and Recalls at

1-800-333-0510 or go to

wwwapps.tc.gc.ca/Saf-Sec-Sur/7/

PCDB-BDPP.

PUBLICATION ORDER

FORMS

To order the following manuals, you may use either

the website or the phone numbers listed below.
Service Manuals
These comprehensive Service Manuals provide a

complete working knowledge of the vehicle,

system, and/or components and is written in

straightforward language with illustrations,

diagrams, and charts.
Diagnostic Procedure Manuals
Diagnostic Procedure Manuals are filled with

diagrams, charts and detailed illustrations. These

manuals make it easy to find and fix problems on

computer-controlled vehicle systems and

features. They show exactly how to find and

correct problems, using step-by-step trouble

-

shooting and drivability procedures, proven

diagnostic tests and a complete list of all tools

and equipment.

 WARNING!

Engine exhaust (internal combustion engines

only), some of its constituents, and certain

vehicle components contain, or emit,

chemicals known to the State of California to

cause cancer and birth defects, or other

reproductive harm. In addition, certain fluids

contained in vehicles and certain products of

component wear contain, or emit, chemicals

known to the State of California to cause

cancer and birth defects, or other reproductive

harm.

CarManuals2.com

239

To order a hard copy of your Service or Diagnostic

Procedure manuals, visit:
www.techauthority.com (US and Canada).
Owner's Manuals
These Owner's Manuals have been prepared with

the assistance of service and engineering

specialists to acquaint you with specific FCA

vehicles.
To access your Owner's Information online, visit

www.mopar.com/om (US) or

www.owners.mopar.ca (Canada).
Or
Call Tech Authority toll free at:

1-800-890-4038 (US)

Owner's Manuals, Radio Manuals and Warranty

Information Books can be ordered through

Archway at:

1-800-387-1143 (Canada)

GENERAL INFORMATION

The following regulatory statement applies to all

Radio Frequency (RF) devices equipped in this

vehicle:
This device complies with Part 15 of the FCC

Rules and with Innovation, Science and Economic

Development Canada license-exempt RSS

standard(s). Operation is subject to the following

two conditions:

1. This device may not cause harmful interfer

-

ence, and

2. This device must accept any interference

received, including interference that may

cause undesired operation.

Le présent appareil est conforme aux CNR

d`Innovation, Science and Economic

Development applicables aux appareils radio

exempts de licence. L'exploitation est autorisée

aux deux conditions suivantes:
1. l'appareil ne doit pas produire de brouillage,

et

2. l'utilisateur de l'appareil doit accepter tout

brouillage radioélectrique subi, même si le

brouillage est susceptible d'en compromettre

le fonctionnement.

La operación de este equipo está sujeta a las

siguientes dos condiciones:
1. es posible que este equipo o dispositivo no

cause interferencia perjudicial y

2. este equipo o dispositivo debe aceptar cual

-

quier interferencia, incluyendo la que pueda

causar su operación no deseada.

RF Exposure Requirements
To comply with FCC RF exposure compliance

requirements, the device must be installed and

operated to provide a separation distance of at

least 20 cm from all persons.
This equipment complies with Canada radiation

exposure limits set forth for an uncontrolled

environment. This equipment should be installed

and operated with minimum distance 20 cm

between the radiator and your body.
NOTE:

Changes or modifications not expressly approved

by the party responsible for compliance could

void the user’s authority to operate the equip

-

ment.
Déclaration d’exposition aux radiations
Cet équipement est conforme aux limites

d’exposition aux rayonnements ISED établies

pour un environnement non contrôlé. Cet

équipement doit être installé et utilisé avec un

minimum de 20 cm de distance entre la source

de rayonnement et votre corps
NOTA:

Des changements ou des modifications n’ayant

pas été expressément approuvés par la partie

responsable de la conformité pourraient

révoquer l’autorisation d’utilisation de

l’équipement.

CarManuals2.com

240

INDEX

A

Accessories Purchased By The Owner.......... 4

Active Blind Spot Assist .............................134

Active Safety Systems................................129

Active Torque Vectoring (ATV) System ......129

Adaptive Cruise Control (ACC)

(Cruise Control) ............................................97

Off ...........................................................101

On............................................................101

Additives, Fuel ............................................230

Adjust

Forward.............................................. 31, 34

Rearward ........................................... 31, 34

Air Bag.........................................................150

Air Bag Operation...................................152

Air Bag Warning Light ............................150

Driver Knee Air Bag................................152

Enhanced Accident Response .....155, 181

Event Data Recorder (EDR)...................181

Front Air Bag...........................................150

If Deployment Occurs ............................155

Knee Impact Bolsters ............................152

Maintaining Your Air Bag System..........157

Maintenance ..........................................157

Redundant Air Bag Warning Light.........150

Side Air Bags ..........................................153

Transporting Pets...................................166

Air Bag Light ......................................150, 167

Air Pressure

Tires ........................................................212

Alarm

Security Alarm ..........................................24

Alfa Active Suspension (AAS).......................94

Alfa DNA System ..........................................91

Anti-Lock Braking (ABS) System................129

Anti-Lock Warning Light ...............................72

Automatic Door Locks ..................................28

Automatic Headlights...................................43

Automatic Temperature Control (ATC) ........49

Automatic Transmission ..............................86

Auxiliary Driving Systems .......................... 132

B

Back-Up Camera........................................ 123

Battery..................................................74, 190

Charging System Light .............................74

Battery Recharging.................................... 191

Belts, Seat.................................................. 167

Blind Spot Monitoring ............................... 132

Bodywork (Cleaning And Maintenance)... 221

B-Pillar Location......................................... 209

Brake System

Warning Light ....................................71, 72

Brakes ........................................................ 226

Brake Fluid Level................................... 190

Bulbs, Light ................................................ 168

C

Camera, Rear............................................. 123

Carbon Monoxide Warning ....................... 168

Cargo Tie-Downs...........................................62

Certification Label ..................................... 125

Chart, Tire Sizing........................................ 207

Check Engine Light (Malfunction

Indicator Light)..............................................80

Checking Levels................................ 187, 188

Checking Your Vehicle For Safety............. 166

Checks, Safety ........................................... 166

Child Restraint ........................................... 158

Child Restraints

Booster Seats ........................................ 159

Child Seat Installation ........................... 165

How To Stow An unused ALR Seat

Belt ..................................................... 163

Infant And Child Restraints................... 159

LATCH Positions.....................................161

Lower Anchors And Tethers For

Children.............................................. 161

Older Children And Child Restraints..... 159

Seating Positions...................................160

Using The Top Tether Anchorage..........165

Clean Air Gasoline .....................................230

Cleaning

Wheels.................................................... 217

Climate Control ......................................48, 54

Compact Spare Tire ...................................216

Contract, Service........................................ 237

Cruise Control (Speed Control) ................... 97

Customer Assistance................................. 236

D

Daytime Running Lights .............................. 43

Deck Lid

Power Release......................................... 61

Defroster, Windshield................................ 167

Dimmer Switch

Headlight.................................................. 46

Door Ajar.................................................75, 76

Door Ajar Light .......................................75, 76

Door Locks

Automatic................................................. 28

Door Opener, Garage................................... 39

CarManuals2.com

241

Drive Train Control (DTC) System..............130

Driving Modes .............................................. 92

Dynamic Steering Torque (DST) System...130

E

Electric Park Brake....................................... 84

Electronic Speed Control (Cruise Control)..97

Electronic Stability Control (ESC)

System ........................................................130

Electronic Throttle Control Warning Light...75

Emergency

In Case Of ......................................169, 171

SOS Emergency Call ..............................169

Emergency, In Case Of

Jump Starting.........................................175

Overheating............................................178

Tow Hooks..............................................180

Towing.....................................................179

Emission Control System Maintenance...... 80

Engine .........................................................224

Block Heater.............................................83

Engine Coolant Level .............................189

Exhaust Gas Caution .............................168

Fuel Requirements ................................230

Jump Starting.........................................177

Overheating............................................178

Engine Compartment.................................187

Engine Compartment (Washing) ...............222

Engine Oil

Level Check ............................................188

Enhanced Accident Response

Feature...............................................155, 181

Ethanol........................................................230

Exhaust Gas Cautions ............................... 168

Exhaust System ......................................... 168

Exterior Lights.............................42, 168, 203

F

Flashers

Turn Signals.....................................74, 168

Fluid Leaks................................................. 168

Fog Lights, Rear............................................44

Forward Collision Warning ........................ 138

Fuel

Additives ................................................ 230

Clean Air................................................. 230

Ethanol................................................... 230

Light ..........................................................76

Materials Added .................................... 230

Methanol................................................ 230

Fuses................................................. 197, 198

G

Garage Door Opener (HomeLink)................39

Gasoline, Clean Air .................................... 230

Gasoline, Reformulated ............................ 230

Gauges

Engine Oil Temperature ...........................65

Fuel ...........................................................66

Speedometer............................................66

Tachometer...............................................65

Glove Compartment Storage .......................55

GVWR ......................................................... 126

H

Hazard Warning Flashers.......................... 169

Head Restraints............................................36

Head Rests................................................... 36

Headlights .................................................... 42

Automatic................................................. 43

Delay......................................................... 44

High Beam ............................................... 43

Switch....................................................... 42

Headlights (Cleaning) ................................ 222

Heated Mirrors............................................. 39

Heated Seats ............................................... 35

Heated Steering Wheel ............................... 30

Heater, Engine Block ................................... 83

Highway Assist System..............................106

Hill Start Assist (HSA) System ................... 131

HomeLink (Garage Door Opener) ............... 39

Hood

Closing...................................................... 60

Opening .................................................... 60

Hood Release............................................... 60

I

Ignition.......................................................... 22

Switch....................................................... 22

Immobilizer (Sentry Key) ............................. 21

In Case Of Emergency ............................... 169

Installing Electrical/Electronic Devices.........4

Instrument Cluster....................................... 64

Descriptions............................................. 74

Display...................................................... 66

Instrument Panel

Features................................................... 64

Intelligent Speed Control System ............. 114

Interior And Instrument Lights .................... 46

Interior Lights...................................... 45, 204

Interiors (Cleaning) ....................................222

Internal Equipment...................................... 55

CarManuals2.com

242

INDEX

J

Jump Starting .............................................175

K

Keyless Enter 'n Go™...................................26

Passive Entry............................................26

Keys ..............................................................19

L

Lane Change And Turn Signals ................... 45

Lane Change Assist......................................45

Lane Keeping Assist System .....................120

LaneSense..................................................118

Lap/Shoulder Belts....................................145

Latches .......................................................168

Leaks, Fluid ................................................168

Life Of Tires.................................................215

Light Bulbs..................................................168

Lights ..........................................................168

Air Bag ...........................................150, 167

Ambient ....................................................46

Brake Warning .................................. 71, 72

Courtesy/Reading............................. 45, 46

Daytime Running .....................................43

Electronic Stability Program (ESP)

Indicator ............................................... 75

Exterior ............................................ 42, 168

Fog ............................................................ 44

Hazard Warning Flasher........................169

High Beam/Low Beam Select.................43

Interior ...................................................... 45

Low Fuel ...................................................76

Malfunction Indicator (Check Engine) ....73

Park ........................................................44, 74

Seat Belt Reminder..................................71

Turn Signals..............................45, 74, 168

Types Of Bulbs....................................... 202

Warning Instrument Cluster

Descriptions ..................................74, 75

Loading Vehicle ......................................... 125

Tires........................................................ 209

Locks

Automatic Door.........................................28

Child Protection........................................28

M

Maintenance.................................................60

Malfunction Indicator Light (Check

Engine) ..........................................................73

Manual

Service ................................................... 238

Memory Feature (Memory Seats)................30

Memory Seat.................................................30

Methanol.................................................... 230

Mirrors

Automatic Dimming..................................37

Electric Powered.......................................38

Exterior Folding.........................................38

Heated ......................................................39

Rearview ...................................................37

Vanity ..................................................... 204

O

Occupant Restraints.................................. 144

Oil Pressure Light .........................................75

Oil, Engine

Pressure Warning Light............................75

Onboard Diagnostic System........................ 79

Opener, Garage Door (Homelink) ............... 39

Operator Manual

Owner's Manual.....................................238

P

Paintwork (Cleaning And Maintenance)...221

Panic Brake Assist (PBA) System.............. 131

ParkSense System.....................................115

Passive Entry................................................ 26

Performance (Top Speed) ......................... 235

Pets............................................................. 166

Pinch Protection........................................... 59

Placard, Tire And Loading Information..... 209

Power

Deck Lid Release..................................... 61

Outlet (Auxiliary Electrical Outlet) ........... 56

Seats ........................................................ 34

Sunroof..................................................... 58

Windows................................................... 57

Power Seats

Forward ..............................................31, 34

Rearward............................................31, 34

Recline ...............................................31, 34

Power Supply.............................................. 225

Pregnant Women And Seat Belts ............. 148

Pretensioners

Seat Belts............................................... 148

Programmable Settings............................... 69

Prolonged Vehicle Inactivity ......................220

R

Radial Ply Tires...........................................214

Radio Transmitters And Mobile Phones........4

Rear Camera .............................................. 123

CarManuals2.com

243

Rear Cross Path .........................................132

Reformulated Gasoline..............................230

Refueling Procedure ..................................124

Refueling The Vehicle ................................124

Refuelling....................................................231

Reminder, Seat Belt...................................145

Remote Control

Starting System........................................ 23

Remote Keyless Entry.................................. 19

Remote Starting

Exit Remote Start Mode .......................... 23

Remote Starting System....................... 23, 81

Remote Trunk Release ................................ 61

Replacement Bulbs..................202, 203, 204

Replacement Tires .....................................215

Reporting Safety Defects...........................238

Restraints, Child.........................................158

Rims And Tires ...........................................206

Roll Over Warning........................................... 3

S

Safety Checks Inside Vehicle ....................167

Safety Checks Outside Vehicle..................168

Safety Defects, Reporting..........................238

Safety Information, Tire .............................206

Safety Tips ..................................................166

Safety, Exhaust Gas ...................................168

Saving Fuel .................................................126

Scheduled Servicing ..................................182

Scheduled Servicing Program (2.0 T4

MAir Engine Versions)................................183

Scheduled Servicing Program (2.9 V6

Gasoline Engine Versions).........................185

Seat Belt Reminder......................................71

Seat Belts.......................................... 144, 167

Child Restraints..................................... 158

Energy Management Feature............... 148

Front Seat ..................................... 144, 145

Inspection .............................................. 167

Lap/Shoulder Belt Untwisting .............. 147

Lap/Shoulder Belts............................... 145

Pregnant Women................................... 148

Pretensioners ........................................ 148

Rear Seat............................................... 145

Reminder ............................................... 145

Seat Belt Pretensioner.......................... 148

Untwisting Procedure............................ 147

Seats ......................................................31, 34

Adjustment ........................................ 31, 34

Head Restraints .......................................36

Heated ......................................................35

Power ........................................................34

Security Alarm...............................................24

Service Assistance .................................... 236

Service Contract ........................................ 237

Service Manuals........................................ 238

Servicing Procedures ................................ 192

Shoulder Belts ........................................... 145

Signals, Turn ........................................74, 168

Snow Chains .............................................. 218

Snow Tires.................................................. 218

Spare Tires................................................. 216

Speed Control

Accel/Decel ..............................................99

Accel/Decel (ACC Only)......................... 102

Cancel .......................................................99

Distance Setting (ACC Only).................. 103

Resume.....................................................99

Set.............................................................98

Speed Control (Cruise Control) ................... 97

Speed Limiting System................................ 96

Starting

Button....................................................... 22

Cold Weather ........................................... 82

Remote..................................................... 23

Starting The Engine ..................................... 81

Steering

Tilt Column ............................................... 29

Wheel, Heated ......................................... 30

Wheel, Tilt ................................................ 29

Steering System......................................... 226

Stop/Start System ....................................... 94

Storage

Console .................................................... 55

Glove Compartment ................................ 55

Suggestions For Driving.............................126

Sun Roof.................................................58, 60

Sun Visor ...................................................... 38

Supplemental Restraint System –

Air Bag ........................................................150

Suspension ................................................ 226

Symbols ...........................................................6

System, Remote Starting ............................ 23

T

Tie Down Hooks, Cargo ............................... 62

Tire And Loading Information Placard...... 209

Tire Markings ............................................. 206

Tire Safety Information..............................206

Tire Service Kit ...........................................171

CarManuals2.com

244

INDEX

Tires .................................168, 212, 216, 219

Aging (Life Of Tires)................................215

Air Pressure............................................212

Compact Spare ......................................216

Flat Changing .........................................171

General Information......................212, 216

High Speed.............................................213

Inflation Pressure...................................212

Life Of Tires ............................................215

Load Capacity.........................................209

Pressure Monitoring System

(TPMS) ..................................................73

Quality Grading.......................................219

Radial......................................................214

Replacement..........................................215

Safety.............................................206, 212

Sizes .......................................................207

Snow Tires..............................................218

Spare Tires .............................................216

Spinning..................................................214

Tread Wear Indicators ...........................215

Tow Hooks ..................................................180

Towing

Disabled Vehicle ....................................179

Towing Trailers ...........................................126

TPMS (Tire Pressure Monitoring

System) .......................................................142

Traction Control System (TCS).................. 131

Traffic Jam Assist System ......................... 110

Traffic Sign Recognition System............... 113

Transmission ............................................. 225

Transporting Animals ................................ 127

Transporting Passengers .......................... 127

Transporting Pets ...................................... 166

Tread Wear Indicators............................... 215

Trunk Lid (Deck Lid) .....................................61

Turn Signals ...........................................45, 74

U

Uconnect Settings

Customer Programmable Features.........26

Passive Entry Programming.....................26

Uniform Tire Quality Grades...................... 219

Universal Garage Door Opener

(HomeLink®)

S

..........................................39

Universal Transmitter...................................39

Untwisting Procedure, Seat Belt............... 147

Use Of The Owner’s Manual ..........................5

V

Vehicle Changes/Alterations .........................4

Vehicle Identification Number .................. 224

Vehicle Loading ................................ 125, 209

W

Warning Lights (Instrument Cluster

Descriptions) ................................................ 72

Warnings, Roll Over ........................................3

Warranty Information ................................ 238

Washer Fluid For Windshield/

Headlights ..................................................189

Washers, Windshield................................... 47

Weights....................................................... 229

Wheel And Wheel Tire Care.......................217

Wheel And Wheel Tire Trim .......................217

Wheels And Tires ....................................... 206

Wind Buffeting ............................................. 58

Windows (Cleaning) ...................................222

Windshield Defroster................................. 167

Windshield Washers.................................... 47

Windshield Wiper

Replacing Blades...................................194

Windshield Wipers ....................................... 47

Wipers, Intermittent..................................... 47

Wipers, Rain Sensitive................................. 47

Wireless Charging Pad ................................ 57

CarManuals2.com















Content      ..     5      6      7
