Activation Of The Function

To activate this function, disable the windshield

wiper before placing the ignition in the OFF

position.
This function can only be activated within two

minutes of placing the ignition in the OFF

position.
To activate this function, move the lever upward

for at least three seconds.

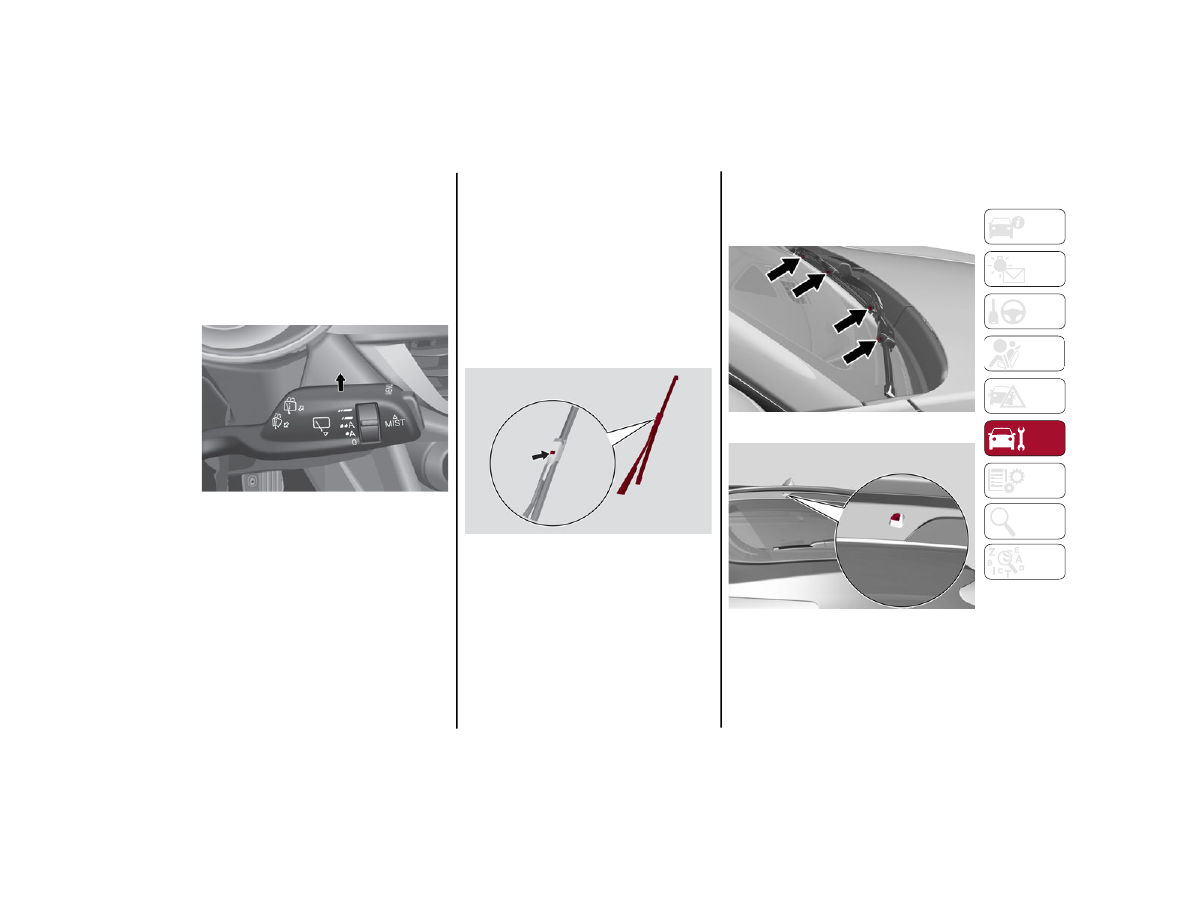

Windshield Wiper Stalk

Function Deactivation

The function is deactivated if:

More than two minutes has passed before

placing the ignition in the OFF position after

raising the lever and placing the wipers in

service position.

The ignition is placed in the ACC position and

the windshield wiper control is used.

If, after using the function, the ignition is set back

to ACC with the blades in a position other than

rest position (at the base of the windshield), they

will only return to rest position following a

command given using the stalk (stalk upwards,

into unstable position) or when a speed of 3 mph

(5 km/h) is exceeded.
Replacing The Windshield Wiper Blades
Proceed as follows:
1. Raise the wiper arm, push tab of the

attachment spring and remove the blade

from the arm.

Wiper Release Tab

2. Fit the new blade, inserting the tab in the

dedicated housing in the arm and checking

that it is locked.

3. Lower the wiper arm onto the windshield.

NOTE:

Do not operate the windshield wiper with the

blades lifted from the windshield.

Front/Rear Windshield Washers
The window washer nozzles are fixed. If there is

no jet of fluid, first check that there is fluid in the

reservoir

Ú

page 204.

Front Windshield Washers

Rear Windshield Washer

Then, check that the nozzle holes are not clogged;

use a needle to unblock them if necessary.

CarManuals2.com

SERVICING AN

D M

AINTENAN

CE

212

(Continued)

E

XHAUST

 S

YSTEM

Adequate maintenance of the engine exhaust

system represents the best protection against

leaks of carbon monoxide into the passenger

compartment.
If an unusual noise from the exhaust or the

presence of smoke in the passenger

compartment is identified, or if the underbody or

rear section of the vehicle have been damaged,

have the entire exhaust system and adjoining

bodywork areas checked at an authorized dealer

to identify any components which are broken,

damaged, worn or have moved from their correct

fitting position.
Open welding or loose connections may permit

exhaust gas to enter the passenger

compartment.
Have the exhaust system checked every time the

vehicle is raised. Replace the components where

necessary (for these operations, contact an

authorized dealer).
In normal operating conditions, the catalytic

converter does not require maintenance. To

ensure that it operates correctly, and prevent it

from getting damaged, it is extremely important

that the engine operates perfectly.
To minimize the risk of damaging the catalytic

converter, proceed as follows:

Do not stop the engine or deactivate the

ignition with gear engaged and vehicle in

motion.

Do not attempt to start the engine by bump

starting.

Do not use the vehicle if irregular idling or

operating conditions are experienced.

C

OOLING

 S

YSTEM

Coolant Check
Your vehicle has two cooling systems and both

need to be checked to ensure they are at proper

fill levels

Ú

page 204.

Check the engine coolant and intercooler coolant

level every oil change or before long trips.
If there are impurities in the engine coolant, the

system must be drained, flushed and refilled:

contact an authorized dealer.
Check the front part of the condenser for any

build-up of insects, leaves or other debris. Should

it be dirty, clean by spraying delicately with water.
Check the hoses of the engine/intercooler

cooling system to ensure that the rubber has not

deteriorated and that there are no cracks, tears,

cuts or obstructions in the expansion tank side

and radiator side connectors. Should there be

any doubt regarding leaks from the system (e.g. if

frequent top ups are required), have the seal

checked at an authorized dealer.
With the engine off and at normal operating

temperature, check that the cooling system

radiator cap is closed properly.

 WARNING!

Exhaust gases can injure or kill. They contain

Carbon Monoxide (CO), which is colorless

and odorless. Breathing it can make you

unconscious and can eventually poison you.

A hot exhaust system can start a fire if you

park over materials that can burn. Such

materials might be grass or leaves coming

into contact with your exhaust system. Do not

park or operate your vehicle in areas where

your exhaust system can contact anything

that can burn.

 WARNING!

You or others can be badly burned by hot

engine coolant (antifreeze) or steam from

your radiator. If you see or hear steam

coming from under the hood, do not open the

hood until the radiator has had time to cool.

Never open a cooling system pressure cap

when the radiator or coolant bottle is hot.

Keep hands, tools, clothing, and jewelry away

from the radiator cooling fan when the hood

is raised. The fan starts automatically and

may start at any time, whether the engine is

running or not.

When working near the radiator cooling fan,

disconnect the fan motor lead or turn the

ignition to the OFF position. The fan is

temperature controlled and can start at any

time the ignition is in the ON position.

 WARNING!

Do not open hot engine cooling system.

Never add engine coolant (antifreeze) when

the engine is overheated. Do not loosen or

remove the cap to cool an overheated

engine. Heat causes pressure to build up in

the cooling system. To prevent scalding or

injury, do not remove the pressure cap while

the system is hot or under pressure.

CarManuals2.com

213

(Continued)

NOTE:

Before removing the coolant reservoir cap, wait

for the system to cool down.
Topping Up / Draining / Flushing The Engine/

Intercooler Coolant
If the engine coolant (antifreeze) is dirty, have

cleaning and flushing carried out at an authorized

dealer.
For the correct servicing intervals

Ú

page 200.

NOTE:

For topping off, and proper coolant specifi

-

cations

Ú

page 252.

Do not use pure water, alcohol-based coolants,

corrosions inhibitors or additional anti-rust

products because they may be incompatible

with the engine coolant and cause the clogging

of the radiator. The use of propylene

glycol-based coolant is also not recommended.

Use care when filling under hood fluids such as

engine oil, windshield washer fluid, antifreeze

etc. to minimize spillage onto top of engine.

Any excess fluid that is spilled onto the top of

the engine should be removed using

compressed air or absorbent cloth.

Engine Cooling/Intercooler System Cap
To prevent loss of engine coolant, make sure that

the expansion tank cap is closed. If it is open,

screw it completely until you reach/hear the click.
Periodically check the cap and clean it from any

foreign bodies that may have deposited on the

external surface.

Disposal of Used Coolant
Disposal of engine/intercooler coolant is subject

to legal requirements. Contact the appropriate

body to determine local regulations.
NOTE:

To prevent the fluid from being ingested by

children or animals, do not keep it in open

containers or pour it on the ground. If ingested,

contact a doctor immediately. Eliminate any

traces of fluid from the ground immediately.

When the vehicle stops after a short trip,

steam may be seen coming out from the front

of the hood. This is a normal phenomenon

which is due to the presence of rain, snow or a

lot of moisture on the surface of the radiator.

With engine and system cold, do not top up

with coolant beyond the maximum level

indicated on the reservoir in the engine

compartment.

B

RAKING

 S

YSTEM

In order to guarantee the efficiency of the braking

system, periodically check its components; for

this operation, contact an authorized dealer.
For the correct servicing intervals

Ú

page 200.

NOTE:

Driving with your foot resting on the brake pedal

may compromise its efficiency, increasing the risk

of accidents. When driving, never keep your foot

on the brake pedal and don’t put unnecessary

strain on it to prevent the brakes from over

-

heating. Excess pad wear may cause damage to

the braking system.

When an insufficient oil level is detected,

contact an authorized dealer to have the

system checked.

Always keep the cap of the brake fluid reservoir

(in the engine compartment) completely

closed.

Do not use a pressure cap other than the one

specified for your vehicle. Personal injury or

engine damage may result.

 WARNING!

 WARNING!

Never add coolant with the engine hot or

overheated.

Do not attempt to cool an overheated engine

by loosening or removing the cap. The heat

causes a considerable increase in pressure

in the cooling system.

To prevent damage to the engine, only use

the engine cooling circuit caps provided.

 WARNING!

Use only manufacturer's recommended

brake fluid

Ú

page 252. Using the wrong

type of brake fluid can severely damage your

brake system and/or impair its performance.

The proper type of brake fluid for your vehicle

is also identified on the original factory

installed hydraulic master cylinder reservoir.

CarManuals2.com

SERVICING AN

D M

AINTENAN

CE

214

A

UTOMATIC

 T

RANSMISSION

Use only a transmission oil with the character

-

istics indicated

Ú

page 252.

Special Additives
Do not use any type of additive with the

automatic transmission oil. The automatic

transmission oil is a product designed especially

for this vehicle and its performance may be

compromised through the use of further

additives.

Frequency of Oil Changes
In normal vehicle operating conditions, it is not

necessary to change the transmission oil.

R

EPLACING

 T

HE

 B

ATTERY

If necessary, replace the battery with another

battery with the same specifications. It is advised

to contact an authorized dealer for replacement.
NOTE:

Each time the 12 Volt battery is reconnected,

cycle the steering wheel all the way to the left.

Then cycle the steering wheel all the way to the

right to allow the steering angle sensor to learn

the steering angle thresholds.
Follow the battery manufacturer's instructions for

maintenance.
NOTE:

It will not be possible to open the liftgate with a

key or by pushing the button in the passenger

compartment when the battery is disconnected.

Always position the manual liftgate opening strap

on the liftgate lock before disconnecting the

battery. The procedure is described in the

“Liftgate Emergency Opening”

Ú

page 62.

F

USES

General Information

The fuses protect electrical systems against

excessive current.
When a device does not work, you must check the

electrical circuit inside of the fuse for a break/

melt.
Also, please be aware that using power outlets for

extended periods of time with the engine off may

result in vehicle battery discharge.

Blade Fuses

To avoid contamination from foreign matter

or moisture, use only new brake fluid or fluid

that has been in a tightly closed container.

Keep the master cylinder reservoir cap

secured at all times. Brake fluid in an open

container absorbs moisture from the air

resulting in a lower boiling point. This may

cause it to boil unexpectedly during hard or

prolonged braking, resulting in sudden brake

failure. This could result in a collision.

Overfilling the brake fluid reservoir can result

in spilling brake fluid on hot engine parts,

causing the brake fluid to catch fire. Brake

fluid can also damage painted and vinyl

surfaces, care should be taken to avoid its

contact with these surfaces.

Do not allow petroleum-based fluid to

contaminate the brake fluid. Brake seal

components could be damaged, causing

partial or complete brake failure. This could

result in a collision.

 WARNING!

 CAUTION!

Do not use chemical flushes in your

transmission as the chemicals can damage your

transmission components. Such damage is not

covered by the New Vehicle Limited Warranty.

 CAUTION!

If a transmission fluid leak occurs, visit an

authorized dealer immediately. Severe

transmission damage may occur. An

authorized dealer has the proper tools to

adjust the fluid level accurately.

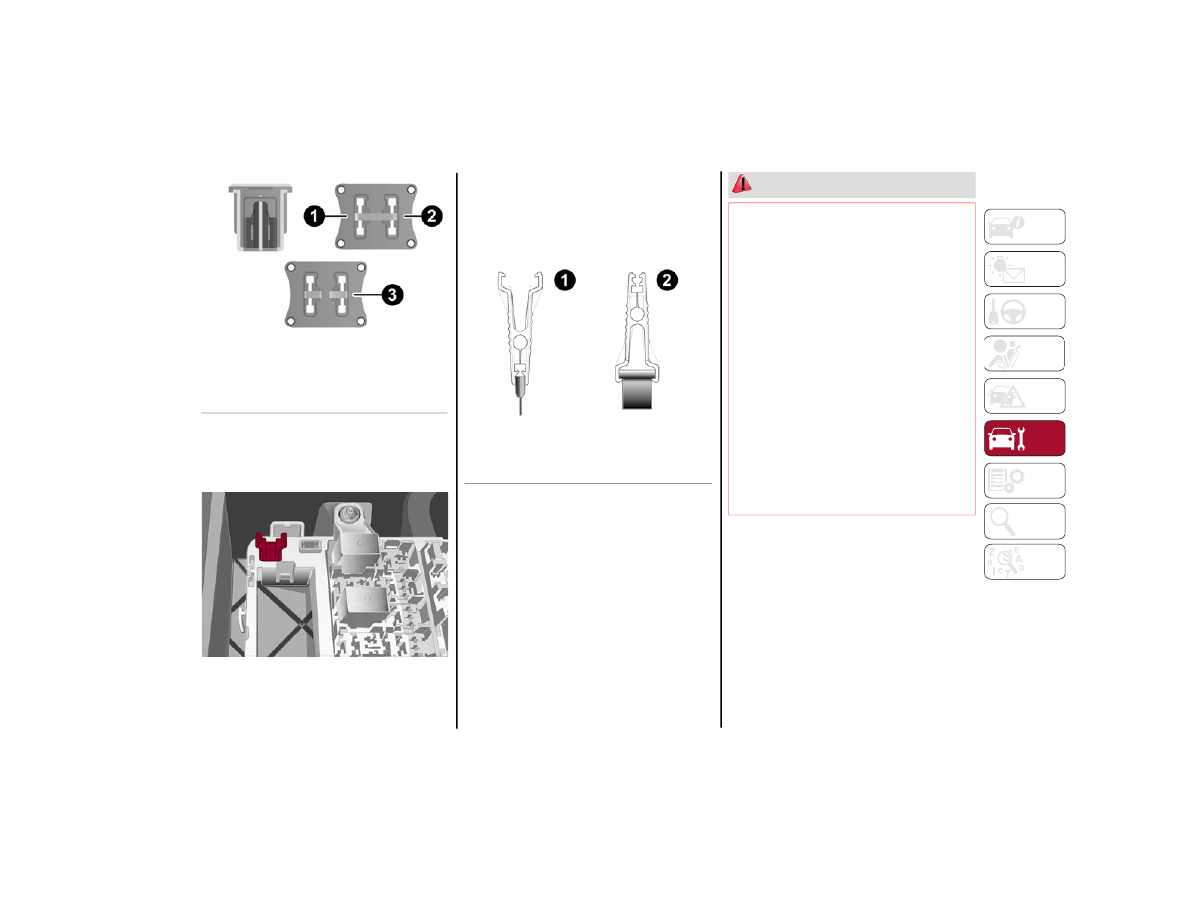

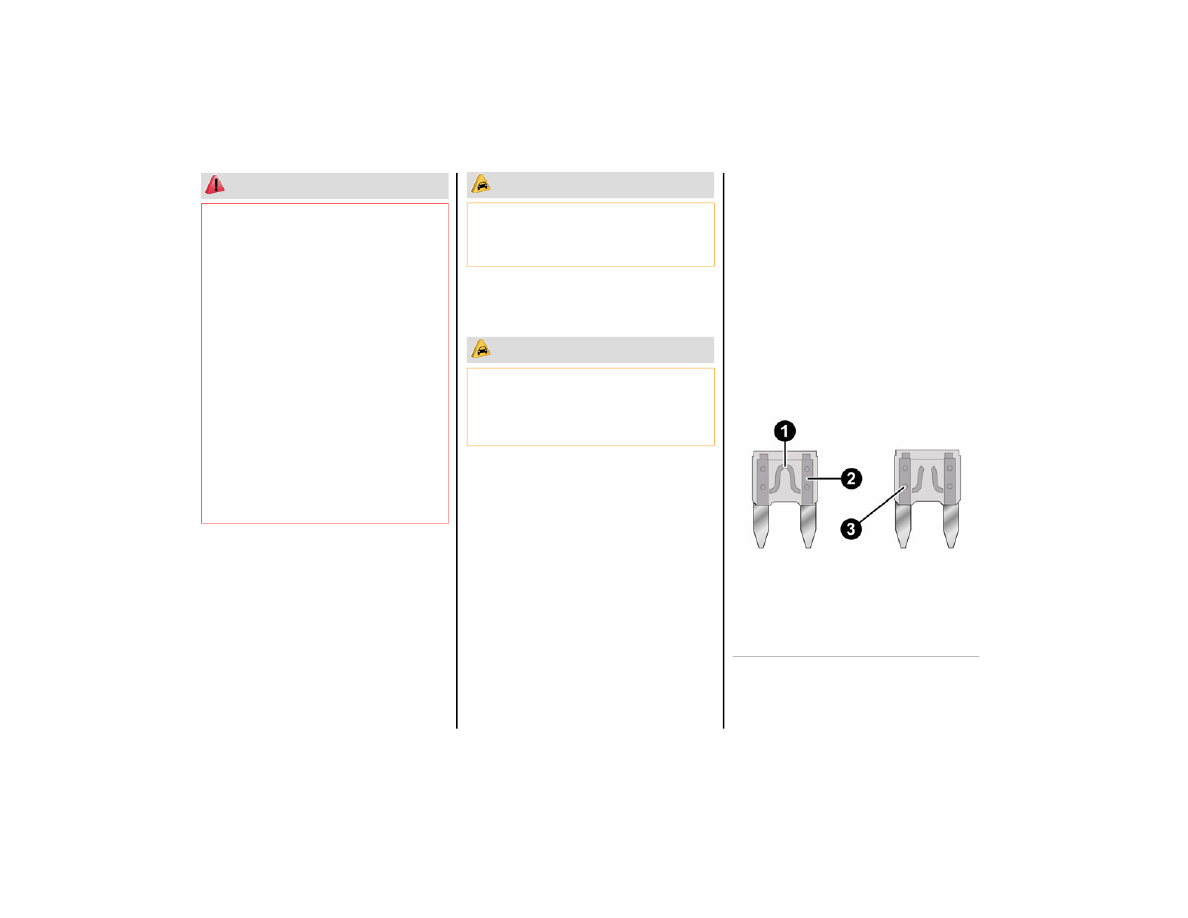

1 — Electrical Circuit
2 — Blade Fuse With Good Electrical Circuit
3 — Blade Fuse With Bad Electrical Circuit

CarManuals2.com

215

J-CASE Fuse

Fuse Extracting Pliers

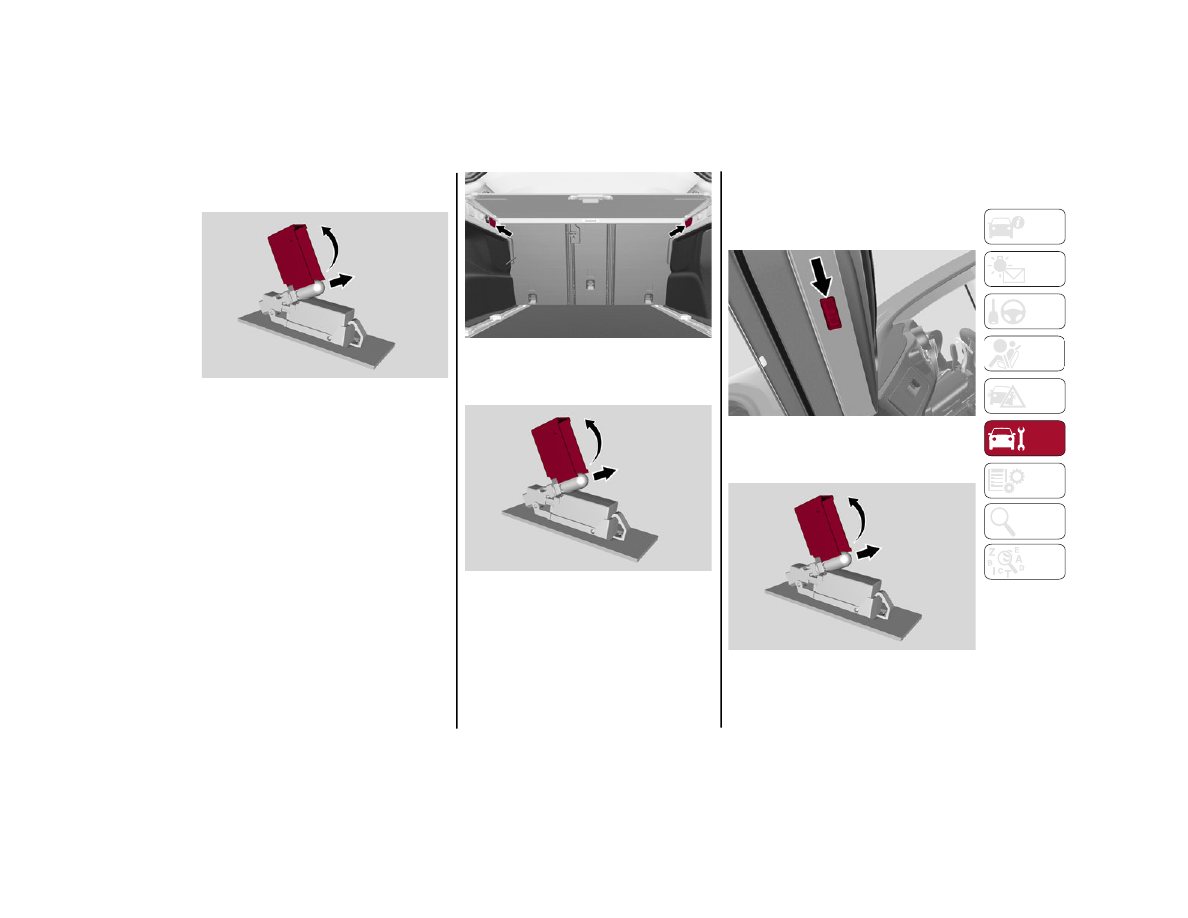

To replace a fuse, use the pliers hooked to the

fuse box.

Fuse Box

Grab the pliers from the upper tabs, press them,

and extract the pliers pulling upwards.
The pliers have two different ends, both of which

are specifically designed to remove the different

types of fuses present in the vehicle:

Fuse Extracting Pliers

After use, return the pliers to their proper position

using the following procedures:

Grasp the pliers from the upper tabs and insert

them into their housing.

Push downward on the pliers into their housing

until they click into place.

1 — Electrical Circuit
2 — Case Fuse With Good Electrical Circuit
3 — Case Fuse With Bad Electrical Circuit

1 — MINI fuse
2 — J-CASE fuse

 WARNING!

When replacing a blown fuse, always use an

appropriate replacement fuse with the same

amp rating as the original fuse. Never

replace a fuse with another fuse of higher

amp rating. Never replace a blown fuse with

metal wires or any other material. Do not

place a fuse inside a circuit breaker cavity or

vice versa. Failure to use proper fuses may

result in serious personal injury, fire and/or

property damage.

Before replacing a fuse, make sure that the

ignition is off and that all the other services

are switched off and/or disengaged.

If the replaced fuse blows again, contact an

authorized dealer.

If a general protection fuse for safety

systems (air bag system, braking system),

power unit systems (engine system,

transmission system) or steering system

blows, contact an authorized dealer.

CarManuals2.com

SERVICING AN

D M

AINTENAN

CE

216

Fuse Location

The fuses, which can be replaced by the user, are

grouped in two boxes below the passenger side

foot board and inside the luggage compartment.

Control Unit Under Passenger Side

Footboard

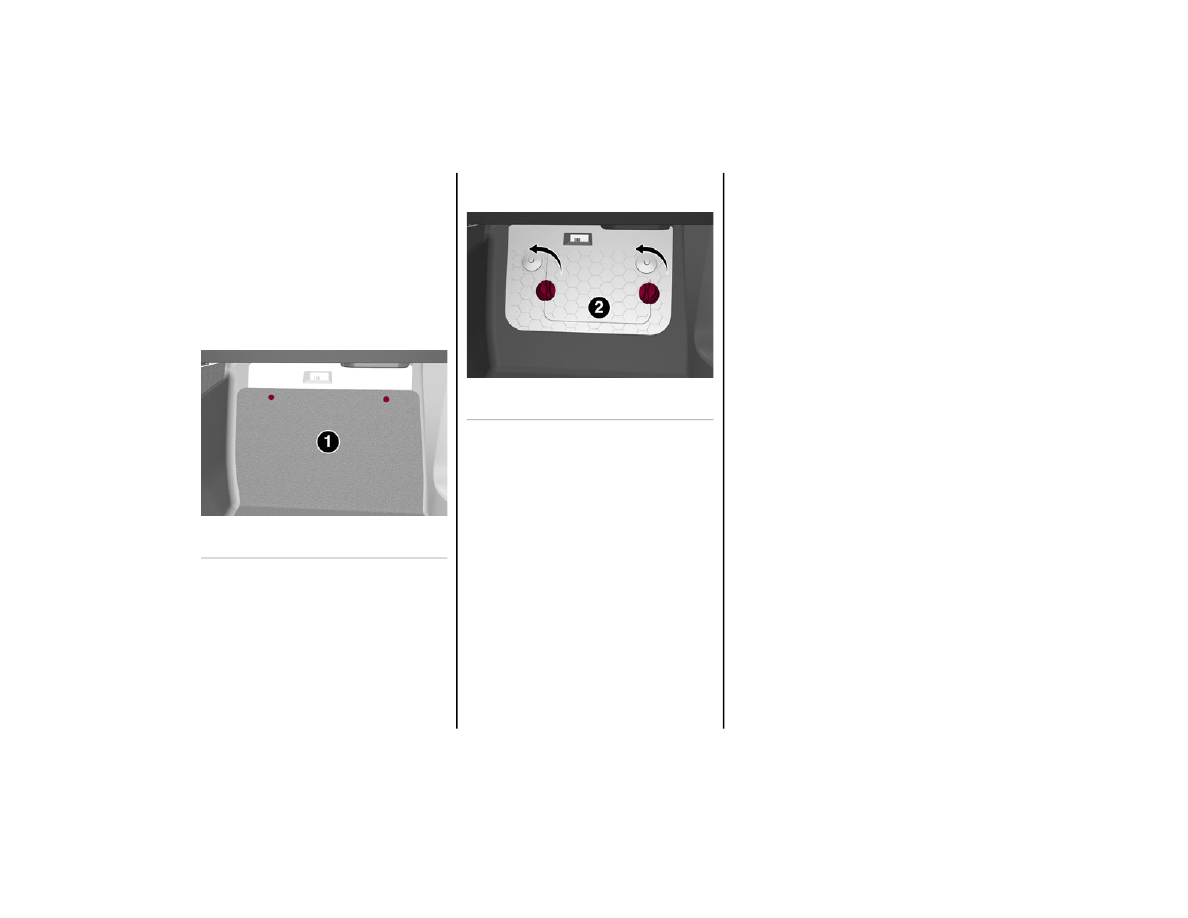

To access the fuses, proceed as follows:
1. Lift the upper end of the footboard on the

passenger side, pulling to release the two

buttons.

Release Buttons On Footboard

2. Unscrewing the two hooks, remove the panel

pulling downward.

Release Hooks On Footboard

The fuses are freely accessible on the control

unit.
After replacing the fuse, make sure that panel

and footboard are correctly locked.

1 — Footboard

2 — Panel

CarManuals2.com

217

Control Unit Under Passenger Side Footboard

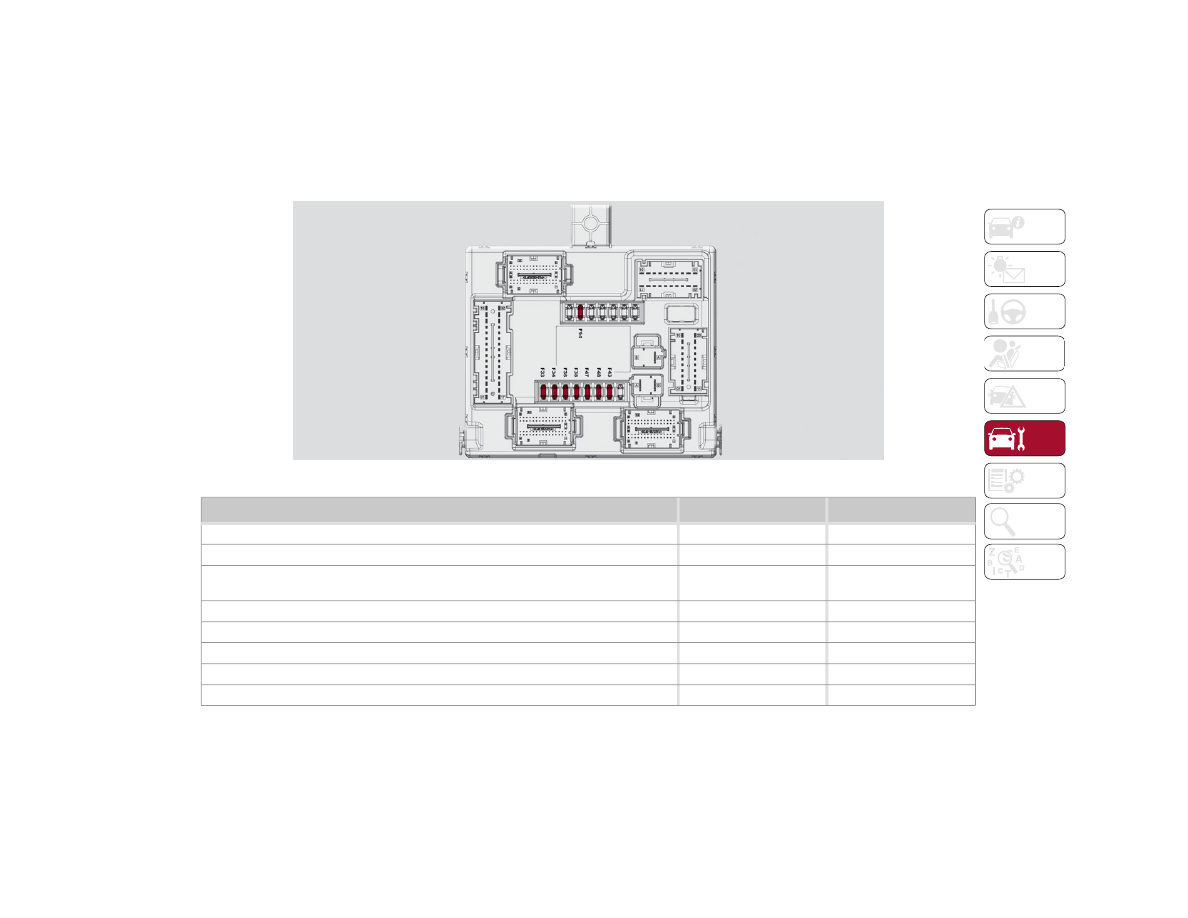

Passenger Side Control Unit

FUNCTION

FUSE

AMPERAGE

Front power window (driver’s side)

F33

25

Front power window (passenger side)

F34

25

Supply for Information and Entertainment system, Climate Control system, alarm, power

door mirror folding, EOBD system, USB port

F36

15

Safe Lock device (driver side door unlock – if equipped), doors unlock, central lock

F38

20

Windshield washer pump

F43

20

Rear left power window

F47

25

Rear right power window

F48

25

Heater rear window coil

F94

15

CarManuals2.com

SERVICING AN

D M

AINTENAN

CE

218

Luggage Compartment Fuse Box

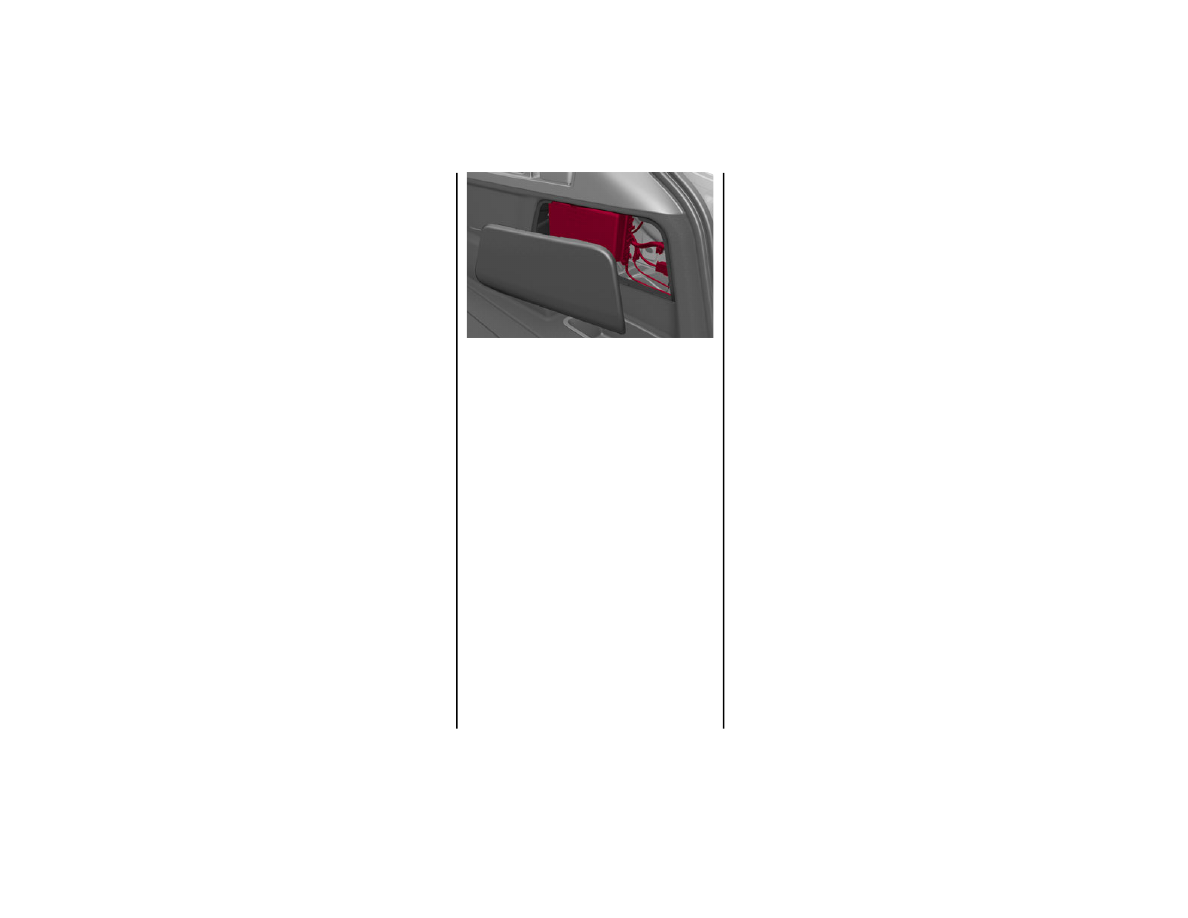

To access the fuses, proceed as follows:
1. Lift the luggage compartment cover.
2. Remove the control unit cover.

Control Unit

The fuses are freely accessible on the control

unit.
The number identifying the electrical component

corresponding to each fuse is shown on the

cover.
After replacing a fuse, make sure that you have

closed the cover correctly.

CarManuals2.com

219

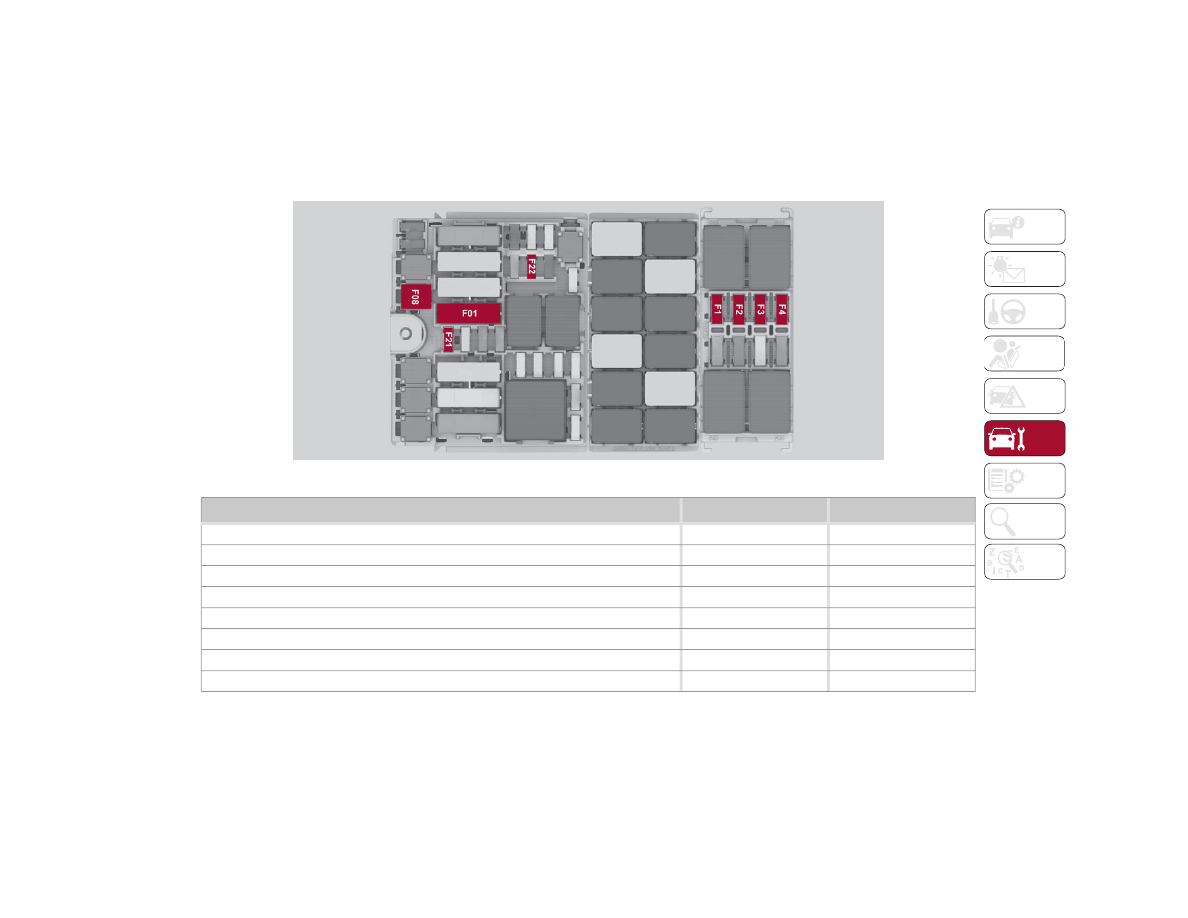

Luggage Compartment Fuse Box

Luggage Compartment Control Unit

FUNCTION

FUSE

AMPERE

Receiver module (TTM/TTEBM)

F01

40

Hi-Fi system

F08

30

I-Drive / USB Socket / AUX / USB Charger

F21

10

KL15/a 12 Volts Power socket in the luggage compartment

F22

20

Trailer light control unit power supply (+30)

F1

20

Trailer light control unit power supply (+30)

F2

15

Trailer socket (only EMEA) (+30)

F3

10

Tow bar (+15)

F4

10

CarManuals2.com

SERVICING AN

D M

AINTENAN

CE

220

B

ULB

 R

EPLACEMENT

General Instructions

Before replacing a bulb, check the contacts for oxidation.

Replace blown bulbs with others of the same type and power.

After replacing a headlight bulb, always check its alignment.

When a light is not working, check that the corresponding fuse is intact before changing the bulb.

NOTE:

In some particular climate conditions, such as low temperature, humidity, or after washing the vehicle, a thin condensation layer may form on the

internal surfaces of the front and rear headlights. This condensation will disappear after switching on the headlights.

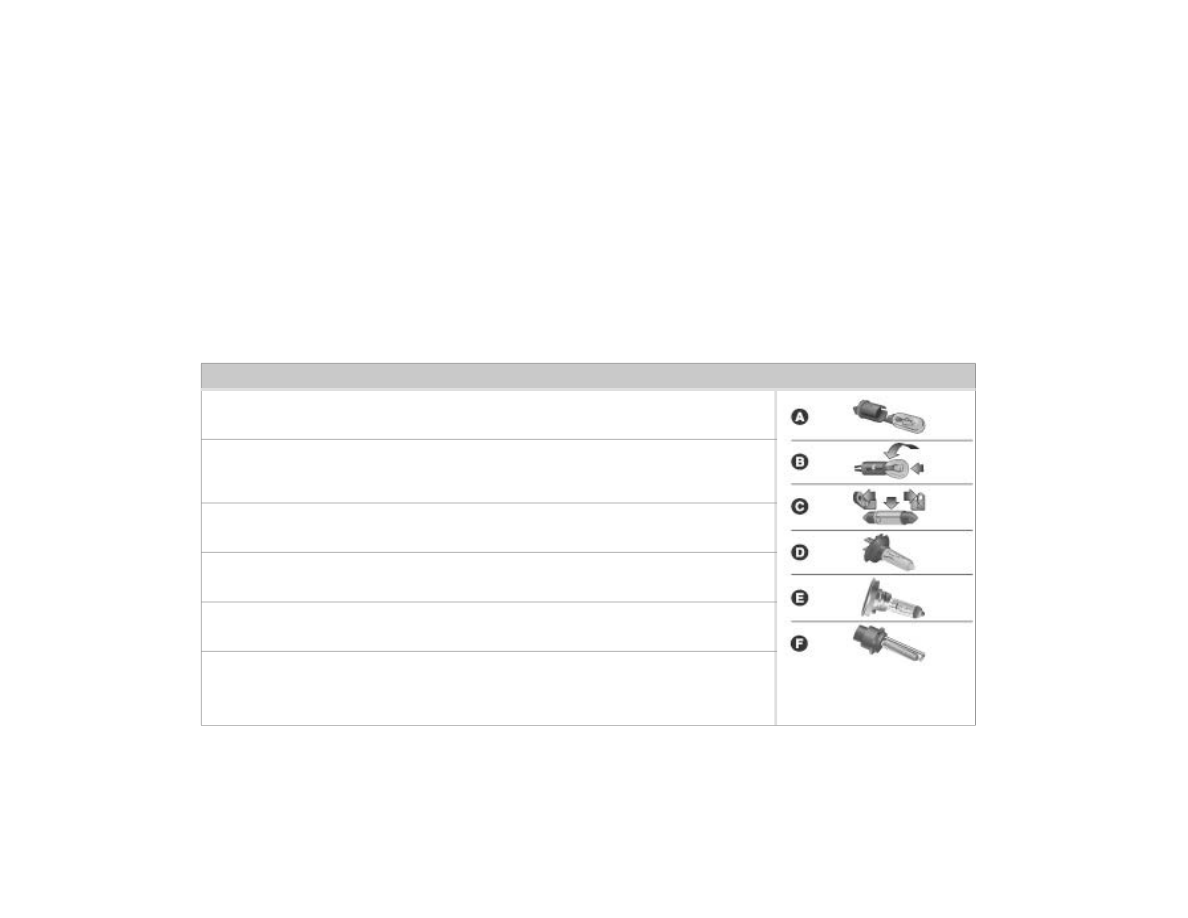

Types Of Bulbs

The vehicle may be equipped with the following bulbs

Glass Bulbs (Type A): They are press-fitted. Pull to extract.

Bayonet-Type Bulbs (Type B): To remove them from their holder, press the bulb and turn it counterclockwise,

then extract it.

Tubular Bulbs (Type C): Release them from their contacts to remove.

Halogen Bulbs (Type D): To remove the bulb, turn the connector to the side and pull it out.

Halogen Bulbs (Type E): To remove the bulb, turn it counterclockwise.

Xenon Gas Discharge Bulb (Type F): To remove the bulb, contact an authorized dealer.

CarManuals2.com

221

Replacement Bulbs

*Only for basic version headlight with halogen main beam/dipped beam headlights

Replacing Exterior Bulbs

NOTE:

Only replace bulbs when the engine is off.

Also ensure that the engine is cold, to prevent the

risk of burns.
Front Light Cluster
Direction Indicators
Proceed with the following directions to change

bulbs:

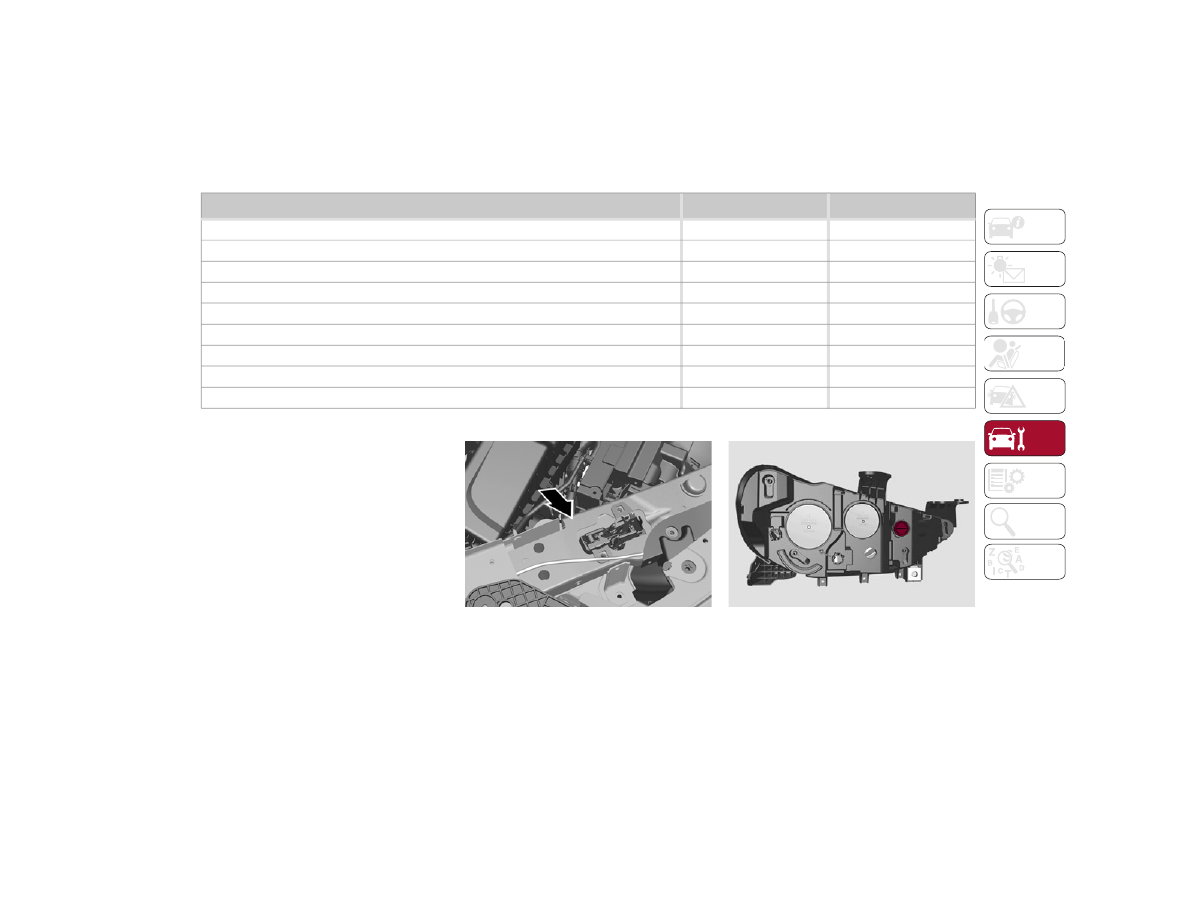

1. Operating inside the engine compartment,

locate the protective cover.

Protective Cover Location

2. Remove protective cover.

Protective Cover

Light bulbs

Type

Power

Front direction indicators*

PY24W

24W

Rear Fog lights *

H11

55 W

Main beam headlights, front side lights/daylight running lights (DRL)*

H15

55/15W

Dipped beam headlights*

H7

55W

Main beam/dipped beam headlights (Xenon gas discharge)

D3S

35W

Sun visor light

1.5CP

2.1W

Glove compartment light

W5W

4W

Liftgate light

W5W

5W

Puddle lights (under door panel)

W5W

5W

CarManuals2.com

SERVICING AN

D M

AINTENAN

CE

222

3. Turn the bulb/connector assembly counter

-

clockwise, and then slide it off the headlight

body.

Bulb/Connector

4. Remove the bulb by sliding it off the bulb

holder.

5. Install the new bulb, making sure it is

correctly inserted in the bulb holder.

6. Insert the bulb/connector assembly in the

housing on the headlight body and turn it

clockwise, making sure that it is locked

correctly.

7. Install the protective cover.

Front Light Cluster With Main Beam Xenon Gas

Discharge Headlights
To replace the bulbs of the main beam

headlights, contact an authorized dealer.

Replacing Interior Bulbs

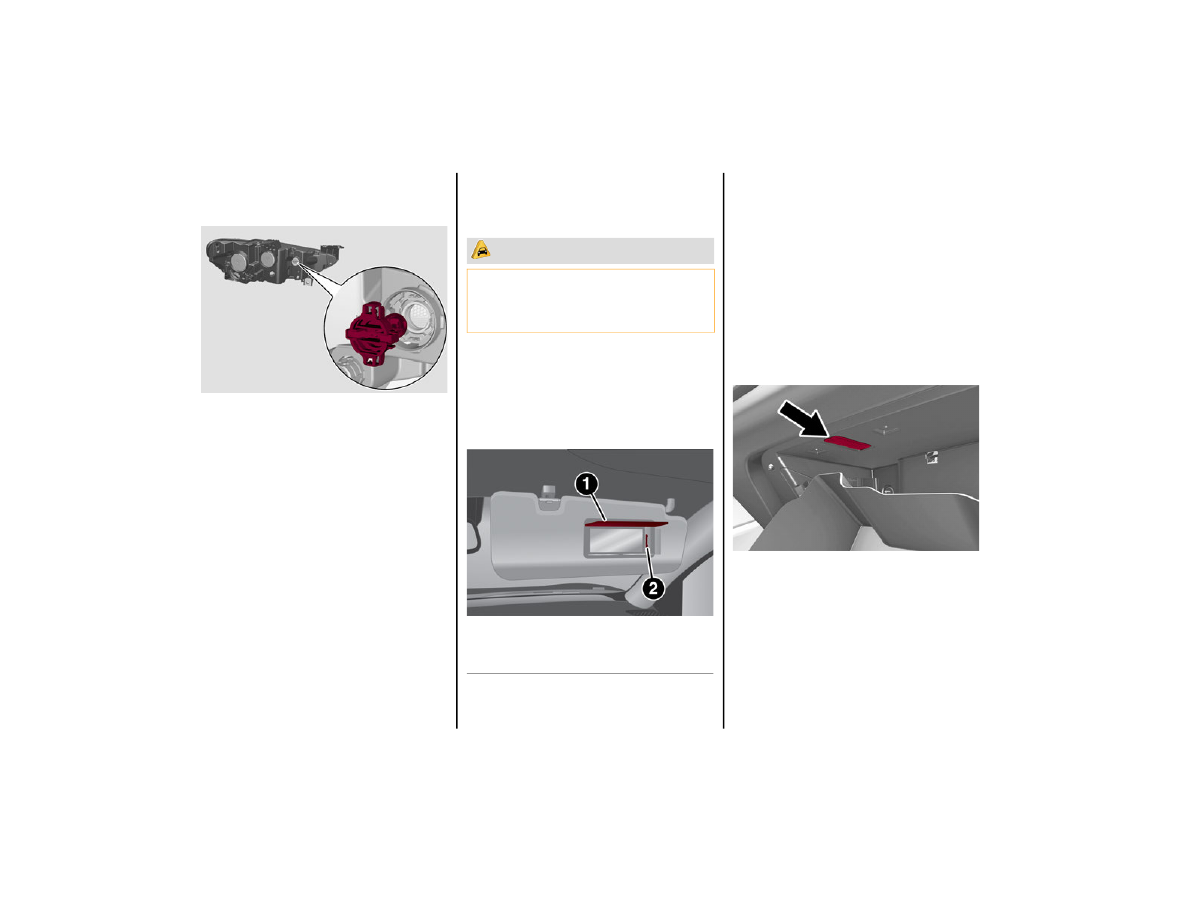

Courtesy Mirror Light
To replace the bulbs, proceed as follows:
1. Lift the mirror cover and remove the lens,

using a suitable tool.

Sun Visor

2. Change the bulb, releasing it from the side

contacts, then insert the new bulb, making

sure that it is correctly fastened between the

contacts.

3. Install the lens, inserting it first on one side

and then pressing on the other side until it

clicks into place.

Glove Compartment Light
To replace the bulb, proceed as follows:
1. Open the glove compartment.
2. Remove the courtesy light assembly, using a

suitable tool.

Courtesy Lamp Indent

 CAUTION!

Do not touch the new bulb with your fingers.

Oil contamination will severely shorten bulb

life. If the bulb comes in contact with any oily

surface, clean the bulb with rubbing alcohol.

1 — Mirror Cover
2 — Lens

CarManuals2.com

223

3. Open protective cover and remove the bulb

pulling out of the connector.

Cover And Bulb Removal Direction

4. Install bulb, making sure that it is correctly

inserted fully.

5. Close the protective cover on the lens.
6. Install courtesy light, inserting it first on

one side and then pressing on the other

side until it clicks into place.

Luggage Compartment Courtesy Lights
To replace the bulbs, proceed as follows:
1. Open the liftgate, and remove the liftgate

lamp assembly using a suitable tool.

Ceiling Light Indent

2. Open protective cover and remove the bulb

pulling out of the connector.

Cover And Bulb Removal Direction

3. Install bulb, making sure that it is correctly

inserted fully.

4. Close the protective cover on the lens.
5. Install liftgate lamp in the correct position,

inserting it first on one side, and then

pressing on the other side until it clicks into

place.

Puddle Lights On Door Panel
To replace the bulb, proceed as follows:
1. Open the door and remove the puddle light

assembly, using a suitable tool.

Puddle Light Indent

2. Open protective cover and remove the bulb

pulling out of the connector.

Cover And Bulb Removal Direction

CarManuals2.com

SERVICING AN

D M

AINTENAN

CE

224

3. Install bulb, making sure that it is correctly

inserted fully.

4. Close the protective cover on the lens.
5. Install puddle light in the correct position,

inserting it first on one side and then pressing

on the other side until it clicks into place.

TIRES

T

IRE

 S

AFETY

 I

NFORMATION



Tire safety information will cover aspects of

the following information: Tire Markings,

Tire Identification Numbers, Tire Terminology and

Definitions, Tire Pressures, and Tire Loading.

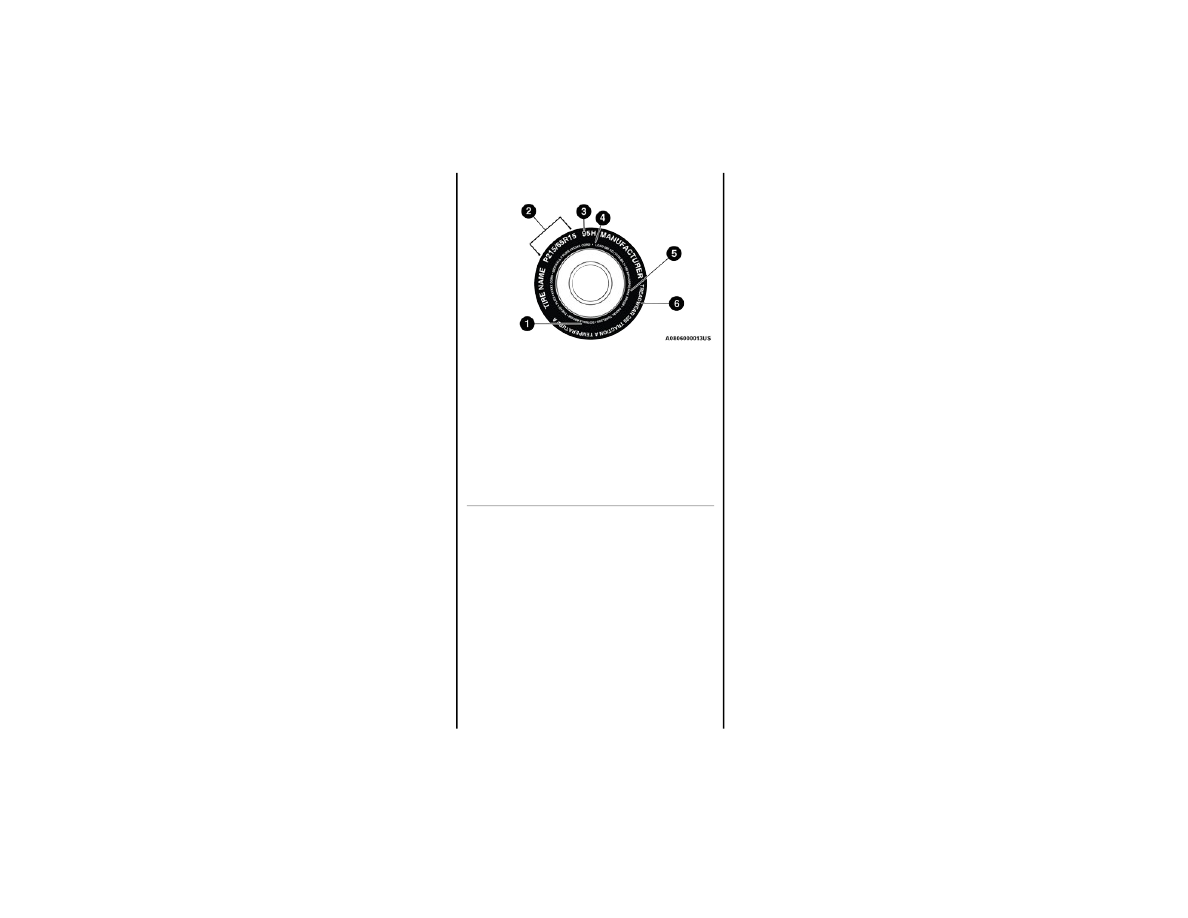

Tire Markings

Tire Markings

NOTE:

P (Passenger) — Metric tire sizing is based on

US design standards. P-Metric tires have the

letter “P” molded into the sidewall preceding

the size designation.

Example: P215/65R15 95H.

European — Metric tire sizing is based on

European design standards. Tires designed to

this standard have the tire size molded into the

sidewall beginning with the section width.

The letter "P" is absent from this tire size

designation. Example: 215/65R15 96H.

LT (Light Truck) — Metric tire sizing is based on

US design standards. The size designation for

LT-Metric tires is the same as for P-Metric tires

except for the letters “LT” that are molded into

the sidewall preceding the size designation.

Example: LT235/85R16.

Temporary spare tires are designed for

temporary emergency use only. Temporary

high pressure compact spare tires have the

letter “T” or “S” molded into the sidewall

preceding the size designation.

Example: T145/80D18 103M.

High flotation tire sizing is based on US design

standards and it begins with the tire diameter

molded into the sidewall.

Example: 31x10.5 R15 LT.

1 — US DOT Safety Standards Code (TIN)
2 — Size Designation
3 — Service Description
4 — Maximum Load
5 — Maximum Pressure
6 — Treadwear, Traction and

Temperature Grades

CarManuals2.com

225

Tire Sizing Chart

EXAMPLE:

Example Size Designation: P215/65R15XL 95H, 215/65R15 96H, LT235/85R16C, T145/80D18 103M, 31x10.5 R15 LT
P = Passenger car tire size based on US design standards, or
"....blank...." = Passenger car tire based on European design standards, or
LT = Light truck tire based on US design standards, or
T or S = Temporary spare tire or
31 = Overall diameter in inches (in)
215, 235, 145 = Section width in millimeters (mm)
65, 85, 80 = Aspect ratio in percent (%)

Ratio of section height to section width of tire, or

10.5 = Section width in inches (in)
R = Construction code

"R" means radial construction, or

"D" means diagonal or bias construction

15, 16, 18 = Rim diameter in inches (in)
Service Description:
95 = Load Index

A numerical code associated with the maximum load a tire can carry

H = Speed Symbol

A symbol indicating the range of speeds at which a tire can carry a load corresponding to its load index under certain operating conditions

The maximum speed corresponding to the speed symbol should only be achieved under specified operating conditions (i.e., tire pressure, vehicle

loading, road conditions, and posted speed limits)

CarManuals2.com

SERVICING AN

D M

AINTENAN

CE

226

Tire Identification Number (TIN)

The TIN may be found on one or both sides of the tire; however, the date code may only be on one side. Tires with white sidewalls will have the full TIN,

including the date code, located on the white sidewall side of the tire. Look for the TIN on the outboard side of black sidewall tires as mounted on the vehicle.

If the TIN is not found on the outboard side, then you will find it on the inboard side of the tire.

Load Identification:

Absence of the following load identification symbols on the sidewall of the tire indicates a Standard Load (SL) tire:

XL = Extra load (or reinforced) tire, or

LL = Light load tire or

C, D, E, F, G = Load range associated with the maximum load a tire can carry at a specified pressure

Maximum Load – Maximum load indicates the maximum load this tire is designed to carry
Maximum Pressure – Maximum pressure indicates the maximum permissible cold tire inflation pressure for this tire

EXAMPLE:

EXAMPLE:

DOT MA L9 ABCD 0301
DOT = Department of Transportation

This symbol certifies that the tire is in compliance with the US Department of Transportation tire safety standards and is approved for highway use

MA = Code representing the tire manufacturing location (two digits)
L9 = Code representing the tire size (two digits)
ABCD = Code used by the tire manufacturer (one to four digits)
03 = Number representing the week in which the tire was manufactured (two digits)

03 means the 3rd week

01 = Number representing the year in which the tire was manufactured (two digits)

01 means the year 2001

Prior to July 2000, tire manufacturers were only required to have one number to represent the year in which the tire was manufactured.

Example: 031 could represent the 3rd week of 1981 or 1991

CarManuals2.com

227

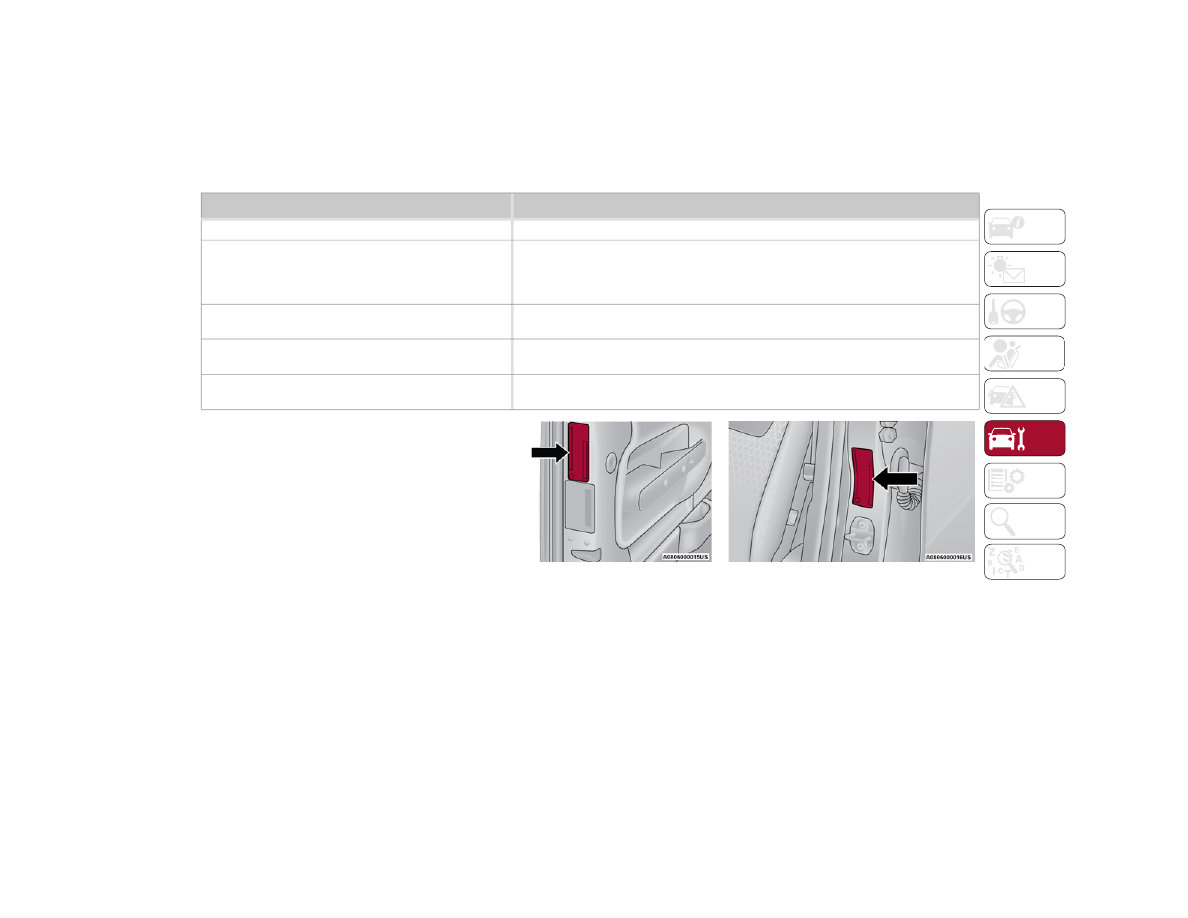

Tire Terminology And Definitions

Tire Loading And Tire Pressure

NOTE:

The proper cold tire inflation pressure is listed on

the driver’s side B-pillar or the rear edge of the

driver's side door.
Check the inflation pressure of each tire,

including the spare tire (if equipped), at least

monthly and inflate to the recommended

pressure for your vehicle.

Example Tire Placard Location (Door)

Example Tire Placard Location (B-pillar)

Term

Definition

B-pillar

The vehicle B-pillar is the structural member of the body located behind the front door.

Cold Tire Inflation Pressure

Cold tire inflation pressure is defined as the tire pressure after the vehicle has not been

driven for at least three hours, or driven less than 1 mile (1.6 km) after sitting for a

minimum of three hours. Inflation pressure is measured in units of PSI (pounds per

square inch) or kPa (kilopascals).

Maximum Inflation Pressure

The maximum inflation pressure is the maximum permissible cold tire inflation pressure

for this tire. The maximum inflation pressure is molded into the sidewall.

Recommended Cold Tire Inflation Pressure

Vehicle manufacturer's recommended cold tire inflation pressure as shown on the

tire placard.

Tire Placard

A label permanently attached to the vehicle describing the vehicle’s loading capacity, the

original equipment tire sizes and the recommended cold tire inflation pressures.

CarManuals2.com

SERVICING AN

D M

AINTENAN

CE

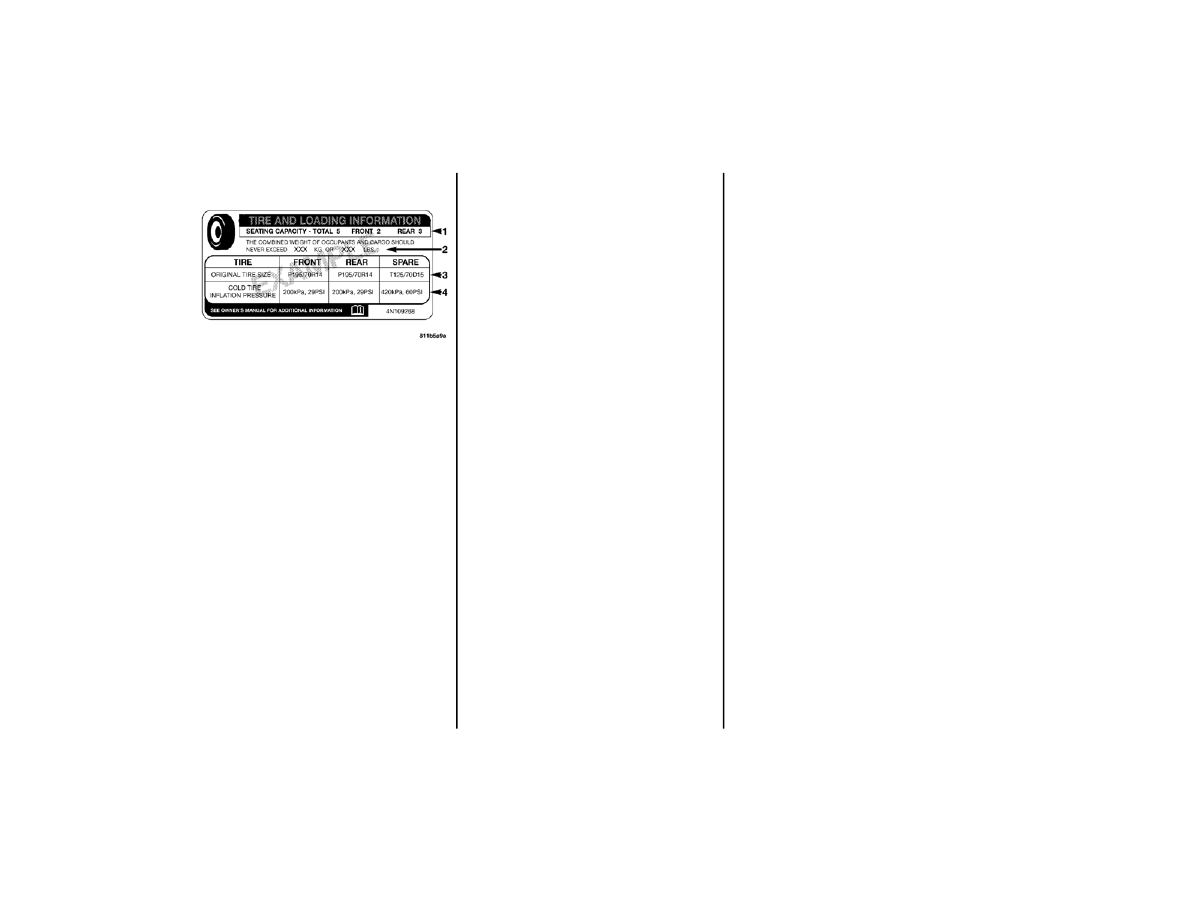

228

Tire And Loading Information Placard

Tire And Loading Information Placard

This placard tells you important information

about the:
1. Number of people that can be carried in

the vehicle.

2. Total weight your vehicle can carry.
3. Tire size designed for your vehicle.
4. Cold tire inflation pressures for the front,

rear, and spare tires.

Loading

The vehicle maximum load on the tire must not

exceed the load carrying capacity of the tire on

your vehicle. You will not exceed the tire's load

carrying capacity if you adhere to the loading

conditions, tire size, and cold tire inflation

pressures specified on the Tire and Loading

Information placard

Ú

page 132.

NOTE:

Under a maximum loaded vehicle condition,

gross axle weight ratings (GAWRs) for the front

and rear axles must not be exceeded. For further

information on GAWRs, vehicle loading, and

trailer towing

Ú

page 132.

To determine the maximum loading conditions of

your vehicle, locate the statement “The combined

weight of occupants and cargo should never

exceed XXX kg or XXX lbs” on the Tire and Loading

Information placard. The combined weight of

occupants, cargo/luggage and trailer tongue

weight (if applicable) should never exceed the

weight referenced here.

Steps For Determining Correct Load

Limit—
(1) Locate the statement “The

combined weight of occupants and

cargo should never exceed XXX kg or

XXX lbs.” on your vehicle's placard.
(2) Determine the combined weight of

the driver and passengers that will be

riding in your vehicle.
(3) Subtract the combined weight of the

driver and passengers from XXX kg or

XXX lbs.
(4) The resulting figure equals the

available amount of cargo and luggage

load capacity. For example, if “XXX”

amount equals 1400 lbs. and there will

be five 150 lb passengers in your

vehicle, the amount of available cargo

and luggage load capacity is 650 lbs.

(1400-750 (5x150) = 650 lbs.).
(5) Determine the combined weight of

luggage and cargo being loaded on the

vehicle. That weight may not safely

exceed the available cargo and luggage

load capacity calculated in Step 4.
(6) If your vehicle will be towing a trailer,

load from your trailer will be transferred

to your vehicle. Consult this manual to

determine how this reduces the

available cargo and luggage load

capacity of your vehicle.

Metric Example For Load Limit
For example, if “XXX” amount equals 635 kg and

there will be five 68 kg passengers in your

vehicle, the amount of available cargo

and luggage load capacity is 295 kg

(635-340 (5x68) = 295 kg) as shown in step 4.
NOTE:

If your vehicle will be towing a trailer, load from

your trailer will be transferred to your vehicle.

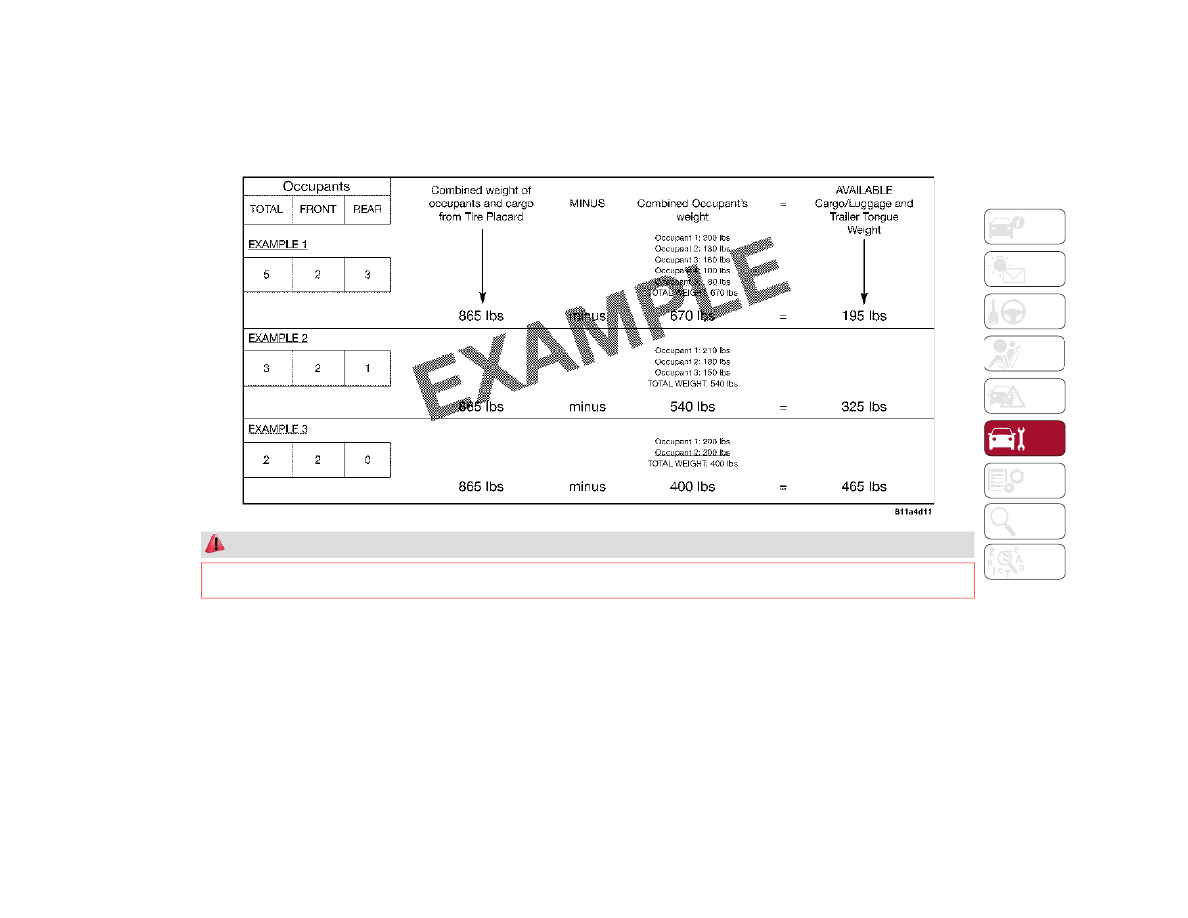

The following table shows examples on how to

calculate total load, cargo/luggage, and

towing capacities of your vehicle with varying

seating configurations and number and size of

occupants. This table is for illustration

purposes only and may not be accurate for the

seating and load carry capacity of your vehicle.

For the following example, the combined

weight of occupants and cargo should never

exceed 865 lbs (392 kg).

CarManuals2.com

229

 WARNING!

Overloading of your tires is dangerous. Overloading can cause tire failure, affect vehicle handling, and increase your stopping distance. Use tires of the

recommended load capacity for your vehicle. Never overload them.

CarManuals2.com

SERVICING AN

D M

AINTENAN

CE

230

T

IRES

 — G

ENERAL

 I

NFORMATION



Tire Pressure

Proper tire inflation pressure is essential to the

safe and satisfactory operation of your vehicle.

Four primary areas are affected by improper

tire pressure:

Safety

Fuel Economy

Tread Wear

Ride Comfort and Vehicle Stability

Safety

Both underinflation and overinflation affect the

stability of the vehicle and can produce a feeling

of sluggish response or over responsiveness in

the steering.
NOTE:

Unequal tire pressures from side to side may

cause erratic and unpredictable steering

response.

Unequal tire pressure from side to side may

cause the vehicle to drift left or right.

Fuel Economy
Underinflated tires will increase tire rolling

resistance resulting in higher fuel consumption.
Tread Wear
Improper cold tire inflation pressures can cause

abnormal wear patterns and reduced tread life,

resulting in the need for earlier tire replacement.
Ride Comfort And Vehicle Stability
Proper tire inflation contributes to a comfortable

ride. Overinflation produces a jarring and

uncomfortable ride.

Tire Inflation Pressures

The proper cold tire inflation pressure is listed on

the driver's side B-pillar or rear edge of the

driver's side door.
At least once a month:

Check and adjust tire pressure with a good

quality pocket-type pressure gauge. Do not

make a visual judgement when determining

proper inflation. Tires may look properly

inflated even when they are underinflated.

Inspect tires for signs of tire wear or visible

damage.

Inflation pressures specified on the placard are

always “cold tire inflation pressure”. Cold tire

inflation pressure is defined as the tire pressure

after the vehicle has not been driven for at least

three hours, or driven less than 1 mile (1.6 km)

after sitting for a minimum of three hours. The

cold tire inflation pressure must not exceed the

maximum inflation pressure molded into the tire

sidewall.
Check tire pressures more often if subject to a

wide range of outdoor temperatures, as tire

pressures vary with temperature changes.
Tire pressures change by approximately 1 psi

(7 kPa) per 12°F (7°C) of air temperature

change. Keep this in mind when checking tire

pressure inside a garage, especially in the Winter.
Example: If garage temperature = 68°F (20°C)

and the outside temperature = 32°F (0°C) then

the cold tire inflation pressure should be

increased by 3 psi (21 kPa), which equals 1 psi

(7 kPa) for every 12°F (7°C) for this outside

temperature condition.
Tire pressure may increase from 2 to 6 psi

(13 to 40 kPa) during operation. DO NOT reduce

this normal pressure build up or your tire

pressure will be too low.

 WARNING!

Improperly inflated tires are dangerous and

can cause collisions.

Underinflation increases tire flexing and can

result in overheating and tire failure.

Overinflation reduces a tire's ability to

cushion shock. Objects on the road and

chuckholes can cause damage that result in

tire failure.

Overinflated or underinflated tires can affect

vehicle handling and can fail suddenly,

resulting in loss of vehicle control.

Unequal tire pressures can cause steering

problems. You could lose control of your

vehicle.

Unequal tire pressures from one side of the

vehicle to the other can cause the vehicle to

drift to the right or left.

Always drive with each tire inflated to the

recommended cold tire inflation pressure.

 CAUTION!

After inspecting or adjusting the tire pressure,

always reinstall the valve stem cap. This will

prevent moisture and dirt from entering the

valve stem, which could damage the valve

stem.

CarManuals2.com

231

Tire Pressures For High Speed Operation

The manufacturer advocates driving at safe

speeds and within posted speed limits. Where

speed limits or conditions are such that the

vehicle can be driven at high speeds, maintaining

correct tire inflation pressure is very important.

Increased tire pressure and reduced vehicle

loading may be required for high-speed vehicle

operation. Refer to an authorized tire dealer or

original equipment vehicle dealer for

recommended safe operating speeds, loading

and cold tire inflation pressures.

Recommended Cold Tire Inflation Pressures
For vehicle speeds below 100 mph (160 km/h),

recommended cold tire inflation pressures are

listed on the Tire And Loading Information

Placard located on driver’s side B-pillar or the rear

edge of the driver's side door.

When driving at speeds 100 mph (160 km/h)

and above, increased tire pressures and reduced

vehicle loading are required for high-speed

vehicle operation.
For driving speeds above 100 mph (160 km/h)

recommended cold tire inflation pressures in the

following table under “High Speed Tire Inflation

Pressure”. Vehicle loading condition must not

exceed 688 lb. (312 kg) (driver + three

passengers + 88 lb. (40kg) luggage).

2.0L Engine

NOTE:

Using tires of a different size, type, brand or design on the front and rear may adversely affect vehicle drive-ability. We recommend using only tires approved

by the manufacturer. The manufacturer cannot determine if unapproved tires are suitable for use and therefore cannot guarantee vehicle safety in those

conditions.

 WARNING!

High speed driving with your vehicle under

maximum load is dangerous. The added strain

on your tires could cause them to fail. You could

have a serious collision. Do not drive a vehicle

loaded to the maximum capacity at continuous

speeds above 75 mph (120 km/h).

 WARNING!

High speed driving with your vehicle under

maximum load is dangerous. The added strain

on your tires could cause them to fail.

You could have a serious collision.

Tires

Wheel

Recommended Cold Tire Inflation

Pressure

High Speed Tire Inflation

Pressure

Front

Rear

Front

Rear

235/60 R18 103V

18x8J

30 psi / 210 kPa

33 psi / 230 kPa

33 psi / 230 kPa

38 psi / 260 kPa

235/55 R19 101V & 105V

19x8J

30 psi / 210 kPa

33 psi / 230 kPa

33 psi / 230 kPa

38 psi / 260 kPa

255/45 R20 101V

20x8.5J

33 psi / 230 kPa

36 psi / 250 kPa

35 psi / 240 kPa

39 psi / 270 kPa

255/40 R21 102V XL

21x8.5J

33 psi / 230 kPa

36 psi / 250 kPa

33 psi / 230 kPa

39 psi / 270 kPa

195/75 R18 106P

(Compact Spare Tire)

43 psi / 300 kPa

CarManuals2.com

SERVICING AN

D M

AINTENAN

CE

232

2.9L Engine

Radial Ply Tires

Tire Repair
If your tire becomes damaged, it may be repaired

if it meets the following criteria:

The tire has not been driven on when flat.

The damage is only on the tread section of your

tire (sidewall damage is not repairable).

The puncture is no greater than a ¼ of an

inch (6 mm).

Consult an authorized tire dealer for tire repairs

and additional information.
Damaged Run Flat tires, or Run Flat tires that

have experienced a loss of pressure should be

replaced immediately with another Run Flat tire

of identical size and service description (Load

Index and Speed Symbol). Replace the tire

pressure sensor as well as it is not designed to

be reused.

Tires

Wheel

Recommended Cold Tire

Inflation Pressure

High Speed Tire

Inflation Pressure

Front

Rear

Front

Rear

255/45 R20 101Y

(Original Equipment)

20x9J

36 psi / 250 kPa

-

39 psi / 270 kPa

-

255/40 R21 102Y XL

(Original Equipment)

21x9J

39 psi / 270 kPa

-

39 psi / 270 kPa

-

285/40 R20 104Y

(Original Equipment)

20x10J

-

39 psi / 270 kPa

-

42 psi / 290 kPa

285/35 R21 105Y XL

(Original Equipment)

21x10J

-

42 psi / 290 kPa

-

42 psi / 290 kPa

255/40 R21 M+S

(Snow Tires)

21x9J

39 psi / 270 kPa

-

39 psi / 270 kPa

-

285/35 R21 M+S

(Snow Tires)

21x9J

-

42 psi / 290 kPa

-

42 psi / 290 kPa

 WARNING!

Combining radial ply tires with other types of tires

on your vehicle will cause your vehicle to handle

poorly. The instability could cause a collision.

Always use radial ply tires in sets of four. Never

combine them with other types of tires.

CarManuals2.com

233

Run Flat Tires — If Equipped

Run Flat tires allow you the capability to drive

50 miles (80 km) at 50 mph (80 km/h) after a

rapid loss of inflation pressure. This rapid loss of

inflation is referred to as the Run Flat mode. A

Run Flat mode occurs when the tire inflation

pressure is of/or below 14 psi (96 kPa). Once a

Run Flat tire reaches the run flat mode it has

limited driving capabilities and needs to be

replaced immediately. A Run Flat tire is not

repairable. When a Run Flat tire is changed after

being driven under a Run Flat mode 14 psi

(96 kPa) condition, please replace the TPMS

sensor as it is not designed to be reused.
NOTE:

TPMS sensor must be replaced after driving the

vehicle on a flat tire condition.
It is not recommended driving a vehicle loaded at

full capacity or to tow a trailer while a tire is in the

Run Flat mode.
For more information

Ú

page 155.

Tire Spinning

When stuck in mud, sand, snow, or ice conditions,

do not spin your vehicle's wheels above 30 mph

(48 km/h) or for longer than 30 seconds contin

-

uously without stopping.

Tread Wear Indicators

Tread wear indicators are in the original

equipment tires to help you in determining when

your tires should be replaced.

Tire Tread

These indicators are molded into the bottom of

the tread grooves. They will appear as bands

when the tread depth becomes a 1/16 of an inch

(1.6 mm). When the tread is worn to the tread

wear indicators, the tire should be replaced.

Life Of Tire

The service life of a tire is dependent upon

varying factors including, but not limited to:

Driving style.

Tire pressure - Improper cold tire inflation

pressures can cause uneven wear patterns to

develop across the tire tread. These abnormal

wear patterns will reduce tread life, resulting in

the need for earlier tire replacement.

Distance driven.

Performance tires, tires with a speed rating of

V or higher, and Summer tires typically have a

reduced tread life. Rotation of these tires per

the vehicle scheduled maintenance is highly

recommended.

NOTE:

Wheel valve stem must be replaced as well when

installing new tires due to wear and tear in

existing tires.
Keep dismounted tires in a cool, dry place with as

little exposure to light as possible. Protect tires

from contact with oil, grease, and gasoline.

 WARNING!

Fast spinning tires can be dangerous. Forces

generated by excessive wheel speeds may

cause tire damage or failure. A tire could

explode and injure someone. Do not spin your

vehicle's wheels faster than 30 mph (48 km/h)

for more than 30 seconds continuously when

you are stuck, and do not let anyone near a

spinning wheel, no matter what the speed.

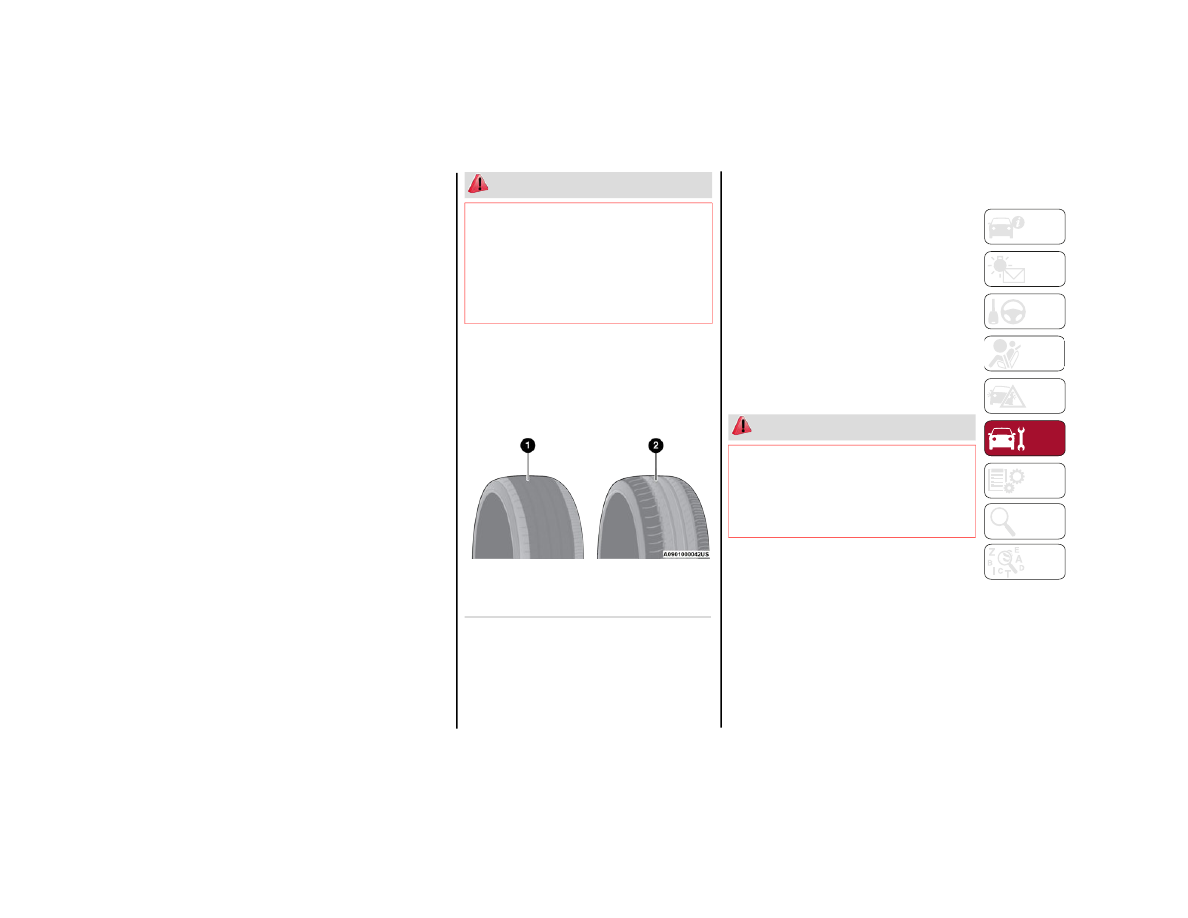

1 — Worn Tire
2 — New Tire

 WARNING!

Tires and the spare tire should be replaced

after six years, regardless of the remaining

tread. Failure to follow this warning can result

in sudden tire failure. You could lose control

and have a collision resulting in serious injury

or death.

CarManuals2.com

SERVICING AN

D M

AINTENAN

CE

234

Replacement Tires

The tires on your new vehicle provide a balance of

many characteristics. They should be inspected

regularly for wear and correct cold tire inflation

pressures. The manufacturer strongly

recommends that you use tires equivalent to the

originals in size, quality and performance when

replacement is needed

Ú

page 233. Refer to the

Tire and Loading Information placard or the

Vehicle Certification Label for the size

designation of your tire. The Load Index and

Speed Symbol for your tire will be found on the

original equipment tire sidewall.
See the Tire Sizing Chart example for more

information relating to the Load Index and

Speed Symbol of a tire

Ú

page 224.

It is recommended to replace the two front tires

or two rear tires as a pair. Replacing just one tire

can seriously affect your vehicle’s handling. If you

ever replace a wheel, make sure that the wheel’s

specifications match those of the original wheels.
It is recommended you contact an authorized tire

dealer or original equipment dealer with any

questions you may have on tire specifications or

capability. Failure to use equivalent replacement

tires may adversely affect the safety, handling,

and ride of your vehicle.

S

PARE

 T

IRES

 — I

F

 E

QUIPPED



NOTE:

For vehicles equipped with Tire Service Kit

instead of a spare tire

Ú

page 189.

Spare Tire Matching Original Equipped

Tire And Wheel — If Equipped

Your vehicle may be equipped with a spare tire

and wheel equivalent in look and function to the

original equipment tire and wheel found on the

front or rear axle of your vehicle. This spare tire

may be used in the tire rotation for your vehicle.

If your vehicle has this option, refer to an

authorized tire dealer for the recommended

tire rotation pattern.

Compact Spare Tire — If Equipped

The compact spare is for temporary emergency

use only. You can identify if your vehicle is

equipped with a compact spare by looking at the

spare tire description on the Tire and Loading

Information Placard located on the driver’s side

door opening or on the sidewall of the tire.

Compact spare tire descriptions begin with the

letter “T” or “S” preceding the size designation.

Example: T145/80D18 103M.
T, S = Temporary Spare Tire

 WARNING!

Do not use a tire, wheel size, load rating, or

speed rating other than that specified for

your vehicle. Some combinations of

unapproved tires and wheels may change

suspension dimensions and performance

characteristics, resulting in changes to

steering, handling, and braking of your

vehicle. This can cause unpredictable

handling and stress to steering and

suspension components. You could lose

control and have a collision resulting in

serious injury or death. Use only the tire and

wheel sizes with load ratings approved for

your vehicle.

Never use a tire with a smaller load index or

capacity, other than what was originally

equipped on your vehicle. Using a tire with a

smaller load index could result in tire

overloading and failure. You could lose

control and have a collision.

Failure to equip your vehicle with tires having

adequate speed capability can result in

sudden tire failure and loss of vehicle

control.

 CAUTION!

Replacing original tires with tires of a different

size may result in false speedometer and

odometer readings.

 CAUTION!

Because of the reduced ground clearance, do

not take your vehicle through an automatic car

wash with a compact or limited use temporary

spare installed. Damage to the vehicle may

result.

CarManuals2.com

235

Since this tire has limited tread life, the original

equipment tire should be repaired (or replaced)

and reinstalled on your vehicle at the first

opportunity.
Do not install a wheel cover or attempt to mount

a conventional tire on the compact spare wheel,

since the wheel is designed specifically for the

compact spare tire. Do not install more than one

compact spare tire and wheel on the vehicle at

any given time.

Full Size Spare — If Equipped

The full size spare is for temporary emergency

use only. This tire may look like the originally

equipped tire on the front or rear axle of your

vehicle, but it is not. This spare tire may have

limited tread life. When the tread is worn to the

tread wear indicators, the temporary use full size

spare tire needs to be replaced. Since it is not the

same as your original equipment tire, replace (or

repair) the original equipment tire and reinstall on

the vehicle at the first opportunity.

Limited Use Spare — If Equipped

The limited use spare tire is for temporary

emergency use only. This tire is identified by a

label located on the limited use spare wheel.

This label contains the driving limitations for

this spare. This tire may look like the original

equipped tire on the front or rear axle of your

vehicle, but it is not. Installation of this limited use

spare tire affects vehicle handling. Since it is not

the same as your original equipment tire, replace

(or repair) the original equipment tire and

reinstall on the vehicle at the first opportunity.

W

HEEL

 A

ND

 W

HEEL

 T

RIM

 C

ARE



All wheels and wheel trim, especially aluminum

and chrome plated wheels, should be cleaned

regularly using mild (neutral Ph) soap and water

to maintain their luster and to prevent corrosion.

Wash wheels with the same soap solution

recommended for the body of the vehicle and

remember to always wash when the surfaces are

not hot to the touch.

Your wheels are susceptible to deterioration

caused by salt, sodium chloride, magnesium

chloride, calcium chloride, etc., and other road

chemicals used to melt ice or control dust on dirt

roads. Use a soft cloth or sponge and mild soap to

wipe away promptly. Do not use harsh chemicals

or a stiff brush. They can damage the wheel’s

protective coating that helps keep them from

corroding and tarnishing.

When cleaning extremely dirty wheels including

excessive brake dust, care must be taken in the

selection of tire and wheel cleaning chemicals

and equipment to prevent damage to the wheels.

Select a non-abrasive, non-acidic cleaner for

aluminum or chrome wheels.

 WARNING!

Compact and collapsible spares are for

temporary emergency use only. With these

spares, do not drive more than 50 mph

(80 km/h). Temporary use spares have limited

tread life. When the tread is worn to the tread

wear indicators, the temporary use spare tire

needs to be replaced. Be sure to follow the

warnings, which apply to your spare. Failure to

do so could result in spare tire failure and loss

of vehicle control.

 WARNING!

Limited use spares are for emergency use

only. Installation of this limited use spare tire

affects vehicle handling. With this tire, do not

drive more than the speed listed on the limited

use spare wheel. Keep inflated to the cold tire

inflation pressures listed on your Tire and

Loading Information Placard located on the

driver’s side B-pillar or the rear edge of the

driver’s side door. Replace (or repair) the

original equipment tire at the first opportunity

and reinstall it on your vehicle. Failure to do so

could result in loss of vehicle control.

 CAUTION!

Avoid products or automatic car washes that

use acidic solutions or strong alkaline

additives or harsh brushes. Many aftermarket

wheel cleaners and automatic car washes may

damage the wheel's protective finish. Such

damage is not covered by the New Vehicle

Limited Warranty. Only car wash soap is

recommended.

 CAUTION!

Do not use scouring pads, steel wool, a bristle

brush, metal polishes or oven cleaner. These

products may damage the wheel's protective

finish. Such damage is not covered by the

New Vehicle Limited Warranty. Only car wash

soap is recommended.

CarManuals2.com

SERVICING AN

D M

AINTENAN

CE

236

NOTE:

If you intend parking or storing your vehicle for an

extended period after cleaning the wheels with

wheel cleaner, drive your vehicle and apply the

brakes to remove the water droplets from the

brake components. This activity will remove the

red rust on the brake rotors and prevent vehicle

vibration when braking.
Dark Or Low Gloss Wheels

T

IRE

 T

YPES

All Season Tires — If Equipped

All Season tires provide traction for all seasons

(Spring, Summer, Autumn, and Winter). Traction

levels may vary between different all season

tires. All season tires can be identified by the

M+S, M&S, M/S or MS designation on the

tire sidewall. Use all season tires only in sets of

four; failure to do so may adversely affect the

safety and handling of your vehicle.

Summer Or Three Season Tires —

If Equipped

Summer tires provide traction in both wet and dry

conditions, and are not intended to be driven in

snow or on ice. If your vehicle is equipped with

Summer tires, be aware these tires are not

designed for Winter or cold driving conditions.

Install Winter tires on your vehicle when ambient

temperatures are less than 40°F (5°C) or if

roads are covered with ice or snow. For more

information, contact an authorized dealer.
Summer tires do not contain the all season

designation or mountain/snowflake symbol on

the tire sidewall. Use Summer tires only in sets of

four; failure to do so may adversely affect the

safety and handling of your vehicle.

Snow Tires

Some areas of the country require the use of

snow tires during the Winter. Snow tires can be

identified by a “mountain/snowflake” symbol on

the tire sidewall.

If you need snow tires, select tires

equivalent in size and type to the

original equipment tires. Use snow tires

only in sets of four; failure to do so may

adversely affect the safety and handling of your

vehicle.

Snow tires generally have lower speed ratings

than what was originally equipped with your

vehicle and should not be operated at sustained

speeds over 75 mph (120 km/h). For speeds

above 75 mph (120 km/h) refer to original

equipment or an authorized tire dealer for

recommended safe operating speeds, loading

and cold tire inflation pressures.
While studded tires improve performance on ice,

skid and traction capability on wet or dry surfaces

may be poorer than that of non-studded tires.

Some states prohibit studded tires; therefore,

local laws should be checked before using these

tire types.

T

IRE

 C

HAINS



AND

 T

RACTION

 D

EVICES

It is possible to fit 13 mm chains on the tires:

2.0L engines, 18” and 19” are chainable.

2.9L engines, 20” and 21” are chainable.

Use of traction devices require sufficient

tire-to-body clearance. Follow these recommen

-

dations to guard against damage.
NOTE:

Traction device must be of proper size for the

tire, as recommended by the traction device

manufacturer.

Use on rear tires only.

Check the tension of the snow chains after the

first few meters have been driven.

Using snow chains with tires with non-original

dimensions may damage the vehicle.

Using different tires sizes or types (M+S, snow,

etc.) between the front and rear axles may

adversely affect vehicle drivability, with the

risk of losing control of the vehicle and

resulting accidents.

 CAUTION!

If your vehicle is equipped with these specialty

wheels, DO NOT USE wheel cleaners,

abrasives, or polishing compounds. They will

permanently damage this finish and such

damage is not covered by the New Vehicle

Limited Warranty. HAND WASH ONLY USING

MILD SOAP AND WATER WITH A SOFT CLOTH.

Used on a regular basis; this is all that is

required to maintain this finish.

 WARNING!

Do not use Summer tires in snow/ice

conditions. You could lose vehicle control,

resulting in severe injury or death. Driving too

fast for conditions also creates the possibility

of loss of vehicle control.

CarManuals2.com

237

T

IRE

 R

OTATION

 R

ECOMMENDATIONS

Tires on the front and rear axles of vehicles

operate at different loads and perform different

steering, driving, and braking functions. For these

reasons, they wear at unequal rates. These

effects can be reduced by timely rotation of tires.

Rotation will increase tread life, maintain traction

levels and contribute to a smooth, quiet ride.
To resolve this problem, tires should be rotated at

each service interval (approximately every

10,000 miles [16,000 km]). More frequent

rotation is permissible if desired. The reasons for

any rapid or unusual wear should be corrected

prior to rotation being performed.
Tire Rotations Not Recommended — If Equipped
Due to different size tires and wheels on front and

rear axles, tire rotation is not possible for:
2.0L Engine equipped with a different front and

rear tire size.

Tire rotation contributes to the preservation of the

grip and traction performance on wet, muddy or

snowy roads, guaranteeing optimal drivability of

the vehicle.
In the case of irregular wear of the tires identify

the cause and correct it as soon as possible, by

contacting an authorized dealer.

The rotational direction of the tire must be taken

into consideration when rotating the tires. The

recommended rotation pattern for directional

tires is shown in the following diagram.

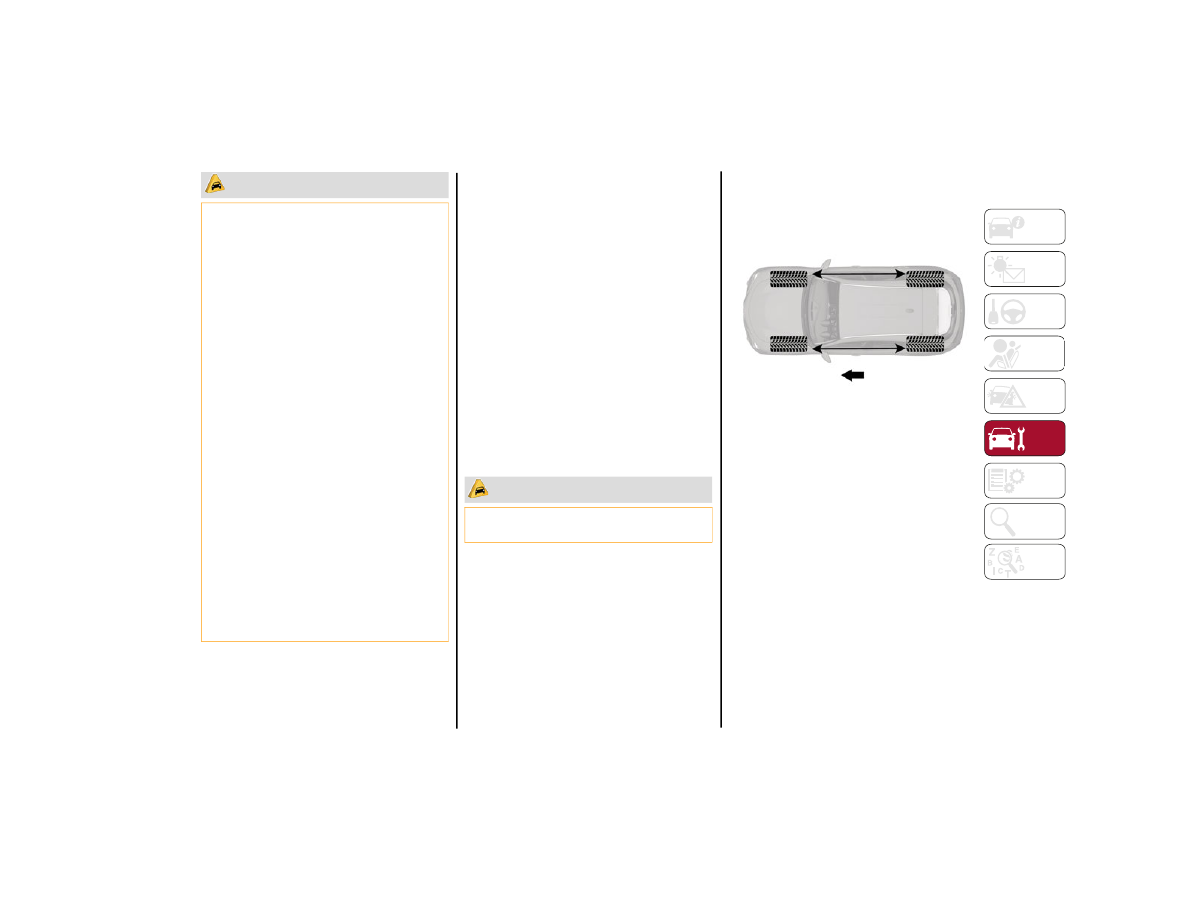

Tire Rotation

It is recommended to avoid situations with a large

difference in wear between the front and rear

tires and to strictly use Winter tires of the sizes

given on the tire placard.
The AWD system and the original tires are

developed together to ensure the vehicle’s best

performance. When changing the tires, it is

recommended to us the same “AR” marked tires,

to maintain the same level of performance and

component life.

 CAUTION!

To avoid damage to your vehicle or tires,

observe the following precautions:

Because of restricted traction device

clearance between tires and other

suspension components, it is important that

only traction devices in good condition are

used. Broken devices can cause serious

damage. Stop the vehicle immediately if

noise occurs that could indicate device

breakage. Remove the damaged parts of

the device before further use.

Install device as tightly as possible and then

retighten after driving about ½ mile (0.8 km).

Do not exceed 30 mph (48 km/h).

Drive cautiously and avoid severe turns and

large bumps, especially with a loaded

vehicle.

Do not drive for a prolonged period on

dry pavement.

Observe the traction device manufacturer’s

instructions on the method of installation,

operating speed, and conditions for use.

Always use the suggested operating speed of

the device manufacturer’s if it is less than

30 mph (48 km/h).

Do not use traction devices on a compact

spare tire.

 CAUTION!

Damage to the vehicle may occur if different

front and rear tire sizes are rotated

CarManuals2.com

SERVICING AN

D M

AINTENAN

CE

238

DEPARTMENT OF

TRANSPORTATION

UNIFORM TIRE QUALITY

GRADES

The following tire grading categories

were established by the National

Highway Traffic Safety Administration.

The specific grade rating assigned by

the tire's manufacturer in each

category is shown on the sidewall of

the tires on your vehicle.
All passenger vehicle tires must conform

to Federal safety requirements in

addition to these grades.

T

READWEAR

The Treadwear grade is a comparative

rating, based on the wear rate of the

tire when tested under controlled

conditions on a specified government

test course. For example, a tire graded

150 would wear one and one-half times

as well on the government course as a

tire graded 100. The relative

performance of tires depends upon the

actual conditions of their use, however,

and may depart significantly from the

norm due to variations in driving habits,

service practices, and differences in

road characteristics and climate.

T

RACTION

 G

RADES

The Traction grades, from highest to

lowest, are AA, A, B, and C. These

grades represent the tire's ability to

stop on wet pavement, as measured

under controlled conditions on

specified government test surfaces of

asphalt and concrete. A tire marked C

may have poor traction performance.

T

EMPERATURE

 G

RADES

The temperature grades are A (the

highest), B, and C, representing the

tire's resistance to the generation of

heat and its ability to dissipate heat,

when tested under controlled

conditions on a specified indoor

laboratory test wheel. Sustained high

temperature can cause the material of

the tire to degenerate and reduce tire

life, and excessive temperature can

lead to sudden tire failure. The grade C

corresponds to a level of performance,

which all passenger vehicle tires must

meet under the Federal Motor Vehicle

Safety Standard No. 109. Grades B and

A represent higher levels of

performance on the laboratory test

wheel, than the minimum required

by law.

STORING THE VEHICLE

If the vehicle is left inactive for longer than a

month, the following precautions should be

observed:

Park the vehicle in an area that is covered and

dry, and well-ventilated if possible. Slightly

open the windows.

Check that the Electric Park Brake (EPB) is

not activated.

Carry out the “Liftgate Emergency Opening”

procedure

Ú

page 62.

Disconnect the negative battery terminal and

check the battery charge. Repeat this check

once every three months during storage.

If the battery is not disconnected from the

electrical system, check its state of charge

every 30 days.

Clean and protect the painted parts using

protective wax.

 WARNING!

The traction grade assigned to this tire is

based on straight-ahead braking traction

tests, and does not include acceleration,

cornering, hydroplaning, or peak traction

characteristics.

 WARNING!

The temperature grade for this tire is

established for a tire that is properly inflated

and not overloaded. Excessive speed,

under-inflation, or excessive loading, either

separately or in combination, can cause heat

buildup and possible tire failure.

CarManuals2.com

239

Clean and protect the shiny metal parts using

special compounds available commercially.

Sprinkle talcum powder on the windshield

wiper rubber blades, and lift them off the glass.

Cover the vehicle with a fabric or perforated

plastic sheet, paying particular care not to

damage the painted surface by dragging any

dust that may have accumulated on it. Do not

use compact plastic sheets, as they do not

allow humidity to evaporate from the surface

of the vehicle.

Inflate tires to +7.25 psi (+0.5 bar) above the

standard prescribed pressure and check it

periodically.

Do not drain the engine cooling system.

Any time the vehicle is left inactive for two

weeks or more, operate the air conditioning

system with engine idling for at least five

minutes, setting external air and with fan set to

maximum speed. This operation will ensure

appropriate lubrication for the system, thus

minimizing the possibility of damage to the

compressor when the system is operated

again.

NOTE:

After cycling the ignition to STOP and having

closed the driver side door, wait at least one

minute before disconnecting the electrical supply

from the battery. When reconnecting the elec

-

trical supply to the battery, make sure that the

ignition is in the STOP position and the driver’s

side door is closed.

BODYWORK

P

ROTECTION

 A

GAINST

 A

TMOSPHERIC



A

GENTS

The vehicle is equipped with the best available

technological solutions to protect the bodywork

against corrosion.
These include:

Painting products and systems which give the

vehicle resistance to corrosion and abrasion.

Use of galvanized (or pre-treated) steel sheets,

with high resistance to corrosion.

Spraying of plastic parts, with a protective

function in the more exposed points: under

door, inner wing, edges, etc.

Use of “open” boxed sections to prevent

condensation and pockets of moisture which

could favor the formation of rust inside.

Use of special films to protect against abrasion

in exposed areas (e.g. rear wing, doors, etc.).

C

ORROSION

 W

ARRANTY

Your vehicle is covered by Corrosion Warranty

against perforation due to rust of any original

element of the structure or bodywork. For the

general terms of this warranty, refer to the

Warranty Booklet.

P

RESERVING

 T

HE

 B

ODYWORK



Paint
Touch up abrasions and scratches immediately to

prevent the formation of rust.
Maintenance of paintwork consists of washing

the vehicle: the frequency depends on the

conditions and environment where the vehicle is

used. For example, it is advisable to wash the

vehicle more often in areas with high levels of

atmospheric pollution or salted roads.
Some parts of the vehicle may be covered with a

matte paint which, in order to be maintained

intact, requires special care.
To correctly wash the vehicle, follow these

instructions:

If high pressure jets or cleaners are used to

wash the vehicle, keep a distance of at least

15 inches (40 cm) from the bodywork to avoid

damage or alteration. Build up of water could

cause damage to the vehicle in the long term.

To make it easier to remove any dirt deposits in

the area where the blades are normally located

it is recommended to position the windshield

wipers vertically (service position)

Ú

page 209.

Wash the bodywork using a low pressure jet of

water if possible.

Wipe a sponge with a slightly soapy solution

over the bodywork, frequently rinsing the

sponge.

Rinse well with water and dry with a leather

chamois.

CarManuals2.com

SERVICING AN

D M

AINTENAN

CE

240

Dry the less visible parts (e.g. door frames, hood,

headlight frames, etc.) with special care, as water

may stagnate more easily in these areas. Do not

wash the vehicle after it has been left in the sun

or with the hood hot: this may alter the shine of

the paintwork.
NOTE:

Avoid parking under trees; the resin dropped by

trees makes the paintwork go opaque and

increases the possibility of corrosion.
Exterior plastic parts must be cleaned in the

same way as the rest of the vehicle.
If washing the vehicle in a service that moves the

vehicle, for vehicles with automatic

transmissions, proceed with the following

directions:

Ensure that the vehicle is on a flat surface.

Disable the automatic engagement of the

parking brake

Ú

page 89.

With the vehicle stationary, the gear in

NEUTRAL (N) and the brake pedal pressed,

push the START button.

NOTE:

The vehicle will remain in NEUTRAL (N) for

15 minutes before PARK (P) will be engaged

automatically.

Windows
Use specific detergents and clean cloths to

prevent scratching or altering the transparency.

Front Headlights
Use a soft cloth soaked in water and detergent for

washing vehicles.
NOTE:

Never use aromatic substances (e.g. gasoline)

or ketones (e.g. acetone) for cleaning the

plastic lenses of the headlights.

When cleaning with a pressure washer, keep

the pressure washer at least eight inches

(20 cm) away from the headlights.

Engine Compartment
At the end of every Winter, wash the engine

compartment thoroughly, taking care not to aim

the jet of water directly at the electronic control

units or at the windshield wiper motors. Have this

operation performed at a specialized workshop

Ú

page 208.

NOTE:

The washing should take place with the engine

cold and the ignition device in the STOP position.

After the washing operation, make sure that the

various protections (e.g. rubber caps and guards)

have not been removed or damaged.

INTERIORS

Periodically check the cleanliness of the interior,

beneath the mats, which could cause oxidation of

the sheet metal.

S

EATS

 A

ND

 F

ABRIC

 P

ARTS

Remove dust with a soft brush or a vacuum

cleaner. It is advised to use a moist brush on

velvet upholstery. Rub the seats with a sponge

moistened with a solution of water and neutral

detergent.
Cleaning heat press images on seats —

if equipped:
Due to the color, opacity and wear-resistant

protection with which the heat press images on

some seats are made, they may be subject to

temporary scratching if they are touched by finger

nails, keys, or other hard objects. In such cases,

the visible signs do not impair the profiled

images, and can easily be removed by wiping the

affected area with a microfiber cloth moistened

with water (not dry) to restore the seat to its

original condition. The microfiber cloth must not

have been previously soaked in other substances

or detergents.

 CAUTION!

Wipe the rear window inside gently with a

cloth following the direction of the filaments to

avoid damaging the heating device.

CarManuals2.com

241

L

EATHER

 S

EATS

Remove the dry dirt with a chamois or slightly

damp cloth, without exerting too much pressure.
Remove any liquid or grease stains using an

absorbent dry cloth, without rubbing. Then clean

with a soft cloth or buckskin cloth dampened with

water and mild soap. If the stain persists, use

specific products and observe the instructions

carefully.
NOTE:

Never use alcohol. Make sure that the cleaning

products used contain no alcohol or alcohol deriv

-

atives, even in small quantities.

P

LASTIC

 A

ND

 C

OATED

 P

ARTS

Clean interior plastic parts with a damp cloth (if

possible made from microfiber), and a solution of

water and neutral, non-abrasive detergent.
To clean oily or persistent stains, use specific

products free from solvents and designed to

maintain the original appearance and color of the

components.

Remove any dust using a microfiber cloth, if

necessary moistened with water. The use of

paper tissues is not recommended as these may

leave residues.

A

LCANTARA

 P

ARTS

 — I

F

 E

QUIPPED

Alcantara parts maintenance procedure:

Treat the surface with a microfiber cloth

moistened with mild Marseille soap and water,

taking care to apply a uniform light pressure

over the entire area (do not rub vigorously).

Rinse and wring out the microfiber cloth, and

pass it over the entire area again.

Let it dry, and then brush gently with a

soft brush.

G

ENUINE

 L

EATHER

 P

ARTS

Use only water and mild soap to clean these

parts. Never use alcohol or alcohol-based

products.
Before using a specific product for cleaning

interiors, make sure that it does not contain

alcohol and/or alcohol based substances.

C

ARBON

 F

IBER

 P

ARTS

To eliminate small scratches and marks on the

carbon, contact an authorized dealer. An

improperly performed operation may irreparably

damage the carbon.

 CAUTION!

Precautions have been taken to safeguard all

parts and connections however, the pressures

generated by these machines is such that

complete protection against water ingress

cannot be guaranteed.

CarManuals2.com

242

TECH

NICAL SPECIFICA

TIO

NS

For the enthusiasts, the technician, or those who

just want to know every detail of their vehicle,

useful information on understanding how your

vehicle works is contained in this chapter and

illustrated with data, tables, and graphics.

VEHICLE IDENTIFICATION

NUMBER (VIN)

The VIN is stamped on a plate on the front left

corner of the dashboard trim, which can be seen

from outside the vehicle, through the windshield.

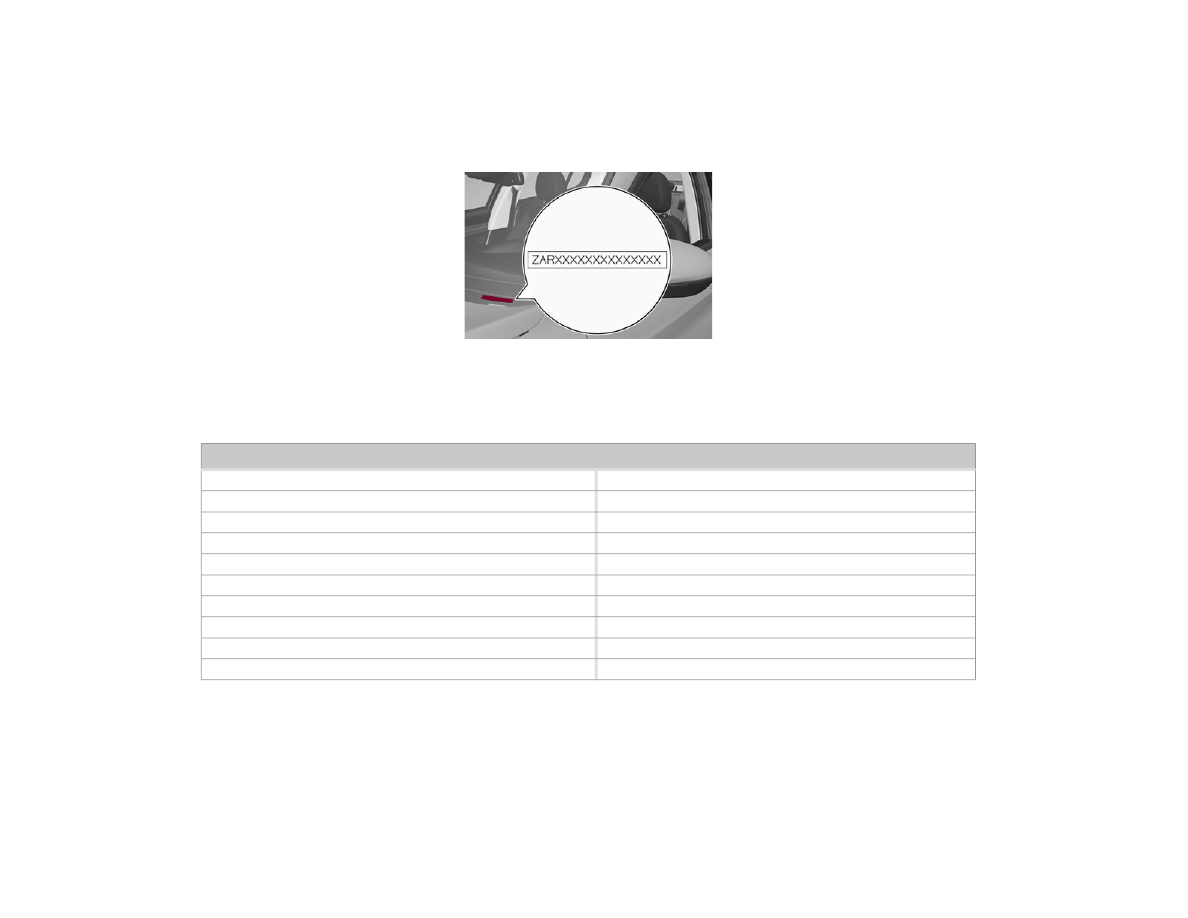

Windshield VIN Location

V

EHICLE

 I

DENTIFICATION

 N

UMBER

 (VIN)

P

LATE

The plates are located on the left side A-pillar and

contain the following data:

Vehicle Identification Number (VIN).

Vehicle type (USA and Canada only).

Color code.

Place of manufacturing of the vehicle

(USA and Mexico only).

Vehicle manufacturing date.

Maximum permitted weights.

Permitted tire inflation pressure

(USA and Canada only).

ENGINE

2.0L Engine

Cycle

Four

Number and position of cylinders

4 inline

Piston bore and stroke (mm)

84 / 90

Total displacement (cm³)

1,995

Compression ratio

10:1

Maximum power (SAE) (HP)

280

Maximum power (kW)

209

Corresponding engine speed (RPM)

5,200

Maximum torque (SAE) (ft-lb)

295

Maximum torque (Nm)

400

CarManuals2.com















Content      ..     5      6      7      8     ..
