Alfa Romeo Stelvio (2023 year). Manual in english - page 5





147

(Continued)

ABSA Indicator Light

Sensors
The system uses radar sensors, located in the

rear fascia/bumper, to detect the presence of

vehicles (cars, trucks, motorbikes, etc.) in the

rear side blind spots of the car.
The sensors are activated when any forward gear

is engaged at a speed higher than about 6 mph

(10 km/h), or when REVERSE (R) is engaged.
The sensors are temporarily deactivated when

the car is stationary and in PARK (P).
The detection area of the system covers about a

lane on both sides of the car around 10 ft (3 m).
This area begins from the door mirror and

extends for about 20 ft (6 m) towards the rear

part of the car.
When the sensors are active the system monitors

the detection areas on both sides of the car and

warns the driver about the possible presence of

cars in these areas.

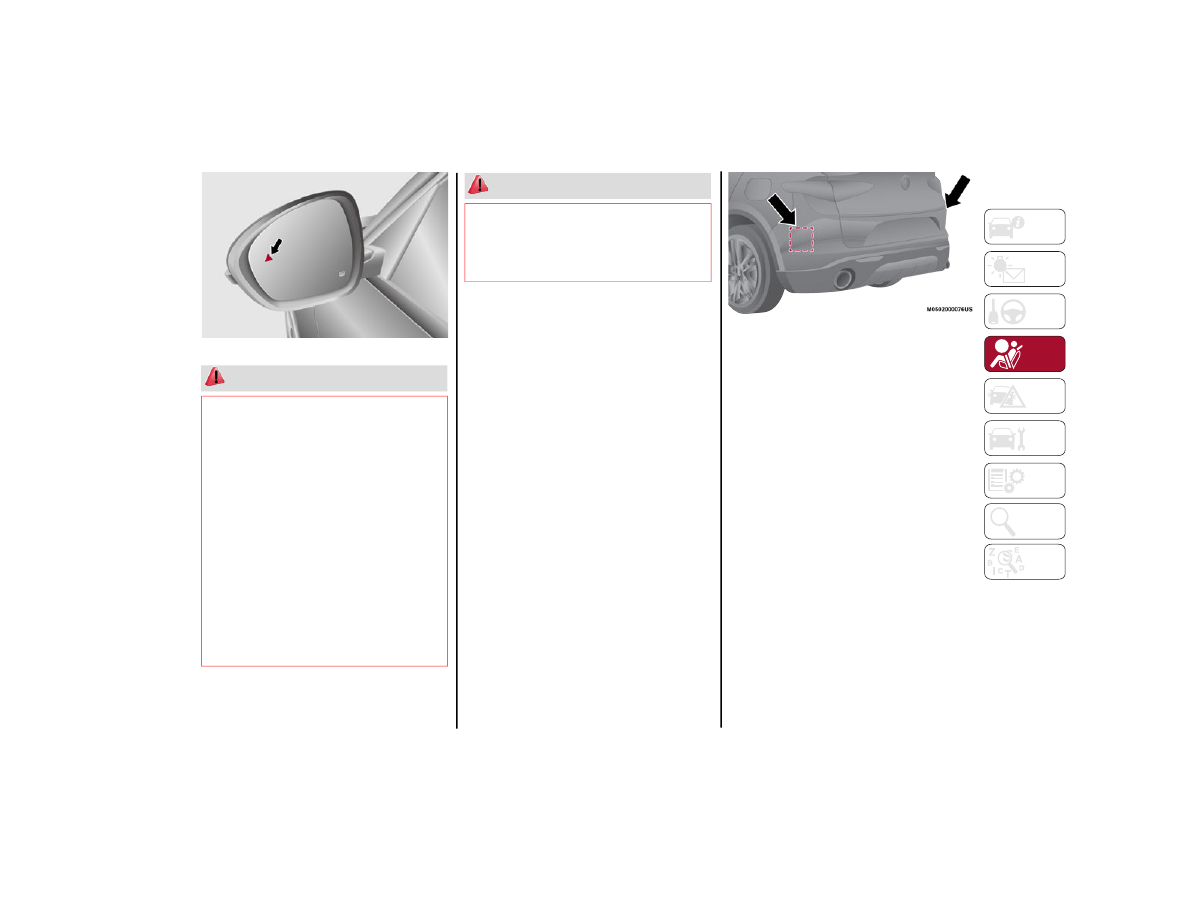

Rear Sensor Location

While driving, the system monitors the detection

zone in three different situations:

when you are being overtaken by a vehicle;

when you are overtaking a vehicle;

when a vehicle approaches from the side;

to check if it is necessary to intervene in order to

keep the vehicle inside the lane on both sides.
NOTE:

The system does not signal the presence of fixed

object (e.g. safety barriers, poles, walls, etc.).

However, in some circumstances, the system

may activate in the presence of these

objects.This is normal and does not indicate a

system malfunction.
The system does not warn the driver about the

presence of cars coming from the opposite direc

-

tion, in the adjacent lanes.

 WARNING!

The accident risk persists despite the

application of torque to the steering wheel by

the ABSA system.

Applying a torque that corrects the steering

wheel alignment does not always prevent an

accident. It is always the driver's responsi

-

bility to steer, brake or accelerate, especially

after the ABSA system warning or after the

steering wheel torque intervention. The

driver is responsible for ensuring that there

are no pedestrians, other vehicles or objects

along the direction of the vehicle. Failure to

comply with these precautions may cause

serious accidents and injuries. The driver is

fully responsible for holding a safe distance

from the vehicle ahead respecting the

highway code in force in the respective

country.

In some cases, the system could apply an

improper torque to the steering wheel. This

application can be interrupted at any time by

turning the steering wheel in the opposite

direction.

 WARNING!

CarManuals2.com

SAFETY

148

Activation/Deactivation
The system can be activated/deactivated using

the “Driver Assistance” menu in the radio system.

Select signal type, strength levels and sensitivity.
NOTE:

Vehicles with an active system will display the

following screen, on the radio system.

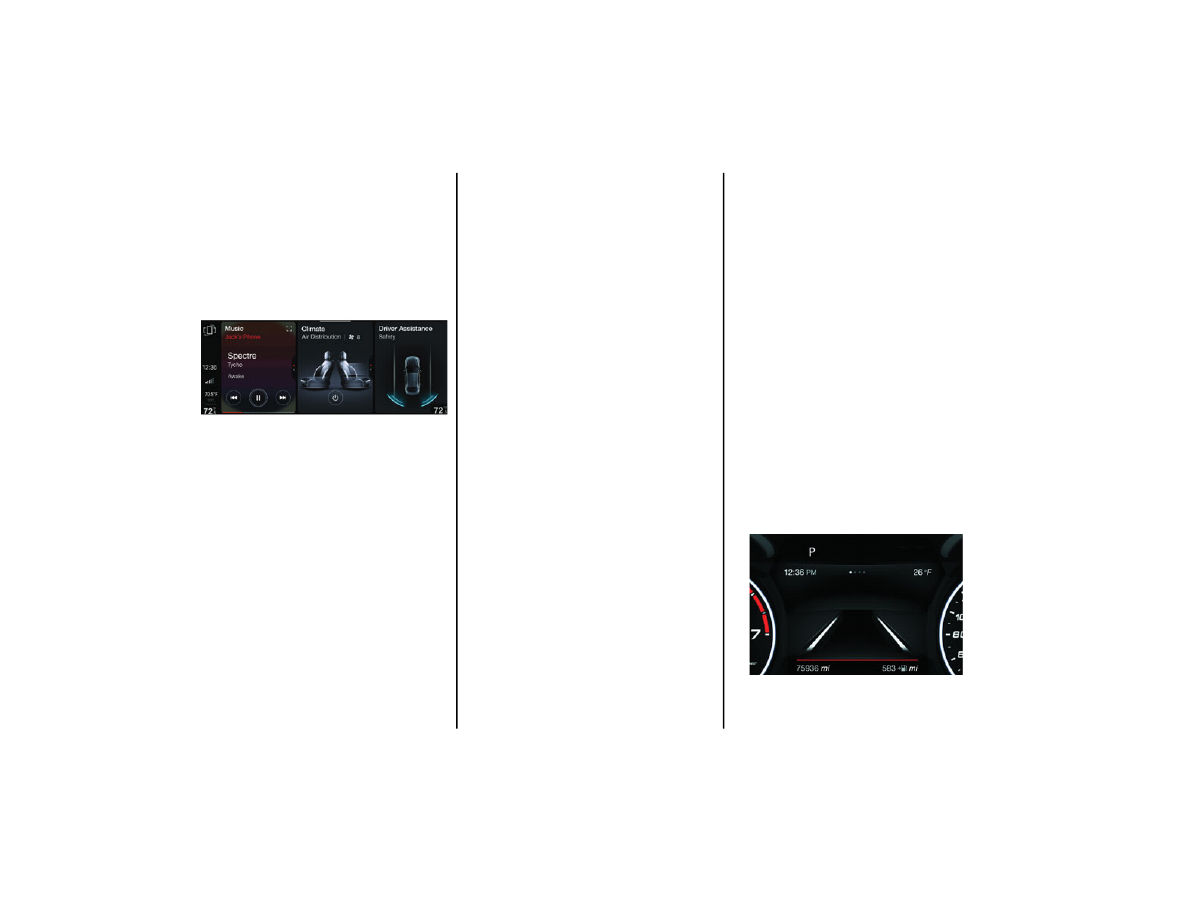

ABSA Menu Screen

System Intervention
The system intervenes in the following

conditions:

the turn signals have been activated;

there is a vehicle in the adjacent lane on the

same side of the turn signal (blind spot area);

lane lines are not correctly detected;

the driver tries to change lanes intentionally.

If the system detects the presence of a vehicle in

the rear side blind spots of the car, it applies a

torque on the steering wheel (if it has been set

through the “Settings” menu of the radio system),

in order to warn the driver of the need to keep the

car inside the lane and thus avoid collisions with

other vehicles.
The application of torque and vibration is

however only available with car speed between

37 mph (60 km/h) and 110 mph (180 km/h).
The application of torque, as well as of the

vibration, is suppressed/inhibited if:

The torque given by the driver of the steering

wheel is high

Lateral acceleration is high

The trailer is connected to the correct control

module

At least one hand is not detected on the

steering wheel for longer than a specific time

The turn signal is turned off

NOTE:

The steering wheel torque is not applied if the

system is unable to detect a lane and if the turn

signal for the appropriate side has not been

switched on.
The steering wheel detects the presence of the

driver’s hands by a capacitive sensor installed in

the steering wheel and by the applied torque

measured on the steering column.
System Availability
Aggressive driving of the car, or driving on the

median lines, will prevent the correct operation of

the system.
In case of intervention of the stability and braking

systems (FCW, ESC, ABS) they will prevent the

system from operating.
Lane change will disable the system for a certain

period of time.

The road must also comply with some specific

characteristics, such as:

Maximum/minimum lane width.

Clearly identified and defined double yellow

lines and, for a limited period of time, a lane

with a single demarcation line.

NOTE:

In some cases, for a limited period of time, the

system may be activated by a lane with a single

median line.
In cases of good road surface conditions, the

system could correctly recognize other types of

valid lane markings (e.g. road edges, sidewalks,

etc.).
Hand Presence On The Steering Wheel Detection
The system is able to detect the presence of the

driver’s hands on the steering wheel.
When the system does not detect the presence of

hands on the steering wheel for 0 to 6 seconds,

the following screen will be displayed on the

instrument cluster display. No acoustic warning

will be emitted in this case.

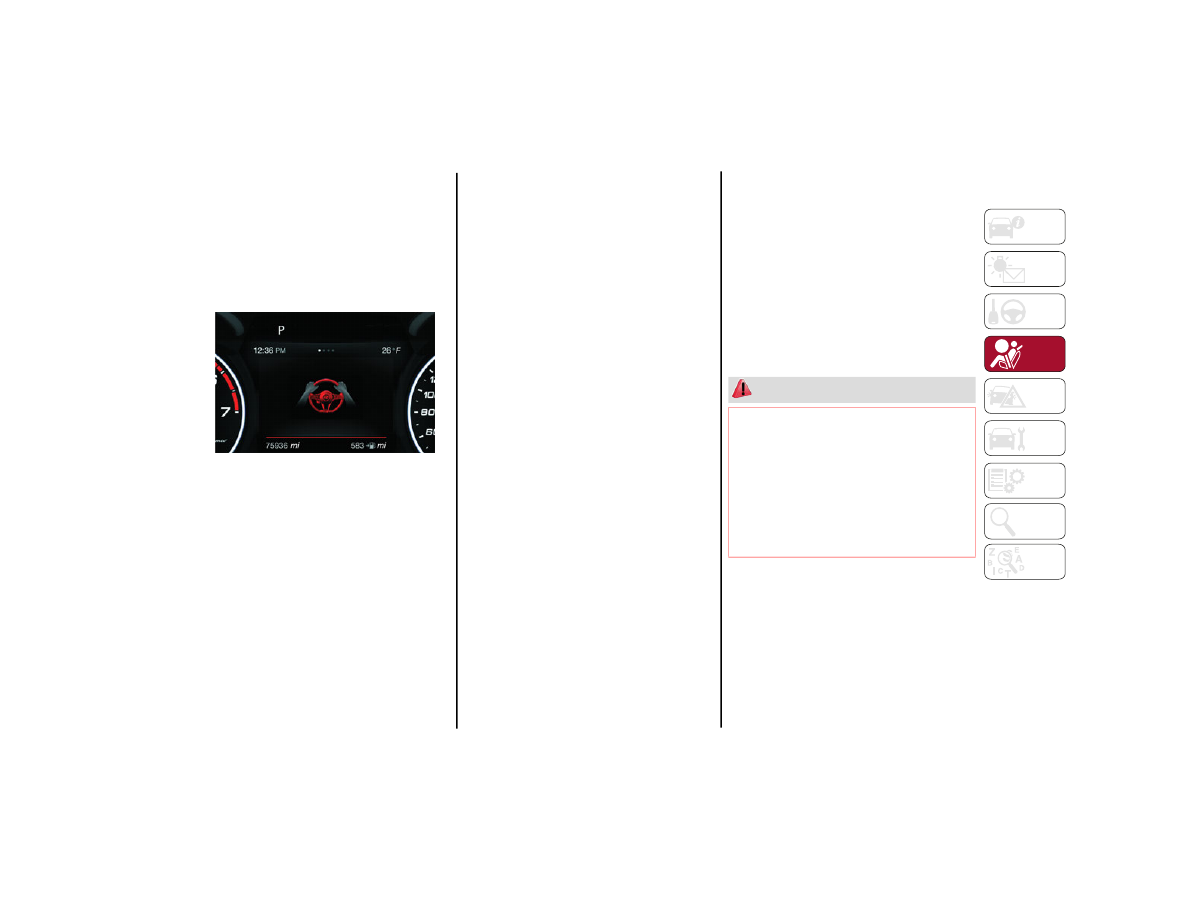

Hand Presence On The Steering Wheel Not

Detected Display (Up To 6 Seconds)

CarManuals2.com

149

When the system does not detect the

presence of hands on the steering wheel from

6 to 15 seconds, the following screen will be

displayed on the instrument cluster display.

A short acoustic signal will sound if hands are

not detected on the steering wheel for 6 to

12 seconds. A continuous signal will sound if

hands are not detected on the steering wheel

for 12 to 15 seconds.

Hand Presence On The Steering Wheel Not

Detected Display (6 To 15 Seconds)

After 15 seconds with the hands removed from

the steering wheel, the LKA system will be

deactivated and a dedicated message will be

shown on the instrument cluster display.

A short acoustic signal will sound in this case.
In any of the situations where the hands are

removed from the steering wheel for more than

6 seconds, it is necessary to reposition the hands

on the steering wheel.

Changing The System Sensitivity
The system's sensitivity can be set through the

radio system. Select the “Driver Assistance”

menu and then select “Comfort”. Sensitivity

“High” or “Low” can be selected.
Rear Cross Path Detection (RCP) System
The Rear Cross Path Detection (RCP) system

assists the driver during reverse maneuvers in

the case of reduced visibility.
When the ABSA system is active, the RCP system

monitors the rear detection areas on both sides

of the vehicle to detect objects moving towards

the sides of the vehicle at a minimum speed

between 0.6 mph and 2 mph (1 km/h and

3km/h) from objects moving at a maximum

speed of 22 mph (35 km/h).
These are generally occurrences that happen in

parking areas.
The system activation is signaled to the driver by

means of a visual and audible warning.
NOTE:

If the sensors are covered by objects or vehicles,

the system may not work as intended.
Changing The System Sensitivity
To change the sensitivity and the strength of the

torque intervention on the steering wheel, refer to

“Settings” of the radio system

Ú

page 259.

D

RIVER

 A

TTENTION

 A

SSIST

 (DAA)

S

YSTEM

 — I

F

 E

QUIPPED

The Driver Attention Assist (DAA) system detects

when the driver is feeling fatigued and warns the

driver to pull over and take a break.

To Activate/Deactivate

The DAA system can be activated and deactivated

through the radio system by selecting the

following in order:
1. “Driver Assistance”
2. “Driver Attention Assist”

 WARNING!

The DAA system is an aid for driving and does

not relieve the driver of the responsibility of

driving the vehicle. Always drive alert and get

plenty of rest before driving. If you experience

fatigue while driving, do not wait for the DAA to

intervene with a warning. Choose a safe and

secure location where you can pull over safely

for a break. Only return to the road when you

are in the right physical and mental condition

to prevent endangering yourself and others.

CarManuals2.com

SAFETY

150

System Intervention

Using information from the front camera, the

system implements two operating logics:

The first operating logic takes the driving style

into account, observing the road and detecting

to what extent the driver can continue driving

with few lane crossing events.

The second operating logic measures the time

spent behind the wheel with the vehicle speed

above 40 mph (60 km/h) and below 110 mph

(180 km/h). If the “Standard” option is

selected, in these conditions, the “Dozy Driver”

message may appear after three hours of

driving. If the “Early” option is selected and

these conditions occur, the “Dozy Driver”

message will be displayed after two hours

of driving.

NOTE:

If the conditions described previously are not

detected continuously during the entire driving

period, the “Dozy Driver” message may be

displayed later than two or three hours. If the

driving style indicates that the driver is unable to

follow the road trajectory and respect the hori

-

zontal lane markings, the red symbol will appear

on the instrument cluster display to suggest that

the driver should stop for a break. An audible

signal will also sound.

If the driver accepts the suggestion provided by

the system by pushing the MENU button on the

multifunction lever, the message will disappear

from the display and the symbol will be displayed

in the dedicated area of the instrument cluster

display until the next engine shutdown.
If the driver ignores the warning provided by the

system and does not stop, the message will

continue to remain on the display, along with the

symbol.
NOTE:

In the event of a DAA system failure, an amber

symbol will appear in the instrument cluster

display along with a dedicated message.

If the ABS system activates, “ABS ACTIVE” will

display in place of the DAA symbol and will

remain active until the ABS system

deactivates.

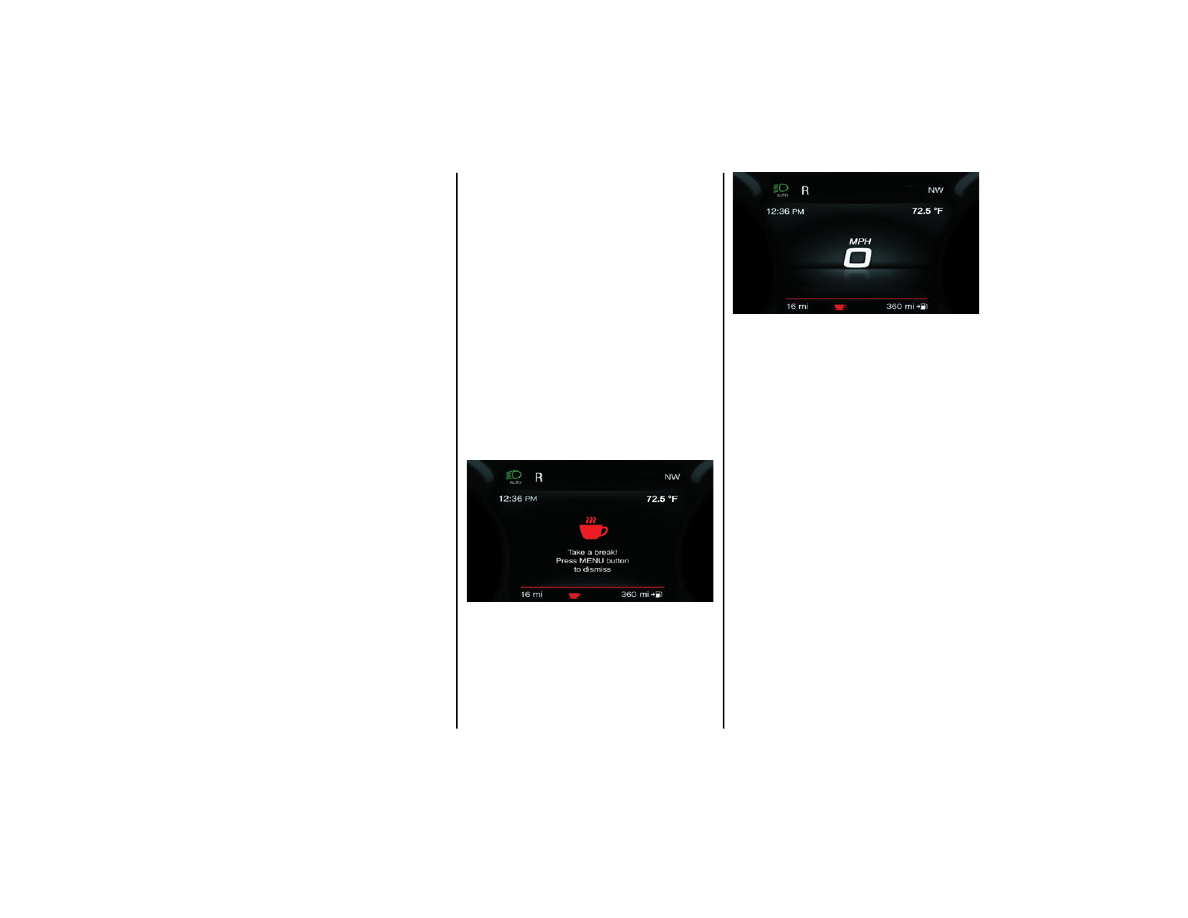

DAA Warning Message

DAA Warning Icon

Changing The System Sensitivity
The DAA system intervention sensitivity can be

adjusted through the radio system within the

“Driver Assistance” menu.
NOTE:

If “Race” mode (if equipped) is activated, the

DAA system will be automatically deactivated.

The system sensitivity cannot be changed in

the event of a camera system failure.

CarManuals2.com

151

F

ORWARD

 C

OLLISION

 W

ARNING

 P

LUS



(FCW+) S

YSTEM

 — I

F

 E

QUIPPED



This is a driving assistance system composed of a

radar located behind the front fascia/bumper

and a camera located in the center of the

windshield.

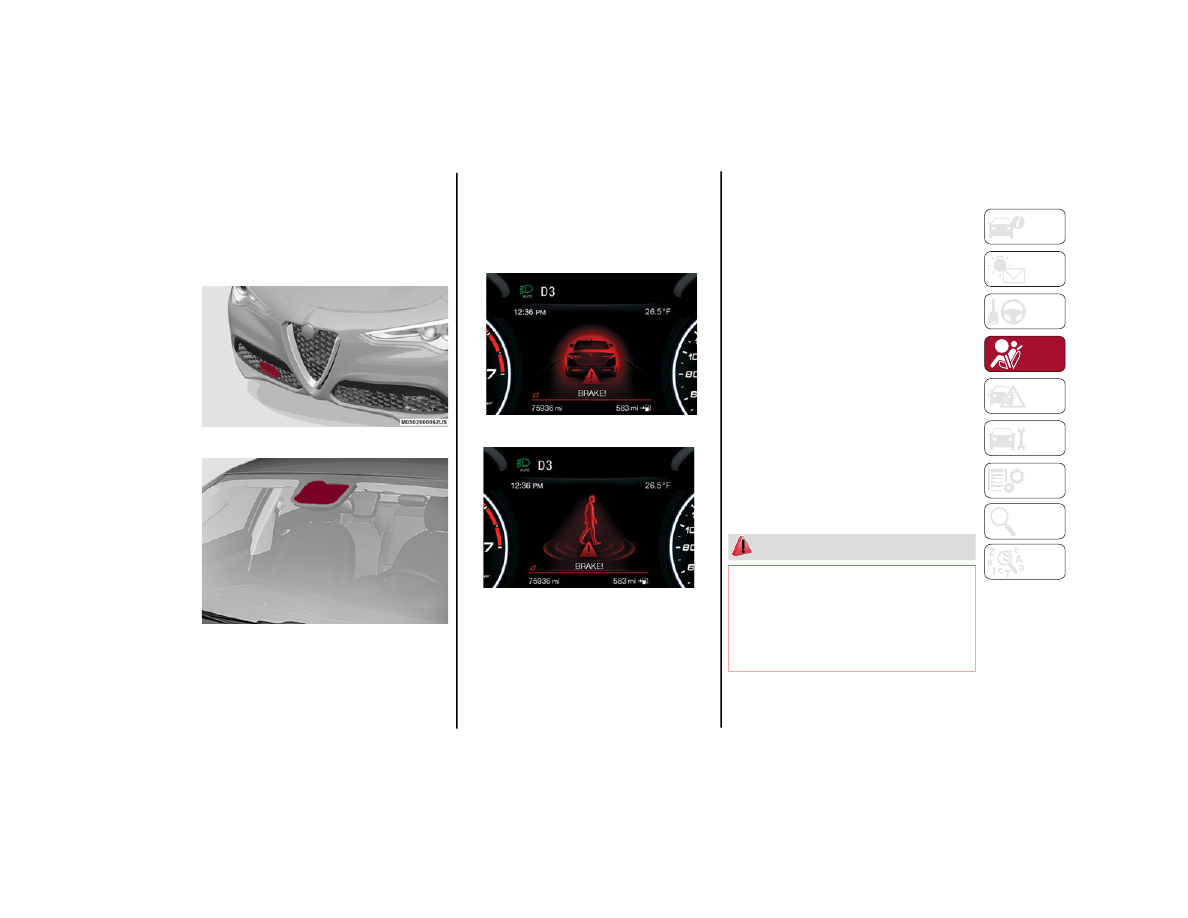

Front Fascia/Bumper Radar Location

Windshield Camera Location

In the event of an imminent collision, the system

intervenes by automatically applying the vehicle’s

brakes to prevent a collision or reduce its effects.
The system provides the driver with audible and

visual signals through specific messages on the

instrument cluster display.

Vehicle Brake Screen

Pedestrian Brake Screen

The audible and visual signals warn the driver

before the system activates, depending on the

vehicle speed.
NOTE:

No warning signals are generated at speeds

below 20 mph (30 km/h).

The system may lightly brake to warn the driver if

a possible frontal accident is detected (limited

braking). Signals and limited braking are

intended to allow the driver to react promptly, in

order to prevent or reduce the effects of a

potential accident.
In situations with the risk of collision, if the

system detects no intervention by the driver, it

provides automatic braking to help slow the

vehicle and mitigate the potential frontal collision

(automatic braking). If intervention by the driver

on the brake pedal is detected, but not deemed

sufficient, the system may intervene in order to

improve the reaction of the braking system,

therefore reducing vehicle speed further

(additional assistance in braking stage).
The system will intervene automatically in case of

imminent collision or impact against a pedestrian

crossing the road (speed under 31 mph (50 km/h)).
NOTE:

For safety reasons, when the vehicle has

stopped, the brake calipers may remain blocked

for about two seconds. Make sure to press the

brake pedal if the vehicle moves slightly forward.

 WARNING!

Forward Collision Warning (FCW) is not

intended to avoid a collision on its own, nor

can FCW detect every type of potential

collision. The driver has the responsibility to

avoid a collision by controlling the vehicle via

braking and steering. Failure to follow this

warning could lead to serious injury or death.

CarManuals2.com

SAFETY

152

Engagement/Disengagement
The system may be disengaged (and engaged

again) in the “Driver Assistance” menu of the

Information and Entertainment system.
The system can be deactivated even with the

ignition device in the ON position.
NOTE:

The system status can be changed with car at a

standstill only.
Select from three operating modes:

Warning And Braking: the system (if active), in

addition to the visual and audible warnings,

provides limited braking, automatic braking

and additional assistance in the braking stage,

where the driver does not brake sufficiently in

the event of a potential frontal impact.

Only Warning: the system (if active), does not

provide limited braking, but guarantees

automatic braking or additional assistance in

the braking stage, where the driver does not

brake at all or not sufficiently in the event of a

potential frontal impact.

Disabled: the system does not provide visual

and audible warnings, limited braking,

automatic braking or additional assistance in

the braking stage. The system will therefore

provide no indication of a possible collision.

Activation/Deactivation
The Forward Collision Warning system is

activated whenever the engine is started

regardless of what is shown on the radio system.
Following a deactivation, the system will not warn

the driver about the possible collision with a

preceding vehicle, regardless of the setting

selected in the radio system.

NOTE:

Each time the engine is started, the system is

activated regardless of what setting was selected

when the engine was turned off.
This function is not active at a speed lower than

4 mph (7 km/h) or higher than 124 mph

(200 km/h).
The system is active:

Each time the engine is started

When feature is selected within the radio

system

When the ignition is in the ON position

When the vehicle speed is between 2 mph

(4 km/h) and 124 mph (200 km/h)

When the front seat belts are fastened

The Alfa DNA selector is not in RACE position

(if equipped)

NOTE:

If the seat belts of the front seats are not correctly

fastened, the system will not intervene on the

braking system (only audible and visual signals

will be provided).
Changing The System Sensitivity
The sensitivity of the system can be changed

through the Information and Entertainment

system menu, choosing from one of the following

three options: "Near", "Medium" or "Far".

Refer to the description in the Information and

Entertainment system Supplement for how to

change the settings.
The default setting is "Medium". With this setting,

the system warns the driver of a possible collision

with the vehicle in front when that vehicle is at a

standard distance, between that of the other two

settings.

With the system sensitivity set to "Far", the

system will warn the driver of a possible collision

with the vehicle in front when that vehicle is at a

greater distance, thus providing the possibility of

acting on the brakes more lightly and gradually.

This setting provides the driver with the maximum

possible reaction time to prevent a potential

collision.
NOTE:

The “Far” setting may result in a greater number

of FCW possible collision warnings experienced.
With the option set to "Near", the system will alert

the driver of a possible collision with the vehicle

in front when that vehicle is close. This setting

offers the driver a lower reaction time compared

to the "Medium" and "Far" settings, in the event of

a potential collision, but permits more dynamic

driving of the vehicle.
NOTE:

The “Near” setting may result in a lesser number

of FCW possible collision warnings experienced.
The system sensitivity setting is kept in the

memory when the engine is turned off.
System Limited Operation Warning
If a dedicated message is displayed, a condition

limiting the system operation may have occurred.

The possible reasons of this limitation are

something is blocking the camera view or a fault.
If an obstruction is signaled, clean the area of the

radar on the front fascia/bumper, and the

camera area on the windshield.
If a fault in the system is occurring, it will still be

possible to drive the vehicle normally, but

automatic braking will not be available in the

event of an impending collision.

CarManuals2.com

153

When the conditions limiting the system

functions end, this will go back to normal and

complete operation. Should the fault persist,

contact an authorized dealer.
System Failure Signaling
If the system turns off and a dedicated message

is shown on the display, it means that there is a

fault with the system.
In this case, it is still possible to drive the vehicle,

but you are advised to contact an authorized

dealer as soon as possible.
Radar Indication Not Available
If conditions are such that the radar cannot

detect obstacles correctly, the system is

deactivated and a dedicated message appears

on the display. This generally occurs in the event

of poor visibility, such as when it is snowing or

raining heavily.
The function of this system can also be

temporarily reduced due to obstructions such as

mud, dirt or ice on the fascia/bumper. In such

cases, a dedicated message will be shown on the

display and the system will be deactivated. This

message can sometimes appear in conditions of

high reflectivity (e.g. tunnels with reflective tiles or

ice or snow). When the conditions limiting the

system functions end, it will go back to normal

and complete operation.
In certain cases, this dedicated message could

be displayed when the radar is not detecting any

vehicles or objects within its view range.
If atmospheric conditions are not the reason

behind this message, check if the sensor is dirty.

It could be necessary to clean or remove any

obstructions in the area.

If the message appears frequently, even in the

absence of atmospheric conditions such as snow,

rain, mud or other obstructions, contact an

authorized dealer for a sensor alignment check.
In the absence of visible obstructions, manually

removing the decorative cover trim and cleaning

the radar surface could be required. Have this

operation performed at an authorized dealer.
NOTE:

It is recommended that you do not install devices,

accessories or aerodynamic attachments in front

of the sensor or darken it in any way, as this can

compromise the correct functioning of the

system.
Frontal Collision Alarm With Active Braking —

If Equipped
If this function is selected, the brakes are

operated to reduce the speed of the vehicle in the

event of potential frontal impact.
This function applies an additional braking

pressure if the braking pressure applied by the

driver does not suffice to prevent potential frontal

impact.
The function is active with speed above 2 mph

(4 km/h).
NOTE:

When using an automatic car wash it is recom

-

mended to deactivate the system through the

settings of the radio system. The system may

detect the presence of a car, a wall or another

obstacle and activate.

Driving In Special Conditions
In certain driving conditions, system intervention

might be unexpected or delayed. The driver must

therefore be very careful, keeping control of the

vehicle to drive in complete safety.

Driving close to a bend.

The vehicle ahead is leaving a roundabout.

Vehicles with small dimensions and/or not

aligned in the driving lane.

Lane change by other vehicles.

Vehicles traveling at right angles to the vehicle.

NOTE:

In particularly complex traffic conditions, the

driver can deactivate the system manually

through the Information and Entertainment

system.

If the driver presses the brake pedal fully or

makes an excessive steering maneuver during

system operation, the automatic braking

function may deactivate (e.g. to allow a

possible maneuver to avoid the obstacle).

The FCW system is automatically deactivated

when operating in race mode and a warning

message will be displayed on the instrument

cluster.

CarManuals2.com

SAFETY

154

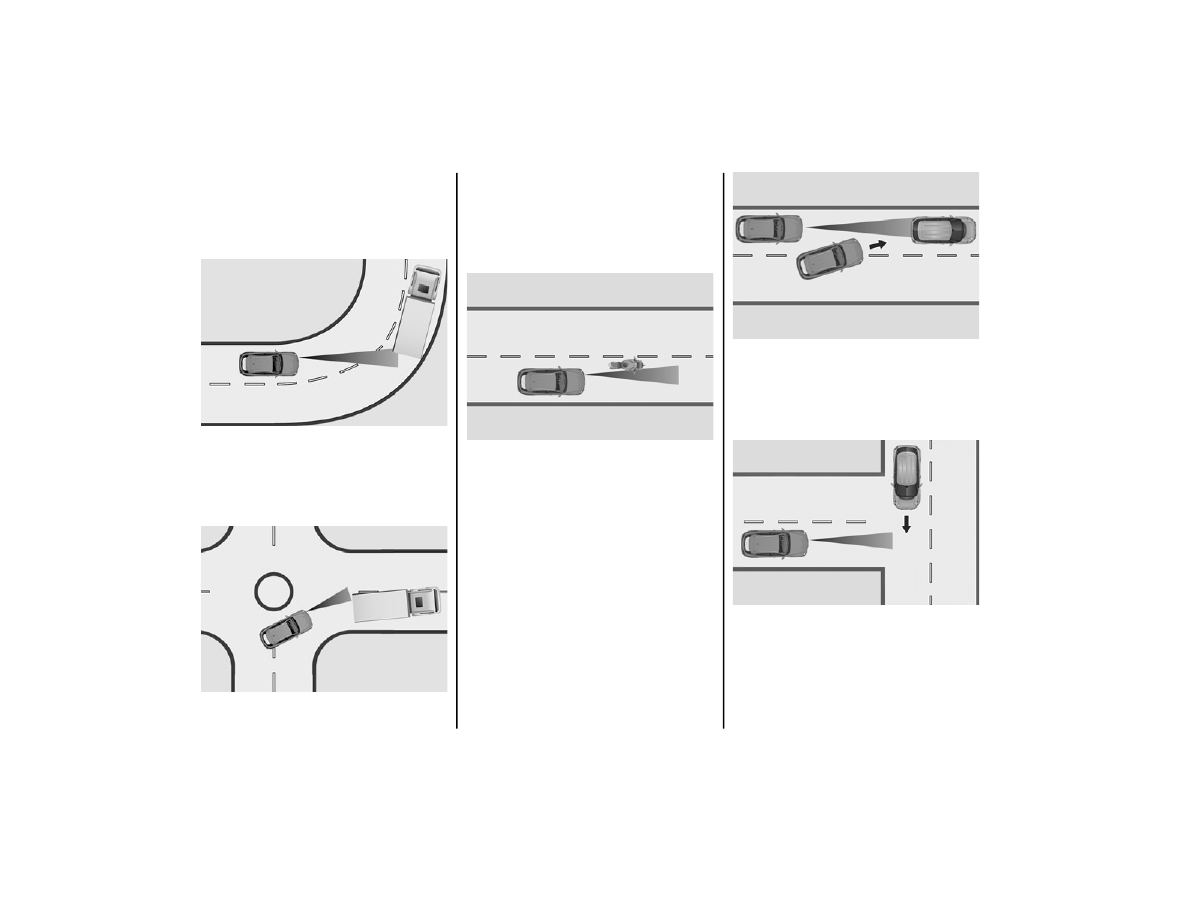

Driving Close To A Bend
When entering or leaving a wide bend, the system

may detect a vehicle in front of you, but not

driving in the same driving lane. In cases such as

these, the system may intervene.

Driving Around Wide Curves

The Vehicle Ahead Is Leaving A Roundabout
On a roundabout, the system could intervene

when it detects a vehicle ahead that is leaving the

roundabout.

Driving In Roundabouts

Vehicles With Small Dimensions And/Or Not

Aligned In The Driving Lane
The system cannot detect vehicles in front of the

vehicle if they are outside the range of the radar

sensor and may not react to small vehicles, such

as bicycles or motorcycles.

Driving Near Small Vehicles

Lane Change By Other Vehicles
Vehicles suddenly changing lanes to enter the

same lane as your vehicle within the operating

range of the radar sensor, may cause the system

to intervene.

Other Vehicles Changing Lanes

Vehicles Traveling At Right Angles To The Vehicle
The system could temporarily react to a vehicle

that is passing at right angles through the radar

sensor’s operating range

Ú

page 259.

Other Vehicle Passing Through Radar Range

CarManuals2.com

155

T

IRE

 P

RESSURE

 M

ONITORING

 S

YSTEM



(TPMS)

The vehicle is equipped with a Tire Pressure

Monitoring System (TPMS) that sends the

inflation pressure information of each tire to the

control unit, and will signal the driver in the event

of insufficient tire pressure.
The TPMS uses wireless technology with wheel

rim mounted electronic sensors to monitor tire

pressure levels. Sensors, mounted to each wheel

as part of the valve stem, transmit tire pressure

readings to the receiver module.
Tire pressure will vary with temperature by

approximately 1 psi (7 kPa) for every 12°F

(6.5°C). This means that when the outside

temperature decreases, the tire pressure will also

decrease. Tire pressure should always be set

based on cold inflation tire pressure. This is

defined as the tire pressure after the vehicle has

not been driven for at least three hours, or driven

less than 1 mile (1.6 km) after a three hour

period. The cold tire inflation pressure must not

exceed the maximum inflation pressure molded

into the tire sidewall. The tire pressure will also

increase as the vehicle is driven. This is normal,

and there should be no adjustment for this

increased pressure.
See

Ú

page 224 for information on how to

properly inflate the vehicle’s tires.
The TPMS will signal the driver if pressure falls

below the warning limit for any reason, including

the effects of low temperature and normal loss of

pressure from the tire.

The TPMS will stop indicating insufficient tire

pressure when pressure is equal to or greater than

the prescribed cold inflation level. Therefore, if
insufficient tire pressure is indicated by the (   )

warning light displaying in the instrument cluster,

increase the inflation pressure up to the

prescribed cold inflation value.
The system will automatically update, and the

TPMS Warning Light will turn off once the system

receives the updated tire pressures. The vehicle

may need to be driven for up to 20 minutes above

15 mph (24 km/h) in order for the TPMS to

receive this information.
NOTE:

The TPMS cannot indicate sudden tire pressure

drops (e.g. if a tire bursts). In this case, proceed

with caution and avoid abrupt steering.
Operating Example
For example, your vehicle may have a

recommended cold (parked for more than three

hours) placard pressure of 33 psi (227 kPa). If the

ambient temperature is 68°F (20°C), and the

measured tire pressure is 28 psi (193 kPa), a

temperature drop to 20°F (-7°C) will decrease

the tire pressure to approximately 24 psi

(165 kPa). This tire pressure is low enough to turn

on the Tire Pressure Monitoring Warning Light.

Driving the vehicle may cause the tire pressure to

rise to approximately 28 psi (193 kPa), but the

TPMS Warning Light will still be on. In this

situation, the TPMS Warning Light will turn off

only after the tires are inflated to the vehicle’s

recommended cold placard pressure value.

 WARNING!

The system has not been designed to

prevent impacts and cannot detect possible

conditions leading to an accident in

advance. Failure to take into account this

warning may lead to serious or fatal injuries.

The system may activate, assessing the

trajectory of the vehicle, for the presence of

reflecting metal objects different from other

vehicles, such as safety barriers, road signs,

barriers before parking lots, tollgates, level

crossings, gates, railways, objects near road

constructions sites or higher than the vehicle

(e.g. a fly-over). In the same way, the system

may intervene inside multi-story parking lots

or tunnels, or due to a glare on the road

surface. These possible activations are a

consequence of the real driving scenario

coverage by the system and must not be

regarded as faults.

The system has been designed for road use

only. If the vehicle is driven on a track, the

system must be deactivated to avoid

unnecessary warnings. Automatic deacti

-

vation is signaled by the dedicated warning

light/symbol switching on in the instrument

panel

Ú

page 74.

CarManuals2.com

SAFETY

156

Insufficient Tire Pressure Indication
If an insufficient pressure value is detected on
one or more tires, the   warning light in the

instrument cluster will display alongside the

dedicated messages, the system will highlight the

tire or tires with insufficient pressure graphically,

and an acoustic signal will be emitted.

In this case, stop the vehicle, check the inflation

pressure of each tire, and inflate the necessary

tire or tires to the correct cold inflation pressure

value, shown on the display or in the dedicated

TPMS menu.
TPMS Temporarily Disabled:
TPMS Check Message
When a system fault is detected, the TPMS

Warning Light will flash on and off for 75 seconds,

and then remain on solid. The system fault will

also sound a chime. If the ignition is cycled, this

sequence will repeat, provided that the system

fault still exists. The TPMS Warning Light will turn

off when the fault condition no longer exists. A

system fault can occur due to any of the following:

Jamming due to electronic devices or driving

next to facilities emitting the same radio

frequencies as the TPMS sensors.

Installing some form of aftermarket window

tinting that affects radio wave signals.

Packed snow or ice around the wheels or

wheel housings.

Using tire chains on the vehicle.

Using wheels/tires not equipped with

TPMS sensors.

After the punctured tire has been repaired with

the original tire sealant contained in the tire kit,

the previous condition must be restored so that
the   warning light is off during normal driving.
TPMS Deactivation
The TPMS can be deactivated by replacing all

four wheel and tire assemblies (road tires) with

wheel and tire assemblies that do not have TPMS

sensors, such as when installing winter wheel

and tire assemblies on your vehicle.

To deactivate the TPMS, first replace all four

wheel and tire assemblies (road tires) with tires

not equipped with Tire Pressure Monitoring

System (TPMS) sensors. Then, drive the vehicle

for 20 minutes above 15 mph (24 km/h). The

TPMS will chime, the TPMS Warning Light will

flash on and off for 75 seconds and then remain

on. The instrument cluster will display the

“SERVICE TPM SYSTEM” message and then

display dashes (--) in place of the pressure values.
Beginning with the next ignition switch cycle, the

TPMS will no longer chime or display the

“SERVICE TPM SYSTEM” message in the

instrument cluster. Instead, dashes (--) will

remain in place of the pressure values.
To reactivate the TPMS, replace all four wheel

and tire assemblies (road tires) with tires

equipped with TPMS sensors. Then, drive the

vehicle for up to 20 minutes above 15 mph

(24 km/h). The TPMS will chime, the TPMS

Warning Light will flash on and off for 75 seconds

and then turn off. The instrument cluster will

display the “SERVICE TPM SYSTEM” message

and then display pressure values in place of the

dashes. On the next ignition switch cycle the

“SERVICE TPM SYSTEM” message will no longer

be displayed, as long as no system fault exists.
NOTE:

The TPMS is not intended to replace normal

tire care and maintenance, or to provide

warning of a tire failure or condition.

The TPMS should not be used as a tire

pressure gauge while adjusting your tire

pressure.

 CAUTION!

The TPMS has been optimized for the original

equipment tires and wheels. TPMS

pressures and warning have been

established for the tire size equipped on your

vehicle. Undesirable system operation or

sensor damage may result when using

replacement equipment that is not of the

same size, type, and/or style. The TPMS

sensor is not designed for use on

aftermarket wheels and may contribute to a

poor overall system performance or sensor

damage. Customers are encouraged to use

Original Equipment Manufacturer (OEM)

wheels to ensure proper TPMS feature

operation.

Using aftermarket tire sealants may cause

the Tire Pressure Monitoring System (TPMS)

sensor to become inoperable. After using an

aftermarket tire sealant it is recommended

that you take your vehicle to an authorized

dealer to have your sensor function checked.

After inspecting or adjusting the tire pressure

always reinstall the valve stem cap. This will

prevent moisture and dirt from entering the

valve stem, which could damage the TPMS

sensor.

CarManuals2.com

157

Driving on a significantly underinflated tire will

cause the tire to overheat, and can lead to tire

failure. Underinflation also reduces fuel

efficiency and tire tread life, and may affect the

vehicle’s handling and stopping ability.

The TPMS is not a substitute for proper tire

maintenance, and it is the driver’s responsi

-

bility to maintain correct tire pressure using an

accurate tire pressure gauge, even if underin

-

flation has not reached the level to trigger

illumination of the TPMS Warning Light.

Seasonal temperature changes will affect tire

pressure, and the TPMS will monitor the actual

tire pressure in the tire

Ú

page 259.

OCCUPANT RESTRAINT

SYSTEMS

Some of the most important safety features in

your vehicle are the restraint systems:

O

CCUPANT

 R

ESTRAINT

 S

YSTEMS



F

EATURES



Seat Belt Systems

Supplemental Restraint Systems (SRS)

Air Bags

Child Restraints

Some of the safety features described in this

section may be standard equipment on some

models, or may be optional equipment on others.

If you are not sure, ask an authorized dealer.

I

MPORTANT

 S

AFETY

 P

RECAUTIONS

Please pay close attention to the information in

this section. It tells you how to use your restraint

system properly, to keep you and your

passengers as safe as possible.
Here are some simple steps you can take to

minimize the risk of harm from a deploying

air bag:
1. Children 12 years old and under should

always ride buckled up in the rear seat of a

vehicle with a rear seat.

2. A child who is not big enough to wear the

vehicle seat belt properly must be secured in

the appropriate child restraint or belt-posi

-

tioning booster seat in a rear seating position

Ú

page 170.

3. If a child from 2 to 12 years old (not in a

rear-facing child restraint) must ride in the

front passenger seat, move the seat as far

back as possible and use the proper child

restraint

Ú

page 170.

4. Never allow children to slide the shoulder belt

behind them or under their arm.

5. You should read the instructions provided

with your child restraint to make sure that you

are using it properly.

6. All occupants should always wear their lap

and shoulder belts properly.

7. The driver and front passenger seats should

be moved back as far as practical to allow the

front air bags room to inflate.

8. Do not lean against the door or window. If

your vehicle has side air bags, and deploy

-

ment occurs, the side air bags will inflate

forcefully into the space between occupants

and the door and occupants could be injured.

9. If the air bag system in this vehicle needs to

be modified to accommodate a disabled

person, see

Ú

page 255 for customer

service contact information.

 WARNING!

Never place a rear-facing child restraint in

front of an air bag. A deploying passenger

front air bag can cause death or serious

injury to a child 12 years or younger,

including a child in a rear-facing child

restraint.

Never install a rear-facing child restraint in

the front seat of a vehicle. Only use a

rear-facing child restraint in the rear seat.

If the vehicle does not have a rear seat, do

not transport a rear-facing child restraint in

that vehicle.

CarManuals2.com

SAFETY

158

(Continued)

S

EAT

 B

ELT

 S

YSTEMS



Buckle up even though you are an excellent

driver, even on short trips. Someone on the road

may be a poor driver and could cause a collision

that includes you. This can happen far away from

home or on your own street.
Research has shown that seat belts save lives,

and they can reduce the seriousness of injuries in

a collision. Some of the worst injuries happen

when people are thrown from the vehicle. Seat

belts reduce the possibility of ejection and the

risk of injury caused by striking the inside of the

vehicle. Everyone in a motor vehicle should be

belted at all times.

Enhanced Seat Belt Use Reminder

System (BeltAlert)

Driver And Passenger BeltAlert — If Equipped

BeltAlert is a feature intended to remind

the driver and outboard front seat

passenger (if equipped with outboard

front passenger seat BeltAlert) to

buckle their seat belts. The BeltAlert feature is

active whenever the ignition switch is in the

ON/RUN position.
Initial Indication
If the driver is unbuckled when the ignition switch

is first in the ON/RUN position, a chime will signal

for a few seconds. If the driver or outboard front

seat passenger (if equipped with outboard front

passenger seat BeltAlert) is unbuckled when the

ignition switch is first in the ON/RUN position the

Seat Belt Reminder Light will turn on and remain

on until both outboard front seat belts are

buckled. The outboard front passenger seat

BeltAlert is not active when an outboard front

passenger seat is unoccupied.

BeltAlert Warning Sequence
The BeltAlert warning sequence is activated

when the vehicle is moving above a specified

vehicle speed range and the driver or outboard

front seat passenger is unbuckled (if equipped

with outboard front passenger seat BeltAlert)

(the outboard front passenger seat BeltAlert is

not active when the outboard front passenger

seat is unoccupied). The BeltAlert warning

sequence starts by blinking the Seat Belt

Reminder Light and sounding an intermittent

chime. Once the BeltAlert warning sequence has

completed, the Seat Belt Reminder Light will

remain on until the seat belts are buckled. The

BeltAlert warning sequence may repeat based on

vehicle speed until the driver and occupied

outboard front seat passenger seat belts are

buckled. The driver should instruct all occupants

to buckle their seat belts.
Change Of Status
If the driver or outboard front seat passenger

(if equipped with outboard front passenger seat

BeltAlert) unbuckles their seat belt while the

vehicle is traveling, the BeltAlert warning

sequence will begin until the seat belts are

buckled again.
The outboard front passenger seat BeltAlert is

not active when the outboard front passenger

seat is unoccupied. BeltAlert may be triggered

when an animal or other items are placed on the

outboard front passenger seat or when the seat

is folded flat (if equipped). It is recommended

that pets be restrained in the rear seat (if

equipped) in pet harnesses or pet carriers that

are secured by seat belts, and cargo is properly

stowed.

Lap/Shoulder Belts

All seating positions in your vehicle are equipped

with lap/shoulder belts.
The seat belt webbing retractor will lock only

during very sudden stops or collisions. This

feature allows the shoulder part of the seat belt

to move freely with you under normal conditions.

However, in a collision the seat belt will lock and

reduce your risk of striking the inside of the

vehicle or being thrown out of the vehicle.

 WARNING!

Relying on the air bags alone could lead to

more severe injuries in a collision. The air

bags work with your seat belt to restrain you

properly. In some collisions, the air bags

won’t deploy at all. Always wear your seat

belt even though you have air bags.

In a collision, you and your passengers can

suffer much greater injuries if you are not

properly buckled up. You can strike the

interior of your vehicle or other passengers,

or you can be thrown out of the vehicle.

Always be sure you and others in your vehicle

are buckled up properly.

It is dangerous to ride in a cargo area, inside

or outside of a vehicle. In a collision, people

riding in these areas are more likely to be

seriously injured or killed.

CarManuals2.com

159

(Continued)

Do not allow people to ride in any area of

your vehicle that is not equipped with seats

and seat belts.

Be sure everyone in your vehicle is in a seat

and using a seat belt properly. Occupants,

including the driver, should always wear their

seat belts whether or not an air bag is also

provided at their seating position to minimize

the risk of severe injury or death in the event

of a crash.

Wearing your seat belt incorrectly could

make your injuries in a collision much worse.

You might suffer internal injuries, or you

could even slide out of the seat belt. Follow

these instructions to wear your seat belt

safely and to keep your passengers safe, too.

Two people should never be belted into a

single seat belt. People belted together can

crash into one another in a collision, hurting

one another badly. Never use a lap/shoulder

belt or a lap belt for more than one person,

no matter what their size.

 WARNING!

 WARNING!

A lap belt worn too high can increase the risk

of injury in a collision. The seat belt forces

won’t be at the strong hip and pelvic bones,

but across your abdomen. Always wear the

lap part of your seat belt as low as possible

and keep it snug.

A twisted seat belt may not protect you

properly. In a collision, it could even cut into

you. Be sure the seat belt is flat against your

body, without twists. If you can’t straighten a

seat belt in your vehicle, take it to an

authorized dealer immediately and have

it fixed.

A seat belt that is buckled into the wrong

buckle will not protect you properly. The lap

portion could ride too high on your body,

possibly causing internal injuries. Always

buckle your seat belt into the buckle nearest

you.

A seat belt that is too loose will not protect

you properly. In a sudden stop, you could

move too far forward, increasing the

possibility of injury. Wear your seat belt

snugly.

A seat belt that is worn under your arm is

dangerous. Your body could strike the inside

surfaces of the vehicle in a collision,

increasing head and neck injury. A seat belt

worn under the arm can cause internal

injuries. Ribs aren’t as strong as shoulder

bones. Wear the seat belt over your shoulder

so that your strongest bones will take the

force in a collision.

A shoulder belt placed behind you will not

protect you from injury during a collision. You

are more likely to hit your head in a collision

if you do not wear your shoulder belt. The lap

and shoulder belt are meant to be used

together.

A frayed or torn seat belt could rip apart in a

collision and leave you with no protection.

Inspect the seat belt system periodically,

checking for cuts, frays, or loose parts.

Damaged parts must be replaced

immediately. Do not disassemble or modify

the seat belt system. If your vehicle is

involved in a collision, or if you have

questions regarding seat belt or retractor

conditions, take your vehicle to an

authorized FCA dealer or authorized

FCA Certified Collision Care Program facility

for inspection.

 WARNING!

CarManuals2.com

SAFETY

160

Lap/Shoulder Belt Operating Instructions

1. Enter the vehicle and close the door. Sit back

and adjust the seat.

2. The seat belt latch plate is above the back of

the front seat, and next to your arm in the

rear seat (for vehicles equipped with a rear

seat). Grab the latch plate and pull out the

seat belt. Slide the latch plate up the webbing

as far as necessary to allow the seat belt to

go around your lap.

3. When the seat belt is long enough to fit, insert

the latch plate into the buckle until you hear

a “click.”

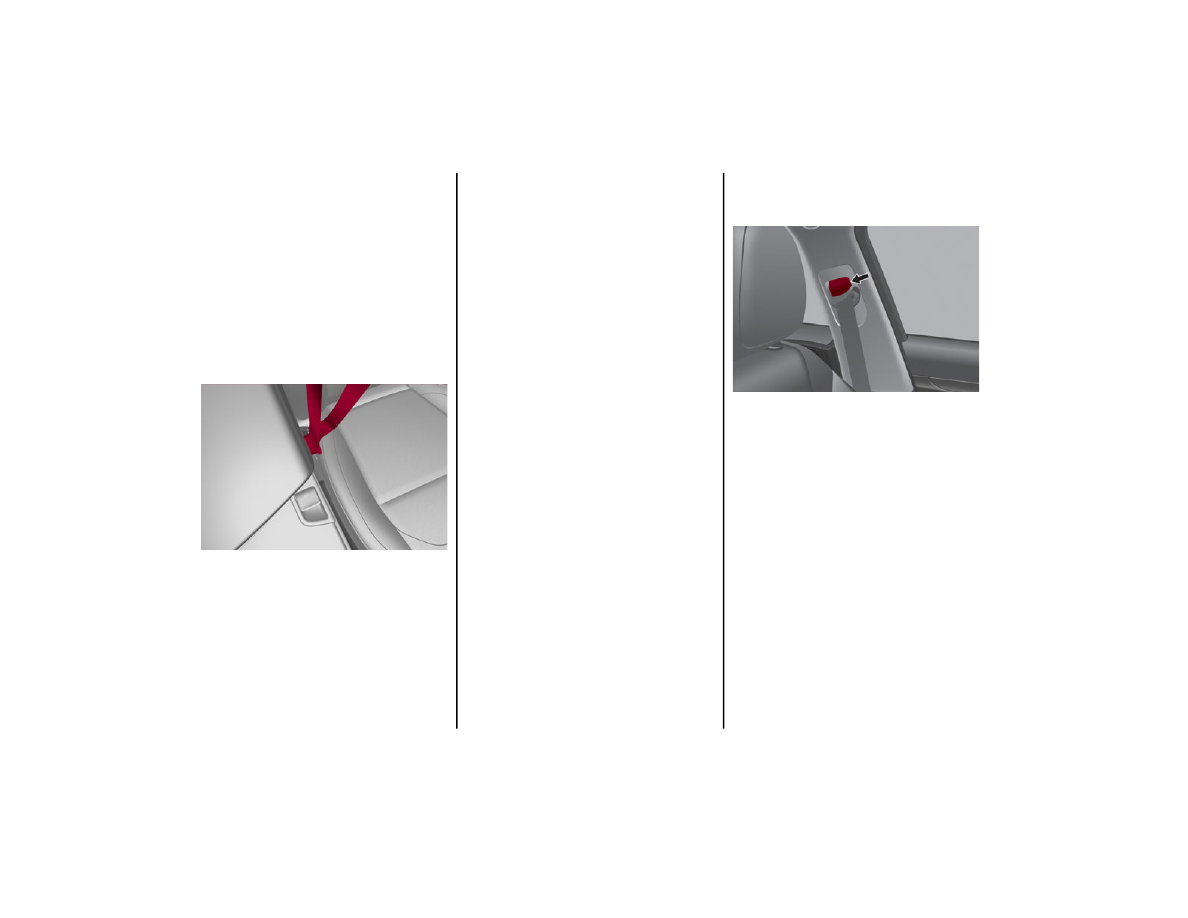

Seat Belt Latch Plate Inserted Into

Seat Belt Buckle

4. Position the lap belt so that it is snug and lies

low across your hips, below your abdomen.

To remove slack in the lap belt portion, pull

up on the shoulder belt. To loosen the lap belt

if it is too tight, tilt the latch plate and pull on

the lap belt. A snug seat belt reduces the risk

of sliding under the seat belt in a collision.

5. Position the shoulder belt across the

shoulder and chest with minimal, if any slack

so that it is comfortable and not resting on

your neck. The retractor will withdraw any

slack in the shoulder belt.

6. To release the seat belt, push the red button

on the buckle. The seat belt will automatically

retract to its stowed position. If necessary,

slide the latch plate down the webbing to

allow the seat belt to retract fully.

Lap/Shoulder Belt Untwisting Procedure

Use the following procedure to untwist a twisted

lap/shoulder belt.
1. Position the latch plate as close as possible

to the anchor point.

2. At about 6 to 12 inches (15 to 30 cm) above

the latch plate, grab and twist the seat belt

webbing 180 degrees to create a fold that

begins immediately above the latch plate.

3. Slide the latch plate upward over the folded

webbing. The folded webbing must enter the

slot at the top of the latch plate.

4. Continue to slide the latch plate up until it

clears the folded webbing and the seat belt is

no longer twisted.

Adjustable Upper Shoulder Belt

Anchorage

In the driver and outboard front passenger seats,

the top of the shoulder belt can be adjusted

upward or downward to position the seat belt

away from your neck. Push or squeeze the

anchorage button to release the anchorage, and

move it up or down to the position that serves you

best.

Adjustable Upper Shoulder Belt Anchorage

As a guide, if you are shorter than average, you

will prefer the shoulder belt anchorage in a lower

position, and if you are taller than average, you

will prefer the shoulder belt anchorage in a higher

position. After you release the anchorage button,

try to move it up or down to make sure that it is

locked in position.
NOTE:

The adjustable upper shoulder belt anchorage is

equipped with an Easy Up feature. This feature

allows the shoulder belt anchorage to be

adjusted in the upward position without pushing

or squeezing the release button. To verify the

shoulder belt anchorage is latched, pull down

-

ward on the shoulder belt anchorage until it is

locked into position.

CarManuals2.com

161

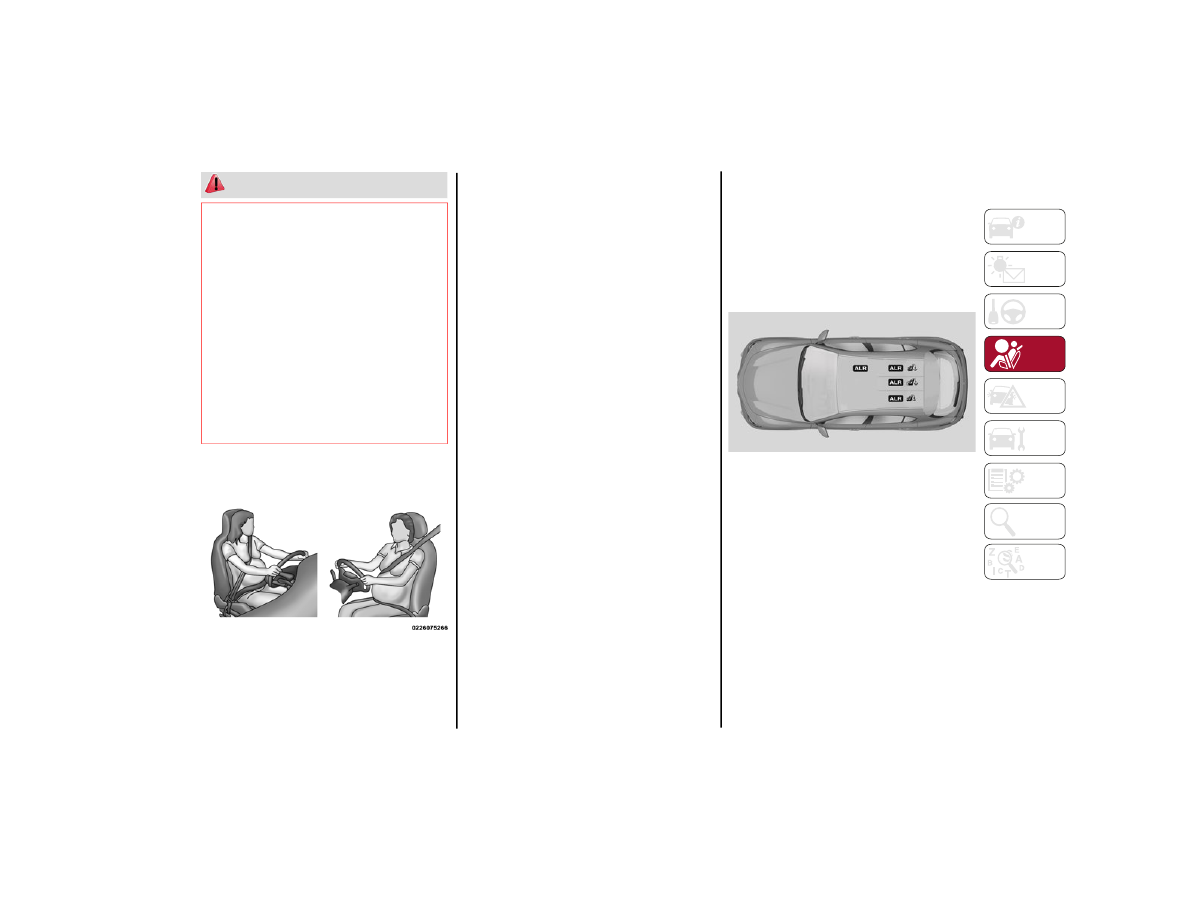

Seat Belts And Pregnant Women

Seat Belts And Pregnant Women

Seat belts must be worn by all occupants including

pregnant women: the risk of injury in the event of

an accident is reduced for the mother and the

unborn child if they are wearing a seat belt.

Position the lap belt snug and low below the

abdomen and across the strong bones of the

hips. Place the shoulder belt across the chest and

away from the neck. Never place the shoulder

belt behind the back or under the arm.

Seat Belt Pretensioner

The front outboard seat belt system is equipped

with pretensioning devices that are designed to

remove slack from the seat belt in the event of a

collision. These devices may improve the

performance of the seat belt by removing slack

from the seat belt early in a collision. Preten

-

sioners work for all size occupants, including

those in child restraints.
NOTE:

These devices are not a substitute for proper seat

belt placement by the occupant. The seat belt still

must be worn snugly and positioned properly.
The pretensioners are triggered by the Occupant

Restraint Controller (ORC). Like the air bags, the

pretensioners are single use items. A deployed

pretensioner or a deployed air bag must be

replaced immediately.

Energy Management Feature

The front outboard seat belt system is equipped

with an Energy Management feature that may

help further reduce the risk of injury in the event

of a collision. The seat belt system has a retractor

assembly that is designed to release webbing in a

controlled manner.

Switchable Automatic Locking Retractors

(ALR)

The seat belts in the passenger seating positions

are equipped with a Switchable Automatic

Locking Retractor (ALR) which is used to secure a

child restraint system

Ú

page 177.

The figure below illustrates the locking feature for

each seating position.

Switchable Automatic Locking

Retractor (ALR) Locations

If the passenger seating position is equipped with

an ALR and is being used for normal usage, only

pull the seat belt webbing out far enough to

comfortably wrap around the occupant’s

mid-section so as to not activate the ALR. If the

ALR is activated, you will hear a clicking sound as

the seat belt retracts. Allow the webbing to retract

completely in this case and then carefully pull out

only the amount of webbing necessary to

comfortably wrap around the occupant’s

mid-section. Slide the latch plate into the

buckle until you hear a "click."

 WARNING!

Wearing your seat belt incorrectly could

make your injuries in a collision much worse.

You might suffer internal injuries, or you

could even slide out of the seat belt. Follow

these instructions to wear your seat belt

safely and to keep your passengers safe, too.

Position the shoulder belt across the

shoulder and chest with minimal, if any slack

so that it is comfortable and not resting on

your neck. The retractor will withdraw any

slack in the shoulder belt.

Misadjustment of the seat belt could reduce

the effectiveness of the safety belt in a crash.

Always make all seat belt height adjustments

when the vehicle is stationary.

CarManuals2.com

SAFETY

162

In Automatic Locking Mode, the shoulder belt is

automatically pre-locked. The seat belt will still

retract to remove any slack in the shoulder belt.

Use the Automatic Locking Mode anytime a child

restraint is installed in a seating position that has

a seat belt with this feature. Children 12 years old

and under should always be properly restrained

in the rear seat of a vehicle with a rear seat.

How To Engage The Automatic Locking Mode
1. Buckle the combination lap and shoulder

belt.

2. Grab the shoulder portion and pull downward

until the entire seat belt is extracted.

3. Allow the seat belt to retract. As the seat belt

retracts, you will hear a clicking sound. This

indicates the seat belt is now in the Auto

-

matic Locking Mode.

How To Disengage The Automatic Locking Mode
Unbuckle the combination lap/shoulder belt and

allow it to retract completely to disengage the

Automatic Locking Mode and activate the vehicle

sensitive (emergency) locking mode.

S

UPPLEMENTAL

 R

ESTRAINT

 S

YSTEMS



(SRS)

Some of the safety features described in this

section may be standard equipment on some

models, or may be optional equipment on others.

If you are not sure, ask an authorized dealer.
The air bag system must be ready to protect you

in a collision. The Occupant Restraint Controller

(ORC) monitors the internal circuits and intercon

-

necting wiring associated with the electrical

Air Bag System Components. Your vehicle may be

equipped with the following Air Bag System

Components:

Air Bag System Components

Occupant Restraint Controller (ORC)

Air Bag Warning Light

Steering Wheel and Column

Instrument Panel

Knee Impact Bolsters

Driver and Front Passenger Air Bags

Seat Belt Buckle Switch

Supplemental Side Air Bags

Supplemental Knee Air Bags

Front and Side Impact Sensors

Seat Belt Pretensioners

Seat Track Position Sensors

Air Bag Warning Light

The Occupant Restraint Controller

(ORC) monitors the readiness of the

electronic parts of the air bag system

whenever the ignition switch is in the

START or ON/RUN position. If the ignition switch

is in the OFF position or in the ACC position, the

air bag system is not on and the air bags will not

inflate.
The ORC contains a backup power supply system

that may deploy the air bag system even if the

battery loses power or it becomes disconnected

prior to deployment.

 WARNING!

Never place a rear-facing child restraint in

front of an air bag. A deploying passenger

front air bag can cause death or serious

injury to a child 12 years or younger,

including a child in a rear-facing child

restraint.

Never install a rear-facing child restraint in

the front seat of a vehicle. Only use a

rear-facing child restraint in the rear seat. If

the vehicle does not have a rear seat, do not

transport a rear-facing child restraint in that

vehicle.

 WARNING!

The seat belt assembly must be replaced if

the switchable Automatic Locking Retractor

(ALR) feature or any other seat belt function

is not working properly when checked

according to the procedures in the Service

Manual.

Failure to replace the seat belt assembly

could increase the risk of injury in collisions.

Do not use the Automatic Locking Mode to

restrain occupants who are wearing the seat

belt or children who are using booster seats.

The locked mode is only used to install

rear-facing or forward-facing child restraints

that have a harness for restraining the child.

CarManuals2.com

163

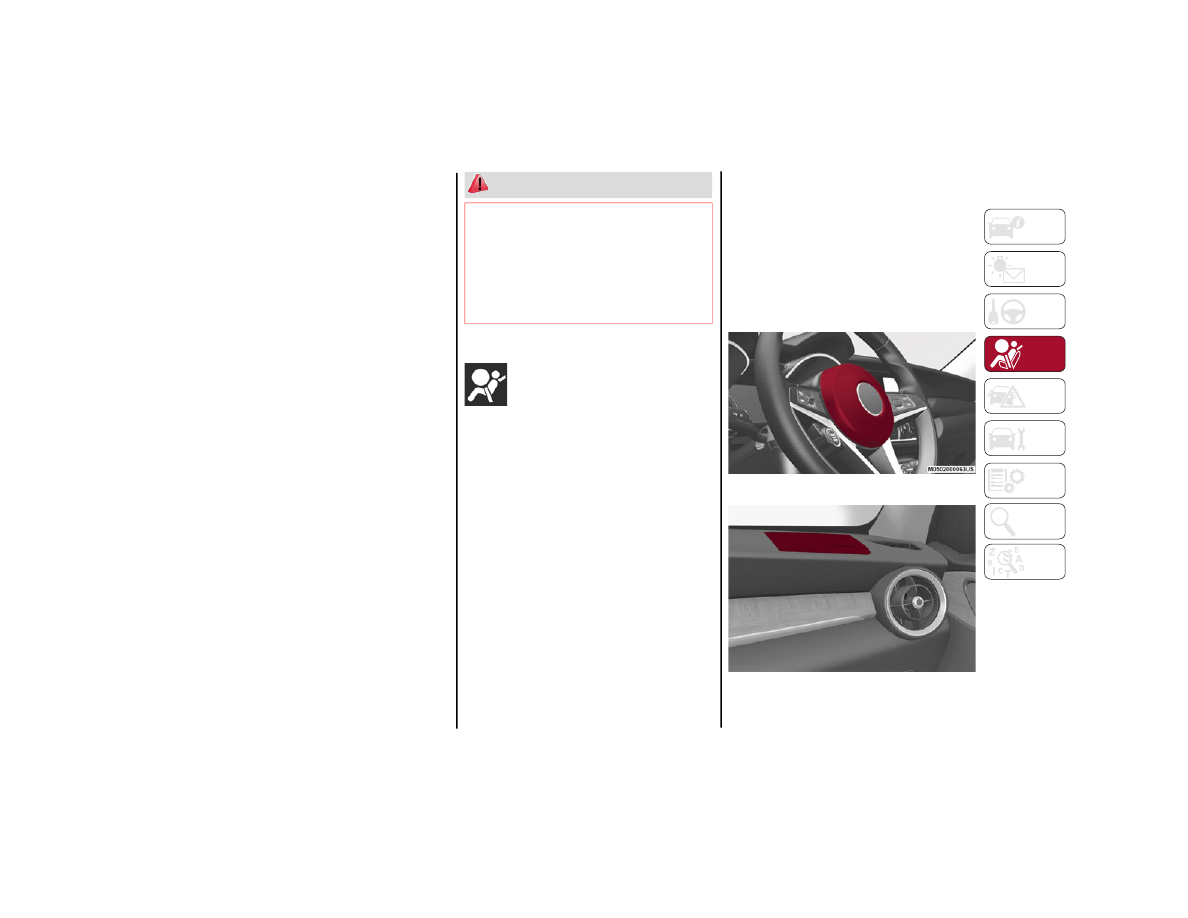

The ORC turns on the Air Bag Warning Light in the

instrument panel for approximately four to eight

seconds for a self-check when the ignition switch

is first in the ON/RUN position. After the

self-check, the Air Bag Warning Light will turn off.

If the ORC detects a malfunction in any part of the

system, it turns on the Air Bag Warning Light,

either momentarily or continuously. A single

chime will sound to alert you if the light comes on

again after initial startup.
The ORC also includes diagnostics that will

illuminate the instrument panel Air Bag Warning

Light if a malfunction is detected that could affect

the air bag system. The diagnostics also record

the nature of the malfunction. While the air bag

system is designed to be maintenance free, if any

of the following occurs, have an authorized dealer

service the air bag system immediately.

The Air Bag Warning Light does not come on

during the four to eight seconds when the

ignition switch is first in the ON/RUN position.

The Air Bag Warning Light remains on after the

four to eight-second interval.

The Air Bag Warning Light comes on intermit

-

tently or remains on while driving.

NOTE:

If the speedometer, tachometer, or any engine

related gauges are not working, the Occupant

Restraint Controller (ORC) may also be disabled.

In this condition the air bags may not be ready to

inflate for your protection. Have an authorized

dealer service the air bag system immediately.

Redundant Air Bag Warning Light

If a fault with the Air Bag Warning Light

is detected, which could affect the

Supplemental Restraint System (SRS),

the Redundant Air Bag Warning Light

will illuminate on the instrument panel. The

Redundant Air Bag Warning Light will stay on until

the fault is cleared. In addition, a single chime will

sound to alert you that the Redundant Air Bag

Warning Light has come on and a fault has been

detected. If the Redundant Air Bag Warning Light

comes on intermittently or remains on while

driving have an authorized dealer service the

vehicle immediately.
For additional information regarding the

Redundant Air Bag Warning Light see

Ú

page 74.

Front Air Bags

This vehicle has front air bags and lap/shoulder

belts for both the driver and front passenger. The

front air bags are a supplement to the seat belt

restraint systems. The driver front air bag is

mounted in the center of the steering wheel.

The passenger front air bag is mounted in the

instrument panel, above the glove compartment.

The words “SRS AIRBAG” or “AIRBAG” are

embossed on the air bag covers.

Driver Front Air Bag

Passenger Front Air Bag

 WARNING!

Ignoring the Air Bag Warning Light in your

instrument panel could mean you won’t have

the air bag system to protect you in a collision.

If the light does not come on as a bulb check

when the ignition is first turned on, stays on

after you start the vehicle, or if it comes on as

you drive, have an authorized dealer service

the air bag system immediately.

CarManuals2.com

SAFETY

164

(Continued)

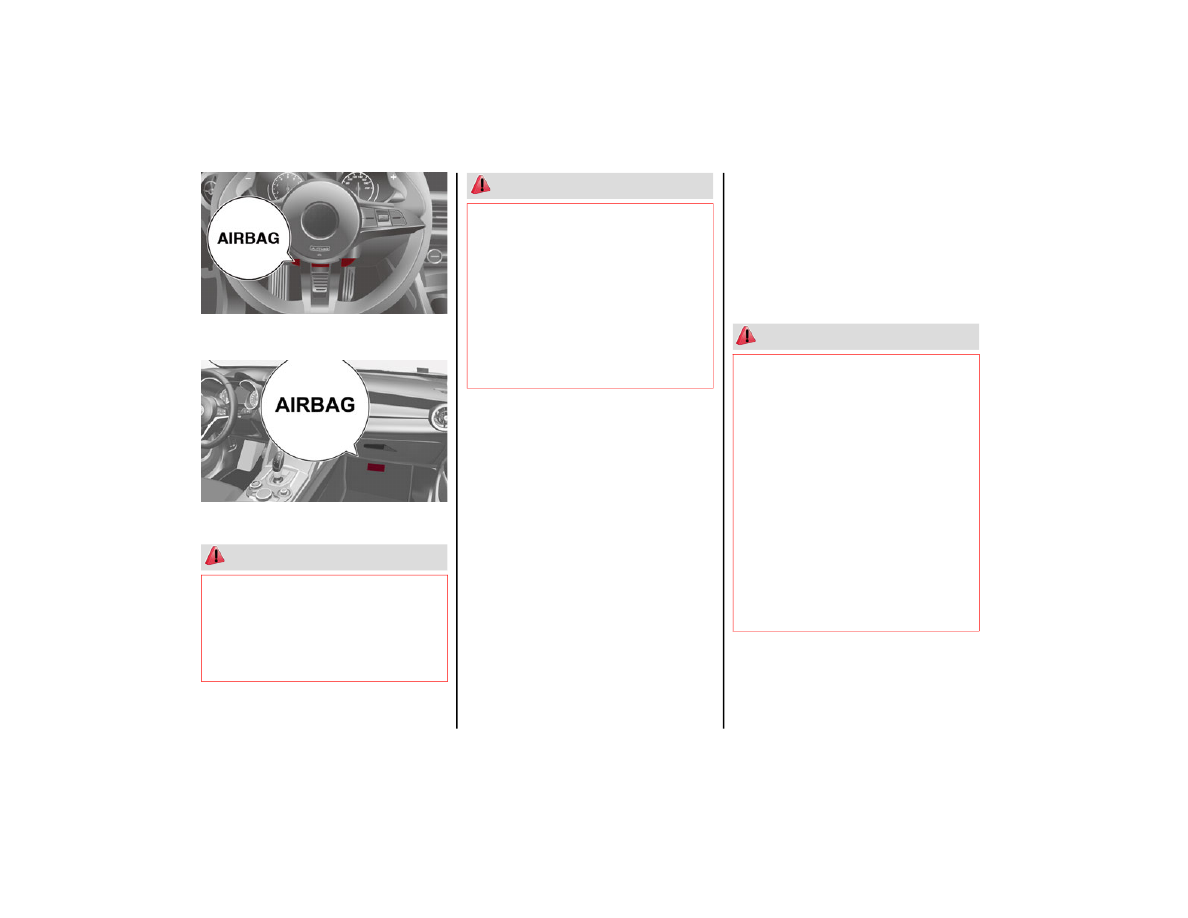

Driver Knee Air Bag Location/Knee Bolster

Location

Passenger Knee Air Bag Location/Knee Bolster

Location

Driver And Passenger Front Air Bag

Features

The Advanced Front Air Bag system has

multistage driver and front passenger air bags.

This system provides output appropriate to the

severity and type of collision as determined by

the Occupant Restraint Controller (ORC), which

may receive information from the front impact

sensors (if equipped) or other system

components.
The first stage inflator is triggered immediately

during an impact that requires air bag

deployment. A low energy output is used in less

severe collisions. A higher energy output is used

for more severe collisions.

This vehicle may be equipped with a driver and/

or front passenger seat belt buckle switch that

detects whether the driver or front passenger

seat belt is buckled. The seat belt buckle switch

may adjust the inflation rate of the Advanced

Front Air Bags.
This vehicle may be equipped with driver and/or

front passenger seat track position sensors that

may adjust the inflation rate of the Advanced

Front Air Bags based upon seat position.

 WARNING!

Being too close to the steering wheel or

instrument panel during front air bag

deployment could cause serious injury,

including death. Air bags need room to

inflate. Sit back, comfortably extending your

arms to reach the steering wheel or

instrument panel.

Never place a rear-facing child restraint in

front of an air bag. A deploying passenger

front air bag can cause death or serious

injury to a child 12 years or younger,

including a child in a rear-facing child

restraint.

Never install a rear-facing child restraint in

the front seat of a vehicle. Only use a

rear-facing child restraint in the rear seat. If

the vehicle does not have a rear seat, do not

transport a rear-facing child restraint in that

vehicle.

 WARNING!

 WARNING!

No objects should be placed over or near the

air bag on the instrument panel or steering

wheel because any such objects could cause

harm if the vehicle is in a collision severe

enough to cause the air bag to inflate.

Do not put anything on or around the air bag

covers or attempt to open them manually.

You may damage the air bags and you could

be injured because the air bags may no

longer be functional. The protective covers

for the air bag cushions are designed to open

only when the air bags are inflating.

Relying on the air bags alone could lead to

more severe injuries in a collision. The air

bags work with your seat belt to restrain you

properly. In some collisions, air bags won’t

deploy at all. Always wear your seat belts

even though you have air bags.

CarManuals2.com

165

Front Air Bag Operation

Front Air Bags are designed to provide additional

protection by supplementing the seat belts. Front

air bags are not expected to reduce the risk of

injury in rear, side, or rollover collisions. The front

air bags will not deploy in all frontal collisions,

including some that may produce substantial

vehicle damage — for example, some pole

collisions, truck underrides, and angle offset

collisions.
On the other hand, depending on the type and

location of impact, front air bags may deploy in

crashes with little vehicle front-end damage but

that produce a severe initial deceleration.
Because air bag sensors measure vehicle

deceleration over time, vehicle speed and

damage by themselves are not good indicators of

whether or not an air bag should have deployed.
Seat belts are necessary for your protection in all

collisions, and also are needed to help keep you

in position, away from an inflating air bag.
When the Occupant Restraint Controller (ORC)

detects a collision requiring the front air bags, it

signals the inflator units. A large quantity of

non-toxic gas is generated to inflate the front air

bags.
The steering wheel hub trim cover and the upper

passenger side of the instrument panel separate

and fold out of the way as the air bags inflate to

their full size. The front air bags fully inflate in less

time than it takes to blink your eyes. The front air

bags then quickly deflate while helping to restrain

the driver and front passenger.

Knee Impact Bolsters

The Knee Impact Bolsters help protect the knees

of the driver and front passenger, and position

the front occupants for improved interaction with

the front air bags.

Supplemental Driver And Front

Passenger Knee Air Bags

This vehicle is equipped with a Supplemental

Driver Knee Air Bag mounted in the instrument

panel below the steering column and a Supple

-

mental Passenger Knee Air Bag mounted in the

instrument panel below the glove compartment.

The Supplemental Knee Air Bags provide

enhanced protection during a frontal impact by

working together with the seat belts, preten

-

sioners, and front air bags.

Supplemental Side Air Bags

Supplemental Seat-Mounted Side Air Bags

(SABs)
This vehicle is equipped with Supplemental

Seat-Mounted Side Air Bags (SABs).
Supplemental Seat-Mounted Side Air Bags (SABs)

are located in the outboard side of the front

seats. The SABs are marked with “SRS AIRBAG”

or “AIRBAG” on a label or on the seat trim on the

outboard side of the seats.

The SABs may help to reduce the risk of occupant

injury during certain side impacts, in addition to

the injury reduction potential provided by the seat

belts and body structure.

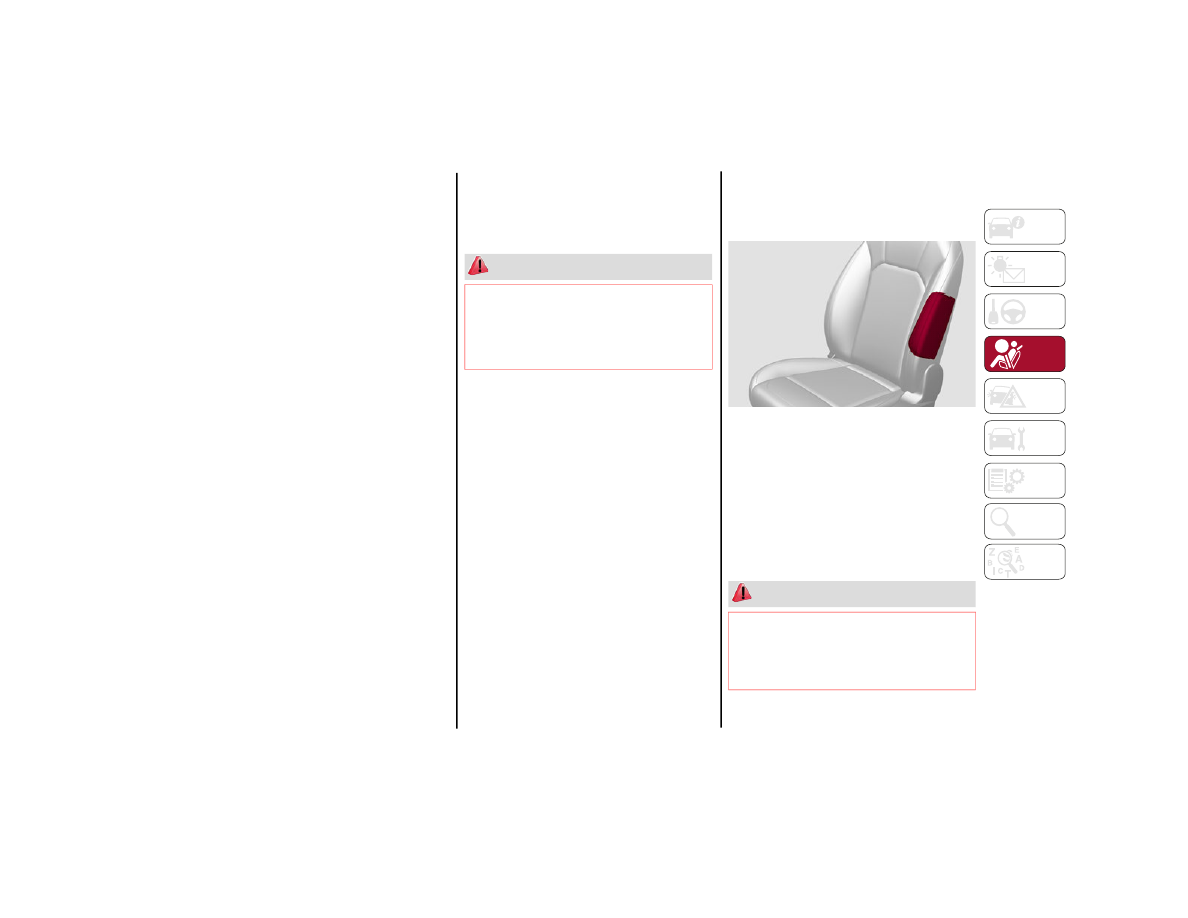

Front Supplemental Seat-Mounted Side Air Bag

When the SAB deploys, it opens the seam on the

outboard side of the seatback’s trim cover. The

inflating SAB deploys through the seat seam into

the space between the occupant and the door.

The SAB moves at a very high speed and with

such a high force that it could injure occupants if

they are not seated properly, or if items are

positioned in the area where the SAB inflates.

Children are at an even greater risk of injury from

a deploying air bag.

 WARNING!

Do not drill, cut, or tamper with the knee

impact bolsters in any way.

Do not mount any accessories to the knee

impact bolsters such as alarm lights, stereos,

citizen band radios, etc.

 WARNING!

Do not use accessory seat covers or place

objects between you and the Side Air Bags;

the performance could be adversely affected

and/or objects could be pushed into you,

causing serious injury.

CarManuals2.com

SAFETY

166

Supplemental Side Air Bag Inflatable Curtains

(SABICs)
This vehicle is equipped with Supplemental Side

Air Bag Inflatable Curtains (SABICs).
Supplemental Side Air Bag Inflatable Curtains

(SABICs) are located above the side windows. The

trim covering the SABICs is labeled “SRS AIRBAG”

or “AIRBAG.”

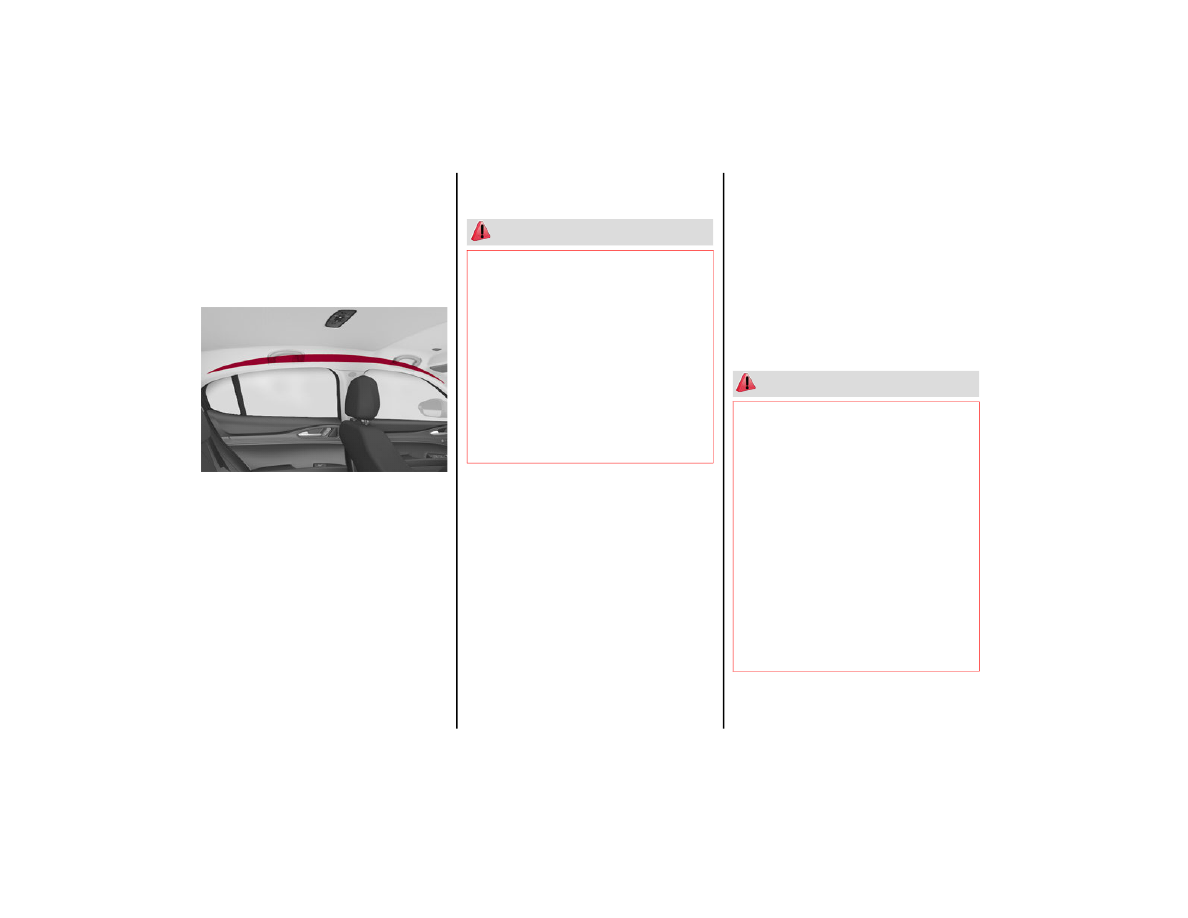

Supplemental Side Air Bag Inflatable Curtain

(SABIC) Location

SABICs may help reduce the risk of head and

other injuries to front and rear seat outboard

occupants in certain side impacts, in addition to

the injury reduction potential provided by the seat

belts and body structure.
The SABIC deploys downward, covering the side

windows. An inflating SABIC pushes the outside

edge of the headliner out of the way and covers

the window. The SABICs inflate with enough force

to injure occupants if they are not belted and

seated properly, or if items are positioned in the

area where the SABICs inflate. Children are at an

even greater risk of injury from a deploying air

bag.

The SABICs may help reduce the risk of partial or

complete ejection of vehicle occupants through

side windows in certain side impact events.

Side Impacts
The Side Air Bags are designed to activate in

certain side impacts. The Occupant Restraint

Controller (ORC) determines whether the

deployment of the Side Air Bags in a particular

impact event is appropriate, based on the

severity and type of collision. The side impact

sensors aid the ORC in determining the

appropriate response to impact events. The

system is calibrated to deploy the Side Air Bags

on the impact side of the vehicle during impacts

that require Side Air Bag occupant protection.

In side impacts, the Side Air Bags deploy

independently; a left side impact deploys the

left Side Air Bags only and a right-side impact

deploys the right Side Air Bags only. Vehicle

damage by itself is not a good indicator of

whether or not Side Air Bags should have

deployed.
The Side Air Bags will not deploy in all side

collisions, including some collisions at certain

angles, or some side collisions that do not impact

the area of the passenger compartment. The Side

Air Bags may deploy during angled or offset

frontal collisions where the front air bags deploy.
Side Air Bags are a supplement to the seat belt

restraint system. Side Air Bags deploy in less time

than it takes to blink your eyes.

 WARNING!

Do not mount equipment, or stack luggage or

other cargo up high enough to block the

deployment of the SABICs. The trim covering

above the side windows where the SABIC

and its deployment path are located should

remain free from any obstructions.

In order for the SABICs to work as intended,

do not install any accessory items in your

vehicle which could alter the roof. Do not add

an aftermarket sunroof to your vehicle. Do

not add roof racks that require permanent

attachments (bolts or screws) for installation

on the vehicle roof. Do not drill into the roof

of the vehicle for any reason.

 WARNING!

Occupants, including children, who are up

against or very close to Side Air Bags can be

seriously injured or killed. Occupants,

including children, should never lean on or

sleep against the door, side windows, or area

where the side air bags inflate, even if they

are in an infant or child restraint.

Seat belts (and child restraints where

appropriate) are necessary for your

protection in all collisions. They also help

keep you in position, away from an inflating

Side Air Bag. To get the best protection from

the Side Air Bags, occupants must wear their

seat belts properly and sit upright with their

backs against the seats. Children must be

properly restrained in a child restraint or

booster seat that is appropriate for the size

of the child.

CarManuals2.com

167

NOTE:

Air bag covers may not be obvious in the interior

trim, but they will open during air bag deployment.
Rollover Events
Side Air Bags and seat belt pretensioners are

designed to activate in certain rollover events.

The Occupant Restraint Controller (ORC)

determines whether deployment in a particular

rollover event is appropriate, based on the

severity and type of collision. Vehicle damage by

itself is not a good indicator of whether or not

Side Air Bags and seat belt pretensioners should

have deployed.
The Side Air Bags and seat belt pretensioners will

not deploy in all rollover events. The rollover

sensing system determines if a rollover event

may be in progress and whether deployment is

appropriate. In the event the vehicle experiences

a rollover or near rollover event, and deployment

is appropriate, the rollover sensing system will

deploy the side air bags and seat belt preten

-

sioners on both sides of the vehicle.
The SABICs may help reduce the risk of partial or

complete ejection of vehicle occupants through

side windows in certain rollover or side impact

events.

Air Bag System Components

NOTE:

The Occupant Restraint Controller (ORC) monitors

the internal circuits and interconnecting wiring

associated with electrical Air Bag System

Components listed below:

Occupant Restraint Controller (ORC)

Air Bag Warning Light

Steering Wheel and Column

Instrument Panel

Knee Impact Bolsters

Driver and Front Passenger Air Bags

Seat Belt Buckle Switch

Supplemental Side Air Bags

Supplemental Knee Air Bags

Front and Side Impact Sensors

Seat Belt Pretensioners

Seat Track Position Sensors

If A Deployment Occurs

The front air bags are designed to deflate

immediately after deployment.
NOTE:

Front and/or side air bags will not deploy in all

collisions. This does not mean something is

wrong with the air bag system.
If you do have a collision which deploys the air

bags, any or all of the following may occur:

The air bag material may sometimes cause

abrasions and/or skin reddening to the

occupants as the air bags deploy and unfold.

The abrasions are similar to friction rope burns

or those you might get sliding along a carpet or

gymnasium floor. They are not caused by

contact with chemicals. They are not

permanent and normally heal quickly.

However, if you haven’t healed significantly

within a few days, or if you have any blistering,

see your doctor immediately.

As the air bags deflate, you may see some

smoke-like particles. The particles are a

normal by-product of the process that

generates the non-toxic gas used for air bag

inflation. These airborne particles may irritate

the skin, eyes, nose, or throat. If you have skin

or eye irritation, rinse the area with cool water.

For nose or throat irritation, move to fresh air.

If the irritation continues, see your doctor. If

these particles settle on your clothing, follow

the garment manufacturer’s instructions for

cleaning.

 WARNING!

Side Air Bags need room to inflate. Do not

lean against the door or window. Sit upright

in the center of the seat.

Being too close to the Side Air Bags during

deployment could cause you to be severely

injured or killed.

Relying on the Side Air Bags alone could lead

to more severe injuries in a collision. The

Side Air Bags work with your seat belt to

restrain you properly. In some collisions, Side

Air Bags won’t deploy at all. Always wear your

seat belt even though you have Side Air Bags.

CarManuals2.com

SAFETY

168

Do not drive your vehicle after the air bags have

deployed. If you are involved in another collision,

the air bags will not be in place to protect you.

NOTE:

Air bag covers may not be obvious in the

interior trim, but they will open during air bag

deployment.

After any collision, the vehicle should be taken

to an authorized dealer immediately.

Enhanced Accident Response System

In the event of an impact, if the communication

network remains intact, and the power remains

intact, depending on the nature of the event, the

Occupant Restraint Controller (ORC) will

determine whether to have the Enhanced

Accident Response System perform the following

functions:

Cut off fuel to the engine (if equipped)

Cut off battery power to the electric motor

(if equipped)

Flash hazard lights as long as the battery has

power

Turn on the interior lights, which remain on as

long as the battery has power or for

15 minutes from the intervention of the

Enhanced Accident Response System

Unlock the power door locks

Your vehicle may also be designed to perform any

of these other functions in response to the

Enhanced Accident Response System:

Turn off the Fuel Filter Heater, Turn off the

HVAC Blower Motor, Close the HVAC

Circulation Door

Cut off battery power to the:

Engine

Electric Motor (if equipped)

Electric power steering

Brake booster

Electric park brake

Automatic transmission gear selector

Horn

Front wiper

Headlamp washer pump (if equipped)

NOTE:

After an accident, remember to cycle the ignition

to the OFF position and remove the key from the

ignition switch to avoid draining the battery. Care

-

fully check the vehicle for fuel leaks in the engine

compartment and on the ground near the engine

compartment and fuel tank before resetting the

system and starting the engine. If there are no

fuel leaks or damage to the vehicle electrical

devices (e.g. headlights) after an accident, reset

the system by following the procedure described

below. If you have any doubt, contact an autho

-

rized dealer.

Enhanced Accident Response System

Reset Procedure

After the event occurs, when the system is active,

a message regarding fuel cutoff is displayed. Turn

the ignition switch from ignition ACC or ON/RUN

to ignition OFF. Carefully check the vehicle for

fuel leaks in the engine compartment and on the

ground near the engine compartment and fuel

tank before resetting the system and starting

the engine.
Depending on the nature of the event the left and

right turn signal lights, located in the instrument

panel, may both be blinking and will continue to

blink. In order to move your vehicle to the side of

the road, you must follow the system reset

procedure.

 WARNING!

Deployed air bags and seat belt pretensioners

cannot protect you in another collision. Have

the air bags, seat belt pretensioners, and the

seat belt retractor assemblies replaced by an

authorized dealer immediately. Also, have the

Occupant Restraint Controller System serviced

as well.

CarManuals2.com

169

If a reset procedure step is not completed within 60 seconds, then the turn signal lights will blink and the reset procedure must be performed again in order

to be successful.

Customer Action

NOTE:

Each step MUST BE held for at least two seconds

Customer Will See

1. Turn ignition OFF. (Turn Signal Switch Must be placed in Neutral State).

2. Turn ignition ACC.

Right turn light BLINKS.

Left turn light is OFF.

3. Turn right turn signal switch ON.

Right turn light is ON SOLID.

Left turn light BLINKS.

4. Place turn signal in neutral state.

Right turn light is OFF.

Left turn light BLINKS.

5. Turn left turn signal switch ON.

Right turn light BLINKS.

Left turn light is ON SOLID.

6. Place turn signal in neutral state.

Right turn light BLINKS.

Left turn light is OFF.

7. Turn right turn signal switch ON.

Right turn light is ON SOLID.

Left turn light BLINKS.

8. Place turn signal in neutral state.

Right turn light is OFF.

Left turn light BLINKS.

9. Turn left turn signal switch ON.

Right turn light is ON SOLID.

Left turn light is ON SOLID.

10. Turn left turn signal switch OFF.

(Turn Signal Switch Must be placed in Neutral State).

Right turn light is OFF.

Left turn light is OFF.

11. Turn ignition OFF.
12. Turn ignition ACC. (Entire sequence needs to be completed within

one minute or sequence will need to be repeated).

System is now reset and the engine may be started.

Turn hazard flashers OFF (Manually).

CarManuals2.com

SAFETY

170

Maintaining Your Air Bag System

Event Data Recorder (EDR)

This vehicle is equipped with an event data

recorder (EDR). The main purpose of an EDR is to

record, in certain crash or near crash-like

situations, such as an air bag deployment or

hitting a road obstacle, data that will assist in

understanding how a vehicle’s systems

performed. The EDR is designed to record data

related to vehicle dynamics and safety systems

for a short period of time, typically 30 seconds or

less. The EDR in this vehicle is designed to record

such data as:

How various systems in your vehicle were

operating;

Whether or not the driver and passenger

safety belts were buckled/fastened;

How far (if at all) the driver was depressing the

accelerator and/or brake pedal; and,

How fast the vehicle was traveling.

These data can help provide a better

understanding of the circumstances in which

crashes and injuries occur.
NOTE:

EDR data are recorded by your vehicle only if a

non-trivial crash situation occurs; no data are

recorded by the EDR under normal driving condi

-

tions and no personal data (e.g., name, gender,

age, and crash location) are recorded. However,

other parties, such as law enforcement, could

combine the EDR data with the type of personally

identifying data routinely acquired during a crash

investigation.

To read data recorded by an EDR, special

equipment is required, and access to the vehicle

or the EDR is needed. In addition to the vehicle

manufacturer, other parties, such as law

enforcement, that have the special equipment,

can read the information if they have access to

the vehicle or the EDR.

C

HILD

 R

ESTRAINTS



Everyone in your vehicle needs to be buckled up

at all times, including babies and children. Every

state in the United States, and every Canadian

province, requires that small children ride in

proper restraint systems. This is the law, and you

can be prosecuted for ignoring it.
Children 12 years or younger should ride properly

buckled up in a rear seat, if available. According

to crash statistics, children are safer when

properly restrained in the rear seats rather than

in the front.

 WARNING!

Modifications to any part of the air bag

system could cause it to fail when you need

it. You could be injured if the air bag system

is not there to protect you. Do not modify the

components or wiring, including adding any

kind of badges or stickers to the steering

wheel hub trim cover or the upper passenger

side of the instrument panel. Do not modify

the front fascia/bumper, vehicle body

structure, or add aftermarket side steps or

running boards.

It is dangerous to try to repair any part of the

air bag system yourself. Be sure to tell

anyone who works on your vehicle that it has

an air bag system.

Do not attempt to modify any part of your

air bag system. The air bag may inflate

accidentally or may not function properly if

modifications are made. Take your vehicle to

an authorized dealer for any air bag system

service. If your seat, including your trim cover

and cushion, needs to be serviced in any way

(including removal or loosening/tightening of

seat attachment bolts), take the vehicle to an

authorized dealer. Only manufacturer

approved seat accessories may be used. If it

is necessary to modify the air bag system for

persons with disabilities, contact an

authorized dealer.

 WARNING!

In a collision, an unrestrained child can

become a projectile inside the vehicle. The

force required to hold even an infant on your

lap could become so great that you could not

hold the child, no matter how strong you are.

The child and others could be badly injured or

killed. Any child riding in your vehicle should be

in a proper restraint for the child’s size.

CarManuals2.com

171

There are different sizes and types of restraints

for children from newborn size to the child almost

large enough for an adult safety belt. Always

check the child seat Owner’s Manual to make

sure you have the correct seat for your child.

Carefully read and follow all the instructions and

warnings in the child restraint Owner’s Manual

and on all the labels attached to the child

restraint.

Before buying any restraint system, make sure

that it has a label certifying that it meets all

applicable Safety Standards. You should also

make sure that you can install it in the vehicle

where you will use it.

NOTE:

For additional information, refer to

http://

www.nhtsa.gov/parents-and-caregivers or

call: 1–888–327–4236

Canadian residents should refer to Transport

Canada’s website for additional information:

https://www.tc.gc.ca/en/services/road/

child-car-seat-safety.html

Summary Of Recommendations For Restraining Children In Vehicles

Child Size, Height, Weight Or Age

Recommended Type Of Child Restraint

Infants and Toddlers

Children who are two years old or younger and

who have not reached the height or weight limits

of their child restraint

Either an Infant Carrier or a Convertible Child

Restraint, facing rearward in a rear seat of

the vehicle

Small Children

Children who are at least two years old or who

have outgrown the height or weight limit of their

rear-facing child restraint

Forward-Facing Child Restraint with a five-point

Harness, facing forward in a rear seat of the

vehicle

Larger Children

Children who have outgrown their forward-facing

child restraint, but are too small to properly fit

the vehicle’s seat belt

Belt Positioning Booster Seat and the vehicle

seat belt, seated in a rear seat of the vehicle

Children Too Large for Child Restraints

Children 12 years old or younger, who have

outgrown the height or weight limit of their

booster seat

Vehicle Seat Belt, seated in a rear seat of the

vehicle

CarManuals2.com

SAFETY

172

(Continued)

Infant And Child Restraints

Safety experts recommend that children ride

rear-facing in the vehicle until they are two years

old or until they reach either the height or weight

limit of their rear-facing child restraint. Two types

of child restraints can be used rear-facing: infant

carriers and convertible child seats.
The infant carrier is only used rear-facing in the

vehicle. It is recommended for children from birth

until they reach the weight or height limit of the

infant carrier. Convertible child seats can be used

either rear-facing or forward-facing in the vehicle.

Convertible child seats often have a higher

weight limit in the rear-facing direction than

infant carriers do, so they can be used rear-facing

by children who have outgrown their infant carrier

but are still less than at least two years old.

Children should remain rear-facing until they

reach the highest weight or height allowed by

their convertible child seat.

Older Children And Child Restraints

Children who are two years old or who have

outgrown their rear-facing convertible child seat

can ride forward-facing in the vehicle.

Forward-facing child seats and convertible child

seats used in the forward-facing direction are for

children who are over two years old or who have

outgrown the rear-facing weight or height limit of

their rear-facing convertible child seat. Children

should remain in a forward-facing child seat with

a harness for as long as possible, up to the

highest weight or height allowed by the child seat.
All children whose weight or height is above the

forward-facing limit for the child seat should use

a belt-positioning booster seat until the vehicle’s

seat belts fit properly. If the child cannot sit with

knees bent over the vehicle’s seat cushion while

the child’s back is against the seatback, they

should use a belt-positioning booster seat. The

child and belt-positioning booster seat are held in

the vehicle by the seat belt.

 WARNING!

Never place a rear-facing child restraint in

front of an air bag. A deploying passenger

front air bag can cause death or serious

injury to a child 12 years or younger,

including a child in a rear-facing child

restraint.

Never install a rear-facing child restraint in

the front seat of a vehicle. Only use a

rear-facing child restraint in the rear seat.

If the vehicle does not have a rear seat, do

not transport a rear-facing child restraint in

that vehicle.

 WARNING!

 WARNING!

Improper installation can lead to failure of an

infant or child restraint. It could come loose

in a collision. The child could be badly injured

or killed. Follow the child restraint

manufacturer’s directions exactly when

installing an infant or child restraint.

After a child restraint is installed in the

vehicle, do not move the vehicle seat forward

or rearward because it can loosen the child

restraint attachments. Remove the child

restraint before adjusting the vehicle seat

position. When the vehicle seat has been

adjusted, reinstall the child restraint.

When your child restraint is not in use,

secure it in the vehicle with the seat belt or

LATCH anchorages, or remove it from the

vehicle. Do not leave it loose in the vehicle.

In a sudden stop or accident, it could strike

the occupants or seatbacks and cause

serious personal injury.

CarManuals2.com

173

Children Too Large For Booster Seats

Children who are large enough to wear the

shoulder belt comfortably, and whose legs are

long enough to bend over the front of the seat

when their back is against the seatback, should

use the seat belt in a rear seat. Use this simple

5-step test to decide whether the child can use

the vehicle’s seat belt alone:
1. Can the child sit all the way back against the

back of the vehicle seat?

2. Do the child’s knees bend comfortably over

the front of the vehicle seat while the child is

still sitting all the way back?

3. Does the shoulder belt cross the child’s

shoulder between the neck and arm?

4. Is the lap part of the belt as low as possible,

touching the child’s thighs and not the

stomach?

5. Can the child stay seated like this for the

whole trip?

If the answer to any of these questions was “no,”

then the child still needs to use a booster seat in

this vehicle. If the child is using the lap/shoulder

belt, check seat belt fit periodically and make

sure the seat belt buckle is latched. A child’s

squirming or slouching can move the belt out of

position. If the shoulder belt contacts the face or

neck, move the child closer to the center of the

vehicle, or use a booster seat to position the seat

belt on the child correctly.

Recommendations For Attaching Child Restraints

 WARNING!

Never allow a child to put the shoulder belt

under an arm or behind their back. In a crash,

the shoulder belt will not protect a child

properly, which may result in serious injury or

death. A child must always wear both the lap

and shoulder portions of the seat belt

correctly.

Restraint Type

Combined Weight

of the Child + Child

Restraint

Use Any Attachment Method Shown With An “X” Below

LATCH – Lower

Anchors Only

Seat Belt Only

LATCH – Lower

Anchors + Top

Tether Anchor

Seat Belt + Top

Tether Anchor

Rear-Facing

Child Restraint

Up to 65 lb

(29.5 kg)

X

X

Rear-Facing

Child Restraint

More than 65 lb

(29.5 kg)

X

Forward-Facing

Child Restraint

Up to 65 lb

(29.5 kg)

X

X

Forward-Facing

Child Restraint

More than 65 lb

(29.5 kg)

X

CarManuals2.com

SA

FETY

174

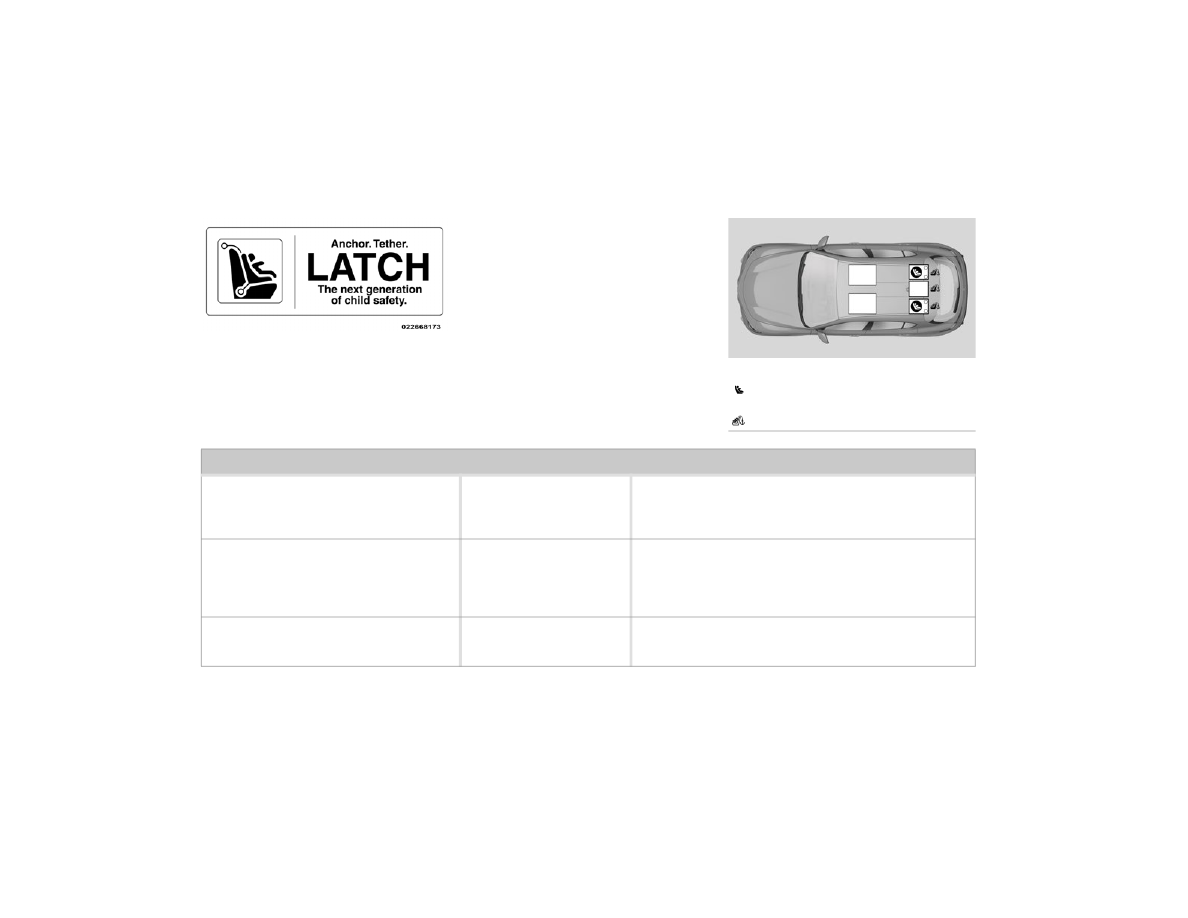

Lower Anchors And Tethers For CHildren

(LATCH) Restraint System

LATCH Label

Your vehicle is equipped with the child restraint

anchorage system called LATCH, which stands for

Lower Anchors and Tethers for CHildren. The

LATCH system has three vehicle anchor points for

installing LATCH-equipped child seats. There are

two lower anchorages located at the back of the

seat cushion where it meets the seatback and

one top tether anchorage located behind the

seating position. These anchorages are used to

install LATCH-equipped child seats without using

the vehicle’s seat belts. Some seating positions

may have a top tether anchorage but no lower

anchorages. In these seating positions, the seat

belt must be used with the top tether anchorage

to install the child restraint. Please see the

following table for more information.

LATCH Positions For Installing Child

Restraints In This Vehicle

LATCH Positions

 Lower Anchorage Symbol

(2 Anchorages Per Seating Position)

 Top Tether Anchorage Symbol

Frequently Asked Questions About Installing Child Restraints With LATCH

What is the weight limit (child’s weight + weight

of the child restraint) for using the LATCH

anchorage system to attach the child restraint?

65 lbs (29.5 kg)

Use the LATCH anchorage system until the combined weight of the

child and the child restraint is 65 lbs (29.5 kg). Use the seat belt

and tether anchor instead of the LATCH system once the

combined weight is more than 65 lbs (29.5 kg).

Can the LATCH anchorages and the seat belt be

used together to attach a rear-facing or

forward-facing child restraint?

No

Do not use the seat belt when you use the LATCH anchorage

system to attach a rear-facing or forward-facing child restraint.

Booster seats may be attached to the LATCH anchorages if

allowed by the booster seat manufacturer. See your booster seat

owner’s manual for more information.

Can a child seat be installed in the center

position using the inner LATCH lower anchorages

from the outboard seating positions?

No

Use the seat belt and tether anchor to install a child seat in the

center seating position.

CarManuals2.com

175

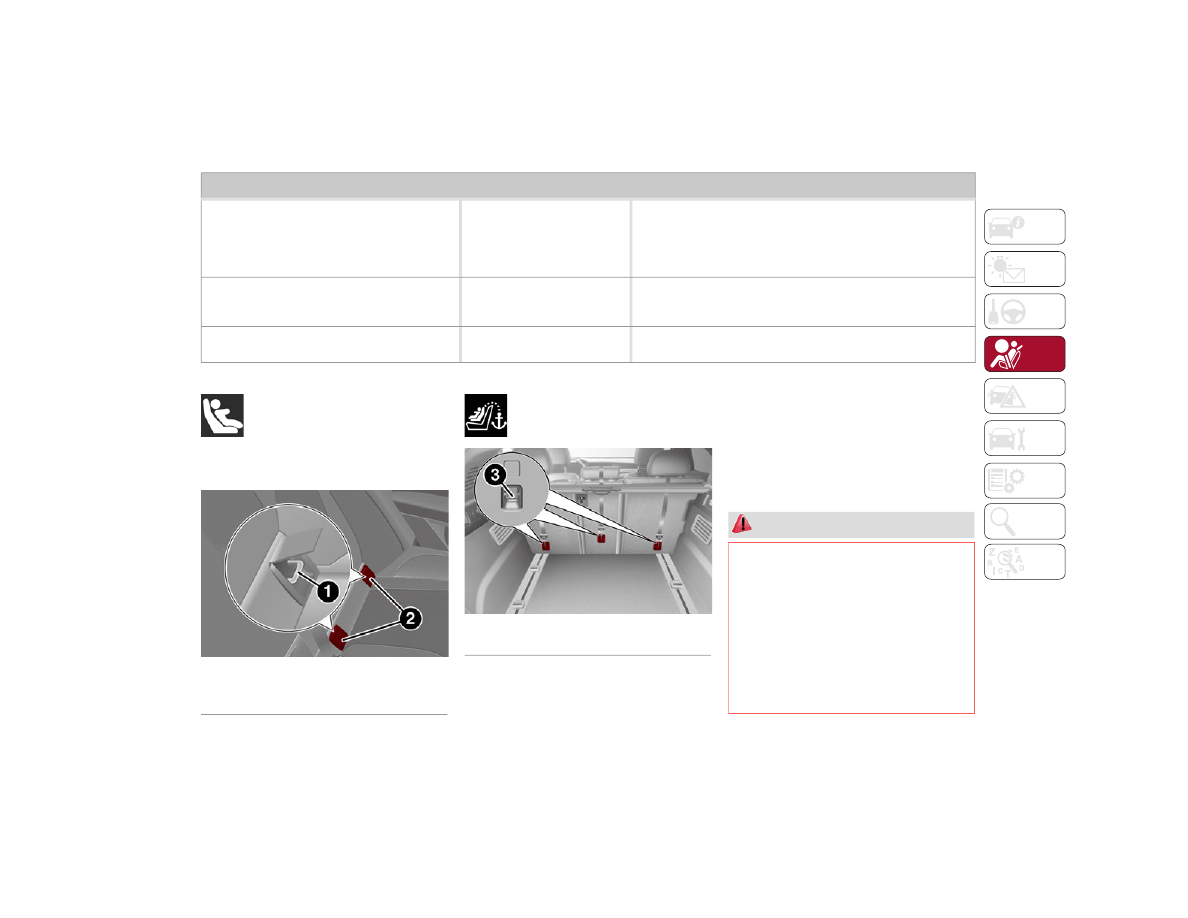

Locating The LATCH Anchorages

The lower anchorages are round bars

that are found at the rear of the seat

cushion where it meets the seatback.

Each anchorage is under a cover with

the anchorage symbol on it. Lift the cover to

access the lower anchorage.

LATCH Anchorage Locations

Locating The Upper Tether Anchorages

There are tether strap anchorages

behind each rear seating position

located on the back of the seat.

Tether Strap Anchorage Locations

LATCH-compatible child restraint systems will be

equipped with a rigid bar or a flexible strap on

each side. Each will have a hook or connector to

attach to the lower anchorage and a way to

tighten the connection to the anchorage.

Forward-facing child restraints and some

rear-facing child restraints will also be equipped

with a tether strap. The tether strap will have a

hook at the end to attach to the top tether

anchorage and a way to tighten the strap after it

is attached to the anchorage.

Center Seat LATCH

Can two child restraints be attached using a

common lower LATCH anchorage?

No

Never “share” a LATCH anchorage with two or more child

restraints. If the center position does not have dedicated LATCH

lower anchorages, use the seat belt to install a child seat in the

center position next to a child seat using the LATCH anchorages in

an outboard position.

Can the rear-facing child restraint touch the back

of the front passenger seat?

Yes

The child seat may touch the back of the front passenger seat if

the child restraint manufacturer also allows contact. See your

child restraint owner’s manual for more information.

Can the rear head restraints be removed?

Yes

All head restraints can be removed if they interfere with the

installation of the child restraint

Ú

page 36.

Frequently Asked Questions About Installing Child Restraints With LATCH

1 — LATCH Anchorage Bar
2 — LATCH Anchorage Locations

3 — Tether Strap Anchorages

 WARNING!

Do not install a child restraint in the center

position using the LATCH system. This

position is not approved for installing child

seats using the LATCH attachments. You

must use the seat belt and tether anchor to

install a child seat in the center seating

position.

Never use the same lower anchorage to

attach more than one child restraint.

See

Ú

page 176 for typical installation

instructions.

CarManuals2.com

SAFETY

176

Always follow the directions of the child restraint

manufacturer when installing your child restraint.

Not all child restraint systems will be installed as

described here.

To Install A LATCH-Compatible Child

Restraint

If the selected seating position has a Switchable

Automatic Locking Retractor (ALR) seat belt, stow

the seat belt, following the instructions below.

See

Ú

page 177 to check what type of seat belt

each seating position has.
1. Loosen the adjusters on the lower straps and

on the tether strap of the child seat so that

you can more easily attach the hooks or

connectors to the vehicle anchorages.

2. Place the child seat between the lower

anchorages for that seating position. If the

second row seat can be reclined, you may

recline the seat and/or raise the head

restraint (if adjustable) to get a better fit. If

the rear seat can be moved forward and rear

-

ward in the vehicle, you may wish to move it

to its rear-most position to make room for the

child seat. You may also move the front seat

forward to allow more room for the child seat.

3. Attach the lower hooks or connectors of the

child restraint to the lower anchorages in the

selected seating position.

4. If the child restraint has a tether strap,

connect it to the top tether anchorage. See

Ú

page 179 for directions to attach a tether

anchor.

5. Tighten all of the straps as you push the child

restraint rearward and downward into the

seat. Remove slack in the straps according to

the child restraint manufacturer’s instruc

-

tions.

6. Test that the child restraint is installed tightly

by pulling back and forth on the child seat at

the belt path. It should not move more than

1 inch (25.4 mm) in any direction.

How To Stow An Unused Switchable-ALR

(ALR) Seat Belt:

When using the LATCH attaching system to install

a child restraint, stow all ALR seat belts that are

not being used by other occupants or being used

to secure child restraints. An unused belt could

injure a child if they play with it and accidentally

lock the seat belt retractor. Before installing a

child restraint using the LATCH system, buckle

the seat belt behind the child restraint and out of

the child’s reach. If the buckled seat belt

interferes with the child restraint installation,

instead of buckling it behind the child restraint,

route the seat belt through the child restraint belt

path and then buckle it. Do not lock the seat belt.

Remind all children in the vehicle that the seat

belts are not toys and that they should not play

with them.

 WARNING!

Improper installation of a child restraint to

the LATCH anchorages can lead to failure of

the restraint. The child could be badly injured

or killed. Follow the child restraint

manufacturer’s directions exactly when

installing an infant or child restraint.

Child restraint anchorages are designed to

withstand only those loads imposed by

correctly-fitted child restraints. Under no

circumstances are they to be used for adult

seat belts, harnesses, or for attaching other

items or equipment to the vehicle.

CarManuals2.com

177

Installing Child Restraints Using The

Vehicle Seat Belt

Child restraint systems are designed to be

secured in vehicle seats by lap belts or the lap

belt portion of a lap/shoulder belt.

The seat belts in the passenger seating positions

are equipped with a Switchable Automatic

Locking Retractor (ALR) that is designed to keep

the lap portion of the seat belt tight around the

child restraint so that it is not necessary to use a

locking clip. The ALR retractor can be “switched”

into a locked mode by pulling all of the webbing

out of the retractor and then letting the webbing

retract back into the retractor. If it is locked, the

ALR will make a clicking noise while the webbing

is pulled back into the retractor.
Refer to the “Automatic Locking Mode”

description on

Ú

page 161 for additional

information on ALR.
Please see the table below and the following

sections for more information.

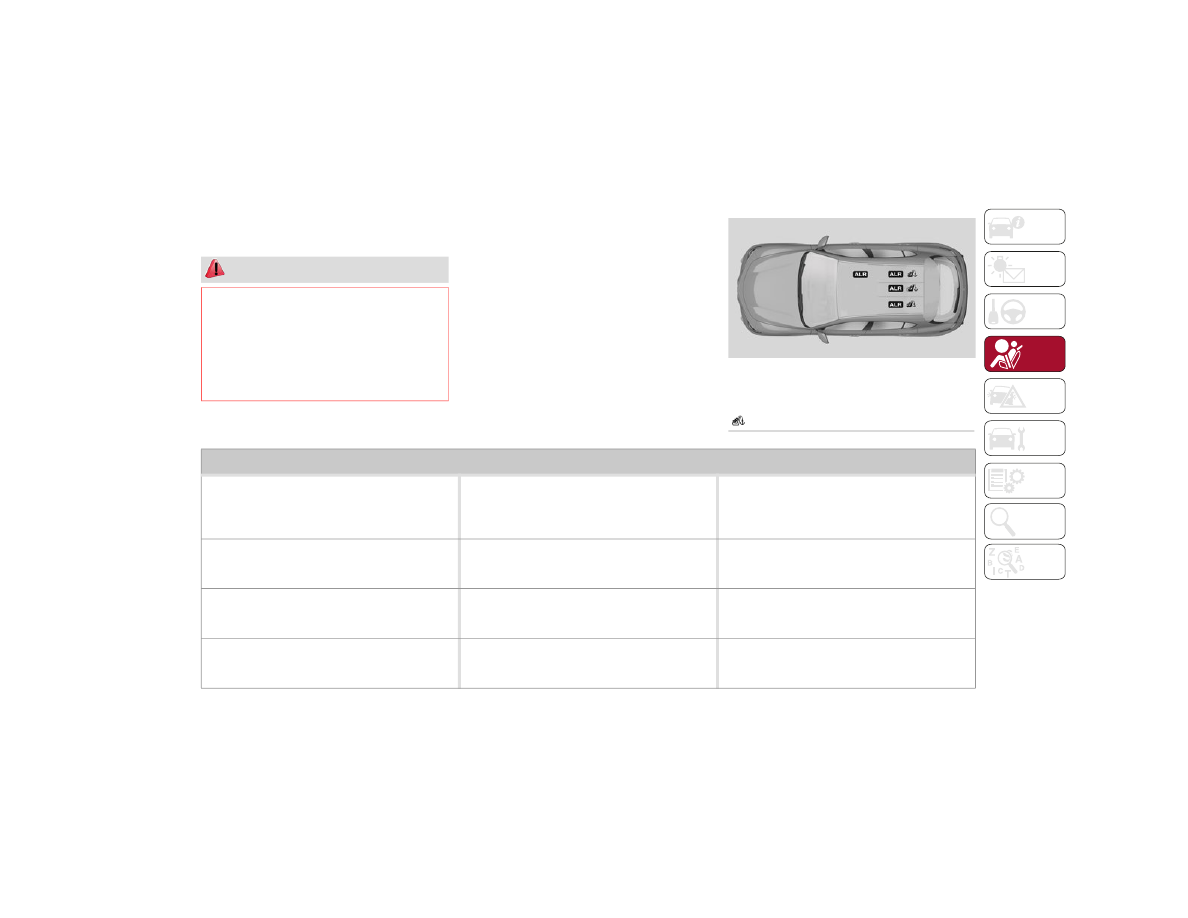

Lap/Shoulder Belt Systems For Installing

Child Restraints In This Vehicle

Automatic Locking Retractor (ALR) Locations

 WARNING!

Improper installation or failure to properly

secure a child restraint can lead to failure of

the restraint. The child could be badly injured

or killed.

Follow the child restraint manufacturer’s

directions exactly when installing an infant or

child restraint.

ALR — Switchable Automatic Locking

Retractor (ALR)

 Top Tether Anchorage Symbol

Frequently Asked Questions About Installing Child Restraints With Seat Belts

What is the weight limit (child’s weight + weight

of the child restraint) for using the Tether Anchor

with the seat belt to attach a forward facing child

restraint?

Weight limit of the Child Restraint

Always use the tether anchor when using the

seat belt to install a forward facing child

restraint, up to the recommended weight limit of

the child restraint.

Can the rear-facing child restraint touch the back

of the front passenger seat?

Yes

Contact between the front passenger seat and

the child restraint is allowed, if the child restraint

manufacturer also allows contact.

Can the rear head restraints be removed?

Yes

All head restraints can be removed if they

interfere with the installation of the child

restraint. See

Ú

page 36 for further information.

Can the buckle stalk be twisted to tighten the

seat belt against the belt path of the child

restraint?

No

Do not twist the buckle stalk in a seating position

with an ALR retractor.

CarManuals2.com

SAFETY

178

Installing A Child Restraint With A

Switchable Automatic Locking Retractor

(ALR):

Child restraint systems are designed to be

secured in vehicle seats by lap belts or the lap

belt portion of a lap/shoulder belt.

1. Place the child seat in the center of the

seating position. If the second row seat can

be reclined, you may recline the seat and/or

raise the head restraint (if adjustable) to get

a better fit. If the rear seat can be moved

forward and rearward in the vehicle, you may

wish to move it to its rear-most position to

make room for the child seat. You may also

move the front seat forward to allow more

room for the child seat.

2. Pull enough of the seat belt webbing from the

retractor to pass it through the belt path of

the child restraint. Do not twist the belt

webbing in the belt path.

3. Slide the latch plate into the buckle until you

hear a “click.”

4. Pull on the webbing to make the lap portion

tight against the child seat.

5. To lock the seat belt, pull down on the

shoulder part of the belt until you have pulled

all the seat belt webbing out of the retractor.

Then, allow the webbing to retract back into

the retractor. As the webbing retracts, you will

hear a clicking sound. This means the seat

belt is now in the Automatic Locking mode.

6. Try to pull the webbing out of the retractor. If

it is locked, you should not be able to pull out

any webbing. If the retractor is not locked,

repeat step 5.

7. Finally, pull up on any excess webbing to

tighten the lap portion around the child

restraint while you push the child restraint

rearward and downward into the vehicle seat.

8. If the child restraint has a top tether strap

and the seating position has a top tether

anchorage, connect the tether strap to the

anchorage and tighten the tether strap.

See

Ú

page 179 for directions to attach a

tether anchor.

9. Test that the child restraint is installed tightly

by pulling back and forth on the child seat at

the belt path. It should not move more than

1 inch (25.4 mm) in any direction.

Any seat belt system will loosen with time, so

check the belt occasionally, and pull it tight if

necessary.

 WARNING!

Improper installation or failure to properly

secure a child restraint can lead to failure of

the restraint. The child could be badly injured

or killed.

Follow the child restraint manufacturer’s

directions exactly when installing an infant or

child restraint.

CarManuals2.com















Content      ..     3      4      5      6     ..
