Installing Child Restraints Using The Top

Tether Anchorage:

1. Look behind the seating position where you

plan to install the child restraint to find the

tether anchorage. You may need to move the

seat forward to provide better access to the

tether anchorage. If there is no top tether

anchorage for that seating position, move the

child restraint to another position in the

vehicle if one is available.

2. Route the tether strap to provide the most

direct path for the strap between the anchor

and the child seat. If your vehicle is equipped

with adjustable rear head restraints, raise the

head restraint, and where possible, route the

tether strap under the head restraint and

between the two posts. If not possible, lower

the head restraint and pass the tether strap

around the outboard side of the head

restraint.

3. Attach the tether strap hook of the child

restraint to the top tether anchorage as

shown in the diagram.

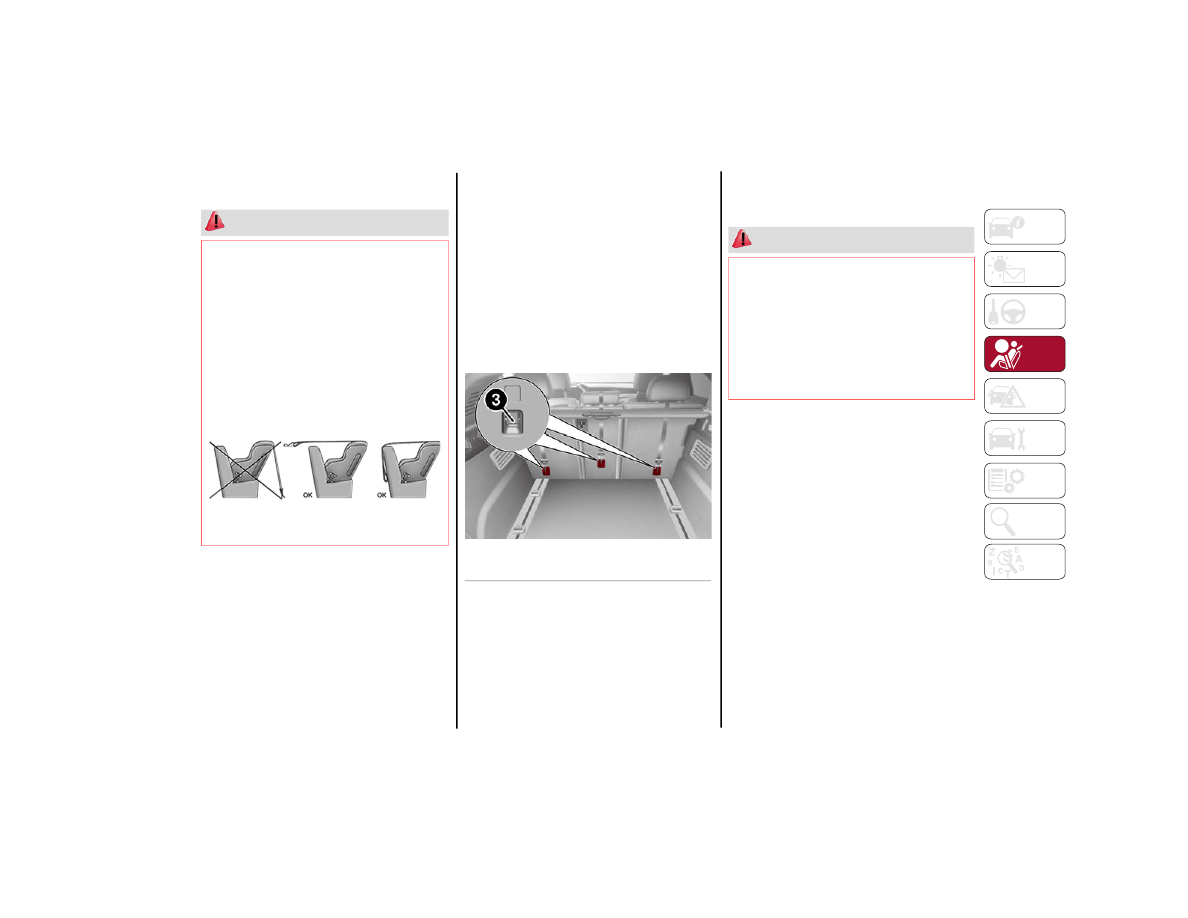

Rear Seat Tether Strap Mounting

4. Remove slack in the tether strap according to

the child restraint manufacturer’s instruc

-

tions.

Center Tether Special Instructions

Center Tether Attachment:
1. If adjustable, lower the adjustable center

head restraint to the full down position.

2. Route the tether strap over the seatback and

head restraint.

3. Attach the tether strap hook of the child

restraint to the center tether anchorage

located on the back of the seat.

4. Remove slack in the tether strap according to

the child restraint manufacturer’s instruc

-

tions.

 WARNING!

Do not attach a tether strap for a rear-facing

car seat to any location in front of the car seat,

including the seat frame or a tether

anchorage. Only attach the tether strap of a

rear-facing car seat to the tether anchorage

that is approved for that seating position,

located behind the top of the vehicle seat. See

the section “Lower Anchors and Tethers for

CHildren (LATCH) Restraint System” for the

location of approved tether anchorages in

your vehicle.

3 — Tether Strap Anchorages

 WARNING!

An incorrectly anchored tether strap could

lead to increased head motion and possible

injury to the child. Use only the anchorage

position directly behind the child seat to

secure a child restraint top tether strap.

If your vehicle is equipped with a split rear

seat, make sure the tether strap does not

slip into the opening between the seatbacks

as you remove slack in the strap.

CarManuals2.com

SAFETY

180

SAFETY TIPS

T

RANSPORTING

 P

ASSENGERS

NEVER TRANSPORT PASSENGERS IN THE CARGO

AREA.

T

RANSPORTING

 P

ETS



Air Bags deploying in the front seat could harm

your pet. An unrestrained pet will be thrown about

and possibly injured, or injure a passenger during

panic braking or in a collision.
Pets should be restrained in the rear seat (if

equipped) in pet harnesses or pet carriers that

are secured by seat belts.

C

ONNECTED

 V

EHICLES

Privacy of any wireless and wired communi

-

cations cannot be assured. Third parties may

unlawfully intercept information and private

communications without your consent. For

further information, refer to “Data Collection &

Privacy” in your Uconnect Owner’s Manual

Supplement or “Onboard Diagnostic System

(OBD II) Cybersecurity”

Ú

page 84.

S

AFETY

 C

HECKS

 Y

OU

 S

HOULD

 M

AKE



I

NSIDE

 T

HE

 V

EHICLE



Seat Belts

Inspect the seat belt system periodically,

checking for cuts, frays, and loose parts.

Damaged parts must be replaced immediately.

Do not disassemble or modify the system.
If your vehicle is involved in a collision, or if you

have questions regarding the seat belt or

retractor conditions, take your vehicle to an

authorized FCA dealer or authorized FCA Certified

Collision Care Program facility for inspection.

Air Bag Warning Light

 The Air Bag Warning Light will turn on

for four to eight seconds as a bulb check

when the ignition switch is first turned

to ON/RUN. If the light is either not on

during starting, stays on, or turns on while driving,

have the system inspected at an authorized

dealer as soon as possible. After the bulb check,

this light will illuminate with a single chime when

a fault with the Air Bag System has been

detected. It will stay on until the fault is removed.

If the light comes on intermittently or remains on

while driving, have an authorized dealer service

the vehicle immediately

Ú

page 157.

Defroster

Check operation by selecting the defrost mode

and place the blower control on high speed. You

should be able to feel the air directed against the

windshield. See an authorized dealer for service

if your defroster is inoperable.

 WARNING!

Do not leave children or animals inside

parked vehicles in hot weather. Interior heat

build-up may cause serious injury or death.

It is extremely dangerous to ride in a cargo

area, inside or outside of a vehicle. In a

collision, people riding in these areas are

more likely to be seriously injured or killed.

Do not allow people to ride in any area of your

vehicle that is not equipped with seats and

seat belts.

Be sure everyone in your vehicle is in a seat

and using a seat belt properly.

 WARNING!

It is not possible to know or to predict all of the

possible outcomes if your vehicle’s systems

are breached. It may be possible that vehicle

systems, including safety related systems,

could be impaired or a loss of vehicle control

could occur that may result in an accident

involving serious injury or death.

CarManuals2.com

181

(Continued)

(Continued)

Floor Mat Safety Information

Always use floor mats designed to fit your vehicle.

Only use a floor mat that does not interfere with

the operation of the accelerator, brake or clutch

pedals. Only use a floor mat that is securely

attached using the floor mat fasteners so it

cannot slip out of position and interfere with the

accelerator, brake or clutch pedals or impair safe

operation of your vehicle in other ways.

 WARNING!

An improperly attached, damaged, folded, or

stacked floor mat, or damaged floor mat

fasteners may cause your floor mat to

interfere with the accelerator, brake, or

clutch pedals and cause a loss of vehicle

control. To prevent SERIOUS INJURY or DEATH:

 ALWAYS securely attach your

floor mat using the floor mat

fasteners. DO NOT install your floor

mat upside down or turn your floor

mat over. Lightly pull to confirm mat is

secured using the floor mat fasteners on a

regular basis.

 ALWAYS REMOVE THE EXISTING

FLOOR MAT FROM THE VEHICLE

before installing any other floor

mat. NEVER install or stack an

additional floor mat on top of an existing

floor mat.

ONLY install floor mats designed to fit your

vehicle. NEVER install a floor mat that cannot

be properly attached and secured to your

vehicle. If a floor mat needs to be replaced,

only use a FCA approved floor mat for the

specific make, model, and year of your

vehicle.

ONLY use the driver’s side floor mat on the

driver’s side floor area. To check for

interference, with the vehicle properly

parked with the engine off, fully press the

accelerator, the brake, and the clutch pedal

(if present) to check for interference. If your

floor mat interferes with the operation of any

pedal, or is not secure to the floor, remove

the floor mat from the vehicle and place the

floor mat in your trunk.

ONLY use the passenger’s side floor mat on

the passenger’s side floor area.

ALWAYS make sure objects cannot fall or

slide into the driver’s side floor area when

the vehicle is moving. Objects can become

trapped under accelerator, brake, or clutch

pedals and could cause a loss of vehicle

control.

 WARNING!

NEVER place any objects under the floor mat

(e.g., towels, keys, etc.). These objects could

change the position of the floor mat and may

cause interference with the accelerator,

brake, or clutch pedals.

If the vehicle carpet has been removed and

re-installed, always properly attach carpet to

the floor and check the floor mat fasteners

are secure to the vehicle carpet. Fully press

each pedal to check for interference with the

accelerator, brake, or clutch pedals then

re-install the floor mats.

It is recommended to only use mild soap and

water to clean your floor mats. After cleaning,

always check your floor mat has been

properly installed and is secured to your

vehicle using the floor mat fasteners by

lightly pulling mat.

 WARNING!

CarManuals2.com

SAFETY

182

P

ERIODIC

 S

AFETY

 C

HECKS

 Y

OU

 S

HOULD



M

AKE

 O

UTSIDE

 T

HE

 V

EHICLE

Tires

Examine tires for excessive tread wear and

uneven wear patterns. Check for stones, nails,

glass, or other objects lodged in the tread or

sidewall. Inspect the tread for cuts and cracks.

Inspect sidewalls for cuts, cracks, and bulges.

Check the wheel nuts for tightness. Check the

tires (including spare) for proper cold inflation

pressure.

Lights

Have someone observe the operation of brake

lights and exterior lights while you work the

controls. Check turn signal and high beam

indicator lights on the instrument panel.

Door Latches

Check for proper closing, latching, and locking.

Fluid Leaks

Check area under the vehicle after overnight

parking for fuel, coolant, oil, or other fluid leaks.

Also, if gasoline fumes are detected or if fuel, or

brake fluid leaks are suspected, the cause should

be located and corrected immediately.

E

XHAUST

 G

AS



The best protection against carbon monoxide

entry into the vehicle body is a properly

maintained engine exhaust system.
Whenever a change is noticed in the sound of the

exhaust system, when exhaust fumes can be

detected inside the vehicle, or when the

underside or rear of the vehicle is damaged, have

a competent mechanic inspect the complete

exhaust system and adjacent body areas for

broken, damaged, deteriorated, or mispositioned

parts. Open seams or loose connections could

permit exhaust fumes to seep into the passenger

compartment. In addition, inspect the exhaust

system each time the vehicle is raised for

lubrication or oil change. Replace as required.

C

ARBON

 M

ONOXIDE

 W

ARNINGS



 WARNING!

Exhaust gases can injure or kill. They contain

carbon monoxide (CO), which is colorless and

odorless. Breathing it can make you

unconscious and can eventually poison you. To

avoid breathing (CO), follow these safety tips:

Do not run the engine in a closed garage or in

confined areas any longer than needed to

move your vehicle in or out of the area.

If you are required to drive with the trunk/

liftgate/rear doors open, make sure that all

windows are closed and the climate control

BLOWER switch is set at high speed. DO NOT

use the recirculation mode.

If it is necessary to sit in a parked vehicle with

the engine running, adjust your heating or

cooling controls to force outside air into the

vehicle. Set the blower at high speed.

 WARNING!

Carbon monoxide (CO) in exhaust gases is

deadly. Follow the precautions below to

prevent carbon monoxide poisoning:

Do not inhale exhaust gases. They contain

carbon monoxide, a colorless and odorless

gas, which can kill. Never run the engine in a

closed area, such as a garage, and never sit

in a parked vehicle with the engine running

for an extended period. If the vehicle is

stopped in an open area with the engine

running for more than a short period, adjust

the ventilation system to force fresh, outside

air into the vehicle.

Guard against carbon monoxide with proper

maintenance. Have the exhaust system

inspected every time the vehicle is raised.

Have any abnormal conditions repaired

promptly. Until repaired, drive with all side

windows fully open.

When exiting the vehicle, always make sure

the ignition is in the off position, remove the

key fob from the vehicle, and lock your

vehicle.

CarManuals2.com

183

Have a flat tire or a burnt-out bulb?
At times, a problem such as these may interfere

with your driving experience.
The section on emergencies can help you to deal

with critical situations independently.

HAZARD WARNING

FLASHERS

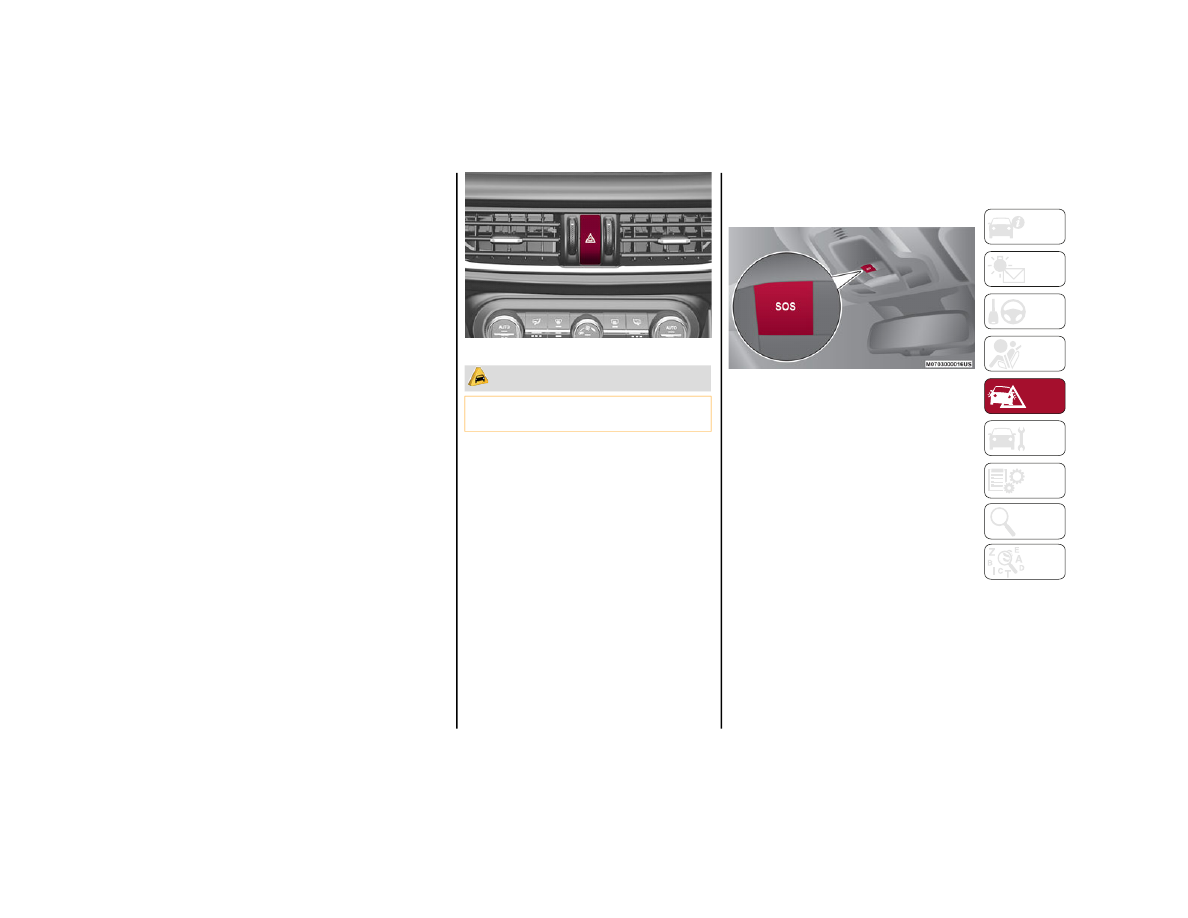

The Hazard Warning Flashers button is located in

the switch bank below the radio screen.
Push the button once to turn the Hazard Warning

Flashers on. When the button is activated, all

directional turn signals will flash on and off to

warn oncoming traffic of an emergency. Push the

button a second time to turn the Hazard Warning

Flashers off.
This is an emergency warning system and it

should not be used when the vehicle is in motion.

Use it only when your vehicle is disabled or

signaling a safety hazard warning for other

motorists.
When you must leave the vehicle to seek

assistance, the Hazard Warning Flashers will

continue to operate even though the ignition is

cycled to OFF.

Hazard Warning Flashers Button

Panic Brake Assist (PBA) System
The PBA system is designed to improve the

vehicle’s braking capacity during emergency

braking

Ú

page 143.

SOS EMERGENCY CALL —

IF EQUIPPED

Your vehicle has an on-board assistance feature

that is designed to provide support in case of an

accident and/or emergency. This feature is

automatically activated by air bag intervention, or

can be activated manually by pushing the button

located on the base of the rear view mirror.

NOTE:

SOS Emergency Call will only work with an

enabled network operator.

SOS Emergency Call Button

The SOS Emergency Call system automatically

forwards a call to emergency services in the event

of an accident with air bag intervention providing

that the ignition device is in RUN position and the

air bags are working. When the connection

between the vehicle and a public safety operator

is made, your vehicle will automatically transmit

location and vehicle information to the

emergency service operator.
Only a public safety operator can remotely end

the SOS Emergency Call and, if necessary, call the

vehicle back through the Emergency Call system.

Once the call has ended, you can still call the

emergency service operator to indicate additional

information by pushing the button again.

 CAUTION!

Prolonged use of the Hazard Warning Flashers

may discharge the vehicle’s battery.

CarManuals2.com

IN CASE O

F EM

ERGENCY

184

To Use SOS Emergency Call
Push and hold the SOS Emergency Call button for

a few seconds. The LED, located next to the SOS

button, will blink once and then stay on indicating

a call has been placed.
NOTE:

If the SOS Emergency Call button is accidentally

pushed, there is a 10 second delay before the call

is placed. The system will issue a verbal alert that

a call is about to be made. To cancel the call

connection, push the SOS Emergency Call button

again.
Once a connection between the vehicle and an

emergency service operator is made, the SOS

Emergency Call system will transmit the following

important vehicle information to the operator:

Indication that the occupant placed an

SOS Emergency Call.

The Vehicle Identification Number (VIN).

The last known GPS coordinates of the vehicle.

You will then be able to speak with the emergency

service operator to determine if additional help is

needed.
The SOS Emergency Call has priority over other

audio sources, which will be muted. If you have a

phone connected via Bluetooth®, it is discon

-

nected and reconnected at the end of the SOS

Emergency Call. Voice prompts will guide you

during the SOS Emergency Call. If a connection is

made between an emergency service operator

and your vehicle, emergency service operators

may record conversations and sounds within your

vehicle once a connection is made, and by using

the service you consent to having this information

shared.
NOTE:

If you have not subscribed to the SOS service or if

the service is not available or has expired, the

Connect system will display a dedicated screen

when the button is pressed informing you to

contact the national emergency number 9-1-1

(the respective graphic button will be displayed to

make the call if you have connected your mobile

phone via Bluetooth® The call to the national

emergency number 9-1-1 will be made via the

mobile phone by pressing red graphic button

shown on the Connect system display.

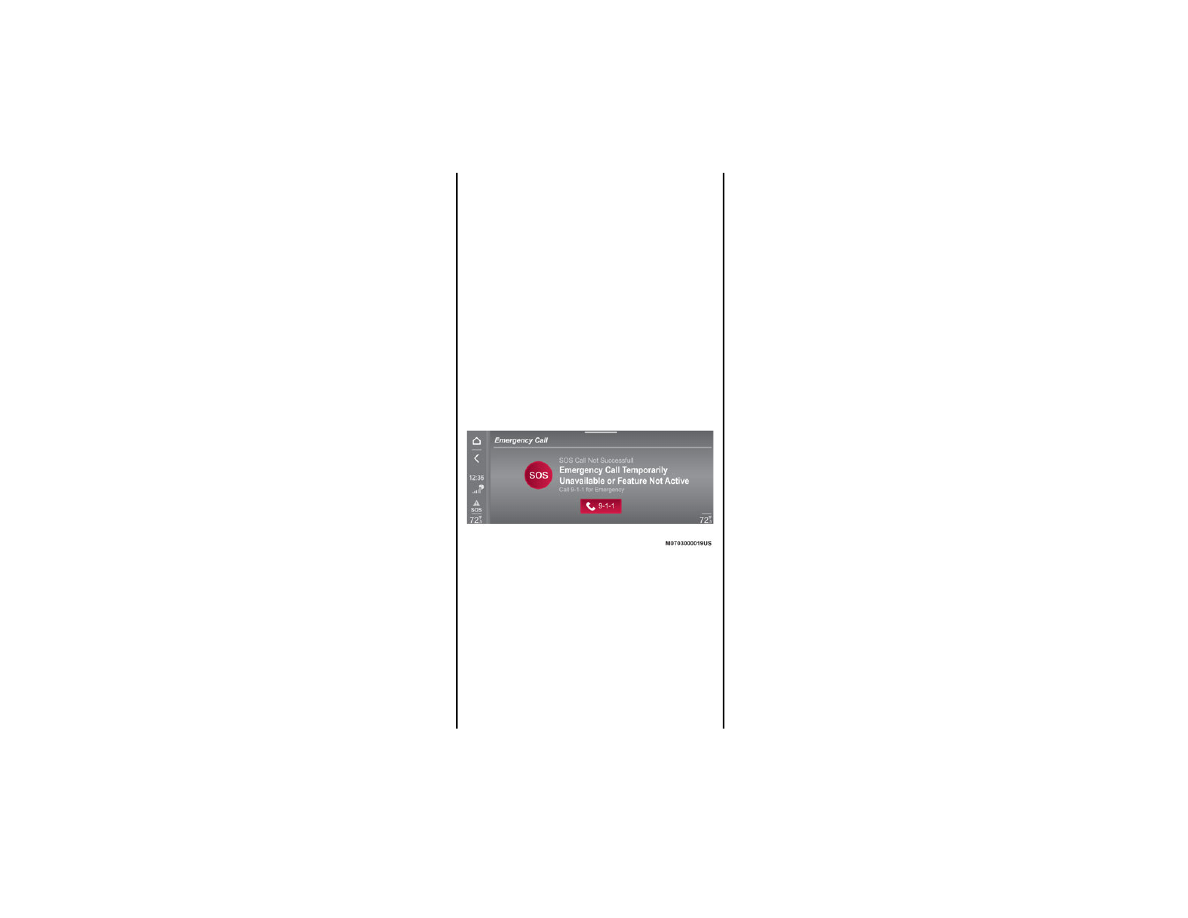

SOS Screen Message

SOS Emergency Call System Limitations
When the ignition switches to the RUN position,

the Emergency Call system runs a routine check.

During this check, a red indicator will illuminate

for about three seconds. This signal must not be

confused with a fault warning. In the event of a

malfunction, the red indicator would remain on.

If the SOS Emergency Call system detects a

malfunction, any of the following may occur at the

time the malfunction is detected:
NOTE:

The SOS Call function may not be available for the

first minute after the vehicle is started

The LED next to the SOS button will be contin

-

uously illuminated red.

The Emergency Call system is powered by its

own non-rechargeable battery to ensure

operation, even when the vehicle battery is

discharged or disconnected. When system

battery is discharged, the instrument cluster

display will show a special message, different

than other messages referring to other types

of faults. In this case, the system works only if

powered by the vehicle’s battery.

The instrument cluster will display a message

alerting you to contact the Service Network

along with a failure warning light.

Even if the SOS Emergency Call system is fully

functional, external or uncontrolled factors may

prevent or stop SOS Emergency Call operation.

These include, but are not limited to, the following

factors:

The ignition is in OFF position.

The vehicle’s electrical systems are not intact.

The SOS Emergency Call system software and/

or hardware is damaged during a vehicle

collision.

There are network problems that could limit or

impair service operation (e.g., error by

operator, busy network, bad weather, etc.).

CarManuals2.com

185

(Continued)

(Continued)

If the vehicle battery connection fails due to a

collision or accident, the system can support an

SOS Emergency Call for a limited period of time. If

the battery is disconnected for service, the

system turns off. In this case, it will be possible to

make an SOS Emergency Call only when the

battery is reconnected to the vehicle’s electrical

system.
System Requirements

Vehicle must have an operable 4G network

connection.

Vehicle must be powered with a properly

functioning electrical system.

The ignition must be in the RUN or ACC

position.

Frequently Asked Questions:
What happens if I accidentally push the SOS

Emergency Call Button? You have 10 seconds

after pushing the emergency button to cancel the

call. To cancel the call, push the button again.
What type of information is sent when I make an

SOS Emergency Call from my vehicle? Certain

vehicle information, such as the VIN, is

transmitted along with last known GPS location.

Also note that emergency service operators may

record conversations and sounds within your

vehicle once a connection is made, and by using

the service you consent to having this information

shared.

When can I use the SOS Emergency Call

button? You can ONLY use the SOS

Emergency Call button to make a call if

you or someone else needs emergency

assistance.

 WARNING!

Never place anything on or near the vehicle’s

4G and GPS aerials. You could prevent

4G and GPS signal reception, which can

prevent your vehicle from placing an

emergency call. An operable 4G network

connection and a GPS signal is required

for the SOS-Emergency Call system to

function properly.

Do not add any aftermarket electrical

equipment to the vehicle’s electrical system.

This may prevent your vehicle from sending a

signal to initiate an emergency call. To avoid

interference that can cause the

SOS-Emergency Call system to fail, never

add aftermarket equipment (e.g., two-way

mobile radio, CB radio, data recorder, etc.) to

your vehicle’s electrical system or modify the

antennas on your vehicle. IF YOUR VEHICLE

AND SYSTEM LOSES BATTERY POWER FOR

ANY REASON (INCLUDING DURING OR AFTER

AN ACCIDENT) THE SOS FEATURES, APPS

AND SERVICES AMONG OTHERS WILL

NOT OPERATE.

The Occupant Restraint Controller (ORC)

turns on the air bag warning light in the

instrument cluster if a malfunction in any

part of the air bag system is detected. If the

air bag warning light is illuminated, the air

bag system may not be working properly and

the SOS-Emergency Call system may not be

able to send a signal to an emergency

service operator. If the air bag warning light

is illuminated, contact the Service Network

to have the air bag system checked

immediately.

Ignoring the LED on the SOS-Emergency Call

button could mean you will not have

emergency call services if needed. If the LED

on SOS-Emergency Call button is illuminated

red, contact the Service Network to have the

emergency call system checked

immediately.

 WARNING!

If anyone in the vehicle could be in danger

(e.g., fire or smoke is visible, dangerous road

conditions or location), do not wait for voice

contact from an emergency service operator.

All occupants should exit the vehicle

immediately and move to a safe location.

Failure to perform scheduled maintenance

and regularly inspect your vehicle may result

in vehicle damage, accident or injury.

 WARNING!

CarManuals2.com

IN CASE O

F EM

ERGENCY

186

JACKING AND TIRE

CHANGING

G

ENERAL

 I

NSTRUCTIONS

This vehicle can be equipped with a Tire Service

Kit

Ú

page 189.

As an alternative to the Tire Service Kit, the

vehicle may be purchased with a compact spare

tire

Ú

page 186.

J

ACK

 I

NFORMATION

 A

ND

 U

SAGE



P

RECAUTIONS

Jack Information

The jack weighs 4.4 lb (2 kg).

The jack requires no adjustment.

The jack cannot be repaired, and in the event

of a fault it must be replaced by another

factory replacement.

No tool other than its extension lever may be

fitted on the jack.

Jack Maintenance

Prevent any dirt from depositing on the "worm

screw".

Keep the "worm screw" lubricated.

Never modify the jack.

Conditions Of Non-Use Of The Jack

Temperatures below −40°F (−40°C).

On sandy or muddy ground.

On uneven ground.

On steep slopes in extreme weather

conditions.

In direct contact with the engine or for repairs

under the vehicle.

On boats.

C

HANGING

 P

ROCEDURE

1. Park the vehicle on a firm, level surface.

Avoid ice or slippery areas.

2. Turn on the Hazard Warning Flashers.
3. Apply the Electric Park Brake.
4. Place the gear selector into PARK (P).
5. Place the ignition in the OFF mode.
6. Block both the front and rear of the wheel

diagonally opposite of the jacking position.

For example, if changing the left rear tire,

block the right front wheel.

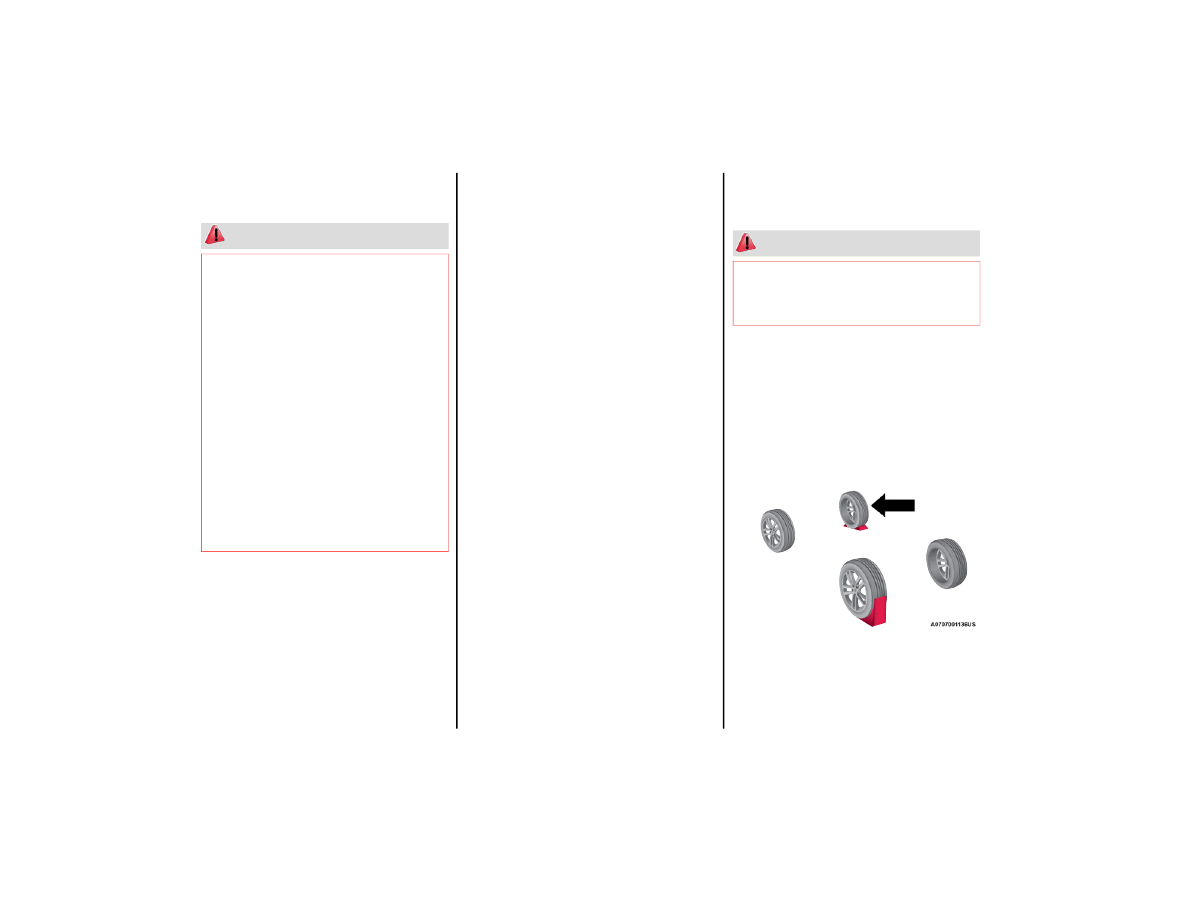

Wheel Blocking Example

 WARNING!

Do not attempt to change a tire on the side of

the vehicle close to moving traffic. Pull far

enough off the road to avoid the danger of

being hit when operating the jack or

changing the wheel.

Being under a jacked-up vehicle is

dangerous. The vehicle could slip off the jack

and fall on you. You could be crushed. Never

put any part of your body under a vehicle that

is on a jack. If you need to get under a raised

vehicle, take it to a service center where it

can be raised on a lift.

Never start or run the engine while the

vehicle is on a jack.

The jack is designed to be used as a tool for

changing tires only. The jack should not be

used to lift the vehicle for service purposes.

The vehicle should be jacked on a firm level

surface only. Avoid ice or slippery areas.

 WARNING!

Do not attempt to change a tire on the side of

the vehicle close to moving traffic. Pull far

enough off the road to avoid being hit when

operating the jack or changing the wheel.

CarManuals2.com

187

7. Open the liftgate and lift up the load floor

using the handle.

8. Take the warning triangle and position it at a

suitable distance from the vehicle to warn

oncoming vehicles.

9. Unscrew the locking plate and take out the

compact spare tire and the air compressor.

Compact Spare Tire — If Equipped

10. Remove the damaged wheel by using the

wheel wrench to loosen the bolts by one turn.

11. Position the jack under the vehicle, near the

wheel to be changed, taking care not to

damage the plastic body panel.

12. Lift the extension lever on the wrench.

Jacking Location

13. Rotate the extension lever clockwise until the

round pin on the jack engages in the hole in

the lifting block located about 6 inches

(15 cm) from the outside edge of the body.
The lifting points are marked by triangles

visible on the plastic body panel.

Jacking Point Indicators

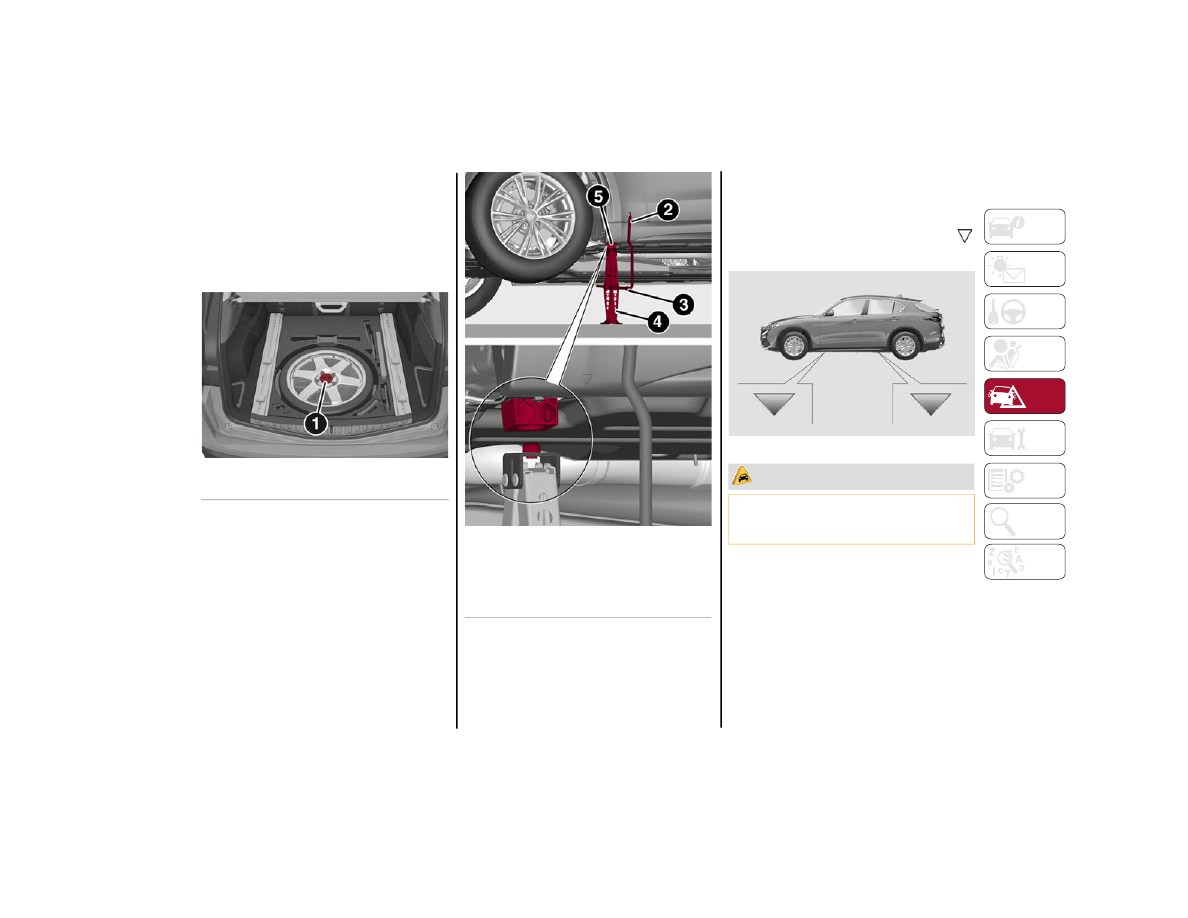

1 — Locking Plate

2 — Extension Lever
3 — Wrench Head
4 — Jack
5 — Lifting Block

 CAUTION!

Do not attempt to raise the vehicle by jacking

on locations other than those indicated in the

Jacking Instructions for this vehicle.

CarManuals2.com

IN CASE O

F EM

ERGENCY

188

14. Raise the vehicle by turning the jack screw

clockwise, using the swivel wrench. Raise the

vehicle only until the tire just clears the

surface and enough clearance is obtained to

install the compact spare tire. Minimum tire

lift provides maximum stability.

15. Remove the five wheel bolts and take the

wheel off.

16. Make sure the contact surfaces between

compact spare tire and hub are clean so that

the fastening bolts will not come loose.

17. Fit the compact spare tire by inserting the

first wheel bolt for two threads into the hole

closest to the valve.

18. Take the wheel wrench and tighten the

wheel bolts.

19. Inflate the compact spare tire by removing

the cap from its inflation valve and screwing

on the compressor inflation hose fitting.

20. Make sure that the switch on the compressor

is in the O (off) position, open the liftgate and

insert the plug into the power socket in the

cargo area, or on the center console and

start the engine. Place the on/off switch in

the I (on) position.

Attaching Compressor To Tire

21. Inflate the compact spare tire to a pressure of

43.5 psi (3 bar).

NOTE:

If spare tire is overinflated, be sure to lower the

psi in the tire to the recommended amount by

using the deflation button on the air compressor.
22. Operate the wheel wrench on the jack to

lower the vehicle.

23. Remove the jack.

24. Use the wheel wrench to fully tighten the

bolts, passing alternately from one bolt to the

diagonally opposite one.

To obtain a more accurate reading, it is advisable

to check the pressure of the compact spare tire

on the pressure gauge with the compressor off.
NOTE:

Do not stow the deflated tire in the compact

spare tire location.
The compressor was designed for inflating the

compact spare tire. Do not use it for inflating

mattresses, rafts, etc.
NOTE:

Spare tires are intended for temporary use only.
Have the full-sized tire repaired or replaced, as

soon as possible.

 WARNING!

Raising the vehicle higher than necessary can

make the vehicle less stable. It could slip off

the jack and hurt someone near it. Raise the

vehicle only enough to remove the tire.

 CAUTION!

Be sure to mount the spare tire with the valve

stem facing outward. The vehicle could be

damaged if the spare tire is mounted

incorrectly.

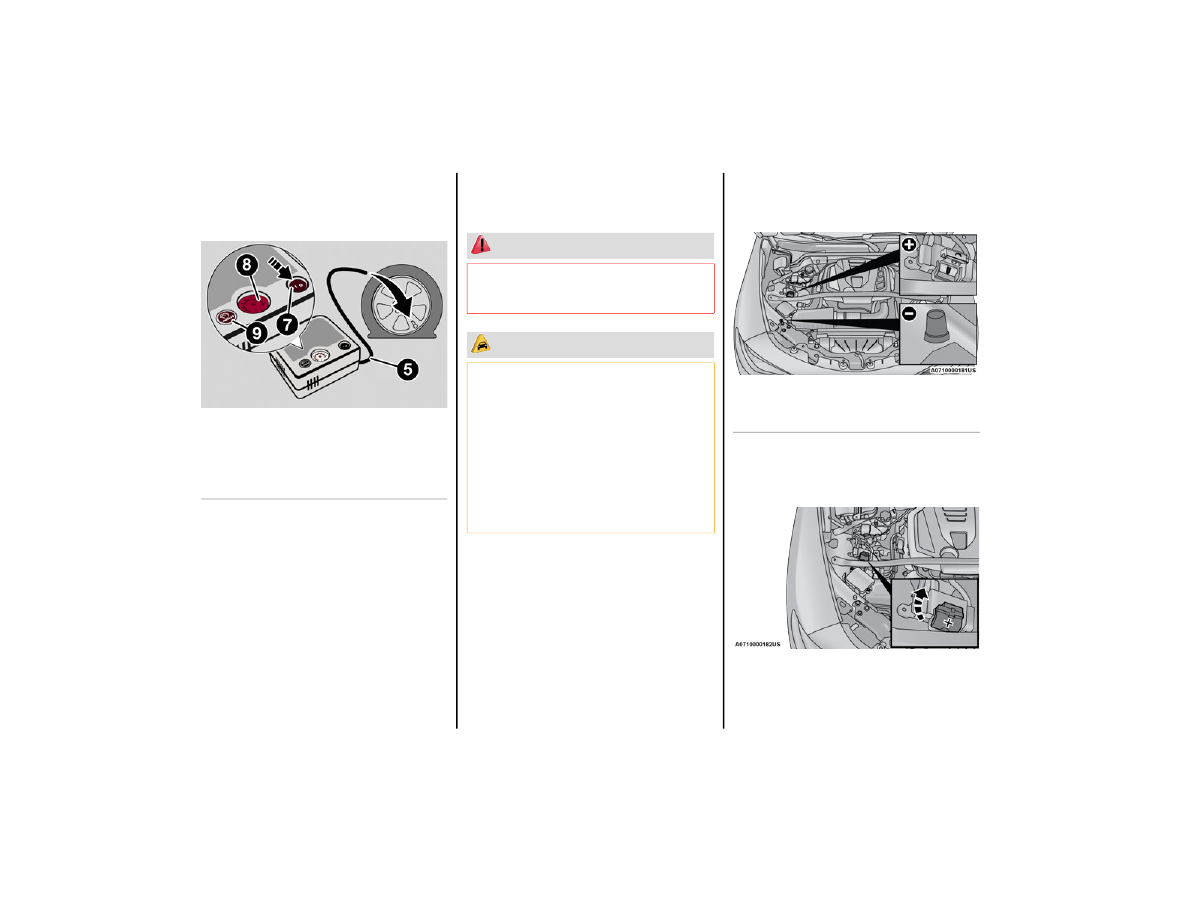

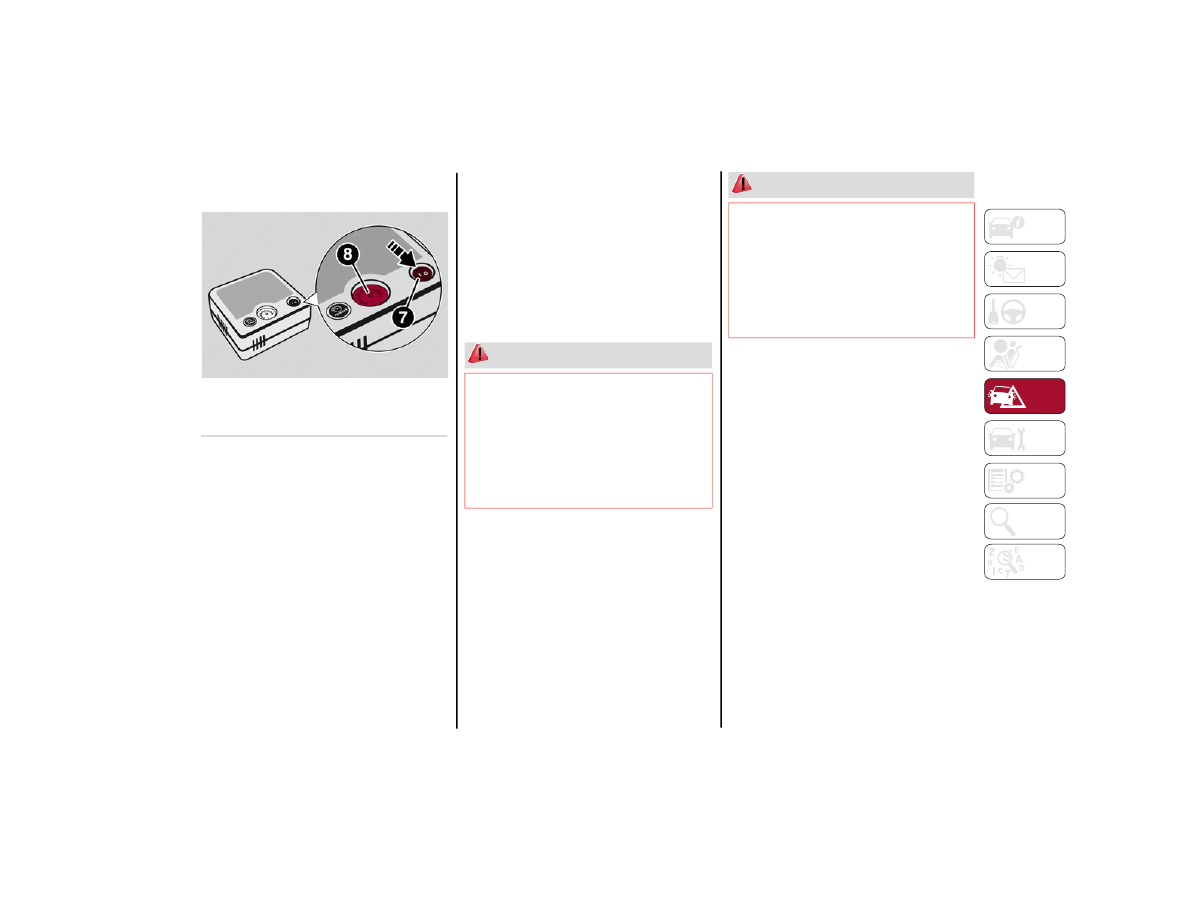

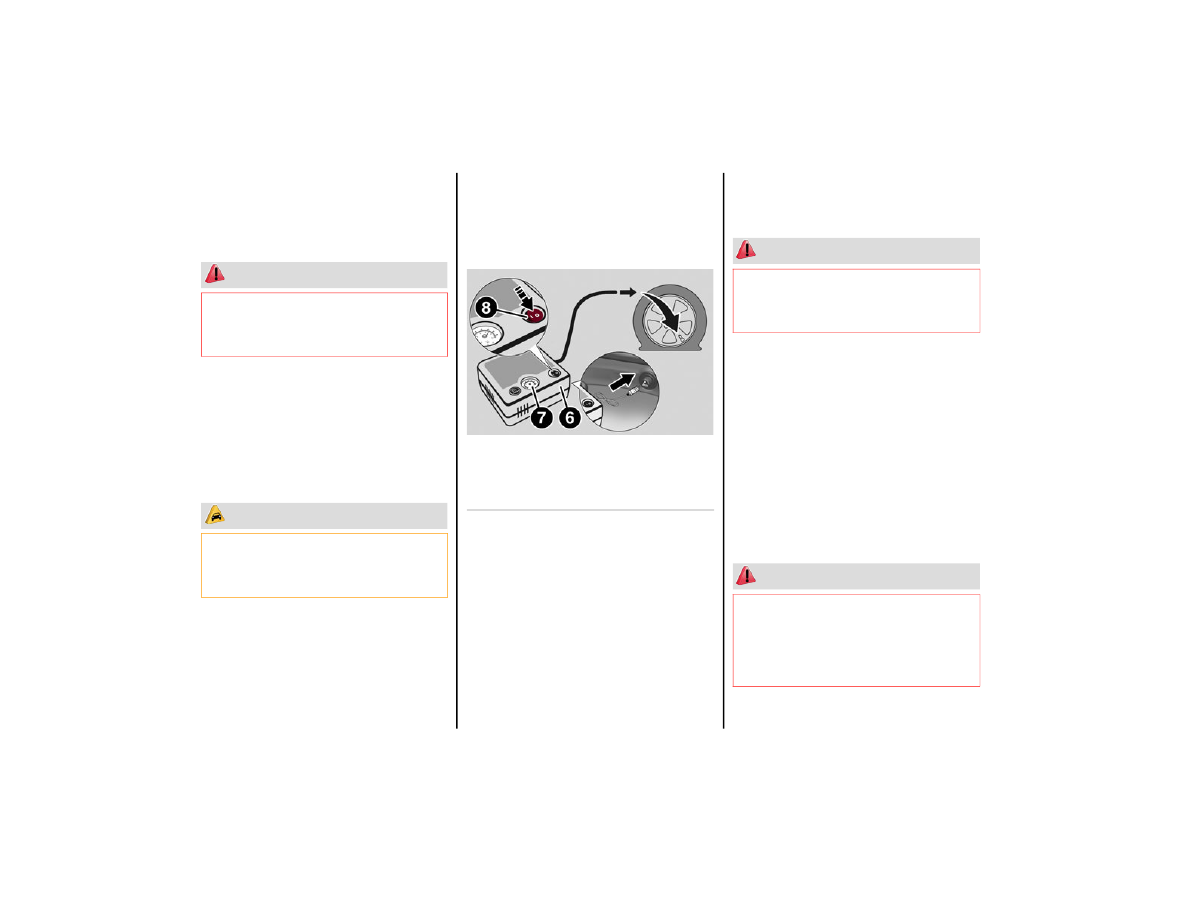

6 — Air Compressor
7 — Pressure Gauge
8 — Power Button

 WARNING!

To avoid the risk of forcing the vehicle off the

jack, do not tighten the wheel nuts fully until

the vehicle has been lowered. Failure to follow

this warning may result in serious injury.

 WARNING!

A loose tire or jack thrown forward in a

collision or hard stop could endanger the

occupants of the vehicle. Always stow the jack

parts and the spare tire in the places provided.

Have the deflated (flat) tire repaired or

replaced immediately.

CarManuals2.com

189

TIRE SERVICE KIT —

IF EQUIPPED

D

ESCRIPTION

If a tire is punctured, you can make an emergency

repair using the Tire Service Kit located in the rear

storage area under the load platform.
1. Stop the vehicle in a position where you can

repair the tire safely. You should be as far as

possible from the side of the road, and in a

position that is not dangerous for oncoming

traffic. Turn on the Hazard Warning Flashers,

remove the safety triangle from the luggage

compartment, and place it at a suitable

distance from the vehicle to make other

drivers aware of your presence.

2. Verify that the valve stem (on the wheel with

the deflated tire) is in a position that is near

to the ground. This will allow the tire repair kit

hoses to reach the valve stem and keep the

tire service kit flat on the ground.

3. Place the gear selector in PARK (P).
4. Apply the electric park brake and turn the

engine OFF.

To access the Tire Service Kit, open the liftgate

and lift the load floor.

Load Floor

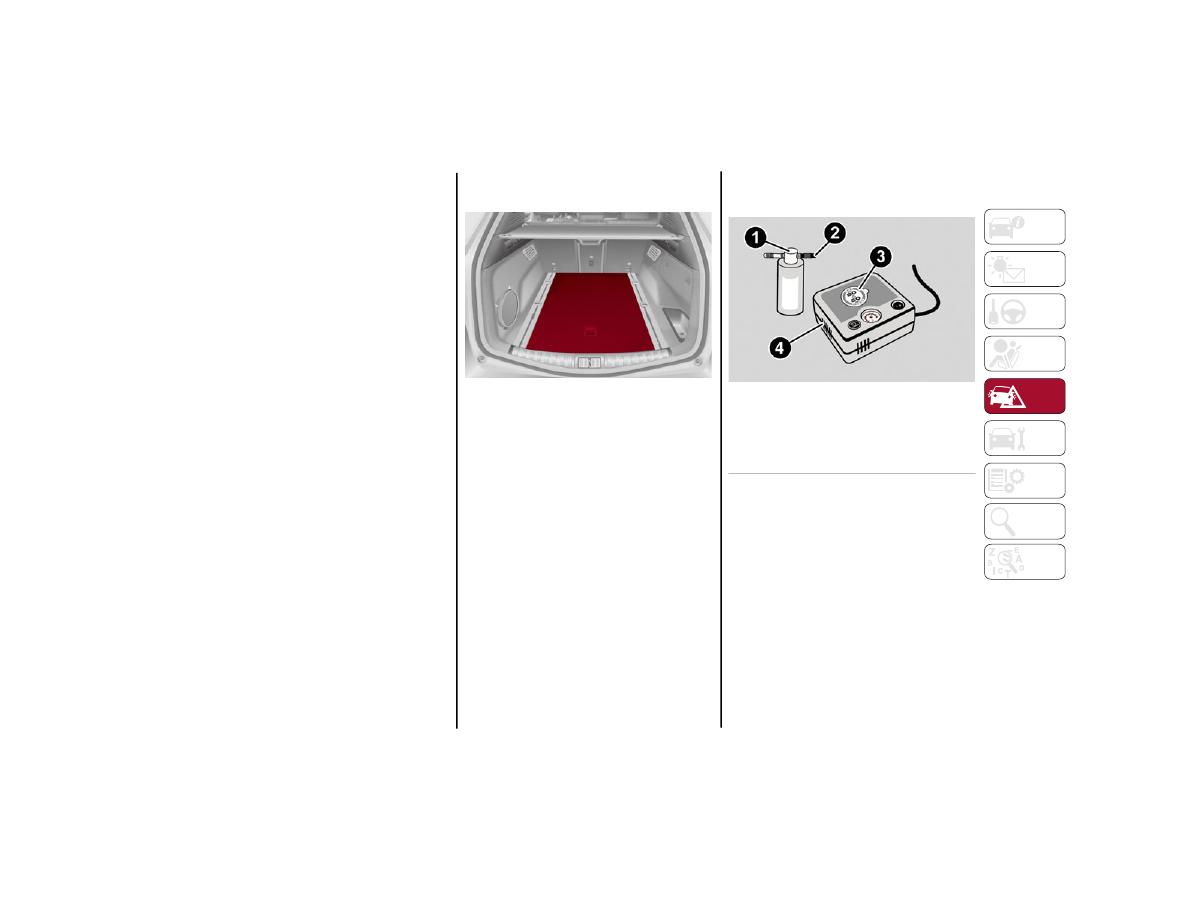

The Tire Service Kit consists of:

Sealant cartridge containing the sealing fluid

Filler Tube

Air compressor, complete with pressure gauge

and connectors

Adhesive label with the writing "Max. 50 mph

(80 km/h)”, to be attached in a position easily

visible to the driver (e.g. on the dashboard)

after repairing the tire

An instruction pamphlet for reference in

prompt and correct use of the Tire Service Kit,

which must be then given to the personnel

dealing with the sealant-treated tire

A pair of protective gloves

Some adapters, for inflating different elements

Tire Service Kit Components

NOTE:

The sealing fluid is effective with external

temperatures of between -40°F (-40°C) and

122°F (50°C).

The sealing fluid has an expiration date.

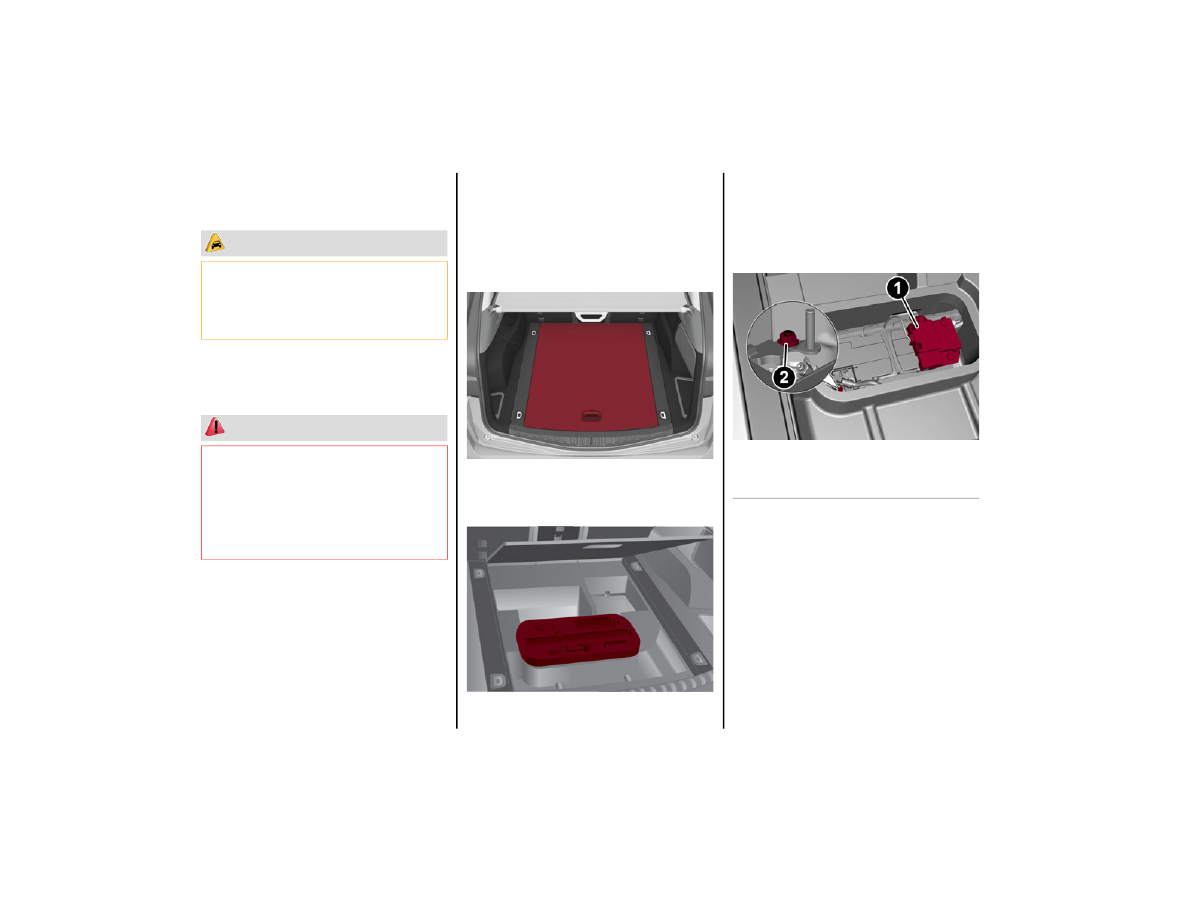

1 — Sealant Cartridge
2 — Filling Hose
3 — Adhesive Label
4 — Air Compressor

CarManuals2.com

IN CASE O

F EM

ERGENCY

190

(Continued)

I

NFLATION

 P

ROCEDURE

To use the Tire Service Kit, proceed as follows:
1. Apply the Electric Park Brake.
2. Connect the hose to the sealant cartridge

containing the sealing liquid. Unscrew the tire

valve cap, take out the filler tube and tighten

the fitting on the tire valve.

Attaching Filler Tube To Deflated Tire

3. Make sure the power switch of the

compressor is in the O (off) position.

4. Insert the plug into the power outlet in the

center console, then start the engine.

Inserting Plug Into Outlet

 WARNING!

Do not attempt to seal a tire on the side of

the vehicle closest to traffic. Pull far enough

off the road to avoid the danger of being hit

when using the Tire Service Kit.

Do not use Tire Service Kit or drive the

vehicle under the following circumstances:

If the puncture in the tire tread is approx-

imately 1/4 inch (6 mm) or larger.

If the tire has any sidewall damage.

If the tire has any damage from driving

with extremely low tire pressure.

If the tire has any damage from driving

on a flat tire.

If the wheel has any damage.

If you are unsure of the condition of the

tire or the wheel.

Keep Tire Service Kit away from open flames

or heat sources.

A loose Tire Service Kit thrown forward in a

collision or hard stop could endanger the

occupants of the vehicle. Always stow the

Tire Service Kit in the place provided. Failure

to follow these warnings can result in injuries

that are serious or fatal to you, your

passengers, and others around you.

Take care not to allow the contents of Tire

Service Kit to come in contact with hair, eyes,

or clothing. Tire Service Kit sealant is harmful

if inhaled, swallowed, or absorbed through

the skin. It causes skin, eye, and respiratory

irritation. Flush immediately with plenty of

water if there is any contact with eyes or skin.

Change clothing as soon as possible, if there

is any contact with clothing.

Tire Service Kit Sealant solution contains

latex. In case of an allergic reaction or rash,

consult a physician immediately. Keep Tire

Service Kit out of reach of children. If

swallowed, rinse mouth immediately with

plenty of water and drink plenty of water.

Do not induce vomiting! Consult a physician

immediately.

 WARNING!

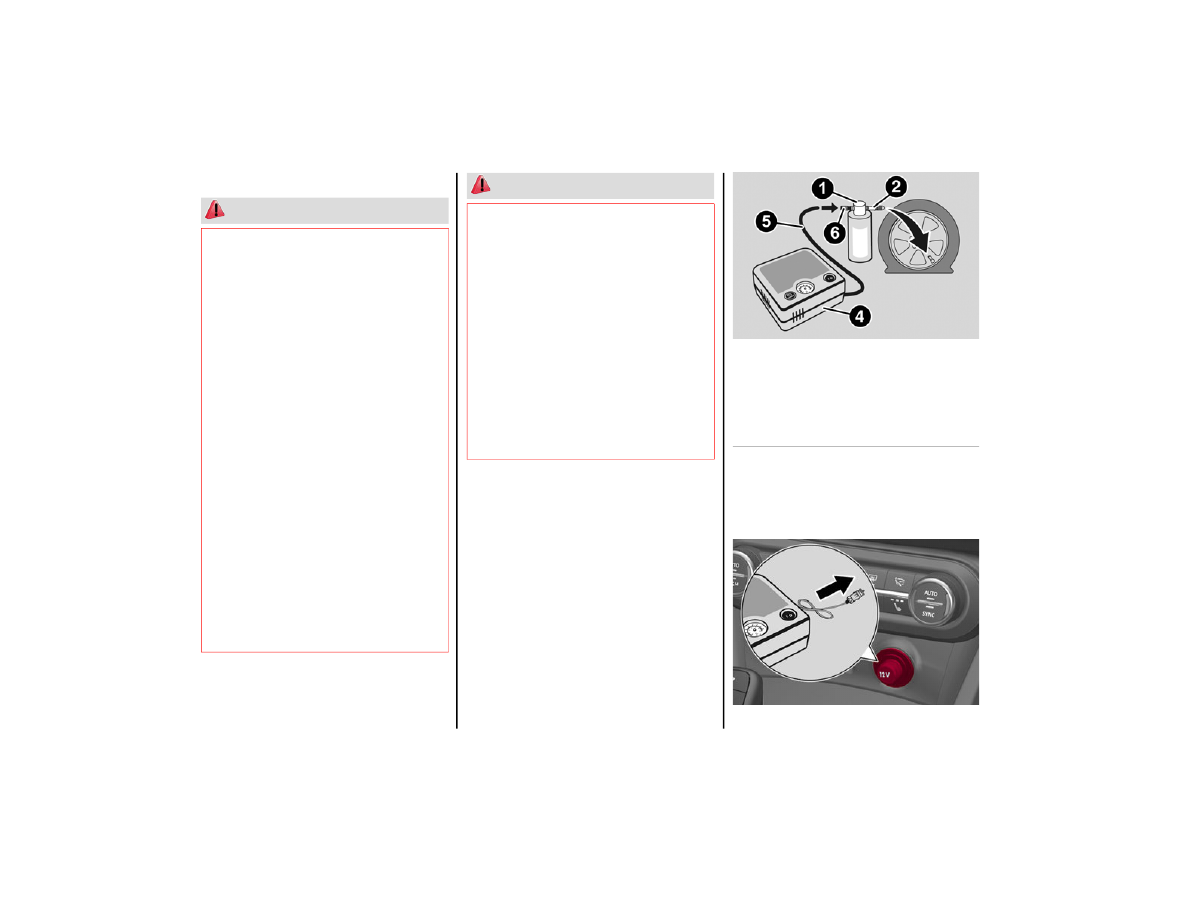

1 — Sealant Cartridge
2 — Filler Hose
4 — Air Compressor
5 — Hose
6 — Sealant Cartridge Connector

CarManuals2.com

191

5. Start the compressor by placing the power

switch in the I (on) position.

Air Compressor

6. Inflate the tire to a pressure of at least

32 psi (2.2 bar)

Ú

page 224. In order to

obtain a more precise reading, check the

pressure value on pressure gauge with the

compressor off.

7. If the pressure is not at least 26 psi (1.8 bar)

after 15 minutes, disengage the compressor

from the valve and power outlet. Then, move

the vehicle forwards approximately five tire

turns in order to distribute the sealing fluid

inside the tire evenly, and then repeat the

inflation operation.

8. Drive the vehicle for about 5 miles (8 km),

stop, engage the electric park brake, and

recheck the tire pressure.

9. If the pressure is less than 19 psi (1.3 bar),

DO NOT drive the vehicle, and see an autho

-

rized dealer.

10. If a pressure value of at least 19 psi (1.3 bar)

is detected, restore the correct pressure (with

engine running and electric park brake

engaged), and drive immediately with great

care to an authorized dealer.

11. Apply the adhesive label from the sealant

bottle where it can be easily seen by the

driver as a reminder that the tire has been

treated with a Tire Service Kit, as well as

not to exceed the speed restriction for the

treated tire.

NOTE:

Only use original sealant cartridges, which can be

purchased at an authorized dealer.

C

HECKING

 A

ND

 R

ESTORING

 T

IRE



P

RESSURE

The compressor can also be used to check and, if

necessary, restore the tire pressure.
Proceed as follows:
1. Make sure that the power switch is in the

O (off) position.

2. Connect the hose directly to the valve on the

tire to be inflated.

3. Insert the plug into the socket in the

passenger compartment or in the cargo area

and start the engine.

7 — Power Switch
8 — Pressure Gauge

 WARNING!

Tire Service Kit is not a permanent flat tire

repair. Have the tire inspected and repaired or

replaced after using Tire Service Kit. Do not

exceed 50 mph (80 km/h) until the tire is

repaired or replaced. Failure to follow this

warning can result in injuries that are serious

or fatal to you, your passengers, and others

around you. Have the tire checked as soon as

possible at an authorized dealer.

 WARNING!

Do not adhere the speed restriction sticker to

the padded area on the steering wheel.

Adhering the speed restriction sticker to the

padded area on the steering wheel is

dangerous because the air bag may not

operate (deploy) normally resulting in serious

injury. In addition, do not adhere the sticker to

areas where warning lights or the

speedometer cannot be viewed.

CarManuals2.com

IN CASE O

F EM

ERGENCY

192

4. Start the compressor by putting the power

switch to I (on). As soon as the correct pres

-

sure is reached, put the power switch to

O (off).

Air Compressor And Components

If the tire is overinflated, reduce the pressure by

pushing the PSI/BAR button and releasing it

when the correct pressure is reached.

JUMP STARTING

If your vehicle has a discharged battery, it can be

jump started from the remote battery

connections by using a set of jumper cables and

a battery in another vehicle, or by using a

portable battery booster pack. Jump starting can

be dangerous if done improperly, so please follow

the procedures in this section carefully.

NOTE:

When using a portable battery booster pack,

follow the manufacturer's operating instructions

and precautions.

R

EMOTE

 B

ATTERY

 C

ONNECTION

 P

OSTS

Your vehicle is equipped with remote battery

connection posts for jump starting. Depending

on the vehicle model, remote post locations

may vary.

Non Quadrifoglio Model

The remote jump starting battery posts can be

found inside the engine compartment.

Remote Battery Post Locations

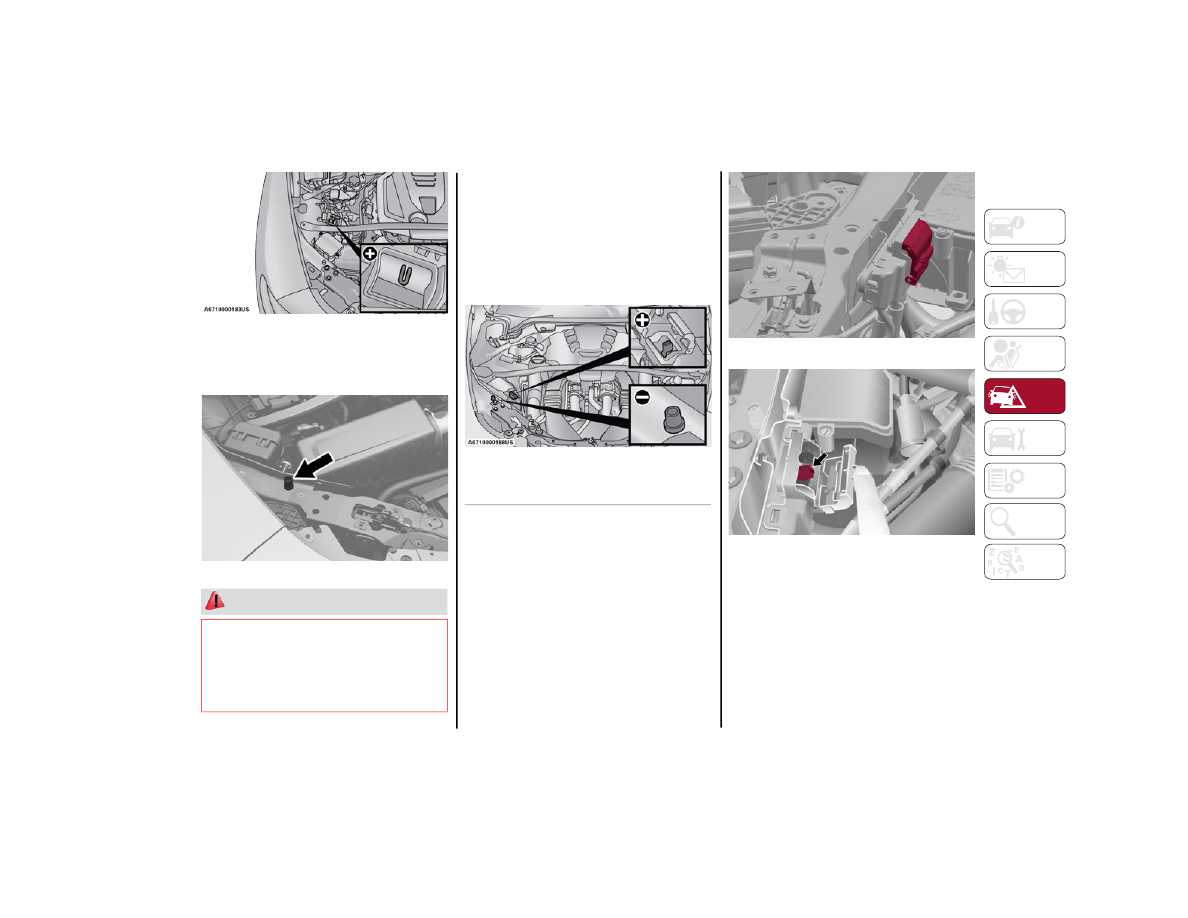

The remote positive (+) post is located above the

engine stabilizer bar, which can be accessed by

opening the spring loaded protective red flap.

Remote Positive (+) Protective Flap

5 — Hose
7 — Power Switch
8 — Pressure Gauge
9 — PSI/BAR Button

 WARNING!

Do not attempt jump starting if the battery is

frozen. It could rupture or explode and cause

personal injury.

 CAUTION!

Do not use the battery for jump starting the

vehicle. Improperly connecting the jumper

cables or booster pack to the battery can

result in electrical system and fuse failure.

Always use the remote battery connection

posts to jump start your vehicle.

Do not use a portable battery booster pack or

any other booster source with a system

voltage greater than 12 Volts or damage to

the battery, starter motor, alternator or

electrical system may occur.

Remote Positive (+) Post
Remote Negative (-) Post

CarManuals2.com

193

Remote Positive (+) Post

The remote negative (-) post is an exposed stud,

positioned next to the passenger side hood lock

on the upper frame rail.

Remote Negative (-) Post Location

To carry out the operation, you need to have the

correct cables to connect to the battery of

another vehicle or a portable battery booster

pack to the remote posts of the discharged

battery. Usually, these cables have terminals at

the ends and are identified by different sheath

colors (red = positive, black = negative).

Quadrifoglio Model

Remote Battery Post Locations

The remote positive (+) post is located next to the

passenger side hood lock on the inside of the

upper frame rail, and can be accessed by

removing the protective red flap.

Remote Positive (+) Protective Flap

Remote Positive (+) Post Location

 WARNING!

Do not connect the jumper cable to the

negative (-) post of the discharged battery.

The resulting electrical spark could cause the

battery to explode and could result in serious

injury. Only use the specific ground point, do

not use any other exposed metal parts.

Remote Positive (+) Post
Remote Negative (-) Post

CarManuals2.com

IN CASE O

F EM

ERGENCY

194

The remote negative (-) post is an exposed stud,

positioned next to the passenger side hood lock

on the upper frame rail.

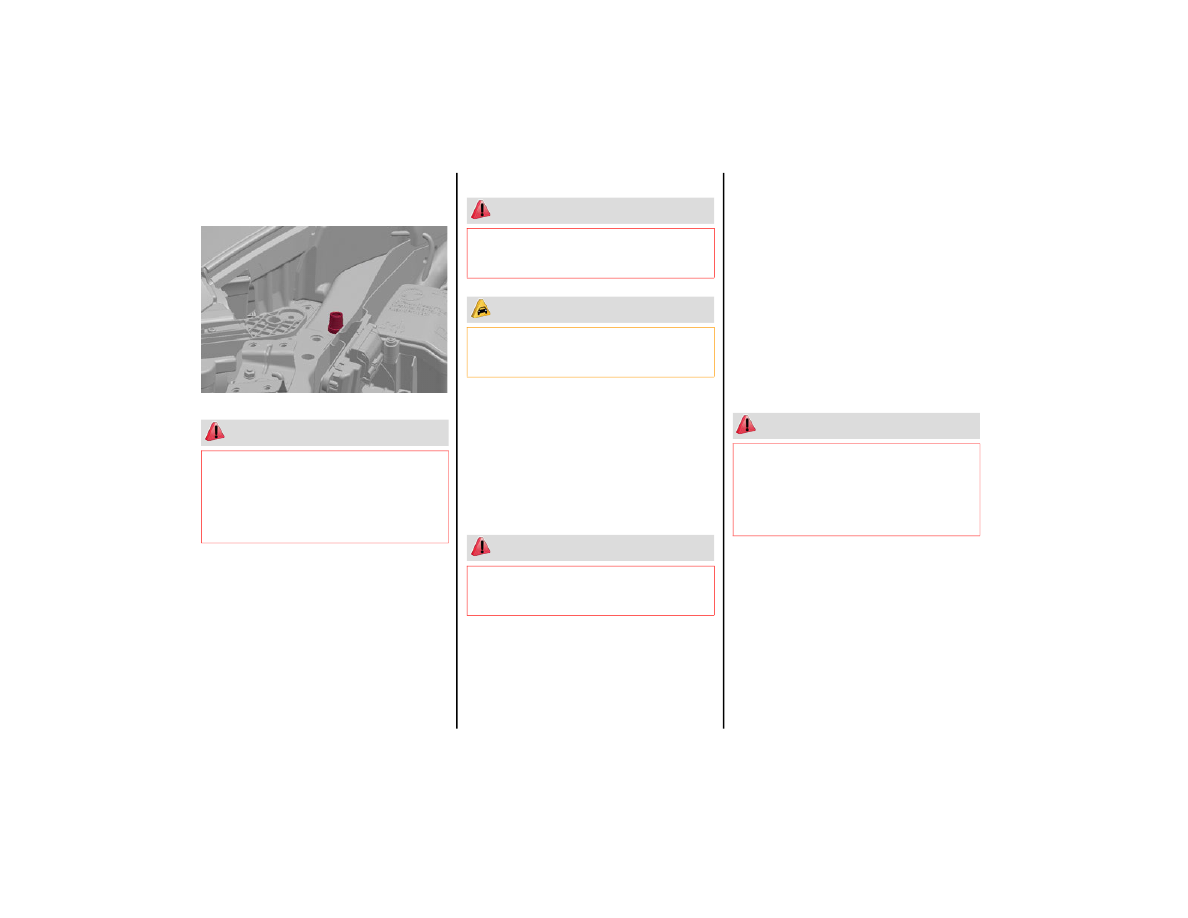

Remote Negative (-) Post Location

To carry out the operation, you need to have the

correct cables to connect to the battery of

another vehicle or a portable battery booster

pack to the remote posts of the discharged

battery. Usually, these cables have terminals at

the ends and are identified by different sheath

colors (red = positive, black = negative).

J

UMP

 S

TARTING

 P

ROCEDURE

Preparation For Jump Starting:
1. Firmly apply the park brake, and cycle the

ignition to OFF.

2. Turn off all electrical features in the vehicle.
3. If using another vehicle to jump start the

battery, park the vehicle within the jumper

cables reach, apply the park brake and make

sure the ignition is OFF.

Cable Connection
Proceed as follows to perform a jump starting

procedure:
1. Connect the positive (+) end of the jumper

cable to the remote positive (+) post of the

vehicle with the discharged battery.

2. Connect the opposite end of the positive (+)

jumper cable to the positive (+) post of the

booster battery.

3. Connect the negative (-) end of the jumper

cable to the negative (-) post of the booster

battery.

4. Connect the opposite end of the negative (-)

jumper cable to the remote negative (-) post

of the discharged vehicle.

5. Start the engine in the vehicle that has the

booster battery, let the engine idle a few

minutes, and then start the engine in the

vehicle with the discharged battery. If using a

portable battery booster pack, before starting

the vehicle, wait a few seconds after

completing the connection.

6. Once the engine is started, follow the discon

-

nection procedure.

 WARNING!

Do not connect the jumper cable to the

negative (-) post of the discharged battery.

The resulting electrical spark could cause the

battery to explode and could result in serious

injury. Only use the specific ground point, do

not use any other exposed metal parts.

 WARNING!

Failure to follow this jump starting procedure

could result in personal injury or property

damage due to battery explosion.

 CAUTION!

Failure to follow these procedures could result

in damage to the charging system of the

booster vehicle or the discharged vehicle.

 WARNING!

Do not allow vehicles to touch each other as

this could establish a ground connection and

personal injury could result.

 WARNING!

Do not connect the jumper cable to the

negative (-) post of the discharged battery. The

resulting electrical spark could cause the

battery to explode and could result in serious

injury. Only use the specific ground point, do

not use any other exposed metal parts.

CarManuals2.com

195

Cable Disconnection
1. Disconnect the negative (-) end of the jumper

cable from the remote negative (-) post of the

vehicle with the discharged battery.

2. Disconnect the opposite end of the negative

(-) jumper cable from the negative (-) post of

the booster battery.

3. Disconnect the positive (+) end of the jumper

cable from the positive (+) post of the booster

battery.

4. Disconnect the opposite end of the positive (+)

jumper cable from the remote positive (+) post

of the vehicle with the discharged battery, and

reinstall the protective cap.

If frequent jump starting is required to start your

vehicle, you should have the battery and charging

system inspected at an authorized dealer.

B

UMP

 S

TARTING



Never jump start the engine by pushing, towing or

coasting downhill.
NOTE:

You cannot start a vehicle with an automatic

transmission by pushing it.

ENGINE OVERHEATING

If your vehicle is overheating, it will need to be

serviced at an authorized dealer.
Engine overheating may occur in situations such

as (but not limited to) extreme environmental

temperatures or frequent engine stops/starts.

If the engine becomes overheated, the Engine

Temperature Warning Light in the instrument

cluster will illuminate along with a dedicated

message

Ú

page 80.

In any of the following situations, you can reduce

the potential for overheating by taking the

appropriate action.

On the highways — slow down.

In city traffic — while stopped, place the

transmission in NEUTRAL, but do not increase

engine idle speed.

NOTE:

There are steps that you can take to slow down an

impending overheat condition:

If your Air Conditioner (A/C) is on, turn it off.

The A/C system adds heat to the engine

cooling system and turning the A/C off can

help remove this heat.

You can also turn the temperature control to

maximum heat, the mode control to floor and

the blower control to high. This allows the

heater core to act as a supplement to the

radiator and aids in removing heat from the

engine cooling system.

NOTE:

If the cooling fan does not operate while the

engine is running, the engine temperature will

increase. Stop the engine and contact an

authorized dealer.

If the engine continues to overheat or

frequently overheats, have the cooling system

inspected. The engine could be seriously

damaged unless repairs are made. Contact an

authorized dealer.

 CAUTION!

Accessories plugged into the vehicle power

outlets draw power from the vehicle’s battery,

even when not in use (i.e., cellular phones,

etc.). Eventually, if plugged in long enough

without engine operation, the vehicle’s battery

will discharge sufficiently to degrade battery

life and/or prevent the engine from starting.

 WARNING!

You or others can be badly burned by hot

engine coolant (antifreeze) or steam from your

radiator. If you see or hear steam coming from

under the hood, do not open the hood until

the radiator has had time to cool. Never try to

open a cooling system pressure cap when the

radiator or coolant bottle is hot.

 CAUTION!

Driving with a hot cooling system could

damage your vehicle. If temperature gauge

reads “H”, pull over and stop the vehicle. Idle

the vehicle with the air conditioner turned off

until the pointer drops back into the normal

range. If the pointer remains on the “H”, turn

the engine off immediately, and call for

service.

CarManuals2.com

IN CASE O

F EM

ERGENCY

196

(Continued)

MANUAL PARK RELEASE

See an authorized dealer to disengage the

manual park release lever.

TOWING A DISABLED

VEHICLE

This section describes procedures for towing a

disabled vehicle using a commercial towing

service.

NOTE:

If your vehicle is equipped with a Anti-Lift Protec

-

tion system, you will need to disable the system

prior to towing by pushing the button located on

the overhead console

Ú

page 24.

The operators of the assistance vehicle must be

informed with regard to the vehicle's minimum

height from ground in order to avoid contact

between the ends of the bumpers with the

equipment of the breakdown truck.
The following image illustrates the front and rear

attachment corners of the vehicle, to be taken

into consideration when loading the vehicle on

the commercial towing vehicle.

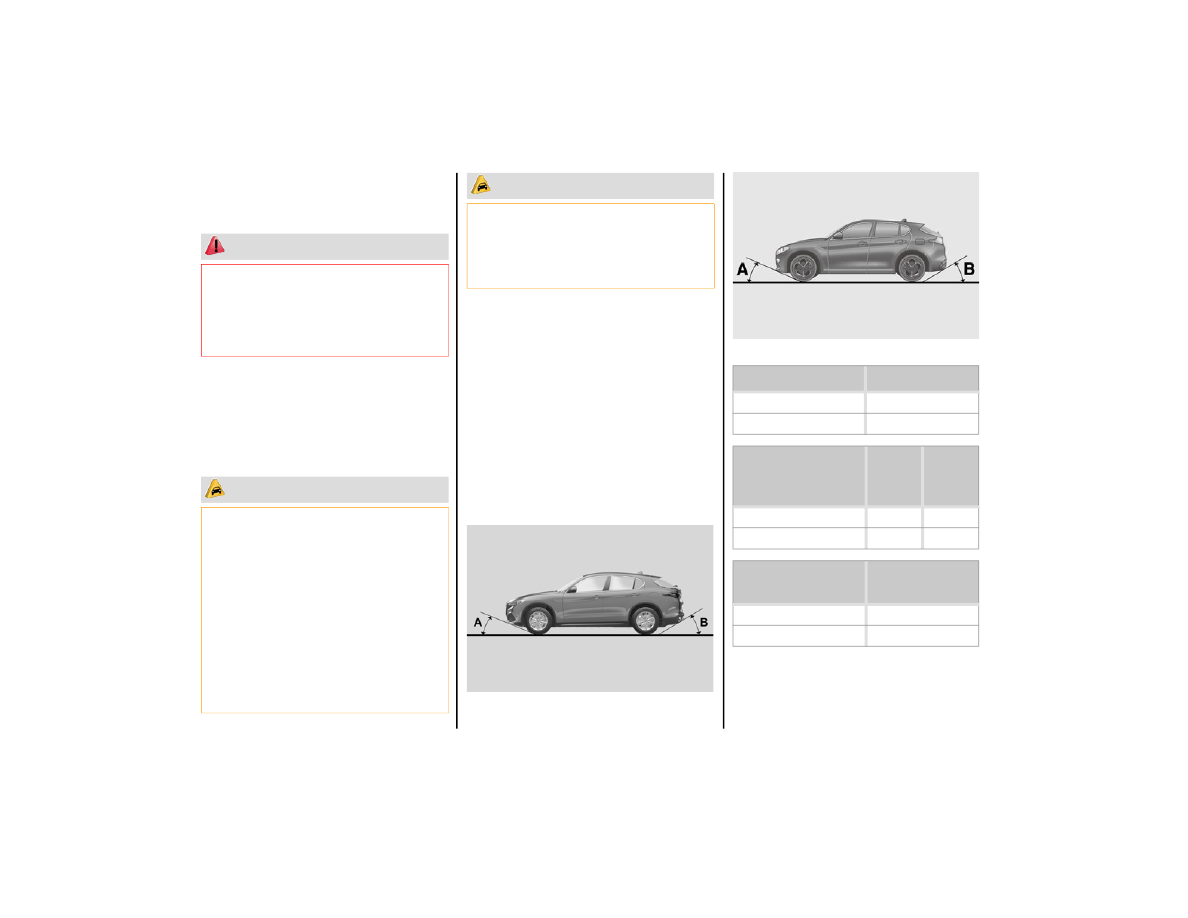

Front And Rear Loading Angles

Front And Rear Loading Angles

 WARNING!

A special tool is required to perform this

procedure. Damage to the vehicle or serious

injury or death may occur if the procedure is

performed improperly. Please contact an

authorized dealer to have this procedure

performed.

 CAUTION!

The vehicle should be transported with all

four wheels OFF the ground on the flatbed of

a roadside assistance vehicle. Avoid towing

with only the front (or rear) wheels lifted.

When towing with only the front (or rear)

wheels lifted, in addition to damaging the

body, it could damage the transmission.

Do not use sling-type equipment when

towing. Vehicle damage may occur.

When securing the vehicle to a flatbed truck,

do not attach to front or rear suspension

components. Damage to your vehicle may

result from improper towing.

Ensure that the Electric Park Brake is

released, and remain released, while

being towed.

Damage from improper towing is not covered

under the New Vehicle Limited Warranty.

 CAUTION!

AWD Models

A — Front Loading Angle

21.7°

B — Rear Loading Angle

18.3°

AWD

Models

Quadri

-

foglio

Models

A — Front Loading Angle

21.7°

20.8°

B — Rear Loading Angle

18.3°

21.0°

Quadrifoglio

Models

A — Front Loading Angle

20.8°

B — Rear Loading Angle

21.0°

CarManuals2.com

197

F

OUR

-W

HEEL

 D

RIVE

 (AWD) M

ODELS

It is recommended to tow the vehicle with all

four wheels OFF the ground on the flatbed of a

commercial towing vehicle.

TOW EYES

If the vehicle has been in an accident or has

broken down, a tow eye is provided in the tools

container located inside the luggage

compartment for vehicle towing. Towing is meant

only for short distances on a paved road surface.
Proceed as follows to use the tow eye:
1. Unhook the cap on the front grille or

rear bumper (if equipped), pushing on the

upper part.

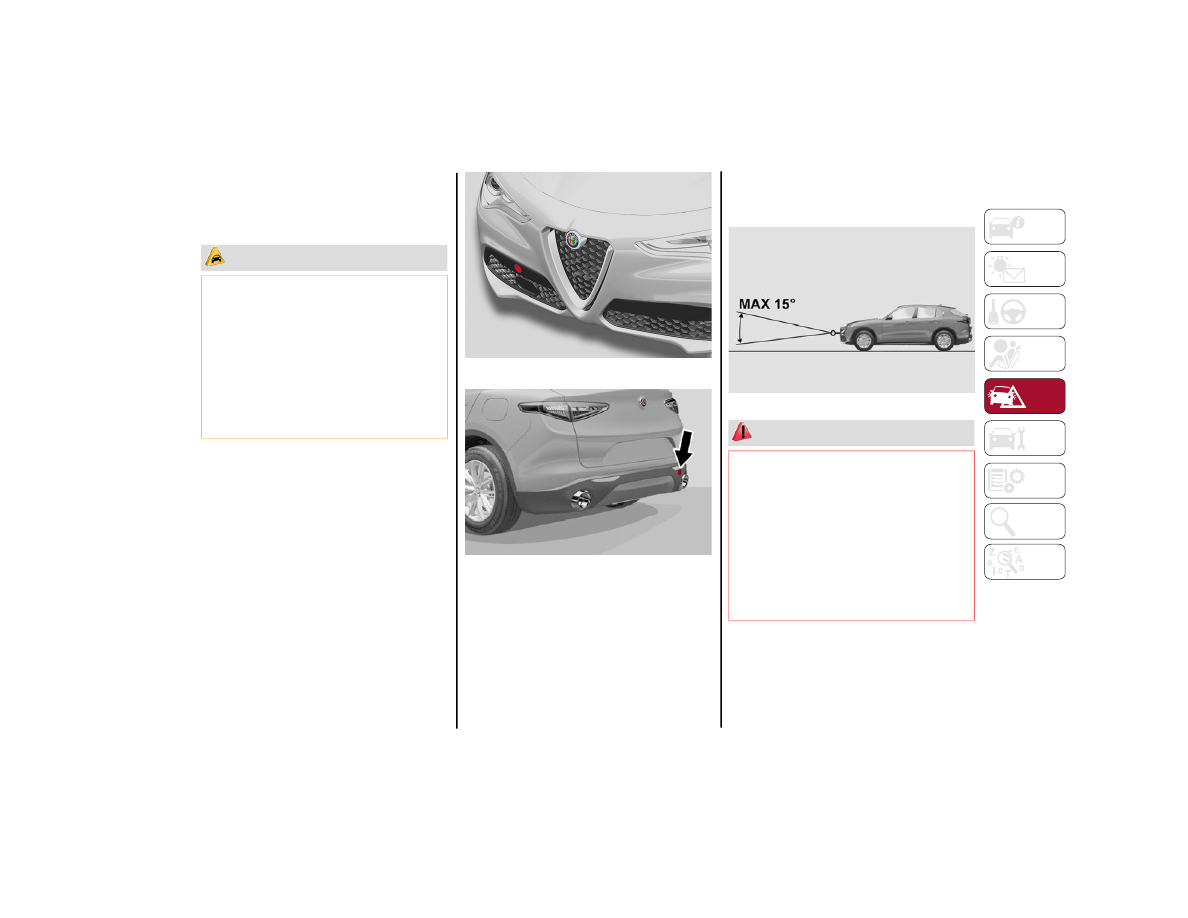

Front Tow Eye Cap

Rear Tow Eye Cap

2. Remove the tow eye from its housing in

the luggage compartment and carefully clean

the threaded housing on the vehicle before

using it.

3. Tighten the vehicle's tow eye in place

(about 11 turns).

NOTE:

The largest work angle of a tow cable to fix on the

tow eye must not exceed 15°.

Work Angle Of Tow Cable

 CAUTION!

DO NOT flat tow this vehicle. Damage to the

drivetrain will result.

DO NOT dolly tow this vehicle. Use of a towing

dolly can cause significant damage to your

vehicle.

Towing this vehicle in violation of the above

requirements can cause severe transmission

damage. Damage from improper towing is not

covered under the New Vehicle Limited

Warranty.

 WARNING!

Stand clear of vehicles when pulling with

tow eyes.

Do not use a chain with a tow eye. Chains

may break, causing serious injury or death.

Do not use a tow strap with a tow eye. Tow

straps may break or become disengaged,

causing serious injury or death.

Failure to follow proper tow eye usage may

cause components to break resulting in

serious injury or death.

CarManuals2.com

IN CASE O

F EM

ERGENCY

198

(Continued)

ENHANCED ACCIDENT

RESPONSE SYSTEM (EARS)

This vehicle is equipped with an Enhanced

Accident Response System.
This feature is a communication network that

takes effect in the event of an impact

Ú

page 168.

EVENT DATA RECORDER

(EDR)

This vehicle is equipped with an event data

recorder (EDR). The main purpose of an EDR is to

record data that will assist in understanding how

a vehicle’s systems performed under certain

crash or near crash-like situations, such as an

air bag deployment or hitting a road obstacle

Ú

page 170.

 CAUTION!

The tow eye must be used exclusively for

roadside assistance operations. Only use

the tow eye with an appropriate device in

accordance with the highway code (a rigid

bar or rope) to flat tow the vehicle for a short

distance to the nearest service location.

Tow eyes MUST NOT be used to tow vehicles

off the road or where there are obstacles.

In compliance with the above conditions,

towing with a tow eye must take place with

two vehicles (one towing, the other towed)

aligned as much as possible along the same

center line. Damage to your vehicle may

occur if these guidelines are not followed.

When towing, only use a facility that can

tow vehicles with low ground clearances as

extensive damage can result by using a

standard tow truck platform.

 CAUTION!

CarManuals2.com

199

Correct servicing permits the performance of the

vehicle to be maintained over time, as well as

limited running costs and safeguarding the

efficiency of the safety systems.

SCHEDULED SERVICING

Correct servicing is crucial for guaranteeing a

long life for the vehicle under the best conditions.
For this reason, Alfa Romeo has planned a series

of checks and services for your vehicle at fixed

intervals based on distance and time, as

described in the Scheduled Servicing Plan.
Before each service, it is always necessary to

carefully follow the instructions in the Scheduled

Servicing Plan (e.g. periodically check level of

fluids, tire pressure, etc.).
Scheduled Servicing is offered by an authorized

dealer according to a set time schedule. If, during

each operation, in addition to the ones

scheduled, the need arises for further

replacements or repairs, these may be carried

out with the owner’s explicit consent only.
NOTE:

Scheduled Servicing intervals are required by the

manufacturer. Failure to have them carried out

may invalidate the New Vehicle Limited Warranty.
You are advised to inform an authorized dealer of

any small operating irregularities without waiting

for the next service.

P

ERIODIC

 C

HECKS

Every month or every 620 miles (1,000 km) or

before long trips check and, if necessary, top off:

Engine coolant level.

Brake fluid level (if insufficient, see an

authorized dealer as soon as possible).

Windshield washer fluid level.

Tire inflation pressure and condition.

Operation of lighting system (headlights,

direction indicators, hazard warning lights,

etc.).

Operation of windshield washing/wiping

system and positioning/wear of wiper blades.

Inspect the CV/Universal joints.

Oil consumption of the engine depends on

conditions and driving style. For this reason, the

engine oil level must be checked every

1,860 miles (3,000 km), and top off if necessary;

for further information

Ú

page 205.

H

EAVY

 U

SAGE

 O

F

 T

HE

 V

EHICLE

If the vehicle is used under one of the following

conditions:

Dusty roads.

Short, repeated journeys less than 4 miles

(7 km) at sub-zero outside temperatures.

Engine often idling or driving long distances at

low speeds or long periods of inactivity.

In the event of a long period of inactivity.

The following checks must be carried out more

often than indicated in the Scheduled Servicing

Plan:

Check cleanliness of hood and liftgate locks,

cleanliness and lubrication of linkage.

Visually inspect conditions of: engine,

transmission, pipes and hoses (exhaust/fuel

system/brakes) and rubber elements

(sleeves/bushes, etc.).

Check battery charge and battery fluid level

(electrolyte).

Visually inspect conditions of the accessory

drive belts.

Check and, if necessary, change engine oil and

replace oil filter.

Check and, if necessary, replace cabin air

filter.

Check and, if necessary, replace air cleaner.

Severe Duty All Models
Change engine oil at 4,000 miles (6,500 km) if

the vehicle is operated in a dusty and off-road

environment or is operated predominately at idle

or only very low engine RPM. This type of vehicle

use is considered Severe Duty.

CarManuals2.com

SERVICING AN

D M

AINTENAN

CE

200

M

AINTENANCE

 P

LAN

 — 2.0L E

NGINE

Thousands of miles

10

20

30

40

50

60

70

80

90

100

110

120

130

140

150

Years

1

2

3

4

5

6

7

8

9 10 11 12 13 14 15

Thousands of kilometers

16

32

48

64

80

96

112

128

144

160

176

192

208

224

240

Change engine oil and replace oil filter.

1

SOS backup battery replacement. (if equipped)

2



Check battery charge status with the proper instrument.

Check tire condition/wear and adjust pressure, if

necessary. Check the tire service kit recharge condition and

expiration date.

Check operation of lighting system (headlights, direction

indicators, hazard warning lights, deck lid, passenger

compartment, glove compartment, instrument panel

warning lights, etc.).

Check and, if necessary, top up fluid levels.

3

Check engine control system operation (via diagnostic tool)
and engine oil degradation (if equipped).

4

Visually inspect conditions of: exterior bodywork, underbody

protection, pipes and hoses (exhaust, fuel system, brakes),

rubber elements (sleeves, bushes, etc.).

Check position/wear of front windshield wiper blade.

Check operation of the windshield wiper/washer system

and adjust nozzles, if necessary.

Check cleanliness of hood and luggage compartment locks,

cleanliness and lubrication of linkage.

Visually inspect conditions and wear of front/rear disc brake

pads and operation of pad wear indicators.

CarManuals2.com

201

(o) Recommended operations
(●) Mandatory operations

Visually inspect the condition and tensioning of the

accessory drive belt(s).

Change engine coolant.

Replace transfer case oil (AWD models only).

Replace accessory drive belt(s).

Replace air cleaner cartridge.

5

Replace the additional fuel filter (if equipped).

Change the brake fluid.

6

Replace the passenger compartment cleaner.

5

o

o

o

o

o

o

o

o

Spark plug replacement.

7

1. The actual interval for changing engine oil and replacing the engine oil filter depends on the vehicle usage conditions and is signaled by the warning light or message in the

instrument panel. In all cases, never exceed 1 year/10,000 miles (16,000 km).

2. The SOS backup battery must be replaced every five years, regardless of mileage.
3. Top up using the fluids indicated, only after checking that the system is intact

Ú

page 252.

4. If oil degradation ratio (data collectible from diagnostic device) is more than 80% (oil quality less than 20%), engine oil and filter replacement is recommended.

5. If the vehicle is used in dusty areas, this engine air cleaner filter must be replaced every 10,000 miles (16,000 km).

6. The brake fluid replacement has to be done every two years, regardless of the mileage.

7. The spark plug change interval is 60,000 miles for NAFTA market or 60,000 km outside NAFTA. Yearly intervals do not apply.

Thousands of miles

10

20

30

40

50

60

70

80

90

100

110

120

130

140

150

Years

1

2

3

4

5

6

7

8

9 10 11 12 13 14 15

Thousands of kilometers

16

32

48

64

80

96

112

128

144

160

176

192

208

224

240

 WARNING!

You can be badly injured working on or around a motor vehicle. Do only service work for which you have the knowledge and the right equipment.

If you have any doubt about your ability to perform a service job, take your vehicle to a competent mechanic.

Failure to properly inspect and maintain your vehicle could result in a component malfunction and affect vehicle handling and performance.

This could cause an accident.

CarManuals2.com

SERVICING AN

D M

AINTENAN

CE

202

M

AINTENANCE

 P

LAN

 — 2.9L E

NGINE

Thousands of miles

10

20

30

40

50

60

70

80

90

100

110

120

130

140

150

Years

1

2

3

4

5

6

7

8

9 10 11 12 13 14 15

Thousands of kilometers

16

32

48

64

80

96

112

128

144

160

176

192

208

224

240

SOS backup battery replacement (if equipped).

1

Check battery charge status with the proper instrument.

Check tire condition/wear and adjust pressure, if

necessary. Check the tire repair kit recharge condition

and expiration date.

Check operation of lighting system (headlights, direction

indicators, hazard warning lights, trunk lid, passenger

compartment, glove compartment, instrument panel

warning lights, etc.).

Check and, if necessary, top up fluid levels.

2

Check engine control system operation (via diagnostic tool).

Visually inspect conditions of: exterior bodywork, underbody

protection, pipes and hoses (exhaust, fuel system, brakes),

rubber elements (sleeves, bushes, etc.).

Check position/wear of front windshield wiper blade.

Check operation of the windshield wiper/washer system and

adjust nozzles, if necessary.

Check cleanliness of hood and luggage compartment locks,

cleanliness and lubrication of linkage.

Visually inspect conditions and wear of front/rear disc brake

pads and operation of pad wear indicators.

Inspect the CV/Universal joints.

Visually inspect the brake discs surface and edge.

CarManuals2.com

203

Brake pads/brake discs replacement.

3

Visually inspect the condition and tensioning of the

accessory drive belt(s).

Change engine coolant.

Change engine oil and replace oil filter.

Replace transfer case oil (AWD models only).

Replace accessory drive belt/s.

4

Replace air cleaner cartridge.

5

Replace the additional fuel filter (if equipped).

Change the brake fluid.

6

Replace the cabin air filter.

5

o

o

o

o

o

o

o

o

Spark plug replacement.

7

1. The SOS backup battery must be replaced every five years, regardless of mileage.
2. Top off using the fluids indicated only after checking that the system is intact

Ú

page 252.

3. The actual interval for changing the brake pads and the carbon ceramic brake discs depends on the vehicle usage conditions and is signaled by the warning light or message

on the instrument panel. After each discs replacement, reset the warning light using the diagnostic socket.

4. Areas that are not dusty: recommended maximum mileage 36,000 miles (60,000 km). Regardless of the mileage, the belt must be replaced every 4 years. Dusty areas and/

or demanding use of the vehicle (cold climates, town use, long periods of idling): advised maximum mileage 18,000 miles (30,000 km). Regardless of the mileage, the belt

must be replaced every 2 years.

5. If the vehicle is used in dusty areas, this engine air cleaner filter must be replaced every 10,000 miles (16,000 km).
6. The brake fluid replacement has to be done every two years, regardless of the mileage.
7. The spark plug change interval is mileage-based only. Yearly intervals do not apply.

Thousands of miles

10

20

30

40

50

60

70

80

90

100

110

120

130

140

150

Years

1

2

3

4

5

6

7

8

9 10 11 12 13 14 15

Thousands of kilometers

16

32

48

64

80

96

112

128

144

160

176

192

208

224

240

CarManuals2.com

SERVICING AN

D M

AINTENAN

CE

204

ENGINE COMPARTMENT

C

HECKING

 L

EVELS

 — 2.0L E

NGINE

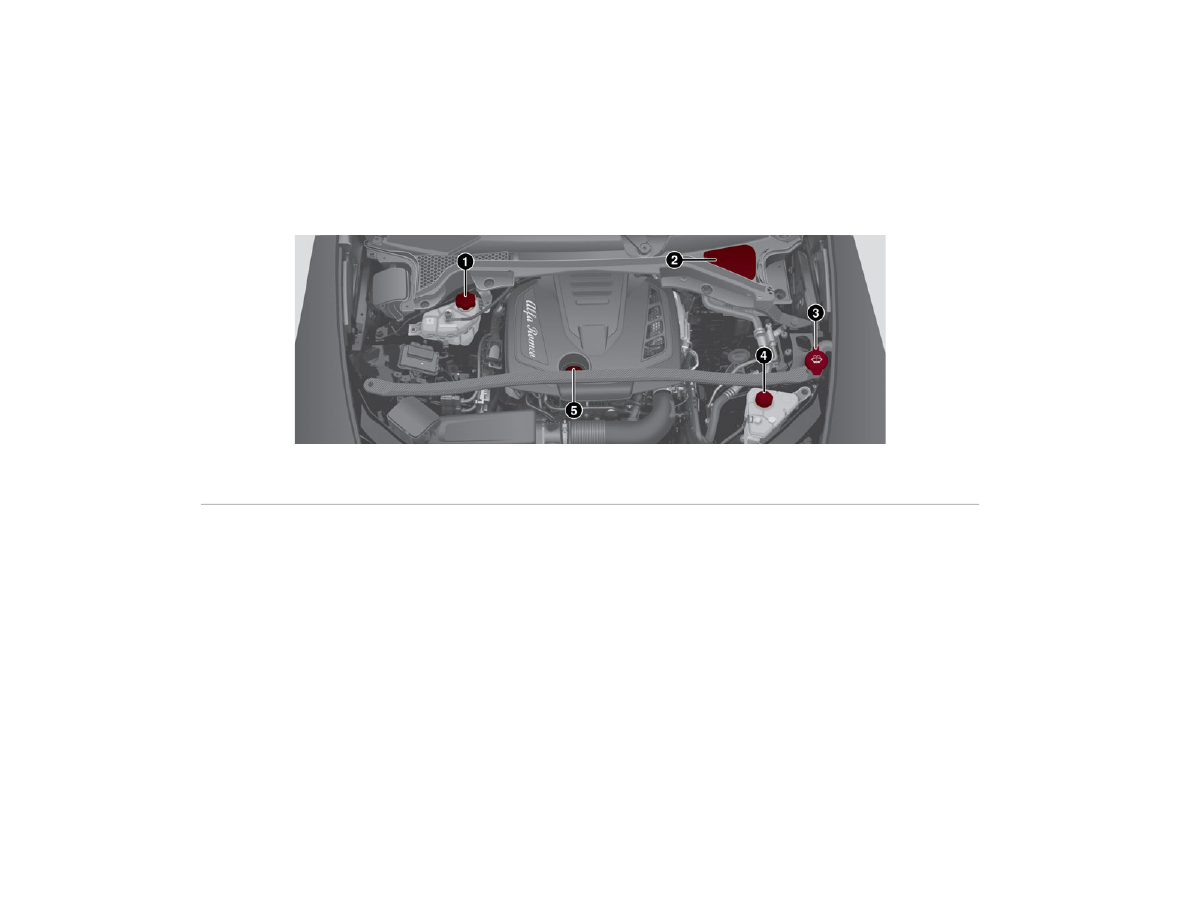

1 – Engine Coolant Reservoir Cap

4 – Intercooler Coolant Reservoir Cap

2 – Brake Fluid Reservoir Access Cover

5 – Engine Oil Filler Cap

3 – Windshield/Headlights Washer Fluid Reservoir Cap

CarManuals2.com

205

C

HECKING

 L

EVELS

 — 2.9L E

NGINE

E

NGINE

 O

IL

The engine oil level can be seen on the

instrument cluster display every time the engine

is started, or on the Information and

Entertainment system display by activating on the

main menu (MENU button) the following

functions in sequence:
1. “Vehicle Information”
2. “Engine Oil”

Check that the oil level is between the MIN and

MAX level on the instrument cluster display using

the 6 notches shown. 1 notch displays the MIN

level and 6 notches displays the MAX level.

NOTE:

Use care when filling under hood fluids such as

engine oil, windshield washer fluid, antifreeze

etc. to minimize spillage onto top of engine. Any

excess fluid that is spilled onto the top of the

engine should be removed using compressed air

or absorbent cloth.
If the oil level is close to or below the MIN mark,

add oil gradually through the filler, (refer to

“Top-Up And Oil Level Indication Update On

Display” in this section) considering that each

notch shown on the display corresponds to

approximately 8.8 fl oz (250 ml).

The oil level can also be checked manually on

2.9L Quadrifoglio models.

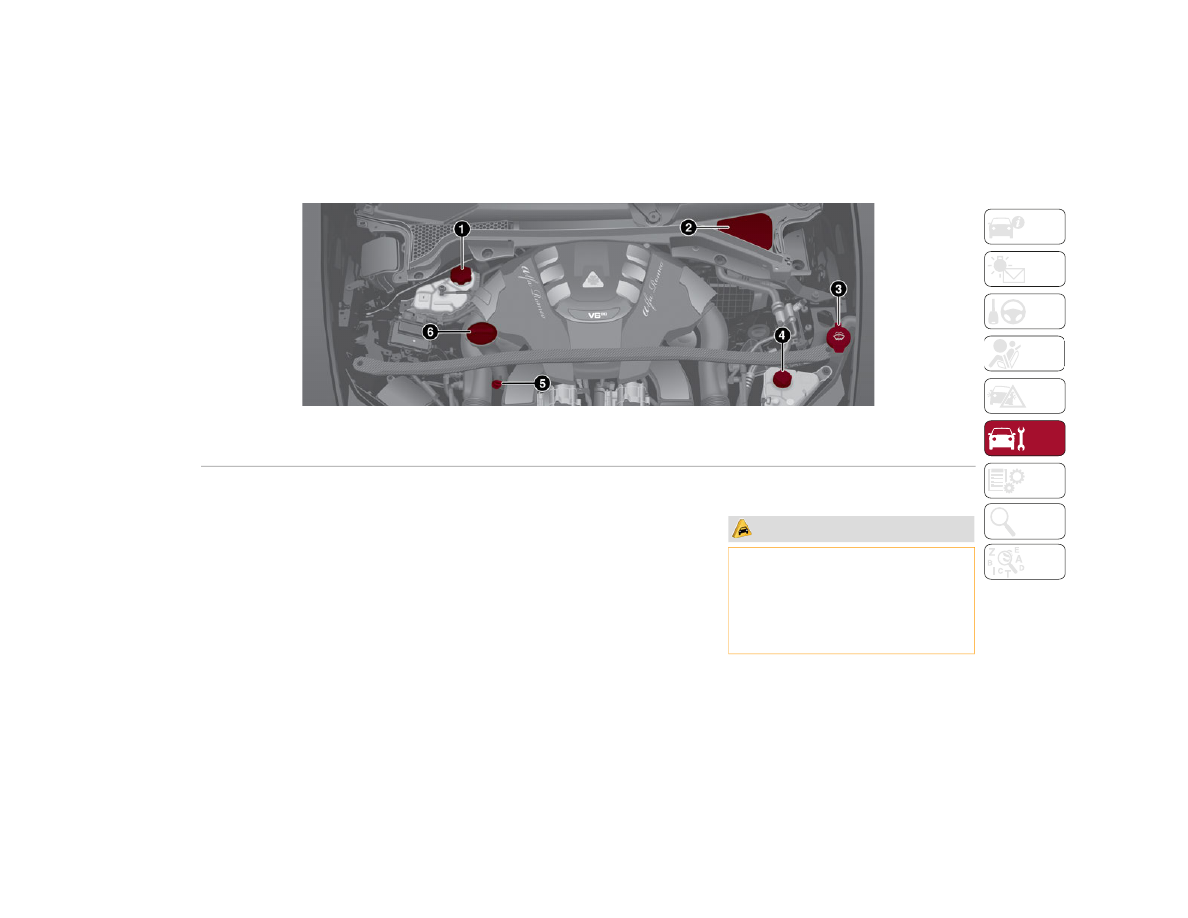

1 – Engine Coolant Reservoir Cap

4 – Intercooler Coolant Reservoir Cap

2 – Brake Fluid Reservoir Cap Access Cover

5 – Engine Oil Dipstick

3 – Windshield/Headlight Washer Fluid Reservoir Cap

6 – Engine Oil Filler

 CAUTION!

Make sure not to add too much oil when

topping off the engine. Engine oil in excess

may damage the engine. Have the vehicle

checked. Never exceed the MAX level when

topping off engine oil. It is advisable to check

the oil level in intermediate steps using the

oil dipstick (2.9L Quadrifoglio Only).

CarManuals2.com

SERVICING AN

D M

AINTENAN

CE

206

NOTE:

Always reinstall the oil cap and tighten to proper

torque whenever it is removed to add oil to

engine. Never run the engine with cap removed

as this could cause oil to leak from engine.
Manual Oil Level Checking Procedure —

2.9L Quadrifoglio
Check that the oil level is between the MIN and

MAX marks on dipstick, clean it with a lint-free

cloth and reinsert it. Extract the dipstick again

and check that the level is between the MIN and

MAX marks.
Top-Up And Oil Level Indication Update On

Display — 2.9L Quadrifoglio
If an engine oil top-off is needed, in order to

ensure the correct indication of the oil level on

the display, proceed with the following process:

Leave the car on flat ground with the engine

running for approximately five minutes

(temperature higher than 198°F (90°C) and

shut the engine off.

Wait for five minutes, turn the ignition to the

ACC mode without starting the engine and wait

for a few seconds.

NOTE:

If the level indication is not updated after the

previously described procedure, repeat the

engine adjustment, shut the engine off and wait

another five minutes before starting it again. If

the indication is not updated after the second

start, contact an authorized dealer.
Top-Up And Oil Level Indication Update On

Display — 2.0L
If an engine oil top-off is needed, in order to

ensure the correct indication of the oil level on

the display, proceed with the following process:

Leave the car on flat ground with the engine

running for approximately five minutes

(temperature higher than 176°F (80°C) and

shut the engine off.

Start the engine again and idle it for about

two minutes.

NOTE:

If you have added the specified amount of oil and

the indicator is not reading “Full”, please contact

an authorized dealer.

E

NGINE

 C

OOLANT

 F

LUID

If the level is too low, unscrew the cap of the

reservoir and add the fluid described

Ú

page 252.

W

ASHER

 F

LUID

 F

OR

 W

INDSHIELD

/

H

EADLIGHTS

The windshield and headlight (if equipped)

washer fluid reservoir is equipped with a

telescopic filler neck.
If the level is too low, remove reservoir cap and lift

the filler neck. Then, add the fluid described

Ú

page 252. After filling the reservoir, lower the

filler neck and install the reservoir cap until you

hear it click.

 CAUTION!

The oil level is not refreshed immediately on

the display after topping off. Consequently,

wait for the oil level to be refreshed on the

display and follow the procedure below.

 WARNING!

If the engine oil is being topped up, wait for the

engine to cool down before loosening the filler

cap, particularly for vehicles with aluminum

cap (if equipped). WARNING: risk of burns!

 CAUTION!

The oil level must never exceed the MAX mark.
If the MAX mark is exceeded (last notch on

the right turns red) after the fill-up, go to an

authorized dealer as soon as possible to have

the oil in excess removed.
Do not add oil with specifications different

from those of the oil already in the engine.
Used engine oil and oil filters contain

substances which are harmful to the

environment. To change the oil and filters, we

advise you to contact an authorized dealer.

CarManuals2.com

207

NOTE:

Use care when filling under hood fluids such as

engine oil, windshield washer fluid, antifreeze

etc. to minimize spillage onto top of engine.

Any excess fluid that is spilled onto the top of

the engine should be removed using compressed

air or absorbent cloth.
NOTE:

The headlight washers are activated every

10 activations of the windshield washer.
NOTE:

The headlight washing system will not work if the

liquid level is low (situation indicated by the

symbol on the instrument cluster display

Ú

page 70). The windshield washer will keep

working.
On vehicles equipped with headlight washers,

there is a reference notch on the dipstick:

ONLY the windshield/rear window washer oper

-

ates with the level below this reference.

B

RAKE

 F

LUID

Check that the fluid is at the maximum level. If the

fluid level in the tank is low, contact an authorized

dealer to have the system checked.

A

UTOMATIC

 T

RANSMISSION

 A

CTIVATION



S

YSTEM

 O

IL

The transmission control oil level should only be

checked at an authorized dealer.

U

SEFUL

 A

DVICE

 F

OR

 E

XTENDING

 T

HE

 L

IFE



O

F

 Y

OUR

 B

ATTERY

To avoid draining your battery and make it last

longer, observe the following instructions:

When you park the vehicle, ensure that the

doors and liftgate are closed properly to

prevent any lights from remaining on inside the

passenger's compartment.

Do not keep accessories (e.g. radio, hazard

warning lights, etc.) switched on for a long time

when the engine is not running.

Before performing any operation on the

electrical system, disconnect the negative

battery cable.

If you wish to install electrical accessories after

purchasing the vehicle that require permanent

electrical supply (e.g. alarm, etc.), or accessories

which influence the electrical supply

requirements, contact an authorized dealer,

who’s qualified staff will evaluate the overall

electrical consumption.

NOTE:

After the battery is disconnected, the steering
must be initialized. The   Power Steering

Warning Light on the instrument cluster display

switches on to indicate this. To carry out this

procedure, simply turn the steering wheel all the

way from one end to the other, and then turn it

back to the central position.

B

ATTERY

The battery does not require the electrolyte to be

topped up with distilled water. A periodic check

carried out at an authorized dealer, however, is

necessary to check efficiency.

 CAUTION!

If the charge level remains under 50% for a

long time, the battery may be damaged by

sulfation, reducing its capacity and efficiency

during the vehicle start. The battery is also

more prone to the risk of freezing (at

temperatures as high as 14°F (-10°C).

 WARNING!

Battery acid is a corrosive solution and can

burn or even blind you. Do not allow battery

acid to contact your eyes, skin, or clothing.

Do not lean over a battery when attaching

clamps. If acid splashes in eyes or on skin,

flush the area immediately with large

amounts of water

Ú

page 192.

Battery gas is flammable and explosive.

Keep flame or sparks away from the battery.

Do not use a booster battery or any other

booster source with an output greater than

12 Volts. Do not allow cable clamps to touch

each other.

Battery posts, terminals, and related

accessories contain lead and lead

compounds. Wash hands after handling.

CarManuals2.com

SERVICING AN

D M

AINTENAN

CE

208

P

RESSURE

 W

ASHING

Cleaning the engine compartment with a high

pressure washer is not recommended.

BATTERY RECHARGING

I

MPORTANT

 N

OTES

NOTE:

Before using the charging device, always make

sure that it is appropriate for the installed

battery, with constant voltage (below 14.8 Volts)

and low amperage (maximum 15 Amps).

Recharge the battery in a well ventilated

environment.

Before using any devices to charge or to

maintain the charge of the battery, carefully

follow the instructions provided with the device

in order to properly and safely connect it to the

vehicle battery.

You can recharge the battery without discon

-

necting the wires of the vehicle's electrical system.

To reach the battery, remove the load floor

inside the liftgate.

Load Floor

Locate the battery access panel under the load

floor.

Battery Access Panel

Remove the protective cover and connect the

positive cable terminal of the charger (usually

red) to the positive terminal (+) of the battery.

Connect the negative terminal of the charger

(usually black) to nut next to the negative

terminal (-) of the battery.

Battery

The vehicle is equipped with an Intelligent Battery

Sensor (IBS), which is able to measure the charge

and discharge voltage, calculate the charge level

and the general condition of the battery. The

sensor is placed next to the negative terminal (-)

of the battery.
For a correct charge/discharge procedure, the

charge voltage must go through the IBS sensor.
1. Turn the charger on and follow the instruc

-

tions in the user's manual to completely

recharge the battery.

2. When the battery is charged, turn the charger

off before disconnecting it from the battery.

 CAUTION!

Precautions have been taken to safeguard all

parts and connections however, the pressures

generated by these machines is such that

complete protection against water ingress

cannot be guaranteed.

 WARNING!

Never charge or recharge a frozen battery: it

may explode because of the nitrogen

trapped inside the ice crystals.

At all times while charging or recharging the

battery, make sure that any sparks or open

flames are kept sufficiently far away from the

battery.

1 — Protective Cover
2 — Negative Post (Nut)

CarManuals2.com

209

3. Disconnect the black cable terminal of the

battery charger and then the red cable

terminal.

4. Refit the protective cover of the positive

terminal of the battery and the access cover

to the battery compartment.

NOTE:

If a "quick-type" battery charger is used with the

battery fitted on the vehicle, before connecting it

disconnect both cables of the battery itself. Do

not use a "quick-type" battery charger to provide

the starting voltage.

VEHICLE MAINTENANCE

The following pages contain instructions on the

required maintenance from the technical

personnel who designed the vehicle.
In addition to these specific maintenance

instructions specified for routine scheduled

servicing, there are other components which may

require periodic maintenance or replacement

over the vehicle’s life cycle.

E

NGINE

 O

IL

Engine Oil Level Check
To ensure correct engine lubrication, the oil must

always be kept at the prescribed level

Ú

page 204.

Check the oil level at regular intervals, for

example every 1,864 miles (3,000 km).
It must be checked about five minutes after

stopping the engine.
Full operating temperature must be reached. The

vehicle must also be parked on as level a surface

as possible.

The engine oil level can be checked using the

Information and Entertainment system. To

access the function, activate the main menu

(MENU button) and select the following options in

sequence:
1. “Vehicle Information”
2. “Engine Oil”

Ensure that the oil level is within the interval on

the dipstick between the minimum and maximum

limits (Quadrifoglio only).
Changing The Engine Oil
For the correct servicing intervals

Ú

page 200.

Choice Of Engine Oil Type
To ensure optimal performance and maximum

protection in all operating conditions, it is advised

to use certified engine oils

Ú

page 252.

Additives For Engine Oil
It is strongly recommended not to use additives

(other than leak detection dyes) with the engine

oil.
The engine oil is a product designed especially for

the vehicle, and its performance may be deteri

-

orated through the use of further additives.
Disposal Of Used Engine Oil And Filters
For the disposal of the engine oil and filters,

contact the appropriate body to determine local

regulations.
NOTE:

Incorrectly disposed used engine oil may seri

-

ously harm the environment.

E

NGINE

 O

IL

 F

ILTER

Replacing the Engine Oil Filter
The engine oil filter must be replaced each time

the engine oil is changed. It is advised to replace

it with a genuine spare part, specifically designed

for this vehicle.

E

NGINE

 A

IR

 C

LEANER

 F

ILTER

Replacing the Engine Air Cleaner Filter
For the correct servicing intervals

Ú

page 200. It

is advised to replace the engine air cleaner filter

with a genuine spare part, specifically designed

for this vehicle.

A

IR

 C

ONDITIONING

 S

YSTEM



M

AINTENANCE

To ensure the best possible performance, the air

conditioning system must be checked and

undergo maintenance at an authorized dealer at

the beginning of the summer.

 CAUTION!

Do not use chemicals to clean the air

conditioning system, since the internal

components may be damaged. This kind of

damage is not covered by warranty.

CarManuals2.com

SERVICING AN

D M

AINTENAN

CE

210

Replace The Cabin Air Filter
For the correct servicing intervals

Ú

page 200.

For cleaner replacement, contact an authorized

dealer.

L

UBRICATING

 M

OVING

 P

ARTS

 O

F

 T

HE



B

ODYWORK

Ensure that the locks and bodywork junction

points, including components such as the seat

guides, door hinges (and rollers), liftgate and

hood are periodically lubricated with

lithium-based grease to ensure correct,

silent operation and to protect them from

rust and wear.
Thoroughly clean the components, eliminating

every trace of dirt and dust. After lubricating,

eliminate excess oil and grease. Also pay

particular attention to the hood closing devices,

to ensure correct operation. Operations of the

hood are to be carried out with the engine cold.

Remember to check, clean and lubricate the

locking, release and safety devices.

Lubricate the external lock barrels twice a year.

Apply a small amount of high-quality lubricant

directly into the lock barrel.
If necessary, contact an authorized dealer as

soon as possible.

W

INDSHIELD

 W

IPER

Periodically clean the windshield, rear window

and rubber profile of the windshield wiper blades,

using a sponge or a soft cloth and a non-abrasive

detergent. This eliminates the salt or impurities

accumulated when driving.
Prolonged operation of the windshield window

wipers with dry glass may cause the deterioration

of the blades, in addition to abrasion of the

surface of the glass. To eliminate the impurities

on the dry glass, always operate the windshield

washers.
In the event of very low outdoor temperatures,

below 0°F (-17.8°C), ensure that the movement

of the rubber part in contact with the glass is not

obstructed. Use a suitable deicing product to

release it if required.
Avoid using the windshield wipers to remove frost

or ice.
Also avoid contact of the rubber profile of the

blades with petroleum derivatives such as engine

oil, gas, etc.

NOTE:

The life of the windshield wiper blades varies

according to the usage frequency. It is advised to

replace the blades approximately once a year.

When the blades are worn, noise, marks on the

glass or streaks of water may be noticed. In the

presence of these conditions, clean the wind

-

shield wiper blades or, if necessary, replace

them.
Raising The Windshield Wiper Blades (“Service

Position” Function)
The “service position” function allows the driver

to replace the windshield wiper blades easily. It is

also recommended to activate this function when

it is snowing and to make it easier to remove any

dirt deposits in the area where the blades are

normally positioned, while washing.
NOTE:

If the windshield wipers are raised while not in

the “service position,” it is possible to damage

the hood.

 WARNING!

Use only refrigerants and compressor

lubricants approved by the manufacturer for

your air conditioning system. Some

unapproved refrigerants are flammable and

can explode, injuring you. Other unapproved

refrigerants or lubricants can cause the

system to fail, requiring costly repairs. Refer to

Warranty Information Book, located in your

owner’s information kit, for further warranty

information.

 WARNING!

Driving with worn windshield wiper blades is a

serious hazard, because visibility is reduced in

bad weather conditions.

CarManuals2.com















Content      ..     4      5      6      7     ..
