Alfa Romeo Stelvio (2023 year). Manual in english - page 4





115

NOTE:

Do not use the TJA system while driving in urban

areas.

T

O

 A

CTIVATE

/D

EACTIVATE

To activate the system, push the button on the

left side of the steering wheel.
To deactivate the system, push the button again.

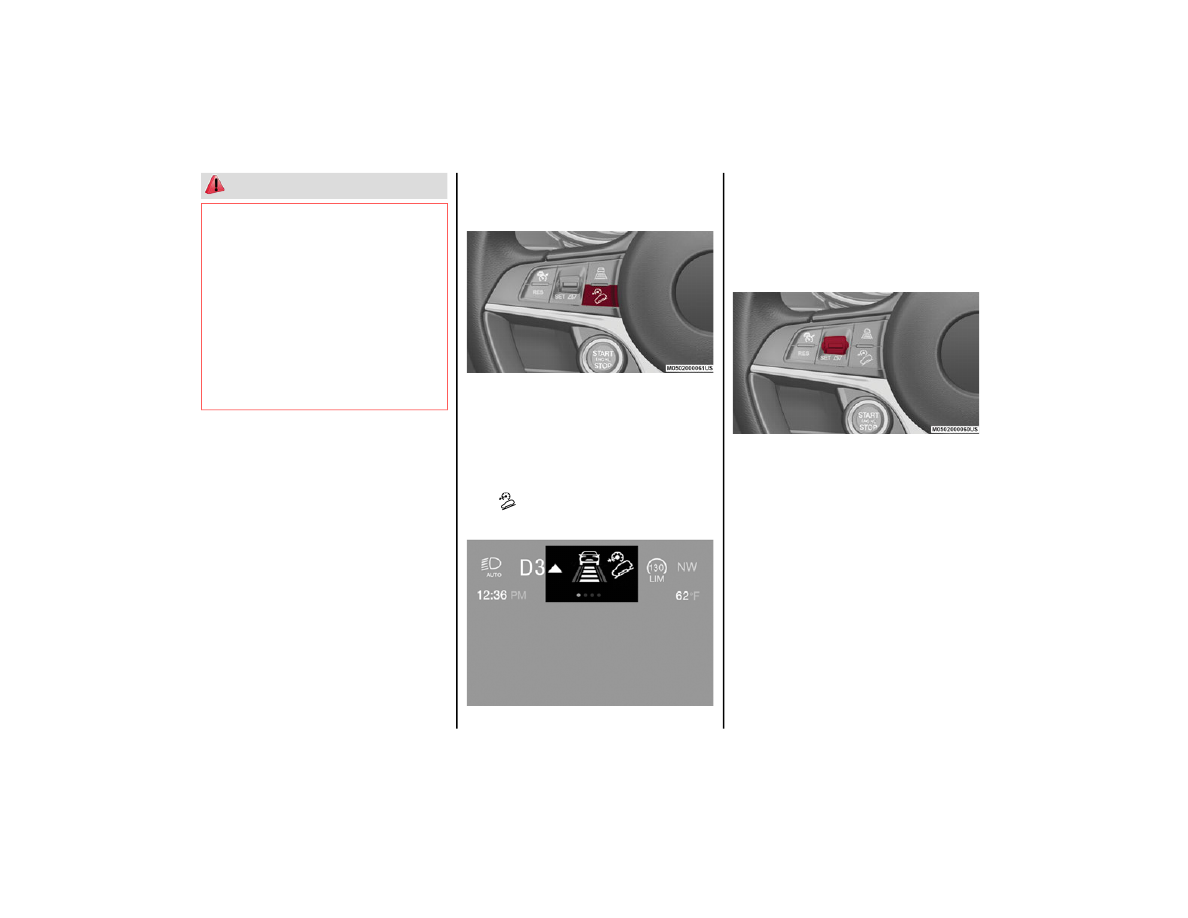

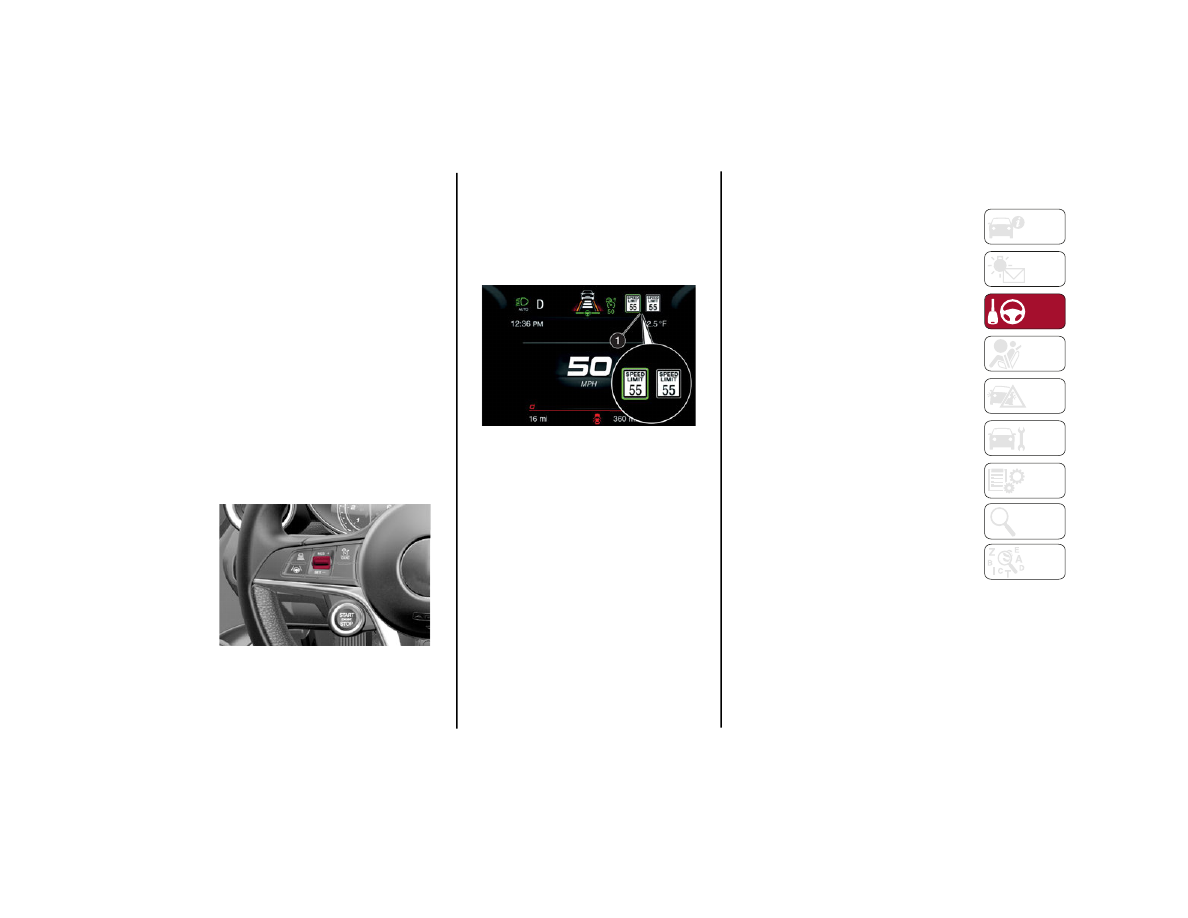

Traffic Jam Assist Button

Suspension Conditions
The following operations will suspend the

TJA system:

Pressing the brake pedal

Opening the driver’s door

Disabling ACC

If the vehicle speed exceeds 37 mph (60 km/h)

Releasing the driver’s seat belt

Placing the gear selector in PARK, REVERSE, or

NEUTRAL

If the Forward Collision Warning system or

Active Braking intervenes

Automatic Deactivation
System operation will be temporarily disabled

under the following conditions:

When traveling around narrow bends

If the lane boundaries are not detected

One of the two lines is interrupted

The sun is low and reflects on the radar

camera

If the turn signals are activated

If the driver intentionally changes lanes

without using the turn signal

If manual steering begins

If the driver’s hands are removed from the

steering wheel

When there is no surrounding traffic and there

are no horizontal lane boundaries

If the system is not functioning properly

If lateral acceleration is high

NOTE:

When TJA is turned off, the symbol in the

instrument cluster display will turn red, and

then grey.

A sensor in the steering wheel detects whether

the driver’s hands are placed on the steering

wheel.

When the automatic suspension conditions are

over, the TJA system will be automatically

reactivated.

O

PERATION

The TJA system can only operate when the

driver’s hands are on the steering wheel.
If the system detects that the driver’s hands have

been removed from the steering wheel, a

message will appear in the instrument cluster

display to alert the driver to place their hands

back on the wheel.
NOTE:

If the vehicle begins to cross the lane

boundary, the steering wheel will vibrate and a

dedicated screen will appear in the instrument

cluster display.

The TJA system may take up to five seconds to

become active once all conditions are met.

 WARNING!

You should switch off the TJA system:

When driving in fog, heavy rain, heavy snow,

sleet, heavy traffic, and complex driving

situations (i.e., in highway construction

zones).

When entering a turn lane or highway

off-ramp; when driving on roads that are

winding, icy, snow-covered, slippery, or have

steep uphill or downhill slopes.

When circumstances do not allow safe

driving at a constant speed.

CarManuals2.com

STARTING AN

D O

PERA

TIN

G

116

The following conditions must be met in order to

activate the system:

The TJA system must be enabled

The Adaptive Cruise Control (ACC) system must

be turned on

The right and left lane boundaries must be

recognized by the system

The vehicle must be traveling at a speed

between 0 and 37 mph (0 and 60 km/h)

The camera, radar, and radio system must be

functioning properly

The road lane width must be between 8.5 ft

and 13.7 ft (2.6 m and 4.2 m)

The turn signals must be turned off

The TJA system must be functioning properly

If the ACC speed is set to 37 mph (60 km/h) or

less, traveling downhill may increase the

vehicle speed. The system will remain inactive

until the speed returns to 37 mph (60 km/h)

or less.

I

NDICATIONS

 O

N

 T

HE

 D

ISPLAY

The TJA system status is indicated by the color of

the symbol in the instrument cluster display.
The system uses sensors in the steering wheel to

detect if the driver’s hands are present. If the

driver’s hands are removed, a series of warnings

will appear in the instrument cluster display to

alert the driver to reposition their hands on the

steering wheel. Acoustic signals will also be

emitted.
If the driver’s hands are not returned to the

steering wheel after a period of time, the system

will be disabled.

S

YSTEM

 S

TATUS

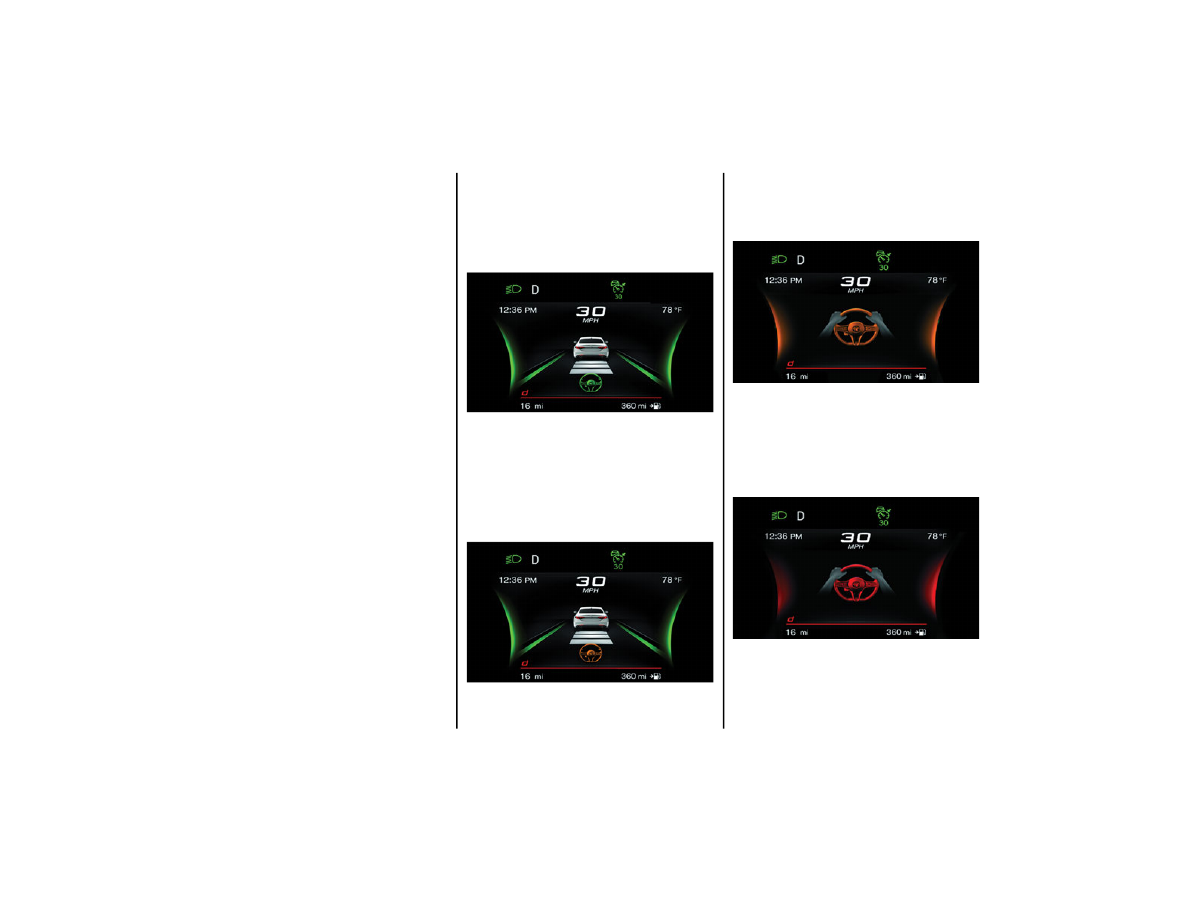

Active System
An active system is indicated by the following

screen in the “Driver Assistance” menu on the

instrument cluster display.

TJA System Active

Active System (Hands Removed From The

Steering Wheel For A Short Time)
The following screen will appear in the instrument

cluster display immediately after the driver’s

hands are removed from the steering wheel.

The system still remains active at this time.

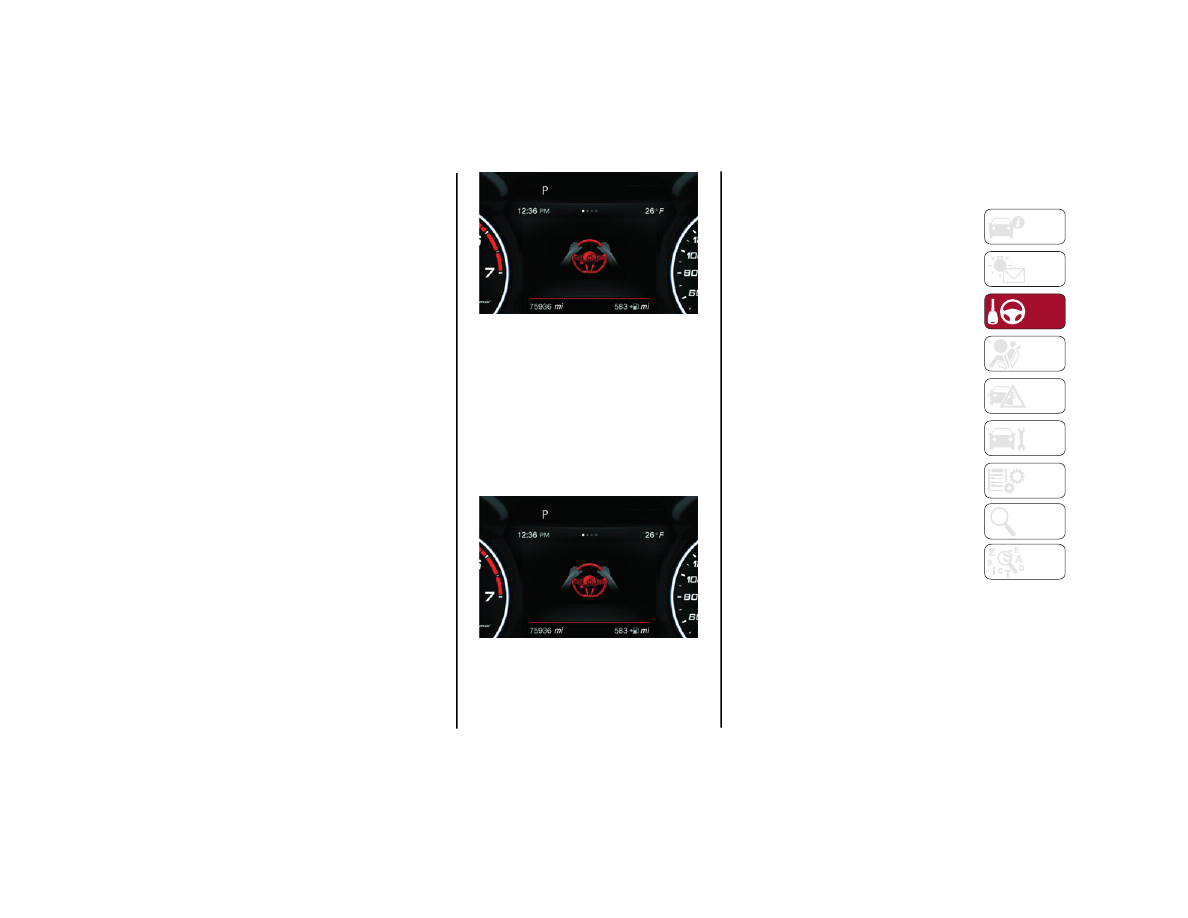

Hands Removed Initial Warning

If the driver does not return their hands to the

steering wheel within a few seconds, the

following screen will appear in the instrument

cluster display.

Hands Removed Secondary Warning

Active System (Hands Removed From The

Steering Wheel For A Long Time)
If the driver’s hands have still not been returned

to the steering wheel, the following screen will

appear in the instrument cluster display.

Hands Removed Final Warning

An acoustic signal will sound until the driver

regains control of the vehicle (hands on steering

wheel). The system is still active at this time.

CarManuals2.com

117

(Continued)

If the driver’s hands are not returned to the

steering wheel after a period of time, a deacti

-

vation message will appear on the instrument

cluster display and the steering wheel control will

be deactivated.
Once the symbol on the display turns grey, the

system is no longer active and the driver must

take control of the vehicle. At this time, the

Adaptive Cruise Control (ACC) system and Lane

Departure Warning system will also be disabled.
When the TJA system is active, the Lane Keeping

Assist (LKA)/Lane Departure Warning (LDW)

systems (if equipped) will be temporarily

disabled. When TJA is not active, the LKA system

Ú

page 125) and LDW system (

Ú

page 123) will

remain active.

L

IMITED

 S

YSTEM

 A

VAILABILITY

/

O

PERATION

System Availability
Performance of the TJA system may be affected

by the following factors:

Narrow, winding, curvy streets

Lane boundaries that are not clear or in

conditions of poor visibility (e.g. heavy rain,

snow, fog, etc.)

If the camera is exposed to glare from direct

sunlight or headlights of an oncoming vehicle

If the camera or sensor is damaged, covered,

or obstructed (e.g. by mud, ice, snow, etc.)

The bumper is damaged or misaligned

Interference with other equipment causes

electromagnetic waves

Construction sites

If the indications given by the navigation

system of the radio system are not yet ready or

if the system is recalculating

System Limited Operation
The TJA system may have limited or reduced

functionality when one of the following conditions

occurs:

Lane boundaries are not clear or in conditions

of poor visibility (e.g. in heavy rain, snow,

fog, etc.)

Either the camera or radar are damaged,

covered, or obstructed (e.g. by mud, ice,

snow, etc.)

When driving on hills or narrow bends

Near highway toll booths

When the highway entrance or exit is more

than 20 ft (6 m) wide

If the camera is exposed to glare from

reflections or direct sunlight

NOTE:

If damage to the windshield occurs, have the

windshield replaced by an authorized dealer as

soon as possible.

If the vehicle approaches a bend that is too

narrow with respect to the current speed, the

TJA system will deactivate.

TRAFFIC SIGN

RECOGNITION (TSR)

SYSTEM — IF EQUIPPED

The Traffic Sign Recognition (TSR) system uses a

camera mounted on the windshield to detect

recognizable road signs such as:

Speed limits

No passing zones

Signs indicating the end of the situations

indicated above

If the camera does not detect valid speed limits,

the radio system navigation system may suggest

unregulated speed limits.

 WARNING!

To prevent serious injury or death:

Always remain alert and be ready to take

control of the car in the event that the

TJA system disables.

Always keep your hands on the steering

wheel when the TJA system is activated.

Maintain a safe distance from other vehicles

and pay attention to traffic conditions.

The TJA system should only be used as a

driving aid. The driver must always pay

attention to their surroundings when the

system is operating and be ready to take

control of the vehicle at any time.

Do not place any objects on the steering

wheel (e.g. steering wheel covers) which

could interfere with the hand detection

sensor on the steering wheel.

 WARNING!

CarManuals2.com

STARTING AN

D O

PERA

TIN

G

118

The system always checks the traffic signs

indicating the current speed limit signs. The

system is able to recognize and display up to two

different road signs in the instrument cluster

display.
Depending on the unit of measurement (km/h or

mph) set through the Unit of Measurement menu

in the radio system, the TSR system will automat

-

ically show the indication of the road sign in the

unit of measurements selected in the instrument

cluster display.

T

O

 A

CTIVATE

/D

EACTIVATE

The TSR system can be activated/deactivated in

the radio system in the Driver Assistance menu.

The system activation is signaled by road signs

shown on the instrument cluster display.
NOTE:

The TSR system will reset to the default setting

when the vehicle is restarted.
NOTE:

By selecting “Blinking”, the driver can activate

a warning to display when the speed exceeds

the limit indicated by the TSR system. The

speed road sign on the instrument cluster

display will blink until the vehicle speed drops

below the displayed limit.

Selecting “Offset” will set the speed at which

“Blinking” is activated up to a maximum of

6 mph (10 km/h) above the limit detected by

the system.

If no speed limit signs are found, the system

will revert to the speed limit signs that are

stored in the NAV system.

I

NDICATIONS

 O

N

 T

HE

 D

ISPLAY

The system status can always be viewed through

the instrument cluster display.
The instrument cluster display shows only the

speed limit indications and consists of the

following steps:

The new speed limit recognized by the system,

which is indicated by means of a

predetermined color. The road sign indicating

the end of the speed limit or a “Road Sign Not

Detected” message may appear in this zone.

After a predetermined distance, the previously

displayed road sign changes color to inform

the driver that the speed limit provided may no

longer be valid.

If the camera does not detect valid speed

limits, the navigation system may suggest

unregulated speed limits on the instrument

panel display.

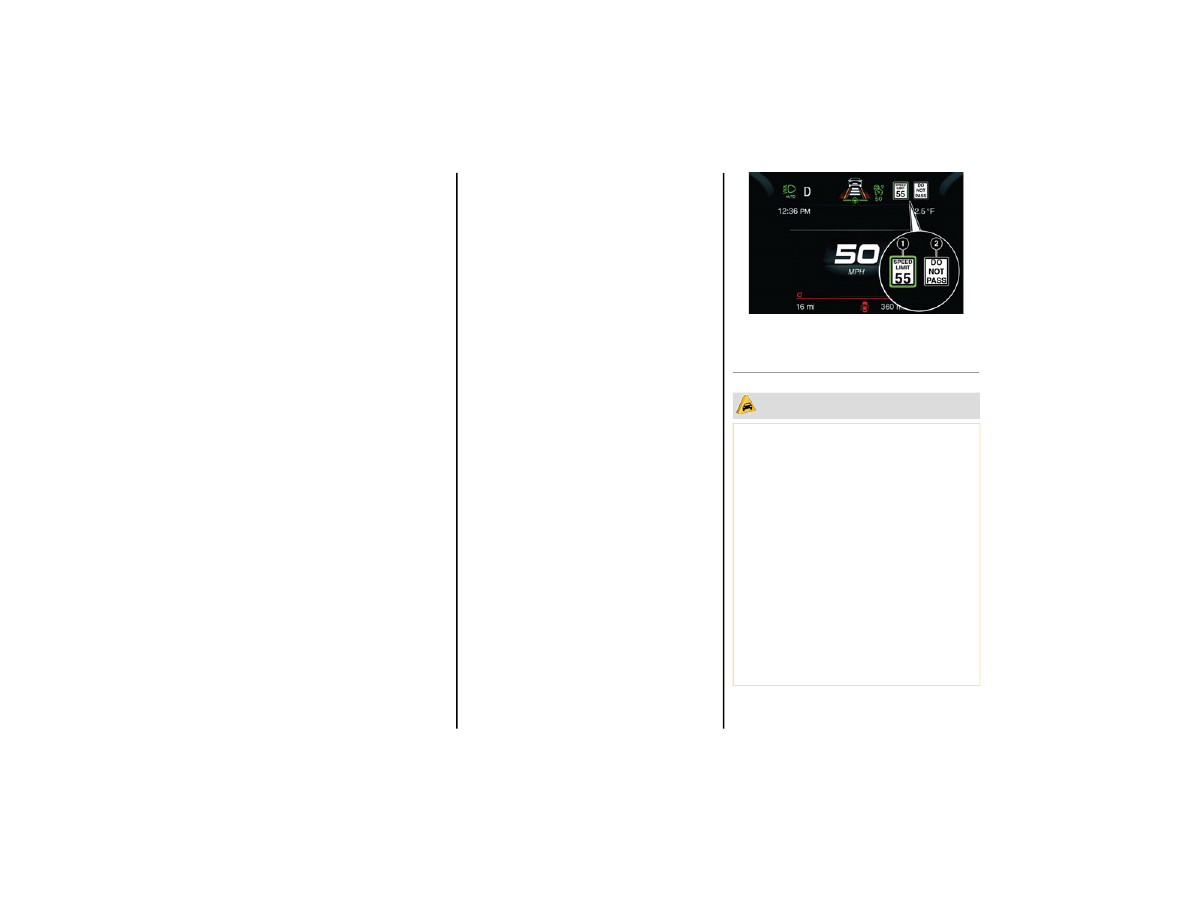

Traffic Signs Detected

1 — Speed Limit Recognized
2 — Traffic Sign Recognized

 CAUTION!

Functionality may be limited or the system

may not work if the sensor is obstructed.

The system may have limited operation or not

work at all in weather conditions such as heavy

rain, hail, thick fog, and low temperatures.

Strong light contrasts can influence the

recognition capability of the sensor.

The area surrounding the sensor must not be

covered with stickers or any other object.

Do not tamper or perform any operations in

the area of the windshield glass directly

surrounding the sensor.

Clean foreign matters such as bird droppings,

insects, snow or ice on the windshield. Use

specific detergents and clean cloths to avoid

scratching the windshield.

CarManuals2.com

119

INTELLIGENT SPEED

CONTROL (ISC) SYSTEM —

IF EQUIPPED

The Intelligent Speed Control (ISC) system is

always paired with the Adaptive Cruise Control

(ACC) system. The ISC system suggests an

automatic speed adjustment to the driver based

on the speed limit for the road being traveled. The

driver can decide whether to accept or reject the

automatic speed adjustment, using the switch on

the steering wheel.
If the speed limit is exceeded according to the

road signs or traffic conditions, a dedicated

graphic message is displayed on the instrument

cluster display.
NOTE:

The driver should always obey traffic laws and

speed limits. Never drive above the applicable

speed limit restrictions.

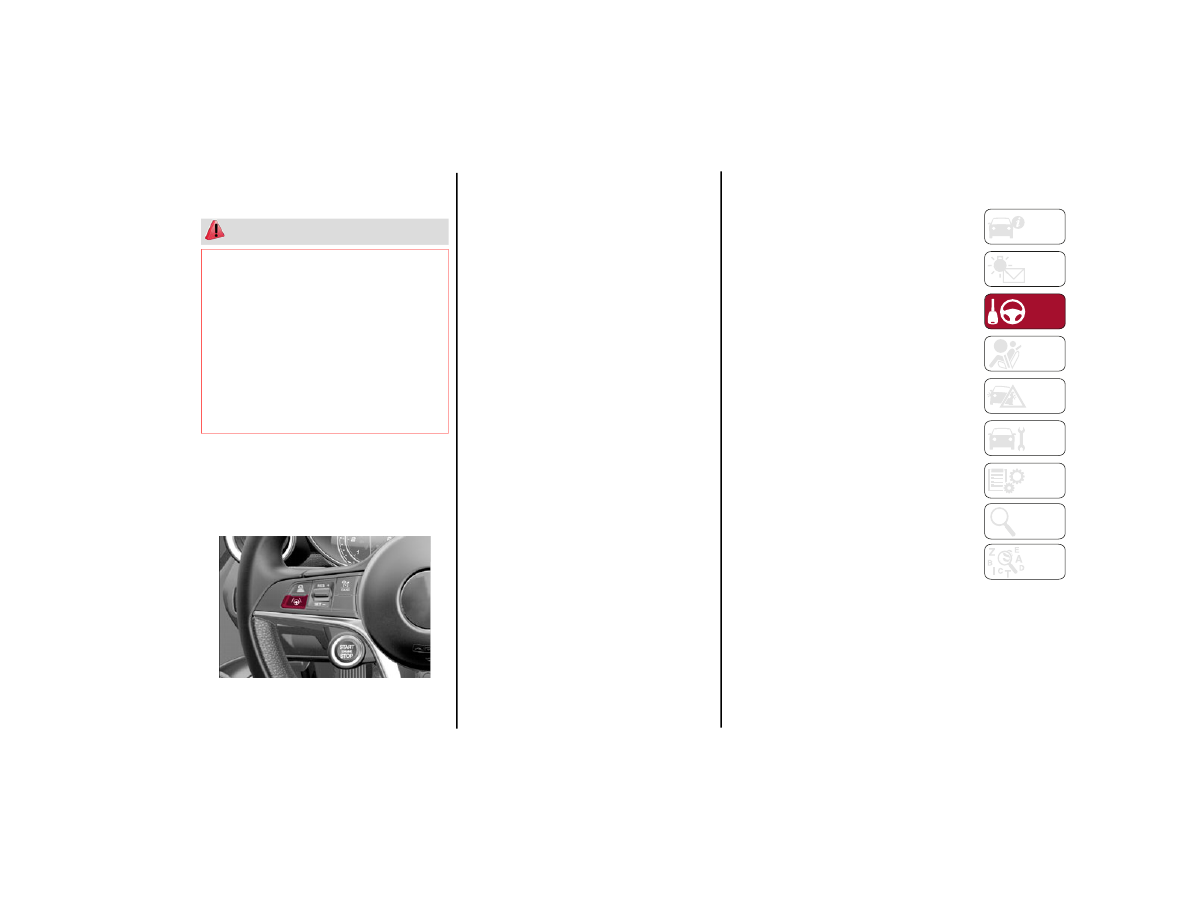

RES/SET Switch

T

O

 A

CTIVATE

/D

EACTIVATE

To Activate
The system can be activated in the radio system

within the Driver Assistance menu. The symbol

illuminates in the instrument cluster display when

the system is active.

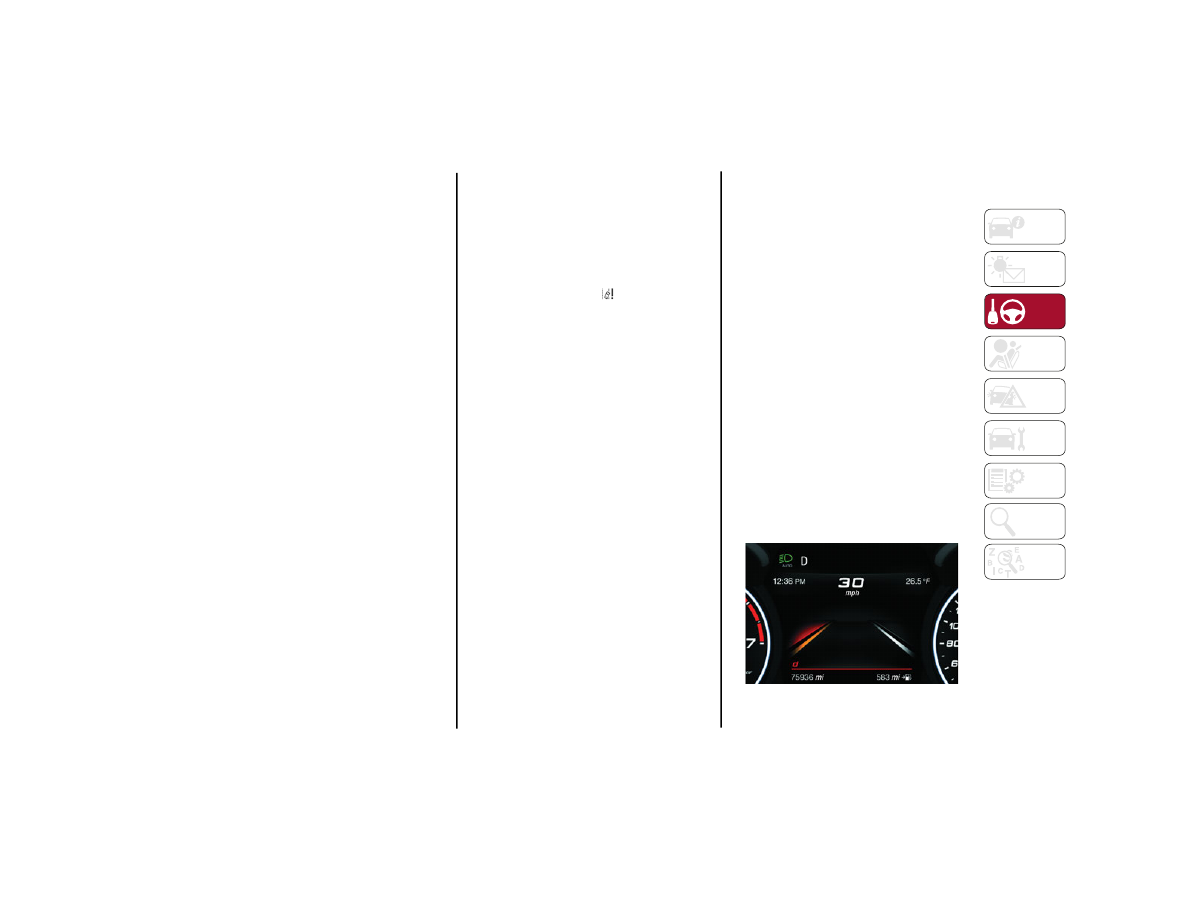

1 — ISC System Active

To Deactivate
The system is deactivated under the following

conditions:

When the Traffic Sign Recognition (TSR)

system is deactivated

When the Adaptive Cruise Control (ACC)

system is deactivated

NOTE:

Selecting “Speed Offset” allows the driver to set

the speed up to a maximum of 10 mph (16 km/h)

above or below the suggested speed set by the

ISC system. In this instance, the road sign infor

-

mation shown in the instrument cluster display

will continue to be detected by the TSR system.

I

NDICATIONS

 O

N

 T

HE

 D

ISPLAY

The system status is indicated by a white or green

icon in the instrument cluster display (similar to

the Adaptive Cruise Control (ACC) device) to the

left of the road sign indications provided by the

Traffic Sign Recognition (TSR) system.

A

CCEPTANCE

/R

EJECTION

 O

F

 T

HE



S

UGGESTED

 S

PEED

The system can be activated if the driver has

activated the following systems beforehand:

Adaptive Cruise Control (ACC)

Traffic Sign Recognition (TSR)

When these systems are active, a telltale will

display in the instrument cluster display

indicating the suggested speed provided by the

TSR system. The driver has the option to accept or

reject this using the RES/SET switch on the

steering wheel.
To accept the proposed speed and adjust the

speed set by ACC, move the RES/SET switch up or

down in the direction indicated in the telltale.
To reject the proposed speed, move the RES/SET

switch up or down in the direction opposite of the

arrow in the telltale. The ACC system will continue

to regulate to the previously set speed.

CarManuals2.com

STARTING AN

D O

PERA

TIN

G

120

If the speed set by the ACC system is the same as

the speed detected by the TSR system, the speed

limit indicator on the instrument cluster display

will be highlighted with a green circle.

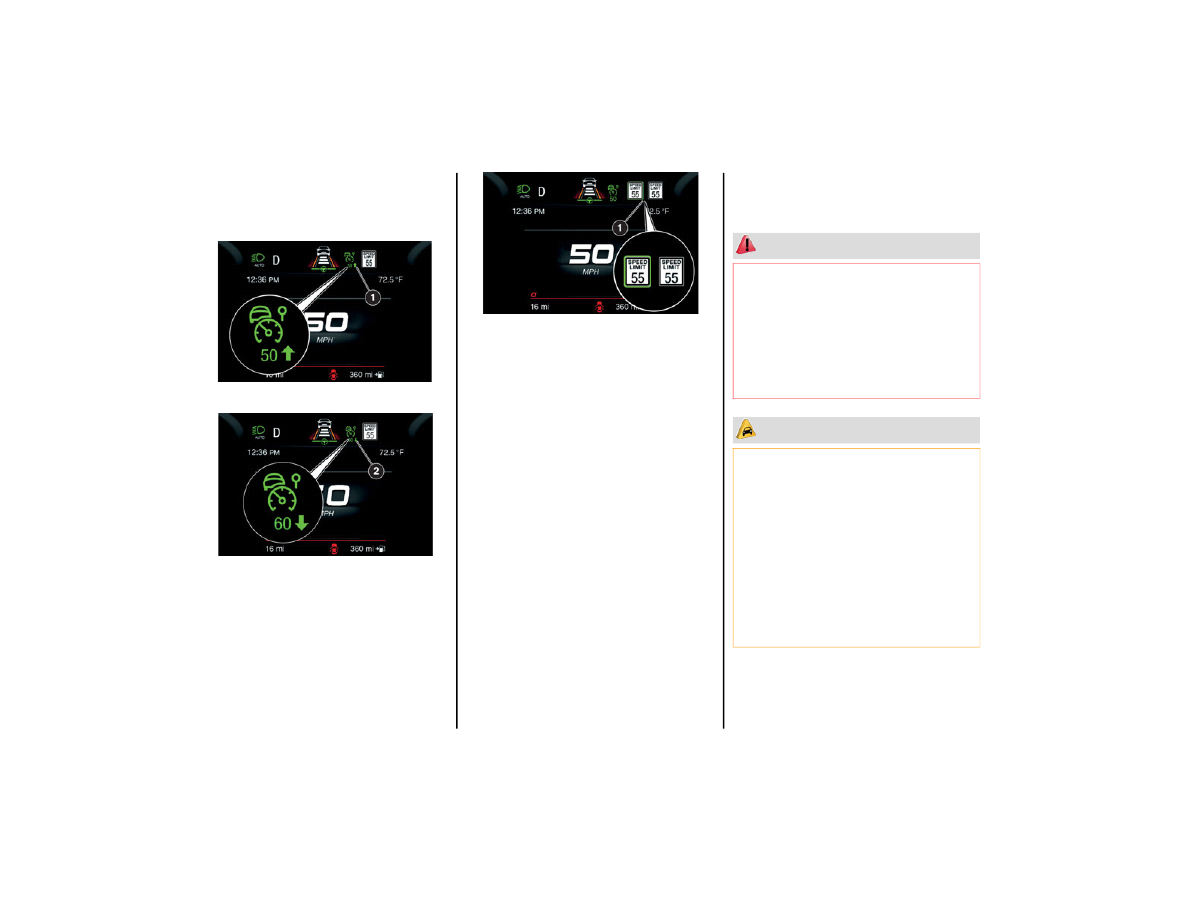

1 — Suggested Speed Higher Than Current Speed

2 — Suggested Speed Lower Than Current Speed

1 —Road Sign Recognized

PARKSENSE FRONT/REAR

PARK ASSIST SYSTEM —

IF EQUIPPED

The ParkSense system provides visual and

audible indications of the distance between the

rear, and if equipped, the front fascia/bumper

and a detected obstacle when backing up or

moving forward (e.g. during a parking maneuver).

The vehicle brakes may be automatically applied

and released when performing a reverse parking

maneuver if the system detects a possible

collision with an obstacle.
When the REVERSE gear is engaged and the

system is on, the front and rear sensors are

activated. If the vehicle moves from REVERSE to

a forward gear, the rear sensors are deactivated,

while the front sensors remain active until the

speed of 9 mph (15 km/h) is exceeded.

NOTE:

In certain operating conditions, the system could

start detecting an obstacle only after the vehicle

has moved slightly (a few inches).

 WARNING!

Drivers must be careful when backing up even

when using the ParkSense system. Always

check carefully behind your vehicle, and be

sure to check for pedestrians, animals, other

vehicles, obstructions, or blind spots before

backing up. You are responsible for the safety

of your surroundings and must continue to pay

attention while backing up. Failure to do so

can result in serious injury or death.

 CAUTION!

The ParkSense system is only a parking aid

and it is unable to recognize every obstacle,

including small obstacles. Parking curbs

might be temporarily detected or not

detected at all. Obstacles located above or

below the sensors will not be detected when

they are in close proximity.

The vehicle must be driven slowly when using

the ParkSense system in order to be able to

stop in time when an obstacle is detected. It

is recommended that the driver looks over

his/her shoulder when using the ParkSense

system.

CarManuals2.com

121

P

ARK

S

ENSE

 S

ENSORS

The ParkSense sensors located in the rear

fascia/bumper and (if equipped) in the front

fascia/bumper, monitor the area in front and

behind the vehicle that is within the sensors’ field

of view. These sensors detect the presence of any

obstacles and warn the driver through an

acoustic signal and visual indications, which will

be displayed on the instrument cluster display.

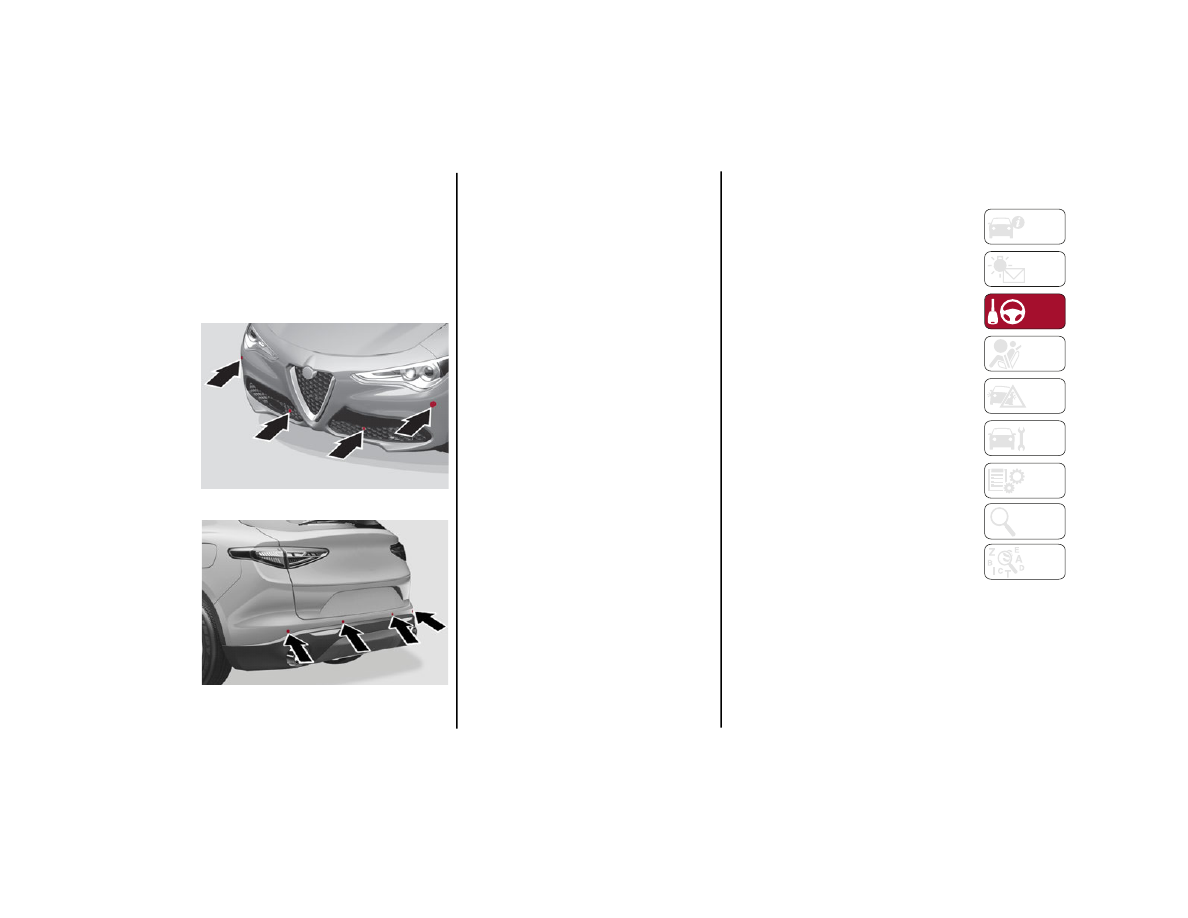

Front Sensor Locations

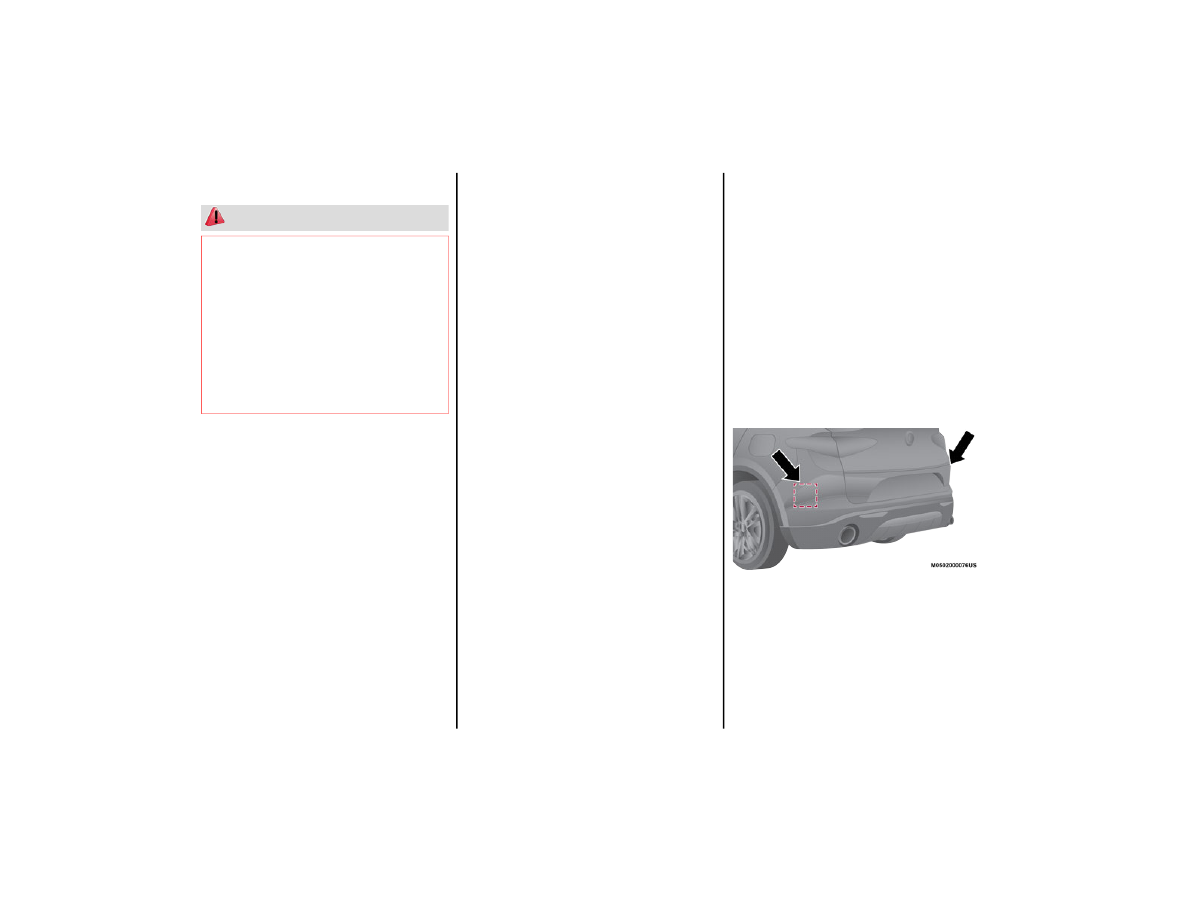

Rear Sensor Locations

P

ARK

S

ENSE

 D

ISPLAY

The driver can select the type of warning they

would like to be displayed through the radio

system. To access the function on the main

menu, select in the following order:
1. Driver Assistance
2. ParkSense
3. Mode
4. Sound and Display

Visual Indications
The system indicates the presence of an obstacle

by displaying a single red arc in the detected area,

in relation to the distance of the object and the

position of the vehicle.
If the obstacle is detected in the front or rear

central area, a single red arc will be displayed as

the obstacle approaches, first constant, then

flashing, in addition to an acoustic signal.
If the obstacle is detected in the front or rear left

and/or right area, a single red flashing arc will be

shown in the corresponding area on the display

and the system will emit an acoustic signal, either

at frequent intervals or constantly.
In general, the vehicle is closer to the obstacle

when a single red flashing arc is shown on the

display and the acoustic signal becomes

continuous.

If several obstacles are detected simultaneously

in the front and rear area, the display will show all

of them, regardless of the area in which they were

detected.
It is not possible to exit from the display screen

while the vehicle is in REVERSE.
Acoustic Signal
In the presence of an obstacle at the front or

the rear of the vehicle, an acoustic signal with

variable frequency will sound:

The acoustic signal increases in frequency as

the distance between the vehicle and the

obstacle decreases.

The acoustic signal becomes continuous when

the distance between the vehicle and the

obstacle is less than 11 inches (30 cm), and

stops if the distance increases.

The acoustic signal is constant if the distance

between the vehicle and the obstacle is

unchanged.

NOTE:

If the sensors detect several front and rear obsta

-

cles, the closest obstacle is considered. An inter

-

mittent signal will sound if the obstacles are at

the same distance (front and rear).
When the system emits an acoustic signal, the

volume of the radio system, if activated, is

automatically lowered.
An acoustic signal will not sound if the vehicle is

in PARK.

CarManuals2.com

STARTING AN

D O

PERA

TIN

G

122

E

NABLING

 A

ND

 D

ISABLING

 P

ARK

S

ENSE

For vehicles only equipped with rear sensors, to

turn the system off, push the ParkSense button

located to the left of the headlight switch. The

indicator light within the button will illuminate

when the system is turned off. Pushing the button

a second time will turn the system back on, and

the indicator light will turn off.

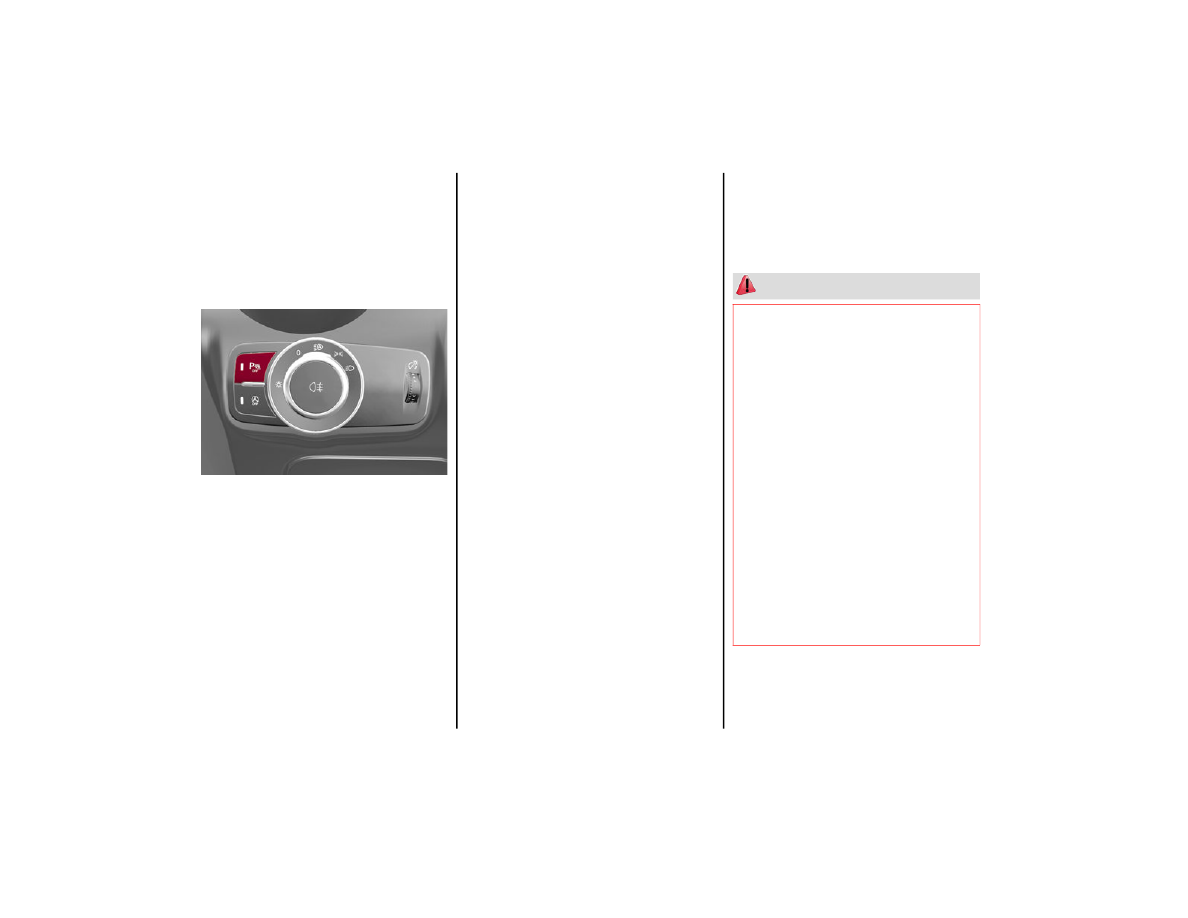

ParkSense System On/Off Button

For vehicles equipped with front and rear

sensors, to turn the front parking sensors off,

push the ParkSense button located to the left of

the headlight switch. The indicator light within the

switch will illuminate when the system is turned

off. Pushing the button a second time will turn the

front sensors back on, and the indicator light will

turn off.
NOTE:

Deactivation of both the front and rear parking

sensors can only be done through the radio

system.

The indicator light within the ParkSense system

switch will also be on in case of system failure. If

the switch is pushed with a system failure, the

indicator light will flash for approximately five

seconds. The light will then stay on constantly.
NOTE:

When the ignition is placed in the ON/RUN posi

-

tion, the ParkSense system keeps the last state

when the engine was stopped (activated or deac

-

tivated) in its memory.

P

ARK

S

ENSE

 W

ARNING

 D

ISPLAY

Parking sensor faults, if any, will be indicated

when REVERSE is engaged by a message on the

instrument cluster display

Ú

page 74.

In case of system failure, a dedicated message

appears on the instrument cluster for about

five seconds.

Cleaning The Front Or Rear Sensors: If the

display shows a message requiring the

sensors to be cleaned, make sure that the

outer surface and the underside of the front

and rear bumpers are free of debris (e.g. snow,

mud, ice, etc.). Once these areas are clear,

place the ignition in the OFF position, then

return it to ON/RUN. If the message is still

displayed, contact an authorized dealer.

Audio System Not Available: If the display

shows a message that the audio system is not

available, it means that the acoustic signal will

be emitted by the instrument panel, and not

through the vehicle’s speakers.

O

PERATION

 W

ITH

 A T

RAILER

The operation of the ParkSense system is

automatically deactivated when a trailer’s

electrical connector is plugged into the vehicle.

The sensors are automatically reactivated when

the electrical connector is removed.

 WARNING!

Before using the ParkSense system, it is

strongly recommended that the ball mount

and hitch ball assembly be disconnected

from the vehicle when the vehicle is not used

for towing. Failure to do so can result in injury

or damage to vehicles or obstacles because

the hitch ball will be much closer to the

obstacle than the rear fascia when the

vehicle sounds the continuous tone. Also, the

sensors could detect the ball mount and

hitch ball assembly, depending on its size

and shape, giving a false indication that an

obstacle is behind the vehicle.

Drivers must be careful when backing up

even when using the ParkSense system.

Always check carefully behind your vehicle,

look behind you, and be sure to check for

pedestrians, animals, other vehicles,

obstructions, and blind spots before

backing up. You are responsible for safety

and must continue to pay attention to your

surroundings. Failure to do so can result in

serious injury or death.

CarManuals2.com

123

(Continued)

P

ARK

S

ENSE

 S

YSTEM

 U

SAGE



P

RECAUTIONS

NOTE:

Some conditions may influence the performance

of the ParkSense system:

Reduced sensor sensitivity could be due to the

presence of ice, snow, mud, or thick paint on

the surface of the sensor.

The sensors may detect a false obstacle (echo

interference) due to mechanical interference,

for example when washing the vehicle or in

extreme weather.

The signals sent by the sensors can be

altered by the presence of ultrasonic systems

(e.g. pneumatic brake systems of trucks or

pneumatic drills) near the vehicle.

System performance can be influenced by the

position of the sensors. For example, due to a

change in the ride setting (caused by wear to

the shock absorbers or suspension), by

changing tires, overloading the vehicle or

operations that require the vehicle to be

lowered.

Be sure not to place bumper stickers or other

adhesives over the sensors as this will affect

system performance.

The presence of a trailer hitch without a trailer.

This may interfere with the operation of the

parking sensors. Before using the ParkSense

system, it is recommended to remove or close

the trailer hitch assembly when the vehicle is

not being used for towing.

LANE DEPARTURE

WARNING (LDW) SYSTEM

L

ANE

 D

EPARTURE

 W

ARNING

 O

PERATION

The Lane Departure Warning system uses a

forward looking camera located on the

windshield to detect lane markings and measure

vehicle position within the lane boundaries.
When one or both lane limits are detected and

the vehicle passes over one without an activated

turn signal, the system emits a visual as well as

an acoustic signal.
If the vehicle continues to go beyond the line of

the lane without any intervention from the driver,

the surpassed line will light up on the display

(left or right) to urge the driver to bring the vehicle

back into the limits of the lane.

 CAUTION!

Projecting loads on the roof of the vehicle

may interfere with the correct operation of

the camera. Before starting, make sure the

load is correctly positioned in order not to

cover the camera operating range.

Do not cover the operating range of the

camera with stickers or other objects.

Do not tamper with nor operate on the

camera. Do not close the openings in the

aesthetic cover located under the interior

rearview mirror. In the event of a failure of

the camera, contact an authorized dealer.

The camera may have limited or absent

operation due to weather conditions such as:

heavy rain, hail, thick fog, heavy snow, or

formation of ice layers on the windshield.

Camera operation may also be compromised

by the presence of dust, condensation, dirt

or ice on the windshield, by traffic conditions

(e.g. vehicles that are driving not aligned with

yours, vehicle driving in a transverse or

opposite way on the same lane, bend with a

small radius of curvature), by road surface

conditions and by driving conditions (e.g.

off-road driving). Make sure the windshield is

always clean. Use specific detergents and

clean cloths to avoid scratching the

windshield. The camera operation may also

be limited or absent in some driving, traffic

and road surface conditions.

If the windshield must be replaced due to

scratches, chipping or breakage, contact

exclusively an authorized dealer. Do not

replace the windshield on your own. It is

advisable to replace the windshield if it is

damaged in the area of the camera.

 CAUTION!

CarManuals2.com

STARTING AN

D O

PERA

TIN

G

124

T

URNING

 L

ANE

 D

EPARTURE

 W

ARNING



O

N

 O

R

 O

FF

The system is activated/deactivated by pushing

the button located on the end of the

multifunction lever, or through the Driver

Assistance widget in the radio system.

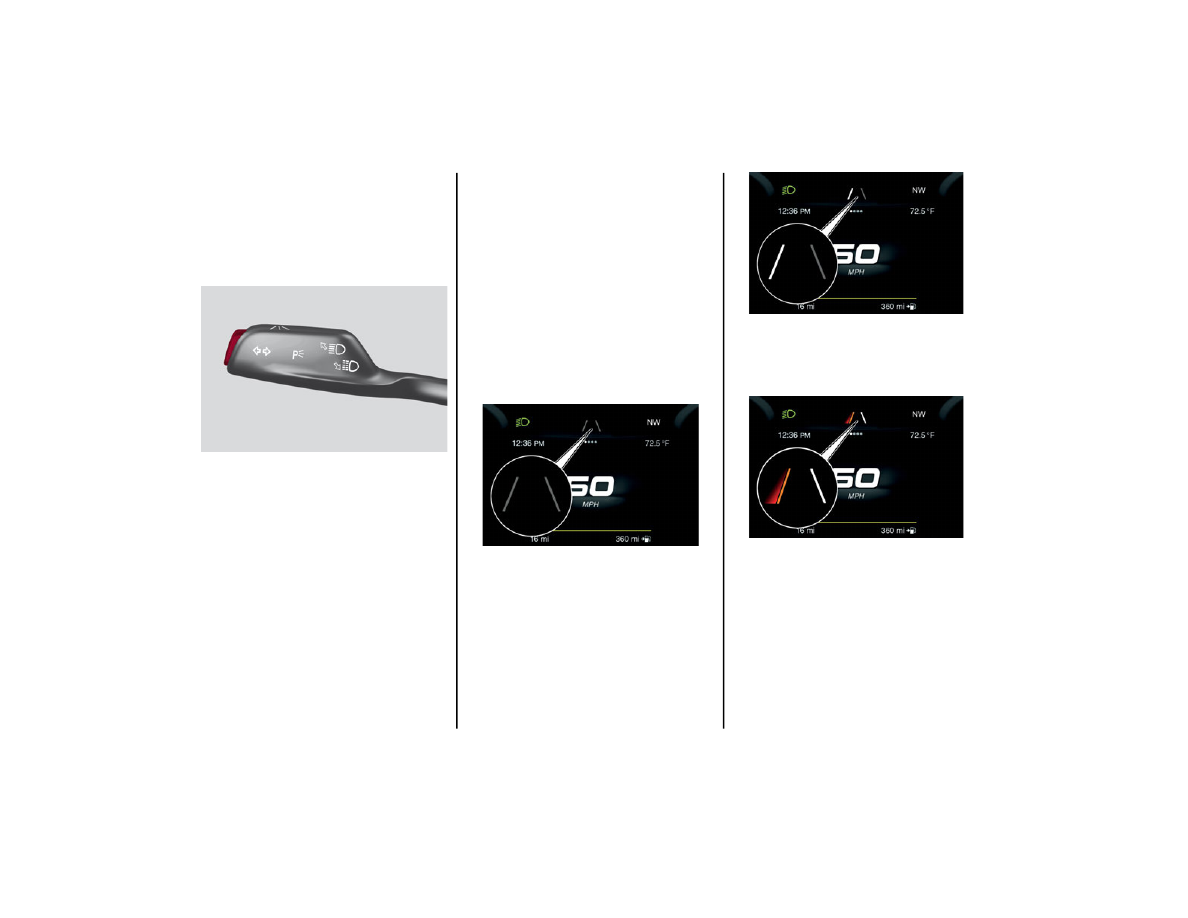

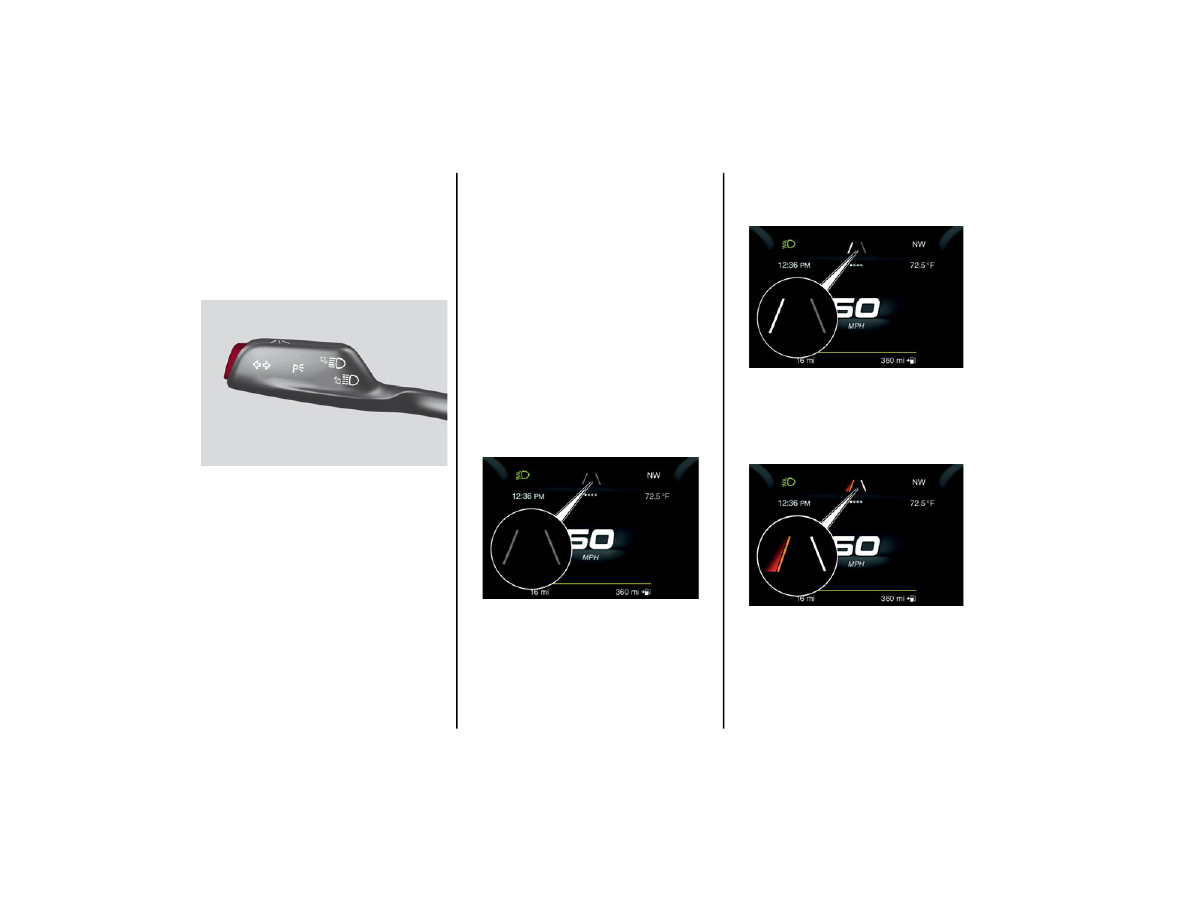

Lane Departure Warning System Activation/

Deactivation Button

NOTE:

The Lane Departure Warning system will retain

the last system state on or off from the last

ignition cycle when the ignition is placed in the

ON/RUN position.
Activation Conditions
Once turned on, the system becomes active only

if the following conditions are met:

The vehicle speed is equal to or above 37 mph

(60 km/h); the system is deactivated at

speeds equal to or greater than 110 mph

(180 km/h).

The lane markings are visible at least on

one side.

There are suitable visibility conditions.

The road is straight or with wide radius bends.

A suitable distance is kept from the vehicle

in front.

The turn signal is not active.

L

ANE

 D

EPARTURE

 W

ARNING

 M

ESSAGE

The Lane Departure Warning system advises the

driver when the vehicle leaves the driving lane by

showing symbols and messages on the

instrument cluster display.
When the system is active and the lane markings

have not been detected, the display shows two

grey lane lines.

Lane Markings Not Detected

Left Lane Departure — Only Left Lane Detected
When the system is active and only, for example,

the left lane marking has been detected, the

detected lane illuminates in white on the display.

The system is then ready to provide visual

warnings on the display in the event of uninten

-

tional exiting of the lane (turn signal not

activated) to the left.

Left Lane Marking Detected

When the system detects that the vehicle has

approached the lane line and is about to pass it,

the left line on the display illuminates in yellow.

Left Lane Marking Approached

The system operates in the same way, but

mirrored, in the event of exiting the right lane

when only the right lane marking has been

detected.

CarManuals2.com

125

Left Lane Departure — Both Lanes Detected
When the system is active, both lane lines on the

display illuminate in white to indicate that both of

the lane markings have been detected.
When lane markings are detected, the system is

ready to provide indications in case the driver

unintentionally leaves the lane (turn signal not

activated).
As the Lane Departure Warning system detects

the lane markings while the vehicle is in motion,

it will adjust the display accordingly (from white to

yellow and yellow to white, and increase their

thickness).
If a lane line is crossed, the driver is alerted by an

audible signal as well as the visual indication in

the instrument cluster. The signal is emitted

through the speakers on the side of the lane limit

which is being crossed (e.g. if the vehicle is

exceeding the left line of the lane, the audible

signal will come from the speakers on the left of

the vehicle).
Limited Operation Warning
If a message appears on the display, a condition

limiting the Lane Departure Warning system

operation may have occurred. This could be an

obstruction of the camera view, or a fault in

the system.
If an obstruction is detected, clean the area of the

windshield by the interior rearview mirror.

Although the vehicle can still be driven in normal

conditions, the system may not function properly.
When the conditions limiting the system are

corrected, it will go back to normal operation.

Should a fault persist, contact an authorized

dealer.
System Failure Warning
If the system turns off and   appears on the

display, it means that there is a system fault.
In this case, it is still possible to drive the vehicle,

but you are advised to contact an authorized

dealer as soon as possible.

C

HANGING

 L

ANE

 D

EPARTURE

 W

ARNING



S

TATUS

The system's sensitivity can be set through the

radio system. Sensitivity “High” or “Low” can be

selected.
To access the function, from the main menu

select the following in order:
1. Driver Assistance
2. Lane Departure Warning
3. Sensitivity

LANE KEEPING ASSIST

(LKA) SYSTEM —

IF EQUIPPED

The Lane Keeping Assist (LKA) system uses a

camera located on the windshield to detect the

lane markings and calculate the position of the

vehicle within such markings, in order to make

sure that the vehicle remains inside the lane. This

is an active system that will apply torque to the

steering wheel if it senses that the vehicle is

drifting out of the lane.
When one or both lane markings are detected

and the vehicle passes over one without a turn

signal being applied, the system will apply torque

to the steering wheel and a visual signal will be

displayed in the instrument cluster display.

An audible signal may also sound.
If the vehicle continues to go beyond the lane line

without any driver intervention, the surpassed

lane line (left or right) will light up on the

instrument cluster display to urge the driver to

bring the vehicle back inside the lane markings.

Lane Crossed

CarManuals2.com

STARTING AN

D O

PERA

TIN

G

126

T

URNING

 L

ANE

 K

EEPING

 A

SSIST

 O

N

 O

R



O

FF

The system is activated/deactivated by pressing

the button at the end of the multifunction lever.

Each time the engine is started, the system

maintains the operating mode that was selected

when it was previously turned off.

Activation/Deactivation Button

Activation Conditions
Once the activation button is pushed, the system

becomes active only if the following conditions

are met:

The car speed is higher than 37 mph (60 km/h)

(the system is deactivated at speeds equal to or

higher than 110 mph (180 km/h))

The lane limit lines are visible at least on one side

There are suitable visibility conditions

The road is straight or with wide radius bends

A suitable distance is kept from the vehicle

in front

The turn signal (to indicate leaving the lane) is

not active

L

ANE

 K

EEPING

 A

SSIST

 W

ARNING



M

ESSAGE

The Lane Keeping Assist system also advises the

driver when the car changes lanes by showing

symbols and messages on the instrument cluster

display.
The message at the top of the display remains

active only until the main reconfigurable area of

the display is activated by pressing the TRIP

button located on the end of the windshield wiper

lever

Ú

page 70.

After activating the main reconfigurable area, the

Lane Keeping Assist system messages will be

shown in the instrument cluster display.
When the system is active and the lane markings

have not been detected, the display shows two

grey lane lines.

Lane Markings Not Detected

Left Lane Departure — Only Left Lane Detected
When the system is active and only, for

example, the left lane marking has been

detected, the detected lane lights up in white

on the display. The system is then ready to

provide visual warnings on the display in the

event of unintentional exiting of the lane (turn

signal indicator not activated) to the left.

Left Lane Marking Detected

When the system detects that the vehicle has

approached the lane marking and is about to

pass it, the left line on the display lights up in

yellow.

Left Lane Marking Approached

NOTE:

The system operates in the same way, but

mirrored, in the event of exiting the right lane

when only the right lane marking has been

detected.

CarManuals2.com

127

Left Lane Departure — Both Lanes Detected
When the system is active, both lane lines on the

display illuminate in white to indicate the

successful detection of both limits.
When lane markings are detected, the system is

ready to provide indications in case the driver

unintentionally leaves the lane (turn signal not

activated).
As the Lane Keeping Assist system detects the

lane markings while the vehicle is in motion, it will

adjust the display accordingly (from white to

yellow and yellow to white, and increase their

thickness).
If a lane line is crossed, the driver is alerted by an

audible signal as well as the visual indication in

the instrument cluster. The signal is emitted

through the speakers on the side of the lane

marking which is being crossed (e.g. if the vehicle

is exceeding the left line of the lane, the audible

signal will come from the speakers on the left of

the vehicle).
Hands Presence On The Steering Wheel

Detection
The system is able to detect the presence of the

driver’s hands on the steering wheel.
When the system does not detect the presence of

hands on the steering wheel for a few seconds

(up to 6 seconds), a yellow indicator light will be

displayed on the instrument cluster display. No

acoustic warning will be emitted in this case.

Hand Presence On The Steering Wheel Not

Detected Display (Up To 6 Seconds)

When the system does not detect the presence of

hands on the steering wheel for a few seconds

(from 6 to 15 seconds), a red indicator light will

be displayed on the instrument cluster display. A

short acoustic signal will sound if hands are not

detected on the steering wheel for 6 to 12

seconds. A continuous signal will sound if hands

are not detected on the steering wheel for 12 to

15 seconds.

Hand Presence On The Steering Wheel Not

Detected Display (6 To 15 Seconds)

After 15 seconds with the hands removed from

the steering wheel, the LKA system will be

deactivated and a dedicated message will be

shown on the instrument cluster display.

A short acoustic signal will sound in this case.
In any of the situations above where the hands

are removed from the steering wheel for more

than 6 seconds, it is necessary to reposition the

hands on the steering wheel.
Changing The System Sensitivity
The system's sensitivity can be set through the

radio system in the Driver Assistance menu.

Select “Lane Keep Assist - Settings” and then

“Keeping sensitivity”. Sensitivity “Early” or

“Late” can be selected.
Changing The System Strength
The system’s strength can be set through the

radio system in the Driver Assistance menu.

Select “Lane Keep Assist - Settings” and then

“Strength”. Strength “Low” or “High” can be

selected.
Limited Operation Warning
If a message appears on the display, a condition

limiting the LKA system operation may have

occurred. This could be an obstruction of the

camera view, or a fault in the system.
If an obstruction is detected, clean the area of the

windshield by the interior rearview mirror.
Although the vehicle can still be driven in normal

conditions, the system may not function properly.
When the conditions limiting the system are

corrected, it will go back to normal operation.

Should a fault persist, contact an authorized

dealer.

CarManuals2.com

STARTING AN

D O

PERA

TIN

G

128

(Continued)

System Failure Signaling
If the system turns off and   appears on the

display, it means that there is a system fault.
In this case, it is still possible to drive the vehicle,

but you are advised to contact an authorized

dealer as soon as possible.

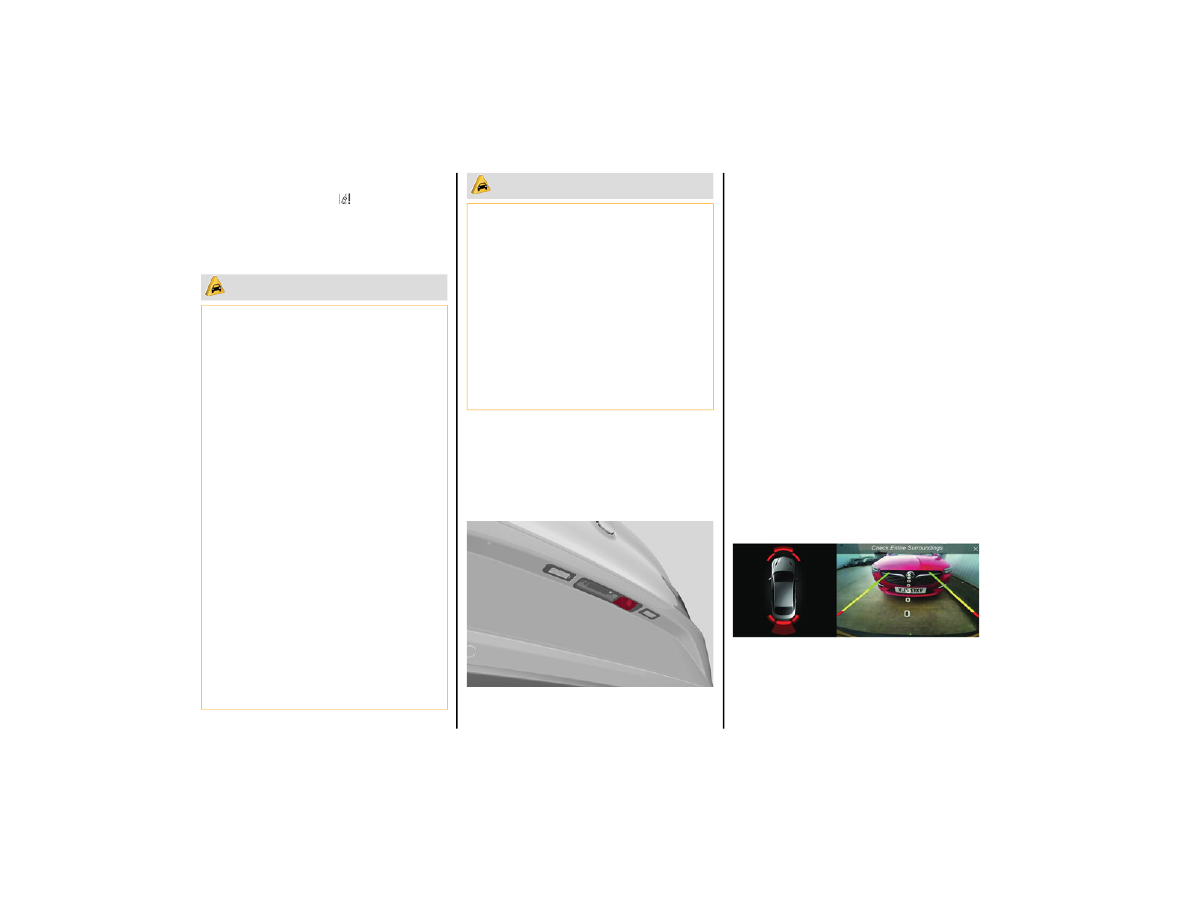

REAR BACK UP CAMERA /

DYNAMIC GRIDLINES

The Rear Back Up Camera is located on the

liftgate, above the rear license plate.

Rear Back Up Camera Location

Camera Activation/Deactivation
To activate the Rear Back Up Camera features,

select “Driver Assistance” from the Main Menu of

the radio system. Under Driver Assistance, Rear

Back Up Camera features can be selected:

View

Camera Delay

Camera Guidelines

Selecting “View” will activate the camera view on

the display.
Selecting “Camera Delay” will allow the camera

view to remain on the display shortly after the

vehicle is no longer in REVERSE, followed by the

previously active screen.
Selecting “Camera Guidelines” will activate the

display of the dynamic guidelines that indicate

the route of the vehicle.
When the vehicle is in REVERSE, the radio system

display will show the area behind the vehicle, as

seen by the Rear Back Up Camera, along with a

warning message.

Rear Back Up Camera Display

 CAUTION!

Projecting loads on the roof of the vehicle

may interfere with the correct operation of

the camera. Before starting, make sure the

load is correctly positioned, in order not to

cover the camera operating range.

If the windshield must be replaced due to

scratches, chips or breakage, contact an

authorized dealer. Do not replace the windshield

on your own; there is risk of malfunction. It is

advisable to replace the windshield if it is

damaged in the area of the camera.

Do not tamper with or operate on the

camera. Do not close the openings in the

aesthetic cover located under the interior

rearview mirror. In the event of a failure of

the camera, contact an authorized dealer

immediately.

Do not cover the operating range of the

camera with stickers or other objects. Also

pay attention to other objects on the hood

(e.g. a layer of snow) and make sure they do

not interfere with the camera.

The camera may have limited or absent

operation due to weather conditions such as:

heavy rain, hail, thick fog, heavy snow, or

formation of ice layers on the windshield.

Camera operation may also be compromised

by the presence of dust, condensation, dirt

or ice on the windshield, traffic conditions

(e.g. vehicles that are driving not aligned with

yours, vehicle driving in a transverse or

opposite way on the same lane, bend with a

small radius of curvature), or road surface

conditions and driving conditions (e.g.

off-road driving). Make sure the windshield is

always clean. Use specific detergents and

clean cloths to avoid scratching the

windshield. The camera operation may also

be limited or absent in some driving, traffic

and road surface conditions.

 CAUTION!

CarManuals2.com

129

When enabled in the radio settings, active

guidelines are overlaid on the image to illustrate

the width of the vehicle and its projected back up

path based on the steering wheel position. A

dashed center line overlay indicates the center of

the vehicle to assist in rear parking maneuvers or

trailer hitch alignment. Different colored zones

indicate the distance to the rear of the vehicle.

The following table shows the approximate

distances for each zone:

Messages On The Display
If the liftgate is opened, the camera will not detect

any obstacle behind the vehicle. The display will

show a dedicated warning message.
Make sure the liftgate is closed by pushing next to

the lock until it clicks.

Important Notes

Ice, snow or mud on the surface of the camera

may reduce its sensitivity. It is important to

keep the camera surface clean, and free from

debris.

When parking, be aware of obstacles that may

be above or below the camera range.

REFUELING THE VEHICLE

Before refueling, make sure that the fuel type is

correct

Ú

page 249.

Also, stop the engine before refueling.

NOTE:

An inefficient catalytic converter leads to

harmful exhaust emissions, thus contributing to

air pollution.

R

EFUELING

 C

APACITY

To ensure that you fill the tank completely, top off

twice after the first click of the fuel nozzle.
Further top-off could cause faults in the fuel

feeding system.

Area

Distance From The

Rear Of The Vehicle

Red

0–11.8 inches

(0–30 cm)

Yellow

11.8 inches to 3.3 feet

(30 cm–1 m)

Green

3.3 feet or more

(1 m or more)

 WARNING!

Drivers must be careful when backing up even

when using the Rear Back Up Camera. Always

check carefully behind your vehicle, and be

sure to check for pedestrians, animals, other

vehicles, obstructions, or blind spots before

backing up. You are responsible for the safety

of your surroundings and must continue to pay

attention while backing up. Failure to do so

can result in serious injury or death.

 CAUTION!

To avoid vehicle damage, Rear Back Up

Camera should only be used as a parking aid.

The Rear Back Up Camera is unable to view

every obstacle or object in your drive path.

To avoid vehicle damage, the vehicle must

be driven slowly when using the Rear Back

Up Camera to be able to stop in time when an

obstacle is seen. It is recommended that the

driver look frequently over his/her shoulder

when using the Rear Back Up Camera.

 CAUTION!

Never introduce leaded fuel to the tank,

even in small amounts in an emergency, as

this would damage the catalytic converter

beyond repair.

CarManuals2.com

STARTING AN

D O

PERA

TIN

G

130

R

EFUELING

 P

ROCEDURE



The fuel filler door is unlocked when the central

door locking system is unlocked. It is automat

-

ically locked when the central locking system is

applied.

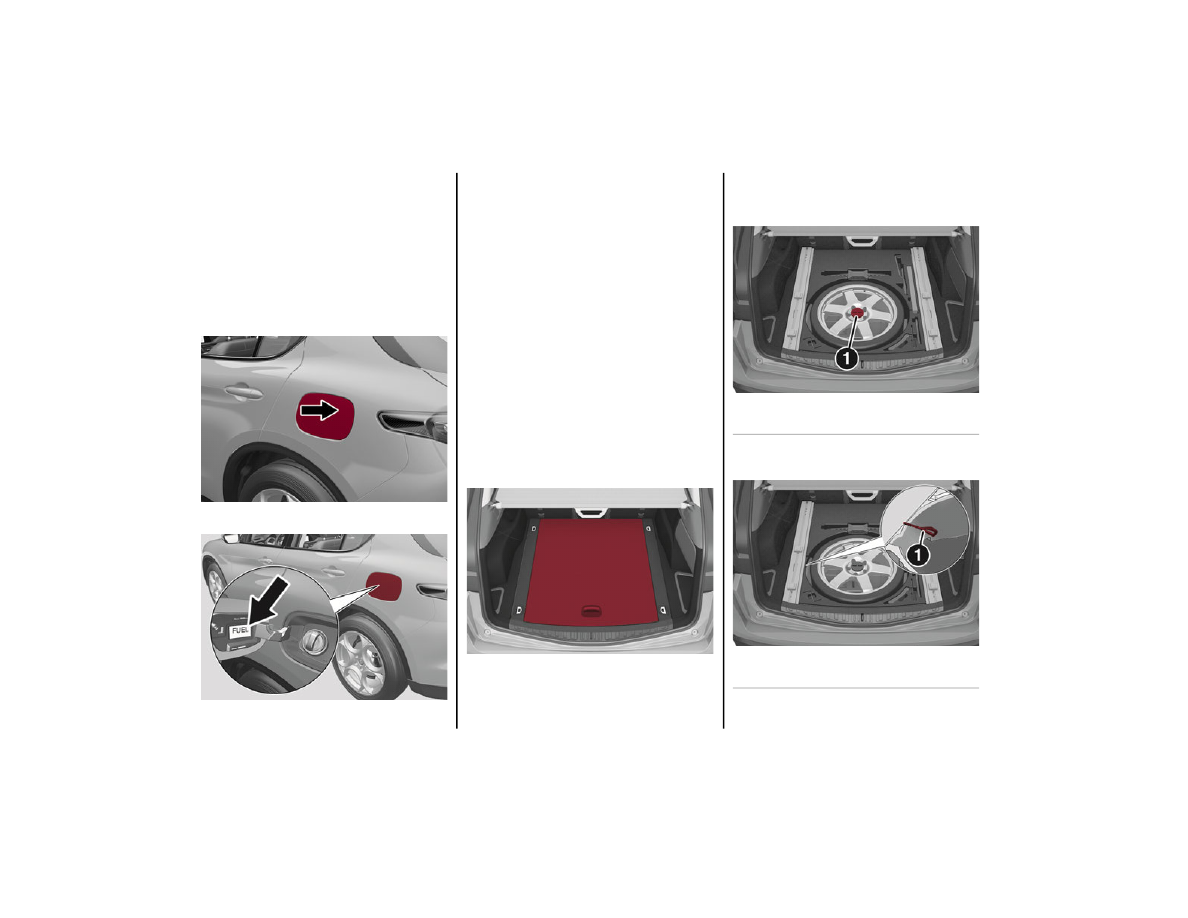

Opening The Fuel Filler Door
To refuel proceed as follows:
1. Open fuel filler door by pushing on the point

shown by the arrow.

Fuel Door

Fuel Door Label

The label indicates the fuel type

(UNLEADED FUEL = gasoline).
2. Remove the fuel filler cap.
3. Insert the fuel nozzle fully into the filler pipe.
4. When the fuel nozzle “clicks” or shuts off,

before removing the nozzle, wait for at

least 10 seconds in order for the fuel to

flow inside the tank.

5. Remove the fuel filler nozzle, tighten the

gas cap about ¼ turn until you hear one click.

This is an indication that the cap is properly

tightened.

Emergency Fuel Door Opening
In the event of an emergency, the fuel filler door

can be opened from inside the liftgate.
Proceed as follows:

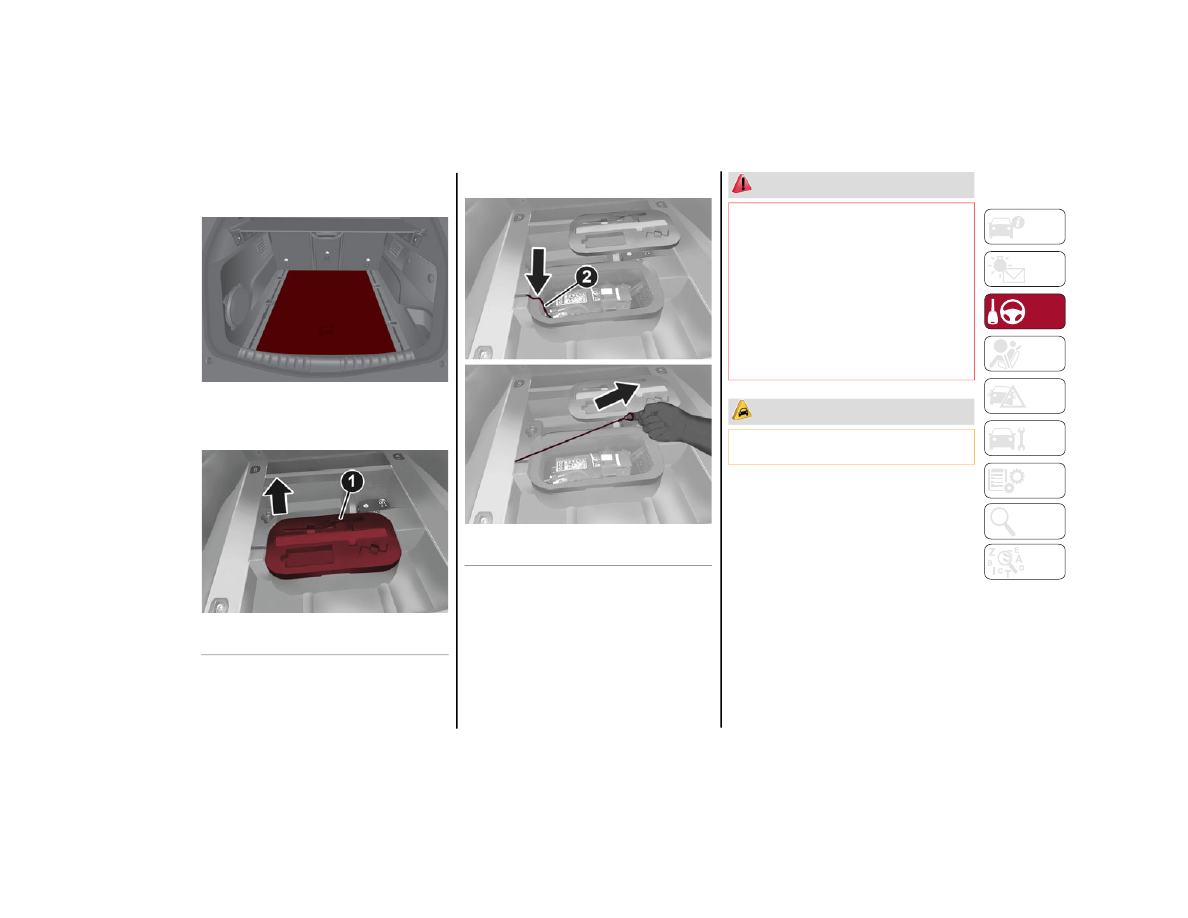

Models With Compact Spare Tire
1. Open the liftgate and lift up the load floor.

Load Floor

2. Unlock the locking device and remove the

compact spare tire to reach the emergency

opening cable on the side of the fuel door.

Cargo Area

3. Pull the cable to release the fuel door lock.

Release Cable

4. Open the fuel door by pushing it.

1 — Locking Device

1 — Release Cable

CarManuals2.com

131

Models Without Compact Spare Tire
1. Open the liftgate and lift up the load floor.

Load Floor

2. Lift up the cover to reach the emergency

opening cable on the side of the fuel door.

Cargo Box

3. Pull the cable to release the fuel door lock.

Cargo Box Opened

4. Open the fuel door by pushing it.

NOTE:

If the filler compartment is washed with a pres

-

sure washer, keep it at a distance of at least

8 inches (20 cm).

1 — Cover

2 — Release Cable

 WARNING!

Never have any smoking materials lit in or

near the vehicle when the fuel door is open

or the tank is being filled.

Never add fuel when the engine is running.

This is in violation of most state and federal

fire regulations and may cause the

Malfunction Indicator Lamp (MIL) to turn on.

A fire may result if gasoline is pumped into a

portable container that is inside of a vehicle.

You could be burned. Always place gas

containers on the ground while filling.

 CAUTION!

To avoid fuel spillage and overfilling, do not

“top off” the fuel tank after filling.

CarManuals2.com

STARTING AN

D O

PERA

TIN

G

132

VEHICLE LOADING

C

ERTIFICATION

 L

ABEL

As required by National Highway Traffic Safety

Administration regulations, your vehicle has a

certification label affixed to the driver's side door

or pillar.
This label contains the month and year of

manufacture, Gross Vehicle Weight Rating

(GVWR), Gross Axle Weight Rating (GAWR) front

and rear, and Vehicle Identification Number

(VIN). A Month-Day-Hour (MDH) number is

included on this label and indicates the Month,

Day and Hour of manufacture. The bar code that

appears on the bottom of the label is your VIN.

Gross Vehicle Weight Rating (GVWR)

The GVWR is the total permissible weight of your

vehicle including driver, passengers, vehicle,

options and cargo. The label also specifies

maximum capacities of front and rear axle

systems (GAWR). Total load must be limited so

GVWR and front and rear GAWR are not

exceeded.

Payload

The payload of a vehicle is defined as the

allowable load weight a truck can carry, including

the weight of the driver, all passengers, options

and cargo.

Gross Axle Weight Rating (GAWR)

The GAWR is the maximum permissible load on

the front and rear axles. The load must be

distributed in the cargo area so that the GAWR of

each axle is not exceeded.
Each axle GAWR is determined by the

components in the system with the lowest load

carrying capacity (axle, springs, tires or wheels).

Heavier axles or suspension components

sometimes specified by purchasers for increased

durability do not necessarily increase the

vehicle's GVWR.

Tire Size

The tire size on the Vehicle Certification Label

represents the actual tire size on your vehicle.

Replacement tires must be equal to the load

capacity of this tire size.

Rim Size

This is the rim size that is appropriate for the

tire size listed.

Inflation Pressure

This is the cold tire inflation pressure for your

vehicle for all loading conditions up to full GAWR.

Curb Weight

The curb weight of a vehicle is defined as the total

weight of the vehicle with all fluids, including

vehicle fuel, at full capacity conditions, and with

no occupants or cargo loaded into the vehicle.

The front and rear curb weight values are

determined by weighing your vehicle on a

commercial scale before any occupants or

cargo are added.

Loading

The actual total weight and the weight of the front

and rear of your vehicle at the ground can best be

determined by weighing it when it is loaded and

ready for operation.
The entire vehicle should first be weighed on a

commercial scale to ensure that the GVWR has

not been exceeded. The weight on the front and

rear of the vehicle should then be determined

separately to be sure that the load is properly

distributed over the front and rear axle. Weighing

the vehicle may show that the GAWR of either the

front or rear axles has been exceeded but the

total load is within the specified GVWR. If so,

weight must be shifted from front to rear or rear

to front as appropriate until the specified weight

limitations are met. Store the heavier items down

low and be sure that the weight is distributed

equally. Stow all loose items securely before

driving.
Improper weight distributions can have an

adverse effect on the way your vehicle steers and

handles and the way the brakes operate.

 WARNING!

Do not load your vehicle any heavier than the

GVWR or the maximum front and rear GAWR. If

you do, parts on your vehicle can break, or it

can change the way your vehicle handles. This

could cause you to lose control. Overloading

can shorten the life of your vehicle.

CarManuals2.com

133

TRAILER TOWING

In this section you will find safety tips and

information on limits to the type of towing you can

reasonably do with your vehicle. Before towing a

trailer, carefully review this information to tow

your load as efficiently and safely as possible.
To maintain the New Vehicle Limited Warranty

coverage, follow the requirements and

recommendations in this manual concerning

vehicles used for trailer towing.

C

OMMON

 T

OWING

 D

EFINITIONS

The following trailer towing related definitions will

assist you in understanding the following

information:

Gross Vehicle Weight Rating (GVWR)

The GVWR is the total allowable weight of your

vehicle. This includes driver, passengers, cargo

and tongue weight. The total load must be limited

so that you do not exceed the GVWR

Ú

page 132.

Gross Trailer Weight (GTW)

The GTW is the weight of the trailer plus the

weight of all cargo, consumables, and equipment

(permanent or temporary) loaded in or on the

trailer in its "loaded and ready for operation"

condition.
The recommended way to measure GTW is to put

your fully loaded trailer on a vehicle scale. The

entire weight of the trailer must be supported by

the scale.

Gross Combination Weight Rating

(GCWR)

The GCWR is the total allowable weight of your

vehicle and trailer when weighed in combination.

Gross Axle Weight Rating (GAWR)

The GAWR is the maximum capacity of the front

and rear axles. Distribute the load over the front

and rear axles evenly. Make sure that you do not

exceed either front or rear GAWR

Ú

page 132.

Tongue Weight (TW)

The tongue weight is the downward force exerted

on the hitch ball by the trailer. You must consider

this as part of the load on your vehicle.

Trailer Frontal Area

The frontal area is the maximum height multiplied

by the maximum width of the front of a trailer.

Weight-Carrying Hitch

A weight-carrying hitch supports the trailer tongue

weight, just as if it were luggage located at a hitch

ball or some other connecting point of the vehicle.

These kinds of hitches are the most popular on

the market today and they are commonly used to

tow small and medium sized trailers.

Weight-Distributing Hitch

A weight-distributing hitch system works by

applying leverage through spring (load) bars. They

are typically used for heavier loads to distribute

trailer tongue weight to the tow vehicle's front

axle and the trailer axle(s). When used in

accordance with the manufacturer's directions, it

provides for a more level ride, offering more

consistent steering and brake control thereby

enhancing towing safety. The addition of a

friction/hydraulic sway control also dampens

sway caused by traffic and crosswinds and

contributes positively to tow vehicle and trailer

stability. Trailer Sway Control and a

weight-distributing (load equalizing) hitch are

recommended for heavier Tongue Weights (TW)

and may be required depending on vehicle and

trailer configuration/loading to comply with Gross

Axle Weight Rating (GAWR) requirements.

 WARNING!

It is important that you do not exceed the

maximum front or rear GAWR. A dangerous

driving condition can result if either rating is

exceeded. You could lose control of the vehicle

and have a collision.

 WARNING!

An improperly adjusted weight-distributing

hitch system may reduce handling, stability,

braking performance, and could result in a

collision.

Weight-distributing hitch systems may not be

compatible with surge brake couplers.

Consult with the hitch and trailer

manufacturer or a reputable Recreational

Vehicle dealer for additional information.

CarManuals2.com

STARTING AN

D O

PERA

TIN

G

134

T

RAILER

 H

ITCH

 C

LASSIFICATION

The following chart provides the industry standard for the maximum trailer weight a given trailer hitch class can tow and should be used to assist you in

selecting the correct trailer hitch for your intended towing condition.

T

RAILER

 T

OWING

 W

EIGHTS

 (M

AXIMUM

 T

RAILER

 W

EIGHT

 R

ATINGS

Trailer towing is not permissible with the 2.9L engine.

Trailer Hitch Classification Definitions

Class

Max. Trailer Hitch Industry Standards

Class I - Light Duty

2,000 lb (907 kg)

Class II - Medium Duty

3,500 lb (1,587 kg)

Class III - Heavy Duty

6,000 lb (2,722 kg)

Class IV - Extra Heavy Duty

10,000 lb (4,535 kg)

Refer to the “Trailer Towing Weights (Maximum Trailer Weight Ratings)” chart for the Maximum Gross Trailer Weight (GTW) towable for your

given drivetrain.
All trailer hitches should be professionally installed on your vehicle.

Engine/Transmission

Maximum GTW

Maximum Trailer TW (See Note)

2.0L Engine

3,000 lb (1,360 kg)

300 lb (136 kg)

Refer to local laws for maximum trailer towing speeds.

NOTE:

The trailer tongue weight must be considered as part of the combined weight of occupants and cargo, and should never exceed the weight referenced on

the Tire and Loading Information placard.

CarManuals2.com

135

(Continued)

(Continued)

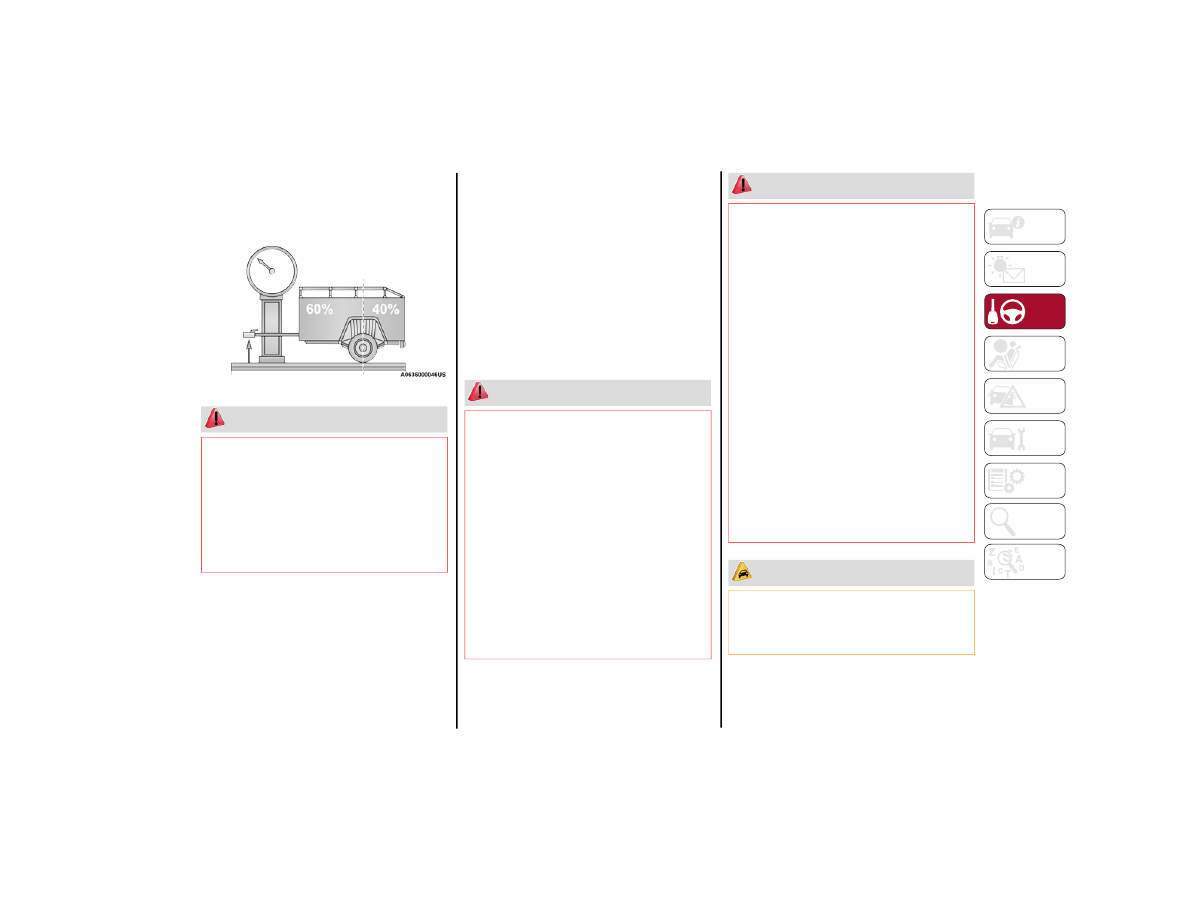

T

RAILER

 A

ND

 T

ONGUE

 W

EIGHT



Never exceed the maximum tongue weight

stamped on your fascia/bumper or trailer hitch.

Weight Distribution

Consider the following items when computing the

weight on the rear axle of the vehicle:

The tongue weight of the trailer.

The weight of any other type of cargo or

equipment put in or on your vehicle.

The weight of the driver and all passengers.

NOTE:

Remember that everything put into or on the

trailer adds to the load on your vehicle. Also, addi

-

tional factory-installed options or dealer-installed

options must be considered as part of the total

load on your vehicle. Refer to the “Tire And

Loading Information” placard for the maximum

combined weight of occupants and cargo for

your vehicle.

T

OWING

 R

EQUIREMENTS

To promote proper break-in of your new vehicle

drivetrain components, the following guidelines

are recommended:

 WARNING!

Always load a trailer with 60% of the weight in

the front of the trailer. This places 10% of the

GTW on the tow hitch of your vehicle. Loads

balanced over the wheels or heavier in the

rear can cause the trailer to sway severely side

to side which will cause loss of control of the

vehicle and trailer. Failure to load trailers

heavier in front is the cause of many

trailer collisions.

 WARNING!

Improper towing can lead to a collision. Follow

these guidelines to make your trailer towing as

safe as possible:

Make certain that the load is secured in the

trailer and that it will not shift during travel.

When trailering cargo that is not fully

secured, dynamic load shifts can occur that

may be difficult for the driver to control. You

could lose control of your vehicle and have a

collision.

When hauling cargo, or towing a trailer, do

not overload your vehicle or trailer.

Overloading can cause a loss of control, poor

performance, or damage to brakes, axle,

engine, transmission, steering, suspension,

chassis structure, or tires.

Safety chains must always be used between

your vehicle and trailer. Always connect the

chains to the frame or hook retainers of the

vehicle hitch. Cross the chains under the

trailer tongue and allow enough slack for

turning corners.

Vehicles with trailers should not be parked

on a grade. When parking, apply the parking

brake on the tow vehicle. Put the tow vehicle

transmission in PARK. Always block or

"chock" the trailer wheels.

GCWR must not be exceeded.

Total weight must be distributed between

the tow vehicle and the trailer such that the

following four ratings are not exceeded:

GVWR

GTW

GAWR

Tongue weight rating for the trailer hitch

utilized.

 CAUTION!

Do not tow a trailer at all during the first

500 miles (805 km) the new vehicle is

driven. The engine, axle or other parts could

be damaged.

 WARNING!

CarManuals2.com

STARTING AN

D O

PERA

TIN

G

136

Towing Requirements — Tires

Do not attempt to tow a trailer while using a

compact spare tire.

Do not drive more than 50 mph (80 km/h)

when towing while using a full size spare tire.

Proper tire inflation pressures are essential to

the safe and satisfactory operation of your

vehicle.

Check the trailer tires for proper tire inflation

pressures before trailer usage.

Check for signs of tire wear or visible tire

damage before towing a trailer.

Replacing tires with a higher load carrying

capacity will not increase the vehicle's GVWR

and GAWR limits.

For proper tire inflation procedures

Ú

page 224.

Towing Requirements — Trailer Brakes

Do not interconnect the hydraulic brake

system or vacuum system of your vehicle with

that of the trailer. This could cause inadequate

braking and possible personal injury.

An electronically actuated trailer brake

controller is required when towing a trailer with

electronically actuated brakes. When towing a

trailer equipped with a hydraulic surge

actuated brake system, an electronic brake

controller is not required.

Trailer brakes are recommended for trailers

over 1,000 lb (453 kg) and required for trailers

in excess of 2,000 lb (907 kg).

Towing Requirements — Trailer Lights

And Wiring

Whenever you pull a trailer, regardless of the

trailer size, stoplights and turn signals on the

trailer are required for motoring safety.
The Trailer Tow Package may include a four- and

seven-pin wiring harness. Use a factory approved

trailer harness and connector.
NOTE:

Do not cut or splice wiring into the vehicle’s wiring

harness.
The electrical connections are all complete to the

vehicle but you must mate the harness to a trailer

connector. Refer to the following illustrations.
NOTE:

Disconnect trailer wiring connector from the

vehicle before launching a boat (or any other

device plugged into vehicle’s electrical

connect) into water.

Be sure to reconnect once clear from

water area.

Then, during the first 500 miles (805 km)

that a trailer is towed, do not drive over

50 mph (80 km/h) and do not make starts

at full throttle. This helps the engine and

other parts of the vehicle wear in at the

heavier loads.

 CAUTION!

 WARNING!

Do not connect trailer brakes to your

vehicle's hydraulic brake lines. It can

overload your brake system and cause it to

fail. You might not have brakes when you

need them and could have an accident.

Towing any trailer will increase your stopping

distance. When towing, you should allow for

additional space between your vehicle and

the vehicle in front of you. Failure to do so

could result in an accident.

 CAUTION!

If the trailer weighs more than 1,000 lb

(453 kg) loaded, it should have its own brakes

and they should be of adequate capacity.

Failure to do this could lead to accelerated

brake lining wear, higher brake pedal effort,

and longer stopping distances.

CarManuals2.com

137

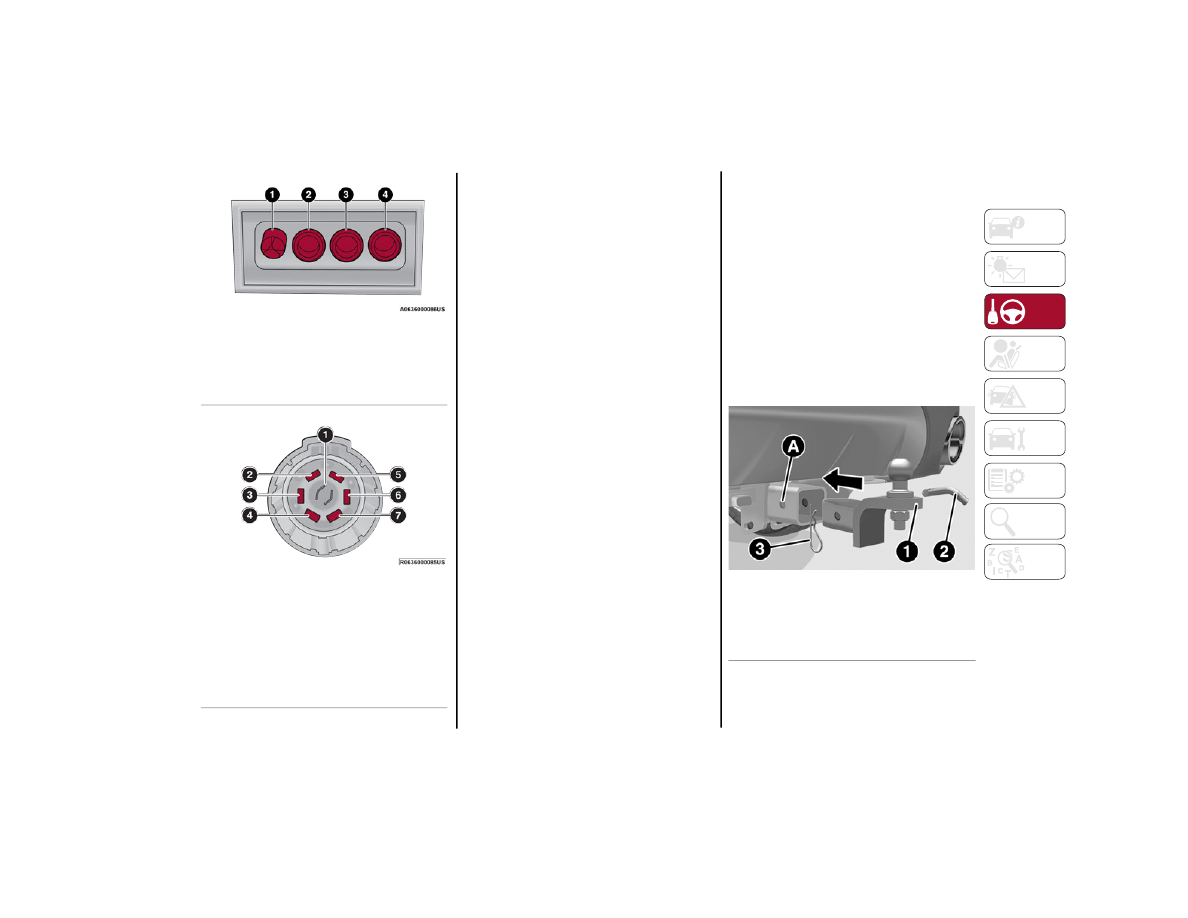

Four-Pin Connector

Seven-Pin Connector

T

OWING

 T

IPS



Before setting out on a trip, practice turning,

stopping, and backing up the trailer in an area

located away from heavy traffic.

Automatic Transmission

Select the DRIVE range when towing. The

transmission controls include a drive strategy to

avoid frequent shifting when towing. However, if

frequent shifting does occur while in DRIVE, you

can use the AutoStick shift control to manually

select a lower gear.
NOTE:

Using a lower gear while operating the vehicle

under heavy loading conditions will improve

performance and extend transmission life by

reducing excessive shifting and heat buildup. This

action will also provide better engine braking.

Cruise Control — If Equipped

Do not use on hilly terrain or with heavy loads.

When using the Cruise Control, if you

experience speed drops greater than 10 mph

(16 km/h), disengage until you can get back to

cruising speed.

Use Cruise Control in flat terrain and with light

loads to maximize fuel efficiency.

I

NSTALLING

 T

HE

 R

ECEIVER

To properly install the receiver, see the following

directions:
1. Retrieve the receiver from the luggage

compartment.

2. Push the receiver into the trailer hitch, and

secure by inserting the locking pin into the

trailer hitch.

3. Insert the safety split ring into the hole on the

locking pin.

NOTE:

Ensure that the locking pin is removed from the

trailer hitch before installing the receiver.

Trailer Hitch And Receiver

1 — Ground
2 — Park
3 — Left Stop/Turn
4 — Right Stop/Turn

1 — Backup Lamps
2 — Running Lamps
3 — Left Stop/Turn
4 — Ground
5 — Battery
6 — Right Stop/Turn
7 — Electric Brakes

1 – Receiver
2 – Locking Pin
3 – Safety Split Ring
A – Trailer Hitch

CarManuals2.com

STARTING AN

D O

PERA

TIN

G

138

C

ONNECTING

 T

HE

 E

LECTRICAL

 S

YSTEM

To connect the trailer’s electrical system, see the

following directions:
1. Remove the socket protective cover.
2. Completely insert the plug into the socket.

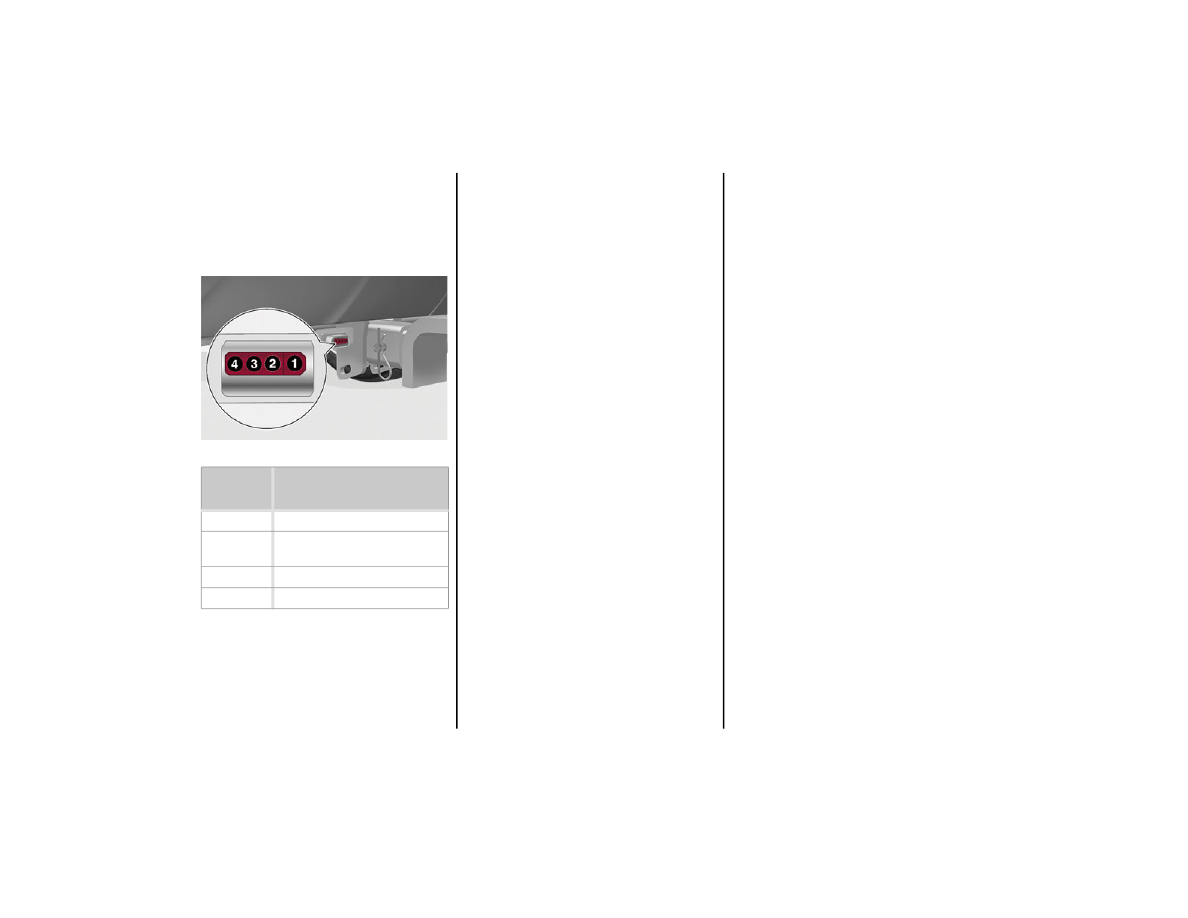

Electrical Tow Connector

R

EMOVING

 T

HE

 R

ECEIVER

When the receiver is no longer needed,

disconnect the electrical connections and

remove it from its position using the following

directions:
1. Remove the safety split ring from the

locking pin.

2. Pull the locking pin out of the trailer hitch.
3. Remove the receiver from the trailer hitch.

SUGGESTIONS FOR

DRIVING

S

AVING

 F

UEL

The following suggestions may help you save fuel

and lower the amount of harmful emissions

released into the atmosphere.
Vehicle Maintenance
Checks and operations should be carried out in

accordance with the Maintenance Plan

Ú

page 199.

Tires
Check the tire pressures at least once every four

weeks: if the pressure is too low, consumption

levels increase as resistance to rolling is higher.
NOTE:

Tire pressure that is too high can cause prema

-

ture tire wear, reduced control, etc.
Unnecessary Loads
Do not travel with an overloaded liftgate. The

weight of the vehicle and its arrangement greatly

affect fuel consumption and stability.
Electric Devices
Use electrical systems only for the amount of

time needed. The rear window defroster,

additional headlights, windshield wipers and

heater blower fan require a considerable amount

of energy; increasing the current uptake

increases fuel consumption (by up to +25% when

city driving).
Climate Control System
Using the climate control system will increase

consumption: use standard ventilation when the

temperature outside permits.
Devices For Aerodynamic Control
The use of non-certified devices for aerodynamic

control may adversely affect air drag and

consumption levels.

Pin

Number

Function

1

Lights ground (Lights GND)

2

Position light, side marker

lights, and license plate light

3

Left turn signal and stop light

4

Right turn signal and stop light

CarManuals2.com

139

D

RIVING

 S

TYLE

Starting
Do not warm up the engine at low or high revs

when the vehicle is stationary; this causes the

engine to warm up more slowly, thereby

increasing fuel consumption and emissions. It is

therefore advisable to drive off immediately,

slowly, avoiding high speeds: by doing this the

engine will warm up more quickly.
Unnecessary Actions
Avoid revving up when starting at traffic lights or

before stopping the engine. This action is

unnecessary and causes increased fuel

consumption and pollution.
Gear Selection
Use a high gear when traffic and road conditions

allow it. Using a low gear for faster acceleration

will increase fuel consumption. Improper use of a

high gear increases consumption, emissions and

engine wear.
Maximum Speed
Fuel consumption considerably increases as

speed increases. Maintain a constant speed,

avoiding unnecessary braking and acceleration,

which cost in terms of both fuel consumption and

emissions.
Acceleration
Accelerating violently severely affects

consumption and emissions: acceleration should

be gradual and should not exceed the maximum

torque.

C

ONDITIONS

 O

F

 U

SE

Cold Starting
Short trips and frequent cold starts will not allow

the engine to reach optimum operating

temperature. This results in a significant increase

in consumption levels (from +15 to +30% in

city driving) and emissions.
Traffic And Road Conditions
High fuel consumption is caused by heavy traffic,

for instance when traveling in traffic with frequent

use of low gears or in cities with many traffic

lights. Winding mountain roads and rough road

surfaces also adversely affect consumption.
Stops In Traffic
During prolonged stops (e.g. railway crossings),

turn off the engine.

P

ERFORMANCE

 — Q

UADRIFOGLIO

This vehicle is equipped with an engine capable

of delivering exceptionally fast acceleration and

speed:

Peak power: 505 HP at 6,500 RPM.

Peak torque: 443 ft-lb at 2,500–5,000 RPM.

Top speed: 176 mph (283 km/h).

Acceleration from 0 to 60 mph (0 to 100 km/h):

3.6 seconds.

For safe driving, it is essential, particularly during

the first days of use, to get to know the car by

driving carefully and gradually discovering its

performance.
Driving On Race Tracks
Before driving on a track using a racing style, it is

necessary to:

Attend a race track driving course.

Check the liquid levels in the engine

compartment

Ú

page 199.

Have the car inspected at an authorized

dealer.

Remember that the car was not designed to be

driven exclusively on the race track and that this

use increases stress and component wear.
NOTE:

Quadrifoglio front brakes are equipped with

Non-Asbestos Organic (NAO) type pads. These

pads are NOT suitable for high thermal loads

(for example track use).

CarManuals2.com

140

(Continued)

SAFETY

This very important section describes the safety

systems that your vehicle may be equipped with,

and provides instructions on how to use them

correctly.

ACTIVE SAFETY SYSTEMS

The vehicle may be equipped with the following

active safety devices:

Anti-Lock Brake System (ABS)

Active Torque Vectoring (ATV) System

Dynamic Steering Torque (DST) System

Drive Train Control (DTC) System

Electronic Stability Control (ESC) System

Hill Descent Control (HDC) System

Hill Start Assist (HSA) System

Panic Brake Assist (PBA) System

Traction Control System (TCS)

For system operation, see the following pages.

A

NTI

-L

OCK

 B

RAKE

 S

YSTEM

 (ABS)

An integral part of the braking system, the ABS

prevents one or more wheels from locking and

slipping in all road surface conditions, regardless

of the intensity of the braking action. The system

ensures that the vehicle can be controlled even

during emergency braking, allowing the driver to

optimize stopping distances.
The system intervenes during braking when the

wheels are about to lock, typically in emergency

braking or low-grip conditions where locking may

be more frequent.

The system also improves control and stability of

the vehicle when braking on a surface where the

grip of the left and right wheels varies, such as in

a corner.
The Electronic Braking Force Distribution (EBD)

system works with the ABS, allowing the brake

force to be distributed between the front and rear

wheels.
System Intervention
The ABS equipped on this vehicle is provided with

the "Brake-By-Wire", Integrated Brake System

(IBS), function. With this system, the command

given by pressing the brake pedal is not

transmitted hydraulically, but electrically.

Therefore, the light pulsation that is felt on the

pedal with the traditional system is no longer

noticeable.

A

CTIVE

 T

ORQUE

 V

ECTORING

 (ATV)

S

YSTEM

 — I

F

 E

QUIPPED

The dynamic drive control is used to optimize and

balance the drive torque between the wheels of

the same axles. The ATV system improves the grip

in turns, sending more drive torque to the

external wheel.
Given that, in a turn, the external wheels of the

car travel more than the internal ones and

therefore turn faster, sending a higher thrust to

the external rear wheel allows for the car to be

more stable and to not suffer an "understeer"

condition. Understeer occurs when the vehicle is

turning less than appropriate for the steering

wheel position.

 WARNING!

The ABS contains sophisticated electronic

equipment that may be susceptible to

interference caused by improperly installed

or high output radio transmitting equipment.

This interference can cause possible loss of

anti-lock braking capability. Installation of

such equipment should be performed by

qualified professionals.

Pumping of the Anti-Lock Brakes will

diminish their effectiveness and may lead to

a collision. Pumping makes the stopping

distance longer. Just press firmly on your

brake pedal when you need to slow down or

stop.

The ABS cannot prevent the natural laws of

physics from acting on the vehicle, nor can it

increase braking or steering efficiency

beyond that afforded by the condition of the

vehicle brakes and tires or the traction

afforded.

The ABS cannot prevent collisions, including

those resulting from excessive speed in

turns, following another vehicle too closely,

or hydroplaning.

The capabilities of an ABS equipped vehicle

must never be exploited in a reckless or

dangerous manner that could jeopardize the

user’s safety or the safety of others.

 WARNING!

CarManuals2.com

141

(Continued)

D

YNAMIC

 S

TEERING

 T

ORQUE

 (DST)

S

YSTEM

DST uses the integration of the Electronic

Stability Control (ESC) system with the electric

power steering to increase the safety level of the

whole vehicle.
In critical situations (e.g. braking on surfaces with

different grip conditions), the ESC system

influences the steering through the DST function

to implement an additional torque contribution

on the steering wheel in order to suggest the

most correct maneuver to the driver.
The coordinated action of the brakes and steering

increases the safety and control of the vehicle.
NOTE:

The DST feature is only meant to help the driver

realize the correct course of action through small

torques on the steering wheel, which means the

effectiveness of the DST feature is highly depen

-

dent on the driver’s sensitivity and overall reac

-

tion to the applied torque. It is very important to

realize that this feature will not steer the vehicle,

meaning the driver is still responsible for steering

the vehicle.

D

RIVE

 T

RAIN

 C

ONTROL

 (DTC) S

YSTEM

Some models of this vehicle are equipped with an

All-Wheel Drive (AWD) system, which offers an

optimal drive for countless driving conditions and

road surfaces. The system reduces tire slipping to

a minimum, automatically redistributing the

torque to the front and rear wheels as needed.

To maximize fuel savings, the vehicle with AWD

automatically passes to Rear-Wheel Drive (RWD)

when the road and environmental conditions are

such that they wouldn't cause the tires to slip.

When the road and environmental conditions

require better traction, the vehicle automatically

switches to AWD mode.
NOTE:

There may be a brief delay in shifting to

AWD mode after a tire slipping event occurs.

If the system failure symbol switches on, after

starting the engine or while driving, it means

that the AWD system is not working properly. If

the warning message activates frequently, it is

recommended to carry out the maintenance

operations.

E

LECTRONIC

 S

TABILITY

 C

ONTROL

 (ESC)

S

YSTEM

The ESC system improves the directional control

and stability of the vehicle in various driving

conditions.
The ESC system corrects the vehicle’s understeer

and oversteer, distributing the brake force on the

appropriate wheels. The torque supplied by the

engine can also be reduced in order to maintain

control of the vehicle.
The ESC system uses sensors installed on the

vehicle to determine the path that the driver

intends to follow and compares it with the

vehicle’s effective path. When the real path

deviates from the desired path, the ESC system

intervenes to counter the vehicle’s oversteer or

understeer.

Oversteer

 occurs when the vehicle is turning

more than it should according to the angle of

the steering wheel.

Understeer

 occurs when the vehicle is turning

less than it should according to the angle of the

steering wheel.

System Intervention
The intervention of the system is indicated by the

flashing of the ESC Warning Light on the

instrument panel, to inform the driver that the

vehicle stability and grip are critical.

 WARNING!

Electronic Stability Control (ESC) cannot

prevent the natural laws of physics from

acting on the vehicle, nor can it increase the

traction afforded by prevailing road

conditions. ESC cannot prevent accidents,

including those resulting from excessive

speed in turns, driving on very slippery

surfaces, or hydroplaning. ESC also cannot

prevent accidents resulting from loss of

vehicle control due to inappropriate driver

input for the conditions. Only a safe,

attentive, and skillful driver can prevent

accidents. The capabilities of an ESC

equipped vehicle must never be exploited in

a reckless or dangerous manner which could

jeopardize the user’s safety or the safety of

others.

CarManuals2.com

SAFETY

142

H

ILL

 D

ESCENT

 C

ONTROL

 (HDC)

S

YSTEM

 — I

F

 E

QUIPPED

The HDC function is an integral part of the

Electronic Stability Control (ESC) system, keeping

the vehicle at a constant speed while descending

a hill by actively controlling the brakes.
HDC aims to create vehicle stability and safer

driving in various situations, including poor grip

conditions and steep descents.
The system has three different modes:

Off: the system is deactivated

Enabled: the system is enabled and ready

to intervene when the activation conditions

are met

Active: the system actively controls the

vehicle speed

Enabling The System
To enable the system, push the HDC switch

located on the steering wheel.

HDC Switch

The system is enabled if the car speed is below

20 mph (30 km/h). The system stays enabled

until the car speed reaches 37 mph (60 km/h),

the system is disabled at speeds above 37 mph

(60 km/h).
Activation of the HDC system is indicated by the
white

 icon appearing in the instrument

cluster display.

HDC Symbol

Activation Of The System
Once enabled, the HDC system will activate

automatically if the vehicle is driven on a downhill

slope with sufficient gradient, greater than 8%.
The speed set for the HDC system can be

adjusted using the SET switch located on the

steering wheel.

HDC Speed SET Switch

Once the desired speed has been reached,

release the SET switch and the HDC system will

maintain the set speed. After set speed is

established, the HDC system will automatically

brake to keep the vehicle at the set speed if the

accelerator pedal is released and the vehicle gets

close to the set speed.
It is possible to reduce the set speed with the

brake pedal. When the pedal is released, the

system will adjust the set speed to the new

current speed.

Vehicle modifications, or failure to properly

maintain your vehicle, may change the

handling characteristics of your vehicle, and

may negatively affect the performance of the

ESC system. Changes to the steering system,

suspension, braking system, tire type and

size or wheel size may adversely affect ESC

performance. Improperly inflated and

unevenly worn tires may also degrade ESC

performance. Any vehicle modification or

poor vehicle maintenance that reduces the

effectiveness of the ESC system can

increase the risk of loss of vehicle control,

vehicle rollover, personal injury and death.

 WARNING!

CarManuals2.com

143

NOTE:

If the vehicle’s speed exceeds 6 mph (10 km/h),

but remains below 37 mph (60 km/h) and the

accelerator pedal is released, as soon as the

vehicle gets close to the set speed the HDC

system will automatically brake to keep the

vehicle at the set speed.
The driver can cancel HDC system intervention at

any time by pressing the accelerator pedal.
System Deactivation
The HDC system will be deactivated, but remain

available, if any of the following conditions are

met:

The vehicle is traveling on a downhill slope with

a gradient less than 8%, on a level surface, or

on an uphill grade.

PARK (P) mode is engaged.

Disabling The System
The system is disabled if any of the following

conditions are met:

The HDC switch is pressed.

Cruise Control/Adaptive Cruise Control is

activated.

A vehicle speed of 37 mph (60 km/h) is

exceeded.

System deactivation is shown by the icon   on

the display turning off.

H

ILL

 S

TART

 A

SSIST

 (HSA) S

YSTEM

HSA is an integral part of the Electronic Stability

Control (ESC) system that facilitates starting on

slopes, activating automatically in the following

cases:

Uphill: the vehicle is stationary on a road with a

gradient higher than 5%, the engine is running,

the brake is pressed, and the transmission is

in NEUTRAL (N) or a gear other than REVERSE

(R) is engaged.

Downhill: the vehicle is stationary on a road

with a gradient higher than 5%, the engine is

running, the brake is pressed, and the

transmission is in REVERSE.

When starting to move forward from a complete

stop, the ESC system control unit maintains the

braking pressure on the wheels until the engine

torque necessary for starting is reached, or in any

case for a maximum of two seconds, allowing

your right foot to be moved easily from the brake

pedal to the accelerator.
The system will automatically deactivate after two

seconds without starting, gradually releasing the

braking pressure. During this release stage, it is

possible to hear a typical mechanical brake

release noise, indicating the imminent movement

of the vehicle.

P

ANIC

 B

RAKE

 A

SSIST

 (PBA) S

YSTEM

The PBA system is designed to improve the

vehicle’s braking capacity during emergency

braking.
The system detects emergency braking by

monitoring the speed and force with which the

brake pedal is pressed, and consequently applies

the optimal brake pressure. This can reduce the

braking distance; the PBA system therefore

complements the ABS.
Maximum assistance from the PBA system is

obtained by pressing the brake pedal very quickly.

In addition, the brake pedal should be pressed

continuously during braking, avoiding

intermittent presses, to get the most out of the

system. Do not reduce pressure on the brake

pedal until braking is no longer necessary.

 WARNING!

HDC is only intended to assist the driver in

controlling vehicle speed when descending

hills. The driver must remain attentive to the

driving conditions and is responsible for

maintaining a safe vehicle speed.

 WARNING!

There may be situations where the Hill Start

Assist (HSA) will not activate and slight rolling

may occur, such as on minor hills or with a

loaded vehicle, or while pulling a trailer. HSA is

not a substitute for active driving involvement.

It is always the driver’s responsibility to be

attentive to distance to other vehicles, people,

and objects, and most importantly brake

operation to ensure safe operation of the

vehicle under all road conditions. Your

complete attention is always required while

driving to maintain safe control of your vehicle.

Failure to follow these warnings can result in a

collision or serious personal injury.

CarManuals2.com

SAFETY

144

The PBA system is deactivated when the brake

pedal is released.

T

RACTION

 C

ONTROL

 S

YSTEM

 (TCS)

The TCS automatically operates in the event of

slipping, loss of grip on wet roads (hydroplaning),

and acceleration on one or both drive wheels on

roads that are slippery, snowy, icy, etc.

Depending on the slipping conditions, two

different control systems are activated:

If the slipping involves both drive wheels, the

system intervenes, reducing the power

transmitted by the engine.

If the slipping only involves one of the drive

wheels, the Brake Limited Differential (BLD)

function is activated, automatically braking the

wheel which is slipping (the behavior of a

self-locking differential is simulated). This will

increase the engine torque transferred to the

wheel which isn't slipping.

System Intervention
The intervention of the system is indicated by the

flashing of the ESC Warning Light on the

instrument panel, to inform the driver that the

vehicle stability and grip are critical.

AUXILIARY DRIVING

SYSTEMS

The following auxiliary driving systems may be

available in this vehicle:

Blind Spot Monitoring (BSM) — if equipped

Active Blind Spot Assist (ABSA) — if equipped

Forward Collision Warning Plus (FCW+)

Tire Pressure Monitoring System (TPMS)

The vehicle may also be fitted with the following

driving assistance systems:

Driver Attention Assist (DAA)

Lane Departure Warning (LDW)

Lane Keeping Assist (LKA)

Highway Assist System (HAS)

Traffic Jam Assist (TJA)

Adaptive Cruise Control (ACC)

Intelligent Speed Control (ISC)

Traffic Sign Recognition (TSR)

For the operation of the DAA, LDW, LKA, HAS, TJA,

ACC, ISC, or TSR systems, see

Ú

page 86.

NOTE:

When driving on two-way roads where there is no

lane dividing center line (e.g. on unpaved roads),

the use of the ABSA, HAS, TJA, and LKA systems

is strongly discouraged as the system could

detect the entire road as single-lane dividing

lines.
NOTE:

The driving assistance systems are designed to

aid in driving the car. The driver must always

maintain a sufficient level of attention to the

traffic and road conditions and control the

trajectory of the car.

B

LIND

 S

POT

 M

ONITORING

 (BSM)

S

YSTEM

 — I

F

 E

QUIPPED



The BSM system uses radar sensors, located in

the rear fascia/bumper, to detect the presence of

other vehicles in the rear side blind spots of your

vehicle.

Rear Sensor Location

The system warns the driver about the presence

of other vehicles in the detection area by illumi

-

nating the warning light located within the door

mirror on the side in which the other vehicle was

detected. If equipped, an audible chime will also

be heard to alert the driver (if option is selected

within the radio system).

 WARNING!

The Panic Brake Assist (PBA) cannot prevent

the natural laws of physics from acting on the

vehicle, nor can it increase the traction

afforded by prevailing road conditions.

PBA cannot prevent collisions, including

those resulting from excessive speed in

turns, driving on very slippery surfaces, or

hydroplaning. The capabilities of a

PBA-equipped vehicle must never be exploited

in a reckless or dangerous manner, which

could jeopardize the user's safety or the

safety of others.

CarManuals2.com

145

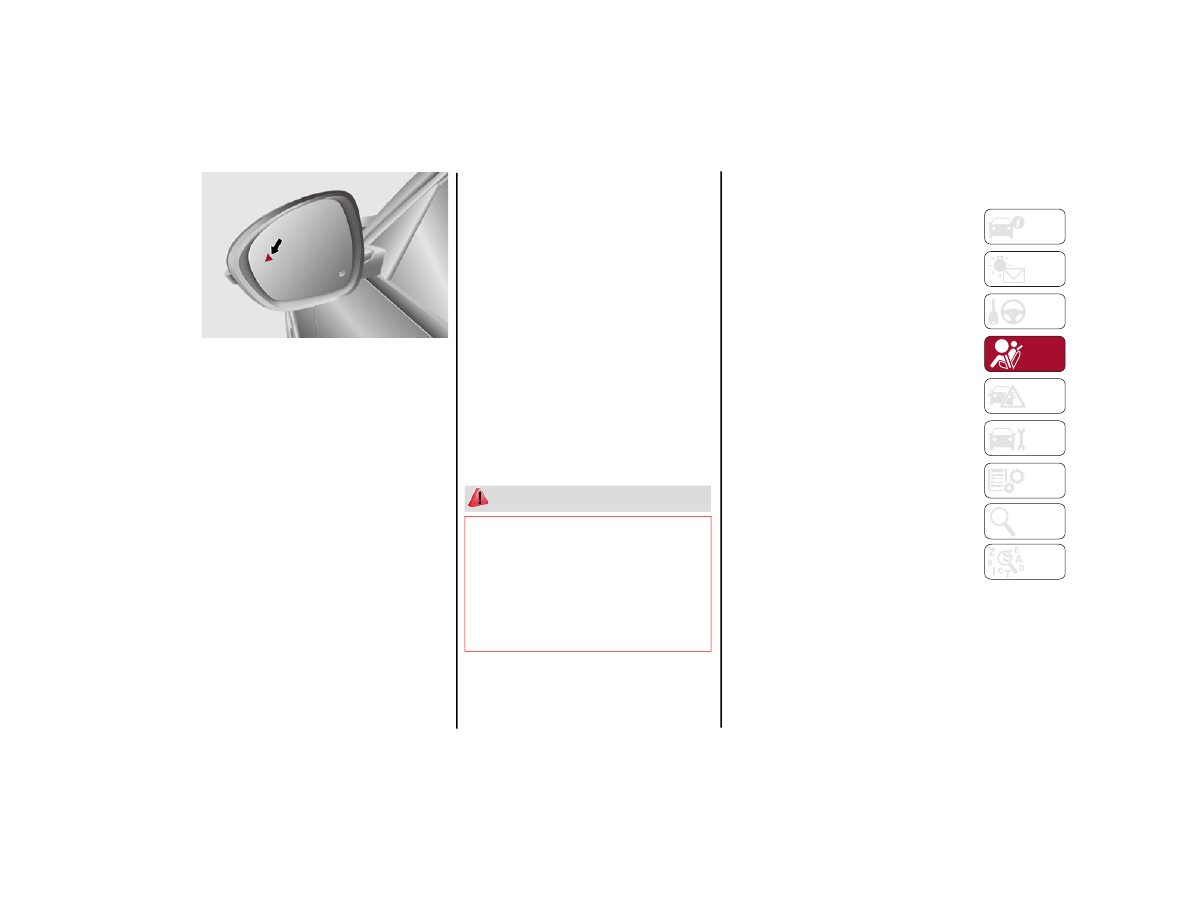

BSM Indicator Light

When the engine is started, the warning light

illuminates briefly to signal the driver that the

system is active.
Sensors
The sensors are activated when any forward gear

is engaged at a speed higher than approximately

6 mph (10 km/h).
The sensors are temporarily deactivated when

the vehicle is stationary or the vehicle is in PARK.
The detection area of the system covers approxi

-

mately one lane on both sides of the vehicle,

which is around 9 ft (3 m).
This area begins from the door mirror and

extends for approximately 19 ft (6 m) towards the

rear part of the vehicle.
When the sensors are active, the system

monitors the detection areas on both sides of the

vehicle and warns the driver about the possible

presence of vehicles in these areas.

While driving, the system monitors the detection

zone in three different situations:

when you are being overtaken by a vehicle;

when you are overtaking a vehicle;

when a vehicle approaches from the side;

to check whether it is necessary to send a signal

to the driver on both sides.
NOTE:

The system does not alert the driver of the

presence of fixed objects (e.g. safety barriers,

poles, walls, etc.). However, in some circum

-

stances, the system may activate in the

presence of these objects. This is normal and

does not indicate a system malfunction.

The system does not alert the driver about the

presence of vehicles coming from the opposite

direction, in the adjacent lanes.

If a trailer is hitched to the car, the system

automatically deactivates.

NOTE:

For the system to operate properly, the rear

fascia/bumper area where the radar sensors

are located must stay free from snow, ice and

dirt gathered from the road surface.

Do not cover the rear fascia/bumper area

where the radar sensors are located with any

object (e.g. adhesives, bike rack, etc.).

If you wish to install a rear tow eye after

purchasing the vehicle, you will need to

deactivate the system via the radio system.

To access the function, select the following

items in sequence on the main menu:

a. “Driver Assistance”

b. “Blind Spot Alert”

Rear View
The system detects vehicles coming from the rear

part of your vehicle on both sides and entering

the rear detection area with a difference in speed

of less than 25 mph (40 km/h) in relation to your

vehicle.
Overtaking Vehicles
If another vehicle is overtaken slowly, with a

difference in speed of less than approximately

15 mph (25 km/h) and the vehicle stays in the

blind spot for approximately 1.5 seconds, the

warning light on the door mirror of the

corresponding side illuminates.
If the difference in speed between the two

vehicles is greater than approximately 15 mph

(25 km/h), the warning light does not illuminate.

 WARNING!

The Blind Spot Monitoring system is only an

aid to help detect objects in the blind spot

zones. The BSM system is not designed to

detect pedestrians, bicyclists, or animals.

Even if your vehicle is equipped with the BSM

system, always check your vehicle’s mirrors,

glance over your shoulder, and use your turn

signal before changing lanes. Failure to do so

can result in serious injury or death.

CarManuals2.com

SAFETY

146

Rear Cross Path Detection (RCP) System
The Rear Cross Path Detection (RCP) system

assists the driver during reverse maneuvers in

the case of reduced visibility.
The RCP system monitors the rear detection

areas on both sides of the vehicle to detect

objects moving toward the sides of the vehicle,

with a minimum speed between approximately

1 mph (1 km/h) and 2 mph (3 km/h) and objects

moving at a maximum speed of 21 mph

(35 km/h), in areas such as parking lots.
The system activation is signaled to the driver by

an audible warning.
NOTE:

If the sensors are covered by objects or

vehicles, the system may not work as

intended.

For the system to operate correctly, the rear

fascia/bumper area where the radar sensors

are located must stay free from snow, ice and

dirt gathered from the road surface.

Do not cover the rear fascia/bumper area

where the radar sensors are located with any

object (e.g. adhesives, bike rack, etc.).

Operating Mode
The system may be activated/deactivated via the

radio system. To access the function, select the

following items on the main menu in sequence:
1. “Driving Assistance”
2. “Blind Spot Alert”

“Blind Spot Alert”, “Visual” Mode
When the system is enabled, the warning light

within the door mirror on the side of the detected

object illuminates.
The visual warning on the mirror will blink if the

driver activates the turn signals, indicating a lane

change.
The warning light will be constant if the driver

stays in the same lane.

“Blind Spot Alert” Function Deactivation
When the system is deactivated (“Blind Spot

Alert” mode off), the BSM or RCP systems will

not emit an audible or a visual warning.
The BSM system will store the operating mode

that was active when the engine was stopped.

Each time the engine is started, the operating

mode stored previously will be recalled and used

Ú

page 259.

A

CTIVE

 B

LIND

 S

POT

 A

SSIST

 (ABSA)

S

YSTEM

 — I

F

 E

QUIPPED



The ABSA system is to help avoid/limit lateral

collisions with cars coming from adjacent lanes

changing the vehicle’s trajectory in order to try to

keep it in the detected lane.
The system warns the driver about the presence

of other vehicles in the detection area by illumi

-

nating the warning light located within the door

mirror on the side in which the other vehicle was

detected and by means of an acoustic signal

and/or vibration on the steering wheel and/or

counter-steering torque on the steering wheel

(if the respective item on the “Driver Assistance”

menu is set up and then “Safety” is selected on

the radio system).
When the engine is started, the warning light

illuminates briefly to signal the driver that the

system is active (the warning light comes on even

if the system is activated through the radio

system menu).

 WARNING!

Rear Cross Path Detection (RCP) is not a back

up aid system. It is intended to be used to help

a driver detect an oncoming vehicle in a

parking lot situation. Drivers must be careful

when backing up, even when using RCP.

Always check carefully behind your vehicle,

look behind you, and be sure to check for

pedestrians, animals, other vehicles,

obstructions, and blind spots before backing

up. Failure to do so can result in serious injury

or death.

CarManuals2.com















Content      ..     2      3      4      5     ..
