Automatic Climate Control System (Touchscreen Controls)

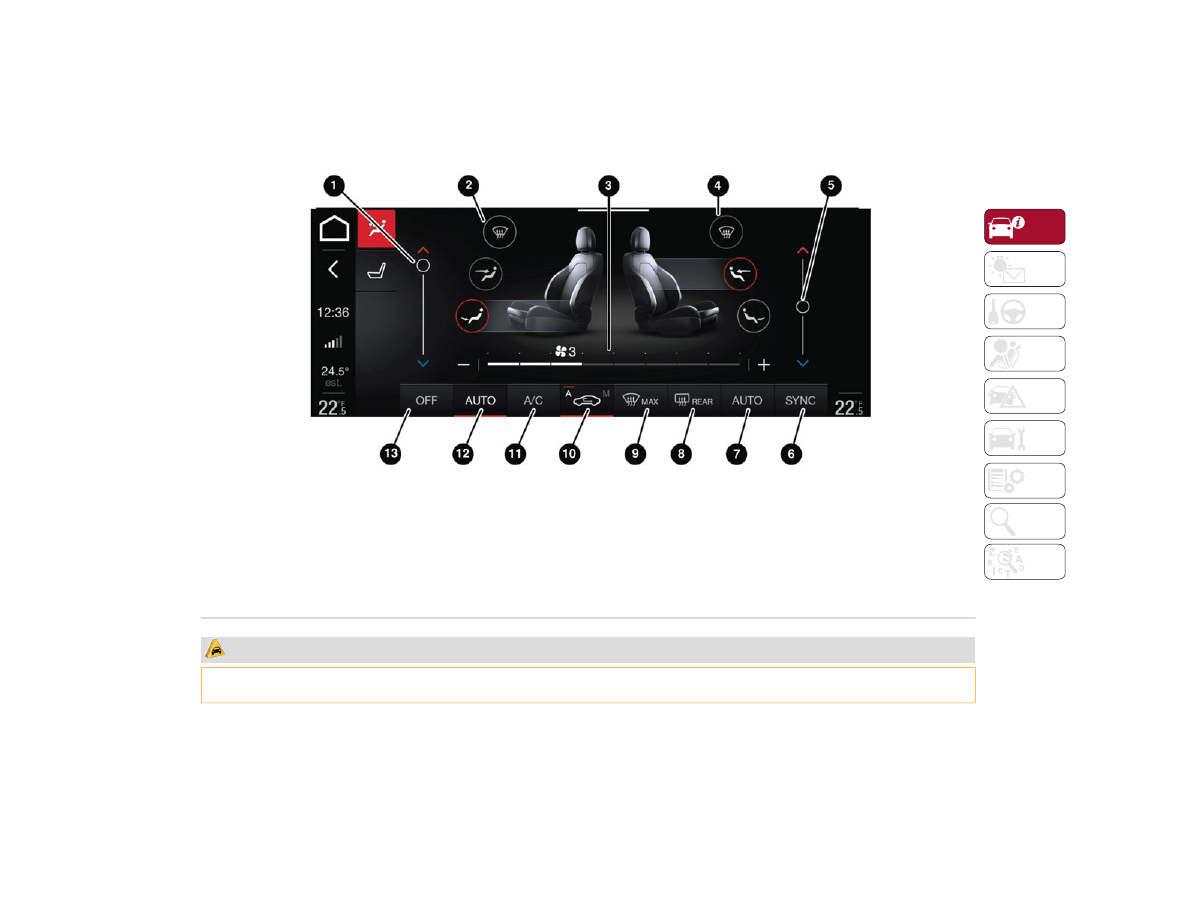

1 — Driver Side Temperature Adjustment Bar

8 — Heated Rear Window On/Off Button

2 — Driver Side Air Distribution Buttons

9 — MAX-DEF Activation/Deactivation Button (Rapid Defrosting/Demisting)

3 — Fan Speed Adjustment Button

10 — Air Recirculation On/Off Button

4 — Passenger Side Air Distribution Buttons

11 — Climate Control System Compressor On/Off Button

5 — Passenger Side Temperature Adjustment Bar

12 — Driver Side AUTO Button (Automatic Operation)

6 — SYNC Button

13 — Climate Control System On/Off Button

7 — Passenger Side AUTO Button (Automatic Operation)

 CAUTION!

The system uses R1234yf refrigerant, which does not pollute the environment in the event of accidental leakage. Under no circumstances use R134a

and R12 fluids, which are incompatible with the components of this system.

CarManuals2.com

GETTING TO KNO

W

 YOU

R VEHICLE

52

Description

The Automatic Dual Zone Climate Control System

adjusts the temperature and air distribution

independently between the driver and

passenger.
The system maintains the set temperature inside

the passenger compartment and compensates

for outside temperature change.
NOTE:

The reference temperature is 72°F (22°C) for

optimal comfort management.
The automatic setting will adjust the following to

maintain comfort within the passenger

compartment:

Air temperature from the driver/front

passenger side vents

Air distribution from the driver/front passenger

side vents

Fan speed (continuous variation of the air flow)

Compressor variations (for cooling/dehumid

-

ifying the air)

Air recirculation

The Climate Control System can also be operated

manually by using the buttons and knobs on the

faceplate.
Manual selections will override the automatic

settings, which are stored until the AUTO button is

pushed. If the system intervenes for safety

reasons, the automatic setting will take control of

the system.
The following operations will not deactivate the

automatic (AUTO) function:

Air Recirculation activation/deactivation

A/C activation/deactivation

SYNC function activation

Rear Window Defrost activation/deactivation

When in AUTO mode, the vehicle’s internal

temperature is controlled according to the set

temperature.
The following can be manually set or adjusted:

Driver/passenger air temperature

Blower speed (continuous variation)

Air distribution (seven positions for driver and

passenger)

A/C activation

Front Defroster

Air recirculation

Rear Defroster

System deactivation

A/C Compressor
Push the A/C button or the icon to activate or

deactivate the A/C compressor (indicator

illuminated when activated). The A/C compressor

will remain off even after the engine has stopped.
When the A/C compressor is turned off, the

system deactivates air recirculation to prevent

the windows from fogging up. If the climate

control system can maintain the temperature,

with the A/C turned off, the AUTO feature will

remain on and the AUTO button indicator light will

not switch off.
To restore automatic control of the A/C

compressor, push the A/C button or the icon or

the AUTO button. With the A/C compressor off,

the air speed can be set manually using the Air

Speed Adjustment Knob.

When the A/C compressor is on, and the engine

is running, air speed cannot be lower than the

minimum speed (only one indicator light is lit).
NOTE:

When the A/C is off, the Climate Control system

can not produce air that is colder than the current

outside temperature. Under certain environ

-

mental conditions, windows could fog up rapidly

since the air is not dehumidified.

Air Recirculation And Air Quality System (AQS)

Air Recirculation is managed according

to the following operating mode:

Automatic engagement: indicator is

illuminated above the “A” on the

Air Recirculation Button

Forced activation (air circulation always

activated): indicator illuminated above
the   icon on the Air Recirculation Button

Forced deactivation (air recirculation always

off with intake of outside air): both indicators

not illuminated on the Air Recirculation Button

The three operating conditions are obtained by
pushing the Air Recirculation Button   in

sequence.
Enabling The Air Quality System (AQS) Function —

If Equipped
When the automatic recirculation function is

selected, the AQS function automatically

activates internal air recirculation when the

outside air is polluted (e.g. in heavy traffic and

tunnels).

CarManuals2.com

53

At low external temperatures or in high humidity,

the automatic function turns off to avoid fogging

up the windows. The user can select the function

again by pushing the Air Recirculation Button.
In automatic operation, air recirculation will be

controlled by the system according to outside

environmental conditions.
NOTE:

With the AQS function active and after the

internal air recirculation system has been

functioning for a set amount of time, the

Climate Control System enables air intake to

cycle the air in the passenger compartment for

a set time. The AQS function is disabled during

the air changes.

The engagement of the recirculation system

makes it possible to reach the required heating

or cooling conditions faster. It is, however,

inadvisable to use it on rainy/cold days as it

can increase the possibility of the windows

fogging. When the outside temperature is low,

recirculation is forced off to prevent the

windows from fogging up.

Front Defrost

Air comes from the windshield and side

window demist outlets. Use Defrost

mode with maximum temperature

settings for best windshield and side

window defrosting and defogging.

Rear Defrost

Push the Rear Defrost button to activate

(indicators illuminated) the Rear

Defroster.

The Rear Defrost will turn off after 20 minutes or

once the engine is turned off.
NOTE:

To avoid damage, do not apply stickers over the

interior heating filaments of the Rear Defroster.

Front Defrost And MAX-DEF Function

Push the MAX-DEF button (indicator

illuminated) to defrost the windshield

and side windows.

While in MAX-DEF function, the air conditioner

will:

Activate the air conditioner compressor when

the weather allows

Turn air recirculation off

Set the maximum air temperature (HI) on both

the driver and passenger side

Activate a blower speed based on the

temperature of the engine coolant

Adjust the air flow towards the windshield and

front side windows

Activate the Rear Window Defrost

Display the fan speed (indicators illuminated)

and current air distribution setting

NOTE:

The MAX-DEF function remains active for approx

-

imately three minutes once the engine coolant

reaches the proper temperature.
When the function is on, AUTO mode will

deactivate. The only manual operations possible

are adjusting blower speed and turning off the

Rear Window Defrost.

Pushing the Air Recirculation   button switches

off the MAX-DEF function.

Air Temperature Adjustment
Rotate the driver or passenger Temperature

Adjustment Knob clockwise for warmer

temperatures or counterclockwise for cooler

temperatures. The set temperatures are shown

on the radio system.
Push the SYNC button to sync the driver and

passenger air temperatures.
Rotate the passenger Temperature Adjustment

Knob to cancel the SYNC function. This will set a

new passenger side temperature.
Rotate the Temperature Adjustment Knob fully

clockwise to engage the HI (maximum heating)

setting or fully counterclockwise to engage the

LO (maximum cooling) setting. To deactivate

these functions, rotate the Temperature

Adjustment Knob to the desired temperature.
Rear passengers’ temperature is linked to driver

side selection.

AUTO Button
When the AUTO button is pushed (indicator

illuminated), the Climate Control system automat

-

ically adjusts the following settings:

Quantity and distribution of air flow in the

passenger compartment

The air conditioner

Air recirculation

Cancels any manual settings

Selecting the AUTO function illuminates the

indicator on the A/C button.

CarManuals2.com

GETTING TO KNO

W

 YOU

R VEHICLE

54

If air distribution or the fan speed is manually

adjusted, the AUTO button indicator will turn off to

indicate that the Climate Control system is no

longer in AUTO mode.
After a manual adjustment, push the AUTO

button to resume the automatic system.

SYNC Button
Push the SYNC button (indicator illuminated) to

sync the passenger side air temperature with the

driver side air temperature.
This function makes temperature regulation

easier when the driver is traveling alone.
Turn the passenger Temperature Adjustment

Knob or push the passenger side Air Distribution

Selection Button to change the passenger side

air temperature and return to separate air

temperature management.

Blower Speed
Turn the Blower Speed Knob to increase or

decrease the blower speed. The speed is

displayed with lighted indicators in the radio

system display.

Maximum fan speed = all indicators

illuminated on the radio system display

Minimum fan speed = one indicator

illuminated on the radio system display

The fan can be turned off by rotating the Blower

Speed Knob counterclockwise to the off position

(all segments on the radio system display are

turned off).
NOTE:

To restore automatic control of the fan speed,

push the AUTO button.

Air Distribution Selection
Push the Air Distribution Selection button on the

faceplate to change the mode of air distribution.
NOTE:

In AUTO mode, the Climate Controls automati

-

cally manage the air distribution. When set manu

-

ally, the respective symbols on the radio system

indicate the air distribution setting.

Panel Mode

Air comes from the outlets in the

instrument panel to ventilate the chest

and face. Each of these outlets can be

individually adjusted to direct the flow of

air. The air vanes of the center outlets and

outboard outlets can be moved up and down or

side to side to regulate airflow direction. There is

a shut-off wheel located below the air vanes to

shut off or adjust the amount of airflow from

these outlets.

Bi-Level Mode

Air comes from the instrument panel

outlets and floor outlets. A slight amount

of air is directed through the defrost and

side window demister outlets.

NOTE:

Bi-Level mode is designed under comfort condi

-

tions to provide cooler air out of the panel outlets

and warmer air from the floor outlets.

Floor Mode

Air comes from the floor outlets. A slight

amount of air is directed through the

defrost and side window demister

outlets. This setting heats the

passenger compartment the quickest.

Mix Mode

Air is directed through the floor, defrost,

and side window demister outlets. This

setting works best in cold or snowy

conditions that require extra heat to the

windshield. This setting is good for maintaining

comfort while reducing moisture on the

windshield.

Front Defrost And Panel Mode

Air flow is distributed between the

windshield demisting/defrosting vents

and side/central dashboard vents.

This setting allows air to flow to the

windshield on sunny days.

Front Defrost And Bi-Level Mode

Air flow is distributed to all vents.

Switching The Climate Control System On/Off
To Turn Off The Climate Control System
Rotate the Air Speed Adjustment Knob

completely counterclockwise to turn off the

Climate Control system.
When the air conditioner is off:

Air recirculation is on

The A/C compressor is off

The fan is off

The heated rear window can be activated/

deactivated

NOTE:

The Climate Control system stores the previously

set temperatures and resumes operation when

any button on the system is pushed.

CarManuals2.com

55

To Turn On The Climate Control System
To switch the Climate Control system on in

automatic mode, push the AUTO button.

Operating Mode

The Climate Control system can be activated in

different ways. It is recommended to use the

automatic function. Push the AUTO button and

set the desired temperatures.
The automatic system adjusts the temperature,

quantity, and distribution of air introduced into

the passenger compartment. It also controls air

recirculation and the activation of the air

conditioner.
At any time during automatic operation, you can

change the temperature, activate or deactivate

the Rear Defrost, activate SYNC, activate or

deactivate the air conditioner, and activate or

deactivate air recirculation. The system will

automatically adjust to the new settings.

Climate Control Display Settings

The Climate Control settings are visible on the

radio screen.
The display on the radio system is a pop up

window, which is activated by pushing the

buttons or turning the knobs on the Climate

Control system. The indicator lights located on

the buttons and knobs indicate that the selected

feature is on/off. If no operation is performed for

a predetermined time, the pop-up will close on

the display.

Humidity Sensor

The Humidity Sensor helps prevent the windows

from fogging up. The AUTO function (indicator

illuminated) must be on for the Humidity Sensor

to function.
When outside temperature is low, the system may

turn the compressor on and turn air recirculation

off for safer driving.

Stop/Start

The Stop/Start system shuts off the engine when

the vehicle speed is 0 mph (0 km/h), as a fuel

conservation measure.
In order to maintain comfort in the cabin, the

Stop/Start feature will not activate if any of the

following conditions exist:

The Climate Control system is in AUTO mode

(indicator illuminated), and the vehicle has yet

to reach the set temperature

The Climate Control system is in LO maximum

cooling

The Climate Control system is in HI maximum

heating

The Climate Control system is in the MAX-DEF

status

When the Stop/Start system is active, the engine

will restart if the inside temperature changes

significantly, or if the LO setting, or MAX-DEF

setting, is activated.

With Stop/Start system on (engine is OFF), air

flow is reduced to keep the compartment comfort

conditions for longer.
Until the temperature drastically changes within

the cabin, the climate control system will

continue to maintain the temperature while the

engine is off. By deactivating the Stop/Start
system with the   button (located by the

headlight switch), the climate control system

operates normally according to the settings.
NOTE:

In harsh climate conditions, limit the use of the

Stop/Start system to prevent the compressor

from continuously switching on and off. This

will cause rapid misting of the windows and the

accumulation of humidity in the passenger

compartment.

When the Stop/Start system is on, the climate

control system will always take air in from

outside, reducing the probability of the

windows fogging up.

System Maintenance

In winter months, the Climate Control system

must be turned on at least once a month for

approximately 10 minutes.
Have the system inspected at an authorized

dealer before the summer.

CarManuals2.com

GETTING TO KNO

W

 YOU

R VEHICLE

56

INTERIOR STORAGE AND

EQUIPMENT

G

LOVE

 C

OMPARTMENT

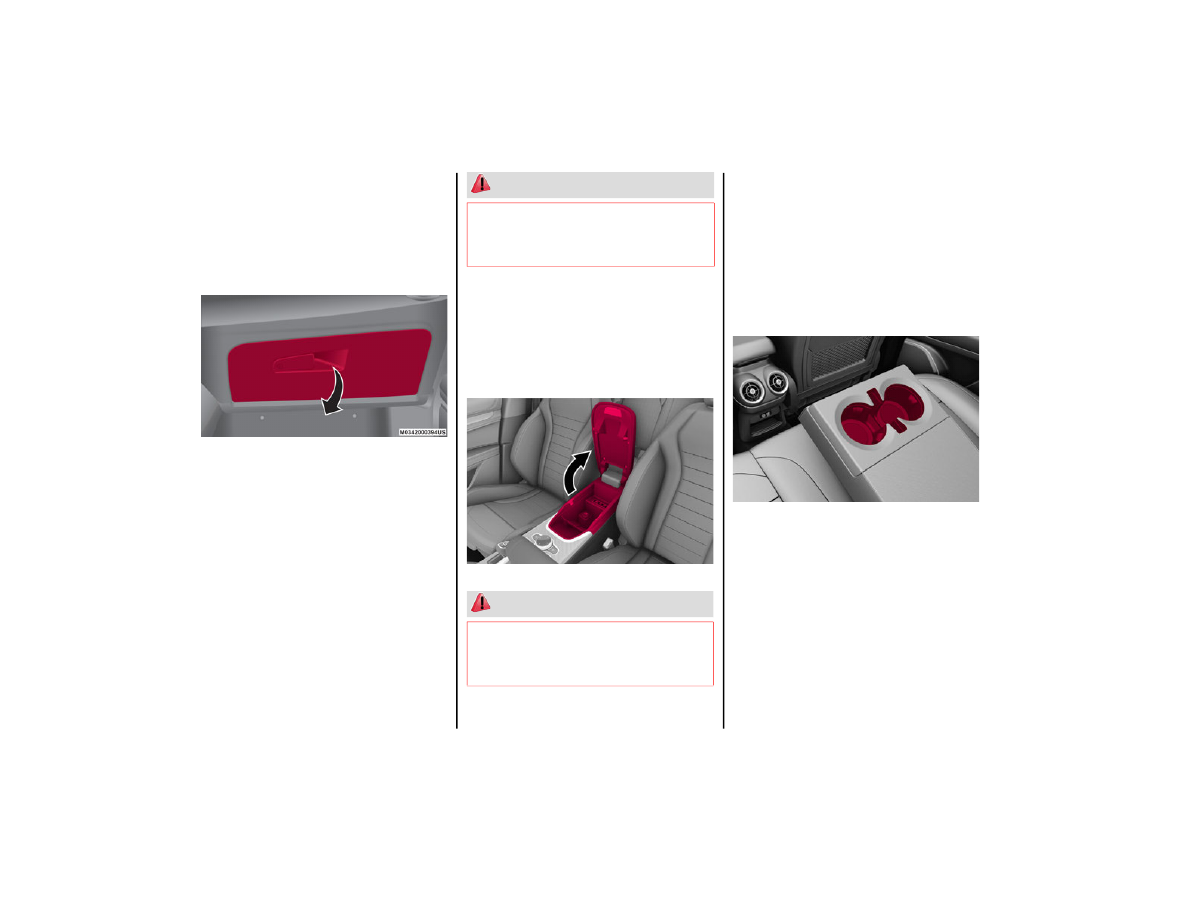

The glove compartment is located on the

passenger side of the instrument panel.

Opening The Glove Compartment

Pull the release handle to open the glove

compartment.
When the glove compartment is opened, a light

turns on to illuminate the inside of the

compartment.
NOTE:

If equipped with a lock, unlock the glove

compartment by placing the emergency key in

the lock on the handle.

Do not insert large objects that will prevent the

glove compartment from closing completely.

C

ENTER

 C

ONSOLE

The center console storage compartment is

located between the front seats.
To access the center console storage, push the

button under the front of the armrest to raise the

cover as shown in the following figure.

Center Console

R

EAR

 A

RMREST

The rear armrest is foldable and can be stored in

the seatback.

To lower the armrest, pull on the tab located at

the top of the seatback and fold it downward.

To close the armrest, lift it until it is inserted

into the seatback.

There are two cupholders and a phone

compartment inside the armrest.

Rear Cupholder

NOTE:

The armrest was not designed to support the

weight of an adult passenger or a child. Only use

it to hold drinks or small objects.

 WARNING!

Do not operate this vehicle with a glove

compartment in the open position. Driving

with the glove compartment open may result

in injury in a collision.

 WARNING!

Do not operate this vehicle with a console

compartment lid in the open position. Driving

with the console compartment lid open may

result in injury in a collision.

CarManuals2.com

57

P

OWER

 O

UTLETS



The Instrument Panel Power Outlet is located on

the center stack under the climate controls. It will

only operate when the ignition is in the ON/RUN

position.

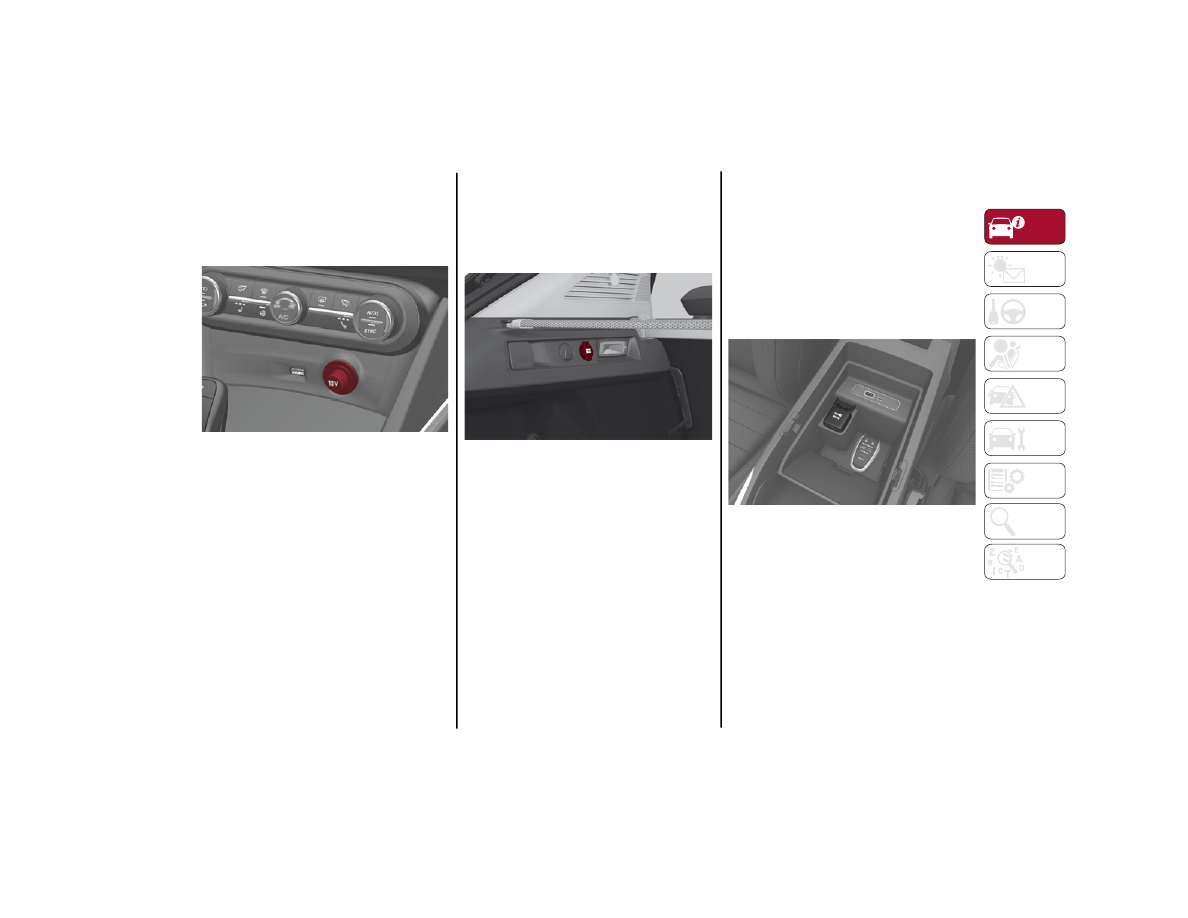

Instrument Panel Power Outlet

NOTE:

Do not connect devices, with a power rating

higher than 180 W, to the outlet. Do not use

power adapters that do not fit the outlet as this

may damage it.

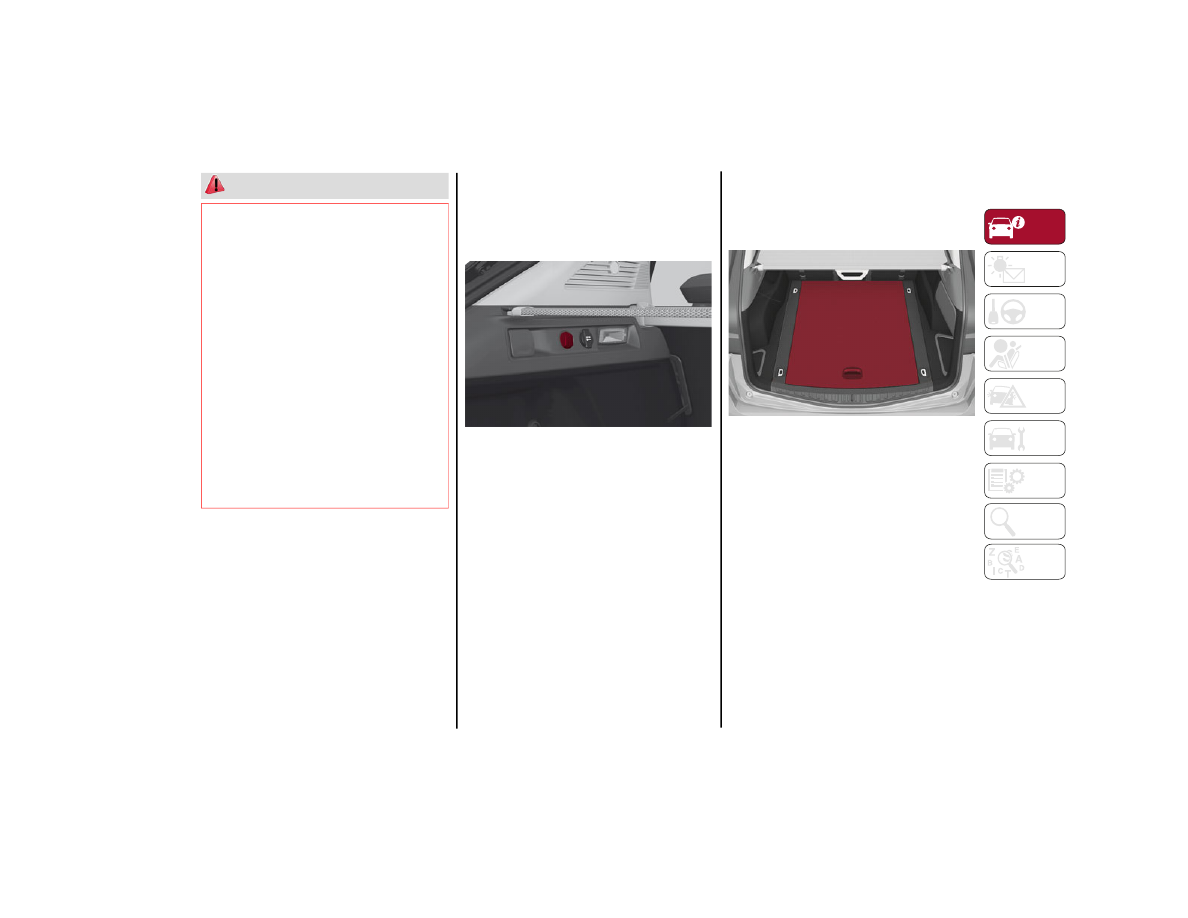

Luggage Compartment Power Outlet —

If Equipped
There is an additional power outlet located on the

left side of the luggage compartment. It will only

operate when the ignition is in the ON/RUN

position.

Luggage Compartment Power Outlet

NOTE:

Do not connect devices with powers higher than

150 W to the socket. Do not damage the outlet by

using unsuitable adapters.

115 Volt Power Inverter — If Equipped
The power inverter is located inside of the center

console. It can be used for small battery-powered

electrical appliances with powers up to 150 W

(e.g. cameras, video camera, tablets, razors,

etc.).
NOTE:

Do not connect devices with powers higher than

150 W to the socket. Do not damage the socket

by using unsuitable adapters.

Power Inverter

CarManuals2.com

GETTING TO KNO

W

 YOU

R VEHICLE

58

C

IGAR

 L

IGHTER

 A

ND

 A

SH

 T

RAY

 —

I

F

 E

QUIPPED

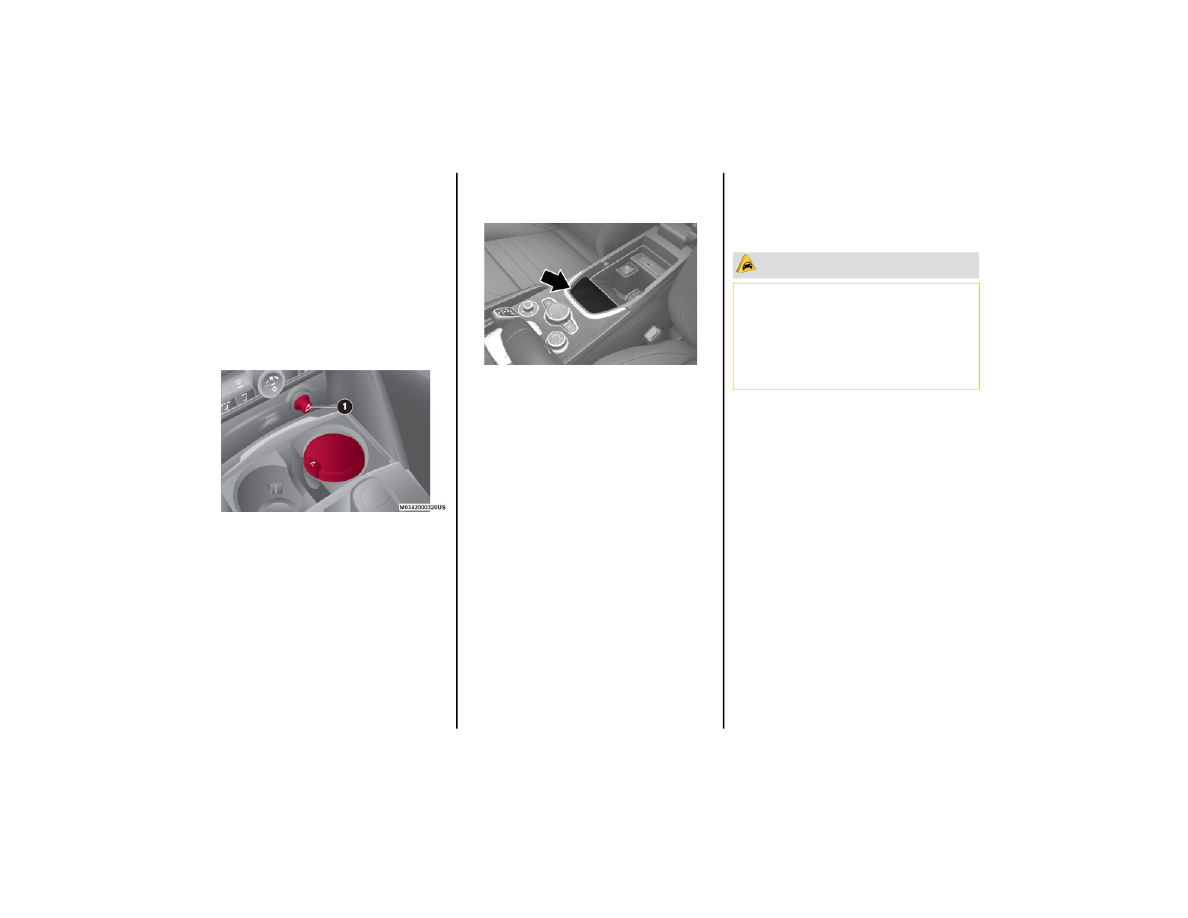

If equipped, the cigar lighter is located on the

bottom of the center stack, in front of the

cupholders.
To activate the cigar lighter, push in and wait a

few seconds. Once the cigar lighter has returned

to its original position, it is ready for use.
NOTE:

Always ensure the cigar lighter is turned off when

not in use.

1 — Cigar Lighter

If equipped, the ash tray is a removable plastic

container located inside the cupholder.

W

IRELESS

 C

HARGING

 P

AD

 —

I

F

 E

QUIPPED

Wireless Charging Pad

Your vehicle may be equipped with a 15 W (3 A)

Qi wireless charging pad located inside of the

center console. This charging pad is designed to

wirelessly charge your Qi enabled mobile phone.

Qi is a standard that uses magnetic induction to

transfer power to your mobile device.
Your mobile phone must be designed for

Qi wireless charging.
NOTE:

Do not place the key fob or any other type of

metal/magnetized object inside the mobile

phone housing or near the wireless charging

pad.

Be sure to place the mobile device correctly

(display facing upward) on the wireless

charging pad.

The ignition must be in the ON/RUN position in

order for the phone to charge.

To avoid interference with the key fob search,

the wireless charging pad will stop charging

when any door is opened.

The following messages will display in the radio

system:

“Your phone is being charged” — The phone

has begun to charge.

“Phone Fully Charged” — The phone has

completed charging its battery.

“Foreign Object Detected” — The phone is not

enabled for wireless charging or an object that

is not permitted has been placed on the

wireless charging pad.

“Unavailable System” — There is a malfunction

with the wireless charging pad.

The driver can deactivate these messages

through the radio system. Refer to the

Information and Entertainment System Owner’s

Manual Supplement for further information.

 CAUTION!

The key fob should not be placed on the

charging pad or within 6 inches (15 cm) of it.

Doing so can cause excessive heat buildup

and damage to the fob. Placing the fob in

close proximity of the charging pad blocks the

fob from being detected by the vehicle and

prevents the vehicle from starting.

CarManuals2.com

59

POWER WINDOWS

P

OWER

 W

INDOW

 C

ONTROLS

The power window switches work with the ignition

in the ACC or ON/RUN position and for three

minutes after the ignition has been placed in the

OFF position. When one of the front doors is

opened, this operation is disabled.
The window controls on the driver's door control

all the door windows.

Power Window Switches

The passenger door windows can also be

operated by using the single window controls on

the passenger door trim panel.

To open the window part way (manually), push the

window switch down briefly and release. Push

past the detent to activate “continuous

automatic” operation.
If the button is pushed again, the window will stop

in the desired position.
Pull the window switch to the first detent to move

the window upward. Pull the window switch to the

second detent, and the window will go up

automatically.
To close the window, pull the window switch up.

To stop the window during Auto-Up operation,

push or pull the window switch again.

A

UTO

-U

P

 F

EATURE

 W

ITH

 A

NTI

-P

INCH



P

ROTECTION

The vehicle is equipped with an anti-pinch safety

device for closing the windows.
If the safety system senses any obstacle while the

window is closing, it will stop the window’s

movement and reverse it, depending on its position.
This device is also useful if the windows are

activated accidentally by children inside the

vehicle.

The anti-pinch safety function is activated both

during the manual and the automatic operation

of the window.
When the anti-pinch system is activated, the

window closing is immediately interrupted. Then

the window closing is automatically reversed and

the window lowers by about 8 inches (20 cm) in

relation to the first stop position. The window

cannot be operated during this time.
NOTE:

In the event of an error, or if the anti-pinch protec

-

tion is activated three consecutive times, the

automatic closing operation of the window will be

deactivated. In order to restore the correct opera

-

tion of the system, the window must be lowered.

P

OWER

 W

INDOW

 S

YSTEM

 I

NITIALIZATION

If power supply is interrupted, the electric window

automatic operation must be reinitialized.
To perform the initialization procedure, which

must be done on each door with the doors closed,

manually fully close the window to be initialized.

W

IND

 B

UFFETING



Wind buffeting can be described as the

perception of pressure on the ears or a

helicopter-type sound in the ears. Your vehicle

may exhibit wind buffeting with the windows

down, or the sunroof (if equipped) in certain open

or partially open positions. This is a normal

occurrence and can be minimized. If the buffeting

occurs with the rear windows open, open the front

and rear windows together to minimize the

buffeting. If the buffeting occurs with the sunroof

open, adjust the sunroof opening to minimize the

buffeting or open any window.

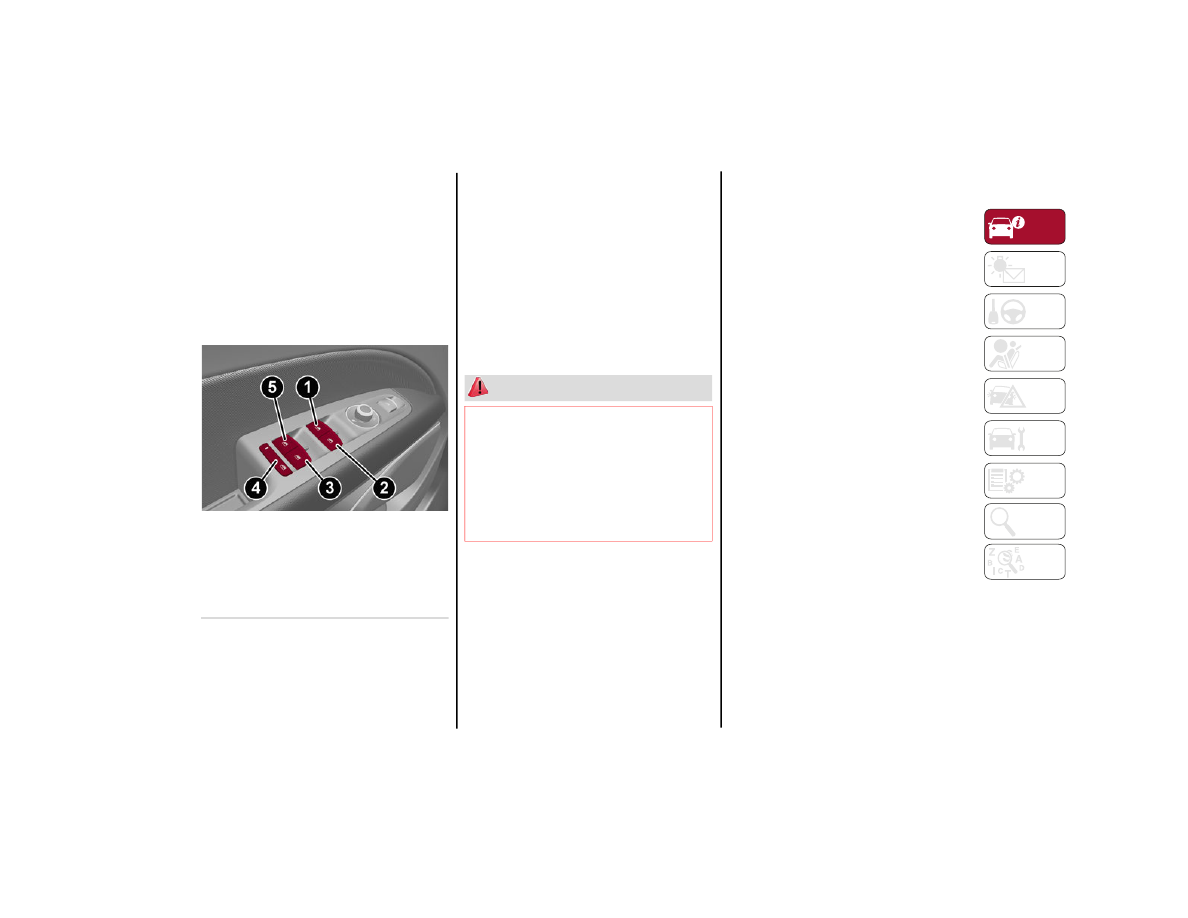

1 — Front Left Window Switch
2 — Front Right Window Switch
3 — Rear Right Window Switch
4 — Window Lockout Switch
5 — Rear Left Window Switch

 WARNING!

Never leave children unattended in a vehicle,

and do not let children play with power

windows. Do not leave the key fob in or near

the vehicle, or in a location accessible to

children. Occupants, particularly unattended

children, can become entrapped by the

windows while operating the power window

switches. Such entrapment may result in

serious injury or death.

CarManuals2.com

GETTING TO KNO

W

 YOU

R VEHICLE

60

(Continued)

POWER SUNROOF —

IF EQUIPPED

P

OWER

 S

UNROOF

The power sunroof consists of a single glass

panel and is fitted with a power sunshade the full

length of the panel.
Operation of the sunroof is only possible with the

ignition in the ACC or ON/RUN position

Ú

page 22.

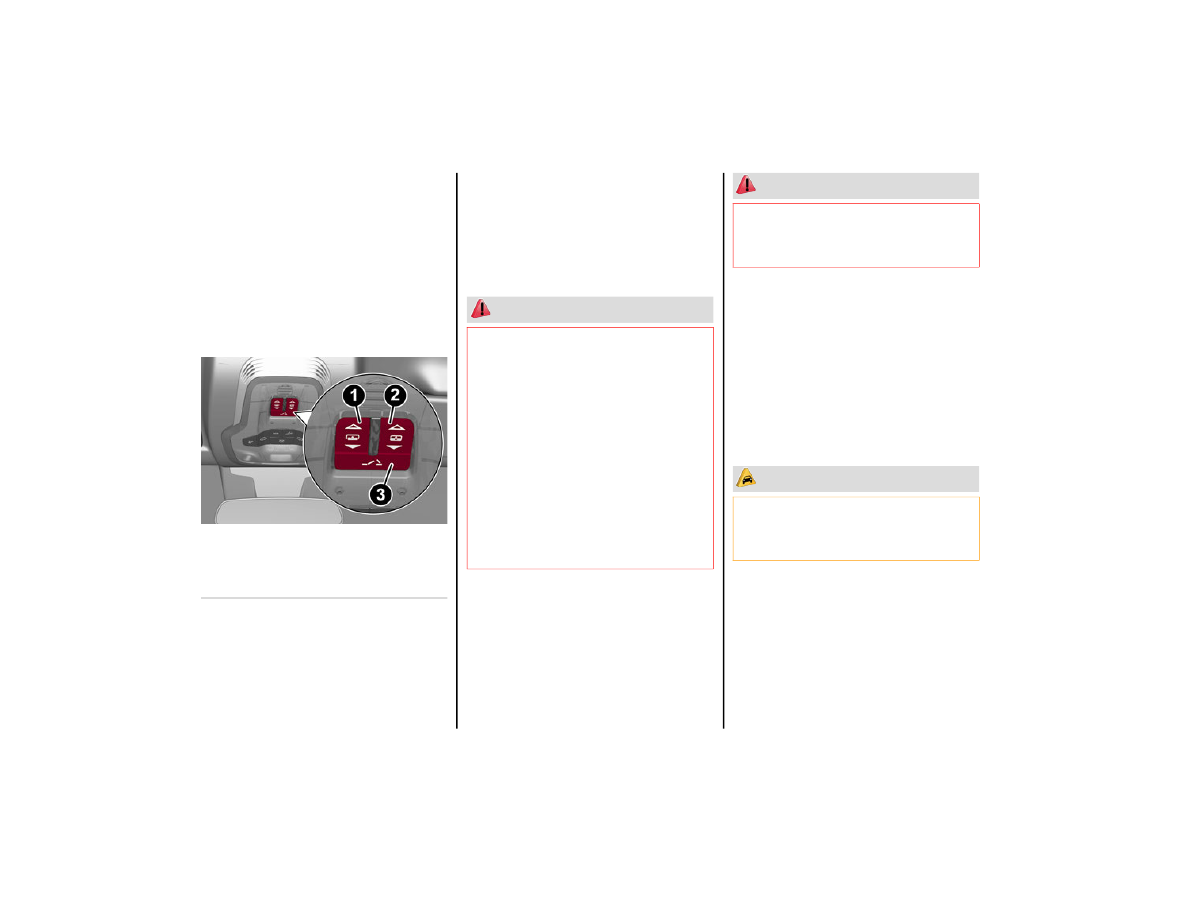

Sunroof And Power Shade Buttons

The sunroof has three preset positions:

Fully closed

Comfort (intermediate opening)

Fully open

NOTE:

You cannot have the sunshade closed when the

sunroof is open.

O

PENING

 A

ND

 C

LOSING

 T

HE

 S

UNROOF

To open the sunroof’s front panel, push the

open/close button toward the rear of the vehicle

to open to the comfort position (half way).

Pushing the button a second time will open to the

fully open position.
To close the sunroof, push the open/close button

toward the front of the vehicle. The roof will close

completely.
The automatic motion can be interrupted in any

position by pushing the open/close button again.

1 — Power Shade Open/Close
2 — Sunroof Open/Close Button
3 — Vent Open/Close

 WARNING!

Never leave children unattended in a vehicle,

or with access to an unlocked vehicle. Never

leave the key fob in or near the vehicle, or in

a location accessible to children. Do not

leave the Keyless Push Button Ignition in the

ON/RUN position. Occupants, particularly

unattended children, can become entrapped

by the power sunroof while operating the

power sunroof switch. Such entrapment may

result in serious injury or death.

In a collision, there is a greater risk of being

thrown from a vehicle with an open sunroof.

You could also be seriously injured or killed.

Always fasten your seat belt properly and

make sure all passengers are also properly

secured.

Do not allow small children to operate the

sunroof. Never allow your fingers, other body

parts, or any object, to project through the

sunroof opening. Injury may result.

 CAUTION!

Do not open the sunroof if a luggage roof rack

or crossbars are fitted. Do not open the

sunroof if there is snow or ice on it: you may

damage it.

 WARNING!

CarManuals2.com

61

V

ENTING

 S

UNROOF

To bring the roof into vent position, push and

release the vent button.
This type of vent opening can be activated

regardless of the position of the sunroof. When

starting with the roof in the closed position,

pushing the vent button automatically causes the

sunroof to open to the vent position. If the roof is

already open, the button must be held until the

roof reaches the vent-opening position.
Pushing the vent button again during automatic

movement of the roof will stop it.

S

UNSHADE

 O

PERATION

The sunshade is power operated.
Push the Power Shade open/close button toward

the rear of the vehicle to open the sun shade.
Push the Power Shade open/close button toward

the front of the vehicle to close the sun shade.
The automatic motion can be interrupted in any

position by pushing the Power Shade open/close

button again.

P

INCH

 P

ROTECT

 F

EATURE

The sunroof has an anti-pinch safety system

capable of detecting the presence of an obstacle

during the closing movement. If an obstacle is

detected, the system intervenes and the

movement of the sunroof is immediately

reversed.

R

E

-I

NITIALIZATION

 P

ROCEDURE

Automatic operation of the sunroof must be

re-initialized in case of faulty sunroof operation. It

may also be necessary to re-initialize the sunroof

after the vehicle’s battery has been disconnected

and then reconnected.
NOTE:

The anti-pinch safety device is deactivated during

the re-initialization procedure.
Proceed as follows:
1. With the ignition in the ON/RUN position,

make sure the sunroof glass is fully closed

(sunshade open).

2. Open the driver’s side door, and place the

ignition in the OFF position.

3. Within five seconds, place the ignition in the

ACC or ON/RUN position.

4. Within 10 seconds, push and hold the

sunroof close switch (forward). After 8 -

10 seconds of holding the switch, the

re-initialization process will begin. Continue

to hold the switch while the sunroof motor

cycles, and the sunshade will fully close.

5. Once the sunroof glass and the power

sunshade have stopped motion, release the

sunroof close switch, then push and hold it

again within five seconds. Continue to hold

the switch while the sunshade fully opens,

the sunroof glass fully opens, followed by the

glass fully closing then the sunshade fully

closing.

6. Release the switch once all of the operations

stop. Re-initialization of the sunroof motor is

now complete.

NOTE:

If the switch is released prior to full completion of

the operations described, the entire re-initializa

-

tion procedure must be repeated from step 1.
7. Confirm express operations for the sunroof

glass and sunshade are functional for

opening and closing operations.

S

UNROOF

 M

AINTENANCE

Use only a non-abrasive cleaner and a soft cloth

to clean the glass panel. Periodically check for

and clear out any debris that may have collected

in the tracks.

CarManuals2.com

GETTING TO KNO

W

 YOU

R VEHICLE

62

HOOD

O

PENING

 T

HE

 H

OOD

To open the hood, two latches must be released.
1. Pull the release lever located underneath the

driver’s side of the instrument panel.

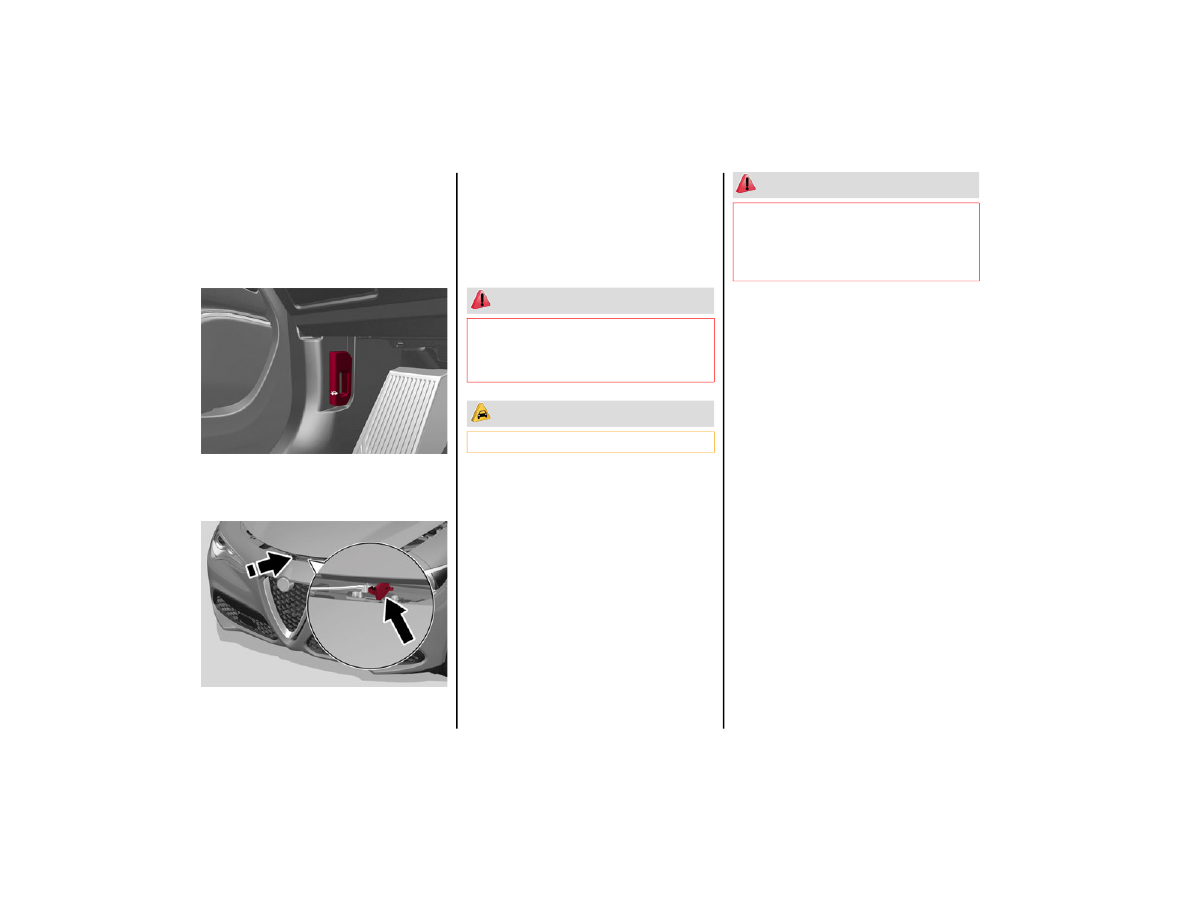

Hood Release Lever

2. Lift the hood slightly. Move the underhood

latch from right to left to release the hood.

Hood Latch Location

3. Raise the hood completely. The operation is

assisted by the addition of two gas props

which hold it in the open position.

NOTE:

Use both hands to lift the hood. Before lifting,

check that the windshield wiper arms are not

raised from the windshield or in operation.

C

LOSING

 T

HE

 H

OOD

To close, lower the hood to approximately

16 inches (40 cm) from the engine compartment

then let it drop. Make sure that the hood is

completely closed and fully latched.
NOTE:

Since the hood is equipped with a double locking

system, one for each side, you must check that it

is closed on each side.

POWER LIFTGATE

Unlocking of the liftgate is electrically operated

and is deactivated when the vehicle is in motion.
If anything obstructs the power liftgate while it is

closing or opening, the liftgate will automatically

reverse to the closed or open position, provided it

meets sufficient resistance.

O

PENING

The liftgate may be released in several ways:

Pressing the liftgate release button on the

key fob twice within five seconds

Pushing the external liftgate release switch

(when the liftgate is unlocked)

Lifting the interior liftgate release button on

the driver’s door panel trim

 WARNING!

Before opening the hood, apply the Electric

Park Brake (EPB) and place the gear selector

in PARK. Otherwise the vehicle may roll and

cause damage, serious injury, or death.

 CAUTION!

Do not tamper with the gas props.

 WARNING!

Be sure the hood is fully latched before driving

your vehicle. If the hood is not fully latched, it

could open when the vehicle is in motion and

block your vision. Failure to follow this warning

could result in serious injury or death.

CarManuals2.com

63

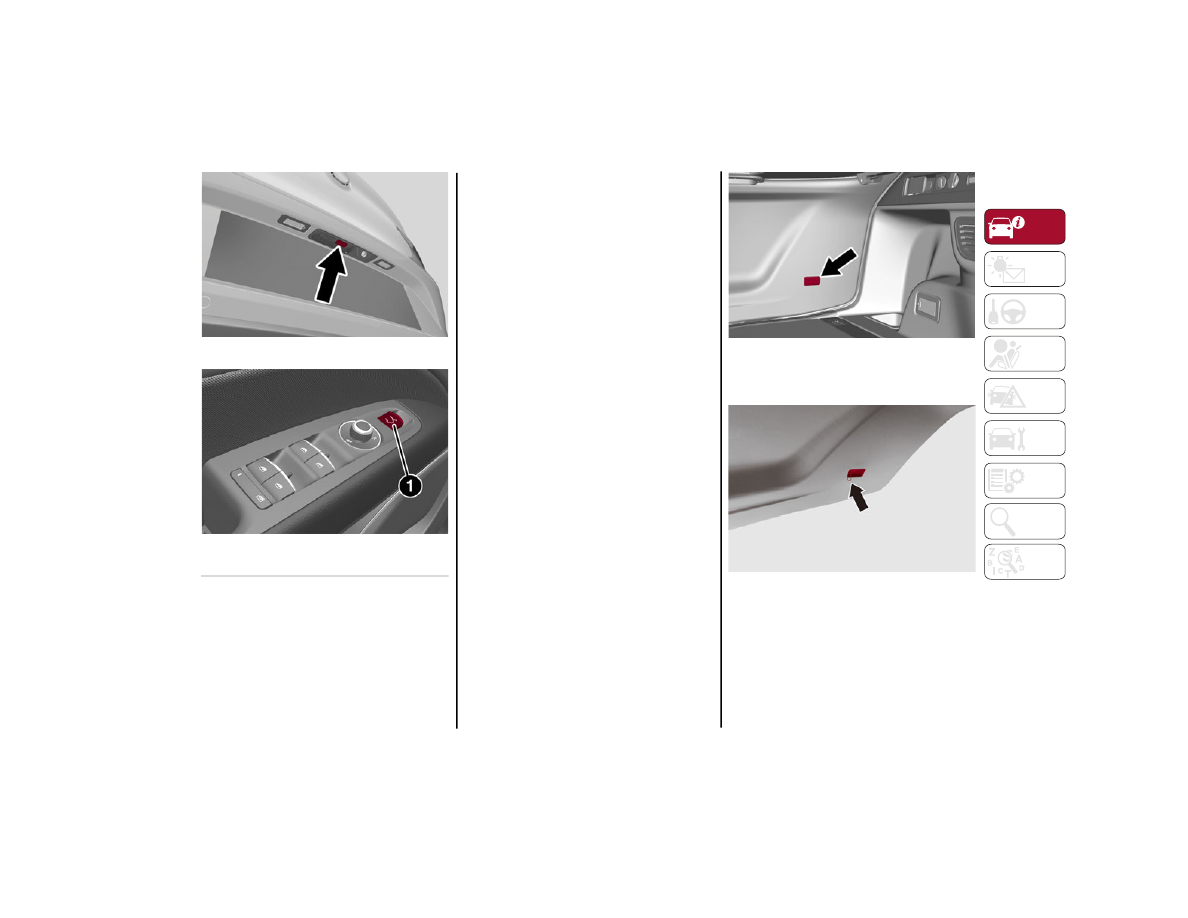

External Liftgate Release Switch

Interior Liftgate Release

The turn signal indicators will blink and the

interior lights will turn on when the liftgate is

opened. They turn off automatically when the

liftgate is closed.
The lights turn off automatically after a few

minutes if the liftgate is left open.
A signal will chime while the liftgate is opening or

closing.
NOTE:

You can stop the liftgate from moving by pushing

the interior liftgate release button again.
Power Liftgate Malfunction Procedure
In the event of a power malfunction to the liftgate,

there is a panel on the luggage compartment

interior trim, next to the liftgate lock, accessible

by folding down the rear seatback, which allows

access to the manual lock release.
1. The service release can be accessed by using

a pry tool to carefully remove the panel cover

on the interior trim of the lift gate shown in

the following illustration. Removing this trim

will allow access to the manual service

release feature.

Manual Lock Release Location

2. Pull the manual lock release cord to release

the lock.

Manual Lock Release Cord

1 — Interior Liftgate Release Switch

CarManuals2.com

GETTING TO KNO

W

 YOU

R VEHICLE

64

C

LOSING

It is possible to close the liftgate by pushing:

The power liftgate switch.

The power lock switch located on the

liftgate (all the doors, including the liftgate,

will be locked).

The liftgate button on the key fob twice.

The power liftgate switch on the liftgate.

The power liftgate switch on the driver’s door

panel trim and hold until the operation is

complete.

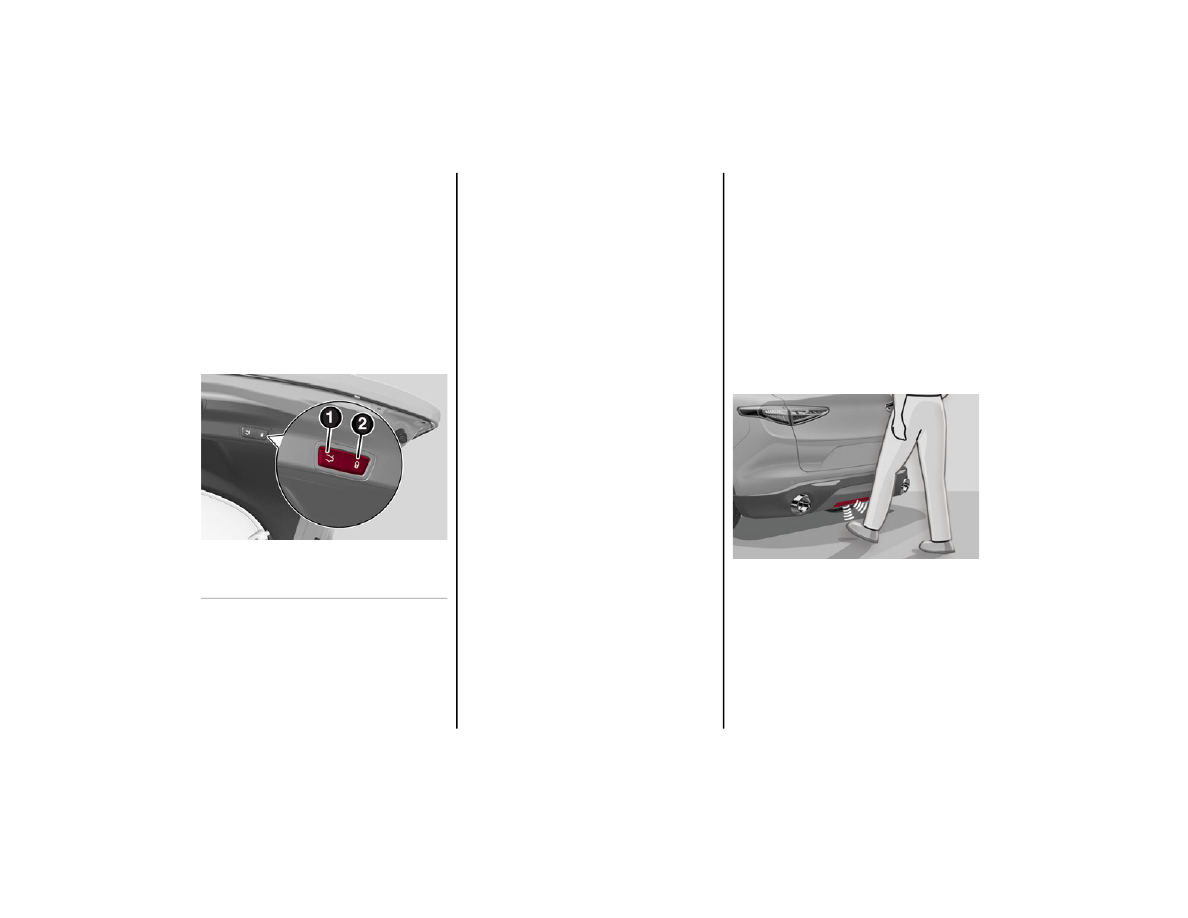

Power Liftgate/Lock Switches

NOTE:

It is possible to stop the liftgate from moving with

any of the Power Liftgate switches.

Customizing The Liftgate Opening Height

To avoid difficulties in tight spaces, you can set

the height at which the liftgate opens to.
To customize the liftgate opening position, follow

the steps below:
1. Open the liftgate manually and move it to the

position that you want the liftgate to open to.

2. Press and hold one of the closing buttons for

at least five seconds (successful program

-

ming is indicated by the turn signals flashing

three times).

The liftgate is now programmed to open to the set

position.
This function can be selected on the radio

system.
To set the liftgate opening height, refer to the

Information and Entertainment System Owner’s

Manual Supplement for further information.

Hands-Free Liftgate — If Equipped

To operate the Hands-Free Liftgate system:
1. If the doors are locked, the system must

detect the key fob near the liftgate.

2. If the doors are unlocked, the system does

not have to detect the key fob near the lift

-

gate.

3. Go to the rear of the vehicle, in the center and

about 3 feet (1 m) from the liftgate.

4. Move your foot under the bumper, simulating

a kick. When you have completed this move

-

ment, withdraw your leg. To activate the lift

-

gate, both sensors must detect your leg.

Hands Free Liftgate Activation Zone

1 — Power Liftgate Switch
2 — Power Door Lock Switch

CarManuals2.com

65

If it is closed, the Hands-Free Liftgate unlocks and

opens completely, and with another movement of

the foot, it stops. A further movement of the foot

reverses the direction and closes the liftgate

completely, if you do not stop it again.
If it is open, with a movement of the foot, the

Hands-Free Liftgate closes completely, and with

another movement of the foot, it stops. If the

liftgate is stopped, another movement of the foot

will reverse the direction and open it completely.
NOTE:

To conserve the battery charge, avoid performing

this operation repeatedly with the engine off.
You can activate/deactivate the Hands-Free

Liftgate on the radio system by pushing the MENU

button to select the Main menu, and selecting the

following items:
1. Settings
2. Doors And Locks
3. Automatic Liftgate Opening

R

E

-I

NITIALIZATION

 P

ROCEDURE

Automatic operation of the liftgate must be

re-initialized in case of faulty liftgate operation.

It may also be necessary to re-initialize the liftgate

after the vehicle’s battery has been disconnected

and then reconnected.
Proceed as follows:
1. Close all the doors and the liftgate.
2. Press the lock button on the key fob.
3. Press the unlock button on the key fob.

 WARNING!

Driving with the liftgate open can allow

poisonous exhaust gases into your vehicle.

You and your passengers could be injured by

these fumes. Keep the liftgate closed when

you are operating the vehicle.

If you are required to drive with the liftgate

open, make sure that all windows are closed,

and the climate control blower switch is set

at high speed. Do not use the recirculation

mode.

During power operation, personal injury or

cargo damage may occur. Ensure the liftgate

travel path is clear. Make sure the liftgate is

closed and latched before driving away.

 CAUTION!

The Hands-Free Liftgate can be turned off

manually in the radio system to avoid

unintentional activation. For further

information refer to the Information and

Entertainment System Owner’s Manual

Supplement.

CarManuals2.com

GETTING TO KNO

W

 YOU

R VEHICLE

66

(Continued)

C

ARGO

 A

REA

 F

EATURES

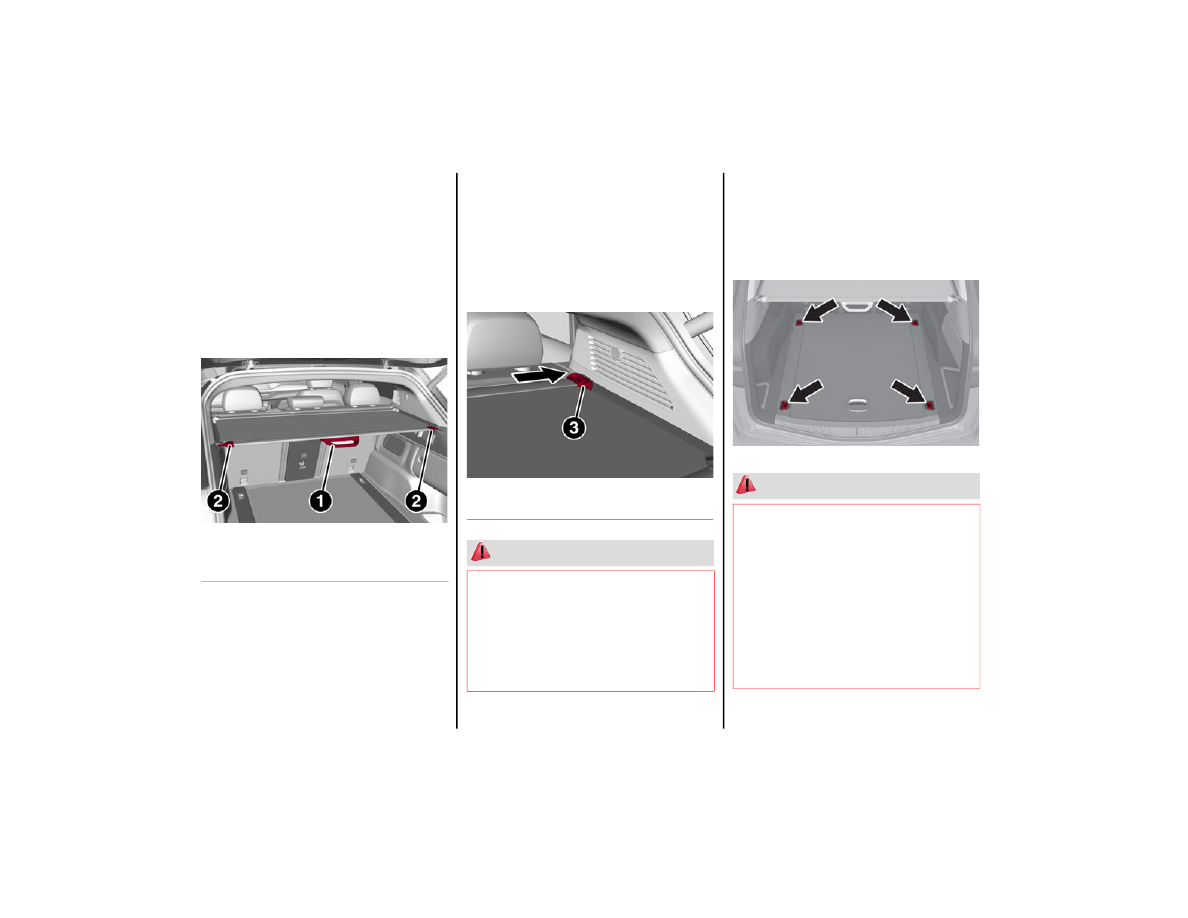

Retractable Cargo Area Cover

The Retractable Cargo Area Cover can be rolled

up and removed.

To Use The Cargo Area Cover:

1. From the rolled up (retracted) position, hold

the handle and pull the cover outward toward

the rear of the vehicle.

2. Then assist the cover pins into the slots

located just inside the liftgate opening.

Retractable Cargo Area Cover

Removing The Cover:

1. Retract the cover by pulling the handle

slightly rearward to release the cover pins.

2. Guide the cover forward until it is fully

retracted.

3. Pull the two cover hooks (one on each side)

towards the inside of the cargo area. Then lift

the cover up and remove it.

Cover Attached

Rear Cargo Anchors

The cargo area floor may be equipped with fixed

or mobile anchoring loops that allow you to

anchor and secure luggage safely.
The fixed anchor loops are located in the four

corners of the cargo floor.

Anchor Loops

1 — Handle
2 — Cover Pins

3 — Cover Hook

 WARNING!

In a collision, a loose cargo cover in the vehicle

could cause injury. It could fly around in a

sudden stop and strike someone in the

vehicle. Do not store the cargo cover on the

cargo floor or in the passenger compartment.

Remove the cover from the vehicle when taken

from its mounting. Do not store it in the

vehicle.

 WARNING!

Rear cargo anchors are not safe anchors for

a child seat tether strap. In a sudden stop or

accident, an anchor loop could pull loose and

allow the child seat to come loose. A child

could be badly injured. Use only the anchors

provided for child seat tethers.

To help protect against personal injury,

passengers should not be seated in the rear

cargo area. The rear cargo space is intended

for load carrying purposes only, not for

passengers, who should sit in seats and use

seat belts.

CarManuals2.com

67

Grocery Hooks

Two hooks (one on the left side and one on the

right side) are also available on the side panels to

fix loads that are not excessively heavy (e.g.

bags).

Grocery Hook

NOTE:

Do not apply a load greater than 22 lb (10 kg) on

a single hook.

Accessing The Tire Service Kit —

If Equipped

To access the Tire Service Kit

Ú

page 189, lift up

the load floor by the handle.

Load Floor

The weight and position of cargo and

passengers can change the vehicle center of

gravity and vehicle handling. To avoid loss of

control resulting in personal injury, follow

these guidelines for loading your vehicle:

Do not carry loads that exceed the load limits

described on the label attached to the left

door or left door center pillar.

Always place cargo evenly on the cargo floor.

Put heavier objects as low and as far forward

as possible.

Place as much cargo as possible in front of

the rear axle. Too much weight or improperly

placed weight over or behind the rear axle

can cause the vehicle to sway.

Do not pile luggage or cargo higher than the

top of the seatback. This could impair

visibility or become a dangerous projectile in

a sudden stop or accident.

 WARNING!

CarManuals2.com

68

GETTING TO KNO

W

 YOU

R IN

STRUM

ENT PAN

EL

This section gives you all the information you need to understand and use the instrument panel correctly.

INSTRUMENT PANEL FEATURES

I

NSTRUMENT

 C

LUSTER



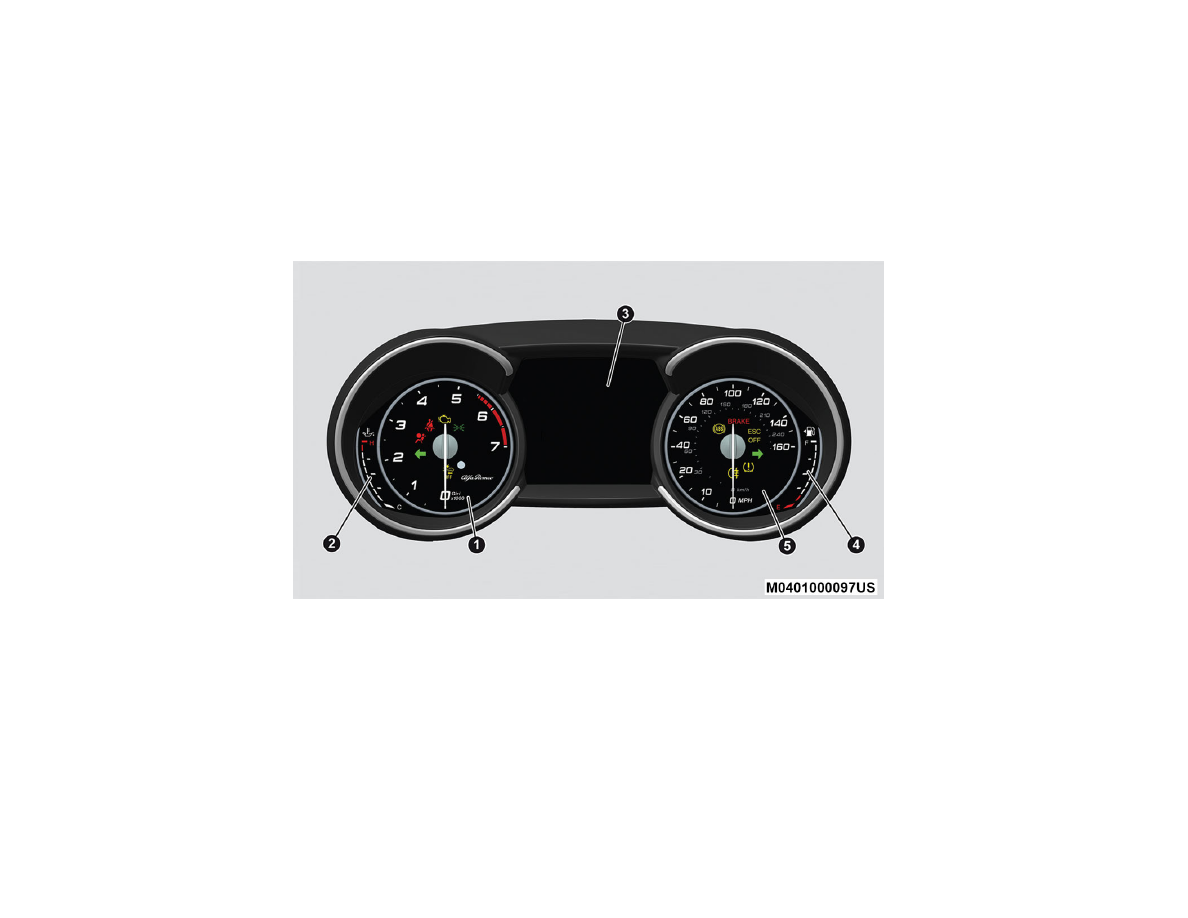

Instrument Cluster

CarManuals2.com

69

Quadrifoglio Instrument Cluster

I

NSTRUMENT

 C

LUSTER

 D

ESCRIPTIONS

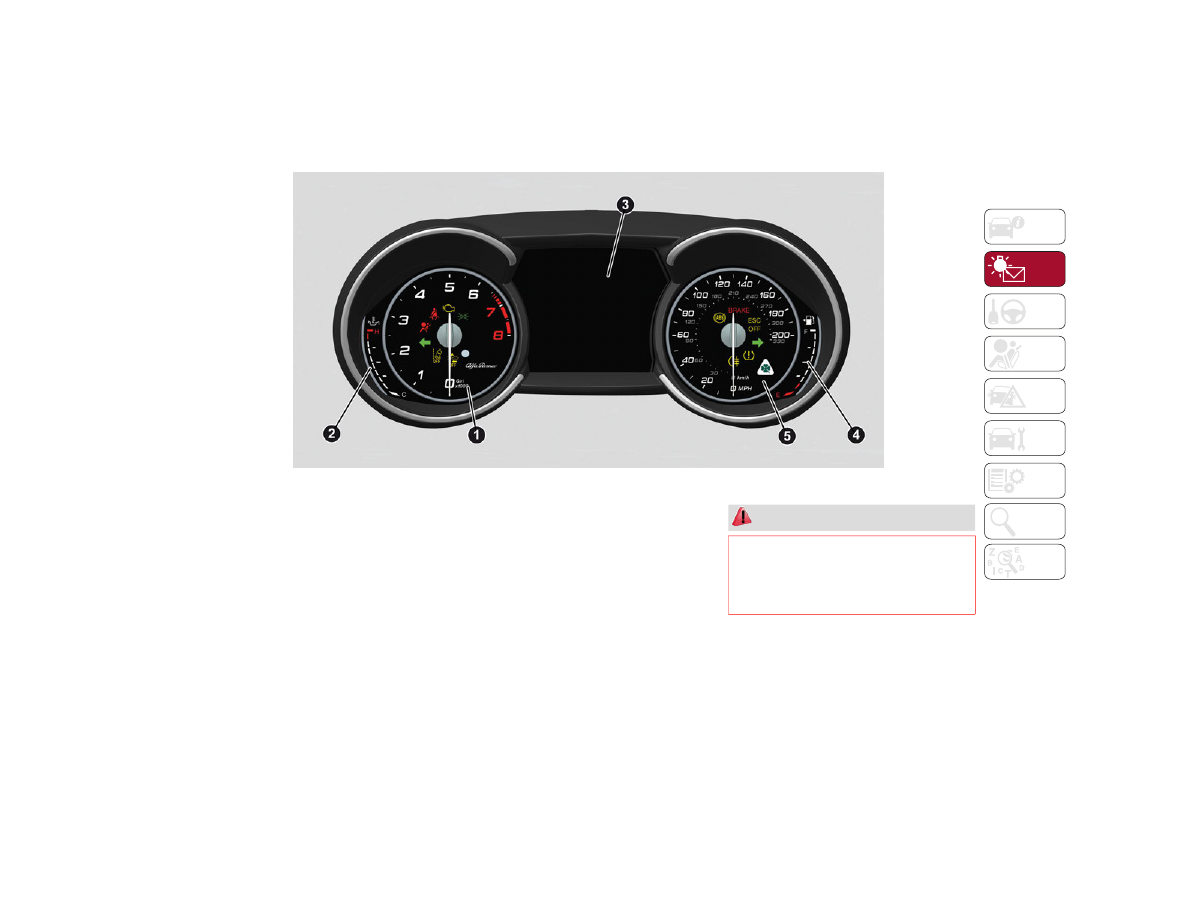

1. Tachometer

Indicates the engine speed in revolutions

per minute (RPM x 1000).

Inside the tachometer there is a light

sensor capable of detecting ambient light

conditions and adjusting the operating

mode (night/day) and the brightness of the

instrument panel and the Information and

Entertainment System display.

2. Engine Oil Temperature Gauge

The digital bar indicator monitors the

temperature of the engine oil and starts

supplying indications when the fluid

temperature reaches approximately

122°F (50°C).

Under normal usage, the digital scale

should hover around the middle of the

scale according to the working conditions.

 WARNING!

A hot engine cooling system is dangerous. You

or others could be badly burned by steam or

boiling coolant. It is recommended to call an

authorized dealer for service if your vehicle

overheats

Ú

page 212.

CarManuals2.com

GETTING TO KNO

W

 YOU

R IN

STRUM

ENT PAN

EL

70

3. Instrument Cluster Display

The instrument cluster display features a

driver interactive display

Ú

page 70.

4. Fuel Gauge

The digital bar gauge shows the amount of

fuel in the tank.

The   fuel reserve/limited range warning

light turns on, a message is displayed

and there is an acoustic signal when about

2.4 gallons (9 liters) of fuel are left in

the tank.

The   fuel pump symbol points to the

side of the vehicle where the fuel door is

located.

As fuel is consumed, the white notch indi-

cators will disappear. The last one will

become red, together with the indication

"E" (for empty) illuminating beneath the

Fuel Level Warning Light to indicate fuel

must be added immediately.

Fuel Level Gauge

NOTE:

If the Low Fuel Warning light switches on, refuel

at the earliest opportunity.
5. Speedometer

Indicates vehicle speed.

NOTE:

The hard telltales will illuminate for a bulb check

when the ignition is first cycled.

INSTRUMENT CLUSTER

DISPLAY

I

NSTRUMENT

 C

LUSTER

 D

ISPLAY



D

ESCRIPTION

This vehicle is equipped with a driver interactive

display that is located in the instrument cluster.
When one or more of the doors have been

opened or closed and the ignition is in the OFF

position, the instrument cluster will display the

vehicle mileage for a few seconds.

R

ECONFIGURABLE

 I

NSTRUMENT

 C

LUSTER



D

ISPLAY

During operation, the instrument cluster display

is divided into multiple sections which show

driving data, warnings, and failure indications.

Instrument Cluster Display

R

ECONFIGURABLE

 D

ISPLAY

 I

TEMS

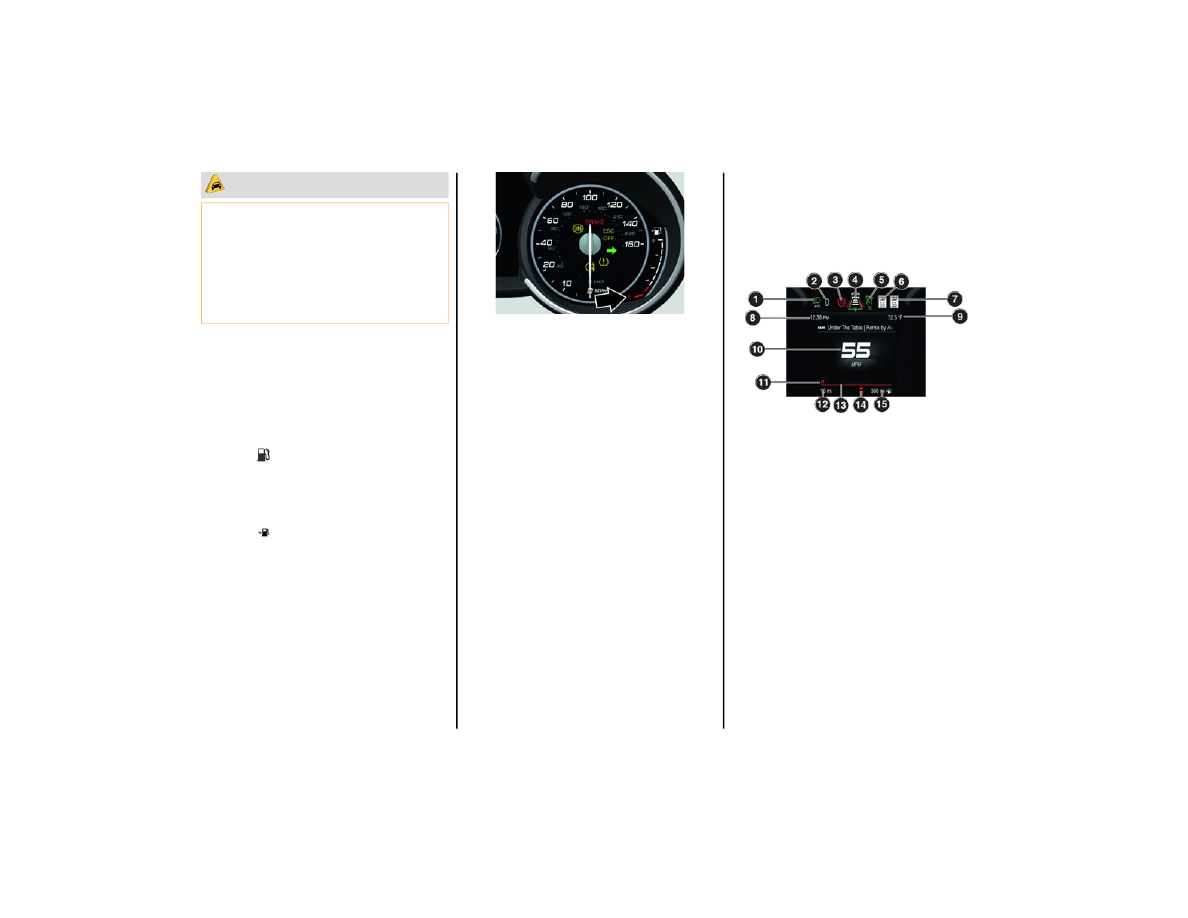

1. External Lights (Low Beam/High Beam)

Display

2. Front, Side Anti-Collision Systems, Cruise

Control Change Information

3. Speed Limiter Display
4. Driving Assistance Systems (FCW, LDW,

LKA, HAS) Information Display

5. Adaptive Cruise Control (ACC) / Cruise

Control (CC) Information Display

6. Traffic Sign Information (TSI) / Speed Limiter

Information Display

7. Traffic Sign Information (TSI) Information

Display

8. Time
9. External Temperature

 CAUTION!

Driving with a hot engine cooling system could

damage your vehicle. If the temperature gauge

reads “H” pull over and stop the vehicle. Idle

the vehicle with the air conditioner turned off

until the pointer drops back into the normal

range. If the pointer remains on the “H”, turn

the engine off immediately and call an

authorized dealer for service.

CarManuals2.com

71

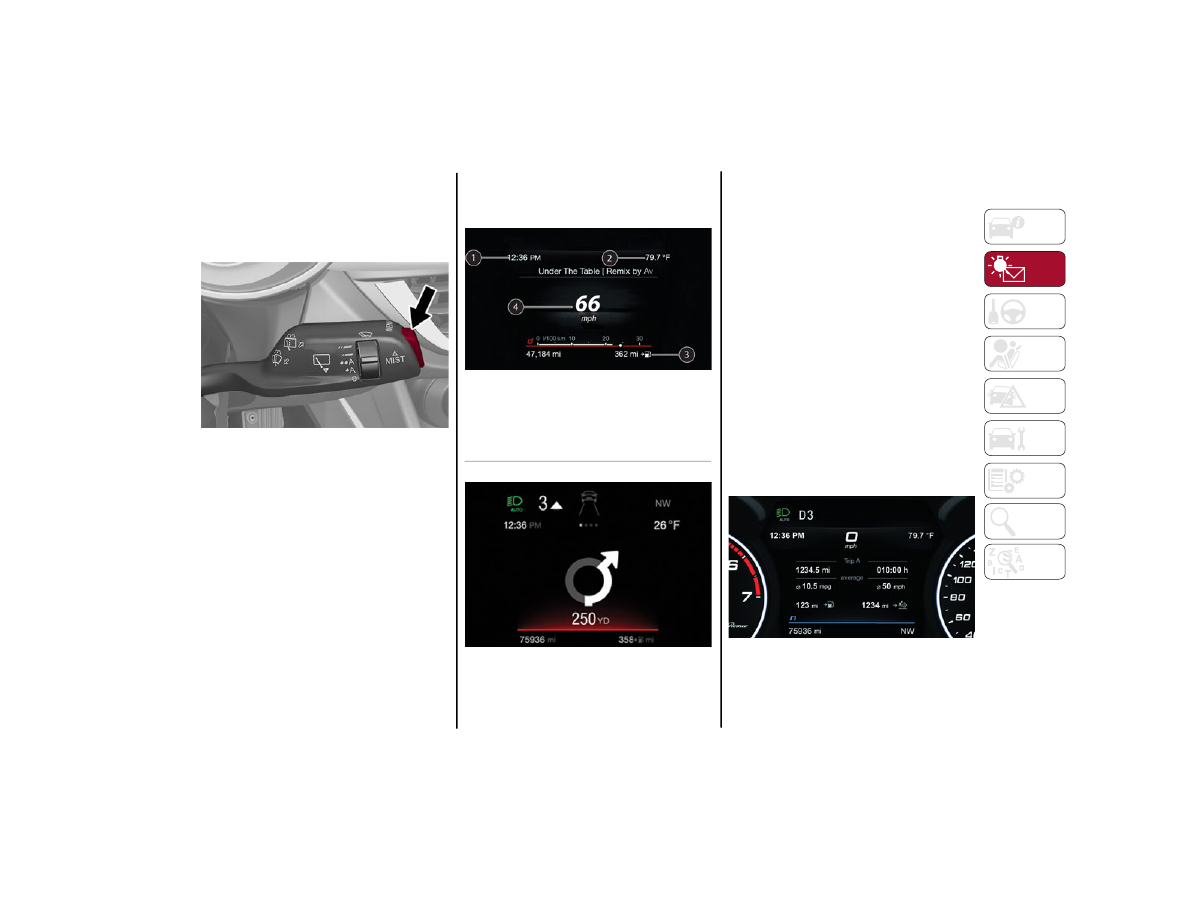

10. Main Display: Vehicle Speed Display, Trip

Computer Information, etc.
The screens can be selected, on rotation, by

pushing the MENU selection button on the

windshield wiper stalk.

MENU Selection Button

Depending on the driving mode chosen using

the Alfa Dynamic, Natural, and Advanced

Efficiency (DNA) the screens can be graphi

-

cally different. Navigation instructions and

call information can be set and displayed in

the Information and Entertainment System.
Home
The parameters shown on the display, for

the modes: Dynamic, Natural and Advanced

Efficiency are:

Time

Outside Temperature

Current speed (shown only if the repeat

mode of the “Navigation” and “Phone” func

-

tions have not been previously activated).

Range

In RACE mode (if equipped) the consumption

indication index is not active and a sports

gearshift indicator is displayed.

Instrument Cluster Display

Instrument Cluster Display

Trip A And B
For all driving modes (Dynamic, Natural, and

Advanced Efficiency) and with the ignition

device ON, the “Trip computer” can be used

to display the measurements regarding the

operating state of the vehicle. This function is

characterized by two separate records, called

“Trip A” and “Trip B” (the latter can be deacti

-

vated by Information and Entertainment

System), where the “complete missions”

(journeys) are recorded in a reciprocally

independent manner.
“Trip A” and “Trip B” are used to display the

values relating to:

Distance traveled

Average fuel consumption

Average speed

Active trip

Fuel consumption indicator

Instrument Cluster Display

To reset the values, press and hold down the

button on the windshield wiper stalk.

1 — Time
2 — Temperature
3 — Distance To Empty
4 — Speed

CarManuals2.com

GETTING TO KNO

W

 YOU

R IN

STRUM

ENT PAN

EL

72

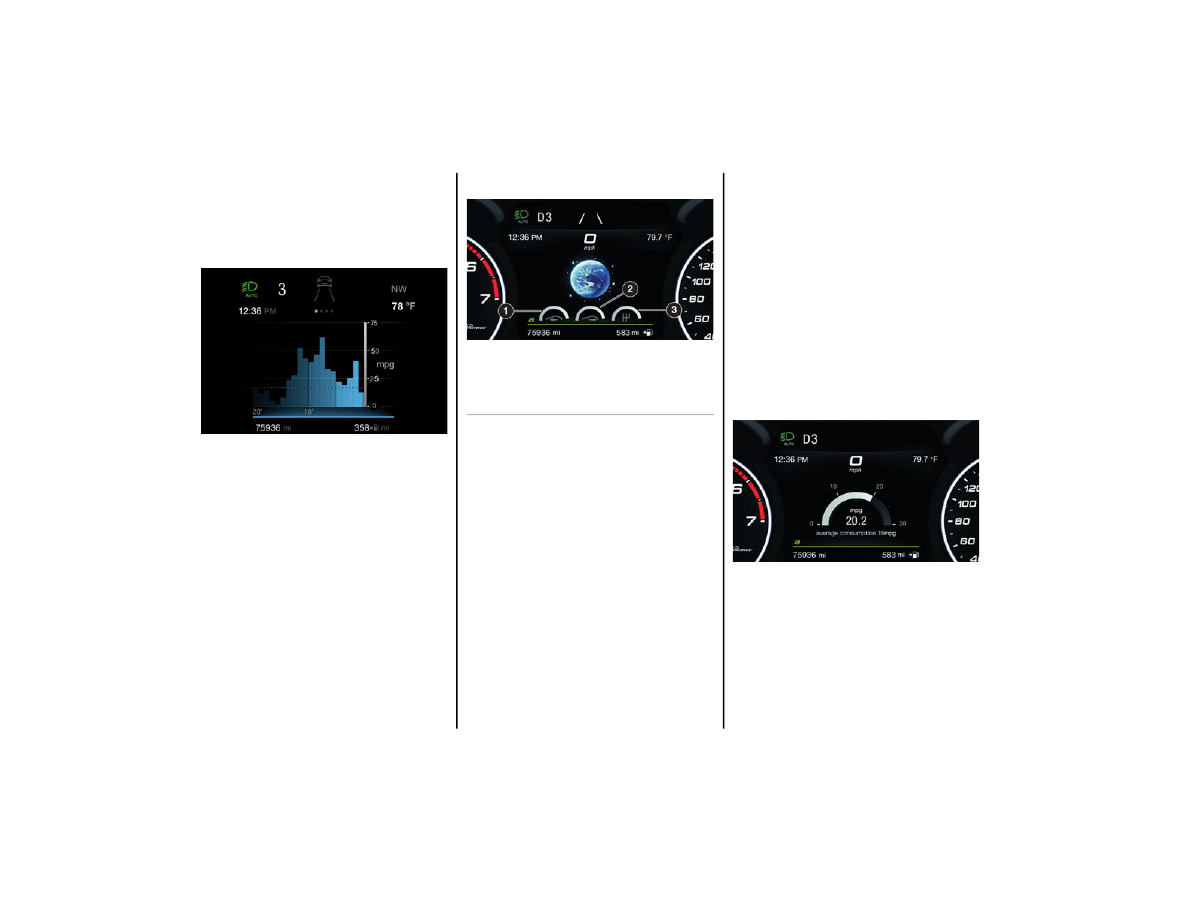

Performance
The displayed parameters differ according to

the active mode. The modes which can be se

-

lected using the Alfa DNA system are:
Natural

Efficiency Consumption Graph

The screen graphically reproduces some pa

-

rameters closely linked to the efficiency of

the driving style, with a view to limiting con

-

sumption.

Advanced Efficiency

Dynamic Driving Style

The three central icons on the screen indi

-

cate the effectiveness of the driving style

linked to the parameters of: acceleration, de

-

celeration and gearshift with a view to reduc

-

ing fuel consumption.
The graphic bar below the icons shows cur

-

rent consumption and the green line rep

-

resents the optimal area. The globe lights up

gradually according to lower consumption.

Alternative Performance
The displayed parameters vary depending on

the active mode. The modes can be selected

through the Alfa DNA system and are as

follows:
Natural and Advanced Efficiency
The display graphically shows the values of:

○ instantaneous consumption
○ average fuel consumption

(based on “Trip A”);

Below a certain speed value, when the accel

-

erator pedal is not pressed or in the event of

failure, dashes are displayed in place of the

consumption value ("– –. –").

Natural and Advanced Efficiency

1 — Acceleration
2 — Deceleration
3 — Gear Shifts

CarManuals2.com

73

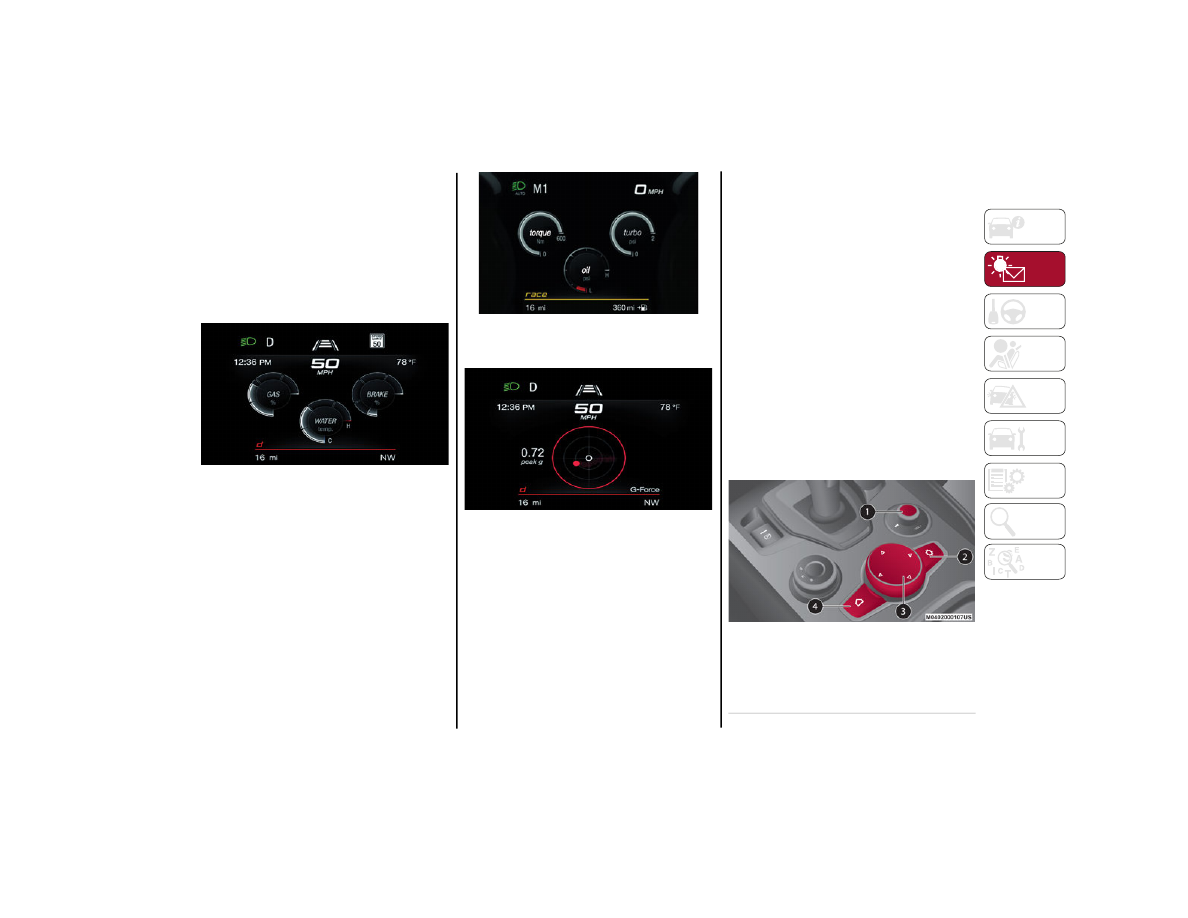

Dynamic
The display graphically shows the values of:

○ accelerator pedal position

(expressed in percentage);

○ brake pedal position

(expressed in percentage);

○ engine coolant temperature

(H = hot C = cold).

Dynamic

Race (If Equipped)
The display graphically shows the values of:

○ engine torque;
○ turbocharger pressure;
○ engine oil pressure

(L = low pressure/

H= high pressure).

NOTE:

The engine torque and turbocharger pressure

values vary according to the engine type.

Race

Dynamic

Acceleration Gauge

The displayed parameters are related to vehi

-

cle stability, the graphs illustrate the trend of

the longitudinal/lateral accelerations (G-me

-

ter information), considering gravity accelera

-

tion as a reference unit.
Lateral acceleration peaks are also indicated.

11. Driving Mode Display (Alfa DNA System)
12. Distance Traveled (miles/km) display
13. Fuel Consumption

14. Warning Indications Display (e.g. danger of

ice, open doors, ABS operation, etc.)

15. Range

C

USTOMER

 P

ROGRAMMABLE

 S

ETTINGS

Multiple settings can be programmed by the user

using the radio. This section describes only the

basic settings:

Units & Language

Clock & Date

Cluster

To access the settings list in the radio, proceed as

follows:

Press the Home button to access the main

menu.

Select Settings from the main menu using the

Rotary Knob or by pressing Settings on the

touchscreen.

Rotary Knob

1 — ON/OFF Control And Volume Knob
2 — OPTION Button
3 — Rotary Pad
4 — Home Button

CarManuals2.com

GETTING TO KNO

W

 YOU

R IN

STRUM

ENT PAN

EL

74

Units & Language
The following settings can be modified under the

“Units & Language” menu:

Units: select US, Metric, or Custom. The

custom option allows for individual selection of

the unit measures

Language: change the language of the system

Restore Unit & Language Settings: restores the

factory settings

To access and the change the setting, turn and

push the Rotary Pad or press the desired setting

on the touchscreen.
Clock & Date
The following settings can be modified under the

“Clock & Date” menu:

Sync With GPS Time: activates or deactivates

the clock synchronization through the GPS.

If the function is deactivated, the options Set

Time and Set Date are enabled.

Set Time: set the time manually.

Time Format: set the time format to either a

12-hour or a 24-hour clock.

Set Date: set the date manually.

Restore Clock & Date Settings: restores the

factory settings.

To access and change the setting, turn and push

the Rotary Pad or press the desired setting on the

touchscreen.

Cluster
The following settings can be modified under the

“Cluster” menu:

Warning Buzzer Volume: set the volume of the

warning buzzer on seven levels.

Trip B: activate or deactivate the Trip function.

Show Phone Info: activate/deactivate

repetition of the phone function screens also

on the instrument cluster display.

Show Audio Info: activate/deactivate

repetition of the audio function screens (Radio

and Media) also on the instrument cluster

display.

Show Nav Info: activate/deactivate repetition

of the navigator function screens also on the

instrument cluster display.

Digital Speed on all screens: activate/deacti

-

vating of digital speed on the instrument

cluster display screens other than the main

screen.

Consumption Bar: activate/deactivate the

consumption baron the display screens of the

instrument panel where it is available.

Performance Pages: choose, for each driving

mode, one of the two alternative contents

displayed in the screen.

Custom Areas: select which content to display

in each of the three customizable areas on the

display of the instrument panel: time, date,

outside temperature, radio information,

compass.

Restore Cluster Settings: deletes the current

settings and restores the factory settings.

To access and the change the setting, turn and

push the Rotary Pad or press the desired setting

on the touchscreen.

WARNING LIGHTS AND

MESSAGES ON THE

INSTRUMENT PANEL

The following pages consist of warning lights and

messages.
NOTE:

The warning light turns on together with a

dedicated message and/or chime when

applicable. These indications are precau

-

tionary and as such must not be considered as

exhaustive and/or alternative to the

information contained in the Owner’s Manual,

which you are advised to read carefully in all

cases. Always refer to the information in this

section in the event of a failure indication.

The failure indicators appearing on the display

are divided into two categories: very serious

and less serious faults. Serious faults are

indicated by a repeated and prolonged

warning cycle. Less serious faults are

indicated by a warning cycle with a shorter

duration. You can stop the warning cycle in

both cases by pushing the button located on

the windshield wiper stalk. The instrument

panel warning light will stay on until the cause

of the failure is eliminated.

CarManuals2.com

75

(Continued)

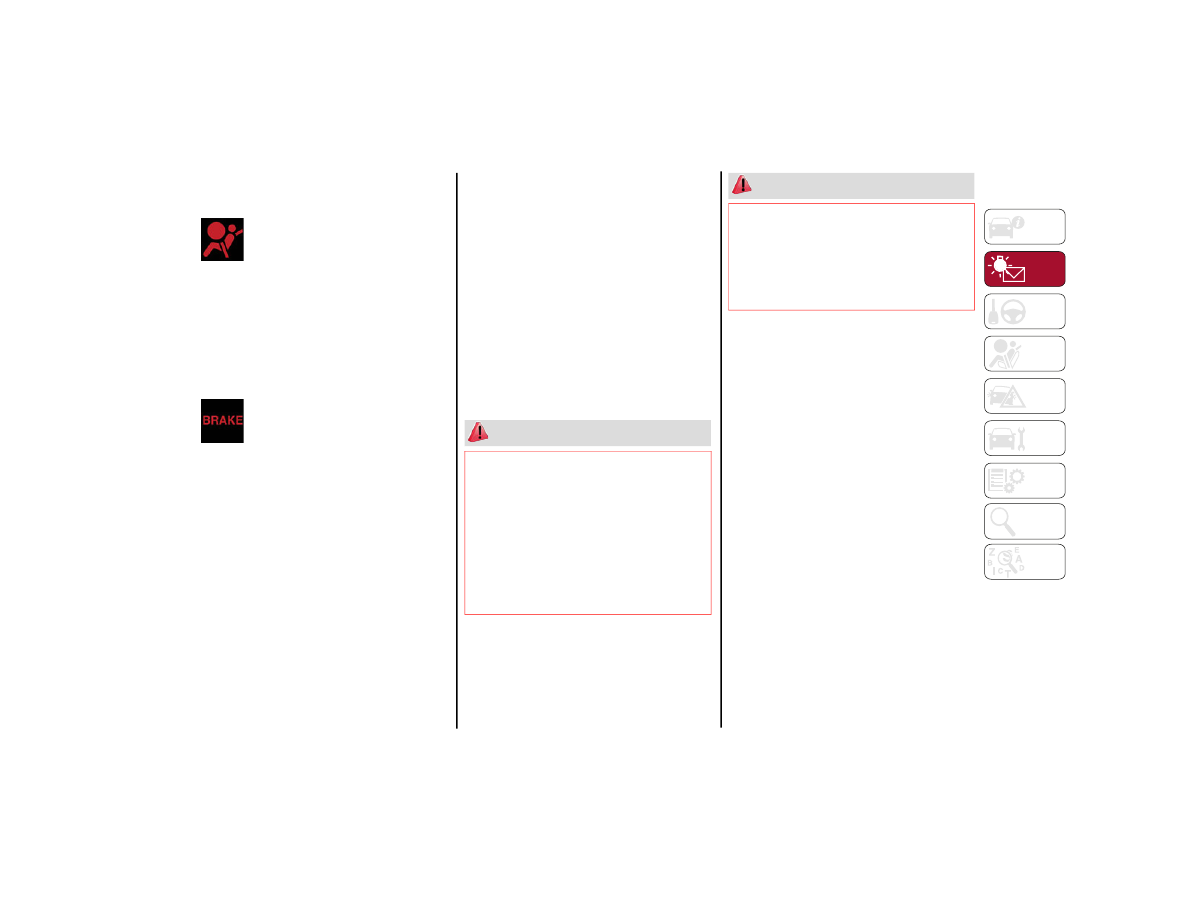

R

ED

 W

ARNING

 L

IGHTS

Air Bag Warning Light

This warning light will illuminate to

indicate a fault with the air bag, and will

turn on for four to eight seconds as a

bulb check when the ignition is placed in

the ON/RUN or ACC/ON/RUN position. This light

will illuminate with a single chime when a fault

with the air bag has been detected, it will stay on

until the fault is cleared. If the light is either not on

during startup, stays on, or turns on while driving,

have the system inspected at an authorized

dealer as soon as possible.

Brake Warning Light

This warning light monitors various

brake functions, including brake fluid

level and parking brake application. If

the brake light turns on it may indicate

that the parking brake is applied, that the brake

fluid level is low, or that there is a problem with

the Anti-Lock Brake System reservoir.
If the light remains on when the parking brake

has been disengaged, and the fluid level is at the

full mark on the master cylinder reservoir, it

indicates a possible brake hydraulic system

malfunction or that a problem with the Brake

Booster has been detected by the Anti-Lock

Brake System (ABS) / Electronic Stability Control

(ESC) system. In this case, the light will remain on

until the condition has been corrected. If the

problem is related to the brake booster, the

ABS pump will run when applying the brake,

and a brake pedal pulsation may be felt during

each stop.

The dual brake system provides a reserve braking

capacity in the event of a failure to a portion of the

hydraulic system. A leak in either half of the dual

brake system is indicated by the Brake Warning

Light, which will turn on when the brake fluid level

in the master cylinder has dropped below a

specified level.
The light will remain on until the cause is

corrected.
NOTE:

The light may flash momentarily during sharp

cornering maneuvers, which change fluid level

conditions. The vehicle should have service

performed, and the brake fluid level checked.
If brake failure is indicated, immediate repair is

necessary.

Vehicles equipped with the Anti-Lock Brake

System (ABS) are also equipped with Electronic

Brake Force Distribution (EBD). In the event of an

EBD failure, the Brake Warning Light will turn on

along with the ABS Light. Immediate repair to the

ABS system is required.
Operation of the Brake Warning Light can be

checked by turning the ignition switch from the

OFF position to the ON/RUN position. The light

should illuminate for approximately two seconds.

The light should then turn off unless the parking

brake is applied or a brake fault is detected. If the

light does not illuminate, have the light inspected

by an authorized dealer.
The light also will turn on when the parking brake

is applied with the ignition switch in the ON/RUN

position.
NOTE:

This light shows only that the parking brake is

applied. It does not show the degree of brake

application.

 WARNING!

If the warning light does not turn on when the

ignition is placed in the ON/RUN position or

if it stays on when driving (together with the

message on the display), there might be a

malfunction in the restraint systems; This

could mean the air bags or pretensioners

may not deploy in the event of an accident or,

they could deploy erroneously. This could

result in serious injuries or death. Have the

vehicle checked by qualified technician

immediately.

Driving a vehicle with a red Brake Warning

Light on is dangerous. Part of the brake

system may have failed. It will take longer to

stop the vehicle in such circumstances. This

could result in a collision and serious injuries

or death. Have the vehicle checked by a

qualified technician immediately.

 WARNING!

CarManuals2.com

GETTING TO KNO

W

 YOU

R IN

STRUM

ENT PAN

EL

76

Electronic Brake Force Distribution (EBD)

Failure

The simultaneous turning on of the

BRAKE (red) and ABS (amber) warning

lights with the engine on indicates

either a failure of the EBD system or

that the system is not available. In this case, the

rear wheels may suddenly lock and the vehicle

may swerve when braking abruptly.

Oil Temperature Warning Light

This warning light indicates engine oil

temperature is high.

Stop the vehicle and shut off the engine as soon

as possible. If the problem persists, contact an

authorized dealer.

Seat Belt Reminder Warning Light

When the ignition is first placed in the

ON/RUN position, if the driver’s seat

belt is unbuckled, a chime will sound

and the light will turn on. When driving,

if the driver, front, or rear passenger seat belt

remains unbuckled, the Seat Belt Reminder Light

will flash or remain on continuously and a chime

will sound

Ú

page 157.

A

MBER

 W

ARNING

 L

IGHTS

Anti-Lock Brake System (ABS)

Warning Light

This light monitors the ABS. The light will

turn on when the ignition is placed in

the ON/RUN position and may stay on

for as long as four seconds.

If the ABS light remains on or turns on while

driving, then the Anti-Lock portion of the brake

system is not functioning and service is required.

However, the conventional brake system will

continue to operate normally if the red Brake

Warning Light is not on.

If the ABS light is on, the brake system should be

serviced as soon as possible to restore the

benefits of Anti-Lock Brakes. If the ABS light does

not turn on when the ignition is placed in the ON/

RUN position, have the light inspected by an

authorized dealer.

Electronic Stability Control (ESC)

Indicator Light — If Equipped

When the ignition is cycled to ON, the

indicator light illuminates, but should

turn off as soon as the engine is started.

ESC System Intervention: Intervention by the

system is indicated by the flashing of the

indicator light: it indicates that the vehicle is in

critical stability and grip conditions.
ESC System Failure: If the indicator light does not

turn off, or if it stays on with the engine running,

a failure was found in the ESC system.
Hill Start Assist System Failure: The illumination

of the indicator light indicates a Hill Start Assist

system failure.
In these cases, contact an authorized dealer as

soon as possible.

Electronic Stability Control (ESC) OFF

Indicator Light — If Equipped

When the ignition is cycled to ON, the

indicator light illuminates, but should

turn off as soon as the engine is started.

The indicator light illuminates to indicate that

some active safety systems have been partially or

totally deactivated

Ú

page 140.

When the active safety systems are reactivated,

the indicator light turns off.

 WARNING!

Driving a vehicle with a red Brake Warning

Light on is dangerous. Part of the brake

system may have failed. It will take longer to

stop the vehicle in such circumstances. This

could result in a collision and serious injuries

or death. Have the vehicle checked by a

qualified technician immediately.

 WARNING!

If the warning light does not turn on when the

ignition is placed in the ON/RUN position or if

it stays on when driving (together with the

message on the display), there might be a

malfunction in the restraint systems; This

could mean the air bags or pretensioners

may not deploy in the event of an accident or,

they could deploy erroneously. This could

result in serious injuries or death. Have the

vehicle checked by qualified technician

immediately.

Driving a vehicle with a red Brake Warning

Light on is dangerous. Part of the brake

system may have failed. It will take longer to

stop the vehicle in such circumstances. This

could result in a collision and serious injuries

or death. Have the vehicle checked by a

qualified technician immediately.

CarManuals2.com

77

Engine Check/Malfunction Indicator

Light (MIL)

In normal conditions, when the ignition

is cycled to ON, the indicator light

illuminates, but it should turn off as

soon as the engine is started.

The operation of the indicator light may be

checked by the traffic police using specific

devices. Comply with the laws and regulations of

the country where you are driving.
Under these conditions, the vehicle can continue

traveling at moderate speed but without

demanding excessive effort from the engine or

high speed. Prolonged use of the vehicle with the

indicator light on constantly may cause damage.

Contact an authorized dealer as soon as possible.

Forward Collision Warning (FCW) System

This indicator light informs the driver

that the frontal collision alarm function

is not enabled.

Drive carefully and contact an authorized dealer

as soon as possible.

Fuel Reserve/Limited Range

The indicator light (or the symbol in

the display) illuminates when about

2.4 gallons (9 liters) of fuel is left in

the tank.

Rear Fog Lights

The indicator illuminates when the

rear fog light is activated.

Tire Pressure Low Warning Light

 The indicator light will illuminate to

indicate that the tire pressure is lower

than the recommended value and/or

that slow pressure loss is occurring.

In these cases, optimal tire duration and fuel

consumption may not be guaranteed.
In any situation in which the message on the

display is “See Manual”

Ú

page 155.

Tire Pressure Monitoring System (TPMS)

Warning Light

The warning light switches on and a

message is displayed to indicate that

the tire pressure is lower than the

recommended value and/or that slow

pressure loss is occurring. In these cases, optimal

tire duration and fuel consumption may not be

guaranteed.

Should one or more tires be in the condition

previously mentioned, the display will show the

indications corresponding to each tire.

Each tire, including the spare (if provided), should

be checked monthly when cold and inflated to the

inflation pressure recommended by the vehicle

manufacturer on the vehicle placard or tire

inflation pressure label. If your vehicle has tires of

a different size than the size indicated on the

vehicle placard or tire inflation pressure label, you

should determine the proper tire inflation

pressure for those tires.
As an added safety feature, your vehicle has been

equipped with a TPMS that illuminates a low tire

pressure telltale when one or more of your tires is

significantly underinflated. Accordingly, when the

low tire pressure telltale illuminates, you should

stop and check your tires as soon as possible,

and inflate them to the proper pressure. Driving

on a significantly underinflated tire causes the

tire to overheat and can lead to tire failure. Under

inflation also reduces fuel efficiency and tire

tread life, and may affect the vehicle’s handling

and stopping ability.

 CAUTION!

If, turning the ignition device to ON, the
warning light   does not turn on or if it turns

on steadily or flashing while driving (on some

versions together with the message on the

display), immediate service is required.

Prolonged driving with the MIL on could cause

damage to the vehicle.

 CAUTION!

If the warning light on the display flashes while

driving, contact an authorized dealer.

 CAUTION!

Do not continue driving with one or more flat

tires as handling may be compromised. Stop

the vehicle, avoiding sharp braking and

steering. If a tire puncture occurs, repair

immediately using the dedicated tire repair kit

and contact an authorized dealer as soon as

possible.

CarManuals2.com

GETTING TO KNO

W

 YOU

R IN

STRUM

ENT PAN

EL

78

Please note that the TPMS is not a substitute for

proper tire maintenance, and it is the driver’s

responsibility to maintain correct tire pressure,

even if under inflation has not reached the level

to trigger illumination of the TPMS low tire

pressure telltale.
Your vehicle has also been equipped with a

TPMS malfunction indicator to indicate when the

system is not operating properly. The TPMS

malfunction indicator is combined with the low

tire pressure telltale. When the system detects a

malfunction, the telltale will flash for approxi

-

mately one minute and then remain continuously

illuminated. This sequence will continue upon

subsequent vehicle start-ups as long as the

malfunction exists. When the malfunction

indicator is illuminated, the system may not be

able to detect or signal low tire pressure as

intended. TPMS malfunctions may occur for a

variety of reasons, including the installation of

replacement or alternate tires or wheels on the

vehicle that prevent the TPMS from functioning

properly. Always check the TPMS malfunction

telltale after replacing one or more tires or wheels

on your vehicle to ensure that the replacement or

alternate tires and wheels allow the TPMS to

continue to function properly.

G

REEN

 I

NDICATOR

 L

IGHTS

Automatic High Beam Indicator Light —

If Equipped

This indicator light will illuminate when

the automatic high beam headlights are

activated.

Left Turn Signal Indicator Light

The instrument cluster directional arrow

will flash independently for the left turn

signal as selected, as well as the

exterior turn signal lamp(s) (front and

rear) as selected when the multifunction lever is

moved down (left). This directional arrow will

flash in conjunction with the right directional

arrow when the hazard warning light button is

pushed.

Parking/Headlights On Indicator Light

This indicator will illuminate when

the parking lights or headlights are

turned on.

Right Turn Signal Indicator Light

The instrument cluster directional arrow

will flash independently for the right

turn signal as selected, as well as the

exterior turn signal lamp(s) (front and

rear) as selected when the multifunction lever is

moved up (right). This directional arrow will flash

in conjunction with the left directional arrow

when the hazard warning light button is pushed.

 CAUTION!

The TPMS has been optimized for the original

equipment tires and wheels. TPMS pressures

and warning have been established for the tire

size equipped on your vehicle. Undesirable

system operation or sensor damage may

result when using replacement equipment

that is not of the same size, type, and/or style.

Aftermarket wheels can cause sensor

damage. Using aftermarket tire sealants

may cause the Tire Pressure Monitoring

System (TPMS) sensor to become inoperable.

After using an aftermarket tire sealant it is

recommended that you take your vehicle to an

authorized dealership to have your sensor

function checked.

CarManuals2.com

79

B

LUE

 I

NDICATOR

 L

IGHTS

High Beam Indicator Light — If Equipped

This indicator shows that the high beam

headlights are on. Push the

multifunction control lever away from

you to switch the headlights to high

beam. Push the lever a second time to switch the

headlights back to low beam. Pull the lever

toward you for a temporary high beam on,

“flash to pass” scenario.

R

ED

 S

YMBOLS

Alfa Steering Torque (AST) Failure

The switching on of the telltale signals a

failure in the automatic steering

correction system.

Contact an authorized dealer to have the system

checked.

Alternator Failure

The switching on of the telltale with

engine on corresponds to an alternator

failure.

Contact an authorized dealer as soon as possible.

Automatic Transmission Failure

The telltale turns on, together with a

buzzer warning, to indicate that the

automatic transmission is faulty.

Contact an authorized dealer as soon as possible.

Brake Disc Temperature

When the symbol turns on, it indicates

an excessive temperature of the brake

discs. Let the breaking system cool

down by reducing the speed.

Driver Attention Assist (DAA) System

Activation

The DAA system detects indications that

the driver is feeling fatigued and

illuminates this warning that the driver

should pull over and take a break.

Stop to pause while driving, pulling the car over in

safe conditions.

Door Open

The telltale turns on when one or more

doors are not completely shut. An

acoustic signal is activated with the

doors open and the car moving.

Close the doors properly.

Power Steering Failure

If the telltale remains on, you may

not have steering assistance and the

effort required to operate the steering

wheel may be increased; steering is,

however, possible.
NOTE:

After the battery is disconnected, the steering

wheel must be initialized. The Power Steering

Failure light on the instrument panel will illumi

-

nate to indicate this. To carry out this procedure,

simply turn the steering wheel all the way from

one end to the other, and then turn it back to the

central position.
Contact an authorized dealer as soon as possible.

Electronic Throttle Control (ETC) Warning

Light

This warning light, along with the related

message, signals a failure in the ETC.

If a failure is detected, the warning light turns on

while the engine is running.
Place the gear selector in the Park (P) position

and the ignition in the off position: the warning

light should switch off. If the warning light stays

on with engine running, the vehicle can still be

driven.
If the warning light flashes with the engine

running, immediate intervention is required. A

loss of performance, irregular/high idling speed

or engine stopping might take place and the

vehicle may need to be towed.
Contact an authorized dealer as soon as possible

to have the failure eliminated.

 CAUTION!

Driving the vehicle with this symbol on may

severely damage the gearbox, with resulting

breakage. The oil may also overheat: contact

with hot engine or with exhaust components

at high temperature could cause fires.

CarManuals2.com

GETTING TO KNO

W

 YOU

R IN

STRUM

ENT PAN

EL

80

Engine Coolant Temperature Too High

The telltale lights up when the engine

has overheated.

In normal driving conditions

: stop the car, turn off

the engine and check that the coolant level in the

reservoir is not below the MIN mark. In this case,

wait for the engine to cool down, then slowly and

carefully open the cap, fill with coolant and check

that the level is between the MIN and MAX marks

on the reservoir itself. Also check visually for any

fluid leaks. Contact an authorized dealer if the

telltale comes on when the engine is started again.

If the vehicle is used under demanding

conditions (e.g. in high-performance driving):



slow down and, if the warning light stays on, stop

the vehicle. Stop for two or three minutes with the

engine running and slightly accelerated to

facilitate better coolant circulation, then turn the

engine off. Check that the coolant level is correct

as described previously.

Hood Cap Not Properly Shut

The telltale turns on when the hood cap

is not properly closed, along with the

icon, an image of the vehicle with an

open hood cap appears on the display.

A buzzer is heard when the hood cap is open and

the vehicle is moving.
Close the hood properly.

Insufficient Engine Oil Level

The telltale turns on, along with the

related message on the display, to

indicate low engine oil level.

Contact an authorized dealer to have the system

checked.

Low Engine Oil Pressure

This telltale indicates low engine oil

pressure. If the telltale turns on while

driving, stop the vehicle and shut off the

engine as soon as possible. A chime will

sound when this telltale turns on. Do not operate

the vehicle until the cause is corrected. This

telltale does not indicate how much oil is in

the engine.
NOTE:

Do not use the vehicle until the failure has been

solved. The turning on of the telltale does not indi

-

cate the amount of oil in the engine: the oil level

can be checked on the display upon entering the

vehicle and also by activating the “Oil level”

function on the Information and Entertainment

System.
Contact an authorized dealer as soon as

possible.

Liftgate Not Properly Shut

The telltale turns on when the liftgate is

not properly closed, along with the icon,

an image of the vehicle with an open

liftgate appears on the display.

A buzzer is heard when the liftgate is open and

the vehicle is moving.
Close the liftgate properly.

A

MBER

 S

YMBOLS

ABS Activation

This telltale will illuminate to indicate

that the ABS system has activated.

Adaptive Front Lighting System Failure

The telltale will illuminate to indicate the

automatic directional light system

failure.

Go to an authorized dealer to have the system

checked.

All Wheel Drive Failure

This telltale will illuminate along with

an accompanying message when the

AWD dynamic control system is

temporarily deactivated to prevent

damage. The traction system will work in

RWD mode in this instance.
Contact an authorized dealer as soon as possible

to have the failure eliminated.

Audio System Failure

The telltale will illuminate to report a

failure of the audio system.

Contact an authorized dealer as soon as possible

to have the failure eliminated.

Automatic High Beam Headlights

Failure — If Equipped

The telltale will illuminate to report a

failure of the automatic high beam

headlights.

Contact an authorized dealer as soon as possible

to have the failure eliminated.

 CAUTION!

If the LOW ENGINE OIL PRESSURE symbol

switches on when driving, stop the engine

immediately and contact an authorized dealer.

CarManuals2.com

81

Blind Spot Monitoring System Failure —

If Equipped

The telltale will illuminate in the event of

a Blind Spot Monitoring system failure.

Contact an authorized dealer as soon as possible.

Driver Attention Assist (DAA) System

Failure

The symbol comes on in the event of a

DAA system failure.

Contact an authorized dealer as soon as possible.

Dusk Sensor Failure

The telltale will illuminate in the case of

failure of the automatic low beam

alignment.

Contact an authorized dealer as soon as possible.

Dynamic Drive Control System Failure

The telltale will illuminate to signal a

failure in the dynamic drive control

system.

Electric Park Brake Failure

The telltale will illuminate and a

message will display to signal a failure

in the electric park brake system.

This failure may partially or completely block the

vehicle because the park brake could remain

activated even if automatically or manually

disengaged using the relevant controls. In these

circumstances, you can disengage the park brake

following the emergency disengagement

procedure

Ú

page 89.

If you are still able to drive the vehicle (park brake

is not engaged), drive to the nearest authorized

dealer and remember, when executing any

maneuvers/commands, that the electric park

brake is not operational.

Engine Immobilizer Failure/Break-In

Attempt

Engine Immobilizer System Failure The

telltale will illuminate to report a failure

of the Engine Immobilizer system.

Break-In Attempt The telltale will illuminate when

the ignition is cycled to ON position, to indicate a

possible break-in attempt detected by the alarm

system.
Electronic Key Not Recognized The telltale will

illuminate when the engine is started and the

electronic key is not recognized by the system.
Alarm System Failure The telltale will illuminate to

report an alarm system failure.
Contact an authorized dealer as soon as possible.

Exterior Lights Failure

The telltale will illuminate to indicate a

failure on the following lights: Daytime

Running Lights (DRLs) / parking lights /

trailer turn signal indicators (if present) /

trailer lights (if present) / side lights / turn signal

indicators / rear fog light / reversing light / brake

lights / license plate lights.

The failure may be caused by a blown bulb, a

blown protection fuse, or an interruption of the

electrical connection.
Replace the bulb or the relevant fuse. Contact an

authorized dealer.

Engine Oil Change Required —

If Equipped

The telltale is illuminated only for a

limited time.

NOTE:

After the first indication, each time the engine is

started the symbol will continue to illuminate as

previously described until the oil is changed.
If the telltale flashes, this does not mean that

there is a fault on the vehicle, rather it simply

reports that it is now necessary to change the

oil as a result of regular use of the vehicle. The

deterioration of engine oil is accelerated by

using the vehicle for short drives, preventing the

engine from reaching operating temperature.
Contact an authorized dealer as soon as possible.

 WARNING!

If a failure is present with sharp braking, the

rear wheels may lock and the vehicle may

swerve.

 CAUTION!

Deteriorated engine oil should be replaced as

soon as possible after the symbol is switched

on, and never more than 500 miles (805 km)

after it first switches on. Failure to observe the

above may result in severe damage to the

engine and invalidate the New Vehicle Limited

Warranty. When this symbol comes on, it does

not mean that the level of engine oil is low, so

if it flashes you do not need to top up the

engine oil.

CarManuals2.com

GETTING TO KNO

W

 YOU

R IN

STRUM

ENT PAN

EL

82

Engine Oil Level Sensor Failure

The telltale will illuminate in the event of

engine oil level sensor failure.

Contact an authorized dealer as soon as

possible.

Engine Oil Pressure Sensor Failure

The telltale will illuminate in the event of

engine oil pressure sensor failure.

Contact an authorized dealer as soon as

possible.

Fuel Cut-Off System Failure

The telltale will illuminate in the event of

fuel cut-off system failure.

Contact an authorized dealer as soon as

possible.

Fuel Cut-Off Indicator Light

The telltale will illuminate after an

accident has occurred and the system

has shut the fuel off.

For reactivating the fuel cut-off system

Ú

page 157. If it is not possible to restore the fuel

supply, contact an authorized dealer.

Fuel Level Sensor Failure

The telltale will illuminate in the event of

fuel level sensor failure.

Contact an authorized dealer as soon as

possible.

Generic Indication

Signals information and failures.

The accompanying messages describe the

failure.

Highway Assist System (HAS)/Traffic Jam

Assist (TJA) System Failure

The symbol lights up in case of HAS or

TJA system failure.

Contact an Alfa Romeo Dealership as soon as

possible to have the failure eliminated.

Keyless System Failure

The telltale will illuminate in the event of

keyless system failure.

Contact an authorized dealer as soon as

possible.

Lane Departure Warning (LDW) System

Failure — If Equipped

The telltale will illuminate in the event of

a fault in the Lane Departure Warning

system.

Contact an authorized dealer as soon as

possible.

Loose Fuel Filler Cap

Lights up if the fuel tank cap is open or

not properly closed.

Tighten the cap properly.

Low Coolant Level — If Equipped

This telltale will illuminate to indicate

that the vehicle coolant level is low.

Windshield Washer Liquid Level

The telltale will illuminate to indicate

that the level of the windshield and

headlight washing fluid (if any) is low.

Always use liquid with the features indicated in

the “Fluids And Lubricants”

Ú

page 206.

Park Sensors System Failure

The telltale will illuminate when the

system has failed or is not available.

Contact an authorized dealer to have the system

checked.

Rain Sensor Failure

The telltale will illuminate in the case of

failure of the automatic windshield

wiper.

Contact an authorized dealer as soon as

possible.

Service Adaptive Cruise Control (ACC)

System

This light will illuminate when the ACC is

not operating and needs service.

Contact an authorized dealer to have the system

checked.

CarManuals2.com















Content      ..      1      2      3      ..
