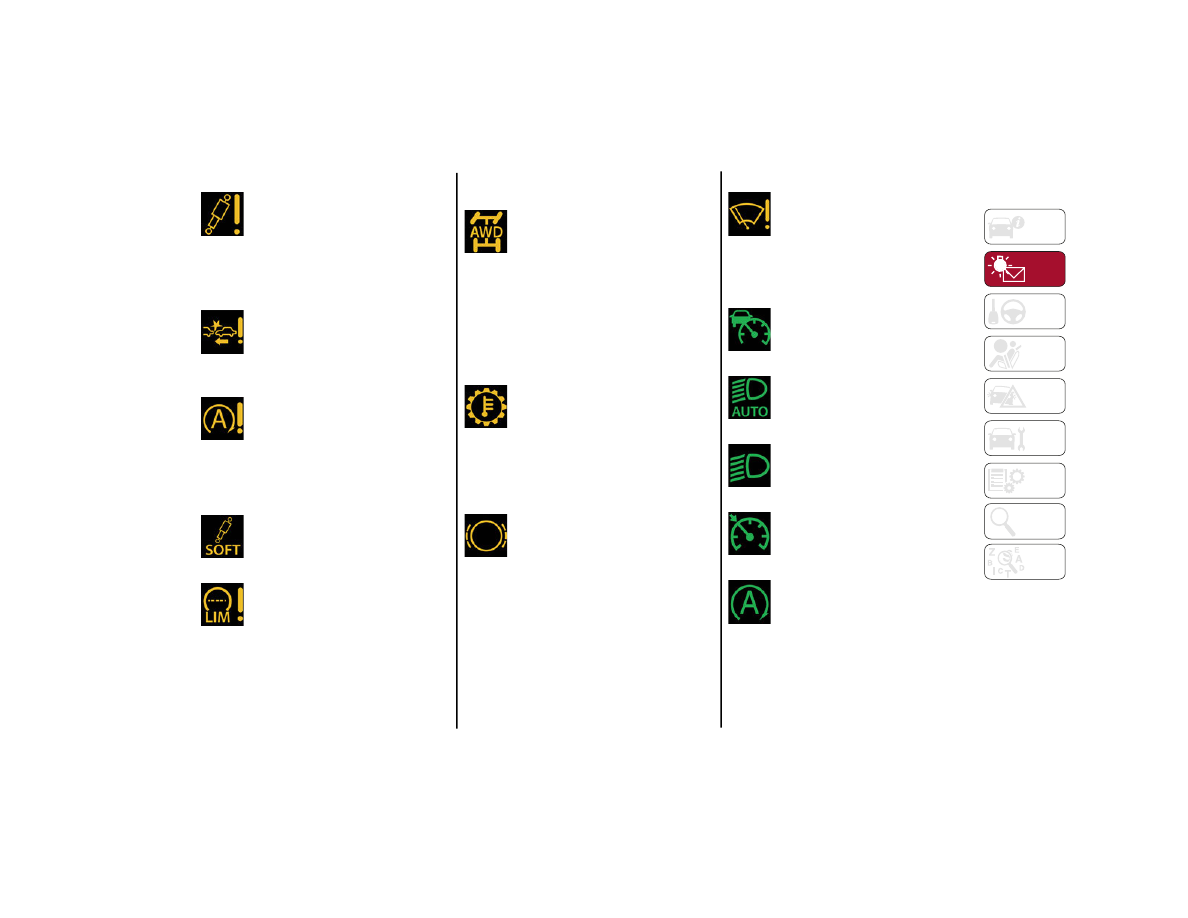

Shock Absorbers Failure

While driving, if the telltale illuminates,

it signals a failure in the suspension

system.

Contact an authorized dealer to have the system

checked.

Forward Collision Warning (FCW) System

Failure — If Equipped

The telltale will illuminate in the case of

failure of the Forward Collision Warning

system.

Contact an authorized dealer as soon as possible.

Stop/Start System Failure

This telltale will illuminate to report a

Stop/Start system failure.

Contact an authorized dealer as soon as possible

to have the failure eliminated.

Soft Suspension Calibration Insertion —

If Equipped

The telltale will illuminate when the

most comfortable suspension setting is

activated.

Speed Limiter System Failure

While driving, the telltale will illuminate

to signal a Speed Limiter system failure.

Contact an authorized dealer as soon as possible

to have the failure eliminated.

Temporary All Wheel Drive Failure —

If Equipped

This telltale will illuminate to indicate

that the AWD dynamic control system is

temporarily deactivated to prevent

damage. The traction system will work in

RWD mode in this instance.
In the event that this telltale illuminates, reduce

the load to allow the system to cool down. The

AWD system will resume normal operation when

the symbol disappears from the display.

Automatic Transmission Fluid

Overheating

The telltale will illuminate in the case

of transmission overheating, after a

particularly demanding use. In this case

an engine performance limitation is

carried out.
Wait for the telltale to turn off with the engine off

or idling.

Wear On Brake Pads

This light will illuminate when the brake

pads have reached their wear limit.
Contact an authorized dealer as soon

as possible.
NOTE:

Always use genuine parts or similar because the

Integrated Brake System (IBS) system could

detect anomalies.

Windshield Wiper Failure

Signals a windshield wiper failure.
Contact an authorized dealer.

G

REEN

 S

YMBOLS

Adaptive Cruise Control System —

If Equipped

The symbol comes on when the

Adaptive Cruise Control system is

activated.

Automatic Headlights

The symbol lights up when the

automatic headlights are on.

Headlights

The telltale will illuminate when the

headlights are turned on.

Cruise Control Activated

The telltale will illuminate when the

Cruise Control system is activated.

Stop/Start Operation

The telltale will illuminate in the case of

Stop/Start system intervention

(stopping the engine).

When the engine is restarted, the telltale will shut

off

Ú

page 100.

CarManuals2.com

GETTING TO KNO

W

 YOU

R IN

STRUM

ENT PAN

EL

84

B

LUE

 S

YMBOLS

Automatic High Beam Headlights —

If Equipped

The telltale will illuminate when the

automatic high beam headlights are

activated.

High Beam Headlights

The telltale will illuminate when the

high beam headlights are activated.

ONBOARD DIAGNOSTIC

SYSTEM

Operation
The Onboard Diagnostic system (OBD) carries out

a continuous diagnosis of the components of the

vehicle related to emissions.
It also alerts the driver of when these

components are no longer in peak condition by
switching on the   Engine Check/Malfunction

Indicator warning light on the instrument panel.

The aim of the OBD system (Onboard Diagnostic)

is to:

Monitor the efficiency of the system

Indicate an increase in emissions

Indicate the need to replace damaged

components

The vehicle also has a connector, which can

interface with appropriate tools, that makes it

possible to read the error codes stored in the

electronic control units together with a series of

specific parameters for engine operation and

diagnosis. This check can be carried out by an

authorized dealer.
NOTE:

After eliminating a fault, to check the system

completely, an authorized dealer is obliged to run

tests and, if necessary certain road tests.

O

NBOARD

 D

IAGNOSTIC

 S

YSTEM

 (OBD II)

C

YBERSECURITY

Your vehicle is required to have OBD II and a

connection port to allow access to information

related to the performance of your emissions

controls. Authorized service technicians may

need to access this information to assist with the

diagnosis and service of your vehicle and

emissions system.

 WARNING!

ONLY an authorized service technician

should connect equipment to the OBD II

connection port in order to read the VIN,

diagnose, or service your vehicle.

If unauthorized equipment is connected to

the OBD II connection port, such as a

driver-behavior tracking device, it may:

Be possible that vehicle systems,

including safety related systems, could

be impaired or a loss of vehicle control

could occur that may result in an acci-

dent involving serious injury or death.

Access, or allow others to access, infor-

mation stored in your vehicle systems,

including personal information.

CarManuals2.com

85

EMISSIONS INSPECTION

AND MAINTENANCE

PROGRAMS

In some localities, it may be a legal requirement

to pass an inspection of your vehicle's emissions

control system. Failure to pass could prevent

vehicle registration.

For states that require an Inspection

and Maintenance (I/M), this check

verifies the Malfunction Indicator

Light (MIL) is functioning and is not

on when the engine is running, and that the

OBD II system is ready for testing.
Normally, the OBD II system will be ready. The

OBD II system may not be ready if your vehicle

was recently serviced, recently had a depleted

battery or a battery replacement. If the OBD II

system should be determined not ready for the

I/M test, your vehicle may fail the test.

Your vehicle has a simple ignition actuated test,

which you can use prior to going to the test

station. To check if your vehicle's OBD II system is

ready, you must do the following:
1. Cycle the ignition switch to the ACC position,

but do not crank or start the engine.

NOTE:

If you crank or start the engine, you will have to

start this test over.
2. As soon as you cycle the ignition switch to the

ACC position, you will see the Malfunction

Indicator Light (MIL) symbol come on as part

of a normal bulb check.

3. Approximately 15 seconds later, one of two

things will happen:

The MIL will flash for about 10 seconds and

then return to being fully illuminated until you

turn OFF the ignition or start the engine.

This means that your vehicle's OBD II system

is not ready and you should not proceed to

the I/M station.

The MIL will not flash at all and will remain fully

illuminated until you place the ignition in the

off position or start the engine. This means

that your vehicle's OBD II system is ready and

you can proceed to the I/M station.

If your OBD II system is not ready, you should see

an authorized dealer or repair facility. If your

vehicle was recently serviced or had a battery

failure or replacement, you may need to do

nothing more than drive your vehicle as you

normally would in order for your OBD II system to

update. A recheck with the above test routine

may then indicate that the system is now ready.
Regardless of whether your vehicle's OBD II

system is ready or not, if the MIL is illuminated

during normal vehicle operation you should have

your vehicle serviced before going to the I/M

station. The I/M station can fail your vehicle

because the MIL is on with the engine running.

CarManuals2.com

86

STARTING AN

D O

PERA

TIN

G

STARTING THE ENGINE

Before starting the engine, be sure to adjust the

seat, the interior rearview mirror, door mirrors,

and fasten the seat belt correctly.
Never press the accelerator pedal before starting

the engine.
If necessary, messages indicating the starting

procedure will be shown in the display.

S

TARTING

 P

ROCEDURE

Proceed as follows:
1. Apply the Electric Park Brake (EPB) and place

the gear selector in PARK (P) or NEUTRAL (N).

2. Fully press the brake pedal without touching

the accelerator.

3. Briefly push the ignition button.
4. If the engine doesn't start within a few

seconds, you need to repeat the procedure.

If the problem persists, contact an authorized

dealer.

R

EMOTE

 S

TARTING

 S

YSTEM

This system uses the key fob to start the engine

conveniently from outside the vehicle while still

maintaining security. The system has a range of

at least 300 feet (91 meters).
The remote starting system also activates the

climate control, the heated seats (if equipped),

and the heated steering wheel (if equipped),

depending on temperatures outside and inside of

the vehicle.
NOTE:

Obstructions between the vehicle and key fob

may reduce this range.
How To Use Remote Start
All of the following conditions must be met before

the engine will remote start:

Gear selector in PARK (P).

Doors closed.

Hood closed.

Liftgate closed.

Hazard switch off.

Brake switch inactive (brake pedal not

pressed).

Battery at an acceptable charge level.

 WARNING!

When leaving the vehicle, always remove the

key fob from the vehicle and lock your

vehicle.

Never leave children alone in a vehicle, or

with access to an unlocked vehicle.

Allowing children to be in a vehicle

unattended is dangerous for a number of

reasons. A child or others could be seriously

or fatally injured. Children should be warned

not to touch the parking brake, brake pedal

or the transmission gear selector.

Do not leave the key fob in or near the

vehicle, or in a location accessible to

children. A child could operate power

windows, other controls, or move the vehicle.

Do not leave children or animals inside

parked vehicles in hot weather. Interior heat

buildup may cause serious injury or death.

 WARNING!

Never pour fuel or other flammable liquid

into the throttle body air inlet opening in an

attempt to start the vehicle. This could result

in flash fire causing serious personal injury.

Do not attempt to push or tow your vehicle to

get it started. Vehicles equipped with an

automatic transmission cannot be started

this way. Unburned fuel could enter the

catalytic converter and once the engine has

started, ignite and damage the converter and

vehicle.

If the vehicle has a discharged battery,

booster cables may be used to obtain a start

from a booster battery or the battery in

another vehicle. This type of start can be

dangerous if done improperly

Ú

page 192.

 CAUTION!

To prevent damage to the starter, do not

continuously crank the engine for more than

25 seconds at a time. Wait 60 seconds before

trying again.

CarManuals2.com

87

PANIC button not pushed.

System not disabled from previous remote

start event.

Vehicle Security System indicator flashing.

Ignition in the OFF position (if equipped with

keyless ignition system).

Fuel level meets minimum requirement.

Remote Start Comfort Systems — If Equipped
When Remote Start is activated, the heated

steering wheel and driver heated seat features

will automatically turn on in cold weather.
These features will stay on through the duration

of remote start until the ignition is placed in the

ON/RUN position.
Remote Start Windshield Wiper De–Icer

Activation — If Equipped
When remote start is active and the outside

ambient temperature is less than 39°F (4°C), the

Windshield Wiper De-Icer will be enabled. Exiting

remote start will resume previous operation,

except if the Windshield Wiper De-Icer is active.
The Windshield Wiper De-Icer timer and operation

will continue.

C

OLD

 W

EATHER

 O

PERATION

To prevent possible engine damage while starting

at low temperatures, this vehicle will inhibit

engine cranking when the ambient temperature

is less than –22°F (–30°C) and the oil

temperature sensor reading indicates an

engine block heater has not been used. An

externally-powered electric engine block heater is

available as optional equipment or from an

authorized dealer.

The message “Plug In Engine Heater” will be

displayed in the instrument cluster when the

ambient temperature is below 5°F (–15°C) at

the time the engine is shut off as a reminder to

avoid possible crank delays at the next cold start.

E

XTENDED

 P

ARK

 S

TARTING

If the vehicle has not been started or driven for at

least 30 days, see the following instructions:
To start the engine, proceed as follows:
1. Install a battery charger or jumper cables to

the battery to ensure a full battery charge

during the crank cycle

Ú

page 192.

2. Briefly push the ignition button.
3. If the engine does not start, wait five seconds

and let the starter cool down and then repeat

the starting procedure.

4. If the engine does not start after eight

attempts, let the starter cool down for at least

10 seconds, and then repeat the starting

procedure. If the problem persists, contact an

authorized dealer.

I

F

 E

NGINE

 F

AILS

 T

O

 S

TART

Starting the Engine with Key Fob Battery Run

Down or Drained
If the ignition does not respond when the button

is pushed, the key fob battery might be run down

or drained. Therefore, the system does not detect

the presence of the key fob in the vehicle, and will

display a dedicated message

Ú

page 22.

 CAUTION!

Use of the recommended oil and adhering to

the prescribed oil change intervals is

important to prevent engine damage and

ensure satisfactory starting in cold conditions.

 WARNING!

Never pour fuel or other flammable liquid

into the throttle body air inlet opening in an

attempt to start the vehicle. This could result

in flash fire causing serious personal injury.

Do not attempt to push or tow your vehicle to

get it started. Vehicles equipped with an

automatic transmission cannot be started

this way. Unburned fuel could enter the

catalytic converter and once the engine has

started, ignite and damage the converter

and vehicle.

If the vehicle has a discharged battery,

booster cables may be used to obtain a start

from a booster battery or the battery in

another vehicle. This type of start can be

dangerous if done improperly

Ú

page 192.

 CAUTION!

To prevent damage to the starter, do not

continuously crank the engine for more than

25 seconds at a time. Wait 60 seconds before

trying again.

CarManuals2.com

STARTING AN

D O

PERA

TIN

G

88

A

FTER

 S

TARTING

 — W

ARMING

 U

P

 T

HE



E

NGINE

Proceed as follows:

Travel slowly, letting the engine run at a

reduced RPM, without accelerating suddenly.

It is recommended to wait until the digital

engine coolant temperature indicator starts to

rise for maximum performance.

S

TOPPING

 T

HE

 E

NGINE

To stop the engine, proceed as follows:
1. Park the vehicle in a position that is not

dangerous for oncoming traffic.

2. Engage the PARK (P) mode.
3. With engine idling, push the ENGINE START/

STOP button on the steering wheel to stop the

engine.

NOTE:

Do not leave the ignition in ACC position when the

engine is off.
To shut off the engine with vehicle speed greater

than 5 mph (8 km/h), you must push and hold

the ignition or push the ENGINE START/STOP

button three times consecutively within a few

seconds. The engine will shut down, and the

ignition will be placed in the ACC position.
With the keyless ignition system, it is possible to

exit the vehicle taking the key fob with you,

without the engine switching off. The vehicle will

inform about the absence of the key on board,

when the doors are closed.

After the engine has stopped (cycling from the

ACC to the OFF position) the accessories are still

powered for about three minutes, or until a door

is opened.
When the ignition is in the OFF position, the

window switches remain active for three minutes.

Opening a front door will cancel this function.
After severe driving, idle the engine to allow the

temperature inside the engine compartment to

cool before shutting off the engine.

T

URBOCHARGER

 C

OOL

 D

OWN

It is recommended before switching the vehicle

off, to keep the engine idling for a few minutes so

that the turbocharger can be suitably lubricated.

This procedure is particularly recommended after

severe driving.
After a full load operation, keep the engine idling

for three to five minutes before switching it off.
This time allows the lubricating oil and the engine

coolant to eliminate the excessive heat from

combustion chamber, bearings, inner

components and turbocharger.

ENGINE BLOCK HEATER —

IF EQUIPPED

The engine block heater warms the engine and

permits quicker starts in cold weather.
Connect the cord to a 110-115 Volt AC electrical

outlet with a grounded, three-wire extension cord.

For ambient temperatures below 0°F (-18°C),

the engine block heater is recommended. For

ambient temperatures below -20°F (-29°C), the

engine block heater is required.
See the following steps to properly use the engine

block heater:
1. Locate the engine block heater cord (access

door on the passenger side wiper cowl).

2. Pull the cord to the front of the vehicle and

plug it into a grounded, three-wire extension

cord.

3. After the vehicle is running, properly stow the

cord away behind the access door on the

passenger side wiper cowl.

NOTE:

The engine block heater cord is a factory

installed option. If your vehicle is not equipped,

heater cords are available from an authorized

dealer.

The engine block heater will require 110 Volt

AC and 6.5 Amps to activate the heater

element.

The engine block heater must be plugged in at

least one hour to have a warming effect on the

engine and at least four hours to have a

warming effect when ambient temperatures

are below -20°F (-29°C).

 WARNING!

Remember to disconnect the engine block

heater cord before driving. Damage to the

110-115 Volt electrical cord could cause

electrocution.

CarManuals2.com

89

ENGINE BREAK-IN

RECOMMENDATIONS

E

NGINE

 B

REAK

-I

N

For both engines, use the following engine

break-in recommendations:
NOTE:

A new engine may consume some oil during its

first few thousand miles (kilometers) of opera

-

tion. This should be considered a normal part of

the break-in period and not interpreted as an indi

-

cation of a problem. Please monitor your oil level

during the break-in period and add oil as

required.
It is recommended for the operator to observe the

following driving behaviors during the new vehicle

break-in period:
0 to 100 miles (0 to 160 km):

Do not allow the engine to operate at idle for an

extended period of time.

Press the accelerator pedal slowly and not

more than halfway to avoid rapid acceleration.

Avoid aggressive braking.

Drive with the engine speed less than

3,500 RPM.

Maintain vehicle speed below 55 mph

(88 km/h) and observe local speed limits.

100 to 300 miles (160 to 483 km):

Press the accelerator pedal slowly and not

more than halfway to avoid rapid acceleration

in lower gears (FIRST to THIRD gears).

Avoid aggressive braking.

Drive with the engine speed less than

5,000 RPM.

Maintain vehicle speed below 70 mph

(112 km/h) and observe local speed limits.

300 to 500 miles (483 to 805 km):

Exercise the full engine RPM range, shifting

manually (paddles or gear shift) at higher RPM

when possible.

Do not perform sustained operation with the

accelerator pedal at wide open throttle.

Maintain vehicle speed below 85 mph

(136 km/h) and observe local speed limits.

For the first 1,500 miles (2,414 km):

Do not participate in track events, sport driving

schools, or similar activities during the first

1,500 miles (2,414 km).

NOTE:

Monitor engine oil with every refueling and add if

necessary. Oil and fuel consumption may be

higher through the first oil change interval.

ELECTRIC PARK BRAKE

(EPB)

The EPB features a switch located on the center

console, a caliper with motor for each rear wheel,

and an electronic control module.

Electric Park Brake Switch

The EPB can be engaged in two ways:

Manually, by pulling the switch on the center

console.

Automatically, in “Safe Hold” or “Auto Park

Brake” conditions.

NOTE:

Normally, the EPB is engaged automatically when

the engine is stopped. This function can be deac

-

tivated/activated on the Information and Enter

-

tainment system by selecting the following items

in sequence on the main menu: “Settings”,

“Driver Assistance” and “Automatic Parking

Brake”.

CarManuals2.com

STARTING AN

D O

PERA

TIN

G

90

In addition to engaging the EPB, along with

steering and positioning chocks in front of the

wheels (when on a steep slope), you must always

place the vehicle in the PARK (P) mode before

leaving.
Should the vehicle battery be faulty, the battery

must be replaced in order to unlock the EPB.
Engaging The EPB Manually
Briefly pull the switch located on the center

console to manually engage the EPB when the

vehicle is stationary.
Noise may be heard from the rear of the vehicle

when engaging the EPB.
A slight movement of the brake pedal may be

detected when engaging the EPB with the brake

pedal pressed.
With the EPB engaged, the Brake Warning Light

on the instrument cluster display and the switch

will illuminate.

If, under exceptional circumstances, the use of

the brake is required with the vehicle in motion,

keep the switch on the center console pulled as

long as the brake action is necessary.
The Brake Warning Light may turn on with the

hydraulic system temporarily unavailable; in this

case, braking is controlled by the motors.

The brake lights will also automatically turn on in

the same way as normal braking with the use of

the brake pedal.
Release the switch on the center console to stop

the braking action with the vehicle in motion.
If, through this procedure, the vehicle is braked

until a speed below 1.9 mph (2.0 km/h) is

reached and the switch is kept pulled, the parking

brake will definitively engage.

Disengaging The EPB Manually
In order to manually release the parking brake,

the ignition should be in the ACC position. Press

the brake pedal, and then push the switch on the

center console briefly.
Noise may be heard from the rear of the vehicle,

and a slight movement of the brake pedal may be

detected during disengagement.
After disengaging the EPB, the Brake Warning

Light on the instrument cluster display and the

light on the switch will turn off.
If the Brake Warning Light on the instrument

cluster display remains on with the EPB

disengaged, this indicates a fault: in this case,

contact an authorized dealer.

 CAUTION!

With the Electronic Parking Brake failure

warning light on, some functions of the EPB

are deactivated. In this case the driver is

responsible for engaging the EPB manually to

ensure the vehicle is safely and properly

parked

 WARNING!

Driving the vehicle with the parking brake

engaged, or repeated use of the parking brake

to slow the vehicle may cause serious damage

to the brake system. Be sure the parking brake

is fully disengaged before driving; failure to do

so can lead to brake failure and a collision.

 WARNING!

Never use the PARK position as a substitute

for the parking brake. Always apply the

parking brake fully when parked to guard

against vehicle movement and possible

injury or damage.

When exiting the vehicle, always turn the

ignition OFF, secure the key fob, and lock

your vehicle.

Never leave children alone in a vehicle, or

with access to an unlocked vehicle. Allowing

children to be in a vehicle unattended is

dangerous for a number of reasons. A child

or others could be seriously or fatally injured.

Children should be warned not to touch the

parking brake, brake pedal or the gear

selector.

Do not leave the key fob in or near the

vehicle, or in a location accessible to

children, and do not leave a vehicle

equipped with a keyless ignition system in

the ON/RUN position. A child could operate

power windows, other controls, or move the

vehicle.

Be sure the parking brake is fully disengaged

before driving; failure to do so can lead to

brake failure and a collision.

Always fully apply the parking brake when

leaving your vehicle, or it may roll and cause

damage or injury. Also be certain to leave the

transmission in PARK. Failure to do so may

allow the vehicle to roll and cause damage or

injury.

CarManuals2.com

91

(Continued)

E

LECTRIC

 P

ARK

 B

RAKE

 (EPB)

O

PERATING

 M

ODES

The EPB may operate as follows:

“Dynamic Operating Mode”: this mode is

activated by pulling the switch repeatedly while

driving.

“Static Engagement and Release Mode”: with

the vehicle stationary, the EPB can be

activated by pulling the switch on the center

console once. Push the switch and the brake

pedal at the same time to disengage the brake.

“Drive Away Release” — if equipped: the EPB

will automatically disengage with the driver

side seat belt fastened and the detection of an

action performed by the driver to move the

vehicle (DRIVE [D] or REVERSE [R]). This

feature can be turned on or off in the

Information and Entertainment System.

“Safe Hold”: engages if the gear selector is not

in PARK (P) position and the driver's intention

of leaving the vehicle is detected. The EPB will

automatically engage the EPB.

S

AFE

 H

OLD

Safe Hold is a safety function that automatically

engages the EPB if the driver attempts to leave

the vehicle while the ignition is in ON/RUN.
The EPB engages automatically to prevent vehicle

movement if:

The vehicle speed is below 1.9 mph (2.0 km/h).

A transmission operating mode different from

PARK (P) is activated.

The driver's seat belt is not fastened.

The driver side door is open.

No attempts to apply pressure on the brake

pedal have been detected.

The vehicle is parked on roads with a slope of

more than 4%.

The “Safe Hold” function can be temporarily

disabled by pushing the EPB switch located on

the center console and the brake pedal at the

same time, with the vehicle stationary and the

driver side door open.
Once disabled, the function will activate again when

the vehicle speed reaches 12 mph (20 km/h) or the

ignition is cycled to OFF and then to ACC.

AUTOMATIC

TRANSMISSION

The vehicle is equipped with an electronically

controlled 8-speed automatic transmission

where gear shifting automatically takes place,

depending on the vehicle usage instantaneous

parameters (vehicle speed, grade, and

accelerator pedal position).
Manual gear shifting can still occur thanks to the

“Sequential” mode position for the gear selector.

 WARNING!

It is dangerous to shift out of PARK or

NEUTRAL if the engine speed is higher than

idle speed. If your foot is not firmly pressing

the brake pedal, the vehicle could accelerate

quickly forward or in reverse. You could lose

control of the vehicle and hit someone or

something. Only shift into gear when the

engine is idling normally and your foot is

firmly pressing the brake pedal.

Unintended movement of a vehicle could

injure those in or near the vehicle. As with all

vehicles, you should never exit a vehicle

while the engine is running. Before exiting a

vehicle, always apply the parking brake, shift

the transmission into PARK, and turn the

ignition OFF. When the ignition is in the OFF

position, the transmission is locked in PARK,

securing the vehicle against unwanted

movement.

When leaving the vehicle, always make sure

the ignition is in the OFF position, remove the

key fob from the vehicle, and lock the

vehicle.

Never leave children alone in a vehicle, or

with access to an unlocked vehicle. Allowing

children to be in a vehicle unattended is

dangerous for a number of reasons. A child

or others could be seriously or fatally injured.

Children should be warned not to touch the

parking brake, brake pedal or the

transmission gear selector.

Do not leave the key fob in or near the vehicle

(or in a location accessible to children), and

do not leave the ignition in the ON/RUN or

ACC position. A child could operate power

windows, other controls, or move the vehicle.

 WARNING!

CarManuals2.com

STARTING AN

D O

PERA

TIN

G

92

D

ISPLAY

The following information is shown on the

dedicated area of the display:

In Automatic Mode: the active mode (P, R, N,

D) and with "D" the current gear number.

In Manual Drive Mode (Sequential): the

mode (M), the current gear and the double or

single gear shift request, both up and down

(single or double arrow).

Gear Display

G

EAR

 S

ELECTOR

The gear functioning is controlled by the gear

selector, which can assume the following

positions:

P = PARK

R = REVERSE

N = NEUTRAL

D = DRIVE (automatic forward speed)

AutoStick: + manually shift to higher gear; –

manually shift to lower gear

The positions diagram is illustrated on the top of

the gear selector.

Gear Selector Center Console

The letter corresponding to the mode selected on

the gear selector lights up and appears on the

instrument cluster display.

To select a mode, move the gear selector forward

or rearward while pressing the brake pedal. To

engage REVERSE (R), press the brake pedal

together with the gear selector button.

Gear Selector

The gear selector is a joystick style shifting

mechanism which returns to the center position

automatically. It can be pushed forward twice and

rearward twice, based on the starting condition.
The PARK (P) mode can be enabled/disabled by

pushing the PARK (P) button. PARK (P) mode is

automatically activated if the following conditions

are met simultaneously:

DRIVE (D) mode or REVERSE (R) mode is active

The vehicle’s speed is close to 0 mph (0 km/h)

The brake pedal is released

The driver’s seat belt is not fastened

The driver’s door is open

 CAUTION!

Damage to the transmission may occur if the

following precautions are not observed:

Shift into or out of PARK or REVERSE only

after the vehicle has come to a complete

stop.

Do not shift between PARK, REVERSE,

NEUTRAL, or DRIVE when the engine is above

idle speed.

Before shifting into any gear, make sure your

foot is firmly pressing the brake pedal.

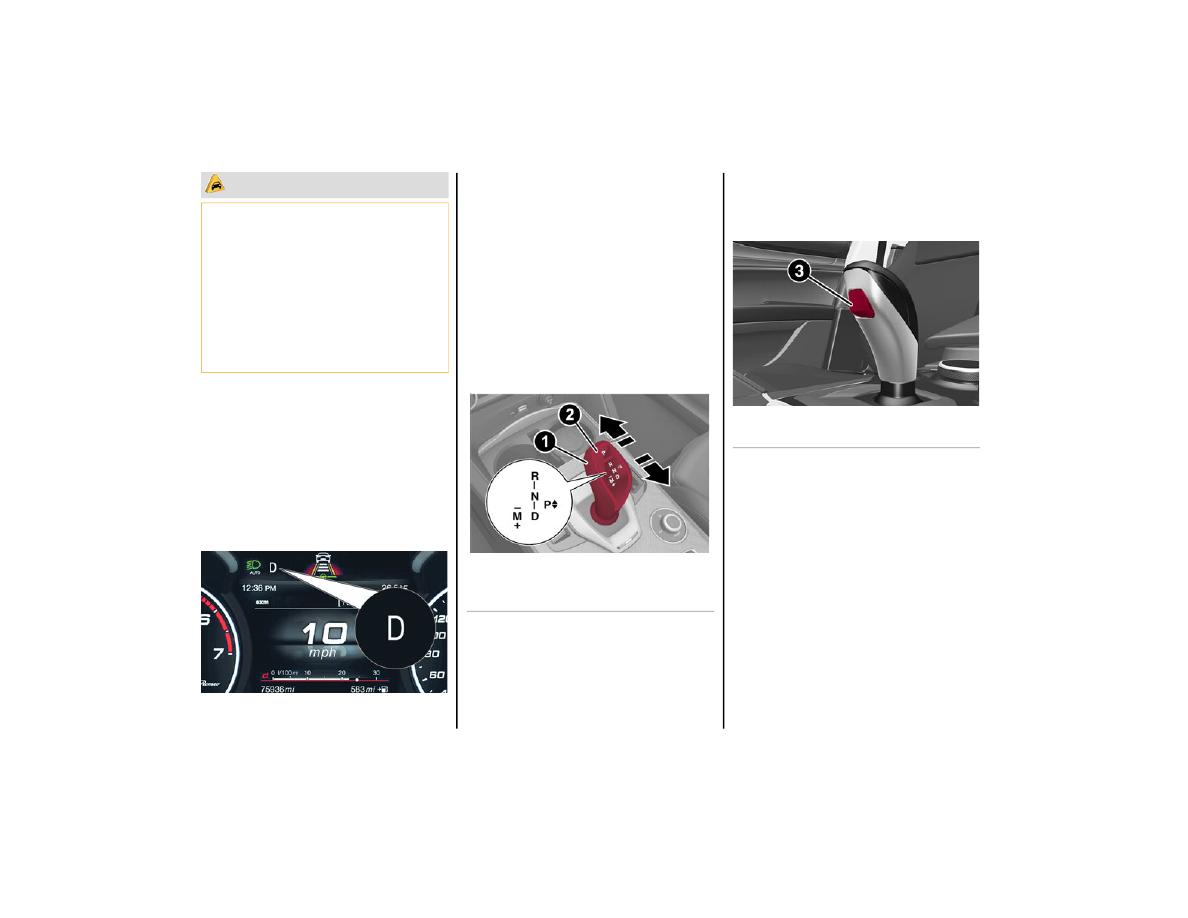

1 — Gear Selector
2 — PARK (P) Button

3 — Gear Selector Button

CarManuals2.com

93

(Continued)

To transition the vehicle into REVERSE (R) mode

from DRIVE (D) mode, or into DRIVE (D) mode

from REVERSE (R) mode, it is necessary to move

the gear selector by pushing the gear selector

button.
AutoStick can be activated by moving the gear

selector from DRIVE (D) to the left and then

forward toward the - symbol (or backward toward

the + symbol) changing the gear.
To shift out of PARK (P), or to pass from position

NEUTRAL (N) to position DRIVE (D) or REVERSE

(R), the vehicle must be moving at a low speed or

stopped, and the brake pedal must also be

pressed.
NOTE:

DO NOT accelerate while shifting from position

PARK (P) or NEUTRAL (N) to another position.

After selecting a gear, wait a few seconds

before accelerating. This precaution is partic

-

ularly important with the engine cold.

It is not possible to select NEUTRAL (N) mode

from PARK (P) mode.

T

RANSMISSION

 O

PERATING

 M

ODES

PARK (P)
The transmission is locked in this mode. The

engine can be started in this mode.
NOTE:

Never try to engage PARK (P) mode when the

vehicle is moving. Before leaving the vehicle,

make sure this mode is engaged (letter P shown

on the display and gear selector) and that the

parking brake is engaged.

When parking on a flat surface, first engage the

PARK (P) mode and then engage the EPB.
When parking uphill, before activating the

PARK (P) mode, engage the EPB. Otherwise, it

could be difficult to engage the PARK (P) mode.
To check that the PARK (P) mode is actually

engaged, make sure P is illuminated on the

display and on the gear selector.

 WARNING!

Never use the PARK position as a substitute

for the parking brake. Always apply the

parking brake fully when parked to guard

against vehicle movement and possible

injury or damage.

Your vehicle could move and injure you and

others if it is not in PARK. Check by trying to

move the gear selector out of PARK with the

brake pedal released. Make sure the

transmission is in PARK before leaving the

vehicle.

It is dangerous to shift out of PARK or

NEUTRAL if the engine speed is higher than

idle speed. If your foot is not firmly pressing

the brake pedal, the vehicle could accelerate

quickly forward or in reverse. You could lose

control of the vehicle and hit someone or

something. Only shift into gear when the

engine is idling normally and your foot is

firmly pressing the brake pedal.

Unintended movement of a vehicle could

injure those in or near the vehicle. As with all

vehicles, you should never exit a vehicle

while the engine is running. Before exiting a

vehicle, always apply the parking brake, shift

the transmission into PARK, and turn the

ignition OFF. When the ignition is in the

OFF position, the transmission is locked in

PARK, securing the vehicle against unwanted

movement.

When leaving the vehicle, always make sure

the ignition is in the OFF position, remove the

key fob from the vehicle, and lock the

vehicle.

Never leave children alone in a vehicle, or

with access to an unlocked vehicle. Allowing

children to be in a vehicle unattended is

dangerous for a number of reasons. A child

or others could be seriously or fatally injured.

Children should be warned not to touch the

park brake, brake pedal or the transmission

gear selector.

Do not leave the key fob in or near the vehicle

(or in a location accessible to children), and

do not leave the ignition in the ACC position.

A child could operate power windows, other

controls, or move the vehicle.

 WARNING!

CarManuals2.com

STARTING AN

D O

PERA

TIN

G

94

REVERSE (R)
Select this mode only with the vehicle at a

standstill.
NEUTRAL (N)
Use this range when the vehicle is standing for

prolonged periods with the engine running. The

engine may be started in this range. Apply the

EPB and shift the transmission into PARK (P) if

you must leave the vehicle.

DRIVE (D)
Use this mode in normal driving conditions.
Shifting from DRIVE (D) to PARK (P) or REVERSE

(R) modes must take place only after releasing

the accelerator pedal, with vehicle at a standstill

and brake pedal pressed.
This mode ensures automatic engagement of the

most suitable gears for driving needs and

maximum fuel economy in terms of consumption.
In this position, the transmission shifts the gears

automatically, selecting the most suitable for

forward driving among those available as you go.

In this way the vehicle's optimal driving character

-

istics are provided for all conditions.
AutoStick
In the case of frequent shifting (e.g. for sport

driving, when the vehicle is driven with a heavy

load, on slopes, when towing heavy trailers), it is

recommended to use the AutoStick (sequential

shifting) mode to select and keep a lower fixed

ratio.
In these conditions, the use of a lower gear

improves vehicle performance and prevents

overheating.
It is possible to shift from DRIVE (D) mode to

AutoStick mode regardless of vehicle speed.
Activation
Starting from DRIVE (D) mode, to activate the

sequential drive mode, move the gear selector to

the left (– and + indication of the trim). The gear

engaged will be shown on the display.

Shifting is made by moving the gear selector

forward, toward symbol – or backward, toward

symbol +.

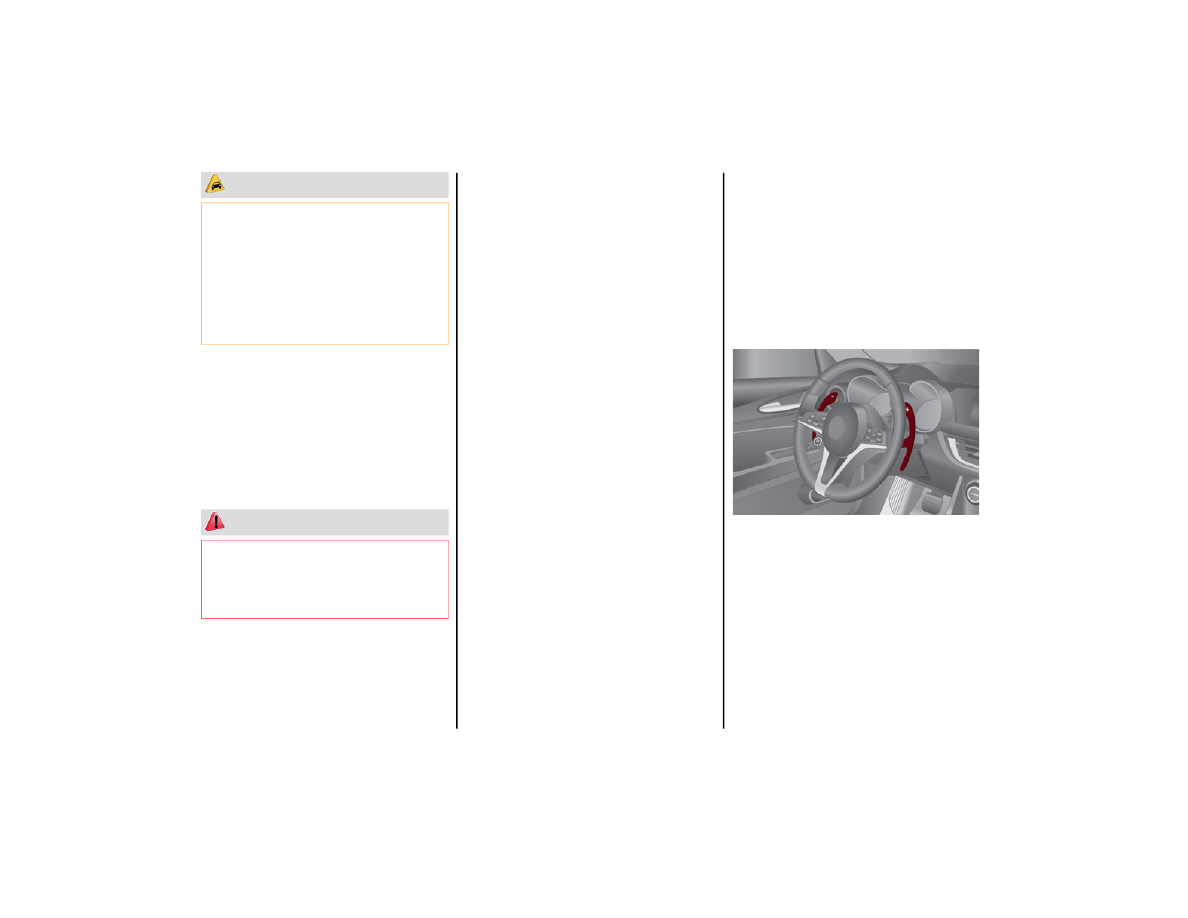

Steering Column Mounted Shift Paddles —

If Equipped
The gear can be manually shifted also by using

the paddles behind the steering wheel, pull the

right paddle (+) toward the steering wheel and

release it to engage a higher gear, perform the

same operation with the left paddle (-) to engage

a lower gear.

Steering Column Mounted Shift Paddles

NOTE:

If only one manual shift is necessary, the letter D

will remain on the display with the engaged gear

next to it.

 CAUTION!

Before moving the transmission gear

selector out of PARK, you must push the

ignition button to cycle from OFF position to

the ACC position, and also press the brake

pedal. Otherwise, damage to the gear

selector could result.

DO NOT race the engine when shifting from

PARK or NEUTRAL into another gear range,

as this can damage the drivetrain.

 WARNING!

Do not coast in NEUTRAL and never turn off

the ignition to coast down a hill. These are

unsafe practices that limit your response to

changing traffic or road conditions. You might

lose control of the vehicle and have a collision.

CarManuals2.com

95

Deactivation
To deactivate the sequential driving mode, bring

the gear selector back in position DRIVE (D)

("automatic" driving mode).

NOTE:

To select the correct gear for maximum

deceleration (engine brake), keep the gear

paddle pulled (–): the transmission goes to

an operating mode in which the vehicle can

slow down easily.

The vehicle will keep the gear selected by the

driver until the safety conditions allow it.

This means, for example, that the system will

try to prevent the engine from switching off,

automatically downshifting if the engine speed

is too low.

A

UTOMATIC

 T

RANSMISSION

 L

IMP

 H

OME



M

ODE

Transmission function is monitored electronically

for abnormal conditions. If a condition is detected

that could result in transmission damage,

Transmission Limp Home Mode is activated.

In this condition, the transmission stays in

FOURTH gear, regardless of the selected gear.

Positions PARK (P), REVERSE (R) and

NEUTRAL (N) still work.
The   symbol might light up in the instrument

cluster.
Temporary failure
In the event of a momentary problem, the

transmission can be reset to regain all forward

gears by performing the following steps:
1. Stop the vehicle.
2. Shift the transmission into PARK (P), if

possible. If not, shift the transmission to

NEUTRAL (N).

3. Push and hold the ignition until the engine

turns off.

4. Wait for about 10 seconds, then restart the

engine.

5. Shift into the desired gear range. If the

problem is no longer detected, the transmis

-

sion will return to normal operation.

NOTE:

Even if the transmission can be reset, we recom

-

mend that you visit an authorized dealer at your

earliest possible convenience. An authorized

dealer has diagnostic equipment to determine if

the problem could reoccur. If the transmission

cannot be reset, service is required at an autho

-

rized dealer.

B

RAKE

 T

RANSMISSION

 S

HIFT

 I

NTERLOCK



(BTSI) S

YSTEM

This vehicle is equipped with a BTSI that holds the

gear selector in PARK (P) unless the brakes are

applied.
This system prevents you from moving the gear

selector from position PARK (P) unless the brakes

are applied.
To shift the transmission out of PARK (P), the

ignition must be cycled to the ON/RUN position

(engine running or not) and the brake pedal must

be pressed.
Brake Transmission Shift Interlock Disabling
Only if strictly necessary (e.g. pushing the vehicle,

conveyor vehicle washing systems), place the

vehicle in the NEUTRAL (N) position when

stopping the engine. See the following steps:
1. Bring the vehicle to a standstill.
2. Place the transmission in the NEUTRAL (N)

position.

3. Push the ignition button for at least three

seconds.

The automatic activation of PARK (P) when the

engine is stopped can also be deactivated on the

Information and Entertainment system by

selecting the following functions on the main

menu: "Settings", "Driver Assistance" and

"Automatic Parking Brake".

 WARNING!

Do not downshift for additional engine braking

on a slippery surface. The drive wheels could

lose their grip and the vehicle could skid,

causing a collision or personal injury.

CarManuals2.com

STARTING AN

D O

PERA

TIN

G

96

(Continued)

(Continued)

I

MPORTANT

 N

OTES

Failure to comply with the following may damage

the transmission:

Shift into PARK (P) mode only with the vehicle

at a standstill.

Select REVERSE (R) mode, or pass from

REVERSE to another mode only with the

vehicle at a standstill and engine idling.

Do not change between PARK (P), REVERSE

(R), NEUTRAL (N) or DRIVE (D) modes with

engine running at a speed above idling.

Before activating any transmission operating

mode, fully press the brake pedal.

 WARNING!

It is dangerous to shift out of PARK or

NEUTRAL if the engine speed is higher than

idle speed. If your foot is not firmly pressing

the brake pedal, the vehicle could accelerate

quickly forward or in reverse. You could lose

control of the vehicle and hit someone or

something. Only shift into gear when the

engine is idling normally and your foot is

firmly pressing the brake pedal.

Unintended movement of a vehicle could

injure those in or near the vehicle. As with all

vehicles, you should never exit a vehicle

while the engine is running. Before exiting a

vehicle, always apply the parking brake, shift

the transmission into PARK, and turn the

ignition OFF. When the ignition is in the OFF

position, the transmission is locked in PARK,

securing the vehicle against unwanted

movement.

When leaving the vehicle, always make sure

the ignition is in the OFF position, remove the

key fob from the vehicle, and lock the

vehicle.

Never leave children alone in a vehicle, or

with access to an unlocked vehicle. Allowing

children to be in a vehicle unattended is

dangerous for a number of reasons. A child

or others could be seriously or fatally injured.

Children should be warned not to touch the

parking brake, brake pedal or the

transmission gear selector.

 WARNING!

Do not leave the key fob in or near the vehicle

(or in a location accessible to children), and

do not leave the ignition in the ON/RUN or

ACC position. A child could operate power

windows, other controls, or move the vehicle.

 CAUTION!

Only engage the gear with engine at idling

while fully pressing the brake pedal. If the

transmission temperature exceeds the

normal operating limits, the transmission

control unit may change the gear

engagement order and reduce the drive

torque. If the transmission overheats, it

could operate incorrectly until it cools down.

When using the vehicle with extremely low

external temperatures, the transmission

operation may change depending on the

engine and transmission temperature, as

well as vehicle speed. Activation of the

torque converter clutch and of the EIGHTH

gear is inhibited until the transmission oil is

correctly warmed up. Complete operation of

the transmission will be enabled as soon as

the fluid temperature reaches the

predefined value.

 WARNING!

CarManuals2.com

97

ALFA DNA SELECTOR

A

LFA

 DNA S

YSTEM

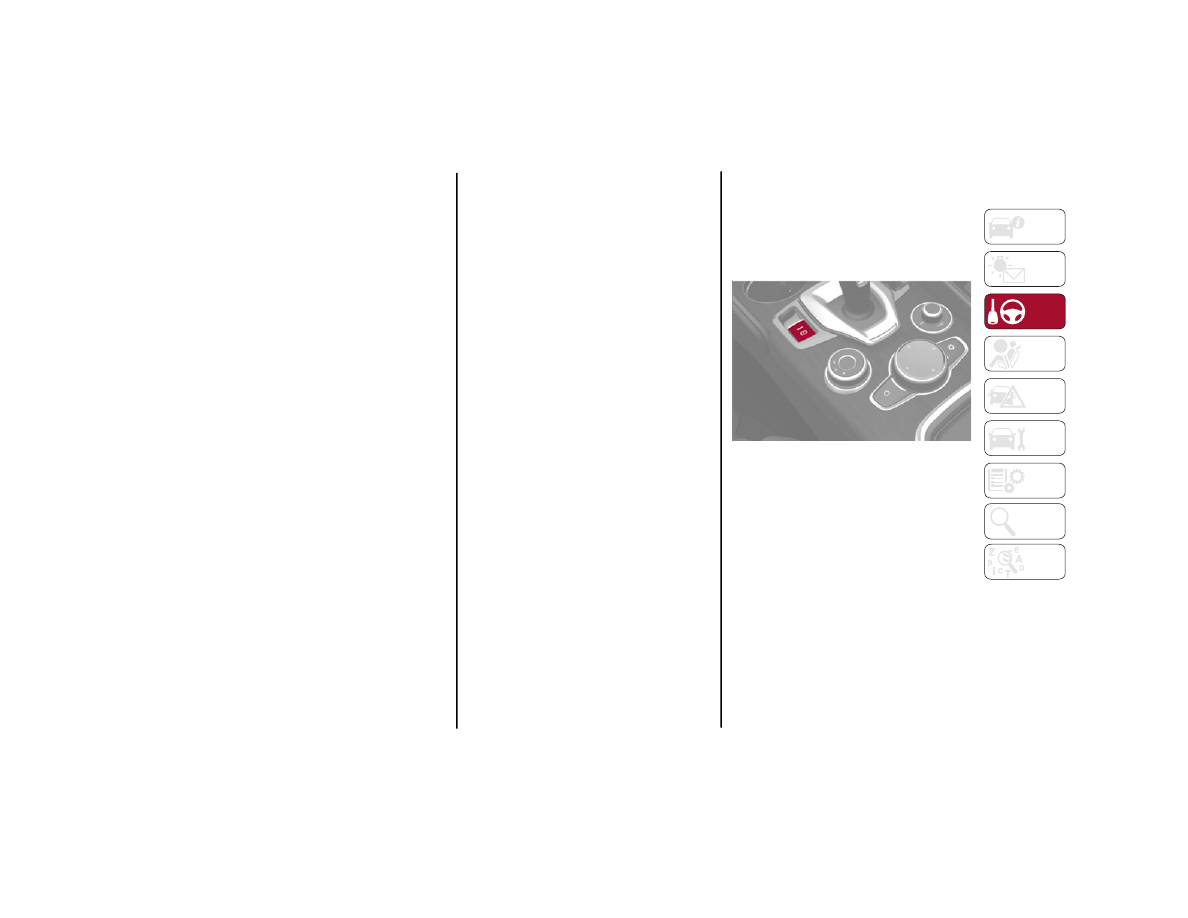

This vehicle is equipped with an Alfa DNA system

selector (located on the center console). There

are up to four modes of operation to be selected

according to driving style and road conditions:

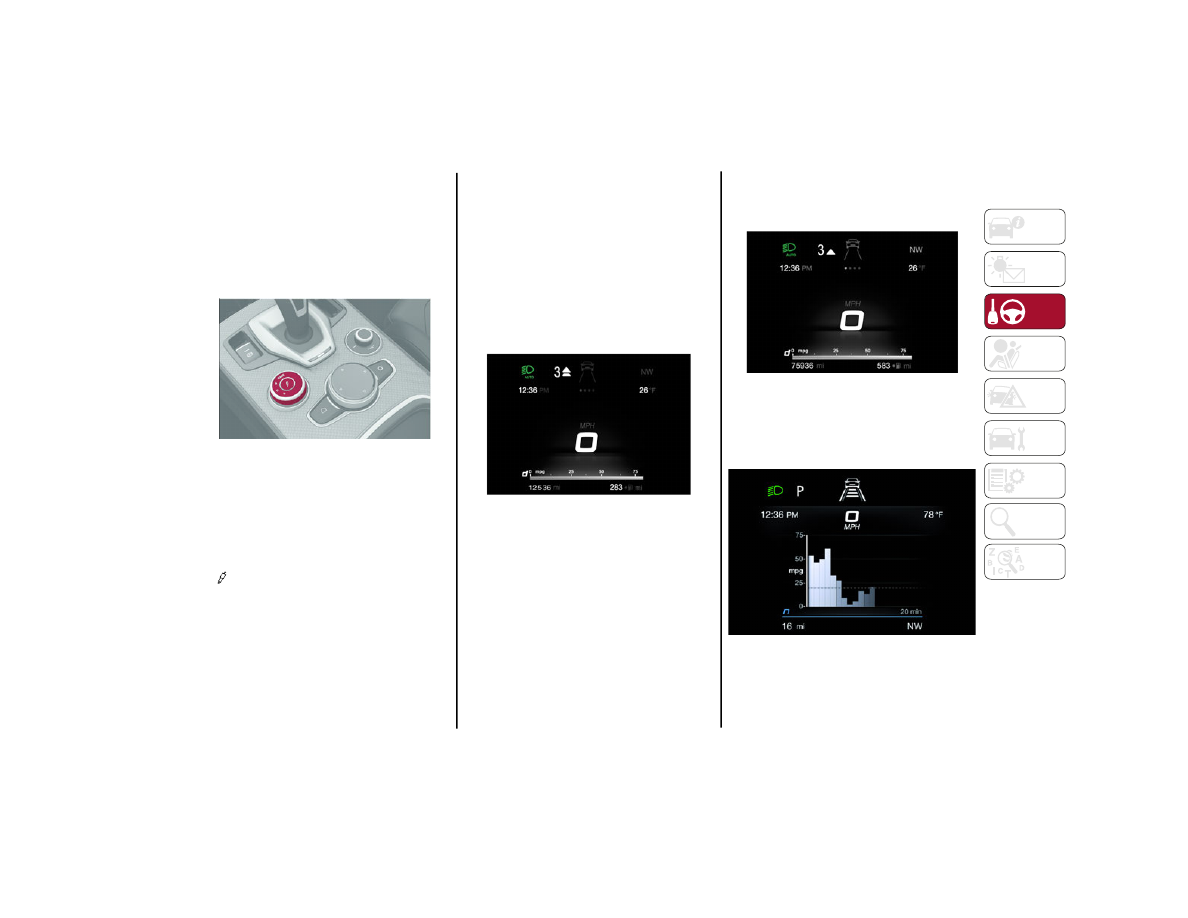

Alfa DNA System Selector

d = Dynamic (sports driving mode).

n = Natural (mode for driving in normal

conditions).

a = Advanced Efficiency (ECO driving mode for

maximum fuel savings).

RACE = track race driving mode (if equipped).

 = Adjusts the calibration of the active

suspension (if equipped).

Unlike with the other modes, there is no detent

for the RACE position. When the system selector

is rotated to the RACE position, it will return to its

initial position "d".

When the engine is stopped, the selector returns

to “n” (Natural) mode.
The symbol of the active mode lights up in red on

the selector.

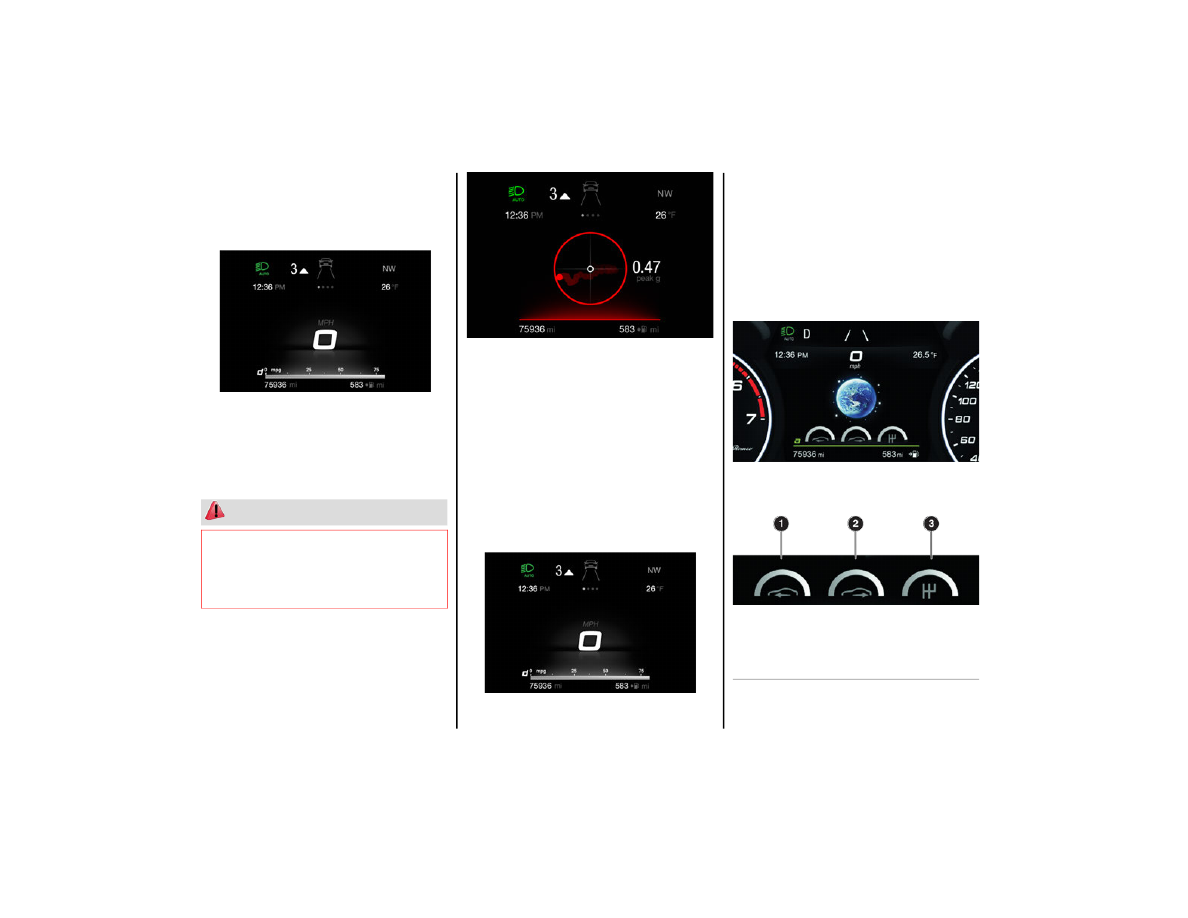

On the instrument cluster display, the different

modes are characterized by different colors:

Natural - Blue

Dynamic - Red

Advanced Efficiency - Green

RACE - Yellow

Mode Display

Each driving mode is graphically different in

frame color and contents of each individual

"performance" screen.

D

RIVING

 M

ODES

“Natural” Mode
“Natural” Mode is characterized by reduced

engine performance and ECO shifting strategy for

the automatic transmission.

Activation
It is activated by rotating the selector to the

letter “n”; the display will light up in blue.

Natural Mode

The “Performance” screen graphically

reproduces some parameters closely linked to

the efficiency of the driving style, with a view to

limiting consumption.

Natural Mode Performance Display

CarManuals2.com

STARTING AN

D O

PERA

TIN

G

98

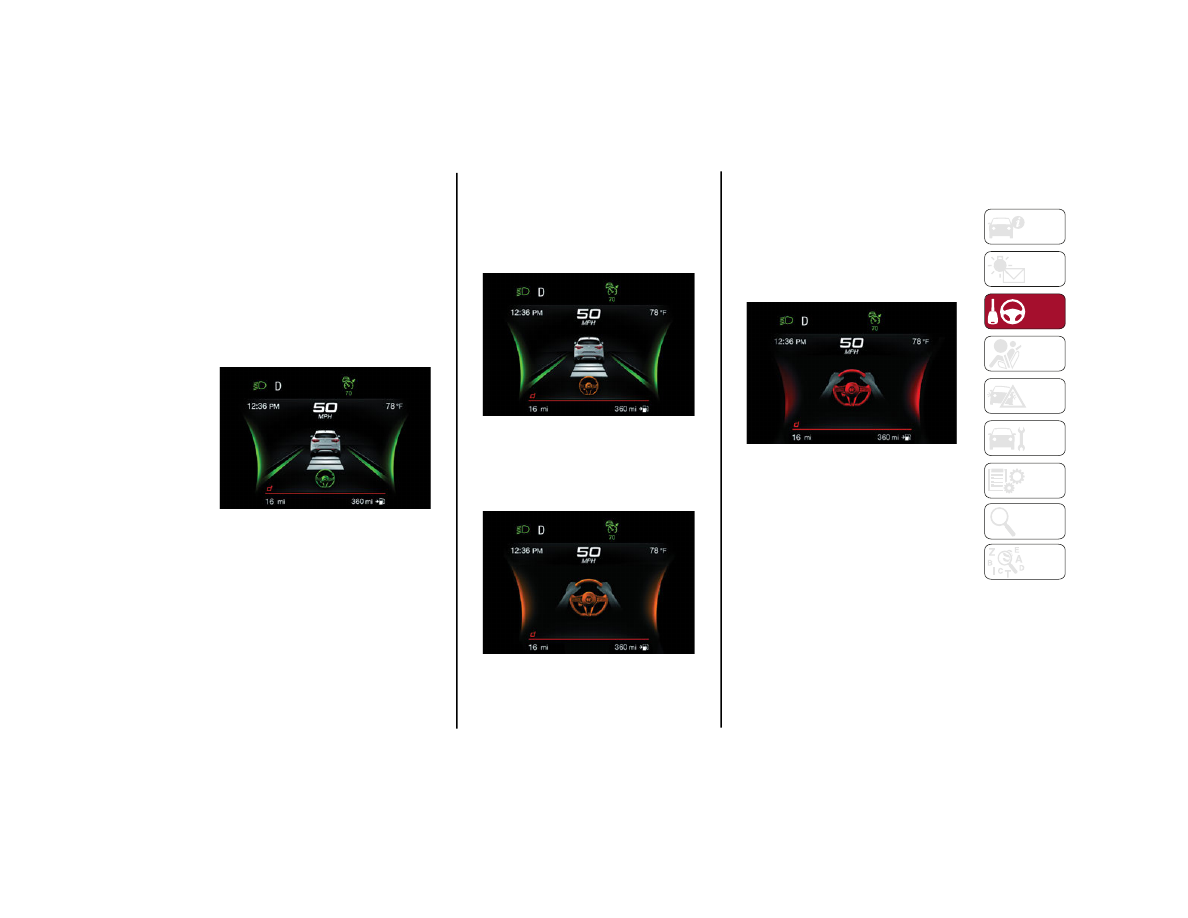

“Dynamic” Mode
Activation
It is activated by rotating the selector to the

letter “d”; the display will light up in red.

Dynamic Mode

ESC and ASR systems: intervention thresholds

that ensure more enjoyable, sportier driving while

guaranteeing the stability of the vehicle.
Engine and transmission: adoption of sports

mapping.

Dynamic Mode Performance Display

The “Performance” screen displays parameters

related to vehicle stability, the graphs illustrate

the trend of the longitudinal/lateral accelerations

(G-meter information), considering gravity

acceleration as a reference unit.
Lateral acceleration peaks are displayed on

the right.
“Advanced Efficiency” Mode
Activation
It is activated by rotating the selector to the letter

“a”; the display will light up in green.

Advanced Efficiency Mode

ESC and ASR systems: intervention thresholds

aimed at ensuring maximum safety in low-grip

driving conditions. It is advisable to select

“Advanced Efficiency” mode in the presence of

low-grip road surfaces.
Engine and transmission: standard response.
The “Performance” screen graphically displays

some parameters closely related to the vehicle

acceleration, deceleration and gear selector.

Advanced Efficiency Mode Performance Display

 WARNING!

In "Dynamic", the sensitivity of the accelerator

pedal increases considerably. Consequently,

driving is less fluid and comfortable. The driver

must ensure full control of the vehicle at all

times to avoid a collision.

1 — Acceleration
2 — Deceleration
3 — Gear Selector

CarManuals2.com

99

“RACE” Mode
Activation
“RACE” Mode is activated by rotating the selector

to the “RACE” position. The instrument cluster

display will light up in yellow.

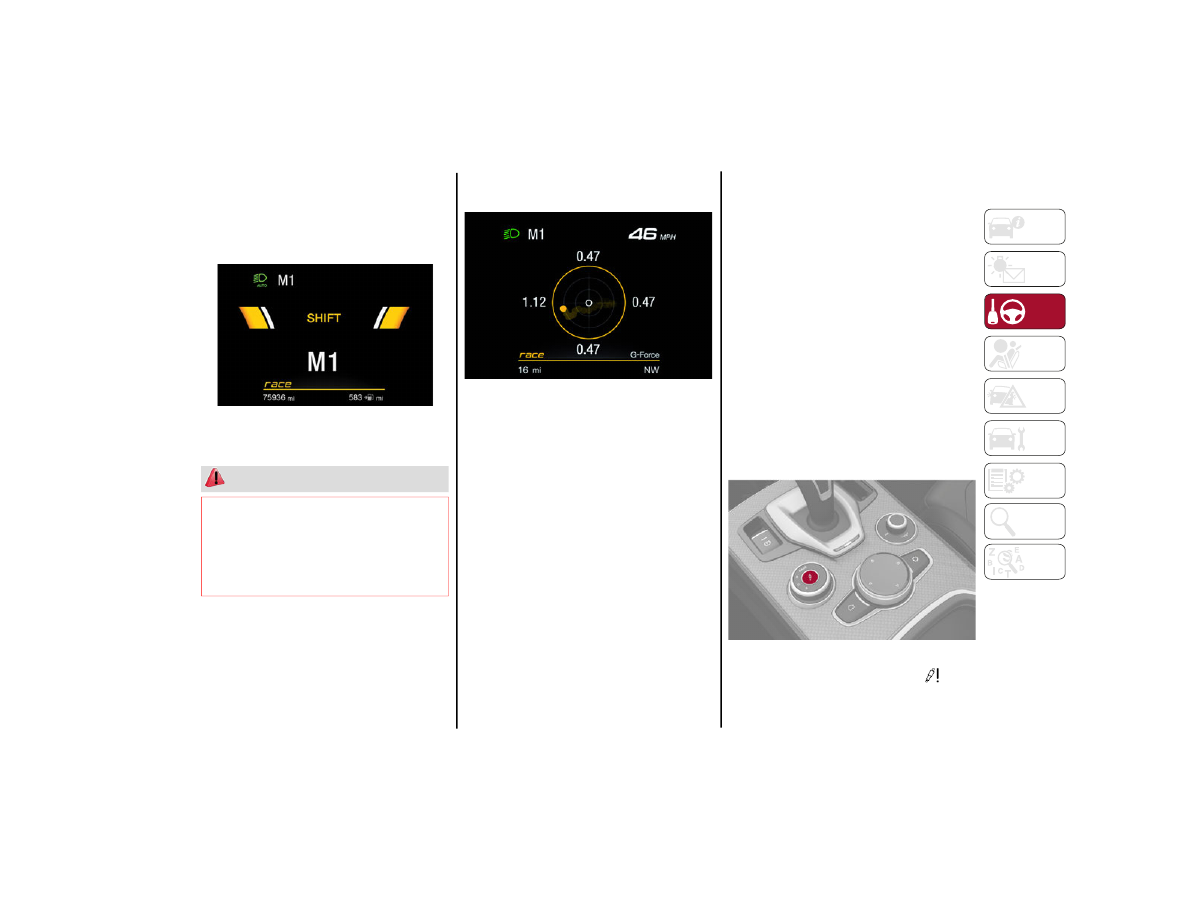

RACE Mode

Engine and transmission: adoption of sports

mapping.

The “Performance” screen displays parameters

related to vehicle stability. The graphs illustrate

the trend of the longitudinal/lateral accelerations

(G-meter information), considering gravity

acceleration as a reference unit.

The screen displays the lateral and longitudinal

acceleration peaks.

RACE Mode Performance Display

NOTE:

If the brake system overheats, this is communi

-

cated by the Information and Entertainment

system. In this case, allow the system to cool for

a few minutes by driving the vehicle normally

without operating the brakes.
Driving Mode Deactivation
To deactivate any driving mode, simply move the

selector to any other mode.
NOTE:

The next time that the engine is started the

vehicle will be in “Natural” mode regardless of

which mode was selected before the engine

was stopped.

ALFA ACTIVE SUSPENSION

(AAS) — IF EQUIPPED

The vehicle's electronic suspension management

system is aimed at optimizing the vehicle's

performance.
The system continuously monitors the damping of

the suspensions through the actuator installed

on each shock absorber. This way, the calibration

of the shock absorbers can be adjusted to the

conditions of the road surface and to the dynamic

conditions of the vehicle, improving its comfort

and road holding.
The driver can choose, even while driving (only in

“Dynamic” mode), between two types of

suspension calibration: a sportier or a more

comfortable one.
By pushing the button, the system changes the

shock absorber calibration.

Alfa Active Suspension Button

In case of a system failure, the symbol   and a

dedicated message will be shown on the

instrument cluster display.

 WARNING!

Only activate the RACE mode at the track.

In “RACE”, the sensitivity of the accelerator

pedal increases considerably. Consequently,

driving is less fluid and comfortable. The

driver must ensure full control of the vehicle

at all times to avoid a collision.

CarManuals2.com

STARTING AN

D O

PERA

TIN

G

100

STOP/START SYSTEM

The Stop/Start system automatically shuts off

the engine during a vehicle stop if the required

conditions are met. Releasing the brake pedal or

pressing the accelerator pedal will automatically

restart the engine.
The function was designed to increase vehicle

efficiency by reducing fuel consumption, gas

emissions, and sound pollution.
NOTE:

When the Stop/Start system stops the engine,

the power steering is also disabled.

O

PERATING

 M

ODE

Stopping The Engine
With the vehicle at a standstill and brake pedal

pressed, the Stop/Start system shuts off the

engine if the gear selector is in a position other

than REVERSE (R).
The system does not operate when the gear

selector is in REVERSE (R), in order to make

parking maneuvers easier.
In the event of uphill stops, the Stop/Start system

is disabled to make the “Hill Start Assist” function

available (works only with running engine).
NOTE:

The engine can only be automatically stopped

after having run at about 6 mph (10 km/h). After

an automatic restart, the vehicle only needs to

exceed a speed of 0.3 mph (0.5 km/h) to stop

the engine.
Engine stopping is signaled by the   symbol

lighting up on the instrument cluster display.

Restarting The Engine
To restart the engine, release the brake pedal or,

turn the steering wheel slightly (if equipped).
With the brake pressed and the transmission in

automatic mode DRIVE (D), the engine will restart

by shifting to REVERSE (R), to PARK (P) or to

“AutoStick”

Ú

page 93.

With brake pressed if the gear selector is in

“AutoStick” mode, the engine will restart by

shifting to PARK (P) or by moving the selector

to + or -

Ú

page 93.

S

YSTEM

 M

ANUAL

 A

CTIVATION

/

D

EACTIVATION

To manually activate/deactivate the system,

push the button located on the control panel to

the left of the steering wheel.

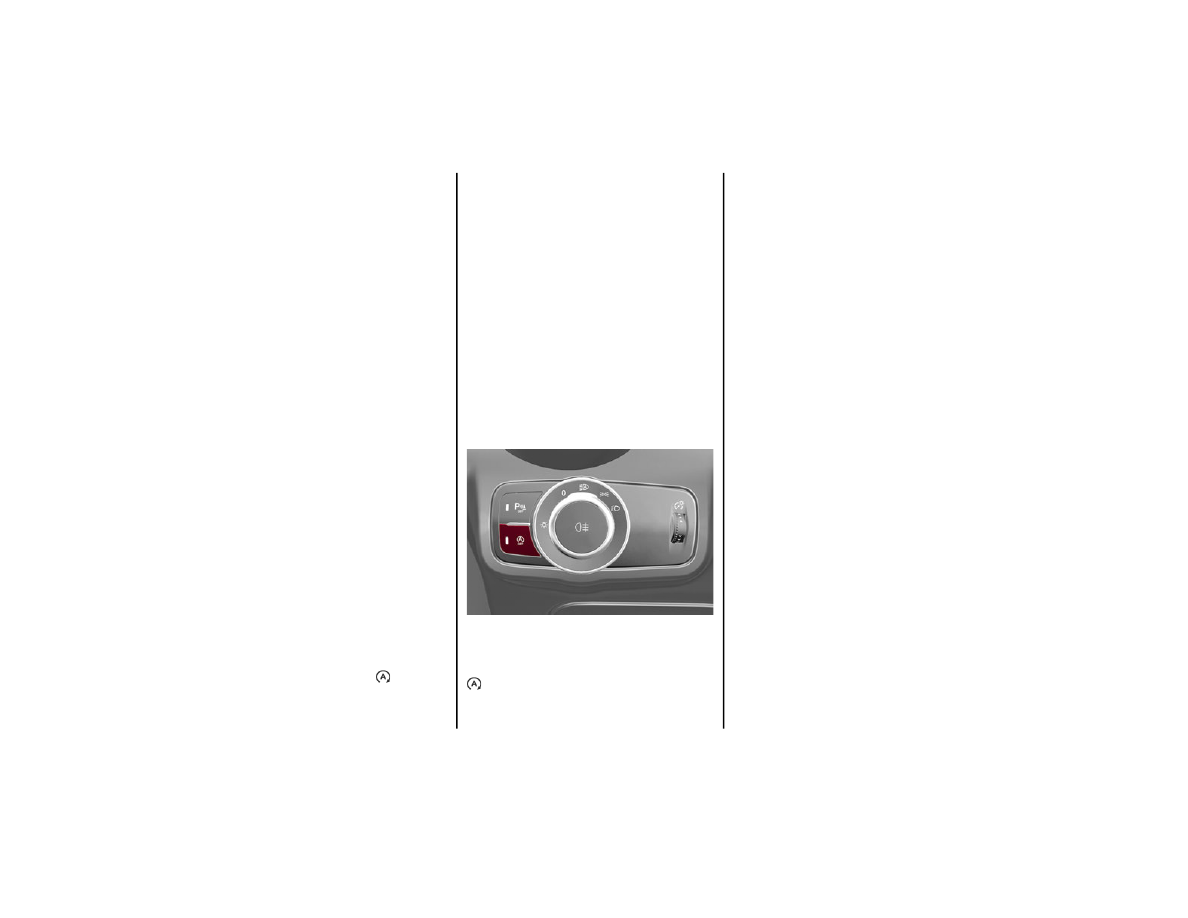

Stop/Start Button

System Activation
The activation of the system is indicated by the

 symbol lighting up on the display. In this

condition, the light on the button is off.

System Deactivation
A message will appear on the display when the

system is deactivated. In this condition, the light

on the button is on.
NOTE:

Each time the engine is started, the system is

activated regardless of where it was when it was

previously switched off.

P

OSSIBLE

 R

EASONS

 T

HE

 E

NGINE

 D

OES



N

OT

 A

UTOSTOP

For higher comfort and increased safety, and to

reduce emissions, there are certain conditions

where the engine will not autostop despite the

system being active, such as:

Engine still cold.

Extreme cold outside temperature.

Battery not sufficiently charged.

Driver's door not shut.

Driver's seat belt not fastened.

REVERSE (R) gear engaged (e.g. for parking

maneuvers).

With the automatic climate control active, an

adequate cabin heating or cooling comfort has

not been reached or with MAX-DEF function

active.

During the first period of use, to initialize the

system.

Steering angle beyond threshold.

CarManuals2.com

101

E

NGINE

 R

ESTARTING

 C

ONDITIONS

Due to comfort, emission control, and safety

reasons, the engine can restart automatically

without any action by the driver, under special

conditions, such as:

Battery not sufficiently charged.

Reduced braking system vacuum (e.g. if the

brake pedal is pressed repeatedly).

Vehicle moving (e.g. when driving on roads

with a grade).

Engine stopping by the Stop/Start system for

more than approximately three minutes.

With the automatic climate control active, an

adjustment in cabin heating or cooling is made

or with MAX-DEF function active.

S

AFETY

 F

UNCTIONS

When the engine is stopped through the Stop/

Start system, if the driver releases their seat belt,

opens the driver's or passenger's door, or opens

the hood from inside the vehicle, the engine can

be restarted only by using the ignition.
This condition is indicated to the driver both

through a buzzer and a message on the

instrument cluster display.

E

NERGY

 S

AVING

 F

UNCTION

If the driver does not carry out any action for more

than three minutes after the automatic engine

restart, the Stop/Start system will switch off the

engine in order to prevent fuel consumption.
In this situation, the engine can only be restarted

using the ignition device.

NOTE:

It is possible to keep the engine running by deac

-

tivating the system.

I

RREGULAR

 O

PERATION

In the event of malfunction, the Stop/Start

system is deactivated.
For failure indications

Ú

page 74.

V

EHICLE

 I

NACTIVITY

In the event of vehicle inactivity (or if the battery

is replaced), special attention must be paid to the

disconnection of the battery power supply.
Proceed as follows:
Remove connector from socket to disconnect

sensor (battery status monitoring) installed on

the negative pole of the battery. This sensor

should never be disconnected from the pole

except if the battery is replaced.

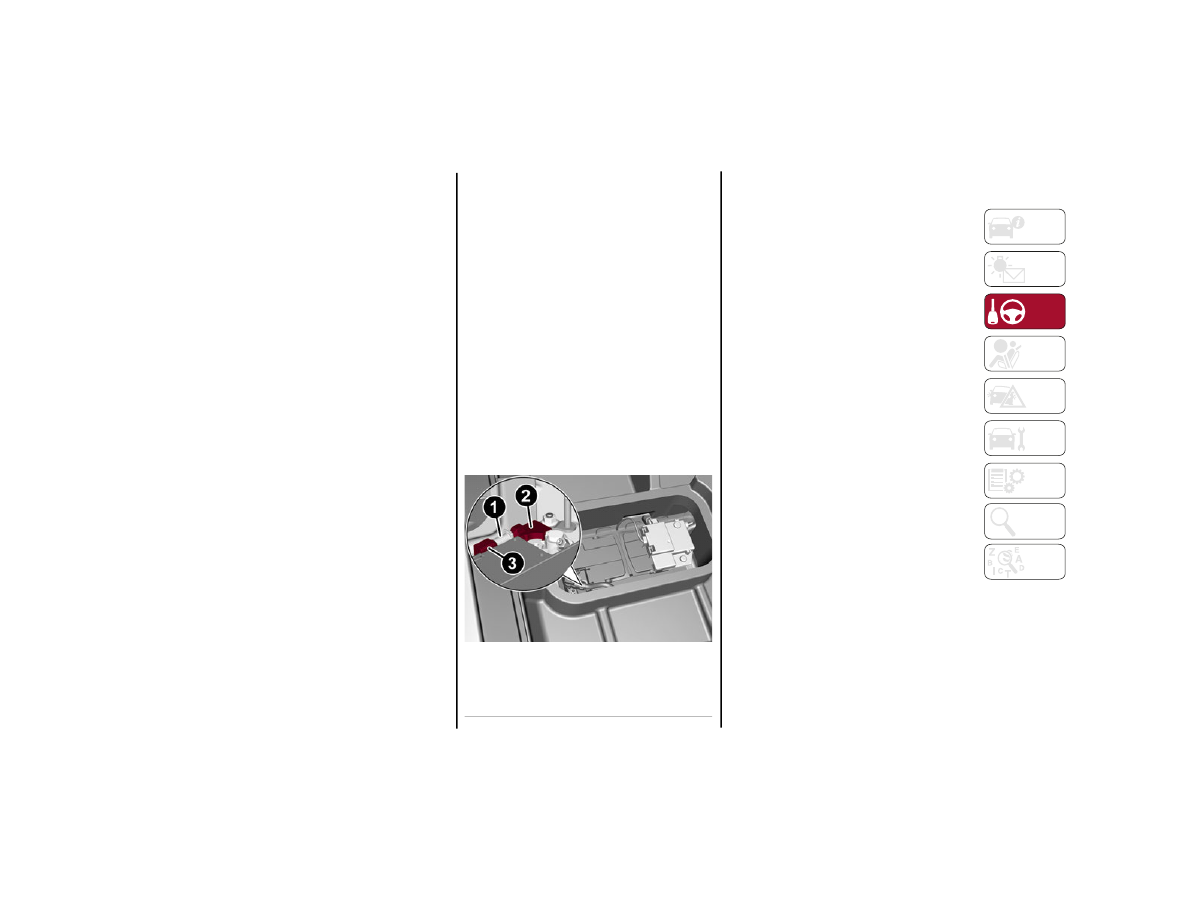

Battery Power Supply

NOTE:

After setting the ignition to OFF and having closed

the driver side door, wait at least one minute

before disconnecting the electrical supply from

the battery. When reconnecting the electrical

supply to the battery, make sure that the ignition

is in the OFF position and the driver side door

is closed.

SPEED LIMITER

D

ESCRIPTION

This feature allows the driver to program the

maximum speed of the vehicle.
NOTE:

The maximum set speed can be exceeded by

continuing to press the accelerator pedal.
The maximum speed can be set with the vehicle

stationary or in motion. The minimum speed that

can be set is 18 mph (30 km/h).
When this feature is active, the vehicle speed

depends on the pressing of the accelerator pedal

until the programmed speed limit is reached

Ú

page 102.

A

CTIVATION

The feature can be activated/deactivated

through the radio system.
Activating The Device
To access this feature, select the “Driver

Assistance” widget in the radio system, then

select the following items in sequence:
1. Speed Limiter
2. ON

1 — Socket
2 — Sensor
3 — Connector

CarManuals2.com

STARTING AN

D O

PERA

TIN

G

102

The activation of this feature is signaled by the

illumination of the green Speed Limiter icon,

along with the last speed set, in the instrument

cluster display. The Speed Limiter feature can

remain active concurrently with the Cruise

Control system. If a speed limit below the one

indicated in the Cruise Control is selected, the

Cruise Control speed will be lowered to that of the

Speed Limiter. This function remains available in

RACE mode.

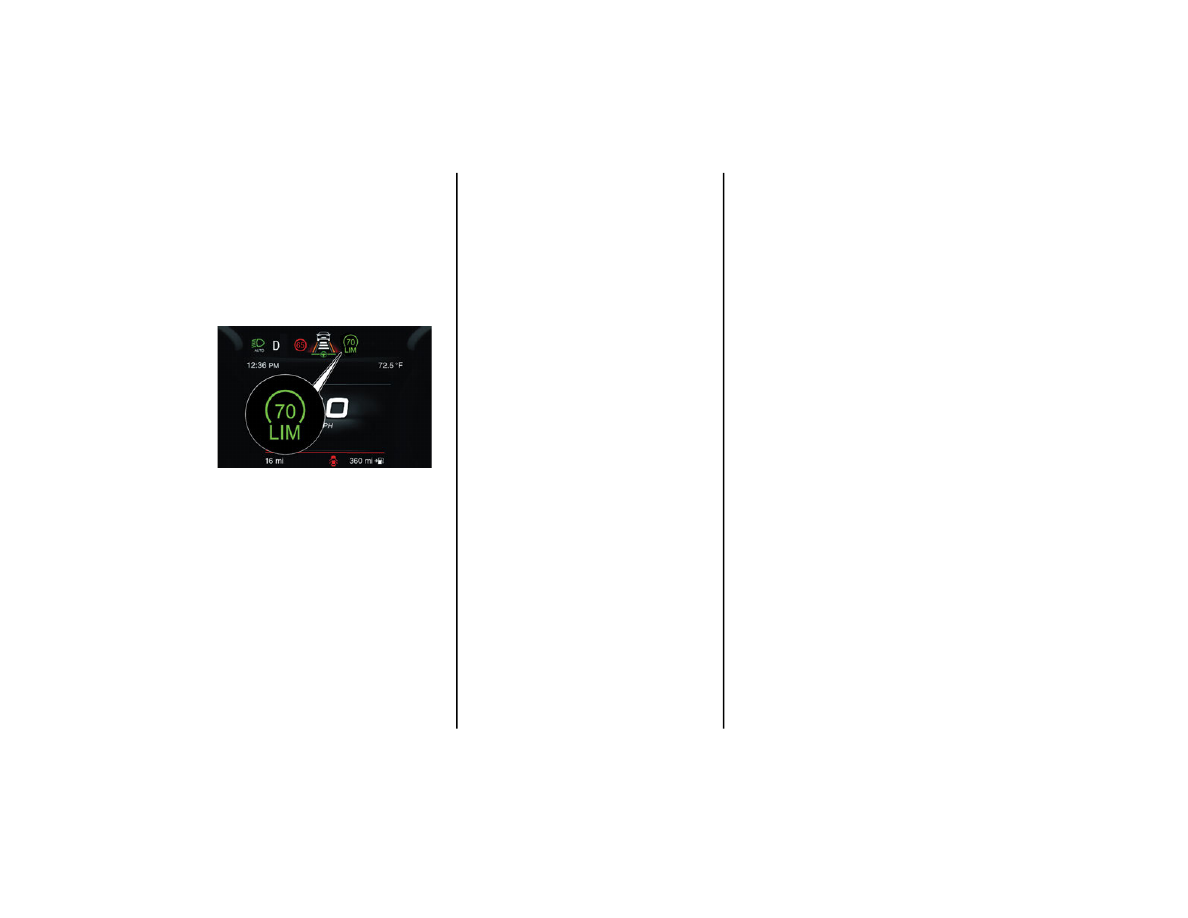

Speed Limiter Display

S

PEED

 L

IMIT

 P

ROGRAMMING

The speed limit can be programmed through the

radio system.
To access the function on the main menu, select

the following items in order:
1. Driver Assistance
2. Speed Limiter - Set Speed

By turning the Rotary Pad, the speed increases by

5 mph (5 km/h), from a minimum of 18 mph

(30 km/h) to a maximum of 112 mph (180 km/h).

E

XCEEDING

 T

HE

 P

ROGRAMMED

 S

PEED

By fully pressing the accelerator pedal, the

programmed speed can be exceeded even with

the device active (e.g. in the event of overtaking).
The device is disabled until the speed drops

below the set limit, after which it reactivates

automatically.

P

ROGRAMMED

 S

PEED

 I

CON

 F

LASHING

The programmed speed will flash in the following

scenarios:

When the accelerator pedal has been fully

pressed and the vehicle has exceeded the

programmed speed.

Activating the system after setting a limit

below the effective speed of the vehicle.

In the event of overtake acceleration.

D

EACTIVATION

The feature can be activated/deactivated

through the radio system.
Deactivating The Device
To access this feature, select the “Driver

Assistance” widget in the radio system, then

select the following items in sequence:
1. Speed Limiter
2. OFF

Automatic Deactivation Of The Device
The device deactivates automatically in the event

of fault in the system. In this case, contact an

authorized dealer.

Temporary Signal Loss
When the devices loses the signal, the white

symbol without the speed indication illuminates

on the display.
System Failure
If there is a system failure, the amber symbol

illuminates on the display.

CRUISE CONTROL

SYSTEMS — IF EQUIPPED

Your vehicle may be equipped with the Cruise

Control system, or the Adaptive Cruise Control

(ACC) system:

Cruise Control will keep your vehicle at a

constant preset speed.

Adaptive Cruise Control (ACC) will adjust the

vehicle speed up to the preset speed to

maintain a distance with the vehicle ahead.

NOTE:

In vehicles equipped with ACC, if ACC is not

enabled, Fixed Speed Cruise Control will not

detect vehicles directly ahead of you. Always

be aware of the feature selected.

Only one Cruise Control feature can operate at

a time. For example, if Fixed Speed Cruise

Control is enabled, Adaptive Cruise Control will

be unavailable, and vice versa.

CarManuals2.com

103

C

RUISE

 C

ONTROL

When engaged, the Cruise Control takes over

accelerator operations at speeds greater than

20 mph (32 km/h).

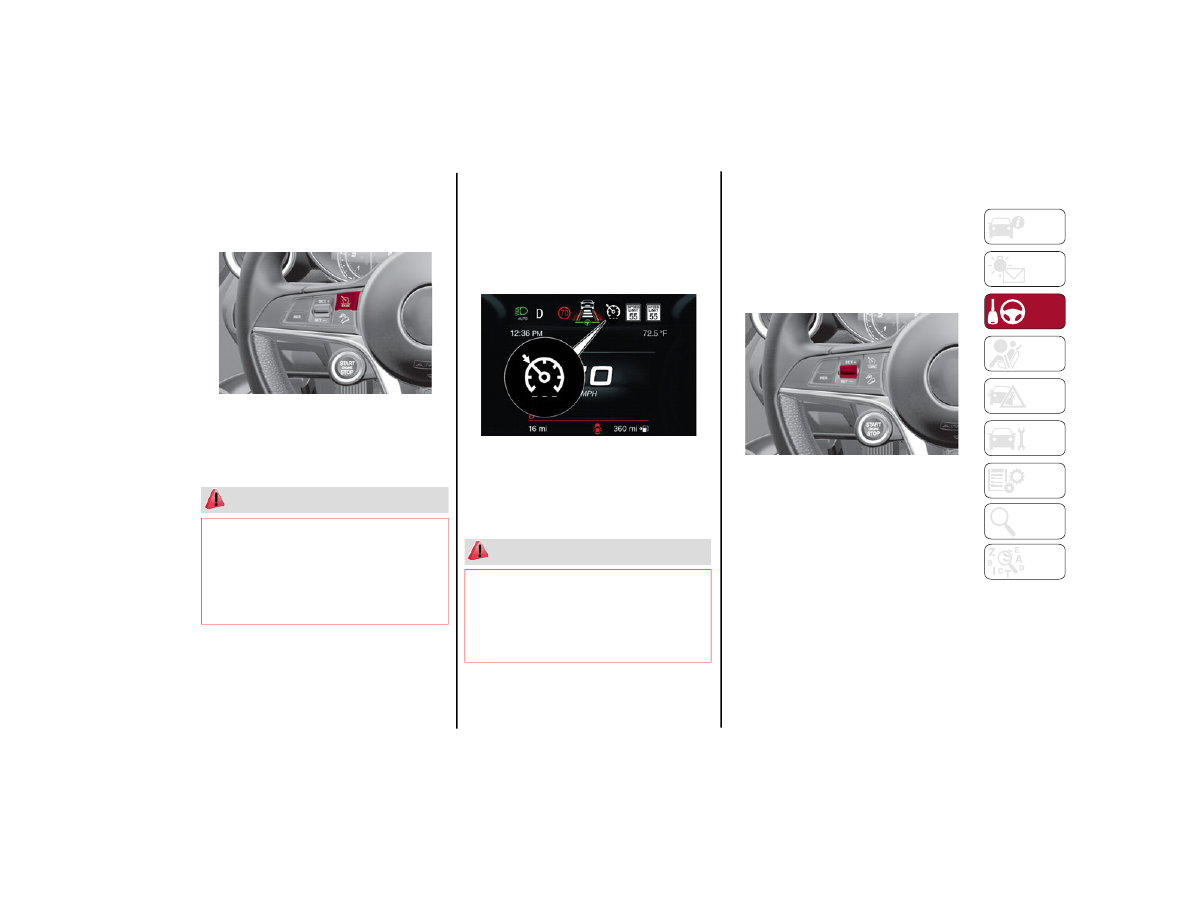

Cruise Control On/Off Switch

The Cruise Control buttons are located on the left

side of the steering wheel.
While driving downhill, the system could brake

the vehicle to keep the set speed the same.

To Activate

To activate the Cruise Control system, push the

on/off button located on the left side of the

steering wheel.
The activation of the system is signaled by the

white warning light illuminating in the instrument

cluster display.

Cruise Control Indicator Light

The Cruise Control function can remain active at

the same time as the Speed Limiter system. If the

set speed is higher than the speed set with the

Speed Limiter, the set speed will be lowered to

that of the Speed Limiter.

To Set A Desired Speed

To set a desired speed, proceed as follows:
1. Turn the Cruise Control on.
2. When the vehicle has reached the desired

speed, push the SET switch up or down and

release to activate. When the accelerator is

released, the vehicle will maintain the

selected speed automatically.

SET Switch Location

If needed (when overtaking for instance), you can

accelerate beyond the set speed by pressing the

accelerator. When you release the pedal, the

vehicle goes back to the previously set speed.
When traveling downhill with the system active,

the vehicle speed may slightly exceed the set one.
NOTE:

Before pushing the SET switch, the vehicle must

be traveling at a constant speed on a flat surface.

 WARNING!

Cruise Control can be dangerous where the

system cannot maintain a constant speed.

Your vehicle could go too fast for the

conditions, and you could lose control and

have an accident. Do not use Cruise Control in

heavy traffic or on roads that are winding, icy,

snow-covered or slippery.

 WARNING!

Leaving the Cruise Control system on when

not in use is dangerous. You could accidentally

set the system or cause it to go faster than you

want. You could lose control and have an

accident. Always ensure the system is OFF

when you are not using it.

CarManuals2.com

STARTING AN

D O

PERA

TIN

G

104

To Vary The Speed Setting

To Increase Or Decrease The Set Speed
When the Cruise Control is set, you can increase

the speed by pushing the SET switch upward or

decrease the speed by pushing the SET switch

downward.
U.S. Speed (mph)

Pushing the SET switch once will result in a

1 mph speed adjustment. Each subsequent

movement of the switch results in an

adjustment of 1 mph.

If the switch is continually pushed, the set

speed will continue to adjust until the switch is

released, then the new set speed will be

established.

Metric Speed (km/h)

Pushing the SET switch once will result in a

1 km/h speed adjustment. Each subsequent

movement of the switch results in an

adjustment of 1 km/h.

If the switch is continually pushed, the set

speed will continue to adjust until the switch is

released, then the new set speed will be

established.

NOTE:

Moving the SET switch allows for adjusting of the

speed according to the selected unit of measure

-

ment set on the radio system. Refer to the Infor

-

mation and Entertainment System Owner’s

Manual for more information.

To Accelerate For Passing

While the Cruise Control is set, press the

accelerator to pass as you would normally. When

the pedal is released, the vehicle will return to the

set speed.

Using Cruise Control On Hills
The transmission may downshift on hills to

maintain the vehicle set speed.
The Cruise Control system maintains speed up

and down hills. A slight speed change on

moderate hills is normal. On steep hills, a greater

speed loss or gain may occur so it may be

preferable to drive without Cruise Control.

To Resume Speed

To resume a previously set speed, push the

RES button and release. Resume can be used at

any speed above 20 mph (32 km/h).

NOTE:

Before returning to the previously set speed, you

must accelerate to a speed close to the set

speed, then push and release the RES button.

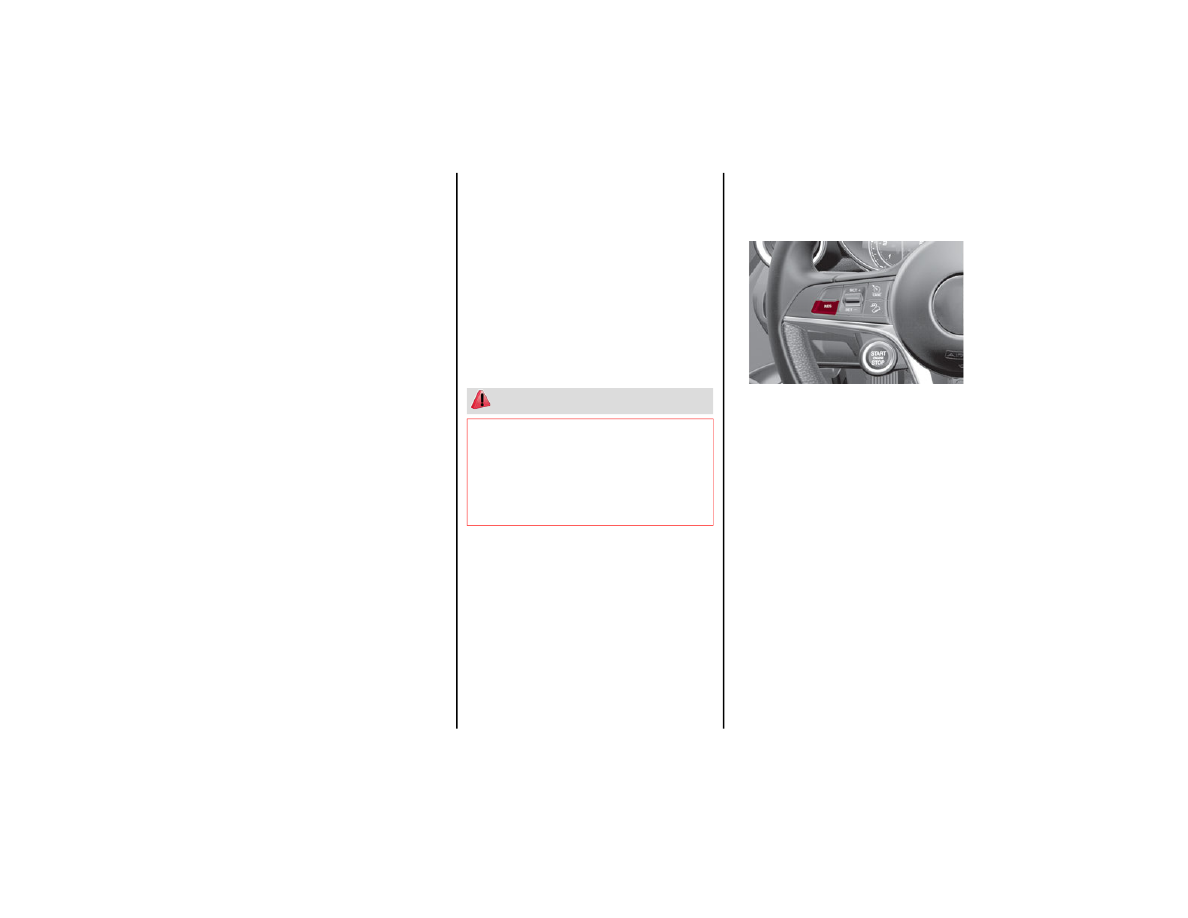

Resume Button Location

In AutoStick (sequential) mode, before resuming

the previously set speed, you should accelerate

until you are close to that speed. Then, push and

release the RES button.

To Deactivate

A tap on the brake pedal deactivates the Cruise

Control without deleting the set speed.
The Cruise Control may also be deactivated by

applying the Electric Park Brake or when the

braking system is operated (e.g. operation of the

Electronic Stability Control (ESC) system).
The set speed is deleted in the following cases:

Pushing the on/off button a second time

The ignition is placed in the OFF position

If there is a malfunction with the Cruise Control

system

 WARNING!

Cruise Control can be dangerous where the

system cannot maintain a constant speed.

Your vehicle could go too fast for the

conditions, and you could lose control and

have an accident. Do not use Cruise Control in

heavy traffic or on roads that are winding, icy,

snow-covered or slippery.

CarManuals2.com

105

(Continued)

A

DAPTIVE

 C

RUISE

 C

ONTROL

 (ACC)

The Adaptive Cruise Control (ACC) is a driver

assist system that combines the Cruise Control

functions with controlling the distance from the

vehicle ahead. ACC will adjust the vehicle speed

up to the preset speed to maintain a distance

with the vehicle ahead. ACC increases the driving

convenience provided by Cruise Control while

traveling on highways and major roadways.

However, it is not a safety system and not

designed to prevent collisions. The Cruise Control

function performs differently

Ú

page 103.

ACC will allow you to keep Cruise Control engaged

in light to moderate traffic conditions without the

constant need to reset your Cruise Control. ACC

uses a radar sensor located behind the front

bumper and a camera located in the center/

upper part of the windshield, to detect the

presence of a vehicle close ahead.
The system sets and holds the vehicle at the

desired speed without needing to press the

accelerator. It also sets and holds a distance from

the vehicle ahead (these settings are set by

the driver).

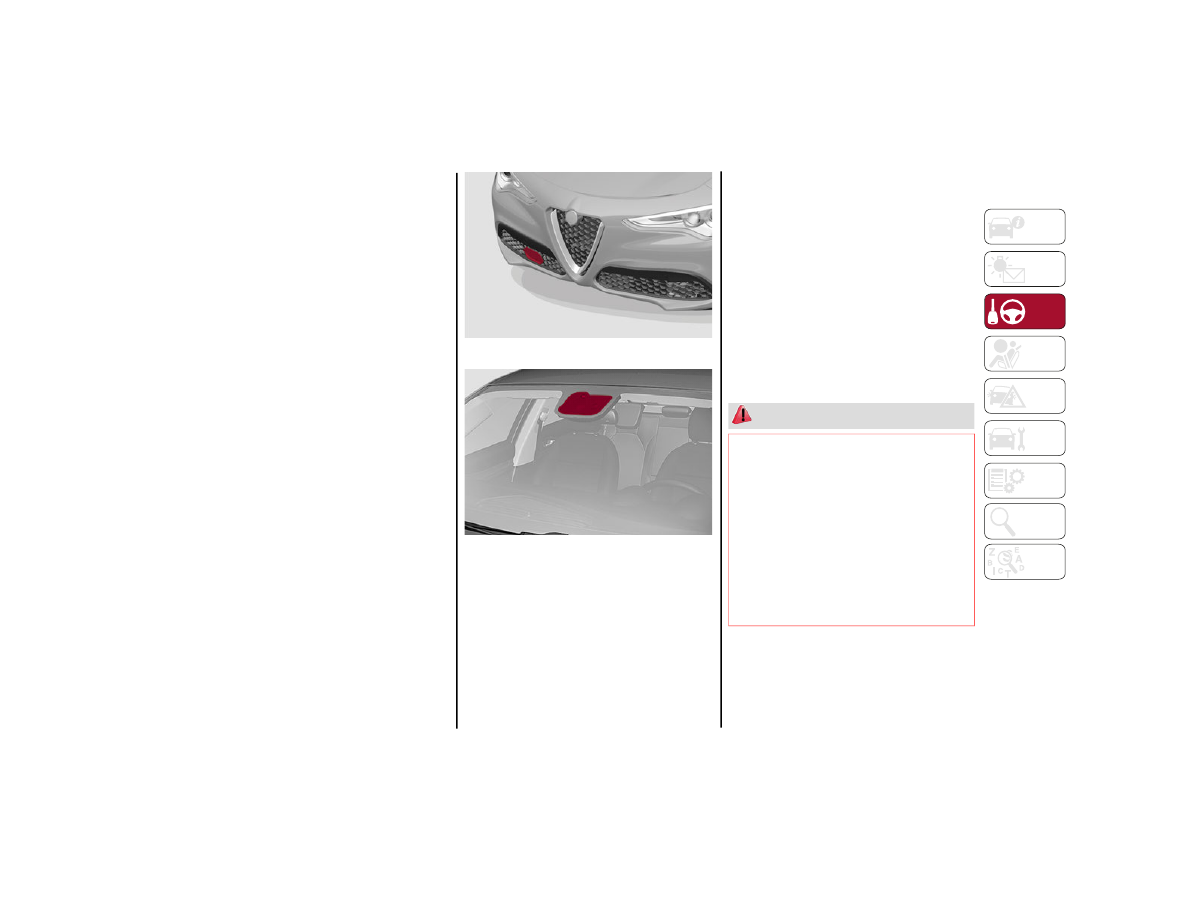

Front Bumper Radar Location

Windshield Camera Location

If the system detects a vehicle ahead, it will

automatically intervene by slightly braking or

accelerating in order to maintain the preset

distance. It will not exceed the original set speed

when adapting to the speed of the vehicle ahead.

NOTE:

Adaptive Cruise Control performance is not guar

-

anteed under the following circumstances. You

should not utilize the ACC system when:

Driving in fog, heavy rain, sleet, or snow.

Driving in heavy traffic and complex driving

situations (e.g., in construction zones).

Driving on icy, snowy, slippery roads, roads

with steep inclines or downhill slopes, or roads

with numerous turns and bends.

Entering a turn lane or highway off-ramp.

While towing a trailer.

When circumstances do not allow safe driving

at a constant speed

Ú

page 259.

 WARNING!

Adaptive Cruise Control (ACC) is a

convenience system. It is not a substitute for

active driver involvement. It is always the

driver’s responsibility to be attentive of road,

traffic, and weather conditions, vehicle

speed, distance to the vehicle ahead and,

most importantly, brake operation to ensure

safe operation of the vehicle under all road

conditions. Your complete attention is

always required while driving to maintain

safe control of your vehicle. Failure to follow

these warnings can result in a collision and

death or serious personal injury.

CarManuals2.com

STARTING AN

D O

PERA

TIN

G

106

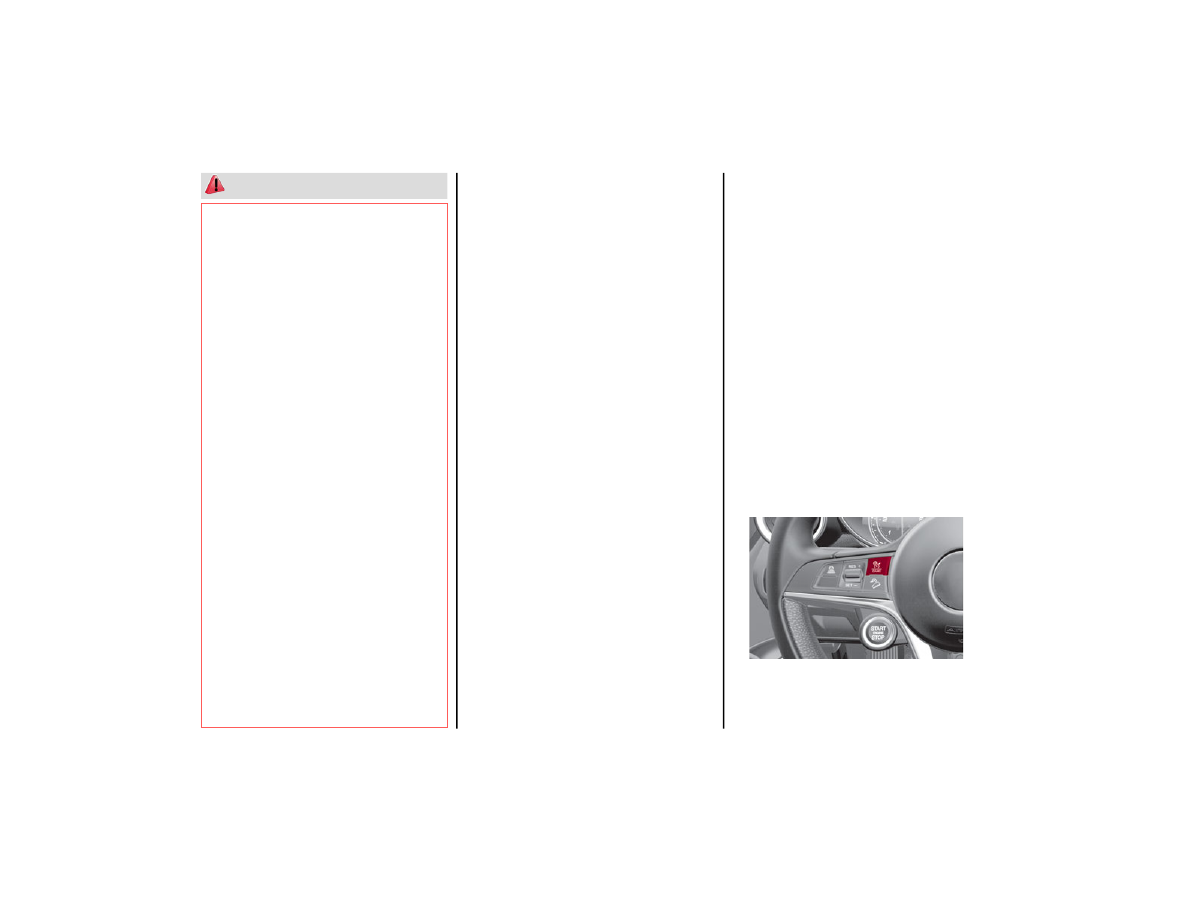

Activating Adaptive Cruise Control (ACC)

The minimum set speed for the ACC system is

19 mph (30 km/h) and the maximum is 110 mph

(180 km/h).
The system cannot be activated:

When pressing the brake pedal.

When the brakes are overheated.

When the Electric Park Brake has been

operated.

When either PARK, REVERSE or NEUTRAL is

engaged.

When the engine RPM is above a maximum

threshold.

When the vehicle speed is not within the

operational speed range.

When the Electronic Stability Control (ESC)

(or Anti-Lock Brake System (ABS) or other

stability control systems) are operating or

have just operated.

When the ESC system is off.

When the Forward Collision Warning system

(if equipped) is braking automatically.

In the event of a system failure.

When the engine is off.

In case of obstruction of the radar sensor (in

this case the bumper area where it is located

must be cleaned).

If the system is set, the conditions described

above also cause a cancellation or deactivation

of the system. These situations may vary

according to the conditions.

NOTE:

The system will not be deactivated when speeds

higher than those set are reached by pressing the

accelerator pedal above 110 mph (180 km/h). In

these situations, the system may not work

correctly and it is recommended to deactivate it.
The driver should always obey traffic laws and

speed limits. Never drive above applicable speed

limit restrictions.

To Activate/Deactivate

The system has four operating states:

Enabled (speed not set)

Activated (speed set)

Paused

Deactivated

To Activate
To enable the system, push and release the on/

off button located on the left side on the steering

wheel.

On/Off Button

The ACC system:

Does not react to pedestrians, oncoming

vehicles, and stationary objects (e.g., a

stopped vehicle in a traffic jam or a

disabled vehicle).

Cannot take street, traffic, and weather

conditions into account, and may be

limited upon adverse sight distance

conditions.

Does not always fully recognize complex

driving conditions, which can result in

wrong or missing distance warnings.

Will bring the vehicle to a complete stop

while following a vehicle ahead and hold

the vehicle for approximately two

minutes in the stop position. If the

vehicle ahead does not start moving

within two minutes, the parking brake

will be activated and the ACC system will

be canceled.

You should switch off the ACC system:

When driving in fog, heavy rain, heavy snow,

sleet, heavy traffic, and complex driving

situations (i.e., in highway construction

zones).

When entering a turn lane or highway

off-ramp; when driving on roads that are

winding, icy, snow-covered, slippery, or have

steep uphill or downhill slopes.

While towing a trailer.

When circumstances do not allow safe

driving at a constant speed.

 WARNING!

CarManuals2.com

107

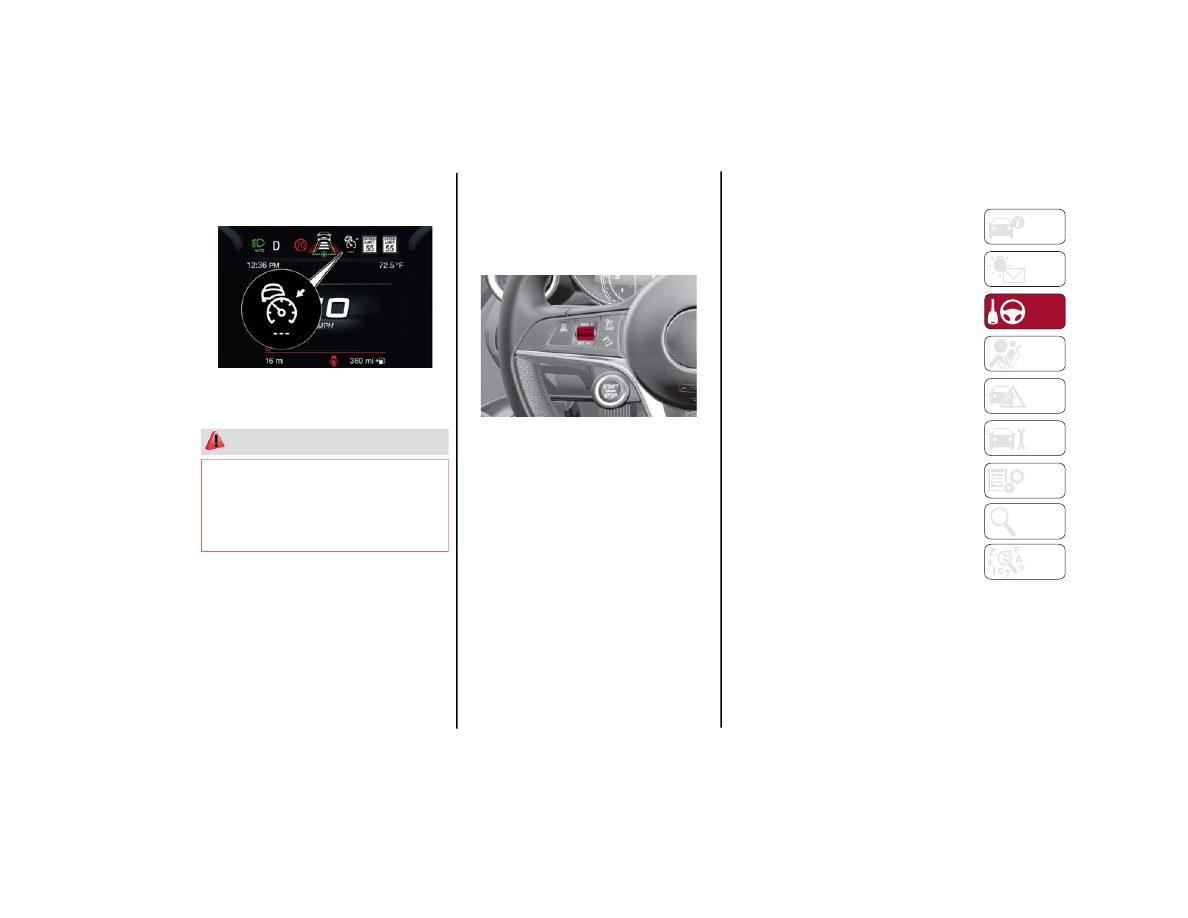

When the system is enabled and ready to

operate, the display shows the white ACC icon

above dashes in place of the speed.

Enabled Icons

Setting a speed activates the system. The display

shows the icon in green with the set speed.

To Pause/Deactivate
With the feature enabled (speed not set), push

the on/off button to disable.
With the feature active (speed set), push the

on/off button to pause. The display will show the

icon in white with the speed in brackets. To

deactivate the feature, push the on/off button a

second time.

To Set A Desired Speed

When the vehicle reaches the desired speed,

push the RES/SET switch downward and release

it to activate the system. When the accelerator is

released, the vehicle will maintain the set speed

automatically.

SET Switch

While the accelerator pedal is pressed, the

system will not be able to control the distance

between the vehicle and the one ahead. In this

case, the speed will be determined only by the

position of the accelerator pedal.
The system will return to normal operation as

soon as the accelerator pedal is released.

To Vary The Speed Setting

To Increase Or Decrease The Set Speed
Once the system has been activated, you can

increase the speed by pushing the RES/SET

switch upward or decrease the speed by pushing

the RES/SET switch downward. Each time the

switch is pushed, the speed is adjusted by 1 mph.

Pushing and holding the switch upward or

downward will cause the set speed to adjust in

5 mph increments until the button is released.

The new set speed is reflected in the instrument

cluster display.
NOTE:

Moving the RES/SET switch downward allows

you to adjust the speed according to the

selected unit of measurement (U.S. or Metric)

set on the radio system. Refer to the

Information and Entertainment System

Owner’s Manual for more information.

When the unit of measurement is set to Metric,

pushing and holding the RES/SET switch will

adjust the speed in 10 km/h increments.

By keeping the accelerator pedal pressed, the

vehicle can continue to accelerate beyond the

set speed. In this case, use the RES/SET

switch to set the speed to the vehicle’s current

speed.

When you push the RES/SET button to reduce

the speed, the braking system intervenes

automatically if the engine brake does not slow

the vehicle down sufficiently to reach the set

speed. The device holds the set speed uphill

and downhill; however a slight variation is

entirely normal, particularly on slight inclines.

The transmission could shift to a lower gear

when driving downhill, or when accelerating.

This is normal and necessary to maintain the

set speed.

The system will disable while driving if the

brakes overheat.

 WARNING!

Leaving the Adaptive Cruise Control (ACC)

system on when not in use is dangerous. You

could accidentally set the system or cause it to

go faster than you want. You could lose control

and have a collision. Always leave the system

off when you are not using it.

CarManuals2.com

STARTING AN

D O

PERA

TIN

G

108

(Continued)

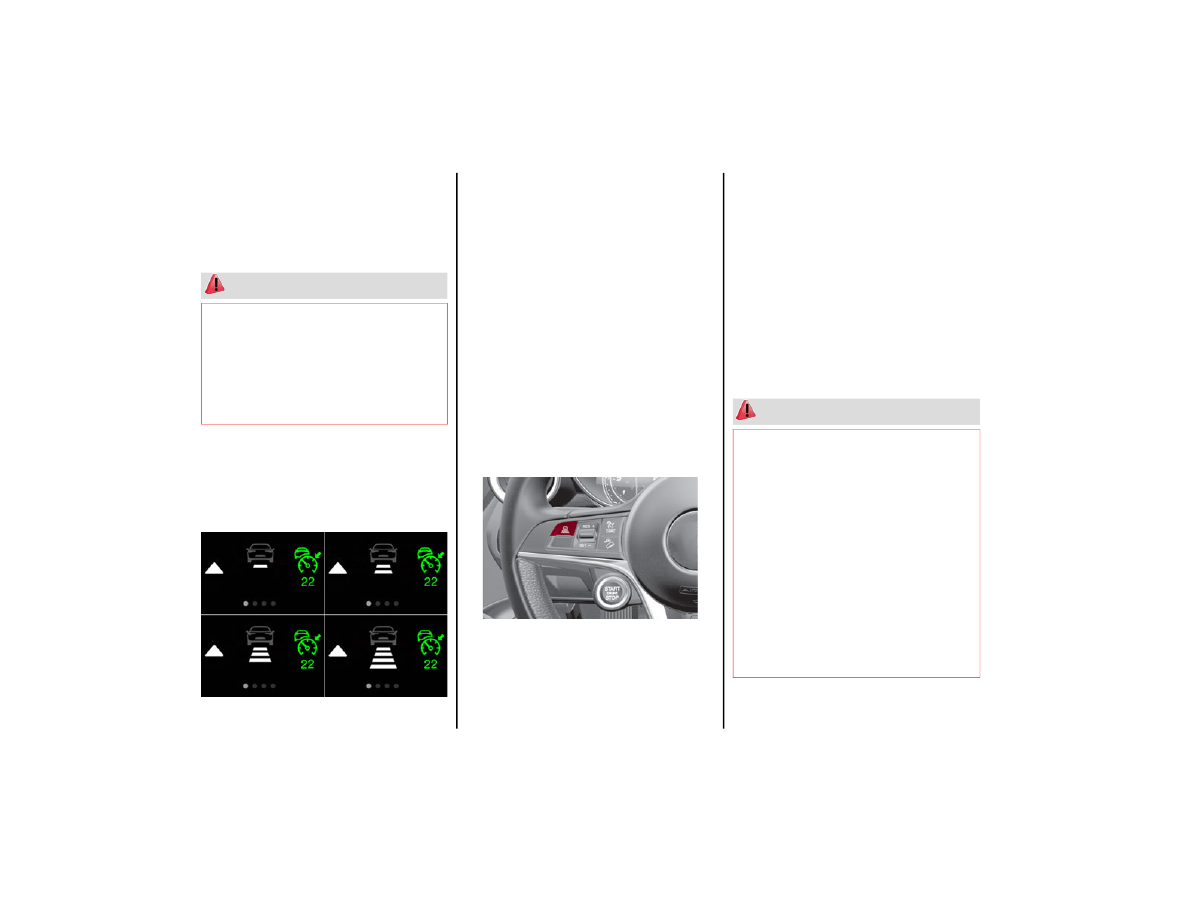

To Resume

Once the system has been canceled but not

deactivated, to resume a previously set speed,

simply push the RES/SET switch upward and

remove your foot from the accelerator to recall it.
The system will be set to the last stored speed.

Setting The Distance Between Vehicles

The distance between your vehicle and the

vehicle ahead may be set to one bar (short), two

bars (medium), three bars (long), or four bars

(maximum).

Distance Icons

The distances from the vehicle ahead are propor

-

tional to speed.
The interval of time with relation to the vehicle

ahead remains constant and varies from one

second (for the short distance one-bar setting)

to two seconds (for the maximum distance

four-bar setting).
The set distance is shown on the display by a

dedicated icon.
The setting is four bars (maximum) the first time

the system is used. After the distance has been

modified by the driver, the new distance will be

stored even if the system is deactivated and

reactivated.
To Decrease The Distance
Push and release the distance button to

decrease the distance setting. The distance

setting decreases by one bar (shorter) every time

the button is pushed.

Distance Button

The set speed is held if there are no vehicles

ahead. Once the shortest distance has been

selected, the next push of the button will set the

maximum distance.

If a slower vehicle is detected in the same lane,

the vehicle icon on the display illuminates from

grey to white. The system automatically adjusts

the vehicle’s speed to keep the set distance,

independently of the set speed.
The vehicle holds the set distance until:

The vehicle ahead accelerates to a speed

higher than the set speed.

The vehicle ahead leaves the lane or the

detection field of the Adaptive Cruise Control

system sensor.

The distance setting is changed.

The Adaptive Cruise Control system is

deactivated/paused.

 WARNING!

The Resume function should only be used if

traffic and road conditions permit. Resuming a

set speed that is too high or too low for

prevailing traffic and road conditions could

cause the vehicle to accelerate or decelerate

too sharply for safe operation. Failure to follow

these warnings can result in a collision and

death or serious personal injury.

 WARNING!

The maximum braking applied by the system

is limited. The driver may apply the brakes in

all cases if needed.

If the system predicts that the braking level is

insufficient to hold the set distance, either

“BRAKE!” or a dedicated message is

displayed to warn the driver of approaching

the vehicle ahead. An acoustic signal is also

emitted. In this case, it is advised to brake

immediately as necessary to hold a safe

distance from the vehicle ahead.

The driver is responsible for ensuring that

there are no pedestrians, other vehicles or

objects along the direction of the vehicle.

Failure to comply with these precautions may

cause serious accidents and injuries.

CarManuals2.com

109

Overtake Aid

When driving with ACC engaged and following a

vehicle at a speed greater than 45 mph

(70 km/h), the system will provide an additional

acceleration up to the ACC set speed to assist in

passing the vehicle. This additional acceleration

is triggered when the driver utilizes the left turn

signal and will only be active when passing on the

left hand side.
The system detects the direction of traffic

automatically when the vehicle passes from left

hand traffic to right hand traffic. In this case, the

overtaking assist function is only active when the

reference vehicle is overtaken on the right. The

additional acceleration is deactivated when the

driver uses the right direction indicator and

returns to the original lane.

Stop And Go Function

The Stop and Go operating strategy allows you to

maintain a safe distance from the vehicle ahead

until the vehicle has completely stopped.
In the event that the ACC system brings your

vehicle to a standstill while following the vehicle

in front, if the vehicle in front starts moving within

two seconds of your vehicle coming to a

standstill, your vehicle will resume motion without

the need for any driver action.

If the vehicle in front does not start moving within

two seconds of your vehicle coming to a

standstill, the driver will have to push the RES/

SET switch upward to restart.

Deactivation

The system is deactivated and the set speed is

canceled if:

The on/off button is pushed (when the system

is on or paused)

The ignition is placed in the OFF position

RACE mode is activated (Quadrifoglio models)

The system is canceled (the set speed and

distance are stored):

When the system is paused

Ú

page 106

When the conditions shown in the “Activating

Adaptive Cruise Control (ACC)” section occur

Ú

page 106

Limited Operation Warning

If the dedicated message is shown on the display,

a condition limiting the Adaptive Cruise Control

operation may have occurred.
This could be due to an obstruction of the

vehicle’s sensor or camera. It could also be due to

a fault in the system. If an obstruction is detected,

clean the area of the windshield opposite the

interior rearview mirror, where the camera is

located, as well as the area of the front fascia/

bumper where the sensor is located. Then check

that the message has disappeared.
When the conditions limiting the system

functions end, normal operation will resume.
Should the fault persist, contact an authorized

dealer.

Precautions While Driving With ACC

In certain driving situations, ACC may have

detection issues. In these cases, ACC may brake

late or unexpectedly. The driver needs to stay

alert and may need to intervene. The following

are examples of these types of situations:

Towing A Trailer
Towing a trailer is not recommended when using

ACC.

Offset Driving
ACC may not detect a vehicle in the same lane

that is offset from your direct line of travel, or a

vehicle merging in from a side lane. There may

not be sufficient distance to the vehicle ahead.

The offset vehicle may move in and out of the line

of travel, which can cause your vehicle to brake or

accelerate unexpectedly.

Turns And Bends
When driving on a curve with ACC engaged, the

system may increase or decrease the vehicle

speed for stability, with no vehicle ahead

detected. Once the vehicle is out of the curve, the

system will resume your original set speed. This is

a part of normal ACC system functionality.
NOTE:

On tight turns ACC performance may be limited.

The driver is fully responsible for holding a

safe distance from the vehicle ahead

respecting the highway code in force in the

respective country.

 WARNING!

 WARNING!

When the ACC system is resumed, the driver

must ensure that there are no pedestrians,

vehicles or objects in the path of the vehicle.

Failure to follow these warnings can result in a

collision and death or serious personal injury.

CarManuals2.com

STARTING AN

D O

PERA

TIN

G

110

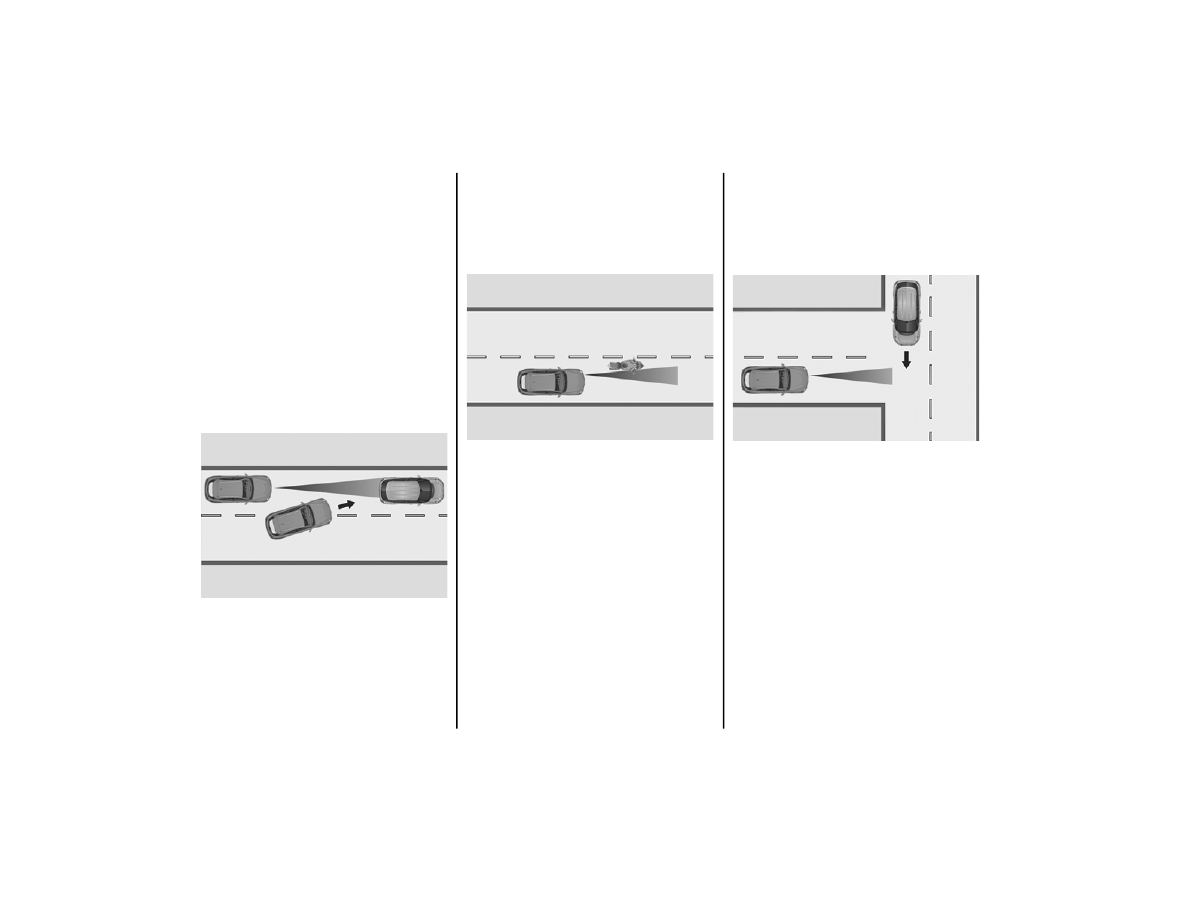

Using ACC On Hills
ACC performance may be limited when driving on

hills. ACC may not detect a vehicle in your lane

depending on the speed, vehicle load, traffic

conditions, and the steepness of the hill.

Lane Changing
ACC may not detect a vehicle until it is completely

in the lane in which you are traveling. In the

following lane changing example, ACC has not yet

detected the vehicle changing lanes and it may

not detect the vehicle until it's too late for the ACC

system to take action. ACC may not detect a

vehicle until it is completely in the lane. There

may not be sufficient distance to the

lane-changing vehicle. Always be attentive and

ready to apply the brakes if necessary.

Lane Change

Narrow Vehicles
Some narrow vehicles traveling near the outer

edges of the lane or edging into the lane are not

detected until they have moved fully into the lane.

There may not be sufficient distance to the

vehicle ahead.

Narrow Vehicles

Stationary Objects And Vehicles
The ACC system can detect stationary vehicles

when the vehicle is traveling at speeds between

2 mph and 35 mph (4 km/h and 60 km/h). The

driver should always be attentive and be ready to

press the brakes if necessary.
ACC does not react to stationary objects or

vehicles. For example, ACC will not react in

situations where the vehicle you are following

exits your lane and the vehicle ahead is stopped

in your lane. It will consider this stopped vehicle a

stationary object as it did not previously detect

movement from it. Always be attentive and ready

to apply the brakes if necessary.

Objects And Vehicles Moving In Opposite Or

Crosswise Direction
The system cannot detect the presence of

objects or vehicles traveling in opposite or

crosswise directions and consequently will not

activate.

Objects And Vehicles Moving In Opposite Or

Crosswise Direction

IFETEL: RCPBOMR 14-0766
La operación de este equipo está sujeta a las

siguientes dos condiciones:
1. es posible que este equipo o dispositivo no

cause interferencia perjudicial y

2. este equipo o dispositivo debe aceptar cual

-

quier interferencia, incluyendo la que pueda

causar su operación no deseada.

Changes or modifications made to this

equipment not expressly approved by Robert

BOSCH GmbH may void the FCC authorization to

operate this equipment.

CarManuals2.com

111

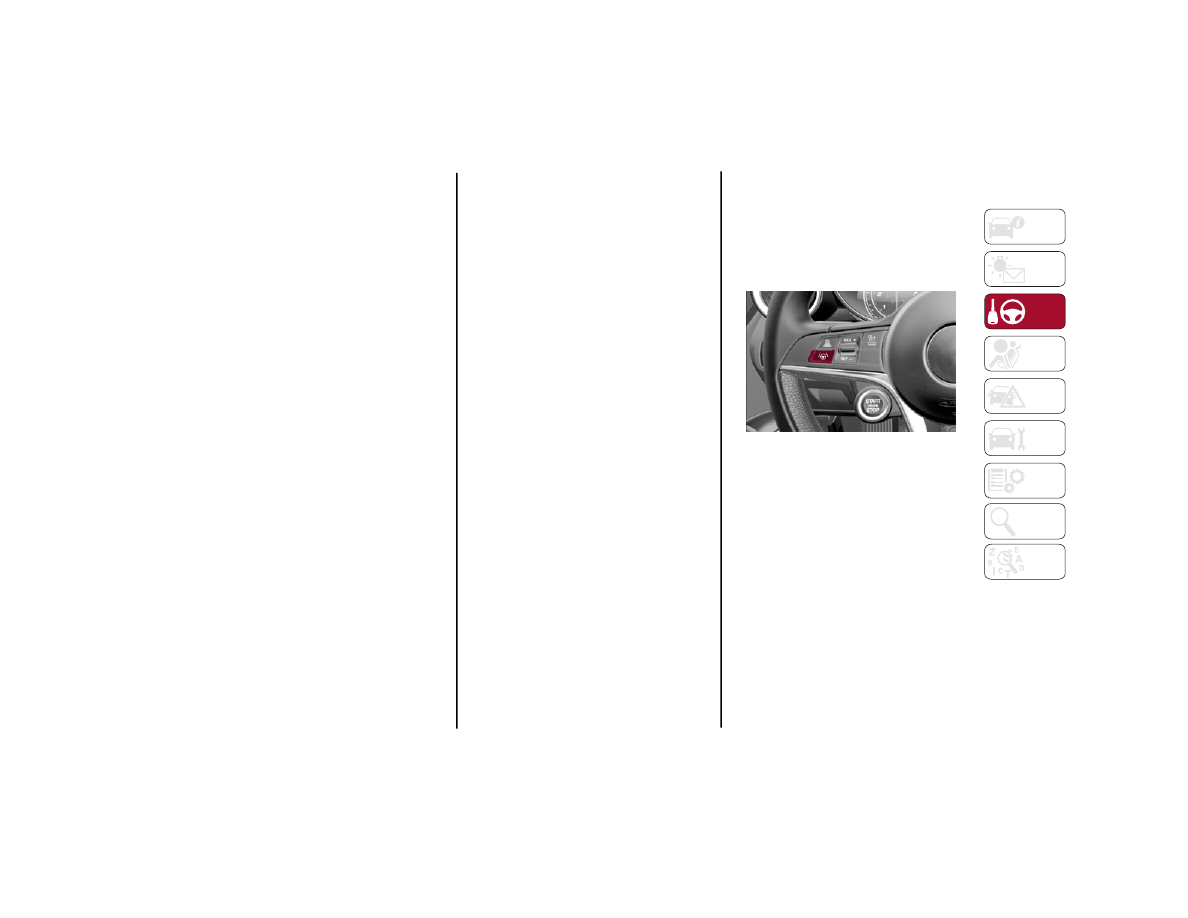

This equipment has been tested and found to

comply with the limits for a Class A digital device,

pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection

against harmful interference when the

equipment is operated in a commercial

environment. This equipment generates, uses,

and can radiate radio frequency energy and, if not

installed and used in accordance with the

instruction manual, may cause harmful

interference to radio communications. Operation

of this equipment in a residential area is likely to

cause harmful interference in which case the

user will be required to correct the interference at

his own expense.
Toutes modifications apportées à cet

équipement qui ne sont pas expressément

homologuées par Robert BOSCH GmbH peuvent

annuler l'autorisation de la FCC de faire

fonctionner cet équipement.
Cet appareil a été vérifié et s'est révélé conforme

aux normes applicables aux appareils

numériques de catégorie A, en vertu de la section

15 des règlements de la FCC. Ces normes sont

définies pour fournir une protection raisonnable

contre les interférences nuisibles lorsque

l'équipement est utilisé dans les installations

résidentielles. Cet appareil génère, utilise et peut

émettre des ondes radioélectriques et, s'il n'est

pas installé et utilisé conformément au manuel

d’instruction, peut causer un brouillage radioélec

-

trique nuisible aux communications radio. Le

fonctionnement de cet équipement dans une

zone résidentielle est susceptible de causer des

interférences nuisibles; dans ce cas, l'usager doit

corriger les interférences à ses propres frais.

Radio Frequency Exposure Information
This equipment complies with FCC radiation

exposure limits set forth for an uncontrolled

environment. This equipment should be installed

and operated with minimum distance of 20 cm

between the radiator and your body.
This transmitter must not be co-located or

operating in conjunction with any other antenna

or transmitter.
Déclaration d’exposition aux radiations
Cet équipement est conforme aux limites

d'exposition aux rayonnements IC établies pour

un environnement non contrôlé. Cet équipement

doit être installé et utilisé avec un minimum de

20 cm de distance entre la source de

rayonnement et votre corps.
Ce transmetteur ne doit pas etre place au meme

endroit ou utilise simultanement avec un autre

transmetteur ou antenne.

HIGHWAY ASSIST SYSTEM

(HAS) — IF EQUIPPED

The Highway Assist System (HAS) is a driving

assistance system that is only available when

driving on highways. The system operates up to

speeds of 90 mph (145 km/h).
The system uses information from the front

camera and radar to help keep the vehicle in the

center of the lane and at a constant speed.
HAS combines Adaptive Cruise Control (ACC)

functions with lane centering logic to control the

trajectory of the vehicle. HAS requires the driver’s

hands to remain on the steering wheel.

Once HAS is activated, a dedicated screen will

appear on the instrument cluster display.

T

O

 A

CTIVATE

/D

EACTIVATE

To Activate
To activate the HAS system, push the button

located on the left side of the steering wheel.

Highway Assist Button

Suspension Conditions
The following operations will suspend the

HAS system:

Steer manually

Press the brake pedal

Disable the ACC system

Activate the turn signals

Push the ACC activation setting button for

two seconds to activate Cruise Control

Place the gear selector in PARK, REVERSE, or

NEUTRAL

Reactivating the ACC system will reactivate HAS

Ú

page 105.

CarManuals2.com

STARTING AN

D O

PERA

TIN

G

112

Automatic Deactivation
The system can be deactivated in the following

situations:

If there are narrow bends

When hands are removed from the steering

wheel

If the left or right turn signal is activated

If the driver intentionally changes lanes

without using the turn signal

If the driver’s seat belt is released

If the gear selector is placed in DRIVE

If the “Active Braking” function is activated

Ú

page 151

If the vehicle exits the highway

If the lane markings are not detected by the

camera

If the ACC device is deactivated

If the vehicle speed exceeds 90 mph

(145 km/h)

NOTE:

When the HAS system is turned off, the symbol

on the display turns red and then grey.

Hands on the steering wheel are detected by a

capacitive sensor within the steering wheel.

When the automatic suspension conditions are

over, HAS will be automatically reactivated.

O

PERATION

HAS only operates when the driver’s hands are on

the steering wheel.
If the system detects that the driver’s hands have

been removed from the steering wheel, the

system will alert the driver to place their hands

back on the steering wheel

Ú

page 113.

If the vehicle crosses the lane boundary, the

steering wheel will vibrate and the dedicated

screen will appear in the instrument cluster

display.
NOTE:

HAS may take up to five seconds to turn on once

all conditions are met. During this time, a grey

indicator light will appear on the instrument

cluster display and the system will automatically

activate as soon as all of the conditions are met

with no intervention from the driver.
The following conditions must be met before

HAS turns on:

HAS must be enabled by pushing the button on

the steering wheel

The vehicle must be on a highway

ACC must be activated

The right and left lane boundaries must be

visible

The vehicle speed must be between 0 and

90 mph (0 and 145 km/h)

The camera, radar, and radio system must be

functioning properly

The road lane width must be between 8.5 ft

and 13.7 ft (2.6 m and 4.2 m)

The turn signals must not be activated

HAS must be functioning properly

Other operating limits:

If the speed of ACC can be set to a higher value

(top speed 110 mph (180 km/h), HAS is only

available as long as the vehicle speed is equal

to or less than 90 mph (145 km/h).

When the ACC speed is reduced and the vehicle

speed is less than 90 mph (145 km/h), the

system will automatically reactivate.

If the ACC speed is set to 90 mph (145 km/h),

traveling downhill may increase the vehicle

speed. HAS will deactivate until the speed

returns to 90 mph (145 km/h).

I

NDICATIONS

 O

N

 T

HE

 D

ISPLAY

The HAS status can always be viewed in the

instrument cluster display.
The system status is indicated by the color of the

symbol on the display.
HAS uses sensors in the steering wheel to detect

if the driver’s hands are on it.
If the driver’s hands are not on the steering

wheel, a series of warnings will appear in the

instrument cluster display to alert the driver to

reposition their hands on the steering wheel. An

acoustic signal will also sound. After a period of

time, HAS will disable if the driver’s hands do not

return to the steering wheel.

CarManuals2.com

113

After a period of time, HAS will disable if the driver

has not repositioned their hands on the steering

wheel.
When the system does not detect hands on the

steering wheel, it will warn the driver by displaying

a dedicated screen on the instrument cluster

display.

S

YSTEM

 S

TATUS

Active System
When the system is active, the following screen

will appear in the instrument cluster display.

Highway Assist System Active

If on a different menu screen, a symbol will

appear on the instrument cluster display

indicating that the system is active.
When the driver’s hands are removed from the

steering wheel, the system disables after a few

seconds. A screen will appear in the instrument

cluster display warning the driver to return their

hands to the steering wheel.

Active System (Hands Removed From The

Steering Wheel For A Short Time)
As soon as the driver removes their hands from

the steering wheel, the following screen will

appear in the instrument cluster display.

The system will remain active at this time.

Hands Removed Initial Warning

If the driver does not return their hands to the

steering wheel within a few seconds, the following

screen will appear in the instrument cluster

display.

Hands Secondary Warning

Active System (Hands Removed From The

Steering Wheel For A Long Time)
If the driver still has not returned their hands to

the steering wheel after the screen above is

displayed, the following screen will now appear in

the instrument cluster display, and an acoustic

signal will sound until the driver regains control of

the vehicle.

Hands Removed Final Warning

If the driver’s hands are not returned to the

steering wheel after an extended period of time,

a deactivation message will appear on the

instrument cluster display. The steering wheel

control will be deactivated.
This display will remain active even when the

driver’s hands are removed from the steering

wheel. The symbol on the display will turn grey.
When HAS is active, the Lane Keeping Assist

(LKA)/Lane Departure Warning (LDW) systems

(if equipped), if previously activated, will remain

activated.

CarManuals2.com

STARTING AN

D O

PERA

TIN

G

114

(Continued)

L

IMITED

 S

YSTEM

 A

VAILABILITY

/

O

PERATION

System Availability
External factors and conditions may affect the

proper operation of HAS, such as:

Narrow, winding, curvy streets

Poor visibility (due to heavy rain, snow, fog,

etc.)

Front lights of oncoming vehicles or direct

sunlight or shade

Damage or obstructions caused by mud, ice,

snow, etc.

Bumper damaged or not aligned

Interference with other equipment that causes

electromagnetic waves

Presence of roadwork/road construction sites

If the indications given by the navigation

system (if any) of the radio system are not yet

ready and/or if the navigation system is

recalculating the route

System Limited Operation
HAS may have limited or reduced functionality

when one of the following conditions occur:

Lane markings are not clear or in conditions of

poor visibility (e.g. in heavy rain, snow,

fog, etc.)

Either the camera or radar are damaged,

covered, or obstructed (e.g. by mud, ice,

snow, etc.)

When driving on hills or roads with narrow

bends

Near highway toll booths

When the highway entrance or exit is wider

than 20 ft (6 m)

If the camera is exposed to glare caused by

reflections or direct sunlight

If the navigation system information is

unavailable or being recalculated

NOTE:

If the vehicle approaches a bend that is too

narrow with respect to the current speed,

HAS will disable.

If damage to the windshield occurs, have the

windshield replaced by an authorized dealer

as soon as possible.

TRAFFIC JAM ASSIST (TJA)

SYSTEM — IF EQUIPPED

The Traffic Jam Assist (TJA) system can be

activated on all road types. The system uses a

camera and radar sensors located on front

fascia/bumper to detect lane markings and keep

the vehicle in the center of the lane.
When the system is unable to detect lane

markings, it will still operate using surrounding

traffic. This can occur in congested traffic

scenarios, when the vehicles ahead or

surroundings obstruct the visibility of the lane

markings. When the speed is below 12 mph

(20 km/h), the system can use a lock-on strategy

that allows the vehicle to automatically follow the

vehicle ahead.
The TJA system combines Adaptive Cruise Control

(ACC) functions with Lane Departure Warning

functions to maintain vehicle speed and steering

wheel behavior.

 WARNING!

To prevent serious injury or death:

Always remain alert and be ready to take

control of the vehicle in the event that HAS

disables.

Always keep your hands on the steering

wheel when HAS is activated.

Maintain a safe distance from other vehicles

and pay attention to traffic conditions.

ALWAYS obey traffic laws and pay attention

to the road. ALWAYS drive safely with your

hands on the steering wheel. You have full

responsibility and assume all risks related to

the use of the features and applications in

this vehicle. Only use the features and

applications when it is safe to do so. Failure

to do so may result in an accident involving

serious injury or death.

 WARNING!

CarManuals2.com

















Content      ..     1      2      3      4      ..
