Alfa Romeo Stelvio (2023 year). Manual in english - page 8





243

POWER SUPPLY

Corresponding engine speed (RPM)

2,250 - 4,000

Fuel

87 Octane Minimum (R+M)/2 Method,

91 Recommended, ethanol percentage is 0–15%.

2.9L Engine

Cycle

Four

Number and position of cylinders

6 / V

Piston bore and stroke (mm)

86.5 × 82

Total displacement (cm³)

2,891

Compression ratio

9.3:1

Maximum power (SAE) (HP)

505

Maximum power (kW)

375

Corresponding engine speed (RPM)

6,500

Maximum torque (SAE) (ft-lb)

443

Maximum torque (Nm)

600

Corresponding engine speed (RPM)

2,500

Fuel

87 Octane Minimum (R+M)/2 Method,

91 Recommended, ethanol percentage is 0–15%.

Power supply

2.0L Engine

Electronic timed sequential injection with knock control

Power supply

2.9L Engine

Phased sequential electronic injection with knock control and

variable intake valve actuation

2.0L Engine

CarManuals2.com

TECH

NICAL SPECIFICA

TIO

NS

244

TRANSMISSION

BRAKES

Version

Transmission

Traction

2.0L Engine

Eight Forward Gears Plus Reverse

All-Wheel Drive

2.0L Engine

Eight Forward Gears Plus Reverse

Rear-Wheel Drive

Version

Transmission

Traction

2.9L Engine

Eight Forward Gears Plus Reverse

All-Wheel Drive

Version

Front brakes

Rear brakes

Parking brake

2.0L Engine and 2.9L Engine

Disc

Disc

Electric

 CAUTION!

Water, ice and salt spread on the roads may deposit on the brake discs, reducing braking efficiency the first time the brakes are applied.

To obtain the maximum efficiency of the braking system, a bedding-in period of about 300 miles (500 km) is needed: during this period it is better to

avoid sharp, repeated and prolonged braking.

CarManuals2.com

245

SUSPENSION

STEERING

Version

Front

Rear

2.0L Engine

Independent wheel

double-wishbone suspension

Independent wheel with

multilink system

Version

Front

Rear

2.9L Engine

Independent wheel

double-wishbone suspension

Independent wheel with

multilink system

Version

Curb-to-curb turning circle

Type

2.0L Engine

38.55 ft (11.75 m)

Rack and pinion with

electric power steering

Version

Curb-to-curb turning circle

Type

2.9L Engine

37.10 ft (11.30 m)

Rack and pinion with

electric power steering

CarManuals2.com

TECH

NICAL SPECIFICA

TIO

NS

246

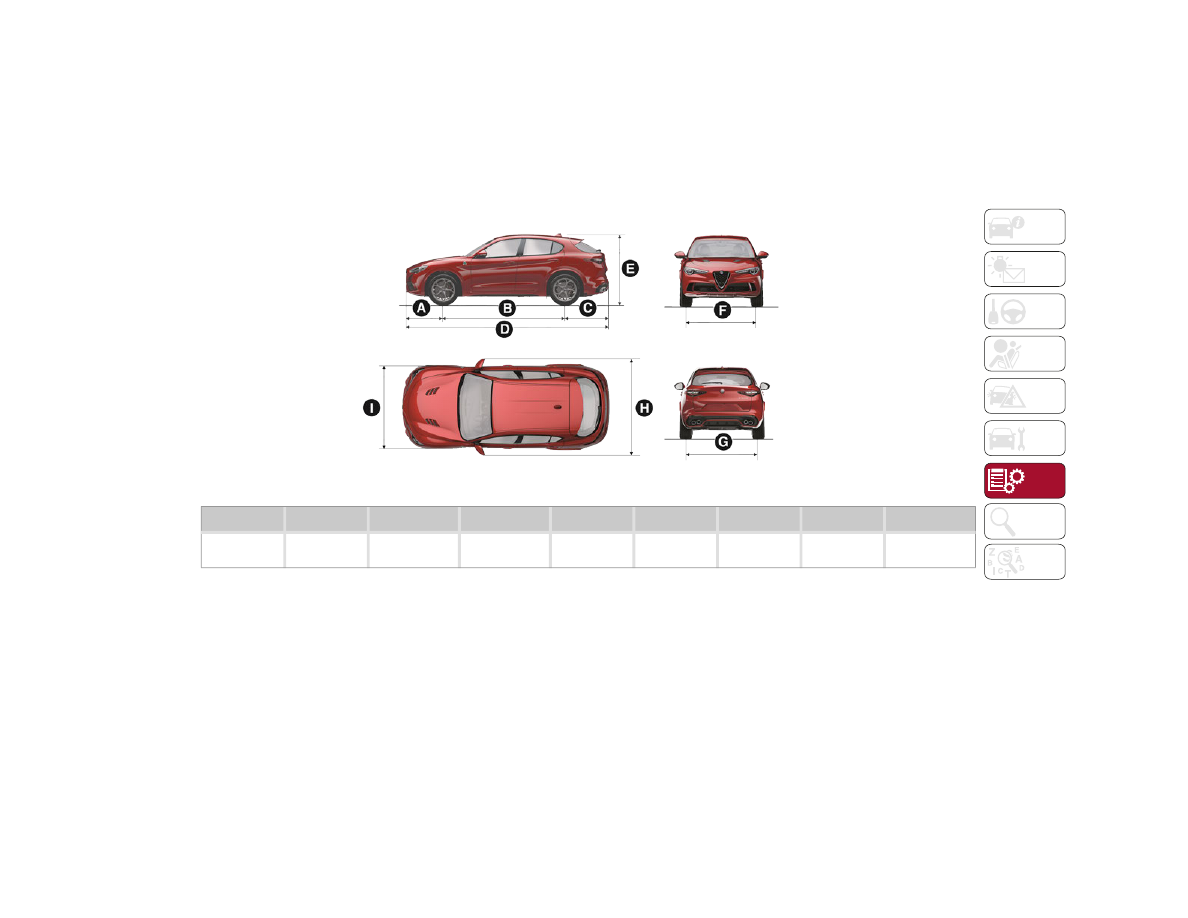

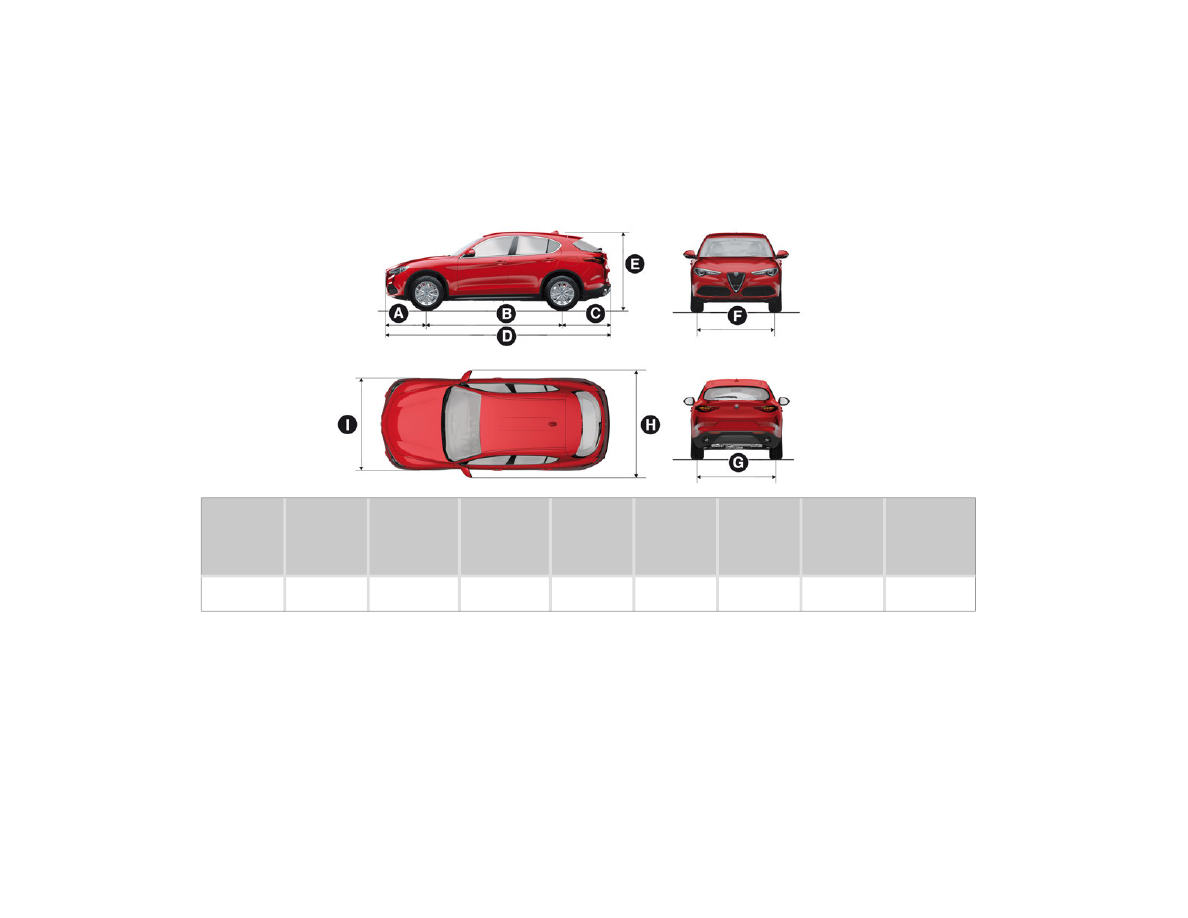

DIMENSIONS

Dimensions are expressed in inches and refer to the vehicle equipped with its standard-supplied tires. Height is measured with vehicle unladen.

Small variations with respect to the reported values are possible depending on the dimensions of the rims.

A

Front

Overhang

B

Wheelbase

C

Rear

Overhang

D

Overall

Length

E

Overall

Height

F

Front Track

G

Rear Track

H

Overall

Width (Incl.

Mirrors)

I

Overall Width

(Excl. Mirrors)

33.9 inches

(862 mm)

111 inches

(2,818 mm)

39.7 inches

(1,008 mm)

184.6 inches

(4,688 mm)

66 inches

(1,677 mm)

63.5 inches

(1,612 mm)

65 inches

(1,650 mm)

85.2 inches

(2,163 mm)

74.9 inches

(1,903 mm)

CarManuals2.com

247

Quadrifoglio Model

L

UGGAGE

 C

OMPARTMENT

 V

OLUME

Capacity (VDA standards)

Rear seats not folded

Vehicle unladen: 18.54 cubic feet (525 liters)

A

B

C

D

E

F

G

H

I

31.3 inches

(795 mm)

111 inches

(2,818 mm)

40.3 inches

(1,023.6 mm)

182.6 inches

(4,638 mm)

56.1 inches

(1,424.9 mm)

61.2 inches

(1,554.5 mm)

63.3 inches

(1,607.8 mm)

79.7 inches

(2,024.4 mm)

73.7 inches

(1,872 mm)

CarManuals2.com

TECH

NICAL SPECIFICA

TIO

NS

248

WEIGHTS

Weights

2.0L Engine AWD

2.0L Engine RWD

Unladen weight (with all fluids, fuel tank filled to

90% and without optional equipment)

4,006 lb

3,896 lb

Payload including the driver

1



1. If special equipment is fitted (trailer towing equipment, etc.) the empty weight will increase and consequently the payload will decrease in relation to the maximum permitted

loads.

992 lb

992 lb

Maximum permitted loads

2



2. Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or on the load platform within the maximum permitted loads.

242 lb

242 lb

Front axle

2,491 lb

2,403 lb

Rear axle

2,976 lb

2,932 lb

Total

5,247 lb

5,115 lb

Towable loads

-

-

Braked trailer

3,000 lb (1,360 kg)

3,000 lb (1,360 kg)

Unbraked trailer

1,000 lb (454 kg)

1,000 lb (454 kg)

Maximum load on roof

165 lb (75 kg)

165 lb (75 kg)

Maximum load on tow hitch (braked trailer)

300 lb (136 kg)

300 lb (136 kg)

CarManuals2.com

249

FUEL REQUIREMENTS

This engine is designed to meet all

emission regulations, and provide

satisfactory fuel economy and

performance when using high-quality

unleaded regular gasoline having a posted

octane number of 87 as specified by the (R+M)/

2 method. For optimal performance the use of

91 or higher octane premium gasoline is

recommended in these engines.
While operating on gasoline with the required

octane number, hearing a light knocking sound

from the engine is not a cause for concern.

However, if the engine is heard making a heavy

knocking sound, see an authorized dealer

immediately. Use of gasoline with a lower than

recommended octane number can cause engine

failure and may void or not be covered by the New

Vehicle Limited Warranty.

Poor quality gasoline can cause problems such as

hard starting, stalling, and hesitations. If you

experience these symptoms, try another brand of

gasoline before considering service for the

vehicle.

R

EFORMULATED

 G

ASOLINE



Many areas of the country require the use of

cleaner burning gasoline referred to as

“reformulated gasoline”. Reformulated gasoline

contains oxygenates and are specifically blended

to reduce vehicle emissions and improve air

quality.
The use of reformulated gasoline is

recommended. Properly blended reformulated

gasoline will provide improved performance and

durability of engine and fuel system components.

G

ASOLINE

/O

XYGENATE

 B

LENDS



Some fuel suppliers blend unleaded gasoline with

oxygenates such as ethanol.

Weights

2.9L engine

Unladen weight (with all fluids, fuel tank filled to 90% and without optional

equipment)

4,308 lb

Payload including the driver

1



1. If special equipment is fitted the empty weight will increase and consequently the payload will decrease in relation to the maximum permitted loads.

992 lb

Maximum permitted loads

2



2. Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or on the load platform within the maximum permitted loads.

242 lb

– Front axle

2,579 lb

– Rear axle

2,976 lb

– Total

5,423 lb

Maximum load on roof

165 lb (75 kg)

 CAUTION!

DO NOT use E-85, gasoline containing

methanol, or gasoline containing more than

15% ethanol (E-15). Use of these blends may

result in starting and drivability problems,

damage critical fuel system components,

cause emissions to exceed the applicable

standard, and/or cause the Malfunction

Indicator Light to illuminate. Please observe

pump labels as they should clearly

communicate if a fuel contains greater than

15% ethanol (E-15).

CarManuals2.com

TECH

NICAL SPECIFICA

TIO

NS

250

(Continued)

Problems that result from using gasoline

containing more than 15% ethanol (E-15) or

gasoline containing methanol are not the respon

-

sibility of the manufacturer and may void or not

be covered under New Vehicle Limited Warranty.

CNG A

ND

 LP F

UEL

 S

YSTEM



M

ODIFICATIONS

Modifications that allow the engine to run on

Compressed Natural Gas (CNG) or Liquid

Propane (LP) may result in damage to the engine,

emissions, and fuel system components.

Problems that result from running CNG or LP are

not the responsibility of the manufacturer and

may void or not be covered under the New

Vehicle Limited Warranty.

MMT I

N

 G

ASOLINE

Methylcyclopentadienyl Manganese Tricarbonyl

(MMT) is a manganese-containing metallic

additive that is blended into some gasoline to

increase octane. Gasoline blended with MMT

provides no performance advantage beyond

gasoline of the same octane number without

MMT. Gasoline blended with MMT reduces

spark plug life and reduces emissions system

performance in some vehicles. The manufacturer

recommends that gasoline without MMT be used

in your vehicle. The MMT content of gasoline may

not be indicated on the gasoline pump; therefore,

you should ask your gasoline retailer whether the

gasoline contains MMT. MMT is prohibited in

Federal and California reformulated gasoline.

M

ATERIALS

 A

DDED

 T

O

 F

UEL



Besides using unleaded gasoline with the proper

octane rating, gasolines that contain detergents,

corrosion and stability additives are

recommended. Using gasolines that have these

additives will help improve fuel economy, reduce

emissions, and maintain vehicle performance.

Designated TOP TIER Detergent

Gasoline contains a higher level of

detergents to further aide in minimizing

engine and fuel system deposits.

When available, the usage of TOP TIER Detergent

Gasoline is recommended. Visit

www.toptiergas.com for a list of TOP TIER

Detergent Gasoline retailers.
Indiscriminate use of fuel system cleaning agents

should be avoided. Many of these materials

intended for gum and varnish removal may

contain active solvents or similar ingredients.

These can harm fuel system gasket and

diaphragm materials.

F

UEL

 S

YSTEM

 C

AUTIONS

NOTE:

Intentional tampering with the emissions control

system can result in civil penalties being

assessed against you.

 CAUTION!

Follow these guidelines to maintain your

vehicle’s performance:

The use of leaded gasoline is prohibited by

Federal law. Using leaded gasoline can

impair engine performance and damage the

emissions control system.

An out-of-tune engine or certain fuel or

ignition malfunctions can cause the catalytic

converter to overheat. If you notice a

pungent burning odor or some light smoke,

your engine may be out of tune or malfunc

-

tioning and may require immediate service.

Contact an authorized dealer for service

assistance.

The use of fuel additives, which are now

being sold as octane enhancers, is not

recommended. Most of these products

contain high concentrations of methanol.

Fuel system damage or vehicle performance

problems resulting from the use of such fuels

or additives is not the responsibility of the

manufacturer and may void or not be

covered under the New Vehicle Limited

Warranty.

 CAUTION!

CarManuals2.com

251

FLUID CAPACITIES

2.0L Engine

Component

US

Metric

Fuel Tank

16.9 gal

64 L

Fuel Tank Reserve

2.5 gal

9.6 L

Engine Cooling System

2.3 gal

8.8 L

Intercooler Cooling System

1.4 gal

5.25 L

Engine Oil Sump And Filter

5.5 qt

5.2 L

Hydraulic Brake Circuit

0.9 qt

0.9 L

Windshield Washer Fluid Reservoir

1.1 gal

4.1 L

Automatic Transmission

9.8 qt

9.3 L

RDU 230-LSD Differential

0.9 qt

0.9 L

RDU 210-eLSD Differential (If Equipped)

1.4 qt

1.3 L

RDU 210/215-LSD Differential

1.1 qt

1.1 L

AWD System FAD Transfer Case

0.5 qt

0.5 L

AWD System Transfer Case

0.7 qt

0.7 L

2.9L Engine

Component

US

Metric

Fuel Tank

16.9 gal

64 L

Fuel Tank Reserve

2.5 gal

9.6 L

Engine Cooling System

2.95 gal

11.2 L

Intercooler Cooling System

1.5 gal

5.75 L

Engine Oil Sump And Filter

7.2 qt

7 L

Hydraulic Brake Circuit

0.9 qt

0.9 L

CarManuals2.com

TECH

NICAL SPECIFICA

TIO

NS

252

ENGINE FLUIDS AND LUBRICANTS

If lubricants conforming to the requested specification are not available, products that meets indicated features can be used to top up; in this case optimal

performance of the engine is not guaranteed.

Windshield Washer Fluid Reservoir

1.1 gal

4.1 L

Automatic Transmission

9.8 qt

9.3 L

Differentials And Reduction Gears RDU 230-TV

Main body: 0.8 qt

Left TV: 0.64 qt

Right TV: 0.72 qt

Main body: 0.8 L

Left TV: 0.61 L

Right TV: 0.68 L

AWD System FAD Transfer Case

0.48 qt

0.45 L

AWD System Transfer Case

0.7 qt

0.7 L

Engine

Features

Specification

Replacement interval

2.0L

We recommend using Mopar®

API SP/GF-6A Certified SAE 0W-30

Full Synthetic Engine Oil which

meets the requirements of the

manufacturer Material Standard

MS-13340. Equivalent full synthetic

0W-30 API SP engine oil can be

used but must have the

API Donut Trademark.

MS-13340

According To Maintenance Plan

CAUTION!

Failure to use the recommended

API SP/GF-6A or equivalent oil can

cause engine damage not covered

by the vehicle warranty.

2.9L

5W-40 ACEA C3 API SN

FPT 9.55535-GH2 MS-12991

According To Maintenance Plan

2.9L Engine

Component

US

Metric

CarManuals2.com

253

CHASSIS FLUIDS AND LUBRICANTS

Use

Features

Specification

Applications

Lubricants and greases

ZF 8HP 50 – Synthetic ATF

-

Automatic transmission-2.0L / 2.9L

SAE 75W-85 Synthetic ATF

FPW9.55550–DA9

Differential

RDU 195; RDU 230-LSD;

RDU 210-eLSD;

RDU 210/215-LSD / 2.0L engine

SAE 75W-80 APL GL-5 Synthetic

lubricant

FPW9.55550–DA10

AWD System FAD transfer case /

2.0L

Differential and reduction units

RDU 230-TV / 2.9L

SAE 75W Synthetic lubricant

FPW9.55550–DA11

AWD System transfer case

Brake fluid

DOT 4

MS.90039

Hydraulic brakes

Engine coolant

CUNA NC956–16

ASTMD3306

MS.90032

Mix a minimum solution of 50%

engine coolant. Not mixable with
different formulation products.

1

1. For particularly harsh climate conditions, a mixture of 60% product and 40% distilled water is recommended.

Windshield washer fluid

CUNA NC 956-11

MS.90043

To be used diluted or undiluted in

windshield washer/wiper systems.

HVAC

R1234yf or R134a

(depending on the market)

 CAUTION!

The use of products with different specifications than those indicated above could cause damage to the engine that is not covered by the warranty.

CarManuals2.com

TECH

NICAL SPECIFICA

TIO

NS

254

PERFORMANCE

Top performance after the initial period of vehicle usage.

* Based on manufacturer testing.

Engine

Top Speed mph (km/h)

Acceleration From 0-60 mph

(0-100 km/h) In Seconds

2.0L AWD Engine

143 (230) *

5.4 *

2.0L RWD Engine

143 (230) *

5.5 *

 2.9L Engine

176 (283) *

3.6 *

CarManuals2.com

255

SUGGESTIONS FOR

OBTAINING SERVICE FOR

YOUR VEHICLE

P

REPARE

 F

OR

 T

HE

 A

PPOINTMENT

All work to be performed may not be covered by

the warranty. Discuss additional charges with the

service manager. Keep a maintenance log of your

vehicle's service history, as this can often provide

a clue to the current problem.

P

REPARE

 A L

IST

Make a written list of your vehicle's problems or

the specific work you want done. If you've had an

accident or work done that is not on your

maintenance log, let the service advisor know.

B

E

 R

EASONABLE

 W

ITH

 R

EQUESTS

If you list a number of items and you must have

your vehicle by the end of the day, discuss the

situation with the service advisor and list the

items in order of priority. At many authorized

dealers, you may obtain a rental vehicle at a

minimal daily charge. If you need a rental, it is

advisable to make these arrangements when you

call for an appointment.

IF YOU NEED ASSISTANCE

FCA US LLC and its authorized dealers are vitally

interested in your satisfaction. We want you to be

happy with our products and services.
Warranty service must be done by an authorized

dealer. We strongly recommend that you take the

vehicle to an authorized dealer. They know your

vehicle the best, and are most concerned that

you get prompt and high quality service. FCA US

LLC's authorized dealers have the facilities,

factory-trained technicians, special tools, and the

latest information to ensure the vehicle is fixed

correctly and in a timely manner.
This is why you should always talk to an

authorized dealer’s service manager first. If for

some reason you are still not satisfied, talk to the

general manager or owner of the authorized

dealer. They want to know if you need assistance.

If an authorized dealer is unable to resolve the

concern, you may contact FCA US LLC's Customer

Assistance center.
Any communication to FCA US LLC's customer

center should include the following information:

Owner's name and address

Owner's telephone number

(mobile, home and office)

Authorized dealer name

Vehicle Identification Number (VIN)

Vehicle delivery date and mileage

R

OADSIDE

 A

SSISTANCE

Available 24 hours, 7 days a week.
Call 1-855-299-1368 or visit

alfaromeo.rsahelp.com (USA)
Call 1-800-363-4869 or visit

fca.roadsideaid.com (Canada)
Who is Covered
You are covered by Roadside Assistance services

if you are a purchaser for use of the vehicle.

Roadside Assistance services last for five years or

60,000 miles on the odometer, whichever occurs

first, calculated from the start date of the Basic
Limited Warranty, as set forth in “section 2.1 E”.

1

1. Towing services provided through Cross Country Motor
Club, Inc., Medford, MA 02155, except in AK, CA, HI, OR, WI,

and WY, where services are provided by Cross Country Motor

Club of California, Inc., Thousand Oaks, CA 91360.

What to Do
If your vehicle requires jump start assistance, out

of gas/fuel delivery, tire service, lockout service

or towing as a result of a mechanical breakdown,

dial toll-free: U.S.A.: 1-855-299-1368/Canada:

800-363-4869. Provide your name, Vehicle

Identification Number (VIN) required for covered

services, license plate number, and your location,

including the telephone number from which you

are calling. Briefly describe the nature of the

problem and answer a few simple questions. You

will be given the name of the service provider and

an estimated time of arrival. If you feel you are in

an “unsafe situation”, please let us know. With

your consent, we will contact local police or safety

authorities.

CarManuals2.com

CUSTO

MER A

SSISTANC

E

256

If Unable to Contact Roadside Assistance
If you are unable to contact Roadside Assistance

or unable to provide a valid Vehicle Identification

Number (VIN), and you obtain towing services on

your own, you may submit your original receipts

from the licensed towing or service facility for

services rendered within 30 days of the

occurrence. Be sure to include your VIN,

odometer mileage at the time of service, and

current mailing address. We will process the

claim based on vehicle and service eligibility. If

eligible, we will reimburse you for the reasonable

amount actually paid, based on the usual and

customary charges for that service in the area

where they were provided. FCA US LLC’s determi

-

nation relating to reimbursement is final.

Correspondence should be mailed to:
FCA US LLC Customer Assistance
P.O. Box 9145
Medford, MA 02155
Attention Claims Department
FCA US LLC reserves the right to modify the terms

or discontinue the Roadside Assistance Program

at any time. The Roadside Assistance Program is

subject to restrictions and conditions of use,

which are determined solely by FCA US LLC.
Flat Tire Service
If you are inconvenienced by a flat tire, we will

dispatch a service provider to install your

vehicle’s temporary spare tire (if equipped) as

recommended in your Owner’s Manual.

This is not a permanent flat tire repair.

Out of Gas/Fuel Delivery
Drivers cannot always count on a gas station

being nearby, especially when traveling away

from home. We will dispatch a service provider to

deliver a small amount of fuel (maximum two

gallons) to get you to a nearby station. This

service is limited to two occurrences in a

12-month period.
Battery Jump Assistance
No time is a good time for a depleted battery.

With Roadside Assistance, you do not have to

worry about being stranded. We will dispatch a

service provider to provide you with a battery

jump anytime, day or night.
Lockout Service
Whether the keys are locked in your vehicle or

frozen locks are keeping you from getting on your

way, help is just a phone call away. This service is

limited to providing access to the vehicle’s

seating area. It does not cover the cost of

replacement keys.
Towing Service
Our towing service gives you peace of mind and

confidence. If your vehicle becomes disabled as a

result of a mechanical breakdown, Roadside

Assistance will dispatch a towing service to

transport your vehicle to the closest authorized

Chrysler, Dodge, Jeep®, or Ram dealer. If you

choose to go to another dealer, you will be

responsible for the cost if the extra distance

exceeds 10 miles.

A

LFA

 R

OMEO

 C

USTOMER

 C

ENTER

P.O. Box 21–8004
Auburn Hills, MI 48321–8004
Phone: 1-844-Alfa-USA (1-844-253-2872)

A

LFA

 R

OMEO

 C

USTOMER

 C

ARE



(C

ANADA

)

P.O. Box 1621
Windsor, Ontario N9A 4H6
Phone: 1-877-230-0563 (English)
Phone: 1-877-515-9112 (French)

C

USTOMER

 A

SSISTANCE

 F

OR

 T

HE



H

EARING

 O

R

 S

PEECH

 I

MPAIRED

(TDD/TTY)

To assist customers who have hearing

difficulties, the manufacturer has installed

special Telecommunication Devices for the

Deaf (TDD) equipment at its customer center. Any

hearing or speech impaired customer, who has

access to a TDD or a conventional teletypewriter

(TTY) in the United States, can communicate with

the manufacturer by dialing 1-800-380-2479.
Canadian residents with hearing difficulties that

require assistance can use the special needs

relay service offered by Bell Canada. For TTY

teletypewriter users, dial 711 and for Voice

callers, dial 1-800-855-0511 to connect with a

Bell Relay Service operator.

CarManuals2.com

257

S

ERVICE

 C

ONTRACT



You may have purchased a service contract for a

vehicle to help protect you from the high cost of

unexpected repairs after FCA US LLC's New

Vehicle Limited Warranty expires. The Mopar®

Vehicle Protection plans are the ONLY vehicle

extended protection plans authorized, endorsed

and backed by FCA US LLC to provide additional

protection beyond your vehicle’s warranty. If you

purchased a Mopar® Vehicle Protection Plan, you

will receive Plan Provisions and an Owner Identifi

-

cation Card in the mail within three weeks of the

vehicle delivery date. If you have any questions

about the service contract, call FCA US LLC’s

Service Contract National Customer Hotline at

1-800-521-9922 (Canadian residents, call

(800) 465-2001 English /

(800) 387-9983 French).
FCA US LLC is not responsible for any service

contract you may have purchased from another

manufacturer. If you require service after the

FCA US LLC New Vehicle Limited Warranty

expires, please refer to the contract documents,

and contact the person listed in those

documents.
We appreciate that you have made a major

investment when you purchased the vehicle.

An authorized dealer has also made a major

investment in facilities, tools, and training to

ensure that you are absolutely delighted with the

ownership experience.

You may have purchased additional coverage

with an extended service contract. FCA Canada

Inc. stands fully behind its service contracts. Be

sure that the one you buy is a genuine Canada

Inc. service contract. We are not responsible for

other companies’ contracts. If you purchased a

contract other than a genuine FCA Canada Inc.

service contract and you have a problem, you

will have to contact the administrator of that

contract for resolution. If you have any questions

about the service contract, call FCA's Service

Contract National Customer Hotline at

(800) 465-2001 English /

(800) 387-9983 French).

We appreciate that you have made a major

investment when you purchased the vehicle.

An authorized dealer has also made a major

investment in facilities, tools, and training to

ensure that you are absolutely delighted with the

ownership experience.

WARRANTY INFORMATION

See the Warranty Information for the terms and

provisions of FCA US LLC and FCA Canada Inc.

warranties applicable to this vehicle and market.
Use this QR code to access your

digital experience.

 WARNING!

Engine exhaust (internal combustion engines

only), some of its constituents, and certain

vehicle components contain, or emit,

chemicals known to the State of California to

cause cancer and birth defects, or other

reproductive harm. In addition, certain fluids

contained in vehicles and certain products of

component wear contain, or emit, chemicals

known to the State of California to cause

cancer and birth defects, or other reproductive

harm.

CarManuals2.com

CUSTO

MER A

SSISTANC

E

258

REPORTING SAFETY

DEFECTS

I

N

 T

HE

 50 U

NITED

 S

TATES

 A

ND



W

ASHINGTON

, D.C.

If you believe that your vehicle has a

defect that could cause a crash or

cause injury or death, you should

immediately inform the National

Highway Traffic Safety Administration

(NHTSA) in addition to notifying

FCA US LLC.
If NHTSA receives similar complaints, it

may open an investigation, and if it

finds that a safety defect exists in a

group of vehicles, it may order a recall

and remedy campaign. However,

NHTSA cannot become involved in

individual problems between you, your

authorized dealer or FCA US LLC.
To contact NHTSA, you may call the

Vehicle Safety Hotline toll free

at 1-888-327-4236

(TTY: 1-800-424-9153); or go to

http://www.safercar.gov; or write to:

Administrator, NHTSA, 1200 New

Jersey Avenue, SE., West Building,

Washington, D.C. 20590. You can

also obtain other information

about motor vehicle safety from

http://www.safercar.gov.

I

N

 C

ANADA

If you believe that your vehicle has a

safety defect, you should contact the

Customer Service Department

immediately. Canadian customers who

wish to report a safety defect to the

Canadian government should contact

Transport Canada, Motor Vehicle

Defect Investigations and Recalls

at 1-800-333-0510 or go to

wwwapps.tc.gc.ca/Saf-Sec-Sur/7/

PCDB-BDPP.

PUBLICATION ORDER

FORMS

To order the following manuals, you may use

either the website or the phone numbers listed

below.
Service Manuals
These comprehensive Service Manuals provide a

complete working knowledge of the vehicle,

system, and/or components and is written in

straightforward language with illustrations,

diagrams, and charts.

Diagnostic Procedure Manuals
Diagnostic Procedure Manuals are filled with

diagrams, charts and detailed illustrations. These

manuals make it easy to find and fix problems on

computer-controlled vehicle systems and

features. They show exactly how to find and

correct problems, using step-by-step trouble

-

shooting and drivability procedures, proven

diagnostic tests and a complete list of all tools

and equipment.
To order a hard copy of your Service or

Diagnostic Procedure manuals, visit:
www.techauthority.com (US and Canada).
Owner's Manuals
These Owner's Manuals have been prepared with

the assistance of service and engineering

specialists to acquaint you with specific

FCA vehicles.
To access your Owner's Information online, visit
www.mopar.com/om (US) or
www.owners.mopar.ca (Canada).
Or
Call Tech Authority toll free at:
1-800-890-4038 (US)
Owner's Manuals, Radio Manuals and Warranty

Information Books can be ordered through

Archway at:
1-800-387-1143 (Canada)

CarManuals2.com

259

GENERAL INFORMATION

The following regulatory statement applies to all

Radio Frequency (RF) devices equipped in this

vehicle:
This device complies with Part 15 of the

FCC Rules and with Innovation, Science and

Economic Development Canada license-exempt

RSS standard(s). Operation is subject to the

following two conditions:
1. This device may not cause harmful interfer

-

ence, and

2. This device must accept any interference

received, including interference that may

cause undesired operation.

Le présent appareil est conforme aux

CNR d`Innovation, Science and Economic

Development applicables aux appareils radio

exempts de licence. L'exploitation est autorisée

aux deux conditions suivantes:
1. l'appareil ne doit pas produire de

brouillage, et

2. l'utilisateur de l'appareil doit accepter tout

brouillage radioélectrique subi, même si le

brouillage est susceptible d'en compromettre

le fonctionnement.

La operación de este equipo está sujeta a las

siguientes dos condiciones:
1. es posible que este equipo o dispositivo no

cause interferencia perjudicial y

2. este equipo o dispositivo debe aceptar cual

-

quier interferencia, incluyendo la que pueda

causar su operación no deseada.

RF Exposure Requirements
To comply with FCC RF exposure compliance

requirements, the device must be installed and

operated to provide a separation distance of at

least 20 cm from all persons.
This equipment complies with Canada radiation

exposure limits set forth for an uncontrolled

environment. This equipment should be installed

and operated with minimum distance 20 cm

between the radiator and your body.
NOTE:

Changes or modifications not expressly approved

by the party responsible for compliance could

void the user’s authority to operate the equip

-

ment.

Déclaration d’exposition aux radiations
Cet équipement est conforme aux limites

d’exposition aux rayonnements ISED établies

pour un environnement non contrôlé. Cet

équipement doit être installé et utilisé avec un

minimum de 20 cm de distance entre la source

de rayonnement et votre corps
NOTA : Des changements ou des modifications

n’ayant pas été expressément approuvés par la

partie responsable de la conformité pourraient

révoquer l’autorisation d’utilisation

de l’équipement.

CarManuals2.com

260

INDEX

A

Accessories Purchased By The Owner.......... 4

Active Blind Spot Assist .............................146

Active Safety Systems................................140

Active Speed Limiter ..................................101

Active Torque Vectoring (ATV) System ......140

Adaptive Cruise Control (ACC)

(Cruise Control) .................................102, 105

Off ...........................................................106

On............................................................106

Additives, Fuel ............................................250

Adjust

Forward.............................................. 31, 34

Rearward ........................................... 31, 34

Air Bag.........................................................163

Air Bag Operation...................................165

Air Bag Warning Light ............................162

Driver Knee Air Bag................................165

Enhanced Accident Response .....168, 198

Event Data Recorder (EDR)...................198

Front Air Bag...........................................163

If Deployment Occurs ............................167

Knee Impact Bolsters ............................165

Maintaining Your Air Bag System..........170

Maintenance ..........................................170

Redundant Air Bag Warning Light.........163

Side Air Bags ..........................................165

Transporting Pets...................................180

Air Bag Light ......................................162, 180

Air Pressure

Tires ........................................................230

Alfa Active Suspension (AAS).......................99

Alfa DNA System ..........................................97

Antifreeze (Engine Coolant).......................251

Anti-Lock Braking (ABS) System................140

Anti-Lock Warning Light ...............................76

Automatic Climate Controls .........................50

Automatic Dimming Mirror...........................38

Automatic Door Locks ..................................28

Automatic Headlights...................................44

Automatic Temperature Control (ATC) ........50

Automatic Transmission ..............................91

Auxiliary Driving Systems .......................... 144

Auxiliary Power Outlet ..................................57

B

Battery..................................................79, 207

Charging System Light .............................79

Keyless Key Fob Replacement................20

Battery Recharging.................................... 208

Belts, Seat.................................................. 180

Blind Spot Monitoring ............................... 144

Bodywork (Cleaning And Maintenance)... 239

B-Pillar Location......................................... 227

Brake System

Warning Light ....................................75, 76

Brakes ........................................................ 244

Brake Fluid Level................................... 207

Brightness, Interior Lights............................47

Bulbs, Light ................................................ 182

C

Camera, Rear............................................. 128

Capacities, Fluid ........................................ 251

Carbon Monoxide Warning ....................... 182

Cargo Compartment.....................................66

Certification Label ..................................... 132

Chart, Tire Sizing........................................ 225

Check Engine Light

(Malfunction Indicator Light) .......................85

Checking Levels ................................ 204, 205

Checking Your Vehicle For Safety............. 180

Checks, Safety ...........................................180

Child Restraint ...........................................170

Child Restraints

Booster Seats ........................................ 173

Child Seat Installation ........................... 178

How To Stow An unused

ALR Seat Belt.....................................176

Infant And Child Restraints................... 172

LATCH Positions.....................................174

Lower Anchors And Tethers

For Children ....................................... 174

Older Children And Child Restraints..... 172

Seating Positions...................................173

Clean Air Gasoline .....................................249

Cleaning

Wheels.................................................... 235

Climate Control ......................................49, 55

Automatic................................................. 50

Compact Spare Tire ...................................234

Contract, Service........................................ 257

Cooling System

Cooling Capacity ....................................251

Selection Of Coolant (Antifreeze) .........251

Cruise Control (Speed Control) ........ 102, 105

Customer Assistance................................. 255

D

Daytime Running Lights .............................. 43

Defroster, Windshield................................ 180

Dimensions ................................................ 246

Disabled Vehicle Towing............................196

Door Ajar.................................................79, 80

Door Ajar Light .......................................79, 80

CarManuals2.com

261

Door Locks....................................................28

Automatic .................................................28

Door Opener, Garage ...................................40

Doors............................................................. 25

Drive Train Control (DTC) System..............141

Driving Modes .............................................. 97

Dynamic Steering Torque (DST) System...141

E

Electric Park Brake....................................... 89

Electric Remote Mirrors...............................38

Electronic Speed Control

(Cruise Control) ..........................................102

Electronic Stability Control (ESC)

System ........................................................141

Electronic Throttle Control Warning

Light ..............................................................79

Emergency

In Case Of ......................................183, 189

SOS Emergency Call ..............................183

Emergency, In Case Of

Jump Starting.........................................192

Overheating............................................195

Towing.....................................................197

Emission Control System Maintenance...... 85

Engine .........................................................242

Block Heater.............................................88

Engine Coolant Level .............................206

Exhaust Gas Caution .............................182

Fuel Requirements ................................249

Jump Starting.........................................194

Oil............................................................251

Oil Selection ...........................................251

Overheating............................................195

Starting ...................................................195

Engine Compartment ................................ 204

Engine Compartment (Washing) .............. 239

Engine Oil

Level Check ........................................... 205

Enhanced Accident Response

Feature.............................................. 168, 198

Ethanol....................................................... 249

Exhaust Gas Cautions ............................... 182

Exhaust System ......................................... 182

Exterior Lighting.....................................43, 44

Exterior Lights......................................43, 182

F

Flashers

Hazard Warning..................................... 183

Turn Signals..............................45, 78, 182

Fluid Capacities ......................................... 251

Fluid Leaks................................................. 182

Fluids And Lubricants................................ 252

Fog Lights, Rear............................................45

Forward Collision Warning ........................ 151

Fuel

Additives ................................................ 250

Clean Air................................................. 249

Ethanol................................................... 249

Light ..........................................................82

Materials Added .................................... 250

Methanol................................................ 249

Tank Capacity ........................................ 251

G

Garage Door Opener (HomeLink)................40

Gasoline, Clean Air .................................... 249

Gasoline, Reformulated ............................ 249

Gross Axle Weight Rating.......................... 133

Gross Vehicle Weight Rating.....................133

GVWR.......................................................... 132

H

Hands-Free Liftgate ..................................... 64

Hazard Warning Flashers .......................... 183

Head Restraints ........................................... 36

Head Rests................................................... 36

Headlights

Switch.................................................43, 44

Headlights (Cleaning) ................................ 239

Heated Mirrors............................................. 39

Heated Seats ............................................... 35

Heated Steering Wheel ............................... 30

Heater, Engine Block ................................... 88

Highway Assist System..............................111

Hill Decent Control (HDC) System............. 142

Hill Start Assist (HSA) System ................... 143

Hitches

Trailer Towing......................................... 134

HomeLink (Garage Door Opener) ............... 40

Hood

Closing...................................................... 62

Opening .................................................... 62

I

Ignition.......................................................... 22

Switch....................................................... 22

Immobilizer (Sentry Key) ............................. 21

In Case Of Emergency ............................... 183

Installing Electrical/Electronic Devices.........4

Instrument Cluster....................................... 68

Descriptions................................69, 70, 78

Display...................................................... 70

Reconfigurable Display ........................... 70

CarManuals2.com

262

INDEX

Instrument Panel

Features ...................................................68

Intelligent Speed Control System..............119

Interior Lights ............................................... 45

Interiors (Cleaning).....................................240

J

Jump Starting .............................................192

K

Keyless Enter 'n Go™...................................26

Passive Entry............................................26

Keys ..............................................................19

L

Lane Change And Turn Signals ................... 45

Lane Departure Warning System..............123

Lane Keep Assist System ..........................125

Lap/Shoulder Belts....................................158

Latches .......................................................182

Leaks, Fluid ................................................182

Life Of Tires.................................................233

Liftgate..........................................................62

Light Bulbs..................................................182

Types Of Bulbs .......................................220

Lights ..........................................................182

Air Bag ....................................75, 162, 180

Automatic Headlights ..............................44

Brake Warning .................................. 75, 76

Courtesy/Reading............................. 46, 47

Daytime Running .....................................43

Electronic Stability Program (ESP)

Indicator.........................................76, 80

Exterior................................................... 182

Fog......................................................45, 77

Headlight Switch ...............................43, 44

Headlights..........................................43, 44

High Beam ................................................44

Instrument Cluster ............................43, 44

Intensity Control .......................................47

Interior................................................46, 47

Low Fuel....................................................82

Malfunction Indicator

(Check Engine) .....................................77

Map ...........................................................46

Oil Temperature........................................76

Park....................................................45, 78

Reading.....................................................46

Seat Belt Reminder..................................76

Turn Signals..............................45, 78, 182

Warning Instrument Cluster

Descriptions ..................................78, 80

Loading Vehicle ......................................... 132

Tires........................................................ 227

Locks

Automatic Door.........................................28

Child Protection........................................29

M

Maintenance.................................................61

Malfunction Indicator Light

(Check Engine).......................................77, 85

Manual

Service ................................................... 258

Memory Feature (Memory Seats) ............... 30

Memory Seat................................................ 30

Methanol .................................................... 249

Mirrors .......................................................... 38

Automatic Dimming................................. 38

Electric Powered...................................... 38

Electric Remote ....................................... 38

Heated...................................................... 39

O

Occupant Restraints.................................. 157

Oil Pressure Light......................................... 80

Oil, Engine

Capacity..................................................251

Pressure Warning Light........................... 80

Recommendation .................................. 251

Viscosity .................................................251

Opener, Garage Door (HomeLink) .............. 40

Operator Manual

Owner's Manual.....................................258

Outlet

Power........................................................ 57

Overheating, Engine .................................. 195

P

Paintwork (Cleaning And Maintenance)...239

Panic Brake Assist (PBA) System.............. 143

Park Assist..................................................120

ParkSense System.....................................120

Passive Entry................................................ 26

Performance (Top Speed) ......................... 254

Pets............................................................. 180

Placard, Tire And Loading Information..... 227

CarManuals2.com

263

Power

Mirrors ...................................................... 38

Outlet (Auxiliary Electrical Outlet) ...........57

Seats.........................................................34

Sunroof ..................................................... 60

Windows ...................................................59

Power Seats

Forward.............................................. 31, 34

Rearward ........................................... 31, 34

Recline............................................... 32, 34

Power Supply..............................................243

Pregnant Women And Seat Belts..............161

Pretensioners

Seat Belts ...............................................161

Prolonged Vehicle Inactivity ......................238

R

Radial Ply Tires...........................................232

Radio Transmitters And Mobile Phones ....... 4

Rear Camera ..............................................128

Rear Cross Path .........................................144

Reformulated Gasoline..............................249

Refueling Procedure ..................................130

Refueling The Vehicle ................................129

Reminder, Seat Belt...................................158

Remote Control

Starting System........................................ 23

Remote Keyless Entry.................................. 19

Remote Starting

Exit Remote Start Mode .......................... 23

Remote Starting System....................... 23, 86

Replacement Tires .....................................234

Reporting Safety Defects...........................258

Restraints, Child.........................................170

Restraints, Head ..........................................36

Rims And Tires........................................... 224

Roll Over Warning...........................................3

S

Safety Checks Inside Vehicle.................... 180

Safety Checks Outside Vehicle................. 182

Safety Defects, Reporting ......................... 258

Safety Information, Tire............................. 224

Safety Tips ................................................. 180

Safety, Exhaust Gas .................................. 182

Saving Fuel ................................................ 138

Scheduled Servicing.................................. 199

Scheduled Servicing Program

(2.0L T4 MAir Engine Versions) ................ 200

Scheduled Servicing Program

(2.9L V6 Gasoline Engine Versions)......... 202

Seat Belt Reminder ......................................76

Seat Belts.......................................... 158, 180

Adjustable Shoulder Belt ...................... 160

Adjustable Upper Shoulder

Anchorage.......................................... 160

Adjustable Upper Shoulder Belt

Anchorage.......................................... 160

Child Restraints..................................... 170

Energy Management Feature............... 161

Front Seat .............................................. 158

Inspection .............................................. 180

Lap/Shoulder Belt Untwisting .............. 160

Lap/Shoulder Belts............................... 158

Pregnant Women................................... 161

Pretensioners ........................................ 161

Rear Seat............................................... 158

Reminder ............................................... 158

Seat Belt Pretensioner.......................... 161

Untwisting Procedure............................ 160

Seats.......................................................31, 34

Adjustment.........................................31, 34

Head Restraints....................................... 36

Heated...................................................... 35

Height Adjustment................................... 34

Power........................................................ 34

Tilting........................................................ 34

Security Alarm.............................................. 24

Service Assistance.....................................255

Service Contract......................................... 257

Service Manuals ........................................ 258

Servicing Procedures................................. 209

Shoulder Belts............................................158

Signals, Turn .................................45, 78, 182

Snow Chains .............................................. 236

Snow Tires..................................................236

Spare Tires ........................................234, 235

Speed Control

Accel/Decel............................................104

Accel/Decel (ACC Only) ......................... 107

Cancel..................................................... 104

Distance Setting (ACC Only).................. 108

Resume ..................................................104

Set .......................................................... 103

Speed Control (Cruise Control) ................. 102

Starting ....................................................... 195

Button....................................................... 22

Cold Weather ........................................... 87

Remote..................................................... 23

Starting And Operating ..............................195

Starting Procedures...................................195

Starting The Engine ..................................... 86

Steering ...................................................... 245

Wheel, Heated ......................................... 30

Wheel, Tilt ................................................ 29

CarManuals2.com

264

INDEX

Stop/Start System .....................................100

Storage

Console..................................................... 56

Suggestions For Driving.............................138

Sun Roof ................................................ 60, 61

Supplemental Restraint System –

Air Bag.........................................................163

Suspension.................................................245

Symbol Glossary...........................................14

Symbols .......................................................... 6

System, Remote Starting.............................23

T

Telescoping Steering Column......................29

Tilt Steering Column.....................................29

Tire And Loading Information Placard ......227

Tire Markings..............................................224

Tire Safety Information ..............................224

Tire Service Kit ...........................................189

Tires .................................182, 230, 234, 238

Aging (Life Of Tires)................................233

Air Pressure............................................230

Changing.................................................189

Compact Spare ......................................234

General Information......................230, 234

High Speed.............................................231

Inflation Pressure...................................230

Life Of Tires ............................................233

Load Capacity................................227, 228

Pressure Monitoring System (TPMS)...... 77

Quality Grading.......................................238

Radial......................................................232

Replacement..........................................234

Safety ............................................ 224, 230

Sizes....................................................... 225

Snow Tires ............................................. 236

Spare Tires.................................... 234, 235

Spinning................................................. 233

Trailer Towing ........................................ 136

Tread Wear Indicators........................... 233

Tongue Weight/Trailer Weight.................. 135

Towing ............................................... 133, 134

Disabled Vehicle.................................... 196

Towing Eyes ............................................... 197

TPMS (Tire Pressure Monitoring

System) ...................................................... 155

Traction Control System (TCS).................. 144

Traffic Jam Assist System ......................... 114

Traffic Sign Recognition System............... 117

Trailer Towing............................................. 133

Hitches................................................... 134

Minimum Requirements....................... 135

Tips......................................................... 137

Trailer And Tongue Weight........... 134, 135

Wiring ..................................................... 136

Trailer Towing Guide.................................. 134

Trailer Weight............................................. 134

Transmission ............................................. 244

Transporting Pets ...................................... 180

Tread Wear Indicators............................... 233

Turn Signals ...........................................45, 78

U

Uconnect Settings

Customer Programmable Features.........26

Passive Entry Programming.....................26

Uniform Tire Quality Grades...................... 238

Universal Garage Door Opener

(HomeLink®)

b

.......................................... 40

Universal Transmitter .................................. 40

Untwisting Procedure, Seat Belt ...............160

Use Of The Owner’s Manual...........................5

V

Vehicle Changes/Alterations .........................4

Vehicle Identification Number .................. 242

Vehicle Loading.................................132, 228

W

Warning Lights

(Instrument Cluster Descriptions) .............. 76

Warnings, Roll Over ........................................3

Warranty Information ................................ 257

Washer Fluid For Windshield/

Headlights ..................................................206

Washers, Windshield.............................47, 48

Weights....................................................... 248

Wheel And Wheel Tire Care.......................235

Wheel And Wheel Tire Trim .......................235

Wheels And Tires ....................................... 224

Wind Buffeting ............................................. 59

Windows

Power........................................................ 59

Windows (Cleaning) ...................................239

Windshield Defroster................................. 180

Windshield Washers.................................... 48

Windshield Wiper

Replacing Blades...................................211

Windshield Wipers ....................................... 47

Wipers, Rain Sensitive................................. 48

Wireless Charging Pad ................................ 58

CarManuals2.com















Content      ..     6      7      8
