Alfa Romeo Tonale (2023 year). Manual in english - page 11





331

LUGGAGE COMPARTMENT CAPACITY

BOOT VOLUME (litres)

Rear seats not folded

(capacity measured at the

seat back level)

Rear seats folded (capacity

measured at the level of

the roof)

Vehicle unladen and reconfigurable load platform in “all up” position

500 (*) / 385 (**)

1550 (*) / 1430 (**)

(*) Versions with heat engine and Mild Hybrid
(**) Q4 Plug-in Hybrid versions

CarManuals2.com

 TECHNICAL SPECIFICATIONS

332

WEIGHTS AND LOADS

134)

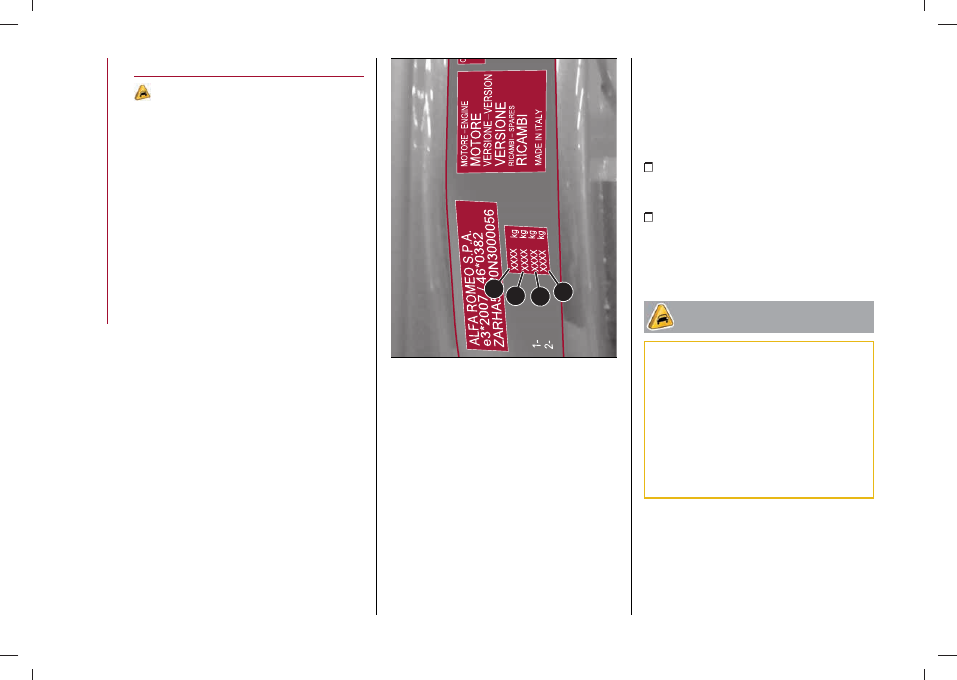

To identify the weights and loads for

your car, refer to the plate shown in
fig. 323 and described in the “Vehicle

identification number (VIN) plate"

chapter or refer to the car registration

certificate showing the type-approved

weights (for markets, where provided).

1

: maximum authorised weight of car fully

laden (GVW).

2

: maximum authorised weight of fully

laden car (GVW) plus trailer. If there is no

value in the field or if there is a dash, it

means that the car cannot tow.

3

: maximum permitted weight on first

front axle.

4

: maximum permitted weight on second

rear axle.

1 2 3 4

323

9650290

To calculate the towable weight with

a braked trailer, take the difference

between values (2) e (1) shown on the

plate.
E.g.: 2=3100 kg - 1= 1900 kg
Braked trailer = 1200 kg + 250 kg SAE

towing (*)
WARNING

Do not exceed the indicated

trailer and towable weights

.

WARNING

Respect the vehicle towing

capacities

.

WARNING

Never exceed the maximum

permitted load indicated on the plate

(

2

).

(*) SAE towing: taking care never to

exceed the maximum permitted load

indicated on the plate (2):

For 1.3 Q4 Plug-In Hybrid, 1.5 Mild

Hybrid and 1.6 Multijet versions

it may

be increased up to 250 kg

for 2.0 T4 versions

SAE Towing is

NOT

allowed: the maximum value of

the braked trailer is obtained from the

difference (2) - (1)

IMPORTANT

134)

Do not load your car any heavier than

the gross vehicle weight rating or the front

and rear gross axle weight rating. If you do,

parts on your car can break, or it can change

the way your car handles. This could cause

you to lose control. Also overloading can

shorten the life of your car. Do not exceed

the maximum load for the car and trailer

combination. The maximum towable load

is only permitted if it does not exceed the

maximum load of the combination.

CarManuals2.com

333

TOWABLE WEIGHTS (kg)

Versions

GVW

A

B

C

D

1.3 190/280 HP Q4

Plug-In Hybrid

2420

1250

700

75

50

1.5 130HP/160HP Mild

Hybrid

2135

1500

700

75

50

1.6-litre 16V Multijet

2185

1025

700

75

50

2.0 T4 272 HP

(*)

2250

907

700

75

50

A

= TOWABLE WEIGHT (including SAE tow hitch, where provided)

B

= UNBRAKED TRAILER

C

= LOAD ON TOW HOOK

D

= LOAD ON THE ROOF (versions with roof rack bars)

GVW

= Maximum authorised weight of car fully laden

(*) For versions/markets, where provided.

CarManuals2.com

 TECHNICAL SPECIFICATIONS

334

REFUELLING

1.3 190 HP/280

Q4 HP Plug-In

Hybrid

1.5

130HP/160HP

Mild Hybrid

Prescribed fuels and original lubricants

Fuel tank (liters):

43

55

Unleaded petrol with at least 95 R.O.N. (EN228

specifications)

Including a reserve of (litres):

10

5 – 7

Engine sump (liters):

4.2

4.2

SELENIA ECO2 (Mild Hybrid versions) / SELENIA

DIGITEK P.E. (Q4 Plug-in Hybrid versions)

Engine sump and filter (liters):

4.5

4.3

Engine cooling system (liters):

5.3

5.2

Mixture of demineralized water and 50%

PARAFLUUP (*)

Electronic component auxiliary cooling system (***)

(****) (litres):

5.0

Cooling system (high voltage) (**) (litres):

8.8

Gearbox/differential casing (litres):

6.5

5.5

TUTELA DCT 700 H (Mild Hybrid versions) /

TUTELA TRANSMISSION GI/VI (Q4 Plug-in

Hybrid versions)

Hydraulic brake circuit (liters):

1.13

1.13

TUTELA TOP EVO

Windscreen and rear window washer fluid reservoir

(litres):

2.5

2.5

Mixture of water and liquid PETRONAS

DURANCE SC 35

(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60% mixture of PARAFLUUP and 40% demineralised

water.
(**) NOTE The coolant tank for the high voltage system cannot be refilled by the driver. To top up the fluid, contact an Alfa Romeo Dealership
(***) Including secondary system tray with 48V auxiliary battery.
(****) NOTE The coolant tank of the 48V auxiliary battery system cannot be refilled by the driver. To top up the fluid, contact an Alfa Romeo

Dealership

CarManuals2.com

335

135) 136)

1.6-litre 16V

Multijet

2.0 T4 272 HP

(°)

Prescribed fuels and original lubricants

Fuel tank (litres):

55

51

Unleaded petrol with at least 95 R.O.N. (EN 228

specifications) (2.0 T4 272 HP versions) / Diesel

for motor vehicles (EN 590 specifications)

(1.6 16V Multijet)

Including a reserve of (litres):

5 – 7

6

AdBlue® tank (where provided) capacity

approximately (litres):

13

AdBlue® (DIN 70 070 and ISO 22241-1

specifications)

Engine sump (litres):

SELENIA WR FORWARD 0W-20 (1.6 16V Multijet

versions) / SELENIA K POWER PLUS 5W-30

(2.0 T4 2728 HP)

Engine sump and filter (litres):

4.8

4.7

Engine cooling system (litres):

6.1

8.8

Mixture of demineralised water and 50%

PARAFLUUP (*)

Gearbox/differential casing (litres):

1.8

TUTELA CS SPEED (1.6 16V Multijet)

AT9 automatic transmission (litres)

6.0

TUTELA TRANSMISSION AS8 (2.0 T4 272 HP)

Transfer unit (PTU - 4x4 versions) (litres)

0.4

TUTELA TRANSMISSION B-5X (2.0 T4 272 HP)

Rear differential (RDM) (4×4 versions) (litres)

0.6

TUTELA TRANSMISSION COMPAQ DRIVE

(2.0 T4 272 HP)

Hydraulic brake circuit (kg):

0.83

0.83

TUTELA TOP EVO

Windscreen and rear window washer fluid reservoir

(litres):

2.5

2.5

Mixture of water and liquid PETRONAS

DURANCE SC 35

(°) For versions/markets, where provided
(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60% mixture of PARAFLUUP and 40% demineralised

water.

CarManuals2.com

 TECHNICAL SPECIFICATIONS

336

IMPORTANT

135)

Only use AdBlue® (UREA) compliant with DIN 70 070 and ISO 22241-1. Other fluids may cause damage to the system: also exhaust emissions

would no longer comply with the law.

136)

The distribution companies are responsible for the compliance of their product. Observe the precautions of storage and servicing, in order to

preserve the initial qualities. The manufacturer will not recognise any guarantee in case of malfunctions and damage caused to the car due to the
use of AdBlue® (UREA) not in accordance with regulations.

CarManuals2.com

337

FLUIDS AND LUBRICANTS

Your car is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of the

Service Schedule. Constant use of the prescribed lubricants guarantees the fuel consumption and emission specifications. Lubricant

quality is crucial for engine operation and duration.

137)

PRODUCT SPECIFICATIONS

Use

Features

Specification

Original fluids and

lubricants

Replacement frequency

Lubricant for Mild Hybrid

petrol engines (1.5 130

HP/160 HP)

SAE 0W-20

ACEA C5

9.55535-DM1

SELENIA ECO2

Contractual Technical

Reference N° F049.C18

According to Service

Schedule

Lubricant for Q4 Plug-In

Hybrid petrol engines (1.3

190 HP/280 HP)

SAE 0W-30

ACEA C2 / API SN

9.55535-GS1

SELENIA DIGITEK P.E.

Contractual Technical

Reference N° F020.B12

According to Service

Schedule

Lubricant for petrol engines

(2.0 T4 272 HP)

SAE 5W-30

ACEA API SP / ILSAC GF-6

MS 13340 or 9.55535-GSY

SELENIA K POWER PLUS

5W-30

Contractual Technical

Reference N° F036.H20

According to Service

Schedule

Lubricant for diesel engines

SAE 0W-20

ACEA C5

9.55535-DSX

SELENIA WR FORWARD

0W-20

Contractual Technical

Reference N° F.013.K15

According to Service

Schedule

If lubricants conforming to the specific request are not available, products that meet the indicated specifications can be used to top

up; in this case optimal performance of the engine is not guaranteed.

CarManuals2.com

 TECHNICAL SPECIFICATIONS

338

Use

Features

Specification

Original liquids and

lubricants

Applications

Lubricants and greases for

drive transmission

Fully synthetic oil with

dedicated additive.

9.55550-SA11

TUTELA CS SPEED

Contractual Technical

Reference N° F005.F98

Lubricant for electro-

hydraulic actuator

(dual clutch automatic

transmission versions)

Synthetic lubricant, first

use EG FFL-7A.

9.55550-HE2

TUTELA DCT 700 H

Contractual Techcnical

Reference N° F003.I21

Lubricant for electrified

dual clutch automatic

transmission (Mild Hybrid

versions)

SAE 75W API GL4 grade

synthetic lubricant.

9.55550-MZ6

TUTELA TRANSMISSION

GEARFORCE

Contractual Technical

Reference N° F002.F10

Differential

Synthetic lubricant

9.55550-AV5

TUTELA TRANSMISSION

AS8

Contractual Technical

Reference N° F139.I11

Lubricant for AT9

automatic transmission

for 2.0 T4 272 HP versions

(where provided)

SAE75W 90 API GL 5 grade

synthetic lubricant

9.5550-DA6

TUTELA TRANSMISSION

B-5X

Contractual Technical

Reference N° F006.B14

Transfer unit (PTU - 4x4

versions) (2.0 T4 272 HP)

SAE75W 90 API GL 5 grade

synthetic lubricant

9.5550-DA7

TUTELA TRANSMISSION

COMPAQ DRIVE

Contractual Technical

Reference N° F007.B14

Rear differential (RDM)

(4x4 versions) (2.0 T4 272

HP)

CarManuals2.com

339

Use

Features

Specification

Original liquids and

lubricants

Applications

Lubricants and greases for

drive transmission

Molybdenum disulphide

grease, for use at high

temperatures.
N.L.G.I. consistency 1-2.

9.55580-GRAS II

TUTELA ALL STAR

Contractual Technical

Reference N° F702.G07

Wheel side constant

velocity joints

Low friction coefficient

grease for constant

velocity joints. N.L.G.I.

consistency 0-1.

9.55580-GRAS II

TUTELA STAR 700

Contractual Technical

Reference N° F701.C07

Differential side constant

velocity joints

Synthetic lubricant

9.55550-AV2

TUTELA TRANSMISSION

GI/VI

Contractual Technical

Reference N° F336.G05

ATF AW-1 lubricant for

automatic transmissions

(Q4 Plug-In Hybrid versions)

SAE 75W API GL4 grade

synthetic lubricant

Electrified axle (Q4 Plug-In

Hybrid version)

Brake fluid

Synthetic fluid for brake

and clutch systems.
Exceeds specifications:

FMVSS n° 116 DOT 4, ISO

4925 Class 6, SAE J1704.

9.55597 or MS.90039

TUTELA TOP EVO

Contractual Technical

Reference N° F002.L18

Hydraulic brakes and

hydraulic clutch controls

AdBlue

®

additive for diesel

emissions

Water-AdBlue (UREA)

solution

DIN 70 070 and ISO

22241-1

AdBlue®

To be used for filling the
AdBlue® tank on versions

equipped with Selective

Catalytic Reduction (SCR)

system

Antifreeze additive for

diesel, with protective

action for Diesel engines

PETRONAS DURANCE

DIESEL ART

Contractual Technical

Reference N° F601.L06

To be mixed with diesel (25

cc per 10 litres)

CarManuals2.com

 TECHNICAL SPECIFICATIONS

340

Use

Features

Specification

Original liquids and

lubricants

Applications

Protective agent for

radiators

Red protective with

antifreeze action, based

on inhibited monoethyl

glycol with organic

formula. Exceeds CUNA

NC 956-16, ASTM D 3306

specifications.

9.55523 or MS.90032

PARAFLU UP

Contractual Technical

Reference N° F101.M01

Cooling circuits proportions

of use: 50% water 50%

protective fluid (**)

Windscreen/rear window

washer fluid

Mixture of spirits and

surfactants. Exceeds

CUNA NC 956-11

specifications.

9.55522 or MS.90043

PETRONAS DURANCE SC

35

Contractual Technical

Reference N° F001.D16

To be used diluted or

undiluted in windscreen

washer/wiper systems

(**) In particularly harsh weather conditions, we recommend using a 60% mixture of antifreeze and 40% demineralised water.

AdBlue® is a registered trademark of Verband der Automobilindustrie e.V. (VDA)

IMPORTANT

137)

The use of products with specifications other than those indicated above could cause damage to the engine not covered by the warranty.

CarManuals2.com

341

PERFORMANCE

Top speeds after the initial period of usage of the vehicle.

Versions

km/h

1.3 190 HP

(*)

189 (***)

1.3 280 HP

(*)

206 (***)

1.5 130 HP

(**)

195

1.5 160 HP

(**)

210

1.6 16V Multijet 130 HP

194

2.0 T4 272 HP

(****)

225

(*) Q4 Plug-in Hybrid versions
(**) Mild Hybrid versions
(***) Operation in hybrid mode
(****) For versions/markets, where provided.
NOTE On Mild Hybrid versions, with electronic Cruise Control, top speed is reached in 6th gear.

CarManuals2.com

 TECHNICAL SPECIFICATIONS

342

FUEL CONSUMPTION AND CO2 EMISSIONS

The fuel consumption and CO2 emission figures declared by the manufacturer are determined on the basis of the type-approval tests

laid down by the applicable standards in the country where the vehicle is registered.
The type of route, traffic conditions, weather conditions, driving style, general condition of the car, version/equipment/accessories,

use of the climate control system, car load, presence of roof racks and other situations that adversely affect the aerodynamics or

wind resistance lead to different fuel consumption values than those measured. The fuel consumption will only become more regular

after driving the first 3000 km.
To find the specific fuel consumption and CO 2 emission figures for this car, please refer to the data in the Certificate of Conformity,

and the related documentation that accompanies the car.

CarManuals2.com

343

PRESCRIPTIONS FOR HANDLING THE CAR AT THE END OF ITS LIFE

(where present)
For years, Alfa Romeo S.p.A. has pursued a global commitment to protect and respect the environment by continually improving

its production processes and developing increasingly "eco-compatible" products. To grant customers the best possible service in

terms of respecting environmental laws and in response to European Directive 2000/53/EC governing vehicles at the end of their life,

Alfa Romeo S.p.A. is offering its customers the chance to hand over their vehicle at the end of its life without incurring any additional

costs. The European Directive sets out that when the vehicle is handed over, the last keeper or owner should not incur any expenses

as a result of it having a zero or negative market value.
To hand your vehicle over at the end of its life without extra cost, contact one of our dealerships if you are purchasing another vehicle

or an Alfa Romeo S.p.A.-authorised collection and scrapping centre. These centres have been carefully chosen to offer high quality

service for the collection, treatment and recycling of vehicles at their end of life, respecting the surrounding environment.
Similarly, to meet its obligations under European Directive 2006/66/EC on batteries, Alfa Romeo S.p.A. requires you to comply with

the national regulations on handling both low-voltage and high-voltage lithium ion batteries (12V and 48V) at all times. This includes

consigning vehicles complete with their batteries to one of the collection and demolition centres authorized by Alfa Romeo S.p.A. to

handle such batteries, and not disposing of them improperly, which could lead to personal injuries and/or harm to the environment.
You can find further information on these collection and scrapping centres either from an Alfa Romeo S.p.A. dealership or by calling

the number in the Warranty Booklet or by consulting the Alfa Romeo brand official website.

CarManuals2.com

This section describes the main functions of the Alfa Connect

system infotainment system that may be fitted on the car.

MULTIMEDIA

TIPS, CONTROLS AND GENERAL INFO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 346
ALFA CONNECT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 348
CONNECTED SERVICES - ALFA CONNECT SERVICES . . . . . . . . . . . . .370
OFFICIAL TYPE APPROVALS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .374

CarManuals2.com

 MULTIMEDIA

346

TIPS, CONTROLS AND GENERAL

INFO

300) 301)

138) 139)

ROAD SAFETY

Learn how to use the various system

functions before setting off.
Read the instructions for the system

carefully before setting off.

RECEPTION CONDITIONS

Reception conditions change constantly

while driving. Reception may be

interfered with by the presence of

mountains, buildings or bridges,

especially when you are far away from

the broadcaster.
WARNING The volume may be increased

when receiving traffic information and

news.

CARE AND MAINTENANCE

138) 140)

Observe the following precautions to

ensure the system is fully operational:

the display lens should not come into

contact with pointed or rigid objects

which could damage its surface; use a

soft, dry anti-static cloth to clean and do

not press

do not use alcohol, petrol and derived

products them to clean the display lens

and make sure that the Alfa Connect

system is switched off during cleaning

prevent any liquid from entering the

system: this could damage it beyond

repair

MULTIMEDIA DEVICES

WARNING Some multimedia players may

not be compatible with the Alfa Connect

system.
Only use devices (e.g. USB flash

drives) from safe sources on the car.

Devices from unknown sources could

contain software infected by viruses

which, if installed on the car, could

increase the vulnerability of the car's

electric/electronic systems to hacking.

ANTITHEFT PROTECTION

The system is equipped with an

anti-theft protection system based on

the exchange of information with the

electronic control unit (Body Computer)

on the vehicle.
This guarantees maximum safety and

prevents the secret code from being

entered after the power supply has been

disconnected.
If the check has a positive outcome, the

system will start to operate, whereas if

the comparison codes are not the same

or if the electronic control unit (Body

Computer) is replaced, the system will

ask the user to enter the secret code

according to the procedure described in

the paragraph below.

Entering the secret code

When the system is switched on, if the

code is requested, a keypad appears on

the display to enter the secret code.
After entering the fourth digit, press the

OK graphic button and the system begins

operating.
If an incorrect code is entered, the

system displays a message to notify the

user of the need to enter the correct

code.
After the 3 attempts available for

entering the code have been used, the

system will display a message indicating

that the code is not correct, the radio is

blocked and it is necessary to wait 30

minutes. After the text has disappeared

it is possible to start the code entering

procedure again.

WARNINGS

In the event of an anomaly, the system

must only be checked and repaired by an

Alfa Romeo Dealership.
If the temperature is particularly low,

the display may take a while to reach

optimum brightness.
If the car is stopped for a while and the

external temperature is very high, the

system may go into "thermal protection"

mode, suspending operation until the

radio temperature returns to acceptable

levels.

CarManuals2.com

347

Look at the screen only and when it is

necessary and safe. If you need to look

at the screen for a long time, pull over to

a safe place so as not to be distracted

while driving.
Immediately stop using the system in the

event of a fault. Otherwise the system

might be damaged.
Contact an Alfa Romeo Dealership as

soon as possible to have the system

repaired.

WARNING

300)

Follow the safety rules below:

otherwise serious injuries may occur to the

occupants or the system may be damaged.

301)

If the volume is too loud this can be

dangerous. Adjust the volume so that you

can still hear background noises (e.g. horns,

ambulances, police vehicles, etc.).

IMPORTANT

138)

Only clean the front panel and the

display with a soft, clean, dry, anti-static

cloth. Cleaning and polishing products may

damage the surface. Do not use alcohol or

similar products to clean the control panel

or the display.

139)

Do not use the display as a base for

supports with suction pads or adhesives

for external navigators or smartphones or

similar devices.

140)

Do not use the display as a base for

supports with suction pads or adhesives

for external navigators or smartphones or

similar devices.

CarManuals2.com

 MULTIMEDIA

348

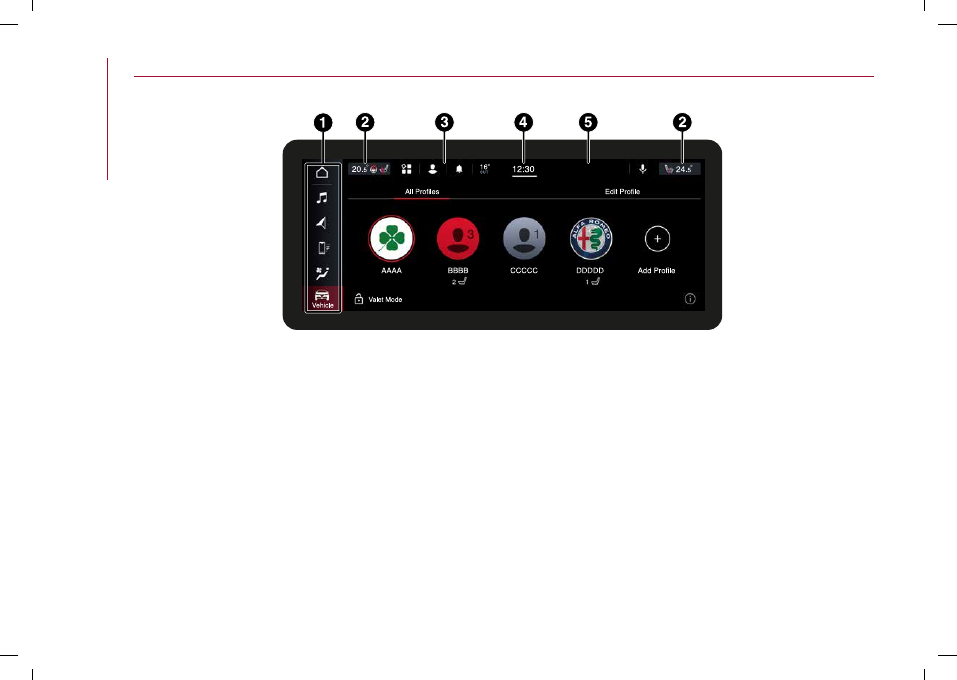

ALFA CONNECT

324

9650110

CarManuals2.com

349

GRAPHIC BUTTONS ON DISPLAY AREA (1)

Graphic button

Functions

Mode

Home

Show the main screen

Press graphic button

Media

Access Media mode to select available

sources, folder tracks and interaction with

audio settings

Press graphic button

Comfort

Climate control system settings (air flow, set

indoor temperature) and heated seat (where

provided)

Press graphic button

Phone

Access to the Phone mode

Press graphic button

Vehicle

Access to additional car settings and functions

Press graphic button

Navigator (where provided)

Start Navigation system

Press graphic button

App

Access the list of available Apps

Press graphic button

You can customise the order of the buttons by holding down the icon to move and dragging it to the desired position.
NOTE Customisation is only active when the car is stationary. If an attempt is made to customise with the car in motion or to resume driving without

having completed the operation, a warning message will appear on the display and the operation will be ended.

CarManuals2.com

 MULTIMEDIA

350

STATUS BAR

Area

Functions

Mode

2

Comfort (where provided)

Climate control system display and settings on

driver and passenger side

Press graphic button

3

Reconfigurable quick button bar

Quick access to functions: Profiles,

Notifications, External temperature, Voice

recognition

Press graphic button

4

Timetable / App customisation

Display the current time / access to the Apps

list for customising the reconfigurable bar

Press graphic button

5

Message area

Display notifications, audio track playing,

tuned radio station, call time, volume and

scrolling messages

CarManuals2.com

351

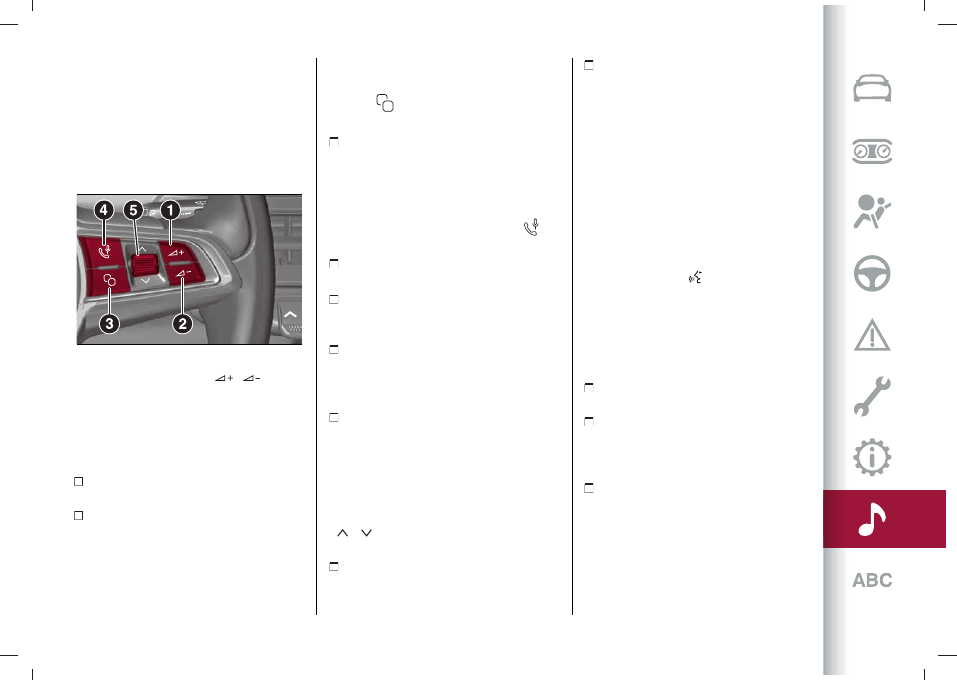

CONTROLS ON THE STEERING WHEEL

The controls for the main system

functions are present on the steering
wheel fig. 325 to make control easier.
The activation of the function selected is

controlled, in some cases, by the length

of the press (short or long press) as

described in the tables below.

325

9650105

(1) (2) Volume controls (

/

)

Media/Radio Mode

: increase and

decrease the volume in increments

(short) or continuously (keeping the

control pressed).

Phone mode:

turns the ring turn volume up or down

during ringing

after answering, turn up the volume

of the call (voice of the caller) in steps

(short) or continue (keeping the control

pressed)

(3) Selection of the main/default

screen/widget on the instrument panel
display
Short press

Toggle between displaying the main

(or default) screen (in the central area

of the instrument cluster display), or the

widgets (inside the tachometer on the

instrument cluster display)

(4) Telephone / Voice commands
Short press (Phone Mode)

Answer / end call

Short press (Voice command mode)

With voice session not active

:

activation of Alfa Connect system voice

controls

With voice session active:

immediately close voice session in

progress

Long press (Voice Command mode)

With voice session not active and

external audio device connected (e.g.

Apple CarPlay / Android Auto)

: activate

voice session of connected device

(5) Select items on the Connect system

display / Confirm actions suggested

by messages shown on the display

(

/

)

Rotate

Upwards:

Radio mode: select previous

radio station / Media mode: select

previous song

Downwards:

Radio mode: select next

radio station / Media mode: select

previous song
NOTE If Apple CarPlay and Android Auto

apps are present, Siri voice assistant

(for Apple CarPlay) or Google Assistant

(for Android Auto) will be activated. In

this case you can use "Natural language"

voice controls and not just the specific

ones preset for the Alfa Connect system.

The voice assistants of Siri (for Apple

CarPlay) or Google Assistant (for

Android Auto) will only be activated by
holding the button

pressed on the

right side of the steering wheel.

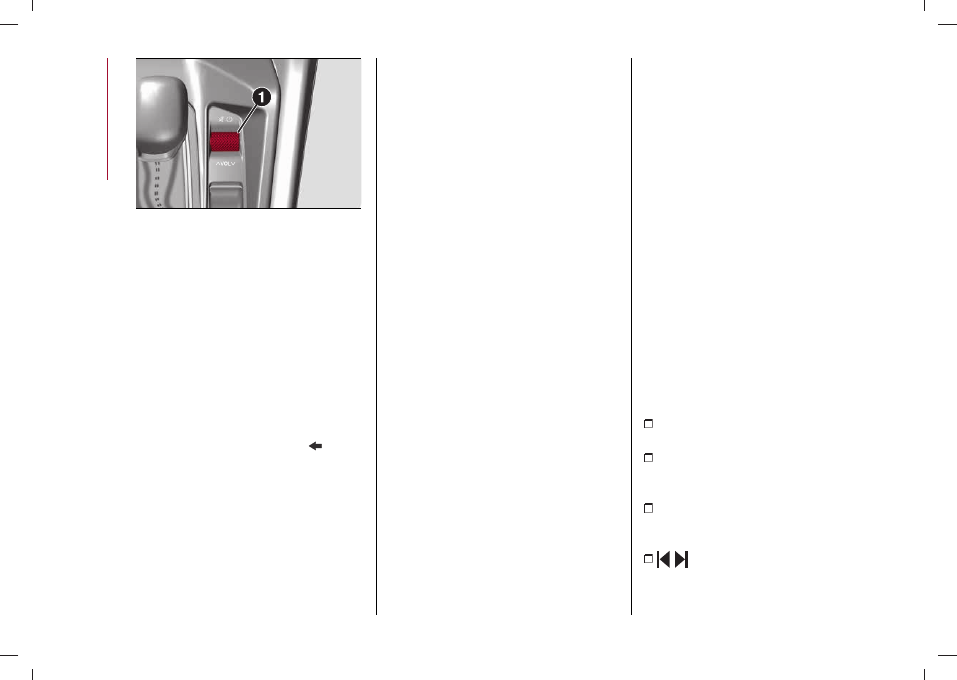

CONTROLS ON CENTRAL TUNNEL

On the central tunnel, to the side of the

gear lever, there is a rotary control (1)
fig. 326 for the following functions:

Long press: Alfa Connect system

on/off

Short press: Mute on/off (mutes the

playback of audio tracks, radio stations,

streaming from App and the ringing of

incoming calls).

Control rotation: adjust volume

CarManuals2.com

 MULTIMEDIA

352

326

9650183

TOUCHSCREEN FUNCTION

The system uses the touchscreen

function; to interact with the different

functions, press the graphic buttons

displayed.

To confirm

the selection, press the

graphic button "OK" or tick the required

selection. The selection is confirmed

with a dedicated acoustic signal for some

functions or settings.

To go back to the previous screen

, press

the "X" (Delete) graphic button or,

depending on the active screen .

To go back to the home screen or home

position

press the HOME graphic button.

The touchscreen function can be used

to access and view the available lists of

music tracks, phone numbers, settings,

etc.
Move your finger on the display to scroll

lists and selections. Hold your finger

down and move up to display the list

items at the bottom; move down to

display the list items at the top. Hold

your finger down on the display and move

your finger rightwards, to see the lists to

the left; move your finger leftwards, to

see the lists to the right of the display.

The same operation can be performed to

move between pages. When you press

your finger on the selected field or

graphic button, the Alfa Connect system

will either select the field or perform the

function associated with the graphic

button.

SHORTCUT BUTTONS

Up to 3 hot buttons (3) fig. 324 can be set

on the status bar.
Press the button below the time ((4)

fig. 324) to open the drop-down menu

with the list of available apps. Hold the

desired app pressed and drag it to the

app to be replaced on the status bar.
NOTE Customisation is only active when

the car is stationary. If an attempt is

made to customise with the car in motion

or to resume driving without having

completed the operation, a warning

message will appear on the display and

the operation will be ended.

MEDIA MODE

Press the "Media" graphic button to

listen and manage your music, view the

available lists, select your preferred

audio settings and select your sound

source of choice from those available:

AM radio, FM, DAB (where available),

SXM (where provided), USB,

Bluetooth®

,

etc.
WARNING Applications used on portable

devices may be not compatible with the

Alfa Connect system.
After Media mode is selected, the

following information is shown on the

display:

Left part:

display of the user's three

favourite sources. To choose the source,

select "Sources" and then choose the

source to display. The source being

played is highlighted on the display.

Upper part:

select the various pages

of the function: "Media", "Playing",

"Browse", "Audio Settings".

Middle part:

Display of information

about the track or station being played

and playback control buttons:

“Bluetooth”: for a

Bluetooth®

audio

source, opens the list of devices;

"Browse" for USB/

Bluetooth®

source,

allows you to search for content on your

device;

"Tracks" for USB/

Bluetooth®

source,

allows you to select a track from the

playlist;

/ : previous/next track selection or

previous/next station;

CarManuals2.com

353

: random playback of tracks

contained in the folder (if an audio track

is played);

: when the last track is finished,

playback automatically resumes from

the first track in the playlist (when

listening to an audio track);

: pause track in progress (if listening

to an audio track);

"Tuning": access the radio stations

(only with the radio playing).

Lower part:

Quick access to the favourite

radio stations.

Track selection

The "Songs" function allows you to open

a window with the list of tracks being

played.
The graphic buttons

and

can be

used to browse the list of artists, music

genres and albums on the connected
device via USB or

Bluetooth®

, according

to the information recorded on the

tracks themselves.
Within each list, the "ABC" graphic button

allows the user to skip to the desired

letter in the list.
NOTE This button might be disabled for

some

Apple®

devices.

NOTE The DAB frequency can be used

in countries where digital transmission

technology is available. The device will

tuned to any frequency if the DAB button

is pressed in a country where the service

is not provided.

COMFORT MODE

On the main screen you can select:

the airflow distribution settings:

windscreen, face, face plus feet,

feet, feet plus windscreen, face plus

windscreen, face plus windscreen plus

feet

the inside temperature settings
fast windscreen heating (

Max)

the defrosting of the rear window (

Rear)

the heating of the driver/passenger

seat (where provided)

the activation of the climate control

system with maximum cooling (Max A/C)

the activation of the climate control

system (A/C)

temperature synchronisation and

driver/passenger side ventilation (Sync)

switching off the air conditioning (Off)
the ventilation level
the steering wheel heater (where

provided)

activation of the automatic air

conditioning system “Auto” (only for

automatic air conditioning system)

the recirculation function

BLUETOOTH® MODE

This mode is activated by pairing a

Bluetooth®

device containing music

tracks with the Alfa Connect system.
When

Bluetooth®

mode is active, the

symbol

appears on the display.

PAIRING A BLUETOOTH® AUDIO

DEVICE

The pairing of a

Bluetooth®

device (e.g.

a smartphone) is done via the "Device

Manager" function on the "Phone" page.
Proceed as follows to pair a device:

activate the

Bluetooth®

function on

the device

access the "Device Manager" function
press the "Add button” button
a popup window shows the temporary

PIN to be entered in the device

find Alfa Connect system on the

Bluetooth®

audio device

when requested by the audio device,

enter the PIN code shown on the system

display or confirm on the device the PIN

displayed

if the pairing procedure is completed

successfully, a screen is displayed.

Answer “Yes” to the question to pair the

Bluetooth®

audio device as favourite

(the device will have priority over all

other devices to be paired subsequently).

If "No" is selected, the priority is

determined according to the order of

CarManuals2.com

 MULTIMEDIA

354

connection. The last device connected

will have the highest priority
If no device has been registered, you can

access the "Device Manager" directly

from the "Phone" function.
NOTE Up to 20 device can be paired.

In case of an attempt to pair a twenty-

first device a pop-up window will notify

that this is impossible. Remove a paired

device to allow the pairing of a new one.
NOTE The Radio may change the track

being played by modifying the from name

of the device in the

Bluetooth®

settings

of the telephone (where provided), if

the device is by means of USB after

the

Bluetooth®

connection. After

updating the phone software, for proper

operation, it is recommended to remove

the phone from the list of devices linked

to the radio, delete the previous system

pairing also from the list of

Bluetooth®

devices on the phone and make a new

pairing.
WARNING If the

Bluetooth®

connection

between mobile phone and system is

lost, consult the mobile phone handbook.

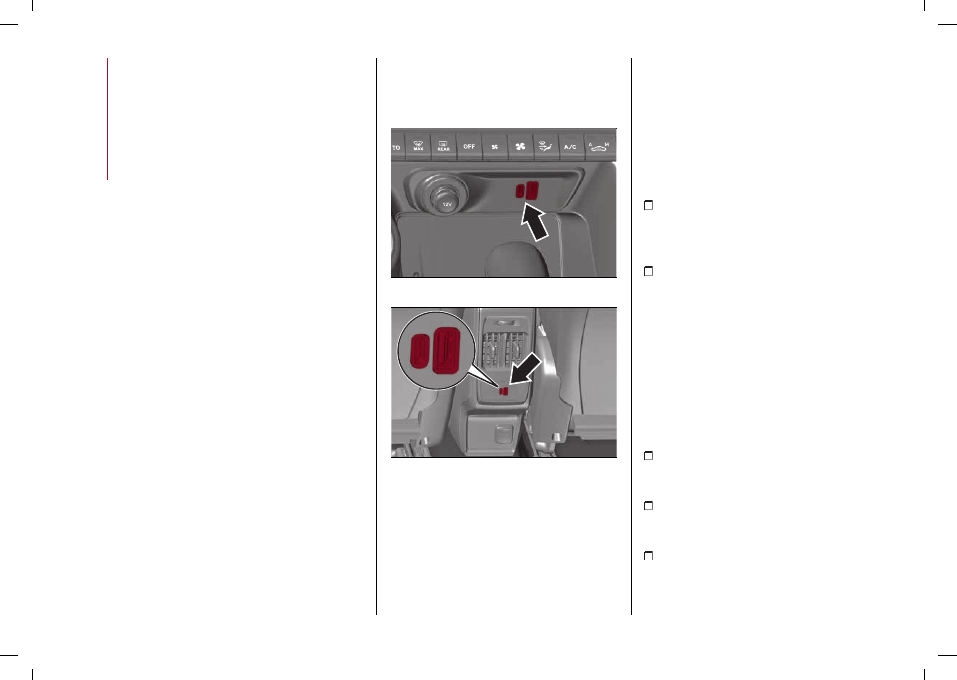

USB SOURCE

The vehicle has type A+C USB data &

charge ports on the central dashboard,

fig. 248 and, for versions/markets

where provided, a further two type A+C

USB charge-only ports on the rear

of the central console under the air

vents, fig. 327. Both Type C ports, for

versions/markets where provided, are

Power Delivery 3.0, providing very fast

charging, up to 40W.

327

9650103

328

9650102

When a USB device is plug into the

port on the dashboard with the radio

on, it starts to play the tracks on the

device if the "AutoPlay" is set to "ON"

in the "Audio" menu. If the "AutoPlay"

function is set to OFF and a smartphone

is connected, only charging the device

will be active.

PHONE MODE

Press the “Phone” button on the display

to activate the Phone mode.
NOTE To consult the list of mobile

phones and supported functions, visit the

www.alfaromeoconnect.eu website
Select the desired page on the display

using the bar at the top to:

press on the "Current call" graphic

button to display the name of the contact

(if stored) and the duration of the current

phone call

press the “Keypad” graphic button to

access the graphic keypad on the display,

which you can use to dial a phone number
NOTE The keypad is only active when the

car is stationary. If an attempt is made

to use the keypad with the car in motion

or if driving is resumed without having

completed the input, a specific warning

message will appear on the Alfa Connect

system display and the operation will be

ended.

press the "Recent” graphic button to

display and call contacts from the recent

calls logs

press the “Favourites” graphic button

to display and call contacts in the

favourites list

press the “Phonebook” graphic button

to display and call contacts in the mobile

phone address book

CarManuals2.com

355

press the “Messages” graphic button

to display the text messages received

view the connected devices

The mobile phone audio is transmitted

through the sound system of the car; the

system automatically mutes the Connect

system audio when the Phone function is

used.

Pairing a mobile phone

WARNING Carry out this operation

only with car stationary and in safety

conditions; this function is deactivated

when the car is moving.
To pair a mobile phone, see the

procedure in "Pairing a Bluetooth audio

device" in this chapter.
NOTE After updating the phone

software, for proper operation, it is

recommended to remove the phone from

the list of devices linked to the radio,

delete the previous Alfa Connect system

pairing also from the list of

Bluetooth®

devices on the phone and make a new

pairing.
WARNING If the

Bluetooth®

connection

between mobile phone and system is

lost, consult the mobile phone handbook.

"Double telephone" feature

The Alfa Connect system allows

simultaneous

Bluetooth®

connection

to two telephones. Only one of the two

connected devices can play multimedia

content via

Bluetooth®

. To activate the

feature, select "Two active phones" on

the "Device Manager" screen.
WARNING The “double telephone”

feature is not available while using the

telephone in CarPlay or Android Auto

mode.

Making a phone call

The operations described below can

only be accessed if supported by the

mobile phone in use. For all functions

available, refer to the mobile phone

owner's handbook.
You can make a call by selecting one of

the following items:

"Keypad"
“Recent”
"Favourites"
"Contacts"

Favourites

You can add a number or a contact (if

already in Contacts) to the favourite

list during a call by pressing one of the

5 "Empty" graphic buttons on the upper

part of the display. The favourites can

also be managed by using the Phone

Book options.

Text Message

You can access the text message

list received by the cell by selecting

the "Messages" item (the list shows a

maximum of 60 received messages).

To use this function, the mobile phone

must support the text exchange function

through

Bluetooth®

. If this operation

is not supported by the phone, the

corresponding "Text message" graphic

button is deactivated (greyed out).
When a text message is received, the

display will show a screen where the

options "Read", "Answer", "Forward",

"Call" or "Incoming" can be selected.
NOTE On some mobile phones, to make

the text voice reading function available,

the text notification option on the

phone must be enabled; this option is

usually available on the phone, in the

Bluetooth®

connections menu for a

device registered as Alfa Connect. After

enabling this function on the mobile

phone, it must be disconnected and

reconnected with the Alfa Connect

system in order to make it effective.
WARNING Some mobile phones may

not take the text message delivery

confirmation settings into account

when interfacing with the Alfa Connect

system.If a text message is sent via

the Alfa Connect system, the driver

could face an additional cost, without

any warning, due to the text message

delivery confirmation request sent by

the phone. For any problems related

to the above, contact your telephone

service provider.

CarManuals2.com

 MULTIMEDIA

356

"Do Not Disturb" function

(where provided)
If supported by the connected phone,

by pressing the "Do Not Disturb"

graphic button the user will not receive

notifications of incoming calls or text

messages. The user can reply with a

default or customized message by

means of the settings.

Text message options

(where provided)
Predefined messages are stored in

the system memory and can be sent to

answer a received message or as a new

message:

Yes
No
Okay
I can't talk right now
Call me
Thanks
I'm lost
I'm on the road
I am stuck in traffic
Are you there?
Where are you?
I can't talk right now
I will be 5 (or 10, 15, 20, 25, 30, 45, 60) (*)

minutes late
(*) Only use the numbers listed,

otherwise the system will not take

the message. When receiving a text

message, the systems also allows the

same message to be forwarded.
NOTE For details on how to send a text

message using the voice commands,

refer to the dedicated paragraph.

Apple CarPlay and Android Auto

(where provided)
The Apple CarPlay and Android Auto

applications allow you to use your

smartphone in the car safely and

intuitively. To enable them, Alfa Connect

a compatible smartphone to the USB

port of the car or in Wireless mode

and the contents of the phone will be

automatically shown on the Alfa Connect

system display.
To check the compatibility of your

smartphone, refer to the indications on

the websites:
https://www.android.com/intl/it_it/auto/

e http://www.apple.com/it/ios/carplay/.
If the smartphone is connected correctly

to the car via the USB port or in Wireless

mode, the Apple CarPlay or Android Auto
icon will be displayed in place of the

graphic button in the main menu.
NOTE The date and time shown on Alfa

Connect system display must match

the actual date and time, even after

disconnecting the battery. Adjust it from

the "Settings" menu of the Alfa Connect

system. Any discrepancy between the

date and time on the display and the

actual date and time may be due to a

malfunction in Apple CarPlay/Android

Auto.

Apple CarPlay App Setup

Apple CarPlay is compatible with the

iPhone 5 or more recent models, with

the iOS 7.1 operating system or later

versions.
Before using Apple CarPlay, enable Siri

from "Settings" > "General" > "Siri" on the

smartphone.

Android Auto APP Setup

Before use, download the Android Auto

application to your smartphone from

Google Play Store.
The application is compatible with

Android 5.0 (Lollipop) and later versions.

Starting from Android version 10

and higher, the Android Auto app is

integrated into the operating system of

the smartphone and no downloading is

required.
On the first connection, you will have

to perform the setup procedure that

appears on the smartphone. You can

only perform this procedure with the car

stationary.
Once connected to the USB port, the

Android Auto application establishes a

parallel

Bluetooth®

connection.

CarManuals2.com

357

Wireless mode

You can use Apple CarPlay and Android

Auto in Wireless mode, without the need

to connect your smartphone to the USB

port.
To configure this mode, follow the

procedure for pairing a

Bluetooth®

device. If successfully completed and

the Alfa Connected device supports

Wireless mode, confirm that it starts on

the message shown on your smartphone

Alfa Connect system display.
On subsequent connections, Wireless

mode is available automatically. If a

Bluetooth®

pairing is cancelled, the

pairing procedure must be repeated on

the "Device Manager" menu.
NOTE The use of multiple wireless

functions on the smartphone at the same

time (Apple CarPlay/Android Auto and

wireless charging), as indicated by the

smartphone manufacturers, could cause

it to overheat, resulting in a limitation of

the active functions or its turning off. In

this case, it is recommended to connect

the system using the USB socket.
To enable connection to Ubigi Wi-Fi,

CarPlay and/or Android Auto must be

disconnected beforehand.

Interaction

After the setup procedure, on connecting

your smartphone to the car's USB port,

the application will run automatically on

the Alfa Connect system.

Apple CarPlay

: To interact with Apple

CarPlay press the steering wheel button

(short press of the button) or the

"Home" graphic button on the display in

Apple CarPlay.

Android Auto

: To interact with Android

Auto press the steering wheel button

(long press of the button) or the

"Microphone" graphic button on the

display in Android Auto (where provided).

Navigation

(where provided)
If the "Nav" mode of the system is

already active, or when a device is

connected to the car with a navigation

session in progress, the system

navigation mode is interrupted to

continue the navigation session of the

device.
The selection can be changed at any

time by accessing the chosen navigation

system and setting a new destination.

Exiting the Android Auto and Apple

CarPlay apps

To end the Apple CarPlay or Android

Auto session, physically disconnect the

smartphone from the USB port of the car

or using the "Device Manager" menu.

VOICE COMMANDS

NOTE Voice commands are not available

for languages not supported by the

system.
To use voice commands, press the
"Voice"

button on the steering wheel

controls or the button

on the display

and say out loud the function you want

to activate. Alternatively, the function

can be activated by saying "Hey Alfa

Romeo" or "Hey Connect" (if the user has

previously enabled the function, for

versions/markets, where provided).
The list of available voice commands

is shown on the display divided by

categories.

Suggestion

A list of the most used voice commands

is shown.

Phone

Call

<contact name>

Call <

number

>

Write message
Call back
Show recent calls
Show outgoing calls
Show missed calls
Show received calls

CarManuals2.com

 MULTIMEDIA

358

Text

Send a message to <

contact

> mobile /

work

Media

I want to listen to music
Play <

track

> by <

artist

>

Let me hear some <

genre

>

Show my playlists
Play album <

album name

>

Play artist <

artist name

>

Play genre <

genre name

>

Play playlist <

playlist name

>

Radio

I want to listen to a radio
Play radio <

radio name

>

Play channel <

number

>

Tune to <

frequency

> <

FM

>/<

AM

>

Tune to <

radio name

>

Tune to <

radio name

> DAB channel

Navigation

See the "Navigation" paragraph below.

Climate

Set the temperature to <

value

>

Set fan speed to <

value

>

Turn on the A/C

NOTE If the fields include special

characters of languages not supported

by the system (e.g. Greek) the voice

commands will not be available. The

voice command operation may change as

a result of system updates.

ELECTRIC VEHICLE

(Q4 Plug-in Hybrid versions)
Proceed as follows:

select the "Vehicle” graphic button on

the Alfa Connect system and then select

"E-Hybrid"

if the charging cable is connected

to the car, select the "Activate PHEV”

function

the list of available screens will be

displayed:

"Power flow"
"Driving history"
"Schedules"
"e-Save"
"Charge setting"

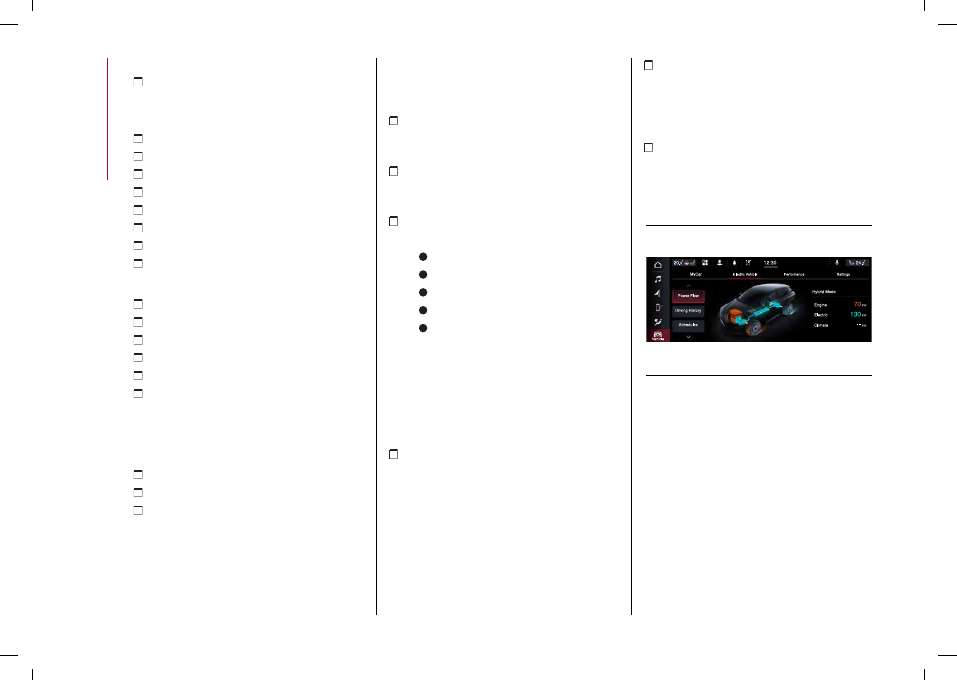

Power flow

Through the "Power flow" function
fig. 329 it is possible to see on the display

information related to the distribution of

the power consumed/supplied by the

systems:

"Engine" (power value, expressed in

kW, that the heat engine is generating).

Based on the car operating conditions,

this power is used for car movement,

to heat the passenger compartment,

supply the electric loads and charge the

high-voltage battery. The operation of

the heat engine is monitored in order to

minimize fuel consumption

"Battery" (peak power value,

expressed in kW, that the high voltage

battery is able to supply/ absorb. This

power supplies the front and rear

electric motors and car loads

"Climate" (power value, expressed in

kW, that the automatic dual-zone climate

control system is using to maintain the

set air temperature value inside the

passenger compartment)

329

9651136

NOTE In deceleration energy recovery

operations ("eBraking" or "eCoasting")

the power value of the high-voltage

battery displayed on the Alfa Connect

system display may be negative.
NOTE The distribution of the power

flows is shown graphically using arrows

on the Alfa Connect system display.

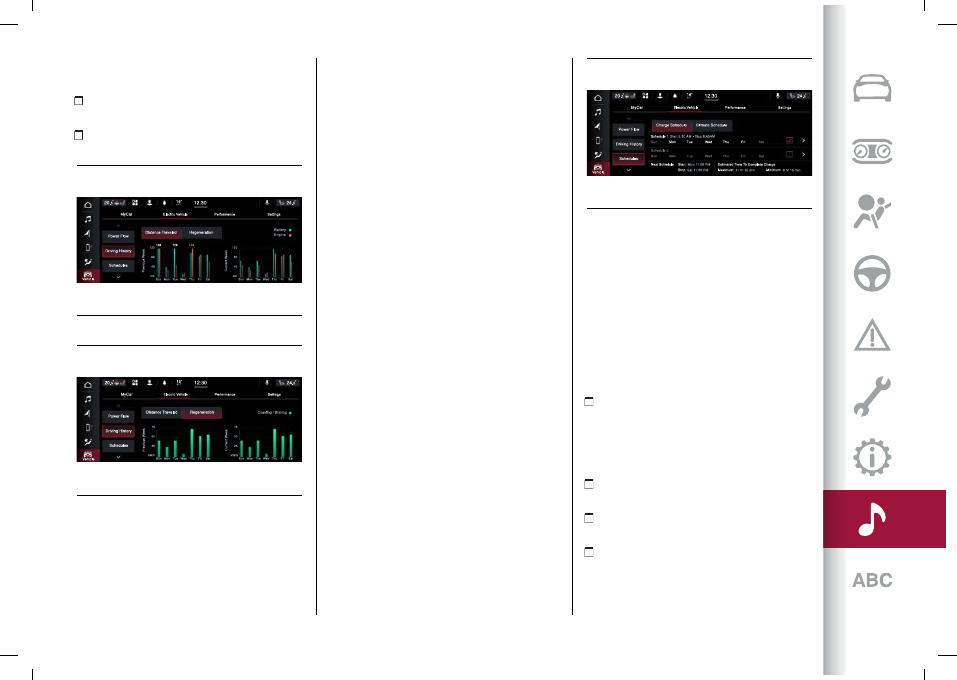

Driving history

Using the "Driving History" function,

you can see the graphs (relating to the

CarManuals2.com

359

"Previous Week" and "Current Week") on

the display with information regarding:

"Distance Travelled" (values

expressed in km or mi), fig. 330

"Regeneration" (energy value,

expressed in kWh), fig. 331

330

9651137

331

9651138

Distance Travelled

The graphic bars shown on the display

(referring to "Previous Week" and

"Current Week") indicate the distance

travelled (in km or mi) in one day in

electric operation mode or hybrid

operating mode.
The

light blue

bars refer to operation

with the electric motor.
The

amber

bars refer to operation with

the heat engine.

Regeneration

The graphic bars on the display show

the value of energy recovered from the

high-voltage battery (expressed in kWh)

during "eCoasting" and "eBraking" energy

recovery operations.

Schedules

If the charging cable is connected to the

car, select the "Activate PHEV”.
Using the "Schedules" feature fig. 332,

you can schedule the automatic dual-

zone climate control system and/or the

high voltage battery charging.
When charging the car, or if the high-

voltage battery is sufficiently charged,

you can activate the preconditioning

of the passenger compartment before

driving.

332

9651139

The display also shows information

about "Next Schedules" ("Charge" and

"Climate") and "Estimated Time to

Complete Charge" ("Maximum" and

"Minimum" time).

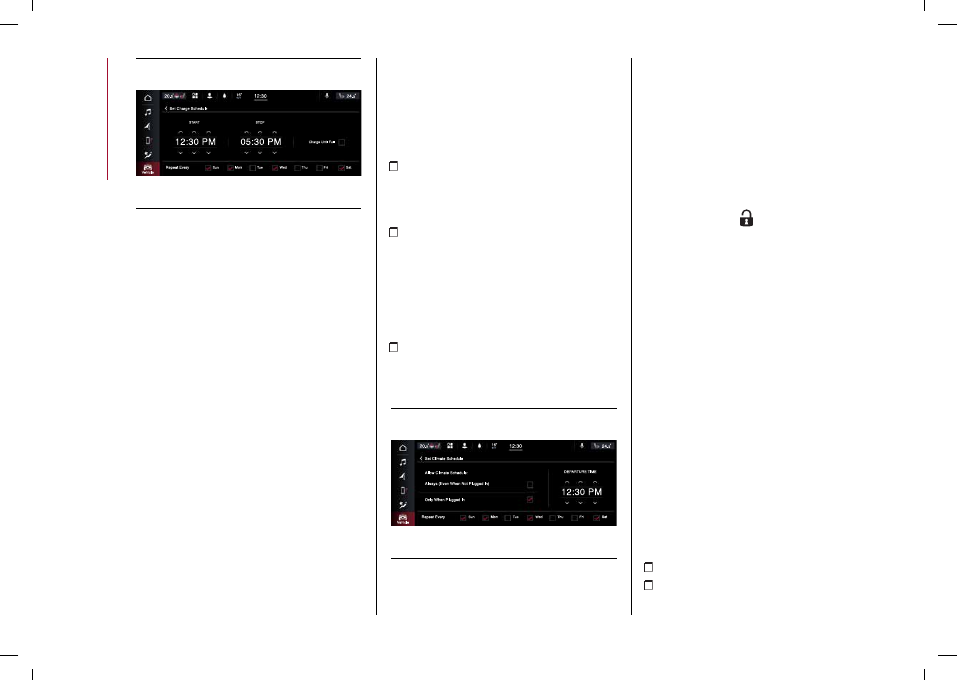

Charging Schedule

Using this function, fig. 333, you can set

the high voltage battery charging by

selecting the following settings:

"START": time at which to activate

the charging procedure. Through this

function you can choose the time

interval at which to activate the charging

procedure

"STOP": time when the charging

process ends

"Repeat every” day(s) on which to start

charging;

"Full charge": the charge continues

until the high voltage battery is fully

charged

CarManuals2.com

 MULTIMEDIA

360

333

9651143

NOTE When this is selected, the charge

procedure cannot be interrupted.

Charging will stop automatically when

100% is reached.
NOTE If the charging schedule is not set,

to charge the high-voltage battery simply

connect the cable to the power socket

(the charging schedule operation does

not need to be set).
NOTE If the "Until Full" setting is

selected and the charging cable is

connected after the schedule start

time, the high-voltage battery charging

procedure will start the next day (at the

same time). If you want to start to charge

immediately and continue to charge until

the high voltage battery is fully charged,

select the setting "Charge Now".
For the charging cable connection, see

the description in the "Charging" chapter

in the "Starting and driving" section.

Climate Schedule

This function fig. 334 is used to set the

ignition of the automatic dual-zone

climate control system when the engine

is turned off by selecting the following

settings:

"Departure Time": time you wish to

leave. The car preconditioning activation

time will be managed autonomously by

the car

"Always (Even when not connected)”:

enables the air conditioning system

of the passenger compartment when

the high-voltage battery charge status

is below 25%. The preconditioning is

active even if the charging cable is not

connected to the charging port

“Charging: When connected": allows

you to repeat the function for the

selected days of the week (the days are

at the bottom of the screen)

334

9651144

NOTE The temperature set by the

automatic dual-zone climate control

system is the temperature selected

before the engine or climate control

system is turned off.
NOTE To stop the "Climate Schedule"

procedure, either start the engine or

press the OFF button on the automatic

dual-zone climate control system panel.
NOTE Before the comfort temperature

is reached, press and release the door
unlocking button

located on the

key with remote control, or on the

handle of the driver's door to unlock the

doors and turn off the alarm (where

provided). Afterwards, before the

comfort temperature is reached, press

and release the ignition device.
NOTE Selecting “Always (Even when not

connected)” will temporarily suspend

the high-voltage battery charging

function. This depends on the power

consumption of the automatic dual-zone

climate control system compared to

that provided by the public charging

station: in case of redundancy, the

air conditioning will be activated and

charging will be carried out.
NOTE The schedule of the automatic

dual-zone climate control system can

be activated only under the following

conditions:

Doors closed properly
Bonnet closed properly

CarManuals2.com

361

Tailgate closed properly
Brake pedal not pressed
Hazard warning lights button not

pressed

Alarm (where provided) not active
Battery voltage at an acceptable

charge level

Ignition device in the STOP position
Gear lever in "Park" position (P)

NOTES

If a problem occurs with the electric

motor, the automatic dual-zone

climate control system schedule will be

deactivated in approx. 3 seconds.

Fore safety reasons, windscreen

wiper operation is disabled when the

automatic dual-zone climate control

system schedule is active.

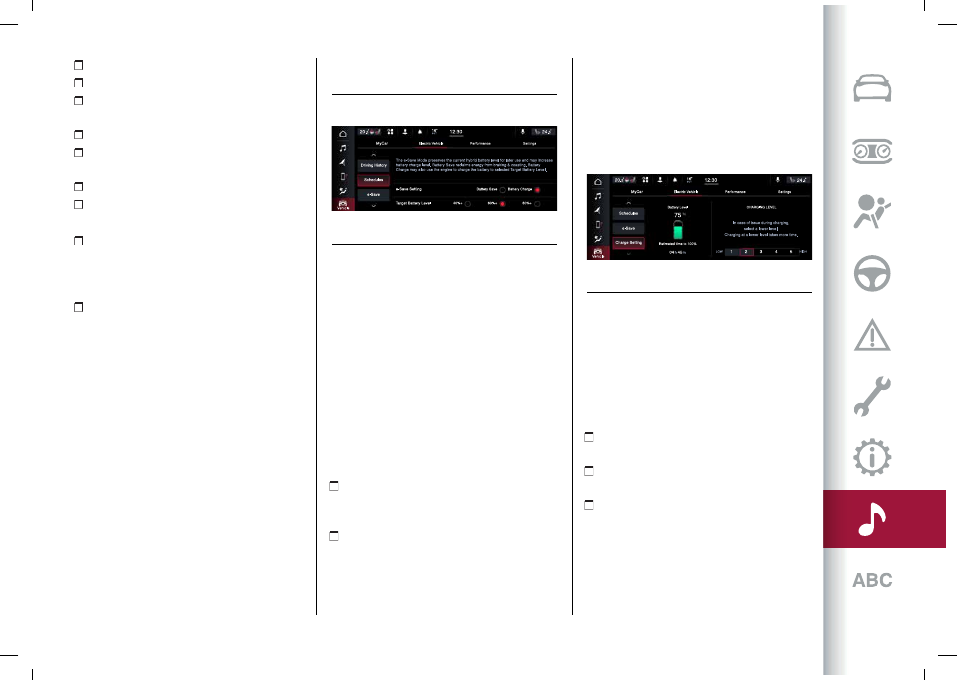

e-Save

The "e-Save" function fig. 335 safeguards

the state of charge of the high-voltage

battery or uses the heat engine to charge

the high-voltage battery.
NOTE Driving with the "e-Save" mode

active may result in an increase in

average fuel consumption and a

limitation of the accelerator pedal

response in case of engine performance

request.

Battery charge

Select “Battery Target Level” to select

one of the following battery status

maintenance options: 40%+ / 60%+ /

80%+.

335

9651140

Charge setting

The "Charge Setting" function can be

used to set the power level / current

consumption during charging. Select

the displayed level on the display, which

ranges from a LOW level (“1”) to a HIGH

level (“5”).
The high voltage battery charge level

(expressed as a percentage) is shown
graphically on the display fig. 336.
The display also shows information

related to:

"Battery Level": the graphic bar shown

on the display indicates, in percentage,

the high-voltage battery state of charge

"Estimated time to 100%":

corresponds to the time required to

obtain full recharging of the high-voltage

battery

If problems occur during the charging

procedure, a dedicated message will

appear on the display suggesting the

driver to select a lower level (selecting a

lower level will take longer to charge).

336

9651141

NOTE To get an estimate of the time

needed for full charge (100%) refer to

what is shown on the display and updated

in real time.

Charging time

The charging time varies depending on:

the high-voltage battery state of

charge;

the age of the high-voltage battery and

its temperature;

the type of cable used ("Mode 2" cable

or "Mode 3" cable) and, consequently, the

selected charging mode (connection to

a domestic socket, a domestic charging

station (wallbox) or a public charging

station);

CarManuals2.com

 MULTIMEDIA

362

any external or environmental factors

such as, for example, activation of the

climate control system, the outside

temperature, the temperature of the

high-voltage battery, the country where

charging is carried out.
Charging times can be longer if there is a

thermal protection device in the system,

which reduces the charging current to

the socket to which the car is connected.
NOTE Charging times and currents refer

to systems powered at 230V and 50Hz

under nominal conditions and ambient

temperature of 25°C.

NOTES

The following information refers to the

use of the "Mode 2" charging cables

supplied with the car and "Mode

3" supplied separately as optional

equipment by FCA.
The charging times shown in the table

below are estimates based on charging

the high-voltage battery having a state

of charge less than 1%.

Type of charging cable used: "Mode 2”

(*)

Estimated standard charge time (using

"Level 5"): approximately 5 hours and 30

minutes

Type of charging cable used: "Mode 3”

(**)

Estimated standard charge time (using

"Level 5"): approximately 2 hours and 30

minutes
(*) The

standard charging time

shown

is calculated at the maximum level (5)

“high” set on the Alfa Connect system

display, corresponding to an absorbed

current of 13 A. Selecting a lower power

level will increase the charging time in a

non-linear manner. Lower power levels

reduce the maximum current drawn in

steps of about 20%, up to a current of 2.7

A at the lowest (1) “low” level set on the

Alfa Connect system display.
NOTE According to the country where

the car is sold and the "Charging level"

("Level 1" low or "Level 5" high) set on

the display of the Alfa Connect system,

the current consumption values (from a

minimum of 2.7 A to a maximum of 13 A)

and the related charging times may vary

as the "Mode 2" charging cable may have

maximum permitted levels lower than

13A.
(**) The

standard charging time

shown

is calculated at the maximum level (5)

“high” set on the Alfa Connect system

display, corresponding to an absorbed

current of 32 A. Selecting a lower power

level will increase the charging time in

a non-linear way. Lower power levels

reduce the maximum current drawn in

steps of 20%, up to a current of 6.4 A at

the lowest (1) “low” level set on the Alfa

Connect system display.

NAVIGATION

(where provided)
Press the "Nav" graphic button to show

the navigation map on the display.
You can use map view in the same way

as you might look at a traditional paper

map. You can move around the map

using gestures, and zoom using the zoom

buttons.
You can find your destination by

selecting it on the map, choosing a saved

destination (for example "Home" or

"Work") or searching for an address using

the "Search" button in the main menu.
After selecting the destination, a route is

planned and shown on the "Map view"

screen. The route bar appears on the

right hand side of the display and

provides an additional indication of

events along the route, e.g. accidents

and speed cameras. The arrival time and

remaining distance are also available.
You can choose to view the route via a 3D

image in the "Guidance view".
NOTE The navigation system volume

can be adjusted during navigation when

the system provides voice indications or

using the "Volume adjustment" function

"Audio settings" menu.

CarManuals2.com

363

NOTE In some countries, the use of the

keyboard is only permitted when the car

is stationary. If an attempt is made to

enter text (e.g. an address) with the

car in motion or if driving is resumed

without having completed engagement,

a warning message will appear on

the display and the operation will be

ended. We recommend the use of voice

commands while driving.

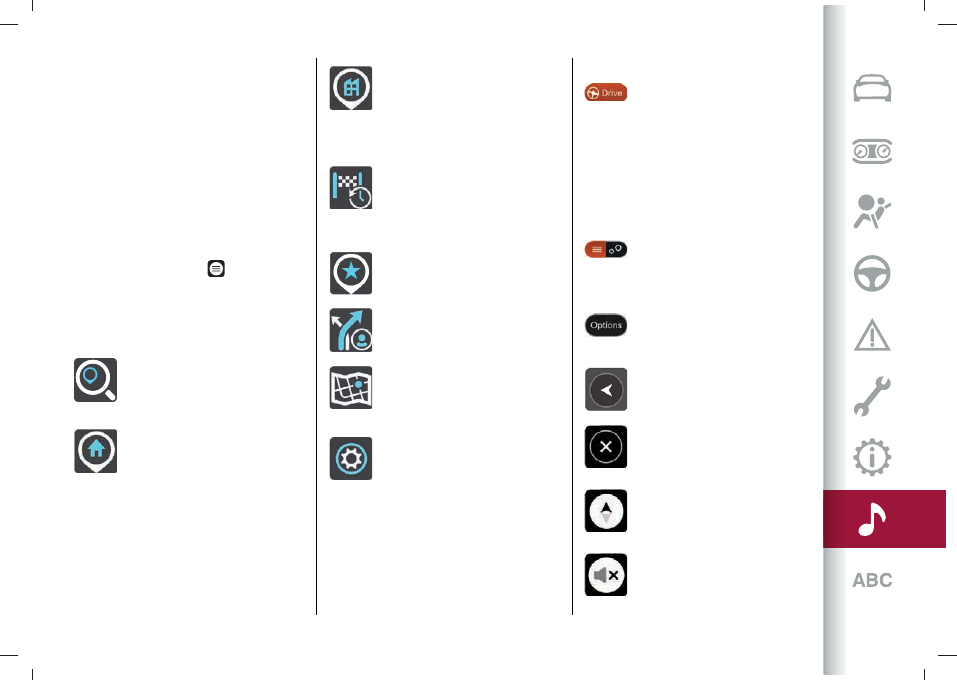

Navigation main menu

In "Map view" or "Guidance view", tap
the "Main menu" button

to open the

menu.
The following buttons are available in the

main menu:

"Search”: select this graphic

button to search for an address,

a place or a point of interest, then

plan a route to the location.

"Drive Home": Select this button

to navigate to the location

registered as "Home". If this

button is displayed as "Add

Home", select this button to set

the location of your home.

"Drive to work": Select this

button to navigate to the location

registered as "Work". If this

button is displayed as "Add

Work", select this button to set

the work position.

"Recent": Select this button

to open the list of recent

destinations. Select a recent

destination to plan a route to that

destination.

"Favourites": select this button to

show the saved favourite places.

"Trips": select this button to show

saved trips.

"Maps": select this button

to display a list of installed

maps. The maps are updated

automatically.

"Settings": select this button to

open the Settings Menu. In the

"Settings" menu, you can change

the items shown on the navigation

display.

System buttons

The following buttons are available in

the different displays of the navigation

system:

When you have selected a

destination, either by clicking on a

location on the map, or using the

search feature, select this graphic

button. The navigation system

will find the best route and, if

available, two alternative routes.

You can select an alternative to

avoid tolls or heavy traffic, for

example.

Use this button to decide whether

to display the results on the map

or in a list.

Use this button to access the

"Route Options" menu. With an

active route, you can change the

route from this screen.

Select this button to return to the

previous screen.

Select this button to return to the

"Map view" screen.

Select this button to switch

between the "3D direction up",

"2D direction up" and "2D north

up".

Select this button to choose

between audio instructions,

warning only or no sound.

CarManuals2.com















Content      ..     9      10      11      12     ..
