Alfa Romeo Tonale (2023 year). Manual in english - page 10





299

274)

When working in the engine compartment pay special attention to mechanical components that can move suddenly, pressurized or very hot

liquids and live electrical parts.

275)

NEVER touch the high-voltage system components (identified by the orange colour), as this could result in serious injury or death from electric

shock.

276)

Do not pour water or any other type of liquid onto the high voltage system components inside the engine compartment. Risk of death by

electric shock and/or damage to the system.

IMPORTANT

110)

Be careful not to confuse the various types of fluids while topping up: they are not compatible with one another! Topping up with an unsuitable

fluid could severely damage your vehicle.

CarManuals2.com

 SERVICING AND MAINTENANCE

300

ENGINE OIL

277)

111)

Check that the oil level is between the

MIN and MAX references on the dipstick

(1). If the level of the oil is close to or

below the MIN mark, add oil via the filler

fitting (2) until the MAX mark is reached.

1.3 / 1.5 versions

The engine oil level dipstick (1) is integral

with the cap (2). Unscrew the cap, clean

the dipstick with a lint-free cloth,

reinsert the dipstick and screw the cap

back on.
Unscrew the plug again and check that

the engine oil level is between the MIN

and MAX marks on the dipstick.
When the operation is complete, screw in

the cap/dipstick correctly.

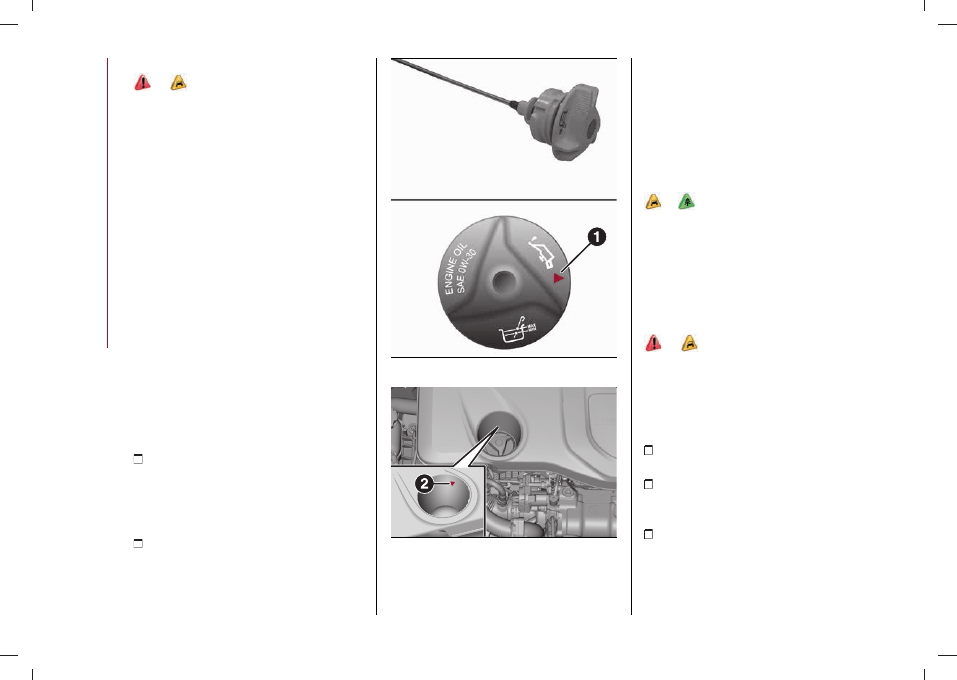

Insertion of engine oil cap/dipstick (1.3

versions)

(for versions/markets where provided)
To reinsert the engine oil cap/dipstick

correctly, proceed as follows:

insert the cap/dipstick in position,

aligning the mark (1) fig. 307 on the
cap/dipstick with the mark (2) fig. 308 on

the engine cover (for versions/markets

where provided)

screw in the cap/dipstick correctly

307

9650243

308

9650244

1.6 16V Multijet and 2.0 T4 272 HP

versions

Take out the engine oil dipstick (1), clean

it with a lint-free cloth and reinsert it.
Extract it again and check that the engine

oil level is between the MIN and MAX

marks on the dipstick.

Engine oil consumption

112)

8)

The maximum engine oil consumption

is usually 400 grams every 1000 km.

During the initial period of use the engine

oil consumption conditions should be

considered as having stabilised after the

first 5000 - 6000 km.

HEAT ENGINE COOLANT

278)

113)

If the level is too low, unscrew the cap

(3) of the reservoir and add the fluid

described in the "Refilling" chapter in the

“Technical Specifications” section.
For 2.0 T4 272 HP versions:

undo the tank cap with the engine

coolant level control rod

clean the dipstick with a lint-free

cloth, reinsert the dipstick and without

screwing the cap back on

remove cap again and check that the

liquid level is between the MIN and MAX

marks on the dipstick

CarManuals2.com

301

AUXILIARY BATTERY COOLING

SYSTEM FLUID

(Mild Hybrid versions)

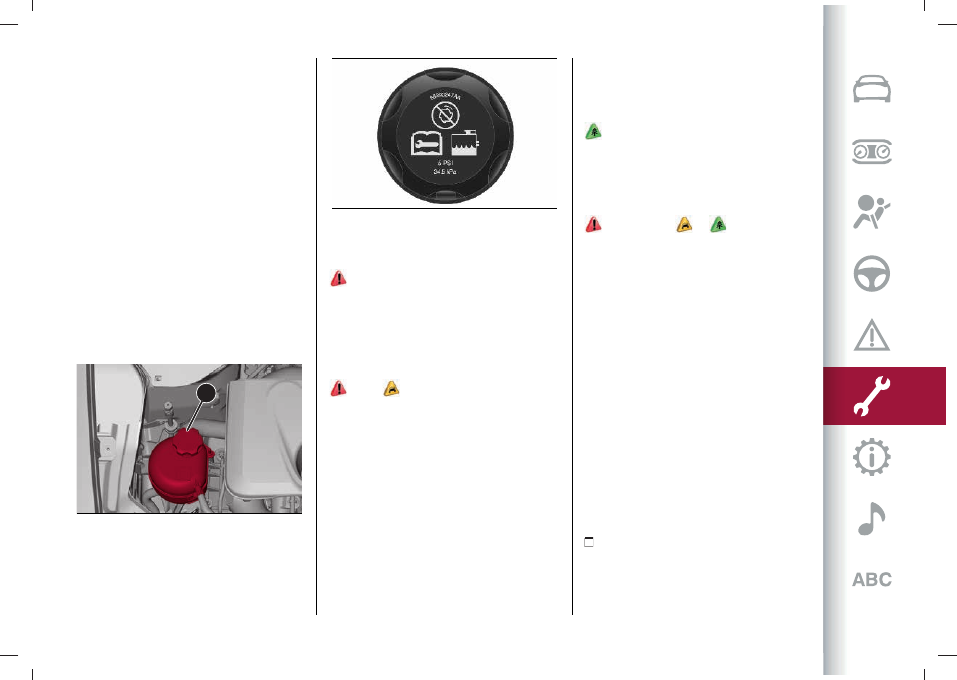

The level of the auxiliary battery system

coolant must be checked when the

engine is cold and must be between the

MIN and MAX marks on the reservoir (4)

fig. 309.
If the level is below the MIN level, go to

an Alfa Romeo Dealership.
Do not attempt to open the cap fig. 310

yourself to avoid burns and/or damage

to the cooling system and electronic

components. Topping up and filling

operations must be carried out by

qualified personnel at an Alfa Romeo

Dealership using the appropriate

equipment for vacuum filling.

4

309

9650314

310

9650315

WINDSCREEN/REAR WINDOW

WASHER FLUID

279) 280)

If the level is low, lift the cap (4) of the

reservoir and add the fluid described in

the “Refilling” chapter of the "Technical

Specifications" section.

BRAKE FLUID

281) 282)

114)

Check that the fluid is at the max. level.

If the fluid level in the reservoir is low,

unscrew the cap (5) of the reservoir and

add the fluid described in the “Refilling”

chapter of the "Technical Specifications"

section.

DUAL CLUTCH AUTOMATIC

TRANSMISSION/ELECTRIFIED DUAL

CLUTCH AUTOMATIC TRANSMISSION

ACTIVATION SYSTEM OIL

9)

The transmission control oil level should

only be checked at an Alfa Romeo

Dealership.

CONVENTIONAL BATTERY

283) 284) 285) 286)

115)

10)

The conventional battery does not

require topping up the electrolyte with

distilled water.
A periodic check carried out at an

Alfa Romeo Dealership is, however,

necessary to check efficiency.

Replacing the conventional battery

If necessary, replace the conventional

battery with another original battery

with the same specifications. Follow the

conventional battery manufacturer's

instructions for maintenance.

USEFUL ADVICE FOR EXTENDING THE

LIFE OF THE CONVENTIONAL BATTERY

To avoid draining your conventional

battery and make it last longer, observe

the following instructions:

when you park the car, ensure that the

doors, tailgate and bonnet are closed

properly, to prevent any ceiling lights

from remaining on inside the passenger

compartment

CarManuals2.com

 SERVICING AND MAINTENANCE

302

switch off all ceiling lights inside the

car: the car is however equipped with a

system which switches all internal lights

off automatically

do not keep accessories (e.g. Alfa

Connect system, hazard warning lights,

etc.) switched on for a long time when the

engine is not running

before performing any operation on

the electrical system disconnect the

cable from the negative conventional

battery terminal. If, after purchasing

the car, you wish to install electrical

accessories which require permanent

electrical supply (e.g. alarm, etc.)

or accessories which influence the

electrical supply requirements, contact

an Alfa Romeo Dealership, whose

qualified staff will evaluate the overall

electrical consumption
WARNING After the battery is

disconnected, the steering must be
initialised. The

warning light on the

instrument panel switches on to indicate

this. To carry out this procedure turn the

steering wheel all the way from one end

to the other or drive in a straight line for

about a hundred metres.
WARNING If the state of charge remains

under 50% for a long time, the traditional

battery is damaged by sulphation,

reducing its capability and efficiency

when starting. The battery is also

more prone to the risk of freezing (at

temperatures of −10 °C/14 °F). Refer to

the "Car inactivity" chapter this section if

the car is left parked for a long time.

CLIMATE CONTROL SYSTEM

MAINTENANCE

In winter, the climate control system

must be turned on at least once a month

for about 10 minutes. Have the system

inspected at an Alfa Romeo Dealership

before the summer.

WARNING

277)

If the engine oil is being topped up, wait

for the engine to cool down before loosening

the filler cap, particularly for vehicles with

aluminium cap (where provided). WARNING:

risk of burns!

278)

The cooling system is pressurised.

If necessary, only replace the plug with

another original or the operation of the

system may be adversely affected. Do not

remove the reservoir plug when the engine is

hot: you risk scalding yourself.

279)

Do not travel with the windscreen

washer fluid reservoir empty: the

windscreen washer is essential for

improving visibility. Repeated operation of

the system without fluid could damage or

cause rapid deterioration of some system

components.

280)

Some commercial additives for

windscreen washer fluid are flammable.

The engine compartment contains hot

components which may start a fire.

281)

Brake fluid is poisonous and highly

corrosive. In the event of accidental contact,

immediately wash the affected parts with

water and mild soap. Then rinse thoroughly.

Call a doctor immediately if swallowed.

282)

The symbol , on the brake fluid

container indicates if a brake fluid is

synthetic or mineral­based. Use of mineral

type fluids will damage the special rubber

seals of the braking system beyond repair.

283)

The conventional battery fluid is

poisonous and corrosive. Avoid contact with

the skin and eyes. Keep open flames away

from the conventional battery and do not

use objects that might create sparks: risk of

explosion and fire.

284)

Using the conventional battery with

insufficient battery fluid may irreparably

damage the battery and may cause an

explosion.

285)

If the car must remain unused for a

long time at a very low temperature, remove

the conventional battery and take it to a

warm place, to avoid freezing.

286)

Always wear appropriate goggles to

protect your eyes when working on or near

the conventional battery.

IMPORTANT

111)

The oil level must never exceed the MAX

mark.

112)

Always top up using engine oil of the

same specifications as that already in the

engine.

113)

PARAFLU UP anti-freeze fluid is used

in the engine cooling system; use the same

fluid type as that already in the cooling

CarManuals2.com

303

system when topping up. PARAFLU UP may

not be mixed with other types of anti-freeze

fluids. In the event of topping up with an

unsuitable product, under no circumstances

start the engine and contact an Alfa Romeo

Dealership.

114)

Prevent brake fluid, which is highly

corrosive, from coming into contact

with painted parts. Should it happen,

immediately wash with water.

115)

Incorrect installation of electric and

electronic devices may cause severe

damage to your car. After purchasing your

car, if you wish to install any accessories

(e.g. anti-theft, radio phone, etc.), go to an

Alfa Romeo Dealership, which will suggest

the most suitable devices and advise you

whether a higher capacity conventional

battery needs to be installed.

IMPORTANT

8)

Used engine oil and oil filters contain

substances which are harmful to the

environment. To change the oil and filters,

we advise you to contact an Alfa Romeo

Dealership.

9)

Used transmission oil contains

substances that may be dangerous for the

environment. You are advised to contact an

Alfa Romeo Dealership for oil changes.

10)

Batteries contain substances which

are very harmful for the environment. For

conventional battery replacement, contact

an Alfa Romeo Dealership.

CHARGING THE CONVENTIONAL

BATTERY

WARNINGS

WARNING After setting the ignition

device to STOP and closing the driver's

door, wait at least two minutes before

disconnecting the electrical supply

from the traditional battery. When

reconnecting the electrical supply to the

conventional battery, make sure that the

ignition device is in the STOP position

and the driver's door is closed.
WARNING Charging should be slow at

a low ampere rating for approximately

24 hours. Charging for a longer time may

damage the conventional battery.
WARNING The cables of the electrical

system must be correctly reconnected to

the conventional battery, i.e. the positive

cable (+) to the positive terminal and

the negative cable (–) to the negative

terminal.
The conventional battery terminals are

marked with the positive (+) and negative

(-) terminal symbols, and are shown on

the cover of the battery itself.
The battery terminals must also be

corrosion-free and firmly secured to the

terminals. If a "quick-type" conventional

battery charger is used with the battery

fitted on the car, before connecting

it disconnect both cables of the

conventional battery itself. Do not use a

"quick-type" battery charger to provide

the starting voltage. When using a

portable booster with a nominal voltage

of 12V/24V, make sure that the selector

is correctly positioned on 12 Volt.

VERSIONS WITHOUT START&STOP

SYSTEM (where provided)

To charge, proceed as follows:

disconnect the terminal from the

negative conventional battery pole

connect the charger cables to the

conventional battery terminals,

observing the polarity

turn on the battery charger
when it is recharged, turn the charger

off before disconnecting it from the

conventional battery

reconnect the terminal to the negative

conventional battery pole

VERSIONS WITH START&STOP

SYSTEM (where provided) AND MILD

HYBRID

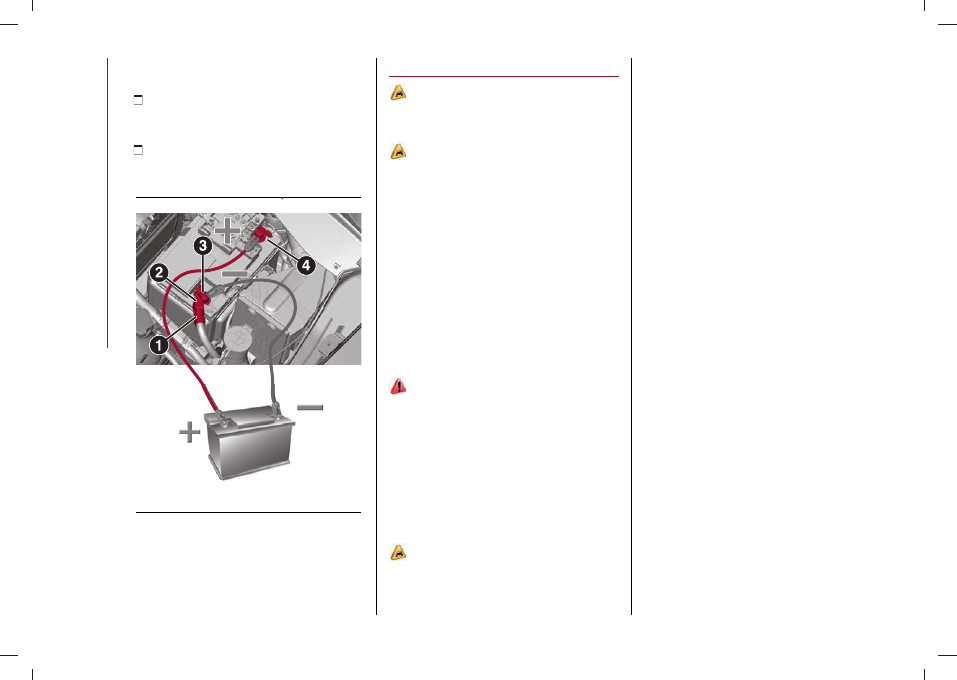

To charge, proceed as follows:

disconnect the connector (1) fig. 311

by pressing the button (2) from the

sensor (3) monitoring the status of the

conventional battery, on the negative (-)

pole of the conventional battery

connect the positive cable (+) of the

conventional battery charger to the

positive conventional battery terminal

CarManuals2.com

 SERVICING AND MAINTENANCE

304

(4) and the negative cable (–) to sensor
terminal (3) as shown fig. 311

turn on the battery charger. At the end

of the charging procedure, switch the

battery charger off

after having disconnected the battery

charger, reconnect connector (1) to the
sensor (3) as shown in fig. 311

311

9650245

SERVICING PROCEDURES

116) 117) 118)

ENGINE OIL

Engine oil level check

119)

To ensure correct engine lubrication, the

oil must always be kept at the prescribed

level (see the "Engine Compartment"

chapter in this section).

ENGINE OIL FILTER

Replacing the engine oil filter

The engine oil filter must be replaced

each time the engine oil is changed.
It is advisable to replace it with a genuine

spare part, specifically designed for this

car.

AIR CLEANER

287)

Replacing the air cleaner

See the "Service Schedule" for the

correct servicing intervals.
It is advisable to replace it with a genuine

spare part, specifically designed for this

car.

AIR CONDITIONING SYSTEM

MAINTENANCE

120) 121)

To ensure the best possible

performance, the air conditioning

system must be checked and undergo

maintenance at an Alfa Romeo

Dealership at the beginning of the

summer.
WARNING Do not use chemicals to clean

the air conditioning system, since the

internal components may be damaged.

This kind of damage is not covered by

warranty.

Replace the pollen filter

(where provided)
See the "Service Schedule" for the

correct servicing intervals.
For cleaner replacement, contact an Alfa

Romeo Dealership.

DIESEL FILTER (Diesel versions)

See the "Service Schedule" for the

correct servicing intervals.

LUBRICATING MOVING PARTS OF THE

BODYWORK

Ensure that the locks and bodywork

junction points, including components

such as the seat guides, door hinges

(and rollers), tailgate and bonnet are

periodically lubricated with lithium-

based grease to ensure correct, silent

operation and to protect them from rust

and wear.
Also pay particular attention to the

bonnet closing devices, to ensure correct

operation.

CarManuals2.com

305

WINDSCREEN WIPER/REAR WINDOW

WIPER

Periodically clean the glass of the

windscreen and heated rear window and

rubber profile of the windscreen/rear

window wiper blades, using a sponge or a

soft cloth and a non-abrasive detergent.

This eliminates the salt or impurities

accumulated when driving.
Prolonged operation of the

windscreen/rear window wipers with

dry glass may cause the deterioration of

the blades, in addition to abrasion of the

surface of the glass.
In the event of very low outdoor

temperatures, below zero degrees,

ensure that the movement of the rubber

part in contact with the glass is not

obstructed.
Use a suitable deicing product to release

it if required.
Avoid using the windscreen wipers to

remove frost or ice.
Also avoid contact of the rubber profile

of the blades with petroleum derivatives

such as engine oil, petrol, etc.
WARNING It is advisable to replace the

wiper blades about once a year. When

the blades are worn, noise, marks on the

glass or streaks of water may be noticed.
WARNING Driving with worn

windscreen/rear window wiper blades

is a serious risk, because visibility is

reduced in bad weather.

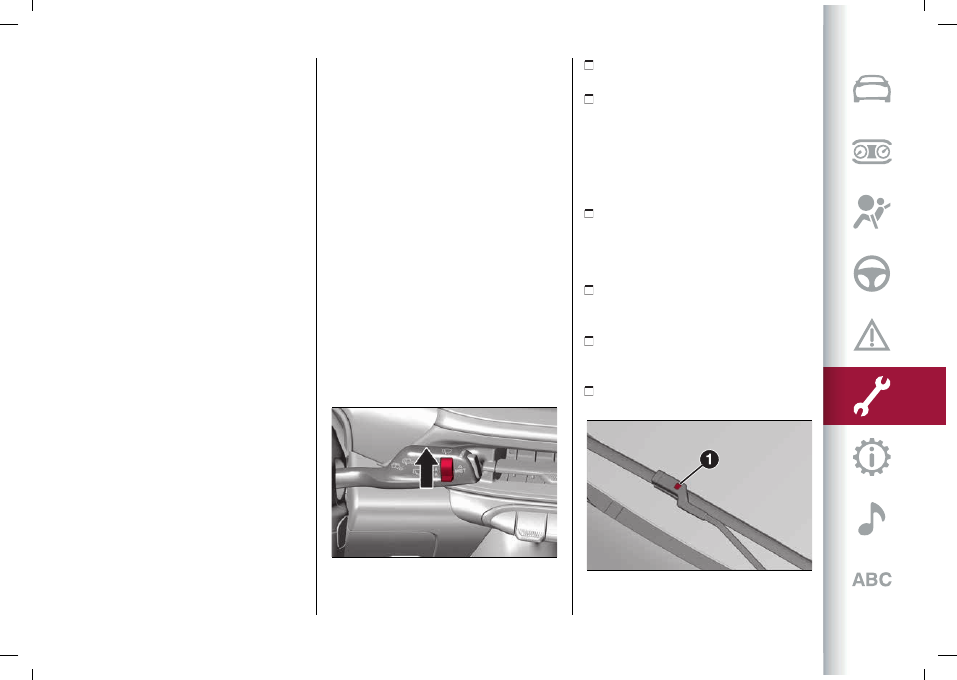

Raising the windscreen wiper blades

("Service position" function)

The “Service position” function allows

the driver to replace the windscreen

wiper blades more easily, protecting

them from ice and/or snow.

Activation of the function

To activate this function, deactivate

the windscreen wiper (stalk fig. 312 in

position

O

) before setting the ignition

device to STOP.
This function can only be activated

within 2 minutes of setting the ignition

device to STOP, with the blades turned

correctly in the parking position.
To activate this function, move the lever

upwards (unstable position) for at least

half a second.

312

9650122

Function deactivation

The function is deactivated if:

2 minutes have passed since the

ignition device was set to STOP

the ignition device is switched to

ENGINE and the blades are in the rest

position; the blades will only be returned

to the rest position following a lever

command (movement of the lever

upwards, in an unstable position) or when

the speed of 5 km/h is exceeded

the command for the function is

repeated four times

Replacing the windscreen wiper blades

Proceed as follows:

raise the wiper arm, press tab (1)

fig. 313 of the attachment spring and

remove the blade from the arm

fit the new blade, inserting the tab into

the specific slot in the arm, making sure

that it is locked

lower the wiper arm onto the

windscreen

313

9650280

CarManuals2.com

 SERVICING AND MAINTENANCE

306

WARNING Do not operate the

windscreen wiper with the blades lifted

from the windscreen.

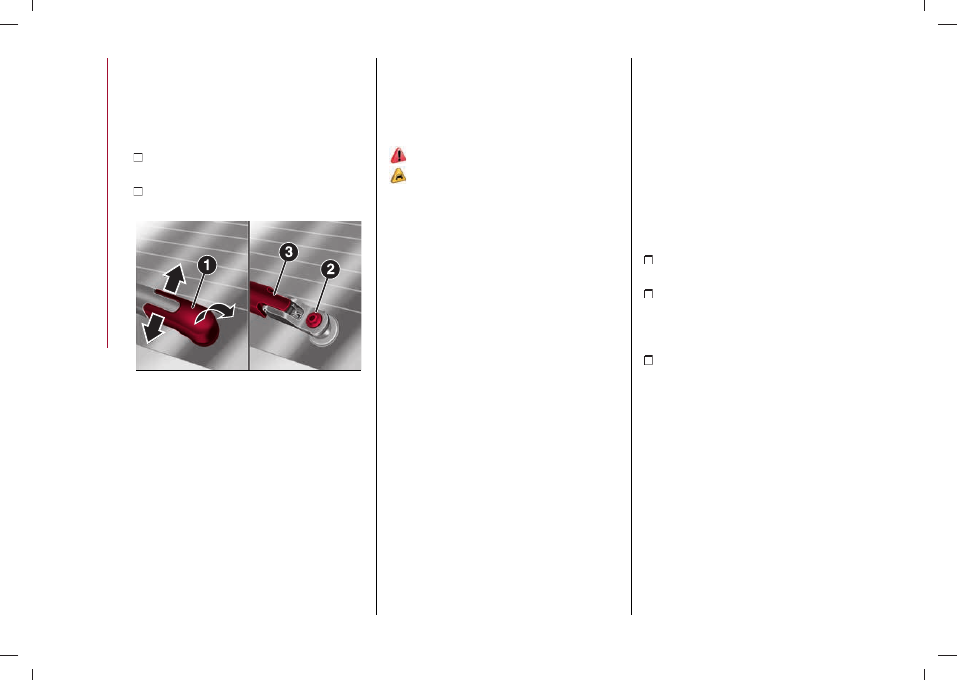

Replacing the rear window wiper blade

Proceed as follows:

lift the cover (1) fig. 314, undo the nut

(2) and remove the arm (3)

correctly position the new arm, fully

tighten the nut (2) then lower the cover (1)

314

9650281

WARNING Do not operate the rear

window wiper with the blade lifted from

the rear window.

Windscreen / rear window washer

If there is no jet of fluid, firstly check that

there is fluid in the windscreen washer

reservoir (see the “Engine compartment”

chapter in this section).
Then check that the nozzle holes are not

clogged; use a needle to unblock them if

necessary.

WARNING In versions with sun roof,

make sure that the roof is closed before

operating the windscreen washer

nozzles.

EXHAUST SYSTEM

288) 289)

122)

Adequate maintenance of the engine

exhaust system represents the

best protection against leaks of

carbon monoxide into the passenger

compartment.

COOLING SYSTEM

Coolant (antifreeze) exiting from

the engine or vapour exiting from the

radiator can cause serious burns.
If vapour is seen coming from the engine

compartment, or its hissing is heard, do

not open the bonnet until the radiator

has cooled.
WARNING Never attempt to remove the

cap with radiator or expansion tank hot:

DANGER OF SCALDING!

Engine coolant check

Check the engine coolant level every

year (preferably before the start of the

winter).
WARNING Before removing the engine

coolant reservoir cap, wait for the

system to cool down.

Topping up / draining / flushing the

engine coolant

If the engine coolant (antifreeze) is dirty,

have cleaning and flushing carried out at

an Alfa Romeo Dealership.

Engine cooling system radiator cap

The cap must be completely closed to

prevent engine coolant leaks and ensure

that the fluid returns to the radiator from

the expansion tank.

Warnings

never add coolant with the engine hot

or overheated

do not attempt to cool an overheated

engine by loosening or removing the cap.

The heat causes a considerable increase

in pressure in the cooling system

use only the radiator cap for the car to

prevent damage to the engine

Disposal of used engine coolant

Disposal of engine coolant is subject

to legal requirements: contact the

appropriate body to determine local

regulations.

BRAKING SYSTEM

The guarantee the efficiency of the

braking system, periodically check its

components: for this operation, contact

an Alfa Romeo Dealership.
WARNING Driving with the pedal resting

on the brake pedal may compromise

its efficiency, increasing the risk of

CarManuals2.com

307

accidents. While driving, never keep your

foot on the brake pedal and do not put

unnecessary strain on it to prevent the

brakes from overheating: excess pad

wear may cause damage to the braking

system.
WARNING In the event of topping up, use

only new brake fluid or fluid stored in

a completely closed container. Brake

fluid stored in an open container absorbs

moisture: this may cause unexpected

boiling of the fluid in sudden and

prolonged braking, resulting in a sudden

brake failure. This may cause accidents.
WARNING Excess brake fluid in the

reservoir may cause it to escape onto hot

parts of the engine with corresponding

risk of fire. The brake fluid may also

damage painted surfaces and plastic

parts, so pay particular attention.

AUTOMATIC TRANSMISSION / DUAL

CLUTCH AUTOMATIC TRANSMISSION/

ELECTRIFIED AUTOMATIC DUAL

CLUTCH TRANSMISSION

123)

Special additives

Do not use any type of additive with

the automatic transmission/dual clutch

automatic transmission fluid.
Avoid the use of transmission sealers,

since they may compromise the

efficiency of the automatic transmission

seals.

WARNING Do not use chemicals to flush

the transmission, since this may damage

its components.

Frequency of oil changes

(excluding Mild Hybrid versions)
In normal car operating conditions,

it is not necessary to change the

transmission fluid.
If fluid leaks are noticed or irregular

operation of the transmission is

detected, have it checked immediately at

an Alfa Romeo Dealership.
WARNING Driving the car with an

insufficient oil level may cause serious

damage to the transmission.

WARNING

287)

The air intake system (air cleaner,

rubber hoses, etc.) can be a protection in

the case of blowbacks from the engine. DO

NOT REMOVE this system unless you need

to carry out repair or maintenance. Before

starting the engine, ensure that the system

has not been removed: failure to observe

this precaution may result in serious injury.

288)

Exhaust emissions are very dangerous,

and may be lethal. They contain carbon

monoxide, a colourless, odourless gas which

can cause fainting and poisoning if inhaled.

289)

The exhaust system may reach high

temperatures and may cause a fire if the

car is parked on flammable material. Dry

grass or leaves can also catch fire if they

come into contact with the exhaust system.

Do not park or use the car in a place in which

the exhaust system might come into contact

with flammable material.

IMPORTANT

116)

Incorrect servicing of the car or failure

to carry out operations or repairs (when

necessary) may lead to more expensive

repairs, damage to other components

or have a negative impact on the car

performance. Have any malfunction

inspected immediately by an Alfa Romeo

Dealership.

117)

The car is filled with fluids which are

optimised or protecting its performance

and life and extending service intervals.

Do not use chemicals for washing these

components since they may damage the

engine, the transmission or the climate

control system. This damage is not covered

by the car’s warranty. If any component

needs to be washed due to malfunctioning,

use only the specific liquid for that

procedure.

118)

It is recommended to have the car

serviced by an Alfa Romeo Dealership.

When carrying out normal periodic

operations and small servicing interventions

personally on the vehicle, it is recommended

to use suitable equipment, genuine spare

parts and the necessary fluids. Do not carry

out any interventions if you do not have the

necessary experience.

119)

An excessive or insufficient amount of

oil inside the base is extremely damaging

CarManuals2.com

 SERVICING AND MAINTENANCE

308

to the engine. Make sure it is always at an

adequate level.

120)

Always require the use of only

compressor coolants and lubricants

approved and suitable for the specific air

conditioning system fitted on the car. Some

non-approved coolants are flammable and

may explode, with the risk of injuries. The

use of non-approved coolants or lubricants

may adversely affect system efficiency,

leading to expensive repairs.

121)

The air conditioner system contains

coolant under high pressure: to avoid

injuries to people or damage to the system,

any coolant addition or repair that requires

to disconnect the cables must be carried out

by an Alfa Romeo Dealership.

122)

Vehicles equipped with catalytic

converter must be fuelled only with

unleaded petrol. Leaded petrol would

permanently damage the catalytic

converter and eliminate its ability to reduce

polluting emissions, seriously compromising

the engine performance, which would be

irreparably damaged. If the engine does

not work correctly, especially if it starts

irregularly or if there is a reduction of

its performance, immediately go to an

Alfa Romeo Dealership. Prolonged and

faulty operation of the engine may cause

overheating of the converter and, as a

consequence, possible damage to the

converter and the car.

123)

Using transmission fluid different from

that approved may compromise the quality

of gear changes and/or cause vibration of

the transmission.

RAISING THE CAR

If the car needs to be jacked up, go to

an Alfa Romeo Dealership which is

equipped with shop jacks or jack arms.

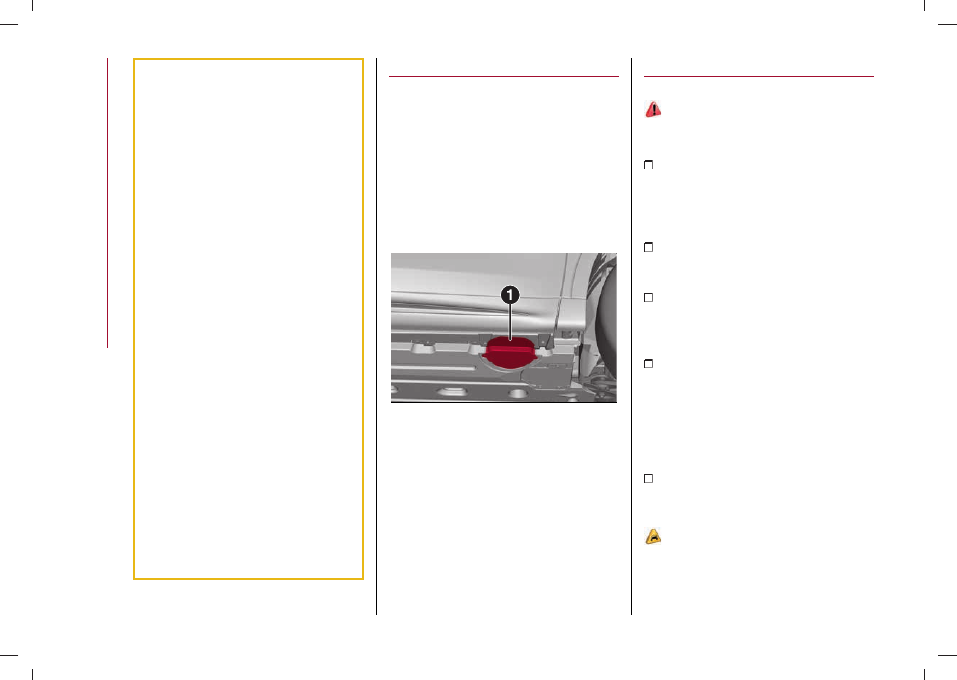

To gain access to the lifting points,
remove the covers (1) fig. 315 by acting on

the fastening buttons using a special tool

(screwdriver) provided in the equipment

of the car. When the lifting operation is

complete, make sure to reapply the

covers.

315

9650305

WHEELS AND TYRES

GENERAL INFORMATION

290) 291)

Take the following precautions to

prevent damage to the tyres:

avoid braking suddenly, racing starts

and violent impact against the curb,

potholes, obstacles and driving for

extended periods on uneven road

surfaces

periodically check that the tyres

have no cuts in the side wall, abnormal

swelling or irregular tyre tread wear

change the position of the tyres every

10000/15000 kilometres, keeping them

on the same side of the car to avoid

inverting the rotation direction

tyres age even if they are not used

much. In any event, have the tyres

checked by specialised technicians if

they have been fitted for longer than

6 years. Also remember to check the

space-saver spare wheel with particular

care

if a tyre is changed also change the

inflation valve

SNOW CHAINS

124)

Versions with heat engine and Mild

Hybrid

215/60 R17 tyres can be fitted with 7 mm

snow chains. Chains cannot be fitted on

CarManuals2.com

309

235/50 R18, 235/45 R19 and 235/40 R20

tyres.

Q4 Plug-in Hybrid versions

215/60 R17 96H tyres can be fitted with

7 mm snow chains. The snow chains may

be applied only to the front wheel tyres.

For driving with snow chains fitted, the

“Natural” driving mode must be set and

the gearbox set to manual sequential

mode (“Autostick”) to ensure traction on

the front wheels.

Warnings

The use of snow chains should be in

compliance with local regulations of

each country. In certain countries, tyres

marked with code M+S (Mud and Snow)

are considered as winter equipment;

therefore their use is equivalent to that

of the snow chains.
The snow chains may be applied only to

the front wheel tyres.
Check the tension of the snow chains

after the first few feet/meters have

been driven.
WARNING Using snow chains with

tyres with non-original dimensions may

damage the car.
WARNING Using different size or

type (M+S, snow, etc.) tyres between

front and rear axle may adversely

affect car driveability, with the risk of

losing control of the car and resulting

accidents.

SUGGESTIONS ABOUT THE ROTATION

OF THE TYRES

292) 293)

125) 126)

The front and rear tyres are subject

to different loads and stress due to

steering, manoeuvres and braking. For

this reason they are subject to uneven

wear.
To resolve this problem, tyres should be

rotated at the appropriate time.
In the case of irregular wear of the

tyres, the reason must be identified and

corrected before rotating them.

WARNING

290)

The road holding qualities of the

car also depend on the correct inflation

pressure of the tyres.

291)

Travelling with partially or completely

deflated tyres can cause safety problems

and irremediably damage the tyre.

292)

In the case of “one-way” types,

always take care not to fit the tyres with a

direction of rotation that is opposite to that

indicated: you would risk losing grip and

control of the vehicle.

293)

Do not switch tyres from the

right­hand side of the car to the left­hand

side, and vice versa.

IMPORTANT

124)

Keep your speed down when snow

chains are fitted; do not exceed 50 km/h (or

the equivalent in miles). Avoid potholes, do

not drive over steps or pavements and do

not drive long distances over roads without

snow, to avoid damaging both your vehicle

and the road surface.

125)

If tyre pressure is too low, the tyre may

overheat and be severely damaged as a

result.

126)

Never submit alloy rims to

repainting treatments requiring the use

of temperatures exceeding 150°C. The

mechanical properties of the wheels could

be impaired.

CAR INACTIVITY

If the car is left inactive for longer than a

month, the following precautions should

be observed:

park the car in covered, dry and if

possible well-ventilated premises and

slightly open the windows;

check that the electric parking brake is

not activated;

disconnect the negative battery

terminal and check the battery charge.

Repeat this check once every three

months during storage;

if the battery is not disconnected from

the electrical system, check its state of

charge every thirty days;

CarManuals2.com

 SERVICING AND MAINTENANCE

310

For Q4 Plug-in Hybrid versions

: If

the car is stopped for several weeks,

park the car with the high-voltage

battery charged more than 50%. If over-

discharged, the high-voltage battery may

be damaged. An Alfa Romeo Dealership

can provide further advice on what to do

if the car should be stopped for more

than three

Mild Hybrid versions:

park the car

with the auxiliary lithium battery fully

charged

clean and protect the painted parts

using protective wax;

clean and protect the shiny metal

parts using special compounds available

commercially;

sprinkle talcum powder on the

windscreen and rear window wiper

rubber blades and lift them off the glass;

cover the car with a fabric or

perforated plastic sheet, paying

particular care not to damage the

painted surface by dragging any dust

that may have accumulated on it. Do not

use compact plastic sheets which do not

allow humidity to evaporate from the

surface of the car;

inflate tyres to +0.5 bar above the

standard prescribed pressure and check

it periodically;

do not drain the engine cooling system;

any time the car is left inactive for

two weeks or more, operate the air

conditioning system with engine idling

for at least 5 minutes, setting external

air and with fan set to maximum speed.

This operation will ensure appropriate

lubrication for the system, thus

minimising the possibility of damage to

the compressor when the system is

operated again.
WARNING After setting the ignition

device to STOP and having closed

the driver side door, wait at least

one minute before disconnecting the

electrical supply from the battery. When

reconnecting the electrical supply to the

battery, make sure that the ignition

device is in the STOP position and the

driver's door is closed.

BODYWORK

BODY AND UNDERBODY WARRANTY

Your car is covered by warranty against

perforation due to rust of any original

element of the structure or bodywork.

For the general terms of this warranty,

refer to the Warranty Booklet.

PRESERVING THE BODYWORK

Paintwork

127) 128)

11)

Touch up abrasions and scratches

immediately to prevent the formation of

rust.
Maintenance of paintwork consists of

washing the car: the frequency depends

on the conditions and environment where

the car is used.
For example, it is advisable to wash the

car more often in areas with high levels

of atmospheric pollution or salted roads.
To correctly wash the car, follow these

instructions:

If high pressure jets or cleaners are

used to wash the car, keep a distance

of at least 40 cm from the bodywork to

avoid damage or alteration. Build up of

water could cause damage to the car in

the long term

wet the bodywork with a low-pressure

water jet

wipe a sponge with a slightly soapy

solution over the bodywork, frequently

rinsing the sponge

CarManuals2.com

311

rinse well with water and dry with a jet

of air or a chamois leather

Versions with matt paintwork

(where provided)
Some parts of the car are painted with

a matt paintwork which requires special
care for its preservation.

129)

WASHING THE CAR

Versions with stickers

(where provided)
To correctly wash the car, follow these

instructions:

avoid washing with rollers and/or

brushes in washing stations. Wash

the car by hand only, using pH-neutral

detergents. Dry it with a damp chamois

leather. Abrasive products and/or

polishes should not be used for cleaning

the car

if high pressure jets or cleaners are

used to wash the car, keep a distance

of at least 40 cm from the bodywork to

avoid damage or alteration. Build up of

water could cause damage to the car in

the long term

wet the bodywork with a low-pressure

water jet

wipe a sponge with a slightly soapy

solution over the bodywork, frequently

rinsing the sponge

rinse well with water and dry with a jet

of air or a chamois leather

Dry the less visible parts (e.g. door

frames, bonnet, headlight frames, etc.)

with special care, as water may stagnate

more easily in these areas. The car

should not be taken to a closed area

immediately, but left outside so that

residual water can evaporate.
Do not wash the car after it has been left

in the sun or with the bonnet hot: this

may alter the shine of the paintwork.
Exterior plastic parts must be cleaned in

the same way as the rest of the car.

ENGINE COMPARTMENT WASHING

130)

If the engine compartment is washed (at

low pressure, e.g. in very dusty areas),

this must be done with the engine cold

and with ignition device turned to STOP.

Take care not to direct the water

jet straight at the electronic control

modules or the wiper motors. Have this

operation performed by a specialised

workshop. After washing, check that the

various protective components (e.g.

rubber guards and caps) have not been

removed or damaged.

Q4 Plug-In Hybrid and Mild Hybrid

versions

It is not recommended to wash the

engine compartment with water.

WARNINGS

Avoid parking under trees; the resin

dropped by trees makes the paintwork

go opaque and increases the possibility

of corrosion.
Bird droppings must be washed off

immediately and thoroughly as the acid

they contain is particularly aggressive.

Windows

Use specific detergents and clean cloths

to prevent scratching or altering the

transparency.
WARNING Wipe the rear window inside

gently with a cloth following the direction

of the filaments to avoid damaging the

heating device.

Headlights

Use a soft cloth soaked in water and

detergent for washing cars.
WARNING Never use aromatic

substances (e.g. petrol) or ketones (e.g.

acetone) for cleaning the plastic lenses

of the headlights.
WARNING When cleaning the car with a

pressure washer, keep the water jet at

least 20 cm away from the headlights.

Engine compartment

At the end of every winter, wash the

engine compartment thoroughly, taking

care not to aim the jet of water directly

at the electronic control units or at the

windscreen wiper motors. Have this

CarManuals2.com

 SERVICING AND MAINTENANCE

312

operation performed at a specialised

workshop.
WARNING The washing should take

place with the engine cold and the

ignition device in the STOP position.

After the washing operation, make sure

that the various protections (e.g. rubber

caps and guards) have not been removed

or damaged.

UNDERBODY WASHING

(Q4 Plug-In Hybrid and Mild Hybrid

versions)
If it is necessary to wash the underbody,

do not directly pressurise with a high-

pressure jet.

EXTERNAL CAR WASHING

(Q4 Plug-in Hybrid versions)

Washing with the hybrid system charge

flap closed

The hybrid system is safe, even if the

following situations occur:

presence of water in the foot area
when the car is in water at a level that

allows it to cross a ford

liquids entering the boot

131)

PAINTING

(Q4 Plug-In Hybrid and Mild Hybrid

versions)
When painting the car in the oven, take

care not to exceed:

30 minutes at 70°C
20 minutes at 80°C

IMPORTANT

127)

In order to preserve the appearance of

the paint abrasive products and/or polishes

should not be used for cleaning the car.

128)

Abrasive products and/or polishes

should not be used for cleaning the car. Bird

droppings must be washed off immediately

and thoroughly as the acid they contain is

particularly aggressive. Avoid parking the

vehicle under trees (unless it is absolutely

necessary). Remove any resinous plant

matter immediately because, once it has

dried, it may require the use of abrasive

and/or polishing products to be removed,

which are strongly discouraged as they

could potentially alter the characteristics of

the paintwork. Do not use pure windscreen

washer fluid for cleaning the front

windscreen and rear window; dilute it min.

50% with water. Only use pure screen

washer fluid when strictly necessary due to

outside temperature conditions. Do not use

chemicals/acids to defrost windows/vehicle

glass as they can damage the paint.

129)

Avoid washing with rollers and/or

brushes in washing stations. Wash the car

only by hand using neutral pH detergents;

dry it with a wet chamois leather. Abrasive

products and/or polishes should not be used

for cleaning the car. Bird droppings must be

washed off immediately and thoroughly

as the acid they contain is particularly

aggressive. Avoid (if at all possible) parking

the car under trees; remove vegetable

resins immediately as, when dried, it may

only be possible to remove them with

abrasive products and/or polishes, which is

highly inadvisable as they could alter the

typical opacity of the paint. Do not use pure

windscreen washer fluid for cleaning the

front windscreen and rear window; dilute it

min. 50% with water. Only use pure screen

washer fluid when strictly necessary due to

outside temperature conditions. Do not use

chemicals/acids to defrost windows/vehicle

glass as they can damage the paint.

130)

A high pressure jet cleaner should

not be used for cleaning the engine

compartment. The appropriate precautions

have been taken to protect all parts and

connections, but the pressures generated by

these devices are so high that complete

protection against water seepages cannot

be guaranteed.

131)

If it is necessary to wash the vehicle

from the outside, take care not to insist

directly with the water jet onto the charging

flap of the hybrid system.

IMPORTANT

11)

Detergents pollute the water. The vehicle

should be washed in areas equipped for

collecting and purifying the liquid used in the

washing process.

CarManuals2.com

313

INTERIOR

294) 295) 296) 297)

Periodically check the cleanliness of the

interior, beneath the mats, which could

cause oxidation of the sheet metal.

SEATS AND FABRIC PARTS

Use a specific product to clean carpets

and fabric upholstery.
Remove dust with a soft brush or a

vacuum cleaner.
It is advisable to use a moist brush on

velvet upholstery. Rub the seats using a

soft microfibre cloth moistened with a

solution of water and neutral detergent.

Cleaning heat press images on seats

(where provided)
Due to the colour, opacity and wear-

resistant protection with which the heat

press images on some seat versions are

made, they may be subject to temporary

scratching if they are touched by finger

nails, keys, or other hard objects.
In such cases, the visible signs do not

impair the profiled images, and can easily

be removed by wiping the affected area

with a microfibre cloth moistened with

water (not dry) to restore the seat to its

original condition.
WARNING the microfibre cloth must not

have been previously soaked in other

substances or detergents.

LEATHER SEATS

(where provided)
Remove the dry dirt with a chamois or

slightly damp cloth, without exerting too

much pressure.
Remove any liquid or grease stains using

an absorbent dry cloth, without rubbing.

Then clean with a soft cloth or chamois

leather dampened with water and mild

soap. If the stain persists, use specific

products and observe the instructions

carefully.
WARNING Never use alcohol. Make sure

that the cleaning products used contain

no alcohol or alcohol derivatives, even in

small quantities.

PLASTIC AND COATED PARTS

132)

Clean interior plastic parts with a damp

cloth (if possible made from microfibre),

and a solution of water and neutral, non-

abrasive detergent.
To clean oily or persistent stains,

use specific products free from

solvents and designed to maintain the

original appearance and colour of the

components.
Remove any dust using a microfibre

cloth, if necessary moistened with

water. The use of paper tissues is not

recommended as these may leave

residues.

ALCANTARA PARTS

(where provided)

133)

Alcantara parts maintenance procedure:

treat the surface with a microfibre

cloth moistened with mild marseille soap

and water, taking care to cover the entire

covered area and applying a uniform light

pressure (do not rub vigorously)

rinse and wring out the microfibre

cloth, and pass it again over the covered

area treated according to the previous

point

let it dry then brush gently with a soft

brush

LEATHER AND SOFT TOUCH PARTS

(where provided)
To clean these components, use a soft

microfibre cloth moistened with a

solution of water and neutral detergent.
Before using a specific product for

cleaning interiors, make sure that it does

not contain alcohol and/or alcohol-based

substances or solvents.

CARBON FIBRE PARTS

To eliminate small scratches and

marks on the carbon, contact an Alfa

Romeo Dealership Authorized Point. An

improperly performed operation may

irreparably damage the carbon.

CarManuals2.com

 SERVICING AND MAINTENANCE

314

WARNING

294)

ever use flammable products, such as

petrol ether or rectified petrol to clean the

inside of the car. The electrostatic charges

which are generated by rubbing during the

cleaning operation may cause a fire.

295)

Do not keep aerosol cans in the car:

they might explode. Aerosol cans must not

be exposed to temperatures above 50°C.

Temperatures may greatly exceed this

value inside a car exposed to direct sunlight.

296)

There must be no obstacles on the

floor under the pedals. Make sure that mat

are always flat and do not interfere with the

pedals.

297)

Do not use aggressive organic

substance such as: petrol, kerosene, oil,

acetone or solvents.

IMPORTANT

132)

Never use alcohol, petrols and

derivatives to clean the dashboard and

instrument panel lens.

133)

Do not use "hard" synthetic brushes as

they could damage the fabric irreparably.

Do not perform partial, localized

interventions that could cause "aesthetic"

differences between the treated and

untreated areas. Do not use alcohol or

acetone-based solvents.

CarManuals2.com

Everything you may find useful for understanding how your

vehicle is made and works is contained in this section and

illustrated with data, tables and graphics. For the enthusiasts

and the technician, but also just for those who want to know

every detail of their car.

TECHNICAL SPECIFICATIONS

IDENTIFICATION DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 316
ENGINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .317
HYBRID SYSTEM BATTERY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .322
TRANSMISSION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .323
WHEELS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .324
DIMENSIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .328
WEIGHTS AND LOADS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .332
REFUELLING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .334
FLUIDS AND LUBRICANTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 337
PERFORMANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 341
FUEL CONSUMPTION AND CO2 EMISSIONS . . . . . . . . . . . . . . . . . . . . . . . .342
PRESCRIPTIONS FOR HANDLING THE CAR AT THE END OF

ITS LIFE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .343

CarManuals2.com

 TECHNICAL SPECIFICATIONS

316

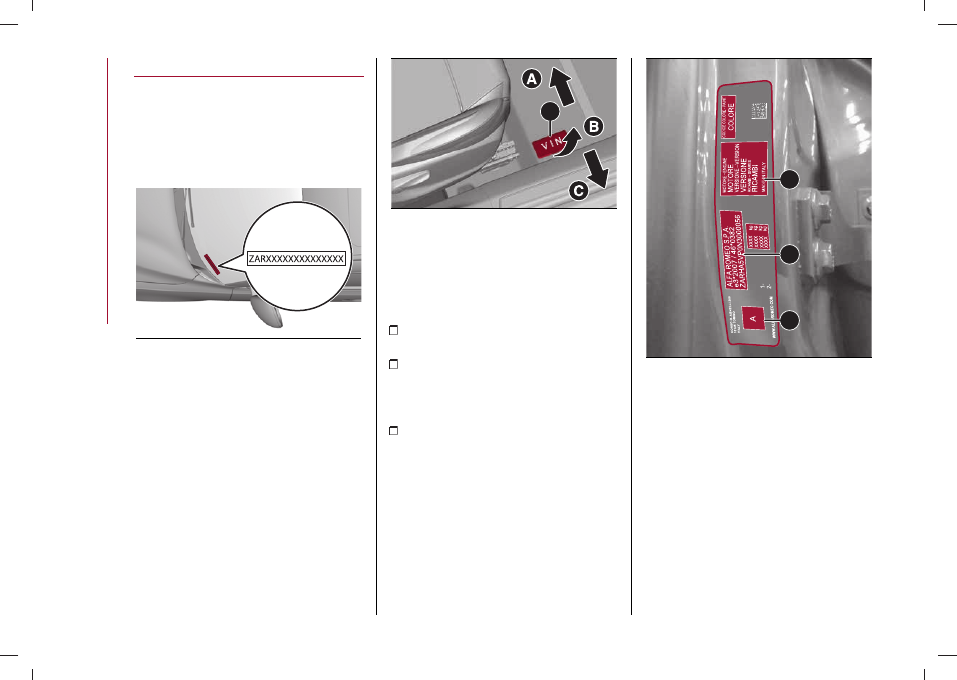

IDENTIFICATION DATA

VEHICLE IDENTIFICATION NUMBER

The chassis number (VIN) is stamped
under the windscreen fig. 316 and

on a plate located on the passenger

compartment floor, next to the right
front seat fig. 317.

316

9650324

To open the flap (1) fig. 317, push it

towards the central tunnel in the

direction indicated by the arrow (A), then

to access it slide it as indicated in the

figure in the direction indicated by the

arrow (B). To close the flap (1) push it

towards the passenger side door in the

direction indicated by the arrow (C).

1

317

9650338

VEHICLE IDENTIFICATION NUMBER

(VIN) PLATE

The plate is located on the left side front
door pillar fig. 318 and shows the data

about:

1: correct value of smoke coefficient

(for Diesel engines)

2: name of the manufacturer,

vehicle type-approval number, vehicle

identification number, max. permitted

weights

3: engine identification, type variant

version, spare part number, colour code,

additional information

1

2

3

318

9650250

CarManuals2.com

317

ENGINE

HEAT ENGINE (Q4 PLUG-IN HYBRID VERSION)

Versions

1.3 190 HP (*)

1.3 280 HP (*)

Type code

46337540

46337540

Cycle

Otto

Otto

Number and position of cylinders

4 in line

4 in line

Piston bore and stroke (mm)

70 x 86.5

70 x 86.5

Total displacement (cm³)

1332

1332

Compression ratio

10.5 +/- 0.2

10.5 +/- 0.2

Maximum power (CEE) (kW)

90

132

Maximum power (CEE) (HP)

130

180

corresponding engine speed (rpm)

5500

5750

Maximum torque (CEE) (Nm)

270

270

Maximum torque (CEE) (kgm)

27.5

27.5

corresponding engine speed (rpm)

1850

1850

Spark plugs

NGK ILKFR7A8

NGK ILKFR7A8

Fuel

Unleaded petrol 95 R.O.N. (EN228

specifications)

Unleaded petrol 95 R.O.N. (EN228

specifications)

(*) Combined power of the system considering the rear electric motor capable of outputting a peak power up to 122 HP

CarManuals2.com

 TECHNICAL SPECIFICATIONS

318

REAR ELECTRIC MOTOR (Q4 PLUG-IN HYBRID VERSIONS)

Features

Technology

Three-phase "induction" electric motor

Continuous power (kW)

44 (*)

Maximum torque (Nm)

250

(*) The peak power that the electric motor can supply an instantaneous power up to 90kW, depending on various factors such as the state of charge

of the high-voltage battery and the environmental conditions.

CarManuals2.com

319

HEAT ENGINE (MILD HYBRID VERSION)

Versions

1.5-litre 130 HP

1.5 160 HP

Engine code

46347812

46347696

Cycle

Otto

Otto

Number and position of cylinders

4 in line

4 in line

Piston bore and stroke (mm)

71.2 x 92.2

71.2 x 92.2

Total displacement (cm³)

1469

1469

Compression ratio

12.5 : 1

12.5 : 1

Maximum power (CEE) (kW)

95

118

Maximum power (CEE) (HP)

130

160

corresponding engine speed (rpm)

5250

5750

Maximum torque (CEE) (Nm)

240

240

Maximum torque (CEE) (kgm)

24.4

24.4

corresponding engine speed (rpm)

1500

1500

Spark plugs

NGK ILKFR7A8

NGK ILKFR7A8

Fuel

Unleaded petrol 95 R.O.N.

(EN228 specifications)

Unleaded petrol 95 R.O.N.

(EN228 specifications)

CarManuals2.com

 TECHNICAL SPECIFICATIONS

320

“e-machine" ELECTRIC MOTOR (Mild Hybrid version)

Features

Technology

Synchronous electric motor with 48V double three-phase winding

Maximum power (kW)

15

Maximum torque (Nm)

55

CarManuals2.com

321

HEAT ENGINE

Versions

2.0 T4 272 HP (*)

1.6 16V Multijet 130 HP

Type code

50057184

46346020

Cycle

Otto

Diesel

Number and position of cylinders

4 in line

4 in line

Piston bore and stroke (mm)

84 x 90

79.5 x 80.5

Total displacement (cm³)

1995

1598

Compression ratio

10 : 1

15.7

Maximum power (CEE) (kW)

200

96

Maximum power (CEE) (HP)

272

130

corresponding engine speed (rpm)

5200

3750

Maximum torque (CEE) (Nm)

400

320

Maximum torque (CEE) (kgm)

40.8

32.6

corresponding engine speed (rpm)

3000

1500

Spark plugs

NGK ILKFR7A8

Fuel

Unleaded petrol 95 R.O.N. (EN228

specifications)

Diesel for motor vehicles (EN590 Specification)

(*) (for versions/markets, where provided)

CarManuals2.com

 TECHNICAL SPECIFICATIONS

322

HYBRID SYSTEM BATTERY

HIGH-VOLTAGE BATTERY (Q4 PLUG-IN HYBRID VERSION)

Features

Battery type

Lithium ions

Voltage (Volts)

304

Energy capacity (kWh)

15.5

AUXILIARY BATTERY (MILD HYBRID VERSION)

Features

Battery type

Lithium ions

Voltage (Volts)

48

Energy capacity (Wh/Ah)

770 / 17.5

CarManuals2.com

323

TRANSMISSION

VERSIONS WITH AUTOMATIC TRANSMISSION

Versions

Transmission

Traction

1.3 190 HP

(*)

1.3 280 HP

(*)

Automatic transmission with six forward

gears plus reverse

Integral Electrified (Front drive Heat

engine + electric motor rear)

2.0 T4 272 HP

(**)

Nine forward gears plus reverse

All-Wheel Drive (AWD)

(*) Q4 Plug-in Hybrid versions
(**) For versions/markets, where provided

VERSIONS WITH DUAL CLUTCH AUTOMATIC TRANSMISSION

Versions

Transmission

Traction

1.6 16V Multijet 130 HP

Automatic transmission with six forward

gears plus reverse

Front

VERSIONS WITH ELECTRIFIED DUAL CLUTCH AUTOMATIC TRANSMISSION

Versions

Transmission

Traction

1.5 130HP Mild Hybrid

Seven forward speeds plus reverse

Electrified Front (Heat engine and electric

motor coupled on the front axle)

1.5 160HP Mild Hybrid

NOTE An electric motor ("e-machine") is integrated in the electrified dual clutch automatic transmission.

CarManuals2.com

 TECHNICAL SPECIFICATIONS

324

WHEELS

RIMS AND WHEELS

298) 299)

Alloy or pressed steel wheels (heat

engine versions only). Tubeless radial

carcass tires.
All approved tires are listed in the

Registration Certificate.
WARNING If there are any discrepancies

between the Owner Handbook and

the Registration Document, take the

information from the latter. For safe

driving, the car must be fitted with tyres

of the same make and type on all wheels.
WARNING Do not use air chambers with

tubeless tyres.

CORRECT READING OF THE TYRE

Example fig. 319: 215/65 R17 96V
215

Nominal width (S, distance in mm

between sides)

65

Height/width ratio (H/S), expressed

as a percentage

R

Radial tyre

17

Rim diameter in inches (Ø)

96

Load rating (capacity)

V

Maximum speed rating

319

J0A0009

Maximum speed index

Q

up to 160 km/h

R

up to 170 km/h

S

up to 180 km/h

T

up to 190 km/h

U

up to 200 km/h

H

up to 210 km/h

V

up to 240 km/h

W

up to 270 km/h

Y

up to 300 km/h

Maximum speed index for snow tyres

Q M +S

up to 160 km/h

T M +S

up to 190 km/h

H M +S

up to 210 km/h

Load index (capacity)

60

= 250 kg

80

= 450 kg

61

= 257 kg

81

= 462 kg

Load index (capacity)

62

= 265 kg

82

= 475 kg

63

= 272 kg

83

= 487 kg

64

= 280 kg

84

= 500 kg

65

= 290 kg

85

= 515 kg

66

= 300 kg

86

= 530 kg

67

= 307 kg

87

= 545 kg

68

= 315 kg

88

= 560 kg

69

= 325 kg

89

= 580 kg

70

= 335 kg

90

= 600 kg

71

= 345 kg

91

= 615 kg

72

= 355 kg

92

= 630 kg

73

= 365 kg

93

= 650 kg

74

= 375 kg

94

= 670 kg

75

= 387 kg

95

= 690 kg

76

= 400 kg

96

= 710 kg

77

= 412 kg

97

= 730 kg

78

= 425 kg

98

= 750 kg

79

= 437 kg

CarManuals2.com

325

CORRECT READING OF THE RIM CODE

Example fig. 319: 7J x 17 H2 ET 37
7

width of the rim in inches (1).

J

rim drop centre outline (side projection

where the tyre bead rests) (2).

17

fitting diameter in inches

(corresponds to the diameter of the tyre

to be fitted) ((3) = Ø).

H2

shape and number of "humps"

(circumference measurement which

keeps the bead of tubeless tyres in

position on the rim).

ET 37

: wheel compensation (distance

between the disc/rim supporting plane

and the wheel rim centre line).

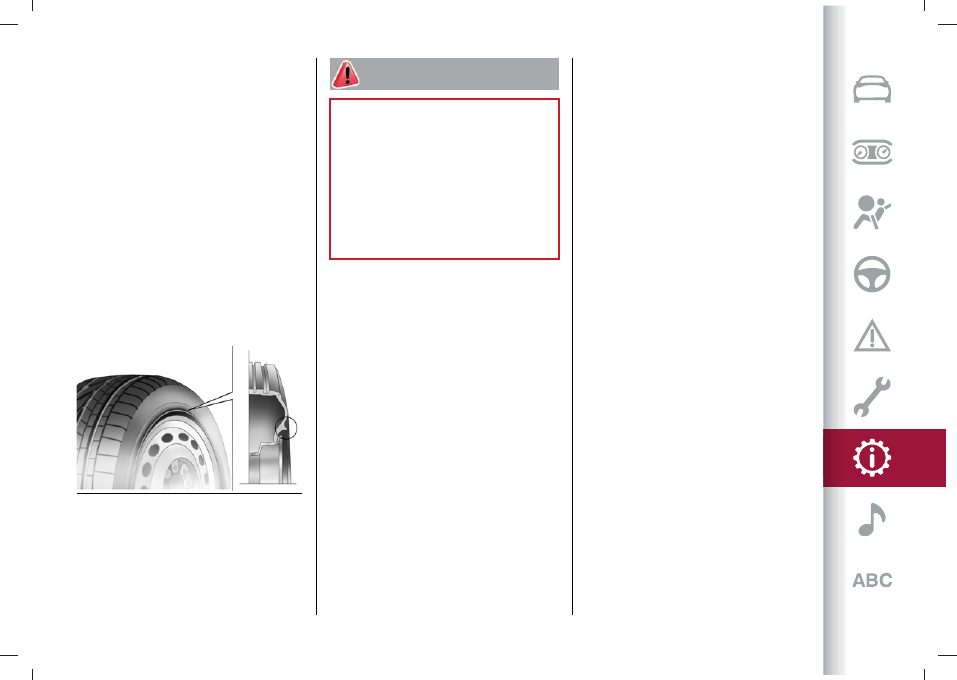

RIM PROTECTOR TYRES

320

J0A0010

WARNING

298)

If winter tyres with a lower

speed rating than that indicated in the

Registration Document are used, do not

exceed the maximum speed corresponding

to the speed rating of the tyres used.

299)

DO NOT fit wheel hub caps when using

integral hub caps fixed (with springs) to the

steel rim and after sale tyres provided with

Rim Protector. Use of unsuitable tyres and

wheel caps may cause sudden decrease of

tyre pressure.

CarManuals2.com

 TECHNICAL SPECIFICATIONS

326

RIMS AND TYRES PROVIDED

Versions

Rims

Tyres

Snow tyres

1.3 190 HP / 280 HP

(***)

7.5J X 18 ET37

235/50 R18 97 V

235/50 R18 101 XL H (M+S)

8J X 19 ET37

235/45 R19 99XL V

235/45 R19 99 H (M+S)

8J X 20 ET37

235/40 R20 96 V

1.5 130 HP

(****)

1.5 160 HP

(****)

1.6 16V Multijet 130 HP

7J X 17 ET37

215/60 R17 96 V

215/60 R17 96 H (M+S)

7.5J X 18 ET37

235/50 R18 97 V

235/50 R18 97 H (M+S)

8J X 19 ET37

235/45 R19 99XL V

235/45 R19 99 H (M+S)

8J x 20 ET37

235/40 R20 96 V

2.0 T4 272 HP

(*****)

7J X 17 ET37

215/60 R17 96 V

215/60 R17 96 H (M+S)

7.5J X 18 ET37

235/50 R18 97 V

235/50 R18 97 H (M+S)

8J x 20 ET37

235/40 R20 96 V

Space-saver wheel

(******)

5.5 B X 17 ET31

T 165/80 R17 104

(*) Suitable for fitting snow chains
(**) Run Flat Tyres
(***) Q4 Plug-in Hybrid versions
(****) Mild Hybrid versions
(*****) For versions/markets, where provided
(******) Where provided

CarManuals2.com

327

COLD TYRE INFLATION PRESSURE

When the tyres are warm, the inflation pressure should be + 0.3 bar in relation to the recommended figure. However, recheck the

correct value when the tyre is cold. With snow tires, add +0.2 bar to the pressure value prescribed for standard tires.

Tyres

Unladen/medium load

Full load

Space-saver wheel

Front

Rear

Front

Rear

215/60 R17 96 V

2.4

2.2

2.7

2.5

4.2

235/50 R18 97 V

2.4

2.2

2.7

2.5

235/50 R18 97 V (***)

2.4

2.4

2.8

2.8

235/45 R19 95 V

2.4

2.2

2.7

2.5

235/45 R19 99XL V (***)

2.4

2.4

2.8

2.8

235/40 R20 96V

2.4

2.2

2.9

2.7

235/40 R20 96V (***)

2.5

2.5

3.0

3.0

(*) For versions/markets, where provided
(**) After using the spare wheel in an emergency, where necessary, align the pressure of the wheel to the recommended value as soon as possible, with

reference to the following
(***) Q4 Plug-in Hybrid versions

CarManuals2.com

 TECHNICAL SPECIFICATIONS

328

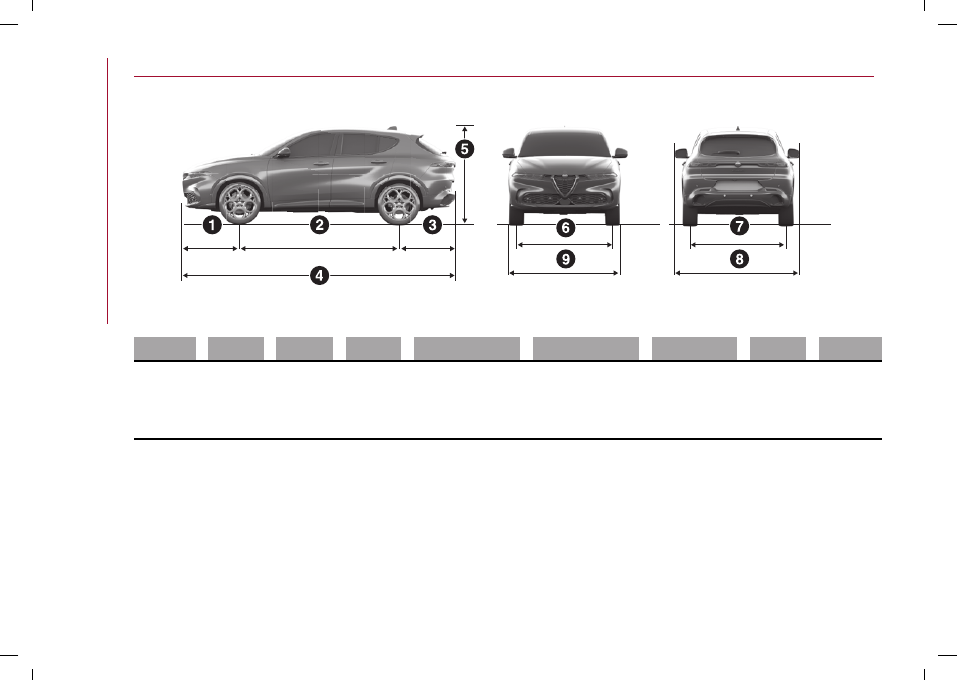

DIMENSIONS

Dimensions are expressed in mm and refer to the car equipped with its original tyres. Height is measured with car unladen.

321

9650055

1

2

3

4

5

6

7

8

9

950

2635

942

4527

(*): 1613-1622 (°)

(**): 1598-1606 (°)

(***): 1595-1602 (°)

(****): 1649-1657 (°)

(*): 1579-1580 (°)

(**): 1583-1584 (°)

(***): 1584-1585 (°)

(****): 1574

(*): 1572-1574 (°)

(**): 1575-1577 (°)

(***): 1575-1577 (°)

(****): 1573

2060

1841

(*) 1.3 190 HP/280 HP Plug-In Hybrid Q4 version
(**) 1.5 130 HP/160 HP Mild Hybrid version
(***) 1.6 Multijet 16V 130 HP versions
(****) 2.0 T4 272 HP version
(°) Depending on trim level

CarManuals2.com

329

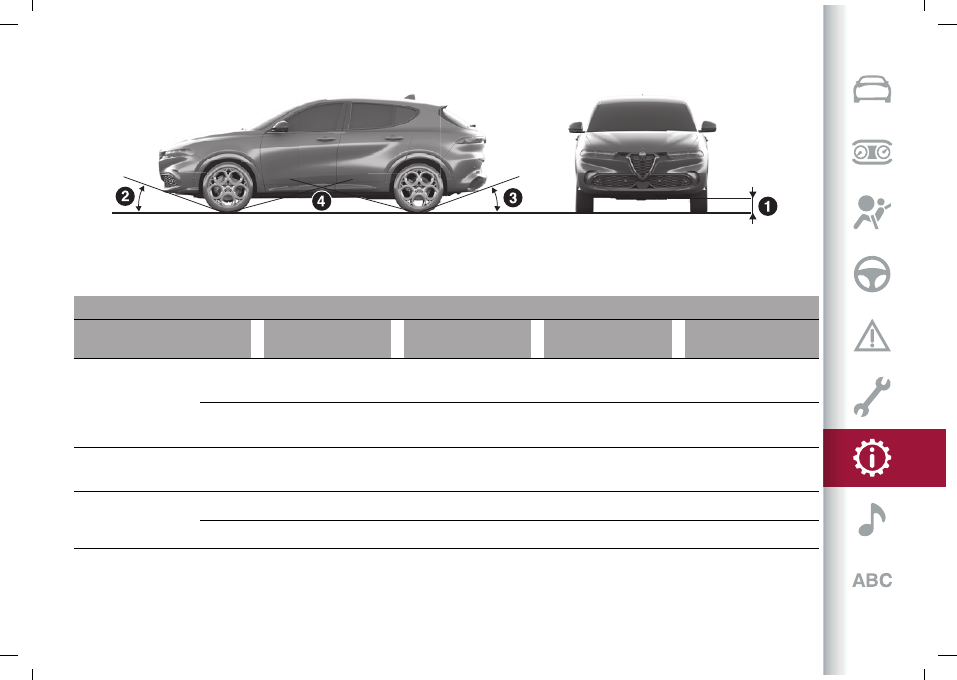

MINIMUM GROUND CLEARANCE/TYPICAL ANGLES

322

9650131

Minimum ground clearance / typical angles

Minimum ground

clearance (mm) (1)

Approach angle (2)

Departure angle (3)

Breakover angle (4)

1.3 Q4 Plug-In Hybrid

Std. A

143.7 - 146.1 (190 HP)

141.1 – 144.7 (280 HP)

Std. C

113.3 - 115.9 (190 HP)

111.6 – 113.6 (280 HP)

18.3° - 18.5° (190 HP)

18.2° – 18.5° (280 HP)

19° (190 HP)

18.8° – 19.1° (280 HP)

12.3° - 12.5° (190 HP)

12° – 12.4° (280 HP)

1.5 Mild Hybrid

Std. A

175

160 (*)

17.6°

22.5°

17.3°

1.6-litre 16V Multijet

Std. A

150.6 – 153.8

Std. C

135.1 – 138.8

16.9° - 17.1°

17.7° - 18°

14.3° - 14.5°

CarManuals2.com

 TECHNICAL SPECIFICATIONS

330

Minimum ground clearance / typical angles

Minimum ground

clearance (mm) (1)

Approach angle (2)

Departure angle (3)

Breakover angle (4)

2.0 T4

212.4 – 212.7

19.9° - 20.2°

24.6°

20.2° - 20.4°

(*) In the area between the front wheels
NOTE Angles and heights may vary depending on equipment and trim levels.
Std. A (unladen car): car with 90% full tank, fluids, spare wheel, tools and accessories
Std. C (loaded car): car with 90 per cent fuel tank, fluids, spare wheel, tools, accessories supplied, maximum number of occupants (70 kg per occupant)

and luggage in the boot

"Minimum ground clearance" (reference 1)

The clearance value is measured next to the lower edge of the differential. This value also defines those for the "Approach angle" the

"Departure angle" and the "Breakover angle". Dimensions are expressed in mm and refer to the car equipped with its original tyres.

"Approach angle" (reference 2)

The approach angle is determined by the horizontal line of the road surface and by the tangent line passing between the front wheel

and the most projecting low point of the car. The wider the angle, the lower the chance to hit an obstacle with the body or chassis,

climbing a steep slope or overcoming an obstacle.

"Departure angle" (reference 3)

The departure angle is determined by the same lines of the "Approach angle", and refers to the rear part of the car.

"Breakover angle" (reference 4)

The value of the "Breakover angle" is linked to the ground clearance of the car and indicates the attitude of the car to overcome a

wedge, more or less steep, preventing the car from resting on the ground with the body or chassis after touching the wedge with its

lowest and most projecting parts (usually the underbody), because this would highly reduce wheel grip which, lacking adequate grip

to the ground would not have sufficient grip to make the car move and slip. The higher the ground clearance, the wider the breakover

angle. Always bear in mind that the higher the ground clearance, the lower the stability, due to a higher centre of gravity which reduces

the side rollover angle.

CarManuals2.com















Content      ..     8      9      10      11     ..
