Alfa Romeo Tonale (2023 year). Manual in english - page 8





 STARTING AND DRIVING

234

PROCEDURE FOR CHARGING

FROM A DOMESTIC POWER

SOCKET (AC)

(Q4 Plug-in Hybrid version)

222) 223) 224) 225) 226) 227) 228) 229) 230) 231)

90) 91) 92) 93) 94) 95) 96) 97)

CHARGING PROCEDURE

WARNING Always connect the cable to

the charging port of the domestic mains

first and only then to the car.

The high-voltage battery of the system

is charged by connecting the "Mode 2"

charging cable, supplied with the car, to

an AC charging port.
For the characteristics of the "Mode 2"

cable, refer to the "Power sources that

can be used - Mode 2 cable" chapter.
To charge, proceed as follows:

park the car safely (automatic

transmission gear lever in position "P" -

Park)

engage the electric parking brake
switch off the engine
take the charging kit located in the

boot

remove any dust that may have built

up on the charging connector and on the

charging port

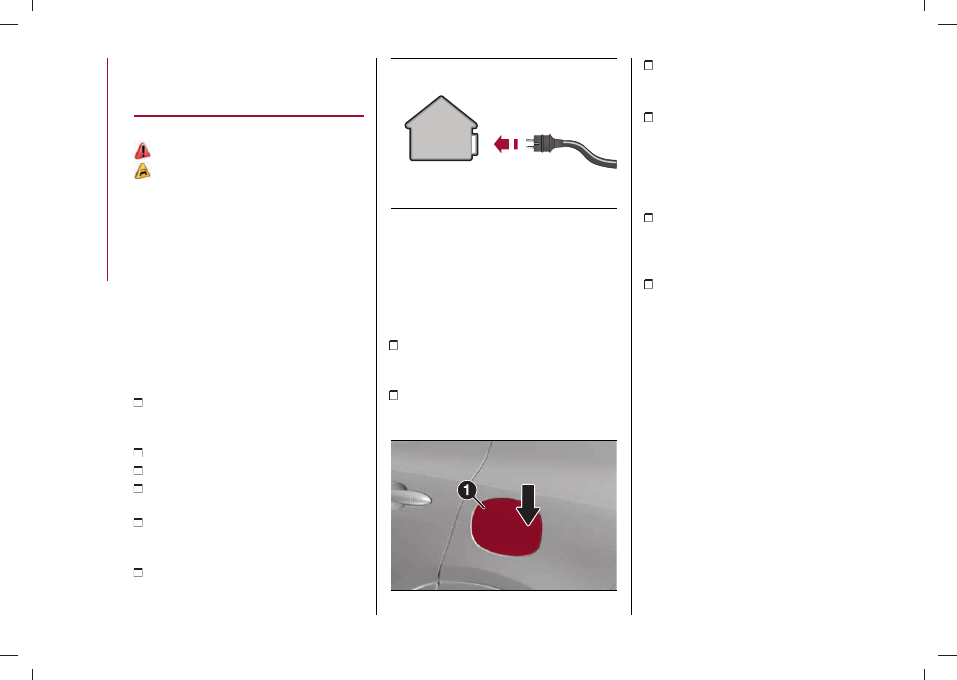

unroll the charging cable and connect it

to an AC charging port, fig. 230

230

J0A6000E

NOTE From the moment the plug is

connected to the domestic mains

charging port, the 3 LEDs on the control

unit of the cable will flash for approx.

6 seconds (control unit switching on

phase).

open the charging flap (1) fig. 231

located on the left side by pressing on

the area indicated by the arrow

remove any dust that may have built

up on the charging connector and on the

charging port

231

9650199

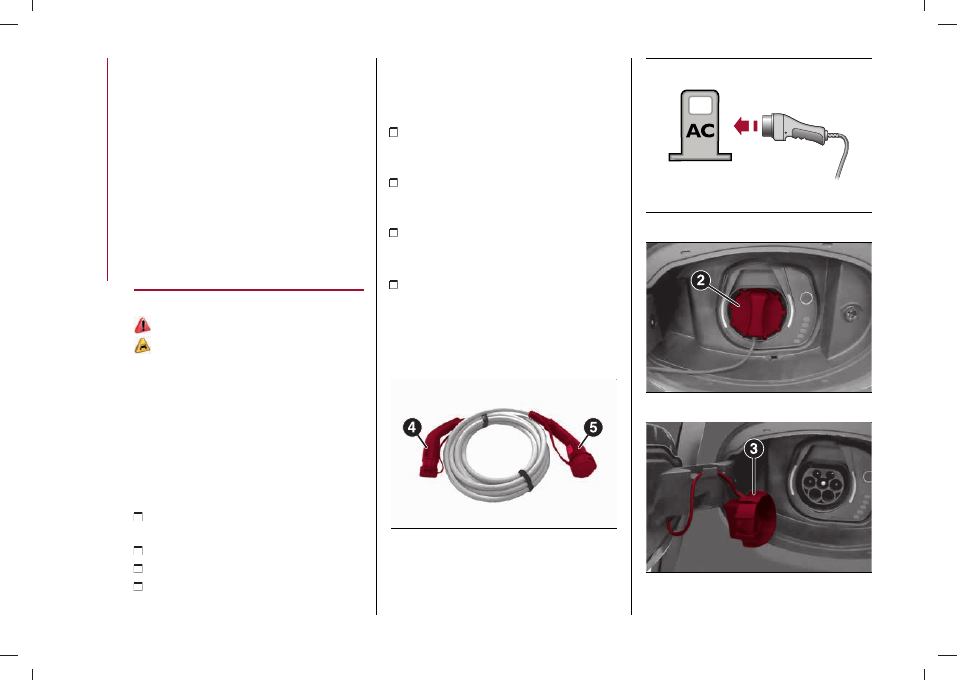

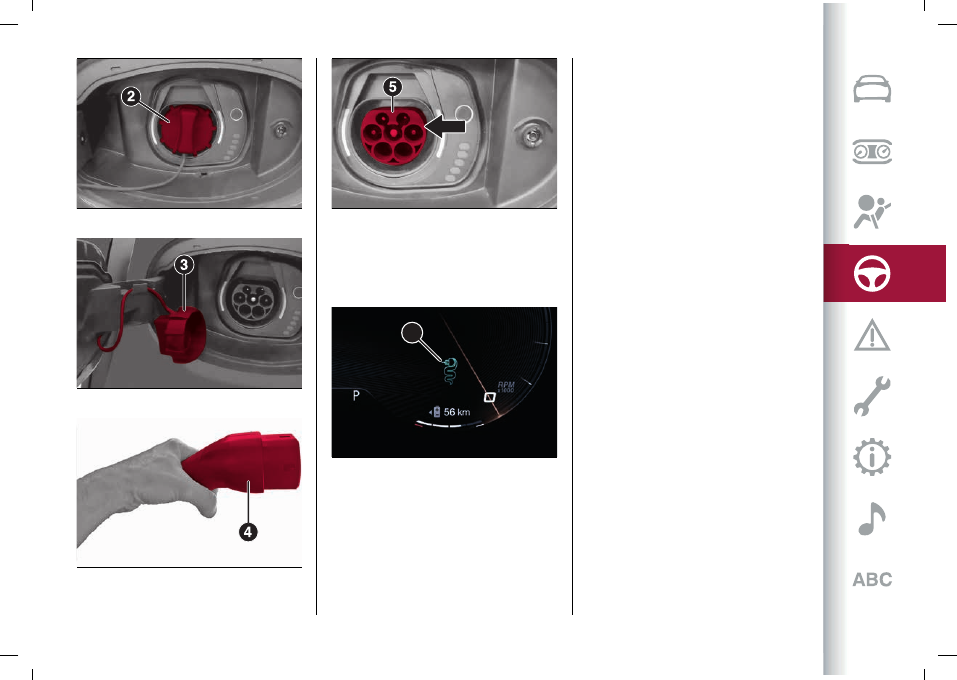

remove the protective cover (2)

fig. 232 from the charging port and attach
it to the device (3) fig. 233

grasp the charging connector by the

handle (4) fig. 234, remove the protective

cover (where provided) and insert it into
the charging port (5) fig. 235until you

hear the click indicating that it has been

locked

charging starts automatically if no

scheduled charging has been set (see

the "Charging functions" chapter in the

Owner Handbook

check by turning on the LEDs on the

cable control unit that there are no

faults in the charging system (for more

information see "charge status control

unit" chapter in the "Power sources that

can be used - Mode 2 cable" section).

If there are no anomalies, the green

LEDs located next to the charging port

will light up momentarily. In case of

anomalies, refer to the description under

"Charging system failure" the chapter

"Power sources that can be used -

Mode 2 cable".

CarManuals2.com

235

232

9650211

233

9650212

234

9650213

235

9650214

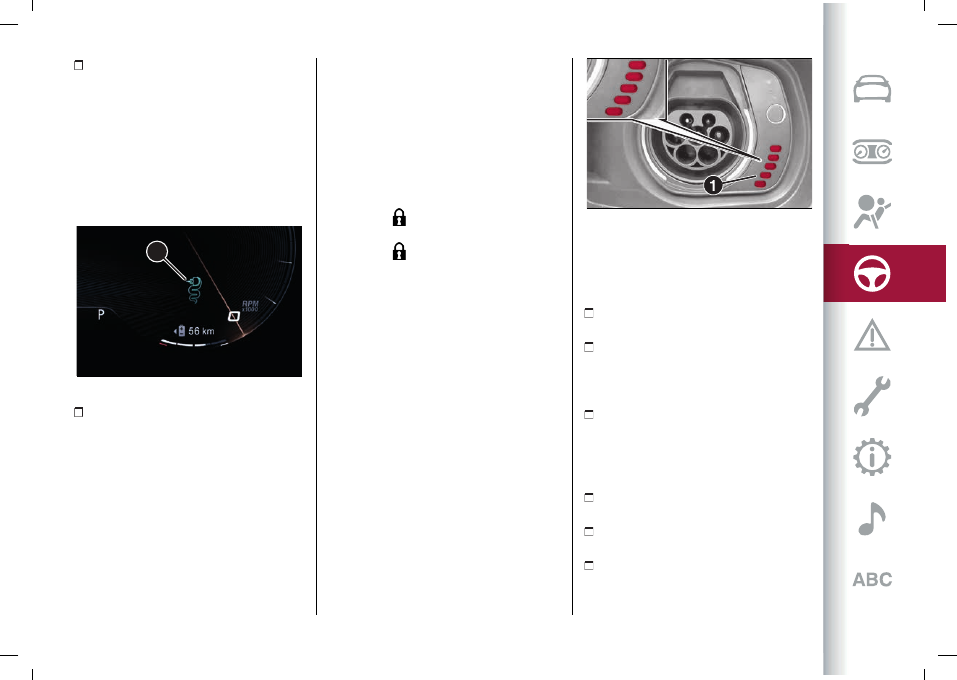

The start of recharging is also notified

by the green illumination of the symbol
(1) fig. 236on both the speedometer and

tachometer.

1

236

9650097

NOTE The charging procedure is

interrupted if the bonnet is opened. The

charge will be reactivated when the

bonnet is closed correctly.
The time required to charge the high-

voltage battery depends on several

factors: for more information see the

description in the “Charging time”

paragraph of in the “Multimedia" section.
If the passenger compartment

preconditioning is activated, the

high-voltage battery charging time

will be extended. The time required

for heating/cooling the car is mainly

determined by the outside temperature.
WARNING The maximum power

consumption of the charging port

depends on the type of contract signed

by the user, the type of cable used and

the charge level set in the Alfa Connect

system menu.
WARNING Use only the charging cable

(where provided) recommended by FCA.
WARNING The high-voltage battery

must be charged in accordance with

the maximum ampere rating allowed by

local and national recommendations for

charging electric/hybrid vehicles.

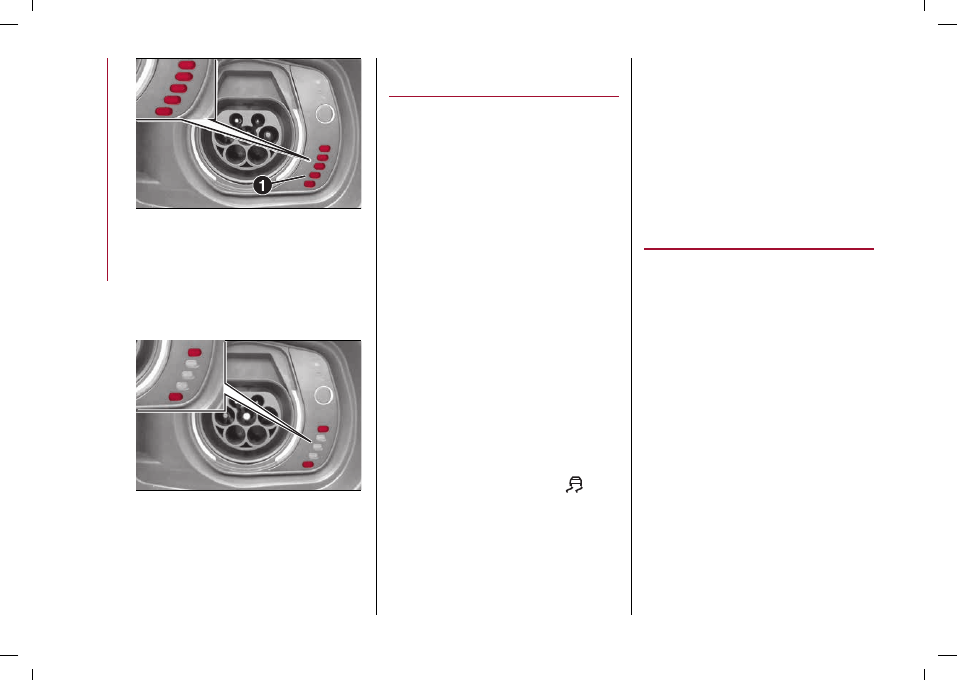

END OF CHARGING PROCEDURE

The charging procedure ends when all
the LEDs (1) fig. 237, next to the charging

port, are on green continuously (during

charging, the first LED will flash, while

the other LEDs will be on continuously).

CarManuals2.com

 STARTING AND DRIVING

236

237

9650201

DISCONNECTING THE "MODE 2"

CHARGING CABLE

During the charging procedure the

cable is automatically locked on the

charging port in the car.

To complete the charging, proceed as

follows:

unlock the doors of the car allowing

the charging cable to unlock

disconnect the cable from the vehicle

charging port by grasping the handle of

the charging connector and avoiding to

pull the cable directly

disconnect the cable from the charging

port fig. 238

reposition the protective cover of the

charging port

close the charging flap, making sure it

locks properly

roll up the charging cable correctly,

repositioning the protective cover

correctly on the charging connector

(where provided). When rolling up, take

care not to damage the cable. Then place

the cable, together with the charging kit,

inside the housing located inside the

boot

238

J0A6001E

WARNING Before disconnecting the

charging connector, make sure that the

doors are unlocked. If the door is locked,

the charging connector locking system

does not allow disconnection.

WARNING

222)

The charging current level ("Level

1" / "Level 2" / "Level 3", etc.) can only

be changed via the Alfa Connect system

display (see the "Alfa Connect" chapter in

the "Multimedia" section). The default

charge level set is "Level 3". For countries in

which the 13A "Mode 2" charge cable can

be used, if the domestic power socket IS

NOT CERTIFIED, it is recommended to set

"Level 4" charge to the maximum, which

corresponds to approx. 10A. For the list of

country-specific cable types refer to what

is indicated in the "Mode 2 cable variant

table".

223)

In order to reduce the risk of electric

shock or damage to the device, special care

should be taken when cleaning: ALWAYS

unplug the device from the domestic power

supply socket and car ports.

224)

Incorrect setting of the charge current

intensity can overload or overheat the

mains power supply of the domestic power

socket. Fire hazard. Before charging from

other domestic sockets, adjust the charge

current intensity to the mains. If you do not

know the mains, set to the lowest level.

Never use extension cords for charging.

225)

Incorrect connection between

connector and charging terminals

constitutes a fire hazard!

226)

During normal operation, the domestic

power socket can overheat. In the case

of extreme overheating, the charge is

interrupted and the warning LED on the

front of the cable control unit will turn on.

Refer to the table in the "Charging system

failure" chapter in the "Power sources that

can be used" section.

227)

The "Mode 2" charge cable must be

connected to a dedicated circuit that is

not shared with other devices that absorb

electrical energy.

228)

Do not insert fingers or objects in the

cable charging connector.

229)

Carefully follow the instructions in the

installation and operation manuals of the

device.

230)

The high-voltage battery must only

be charged through approved, earthed

CarManuals2.com

237

domestic sockets or from a public charging

station using the charging cable supplied

separately as an option by FCA (” Mode 3“

charging cable).

231)

Keep the charging flap closed when the

charging port is not in use.

IMPORTANT

90)

You do not need to wait until the high-

voltage battery level is low to recharge. The

performance of the high-voltage battery is

optimal when it is charged regularly.

91)

Charging the high-voltage battery may

take longer if the temperature of the high-

voltage battery is high or low.

92)

During charging, especially with fast

charging, high-voltage battery cooling

components may be voltage activated.

Therefore, it is normal to hear noises during

this operation.

93)

Do not charge if the external

temperature is -30°C or lower, as charging is

likely to take longer and the charging device

may be damaged.

94)

Do not leave the car or the charging

cable in areas where the external

temperature is below -40°C as they may be

damaged.

95)

In cold temperatures, the charging cable

may become stiff. Therefore, be careful not

to apply excessive force to the charging

cable as it may be damaged.

96)

Do not use personal generators to

charge the high-voltage battery. This may

cause fluctuations in charging and the

voltage may be insufficient, resulting in

damage to the car system.

97)

Charging the high-voltage battery using

incorrect or damaged sockets, or charging

cables and not following the prescribed

charging procedures may cause short

circuits, fire and potential risk of damage to

the electrical system of the car.

CHARGING PROCEDURE FROM

WALLBOX CHARGING STATION

("SMART" WALLBOX)

(Q4 Plug-in Hybrid version)

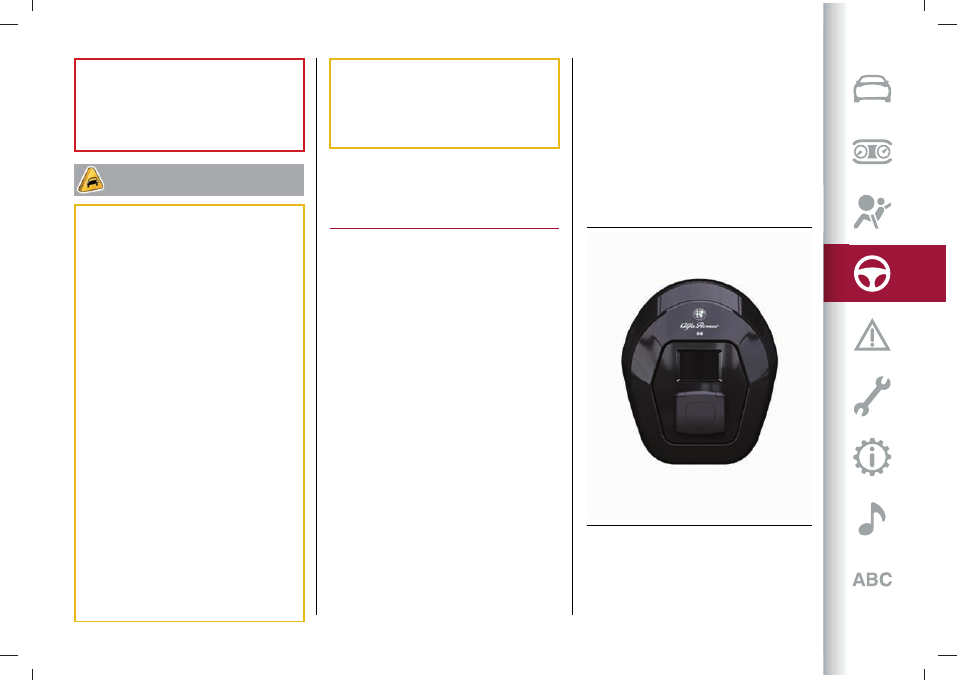

WARNING The "smart" wallbox

domestic charging station fig. 239 (for

versions/markets, where provided) must

be installed by qualified personnel after

checking the domestic electrical system.

For information on available "smart"

wallbox charging stations, contact an

Alfa Romeo Dealership.
The high-voltage battery of your car can

be charged by directly connecting the

charging cable to the “smart” wallbox

charging station or using the Mode 3

charge cable (for versions/markets,

where provided).
For the characteristics of the "Mode 3"

cable, refer to the "Power sources that

can be used - Mode 3 cable" chapter.
Charging with “smart” wallbox allows

to reach, from a domestic user, a higher

charge power than the charge achieved

using a domestic socket: the charging

time, as a consequence, is significantly

reduced.
Some "smart" wallboxes can be

programmed from the mobile app.
WARNING If programming is present

both on the "small" wallbox and on

the car (Alfa Connect" or mobile app),

the charging system gives priority to

programming of the wallbox (excluding

the programming of the car).

239

9650700

NOTE The "smart" wallbox configuration

may vary depending on the country

where the vehicle is sold.

CarManuals2.com

 STARTING AND DRIVING

238

NOTE The electrical system of the house

must be checked regularly by qualified

personnel.
The maximum charging current value

is automatically set by the device,

depending on the building's electrical

system.
For the charging procedure, refer to the

"Charging from domestic power supply

(AC) socket procedure” chapter.

CHARGING PROCEDURE FROM

PUBLIC CHARGING STATION

(AC)

(Q4 Plug-in Hybrid version)

232) 233) 234)

98) 91) 100)

The high-voltage battery of the car can

be charged by directly connecting the

charging cable of the public charging

stations or using the “

3

” charging cable

(for versions/markets, where provided).
For the characteristics of the "Mode 3"

cable, refer to the "Power sources that

can be used - Mode 3 cable" chapter.
To charge, proceed as follows:

park the car safely (automatic

transmission lever in position "P" - Park);

engage the electric parking brake;
switch off the engine;
remove the charging cable (optional)

fig. 240 from the boot (inside a special

bag), remove the protective cover (where

provided) on the two-colour connector

connector (4) and plug it into the socket
of the public charging station, fig. 241;

open the charging flap (1) fig. 231

located on the left side by pressing on

the area indicated by the arrow;

remove any dust that may have built

up on the charging connector and on the

charging port;

remove the protective cover (2)

fig. 242 from the charging port and
attach it to the device (3) fig. 243;

grasp the charging cable, remove the

protective cover (where provided) on
the connector (5) fig. 240 and plug it into

the charging port on the car until you

hear the click indicating that it has been

locked;

240

9650215

241

J0B6067E

242

9650211

243

9650212

CarManuals2.com

239

charging starts automatically.

If necessary, the public charging

station must be enabled; follow the

manufacturer's instructions and

warnings when using the charging

station;
The start of recharging is also notified

by the green illumination of the symbol
(1) fig. 244on both the speedometer and

tachometer.

1

244

9650097

during the charging phase, the first

LED located next to the charging port on

the car flashes green while the remaining

LEDs are on with steady light.
NOTE The charging procedure is

interrupted when opening the bonnet: a

dedicated message will be shown on the

instrument panel display. The charge will

be reactivated when the bonnet is closed

correctly.
NOTE In some countries the "Mode 3"

cable is not available.

WARNING Always connect the connector

first to the socket on the public charging

station and then to the car.
WARNING Unlocking the door locks

during the charging procedure will

cause it to stop. Charging resumes

automatically after about 60 seconds.
WARNING Before leaving the car, it is

advisable to lock the doors by pressing
the button

on the key. If it is not

possible to lock the doors by pressing
the button

on the key, lock the doors

by pressing the button on the driver's

side door handle.
WARNING Not all AC charging stations

are compatible for recharging. In

these cases, charging will not take

place although the cable is connected

correctly and a dedicated message will

be displayed on the instrument panel

display.

END OF CHARGING PROCEDURE

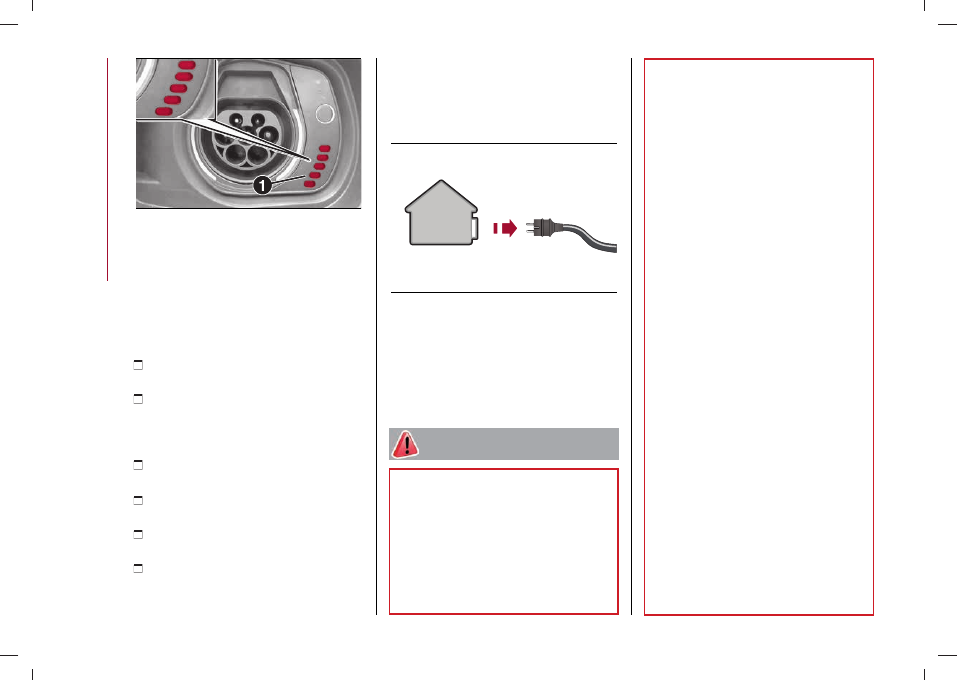

The charging procedure ends when all
the LEDs (1) fig. 245, next to the charging

port, are on green continuously (during

charging, the first LED will flash, while

the other LEDs will be on continuously).

245

9650201

DISCONNECTING THE "MODE 3"

CHARGING CABLE

To complete the charging, proceed as

follows:

unlock the doors of the car allowing

the charging cable to unlock;

disconnect the cable from the charging

port of the car and put the protective

cover (where provided) back on the
connector (5) fig. 240;

unplug the cable from the charging

port on the public charging station

and put the protective cover (where

provided) back correctly on the two-
colour connector (4) fig. 240;

replace the protective cover of the

charging port;

close the charging flap, making sure it

locks properly;

roll up the charging cable correctly,

repositioning the protective covers

on both sides of the cable correctly

(take care not to damage the cable when

CarManuals2.com

 STARTING AND DRIVING

240

rolling it up). Then place the cable inside

the bag located inside the boot.

WARNING

232)

The charging current level ("Level

1" / "Level 2" / "Level 3", etc.) can only

be changed via the Alfa Connect system

display (see the "Alfa Connect" chapter in

the "Multimedia" section). The default

charge level set is "Level 3". The set level

applies indifferently to both AC home

charging (Mode 2) and charging from an

AC public charging station (Mode 3). It is

therefore always advisable to check that

the level is set as desired for the actual

charging type that is about to be carried out.

233)

The high-voltage battery must only

be charged through approved, earthed

domestic sockets or from a public charging

station using the charging cable supplied

separately as an option by FCA (” Mode 3“

charging cable).

234)

Keep the charging flap closed when the

charging port is not in use.

IMPORTANT

98)

You do not need to wait until the high-

voltage battery level is low to recharge. The

performance of the battery is optimal when

it is charged regularly.

99)

Charging the high-voltage battery may

take longer if the temperature of the high-

voltage battery is high or low.

100)

During charging, especially with fast

charging, high-voltage battery cooling

components may be voltage activated.

Therefore, it is normal to hear noises during

this operation.

CHARGING CABLE EMERGENCY

UNLOCK

(Q4 Plug-in Hybrid versions)
If the charging cable does not unlock at

the end of the charging procedure, you

can unlock it manually.
If, after closing and opening the doors

by pressing the relevant buttons

/

located on the key, it is still not

possible to remove the charging cable

from the port on the car, it is possible

to act manually by operating a special

emergency unlocking device located on

the left side of the boot and performing

the operations described below:

open the tailgate
acting from inside the boot, turn the

hook 90° clockwise (1) fig. 246

pull the cord to manually unlock the

actuator of the charging port

pull the charging connector out of the

charging port located on the vehicle

correctly reposition the cord and the

hook in their housing

NOTE To restore correct operation of

the system, contact the an Alfa Romeo

Dealership.

246

9650216

CHARGING FUNCTIONS

(Q4 Plug-in Hybrid versions)

CHARGING SCHEDULE

By acting on the Alfa Connect system

display and selecting the "Charging

Schedule" function you can set the start

and end time at which the high-voltage

battery is to be charged.
For more information see the

descriptions in "Multimedia" section.

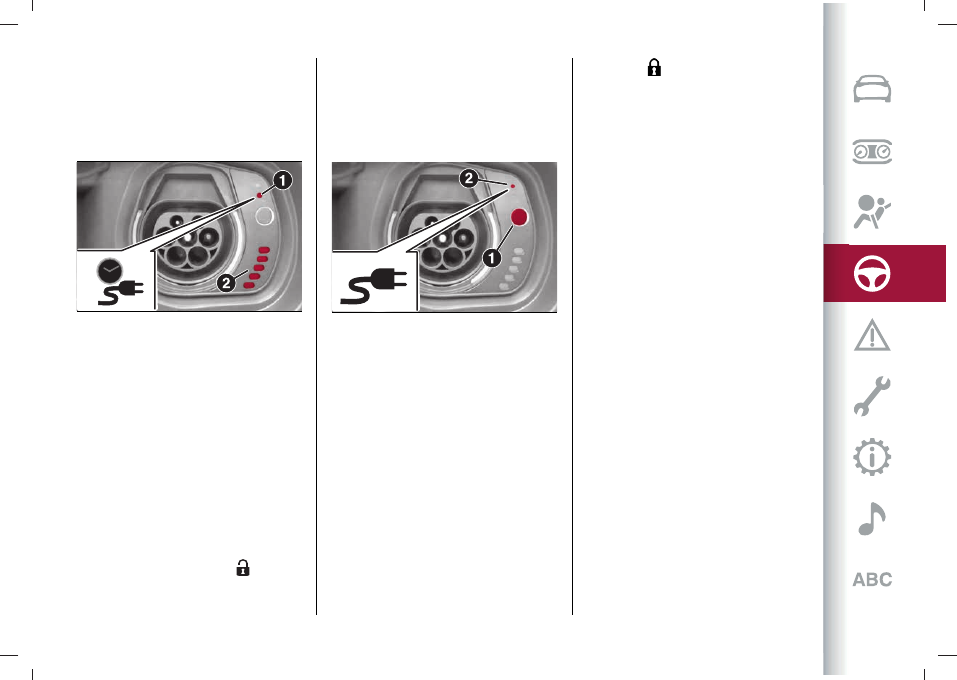

If the vehicle is charging, but it is outside

the charging range set via the Alfa
Connect system, the LED (A) (1) fig. 247

(located near the charging port) will light

up and the LED (2) will turn on with blue

light.
If charging is in progress, the LEDs will

light on with green flashing/green steady

CarManuals2.com

241

light depending on the state of charge of

the battery portion indicated by the LED.
NOTE If the state of charge of the high-

voltage battery is too low, recharging

will start immediately, cancelling any set

programming.

247

9650219

INTERRUPTING THE CHARGING

PROCEDURE

By inserting the charging connector of

the cable into the charging port on the

vehicle, charging starts automatically.
Press the immediate recharge button
(1) fig. 248 to "by-pass" any recharge

programming already set on the Alfa

Connect system display (for further

information refer to what is described

in the "Alfa Connect" chapter in the

"Multimedia" section.
To interrupt the charging, unlock the
doors by pressing the button

on the

key or the corresponding button on the

driver side door panel trim.

The LED (2) fig. 248 illuminates when the

vehicle is charging without a set interval

or in the case of an immediate charging

operation.
If charging was interrupted, the LEDs (2)

turns off.

248

9650279

If, approximately 60 seconds after the

doors are unlocked, the system detects

that the charging cable is still connected

inside the charging port, charging will

restart automatically and the cable will

be locked inside the charging port.
NOTE The charging procedure can

be interrupted either while using the

"Mode 2" charge cable or while using the

"Mode 3" charge cable.

RESUMING THE CHARGING

PROCEDURE

After interrupting the charging

procedure, if you wish to resume the

procedure, you can either perform

the door lock operation by pressing

the button

on the key or wait

approximately 60 seconds after the door

unlocking operation.
In this case, closing the doors with the

charging cable connected will resume

charging and the cable will be locked

inside the charging port.
Once the charging procedure is resumed,
the LED (2) fig. 248 next to the charging

port will turn off.

INSTANT CHARGING MANAGEMENT

Instant charging is performed by
pressing the button (1) fig. 248 located

next to the charging port or through

the dedicated App installed on your

smartphone.
NOTE The (1) fig. 248 is only active when

the doors are unlocked.

END OF CHARGING PROCEDURE

The charging procedure ends when all
the LEDs (1) fig. 249, next to the charging

port, are on green continuously (during

charging, the first LED will flash, while

the other LEDs will be on continuously).

CarManuals2.com

 STARTING AND DRIVING

242

249

9650201

FAILURE DURING CHARGING

PROCEDURE

If a fault is detected during the charging

procedure, the first and last LED located

next to the charging port will light up
flashing red, fig. 250.

250

9650220

"eCoasting" mode (ENERGY

SAVING)

(Q4 Plug-In Hybrid and Mild Hybrid

versions)
It is a mode that, when the accelerator

pedal is released, recovers energy during

the slowing down phase of the car.
The "eCoasting" mode, always active

regardless of the selected operating

mode (use of the heat engine or electric

motor), maximises energy recovery when

the accelerator and brake pedals are

released.
Driving in "eCoasting" mode is possible if

the automatic transmission/electrified

dual clutch automatic transmission gear

lever is in "D" (Drive).

INTERVENTION TYPE SELECTION

Q4 Plug-in Hybrid versions

In "Natural" and "Advanced Efficiency"

modes (in specific driving conditions),

which can be selected via the DNA™

system selector, the “eCoasting” feature

has a setting that favours driving
comfort, while in “Dynamic” and

OFF

modes the setting is sportier, allowing

more pronounced deceleration when the

accelerator pedal is released.

Mild Hybrid versions

During deceleration, with a gear engaged,

the electric motor charges the auxiliary

lithium battery (48V) and the traditional

battery (12V).
When the accelerator pedal is released

with the gear engaged, the electric motor

acts as an engine brake (“eCoasting”

mode): this contribution is increased by

pressing the brake pedal at the same

time ("eBraking” mode). The recovered

energy is made available later, helping to

save fuel.

"eBraking” MODE

Q4 PLUG-IN HYBRID VERSIONS

The "eBraking" mode, which is always

active regardless of the selected

operating mode (heat engine or electric

motor operation), activates the high-

voltage battery charging when the brake

pedal is pressed, thereby recovering

energy during braking.
The electric motors work like

alternators, converting the kinetic

energy of the car into electrical energy.
Using this mode is particularly useful

when driving in the city, where there are

continuous stops and starts.
NOTE To make the most efficient use of

the system, the braking phase should,

where possible, be modulated by

applying gradual pressure on the brake

pedal so as to allow maximum energy

recovery.

CarManuals2.com

243

NOTE In the event of an emergency,

maximum braking efficiency is always

guaranteed by the conventional braking

system.
NOTE On the car, in addition to the

conventional braking system, the rear

electric motor is able to slow the car

down under certain conditions while also

allowing the high-voltage battery to be

recharged.

MILD HYBRID VERSIONS

During deceleration, with a gear

engaged, the electric motor charges the

auxiliary lithium battery (48V) and the

conventional lead battery (12V).
The electric motor acts as an engine

brake (“eCoasting” mode): this

contribution is increased by pressing the

brake pedal at the same time ("eBraking”

mode). The recovered energy is made

available later, helping to save fuel.

"eCreeping” MODE

(Q4 Plug-In Hybrid and Mild Hybrid

versions)

Q4 PLUG-IN HYBRID VERSIONS

This mode makes it possible, with

the heat engine off, to move the car

forwards or backwards in electric

mode by releasing the brake pedal and

without having to press down on the

accelerator pedal as soon as the lever

for the electrified dual clutch automatic

transmission is moved to "D" (Drive), "R"

(Reverse) or when selecting “Sequential

mode” ("creeping" effect).

MILD HYBRID VERSIONS

This mode makes it possible, with

the heat engine off, to move the car

forwards or backwards in electric

mode by releasing the brake pedal and

without having to press down on the

accelerator pedal as soon as the lever

for the electrified dual clutch automatic

transmission is moved to "D" (Drive), "R"

(Reverse) or when selecting “Sequential

mode” ("creeping" effect).
NOTE "eCreeping" mode is only

performed if the lithium ion auxiliary

battery (48V) is charged sufficiently.
For more information on the use of

the electrified dual clutch automatic

transmission, see what is described in

the relative chapters in this section.

"eQueueing” MODE

(Mild Hybrid version)
This mode makes it possible to follow a

queue, in which there are various stops

and consecutive starts ("Stop&Go") of

the car, using the "eCreeping", "eLaunch"

and electric driving modes.
NOTE "eQueueing" mode is activated

only if the auxiliary lithium ion battery

(48V) is sufficiently charged.

"eLaunch” MODE (START OF

ELECTRIC MODE)

(Mild Hybrid version)
This mode makes it possible, with the

heat engine off, to start in electric mode

without decreasing vehicle performance.
By pressing the accelerator pedal,

the vehicle will start to move forward

as soon as the “Sequential mode” of

the electrified dual clutch automatic

transmission is selected.
NOTE "eLaunch" mode is activated only if

the auxiliary lithium ion battery (48V) is

sufficiently charged.

CarManuals2.com

 STARTING AND DRIVING

244

"eBoosting" MODE

(Mild Hybrid version)
This mode permits the simultaneous

operation of the heat engine and electric

motor (combined with the electrified

dual clutch automatic transmission).
As long as the lithium ion battery (48V) is

sufficiently charged, this mode supports

the delivery of engine torque (sum of

the engine torque delivered by the heat

engine and by the electric motor, without

ever exceeding the maximum torque

value for only the heat engine).

"Overboost"

By pressing the accelerator pedal down

fully ("kick-down” function), and when the

lithium ion battery (48V) is has a high

state of charge, it is possible to exceed

the torque of only the heat engine,

thanks to the additional torque provided

by the electric motor.

"eParking" MODE

(Mild Hybrid versions)
This mode makes it possible, thanks to

the electric motor, to perform parking

manoeuvres at a low speed with the

electrified dual clutch automatic

transmission gear lever in D (Drive) or R

(Reverse).
When "eParking" mode is active, the

heat engine is off, and the electric motor

functions as a generator to charge the

auxiliary lithium ion battery (48V).
The movement of the car, or the

acceleration phase, is performed by

moving the electrified dual clutch

automatic transmission gear lever to D

(Drive).
NOTE "eParking" mode is activated only

if the auxiliary lithium ion battery (48V) is

sufficiently charged.

PARKING MANOEUVRES

These manoeuvres can be performed:

in "eCreeping” mode with the

accelerator pedal released
or

in "eLaunch" mode, if the driver

presses the accelerator pedal or if it is

reproduced by the automatic parking

system (ParkAssist system or Active

ParkAssist system) as a virtual gas pedal
The performance must be supplied

within the limits of the state of charge of

the auxiliary lithium ion battery (48V)

and the available energy.

REFUELLING THE CAR

Always stop the engine before refuelling.

235) 236) 237)

PETROL ENGINES

Only use unleaded petrol with an octane

number (R.O.N.) not lower than 95

(EN228 specification).
In order to prevent damage to the

catalytic converter never introduce even

the smallest amount of leaded petrol,

even in the event of an emergency.

DIESEL ENGINES

101)

Only use Diesel fuel for motor vehicles

(EN590 specification). In the event of

refuelling with diesel which is unsuitable

for the operating temperature, it is

advisable to mix the diesel with a specific

additive, introducing it to the tank before

the anti-freeze and then the diesel.
When using or parking the car for a long

time in the mountains or cold areas, it is

advisable to refuel using locally available

Diesel. In this case, it is also advisable to

keep the tank over 50% full.

CarManuals2.com

245

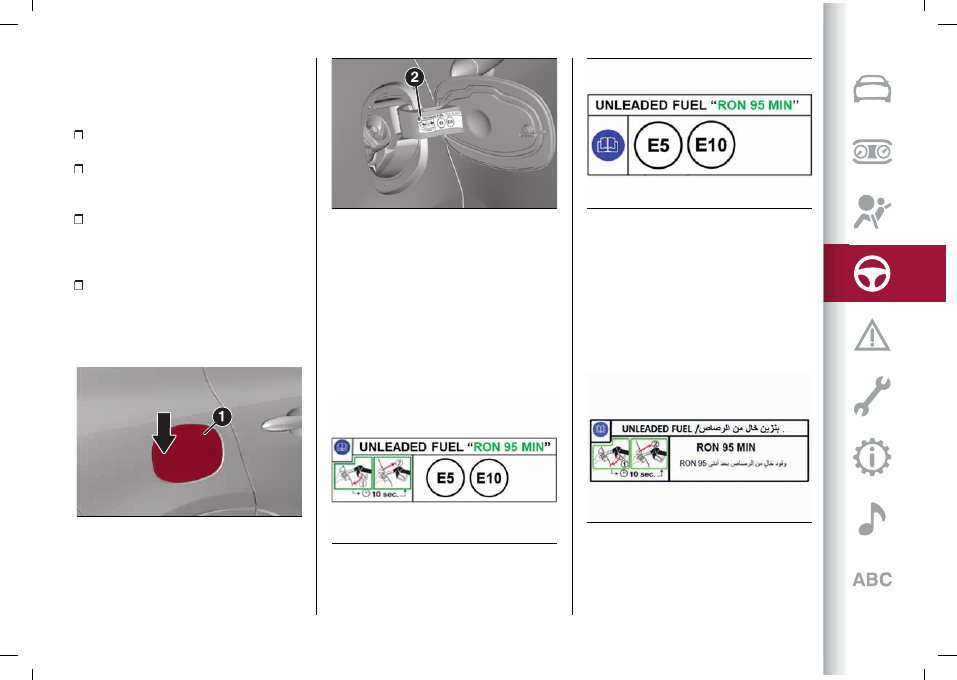

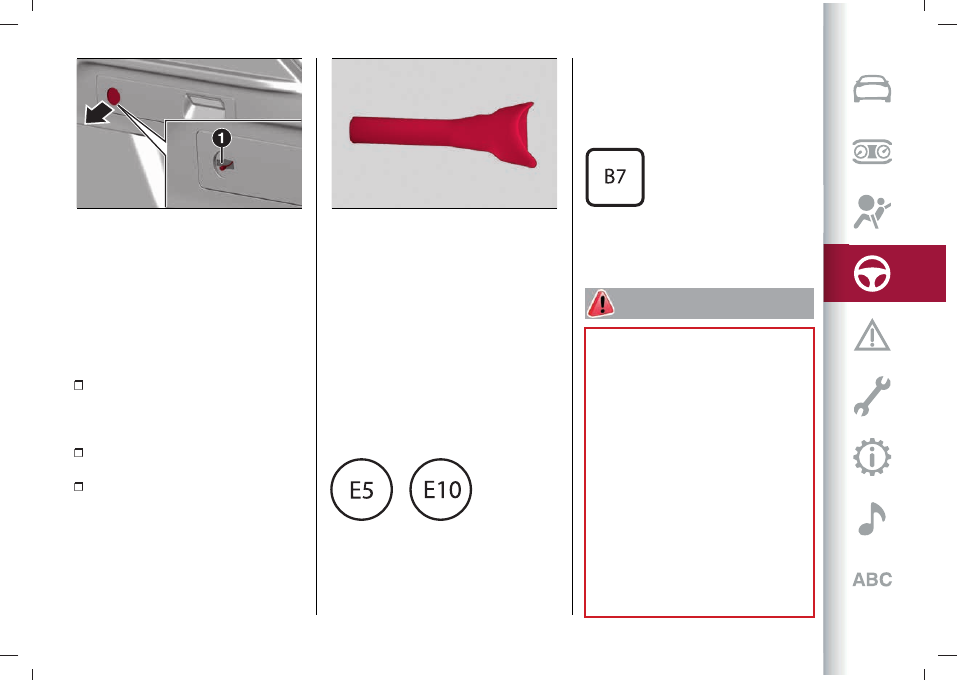

open flap (1) fig. 251, from the point

shown by the arrow

insert the nozzle fully into the filler

neck until the nozzle is engaged and

refuel

when the fuel nozzle "clicks" or shuts

off, before removing the nozzle, wait for

at least 10 seconds in order for the fuel to

flow inside the tank

then remove the nozzle from the filler

and close the flap (1) fig. 251
The refuelling procedure described

below is illustrated on the label (2)

fig. 252 located inside the fuel flap.

251

9650274

252

9650421

WARNING The plate located inside the

fuel door changes depending on the fuel

supply system of the car and whether or

not the fuel cap is present
WARNING Never continue refuelling

after the fuel nozzle has stopped three

times, indicating that the level has

reached the maximum tank capacity.

Running on petrol

:

253

9650422

254

9650423

WARNING For vehicles with 2.0 T4 272

HP engine, refuel with unleaded 95 R.O.N.

petrol only. (EN228 specification), as

reminded by the plate on the inside of

the fuel flap (for versions/markets,
where provided) (see fig. 255 for versions
without a filler cap or fig. 256 for

versions with a cap).

255

9650333

REFUELLING PROCEDURE (Diesel /

Mild Hybrid / 2.0 T4 272 HP versions)

Opening the flap

To refuel proceed as follows:

CarManuals2.com

 STARTING AND DRIVING

246

256

9650334

Diesel fuel

:

257

9650424

258

9650425

REFUELLING PROCEDURE (Q4 Plug-In

Hybrid versions)

To refuel proceed as follows:

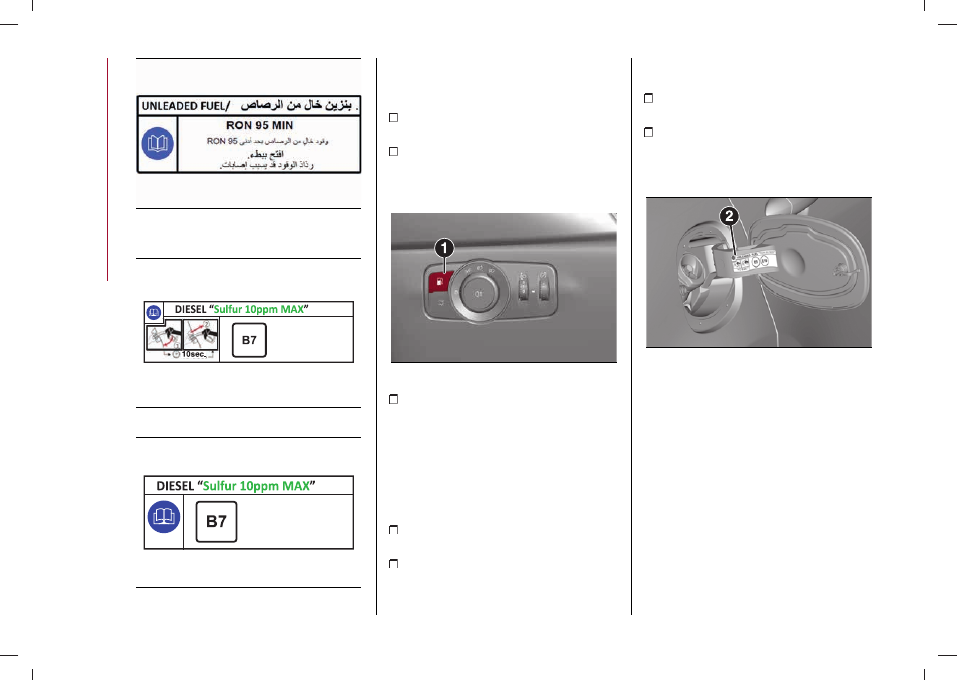

switch off the engine and set the

automatic transmission lever to P (Park)

as soon as the fuel door release button

(1) fig. 259 is pressed, with the automatic

transmission lever in P (Park), action is

taken to release pressure in the fuel tank

259

9650222

refuelling will be possible once the

pressure has been released. Generally

the depressurisation procedure is quite

rapid: it could last up to 15-20 seconds in

case of high ambient temperatures. The

fuel flap is then unlocked and opened (if

necessary, finish opening manually and

then refuel)

insert the nozzle fully into the filler

neck until it engages, and refuel

when the fuel nozzle "clicks" or shuts

off, before removing the nozzle, wait for

at least 10 seconds in order for the fuel to

flow inside the tank

then remove the nozzle from the filler

and close the fuel flap

after refuelling, close the fuel flap

The refuelling procedure described

below is illustrated on the label (2)

fig. 260 located inside the fuel flap.

260

9650421

NOTE The plate inside the fuel flap

depends on whether the car is fitted with
the fuel cap fig. 254, or without the fuel
cap fig. 253.
NOTE After pressing the button
(1)fig. 259, you have 20 minutes to refuel.

After this time you will need to press the

button again to refuel.
WARNING Never continue refuelling

after the fuel nozzle has stopped three

times, indicating that the level has

reached the maximum tank capacity.

CarManuals2.com

247

Warnings

In Q4 Plug-in Hybrid vehicles,

depending on the type of use, the fuel

may remain inside the tank for extended

periods of time and its characteristics

may vary. In order to avoid damage to

the fuel feed system it is recommended

to consume at least one full tank of fuel

every 6 months of use of the car.

Never attempt to start the engine if

there is no fuel inside the tank. In this

case, it may be impossible to start the

vehicle as it is unable to check the high-

voltage battery charge.

TOPPING UP AdBlue® DIESEL

EMISSIONS ADDITIVE

(where provided) (Diesel versions only)

238)

Preliminary Conditions

AdBlue® freezes at temperatures lower

than -11°C. If the car stands for a long

time at this temperature refilling could

be difficult. For this reason, it is advised

to park the car in a garage and/or heated
environment and wait for the AdBlue® to

return to liquid state before topping up.
Proceed as follows:

park the car on flat ground and stop

the engine by setting the ignition device

in the OFF position

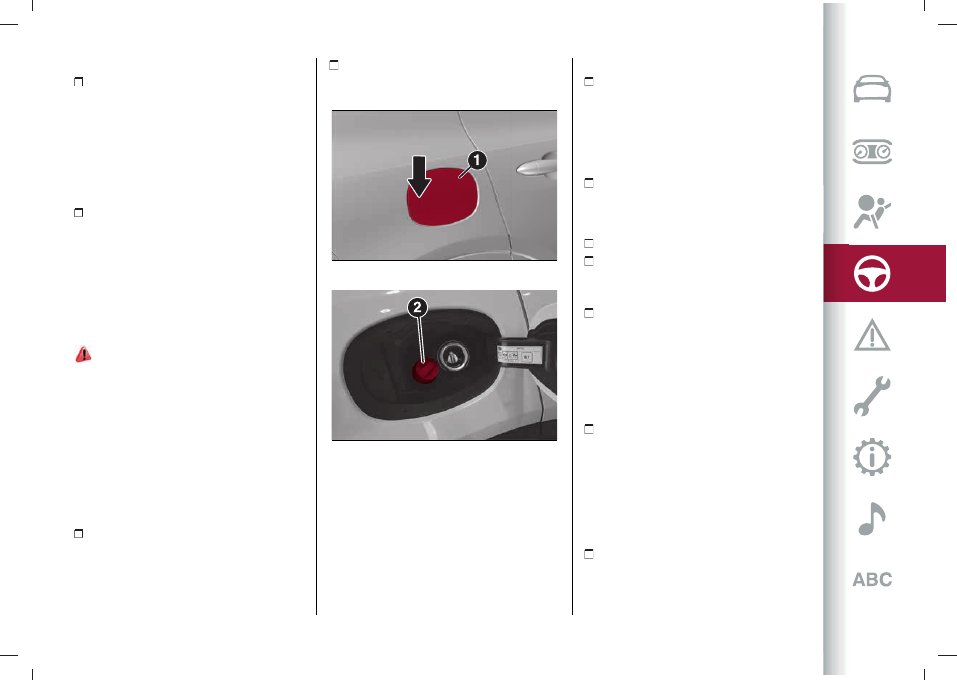

open the fuel flap (1) fig. 261 and then

unscrew and remove the cap (2) (blue)

from the AdBlue® filler

261

9650274

262

9650275

Refilling with nozzles

The system was designed in compliance

with ISO 22241-5 (nozzle capacity: 10

l/min.). Refilling at stations with higher

flow rates is possible, but the nozzle

could shut off and the amount introduced

into the tank may vary.

Proceed as follows:

insert the AdBlue® nozzle in the filler,

start refilling and stop refilling at the

first shut-off (the shut-off indicates that
the AdBlue® tank is full). Do not proceed

with the refilling, to prevent spillage of
AdBlue®

extract the nozzle

Refilling with containers

Proceed as follows:

check the expiration date
read the advice for use on the label

before pouring the content of the bottle
into the AdBlue® reservoir

if systems which cannot be screwed in

(e.g. tanks) are used for refilling, after the

indication appears on the instrument

panel display (see “Indicator lights and

messages" chapter in the “Knowing

the instrument panel” section), fill the
AdBlue® tank with up to 8.5 litres

if containers which can be screwed to

the filler are used, the reservoir is full

when the AdBlue® level in the container

stops pouring out. Do not proceed

further

Operations after refilling

Proceed as follows:

fit the cap (2) fig. 262 back on the

AdBlue® filler by turning it clockwise and

screwing it completely

CarManuals2.com

 STARTING AND DRIVING

248

turn the ignition device to the ENGINE

position (it is not necessary to start the

engine)

wait for the indication on the

instrument panel to switch off before

moving the car. The indication may stay

on for a few seconds to approximately

half a minute. If the engine is started

and the car is moved, the indication

will remain on for longer. This will not

compromise engine operation

if the AdBlue® was topped up when

the tank was empty, see the “Refilling”

chapter in the “Technical specifications”

section and wait for 2 minutes before

starting the engine
WARNING If AdBlue® is spilled out of

the filler neck, clean up well the area and

proceed to filling up again. If the liquid

crystallises, eliminate it with a sponge

and warm water.

WARNING

DO NOT EXCEED THE MAXIMUM

LEVEL: this could cause damage to the
reservoir. AdBlue® freezes at under -

11 °C. Although the system is designed

to operate below the freezing point of
the AdBlue®, it is advisable not to fill

the tank beyond the maximum level
because if the AdBlue®freezes the

system can be damaged. Comply with

what is described in this paragraph

If AdBlue® is spilled on painted

surfaces or aluminium, clean the area

immediately with water and use

absorbent material to collect the fluid

that has spilled on the ground

Do not try to start the engine if the

AdBlue® was accidentally added to

the Diesel fuel tank, this can result in

serious engine damage, contact an Alfa

Romeo Dealership

Do not add additives or other fluids to

AdBlue® as doing so could damage the

system

The use of non-conforming

or degraded AdBlue® may lead

to indications appearing on the

instrument panel display (see

“Indicator lights and messages" chapter

in the “Knowing the instrument panel”

section).

Never pour AdBlue® into another

container: it could be contaminated

If the exhaust gas purification

system is damaged due to the use of

additives/tap water, diesel or due

to the failure to comply with these

requirements, the warranty shall lapse

If the AdBlue® runs out, see the

"Indicator lights and messages" chapter

in the "Knowing the instrument panel”

section to continue using the car

normally

The AdBlue® level is not updated if

the car is parked on a gradient

The consumption of AdBlue®

emissions additive depends on the

conditions of use of the car and is

indicated by means of the symbol which

lights on

Storing AdBlue®

AdBlue® is considered a very stable

product with a long shelf life. Stored at

temperatures LOWER than 32°C, it has a

shelf life of at least one year. Follow the

instructions on the label of the container.

EMERGENCY FUEL FLAP OPENING

(where provided)

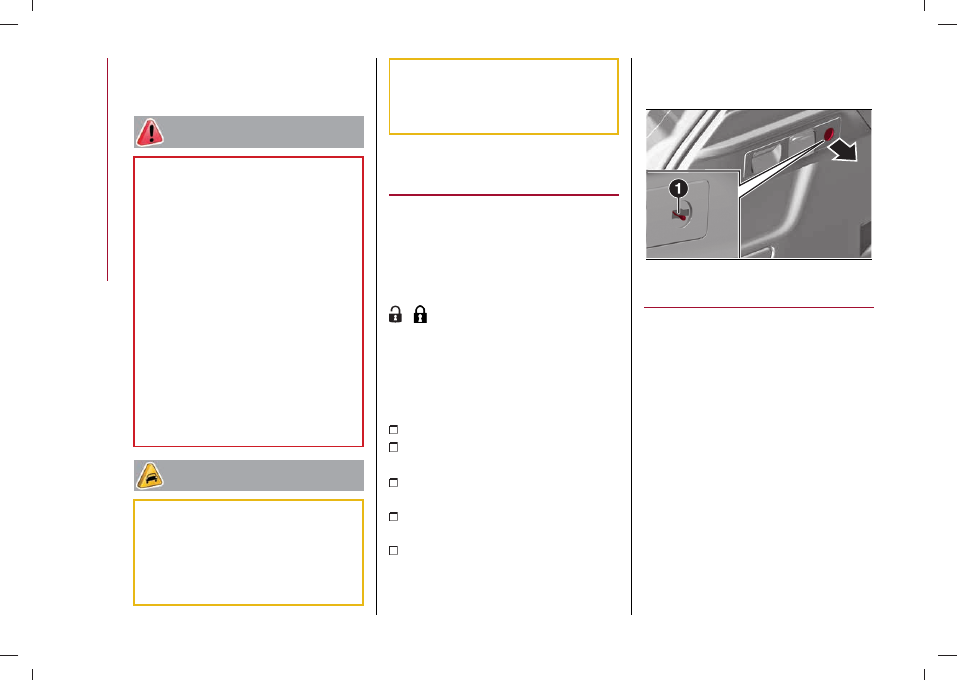

If the fuel flap is not unlocked due to

faults in the electrical unlocking system,

the fuel flap can be unlocked manually

using a cord located on the right side of

the boot, on the side panel near the fuel

flap.
Proceed as follows:

from inside the boot, remove the

protective cap on the right-hand side and
pull the cord (1) fig. 263 to unlock the fuel

filler flap lock

open the fuel flap by pressing on it (see

the previous instructions)

correctly reposition the cord and the

hook in their housing.

CarManuals2.com

249

263

9650224

NOTE If refuelling is performed by

manually unlocking the fuel flap, special

attention must be paid to the reference

operation as the fuel may flow back.

EMERGENCY REFUELLING

If there is no fuel in the car or the supply

circuit is completely empty, proceed as

follows to reintroduce fuel to the tank:

open the boot and get the adapter

fig. 264, located in the toolbox or,

depending on the versions, in the Fix&Go

container

open the fuel door and insert the

adapter into the filler

after refuelling, remove the adapter,

close the door and store the adapter in

the boot

264

9650434

Fuels - identification of vehicle

compatibility. Graphic symbol for

consumer information in accordance

with EN16942

The symbols shown below facilitated

recognising the correct fuel type to be

used on your car.
Before proceeding with refuelling, check

the symbols inside the fuel filler flap

(where provided) and compare them

with the symbols shown on the fuel pump

(where provided).

Symbols for petrol powered cars

E5

: Unleaded petrol containing up to

2.7% (m/m) oxygen and with maximum

5.0% (V/V) ethanol compliant with

EN228

.

E10

: Unleaded petrol containing up to

3.7% (m/m) oxygen and with maximum

10.0% (V/V) ethanol compliant with

EN228

.

Symbols for diesel powered cars

B7

: Diesel containing up to 7% (V/V)

of FAME (Fatty Acid Methyl Esters)

compliant with

EN590

.

WARNING

235)

Do not apply any object/cap to the end

of the filler which is not provided for the

car. The use of non-compliant objects/plugs

could cause a pressure increase inside the

tank, resulting in dangerous situations.

236)

Do not approach naked flames or lit

cigarettes to the fuel tank filler: fire risk.

Keep your face away from the fuel filler to

prevent breathing in harmful vapours.

237)

Do not use a mobile phone near the

refuelling pump: risk of fire.

238)

If the AdBlue (UREA) overheats

for a prolonged period inside the tank

to over 50 °C (for example, due to direct

solar irradiation), the AdBlue (UREA) may

decompose and produce ammonia vapours.

Ammonia vapours have a pungent odour

when the cap of the AdBlue (UREA) tank

is unscrewed, therefore be careful not to

inhale any ammonia vapours in the tank

CarManuals2.com

 STARTING AND DRIVING

250

outlet. In this concentration, however,

the ammonia vapours are not harmful or

dangerous to health.

IMPORTANT

101)

For diesel engines, only use diesel fuel

for motor vehicles in accordance with

EN590 European specifications. The use of

other products or mixtures may damage

the engine beyond repair and consequently

invalidate the warranty, due to the damage

caused. If you accidentally introduce other

types of fuel into the tank, do not start the

engine. Empty the tank. If the engine has

been run for even an extremely limited

amount of time, you must not only drain the

fuel tank, but the rest of the supply circuit as

well.

AdBlue® (UREA) ADDITIVE FOR

DIESEL EMISSIONS

(where provided)
The car is equipped with an AdBlue®

(UREA) injection system and Selective

Catalytic Reduction to meet emission

standards.
These two systems ensure compliance

with the diesel emissions requirements;

at the same, they ensure fuel-efficiency,

handling, torque and power. For

messages and system warnings, refer

to the "Warning lights and messages"

paragraph in the "Knowing the

instrument panel" chapter.
AdBlue® (UREA) is considered a very

stable product with a long shelf life.

Stored at temperatures LOWER than 32

°C, it has a shelf life of at least one year.
For more information on the AdBlue®

(UREA) liquid type, see the “Fluids and

lubricants” paragraph in the “Technical

specifications” chapter.
The car is provided with an automatic
AdBlue® (UREA) heating system when

the engine starts allowing the system to

work correctly at temperatures lower

than -11 °C.
WARNING AdBlue® (UREA) freezes at

temperatures lower than -11 °C.

DRIVING TIPS

PROTECTING THE ENVIRONMENT

Here are some tips:

Plan your route for effective average

speed

observe the service and maintenance

intervals of the vehicle as stated in the

Service and Warranty Booklet

do not run the heat engine at idling

speed and turn it off during long stops in

a queue (excluding Q4 Plug-In Hybrid and

Mild Hybrid versions). Comply with the

regulations of the country where you are

driving

planning the route: many unnecessary

stops and an irregular speed contribute

to increase fuel consumption

FUEL CONSUMPTION

(Q4 Plug-in Hybrid version)
To limit fuel consumption, try to make

maximum use of the car's electric drive,

depending on the driving needs and the

route.

SAVING FUEL

Below are some suggestions which may

help you save fuel and thus lower the

amount of harmful emissions released

into the atmosphere.

Car maintenance

Checks and maintenance should

be carried out in accordance with

CarManuals2.com

251

the "Service Schedule” (see the

"Maintenance and care" section).

Tyres

Check the tyre pressures at least once

every four weeks: if the pressure is too

low, consumption levels increase as

resistance to rolling is higher.

Unnecessary loads

Do not travel with an overloaded

boot. The weight of the car and its

arrangement greatly affect fuel

consumption and stability.

Roof rack/ski rack

Remove the roof rack or the ski

rack from the roof after use. These

accessories lower aerodynamic

penetration and adversely affect

consumption levels. When transporting

particularly large objects, use a trailer if

possible.

Electric devices

Use electrical devices only for the

amount of time needed. The heated

rear window, additional headlights,

screen wipers and heater fan require

a considerable amount of energy;

increasing the current uptake increases

fuel consumption (by up to +25% in an

urban cycle).

Climate control system

Using the climate control system will

increase consumption: use standard

ventilation when the temperature

outside permits.

Devices for aerodynamic control

The use of non-certified devices for

aerodynamic control may adversely

affect air drag and consumption levels.

DRIVING STYLE

Start

Do not warm up the engine at low or

high revs when the car is stationary;

this causes the engine to warm up

more slowly, thereby increasing fuel

consumption and emissions. It is

therefore advisable to move off

immediately, slowly, avoiding high

speeds: in this way the engine will warm

up more quickly.

For Q4 Plug-in Hybrid versions

, once a

month, especially in cold environment

conditions, it is recommended to use

the heat engine for up to 60 minutes at a

time (activating “Dynamic” mode or with

automatic transmission in “Autostick”

mode) to allow complete heating of the

engine.

Unnecessary actions

Avoid accelerating when stopped at

traffic lights or before switching off the

engine.

Gear selection ("Autostick" mode)

Use a high gear when traffic and road

conditions allow it. Using a low gear

for faster acceleration will increase

fuel consumption. In the same way,

improper use of a high gear increases

consumption, emissions and engine wear.

Top speed

Fuel consumption considerably increases

as speed increases. Maintain a constant

speed, avoiding unnecessary braking and

acceleration, which cost in terms of both

fuel consumption and emissions.

Acceleration

Accelerating violently severely affects

consumption and emissions: acceleration

should be gradual and should not exceed

the maximum torque.

TIPS FOR DRIVING HYBRID CARS

(Q4 Plug-In Hybrid and Mild Hybrid

versions)
To ensure maximum autonomy and

minimize energy consumption, observe

the precautions below.

High-voltage battery charging

(Q4 Plug-in Hybrid versions)
Charge the car regularly from the mains.

It is recommended to always travel with

a fully charged high-voltage battery.
Check where the public charging stations

are located (for more information, see

the Alfa Connect - "Navigation" chapter

in the "Multimedia" section).
Park, if possible, in a parking lot provided

with public charging stations.

CarManuals2.com

 STARTING AND DRIVING

252

Regular recharging of the high-voltage

battery increases the range of the car.

Passenger compartment heating

(Q4 Plug-in Hybrid versions)
If possible, warm up the passenger

compartment before driving.
If you are driving for a short time after

air conditioning in the passenger

compartment, switch off the automatic

dual-zone climate control system

compressor or turn off the fan.
In order to maximise the energy

efficiency of the car, it is suggested to

use the passenger compartment air

conditioning function only when strictly

necessary.
During the summer season, avoid parking

the car in a way that overheats the

passenger compartment during parking.
Park, if possible, in suitably ventilated

indoor areas or outside in the shade.

Driving

(Q4 Plug-in Hybrid versions)
Dose the pressure on the accelerator

pedal: the electric motor is more

efficient than the heat engine, especially

at low speeds. High speed leads to higher

energy consumption.
As far as possible, do not use the heat

engine to charge the high-voltage

battery. Recharging with the heat engine

increases fuel consumption.

Exploitation of inertia force

At a traffic light, release the accelerator

pedal, allowing the car to decelerate.
On downhill stretches, release the

accelerator pedal, letting the car proceed

by inertia.
The hybrid system is able to recover

energy from braking and slowing down:

making effective use of these driving

phases emphasizes the peculiarities of a

hybrid car and its efficiency.

Switching off superfluous functions

If not strictly necessary, remember to

switch off functions such as seat heating

or activation of the heated rear window.

Energy recovery optimization

Energy recovery is a characteristic

of the hybrid vehicles and makes it

possible to make efficient use of the

“passive” driving phases (deceleration

and braking), recovering energy and

charging the high voltage battery (Q4

Plug-In Hybrid versions) or the auxiliary

battery (Mild Hybrid versions), making it

possible to use the recovered energy

during subsequent accelerations.
The energy recovery optimization, during

acceleration and braking, is carried out in

three phases:

Light energy recover

during

deceleration without pressing the brake

pedal

Medium energy recovery

during slight

deceleration slightly pressing the brake

pedal

Maximum energy recovery

: if the

brake pedal is depressed deeper,

provided that the indicator located on

the power meter on the instrument

panel still moves in the charge indication

middle space

Optimal energy recovery

Optimising energy recovery is possible

by adopting an appropriate driving style.

For Q4 Plug-in Hybrid versions

: as soon

as the indicator on the instrument panel

display shows the maximum energy

recovery, press down the brake pedal

fully, only if driving conditions require it.

Electrical operating mode

The range of the car in electric mode

is influenced by several factors

(including electrical devices such as

air conditioning, Alfa Connect system,

lighting, etc.) and varies depending on

driving conditions and/or traffic.

CONDITIONS OF USE

(versions with heat engine)

Cold starting

Short journeys and frequent cold starts

do not allow the engine to reach optimum

operating temperature. Consequently,

both consumption (from +15 to +30%

CarManuals2.com

253

on the urban cycle) and emissions will

increase.

Traffic and road conditions

High fuel consumption is caused

by heavy traffic, for instance when

travelling in a queue with frequent use of

low gears or in cities with many traffic

lights. Winding mountain roads and rough

road surfaces also adversely affect

consumption.

TRANSPORTING PASSENGERS

Warnings

WARNING It is extremely dangerous to

leave children in a parked car when the

temperature outside is very high. The

heat inside the passenger compartment

may have serious, or even fatal,

consequences.
WARNING Never travel in the internal

load compartment. In the event of an

accident, anyone inside the boot would

be at greater risk of serious or even fatal

injury.
WARNING Ensure that all the occupants

of the car wear their seat belts correctly

and that any children are positioned

correctly on the dedicated child restraint

systems.

TRANSPORTING ANIMALS

Deployment of the airbags may be

dangerous for an animal on the front

seat. It is therefore advisable to arrange

animals on the rear seat inside dedicated

cages restrained by the car’s seat belts.
Bear in mind also that, in the event of

a sudden braking or an accident, an

inadequately restrained animal may

be projected within the passenger

compartment, risking injury to the animal

itself and the other occupants of the car.

EXHAUST GAS

Adequate maintenance of the exhaust

system represents the best protection

against leaks of carbon monoxide into

the passenger compartment.
Should an unusual noise from the

exhaust system or the presence

of exhaust gas in the passenger

compartment be identified, or if the

underbody or rear part of the car is

damaged, have the entire exhaust

system and adjoining bodywork

areas checked to identify any broken

components which are broken, damaged,

worn or have moved from their correct

fitting position. For these operations,

contact an Alfa Romeo Dealership.

TRANSPORTING THE CAR

(Q4 Plug-in Hybrid versions)
If the vehicle has to be transported on a

ship or an airplane, it is not necessary to

request any authorization from a public

authority (ref. IATA-DGR standard and

IMDG code 01.01.2018) because the high-

voltage battery installed on the vehicle

has passed all the safety tests required

by the regulations in force and complies

with the safety systems.

TOWING TRAILERS

WARNINGS

For towing caravans or trailers the car

must be fitted with an approved tow

hook and an adequate electrical system.

Should aftermarket installation be

requested, this must be carried out by a

specialised technician.
When towing a trailer, do not exceed the

towing limits given in the "Weights and

loads” chapter, "Technical Data” section.
Install any specific and/or additional

rear-view mirrors as specified by the

Highway Code.
Remember that, when towing a trailer,

steep hills are harder to climb, braking

distances increase and overtaking takes

longer depending on the overall weight of

the trailer.
When driving downhill, shift into a lower

gear instead of using the brake pedal

constantly.
The weight the trailer exerts on the car

tow hook reduces the loading capacity of

the car by the same amount. To make

sure that the maximum towable weight is

not exceeded (given in the registration

document) account should be taken

CarManuals2.com

 STARTING AND DRIVING

254

of the fully laden trailer, including

accessories and luggage.
Do not exceed the speed limits specific

to each country you are driving in, in the

case of vehicles towing trailers. In any

case, the top speed must not exceed

100 km/h.
Any electric brake or other device (e.g.

winch, etc.) should be powered directly

by the conventional battery through a

cable with a cross-section of not less

than 2.5 mm².
In addition to the electrical branches,

the car electrical system can only be

connected to the supply cable for an

electric brake and to the cable for

an internal light for the trailer, not

exceeding 15W. For connections use the

preset control unit with battery cable

with cross-section no less than 2.5 mm².
WARNING The use of auxiliary loads

other than external lights (e.g. electric

brake, winch, etc.) must be used with

engine running.
WARNING Contact an Alfa Romeo

Dealership to install a tow hook.

239) 240)

102)

WARNING

239)

The ABS with which the car is equipped

will not control the braking system of the

trailer. Particular caution is therefore

required on slippery roads.

240)

Never modify the braking system of

the vehicle to control the trailer brake.

The trailer braking system must be fully

independent of the vehicle’s hydraulic

system.

IMPORTANT

102)

Do not tow a trailer during the first

805 km of the new car. The engine, axle or

other parts may be damaged. In addition,

during the first 805 km of towing a trailer,

do not exceed a speed of 80 km/h and avoid

abrupt starts. This limits wear and tear on

the engine and other vehicle parts during

use with heavier loads.

CarManuals2.com

Have a flat tyre or a burnt-out bulb?

At times, a problem such as these may interfere with your

driving experience.

The pages on emergencies can help you to deal with critical

situations independently and calmly.

In an emergency, we recommend that you call the phone

number found in the Warranty Booklet.

It is also possible to call the national or international

universal freephone number to search for the nearest

Dealership.

IN CASE OF EMERGENCY

HAZARD WARNING LIGHTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .256
ASSIST CALL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .256
EMERGENCY CALL - EU eCall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .258
IN CASE OF ACCIDENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .262
REPLACING A BULB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .263
FUSES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .263
CHANGING A WHEEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264
FIX&GO KIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268
JUMP STARTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273
FUEL CUT-OFF SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .276
HEAT ENGINE OVERHEATING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .276
AUTOMATIC TRANSMISSION LEVER RELEASE . . . . . . . . . . . . . . . . . . . . 277
TOWING A BROKEN-DOWN CAR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .278
TOWING THE CAR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 280

CarManuals2.com

 IN CASE OF EMERGENCY

256

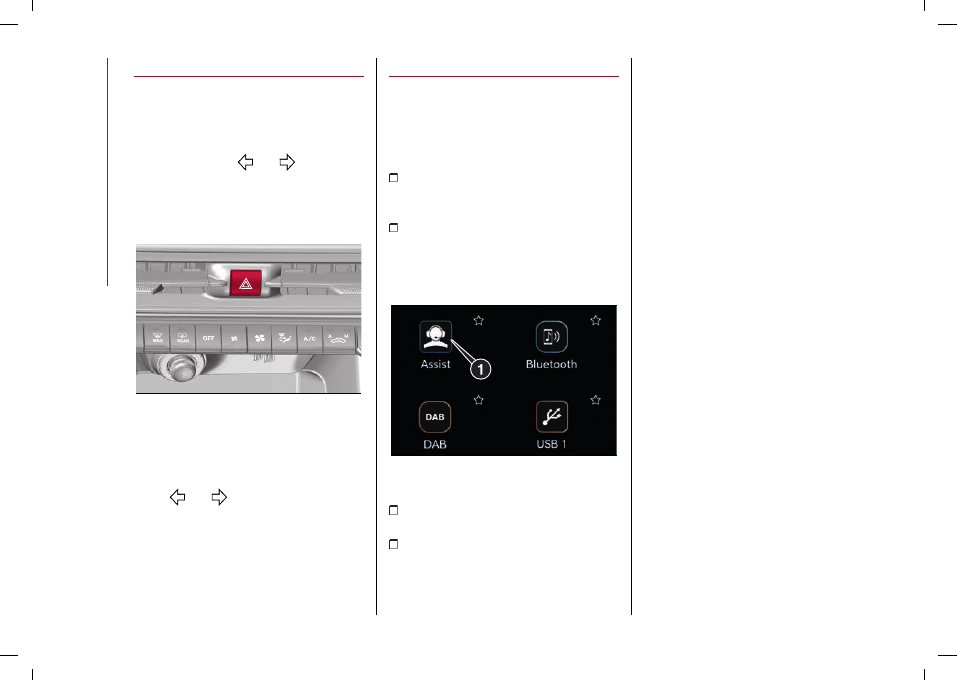

HAZARD WARNING LIGHTS

CONTROL

Press button fig. 265 to switch the lights

on/off.
When the hazard warning lights are on,
the warning lights

and

flash.

WARNING The use of hazard warning

lights is governed by the highway code

of the country you are driving in: comply

with legal requirements.

265

9650229

Emergency braking

In the event of emergency braking

the hazard warning lights switch on

automatically as well as the warning
lights

and

in the instrument panel.

The lights switch off automatically when

emergency braking ceases.

ASSIST CALL

The car is equipped with an on-board

assistance function designed to provide

support in the event of malfunctions of

the car.
The ASSIST function is activated:

automatically (where provided)

following malfunctions of the braking

system, engine, etc.

manually, using the "Assist" app (1)

fig. 266 on the Alfa Connect system. For

more information, refer to the "Apps"

paragraph in the "Alfa Connect" chapter

of the "Multimedia" section

266

9650299

The ASSIST function is activated with:

the ignition device is in the ENGINE

position

ignition device in STOP position and

Alfa Connect system display on
Once activated automatically (where

provided) or manually, the ASSIST

function will send the position data of

the car to the Operations Centre and

stablish a voice call with an operator.
NOTE If the ASSIST function does work,

the fault in the system will be indicated

on the display. Go as soon as possible to

an Alfa Romeo Dealership to have the

function repaired.
NOTE The correct operation of the

ASSIST services will be guaranteed only

by a good network coverage.
WARNING The ASSIST function may not

be available for the first minute after the

car is started.
The "ASSIST call" function is not the

emergency call, also known as "eCall",

which is required by law in the countries

of the European Union (EU eCall) based

on the emergency number 112 and

described in the "Emergency call - EU

eCall" chapter in this section.

Privacy

: for the ASSIST call service,

the location (GPS) of the car cannot be

deactivated because it is indispensable

for the provision of the service itself.

The localisation for this service cannot

be deactivated even with "Privacy

Mode" activated ("Geolocation

OFF"). Furthermore, deactivating the

positioning of the car by means of the

"Settings" menu of the Alfa Connect

system will make other services (other

than the one described here) unavailable

(for more details see "Settings" chapter

of the Alfa Connect system).

CarManuals2.com

257

FCA Italy S.p.A. processes personal

data ("Data") – as the Data Controller

- in accordance with the provisions of

Italian Legislative Decree 196/2003 as

amended by Italian Legislative Decree

101/2018, Regulation (EU) 2016/679

and any other personal data protection

regulations in force. In this regard, refer

to the Privacy Policy on the Patto Chiaro

Vendita.
WARNING The

icon at the top of

the Alfa Connect system display

indicates that the geolocation function

is active (ON). When geolocation is on,

the car position is tracked to enable

the functions that require it. When

geolocation is off, the car position is

only tracked by the navigation, safety,

insurance and driver assistance systems

(where provided). This function can

be deactivated via the Alfa Connect

system (see the "Settings" section in the

"Alfa Connect system" chapter in the

"Multimedia" section).
Pressing the graphic buttons fig. 266

located on the display of the Alfa

Connect system makes a call to one or

more of the following services:

Roadside assistance

: if case of need,

a connection will be established with

the roadside assistance authority which

will receive the car type and its position

directly. Additional roadside assistance

charges may apply

Customer care

(where provided):

Customer service to support all car

problems
NOTE If the ASSIST call button is

pressed by mistake, the call can be ended

by pressing the cancel button on the Alfa

Connect system display.
Once the connection has been

established, the following data will be

automatically transmitted, as authorised

by the customer:

indication that the occupant has made

an ASSIST call

the brand of the car
the most recent known GPS

coordinates of the car

the type of error that occurred in the

car that automatically sent the ASSIST

request (in the case of an automatic call -

where provided)
The call will be made through the car

sound system to provide any additional

information about the assistance

request.
If the system is unable to establish the

voice call, or the line disconnects due

to insufficient coverage, the ASSIST

service will try to call the Operations

Centre again for certain number of times.
WARNING If you have not subscribed to

the related services or the My Assistant

package has expired or is unavailable

for purchase, the ASSIST call will not be

available. For further information visit

the Alfa Romeo official website.
WARNING If the ASSIST call system

detects a malfunction, it is indicated by

a corresponding message on the Alfa

Connect system display. Contact an Alfa

Romeo Dealership as soon as.
If a EU eCall is active and an ASSIST

call is requested, the latter will not be

delivered.

Alfa Connect Box SYSTEM BATTERY

The Alfa Connect Box system is provided

with an independent battery that allows

the operation of some Alfa Connected

services even if the 12V car battery is

disconnected.
The system will warn the user of the need

to replace this battery by displaying a

dedicated message on the display of

the Alfa Connect system and by means

of a notification via mobile app (where

provided).
Go to an Alfa Romeo dealership as soon

as possible.
NOTE Failure to replace the battery

and, consequently, failure to observe

the warnings provided by the system

could affect or entirely prevent service

operation.
NOTE Regardless of charge, the battery

must be replaced every 5 years by an

Alfa Romeo dealership.

CarManuals2.com

 IN CASE OF EMERGENCY

258

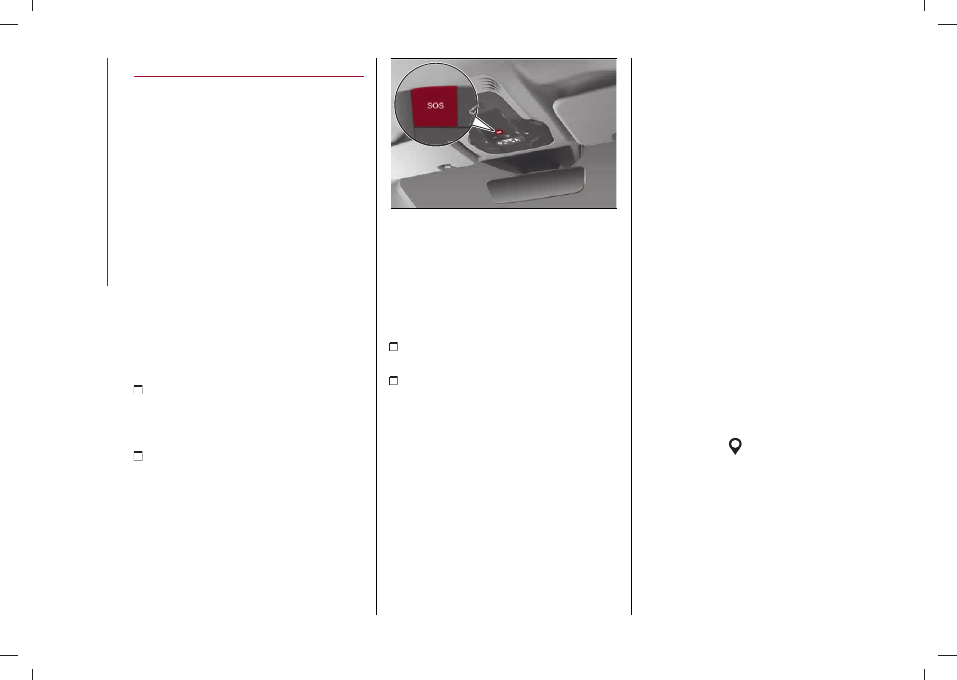

EMERGENCY CALL - EU eCall

The car is equipped with an on-board

assistance function designed to provide

support in the event of accident and/or

emergency (SOS). The emergency call,

also known as "eCall", which is required

by law in the countries of the European

Union (EU eCall) based on the emergency

number 112, can be used to call for help

quickly in dangerous situations.
The EU eCall emergency call activates

the voice call to the Operations Centre

dedicated to emergency calls (112)

with simultaneous activation of the

transmission of the car data and geo-

location. The EU eCall service is a public

service of general interest and free of

charge.
The EU eCall function can be activated:

Automatically, in the event of a major

collision recorded by the device by

means of the presence of sensors aboard

the car

manually, holding the SOS button

located on the ceiling light pressed (for
longer than 2 seconds) fig. 267

267

9650429

The EU eCall service using a SIM card

mounted in the car. The provision of

the services presupposes the proper

operation and availability of the mobile

phone network of the SIM card.
The EU eCall function is activated with:

the ignition device is in the ENGINE

position

ignition device in the STOP position

In the STOP position, the EU eCall is

available for 10 minutes after the ignition

device is switched from ENGINE to

STOP.
This condition is only valid for cars

equipped with SOS call in accordance

with the legal regulations in the countries

where it applies.
Once activated automatically (where

provided) or manually by pressing the

SOS button, the EU eCall function will

send the position data of the car to the

Operations Centre, such as geolocation

of the car, and establish a voice call with

an operator.
NOTE If the EU eCall function does

not work, the fault in the system will

be indicated on the instrument panel

display. Go as soon as possible to an Alfa

Romeo Dealership to have the function

repaired.
NOTE The correct operation of the EU

eCall function will be guaranteed only by

a good network coverage.

Privacy

: the location (GPS) of the car

can

never

be deactivated because

it is indispensable for the eCall

service. Furthermore, deactivating the

positioning of the car, performed by

activating "Privacy Mode" ("Geolocation

OFF") in the "Settings" menu items of

the Alfa Connect system will make other

services - other than the one described

here - unavailable (for more details

see "Settings" in the"vehicle mode"

paragraph in the "Multimedia" section).
WARNING The

icon at the top of the

Connect system display indicates that

the geolocation function is active (ON).

When geolocation is on, the car position

is tracked to enable the functions that

require it. When geolocation is off,

the car position is only tracked by the

navigation, safety, insurance and driver

assistance systems (where provided). To

deactivate this function, see "Settings"

CarManuals2.com

259

in the "Vehicle mode" paragraph in the

"Multimedia" section).

AUTOMATIC EMERGENCY CALL

The automatic emergency call system is

only available if the car is in READY ON

status ("READY" symbol on instrument

panel).
The system makes an automatic

emergency call if certain conditions are

met, e.g. an airbag is deployed.
The flashing green light located on the
SOS button fig. 267 on the front ceiling

light will indicate that the system is

trying to make the emergency call. The

fixed green light will indicate that the call

has been established.

Interrupting the call

The automatic emergency call cannot

be interrupted by the user but will only

be interrupted by the operator of the

Emergency Operations Centre.

MANUAL EMERGENCY CALL

To make the emergency call manually

make sure that the instrument panel is

on ("READY" symbol on the instrument

panel).
Press the SOS button on the front ceiling
light for about 2 seconds fig. 267.
The green light located at the SOS

button will flash and then become fixed

once the connection has been made with

an operator of the Operations Centre

responsible for emergency calls (number

112).
The green light will go out when the call is

interrupted.

Interrupting a call

If the SOS call button is pressed by

mistake, it is possible to press it

again within 10 seconds to cancel the

operation. After 10 seconds, only the

operator of the Operations Centre can

interrupt the call.
If you are able to speak to the operator,

do so through the car audio to provide

additional information about the request

for help.
If the system is unable to establish the

voice call, or the line disconnects due to

insufficient coverage, EU eCall service

will try to call the Operations Centre

again for 5 minutes.
If the Operations Centre needs to

contact the car again, the system can

receive, for up to 120 minutes from the

ending of the call with the operator, an

incoming call, which will be accepted

automatically. Until the end of 120

minutes, the system will be completely

dedicated to the management of the

emergency in progress, therefore it will

not be able to provide any connectivity

service.

LED signalling / colours

Green light

In flashing mode:

this indicates that

the emergency call has been activated,

whether it was made manually or

automatically

In fixed mode:

this indicates that

contact has been established with the

Emergency Operations Centre operator

Off:

this indicates that the emergency

call has ended

Red light

This indicates a fault in the EU eCall

system with the impossibility to make

an emergency call or with the possibility

to do so with limitations. Go to an Alfa

Romeo dealership as soon as possible

when this light is red.

Alfa Connect Box SYSTEM BATTERY

The Alfa Connect Box system is provided

with an independent battery that allows

the operation of some Alfa Connected

services even if the 12V car battery is

disconnected.
The system will warn the user of the need

to replace this battery by displaying a

dedicated message on the display of the

Alfa Connect system (where provided)

and by means of a notification via mobile

app (where provided).
Go to an Alfa Romeo dealership as soon

as possible.

CarManuals2.com

 IN CASE OF EMERGENCY

260

NOTE Failure to replace the battery

and, consequently, failure to observe

the warnings provided by the system

could affect or entirely prevent service

operation.
NOTE Regardless of charge, the battery

must be replaced every 5 years by an

Alfa Romeo dealership.

EU eCall SYSTEM FAULTS

If the EU eCall system detects a

malfunction, this is indicated by the red

light in the ceiling light that turns on and

the dedicated symbol will be displayed

on the instrument panel (see the

"Warning lights and messages" chapter

in the "Knowing the instrument panel"

section).
The system through this symbol will

suggest to the user to have the battery

checked, in case of low level of charge or

malfunction and will inform him about

the current system update and the

status of the call (in progress, failed, etc.)

with a dedicated message.
If a fault is present, contact an Alfa

Romeo Dealership as soon as possible.

Privacy - Information on personal data

("Data") processing

The geolocation (GPS) function of the

car is always active and can never be

deactivated for the EU eCall service,

even when the "Privacy Mode" system is

activated ("Geolocation OFF").

Data processing is carried out in

accordance with current European

legislation (EU Regulation 2016/679 also

known as "GDPR").
When the call is connected, the following

data will be automatically transmitted to

the Operations Centre:

Identification of the data packet sent.

(The operator may request an updated

data package during the call)

car Identification Number
Drive type (hybrid, petrol or diesel)
Date, time and minute when the call

was made

Call type: Manual (via SOS button) or

Automatic (following a collision)

Vehicle type (car or van)
Reliability of the sent position

(depending on the condition of the GPS

signal at the time of the call)

Location relative to the time of the

call. If the call is made from a location

where the GPS position is available, the

position of the car will be sent at the

start of the call; if the GPS signal is not

available, e.g. inside a tunnel, the last

available position will be sent

Two positions before the main

position sent and the direction of travel

of the car.
Data processing is strictly limited to the

sole purpose of making emergency calls

to 112, the single European emergency

number.
The recipients of the Data processed

through EU eCall are the emergency

call collection centres that are the first

designated by the competent Authorities

of the country in whose territory the

vehicle is located to receive and process

eCalls to the single European emergency

number 112.
The EU eCall system is designed to

ensure that the Data in the system

memory is not available outside the

system before an eCall is activated.
The EU eCall system, in normal

operation, is not traceable and cannot be

monitored at all times. It ensures that

data is automatically and continuously

erased from the internal memory of the

system.
The car geolocation data car are

constantly overwritten in the internal

memory of the system to store at most

the last three positions of the car,

necessary for the normal operation of

the system.
The data protocol of the EU eCall

system activities is kept only for the

time necessary to manage the eCall

emergency call and in any case for no

more than 13 hours from the time the

eCall emergency call was initiated. FCA

Italy S.p.A. shall retain the geolocation

data relating to the position of the

CarManuals2.com

261

vehicle - recorded at the time of the

accident - for the period deemed strictly

necessary to provide this Service. The

Data may be retained by FCA for a longer

period to deal with any disputes related

to the provision of the Service and to

ascertain, exercise or defend the rights

of FCA in judicial and/or extrajudicial

proceedings. After this period, the Data

will either be anonymised or permanently

erased.
The Data Controller of the aforesaid

personal data is FCA Italy S.p.A.

(hereinafter "FCA") with registered

office in Corso Agnelli 200, 10135 Torino,

Italy.
The data subject may contact the

Data Protection Officer's team at

dpofca@stellantis.com.
FCA undertakes to comply with the

applicable laws on Data Protection and

in particular with the requirements of

Legislative Decree No. 196/2003 as

amended by Italian Legislative Decree

101/2018 and of EU Regulation 2016/679.
Refer to the Privacy Policy on the Patto

Chiaro Vendita.
The following rights are granted to the

data subject:
1. right of access, i.e. the right to obtain

confirmation from FCA whether or not

the Data are being processed and, if so,

to obtain access to them;

2. right of correction and erasure, i.e.

the right to obtain the correction of

inaccurate Data and/or the integration of

incomplete Data or the deletion of Data

for legitimate reasons;
3. right to the restriction of processing,

i.e. the right to request the suspension

of processing where legitimate reasons

exist;
4. right to data portability, i.e. the right

to receive the Data in a structured,

commonly used and readable format, as

well as the right to transmit the Data to

another data controller;
5. right to object, i.e. the right to object

to the processing of Data if there are

legitimate reasons, including processing

of Data for marketing and profiling

purposes, if any;
6. right to contact the competent data

protection authority in case of unlawful

processing of Data.
The data subject may exercise the rights

listed above by writing to FCA Italy

S.p.A., Corso Giovanni Agnelli 200 -

10135 Turin or directly on the website

https://privacyportal.fcagroup.com.

Furthermore, the data subject has the

right to lodge a complaint with the

competent Data Protection Authority if

he or she considers that his or her rights

have been violated as a result of the

processing of his or her personal data.

WARNINGS

In the event of danger (fire, visible

smoke or hazardous road conditions

or dangerous positions), do not wait

for voice contact with the Emergency

service operator, but exit from the car

immediately and go to a safe place, if in a

condition to do so.
Do not place network CB radios or

aftermarket electrical equipment to

avoid interference. Such interference

could prevent the system form making

the emergency call.
Ignoring system fault signals (red LED on

the ceiling light and dedicated messages

on the instrument panel) may mean

that you cannot make an EU eCall, if

necessary.
Even if the EU eCall system is fully

functional, factors outside the control

of FCA could interfere with or prevent

operation of the EU eCall. These

factors can be identified in: clogged or

unavailable satellite signals, network

connection, adverse weather conditions,

buildings, interfering structures, tunnels,

etc.

CarManuals2.com

 IN CASE OF EMERGENCY

262

IN CASE OF ACCIDENT

(Q4 Plug-In Hybrid and Mild Hybrid

versions)

AUTOMATIC HIGH-VOLTAGE BATTERY

DISCONNECTION

(Q4 Plug-in Hybrid versions)
In the case of an accident, with the

intervention of the fuel cut-off system

and air bags, the high-voltage battery

is disconnected automatically, to

avoid possible fire risks that could

put passengers and any other people

involved in traffic and/or near the car in a

dangerous condition.
To reactivate the high-voltage battery,

contact an Alfa Romeo Dealership.

PRECAUTIONS IN CASE OF ACCIDENT

(Q4 Plug-in Hybrid versions)
To minimise the risk of serious injury,

observe the following precautions:

park safely at the roadside, apply

the electric parking brake, turn the

automatic transmission gear lever to P

(Park) and switch off the engine

contact rescue immediately, warning

that it is a electric hybrid car equipped

with a high-voltage system

do not touch the high-voltage

components (identified by the yellow
triangular label with the symbol

or

because they are connected to orange

cables) or any components that came

into contact with uncovered high-voltage

cables. NEVER touch exposed electric

cables: danger of ELECTROCUTION

if you notice any electrolyte leakage

from the high-voltage battery, do not go

near the car. If the electrolyte from the

high-voltage battery comes into contact

with the eyes or skin, blindness or skin

lesions may occur. Any vapours released

from the electrolyte, if inhaled, may

also cause a risk of intoxication. In the

case of contact with electrolyte, rinse

immediately and thoroughly with water

and contact a physician immediately

do not go near the high-voltage battery

with naked flames: danger of FIRE. In the

case of a fire, move away from the area

surrounding the car and call roadside

assistance immediately

if the car has been seriously damaged,

maintain a safe distance between the car

and the other cars / flammable materials

PRECAUTIONS IN CASE OF ACCIDENT

(Mild Hybrid versions)
To minimise the risk of serious injury,

observe the following precautions:

park safely on the side of the road,

apply the electric parking brake, put the

transmission lever in P (Park) and switch

off the engine

contact roadside assistance

immediately

if you notice any electrolyte leakage

from the auxiliary battery, do not go

near the car. If the electrolyte from the

battery comes into contact with the eyes

or skin, blindness or skin lesions may

occur. Any vapours released from the

electrolyte, if inhaled, may also cause a

risk of intoxication. In the case of contact

with electrolyte, rinse immediately and

thoroughly with water and contact a

physician immediately

do not go near the auxiliary battery

with naked flames: danger of FIRE. In the

case of a fire, move away from the area

surrounding the car and call roadside

assistance immediately

if the car has been seriously damaged,

maintain a safe distance between the car

and the other cars / flammable materials

CarManuals2.com

263

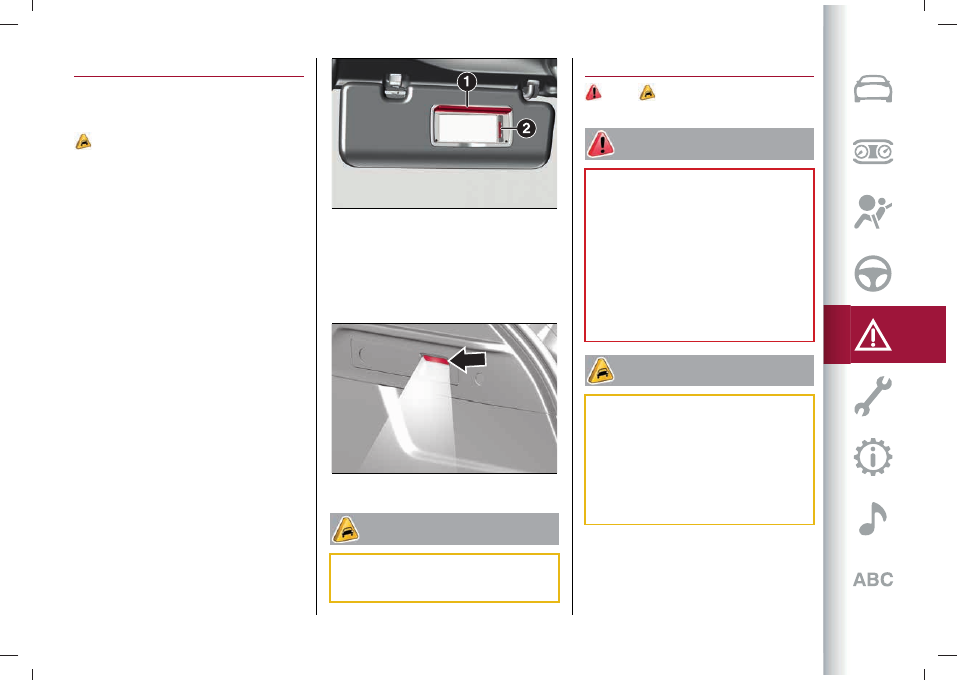

REPLACING A BULB

FRONT AND REAR LIGHT CLUSTERS,

DIRECTION INDICATORS, THIRD

BRAKE LIGHT, LICENCE PLATE LIGHTS

103)

WARNING When the weather is cold or

damp or after heavy rain or washing,

the surface of headlights or rear lights

may steam up and/or form drops of

condensation on the inside. This is

a natural phenomenon due to the

difference in temperature and humidity

between the inside and the outside of the

glass which does not indicate an anomaly

fault and does not compromise the

normal operation of lighting devices. The

mist disappears quickly when the lights

are turned on, starting from the centre of

the diffuser, extending progressively

towards the edges.

REPLACING AN INTERNAL BULB

Courtesy mirror light

: lift the cover (1)

fig. 268and replace the bulb (2), releasing

it from the side contacts, making sure

that it is correct blocked between the

contacts themselves.

268

9650225

Boot ceiling light

: act at the point

indicated by the arrow fig. 269, remove

the ceiling light and replace the lamp,

making sure that it is correctly blocked

between the contacts.

269

9650227

IMPORTANT

103)

The number plate lights are of the LED-

type. For bulb replacement, contact an Alfa

Romeo Dealership.

FUSES

241) 242)

104)

WARNING

241) Replacement of a fuse.

Any service

must be carried out exclusively by the Alfa

Romeo Dealership or by a qualified repairer.

The replacement of a fuse by a third party

may cause a serious car fault.

242) Installation of electrical accessories.

The vehicle's electrical circuit is designed

to operate with standard or optional

equipment, before installing other electrical

equipment or accessories on the vehicle,

contact the Alfa Romeo Dealership or a

qualified repairer.

IMPORTANT

104)

FCA declines all responsibility for

expenses arising from the repair of the

vehicle or for anomalies resulting from the

installation of accessories not supplied or

not recommended by Alfa Romeo and not

installed according to specifications, in

particular when the combined consumption

of all the additional equipment connected

exceeds 10 mA.

CarManuals2.com

 IN CASE OF EMERGENCY

264

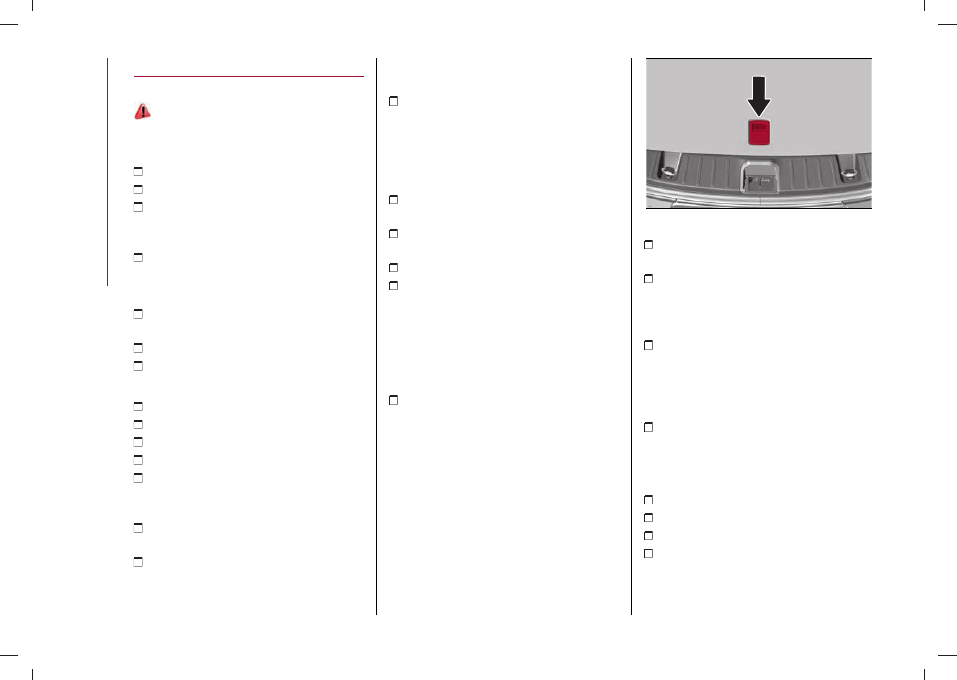

CHANGING A WHEEL

(where provided)

243) 244) 245) 246) 247) 248) 249) 250) 251)

JACK

Please note that:

the jack weight is 2.8 kg
the jack requires no adjustment
the jack cannot be repaired; in the

event of a fault it must be replaced by

another original one

no tool other than its cranking device

may be fitted on the jack

Maintenance

prevent any dirt from depositing on

the "worm screw"

keep the "worm screw" lubricated
Never modify the jack

Conditions for non-use

temperatures below −40°C
on sandy or muddy ground
on uneven ground
on steep roads
in extreme weather conditions:

thunderstorms, typhoons, hurricanes,

blizzards, storms, etc...

in direct contact with the engine or for

repairs under the car

on boats

WHEEL REPLACEMENT PROCEDURE

Proceed as follows:

stop the car in a position that is not

dangerous for oncoming traffic where

you can change the wheel safely, as far

as possible from the side of the road. The

ground must be as level and compact as

possible

switch on the hazard warning lights

and engage the electric parking brake

take the gear lever to the P (Park)

position

switch off the engine
make sure that any passengers get

out of the car and go to a safe place

where they will not obstruct traffic or

be exposed to the risk of injury. In the

event of a puncture, change the tyre in

accordance with the laws of the country

in which you are travelling

before getting out of the car, put on

the reflective safety jacket (if required

by the regulations in force). In any case,

follow the road safety laws in force in the

country where you are travelling
The space-saver wheel (where provided)

is located under the load platform in

the boot. where provided, the tools

are located in the tool compartment

in the space-saver wheel well. To

access the space-saver wheel and tool

compartment, lift the load platform
using the handle fig. 270.

270

9650188

open the tailgate and then remove the

load platform

remove the fixing device for the jack

and the space-saver wheel (where

provided). Remove the wheel locking

wedge (where provided)

remove the jack unit and the wrench

for removing the fixing bolts from the

space-saver wheel . Turn the screw of the

jack to loosen the wrench and separate it

from the jack assembly

extract the space-saver wheel from

the boot

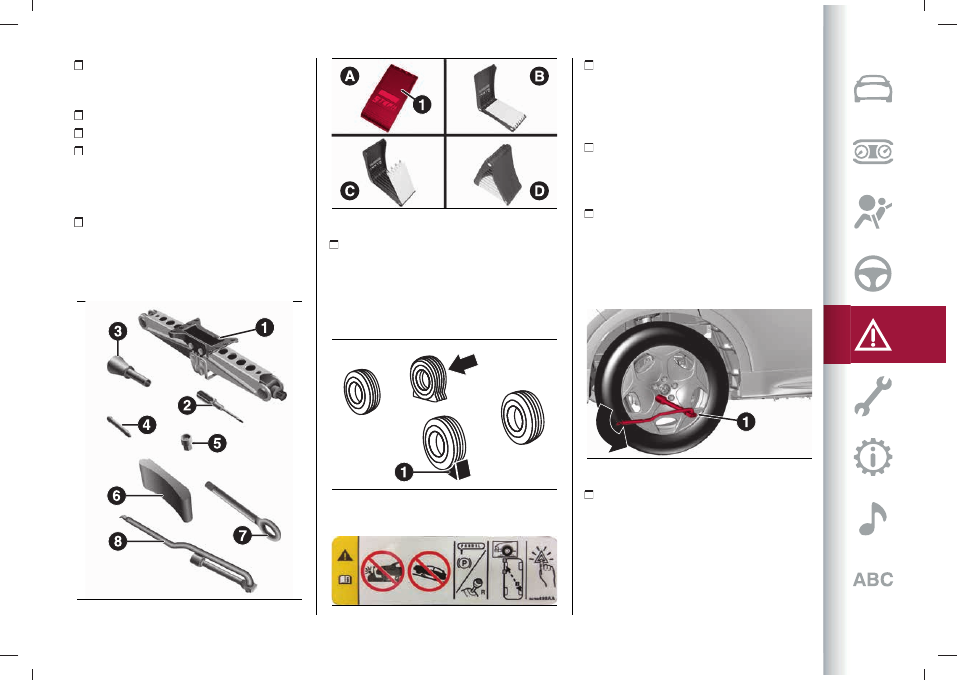

The following are inside the tool
compartment under the boot fig. 271:

1: the jack
2: the screwdriver
3: the emergency refuelling adaptor
4: the wheel locating pin (where

provided, to use during the space-saver

wheel fitting operation)

CarManuals2.com

265

5: special tamper-proof nut (where

provided, to be used for fitting/removing

wheel studs)

6: a chock for locking the wheels
7: the tow ring
8: the wrench for removing/tightening

the wheel fastening bolts and operating

the jack
Then proceed as follows:

should it be necessary to stop the car

on a road with a gradient, especially a

very steep one, or on an unstable surface,

take wedge (1) (where provided) and fold
it out, as shown in the diagram in fig. 272

271

9650231

272

9650232

then position the wedge (where

provided) or a stone at the rear, on the

wheel diagonally opposite the wheel to
be replaced fig. 273 so as to prevent

unwanted movement of the car when it is

raised off the ground

273

9650233

Jack warning label

274

5520120D

alert any bystander that the car is

about to be raised; all persons should be

kept away from the car and nobody must

touch it until it has been lowered. Nor

should any occupant remain in the car

if the car has alloy wheel rims, where

the hub cap covers the fastening bolts,

use the wrench with great care to remove

the hub cap before raising the car

before raising the car, loosen – without

removing – the fastening bolts on the

wheel with the flat tyre using wrench
(1) fig. 275. While the tyre is still resting

on the ground, you just need to turn the

fixing bolts one turn anticlockwise

275

9650230

before positioning the jack, take care

to remove the cover in the lifting point
(1) fig. 276 by acting on the fastening

buttons using a special tool (screwdriver)

contained in the equipment of the car.

After removing the jack, be sure to

reapply the cover

CarManuals2.com















Content      ..     6      7      8      9     ..
