Alfa Romeo Tonale (2023 year). Manual in english - page 9





 IN CASE OF EMERGENCY

266

276

9650305

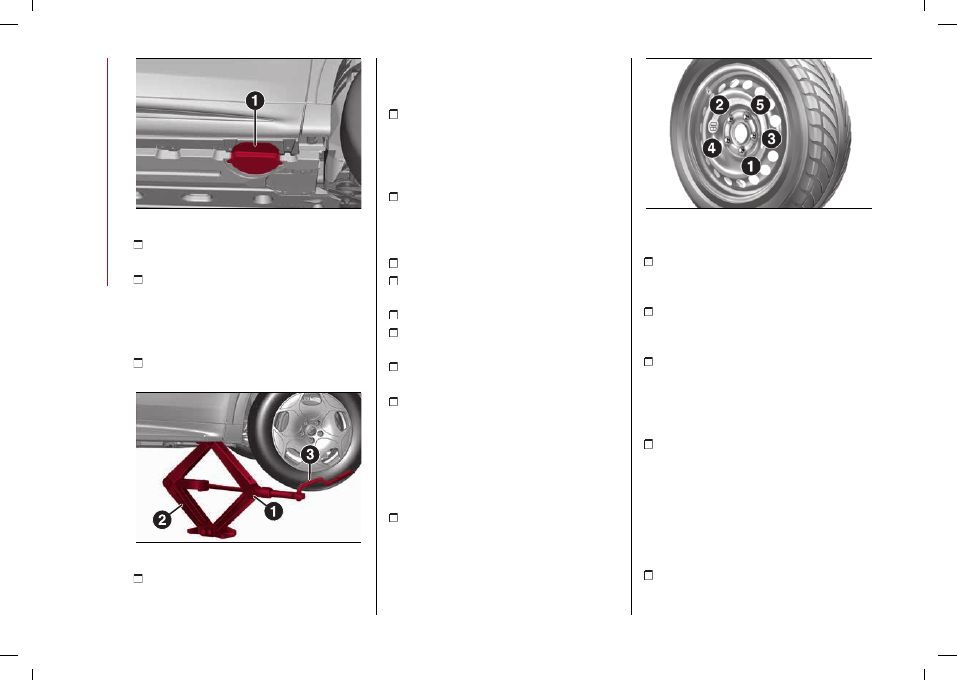

position the jack under the car, near

the wheel to be changed fig. 277

insert the key (3) fig. 277 on the

hexagon (1) hexagon of the jack (2) and

turn it clockwise until the jack bracket is

firmly seated in the lifting area of the
door sill (1) fig. 276

lift the car until the wheel is a few

centimetres off the ground

277

9650306

remove the fixing bolts and the tyre

(for versions equipped with a hubcap,

take it off after having loosened the

4 fixing bolts that attach it and then

unscrew the last fixing bolt and remove

the tyre)

remove the key from the jack and

insert the locating pin (where provided)

in the hub cap (in the case of alloy wheel

rims) to facilitate fitting of the space-

saver wheel

make sure the contact surfaces

between space-saver wheel and hub are

clean so that the fastening bolts will not

come loose

fit the space-saver wheel
fit and do up the bolts, without

tightening them

if used, remove the alignment pin
operate the jack and completely lower

the car

after removing the jack, be sure to

reapply the cover (1) fig. 276

tighten the fixing bolts, alternating

from one fixing bolt to the opposite

one, according to the numerical
sequence illustrated in fig. 278. In the

case of any doubts regarding the bolts

tightening torque, contact an Alfa Romeo

Dealership

replace the jack, tools and wedge in

the tool box, ensuring they are properly

secured, and place the flat tyre in the

boot, locking it in place

278

F1B0225C

WARNINGS

pay close attention to passing vehicles

If you must intervene either in or near the

carriageway

pay particular attention when using

the wrench to remove the wheel

fastening bolts: it may have sharp edges

raising the car any more than

necessary may lower its stability. The

jack may slip and injure those nearby. Do

not lift the car above the height required

for lifting the wheel off the ground

tyres with unidirectional tread can

be recognised by arrows on the side of

the tyre which indicate the direction of

rotation. It is compulsory to comply with

this direction. Only in this way can the

tyres maintain their characteristics in

terms of grip, noise, resistance to wear

and drainage on wet surfaces

if, after a puncture, it is necessary to

fit such a tyre the wrong way round, it will

be necessary to continue driving with

CarManuals2.com

267

great care, since the tyre’s performance

is limited in these conditions. This

precaution must be borne in mind above

all when the road surface is wet

to benefit completely from the

unidirectional tread, it is advisable

to restore all wheels to the correct

direction of rotation as soon as possible

make sure that the space-saver

wheel is mounted with the valve facing

outwards. The space-saver wheel can be

damaged if mounted incorrectly

if the car has a hub cap or wheel cover,

do not fit them on the space-saver spare

wheel

to prevent injury to persons, the

complete tightening of the bolts must

only be carried out when all of the

vehicle’s wheels are on the ground, to

prevent the vehicle falling from the jack

after having travelled for about 40 km,

stop and check that the fastening bolts

are tightened correctly

At the end of the operation

Proceed as follows:

stow the space-saver wheel in the

compartment provided in the boot

place the jack and the other tools in the

dedicated area of the boot

correctly reposition the carpet in the

luggage compartment

WARNING

243)

A punctured tire or jack thrown

forward in a collision or hard stop, could

endanger the occupants of the vehicle. For

this reason, both the jack and the punctured

tire should always be replaced in the

appropriate compartment in the trunk.

244)

It is extremely dangerous to attempt

to change a wheel on the side of the car next

to the driving lane: make sure that the car

is at a sufficient distance from the road, to

avoid being run over.

245)

Indicate the presence of the stationary

car in accordance with current regulations:

hazard warning lights, warning triangle,

etc. Those on board should get out of the

car, especially if it is heavily laden, and wait

for the wheel to be replaced away from the

threat posed by the traffic. On gradients or

on unsurfaced roads, chock the wheels with

the wedge provided (where provided).

246)

The vehicle's driving characteristics

will be modified with the spare tire fitted.

Avoid sudden starting or stopping, sharp or

fast turns. The total life of a space-saver

spare wheel is approximately 3,000 km,

after which it must be replaced by another

wheel of the same type. Never install a

standard tire on a rim that is designed for

use with a space-saver spare wheel. Have

the tire repaired and refitted as soon as

possible. Using two or more space-saver

wheels at the same time is forbidden. Do not

grease the threads of the fastening bolts

before fitting them: they might slip out when

driving!

247)

The space-saver wheel (where

provided) is specific to your car: do not use it

on other models, or use the space-saver

wheel of other models on your car. The

space-saver wheel must only be used in

the event of an emergency. Never use

it for more than strictly necessary and

never exceed 80 km/h. "Warning! For

temporary use only! 80 km/h max!" Replace

with standard wheel as soon as possible.

Never remove or cover the sticker on the

space-saver wheel. Never apply a wheel

cap on a space-saver wheel. The vehicle's

driving characteristics will be modified with

the space-saver wheel fitted. Avoid violent

acceleration and braking, abrupt steering

and fast cornering.

248)

The jack is a tool developed and

designed only for changing a wheel, if a tyre

gets punctured or damaged, on the car

with which it is supplied or on other cars

of the same model. Any other use, e.g. to

jack up other vehicle models or different

things, is strictly prohibited. Never use it

to carry out servicing or repairs under the

vehicle or to change summer/winter wheels

and vice versa: we advise you to contact

an Alfa Romeo Dealership Never go under

the raised car: use it only in the positions

indicated. Do not use the jack for loads

higher than the one shown on its label. Never

start the engine with car raised. If the car

is raised more than necessary, everything

can become more unstable, with the risk

of the car dropping violently. Therefore,

only lift the car just enough to access the

space-saver spare wheel (where provided).

249)

When turning the jack handle make

sure that it can turn freely without scraping

your hand against the ground. The moving

components of the jack ("worm screw"

and joints) can also cause injuries: do not

CarManuals2.com

 IN CASE OF EMERGENCY

268

touch them. If you come into contact

with lubricating grease, clean yourself

thoroughly.

250)

The space-saver wheel (where

provided) cannot be fitted with snow chains.

If a front (drive) tyre is punctured and chains

are needed, use a standard wheel from the

rear axle and install the space-saver wheel

on the rear axle. In this way, with two normal

drive wheels at the front axle, it is possible

to use snow chains.

251)

If the hub cap (if equipped) is not

fitted correctly, it may come off when the

vehicle is traveling. Never tamper with the

inflation valve. Never introduce tools of

any kind between rim and tire. Check tire

and space-saver spare wheel pressure

regularly, referring to the values shown in

the "Technical Data" section.

FIX&GO KIT

(where provided)

252) 253) 254) 255) 256) 257) 258) 259)

105) 106)

7)

The car may be equipped with a different

Fix&Go kit (OPT1 kit or OPT2 kit)

according to the version.

Preliminary operations

Proceed as follows:

stop the car in a position that is not

dangerous for oncoming traffic where

you can carry out the procedure safely.

The ground must be flat and sufficiently

compact

stop the engine, switch on the hazard

warning lights, apply the parking brake

and put the transmission in P

steer the wheels completely
in the event of a steep slope, place a

wedge or stone behind the wheels

before getting out of the car, put on

the reflective safety jacket (if required

by the regulations in force). In any case,

follow the road safety laws in force in the

country where you are travelling.

make sure that any passengers get

out of the car and go to a safe place

where they will not obstruct traffic or

be exposed to the risk of injury. In the

event of a puncture, change the tyre in

accordance with the laws of the country

in which you are travelling

OPT1 KIT DESCRIPTION

The Fix&Go is located in the boot inside

its own box.
The container is also equipped with a

screwdriver, the tow ring and the funnel

for refuelling in an emergency.

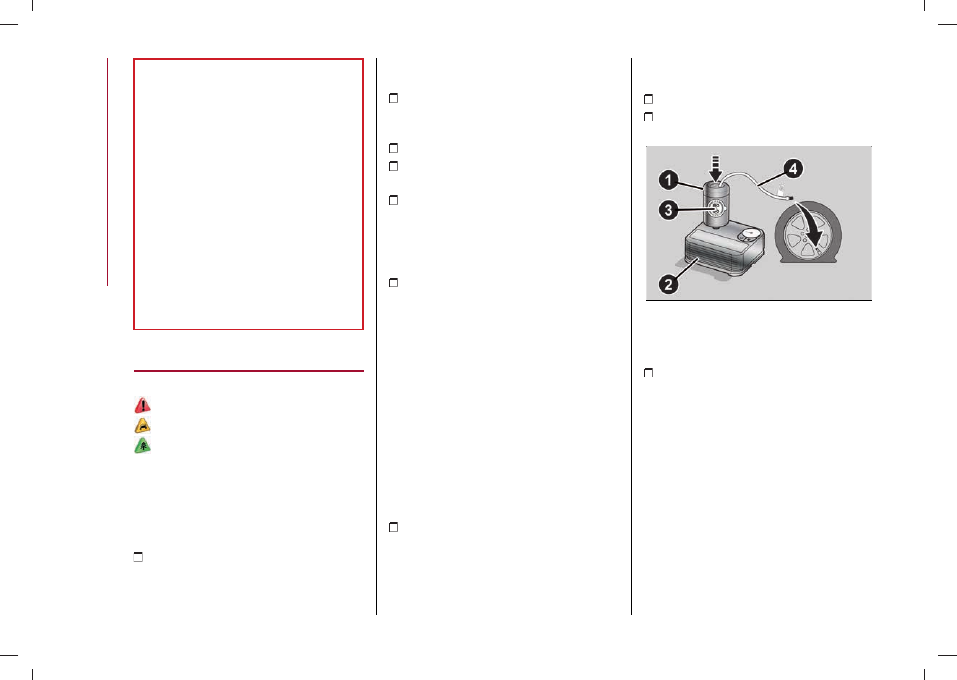

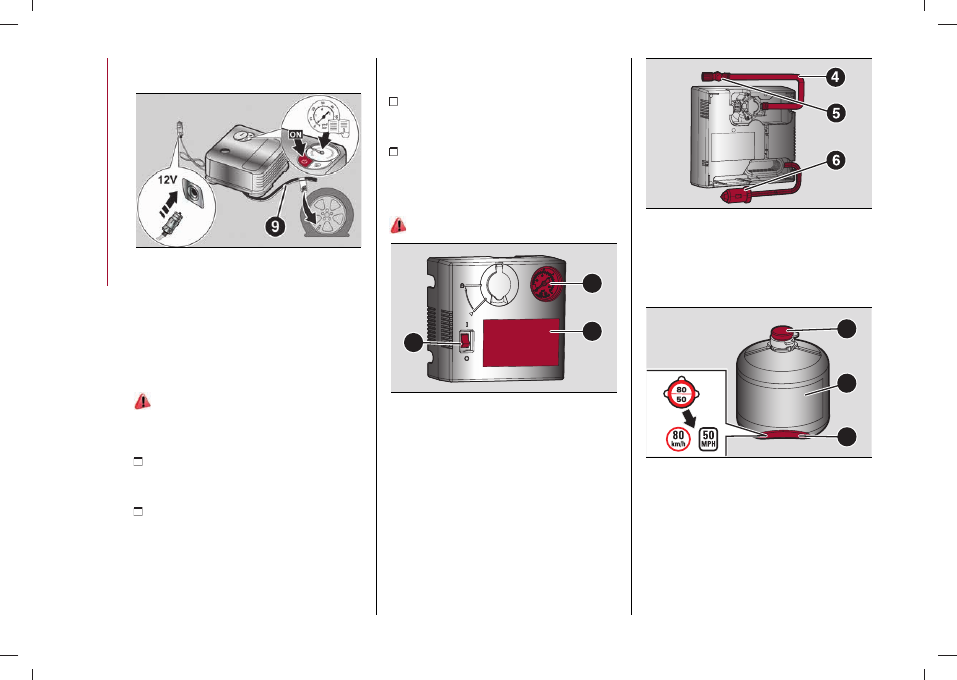

The Fix&Go fig. 279 includes:

one cartridge (1) containing sealant and

fitted with: transparent tube for injecting

the sealant (4) and sticker (3) with the

wording MAX. 80 km/h / 50 mph to be

applied in a clearly visible position (e.g.

on the dashboard) after repairing the

tyre

one compressor (2)
a pair of gloves located in the hose

compartment of the cartridge (4)

279

A0K1302C

Repair procedure

Proceed as follows:

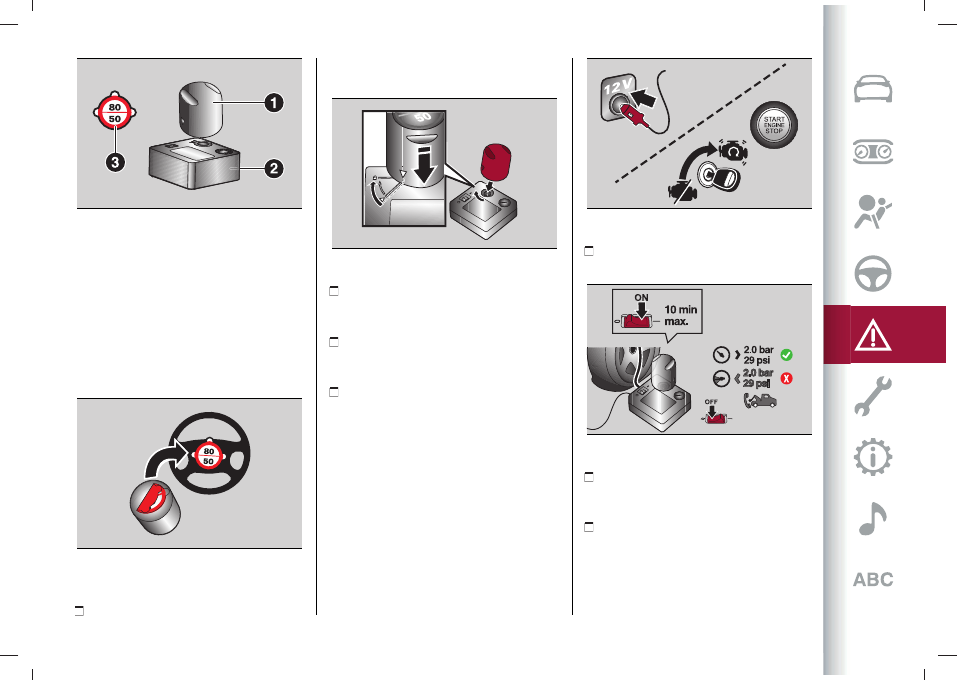

insert the sealant cartridge (1)

into the corresponding compressor

compartment (2) and press it down hard.

Remove the speed limit sticker (3) and

apply it in a clearly visible position
fig. 280

CarManuals2.com

269

280

A0K1306C

wear the gloves
remove the cap from the tyre valve

and connect and screw the transparent

tube of the sealing fluid (4) onto the

valve.

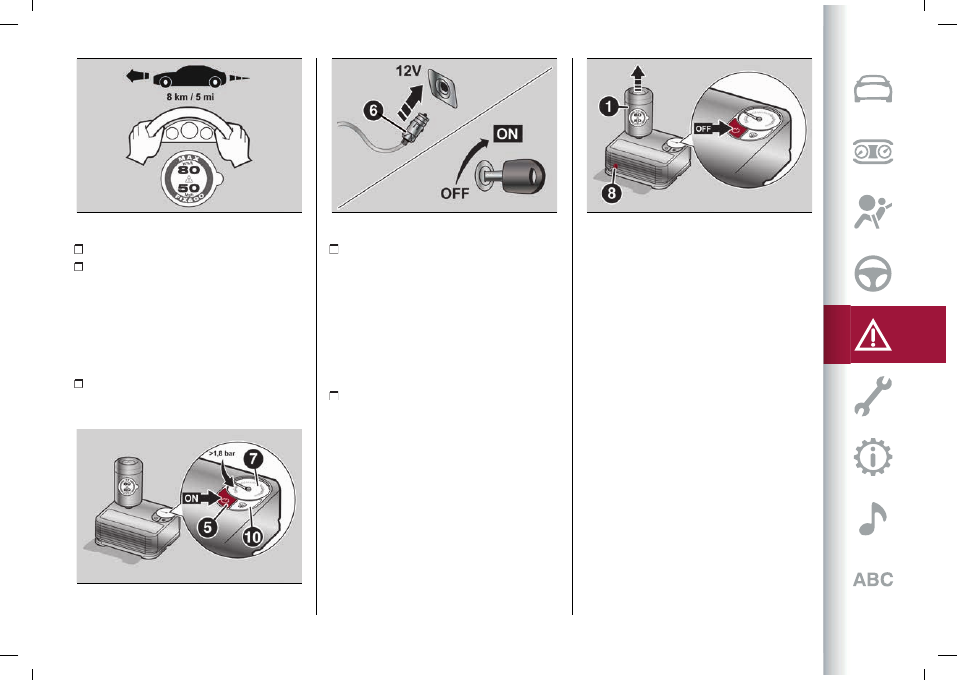

Make sure that the ON/OFF button (5)

fig. 281 is in the off position (button not

pressed)

insert the electrical connector (6) in

the 12V current socket of the car and

start the engine fig. 282

281

A0K1304C

282

A0K1303C

operate the compressor by pressing

the ON/OFF button (5). When the

pressure gauge (7) reaches the

recommended pressure (see the

“Wheels” chapter in the “Technical

specifications” section) or the pressure

indicated on the specific label, stop the

compressor by pressing the ON/OFF

button again

disconnect the cartridge (1) fig. 283

from the compressor, by pressing

the release button (8) and lifting the

cartridge upwards

283

A0K1305C

If the pressure gauge (7) fig. 281 indicates

a pressure lower than 1.8 bar (26 psi) 15

minutes after starting the compressor,

switch off the compressor, disconnect

the sealing fluid tube (4) from the tyre

valve and remove the cartridge (1) from

the compressor.

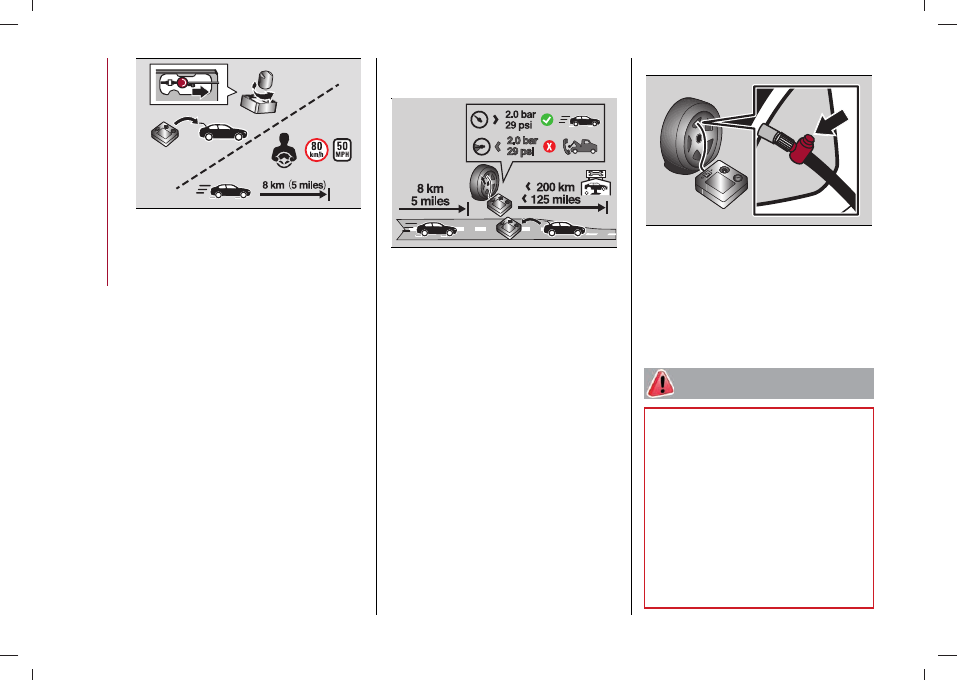

Move the car by approximately 10

metres to allow the distribution of the

sealant.
Stop the engine, engage the hazard

warning lights, stop the car safely and

apply the parking brake. Move the gear

lever to the P position and steer the

wheels fully. In the event of a steep

slope, place a wedge or stone behind the

wheels.
Restore pressure using the black
inflation pipe (9) fig. 284 to reach the

required pressure. Also in this case, if

the pressure is lower than 1.8 bar (26 psi)

within 15 minutes from the compressor

CarManuals2.com

 IN CASE OF EMERGENCY

270

switching on, do not resume driving but

contact an Alfa Romeo Dealership.

284

9650304

If the pressure shown is higher than 1.8

bar (26 psi), restore the pressure and

drive safely to an Alfa Romeo Dealership

as soon as possible. If the pressure is

lower than 1.8 bar (26 psi), do not resume

driving but contact an Alfa Romeo

Dealership.

260)

Inflation procedure

Proceed as follows:

stop the car safely, as described

above, and engage the electric parking

brake

extract the black inflation tube and

screw it firmly onto the tyre valve. Then

follow the instructions below. Press

the air release button to adjust any

excessive tyre pressure (see "Repair

procedure" paragraph)

Cartridge replacement

Proceed as follows:

Only use original cartridges which

can be purchased at an Alfa Romeo

Dealership

to remove the cartridge, press the

release button and lift it (see description

above)

OPT2 KIT DESCRIPTION

261) 262) 263)

1

2

3

285

9650401

(1) Pressure gauge
(2) Instruction label
(3) On/Off switch

286

9650402

(4) Air pipe
(5) Deflation button
(6) Power supply cable / 12V plug

< 8 bar

7

8

9

287

9650403

(7) Cap for the sealant bottle
(8) Sealant bottle and expiry date
(9) Speed label

CarManuals2.com

271

288

9650404

The quick tyre repair kit fig. 288 is

located in the boot or in the toolbox

and consists of a compressor (2) and a

cartridge containing sealing fluid (1)

and an adhesive sticker (3) with the

wording "Max km 80Km/h", which is to be

placed in a clearly visible position (e.g.

instrument panel) after the tyre repair.

Repair procedure

289

9650405

Proceed as follows:

take the kit, detach the speed limit

sticker (9) fig. 287 and apply it in a clearly
visible position fig. 289

290

9650406

open the cap on the compressor,

engage the cartridge and turn a quarter
turn clockwise, fig. 290

remove the cap from the tyre valve

and screw the black compressor tube

onto the valve

ensure that the ON/OFF switch is in

the "0" (off) position

291

9650407

insert the electrical connector fig. 291

into the 12V socket on the car

292

9650408

move the ON/OFF switch fig. 292

to the "I" (on) position to start the

compressor

when the pressure gauge indicates

the prescribed pressure indicated in

the "Wheels” chapter, "Technical Data”

section or on the label, move the ON/OFF

switch to the "0" (off) position to stop the

compressor.

CarManuals2.com

 IN CASE OF EMERGENCY

272

293

9650409

If the pressure gauge fig. 293 indicates

a pressure lower than 2 bar / 29 psi 10

minutes after starting the compressor,

switch off the compressor, disconnect

the black tube of the compressor from

the tyre valve and undo the cartridge

from the compressor turning it by one

quarter of a turn anticlockwise and lift

it. Move the car by approximately 10

metres to allow the distribution of the

sealant.
Stop the engine, turn on the hazard

warning lights; stop the car safely, apply

the parking brake; move the gear lever

to P and leave the wheels steered; if

there is a steep slope, place a wedge or

stone behind the wheels and restore the

prescribed pressure using the black
compressor hose fig. 293.
Also in this case, if the pressure is lower

than 2 bar / 29 psi after 10 minutes

from switching on the compressor, do

not resume driving but contact an Alfa

Romeo Dealership.

294

9650410

After driving about 8 km / 5 miles, park

the car in a safe and convenient area,

stop the engine, turn on the hazard

warning lights, apply the parking brake;

move the gear lever to P and leave the

wheels steered. In the event of a steep

slope, place a wedge or stone behind the

wheels.
Take the compressor and restore the

pressure using the black inflation tube. If

the pressure shown is higher than 2 bar

/ 29 psi, restore the pressure and drive

safely to an Alfa Romeo Dealership as

soon as possible. If the pressure is lower

than 2 bar / 29 psi, do not resume driving

but contact an Alfa Romeo Dealership.

Pressure relief valve

295

9650411

If the tyre pressure is higher than

expected, it is possible, after switching

off the compressor, to lower it by means

of the button located next to the black

tube connection.

WARNING

252)

IMPORTANT: Do not exceed 80 km/h.

Avoid sudden acceleration or braking. The

kit provides a temporary repair, therefore

the tyre must be examined and repaired

by a specialist as soon as possible. Before

using the kit, ensure that the tyre isn't

excessively damaged and that the rim is in

good condition, otherwise do not use it and

call roadside assistance. Do not remove

foreign bodies from the tyre.

253)

Punctures on the sides of the tyre may

not be repaired. Do not attempt to use the

Fix&Go kit if the tyre was damaged as a

result of being used when underinflated.

CarManuals2.com

273

254)

Wear the protective gloves provided

with the Fix&Go kit.

255)

Apply the adhesive label where it can

be easily seen by the driver as a reminder

that the tyre has been treated with the

Fix&Go kit.

256)

Repairs are not possible in the case

of damage to the wheel rim (bad groove

distortion causing air loss). Do not remove

the foreign body (screws or nails) from the

tyre.

257)

As required by current regulations,

the information on chemical substances

for the protection of human health and the

environment and on the safe use of the

sealing fluid are on the packaging label.

Compliance with the indications on the

label is an essential condition to ensure

the safety and the effectiveness of the

product. Remember to carefully read the

label before use; the user of the product

is responsible for any damages caused

by improper use. The sealing fluid has an

expiration date. Replace the bottle if the

sealant has expired.

258)

The Fix&Go kit is not suitable for

definitive repairs, so the repaired tyres may

only be used temporarily. The Fix&Go kit

provides a temporary repair, therefore the

tyre must be examined and repaired by a

specialist as soon as possible.

259)

Alert other drivers that the car

is stationary in compliance with local

regulations: hazard warning lights, warning

triangle, etc. Any passengers on board

should leave the car, especially if it is

heavily laden. Passengers should stay

away from on-coming traffic while the

wheel is being changed. On gradients or on

unsurfaced roads, chock the wheels with the

wedge provided.

260)

If the pressure falls below 1.8 bar, do

not drive any further: the Fix&Go kit cannot

guarantee proper seal because the tyre

is too damaged. Contact an Alfa Romeo

Dealership.

261)

Carefully read the cartridge label

before use and avoid improper use. The kit

should be used by adults and cannot be used

by children.

262)

Do not let the compressor turned on

for longer than 10 consecutive minutes -

overheating hazard

263)

Use the kit only in case of a punctured

tyre.

IMPORTANT

105)

The sealant fluid is effective with

external temperatures from -40°C to +50°C.

The sealant fluid has an expiry date and

must be replaced periodically. It is possible

to repair tyres with damage on the tread

up to a maximum diameter of 6 mm. Show

the cartridge and the label to the personnel

charged with handling the tyre treated with

the tyre repair kit.

106)

The surface of the tube may be hot.

IMPORTANT

7)

Dispose of the bottle and the sealant

liquid properly. Have them disposed of

in compliance with national and local

regulations.

JUMP STARTING

If the conventional battery is flat, jump

starting can be performed using cables

and the battery of another car, or using

a booster battery with equal or slightly

higher capacity than the discharged one.

For the Q4 Plug-in Hybrid version:

If

both the traditional battery and the

high-voltage battery are flat, charge the

traditional battery first, in order to start

the system and allow the heat engine

to start in order to move the car. We

suggest then, to also charge the high-

voltage battery.

107)

WARNINGS

When a booster battery is used, comply

with the use and precaution instructions

specified by the producer.
Do not use the booster battery or any

other source of external supply with a

voltage above 12 V: the conventional

battery, the starter (where provided),

the alternator (where provided) and the

electrical system of the vehicle could be

damaged.
Do not attempt jump starting if the

conventional battery is frozen. The

battery could break and explode!

JUMP STARTING

264) 265) 266) 267)

108) 109)

CarManuals2.com

 IN CASE OF EMERGENCY

274

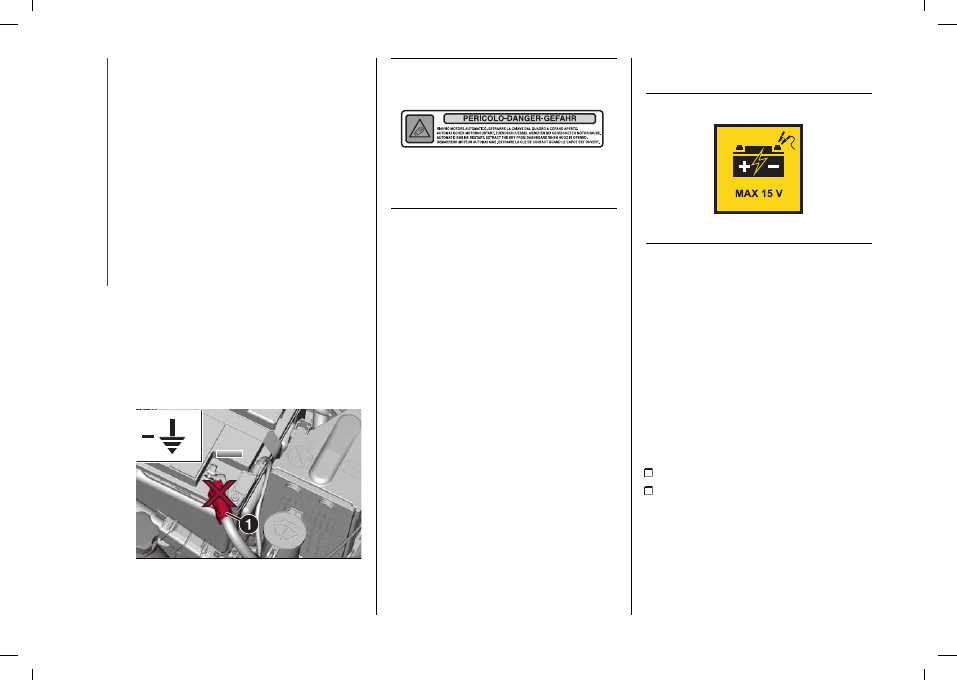

When jump starting, never connect the

negative cable (-) of the auxiliary battery
to the negative pole (1) fig. 296 of the

conventional car battery. The following

spark could lead to battery explosion and

cause serious harm. Only use the specific

earth point; do not use any other exposed

metallic part.
WARNING Avoid contact between the

two vehicles since this could cause a

connection to earth and may result in

serious injury to any people nearby.
WARNING After setting the ignition

device to STOP and closing the driver's

door, wait at least two minutes before

disconnecting the electrical supply

from the traditional battery. When

reconnecting the electrical supply to the

conventional battery, make sure that the

ignition device is in the STOP position

and the driver's door is closed.

296

9650241

297

9650277

FLAT CONVENTIONAL BATTERY

(Q4 Plug-in Hybrid versions)
If the conventional battery of the car is

flat, it can be jump started or a portable

booster can be used with nominal

voltage of 12V.
When using a portable booster with a

nominal voltage of 12V/24V, make sure

that the selector is correctly positioned

on 12V.
Pay attention to the dedicated label,
fig. 298, located on the cover of the

conventional battery.
WARNING

In case of jump starting, do

NOT apply a voltage higher than 15V

under any circumstances in case of

jump starting.

If both the low-voltage

battery and the high-voltage battery are

flat, charge the low-voltage battery first,

in order to start the system and allow the

heat engine to start in order to move the

car. We suggest then, to also charge the

high-voltage battery.

298

J0A6167E

PROCEDURE FOR JUMP STARTING

(excluded hybrid versions)
WARNING If the procedure below is

carried out incorrectly, it can cause

severe injury to people or damage the

recharging system of one or both cars.

Carefully follow the instructions given

below.

Cable connection

Proceed as follows to carry out a jump

starting:

engage the parking brake
move the transmission lever to

position N and the ignition device to

STOP
WARNING With a fully discharged

conventional battery, if the gear lever

is in P (Park), it cannot be disengaged,

nor can the electric parking brake (EPB).

Therefore, to move the car, it must

CarManuals2.com

275

be towed with all four wheels off the

ground.

switch off the additional heater (for

versions/markets, where provided), the

Alfa Connect system and all unnecessary

electrical accessories

remove the protective cover over the

battery's positive (+) pole

connect one end of the cable used for

positive (+) to the positive terminal (+) of

the car with flat conventional battery

connect the other end of the cable

used for positive (+) to the positive

terminal (+) of the supplementary

battery

connect one end of the cable used for

negative (–) to the negative terminal (–)

of the supplementary battery

connect the other end of the cable

used for negative (–) to an engine earth

(the visible metal part of the car engine

with flat conventional battery) far from

the conventional battery and the fuel

injection system

start the vehicle engine with the

supplementary battery, let it idle for a

few minutes. Start the engine of the car

with flat conventional battery

Cable disconnection

Once the engine has been started,

remove the cables proceeding as follows:

disconnect the end of the cable used

for negative (-) from the engine earth of

the vehicle with flat conventional battery

disconnect the other end of the cable

used for negative (–) from the negative

terminal (–) of the supplementary

battery

disconnect the end of the cable used

for positive (+) from the positive terminal

(+) of the supplementary battery

disconnect one end of the cable used

for positive (+) from the positive terminal

(+) of the car with flat conventional

battery

reinstall the protective cover on the

battery's positive (+) pole
If after a few attempts the engine does

not start, do not persist but contact a

dedicated Alfa Romeo Dealership.
If jump starting is often necessary,

have the conventional battery and the

recharging system checked by an Alfa

Romeo Dealership.

BUMP STARTING

Never, under any circumstances, jump

start the engine by pushing, towing or

coasting downhill.

WARNING

264)

Do not get too close to the radiator

cooling fan: the electric fan may start;

danger of injury. Scarves, ties and other

loose clothing might be pulled by moving

parts.

265)

Remove any metal objects (e.g. rings,

watches, bracelets), that might cause an

accidental electrical contact and cause

serious injury.

266)

The batteries contain acid that

can burn skin or eyes. Batteries produce

hydrogen, which is easily flammable and

explosive. Thus keep away flames or

devices which may cause sparks.

267)

Do not attempt jump starting if the

conventional battery is frozen. It may break

or explode during operation.

IMPORTANT

107)

Never use a fast battery charger to

start the engine as this could damage the

electronic systems, particularly the engine

ignition and fuel supply control units.

108)

Do not connect the cable to

the negative terminal (–) of the flat

conventional battery. The following spark

could lead to battery explosion and cause

serious harm. Only use the specific earth

point; do not use any other exposed metallic

part.

109)

Do not bypass the battery fuses as this

could lead to blown fuses and damage to

the electronic systems of the car. Connect

the positive terminal cable of the auxiliary

CarManuals2.com

 IN CASE OF EMERGENCY

276

battery only to the positive terminal of the

conventional battery.

FUEL CUT-OFF SYSTEM

268)

This intervenes in the case of a collision

causing:

the interruption of the fuel supply with

the engine consequently cutting out

the automatic unlocking of the doors
turning on the lights inside the car
deactivation of climate control system

ventilation

automatic disconnection of the

auxiliary battery (Mild Hybrid versions)

from the electrical system

switching on the emergency lights

(to disable the lights, run the “reset”

procedure as shown below)
WARNING Carefully check the car for

fuel leaks, for instance in the engine

compartment, under the car or near

the tank area. After a collision, turn the

ignition device to STOP to prevent the

battery from running down.
WARNING The auxiliary battery can only

be reconnected to the electrical system

by an Alfa Romeo Dealership.

Reset procedure

To restore correct operation of the

car, carry out the following procedure

(this procedure must be started and

completed within less than one minute):

turn the ignition device to the ENGINE

position

turn on the direction indicators on the

right, then on the left, then again on the

right and again on the left

now deactivate the direction

indicators on the left

turn the ignition device to the STOP

position

turn the ignition device to the ENGINE

position

WARNING

268)

If, after an impact, you smell fuel or

notice leaks from the fuel system, do not

reactivate the system to avoid the risk of

fire.

HEAT ENGINE OVERHEATING

By travelling on roads as those described

below, and in particular weather

conditions that may cause engine

overheating, proceed as follows:

driving on extra-urban roads

: reduce

speed

driving on urban roads (with traffic)

:

with car at a standstill, engage neutral

and keep engine speed at idling
Potential signs of engine overheating:

the engine coolant temperature

indicator is close to the “H” value

strong smell of engine coolant
white smoke coming from the exhaust

pipe and/or the engine

bubbles are present in the engine

coolant tank
WARNING An overheated cooling

system can damage the car. In the

case of overheating, pull over and stop

the car. Keep the heat engine at idling

speed with air conditioning off until the

temperature decreases. If temperature

does not decrease, contact an Alfa

Romeo Dealership as soon as possible.
Some further measures to overcome

exceptional engine overheating are

reported below:

if the air conditioner is on, turn it off.

The air conditioning system contributes

CarManuals2.com

277

to overheating of the engine cooling

system

adjust passenger compartment

heating to the maximum, by turning air

distribution toward the floor or outside

the car, if external weather conditions

allow for open side windows; then

activate the fan at maximum speed.

In this way the heater will operate as

an additional radiator, contributing

to dissipate the heat from the engine

cooling system
WARNING Coolant (antifreeze) exiting

from the engine or vapour exiting from

the radiator can cause serious burns. If

vapour is seen or heard coming from the

engine compartment, do not open the

bonnet until the radiator has had enough

time to cool down. Never try to remove

the cap when the radiator is hot.

AUTOMATIC TRANSMISSION

LEVER RELEASE

(if present - excluding Mild Hybrid

versions)

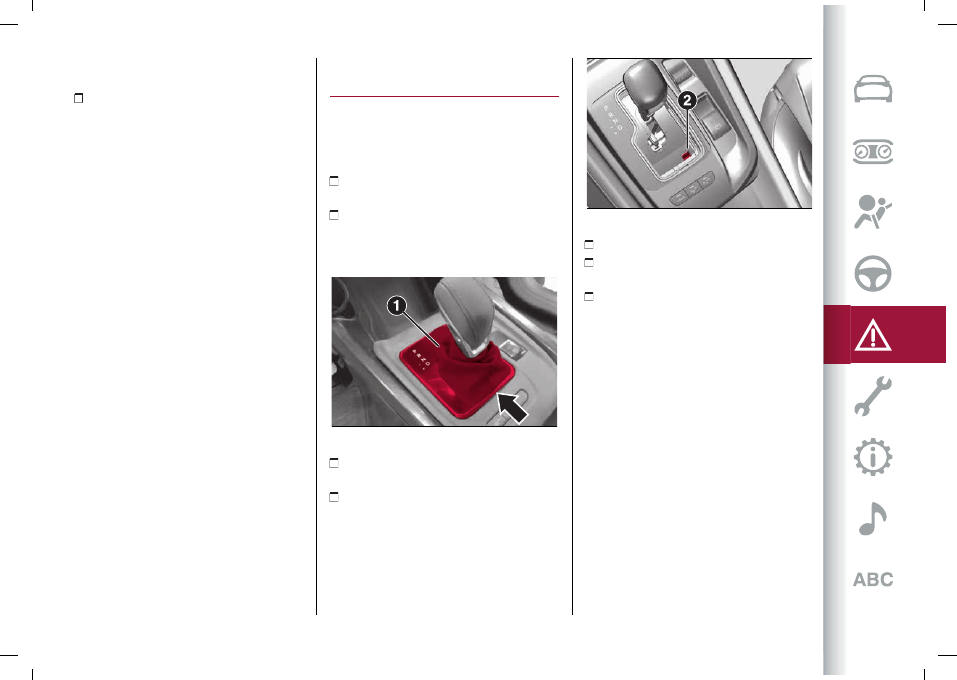

In the event of a failure, to move the gear

lever from P (Park), proceed as follows:

stop the engine and apply the electric

parking brake

working carefully in the point indicated

by the arrow fig. 299 remove the

transmission trim (complete with gear

lever gaiter) lifting it upwards (1)

299

9650181

fully press the brake pedal and hold it

down

press the button with the screwdriver

provided (2) fig. 300

300

9650182

move the gear lever to N (Neutral)
refit the gear lever panel and gaiter

correctly

start the engine

CarManuals2.com

 IN CASE OF EMERGENCY

278

TOWING A BROKEN-DOWN CAR

The procedures for towing a broken-down car with a tow truck are described below.
It is recommended to tow the car with all four wheels lifted from the ground on the platform of a roadside assistance car.

FRONT WHEEL

DRIVE (FWD)

ALL-WHEEL DRIVE

(AWD)

ELECTRIFIED

FRONT DRIVE (Mild

Hybrid versions)

ELECTRIFIED

ALL-WHEEL DRIVE

(eAWD) (Q4 Plug-In

Hybrid versions)

TOWING CONDITION

WHEELS LIFTED

FROM GROUND

DUAL CLUTCH

AUTOMATIC

TRANSMISSION

(*)

AUTOMATIC

TRANSMISSION

(*)

ELECTRIFIED DUAL

CLUTCH AUTOMATIC

TRANSMISSION

(**)

AUTOMATIC

TRANSMISSION

(*)

Towing on level

ground

NONE

NOT PERMITTED

NOT PERMITTED

If the transmission is

operating correctly,

put it in N.
The car can be towed

for 100 metres at a

maximum speed of 10

Km/h.

NOT PERMITTED

Wheel lifting or

towing on a trailer

REAR

NOT PERMITTED

NOT PERMITTED

NOT PERMITTED

NOT PERMITTED

FRONT

Towing with both

front wheels off

the ground is only

permitted for short

distances (approx. 15

km) and at reduced

speed (max. 25 km/h).

NOT PERMITTED

Towing with both

front wheels off

the ground is only

permitted for short

distances (approx. 15

km) and at reduced

speed (max. 25 km/h).

Towing with both front

wheels off the ground

is only permitted

for short distances

(approx. 15 km) and at

reduced speed (max. 25

km/h).

CarManuals2.com

279

FRONT WHEEL

DRIVE (FWD)

ALL-WHEEL DRIVE

(AWD)

ELECTRIFIED

FRONT DRIVE (Mild

Hybrid versions)

ELECTRIFIED

ALL-WHEEL DRIVE

(eAWD) (Q4 Plug-In

Hybrid versions)

Car on the platform of

a roadside assistance

car

ALL

BEST METHOD

PERMITTED

METHOD

PERMITTED

METHOD

PERMITTED METHOD

(*) WARNING (excluding Mild Hybrid versions) If the transmission cannot be put in neutral (N), do not tow the car and contact an Alfa Romeo

Dealership. If the automatic transmission gear lever is locked in "Park" (P), release it before starting to tow the car.
(**) WARNING (Mild Hybrid versions) If the electrified dual clutch automatic transmission cannot be put in neutral (N), tow the car with the front

wheels raised to avoid damaging the transmission. If the car is towed, if the transmission lever is NOT in neutral (N) and if “N” is not shown on the

instrument panel display, the car can be seriously damaged.

CarManuals2.com

 IN CASE OF EMERGENCY

280

WARNING If a car is towed without

complying with the requirements in

the table, the transmission and/or

the transfer unit might be seriously

damaged. Damage due to incorrect

towing is not covered by warranty.
WARNING A suitable towing or lifting

equipment is necessary for towing, in

order to avoid damage to the car.
WARNING Only use suitable tow bars

and other equipment, following the

equipment manufacturer’s instructions.

Connect the tow bars or other tow

equipment to the main structural

components of the car and not to the

bumper or other related brackets.
WARNING Comply with the regulations

regarding vehicle towing in force in each

country.
WARNING Do not tow using lifting

harnesses. When securing the car to a

row truck, do not attach to front or rear

suspension components. Damage to your

car may result from improper towing.

TOWING THE CAR

To tow the car, refer to the “Towing a

broken-down car” chapter in this section.

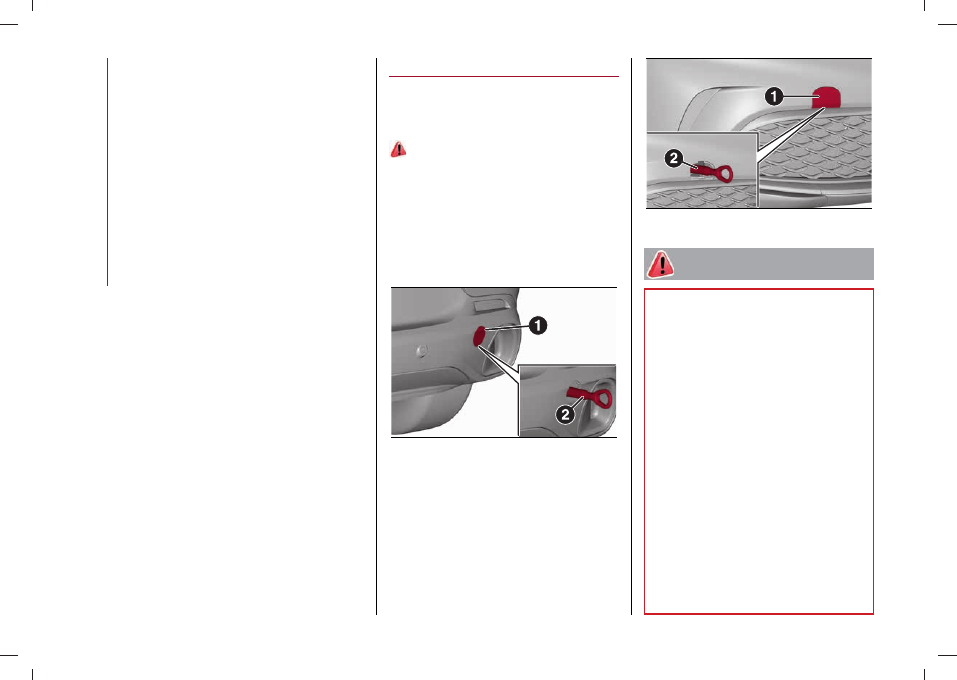

ATTACHING THE TOW RING

269) 270) 271)

The tow ring provided with the car is

located in the tool box inside the boot.

Front

Detach the cap (1) fig. 301 by pressing on

the upper part, take tow ring (2) from its

housing in the tool support and screw it

in fully on the front threaded pin.

301

9650235

Rear

Remove cap (1) fig. 302, take tow ring (2)

from its housing in the tool support and

tighten it securely on the rear threaded

pin.

302

9650236

WARNING

269)

Before towing, move the ignition

device to ENGINE and then to STOP, without

opening the door.

270)

The brake servo and the

electromechanical power steering will not

work while the vehicle is being towed. You

will therefore need to apply more force on

the brake pedal and steering wheel. Do not

use flexible ropes when towing, and avoid

jerky movements. While towing, make sure

that the trailer hitch does not damage any

components it is touching. When towing the

car, you must comply with all specific traffic

regulations and adopt an appropriate

driving behaviour. Do not start the engine

while towing the vehicle. Before tightening

the ring, clean the threaded housing

thoroughly. Make sure that the ring is fully

screwed into the housing before towing the

car.

271)

The front and rear tow hooks should

be used only for emergencies on the road.

You are allowed to tow the vehicle for short

CarManuals2.com

281

distances using an appropriate device in

accordance with the highway code (a rigid

bar), to move the vehicle on the road in

readiness for towing or transport via a

breakdown vehicle. Tow hooks MUST NOT

be used to tow vehicles off the road or

where there are obstacles and/or for towing

operations using cables or other non-rigid

devices. In compliance with the above

conditions, towing must take place with the

two vehicles (one towing, the other towed)

aligned as much as possible along the same

centre line.

CarManuals2.com

Proper maintenance allows car performance to be

maintained over time, operating costs to be contained, and

safety system performance to be safeguarded.

This section explains how.

SERVICING AND MAINTENANCE

SCHEDULED SERVICING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284

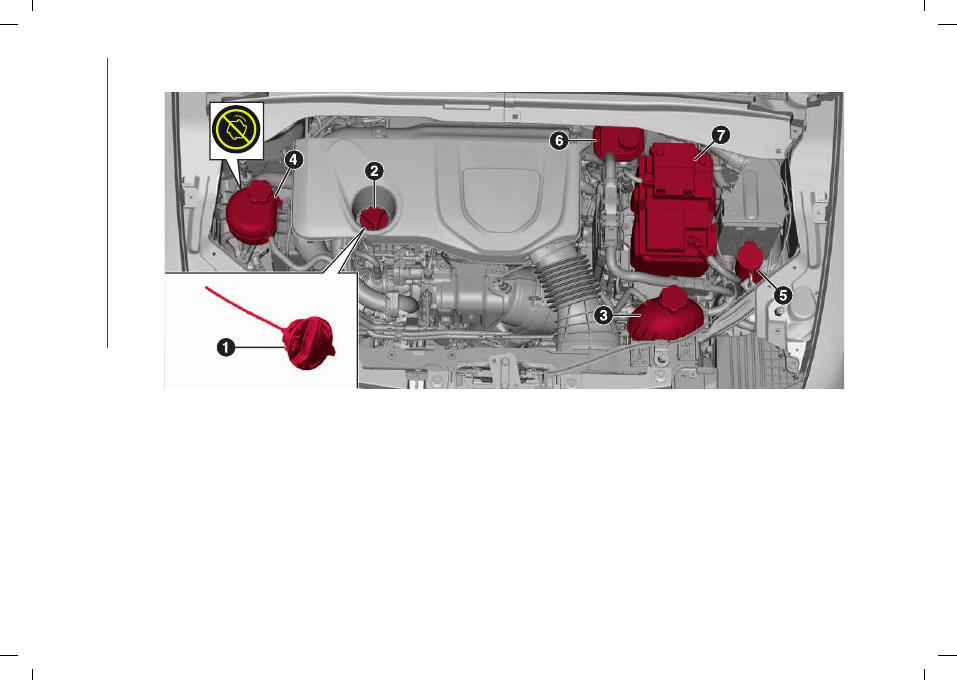

ENGINE COMPARTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .295
CHARGING THE CONVENTIONAL BATTERY . . . . . . . . . . . . . . . . . . . . . . . .303
SERVICING PROCEDURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 304
RAISING THE CAR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 308
WHEELS AND TYRES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 308
CAR INACTIVITY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 309
BODYWORK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 310
INTERIOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 313

CarManuals2.com

 SERVICING AND MAINTENANCE

284

SCHEDULED SERVICING

Correct servicing is crucial for

guaranteeing a long life for the car under

the best conditions. For this reason, Alfa

Romeo has planned a series of checks

and services at fixed distance intervals

and, where provided, at fixed time

intervals, as described on the Service

Schedule.
Before each scheduled service deadline,

it is always necessary to carefully follow

the instructions in the Service Schedule

(e.g. periodically check level of fluids,

tyre pressure, etc.).
Scheduled Servicing is offered by an Alfa

Romeo Dealership according to a set

time schedule. If, during each operation,

in addition to the ones scheduled, the

need arises for further replacements or

repairs, these may be carried out with

the owner's explicit agreement only. If

your car is used frequently for towing,

the interval between one scheduled

servicing operation and the next should

be reduced.
WARNING The scheduled service

deadlines are set out by the

Manufacturer. Failure to have them

carried out may invalidate the New

Vehicle Limited Warranty. It is advisable

to inform the Alfa Romeo Dealership of

any small operating irregularities without

waiting for the next scheduled service

deadline.

PERIODIC CHECKS

Every 1,000 km or before long journeys,

check and, if necessary, top up:

engine coolant level
system coolant level auxiliary battery

48V
NOTE The level must be checked

when the engine is cold and must lie

between the MIN and MAX marks on

the reservoir. If the level is below

the MIN level, go to an Alfa Romeo

Dealership. Do not attempt to open

the cap yourself to avoid burns and/or

damage to the cooling system and

electronic components. Topping up

and filling operations must be carried

out by qualified personnel at an Alfa

Romeo Dealership using the appropriate

equipment for vacuum filling.

brake fluid level
low AdBlue® diesel emissions additive

(UREA) level (where provided)

windscreen washer fluid level
tyre inflation pressure and condition
operation of lighting system

(headlights, direction indicators,

emergency, etc.)

operation of windscreen washer/wiper

system and positioning/wear of rear

window wiper blades

Every 3,000 km check and top up if

required: engine oil level.

DEMANDING USE OF THE CAR

If the car is used in one of the following

conditions:

law enforcement (or security service),

taxi service

towing a trailer or caravan
dusty roads
short, repeated journeys (less than 7-

8 km) at sub-zero external temperature

engine often idling or driving long

distances at low speeds or long periods

of inactivity
the following checks must be carried out

more often than indicated in the Service

Schedule:

check front disc brake pad condition

and wear

check cleanliness of bonnet and boot

locks, cleanliness and lubrication of

linkage

visually inspect conditions of:

engine, gearbox, transmission,

pipes and hoses (exhaust/fuel

system/brakes) and rubber elements

(gaiters/sleeves/bushes, etc.)

check the state of charge and fluid

level (electrolyte) of the conventional

battery

visually inspect condition of the

accessory drive belts

CarManuals2.com

285

check and if required change engine oil

and replace oil filter

check and, if necessary, replace pollen

filter

check and, if necessary, replace air

cleaner

CarManuals2.com

 SERVICING AND MAINTENANCE

286

SERVICE SCHEDULE (Plug-in Hybrid / Mild Hybrid version)

WARNING Once you have carried out the last intervention in the table, continue with the scheduled servicing, maintaining the

frequency indicated in the plan by marking each operation with a dot or dedicated note. Warning: simply restarting the maintenance

from the start of the plan may cause the allowed interval to be exceeded for some operations!

Thousands of miles

9

18

27

36

45

54

63

72

81

90

Thousands of kilometres

15

30

45

60

75

90

105

120

135

150

Years

1

2

3

4

5

6

7

8

9

10

Check the tyre condition/wear and, if necessary, adjust the pressure.

Check the "Fix&Go” kit condition/expiry (where provided)

Check operation of lighting system (headlights, direction indicators,

hazard warning lights, boot, passenger compartment, glove

compartment, instrument panel warning lights, etc.)

Check and, if necessary, restore the engine compartment liquid

level (heat engine cooling, high-voltage system cooling (Plug-In

Hybrid versions), 48V cooling system (Mild Hybrid versions), brakes,

windscreen washers, etc.) (1)

Check the fuel/engine management systems operation, emissions

and high-voltage battery (Plug-In Hybrid versions) using the diagnosis

equipment

Visually inspect condition of: exterior bodywork, underbody

protection, pipes and hoses (exhaust, fuel system, brakes), rubber

elements (gaiters, sleeves, bushes, etc.)

Check the position/wear of the windscreen wiper/rear window wiper

blades (where provided)

Check operation of the windscreen wiper/washer system and adjust

nozzles, if necessary

CarManuals2.com

287

Thousands of miles

9

18

27

36

45

54

63

72

81

90

Thousands of kilometres

15

30

45

60

75

90

105

120

135

150

Years

1

2

3

4

5

6

7

8

9

10

Check cleanliness of bonnet and luggage compartment locks,

cleanliness and lubrication of linkage

Visually inspect conditions and wear of front and rear disc brake pads

and operation of pad wear indicator

Visual inspection of electrical charging port condition and integrity

(Plug-in Hybrid version)

Visually inspect the condition of the accessory drive belt(s) (2)

Change engine oil and replace oil filter

(3)

Change transmission oil (Mild Hybrid versions)

(9)

Spark plug replacement(4)

Replace accessory drive belt/s

(2)

Replace the air cleaner cartridge (Mild Hybrid versions) (5)

Replace the air cleaner cartridge (Plug-in Hybrid versions) (5)

Change the brake fluid

(6)

Replace passenger compartment filter (7)

CarManuals2.com

 SERVICING AND MAINTENANCE

288

Thousands of miles

9

18

27

36

45

54

63

72

81

90

Thousands of kilometres

15

30

45

60

75

90

105

120

135

150

Years

1

2

3

4

5

6

7

8

9

10

Alfa Connect Box system battery replacement (where provided)

(8)

(1) Only ever use the fluids shown in the handbook for topping up, and only after checking that the system is intact.
(2) The maximum mileage is 120,000 km. The belt must be replaced every 6 years, regardless of distance travelled. If the vehicle is used in demanding

conditions (dusty areas, especially severe weather conditions, very low or very high temperatures for extended periods, urban driving, long periods

of idling): A) the maximum mileage is 60,000 km and, regardless of the mileage, the belt must be replaced every 4 years; B) replace the belt tensioner

after a maximum of 120,000 km or 6 years.
(3) Engine oil change and filter replacement depends on driving conditions and the warning light/symbol on the instrument panel (where provided)

turns on to indicate when it is time to do so. In any case, change the engine oil and replace the filter within one year from the last service.
(4) In order to guarantee correct operation and prevent serious damage to the engine, it is essential to proceed as follows: only use spark

plugs specifically certified for these engines; all spark plugs should be of the same type and brand (see the "Engine" chapter in the "Technical

Specifications" section); strictly comply with the spark plugs replacement frequency in the Service Schedule. It is advisable to contact an Alfa Romeo

Dealership for spark plug replacement
(5) If the car is used in dusty areas, this cleaner should be replaced every 15,000 km.
(6) Brake fluid is to be replaced every 2 years.
(7) To maintain maximum protection against external allergens, summer concentrations of ozone and smog, it is recommended to change the

passenger compartment filter every 6 months, preferably at the beginning of each spring and autumn.
(8) The battery in the Alfa Connect Box system must be replaced every 5 years, regardless of mileage.
(9) Change the transmission oil every 60,000 km or 6 years.

CarManuals2.com

289

SERVICE SCHEDULE (2.0 T4 petrol versions)

(for versions/markets, where provided)
WARNING Once you have carried out the last intervention in the table, continue with the scheduled servicing, maintaining the

frequency indicated in the plan by marking each operation with a dot or dedicated note. Warning: simply restarting the maintenance

from the start of the plan may cause the allowed interval to be exceeded for some operations!

Thousands of miles

6

12

18

24

30

36

42

48

54

60

66

72

78

84

90

Thousands of kilometres

10

20

30

40

50

60

70

80

90

100

110

120

130

140

150

Months

6

12

18

24

30

36

42

48

54

60

66

72

78

84

90

Check the tyre condition/wear and, if

necessary, adjust the pressure. Check the

"Fix&Go” kit condition/expiry (where

provided)

Check battery state of charge with the

proper instrument

Check operation of lighting system

(headlights, direction indicators,

hazard warning lights, boot, passenger

compartment, glove compartment,

instrument panel warning lights, etc.)

Check and, if necessary, top up the fluid

levels in the engine compartment (brakes,

engine cooling, windscreen washer, etc.) (1)

Check the supply/engine control and

emissions systems operation using the

diagnosis equipment

CarManuals2.com

 SERVICING AND MAINTENANCE

290

Thousands of miles

6

12

18

24

30

36

42

48

54

60

66

72

78

84

90

Thousands of kilometres

10

20

30

40

50

60

70

80

90

100

110

120

130

140

150

Months

6

12

18

24

30

36

42

48

54

60

66

72

78

84

90

Visually inspect condition of: exterior

bodywork, underbody protection, pipes and

hoses (exhaust, fuel system, brakes), rubber

elements (gaiters, sleeves, bushes, etc.)

Check windscreen and rear window wiper

blade position/wear

Check operation of the windscreen

wiper/washer system and adjust nozzles, if

necessary

Check cleanliness of bonnet and luggage

compartment locks, cleanliness and

lubrication of linkage

Visually inspect conditions and wear of

front/rear disc brake pads and operation of

pad wear indicators

Visually inspect the condition and tensioning

of the accessory drive belt(s)

Change engine oil and replace oil filter

(2)

Spark plug replacement

(3)

Replace accessory drive belt/s

(4)

Replace air cleaner cartridge (5)

Change the brake fluid

(6)

CarManuals2.com

291

Thousands of miles

6

12

18

24

30

36

42

48

54

60

66

72

78

84

90

Thousands of kilometres

10

20

30

40

50

60

70

80

90

100

110

120

130

140

150

Months

6

12

18

24

30

36

42

48

54

60

66

72

78

84

90

Replace the passenger compartment filter

Alfa Connect Box system battery

replacement (where provided)

(7)

Automatic transmission oil and oil filter

change (AT9)

(8)

(1) Only ever use the fluids shown in the handbook for topping up, and only after checking that the system is intact.
(2) Engine oil change and filter replacement depends on driving conditions and the warning light/symbol on the instrument panel (where provided)

turns on to indicate when it is time to do so. In any case, change the engine oil and replace the filter within one year from the last service.
(3) Every 60,000 km regardless of the period of use.
(4) The belt must be replaced every 4 years or 60,000 km.
(5) If the car is used in dusty areas, this cleaner should be replaced every 10,000 km.
(6) The brake fluid replacement has to be done every two years, irrespective of the mileage.
(7) The battery in the Alfa Connect Box system must be replaced every 5 years, regardless of mileage.
(8) Every 240,000 km regardless of the period of use.
( ) Recommended operations
( ) Mandatory operations

CarManuals2.com

 SERVICING AND MAINTENANCE

292

SCHEDULED SERVICING PLAN (1.6 Multijet versions)

WARNING Once you have carried out the last intervention in the table, continue with the scheduled servicing, maintaining the

frequency indicated in the plan by marking each operation with a dot or dedicated note. Warning: simply restarting the maintenance

from the start of the plan may cause the allowed interval to be exceeded for some operations!

Thousands of miles

12

24

36

48

60

72

84

96

108

120

Thousands of kilometres

20

40

60

80

100

120

140

160

180

200

Years

1

2

3

4

5

6

7

8

9

10

Check the tyre condition/wear and, if necessary, adjust the pressure.

Check the "Fix&Go” kit condition/expiry (where provided)

Check operation of lighting system (headlights, direction indicators,

hazard warning lights, boot, passenger compartment, glove

compartment, instrument panel warning lights, etc.)

Check and, if necessary, top up engine compartment fluid levels

(engine cooling, brakes, windscreen washer, etc.) (1)

Check operation of engine control and emissions systems using the

diagnosis socket

Visually inspect condition of: exterior bodywork, underbody

protection, pipes and hoses (exhaust, fuel system, brakes), rubber

elements (gaiters, sleeves, bushes, etc.)

Check the position/wear of the windscreen wiper/rear window wiper

blades (where provided)

Check operation of the windscreen wiper/washer system and adjust

nozzles, if necessary

Check cleanliness of bonnet and luggage compartment locks,

cleanliness and lubrication of linkage

CarManuals2.com

293

Thousands of miles

12

24

36

48

60

72

84

96

108

120

Thousands of kilometres

20

40

60

80

100

120

140

160

180

200

Years

1

2

3

4

5

6

7

8

9

10

Visually inspect conditions and wear of front and rear disc brake pads

and check the integrity of the pad wear sensor

Visually inspect the condition of the accessory drive belt(s) (2)

Check accessory drive belt tensioning (versions without automatic

tensioner)

Visually inspect the condition of the toothed timing drive belt (5)

Check oil level of electro-hydraulic actuator and top up, if necessary

(versions with dual clutch automatic transmission) (4)

Change engine oil and replace oil filter

(3)

Replace low-pressure EGR filter

(4)

Replace accessory drive belt/s

(5)

Replace toothed timing drive belt

(5)

Replace diesel filter cartridge (6)

Replace air cleaner cartridge (7)

Change the brake fluid

(8)

Replace passenger compartment filter (9)

CarManuals2.com

 SERVICING AND MAINTENANCE

294

Thousands of miles

12

24

36

48

60

72

84

96

108

120

Thousands of kilometres

20

40

60

80

100

120

140

160

180

200

Years

1

2

3

4

5

6

7

8

9

10

Alfa Connect Box system battery replacement (where provided)

(10)

(1) Only ever use the fluids shown in the handbook for topping up, and only after checking that the system is intact.
(2) Check to be carried out every year for vehicles on the road in countries with particularly severe climates (cold countries).
(3) Engine oil change and filter replacement depends on driving conditions and the warning light/symbol on the instrument panel (where provided)

turns on to indicate when it is time to do so. In any case, change the engine oil and replace the filter within one year from the last service.
(4) Replace at least every 120,000 km, regardless of the actual operating time.
(5) The maximum mileage is 120,000 km. The belt must be replaced every 6 years, regardless of distance travelled. If the vehicle is used in heavy

conditions (dusty areas, particularly harsh weather conditions, very low or very high temperatures for extended periods, urban driving, long periods

of idling), the maximum mileage is 60,000 km. The belt must be replaced every 4 years regardless of the mileage.
(6) If the car runs on fuel with quality below the relevant European specification, this filter must be replaced every 20,000 km.
(7) If the car is used in dusty areas, this cleaner should be replaced every 20,000 km.
(8) Brake fluid is to be replaced every 2 years.
(9) To maintain maximum protection against external allergens, summer concentrations of ozone and smog, it is recommended to change the

passenger compartment filter every 6 months, preferably at the beginning of each spring and autumn.
(10) The battery in the Alfa Connect Box system must be replaced every 5 years, regardless of mileage.

CarManuals2.com

295

ENGINE COMPARTMENT

CHECKING LEVELS

272) 273) 274) 275) 276)

110)

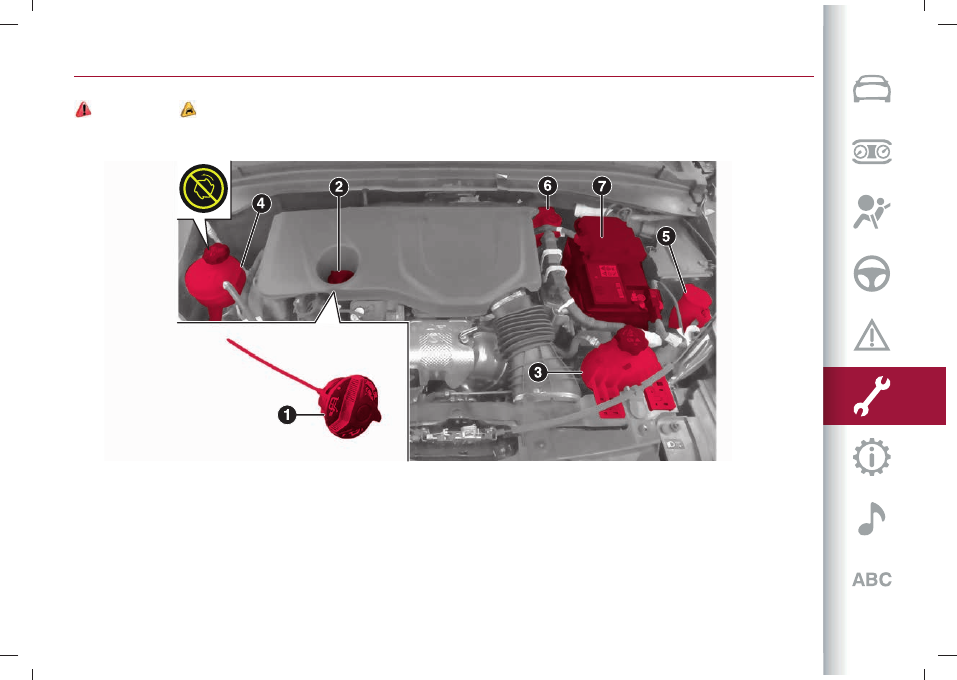

1.3 190 HP / 1.3 280 HP Q4 Plug-In Hybrid versions

303

9650237

1. Engine oil level dipstick 2. Engine oil cap/filler 3. Heat engine coolant 4. High-voltage system coolant 5. Windscreen/rear window

washer fluid 6. Brake fluid 7. Low-voltage battery(12V)
NOTE The cooling tank of the high-voltage system cannot be refilled by the driver. To top up the fluid, contact an Alfa Romeo

Dealership

CarManuals2.com

 SERVICING AND MAINTENANCE

296

1.5 130HP/160HP Mild Hybrid version

304

9650242

1. Engine oil level dipstick 2. Engine oil cap/filler 3. Heat engine coolant 4. Mild Hybrid system low temperature circuit coolant 5.

Windscreen/rear window washer fluid 6. Brake fluid 7. Low-voltage battery(12V)
NOTE The cooling tank of the 48V auxiliary battery system voltage system cannot be refilled by the driver. To top up the fluid,

contact an Alfa Romeo Dealership

CarManuals2.com

297

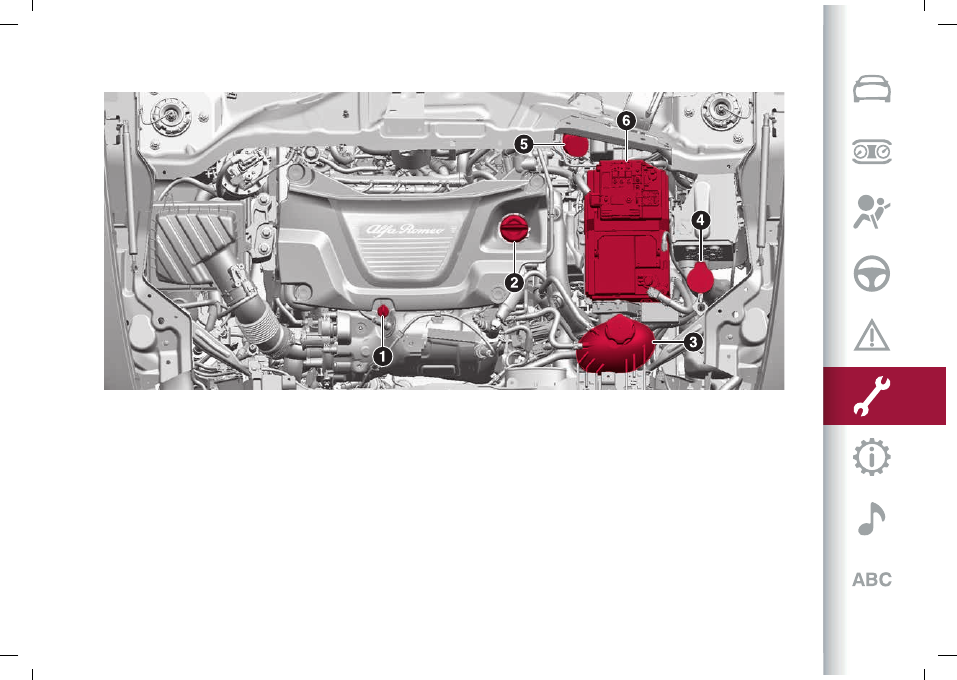

1.6 16V Multijet 130 HP version

305

9650412

1. Engine oil level dipstick 2. Engine oil cap/filler 3. Engine coolant 4. Windscreen/rear window washer fluid 5. Brake fluid 6. Low-

voltage battery(12V)

CarManuals2.com

 SERVICING AND MAINTENANCE

298

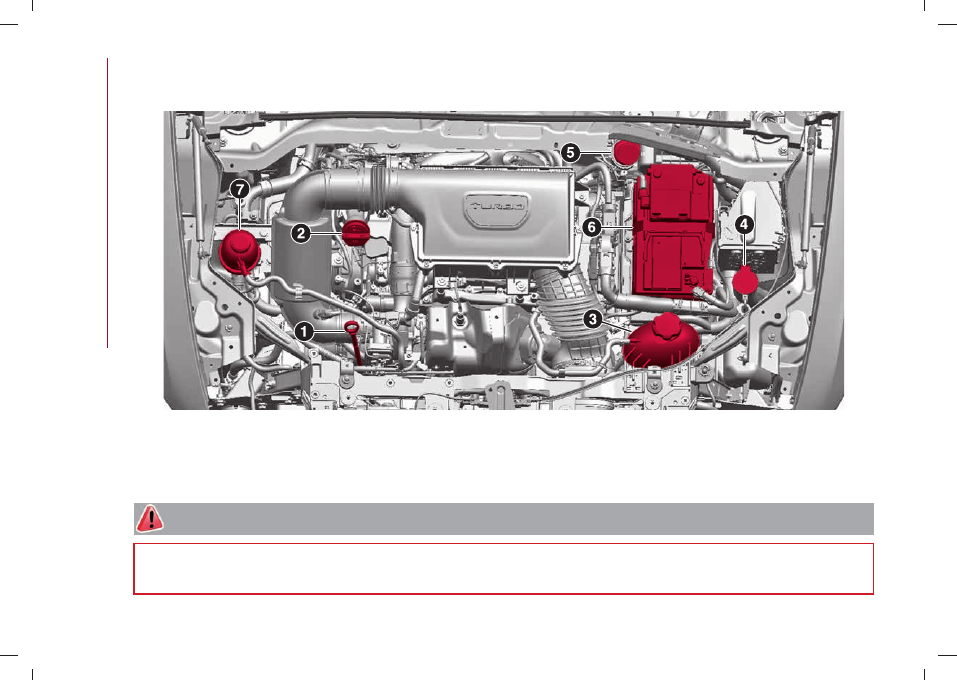

2.0 T4 272 HP version

(for versions/markets, where provided)

306

9650413

1. Engine oil level dipstick 2. Engine oil cap/filler 3. Engine coolant 4. Windscreen/rear window washer fluid 5. Brake fluid 6. Battery 7.

Intercooler engine coolant

WARNING

272)

Never smoke while working in the engine compartment: gas and inflammable vapours may be present, with the risk of fire.

273)

Be very careful when working in the engine compartment when the engine is hot: you may get burned. Do not get too close to the radiator

cooling fan: the electric fan may start; danger of injury. Scarves, ties and other loose clothing might be pulled by moving parts.

CarManuals2.com















Content      ..     7      8      9      10     ..
