Alfa Romeo Tonale (2023 year). Manual in english - page 3





73

103

9650081

Trip A, Trip B (where provided),

distance travelled, average consumption

on trip, travel time, average speed,

odometer, AdBlue® level in tank (where

provided)

104

9650083

Compass

NOTE The Compass is displayed

automatically if Trip B is disabled using

the display settings. Trip B automatically

replaces the Compass if it is enabled.

105

9650082

Tyre pressure detected by iTPMS

106

9650085

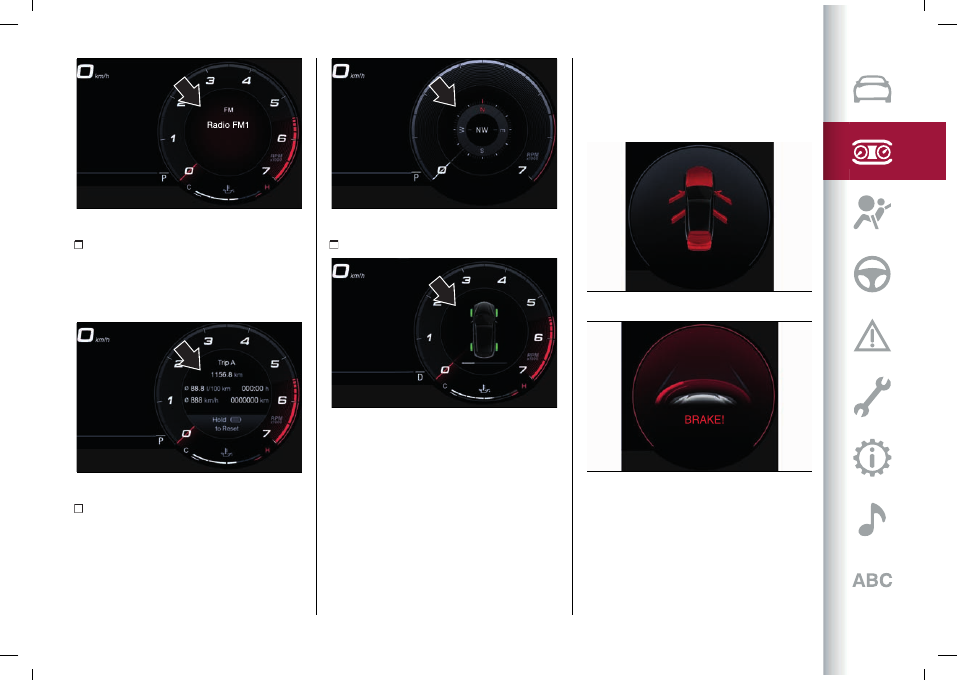

POP-UP SCREENS

Under certain driving conditions,

messages or pop-up screens may be

automatically displayed on the right-

hand dial to alert the driver to useful

driving information (grey background,

e.g. notification of open doors, open
bonnet and/or tailgate, fig. 107), low

priority warnings (yellow background) or

high priority warnings (red background,
e.g. a braking indication, fig. 108). Where

provided, the appearance of the pop-up

screen may be accompanied by an

acoustic warning and the illumination of

one or more warning lights or symbols on

the instrument panel.

107

9650079

108

9650080

NOTE In the case of two or more

simultaneous events displaying a pop-up

screen, the screens are displayed in

sequence and in order of priority:

first those with a higher priority

(red background), then those with a

lower priority (yellow background)

CarManuals2.com

 KNOWING THE INSTRUMENT PANEL

74

and then those with information (grey

background).
The pop-up screen can be closed by
holding the ring (1) fig. 111 pressed.
If the heat engine is shut down with one

or more faults present, pop-up screens

are displayed the next time the engine is

restarted if these faults have not been

resolved in the meantime.

ENGINE OIL CHANGE INDICATOR

SYSTEM

(where provided)
The car is equipped with an engine oil

change indicator system. The dedicated

message will display in the instrument

panel display for 10 seconds to indicate

the next scheduled oil change interval.
The engine oil change indicator system is

based on a use factor, which means the

engine oil change interval may fluctuate,

dependent upon your personal driving

style.

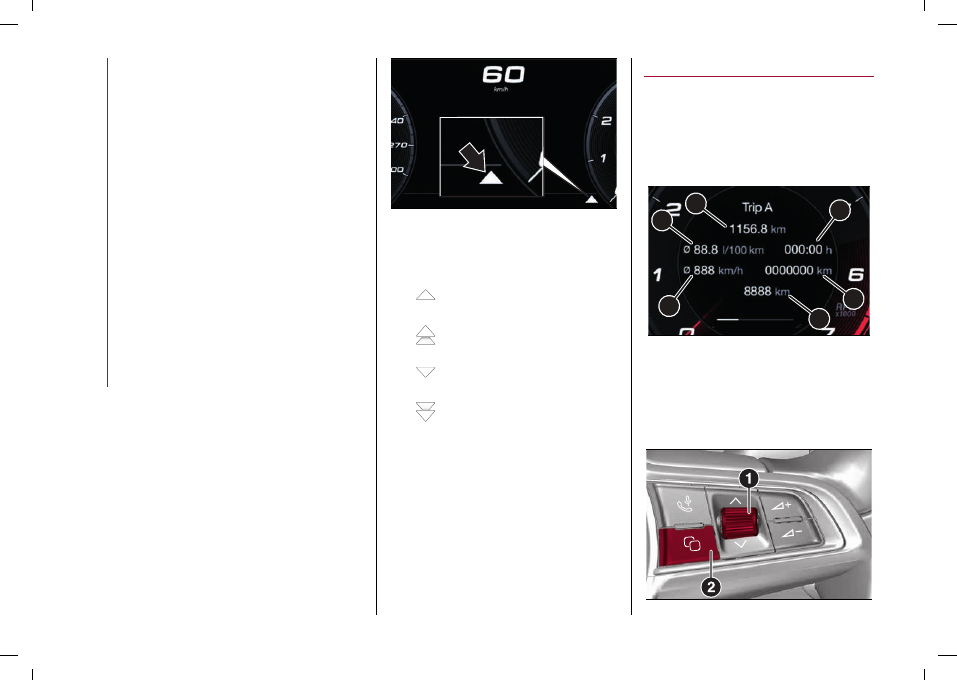

GEAR SHIFT INDICATOR

The Gear Shift Indicator (GSI) system

advises the driver to change gear

through a special indication on the
display fig. 109.

109

9650086

Through the GSI system, the driver is

informed that shifting gear will allow a

reduction in fuel consumption.

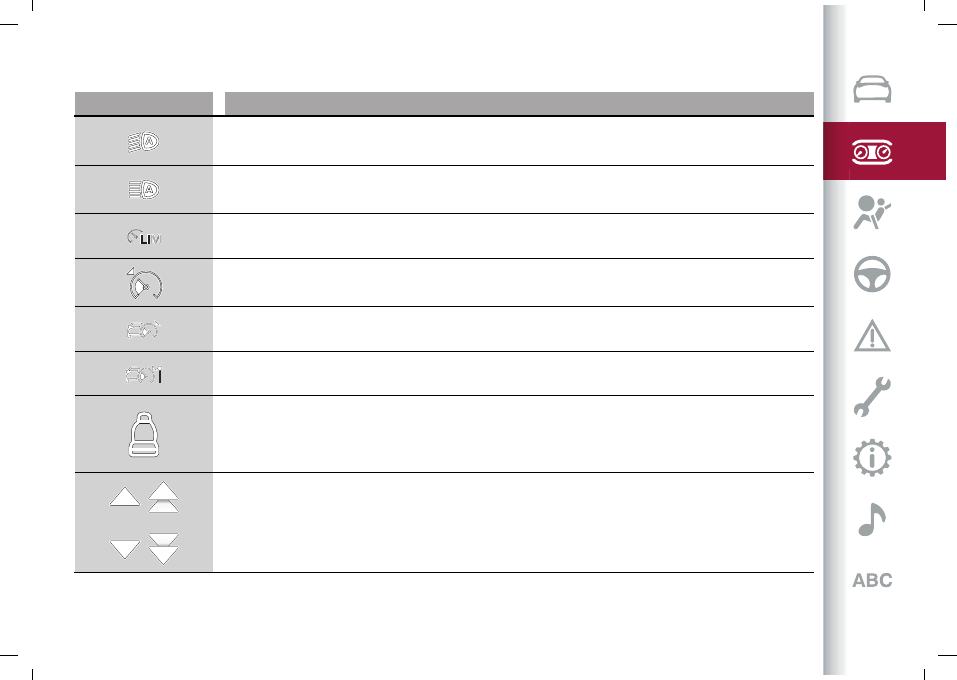

Icon

on the display: suggestion to

shift up a gear.
Icon

on the display: suggestion to

shift to two higher gears (double shift).
Icon

on the display: suggestion to

shift to a lower gear.
Icon

on the display: suggestion to

shift to two lower gears (double shift).
The indication in the display remains until

a gear is shifted or the driving conditions

go back to a situation where gearshifting

is not required to improve consumption.
When there are no gear shift

suggestions, the engaged gear is

displayed (P, R, N, D, M)

TRIP COMPUTER

The “Trip Computer” is used to display

information on car operation when the

ignition device is in the START position.

To display the Trip Computer, set it up as

a widget on the right dial (tachometer) of
the instrument panel fig. 110.

1

2

3

4

6

5

110

9650087

This function has two separate

memories, "Trip A" and "Trip B", where

the data for the car's "complete

journeys" (trips) is recorded

independently from each other.

111

9650288

CarManuals2.com

75

The Trip Computer can display the

following information:

odometer (1)
average fuel consumption (2)
average speed (3)
total distance travelled according to

the trip meter since the last reset (4)

the expected range before the

AdBlue® top-up is required (5)

the elapsed time since the trip meter

was last reset (6)
Press and release the button (2) fig. 111

button on the steering wheel controls

until the "Trip A" or "Trip B" widget is

highlighted on the instrument panel.

Actual running time

This indicates the total time travelled

since the last reset. The time is increased

when the ignition device is in START

position.

Reset Trip

Hold ring (1) fig. 111 pressed.

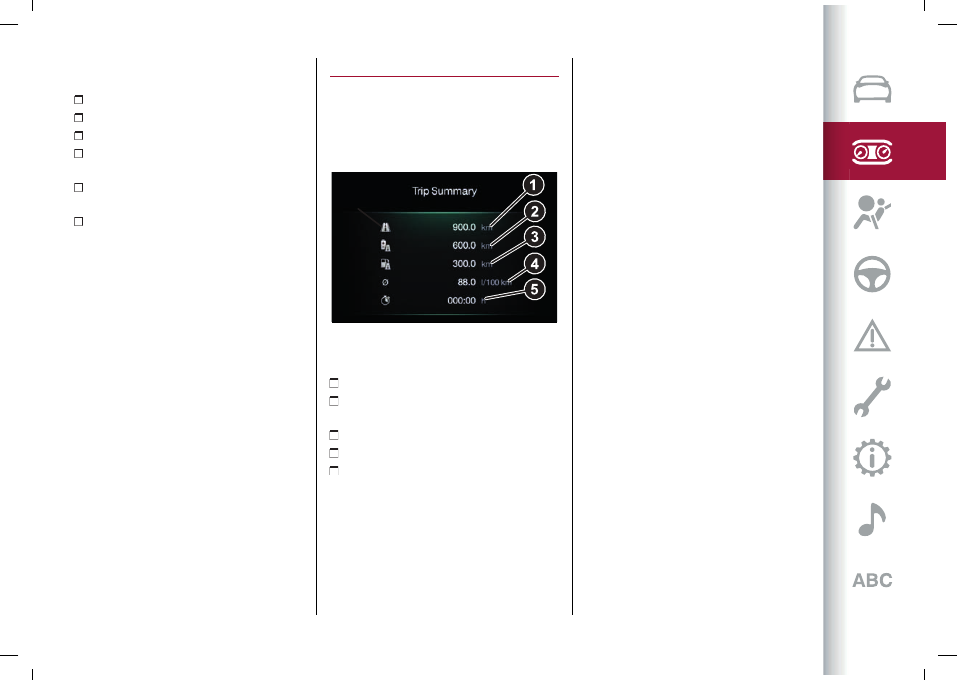

TRIP SUMMARY

(Q4 Plug-in Hybrid version)
Turning the starter from the ENGINE

position to STOP shows the “Trip

Summary” on the display, showing the
data of the last trip fig. 112.

112

9650396

The following information is displayed:

(1) total distance
(2) distance travelled in “hybrid” mode

(combined electric and heat engine)

(3) distance travelled in “electric” mode
(4) average fuel consumption
(5) travel time

CarManuals2.com

 KNOWING THE INSTRUMENT PANEL

76

WARNING LIGHTS AND MESSAGES

WARNING The warning light or symbol may be associated with a specific message and/or acoustic warning. These indications are

indicative and precautionary and as such must not be considered as exhaustive and/or alternative to the information contained in the

Owner Handbook, which you are advised to read carefully in all cases. Always refer to the information in this section in the event of a

failure indication.
WARNING The failure indicators appearing on the display are divided into two categories: very serious and less serious failures.

Serious faults are indicated by a repeated and prolonged warning "cycle". Less serious faults are indicated by a warning "cycle" with

a shorter duration. The display cycle of both categories can be interrupted. The instrument panel warning light will stay on until the

cause of the failure is eliminated.
NOTE The actual presence of the warning lights and symbols shown below depends on the version and/or the country where the car is

marketed.

WARNING LIGHTS ON INSTRUMENT PANEL
Red warning lights

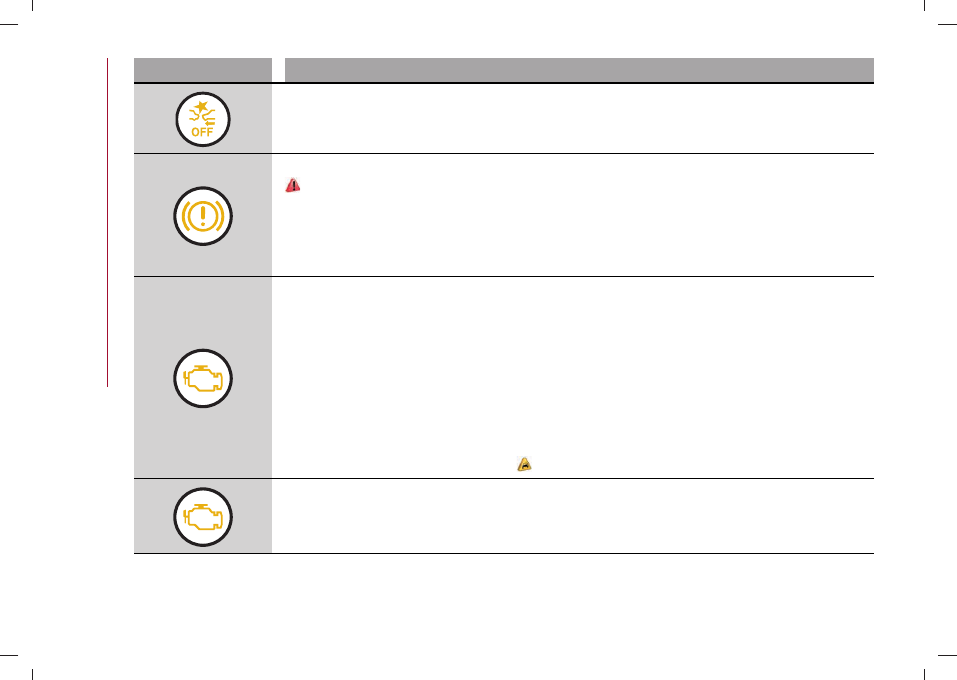

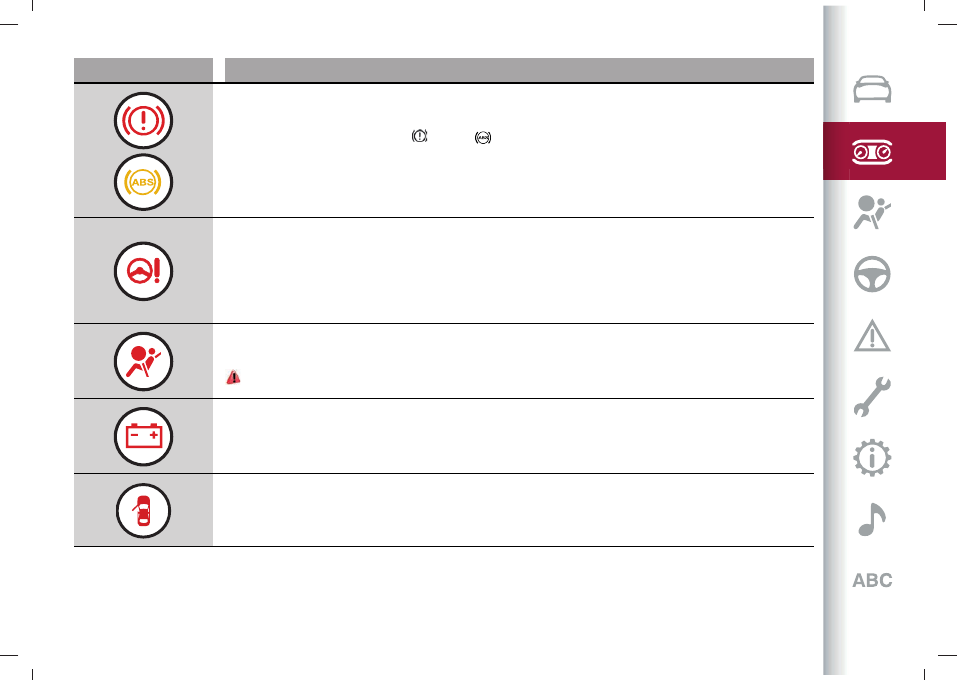

Warning light

What it means

INSUFFICIENT BRAKE FLUID / ELECTRIC PARKING BRAKE ON
The warning light switches on when the ignition device is brought to the ENGINE position, but it should switch off after

a few seconds.

Low brake fluid level

The warning light turns on when the level of the brake fluid in the reservoir falls below the minimum level, possibly due

to a leak in the circuit. Restore the brake fluid level, then check that the warning light has switched off. If the warning

light stays on, contact an Alfa Romeo Dealership.

Electric parking brake on

The warning light switches on when the electric parking brake is engaged. In the event of failure, the warning light

flashes for about 10 seconds and then turns off. Release the electric parking brake, then check that the warning light

has switched off. If the warning light stays on, contact an Alfa Romeo Dealership.

CarManuals2.com

77

Warning light

What it means

EBD FAILURE
The simultaneous switching on of the

(red) and

(amber) warning lights with the engine on indicates either a

failure of the EBD system or that the system is not available. In this case, the rear wheels may suddenly lock and the

vehicle may swerve when braking sharply.
Drive very carefully to the nearest Alfa Romeo Dealership to have the system inspected immediately.

POWER STEERING FAILURE (where provided)
The warning light (where provided) switches on when the ignition device is brought to ENGINE, but it should switch off

after a few seconds.
If the warning light (or the symbol for Q4 Plug-In Hybrid versions) remains on, you could not have power steering and

the effort required to operate the steering wheel could be increased; steering is, however, possible.
Contact an Alfa Romeo Dealership as soon as possible.

AIRBAG FAILURE
If the warning light switches on constantly, this indicates a failure in the airbag system.

53) 54)

CONVENTIONAL 12V BATTERY NOT SUFFICIENTLY CHARGED
If the warning light comes on when the engine is running, this indicates a failure of the conventional battery charging

system (12V). Contact an Alfa Romeo Dealership as soon as possible.

DOORS OPEN
The warning light switches on when one or more doors are not completely shut. A pop-up screen appears highlighting

in red the door(s) that have not been closed properly instead of the tachometer dial. An acoustic warning is activated

with the doors open and the car moving. Close the doors properly.

CarManuals2.com

 KNOWING THE INSTRUMENT PANEL

78

WARNING

53)

If the indicator

does not come on when the key is turned to the ON position or if it remains lit while driving, there may be a problem with the

airbag restraint system. In this case, the airbags or pretensioners may not be activated in the event of an accident or, in a more limited number of

cases, may be activated when not necessary. Before proceeding, contact an Alfa Romeo Dealership to have the system checked immediately.

54)

The failure of the

warning light is signalled by the switching on of the

symbol on the instrument panel. In this case, the warning light may

not indicate problems with the restraint systems. Before proceeding, contact an Alfa Romeo Dealership to have the system checked immediately.

CarManuals2.com

79

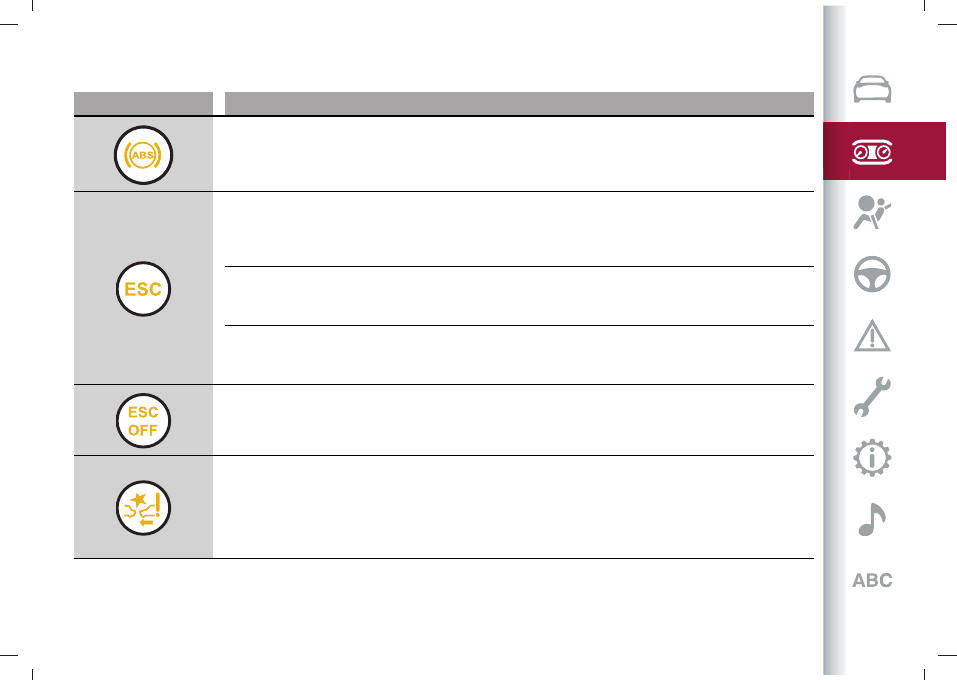

Amber warning lights

Warning light

What it means

ABS FAILURE
The warning light switches on to indicate an ABS fault. In this case the braking system maintains its efficiency

unaltered but without the advantage of the ABS system. Drive carefully and contact an Alfa Romeo Dealership as soon

as possible.

ESC SYSTEM

ESC system activation

Intervention by the system is indicated by the flashing of the warning light: it indicates that the car is in critical stability

and grip conditions.

ESC system failure

If the warning light does not switch off, or if it stays on with the engine running, a failure was found on the ESC system.

Contact an Alfa Romeo Dealership as soon as possible.

Hill Start Assist failure

The warning light switches on to indicate a Hill Start Assist system failure. Contact an Alfa Romeo Dealership as soon

as possible.

PARTIAL / TOTAL DEACTIVATION OF ACTIVE SAFETY SYSTEMS
The warning light switches on to indicate that some active safety systems have been partially or totally deactivated.

When the systems are reactivated, the warning light switches off.

AUTONOMOUS EMERGENCY BRAKING SYSTEM FAILURE
The appearance of the warning light indicates that the Autonomous Emergency Braking system is unavailable. In the

event of a temporary condition that inhibits the use of the camera (such as grazing sun, rain, fog, snow or dirt) the

warning light will light up temporarily until conditions are restored and the system can be used again.
If these conditions do not occur and and the warning light remains permanently lit, contact the Alfa Romeo Dealership

as soon as possible.

CarManuals2.com

 KNOWING THE INSTRUMENT PANEL

80

Warning light

What it means

AUTONOMOUS EMERGENCY BRAKING SYSTEM DEACTIVATION
The warning light switches on if the Autonomous Emergency Braking system has been deactivated or if the system is

obstructed/dirty/unavailable.

ELECTRIC PARKING BRAKE FAILURE

55)

If the warning light turns on, this indicates a failure in the electric parking brake system.
This failure could partially or completely block the car because the electric parking brake could remain activated even

if automatically or manually disengaged using the relevant controls.
If the car can still be used (electric parking brake not engaged), drive carefully to the nearest Alfa Romeo dealership,

remembering that the electric parking brake will not work.

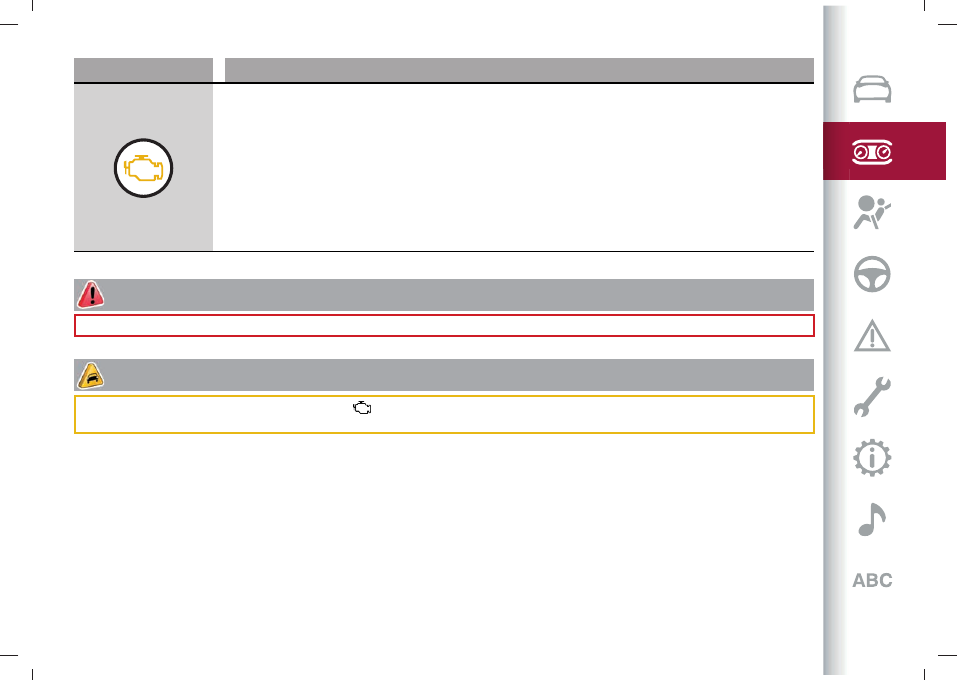

EOBD / INJECTION / CATALYST DAMAGE (petrol versions with GPF)
If the warning light remains on, or it switches on whilst driving, the injection system is not working properly.

The warning light on constantly

signals a malfunction in the supply/ignition system which could cause high exhaust

emissions, a possible loss of performance, poor driveability and high consumption.
The warning light switches off if the malfunction disappears, but is still stored by the system.
Under these conditions, you can continue travelling at moderate speed but without demanding excessive effort from

the engine or high speed. Prolonged use of the car with the warning light on constantly may cause damage.
Contact an Alfa Romeo Dealership as soon as possible.

If the warning light flashes,

it means that the catalytic converter may be damaged.

Release the accelerator pedal to lower the speed of the engine until the warning light stops flashing.
Continue the journey at moderate speed, trying to avoid driving conditions that may cause further flashing and contact
an Alfa Romeo Dealership as soon as possible.

22)

HYBRID SYSTEM FAILURE (Mild Hybrid versions)
If the warning light remains on, or it switches on while driving, there is a hybrid system failure. In this condition, the

state of charge of the auxiliary battery is not shown.
In this case, contact an Alfa Romeo Dealership as soon as possible.

CarManuals2.com

81

Warning light

What it means

AdBlue® (UREA) INJECTION SYSTEM FAILURE (Diesel versions)
In normal conditions, when the ignition device is brought to the ENGINE position, the warning light switches on, but it

should switch off as soon as the engine is started.
The warning lamp will illuminate if a liquid that does not meet the nominal characteristics is introduced or if an average
consumption of AdBlue® (UREA) of more than 50% is detected.
In this case, contact an Alfa Romeo Dealership as soon as possible.
If the problem is not solved, a dedicated message will appear on the instrument panel display whenever a certain

threshold is reached until it will no longer be possible to start the engine.
When there are approximately 200 km before you will no longer able to restart the engine, on some versions a

dedicated message will appear fixed on the instrument panel display accompanied by warning tone.

WARNING

55)

If a failure is present with sharp braking, the rear wheels may lock and the vehicle may swerve.

IMPORTANT

22)

If, when the ignition device is turned to ENGINE, the

warning light does not switch on, switches on constantly or flashes when driving,

contact an Alfa Romeo Dealership as soon as possible.

CarManuals2.com

 KNOWING THE INSTRUMENT PANEL

82

Green warning lights

Warning light

What it means

LEFT DIRECTION INDICATOR
The warning light switches on when the direction indicator stalk is moved downwards or, together with the right

direction indicator, when the hazard warning light button is pressed.

RIGHT DIRECTION INDICATOR
The warning light switches on when the direction indicator stalk is moved upwards or, together with the left direction

indicator, when the hazard warning light button is pressed.

White warning lights

Warning light

What it means

BRIGHTNESS SENSOR
This warning light on the odometer lights up in the event of the brightness sensor activation.

CarManuals2.com

83

Red Symbols

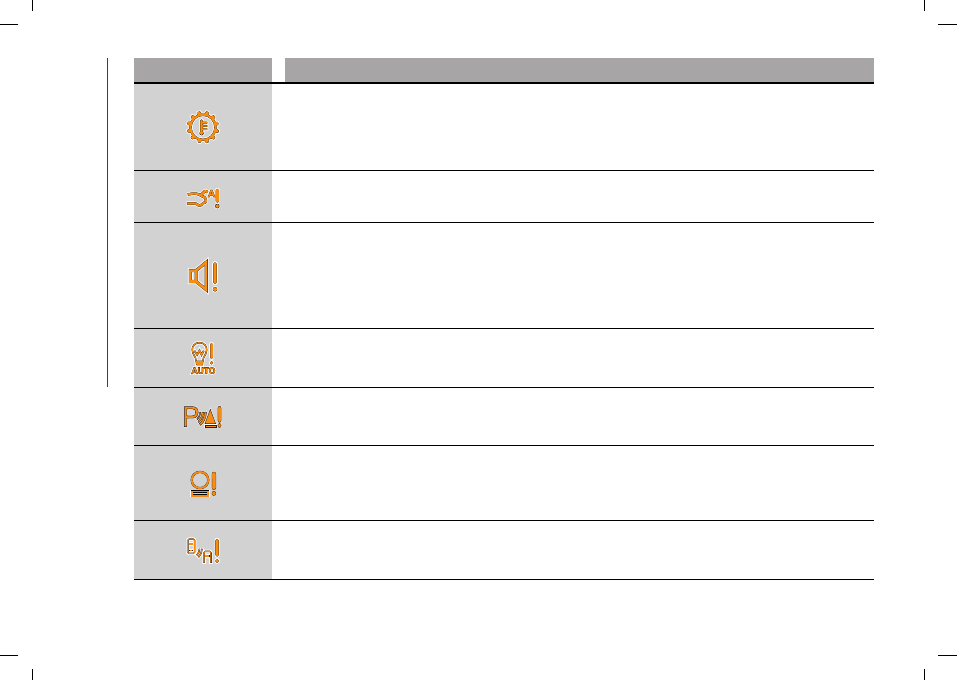

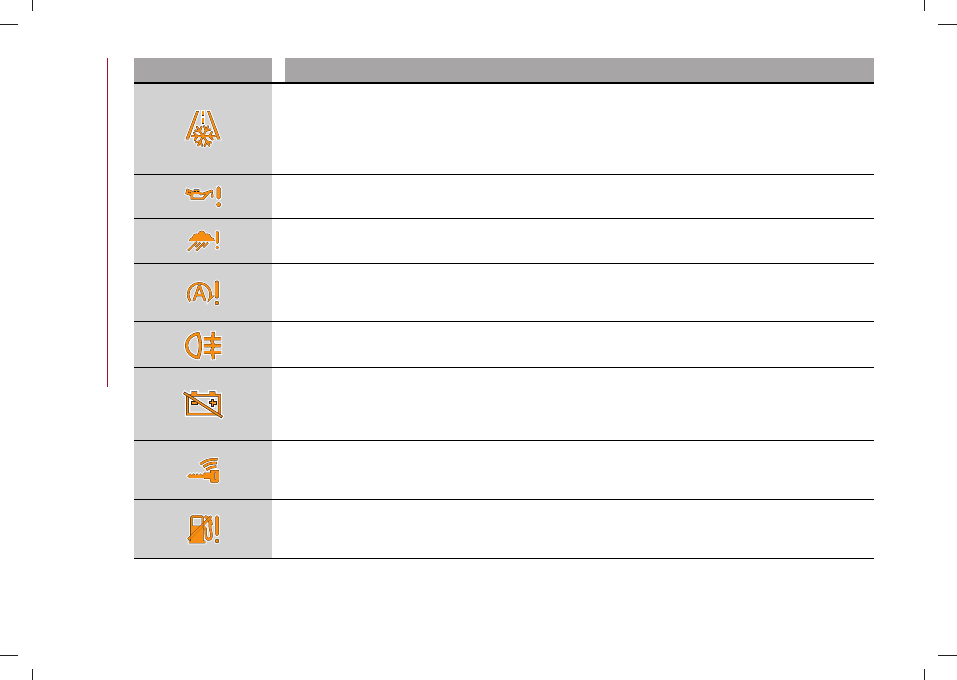

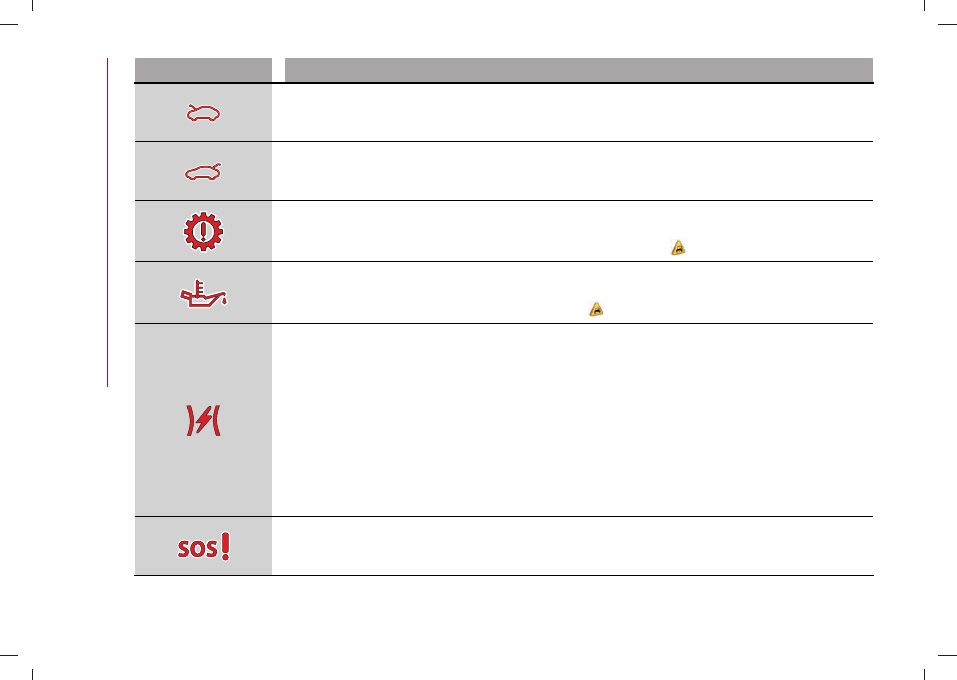

Symbol

What it means

LOW ENGINE OIL PRESSURE
The symbol switches on in the case of insufficient engine oil pressure.

23)

If it turns on temporarily or flashes (for about 5 seconds), check the oil level by following the corresponding procedure

(see the description in the "Checking levels" chapter in the "Maintenance and care" section) and top up to the correct

level if necessary.
If the symbol turns on continuously, contact an Alfa Romeo Dealership to have the system checked.
WARNING IF THE SYMBOL TURNS ON CONTINUOUSLY: Do not use the car until the failure has been solved. When

the symbol turns on, it does not indicate the amount of oil in the engine: the oil level can be checked on the display

upon entering the vehicle and also by activating the "Oil level" function on the Alfa Connect system.

AIRBAG FAILURE
The symbol switches on if there is an airbag system failure. Contact an Alfa Romeo Dealership as soon as possible.

SEAT BELTS REMINDER
The symbol switches on fixed if the car is stationary and the driver, front passenger or rear passage side seat belt is

not fastened with an occupant in the seat. The symbol flashes and an acoustic warning will sound if the car is in motion

and the driver, front passenger or rear passage side seat belt is not correctly fastened with an occupant in the seat. In

this case, fasten the seat belt.

ENGINE COOLANT TEMPERATURE TOO HIGH
The symbol lights up when the engine has overheated.

In normal driving conditions

: stop the car, switch off the engine and check that the water level in the reservoir is not

below the MIN mark. In this case, wait for the engine to cool down, then slowly and carefully open the cap, top up with

coolant and check that the level is between the MIN and MAX marks on the reservoir itself. Also check visually for any

fluid leaks. Contact an Alfa Romeo Dealership if the symbol comes on when the engine is started again.

If the vehicle is used under demanding conditions

: (e.g. in high-performance driving): slow down and, if the symbol

stays on, stop the vehicle. Wait for 2 or 3 minutes with the engine running and slightly accelerated to further favour the

coolant circulation. Then stop the engine. Check that the coolant level is correct as described above.
WARNING Over demanding routes, it is advisable to keep the engine on and slightly accelerated for a few minutes

before switching it off.

CarManuals2.com

 KNOWING THE INSTRUMENT PANEL

84

Symbol

What it means

BONNET NOT PROPERLY SHUT
The symbol switches on when the engine bonnet is not properly shut. A pop-up screen appears instead of the

tachometer dial, highlighting the engine bonnet in red. Close the bonnet properly.

TAILGATE NOT PROPERLY SHUT
The symbol switches on when the liftgate is not properly shut. A pop-up screen appears highlighting the tailgate in red

instead of the tachometer dial. A buzzer is heard with open liftgate and car moving. Close the liftgate correctly.

AUTOMATIC TRANSMISSION FAILURE / DUAL CLUTCH AUTOMATIC TRANSMISSION FAILURE
The symbol switches on together with a buzzer, to indicate that the automatic transmission or dual-clutch automatic
transmission is faulty. Contact an Alfa Romeo Dealership as soon as possible.

24) 25)

EXCESSIVE ENGINE OIL TEMPERATURE
(where provided)
The symbol switches on in the case of engine oil overheating.

26)

ELECTRONIC THROTTLE CONTROL (ETC) FAILURE
(where provided)
This symbol will light up to indicate a problem with the Electronic Throttle Control (ETC) system. If the fault is

detected with the car running, the symbol will light up with a fixed or blinking light according to the fault type. Move

the ignition device to ENGINE with the car completely stopped and the automatic transmission/electrified double

clutch automatic transmission to P (park). The symbol must go off. If the symbol stays on with the car running, it can

still be driven but you must seek the assistance of an Alfa Romeo Dealership as soon as possible.
NOTE This symbol may turn on if the accelerator and brake pedals are pressed at the same time.
Intervene promptly if the symbol keeps blinking with the engine running. You may experience reduced engine

performance, an elevated/rough idle, or engine stall and your car may require towing. The symbol appears when the

ignition device is turned to the ENGINE position and stays on for a few instance during the bulb test. If it does not

come on when starting contact an Alfa Romeo Dealership.

EU eCall SYSTEM FAILURE
The symbol appears to indicate a failure in the EU eCall system. In this case, an emergency call cannot be made. Go to

an Alfa Romeo Dealership as soon as possible to have the system repaired.

CarManuals2.com

85

Symbol

What it means

EU eCall SYSTEM BATTERY FAILURE
The symbol appears to indicate a failure of the EU eCall system battery or a low battery charge. In the first case, it

will not be possible to make the emergency call, while in the second case the data transmission or connection may be

subject to limitations. Go to an Alfa Romeo Dealership as soon as possible to have the system repaired.

FAILURE IN THE VEHICLE CHARGING PROCEDURE (Q4 Plug-In Hybrid versions)
This symbol is shown on the instrument panel display, with the car stationary, in the case of a fault during the high-

voltage battery charging procedure.

failures in the charging system

, in this case disconnect and then reconnect the charging cable to the charging port

or, in the case of charging at a public charging station, look for another power supply point. If the symbol remains on,

contact an Alfa Romeo Dealership.

failures in the public charging station

(because it may have been deactivated or there may be a failure). We

recommend that you try charging your car at another public charging station. If the symbol remains on, contact an Alfa

Romeo Dealership.

TRACTION BATTERY FAILURE (Q4 Plug-In Hybrid and Mild Hybrid versions)
The symbol appears on the instrument panel display in case of traction battery failure. Contact an Alfa Romeo

Dealership.

HYBRID-ELECTRIC SYSTEM FAILURE (Q4 Plug-In Hybrid and Mild Hybrid versions)
The symbol appears on instrument panel display in case of hybrid-electric system failure. Contact an Alfa Romeo

Dealership.

PERFORMANCE LIMITATION (Q4 Plug-In Hybrid versions)
The symbol is shown on the instrument panel display if the acceleration of the car is limited due to a reduction in

performance of the heat engine (e.g. including if there is no fuel) or the electric motor. If the symbol remains on while

driving, contact an Alfa Romeo Dealership.
NOTE If the automatic dual-zone climate control system is turned on, it will be turned off automatically.

DAA (Driver Attention Assist) SYSTEM ACTIVATION (where provided)
The symbol appears on the instrument panel display when the DAA (Driver Attention Assist) system is activated. The

system, after estimating the driver’s drowsiness level, through specific events, suggests to the driver to stop for a

break, because continuing driving is risky. Stop to pause while driving, pulling the car over in safe conditions.

CarManuals2.com

 KNOWING THE INSTRUMENT PANEL

86

IMPORTANT

23)

If the symbol

switches on while driving, stop the engine immediately and contact an Alfa Romeo Dealership.

24)

Driving the vehicle with this symbol on may severely damage the transmission, with resulting breakage. The oil may also overheat: contact with

hot engine or with exhaust components at high temperature could cause fires.

25)

During normal use, the symbol may turn on when the gear lever is in an intermediate position between two gears for around ten seconds: the

symbol will turn off when the gear lever is engaged correctly. If the problem persists, contact an Alfa Romeo Dealership.

26)

If the symbol switches on while driving, stop the car and the engine immediately.

CarManuals2.com

87

Amber symbols

Symbol

What it means

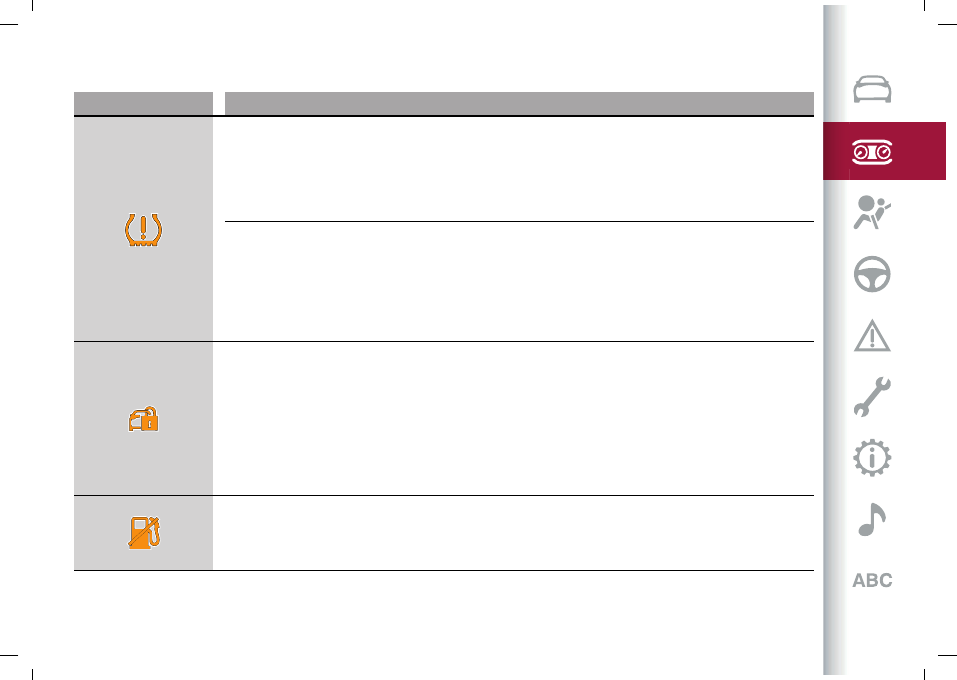

iTPMS (indirect Tyre Pressure Monitoring System)

iTPMS failure

If an iTPMS failure is detected, the warning light flashes for about 75 seconds and then stays on fixed.
WARNING Do not continue driving with one or more flat tyres as handling may be compromised. Stop the car, avoiding

sharp braking and steering. Repair immediately using the Fix&Go and contact the dedicated Alfa Romeo Dealership as

soon as possible.

Low tyre pressure

The warning light switches on to indicate that the tyre pressure is lower than the recommended value and/or that slow

pressure loss is occurring. In these cases, optimal tyre duration and fuel consumption may not be guaranteed.
Should two or more tyres be in the condition mentioned above, the display will show the indications corresponding to

each tyre in sequence.
In the event of insufficient pressure, it is COMPULSORY to refer to the "Wheels" chapter in the "Technical Data"

section and to adhere strictly to this.

ENGINE IMMOBILIZER FAILURE / BREAK-IN ATTEMPT

Engine Immobilizer system failure

The symbol appears to report a failure of the Engine Immobilizer system. Contact an Alfa Romeo Dealership as soon as

possible.

Break-in attempt

The symbol switches on when the ignition device is moved to the ENGINE position to report about a possible break-in

attempt detected by the alarm system.

Electronic key not recognised

The symbol switches on when the engine is started and the electronic key is not recognised by the system.

FUEL CUT-OFF SYSTEM OPERATION
The symbol switches on in the event of fuel cut-off system intervention.
For the fuel cut-off system re-activation procedure, see the "Fuel cut-off system" chapter in the "In an emergency"

section. If it is not possible to restore the fuel supply, contact an Alfa Romeo Dealership.

CarManuals2.com

 KNOWING THE INSTRUMENT PANEL

88

Symbol

What it means

POSSIBLE ICE ON ROAD
(where provided)
The symbol turns on when the external temperature falls to or below 3°C.
WARNING In the event of external temperature sensor failure, the digits that indicate the value are replaced by

dashes.

ENGINE OIL PRESSURE SENSOR FAILURE
The symbol switches on in the event of engine oil level sensor failure.

RAIN SENSOR FAILURE
The symbol switches on in the case of failure of the rain sensor. Contact an Alfa Romeo Dealership as soon as possible.

START&STOP SYSTEM FAILURE (for versions/markets where provided)
The symbol switches on to report a failure of the Start&Stop system. Contact an Alfa Romeo Dealership as soon as

possible.

REAR FOG LIGHT
The warning light switches on when the fog light is activated.

HYBRID SYSTEM TRACTION BATTERY DISCONNECTION (Mild Hybrid and Q4 Plug-in Hybrid versions)
This symbol appears to indicate a hybrid system failure due to the disconnection of the traction battery. In this case,

the state of charge of the traction battery is not shown on the display. Contact an Alfa Romeo Dealership as soon as

possible.

KEYLESS START SYSTEM FAILURE
The symbol switches on in the event of Keyless Start system failure. Contact an Alfa Romeo Dealership as soon as

possible.

FUEL CUT-OFF SYSTEM FAILURE
The symbol switches on in the event of fuel cut-off system failure. Contact an Alfa Romeo Dealership as soon as

possible.

CarManuals2.com

89

Symbol

What it means

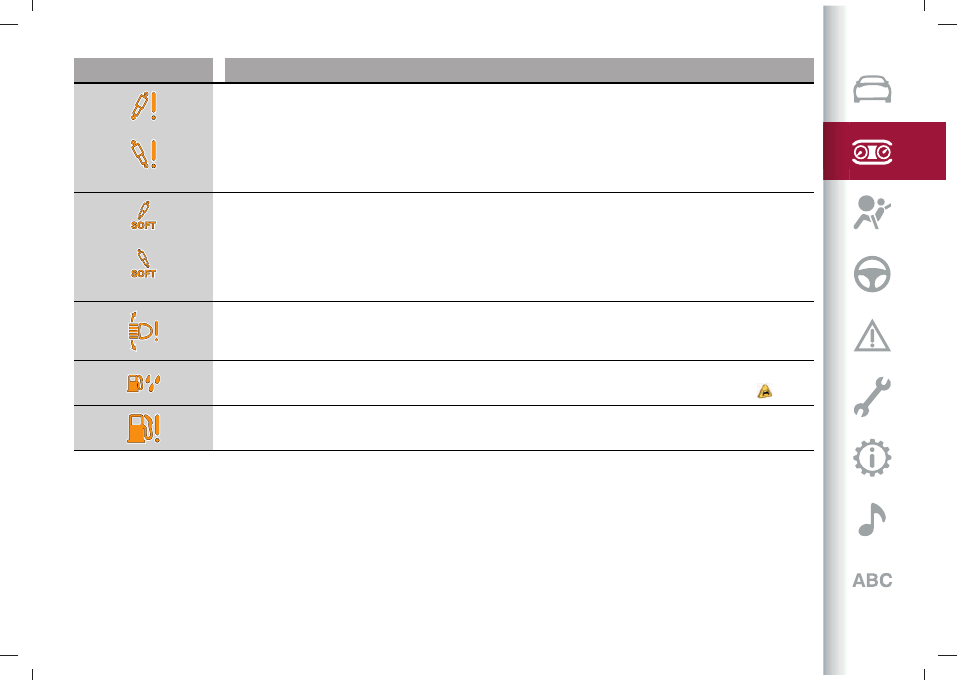

FUEL RESERVE / LIMITED RANGE
The symbol switches on when about few litres of fuel are left in the tank.

27)

GLOW PLUG PREHEATING FAILURE (Diesel versions)
If the symbol flashes, it indicates a fault in the glow plug preheating system.
In this case, contact an Alfa Romeo Dealership as soon as possible.

GLOW PLUG PREHEATING (Diesel versions)
This symbol comes on when the ignition device is brought to ENGINE and will switch off when the glow plugs have

reached the preset temperature. The engine can be started as soon as the symbol turns off.
WARNING In mild or high temperature conditions, the warning light comes on for a very short time only.

SPEED LIMITER FAILURE
The symbol switches on in the case of failure of the Speed Limiter device. Contact an Alfa Romeo Dealership as soon

as possible to have the failure eliminated.

LANE KEEPING ASSIST SYSTEM FAILURE
The symbol comes on in the event of a failure in the Lane Keeping Assist system. Contact an Alfa Romeo Dealership as

soon as possible.

AFS FAILURE
If this symbol appears, it indicates the unavailability of the automatic directional headlight system. In the event of a

temporary condition that inhibits the use of the camera (such as grazing sun, rain, fog, snow or dirt) the symbol will

light up temporarily until conditions are restored and the system can be used again.
If these conditions do not occur and the symbol remains permanently lit, contact the Alfa Romeo Dealership as soon as

possible.

AUTOMATIC MAIN BEAM HEADLIGHTS FAILURE
The symbol switches on to report a failure of the automatic main beam headlights. Contact an Alfa Romeo Dealership

as soon as possible to have the failure eliminated.

CarManuals2.com

 KNOWING THE INSTRUMENT PANEL

90

Symbol

What it means

AUTOMATIC TRANSMISSION FLUID OVERHEATING / DUAL CLUTCH AUTOMATIC TRANSMISSION FLUID

OVERHEATING
The symbol switches on in the case of transmission overheating, after a particularly demanding use. In this case an

engine performance limitation is carried out. With engine off or at idle speed with the transmission in N or P, wait until

the symbol switches off.

TAILGATE ELECTRIC OPENING/CLOSING FAILURE
The symbol turns on to indicate a tailgate electric opening/closing system failure.

SOUND SYSTEM FAILURE
The symbol switches on to report a failure of the sound system.

Versions equipped with Park Sensors system

: If the display shows the message that the sound system is not

available, the Park Sensors system system will be deactivated. If attempting to reactivate the system, the display will

show a dedicated failure message.
Contact an Alfa Romeo Dealership as soon as possible.

DUSK SENSOR FAILURE
The symbol switches on in the case of failure of the dusk sensor. Contact an Alfa Romeo Dealership as soon as

possible.

SIDE DISTANCE WARNING SYSTEM FAILURE
The symbol comes on in the event of Side Distance Warning system failure. Contact an Alfa Romeo Dealership as soon

as possible.

TSR SYSTEM FAILURE
(where provided)
The symbol appears to indicate a Traffic Sign Recognition (TSR) system failure. If the fault persists, contact an Alfa

Romeo Dealership.

BLIND SPOT MONITORING FAILURE
The symbol comes on in the event of a Blind Spot Monitoring system failure. Contact an Alfa Romeo Dealership as

soon as possible.

CarManuals2.com

91

Symbol

What it means

(left-hand drive versions)

(right-hand drive versions)

SHOCK ABSORBERS FAILURE (ADC)
(where provided)
The symbol appears while driving to indicate a failure in the suspension system. Contact an Alfa Romeo Dealership to

have the system checked.

(left-hand drive versions)

(right-hand drive versions)

SOFT SUSPENSION CALIBRATION
(where provided)
The system appears when the most comfortable suspension setting is activated.

DIPPED BEAM AUTOMATIC ADJUSTMENT FAILURE
The symbol lights up in the case of failure of the automatic dipped beam headlights alignment. Contact an Alfa Romeo

Dealership as soon as possible.

WATER IN DIESEL FILTER (Diesel versions)
The symbol switches on constantly while driving, along to indicate the presence of water in the diesel filter.

28)

LPG FUEL LEVEL SENSOR FAILURE (where provided)
The symbol switches on in the event of fuel level sensor failure. Contact an Alfa Romeo Dealership as soon as possible.

CarManuals2.com

 KNOWING THE INSTRUMENT PANEL

92

Symbol

What it means

DEGRADED ENGINE OIL (where provided)

Diesel versions

: the symbol is displayed for 3 minute cycles and intervals of 5 seconds until the oil is changed. The

symbol is displayed until the problem is solved.

Petrol versions

: the symbol switches on and then is not displayed when the display cycle is completed.

WARNING After the first indication, each time the engine is started the symbol will continue to switch on as described

above until the oil is changed.
If the symbol flashes, this does not mean that there is a fault on the car, rather it simply reports that it is now

necessary to change the oil as a result of regular use of the car. The deterioration of engine oil is accelerated by using

the car for short drives, preventing the engine from reaching operating temperature. For Q4 Plug-in Hybrid versions,

once a month, especially in cold environment conditions, it is recommended to use the heat engine for up to 60 minutes

at a time (activating “Dynamic” mode or with automatic transmission in “Autostick” mode). Contact an Alfa Romeo

Dealership as soon as possible.

29) 27)

FUEL FILLER CAP NOT CLOSED (where provided)
The symbol lights up if the fuel tank cap is open or not properly closed. Tighten the cap properly.

EXTERNAL LIGHTS FAILURE
The symbol turns on to indicate a failure in the following lights: daytime running lights (DRLs); parking lights; trailer

direction indicators (where provided); trailer lights (where provided); side lights; direction indicators; rear fog light;

reversing light; brake lights; number plate lights; LED dipped beam headlights (where provided).
The anomaly may be caused by a blown bulb, a blown protection fuse or an interruption of the electrical connection. In

this case, contact an Alfa Romeo Dealership.

ADAPTIVE CRUISE CONTROL (ACC) FAILURE (where provided)
The symbol lights up to indicate an Adaptive Cruise Control (ACC) failure. In this case, contact an Alfa Romeo

Dealership as soon as possible.

CarManuals2.com

93

Symbol

What it means

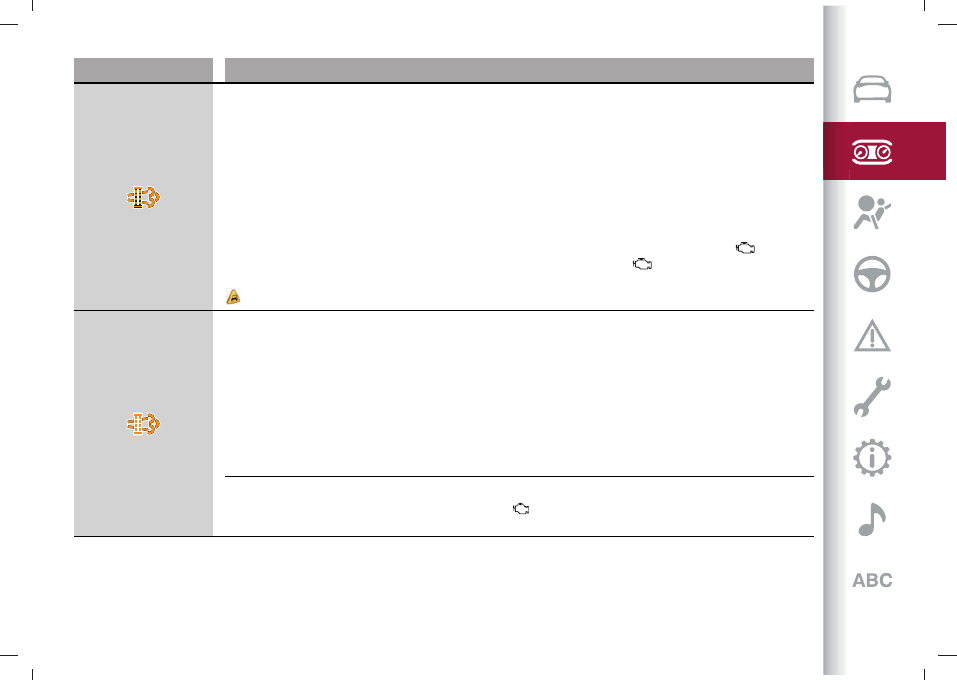

DPF CLEANING (particulate trap) in progress (diesel versions with DPF only)
The symbol switches on constantly to indicate that the DPF system needs to eliminate the trapped pollutants

(particulate) through the regeneration process.

The symbol stays off during the entire DPF regeneration and lights

up only when driving conditions require the driver to be notified.

The symbol does not switch on during every DPF regeneration, but only when driving conditions require that the driver

is notified. To turn off the symbol, keep the car in motion until the regeneration process is over. The process normally

takes about 15 minutes. Optimal conditions for completing the process are achieved by travelling at 60 km/h with

engine speed above 2000 rpm.
When this symbol switches on, it does not indicate a defect of the car and thus it should not be taken to a workshop.

WARNING Failure to follow the procedure provided for when the symbol comes on for a mileage equal to or greater
than 30 km or for a cumulative time equal to or greater than 2 hours, may result in the warning light

coming on

with consequent damage to the DPF device. Remember that if the warning light

is on, it is necessary to go to

the Alfa Romeo Dealership to restore the correct function of the DPF.

30)

GPF CLEANING (particulate filter) in progress (petrol versions only with GPF) (where provided)
The symbol switches on constantly to indicate that the GPF system needs to eliminate the trapped pollutants

(particulate) through the regeneration process.
The symbol does not light up on during every GPF regeneration, but only when driving conditions require that the driver

is notified.
To turn off the symbol, keep the car in motion until the regeneration process is over. The optimal conditions for

completing the process are achieved by varying the speed of the car (press and release the accelerator pedal).
Maintain a speed above 60 km/h, on a highway route, with engine speed above 2000 rpm until the symbol on the

display turns off.
When this symbol switches on, it does not indicate a fault and thus it should not be taken to a workshop.

GPF FAILURE (particulate filter) (petrol versions only with GPF) (where provided)
The symbol lights up fixed together with the warning light

in case of failure to the GPF (Gasoline Particulate Filter).

In this case, contact an Alfa Romeo Dealership as soon as possible.

CarManuals2.com

 KNOWING THE INSTRUMENT PANEL

94

Symbol

What it means

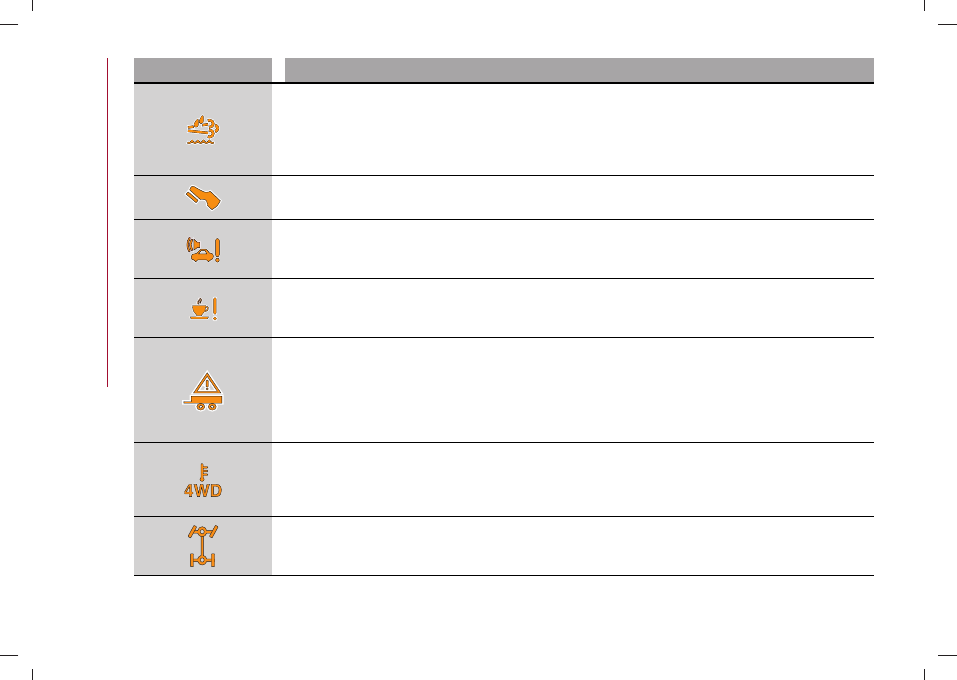

LOW AdBlue® (UREA) DIESEL EMISSIONS ADDITIVE LEVEL WARNING (diesel versions only)
The AdBlue® Diesel Emissions Additive (UREA) low level symbol turns on when the AdBlue® (UREA) level is low. Top
up the UREA tank as soon as possible with at least 5 litres of AdBlue ® (UREA).
If the top-up was done with a range of 0 km left in the AdBlue® (UREA) tank, you may need to wait 2 minutes before

starting the engine.

BRAKE PEDAL
This symbol turns on to indicate that the brake pedal must be pressed to enable reversing.

PEDESTRIAN ACOUSTIC WARNING SYSTEM FAILURE (Q4 Plug-In Hybrid and Mild Hybrid versions)
This symbol is shown on the instrument panel display in case of failure of the pedestrian acoustic warning. Contact an

Alfa Romeo Dealership.

DAA (Driver Attention Assist) SYSTEM FAILURE (where provided)
The symbol appears on the instrument panel display in case of a failure of the DAA (Driver Attention Assist) system.

Contact an Alfa Romeo Dealership.

TOW HOOK FAILURE
The symbol switches on to report a failure of the tow hook. Contact an Alfa Romeo Dealership as soon as possible.
TRAILER LIGHT CONTROL UNIT FAILURE
The symbol turns on to warn of failure in the control unit that manages the trailer lights. Check that the trailer light

is correctly connected to the socket. If the fault persists the next time you start the engine, contact the Alfa Romeo

Dealership as soon as possible to have the system checked.

ALL-WHEEL DRIVE OVERHEATING (where provided)
The symbol switches on in the case of overheating of the all-wheel drive system. In these conditions, it is possible

select the required driving mode but the mode will be engaged only when the system cools down. The symbol will stay

on for as long as the overheating condition persists.

ALL-WHEEL DRIVE FAILURE (where provided)
The symbol switches on in the case of failure of the all-wheel drive system. Contact an Alfa Romeo Dealership as soon

as possible.

CarManuals2.com

95

IMPORTANT

27)

If the symbol flashes when driving, contact an Alfa Romeo Dealership.

28)

The presence of water in the fuel system circuit may cause severe damage to the injection system and irregular engine operation. If the

symbol comes on contact an Alfa Romeo Dealership as soon as possible to bleed the system. If the above indications come on immediately after

refuelling, water has probably been introduced into the tank: turn the engine off immediately and contact an Alfa Romeo Dealership.

29)

Deteriorated engine oil should be replaced as soon as possible after the

symbol is switched on, and never more than 500 km after it first

switches on. Failure to observe the above may result in severe damage to the engine and invalidate the warranty.

Remember that when this

symbol comes on, it does not mean that the level of engine oil is low, so if it flashes it does not mean that you need to top up the engine oil

.

30)

Vehicle travel speed should always be adapted to the traffic and weather conditions, and must always comply with traffic regulations. The

engine can be stopped even if the DPF warning light is on: however, repeated interruptions of the regeneration process could cause premature

deterioration of the engine oil. For this reason it is always advisable to wait for the symbol to go off before turning off the engine, following the

instructions above. Do not complete the DPF regeneration process when the vehicle is stopped.

CarManuals2.com

 KNOWING THE INSTRUMENT PANEL

96

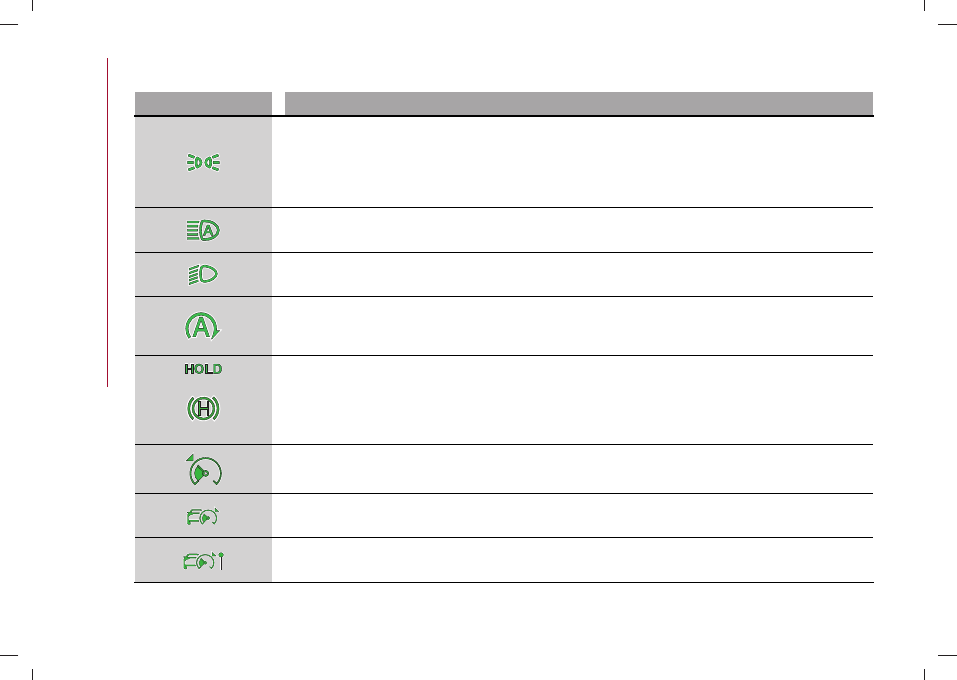

Green Symbols

Symbol

What it means

SIDE LIGHTS
The symbol comes on when the side lights are activated.

"Headlight off delay" function

This function allows the headlights to remain on for 30, 60 or 90 seconds after the ignition device was placed in STOP

position ("Follow me").

AUTOMATIC MAIN BEAM HEADLIGHTS
The symbol comes on when the automatic main beam headlights are activated.

DIPPED BEAM HEADLIGHTS
The warning light switches on when the main beam headlights are turned on.

START&STOP SYSTEM ACTIVATION (for versions/markets, where provided)
The symbol appears in the case of Start&Stop (engine switching off) intervention. Restarting the engine, the warning

light switches off.

or

(depending on the market)

HOLD 'N' GO (where provided)
The symbol lights up when the "Hold 'n' go" function is active (automatic parking brake engaged).

CRUISE CONTROL SYSTEM
The symbol comes on when the Cruise Control system is activated.

ADAPTIVE CRUISE CONTROL SYSTEM
The symbol comes on when the Adaptive Cruise Control system is activated.

INTELLIGENT ADAPTIVE CRUISE CONTROL SYSTEM
The symbol comes on when the Intelligent Adaptive Cruise Control system is activated.

CarManuals2.com

97

Symbol

What it means

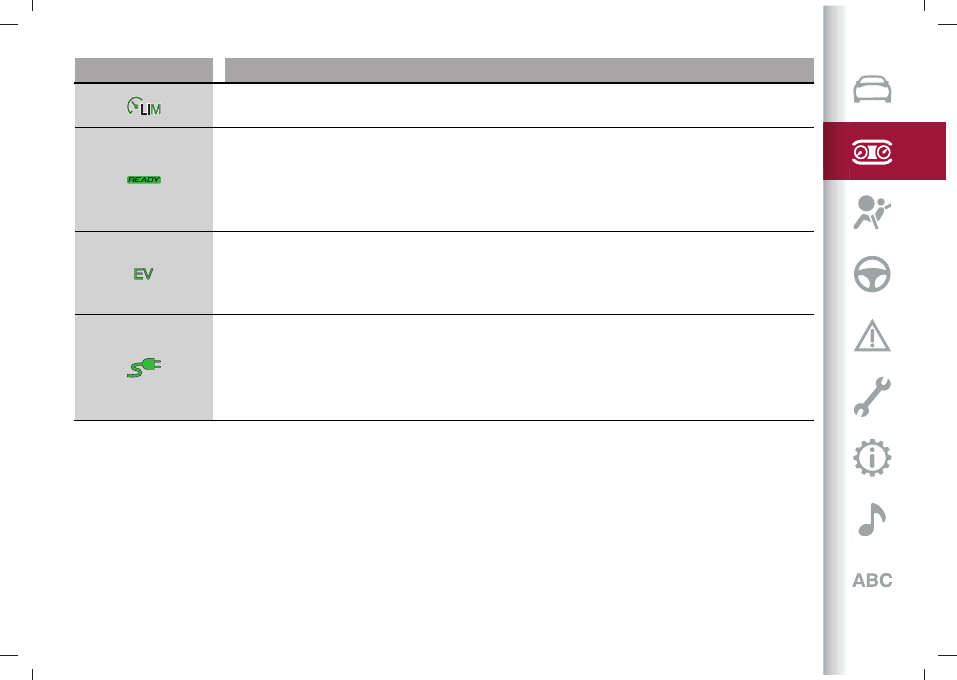

SPEED LIMITER SYSTEM
The symbol comes activating the Speed Limiter system.

VEHICLE READY TO START (Q4 Plug-In Hybrid and Mild Hybrid versions)
This symbol displayed indicates to the driver that the car is ready to move. As long as the "READY" symbol is displayed

on the instrument panel, it does not matter whether the heat engine is started or not, the vehicle's propulsion is always

available.
When the car is moving, the warning light turns off: if the symbol remains on with steady light or flashing light, contact

an Alfa Romeo Dealership.

ELECTRIC DRIVING MODE (Q4 Plug-In Hybrid and Mild Hybrid versions)
The symbol appears in the case of electric driving.

CHARGING CABLE CONNECTED (Q4 Plug-in Hybrid version)
When this symbol is displayed it indicates that the cable is connected to the charging port of the car, not that the

charging procedure is in progress.
The symbol can also be displayed together with dedicated messages. These messages will indicate the connection

status to the charging port until fully charged.
WARNING Starting the engine is not allowed until the charging procedure is complete.

CarManuals2.com

 KNOWING THE INSTRUMENT PANEL

98

Blue symbols

Symbol

What it means

MAIN BEAM HEADLIGHTS ACTIVE
The symbol lights up when the automatic dipped beam is on but not switched on.

AUTOMATIC MAIN BEAM HEADLIGHTS ACTIVE
The symbol lights up when the automatic main beam headlights is on but not switched on.

CarManuals2.com

99

White symbols

Symbol

What it means

AUTOMATIC DIPPED BEAM HEADLIGHTS LIT
The symbol lights up when the main beam headlights are activated.

AUTOMATIC DIM HIGH BEAMS LIT
The symbol lights up when automatic main beam headlights area on.

SPEED LIMITER OFF
The symbol appears when the Speed Limiter is deactivated.

CRUISE CONTROL READY
The symbol appears when the Cruise Control is ready.

ADAPTIVE CRUISE CONTROL READY
The symbol appears when the Adaptive Cruise Control is ready.

INTELLIGENT ADAPTIVE CRUISE CONTROL READY
The symbol appears when the Intelligent Adaptive Cruise Control is ready.

SPLIT REAR SEAT
(where provided)
The symbol lights up fixed to indicate that there is no passenger on the rear seats.
Refer to the “Occupant Restraints Systems” chapter in the “Safety” section for more information.

/

or

/

GEAR SHIFT INDICATOR (where provided)
The symbols appear on the display to alert the driver to the need to shift up or down. The single arrow indicates to

shift up or down one gear, the double arrow to shift two gears.

CarManuals2.com

 KNOWING THE INSTRUMENT PANEL

100

Symbol

What it means

SAILING MODE (where provided)
The symbol comes on when the car is running with the "Idle Coasting" function in "Sailing" mode.

"e-Save" MODE (Q4 Plug-In Hybrid versions)
The message is shown on the instrument panel display when the "e-Save" mode is activated by means of the Alfa

Connect System.
Activating this mode makes it possible to retain the state of charge of the high-voltage battery or actively recharge it

via the heat engine (according to the setting on the Alfa Connect system display) for later use.

CarManuals2.com

101

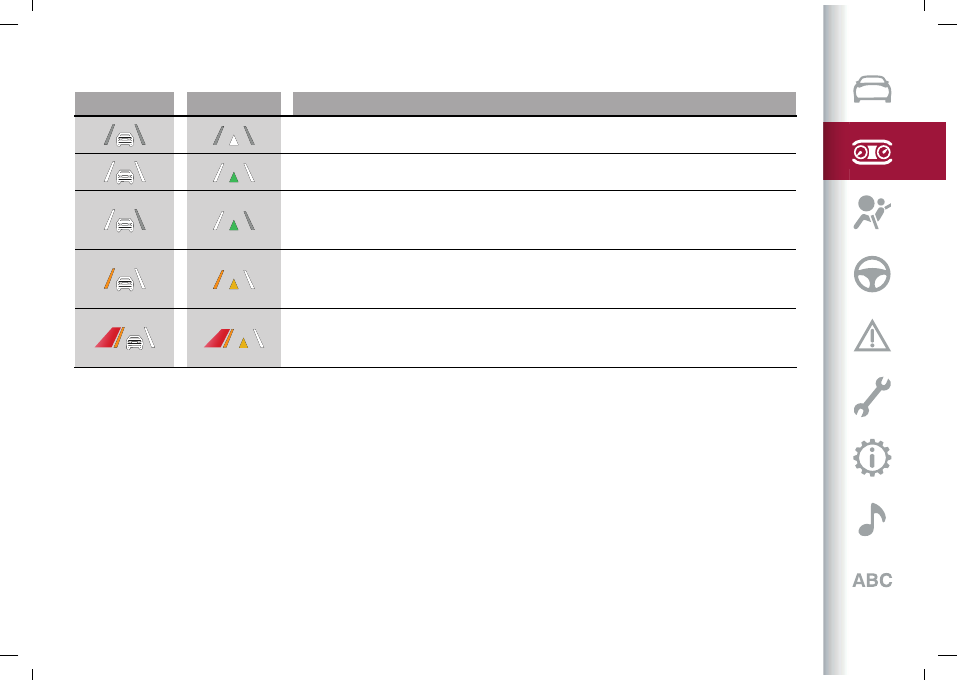

Lane Keeping Assist symbols

Display

Miniature

Description

Sensor not available

Active system

System on, only one side line detected.
NOTE The symbol shown is an example: the detected sideline is displayed in white and the

undetected one in grey.

Car close to the side line.
NOTE The symbol shown is an example: the side line the car is approaching is displayed in yellow and

the other in white (if detected) or grey (if not detected).

The car crossed the side line.
NOTE The symbol shown is an example: the side line the car is approaching is displayed in flashing

yellow and red and the other in white (if detected) or grey (if not detected).

CarManuals2.com

 KNOWING THE INSTRUMENT PANEL

102

Messages on the display

Message on display

What to do

INDICATION OF AdBlue® (UREA) DIESEL EMISSIONS

ADDITIVE LOW LEVEL
When a low level of AdBlue® (UREA) is detected, the

symbol

appears on the instrument panel display,

together with a message indicating the need to top
up the AdBlue® (UREA). The symbol

stays on until

the tank is topped up with at least 5 litres of AdBlue®

(UREA).
If you do not top up, a dedicated message will appear

on the instrument panel display whenever a certain

threshold is reached until it will no longer be possible to

start the engine.
A message will appear permanently on the instrument

panel and an acoustic tone will be heard when there is

about 200 km of range left.
A dedicated message will appear on the instrument panel

display when there are 0 km of range left. It will no

longer be possible to restart the engine after it has been

stopped. It will be possible to restart the engine after
pouring at least 5 litres of AdBlue® (UREA) in the tank.

Top up the AdBlue® (UREA) tank as soon as possible with

at least 5 litres. If the top-up was done with a range of
0 km left in the AdBlue® (UREA) tank, you may need to

wait 2 minutes before starting the engine.

31)

BLIND-SPOT ALERT

BLIND SPOT MONITORING SYSTEM
(where provided)

Sensor block

A message will appear on the display if the Blind Spot

Monitoring system sensor is blocked. In this case, the

LEDs on the door mirrors are switched on continuously.

Free the bumper of any obstacles or clean it.

CarManuals2.com

103

Message on display

What to do

BLIND-SPOT ALERT

System not available

A message will appear on the display if the Blind Spot

Monitoring system sensor is not available. In this

case, the LEDs on the door mirrors are switched on

continuously.

The failed operation of the system might be due to the

insufficient voltage from the conventional battery or other

failures on the electrical system. Contact an Alfa Romeo

Dealership as soon as possible to have the electrical

system checked.

Blind Spot Monitoring system failure

A message will appear on the display if the Blind Spot

Monitoring system sensor is faulty. In this case, the LEDs

on the door mirrors are switched off. An acoustic warning

is also emitted.

Contact an Alfa Romeo Dealership as soon as possible to

have the failure eliminated.

PARK SENSORS

PARK SENSORS SYSTEM (where provided)

Sensor lock

The message is displayed in the case of a failure of the

Park Sensors system sensors.

Free the bumpers of any obstacles, cleaning them.

System not available

A dedicated message is shown on the display if the Park

Sensors system is not available.

The failed operation of the system might be due to the

insufficient voltage from the conventional battery or other

failures on the electrical system. Contact an Alfa Romeo

Dealership as soon as possible to have the electrical

system checked.

ACTIVE PARKASSIST

ACTIVE PARKASSIST SYSTEM (where provided)

Sensor lock

The message is displayed in the case of a failure of the

Active ParkAssist system sensors.

Free the bumpers of any obstacles, cleaning them.

System not available

A dedicated message is displayed if the Active

ParkAssist system is not available. An acoustic warning

is also emitted.

The failed operation of the system might be due to the

insufficient voltage from the conventional battery or other

failures on the electrical system. Contact an Alfa Romeo

Dealership as soon as possible to have the electrical

system checked.

CarManuals2.com

 KNOWING THE INSTRUMENT PANEL

104

Message on display

What to do

SIDE DISTANCE WARNING

SIDE DISTANCE WARNING (where provided)

Sensor lock

The message is displayed in the case of a failure of the

Side Distance Warning system sensors.

Free the bumpers of any obstacles, cleaning them.

System not available

A dedicated message is displayed if the Side Distance

Warning system is not available.

The failed operation of the system might be due to the

insufficient voltage from the conventional battery or

temporary interference other failures on the electrical

system. If the message persists, contact an Alfa Romeo

Dealership as soon as possible to have the electrical

system checked.

LANE KEEPING ASSIST

LANE KEEPING ASSIST SYSTEM (where provided)

Camera obstructed

A dedicated message is shown on the display in the case

of dirt on the windscreen, which may adversely affect

correct operation of the camera.

Clean the windscreen using a soft clean cloth, taking care

not to scratch it. Should the failure persist, contact an Alfa

Romeo Dealership as soon as possible.

System not available

A dedicated message is shown on the display if the Lane

Keeping Assist system is not available.

Contact an Alfa Romeo Dealership as soon as possible.

AUTONOMOUS

EMERGENCY BRAKE

AUTONOMOUS EMERGENCY BRAKE SYSTEM
The display shows the braking request message if the

Autonomous Emergency Brake system activates.

Increase your distance from the vehicle ahead to prevent

the risk of collisions.

CarManuals2.com

















Content      ..     1      2      3      4      ..
