41

INSTRUMENT PANEL AND CONTROL

BUTTON GRAPHIC BRIGHTNESS

ADJUSTMENT

With side lights or headlights on, operate
on the ring fig. 49 upwards to increase

light brightness of the instrument

panel and of the control button

graphics, or turn the ring downwards to

decrease it. The control is pulsed so

that for every action the level intensity

increases/decreases, up to a maximum

of seven.

49

9650157

WINDSCREEN WIPER

The right stalk controls screen

wiper/washer operation.
This operates only with the ignition

device at ENGINE.

WINDSCREEN WIPER/ WASHER

Operation

10) 11)

The ring fig. 50 can be set to the

following positions:

windscreen wiper off.

rotating the ring nut to the

first position activates the

first sensitivity level of the

rain sensor.

rotating the ring nut to the

second position activates the

second sensitivity level of the

rain sensor.

rotating the ring nut to the

third position activates the

first continuous speed level

of the windscreen wipers in

manual mode.

rotating the ring nut to the

fourth position activates the

second continuous speed

level of the windscreen

wipers in manual mode.

50

9650122

Move the stalk upwards (unstable

position) to activate the MIST function:

operation is limited to the time for

which the stalk is held in this position.

When released, the stalk will return to

its default position and the windscreen

wiper will be automatically stopped.

This function is useful to remove small

deposits of dust from the windscreen, or

morning dew.
WARNING This function does not

activate the windscreen washer;

windscreen washer fluid will not

therefore be sprayed onto the

windscreen. To spray windscreen washer

fluid onto the windscreen, the washing

function must be used.
With ring in position

or , the

windscreen wiper will automatically

adapt its operating speed to the speed of

the car.

CarManuals2.com

 KNOWING YOUR VEHICLE

42

Rain sensor sensitivity level

Positions

and

correspond also to

sensitivity level 1 and 2 of the rain sensor.

Smart washing function

Pull the stalk towards the steering

wheel (unstable position) to operate the

windscreen washer.
Keep the stalk pulled to activate

both the windscreen washer jet

and the windscreen wiper with a

single movement; the latter turns on

automatically.
The windscreen wiper stops working

three strokes after the stalk is released.
A further stroke after approx. 6 seconds

completes the windscreen wiper cycle.

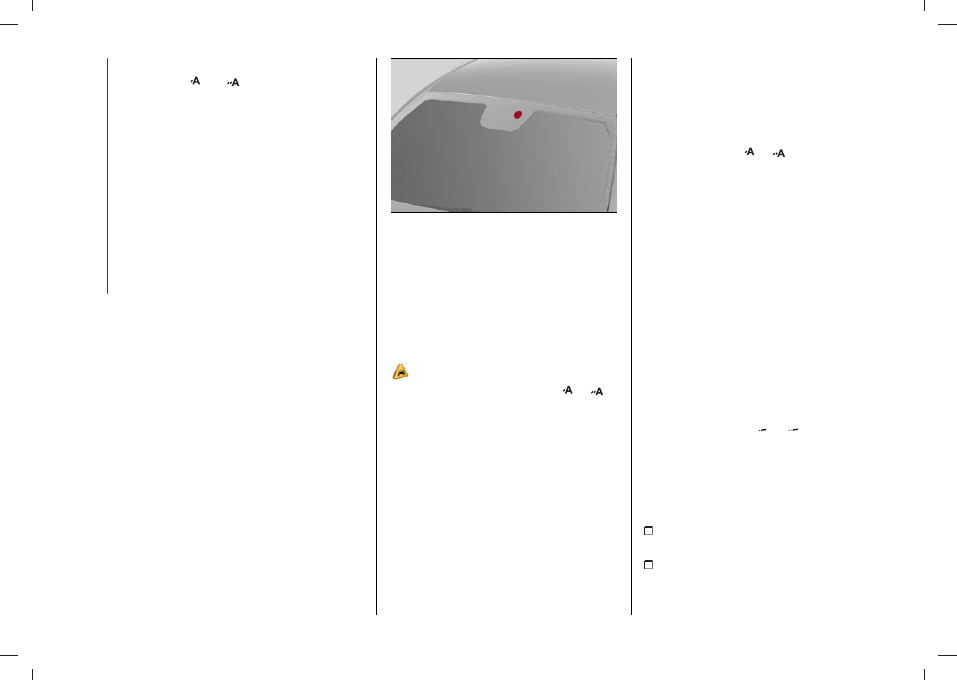

RAIN SENSOR

This is located behind the interior

rear view mirror, in contact with the

windscreen fig. 51 and can detect the

presence of rain and, consequently,

manage the cleaning of the windscreen in

accordance with the amount of water on

the screen.

51

9650187

The sensor has an adjustment range

which varies progressively from wiper

still (no stroke) when the windscreen is

dry, to wiper at 2nd continuous speed

(fast continuous operation) with intense

rain.

Activation

12) 13)

Turn the ring fig. 50 to position

or

to

activate the rain sensor.
The activation of the sensor is signalled

by a flick of the wiper (indicating that the

command has been acquired).
The variation in sensitivity during rain

sensor operation is also signalled by a

flick of the wiper (command acquired

and implemented). This stroke is also

executed with the windscreen dry.
If the windscreen washer is used with

the rain sensor activated, the normal

washing cycle is performed, after which

the rain sensor resumes its normal

automatic operation.
WARNING Keep the glass in the sensor

area clean.
WARNING With the windscreen wiper
ring turned to the

or

position,

wiping operates automatically and is

disabled when the external temperature

is below 0°C.

Deactivation

Use ring fig. 50 or turn the ignition device

to STOP.
In the event of malfunction of the rain

sensor whilst it is active, the windscreen

wiper operates intermittently at a speed

consistent with the sensitivity setting of

the rain sensor, regardless of whether

there is rain on the glass, while sensor

failure is indicated on the display.
The sensor continues to operate and it

is possible to set the windscreen wiper
to continuous mode

or . The failure

indication remains for as long as the

sensor is active.
The rain sensor is able to recognise,

and automatically adjust itself in the

presence of the following conditions:

presence of dirt on the controlled

surface (e.g. salt, dirt, etc.)

presence of streaks of water caused

by the worn windscreen wiper blades

CarManuals2.com

43

difference between day and night

35)

REAR WINDOW WIPER/WASHER

Engaging reverse gear with the

windscreen wiper operating activates a

single cycle of the rear window wiper.
Moving the stalk fig. 50 (it only has

unstable positions):

towards the instrument panel

activates the rear window washer

(a brief push activates one washing

cycle, keeping the stalk pushed washes

continuously until the stalk is released);

downwards

(with reverse gear

engaged) this activates/deactivates the

continuous

operation of the rear window

wiper, regardless of the movement of the

windscreen wiper;

downwards

(with reverse gear

not

engaged) this activates/deactivates

intermittent

operation (with actuating

frequency of about 3 seconds) of the

rear window wiper, regardless of the

movement of the windscreen wiper.

WARNING

35)

Make sure the device is turned off

whenever the windscreen glass must be

cleaned.

IMPORTANT

10)

Never use the screen wiper to remove

layers of snow or ice from the windscreen

glass. In such conditions, the windscreen

wiper may be subjected to excessive

stress and the motor cut-out switch, which

prevents operation for a few seconds, may

intervene. If operation is not subsequently

restored, even after restarting the engine,

contact an Alfa Romeo Dealership.

11)

Do not operate the screen wiper with the

blades lifted from the windscreen glass.

12)

Do not activate the rain sensor when

washing the car in an automatic car wash.

13)

Make sure the device is switched off if

there is ice on the windscreen glass.

PROGRAMMING THE CLIMATE

CONTROL SYSTEM

(Q4 Plug-in Hybrid versions only)
The system provides two types

of remote climate control system

programming:

timely start of the climate control

system: this can be activated through

the dedicated smartphone app (where

provided). Refer to the "Connected

Services - Connect Services" chapter in

the "Multimedia" section.

Programming the climate control

system with start time: This can be

activated either through the dedicated

smartphone app (where provided) or by

programming a start time using the Alfa

Connect system (see the "Vehicle mode"

paragraph of the "Multimedia" section).

Failed climate control system

programming messages

If the on-demand or programmed

climate control system switch-on fails

or ends early, dedicated messages will

be displayed on the instrument panel

display.

How to use the climate control system

programming functions

Starting the climate control system

Select the programming function

on the dedicated app (where provided.

Refer to the "Multimedia" section).

The passenger compartment climate

control system will remain active for

15 minutes unless the ignition device is

pressed.

This function can be activated twice

after which it is necessary to turn the

ignition device to ENGINE to allow

turning on the climate control system

app (where provided) on-demand again.

If the ambient temperature is lower

than 4.5 °C when the function is started,

the electric defrosters (heated rear

window, heated mirrors and heated

windscreen where fitted) are also

activated.

CarManuals2.com

 KNOWING YOUR VEHICLE

44

Programming the climate control

system with start time

Select a time to start climate control

system programming using the Alfa

Connect system or the dedicated app

(refer to the "Multimedia" section);

the passenger compartment climate

control system will remain active unless

the ignition device is pressed;
The on-demand starting and

programming of the climate control

system can be successful in the following

conditions:

Doors closed
Bonnet closed
Boot closed
Hazard lights not active
Alarm not active
Adequate state of charge of the

conventional battery

Ignition device in the STOP position
Transmission in P position
If the start on-demand function has

not been activated twice

If the key is not inside the car

(necessary condition for programming

the climate control system with start

time)

How to start climate control system

programming

Select the programming function on

the dedicated app (where provided.

Refer to the "Multimedia" section) to

start the climate control system on-

demand or select an climate control

system programming start time on the

Alfa Connect system or dedicated app

(refer to the "Multimedia" section).
The doors of the car will lock, the climate

control system programming will start

and the car will go into ENGINE mode. If

the climate control system is started

on-demand, the car will remain in ENGINE

mode for 15 minutes; if the climate

control system is programmed to start

at a certain time, the car will remain in

ENGINE mode.

NOTES

In case of motor malfunction/fault, the

climate control system programming will

be disabled.

For safety reasons, both when the

climate control system is started

on-demand or programmed with start

time, the wipers are disabled when the

function is active. For safety reasons, the

windows are disabled when the climate

control system is started on-demand.

In case of activation of the climate

control system on-demand, the sunroof

and soft top are also disabled.

Two 15-minute cycles of climate

control system operation are possible

after which the ignition device must

be turned to the ENGINE position to

perform new start cycles.

How to finish programming the climate

control system without driving the car

If the climate control system starts

up on time, select the end of charging

function on the dedicated app (where

provided. Refer to the "Multimedia"

section) or wait for the end of the start

cycle (about 15 minutes).

In case of programming the climate

control system with start time, finish

charging through the programming

function on the dedicated app (where

provided. Refer to the "Multimedia"

section).

How to stop climate control system

programming and drive the car

Programming can be interrupted with

time or start the climate control system

on time by moving the ignition device to

the START position.

CarManuals2.com

45

CLIMATE CONTROL SYSTEM

SYSTEM MAINTENANCE

6)

In winter, the climate control system

must be turned on at least once a month

for about 10 minutes.
Have the system inspected at an Alfa

Romeo Dealership before the summer.

IMPORTANT

6)

The system uses R1234yf coolant,

which does not pollute the environment in

the event of accidental leakage. Under

no circumstances use R134a and R12

fluids, which are incompatible with the

components of the system.

CarManuals2.com

 KNOWING YOUR VEHICLE

46

AUTOMATIC DUAL-ZONE CLIMATE CONTROL SYSTEM 

CONTROLS ON THE CLIMATE CONTROL FRONT PANEL

REAR

52

9650308

CarManuals2.com

47

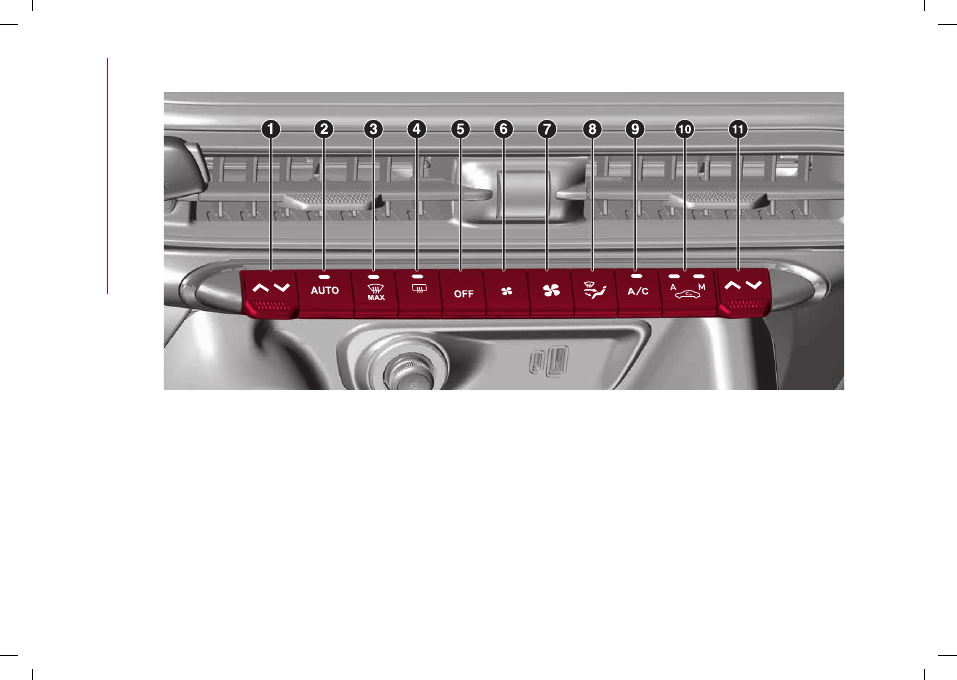

Controls

1 - driver required temperature up/down

button
2 - AUTO function activation button

(automatic operation)
3 - rapid window defrosting/demisting

on/off button
4 - heated rear window on/off button
5 - climate control system on/off button
6 - fan speed down button
7 - fan speed up button
8 - air selector for windscreen and

front side windows / central and side

dashboard diffusers / footwell air
9 - air conditioning compressor on/off

button
10 - internal air recirculation on/off

button (M) / automatic recirculation (A)
11 - passenger required temperature

up/down button

Operation

The automatic dual-zone climate control

system regulates the air temperatures

in the passenger compartment in two

zones: driver side and passenger side.
The system maintains comfort inside

the passenger compartment and

compensates for possible variations in

outside weather conditions.
The automatically controlled parameters

and functions are:

air temperature at the driver/front

passenger side vents

air distribution at the vents
fan speed (continuous variation of the

air flow)

compressor engagement (for

cooling/dehumidifying the air)

air recirculation

All these functions can be adjusted

manually by operating the system and

selecting one or more functions and

modifying their parameters.
The temperature of the air sent is always

automatically controlled according to the

temperature set on the display (except

for when the system is off or in certain

conditions when the compressor is not

running).

Notes

The reference temperature is 22°C for

optimal comfort management.
Do not apply stickers to the inside of

the heated rear window over the heating

filaments, to avoid damage that might

cause them to stop working properly.
Internal air recirculation makes it

possible to reach the required ("heating"

or "cooling") conditions more quickly

depending on the mode selected. Do not

use the air recirculation function on

rainy/cold days as it would considerably

increase the possibility of the windows

misting inside.

The dual zone automatic climate control

manages the Start&Stop system (engine

off and vehicle at a standstill) (for

versions/markets, where provided) in

order to guarantee sufficient comfort

inside the car.
With Start&Stop function on (engine off

and car stopped) (for versions/markets,

where provided), the flow is reduced

as much as possible, to keep the

compartment comfort conditions for

longer.

Start&Stop

(for versions/markets, where provided)
The automatic dual-zone climate control

system manages the Start&Stop system

(engine off and car at a standstill) in

order to guarantee sufficient comfort

inside the car.
In particular, the climate control system

deactivates the Start&Stop if:

the climate control system is in AUTO

mode (LED on the AUTO button switched

on) and the temperature conditions

inside the car are far from a comfort

temperature

the climate control system is in MAX

A/C

the climate control system is in the

MAX DEF status
With Start&Stop function on (engine

off and car stopped), the flow is reduced

CarManuals2.com

 KNOWING YOUR VEHICLE

48

to keep the passenger compartment

comfort conditions for longer.
The climate control system control unit

attempts to manage the decreased

comfort caused by stopping the engine

as far as possible (switching off the

compressor and engine coolant

pump). It is however possible (for

versions/markets where provided) to

prioritise air conditioning operation by

deactivating the Start&Stop system, by
pressing the button (where provided)

on the central tunnel.
In particularly severe climate conditions

it is recommended to limit the use of

the Start&Stop system to prevent the

compressor from continuously switching

on and off, with consequent rapid misting

of the windows and accumulation of

humidity with unpleasant smells in the

passenger compartment.

Mild Hybrid versions

The automatic dual-zone climate control

system manages the hybrid system

(heat engine off when driving or car

at a standstill) in order to guarantee

sufficient comfort inside the passenger

compartment.
In particular, the automatic dual-zone

climate control system inhibits the

turning off of the heat engine if:

the climatic conditions inside the

passenger compartment are far from a

comfort condition

maximum cooling has been activated

(MAX A/C function or LO temperature

request)

rapid window defrosting/de-misting

was turned on (MAX-DEF operation)

ELECTRIC WINDOWS

36) 37)

They work with the ignition device in the

ENGINE position and for about three

minutes after the ignition device has

been turned to the STOP position. When

one of the front doors is opened this

operation is disabled.

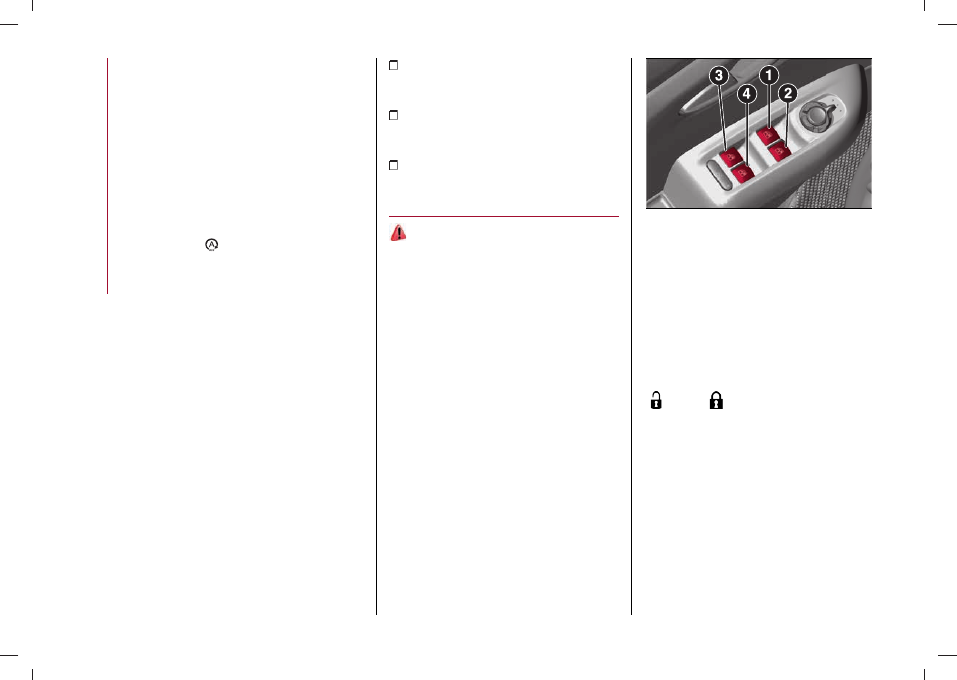

The electric window control buttons are

located on the armrest of the door panel
and activate fig. 53:
(1) Opening/closing of the left window.
(2) Opening/closing of the right window.
(3) Opening/closing of the left rear door

window.
(4) Opening/closing of the right rear door

window.

53

9650125

Press and hold the button for a few

seconds and the window winds down

automatically. Raise the button for a

few seconds and the window winds up

automatically.

WINDOW OPENING/CLOSING BY

MEANS OF AN ELECTRONIC KEY

On some versions, the windows can be

opened/closed by holding the unlock
(

) / lock (

) buttons pressed,

respectively.

ANTI-PINCH DEVICE

According to the versions, the car is

equipped with an anti-pinch safety

function for the raising of the front and

rear windows.
This safety system can recognise the

presence of any obstacle during the

window closing movement. If this

occurs, the system stops the window's

movement and reverts it, depending on

its position.

CarManuals2.com

49

This device is also useful if the windows

are activated accidentally by children on

board the car.
The anti-pinch safety function is

activated both during the manual and the

automatic operation of the window.
When the anti-pinch device is activated

the window travel is immediately

interrupted. Then the window stroke is

automatically inverted.

38)

ELECTRIC WINDOWS SYSTEM

INITIALISATION

If power supply is interrupted when

the window is moving, the electric

window automatic operation must be

reinitialised. The initialisation procedure

described below must be carried out with

the doors closed and for each door:

fully close the window to be initialised,

with manual operation

after the window has reached the

upper end of travel, hold the up button

down for at least 3 seconds

WARNING

36)

Improper use of the electric windows

can be dangerous. Before and during their

operation, ensure that any passengers are

not at risk from the moving glass either

by personal objects getting caught in the

mechanism or by being hit by it directly.

37)

When leaving the car, always set the

ignition device in the STOP position and

take the electronic key with you to avoid the

risk of injury of people still on board due to

accidental operation of the power windows.

38)

If the anti-pinch protection intervenes

three consecutive times in one minute or

is faulty, the automatic closing operation

of the window is inhibited, only allowing

it in "steps"; the button is released for the

subsequent manoeuvre. In order to restore

the correct operation of the system, the

respective window must be wound down.

ELECTRIC SUNROOF

(where provided)

39)

The electric sunroof comprises two

glass panels (the front one is mobile and

the rear one fixed) and is fitted with an

electrically operated front sun blind and

a manually operated rear sun blind.
The sun roof can only operated with the

ignition device at START.
The sun roof has three preset positions:

fully closed; comfort (intermediate

opening) fully open.
WARNING You cannot have the blind

closed when the roof is open.

OPENING

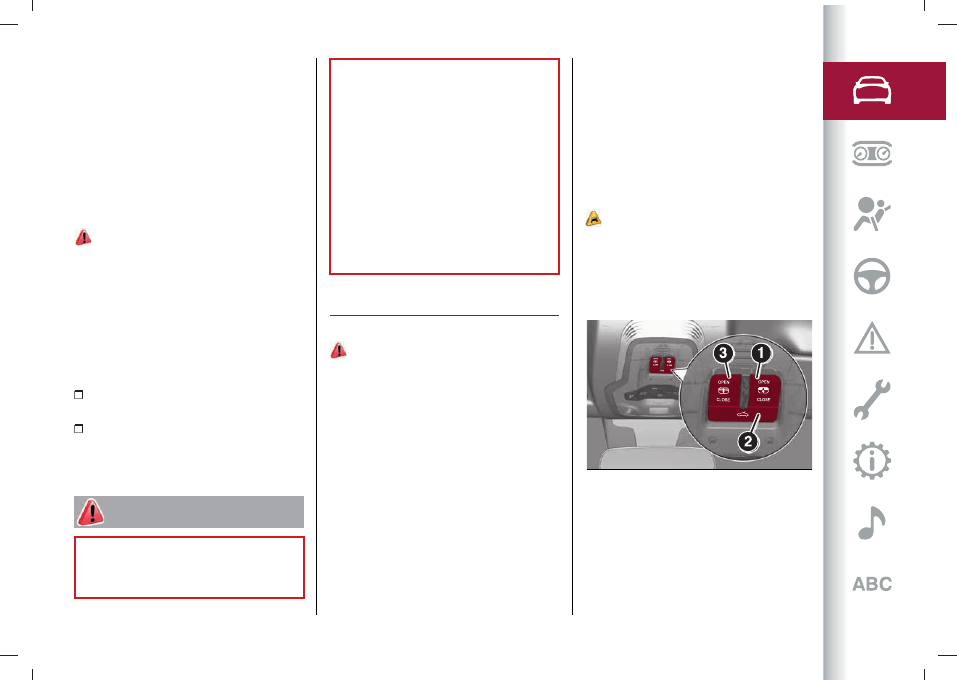

Press the button (1) fig. 54 at the word

OPEN

: the roof will open to the comfort

position. A second press will open it fully.
A long press of the same button will

open the roof until it is released, or if

held down, until it reaches the comfort

position. Use the button in the same way

to open the roof fully from that position.

14)

The automatic motion can be interrupted

in any position by pressing button

(1)again.
If the electric blind is closed, the roof

opening control opens it too.

54

9650418

CLOSING

From the fully open position, press the

button (1) at the word

CLOSE

: the roof

will close completely.
A long press of the same button moves

the roof until it is released.

CarManuals2.com

 KNOWING YOUR VEHICLE

50

The automatic motion can be interrupted

in any position by pressing button

(1)again.

SWIVEL OPENING

To bring the roof into "swivel" position,
press and release button (2) fig. 54.
This type of swivel opening can be

activated irrespective of the position of

the sun roof. When starting with the roof

in closed position, pressing the button

automatically causes its swivel-opening.

If the roof is already open, pressing the

button will open it to the swivel position.
Press button (2) again during automatic

opening or closing to stop movement of

the sunroof.

FRONT SUN BLIND ELECTRIC

MOVEMENT

The front sun blind is electrically

operated.
Press the button (3) fig. 54 at the word

OPEN

to open the sun blind.

Press the button (3) at the word

CLOSE

to close the sun blind.
The automatic motion can be interrupted

in any position by pressing button

(3)again.
If the roof is open, the sun blind closing

control will also close the roof.

ANTI-PINCH DEVICE

The sunroof has an anti-pinch safety

system capable of detecting the

presence of an obstacle during the

closing movement: if this happens, the

system intervenes and the movement of

the roof is immediately reversed into

opening.

INITIALISATION PROCEDURE

Automatic operation of the sunroof

must be initialised again in case of faulty

sunroof operation.
WARNING The anti-pinch safety function

is deactivated during the initialisation

procedure.
Proceed as follows:

Set the ignition device to START and

start the engine

press the button (1) at the word

CLOSE

to bring the roof to the fully closed

position

open the driver side door
turn the ignition device to the STOP

position

within 5 seconds, set the ignition

device to START and start the engine

within 10 seconds press the button

(1) at the word

CLOSE

and hold it down;

after 10 seconds you will hear the electric

motors of the roof and blind stop in

sequence

release the button and within 5

seconds press the button (1) at the word

CLOSE

and hold it down (until the end

of the cycle): the roof will automatically

perform a complete open and close cycle

including both the window and the blind

(to indicate that the initialisation has

been successful). If this does not occur,

the procedure must be restarted from

the beginning

check that the re-initialisation

operation was successful by checking

the “one touch” function of the window

and blind

WARNING

39)

When leaving the car, make sure to take

the key with you to avoid the risk of injury to

those still inside the car due to accidental

operation of the sunroof. Improper use

of the roof can be dangerous. Before and

during operation, always check that no-one

is exposed to the risk of being injured by the

moving sunroof or by objects getting caught

or hit by it.

IMPORTANT

14)

Do not open the sun roof if a roof rack

or crossbars are fitted. Do not open the sun

roof if there is snow or ice on it: you may

damage it.

CarManuals2.com

51

BONNET

40) 41) 42)

OPENING

Proceed as follows:

pull the lever (1) fig. 55 in the direction

indicated by the arrow

move the lever (2) leftwards as shown

in fig. 56

raise the bonnet completely: the

operation is facilitated by the presence

of two gas springs which hold it the all

open position

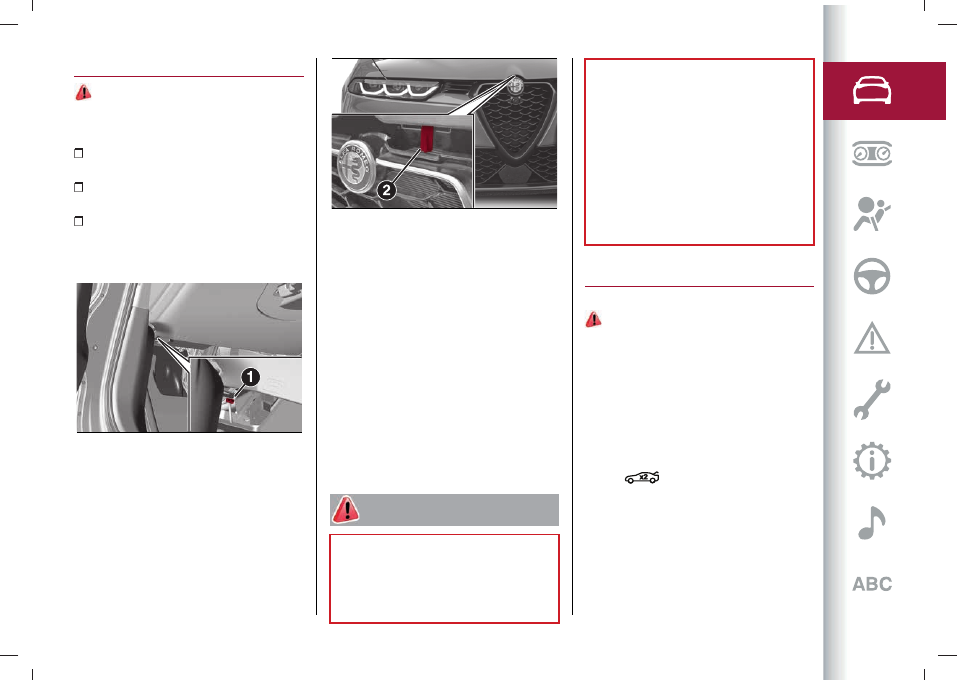

55

9650108

56

9650332

CLOSING

To close, lower the bonnet to

approximately 20 centimetres from the

motor compartment then let it drop.

Make sure that the bonnet is completely

closed and not only fastened by the

locking device by trying to open it. If it is

not perfectly closed, do not try to press

the bonnet down but open it and repeat

the procedure.
IMPORTANT Always check that the

bonnet is closed correctly to prevent

it from opening while the vehicle is

travelling.

WARNING

40)

Be very careful not to allow scarves,

neck ties and other loose articles of clothing

from touching, even accidentally, any

moving parts. This may cause the clothing to

be pulled into the part, resulting in serious

risk to the wearer.

41)

For safety reasons, the bonnet must

always be properly closed while driving.

Therefore, make sure that the bonnet

is properly closed and that the lock is

engaged. If you discover that the bonnet

is not perfectly closed while driving, stop

immediately and close the bonnet in the

correct manner.

42)

Use both hands to lift the bonnet.

Before lifting, check that the windscreen

wiper arms are not raised from the

windscreen, that the car is stationary and

that the parking brake is applied.

TAILGATE

MANUAL OPENING TAILGATE

43)

The boot unlocking is electrically

operated and is deactivated when the car

is in motion.

Opening

When unlocked, the boot can be opened

from outside the car using the power
handle fig. 57 until the unlocking click

is heard or quickly pressing twice the
button

on the remote control.

CarManuals2.com

 KNOWING YOUR VEHICLE

52

57

9650137

Closing

To close the boot, grasp the handle

positioned in the lower part of the

tailgate.
WARNING Before closing the boot make

sure that you have the keys, since the

boot is automatically locked.

ELECTRICALLY ACTUATED TAILGATE

(where provided)
Always exercise extreme caution before

activating the tailgate.
The safe opening and closing of the

tailgate is guaranteed by a protection

system that can automatically stop

its movement when it encounters an

obstacle while opening or closing.
WARNING Frequent activation of

the safety function can disable the

automatic movement of the tailgate.

To reactivate the electrical operation

of the tailgate, perform a reset cycle

by performing a complete open/close

sequence, after manually closing it.
When the car is moving, tailgate

unlocking and movement are disabled.
To avoid difficulties in tight spaces, you

can set the height at which to block the

tailgate open.

Customising the tailgate opening

height

To customise the tailgate opening

position, proceed as described below:

open the tailgate
manually move it to the position that

you want to store

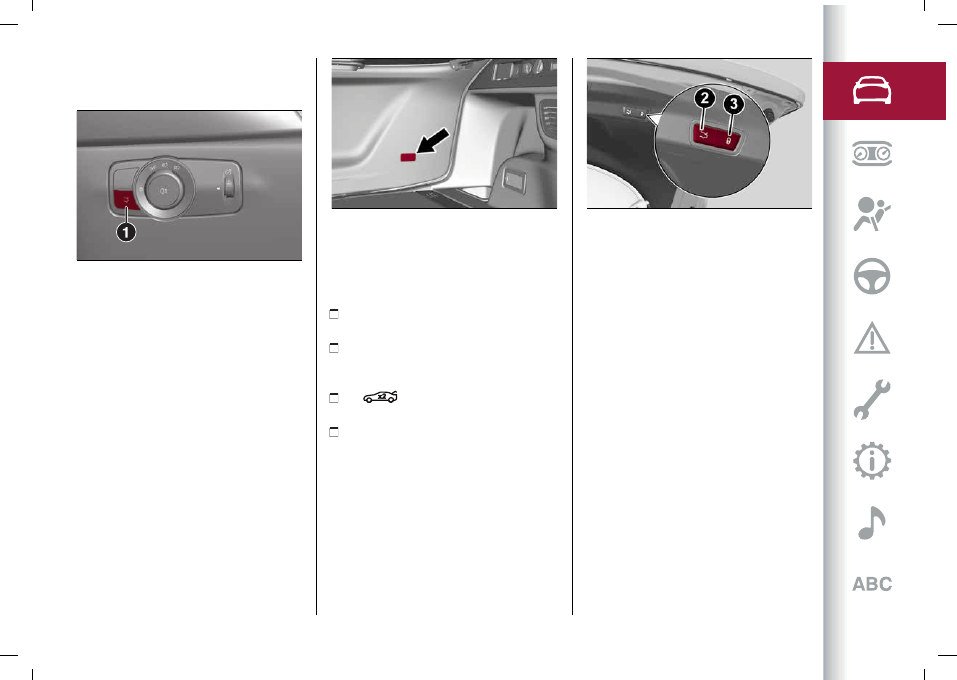

press buttons (2) or (3), fig. 60 for at

least 3 seconds (successful activation

is indicated by the direction indicators

flashing three times)
The tailgate is now programmed to open

to the set position.
This function can be selected by acting

on the Alfa Connect system .

Setting the tailgate opening height to a

preset position

(where provided)
To set the tailgate opening height to one

of the four preset positions, proceed as

follows:

activate the Main menu on the Alfa

Connect system and select the following

functions in sequence: "Settings", "Doors

& Locks" and "Electric Tailgate"

select one of the four pre-set positions

and then press the graphic button to

activate the selected position

OPENING

WARNING When the tailgate is in

motion, the acoustic signal is active if

it is enabled (for more information see

the "Settings" menu, after pressing

the graphic button "Vehicle" in the

"Multimedia" section)

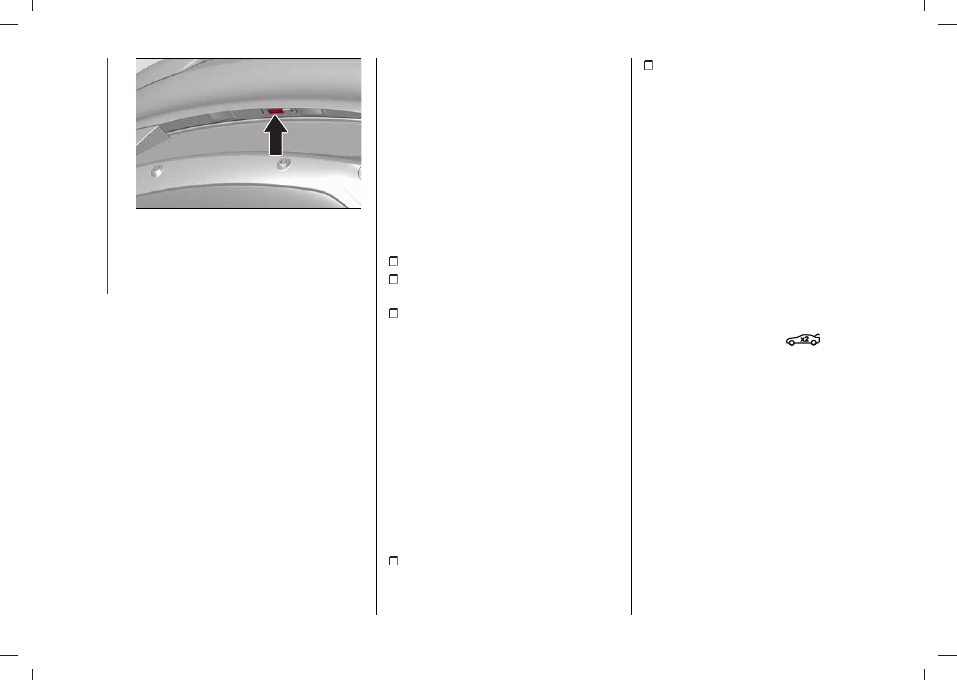

Opening from the outside

When unlocked, you can open the tailgate

from outside the car by pressing the

electric opening button located between

the number plate lights for about one

second until you hear the unlocking click,
or by pressing the button

on the

remote control twice quickly.
When the tailgate is opened, the

direction indicators are illuminated, the

interior lights are switched on (which can

be deactivated using the Alfa Connect

system settings) and the lights are

automatically switched off when the

tailgate is closed.
The lights switch off automatically after

a few minutes if the tailgate is left open.

Opening from the inside

When it is locked, the tailgate can be

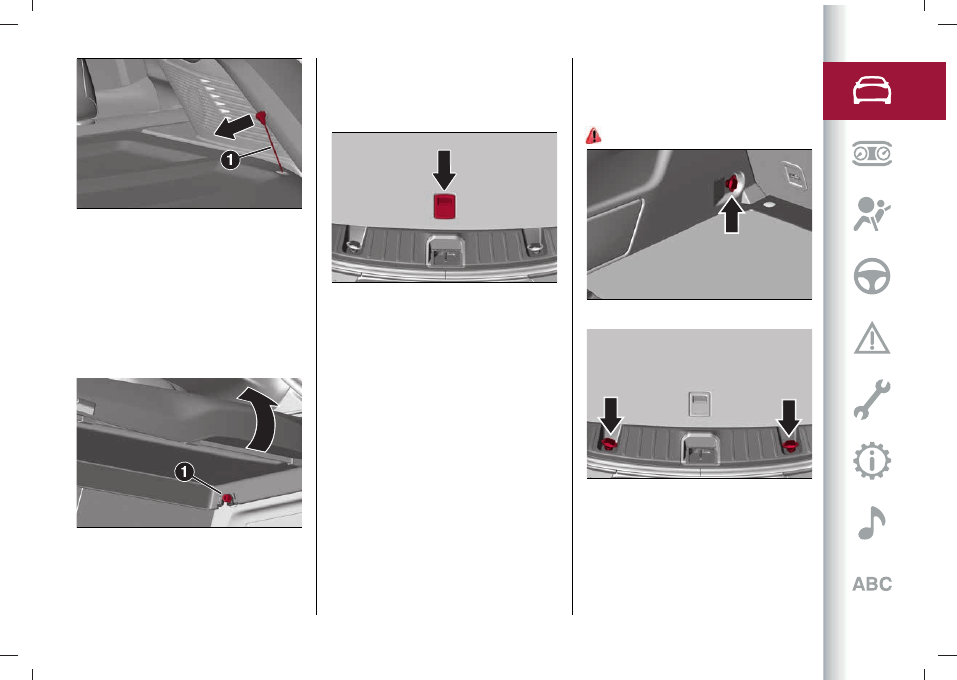

opened from inside the car by lifting the
button (1) fig. 58 on the lower left part of

the steering wheel.

CarManuals2.com

53

WARNING You can stop the tailgate

moving by pressing the same button

again.

58

9650159

EMERGENCY OPENING FROM INSIDE

THE BOOT

(where provided)
According to the version, there may be
a flap fig. 59 inside the boot (accessible

by folding the rear seat back), next to the

tailgate lock, which allows access to the

manual lock opening cord.
Pull the cord to release the lock: the

tailgate can now be lifted manually.

59

04206V0014EM

CLOSING

Closing from outside

It is possible to close the tailgate by

pressing:

the button (2) fig. 60 (where provided)

on the tailgate interior lining

the button (3) (where provided) on

the tailgate interior trim, (all the doors,

including the tailgate, will be locked)

the

button on the remote

control twice quickly

the button fig. 57 on the tailgate,

between the number plate lights

60

04056V0055EM

WARNING It is possible to stop the

tailgate moving with any of the close

buttons.
WARNING Before closing the boot make

sure that you have the keys, since the

boot is automatically locked. If the keys

are in the boot, the boot is closed but the

tailgate is not locked (3) fig. 60 (where

provided), if the keys are in the boot, the

boot will be closed but the tailgate will

not be locked.

Closing from inside

Press the button (1) fig. 58 on the plate on

the driver’s door panel and hold it down

until the operation is complete.
When the tailgate is closed a warning

sounds (can be deactivated using the

Alfa Connect system settings).
WARNING It is possible to stop the

tailgate moving by releasing the button.

CarManuals2.com

 KNOWING YOUR VEHICLE

54

AUTOMATICALLY OPENING AND

CLOSING THE ELECTRICALLY

OPERATED TAILGATE IN

“HANDS-FREE” MODE

(where provided)
WARNING Operation of the "Hands-

Free" system is not compatible with the

tow hook installation. Therefore, the

"Hands-Free" system must be removed

if you wish to install the tow hook after

purchasing the car.
To operate the system in “hands-free”

mode, proceed as follows:

if the doors are locked or unlocked, the

system must recognise the electronic

key fob near the tailgate

go to the rear of the car, in the centre

and about 50 cm from the tailgate

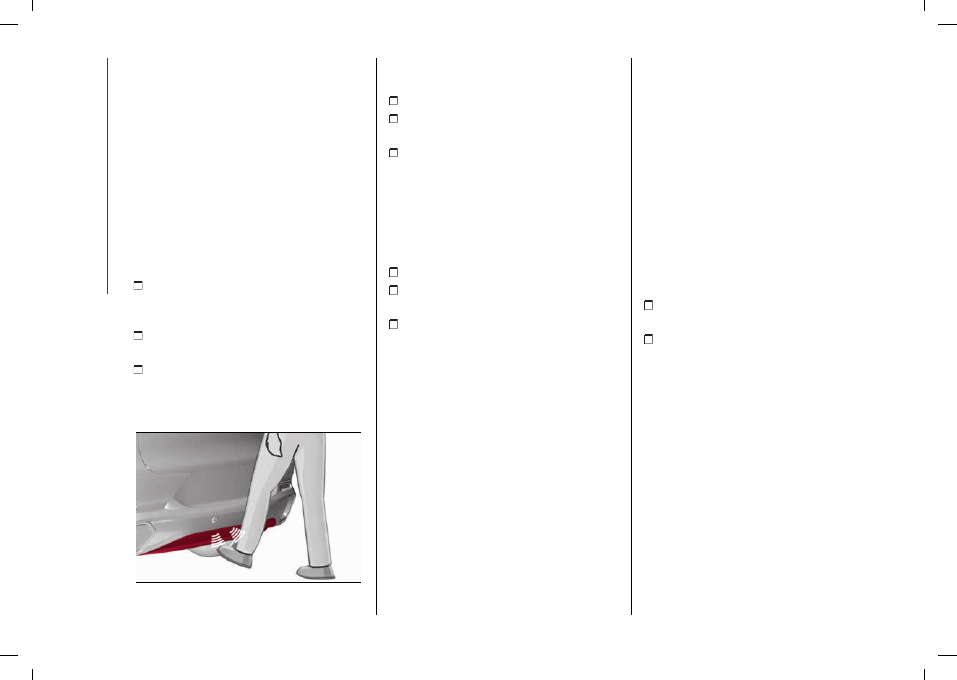

move your foot under the bumper,

simulating a kick as shown at fig. 61

and retract your leg when you have

completed the movement

61

9650160

If it is closed, the electrically

operated/hands-free tailgate:

unlocks and opens completely
with another movement of the foot, it

stops

a further movement of the foot

reverses the direction and closes the

tailgate completely, if you do not stop it

again
If it is open, with a movement of the foot,

the electrically operated/hands-free

tailgate:

it closes completely
another movement of the foot before

it closes completely will stop it

if the tailgate was stopped, another

movement of the foot reverses the

direction and opens it completely
You can activate/deactivate the

automatic tailgate opening and closing

function in hands-free mode on the Alfa

Connect system by activating the Main

menu and selecting the following items in

sequence: "Settings", "Doors and Locks"

and "Automatic tailgate opening".
WARNING Before lifting the foot off the

ground, make sure that you are in stable

position. Do not touch any part of the car.

There is a risk of injury from touching, for

example, the very hot exhaust system.
WARNING To safeguard the charge

of the conventional battery, avoid

repeatedly performing this operation

while the engine is stopped.
WARNING To prevent accidentally

opening the tailgate when washing the

car at a car wash station or using a high-

pressure cleaner, use the Alfa Connect

system to disable the “Automatic

tailgate opening” function.

TAILGATE INITIALISATION

WARNING If the conventional battery

is disconnected or the protective fuse

blows, the tailgate opening/closing

mechanism must be reinitialised as

follows:

close the tailgate manually (if left open

before disconnecting the battery)

perform the tailgate opening/closing

sequence in electrical mode

LUGGAGE COMPARTMENT

SPECIFICATIONS

Removable rear shelf

Proceed as follows to remove the rear

shelf:
1. Disconnect the two rods (1) fig. 62 that

support the shelf at the eyelets.

CarManuals2.com

55

62

9650141

2. Through an open rear door, lift the part

of the rear shelf closest to the rear seats

and pull it out of the pins (1) fig. 63.
3. Remove the rear shelf by pulling it out

of the rear door.
4. The rear shelf can be stowed in the

load compartment or behind the front

seat backrests.

63

9650142

Accessing the Fix&Go kit

To access the Fix&Go kit (for its use, see

chapter "In an emergency"), lift the load
surface upwards fig. 64.

64

9650188

Reconfigurable load platform

The load platform can be adjusted to

three different levels to create more

space in the load compartment.
NOTE The lower position cannot be used

if the space-saver wheel is in the spare

wheel compartment.
To change the level of the load platform,

pull upward on the load platform handle,

pull the floor outward, and place the back

of the platform into the desired position.

Lower the front of the platform into

place.
WARNING The maximum load on the

roof rack is 110 kg.

Anchoring your load

The load anchorage rings located on the
lining panels fig. 65 and fig. 66must be

used to secure loads during travel.

44) 45) 46)

65

9650112

66

9650161

Luggage retaining net

This is useful for correctly arranging

the load and/or for transporting light

materials.
The cargo net is available from the Alfa

Romeo Dealership.

CarManuals2.com

 KNOWING YOUR VEHICLE

56

Emergency kit

(where provided)
Inside the kit are a fire extinguisher and a

first-aid bag.

WARNING

43)

Be careful not to hit objects on the roof

rack when you open the tailgate.

44)

Cargo tie-down hooks are not safe

anchors for a child seat tether strap. In a

sudden stop or accident, a tie-down could

pull loose and allow the child seat to come

loose. A child could be badly injured. Use

only the anchors provided for child seat

tethers.

45)

To help protect against personal injury,

passengers should not be seated in the rear

cargo area. The rear cargo space is intended

for load carrying purposes only, not for

passengers, who should sit in seats and use

seat belts.

46)

The weight and position of cargo and

passengers can change the vehicle center of

gravity and vehicle handling. To avoid loss

of control resulting in personal injury, follow

these guidelines for loading your vehicle: Do

not carry loads that exceed the load limits

described on the sticker attached to the

left door or left door center pillar. Always

place cargo evenly on the cargo floor. Put

heavier objects as low and as far forward as

possible. Place as much cargo as possible

in front of the rear axle. Too much weight

or improperly placed weight over or behind

the rear axle can cause the vehicle to sway.

Do not pile luggage or cargo higher than

the top of the seatback. This could impair

visibility or become a dangerous projectile

in a sudden stop or accident.

INTERIOR FITTINGS

STORAGE COMPARTMENTS

47)

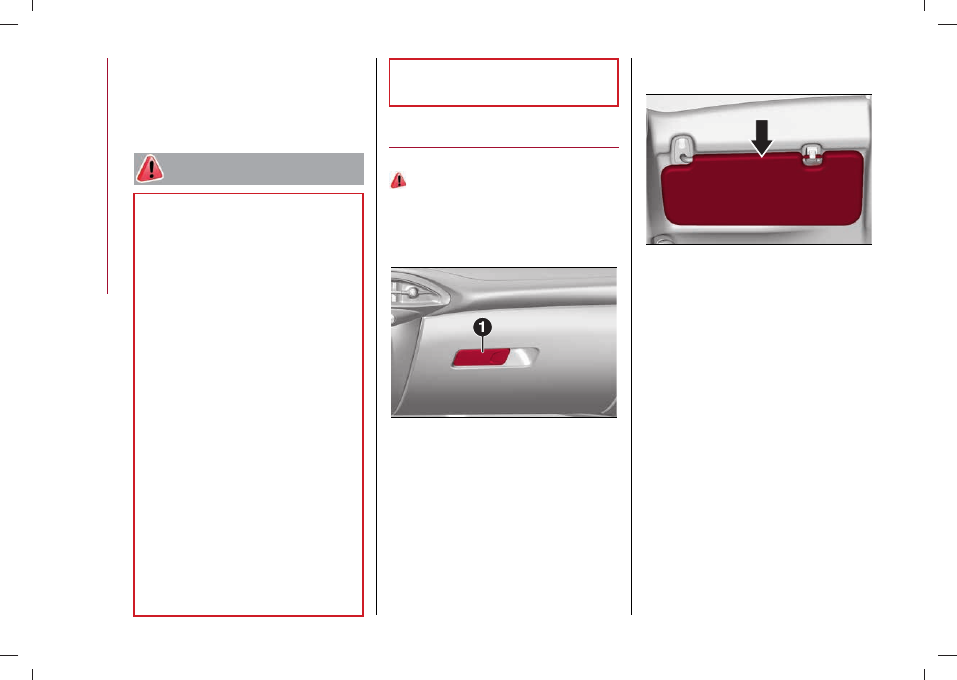

Lower compartment

To open the bottom drawer, pull the
lever (1) fig. 67. The flap opens down

automatically.

67

9650163

SUN VISORS

They are located at the sides of the
interior rear-view mirror (fig. 68).
They can be adjusted forwards and

sideways.
To direct the visor laterally, detach the

visor from the interior rear-view mirror

side support and turn it towards the side

window.

Courtesy mirrors are located on the back

of the sun visors.

68

9650164

WARNING On both sides of the

passenger side sun visor there is a

label advising that it is compulsory to

deactivate the airbag if a rear facing

child restraint system is fitted. Always

comply with the instructions on the sun

visor (see the "Supplementary Restraint

System (SRS) - Airbag" chapter in the

"Safety" section).

USB INPUTS

(where provided)
The vehicle has USB data & charge

ports type A+C located on the central
dashboard, (1) and (2) fig. 69, for

versions/markets where provided, other

two USB ports type A+C for recharge

only on the back of the central console
under the air vents, (1) and (2) fig. 70. Both

Type C ports, for versions/markets

CarManuals2.com

57

where provided, are Power Delivery 3.0,

providing very fast charging, up to 40W.

1

2

69

9650165

70

9650166

WARNING After using a USB charging

port, we recommend disconnecting the

device (smartphone), always removing

the cable from the port of the car first,

never from the device. Cables left

flying or connected incorrectly could

compromise correct recharging and/or

the USB socket condition.
NOTE The USB port handles

data transmission from the Pen

Drive/Smartphone, etc. and slow

recharging of an external device, which

is not guaranteed as it depends on the

device type/brand.

12V POWER SOCKET

(where provided)

48) 49)

15) 16) 17) 18)

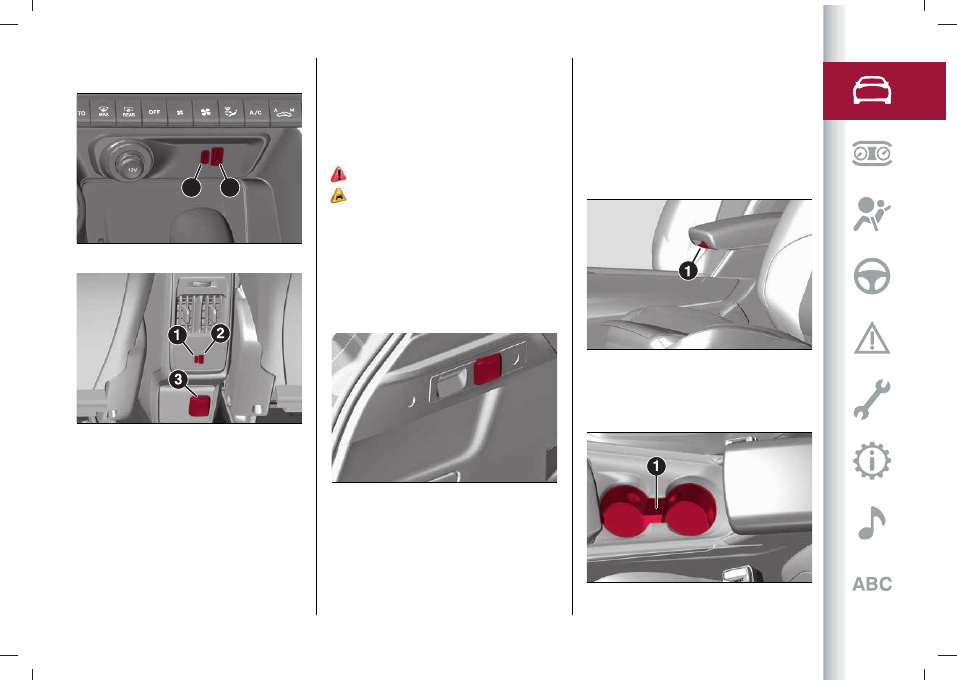

Up to two 12V sockets can be available,

operating only with the starter in

ENGINE position.
One is positioned on the central console.
To use it, open cap (3) fig. 70.
A second socket is located in the boot

fig. 71.

71

9650162

WARNING Do not connect devices with

powers higher than 180W to the socket.

Do not damage the socket by using

unsuitable adaptors.

FRONT ARMREST

(where provided)
There may be an armrest with integrated

storage compartment between the front

seats.
To access the compartment, pull the
lever upwards (1) fig. 72 and lift the

armrest.

72

9650167

CUP HOLDERS / CANS AND HOLDERS

Two cup/can holders are available in the
central tunnel (1) fig. 73.

73

9650168

CarManuals2.com

 KNOWING YOUR VEHICLE

58

WIRELESS CHARGING SYSTEM–

WCPM (Wireless Charge Pad Module)

(where provided)
The wireless charger system is activated
automatically when a mobile phone Qi®

standard compatible is placed in the
storage compartment (1) in fig. 74 on the

central tunnel.

74

9650128

If the mobile phone is removed from the

housing during the wireless charging

phase, this will automatically be

interrupted.
The Wireless Charging System is enabled

for charging when the car is in the driving

condition.
By interacting with the wireless charger

system and placing the mobile phone

in the specific housing, the user will

be informed by means from LED (2)
fig. 74indicating the state of the wireless

charging system:

"Your phone is being charged" blue

LED: this is displayed when the mobile

phone is positioned correctly in the

wireless charging compartment and the

system is activated correctly

"Phone fully charged" green LED: this

is displayed when the mobile phone

has completed charging its battery (if

suitable to transmit the information)

“Object not allowed" red LED: this

is displayed when an object that is not

permitted (e.g. the ignition key) is placed

(e.g. ignition key, credit card, a coin)

"System error" red LED: this appears

when there is a malfunction in the

wireless charger system

"System not active" LED off: there

are no devices compatible with Qi®

standard in the compartment and/or

the ignition device of the car in the OFF

position and/or the doors are not all

closed correctly and the engine is not on
WARNING Do not place contactless

cards (RFID), credit cards or metal

objects in the charging compartment.

The presence of an active NFC function

on a smartphone could signal a

malfunction.
WARNING Not all mobile phone covers

guarantee the correct charging of the

phone. Check that charging is in progress

after having placed the phone in the

charging compartment.

NOTE The use of multiple wireless

functions on the smartphone at the same

time (Apple CarPlay/Android Auto and

wireless charging), as indicated by the

smartphone manufacturers, could cause

it to overheat, resulting in a limitation of

the active functions or its turning off. In

this case, it is recommended to connect

the system using the USB socket.

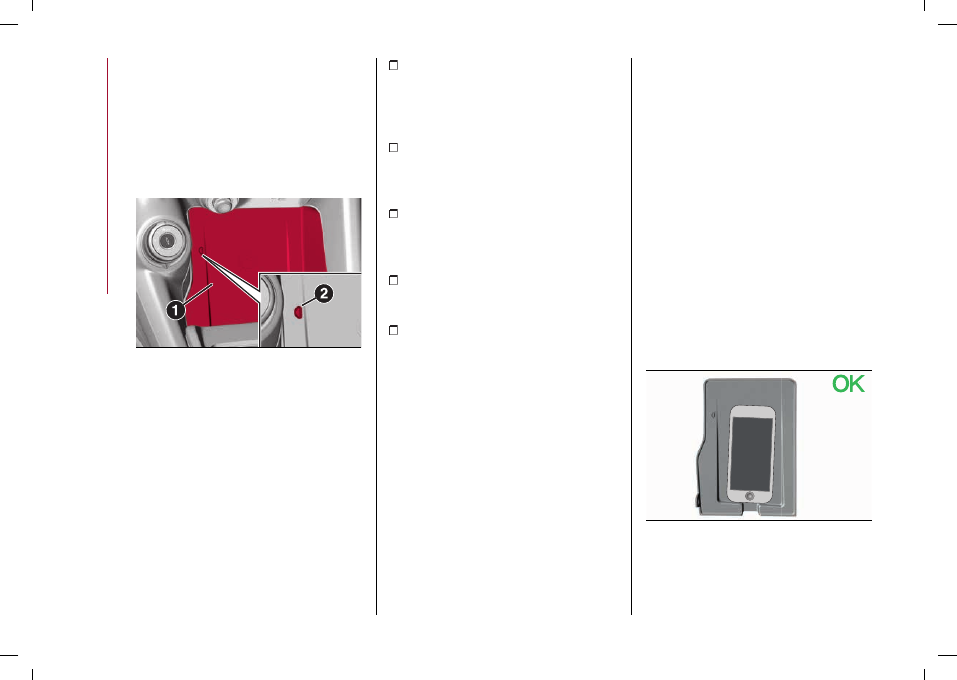

Correct positioning of the mobile phone

To start wireless charging correctly,

make sure the mobile phone is
positioned as shown in fig. 75 with the

display facing up, and that the device

does not cover the alert LED.
Correct positioning: place the device

within the designated area delimited in
the mat as in fig. 75.

75

9650339

CarManuals2.com

59

WARNING

47)

Do not travel with the storage

compartments open: they may injure the

front seat occupants in the event of an

accident.

48)

To prevent serious injury or death: Only

devices designed for use in this type of

socket should be inserted into any 12 Volt

socket. Do not touch the power socket with

wet hands. Close the lid when not in use

and while driving the car. If this socket is

mishandled it may cause an electric shock

and failure.

49)

To prevent serious injury or death: Do

not insert objects into the sockets. Do not

touch the power socket with wet hands.

Close the lid when the device is not in use.

If this socket is mishandled it may cause an

electric shock and failure.

IMPORTANT

15)

Accessories connected to the power

sockets of the car draw current from the

conventional battery even when not in use

(e.g. mobile phones, etc.). These devices, if

left connected too much time with engine

off, may cause the conventional battery

to drain with following reduction of its life

and/or failure to start the engine.

16)

Accessories that draw higher power

(i.e., coolers, vacuum cleaners, lights, etc.),

will degrade the conventional battery even

more quickly. Only use these intermittently

and with great caution.

17)

After the use of high power draw

accessories, or long periods of the car not

being started (with accessories still plugged

in), the car must be driven a sufficient length

of time to allow the alternator to recharge

the conventional battery of the car.

18)

Power sockets are designed for

accessory plugs only. Do not insert any

other object in the power sockets as this

will damage the socket or blow the fuse.

Improper use of the power socket can

cause damage not covered by your limited

warranty of the new car.

ROOF RACK/SKI RACK

50) 51)

19) 20) 21)

DESCRIPTION

On some versions, the car might be

equipped with two longitudinal bars

which, with the addition of special

accessories, can be used to carry various

objects (e.g. skis, surfboards, etc.).

Installation of transversal bars

The crossbars can only be installed when

the longitudinal bars are present.
Refer to the installation instructions

attached to the transversal bars. For

more information, contact an Alfa Romeo

Dealership.

WARNING

50)

Before driving, make sure that the

transversal bars have been fitted properly.

51)

Additional roof racks do not increase

the total load capacity of the car. Make sure

that the gross weight of the occupants and

of the load inside the car, plus the load on

the roof rack, does not exceed the maximum

load capacity of the car.

IMPORTANT

19)

The use of transversal bars on

longitudinal ones prevents the use of the

sunroof, because the latter, while opening,

interferes with the bars. Therefore do not

move the sunroof if transversal bars have

been fitted.

20)

Never exceed the maximum permitted

loads (see the "Weights" paragraph in the

"Technical specifications" chapter).

21)

Fully comply with the regulations in

force concerning maximum clearance.

CarManuals2.com

 KNOWING YOUR VEHICLE

60

ENVIRONMENTAL PROTECTION

SYSTEMS

52)

PETROL VERSIONS

The systems used for reducing petrol

engine emissions are: catalytic

converter, lambda sensors, fuel

evaporation control system and GPF

particulate filter (where provided).

DIESEL VERSIONS

The systems used for reducing diesel

engine emissions are: exhaust gas

recirculation system (EGR), oxidising

catalytic converter,(DOC), selective

nitrogen oxide catalytic converter with
AdBlue® (SCR) (where provided) and

particulate filter (DPF).

GASOLINE PARTICULATE FILTER (GPF)

(where provided)
The Gasoline Particulate Filter is a

mechanical filter, integral to the exhaust

system, that physically traps carbon

particles present in the exhaust gases.
Since this filter physically traps

particulate, it should be periodically

regenerated (cleaned) at regular

intervals by burning carbon particles.
Driving performance of the car at slow

speed may worsen slightly during

regeneration.
These are not faults; they do not impair

normal car performance or damage the

environment. If the dedicated message

is displayed, see contents of "Warning

lights and messages" paragraph, in

chapter "Knowing the instrument panel".

DIESEL PARTICULATE FILTER (DPF)

The Diesel Particulate Filter is a

mechanical filter, integral to the exhaust

system, that physically traps carbon

particles present in the exhaust gases of

diesel engines.
The Diesel particulate filter is needed

to eliminate almost all carbon

particle emissions in compliance

with current/future regulations and

standards.
During standard use of the car, the

engine control unit records a set of

data (e.g.: travel time, type of route,

temperatures, etc.) and it will then

calculate how much particulate has been

trapped by the filter.
Since this filter physically traps

particulate, it should be periodically

regenerated (cleaned) at regular

intervals by burning carbon particles.
The regeneration procedure is controlled

automatically by the engine control unit

according to the filter conditions and car

use conditions.
During the regeneration there may be

a limited increase in the engine idle

speed, fan activation, a limited increase

in fumes and high temperatures at the

exhaust.
These are not faults; they do not impair

normal car performance or damage the

environment. If the dedicated message

is displayed, see contents of "Warning

lights and messages" paragraph, in

chapter "Knowing the instrument panel".

WARNING

52)

The catalytic converter and particulate

filter (DPF) reach very high temperatures

during operation. Therefore do not park the

vehicle on flammable materials (e.g. grass,

dry leaves, pine needles, etc.): fire hazard.

CarManuals2.com

This section of the handbook provides all information that is

useful for getting to know, interpreting, and using the

instrument panel correctly.

KNOWING THE INSTRUMENT PANEL

EOBD SYSTEM (European On Board Diagnosis) . . . . . . . . . . . . . . . . . . . . . . 62
INSTRUMENT PANEL FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
TRIP COMPUTER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
TRIP SUMMARY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
WARNING LIGHTS AND MESSAGES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

CarManuals2.com

 KNOWING THE INSTRUMENT PANEL

62

EOBD SYSTEM (European On

Board Diagnosis)

(where provided)

OPERATION

The EOBD (European On Board

Diagnosis) system continuously

diagnoses emission-related components

on the vehicle and the automatic

transmission control system (for

versions/markets, where applicable).
It also alerts the driver, by switching on
the

warning light on the instrument

panel, when these components are

no longer in peak condition (see the

instructions in the “Warning lights and

messages” chapter in this section).
The aim of the EOBD system (European

On Board Diagnosis) is to:

monitor system efficiency
indicate an increase in emissions
indicate the need to replace damaged

components
The car also has a connector, which

can interface with appropriate tools,

that makes it possible to read the error

codes stored in the electronic control

units together with a series of specific

parameters for engine operation and

diagnosis. This check can also be carried

out by the traffic police.
WARNING After eliminating a fault, to

check the system completely, the Alfa

Romeo Dealership is obliged to run tests

and, if necessary, road tests which may

also require a long journey.

CarManuals2.com

63

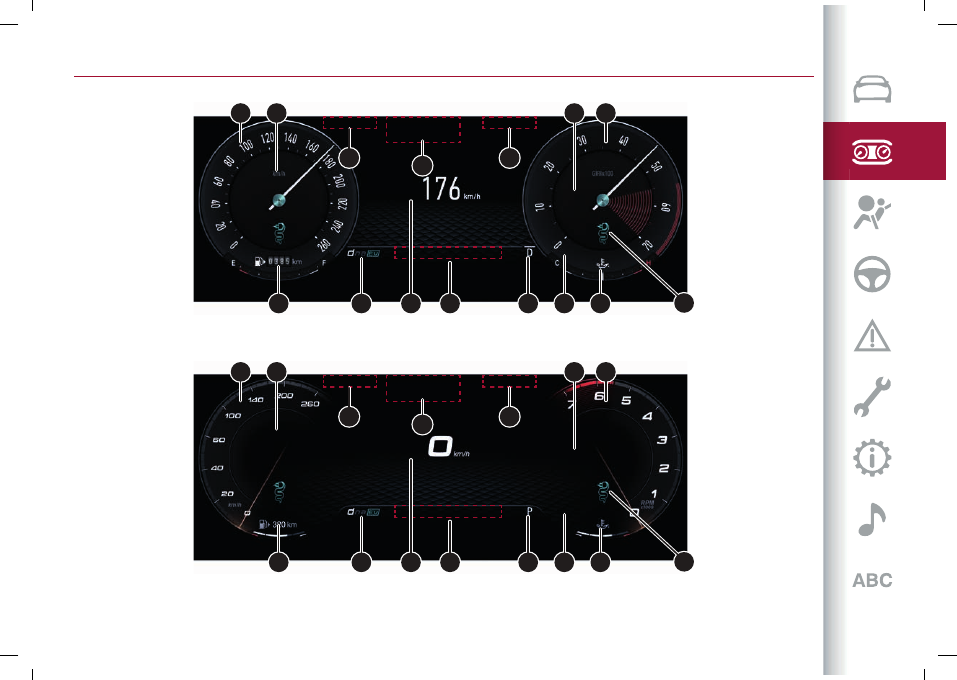

INSTRUMENT PANEL FEATURES

“HERITAGE” DISPLAY

1

4

7

2

6

3

5

9

10

11

12

14

15

13

8

76

9650056

“EVOLVED” DISPLAY

1

4

7

2

6

3

5

9

10

11

12

14

15

13

8

77

9650057

CarManuals2.com

 KNOWING THE INSTRUMENT PANEL

64

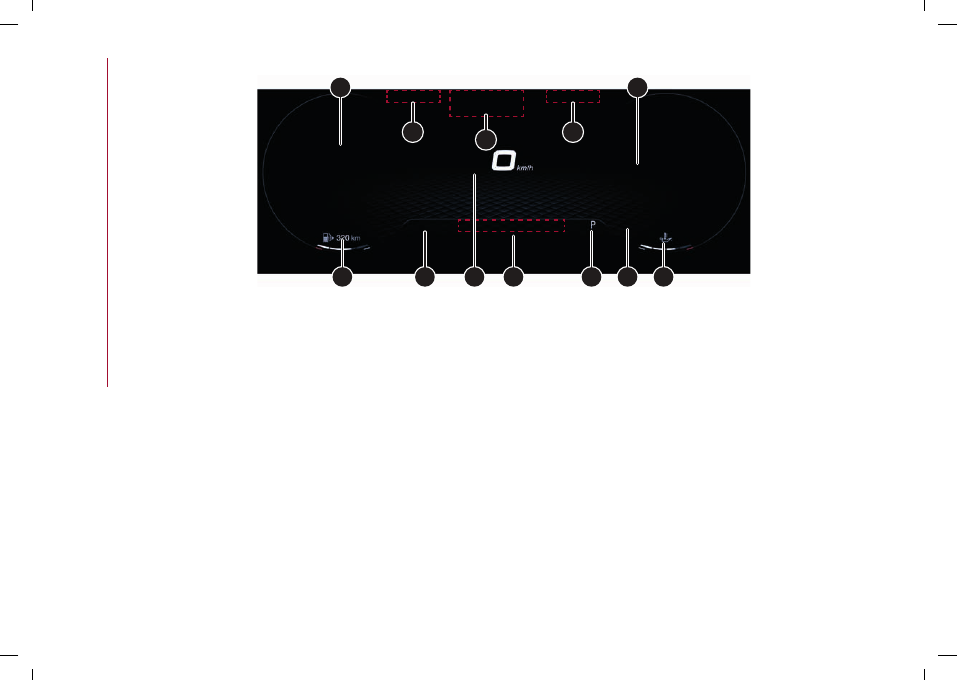

“RELAX” DISPLAY

4

2

6

3

5

9

10

11

12

14

15

13

78

9650058

NOTE The "Heritage", "Evolved" and "Relax" views can be set by pressing the "MENU VIEW" button on the right-hand shift paddle.

CarManuals2.com

65

DESCRIPTION OF THE INSTRUMENT

PANEL

1

Speedometer (excluding "Relax”

display)

2

Indications of the driving assistance

systems, customisable notification

area (only "Relax” display), second

instantaneous speed display (only

"Relax” display)
Refer to the “Safety” and “Starting and

driving” sections for more information

3

Customisable notification area, main

beam/dipped beam, side lights, rear fog

lights icons, second instantaneous speed

display (only "Evolved” display)

4

Instantaneous speed (numeric),

"READY" icon (only for Mild Hybrid and

Q4 Plug-in Hybrid versions), driving

assist notification icons

5

"READY" icon (only for Mild Hybrid

and Q4 Plug-in Hybrid versions),

customisable notification area, heat

engine torque limitation notification

6

Customisable and notification area

with pop-ups

7

Tachometer (Diesel/Petrol and Mild

Hybrid versions), tachometer with

Charge/Power indicator (Q4 Plug-in

Hybrid version - depending on driving

mode) (excluding "Relax" display)

8

Electric drive mode indication (Q4

Plug-In Hybrid versions)

9

Digital heat engine oil temperature

indicator, high-voltage battery charge

level indicator (Q4 Plug-in Hybrid version

only - depending on driving mode)

10

Notification icon display area

11

Gear shift indicator (GSI)

12

Menu title, screen navigation

indications (e.g.: reset counters,

customisation of information display,

etc.)

13

Main screen with driving assistance

system notifications

14

Operating mode display: EV (Mild

Hybrid and Q4 Plug-in Hybrid versions

only), Dynamic, Natural, Advanced

Efficiency

15

Digital fuel level gauge, indications of

the SBA (Seat Belt Alert) system, iTPMS

(indirect Tyre Pressure Monitoring

System) notification icon
NOTE The warning lights come on to

check their operation whenever the

engine is started.

SPEEDOMETER

The instantaneous speed of the car

(in km/h or mph) is displayed as a number

in this position also be displayed at the
top of the display (4) fig. 76, fig. 77, or (2)
fig. 78, or in the central area (13).
NOTE In the "Natural" driving mode,

only the instantaneous speed, minimum

speed (0 km/h) and maximum speed

at full scale are displayed on the scale.

The colour of the speedometer may

vary depending on the driving mode set

(Dynamic, Natural, Advanced Efficiency).
Press the ring (1) fig. 79 to change the

unit of measurement of the numerical

tachometer from km/h to mph and vice

versa.

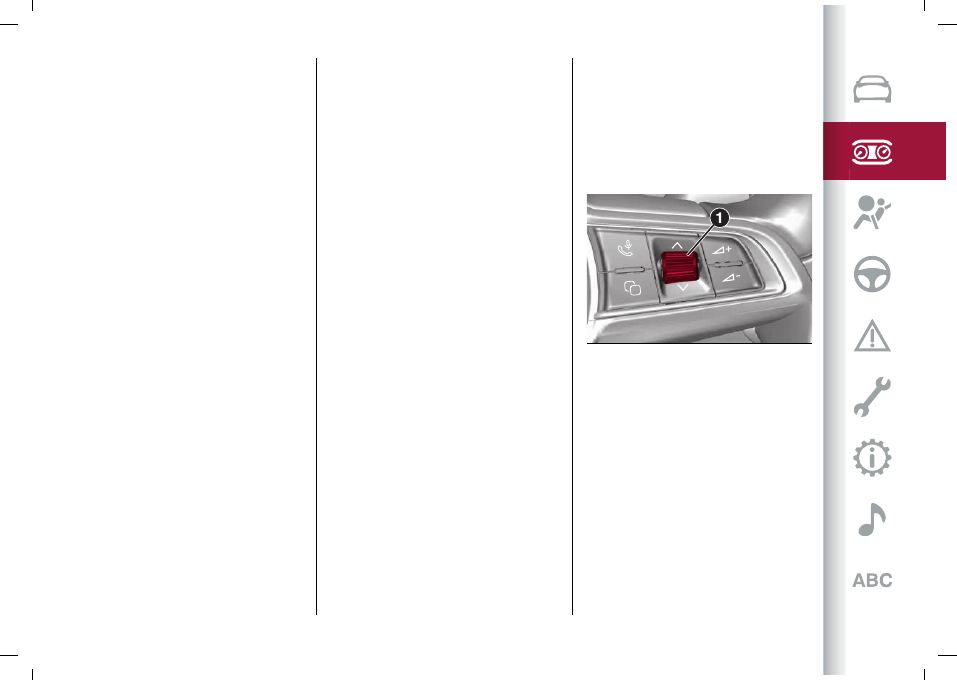

79

9650060

TACHOMETER

This indicates the instantaneous speed

of the heat engine in rpm. X 1000 or X

100.
NOTE In the "Natural" driving mode,

only the instantaneous speed, minimum

speed (0 rpm) and maximum speed at

full scale are displayed on the scale. The

indicator colour may vary depending on

the driving mode set (Dynamic, Natural,

Advanced Efficiency).
WARNING Q4 Plug-in Hybrid version
only: the charging zone (1) fig. 80 is only

CarManuals2.com

 KNOWING THE INSTRUMENT PANEL

66

displayed in the "Advanced Efficiency"

driving mode.

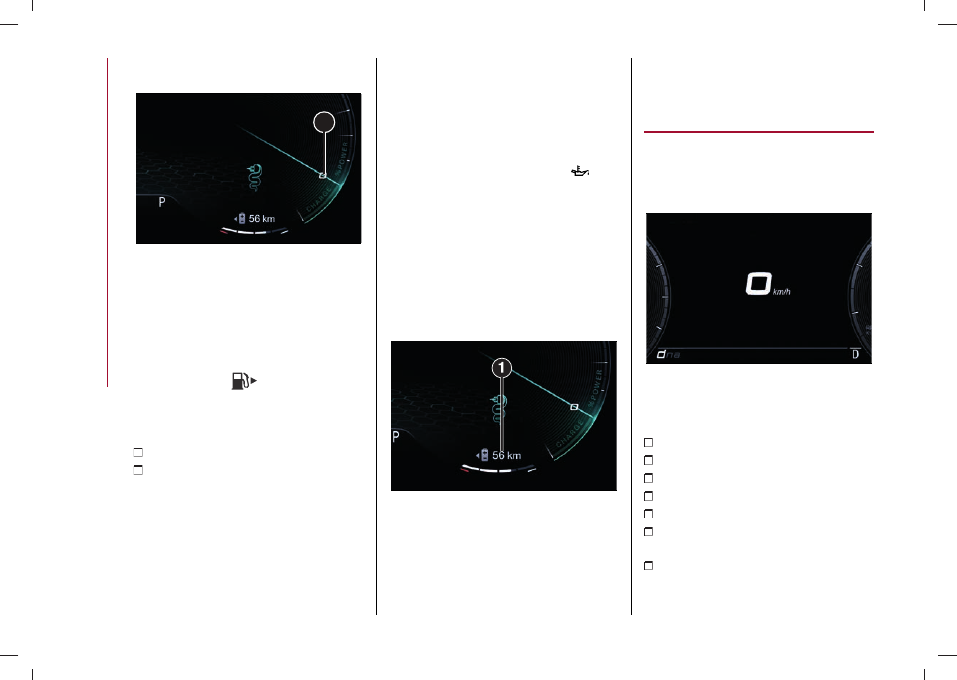

1

80

9650059

DIGITAL FUEL LEVEL GAUGE

The digital gauge shows the level of

fuel still available in the tank and the

estimated range. The triangle to the side

of the symbol indicates the side of the

car with the fuel filler.
The warning light

turns yellow when

the level has reached the fuel reserve.
The indications next to the graphic scale

indicate the amount of fuel:

F

(Full) = full tank

E

(Empty) = empty tank

WARNING If the reserve switches on,

refuel at the earliest opportunity.
WARNING Do not travel with the fuel

tank almost empty: possible gaps in

fuel supply could damage the catalytic

converter. It may be impossible to

start

Q4 Plug-in Hybrid versions

when

the fuel runs out Q4, even if there is

remaining electrical range.

HEAT ENGINE OIL TEMPERATURE

GAUGE

This indicates the temperature of the

heat engine lubrication oil. When the
temperature is too high, the icon

and

the indicator turn red.

DIGITAL AUXILIARY BATTERY CHARGE

LEVEL INDICATOR

(Q4 Plug-in Hybrid versions in “Natural”

and “Advanced Efficiency” modes)
The digital indicator (1) fig. 81 shows the

charge level of the auxiliary battery of

the hybrid system (e.g. with the “Evolved”

view).

81

9650024

INSTRUMENT PANEL LIGHT

ADJUSTMENT (brightness sensor)

Inside the tachometer there is a

light sensor capable of detecting

environmental light conditions and

adjusting the operating mode (night/day)

and the brightness of the instrument

panel and the Alfa Connect system

display.

DISPLAY

A welcome screen appears on the display

when you entering the passenger

compartment.

CENTRAL SCREEN

82

9650061

The following screens appear in the
central area of the display fig. 82:

Speedometer (numeric indication)
Navigation
Performance
Driver Assist
Messages and stored message list
Charge/Power (Mild Hybrid and Q4

Plug-in Hybrid versions only)

Info Hybrid with “Efficiency Coach”

(Mild Hybrid and Q4 Plug-in Hybrid

versions only)

CarManuals2.com

67

NOTE When the ignition device is moved

from STOP to the ENGINE, the last

screen displayed before the previous

engine shutdown is shown.

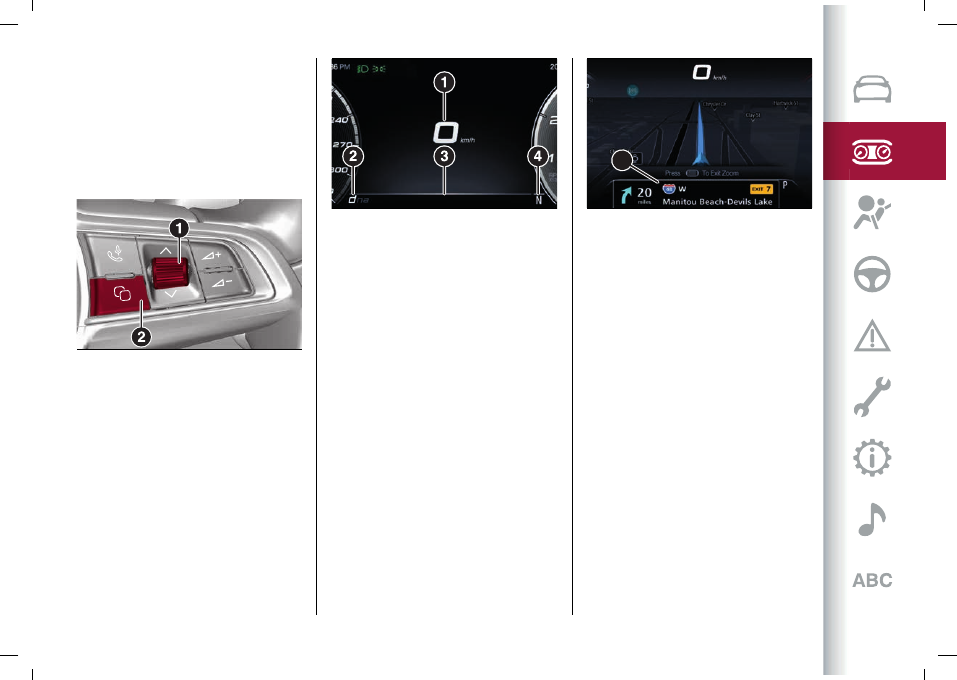

NAVIGATION BETWEEN SCREENS

Press the button (2) fig. 83 and turn the

ring (1) up or down to scroll through the

screens.

83

9650288

If the selected screen permits, press the

ring to access the submenus (1).

SPEEDOMETER

The following information fig. 84 is

displayed on this screen
(1) Instantaous speed in km/h or mph.
Press the ring (1) fig. 79 to switch

between km/h and mph scales.
(2) Driving modes
(3) Messages
(4) Engaged gear and GSI (Gear Shift

Indicator) shift suggestions

84

9650062

NAVIGATION

This screen repeats the instructions

provided by the Alfa Connect system
(fig. 85).
Zoom changes made on the Alfa

Connect system are not automatically

repeated on the instrument panel

display screen. Turn the ring up/down
(1) fig. 79 to increase/decrease the

zoom on this screen. Press the ring to

go back to the initial frame. The zoom

level is automatically reset to the

factory settings whenever the engine is

restarted.

1

85

9650063

If the function is activated through the

Alfa Connect system settings, the Alfa

Connect system navigator indications

are also repeated within the right dial
of the display (1) fig. 86 using turn by

turn navigation (see the chapter "Alfa

Connect system" in the "Multimedia"

section). The following information is

shown:
(1) Direction indicators
(2) Distance to next change of direction

(in km or miles, depending on instrument

panel settings)
(3) Suggested lanes
(4) Address of the road to be followed

after the change of direction
Press and hold the ring (1) fig. 79 to

disable the indications in the right-hand

ring for the current navigation.

CarManuals2.com

 KNOWING THE INSTRUMENT PANEL

68

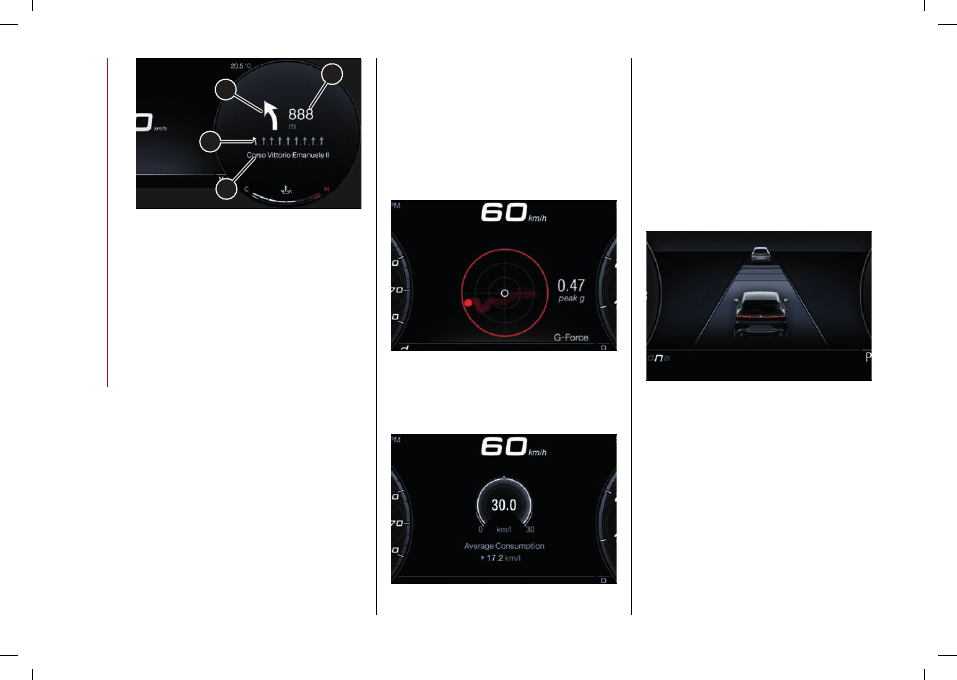

1

2

3

4

86

9650064

With active navigation outside the

"Navigation" screen, turn-by-turn

indications are shown in the lower part of
the display by a pop-up (1) fig. 85 with

each change of direction suggested by

the navigation system.
NOTE It is only possible to display the

repetition of navigation directions from

the native navigator of the Alfa Connect

system. The repetition of directions

provided by apps on the device

connected to the Alfa Connect system

using Android Auto, Apple CarPlay or

Baidu CarLife is not supported.

PERFORMANCE

According to the mode selected using

the Alfa DNA™ system selector, the

screen shows the acceleration or fuel

consumption of the car.
Refer to the “Alfa DNA™ System with

ESC OFF” chapter in the “Starting and

driving” section for more information.

"DYNAMIC" MODE

This displays parameters related to car

stability, the graphs illustrate the trend

of the longitudinal/lateral accelerations

(G-meter information), considering

gravity acceleration as a reference unit.
Lateral acceleration peaks are displayed
on the right fig. 87.

87

9650094

“NATURAL” MODE

Average and instantaneous consumption
are shown fig. 88.

88

9650095

DRIVER ASSIST

The screen at fig. 89 shows the status

and settings of the driving assistance

Adaptive Cruise Control, Lane Keeping

Assist and Active Driving Assist systems.
Any instant notifications are displayed

via a pop-up screen.
The units of measurement (metric or

imperial) depend on the units defined via

the display settings.

89

9650070

For further information see the

respective chapters in the "Safety" and

"Starting and driving" sections.

MESSAGES AND STORED MESSAGE

LIST

Messages shown on the display via pop-

up screens are stored as long as they

remain valid. You can view them later

in the central area of the “Messages”
screen (1) fig. 90.

CarManuals2.com

69

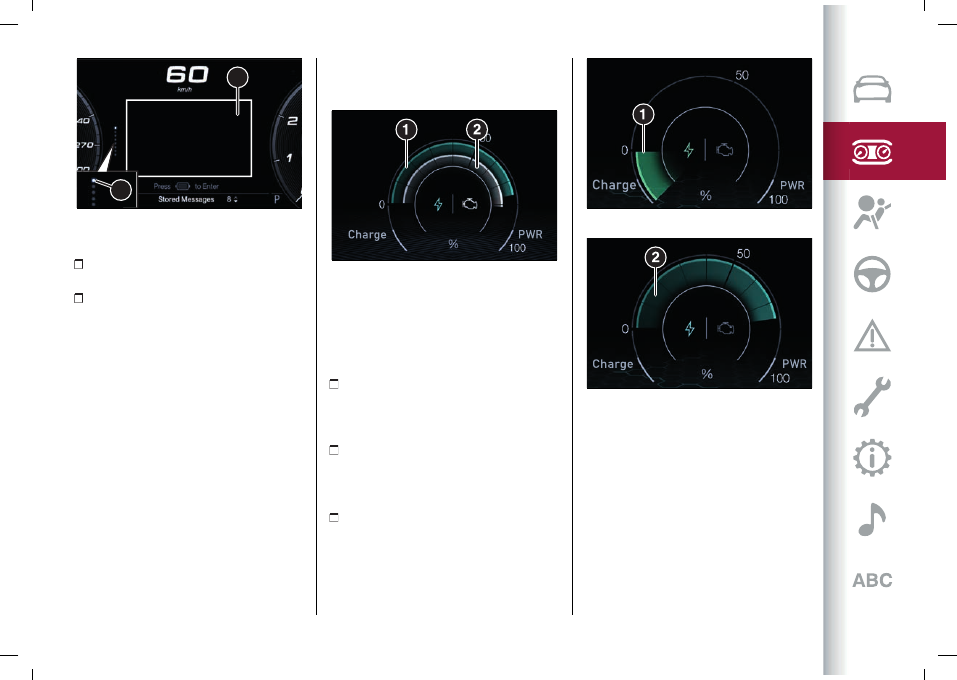

1

2

90

9650071

If multiple messages are present:

press the ring (1) fig. 79 to access the

message list

scroll through the previous/next

messages by turning the ring up/down (1)

upwards/downwards. The position of

the displayed message within the list
is indicated by the light spot (2) fig. 90.

Presence of previous/next messages is

indicated by grey dots

CHARGE / POWER

(Mild Hybrid and Q4 Plug-in Hybrid

versions)
The "Charge / Power" function shows

the instantaneously available on the

instrument panel display.
The green outer graphic ring (1) fig. 91

represents the electric motor power

output available during the acceleration

phase and the input power during the

regeneration phase.

The grey inner graphic ring (2) fig. 91

displays the instantaneous power

available from the heat engine.

91

9650447

The charge/power indications are only

displayed when the car is ready for

driving.
The instrument panel display varies

according to the following conditions:

if the high-voltage battery

is not

charging

, no graphic notches will be

shown on the display for each sector

("Charge" and "Power")

if the high voltage battery is

charging

,

the left side of the screen will be

highlighted on the lower part of the
display, (1) fig. 92.

if the high voltage battery is in

"Power”

mode, the upper side of the

screen will be highlighted on the display
(2) fig. 93.

92

9650449

93

9650450

"Load" display

The

green

charging indicator increases

towards the lower part when the

regeneration phase is in progress or

when the heat engine is charging the

high-voltage battery.

"Power" display

The power is shown on the instrument

panel display by filling the engine and/or

battery section (in case of combined

operation) from the left rightwards,

CarManuals2.com

 KNOWING THE INSTRUMENT PANEL

70

according to the power source used. The

two indicators will move independently.

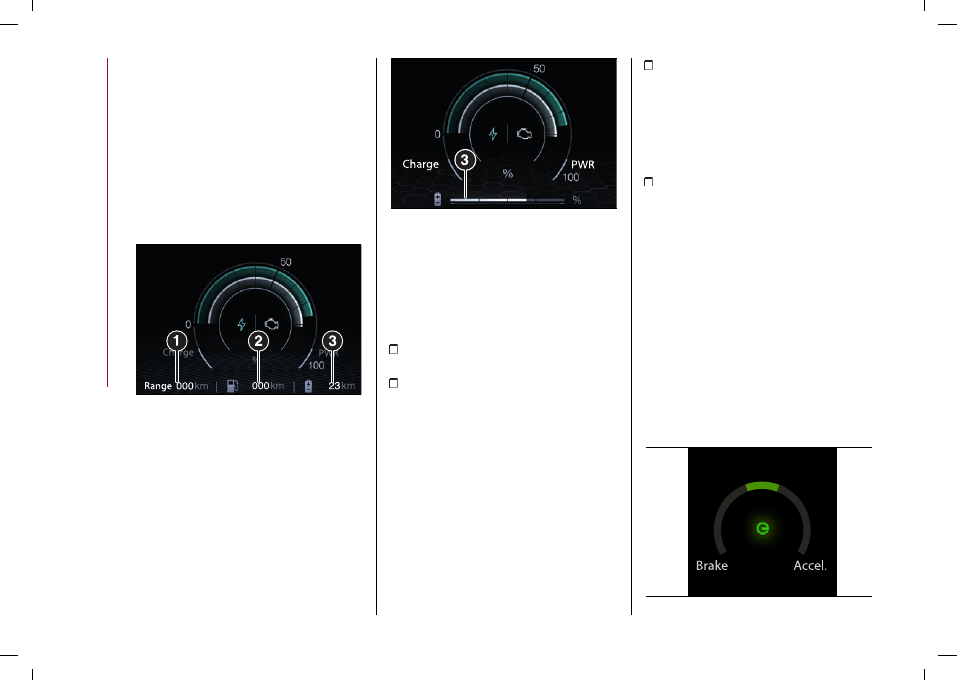

Range

(Q4 Plug-in Hybrid versions only)
The fig. 94 screen also shows the

estimated range in the following cases:
(1) Total (running with electric motor

together with heat engine)
(2) Heat engine only
(3) Electric motor only

94

9650448

Auxiliary battery charge level indicator

(for Mild Hybrid versions)
The indicator (3) fig. 95 shows the charge

level of the auxiliary battery.

95

9650437

HYBRID INFO (Hybrid System

Information)

(Mild Hybrid and Q4 Plug-in Hybrid

versions only)
This menu item shows the following

information on the instrument panel:

Efficiency Coach: in "Natural" or

"Advanced Efficiency" driving mode

Indicators: in 'Dynamic' driving mode

(Mild Hybrid and Q4 Plug-in Hybrid

version)

Efficiency Coach

The "Efficiency Coach" function

provides the driver with "visual

awareness" through the indications on

the instrument panel display on how to

achieve maximum energy efficiency

while driving.
The display varies according to the

following conditions:

if the driver accelerates/brakes

efficiently or, after reaching a certain

speed, he does not act on the accelerator

and/or brake pedal, the following screen
will appear on the display fig. 96 (Q4
Plug-In Hybrid versions) or fig. 97 (Mild

Hybrid versions)

during acceleration and braking,

the most efficient operation will be

represented by the colour of the green
indicator fig. 96 or fig. 97, while the least

efficient operation will be represented

by the colour of the yellow indicator (1) e
(2) fig. 98 (Q4 Plug-in Hybrid versions) or
fig. 99 (Mild Hybrid versions), followed

by amber, when the efficiency level
decreases fig. 100 (Plug-In Hybrid
versions) or fig. 101 (Mild Hybrid versions)
Driving the car in optimal conditions is

achieved when the letter "

e

" and the

graphic indication on the graphic bar

are shown in green in the middle of the
display screeen (fig. 96, fig. 97).

96

9650074

CarManuals2.com

71

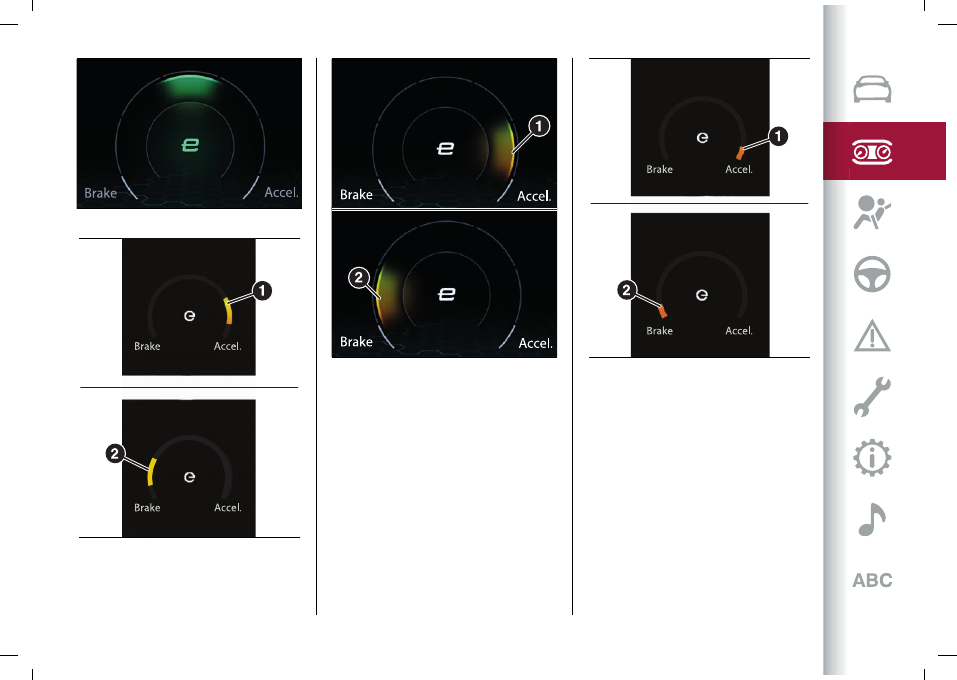

97

9650438

98

9650075

99

9650439

100

9650076

CarManuals2.com

 KNOWING THE INSTRUMENT PANEL

72

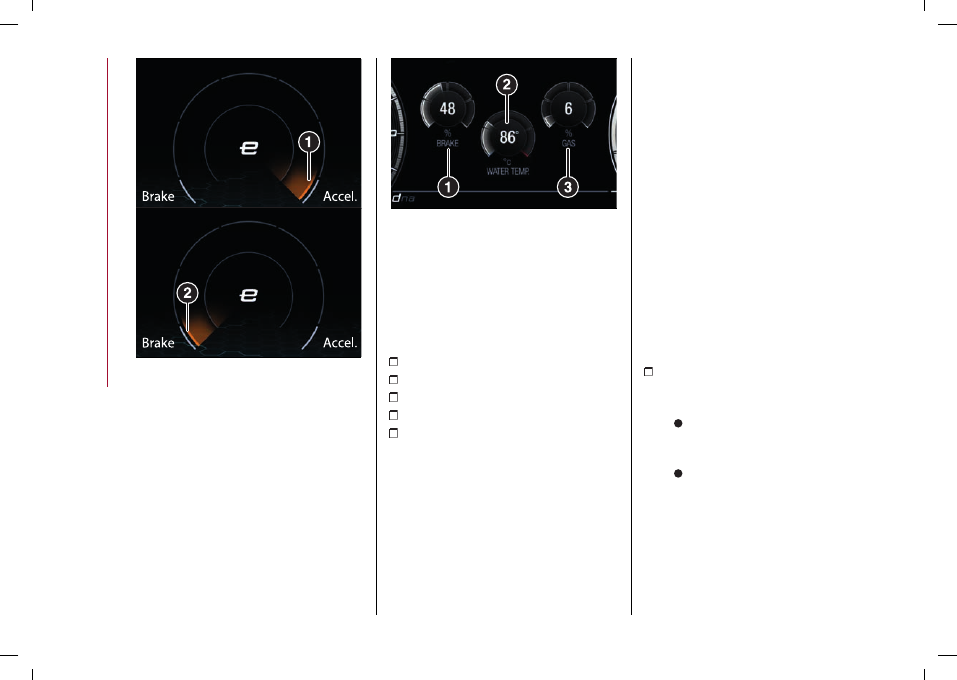

101

9650440

Gauges

The screen fig. 102 shows the following

information:
(1) Brake pedal position (0%: pedal

released - 100%: pedal fully pressed)
(2) Engine coolant temperature,

high-voltage system (Q4 Plug-in Hybrid

version) and low-temperature circuit

(Mild Hybrid version)
(3) Accelerator pedal position (0%: pedal

released - 100%: pedal fully pressed)

102

9650078

CUSTOM AREAS

The right dial (tachometer) and left dial

(speedometer) of the instrument panel

can be customised to display additional

information using the "Settings" function

of the Alfa Connect system. One of the

following can be selected for each dial:

Schedule
Date
External temperature
Compass (where provided)
Empty

NOTE The date and time format and the

unit of measurement of the external

temperature depend on the settings

defined using the Alfa Connect system.
NOTE It is not possible to display the

same information in two different dials:

setting the same content in one dial will

remove the information from the other.
NOTE If the repetition of the navigation

is deactivated (see the paragraph

"Navigation"), even if the compass is

shown on the instrument panel display, it

is not active.
When the engine is switched off, the

last customisation set is stored and

displayed the next time the engine is

restarted.

WIDGETS

The right-hand dial (tachometer) of the

instrument panel can be customised

with alternative information to that

described in the previous paragraph

"Custom areas" using graphic elements

known as "Widgets". To scroll through

the set widgets, press the button (2)
fig. 111 on the steering wheel controls

and then turn the ring (1). The following

widgets can be displayed:

Media, which displays the following,

according to the type of information

played by the Alfa Connect system:

album thumbnail, source, song

title, artist, any connected phone

information, or:

album thumbnail or radio station

logo, station name, frequency,

any information on the connected

phone

CarManuals2.com















Content      ..      1      2      3      ..
