Alfa Romeo Tonale (2023 year). Manual in english - page 1





In-depth knowledge of your new car starts here.

The handbook you are reading will tell you how things are

done, and how it works in a simple, direct way.

That’s why we advise you to read it seated comfortably on

board, so that you can see immediately what is described

here for yourself.

KNOWING YOUR VEHICLE

DASHBOARD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
PLUG-IN HYBRID VERSION OPERATING PRINCIPLE . . . . . . . . . . . . . . . . . 11
HIGH-VOLTAGE BATTERY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
MILD HYBRID VERSION OPERATING PRINCIPLE . . . . . . . . . . . . . . . . . . . . .14
AUXILIARY BATTERY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
THE KEYS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
IGNITION DEVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
ENGINE IMMOBILIZER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
ALARM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
DOORS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
SEATS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
HEAD RESTRAINTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
STEERING WHEEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
REAR-VIEW MIRRORS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
EXTERNAL LIGHTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
INTERIOR LIGHTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
WINDSCREEN WIPER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
PROGRAMMING THE CLIMATE CONTROL SYSTEM . . . . . . . . . . . . . . . . 43
CLIMATE CONTROL SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
ELECTRIC WINDOWS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
ELECTRIC SUNROOF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
BONNET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
TAILGATE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
INTERIOR FITTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
ROOF RACK/SKI RACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
ENVIRONMENTAL PROTECTION SYSTEMS . . . . . . . . . . . . . . . . . . . . . . . . .60

CarManuals2.com

 KNOWING YOUR VEHICLE

10

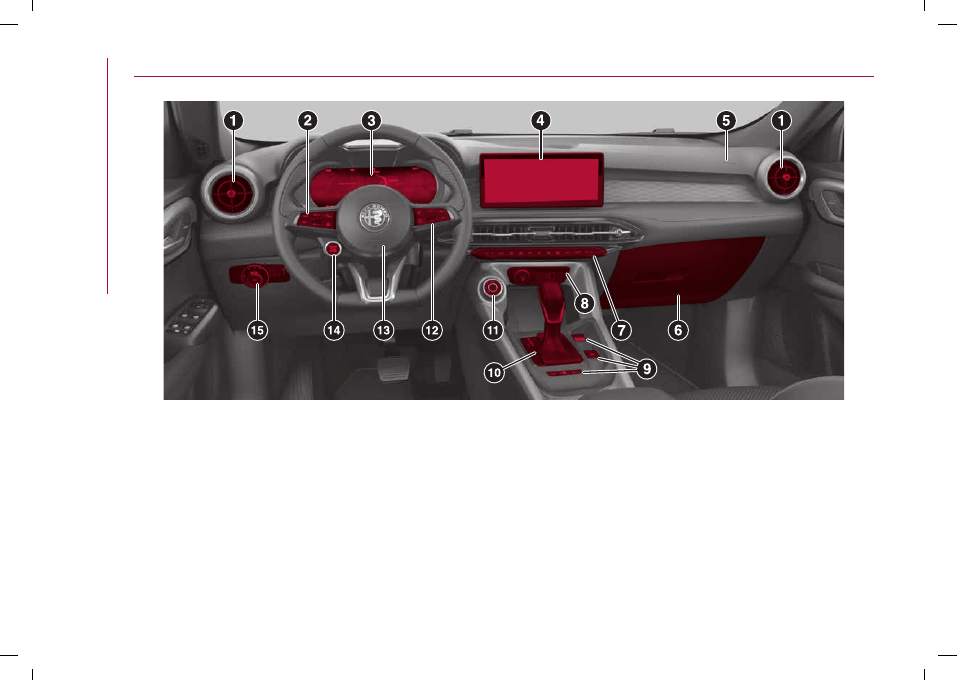

DASHBOARD

2

9650414

1. Adjustable side air diffusers 2. Steering wheel controls Speed Limiter (where provided), Cruise Control (where provided), Adaptive

Cruise Control (where provided), Active Driving Assist system (where provided), TSR system (where provided), ISA system (where

provided) 3. Instrument panel features 4. Alfa Connect system display 5. Passenger's front airbag 6. Glove compartment 7. Climate

control system 8. USB ports, 12V socket 9. Electric parking brake (EPB), Alfa Connect system controls (on/off, mute, volume), Park

Sensors buttons (where provided), Active ParkAssist (where provided) and Start&Stop (where provided) 10. Gear lever 11. Alfa DNA™

system knob 12. Steering wheel controls: display menu, trip computer, Alfa Connect system, telephone, voice recognition 13. driver

side front airbag and horn 14. Ignition device 15. Exterior light control, boot opening

CarManuals2.com

11

PLUG-IN HYBRID VERSION

OPERATING PRINCIPLE

(where provided)

HYBRID SYSTEM EQUIPMENT

The Tonale Q4 Plug-in Hybrid is a

P-HEV

(

P

lug-in

H

ybrid

E

lectric

V

ehicle).

The car is equipped with:

in the front

with the conventional heat

engine, to which a high-voltage electric

motor that performs the function of

alternator Start&Stop system is coupled

in the rear

with an electric motor

(powered by a high-voltage lithium ion

battery) on the rear axle, for motion

transmission

GENERAL INFORMATION

The vehicle can be charged with

alternating current (AC) using:

a domestic power socket. Charging

via the domestic power socket is

permitted with voltage values ranging

from 100 to 230 Volts depending on the

country and depending on the charging

cable connected to the car (e.g. 110 Volts

cannot be charged via the 230 Volt

cable);

a domestic charging station (wallbox)
a public charging station

Depending on the driving and operating

conditions of the vehicle, the hybrid

system can move the vehicle in purely

electric mode or support the heat engine.
Thanks to the "e-Save" function, the

heat engine can help to charge the

high-voltage battery or keep its state of

charge.
In electric only driving mode the car does

not consume fuel, but uses the energy

stored in the high-voltage battery. This

is useful for quiet driving or for access

to urban areas where there are special

restrictions for cars equipped with

internal combustion engine only.
The high-voltage battery is charged

by the heat engine charged also

during regenerative braking

("eBraking"/"eCoasting"). For more

information, see the respective chapters

in the “Starting and driving” section.
NOTE It is advisable to use the heat

engine (by selecting Dynamic driving

mode) for up to 60 minutes non-stop

once a month, especially in cold weather.
For more information on domestic

charging stations (wallbox) contact an

Alfa Romeo Dealership.

OPERATING MODE

The Plug-In Hybrid system has three

modes of operation, which can be

selected to adapt the response of the

vehicle to driving needs: Dynamic,

Natural and Advanced Efficiency.

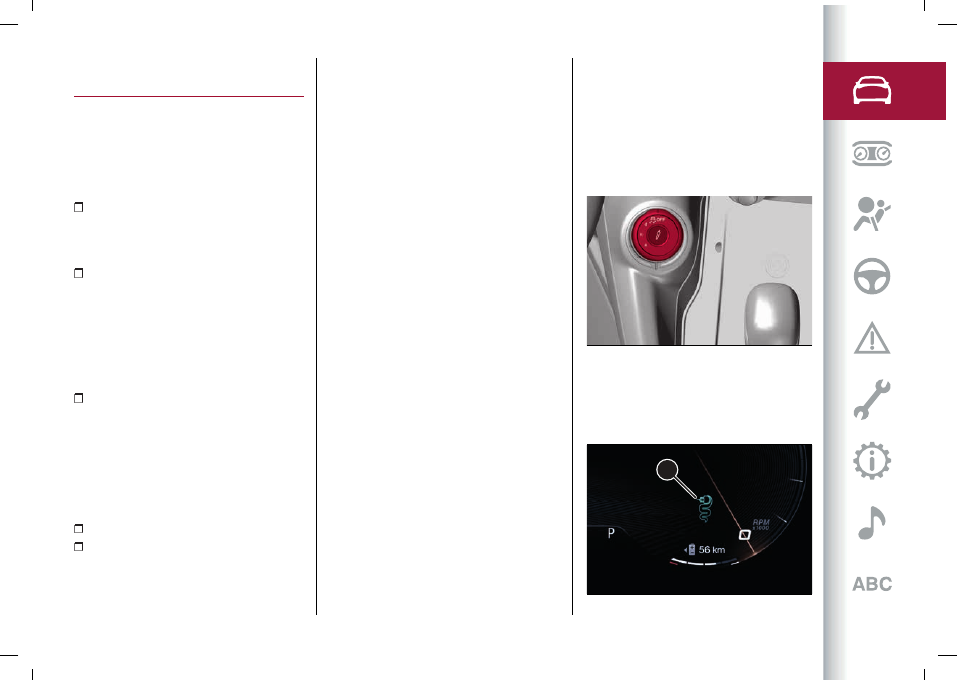

These operating modes can be selected

using the "DNA" selector switch on the
central tunnel fig. 3.
For more information on how to operate

the system, refer to the "Alfa DNA™

system with ESC OFF (Plug-In Hybrid Q4

versions)" chapter in the "Starting and

driving" section.

3

9650025

When the electric motor is active and

delivering power, the symbol lights up
blue (1) fig. 4 on the speedometer and the

tachometer.

1

4

9650097

CarManuals2.com

 KNOWING YOUR VEHICLE

12

Activating “e-Save” mode

Activating "e-Save" operating mode

maintains the state of charge of the high-

voltage battery or charges it, depending

on the setting on the Alfa Connect

system display (for more information

see the "Alfa Connect" chapter in the

"Knowing the instrument panel" in the

Multimedia" section).
The electrical autonomy of the high-

voltage battery is thus safeguarded,

allowing it to be used, for example, for

a route in urban areas where the heat

engine use is prohibited.
The mode is activated by means of the

Alfa Connect system (see the "Settings"

section in the "Alfa Connect system"

chapter in the "Multimedia" section). The

message "e-Save" on instrument panel

display
It is also possible to change the

characteristics of the function by

adjusting the display of the Alfa Connect

system and choosing between the two

“e-Save” mode features:

"

Battery save

" (high-voltage battery

state of charge safeguard) (preset

setting

"

Battery charge

" (high-voltage battery

charge)
NOTE The activation of the "e-Save"

mode with "Battery charge" operation

active permits charging the high-voltage

battery up to the predetermined value

based on the driving style and the

method of using the car.

Battery save

This maintains the high-voltage battery

state of charge at about the same

constant charge level as when "e-Save"

mode is activated on the car.

Battery charge

The high-voltage battery is charged

through the control electronics thanks to

the operation of the heat engine.
NOTE Driving with the "e-Save" mode

active may result in an increase in

average fuel consumption and a

limitation of the accelerator pedal

response in case of engine performance

request.
NOTE The "e-Save" mode can only be

used if the fuel level in the tank is not at

minimum and in the "AUTO" mode and in

"Natural" mode of the Alfa DNA™ system.

HIGH-VOLTAGE BATTERY

(Q4 Plug-in Hybrid version)

1) 2) 3) 4) 5) 6)

1)

1) 2)

The car is equipped with a sealed

high-voltage lithium ion battery and has

the function of energy storage for the

car. The high-voltage battery is used to

power the electric motor and power to

the 12V system of the car using a voltage

converter.
The high-voltage battery is partially

charged by recovering the kinetic energy

of the car during slowing down and

braking while driving. The high-voltage

battery can be recharged completely

only by connecting the car to the mains

using the charging outlet
For optimal use of the high-voltage

battery, it is advisable to charge the

car regularly using a suitable charging

device.
The high-voltage battery is located at the

bottom of the car in a central area and is

maintenance-free.
Lithium-ion batteries provide the

following benefits:

are much lighter than other types of

chargeable batteries of the same size;

CarManuals2.com

13

keep the charge longer;
can be charged/discharged thousands

of times.
The high-voltage components on the car

are cooled by an auxiliary circuit located

inside the engine compartment (for

more information refer to the "Checking

levels" paragraph in the "Servicing and

maintenance" section).
NOTE If the battery pack needs to be

cooled, the electric climate control

compressor is automatically activated

even when the passenger compartment

cooling function is not operating. The

high-voltage battery is cooled by

the refrigerant gas also used by the

passenger compartment air conditioning

system.
WARNING The high-voltage battery

has a limited life duration. Its capacity

to hold charge decreases with time and

use, as for any rechargeable battery. The

amount by which the battery capacity

decreases varies with the outside

conditions (ambient temperature,

etc.) and usage conditions, e.g. driving

habits and the high-voltage battery

(traction battery) charging methods.

This is a natural characteristic of

lithium ion batteries and is not a sign

of malfunction. In addition, although

the distance that can be travelled in

electric mode decreases as the capacity

of the high-voltage battery decreases,

the performance of the car is not

significantly affected.
To ensure that the lithium ion battery

is maintained properly over time,

the vehicle must not be exposed to

temperatures below -10°C and above

40°C for extended periods of time, as

some vehicle functions may change or be

deactivated under -10°C as the battery

capacity and power decrease outside

this temperature range. The high-voltage

battery is equipped with conditioning

systems to ensure that it works in

temperature conditions suitable for its

operation as long as the temperature is

above -30°C. Do not expose the battery

to lower temperatures.

WARNING

1)

Do not resell, give away or modify the

high-voltage battery. The high-voltage

battery must only be used on the vehicle

on which it is supplied. If used outside the

vehicle or modified, accidents such as

electric shock, heat or smoke generation,

explosion or electrolyte leakage may occur.

If the vehicle is scrapped without removing

the high-voltage battery, contact with high-

voltage components, cables and connectors

could cause very dangerous electric shock.

If the high-voltage battery is not disposed

of properly, it may cause electric shock,

resulting in serious injury or death.

2)

The mains power supply and the high-

voltage battery are potentially dangerous:

they can cause injury, burns and risk of

electrocution. Always take great care.

3)

Never touch or tamper with the cables

and components of the high-voltage battery

in any way: do not allow the high-voltage

battery components to come into contact

with bracelets, necklaces or any metal

objects worn.

4)

Do not open, modify or remove the

high-voltage battery cover: any gases

released may be harmful and flammable:

avoid inhaling the gases.

5)

Damage to the vehicle or the high-voltage

battery may cause harmful gases to

escape, which could cause a fire. In the

event of a fire, move away from the vehicle,

wear a reflective vest (if required by the

regulations in force), position yourself in a

safe place, and immediately contact the

rescuers, police or fire brigade informing

them that this is a vehicle with a high

voltage system.

6)

The electrolyte inside the battery is a

polluting and flammable material. If the

high-voltage battery is not disposed of

properly, it may cause fire and pollute the

environment.

IMPORTANT

1)

If, as a result of a violent impact or

accident, the car has hit the bottom

(underbody), have the battery and the

high-voltage system checked by qualified

technicians.

CarManuals2.com

 KNOWING YOUR VEHICLE

14

IMPORTANT

1)

Live parts of the vehicle are marked with

safety warning labels. The high-voltage

battery bears a label indicating this danger.

2)

Do not dispose of the high-voltage

battery yourself. For more information

contact an Alfa Romeo Dealership.

MILD HYBRID VERSION

OPERATING PRINCIPLE

(where provided)

HYBRID SYSTEM EQUIPMENT

7) 8) 9) 10) 11)

Tonale Mild Hybrid is a

MHEV

(

M

ild

H

ybrid

E

lectric

V

ehicle).

The hybrid system of the car uses:

an electric motor ("e-machine")

integrated in the electrified dual clutch

automatic transmission, connected

mechanically to the heat engine and

powered by a lithium ion auxiliary battery

(48V)

a BSG (Belt Starter Generator)

alternator/starter

, activated by the

auxiliary services belt, which makes it

possible to start the heat engine with

the car stationary or when driving at

a low speed. In the case of a fault in

the 48V system, the BSG (Belt Starter

Generator) alternator/starter can act as

an alternator and charge the traditional

12V battery. In some phases, such as

during “electric driving”, it replaces the

starter motor of the heat engine. In the

latter case, when the car is stopped with

automatic engine shutdown, the engine

will be restarted by the BSG (Belt ignition

device Generator) alternator/ignition

device.

a 48V lithium ion auxiliary battery

with the function of energy accumulator

for the car
The Mild Hybrid system therefore

enables improved performance (better

response in transients), while reducing

fuel consumption and CO2 emissions.

NOTE The Mild Hybrid system does not

operate continuously, but is activated

based on the state of the car, the state

of charge of the auxiliary lithium ion

battery (48V), the driving conditions

(acceleration/deceleration/braking,

engine starting) and on the conditions of

the road surface (e.g. downhill road).
The Mild Hybrid system provides a

power boost to the internal combustion

engine during vehicle start-up when more

traction torque is required, or at times of

higher fuel consumption and emissions.

In certain driving conditions, the Mild

Hybrid system control module regulates

the energy flows based on the charge

level of the lithium-ion auxiliary battery

(48V).

With the electrified dual clutch

automatic transmission lever in P

("Park") and N ("Neutral"), an increase in

noise from the engine compartment may

be heard as the auxiliary battery (48V)

charging phase begins: this is normal and

not a fault.

DC/DC converter

To permit the conversion of the current

originating from the 48V system into

current that can be used by the 12V

system, DC/DC is used: when driving

the car, the DC/DC acts as a converter,

making it possible to power and charge

the 12V battery. The connecting cable

allows the 12V and 48V system to

be interfaced and to power the 12V

system through the 48V auxiliary

battery, the DC/DC converter and the

BSG (Belt ignition device Generator)

alternator/ignition device.

OPERATING MODE

The Mild Hybrid system has three modes

of operation, which can be selected

to adapt the response of of the car to

driving needs: Dynamic, Natural and

Advanced Efficiency.
These operating modes can be selected

using the "DNA" selector switch on the
central tunnel fig. 5.
For more information on how to operate

the system, refer to the chapter "Alfa

DNA™ system with ESC OFF (excluding

CarManuals2.com

15

Q4 Plug-in Hybrid versions)" in the

"Starting and driving" section.

5

9650025

MAIN CHARACTERISTICS OF THE MILD

HYBRID SYSTEM

The main features of the Mild Hybrid

system are:

"eBraking” mode
"eCoasting" mode
"eCreeping” function
"eLaunch” mode
"eQueueing” mode
"eBoosting" mode
"eParking" mode

NOTE All of the characteristics listed

above cannot be selected by the driver,

but are activated automatically by the

Mild Hybrid system based on the driving

conditions and the state of charge of the

auxiliary battery.
For a description of the various features

listed above, refer to the respective

chapters in the "Starting and driving"

section.

WARNING

7)

Improper use, or inappropriate

interventions on the system components,

can cause serious electric damage and

cause serious accidents that can even result

in death if the provided instructions are not

observed. Always contact an Alfa Romeo

Dealership.

8)

In case of an accident, the system

components could have suffered damage

that cannot be seen. Do not touch or

tamper with damaged components of the

battery system: be careful to avoid short

circuits. Contact an Alfa Romeo Dealership

immediately.

9)

Do not make any type of change to the

components of the battery system: always

contact an Alfa Romeo Dealership.

10)

Do not puncture, crush, shake or deform

the battery system.

11)

The lithium ion auxiliary battery (48V)

is located at the bottom of the vehicle:

therefore avoid getting the battery system

wet with any type of liquid and do not park

the vehicle over sources of external heat.

AUXILIARY BATTERY

(Mild Hybrid version)

12)

2)

3) 4)

The car is equipped with a sealed 48V

auxiliary lithium-ion battery with the

function of energy storage for the car.
The main functions performed by the

auxiliary lithium-ion battery are to

store the electric energy developed

while braking and to supply it to the

system when the electric motor starts to

function.
The auxiliary lithium ion battery is

partially charged during driving by

recovering the kinetic energy of the car

when slowing down and braking.
The auxiliary lithium ion battery

recharges automatically to ensure that

the charge level is always around 50% of

the maximum level, in order to take full

advantage of the hybrid functionality

and, at the same time, always have a

certain capacity useful for the energy

recovery operation.
The battery does not require any type of

maintenance.
To ensure that the lithium ion battery is

maintained properly over time, the car

must not be exposed to temperatures

below -10°C and above +40°C for

extended periods of time, as some

car functions may change or become

deactivated as the battery capacity

CarManuals2.com

 KNOWING YOUR VEHICLE

16

decreases outside this temperature

range. The battery is equipped with

conditioning systems that ensure that it

operates under optimal temperature

conditions appropriate to its operation.
The components of the hybrid system

in the vehicle (DC/DC, inverter, 48V

auxiliary lithium ion battery, control

module of the electrified dual clutch

automatic transmission) are cooled by an

auxiliary circuit located inside the engine

compartment (for more information

refer to the "Checking levels" paragraph

in the "Servicing and maintenance"

section).
WARNING When replacing the 48 Volt

battery, always contact an Alfa Romeo

Dealership.
WARNING The battery has a limited

service life. Its ability to conserve

the charge decreases with time and

use. The extent to which the battery

capacity decreases will vary depending

on external conditions (e.g. ambient

temperature, etc.) and usage conditions

such as driving style. This is a natural

characteristic of lithium ion batteries

and is not a sign of malfunction. In

addition, although the distance that can

be travelled in electrical mode decreases

as the capacity of the lithium ion battery

decreases, the performance of the car is

not affected.

GENERAL SAFETY INFORMATION

Improper use, or inappropriate work

performed on the components of

the system with incorrectly isolated

equipment, could cause short circuits

and cause accidents due to the

passage of high currents and/or the

high resulting temperatures. For any

repair/maintenance work on the system,

contact exclusively an Alfa Romeo

Dealership.
If the battery system is used in

an inappropriate manner, if it is

damaged/overheats/tampered with or

exposed to adverse environmental

conditions (e.g. very high or very low

temperatures), the battery could

be damaged and release flammable

electrolyte emissions. In these cases,

have the 48 Volt battery replaced:

contact exclusively an Alfa Romeo

Dealership.
The hybrid system does not allow the

48V battery to be recharged using

external devices, so it is recommended

that the vehicle is not left unused for

too long (no more than 3 months) to

prevent the 48V battery from being

discharged beyond the minimum limit, as

it may become unusable as it cannot be

recharged from an external supply.

WARNING

12)

The electrolyte inside the battery is

a polluting and flammable material. If

the auxiliary battery is not disposed of

properly, it may cause fire and pollute the

environment.

IMPORTANT

2)

If, as a result of a violent impact or

accident, the car has hit the bottom

(underbody), have the battery checked by

qualified technicians.

IMPORTANT

3)

Live parts of the vehicle are marked with

safety warning labels. The high-voltage

battery bears a label indicating this danger.

4)

Do not dispose of the auxiliary battery

yourself. For more information contact an

Alfa Romeo Dealership.

CarManuals2.com

17

THE KEYS

ELECTRONIC KEY

13)

3) 4)

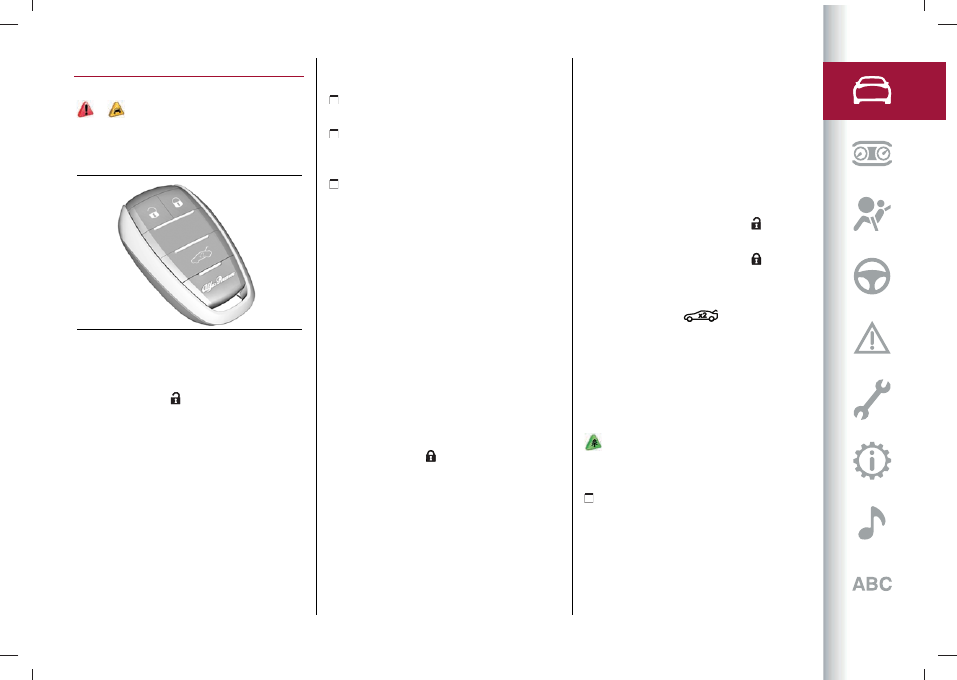

The car is equipped with an electronic
key with a Keyless Start function fig. 6,

provided in duplicate.

6

04016S0010EM

OPERATION

Door and boot unlock

Briefly press the

button: unlocking of

doors and boot, timed switching-on of

interior ceiling lights and single flashing

of direction indicators (if activated from

the Alfa Connect system).
When the function is available, press and

release the unlock button on the remote

control once only to unlock the driver

side front door or twice within 1 second

to unlock all doors and the boot.
It is however possible to change the

current setting through the Alfa Connect

system menu, so that the system

unlocks:

all doors on the first press of the

remote control button

only the driver door on the first press

of the remote control button (where

provided)

the boot, "independently" or "with

doors"
Moreover, from the Alfa Connect system

you can activate or deactivate the

flashing of the direction indicators upon

locking/unlocking the doors and activate

the "courtesy light" function (dipped

beam headlights and direction indicators

switch on) upon unlocking the doors. For

more information see the "Settings"

section in the "Alfa Connect" online

booklet.
The doors can always be unlocked by

putting the metal insert inside the driver

side door lock.

Door and boot lock

Briefly press the

button: locking of

doors and boot, timed switching-off of

interior ceiling light and double flashing

of direction indicators (if activated from

the Alfa Connect system).
If one or more doors are open, the doors

are locked and this is indicated by a

rapid flashing of the direction indicators

(where provided). The doors prepare for

locking, which is active from the moment

they are closed. The doors will unlock

again only if the key presence is detected

inside the passenger compartment.
The doors can always be locked by

putting the metal insert inside the driver

side door lock.

Automatic window opening/closing

function

(where provided)
Prolonged pressing of button : open all

windows.
Prolonged pressing of button : close all

windows.

boot opening

Rapidly press the

button twice to

open the boot remotely.
The direction indicators will flash twice

to indicate that the boot has been

opened.

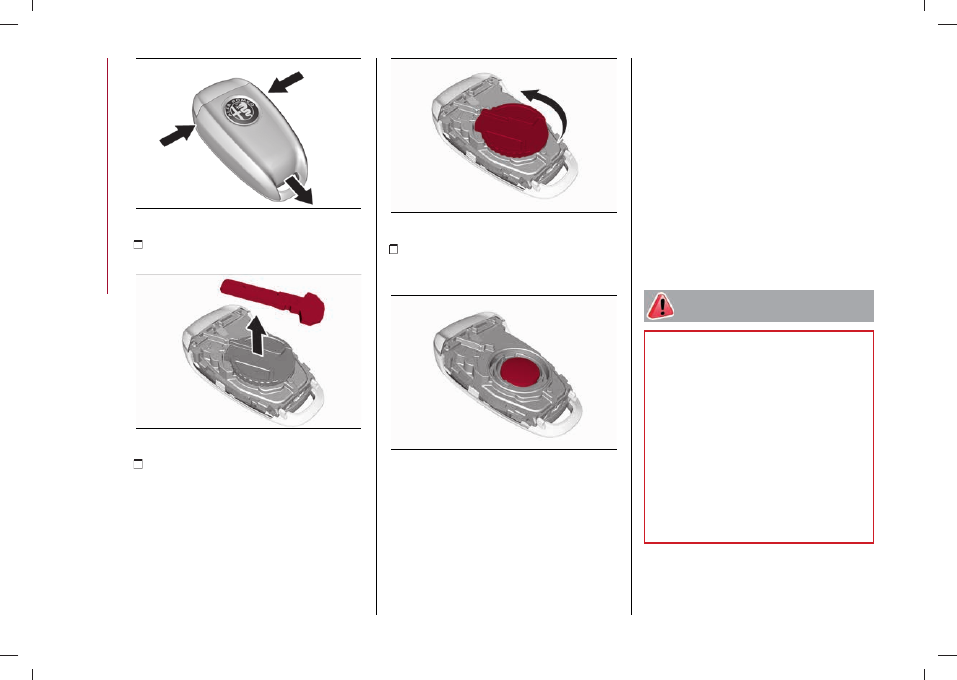

REPLACING THE ELECTRONIC KEY

BATTERY

5)

To replace the battery, proceed as

follows:

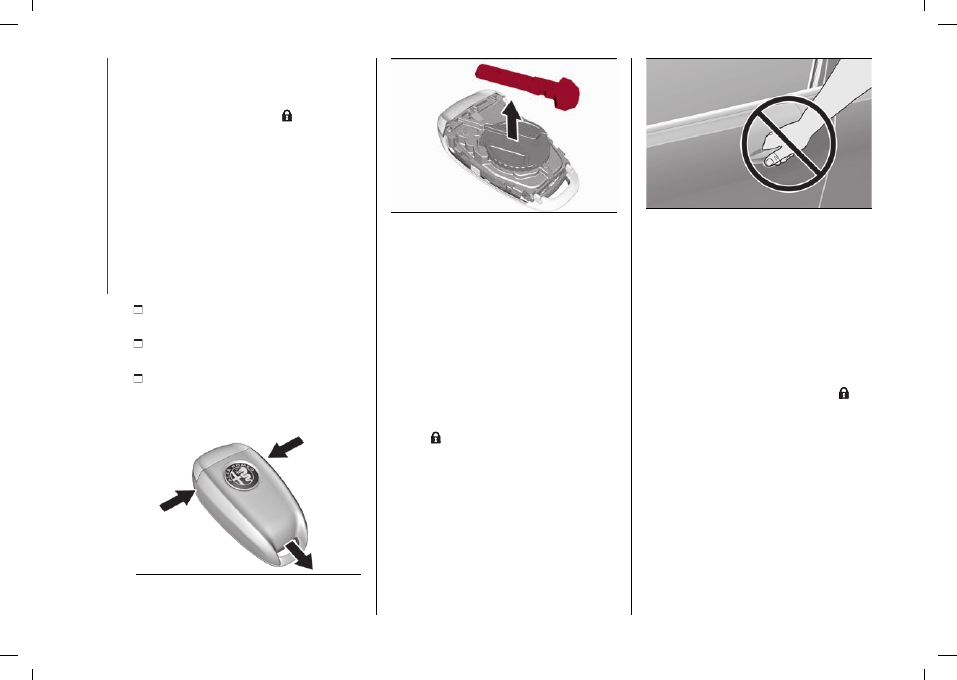

hold pressed in the points shown fig. 7

and slide the cover off downwards

CarManuals2.com

 KNOWING YOUR VEHICLE

18

7

04016S0002EM

remove the key insert fig. 8 from its

housing

8

04016S0003EM

remove the battery cap fig. 9 by

rotating it anticlockwise

9

04016S0004EM

remove the battery from its housing

fig. 10 and replace it with a new one of the

same type

10

04016S0005EM

Proceed in reverse order to reassemble

the key.
WARNING The battery replacement

operation must be carried out with care,

in order not to damage the electronic

key.

REQUEST FOR ADDITIONAL KEYS

The system can recognise up to 8 keys

with remote control.
Only use keys that have been specially

coded for the car electronics. If an

electronic key is coded for a car, it cannot

be used on any other car.

Duplicating keys

If you need a new electronic key, go to

an Alfa Romeo Dealership, taking an

ID document and the car ownership

documents.

WARNING

13)

Do not swallow the battery. Danger of

chemical burns. The keys contain a small

battery. If the battery is swallowed, it

can cause severe internal burns in just 2

hours and cause death. Keep new and used

batteries out of the reach of children. If

the battery compartment does not close

securely, discontinue use of the product

and keep it out of reach of children. If you

believe that batteries may have been

swallowed or inserted inside the body,

seek medical attention immediately. The

emergency key (where provided) must be

immediately inserted into the electronic key

to prevent easy access to the battery.

CarManuals2.com

19

IMPORTANT

3)

The wireless signal may be blocked if

the key is near a metal object or electronic

devices (e.g. wireless charger, smartphone,

laptop). This can cause malfunctions and/or

reduced performance of the access and

start-up functions of the car.

4)

The electronic components inside the key

may be damaged if the key is subjected to

strong shocks. In order to ensure complete

efficiency of the electronic devices inside

the key, it should never be exposed to direct

sunlight.

IMPORTANT

5)

Used batteries may be harmful to the

environment if not disposed of correctly.

They must be disposed of as specified by

law in the special containers or taken to an

Alfa Romeo Dealership, which will take care

of their disposal.

IGNITION DEVICE

14) 15) 16) 17)

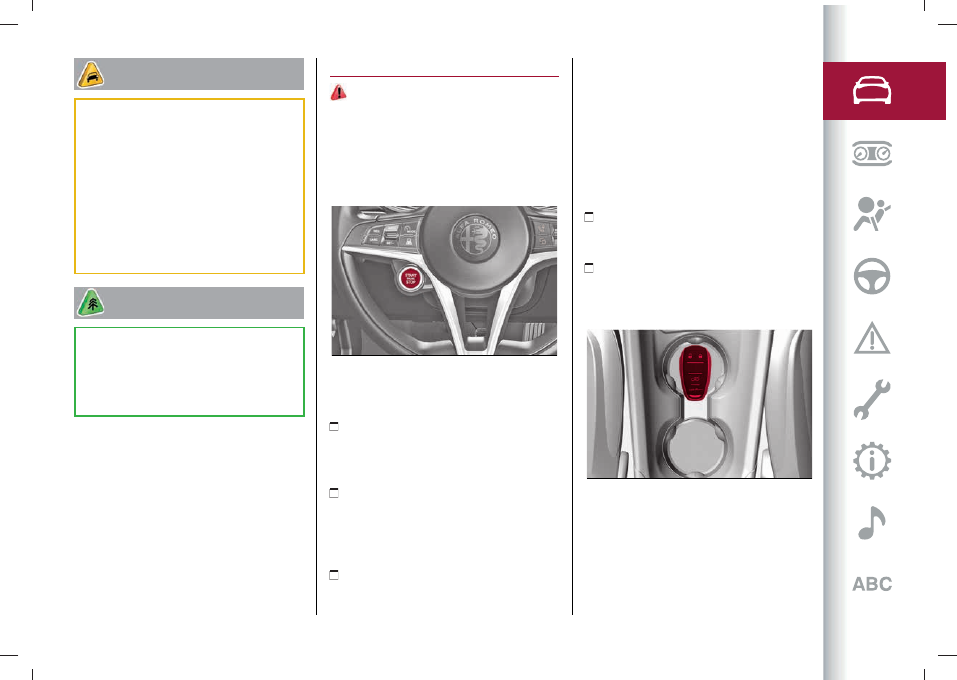

To activate the ignition device the

electronic key must be inside the

passenger compartment. The ignition
device fig. 11 activates also if the

electronic key is inside the boot or on the

rear shelf.

11

9650180

The ignition device has the following

possible states:

STOP: engine off, steering column

locked. Some electrical devices (e.g.

central door locking system, alarm, etc.)

are still available

ENGINE: driving position. All electrical

devices are available. This state can be

selected by pressing the ignition device

button once, without pressing the brake

pedal

START: motor starting

Starting the motor (with flat electronic

key battery)

In this case, to start the engine, place the
electronic key in the cup holder fig. 12 and

press the ignition device.
NOTE If the doors are locked with the

remote control, using Passive Entry

(where provided) or using the app (where

provided), the engine must be started:

place the electronic key in the cup

holder fig. 12 and press the ignition

device

unlock the doors using remote control,

Passive Entry (where provided) or app

(where provided) and press the ignition

device

12

9650298

Stopping the engine (with flat

electronic key battery or stopping the

engine while running)

Hold the ignition device button pressed

for a while or press it 3 times in a row

within a few seconds.

CarManuals2.com

 KNOWING YOUR VEHICLE

20

NOTE The ignition device does NOT

activate if the electronic key is inside the

boot and this is open.
NOTE With the ignition device in the

ENGINE position, if 30 minutes pass

with transmission lever to P (Park) and

the motor stopped, the ignition device

will automatically move to the STOP

position.
NOTE For Q4 Plug-In Hybrid and Mild

Hybrid versions, with the ignition device

in ENGINE, the electric motor running

and the transmission lever in P, the

ignition device will automatically move to

STOP 30 minutes after the driver's door

is closed.
NOTE With motor started, it is possible

to go away from the car taking the

electronic key with you. The engine will

still be running. The car will indicate the

absence of the key on board when the

door is closed.
NOTE If the device does switch off the

car, refer to the “Display” chapter in

the “Knowing the instrument panel”

section , where provided, and contact

an Alfa Romeo Dealership as soon as

possible. For more information on the

engine start-up, see the description in

the "Starting the engine" chapter in the

"Starting and driving" section.
NOTE The electronic key can be disabled

for starting if it is left in the car. To do

this:

close all the doors, including the

tailgate

press the lock button on another key

twice or the button located under the

handle with another electronic key,

waiting at least 3 seconds between each

press

wait 30 seconds without unlocking the

car or opening the doors. To reactivate

the previously disabled electronic key

you must either start the car with an

enabled electronic key or unlock the car

using an enabled electronic key

STEERING COLUMN LOCK

(for versions/markets where provided)

Activation

The steering column lock engages when

the driver door is opened, with the

ignition device button at STOP and

speed 3 km/h.

Deactivation

The steering column lock disengages

when the ignition device is pressed and

the electronic key is recognised.

18)

WARNING

14)

If the ignition device has been tampered

with (e.g. an attempted theft), have it

checked over by the Alfa Romeo Dealership

before driving again.

15)

Always take the key with you when

you leave your car to prevent someone

from accidentally operating the controls.

Remember to engage the electric parking

brake. Never leave children unattended in

the vehicle.

16)

Before leaving the car, ALWAYS

engage the electric parking brake. Put the

transmission in the P (Park) position and

press the ignition device to set it to STOP.

When leaving the car, always lock all the

doors by pressing the button on the handle.

17)

Do not leave the electronic key inside

or near the car or in a place accessible to

children. Do not leave the car with the

ignition device in the ENGINE position. A

child could activate the electric window

winders, other controls or even start the car.

18)

It is absolutely forbidden to carry out

any after-market operation involving

steering system or steering column

modifications (e.g. installation of anti-theft

device) that could adversely affect

performance and safety, invalidate the

warranty and also result in non-compliance

of the car with type-approval requirements.

CarManuals2.com

21

ENGINE IMMOBILIZER

The Engine Immobilizer system prevents

unauthorised use of the car preventing

to start the engine. The system does not

need to be enabled/activated: operation

is automatic, regardless of the fact that

the car's doors are locked or unlocked.

IRREGULAR OPERATION

If, during starting, the key code is not
correctly recognised, the

icon is

displayed on the instrument panel (see

the instructions in the "Warning lights

and messages" chapter in the "Knowing

the instrument panel" section). This

condition will cause the engine to shut

down after two seconds. If this happens,

turn the key fob to the STOP position

and then back to ENGINE; if the lock

remains in place, try the other key fobs

supplied. If it is still not possible to start

the engine, contact an Alfa Romeo

Dealership.
If the

icon is displayed while driving,

this means that the system is running

a self-diagnosis (e.g. due to a voltage

drop). If the display persists, contact an

Alfa Romeo Dealership.

WARNINGS

Do not tamper with the Engine

Immobilizer system. Any

modifications/alterations could

cause the protection function to be

deactivated.
The Engine Immobilizer system is not

compatible with certain aftermarket

remote starting systems.

ALARM

(where provided)

ALARM ACTIVATION

The alarm goes off in the following cases:

wrongful opening of

doors/bonnet/boot (perimeter

protection)

operation of starting device with a key

which is not validated

when the conventional battery leads

are cut.

movement inside the passenger

compartment (volumetric protection,

where provided)

anomalous lifting/tilting of the car

(anti-lift protection, where provided)
Activation of the alarm triggers the horn

and the direction indicators.
WARNING The immobilizer function

is provided by the Engine Immobilizer

system, which is automatically activated

when you get out of the car taking the

electronic key with you and locking the

doors.
WARNING The alarm is adapted to meet

requirements in various countries.

TURNING THE ALARM ON

With the doors, bonnet and tailgate

closed and the ignition device turned to

STOP, point the electronic key towards
the car and press and release button .
The alarm can also be engaged by

pressing the "door lock" button, located

on the door external handle. For further

information, see "Passive Entry" in the

"Doors" chapter.
Except on some versions for specific

markets, the system produces a visual

and acoustic warning and activates the

door lock.
With the alarm on, warning light (1) fig. 13

flashes on the instrument panel.

13

9650186

In case of faults the system will generate

a further acoustic signal.
If, after the alarm is switched on, a

second acoustic warning is emitted, wait

about 4 seconds and switch off the alarm

by pressing the button , check that

the doors, bonnet and boot are closed

CarManuals2.com

 KNOWING YOUR VEHICLE

22

correctly and then reactivate the system
by pressing the button .
If the alarm emits an acoustic signal even

when the doors, bonnet and boot are

correctly closed, a fault has occurred in

system operation: in this case, contact an

Alfa Romeo Dealership.
Locking the doors without engaging the

alarm is also always possible by locking

the doors by putting the metal insert of

the key inside the driver side door lock.
WARNING If the doors are unlocked by

putting the metal insert into the driver

side door lock, the alarm, if previously

enabled, is not disabled. It will be

possible to disable the alarm by turning

the ignition device switch to ENGINE,
or by pressing button on the remote

control.

TURNING THE ALARM OFF

Press the button. The following

operations are performed:

two brief flashes of the direction

indicators (where provided)

two brief acoustic signals (where

provided)

releasing the doors

The alarm can also be disengaged by the

holder of the key, by grasping one of the

front handles. For further information,

see "Passive Entry" in the "Doors"

chapter.

WARNING The alarm does not switch off

when the central opening is activated

using the metal insert in the key.

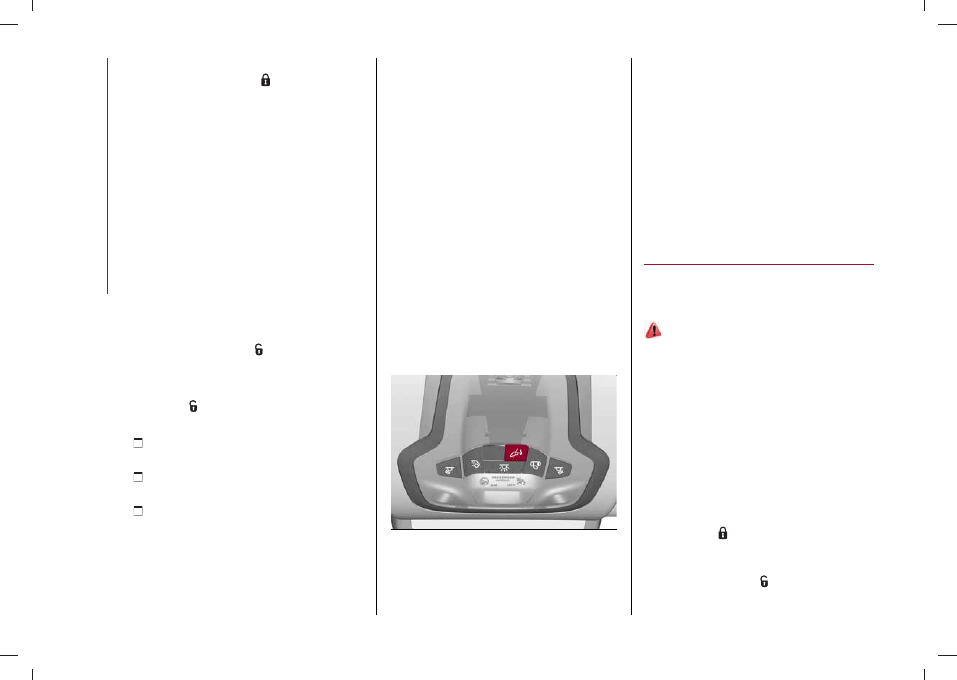

VOLUMETRIC / ANTI-LIFT

PROTECTION

(where provided)
For guaranteeing correct operation,

completely close the side windows and

sunroof, if present.
To exclude the function, press button
fig. 14 before deactivating the alarm.
When the function is turned off, this

is indicated by the LED on the button

flashing for several seconds.
Any disabling of the volume sensing/anti-

lift protection must be repeated each

time the instrument panel is switched

off.

14

04046S0002EM

DISARMING THE ALARM

To completely disable the alarm (e.g.

during a lengthy period of car inactivity),

close the doors by turning the metal

insert of the key in the door lock.
WARNING If the batteries of the key

with the remote control run out or the

system fails, the alarm can be switched

off by placing the ignition device switch

in the ENGINE position. Manually open

the doors by fitting the metal insert

located inside the key into the driver's

side door lock barrel and then placing the

electronic key in the cup holder.

DOORS

LOCKING / UNLOCKING DOORS FROM

THE INSIDE

Central locking / unlocking

19)

According to the version/market of

the car, the automatic locking function

of the doors when the speed exceeds

20 km/h ("Autoclose" function) may

not be present. In this case, use the

corresponding control located on the

door panel to lock/unlock the doors.
Similarly, the "Autoclose" function may

not be present in the "Doors & Locks"

menu on the instrument panel/Alfa

Connect.

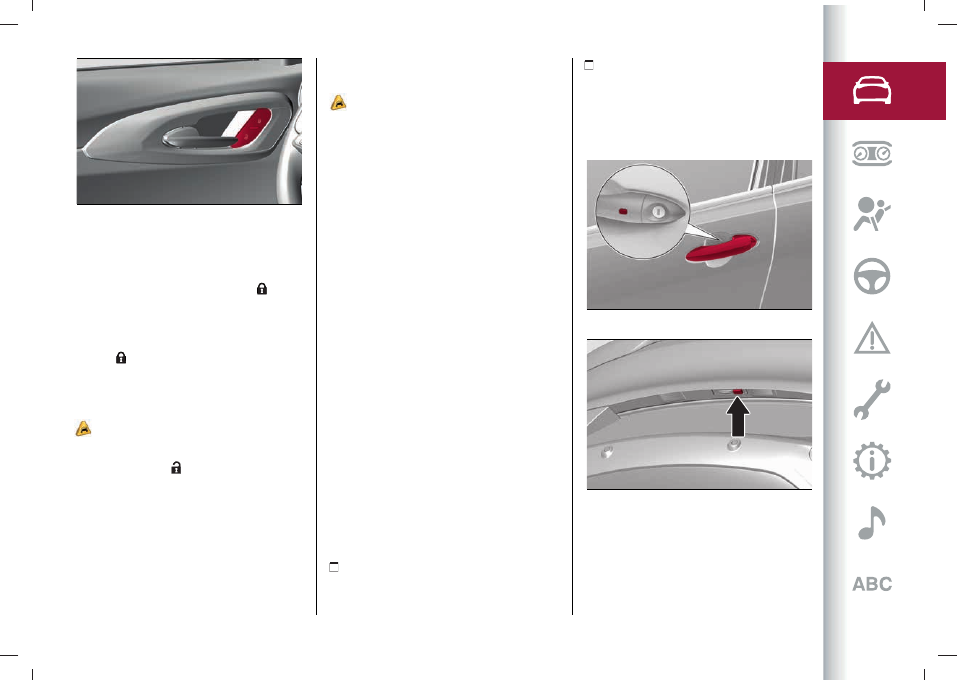

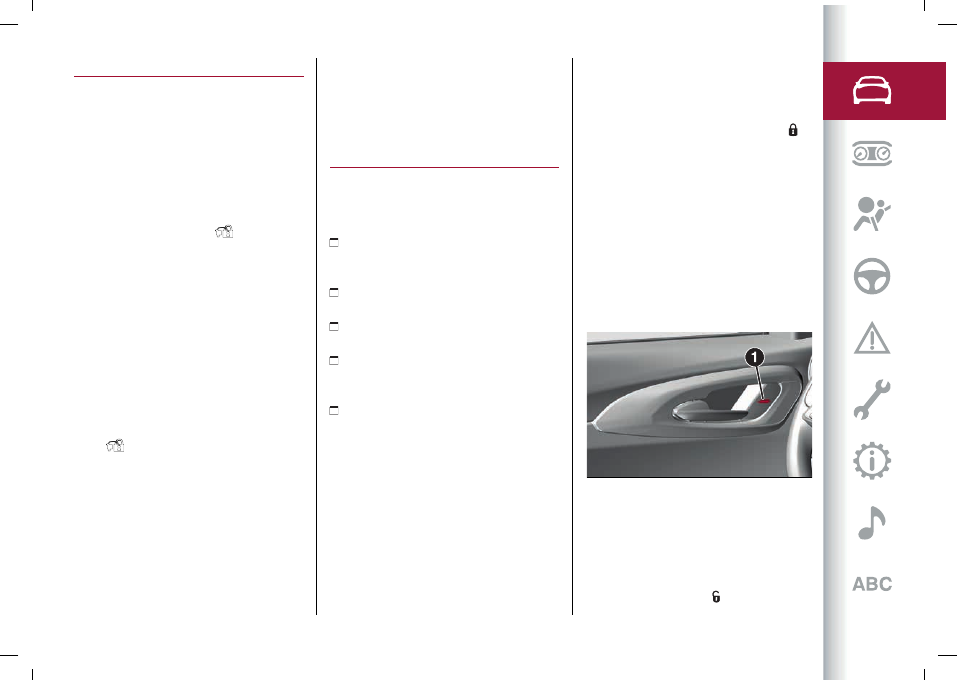

Press button on the driver side door

panel fig. 15 or on the passenger side

door to lock the doors. With doors

locked, press button to unlock them.

CarManuals2.com

23

15

9650185

LOCKING/UNLOCKING DOORS FROM

THE OUTSIDE

Locking from the outside

With the doors closed, press the

button on the key.
The door lock can be activated with all

doors locked and the boot open. When
button

on the key is pressed, all locks

are closed, including the lock of the open

boot. The latter will be locked when it is

closed.

5)

Door unlocking from the outside

Press the button

on the key.

Locking/unlocking doors from the

outside in an emergency

If the battery is flat or the remote control

is faulty, you can lock/unlock the doors

from the outside by inserting and

rotating the metal insert (available inside

the remote control) in the lock of the

driver side door.

PASSIVE ENTRY

(where provided)

6)

The Passive Entry system can identify

the presence of an electronic key near

the doors and the boot.
The system enables the doors (or the

boot) to be locked/released without

pressing any button on the electronic

key.
The key is detected only after the

system recognises the presence of a

hand in one of the front handles. If the

detected key is valid, the doors and the

boot are unlocked (the elements that

open depend on the Alfa Connect system

settings).
Where the function is provided, grasping

the handle of the driver's door unlocks

the driver's door only, or all the doors,

depending on the mode set in the Alfa

Connect system.
WARNING If wearing gloves, or if it has

rained and the door handle is wet, the

activation sensitivity of the Passive

Entry function may be reduced, resulting

in a longer reaction time.

Door locking

To lock the doors, proceed as follows:

make sure that you have the electronic

key and are close to the driver or

passenger side door handle

press the "door locking" button fig. 16

located on the handle or the fig. 17 button

on the boot near the open button: this

will lock all doors and the boot. Door

locking will activate the alarm as well

(where provided)

16

9650134

17

9650135

WARNING After pressing the "door

locking" button, you need to wait two

seconds before the doors can be

unlocked again using the door handle. It is

therefore possible to check whether the

car is locked correctly by pulling the door

CarManuals2.com

 KNOWING YOUR VEHICLE

24

handle within 2 seconds. The doors will

not be unlocked again.
The car doors and boot can anyway
be locked pressing button

on the

electronic key or on the inner door panel.

Driver side door emergency opening

If the electronic key does not work, e.g.

because its battery is flat or the car

battery is flat, the emergency metal

insert inside the key can anyway be used

to operate the lock, unlocking the driver

side door.
To extract the metal insert, proceed as

follows:

hold pressed in the points shown fig. 18

and slide the cover off downwards

remove the key insert from its housing

fig. 19

then insert the metal insert in the

driver side door lock and turn it to unlock

the door

18

04016S0002EM

19

04016S0003EM

NOTE The metal insert of the key has

no forced insertion direction and can be

inserted indifferently in the lock.

WARNINGS

To avoid leaving the electronic key inside

the car accidentally, the Passive Entry

function features an automatic door

unlocking function.
If one of the car doors is open and the
"door lock" button fig. 16 is pressed

located on the front door handles, or the

button

in the door panel inner trim

fig. 15, once all the doors are closed, the

car checks the inside and outside of the

car to check for the presence of enabled

electronic keys.
When pulling the handle, do not press the

door lock/unlock button on the handle

fig. 20.

20

9650136

If one of the electronic keys is detected

inside the car and no other active

electronic key is detected outside

the car, the Passive Entry function

automatically unlocks all the car doors,

sounds three times and operates the

direction indicators.
If, on the contrary, one or more

electronic keys are inside the passenger
compartment, pressing the button

on

the remote control the keys inside the

passenger compartment are temporarily

disabled.
The car

will not unlock

the doors if an

unauthorised electronic key has been

detected outside close to the car.
If the Passive Entry function is disabled

using the Alfa Connect system, the

protections to avoid leaving accidentally

the electronic key inside the car are

deactivated.

CarManuals2.com

25

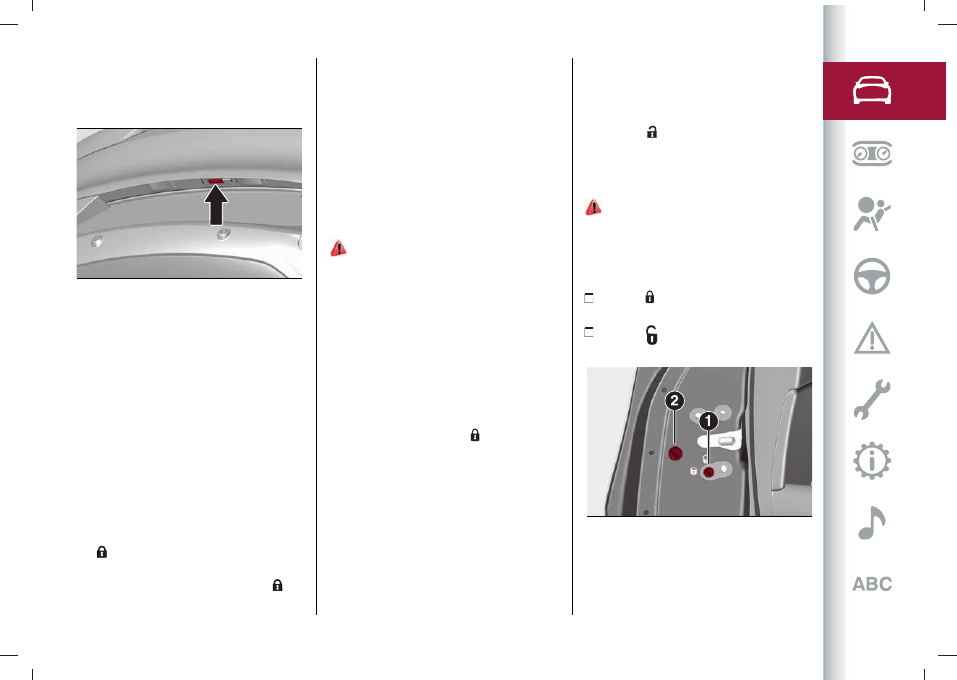

Boot access

Approaching the boot with a valid

electronic key, press the opening button
fig. 21 to access the boot.

21

9650137

WARNING If the electronic key is

inadvertently forgotten inside the boot

and an attempt is made to close it from

outside, the boot will not lock unless

another electronic key is recognised

outside and nearby the car. With the

doors locked, if only the boot is unlocked,

if a key is detected inside when it is

locked, the boot will unlock again and the

lights flash twice.
WARNING Before driving make sure the

boot is closed correctly.

Locking the boot lock

The boot may still be locked by pressing
the

button on the electronic key or

by pressing the door lock button on the
external handles or by pressing the

button on the inner door panel of the car.

On cars equipped with Passive Entry,

the boot and the doors can be locked by
pressing the fig. 17 button located near

the opening button on the boot.

System activation/deactivation

The Passive entry system can be

activated/deactivated using the Alfa

Connect system.

DEAD LOCK DEVICE

(where provided)

20)

This safety device prevents the opening

of the doors from inside the car and the

lock/unlock door button. This prevents

the opening of the doors from inside

the passenger compartment in case of

break-in attempt (e.g. by smashing a

window).
We recommend that you activate the

device each time you park your car.

Device on

: the device is activated on all

doors by pressing button on the key

twice in rapid succession or by pressing

the lock button on the exterior handle of

the car. The direction indicators flash 3

times to let you know that the device is

active.
If one or more of the doors are not closed

correctly, the device will not activate,

thus preventing a person from getting

stuck inside the passenger compartment

by entering the car through, and then

closing, the open door.

Deactivating the device

: the device is

automatically deactivated by pressing
the button

on the electronic key or by

turning the ignition device to ENGINE or

by grasping one of the front handles.

CHILD LOCK

21)

This system prevents the rear doors

from being opened from the inside.

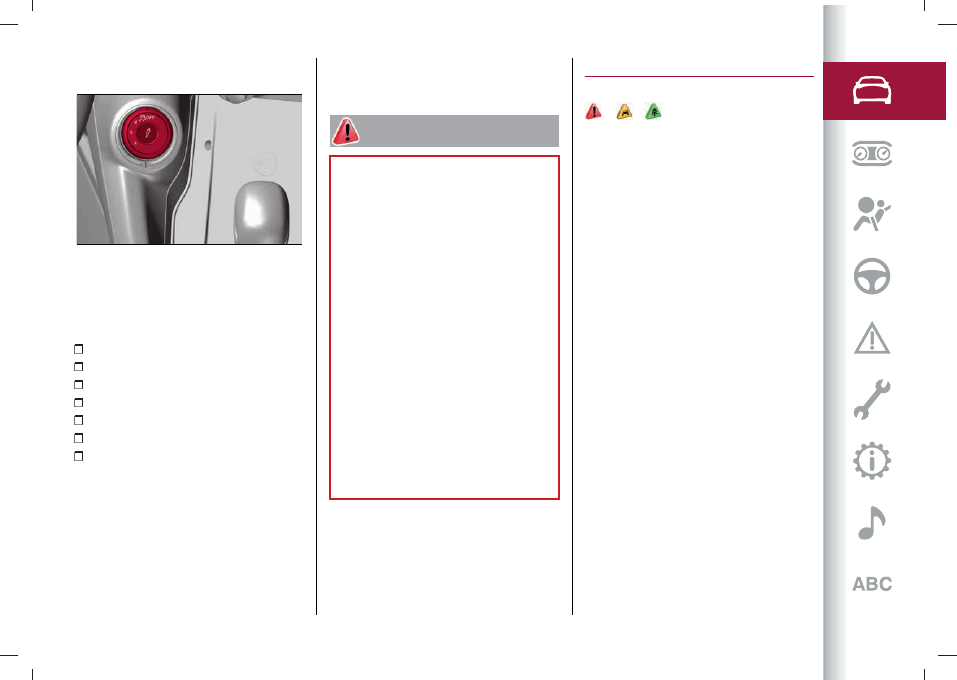

This device (1) fig. 22 can be engaged only

with the doors open:

position : device engaged (door

locked)

position : device not engaged (door

may be opened from the inside)

22

9650138

The device remains engaged even if the

doors are electrically unlocked.

CarManuals2.com

 KNOWING YOUR VEHICLE

26

WARNING The rear doors cannot be

opened from the inside when the child

lock is engaged.

UNLOCKING THE DOORS WITH A FLAT

BATTERY

Proceed as follows to unlock the doors if

the car battery is flat.

Rear doors and passenger door

Proceed as follows:

insert the metal insert of the

electronic key in the release device
housing (2) fig. 22;

turn the key clockwise for the right

door locks or anticlockwise for the left

door locks;

remove the key from the housing.

Proceed in one of the following ways to

realign the door lock device (only when

the battery charge has been restored):

press the

button on the electronic

key;

press the

button on the door panel;

open by inserting the key insert in the

driver's door lock;

operate the internal door handle.

WARNING For the rear doors, if the

child lock device was engaged and the

previously described locking procedure

carried out, operating the internal handle

will not open the door but will only realign

the lock release device. To open the door,

the outside handle must be used. The

door central locking/unlocking buttons

are not deactivated when the emergency

lock is engaged.

WARNING

19)

NEVER leave children unattended in

the car and do not leave the car with the

doors unlocked in a location accessible to

children. Children could be seriously or

fatally injured. Also ensure that children do

not inadvertently operate the electric park

brake, the brake pedal or the automatic

transmission/ dual clutch automatic

transmission lever.

20)

Always use this device when carrying

children. After engaging the device on both

rear doors, check that it is actually engaged

by trying to open a door with the internal

handle.

21)

Once the safe lock system is engaged it

is impossible to open the doors from inside

the vehicle. Before engaging the system

please therefore check that there is no one

left on board. If the electronic key battery is

flat, the system can be disengaged only by

inserting the key metal insert in either of the

door locks as described previously: in this

case the device remains active only for the

rear doors.

IMPORTANT

5)

Make sure to take the key with you once

a door or the boot is locked, to prevent

forgetting the key inside the car. If the key is

locked inside, it can only be retrieved by

using the second key provided.

6)

The operation of the recognition system

depends on various factors, such as, for

example, any electromagnetic wave

interference from external sources (e.g.

mobile phones), the charge of the battery in

the electronic key and the presence of metal

objects near the key or the car. In these

cases it is still possible to unlock the doors

by using the metal insert in the electronic

key (see description on the following pages).

SEATS

Driver seat adjustment must also be

carried out remembering that, keeping

the shoulders resting firmly against the

backrest, the wrists must be able to

reach the top of the steering wheel rim.
It must also be possible to fully press the

brake pedal with the left foot.
WARNING Make adjustments while

sitting in the seat you want to adjust

(driver side or passenger side).
NOTE Do not place objects beneath the

adjustable seat or impede proper seat

adjustment.

FRONT SEATS WITH MANUAL

ADJUSTMENT

22)

7)

Longitudinal adjustment

: lift lever (1)

fig. 23 and push the seat forwards or

backwards.

CarManuals2.com

27

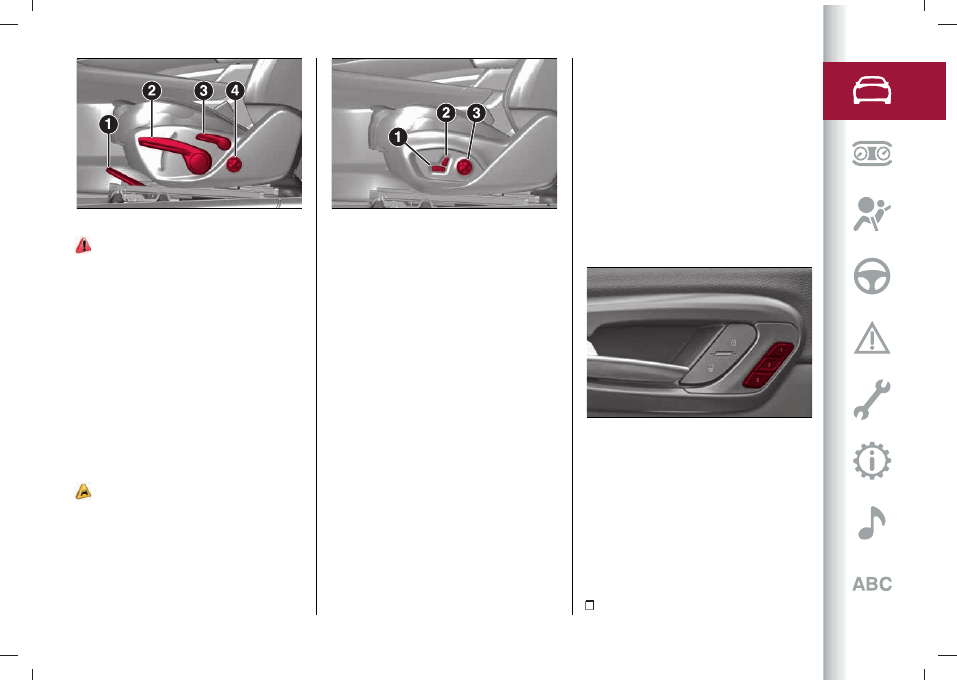

23

9650139

23)

Height adjustment

(where provided):

adjust lever (2) upwards or downwards to

obtain the required height.

Backrest angle adjustment

: move

lever (3) to adjust the backrest angle,

accompanying it with the movement of

the torso (operate the lever until the

desired position is reached, then release

it).

Electric lumbar adjustment

(where

provided): operate the joystick (4) .

ELECTRICALLY ADJUSTABLE FRONT

SEATS

8)

The buttons for electrically adjusting

the seat can be used to adjust the height

(where provided), longitudinal position

and angle of the backrest.

24

9650140

Height and/or cushion tilt adjustment

(where provided): act on the front or rear
part of the switch (1) fig. 24.

Longitudinal adjustment

: push switch (1)

forwards or backwards to move the seat

in the corresponding direction.

Backrest angle adjustment

: push switch

(2) fig. 24 forwards or backwards to

adjust the backrest in the corresponding

direction.

Electric lumbar adjustment

(where

provided): operate the joystick (3) fig. 24.
WARNING The electrical adjustment is

only allowed when the ignition device

switch is turned to ENGINE, and for

about 20 minutes after it is turned

to STOP. The seat can be moved for

approximately 20 minutes after opening

or closing the door.
NOTE With the ignition device in the

STOP position, the electric adjustment

will automatically deactivate if the doors

of the car are locked from the outside.

Storing the driver’s seat positions

(where provided)
This function allows the driver to store

up to three different profiles, which can

be easily recalled by pressing buttons

(1), (2), (3) on the side of the inside door

handle on the driver's side door panel
fig. 25. Each stored profile (profile 1, 2 or

3) contains the desired position settings

for the driver's side seat.

25

9650337

Memorisation and recall is possible

both with the ignition device in ENGINE

position and the vehicle stationary, and

with the vehicle moving (up to a speed

of approx. 2 km/h), and for 20 minutes

from when the ignition device is moved

to STOP. Storage of the position is

confirmed by a beep.
To storing a seat position:

adjust the driver’s seat

CarManuals2.com

 KNOWING YOUR VEHICLE

28

press the button for about 1.5 seconds

(1), (2) or (3) and release it
When storing a new setting for the

driver's seat and radio, the previous

setting is automatically deleted using the

same button.
Recalling a memorised position is also

possible for about 20 minutes after the

doors are opened and about 20 minute

after the engine is stopped. To recall a

memorised position, press the relevant

button briefly.
NOTE The movement of the seat is

suspended if the ignition device is moved

to the START position following the

recall.

FRONT SEAT ELECTRIC HEATING

(where provided)
With the ignition device in ENGINE
position, press button (1) fig. 26 on the

Alfa Connect system display.

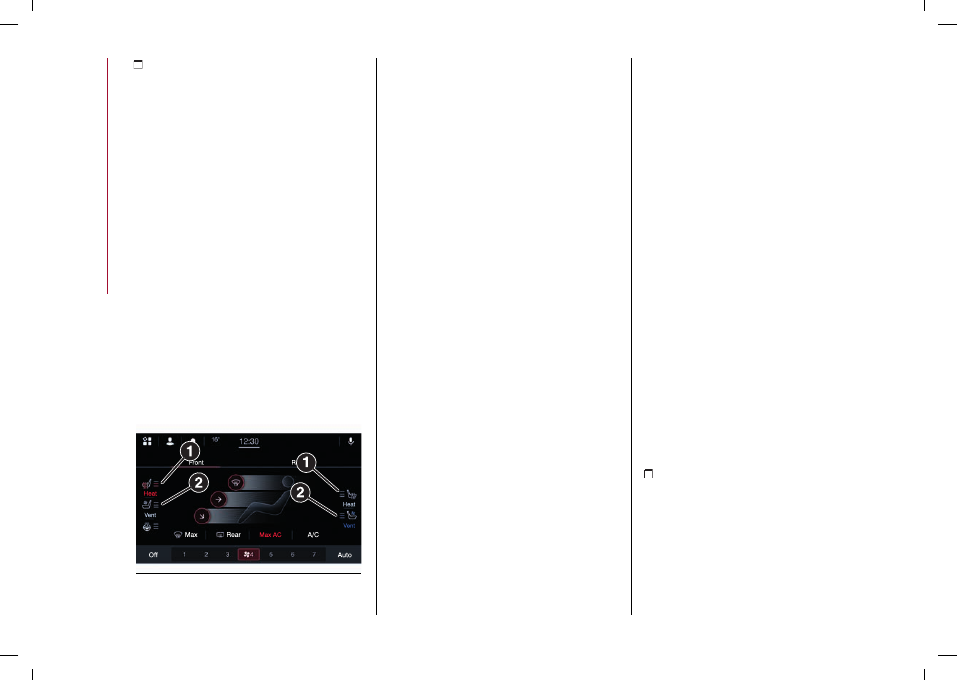

26

9650106

There are 3 heating levels (Minimum,

Medium, Maximum).
The heating level can be automatically

updated to lower levels until the function

is deactivated depending on the time

elapsed since activation and the

temperature reached.
After activating the heating, you need

to wait for a few minutes until warm air

flows into the compartment.
WARNING In order to preserve the

conventional battery, this feature cannot

be activated when the engine is off.

Auto On Comfort (where provided)

The electric heated driver and passenger

seat is switched on automatically to

"maximum heating" whenever the engine

is started and the external temperature

is lower than 4.4°C. This function can be

activated and deactivated using the Alfa

Connect system Menu.

FRONT VENTILATED SEATS

(where provided)
Tans are placed in the seat cushion and

backrest to suck air out of the passenger

compartment and introduce air through

the small holes in the seat cover to keep

the driver and front passenger cool in the

event of high external temperatures. The

fans run at two speeds: high and low.
The front ventilated seats control

buttons are located within the Alfa

Connect system. You can gain access to

the control buttons through the climate

screen or the controls screen.
Press button (2) fig. 26 several times to

select, in sequence: HI (High ventilation),

intermediate ventilation level, LO (Low

ventilation) or ventilation off.
NOTE The engine must be running for the

ventilated seats to operate.

Auto On Comfort (where provided)

If the driver and passenger ventilated

seat function is switched on

automatically whenever the engine is

started and the external temperature is

higher than 27°C. This function can be

activated and deactivated using the Alfa

Connect system Menu.

REAR SEATS

The boot can be partially (1/3 or 2/3) or

totally extended by splitting the rear

seat.

Removing the parcel shelf

(where provided)
Proceed as follows:

free the ends of the two parcel shelf

mounting links (1) fig. 27 by removing the

eyelets from the mounting pins

CarManuals2.com

29

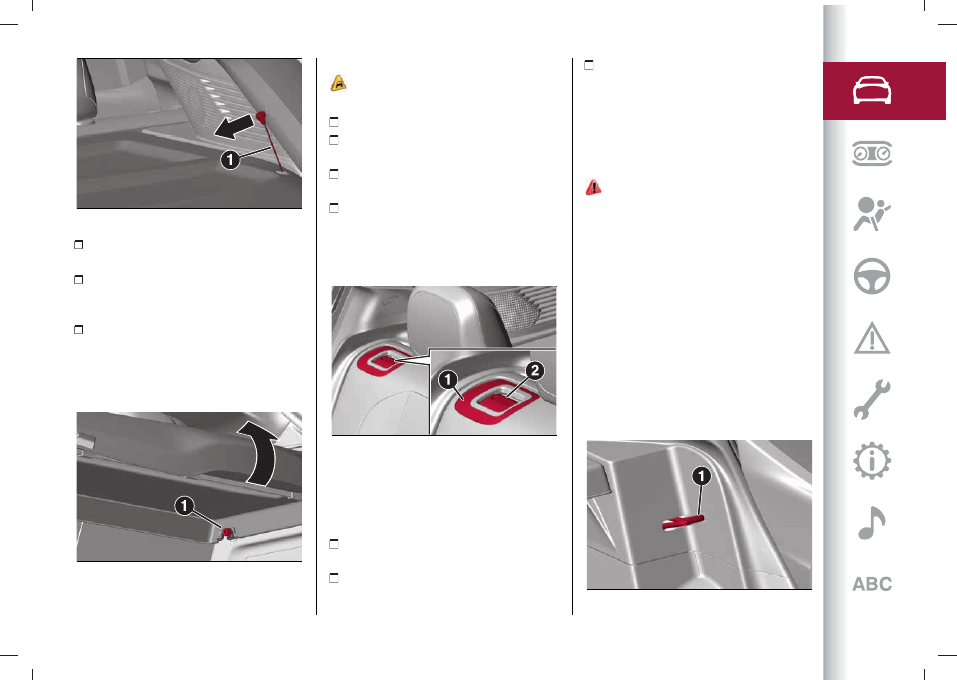

27

9650141

raise the rear part of the parcel rack,

operating as illustrated in fig. 28

release the pins (1) fig. 28 located

outside the shelf, then remove the parcel

rack, pulling it upwards

after removal, the parcel rack can be

loaded sideways into the boot or placed

between the front seat backrests and

the rear seats (with the boot completely

expanded)

28

9650142

Partial extension of boot (1/3 or 2/3)

9)

Proceed as follows:

remove the parcel shelf, if present
completely lower the rear seat head

restraints

make sure that the seat belt is

positioned on panel (1) fig. 29

operate lever (2) to tilt the left or right

part of the backrest: it will automatically

tilt forward. If necessary, accompany the

backrest during the initial stage of tilting.

When you lift the lever, you will see a red

29

9650143

Total boot extension

Tilting the rear seat completely forwards

allows maximum loading volume.
Proceed as follows:

completely lower the rear seat head

restraints

make sure that the seat belt is

positioned on panel (1) fig. 29 (where

provided)

operate the lever (2) to fold down

the backrests. They will fold forwards

automatically. If necessary, accompany

the backrests during the initial stage of

tilting. When you lift the lever, you will

see a red

Repositioning seat backrests

24) 25)

Move the seat belts aside, making sure

that they are correctly extended and not

twisted and that they are not trapped

behind the backrests of the seats.
Make sure that the seat belt is

positioned on panel trim (1) fig. 29 (where

provided), then raise the backrests

pushing them backwards until the

locking click is heard on both coupling
mechanisms (1) fig. 30 by the side visually

checking that the "red notches" on the
levers (2) fig. 29 are not visible (the “red

notch” indicates that the seat back is not

fastened).

30

9650144

CarManuals2.com

 KNOWING YOUR VEHICLE

30

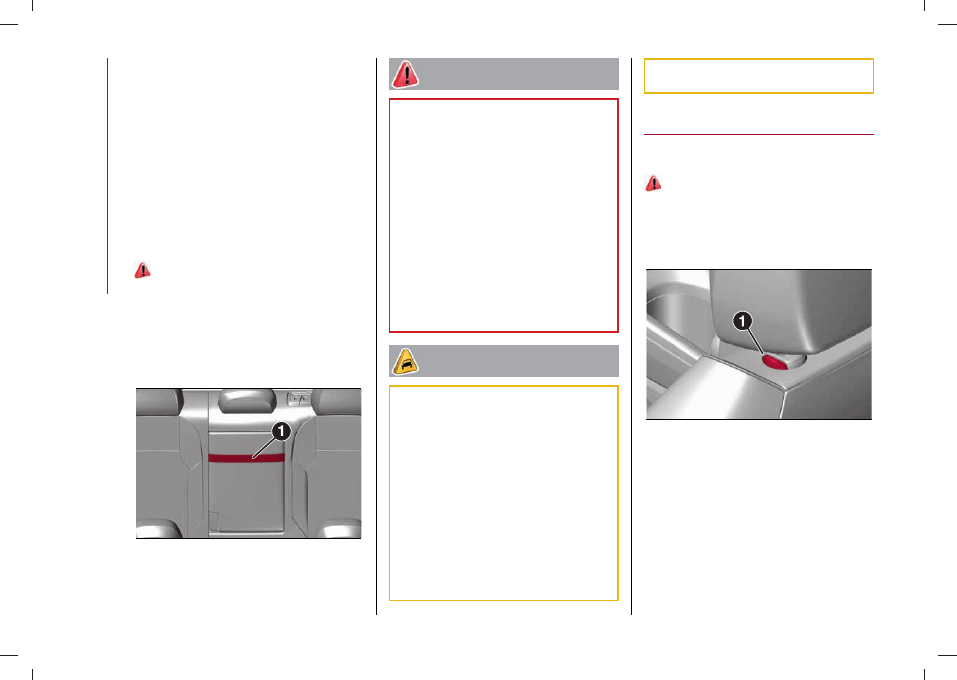

Backrest centre part (rear armrest)

Before tilting the backrest, lower the

head restraint completely making sure

that the rear central seat belt is not

fastened and that there aren't any

objects in the central part of the cushion

(if there are any, remove them).
Pull the handle (1) fig. 31 and tilt the

central part of the backrest.
The backrest central part, once tilted,

can be used as rear armrest as well; it is

equipped with a cup/bottle holder.

25)

WARNING Before repositioning the

central part of the backrest check that

there are no beverages or objects in

the cup holder which could obstruct

the coupling area (remove them where

provided).

31

9650145

WARNING

22)

All adjustments must be made with the

car stationary.

23)

After releasing the adjustment lever,

always check that the seat is locked on the

guides by trying to move it back and forth.

If the seat is not locked into place, it may

unexpectedly slide and cause the driver to

lose control of the car.

24)

Make sure the backrests are properly

secured at both sides (not visible “red

notches”) to prevent them from moving

forward, in the event of sharp braking, with

possible impact with the passengers.

25)

If a passenger is present, it won't be

possible to use the armrest, but the central

backrest needs to be properly attached.

IMPORTANT

7)

The fabric upholstery of the seats has

been designed to withstand long-term wear

deriving from normal use of the car. Some

precautions are however required. Avoid

prolonged and/or excessive rubbing against

clothing accessories such as metal buckles

and Velcro strips which, by applying a high

pressure on the fabric in a small area, could

cause it to break, thereby damaging the

upholstery.

8)

Do not arrange objects beneath the

electrically adjustable seat and do not

impede its movement, since the controls

may be damaged. They may also restrict the

seat travel.

9)

Before tilting the backrest, remove any

objects on the seat cushion.

HEAD RESTRAINTS

FRONT HEAD RESTRAINTS

(adjustments)

26) 27) 28) 29)

Upwards adjustment

: raise the head

restraint until it clicks into place.

Downward adjustment

: press button (1)

fig. 32 and lower the head restraint.

32

9650146

REAR HEAD RESTRAINTS

(adjustments)

NOTE Only the outer head restraint are

adjustable. The central head restraint is

fixed (where provided).

Upwards adjustment

: raise the head

restraint until it clicks into place.

Downward adjustment

: press button (1)

fig. 33 and lower the head restraint.

CarManuals2.com

31

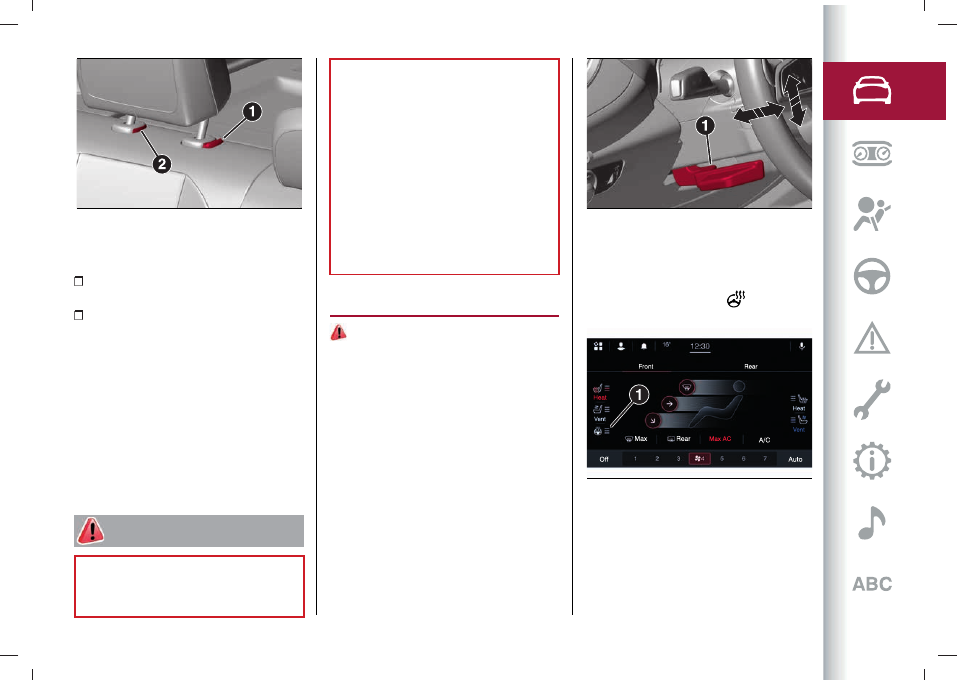

33

9650147

REAR HEAD RESTRAINTS (removal)

Proceed as follows:

raise the head restraint to its

maximum height

press buttons (1) and (2) fig. 33 at the

side of the two supports, then remove

the head restraints by pulling them

upwards
WARNING Always re-position the rear

head restraints if they had been removed

before starting to drive normally. Re-

fit the rods of the head restraints in

their housings, holding buttons (1) and

(2) pressed. Then, re-position the head

restraints according to your needs.

WARNING

26)

Head restraints must be adjusted so

that the head, rather than the neck, rests on

them. Only in this case they can protect your

head correctly.

27)

All occupants, including the driver,

should not operate a vehicle or sit in a

vehicle’s seat until the head restraints are

placed in their proper positions in order to

minimize the risk of neck injury in the event

of a collision

28)

Head restraints should never be

adjusted while the vehicle is in motion.

Driving a vehicle with the head restraints

improperly adjusted or removed could cause

serious injury or death in the event of a

collision.

29)

ALL the head restraints MUST be

reinstalled in the vehicle to properly protect

the occupants.

STEERING WHEEL

30) 31)

ADJUSTMENTS

The steering wheel can be adjusted both

in height and in depth.
To adjust, move the lever (1) fig. 34

downwards, then adjust the steering

wheel to the most suitable position and

then lock it in this position moving the

lever (1) again upwards.

34

9650148

ELECTRIC STEERING WHEEL HEATING

(where provided)
With the ignition device in ENGINE
position, press the button

(1) fig. 35 on

the Alfa Connect system display.

35

9650107

WARNING This function can only be

activated when the heat engine is

running.

CarManuals2.com

 KNOWING YOUR VEHICLE

32

The electric heated steering wheel is

switched on automatically whenever

the engine is started and the outside

temperature is lower than 4.4°C.
This function can be activated and

deactivated using the Alfa Connect

system Menu.

WARNING

30)

All adjustments must be carried out only

with the car stationary and engine off.

31)

It is absolutely forbidden to carry out

any after-market operation involving

steering system or steering column

modifications (e.g. installation of anti-theft

device) that could adversely affect

performance, invalidate the warranty, cause

SERIOUS SAFETY PROBLEMS and also

result in the car not meeting type-approval

requirements.

REAR-VIEW MIRRORS

INTERIOR MIRROR

The mirror is fitted with a safety device

that causes its release in the event of a

violent impact with the passenger.

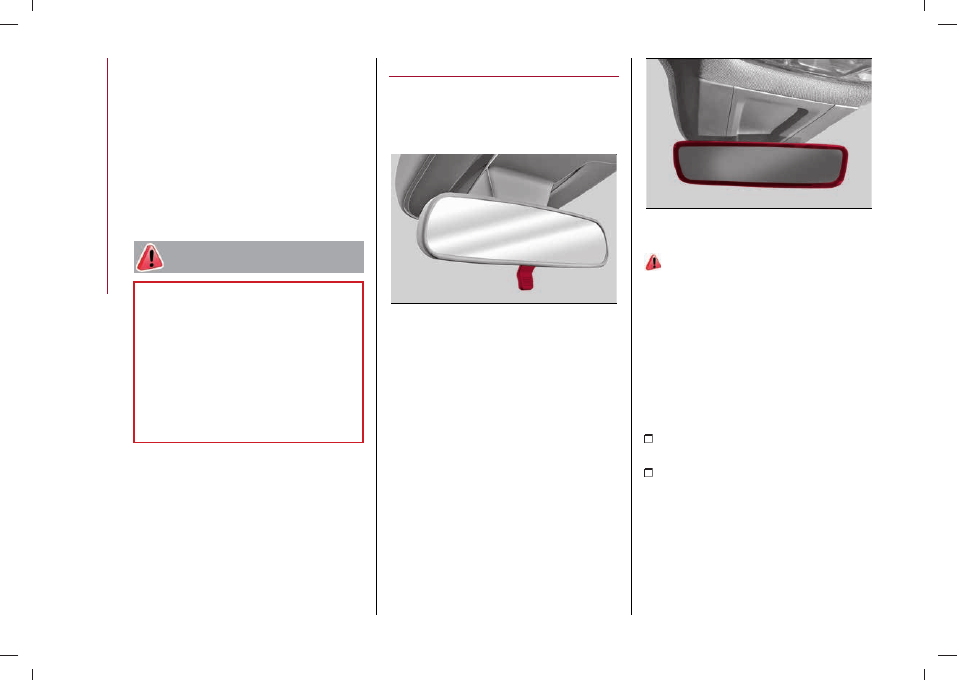

36

04106S0001EM

Operate lever fig. 36 to adjust the mirror

into two different positions: normal or

anti-glare.

ELECTROCHROMIC REAR-VIEW

MIRROR

(where provided)
Some versions have an electrochromic

mirror with automatic antiglare function
fig. 37.

37

9650331

DOOR MIRRORS

32)

The mirrors can be adjusted with the

ignition device in the ENGINE position

and for about 3 minutes after the ignition

device has been turned to the STOP

position.
When one of the front doors is opened

this operation is disabled.
Select the desired mirror using device (1)
fig. 38:

device in position (A): left mirror

selected

device in position (C): right mirror

selected

Auto On Comfort

(where provided)

CarManuals2.com

33

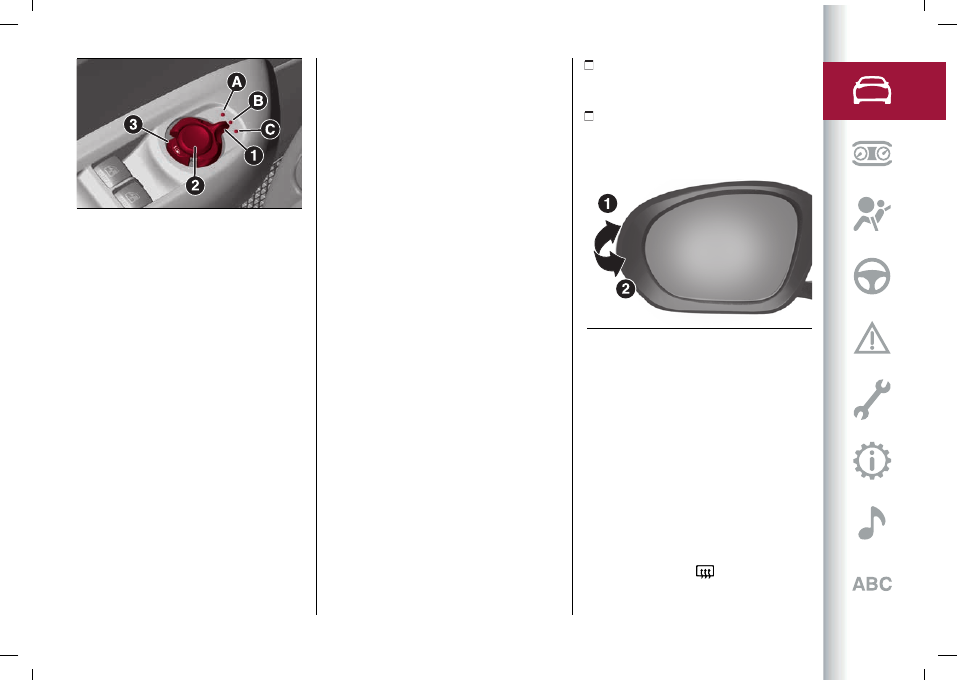

38

9650149

To adjust the selected mirror, press

button (2) in the four directions shown by

the arrows.
WARNING Once adjustment is complete,

rotate device (1) to position (B) to

prevent accidental movements.

Folding

To fold the mirrors, press button (3)
fig. 38. Press the button again to restore

the mirrors to the driving position.
If button (3) is pressed during door mirror

folding (from closed to open position and

vice versa), their movement direction is

reversed.
The mirrors can be folded or opened

with the ignition device in the ENGINE

position and for about 3 minutes after

the ignition device has been turned to

the STOP position. When one of the

front doors is opened this operation is

disabled.

WARNING The mirrors must always be

open while driving and should never be

folded.

Automatic function activation

Activating the central door locking

system from outside the vehicle

automatically folds the mirrors.
Turning the ignition device to the

ENGINE position automatically returns

the mirrors to the driving position.
If the mirrors were folded using device
(3) fig. 38, they can only be returned

to the driving position using the same

device.

Function activation/deactivation using

the Alfa Connect system

The Alfa Connect system menu can be

used to activate/deactivate the electric

mirror folding function (the default

setting for the function is “Active”).
For more information refer to the

contents of the supplements available

online.

Mirrors realignment operation

In case one of the door mirrors has been

moved manually it may occur that the

mirror itself does not retain its position

in a stable way while driving.
In that case it is necessary to carry out

the following realignment operation:

manually close the mirror in the

parking position, folding it from the
position (1) to the position (2) (see fig. 39)

actuate the mirrors opening control

once or twice (3) fig. 38 to realign the

system and bring both mirrors in the

driving position

39

9650172

ELECTROCHROMIC EXTERIOR

MIRRORS

(where provided)
These mirrors can automatically modify

its reflecting action to prevent dazzling

the driver. The electrochromic rear-view

mirror function on/off button fig. 37 is

the same for all rear-view mirrors.

ELECTRIC DOOR MIRROR HEATING

On versions with manual climate

control or, depending on the trim level,

automatic dual-zone climate control,

pressing the button

activates door

mirror demisting/thermal resistance.

CarManuals2.com

 KNOWING YOUR VEHICLE

34

WARNING

32)

As the driver and passenger side door

mirror is curved, it may slightly alter the

perception of distance.

EXTERNAL LIGHTS

LIGHT SWITCH

The ring of the light switch (1) fig. 40,

located on the left side of the dashboard,

controls the operation of headlights, side

lights, daytime running lights, dipped

beam headlights, the rear fog lights and

instrument panel and graphic control

button dimmer.

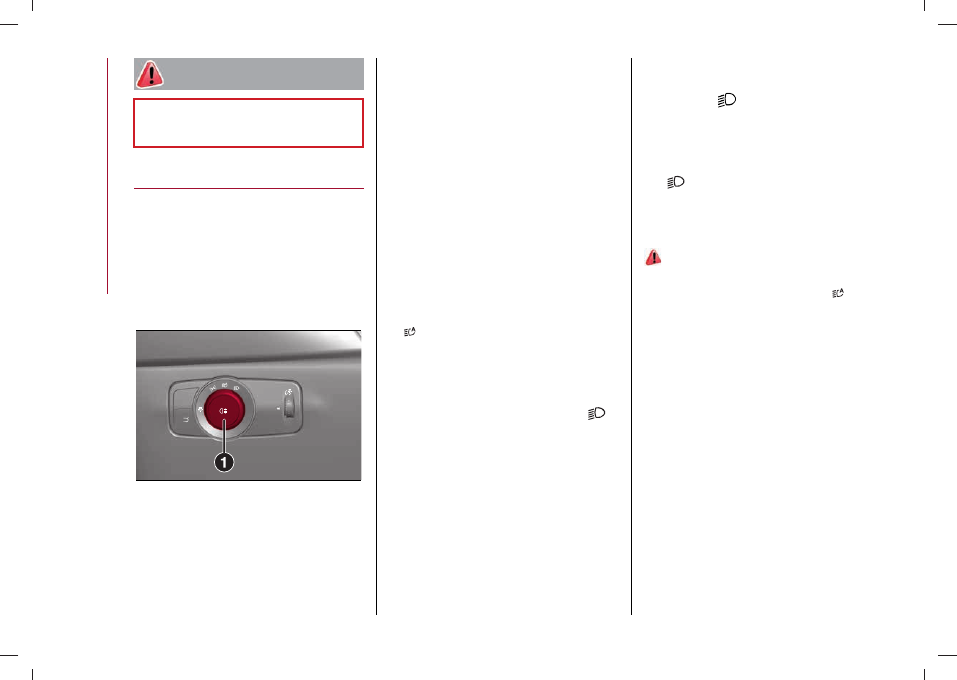

40

9650124

The exterior lights, except for the side

lights, can only be switched on when the

ignition device is at ENGINE.
The instrument panel and the various

controls on the dashboard will light up

when the external lights are switched on.

AUTOMATIC LIGHTING CONTROL

(AUTOLIGHT) - DUSK SENSOR

This is an infrared LED sensor that works

in conjunction with - the rain sensor

and is located on the windscreen. It is

able to detect variations in outside

lighting based on the light sensitivity set

in the menu of the Alfa Connect system

(see "Settings" in the "Vehicle mode"

paragraph in the "Multimedia" section).

The higher the sensitivity, the lower

the amount of external light needed to

switch the lights on.

Activation

With the ignition device in the ENGINE

position, turn the ring of the light switch
to

to activate the "Automatic lighting

control" function. This automatically

switches on the side/tail lights and

dipped beam headlights in case of low

external light or DRL in daytime driving
conditions. Turn the ring to position

to switch to manual dipped beam mode.
In the event of a sensor malfunction, the

side/tail lights, dipped beam headlights

and licence plate lights are automatically

activated.
WARNING The sensor cannot detect

the presence of fog. These lights must

therefore be switched on manually in

these circumstances.

DIPPED BEAM HEADLIGHTS

With the ignition device on ENGINE, turn
the switch to

. If the dipped beam

headlights are activated, the daytime

lights are switched off and the dipped

beam headlights, side lights and number

plate lights are switched on.
The

warning light switches on in the

instrument panel.

DAYTIME RUNNING LIGHTS (DRL)

"Daytime Running Lights"

33) 34)

The daytime running lights (DRL) are
activated with the ring in position

and

in daylight conditions. They remain off

as long as the electric parking brake is

engaged or the transmission is in the P

(Parking) position. With the ignition

device in the ENGINE position and the

heat engine switched off, the daytime

running lights are off. The daytime

running lights are also temporarily

deactivated when the direction

indicators are activated. When the

direction indicators are deactivated, the

daylight running lights are reactivated.

In some versions, if one of the daytime

running lights fails, all the daytime

running lights on the side where the

failure is present are switched off.

CarManuals2.com

35

REAR FOG LIGHT

The rear fog light switch is integrated

with the light switch.
With ignition device in the ENGINE
position, press button

to switch the

light on/off.
The rear fog light switches on only when

the dipped headlights are on. The light
can be switched off by pressing the

button again or by switching off the

dipped beam headlights.

PARKING LIGHTS

These can be turned on by turning the
light switch ring to the

position.

The

warning light switches on in the

instrument panel.
WARNING Do not select this light switch

position when the car is moving, but only

to indicate that the car is parked when

prescribed by the regulations in force

in the country where you are driving

(Highway Code).

TAIL LIGHTS

The tails on the tailgate are switched off

when the door is opened.

HEADLIGHTS OFF TIMER

This safety function delays the switching

off of the headlights, allowing the space

in front of the car to be illuminated for a

certain period of time.

Function activation

With the ignition device turned to STOP

or removed, pull the left stalk towards

the steering wheel within 2 minutes from

when the ignition device is turned to the

STOP position.
Each time the stalk is moved, the lights

stay on for an extra 30 seconds up to a

maximum of 210 seconds; then the lights

are switched off automatically.
Furthermore, the symbol

on the

instrument panel lights up whenever the

stalk is operated. The display shows

a message and the time set for the

function.
The

symbol comes on when the stalk

is first moved and stays on until the

function is automatically deactivated.

Each movement of the stalk only

increases the amount of time the lights

stay on.

Function deactivation

Hold the stalk pulled towards the

steering wheel for more than 2 seconds

or turn the ignition device to the ENGINE

position.
If the headlights are switched off before

the ignition, they will switch off normally.

MAIN BEAM HEADLIGHTS

To activate the fixed main beam

headlights, with the ignition device in
ENGINE, push left lever fig. 41 (car travel

direction) into unstable position. The

light switch should be turned to

with

the dipped beam headlights on, or it
should be turned to position

.

To flash, the unstable position is used

(activate by pulling the lever towards

you). With main beam headlights on, the
warning light

on the instrument panel

will come on at the same time.
The main beam headlights is switched off

by pushing the left lever in the direction

of travel in the toggle position. Warning
light

switches off in the instrument

panel.
When the speed is higher than 40 km/h

and the function is active, the lights

switch off if the stalk is pushed n the

direction of travel in the toggle position

again.

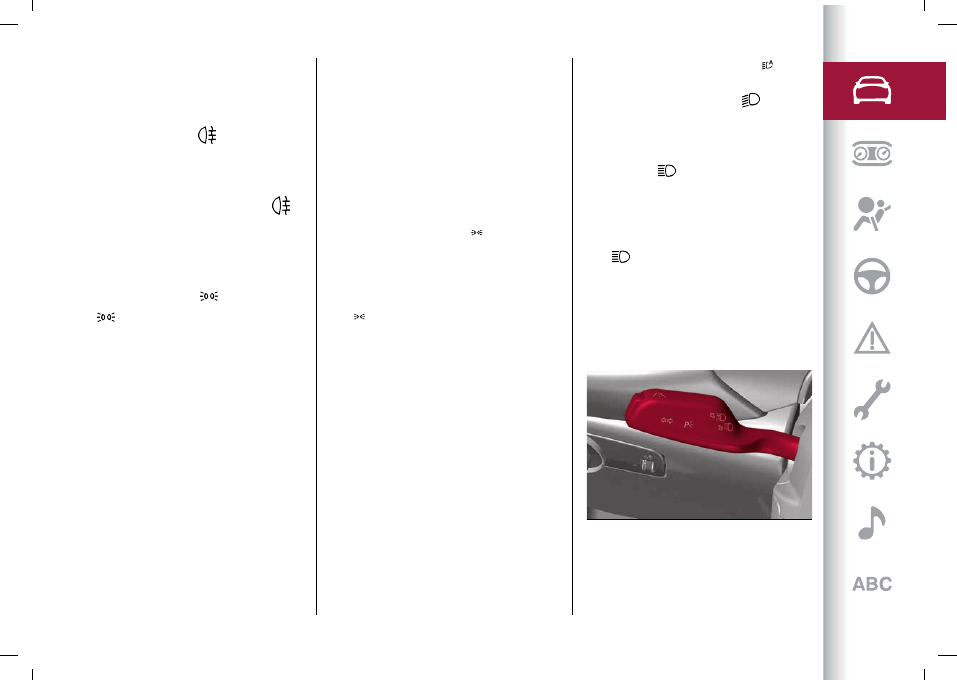

41

9650150

Automatic main beam headlights

In order not to dazzle other road users,

the lights are automatically deactivated

when approaching cars travelling in the

CarManuals2.com

 KNOWING YOUR VEHICLE

36

opposite direction or when following a

car travelling in the same direction.
This function is enabled with the display

Menu or the Alfa Connect system, and
with the light switch turned to .
The first time the main beam headlights

are activated (pushing the left lever), the

function is activated (the white symbol

comes on in the instrument panel

display).
If the main beam headlights are actually
on, the blue warning light

will also

come on in the instrument panel display.
When the speed is higher than 40 km/h

and the function is active, the lights

switch off if the stalk is pushed n the

direction of travel in the toggle position

again.
When the speed is lower than 15 km/h

and the function is active, the function

switches the main beam headlights off.
If the fixed main beam headlights are

operated quickly again (pushing the

left stalk in the direction of travel and

releasing it), the blue warning light/icon

will switch on in the instrument panel

and the main beam headlights will

be switched on fixed until the speed

exceeds 40 km/h.
When the speed of 40 km/h is exceeded
again, the function

is activated

automatically again.

If the lever is pulled again in this

condition, to request main beam

headlight deactivation, the function

remains off and the main beam

headlights switch off.
To deactivate the automatic function

rotate the light switch ring to position

.

When the speed is higher than 40 km/h

and the function is active, the lights

switch off if the stalk is pushed n the

direction of travel in the toggle position

again.

ADAPTIVE DRIVING BEAM (ADB) WITH

GLARE-FREE TECHNOLOGY

(where provided)
The "Glare Free" technology assists the

driver when driving on highway roads

with poor ambient lighting by allowing

the use of high beam lights even in the

presence of other cars without the risk

of dazzling them.
The glare-free effect is achieved by

arrays of LEDs, which are dynamically

switched on and off to detect a shaded

area at the headlights of every vehicle

on the road (including motorbikes and

bicycles), based on information about the

headlights of other cars provided by the

forward-facing digital camera located on

the windscreen below the interior rear-

view mirror.

The glare-free system is of the multi-

shadow type, as it can create up to four

light tunnels at the same time, and each

tunnel area is as wide as the obstacle

that must not be dazzled.
The figure shows an example of different

scenarios:

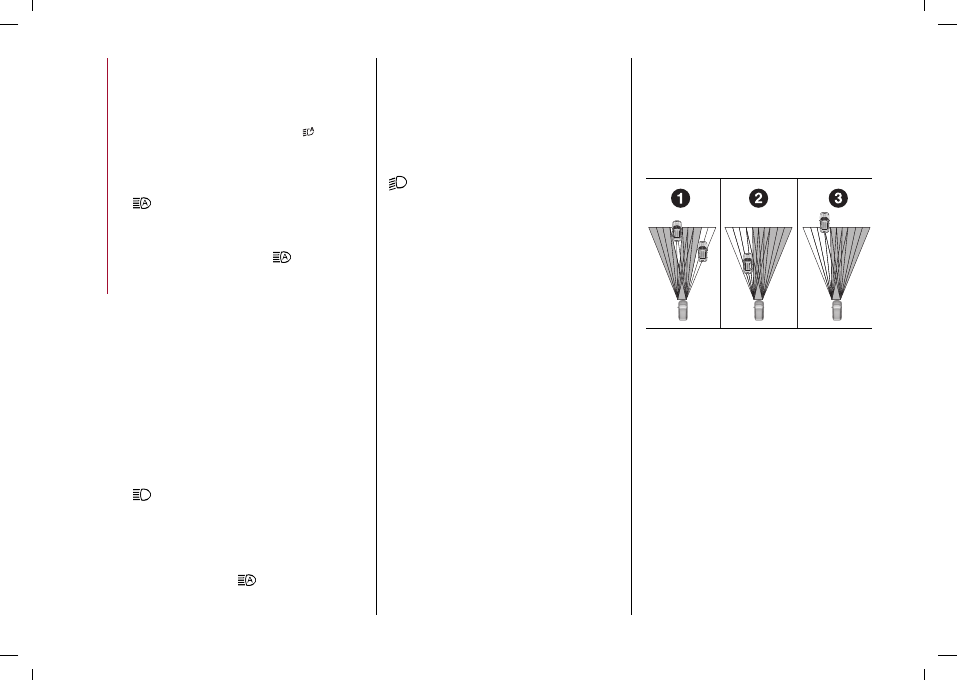

42

9650050

(1) two cars are travelling in front in the

same direction;
(2) another car is overtaking;
(3) another car is travelling in the

opposite direction.
The system can detect and react to

an oncoming car from a distance of

about 400 m in a couple of seconds. In

contrast, in the case of vehicles driving in

front, the system can detect and react

within seconds from a distance of

approximately 100 m.

Activation mode

The digital camera is the same as

the one used for the Auto Dim High

CarManuals2.com

37

Beams and, as with the Auto Dim High

Beams, the "Glare Free" technology

must be activated as indicated in the

"Multimedia" section by ticking the

automatic high beam dimming option.
The glare-free function will be activated

after the following actions:

starting the engine
positioning the light switch on
switching on the main beam headlights

When the high beam is switched on, the

anti-glare function is activated if:

the speed of the car is equal to or

greater than 35 km/h when the function

is activated

ambient light is not sufficient for safe

and comfortable driving

there is traffic outside the urban

context
Once the system is active, the white
symbol

lights up, the blue symbol

replaces the previous symbol and

indicates that all or only some of the

main beam LEDs are on at that time.
In the event that the entire main beam

module has to be switched off to achieve

a glare-free effect on the instrument

panel, only the green indicator will remain

lit. When the situation allows partial or

total use of main beam without causing

glare, the blue indicator will appear again.

NOTES

some unpredictable conditions, such

as dirt, dust, films or other obstructions

on the camera lens, may affect the

proper functioning of the glare-free

function

heavy rain and fog can affect the

performance of the system by leaving

the main beam on for longer than the

nominal operating conditions. This can

dazzle other cars and cause disturbance.

To avoid this, the driver must switch off

the main beam manually

when the function is deactivated, the

minimum operating speed is 25 km/h

DIRECTION INDICATORS

The direction indicators could assume

two different flashing strategies:

continuous or temporary (Lane Change).
To activate the continuous flashing

function, move the left lever until end of

stroke (unstable):

upwards

: activates the right direction

indicator

downwards

: activates the left

direction indicator
Warning light

or

will blink on the

instrument panel.
The direction indicators turn of

automatically when the car is brought

back onto a straight course or by moving

the lever in the opposite direction until

the first click (about half way).

"Lane Change" function

When you want to signal the change of

the driving lane, move the lever until the

first impulse (about half stroke).
The direction indicator on the side

selected will be activated for 3 flashes

and then go out automatically. To turn of

the flashing before the end of the cycle,

move the lever in the opposite direction

until the first click (about half way).

TURNING LIGHT

(where provided)
The function is activated with the main

beam switched on and allows the road

to be better illuminated when turning

or negotiating a bend by switching on

dedicated LEDs.

ANIMATIONS

(where provided)
Depending on the version, with the

ignition device in the STOP position, an

animated sequence of front and rear

lights may can be shown when the doors

of the car are unlocked.
Then they light up fixed. The function

is activated from the instrument panel

display menu or using the Alfa Connect

system (see "Multimedia" section).
Only the direction indicators will light up

when only the tailgate is unlocked.
Activating the alarm or hazard warning

lights will disable the function.

CarManuals2.com

 KNOWING YOUR VEHICLE

38

ADAPTIVE LOW BEAM FUNCTION WITH

AFS (Adaptive Frontlight System)

TECHNOLOGY

(where provided)
It is a system that adapts the depth

of the dipped beam, depending on the

following driving conditions:

car speed
windscreen wiper moving
the function is enabled through the

instrument panel display menu

when the dipped beam headlights are

on.
In the case of LED matrix headlamps,

in order to meet type-approval

requirements and to avoid dazzling

oncoming drivers, the Adaptive Low

Beam feature must be disabled if the

driver's seat is on the left-hand side of

the vehicle and driving in countries with

the right-hand lane (and vice versa).

HEADLIGHT ALIGNMENT ADJUSTMENT

(where provided)

Light beam direction

The correct aiming of the headlights is

important for the comfort and safety

of not only the driver but all other road

users. This is also covered by a specific

rule of the highway code.
The headlights must be correctly

aligned to guarantee the best visibility

conditions for all drivers while travelling

with headlights on.
Contact a Alfa Romeo Dealership to have

the headlights checked and adjusted, if

necessary.
Check light beam alignment every time

the load or its distribution changes.

Headlight alignment corrector

(where provided)
It only operates with the ignition device

in the ENGINE position.

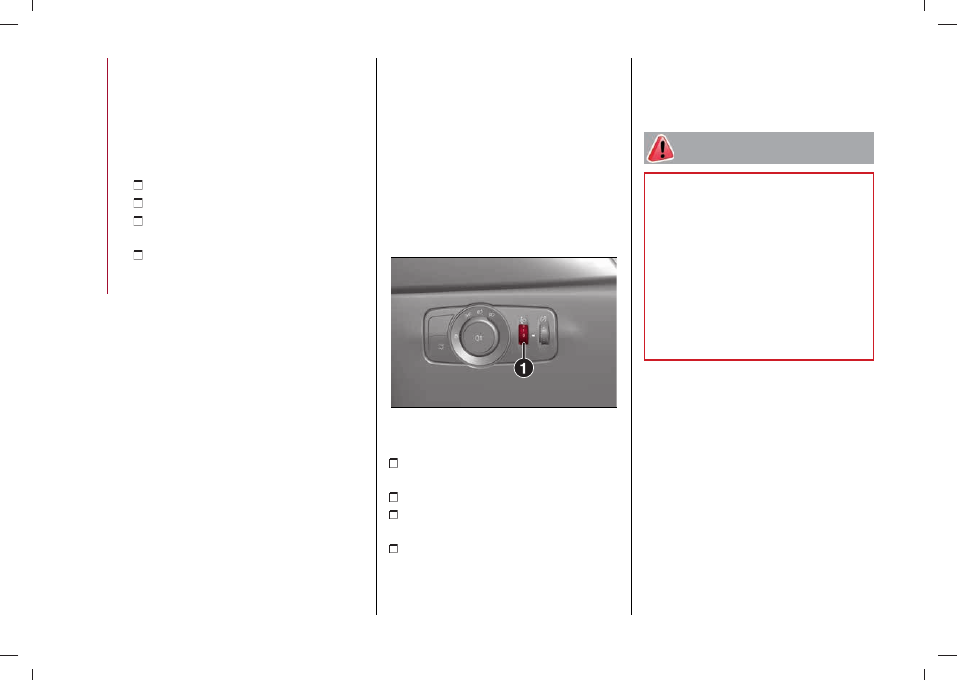

43

9650158

Turn the ring (1) fig. 43 to adjust.

Position 0

: one or two people on the

front seats

Position 1

: 4 people

Position 2

: 4 people + load in luggage

compartment

Position 3

: Driver + maximum

permitted load stowed in the boot

WARNING Check the headlight

alignment each time the weight of the

load transported changes.

WARNING

33)

The daytime running lights are an

alternative to the dipped headlights while

driving during the daytime in countries

where it is compulsory to have lights on

during the day; where it is not compulsory,

the use of daytime running lights is

permitted.

34)

Daytime running lights cannot replace

dipped beam headlights while driving at

night or through tunnels. The use of daytime

running lights is governed by the highway

code of the country in which you are driving.

Comply with legal requirements.

CarManuals2.com

39

INTERIOR LIGHTS

FRONT CEILING LIGHT

There are switches on the ceiling light

that perform the following functions:

switch (1) turns light on/off (8)
switch (2) activates/deactivates the

rear ceiling buttons

switch (3) turns all lights inside the

ceiling lights (front and rear) in the

passenger compartment on/off

switch (4) activates or deactivates

turning ceiling lights (6), (7) and (8) on/off

when the doors are opened/closed. The

lights switch on/off gradually

switch (5) turns light on/off (6)

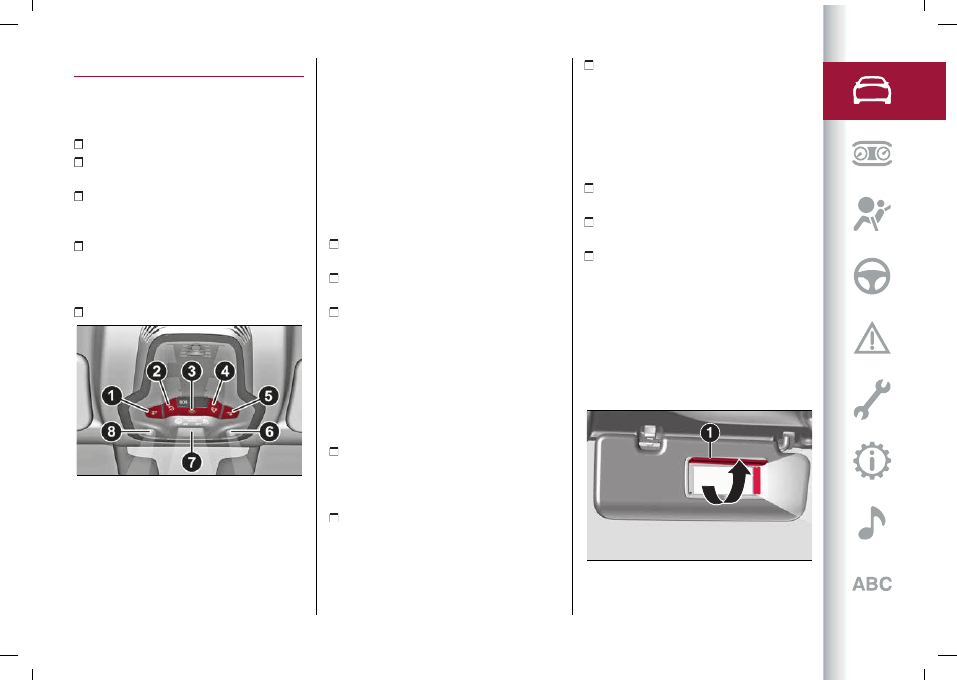

44

9650322

WARNING Before getting out of the

vehicle, make sure that the ceiling

light bulbs are off; this will prevent the

conventional battery level from being

uselessly drained once the doors are

closed. In any case, if a light is left on by

mistake, the ceiling light switches off

automatically about 15 minutes after the

engine has been switched off.

Ceiling light timing

On certain versions, to facilitate getting

in/out of the car at night or in poorly-

lit areas, two timed modes have been

provided.

Timing while getting into the car

The ceiling lights switch on according to

the following modes:

for 3 minutes when the doors are

unlocked;

for about 3 minutes when one of the

doors is opened;

for 27 seconds when each individual

door is closed and switch off

simultaneously when the doors are

locked.
Timing is interrupted when the ignition

device is turned to ENGINE.
Three modes are provided for switching

off:

when all doors are closed, the three-

minute timer will stop and a few-seconds

one will start. This timing will stop when

the ignition device is turned to ENGINE

when doors are locked (either with

remote control or with key inserted

on driver side door), the ceiling light

switches off

the interior lights are switched off in

any case after 15 minutes to preserve the

conventional battery charge

Timing while getting out of the vehicle

After positioning the ignition device

to STOP, the ceiling lights switch on as

follows:

for a few seconds after the engine

stops

for about 3 minutes when one of the

doors is opened

for several seconds when one of the

doors is closed
The timing stops automatically when the

doors are locked.

Courtesy ceiling lights

Behind the driver and passenger sun

visor (where provided) a courtesy light

is located which illuminates the mirror

behind the sun visor itself fig. 45.

45

9650151

CarManuals2.com

 KNOWING YOUR VEHICLE

40

The courtesy light switches on

automatically by lifting cover (1).

GLOVE COMPARTMENT LIGHT

This light comes on automatically when

the glove compartment is opened and

switches off when it is closed regardless

of the ignition device status.
The light switches on/off regardless of

the ignition device status.

INTERIOR AMBIENT LIGHTING

The brightness of the interior passenger

compartment lights can be adjusted

through the Alfa Connect system.
To access the adjustment function,

on the main menu select the following

items in sequence: "Settings", "Lights"

and "Interior Ambient Lighting". The

brightness can be adjusted at seven

levels.
Using the same menu, where provided,

it is possible to set the colour of the

ambient lights. Five colours are available:

red, green, blue, yellow and Alfa white.
These colours have 7 different intensity

levels as well as the interior ambient

lights. The intensity of the lights can only

be changed when in night mode. During

the day, the intensity is automatically set

to the maximum value.

DOOR LIGHT

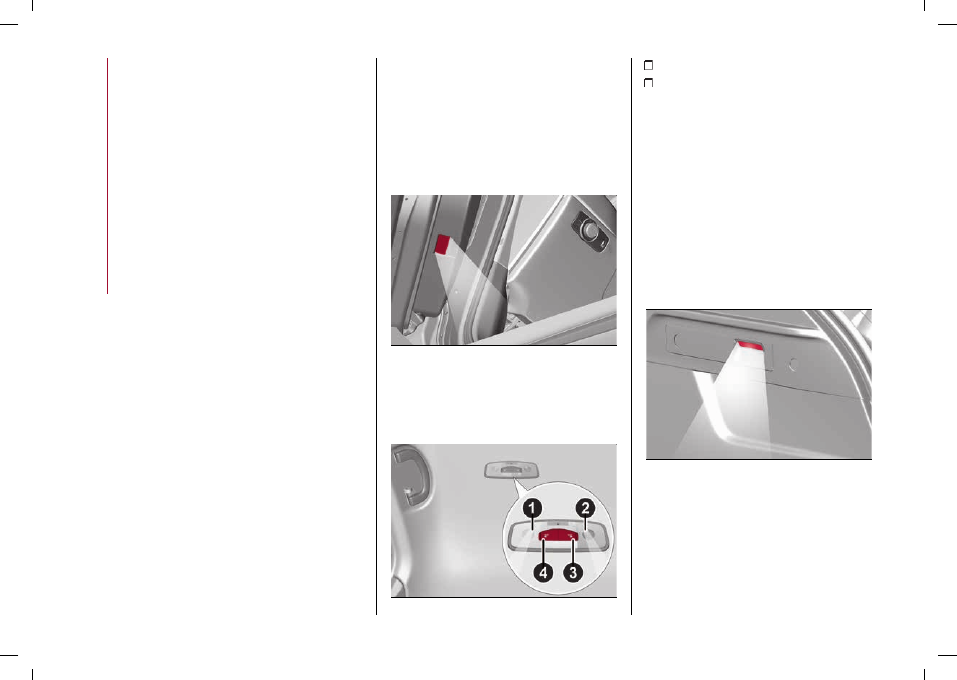

The door light is below the doors fig. 46.

This light comes on automatically when

the door is opened and switches off

when it is closed regardless of the

ignition device status.
The light switches on/off regardless of

the ignition device status.

46

9650152

REAR CEILING LIGHT

The rear ceiling lights buttons are

activated or deactivated with button (2)

fig. 44 of the front ceiling lights.

47

04136S0004EM

switch (3) fig. 47 turns light on/off (2)
switch (4) turns light on/off (1)

The lights switch on when a door opened.
WARNING The light switches off

automatically after a few minutes if a

door is left open. To switch it on again,

open another door or close and reopen

the same door.

BOOT CEILING LIGHTS

The luggage compartment features two
courtesy lights fig. 48.
These switch on automatically when the

boot is opened and switch off when it is

closed.

48

9650154

The ceiling lights switch on/off

regardless of the position of the ignition

switch.
If the boot is left open, the lights will

automatically switch off after 15 minutes

to preserve the conventional battery life.

CarManuals2.com

















Content      ..      1       2         ..



//////////////////////////////////////////
