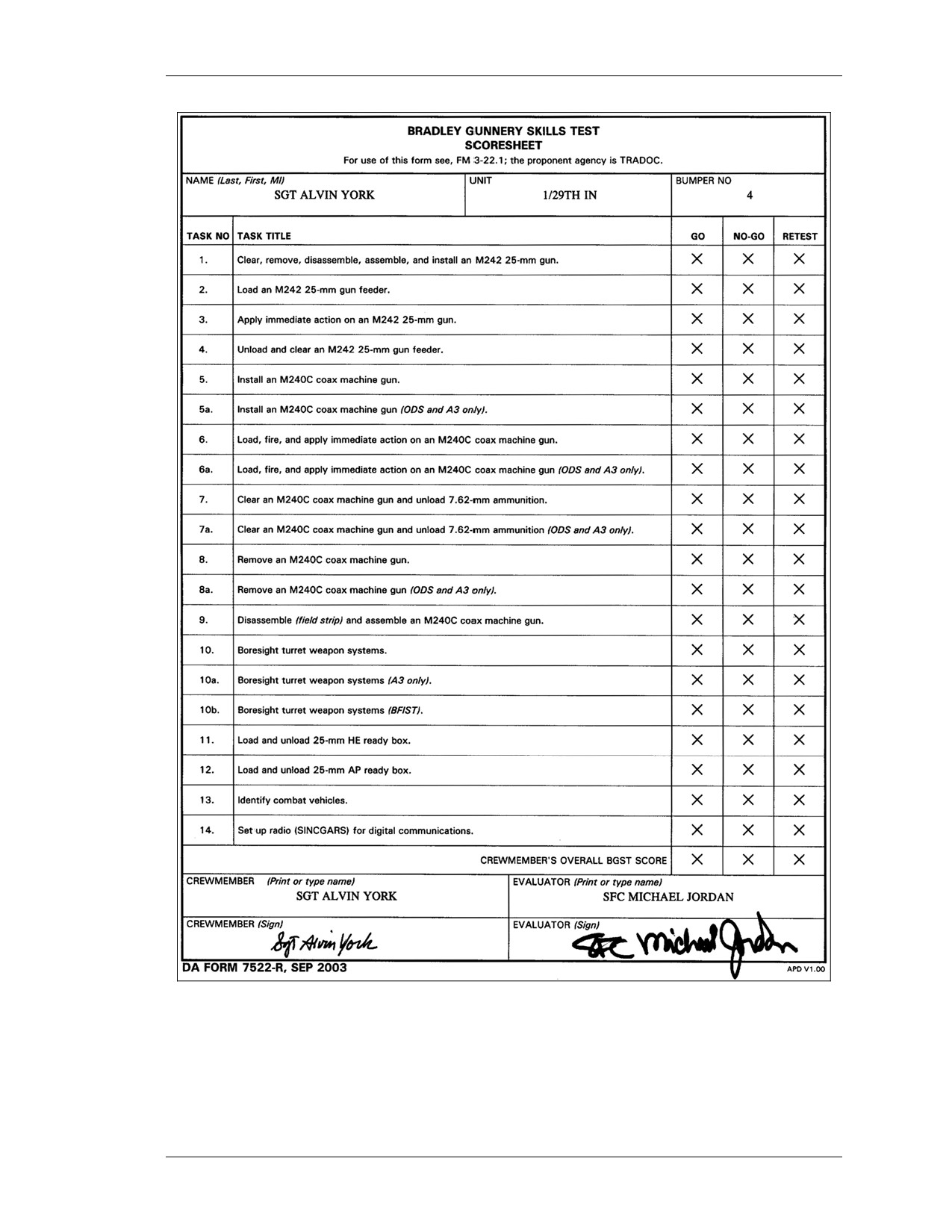

Figure A-1. Example completed DA Form 7522-R, BGST Scoresheet.
A-3
FM 3-22.1
TASK 1
CLEAR, REMOVE, DISASSEMBLE, ASSEMBLE,
AND INSTALL AN M242 25-MM GUN
CONDITIONS
Given a Bradley with an installed 25-mm gun.
STANDARDS
Within 10 minutes, the crewmember--
1. Cleared, removed, and disassembled the 25-mm gun.
2. Assembled and installed the 25-mm gun so that it operated properly.
EVALUATION PROCEDURES
1. Administrative Process. At this task, the evaluator logs information about each
crewmember on a roster. He supplies the crewmember with all required materials and
equipment, displaying them IAW this manual. He uses the performance measures to
record the crewmember's performance. Afterward, he tells the crewmember how well
the crewmember performed on this task and directs him to the next task or to further
training. One evaluator can test one--and only one--crewmember at a time.
2. Procedures Used When Personnel Receive a NO GO. If a crewmember fails to
achieve the standards on the performance measures, he earns a NO GO. When this
happens, the evaluator explains to the crewmember what he did wrong and how to
correct his mistakes. Then, he retests the crewmember IAW local SOP.
PERSONNEL, EQUIPMENT, AND MATERIALS
• Qualified 11B, 12B, 13F, 14R, or 19D, sergeant or above.
• Operational Bradley fighting vehicle with BII.
• TM 9-2350-252-10-2, TM 9-2350-284-10-2, or TM 9-2350-294-10-2-1.
• FM 3-22.1.
• Stopwatch.
• Clipboard with pen.
• One helper, qualified 11B, 12B, 13F, 14R, or 19D, sergeant or below.
PRETEST PREPARATION
Before testing this task, the evaluator—
1. Places trim vane in work-stand position (M2 and M3 through A2 only).
2. Removes 25-mm gun and ensures all parts are present.
3. Replaces all unserviceable or missing parts.
4. Installs M242 25-mm automatic gun.
PRETEST CONDITIONS FOR EACH EXAMINEE
Before testing each examinee, the evaluator prepares as follows:
1. Sets gun to zero elevation.
2. Ensures master and turret power switches are off.
3. Ensures turret is in manual mode.
4. Ensures gun guard is removed and gas bag is unzipped and out of the way.
5. Ensures weapon properly installed.
A-4
FM 3-22.1
TEST PLANNING TIME
The evaluator allots time as follows:
Administration--5 minutes.
Test--20 minutes.
Total--25 minutes.
INSTRUCTIONS TO EXAMINEE
The evaluator will read the following instructions aloud to the examinee:
"Let me have your attention. This task evaluates your ability to remove and install the
M242 25-millimeter gun.
"You must unlock the barrel and begin to remove it. After you do this, your helper
will help you finish removing the gun barrel.
"During reassembly, he will help you lift the gun barrel, but you must guide and lock
the barrel in place.
"You have 10 minutes to remove and disassemble the gun, and then 10 more minutes
to reassemble and install it.
"Do you understand these instructions?"
Pause for 5 seconds, then say--
"You have 10 minutes to complete each task."
Pause again, then say--
"Begin."
Start timing at once. If the examinee fails to complete the task after the allotted time, then
say, loudly enough for him to hear--
"Stop."
If you think that he is going to damage equipment or injure himself, then say--
"Stop."
PERFORMANCE MEASURES
1. Completed first ten performance measures in sequence and all performance measures
within 10 minutes.
2. Cleared, removed, and disassembled the 25-mm gun.
a. Removed Feeder.
• Checked to ensure bolt and bolt positioned indicator were in SEAR.
• Ensured manual safety handle was in SAFE.
• Raised feeder handle.
• Removed power cable.
• Lowered feeder handle.
• Removed link chutes.
• Removed feed chutes.
• Pulled out straight drive shaft.
• Raised feeder handle.
A-5
FM 3-22.1
• Removed feeder.
• Moved feeder from turret to crew area.
• Removed any ammunition from the gun rotor.
• Cleared the feeder by cycling once in HE and once in AP.
• Placed feeder on a clean, flat surface with feeder handle lowered.
• Pushed in the straight drive shaft on receiver.
• Ensured breach was cleared of all spent casings or live ammunition.
• Ensured ejection port was cleared of all spent casings or live ammunition.
• Ensured bolt surface was cleared of all spent casings or live ammunition.
b.
Removed Barrel.
• Unlocked gun barrel.
• Removed gun barrel.
c.
Removed Bolt and Track.
• Pulled out the straight drive shaft.
• Cycled bolt out of SEAR position.
• Removed bolt and track assembly.
• Inserted the straight drive shaft handle.
d.
Removed Receiver.
• Unlocked 25-mm gun receiver.
• Removed receiver from turret to crew area.
e.
Disassembled Bolt and Track Assembly.
• Removed bolt carrier from track assembly.
• Unlocked bolt from forward locking position.
• Removed firing pin sleeve keeper.
• Removed firing pin and its sleeve from bolt and separated pin and sleeve.
• Removed cam pin.
• Removed bolt from bolt carrier.
3.
Assembled and installed the 25-mm gun.
a. Assembled Track and Bolt Assembly.
• Slid bolt into bolt carrier.
• Inserted cam pin.
• Inserted firing pin and sleeve into bolt.
• Inserted firing pin sleeve keeper.
• Locked bolt in forward position.
• Placed bolt and carrier on track assembly.
b. Installed Bolt and Track Assembly.
• Pulled out the straight drive shaft.
• Inserted bolt and track assembly into receiver.
• Locked track latch handle.
• Moved bolt to SEAR position.
• Pushed in the straight drive shaft.
c. Installed Receiver.
• Pulled anti-rotation latch handle out.
• Installed receiver into trunnion.
• Locked receiver in place.
A-6
FM 3-22.1
d. Installed Barrel.
• Installed barrel into barrel support.
• Locked into place.
e. Installed Feeder.
• Verified feeder timing.
• Pulled out the straight drive shaft.
• Ensured 25-mm gun bolt was in SEAR position.
• Raised feeder handle.
• Positioned feeder on receiver.
• Lowered feeder handle.
• Inserted and locked the straight drive shaft.
• Installed feed chutes.
• Installed link-eject chutes.
• Raised feeder handle.
• Installed power cable.
• Lowered feeder handle.
A-7
FM 3-22.1
TASK 2
LOAD A 25-MM GUN FEEDER
CONDITIONS
Given a Bradley with
25-mm dummy ammunition loaded in the AP- and
HE-ready boxes.
STANDARDS
Within 5 minutes, the crewmember loaded the 25-mm gun so that it was ready to fire.
EVALUATION PROCEDURES
1. Administrative Process. At this task, the evaluator logs information about each
crewmember on a roster. He supplies the crewmember with all required materials and
equipment, displaying them IAW this manual. He uses the performance measures to
record the crewmember's performance. Afterward, he tells the crewmember how well
the crewmember performed on this task and directs him to the next task or to further
training. One evaluator can test one--and only one--crewmember at a time.
2. Procedures Used When Personnel Receive a NO GO. If a crewmember fails to
achieve the standards on the performance measures, he earns a NO GO. When this
happens, the evaluator explains to the crewmember what he did wrong and how to
correct his mistakes. Then, he retests the crewmember IAW local SOP.
PERSONNEL, EQUIPMENT, AND MATERIALS
• Qualified 11B, 12B, 13F, 14R, or 19D, sergeant or above.
• All operational BFVs through A3 with BII.
• TM 9-2350-252-10-2, TM 9-2350-284-10-2, or TM 9-2350-294-10-2-1.
• FM 3-22.1.
•
90 rounds of 25-mm dummy ammunition.
•
Stopwatch.
•
Clipboard with pen.
•
One helper, qualified 11B, 12B, 13F, 14R, or 19D, sergeant or below.
PRETEST PREPARATION
1. Ensure all power is off.
2. Inspect and load 45 rounds of dummy ammunition in AP-ready box.
3. Inspect and load 45 rounds of dummy ammunition in HE-ready box.
4. Clear the 25-mm gun.
5. Inspect for presence and damage of HE and AP feed chutes.
6. Set travel lock.
7. Ensure ammunition is in the AP or HE forwarder.
8. Ensure bolt and bolt position indicators are in SEAR.
PRETEST CONDITIONS FOR EACH EXAMINEE
1. Ensure all turret power is off.
2. Ensure travel lock is set.
3. Ensure all turret tools are present.
4. Ensure that bolt and bolt position indicators are in SEAR.
A-8
FM 3-22.1
TEST PLANNING TIME
Administration
5 minutes
Test
5 minutes
Total
10 minutes
INSTRUCTIONS TO EXAMINEE
The evaluator will read the following instructions aloud to the examinee:
"Let me have your attention. This task evaluates your ability to load the 25-millimeter
gun feeder.
"Do you understand these instructions?"
Pause for 5 seconds, then say--
"You have 5 minutes to complete the task."
Pause again, then say--
"Begin."
Start timing at once. If the examinee has not completed the task after 5 minutes, then say
loudly enough for him to hear--
"Stop."
If at any time you think that he is going to damage the equipment or injure himself,
then say--
"Stop."
PERFORMANCE MEASURES
1. Completed performance measures within 5 minutes.
2. Loaded the 25-mm gun feeder.
a. Ensured that the bolt and bolt-position indicator were in the SEAR position.
b. Ensured manual safe handle was in SAFE position.
c. Pulled out feed select solenoid to HE position.
d. Forwarded HE ammunition to 25-mm gun feeder.
e. Loaded the 25-mm gun feeder with two rounds of HE ammunition.
f. Released tension off HE ammunition.
g. Pushed feed select solenoid to AP position.
h. Forwarded AP ammunition to 25-mm gun feeder.
i.
Loaded 25-mm gun feeder with one round of AP ammunition.
j.
Released tension off AP ammunition.
A-9
FM 3-22.1
TASK 3
APPLY IMMEDIATE ACTION ON A 25-MM GUN
CONDITIONS
Given a Bradley with BII, 25-mm dummy ammunition loaded, and a 25-mm gun that
fails to fire.
STANDARDS
Within 1 minute, the crewmember applied immediate action so that the 25-mm gun
would fire.
EVALUATION PROCEDURES
1. Administrative Process. At this task, the evaluator logs information about each
crewmember on a roster. He supplies the crewmember with all required materials and
equipment, displaying them IAW this manual. He uses the performance measures to
record the crewmember's performance. Afterward, he tells the crewmember how well
the crewmember performed on this task and directs him to the next task or to further
training. One evaluator can test one--and only one--crewmember at a time.
2. Procedures Used When Personnel Receive a NO GO. If a crewmember fails to
achieve the standards on the performance measures, he earns a NO GO. When this
happens, the evaluator explains to the crewmember what he did wrong and how to
correct his mistakes. Then, he retests the crewmember IAW local SOP.
PERSONNEL, EQUIPMENT, AND MATERIALS
• Qualified 11B, 12B, 13F, 14R, or 19D, sergeant or above.
•
Operational M2, M2A2, or M2A2 ODS; M2A3, M3, M3A2, or M3A2 ODS; M3A3 with BII.
•
TM 9-2350-284-10-2, TM 9-2350-252-10-2, or TM 9-2350-294-10-2-1.
•
FM 3-22.1.
•
90 rounds of 25-mm dummy ammunition.
•
Stopwatch.
•
Clipboard with pen.
•
One helper, qualified 11B, 12B, 13F, 14R, or 19D, sergeant or below.
PRETEST PREPARATION
1. Ensure master power is on.
2. After examinee enters turret, turn on turret power and turret drive.
3. Ensure turret tools are present and stowed properly.
4. Ensure 25-mm feeder is loaded.
PRETEST CONDITIONS FOR EACH EXAMINEE
1. Ensure all power is on.
2. Ensure that bolt and bolt position indicators are in SEAR position.
TEST PLANNING TIME
Administration
5 minutes
Test
1 minute
Total
6 minutes
A-10
FM 3-22.1
INSTRUCTIONS TO EXAMINEE
The evaluator will read the following instructions aloud to the examinee:
"Let me have your attention. This task evaluates your ability to perform misfire
procedures on the 25-millimeter gun.
"Do you understand these instructions?"
Pause for 5 seconds, then say--
"You have 1 minute to complete the task."
Pause again, then say--
"Time starts when you squeeze the trigger."
Begin timing when the examinee squeezes the trigger. If the examinee has not completed
the task after 1 minute, then say loudly enough for him to hear--
"Stop."
If at any time you think that he is going to damage the equipment or injure himself,
then say--
"Stop."
PERFORMANCE MEASURES
1. Completed performance measures within 1 minute.
2. Performed misfire procedures on the 25-mm gun.
a. Ensured ARM-SAFE-RESET switch was in ARM position.
b. Said to the crew--
"25-mm misfire."
c. Released trigger switches and waited 5 seconds.
d. Pressed SS of ammunition selected.
e. On the M2A3 only, moved the rate switch on the system control box to SS.
f. Pressed misfire button.
g. Squeezed trigger switches.
h. Ensured sear indicator light was on.
A-11
FM 3-22.1
TASK 4
UNLOAD AND CLEAR A 25-MM FEEDER
CONDITIONS
Given a Bradley with BII, 25-mm gun installed, and loaded with 25-mm dummy
ammunition.
STANDARDS
Within 10 minutes, the crewmember unloaded and cleared the 25-mm gun feeder.
EVALUATION PROCEDURES
1. Administrative Process. At this task, the evaluator logs information about each
crewmember on a roster. He supplies the crewmember with all required materials and
equipment, displaying them IAW this manual. He uses the performance measures to
record the crewmember's performance. Afterward, he tells the crewmember how well
the crewmember performed on this task and directs him to the next task or to further
training. One evaluator can test one--and only one--crewmember at a time.
2. Procedures Used When Personnel Receive a NO GO. If a crewmember fails to
achieve the standards on the performance measures, he earns a NO GO. When this
happens, the evaluator explains to the crewmember what he did wrong and how to
correct his mistakes. Then, he retests the crewmember IAW local SOP.
PERSONNEL, EQUIPMENT, AND MATERIALS
• Qualified 11B, 12B, 13F, 14R, or 19D, sergeant or above.
•
Operational M2, M2A2, M2A2 ODS; M2A3, M3, M3A2 or M3A2 ODS; M3A3 with BII.
•
TM 9-2350-284-10-2, TM 9-2350-252-10-2, or TM 9-2350-294-10-2-1.
•
FM 3-22.1.
•
90 rounds of 25-mm dummy ammunition.
•
Stopwatch.
•
Clipboard with pen.
•
One helper, qualified 11B, 12B, 13F, 14R, or 19D, sergeant or below.
PRETEST PREPARATION
1. Ensure turret power is on.
2. Ensure both ready boxes are loaded with 45 rounds of dummy ammunition.
3. Ensure the feeder is loaded with one round of AP and two rounds of HE.
4. Set turret travel lock.
5. Set ARM-SAFE-RESET switch to ARM and select ammunition.
PRETEST CONDITIONS FOR EACH EXAMINEE
1. Ensure master power is on.
2. Ensure turret tools are in proper stowage position.
3. Ensure feeder is loaded with ammunition.
4. Ensure ARM-SAFE-RESET switch is set to ARM.
5. Ensure ammunition is selected.
A-12
FM 3-22.1
TEST PLANNING TIME
Administration
5 minutes
Test
10 minutes
Total
15 minutes
INSTRUCTIONS TO EXAMINEE
The evaluator will read the following instructions aloud to the examinee:
"Let me have your attention. This task evaluates your ability to unload and clear the
25-millimeter gun feeder.
"Do you understand these instructions?"
Pause for 5 seconds, then say--
"You have 10 minutes to complete the task."
Pause again, then say--
"Begin."
Start timing at once. If the examinee has not completed the task after 10 minutes, then say
loudly enough for him to hear--
"Stop."
If at any time you think that he is going to damage the equipment or injure himself,
then say--
"Stop."
PERFORMANCE MEASURES
1. Completed performance measures within 10 minutes.
2. Unloaded the 25-mm gun feeder.
a. Moved ARM-SAFE-RESET switch to RESET, then to SAFE.
b. Checked to ensure bolt and bolt position indicator were in sear.
c. Turned off turret power.
d. Moved manual safety to SAFE.
e. Raised feeder handle.
f. Removed power cable.
g. Lowered feeder handle.
h. Disconnected link eject chutes and removed links.
i.
Unloaded HE ammunition.
j.
Unloaded AP ammunition.
k. Removed feed chutes.
l.
Pulled out straight drive shaft handle.
m. Raised feeder handle.
n. Removed feeder.
o. Removed any ammunition from the gun rotor.
p. Cleared the feeder by cycling once in HE and once in AP.
q. Removed any rounds or expended casings from receiver and ejection port.
A-13
FM 3-22.1
TASK 5
INSTALL AN M240C COAX MACHINE GUN
(M2, M3, M2A2, M3A2, OR M2A2 ODS; OR M3A2 ODS)
CONDITIONS
Given a Bradley with BII and a cleared M240C machine gun.
STANDARDS
Within 2 minutes, the crewmember installed the M240C machine gun.
EVALUATION PROCEDURES
1. Administrative Process. At this task, the evaluator logs information about each
crewmember on a roster. He supplies the crewmember with all required materials and
equipment, displaying them IAW this manual. He uses the performance measures to
record the crewmember's performance. Afterward, he tells the crewmember how well
the crewmember performed on this task and directs him to the next task or to further
training. One evaluator can test one--and only one--crewmember at a time.
2. Procedures Used When Personnel Receive a NO GO. If a crewmember fails to
achieve the standards on the performance measures, he earns a NO GO. When this
happens, the evaluator explains to the crewmember what he did wrong and how to
correct his mistakes. Then, he retests the crewmember IAW local SOP.
PERSONNEL, EQUIPMENT, AND MATERIALS
• Qualified 11B, 12B, 13F, 14R, or 19D, sergeant or above.
• Operational M2, M2A2, M2A2 ODS or M3, M3A2, M3A2 ODS with BII.
• TM 9-2350-284-10-2 or TM 9-2350-252-10-2.
• FM 3-22.1.
• Operational M240C coax machine gun.
• Stopwatch.
• Clipboard with pen.
• One helper, qualified 11B, 12B, 13F, 14R, or 19D, sergeant or below.
PRETEST PREPARATION
1. Ensure front and rear mounting brackets are present and operational.
2. Ensure that the M240C coax mounts properly.
3. Place turret in manual mode.
PRETEST CONDITIONS FOR EACH EXAMINEE
1. Ensure mounting brackets are undamaged.
2. Ensure M240C coax is undamaged.
3. Ensure turret power and drive is off.
4. Ensure coax access doors are closed.
A-14
FM 3-22.1
TEST PLANNING TIME
Administration
5 minutes
Test
2 minutes
Total
7 minutes
INSTRUCTIONS TO EXAMINEE
The evaluator will read the following instructions aloud to the examinee:
"Let me have your attention. This task evaluates your ability to install the M240C
coaxial machine gun.
"Do you understand these instructions?"
Pause for 5 seconds, then say--
"You have 2 minutes to complete the task."
Pause again, then say--
"Begin."
Start timing at once. If the examinee has not completed the task after 2 minutes, then say
loudly enough for him to hear--
"Stop."
If at any time you think that he is going to damage the equipment or injure himself,
then say--
"Stop."
PERFORMANCE MEASURES
1. Completed performance measures within 2 minutes.
2. Elevated gun to 300 mils (200 mils old mount).
3. Installed M240C coaxial machine gun.
a. Opened coax access doors.
b. Mounted the coax--old mount (M2 or M3):
• Placed coax in plenum onto the mount.
• Aligned alignment lugs with cradle mount.
• Pushed coax all the way in.
• Ensured coax was fully seated.
c. Mounted the coax--new mount (M2A2 or M2A2 ODS; or M3A2 or M3A2 ODS):
• Pulled retaining pins out.
• Placed coax in plenum.
• Pushed coax all the way in.
• Ensured coax was fully seated.
• Pushed in retaining pins fully.
• Pulled on rear of coax to ensure that retaining pins were locked in position.
d. Joined and secured rear mount to coax (old mount).
e. Installed solenoid cable plug on plenum jack (old mount).
f. Closed coax access doors.
A-15
FM 3-22.1
TASK 5A
INSTALL AN M240C COAX MACHINE GUN
(M2A2 ODS FBCB2 OR M3A2 ODS FBCB2, OR M2A3 OR M3A3 ONLY)
CONDITIONS
Given a Bradley with BII, and a cleared M240C machine gun.
STANDARDS
Within 2 minutes, the crewmember installed the M240C machine gun.
EVALUATION PROCEDURES
1. Administrative Process. At this task, the evaluator logs information about each
crewmember on a roster. He supplies the crewmember with all required materials and
equipment, displaying them IAW this manual. He uses the performance measures to
record the crewmember's performance. Afterward, he tells the crewmember how well
the crewmember performed on this task and directs him to the next task or to further
training. One evaluator can test one--and only one--crewmember at a time.
2. Procedures Used When Personnel Receive a NO GO. If a crewmember fails to
achieve the standards on the performance measures, he earns a NO GO. When this
happens, the evaluator explains to the crewmember what he did wrong and how to
correct his mistakes. Then, he retests the crewmember IAW local SOP.
PERSONNEL, EQUIPMENT, AND MATERIALS
• Qualified 11B, 12B, 13F, 14R, or 19D, sergeant or above.
•
Operational M2A2 ODS appliqué, M2A3 or M3A2 ODS appliqué, or M3A3 with BII.
•
TM 9-2350-284-10-2 or TM 9-2350-294-10-2-1.
•
FM 3-22.1.
•
Operational M240C coax machine gun.
•
Stopwatch.
•
Clipboard with pen.
•
One helper, qualified 11B, 12B, 13F, 14R, or 19D, sergeant or below.
PRETEST PREPARATION
1. Ensure front and rear mounting brackets are present and operational.
2. Ensure that the M240C coax mounts properly.
3. Place turret in manual mode.
PRETEST CONDITIONS FOR EACH EXAMINEE
1. Ensure mounting brackets are undamaged.
2. Ensure M240C coax is undamaged.
3. Ensure turret power and drive is off.
4. Ensure coax access doors are closed.
5. Ensure CTD bracket is latched.
TEST PLANNING TIME
Administration
5 minutes
Test
2 minutes
A-16
FM 3-22.1
Total
7 minutes
INSTRUCTIONS TO EXAMINEE
The evaluator will read the following instructions aloud to the examinee:
"Let me have your attention. This task evaluates your ability to install the M240C
coaxial machine gun.
"Do you understand these instructions?"
Pause for 5 seconds, then say—
"You have 2 minutes to complete the task."
Pause again, then say--
"Begin."
Start timing at once. If the examinee has not completed the task after 2 minutes, then say
loudly enough for him to hear--
"Stop."
If at any time you think that he is going to damage the equipment or injure himself,
then say--
"Stop."
PERFORMANCE MEASURES
1. Completed performance measures within 2 minutes.
2. Elevated gun to 300 mils.
3. Opened coax machine gun access doors.
a. Unlatched CTD from its bracket.
b. Released handle on right access door to unlatched door.
c. Pulled out on left side of CTD to open left access door.
d. Pushed in right coax machine gun access door.
4. Mounted coax machine gun.
a. Placed coax machine gun on gun mount.
b. Ensured gun barrel points forward and trigger points down.
c. Aligned mounting holes on gun with retaining pins on gun mount.
d. Pushed retaining pins fully into gun.
e. Flipped in handles on retaining pins to lock.
f. Checked that coax barrel locking latched was locked.
g. Checked that coax barrel did not turn.
5. Closed coax machine gun access doors.
a. Pulled in right coax machine gun access door.
b. Pushed in on left side of CTD to close left access door.
c. Latched handle on right coax access door.
d. Latched CTD on bracket.
A-17
FM 3-22.1
TASK 6
LOAD, FIRE, AND APPLY IMMEDIATE ACTION ON AN
M240C COAX MACHINE GUN
(M2, M3, M2A2, M3A2, OR M2A2 ODS OR M3A2 ODS)
CONDITIONS
Given a Bradley with BII, an M240C machine gun installed, and 300 rounds of dummy
7.62-mm ammunition loaded into the ready box.
STANDARDS
Within 6 minutes, the crewmembers--
• Loaded the coax machine gun.
• Fired the coax machine gun.
• Applied immediate action to the coax machinegun.
EVALUATION PROCEDURES
1. Administrative Process. At this task, the evaluator logs information about each
crewmember on a roster. He supplies the crewmember with all required materials and
equipment, displaying them IAW this manual. He uses the performance measures to
record the crewmember's performance. Afterward, he tells the crewmember how well
the crewmember performed on this task and directs him to the next task or to further
training. One evaluator can test one--and only one--crewmember at a time.
2. Procedures Used When Personnel Receive a NO GO. If a crewmember fails to
achieve the standards on the performance measures, he earns a NO GO. When this
happens, the evaluator explains to the crewmember what he did wrong and how to
correct his mistakes. Then, he retests the crewmember IAW local SOP.
PERSONNEL, EQUIPMENT, AND MATERIALS
• Qualified 11B, 12B, 13F, 14R, or 19D, sergeant or above.
• Operational M2, M2A2, or M2A2 ODS or M3, M3A2, or M3A2 ODS with BII.
• TM 9-1005-313-10.
• TM 9-2350-284-10-2 or TM 9-2350-252-10-2.
• FM 3-22.1.
• M240C coax machine gun.
•
300 rounds of 7.62-mm dummy ammunition.
•
Stopwatch.
•
Clipboard with pen.
•
One helper, qualified 11B, 12B, 13F, 14R, or 19D, sergeant or below.
PRETEST PREPARATION
1. Clear the weapon.
2. Disassemble the weapon to ensure that all parts are present and serviceable.
3. Assemble the weapon to ensure that all parts are present and serviceable.
4. Ensure rounds do not bind in feed chute.
5. Remove rounds from feed chute.
A-18
FM 3-22.1
PRETEST CONDITIONS FOR EACH EXAMINEE
1. Ensure all power is off.
2. Ensure M240C machine gun bolt is forward.
3. Ensure manual safe is set to FIRE position.
TEST PLANNING TIME
Administration
5 minutes
Test
6 minutes
Total
11 minutes
INSTRUCTIONS TO EXAMINEE
The evaluator will read the following instructions aloud to the examinee:
"Let me have your attention. This task evaluates your ability to load, fire, and apply
immediate action to the M240C machine gun.
"Do you understand these instructions?"
Pause for 5 seconds, then say—
"You have 6 minutes to complete the task."
Pause again, then say--
"Begin."
Start timing at once. If the examinee has not completed the task after 6 minutes, then say
loudly enough for him to hear--
"Stop."
If at any time you think that he is going to damage the equipment or injure himself,
then say--
"Stop."
PERFORMANCE MEASURES
1. Completed performance measures within 6 minutes.
2. Loaded the M240C coax machine gun.
a. Opened forwarder access door (M2 or M3 only).
b. Opened coax machine gun access doors.
c. Charged coax machine gun.
d. Set manual safety on coax to SAFE.
e. Opened cover assembly and feed tray.
f. Inspected chamber for rounds.
g. Placed ammunition in forwarder.
h. Closed forwarder access door (M2 or M3 only).
i.
Forward ammunition to the feed tray.
j.
Closed feed tray.
k. Installed ammunition belt on feed tray.
l.
Closed cover assembly.
m. Closed coax machine gun access doors.
3. Fired coax machine gun.
A-19
FM 3-22.1
a. Ensured turret drive system switch was off.
b. Opened coax machine gun access doors.
c. Pushed manual safety to firing position.
d. Closed coax machine gun access doors.
e. Turned turret power switch to ON.
f. Moved turret drive switch to ON.
g. Pressed 7.62-mm ammunition button.
h. Moved ARM-SAFE-RESET switch to ARM.
i.
Fired coax machine gun.
4. Applied immediate action procedures to the M240C coax machine gun.
a. Moved ARM-SAFE-RESET switch to SAFE.
b. Announced "Coax misfire" to crew.
c. Moved turret drive system switch to OFF.
d. Opened coax access doors.
e. Pulled charger handle back until bolt locked to the rear.
f. Closed coax access doors.
g. Turned turret drive system switch to ON.
h. Moved ARM-SAFE-RESET switch to ARM.
i.
Squeezed palm switch and trigger switch on commander's control handle.
A-20
FM 3-22.1
TASK 6A
LOAD, FIRE, AND APPLY IMMEDIATE ACTION ON AN
M240C COAX MACHINE GUN
(M2A2 ODS FBCB2, M3A2 ODS FBCB2, OR M2A3 OR M3A3 ONLY)
CONDITIONS
Given a Bradley with BII and an M240C machine gun installed, and 300 rounds of
dummy 7.62-mm ammunition loaded into the ready box.
STANDARDS
Within 6 minutes, the crewmembers--
1. Loaded the coax machine
2. Fired the coax machine gun.
3. Applied immediate action to the coax machinegun.
EVALUATION PROCEDURES
1. Administrative Process. At this task, the evaluator logs information about each
crewmember on a roster. He supplies the crewmember with all required materials and
equipment, displaying them IAW this manual. He uses the performance measures to
record the crewmember's performance. Afterward, he tells the crewmember how well
the crewmember performed on this task and directs him to the next task or to further
training. One evaluator can test one--and only one--crewmember at a time.
2. Procedures Used When Personnel Receive a NO GO. If a crewmember fails to
achieve the standards on the performance measures, he earns a NO GO. When this
happens, the evaluator explains to the crewmember what he did wrong and how to
correct his mistakes. Then, he retests the crewmember IAW local SOP.
PERSONNEL, EQUIPMENT, AND MATERIALS
• Qualified 11B, 12B, 13F, 14R, or 19D, sergeant or above.
• Operational M2A2 ODS appliqué, M3A2 ODS appliqué, or M2A3 or M3A3 with BII.
• TM 9-2350-284-10-2 or TM 9-2350-294-10-2-1.
• TM 9-1005-313-10.
• FM 3-22.1.
• M240C coax machine gun.
•
300 rounds 7.62-mm dummy ammunition.
•
Stopwatch.
•
Clipboard with pen.
•
One helper, qualified 11B, 12B, 13F, 14R, or 19D, sergeant or below.
PRETEST PREPARATION
1. Clear the weapon.
2. Disassemble and reassemble the weapon to ensure that all parts are present and
serviceable.
3. Ensure rounds do not bind in feed chute.
4. Remove rounds from feed chute.
A-21
FM 3-22.1
PRETEST CONDITIONS FOR EACH EXAMINEE
1. Ensure all power is off.
2. Ensure M240C machine gun bolt is forward.
3. Ensure manual safe is set to FIRE position.
TEST PLANNING TIME
Administration
5 minutes
Test
6 minutes
Total
11 minutes
INSTRUCTIONS TO EXAMINEE
The evaluator will read the following instructions aloud to the examinee:
"Let me have your attention. This task evaluates your ability to load, fire, and apply
immediate action to the M240C machine gun.
"Do you understand these instructions?"
Pause for 5 seconds, then say—
"You have 6 minutes to complete the task."
Pause again, then say--
"Begin."
Start timing at once. If the examinee has not completed the task after 6 minutes, then say
loudly enough for him to hear--
"Stop."
If at any time you think that he is going to damage the equipment or injure himself,
then say--
"Stop."
PERFORMANCE MEASURES
1. Completed performance measures within 6 minutes.
2. Loaded the M240C coax machine gun.
a. Unlatched CTD from its bracket.
b. Released handle on right access door to unlatch door.
c. Pulled out on left side of CTD to open left access door.
d. Pushed in right coax machine gun access door.
e. Charged coax machine gun.
f. Set manual safety on coax to SAFE.
g. Opened cover assembly and feed tray.
h. Inspected chamber for rounds.
i.
Placed ammunition in forwarder.
j.
Forwarded ammunition to the feed tray.
k. Closed feed tray.
l.
Installed ammunition belt on feed tray.
m. Closed cover assembly.
n. Pulled in right coax machine gun access door.
A-22
FM 3-22.1
o. Pushed in on left side of CTD to close left access door.
p. Latched handle on right coax access door.
q. Latched CTD on bracket.
3.
Fired coax machine gun.
a. Ensured turret drive system switch was off.
b. Unlatched CTD from bracket.
c. Released handle on right access door to unlatched door.
d. Pulled out on left side of CTD to open left access door.
e. Pushed in right coax machine gun access door.
f. Pushed manual safety to fire position.
g. Pulled in right coax machine gun access door.
h. Pushed in on left side of CTD to close left access door.
i.
Latched handle on right coax access door.
j.
Latched CTD on bracket.
k. Moved turret power switch to ON.
l.
Moved turret drive switch to ON.
m. Pressed 7.62-mm ammunition button.
n. Moved ARM-SAFE-RESET switch to ARM.
o. Fired coax machine gun.
4.
Applied immediate action procedures to the M240C coax machine gun.
a. Moved ARM-SAFE-RESET switch to SAFE.
b. Announced "Coax misfire" to crew.
c. Moved turret drive system switch to OFF.
d. Unlatched CTD from its bracket.
e. Released handle on right access door to unlatched door.
f. Pulled out on left side of CTD to open left access door.
g. Pushed in right coax machine gun access door.
h. Pulled charger handle back until bolt locked to the rear.
i.
Pulled in right coax machine gun access door.
j.
Pushed in on left side of CTD to close left access door.
k. Latched handle on right coax access door.
l.
Latched CTD on bracket.
m. Turned turret drive system switch to ON.
n. Moved ARM-SAFE-RESET switch to ARM.
o. Squeezed palm switch and trigger switch on commander's handstation.
A-23
FM 3-22.1
TASK 7
CLEAR AN M240C COAX MACHINE GUN AND UNLOAD 7.62-MM
AMMUNITION
(M2, M3, M2A2, M3A2, OR M2A2 ODS, OR M3A2 ODS)
CONDITIONS
Given a Bradley with BII and coax machine gun loaded with 300 rounds of 7.62-mm
dummy ammunition.
STANDARDS
Within 4 minutes, the crewmember--
1. Cleared the M240C.
2. Unloaded the ammunition from the forwarder and stowed it in the ammunition can.
EVALUATION PROCEDURES
1. Administrative Process. At this task, the evaluator logs information about each
crewmember on a roster. He supplies the crewmember with all required materials and
equipment, displaying them IAW this manual. He uses the performance measures to
record the crewmember's performance. Afterward, he tells the crewmember how well
the crewmember performed on this task and directs him to the next task or to further
training. One evaluator can test one--and only one--crewmember at a time.
2. Procedures Used When Personnel Receive a NO GO. If a crewmember fails to
achieve the standards on the performance measures, he earns a NO GO. When this
happens, the evaluator explains to the crewmember what he did wrong and how to
correct his mistakes. Then, he retests the crewmember IAW local SOP.
PERSONNEL, EQUIPMENT, AND MATERIALS
• Qualified 11B, 12B, 13F, 14R, or 19D, sergeant or above.
• Operational M2, M2A2, M2A2 ODS or M3, M3A2, M3A2 ODS with BII.
• TM 9-1005-313-10.
• TM 9-2350-284-10-2 or TM 9-2350-252-10-2.
• FM 3-22.1.
• Operational M240C coax (installed).
•
300 rounds of 7.62-mm dummy ammunition.
•
Stopwatch.
•
Clipboard with pen.
•
One helper, qualified 11B, 12B, 13F, 14R, or 19D, sergeant or below.
PRETEST PREPARATION
1. Clear the weapon.
2. Disassemble and reassemble the weapon to ensure that all parts are present
and
operational.
3. Install the M240C.
4. Load the M240C coax with dummy 7.62-mm ammunition.
PRETEST CONDITIONS FOR EACH EXAMINEE
1. Turn on master power.
A-24
FM 3-22.1
2. Turn on turret power and turret drive.
3. Select and arm M240C coax.
TEST PLANNING TIME
Administration
5 minutes
Test
4 minutes
Total
9 minutes
INSTRUCTIONS TO EXAMINEE
The evaluator will read the following instructions aloud to the examinee:
"Let me have your attention. This task evaluates your ability to clear the M240C
coaxial machine gun and to unload the 7.62-mm ammunition.
"This test is scored in sequence. Do you understand these instructions?"
Pause for 5 seconds, then say—
"You have 4 minutes to complete the task."
Pause again, then say--
"Begin."
Start timing at once. If the examinee has not completed the task after 4 minutes, then say
loudly enough for him to hear--
"Stop."
If at any time you think that he is going to damage the equipment or injure himself,
then say--
"Stop."
PERFORMANCE MEASURES
1. Completed performance measures within 4 minutes.
2. Cleared the coax machine gun.
a. Moved ARM-SAFE-RESET switch to SAFE.
b. Turned turret drive switch to OFF.
c. Opened coax machine gun access doors.
d. Pulled charger handle back firmly.
e. Moved manual safety up to SAFE position.
f. Opened cover assembly.
g. Removed ammunition belt from feed tray.
h. Opened feed tray.
i.
Checked to see if chamber was cleared of ammunition.
j.
Closed feed tray.
k. Closed cover assembly.
l.
Moved manual safety to FIRE position.
m. Dry fired coax machine gun by riding the bolt forward.
n. Pulled charger handle back firmly.
o. Dry fired coax machine gun by riding the bolt forward.
p. Closed coax machine gun access doors.
A-25
FM 3-22.1
3. Unloaded 7.62-mm ammunition.
a. Opened forwarder access door (M2 or M3 only).
b. Removed coax ammunition from feed chute and forwarder (M2 or M3 only).
c. Removed coax ammunition from feed chute.
d. Closed forwarder access door (M2 or M3 only).
A-26
FM 3-22.1
TASK 7A
CLEAR AN M240C COAX MACHINE GUN AND UNLOAD
7.62-MM AMMUNITION
(M2A2 ODS FBCB2, M3A2 ODS FBCB2, OR M2A3 OR M3A3 ONLY)
CONDITIONS
Given a Bradley with BII, coax machine gun loaded with 300 rounds of 7.62-mm dummy
ammunition.
STANDARDS
Within 4 minutes, the crewmember--
1. Cleared the M240C.
2. Unloaded the ammunition from the forwarder and stowed the ammunition in the
ammunition can.
EVALUATION PROCEDURES
1. Administrative Process. At this task, the evaluator logs information about each
crewmember on a roster. He supplies the crewmember with all required materials and
equipment, displaying them IAW this manual. He uses the performance measures to
record the crewmember's performance. Afterward, he tells the crewmember how well
the crewmember performed on this task and directs him to the next task or to further
training. One evaluator can test one--and only one--crewmember at a time.
2. Procedures Used When Personnel Receive a NO GO. If a crewmember fails to
achieve the standards on the performance measures, he earns a NO GO. When this
happens, the evaluator explains to the crewmember what he did wrong and how to
correct his mistakes. Then, he retests the crewmember IAW local SOP.
PERSONNEL, EQUIPMENT, AND MATERIALS
• Qualified 11B, 12B, 13F, 14R, or 19D, sergeant or above.
•
Operational M2A2 ODS appliqué, M3A2 ODS appliqué, or M2A3 or M3A3 with BII.
•
TM 9-2350-284-10-2 or TM 9-2350-294-10-2-1.
•
TM 9-1005-313-10.
•
FM 3-22.1.
•
Operational M240C coaxes (installed).
•
300 rounds dummy 7.62-mm ammunition.
•
Stopwatch.
•
Clipboard with pen.
•
One helper, qualified 11B, 12B, 13F, 14R, or 19D, sergeant or below.
PRETEST PREPARATION
1. Clear the weapon.
2. Disassemble and reassemble the weapon to ensure that all parts are present and
operational.
3. Install the M240C.
4. Load the M240C coax with dummy 7.62-mm ammunition.
A-27
FM 3-22.1
PRETEST CONDITIONS FOR EACH EXAMINEE
1. Turn on master power.
2. Turn on turret power and turret drive.
3. Select and arm M240C coax.
TEST PLANNING TIME
Administration
5 minutes
Test
4 minutes
Total
9 minutes
INSTRUCTIONS TO EXAMINEE
The evaluator will read the following instructions aloud to the examinee:
"Let me have your attention. This task evaluates your ability to clear the M240C
coaxial machine gun and to unload the 7.62-mm ammunition.
"This test is scored in sequence. Do you understand these instructions?"
Pause for 5 seconds, then say—
"You have 4 minutes to complete the task."
Pause again, then say--
"Begin."
Start timing at once. If the examinee has not completed the task after 4 minutes, then say
loudly enough for him to hear--
"Stop."
If at any time you think that he is going to damage the equipment or injure himself,
then say--
"Stop."
PERFORMANCE MEASURES
1. Completed performance measures within 4 minutes.
2. Cleared the coax machine gun.
a. Moved ARM-SAFE-RESET switch to SAFE.
b. Turned turret drive switch to OFF.
c. Unlatched CTD from its bracket.
d. Released handle on right access door to unlatched door.
e. Pulled out on left side of CTD to open left access door.
f. Pushed in right coax machine gun access door.
g. Pulled charger handle back firmly.
h. Moved manual safety up to SAFE position.
i.
Opened cover assembly.
j.
Removed ammunition belt from feed tray.
k. Opened feed tray.
l.
Checked to see if chamber was cleared of ammunition.
m. Closed feed tray.
n. Closed cover assembly.
A-28
FM 3-22.1
o. Moved manual safety to FIRE position.
p. Dry fired coax machine gun by riding the bolt forward.
q. Pulled charger handle back firmly.
r. Dry fired coax machine gun by riding the bolt forward.
s. Pulled in right coax machine gun access door.
t.
Pushed in on left side of CTD to close left access door.
u. Latched handle on right coax access door.
v. Latched CTD on bracket.
3. Unloaded 7.62-mm ammunition.
a. Removed coax ammunition from feed chute.
b. Removed coax ammunition from ammo box.
c. Placed unloaded ammunition in empty 7.62-mm ammo cans.
A-29
FM 3-22.1
TASK 8
REMOVE AN M240C COAX MACHINE GUN
(M2, M3, M2A2, M3A2, M2A2 ODS, OR M3A2 ODS)
CONDITIONS
Given a Bradley with BII and a cleared coax.
STANDARDS
Within 2 minutes, the crewmember removed the coax machine gun.
EVALUATION PROCEDURES
1. Administrative Process. At this task, the evaluator logs information about each
crewmember on a roster. He supplies the crewmember with all required materials and
equipment, displaying them IAW this manual. He uses the performance measures to
record the crewmember's performance. Afterward, he tells the crewmember how well
the crewmember performed on this task and directs him to the next task or to further
training. One evaluator can test one--and only one--crewmember at a time.
2. Procedures Used When Personnel Receive a NO GO. If a crewmember fails to
achieve the standards on the performance measures, he earns a NO GO. When this
happens, the evaluator explains to the crewmember what he did wrong and how to
correct his mistakes. Then, he retests the crewmember IAW local SOP.
PERSONNEL, EQUIPMENT, AND MATERIALS
• Qualified 11B, 12B, 13F, 14R, or 19D, sergeant or above.
• Operational M2, M2A2, or M2A2 ODS or M3, M3A2, or M3A2 ODS with BII.
• TM 9-2350-284-10-2 or TM 9-2350-252-10-2.
• FM 3-22.1.
• M240C machine gun (installed).
• Stopwatch.
• Clipboard with pen.
• One helper, qualified 11B, 12B, 13F, 14R, or 19D, sergeant or below.
PRETEST PREPARATION
1. Ensure that the master power is off.
2. Ensure turret drive system is in manual.
3. Ensure turret drive system is off.
PRETEST CONDITIONS FOR EACH EXAMINEE
1. Ensure that the weapon is cleared.
2. Ensure that the turret power is off.
3. Ensure that the turret drive is off.
TEST PLANNING TIME
Administration
5 minutes
Test
2 minutes
Total
7 minutes
A-30
FM 3-22.1
INSTRUCTIONS TO EXAMINEE
The evaluator will read the following instructions aloud to the examinee:
"Let me have your attention. This task evaluates your ability to remove the M240C
coaxial machine gun.
"Do you understand these instructions?"
Pause for 5 seconds, then say—
"You have 2 minutes to complete the task."
Pause again, then say--
"Begin."
Start timing at once. If the examinee has not completed the task after 2 minutes, then say
loudly enough for him to hear--
"Stop."
If at any time you think that he is going to damage the equipment or injure himself,
then say--
"Stop."
PERFORMANCE MEASURES
1. Completed performance measures within 2 minutes.
2. Removed M240C coax machine gun.
a. Opened coax machine gun access doors.
b. Removed solenoid cable plug from plenum jack (old mount).
c. Disconnected rear mount pin handle from mount pinhole.
d. Removed coax machine gun from plenum.
e. Closed coax machine gun access doors.
A-31
FM 3-22.1
TASK 8A
REMOVE AN M240C COAX MACHINE GUN (M2A2 ODS FBCB2, M3A2 ODS
FBCB2, OR M2A3 OR M3A3 ONLY)
CONDITIONS
Given a Bradley with BII and a cleared coax.
STANDARDS
Within 2 minutes, the crewmember removed the coax machine gun.
EVALUATION PROCEDURES
1. Administrative Process. At this task, the evaluator logs information about each
crewmember on a roster. He supplies the crewmember with all required materials and
equipment, displaying them IAW this manual. He uses the performance measures to
record the crewmember's performance. Afterward, he tells the crewmember how well
the crewmember performed on this task and directs him to the next task or to further
training. One evaluator can test one--and only one--crewmember at a time.
2. Procedures Used When Personnel Receive a NO GO. If a crewmember fails to
achieve the standards on the performance measures, he earns a NO GO. When this
happens, the evaluator explains to the crewmember what he did wrong and how to
correct his mistakes. Then, he retests the crewmember IAW local SOP.
PERSONNEL, EQUIPMENT, AND MATERIALS
• Qualified 11B, 12B, 13F, 14R, or 19D, sergeant or above.
•
Operational M2A2 ODS appliqué, M3A2 ODS appliqué, or M2A3 or M3A3 with BII.
•
TM 9-2350-284-10-2 or TM 9-2350-294-10-2-1.
•
FM 3-22.1.
•
Stopwatch.
•
Clipboard with pen.
•
One helper, qualified 11B, 12B, 13F, 14R, or 19D, sergeant or below.
PRETEST PREPARATION
1. Ensure that the master power is off.
2. Ensure turret drive system is in manual.
3. Ensure turret drive system is off.
PRETEST CONDITIONS FOR EACH EXAMINEE
1. Ensure that the weapon is cleared.
2. Ensure that the turret power is off.
3. Ensure that the turret drive is off.
TEST PLANNING TIME
Administration
5 minutes
Test
2 minutes
Total
7 minutes
INSTRUCTIONS TO EXAMINEE
The evaluator will read the following instructions aloud to the examinee:
A-32
FM 3-22.1
"Let me have your attention. This task evaluates your ability to remove the M240C
coaxial machine gun.
"Do you understand these instructions?"
Pause for 5 seconds, then say--
"You have 2 minutes to complete the task."
Pause again, then say--
"Begin."
Start timing at once. If the examinee has not completed the task after 2 minutes, then say
loudly enough for him to hear--
"Stop."
If at any time you think that he is going to damage the equipment or injure himself,
then say--
"Stop."
PERFORMANCE MEASURES
1. Completed performance measures within 2 minutes.
2. Removed M240C coax machine gun.
a. Unlatched CTD from its bracket.
b. Released handle on right access door to unlatch door.
c. Pulled out on left side of CTD to open left access door.
d. Pushed in right coax machine gun access door.
e. Disconnect rear mount pin handle from mount pinhole.
f. Removed coax machine gun from plenum.
g. Pulled in right coax machine gun access door.
h. Pushed in on left side of CTD to close left access door.
i.
Latched handle on right coax access door.
j.
Latched CTD on bracket.
A-33
FM 3-22.1
TASK 9
DISASSEMBLE (FIELD STRIP) AND ASSEMBLE AN
M240C COAX MACHINE GUN
CONDITIONS
Given an M240C coax machine gun placed on a flat surface and cleared of ammunition.
STANDARDS
The crewmember--
1. Within 2 minutes, disassembled the M240C machine gun.
2. Within 2 minutes, assembled the M240C machine gun.
EVALUATION PROCEDURES
1. Administrative Process. At this task, the evaluator logs information about each
crewmember on a roster. He supplies the crewmember with all required materials and
equipment, displaying them IAW this manual. He uses the performance measures to
record the crewmember's performance. Afterward, he tells the crewmember how well
the crewmember performed on this task and directs him to the next task or to further
training. One evaluator can test one--and only one--crewmember at a time.
2. Procedures Used When Personnel Receive a NO GO. If a crewmember fails to
achieve the standards on the performance measures, he earns a NO GO. When this
happens, the evaluator explains to the crewmember what he did wrong and how to
correct his mistakes. Then, he retests the crewmember IAW local SOP.
PERSONNEL, EQUIPMENT, AND MATERIALS
• Qualified 11B, 12B, 13F, 14R, or 19D, sergeant or above.
•
Operational M2, M2A2, M2A2 ODS, M2A3 or M3, M3A2, M3A2 ODS, or M3A3 with BII.
•
TM 9-2350-284-10-2, TM 9-2350-252-10-2, or TM 9-2350-294-10-2-1.
•
FM 3-22.1.
•
M240C coax machine gun.
•
Stopwatch.
•
Clipboard with pen.
•
One helper, qualified 11B, 12B, 13F, 14R, or 19D, sergeant or below.
PRETEST PREPARATION
1. Ensure that the equipment is operational.
2. Ensure that the weapon is removed from vehicle.
3. Ensure that the weapon is cleared.
PRETEST CONDITIONS FOR EACH EXAMINEE
1. Ensure that the weapon is placed on a flat surface.
2. Ensure that the weapon is cleared of ammunition.
A-34
FM 3-22.1
TEST PLANNING TIME
Administration
5 minutes
Test
4 minutes
Total
9 minutes
INSTRUCTIONS TO EXAMINEE
The evaluator will read the following instructions aloud to the examinee:
"Let me have your attention. This task evaluates your ability to disassemble and
assemble the M240C machine gun. The weapon has been cleared.
"Do you understand these instructions?"
Pause for 5 seconds, then say—
"You have 4 minutes to complete the task."
Pause again, then say--
"Begin."
Start timing at once. If the examinee has not completed the task after 4 minutes, then say
loudly enough for him to hear--
"Stop."
If at any time you think that he is going to damage the equipment or injure himself,
then say--
"Stop."
PERFORMANCE MEASURES
1. Completed performance measures within 4 minutes.
2. Disassembled (field strip) M240C coax machine gun.
a. Depressed and held barrel-locking latch.
b. Turned barrel released to upright position.
c. Removed barrel.
d. Depressed trigger pin spring and removed pin.
e. Pulled trigger-housing assembly down and back.
f. Pulled charger handle through cable guide.
g. Pulled back plate latch and lifted buffer straight up.
h. Pressed driving spring in, then up, and pulled it out.
i.
Depressed cover latches and raised cover assembly.
j.
Pulled charger handle back; pulled out the bolt and operating rod assembly.
k. Closed cover, pushed spring pin out, and removed it.
l.
Pressed latches and removed cover assembly and feed tray.
3. Reassembled M240C coax machine gun.
a. Positioned feed tray and cover assembly, pushed cover assembly forward, closed
cover, and inserted spring pin.
b. Inserted spring pin from right side.
c. Opened cover assembly.
d. Set bolt operating rod assembly on top of rails (receiver).
A-35
FM 3-22.1
e. Extend bolt to unlocked position; then pushed assembly all the way in.
f. Closed and locked cover.
g. Inserted driving spring in the operating rod, pushed in fully, and lowered it to seat
the stud in the hole of the receiver.
h. Installed buffer and ensured that it latched.
i.
Slid charger handle through cable guide and positioned trigger housing assembly
in place.
j.
Inserted pin.
k. Inserted barrel fully into socket, pushed barrel release to the right as far as it
would go (no less than two, and no more than seven clicks).
l.
Conducted function checks of the M240C.
A-36
FM 3-22.1
TASK 10
BORESIGHT TURRET WEAPONS SYSTEMS
(M2, M3, M2A2, M3A2, M2A2 ODS, OR M3A2 ODS)
CONDITIONS
Given an operational Bradley with BII and coax installed, operational boresight kit with
25-mm gun adapter, and TM 9-2350-252-10-2 or TM 9-2350-284-10-2. This is the only
BGST task that requires the use of the technical manual.
STANDARDS
Within 25 minutes (30 minutes for M2A2 ODS or M3A2 ODS), the crewmember
boresighted--
1.
25-mm gun (day and night).
2. Auxiliary sight.
3. M240C coax.
4. TOW launcher.
5. Laser range finder (M2A2 ODS or M3A2 ODS only).
EVALUATION PROCEDURES
1. Administrative Process. At this task, the evaluator logs information about each
crewmember on a roster. He supplies the crewmember with all required materials and
equipment, displaying them IAW this manual. He uses the performance measures to
record the crewmember's performance. Afterward, he tells the crewmember how well
the crewmember performed on this task and directs him to the next task or to further
training. One evaluator can test one--and only one--crewmember at a time.
2. Procedures Used When Personnel Receive a NO GO. If a crewmember fails to
achieve the standards on the performance measures, he earns a NO GO. When this
happens, the evaluator explains to the crewmember what he did wrong and how to
correct his mistakes. Then, he retests the crewmember IAW local SOP.
PERSONNEL, EQUIPMENT, AND MATERIALS
• Qualified 11B, 12B, 13F, 14R, or 19D, sergeant or above.
• Operational M2, M2A2, M2A2 ODS or M3, M3A2, M3A2 ODS with BII.
• TM 9-2350-252-10-2 or TM 9-2350-284-10-2.
• FM 3-22.1.
• Boresight kit.
• Boresight panel (1,200 meters distant).
• Stopwatch.
• Clipboard with pen.
• One helper, qualified 11B, 12B, 13F, 14R, or 19D, sergeant or below.
PRETEST PREPARATION
1. Ensure boresight telescope is operational.
2. Ensure engine is off.
3. Ensure master power is on.
4. Ensure all drive-select levers are in power mode.
5. Ensure turret power and turret drive are off.
A-37
FM 3-22.1
6. Ensure vehicle is parked on level ground.
7. Ensure ballistic sight covers are closed.
8. Ensure driver and cargo hatches are closed.
PRETEST CONDITIONS FOR EACH EXAMINEE
1. Ensure ARM-SAFE-RESET switch is set to SAFE.
2. Ensure thermal sight is off.
3. Ensure magnification is set to low.
4. Ensure the range index is on 12.
5. Ensure reticle brightness is off.
6. Offset day and night 25-mm boresight knobs.
7. Offset coax mount azimuth elevation knobs.
8. Offset TOW boresight screen.
9. Move turret out of target area.
10. Ensure travel lock is engaged.
11. Ensure turret shield door is closed.
TEST PLANNING TIME
Administration
5 minutes
Test
25 minutes
Total
30 minutes
Test for M2A2
ODS or M3A2 ODS
30 minutes
Total
35 minutes
INSTRUCTIONS TO EXAMINEE
The evaluator will read the following instructions aloud to the examinee:
"Let me have your attention. This task evaluates your ability to boresight the M242
25-millimeter automatic gun, the M240C coaxial machine gun, the auxiliary sight,
and the TOW launcher.
"For M2A2 ODS or M3A2 ODS models, you must also boresight the laser
range finder.
"Do you understand these instructions?"
Pause for 5 seconds, then say--
"You have 25 minutes (30 minutes for M2A2 ODS or M3A2 ODS models) to complete
the task."
Pause again, then say--
"Begin."
Start timing at once. If the examinee has not completed the task after 25 minutes (30
minutes for M2A2 ODS, M3A2 ODS), then say loudly enough for him to hear--
"Stop."
A-38
FM 3-22.1
If at any time you think that he is going to damage the equipment or injure himself,
then say--
"Stop."
Any time the helper installs the boresight telescope, the red streamer must be attached.
PERFORMANCE MEASURES
1.
Completed performance measures within 25 minutes (30 minutes for M2A2 ODS,
M3A2 ODS models).
2.
Turned on turret power.
3.
Moved night vision power switch to ON.
4.
Opened ballistic sight cover doors.
5.
Moved range control knob to "0."
6.
Moved magnification switch to HIGH.
7.
Moved sensor select to CLEAR or NEUTRAL.
8.
Boresighted M242 25-mm automatic gun:
a. Pressed AP SS button.
b. Ensured that AP appears on status indicator.
c. Adjusted reticle brightness knob.
d. Moved turret traverse drive-select lever to manual position.
e. Moved gun elevation drive-select lever to manual position.
f. Moved TOW elevation drive-select lever to power position.
g. Centered gun reticle on aiming point of target.
h. Helper installed 25-mm boresighted adapter and boresighted telescope on the
muzzle end of the 25-mm barrel.
i.
Helper focused boresighted telescope on target.
j.
Helper aligned elevation crosshair in boresighted reticle on aiming point of target.
k. Helper checked accuracy of boresighted telescope.
l.
Aligned gun reticle on aiming point of target.
m. Helper and gunner switched positions and verified alignment.
n. Removed boresight telescope and boresight adapter from 25-mm gun barrel.
9.
Boresighted the laser range finder (M2A2 ODS, M3A2 ODS only):
a. Moved magnification switched to HIGH.
b. Moved laser switched to ON.
c. Engaged and fully locked boresighted prism.
d. Located laser reticle.
e. Aligned laser reticle in center of the gun reticle circle.
f. Disengaged and locked boresighted prism.
g. Moved laser switch OFF.
10. Boresighted the auxiliary sight:
a. Positioned auxiliary sight to the commander's position.
b. Focused auxiliary sight.
c. Looked at aiming point image in auxiliary sight reticle.
d. Adjusted elevation linkage.
e. Loosened horizontal adjustment lock screw.
f. Centered aiming point image.
g. Locked horizontal adjustment lock screw.
A-39
FM 3-22.1
h. Checked aiming point image.
11. Boresighted the M240C coax machine gun.
a. Pressed 7.62-mm ammunition button.
b. Ensured that 7.62 appeared in status indicator.
c. Ensured alignment of gun reticle on aiming point of target.
d. Moved to commander's seat.
e. Helper installed boresight adapter and boresight telescope in muzzle end of
M240C coax machine gun.
f. Helper focused boresight telescope on boresighted panel.
g. Helper aligned azimuth crosshair reticle on aiming point of target.
h. Helper removed boresight telescope and boresight adapter.
12. Aligned nightsight:
a. Moved sensor select switch to NIGHT.
b. Aligned elevation crosshair and azimuth crosshair on gun reticle on aiming point
of target.
c. Moved sensor select switch to CLEAR or NEUTRAL.
d. Ensured alignment of gun reticle on aiming point of target.
13. Prepared turret for power operation.
a. Moved gun elevation drive-select lever to POWER.
b. Moved turret-traverse drive-select lever to POWER.
14. Boresighted TOW system.
a. Turned on turret drive and raised TOW launcher.
b. Turned off turret drive.
c. Hung red streamer on turret drive system switch.
d. Pressed TOW button.
e. Ensured that TOW appeared on status indicator.
f. Moved TOW elevation drive-select lever to manual position.
g. Moved gun elevation drive-select lever to power position.
h. Moved turret-traverse drive-select lever to manual position.
i.
Helper installed boresight telescope and hung red streamer on boresighted
telescope.
j.
Aligned azimuth crosshair of TOW reticle on aiming point of target.
k. Adjusted the TOW launcher for azimuth, if necessary.
l.
Helper aligned elevation crosshair of boresight-telescope reticle on target's
aiming point.
m. Aligned elevation crosshair of TOW reticle on aiming point of target.
n. Helper removed boresight telescope and red streamer from TOW launcher.
Gunner visually inspected it.
o. Removed red streamer from turret drive system switch.
p. Moved TOW elevation drive-select lever to POWER.
q. Moved turret-traverse drive-select lever to POWER.
r. Moved turret-drive switched to ON.
s. Lowered TOW launcher.
t.
Moved turret drive system switch to OFF.
A-40
FM 3-22.1
TASK 10A
BORESIGHT TURRET WEAPONS SYSTEMS (M2A3, M3A3)
CONDITIONS
Given an operational Bradley with BII and coax installed, operational boresight kit with
25-mm gun adapter, and TM 9-2350-294-10-2-1.
STANDARDS
Within 25 minutes, the crewmember--
1. Boresighted the--
• TAS and backup sight to the 25-mm gun.
• CIV to the 25-mm gun.
• TAS and backup sight to the coax.
• TAS to the TOW launcher.
2. Aligned the--
• TAS TV NFOV to the aided target tracker.
• TAS TV WFOV to the aided target tracker.
• CIV FLIR to the TV.
EVALUATION PROCEDURES
1. Administrative Process. At this task, the evaluator logs information about each
crewmember on a roster. He supplies the crewmember with all required materials and
equipment, displaying them IAW this manual. He uses the performance measures to
record the crewmember's performance. Afterward, he tells the crewmember how well
the crewmember performed on this task and directs him to the next task or to further
training. One evaluator can test one--and only one--crewmember at a time.
2. Procedures Used When Personnel Receive a NO GO. If a crewmember fails to
achieve the standards on the performance measures, he earns a NO GO. When this
happens, the evaluator explains to the crewmember what he did wrong and how to
correct his mistakes. Then, he retests the crewmember IAW local SOP.
PERSONNEL, EQUIPMENT, AND MATERIALS
• Qualified 11B, 12B, 13F, 14R, or 19D, sergeant or above.
• Operational M2A3 or M3A3 with BII.
• TM 9-2350-294-10-2-1.
• FM 3-22.1.
• Boresight kit.
• Boresight panel (1,200 meters distant).
• Stopwatch.
• Clipboard with pen.
• One helper, qualified 11B, 12B, 13F, 14R, or 19D, sergeant or below.
PRETEST PREPARATION
1. Ensure boresight telescope is operational.
2. Ensure engine is off.
3. Ensure master power is on.
4. Ensure all drive-select levers are in POWER mode.
A-41
FM 3-22.1
5. Turn turret power on.
6. Ensure vehicle is parked on level ground.
7. Ensure ballistic sight covers are closed.
8. Ensure driver and cargo hatches are closed.
9. Log on to FBCB2.
10. Return to the A3 tactical screen.
PRETEST CONDITIONS FOR EACH EXAMINEE
1. Ensure ARM-SAFE-RESET switch is at SAFE position.
2. Ensure range index is at 1.
3. Move turret out of target area.
4. Ensure travel lock is engaged.
5. Ensure turret shield door is closed.
TEST PLANNING TIME
Administration
5 minutes
Test
25 minutes
Total
30 minutes
INSTRUCTIONS TO EXAMINEE
The evaluator will read the following instructions aloud to the examinee:
"Let me have your attention. This task evaluates your ability to boresight the TAS
backup sight to the 25-mm gun; the CIV to the 25-mm gun; the TAS backup sight to
the coaxial machine gun; and the TAS to the TOW launcher.
"You must also align the TAS TV NFOV to the ATT; the TAS TV WFOV to the ATT,
and the CIV FLIR to the TV.
"Do you understand these instructions?"
Pause for 5 seconds, then say—
"You have 25 minutes to complete the task."
Pause again, then say--
"Begin."
Start timing at once. If the examinee has not completed the task after 25 minutes, then say
loudly enough for him to hear--
"Stop."
If at any time you think that he is going to damage the equipment or injure himself,
then say--
"Stop."
Any time the helper installs the boresight telescope, the red streamer must be attached.
PERFORMANCE MEASURES
1. Boresighted turret weapons systems.
a. Ensured turret power was on.
A-42
|
|
