Chapter 10
Table 10-9. AN/TRN-44 Tactical Air Navigation Shelter
Nomenclature
Max
Sling Set
Link Count
Weight
Front/Rear
(Pounds)
AN/TRN-44 Tactical Air Navigation Shelter
6,800
15K
3/3
z
Materials. The following materials are required to rig this load:
„ Sling set (15,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
z
Personnel. Two persons can prepare and rig this load in 15 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Secure all internal equipment with tape or Type III nylon cord.
─ Close and secure all doors, vents, and caps with tape or Type III nylon cord.
„ Rigging. Rig the load according to the steps in Figure 10-9.
„ Hookup. The hookup team stands on top of the shelter. The static wand person discharges
the static electricity with the static wand. The hookup person places the apex fitting onto the
aircraft cargo hook. The hookup team then moves clear of the load but remains close to the load
as the helicopter removes slack from the sling legs. When successful hookup is assured, the
hookup team quickly exits the area underneath the helicopter to the designated rendezvous
point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.

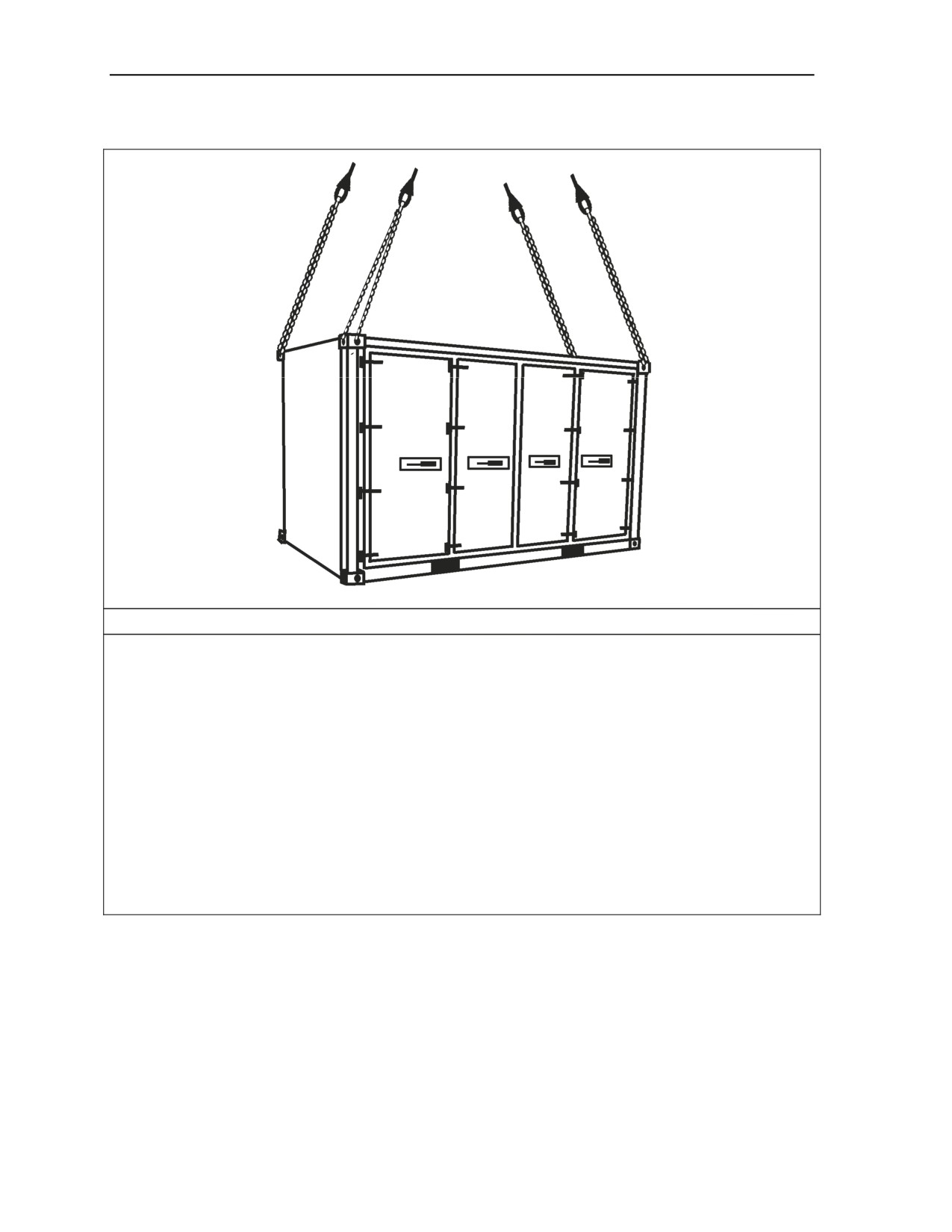

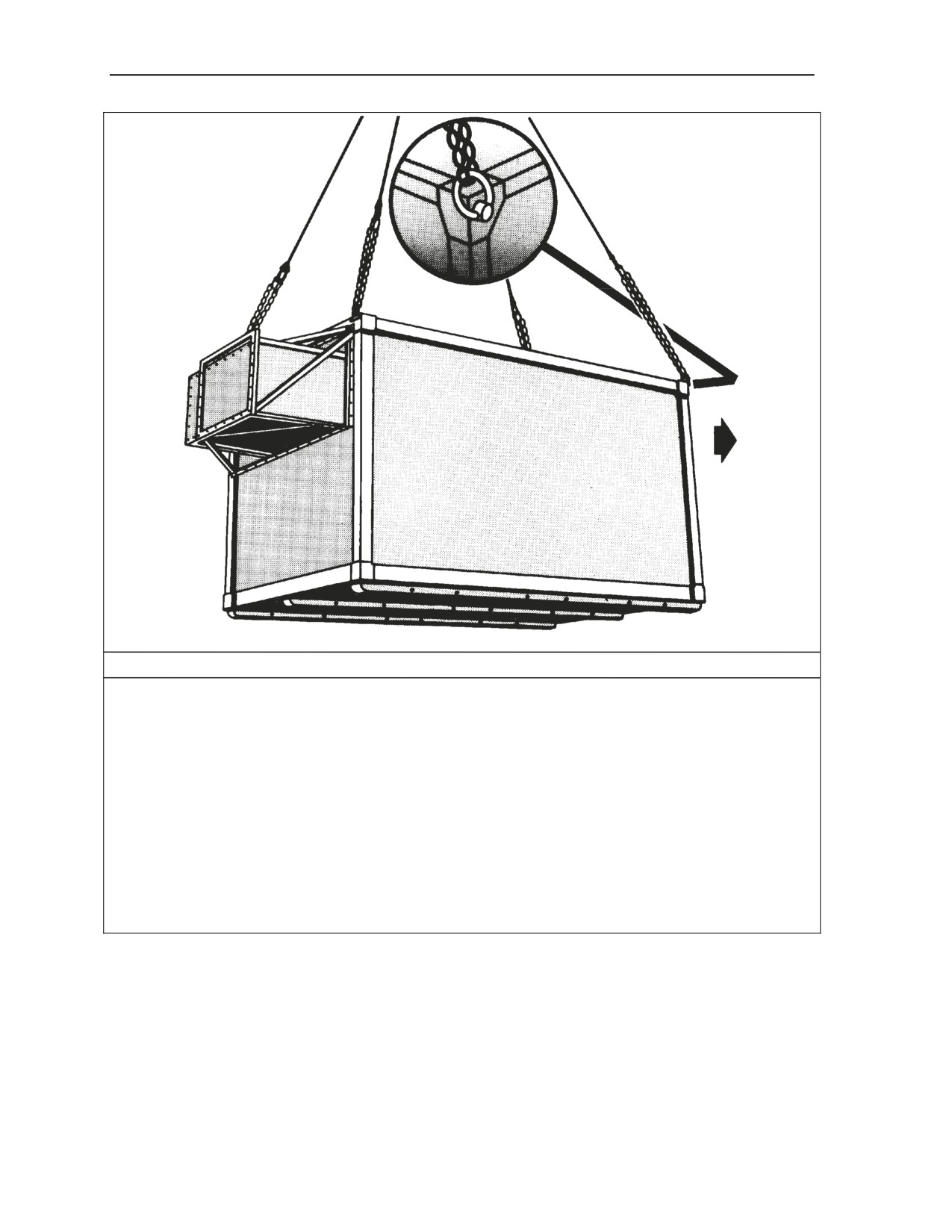

Figure 10-9. AN/TRN-44 Tactical Air Navigation Shelter
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
10-16
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Shelters

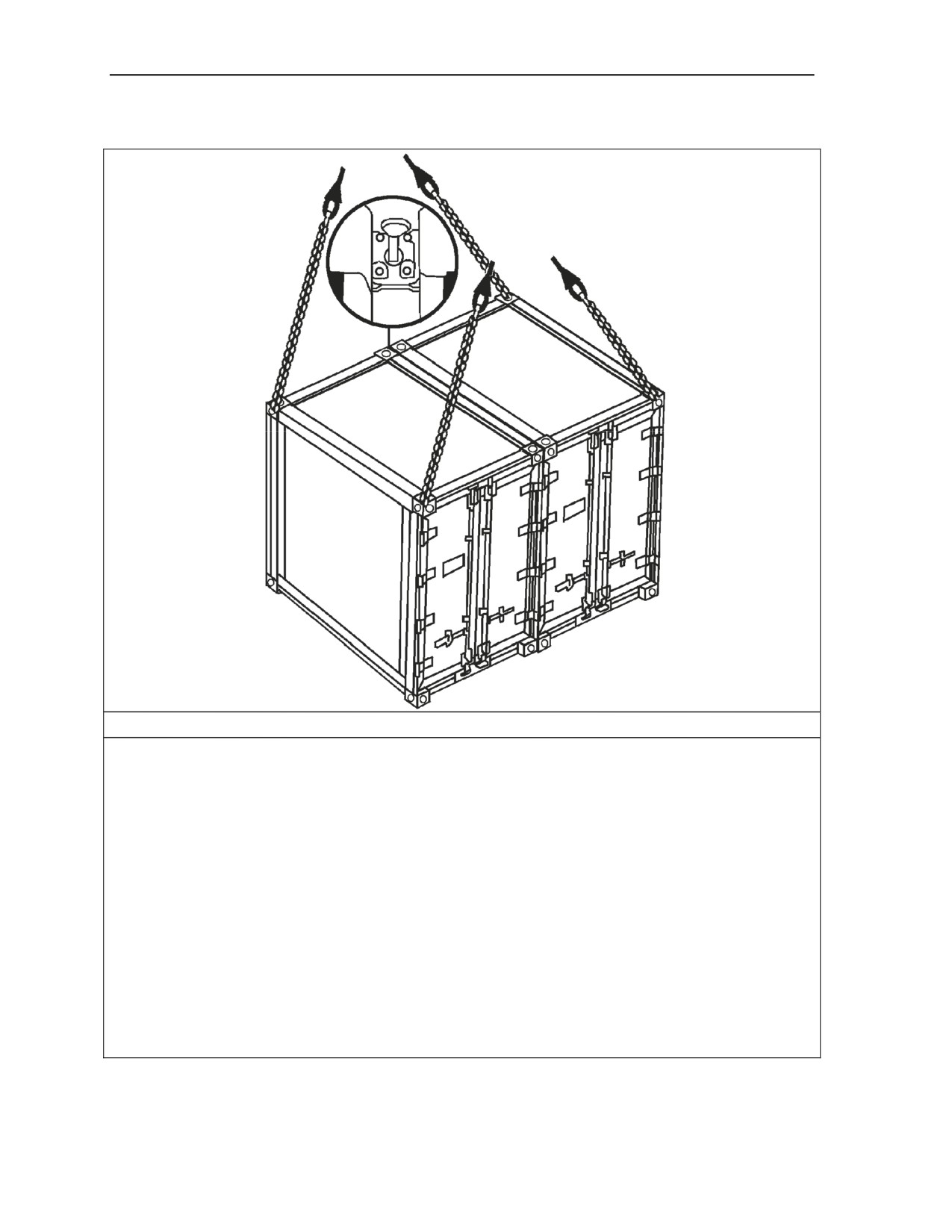

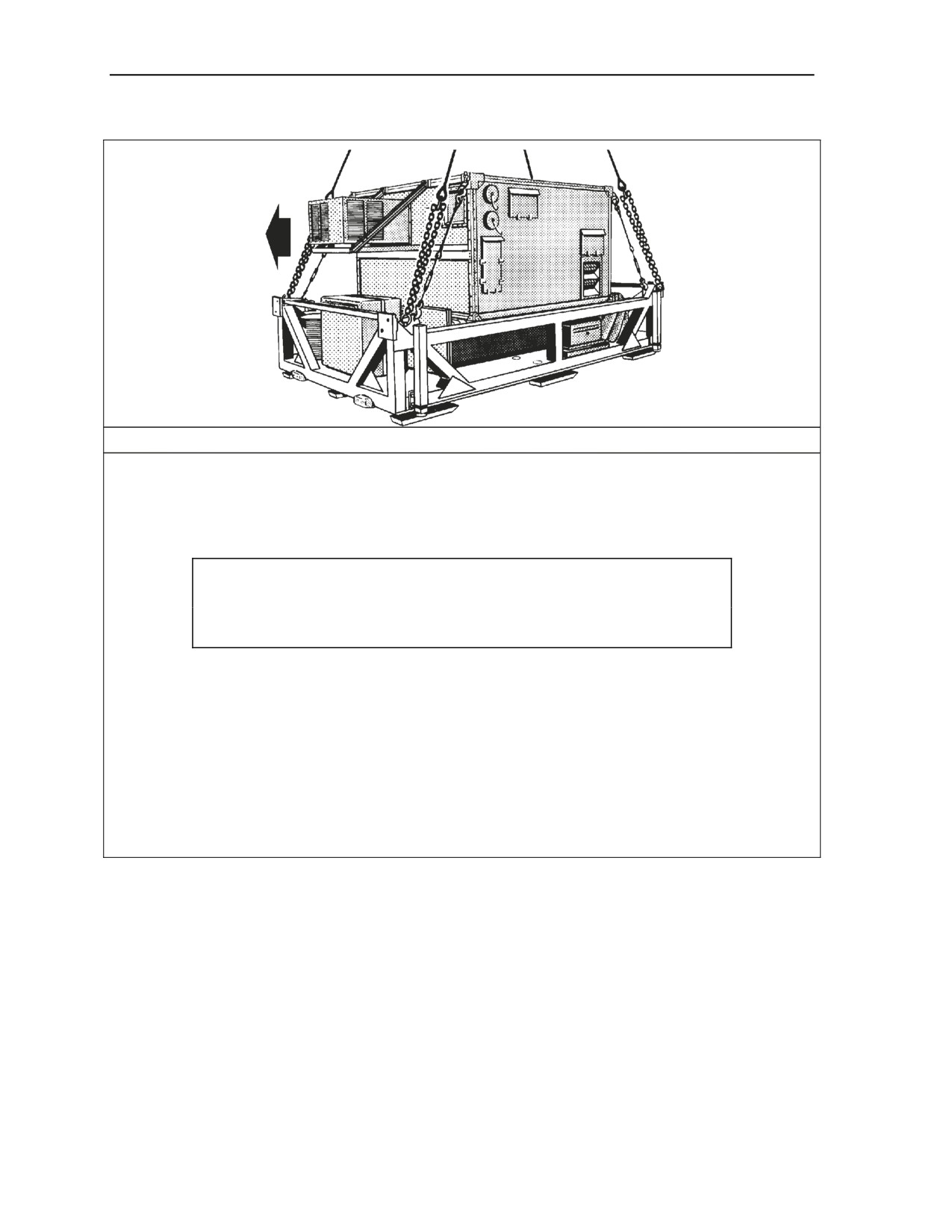

RIGGING STEPS
1. Position apex fitting on top of the shelter. Route outer sling legs 1 and 2 to the front of the
shelter (door end) and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on the
left side of the load.
2. Loop the chain end of sling leg 1 through the left front lift provision. Place the correct link
from Table 10-9 in the grab hook. Repeat with sling leg 2 on the right front lift provision.
3. Loop the chain end of sling leg 3 through the left rear lift provision. Place the correct link
from Table 10-9 in the grab hook. Repeat with sling leg 4 on the right rear lift provision.

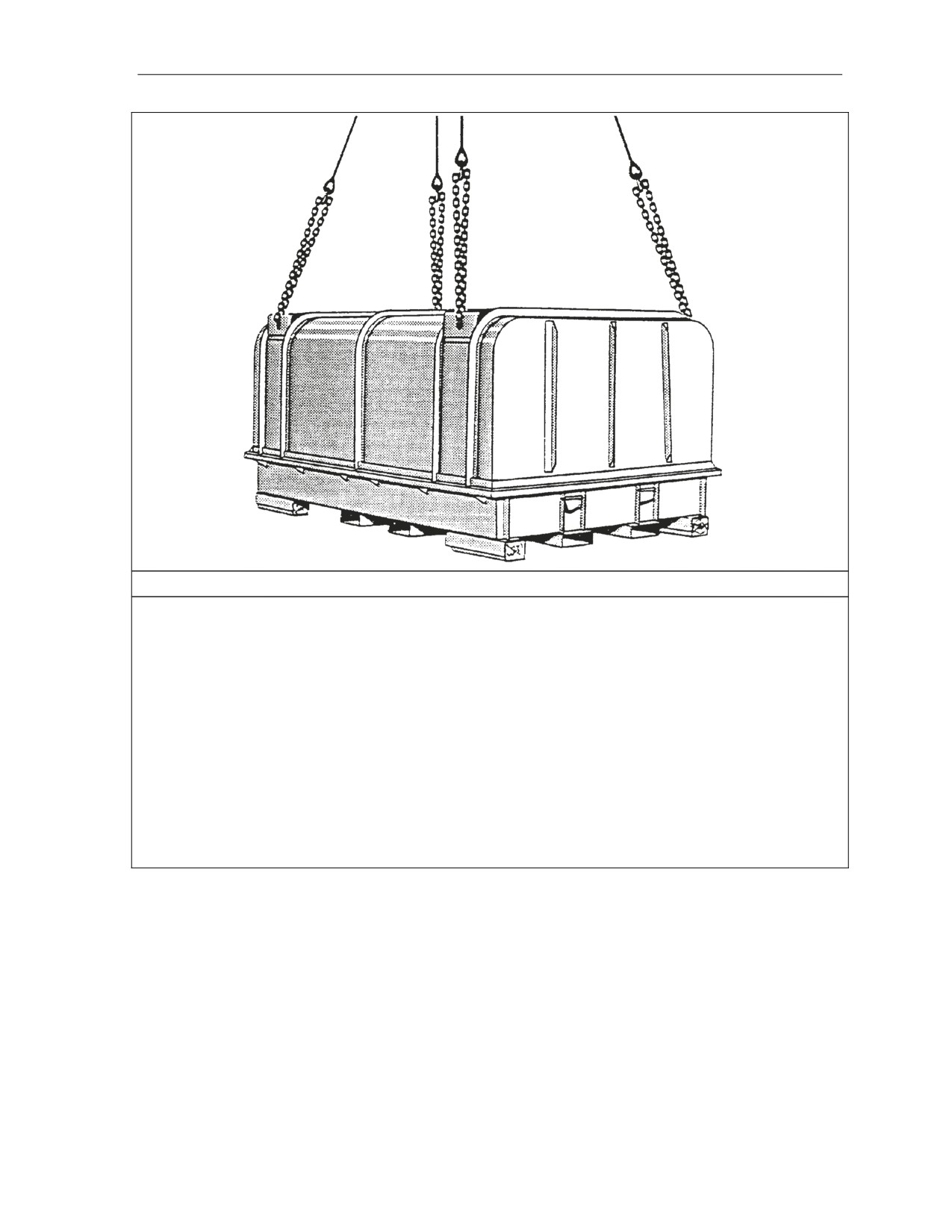

4. Cluster and tie (breakaway technique) all sling legs together on top of the shelter to prevent
entanglement during hookup and lift-off.
Figure 10-9. AN/TRN-44 Tactical Air Navigation Shelter (Continued)
HARDENED ARMY TACTICAL SHELTER (HATS)
10-11. The hardened Army tactical shelter is rigged for single-point sling load using the following
procedures:
z
Applicability. The following item in Table 10-10 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 10-10. Hardened Army Tactical Shelter
Nomenclature
Max
Sling Set
Link Count
Weight
Front/Rear
(Pounds)
Hardened Army Tactical Shelter
8,160
10K
3/30
z
Materials. The following materials are required to rig this load:
„ Sling set (10,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
z
Personnel. Two persons can prepare and rig this load in 15 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Secure all internal equipment with tape or Type III nylon cord.
─ Close and secure all doors, vents, and caps with tape or Type III nylon cord.
─ Secure the air conditioner panels with tape.
„ Rigging. Rig the load according to the steps in Figure 10-10.
„ Hookup. The hookup team stands on top of the shelter. The static wand person discharges
the static electricity with the static wand. The hookup person places the apex fitting onto the
aircraft cargo hook. The hookup team then moves clear of the load but remains close to the load
as the helicopter removes slack from the sling legs. When successful hookup is assured, the
hookup team quickly exits the area underneath the helicopter to the designated rendezvous
point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
10-17
Chapter 10
RIGGING STEPS
1. Position apex fitting on top of the shelter. Route outer sling legs 1 and 2 to the front of the
shelter (door end) and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on the
left side of the load.
2. Loop the chain end of sling leg 1 through the left front lift provision. Place the correct link
from Table 10-10 in the grab hook. Repeat with sling leg 2 on the right front lift provision.
3. Loop the chain end of sling leg 3 through the left rear lift provision. Place the correct link
from Table 10-10 in the grab hook. Repeat with sling leg 4 on the right rear lift provision.
4. Cluster and tie (breakaway technique) all sling legs together on top of the shelter to prevent
entanglement during hookup and lift-off.

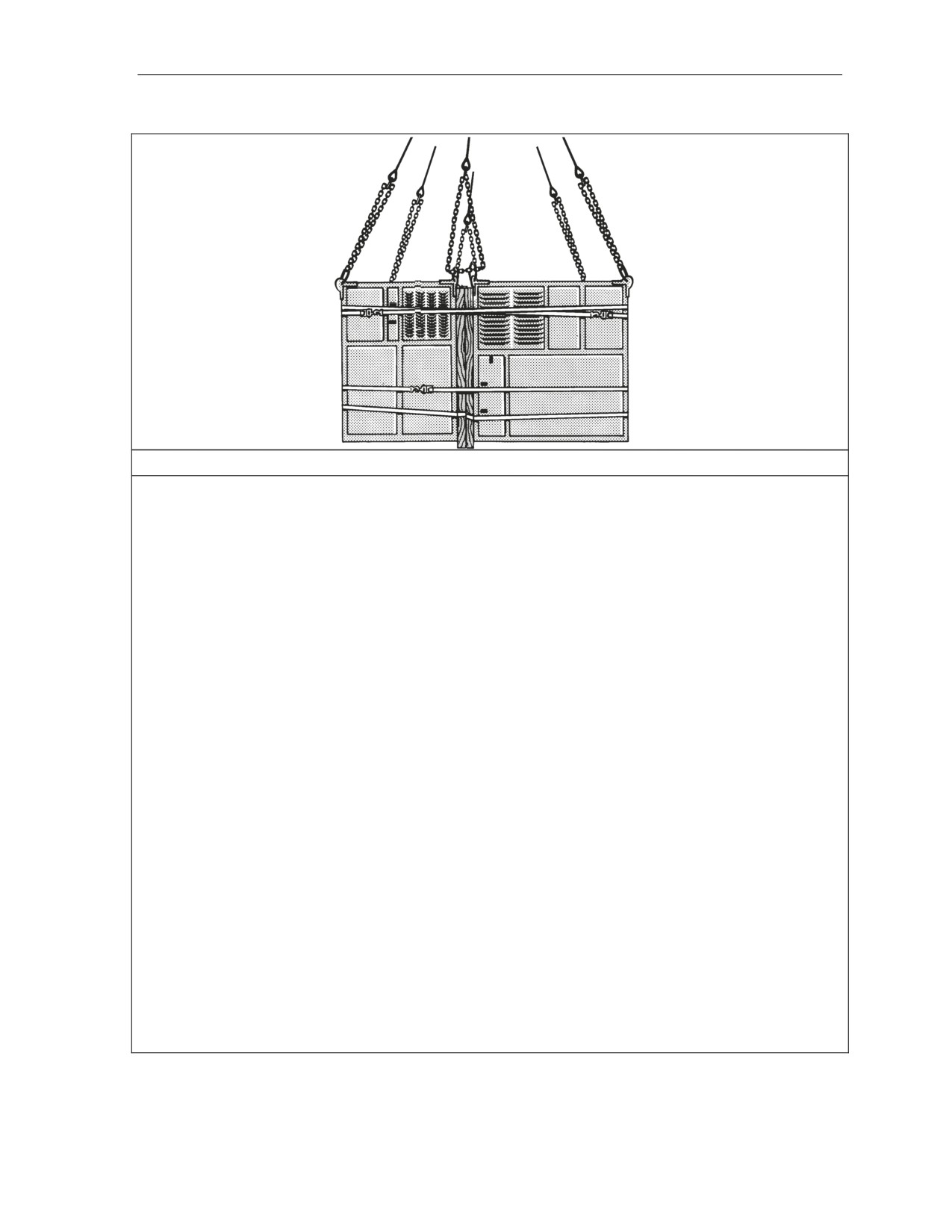

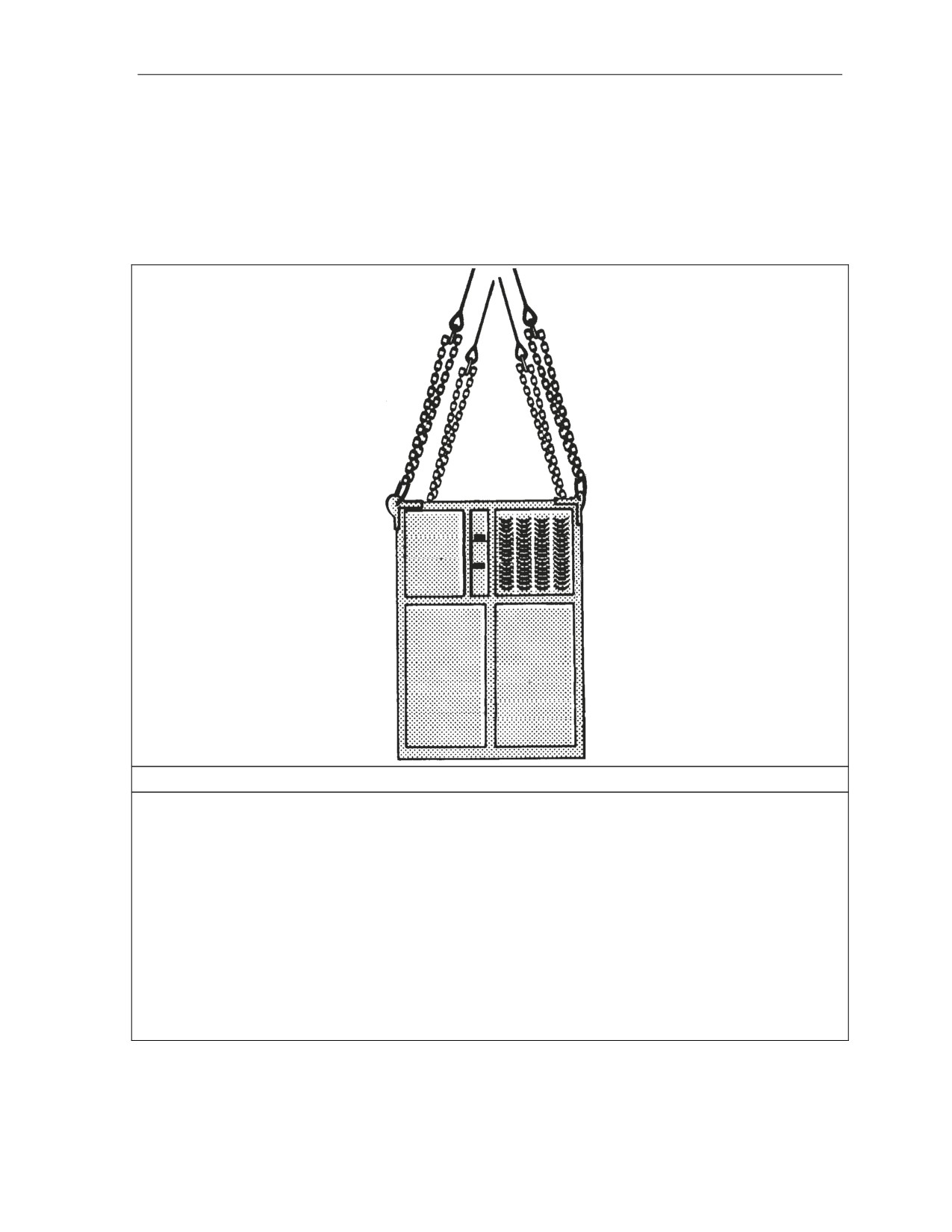

Figure 10-10. Hardened Army Tactical Shelter
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
10-18
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Shelters
CRADLE MOUNTED AN/TPQ-32A RADAR SET, COMPONENT OF
THE AN/MPQ-49A FORWARD AREA ALERTING RADAR (FAAR)
SYSTEM
10-12. The cradle mounted AN/TPQ-32A radar set, component of the AN/MPQ-49A forward area
alerting radar system is rigged for single-point sling load using the following procedures:
z
Applicability. The following item in Table 10-11 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 10-11. Cradle Mounted AN/TPQ-32A Radar Set, Component of the AN/MPQ-49A Forward
Area Alerting Radar System
Nomenclature
Max
Sling Set
Link Count
Weight
Front/Rear
(Pounds)
Cradle Mounted AN/TPQ-32A Radar Set,
Component of the AN/MPQ-49A Forward Area
7,100
10K
3/20
Alerting Radar System
Note: The AN/TPQ-32A must be removed from the truck prior to sling loading.
z
Materials. The following materials are required to rig this load:
„ Sling set (10,000-pound capacity).
„ Additional chain lengths with couplings (4 each).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Tie-down strap, cargo, CGU-1/B (as required).
„ Wrench, box end, 9/16-inch.
z
Personnel. Two persons can prepare and rig this load in 25 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Remove the cradle from the modified M35A2 truck and remount the mast in the vertical
position in accordance with TM 9-1430-588-10.
─ Remount the antenna reflectors from over the generator assembly to the front of the
cradle by removing and replacing the quick release pins.
─ Remove the two turnbuckles located between the front (shelter door end) cradle tie-down
provision and the shelter lifting provision using a 9/16-inch box wrench. Store them
inside the shelter or in a cradle cabinet.
─ Pin the mud flaps in the up position.
─ Secure all loose equipment inside the shelter and between the cradle and the shelter with
Type III nylon cord, tape, or tie-down straps.
─ Close and secure all doors, vents, and caps with tape or Type III nylon cord.
„ Rigging. Rig the load according to the steps in Figure 10-11.
„ Hookup. The hookup team stands on top of the shelter. The static wand person discharges
the static electricity with the static wand. The hookup person places the apex fitting onto the
aircraft cargo hook. The hookup team then moves clear of the load but remains close to the load
as the helicopter removes slack from the sling legs. When successful hookup is assured, the
hookup team quickly exits the area underneath the helicopter to the designated rendezvous
point.
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
10-19
Chapter 10
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.

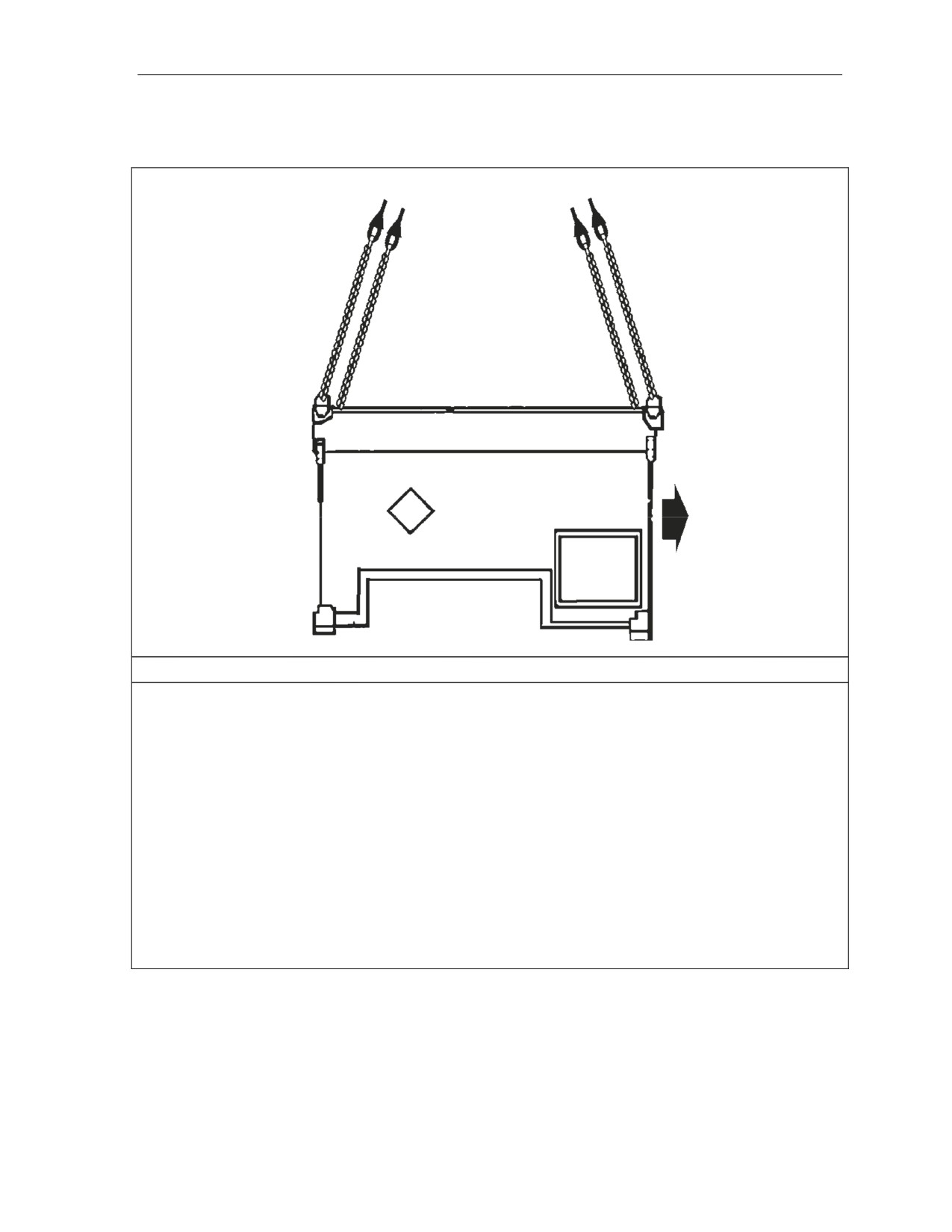

RIGGING STEPS
1. Attach an additional chain leg to each sling leg using the coupling links.
2. Position the apex fitting on top of the shelter. Route outer sling legs 1 and 2 to the front of
the shelter (door end) and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on
the left side of the load.
3. Loop the chain end of sling leg 1 through the left front lift provision of the shelter and through
the left front lift provision of the cradle. Be sure to use the cradle lift provision, not the tie-
down provision. Place the correct link from Table 10-11 in the grab hook. Repeat with sling
leg 2 and the right front lift provision of the shelter and cradle. Secure excess chain with tape
or nylon cord.
4. Loop the chain end of sling leg 3 through the left rear lift provision of the cradle. Place the
correct link from Table 10-11 in the grab hook. Repeat with sling leg 4 and the right rear lift
provision of the cradle.
5. Cluster and tie (breakaway technique) all sling legs together on top of the shelter to prevent
entanglement during hookup and lift-off.

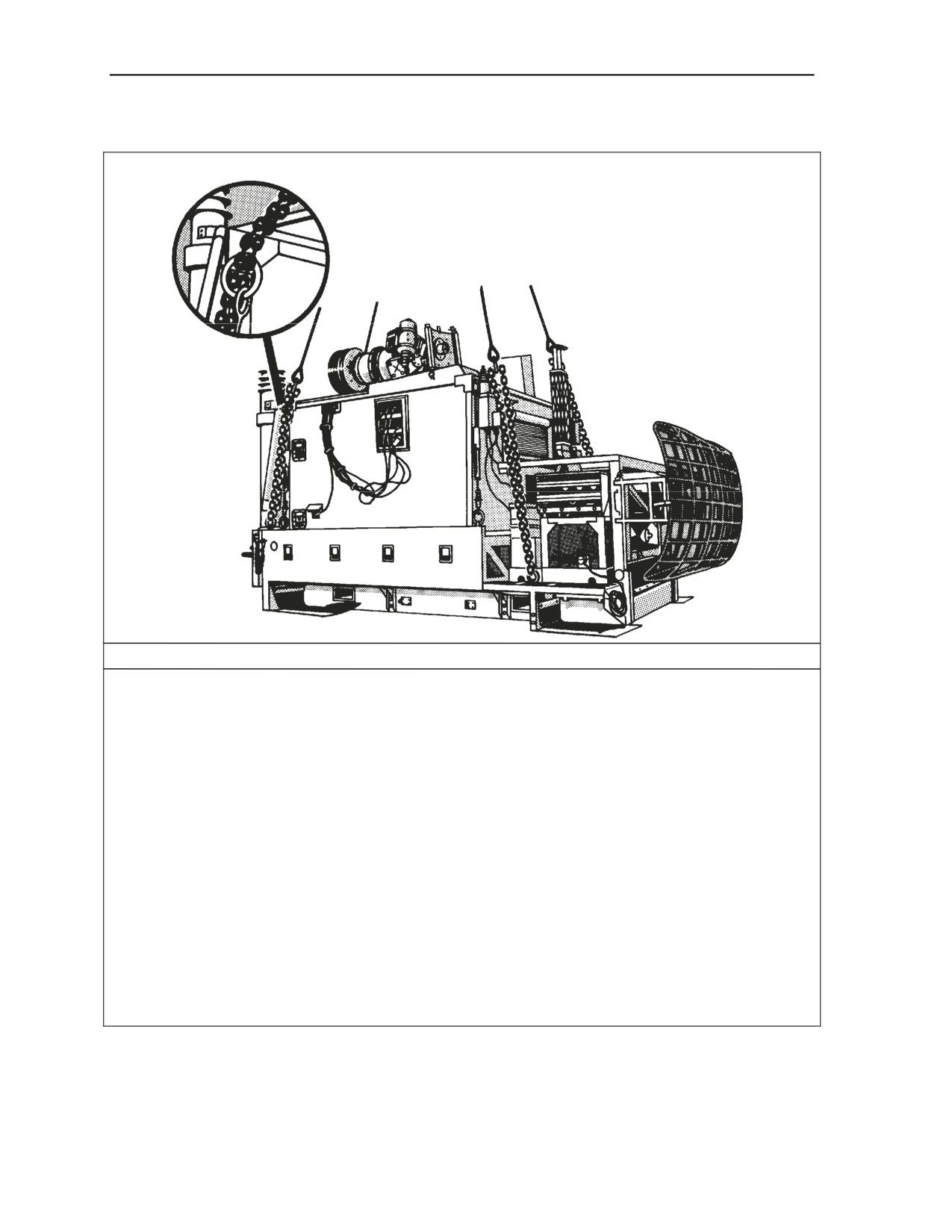

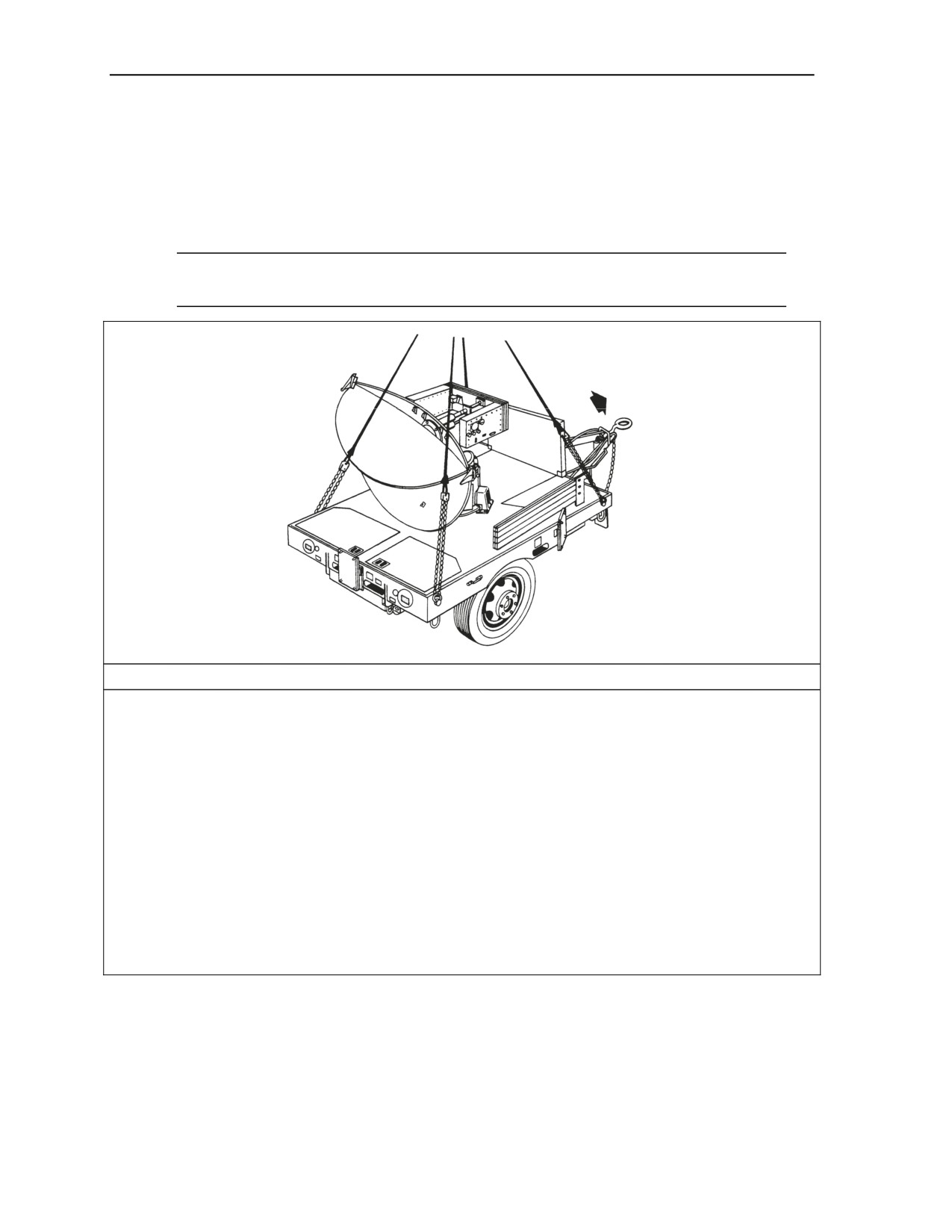

Figure 10-11. Cradle Mounted AN/TPQ-32A Radar Set, Component of the AN/MPQ-49A
Forward Area Alerting Radar System
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
10-20
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Shelters
NATO AIR BASE SATCOM (NABS) SHELTER PALLET, AN/TSC-93B
(V)2
10-13. The NATO air base satcom shelter pallet, AN/TSC-93B (V)2 is rigged for single-point sling load
using the following procedures:
z
Applicability. The following item in Table 10-12 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 10-12. NATO Air Base Satcom (NABS) Shelter Pallet, AN/TSC-93B (V)2
Nomenclature
Max
Sling Set
Link Count
Weight
Front/Rear
(Pounds)
NATO Air Base Satcom Shelter Pallet,
5,751
10K
3/3
AN/TSC-93B (V)2
z
Materials. The following materials are required to rig this load:
„ Sling set (10,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
z
Personnel. Two persons can prepare and rig this load in 20 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Secure all loose cables and equipment on the shelter pallet with tape or Type III nylon
cord.
─ Remove the cargo cover and stow it inside the shelter.
─ Close and secure all doors, vents, and caps with tape or Type III nylon cord. All exhaust
vents must be taped.
„ Rigging. Rig the load according to the steps in Figure 10-12.
„ Hookup. The hookup team stands on top of the shelter. The static wand person discharges
the static electricity with the static wand. The hookup person places the apex fitting onto the
aircraft cargo hook. The hookup team then moves clear of the load but remains close to the load
as the helicopter removes slack from the sling legs. When successful hookup is assured, the
hookup team quickly exits the area underneath the helicopter to the designated rendezvous
point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
10-21
Chapter 10

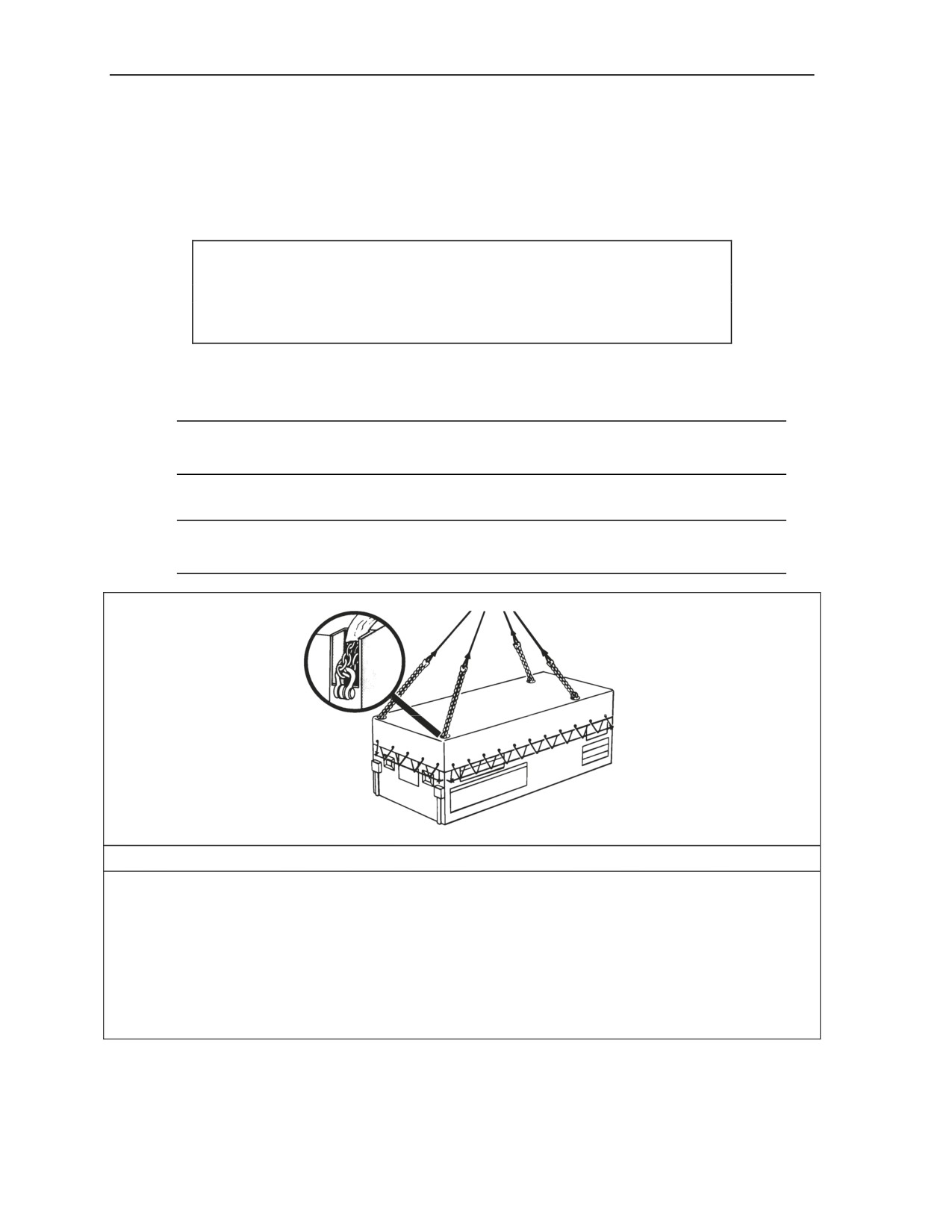

RIGGING STEPS
1. Position the apex fitting on top of the shelter. Route outer sling legs 1 and 2 to the front of
the pallet (ECU end) and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on
the left side of the load.
CAUTION
Do not use the lift provisions on the shelter.
2. Loop the chain end of sling leg 1 through the left front lift provision located on the pallet.
Place the correct link from Table 10-12 in the grab hook. Repeat with sling leg 2 and the
right front lift provision.
3. Loop the chain end of sling leg 3 through the left rear lift provision located on the pallet.
Place the correct link from Table 10-12 in the grab hook. Repeat with sling leg 4 and the
right rear lift provision.
4. Cluster and tie (breakaway technique) all sling legs together on top of the shelter to prevent
entanglement during hookup and lift-off.

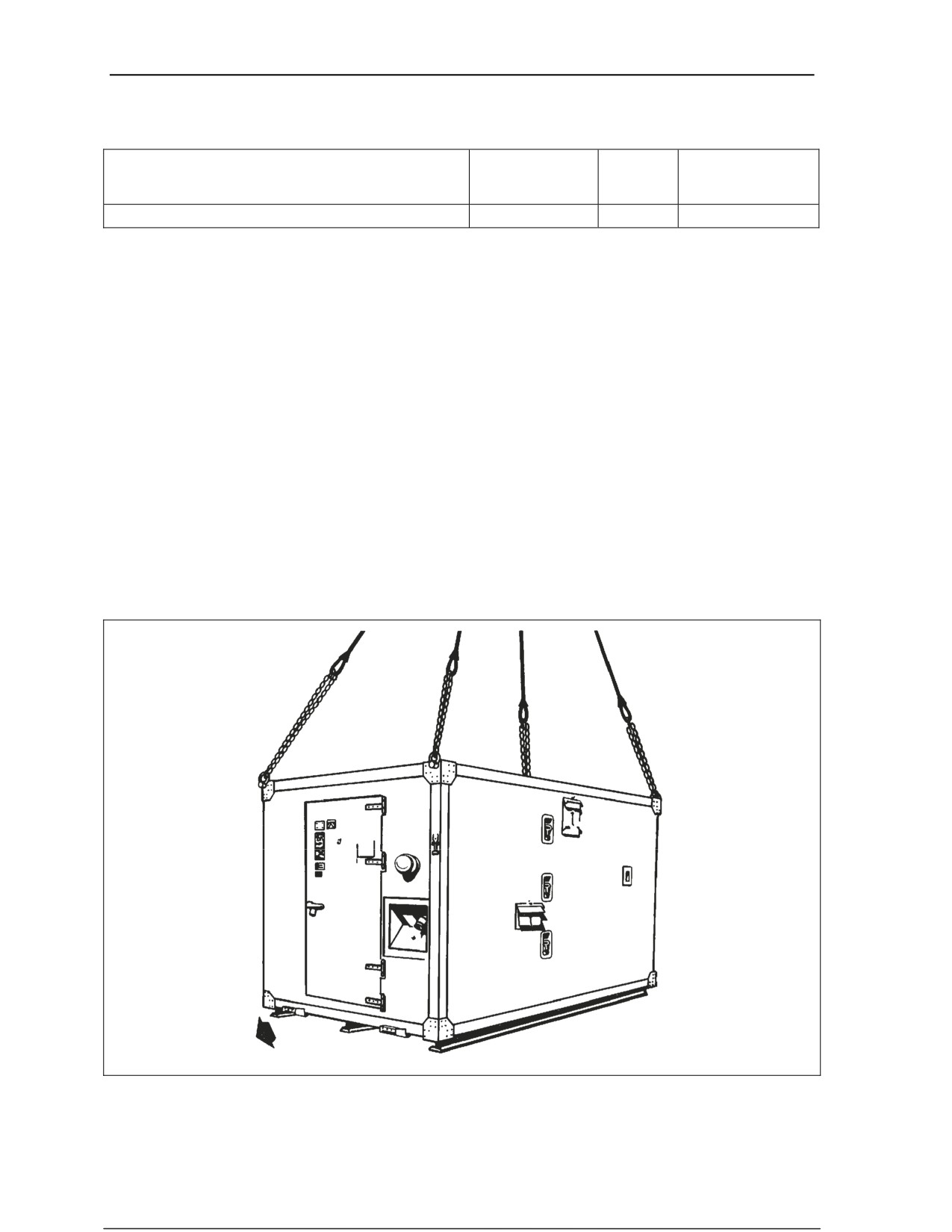

Figure 10-12. NATO Air Base Satcom (NABS) Shelter Pallet, AN/TSC-93B (V)2
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
10-22
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Shelters
REFRIGERATOR, RIGID BOX WITHOUT REFRIGERATOR UNIT
10-14. The refrigerator, rigid box without refrigerator unit is rigged for single-point sling load using the
following procedures:
z
Applicability. The following item in Table 10-13 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 10-13. Refrigerator, Rigid Box without Refrigerator Unit
Nomenclature
Max
Sling Set
Link Count
Weight
Front/Rear
(Pounds)
Refrigerator, Rigid Box without Refrigerator Unit
3,500
15K
5/5
z
Materials. The following materials are required to rig this load:
„ Sling set (15,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
z
Personnel. Two persons can prepare and rig this load in 10 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Remove the refrigerator unit from inside the refrigerator box.
─ Secure all equipment inside the box with tape or Type III nylon cord. Close and secure
the door latch.
„ Rigging. Rig the load according to the steps in Figure 10-13.
„ Hookup. The hookup team stands on top of the shelter. The static wand person discharges
the static electricity with the static wand. The hookup person places the apex fitting onto the
aircraft cargo hook. The hookup team then moves clear of the load but remains close to the load
as the helicopter removes slack from the sling legs. When successful hookup is assured, the
hookup team quickly exits the area underneath the helicopter to the designated rendezvous
point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.

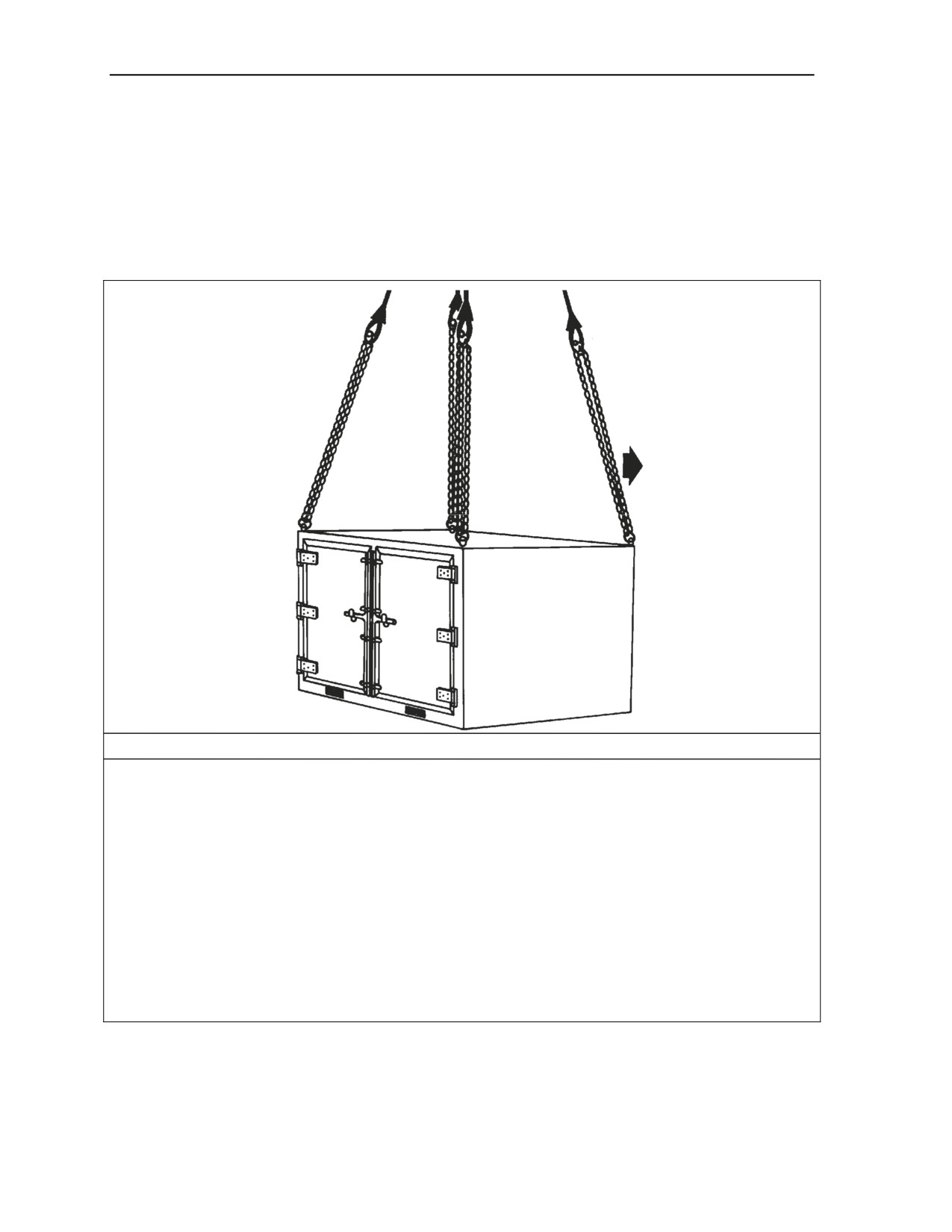

Figure 10-13. Refrigerator, Rigid Box without Refrigerator Unit
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
10-23
Chapter 10
RIGGING STEPS
1. Position the web ring on top of the refrigerator box. Route outer sling legs 1 and 2 to the
front of the box and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on the left
side of the load.
2. Loop the chain end of sling leg 1 through the left front lift provision. Place the correct link
from Table 10-13 in the grab hook. Repeat with sling leg 2 and the right front lift provision.
3. Loop the chain end of sling leg 3 through the left rear lift provision. Place the correct link
from Table 10-13 in the grab hook. Repeat with sling leg 4 and the right rear lift provision.
4. Cluster and tie (breakaway technique) all sling legs together on top of the box to prevent
entanglement during hookup and lift-off.
Figure 10-13. Refrigerator, Rigid Box without Refrigerator Unit (Continued)
PETROLEUM QUALITY ANALYSIS SYSTEM (PQAS) SHELTER
10-15. The petroleum quality analysis system shelter is rigged for single-point sling load using the
following procedures:
z
Applicability. The following item in Table 10-14 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 10-14. Petroleum Quality Analysis. System Shelter
Nomenclature
Max
Sling Set
Link Count
Weight
Front/Rear
(Pounds)
PQAS Shelter, Dismounted
3,200
10K
5/10
z
Materials. The following materials are required to rig this load:
„ Sling set (10,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Webbing, nylon, tubular, ½-inch, 1000-pound breaking strength.
z
Personnel. Two persons can prepare and rig this load in 15 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Secure all equipment inside the box with tape or Type III nylon cord. Close and secure
the door latch. Raise the roof to the stop and pin in position. Secure the pin with tape.
─ Roll up and tie the large canvas covers on the shelter with Type III nylon cord. Secure
the small canvas covers with tape.
„ Rigging. Rig the load according to the steps in Figure 10-14.
„ Hookup. The hookup team stands on top of the shelter. The static wand person discharges
the static electricity with the static wand. The hookup person places the apex fitting onto the
aircraft cargo hook. The hookup team then moves clear of the load but remains close to the load
as the helicopter removes slack from the sling legs. When successful hookup is assured, the
hookup team quickly exits the area underneath the helicopter to the designated rendezvous
point.
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
10-24
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Shelters
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
RIGGING STEPS
1. Position the web ring on top of the shelter. Route outer sling legs 1 and 2 to the front of the
box and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on the left side of the
load.
2. Loop the chain end of sling leg 1 through the left front lift ring on top of the shelter. Place the
correct link from Table 10-14 in the grab hook. Repeat with sling leg 2 and the right front lift
ring.
3. Loop the chain end of sling leg 3 through the left rear lift ring on top of the shelter. Place the
correct link from Table 10-14 in the grab hook. Repeat with sling leg 4 and the right rear lift
provision.
4. Cluster and tie (breakaway technique) all sling legs together on top of the box to prevent
entanglement during hookup and lift-off.
Figure 10-14. Petroleum Quality Analysis System Shelter
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
10-25
This page intentionally left blank.
Chapter 11
Certified Single-Point Rigging Procedures for Containers
INTRODUCTION
11-1. This chapter contains rigging procedures for single-point lift of containers that have been certified
for sling load. Each rigging procedure is found in a paragraph that includes a description of the load,
materials required for rigging, and steps to complete the procedure. An applicability paragraph is also a
part of each paragraph and identifies the certified loads. The certified single-point rigging procedures for
containers are in this section. Paragraphs 11-2 through 11-13 give detailed instructions for rigging loads.
Note: Reach pendants may be used on all single point loads. A static discharge person is not
required when using a reach pendant.
SHIPPING/STORAGE CONTAINERS
11-2. The shipping/storage containers are rigged for single-point sling load using the following
procedures:
z
Applicability. The following items in Table 11-1 are certified for all helicopters with suitable
lift capacity by the US Army Natick Soldier Center:
Table 11-1. Shipping/Storage Containers
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
ISU-60 (Loaded)
11,650
25K
3/3
ISU-90 (Loaded)
11,900
25K
3/3
ISU-90 (Empty)
1,900
10K
3/3
ISU-60 with Jump Forward Arming and Refueling Point (FARP),
4,000
10K
3/3
Advanced Aviation Forward Area Refueling System (AAFARS)
Advanced Design Refrigerator, 300 Cubic Feet (ADR300),
11,900
25K
3/3
Produced by AAR Cadilac Manufacturing Inc.
z
Materials. The following materials are required to rig this load:
„ Sling set (10,000- or 25,000-pound capacity) (as required).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
z
Personnel. Two persons can prepare and rig this load in 10 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Secure all cargo inside the container.
─ Secure all doors in the secured and locked position.
„ Rigging. Rig the load according to the steps in Figure 11-1.
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
11-1
Chapter 11
„ Hookup. The hookup team stands on top of the container. The static wand person
discharges the static electricity with the static wand. The hookup person places the apex fitting
onto the aircraft cargo hook. The hookup team then moves clear of the load but remains close to
the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
RIGGING STEPS
1. Position apex fitting on top of the container. Route outer sling legs 1 and 2 to the front of the
container and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on the left side
of the load.
2. Loop the chain end of sling leg 1 through the left front lift provision. Place the correct link
from Table 11-1 in the grab hook. Repeat with sling leg 2 on the right front lift provision.
3. Loop the chain end of sling leg 3 through the left rear lift provision. Place the correct link
from Table 11-1 in the grab hook. Repeat with sling leg 4 on the right rear lift provision.
4. Cluster and tie (breakaway technique) all sling legs together on top of the container to
prevent entanglement during hookup and lift-off.

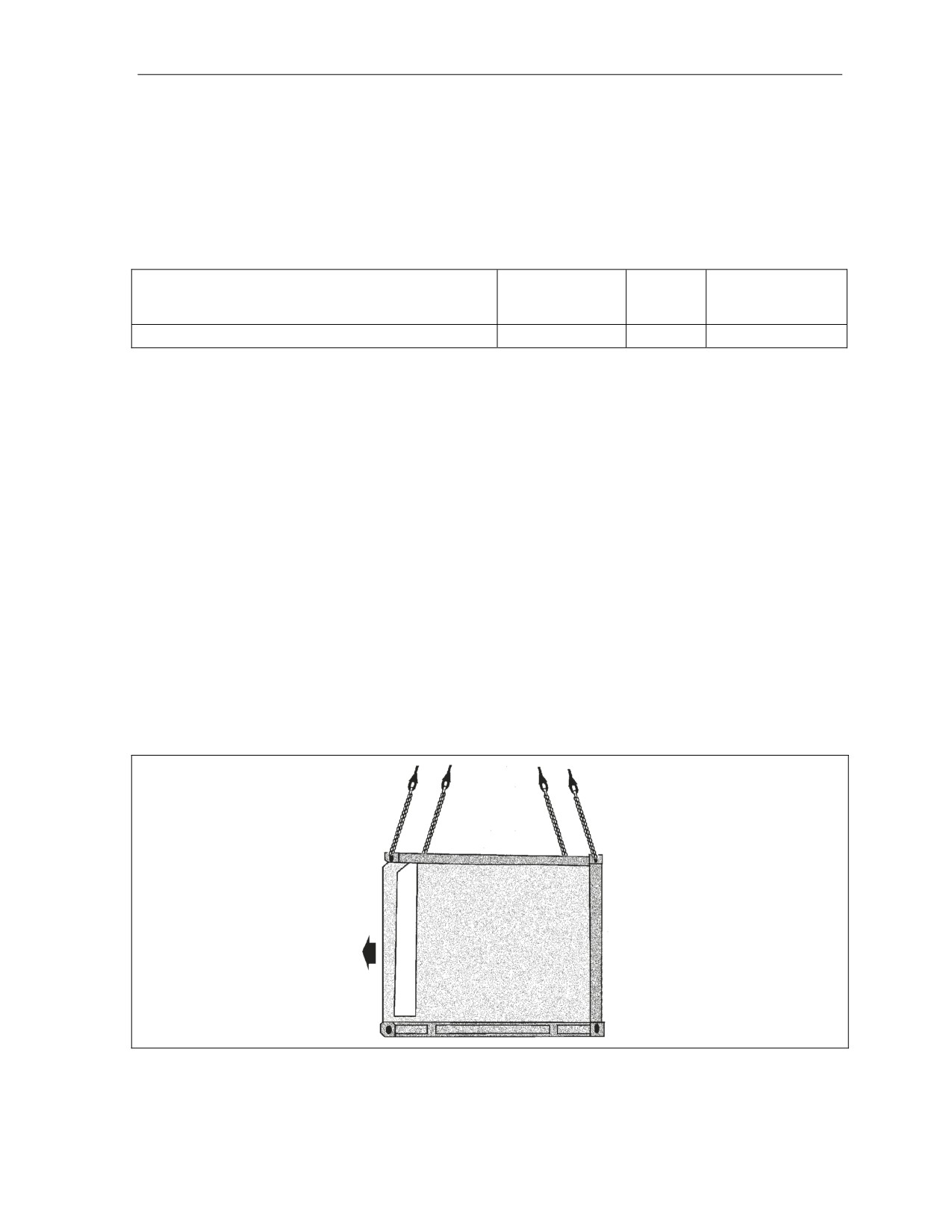

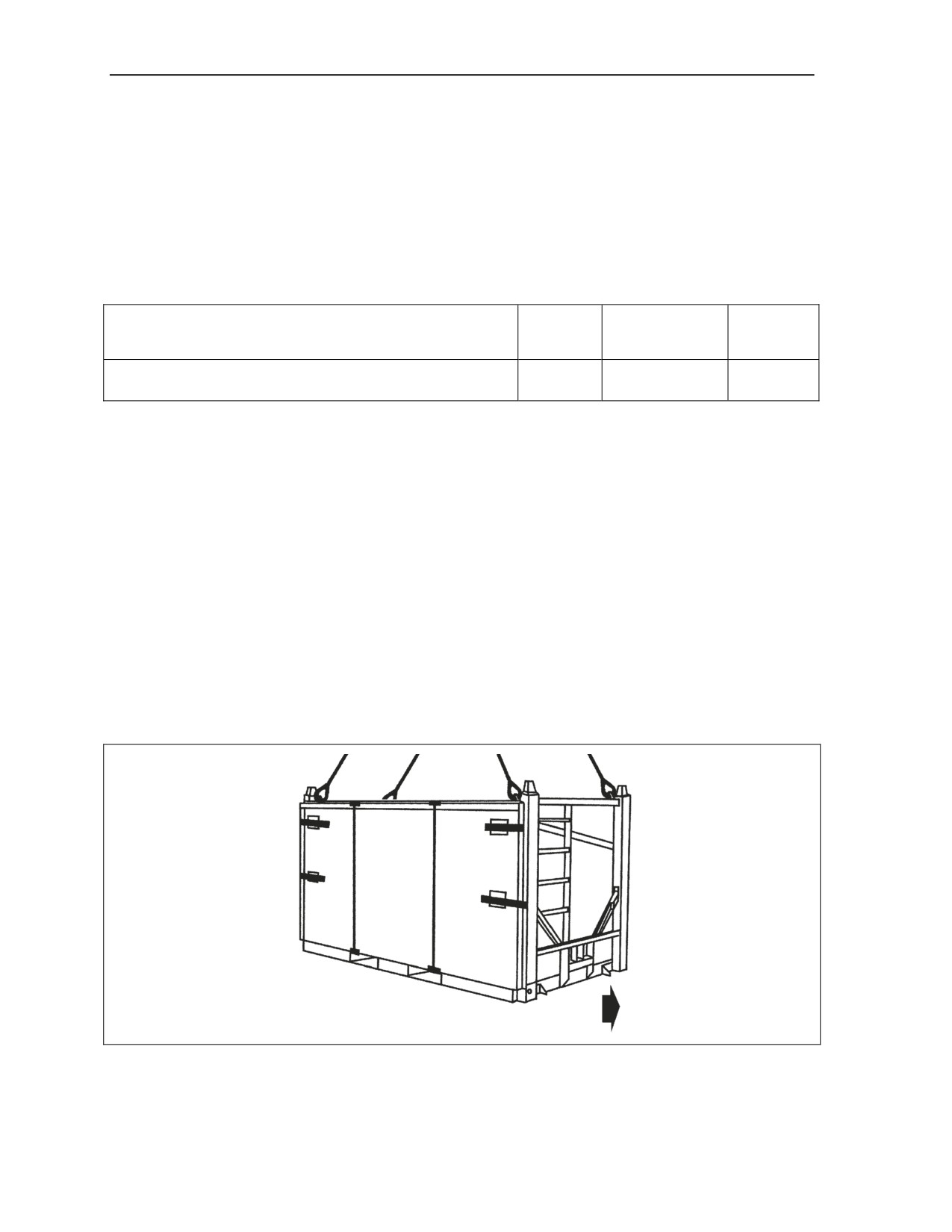

Figure 11-1. Shipping/Storage Containers
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
11-2
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Containers
QUADCONS

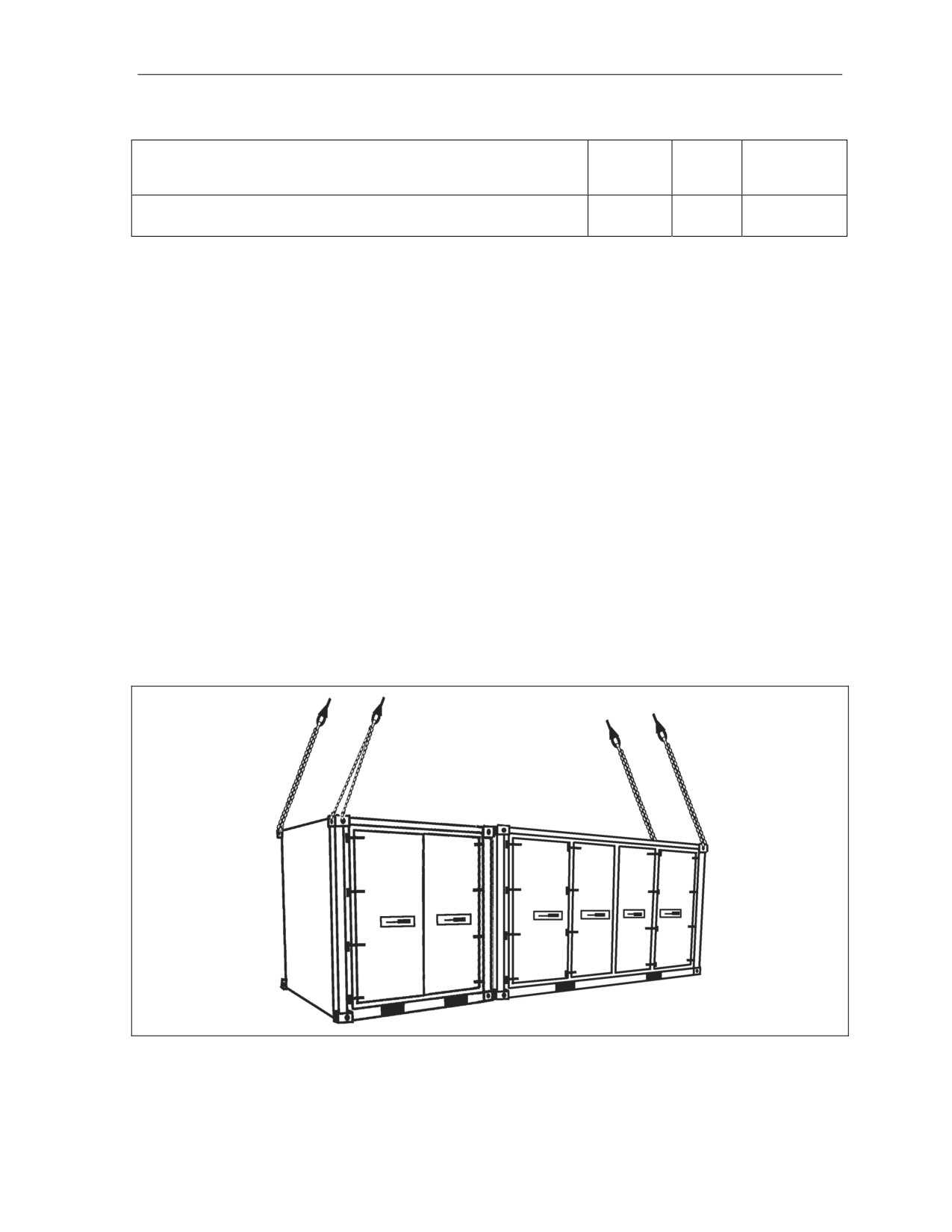

11-3. The Quadcons are rigged for single-point sling load using the following procedures:
z
Applicability. The following items in Table 11-2 are certified for all helicopters with suitable
lift capacity by the US Army Natick Soldier Center:
Table 11-2. Quadcons
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
One (1) Quadcon, Empty
1,764
10K
3/3
One (1) Quadcon, Loaded
7,000
10K
3/3
Two (2) Quadcons, Empty
3,528
10K
3/3
Two (2) Quadcons, Loaded
10,000
10K
3/3
14,000
25K
3/3
WARNING
WEIGHT IS RESTRICTED TO 7,000 POUNDS IN EACH QUADCON
FOR SLING LOAD OPERATIONS. QUADCONS MUST BE
CENTRALLY LOADED. ENSURE QUADCONS ARE LOADED TO
SIMILAR WEIGHTS FOR MULTIPLE QUADCON
CONFIGURATIONS. OFF CENTER LOADING OR OVERLOADING
MAY RESULT IN ADVERSE FLIGHT CONDITIONS OR DAMAGE
TO THE LOAD.
Note. Recommended airspeed will vary based on load configuration and the weight of the load
inside the Quadcons.
z
Materials. The following materials are required to rig this load:
„ Sling set (10,000- or 25,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
z
Personnel. Two persons can prepare and rig this load in 15 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Connect the Quadcons together using the manufacture's approved rigid connecting link
(Part No. Sealock 1046). Lock all connecting links and wrap with tape.
─ Secure all cargo inside the container. Close and secure all doors in the locked position.
„ Rigging. Rig the load according to the steps in Figure 11-2.
„ Hookup. The hookup team stands on top of the container. The static wand person
discharges the static electricity with the static wand. The hookup person places the apex fitting
onto the aircraft cargo hook. The hookup team then moves clear of the load but remains close to
the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
11-3
Chapter 11
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.

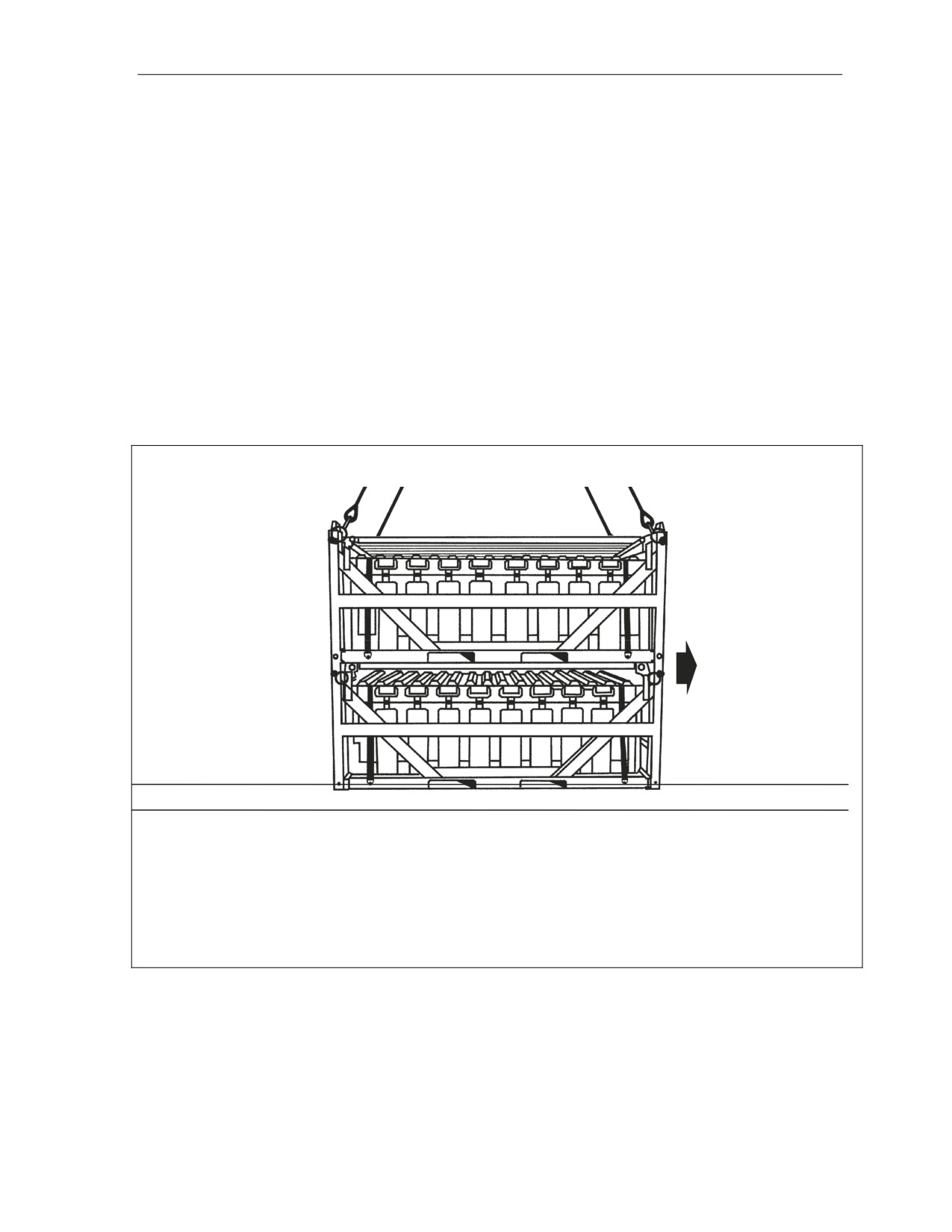

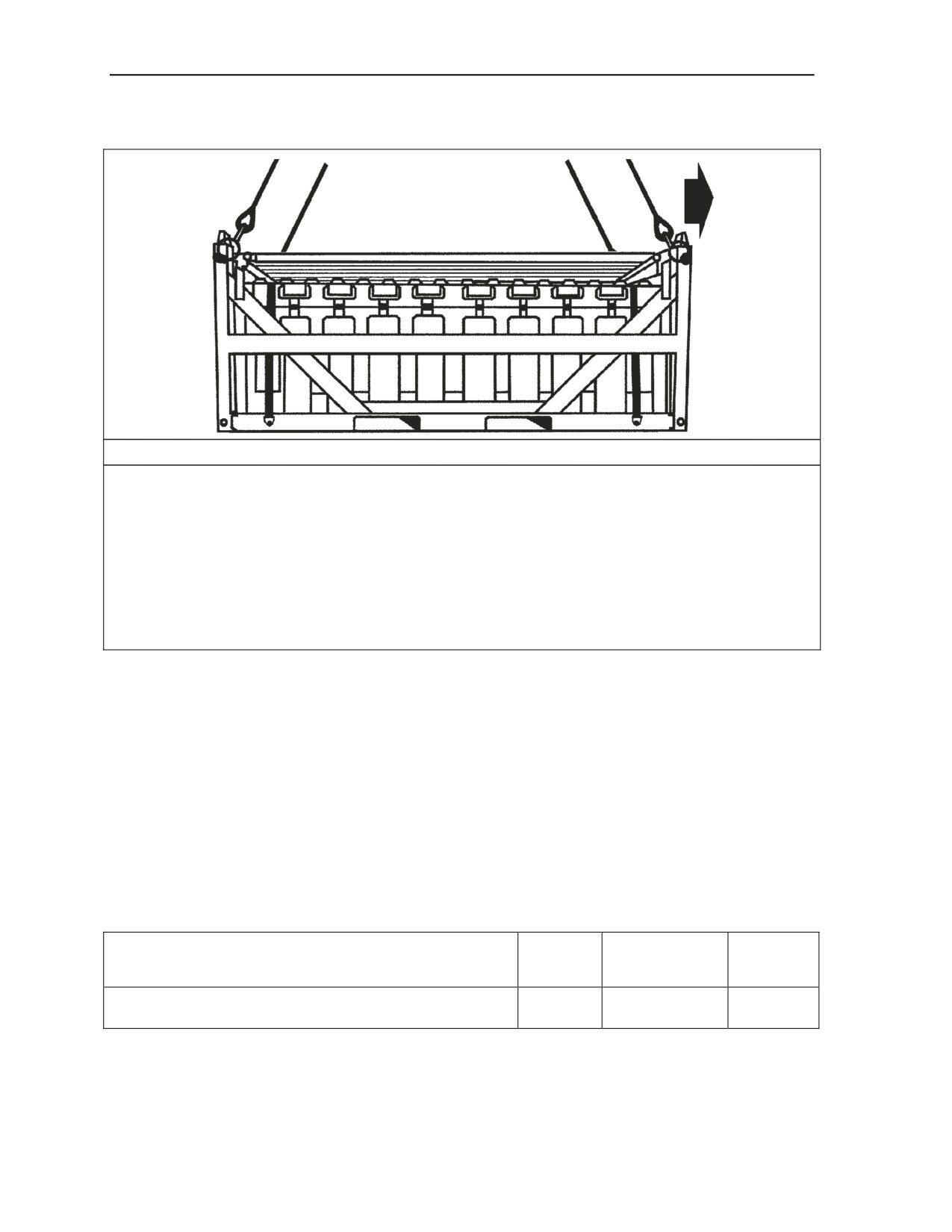

RIGGING STEPS
1. Position the apex fitting on the roof of the container. Route outer sling legs 1 and 2 to the
front of the container and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on
the left side of the load.
2. Loop the chain end of sling leg 1 through the left front lift provision located on the left front
corner of the container. Place the correct link from Table 11-2 in the grab hook. Repeat with
sling leg 2 through the right front lift provision.
3. Loop the chain end of sling leg 3 through the left rear lift provision located on the left rear
corner of the container. Place the correct link from Table 11-2 in the grab hook. Repeat with
sling leg 4 through the right rear lift provision.
4.
Secure all excess chain with tape or Type III nylon cord.
5. Cluster and tie (breakaway technique) all sling legs together on top of the container to
prevent entanglement during hookup and lift-off.
Figure 11-2. Quadcons
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
11-4
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Containers
AUTHORIZED STOCKAGE LIST MOBILITY SYSTEMS (ASLMS)
11-4. The Authorized Stockage List Mobility Systems are rigged for single-point sling load using the
following procedures:
z
Applicability. The following items in Table 11-3 are certified for all helicopters with suitable
lift capacity by the US Army Natick Soldier Center:
Table 11-3. Authorized Stockage List Mobility Systems
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
ASLMS, Field Pack-Up, FPU-12 (12-Foot Only)
20,000
25K
3/3
40K
ASLMS, Field Pack-Up, FPU-8 (8-Foot Only)
18,000
25K
3/3
40K
z
Materials. The following materials are required to rig this load:
„ Sling set (25,000- or 40,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
z
Personnel. Two persons can prepare and rig this load in 15 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Secure all cargo inside the container.
─ Close and secure all doors in the locked position.
„ Rigging. Rig the load according to the steps in Figure 11-3.
„ Hookup. The hookup team stands on the rear of the container. The static wand person
discharges the static electricity with the static wand. The hookup person places the apex fitting
onto the aircraft cargo hook. The hookup team then moves clear of the load but remains close to
the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
11-5
Chapter 11
RIGGING STEPS
1. Position the apex fitting on the roof of the container. Route outer sling legs 1 and 2 to the
front of the container and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on
the left side of the load.
2. Loop the chain end of sling leg 1 through the opening in the side of the ISO fitting at the top
left front corner and out through the front opening. Place the correct link from Table 11-3 in
the grab hook. Repeat with sling leg 2 through the right front ISO fitting.
3. Loop the chain end of sling leg 3 through the opening in the side of the ISO fitting at the top
left rear corner and out through the rear opening. Place the correct link from Table 11-3 in
the grab hook. Repeat with sling leg 2 through the right rear ISO fitting.
4. Cluster and tie (breakaway technique) all sling legs together on top of the container to
prevent entanglement during hookup and lift-off.
Figure 11-3. Authorized Stockage List Mobility Systems
AUTHORIZED STOCKAGE LIST MOBILITY SYSTEMS,
CONNECTED
11-5. The connected Authorized Stockage List Mobility Systems are rigged for single-point sling load
using the following procedures:
z
Applicability. The following items in Table 11-4 are certified for all helicopters with suitable
lift capacity by the US Army Natick Soldier Center:
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
11-6
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Containers
Table 11-4. Authorized Stockage List Mobility Systems, Connected
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
ASLMS, Field Pack-Up, FPU-8/12
25,000
25K
3/3
(8 & 12-Foot Sections Connected)
26,000
40K
z
Materials. The following materials are required to rig this load:
„ Sling set (25,000- or 40,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
z
Personnel. Two persons can prepare and rig this load in 15 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Connect the FPU-8 and FPU-12 together using the manufacturer’s approved rigid
connecting link (Tandem Horizontal Connectors, part number 12900BA-1PZ) (FPU-8-
12 only).
─ Secure all cargo inside the container.
─ Close and secure all doors in the locked position.
„ Rigging. Rig the load according to the steps in Figure 11-4.
„ Hookup. The hookup team stands on the rear of the container. The static wand person
discharges the static electricity with the static wand. The hookup person places the apex fitting
onto the aircraft cargo hook. The hookup team then moves clear of the load but remains close to
the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
Figure 11-4. Authorized Stockage List Mobility Systems, Connected
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
11-7
Chapter 11
RIGGING STEPS
1. Position the apex fitting on the roof of the container. Route outer sling legs 1 and 2 to the
front of the container and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on
the left side of the load.
2. Loop the chain end of sling leg 1 through the opening in the side of the ISO fitting at the top
left front corner and out through the front opening. Place the correct link from Table 11-4 in
the grab hook. Repeat with sling leg 2 through the right front ISO fitting.
3. Loop the chain end of sling leg 3 through the opening in the side of the ISO fitting at the top
left rear corner and out through the rear opening. Place the correct link from Table 11-4 in
the grab hook. Repeat with sling leg 2 through the right rear ISO fitting.
4.
Cluster and tie (breakaway technique) all sling legs together on top of the container to
prevent entanglement during hookup and lift-off.
Figure 11-4. Authorized Stockage List Mobility Systems, Connected (Continued)
FIELD MEDICAL OXYGEN GENERATION/DISTRIBUTION SYSTEM
(FMOGDS)
11-6. The field medical oxygen generation/distribution system is rigged for single-point sling load using
the following procedures:
z
Applicability. The following items in Table 11-5 are certified for all helicopters with suitable
lift capacity by the US Army Natick Soldier Center:
Table 11-5. Field Medical Oxygen Generation/Distribution System
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
Oxygen Generation/Distribution Module (OGDM)
3,405
10K
3/3
Cylinder Filling Module
2,049
10K
3/3
z
Materials. The following materials are required to rig this load:
„ Sling set (10,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Tie-down strap, cargo, CGU-1/B (as required).
z
Personnel. Two persons can prepare and rig this load in 20 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Ensure all tools are properly stowed. Secure all loose equipment inside the container
with tape or Type III nylon cord.
─ Secure all doors and vents with tape. Secure all hoses and chains with tape or 1/4-inch
cotton webbing.
„ Rigging. Rig the load according to the steps in Figure 11-5.
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
11-8
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Containers
„ Hookup. The hookup team stands on top of the container. The static wand person
discharges the static electricity with the static wand. The hookup person places the apex fitting
onto the aircraft cargo hook. The hookup team then moves clear of the load but remains close to
the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
RIGGING STEPS
1. Position apex fitting on top of the container. Route outer sling legs 1 and 2 to the front of the
container (side with the forklift entry holes) and inner sling legs 3 and 4 to the rear. Sling legs
1 and 3 must be on the left side of the load.
2. Loop the chain end of sling leg 1 through the left front lift provision. Place the correct link
from Table 11-5 in the grab hook. Repeat with sling leg 2 on the right front lift provision.
3. Loop the chain end of sling leg 3 through the left rear lift provision. Place the correct link
from Table 11-5 in the grab hook. Repeat with sling leg 4 on the right rear lift provision.
4. Cluster and tie (breakaway technique) all sling legs together on top of the container to
prevent entanglement during hookup and lift-off.
Figure 11-5. Field Medical Oxygen Generation/Distribution System
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
11-9
Chapter 11
FIELD MEDICAL OXYGEN GENERATION/DISTRIBUTION SYSTEM
(FMOGDS) (COMBINED)
11-7. The combined field medical oxygen generation/distribution system is rigged for single-point sling
load using the following procedures:
z
Applicability. The following item in Table 11-6 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 11-6. Field Medical Oxygen Generation/Distribution System (Combined)
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
Oxygen Generation/Distribution Module and Cylinder Filling
3,405
10K
3/3
Module
z
Materials. The following materials are required to rig this load:
„ Sling set (10,000-pound capacity) with two additional chain legs.
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Tie-down strap, cargo, CGU-1/B (as required).
„ Lumber, 2 x 4 x 72-inch (4 each).
z
Personnel. Two persons can prepare and rig this load in 20 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Ensure all tools are properly stored. Secure all loose equipment inside the container with
tape or Type III nylon cord.
─ Secure all doors and vents with tape. Secure all hoses and chains with tape or 1/4-inch
cotton webbing.
─ Position the units together with the "A" sides facing each other.
─ Cut slots in four 2 x 4 x 72-inch pieces of lumber to keep the CGU-1/B tie-down straps
from sliding.
─ Place the 2 x 4 x 72-inch pieces of lumber between the OGMD and the CFM as dunnage.
„ Rigging. Rig the load according to the steps in Figure 11-6.
„ Hookup. The hookup team stands on top of the container. The static wand person
discharges the static electricity with the static wand. The hookup person places the apex fitting
onto the aircraft cargo hook. The hookup team then moves clear of the load but remains close to
the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
11-10
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Containers
RIGGING STEPS
1.
Configure a six leg sling set.
2.
Attach two (2) 2 x 4 x 72-inch pieces of lumber to the “A” side of each unit using the CGU-1/B
tie-down straps. Ensure the straps are routed horizontally around the unit and through the
slots in the lumber.
3.
Strap OGDM and CFM together using the tiedown straps, two fastenings evenly spaced
around the sides. Fasten the straps together as necessary to span the two pieces of
equipment.
4.
Position apex fitting on top of the units. Route outer sling legs 1 and 2 to the front of the
OGDM. Route inner sling legs 3 and 4 to the rear of the CFM and the middle sling legs 5 and
6 to the interface of the OGDM and the CFM. Sling legs 1, 3, and 5 must be on the left side
of the load.
5.
Route the chain end of sling leg 1 through the left front lift provision located on the front of the
OGDM. Place the correct link from Table 11-6 in the grab hook. Repeat with sling leg 2 on
the right front lift provision.
6.
Route the chain end of sling leg 3 through the left rear lift provision located on the rear of the
CFM. Place the correct link from Table 11-6 in the grab hook. Repeat with sling leg 4 on the
right rear lift provision.
7.
Route the chain end of sling leg 5 through the left lifting provision on the interfacing “A” sides
of the OGDM and the CFM. Place the correct link from Table 11-6 in the grab hook. Repeat
with sling leg 6 and the right lifting provision on the interfacing “A” sides of the OGDM and the
CFM. Secure the excess chain with Type III nylon cord.
8.
Cluster and tie (breakaway technique) all sling legs together on top of the ODGM and CFM to
prevent entanglement during hookup and lift-off.
Figure 11-6. Field Medical Oxygen Generation/Distribution System (Combined)
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
11-11
Chapter 11
LAUNCH POD CONTAINER (LPC) WITH MULTIPLE LAUNCH
ROCKET SYSTEM (MLRS) ROCKETS OR GUIDED MULTIPLE
LAUNCH ROCKET SYSTEM (G-MLRS) ROCKETS / GUIDED
MISSILE LAUNCH ASSEMBLY (GMLA)PODS WITH ARMY
TACTICAL MISSILE SYSTEM (ATACMS) MISSILES, ONE
CONTAINER
11-8. The launch pod container with multiple launch rocket system rockets or guided multiple launch
rocket system rockets / guided missile launch assembly pods with army tactical missile system missiles,
one container is rigged for single-point sling load using the following procedures:
z
Applicability. The following items in Table 11-7 are certified for all helicopters with suitable
lift capacity by the US Army Natick Soldier Center:
Table 11-7. Launch Pod Container with Multiple Launch Rocket System Rockets or Guided
Multiple Launch Rocket System Rockets / Guided Missile Launch Assembly Pods with Army
Tactical Missile System Missiles, One Container
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
Launch Pod Container with Multiple Launch Rocket System
5,095
10K
3/3
Rockets or Guided Multiple Launch Rocket System Rockets
(with Six Rockets)
Guided Missile Launch Assembly Pods with Army Tactical Missile
5,111
10K
3/3
System Missiles
z
Materials. The following materials are required to rig this load:
„ Sling set (10,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
z
Personnel. Two persons can prepare and rig this load in 15 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the pod for travel in accordance with standard procedures.
„ Rigging. Rig the load according to the steps in Figure 11-7.
Note. The firing end is considered to be the front of the load.
„ Hookup. The hookup team stands on top of the pod. The static wand person discharges
the static electricity with the static wand. The hookup person places the apex fitting onto the
aircraft cargo hook. The hookup team then moves clear of the load but remains close to the load
as the helicopter removes slack from the sling legs. When successful hookup is assured, the
hookup team quickly exits the area underneath the helicopter to the designated rendezvous
point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
11-12
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Containers
RIGGING STEPS
1. Position apex fitting on top of the pod. Route outer sling legs 1 and 2 to the front of the pod
and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on the left side of the
load.
2. Loop the chain end of sling leg 1 through the left front lift provision. Place the correct link
from Table 11-7 in the grab hook. Repeat with sling leg 2 on the right front lift provision.
3. Loop the chain end of sling leg 3 through the left rear lift provision. Place the correct link
from Table 11-7 in the grab hook. Repeat with sling leg 4 on the right rear lift provision.
4. Cluster and tie (breakaway technique) all sling legs together on top of the container to
prevent entanglement during hookup and lift-off.

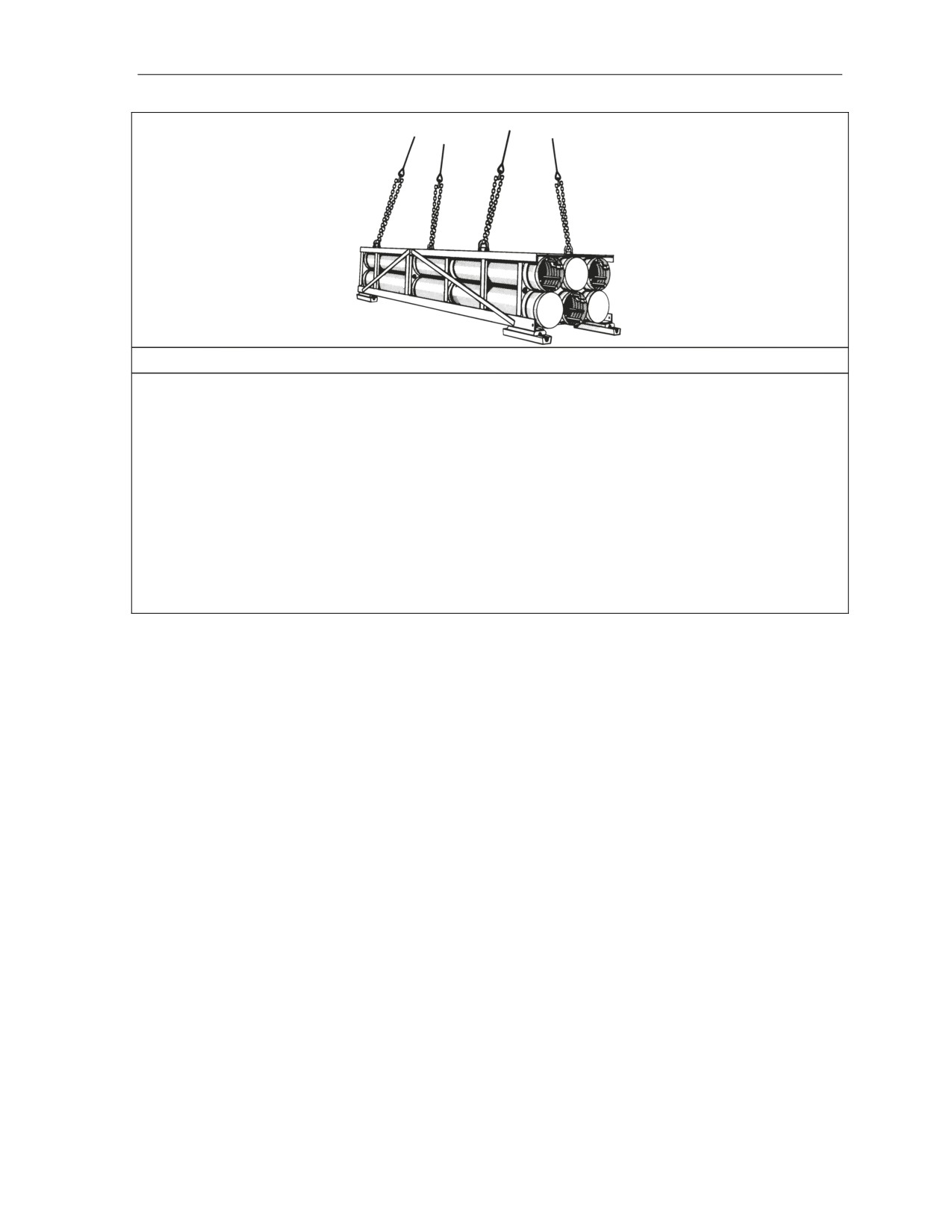

Figure 11-7. Launch Pod Container with Multiple Launch Rocket System Rockets or Guided
Multiple Launch Rocket System Rockets / Guided Missile Launch Assembly Pods with Army
Tactical Missile System Missiles, One Container
LAUNCH POD CONTAINER (LPC) WITH MULTIPLE LAUNCH
ROCKET SYSTEM (MLRS) ROCKETS OR GUIDED MULTIPLE
LAUNCH ROCKET SYSTEM (G-MLRS) ROCKETS / GUIDED
MISSILE LAUNCH ASSEMBLY (GMLA)PODS WITH ARMY
TACTICAL MISSILE SYSTEM (ATACMS) MISSILES, TWO
CONTAINERS
11-9. The launch pod container with multiple launch rocket system rockets or guided multiple launch
rocket system rockets / guided missile launch assembly pods with army tactical missile system missiles,
two containers are rigged for single-point sling load using the following procedures:
z
Applicability. The following items in Table 11-8 are certified for all helicopters with suitable
lift capacity by the US Army Natick Soldier Center:
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
11-13
Chapter 11
Table 11-8. Launch Pod Container with Multiple Launch Rocket System Rockets or Guided
Multiple Launch Rocket System Rockets / Guided Missile Launch Assembly Pods with Army
Tactical Missile System Missiles, Two Containers
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
Launch Pod Container with Multiple Launch Rocket System
10,190
25K
3/3
Rockets or Guided Multiple Launch Rocket System Rockets
(with Six Rockets)
Guided Missile Launch Assembly Pods with Army Tactical Missile
10,222
25K
3/3
System Missiles
z
Materials. The following materials are required to rig this load:
„ Sling set (25,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Felt sheet, cattle hair, Type IV, 1/2-inch or suitable substitute.
„ Tie-down strap, cargo, CGU-1/B (as required).
z
Personnel. Four persons can prepare and rig this load in 30 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
Prepare the pods for travel in accordance with standard procedures.
─ Stack the pods one on top of the other, with both pods facing the same direction.
CAUTION
Do not mix the MLRS and the GMLA in the same load.
─ Lash the stack of pods together using the CGU-1/B tie-down straps. Two of the straps
should run through both sets of lifting provisions on each end of the pods, to keep
them aligned during flight. Evenly space the remaining two straps between the lifting
provisions, running them around the pods. DO NOT ROUTE THE STRAPS OVER
THE ROCKET TUBES. Pad all straps in the area where they contact the edges of
the pods.
„ Rigging. Rig the load according to the steps in Figure 11-8.
Note. The firing end is considered the front of the load.
„ Hookup. The hookup team stands on top of the pods. The static wand person discharges
the static electricity with the static wand. The hookup person places the apex fitting onto the
aircraft cargo hook. The hookup team then moves clear of the load but remains close to the load
as the helicopter removes slack from the sling legs. When successful hookup is assured, the
hookup team quickly exits the area underneath the helicopter to the designated rendezvous
point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
11-14
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Containers
RIGGING STEPS
1. Position apex fitting on top of the pods. Route outer sling legs 1 and 2 to the front of the pods
and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on the left side of the
load.
2. Loop the chain end of sling leg 1 through the left front lift provision on the top pod and
through the front lift provision on the bottom pod. Thread it back through the front lift
provision on the top pod. Place the correct link from Table 11-8 in the grab hook. Repeat
with sling leg 2 on the right front lift provision.
3. Loop the chain end of sling leg 3 through the left rear lift provision on the top pod and through
the rear lift provision on the bottom pod. Thread it back through the rear lift provision on the
top pod. Place the correct link from Table 11-8 in the grab hook. Repeat with sling leg 4 on
the right rear lift provision.
4. Cluster and tie (breakaway technique) all sling legs together on top of the pod to prevent
entanglement during hookup and lift-off.

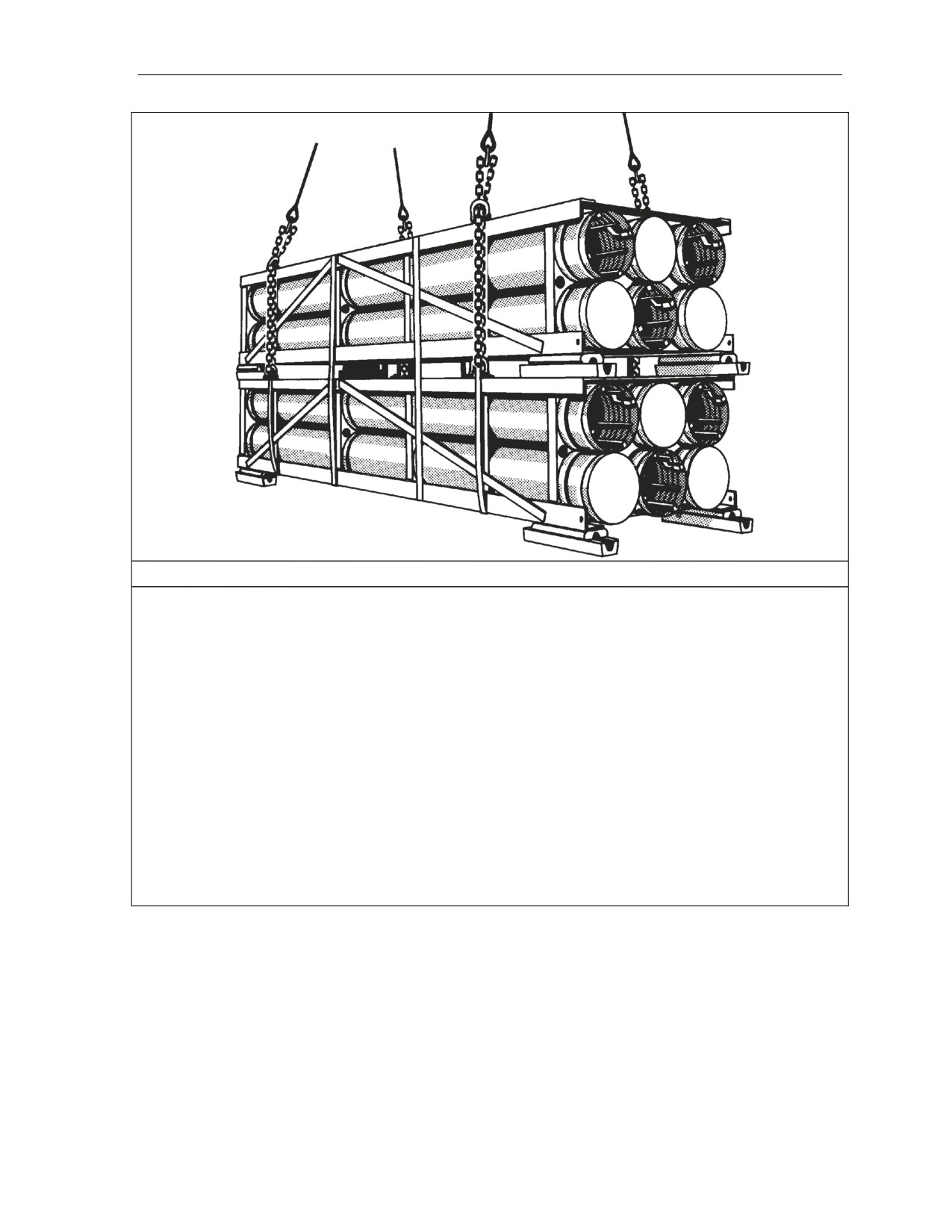

Figure 11-8. Launch Pod Container with Multiple Launch Rocket System Rockets or Guided
Multiple Launch Rocket System Rockets / Guided Missile Launch Assembly Pods with Army
Tactical Missile System Missiles, Two Containers
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
11-15
Chapter 11
M1A1 FULL-UP POWER PACK (FUPP) CONTAINER
11-10. The M1A1 full-up power pack container is rigged for single-point sling load using the following
procedures:
z
Applicability. The following item in Table 11-9 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 11-9. M1A1 Full-Up Power Pack Container
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
M1A1 Full-Up Power Pack Container with Full-Up Power Pack,
13,620
25K
3/10
(Metal or Fiberglass)
z
Materials. The following materials are required to rig this load:
„ Sling set (25,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Tie-down strap, cargo, CGU-1/B (as required).
z
Personnel. Two persons can prepare and rig this load in 15 minutes.
„ Procedures. The following procedures apply to this load:
─ Secure all equipment inside the container with tape or Type III nylon cord.
─ Close and secure all doors and vents with tape or Type III nylon cord.
„ Rigging. Rig the load according to the steps in Figure 11-9.
„ Hookup. The hookup team stands on top of the container. The static wand person
discharges the static electricity with the static wand. The hookup person places the apex fitting
onto the aircraft cargo hook. The hookup team then moves clear of the load but remains close to
the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
11-16
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Containers
RIGGING STEPS
1. Position apex fitting on top of the container. Route outer sling legs 1 and 2 to the front of the
container (transmission end) and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must
be on the left side of the load.
2. Loop the chain end of sling leg 1 through the left front lift provision. Place the correct link
from Table 11-9 in the grab hook. Repeat with sling leg 2 on the right front lift provision.
3. Loop the chain end of sling leg 3 through the left rear lift provision. Place the correct link
from Table 11-9 in the grab hook. Repeat with sling leg 4 on the right rear lift provision.
Secure the excess chain with Type III nylon cord.
4. Cluster and tie (breakaway technique) all sling legs together on top of the container to
prevent entanglement during hookup and lift-off.
Figure 11-9. M1A1 Full-Up Power Pack Container
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
11-17
Chapter 11
DISTRIBUTED EXPLOSIVE TECHNOLOGY (DET) SYSTEM, ARRAY
CONTAINER
11-11. The distributed explosive technology system, array container is rigged for single-point sling load
using the following procedures:
z
Applicability. The following item in Table 11-10 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 11-10. Distributed Explosive Technology System, Array Container
Nomenclature
Max
Sling Set
Link Count
Weight
Front/Rear
(Pounds)
Distributed Explosive Technology (DET) System, Array
4,000
Navy Mk105 O
N/A
Container
Sling Assembly
z
Materials. The following materials are required to rig this load:
„ Sling set, Navy MK105 O Sling Assembly with 91-inch or longer leg assembly.
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
z
Personnel. Two persons can prepare and rig this load in 10 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load by taping the handles on the sides of the container.
„ Rigging. Rig the load according to the steps in Figure 11-10.
„ Hookup. The hookup team stands on top of the container. The static wand person
discharges the static electricity with the static wand. The hookup person places the apex fitting
onto the aircraft cargo hook. The hookup team then moves clear of the load but remains close to
the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
Figure 11-10. Distributed Explosive Technology System, Array Container
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
11-18
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Containers
RIGGING STEPS
1. Position apex fitting on top of the container. Route outer sling legs 1 and 2 to the front of the
container. Route inner sling legs 3 and 4 to the rear of the container. Sling legs 1 and 3
must be on the left side of the load.
2. Attach the hook on the end of each sling leg to the respective lift provision located at the top
corners of the container.
3. Secure the sling leg hooks in the closed position with Type III nylon cord.
Figure 11-10. Distributed Explosive Technology System, Array Container (Continued)
DISTRIBUTED EXPLOSIVE TECHNOLOGY (DET) SYSTEM,
LANDING CRAFT, AIR CUSHIONED (LCAC), LANDING INTERFACE
KIT (LIK) CONTAINER, SINGLE
11-12. The distributed explosive technology system, landing craft, air cushioned, landing interface kit
container, single is rigged for single-point sling load using the following procedures:
z
Applicability. The following item in Table 11-11 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 11-11. Distributed Explosive Technology System, Landing Craft, Air Cushioned,
Landing Interface Kit Container, Single
Nomenclature
Max
Sling Set
Link Count
Weight
Front/Rear
(Pounds)
Distributed Explosive Technology System, Landing Craft,
1,550
Navy Mk105 O
N/A
Air Cushioned, Landing Interface Kit
Sling Assembly
z
Materials. The following materials are required to rig this load:
„ Sling set, Navy MK105 O Sling Assembly with 91-inch or longer leg assembly.
„ Cord, nylon, Type III, 550-pound breaking strength.
z
Personnel. Two persons can prepare and rig this load in 10 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load by placing a strap over each end of the LIK container and
attaching it to the platform in accordance with manufacturer's instructions.
„ Rigging. Rig the load according to the steps in Figure 11-11.
„ Hookup. The hookup team stands on top of the container. The static wand person
discharges the static electricity with the static wand. The hookup person places the apex fitting
onto the aircraft cargo hook. The hookup team then moves clear of the load but remains close to
the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
11-19
Chapter 11
RIGGING STEPS
1. Position apex fitting on top of the container. Route outer sling legs 1 and 2 to the front of the
container. Route inner sling legs 3 and 4 to the rear of the container. Sling legs 1 and 3
must be on the left side of the load.
2. Attach the hook on the end of each sling leg to the respective lift provision located at the top
corners of the container.
3. Secure the sling leg hooks in the closed position with Type III nylon cord.
Figure 11-11. Distributed Explosive Technology System, Landing Craft, Air Cushioned,
Landing Interface Kit Container, Single
DISTRIBUTED EXPLOSIVE TECHNOLOGY (DET) SYSTEM,
LANDING CRAFT, AIR CUSHIONED (LCAC), LANDING INTERFACE
KIT (LIK) CONTAINER, DOUBLED, STACKED
11-13. The distributed explosive technology system, landing craft, air cushioned, landing interface kit
container, doubled, stacked is rigged for single-point sling load using the following procedures:
z
Applicability. The following items in Table 11-12 are certified for all helicopters with suitable
lift capacity by the US Army Natick Soldier Center:
Table 11-12. Distributed Explosive Technology System, Landing Craft, Air Cushioned,
Landing Interface Kit Container, Doubled, Stacked
Nomenclature
Max
Sling Set
Link Count
Weight
Front/Rear
(Pounds)
Distributed Explosive Technology System, Landing Craft,
2,400
Navy Mk105 O
N/A
Air Cushioned, Landing Interface Kit, Doubled, Stacked
Sling Assembly
z
Materials. The following materials are required to rig this load:
„ Sling set, Navy MK105 O Sling Assembly with 91-inch or longer leg assembly.
„ Cord, nylon, Type III, 550-pound breaking strength.
z
Personnel. Two persons can prepare and rig this load in 10 minutes.
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
11-20
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Containers
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Place a strap over each end of the LIK container and attach it to the platform in
accordance with manufacturer's instructions.
─ Ensure the containers are secured together one on top of the other according to the
manufacturer's instructions.
─ Tie the bottom container lift provisions down to a point on the load with Type III nylon
cord.
„ Rigging. Rig the load according to the steps in Figure 11-12.
„ Hookup. The hookup team stands on top of the container. The static wand person
discharges the static electricity with the static wand. The hookup person places the apex fitting
onto the aircraft cargo hook. The hookup team then moves clear of the load but remains close to
the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
RIGGING STEPS
1. Position apex fitting on top of the container. Route outer sling legs 1 and 2 to the front of the
container. Route inner sling legs 3 and 4 to the rear of the container. Sling legs 1 and 3 must
be on the left side of the load.
2. Attach the hook on the end of each sling leg to the respective lift provision located at the top
corners of the container.
3. Secure the sling leg hooks in the closed position with Type III nylon cord.
Figure 11-12. Distributed Explosive Technology System, Landing Craft, Air Cushioned,
Landing Interface Kit Container, Double, Stacked
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
11-21
This page intentionally left blank.
Chapter 12
Certified Single-Point Rigging Procedures for Radar and
Satellite Equipment
INTRODUCTION
12-1. This chapter contains rigging procedures for single-point lift of radar and satellite equipment that
have been certified for sling load. Each rigging procedure is found in a paragraph that includes a
description of the load, materials required for rigging, and steps to complete the procedure. An
applicability paragraph is also a part of each paragraph and identifies the certified loads. The certified
single-point rigging procedures for containers are in this section. Paragraphs 12-2 through 12-13 give
detailed instructions for rigging loads.
Note. Reach pendants may be used on all single point loads. A static discharge person is not
required when using a reach pendant.
AN/TPQ-37 ARTILLERY-LOADING RADAR SET (FIREFINDER)
12-2. The AN/TPQ-37 artillery-loading radar set is rigged for single-point sling load using the following
procedures:
z
Applicability. The following item in Table 12-1 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 12-1. AN/TPQ-37 Artillery-Loading Radar Set
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
AN/TPQ-37 Artillery-Loading Radar Set
10,800
25K
68/5
z
Materials. The following materials are required to rig this load:
„ Sling set (25,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Felt sheet, cattle hair, Type IV, 1/2-inch or suitable substitute.
„ Ladder.
z
Personnel. Two persons can prepare and rig this load in 30 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Antenna unit should be configured for march order. If the antenna unit is mounted on its
transport trailer, it must be removed for sling loading. If the trailer is to accompany
the unit, it must be rigged and moved as a separate load.
─ Ensure the maintenance tent frame and cover are stowed and secured in their proper
position.
─ Ensure all cover panels, cabinet doors, and vents are installed and secured.
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
12-1
Chapter 12
─ Secure all loose items with Type III nylon cord.
─ Ensure the rear door is closed and secured with the locking handle. Door rods must be
secured in their clips.
─ Ensure the antenna transport cover is secured tightly to the lacing brackets with bungee
cord. If necessary, secure the antenna with additional nylon cord.
„ Rigging. Rig the load according to the steps in Figure 12-1.
CAUTION
Do not stand on top of the load. Use the ladder to connect the sling
legs to the load.
„ Hookup. The hookup team remains close to the load as the helicopter removes slack from
the sling legs. When successful hookup is assured, the hookup team quickly exits the area
underneath the helicopter to the designated rendezvous point.
Note. Hookup is accomplished by the flight engineer using a cargo-hook loading pole
(Shepard's Hook). Ensure the helicopter crew is informed of this in advance.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
Note. Advise the pilot to hover to one side before releasing the apex fitting from the cargo
hook.
RIGGING STEPS
1. Open the access holes in the antenna transport cover as necessary to reach the lifting rings.
2. Rotate the antenna tie-down bolt ratchet handles toward the center of the trailer to prevent
sling interference.
3. Position apex fitting on top of the load. Route outer sling legs 1 and 2 to the front of the unit
and inner sling legs 3 and 4 to the rear (door end). Sling legs 1 and 3 must be on the left
side of the load.
Figure 12-1. AN/TPQ-37 Artillery-Loading Radar Set
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
12-2
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Radar and Satellite Equipment
RIGGING STEPS (CONTINUED)
4. Loop the chain end of sling leg 1 through the left front lift ring. Place the correct link from
Table 12-1 in the grab hook. Repeat with sling leg 2 on the right front lift provision. Secure
the excess chain with Type III nylon cord.
5. Loop the chain end of sling leg 3 through the left rear lift ring. Ensure the chain is routed
through the slot on the top of the corner post. Place the correct link from Table 12-1 in the
grab hook. Repeat with sling leg 4 on the right rear lift ring. Pad the chain legs where they
contact the top of the corner post. Secure the padding with tape or Type III nylon cord.
6. Close and securely fasten the opening in the rear of the antenna transport cover.
7. Cluster and tie (breakaway technique) all sling legs together on top of the unit to prevent
entanglement during hookup and lift-off.
Figure 12-1. AN/TPQ-37 Artillery-Loading Radar Set (Continued)
AN/TMQ-31 RADIO DIRECTION FINDER
12-3. The AN/TMQ-31 radio direction finder is rigged for single-point sling load using the following
procedures:
z
Applicability. The following item in Table 12-2 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 12-2. AN/TMQ-31 Radio Direction Finder
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
AN/TMQ-31 Radio Direction Finder, Pedestal Mounted on M103A3
5,010
10K
3/22
Trailer
z
Materials. The following materials are required to rig this load:
„ Sling set (10,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Felt sheet, cattle hair, Type IV, 1/2-inch or suitable substitute.
z
Personnel. Two persons can prepare and rig this load in 30 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Place the radar set in the travel mode.
─ Secure the air hoses, safety chains, and intervehicular cable to the tongue of the trailer
with tape or Type III nylon cord.
─ Engage the trailer hand brakes.
─ Remove the canvas cover and secure it on top of the ladder with Type III nylon cord.
─ Fold the canvas bows down and secure them to the trailer deck with Type III nylon cord.
„ Rigging. Rig the load according to the steps in Figure 12-2.
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
12-3
Chapter 12
„ Hookup. The hookup team stands on the platform to the rear of the radar. The static wand
person discharges the static electricity with the static wand. The hookup person places the apex
fitting onto the aircraft cargo hook. The hookup team then moves clear of the load but remains
close to the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
Note. Advise the pilot to hover to one side before releasing the apex fitting from the cargo
hook.
RIGGING STEPS
1. Position apex fitting on top of the trailer. Route outer sling legs 1 and 2 to the front of the
trailer and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on the left side of
the load.
2. Loop the chain end of sling leg 1 through the left front lift ring located on the front left corner
of the trailer. Place the correct link from Table 12-2 in the grab hook. Repeat with sling leg 2
on the right front lift provision.
3. Loop the chain end of sling leg 3 through the left rear lift ring located on the left rear corner of
the trailer. Place the correct link from Table 12-2 in the grab hook. Repeat with sling leg 4
on the right rear lift ring. Secure the excess chain with tape or Type III nylon cord.
4. Cluster and tie (breakaway technique) all sling legs together on top of the unit to prevent
entanglement during hookup and lift-off.

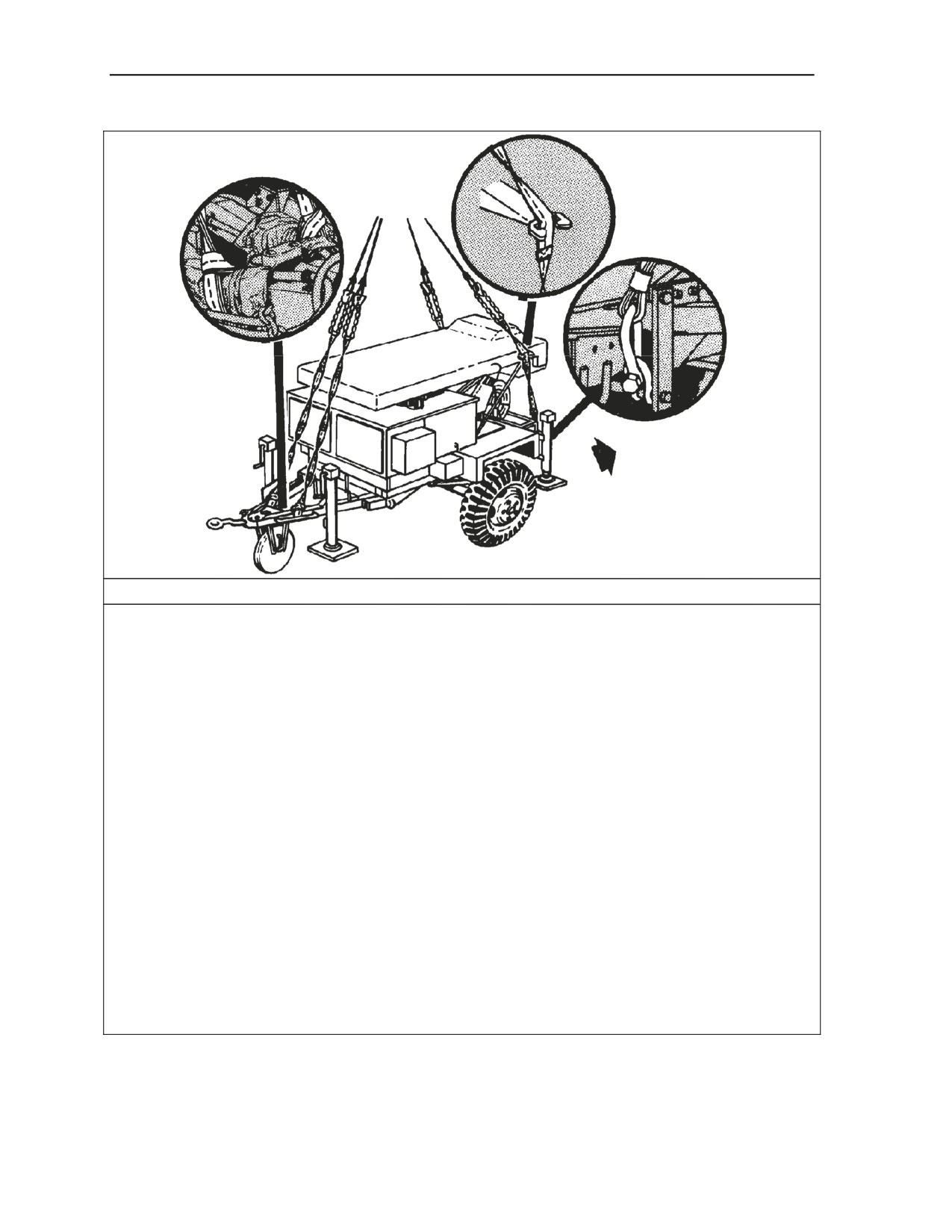

Figure 12-2. AN/TMQ-31 Radio Direction Finder
AN/TPQ-36 FIREFINDER ANTENNA RADAR SET
12-4. The AN/TPQ-36 firefinder antenna radar set is rigged for single-point sling load using the following
procedures:
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
12-4
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Radar and Satellite Equipment
z
Applicability. The following item in Table 12-3 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 12-3. AN/TPQ-36 Firefinder Antenna Radar Set
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
AN/TPQ-36 Firefinder Antenna Radar Set on M103A1 Trailer
4,110
10K
16/11
z
Materials. The following materials are required to rig this load:
„ Sling set (10,000-pound capacity).
„ Multiloop line, 9-foot, Type XXVI, nylon (4 each).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Clevis assembly, medium (2 each).
„ Felt sheet, cattle hair, Type IV, 1/2-inch or suitable substitute.
z
Personnel. Two persons can prepare and rig this load in 20 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Engage the trailer hand brakes.
─ Close and secure the doors with Type III nylon cord.
─ Place the radar set in the travel mode.
─ Secure the cover on the antenna.
─ Attach a medium clevis to each rear lift points.
„ Rigging. Rig the load according to the steps in Figure 12-3.
Note. The radar panels cannot support any extra weight.
„ Hookup. The hookup team stands on the fenders of the unit. The static wand person
discharges the static electricity with the static wand. The hookup person places the apex fitting
onto the aircraft cargo hook. The hookup team then moves clear of the load but remains close to
the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
Note. Advise the pilot to hover to one side before releasing the apex fitting from the cargo
hook.
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
12-5
Chapter 12
RIGGING STEPS
1.
Connect a 9-foot multiloop line to the left rear clevis. Place the multiloop line in the sling
guide of the antenna, pull up until tight, and tape the line to the sling guide. Repeat the
procedure on the right side.
2.
Wrap the left side of the A-frame, aft of the lunette, with padding and secure it in place with
tape. Choker-hitch a 9-foot multiloop line around the padded area. Repeat the procedure on
the right side.
3.
Position apex fitting on top of the trailer (not on top of the radar panel). Route outer sling legs
1 and 2 to the front of the trailer and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3
must be on the left side of the load.
4.
Loop the chain end of sling leg 1 through the multiloop line attached to the left side of the
tongue. Place the correct link from Table 12-3 in the grab hook. Repeat with sling leg 2 on
the right front lift provision. Secure the excess chain with tape or Type III nylon cord.
5.
Loop the chain end of sling leg 3 through the multiloop line attached to the left rear lift
provision. Place the correct link from Table 12-3 in the grab hook. Repeat with sling leg 4 on
the right rear lift provision. Secure the excess chain with tape or Type III nylon cord.
6.
Cluster and tie (breakaway technique) all sling legs together on top of the unit to prevent
entanglement during hookup and lift-off.
Figure 12-3. AN/TPQ-36 Firefinder Antenna Radar Set
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
12-6
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Radar and Satellite Equipment
AN/TPQ-36 FIREFINDER II
12-5. The AN/TPQ-36 firefinder II is rigged for single-point sling load using the following procedures:
z
Applicability. The following item in Table 12-4 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 12-4. AN/TPQ-36 Firefinder II
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
Firefinder II, AN/TPQ-36 Block II
9,673
25K
11/3
z
Materials. The following materials are required to rig this load:
„ Sling set (25,000-pound capacity) with four additional chain lengths and coupling links.
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Tie-down straps, cargo, CGU-1/B (2 each).
„ Felt sheet, cattle hair, Type IV, 1/2-inch or suitable substitute.
„ Spreader bar assemblies,
117 inches and
91.8 inches in length
(components of the
Firefinder II).
z
Personnel. Two persons can prepare and rig this load in 30 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
Note. Do not stand on the surface of the antenna array at any time.
─ Assemble the two spreader bar assemblies by matching similar sections to form a long
(117-inch) and a short (91.8-inch) spreader bar.
─ Prepare the Firefinder II for transport in accordance with operator’s manual.
─ Secure all loose equipment on the pallet with tape or nylon cord.
─ Ensure all latches, doors, and panels are secured with tape or nylon cord.
─ Using the two tie-down straps, secure the antenna cover to the antenna array. Route the
tie-down straps from front to rear.
─ Place the long (117-inch) spreader bar on top of the shelter roof. Position the bar
(parallel with the side of the shelter) between the edge of the shelter that is adjacent to
the antenna array and the radio mount on the shelter roof. Secure the spreader bar
loosely in place (allow adequate slack for movement) with nylon cord to prevent the
spreader bar from rolling off the shelter roof.
─ Place the short (91.8-inch) spreader bar through the opening in the antenna array support
arms directly below the antenna array as indicated in the illustration. Secure the
spreader bar loosely in place with nylon cord to prevent the spreader bar from sliding
out of the openings in the support arms.
„ Rigging. Rig the load according to the steps in Figure 12-4.
„ Hookup. The hookup team stands on top of the shelter. The static wand person discharges
the static electricity with the static wand. The hookup person places the apex fitting onto the
aircraft cargo hook. The hookup team then moves clear of the load but remains close to the load
as the helicopter removes slack from the sling legs. When successful hookup is assured, the
hookup team quickly exits the area underneath the helicopter to the designated rendezvous
point.
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
12-7















Content      ..     8      9      10      11     ..
