FM 4-20.198 Multiservice Helicopter Sling Load: Single-Point Load Rigging Procedures (February 2009) - page 4





Chapter 3
RIGGING STEPS
1. Position apex fitting in the trailer bed. Route outer sling legs 1 and 2 to the front of the trailer
and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on the left side of the
load.
2. Loop the chain end of sling leg 1 through the left front lift provision located on the left
front corner of the trailer. Place the correct link from Table 3-4 in the grab hook. Repeat
with sling leg 2 through the right front lift provision. Secure excess chain with Type III
nylon cord.
3. Route the chain end of sling leg 3 through the left rear lift provision. Place the correct
link from Table 3-4 in the grab hook. Repeat with sling leg 4 through the right rear lift
provision.
4. Cluster and tie (breakaway technique) all sling legs together on top of the trailer to
prevent entanglement during hookup and lift-off. Secure excess chain with Type III
nylon cord.

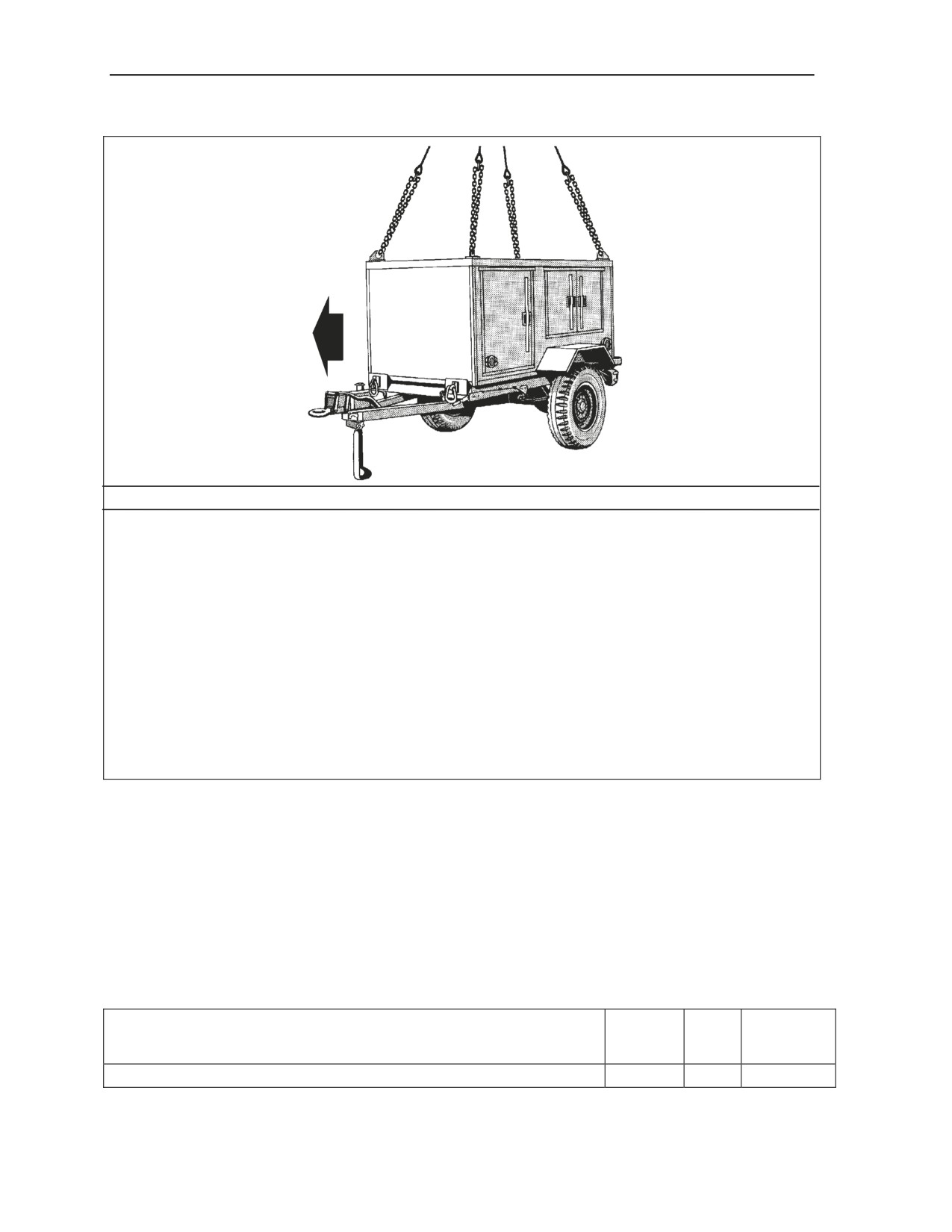

Figure 3-4. M1048 Trailer (TSS)
M149A2 WATER TRAILER (USMC)
3-6. The M149A2 water trailer is rigged for single-point sling load using the following procedures:
z
Applicability. The following items in Table 3-5 are certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 3-5. M149A2 Water Trailer
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
M149A2 Water Trailer Modified with Clevis Type Lift Provisions
6,100
15K
3/11
3-8
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Trailers
Notes.
1. This load is only certified for sling loading at its full weight of 6,100 pounds.
2. The rigging procedures for the M149 Water Trailer (US Army) are located in
Chapter 16.
z
Materials. The following materials are required to rig this load:
„ Multileg sling set (15,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Felt sheet, cattle hair, Type IV, 1/2-inch or suitable substitute.
z
Personnel. Two persons can prepare and rig this load in 10 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Secure all loose chains, hoses, and cables to the trailer drawbar with tape or Type III
nylon cord.
─ Ensure the tongue wheel is locked in the down position.
─ Close the tank lid and secure.
─ Ensure that one trailer brake is set.
„ Rigging. Rig the load according to the steps in Figure 3-5.
„ Hookup. The hookup team stands on the trailer fenders or the front of the trailer. The
static wand person discharges the static electricity with the static wand. The hookup person
places the apex fitting onto the aircraft cargo hook. The hookup team then carefully dismounts
the vehicle and remains close to the load as the helicopter removes slack from the sling legs.
When successful hookup is assured, the hookup team quickly exits the area underneath the
helicopter to the designated rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.

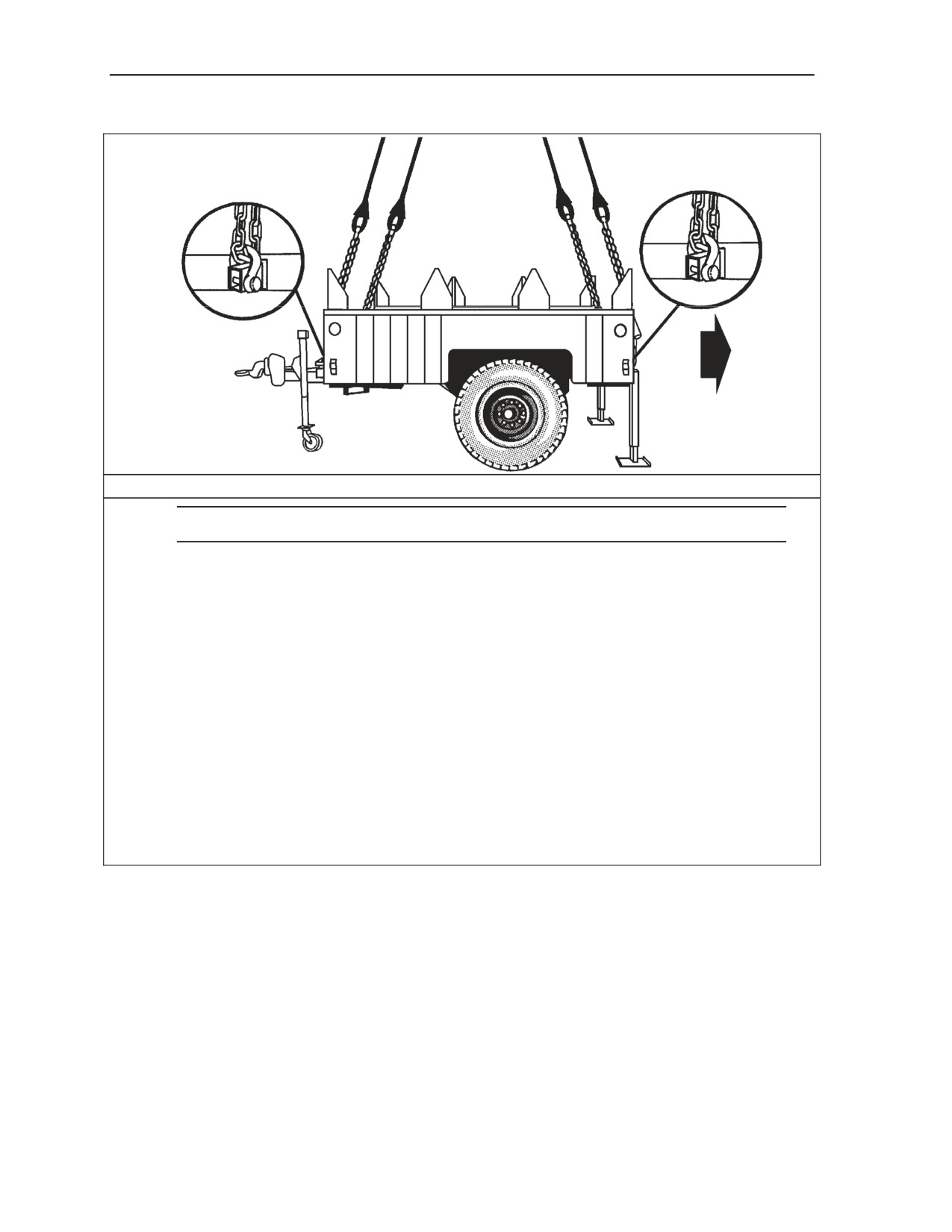

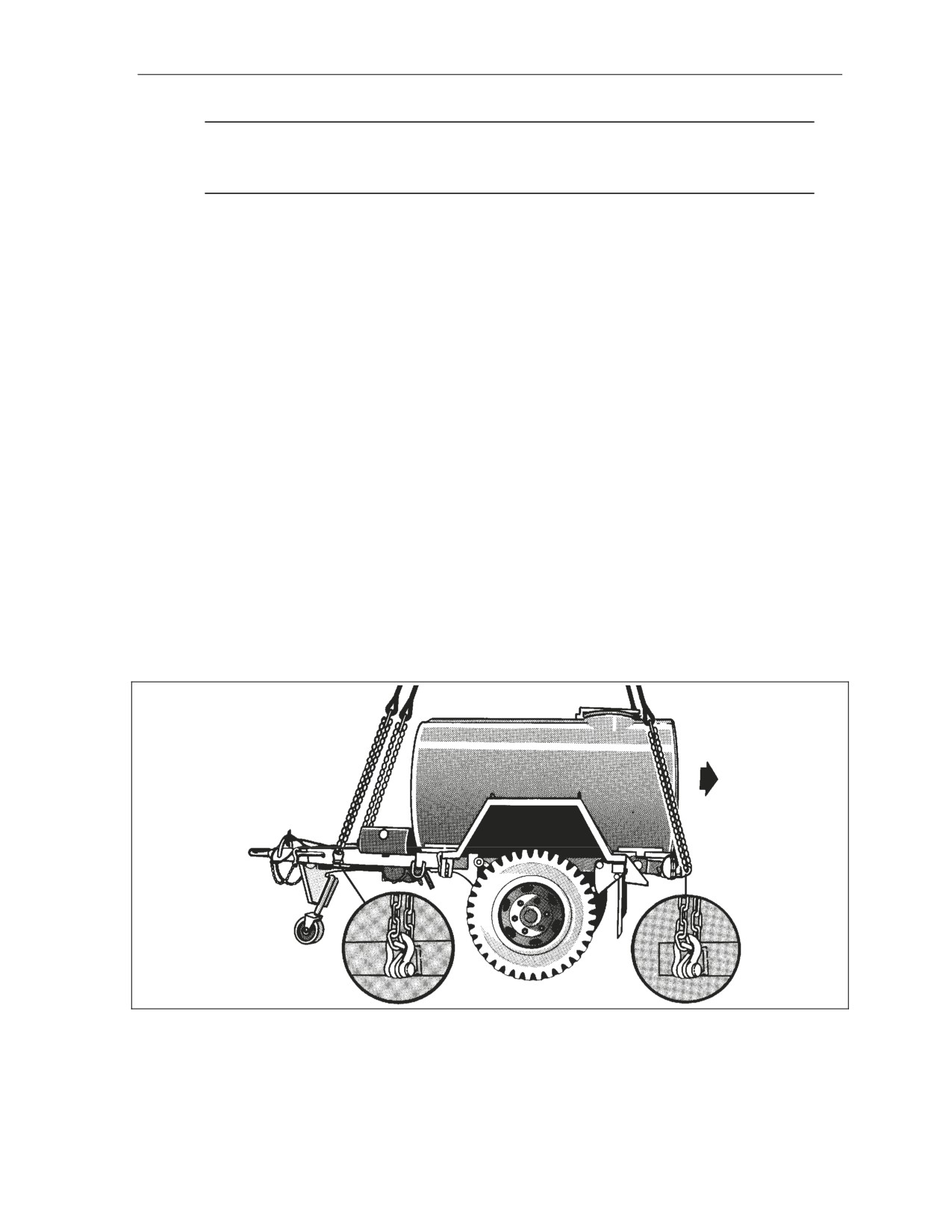

Figure 3-5. M149A2 Water Trailer
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
3-9
Chapter 3
RIGGING STEPS
1. Position apex fitting on top of the water tank. Route outer sling legs 1 and 2 to the front of the
trailer and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on the left side of
the load.
2. Loop the chain end of sling leg 1 through the left front lift provision located on the left front
corner of the trailer. Place the correct link from Table 3-5 in the grab hook. Repeat with sling
leg 2 through the right front lift provision.
3. Route the chain end of sling leg 3 through the left rear lift provision. Place the correct link
from Table 3-5 in the grab hook. Repeat with sling leg 4 through the right rear lift provision.
Pad the rear slings where they contact the water tank. Secure excess chain with Type III
nylon cord.
4. Position the two rear slings around the side of the tank so that the sling legs cradle the tank.
5. Cluster and tie (breakaway technique) all sling legs together on top of the tank to prevent
entanglement during hookup and lift-off.

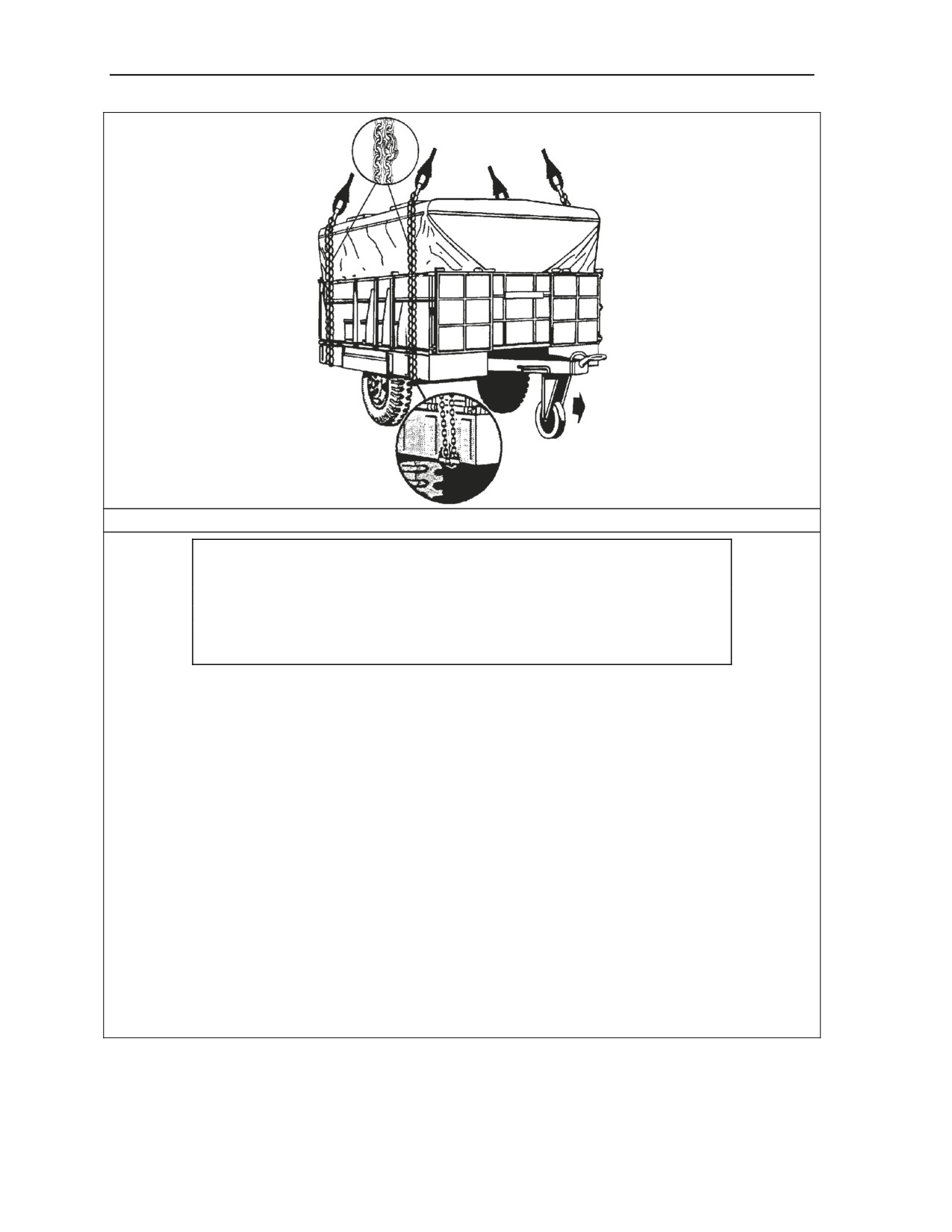

Figure 3-5. M149A2 Water Trailer (Continued)
M989 HEAVY-EXPANDED MOBILITY AMMUNITION TRAILER
(HEMAT)
3-7. The M989 heavy-expanded mobility ammunition trailer is rigged for single-point sling load using
the following procedures:
z
Applicability. The following item in Table 3-6 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 3-6. M989 HEMAT
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
M989 HEMAT, Empty
7,640
10K
40/4
Note. This load is only certified for sling loading at its empty weight.
z
Materials. The following materials are required to rig this load:
„ Sling set (10,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Tie-down CGU-1/B (4 each).
z
Personnel. Two persons can prepare and rig this load in 15 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
3-10
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Trailers
─ At each corner of the trailer, slide the lifting provisions out until they are completely
extended. Do not lift the trailer unless the provisions are fully extended and secured in
position.
─ Remove the side and end panels. Place two panels side by side on the trailer so that the
panel ends are approximately 10 inches from the front of the trailer. Make sure the
panels are positioned lengthwise on the trailer. Place the remaining panels on top of
the respective panels on the trailer.
─ Secure the panels on the trailer with the tie-down straps. Attach the hook end of one tie-
down strap to a tie-down ring on the trailer bed beside the panels approximately 1 foot
from the end of the panels. Connect and tighten the ratchet end to a tie-down ring on
the other side of the panels. Secure loose end of strap. Repeat with a second tie-down
strap at the other end of the panels.
─ To secure the panels lengthwise, route the hook end of one tie-down strap around the
vertical metal stiffeners on the top panel of the stack of panels on the left side of the
trailer. Attach the hook end to a tie-down ring on the front end of the trailer bed.
Connect and tighten the ratchet end to a tie-down ring on the other end of the stack of
panels. Secure loose end of strap. Repeat with a second tie-down strap on the other
stack of panels.
─ Tape or tie the intervehicular cable, hoses, and safety chains firmly to the top of the
drawbar with tape or Type III nylon cord.
─ Engage the parking brake.
„ Rigging. Rig the load according to the steps in Figure 3-6.
„ Hookup. The hookup team stands on the bed of the trailer. The static wand person
discharges the static electricity with the static wand. The hookup person places the apex fitting
onto the aircraft cargo hook. The hookup team then carefully dismounts the vehicle and remains
close to the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.

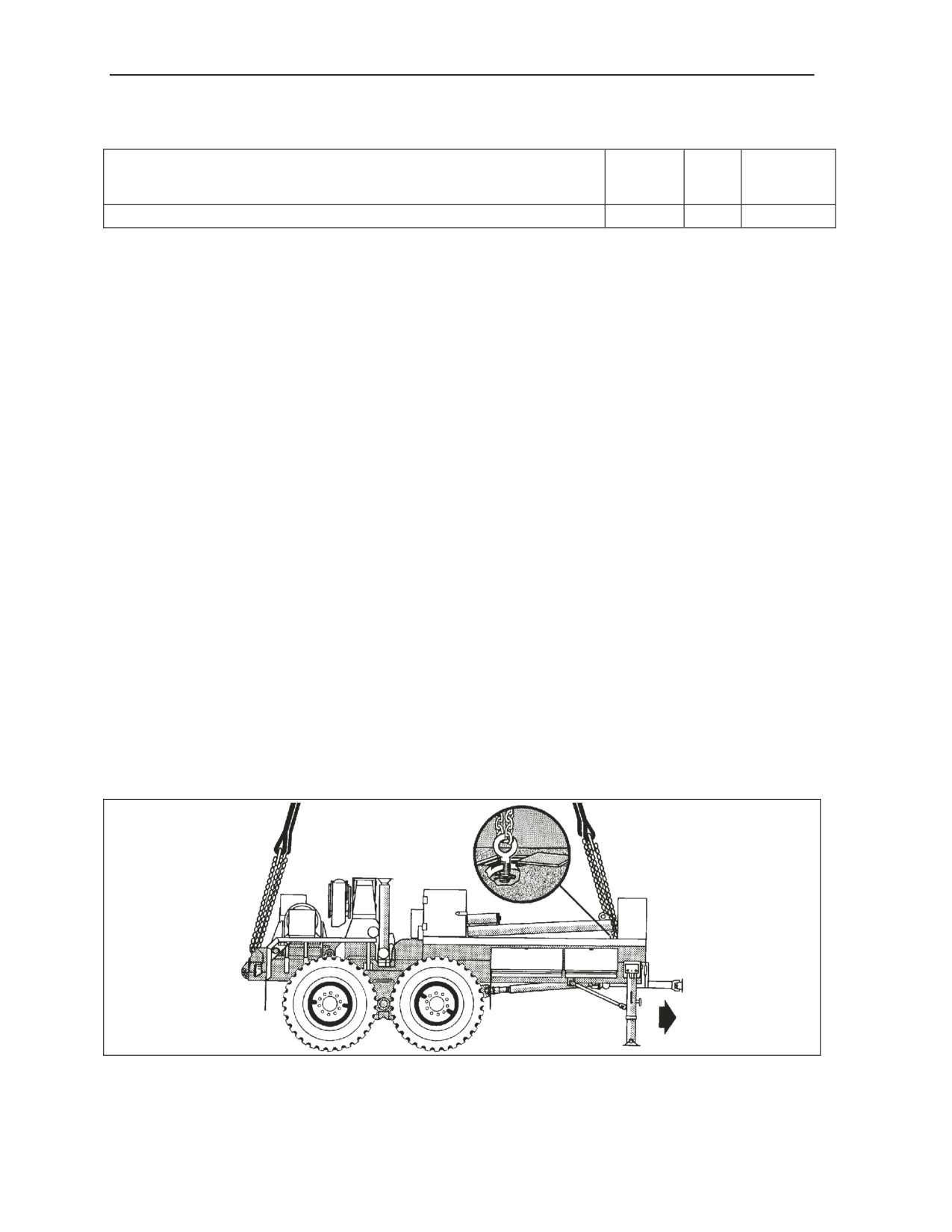

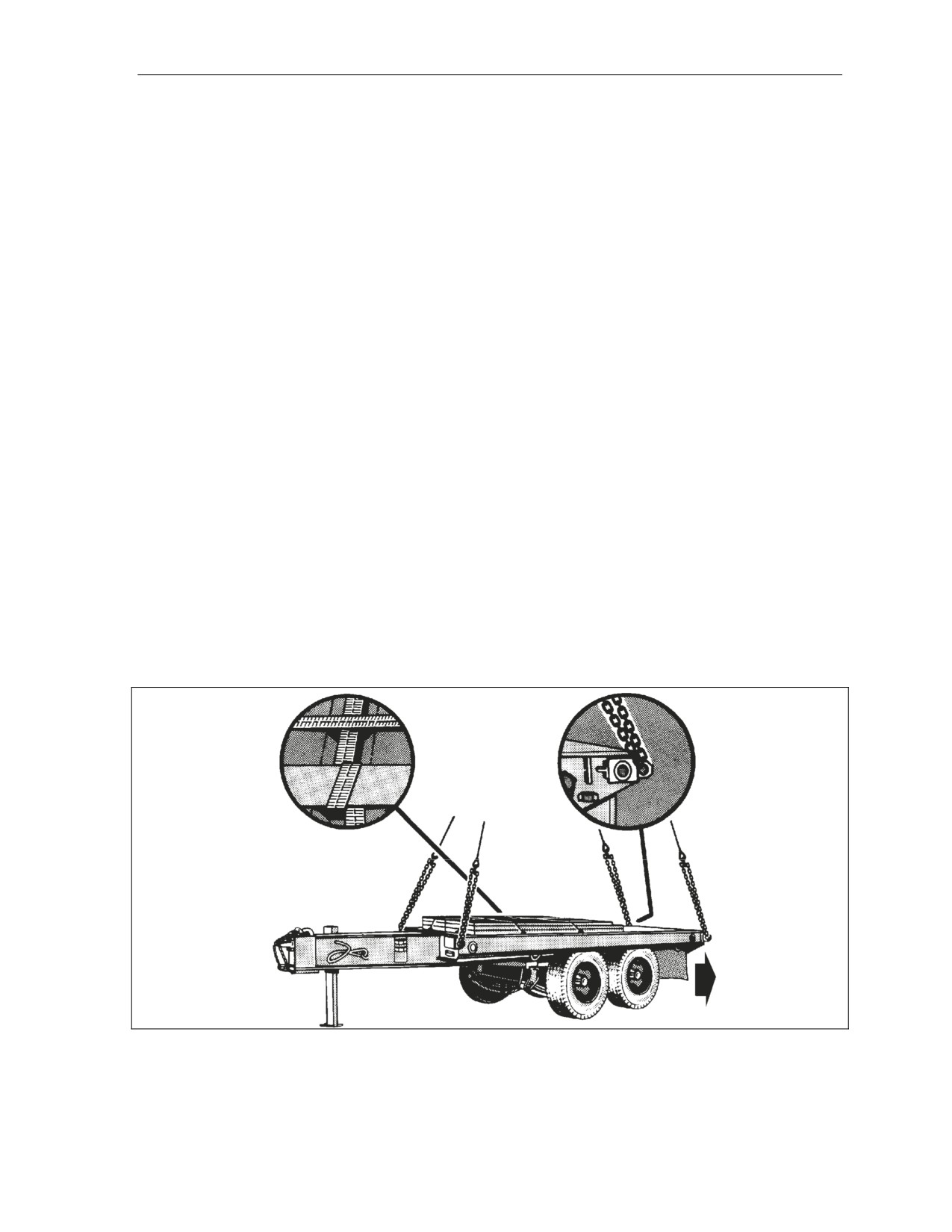

Figure 3-6. M989 HEMAT
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
3-11
Chapter 3
RIGGING STEPS
1. Position apex fitting on top of the trailer. Route outer sling legs 1 and 2 to the front of the
trailer and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on the left side of
the load.
2. Loop the chain end of sling leg 1 through the left front lift provision located on the left front
corner of the trailer. Place the correct link from Table 3-6 in the grab hook. Repeat with sling
leg 2 through the right front lift provision. Secure excess chain with Type III nylon cord.
3. Route the chain end of sling leg 3 through the left rear lift provision. Place the correct link
from Table 3-6 in the grab hook. Repeat with sling leg 4 through the right rear lift provision.
Secure excess chain with Type III nylon cord.
4. Cluster and tie (breakaway technique) all sling legs together on top of the trailer to prevent
entanglement during hookup and lift-off.
Figure 3-6. M989 HEMAT (Continued)
M989A1 HEAVY-EXPANDED MOBILITY AMMUNITION TRAILER
(HEMAT II)
3-8. The M989A1 heavy-expanded mobility ammunition trailer is rigged for single-point sling load using
the following procedures:
z
Applicability. The following item in Table 3-7 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 3-7. M989A1 HEMAT II
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
M989 HEMAT II
10,650
25K
15/3
CAUTION
The following rigging procedures are for the M989A1 HEMAT II only.
Do not use these procedures when rigging the M989 HEMAT.
z
Materials. The following materials are required to rig this load:
„ Sling set (25,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Tie-down CGU-1/B (8 each).
„ Felt sheet, cattle hair, Type IV, 1/2-inch or suitable substitute.
z
Personnel. Two persons can prepare and rig this load in 10 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
3-12
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Trailers
─ Inspect the lift provisions at the four upper corners of the cargo bed.
─ Raise the trailer tongue and secure it in the up position with a CGU-1/B.
─ Secure the brake hose, safety hose, intervehicular cables, and safety chains to the trailer
and tongue with tape or Type III nylon cord.
─ Engage the steering lockout pin.
─ Secure the side panels to the cargo deck with CGU-1/Bs.
„ Rigging. Rig the load according to the steps in Figure 3-7.
„ Hookup. The hookup team stands on the bed of the trailer. The static wand person
discharges the static electricity with the static wand. The hookup person places the apex fitting
onto the aircraft cargo hook. The hookup team then carefully dismounts the vehicle and remains
close to the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
CAUTION
Brief the aircrew to relax sling leg tension and hover to the side of the
load when releasing the apex fitting to prevent damage to the panels
on top of the trailer.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.

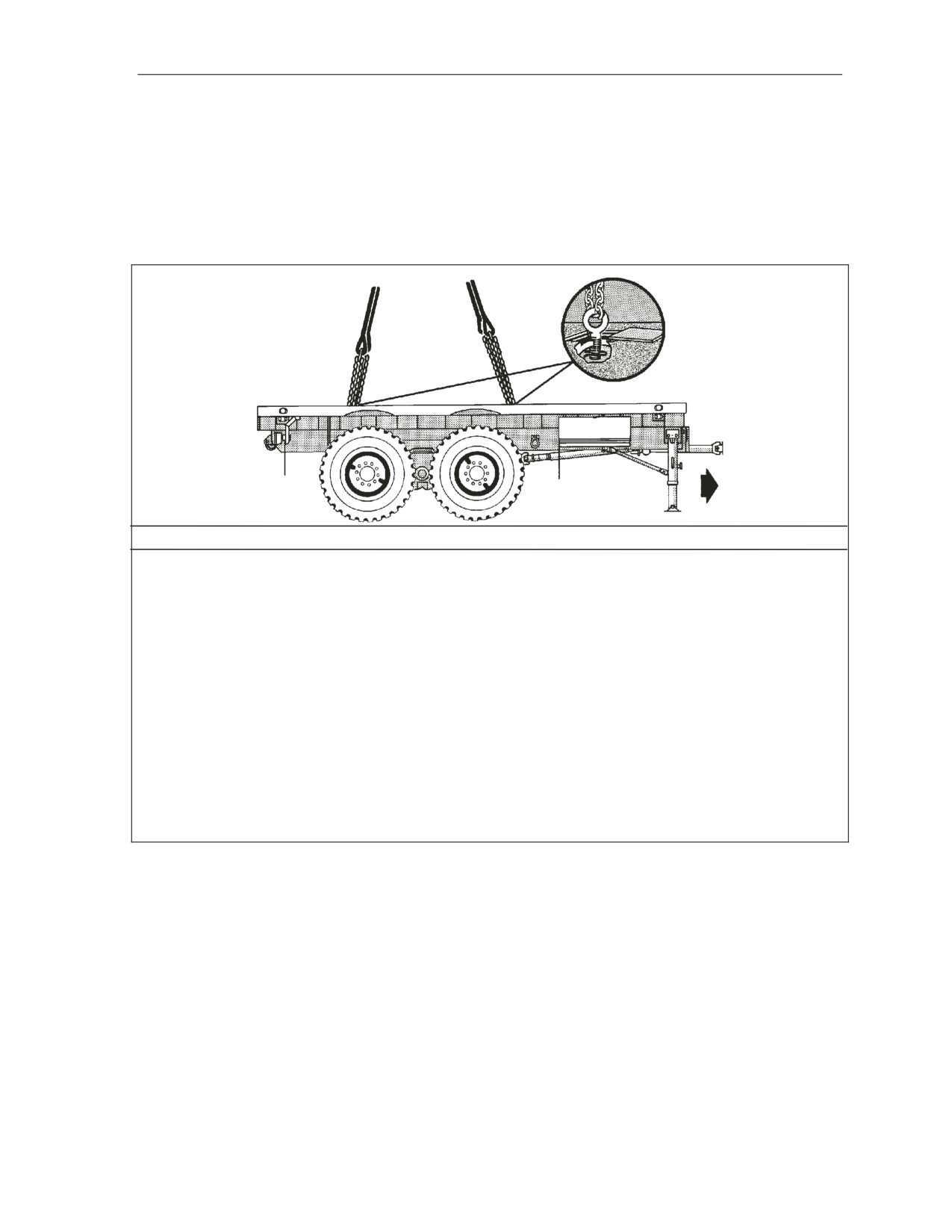

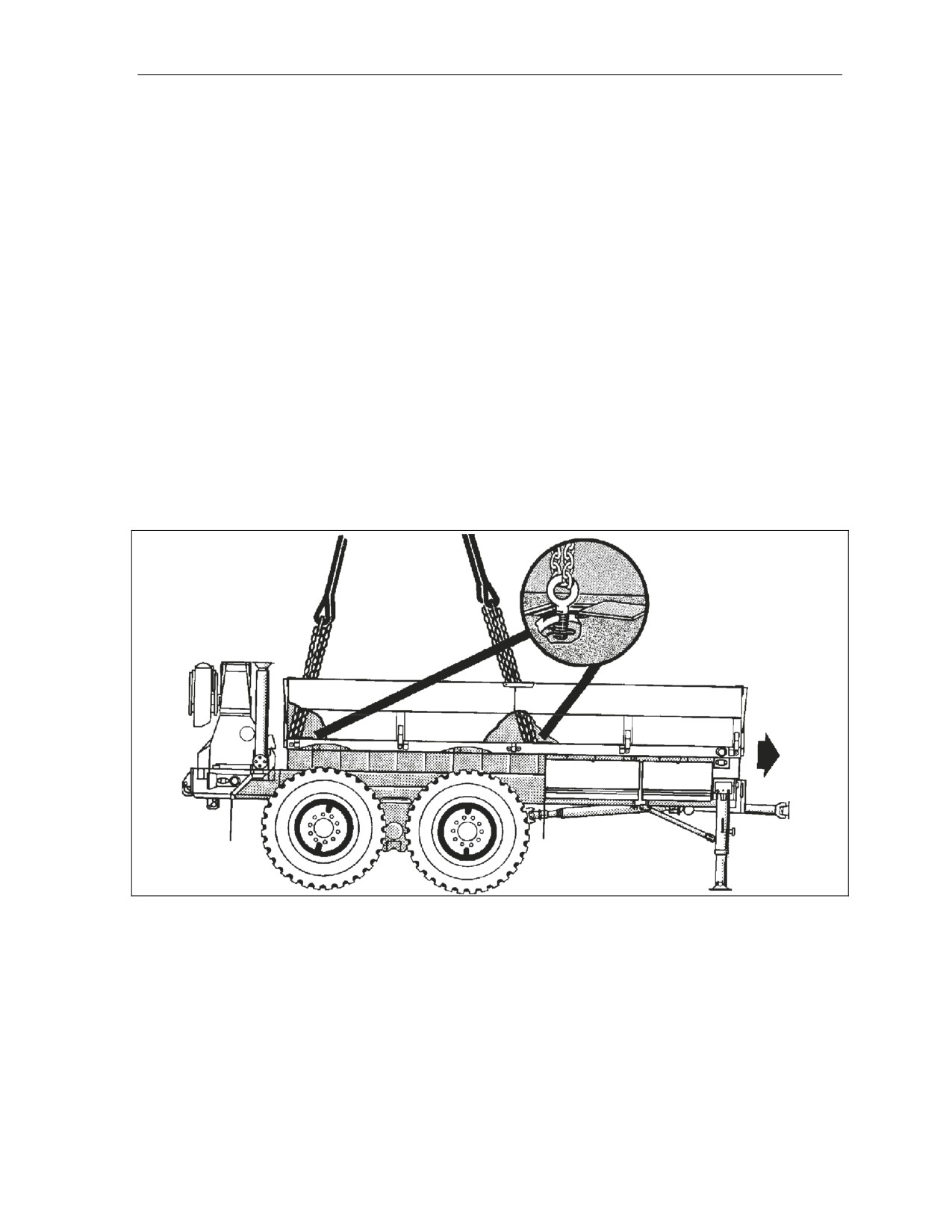

Figure 3-7. M989A1 HEMAT II
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
3-13
Chapter 3
RIGGING STEPS
1. Position apex fitting on top of the trailer. Route outer sling legs 1 and 2 to the front of the
trailer and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on the left side of
the load.
2. Loop the chain end of sling leg 1 through the left front lift provision located on the left front
corner of the trailer. Place the correct link from Table 3-7 in the grab hook. Repeat with sling
leg 2 through the right front lift provision. Secure excess chain with Type III nylon cord.
3. Route the chain end of sling leg 3 through the left rear lift provision. Place the correct link
from Table 3-7 in the grab hook. Repeat with sling leg 4 through the right rear lift provision.
Secure excess chain with Type III nylon cord.
4. Cluster and tie (breakaway technique) all sling legs together on top of the trailer to prevent
entanglement during hookup and lift-off.
Figure 3-7. M989A1 HEMAT II (Continued)
MK14, TRAILER, CONTAINER HAULER
3-9. The Mk14 container hauler trailer is rigged for single-point sling load using the following
procedures:
z
Applicability. The following item in Table 3-8 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 3-8. Mk14 Container Hauler Trailer
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
Mk 14 Container Hauler Trailer
16,000
40K
3/3
z
Materials. The following materials are required to rig this load:
„ Sling set (40,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
z
Personnel. Two persons can prepare and rig this load in 15 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Disengage the Mkl4 from the Mk48 prime mover according to the operator’s manual.
─ Secure all hoses with tape or nylon cord.
─ Tape all lights, reflectors, and glass fixtures.
─ Remove the safety retainer pins from the lifting eyelets located under the doors in the bed
of the trailer. Unscrew the lifting eyelets from their stored position and reinsert the
lifting eyelets so that the eyelet portion is accessible from the bed of the trailer through
the access doors. Screw the lifting eyelets all the way in and back out one full turn.
Reinsert the safety retainer pins to prevent the lifting eyelets from backing out in flight.
─ Make sure all tool compartment doors are secured shut.
„ Rigging. Rig the load according to the steps in Figure 3-8.
3-14
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Trailers
„ Hookup. The hookup team stands on the bed of the trailer. The static wand person
discharges the static electricity with the static wand. The hookup person places the apex fitting
onto the aircraft cargo hook. The hookup team then carefully dismounts the vehicle and remains
close to the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
RIGGING STEPS
1. Position apex fitting on top of the trailer. Route outer sling legs 1 and 2 to the front of the
trailer and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on the left side of
the load.
2. Loop the chain end of sling leg 1 through the left front lift provision located on the left front
corner of the trailer. Place the correct link from Table 3-8 in the grab hook. Repeat with sling
leg 2 through the right front lift provision. Secure excess chain with Type III nylon cord.
3.
3. Route the chain end of sling leg 3 through the left rear lift provision. Place the correct link
from Table 3-8 in the grab hook. Repeat with sling leg 4 through the right rear lift provision.
Secure excess chain with Type III nylon cord.
4. Cluster and tie (breakaway technique) all sling legs together on top of the trailer to prevent
entanglement during hookup and lift-off.

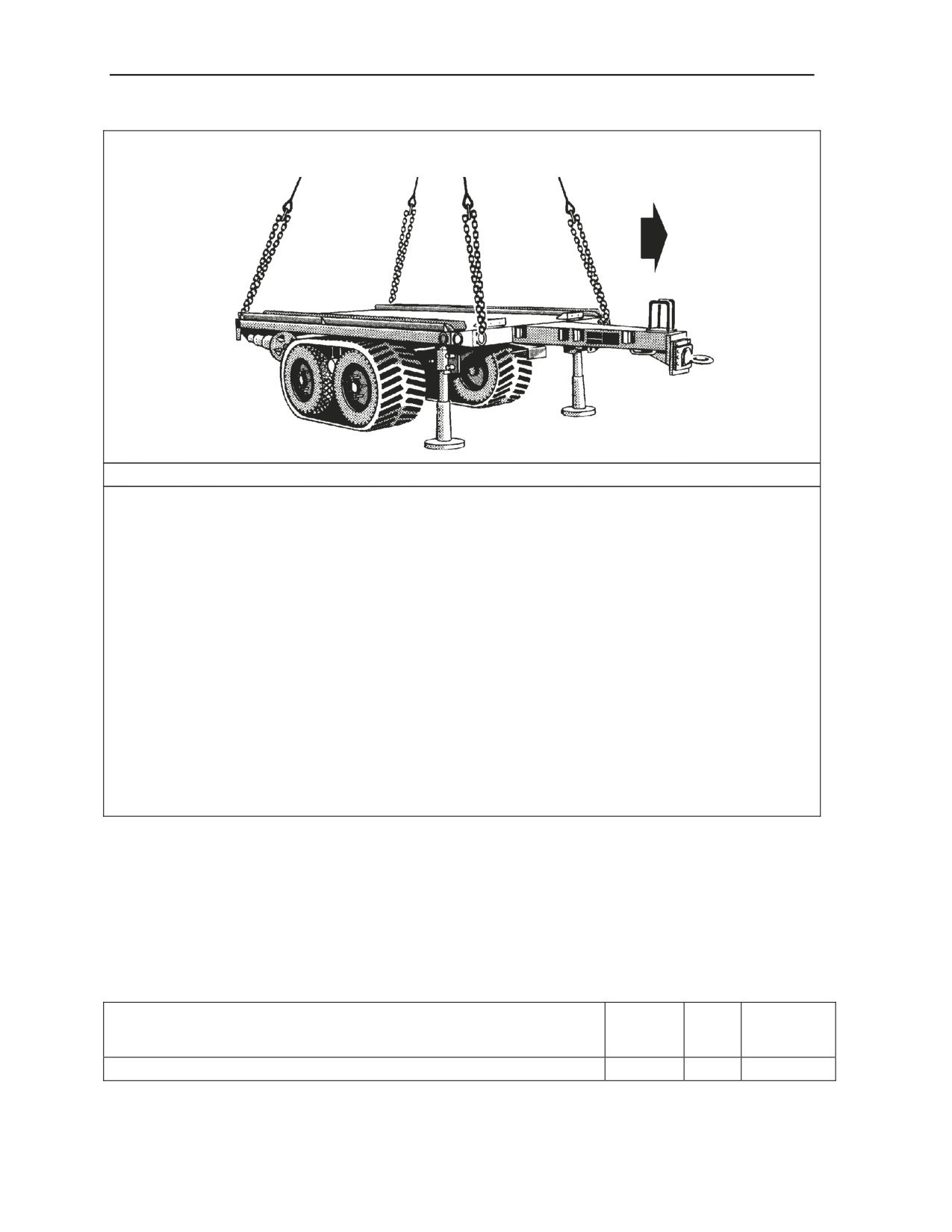

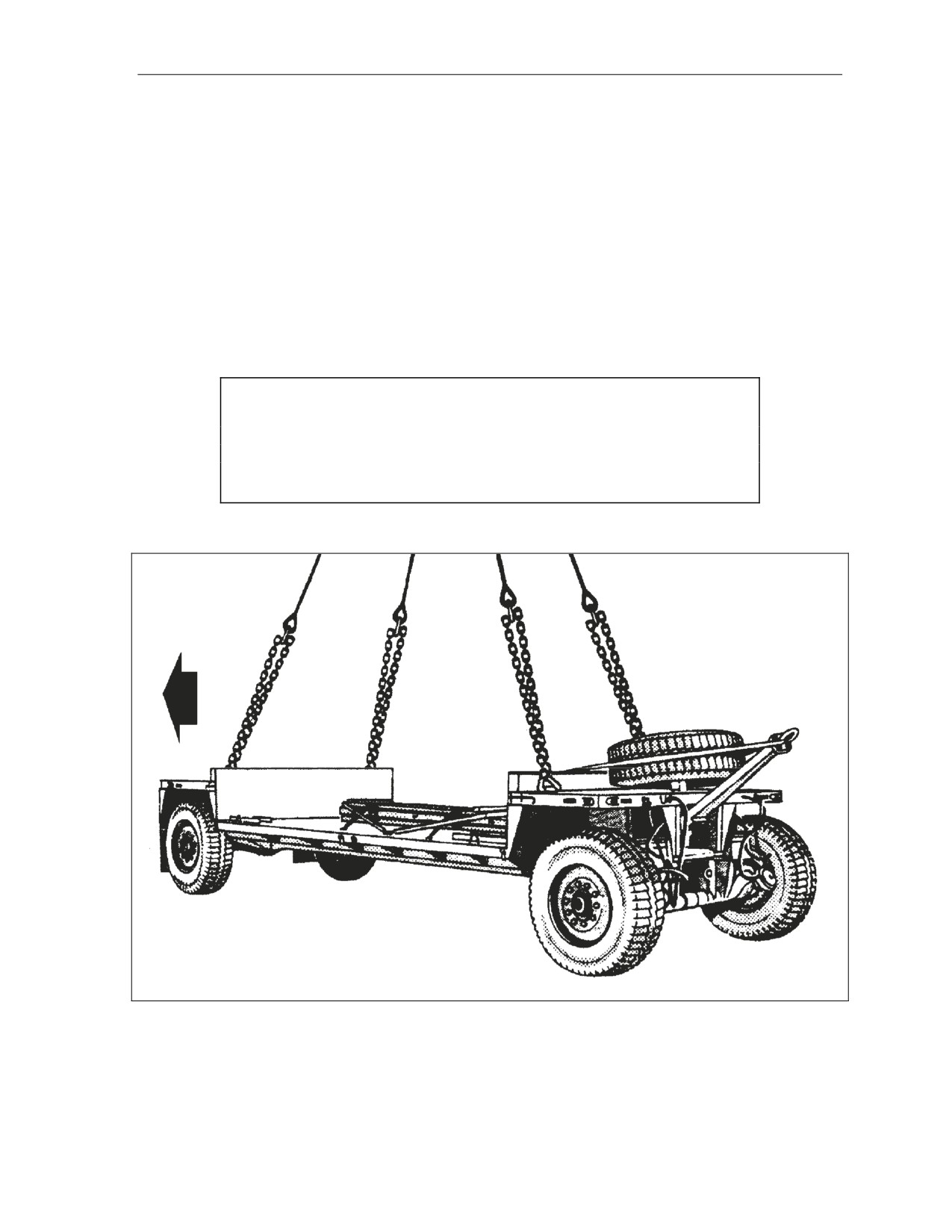

Figure 3-8. Mk14 Container Hauler Trailer
MK15, TRAILER, WRECKER/RECOVERY
3-10. The Mk15 wrecker/recovery trailer is rigged for single-point sling load using the following
procedures:
z
Applicability. The following item in Table 3-9 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
3-15
Chapter 3
Table 3-9. Mk15 Wrecker/Recovery Trailer
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
Mk 15 Wrecker/Recovery Trailer
26,000
40K
3/10
z
Materials. The following materials are required to rig this load:
„ Sling set (40,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Tie-down strap, cargo, CGU-1/B, as required.
z
Personnel. Two persons can prepare and rig this load in 30 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Disengage the Mkl5 from the Mk48 prime mover according to the operator’s manual.
─ Remove the A-frame from the rear of the trailer.
─ Secure all hoses with tape or nylon cord.
─ Tape all lights, reflectors, and glass fixtures.
─ Remove the safety retainer pins from the lifting eyelets located under the doors in the bed
of the trailer. Unscrew the lifting eyelets from their stored position and reinsert the
lifting eyelets so that the eyelet portion is accessible from the bed of the trailer through
the access doors. Screw the lifting eyelets all the way in and back out one full turn.
Reinsert the safety retainer pins to prevent the lifting eyelets from backing out in flight.
─ Make sure all tool compartment doors are secured shut.
„ Rigging. Rig the load according to the steps in Figure 3-9.
„ Hookup. The hookup team stands on the bed of the trailer. The static wand person
discharges the static electricity with the static wand. The hookup person places the apex fitting
onto the aircraft cargo hook. The hookup team then carefully dismounts the vehicle and remains
close to the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.

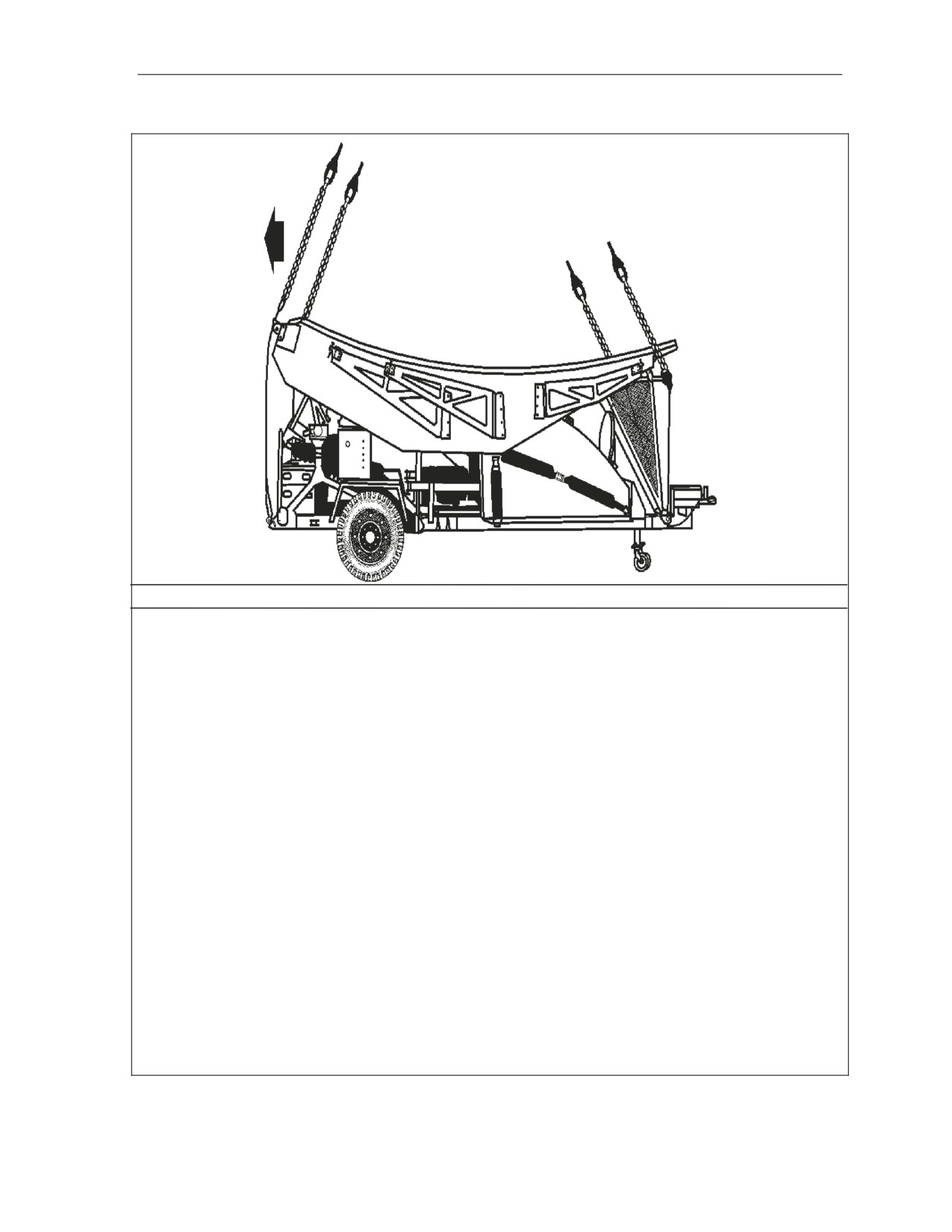

Figure 3-9. Mk15 Wrecker/Recovery Trailer
3-16
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Trailers
RIGGING STEPS
1. Position apex fitting on top of the trailer. Route outer sling legs 1 and 2 to the front of the
trailer and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on the left side of
the load.
2. Loop the chain end of sling leg 1 through the left front lift provision located on the left front
corner of the trailer. Place the correct link from Table 3-9 in the grab hook. Repeat with sling
leg 2 through the right front lift provision. Secure excess chain with Type III nylon cord.
3. Route the chain end of sling leg 3 through the left rear lift provision. Place the correct link
from Table 3-9 in the grab hook. Repeat with sling leg 4 through the right rear lift provision.
Secure excess chain with Type III nylon cord.
4. Cluster and tie (breakaway technique) all sling legs together on top of the trailer to prevent
entanglement during hookup and lift-off.
Figure 3-9. Mk15 Wrecker/Recovery Trailer (Continued)
MK16, TRAILER, FIFTH-WHEEL ADAPTER
3-11. The Mk16 fifth-wheel adapter trailer is rigged for single-point sling load using the following
procedures:
z
Applicability. The following item in Table 3-10 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 3-10. Mk16 Fifth-Wheel Adapter Trailer
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
Mk 16 Fifth Wheel Adapter Trailer
16,000
40K
3/3
z
Materials. The following materials are required to rig this load:
„ Sling set (40,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
z
Personnel. Two persons can prepare and rig this load in 30 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Disengage the Mkl6 from the Mk48 prime mover according to the operator’s manual.
─ Secure all hoses with tape or nylon cord.
─ Tape all lights, reflectors, and glass fixtures.
─ Make sure all tool compartment doors are secured shut.
„ Rigging. Rig the load according to the steps in Figure 3-10.
„ Hookup. The hookup team stands on top of the fifth-wheel adapter. The static wand
person discharges the static electricity with the static wand. The hookup person places the apex
fitting onto the aircraft cargo hook. The hookup team then carefully dismounts the vehicle and
remains close to the load as the helicopter removes slack from the sling legs. When successful
hookup is assured, the hookup team quickly exits the area underneath the helicopter to the
designated rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
3-17
Chapter 3
RIGGING STEPS
1. Position apex fitting on top of the fifth-wheel. Route outer sling legs 1 and 2 to the front of the
trailer and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on the left side of
the load.
2. Loop the chain end of sling leg 1 through the left front lift provision located on the main frame
below the winch and behind the left front stowage compartment. Place the correct link from
Table 3-10 in the grab hook. Repeat with sling leg 2 through the right front lift provision.
3. Route the chain end of sling leg 3 through the left rear lift provision located on the left side of
the towing pintle. Place the correct link from Table 3-10 in the grab hook. Repeat with sling
leg 4 through the right rear lift provision.
4. Cluster and tie (breakaway technique) all sling legs together on top of the trailer to prevent
entanglement during hookup and lift-off.

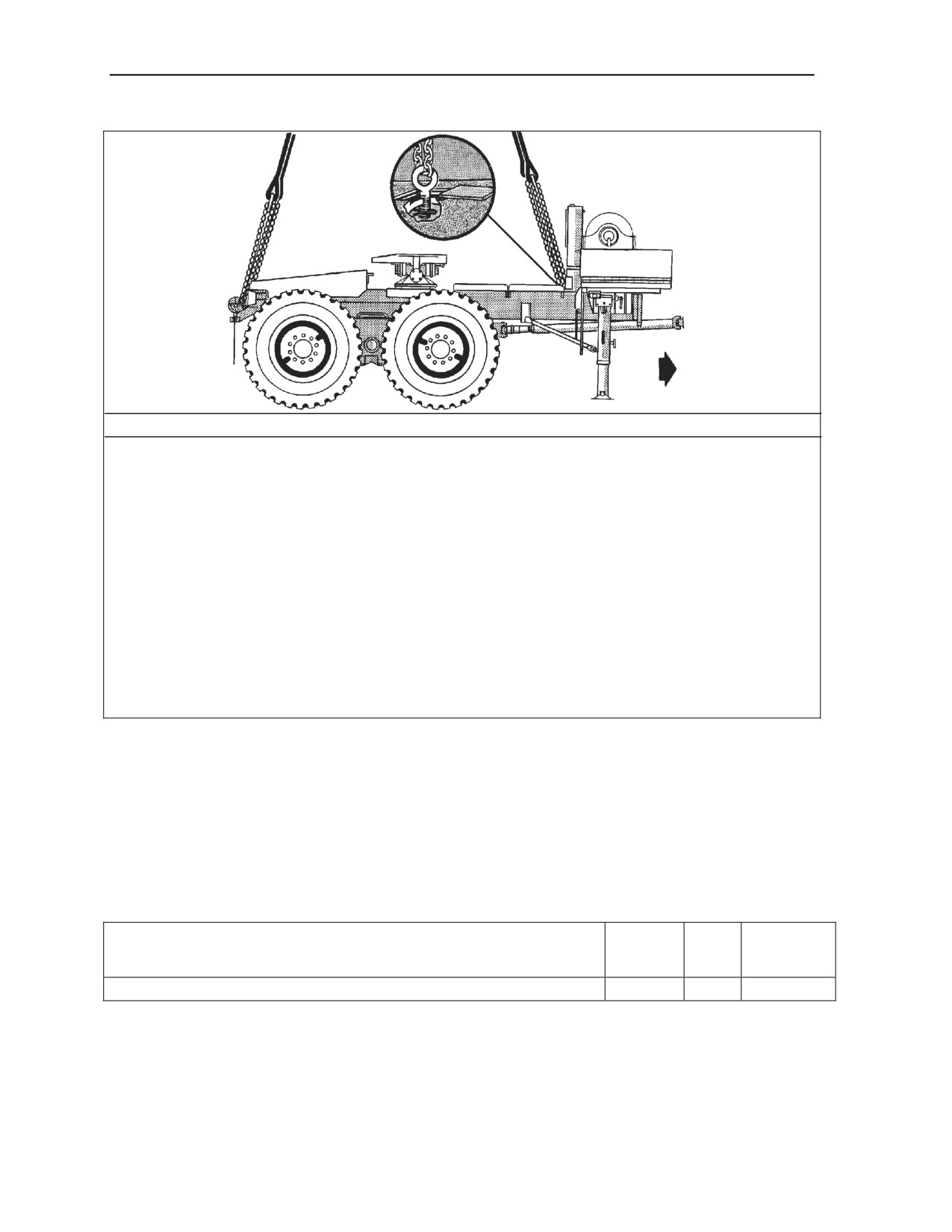

Figure 3-10. Mk16 Fifth Wheel Adapter Trailer
MK17, TRAILER, DROP-SIDE CARGO
3-12. The Mk17 drop-side cargo trailer is rigged for single-point sling load using the following
procedures:
z
Applicability. The following item in Table 3-11 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 3-11. Mk17 Drop-Side Cargo Trailer
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
Mk 17 Drop-Side Cargo Trailer
23,000
40K
3/13
z
Materials. The following materials are required to rig this load:
„ Sling set (40,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
3-18
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Trailers
z
Personnel. Two persons can prepare and rig this load in 20 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Disengage the Mkl7 from the Mk48 prime mover according to the operator’s manual.
─ Secure all hoses with tape or nylon cord.
─ Tape all lights, reflectors, and glass fixtures.
─ Remove the safety retainer pins from the lifting eyelets located under the doors in the bed
of the trailer. Unscrew the lifting eyelets from their stored position and reinsert the
lifting eyelets so that the eyelet portion is accessible from the bed of the trailer through
the access doors. Screw the lifting eyelets all the way in and back out one full turn.
Reinsert the safety retainer pins to prevent the lifting eyelets from backing out in flight.
─ Make sure all tool compartment doors are secured shut.
„ Rigging. Rig the load according to the steps in Figure 3-11.
„ Hookup. The hookup team stands on top of the trailer. The static wand person discharges
the static electricity with the static wand. The hookup person places the apex fitting onto the
aircraft cargo hook. The hookup team then carefully dismounts the vehicle and remains close to
the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.

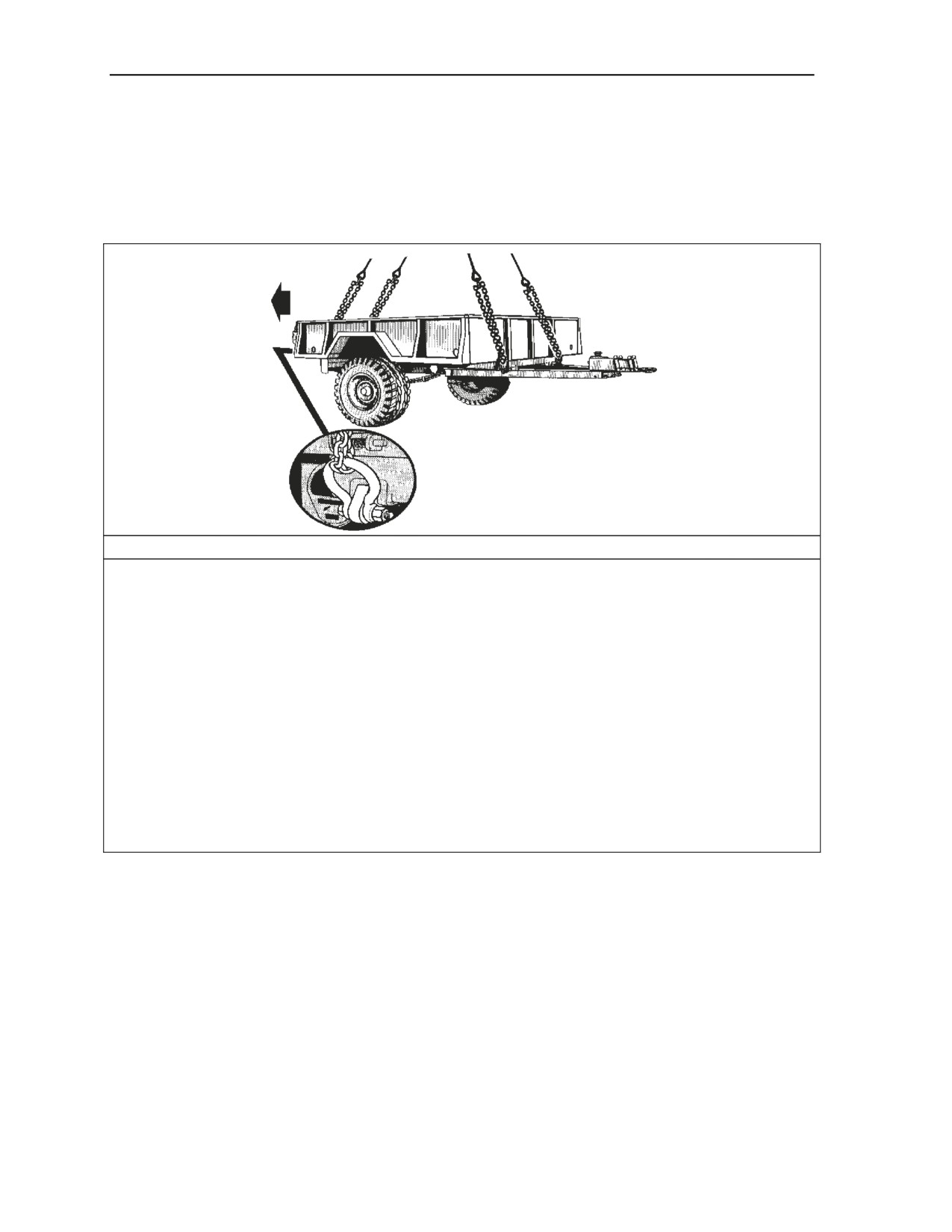

Figure 3-11. Mk17 Drop-Side Trailer
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
3-19
Chapter 3
RIGGING STEPS
1. Position apex fitting on top of the trailer. Route outer sling legs 1 and 2 to the front of the
trailer and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on the left side of
the load.
2. Loop the chain end of sling leg 1 through the left front lift provision located in the middle of
the left side of the trailer bed. Place the correct link from Table 3-11 in the grab hook. Repeat
with sling leg 2 through the right front lift provision.
3. Route the chain end of sling leg 3 through the left rear lift provision located in the left rear
corner of the trailer bed by the towing pintle hook. Place the correct link from Table 3-11 in
the grab hook. Repeat with sling leg 4 through the right rear lift provision.
4. Cluster and tie (breakaway technique) all sling legs together on top of the trailer to prevent
entanglement during hookup and lift-off.
Figure 3-11. Mk17 Drop-Side Trailer (Continued)
M116A2 TRAILER WITH ANTENNA GROUPS, AS-3954/TRC
(2 EACH) (USMC)
3-13. The M116A2 trailer with antenna groups, AS-3954/TRC (2 each) is rigged for single-point sling
load using the following procedures:
z
Applicability. The following item in Table 3-12 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 3-12. M116A2 Trailer with Antenna Groups, AS-3954/TRC (2 each)
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
M116A2 Trailer with Antenna Groups, AS-3954/TRC (2 each)
3,230
15K
3/3
z
Materials. The following materials are required to rig this load:
„ Multileg sling set (15,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Tie-down strap, cargo, CGU-1/B.
z
Personnel. Two persons can prepare and rig this load in 10 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Secure all loose items inside the trailer with tape or Type III nylon cord.
─ Secure all covers in their proper place. Do not remove the tarps. The tarps protect the
antennae.
─ Secure all chains, hoses, and cables with Type III nylon cord.
─ Engage both trailer parking brakes and ensure the front support leg is down.
„ Rigging. Rig the load according to the steps in Figure 3-12.
3-20
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Trailers
„ Hookup. The hookup team stands on top of the trailer. The static wand person discharges
the static electricity with the static wand. The hookup person places the apex fitting onto the
aircraft cargo hook. The hookup team then carefully dismounts the vehicle and remains close to
the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
RIGGING STEPS
1. Position apex fitting on top of the trailer. Route outer sling legs 1 and 2 to the front of the
trailer (lunette end) and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on
the left side of the load.
2. Loop the chain end of sling leg 1 through the left front lift provision located on the aluminum
frame attached to the trailer. Do not use the trailer lifting provisions attached to the chassis.
Place the correct link from Table 3-12 in the grab hook. Repeat with sling leg 2 through the
right front lift provision.
3. Route the chain end of sling leg 3 through the left rear lift provision located on the aluminum
frame attached to the trailer. Do not use the trailer lifting provisions attached to the chassis.
Place the correct link from Table 3-12 in the grab hook. Repeat with sling leg 4 through the
right rear lift provision.
4. Cluster and tie (breakaway technique) all sling legs together on top of the trailer to prevent
entanglement during hookup and lift-off.

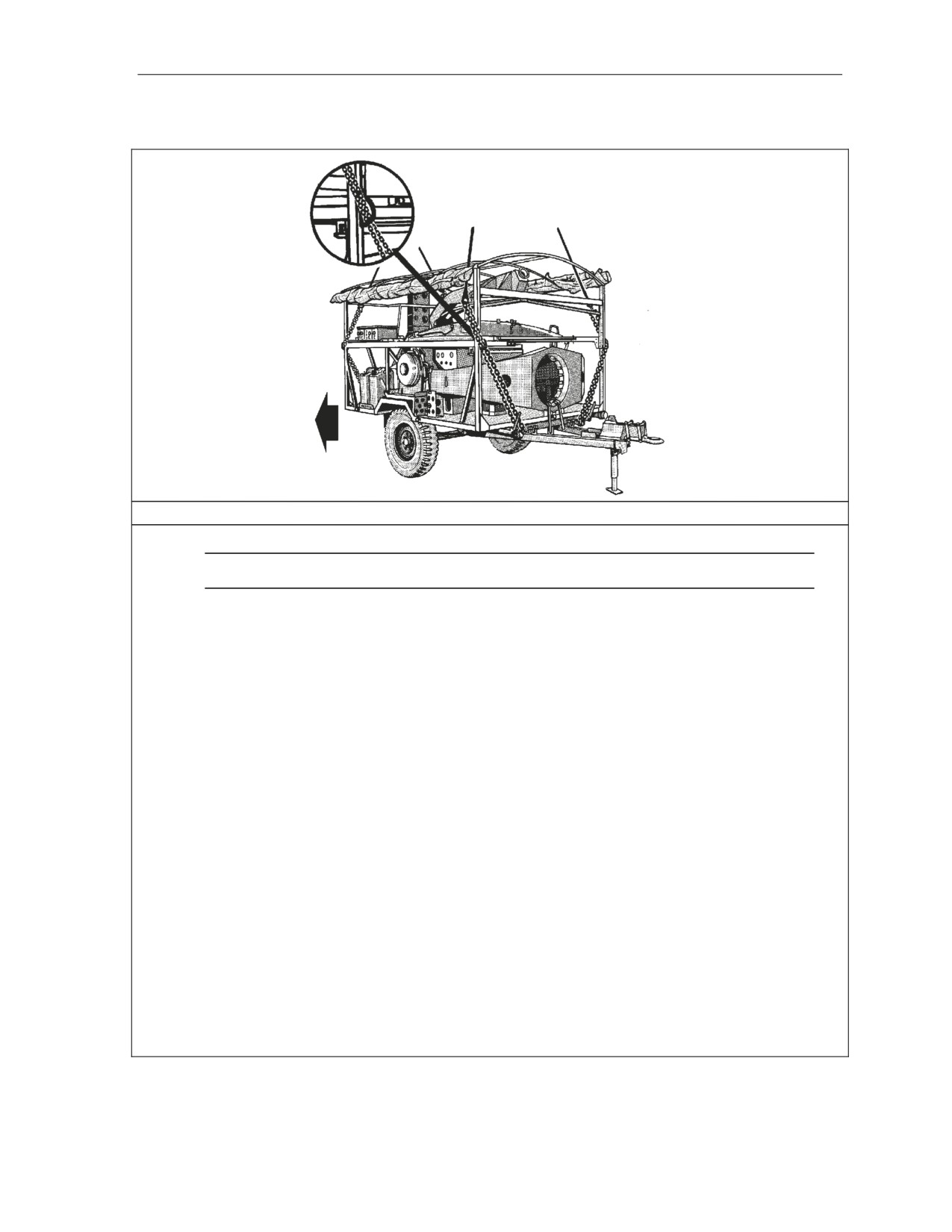

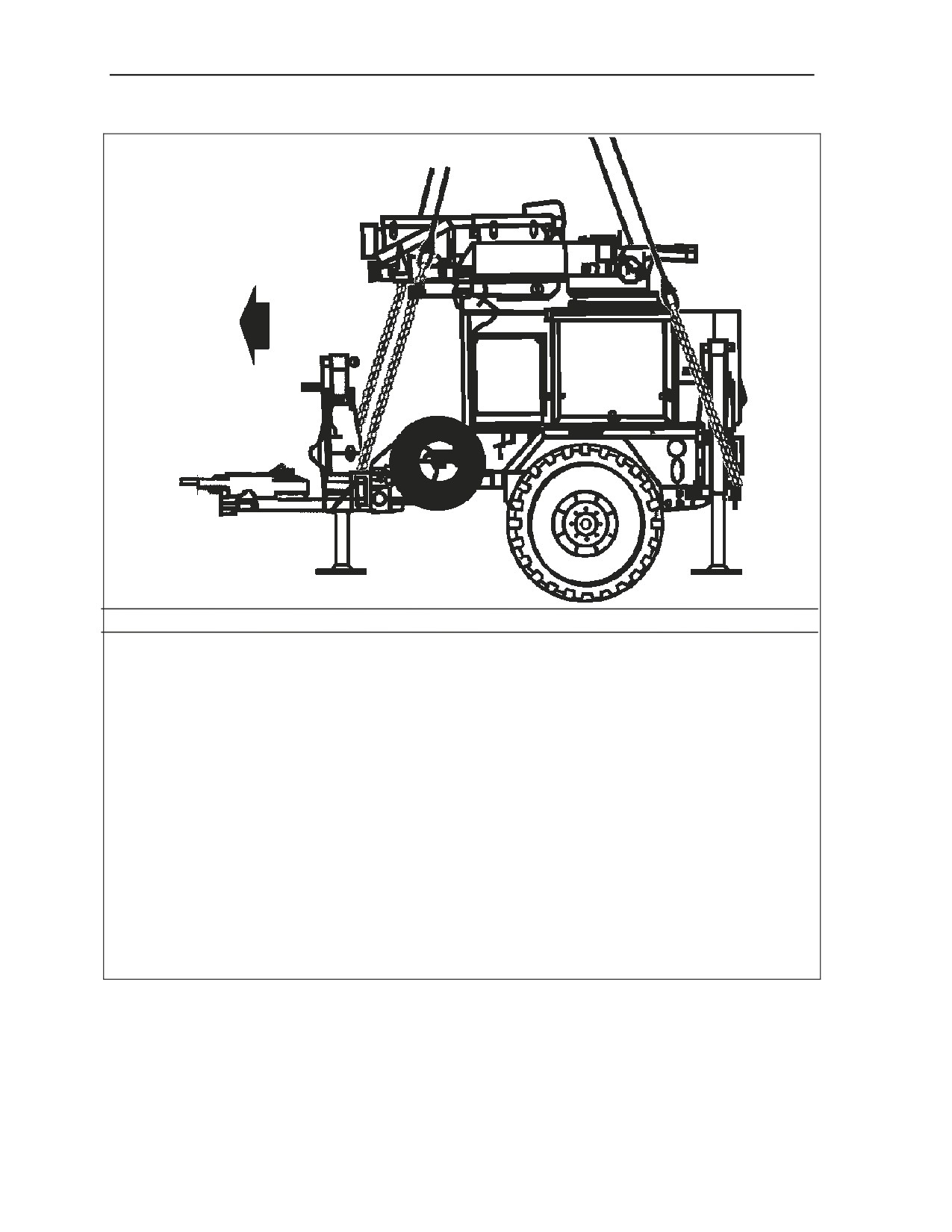

Figure 3-12. M116A2 Trailer with Antenna Groups, AS-3954/TRC (2 each)
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
3-21
Chapter 3
M116A2 TRAILER WITH AN/TPQ-36 FIREFINDER ANTENNA
TRANSCEIVER GROUP (ATG)
3-14. The M116A2 trailer with AN/TPQ-36 Firefinder antenna transceiver group is rigged for single-
point sling load using the following procedures:
z
Applicability. The following item in Table 3-13 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 3-13. M116A2 Trailer with AN/TPQ-36 Firefinder Antenna Transceiver Group
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
M116A2 Trailer with AN/TPQ-36 Firefinder Antenna Transceiver
3,320
10K
3/25
Group
z
Materials. The following materials are required to rig this load:
„ Sling set (10,000-pound capacity).
„ Chain length, part number 38850-00053-101, from a 10,000-pound capacity sling set
(4 each).
„ Coupling link, part number 577-0415, from a 10,000-pound sling set (4 each).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Felt sheet, cattle hair, Type IV, 1/2-inch or suitable padding.
„ Padding, Cellulose.
z
Personnel. Two persons can prepare and rig this load in 20 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Connect one additional chain length to each chain of the sling set with the coupling link.
─ Engage the trailer parking brake.
─ Secure the doors closed with Type III nylon cord.
─ Place the radar set in the travel mode and secure the antenna cover to the antenna with
tape.
„ Rigging. Rig the load according to the steps in Figure 3-13.
„ Hookup. The hookup team stands on top of the ATG trailer frame. The static wand person
discharges the static electricity with the static wand. The hookup person places the apex fitting
onto the aircraft cargo hook. The hookup team then carefully dismounts the ATG and remains
close to the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
Notes. 1. Do not stand on the radar panel during hookup.
2. Due to limited clearance between the helicopter and the top of the ATG, the hookup
team may want to use an extended sling system on this load and hook this load from
the ground or the bed of a truck. Polyester round slings are recommended for use as
vertical pendants. The extended sling legs may not be ideal for flying this load "nap
of the earth" in a tactical environment.
Note. Hookup of this load presents substantial risk of damage to the load or injury to the
hookup personnel. Use of a reach pendant is recommended for this load.
3-22
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Trailers
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
Note. When releasing the apex fitting after setting the load down, the helicopter pilot should
hover to the side to prevent damaging the radar panel.
RIGGING STEPS
1. Position apex fitting on top of the trailer (but not on top of the radar panel). Route outer sling
legs 1 and 2 to the front of the trailer (lunette end) and inner sling legs 3 and 4 to the rear.
Sling legs 1 and 3 must be on the left side of the load.
2. Loop the chain end of sling leg 1 under the trailer A-frame just aft of the lunette and through
the keeper from left to right on the left side of the drawbar. Place the correct link from Table
3-13 in the grab hook. Repeat with sling leg 2 on the right side of the drawbar.
3. Route the chain end of sling leg 3 through the left rear lift provision located on the rear of the
trailer. Place the correct link from Table 3-13 in the grab hook. Repeat with sling leg 4
through the right rear lift provision. Secure the excess chain with Type III nylon cord.
4. Cluster and tie (breakaway technique) all sling legs together on top of the trailer to prevent
entanglement during hookup and lift-off.

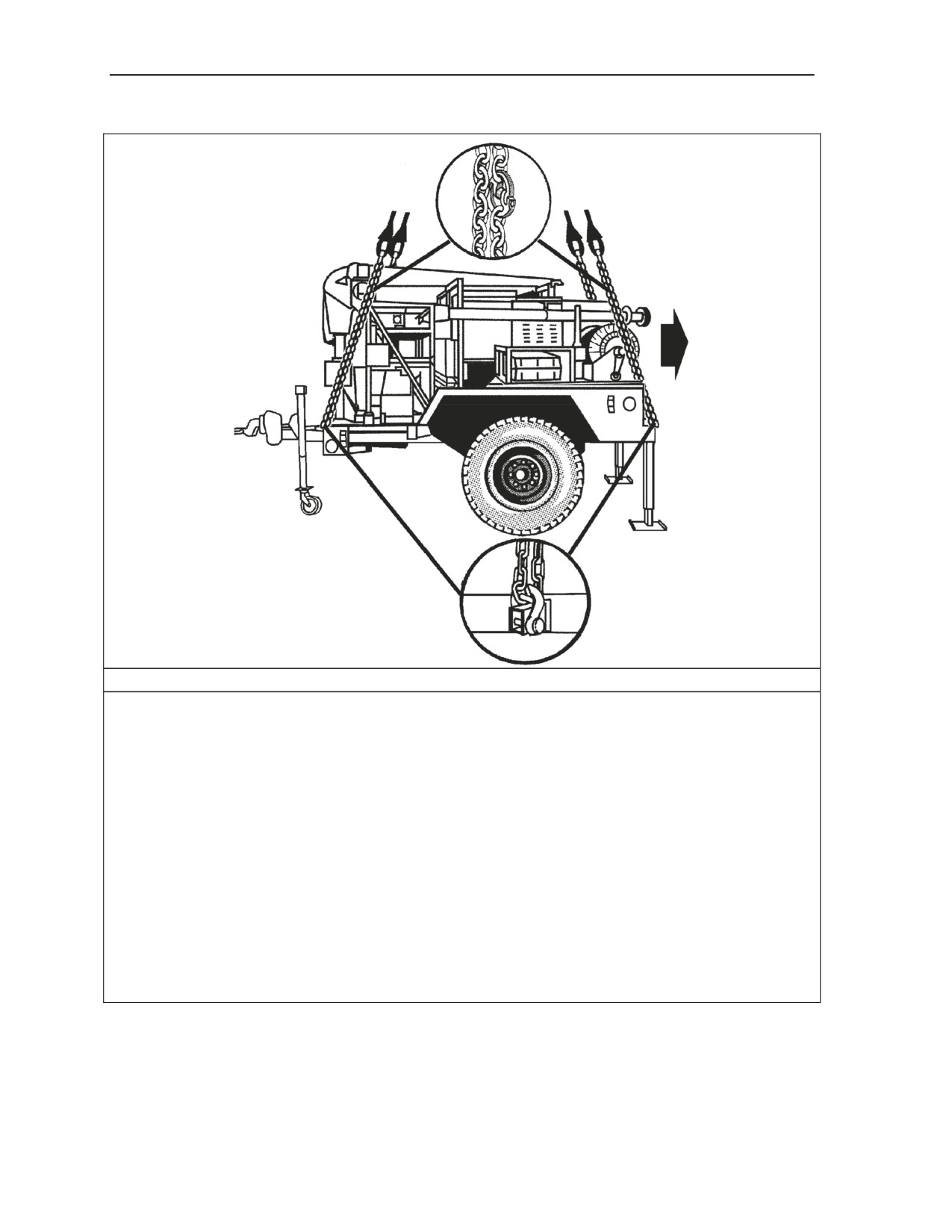

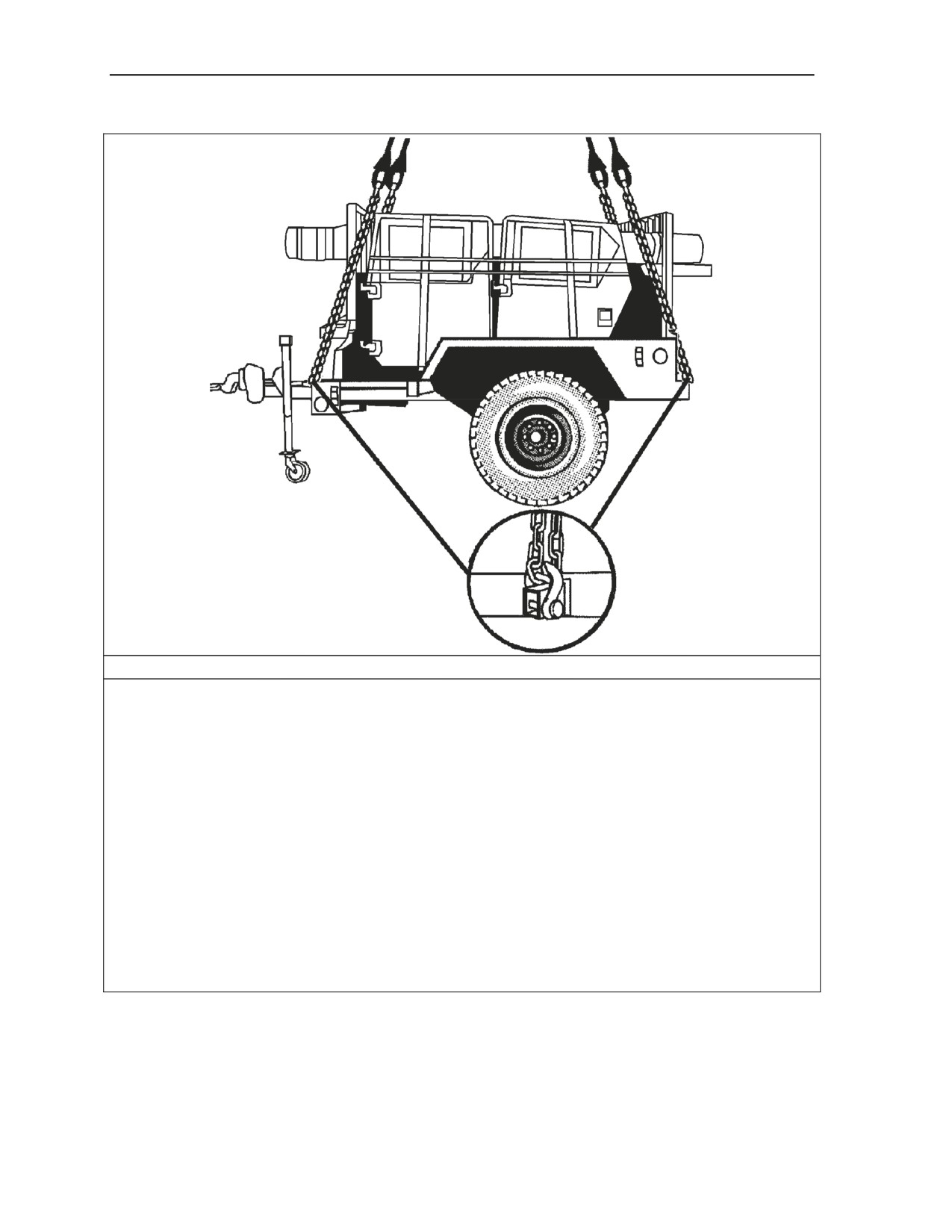

Figure 3-13. M116A2 Trailer with AN/TPQ-36 Firefinder Antenna Transceiver Group
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
3-23
Chapter 3
M116A2 TRAILER WITH M894 18,000-BTU AIR CONDITIONER AND
MEP-003A GENERATOR
3-15. The M116A2 Trailer with M894 18,000-BTU air conditioner and MEP-003A generator is rigged for
single-point sling load using the following procedures:
z
Applicability. The following item in Table 3-14 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 3-14. M116A2 Trailer with M894 18,000-BTU Air Conditioner and MEP-003A Generator
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
M116A2 Trailer with M894 18,000-BTU Air Conditioner and MEP-
2,620
10K
3/3
003A Generator
z
Materials. The following materials are required to rig this load:
„ Sling set (10,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Felt sheet, cattle hair, Type IV, 1/2-inch or suitable substitute.
z
Personnel. Two persons can prepare and rig this load in 15 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Secure all lids, doors, and caps with tape or Type III nylon cord.
─ Secure all chains, hoses, and cables with Type III nylon cord.
─ Engage both trailer parking brakes and ensure the front support leg is down.
„ Rigging. Rig the load according to the steps in Figure 3-14.
„ Hookup. The hookup team stands on top of the trailer. The static wand person discharges
the static electricity with the static wand. The hookup person places the apex fitting onto the
aircraft cargo hook. The hookup team then carefully dismounts the vehicle and remains close to
the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
3-24
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Trailers
RIGGING STEPS
1. Position apex fitting on top of the generator. Route outer sling legs 1 and 2 to the front of the
trailer (lunette end) and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on
the left side of the load.
2. Loop the chain end of sling leg 1 through the left front lift provision located on the front of the
trailer just outside the A-frame. Place the correct link from Table 3-14 in the grab hook.
Repeat with sling leg 2 through the right front lift provision.
3. Route the chain end of sling leg 3 through the left rear lift provision located on the rear of the
trailer frame. Place the correct link from Table 3-14 in the grab hook. Repeat with sling leg
4 through the right rear lift provision.
4. Cluster and tie (breakaway technique) all sling legs together on top of the trailer to prevent
entanglement during hookup and lift-off.

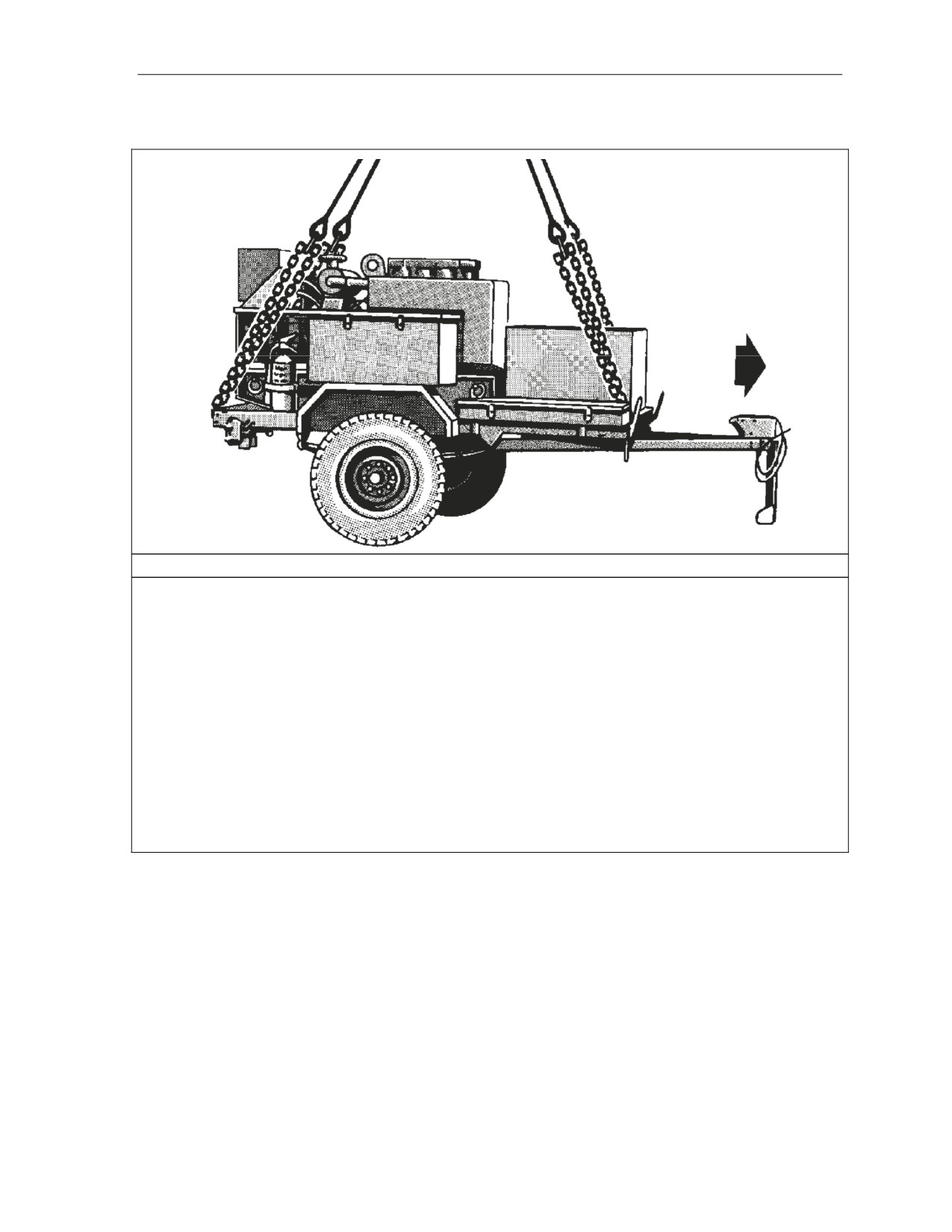

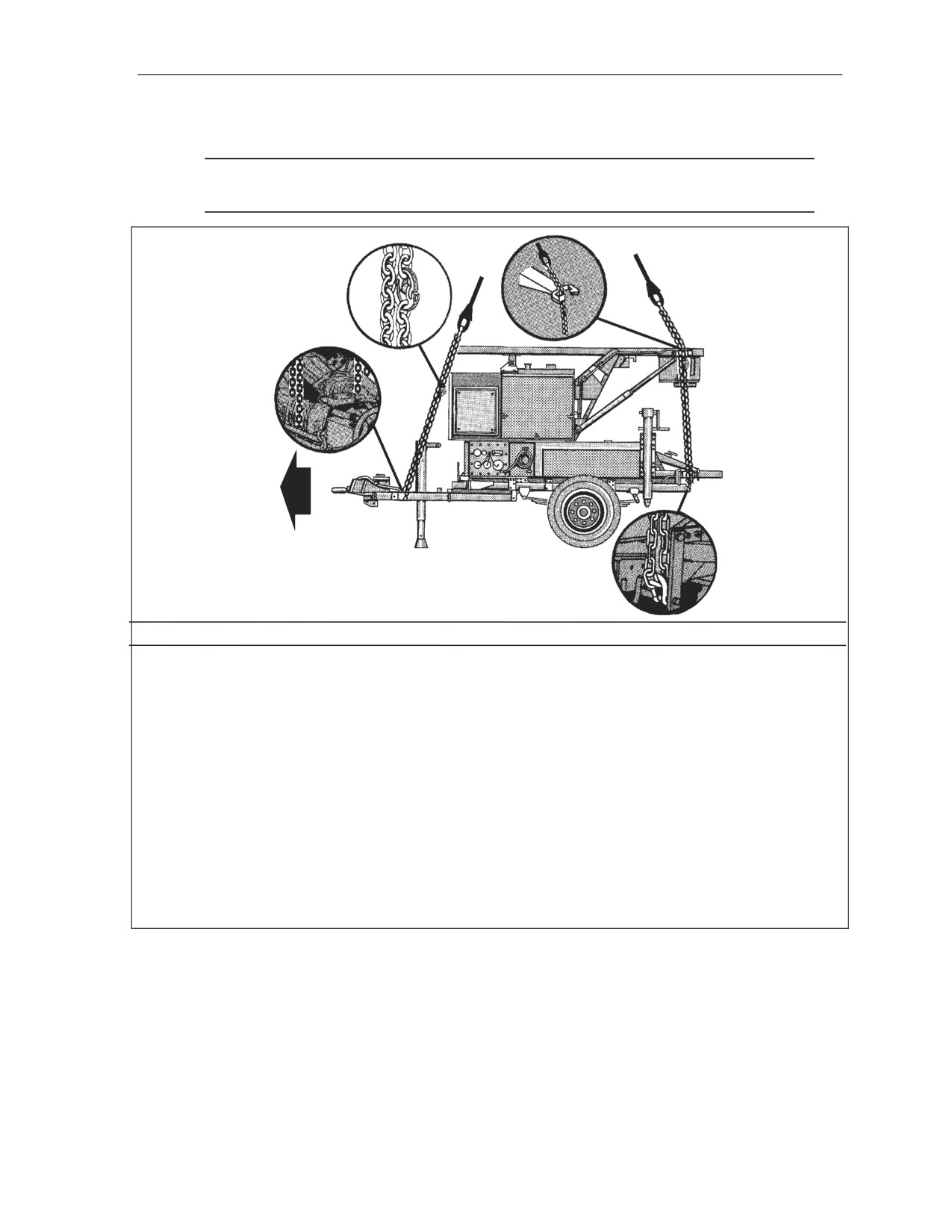

Figure 3-14. M116A2 Trailer with M894 18,000-BTU Air Conditioner and MEP-003A Generator
M116A2 TRAILER, SINGLE CHANNEL OBJECTIVE TACTICAL
TERMINAL (SCOTT)
3-16. The M116A2 trailer, single channel objective tactical terminal is rigged for single-point sling load
using the following procedures:
z
Applicability. The following item in Table 3-15 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
3-25
Chapter 3
Table 3-15. M116A2 Trailer, Single Channel Objective Tactical Terminal
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
M116A2 Trailer Single Channel Objective Tactical Terminal
2,830
10K
18/3
z
Materials. The following materials are required to rig this load:
„ Sling set (10,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Felt sheet, cattle hair, Type IV, 1/2-inch or suitable substitute.
„ Tie-down, cargo, CGU-1/B.
z
Personnel. Two persons can prepare and rig this load in 15 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Secure all cargo in the bed of the trailer with tie-down straps.
─ Remove and secure nylon tarps to upper trailer structure with tape or Type III nylon
cord.
─ Secure all chains, hoses, and cables to the drawbar with Type III nylon cord.
─ Engage both hand brakes.
„ Rigging. Rig the load according to the steps in Figure 3-15.
CAUTION
Brief the pilots to hover to the side of the trailer prior to jettisoning the
apex fitting during landing operations.
„ Hookup. The hookup team stands on the trailer chassis. The static wand person discharges
the static electricity with the static wand. The hookup person places the apex fitting onto the
aircraft cargo hook. The hookup team then carefully dismounts the vehicle and remains close to
the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
3-26
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Trailers
RIGGING STEPS
Note. This trailer will fly with the front end (trailer lunette) aft.
1.
Position apex fitting on top of the trailer. Route outer sling legs 1 and 2 to the front of the
trailer (lunette end) and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on
the left side of the load.
2.
Route sling leg 1 through the trailer canopy structure to the side of the trailer and through the
front left sling guide on the horizontal reflector support tube. Repeat with sling leg 2 and the
right front sling guide provision.
3.
Loop the chain end of sling leg 1 through the left front lift provision located on the front of the
trailer. Place the correct link from Table 3-15 in the grab hook. Repeat with sling leg 2
through the right front lift provision. Secure the excess chain with Type III nylon cord.
4.
Route sling leg 3 through the trailer canopy structure to the side of the trailer and through the
rear left sling guide on the horizontal reflector support tube. Repeat with sling leg 4 and the
right rear sling guide provision.
5.
Route the chain end of sling leg 3 through the left rear lift provision located on the rear of the
trailer. Place the correct link from Table 3-15 in the grab hook. Repeat with sling leg 4
through the right rear lift provision.
6.
Pad the chain and/or trailer support where there is chain contact.
7.
Cluster and tie (breakaway technique) all sling legs together on top of the roof to prevent
entanglement during hookup and lift-off.

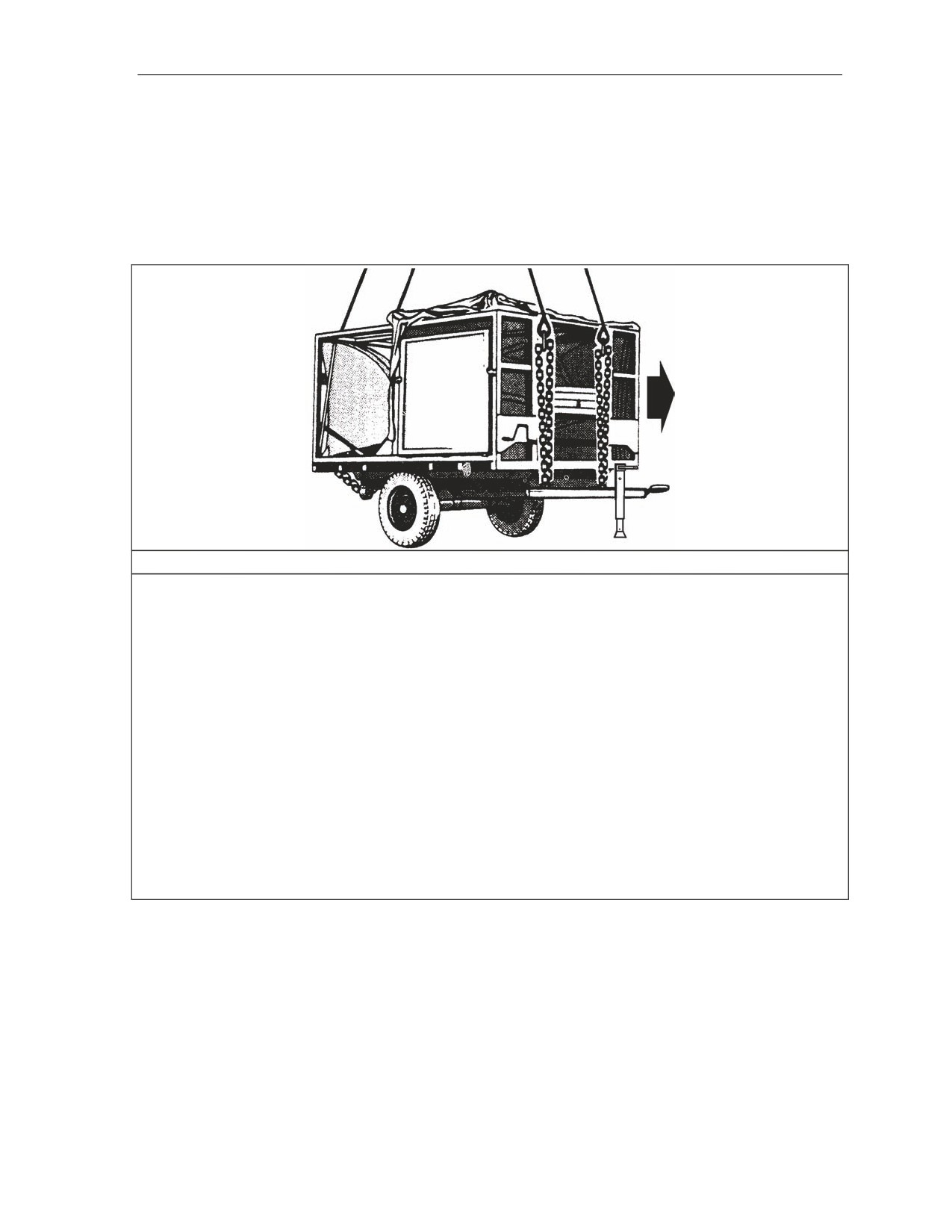

Figure 3-15. M116A2 Trailer, Single Channel Objective Tactical Terminal
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
3-27
Chapter 3
M116A3 TRAILER WITH OE334 ANTENNA COUPLER GROUP
3-17. The M116A3 trailer with OE334 antenna coupler group is rigged for single-point sling load using
the following procedures:
z
Applicability. The following item in Table 3-16 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center
Table 3-16. M116A3 Trailer with OE334 Antenna Coupler Group
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
M116A3 Trailer with OE334 Antenna Coupler Group
3,280
15K
3/15
z
Materials. The following materials are required to rig this load:
„ Multileg sling set (15,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Felt sheet, cattle hair, Type IV, 1/2-inch or suitable substitute.
z
Personnel. Two persons can prepare and rig this load in 15 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Lower and lock the rear landing leg in place.
─ Lower the front jack on the lunette as close to the ground as possible.
─ Secure the light cable to the top of the drawbar with Type III nylon cord.
─ Engage both parking brakes.
„ Rigging. Rig the load according to the steps in Figure 3-16.
„ Hookup. The hookup team stands next to the trailer. The static wand person discharges
the static electricity with the static wand. The hookup person places the apex fitting onto the
aircraft cargo hook. The hookup team remains close to the load as the helicopter removes slack
from the sling legs. When successful hookup is assured, the hookup team quickly exits the area
underneath the helicopter to the designated rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.

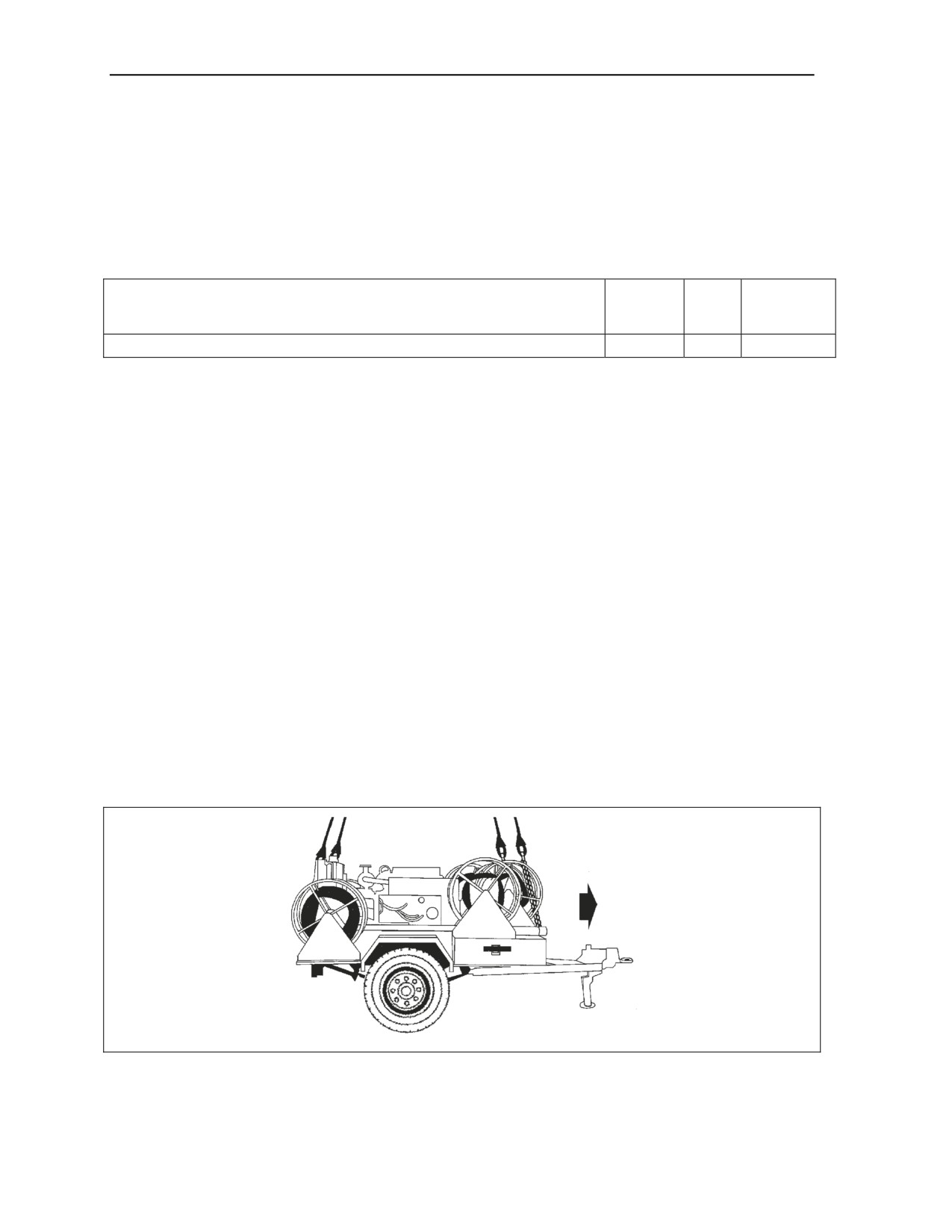

Figure 3-16. M116A3 Trailer with OE334 Antenna Coupler Group
3-28
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Trailers
RIGGING STEPS
1. Position apex fitting on top of the trailer. Route outer sling legs 1 and 2 to the front of the
trailer (lunette end) and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on
the left side of the load.
2. Pass the chain end of sling leg 1 through the right inner cable reel assembly at the front of
the trailer. Loop the chain end of sling leg 1 through the left front multipurpose provision
located on the front of the trailer. Place the correct link from Table 3-16 in the grab hook.
Repeat with sling leg 2 through the right multipurpose provision.
3. Route the chain end of sling leg 3 through the left rear multipurpose provision located on the
rear of the trailer. Place the correct link from Table 3-16 in the grab hook. Repeat with sling
leg 4 through the right rear multipurpose provision. Secure the excess chain with Type III
nylon cord.
4. Pad the front chains where the chains contact the generator and reels.
5. Cluster and tie (breakaway technique) all sling legs together to prevent entanglement during
hookup and lift-off.
Figure 3-16. M116A3 Trailer with OE334 Antenna Coupler Group (Continued)
M105A3 TRAILER
3-18. The M105A3 trailer is rigged for single-point sling load using the following procedures:
z
Applicability. The following item in Table 3-17 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 3-17. M105A3 Trailer
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
M105A3 Trailer (Empty)
2,600
10K
3/40
M105A3 Trailer (Loaded)
5,580
10K
3/40
z
Materials. The following materials are required to rig this load:
„ Sling set (10,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
z
Personnel. Two persons can prepare and rig this load in 10 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Raise the trailer's jack stand so the pintle is on the ground.
─ Engage the hand brakes.
─ Tape or tie the light cable, safety chains, and brake hose to the top of the drawbar.
„ Rigging. Rig the load according to the steps in Figure 3-17.
„ Hookup. The hookup team stands on the trailer bed. The static wand person discharges the
static electricity with the static wand. The hookup person places the apex fitting onto the
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
3-29
Chapter 3
aircraft cargo hook. The hookup team then carefully dismounts the vehicle and remains close to
the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
RIGGING STEPS
1. Position the apex fitting beside the trailer. Route outer sling legs 1 and 2 to the front of the
trailer (tailgate end) and inner sling legs 3 and 4 to the rear (lunette end). Sling legs 1 and 3
must be on the left side of the load.
2. Loop the chain end of sling leg 1 through the left front lift provision of the trailer. Place the
correct link from Table 3-17 in the grab hook. Repeat with sling leg 2 through the right front
lift provision.
3. Route the chain end of sling leg 3 through the left rear lift provision (lunette end). Place the
correct link from Table 3-17 in the grab hook. Repeat with sling leg 4 through the right rear
lift provision (lunette end). Secure excess chain with Type III nylon cord.
4. Cluster and tie (breakaway technique) all sling legs together on top of the trailer to prevent
entanglement during hookup and lift-off.

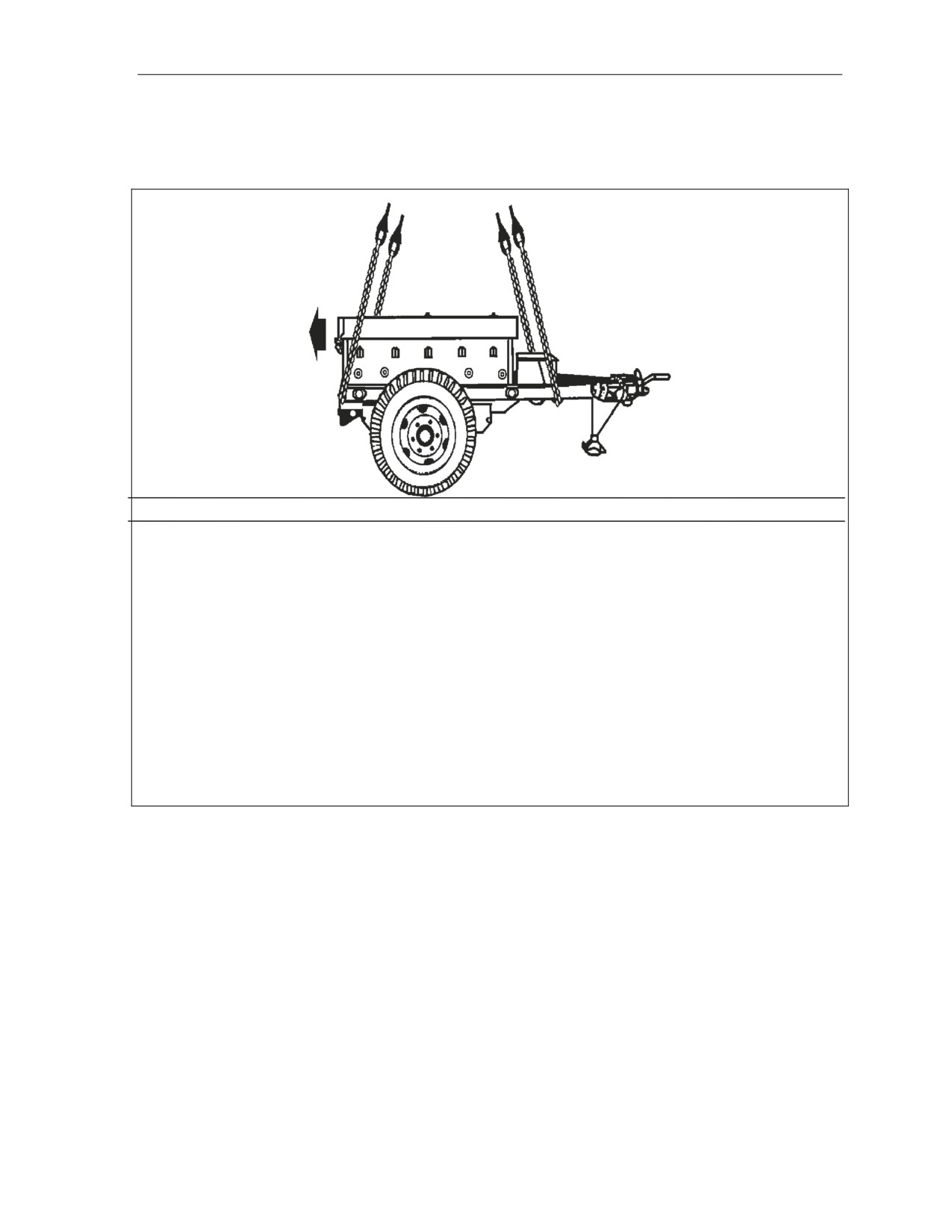

Figure 3-17. M105A3 Trailer
HIGH MOBILITY TRAILERS (HMT), M1101/M1102
3-19. The M1101/M1102 high mobility trailers are rigged for single-point sling load using the following
procedures:
z
Applicability. The following items in Table 3-18 are certified for all helicopters with suitable
lift capacity by the US Army Natick Soldier Center:
3-30
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Trailers
Table 3-18. M1101/M1102 High Mobility Trailers
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
High Mobility Trailer (Light), M1101
3,400
10K
20/3
High Mobility Trailer (Light), M1102
4,200
10K
20/3
Tactical Messaging System (TMS) Cargo Carrier, M1102
4,200
10K
20/3
z
Materials. The following materials are required to rig this load:
„ Sling set (10,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Felt sheet, cattle hair, Type IV, 1/2-inch or suitable substitute.
„ Tie-down, cargo, CGU-1/B or suitable tie-down lashings.
z
Personnel. Two persons can prepare and rig this load in 10 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Remove the two rear stabilizer legs from their storage location on the front of the trailer.
Place the lower support section in the fully retracted position. Install the stabilizer legs
on the rear of the trailer.
─ Install the front jack and lower the lunette as close to the ground as possible.
─ Remove the canvas cover and racks from the trailer. Place these items in the bed of the
trailer. Place the accompanying load on top of the canvas cover and secure with the
tie-down lashings.
─ Secure the light cable to the top of the drawbar with Type III nylon cord.
─ Engage the parking brake.
„ Rigging. Rig the load according to the steps in Figure 3-18.
„ Hookup. The hookup team stands on the drawbar or in the bed of the trailer (if possible).
The static wand person discharges the static electricity with the static wand. The hookup person
places the apex fitting onto the aircraft cargo hook. The hookup team then carefully dismounts
the trailer and remains close to the load as the helicopter removes slack from the sling legs.
When successful hookup is assured, the hookup team quickly exits the area underneath the
helicopter to the designated rendezvous point.
CAUTION
The hookup team should dismount the trailer towards the lunette to
keep the trailer from tipping towards the rear.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
3-31
Chapter 3
RIGGING STEPS
Note. This trailer will fly with the front end (trailer lunette) aft.
1. Position apex fitting on top of the trailer. Route outer sling legs 1 and 2 to the front of the
trailer (lunette end) and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on
the left side of the load.
2. Loop the chain end of sling leg 1 through the left front lift provision located on the front of the
trailer. Place the correct link from Table 3-18 in the grab hook. Repeat with sling leg 2
through the right side front lift provision. Secure the excess chain with Type III nylon cord.
3. Route the chain end of sling leg 3 through the left rear lift provision located on the rear of the
trailer. Place the correct link from Table 3-18 in the grab hook. Repeat with sling leg 4
through the right rear lift provision.
4. Pad the chain at and below where the chain contacts the trailer walls.
5. Cluster and tie (breakaway technique) all sling legs together on top of the roof to prevent
entanglement during hookup and lift-off.

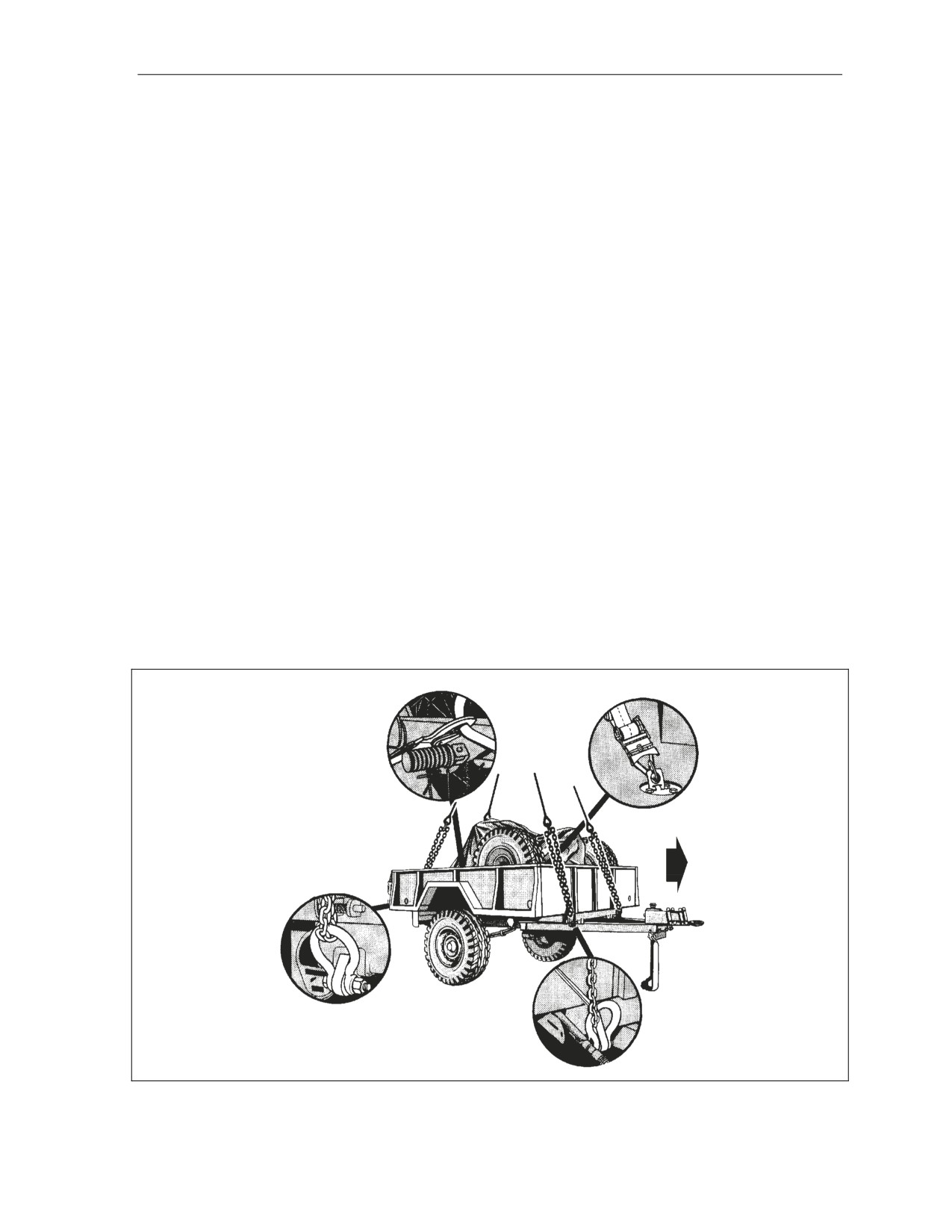

Figure 3-18. M1101/M1102 High Mobility Trailers
HMT TRAILER WITH SENTINEL AN/MPQ-64 ANTENNA
TRANSMITTER GROUP (ATG)
3-20. The HMT trailer with Sentinel AN/MPQ-64 antenna transmitter group is rigged for single-point
sling load using the following procedures:
z
Applicability. The following item in Table 3-19 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
3-32
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Trailers
Table 3-19. HMT Trailer with Sentinel AN/MPQ-64 Antenna Transmitter Group
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
Sentinel AN/MPQ-64 Antenna Transmitter Group
3,900
10K
3/20
z
Materials. The following materials are required to rig this load:
„ Sling set (10,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Plywood, 3/4-inch x 48-inches x 72-inches.
„ Reach pendant, 11K or 25K.
z
Personnel. Two persons can prepare and rig this load in 15 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Partially retract all landing legs. Secure in position and tie with Type III nylon cord.
─ Engage the hand brakes.
─ Tape or tie the light cable and brake hose to the top of the drawbar.
─ Secure all loose equipment, lids, and caps with tape or Type III nylon cord.
─ Cut pieces of plywood to cover the antenna boxes on top of the ATG. Drill holes in the
plywood where necessary to secure the plywood with Type III nylon cord. Ensure the
plywood is adequately secured.
─ Pad the slings where they make contact with the load.
„ Rigging. Rig the load according to the steps in Figure 3-19.
„ Hookup. The hookup team stands on the wheel well of the trailer. The static wand person
discharges the static electricity with the static wand. The hookup person places the apex fitting
onto the aircraft cargo hook. The hookup team then carefully dismounts the vehicle and remains
close to the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
CAUTION
Advise the air crew to hover to the side of the load before releasing the
apex to prevent damaging the load.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
3-33
Chapter 3
RIGGING STEPS
1. Attach a reach pendant to the apex fitting. Position the reach pendant and apex fitting on top
of the ATG. Route outer sling legs 1 and 2 to the front of the trailer and inner sling legs 3 and
4 to the rear. Sling legs 1 and 3 must be on the left side of the load.
2. Loop the chain end of sling leg 1 through the left front lift provision located on the front of the
trailer. Place the correct link from Table 3-19 in the grab hook. Repeat with sling leg 2
through the right front lift provision.
3. Cluster and tie (breakaway technique) sling legs 1 and 2 together at 3-foot intervals to
prevent entanglement during hookup and lift-off.
4. Route the chain end of sling leg 3 through the left rear lift provision. Place the correct link
from Table 3-19 in the grab hook. Repeat with sling leg 4 through the right rear lift provision.
Secure excess chain with Type III nylon cord.
5. Cluster and tie (breakaway technique) all sling legs together on top of the trailer to prevent
entanglement during hookup and lift-off.
Figure 3-19. HMT Trailer with Sentinel AN/MPQ-64 Antenna Transmitter Group
3-34
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Trailers
HMT TRAILER WITH REMOTE LANDING SITE TOWER (RLST)
3-21. The HMT Trailer with remote landing site tower is rigged for single-point sling load using the
following procedures:
z
Applicability. The following item in Table 3-20 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 3-20. HMT Trailer with Remote Landing Site Tower
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
HMT Trailer with Remote Landing Site Tower
3,600
15K
3/15
z
Materials. The following materials are required to rig this load:
„ Sling set (15,000-pound capacity).
─ Chain length, part number 34080-4, from 15,000-pound capacity sling sets (8 each).
─ Coupling link, part number 31611, from 15,000-pound capacity sling sets (8 each).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Felt sheet, cattle hair, Type IV, 1/2-inch or suitable padding
z
Personnel. Two persons can prepare and rig this load in 15 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Engage the hand brakes.
─ Secure loose fittings, wires, and cables with Type III nylon cord. Tape the trailer lights
and the cable on the spool.
─ Retract the jack wheel to the lowest position. Position the rear stabilizers in the highest
position.
─ Place the cover over the aft rack and secure the loose ends of the straps with tape.
─ Extend the sling leg chains by connecting two additional chain lengths to each chain
using the coupling links.
„ Rigging. Rig the load according to the steps in Figure 3-20.
„ Hookup. The hookup team stands beside the trailer. The static wand person discharges the
static electricity with the static wand. The hookup person places the apex fitting onto the
aircraft cargo hook. The hookup team then carefully dismounts the vehicle and remains close to
the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
CAUTION
Ensure the sling legs do not snag on the antenna or the pole at the
corner of the trailer.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
3-35
Chapter 3
RIGGING STEPS
1. Position the web ring beside the trailer. Route outer sling legs 1 and 2 to the aft of the trailer
and inner sling legs 3 and 4 to the front (lunette end). Sling legs 1 and 3 must be on the left
side of the load.
2. Loop the chain end of sling leg 1 through the left front lift provision of the trailer. Place the
correct link from Table 3-20 in the grab hook. Repeat with sling leg 2 through the right front
lift provision.
3. Route the chain end of sling leg 3 through the left rear lift provision (lunette end). Place the
correct link from Table 3-20 in the grab hook. Repeat with sling leg 4 through the right rear
lift provision (lunette end). Secure excess chain with Type III nylon cord.
4. Pad the sling legs or chains where they make contact with the load.
5. Cluster and tie (breakaway technique) all sling legs together on top of the trailer to prevent
entanglement during hookup and lift-off.
Figure 3-20. HMT Trailer with Remote Landing Site Tower
3-36
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Trailers
HMT TRAILER WITH LINE OF SIGHT ANTI-TANK (LOSAT)
RESUPPLY TRAILER
3-22. The LOSAT resupply trailer is rigged for single-point sling load using the following procedures:
z
Applicability. The following item in Table 3-21 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 3-21. LOSAT Resupply Trailer
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
Line of Site Anti-Tank Resupply Trailer with 8 Missiles and 4 Crew
4,230
10K
3/3
Doors from the LOSAT Vehicle
z
Materials. The following materials are required to rig this load:
„ Sling set (10,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Tie-down, cargo, CGU-1B or suitable tie-down lashings.
„ Felt sheet, cattle hair, Type IV, 1/2-inch or suitable padding
„ Webbing, tubular nylon, 1/2-inch.
z
Personnel. Two persons can prepare and rig this load in 20 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Engage the hand brakes.
─ Secure safety chains and brake hoses to the top of the drawbar with Type III nylon cord.
─ Secure all equipment with Type III nylon cord.
─ Place the four crew doors on the sides of the trailer and secure with CGU-1B tie-down
straps and 1/2-inch tubular nylon webbing.
„ Rigging. Rig the load according to the steps in Figure 3-21.
„ Hookup. The hookup team stands on top of the trailer. The static wand person discharges
the static electricity with the static wand. The hookup person places the apex fitting onto the
aircraft cargo hook. The hookup team then carefully dismounts the vehicle and remains close to
the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
3-37
Chapter 3
RIGGING STEPS
1. Position apex fitting on top of the trailer. Route outer sling legs 1 and 2 to the front of the
trailer (lunette end) and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on
the left side of the load.
2. Loop the chain end of sling leg 1 through the left front lift provision located on the front of the
trailer. Place the correct link from Table 3-21 in the grab hook. Repeat with sling leg 2
through the right side front lift provision.
3. Route the chain end of sling leg 3 through the left rear lift provision located on the rear of the
trailer. Place the correct link from Table 3-21 in the grab hook. Repeat with sling leg 4
through the right rear lift provision.
4. Pad the chain where the chain contacts the doors and missiles.
5. Cluster and tie (breakaway technique) all sling legs together on top of the roof to prevent
entanglement during hookup and lift-off.
Figure 3-21. LOSAT Resupply Trailer
3-38
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Trailers
MKT-90/MKT-95/MKT-99 FIELD KITCHEN TRAILER
3-23. The MKT-90/MKT-95/MKT-99 field kitchen trailers are rigged for single-point sling load using the
following procedures:
z
Applicability. The following items in Table 3-22 are certified for all helicopters with suitable
lift capacity by the US Army Natick Soldier Center:
Table 3-22. MKT-90/MKT-95/MKT-99 Field Kitchen Trailer
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
MKT-90
5,370
10K
3/11
MKT-95
6,731
10K
3/11
MKT-99
6,731
10k
3/11
Note. Only MKT-90 versions equipped with internal spreader bars (PIP No. 1-85-08-2802) may
be sling loaded. The data plate next to the item data plate must contain an etched helicopter.
z
Materials. The following materials are required to rig this load:
„ Sling set (10,000-pound capacity).
─ Chain length, part number 38850-00053-101, from a 10,000-pound capacity sling set (4
each).
─ Coupling link, part number 577-0615, from a 10,000-pound sling set (4 each).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Felt sheet, cattle hair, Type IV, 1/2-inch or suitable padding.
z
Personnel. Two persons can prepare and rig this load in 20 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Extend the sling leg chains by connecting one additional chain length to each chain on a
10,000-pound capacity sling set with coupling links.
─ Secure all items in their proper storage location before closing the unit.
─ Configure the MKT for ground transportation according to the operator's instructions.
─ Retract and stow all landing legs. Secure each landing leg with Type III nylon cord.
─ Lower the lunette as far as possible by adjusting the landing wheel hand screw. Do not
retract the landing wheel.
─ Secure all chains, hoses, and cables with Type III nylon cord to the trailer drawbar.
─ Engage both trailer parking brakes and ensure the front support leg is down.
─ Secure loose canvas with tape.
„ Rigging. Rig the load according to the steps in Figure 3-22.
„ Hookup. The hookup team stands on top of the trailer. The static wand person discharges
the static electricity with the static wand. The hookup person places the apex fitting onto the
cargo hook. The hookup team then carefully dismounts the trailer and remains close to the load
as the helicopter removes slack from the sling legs. When successful hookup is assured, the
hookup team quickly exits the area underneath the helicopter to the designated rendezvous
point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
3-39
Chapter 3
RIGGING STEPS
CAUTION
While on the roof of the trailer, stay in front of the trailer axle. Moving
behind the axle may cause the trailer to tip rearwards, causing
possible injury to personnel and damage to the load.
1. Position the apex fitting on the roof of the trailer. Route outer sling legs 1 and 2 to the front of
the trailer (lunette end) and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be
on the left side of the load.
2. Loop the chain end of sling leg 1 through the left front lift provision located in the trailer frame.
Place the correct link from Table 3-22 in the grab hook. Repeat with sling leg 2 through the
right front lift provision. The lift provisions are in the form of cutouts in the frame.
3. Loop the chain end of sling leg 3 through the left rear lift provision located on the rear of the
trailer frame. Place the correct link from Table 3-22 in the grab hook. Repeat with sling leg 4
through the right rear lift provision.
4. Secure all excess chain with tape or Type III nylon cord.
5. Pad each sling where it contacts the edge of the roof. Secure the padding with tape or Type
III nylon cord.
6. Cluster and tie or tape (breakaway technique) all sling legs together on top of the container to
prevent entanglement during hookup and lift-off.
Figure 3-22. MKT-90/MKT-95/MKT-99 Field Kitchen Trailer
3-40
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Trailers
HYDRAULIC SYSTEM TEST AND REPAIR UNIT (HSTRU)
3-24. The hydraulic system test and repair unit is rigged for single-point sling load using the following
procedures:
z
Applicability. The following item in Table 3-23 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 3-23. Hydraulic System Test and Repair Unit
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
Hydraulic Systems Test and Repair Unit
2,878
10K
16/3
z
Materials. The following materials are required to rig this load:
„ Sling set (10,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
z
Personnel. Two persons can prepare and rig this load in 15 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Safety tie the covers in the down position with Type III nylon cord.
─ Secure all chains, hoses, and cables with Type III nylon cord to the trailer drawbar.
─ Engage both trailer parking brakes and ensure the front support leg is down.
„ Rigging. Rig the load according to the steps in Figure 3-23.
„ Hookup. The hookup team stands on top of the HSTRU. The static wand person
discharges the static electricity with the static wand. The hookup person places the apex fitting
onto the aircraft cargo hook. The hookup team then carefully dismounts the vehicle and remains
close to the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
3-41
Chapter 3
RIGGING STEPS
1. Position apex fitting on top of the trailer roof. Route outer sling legs 1 and 2 to the front of the trailer
(lunette end) and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on the left side of the
load.
2. Loop the chain end of sling leg 1 through the left front lift provision located on the front of the HSTRU
roof. Place the correct link from Table 3-23 in the grab hook. Repeat with sling leg 2 through the right
front lift provision. Secure the excess chain with Type III nylon cord.
3. Route the chain end of sling leg 3 through the left rear lift provision located on the rear of the HSTRU
roof. Place the correct link from Table 3-23 in the grab hook. Repeat with sling leg 4 through the right
rear lift provision.
4. Cluster and tie (breakaway technique) all sling legs together on top of the roof to prevent entanglement
during hookup and lift-off.
Figure 3-23. Hydraulic System Test and Repair Unit
DESERT OPERATION TRAILER (DOT) WITH DESERT OPERATION
MOTORCYCLE (DOM)
3-25. The desert operation trailer with desert operation motorcycle is rigged for single-point sling load
using the following procedures:
z
Applicability. The following item in Table 3-24 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 3-24. Desert Operation Trailer with Desert Operation Motorcycle
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
Desert Operation Trailer with Desert Operation Motorcycle
3,300
10K
20/3
3-42
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Trailers
z
Materials. The following materials are required to rig this load:
„ Sling set (10,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Felt sheet, cattle hair, Type IV, 1/2-inch or suitable substitute.
„ Tie-down strap, cargo, CGU-1/B (4 each).
„ Canvas to cover the motorcycle.
z
Personnel. Two persons can prepare and rig this load in 15 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Secure the motorcycle to the trailer using standard mounting methods or using at least
four (4) CGU-1/B tie-down straps.
─ Secure the tailgate in the up position.
─ Secure all chains and hoses with tape or Type III nylon cord.
─ Engage the parking brake and place the front support leg in the down position.
─ Safety the spare tire with Type III nylon cord.
Pad the motorcycle handlebars and luggage rack with felt padding.
─ Cover the motorcycle with canvas and secure the canvas with Type III nylon cord.
„ Rigging. Rig the load according to the steps in Figure 3-24.
„ Hookup. The hookup team stands on the trailer fender or in the trailer bed. The static
wand person discharges the static electricity with the static wand. The hookup person places the
apex fitting onto the aircraft cargo hook. The hookup team remains close to the load as the
helicopter removes slack from the sling legs. When successful hookup is assured, the hookup
team quickly exits the area underneath the helicopter to the designated rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
Figure 3-24. Desert Operation Trailer with Desert Operation Motorcycle
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
3-43
Chapter 3
RIGGING STEPS
1. Position apex fitting on top of the motorcycle. Route outer sling legs 1 and 2 to the front of
the trailer (lunette end) and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be
on the left side of the load.
2. Loop the chain end of sling leg 1 through the left front lift provision located on the front of the
trailer. Place the correct link from Table 3-24 in the grab hook. Repeat with sling leg 2
through the right front lift provision. Secure the excess chain with Type III nylon cord.
3. Route the chain end of sling leg 3 over the tailgate and through the left rear lift provision
located on the rear of the trailer. Place the correct link from Table 3-24 in the grab hook.
Repeat with sling leg 4 through the right rear lift provision.
4. Secure the excess chain taut to the sidewall with Type III nylon cord.
5. Cluster and tie (breakaway technique) all sling legs together on top of the motorcycle to
prevent entanglement during hookup and lift-off.
Figure 3-24. Desert Operation Trailer with Desert Operation Motorcycle (Continued)
M332 AMMUNITION TRAILER, 1 1/2-TON
3-26. The M332, 1 1/2-ton ammunition trailer is rigged for single-point sling load using the following
procedures:
z
Applicability. The following item in Table 3-25 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 3-25. M332, 1 1/2-Ton Ammunition Trailer
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
M332 Ammunition Trailer, 1 ½-Ton
5,780
10K
10/3
z
Materials. The following materials are required to rig this load:
„ Sling set (10,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
z
Personnel. Two persons can prepare and rig this load in 15 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Secure all loose items, lids, and caps with tape or Type III nylon cord.
─ Engage the hand brakes.
─ Tape or tie the light cable, safety chains, and brake hose to the top of the drawbar.
─ Place the telescoping leg in the down position.
„ Rigging. Rig the load according to the steps in Figure 3-25.
„ Hookup. The hookup team stands on the trailer bed. The static wand person discharges the
static electricity with the static wand. The hookup person places the apex fitting onto the
aircraft cargo hook. The hookup team then carefully dismounts the vehicle and remains close to
the load as the helicopter removes slack from the sling legs. When successful hookup is
3-44
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Trailers
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
RIGGING STEPS
1. Position the apex fitting in the trailer bed. Route outer sling legs 1 and 2 to the front of the
trailer (lunette end) and inner sling legs 3 and 4 to the rear (tailgate end). Sling legs 1 and 3
must be on the left side of the load.
2. Loop the chain end of sling leg 1 through the left front lift provision located on the left side of
the A-frame drawbar. Place the correct link from Table 3-25 in the grab hook. Repeat with
sling leg 2 through the right front lift provision. Secure excess chain with tape or Type III
nylon cord.
3. Route the chain end of sling leg 3 through the left rear lift provision (tailgate end). Place the
correct link from Table 3-25 in the grab hook. Repeat with sling leg 4 through the right rear
lift provision.
4. Cluster and tie or tape (breakaway technique) all sling legs together on top of the trailer to
prevent entanglement during hookup and lift-off.
Figure 3-25. M332, 1 1/2-Ton Ammunition Trailer
AS-4492/TSC, LIGHTWEIGHT, HIGH GAIN, X-BAND ANTENNA
(LHGXA) TRAILER
3-27. The AS-4492/TSC, lightweight, high gain, X-band antenna trailer is rigged for single-point sling
load using the following procedures:
z
Applicability. The following item in Table 3-26 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
3-45
Chapter 3
Table 3-26. AS-4492/TSC, Lightweight, High Gain, X-band Antenna Trailer
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
AS-4492/TSC, Lightweight, High Gain, X-Band Antenna Trailer
3,820
10K
60/10
WARNING
DO NOT SLING LOAD THE LHGXA IN THE DUAL POINT
CONFIGURATION AS STRUCTURAL DAMAGE MAY OCCUR TO
THE LOAD.
z
Materials. The following materials are required to rig this load:
„ Sling set (10,000-pound capacity).
„ Additional apex fitting (10,000-pound capacity).
„ Polyester round sling, green, 17-foot (4,200-pound capacity) used as a vertical pendant.
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Felt sheet, cattle hair, Type IV, 1/2-inch or suitable padding.
z
Personnel. Two persons can prepare and rig this load in 15 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Prepare the LHGXA for sling loading in accordance with the operator's manual.
─ Install the shackles and lift cables in accordance with the operator's manual.
─ Tape or tie the light cable to the top of the drawbar.
─ Fully retract the rear trailer jacks. Lower the tongue jack to the position nearest the
ground.
─ Engage the parking brake.
„ Rigging. Rig the load according to the steps in Figure 3-26.
„ Hookup. The hookup team stands beside the trailer. The static wand person discharges the
static electricity with the static wand. The hookup person places the apex fitting onto the
aircraft cargo hook. The hookup team remains close to the load as the helicopter removes slack
from the sling legs. When successful hookup is assured, the hookup team quickly exits the area
underneath the helicopter to the designated rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
3-46
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Trailers
RIGGING STEPS
Note. This load is flown with the lunette facing aft at an approximate 12 degree angle.
1. Position the apex fitting beside the trailer. Route outer sling legs 1 and 2 to the front (lunette
end) of the trailer and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on the
left side of the load.
2. Loop the chain end of sling leg 1 through the left front lift provision. Place the correct link from
Table 3-26 in the grab hook. Repeat with sling leg 2 through the right front lift provision.
Secure excess chain with Type III nylon cord.
3. Route the chain end of sling leg 3 through the left rear lift provision. Place the correct link
from Table 3-26 in the grab hook. Repeat with sling leg 4 through the right rear lift provision.
Secure excess chain with Type III nylon cord.
4. Pad each chain with felt padding. Secure the padding with tape.
5. Install a 17-foot polyester round sling on the bolt end of the apex fitting on the sling set. Tape
the eye of the sling to prevent the apex fitting from rotating through the eye.
6. Place the free end of the 17-foot polyester round sling on the bell portion of the additional
apex fitting. Tape the eye of the sling to prevent the apex fitting from rotating through the
eye.
7. Cluster and tie (breakaway technique) all sling legs together on top of the trailer to prevent
entanglement during hookup and lift-off.
Figure 3-26. AS-4492/TSC, Lightweight, High Gain, X-band Antenna Trailer
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
3-47















Content      ..     2      3      4      5     ..
