FM 4-20.198 Multiservice Helicopter Sling Load: Single-Point Load Rigging Procedures (February 2009) - page 3





Chapter 2
RIGGING STEPS

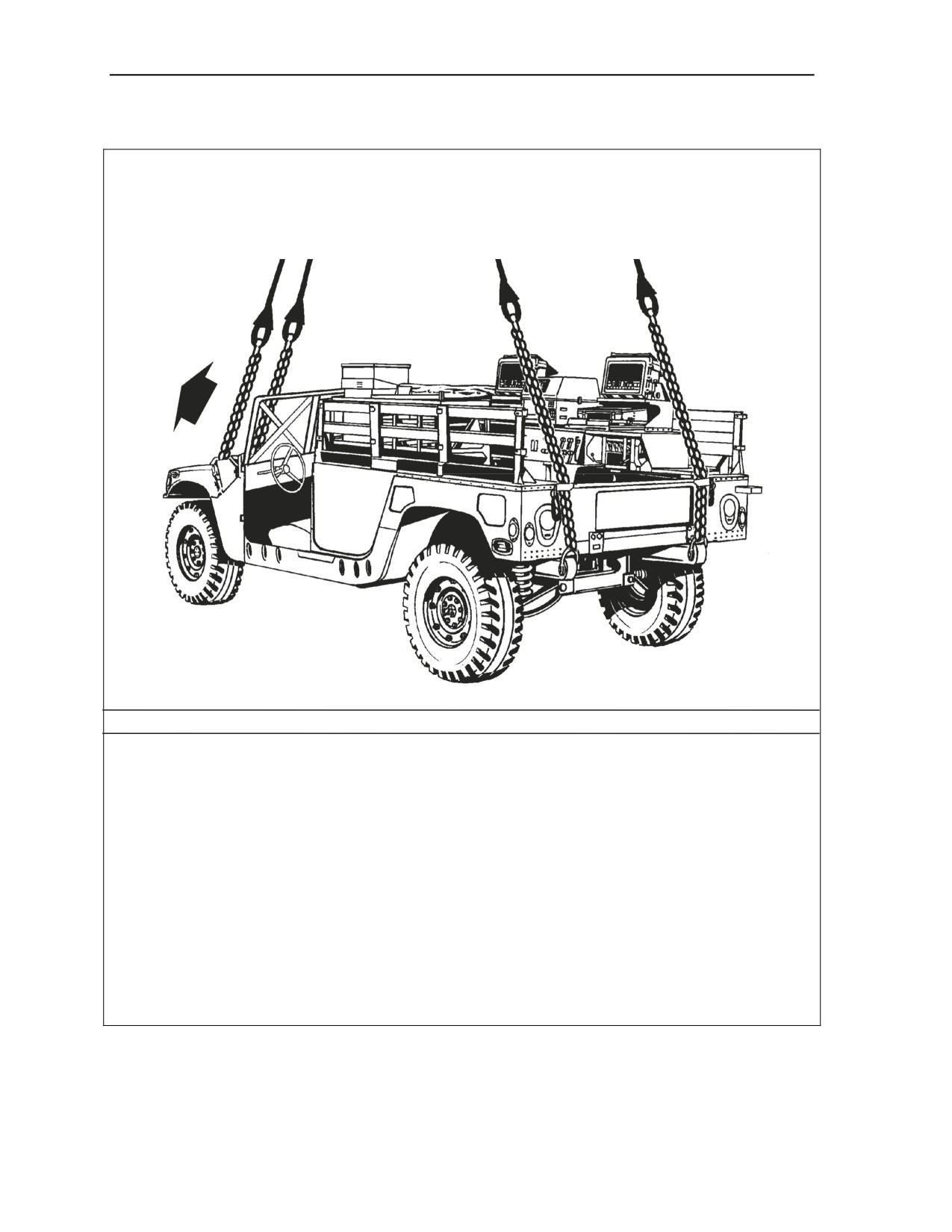

1. Position apex fitting on top of the truck. Route outer sling legs 1 and 2 to the front of the
vehicle and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on the left side of
the load.
2. Loop the chain end of sling leg 1 through the left front lift provision that protrudes through the
hood from inboard to outboard. Place the correct link from Table 2-27 in the grab hook.
Repeat with sling leg 2 and the right front lift provision. Secure excess chain with Type III
nylon cord.
3. Loop the chain end of sling leg 3 through the left rear lift provision located on the outer ends
of the rear bumper. Place the correct link from Table 2-27 in the grab hook. Repeat with
sling leg 4 and the right rear lift provision. Ensure sling leg 4 is routed between the
handholds on the right side of the system. Remove the slack from sling leg 4 and secure the
sling leg to the front handhold with Type I, 1/4-inch cotton webbing. Secure excess chain with
Type III nylon cord.
4. Cluster and tie (breakaway technique) all sling legs together on top of the vehicle to prevent
entanglement during hookup and lift-off.

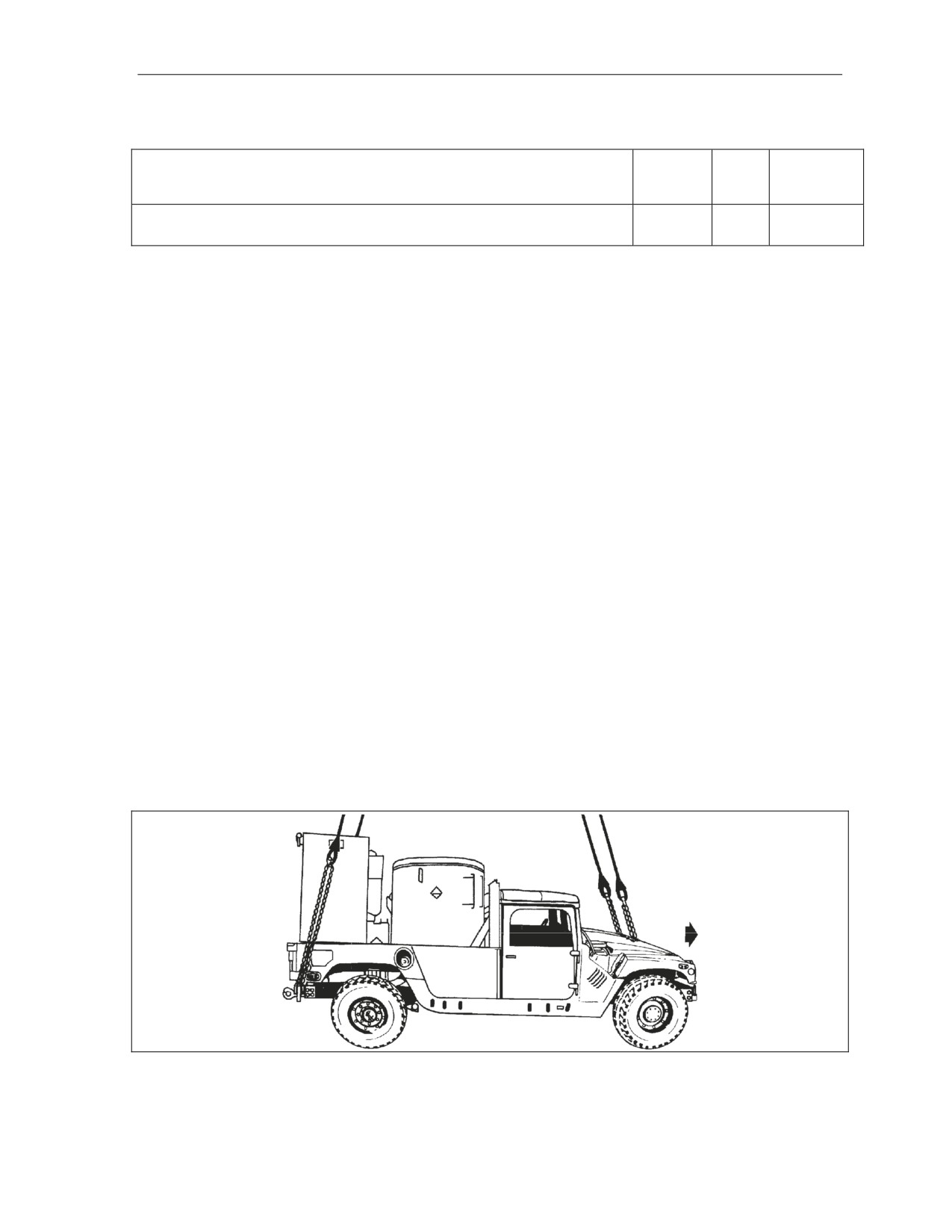

Figure 2-26. Trojan Spirit Lite (V)2 Central Communications AN/TSQ-226 (V)2 on M1113
2-62
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Wheeled Vehicles
AN/MRC-142B RADIO TERMINAL SET WITH 30M MAST ON M998
HMMWV
2-29. The AN/MRC-142B radio terminal set with 30M mast on M998 is rigged for single-point sling load
using the following procedures:
z
Applicability. The following item in Table 2-28 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 2-28. AN/MRC-142B Radio Terminal Set with 30M Mast on M998
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
AN/MRC-142B Radio Terminal Set with 30 Meter Mast on M998
7,500
15K
50/3
z
Materials. The following materials are required to rig this load:
„ Sling set (15,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
z
Personnel. Two persons can prepare and rig this load in 20 minutes.
z
Procedures. The following procedures apply to this load:
„
Preparation. Prepare the load using the following steps:
─ Fold the mirrors inward for added protection and tie together with Type III nylon cord.
─ Remove the canvas cover and doors. Secure the canvas and doors inside the vehicle with
tape, Type III nylon cord, or tiedown straps.
─ Secure all equipment and cargo inside the vehicle cab with tape, Type III nylon cord, or
tiedown straps.
─ Ensure the fuel tank is not over 3/4 full. Inspect fuel tank cap, oil filler cap, and battery
caps for proper installation.
─ Engage the vehicle parking brake and put the transmission in neutral.
─ Ensure the front wheels are pointed straight ahead. Tie down the steering wheel, using
the securing device attached under the dashboard or type III nylon cord.
─ Stow and secure the Shore Mounted Accessory Kit (SMAK) antenna mast. Install the
mast cover and secure with tape.
─ Rotate the antenna array dishes 180 degrees from the normal stowage position; so the
curved sides are facing out.
─ Ensure the offset adapters are stowed and secured.
─ Ensure the left and right SMAK antenna arrays are secured in the normal stowage
position.
─ Secure the power amplifier case in the normal stowage location over right rear wheel
well.
─ Secure the cables on the spools on the left rear wheel well.
─ Secure the universal power supply in normal stowage location between the front seats.
─ Stow and secure radio equipment.
─ Secure the rear roof bow in the rear most position to the SMAK antenna mast with Type
III nylon cord.
Tape the windshield in an X formation from corner to corner.
„
Rigging. Rig the load according to the steps in Figure 2-27.
„
Hookup. The hookup team stands in the bed of the vehicle. The static wand person
discharges the static electricity with the static wand. The hookup person places the apex fitting
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
2-63
Chapter 2
on the cargo hook. The hookup team then carefully dismounts the vehicle and remains close to
the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
RIGGING STEPS
1. Position apex fitting on top of the SMAK antenna mast. Route outer sling legs 1 and 2 to the
front of the vehicle and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on the
left side of the load.
2. Loop the chain end of sling leg 1 through the left front lift provision that protrudes through the
hood from inboard to outboard. Place the correct link from Table 2-28 in the grab hook.
Repeat with sling leg 2 and the right front lift provision. Secure excess chain with Type III
nylon cord.
3. Route the chain end of sling leg 3 under the rear roof bow and through the eyelet opening in
the upper left corner of the tailgate. Loop the chain end through the left lift provision on the
bumper and thread back through the eyelet opening in the tailgate. Place the correct link
from Table 2-28 in the grab hook. Repeat with sling leg 4 and the right rear lift provision.
4. Cluster and tie (breakaway technique) all sling legs together on top of the vehicle to prevent
entanglement during hookup and lift-off.

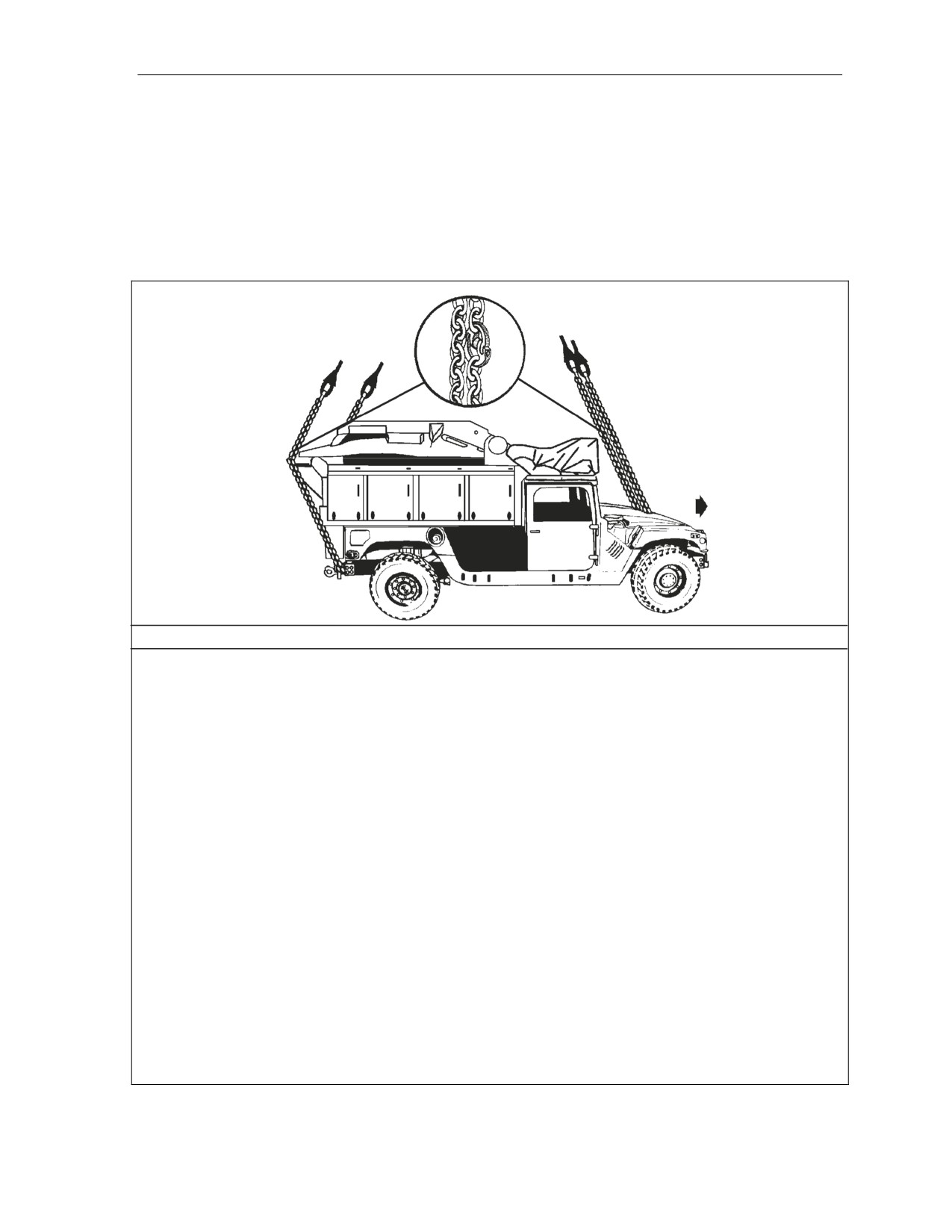

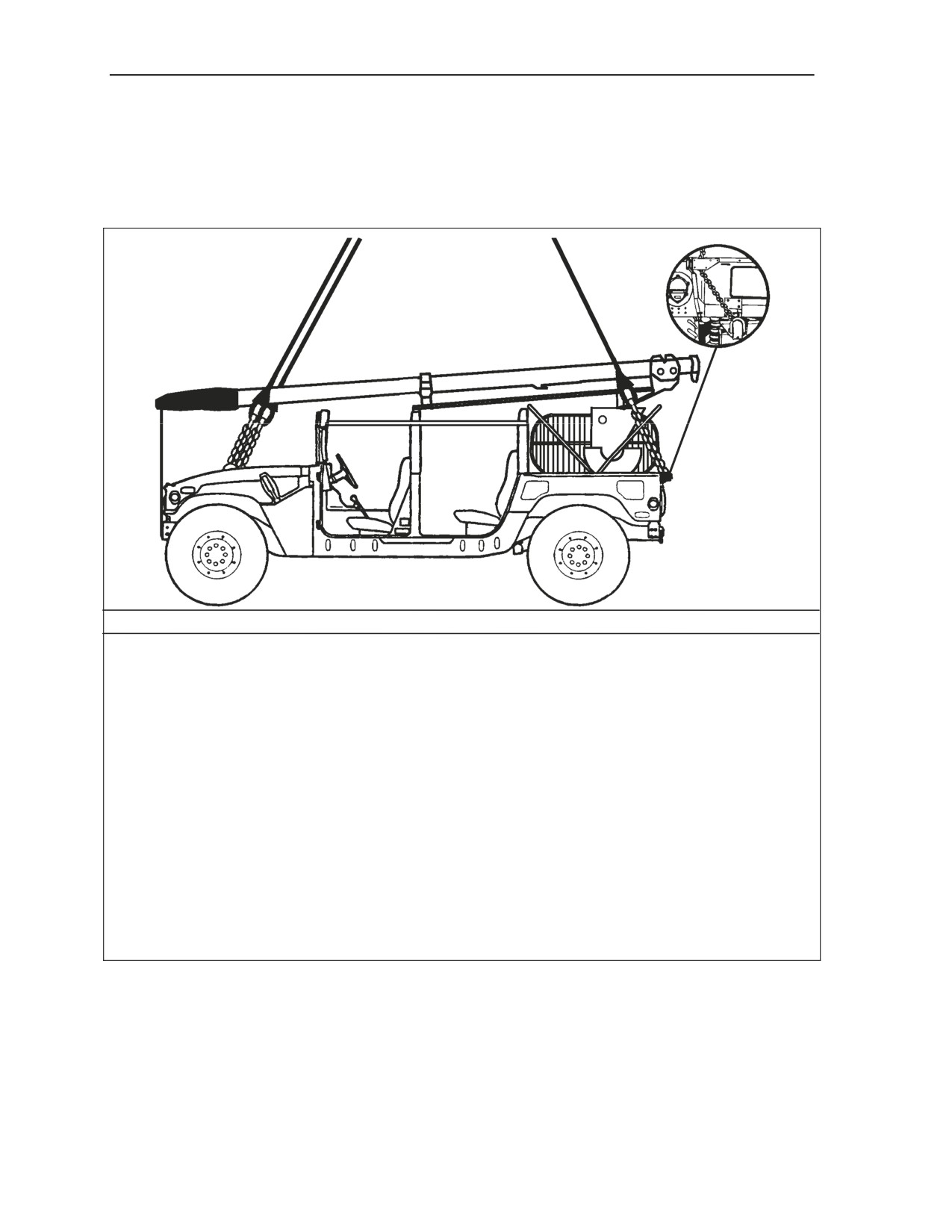

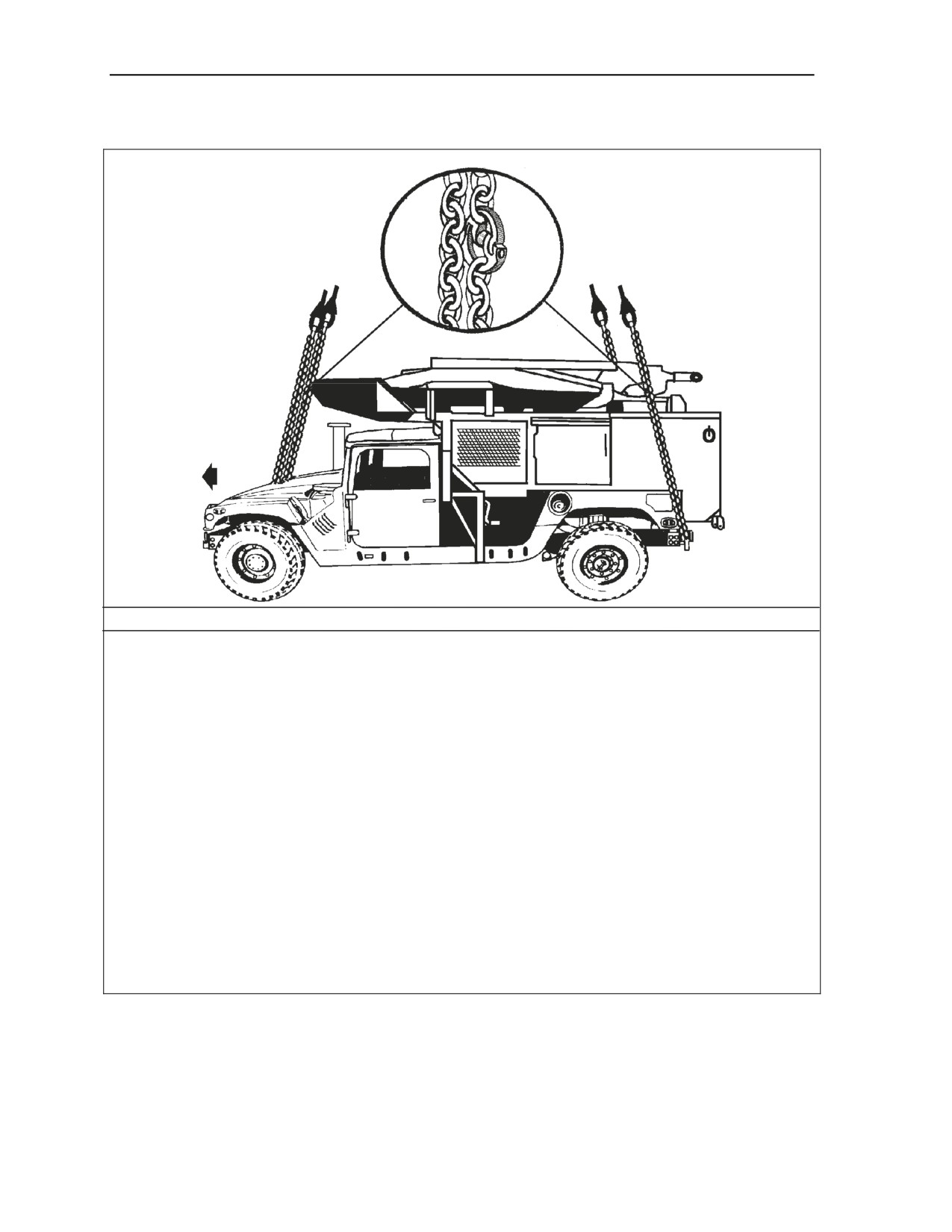

Figure 2-27. AN/MRC-142B Radio Terminal Set with 30M Mast on M998
2-64
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Wheeled Vehicles
M998 (HMMWV) WITH TWO MRC-127 STACKS
2-30. The M998 with two MRC-127 stacks is rigged for single-point sling load using the following
procedures:
z
Applicability. The following item in Table 2-29 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 2-29. M998 with Two MRC-127 Stacks
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
M998 with Two MRC-127 Stacks
8,010
10K
80/3
z
Materials. The following materials are required to rig this load:
„ Sling set (10,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Felt sheet, cattle hair, Type IV, 1/2-inch or suitable padding.
z
Personnel. Two persons can prepare and rig this load in 20 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Fold mirrors forward in front of the windshield for added protection and tie together with
Type III nylon cord. If installed, remove canvas covering over the bed of the truck.
Remove the doors. Tape the windshield in an X formation from corner to corner. If
time permits, fold canvas top and tie to windshield for added protection.
─ Secure all equipment and cargo inside the vehicle with tape, nylon cord, or lashings.
Remove antennas and stow inside vehicle.
─ Ensure the fuel tank is not over 3/4 full. Inspect fuel tank cap, oil filler cap, and battery
caps for proper installation.
─ Engage the vehicle parking brake and put the transmission in neutral.
─ Ensure the front wheels are pointed straight ahead. Tie down the steering wheel, using
the securing device attached under the dashboard.
„ Rigging. Rig the load according to the steps in Figure 2-28.
„ Hookup. The hookup team stands in the bed of the vehicle. The static wand person
discharges the static electricity with the static wand. The hookup person places the apex fitting
onto the aircraft cargo hook. The hookup team then carefully dismounts the vehicle and remains
close to the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
2-65
Chapter 2
RIGGING STEPS
1. Position apex fitting in the bed of the vehicle. Route outer sling legs 1 and 2 to the front of
the vehicle and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on the left
side of the load.
2. Loop the chain end of sling leg 1 through the left front lift provision that protrudes through the
hood. Place the correct link from Table 2-29 in the grab hook. Repeat with sling leg 2 and
the right front lift provision. Secure excess chain with Type III nylon cord.
3. Route the chain end of sling leg 3 through the eyelet opening in the upper left corner of the
tailgate. Loop the chain end through the left lift provision on the bumper and thread back
through the eyelet opening in the tailgate. Place the correct link from Table 2-29 in the grab
hook. Repeat with sling leg 4 and the right rear lift provision.
4. Cluster and tie (breakaway technique) all sling legs together on top of the vehicle to prevent
entanglement during hookup and lift-off.

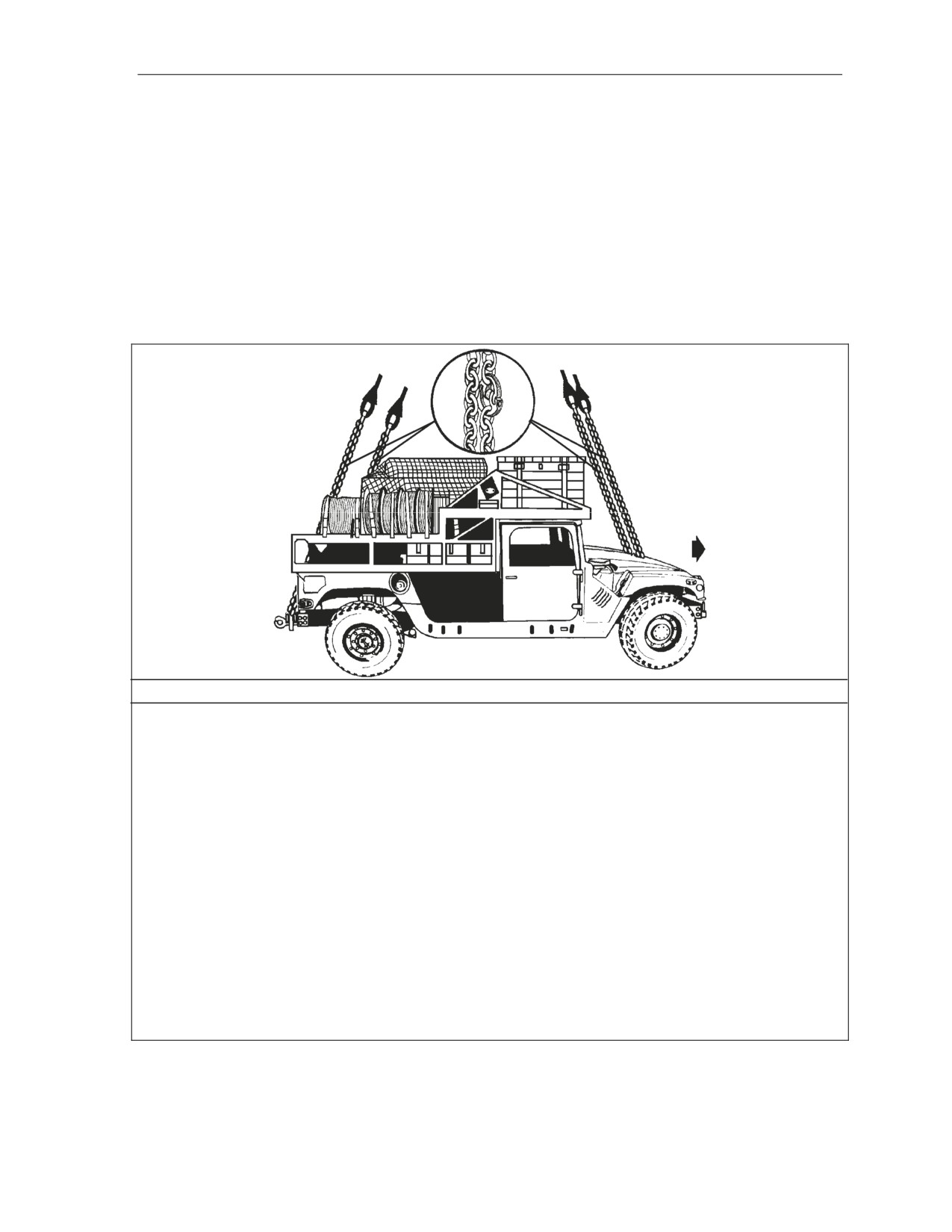

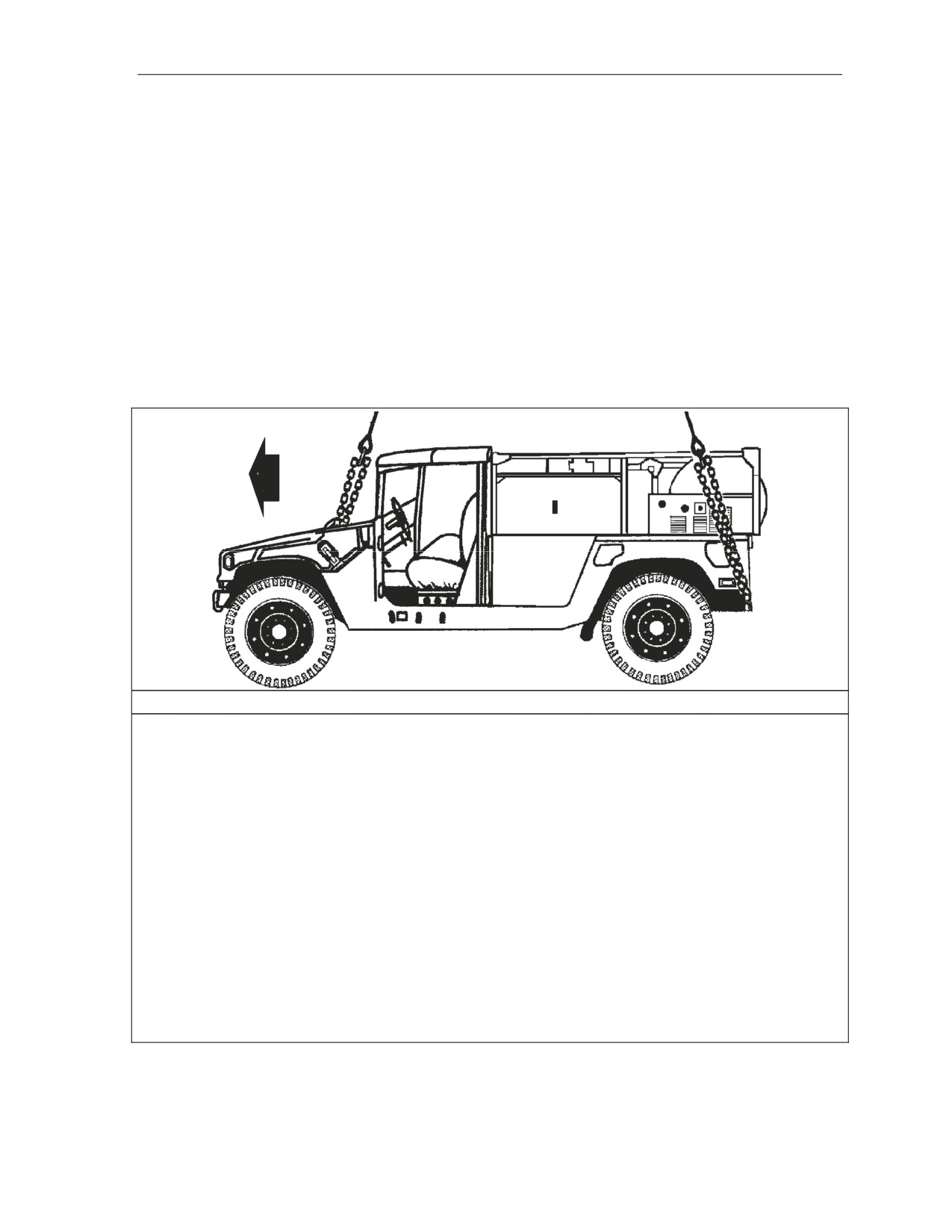

Figure 2-28. M998 with Two MRC-127 Stacks
M998/M1038 (HMMWV) WITH LIGHTWEIGHT TACTICAL FIRE
CONTROL SYSTEMS (LTACFIRE)/TACTICAL TERMINAL
CONTROL SYSTEM (TTCS)
2-31. The M998/M1038 with Lightweight Tactical Fire Control Systems (LTACFIRE)/Tactical Terminal
Control System (TTCS) is rigged for single-point sling load using the following procedures:
z
Applicability. The following item in Table 2-30 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
2-66
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Wheeled Vehicles
Table 2-30. M998/M1038 with LTACFIRE or TTCS
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
LTACFIRE, Single Station
5,927
10K
80/43
LTACFIRE, Dual Station
6,215
10K
80/45
AN/TSQ-198 TTCS
6,015
10K
80/3
z
Materials. The following materials are required to rig this load:
„ Sling set (10,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Felt sheet, cattle hair, Type IV, 1/2-inch or suitable padding.
z
Personnel. Two persons can prepare and rig this load in 20 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Fold mirrors forward in front of the windshield for added protection and tie together with
Type III nylon cord. Remove the canvas cab top and the doors. Fold the canvas top
and stow securely inside the driver's compartment sandwiched between the doors.
─ Secure all equipment and cargo inside the vehicle with tape, nylon cord, or lashings.
─ Ensure the fuel tank is not over 3/4 full. Inspect fuel tank cap, oil filler cap, and battery
caps for proper installation.
─ Engage the vehicle parking brake and put the transmission in neutral.
─ Ensure the front wheels are pointed straight ahead. Tie down the steering wheel, using
the securing device attached under the dashboard.
─ Tape the windshield in an X formation from corner to corner.
„ Rigging. Rig the load according to the steps in Figure 2-29.
„ Hookup. The hookup team stands in the bed of the vehicle. The static wand person
discharges the static electricity with the static wand. The hookup person places the apex fitting
onto the aircraft cargo hook. The hookup team then carefully dismounts the vehicle and remains
close to the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
2-67
Chapter 2
RIGGING STEPS
1. Position apex fitting in the bed of the vehicle. Route outer sling legs 1 and 2 to the front of
the vehicle and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on the left
side of the load.
2. Loop the chain end of sling leg 1 through the left front lift provision that protrudes through the
hood. Place the correct link from Table 2-30 in the grab hook. Repeat with sling leg 2 and
the right front lift provision. Secure excess chain with Type III nylon cord.
3. Route the chain end of sling leg 3 through the eyelet opening in the upper left corner of the
tailgate. Loop the chain end through the left lift provision on the bumper and thread back
through the eyelet opening in the tailgate. Place the correct link from Table 2-30 in the grab
hook. Repeat with sling leg 4 and the right rear lift provision.
4. Cluster and tie (breakaway technique) all sling legs together on top of the vehicle to prevent
entanglement during hookup and lift-off.
Figure 2-29. M998/M1038 with LTACFIRE or TTCS
2-68
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Wheeled Vehicles
M1097A2 (HMMWV) SOFT TOP TRUCK WITH ADVANCED FIELD
ARTILLERY TACTICAL DATA SYSTEMS (AFATADS)
2-32. The M1097A2 soft top truck with Advanced Field Artillery Tactical Data Systems is rigged for
single-point sling load using the following procedures:
z
Applicability. The following item in Table 2-31 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 2-31. M1097A2 Soft Top Truck with Advanced Field Artillery Tactical Data Systems
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
System 2: CHS-2 AN/GYG-3(V)1, with SINCGARS AN/VRC-90,
8,103
10K
50/3
AN/VRC-92, and EPLRS installed in the bed. AN/VRC-92 installed in
cab.
System 3: CHS-2 AN/GYG-3(V)3, with SINCGARS AN/VRC-90,
8,366
10K
50/3
AN/VRC-92, and EPLRS installed in the bed. AN/VRC-92 installed in
cab.
System 4: 2 each AN/GYK-37(V)2, with SINCGARS AN/VRC-89,
7,790
10K
50/3
AN/VRC-92, and EPLRS
z
Materials. The following materials are required to rig this load:
„ Sling set (10,000-pound capacity).
─ Chain length, part number 38850-00053-101, from a 10,000-pound capacity sling set
(4 each).
─ Coupling link, part number 577-0415, from a 10,000-pound capacity sling set (4 each).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Padding, cellulose.
z
Personnel. Two persons can prepare and rig this load in 10 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Fold mirrors forward in front of the windshield for added protection and tie together with
Type III nylon cord.
─ Secure all equipment and cargo inside the vehicle with tape, nylon cord, or lashings.
Remove and secure the doors in the cab of the vehicle.
─ Ensure the fuel tank is not over 3/4 full. Inspect fuel tank cap, oil filler cap, and battery
caps for proper installation.
─ Engage the vehicle parking brake and put the transmission in neutral.
─ Ensure the front wheels are pointed straight ahead. Tie down the steering wheel, using
the securing device attached under the dashboard.
─ Extend the sling leg chains by connecting one additional chain length to each chain using
the coupling links.
„ Rigging. Rig the load according to the steps in Figure 2-30.
„ Hookup. The hookup team stands in the bed of the vehicle. The static wand person
discharges the static electricity with the static wand. The hookup person places the apex fitting
onto the aircraft cargo hook. The hookup team then carefully dismounts the vehicle and remains
close to the load as the helicopter removes slack from the sling legs. When successful hookup is
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
2-69
Chapter 2
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
RIGGING STEPS

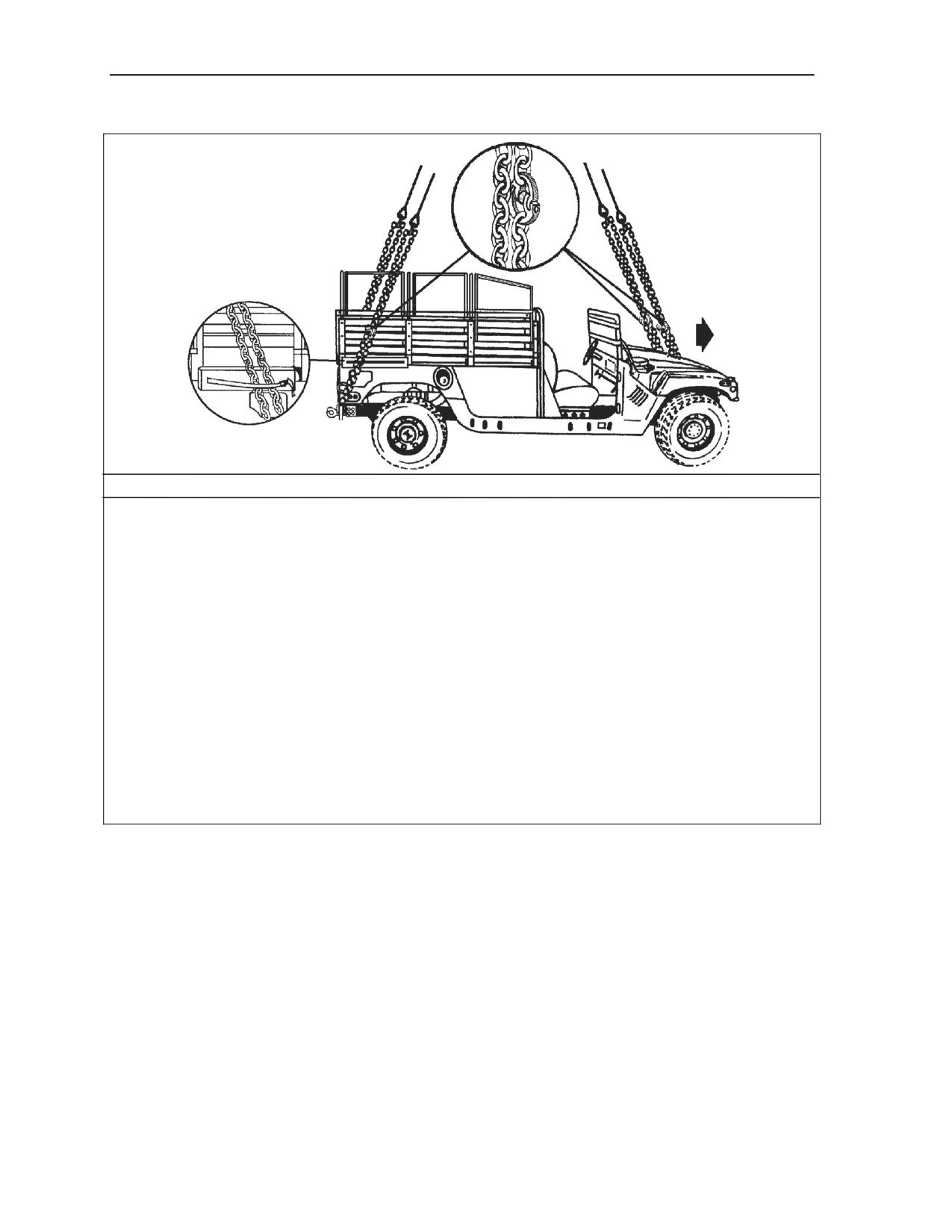

1. Position the apex fitting on top of the shelter. Route outer sling legs 1 and 2 to the front of
the vehicle and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on the left
side of the load.
2. Loop the chain end of sling leg 1 through the left front lift provision that protrudes through the
hood from inboard to outboard. Place the correct link from Table 2-31 in the grab hook.
Repeat with sling leg 2 and the right front lift provision. Secure excess chain with Type III
nylon cord.
3. Route the chain end of sling leg 3 through the lift provision located on the left end of the rear
bumper from inboard to outboard. Place the correct link from Table 2-31 in the grab hook.
Repeat with sling leg 4 and the right rear lift provision.
4. Cluster and tie (breakaway technique) all sling legs together on top of the shelter to prevent
entanglement during hookup and lift-off.
Figure 2-30. M998/M1038 with LTACFIRE or TTCS
M1097A2 (HMMWV) WITH ADVANCED FIELD ARTILLERY
TACTICAL DATA SYSTEM (AFATDS) FULL SIZE SOFT TOP
INSTALLATION KIT (STIK)
2-33. The M1097A2 with Advanced Field Artillery Tactical Data System Full Size Soft Top Installation
Kit is rigged for single-point sling load using the following procedures:
z
Applicability. The following item in Table 2-32 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
2-70
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Wheeled Vehicles
Table 2-32. M1097A2 with Advanced Field Artillery Tactical Data System Full Size Soft Top
Installation Kit
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
System 2: CHS-2 AN/GYG-3(V)1, with SINCGARS AN/VRC-90,
8,103
10K
50/3
AN/VRC-92, and EPLRS installed in the bed. AN/VRC-92 installed in
cab.
System 3: CHS-2 AN/GYG-3(V)3, with SINCGARS AN/VRC-90,
8,366
10K
50/3
AN/VRC-92, and EPLRS installed in the bed. AN/VRC-92 installed in
cab.
System 4: 2 each AN/GYK-37(V)2, with SINCGARS AN/VRC-89,
7,790
10K
50/3
AN/VRC-92, and EPLRS
z
Materials. The following materials are required to rig this load:
„ Sling set (10,000-pound capacity).
─ Chain length, part number 38850-00053-101, from a 10,000-pound capacity sling set (4
each).
─ Coupling link, NSN 4010-01-231-3388, from a 10,000-pound sling set (4 each).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Strap, cargo, tiedown, CGU-1/B (2 each).
„ Sling guides (included as part of the HMMWV STIK) (2 each).
z
Personnel. Two persons can prepare and rig the M1097A2 HMMWV in 15 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Fold mirrors inward and tie together with Type III nylon cord. Remove the doors and
secure to the seats with Type III nylon cord.
─ Secure all equipment and cargo inside the truck and trailer with tiedown straps, tape, or
Type III nylon cord.
─ Ensure the fuel tank is not over 3/4 full. Inspect the fuel tank cap, oil filler cap, and
battery caps for proper installation.
─ Engage the vehicle parking brake and put the transmission in neutral.
─ Ensure the front wheels are pointed straight ahead. Tie down the steering wheel, using
the securing device attached under the dashboard.
─ Connect one additional chain length to each chain on each sling set with a coupling link.
─ Ensure the STIK sling guides are properly installed.
„ Rigging. Rig the load according to the steps in Figure 2-31.
„ Hookup. The hookup team stands on top of the vehicle. The static wand person discharges
the static electricity with the static wand. The hookup person places the apex fitting onto the
aircraft cargo hook. The hookup team then carefully dismounts the vehicle and remains close to
the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
2-71
Chapter 2
RIGGING STEPS
1. Position apex fitting on top of the truck. Route outer sling legs 1 and 2 to the front of the
vehicle and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on the left side of
the load.
2. Loop the chain end of sling leg 1 through the left front lift provision that protrudes through the
hood from inboard to outboard. Place the correct link from Table 2-32 in the grab hook.
Repeat with sling leg 2 and the right front lift provision. Secure excess chain with Type III
nylon cord.
3. Loop the chain end of sling leg 3 through the left sling guide, through the left rear lift provision
located on the outer ends of the rear bumper, and back through the left sling guide. Place
the correct link from Table 2-32 in the grab hook. Repeat with sling leg 4 and the right sling
guide and right rear lift provision. Secure excess chain with Type III nylon cord.
4. Cluster and tie (breakaway technique) all sling legs together on top of the vehicle to prevent
entanglement during hookup and lift-off.
Figure 2-31. M1097A2 with Advanced Field Artillery Tactical Data System Full Size Soft Top
Installation Kit
M1037 (HMMWV) WITH AN/TPQ-36 FIREFINDER GENERATOR
PALLET
2-34. The M1037 with AN/TPQ-36 Firefinder Generator pallet is rigged for single-point sling load using
the following procedures:
z
Applicability. The following item in Table 2-33 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
2-72
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Wheeled Vehicles
Table 2-33. M1037 with AN/TPQ-36 Firefinder Generator
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
ANTPQ-36 Firefinder Generator Pallet
7,700
10K
50/3
z
Materials. The following materials are required to rig this load:
„ Sling set (10,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Felt sheet, cattle hair, Type IV, 1/2-inch or suitable padding.
z
Personnel. Two persons can prepare and rig this load in 15 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Fold mirrors forward in front of the windshield for added protection and tie together with
Type III nylon cord. Remove the cab doors.
─ Ensure the generator is secured to the truck. Secure all lids, doors, and vents on the
generator with tape or nylon Type III nylon cord.
─ Secure all equipment and cargo inside the vehicle with tape, nylon cord, or lashings.
─ Ensure the fuel tank is not over 3/4 full. Inspect fuel tank cap, oil filler cap, and battery
caps for proper installation.
─ Engage the vehicle parking brake and put the transmission in neutral.
─ Ensure the front wheels are pointed straight ahead. Tie down the steering wheel, using
the securing device attached under the dashboard.
─ Tape the windshield in an X formation from corner to corner.
─ Install the lift provisions on the outer ends of the rear bumper by removing the tiedown
provisions located inboard of the bumper end and installing them on the outer ends of
the rear bumper.
„ Rigging. Rig the load according to the steps in Figure 2-32.
„ Hookup. The hookup team stands in the bed of the vehicle. The static wand person
discharges the static electricity with the static wand. The hookup person places the apex fitting
onto the aircraft cargo hook. The hookup team then carefully dismounts the vehicle and remains
close to the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
2-73
Chapter 2
RIGGING STEPS
1. Position apex fitting on top of the vehicle. Route outer sling legs 1 and 2 to the front of the
vehicle and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on the left side of
the load.
2. Loop the chain end of sling leg 1 through the left front lift provision that protrudes through the
hood from inboard to outboard. Place the correct link from Table 2-33 in the grab hook.
Repeat with sling leg 2 and the right front lift provision. Secure excess chain with tape or
Type III nylon cord.
3. Route the chain end of sling leg 3 through the lift provision located on the left end of the rear
bumper from inboard to outboard. Place the correct link from Table 2-33 in the grab hook.
Repeat with sling leg 4 and the right rear lift provision. Secure excess chain with Type III
nylon cord.
4. Wrap the rear slings with padding where they contact the vehicles sides.
5.
Raise the apex fitting above the shelter carrier keeping the slings to the side of the shelter.
6. Cluster and tie (breakaway technique) all sling legs together on top of the shelter to prevent
entanglement during hookup and lift-off.
Figure 2-32. M1037 with AN/TPQ-36 Firefinder Generator
CAUTION
Do not use the lift shackles located near the center of the rear bumper
for sling load lift provisions.
2-74
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Wheeled Vehicles
M1097 (HMMWV) WITH SENTINEL AN/MPQ-64 TACTICAL QUIET
GENERATOR (TQG)
2-35. The M1097 with Sentinel AN/MPQ-64 Tactical Quiet Generator is rigged for single-point sling load
using the following procedures:
z
Applicability. The following item in Table 2-34 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center
Table 2-34. M1097 with Sentinel AN/MPQ-64 Tactical Quiet Generator
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
M1097 with Sentinel AN/MPQ-64 Tactical Quiet Generator
7,800
10K
80/3
z
Materials. The following materials are required to rig this load:
„ Sling set (10,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
z
Personnel. Two persons can prepare and rig this load in 10 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Fold mirrors forward in front of the windshield for added protection and tie together with
Type III nylon cord.
─ Secure all equipment and cargo inside the vehicle with tape, nylon cord, or lashings.
Remove and secure the doors in the cab of the vehicle.
─ Ensure the fuel tank is not over 3/4 full. Inspect fuel tank cap, oil filler cap, and battery
caps for proper installation.
─ Engage the vehicle parking brake and put the transmission in neutral.
─ Ensure the front wheels are pointed straight ahead. Tie down the steering wheel, using
the securing device attached under the dashboard.
─ Install the lift provisions on the outer ends of the rear bumper by removing the tiedown
provisions located inboard of the bumper end and installing them on the outer ends of
the rear bumper.
─ Tape the windshield in an X formation from corner to corner. Tape all mirrors, lights,
and gauges. Remove and secure the rear cabin window.
„ Rigging. Rig the load according to the steps in Figure 2-33.
„ Hookup. The hookup team stands on the vehicle bed. The static wand person discharges
the static electricity with the static wand. The hookup person places the apex fitting onto the
aircraft cargo hook. The hookup team then carefully dismounts the vehicle and remains close to
the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
2-75
Chapter 2
RIGGING STEPS
1. Position apex fitting on top of the vehicle. Route outer sling legs 1 and 2 to the front of the
vehicle and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on the left side of
the load.
2. Loop the chain end of sling leg 1 through the left front lift provision that protrudes through the
hood from inboard to outboard. Place the correct link from Table 2-34 in the grab hook.
Repeat with sling leg 2 and the right front lift provision. Secure excess chain with Type III
nylon cord.
3. Route the chain end of sling leg 3 through the lift provision located on the left end of the rear
bumper from inboard to outboard. Place the correct link from Table 2-34 in the grab hook.
Repeat with sling leg 4 and the right rear lift provision.
4. Cluster and tie or tape (breakaway technique) all sling legs together on top of the shelter to
prevent entanglement during hookup and lift-off.

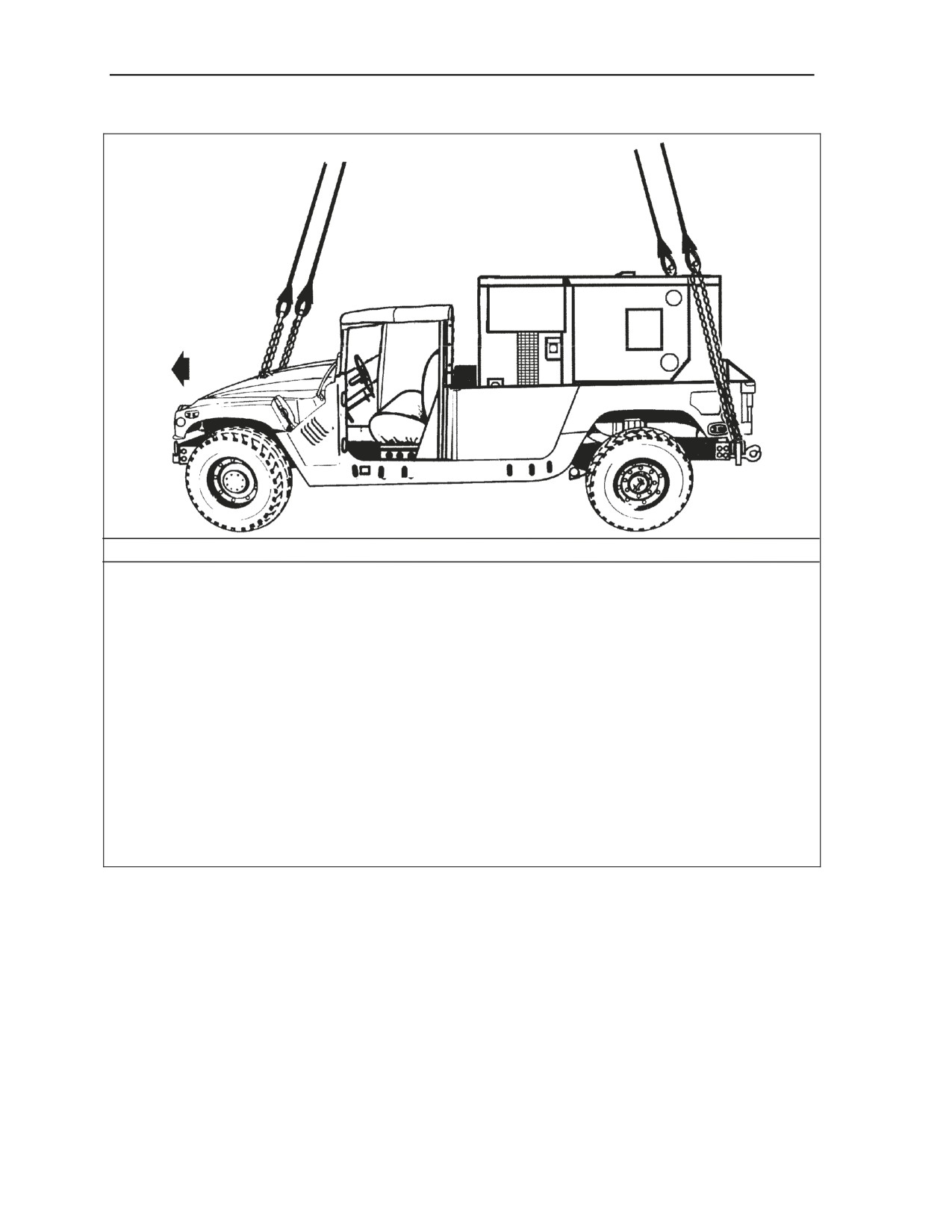

Figure 2-33. M1097 with Sentinel AN/MPQ-64 Tactical Quiet Generator
M1097 (HMMWV) WITH AN/TPQ-42, METEOROLOGICAL
HYDROGEN GENERATOR (MHG)
2-36. The M1097 with AN/TPQ-42, Meteorological Hydrogen Generator is rigged for single-point sling
load using the following procedures:
z
Applicability. The following item in Table 2-35 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
2-76
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Wheeled Vehicles
Table 2-35. M1097 with AN/TPQ-42, Meteorological Hydrogen Generator (MHG)
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
AN/TPQ-42 Meteorological Hydrogen Generator
10,000
10K
80/45
15K
25/3
z
Materials. The following materials are required to rig this load:
„ Sling set (10,000-pound capacity).
OR
„ Multileg sling set (15,000-pound capacity or for the CH-53E only).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
z
Personnel. Two persons can prepare and rig this load in 15 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Fold mirrors forward in front of the windshield for added protection and tie together with
Type III nylon cord.
─ Secure all equipment and cargo inside the vehicle with tape, nylon cord, or lashings.
Secure the doors shut if installed.
─ Ensure the fuel tank is not over 3/4 full. Inspect fuel tank cap, oil filler cap, and battery
caps for proper installation.
─ Engage the vehicle parking brake and put the transmission in neutral.
─ Ensure the front wheels are pointed straight ahead. Tie down the steering wheel, using
the securing device attached under the dashboard.
„ Rigging. Rig the load according to the steps in Figure 2-34.
„ Hookup. The hookup team stands in the cargo bed. The static wand person discharges the
static electricity with the static wand. The hookup person places the apex fitting onto the
aircraft cargo hook. The hookup team then carefully dismounts the vehicle and remains close to
the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
Figure 2-34. M1097 with AN/TPQ-42, Meteorological Hydrogen Generator
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
2-77
Chapter 2
RIGGING STEPS
1. Position apex fitting on top of the vehicle. Route outer sling legs 1 and 2 to the front of the
vehicle and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on the left side of
the load.
2. Loop the chain end of sling leg 1 through the left front lift provision that protrudes through the
hood from inboard to outboard. Place the correct link from Table 2-35 in the grab hook.
Repeat with sling leg 2 and the right front lift provision. Secure excess chain with Type III
nylon cord.
3. Route the chain end of sling leg 3 through the lift provision located on the left end of the rear
bumper from inboard to outboard. Place the correct link from Table 2-35 in the grab hook.
Repeat with sling leg 4 and the right rear lift provision. Secure excess chain with Type III
nylon cord.
4. Cluster and tie (breakaway technique) all sling legs together on top of the shelter to prevent
entanglement during hookup and lift-off.
Figure 2-34. M1097 with AN/TPQ-42, Meteorological Hydrogen Generator (Continued)
M1037 (HMMWV) WITH COMPRESSED AIR-FOAM SYSTEM,
MOBILE (CAFSM)
2-37. The M1037 with Compressed Air-Foam System, Mobile is rigged for single-point sling load using
the following procedures:
z
Applicability. The following item in Table 2-36 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 2-36. M1037 with Compressed Air-Foam System, Mobile
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
Compressed Air Foam System, Mobile
6,400 (Empty)
15K
40/3
z
Materials. The following materials are required to rig this load:
„ Sling set (15,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
z
Personnel. Two persons can prepare and rig this load in 15 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Fold mirrors forward in front of the windshield for added protection and tie together with
Type III nylon cord. Remove the canvas cab top and the doors. Secure to the seats
with Type III nylon cord.
─ Ensure the CAFSM is secured to the truck. Secure all lids, doors, and vents on the
CAFSM with tape or Type III nylon cord.
─ Secure all equipment and cargo inside the vehicle with tape, nylon cord, or lashings.
2-78
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Wheeled Vehicles
─ Ensure the fuel tank is not over 3/4 full. Inspect fuel tank cap, oil filler cap, and battery
caps for proper installation.
─ Engage the vehicle parking brake and put the transmission in neutral.
─ Ensure the front wheels are pointed straight ahead. Tie down the steering wheel, using
the securing device attached under the dashboard.
─ Tape the windshield in an X formation from corner to corner.
„ Rigging. Rig the load according to the steps in Figure 2-35.
„ Hookup. The hookup team stands in the bed of the vehicle. The static wand person
discharges the static electricity with the static wand. The hookup person places the apex fitting
on the cargo hook. The hookup team then carefully dismounts the vehicle and remains close to
the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
RIGGING STEPS
1. Position the apex fitting on top of the vehicle. Route outer sling legs 1 and 2 to the front of
the vehicle and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on the left
side of the load.
2. Loop the chain end of sling leg 1 through the left front lift provision that protrudes through the
hood from inboard to outboard. Place the correct link from Table 2-36 in the grab hook.
Repeat with sling leg 2 through the right front lift provision. Secure all excess chain with
Type III nylon cord.
3. Loop the chain end of sling leg 3 through the left rear lift provision located on the outside end
of the rear bumper. Place the correct link from Table 2-36 in the grab hook. Repeat with
sling leg 4 through the right rear lift provision. Secure all excess chain with Type III nylon
cord.
4. Cluster and tie (breakaway technique) the sling legs in each sling set together to prevent
entanglement during hookup and lift-off.

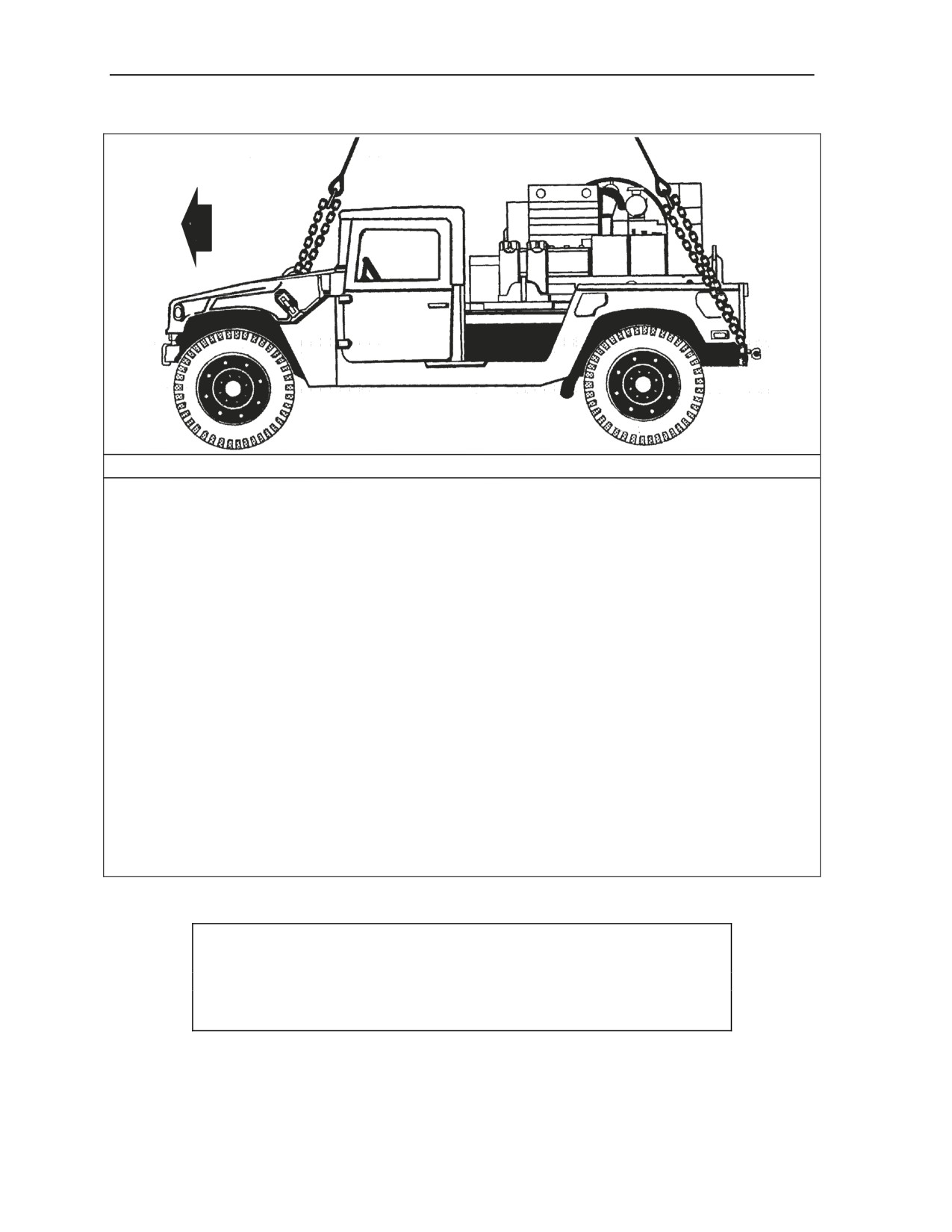

Figure 2-35. M1037 with Compressed Air-Foam System, Mobile
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
2-79
Chapter 2
CAUTION
Do not use the lift shackles located near the center of the rear bumper
for sling load lift provisions.
M1113 (HMMWV) WITH TACTICAL SUPER HIGH FREQUENCY
SATELLITE TERMINAL (TSST)
2-38. The M1113 with Tactical Super High Frequency Satellite Terminal is rigged for single-point sling
load using the following procedures:
z
Applicability. The following item in Table 2-37 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 2-37. M1113 with Tactical Super High Frequency Satellite Terminal
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
M1113 with Tactical Super High Frequency Satellite Terminal
10,340
25K
60/3
z
Materials. The following materials are required to rig this load:
„ Sling set (25,000-pound capacity).
─ Chain length, part number 38850-00053-102, from a 25,000-pound capacity sling set
(4 each).
─ Coupling link part number, 664241 from a 25,000-pound sling set (4 each).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Reach Pendant (11,000-pound capacity).
z
Personnel. Two persons can prepare and rig this load in 25 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Connect one additional chain length to each chain on each sling set with a coupling link.
─ Fold mirrors inward and tie together with Type III nylon cord. Remove the doors and
secure to the seats with Type III nylon cord.
─ Secure all equipment and cargo inside the truck with tiedown straps, tape, or Type III
nylon cord.
─ Ensure all latches are securely fastened and taped.
─ Ensure the fuel tank is not over 3/4 full. Inspect the fuel tank cap, oil filler cap, and
battery caps for proper installation.
─ Engage the vehicle parking brake and put the transmission in neutral.
─ Remove the doors and secure inside the vehicle with Type III nylon cord.
─ Ensure the front wheels are pointed straight ahead. Tie down the steering wheel, using
the securing device attached under the dashboard.
─ Tape the windshield from corner to corner in an X formation.
─ Pad the cooling fan shroud and secure the padding with tape.
„ Rigging. Rig the load according to the steps in Figure 2-36.
2-80
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Wheeled Vehicles
„ Hookup. The hookup team stands on top of the vehicle. The static wand person discharges
the static electricity with the static wand. The hookup person places the apex fitting onto the
aircraft cargo hook. The hookup team then carefully dismounts the vehicle and remains close to
the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
RIGGING STEPS
1.
Position apex fitting on top of the satellite dish. Route outer sling legs 1 and 2 to the front of
the vehicle and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on the left
side of the load.
2.
Loop the chain end of sling leg 1 through the left front lift provision that protrudes through the
hood from inboard to outboard. Place the correct link from Table 2-37 in the grab hook.
Repeat with sling leg 2 and the right front lift provision. Secure excess chain with Type III
nylon cord.
3.
Position the left and right rear center sling guides so the opening is facing the rear of the
vehicle.
4.
Loop the chain end of sling leg 3 through the left sling guide, through the left rear lift provision
located on the outer ends of the rear bumper, and back through the left sling guide. Place
the correct link from Table 2-37 in the grab hook. Remove all slack from the chain and tie a
breakaway tie with a double length of Type I 1/4 -inch cotton webbing to the left corner sling
guide. Secure the sling leg to the center sling guide with a breakaway tie. Repeat with sling
leg 4 and the right sling guides and right rear lift provision. Secure excess chain with Type III
nylon cord.
5.
Cluster and tie (breakaway technique) all sling legs together on top of the vehicle to prevent
entanglement during hookup and lift-off.
Figure 2-36. M1113 with Tactical Super High Frequency Satellite Terminal
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
2-81
Chapter 2
CAUTIONS
1. Do not step on satellite dish.
2. Do not use lift shackles located near the center of the rear bumper
for sling load lift provisions.
3.
Ensure the outboard rear bumper lift provisions are installed
properly and there is a 2-inch clearance between the round portion of
the lift provision and the end of the bumper when the lift provision is in
the raised position.
M1113 (HMMWV) WITH TACTICAL SUPER HIGH FREQUENCY
SATELLITE TERMINAL (TSST) MOBILE POWER UNIT (MPU)
2-39. The M1113 with Tactical Super High Frequency Satellite Terminal Mobile Power Unit is rigged for
single-point sling load using the following procedures:
z
Applicability. The following item in Table 2-38 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 2-38. M1113 with Tactical Super High Frequency Satellite Terminal Mobile Power Unit
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
M1113 with Tactical Super High Frequency Satellite Terminal Mobile
10,520
25K
60/3
Power Unit MEP 803A, 10 KW TQG
z
Materials. The following materials are required to rig this load:
„ Sling set (25,000-pound capacity).
─ Chain length, part number 38850-00053-102, from a 25,000-pound capacity sling set
(4 each).
─ Coupling link part number, 664241 from a 25,000-pound sling set (4 each).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Reach Pendant (11,000-pound capacity).
z
Personnel. Two persons can prepare and rig this load in 25 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Connect one additional chain length to each chain on each sling set with a coupling link.
─ Fold mirrors inward and tie together with Type III nylon cord. Remove the doors and
secure to the seats with Type III nylon cord.
─ Secure all equipment and cargo inside the truck with tiedown straps, tape, or Type III
nylon cord.
─ Ensure all latches are securely fastened and taped.
─ Ensure the fuel tank is not over 3/4 full. Inspect the fuel tank cap, oil filler cap, and
battery caps for proper installation.
─ Engage the vehicle parking brake and put the transmission in neutral.
─ Remove the doors and secure inside the vehicle with Type III nylon cord.
2-82
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Wheeled Vehicles
─ Ensure the front wheels are pointed straight ahead. Tie down the steering wheel, using
the securing device attached under the dashboard.
─ Tape the windshield from corner to corner in an X formation.
„ Rigging. Rig the load according to the steps in Figure 2-37.
„ Hookup. The hookup team stands on top of the vehicle. The static wand person discharges
the static electricity with the static wand. The hookup person places the apex fitting onto the
aircraft cargo hook. The hookup team then carefully dismounts the vehicle and remains close to
the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
RIGGING STEPS
1. Position apex fitting on top of the load. Route outer sling legs 1 and 2 to the front of the
vehicle and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on the left side of
the load.
2. Loop the chain end of sling leg 1 through the left front lift provision that protrudes through the hood from
inboard to outboard. Place the correct link from Table 2-38 in the grab hook. Repeat with sling leg 2
and the right front lift provision. Secure excess chain with Type III nylon cord.
3. Ensure the safety pins are installed in the rear top sling guides.
4. Loop the chain end of sling leg 3 through the left sling guide, through the top left rear lift provision and
back through the top left sling guide. Place the correct link from Table 2-38 in the grab hook. Remove
all slack from the chain and tie a breakaway tie with a double length of Type I 1/4 -inch cotton webbing
to the top left sling guide. Repeat with sling leg 4 and the right sling guide and right rear lift provision.
Secure excess chain with Type III nylon cord.
5. Cluster and tie (breakaway technique) all sling legs together on top of the vehicle to prevent
entanglement during hookup and lift-off.
Figure 2-37. M1113 with Tactical Super High Frequency Satellite Terminal Mobile Power Unit
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
2-83
Chapter 2
M1113 (HMMWV) MISSION VEHICLE WITH PETROLEUM
QUALITY ANALYSIS SYSTEM (PQAS) SHELTER
2-40. The M1113 with Petroleum Quality Analysis System Shelter is rigged for single-point sling load
using the following procedures:
z
Applicability. The following item in Table 2-39 is certified for all helicopters with suitable lift
capacity the US Army Natick Soldier Center:
Table 2-39. M1113 with Petroleum Quality Analysis System Shelter
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
PQAS Mission Vehicle M1113 with PQAS Shelter
9,460
25K
60/3
z
Materials. The following materials are required to rig this load:
„ Sling set (25,000-pound capacity).
─ Chain length, part number 38850-00053-102, from a 25,000-pound capacity sling set
(4 each).
─ Coupling link part number, 664241 from a 25,000-pound sling set (4 each).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Webbing, nylon, tubular, ½-inch, 1000-pound breaking strength.
„ Reach pendant (11,000-pound capacity).
z
Personnel. Two persons can prepare and rig this load in 20 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Connect one additional chain length to each chain on each sling set with a coupling link.
─ Fold mirrors inward and tie together with Type III nylon cord. Remove the doors and
secure to the seats with Type III nylon cord.
─ Secure all loose equipment inside the shelter with tiedown straps, Type III nylon cord or
tape. Close and lock the rear access door. Lower the roof to the stop and pin in
position. Secure pins in place with tape.
─ Secure all equipment and cargo inside the truck or on the roof rack with tiedown straps,
tape, or Type III nylon cord.
─ Ensure the fuel tank is not over 3/4 full. Inspect the fuel tank cap, oil filler cap, and
battery caps for proper installation.
─ Engage the vehicle parking brake and put the transmission in neutral.
─ Remove the doors and secure inside the vehicle with Type III nylon cord.
─ Ensure the front wheels are pointed straight ahead. Tie down the steering wheel, using
the securing device attached under the dashboard.
─ Tape the windshield from corner to corner in an X formation.
─ Roll up and tie the large canvas covers on the shelter. Tape the small covers down.

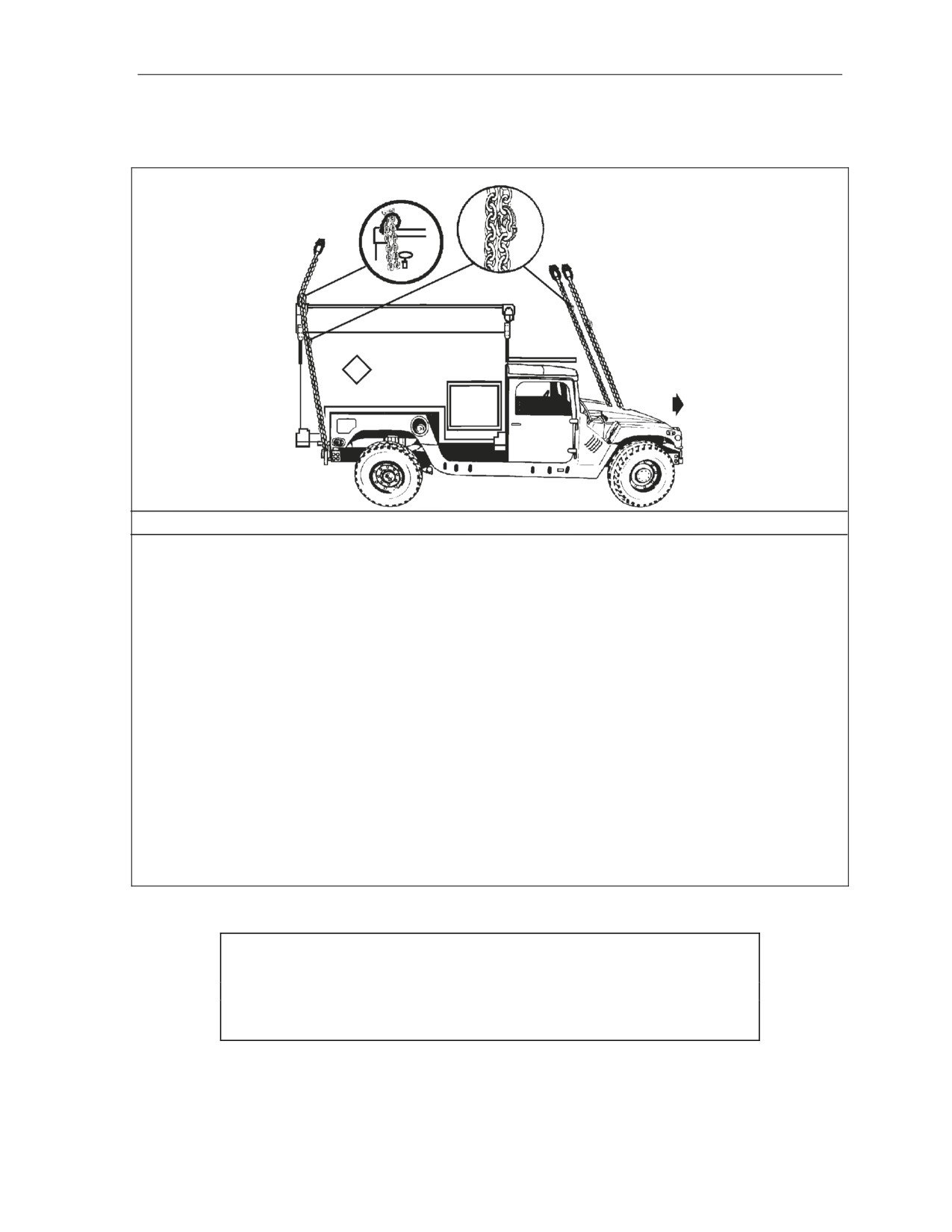

„ Rigging. Rig the load according to the steps in Figure 2-38.
„ Hookup. The hookup team stands on top of the shelter. The static wand person discharges
the static electricity with the static wand. The hookup person places the apex fitting onto the
aircraft cargo hook. The hookup team then carefully dismounts the vehicle and remains close to
the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
2-84
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Wheeled Vehicles
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
RIGGING STEPS
1. Position apex fitting on top of the shelter. Route outer sling legs 1 and 2 to the front of the
vehicle and inner sling legs 3 and 4 to the rear. Sling legs 3 and 4 are routed through the
shelter’s rear lift provisions. Sling legs 1 and 3 must be on the left side of the load.
2. Loop the chain end of sling leg 1 through the left front lift provision that protrudes through the
hood from inboard to outboard. Place the correct link from Table 2-39 in the grab hook.
Repeat with sling leg 2 and the right front lift provision. Secure excess chain with Type III
nylon cord.
3. Loop the chain end of sling leg 3 through the left rear shelter lift guide (inboard to outboard),
through left rear lift provision located on the outer end of the rear bumper and back through
the left rear shelter lift guide (outboard to inboard). Place the correct link from Table 2-39 in
the grab hook. Repeat with sling leg 4 and the right rear shelter lift guide and right rear lift
provision. Secure excess chain with Type III nylon cord.
4. Cluster and tie (breakaway technique) all sling legs together on top of the vehicle to prevent
entanglement during hookup and lift-off.
Figure 2-38. M1113 with Petroleum Quality Analysis System Shelter
CAUTION
Do not use the lift shackles located near the center of the rear bumper
for sling load lift provisions.
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
2-85
Chapter 2
INTERIM FAST ATTACK VEHICLE (IFAV) TRUCK, LONG WHEEL
BASE
2-41. The Interim Fast Attack Vehicle (IFAV) truck, long wheel base is rigged for single-point sling load
using the following procedures:
z
Applicability. The following item in Table 2-40 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 2-40. Interim Fast Attack Vehicle Truck, Long Wheel Base
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
Interim Fast Attack Vehicle Truck, Long Wheel Base
5,720
15K
30/3
z
Materials. The following materials are required to rig this load:
„ Sling set (15,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Padding, cellulose.
„ Strap, cargo, tiedown (as required).
z
Personnel. Two persons can prepare and rig this load in 10 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Fold mirrors forward in front of the windshield for added protection and tie together with
Type III nylon cord. Remove all canvas covers.
─ Secure all equipment and cargo inside the vehicle with tape, nylon cord, or tiedown
straps.
─ Ensure the fuel tank is not over 3/4 full. Inspect fuel tank cap, oil filler cap, and battery
caps for proper installation.
─ Engage the vehicle parking brake and put the transmission in neutral.
─ Ensure the front wheels are pointed straight ahead. Tie down the steering wheel using
Type III nylon cord.
─ Tape the windshield in an X formation from corner to corner.
„ Rigging. Rig the load according to the steps in Figure 2-39.
„ Hookup. The hookup teams stand in the bed of the vehicle. The static wand person
discharges the static electricity with the static wand. The hookup person places the web ring on
the cargo hook. The hookup team then carefully dismounts the vehicle and remains close to the
load as the helicopter removes slack from the sling legs. When successful hookup is assured,
the hookup team quickly exits the area underneath the helicopter to the designated rendezvous
point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
2-86
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Wheeled Vehicles
RIGGING STEPS
1. Position the apex fitting on top of the vehicle. Route outer sling legs 1 and 2 to the front of
the vehicle and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on the left
side of the load.
2. Loop the chain end of sling leg 1 through the left front lift provision located on the left front
corner of the bumper. Place the correct link from Table 2-40 in the grab hook. Repeat with
sling leg 2 through the right front lift provision.
3. Loop the chain end of sling leg 3 through the left rear lift provision located in the left rear
corner of the cargo bed. Place the correct link from Table 2-40 in the grab hook. Repeat
with sling leg 4 through the right rear lift provision.
4. Secure all excess chain with Type III nylon cord.
5. Cluster and tie breakaway technique) the sling legs in each sling set together to prevent
entanglement during hookup and lift-off.

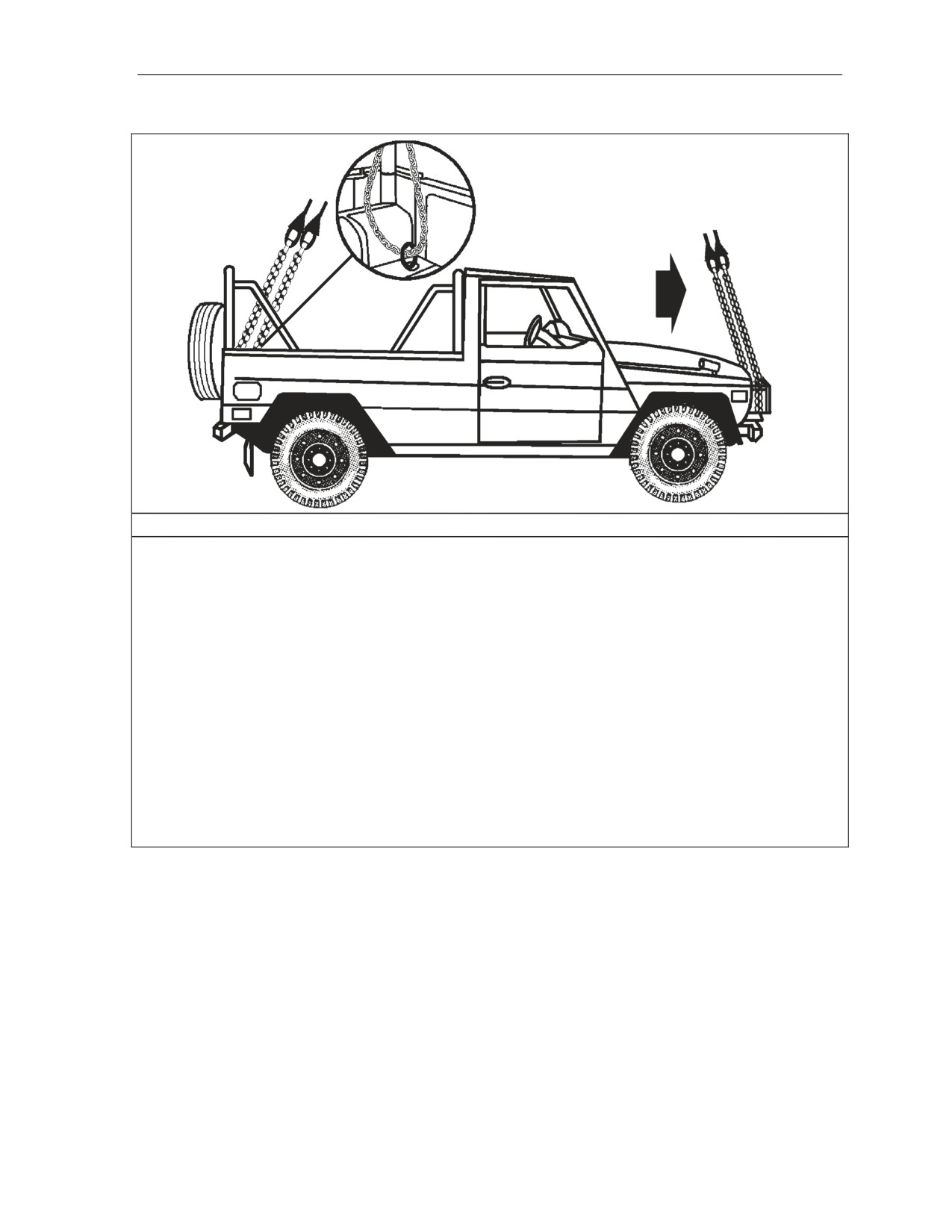

Figure 2-39. Interim Fast Attack Vehicle Truck, Long Wheel Base
JOHN DEERE M-GATOR (MODEL #VGM6X01001)
2-42. The John Deere M-Gator (Model #VGM6X01001) is rigged for single-point sling load using the
following procedures:
z
Applicability. The following item in Table 2-41 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
2-87
Chapter 2
Table 2-41. John Deere M-Gator (Model #VGM6X01001)
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
John Deere M-Gator, Empty (Model #VGM6X01001)
1,400
10K
3/30
John Deere M-Gator with Load (Model #VGM6X01001)
2,450
10K
3/40
z
Materials. The following materials are required to rig this load:
„ Sling set (10,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
z
Personnel. Two persons can prepare and rig this load in 10 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Secure the gas cap, tailgate, fire extinguisher, and all equipment and cargo inside the
vehicle with tape, nylon cord, or lashings.
─ Place tape on all the lights.
─ Ensure the fuel tank is not over 3/4 full. Inspect fuel tank cap, oil filler cap, and battery
caps for proper installation.
─ Engage the vehicle parking brake and put the transmission in neutral.
─ Ensure the front wheels are pointed straight ahead. Tie down the steering wheel, using
the securing device attached under the dashboard or type III nylon cord.
„ Rigging. Rig the load according to the steps in Figure 2-40.
„ Hookup. The hookup team stands on the vehicle. The static wand person discharges the
static electricity with the static wand. The hookup person places the apex fitting on the cargo
hook. The hookup team then carefully dismounts the vehicle and remains close to the load as
the helicopter removes slack from the sling legs. When successful hookup is assured, the
hookup team quickly exits the area underneath the helicopter to the designated rendezvous
point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
2-88
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Wheeled Vehicles
RIGGING STEPS
1. Position the apex fitting on top of the vehicle. Route outer sling legs 1 and 2 to the front of
the vehicle and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on the left
side of the load.
2. Route the chain end of sling leg 1 through the litter carrier and over the brush bar to the left
front lift provision. Loop the chain through the lift provision and follow the chain routing back
to the grab link. Place the correct link from Table 2-41 in the grab hook. Repeat with sling
leg 2 through the right front lift provision.
3. Slide the black circular hole covers, located in the vehicle bed, to the side. Route the chain
end of sling leg 3 through the left exposed hole and the left rear lift provision. Place the
correct link from Table 2-41 in the grab hook. Repeat with sling leg 4 through the right
exposed hole and right rear lift provision.
4.
Secure all excess chain with Type III nylon cord.
5. Cluster and tie (breakaway technique) the sling legs in each sling set together to prevent
entanglement during hookup and lift-off.

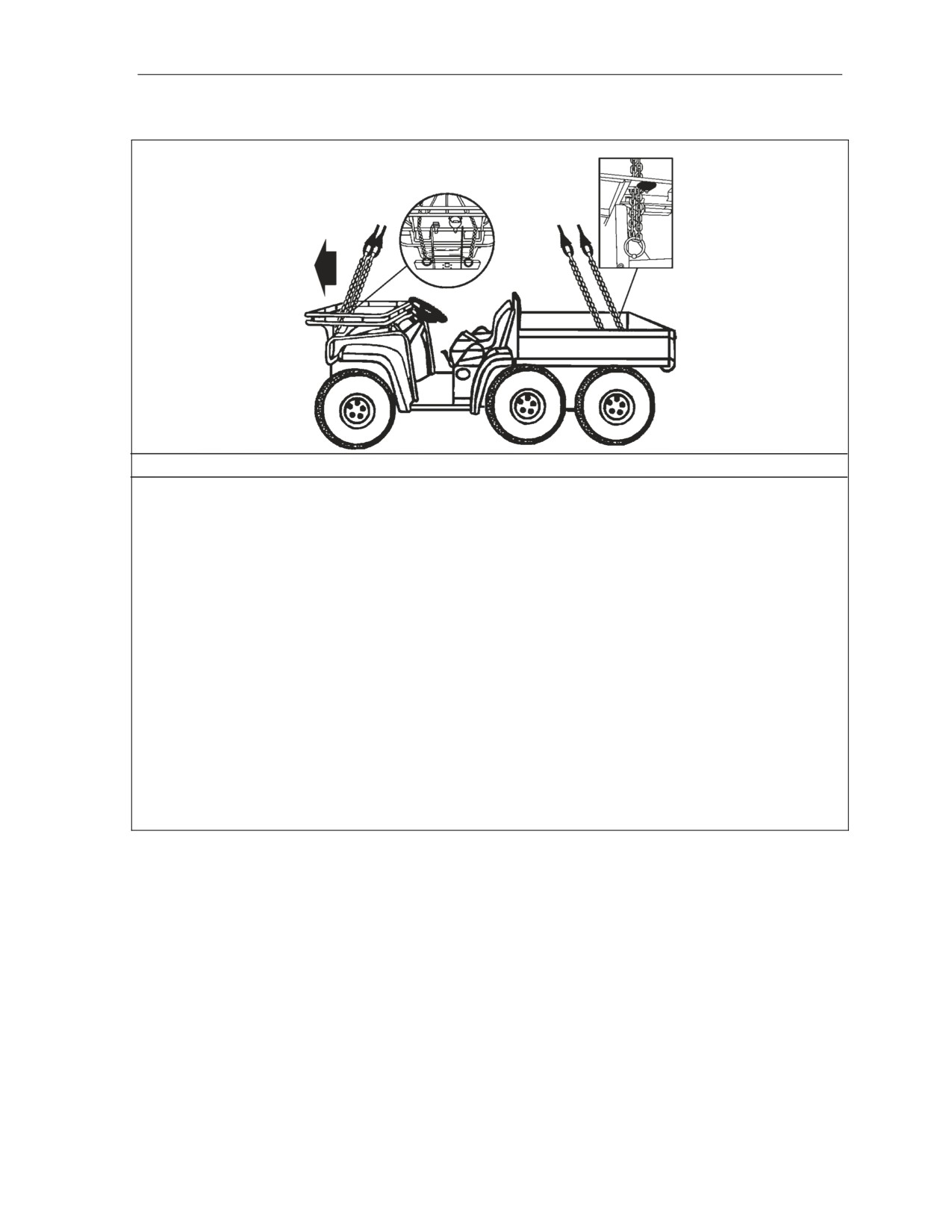

Figure 2-40. John Deere M-Gator (Model #VGM6X01001)
TWO JOHN DEERE M-GATORS, MODEL #VGM6X01001, SIDE BY
SIDE (SHOTGUN METHOD)
2-43. The TWO John Deere M-Gators, Model #VGM6X01001, side by side (shotgun method) are rigged
for single-point sling load using the following procedures:
z
Applicability. The following item in Table 2-42 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
2-89
Chapter 2
Table 2-42. TWO John Deere M-Gators, Model #VGM6X01001, Side by Side (Shotgun Method)
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
Two John Deere M-Gators, Empty (Model #VGM6X01001)
2,800
10K
3/30
z
Materials. The following materials are required to rig this load:
„ Sling set (10,000-pound capacity (2 each)).
„ Additional apex fitting from a 10,000-pound capacity sling set (NSN: 4030-01-027-2902).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Strap, tiedown, cargo, CGU-1/B (2 each).
z
Personnel. Two persons can prepare and rig this load in 15 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Position the vehicles as close together as possible. Ensure the vehicles are facing in the
same direction and the wheels of the M-Gators are lined up.
─ Secure all equipment and cargo inside the vehicle with tape, nylon cord, or lashings.
─ Ensure the fuel tank is not over 3/4 full. Inspect fuel tank cap, oil filler cap, and battery
caps for proper installation.
─ Engage the vehicle parking brake and put the transmission in neutral.
─ Ensure the front wheels are pointed straight ahead. Tie down the steering wheel using
the securing device under the dash or Type III nylon cord.
─ Tape all lights and gauges.
─ Reposition the blackout lights and the infrared LED lights so they do not interfere with
the routing of the sling legs.
─ Open the black sling guide covers in the bed of both vehicles.
„ Rigging. Rig the load according to the steps in Figure 2-41.
„ Hookup. The hookup team stands in the bed of the vehicle. The static wand person
discharges the static electricity with the static wand. The hookup person places the apex fitting
on the cargo hook. The hookup team then carefully dismounts the vehicle and remains close to
the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
2-90
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Wheeled Vehicles
APEX 1
APEX 1
APEX 1
FRONT
REAR

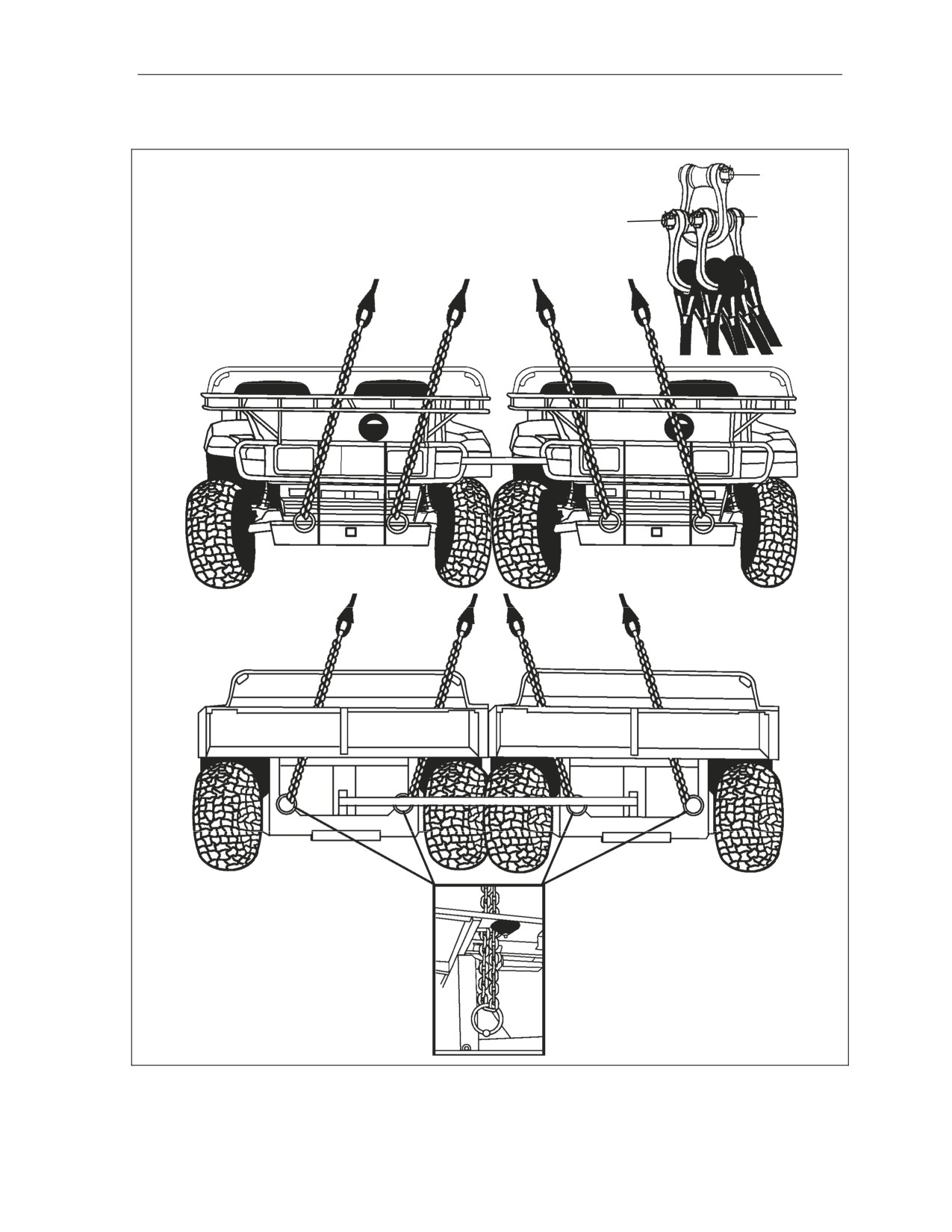

Figure 2-41. Two John Deere M-Gators (Model #VGM6X01001), Side by Side (Shotgun Method)
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
2-91
Chapter 2
RIGGING STEPS
1.
Position sling set 1 on top of the right vehicle with the bolt parallel to the length of the vehicle.
Route sling legs 1 and 2 to the front of the vehicle and sling legs 3 and 4 to the rear. Sling
legs 1 and 4 must be on the outside.
2.
Route the chain end of sling leg 1 through the 4th opening in the front litter carrier, over the
brush guard to the outside front lift provision. Loop the chain end through the outside front lift
provision and back to the grabhook along the same path. Place link 3 in the grabhook.
3.
Route the chain end of sling leg 2 through the 6th opening in the front litter carrier, over the
brush guard to the inside front lift provision. Loop the chain end through the inside front lift
provision and back to the grabhook along the same path. Place link 20 in the grabhook.
4.
Route the chain end of sling leg 4 through the outside sling guide to the outside rear lift
provision. Loop the chain end through the outside rear lift provision and back to the
grabhook along the same path. Place link 30 in the grabhook.
5.
Route the chain end of sling leg 3 through the inside sling guide to the inside rear lift
provision. Loop the chain end through the inside rear lift provision and back to the grabhook
along the same path. Place link 45 in the grabhook.
6.
Position sling set 2 on top of the left vehicle with the bolt parallel to the length of the vehicle.
Route sling legs 1 and 2 to the front of the vehicle and sling legs 3 and 4 to the rear. Sling
legs 1 and 4 must be on the outside.
7.
Route the chain end of sling leg 1 through the 4th opening in the front litter carrier, over the
brush guard to the outside front lift provision. Loop the chain end through the outside front lift
provision and back to the grabhook along the same path. Place link 3 in the grabhook.
8.
Route the chain end of sling leg 2 through the 6th opening in the front litter carrier, over the
brush guard to the inside front lift provision. Loop the chain end through the inside front lift
provision and back to the grabhook along the same path. Place link 20 in the grabhook.
9.
Route the chain end of sling leg 4 through the outside sling guide to the outside rear lift
provision. Loop the chain end through the outside rear lift provision and back to the
grabhook along the same path. Place link 30 in the grabhook.
10. Route the chain end of sling leg 3 through the inside sling guide to the inside rear lift
provision. Loop the chain end through the inside rear lift provision and back to the grabhook
along the same path. Place link 45 in the grabhook.
11. Route the additional apex fitting through apex fittings 1 and 2.
12. Secure all excess chain with tape or Type III nylon cord.
13. Cluster and tie or tape (breakaway technique) the sling legs in each sling set on top of the
vehicle to prevent entanglement during hookup and lift-off.
14. Route a CGU-1/B cargo tiedown strap through the trailer hitch of both vehicles and connect
the hooks together. Tighten the straps and secure the excess strap.
Figure 2-41. Two John Deere M-Gators (Model #VGM6X01001), Side by Side (Shotgun Method)
(Continued)
2-92
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Wheeled Vehicles
RIGGING STEPS
15. Route a CGU-1/B cargo tiedown strap through the inside front bar of the brush guard on both
vehicles and connect the hooks together. Tighten the straps and secure the excess strap.
Figure 2-41. Two John Deere M-Gators (Model #VGM6X01001), Side by Side (Shotgun Method)
(Continued)
LIGHT ARMORED VEHICLE (LAV) (USMC)
2-44. The Light Armored Vehicle is rigged for single-point sling load using the following procedures:
z
Applicability. The following items in Table 2-43 are certified for all helicopters with suitable
lift capacity by the US Army Natick Soldier Center:
Table 2-43. Light Armored Vehicle
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
Command and Control, TAMCN E0946
27,060
40K
3/20
25-MM, TAMCN E0947
28,200
40K
25/3
Logistics, TAMCN E0948
28,200
40K
3/10
Mortar, TAMCN E0949
27,400
40K
25/3
Recovery Unit, TAMCN E0950
28,400
40K
3/10
Tow Anti-Tank, TAMCN E0942
27,650
40K
10/3
z
Materials. The following materials are required to rig this load:
„ Sling set (40,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Felt sheet, cattle hair, Type IV, 1/2-inch or suitable padding.
z
Personnel. Two persons can prepare and rig this load in 15 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Secure all loose items inside the LAV.
─ Remove all antennae.
─ Ensure the parking brake is set.
─ Pad and tape all vision blocks, mirrors, and lights.
─ Secure all hatches and panels.
─ Ensure the boom is pinned down and tape the hydraulic cables. (Recovery Unit)
„ Rigging. Rig the load according to the steps in Figure 2-42.
„ Hookup. The hookup team stands on top of the vehicle. The static wand person discharges
the static electricity with the static wand. The hookup person places the apex fitting onto the
aircraft cargo hook. The hookup team then carefully dismounts the vehicle and remains close to
the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
2-93
Chapter 2
RIGGING STEPS
1. Position apex fitting on top of the vehicle. Route outer sling legs 1 and 2 to the front of the
vehicle and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on the left side of
the load.
2. Loop the chain end of sling leg 1 through the left front lift provision. Place the correct link from
Table 2-43 in the grab hook. Repeat with sling leg 2 and the right front lift provision. Secure
excess chain with Type III nylon cord.
3. Route the chain end of sling leg 3 through the lift provision located on the left end of the rear
bumper from inboard to outboard. Place the correct link from Table 2-43 in the grab hook.
Repeat with sling leg 4 and the right rear lift provision. Secure excess chain with Type III
nylon cord.
4. Cluster and tie (breakaway technique) all sling legs together on top of the LAV to prevent
entanglement during hookup and lift-off.

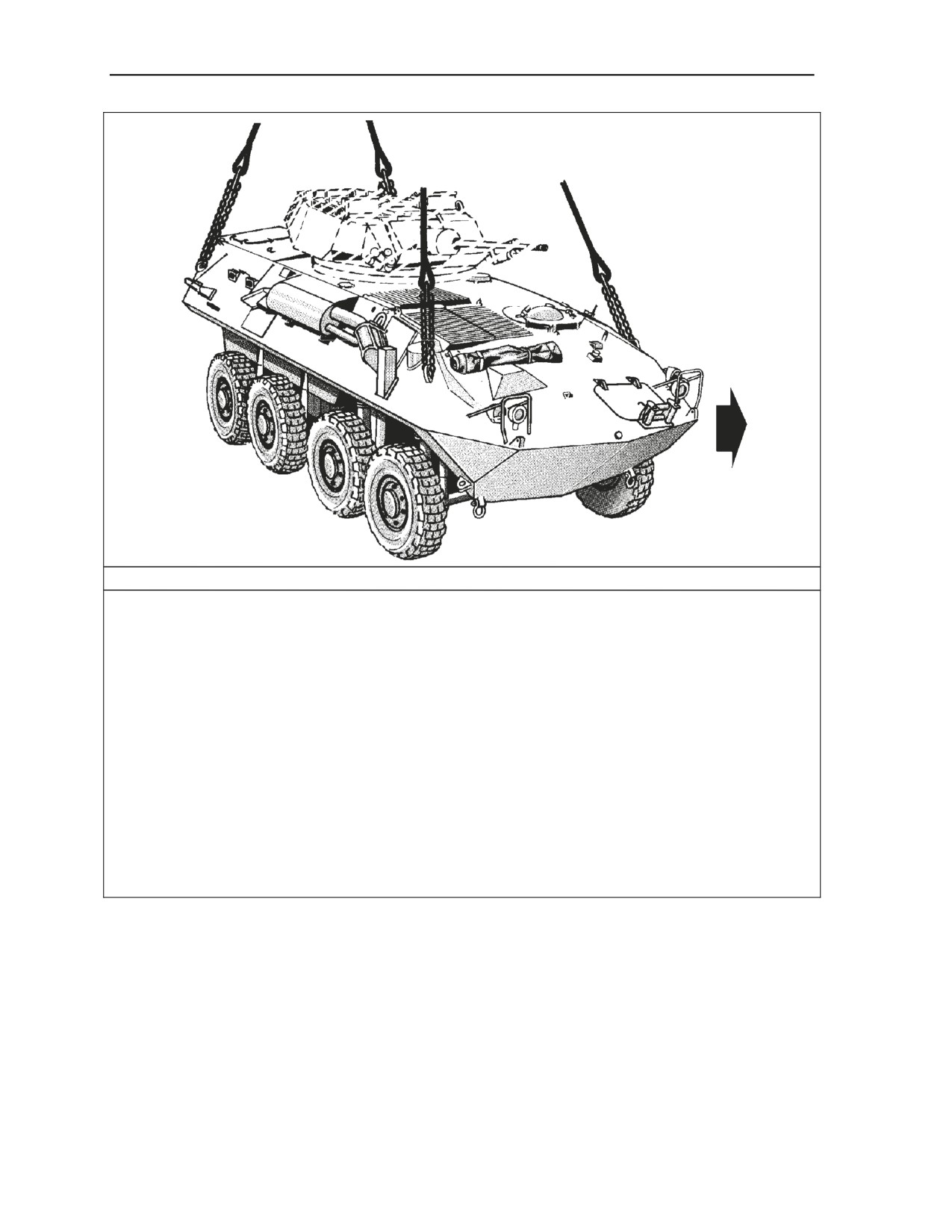

Figure 2-42. Light Armored Vehicle
2-94
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Chapter 3
Certified Single-Point Rigging Procedures for Trailers
INTRODUCTION
3-1. This chapter contains rigging procedures for single-point trailer loads that have been certified for
sling load. Each rigging procedure is found in a paragraph that includes a description of the load, materials
required for rigging, and steps to complete the procedure. An applicability paragraph is also a part of each
paragraph and identifies the certified loads. The certified single-point rigging procedures for trailer loads
are in this section. Paragraphs 3-2 through 3-37 give detailed instructions for rigging loads.
Note. Reach pendants may be used on all single point loads. A static discharge person is not
required when using a reach pendant.
M416 1/4-TON TRAILER
3-2. The M416 1/4-ton trailer is rigged for single-point sling load using the following procedures:
z
Applicability. The following item in Table 3-1 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 3-1. M416 1/4-Ton Trailer
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
M416 ¼-Ton Trailer
1,080
10K
3/3
WARNING
The M416 1/4-ton trailer must have a gross weight of 800 pounds
or more. Add additional weight or cargo to any trailer which
weighs less than 800 pounds.
z
Materials. The following materials are required to rig this load:
„ Sling set (10,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Tie down, CGU-1B or dacron lashing and load binder.
z
Personnel. Two persons can prepare and rig this load in 15 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Lower and lock the trailer support leg in the down position.
─ Tape or tie the light cable firmly to the top of the drawbar.
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
3-1
Chapter 3
─ Load and lash the cargo in the bed of the trailer.
─ Ensure the parking brake is set.
„ Rigging. Rig the load according to the steps in Figure 3-1.
„ Hookup. The hookup team stands in the bed of the trailer. The static wand person
discharges the static electricity with the static wand. The hookup person places the apex fitting
onto the aircraft cargo hook. The hookup team then carefully dismounts the vehicle and remains
close to the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
RIGGING STEPS
1. Position apex fitting in the trailer bed. Route outer sling legs 1 and 2 to the front of the trailer
and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on the left side of the
load.
2. Loop the chain end of sling leg 1 through the lunette. Place the correct link from Table 3-1 in
the grab hook. Repeat with sling leg 2 through the lunette.
3. Route the chain end of sling leg 3 around the left rear spring shackle mounting bracket. Place
the correct link from Table 3-1 in the grab hook. Repeat with sling leg 4 around the right rear
spring shackle mounting bracket.
4. Tie (breakaway technique) the chains of legs 3 and 4 to the next-to-last tarpaulin hold-down
hook on each side.
5. Cluster and tie (breakaway technique) all sling legs together on top of the trailer to prevent
entanglement during hookup and lift-off.

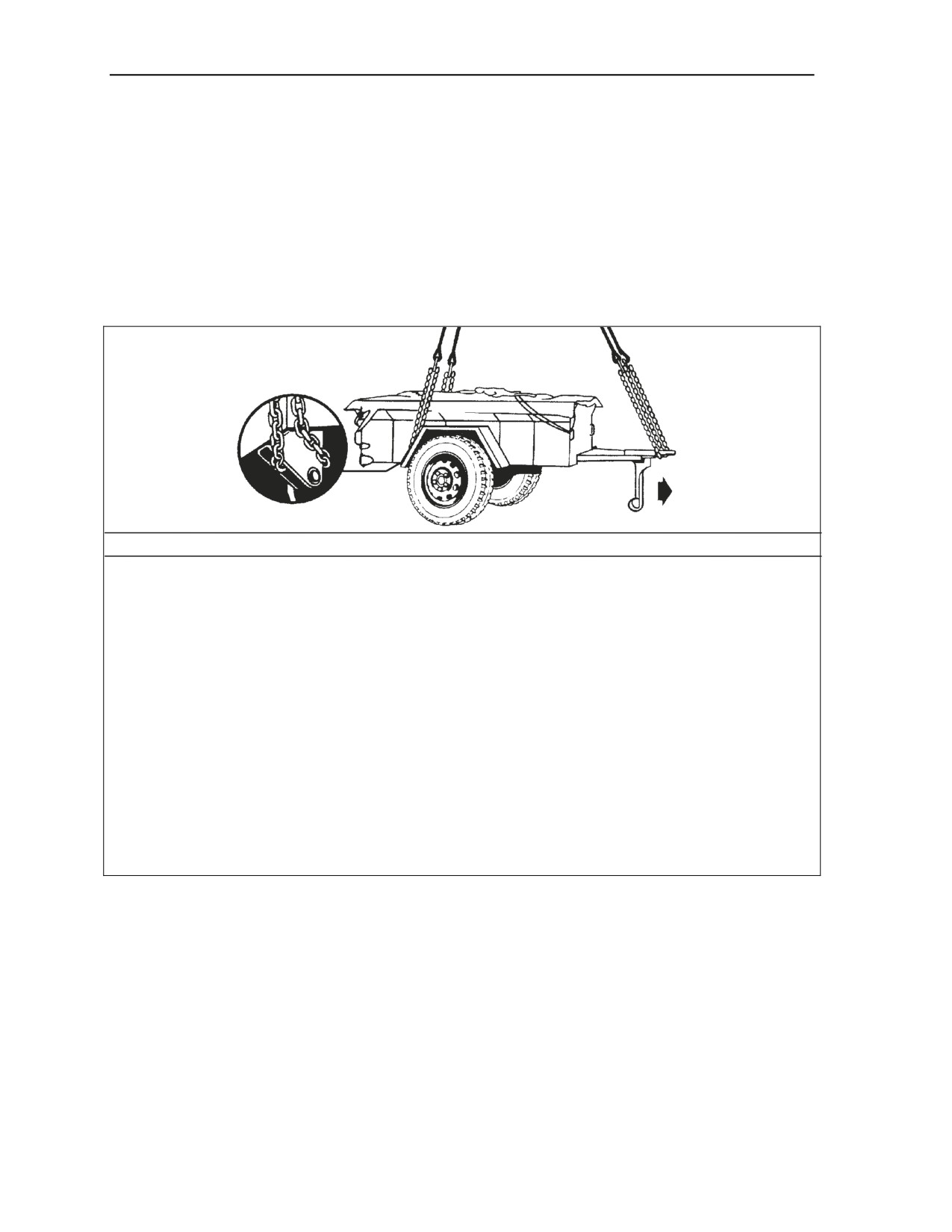

Figure 3-1. M416 1/4-Ton Trailer
3-2
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Trailers
M101A2/A3 3/4-TON TRAILER
3-3. The M101A2/A3 3/4-ton trailer is rigged for single-point sling load using the following procedures:
z
Applicability. The following items in Table 3-2 are certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 3-2. M101A2/A3 3/4-Ton Trailer
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
M101A2/A3 with Accompanying Load
3,000
10K
3/40
Command Version 1 Trailer
1,958
10K
3/40
Command Version 2 Trailer
1,981
10K
3/40
Len Cable Trailer
2,796
10K
3/40
NC Support Trailer
2,643
10K
3/40
Maintenance Trailer #2
1,430
10K
3/40
Battalion Spares Trailer #1
1,594
10K
3/40
Battalion Spares Trailer #2
2,206
10K
3/40
Marine Expeditionary Force Intelligence Analysis System M101A3
3,000
10K
15/3
Trailer
Technical Control and Analysis Center Production Improvement
3,000
10K
15/3
Program M101A3 Trailer
WARNINGS
1. The M101A2/A3 3/4-ton trailer must have a gross weight of
1,575 pounds or more. Add additional weight or cargo to any
trailer which weighs less than 1,575 pounds. Place the weight
near the center of the trailer.
2. Maximum weight during sling load operations for any variant
of the M101A2/A3 3/4-ton trailer is 3,000 pounds.
z
Materials. The following materials are required to rig this load:
„ Sling set (10,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Tie down, CGU-1B or dacron lashing and load binder.
z
Personnel. Two persons can prepare and rig this load in 15 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Fasten the tailgate in the open position with the chains on each side hooked through the
keeper.
─ Remove the front rack and place it in the bed of the trailer. Place the accompanying load
on top of the front rack. Secure the accompanying load to the trailer using tie-down
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
3-3
Chapter 3
straps. Route the straps diagonally across the load from the tailgate hinge to the front
lifting shackles.
─ Tape or tie the light cable firmly to the top of the drawbar.
─ Ensure the tongue wheel is in the down and locked position and the parking brake is set.

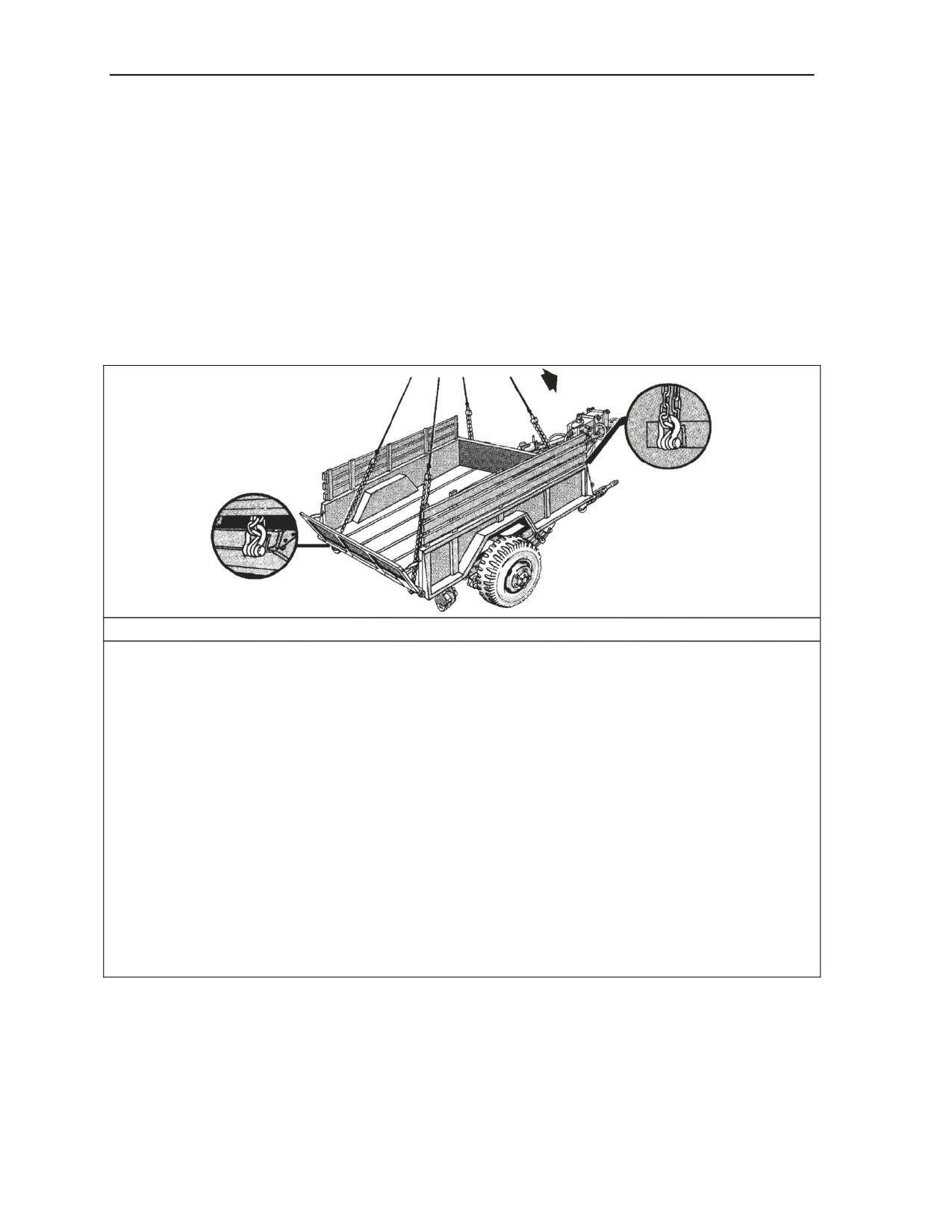

„ Rigging. Rig the load according to the steps in Figure 3-2.
„ Hookup. The hookup team stands in the bed of the trailer. The static wand person
discharges the static electricity with the static wand. The hookup person places the apex fitting
onto the aircraft cargo hook. The hookup team then carefully dismounts the vehicle and remains
close to the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
RIGGING STEPS
1. Position apex fitting in the trailer bed. Route outer sling legs 1 and 2 to the front of the trailer
and inner sling legs 3 and 4 to the rear. Route the rear chains through the opening between
the tailgate and the trailer bed. Sling legs 1 and 3 must be on the left side of the load.
2. Loop the chain end of sling leg 1 through the left front lift provision located on the front of the
trailer. Place the correct link from Table 3-2 in the grab hook. Repeat with sling leg 2 through
the right front lift provision. Secure excess chain with Type III nylon cord.
3. Route the chain end of sling leg 3 through the left rear lift provision. Place the correct link
from Table 3-2 in the grab hook. Repeat with sling leg 4 through the right rear lift provision.
Secure excess chain with Type III nylon cord.
4. Tape or tie (breakaway technique) the chains of legs 3 and 4 to the side racks to keep the
chains from binding between the tailgate and trailer bed.
5. Cluster and tie (breakaway technique) all sling legs together on top of the trailer to prevent
entanglement during hookup and lift-off.
Figure 3-2. M101A2/A3 3/4-Ton Trailer
3-4
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Trailers
M1048/M1073 TRAILER
3-4. The M1048/M1073 trailer is rigged for single-point sling load using the following procedures:
z
Applicability. The following items in Table 3-3 are certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 3-3. M1048/M1073 Trailer
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
M1048 Trailer
5,880
10K
44/6
M1073 Trailer
6,260
15K
58/3
z
Materials. The following materials are required to rig this load:
„ Sling set (10,000-pound capacity).
OR
„ Multileg sling set (15,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
z
Personnel. Two persons can prepare and rig this load in 15 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Secure all loose chains, hoses, and cables to the trailer drawbar with Type III nylon cord.
─ Secure any lids, caps, or loose items with tape or Type III nylon cord.
─ Tape or tie the light cable firmly to the top of the drawbar.
─ Place the leveling jacks in the down position. Ensure the base of the leveling jacks are
not extended. Stow the jack handles and secure with Type III nylon cord. The trailer
should lean downward at the lunette end.
─ Ensure the parking brake is set.
„ Rigging. Rig the load according to the steps in Figure 3-3.
„ Hookup. The hookup team stands in the bed of the trailer. The static wand person
discharges the static electricity with the static wand. The hookup person places the apex fitting
onto the aircraft cargo hook. The hookup team then carefully dismounts the vehicle and remains
close to the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
3-5
Chapter 3
RIGGING STEPS
1. Position apex fitting in the trailer bed. Route outer sling legs 1 and 2 to the front of the trailer
and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on the left side of the
load.
2. Loop the chain end of sling leg 1 through the left front lift provision located on the left front
corner of the trailer. Place the correct link from Table 3-3 in the grab hook. Repeat with sling
leg 2 through the right front lift provision.
3. Route the chain end of sling leg 3 through the left rear lift provision. Place the correct link
from Table 3-3 in the grab hook. Repeat with sling leg 4 through the right rear lift provision.
Secure excess chain with Type III nylon cord.
4. Cluster and tie (breakaway technique) all sling legs together on top of the trailer to prevent
entanglement during hookup and lift-off. Secure excess chain with tape or Type III nylon
cord.

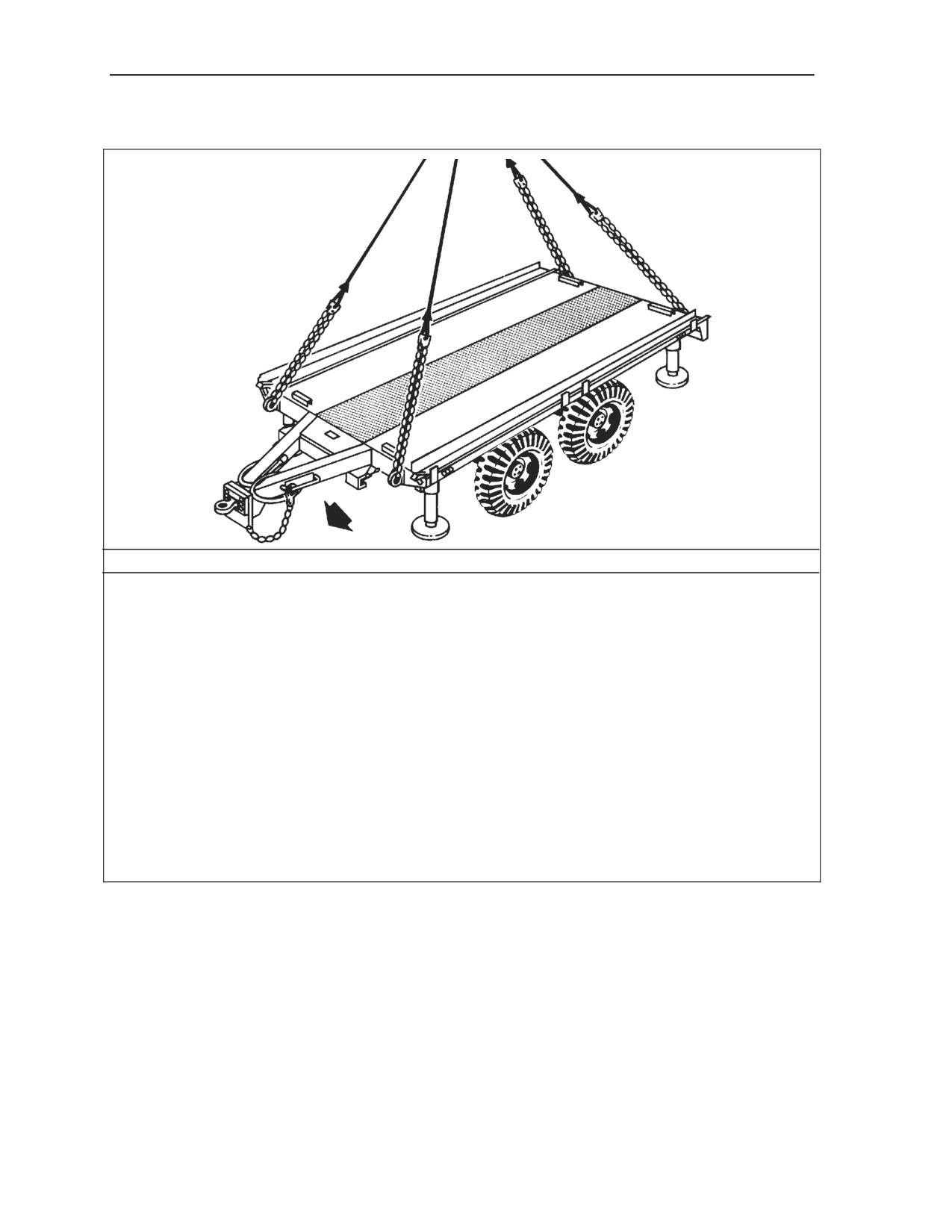

Figure 3-3. M1048/M1073 Trailer
3-6
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Trailers
M1048 TRAILER WITH TRACKED SUSPENSION SYSTEM
3-5. The M1048 trailer with tracked suspension system is rigged for single-point sling load using the
following procedures:
z
Applicability. The following item in Table 3-4 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 3-4. M1048 Trailer with Tracked Suspension System
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
M1048 Trailer (TSS)
7,880
10K
26/3
z
Materials. The following materials are required to rig this load:
„ Sling set (10,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
z
Personnel. Two persons can prepare and rig this load in 10 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Secure all loose chains, hoses, and cables to the trailer drawbar with Type III nylon cord.
─ Secure any lids, caps, or loose items with tape or Type III nylon cord.
─ Tape or tie the light cable firmly to the top of the drawbar.
─ Place the front leveling jacks in the down position. Ensure the base of the leveling jacks
are not extended. Stow the jack handles and secure with Type III nylon cord. Secure
the rear leveling jacks in the up position. The trailer should lean downward at the
lunette end.
─ Ensure the parking brake is set.
„ Rigging. Rig the load according to the steps in Figure 3-4.
„ Hookup. The hookup team stands in the bed of the trailer. The static wand person
discharges the static electricity with the static wand. The hookup person places the apex fitting
onto the aircraft cargo hook. The hookup team then carefully dismounts the vehicle and remains
close to the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
3-7

















Content      ..     1      2      3      4      ..
