POSITIONING AND LASHING DRUMS

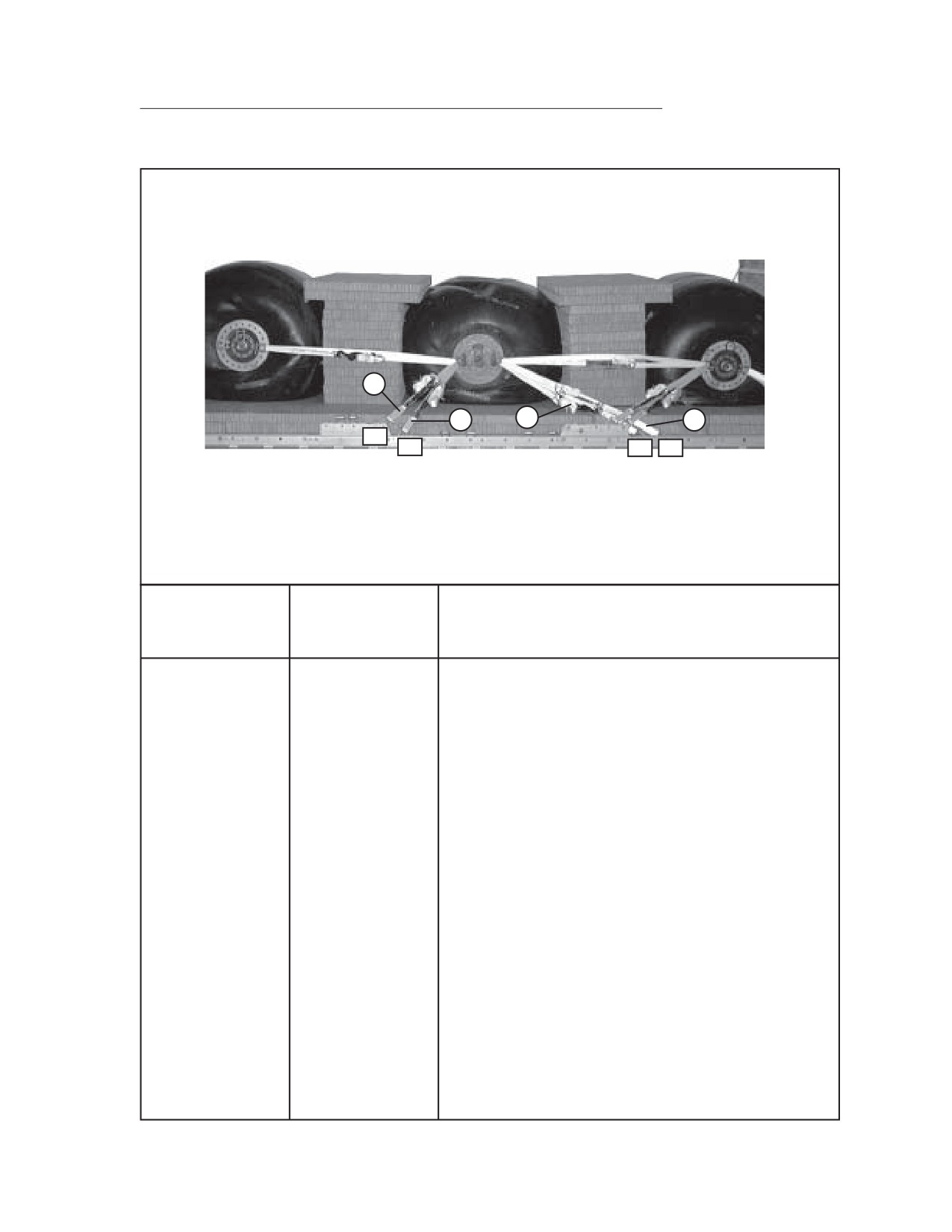

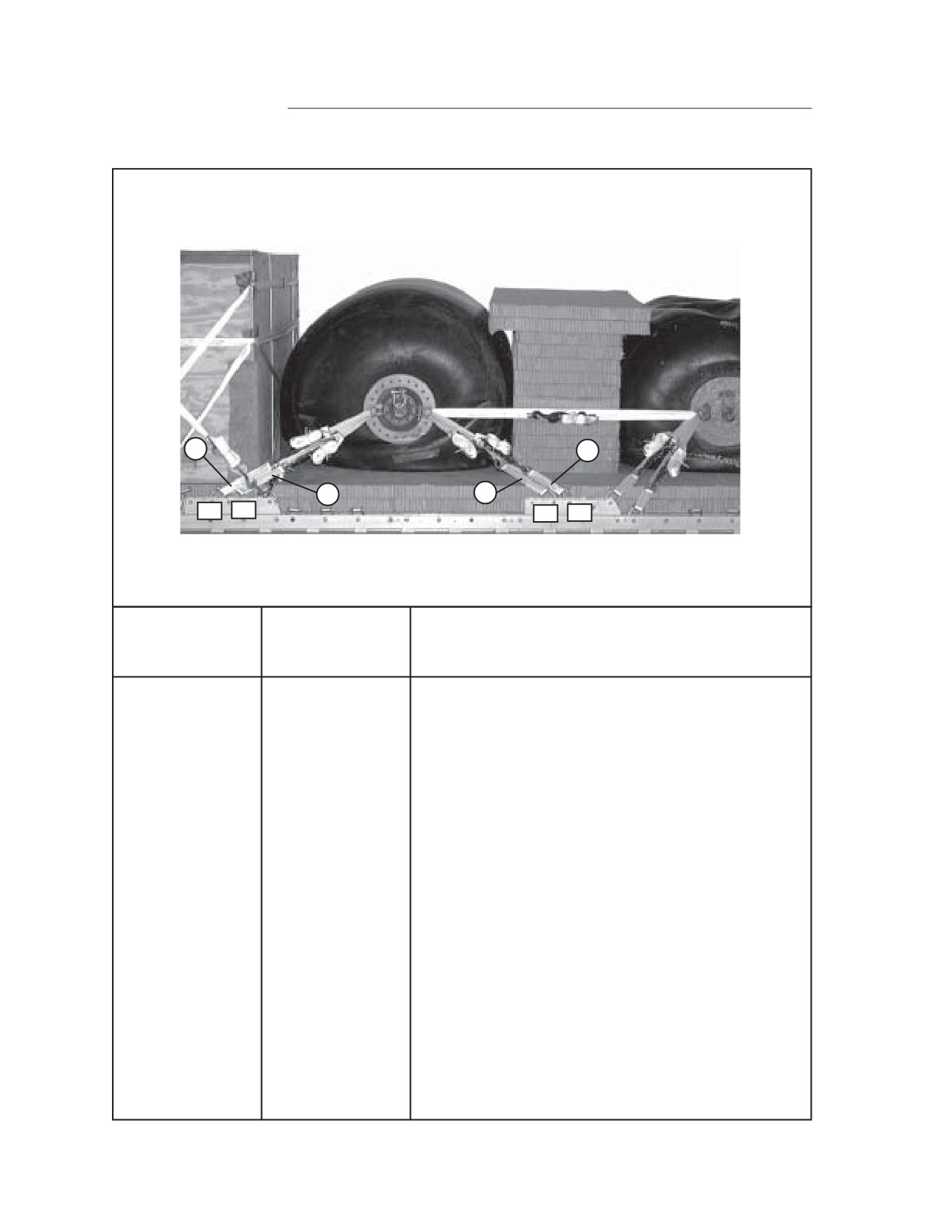

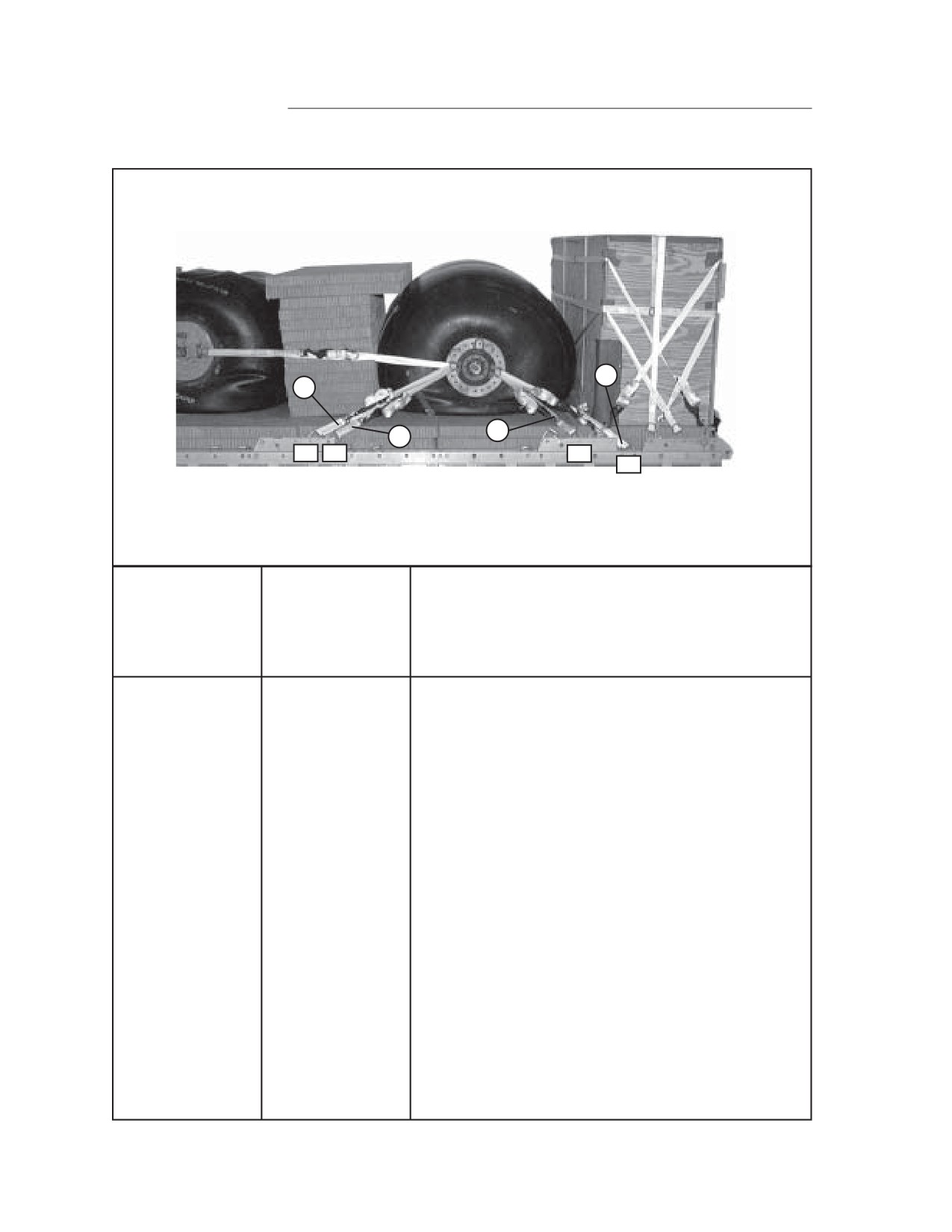

4-28. Position four fuel drums and lash them to the platform as
shown in Figures 4-43 through 4-49.
1
2
1

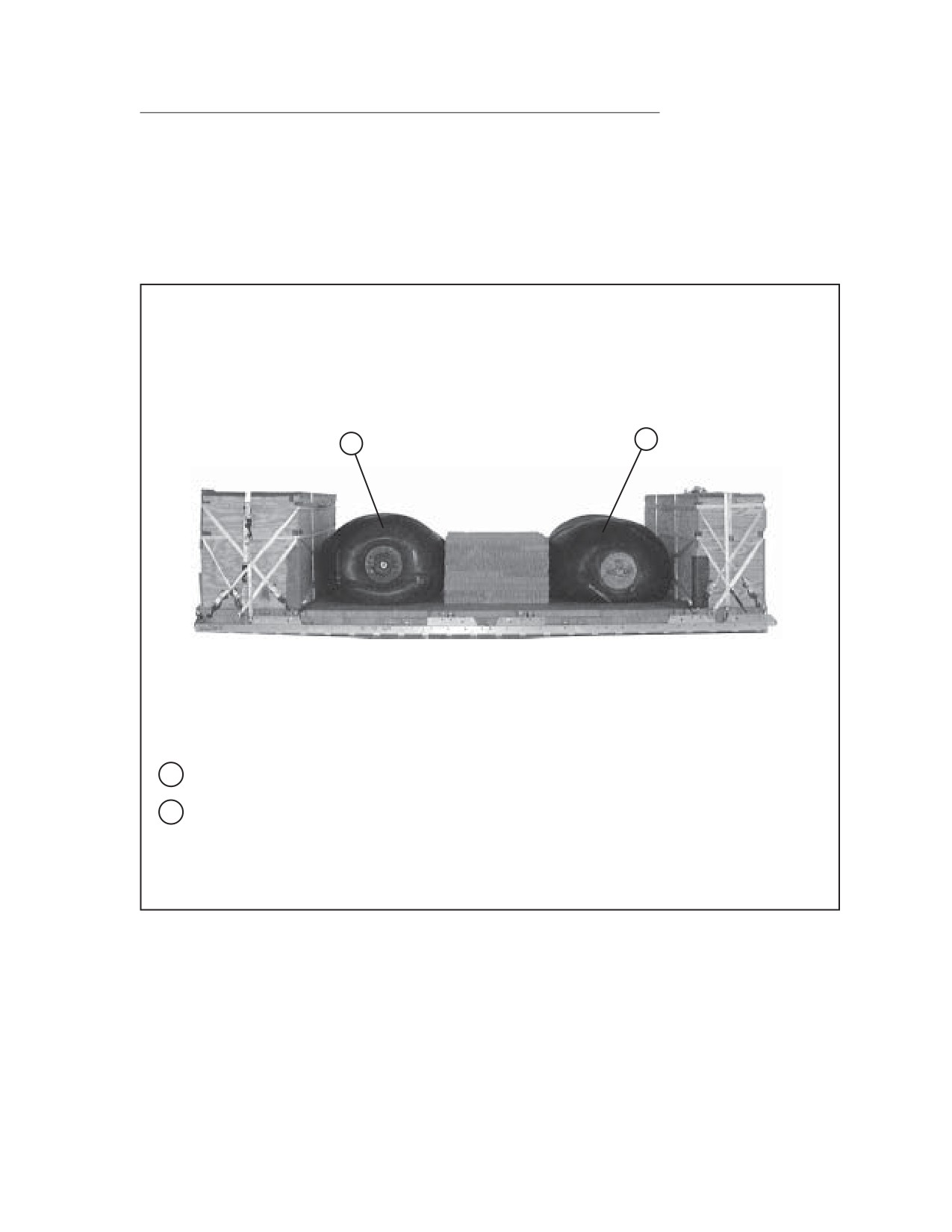

Place drum 1 centered across the platform and between the front box and the center stack.
2
Place drum 2 centered across the platform and between the rear box and the center stack.
NOTE: There should be a 3-inch to 4-inch gap between the drums and the equipment boxes
Figure 4-43. Drums 1 and 2 Placed
4-57
FM 4-20.105/TO 13C7-1-19
15
19
17
10
11
Tie-dow n
Lashing
Clevis
Instruction s
Number
Number
15

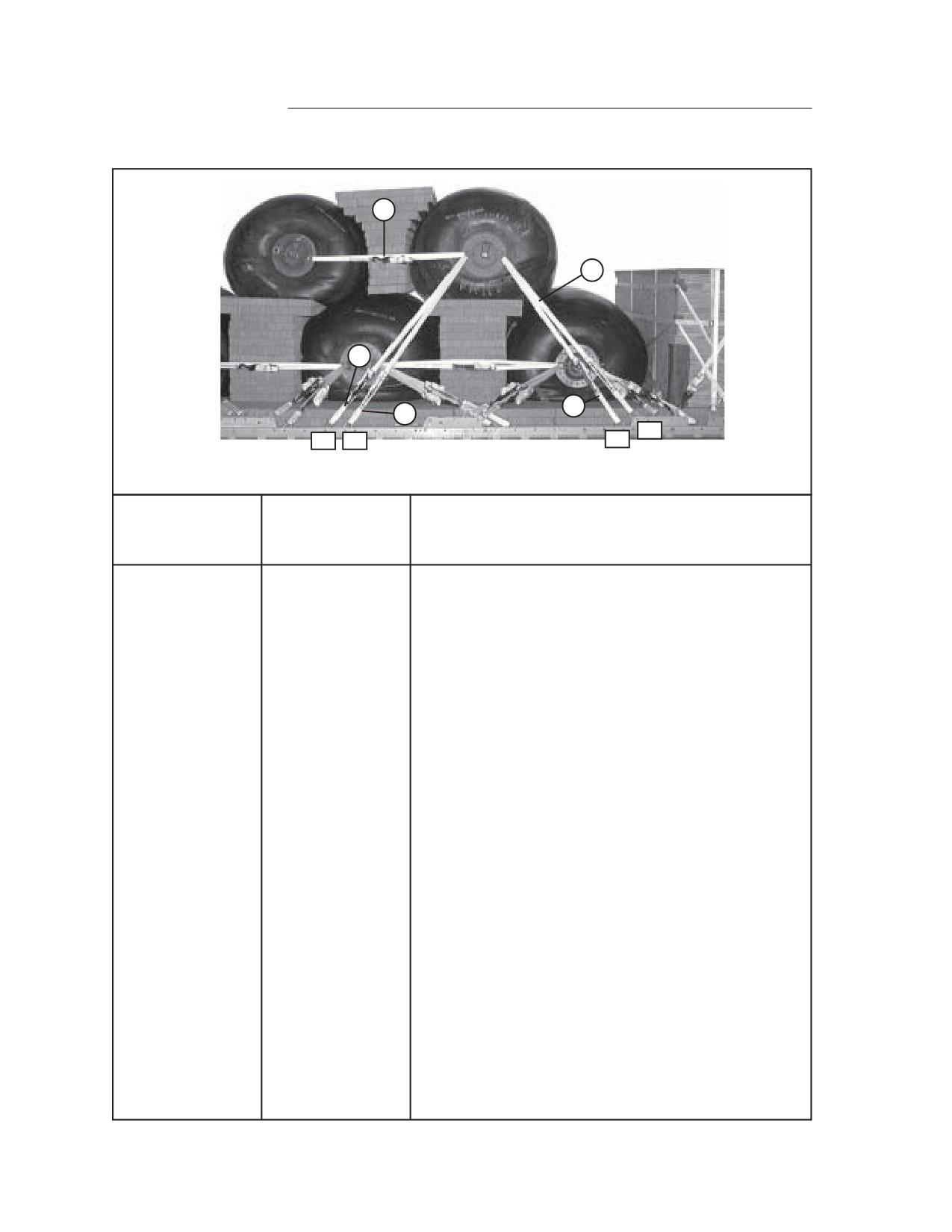

Route a lashing from the rear shackle of drum 1 to the front
shackle of drum 2 on the right side.
16
Route a lashing from the rear shackle of drum 1 to the front
shackle of drum 2 on the left side.
17
10
Route a lashing from clevis 10 to the front right shackle on
drum
1
18
10A
Route a lashing from clevis 10A to the front left shackle on
drum
1
19
11
Route a lashing from clevis 11 to the front right shackle on
drum
1
20
11A
Route a lashing from clevis 11A to the front left shackle on
drum
1

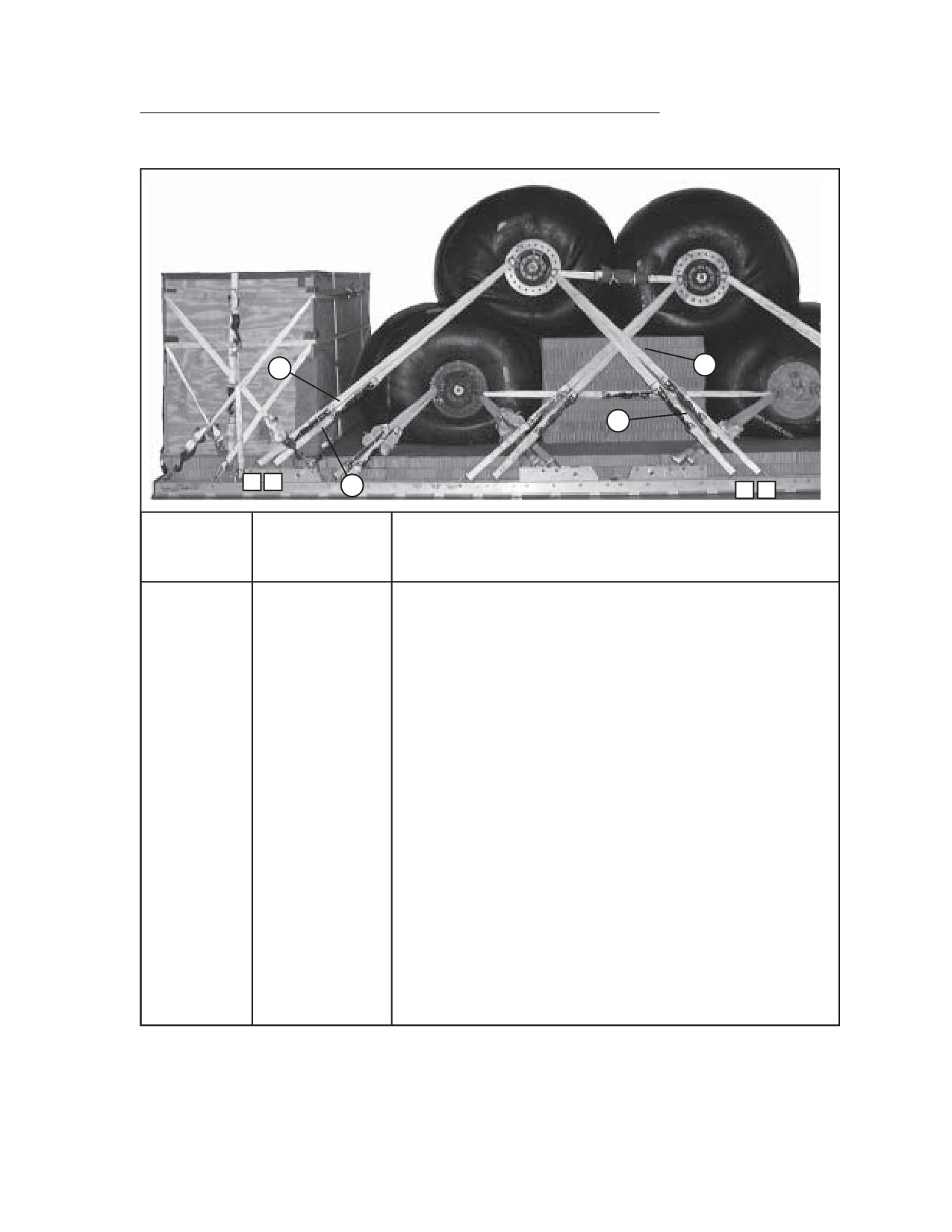

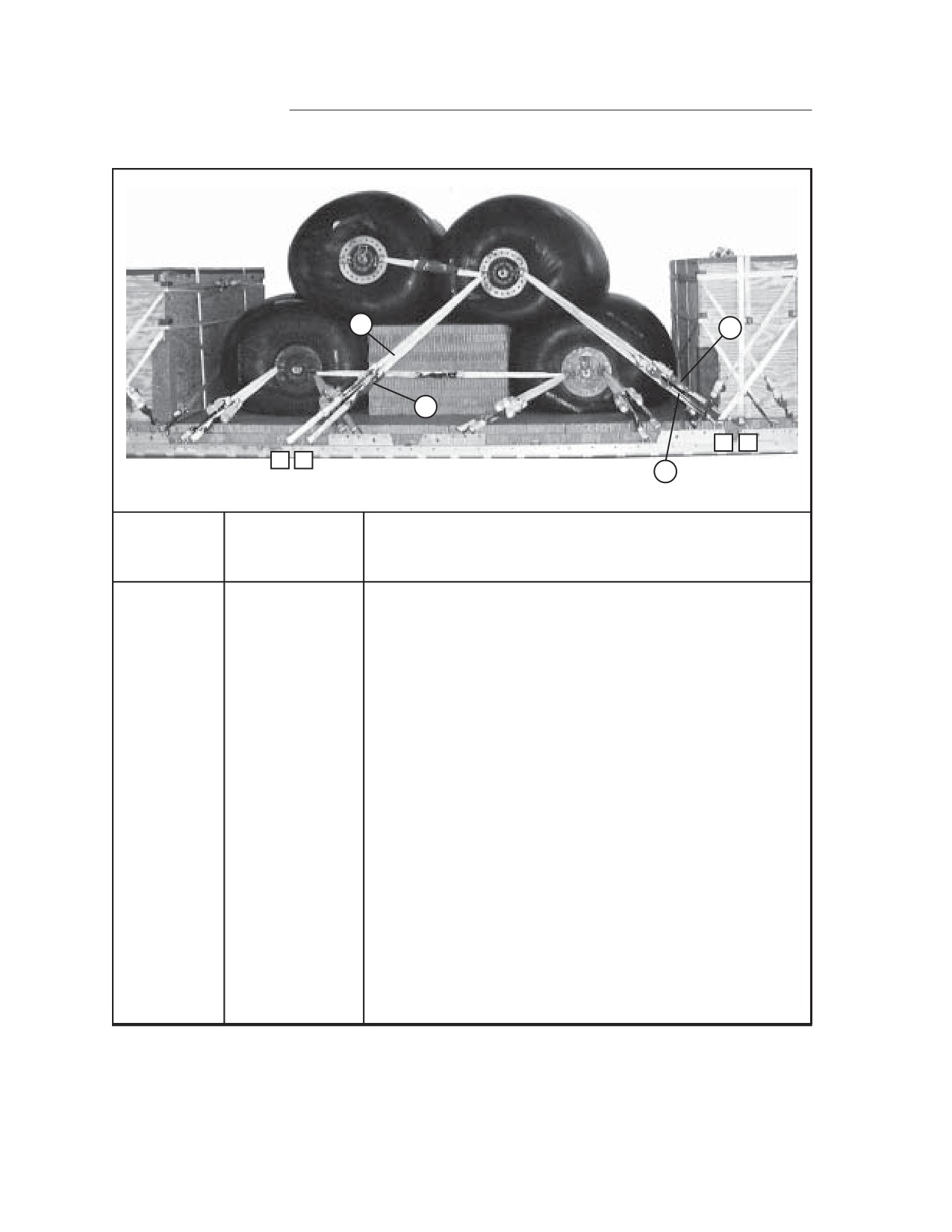

Figure 4-44. Lashings 15 through 20 Installed
4-58
FM 4-20.105/TO 13C7-1-19
23
21
15
14
Tie-dow n
Lashing
Clevis
Instruction s
Number
Number
21
14
Route a lashing from clevis 14 to the rear right shackle on
drum
1
22
14A
Route a lashing from clevis 14A to the rear left shackle on
drum
1
23
15
Route a lashing from clevis 15 to the rear right shackle on
drum
1
24
15A
Route a lashing from clevis 15A to the rear left shackle on
drum
1

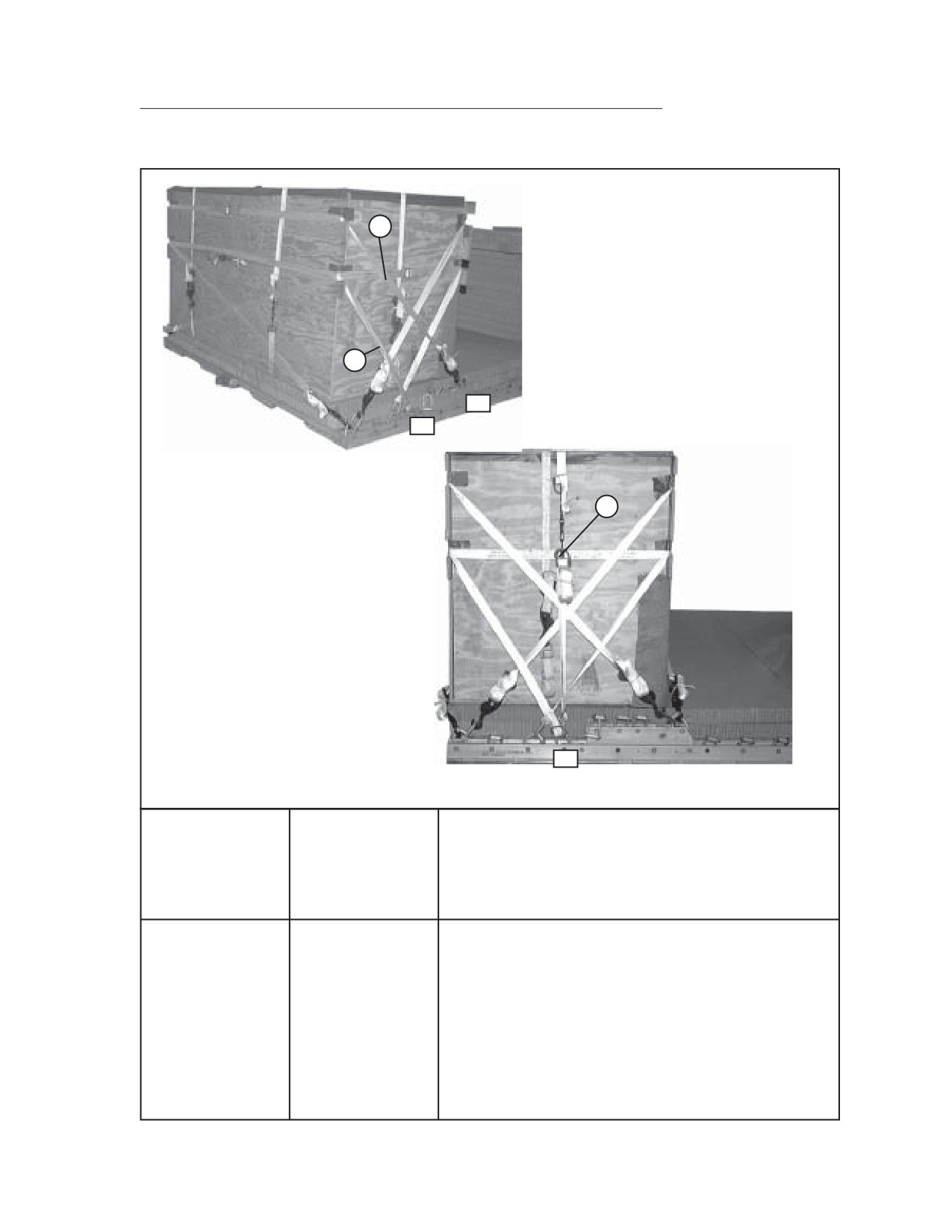

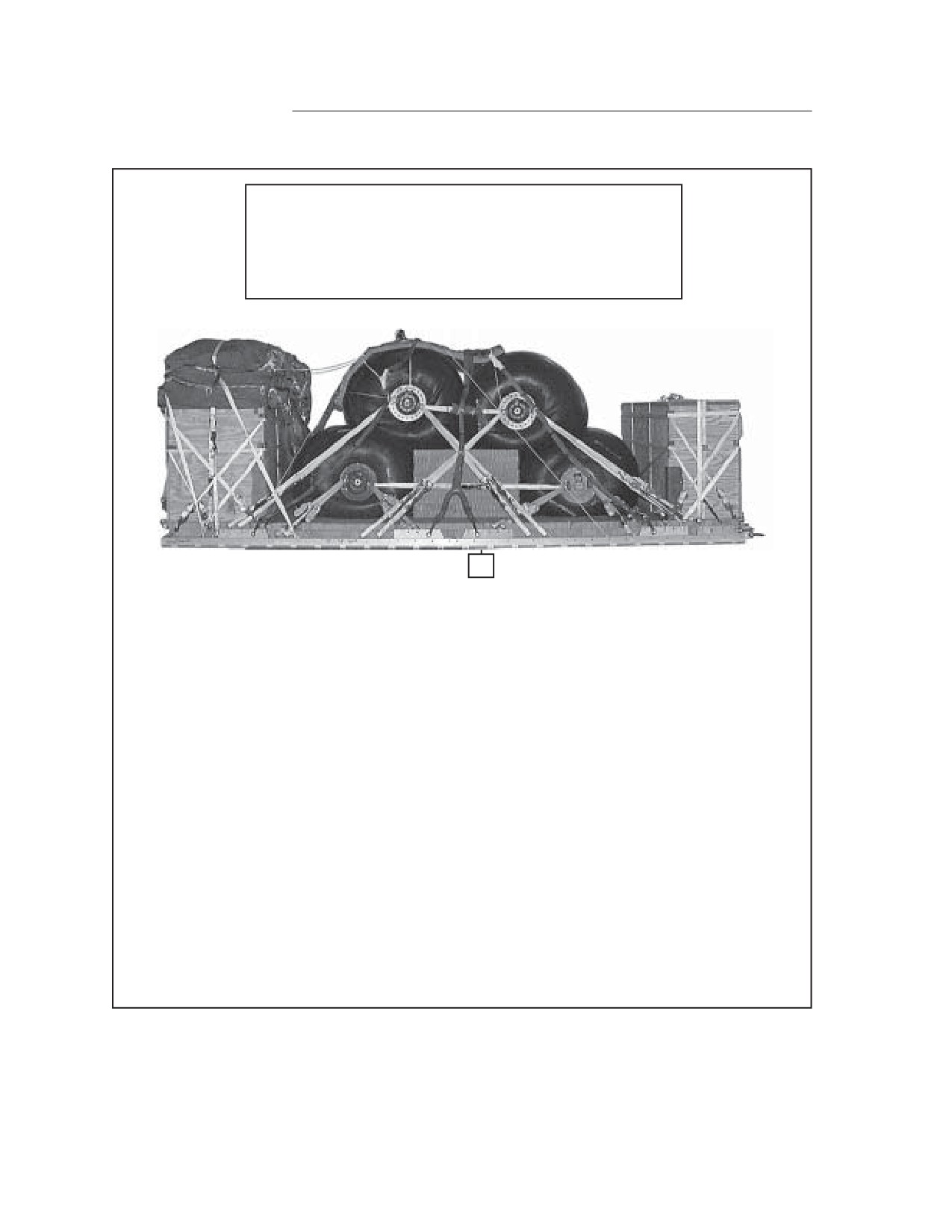

Figure 4-45. Lashings 21 through 24 Installed
4-59
FM 4-20.105/TO 13C7-1-19
31
25
27
29
17
16
21
20
Tie-dow n
Lashing
Clevis
Instruction s
Number
Number
25
16
Route a lashing from clevis
16 to the front right shackle on
drum
2
26
16A
Route a lashing from clevis
16A to the front left shackle on
drum
2
27
17
Route a lashing from clevis
17 to the front right shackle on
drum
2
28
17A
Route a lashing from clevis
17A to the front left shackle on
drum
2
29
20
Route a lashing from clevis
20 to the rear right shackle on
drum
2
30
20A
Route a lashing from clevis
20A to the rear left shackle on
drum
2
31
21
Route a lashing from clevis
21 to the rear right shackle on
drum
2
32
21A
Route a lashing from clevis
21A to the rear left shackle on
drum
2

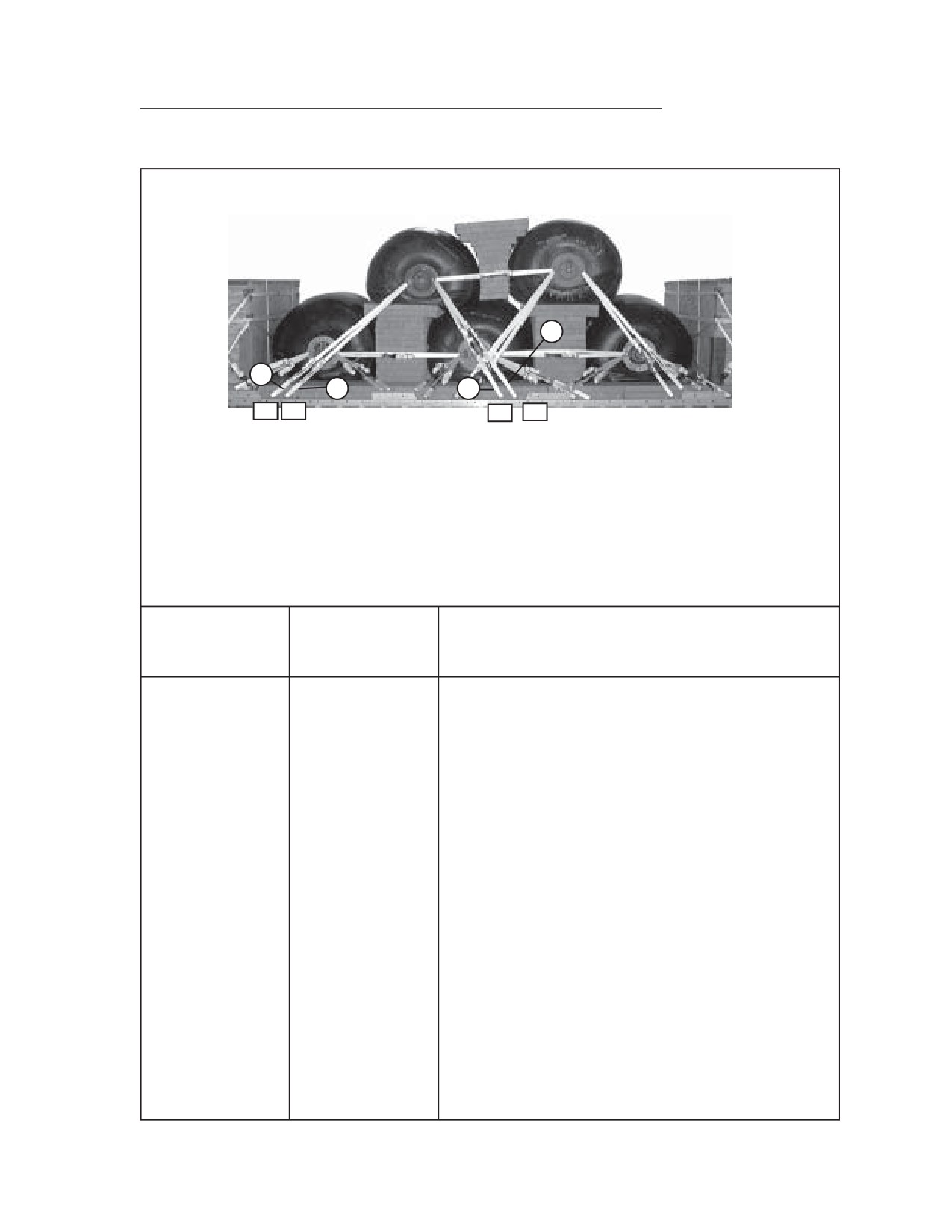

Figure 4-46. Lashings 25 through 32 Installed
4-60
FM 4-20.105/TO 13C7-1-19
1
2
4
3
1

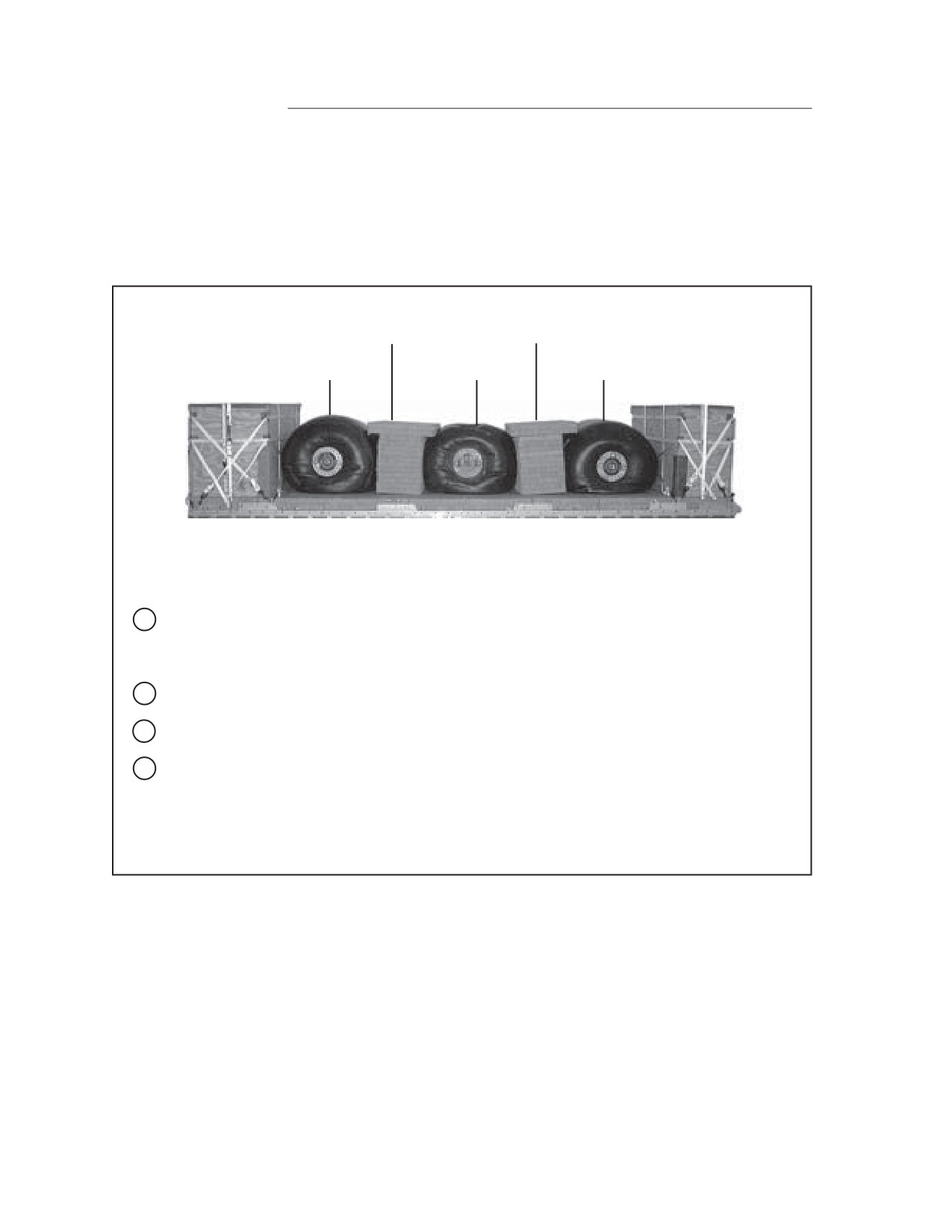

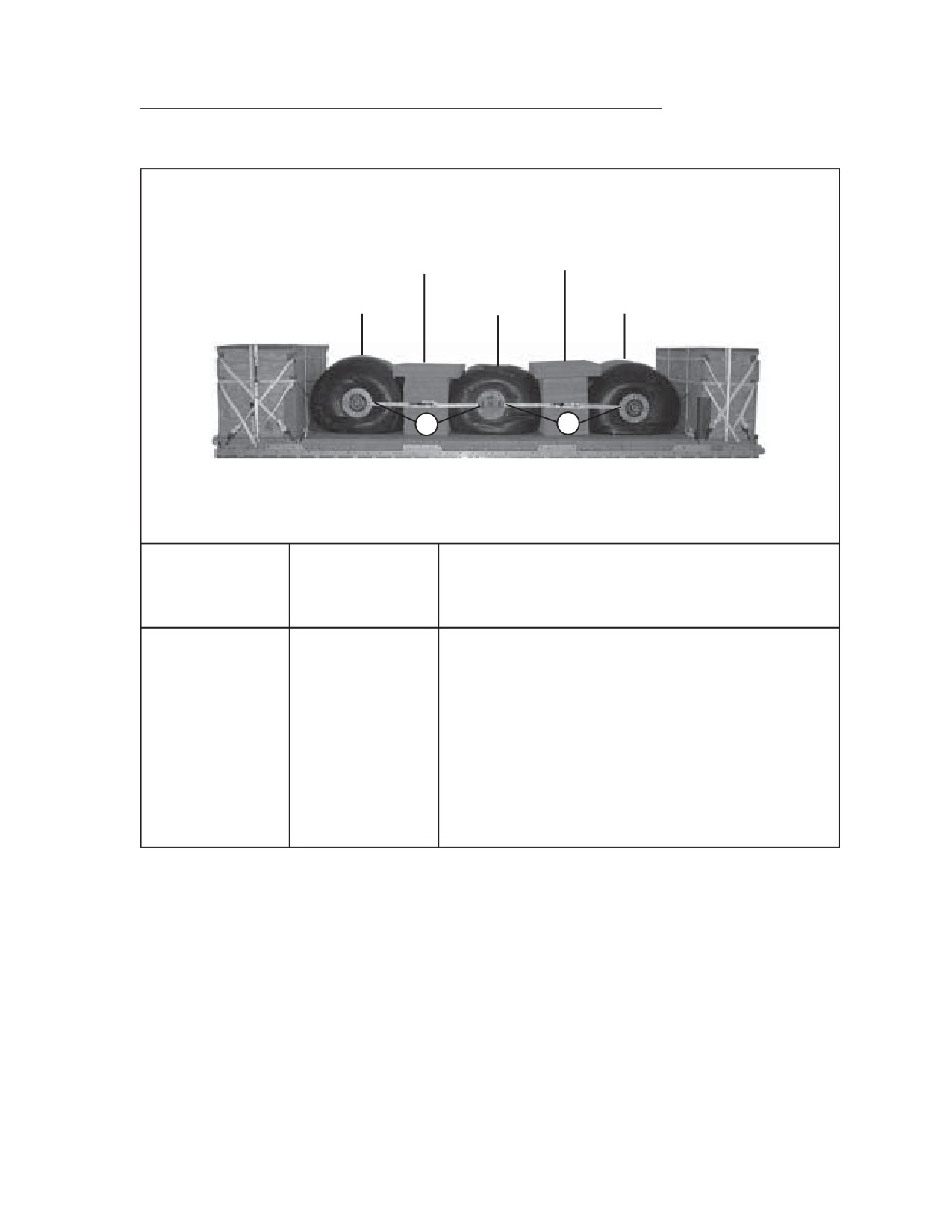

Position drum 3 at the front of the center stack, resting against drum 1.
2
Position drum 4 at the rear of the center stack, resting against drum 2.
3
Lash drums 3 and 4 together on each side, using the inside shackles and a 15-foot lashing.
4
Pad each load binder with a 10- by 15-inch piece of felt. Tie the felt in place with two
lengths of type I, 1/4-inch cotton webbing.
Figure 4-47. Drums 3 and 4 Positioned
4-61
FM 4-20.105/TO 13C7-1-19
39
33
37
7
5
19
18
35
Tie-dow n
Lashing
Clevis
Instruction s
Number
Number
33
5
Route a lashing from clevis
5 to the front right shackle on
drum
3
34
5A
Route a lashing from clevis
5A to the front left shackle on
drum
3
35
7
Route a lashing from clevis
7 to the front right shackle on
drum
3
36
7A
Route a lashing from clevis
7A to the front left shackle on
drum
3
37
18
Route a lashing from clevis
18 to the rear right shackle on
drum
3
38
18A
Route a lashing from clevis
18A to the rear left shackle on
drum
3
39
19
Route a lashing from clevis
19 to the rear right shackle on
drum
3
40
19A
Route a lashing from clevis
19A to the rear left shackle on
drum
3
Figure 4-48. Lashings 33 through 40 Installed
4-62
FM 4-20.105/TO 13C7-1-19
41
47
43
25
24
45
13
12
Tie-dow n
Lashing
Clevis
Instruction s
Number
Number
41
12
Route a lashing from clevis
12 to the front right shackle on
drum
4
42
12A
Route a lashing from clevis
12A to the front left shackle on
drum
4
43
13
Route a lashing from clevis
13 to the front right shackle on
drum
4
44
13A
Route a lashing from clevis
13A to the front left shackle on
drum
4
45
24
Route a lashing from clevis
24 to the rear right shackle on
drum
4
46
24A
Route a lashing from clevis
24A to the rear left shackle on
drum
4
47
25
Route a lashing from clevis
25 to the rear right shackle on
drum
4
48
25A
Route a lashing from clevis
25A to the rear left shackle on
drum
4
Figure 4-49. Lashings 41 through 48 Installed
4-63
FM 4-20.105/TO 13C7-1-19
INSTALLING RELEASE PLATFORM, SUSPENSION SLINGS AND
SAFETY TIES

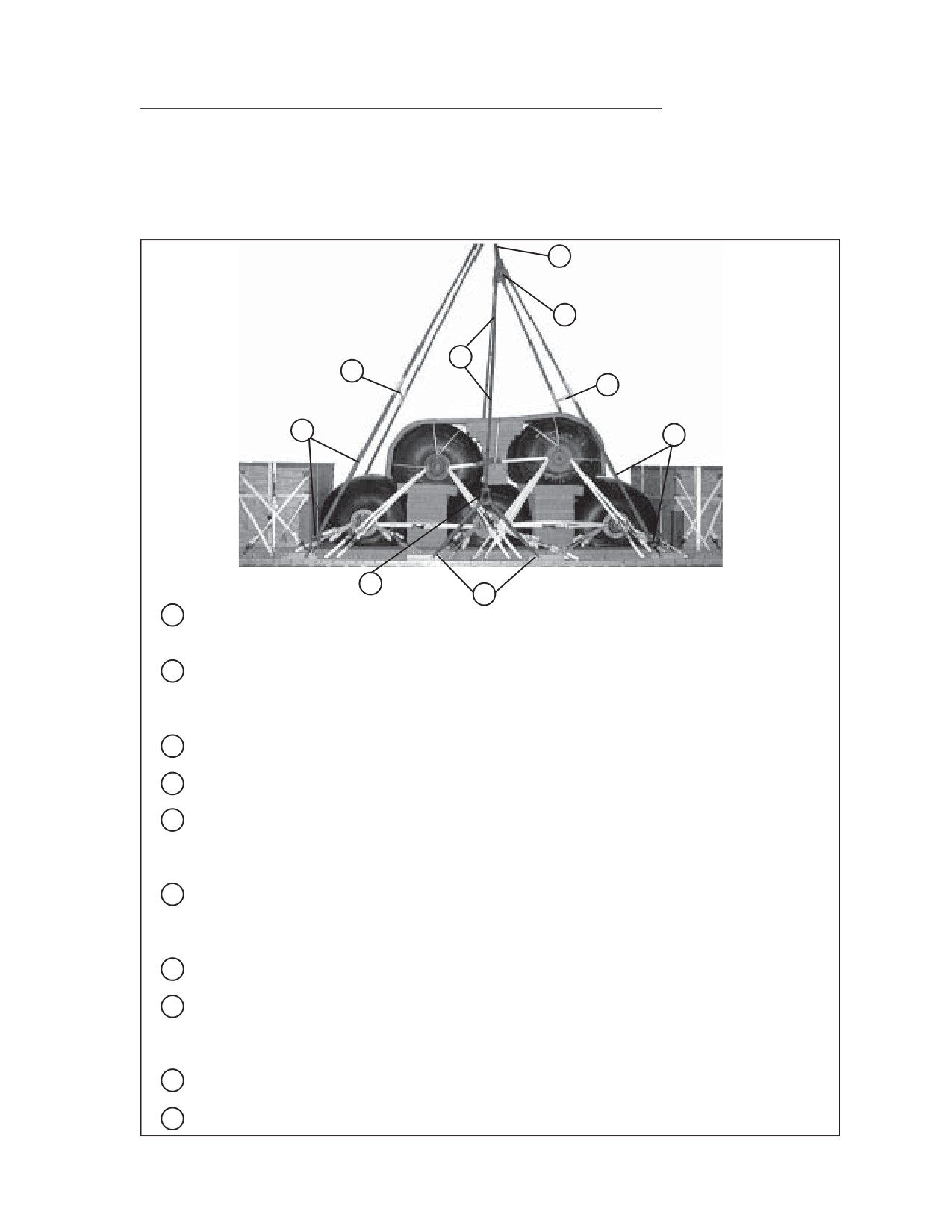

4-29. Install the release platform, suspension slings and safety ties as shown in
Figure 4-50.
1
4
2
3
5
1

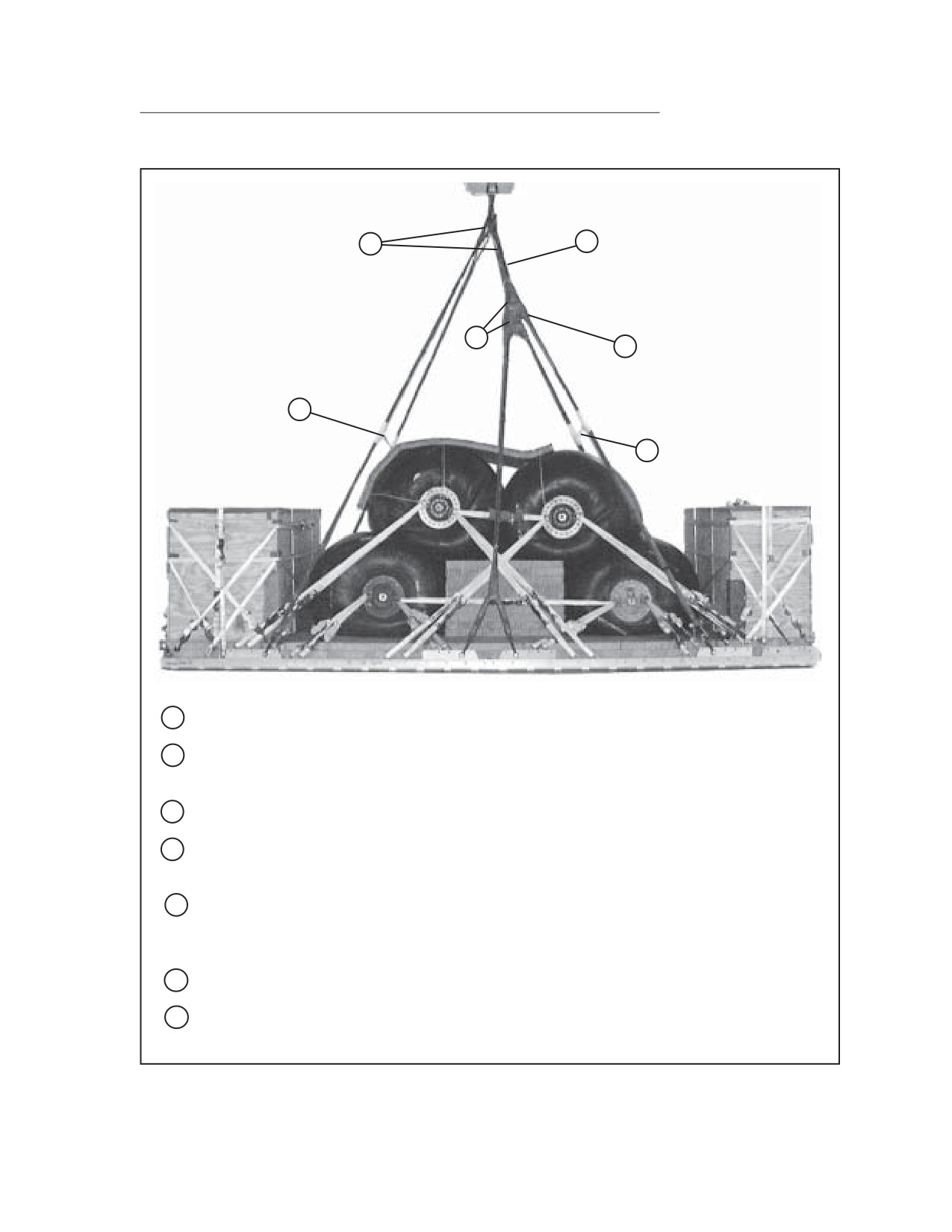

Tie a 36- by 96-inch piece of honeycomb over drums 3 and 4 as shown with type III nylon
cord. Tape edges of honeycomb.
2
Place a large clevis in one end of a 16-foot (4-loop), type XXVI nylon suspension sling. Attach
the clevis to the right rear suspension bracket.
3
Place two large clevises on one end of a 12-foot (4-loop), type XXVI nylon suspension sling.
Attach the lower clevis to the right front suspension bracket. Safety tie them together with
type III nylon cord using an hourglass tie.
4
Place one end of a 20-foot (4-loop), type XXVI nylon suspension sling on a 3-foot (4-loop), type
XXVI nylon suspension sling. Route the running end of the 20-foot sling through a point on
a 3-point link and place it on the 3-foot sling.
5
Attach large clevises to each running end of the 3-foot sling and attach the clevises to the
right center suspension brackets.

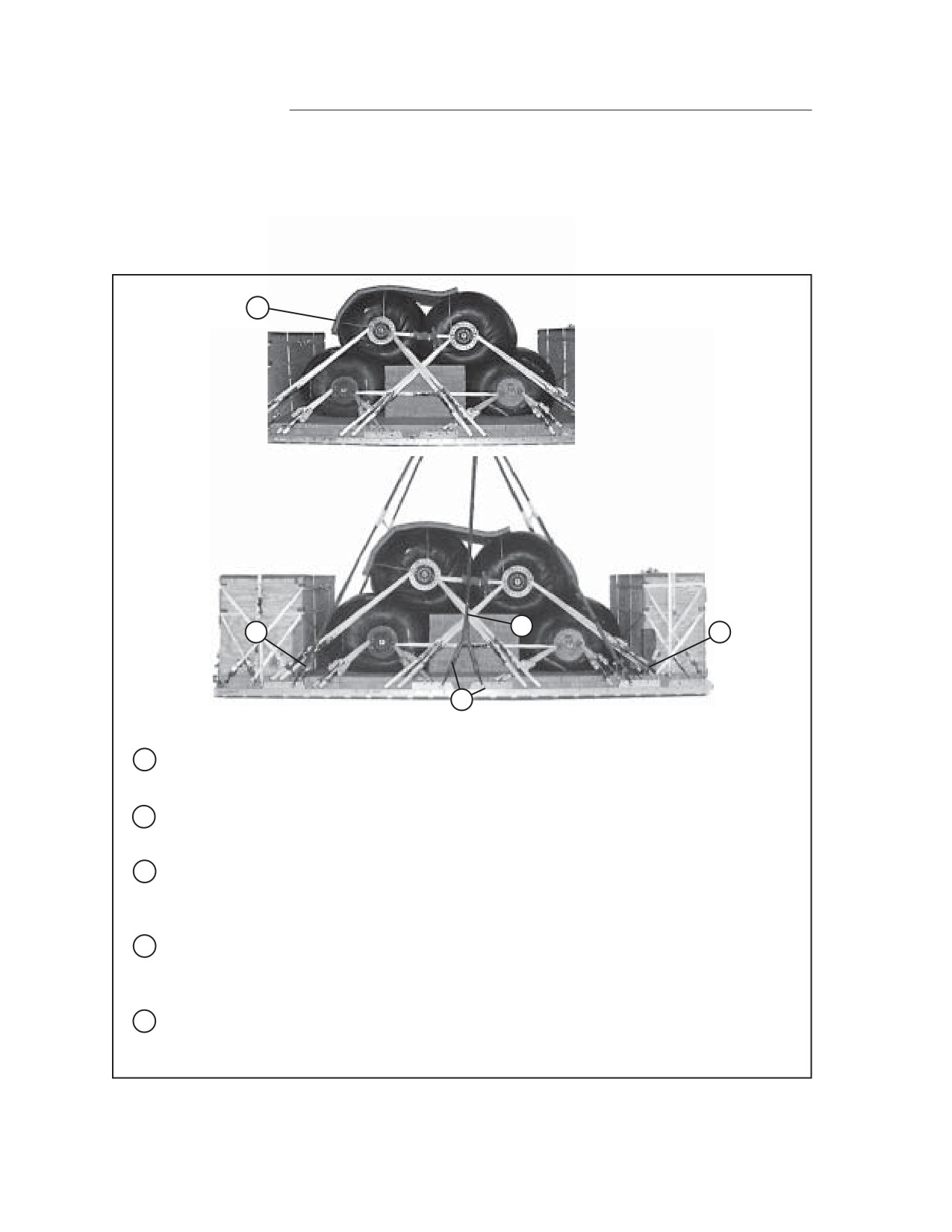

Figure 4-50. Release Platform, Suspension Slings and Safety Ties Installed
4-64
FM 4-20.105/TO 13C7-1-19
9
7
11
6
10
10
6
Attach the running end of the front suspension sling to the 3-point link.
7
Place a 3-foot (4-loop), type XXVI nylon suspension sling on the remaining spool of the 3-
point link.
8
Repeat steps 2 through 7 for the left side (not shown).
9
Attach the rear suspension slings and the three-foot sling on the 3-point link to the crane
hook. Raise the suspension slings.
10
Install the suspension sling safety ties to the front and rear pairs of suspension slings using
doubled 1/2-inch tubular nylon webbing six to eight inches above the highest point of the
load. Refer to the Notice of Exception in the Introduction of this manual.
11
Pad the 3-point links with felt and tape.
12
Remove the slack from the center suspension and safety tie to to a convenient point on the
load using one turn doubled type I, 1/4-inch, cotton webbing (not shown).
Figure 4-50. Release Platform, Suspension Slings and Safety Ties Installed (continued)
4-65
FM 4-20.105/TO 13C7-1-19
PREPARING AND STOWING CARGO PARACHUTES

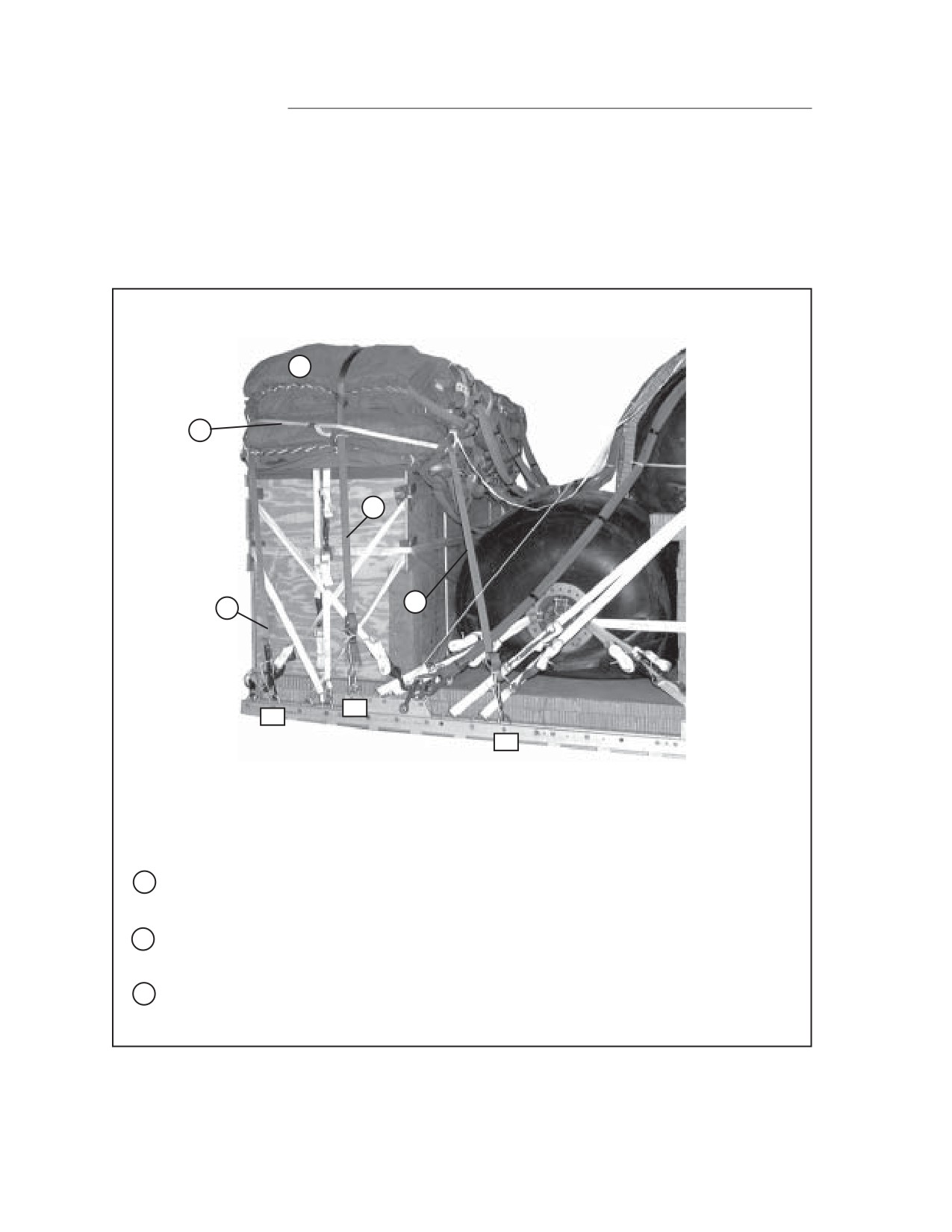

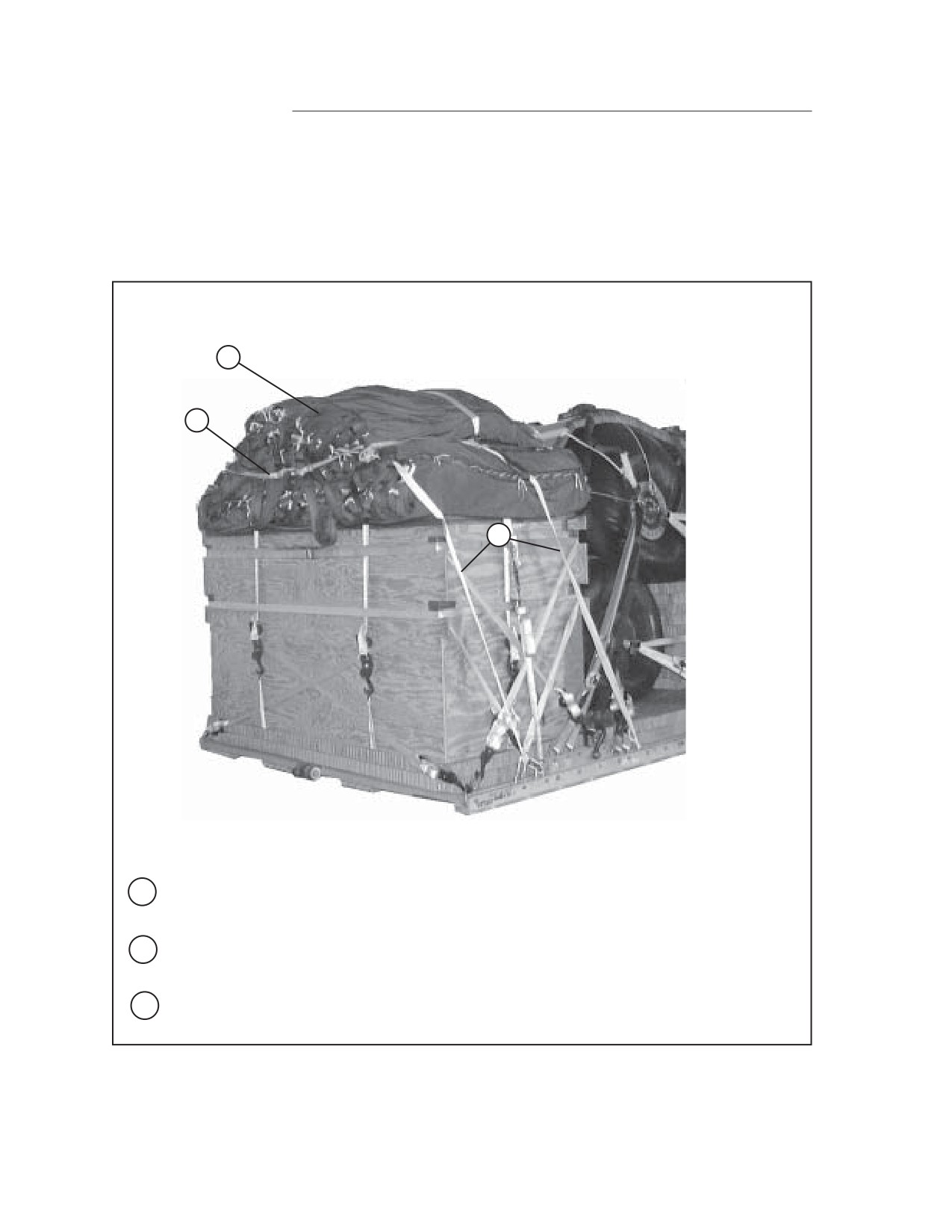

4-30. Prepare and stow five G-11 cargo parachutes as shown in Figure 4-51.

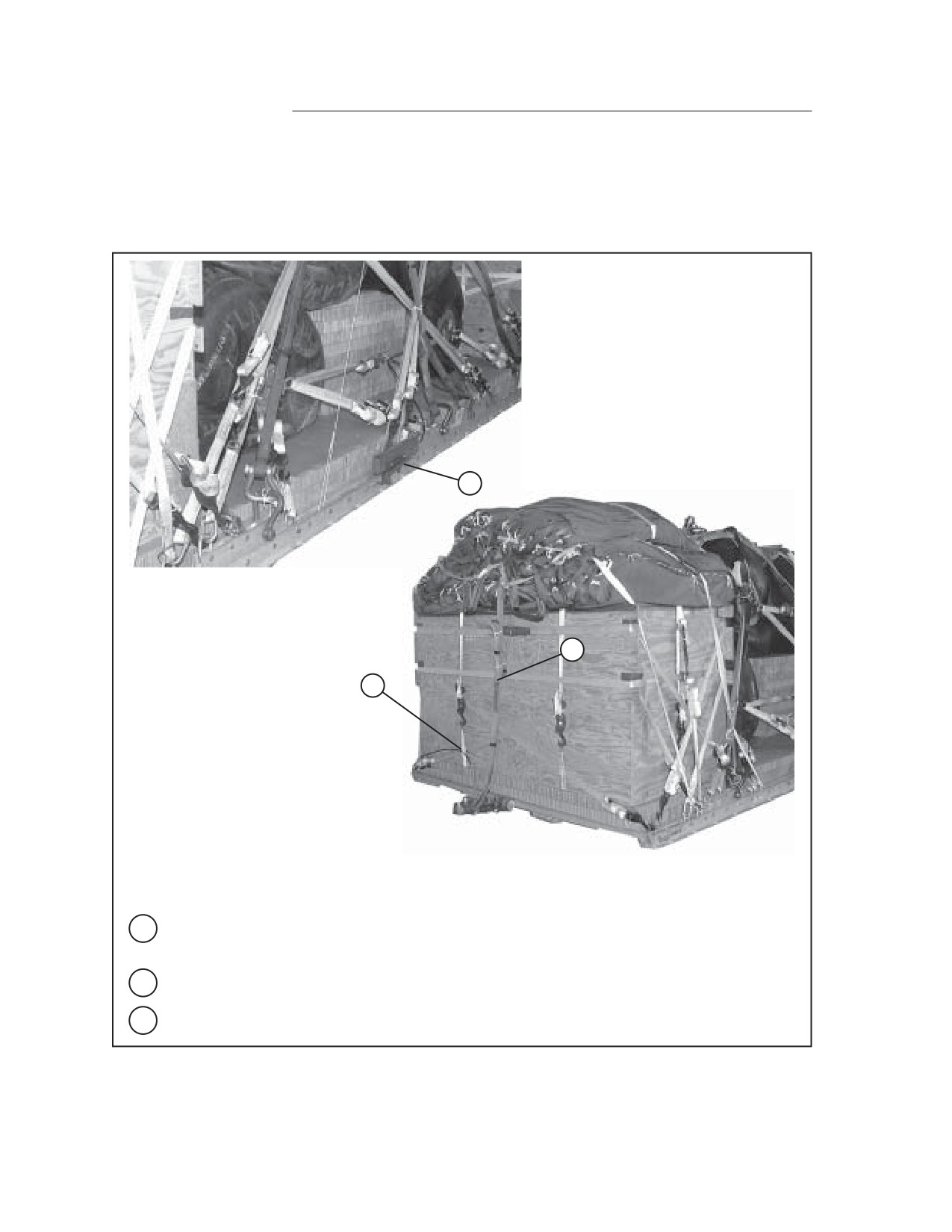

1
3
2
1

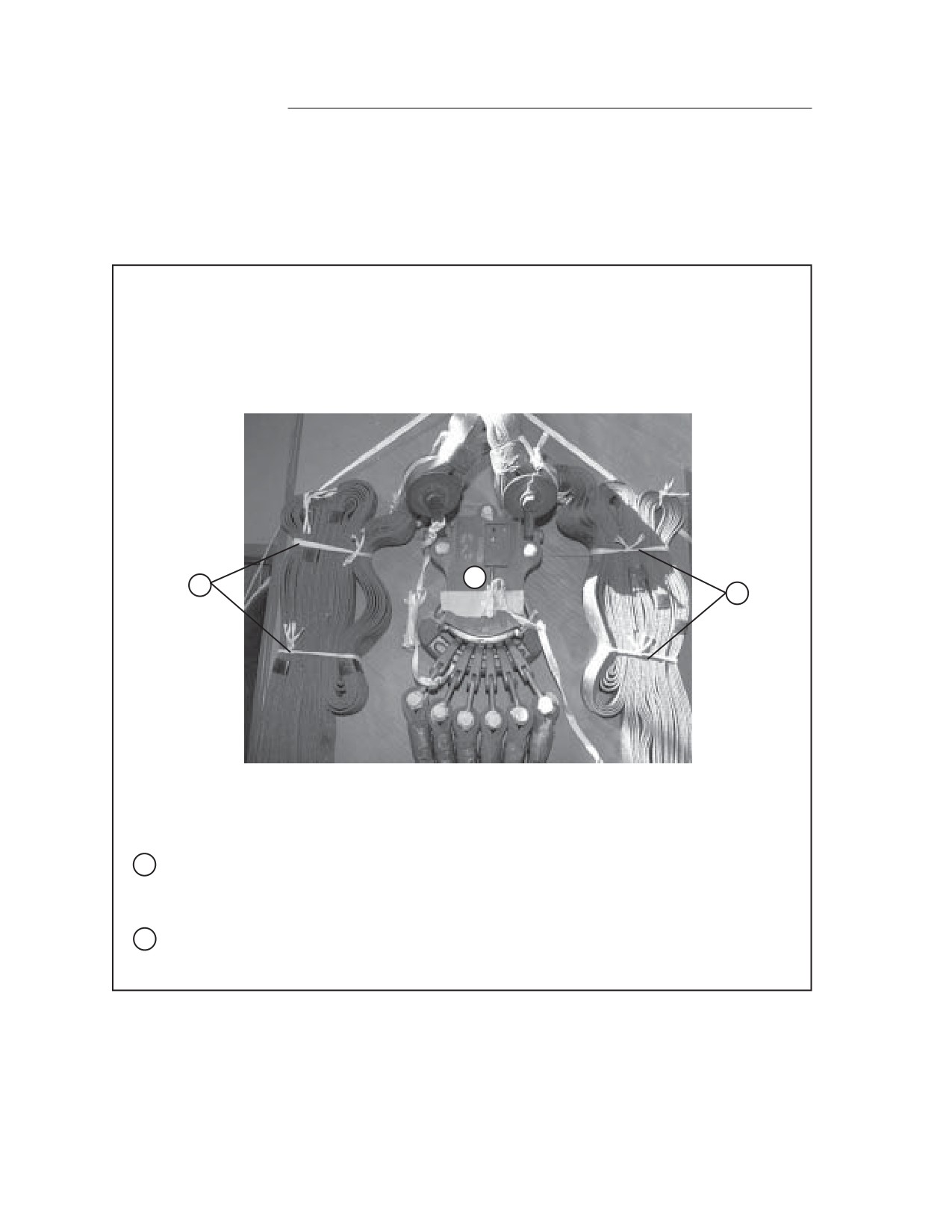

Prepare and stow five G-11 cargo parachutes on the rear equipment box acording to FM 4-
20.102/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
2
Restrain the parachutes according to FM 4-20.102/NAVSEA SS400-AB-MMO-010/TO
13C7-1-5, and using bushings 29 and 29A, and 31 and31A.
3
Install the multicut parachute release strap according to FM 4-20.102/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5.
Figure 4-51. Cargo Parachutes Prepared and Stowed
4-66
FM 4-20.105/TO 13C7-1-19

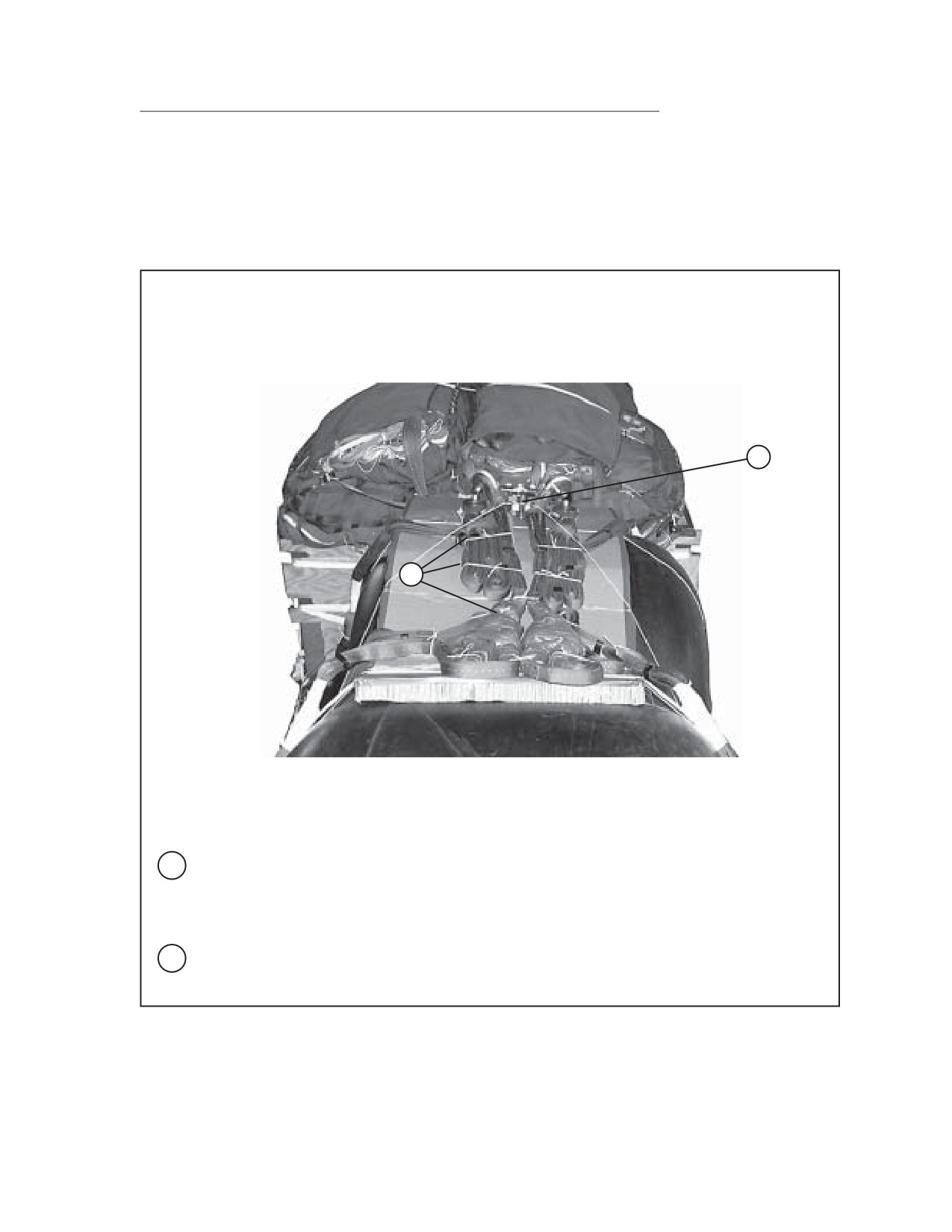

INSTALLING THE CARGO PARACHUTE RELEASE SYSTEM
4-31. Install the parachute release as shown in Figure 4-52.
1
2
1
Place the M-2 release on the release platform. Attach the suspension slings and the
parachute riser extensions to the M-2 cargo parachute release according to FM 4-20.102/
NAVSEA SS400-AB-MMO-010/TO 13C7-1-5. Secure the cargo parachute release with type
III nylon cord.
2
S-fold and tie any slack in the suspension slings with 1/4-inch cotton webbing.
Figure 4-52. Cargo Parachute Release Release Installed
4-67
FM 4-20.105/TO 13C7-1-19
INSTALLING THE EXTRACTION SYSTEM
4-32. Install the components of the EFTC system as shown in Figure 4-53.
1
3
2
1
Using the rear holes, install the extraction force transfer coupling (EFTC) according to FM
4-20.102/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
2
Using a 24-foot EFTC cable, safety the cable using one turn type I, 1/4-inch cotton webbing.
3
Attach a 9-foot (2-loop), type XXVI nylon webbing sling for use as a deployment line.
Figure 4-53. Extraction System Installed
4-68
FM 4-20.105/TO 13C7-1-19
PLACING EXTRACTION PARACHUTE
4-33. Select the extraction parachute and extraction line needed using the
extraction line requirements table in FM 4-20.102/NAVSEA SS400-AB-MMO-
010/TO 13C7-1-5. Rig the extraction line in an extraction line bag according to
TM 10-1670-286-20/TO 13C5-2-41. Place the extraction parachute and extrac-
tion line on the load for installation in the aircraft.
INSTALLING PROVISIONS FOR EMERGENCY RESTRAINTS
4-34. Select and install the provisions for emergency aft restraints according to
the emergency aft restraint requirements table in FM 4-20.102/NAVSEA SS400
-AB-MMO-010/TO 13C7-1-5.
MARKING RIGGED LOAD
4-35. Mark the rigged load according to FM 4-20.102/NAVSEA SS400-AB-MMO
-010/TO 13C7-1-5 and as shown in Figure 4-54. Complete Shipper’s Declaration
for Dangerous Goods and affix to the load. If the load varies from the one shown,
the weight, height, CB, tipoff curve, and parachute requirements must be
recomputed.
EQUIPMENT REQUIRED
4-36. Use the equipment list in Table 4-3 to rig the load shown in Figure 4-54.
4-69
FM 4-20.105/TO 13C7-1-19
CAUTION
Make the final inspection required by FM 4-20.102/NAVSEA
SS400-AB-MMO-010/TO 13C7-1-5 before the load leaves
the rigging site.
CB
RIGGED LOAD DATA
Weight
22,630 pounds
NOTE: The rigged weight for this load is using water as the liquid. Use the weight
conversion table for the actual rigged weight for any other liquids used.
NOTE: The G-11 requirements may need to be recomputed for lighter liquids.
Maximum Weight
24,000 pounds
Height
88 inches
Width
108 inches
Overall Length
258 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Center of Balance (CB) (from front edge of platform)
121 inches
Figure 4-54. AAFARS Rigged with Four 500-Gallon Drums for Low-Velocity Airdrop
4-70
FM 4-20.105/TO 13C7-1-19
Table 4-3. Equipment Required for Rigging AAFARS with Four Drums on 20-foot Type V Platform
4-71
FM 4-20.105/TO 13C7-1-19
Table 4-3. Equipment Required for Rigging AAFARS with Four Drums on 20-foot Type V Platform
(continued)
National Stoc k
Ite m
Quantity
Number
1670-01-307-10
5
5
Link assembly: Three-poin t
2
1670-01-483-82
5
9
Link, tow release mechanism (H-Block) C-1
7
1
Lumber:
5510-00-220-61
4
6
2- by 4-in
As required
5510-00-220-61
4
8
2- by 6-in
As required
Nail, steel wire, commo
n
,
5315-00-010-46
5
9
8
d
As required
5315-00-010-46
6
2
12d
As required
5315-00-753-38
8
5
16d
As required
1670-00-753-39
2
8
Pad, energy dissipating, honeycomb, 3- by 36- by
96-in
25
sheets
Parachute:
Cargo :
1670-01-016-78
4
1
G-11 C
5
Cargo extractio
n
:
1670-00-040-81
3
5
28-foo t
1
Drogue: (for DE
S
)
1670-01-063-37
1
5
15-ft
1
Platform, airdrop, Type V, 20-foo t
1670-01-353-84
2
5
Bracket assembly, EFT C
1
1670-01-162-23
7
6
Bracket assembly, extractio n
1
1670-01-162-23
7
2
Clevis assembly
6
2
1670-01-247-23
8
9
Bracket, suspensio n
8
1670-01-162-23
8
1
Tandem link assembly (multipurpose link)
2
5530-00-128-49
8
1
Plywood, 3/4-in
11
sheets
1670-01-097-88
1
7
Release, cargo parachute, M-2
1
Sling, cargo, airdrop
For suspensio
n
:
1670-01-062-63
0
6
3-ft (4-loop), type XXVI nylon webbin g
4
1670-01-062-63
0
7
12-ft (4-loop), type XXVI nylon webbin g
2
1670-01-062-63
0
8
16-ft (4-loop), type XXVI nylon webbin g
2
1670-01-064-44
5
3
20-ft (4-loop), type XXVI nylon webbin g
2
For deployment:
1670-01-062-63
0
4
9-ft (2-loop), type XXVI nylon webbin g
1
For riser extensio
n
:
1670-01-062-63
1
1
120-ft (2-loop), type XXV I
5
5340-00-040-82
1
9
Strap, parachute release, multicut, comes w / 3
knive s
2
7510-00-266-50
1
6
Tape, adhesive, 2-in
As required
7510-00-266-67
1
0
Tape, masking, 2-in
As required
1670-00-937-02
7
1
Tie-down assembly, 15-foo t
6
2
Webbing :
8305-00-268-24
1
1
Cotton, 1/4-in, type I
As required
8305-00-082-57
5
2
Nylon, tubular, 1/2-in
As required
8305-00-263-35
9
1
Type VIII
As required
4-72
FM 4-20.137/TO 13C7-1-19
SECTION III- RIGGING AAFARS WITH FIVE 500-GALLON FUEL DRUMS
DESCRIPTION OF LOAD
4-37. The Advanced Aviation Forward Area Refueling System (AAFARS) is rigged
on a 24-foot type, V platform with six G-11 cargo parachutes. The AAFARS is
designed for forward area refueling of up to four aircraft at a time with a mini-
mum of 55 GPM. There are five collapsible fuel drums as an accompanying load.
Each drum is filled with 432 gallons of liquid. When empty, each drum weighs
250 pounds and is 62 inches long and 53 inches in diameter. The total rigged
overall length is 288 inches. Width is 108 inches. Height is 96 inches. Center of
balance is 146 inches.
Notes:
1. For drums filled with a liquid other than water, use Table 1-1 to
recompute the weight.
2. If the load varies from the one shaown, the weight, height, CB, tipoff
curve, and parachute requirements must be recomputed
3. Do not pressurize drums with air.
PREPARING PLATFORM
4-38. Prepare a 24-foot type V airdrop platform using two tandem links, eight
suspension brackets, and 80 tie-down clevises as shown in Figure 4-55.
Notes: 1. The nose bumper may or may not be installed.
2. Measurements given in this section are from the front edge of the
platform, NOT from the front edge of the nose bumper.
4-73
FM 4-20.137/TO 13C7-1-19
CLEVISES 1A THROUGH 39A
REAR
FRONT
CLEVISES 1 THROUGH 39
Steps:
1. Inspect, or assemble and inspect, the platform as outlined in TM 10-1670-268-
20&P/TO 13C7-52-22.
2. Install a tandem link on the front of each platform side rail using holes 1, 2, and 3.
3. Install a suspension bracket to each platform side rail using holes 6, 7, and 8.
4. Install a suspension bracket to each platform side rail using holes 18, 19, and 20.
5. Install a suspension bracket to each platform side rail using holes 29, 30, and 31.
5. Install a suspension bracket to each platform side rail using holes 41, 42, and 43.
6. Install a tie-down clevis to bushings 1 (doubled), 3, and 4 (doubled) on each front
tandem links.
7. Install a tie-down clevis to bushings 2 (doubled), 3, and 4 on each of the first
suspension brackets.
8. Install a tie-down clevis to bushings 1 and 2 of each of the second suspension
brackets.
9. Install a tie-down clevis to bushings 1, 2, and 3 of each of the third suspension
brackets.
10. Install a tie-down clevis to bushings 1 (doubled), 2, 3, and 4 (doubled) of each of
the fourth suspension brackets.
11. Starting at the front of each platform side rail, install a tie-down clevis to the
bushings bolted to holes 4, 9, 15, 16, 21, 22, 25, 26, 28, 38, 39, 40, 45 (doubled),
46 (doubled), 47, and 48 (doubled).
12. Starting at the front of the platform, number the clevises bolted to the right side
from 1 through 39 and those bolted to the left side from 1A through 39A.

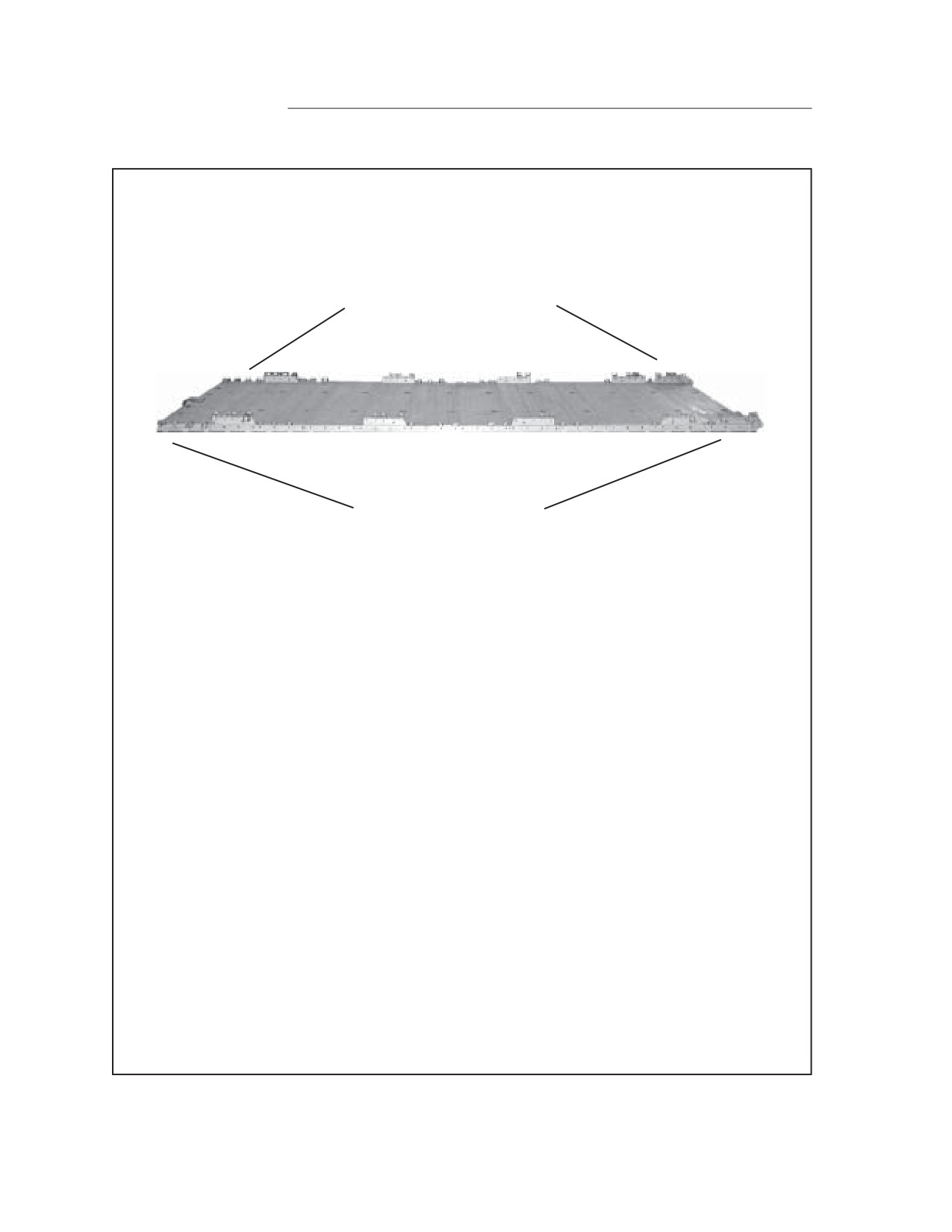

Figure 4-55. Platform Prepared
4-74
FM 4-20.137/TO 13C7-1-19
PREPARING HONEYCOMB
4-39. Build honeycomb stacks as shown in Figures 4-56 and 4-57.
STACKS 1 THROUGH 8
36” X 96”
HONEYCOMB
STACKS 9 AND 10
36” X 66”
STACK 11
36” X 58”
14” X 58”
24” X 66”
15 1/2” X 58”
14 1/2” X 58”
STAC K
PIECE S
WIDTH
LENGT H
MATERIA L
INSTRUCTIONS
NUMBE R
(INCHES)
(INCHES)
-
2
36
96
Honeycom b
Do not glue together.
9 and
10
11
24
66
Honeycom b
Glue together forming a base.
2
36
66
Honeycom b
Glue together and glue onto base.
11
6
14
58
Honeycom b
Glue together forming a base.
1
14
/
58
Honeycom b
Glue onto base.
1
15
/
58
Honeycom b
Glue onto base.
1
18
58
Honeycom b
Glue onto base.
1
23
58
Honeycom b
Glue onto base.
1
31
58
Honeycom b
Glue onto base.
1
35
58
Honeycom b
Glue onto base.
1
36
58
Honeycom b
Glue onto base.

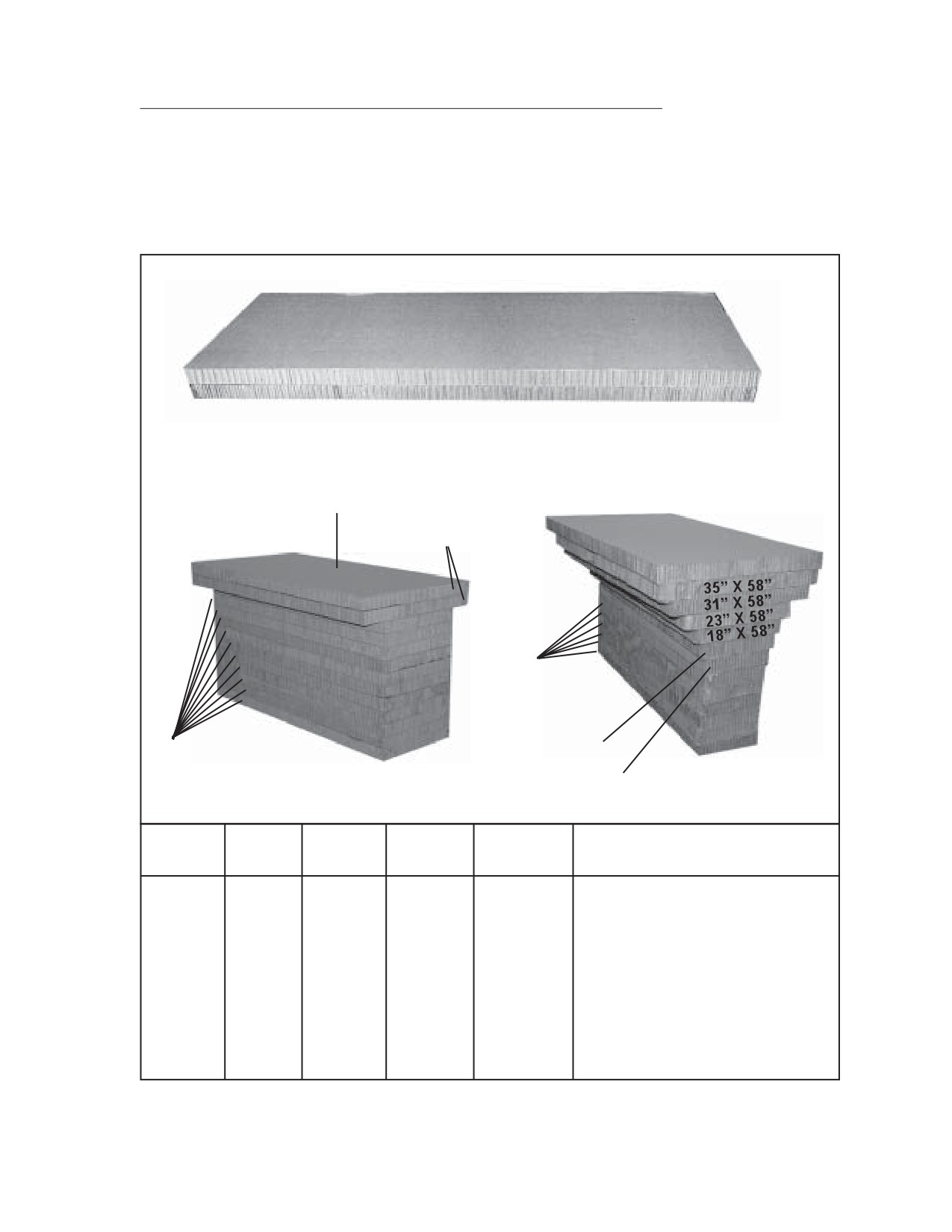

Figure 4-56. Honeycomb Stacks Prepared
4-75
FM 4-20.137/TO 13C7-1-19
POSITIONING HONEYCOMB STACKS
4-40. Position honeycomb stacks as shown in Figure 4-57.

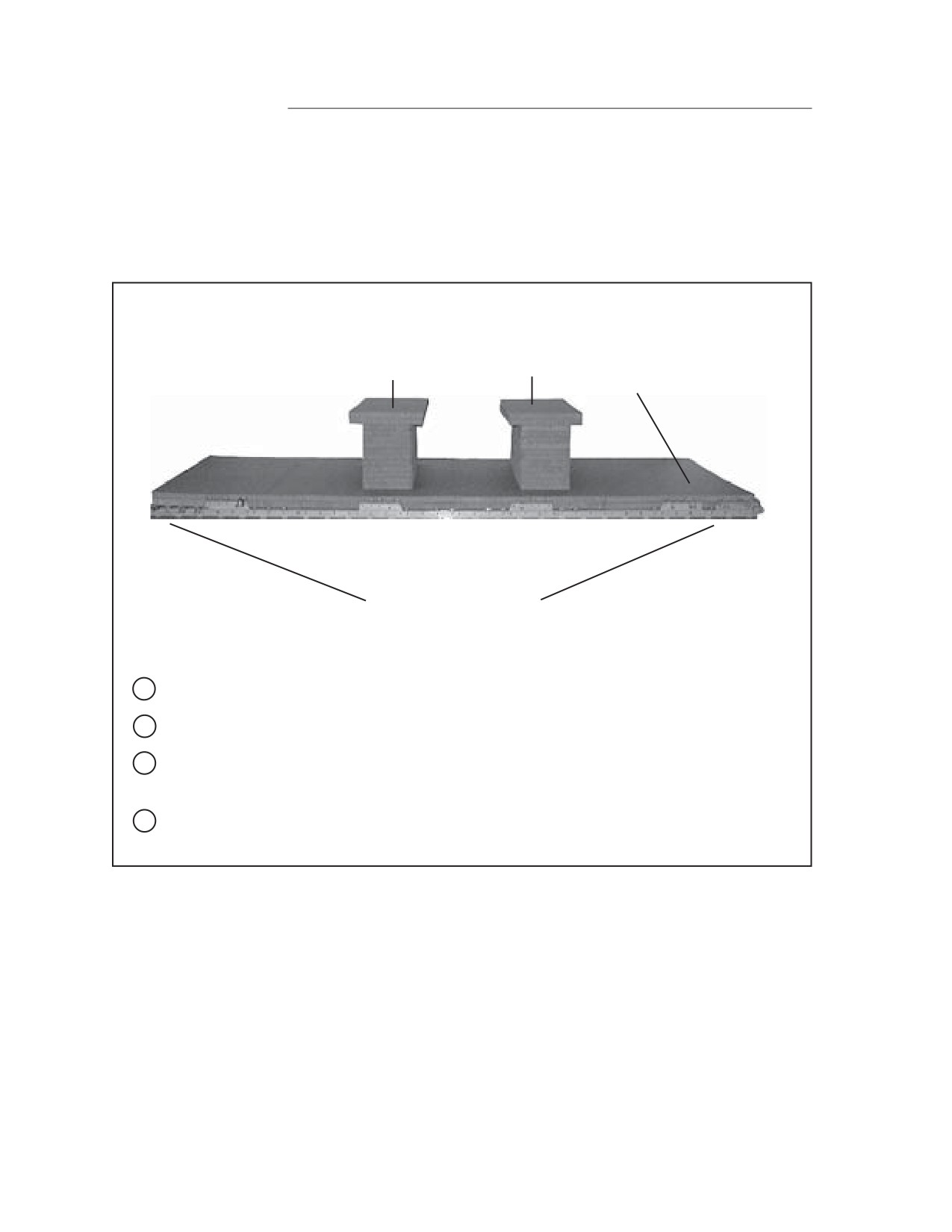

STACK 10
STACK 9
STACK 1
STACKS 2 THROUGH 8
1
Position stack 1 on the front edge of the platform and centered.
2
Position stacks 2 through 8 flush on the rear edge of stack1 placed flush with each other.
3
Position stack 9 centered left to right and at 88 inches from the front edge of the platform.
Ensure the 66 inch length is across the platform.
4
Position stack 10 centered left to right and 54 inches from the rear edge of stack 9.
Ensure the 66 inch length is across the platform.
Figure 4-57. Positioning Honeycomb Stacks
4-76
FM 4-20.137/TO 13C7-1-19
BUILDING THE EQUIPMENT BOXES
4-41. Build the front and rear equipment boxes as shown in Figures 4-4 and 4-5.
PREPARING EQUIPMENT FOR EQUIPMENT BOXES
4-42. Prepare the fire extinguishers, filter separator, explosion proof motor,
pumps, battery box, manuals and toolkit as explained and shown in paragraph
4-6 and Figures 4-6 through 4-12. Using the list printed on the equipment bags,
place the equipment indicated on each list into it’s bag.
POSITIONING EQUIPMENT BOXES
4-43. Pre-position lashings decribed and shown in Figure 4-13, steps 1 through
3. Place the boxes over the lashings and flush with the edges of the honeycomb
as decribed and shown in Figure 4-13, steps 4 and 5.
POSITIONING EQUIPMENT IN EQUIPMENT BOXES AND SECURING
BOXES
4-44. Position and secure equipment in equipment boxes as shown in Figures 4-
14 and 4-15.
4-77
FM 4-20.137/TO 13C7-1-19
LASHING THE EQUIPMENT BOXES TO THE PLATFORM
4-45. Lash the equipment boxes as shown in Figures 4-58 through 4-63.
a. Lash the front equipment box to the platform as shown in Figures 4-58
through 4-60.
2
1A
1
7
FRONT
1
Tie-dow n
Lashing
Clevis
Instruction s
Number
Number
1
1 and
7

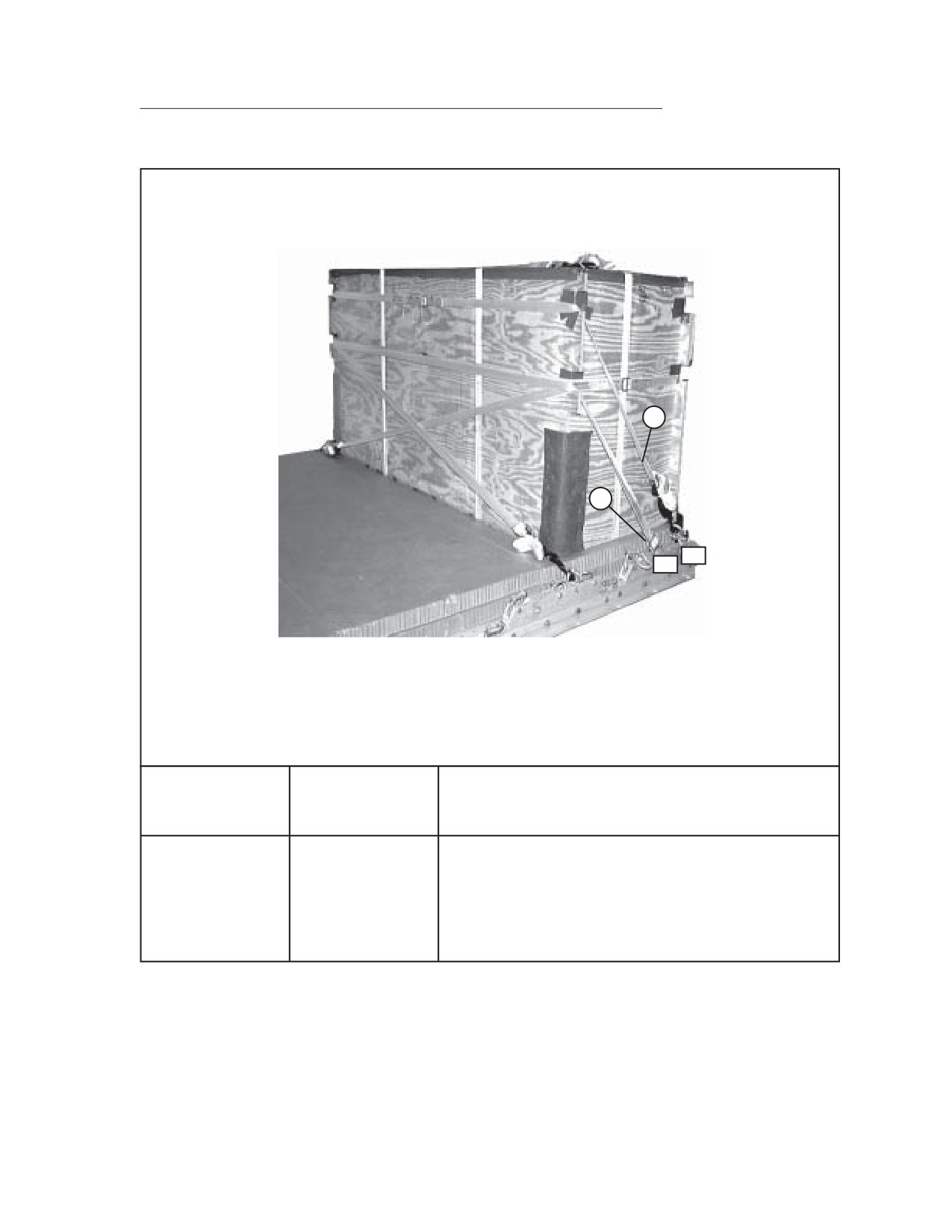

Route a 30-foot lashing from clevis 1 to the front bottom
left cutout, to the rear bottom left cutout, to clevis
7
2
1A and 7A
Route a 30-foot lashing from clevis 1A to the front
bottom right cutout, to the rear bottom right cutout,
t
clevis 7A
Figure 4-58. Lashings 1 and 2 Installed
4-78
FM 4-20.137/TO 13C7-1-19
3
4
FRONT
2
3
Tie-dow n
Lashing
Clevis
Instruction s
Number
Number
3
2 and 2A

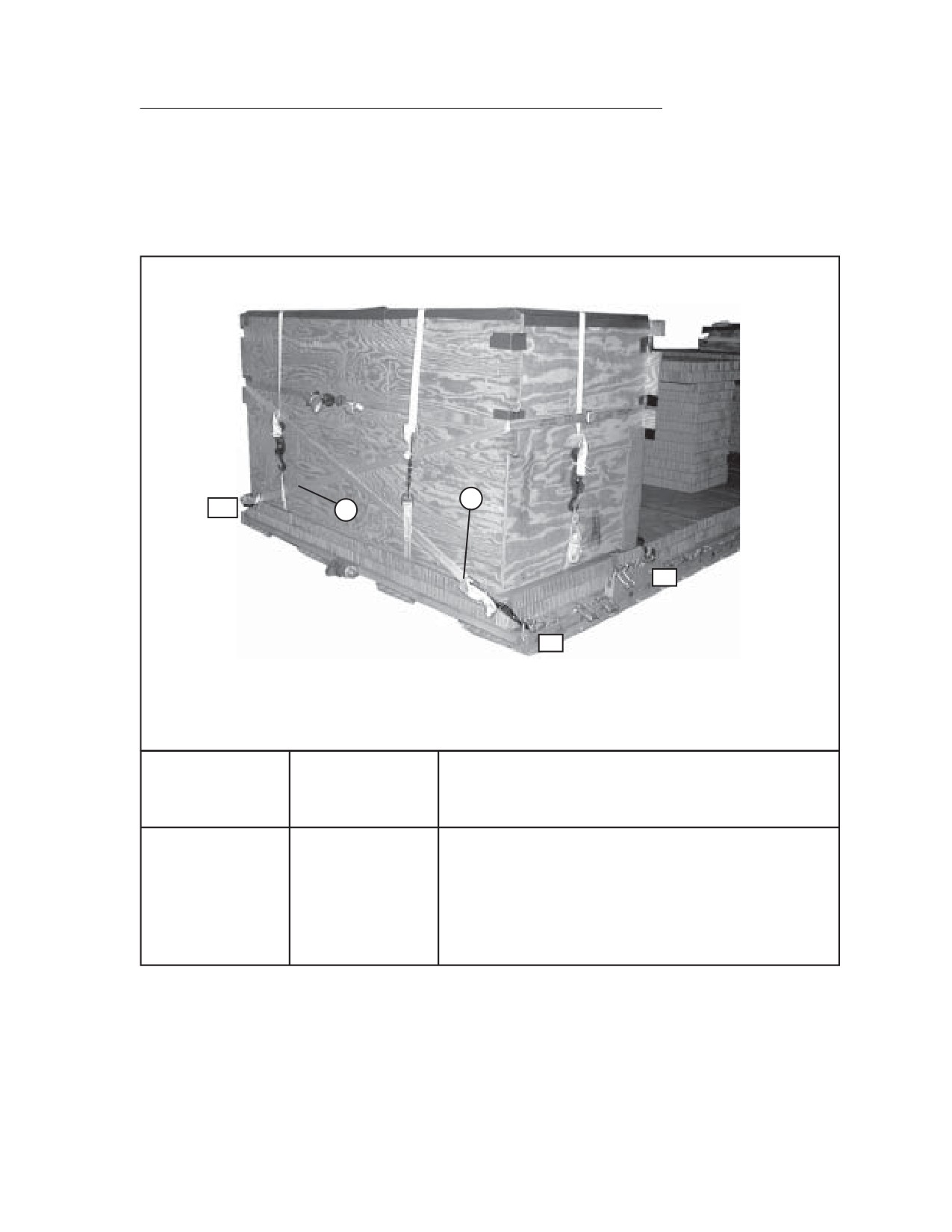

Route a 30-foot lashing from clevis 2 to the rear top
right cutout, to the rear top left cutout, to clevis 2A
4
3 and 3A
Route a lashing through it's own D-ring on clevis 3
t
the rear bottom right cutout, to the rear bottom left
cutout, to clevis 3A
Figure 4-59. Lashings 3 and 4 Installed
4-79
FM 4-20.137/TO 13C7-1-19
6
5
8
7
5
FRONT
4
Tie-dow n
Lashing
Clevis
Instruction s
Number
Number
5
5 and 5A
Route a lashing through it's own D-ring on clevis 5
t
the front bottom right cutout, to the front bottom left
cutout, to clevis 5A
6
8 and 8A
Route a 30-foot lashing from clevis 8 to the front top
right cutout, to the front top left cutout, to clevis 8A
7
4 and 4A
Route a lashing through it's own D-ring on clevis
4,
repeat on clevis 4A and load bind them together on top
of the box.
Figure 4-60. Lashings 5 through 7 Installed
4-80
FM 4-20.137/TO 13C7-1-19
b. Lash the rear equipment box to the platform as shown in Figures 4-61
through 4-63.
8
38A
9
27
REAR
38
T
i
-
Lashing
Clevis
Instruction s
Number
Number
8
27 and
38

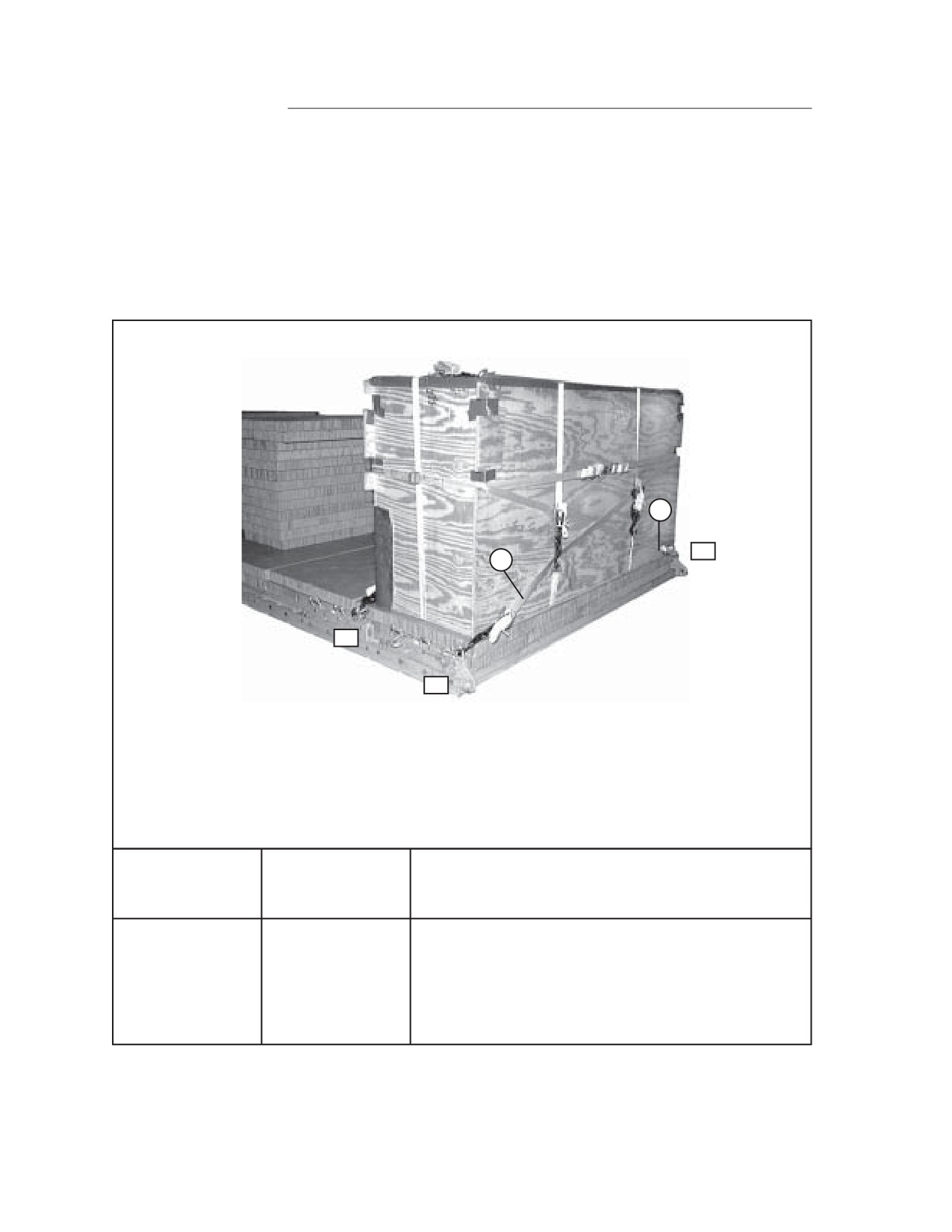

Route a 30-foot lashing from clevis 27 to the
f
left cutout, to the rear lower left cutout,
t
9
27A and 38A
Route a 30-foot lashing from clevis 27A to the
f
lower right cutout, to the rear lower right cutout,
t
clevis 38A
Figure 4-61. Lashings 8 and 9 Installed
4-81
FM 4-20.137/TO 13C7-1-19
10
REAR
11
39
36
Tie-dow n
Lashing
Clevis
Instruction s
Number
Number
10
39 and 39A

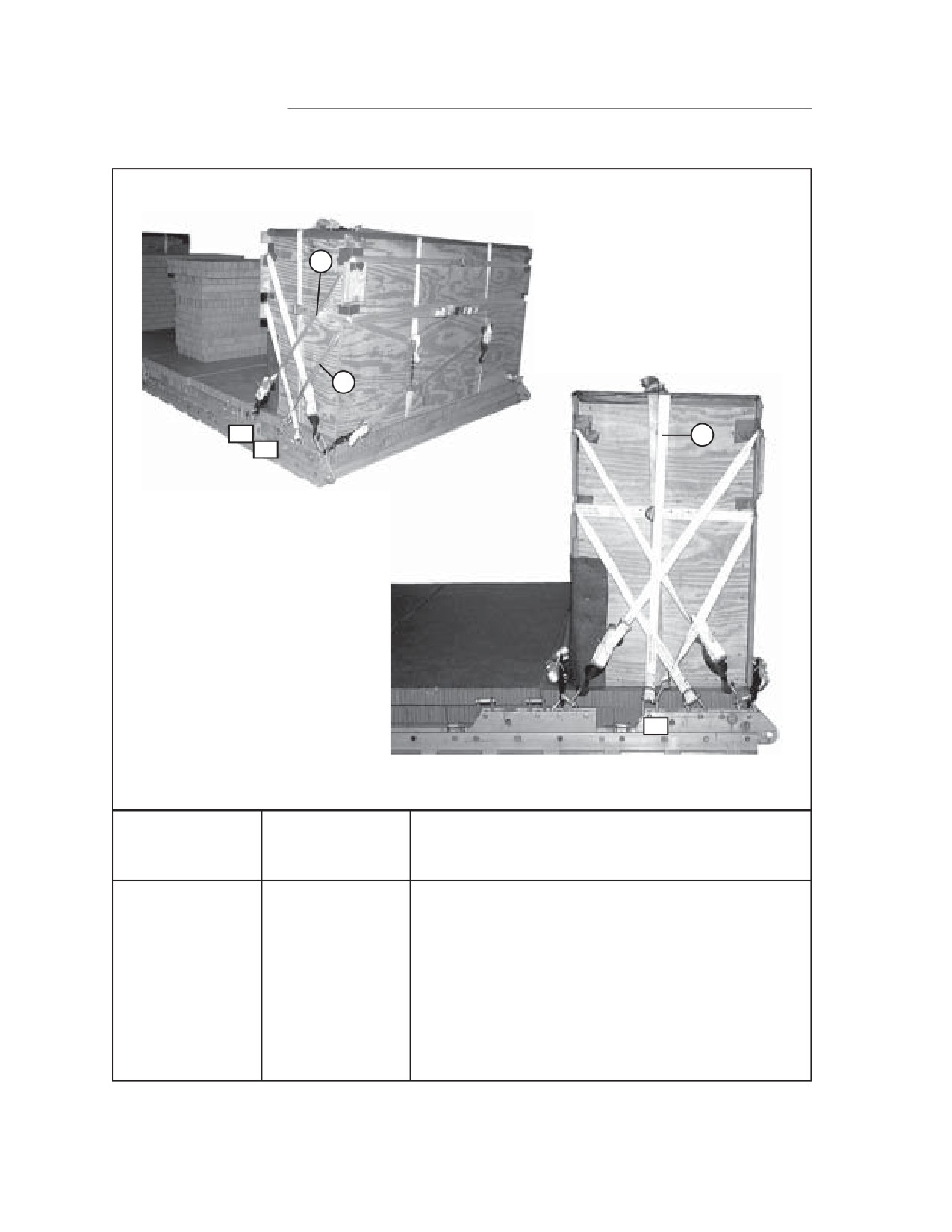

Route a 30-foot lashing from clevis 39 to the front top
right cutout, to the front top left cutout, to clevis 39A
11
36 and 36A
Route a lashing through it's own D-ring on clevis 36
t
the front bottom right cutout, to the bottom left cutout,
t
clevis 36A
Figure 4-62. Lashings 10 and 11 Installed
4-82
FM 4-20.137/TO 13C7-1-19
12
13
28
REAR
33
14
REAR
34
Tie-dow n
Lashing
Clevis
Instruction s
Number
Number
12
28 and 28A
Route a 30-foot lashing from clevis 28 to the rear top
right cutout, to the rear top left cutout, to clevis 28A
13
33 and 33A
Route a lashing through it's own D-ring on clevis 33
t
the rear bottom right cutout, to the rear bottom left
cutout, to clevis 33A
14
34 and 34A
Route a lashing through it's own D-ring on clevis 34,
repeat on clevis 34A and load bind on the right side of
the box
Figure 4-63. Lashings 12 through 14 Installed
4-83
FM 4-20.137/TO 13C7-1-19
POSITIONING AND LASHING THE DRUMS
4-46. Position and lash the drums to the platform as shown in Figures 4-64
through 4-71.
STACK 10
STACK 9
DRUM3
DRUM 2
DRUM 1
REAR
FRONT
1
Place a platform clevis on one end of two 9-foot (2-loop), type XXVI nylon webbing slings.
Attach a sling to each side of the drum (for lifting purposes only) and remove after the
drums are positioned (not shown).
2
Position drum 1 in front of and against stack 9 and centered on the platform.
3
Position drum 2 to the rear of and against stack 9 and centered on the platform.
4
Position drum 3 to the rear of and against stack 10 and centered on the platform.
NOTE: There should be a 3 to 4 inch gap between the drums and
the equipment boxes.
Figure 4-64. Fuel Drums 1 through 3 Positioned
4-84
FM 4-20.137/TO 13C7-1-19
STACK 10
STACK 9
DRUM3
DRUM2
DRUM 1
17
15
FRONT
REAR
Tie-dow n
Lashing
Clevis
Instruction s
Number
Number
15
Route a lashing from the rear shackle of drum 1 to the
front shackle of drum 2 on the right side .
16
Route a lashing from the rear shackle of drum 1 to the
front shackle of drum 2 on the left side .
17
Route a lashing from the rear shackle of drum 2 to the
front shackle of drum 3 on the right side .
18
Route a lashing from the rear shackle of drum 2 to the
front shackle of drum 3 on the left side .

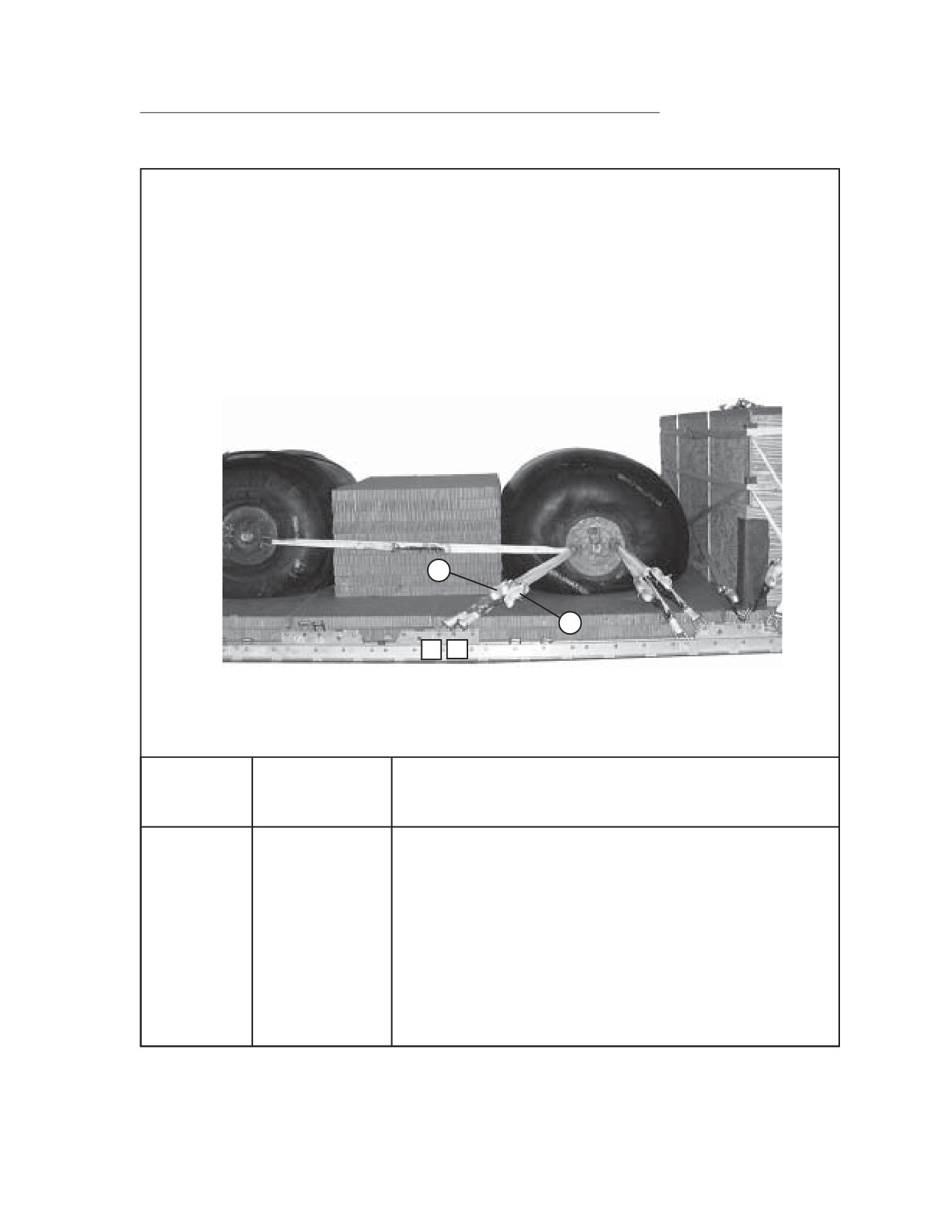

Figure 4-65. Lashings 15 through 18 Installed
4-85
FM 4-20.137/TO 13C7-1-19
19
25
21
FRONT
23
15
14
9
6
Tie-dow n
Lashing
Clevis
Instruction s
Number
Number
19
6
Route a lashing from clevis
6 to the front right shackle
on drum
1
20
6A
Route a lashing from clevis
6A to the front left shackle
on drum
1
21
9
Route a lashing from clevis
9 to the front right shackle
on drum
1
22
9A
Route a lashing from clevis
9A to the front left shackle
on drum
1
23
14
Route a lashing from clevis
14 to the rear right shackle
on drum
1
24
14A
Route a lashing from clevis
14A to the rear left shackle
on drum
1
25
15
Route a lashing from clevis
15 to the rear right shackle
on drum
1
26
15A
Route a lashing from clevis
15A to the rear left shackle
on drum
1

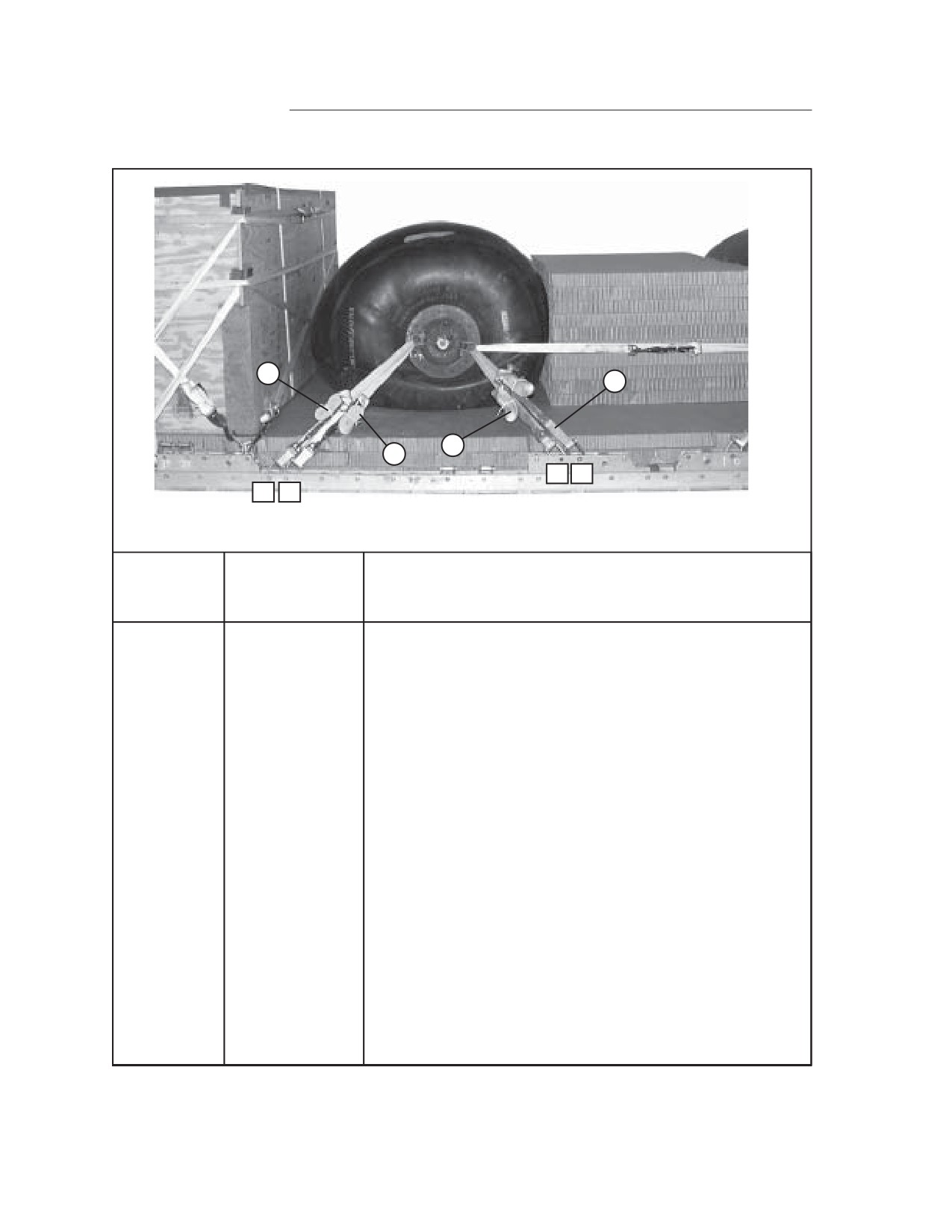

Figure 4-66. Lashings 19 through 26 Installed
4-86
FM 4-20.137/TO 13C7-1-19
33
31
29
27
FRONT
21
20
13
12
Tie-dow n
Lashing
Clevis
Instruction s
Number
Number
27
12
Route a lashing from clevis
12 to the front right shackle
on drum
2
28
12A
Route a lashing from clevis
12A to the front left
shackle on drum
2
29
13
Route a lashing from clevis
13 to the front right shackle
on drum
2
30
13A
Route a lashing from clevis
13A to the front left shackle
on drum
2
31
20
Route a lashing from clevis
20 to the rear right shackle
on drum
2
32
20A
Route a lashing from clevis
20A to the rear left shackle
on drum
2
33
21
Route a lashing from clevis
21 to the rear right shackle
on drum
2
34
21A
Route a lashing from clevis
21A to the rear left shackle
on drum
2

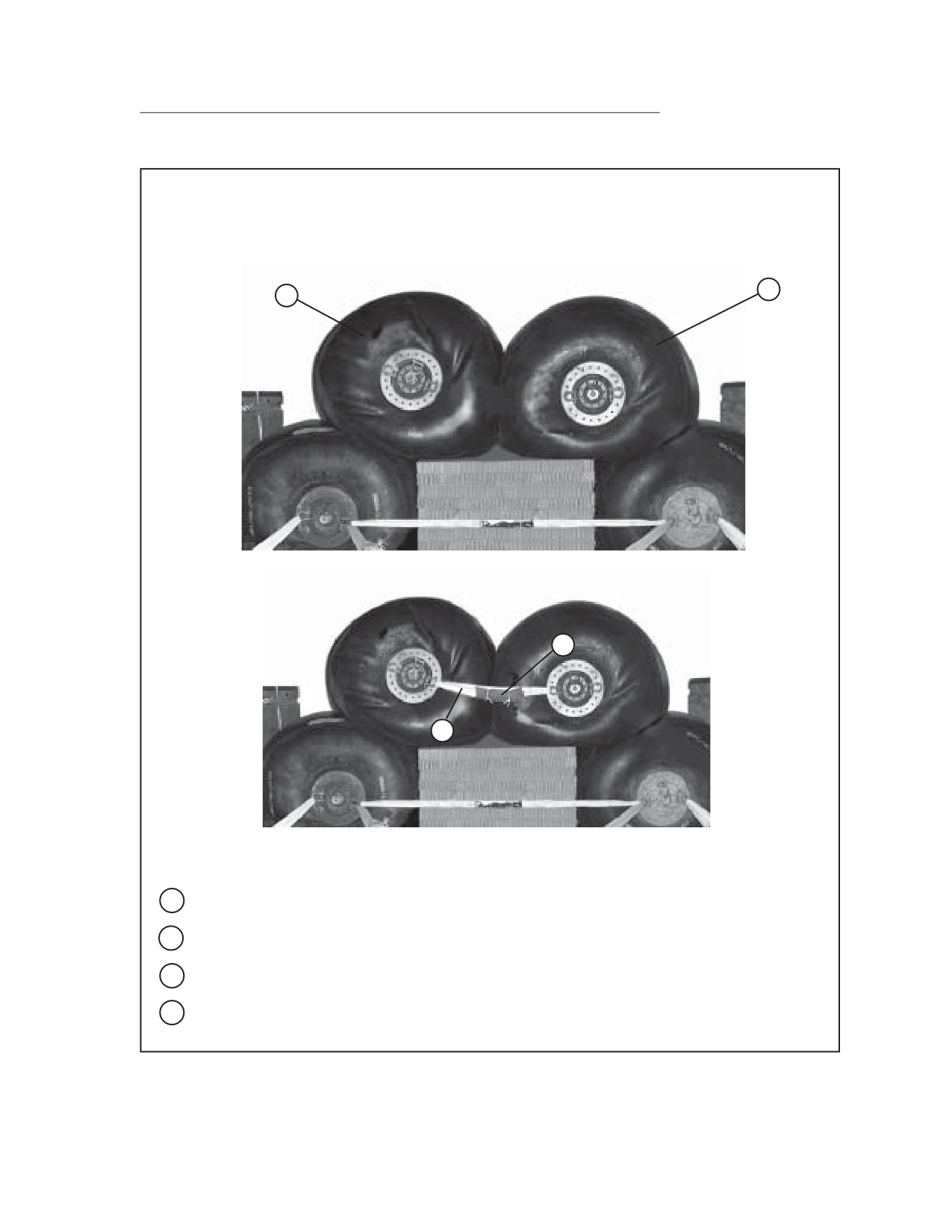

Figure 4-67. Lashings 27 through 34 Installed
4-87
FM 4-20.137/TO 13C7-1-19
41
35
39
37
30
29
22
REAR
23
FRONT
Tie-dow n
Lashing
Clevis
Instruction s
Number
Number
35
22
Route a lashing from clevis
22 to the front right shackle
on drum
3
36
22A
Route a lashing from clevis
22A to the front left shackle
on drum
3
37
23
Route a lashing from clevis
23 to the front right shackle
on drum
3
38
23A
Route a lashing from clevis
23A to the front left shackle
on drum
3
39
29
Route a lashing from clevis
29 to the rear right shackle
on drum
3
40
29A
Route a lashing from clevis
29A to the rear left shackle
on drum
3
41
30
Route a lashing from clevis
30 to the rear right shackle
on drum
3
42
30A
Route a lashing from clevis
30A to the rear left shackle
on drum
3
Figure 4-68. Lashings 35 through 42 Installed
4-88
FM 4-20.137/TO 13C7-1-19
STACK 11
DRUM5
DRUM 4
STACK 10
STACK 9
REAR
FRONT
1
Position drum 4 centered on stack 9.
2
Position drum 5 centered on stack 10.
3
Position stack 11 between drums 4 and 5.

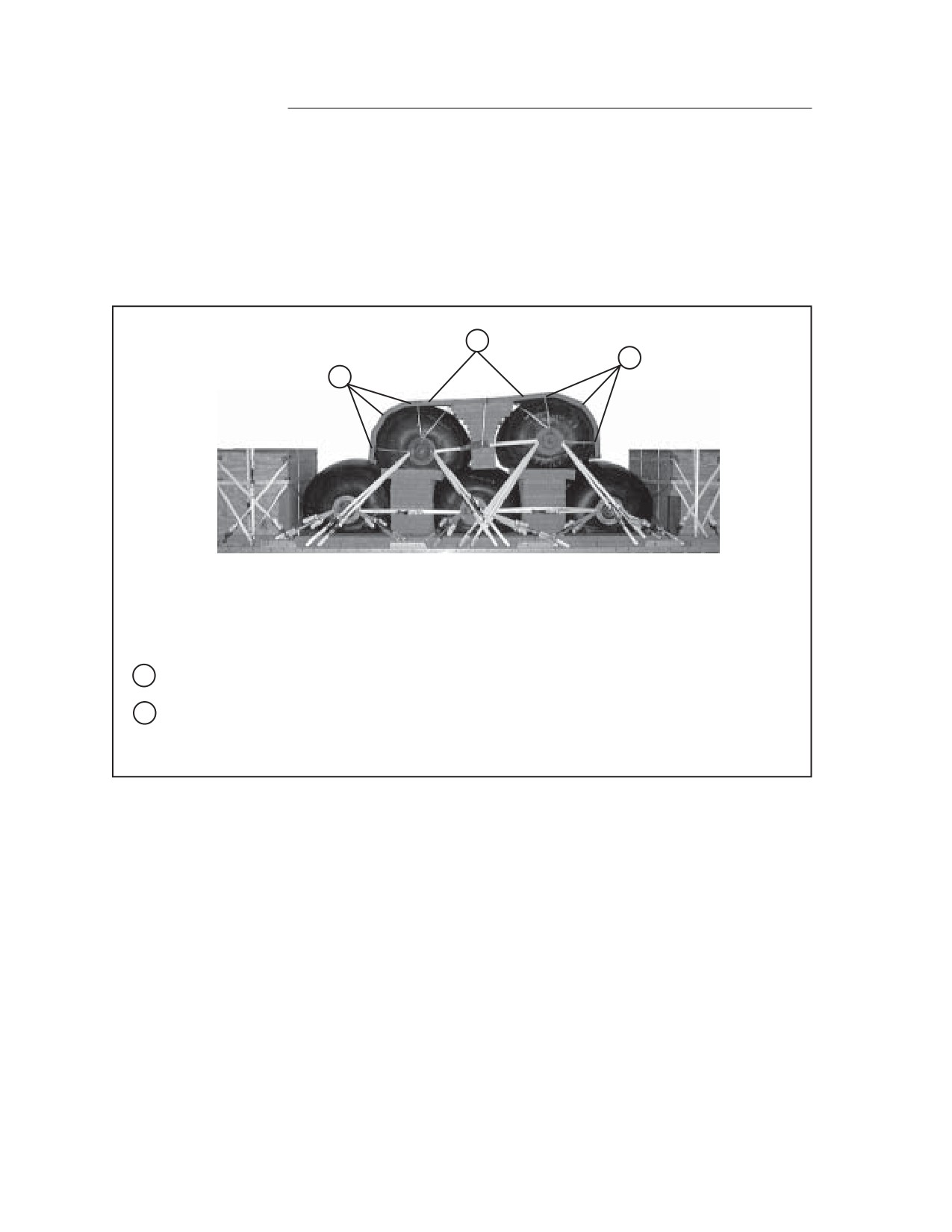

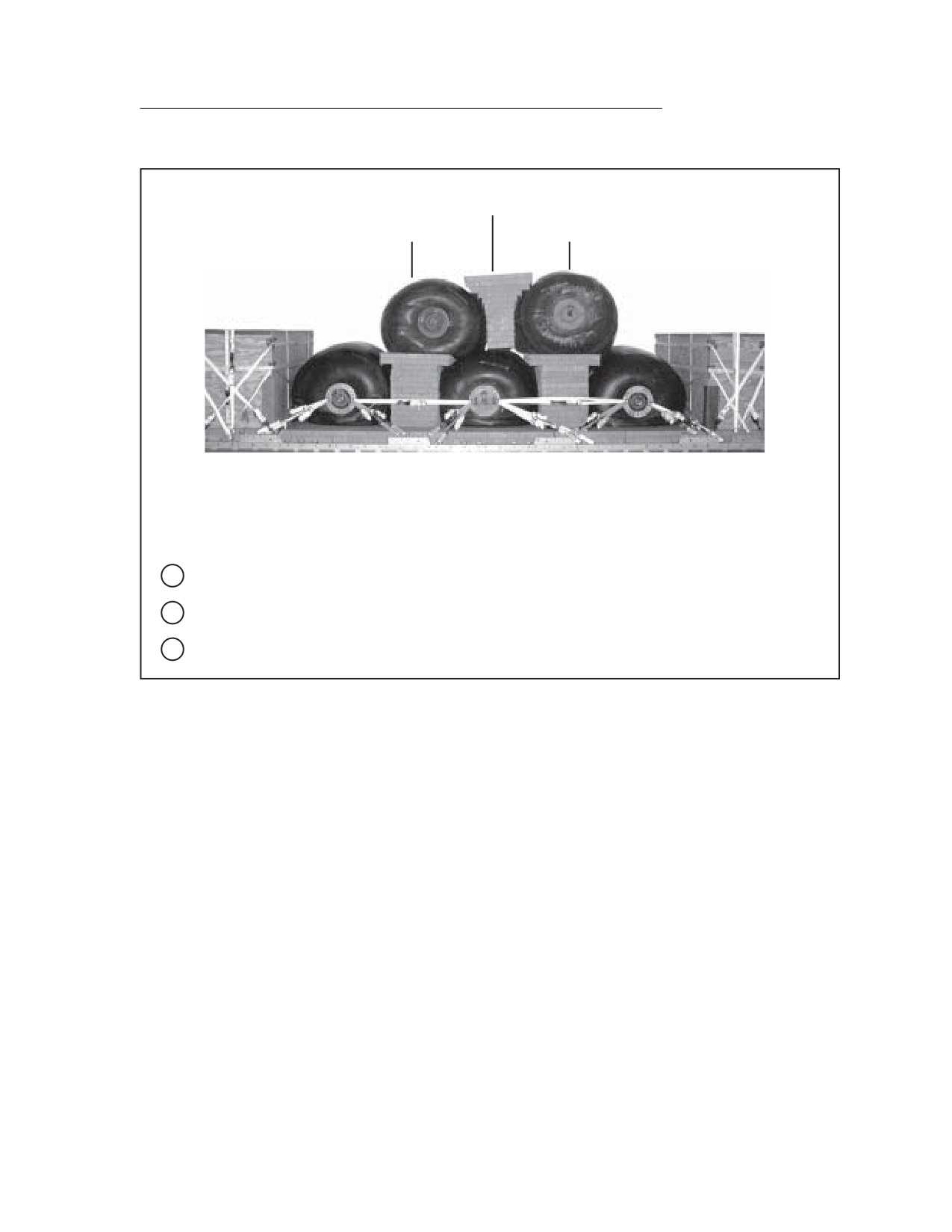

Figure 4-69. Fuel Drums 4 and 5 Positioned
4-89
FM 4-20.137/TO 13C7-1-19
43
45
51
47
49
REAR
10
FRONT
19
18
11
Tie-dow n
Lashing
Clevis
Instruction s
Number
Number
43
Route a lashing from the rear shackle of drum 4 to the
front shackle of drum 5 on the right side .
44
Route a lashing from the rear shackle of drum 4 to the
front shackle of drum 5 on the left side
45
10
Route a lashing from clevis 10 to the front right shackle
on drum
4
46
10A
Route a lashing from clevis 10A to the front left shackle
on drum
4
47
11
Route a lashing from clevis 11 to the front right shackle
on drum
4
48
11A
Route a lashing from clevis 11A to the front left shackle
on drum
4
49
18
Route a lashing from clevis 18 to the rear right shackle
on drum
4
50
18A
Route a lashing from clevis 18A to the rear left shackle
on drum
4
51
19
Route a lashing from clevis 19 to the rear right shackle
on drum
4
52
19A
Route a lashing from clevis 19A to the rear left shackle
on drum
4

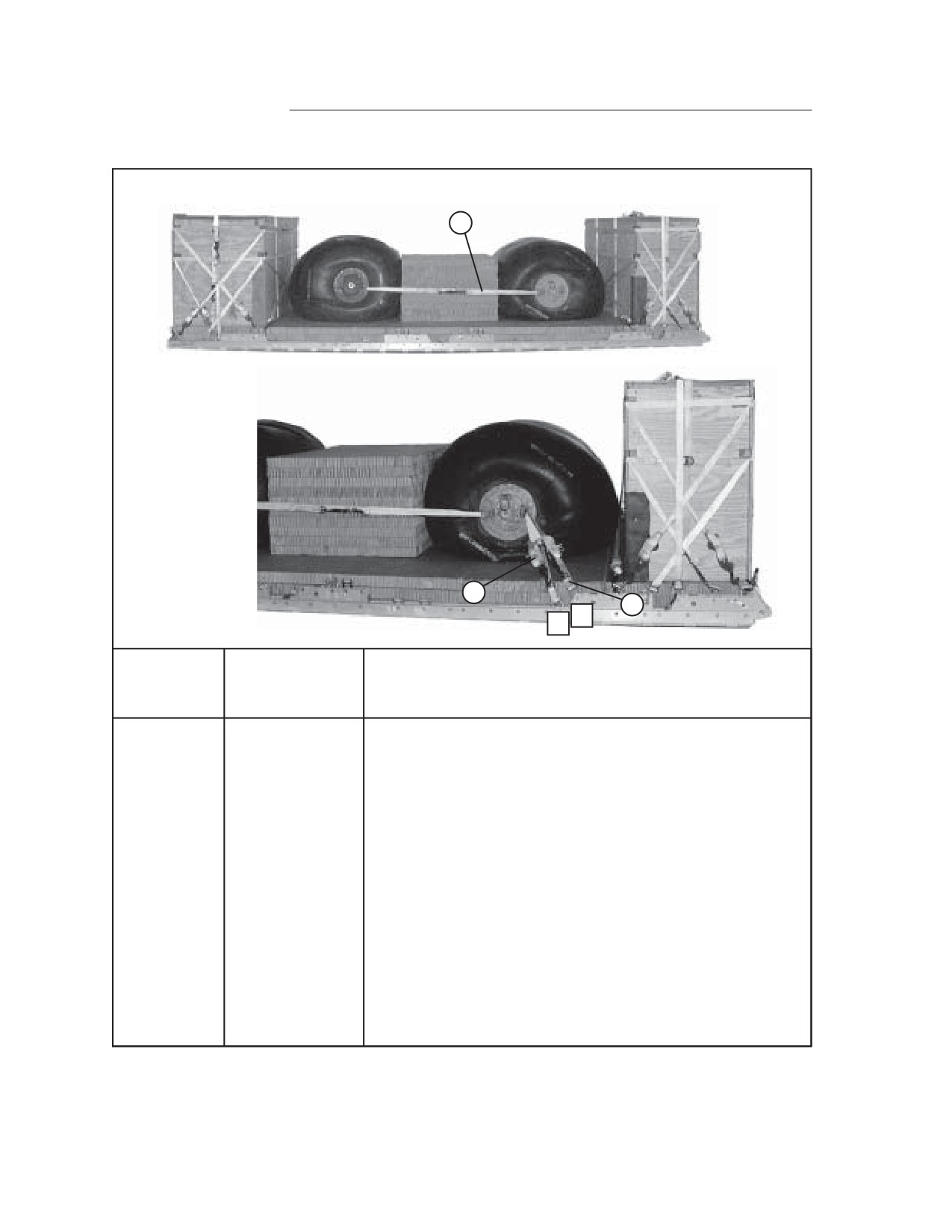

Figure 4-70. Lashings 43 through 52 Installed
4-90
FM 4-20.137/TO 13C7-1-19
53
59
REAR
57
55
FRONT
26
25
17
16
NOTE: Wrap the load binder between drums 4 and 5 with a 1/2-inch- by 12-inch-
by 17-inch piece of felt and secure it with type III nylon cord (not shown).
Tie-dow n
Lashing
Clevis
Instruction s
Number
Number
53
16
Route a lashing from clevis
16 to the front right shackle
on drum
5
54
16A
Route a lashing from clevis
16A to the front left shackle
on drum
5
55
17
Route a lashing from clevis
17 to the front right shackle
on drum
5
56
17A
Route a lashing from clevis
17A to the front left shackle
on drum
5
57
25
Route a lashing from clevis
25 to the rear right shackle
on drum
5
58
25A
Route a lashing from clevis
25A to the rear left shackle
on drum
5
59
26
Route a lashing from clevis
26 to the rear right shackle
on drum
5
60
26A
Route a lashing from clevis
26A to the rear left shackle
on drum
5

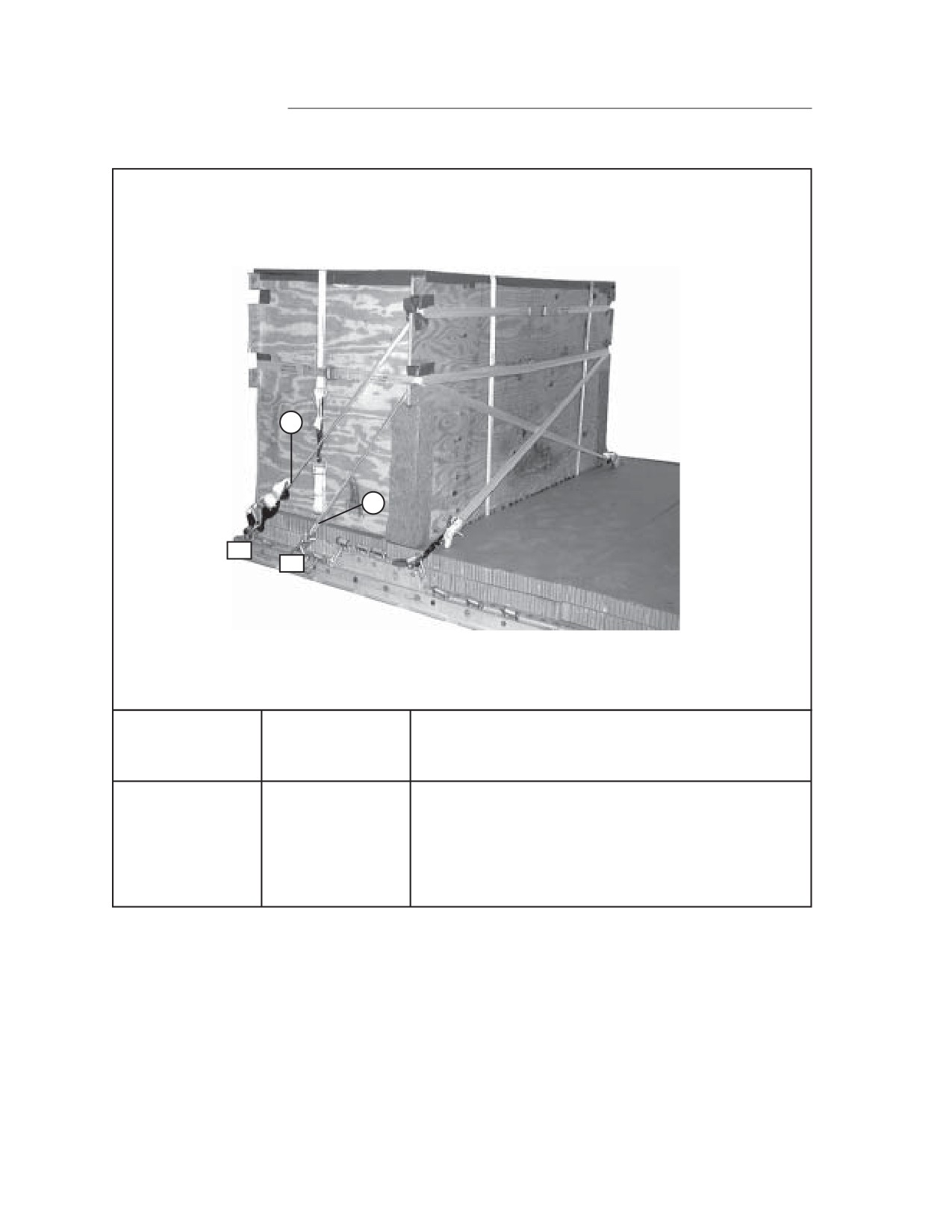

Figure 4-71. Lashings 53 through 60 Installed
4-91
FM 4-20.137/TO 13C7-1-19
BUILDING AND POSITIONING RELEASE PLATFORM
4-47. Build and position the release platform as shown in Figure 4-72.
1
2
2
REAR
FRONT
1
Place two sheets of 36-inch by 96-inch honeycomb over drums 4 and 5.
2
Tape the upper edges of the honeycomb and secure it to the shackles and felted load binder
with 1/2-inch tubular nylon webbing.

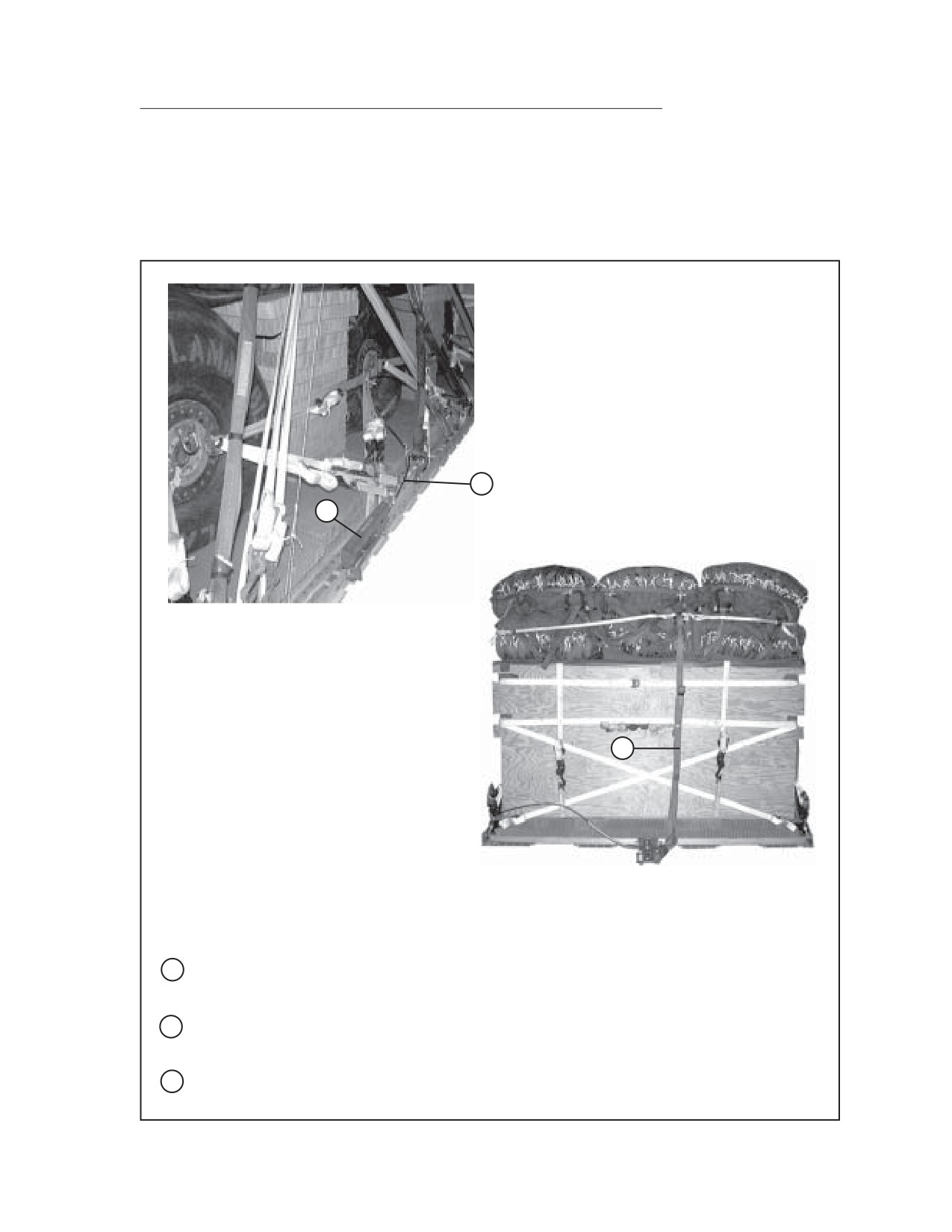

Figure 4-72. Release Platform Built and Positioned
4-92
FM 4-20.137/TO 13C7-1-19
INSTALLING SUSPENSION SLINGS AND SAFETY TIES
4-48. Install suspension slings and safety ties as shown in Figure 4-73.
4
3
5
8
8
1
2
FRONT
REAR
9
6
1
Place two large clevises on one end of a 20-foot (4-loop), type XXVI nylon suspension sling.
Attach the lower clevis to the right rear suspension bracket.
2
Place two large clevises on one end of a 16-foot (4-loop), type XXVI nylon suspension sling.
Attach the lower clevis to the right front suspension bracket. Safety tie them together with
type III nylon webbing using an hourglass tie (not shown).
3
Attach the running end of the 16-foot sling to a 3-point link.
4
Place a 3-foot (4-loop), type XXVI nylon suspension sling on the 3-point link.
5
Attach a 12-foot (4-loop), type XXVI nylon suspension sling on the 3-point link.
Place a large clevis on the running end of the 12-foot (4-loop), type XXVI nylon suspension
sling.
6
Attach two 3-foot (4-loop), type XXVI nylon suspension slings to the large clevis on the 12-
foot sling that was installed in step 5. Attach large clevises to each running end of the
3-foot slings and attach the clevises to the right center suspension brackets.
7
Repeat steps 1 through 6 for the left side (not shown).
8
Raise the suspension slings and install the suspension sling safety ties to the front and rear
suspension slings doubled 1/2-inch tubular nylon webbing 6 to 8 inches above highest point
on the load. Refer to the Notice of Exception in the Introduction of this manual.
9
Safety tie upper clevis to a convient point on the load using type III nylon cord.
10
Paid and tape link assemblies (not shown).
Figure 4-73. Suspension Slings and Safety Ties Installed
4-93
FM 4-20.137/TO 13C7-1-19
PREPARING AND STOWING CARGO PARACHUTES
4-49. Prepare and stow six G-11 cargo parachute as shown in Figure 4-74.
1
3
2
2
2
REAR
32
37
24
1
Prepare and stow six G-11 cargo parachutes on the rear equipment box according to FM 4-
20.102/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
2
Restrain the parachutes according to FM 4-20.102/NAVSEA SS400-AB-MMO-010/TO
13C7-1-5 using platform clevises 24, 24A, 32, 32A, 37 and 37A on the platform.
3
Install the multicut parachute release straps according to FM 4-20.102/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5.
Figure 4-74. Cargo Parachutes Prepared and Stowed
4-94
FM 4-20.137/TO 13C7-1-19
INSTALLING THE EXTRACTION SYSTEM
4-50. Install the extraction system as shown in Figure 4-75.
2
1
3
1
Using the rear holes, install the extraction force transfer coupling (EFTC) according to FM
4-20.102/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
2
Using a 24-foot EFTC cable, safety the cable using one turn type I, 1/4-inch cotton
webbing.
3
Attach a 9-foot (2-loop), type XXVI nylon webbing sling for use as a deployment line.
Figure 4-75. Extraction System Installed
4-95
FM 4-20.137/TO 13C7-1-19
INSTALLING THE CARGO PARACHUTE RELEASE SYSTEM
4-51. Install the M-2 cargo parachute release system as shown in Figure 4-76.
1
2
2
1
Place the M-2 release on the release platform. Attach the suspension slings and the para-
chute riser extensions to the M-2 cargo release according to FM 4-20.102/NAVSEA SS400-
AB-MMO-010/TO 13C7-1-5. Secure the cargo parachute release with type III nylon cord.
2
S-fold and tie any slack in the suspension slings with type I, 1/4-inch cotton
webbing.
Figure 4-76. Cargo Parachute Release Installed
4-96















Content      ..     7      8      9      10     ..
