FM 4-20.137/TO 13C7-1-19
PLACING EXTRACTION PARACHUTE
4-52. Select the extraction parachute and extraction line needed using the
extraction line requirements table in FM 4-20.102/NAVSEA SS400-AB-MMO-
010/TO 13C7-1-5. Rig the extraction line in an extraction line bag according to
TM 10-1670-268-20/TO 13C5-2-41. Place the extraction parachute and extrac-
tion line on the load for installation in the aircraft.
INSTALLING PROVISIONS FOR EMERGENCY RESTRAINTS
4-53. Select and install the provisions for emergency aft restraints according to
the emergency aft restraint requirements table in FM 4-20.102/NAVSEA SS400-
AB-MMO-010/TO 13C7-1-5.
MARKING RIGGED LOAD
4-54. Mark the rigged load according to FM 4-20.102/NAVSEA SS400-AB-MMO-
010/TO 13C7-1-5 and as shown in Figure 4-77. Complete Shipper’s Declaration
for Dangerous Goods and affix to the load. If the load varies from the one
shown, the weight, height, CB, tipoff curve, and parachute requirements must
be recomputed.
EQUIPMENT REQUIRED
4-55. Use the equipment list in Table 4-4 to rig the load shown in Figure 4-77.
4-97
FM 4-20.137/TO 13C7-1-19
CAUTION
Make the final inspection required by FM 4-20.102/
NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 before
the load leaves the rigging site.
CB
RIGGED LOAD DATA
Weight
27,292 pounds
Maximum Weight
30,000 pounds
Height
96 inches
Width
108 inches
Overall Lenght
306 inches
Overhang: Front
0 inches
Overhang: Rear (EFTC)
18 inches
Center of Balance (CB) (from front edge of platform)
146 inches
Figure 4-77. AAFARS With Five 500-Gallon Drums Rigged for Low Velocity Airdrop
4-98
FM 4-20.137/TO 13C7-1-19
Table 4-4. Equipment Required for Rigging AAFARS with Five 500-Gallon Drums
National Stock
Item
Quantity
Number
8040-00-273-8713
Adhesive paste, 1-gal
As required
1670-01-035-6054
Bridle, extraction line bag (for DES
)
1
4030-00-090-5354
Clevis, large
20
4030-00-678-8562
Clevis, medium
6
4020-00-240-2146
Cord, nylon, type III, 550-lb
As required
1670-00-434-5783
Coupling, airdrop, extraction force transfer with cable, 24-ft
1
1670-00-360-0328
Cover, clevis, large
6
8305-00-958-3685
Felt sheet, 1/2-inch
As required
1670-01-183-2678
Leaf, extraction line (line bag
)
2
Line, drogue (for DES
)
1670-01-064-4452
60-foot (1-loop), type XXV I
1
Line, extraction
:
1670-01-062-6313
For C-130: 60-foot (3-loop), type XXV I
1
1670-01-107-7651
For C-141: 140-foot (3-loop), type XXV I
1
1670-01-107-7651
For C-17: 140-foot (3-loop), type XXV I
1
For C-5:
1670-01-062-6313
60-ft, (3-loop), type XXV I
1
1670-01-107-7651
140-ft, (3-loop), type XXV I
1
Link assembly:
1
Two-point, 3 3/4-in
2
5306-00-435-8994
Bolt, 1-in diam, 4-in long
2
5310-00-232-5165
Nut, 1-in, hexagonal
2
1670-00-003-1953
Plate, side, 3 3/4-in
2
5365-00-007-3414
Spacer, large
Two-point, 3 3/4-in (for DE
S)
1
5306-00-435-8994
Bolt, 1-in diam, 4-in long
2
5310-00-232-5165
Nut, 1-in, hexagonal
2
1670-00-003-1953
Plate, side, 3 3/4-in
2
5365-00-007-3414
Spacer, large
2
1670-01-307-1055
Three-point
2
1670-01-483-8259
Link, tow release mechanism (H-Block) C-17
aircraft
1
Lumber:
5510-00-220-6146
2- by 4-in
As required
4-99
FM 4-20.137/TO 13C7-1-19
Table 4-4. Equipment Required for Rigging AAFARS with Five 500-Gallon Drums
(Continued)
National Stock
Item
Quantity
Number
5315-00-753-3885
Nail, steel wire, common, 16d
As required
1670-00-753-3928
Pad, energy dissipating, honeycomb, 3- by
36- by
96-in
32 sheets
Parachute :
1670-01-016-7841
Cargo, G-11C
6
1670-00-040-8135
Cargo, extraction, 28ft
1
1670-01-063-3715
Drogue, 15ft (for DES
)
1
Platform, airdrop, type
V
, 24-foot:
1670-01-353-8425
Bracket assembly, coupling, (EFTC
)
(1
)
1670-01-247-2389
Bracket, suspensio n
(8
)
1670-01-162-2372
Clevis assembly, type V
(80
)
1670-01-353-8424
Extraction bracket assembly
(1
)
1670-01-162-2381
Tandem link assembly
(2
)
5530-00-618-8073
Plywood, 3/4- by 48- by 96-in
11 sheets
1670-01-097-8817
Release, cargo parachute, M-2
1
Sling, cargo airdrop
:
For deployment line :
1670-01-062-6304
9-ft (2-loop), type XXVI nylon webbing
1
For suspension :
1670-01-062-6306
3-ft (4-loop), type XXVI nylon webbing
6
1670-01-062-6307
12-ft (4-loop), type XXVI nylon webbing
2
1670-01-062-6308
16-ft (4-loop), Type XXVI nylon webbing
2
1670-01-064-4453
20-ft (4-loop), typeXXVI nylon webbing
2
For riser extension
:
1670-01-062-6311
120-ft (2-loop), type XXVI nylon webbing
6
1670-00-040-8219
Strap, parachute release, multicut
2
7510-00-266-5016
Tape, adhesive, 2-in
As required
7510-00-266-6710
Tape, masking, 2-in
As required
1670-00-937-0271
Tie-down assembly, 15-ft
70
Webbing :
8305-00-268-2411
Cotton, 1/4-in, type I
As required
8305-00-082-5752
Nylon, tubular, 1/2-in
As required
8305-00-260-6890
Type X
As required
4-100
FM 4-20.137/TO 13C7-1-19
SECTION IV- RIGGING AAFARS WITH SIX 500-GALLON FUEL DRUMS
DESCRIPTION OF LOAD
4-56. The Advanced Aviation Forward Area Refueling System (AAFARS) is rigged
on a 32-foot type, V platform with seven G-11 cargo parachutes. The AAFARS is
designed for forward area refueling of up to four aircraft at a time with a mini-
mum of 55 GPM. There are six collapsible fuel drums as an accompanying load.
Each drum is filled with 432 gallons of liquid. When empty, each drum weighs
250 pounds and is 62 inches long and 53 inches in diameter. The total rigged
overall length is 402 inches. Width is 108 inches. Height is 94 inches. Center of
balance is 195 inches.
Notes:
1. For drums filled with a liquid other than water, use Table 1-1 to
recompute the weight.
2. If the load varies from the one shaown, the weight, height, CB, tipoff
curve, and parachute requirements must be recomputed
3. Do not pressurize drums with air.
PREPARING PLATFORM
4-57. Prepare a 32-foot type V airdrop platform using two tandem links, eight
suspension brackets and 84 tie-down clevises as shown in Figure 4-78.
Notes: 1. The nose bumper may or may not be installed.
2. Measurements given in this section are from the front edge of
the platform, NOT from the front edge of the nose bumper.
4-101
FM 4-20.137/TO 13C7-1-19
CLEVISES 40A THROUGH 1A
FRONT
REAR
CLEVISES 40 THROUGH 1
Steps:
1.
Inspect, or assemble and inspect, the platform as outlined in TM 10-1670-268-
20&P/TO 13C7-52-22.
2.
Install a tandem link on the front of each platform side rail using holes 1, 2, and
3.
3.
Install a suspension bracket to each platform side rail using holes 6, 7, and 8.
4.
Install a suspension bracket to each platform side rail using holes 26, 27, and 28.
5.
Install a suspension bracket to each platform side rail using holes 37, 38, and 39.
6.
Install a suspension bracket to each platform side rail using holes 57, 58, and 59.
7.
Install a tie-down clevis to bushings 1 (doubled), 3, and 4 (doubled) on each front
tandem link.
8.
Install a tie-down clevis to bushings 1(doubled), 2, and 3 on each of the first
suspension brackets.
9.
Install a tie-down clevis to bushings 2 and 3 of each of the second suspension
bracket.
10. Install a tie-down clevis to bushings 2 (doubled), 3, and 4 of each of the fourth
suspension links.
11. Starting at the front of each platform side rail, install a tie-down clevis to the
bushings bolted to holes 9, 10, 17, 18, 20, 21, 29, 30, 32, 33 (tripled), 34, 41, 42
(tripled), 43, 49, 50, 55, 56 (doubled), 61, 63, 64 (doubled).
12. Starting at the front of the platform, number the clevises bolted to the right side
from 1 through 40 and those bolted to the left side from 1A through 40A.
Figure 4-78. Platform Prepared
4-102
FM 4-20.137/TO 13C7-1-19

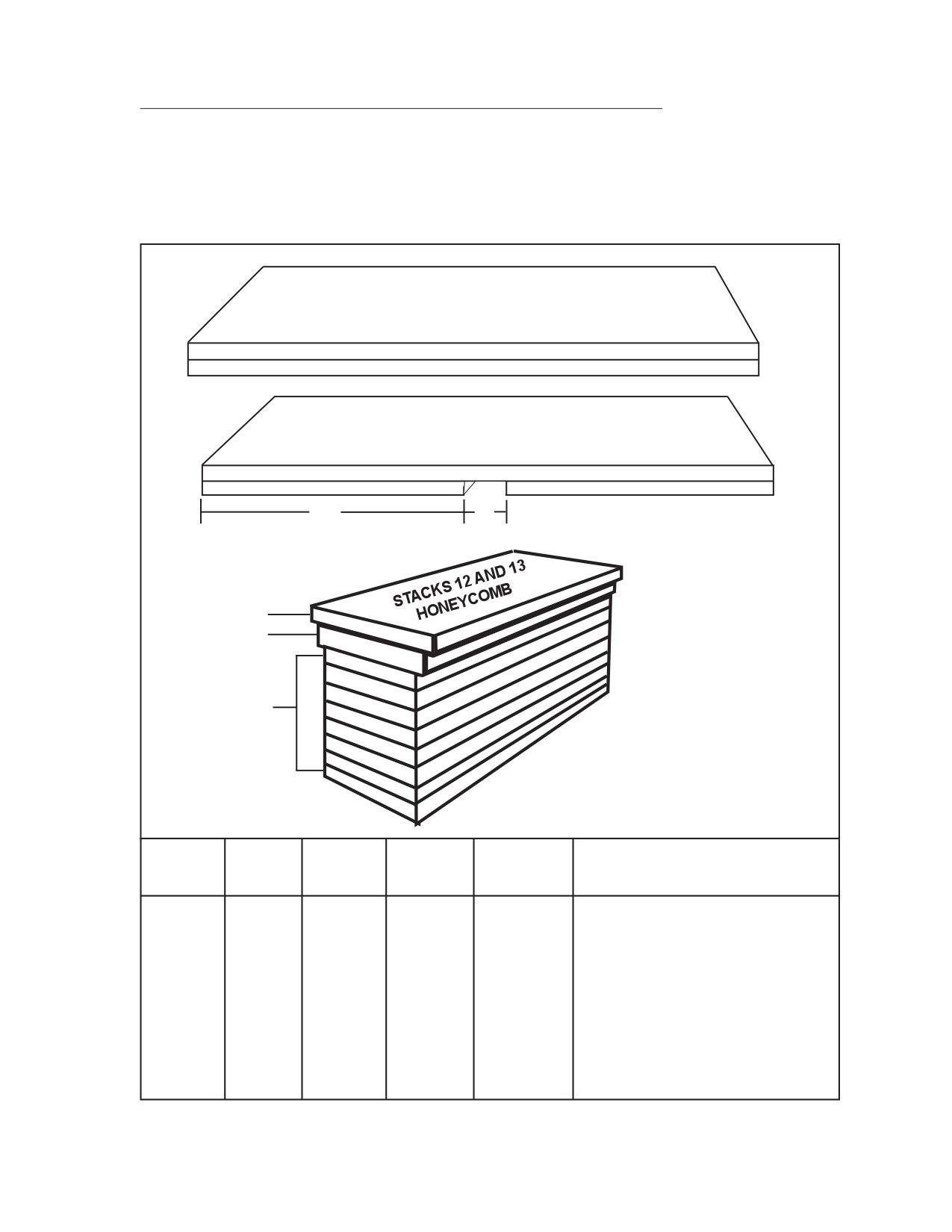

PREPARING HONEYCOMB
4-58. Prepare and build honeycomb stacks as shown in Figure 4-79.
STACKS 1 THROUGH 10
36” X 96”
HONEYCOMB
1234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121
1234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121
1234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121
1234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121
1234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121
STACK 11
24” X 96”
HONEYCOMB
1234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121
1234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121
1234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121
12345678901234567890123456789012123456789012123
0123456789012123456789012345678901234567890121
1234567890123456789012345678901212345678901212
0123456789012123456789012345678901234567890121
44”
9”
21
90121
67890121
45678912
12345689012
89012346789012
56789013456701212
1234
3456789123458901212
24”x 60”
12345678
0123456890125678901212
123456789012
7890123467890345678901212
234567890123456
4567890134567812345678901212
12346789012345678901234567891234589012345678901212
22”x 60”
12345679012345678901234568901236789012345678901212
11345678901345678901234678901456789012345678901212
123467890123457890134567812345678901234567890121
123456780123456781234569012345678901234567890121
123456789013456781236789012345678901234567890121
123456789012345781456789012345678901234567890121
123456789012345123456789012345678901234567890121
123456789012345123456789012345678901234567890121
123456789012345123456789012345678901234567890121
123456789012345123456789012345678901234567890121
123456789012345123456789012345678901234567890121
1234567890123451234567890123456789012345678901
20”x 60”
123456789012345123456789012345678901234567890
1234567890123451234567890123456789012345678
123456789012345123456789012345678901234567
1234567890123451234567890123456789012345
123456789012345123456789012345678901234
1234567890123451234567890123456789012
123456789012345123456789012345678901
1234567890123451234567890123456789
123456789012345123456789012345678
12345678901234512345678901234567
123456789012345123456789012345
12345678901234512345678901234
23456789012345123456789012
45678901234512345678901
6789012345123456789
8901234512345678
012345123456
234512345
451234
STAC K
PIECE S
WIDTH
LENGTH
MATERIAL
INSTRUCTIONS
NUMBE R
(INCHES )
(INCHES )
1-10
2
36
96
Honeycom b
Glue
t
11
2
24
96
Honeycom b
Glue
t
bottom layer starting 44-inches
i
from
t
wide, 5-inches in length
12-13
8
20
60
Honeycom b
Glue together to
f
1
22
60
Honeycom b
Glue and center on base.
1
24
60
Honeycom b
Glue and center on
t
inch piece.
Figure 4-79. Honeycomb Stacks Prepared
4-103
FM 4-20.137/TO 13C7-1-19
POSITIONING HONEYCOMB STACKS
4-59. Position honeycomb stacks 1 through 11 as shown in Figure 4-80.
STACK 11
STACK 1
STACKS 2 THROUGH 10
REAR
FRONT
1
Position stack 1 on the front edge of the platform and centered.
2

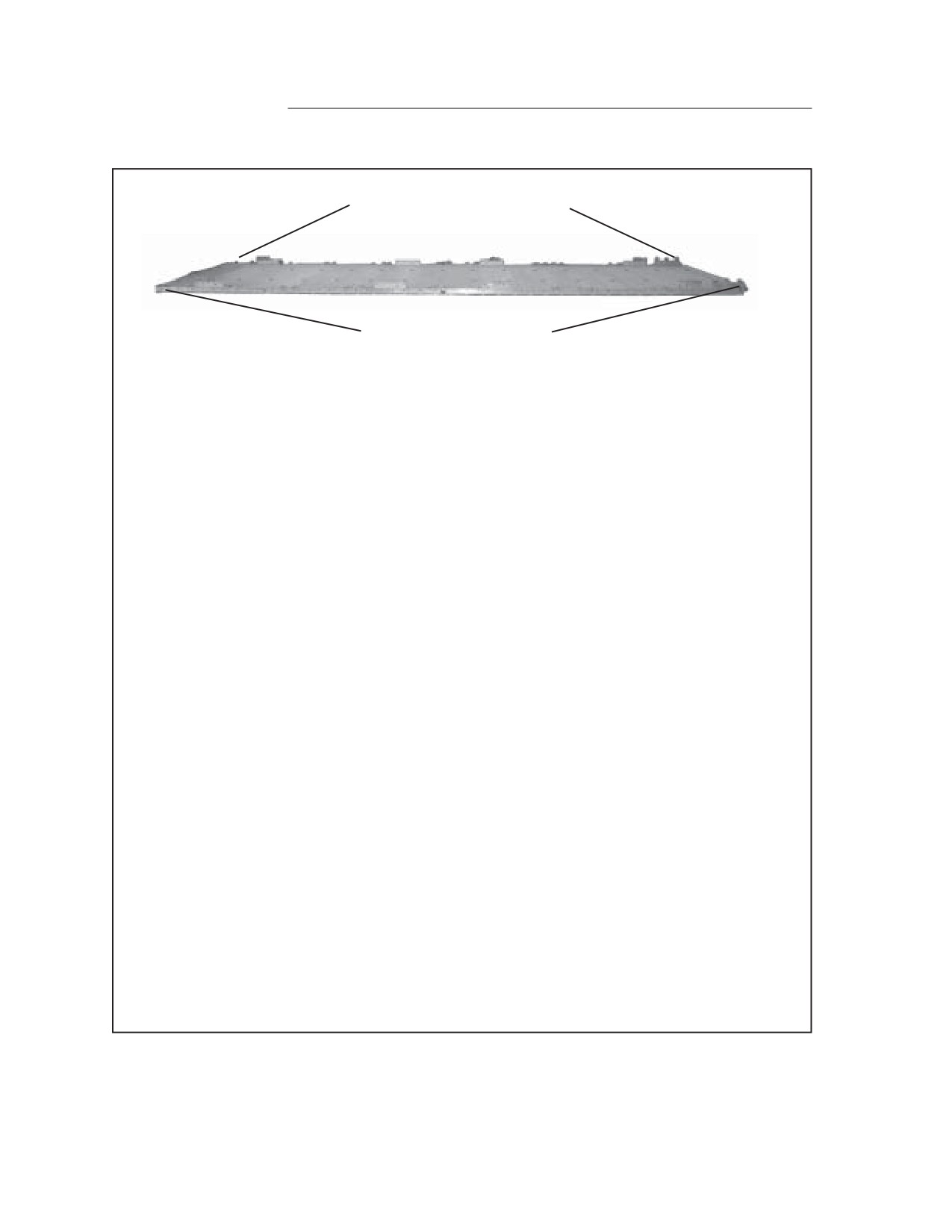

Position stacks 2 through 10 flush on the rear edge of stack 1. Place them flush with each
other.
3
Position stack 11 flush against the rear of stack 10 with the 5 x 9-inch cutout to the rear of
the platform.

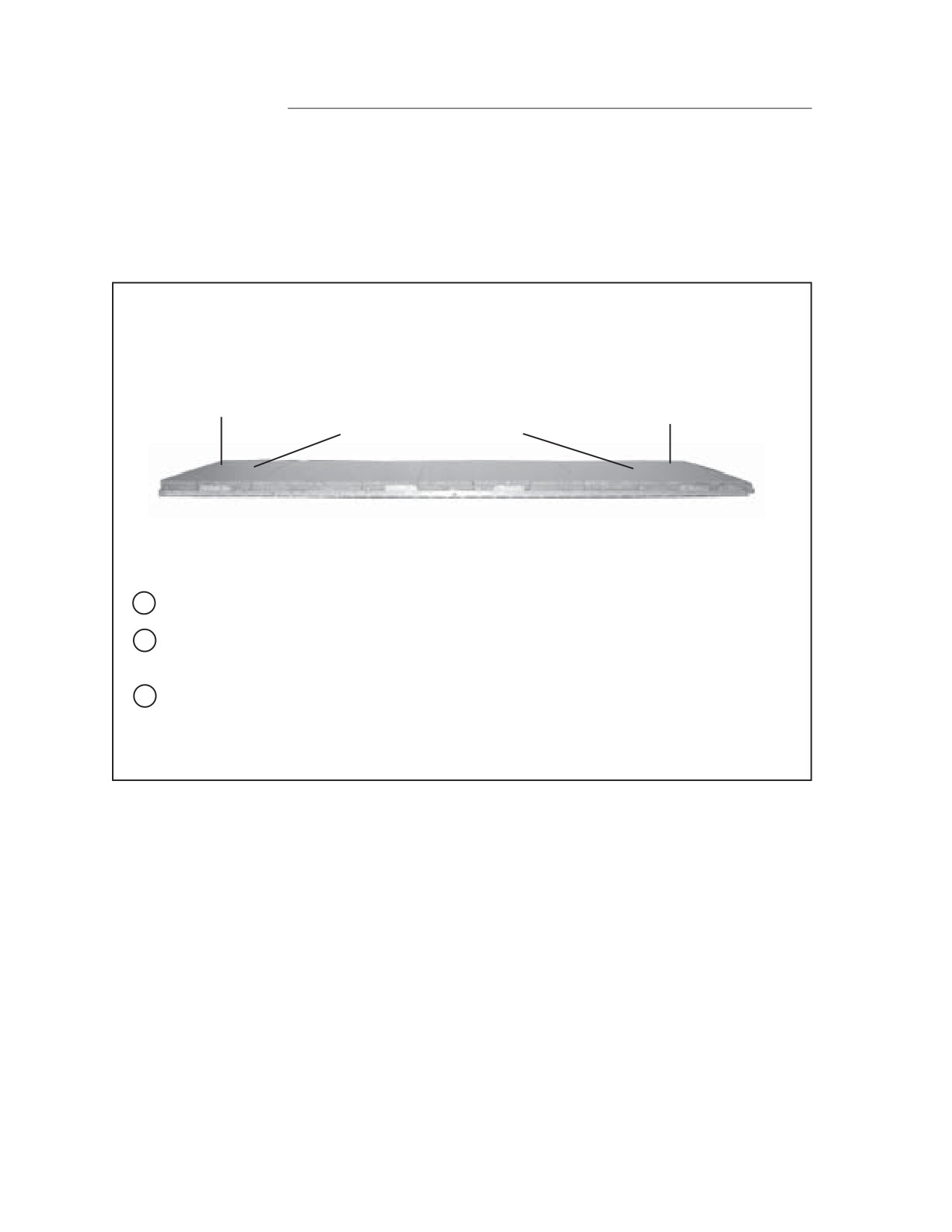

Figure 4-80. Positioning Honeycomb Stacks 1 through 11 Positioned
4-104
FM 4-20.137/TO 13C7-1-19
POSITIONING AND LASHING THE DRUMS

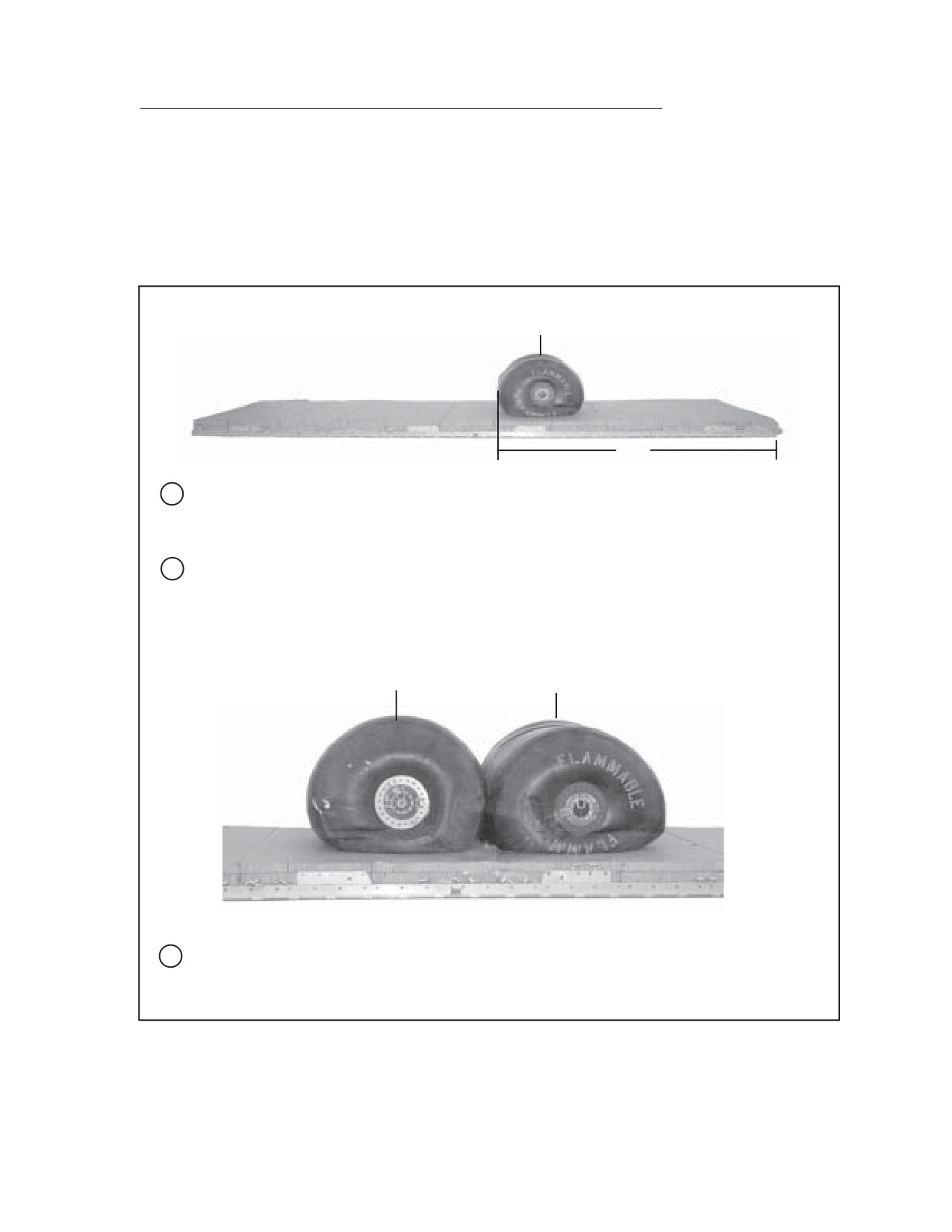

4-60. Position and lash the drums to the platform as shown in Figures 4-81
through 4-92.

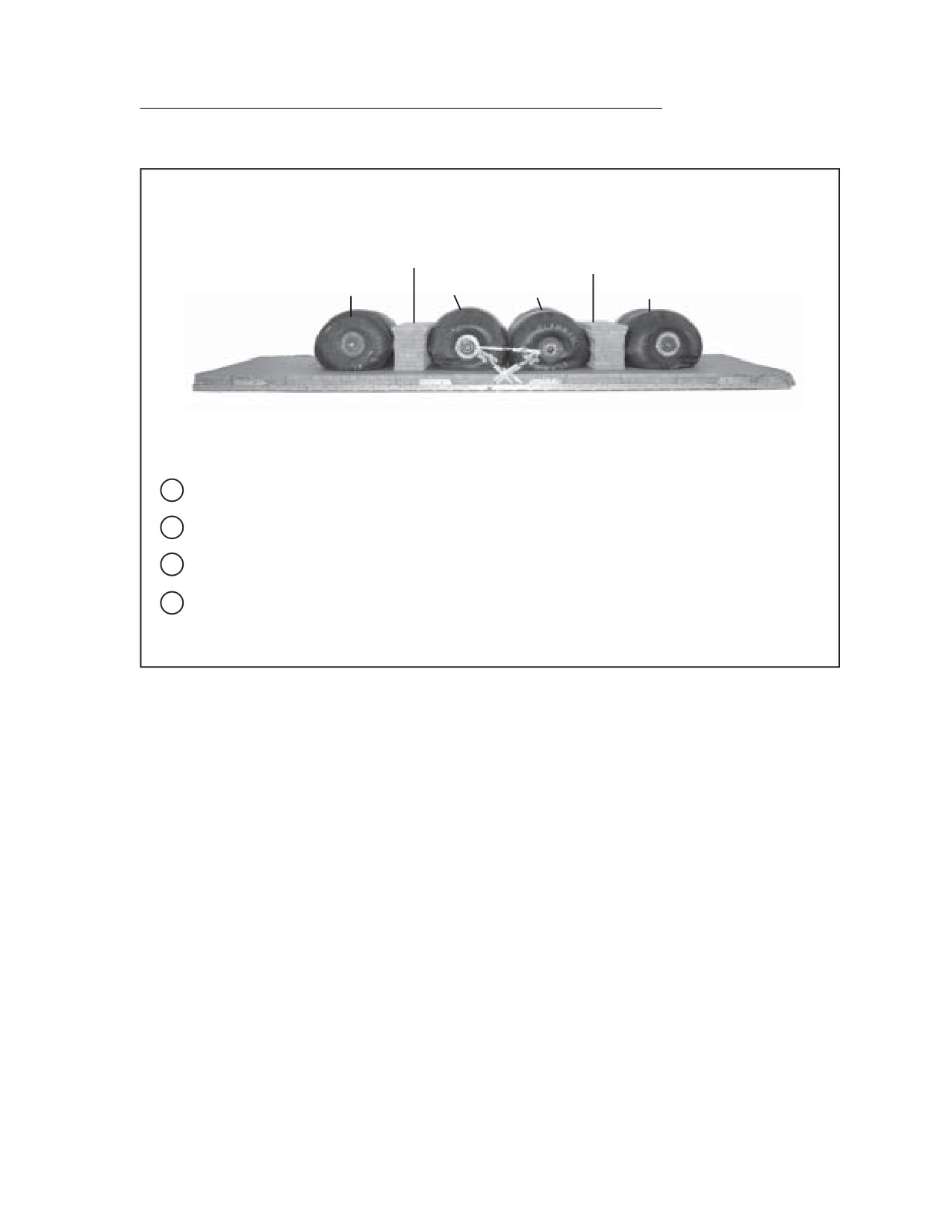

DRUM 2
REAR
FRONT
181”
1
Place a platform clevis on one end of two 9-foot (2-loop), type XXVI nylon webbing slings.
Attach a sling to each side of the drum (for lifting purposes only) and remove after the
drums are positioned (not shown).
2
Position drum 2 centered on the platform with the rear edge 181 inches from the front edge
of the platform.
DRUM 3
DRUM 2
3
Position drum 3 centered on the platform flush against the rear of drum 2.

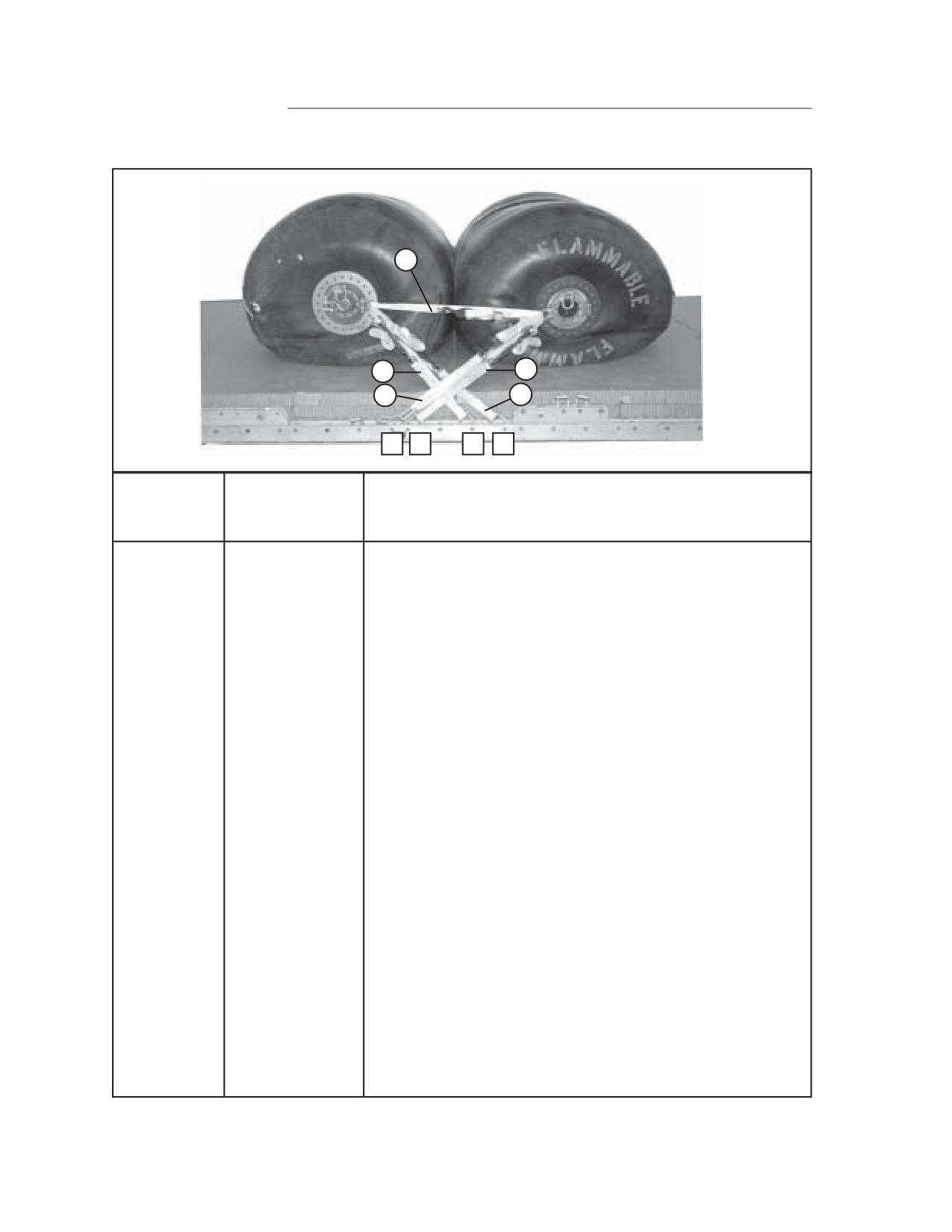

Figure 4-81. Fuel Drums 2 and 3 Positioned
4-105
FM 4-20.137/TO 13C7-1-19
DRUM 3
DRUM 2
1
7
5
9
3
21
20
19
18
Tie-dow n
Lashing
Clevis
Instruction s
Number
Number
1
Route a lashing from the rear shackle of drum 2 to the front
shackle of drum
3 on the right side.
2
Route a lashing from the rear shackle of drum 2 to the front
shackle of drum
3 on the left side
3
18
Route a lashing from clevis 18 to the front right shackle on
drum
3
4
18A
Route a lashing from clevis 18A to the front left shackle on
drum

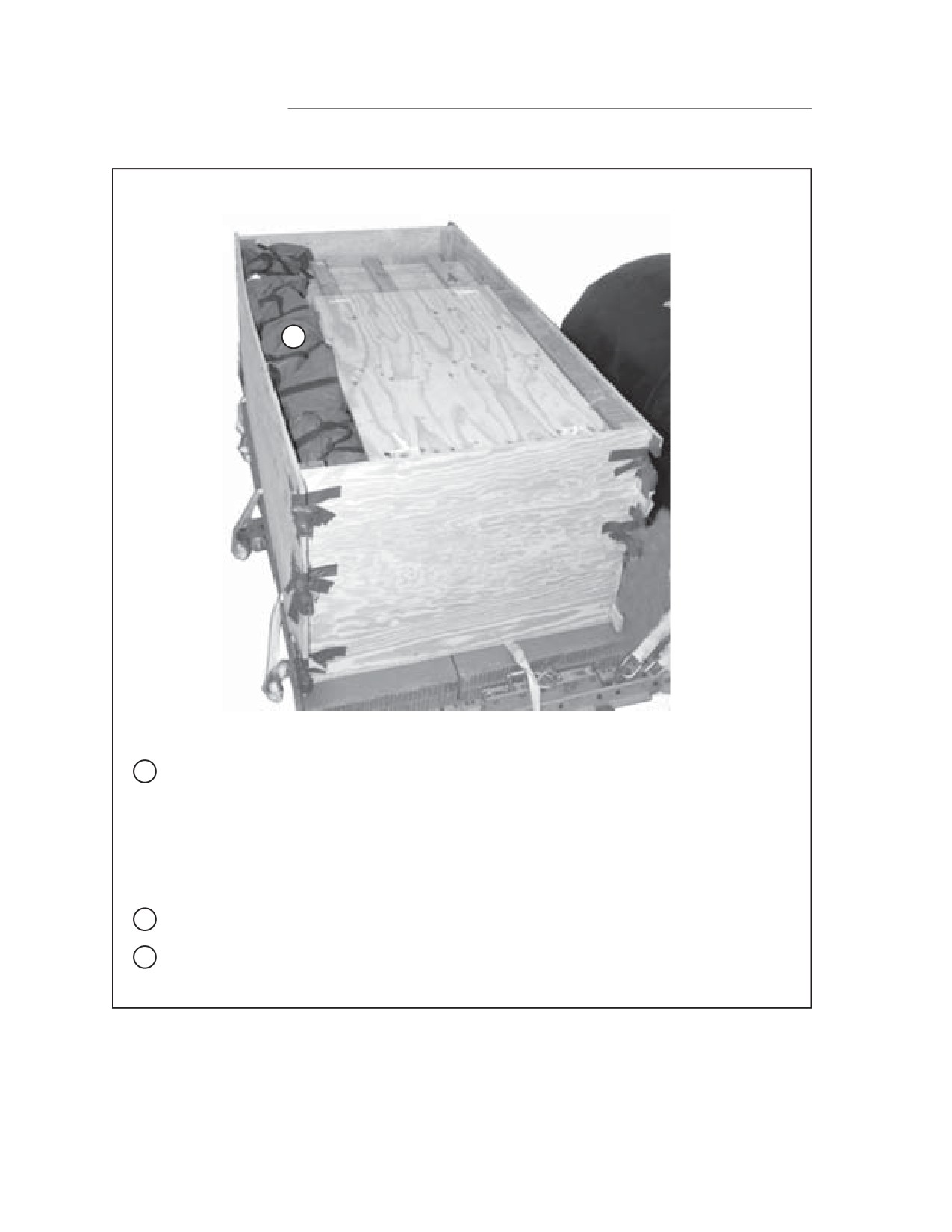

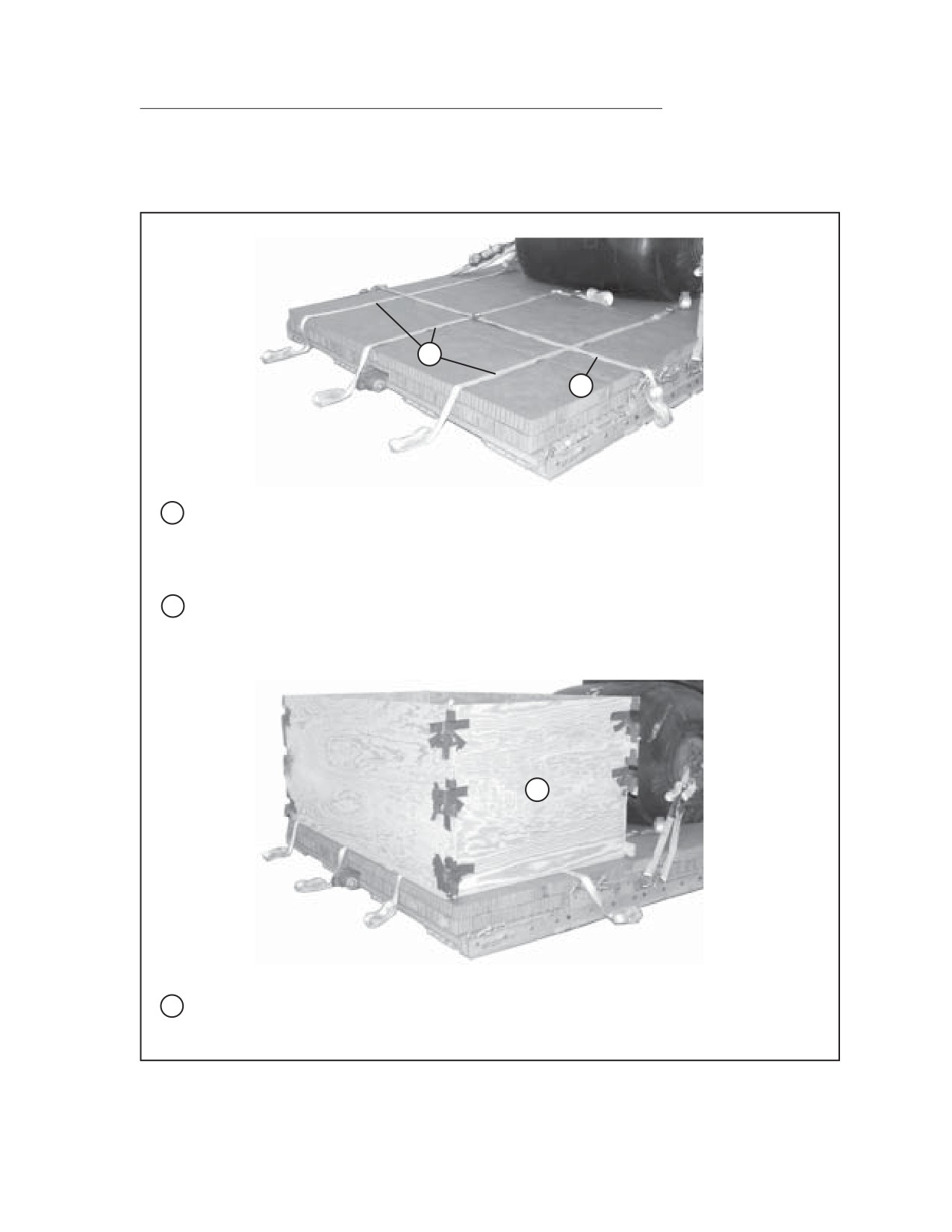

3
5
20
Route a lashing from clevis 20 to the rear right shackle on
drum
2
6
20A
Route a lashing from clevis 20A to the rear left shackle on
drum
2
7
19
Route a lashing from clevis 19 to the front right shackle on
drum
3
8
19A
Route a lashing from clevis 19A to the front left shackle on
drum
3
9
21
Route a lashing from clevis 21 to the rear right shackle on
drum
2
10
21A
Route a lashing from clevis 21A to the rear left shackle on
drum
2

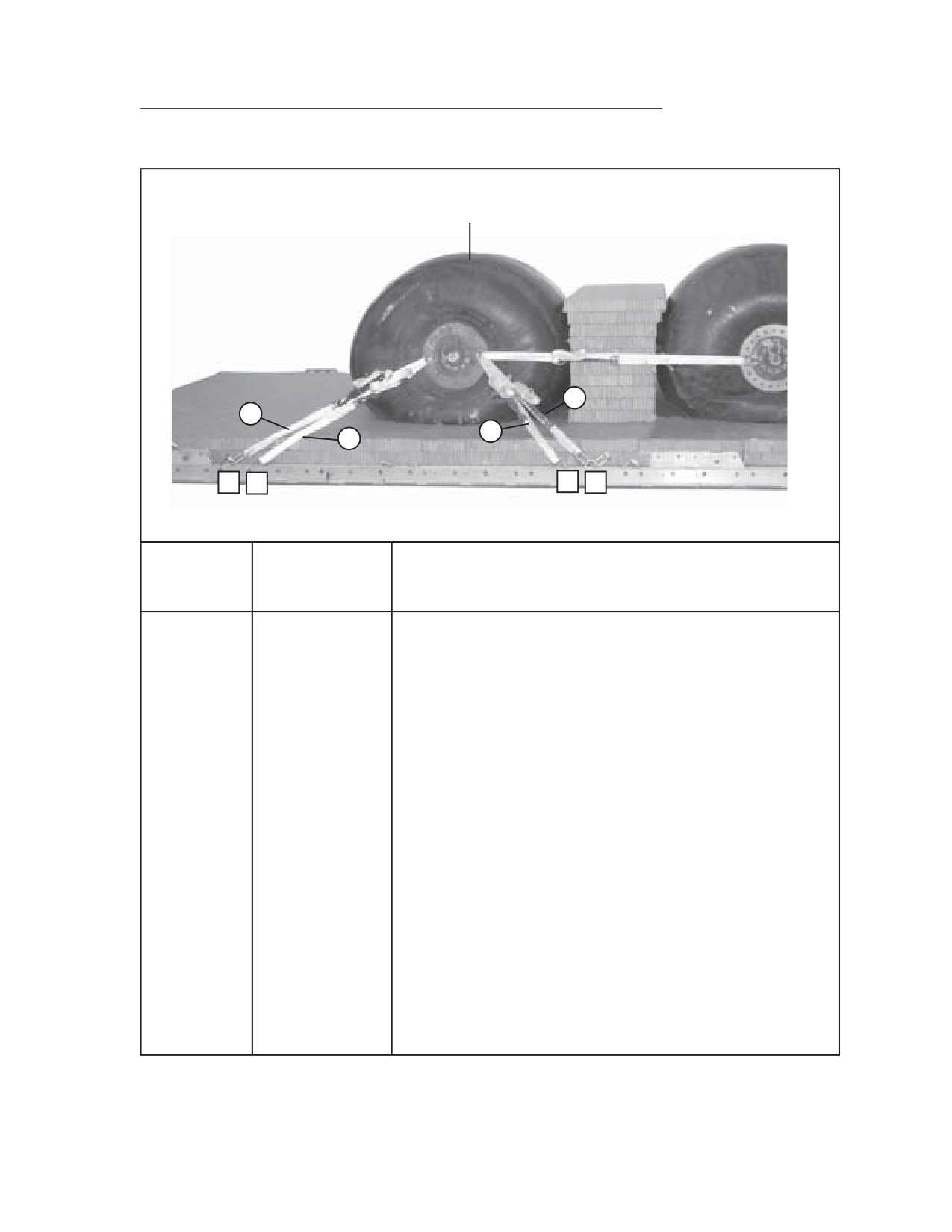

Figure 4-82. Lashings 1 through 10 Installed
4-106
FM 4-20.137/TO 13C7-1-19

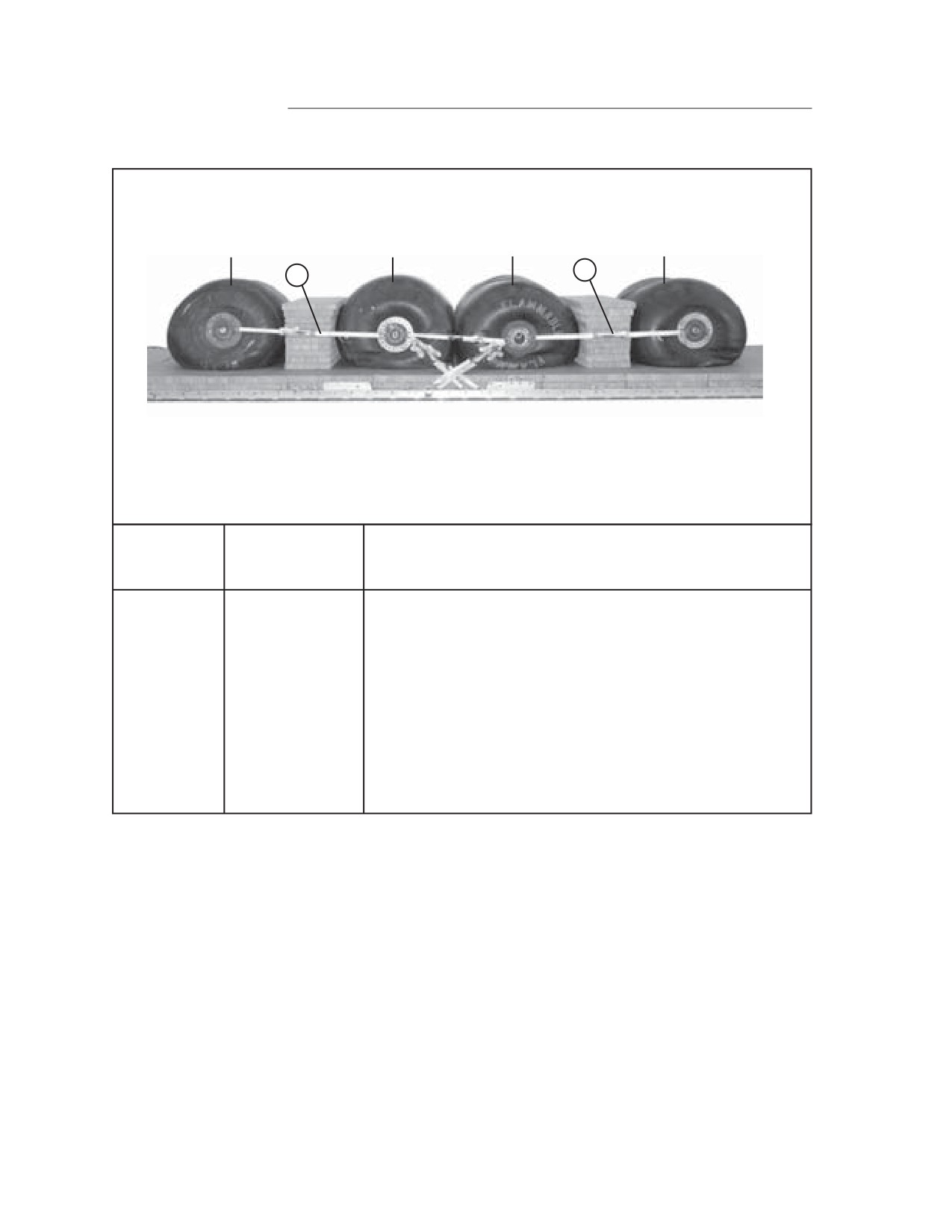

STACK 13
STACK 12
DRUM 4
DRUM 3
DRUM 2
DRUM 1
REAR
FRONT

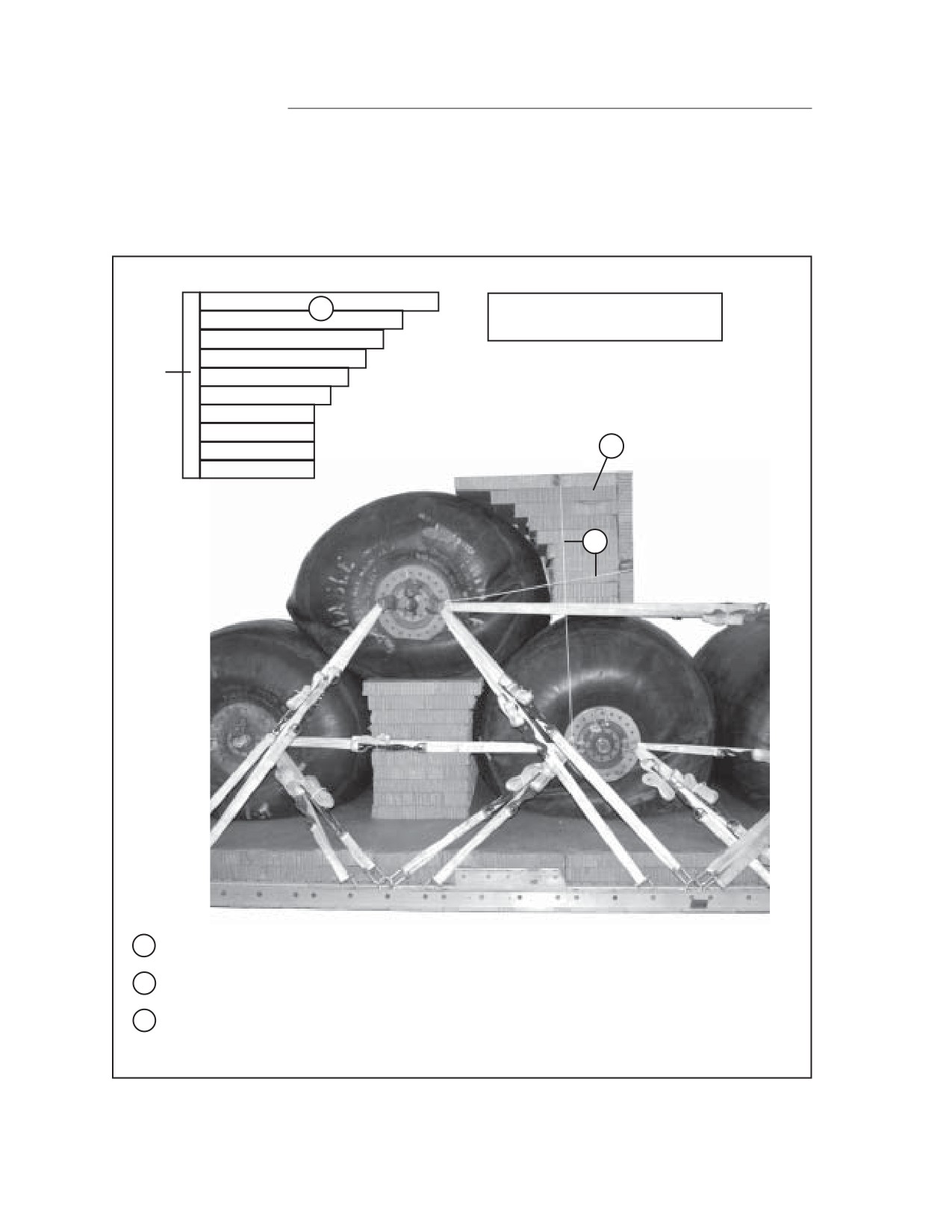

1
Position stack 12 flush and centered against the front of drum 2.
2
Position stack 13 flush and centered against the rear of drum 3.
3
Position drum 1 centered on the platform and flush against the front of stack 12.
4
Position drum 4 centered on the platform and flush against the rear of stack 13.
Figure 4-83. Fuel Drums 1 and 4 Positioned
4-107
FM 4-20.137/TO 13C7-1-19
DRUM 4
DRUM 3
DRUM 2
DRUM 1
11
13
Tie-dow n
Lashing
Clevis
Instruction s
Number
Number
11
Route a lashing from the rear shackle of drum 1 to the front
shackle of drum 2 on the right side
12
Route a lashing from the rear shackle of drum 1 to the front
shackle of drum 2 on the left side
13
Route a lashing from the rear shackle of drum 3 to the front
shackle of drum 4 on the right side
14
Route a lashing from the rear shackle of drum 3 to the front
shackle of drum 4 on the left side
Figure 4-84. Lashings 11 through 14 Installed
4-108
FM 4-20.137/TO 13C7-1-19
DRUM 1
DRUM 2
19
21
17
15
9
8
15
14
Tie-dow n
Lashing
Clevis
Instructions
Number
Number
15
9
Route a lashing from clevis
9 to the
f
drum
1
16
9A
Route a lashing from clevis
9A to the
f
drum
1
17
14
Route a lashing from clevis
14 to
t
drum
1
18
14A
Route a lashing from clevis
14A to
t
drum
1
19
8
Route a lashing from clevis
8 to the
f
drum
1
20
8A
Route a lashing from clevis
8A to the
f
drum
1
21
15
Route a lashing from clevis
15 to
t
drum
1
22
15A
Route a lashing from clevis
15A to
t
drum
1
Figure 4-85. Lashings 15 through 22 Installed
4-109
FM 4-20.137/TO 13C7-1-19
DRUM 2
25
23
13
12
Tie-dow n
Lashing
Clevis
Instruction s
Number
Number
23
13
Route a lashing from clevis 13 to the front right shackle on
drum
2
24
13A
Route a lashing from clevis 13A to the front left shackle on
drum
2
25
12
Route a lashing from clevis 12 to the front right shackle on
drum
2
26
12A
Route a lashing from clevis 12A to the front left shackle on
drum
2
Figure 4-86. Lashings 23 through 26 Installed
4-110
FM 4-20.137/TO 13C7-1-19
DRUM 4
31
33
27
29
32
30
27
26
Tie-dow n
Lashing
Clevis
Instruction s
Number
Number
27
27
Route a lashing from clevis
27 to the front right shackle on
drum
4
28
27A
Route a lashing from clevis
27A to the front left shackle on
drum
4
29
30
Route a lashing from clevis
30 to the rear right shackle on
drum
4
30
30A
Route a lashing from clevis
30A to the rear left shackle on
drum
4
31
26
Route a lashing from clevis
26 to the front right shackle on
drum
4
32
26A
Route a lashing from clevis
26A to the front left shackle on
drum
4
33
32
Route a lashing from clevis
32 to the rear right shackle on
drum
4
34
32A
Route a lashing from clevis
32A to the rear left shackle on
drum
4
Figure 4-87. Lashings 27 through 34 Installed
4-111
FM 4-20.137/TO 13C7-1-19
DRUM 3
37
35
25
24
Tie-dow n
Lashing
Clevis
Instruction s
Number
Number
35
24
Route a lashing from clevis 24 to the rear right shackle on
drum
3
36
24A
Route a lashing from clevis 24A to the rear left shackle on
drum
3
37
25
Route a lashing from clevis 25 to the rear right shackle on
drum
3
38
25A
Route a lashing from clevis 25A to the rear left shackle on
drum
3
Figure 4-88. Lashings 35 through 38 Installed
4-112
FM 4-20.137/TO 13C7-1-19

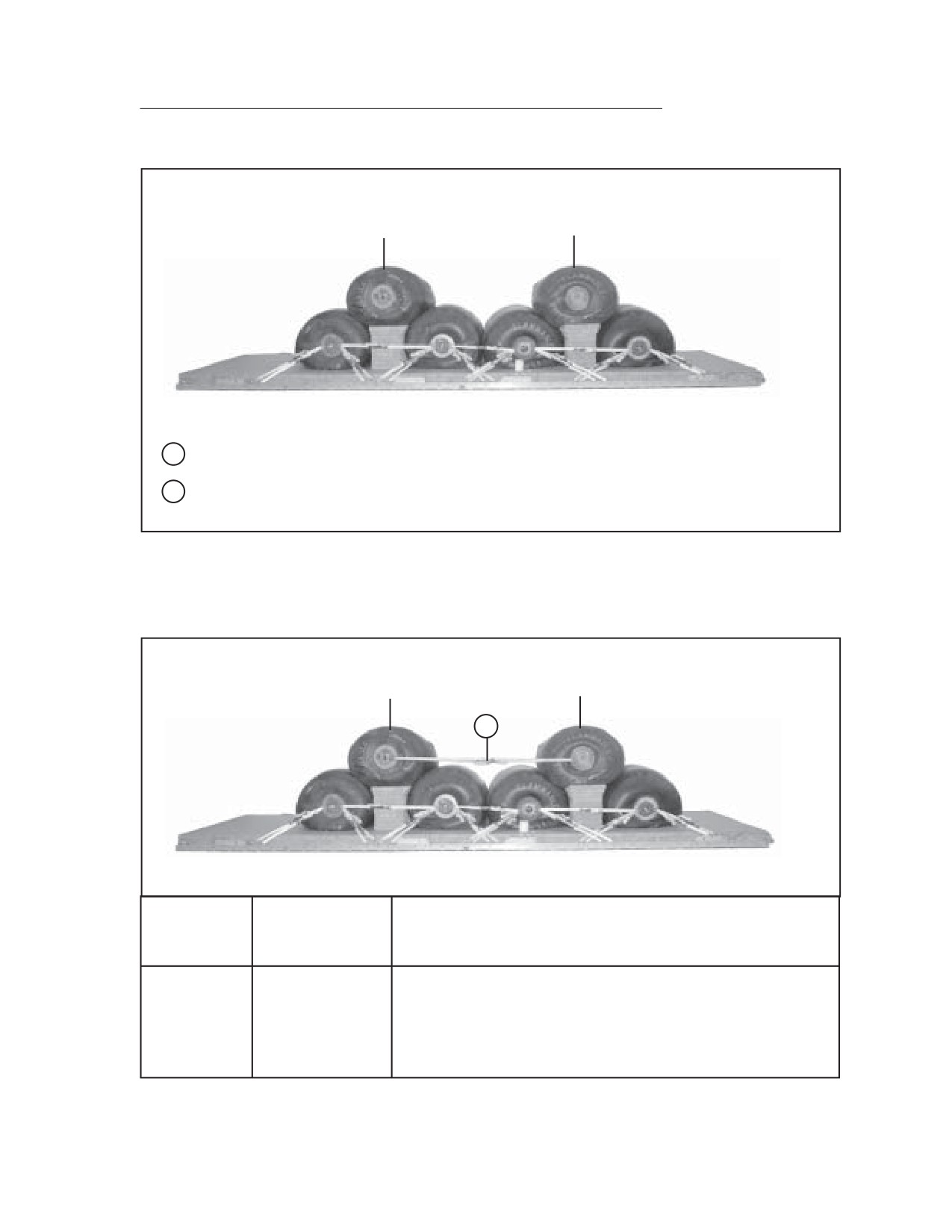

DRUM6
DRUM 5
1
Position drum 5 centered on stack 12.
2
Position drum 6 centered on stack 13.
Figure 4-89. Fuel Drums 5 and 6 Positioned
DRUM6
DRUM 5
39
Tie-dow n
Lashing
Clevis
Instruction s
Number
Number
39
Route a lashing from the rear shackle of drum 5 to the front
shackle of drum 6 on the right side .
40
Route a lashing from the rear shackle of drum 5 to the front
shackle of drum 6 on the left side .
Figure 4-90. Lashings 39 and 40 Installed
4-113
FM 4-20.137/TO 13C7-1-19
DRUM 5
47
45
43
41
17
16
11
10
Tie-dow n
Lashing
Clevis
Instruction s
Number
Number
41
11
Route a lashing from clevis
11 to the front right shackle on
drum
5
42
11A
Route a lashing from clevis
11A to the front left shackle on
drum
5
43
16
Route a lashing from clevis
16 to the rear right shackle on
drum
5
44
16A
Route a lashing from clevis
16A to the rear left shackle on
drum
5
45
10
Route a lashing from clevis
10 to the front right shackle on
drum
5
46
10A
Route a lashing from clevis
10A to the front left shackle on
drum
5
47
17
Route a lashing from clevis
17 to the rear right shackle on
drum
5
48
17A
Route a lashing from clevis
17A to the rear left shackle on
drum
5
Figure 4-91. Lashings 41 through 48 Installed
4-114
FM 4-20.137/TO 13C7-1-19
DRUM 6
53
55
49
51
29
28
23
22
Tie-dow n
Lashing
Clevis
Instruction s
Number
Number
49
23
Route a lashing from clevis
23 to the front right shackle on
drum
6
50
23A
Route a lashing from clevis
23A to the front left shackle on
drum
6
51
28
Route a lashing from clevis
28 to the rear right shackle on
drum
6
52
28A
Route a lashing from clevis
28A to the rear left shackle on
drum
6
53
22
Route a lashing from clevis
22 to the front right shackle on
drum
6
54
22A
Route a lashing from clevis
22A to the front left shackle on
drum
6
55
29
Route a lashing from clevis
29 to the rear right shackle on
drum
6
56
29A
Route a lashing from clevis
29A to the rear left shackle on
drum
6
Figure 4-92. Lashings 49 through 56 Installed
4-115
FM 4-20.137/TO 13C7-1-19
BUILDING THE EQUIPMENT BOXES
4-61. Build the front and rear equipment boxes as shown in Figures 4-93 and
4-94.

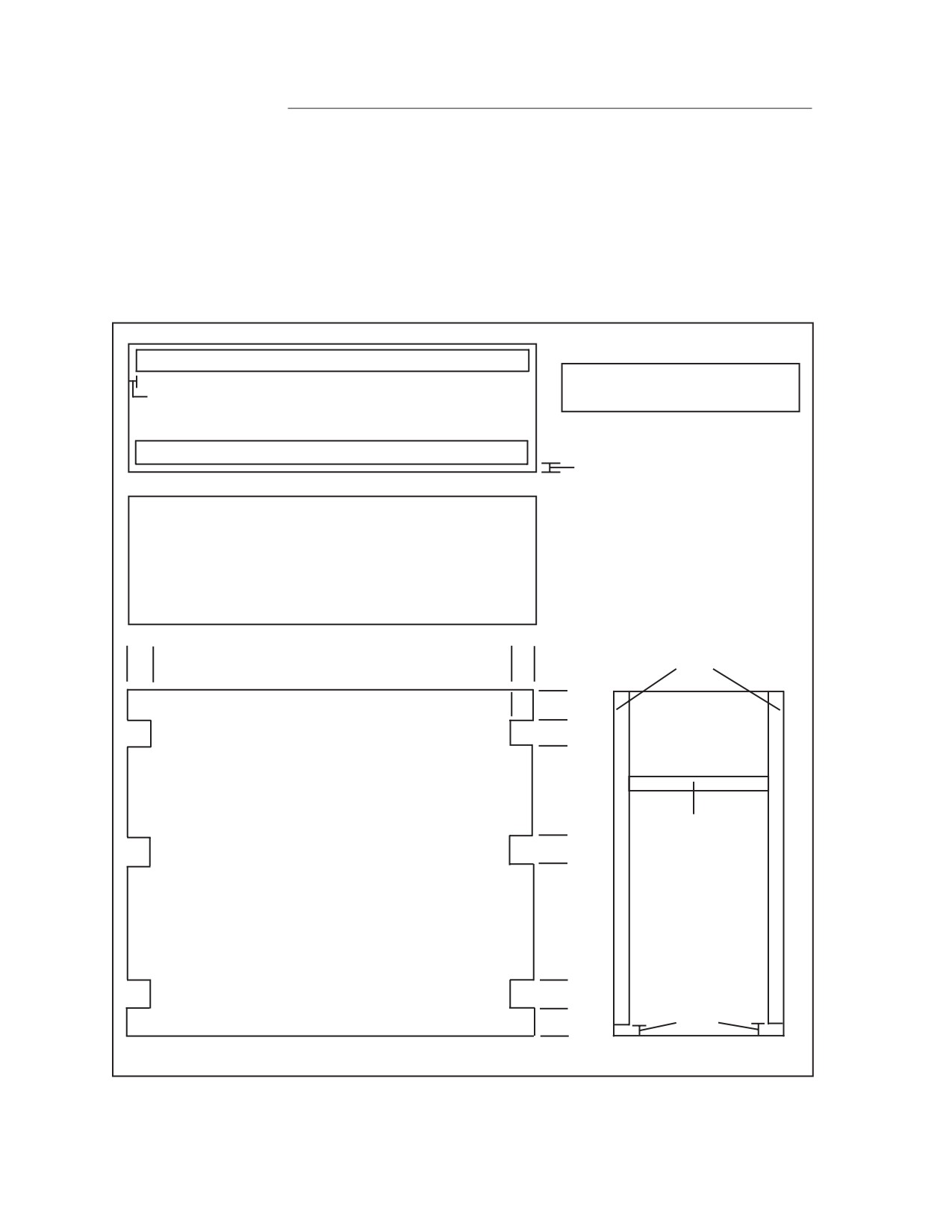

a. Build the front equipment box using 16d nails and as shown in Figure
4-93.

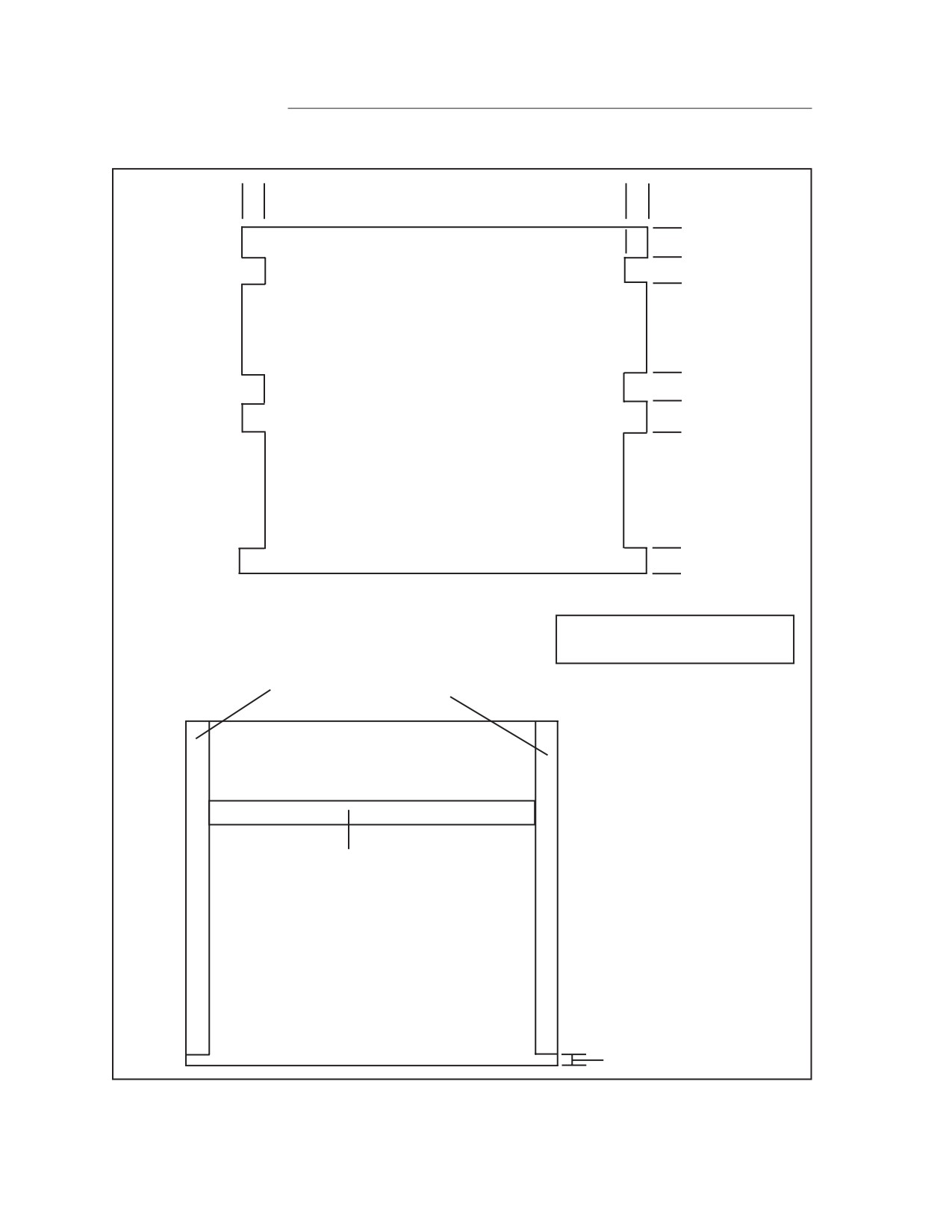

2” X 4” x 90 1/2” LUMBER NAILED FLAT
3/4” X 30” X 92”
NOTE: Drawings not to scale
3/4”
PLYWOOD
BOTTOM (TOP VIEW)
2” X 4” x 90 1/2” LUMBER NAILED FLAT
3/4”
3/4” X 30” X 92”
PLYWOOD
TOP
2” X 4” X 46 1/2” LUMBER
NAILED FLAT TO SIDE
BOARDS DURING ASSEMBLY
2”
92”
2”
3”
3”
10”
3/4” X 48” X 96”
PLYWOOD
2” X 4” X 21 1/2”
FRONT & REAR
3”
LUMBER NAILED
FLAT 10 INCHES
FROM TOP
23”
3/4” X 28 1/2” X 48”
PLYWOOD
SIDES
(INSIDE VIEW)
3”
3”
1 1/2”
Figure 4-93. Front Equipment Box Built
4-116
FM 4-20.137/TO 13C7-1-19
b. Build the rear equipment box using 16d nails and as shown in Figure
4-94.
NOTE: Drawings not to scale
3/4”
2” X 4” x 90 1/2” LUMBER NAILED FLAT
3/4” X 52” X 92”
PLYWOOD
BOTTOM (TOP VIEW)
2” X 4” x 90 1/2” LUMBER NAILED FLAT
3/4”
3/4”
2” X 4” x 87 1/2” LUMBER NAILED FLAT
3/4” X 52” X 92”
PLYWOOD
2 1/4”
TOP
2” X 4” x 87 1/2” LUMBER NAILED FLAT
2”
92”
2”
3”
3”
10”
3/4” X 38” X 96”
PLYWOOD
REAR
3”
13”
3”
3”
Figure 4-94. Rear Equipment Box Built
4-117
FM 4-20.137/TO 13C7-1-19
2”
92”
2”
3”
3”
10”
3/4” X 38” X 96”
PLYWOOD
FRONT
3”
3”
13”
3”
2” X 4” X 36 1/2” LUMBER
NOTE: Drawings not to scale
NAILED FLAT TO SIDE
BOARDS DURING ASSEMBLY
2” X 4” X 43 1/2”
LUMBER NAILED
FLAT 10 INCHES
FROM TOP
3/4” X 50 1/2” X 38”
PLYWOOD
SIDES
(INSIDE VIEW)
1 1/2”
Figure 4-94. Rear Equipment Box Built (Continued)
4-118
FM 4-20.137/TO 13C7-1-19
PREPARING EQUIPMENT FOR EQUIPMENT BOXES
4-62. Prepare the fire extinguishers, filter separator, explosion proof motor,
pumps, manuals and toolkit as explained and shown in paragraph 4-6. Using
the lists printed on the equipment bags, place the equipment indicated on each
list into its bag. Prepare and secure the battery box as shown in Figure 4-95.
3
5
1
2
4
1

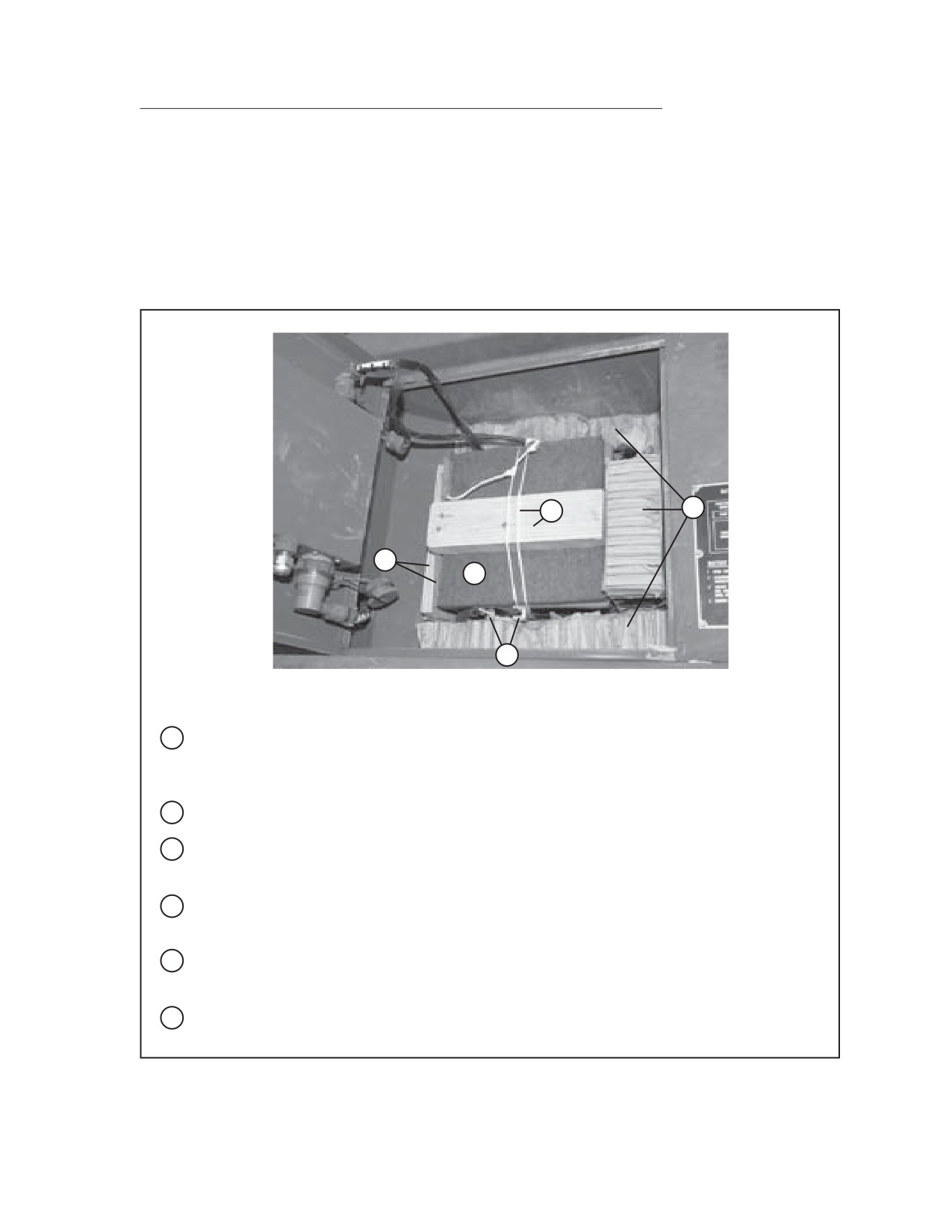

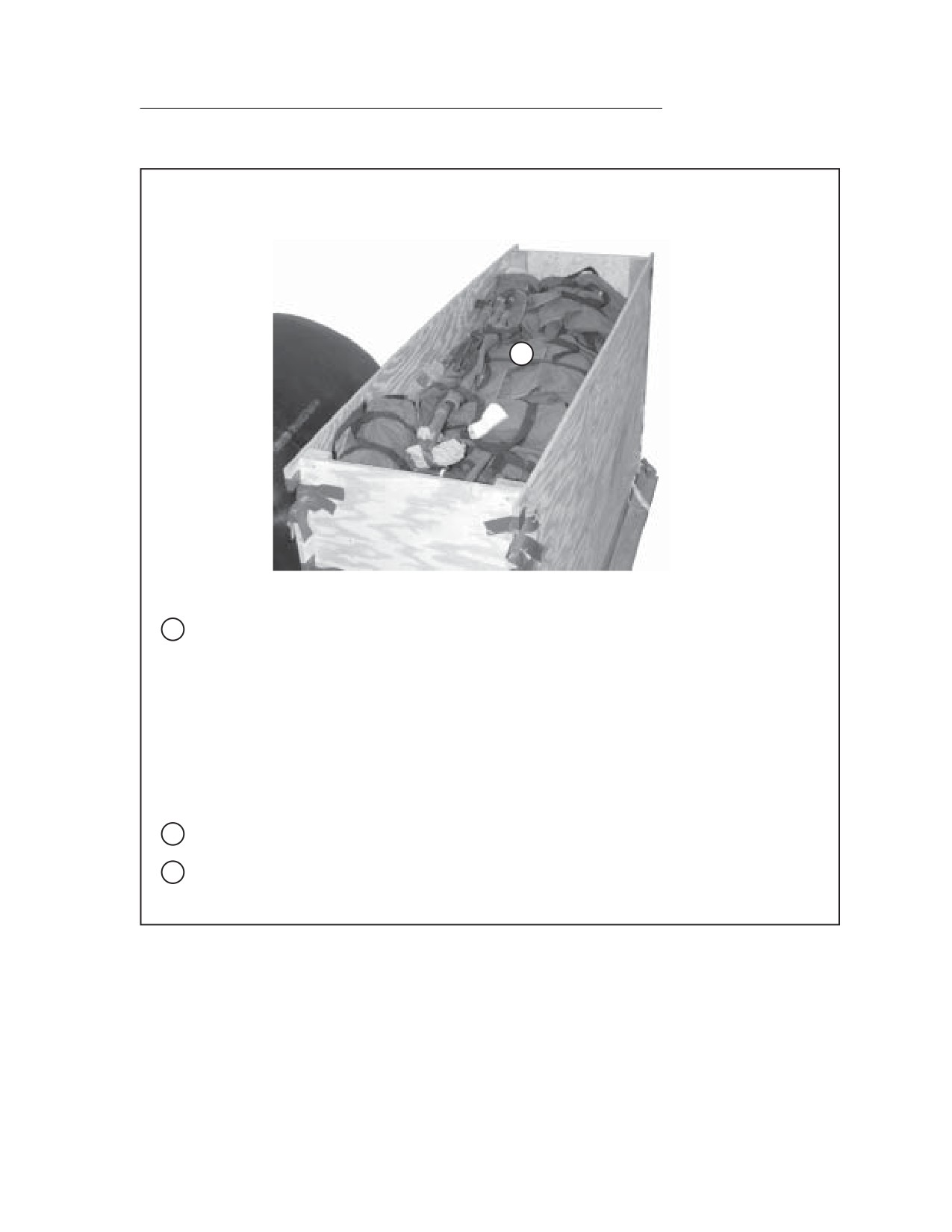

Place a 3/4-inch by 10-inch by 10-inch piece of plywood behind the battery inside the
compartment. Place a 1/4-inch by 10-inch by 10-inch piece of felt between the plywood and
the battery.
2
Place a 1/4-inch by 10-inch 10-inch piece of felt on top of the battery.
3
Place a 2-inch by 4-inch by 10-inch piece of lumber on top of the felt. Secure it with type III
nylon cord.
4
Place cellulose wadding around the battery cap. Disconnect the battery, hold down rods and
lay aside.
5
Fill the remainder of the compartment with pieces of honeycomb. Close and secure lid (not
shown).
6
Secure the intake filter and grounding wire as shown in Figure 4-11, steps 4 and 5.
Figure 4-95. Battery Box Secured
4-119
FM 4-20.137/TO 13C7-1-19
NOTE: Drawings not to scale
5”
12
3/4”
5”
2” X 4” X 18 1/2”
TOP
2” X 4” X 18 1/2”
LUMBER CENTERED
LUMBER CENTERED
2-INCHES IN FROM
TOP
2-INCHES IN FROM
EDGE
VIEW
EDGE
2” X 4” X 24”
3/4” X 21” X 39”
LUMBER
PLYWOOD
1” DIAMETER
HOLES
5”
12
3/4”
5”
4”
1 1/2”
BOTTOM
3/4” X 21” X 39”
OF
PLYWOOD
BASE
TOP
TOP OF BASE
VIEW
2” X 4” X 24”
LUMBER
6 EACH SIDE SUPPORTS
2” X 4” X 23 1/2”
LUMBER
8
BASE COMPLETED
SIDE VIEW
1234567
12345678
1234567
1234567
12345678
1234567
1234567
12345678
1234567
5” X 21”
HONEYCOMB
7
Cut and build the plywood for the battery box as shown above using 16d nails.
8
Nail the top of base to the bottom of base and glue honeycomb to bottom.
Figure 4-95. Battery Box Secured (Continued)
4-120
FM 4-20.137/TO 13C7-1-19
11
9
10
12
9
Nail the six 2-inch by 4-inch by 23 1/2-inch lumber side supports to the 2 X 4 lumber
extending from the sides of the base using 16d nails.
10
Position the battery box inside the frame centered.
11
Position the top board on top of the battery box centered and nail to the six lumber side
supports using 16d nails.
12
Using four lengths of single 1/2-inch tubular nylon, tie the base to the frame of the battery
box using the four corner holes.
Figure 4-95. Battery Box Secured (Continued)
4-121
FM 4-20.137/TO 13C7-1-19
POSITIONING EQUIPMENT BOXES
4-63. Prepare and position the front and rear equipment boxes as shown in
Figures 4-96 and 4-97.
a. Prepare and position the front equipment box as shown in Figure 4-96.
2
1
FRONT
1
Pre-position three 30-foot lashings lengthwise across the end honeycomb stacks on the front
of the platform. Place the two outside lashings 15-inches in from the outside edges of the
honeycomb stacks. Place the third lashing centered on the honeycomb stacks.
2
Pre-position a 30-foot lashing across the width of the front honeycomb stacks 21-inches in
from the front honeycomb edge.
3
FRONT
3
Position the front equipment box flush with the front honeycomb edge and centered. Pad
and tape all cutouts using cellulose wadding.
Figure 4-96. Front Equipment Box Positioned
4-122
FM 4-20.137/TO 13C7-1-19
b. Prepare and position the rear equipment box as shown in Figure 4-97.
1
2
REAR
1
Pre-position three 30-foot lashings lengthwise across the end honeycomb stacks on the rear
of the platform. Place the two outside lashings 15 inches in from the outside edges of the
honeycomb stacks. Place the third lashing centered on the honeycomb stacks. Ensure the
D-rings are placed behind drum 4 and not under the box.
2
Pre-position a 30-foot lashing across the width of the rear honeycomb stacks 26 inches in
from the front honeycomb edge.
3
REAR
3
Position the rear equipment box flush with the rear honeycomb edge and centered. Pad
and tape all cutouts using cellulose wadding.
Figure 4-97. Rear Equipment Box Positioned
4-123
FM 4-20.137/TO 13C7-1-19
POSITIONING AND SECURING EQUIPMENT IN EQUIPMENT BOXES

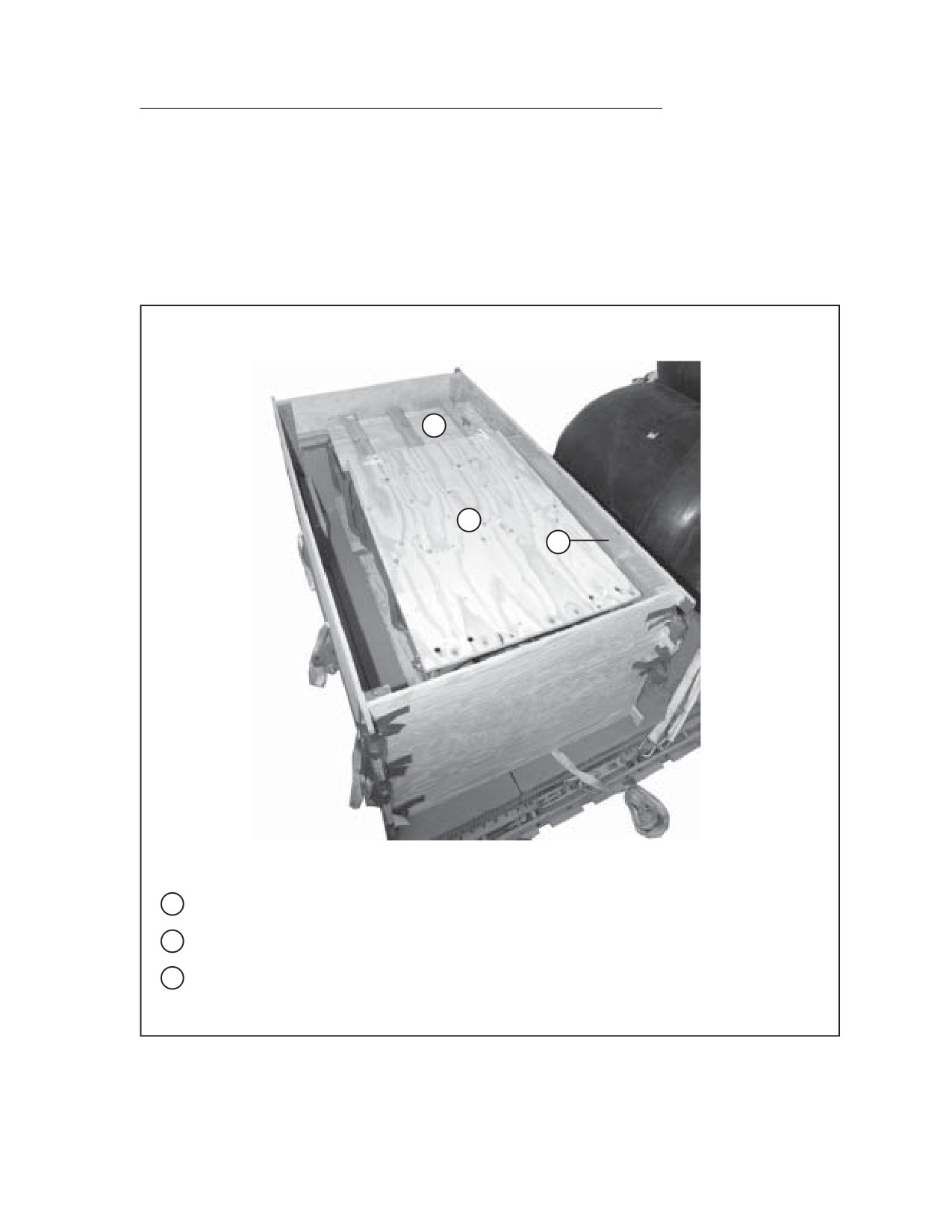

4-64. Position and secure equipment in equipment boxes as shown in Figures 4-
98 and 4-99.
a. Prepare the front equipment box by placing a 22-inch by 82-inch piece of
honeycomb in the floor of the box and a 23-inch by 35-inch piece of honey-
comb against each end of the box below the 2x4 lumber. Position equipment
in the front equipment box as shown in Figure 4-98.
LEFT
REAR
FRONT
2
3
1
RIGHT
1

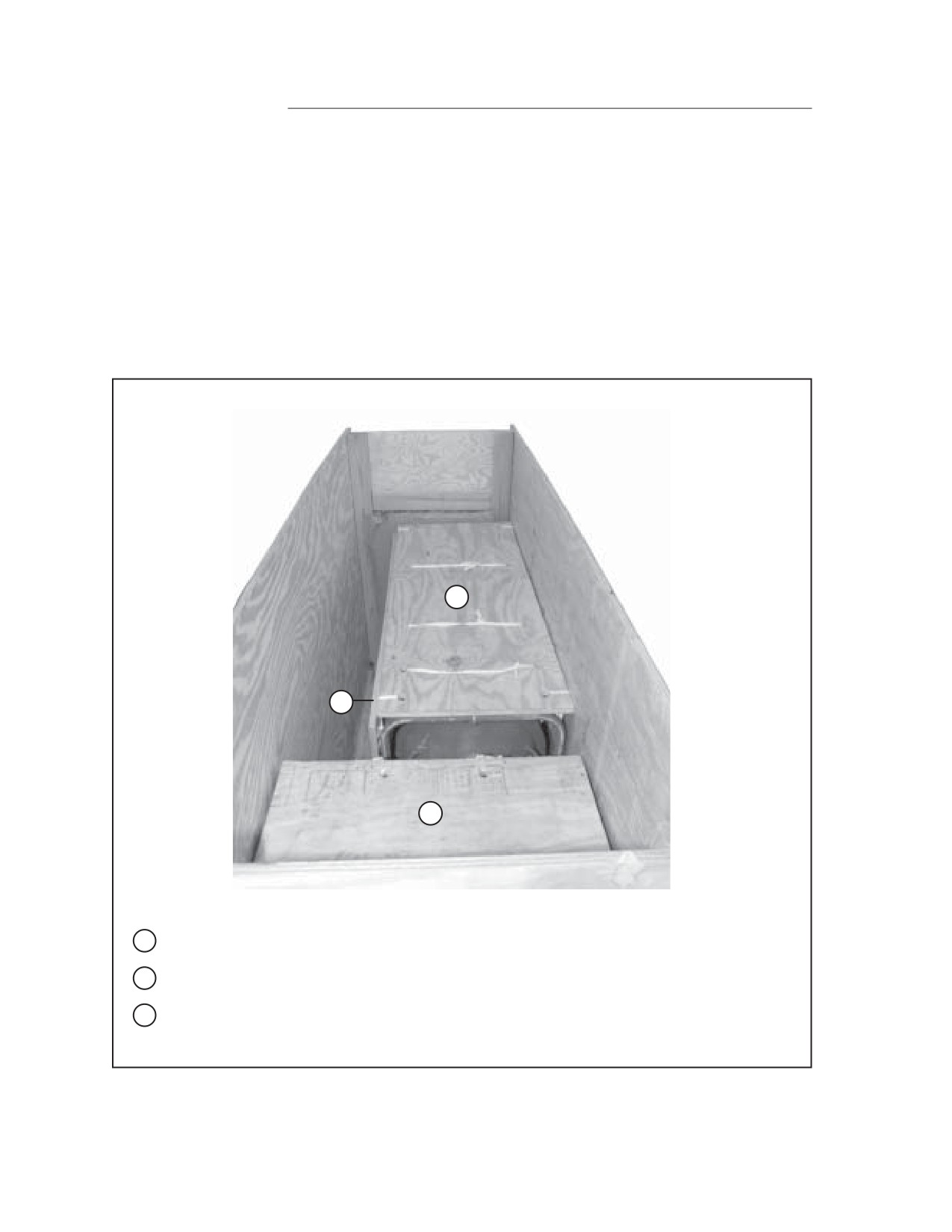

Place the fire extinguishers against the right side of the equipment box.
2
Place the filter separator in the front left corner of the equipment box.
3
Place a 3/4-inch by 28 1/4-inch by 55 3/4-inch piece of plywood against the rear of the filter
separator.
Figure 4-98. Equipment Positioned and Secured in Front Box
4-124
FM 4-20.137/TO 13C7-1-19
LEFT
REAR
4
FRONT
RIGHT
4

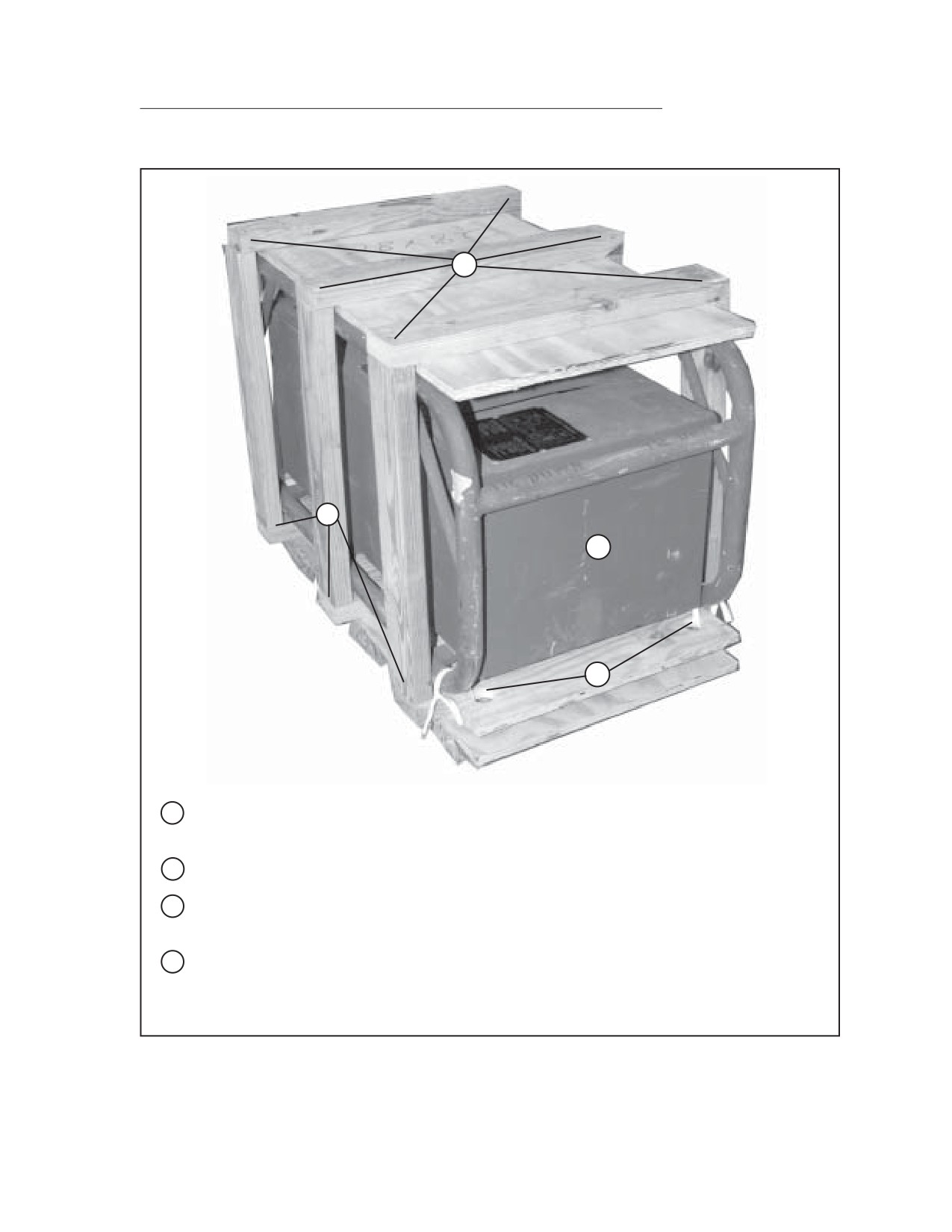

Place the following items in the front equipment box.
a) One bag containing three 50-foot x 2-inch hoses.
b) Two bags containing one 50-foot x 2-inch and one 12-foot x 2-inch discharge hose in
each bag.
c) One bag containing a 50-foot x 3-inch discharge fitting.
d) Two bags containing five suction hoses each.
e) One bag containing four grounding rods.
f)
Tow bar.
g)
Four bags containing three nozzles each.
5
Fill the remaining space with honeycomb to prevent movement (not shown).
6
Nail the top on the box (not shown).
Figure 4-98. Equipment Positioned and Secured in Front Box (Continued)
4-125
FM 4-20.137/TO 13C7-1-19
9
7
8
FRONT
7
Secure the box from front to rear using the three pre-positioned 30-foot lashings. Load bind
on top of the box.
8
Secure the box from left to right using the pre-positioned 30-foot lashing. Load bind on top
of the box.
9
Route three 30-foot lashings around the box using the bottom, middle, and top cut
outs. Load bind on the front of the box.
Figure 4-98. Equipment Positioned and Secured in Front Box (Continued)
4-126
FM 4-20.137/TO 13C7-1-19
b. Prepare the rear equipment box by placing a 36-inch by 86-inch and a 7-
inch by 86-inch piece of honeycomb in the floor of the box. Position a 36-inch
by 43-inch piece of honeycomb against each end of the box below the 2x4
lumber. Position equipment in the rear equipment box as shown in Figure
4-99.
LEFT
1
FRONT
3
2
REAR
RIGHT
1
Place the battery box against the left front side of the box.
2
Place a 34-inch by 56-inch piece of honeycomb against the front right side of the box.
3
Place the pump, with the inlet valves forward, against the front right side of the box.
Figure 4-99. Equipment Positioned and Secured in Rear Box
4-127
FM 4-20.137/TO 13C7-1-19
LEFT
FRONT
4
REAR
RIGHT
4
Place the following items in the rear equipment box.
a) One bag containing a 50-foot x 3-inch discharge hose.
b) Two bags containing two 50-foot x 2-inch discharge hoses each.
c) One bag containing seven discharge fittings.
d) One bag containing 14 adapters.
e) One bag containing 19 drum fittings.
5
Fill the remaining space with honeycomb to prevent movement (not shown).
6
Nail the top on the box (not shown).
Figure 4-99. Equipment Positioned and Secured in Rear Box (Continued)
4-128
FM 4-20.137/TO 13C7-1-19
9
7
1234
1234
1234
1234
8
1234
10
1234
1234
REAR
7
Route three 30-foot lashings around the box using the bottom, middle, and top cut
outs. Load bind on the front of the box.
8
Secure the box from front to rear using the three pre-positioned 30-foot lashings. Load
bind on the front of the box.
9
Secure the box from left to right using the pre-positioned 30-foot lashing. Load bind on top
of the box.
10
Pad and tape the lower two front corners of the equipment box above the bottom lashing to
the top of the cutout on each side with 1/2-inch by 10-inch by 25-inch felt.
Figure 4-99. Equipment Positioned and Secured in Rear Box (Continued)
4-129
FM 4-20.137/TO 13C7-1-19

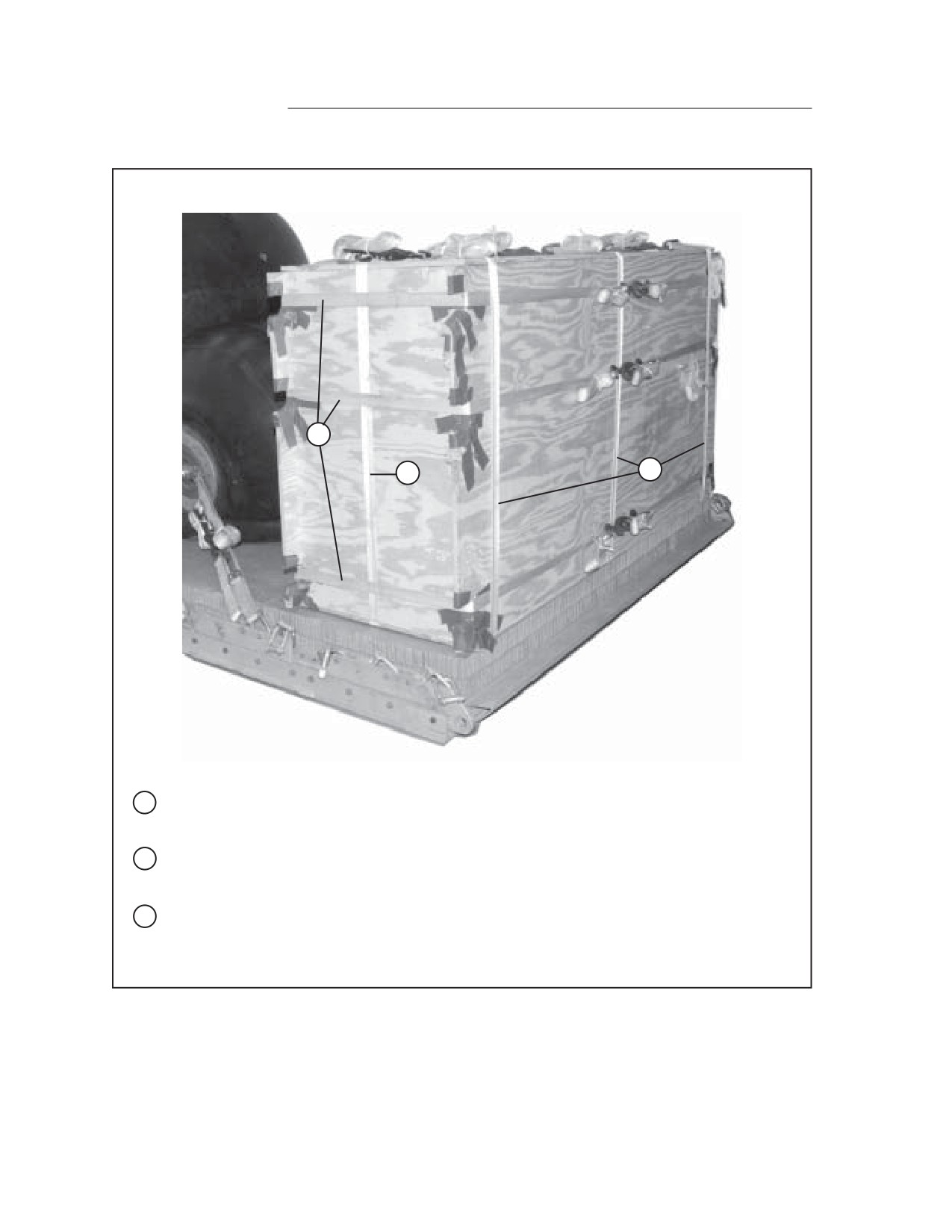

LASHING THE EQUIPMENT BOXES TO THE PLATFORM
4-65. Lash the equipment boxes as shown in Figures 4-100 through 4-105.
a. Lash the front equipment box to the platform as shown in Figures 4-100
through 4-102.
57
58
1A
FRONT
6
1
Tie-dow n
Lashing
Clevis
Instructions
Number
Number
57
1 and
6

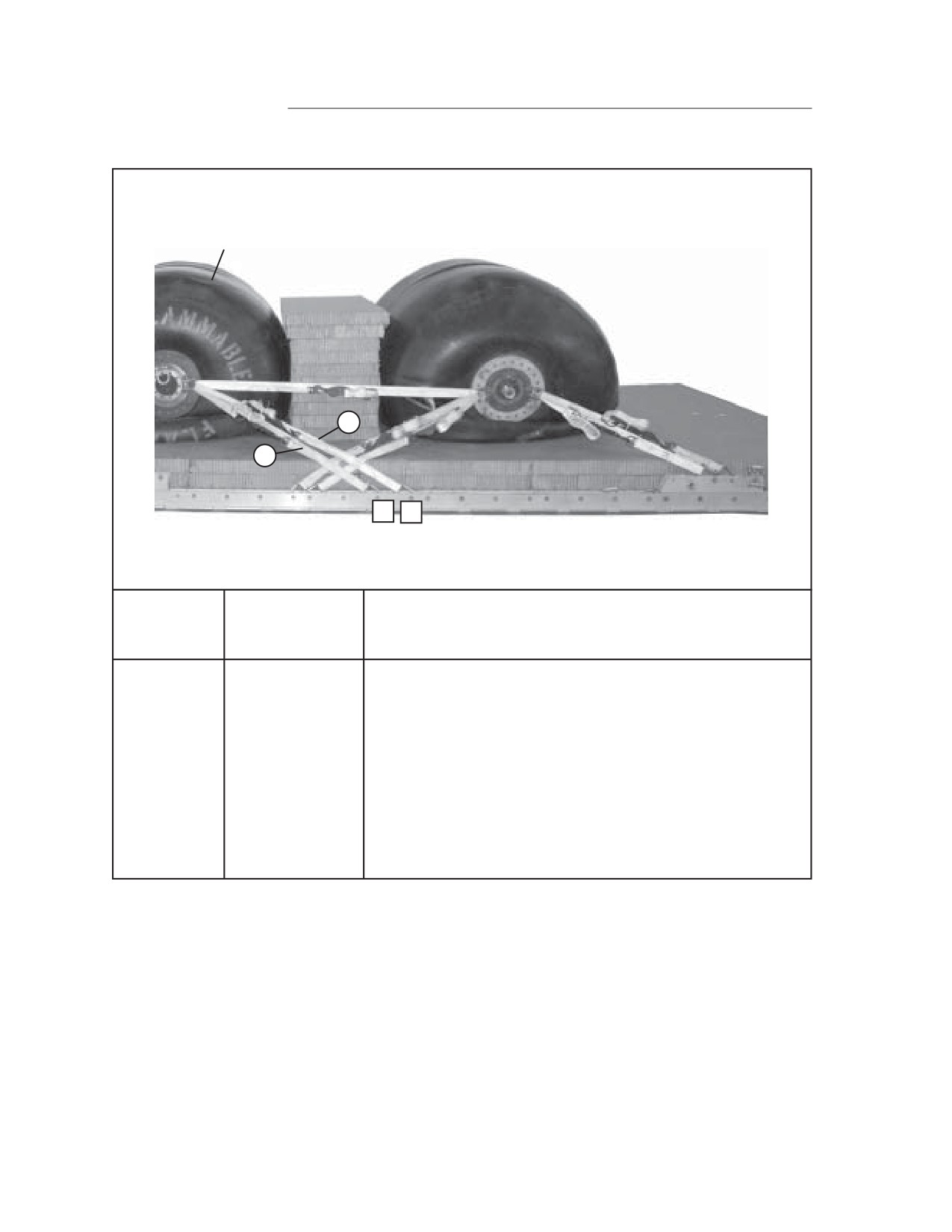

Route a 30-foot lashing from clevis 1 to the
f
cutout, to the rear middle left cutout, to clevis
6
58
1A and 6A
Route a 30-foot lashing from clevis 1A to the
f
cutout, to the rear middle right cutout, to clevis 6A
Figure 4-100. Lashings 57 and 58 Installed
4-130
FM 4-20.137/TO 13C7-1-19

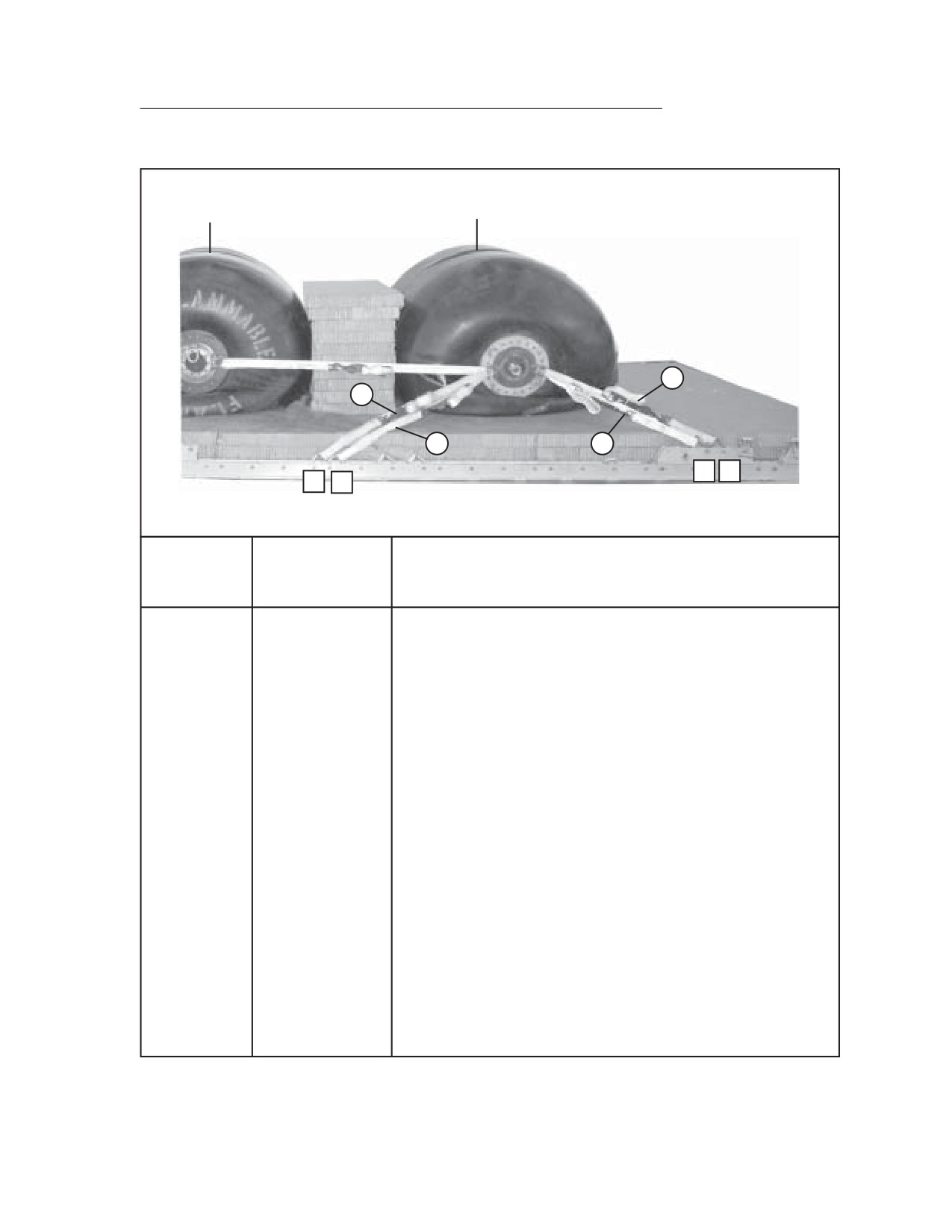

59
61
60
FRONT
2
3
Tie-dow n
Lashing
Clevis
Instruction s
Number
Number
59
2 and 2A

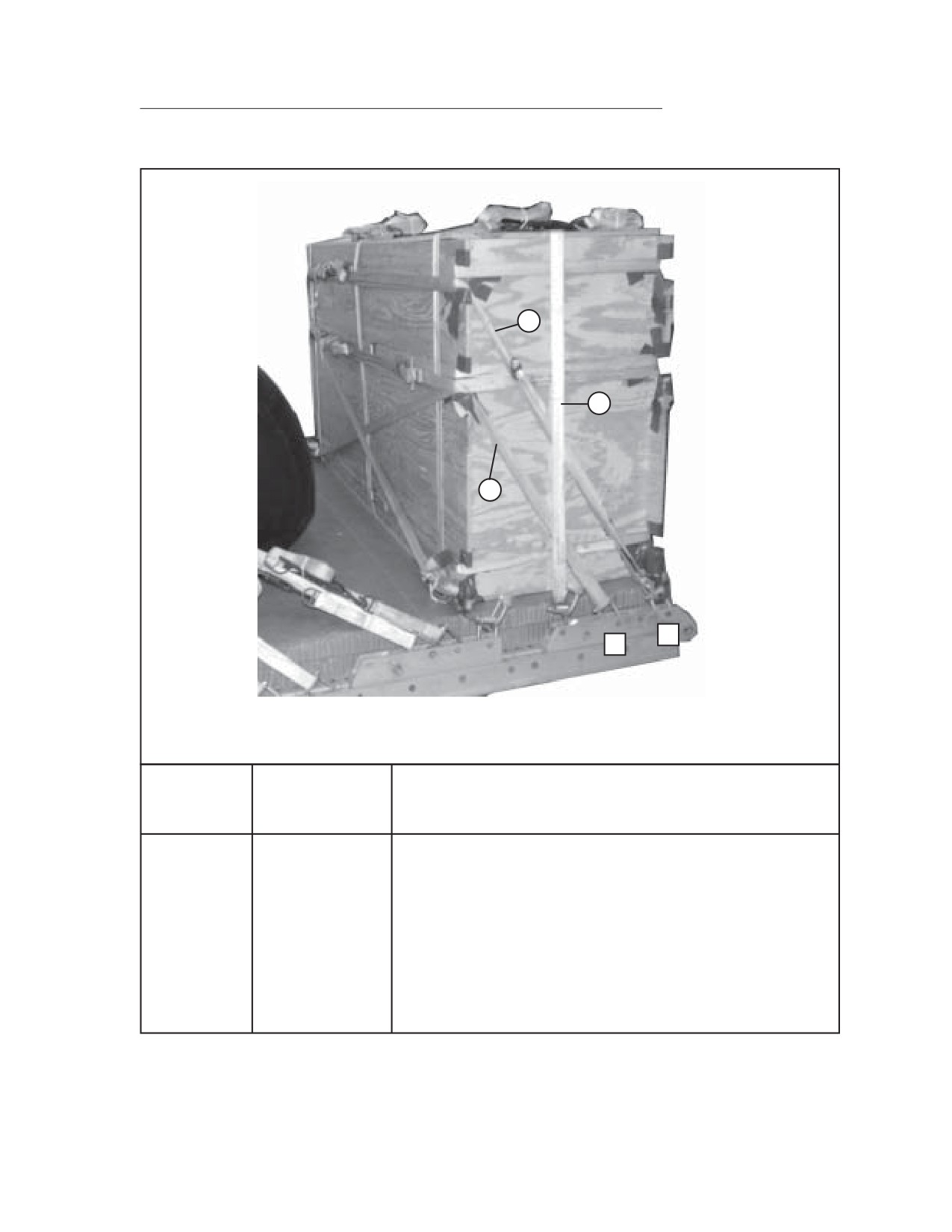

Route a 45-foot lashing through clevis 2 to the rear top right
cutout, to the rear top left cutout, through clevis 2A and loa d
bind on the rear of the box.
60
3 and 3A
Route a 45-foot lashing through clevis 3 to the rear middle
right cutout, to the rear middle left cutout, through clevis 3A
and load bind on the rear of the box.
61
4 and 4A
Route a lashing through it's own D-ring on clevis 4, repeat on
clevis 4A and load bind them together on top of the box.
Figure 4-101. Lashings 59 through 61 Installed
4-131
FM 4-20.137/TO 13C7-1-19

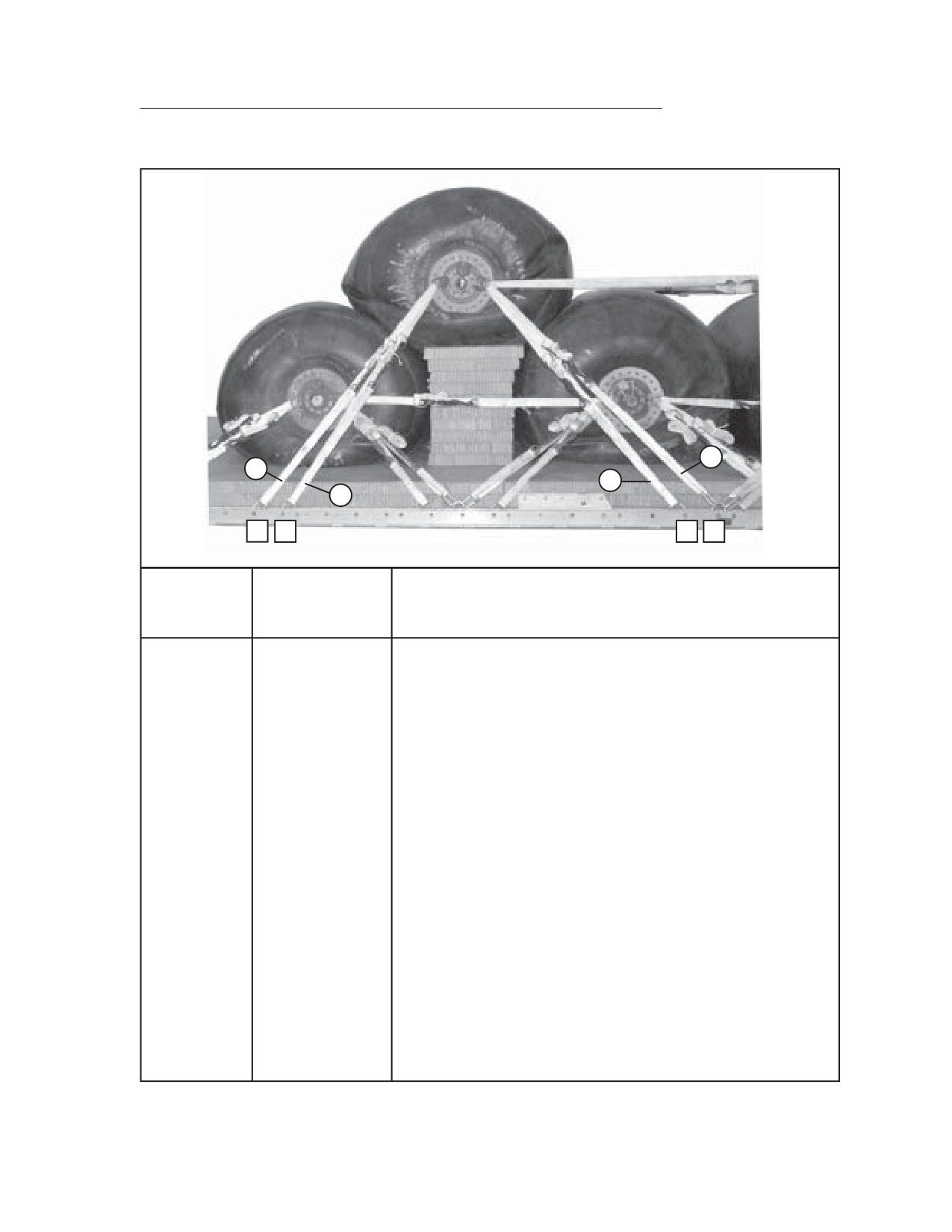

63
62
FRONT
7
5
Tie-dow n
Lashing
Clevis
Instruction s
Number
Number
62
5 and 5A

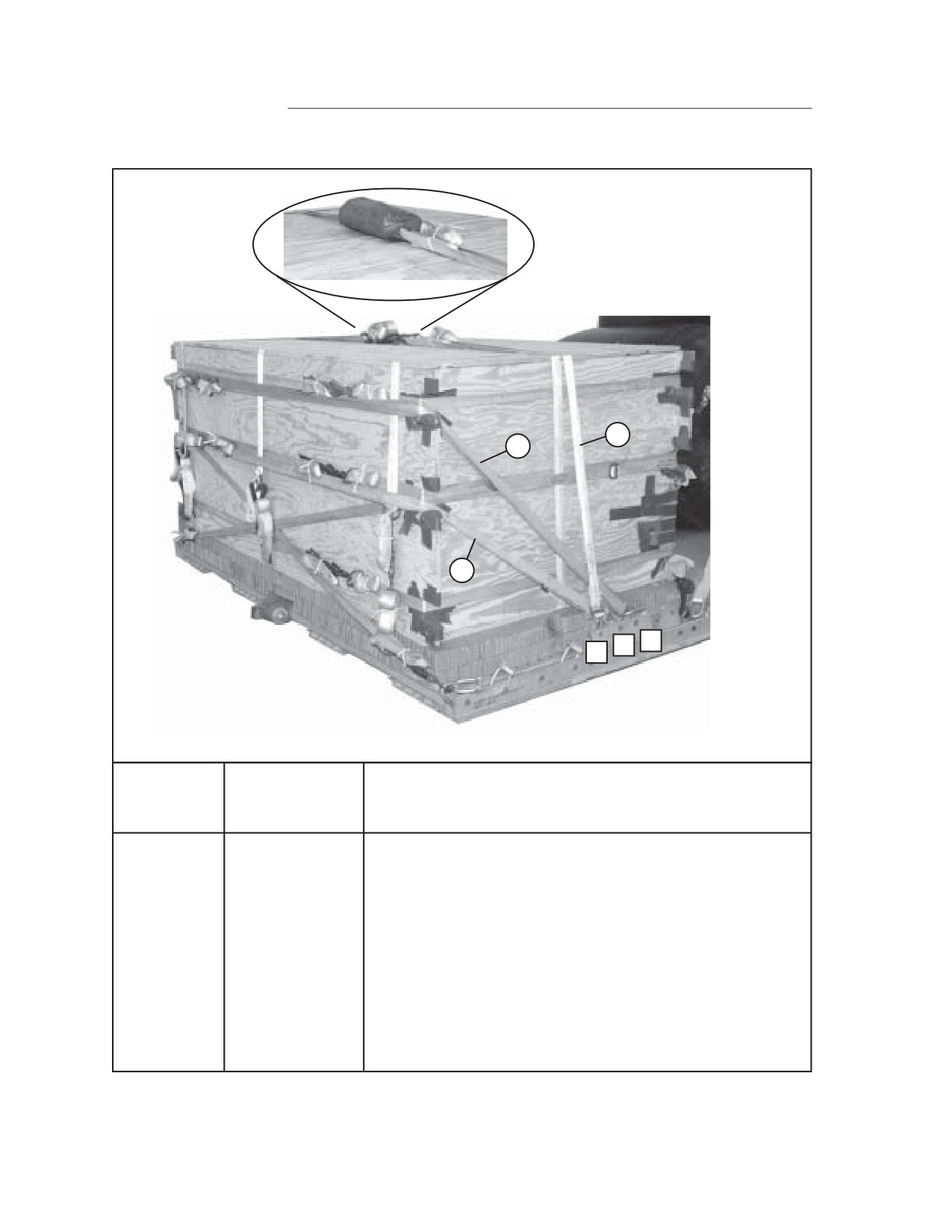

Route a 45-foot lashing through clevis 5 to the front middle
right cutout, to the front middle left cutout, through clevis 5A
and load bind on the front of the box.
63
7 and 7A
Route a 45-foot lashing through clevis 7 to the front top right
cutout, to the front top left cutout, through clevis 7A and load
bind on the front of the box.
Figure 4-102. Lashings 62 and 63 Installed
4-132
FM 4-20.137/TO 13C7-1-19
b. Lash the rear equipment box to the platform as shown in Figures 4-103
through 4-105.
64
65
39A
31
REAR
39
Tie-dow n
Lashing
Clevis
Instruction s
Number
Number
64
31 and
39

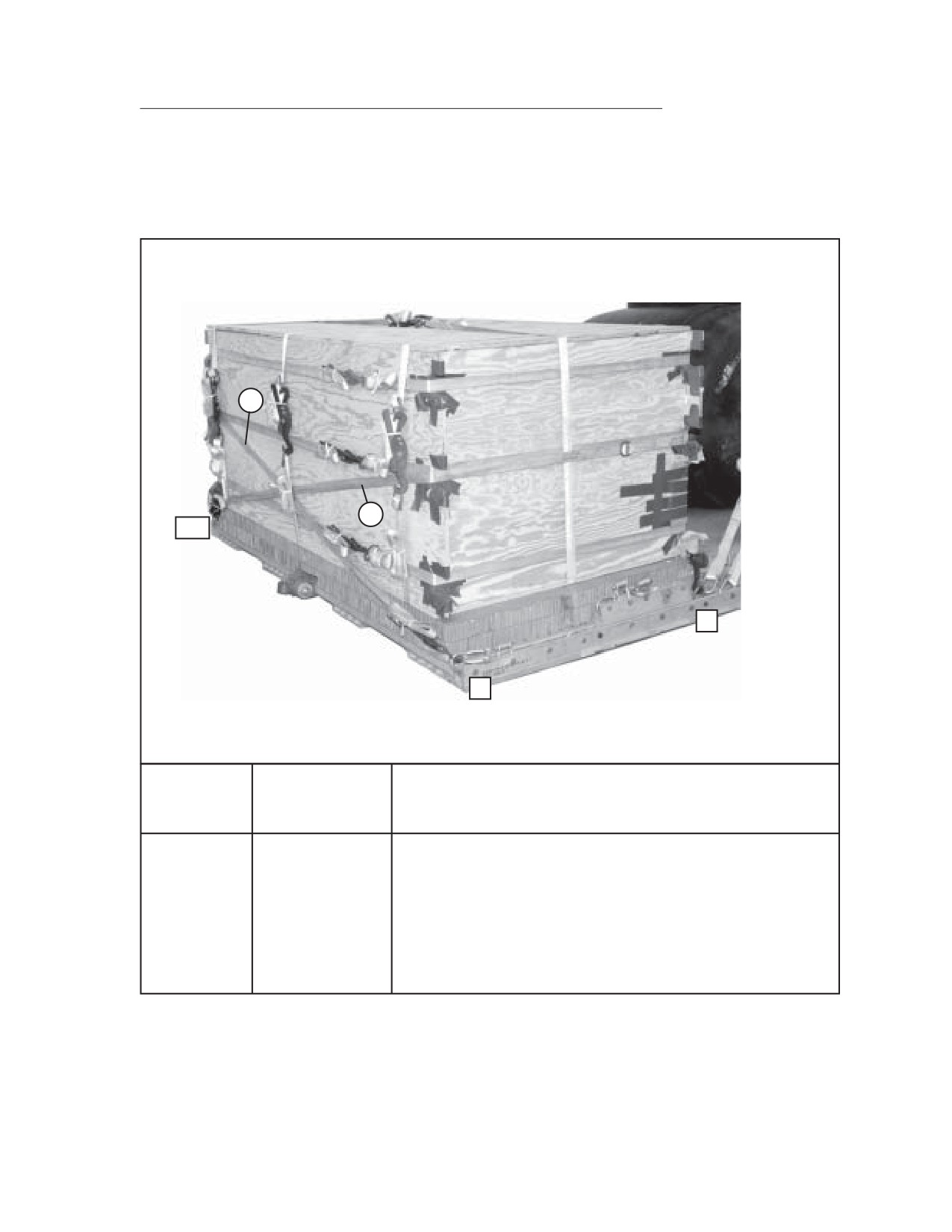

Route a 30-foot lashing from clevis 31 to the front middle left
cutout, to the rear middle left cutout, to clevis 39. Ensure
lashing is routed under the load binders on the rear of box.
65
31A and 39A
Route a 30-foot lashing from clevis 31A to the front middle
right cutout, to the rear middle right cutout, to clevis 39A
Ensure lashing is routed under the load binders on the front
of the box.
Figure 4-103. Lashings 64 and 65 Installed
4-133
FM 4-20.137/TO 13C7-1-19
68
66
67
REAR
33
35
36
Tie-dow n
Lashing
Clevis
Instructions
Number
Number
66
33 and 33A

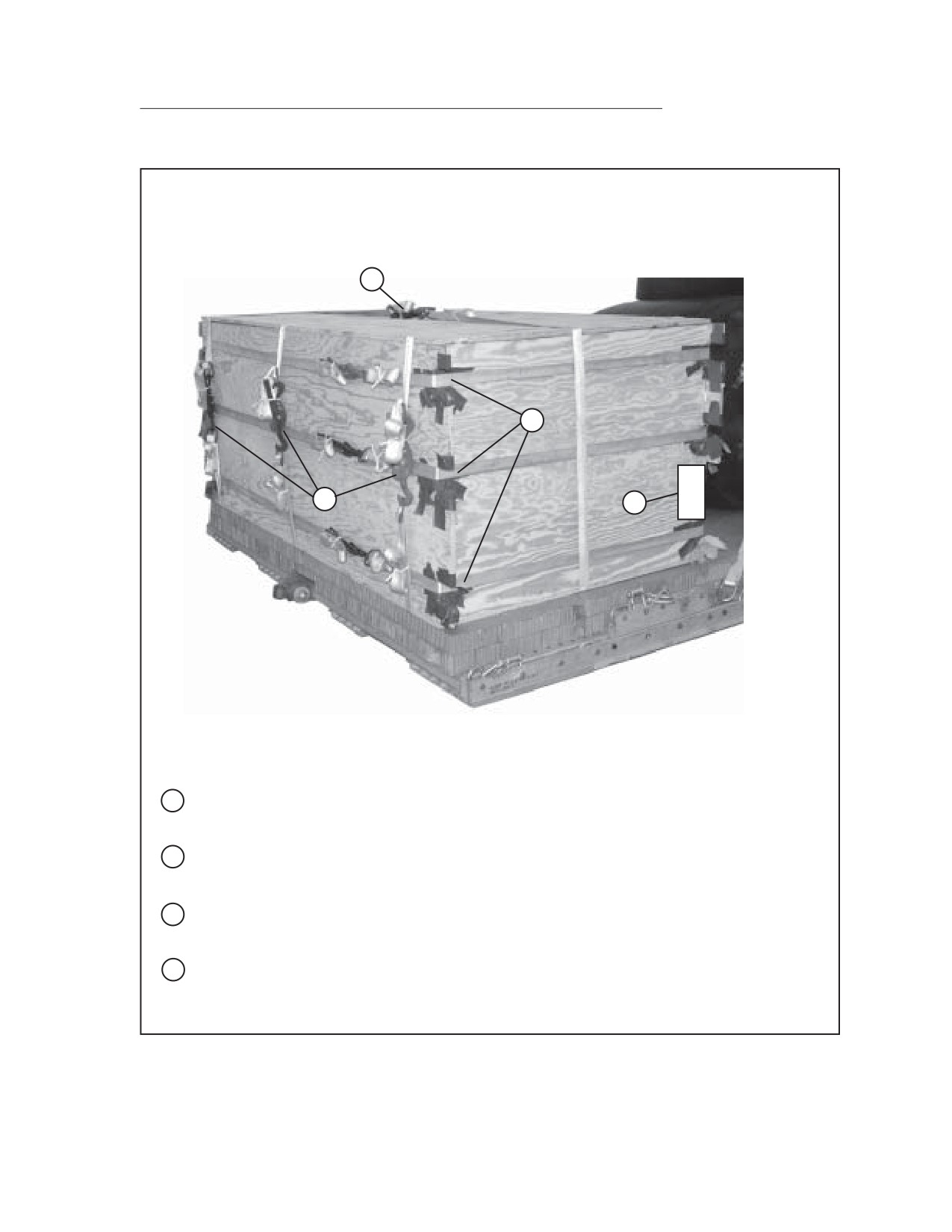

Route a 45-foot lashing through clevis 33 to the rear
t
cutout, to the rear top left cutout,
t
bind on the rear of
t
67
35 and 35A
Route a 45-foot lashing through clevis 35 to
t
right cutout, to the rear middle left cutout,
t
and load bind on the rear of
t
68
36 and 36A
Route a lashing through clevis 36 and
t
repeat on clevis 36A and load bind them together on
t
box. Wrap 1/4-inch felt around the load binders located on
t
of the equipment box and secure them with
t
Figure 4-104. Lashings 66 through 68 Installed
4-134
FM 4-20.137/TO 13C7-1-19
69
70
38
37
Tie-dow n
Lashing
Clevis
Instruction s
Number
Number
69
37 and 37A
Route a 45-foot lashing through clevis 37 to the front middle
right cutout, to the front middle left cutout, through clevis 37
A
and load bind on the front of the box.
70
38 and 38A
Route a 45-foot lashing through clevis 38 to the front top right
cutout, to the front top left cutout, through clevis 38A and load
bind on the front of the box.
Figure 4-105. Lashings 69 and 70 Installed
4-135
FM 4-20.137/TO 13C7-1-19

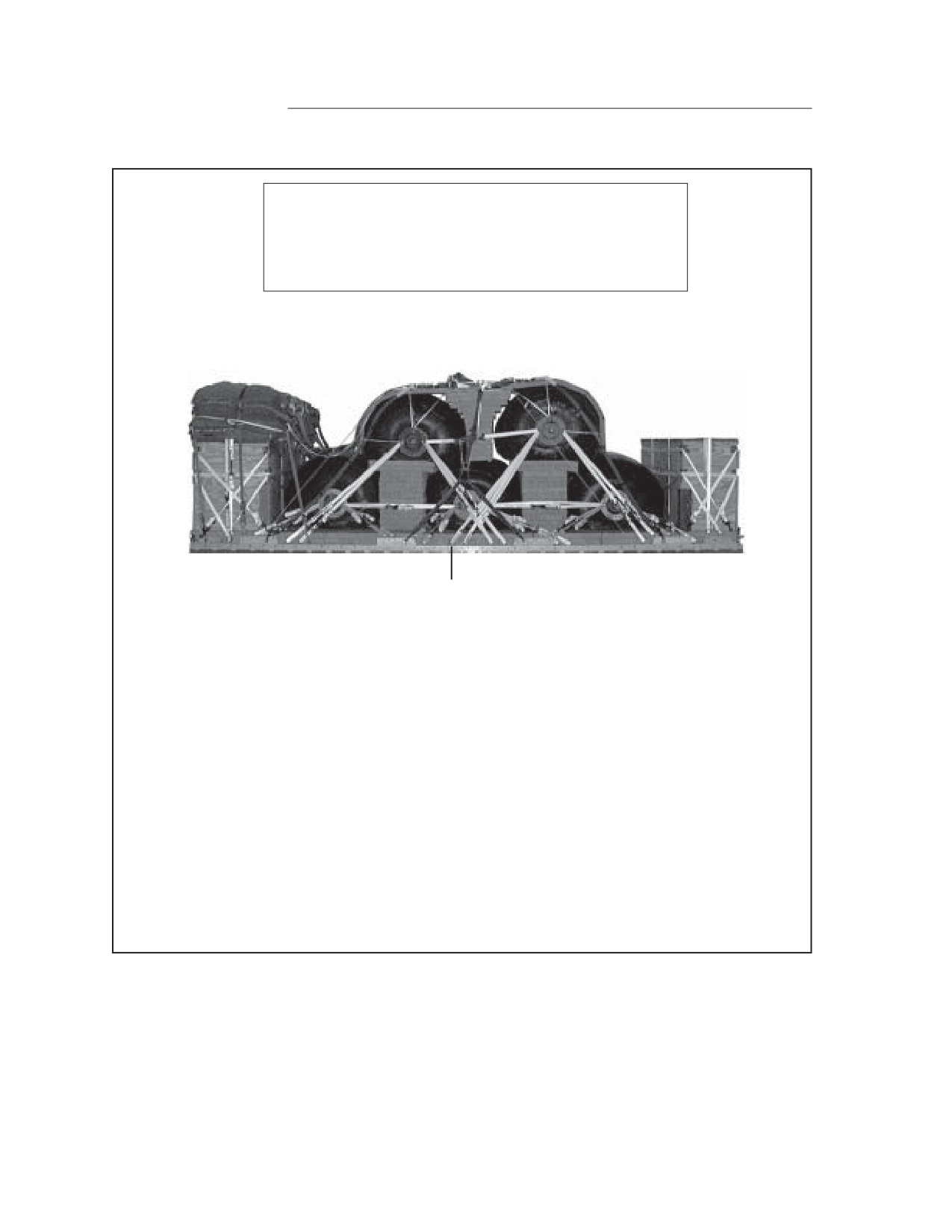

BUILDING AND POSITIONING RELEASE PLATFORM
4-66. Build and position the release platform as shown in Figure 4-106.
35”
1
NOTE: Drawing not to scale
27”
22”
19”
29”
17”
RELEASE PLATFORM
15”
14”
14”
2
14”
14”
DRUM 6
3
DRUM 3
1
Build the release platform as shown above with all honeycomb lengths 36 inches wide.
2
Place the release stack on top of drum 3 and against drum 6, centered.
3
Secure the release stack with two lengths of type III nylon cord to the drum shackles. Tape
the stack in the area where the type III nylon cord makes contact with the stack.
Figure 4-106. Release Platform Built and Positioned
4-136















Content      ..     8      9      10      11     ..
