FM 4-20.117/TO 13C7-1-111
Table 3-2. Equipment Required for Rigging M1025 Armament Carrier with Accompanying Load
on 20-Foot Platform
National Stock
Number
Item
Quantity
8040-00-273-8713
Adhesive, paste, 1-gal
As required
4030-00-090-5354
Clevis, suspension, 1-in (large)
9
4020-00-240-2146
Cord, nylon, type III, 550-lb
As required
1670-00-434-5795
Coupling assembly, airdrop, extraction force transfer with
1
cable, 20ft
Cover:
1670-00-360-0328
Clevis, large
1
8135-00-664-6958
Cushioning material, packaging, cellulose wadding
As required
8305-00-958-3685
Felt, 1/2-in thick
As required
1670-01-183-2678
Leaf, extraction line (line bag)
2
Line, drogue (for C-17)
1670-01-062-6313
60-ft (3-loop), type XXV I
1
Line, extraction
:
1670-01-062-6313
For C-130: 60-ft (3-loop), type XXV I
1
1670-01-107-7651
For C-141: 140-ft (3-loop), type XXV I
1
For C-5:
1670-01-062-6313
60-ft, (3-loop), type XXVI and
1
1670-01-107-7651
140-ft (3-loop), type XXV I
1
For C-17:
1670-01-107-7651
140-ft (3-loop), type XXV I
1
Link Assembly:
Two-point:
6
5306-00-435-8994
Bolt, 1-in diam, 4-in long
(12
)
5310-00-232-5165
Nut, 1-in, hexagonal
(12
)
1670-00-003-1953
Plate, side, 3 3/4-in
(12
)
5365-00-007-3414
Spacer, large
(12
)
Lumber:
5510-00-220-6146
2- by 4-in
As required
5510-00-220-6448
2- by 6-in
As required
5510-00-220-6274
4- by 4-in
As required
5315-00-010-4659
Nail, steel wire, 8d
As required
3-34
FM 4-20.117/TO 13C7-1-111
Table 3-2. Equipment Required for Rigging M1025 Armament Carrier with Accompanying Load
on 20-Foot Platform (continued)
National Stock
Number
Item
Quantity
1670-00-753-3928
Pad, energy-dissipating (honeycomb)
3- by 36- by 96-in
15 sheets
Parachute:
Cargo:
1670-01-016-7841
G-11 B
3
Cargo extraction:
1670-01-063-3716
22-ft (for C-17, use H-block with this parachute.)
1
1670-01-063-3715
Drogue (for C-17) 15-ft
1
Platform, airdrop, type
V, 20-ft
1670-01-353-8425
Bracket assembly, EFT C
(1
)
1670-01-162-2372
Clevis assembly, type V
(46
)
1670-01-162-2376
Bracket assembly, extractio n
(1
)
1670-01-247-2389
Link, suspension bracket, type V
(2
)
1670-01-162-2381
Tandem link assembly (Multipurpose link)
(4
)
5530-00-128-4981
Plywood, 3/4-in
5 sheets
1670-01-097-8816
Release, cargo parachute, M-1
1
Sling, cargo, airdrop
For suspension:
1670-01-062-6301
3-ft (2-loop), type XXVI nylon webbin g
6
1670-01-062-6304
9-ft (2-loop), type XXVI nylon webbin g
4
1670-01-062-6303
12-ft (2-loop), type XXVI nylon webbing
4
For lifting
:
1670-01-062-6304
9-ft (2-loop), type XXVI nylon webbin g
2
1670-01-062-6303
12-ft (2-loop), type XXVI nylon webbing
2
For deployment:
1670-01-062-6304
9-ft (2-loop), type XXVI nylon webbin g
1
For riser extension
:
1670-01-062-6302
20-ft (2-loop), type XXVI nylon webbing
6
5340-00-040-8219
Strap, parachute release, multi-cut, comes w/ 3
knives
2
7510-00-266-5016
Tape, adhesive, 2-in
As required
1670-00-937-0271
Tie-down assembly, 15-foot
39
1670-01-344-0825
Vehicle drive-off aid
2
Webbing :
8305-00-268-2411
Cotton, 1/4-in, type I
As required
8305-00-082-5752
Nylon, tubular, 1/2-in
As required
No NS N
Type V
As required
8305-00-263-3591
Type VIII
As required
3-35
FM 4-20.117/TO 13C7-1-111
SECTION III - RIGGING STRIKER IN ARMAMENT CARRIER-
CONFIGURED M1025 HMMWV-SERIES TRUCK
ON A 16-FOOT PLATFORM
DESCRIPTION OF LOAD
3-32. The unrigged M1025A2 armament carrier is described in Chapter 1. The
Striker vehicle is configured as a field artillery observer carrier. The Striker
serves fire direction control, self-location, target designation and night observa-
tion functions. The Striker components are contained within the truck. This
load requires three G-11 cargo parachutes. Striker-equipped trucks using the
M1025 and M1025A1 models are rigged using these procedures.
PREPARING PLATFORM
3-33. Prepare a 16-foot, type V airdrop platform according to TM 10-1670-268-
20&P/TO 13C7-52-22. Install four tandem links, two suspension links and 20
load tie-down clevises as shown in Figure 3-20.
Notes:
1. The nose bumper may or may not be installed.
2. Measurements given in this chapter are from the front
edge of the platform, NOT from the front edge of the nose bumper.
3-36
FM 4-20.117/TO 13C7-1-111

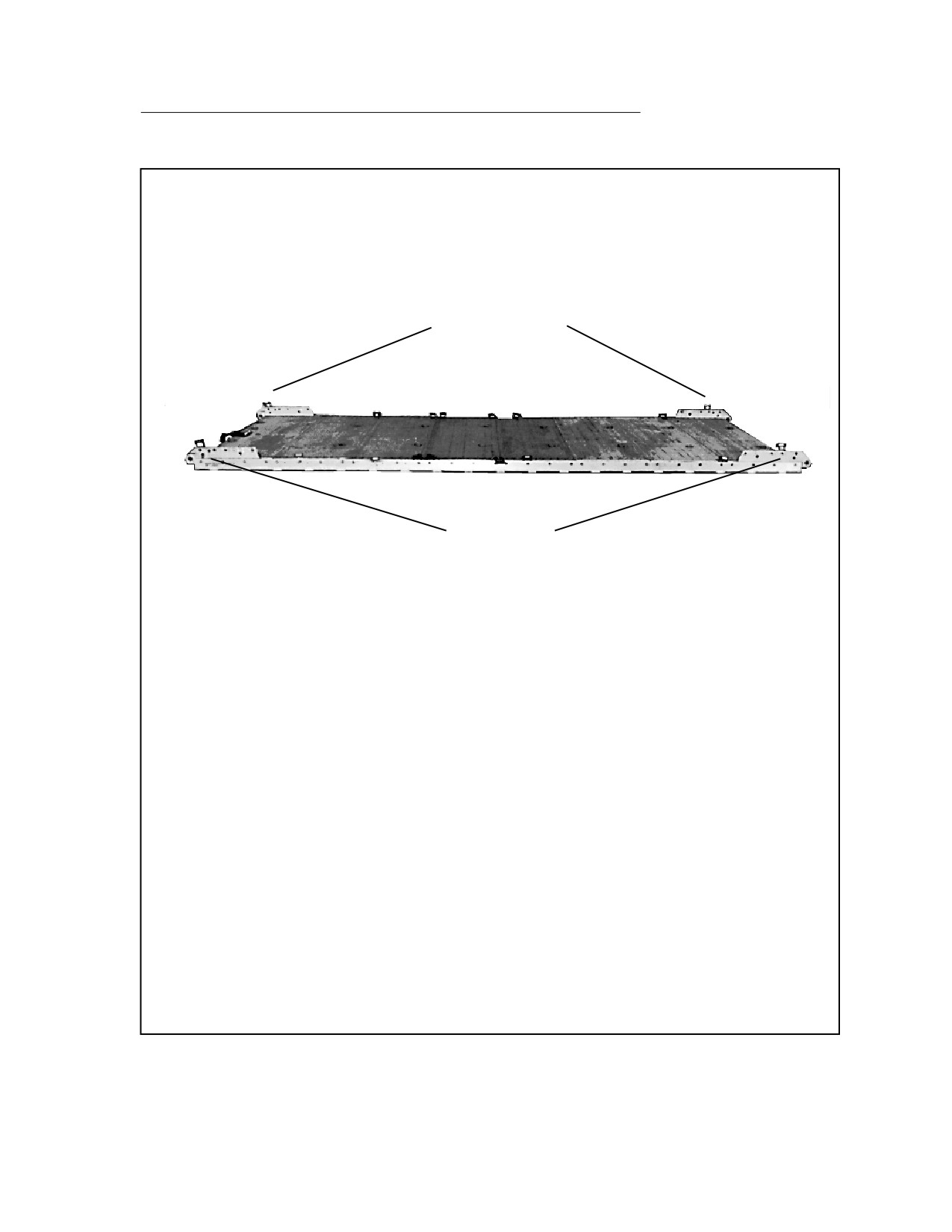

CLEVISES
10A THROUGH 1A
LEFT
RIGHT
REAR
FRONT
CLEVISES
10 THROUGH 1
Step:
1.
Install a tandem link on the front of each platform side rail using holes 1, 2, and 3.
2.
Install a tandem link on the rear of each platform side rail using holes 30, 31, and 32.
3.
Install a clevis on bushing 2 of each front tandem link.
4.
Install a clevis on bushing 4 of each rear tandem link.
5.
Starting at the front of the platform, install clevises on each platform side rail using the
bushings bolted on holes 5, 15, 20, 21,23, and 27.
6.
Install a clevis on bushing 17 in an inverted position. Install a clevis on bushing 17A in the
normal position. Bolt an additional clevis to each of the clevises on the 17th bushings.
7.
Starting at the front of the platform, number the clevises bolted to the right side of the
platform from 1 through 10, and those bolted to the left side from 1A through 10A. Number
the clevises installed on the 17th bushings 5 and 5A. Number the clevises bolted to these
clevises 4 and 4A.
8.
Label the tie-down rings according to FM 4-20.102/TO 13C7-1-5.

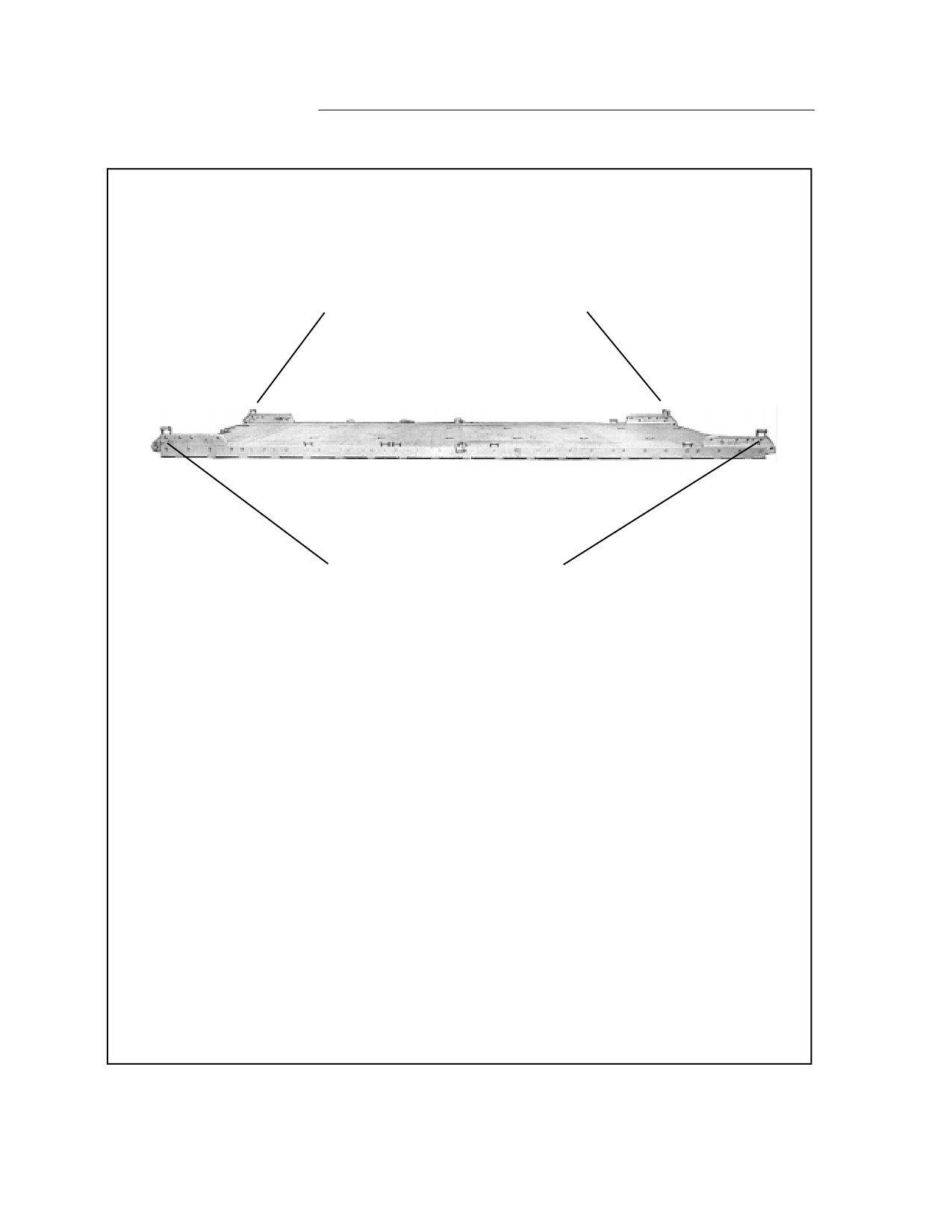

Figure 3-20. Platform Prepared
3-37
FM 4-20.117/TO 13C7-1-111

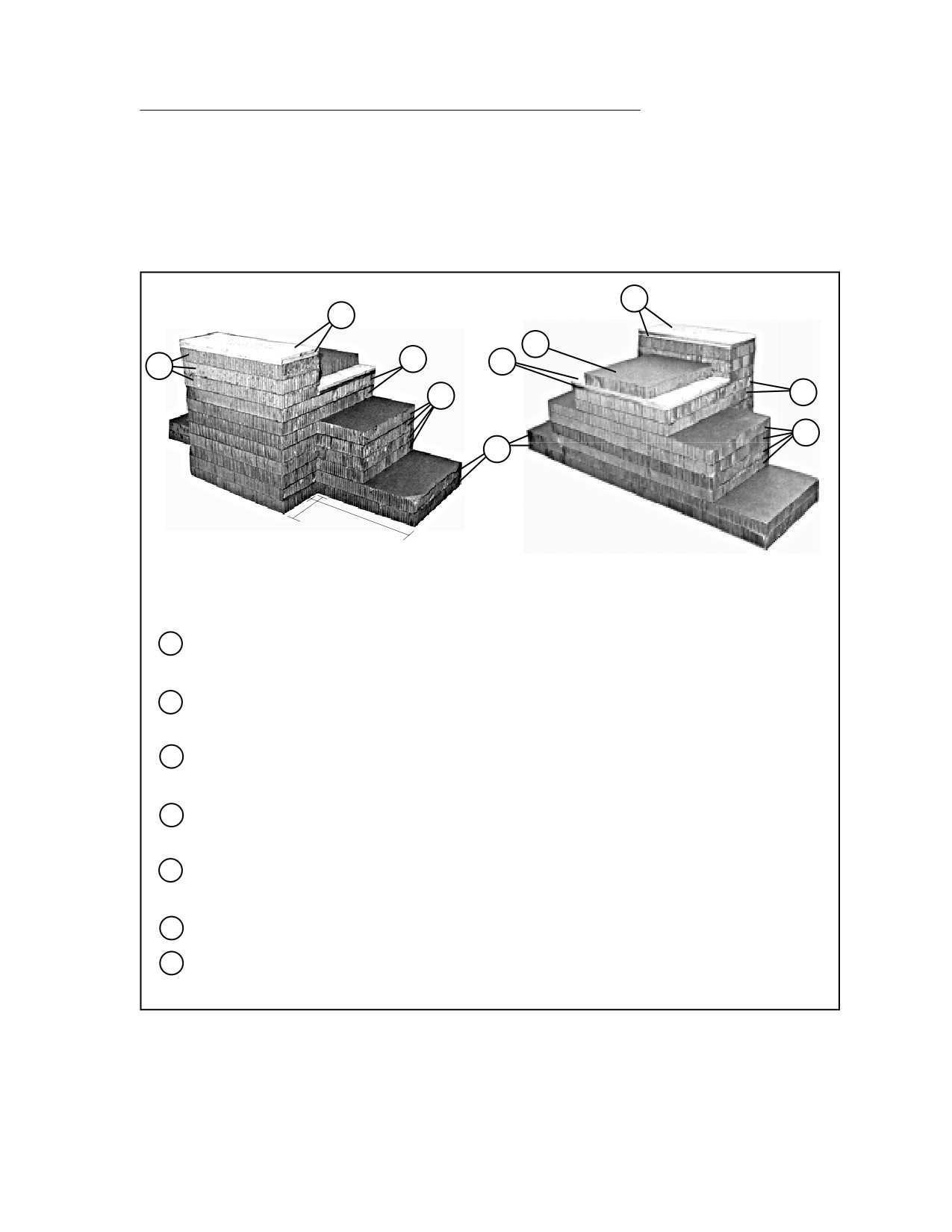

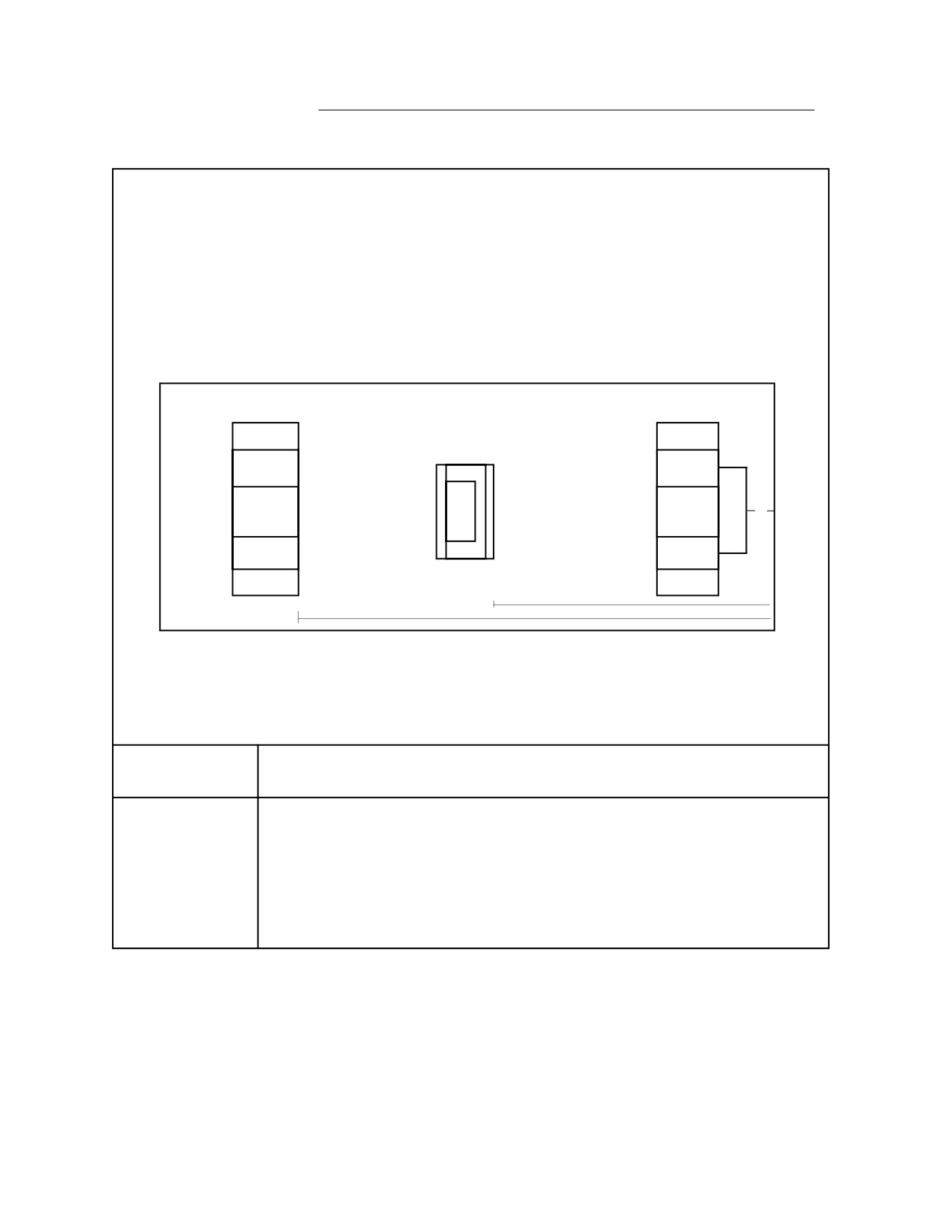

PREPARING AND POSITIONING HONEYCOMB STACKS

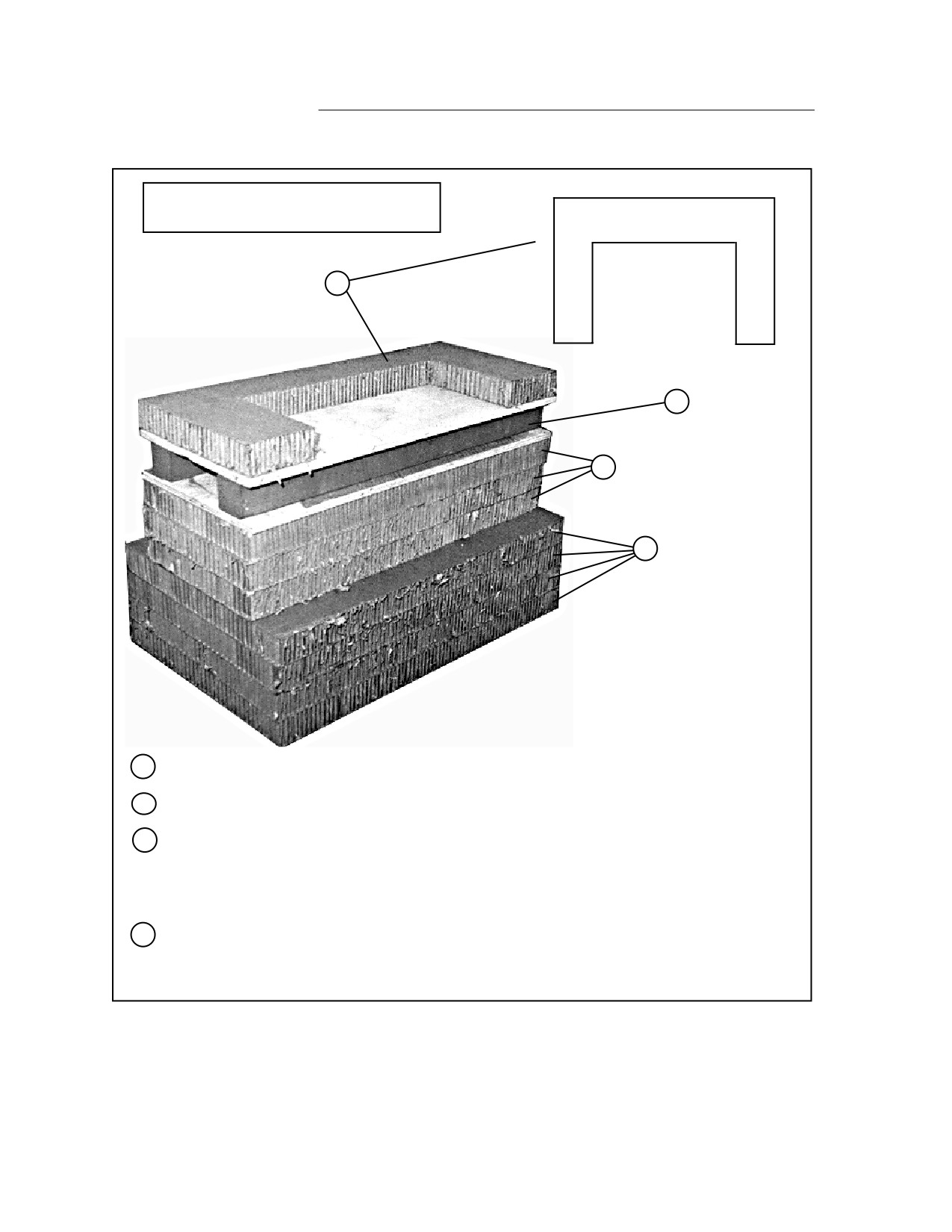

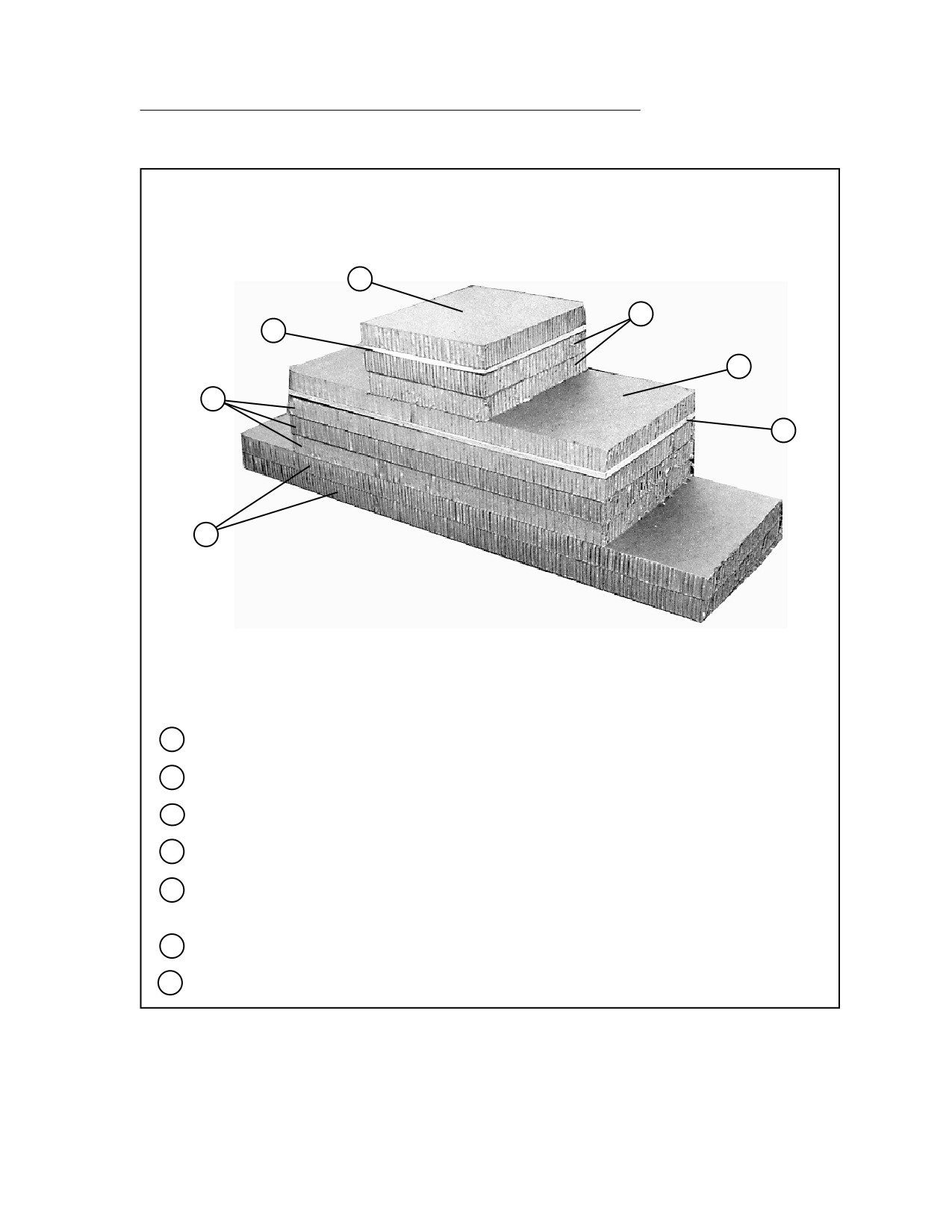

3-34. Prepare three honeycomb stacks as shown in Figures 2-3 and 2-4. Position
the stacks on the platform as shown in Figure 2-5, and according to FM 4-
20.102/TO 13C7-1-5.
PREPARING TRUCK
3-35. Prepare the truck as described in paragraphs 2-4a through e, g, and h,
and as shown in Figures 2-6 and 2-7, 2-8 (omit steps 1 and 3), 2-9, 2-11, and 2-

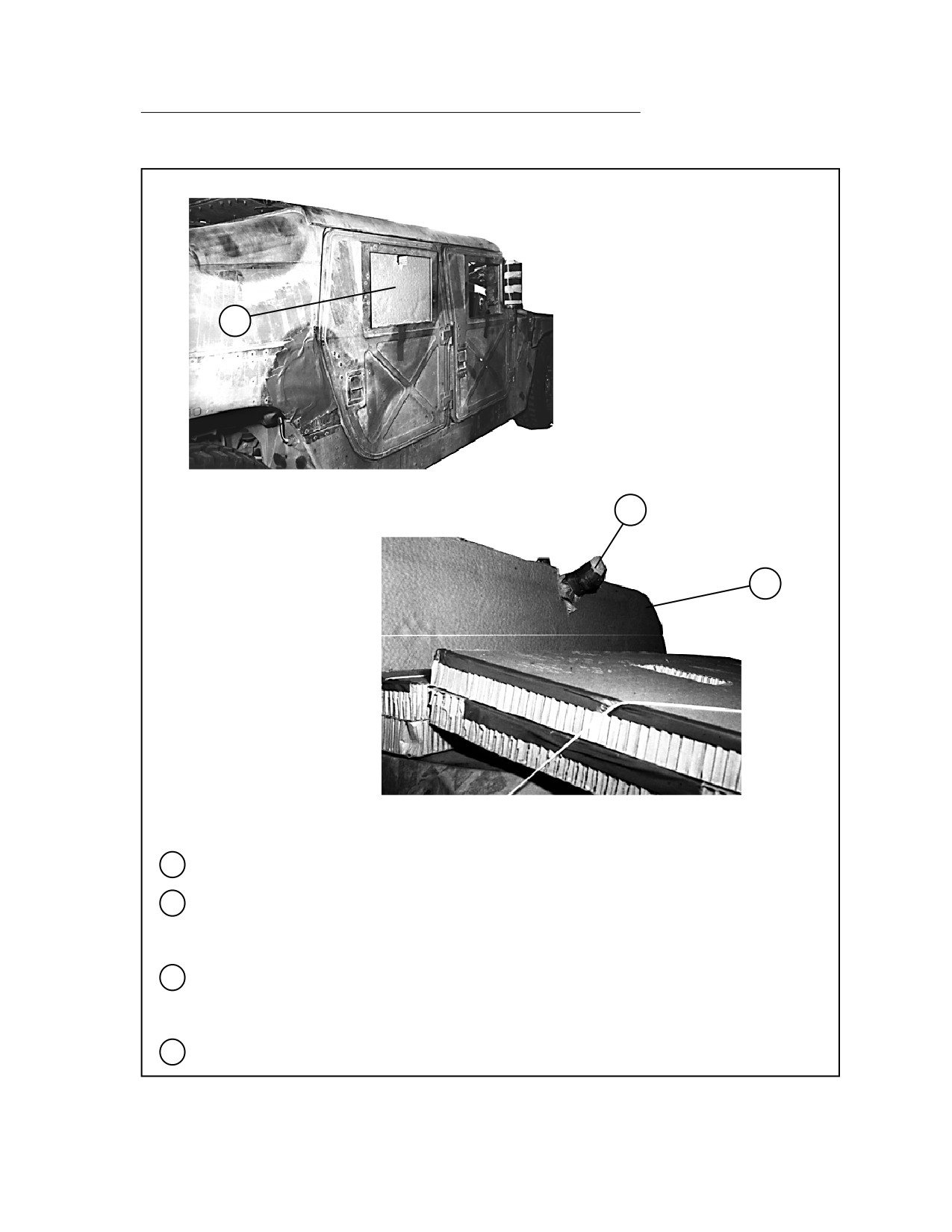

12. Further prepare the closed-body HMMWV as shown in Figures 3-2 and 3-3,
steps 1 through 6.
PREPARING STRIKER EQUIPMENT
3-36. Prepare the components of the Striker system as shown in Figures 3-21
through 3-26.
1
2
1

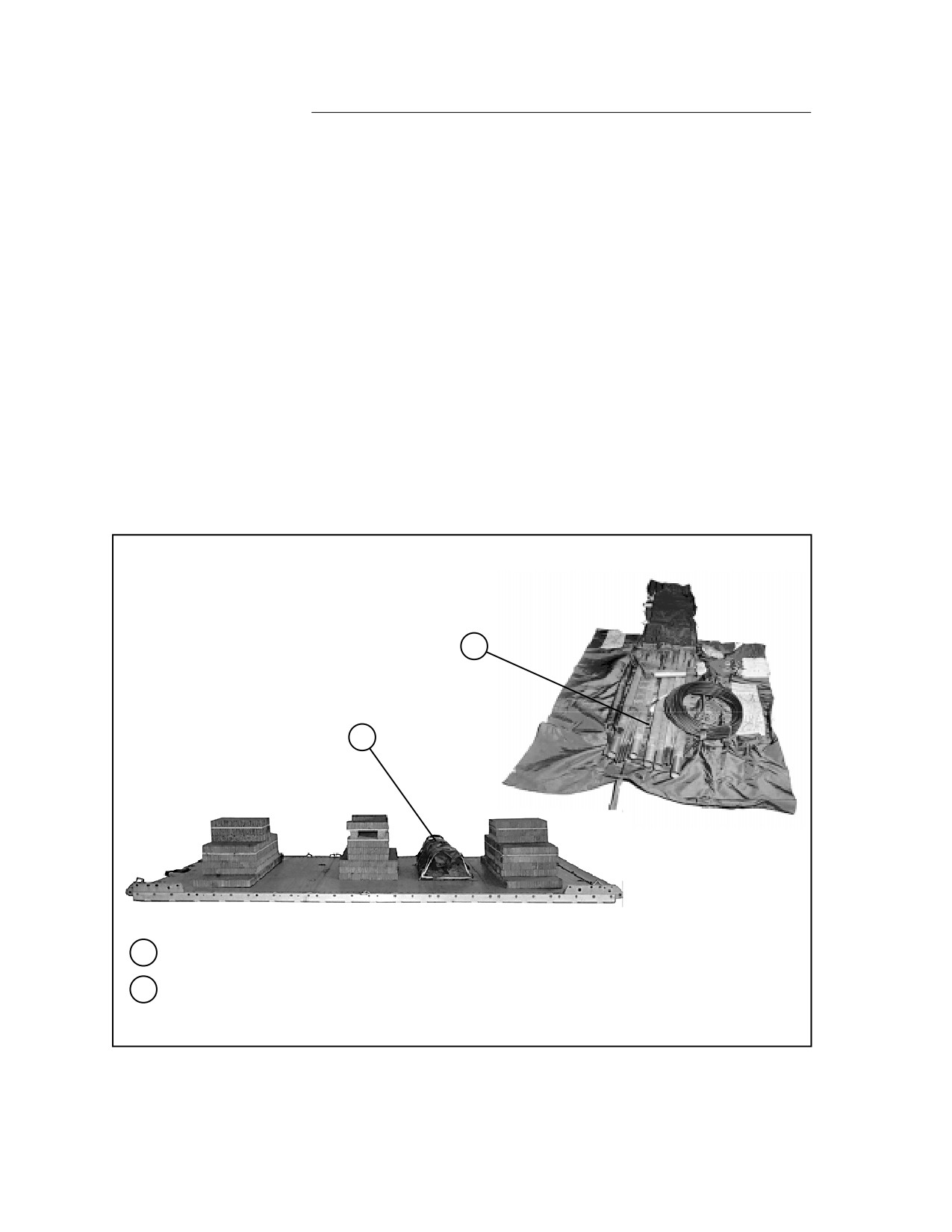

Roll the OE 254 antenna, its bag and wire into an elongated bundle.
2
Tie the roll to the third and fourth deck rings with 1/2-inch tubular nylon webbing in a figure-8
pattern.

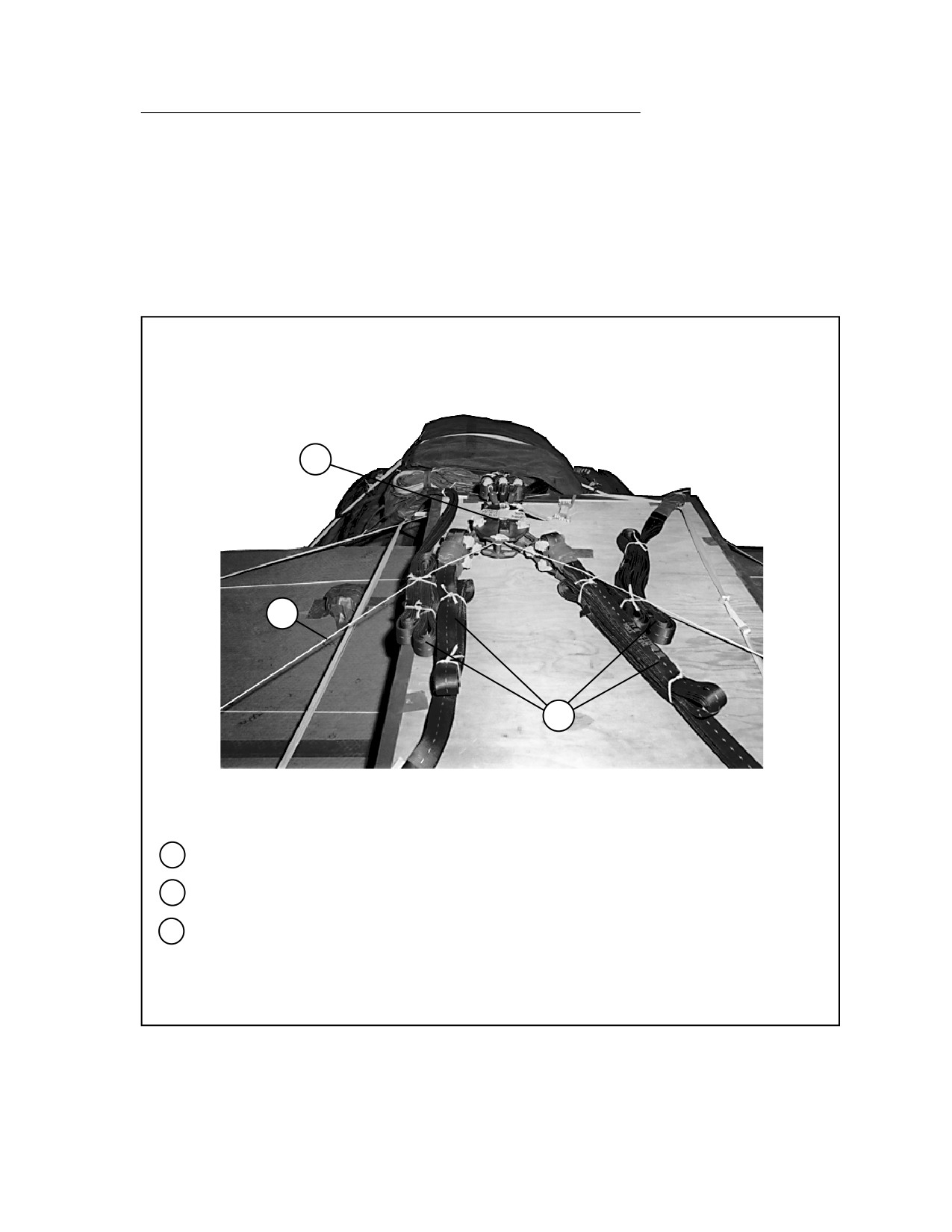

Figure 3-21. Poles and Nets Rigged on Platform
3-38
FM 4-20.117/TO 13C7-1-111
2
1
1
3
1

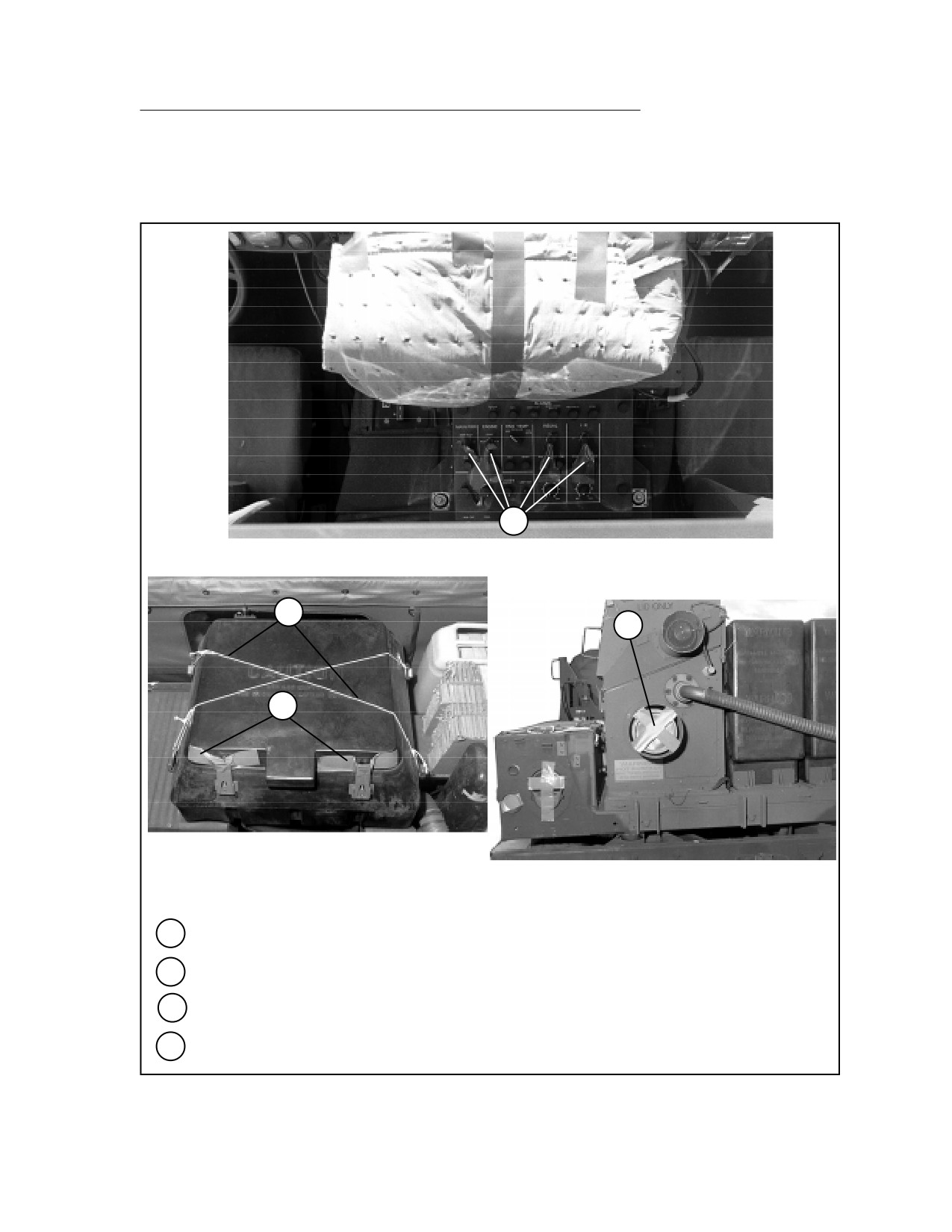

Pad all antenna mounts with cellulose wadding taped in place.
2
Pad the external fuel can mounts with cellulose wadding taped in place.
3
Fold the tripod and place it in its carrying case.

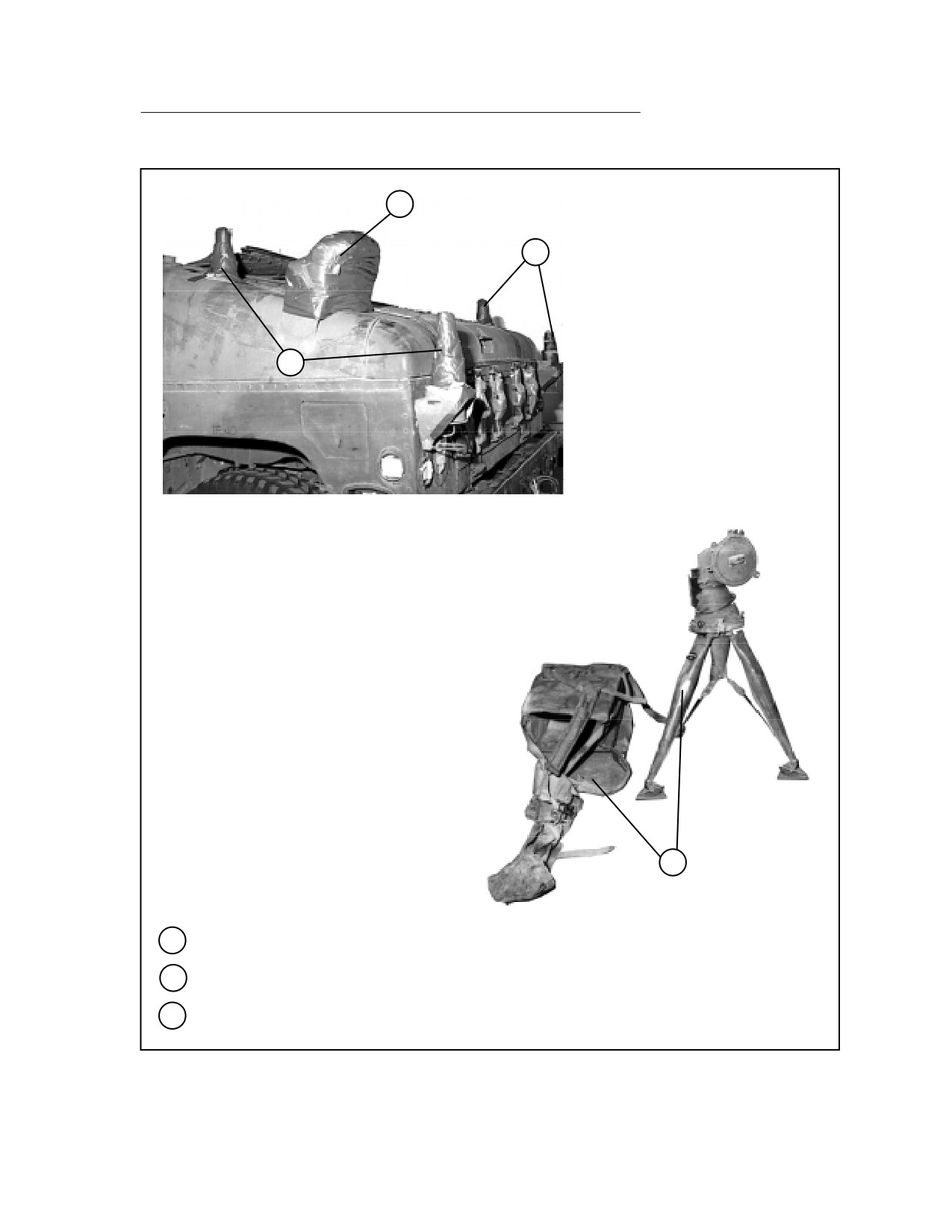

Figure 3-22. Antenna Mounts Padded and Tripod Prepared
3-39
FM 4-20.117/TO 13C7-1-111
5
1
3
2
4
1
1
Tie the computer cage in place with type III nylon cord.
2
Pad the battlefield screen with cellulose wadding. Place a layer of honeycomb cut to fit over
the cellulose wadding. Tape the honeycomb to the screen.
3
Tie the driver's headset to the steering wheel with type I, 1/4-inch cotton webbing.
4
Tie the passenger headset to the right side of the computer cage with type I, 1 1/4-inch cotton
webbing.
5
Cover the range finder with cellulose wadding taped in place.

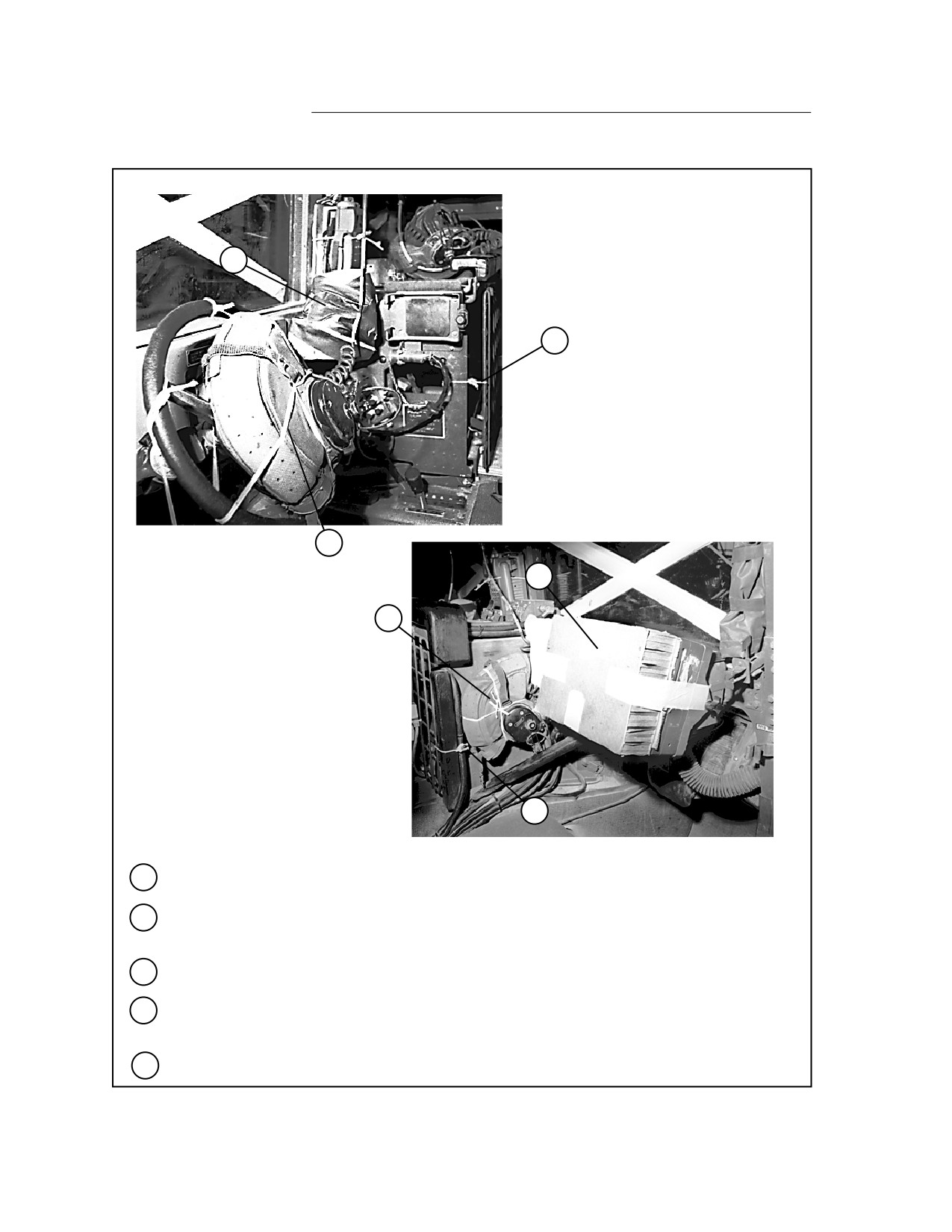

Figure 3-23. Cab Section of Truck Prepared
3-40
FM 4-20.117/TO 13C7-1-111
8
6
REAR
FRONT
7
13
9
10
12
13
11

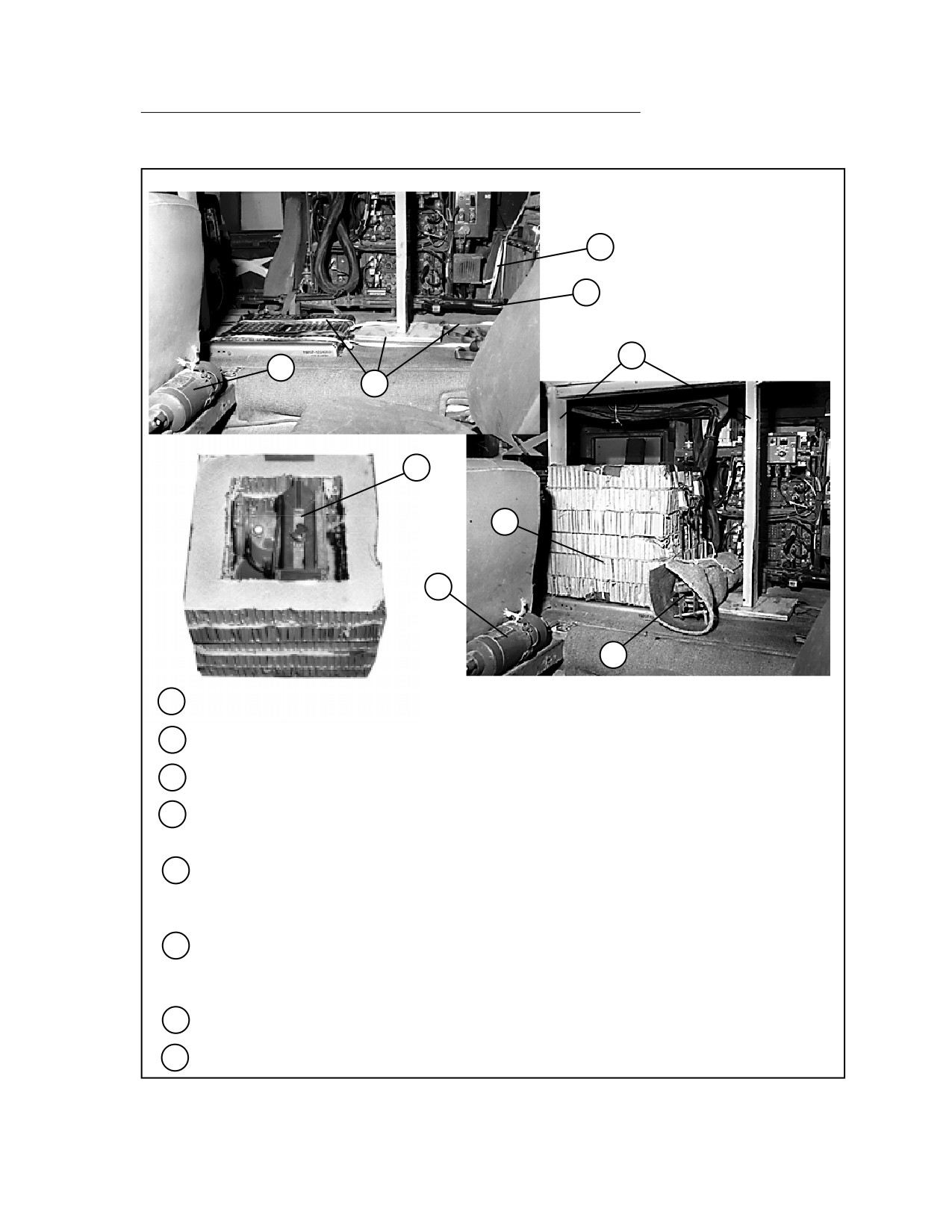

6

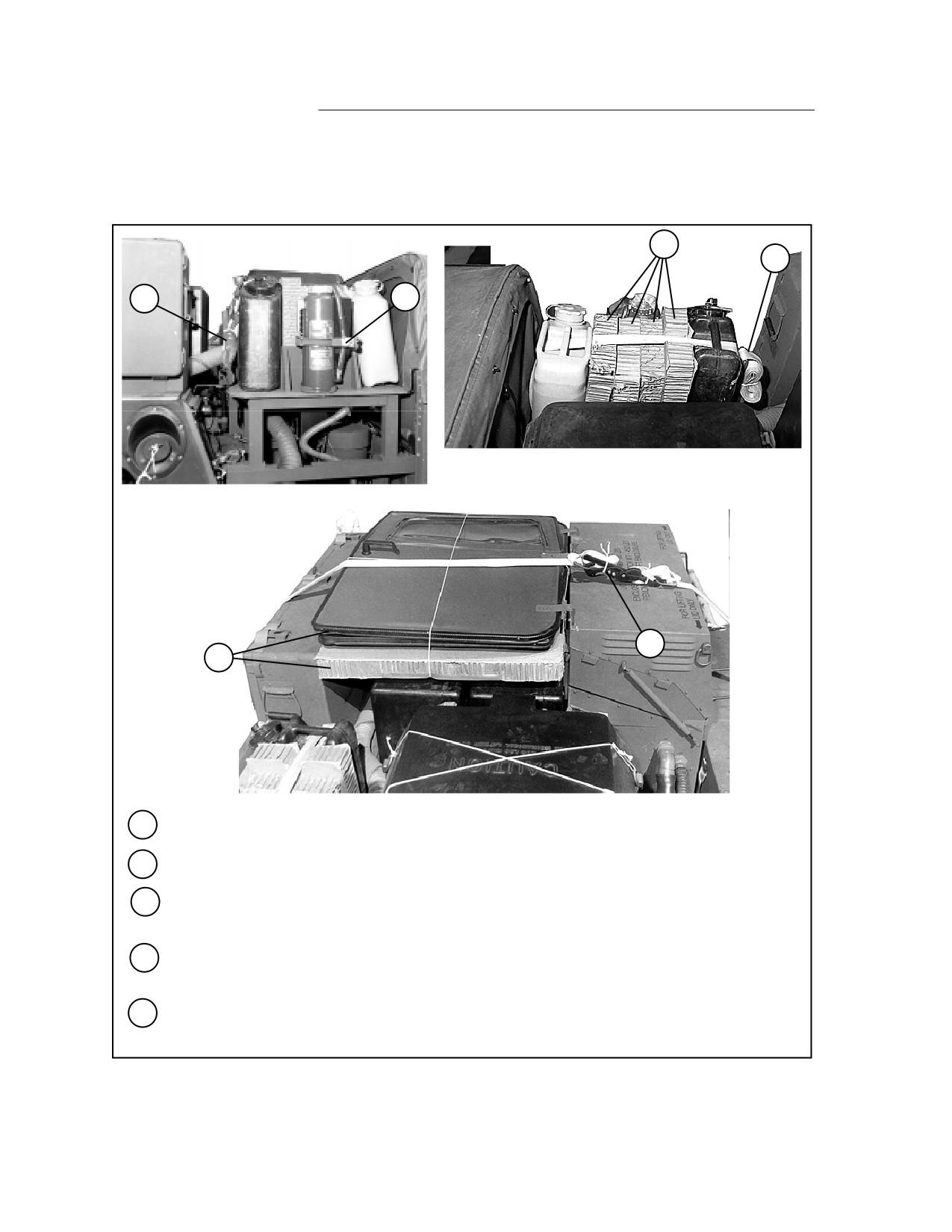

Tie the machine gun (optional) to convenient points in the truck.
7
Build and place the turret support as shown in Figure 3-2.
8
Tie the cargo area gate to the cargo bed rings with 1/2-inch tubular nylon webbing.
9
Route three lengths of 1/2-inch tubular nylon webbing through the rear cargo bed rings, under
all straps and fixtures, under the front gate, and through the strap rings.
10
Center a 12- by 12-inch cutout in four 18- by 18-inch pieces of honeycomb. Glue one 18- by 18-
inch piece to the stack as the box bottom. Pad the traversing unit with cellulose wadding, place
it in the box, and tie an 18- by 18-inch piece of honeycomb on top with type III nylon cord.
11
Girth-hitch two lengths of 1/2-inch tubular nylon webbing through the strap brackets on the
adjustable base. Wrap the machine gun mount with felt and tie it to the edge of the adjustable
base with the 1/2-inch tubular nylon webbing.
12
Secure the traversing unit box made in step 10 to the adjustable base with the straps provided.
13
Tie the fire extinguisher and decontamination bottles to the seat braces with type III nylon cord.
Figure 3-23. Cab Section of Truck Prepared (continued)
3-41
FM 4-20.117/TO 13C7-1-111
2
1
3
5
4
1
Place the disc drive case against the cargo area gate and secure it with the straps provided.
2
Secure the rangefinder to the rear seat with 1/2-inch tubular nylon webbing. Tie the rear
headset to the rangefinder bag straps with type I, 1/4-inch cotton webbing.
3
Pack the vehicle antenna sections between two 12- by 71-inch pieces of honeycomb, making
indentations for the antenna sections. Tie the box together with type III nylon cord.
4
Place an 18- by 18-inch piece of honeycomb over the traversing unit box.
5
Place the antenna box made in step 3 above between the turret and the piece of honeycomb
placed in step 4 above. Secure the antenna box to the turret with type III nylon cord.

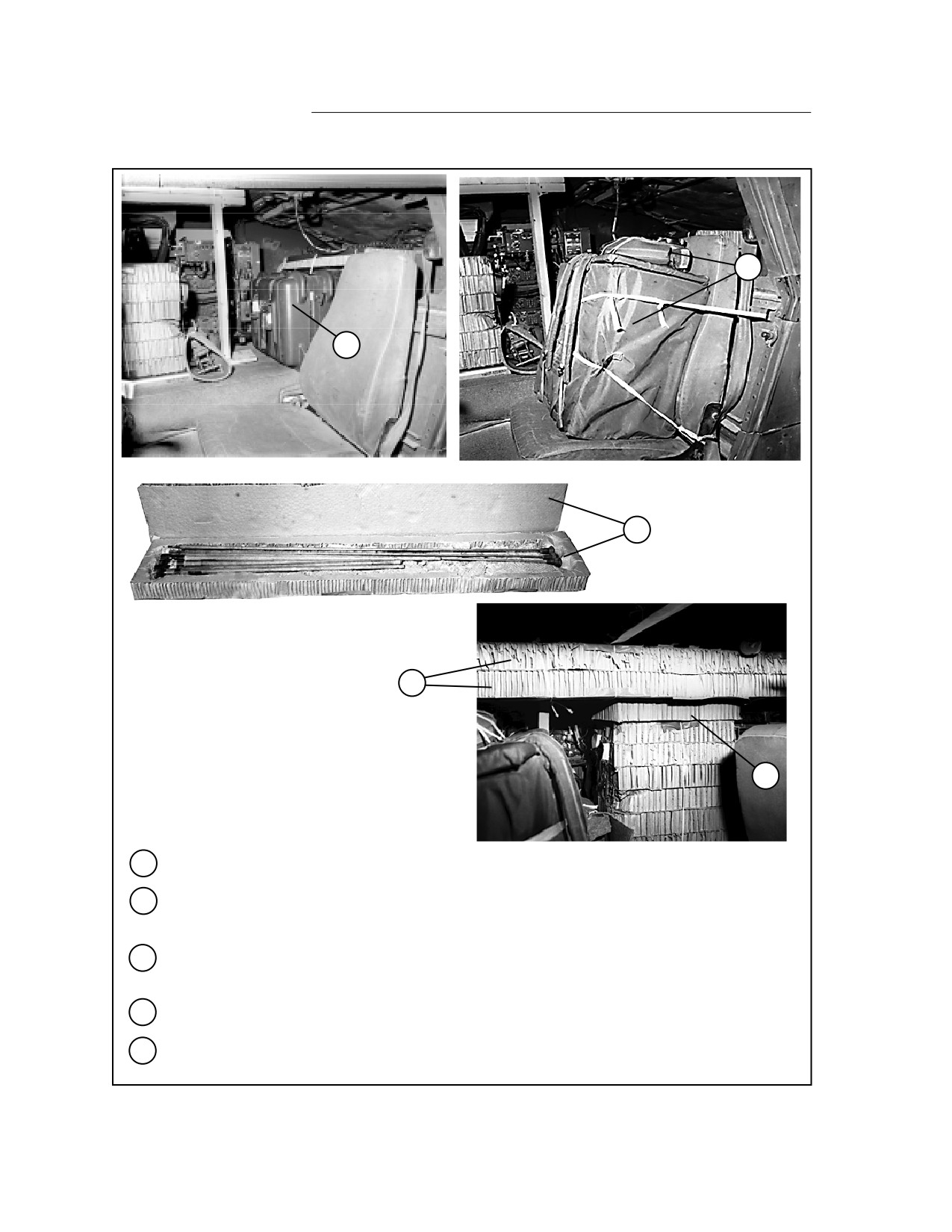

Figure 3-24. Equipment Cases Stowed in Seat Area of Truck
3-42
FM 4-20.117/TO 13C7-1-111
6
7
8

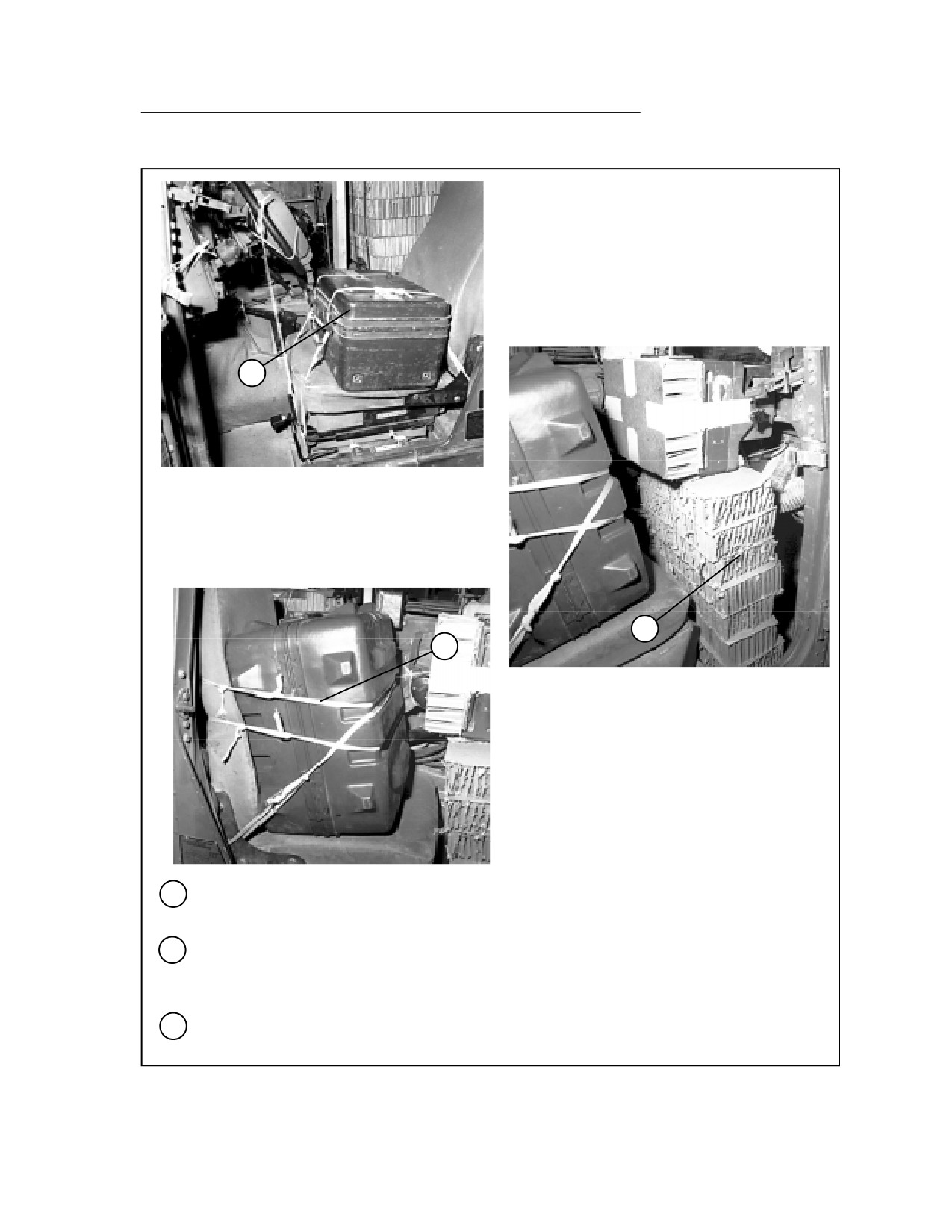

6
Secure the night vision infrared sight box to the front seat frame with 1/2-inch tubular nylon
webbing.
7
Glue a 15-inch piece of 2- by 6-inch lumber to an eight-layer stack of 6- by 15-inch honeycomb.
Place this stack with the lumber side down under the battlefield screen. Use the screen
positioning controls to make a snug fit between the screen and the honeycomb.
8
Secure the computer case to the passenger seat back and frame with 1/2-inch tubular nylon
webbing.
Figure 3-24. Equipment Cases Stowed in Seat Area of Truck (continued)
3-43
FM 4-20.117/TO 13C7-1-111
1
2
4
3
6
5
7

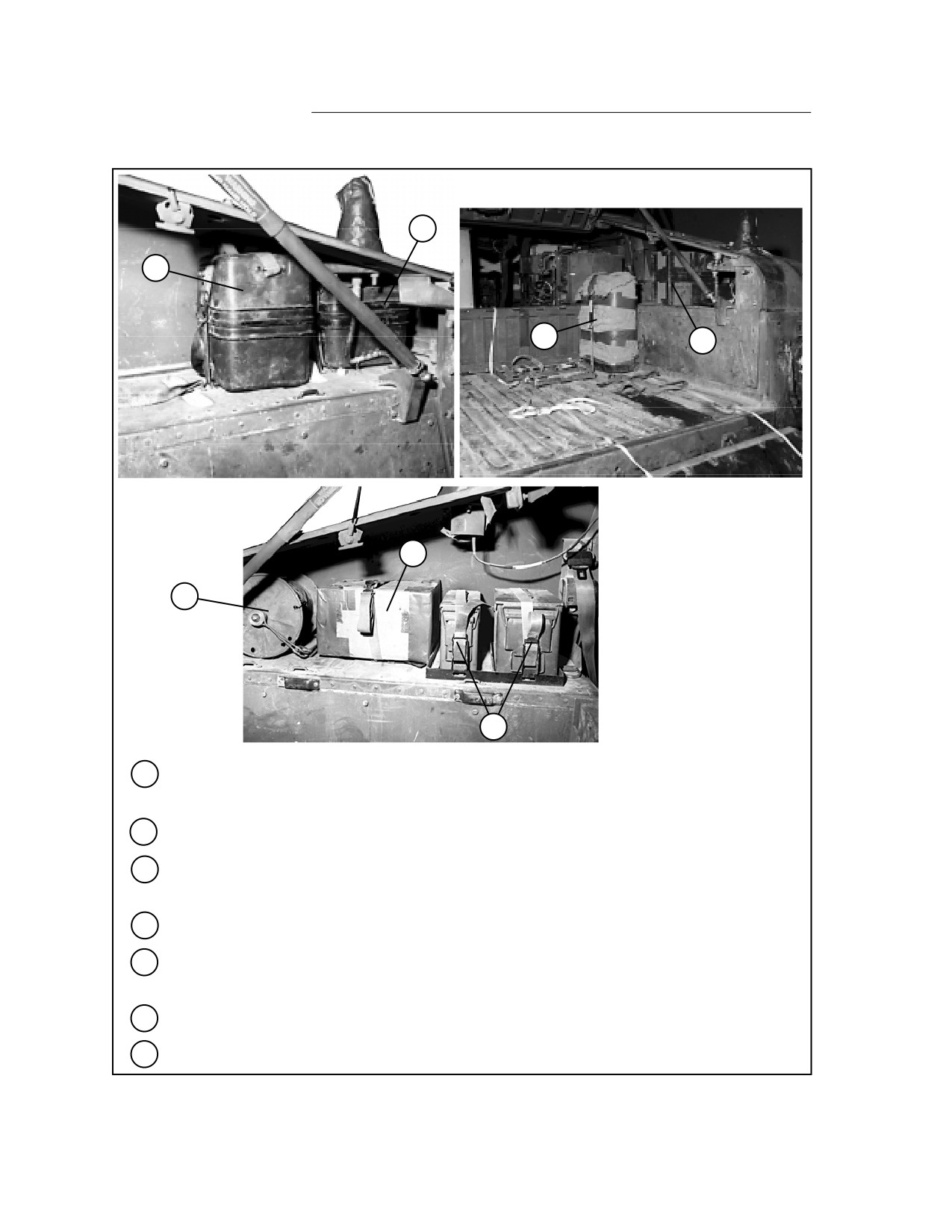

1

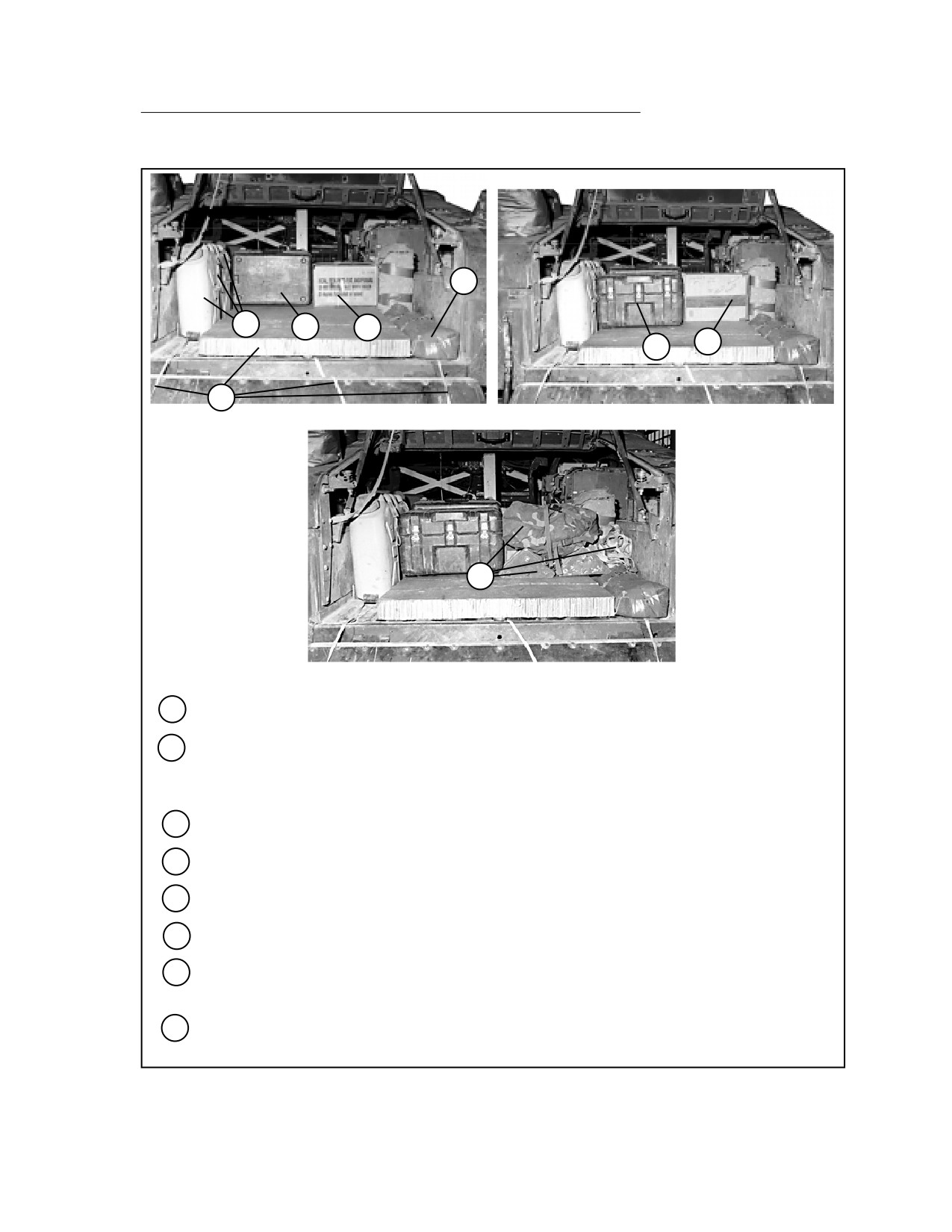

Secure the lithium batteries case in the right rear corner of the cargo area with the strap
provided.
2
Secure the battery power conditioner in its case with the strap provided.
3
Pack the laser infrared observation sight in an appropriate box. Secure the sight box in front of
the battery power conditioner with the straps provided.
4
Secure a padded fuel can in the mount with the strap provided.
5
Secure the wire spool in the left rear corner of the cargo bed with 1/2-inch tubular nylon web-
bing.
6
Secure a box of M8 chemical detector paper in front of the wire spool with the strap provided.
7
Secure the ammunition cans in front of the M8 paper with the straps provided.
Figure 3-25. Equipment Stowed in Cargo Area
3-44
FM 4-20.117/TO 13C7-1-111
10
8
11
12
14
13
9
15
8
Secure three water cans in the mounts on the left with the straps provided.
9
Be sure the lengths of 1/2-inch tubular nylon webbing placed in Figure 3-23, step 9 are free of
twists and lying flat. Cover the truck bed and the nylon webbing with a 44- by 36-inch piece of
honeycomb.
10
Pad the M-240 tripod with felt taped in place. Position the tripod to the right of the honeycomb.
11
Place the collimator bore-sight case on the left front corner of the honeycomb.
12
Place a box of MRE's to the right of the collimator bore-sight case.
13
Place the ancillary equipment transit case to the rear of of the collimeter bore-sight case.
14
Place the night vision infrared sight in an appropriate box, pad it, and place the box to the rear
of the MRE box.
15
Group the vehicle chock blocks, the bag of MOPP gear, and the cargo net between the wheel
well and the ancillary equipment case.
Figure 3-25. Equipment Stowed in Cargo Area (continued)
3-45
FM 4-20.117/TO 13C7-1-111
17
16
18
16
Place the antenna group across the width of the cargo bed at the rear.
17
Place the tripod in its case on top of the antenna case.
18
Tape the upper edges of a 36- by 40-inch piece of honeycomb. Secure the ends of the pre-
positioned 1/2-inch tubular nylon webbing, front to rear, left front to right rear, and right front to
left rear.
19
Close and secure the hatch as shown in Figure 3-4, step 11.

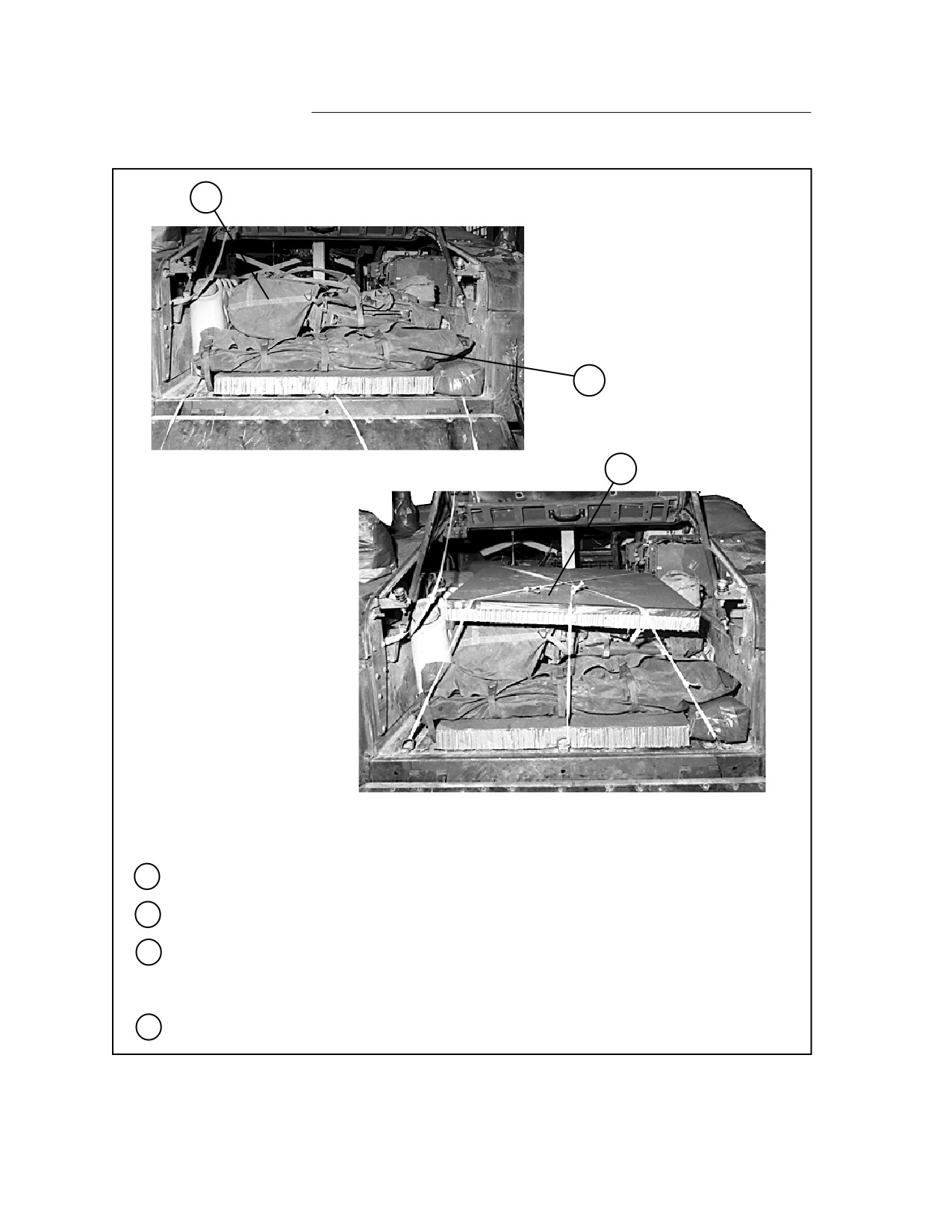

Figure 3-25. Equipment Stowed in Cargo Area (continued)
3-46
FM 4-20.117/TO 13C7-1-111
2
4
3
1

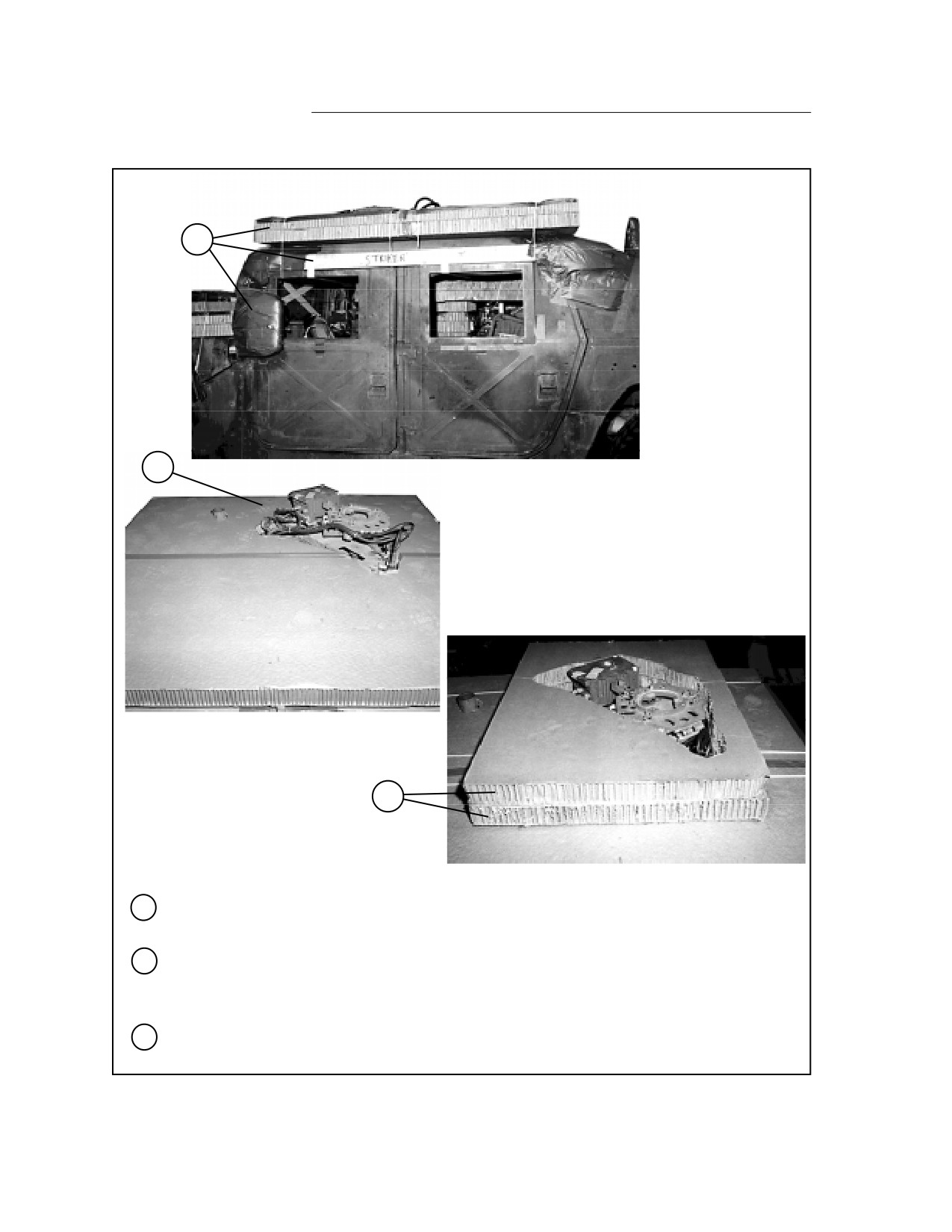

Tape the windows in an X pattern, and lower them. (not shown)
2
Center a 2- by 2-inch cutout in a long edge of a 21 1/2- by 14 1/2-inch piece of honeycomb.
Place the honeycomb in the right rear window, facing the cutout up. Tape the honeycomb in
place between the equipment mount and the door.
3
Cut a notch in the 21- by 83-inch piece of honeycomb covering the windshield to allow for the
GPS (global positioning system) antenna and the windshield wipers. Round the upper edges
of the windshield cover.
4
Pad the GPS antenna with cellulose wadding and tape.
Figure 3-26. Outside and Top of Striker Truck Prepared
3-47
FM 4-20.117/TO 13C7-1-111
5
6
FRONT
7
FRONT
5
Install the rain gutter protective boards and lashings, and pad the mirrors as shown in Figure
3-3, steps 8 through 11.
6
Make cutouts in the two-layer honeycomb roof cover (See Figure 3-3, step 7) to allow for the
turret fixtures. Tape the upper edges of the honeycomb and tie it to the gutter boards and
through the window openings with type III nylon cord.
7
Face two pieces of 36- by 48-inch honeycomb lengthwise to the truck. Make cutouts to allow
for the turret fixtures.
Figure 3-26. Outside and Top of Striker Truck Prepared (continued)
3-48
FM 4-20.117/TO 13C7-1-111

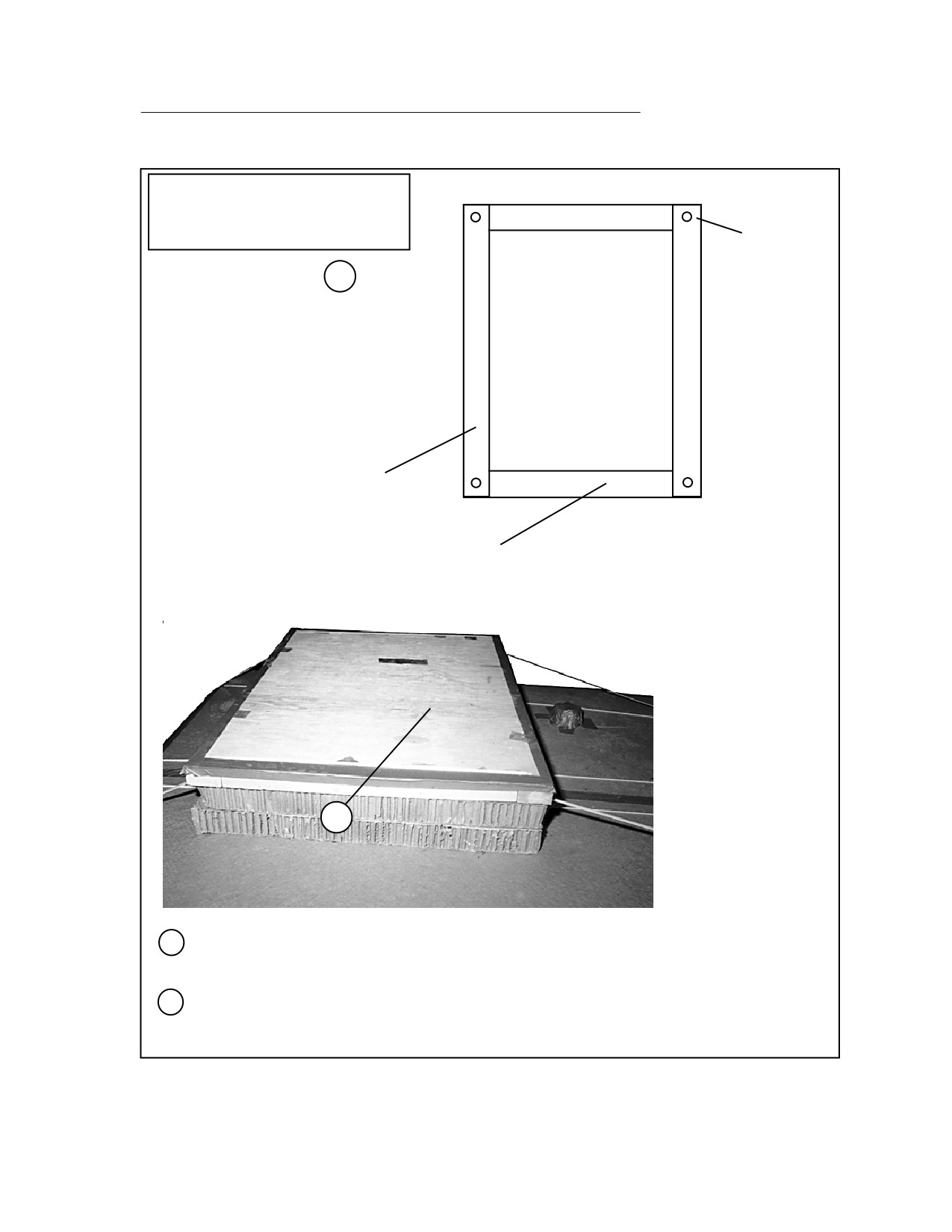

Notes:
36
1. This drawing is not drawn to scale.
2. All dimensions are in inches.
1/2-in holes
8
48
Lumber
2- by 4- by 48
Lumber
2- by 4- by 29
9
8
Construct the turret cover of 3/4-inch plywood and 2- by 4-inch lumber as shown. Nail the
lumber to the edges of the plywood with 8d nails. Tape the upper edges of the plywood.
9
Place the cover flush over the 36- by 48-inch honeycomb placed in step 8 above. Tie the
plywood cover from the 1/2-inch holes to convenient points inside the truck with 1/2-inch
tubular nylon webbing.
Figure 3-26. Outside and Top of Striker Truck Prepared (continued)
3-49
FM 4-20.117/TO 13C7-1-111
LIFTING AND POSITIONING TRUCK AND INSTALLING DRIVE-OFF AIDS
3-37. Install the lifting slings and position the truck on the honeycomb stacks as
shown in Figure 2-16. Attach the drive-off aids to the wheels of the truck as
shown in Figure 2-17, and according to FM 4-20.102/TO 13C7-1-5.
LASHING TRUCK

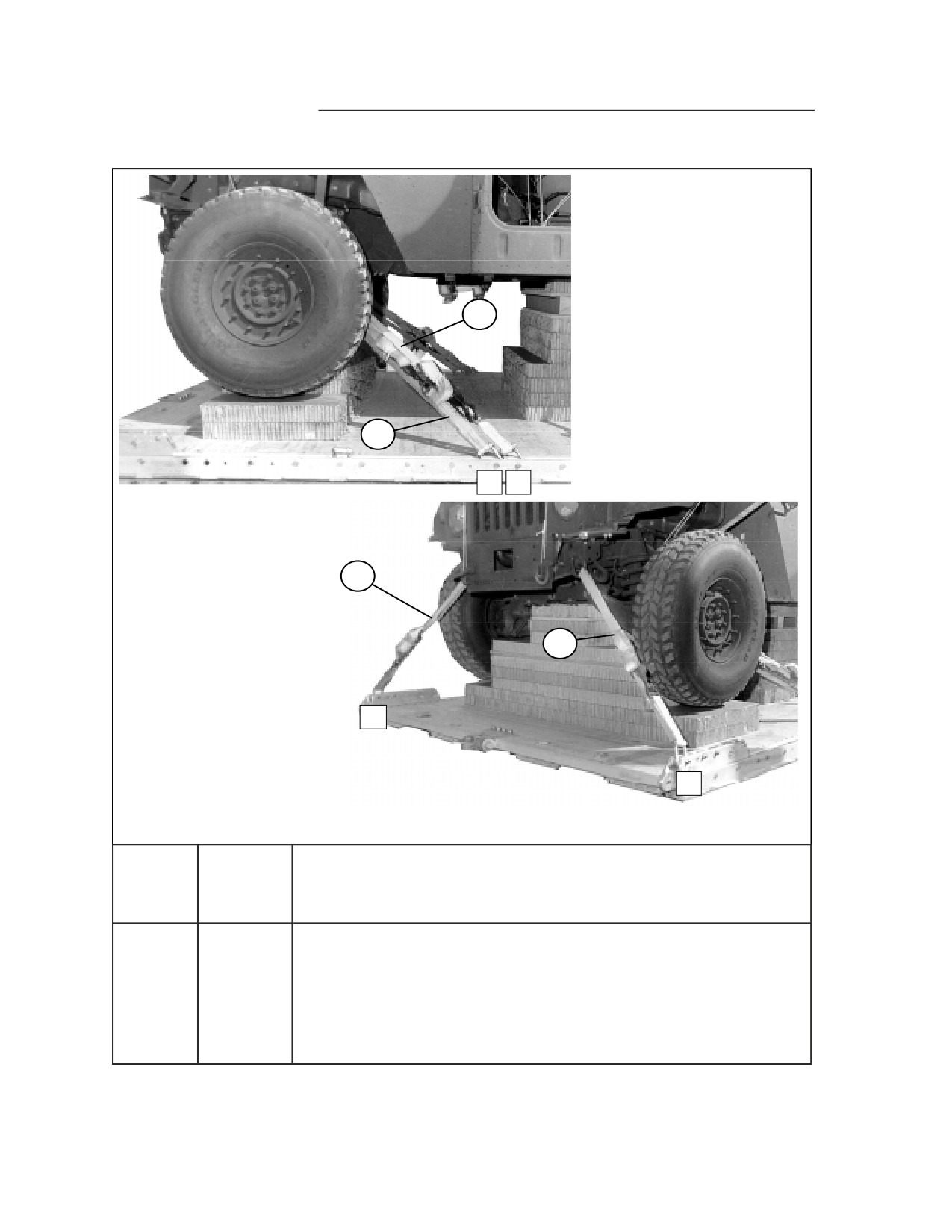

3-38. Lash the truck to the platform with fifteen 15-foot tie-down assemblies.
Install the lashings according to FM 4-20.102/TO 13C7-1-5, and as shown in
Figures 3-27 and 3-28.
7
2
9
5
3
1A
5
4
3
1
2
1
Tie-down
Lashing
Clevis
Number
Number
Instructions
Pass lashing :
1
1
Through tie-down bracket behind left rear coil spring.
2
1A
Through tie-down bracket behind right rear coil spring.
3
2
Through left rear lifting shackle
4
2A
Through right rear lifting shackle
5
3
Around left rear lower control arm
6
3A
Around right rear lower control arm
7
4
Through tie-down bracket in front of left rear coil spring
8
4A
Through tie-down bracket in front of right rear coil spring
9
5 and 5A
Pass a 15-foot lashing through clevis 5A and through its own D-ring .
Pass the lashing through the hole in stack 2. Attach the lashing to clevis
5 with a load binder.

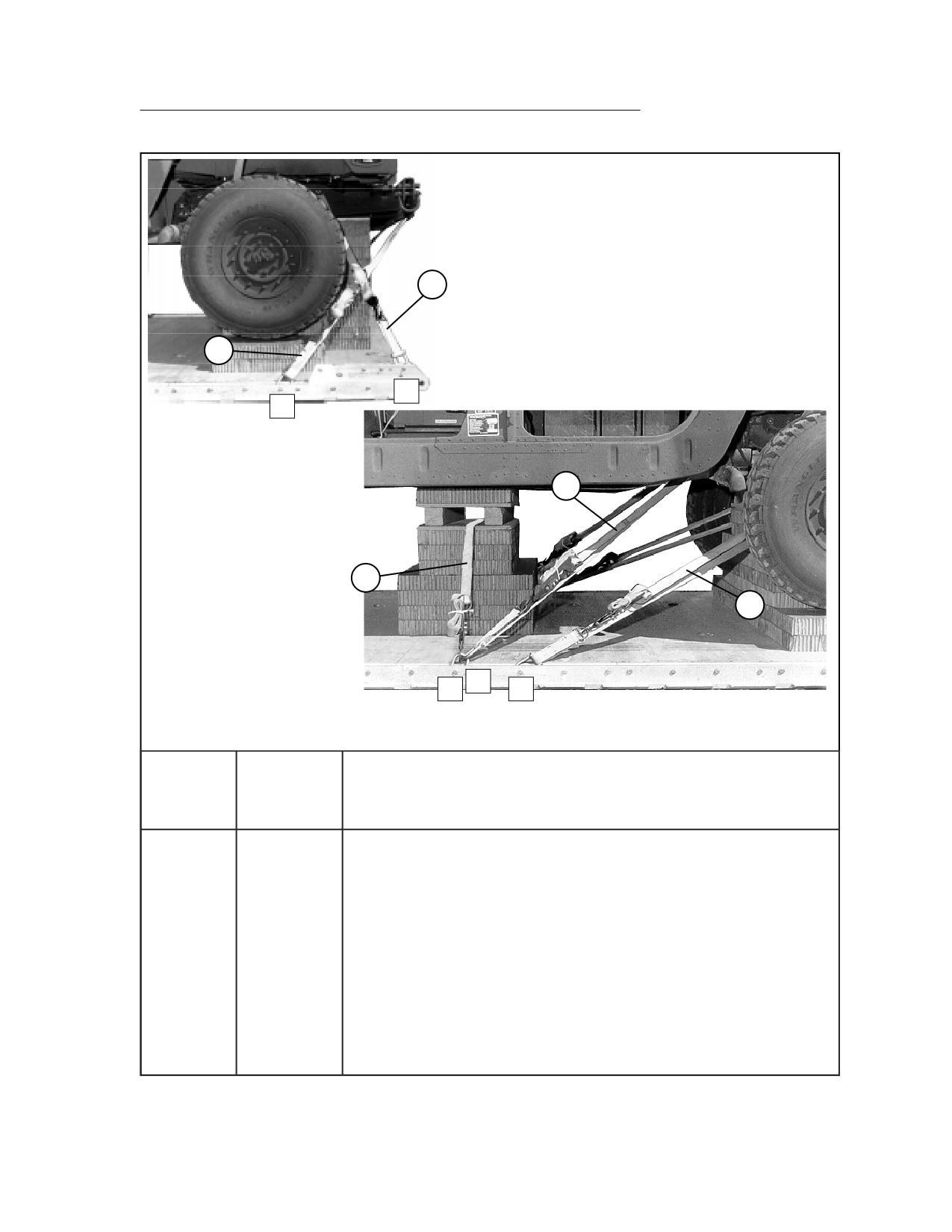

Figure 3-27. Lashings 1 Through 9 Installed
3-50
FM 4-20.117/TO 13C7-1-111
15
10
14
10A
12
6
7
10
Tie-down
Lashing
Clevis
Number
Number
Instructions
Pass lashing :
10
6
Through tie-down bracket behind left front coil spring.
11
6A
Through tie-down bracket behind right front coil spring.
12
7
Around left lower control arm
13
7A
Around right lower control arm
14
10
Through shackle on left side of bumper.
15
10A
Through shackle on right side of bumper

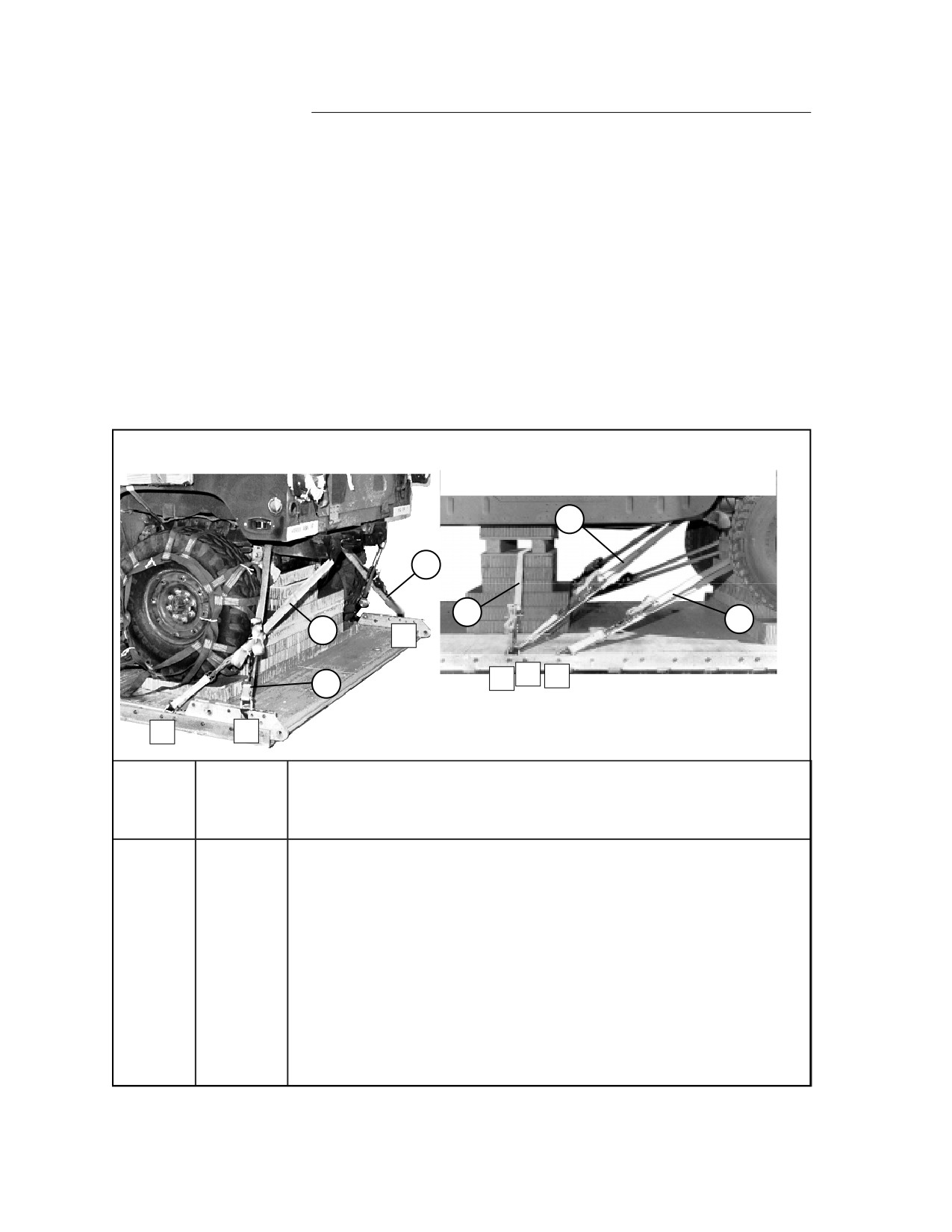

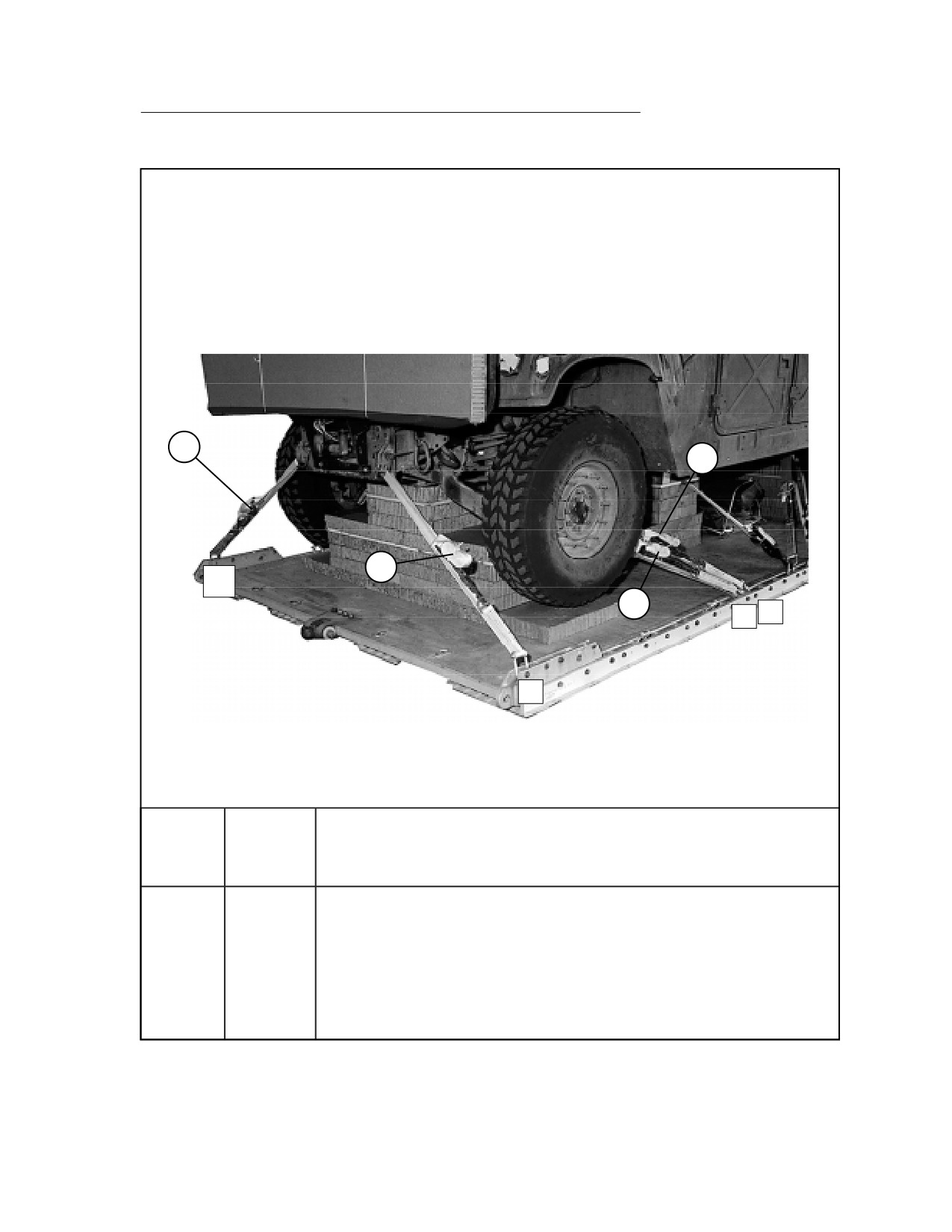

Figure 3-28. Lashings 10 Through 15 Installed
3-51
FM 4-20.117/TO 13C7-1-111
INSTALLING AND SAFETY TYING SUSPENSION SLINGS
3-39. Install and safety tie four 16-foot (2-loop), type XXVI nylon suspension
slings according to FM 4-20.102/TO 13C7-1-5, and as shown in Figure 3-5.
STOWING CARGO PARACHUTES
3-40. Use three G-11 cargo parachutes on this load. Prepare and stow the cargo
parachutes according to FM 4-20.102/TO 13C7-1-5, and as shown in Figure 3-
29.
1
2
8
9
1
Place and cluster three G-11 cargo parachutes on the honeycomb over the truck hood
accordingto FM 4-20.102/TO 13C7-1-5.
2
Tie the type VIII nylon webbing restraint straps to clevises 8 and 8A and to clevises 9 and 9A.

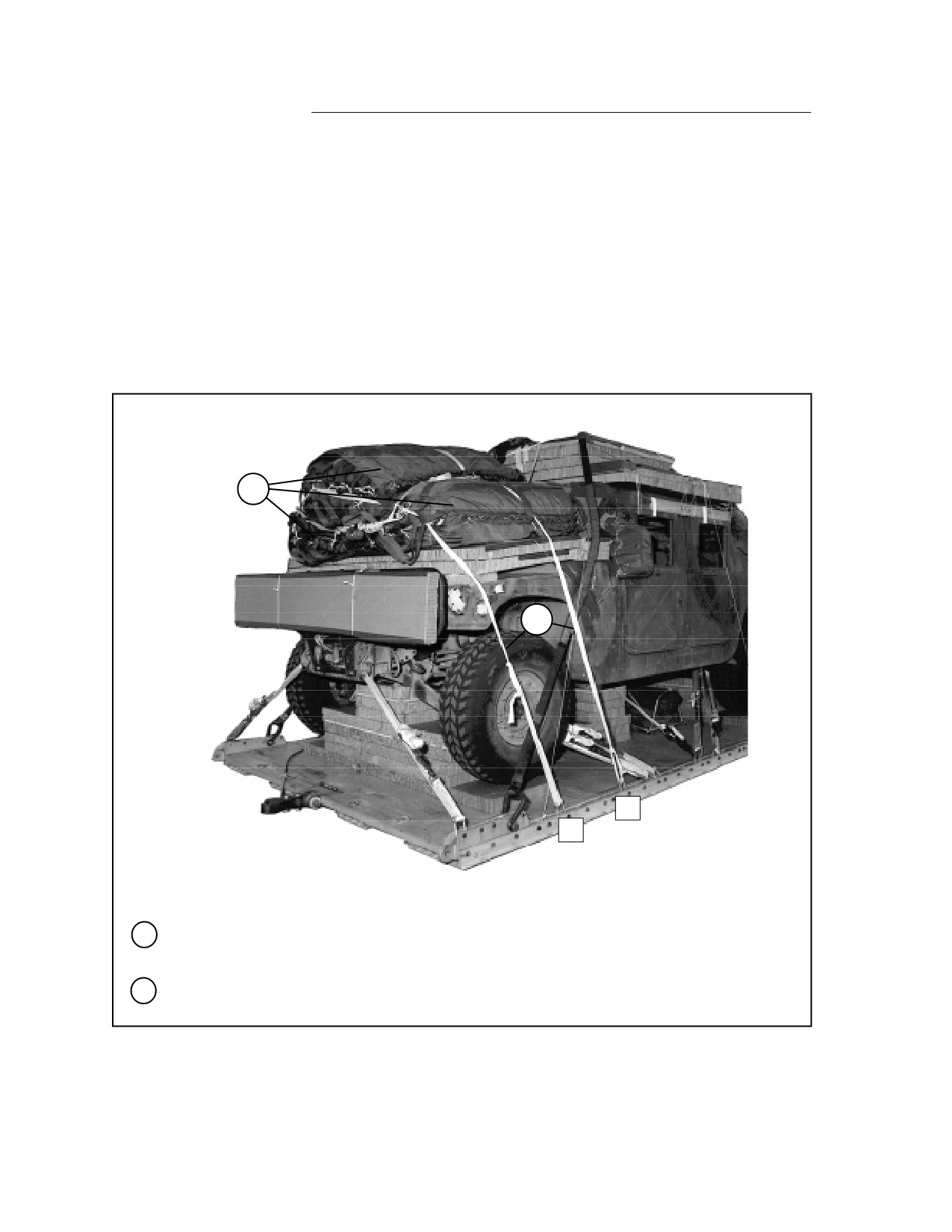

Figure 3-29. Cargo Parachutes Stowed
3-52
FM 4-20.117/TO 13C7-1-111
INSTALLING PARACHUTE RELEASE
3-41. Prepare and install an M-1 cargo parachute release according to FM 4-
20.102/TO 13C7-1-5, and as shown in Figure 3-30.
1
3
2
1
Place the M-1 release in front of the upper parachute on the plywood turret cover.
2
S-fold the slack in the suspension slings. Tie the folds with type I 1/4-inch cotton webbing.
3
Attach the suspension slings and the riser extensions to the relese. Tie the release to
convenient points on the load with type III nylon cord tied over the suspension slings.
Figure 3-30. M-1 Cargo Parachute Release Installed
3-53
FM 4-20.117/TO 13C7-1-111
INSTALLING EXTRACTION SYSTEM
3-42. Install the EFTC extraction system according to FM 4-20.102/TO 13C7-1-
5, and as shown in Figure 2-23.
INSTALLING PROVISIONS FOR EMERGENCY RESTRAINTS
3-43. Install the provisions for emergency restraints on the load according to FM
4-20.102/TO 13C7-1-5.
PLACING EXTRACTION PARACHUTE
3-44. Select the extraction parachute and extraction line needed using the
extraction line requirements table in FM 4-20.102/TO 13C7-1-5. Rig the
extraction line in an extraction line bag according to TM 10-1670-286-20/TO
13C5-2-41. Place the extraction parachute and extraction line on the load for
installation in the aircraft.
MARKING RIGGED LOAD
3-45. Mark the rigged load according to FM 4-20.102/TO 13C7-1-5, and as
shown in Figure 3-31. Complete Shipper's Declaration for Dangerous Goods
according to AFJMAN 24-204/TM 38-250. If the load varies from the one shown,
the weight, height, CB, and parachute requirements must be recomputed.
EQUIPMENT REQUIRED
3-46. Use the equipment listed in Table 3-3 to rig this load. The equipment for
rigging the accompanying load is included in Table 3-1.
3-54
FM 4-20.117/TO 13C7-1-111
CAUTION
Make the final rigger inspection required by FM 4-20.102/
TO 13C7-1-5 before the load leaves the rigging site.
CB
RIGGED LOAD DATA
Weight: Load shown
11,389 pounds
Maximum load allowed
11,500 pounds
Height (with three G-11 parachutes)
98 inches
Width
........................................................................................................ 108 inches
Length (overall)
215 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
CB (from front edge of platform)
97 inches
Figure 3-31. M1025 Armament Carrier Rigged With Striker for Low-Velocity Airdrop
on a 16-Foot Platform
3-55
FM 4-20.117/TO 13C7-1-111
Table 3-3. Equipment Required for Rigging Striker Carrier on a 16-Ft Airdrop Platform
National Stock
Number
Item
Quantity
8040-00-273-8713
Adhesive, paste, 1-gal
As required
4030-00-090-5354
Clevis, suspension, 1-in (large)
5
4020-00-240-2146
Cord, nylon, type III, 550-lb
As required
1670-00-434-5785
Coupling assembly, airdrop, extraction force transfer with
1
cable, 16-ft
Cover:
1670-00-360-0328
Clevis, large
1
8135-00-664-6958
Cushioning material, packaging, cellulose wadding
As required
8305-00-958-3685
Felt, 1/2-in thick
As required
1670-01-183-2678
Leaf, extraction line (line bag)
2
Line, drogue (for C-17)
1670-01-062-6313
60-ft (3-loop), type XXV I
1
Line, extraction
:
1670-01-062-6313
For C-130: 60-ft (3-loop), type XXV I
1
1670-01-107-7651
For C-141: 140-ft (3-loop), type XXV I
1
For C-5:
1670-01-062-6313
60-ft, (3-loop), type XXVI and
1
1670-01-107-7651
140-ft (3-loop), type XXV I
1
For C-17:
1670-01-107-7651
140-ft (3-loop), type XXV I
1
Link Assembly:
Two-point:
7
5306-00-435-8994
Bolt, 1-in diam, 4-in long
(14
)
5310-00-232-5165
Nut, 1-in, hexagonal
(14
)
1670-00-003-1953
Plate, side, 3 3/4-in
(14
)
5365-00-007-3414
Spacer, large
(14
)
Lumber:
5510-00-220-6146
2- by 4-in
As required
5510-00-220-6448
2- by 6-in
As required
5510-00-220-6274
4- by 4-in
As required
5315-00-010-4659
Nail, steel wire, 8d
As required
3-56
FM 4-20.117/TO 13C7-1-111
Table 3-3. Equipment Required for Rigging Striker Carrier on a 16-Ft Airdrop Platform
(continued)
National Stock
Number
Item
Quantity
1670-00-753-3928
Pad, energy-dissipating (honeycomb)
3- by 36- by 96-in
13 sheets
Parachute:
Cargo:
1670-01-016-7841
G-11 B
3
Cargo extraction:
1670-01-063-3716
22-ft (for C-17 aircraft, use H-block with this parachute)
1
Drogue (for C-17 )
1670-01-063-3715
15-ft
1
Platform, airdrop, type
V, 16-ft
1670-01-353-8425
Bracket assembly, EFT C
(1
)
1670-01-162-2372
Clevis assembly, type V
(20
)
1670-01-162-2376
Bracket assembly, extractio n
(1
)
1670-01-162-2381
T
andem link assembly (Multipurpose link)
(4
)
5530-00-128-4981
Plywood, 3/4-in
4
sheets
1670-01-097-8816
Release, cargo parachute, M-1
1
Sling, cargo, airdrop
For suspension:
1670-01-063-7761
16-ft (2-loop), type XXVI nylon webbing
4
For lifting
:
1670-01-062-6304
9-ft (2-loop), type XXVI nylon webbin g
2
1670-01-062-6303
12-ft (2-loop), type XXVI nylon webbing
2
For deployment:
1670-01-062-6304
9-ft (2-loop), type XXVI nylon webbin g
1
For riser extension
:
1670-01-062-6302
20-ft (2-loop), type XXVI nylon webbing
6
5340-00-040-8219
Strap, parachute release, multi-cut, comes w/ 3
knives
2
7510-00-266-5016
T
ape, adhesive, 2-in
As required
1670-00-937-0271
Tie-down assembly, 15-foot
21
1670-01-344-0825
Vehicle drive-off aid
1
Webbing :
8305-00-268-2411
Cotton, 1/4-in, type I
As required
8305-00-082-5752
Nylon, tubular, 1/2-in
As required
8305-00-263-3591
T
ype VIII
As required
3-57
FM 4-20.117/TO 13C7-1-111
CHAPTER 4
RIGGING EXPANDED CAPACITY HMMWV-SERIES TRUCKS
FOR LOW-VELOCITY AIRDROP
SECTION I - RIGGING M1113 TRUCK WITH M56 SMOKE GENERATOR
ON A 16-FOOT PLATFORM
DESCRIPTION OF LOAD
4-1. The M1113 HMMWV-series truck has a heavy-duty suspension and is
rigged the same as the M998 truck except as noted. The truck is rigged on a 16-
foot, type V airdrop platform for low-velocity airdrop. The M56 Smoke Generator
is shown as the accompanying load. The procedure for rigging the M56 smoke
generator in the truck is given in this chapter. An accompanying load weighing
a minimum of 800 pounds and a maximum of 2,500 pounds must be rigged in
the truck. The load requires three G-11 cargo parachutes.
PREPARING PLATFORM
4-2. Prepare a 16-foot, type V airdrop platform according to TM 10-1670-268-
20&P/TO 13C7-52-22. Install four tandem links and 18 load tie-down
clevises according to FM 4-20.102/TO 13C7-1-5, and as shown in Figure 4-1.
NOTES:
1. The nose bumper may or may not be installed.
2. Measurements given in the instructions for this load are from the front
edge of the platform, NOT from the front edge of the nose bumper.
4-1
FM 4-20.117/TO 13C7-1-111
CLEVISES 9A THROUGH 1A
LEFT
REAR
RIGHT
FRONT
CLEVISES 9 THROUGH 1
Step:
1. Install a tandem link on the front of each platform side rail using holes 1, 2, and 3.
2. Install a tandem link on the rear of each platform side rail using holes 30, 31, and 32.
3. Install a clevis on bushing 1 of each front tandem link.
4. Install a clevis on bushing 4 of each rear tandem link.
5. Starting at the front of the platform, install clevises on each platform side rail using the bushings
bolted on holes 5, 15, 20, 21 and 25.
6. Install a clevis on bushing 17 in an inverted position. Install a bushing on clevis 17A in the normal
position. Bolt an additional clevis to each of these clevises.
7. Starting at the front of the platform, number the clevises bolted to the right side of the platform
from 1 through 9, and those bolted to the left side from 1A through 9A. Number the clevises on the
17th bushings 5 and 5A. Number the clevises bolted to these clevises clevises 4 and 4A.
8. Label the tie-down rings according to FM 4-20.102/TO 13C7-1-5.
Figure 4-1. Platform Prepared
4-2
FM 4-20.117/TO 13C7-1-111
PREPARING AND POSITIONING HONEYCOMB STACKS
4-3. Build the honeycomb stacks as shown in Figures 4-2 through 4-4. Position
the stacks on the platform as shown in Figure 4-5.
7
7
6
3
4
5
2
3
2
1
12
30
FRONT
REAR
1
Make 12- by 30-inch cutouts in the left and right front corners of two 36- by 90-inch pieces of
honeycomb. Glue the two pieces flush together to form the base.
2
Make 12- by 12-inch cutouts in the left and right front corners of four 36- by 54-inch pieces of
honeycomb. Glue the four pieces flush together over the base.
3
Center two 30- by 36-inch pieces of honeycomb over the pieces placed in step 2, and glue
them in place.
4
Nail two 30- by 24-inch pieces of 3/4-inch plywood together. Glue the plywood flush over the
rear edges of the honeycomb placed in step 3 above.
5
Glue three 30- by 12-inch pieces of honeycomb to the front of the stack, aligned with the
plywood.
6
Center and glue a 20 -by 24-inch piece of honeycomb over the plywood.
7
Nail two 30- by 12-inch pieces of 3/4-inch plywood together, and glue the plywood flush over
the honeycomb placed in step 5 above.
Figure 4-2. Stack 1 Constructed
4-3
FM 4-20.117/TO 13C7-1-111
43
Note: 1. This drawing is not drawn to scale.
2. All dimensions are in inches.
27
18
4
12
8
3
2
1
1
Glue four 43- by 26-inch pieces of honeycomb together to form a base.
2
Center and glue three 43- by 18-inch pieces of honeycomb over the base.
3
Nail a 43-inch piece of 4- by 4-inch lumber parallel to each long side and 1 1/2 inches from
each long edge of a 3/4- by 43- by 18-inch piece of plywood. Nail a second 3/4- by 43- by 18-
inch piece of plywood to the lumber and flush with the bottom piece of plywood. Glue the wood
section of the stack flush on the honeycomb placed in step 2 above.
4
Make the cutout as shown in a 43- by 18-inch piece of honeycomb. Glue the honeycomb flush
over the plywood, with the cutout facing the rear of the stack.
Figure 4-3. Stack 2 Constructed
4-4
FM 4-20.117/TO 13C7-1-111
7
5
6
4
2
3
1
1
Glue two 80- by 24-inch pieces of honeycomb together to form a base.
2
Center and glue three 54- by 24-inch pieces of honeycomb on the base.
3
Glue a 3/4- by 54- by 24-inch piece of plywood over the honeycomb placed in step 2 above.
4
Glue a 54- by 24-inch piece of honeycomb over the plywood placed in step 3 above.
5
Center and glue two 20- by 24-inch pieces of honeycomb on top of the honeycomb placed in
step 4 above.
6
Glue a 3/4- by 20- by 24-inch piece of plywood over the honeycomb placed in step 5 above.
7
Glue a 20- by 24-inch piece of honeycomb on top of the plywood placed in step 6 above.
Figure 4-4. Stack 3 Constructed
4-5
FM 4-20.117/TO 13C7-1-111
REAR
5
FRONT
86
147
Stack
Number
Position of Stack on Platform
Place stack:
1
5 inches from the front edge of the platform and centered.
2
86 inches from the front edge of the platform and centered. Face the
cutout to the rear.
3
147 inches from the front edge of the platform and centered.
Figure 4-5. Honeycomb Stacks Positioned on Platform
4-6
FM 4-20.117/TO 13C7-1-111
PREPARING TRUCK AND SMOKE GENERATOR
4-4. Prepare the truck and the smoke generator as described below.
a. Prepare the truck as described in Paragraphs 2-4a through e, and h, and as
shown in Figures 2-6 and 2-7.
b. Remove the pioneer tool kit from the rear underside of the truck and stow it
in the cargo bed.
c. Prepare the cab of the truck as shown in Figure 2-8, and remove the rifle
clips as shown in Figure 4-6.
d. Secure and pad radio equipment in the cab as shown in Figure 2-9.
e. Remove the breather cap and fording stack and stow them in the truck as
shown in Figure 4-7.
f. Prepare the front of the truck as shown in Figure 2-10. Use the modification
shown in Figure 4-8. Place a 4- by 78-inch piece of honeycomb along the front
edge of the hood. Also, cover the hood with one piece of honeycomb cut as shown
in Figure 2-10, step 6, instead of with two pieces.
g. Prepare the truck body as shown in Figure 2-13.
1
1

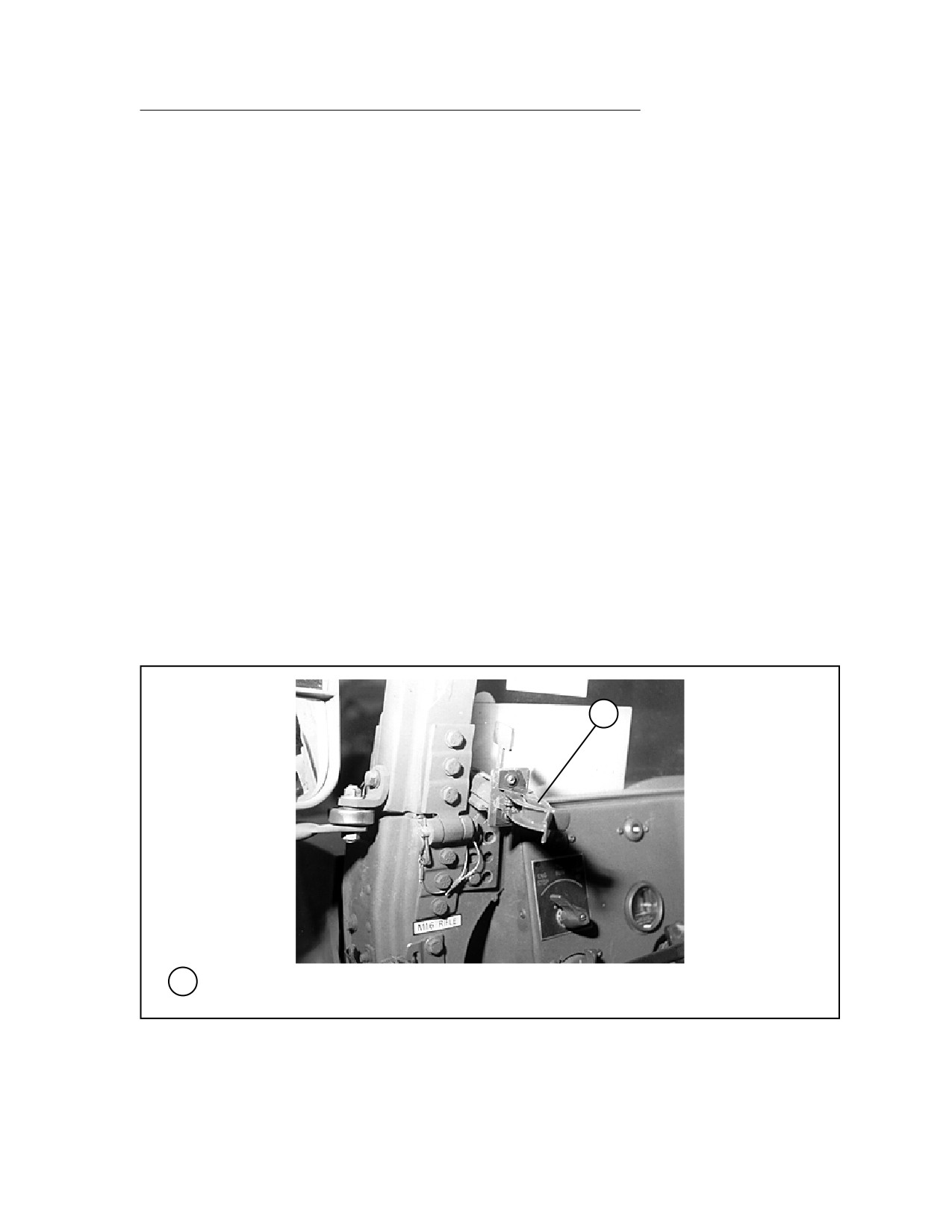

Remove any weapons clip attached to the windshield frame.
Figure 4-6. Weapons Clip
4-7
FM 4-20.117/TO 13C7-1-111
1
2
1
Remove the breather cap and fording stack. Leave the cap attached to the stack.
2
Tie the cap and stack in the passenger footwell with type III nylon cord.
Figure 4-7. Fording Kit Removed and Stowed
2
3
1
Remove the fabric cab cover from its fasteners at the rear of the cab. Remove the roof bows.
Do not detach the cab cover from its fasteners on the windshield frame.
2
Before folding the windshield, bring the cab cover over the front of the windshield. Rest the
windshield on the folded cab cover. The cover must occupy the space between the honeycomb
on which the front of the windshield rests and the windshield hinges.
3
Fold the windshield down over the cab cover and any padding.
Figure 4-8. Windshield Folded Over the Cab Cover
4-8
FM 4-20.117/TO 13C7-1-111
h. Prepare the smoke generator as shown in Figure 4-9.
1
4
2
3
1
Tape the switches on the smoke generator control panel to the OFF position.
2
Tape the exhaust port cover in place.
3
Tape the latches on the IR hopper, and any other latches elsewhere on the smoke generator.
4
Secure the IR hatch cover with two lengths of type III nylon cord.
Figure 4-9. Smoke Generator Prepared
4-9
FM 4-20.117/TO 13C7-1-111
i. Stow and secure the smoke generator equipment and truck doors as shown in
Figure 4-10.
2
3
3
1
5
4
1

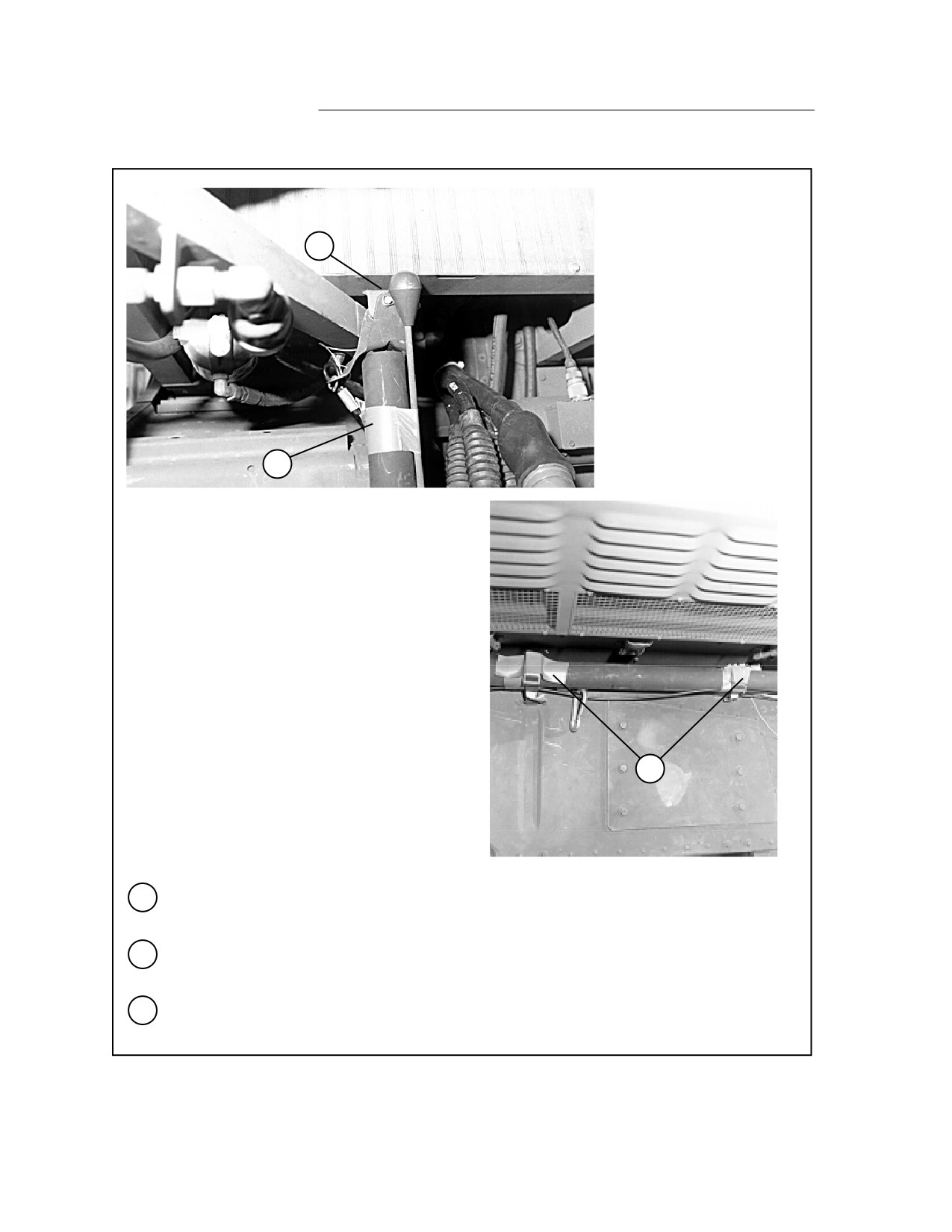

Tape the external fire extinguisher latch closed.
2
Pad between the water and fuel cans with four pieces of honeycomb.
3
Pass a 15-foot lashing under the platform, and over the cans through their carrying handles.
Secure the lashing at the rear.
4
Place a 33- by 44-inch piece of honeycomb over the fog oil tanks. Tie the truck doors over the
honeycomb with two lengths of type III nylon cord.
5
When the lashings securing the body side boards are installed, pass the lashing at the rear of
the truck over the smoke generator and the truck doors as shown.
Figure 4-10. Fuel Cans, Water Cans, and Truck Doors Secured
4-10
FM 4-20.117/TO 13C7-1-111
LIFTING AND POSITIONING TRUCK, INSTALLING OPTIONAL DRIVE-OFF AIDS, AND
STOWING SPREADER BAR
4-5. Install the optional drive-off aids on the platform as shown in Figure 2-15.
Install lifting slings on the truck and position the truck on the honeycomb
stacks as shown in Figure 2-16. Install the spreader bar assembly on the lifting
slings to protect the smoke generator from damage.
CAUTION
USE OF THE SPREADER BAR IS ESSENTIAL.
FAILURE TO COMPLY WILL RESULT
IN DAMAGE TO THE EQUIPMENT.
Install the drive-off aids, if used, to the rear wheels of the truck as shown in
Figure 2-17. Stow the spreader bar, roof bows, and whip antenna as shown in
Figure 4-11.
LASHING TRUCK
4-6. Lash the truck to the platform with fifteen 15-foot tie-down assemblies as
shown in Figures 4-12 and 4-13, and according to FM 4-20.102/TO 13C7-1-5.
4-11
FM 4-20.117/TO 13C7-1-111
2
1
3
1
Tape the cab bows and antenna to the spreader bar. The tip of the antenna and the end of the
spreader bar are shown in the first photograph.
2
Secure the end of the spreader bar to the bracket provided on the equipment platform with the
bar's pin.
3
Place the spreader bar in its original location in the truck cargo area, and secure it with the
fasteners provided. Tape the fasteners shut.
Figure 4-11. Spreader Bar, Antenna, and Cab Bows Stowed
4-12
FM 4-20.117/TO 13C7-1-111
1
3
1
2
7
9
5
4
5
3
Tie-down
Lashing
Clevis
Number
Number
Instructions
Pass
l
1
1
Throughtie-down bracket behind
l
2
1A
Throughtie-down bracket behind right rear coil spring.
3
2
Through left rear lifting shackle
4
2A
Through right rear lifting shackle
5
3
Around left rear lower control arm
6
3A
Around right rear lower control arm
7
4
Throughtie-down bracket infront of
l
8
4A
Throughtie-down bracket infront of right rear coil spring.
9
5 and 5A
Pass a 15-foot lashing through clevis 5A and
t
Pass the lashing throughthe hole in stack 2. Attachthe lashing
t
clevis5witha loadbind
r
Figure 4-12. Lashings 1 Through 9 Installed
4-13
FM 4-20.117/TO 13C7-1-111
10
12
7
6
15
14
9A
9
Tie-down
Lashing
Clevis
Number
Number
Instructions
Pass
l
10
6
Throughtie-down bracket behind left
f
11
6A
Throughtie-down bracket behind right
f
12
7
Around left lower control arm
13
7A
Around right lower control arm
14
9
Throughtie-down bracket on end of left
f
15
9A
Throughtie-down bracket on end of right
f
Figure 4-13. Lashings 10 Through 15 Installed
4-14
FM 4-20.117/TO 13C7-1-111
INSTALLING AND SAFETY TYING SUSPENSION SLINGS
4-7. Install and safety tie four 16-foot (2-loop), type XXVI nylon suspension slings
as shown in Figure 2-20.
STOWING CARGO PARACHUTES
4-8. Stow and restrain three G-11 cargo parachutes on the load according to FM
4-20.102/TO 13C7-1-5. Install two type VIII nylon webbing restraint straps. Tie
the front restraint straps to clevises 8 and 8A. Tie the rear restraint straps to
the 27th bushings on the platform side rails.
INSTALLING PARACHUTE RELEASE
4-9. Prepare and install an M-1 cargo parachute release according to FM 4-
20.102/TO 13C7-1-5, and as shown in Figure 2-22 .
INSTALLING EXTRACTION SYSTEM
4-10. Install the EFTC extraction system according to FM 4-20.102/TO 13C7-1-
5, and as shown in Figure 2-23.
INSTALLING PROVISIONS FOR EMERGENCY RESTRAINTS
4-11. Install provisions for emergency restraints according to FM 4-20.102/TO
13C7-1-5.
PLACING EXTRACTION PARACHUTE
4-12. Select the extraction parachute and extraction line needed, using the
extraction line requirements table in FM 4-20.102/TO 13C7-1-5. Rig the extrac-
tion line in a line bag according to TM 10-1670-286-20/TO 13C5-2-41. Place the
extraction parachute and extraction line on the load for installation in the
aircraft.
4-15
FM 4-20.117/TO 13C7-1-111
MARKING RIGGED LOAD
4-13. Mark the rigged load according to FM 4-20.102/TO 13C7-1-5, and as
shown in Figure 4-14. Complete Shipper's Declaration for Dangerous Goods
according to AFJMAN 24-204/TM 38-250. If the load varies from the one shown,
the weight, height, CB, and parachute requirements must be recomputed.
EQUIPMENT REQUIRED
4-14. Use the equipment listed in Table 4-1 to rig this load.
CAUTION
Make the final rigger inspection required by FM 4-20.102/
TO 13C7-1-5 before the load leaves the rigging site.
CB
RIGGED LOAD DATA
Weight: Load shown
11,960 pounds
Maximum load allowed
12,710 pounds
Height (with three G-11B parachutes)
97 inches
Width
108 inches
Length (overall)
215 inches
Overhang: Front
8 inches
Rear (EFTC)
18 inches
CB (from front edge of platform)
91 inches
Figure 4-14. M56 Smoke Generator Rigged in M1113 Truck for Low-Velocity Airdrop
4-16
|
|
