Chapter 3
LAYER 2
LAYER 1
FUSES AND
HONEYCOMB
PRIMERS
FILLER
HONEYCOMB
LAYER
SKID

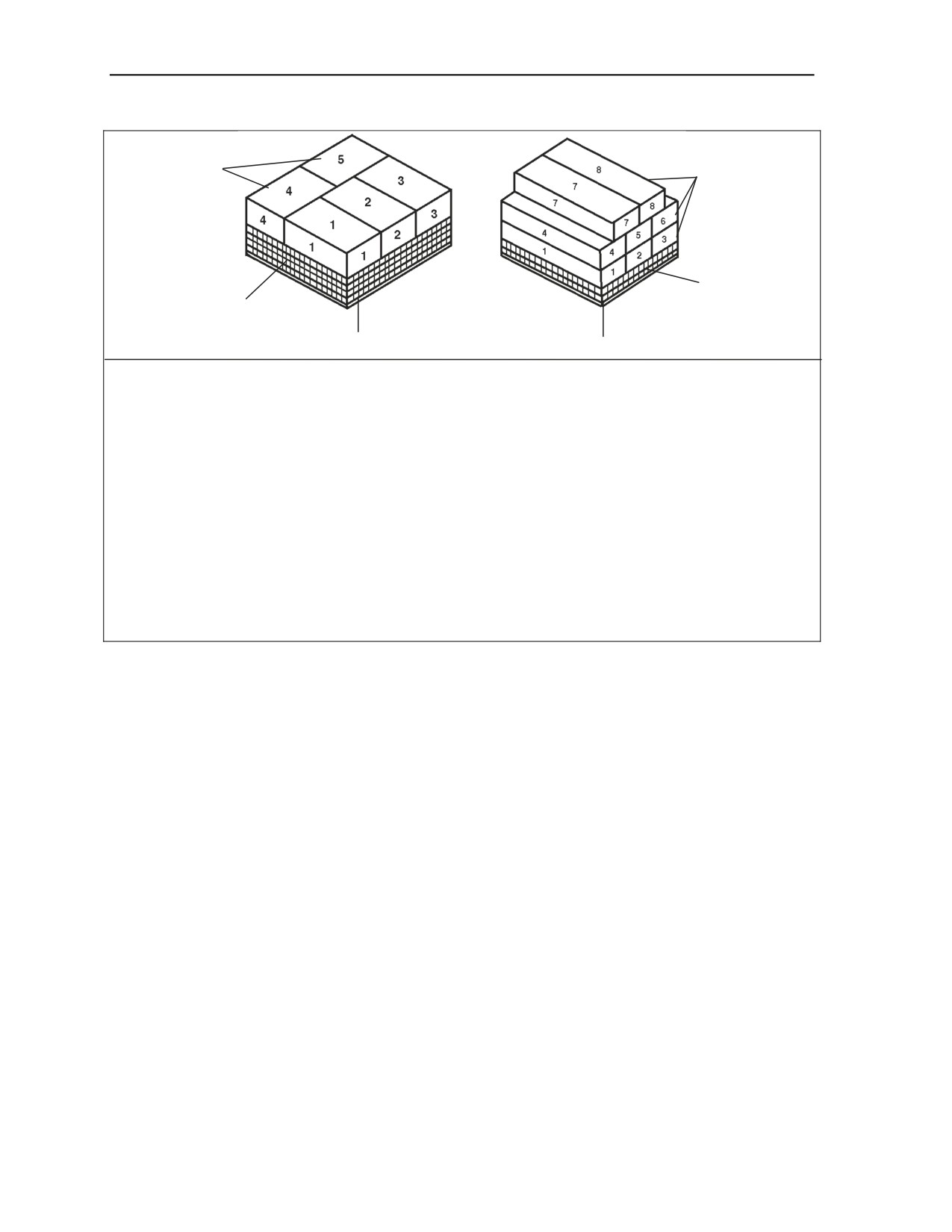

The following ammunition items are rigged in an A-22 cargo bag for high-velocity airdrop as shown in

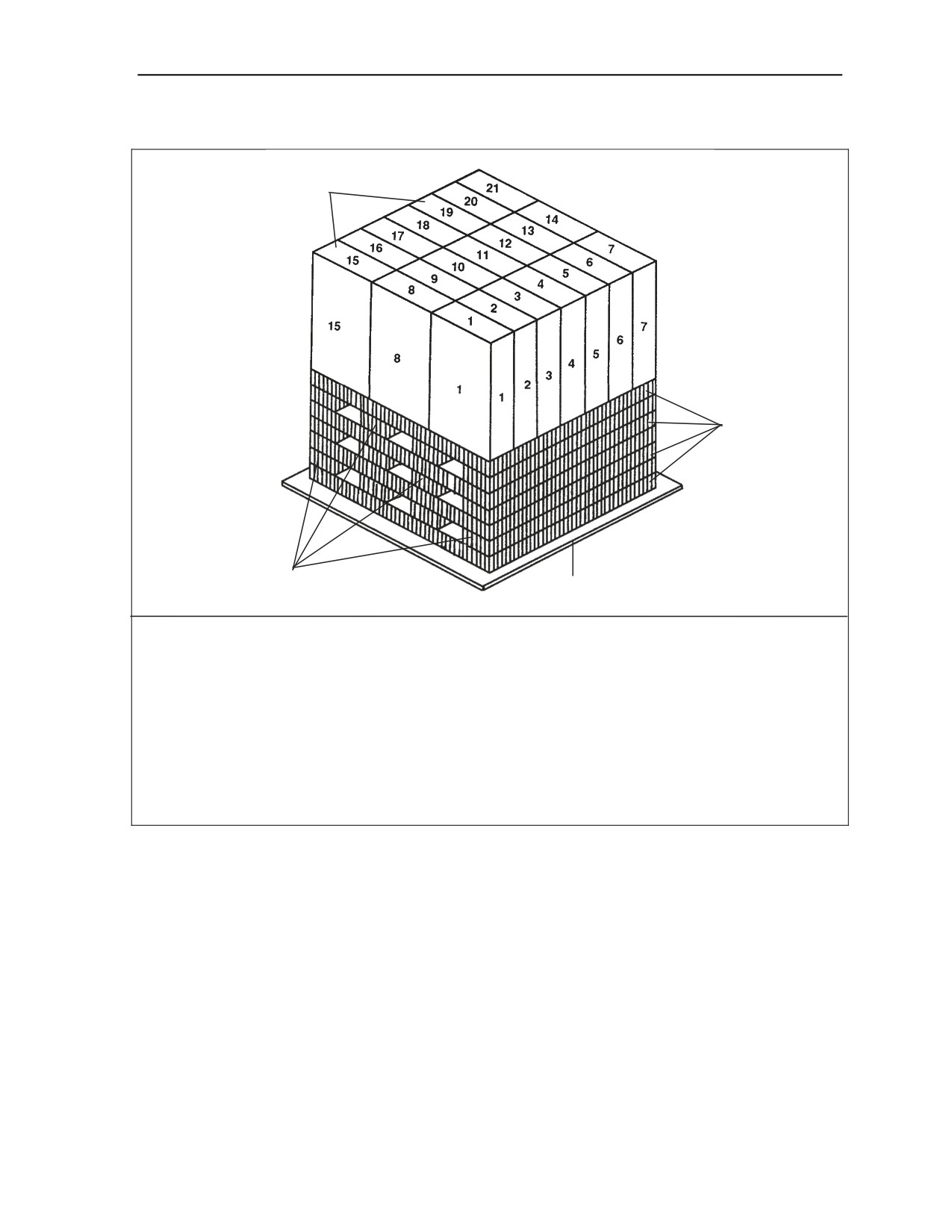

Figure 3-71.
Note: Dropping these items as a single item load may not be practical; however, they can be contained in an A-22 cargo bag
with other compatible items and airdropped. Quantity and type of items that can be rigged in an A-22 cargo bag are
determined by the individual ammunition container dimensions and weight.
Incendiary Item
Starter, Fire, NP3, M2, (DODIC 1370-L621)
Figure 3-71. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
3-76
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Rigging High-Velocity A-22 Cargo Bag Loads
Fuzes and Primers
CAUTION
When proximity fuzes are airdropped, the boxed fuzes must be
dropped in the nose-down position. If the boxes are damaged, the
fuzes must not be used.
Fuze, MT, 565, (DODIC 1390-N248)
Fuze, MTSQ, M500 or M500A1, (DODIC 1390-N275)
Fuze, MTSQ, M501 or M501A1, (DODIC 1390-N276)
Fuze, MT, M564, (DODIC 1390-N278)
Fuze, MTSQ, M520, (DODIC 1390-N280)
Fuze, MTSQ, M577, (DODIC 1390-N285)
Fuze, MTSQ, M582A1, (DODIC 1390-N286)
Fuze, Electronic Time, M762, (DODIC 1390-N289)
Fuze, Electronic Time, M767, (DODIC 1390-N290)
Fuze, PD, M572, (DODIC 1390-N311)
Fuze, PD, M48A3, (DODIC 1390-N318)
Fuze, PD, M535, (DODIC 1390-N323)
Fuze, PD, M557, (DODIC 1390-N335)
Fuze, PD, M739, (DODIC 1390-N340)
Fuze, Proximity, M532, (DODIC 1390-N402)
Fuze, Proximity, M514, M514A1, or M514B1, (DODIC 1390-N411)
Fuze, Proximity, M513A1 or M513B1, (DODIC 1390-N412)
Fuze, Proximity, M517, (DODIC 1390-N417)
Fuze, Proximity, M728, (DODIC 1390-N463)
Fuze, Proximity, M514A1, (DODIC 1390-N477)
Primer, Percussion, M82, (DODIC 1390-N523)
Primer, Percussion, MK2A4, (DODIC 1390-N525)
Fuze, Multi-Option for Artillery, M782, (DODIC 1390-NA09)
Figure 3-71.
Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop (continued)
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
3-77
Chapter 3

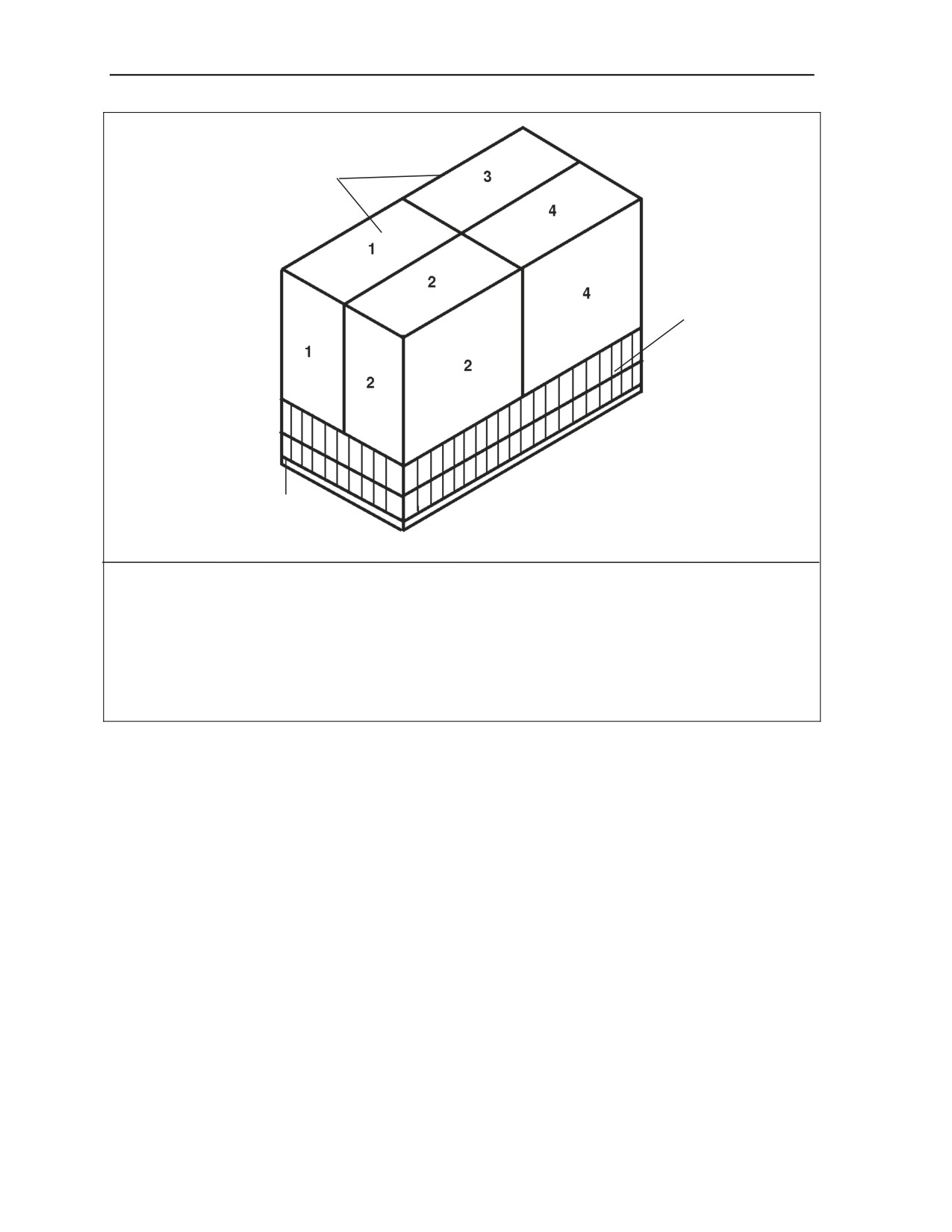

LAYER 1
LAYER 2
AMMUNITION
BOXES
HONEYCOMB
LAYER
LOAD SPREADERS
(¾-IN PLYWOOD)
SKID

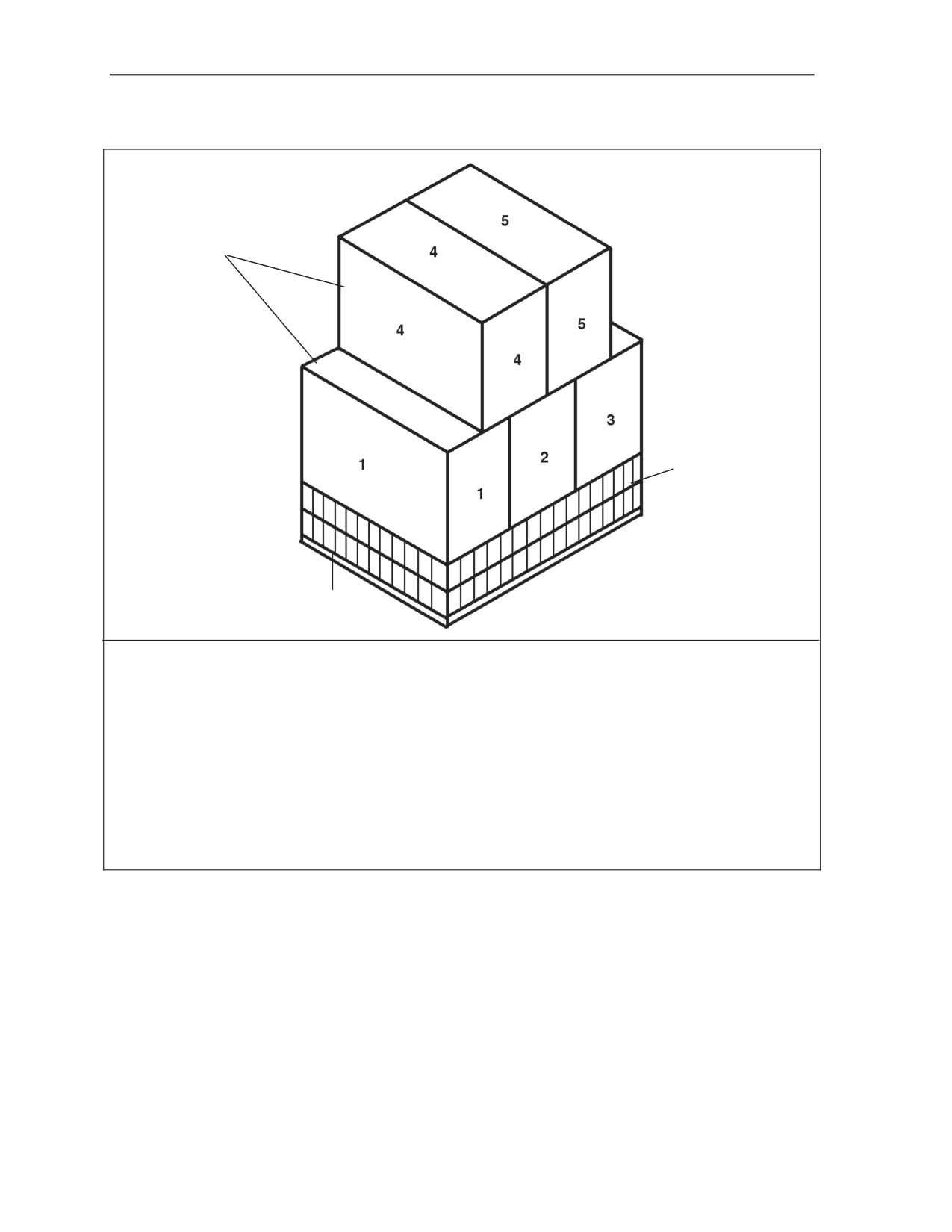

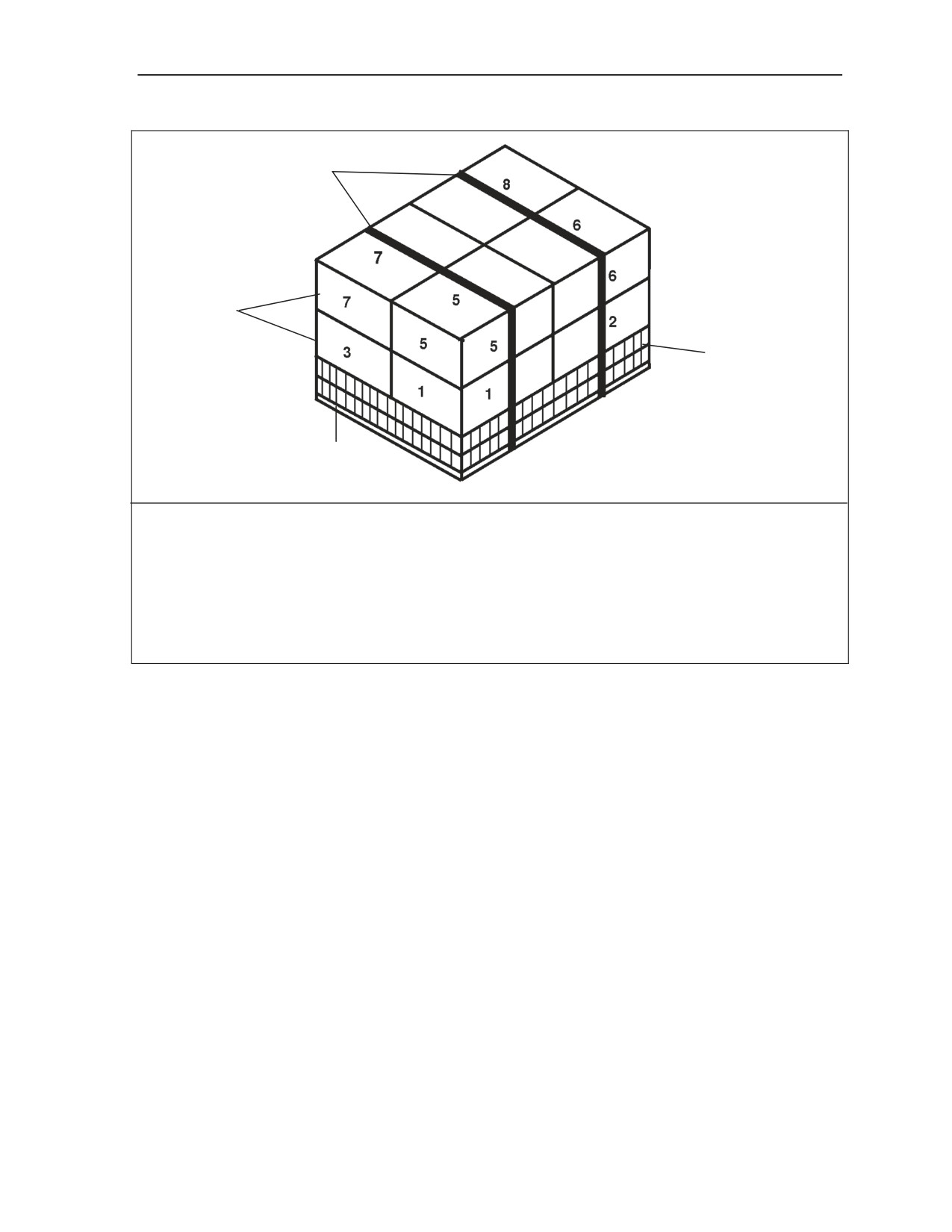

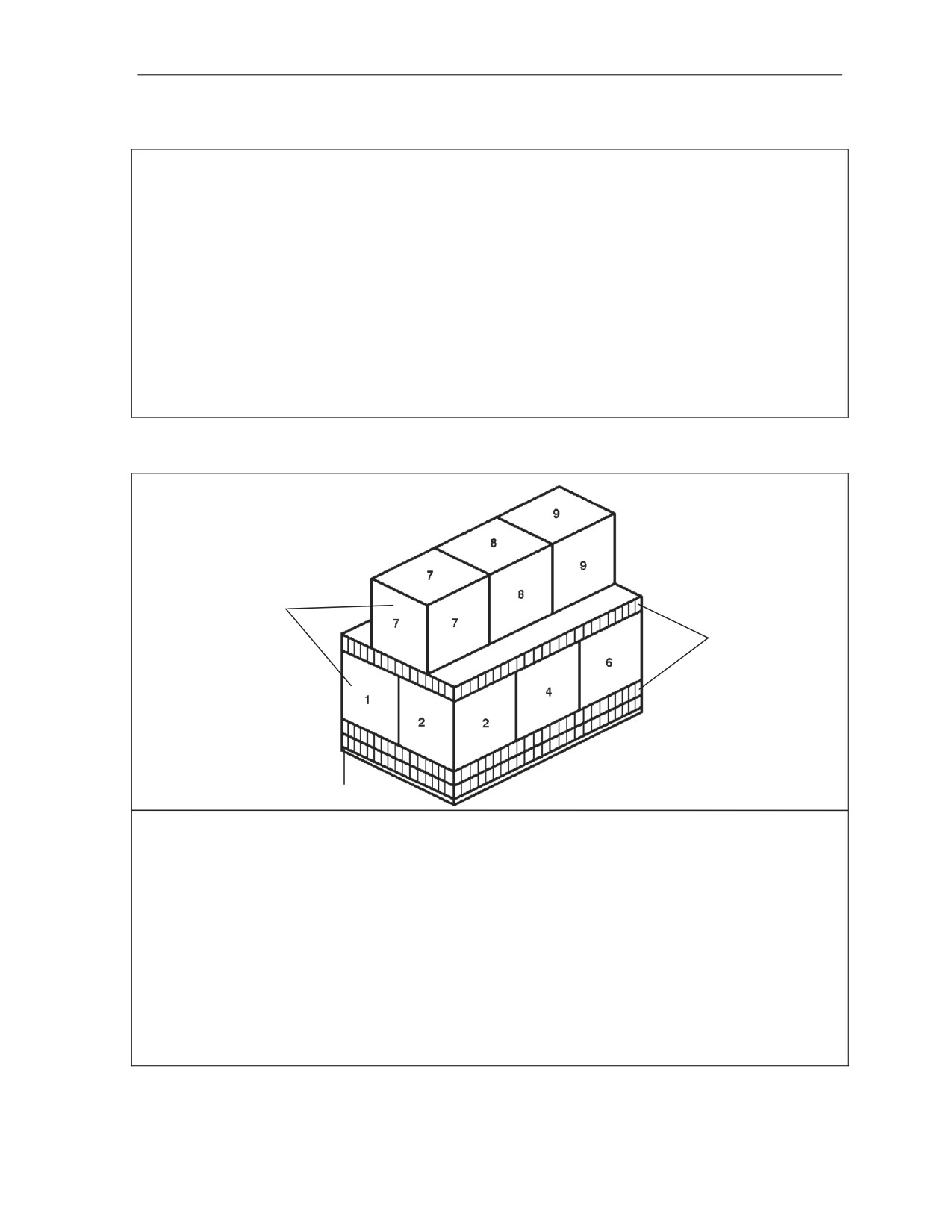

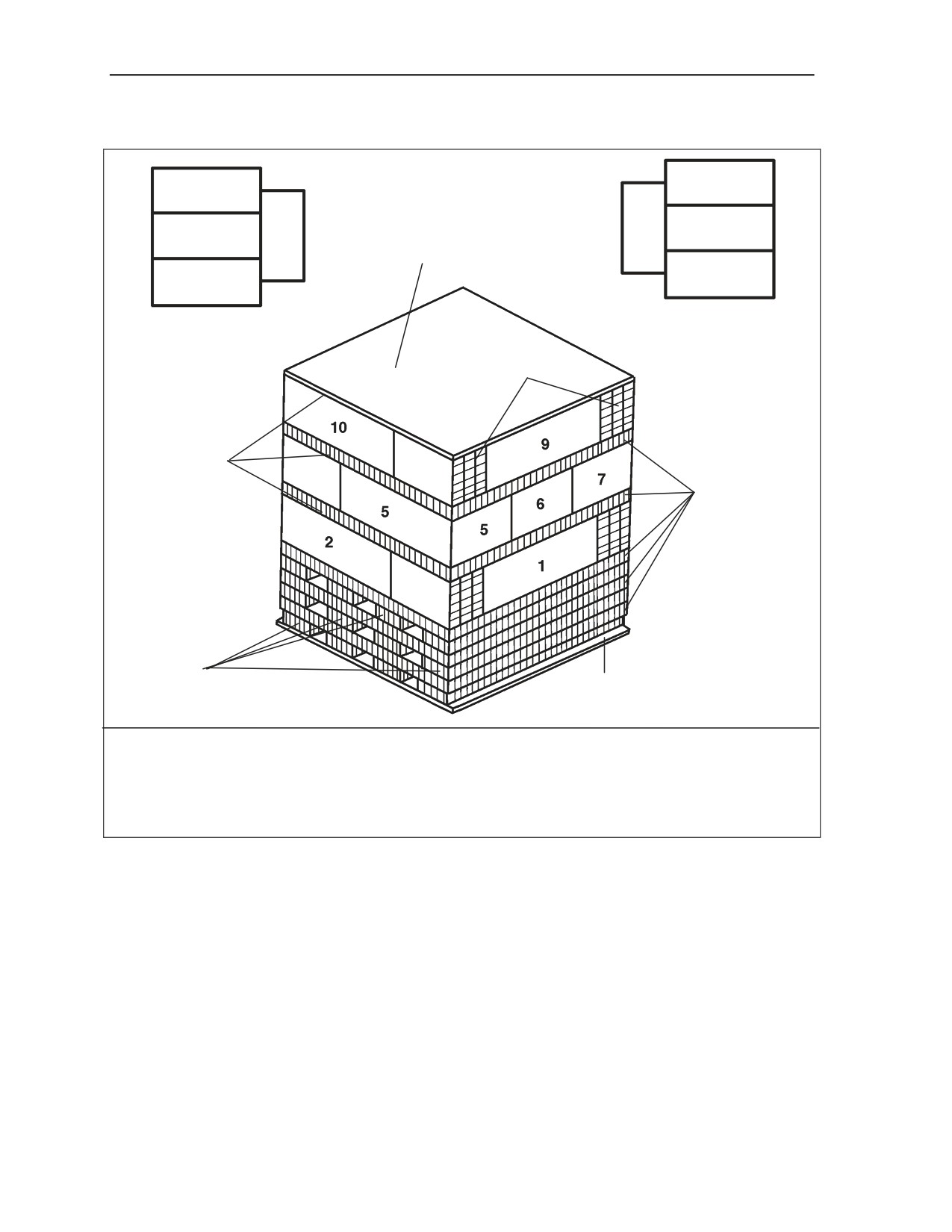

The following ammunition item is rigged in an A-22 cargo bag for high-velocity airdrop as shown in

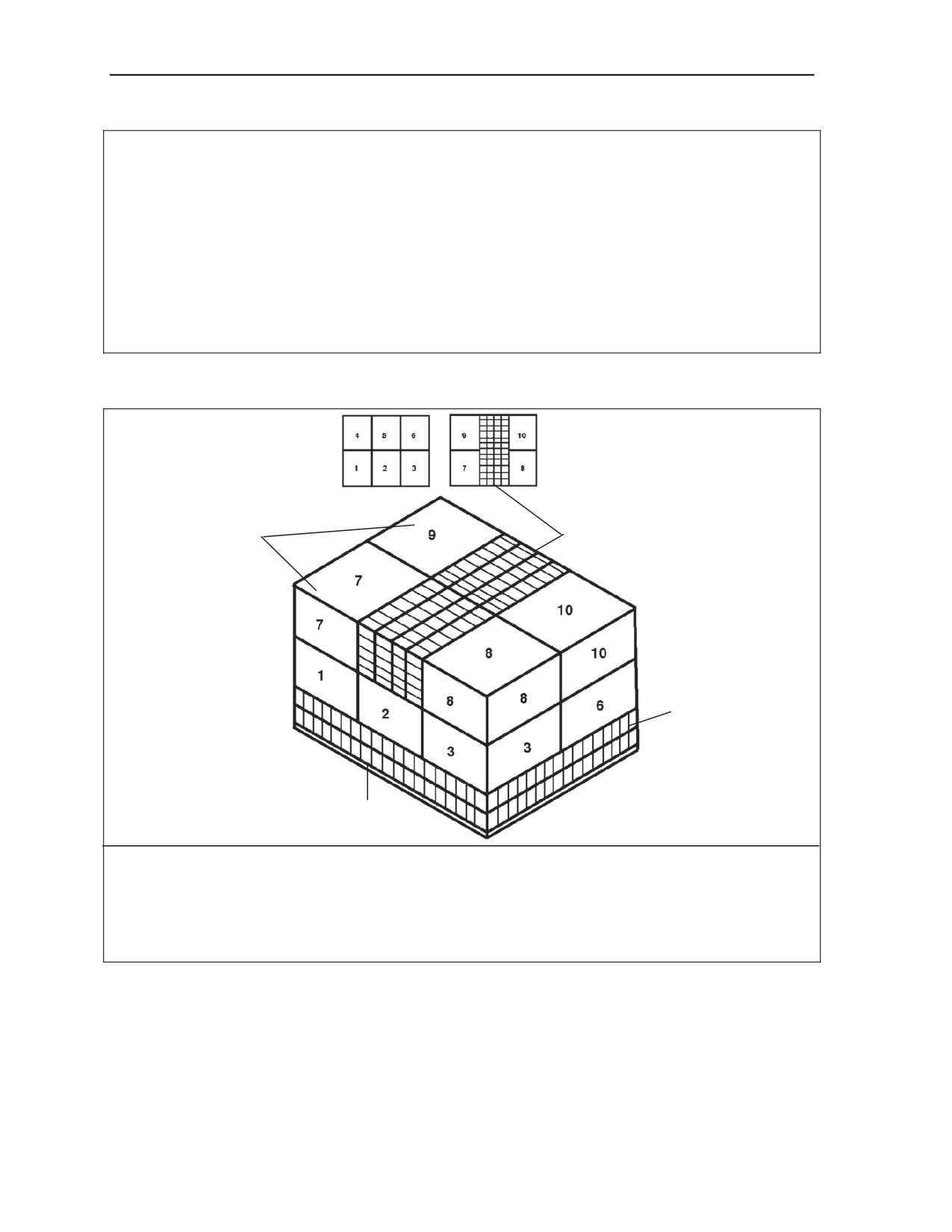

Figure 3-72.
Fuzes and Primers
Fuze, Proximity, M732, (DODIC 1390-N464)
Figure 3-72. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
3-78
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Rigging High-Velocity A-22 Cargo Bag Loads
¾-IN PLYWOOD
AMMUNITION
BOXES
HONEYCOMB
LAYER
LOAD SPREADERS
(¾-IN PLYWOOD)
SKID

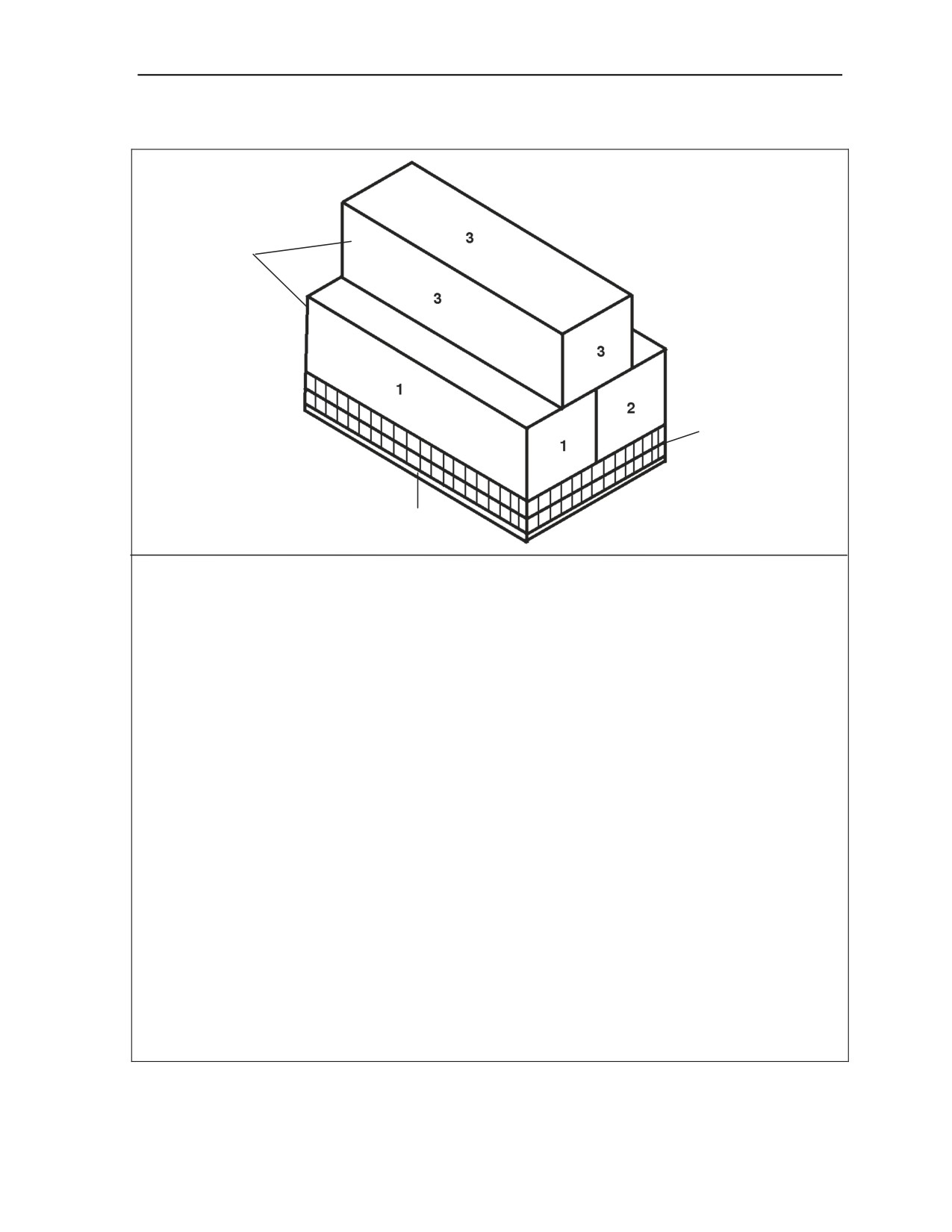

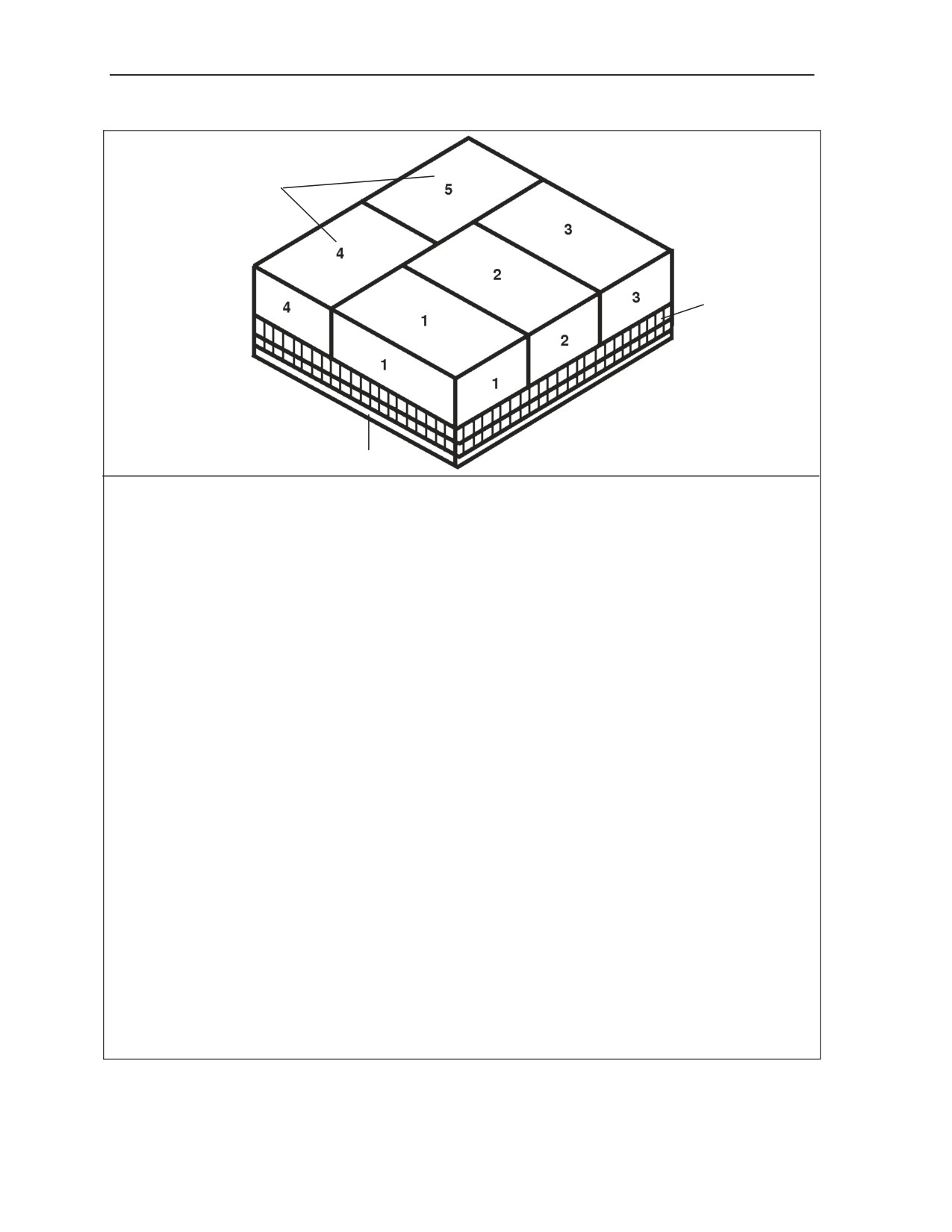

The following ammunition items are rigged in an A-22 cargo bag for high-velocity airdrop as shown in

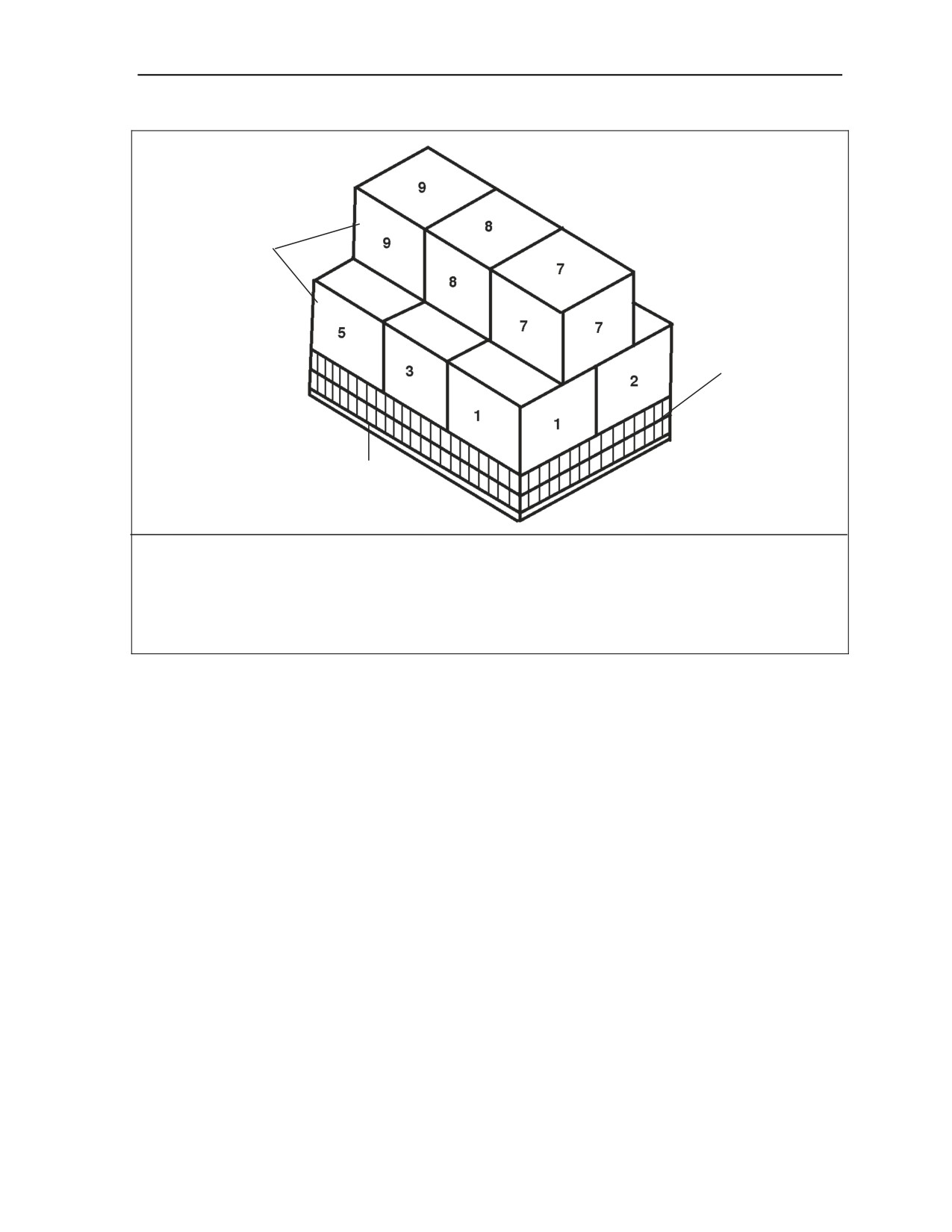

Figure 3-73.
Flare and Signal Items
Signal, Underwater Sound, MK61, Mod O, (NALC SWO8)
Signal, Underwater Sound, MK82, Mod O, (NALC SW32)
Figure 3-73. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
3-79
Chapter 3
AMMUNITION
BOXES
LOAD SPREADERS
HONEYCOMB
(¾-IN PLYWOOD)
LAYER
HONEYCOMB
STRIPS
SKID
(8-IN WIDE)

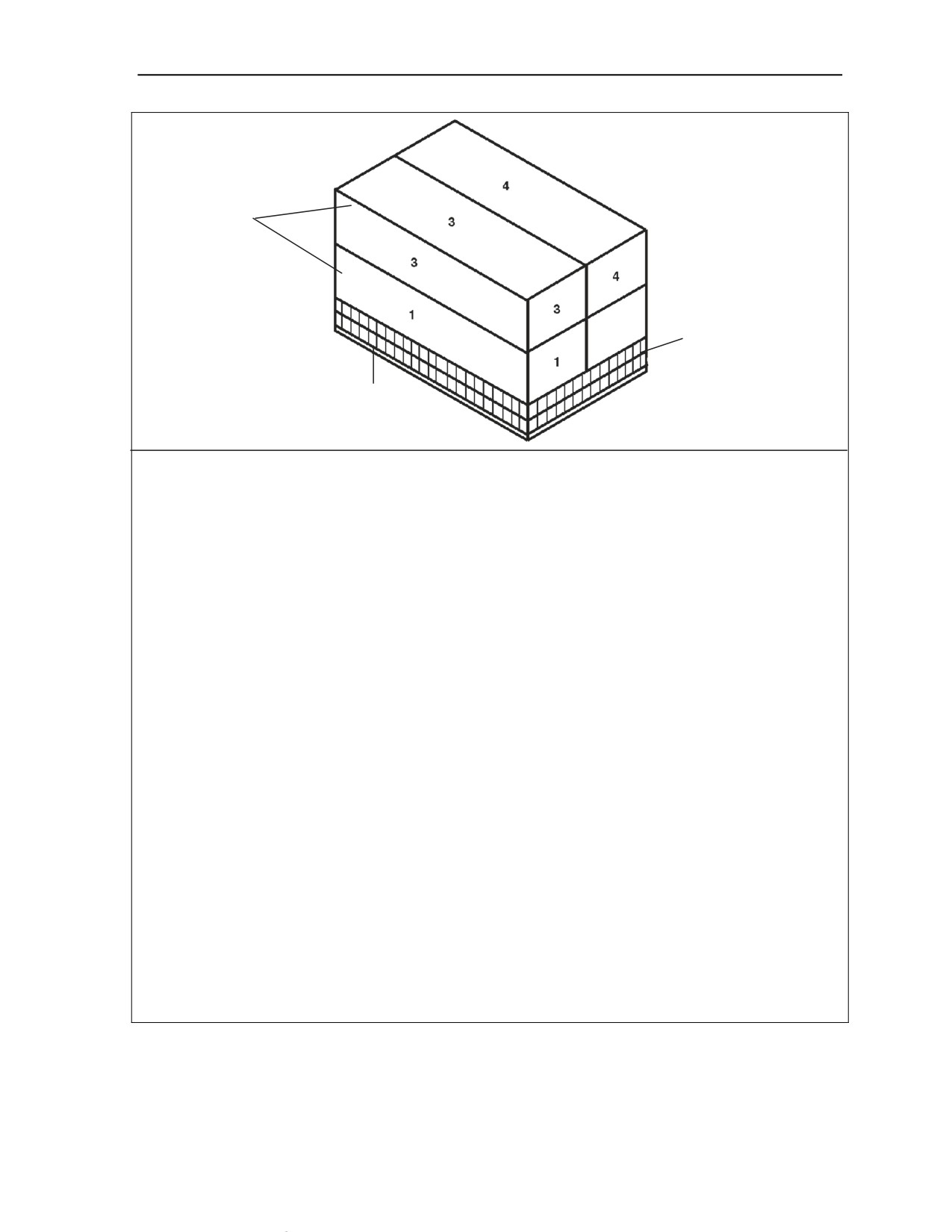

The following ammunition item is rigged in an A-22 cargo bag for high-velocity airdrop as shown in
Figure 3-74.
Fuzes and Primers
Fuze, Delay, PD, MOD 1, MK399, (DODIC 1390-N659)
Figure 3-74. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
3-80
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Rigging High-Velocity A-22 Cargo Bag Loads
AMMUNITION
BOXES
HONEYCOMB
LAYER
HONEYCOMB
STRIPS
(6-IN WIDE)
SKID

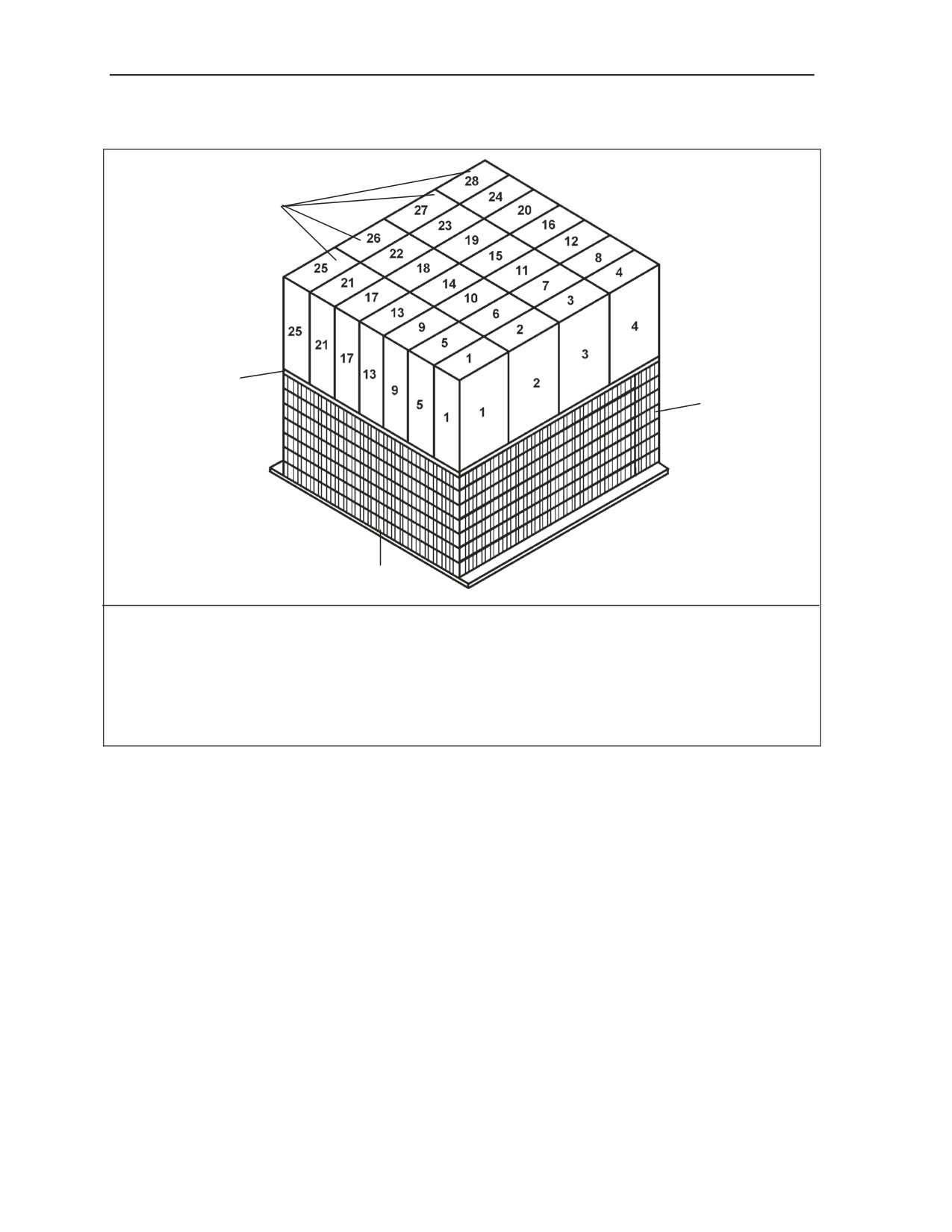

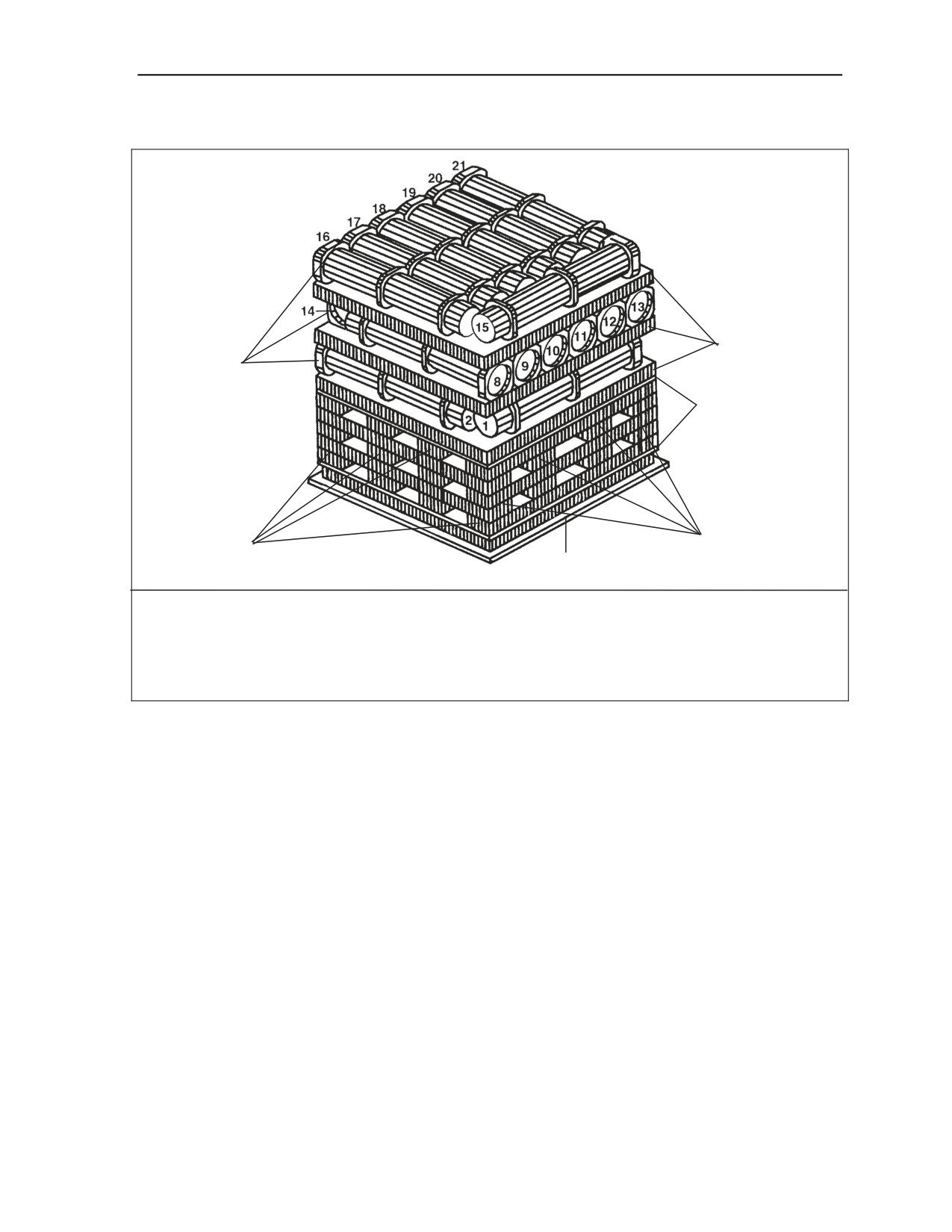

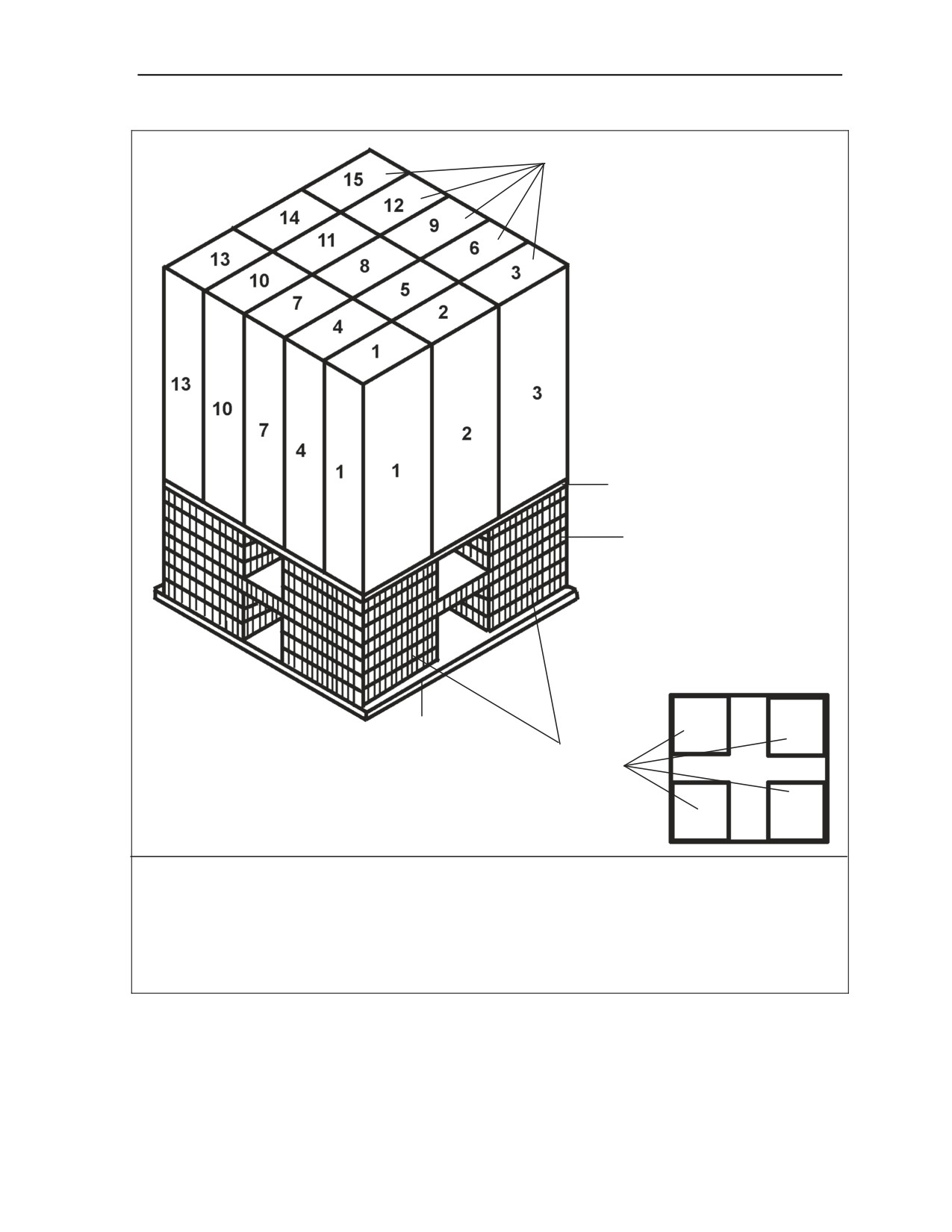

The following ammunition items are rigged in an A-22 cargo bag for high-velocity airdrop as shown in

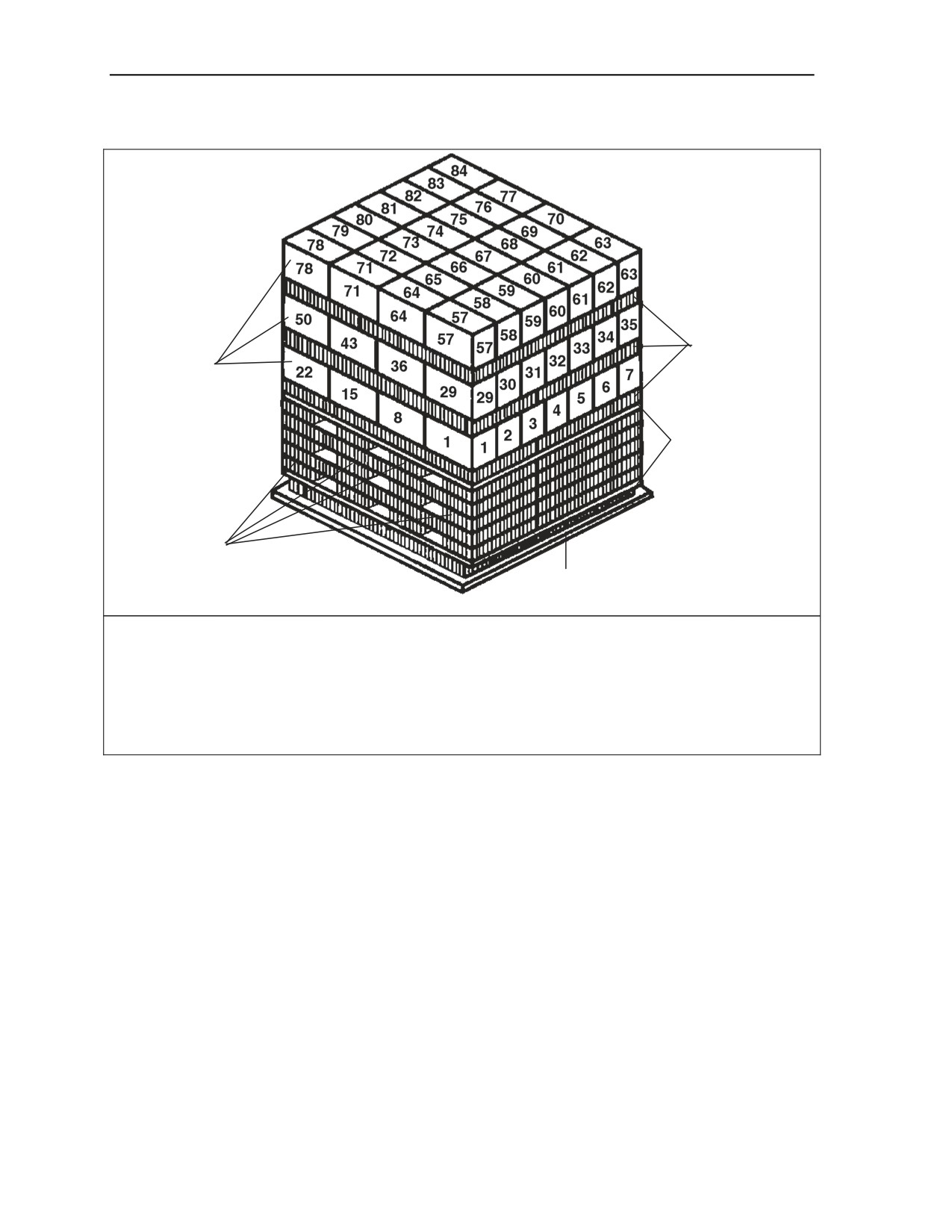

Figure 3-75.
81-Millimeter Ammunition
Cartridge, 81-mm, HE, M821A1/M821A2 with Fuze, M734A1
(DODIC 1315-C868)
Cartridge, 81-mm, HE, M889A1/M889A2 with Fuze, M734A1,
(DODIC 1315-C869)
Cartridge, 81-mm, FRP, M879, (DODIC 1315-C875)
Figure 3-75. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
3-81
Chapter 3
HONEYCOMB
FILLER
AMMUNITION
BOXES
HONEYCOMB
LAYERS
LOAD SPREADERS
(¾-IN PLYWOOD)
HONEYCOMB
STRIPS
SKID
(7 1/2-IN WIDE)

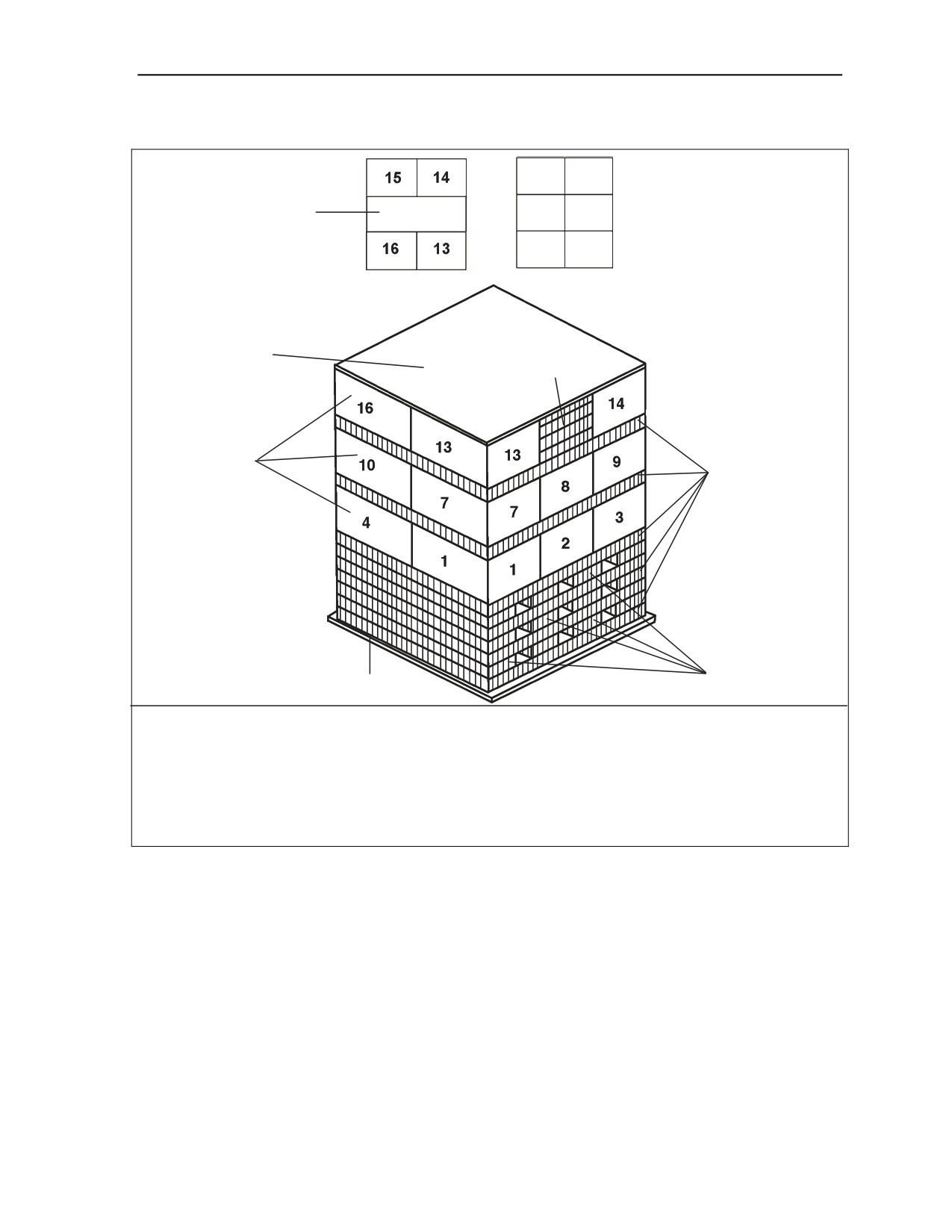

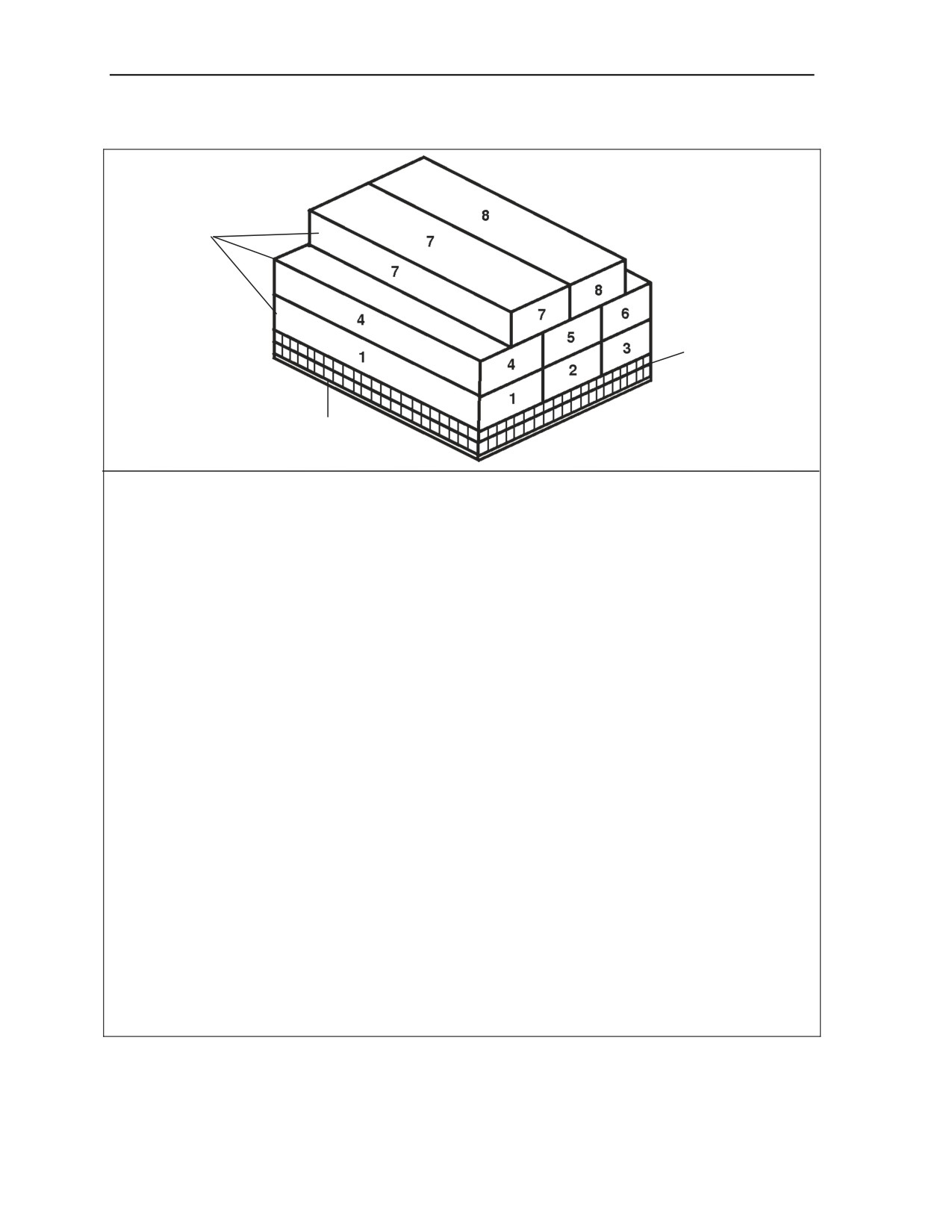

The following ammunition item is rigged in an A-22 cargo bag for high-velocity airdrop as shown in

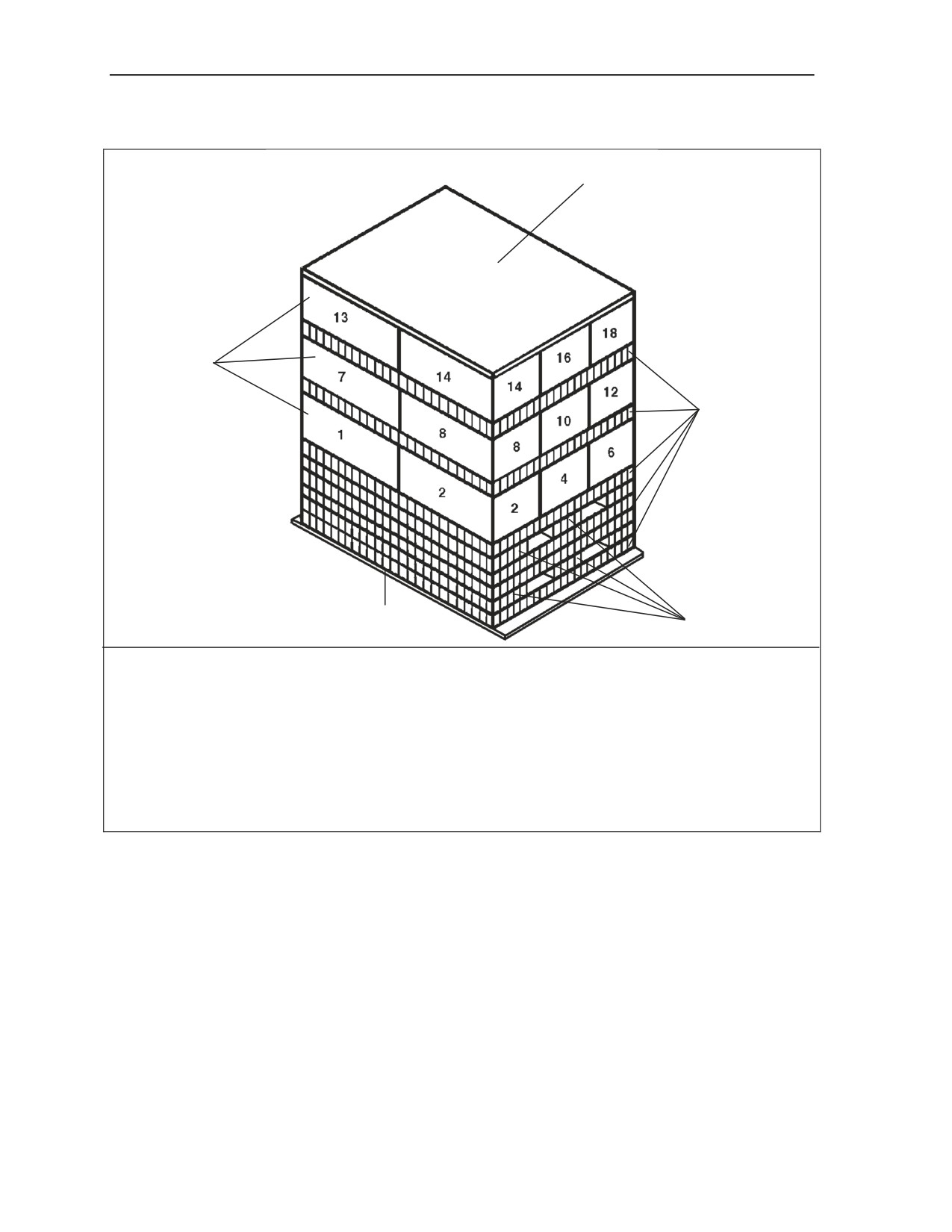

Figure 3-76.
Grenades
Grenade, Launcher, Smoke, Screening, TA, M90, (DODIC 1330-GG03)
Figure 3-76. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
3-82
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Rigging High-Velocity A-22 Cargo Bag Loads
AMMUNITION
HONEYCOMB
LAYERS
HONEYCOMB
STRIPS
(9-IN WIDE)
SKID

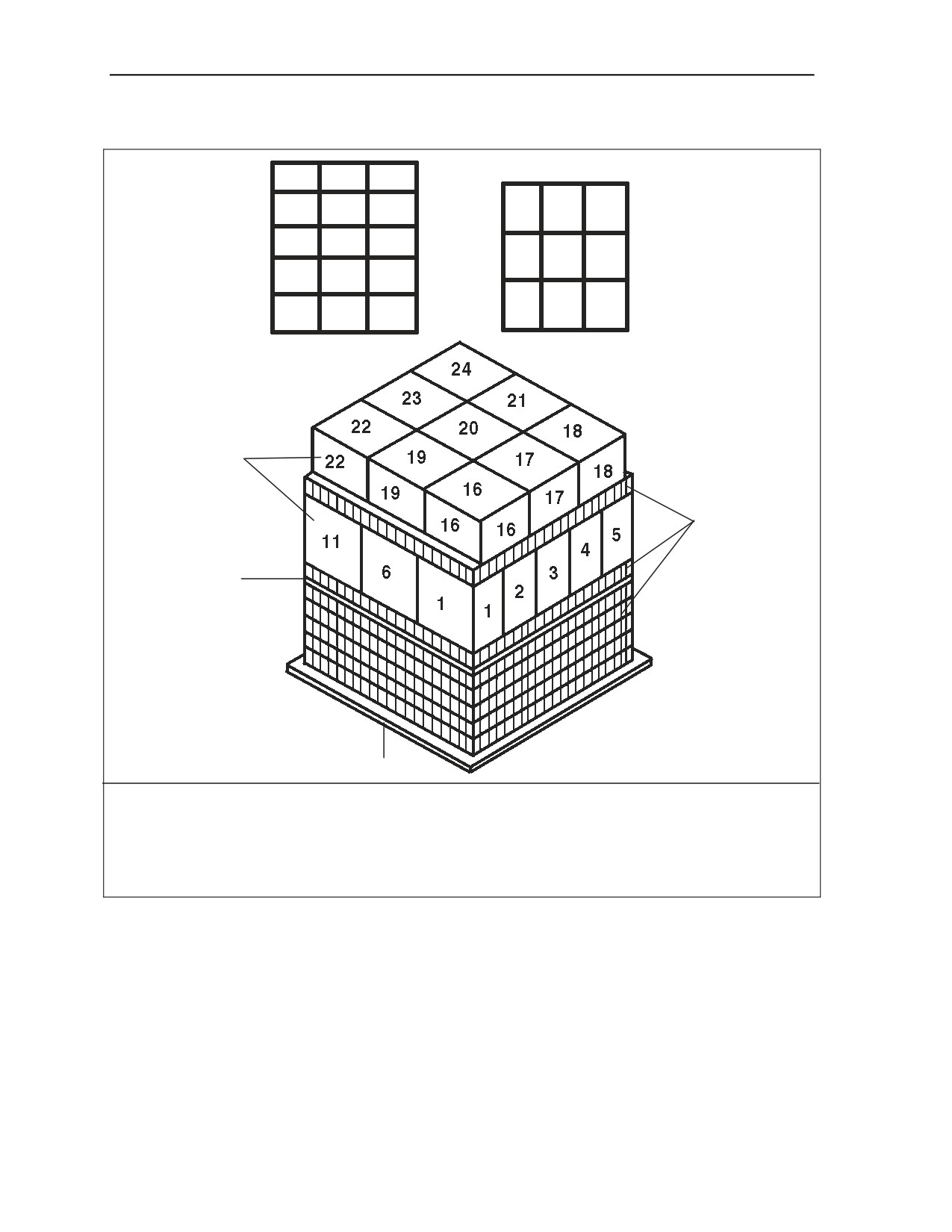

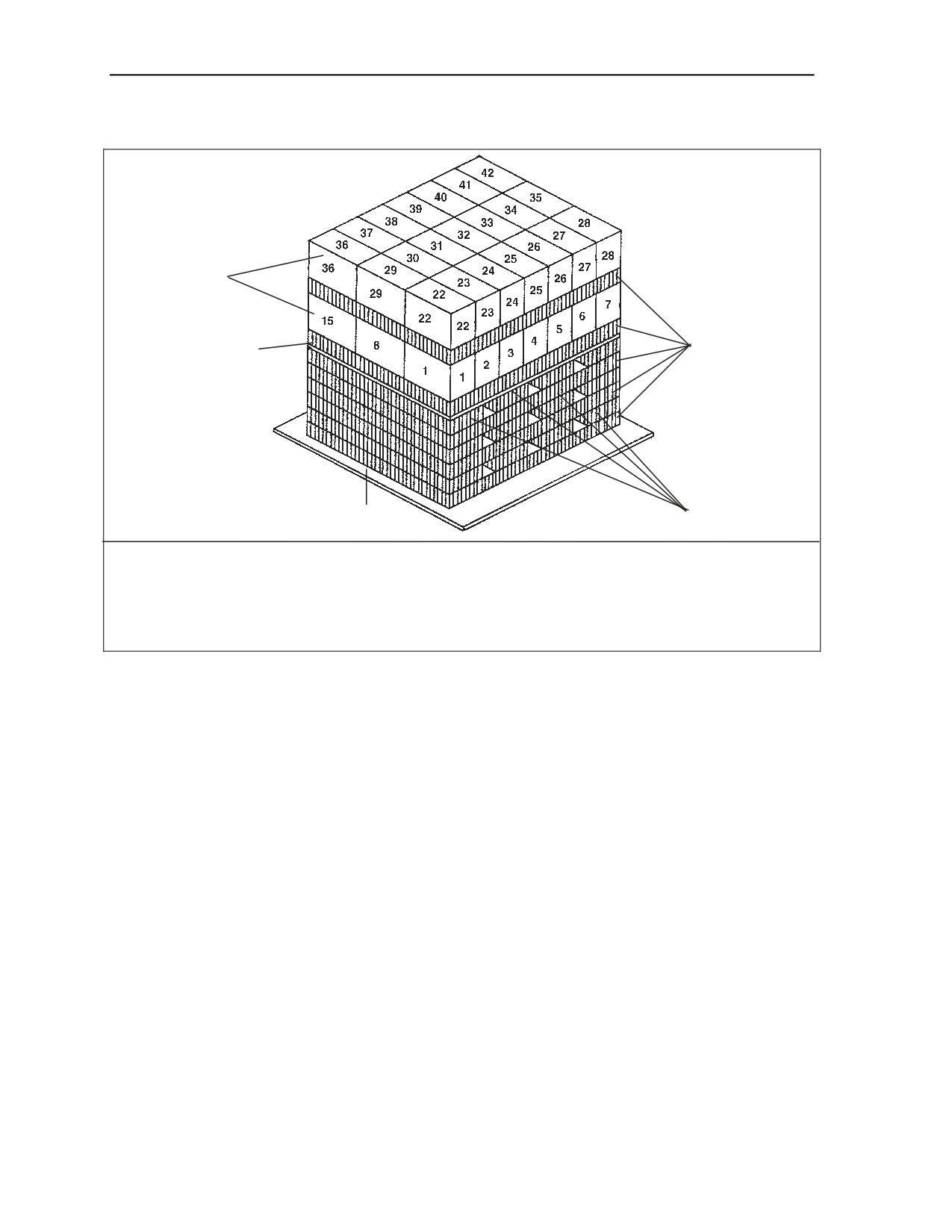

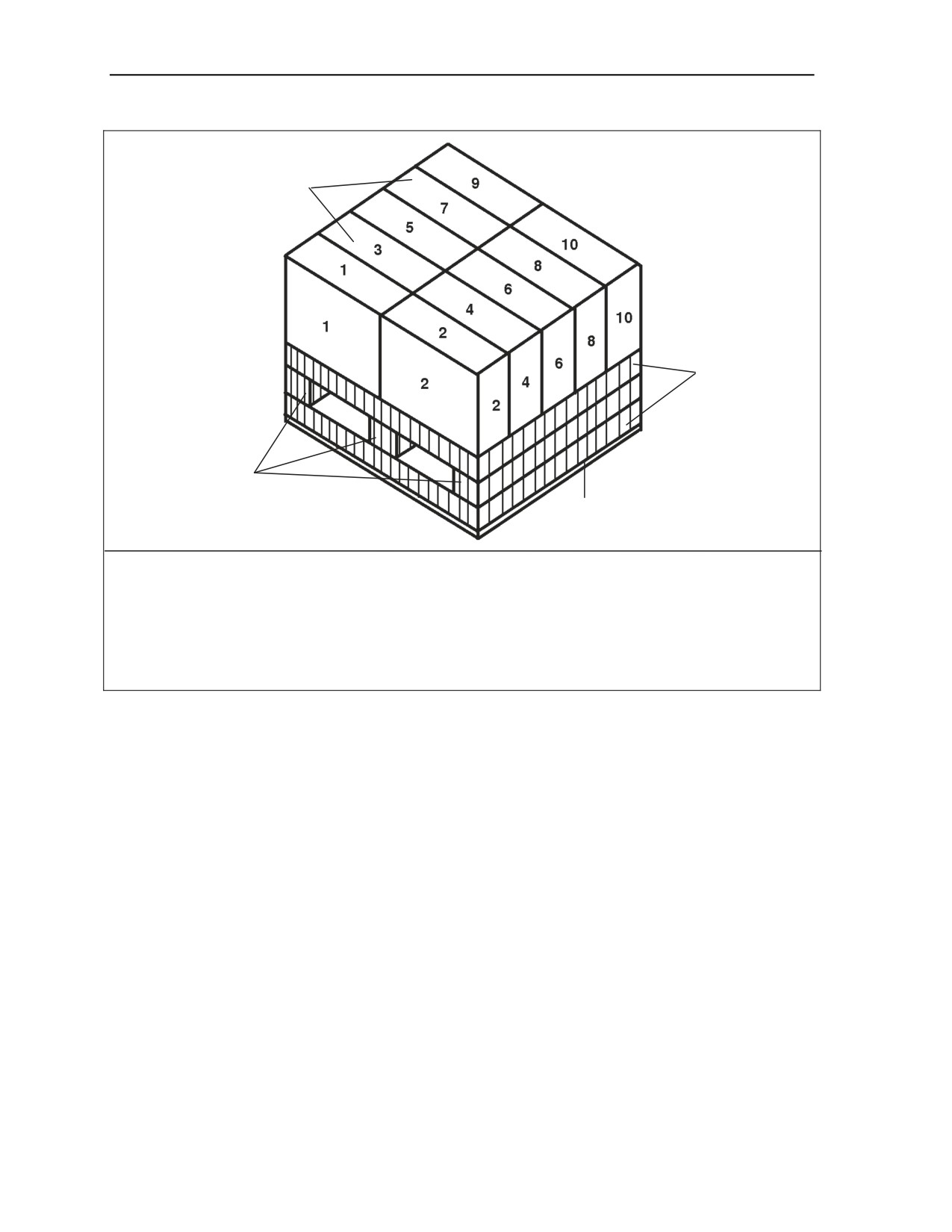

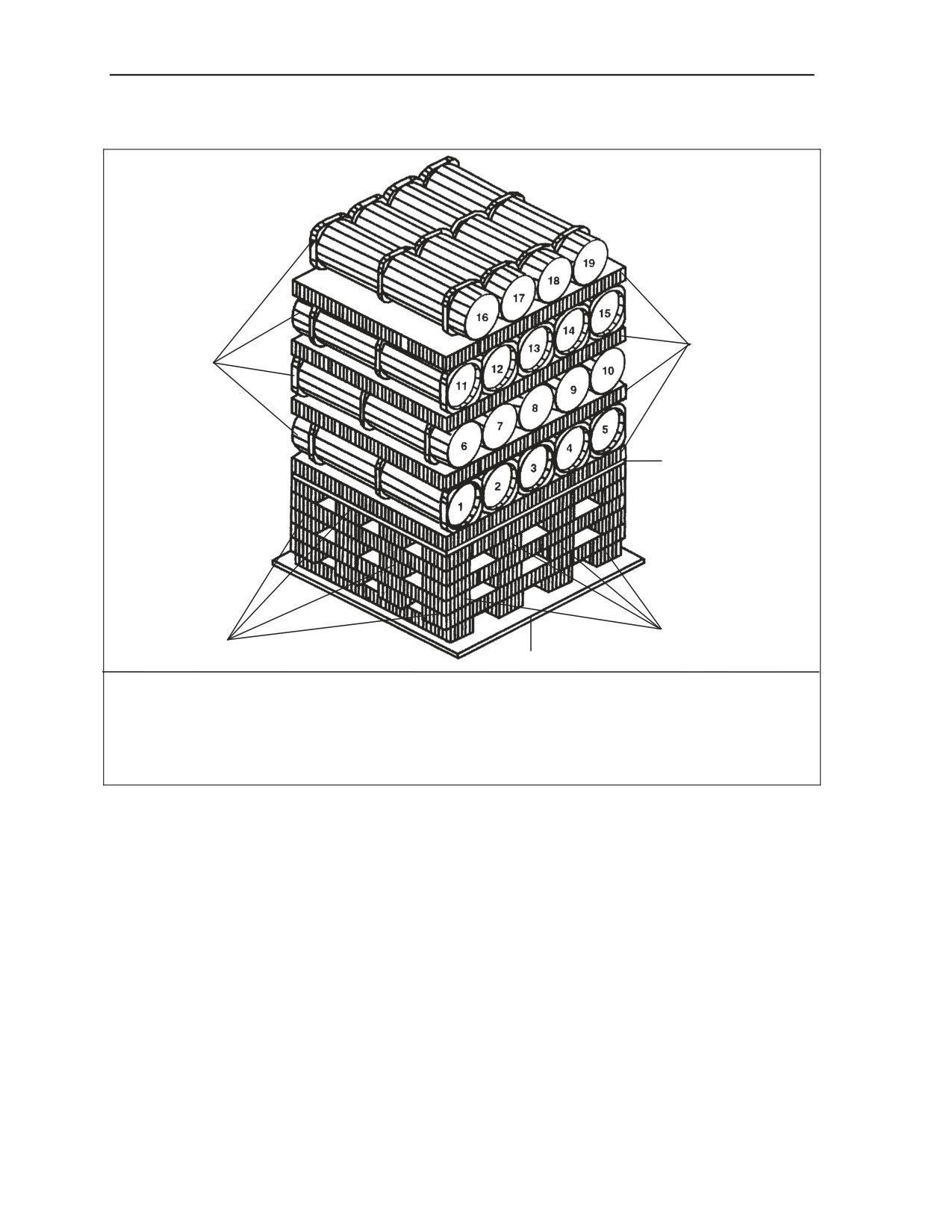

The following ammunition items are rigged in an A-22 cargo bag for high-velocity airdrop as shown in

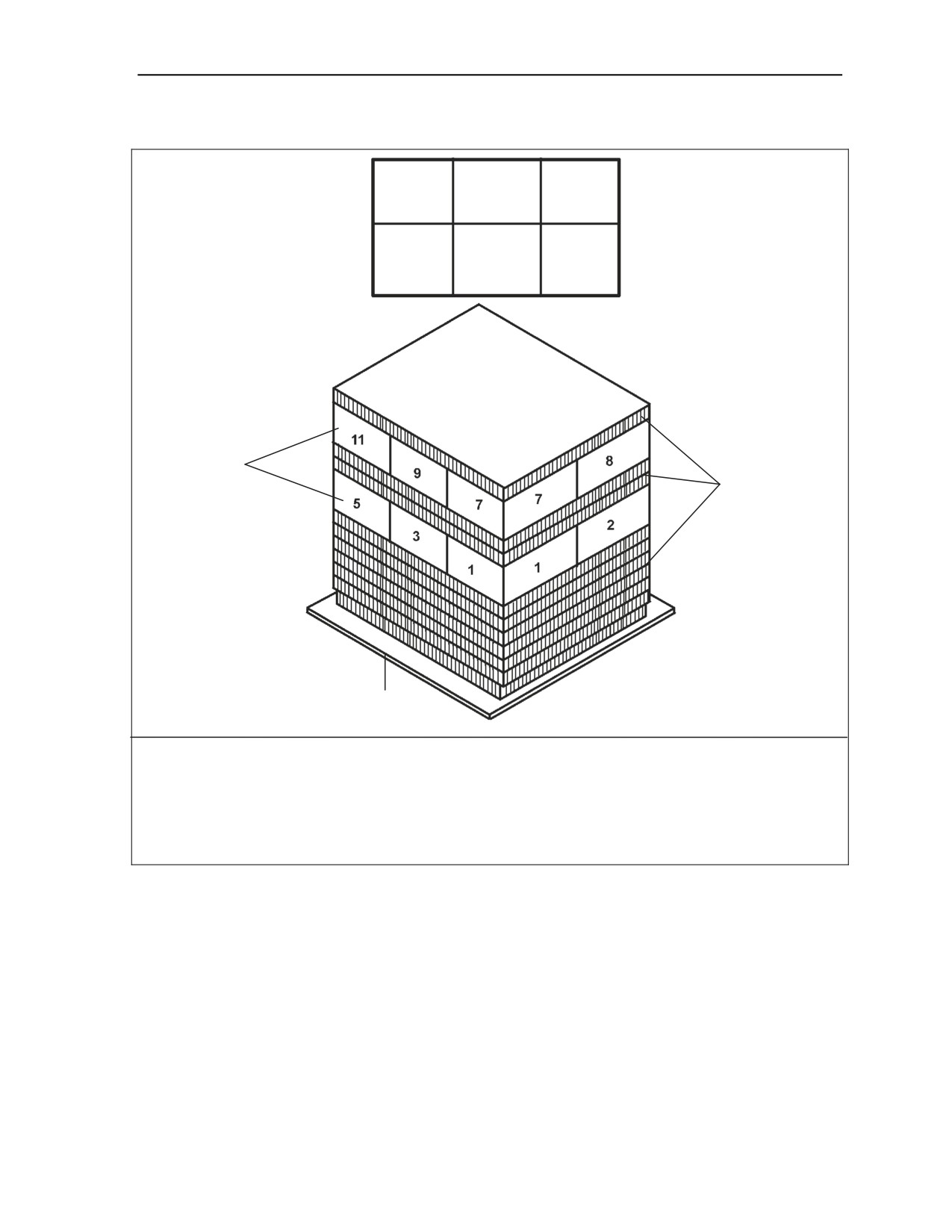

Figure 3-77.
105-Millimeter Ammunition
Cartridge, 105-mm, HERA, M913 in PA117 Containers, (DODIC 1315-C546)
Cartridge, 105-mm, DPICM, M915, (DODIC 1315-CA11)
Cartridge, 105-mm, HE-T/TP-T, M393A3, (DODIC 1315-CA32)
Figure 3-77. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
3-83
Chapter 3
HONEYCOMB
AMMUNITION
LAYERS
LOAD SPREADER
(¾-IN PLYWOOD)
HONEYCOMB
HONEYCOMB
STRIPS
STRIPS
(6-IN WIDE)
(6-IN WIDE)
SKID

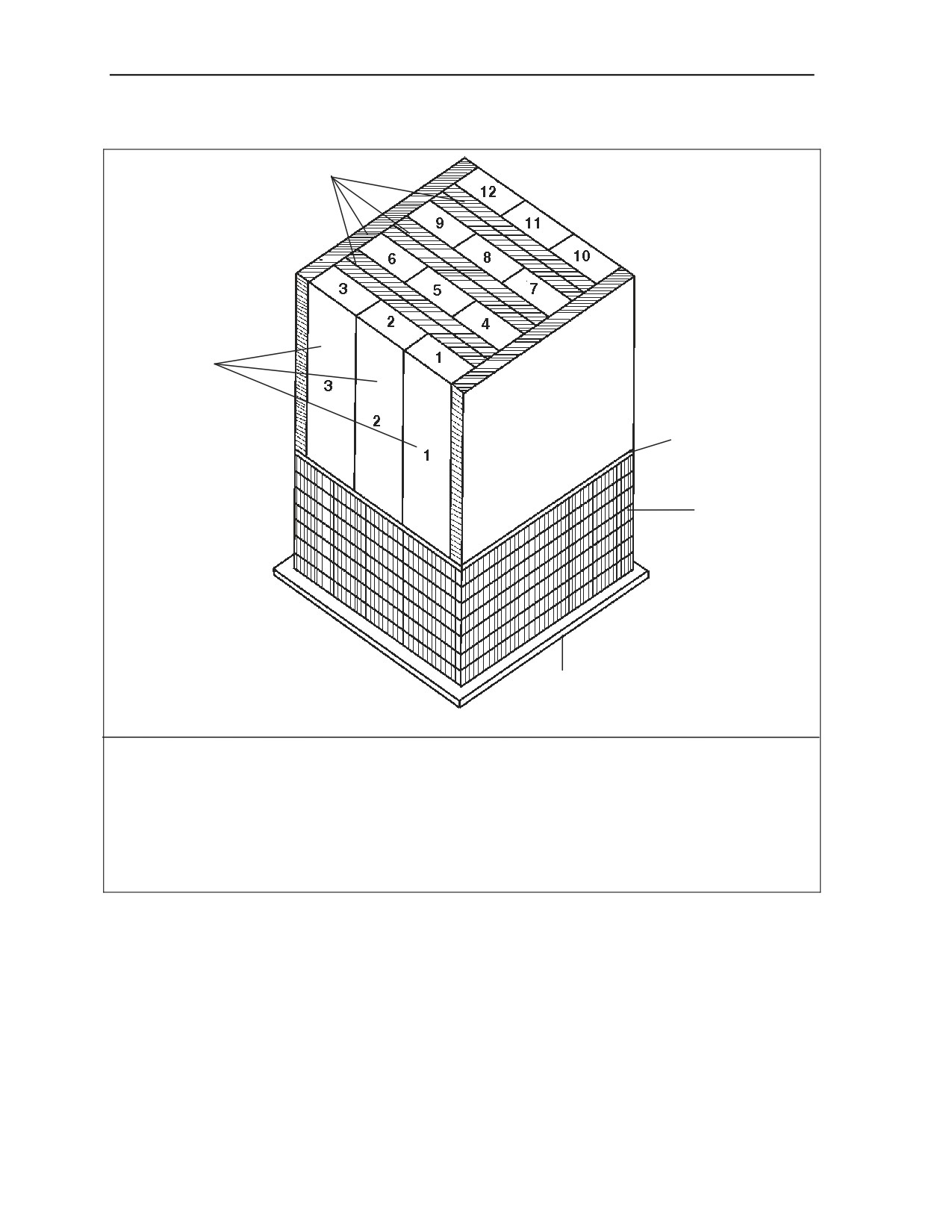

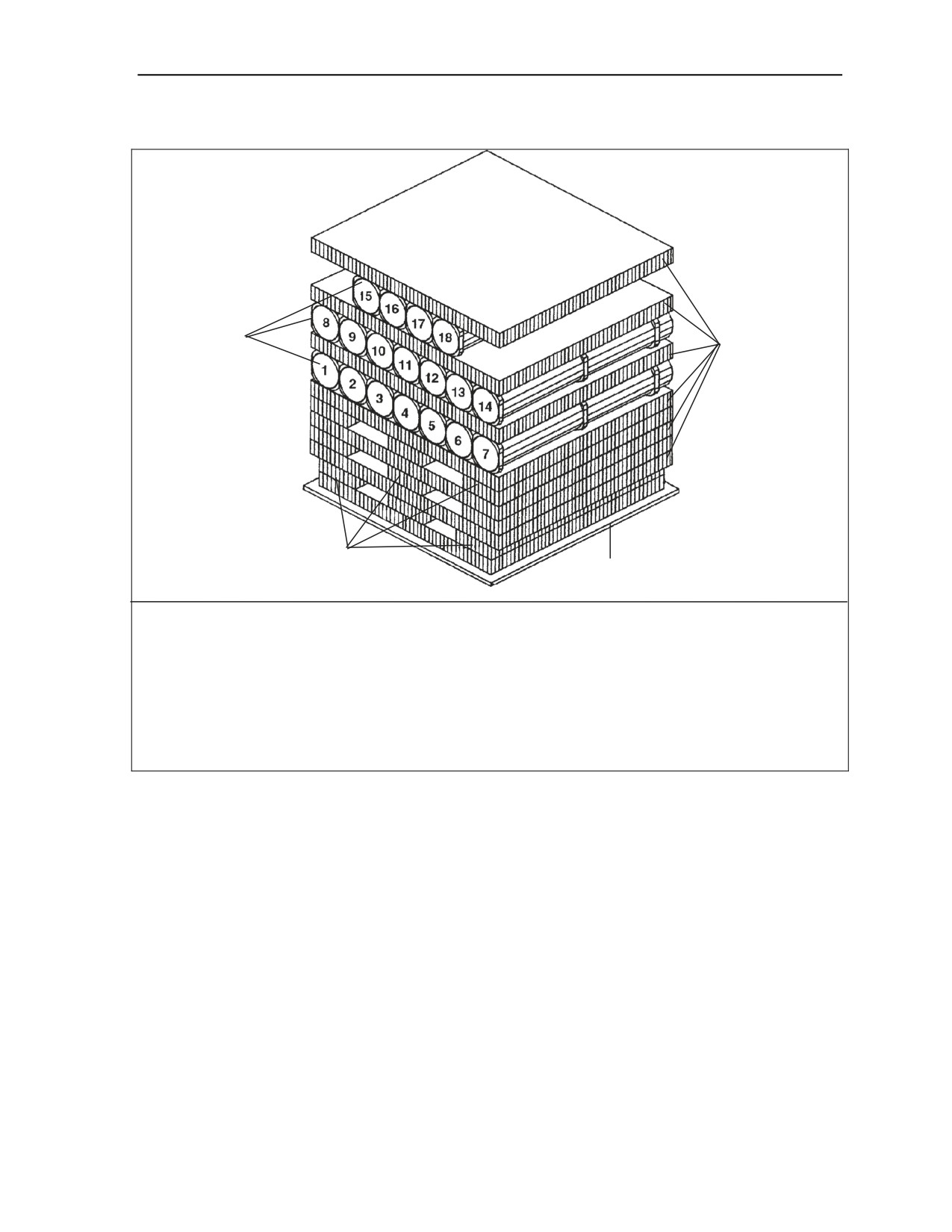

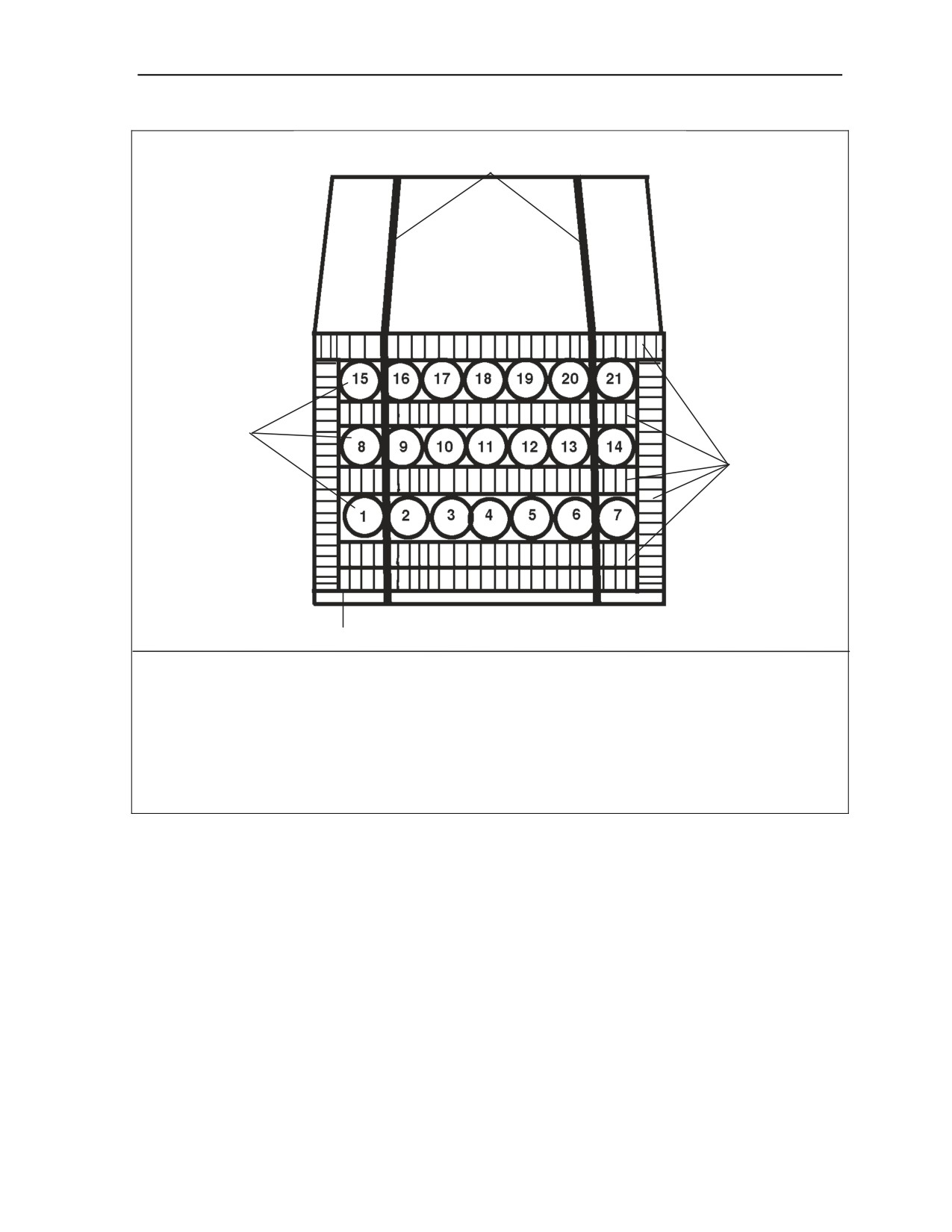

The following ammunition item is rigged in an A-22 cargo bag for high-velocity airdrop as shown in

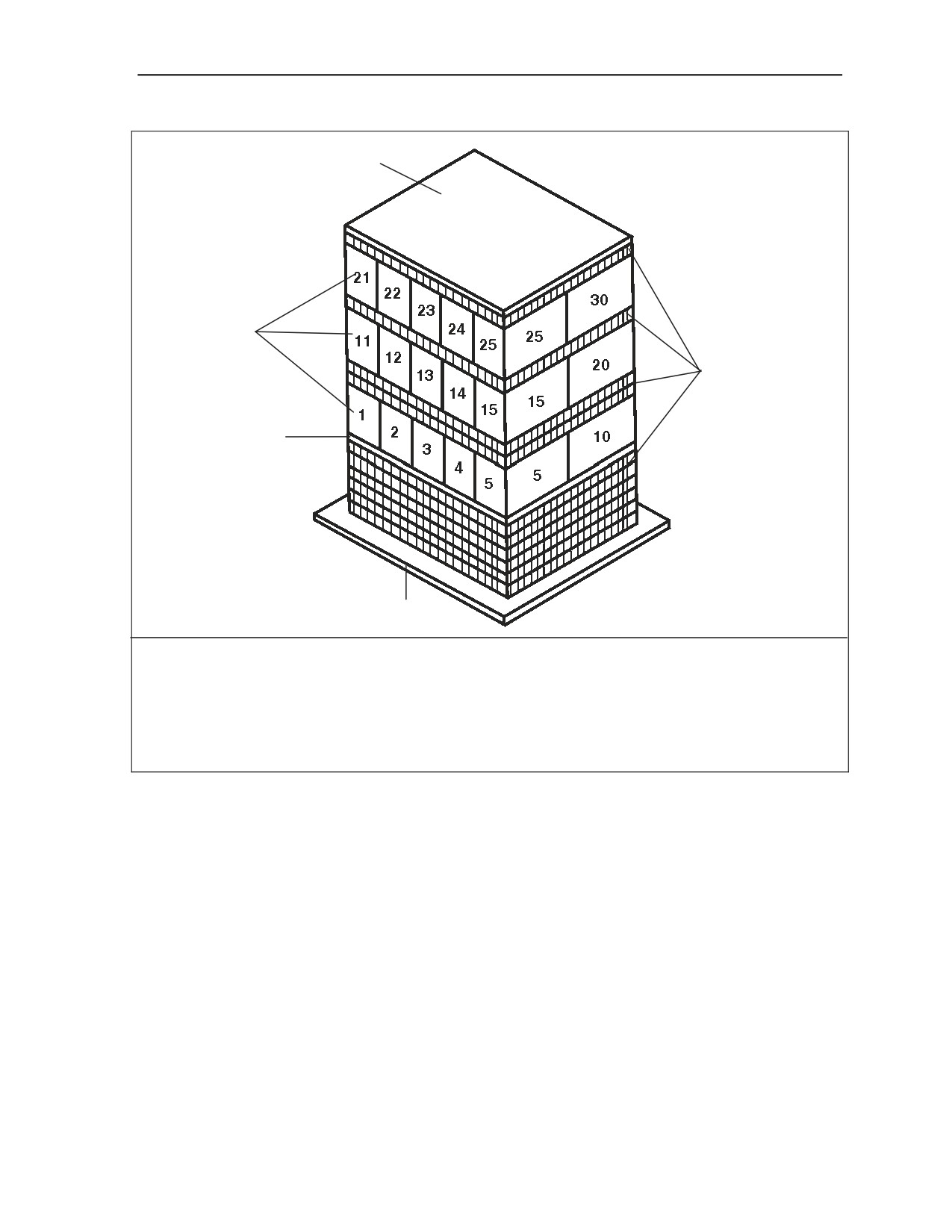

Figure 3-78.
Rockets
Rocket, 83-mm, HEDP, BDM, (DODIC 1340-HA08)
Figure 3-78. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
3-84
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Rigging High-Velocity A-22 Cargo Bag Loads
HONEYCOMB
AMMUNITION
LAYERS
LOAD SPREADERS
(¾-IN PLYWOOD)
HONEYCOMB
STRIPS
HONEYCOMB
(6-IN WIDE)
STRIPS
SKID
(6-IN WIDE)

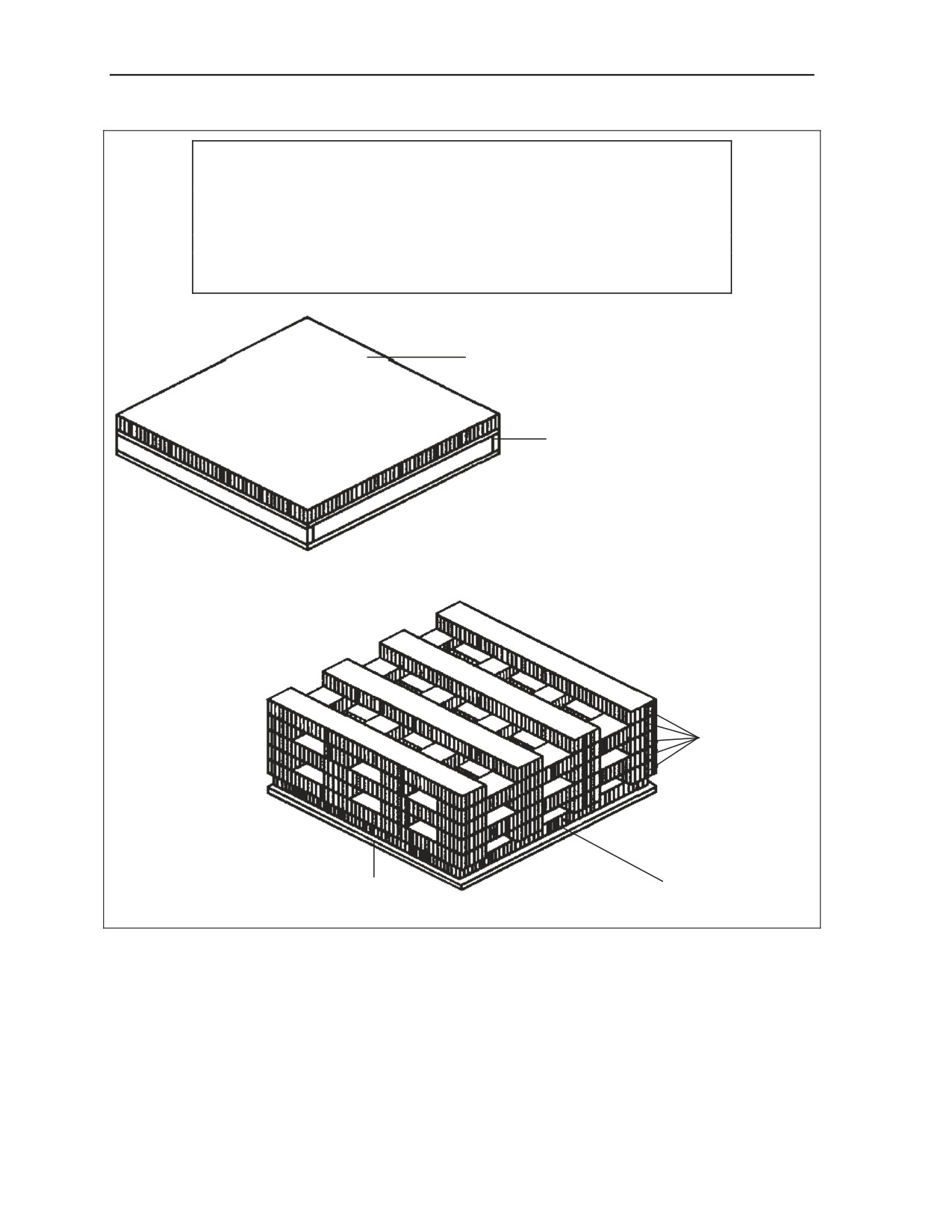

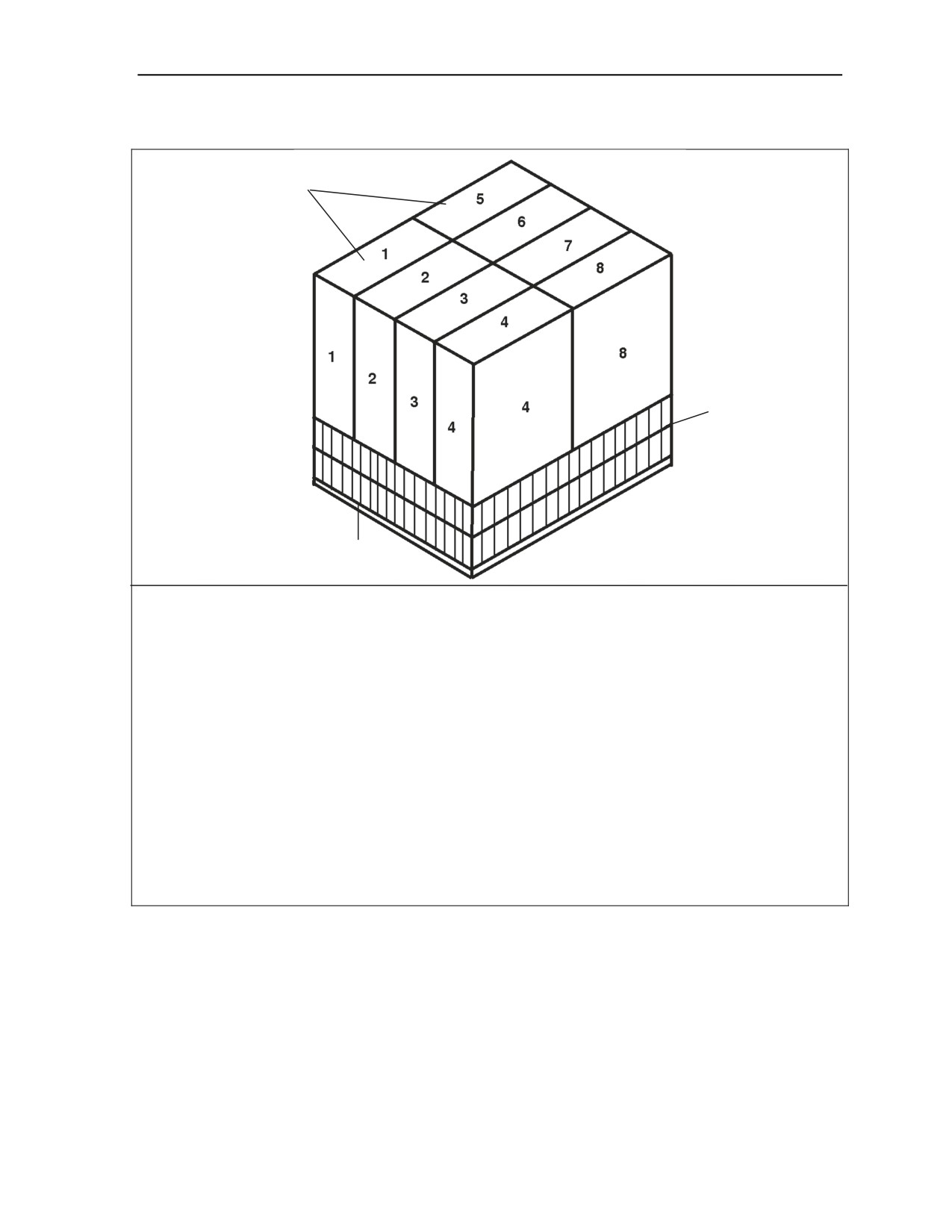

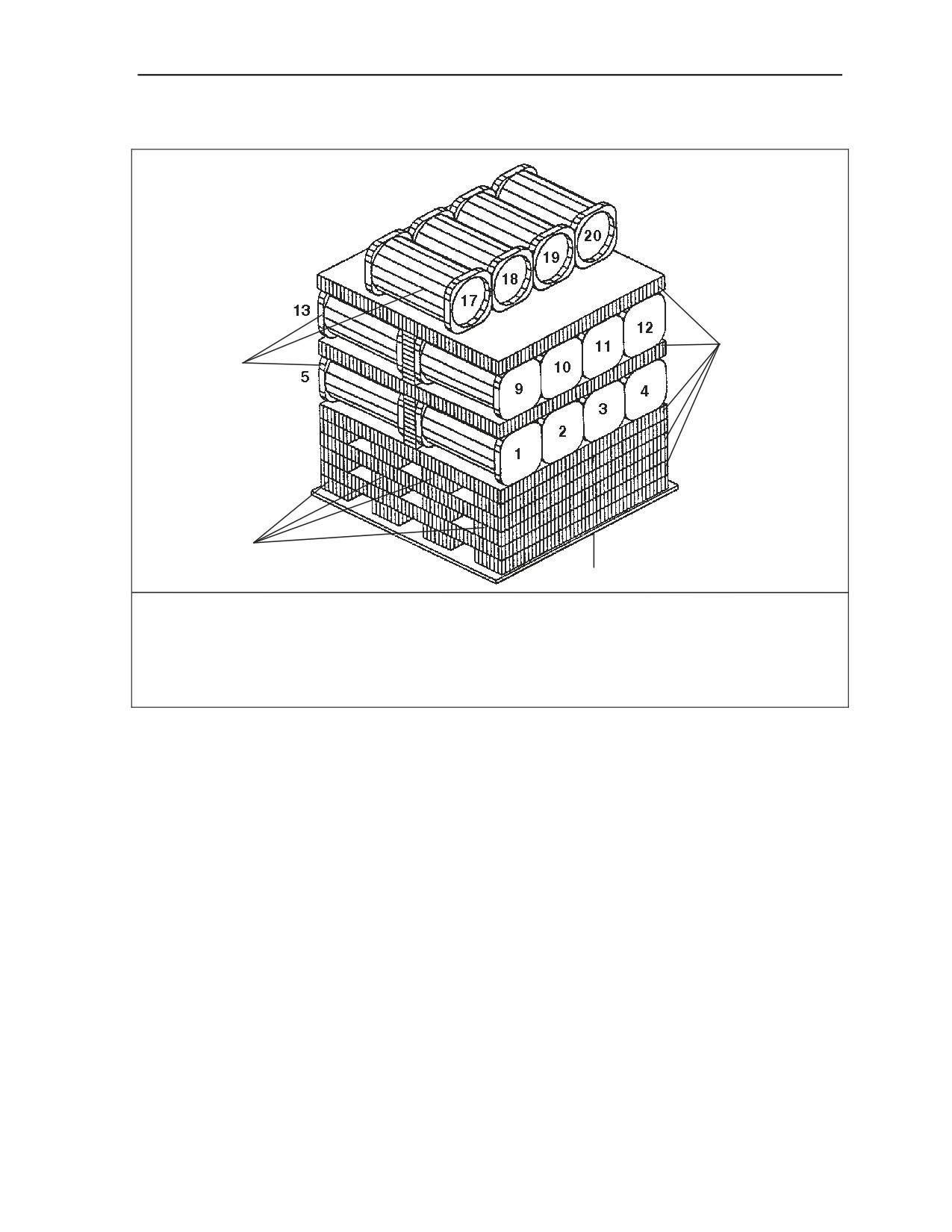

The following ammunition item is rigged in an A-22 cargo bag for high-velocity airdrop as shown in

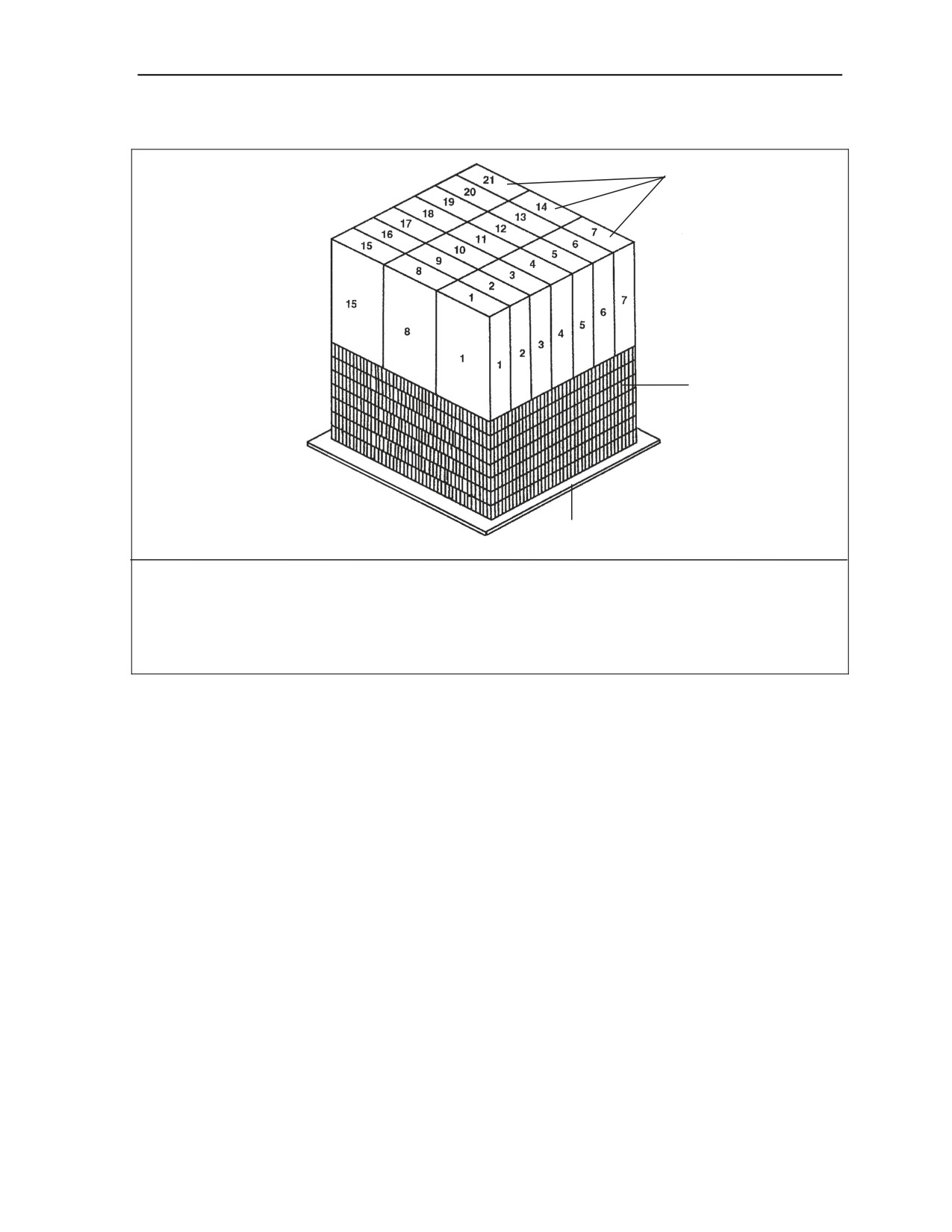

Figure 3-79.
Demolition Item
Demolition Kit, Fighting Position Excavator, M300, (DODIC 1375-MN26)
Figure 3-79. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
3-85
Chapter 3
HONEYCOMB
AMMUNITION
LAYERS
LOAD SPREADERS
(¾-IN PLYWOOD)
HONEYCOMB
STRIPS
(7 1/2-IN WIDE)
SKID

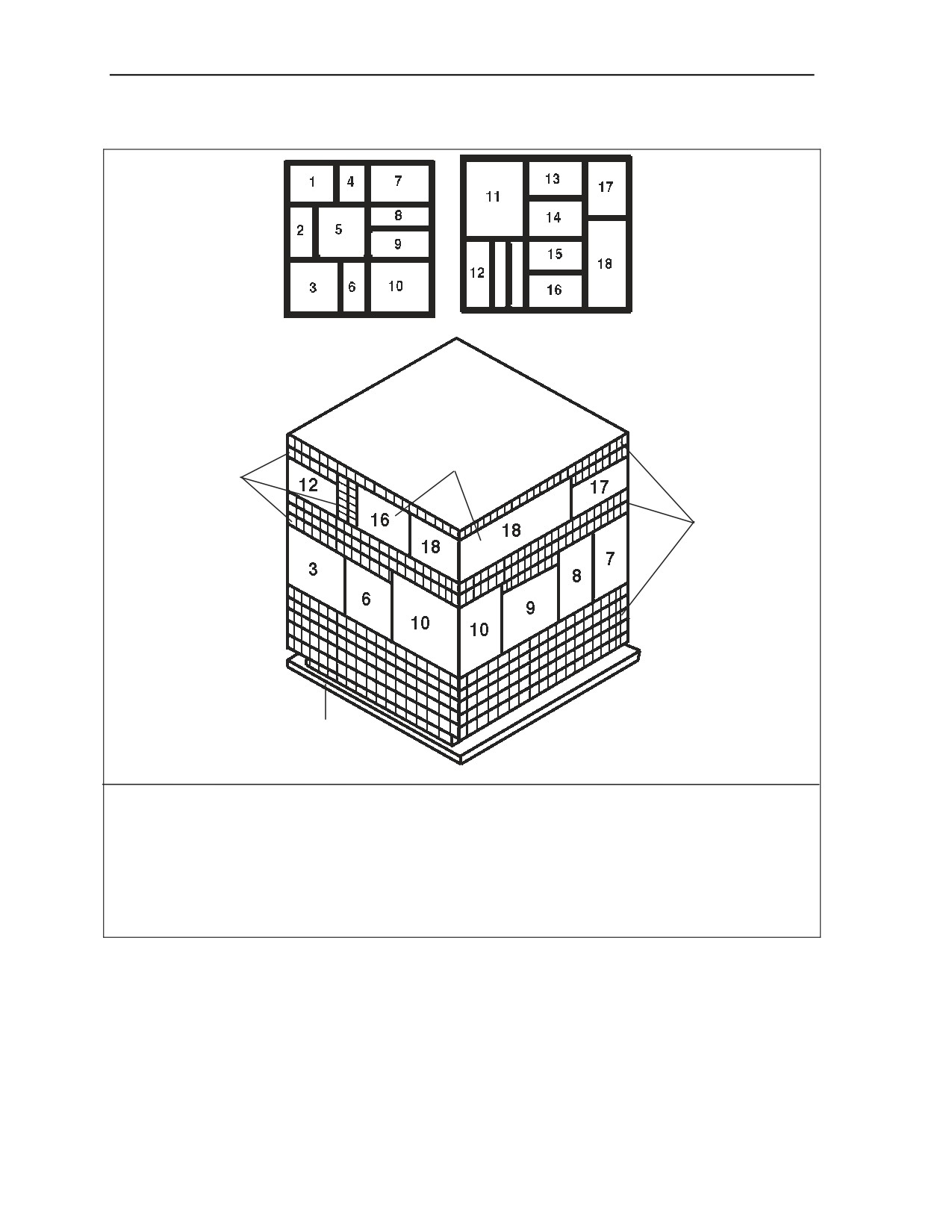

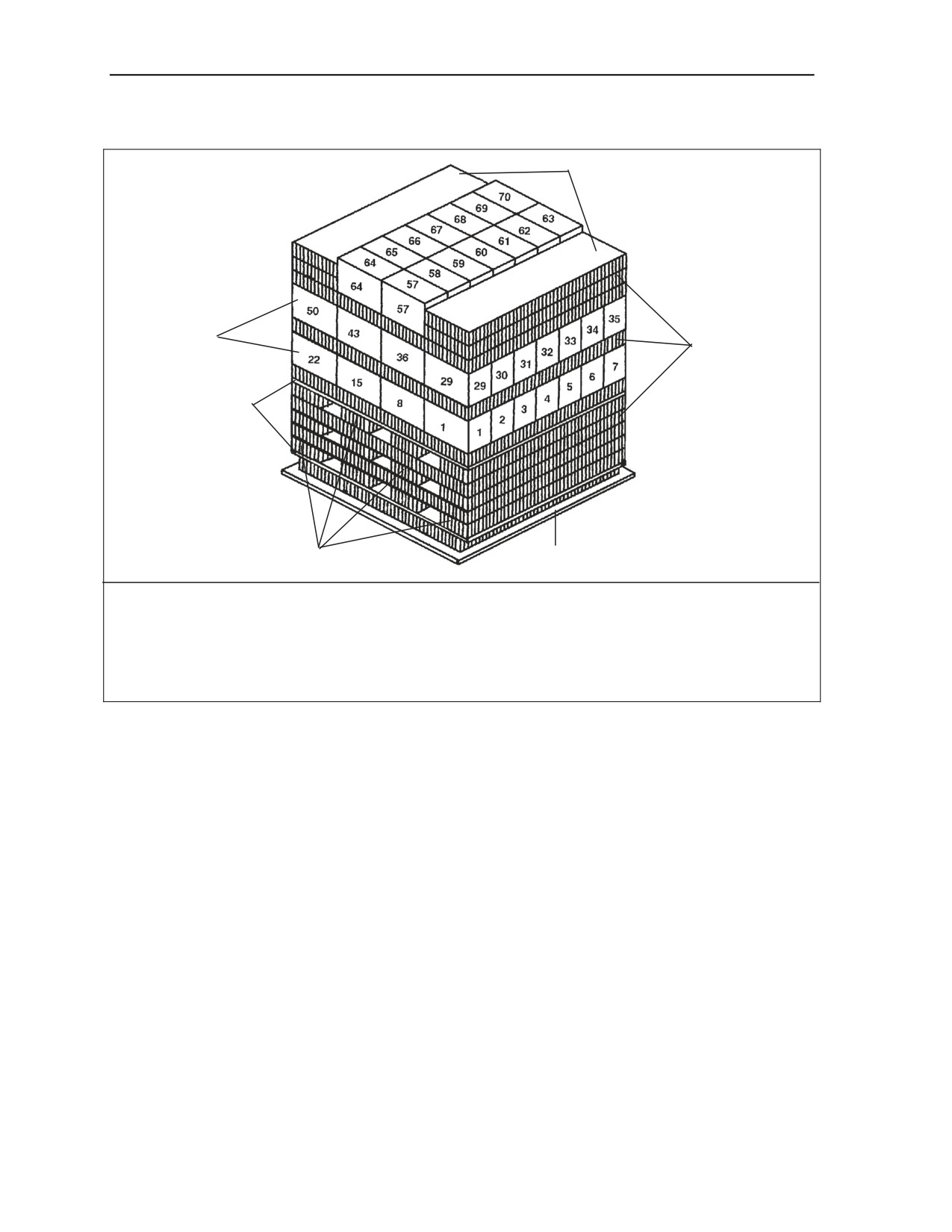

The following ammunition items are rigged in an A-22 cargo bag for high-velocity airdrop as shown in
Figure 3-80.
Grenades
Grenade, Discharger, Anti-Riot, Irritant, L96E1, (DODIC 1330-FZ14)
Grenade, Discharger, Anti-Riot, Irritant, L97E1, (DODIC 1330-FZ15)
Figure 3-80. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
3-86
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Rigging High-Velocity A-22 Cargo Bag Loads
HONEYCOMB
AMMUNITION
LAYERS
HONEYCOMB
STRIPS
(7-IN WIDE)
SKID
The following ammunition item is rigged in an A-22 cargo bag for high-velocity airdrop as shown in
Figure 3-81.
Munition
Munition, Wide Area, Hornet, M93, (DODIC 1377-SQ20)
Figure 3-81. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
3-87
Chapter 3
HONEYCOMB
FILLERS
AMMUNITION
BOXES
LOAD SPREADERS
(¾-IN PLYWOOD)
HONEYCOMB
LAYERS
SKID
The following ammunition items are rigged in an A-22 cargo bag for high-velocity airdrop as shown in
Figure 3-82.
120-Millimeter Ammunition
Cartridge, 120-mm, Visible Illuminating, M930 with M230 Propellant Charge and
M981 Ignition Charge, (DODIC 1315-C625)
Cartridge, 120-mm, Illuminating, IR, M983, (DODIC 1315-CA07)
Figure 3-82. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
3-88
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Rigging High-Velocity A-22 Cargo Bag Loads
AMMUNITION
BOXES
HONEYCOMB
LAYERS
SKID
The following ammunition item is rigged in an A-22 cargo bag for high-velocity airdrop as shown in
Figure 3-83.
81-Millimeter Ammunition
Cartridge, 81-mm, Illuminating, IR, M816, (DODIC 1315-C484)
Figure 3-83. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
3-89
Chapter 3
¾-IN PLYWOOD
AMMUNITION
BOXES
HONEYCOMB
LAYERS
HONEYCOMB
SKID
STRIPS
(12-IN WIDE)
The following ammunition items are rigged in an A-22 cargo bag for high-velocity airdrop as shown in
Figure 3-84.
84-Millimeter Ammunition
Cartridge, 84-mm, Practice, with Tracer, TPT141, (DODIC 1315-CA10)
Cartridge, 84-mm, HEDP, IM, 502, (DODIC 1315-CA21)
Cartridge, 84-mm, MAAWS, Reduced Sensitivity (RS), 441D,
(DODIC 1315-CA27)
Figure 3-84. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
3-90
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Rigging High-Velocity A-22 Cargo Bag Loads
HONEYCOMB
FILLERS
LAYER 3
LAYERS 1 & 2
¾-IN PLYWOOD
HONEYCOMB
FILLERS
AMMUNITION
HONEYCOMB
BOXES
LAYERS
HONEYCOMB
STRIPS
SKID
(8-IN WIDE)
The following ammunition item is rigged in an A-22 cargo bag for high-velocity airdrop as shown in
Figure 3-85.
84-Millimeter Ammunition
Munition, 84-mm, Area Deterrent, 401, (DODIC 1315-CA23)
Cartridge, 84-mm, MAAWS, 545C, Illumination, (DODIC 1315-CA36)
Figure 3-85. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
3-91
Chapter 3
¾-IN PLYWOOD
LAYER 2
LAYERS 1 & 3
HONEYCOMB
FILLERS
AMMUNITION
BOXES
HONEYCOMB
LAYERS
HONEYCOMB
STRIPS
SKID
(7-IN WIDE)
The following ammunition item is rigged in an A-22 cargo bag for high-velocity airdrop as shown in
Figure 3-86.
84-Millimeter Ammunition
Munition, 84-mm, HEAT, Insensitive, 551C, (DODIC 1315-CA20)
Figure 3-86. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
3-92
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Rigging High-Velocity A-22 Cargo Bag Loads
AMMUNITION
BOXES
HONEYCOMB
LAYERS
SKID
The following ammunition item is rigged in an A-22 cargo bag for high-velocity airdrop as shown in
Figure 3-87.
7.62-Millimeter Ammunition
Cartridge, 7.62-mm, Linked, 9-Ball, M80, 1Tracer, M276, (DODIC 1305-A257)
Cartridge, 7.62-mm, Linked, 9-Ball, M80, 1Tracer, M62, (DODIC 1305-A165)
Figure 3-87. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
3-93
Chapter 3
AMMUNITION
BOXES
LOAD SPREADERS
(¾-IN PLYWOOD)
HONEYCOMB
LAYERS
SKID
The following ammunition item is rigged in an A-22 cargo bag for high-velocity airdrop as shown in
Figure 3-88.
60-Millimeter Ammunition
Cartridge, 60-mm, M720A1, (DODIC 1310-BA16)
Cartridge, 60-mm, M768, (DODIC 1310-BA17)
Figure 3-88. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
3-94
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Rigging High-Velocity A-22 Cargo Bag Loads
AMMUNITION
BOXES
LOAD SPREADERS
(¾-IN PLYWOOD)
HONEYCOMB
LAYER
SKID
HONEYCOMB
STACKS
(17 ½” X 17½”)
The following ammunition item is rigged in an A-22 cargo bag for high-velocity airdrop as shown in
Figure 3-89.
84-Millimeter Ammunition
Cartridge, 84-mm, AT4 Confined Space (CS), Reduced Sensitivity (RS)
(DODIC 1315-CA30)
Figure 3-89. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
3-95
Chapter 3
CAUTION
1. The suspended weight of this load must be between 795 pounds
and 805 pounds.
2. The ballast used in the BCC must be contained (i.e. tied sandbags)
so it does not leak outside of the BCC.
HONEYCOMB LAYER
BALLAST CONTAINMENT
COMPARTMENT (BCC)
NOTE: The Ballast Containment Compartment and top
layer of honeycomb are placed inside of the sling assembly and cover of the A-22 cargo bag.
HONEYCOMB
STRIPS
(6-IN WIDE)
HONEYCOMB
SKID
LAYER
Figure 3-90. Honeycomb Stack and Rigging Steps for MDI Munitions in an A-22 Cargo Bag for
High Velocity Airdrop
3-96
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Rigging High-Velocity A-22 Cargo Bag Loads
RIGGING STEPS
1. Build the Ballast Containment Compartment (BCC) using two pieces of 2- by 4- by 48-inch
lumber, two pieces of 2- by 4- by 45-inch lumber, and two pieces of 48-inch X 48-inch X 3/4-
inch plywood. Do not nail the top piece of plywood until after the ballast has been added. The
weight of the BCC is approximately 78 pounds.
2. The combined weight of the BCC, Ballast, and the Modernized Demolition Initiator (MDI)
items must be between 795 and 805 pounds.
3. Weigh the MDI items, add 78 pounds (weight of the BCC), and subtract this sum from 800.
This figure is the amount of ballast weight that must be added in the BCC. Evenly distribute
the ballast in the BCC and fill all empty spaces with honeycomb so the ballast does not
move. Nail the top on the BCC.
4. Prepare and position the load on the honeycomb stack shown above in accordance with FM
4-20.103/MCRP 4-11.3C/TO 13C7-1-11, Chapter 9, Section II. The following restrictions
apply:
The containers (wooden crates) may be broken down into smaller packaging units.
Individual corrugated cardboard boxes.
Individual foil wrapped items.
MDI items maybe rigged for airdrop up to their smallest packaging unit.
MDI items in their smallest packaging unit must be encased in a honeycomb bin. See Appendix
B for honeycomb bin fabrication.
No container may be rigged on top of a honeycomb bin except another honeycomb bin.
Only honeycomb bins and corrugated cardboard boxes may be rigged on top of corrugated
cardboard boxes.
Wooden crates can only be stacked on top of other wooden crates.
Corrugated cardboard boxes containing spools of shock tubing (M12, M13) must be positioned
so the spools are lying flat on their base.
5. Center the load on the A-22 container. Place honeycomb on all four sides of the bundle and
secure the honeycomb with Type III nylon cord. Place a piece of honeycomb over the top of
the load and position a piece of 3/4-inch plywood on top of the honeycomb. Close and secure
the A-22 container.
Figure 3-90. Honeycomb Stack and Rigging Steps for MDI Munitions in an A-22 Cargo Bag for
High Velocity Airdrop (continued)
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
3-97
Chapter 3
The following ammunition items are rigged in an A-22 cargo bag for high-velocity airdrop using the
honeycomb stack and rigging steps in Figure 3-90.
Modernized Demolition Initiators
Holder, Blasting Cap, M9, (DODIC 1375-ML45)
Cap, Blasting, Nonelectric, 30 foot Shock Tube, M11 (1.4B),
(DODIC 1375-ML47)
Cap, Blasting, Nonelectric, 500 foot Shock Tube, M12 (1.4S),
(DODIC 1375-MN02)
Cap, Blasting, Nonelectric, 1000 foot Shock Tube, M13, (1.4S),
(DODIC 1375-MN03)
Cap, Blasting, Nonelectric, Delay, M14, (1.4S), (DODIC 1375-MN06)
Cap, Blasting, Nonelectric, Delay, M15, (DODIC 1375-MN07)
Ignitor, Time Blasting Fuze, M81, w/ Shock Tube Capability (1.4S),
(DODIC 1375-MN08)
Cap, Blasting, Non-Electric, M16, (DODIC 1375-MN39)
Cap, Blasting, Non-Electric, M18, (DODIC 1375-MN41)
Cap, Blasting, Dual, In-line Initiator, Non-Electric, 200-ft Minitube, M19
(DODIC 1375-MN86)
Trainer, Inert (for M19), M20, (DODIC 1375-MN87)
Cap, Blasting, Dual, In-line Initiator, Non-Electric, 500-ft Minitube, M21
(DODIC 1375-MN88)
Trainer, Inert (for M21 and M23), M22, (DODIC 1375-MN89)
Cap, Blasting, Dual, In-line Initiator, Non-Electric, 1000-ft Minitube, M23
(DODIC 1375-MN90)
Figure 3-90. Honeycomb Stack and Rigging Steps for MDI Munitions in an A-22 Cargo Bag for
High Velocity Airdrop (continued)
3-98
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Chapter 4
Rigging Low-Velocity A-7A Cargo Slings and A-21 Cargo
Bag Loads
PREPARING A-7A CARGO SLINGS AND A-21 CARGO BAGS
4-1. Prepare the A-7A cargo slings and A-21 cargo bag according to FM 4-20.103/MCRP 4-11.3C/TO
13C7-1-11.
SPECIAL INSTRUCTIONS
4-2. Follow these special instructions when rigging A-7A cargo slings or A-21 cargo bag for low-velocity
airdrop.
The ammunition loads are positioned in the A-7A cargo slings or A-21 cargo bag for low-
velocity airdrop according to the figures listed in this chapter.
The A-7A cargo sling and the A-21 cargo bag dimension limits are listed in FM
4-
20.103/MCRP 4-11.3C/TO 13C7-1-11 according to type of aircraft used.
The minimum allowable weight of an A-7A cargo sling or A-21 cargo bag, without parachute, is
28 pounds per square foot over the ramp and 11 pounds per square foot out the parachute doors,
based on the largest surface area.
The A-7A cargo slings or A-21cargo bag must be closed and secured according to FM 4-
20.103/MCRP 4-11.3C/TO 13C7-1-11.
PARACHUTE REQUIREMENTS
4-3. Select the correct parachute from Table 1-1. Attach the parachute to the rigged load according to
FM 4-20.103/MCRP 4-11.3C/TO 13C7-1-11.
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
4-1
Chapter 4
AMMUNITION
BOXES
HONEYCOMB
LAYERS
SKID
The following ammunition items are rigged in an A-7A cargo sling or an A-21 cargo bag for low-velocity
airdrop as shown in Figure 4-1.
5.56-Millimeter Ammunition
Cartridge, 5.56-mm, Ball, M855, (DODIC 1305-A059)
Cartridge, 5.56-mm, Tracer, M856, (DODIC 1305-A063)
Cartridge, 5.56-mm, Tracer, M196, (DODIC 1305-A068)
Cartridge, 5.56-mm, Ball, M193, (DODIC 1305-A071)
7.62-Millimeter Ammunition
Cartridge, 7.62-mm, Blank, M82, (DODIC 1305-A111)
Note: M82 boxes must be oriented with the long side sitting vertically.
Cartridge, 7.62-mm, Ball, M59 and M80, (DODIC 1305-A122)
Cartridge, 7.62-mm, Tracer, M62, (DODIC 1305-A124)
Cartridge, 7.62-mm, Ball, Tracer, Linked with M13 Link, M80
(DODIC 1305-A127)
Cartridge, 7.62-mm, 5-rd Clip, M80, (DODIC 1305-A130)
Cartridge, 7.62-mm, Ball, Tracer, Linked with M13 Link, M62
(DODIC 1305-A131)
Cartridge, 7.62-mm, Ball, Tracer, M80/1 Linked, M62
(DODIC 1305-A131)
Cartridge, 7.62-mm, Match, M118, (DODIC 1305-A136)
Cartridge, 7.62-mm, Tracer, M62, (DODIC 1305-A140)
Cartridge, 7.62-mm, Ball, M80, Linked, (DODIC 1305-A143)
Cartridge, 7.62-mm, Tracer, M62, Clipped, (DODIC 1305-A145)
Cartridge, 7.62-mm, Tracer, M62, Linked, (DODIC 1305-A146)
.30-Caliber Ammunition
Cartridge, Cal .30, AP API, 8-rd Clip, Grade R, (DODIC 1305-A205)
Figure 4-1.
Ammunition Layout in an A-7A Cargo Sling or an A-21 Cargo Bag for Low-Velocity
Airdrop
4-2
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Rigging Low-Velocity A-7A Cargo Slings and A-21 Cargo Bag Loads
Cartridge, Cal .30, AP API, M2 Linked with M1 Link, Grade MG,
(DODIC 1305-A207)
Cartridge, Cal. 30, AP API, Linked with Tracer, (DODIC 1305-A209)
Cartridge, Cal. 30, Ball, M2, (DODIC 1305-A212)
Cartridge, Cal. 30, Ball, M2, Clipped, (DODIC 1305-A216)
Cartridge, Cal .30, Tracer, M1 or M25, Clipped, (DODIC 1305-A234)
Cartridge, Cal .30, Tracer, M25, Linked, (DODIC 1305-A236)
.32-Caliber Ammunition
Cartridge, Cal .32, Ball, Auto 71, Grain, (DODIC 1305-A350)
.38-Caliber Ammunition
Cartridge, Cal .38, Special, Ball, M41, (DODIC 1305-A400)
.45-Caliber Ammunition
Cartridge, Cal .45, Ball, M1911, (DODIC 1305-A475)
.50-Caliber Ammunition
Cartridge, Cal .50, API, M8, (DODIC 1305-A531)
Cartridge, Cal .50, API, M8, Linked, (DODIC 1305-A533)
Cartridge, Cal .50, API-T, M1/M17 Linked, (DODIC 1305-A540)
Cartridge, Cal .50, API-T, M20, (DODIC 1305-A541)
Cartridge, Cal .50, API-T, M20, Linked with M2 Link, Grade AC,
(DODIC 1305-A543)
Cartridge, Cal .50, API-T, M20, Linked with M2 Link, Grade MG,
(DODIC 1305-A544)
Cartridge, Cal .50, Tracer, M17, Grade MG, (DODIC 1305-A571)
Cartridge, Cal .50, Tracer, M17, Linked with M2 Link, Grade AC,
(DODIC 1305-A572)
Cartridge, Cal .50, Spotter-Tracer, M48A2, (DODIC 1305-A574)
Cartridge, Cal .50, Linked, 4 API, M8, API-T, M20, (DODIC 1305-A576)
Cartridge, Cal .50, Linked, 4 API, M8, API-T, M20, (DODIC 1305-A577)
Cartridge, Cal .50, API-T, M20, Linked, (DODIC 1305-A585)
Cartridge, Cal .50, Linked, 4 API, M8, API-T, M20, (DODIC 1305-A587)
Cartridge, Cal .50, Linked, 4 API, M8, API-T, M20, (DODIC 1305-A589)
Cartridge, Cal .50, API Lowlite, Linked, 1 Tracer, M257, 2 MK 263, 2 MK211, 1
M20 Tracer, 4 M20, (DODIC 1305-AA50)
Grenade
Cartridge, Grenade, Rifle, NATO, 7.62-mm, M64, (DODIC 1330-G839)
Incendiary Item
Burster, Incendiary, Field, M4 without Fuze, (DODIC 1345-K010)
Antipersonnel and Antitank Mine
Mine, Antipersonnel, M18A1 with Accessories, (DODIC 1345-K143)
Figure 4-1. Ammunition Layout in an A-7A Cargo Sling or an A-21 Cargo Bag for
Low-Velocity Airdrop (continued)
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
4-3
Chapter 4
Flare and Signal Items
Signal, Illuminating, Ground, M195, Green Star, (DODIC 1370-L305)
Signal, Illuminating, Ground, M158, Red Star, (DODIC 1370-L306)
Signal, Illuminating, Ground, M159, White Star, (DODIC 1370-L307)
Signal, Illuminating, Ground Parachute, M126A1, (DODIC 1370-L311)
Signal, Illuminating, Parachute, M127A1, White Star. (DODIC 1370-L312)
Signal, Illuminating, Ground, Cluster, M125A1, (DODIC 1370-L314)
Signal, Smoke, Parachute, M129A1, Red, (DODIC 1370-L323)
Signal, Smoke, Parachute, M128A1, Green, (DODIC 1370-L324)
Figure 4-1. Ammunition Layout in an A-7A Cargo Sling or an A-21 Cargo Bag for
Low-Velocity Airdrop (continued)
LAYER 1
LAYER 2
AMMUNITION
HONEYCOMB
BOXES
FILLERS
HONEYCOMB
LAYERS
SKID
The following ammunition item is rigged in an A-7A cargo sling or an A-21 cargo bag for low-velocity
airdrop as shown in Figure 4-2.
Shotgun Ammunition
Cartridge, 12-gauge Shotgun, No. 00 Buckshot, M162, (DODIC 1305-A011)
Figure 4-2. Ammunition Layout in an A-7A Cargo Sling or an A-21 Cargo Bag for Low-Velocity
Airdrop
4-4
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Rigging Low-Velocity A-7A Cargo Slings and A-21 Cargo Bag Loads
AMMUNITION
BOXES
HONEYCOMB
LAYERS
SKID
The following ammunition items are rigged in an A-7A cargo sling or an A-21 cargo bag for low-velocity
airdrop as shown in Figure 4-3.
7.62-Millimeter Ammunition
Cartridge, 7.62-mm, Linked, 9-ball, M80, 1 Tracer, M62, (DODIC 1305-A165)
Cartridge, 7.62-mm, Linked, 9-Ball, M80, 1Tracer, M276, (DODIC 1305-A257)
.30-Caliber Ammunition
Cartridge, Cal .30, AP, API, Carton, Grade R, (DODIC 1305-A201)
Cartridge, Cal .30, AP, API, Carton, Grade MG, (DODIC 1305-A202)
Cartridge, Cal .30, Ball, M2, Clipped, (DODIC 1305-A214)
Cartridge, Cal .30, Tracer, M1, Clipped, (DODIC 1305-A232)
.50-Caliber Ammunition
Cartridge, Cal .50, API-T, M20, Carton, Grade MG, (DODIC 1305-A542)
40-Millimeter Ammunition
Cartridge, 40-mm, AP-T, M81, (DODIC 1310-B552)
Cartridge, 40-mm, HE-T, SD, M3, MK11, MK2, (DODIC 1310-B562)
4.2-Inch Ammunition
Cartridge, 4.2-in, HE, M329A1, (DODIC 1315-C704)
Cartridge, 4.2-in, HE, M329A1, (DODIC 1315-C705)
Cartridge, 4.2-in, Illuminating, M335A2, (DODIC 1315-C706)
Cartridge, 4.2-in, Smoke, WP, M328A1, (DODIC 1315-C708)
90-Millimeter Ammunition
Cartridge, 90-mm, WP, M313C, (DODIC 1315-C258)
Figure 4-3.
Ammunition Layout in an A-7A Cargo Sling or an A-21 Cargo Bag for Low-Velocity
Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
4-5
Chapter 4
Cartridge, 90-mm, HE, M71, (DODIC 1315-C265)
Cartridge, 90-mm, HE, M71, (DODIC 1315-C266)
Cartridge, 90-mm, HE, M71, (DODIC 1315-C267)
Cartridge, 90-mm, Smoke, WP, M313, (DODIC 1315-C273)
Cartridge, 90-mm, HE-T, M71A1 with Fuze PD M557, (DODIC 1315-C280)
Cartridge, 90-mm, AP-T, M318 or M318A1, (DODIC 1315-C285)
Cartridge, 90-mm, HEP-T, T142E3, (DODIC 1315-C292)
Cartridge, 90-mm, HEAT, M431A1, (DODIC 1315-C294)
Cartridge, 90-mm, Canister, M377, (DODIC 1315-C601)
105-Millimeter Ammunition
Cartridge, 105-mm, HE, M1, (DODIC 1315-C443)
Cartridge, 105-mm, HE, M1, (DODIC 1315-C444)
Cartridge, 105-mm, HE, M1, (DODIC 1315-C445)
Cartridge, 105-mm, HEP-T, M327, (DODIC 1315-C448)
Cartridge, 105-mm, Illuminating, M314A3, (DODIC 1315-C449)
Cartridge, 105-mm, Smoke, HC, BE, M84 or M84A1, (DODIC 1315-C452)
Cartridge, 105-mm, Smoke, WP, M60, (DODIC 1315-C454)
Cartridge, 105-mm, HE, M444, (DODIC 1315-C462)
Cartridge, 105-mm, HE, M548E1, (DODIC 1315-C463)
Cartridge, 105-mm, Tactical, CS, M629, (DODIC 1315-C468)
Cartridge, 105-mm, HE, M760, (DODIC 1315-C473)
Cartridge, 105-mm, Smoke, WP, M60, (DODIC 1315-C477)
Cartridge, 105-mm, APDS-T, M728, (DODIC 1315-C494)
Cartridge, 105-mm, APDS-T, M392A2, (DODIC 1315-C505)
Cartridge, 105-mm, HEAT-T, M456A1E2, (DODIC 1315-C508)
Cartridge, 105-mm, TP-T, M490, (DODIC 1315-C511)
Cartridge, 105-mm, Smoke, WP-T, M416 w/ Fuze BD M534A1,
(DODIC 1315-C512)
Cartridge, 105-mm, APERS-T, M546 with Fuze MT M563, (DODIC 1315-C513)
Cartridge, 105-mm, HEP-T, M393A2, (DODIC 1315-C518)
Cartridge, 105-mm, APER-T, M494 with Fuze M571, (DODIC 1315-C519)
106-Millimeter Ammunition
Cartridge, 106-mm, HEAT, M344A1, (DODIC 1315-C650)
Cartridge, 106-mm, HEP-T, M346A1, (DODIC 1315-C651)
Cartridge, 106-mm, APERS-T, M581, (DODIC 1315-C660)
Antipersonnel and Antitank Mine
Mine, Antitank, HE, M121, Heavy w/ Fuze Combination M607,
(DODIC 1345-K181)
Demolition Item
Firing Device, Demolition, M1, Pull Type, (DODIC 1375-M630)
Figure 4-3.
Ammunition Layout in an A-7A Cargo Sling or an A-21 Cargo Bag for Low-Velocity
Airdrop (continued)
4-6
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Rigging Low-Velocity A-7A Cargo Slings and A-21 Cargo Bag Loads
AMMUNITION
BOXES
HONEYCOMB
2
LAYERS
SKID
The following ammunition items are rigged in an A-7A cargo sling or an A-21 cargo bag for low-velocity
airdrop as shown in Figure 4-4.
.50-Caliber Ammunition
Cartridge, Cal .50, API, M8, Carton, Grade MG or API-T, M20,
(DODIC 1305-A532)
Cartridge, Cal .50, API, M8, Linked with M2 Link, Grade MG,
(DODIC 1305-A534)
40-Millimeter Ammunition
Cartridge, 40-mm, HEI-T, SD, M3, (DODIC 1310-B559)
60-Millimeter Ammunition
Cartridge, 60-mm, Illuminating, M83A3, (DODIC 1310-B627)
81-Millimeter Ammunition
Cartridge, 81-mm, Illuminating, M301A3, (DODIC 1315-C226)
Antipersonnel and Antitank Mine
Mine, AP, M26, (DODIC 1345-K146)
Demolition Items
Charge, Demolition, Block, 1/4-lb TNT, (DODIC 1375-M030)
Charge, Demolition, Roll Type, M-186, (DODIC 1375-M060)
Cap, Blasting, Special Non-Electric, M7, (DODIC 1375-M131)
Cord, Detonating, Reinforced Pliofilm/Wrapped Waterproof, Type I,
(DODIC 1375-M456)
Dynamite, Military, M1, (DODIC 1375-M591)
Firing Device, Demolition, M1A1 Pressure Type, (DODIC 1375-M626)
Fuzes and Primers
Primer, Percussion, M82, (DODIC 1390-N523)
Figure 4-4.
Ammunition Layout in an A-7A Cargo Sling or an A-21 Cargo Bag for Low-Velocity
Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
4-7
Chapter 4
AMMUNITION
BOXES
HONEYCOMB
LAYERS
SKID
The following ammunition items are rigged in an A-7A cargo sling or an A-21 cargo bag for low-velocity
airdrop as shown in Figure 4-5.
20-Millimeter Ammunition
Cartridge, 20-mm, Linked, 4 HEI/TP-T, (DODIC 1305-A653)
Cartridge, 20-mm, Linked, 7 HEI, M56A3-1, M220, (DODIC 1305-A655)
Cartridge, 20-mm, Linked, HEAT-SD, M246, (DODIC 1305-A792)
Demolition Items
Charge, Demolition, Block, 1/2-lb TNT, (DODIC 1375-M031)
Charge, Demolition, Block, 1-lb TNT, (DODIC 1375-M032)
Figure 4-5. Ammunition Layout in an A-7A Cargo Sling or an A-21 Cargo Bag for Low-Velocity
Airdrop
4-8
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Rigging Low-Velocity A-7A Cargo Slings and A-21 Cargo Bag Loads
AMMUNITION
BOXES
HONEYCOMB
LAYERS
SKID
The following ammunition items are rigged in an A-7A cargo sling or an A-21 cargo bag for low-velocity
airdrop as shown in Figure 4-6.
25-Millimeter Ammunition
Cartridge, 25-mm, M791, (DODIC 1305-A974)
Cartridge, 25-mm, HEI-T, M792, w/M758 Fuze, (DODIC 1305-A975)
Cartridge, 25-mm, M919, (DODIC 1305-A986)
81-Millimeter Ammunition
Cartridge, 81-mm, Illuminating, IR, M816 (DODIC 1315-C484)
Cartridge, 81-mm, HE, M821A1/M821A2 with Fuze M734A1,
(DODIC 1315-C868)
Cartridge, 81-mm, HE, M889A1/M889A2 with Fuze M734A1,
(DODIC 1315-C869)
Cartridge, 81-mm, FRP, M879, (DODIC 1315-C875)
Figure 4-6. Ammunition Layout in an A-7A Cargo Sling or an A-21 Cargo Bag for Low-Velocity
Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
4-9
Chapter 4
AMMUNITION
BOXES
HONEYCOMB
LAYERS
SKID
The following ammunition items are rigged in an A-7A cargo sling or an A-21 cargo bag for low-velocity
airdrop as shown in Figure 4-7.
40-Millimeter Ammunition
Cartridge, 40-mm, HEDP, M33, (DODIC 1310-B470)
Cartridge, 40-mm, HEDP, Linked, M430, (DODIC 1310-B542)
Cartridge, 40-mm, HE, Linked, M383E1, (DODIC 1310-B571)
Cartridge, 40-mm, HE, Linked, M384, (DODIC 1310-B572)
60-Millimeter Ammunition
Cartridge, 60-mm, HE, M49A4, (DODIC 1310-B632)
81-Millimeter Ammunition
Cartridge, 81-mm, HE, M362, (DODIC 1315-C222)
Cartridge, 81-mm, HE, M372, (DODIC 1315-C223)
Cartridge, 81-mm, HE, M43A1, (DODIC 1315-C225)
Cartridge, 81-mm, Smoke, WP, M57, (DODIC 1315-C230)
Cartridge, 81-mm, HE, M374A2, (DODIC 1315-C236)
Cartridge, 81-mm, HE, M374A2 with Fuze M524A5, (DODIC 1315-C256)
Cartridge, 81-mm, HE, M374A2 with Fuze M524A6, (DODIC 1315-C256)
Cartridge, 81-mm, HE, M374A2 with Fuze M567, (DODIC 1315-C256)
Cartridge, 81-mm, HE, M374A2 with Fuze M716, (DODIC 1315-C256)
Cartridge, 81-mm, Smoke, WP, M375A2 with Fuze PD 524A6,
(DODIC 1315-C276)
90-Millimeter Ammunition
Cartridge, 90-mm, HEAT, M371, (DODIC 1315-C282)
Cartridge, 90-mm, Canister, APERS, M590, (DODIC 1315-C410)
Figure 4-7.
Ammunition Layout in an A-7A Cargo Sling or an A-21 Cargo Bag for Low-Velocity
Airdrop
4-10
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Rigging Low-Velocity A-7A Cargo Slings and A-21 Cargo Bag Loads
Grenades
Grenade, Hand, Offensive, MK3A2 with Fuze, (DODIC 1330-G911)
Flare and Signal Items
Signal, Illuminating, A/C, Single Star, AN-M43A2, Red, (DODIC 1370-L231)
Signal, Illuminating, A/C, Single Star, AN-M45A2, Green, (DODIC 1370-L233)
Demolition Items
Charge, Demolition, Block, PETN, M118, (DODIC 1375-M024)
Charge, Demolition, Block, 40-lb Cratering Ammonium Nitrate
(DODIC 1375-M039)
Firing Device, Demolition, M5, Pressure Release Type, (DODIC 1375-M627)
Firing Device, Demolition, M1, Release Type, (DODIC 1375-M631)
Figure 4-7. Ammunition Layout in an A-7A Cargo Sling or an A-21 Cargo Bag for Low-Velocity
Airdrop (continued)
AMMUNITION
BOXES
HONEYCOMB
LAYERS
SKID
The following ammunition items are rigged in an A-7A cargo sling or an A-21 cargo bag for low-velocity
airdrop as shown in Figure 4-8.
40-Millimeter Ammunition
Cartridge, 40-mm, Illuminating, M661, (DODIC 1310-B504)
Cartridge, 40-mm, Illuminating, M662, (DODIC 1310-B505)
Cartridge, 40-mm, Red Smoke, M713, (DODIC 1310-B506)
Cartridge, 40-mm, Green Smoke, M715, (DODIC 1310-B508)
Cartridge, 40-mm, Yellow Smoke, M716, (DODIC 1310-B509)
Incendiary Items
Smoke Pot, Hexachloroethane, M5, (DODIC 1365-K866)
Smoke Pot, Floating, HC, M4A2, (DODIC 1365-K867)
Figure 4-8. Ammunition Layout in an A-7A Cargo Sling or an A-21 Cargo Bag for Low-Velocity
Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
4-11
Chapter 4
AMMUNITION
BOXES
HONEYCOMB
LAYERS
SKID
The following ammunition items are rigged in an A-7A cargo sling or an A-21 cargo bag for low-velocity
airdrop as shown in Figure 4-9.
30-Millimeter Ammunition
Cartridge, 30-mm, Target Practice, M788, (DODIC1305-B118)
Cartridge, 30-mm, HE, Dual Purpose, M789, (DODIC 1305-B129)
Cartridge, 30-mm, HE, Dual Purpose, M789, (DODIC 1305-B130)
Figure 4-9. Ammunition Layout in an A-7A Cargo Sling or an A-21 Cargo Bag for Low-Velocity
Airdrop
4-12
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Rigging Low-Velocity A-7A Cargo Slings and A-21 Cargo Bag Loads
AMMUNITION
BOXES
HONEYCOMB
LAYERS
SKID
The following ammunition item is rigged in an A-7A cargo sling or an A-21 cargo bag for low-velocity
airdrop as shown in Figure 4-10.
40-Millimeter Ammunition
Cartridge, 40-mm, Illuminating, M583A1, (DODIC 1310-B535)
Figure 4-10. Ammunition Layout in an A-7A Cargo Sling or an A-21 Cargo Bag for Low-
Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
4-13
Chapter 4
AMMUNITION
BOXES
HONEYCOMB
LAYERS
HONEYCOMB
STRIPS
(5-IN WIDE)
SKID
The following ammunition items are rigged in an A-7A cargo sling or an A-21 cargo bag for low-velocity
airdrop as shown in Figure 4-11.
40-Millimeter Ammunition
Cartridge, 40-mm, HEDP, Linked, M430, (DODIC 1310-B542)
Cartridge, 40-mm, TP, M918, (DODIC 1310-B584)
Figure 4-11. Ammunition Layout in an A-7A Cargo Sling or an A-21 Cargo Bag for Low-
Velocity Airdrop
4-14
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Rigging Low-Velocity A-7A Cargo Slings and A-21 Cargo Bag Loads
STEEL
STRAPPING
AMMUNITION
BOXES
HONEYCOMB
LAYERS
SKID
The following ammunition items are rigged in an A-7A cargo sling or an A-21 cargo bag for low-velocity
airdrop as shown in Figure 4-12.
40-Millimeter Ammunition
Cartridge, 40-mm, HEDP, M433, (DODIC 1310-B546)
Flare and Signal Item
Flare, Surface, M49A1, Trip, (DODIC 1370-L495)
Figure 4-12. Ammunition Layout in an A-7A Cargo Sling or an A-21 Cargo Bag for Low-
Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
4-15
Chapter 4
AMMUNITION
BOXES
AMMUNITION
BOXES
HONEYCOMB
HONEYCOMB
LAYERS
LAYERS
SKID
SKID
The following ammunition items are rigged in an A-7A cargo sling or an A-21 cargo bag for low-velocity
airdrop as shown in Figure 4-13.
60-Millimeter Ammunition
Cartridge, 60-mm, Smoke, WP, M302A1, (DODIC 1310-B630)
Grenade
Grenade, Hand, Incendiary, TH-3, AN-M14 with Fuze M201A1
(DODIC 1330-G900)
Antipersonnel and Antitank Mine
Mine, Antipersonnel, M16A1 with Fuze M605, (DODIC 1345-K092)
Demolition Items
Charge, Demolition Block, Comp, C4, 1 1/4-lb, M112, (DODIC 1375-M023)
Firing Device, Demolition, M3, Pull-Release Type, (DODIC 1375-M629)
Figure 4-13. Ammunition Layout in an A-7A Cargo Sling or an A-21 Cargo Bag for Low-
Velocity Airdrop
4-16
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Rigging Low-Velocity A-7A Cargo Slings and A-21 Cargo Bag Loads
STEEL
STRAPPING
AMMUNITION
HONEYCOMB
LAYERS
SKID
The following ammunition items are rigged in an A-7A cargo sling or an A-21 cargo bag for low-velocity
airdrop as shown in Figure 4-14.
90-Millimeter Ammunition
(Rigged in Fiber Containers)
Cartridge, 90-mm, HEAT, M371, (DODIC 1315-C282)
Cartridge, 90-mm, Canister, APERS, M590, (DODIC 1315-C410)
Figure 4-14. Ammunition Layout in an A-7A Cargo Sling or an A-21 Cargo Bag for Low-
Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
4-17















Content      ..     4      5      6      7     ..
