Chapter 3
HONEYCOMB
AMMUNITION
FILLERS
BOXES
LOAD SPREADER
(¾-IN PLYWOOD)
HONEYCOMB
LAYERS
SKID

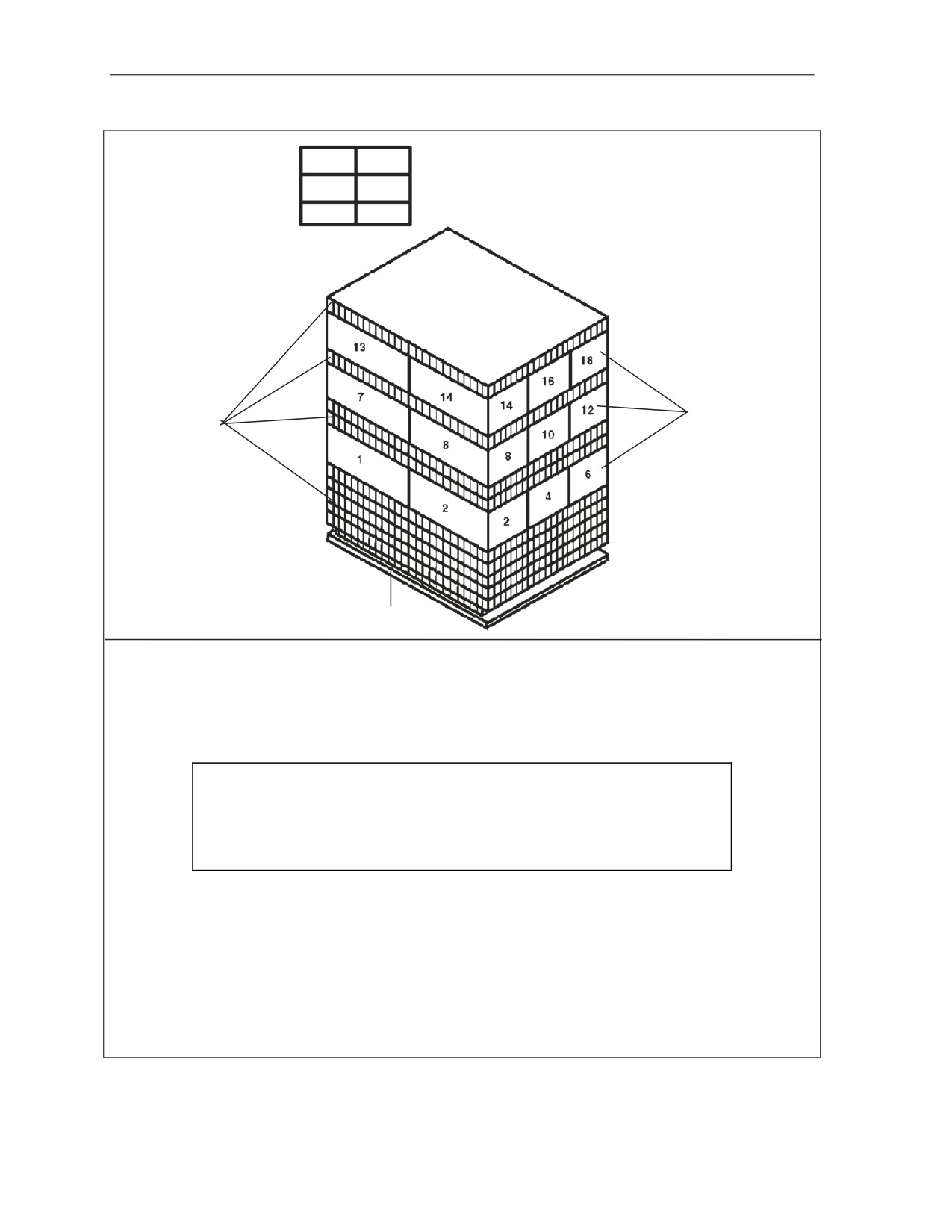

The following ammunition items are rigged in an A-22 cargo bag for high-velocity airdrop as shown in
Figure 3-32.
120-Millimeter Ammunition
Cartridge, 120-mm, HE, M934 w/ or w/o Fuze M734A1, (DODIC 1315-C379)
Cartridge, 120-mm, HE, M933 w/ or w/o Fuze M734A1, (DODIC 1315-C623)
Cartridge, 120-mm, M929, Smoke, WP, w/ Fuze, PD, M745 or M734A1,
(DODIC 1315-C624)

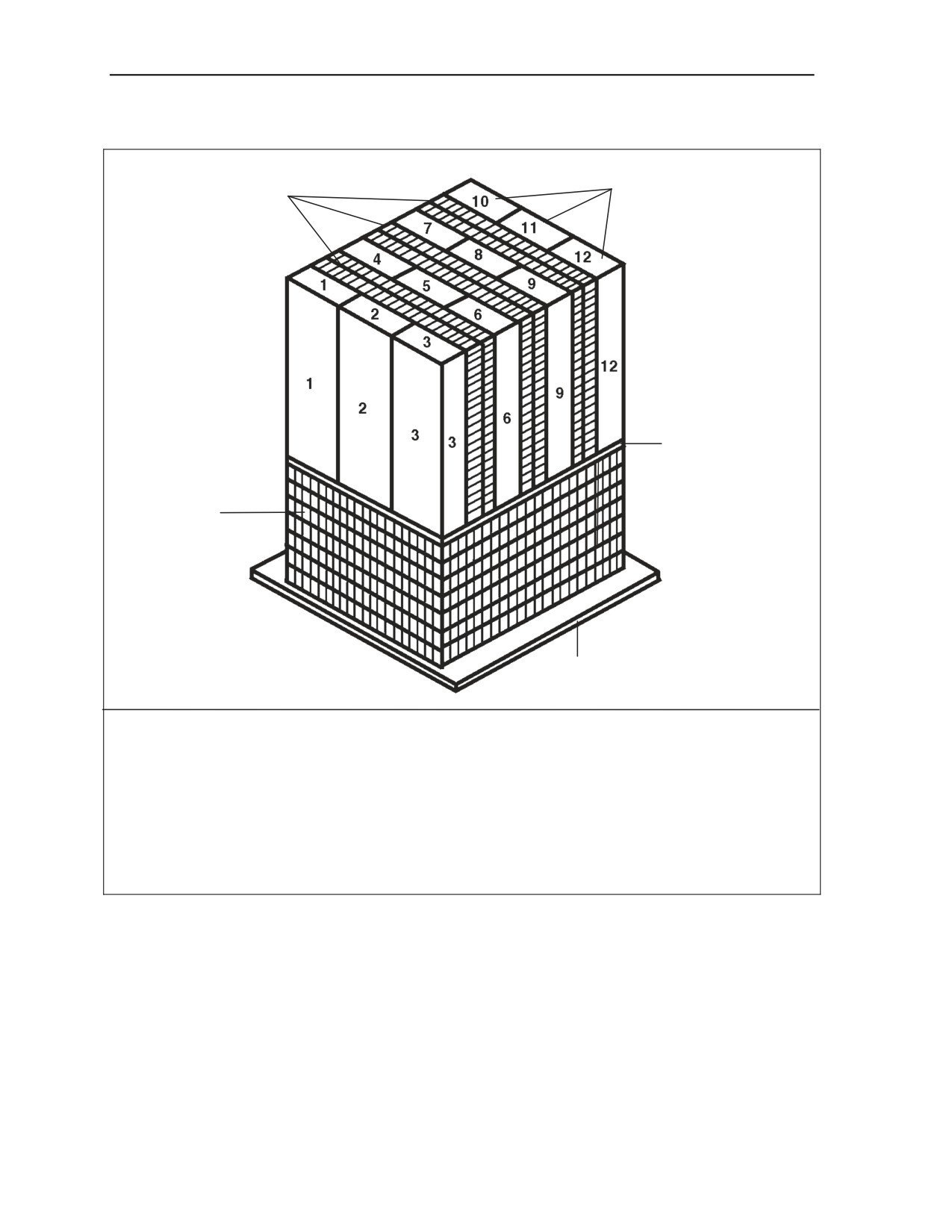

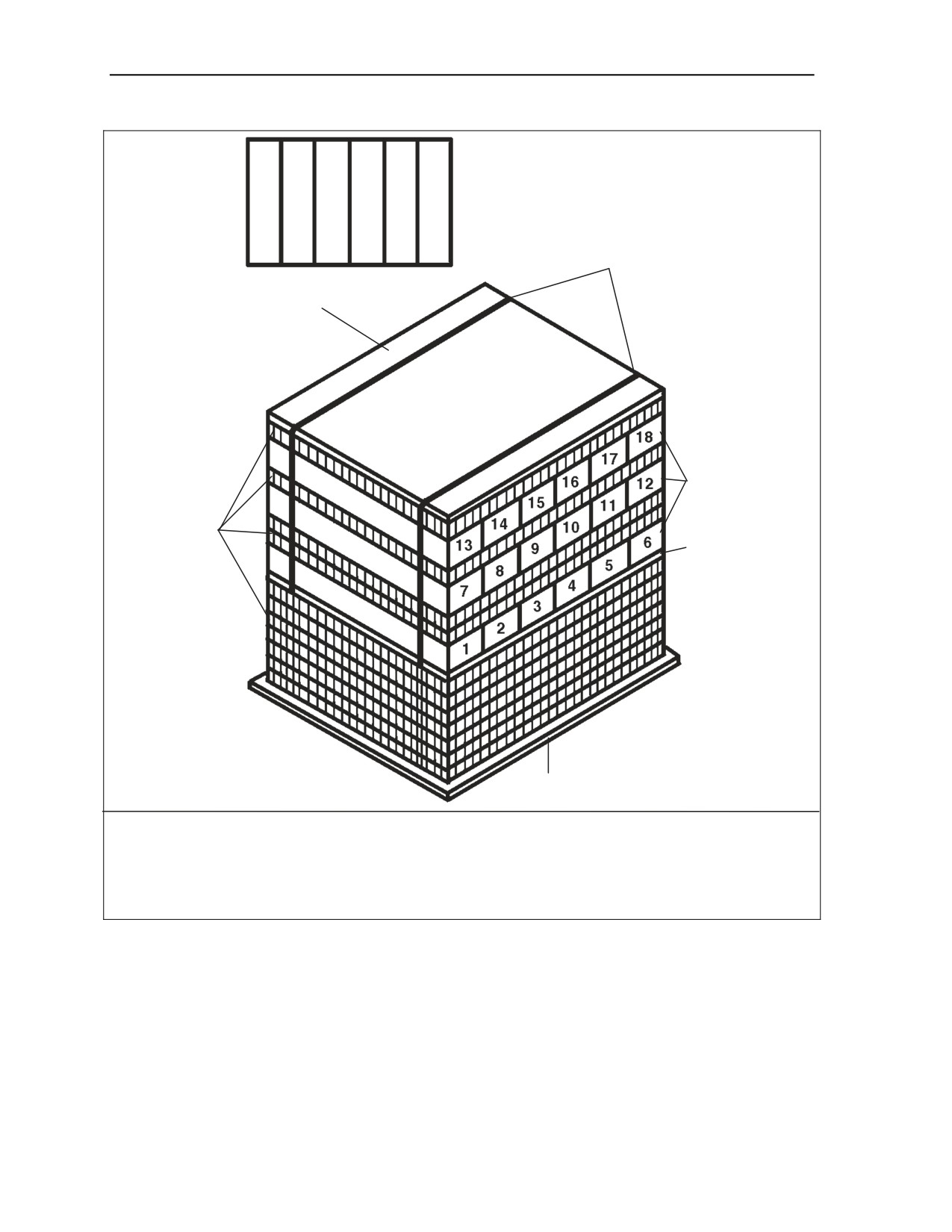

Figure 3-32. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
3-36
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Rigging High-Velocity A-22 Cargo Bag Loads
Note: Cut last layer of honeycomb filler to
appropriate thickness.
AMMUNITION
BOXES
LAYERS 1 & 3
LAYER 2
HONEYCOMB
FILLERS
HONEYCOMB
LOAD SPREADER
LAYERS
(¾-IN PLYWOOD)
SKID

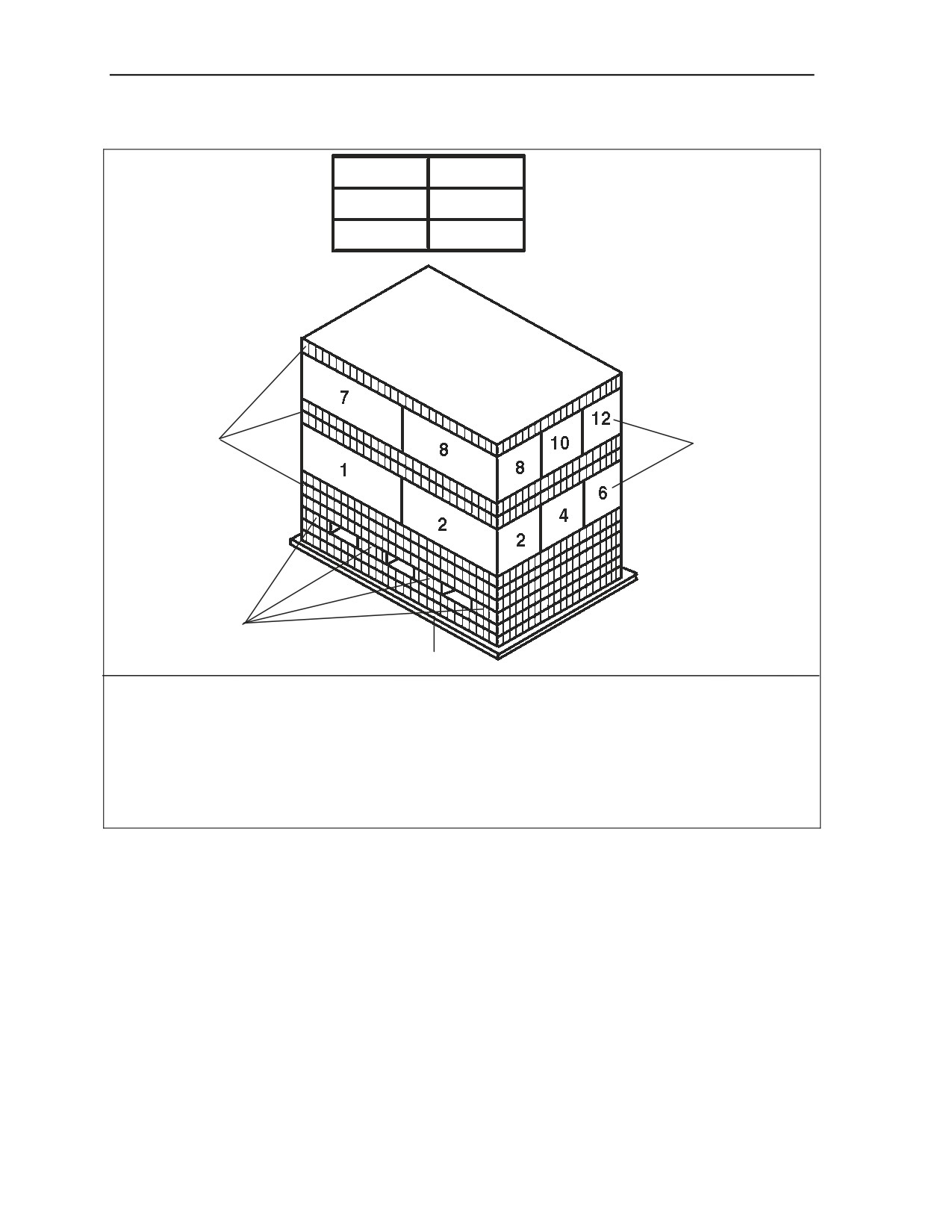

The following ammunition item is rigged in an A-22 cargo bag for high-velocity airdrop as shown in
Figure 3-33.
4.2-Inch Ammunition
Cartridge, 4.2-in, HE, w/o Fuze, (DODIC 1315-C697)

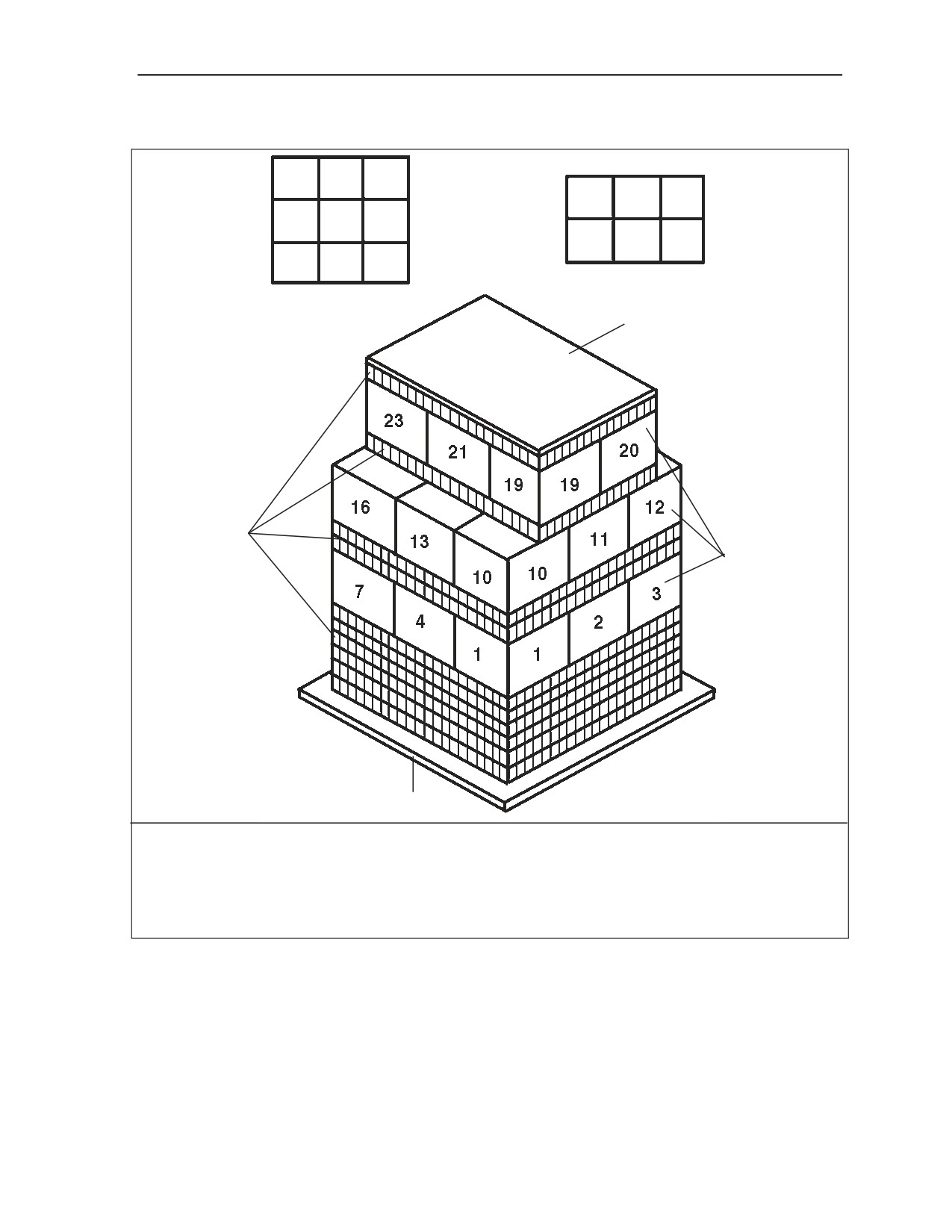

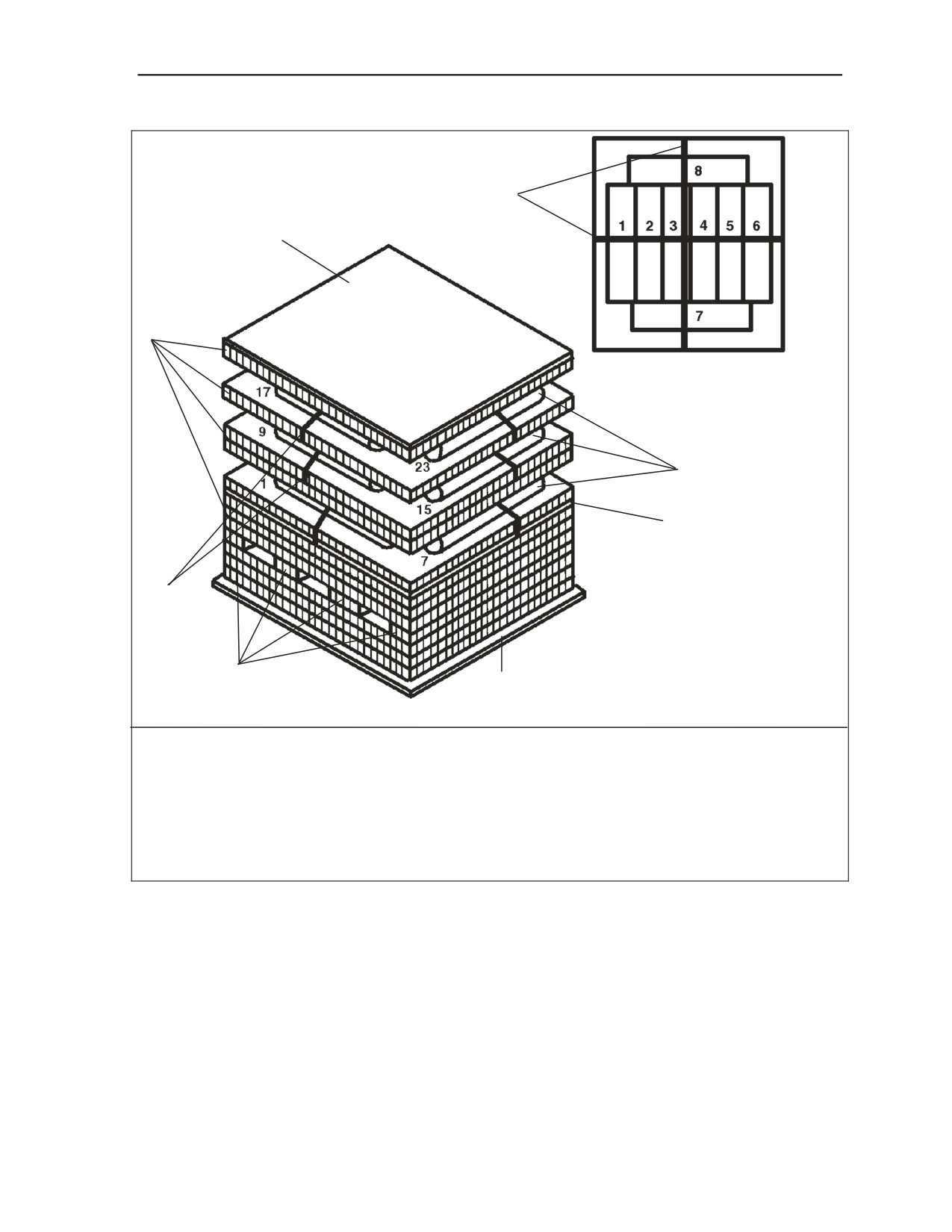

Figure 3-33. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
3-37
Chapter 3
LAYERS 2 & 4
LAYERS 1 & 3
HONEYCOMB
AMMUNITION
LAYERS
BOXES
HONEYCOMB
STRIPS
HONEYCOMB
(4-IN WIDE)
STRIPS
(4-IN WIDE)
SKID

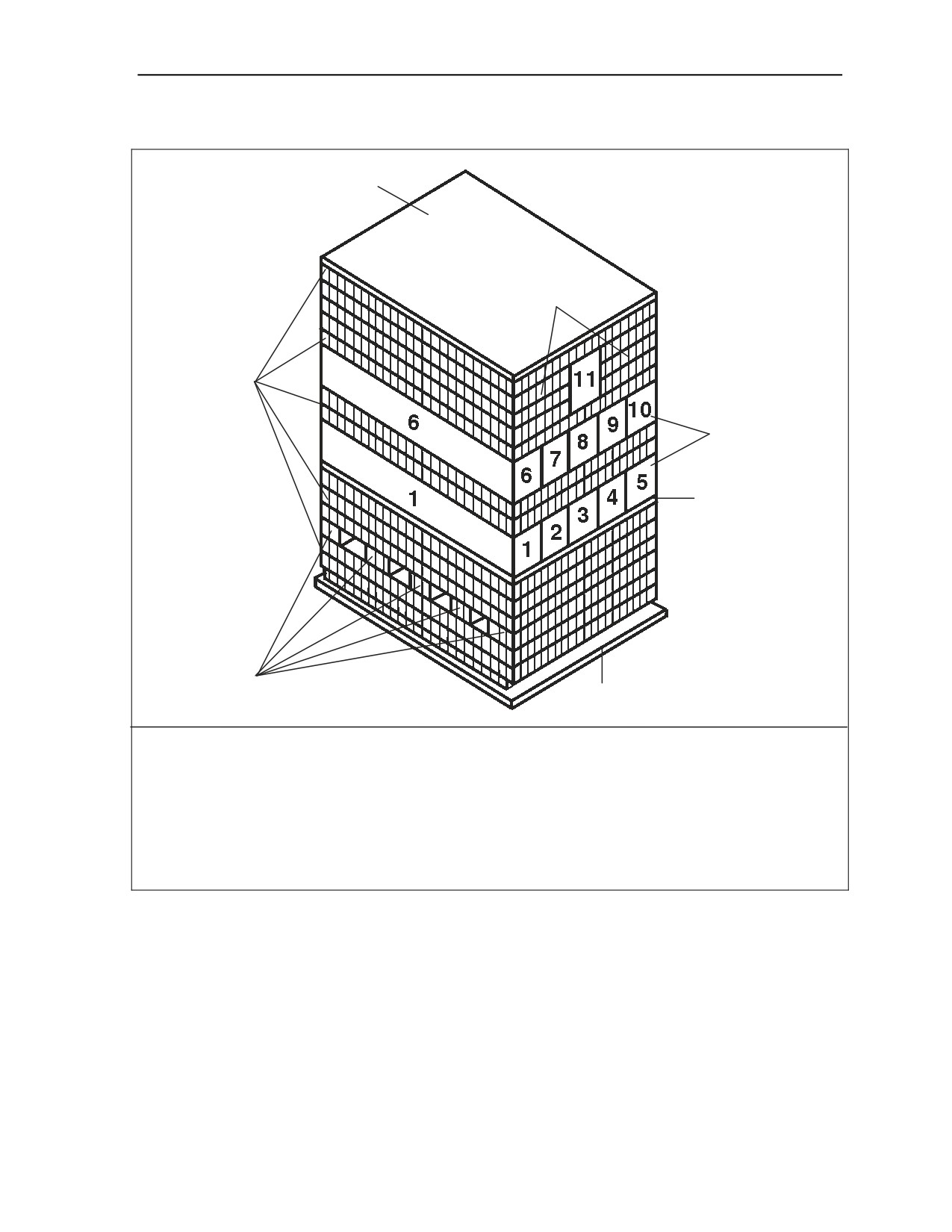

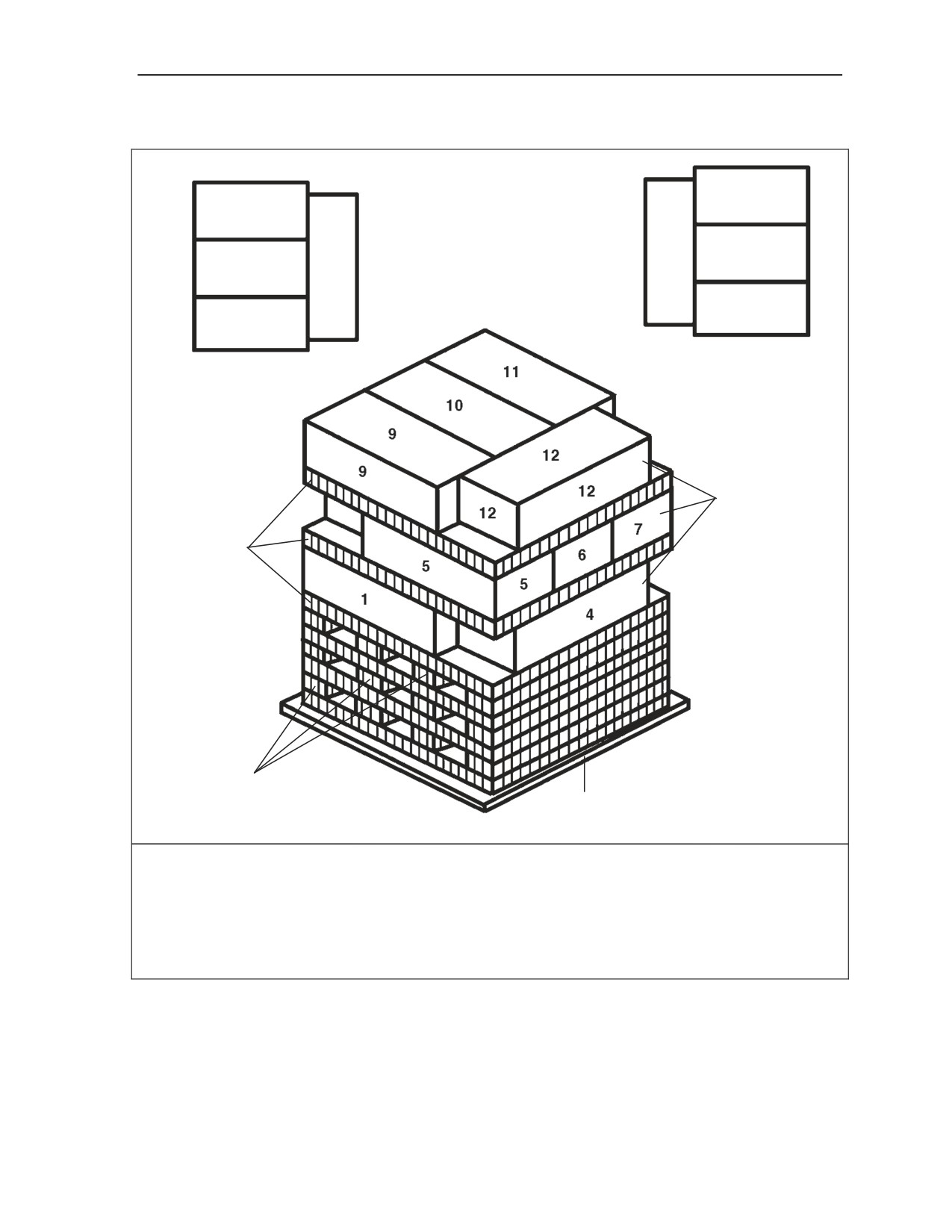

The following ammunition items are rigged in an A-22 cargo bag for high-velocity airdrop as shown in
Figure 3-34.
4.2-Inch Ammunition
Cartridge, 4.2-in, HE, M329A1, (DODIC 1315-C704)
Cartridge, 4.2-in, HE, M329A1, (DODIC 1315-C705)
Cartridge, 4.2-in, Illuminating, M335A2, (DODIC 1315-C706)
Cartridge, 4.2-in, Smoke, WP, M328A1, (DODIC 1315-C708)
Figure 3-34. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
3-38
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Rigging High-Velocity A-22 Cargo Bag Loads
LAYER 2
LAYERS 1 & 3
AMMUNITION
BOXES
HONEYCOMB
LAYERS
HONEYCOMB
STRIPS
(4-IN WIDE)
SKID

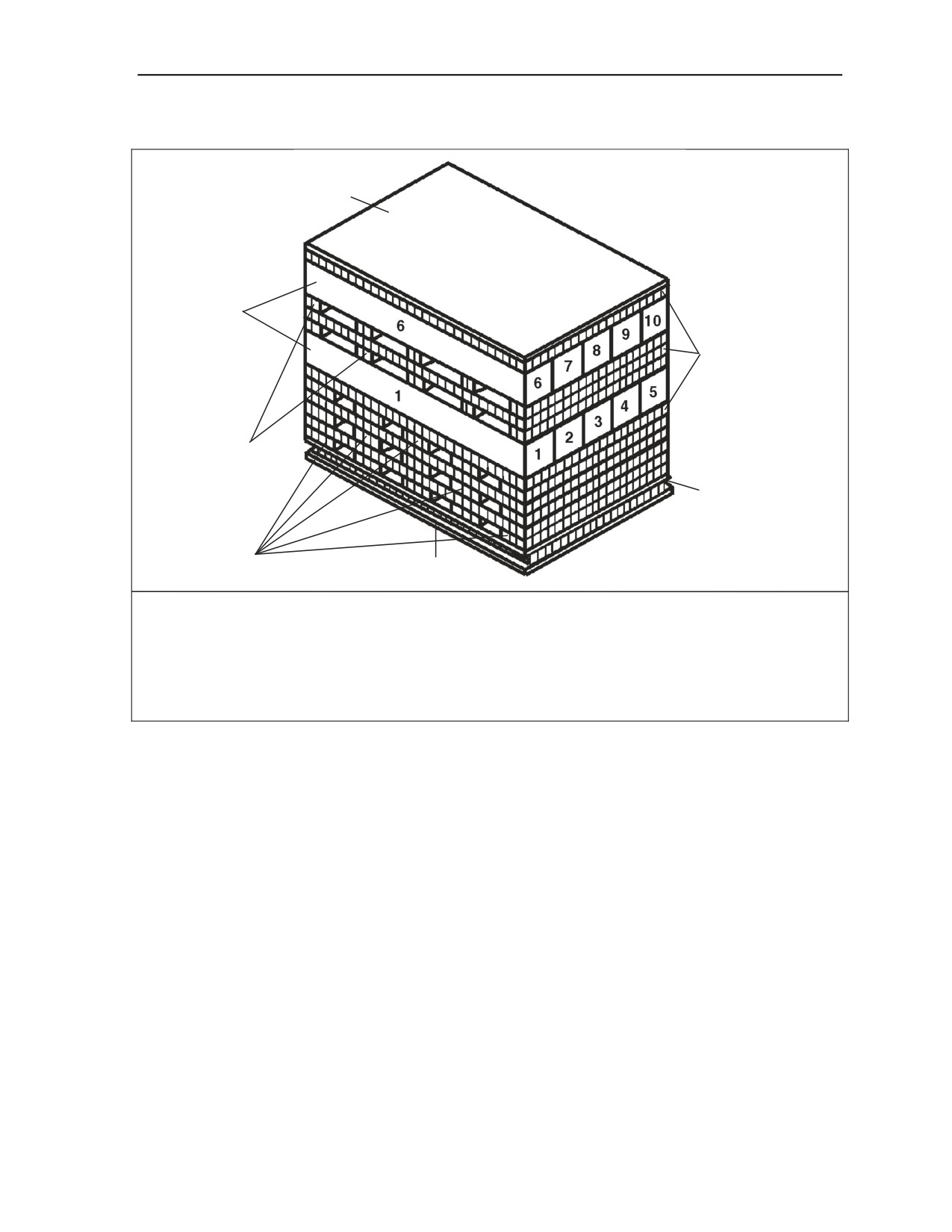

The following ammunition items are rigged in an A-22 cargo bag for high-velocity airdrop as shown in
Figure 3-35.
120-Millimeter Ammunition
Cartridge, 120-mm, HE, M57, (DODIC 1315-C788)
Cartridge, 120-mm, Illuminating, M91, (DODIC 1315-C790)
Figure 3-35. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
3-39
Chapter 3
STEEL
STRAPPING
¾-IN PLYWOOD
AMMUNITION
BOXES
HONEYCOMB
LAYERS
LOAD SPREADER
(¾-IN PLYWOOD)
SKID

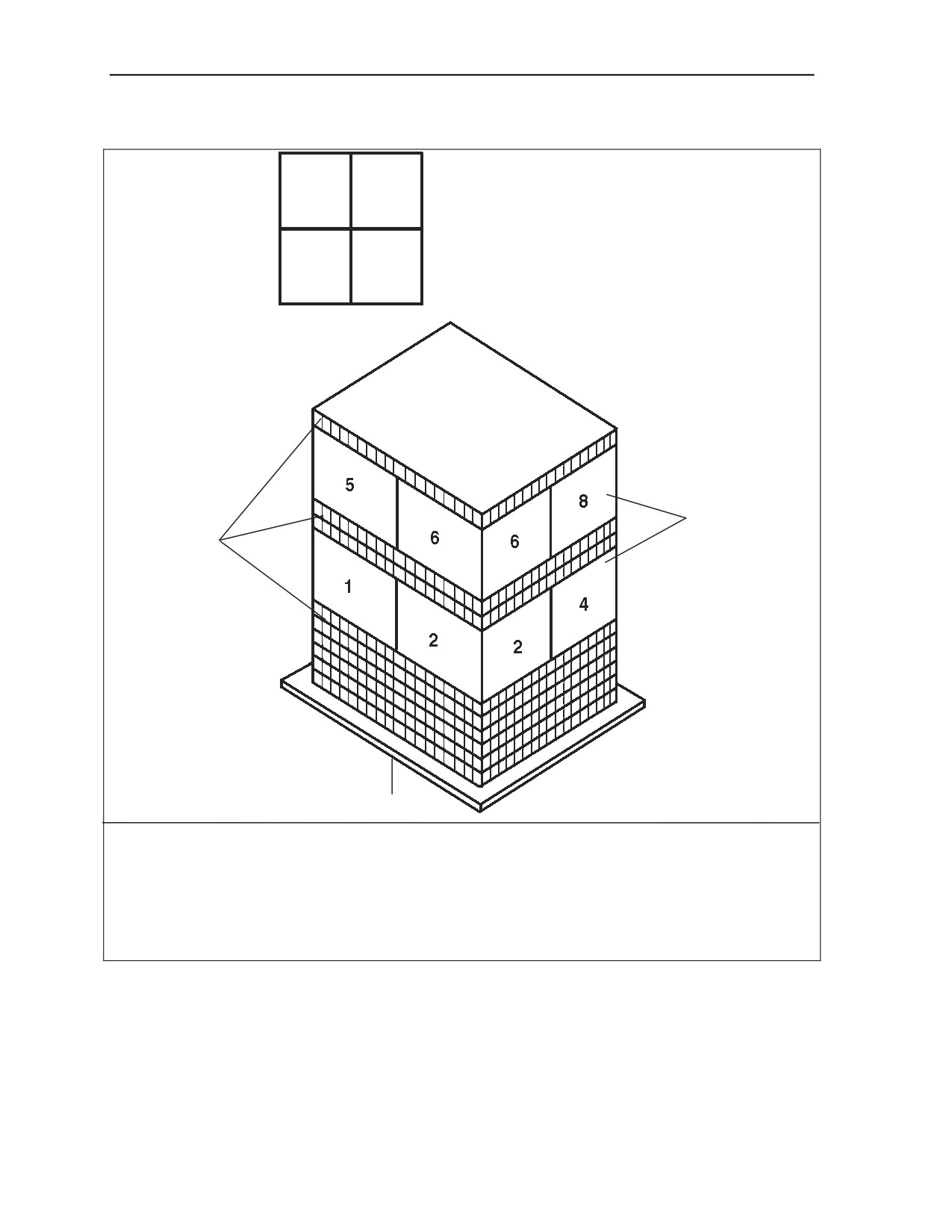

The following ammunition item is rigged in an A-22 cargo bag for high-velocity airdrop as shown in
Figure 3-36.
152-Millimeter Ammunition
Cartridge, 152-mm, TD-T, M411E3, (DODIC 1320-D380)
Figure 3-36. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
3-40
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Rigging High-Velocity A-22 Cargo Bag Loads
STEEL
STRAPPING
¾-IN PLYWOOD
HONEYCOMB
LAYERS
FIBER
CONTAINERS
LOAD SPREADER
(¾-IN PLYWOOD)
STEEL
STRAPPING
HONEYCOMB
SKID
STRIPS
(6-IN WIDE)

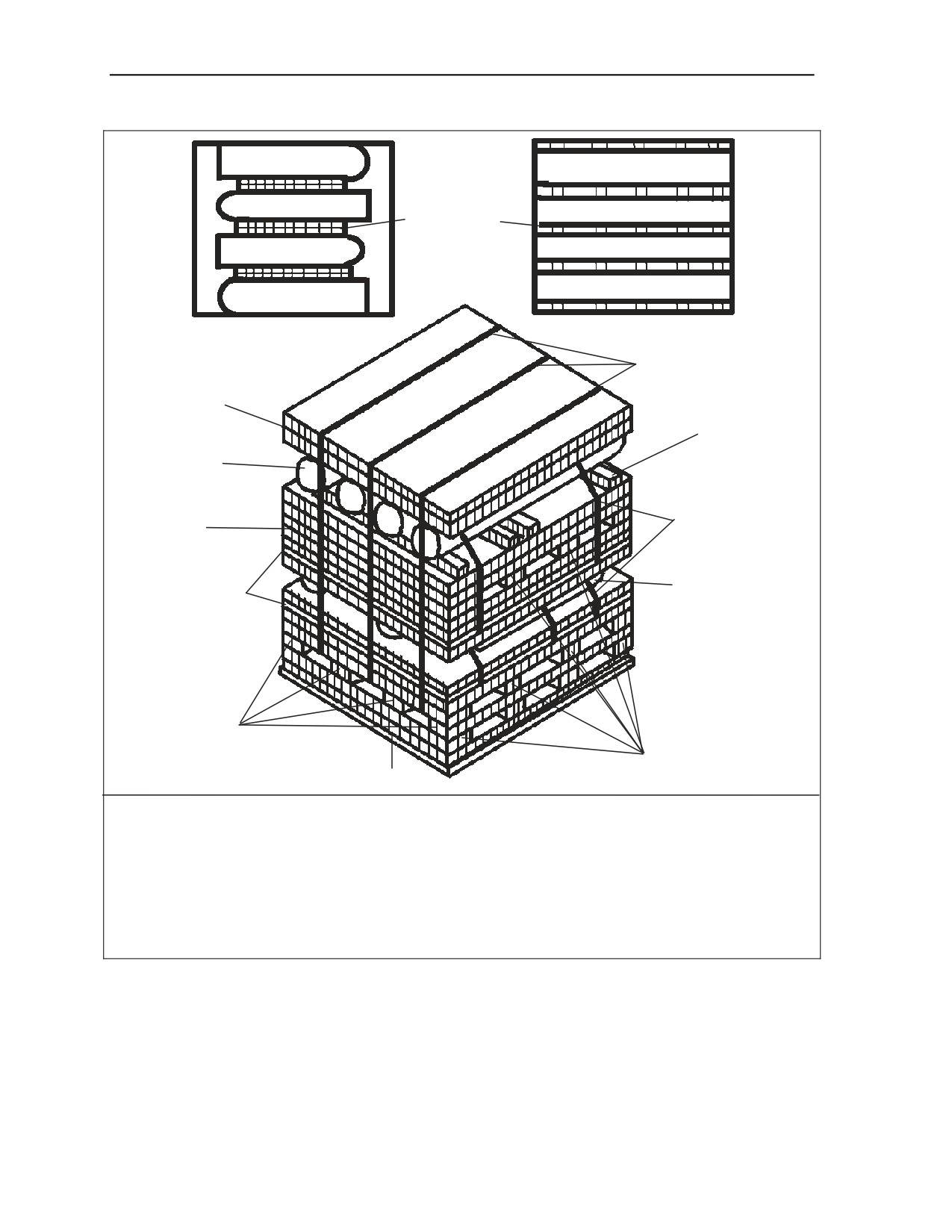

The following ammunition items are rigged in an A-22 cargo bag for high-velocity airdrop as shown in
Figure 3-37.
152-Millimeter Ammunition
(Rigging Fiber Containers)
Cartridge, 152-mm, HEAT-MP, M409E6, (DODIC 1320-D381)
Cartridge, 152-mm, Canister, M625A1, (DODIC 1320-D390)
Figure 3-37. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
3-41
Chapter 3
AMMUNITION
BOXES
HONEYCOMB
LAYERS
SKID

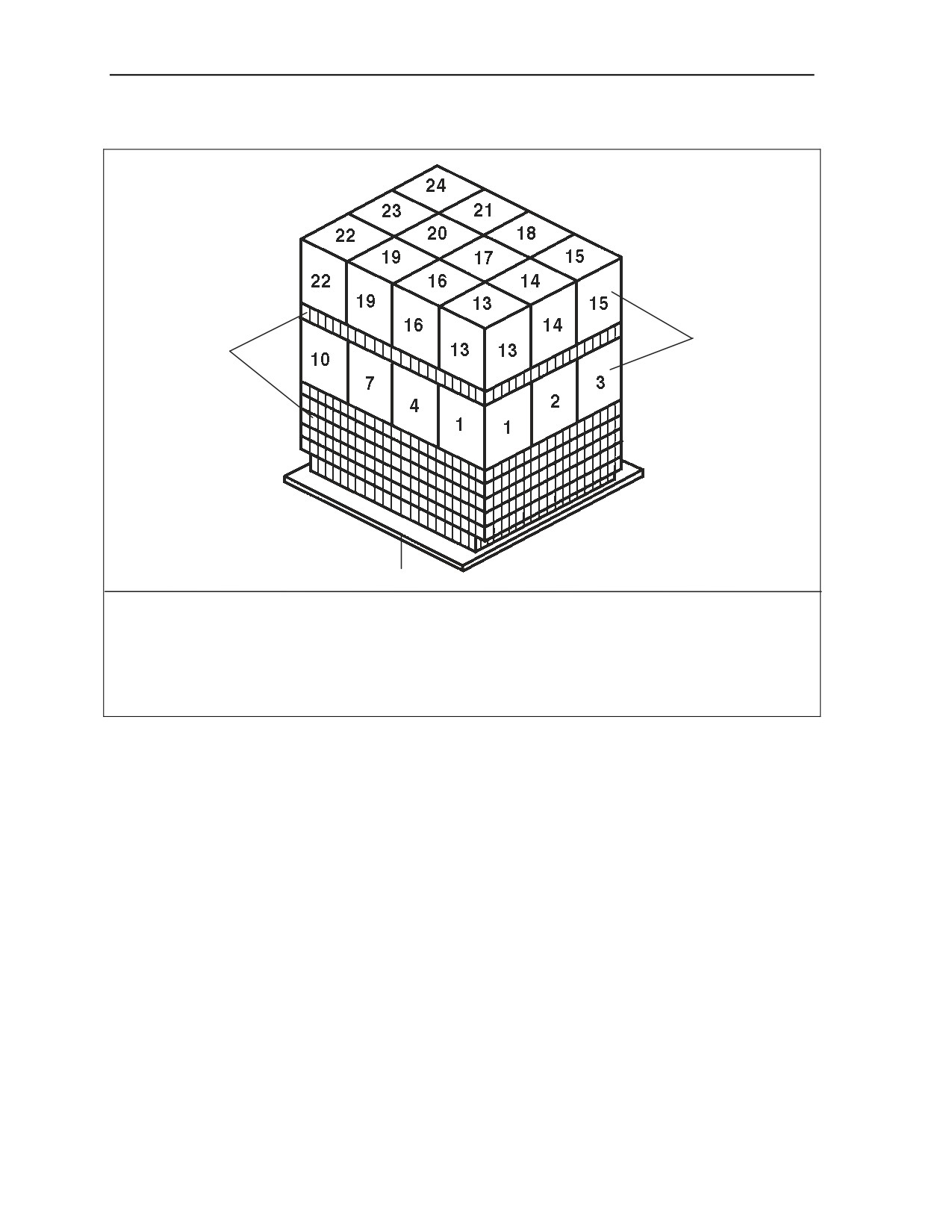

The following ammunition items are rigged in an A-22 cargo bag for high-velocity airdrop as shown in
Figure 3-38.
152-Millimeter Ammunition
Cartridge, 152-mm, HEAT-MP, M409E6, (DODIC 1320-D381)
Cartridge, 152-mm, Canister, M625A1, (DODIC 1320-D390)

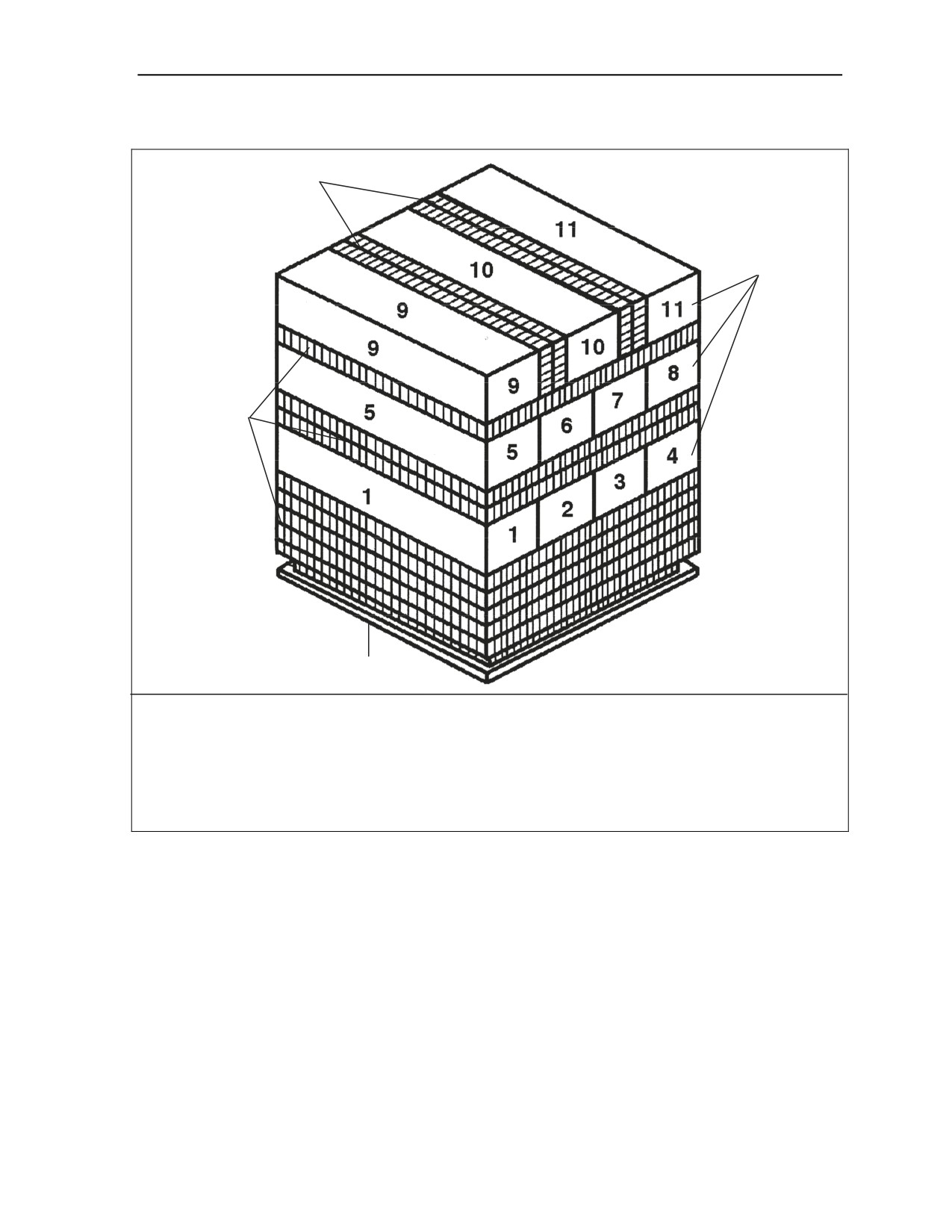

Figure 3-38. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
3-42
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Rigging High-Velocity A-22 Cargo Bag Loads
¾-IN PLYWOOD
HONEYCOMB
STRIPS
(3” X 50”)
HONEYCOMB
LAYERS
STEEL
STRAPPING
LOAD SPREADER
(¾-IN PLYWOOD)
STEEL STRAPPING
SKID
STEEL STRAPPING
STEEL STRAPPING
LAYER 1
LAYER 1
LAYER 2
PROJECTILES
CHARGES, FUSES, & PRIMERS
CHARGES

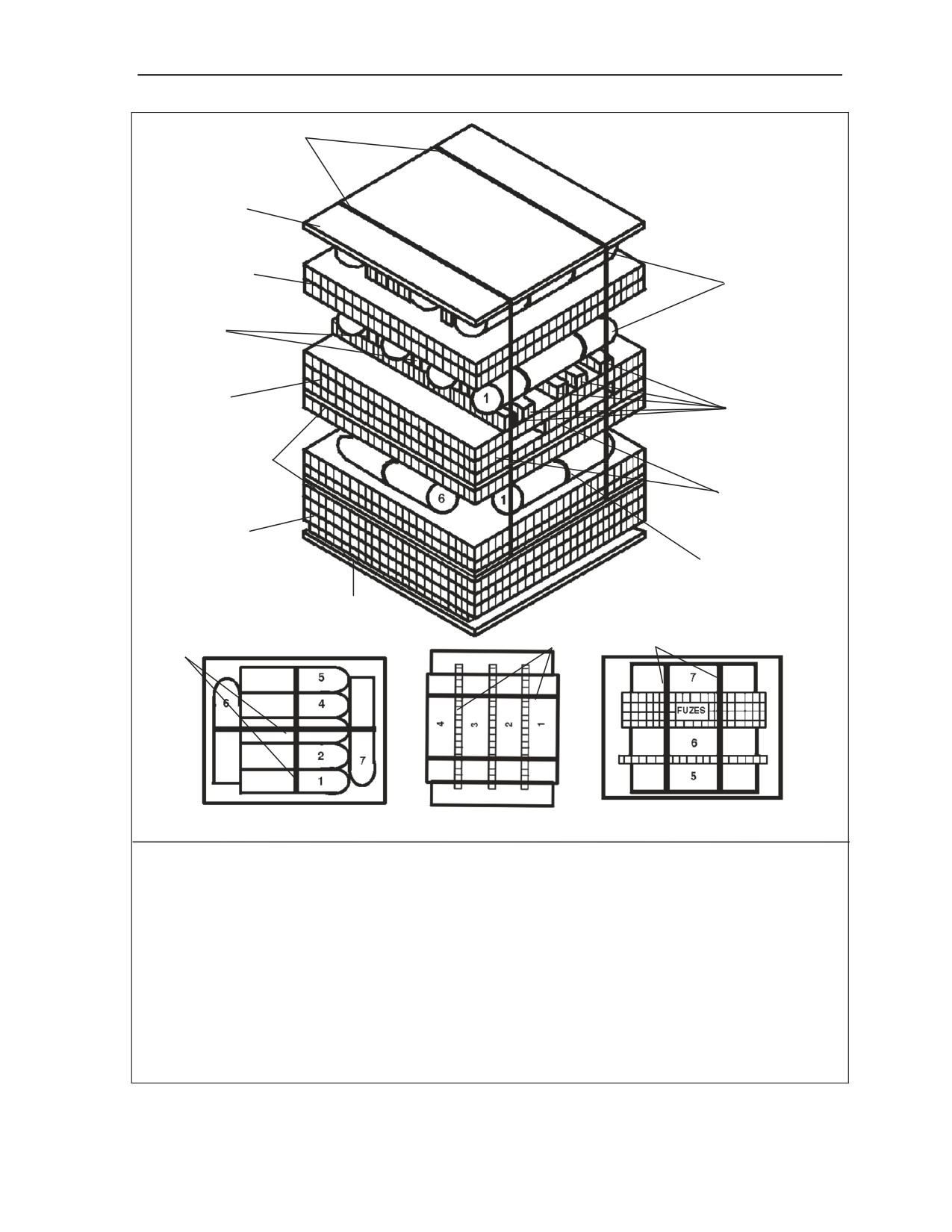

The following ammunition items are rigged in an A-22 cargo bag for high-velocity airdrop as shown in
Figure 3-39.
155-Millimeter Ammunition
Charge, Propelling, 155-mm, M19, (DODIC 1320-D480)
Projectile, 155-mm, Gas, Persistent, HD, M104, (DODIC 1320-D484)
Projectile, 155-mm, HE, M101, (DODIC 1320-D485)

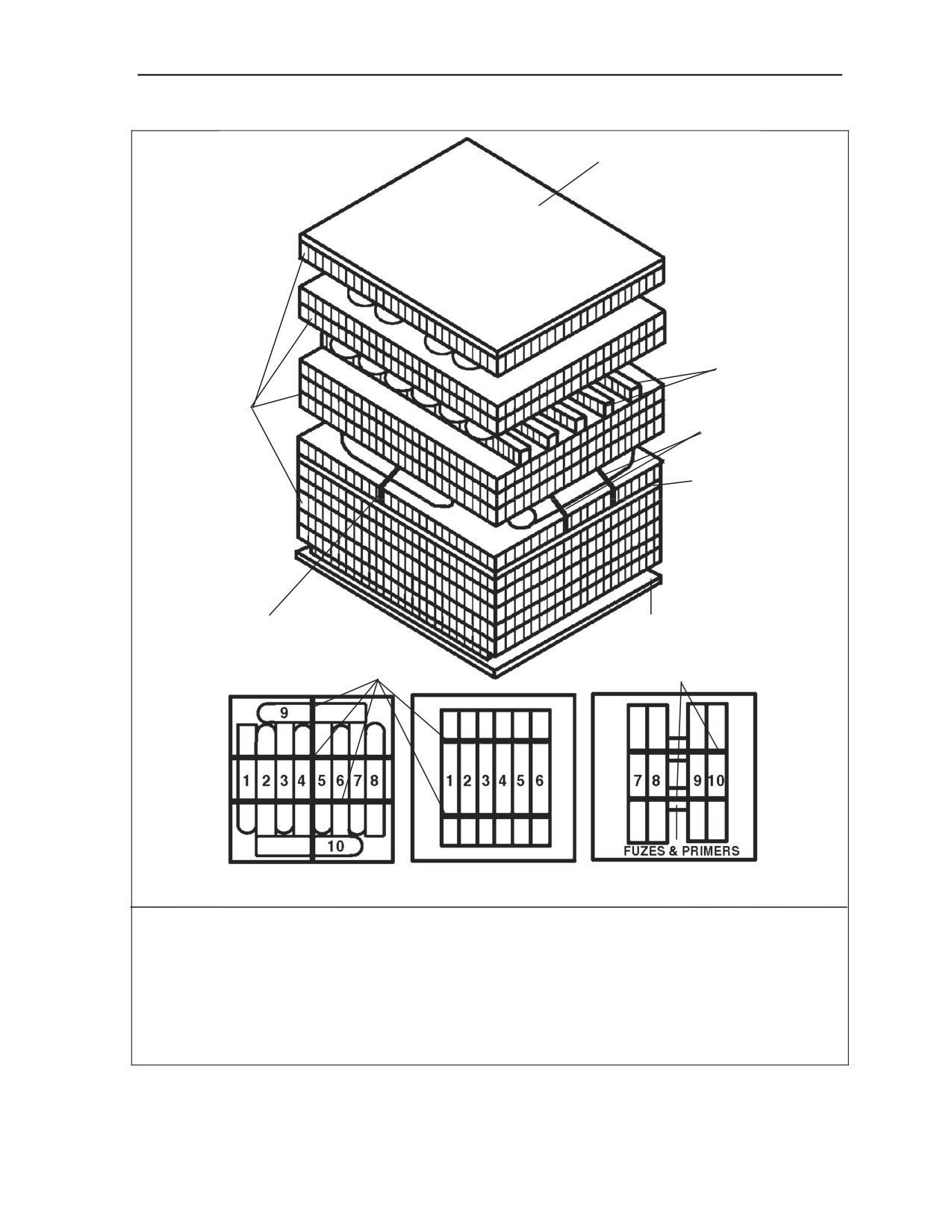

Figure 3-39. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
3-43
Chapter 3
Projectile, 155-mm, Smoke, WP, M104, (DODIC 1320-D487)
Reducer, Flash, Propelling Charge, M1, (DODIC 1320-D490)
Projectile, 155-mm, HE, ADAM, M692, (DODIC 1320-D501)
Projectile, 155-mm, HE, ADAM, M731, (DODIC 1320-D502)
Projectile, 155-mm, AT, RAAMS, M718, (DODIC 1320-D503)
Projectile, 155-mm, Illuminating, M485A2, (DODIC 1320-D505)
Projectile, 155-mm, HC, HE, M116E2, (DODIC 1320-D506)
Projectile, 155-mm, AT, RAAMS, M741, (DODIC 1320-D509)
Projectile, 155-mm, HE, RAAM-L, M718A1, (DODIC 1320-D515)
Projectile, 155-mm, Smoke, WP, M825, (DODIC 1320-D528)
Projectile, 155-mm, Smoke, M795, (DODIC 1320-D529)
*Charge, Propelling, 155-mm, M203A1, (DODIC 1320-D532)
*Charge, Propelling, 155-mm, M119A1 and M119A2, (DODIC 1320-D533)
*Charge, Propelling, 155-mm, M3 and M3A1, (DODIC 1320-D540)
*Charge, Propelling, 155-mm, M4A1 and M4A2, (DODIC 1320-D541)
Projectile, 155-mm, HE, M107, (DODIC 1320-D544)
Projectile, 155-mm, Smoke, HC, BE, M116, (DODIC 1320-D548)
*Projectile, 155-mm, Smoke, WP, M110, (DODIC 1320-D550)
Reducer, Flash, Propelling Charge, M2, (DODIC 1320-D552)
Dummy, Projectile, 155-mm, M7, (DODIC 1320-D553)
Projectile, 155-mm, HE, M449A1, (DODIC 1320-D562)
Projectile, 155-mm, HE, M483A1, (DODIC 1320-D563)
Projectile, 155-mm, HE, RA, M549, (DODIC 1320-D579)
Projectile, 155-mm, M864, (DODIC 1320-D684)
Charge, Propelling, 155-mm, MACS, M231, (DODIC 1320-DA12)
Charge, Propelling, 155-mm, MACS, M232, (DODIC 1320-DA13)
Projectile, 155-mm, RADAM, Short SD, with RAAMS A1, M1025,
(DODIC 1320-DA19)
Projectile, 155-mm, RADAM, Short SD, M1023, (DODIC 1320-DA20)
Projectile, 155-mm, RADAM, Long SD, M1024, (DODIC 1320-DA21)
Projectile, 155-mm, RADAM, Long SD, with RAAMS A1, M1026,
(DODIC 1320-DA22)
Fuze, Electronic Time, M762, (DODIC 1390-N289)
Fuze, Electronic Time, M767, (DODIC 1390-N290)
Fuze, Delay, Mod 1, PD, MK399, (DODIC 1390-N659)
Fuze, Multi-Option for Artillery, M782 (DODIC 1390-NA09)
Note: The required fuses and primers may be rigged as part of the load; however, only those fuses and primers listed in Table
1-3 are authorized to be airdropped.
*The old or new type propelling charge container may be rigged.
Figure 3-39. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop (continued)
3-44
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Rigging High-Velocity A-22 Cargo Bag Loads
Note: Each end requires four vertical layers of honeycomb and Each side requires one vertical layer of honeycomb.
¾-IN PLYWOOD
HONEYCOMB
HONEYCOMB
LAYERS
FILLERS
4 PER END
PROPELLING
HONEYCOMB
CHARGES
LAYERS
M712 PALLETIZED
PROJECTILES
HONEYCOMB
LAYERS
LOAD SPREADERS
(¾-IN PLYWOOD)
2 LAYERS
SKID

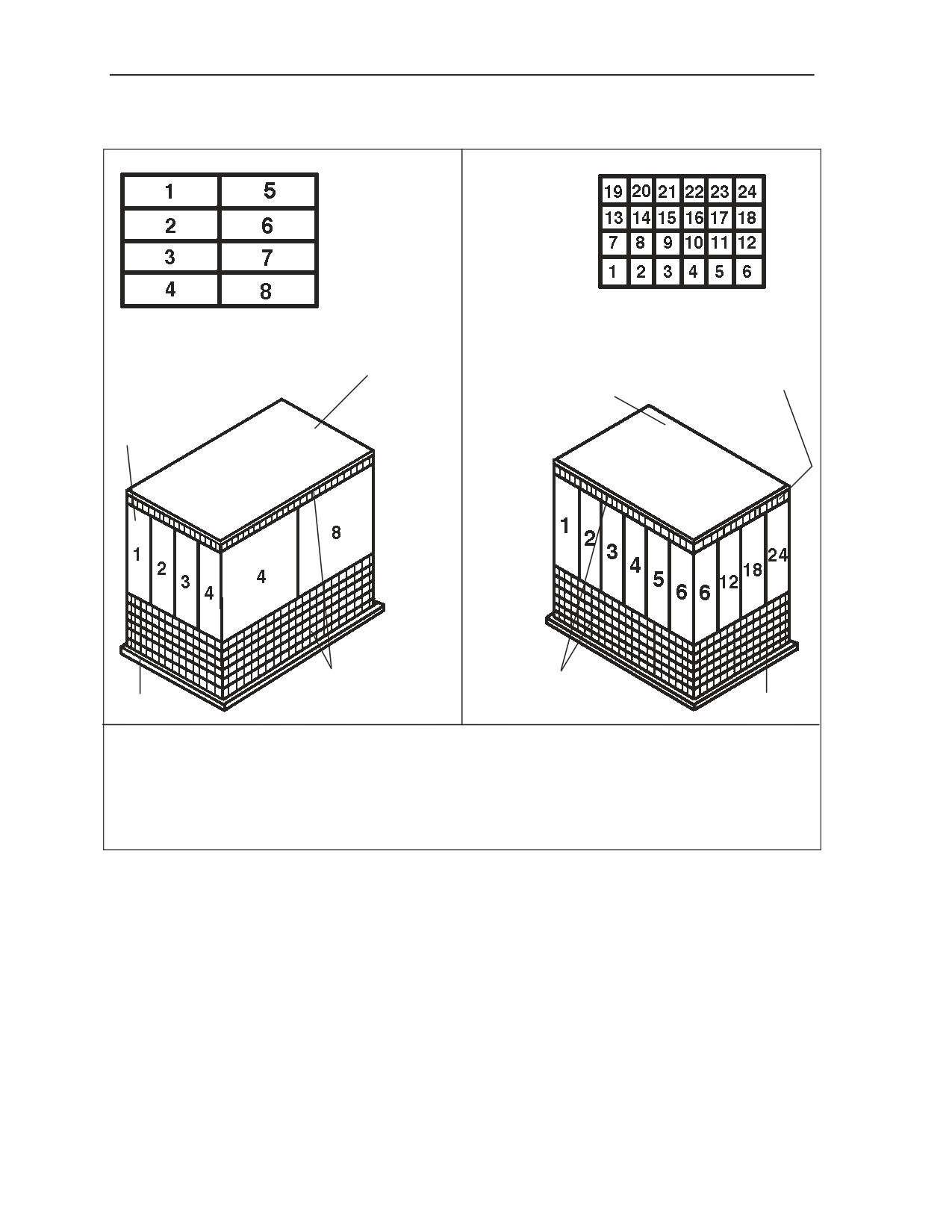

The following ammunition item is rigged in a double A-22 cargo bag for high-velocity airdrop as shown in
Figure 3-40. Prepare a double A-22 skid according to FM 4-20.103/MCRP 4-11.3C/TO 13C7-1-11.
155-Millimeter Ammunition
Projectile, 155-mm, HEAT, M712 (Copperhead), (DODIC 1320-D510)

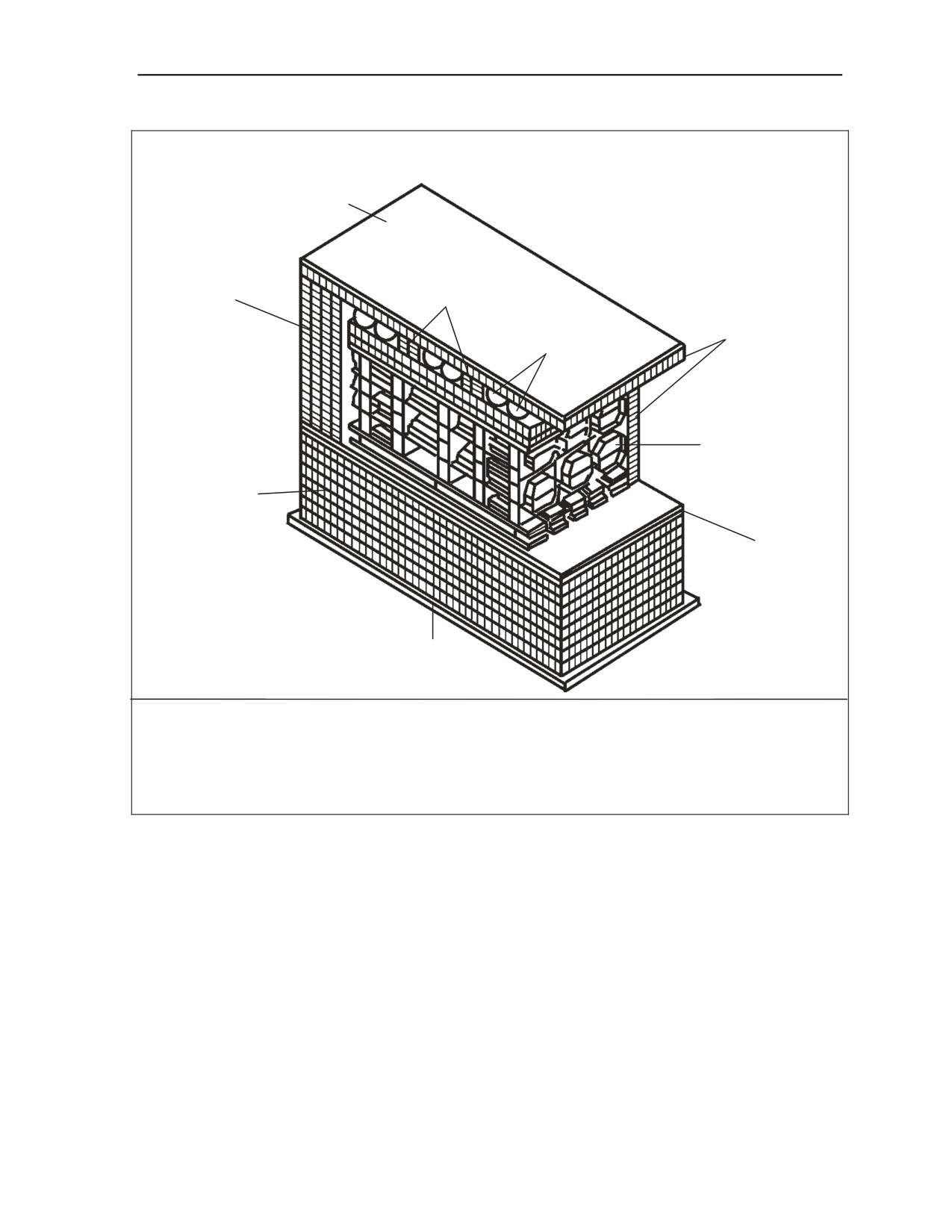

Figure 3-40. Ammunition Layout in a Double A-22 Cargo Bag for High-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
3-45
Chapter 3
HONEYCOMB
FILLERS
LAYER 1
LAYER 2
STEEL
STRAPPING
HONEYCOMB
LAYERS
HONEYCOMB
STRIPS
PROPELLANT
(5-IN WIDE)
CHARGES
HONEYCOMB
STEEL
STRAPPING
LAYERS
LOAD SPREADERS
PROJECTILES
(¾-IN PLYWOOD)
HONEYCOMB
HONEYCOMB
STRIPS
STRIPS
(6-IN WIDE)
(6-IN WIDE)
SKID
The following ammunition items are rigged in an A-22 cargo bag for high-velocity airdrop as shown in
Figure 3-41.
175-Millimeter Ammunition
Charge, Propelling, 175-mm, WB, M86A2, with Additive Jacket M1 and
Primer Percussion M82, (DODIC 1320-D361)
Projectile, 175-mm, HE, M437A2, (DODIC 1320-D572)
Note: Required fuses are rigged with the load.
Figure 3-41. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
3-46
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Rigging High-Velocity A-22 Cargo Bag Loads
STEEL
STRAPPING
¾-IN PLYWOOD
HONEYCOMB
LAYERS
CHARGES
HONEYCOMB
STRIPS
(3” X 48”)
HONEYCOMB
HONEYCOMB
LAYERS
STRIPS
(3” X 48”)
LOAD SPREADERS
(¾-IN PLYWOOD)
HONEYCOMB
STRIPS
(10” X 48”)
HONEYCOMB
LAYERS
PROJECTILES
SKID
STEEL
STEEL
STRAPPING
STRAPPING
LAYER 1
LAYER 2
LAYER 2

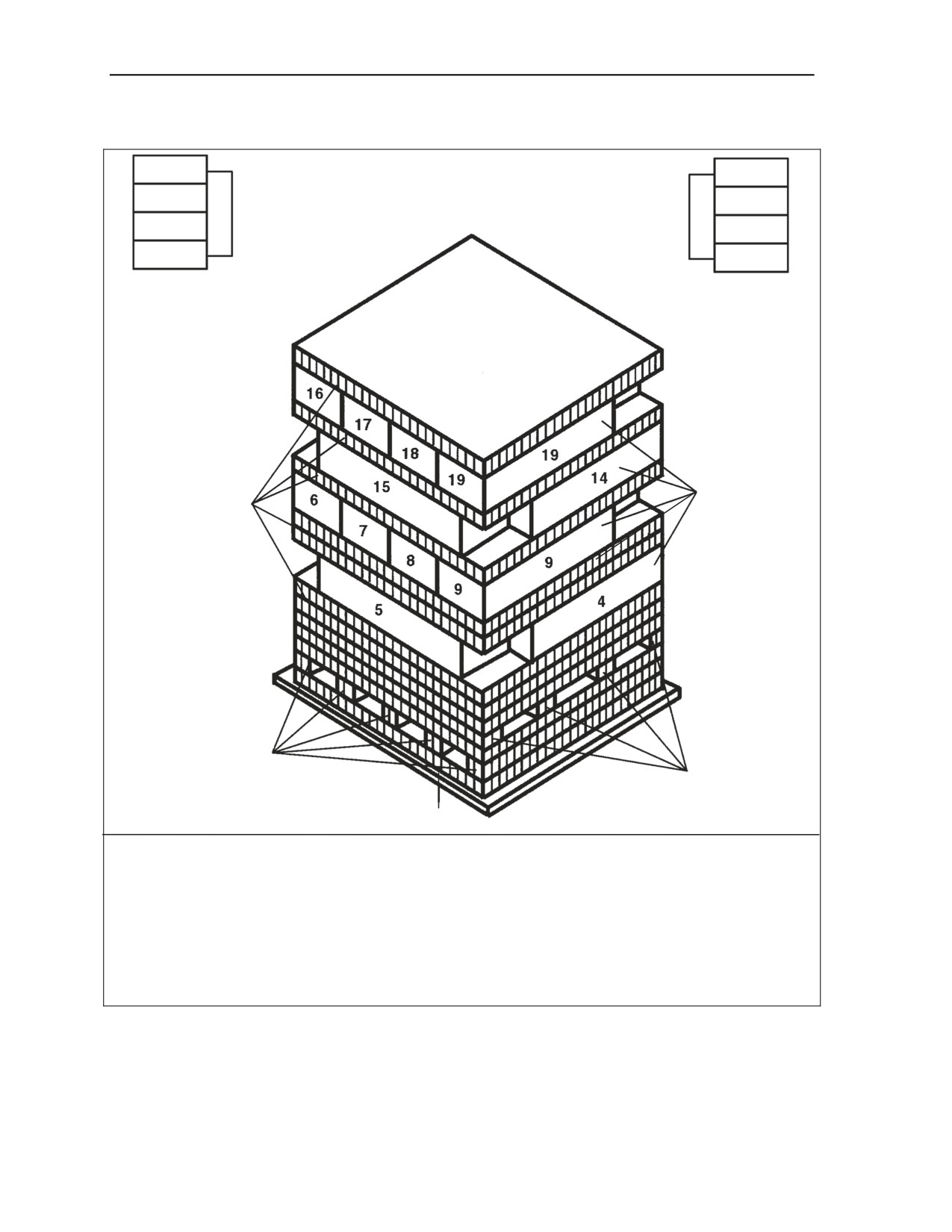

The following ammunition items are rigged in an A-22 cargo bag for high-velocity airdrop as shown in
Figure 3-42.
8-Inch Ammunition
*Charge, Propelling, 8-in, WB, M188 (DODIC 1320-D661)
Charge, Propelling, 8-in, WB, M188A1 (DODIC 1320-D662)
Charge, Propelling, 8-in, M1 (DODIC 1320-D675)
Charge, Propelling, 8-in, M2 (DODIC 1320-D676)
Projectile, 8-in, HE, M106 (DODIC 1320-D680)
Reducer, Flash, Propelling Charge, M3 (DODIC 1320-D681)
Projectile, 8-in, HE, M404 (DODIC 1320-D684)
Figure 3-42. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
3-47
Chapter 3
Primers and Fuses
Fuze, Delay, PD, MOD 1, MK399, (DODIC 1390-N659)
Note: Required fuzes are rigged with the load.
*The old or new type propelling charge containers may be rigged.
Figure 3-42. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop (continued)
LAYERS 1 & 2
AMMUNITION
BOXES
HONEYCOMB
LAYERS
LOAD SPREADER
(¾-IN PLYWOOD)
HONEYCOMB
LAYERS
HONEYCOMB
STRIPS
(4-IN WIDE)
SKID
The following ammunition item is rigged in an A-22 cargo bag for high-velocity airdrop as shown in
Figure 3-43.
Grenades
Grenade, 40-mm, Smoke, Screening, L8A3, (DODIC 1330-G815)

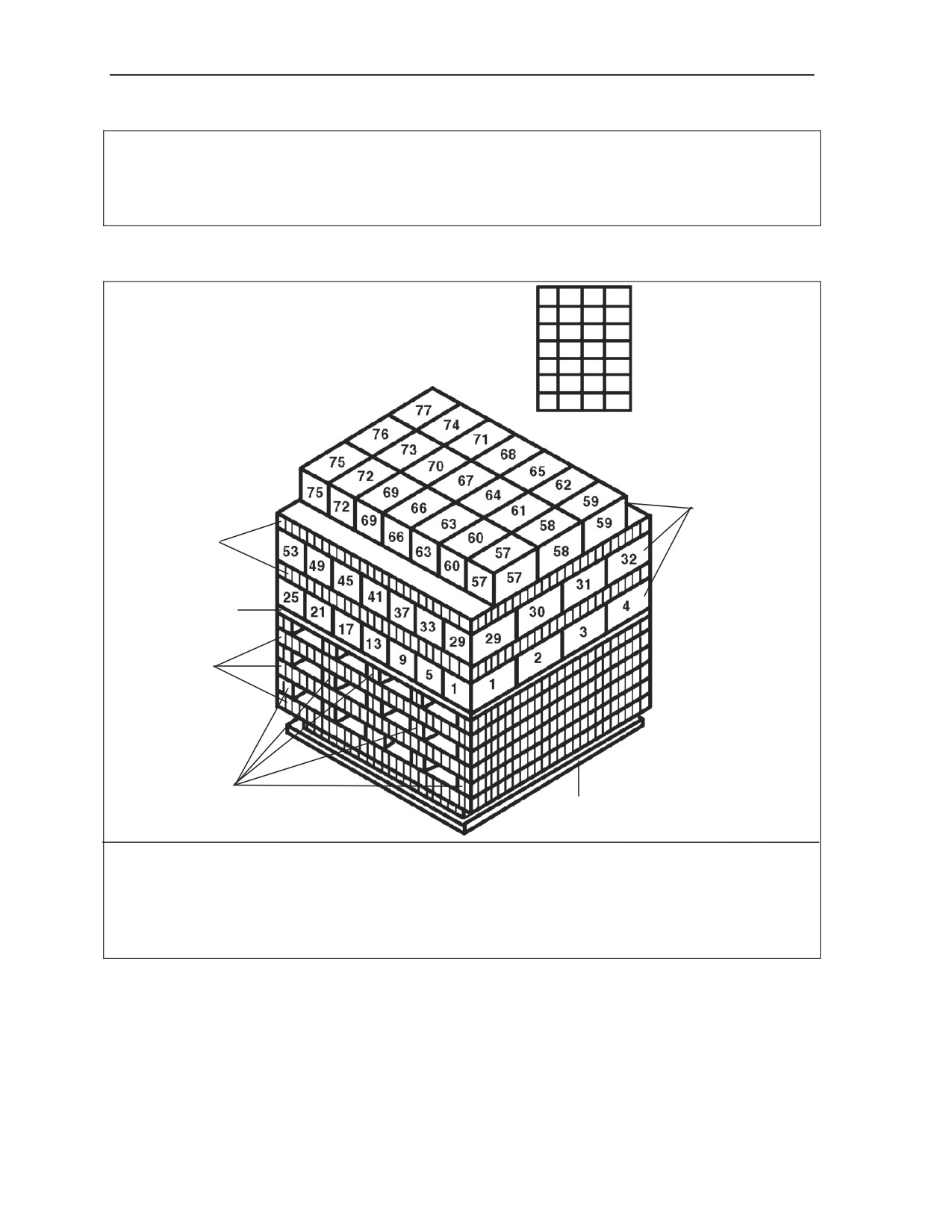

Figure 3-43. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
3-48
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Rigging High-Velocity A-22 Cargo Bag Loads
AMMUNITION
BOXES
HONEYCOMB
LAYERS
HONEYCOMB
STRIPS
(6-IN WIDE)
SKID

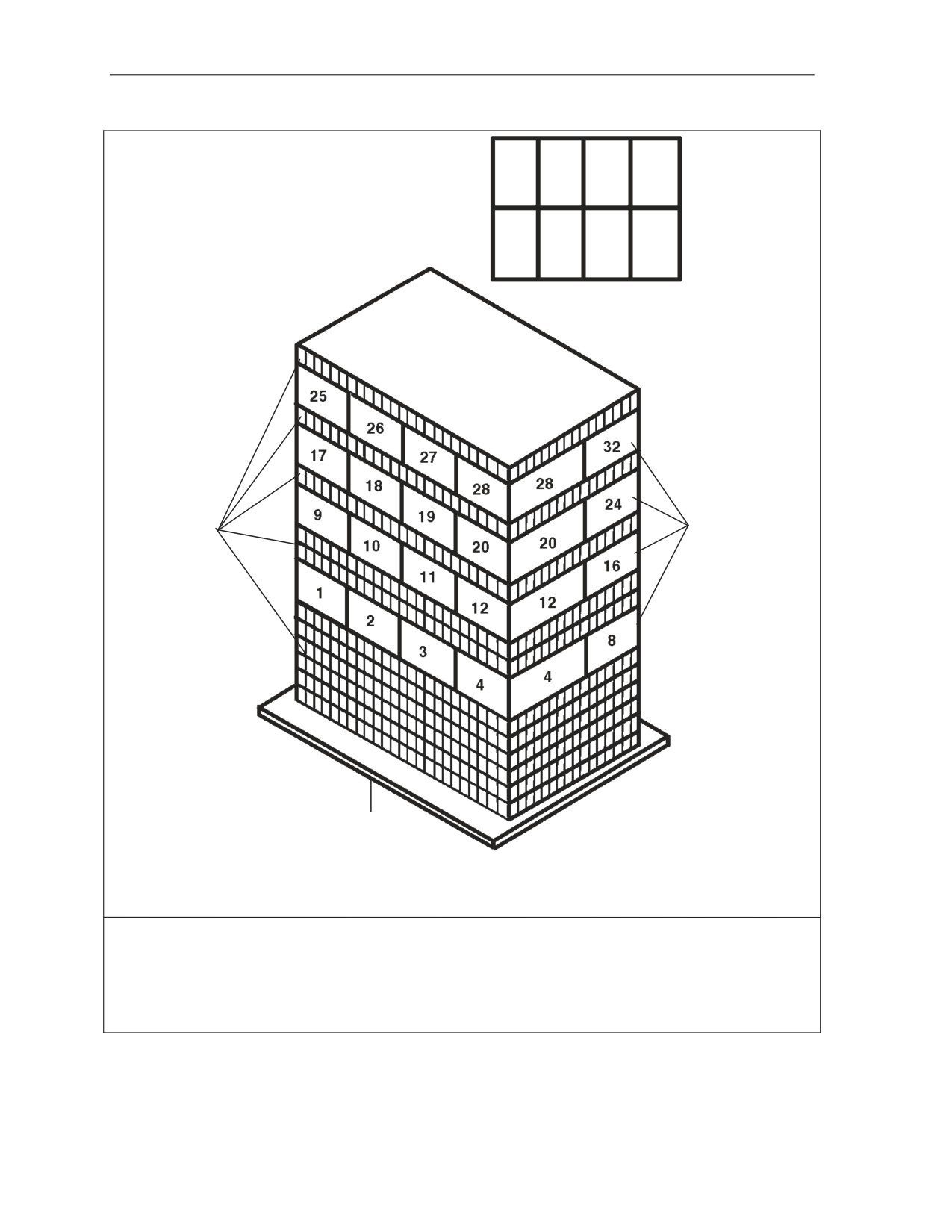

The following ammunition item is rigged in an A-22 cargo bag for high-velocity airdrop as shown in
Figure 3-44.
Grenades
Launcher, Grenade, 40-mm, Smoke, IR Screening, M76, (DODIC 1330-G826)
Figure 3-44. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
3-49
Chapter 3
HONEYCOMB
AMMUNITION
LAYERS
BOXES
SKID

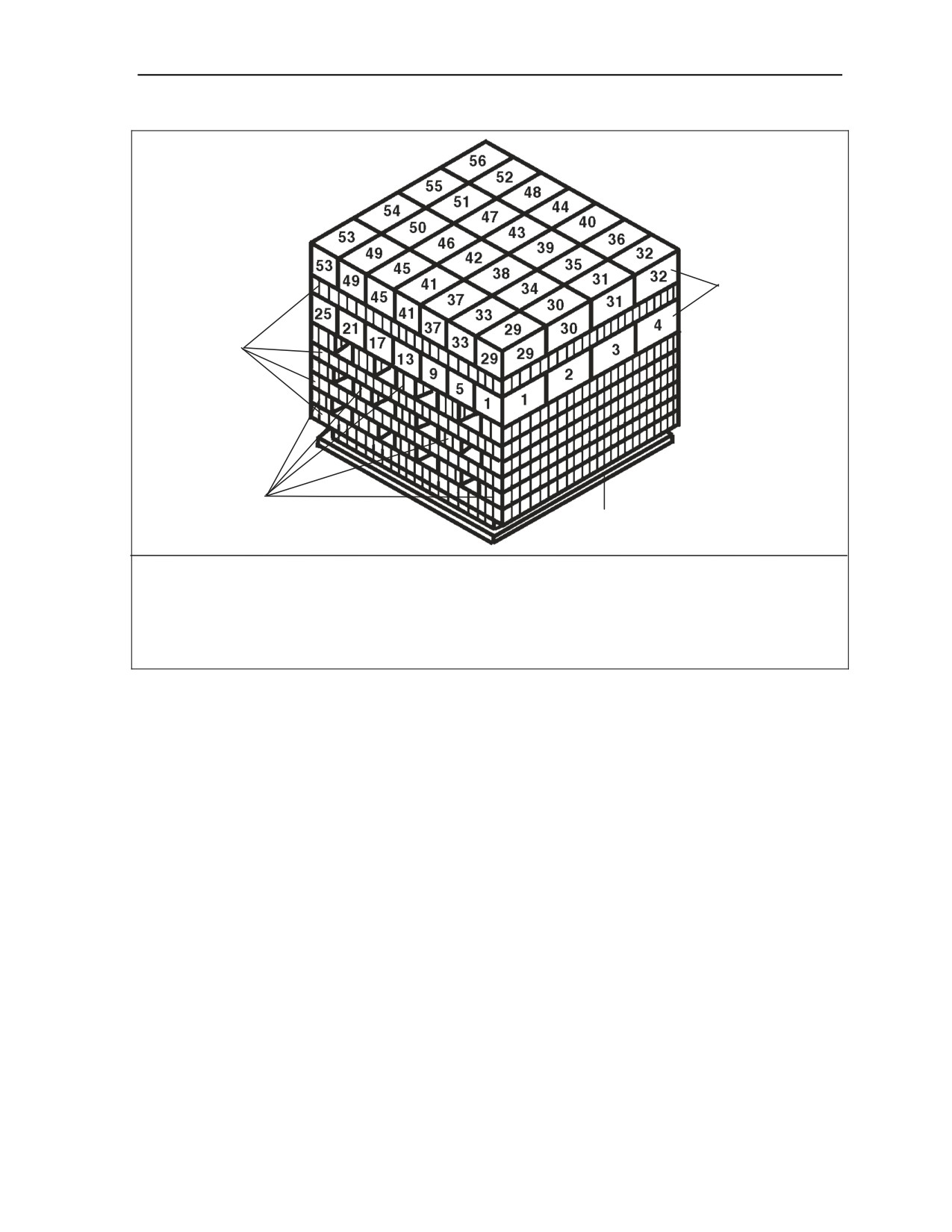

The following ammunition item is rigged in an A-22 cargo bag for high-velocity airdrop as shown in
Figure 3-45.
Grenade
Grenade, Hand, Offensive, MK3A2 with Fuze, (DODIC 1330-G911)

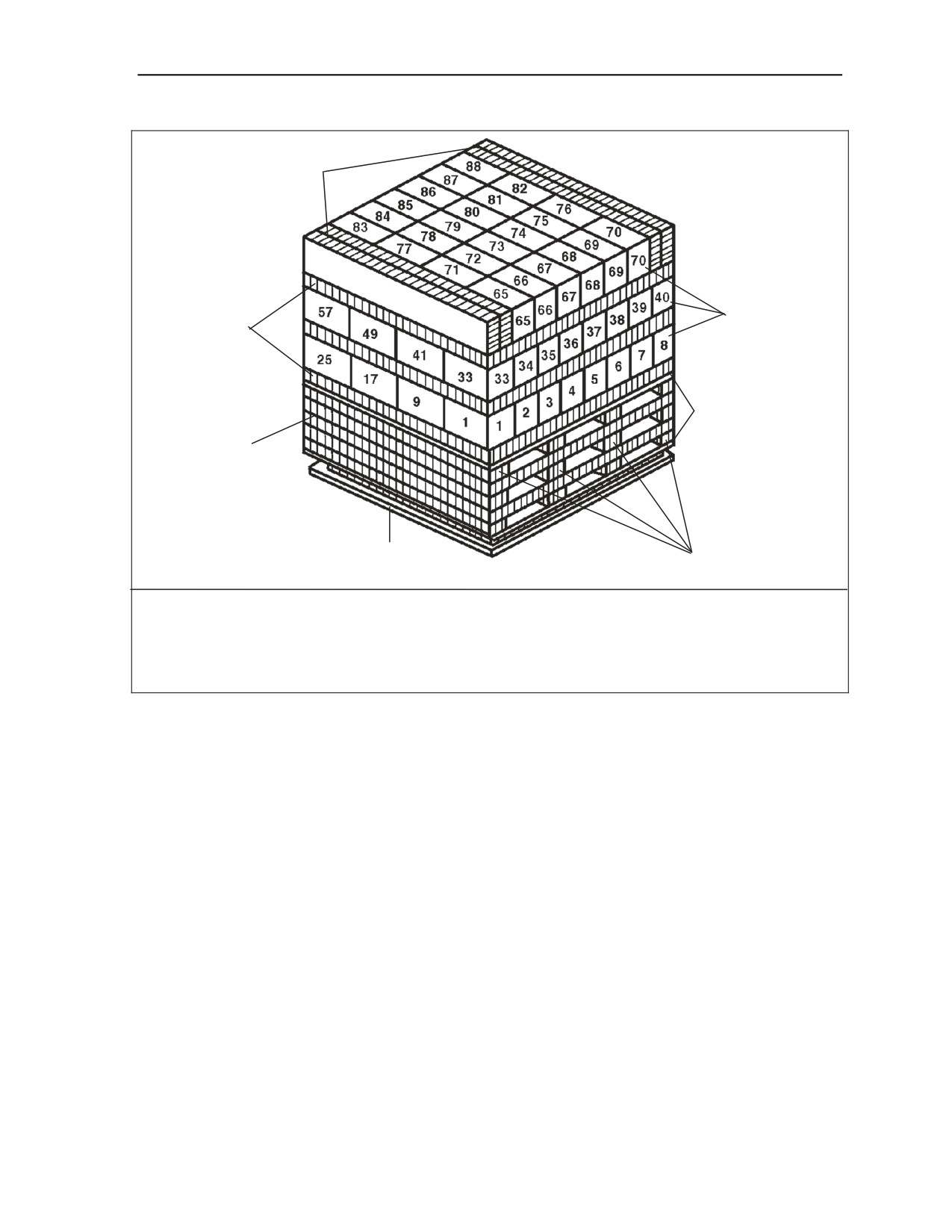

Figure 3-45. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
3-50
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Rigging High-Velocity A-22 Cargo Bag Loads
HONEYCOMB
FILLERS
AMMUNITION
HONEYCOMB
BOXES
LAYERS
LOAD SPREADER
(¾-IN PLYWOOD)
HONEYCOMB
LAYERS
HONEYCOMB
SKID
STRIPS
(5-IN WIDE)

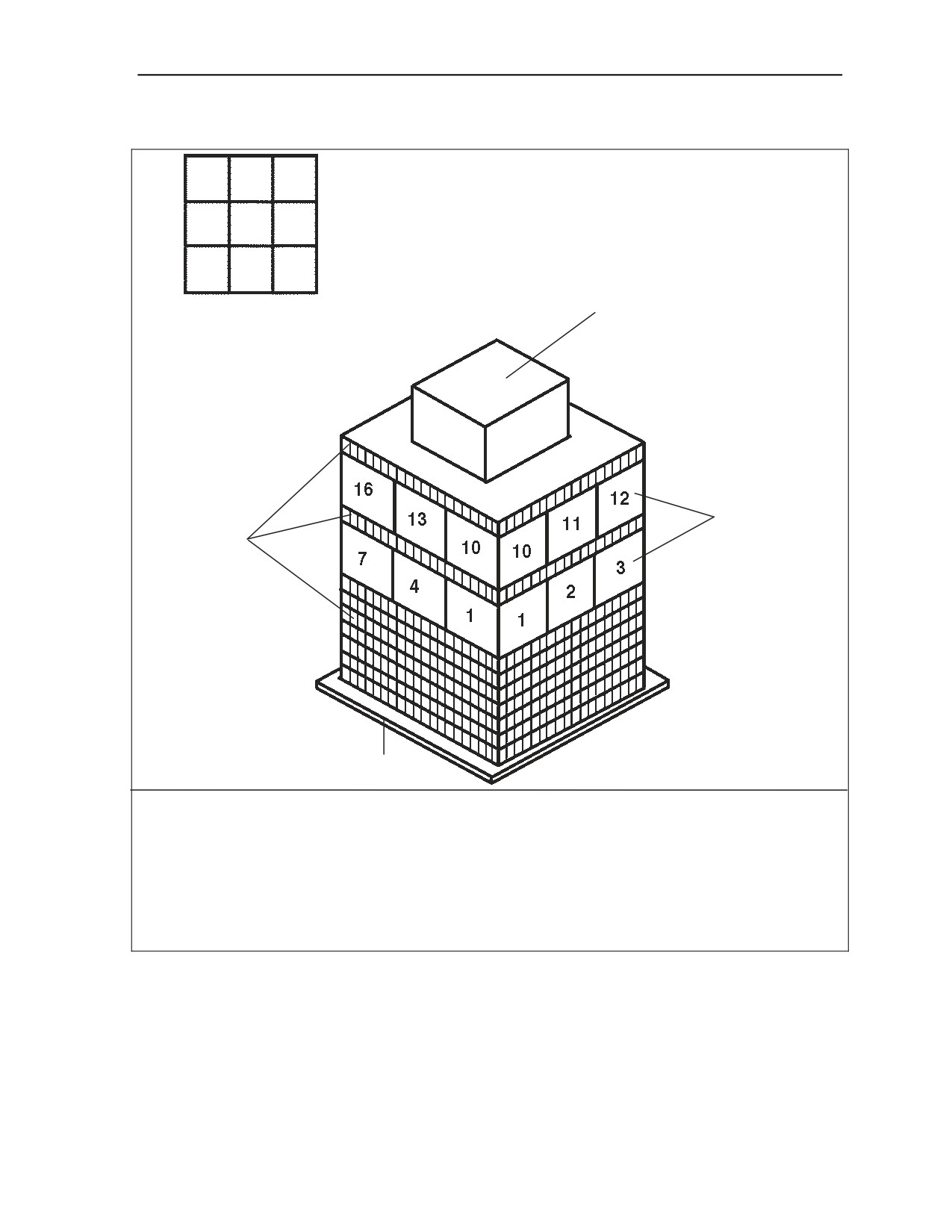

The following ammunition item is rigged in an A-22 cargo bag for high-velocity airdrop as shown in
Figure 3-46.
Grenades
Grenade, Launcher, Smoke, MM/IR, Screening, M81, (DODIC 1330-GG01)
Figure 3-46. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
3-51
Chapter 3
AMMUNITION
HONEYCOMB
BOXES
LAYERS
SKID

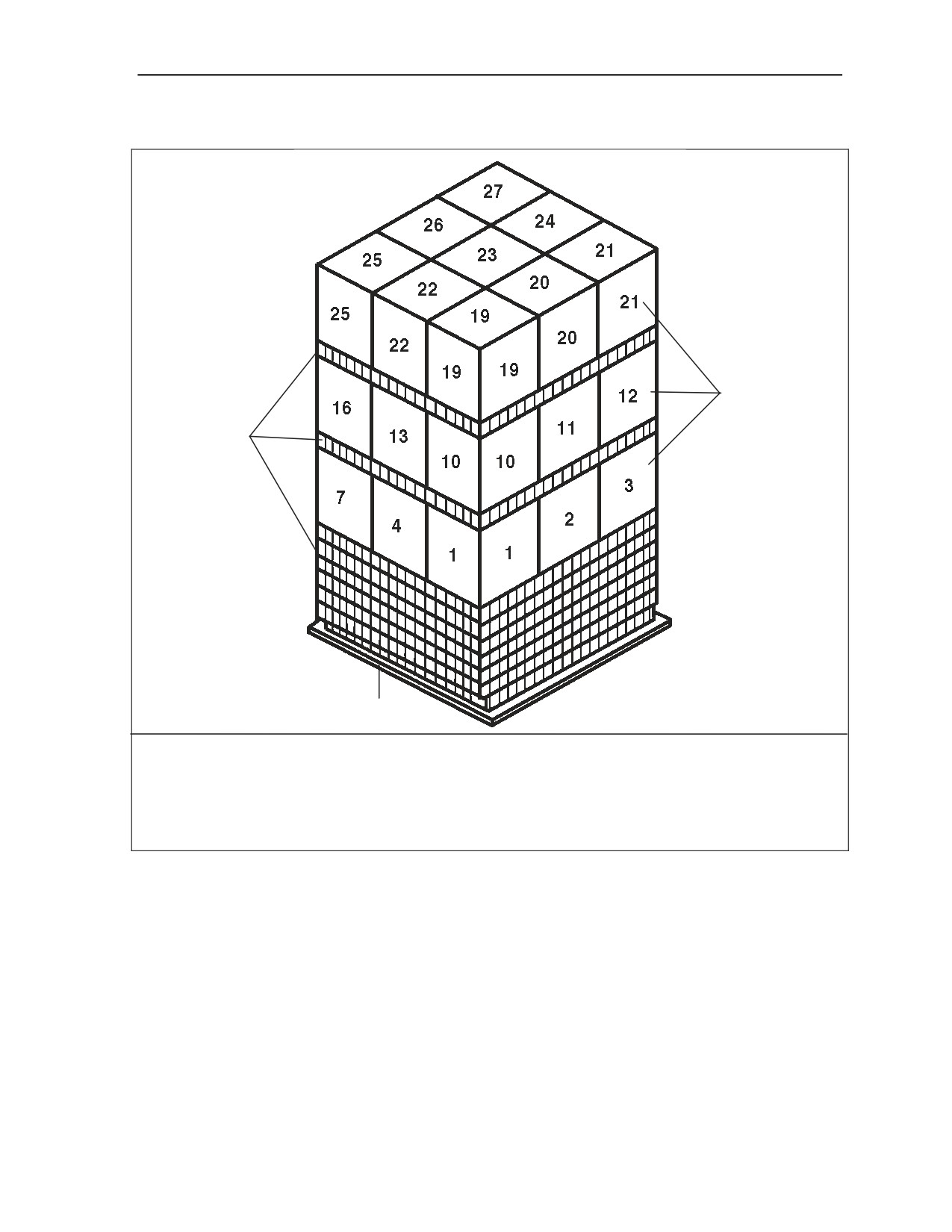

The following ammunition items are rigged in an A-22 cargo bag for high-velocity airdrop as shown in
Figure 3-47.
Grenade
Launcher and Grenade, Smoke, HC, WP, M176, (DODIC 1330-H050)
Antipersonnel and Antitank Mines
CAUTION
The M14 mine will contaminate the drop zone if the parachute
malfunctions.
Mine, Antipersonnel, MN, M14, (DODIC 1345-K121)
Mine, Antitank, HEAT, Heavy M15 with Fuze M603, (DODIC 1345-K180)
Flare and Signal Items
Flare, Surface, M49A1, Trip, (DODIC 1370-L495)
Demolition Items
Cap, Blasting, Special Non-Electric, M7, (DODIC 1375-M131)
Detonator, Percussion, M1A2, 15-sec Delay, (DODIC 1375-M450)
Figure 3-47. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
3-52
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Rigging High-Velocity A-22 Cargo Bag Loads
¾-IN PLYWOOD
(73” X 48”)
AMMUNITION
BOXES
HONEYCOMB
LAYERS
(73” X 48”)
HONEYCOMB
STRIPS
(5-IN WIDE)
LOAD SPREADER
(¾-IN PLYWOOD)
HONEYCOMB
STRIPS
(9-IN WIDE)
SKID

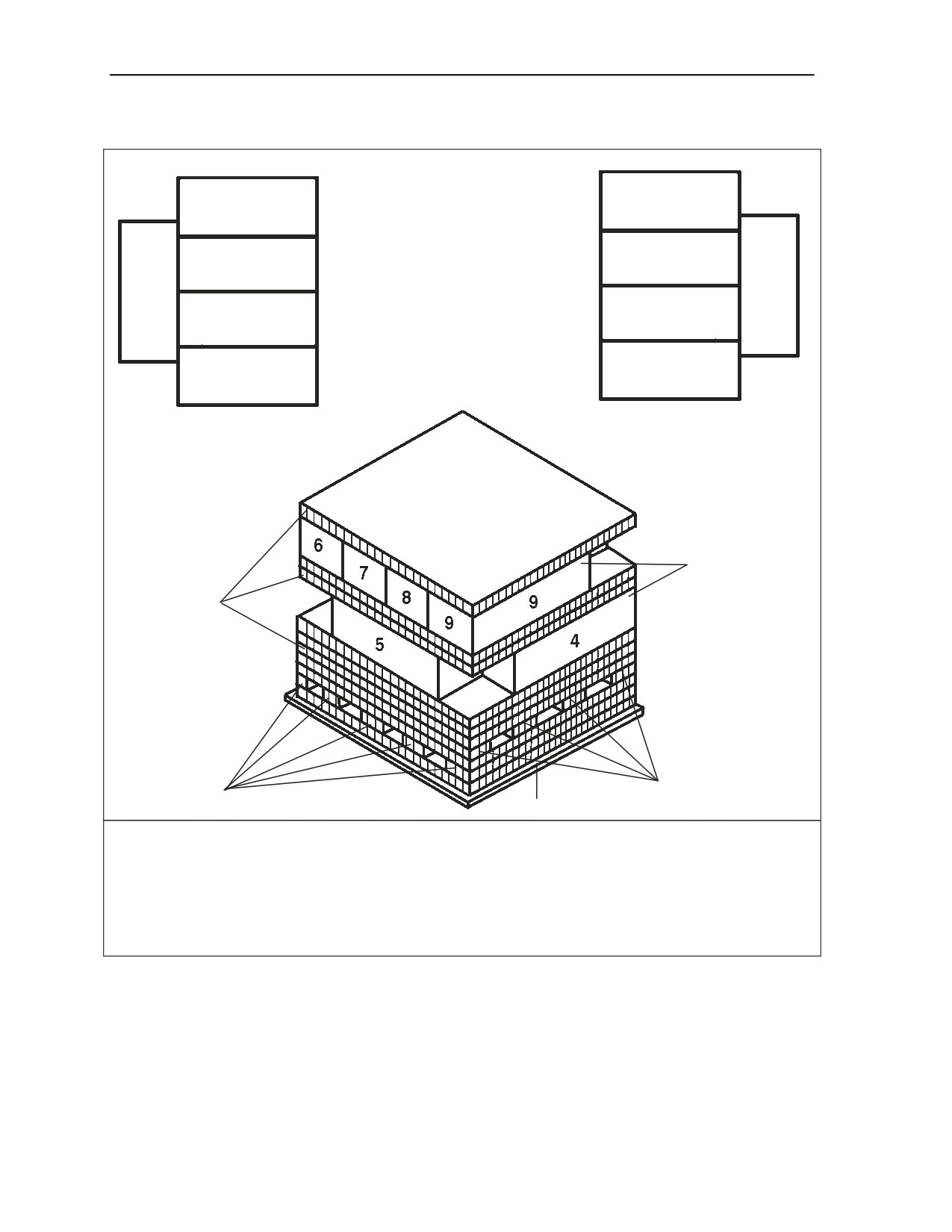

The following ammunition item is rigged in a stretch A-22 cargo bag for high-velocity airdrop as shown
in Figure 3-48. Prepare the stretch A-22 cargo bag according to FM 4-20.103/MCRP 4-11.3C/TO 13C7-1-
11.
Rocket
Rocket, 2.75-in, WP, M259, (DODAC 1340-H116)
Figure 3-48. Ammunition Layout in a Stretch A-22 Cargo Bag for High-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
3-53
Chapter 3
¾-IN PLYWOOD
HONEYCOMB
LAYERS
AMMUNITION
BOXES
LOAD SPREADER
¾-IN PLYWOOD
HONEYCOMB
STRIPS
(4
½
-IN
LOAD SPREADER
(¾-IN PLYWOOD)
HONEYCOMB
STRIPS
(7-IN WIDE)
SKID

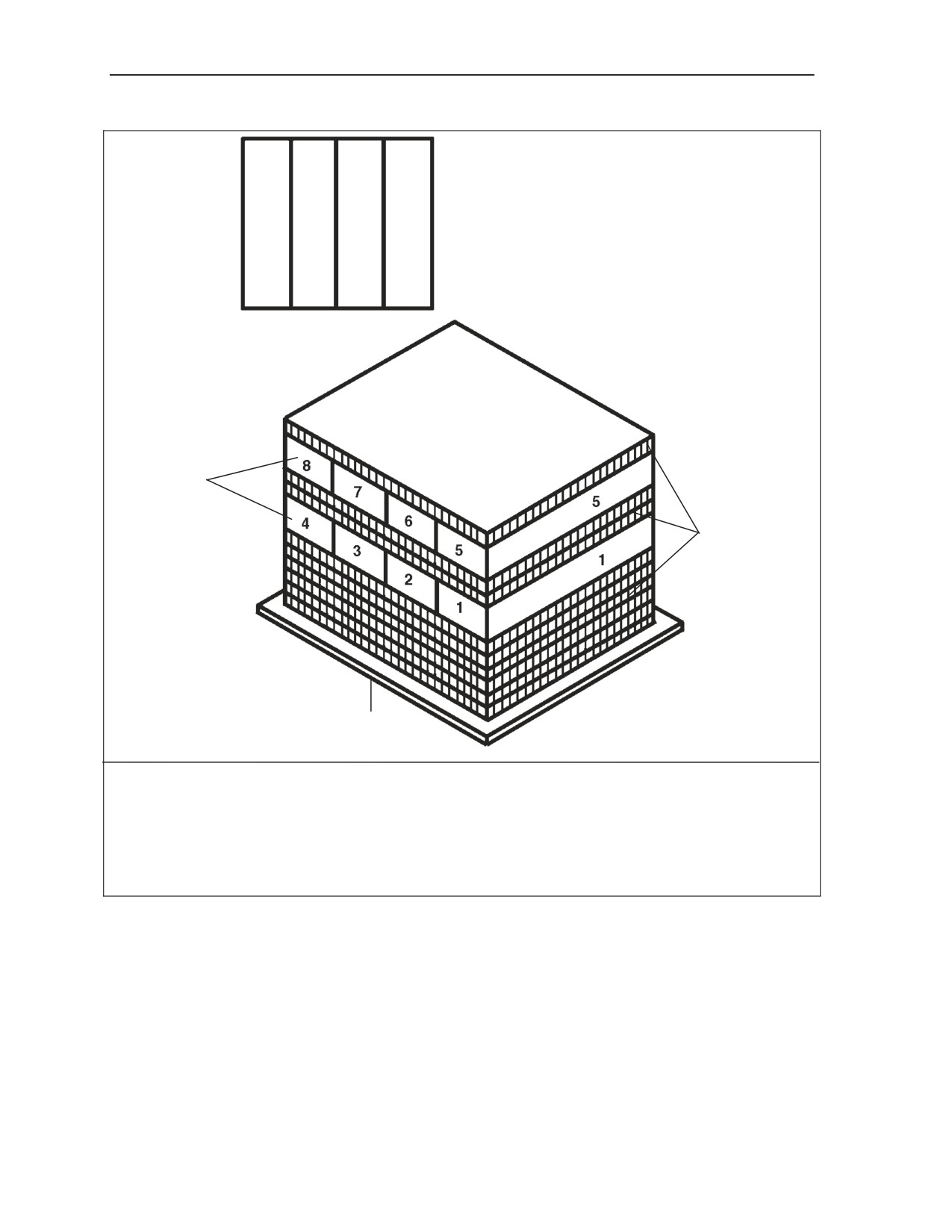

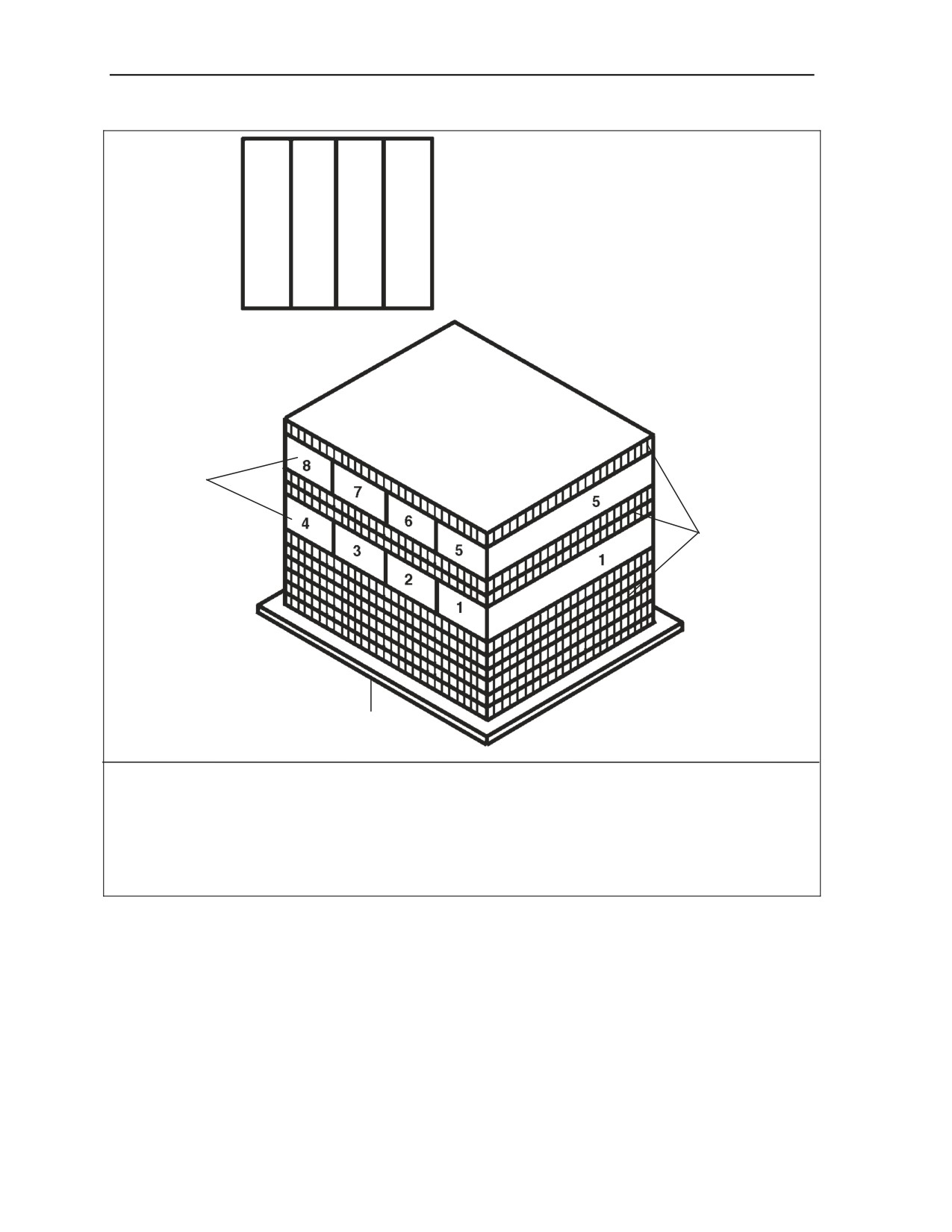

The following ammunition item is rigged in a stretch A-22 cargo bag for high-velocity airdrop as shown in
Figure 3-49. Prepare the stretch A-22 cargo bag according to FM 4-20.103/MCRP 4-11.3C/TO 13C7-1-
11.
Rocket
Rocket, 2.75-in, HE, w/M151 HYDRA, (DODIC 1340-H163)

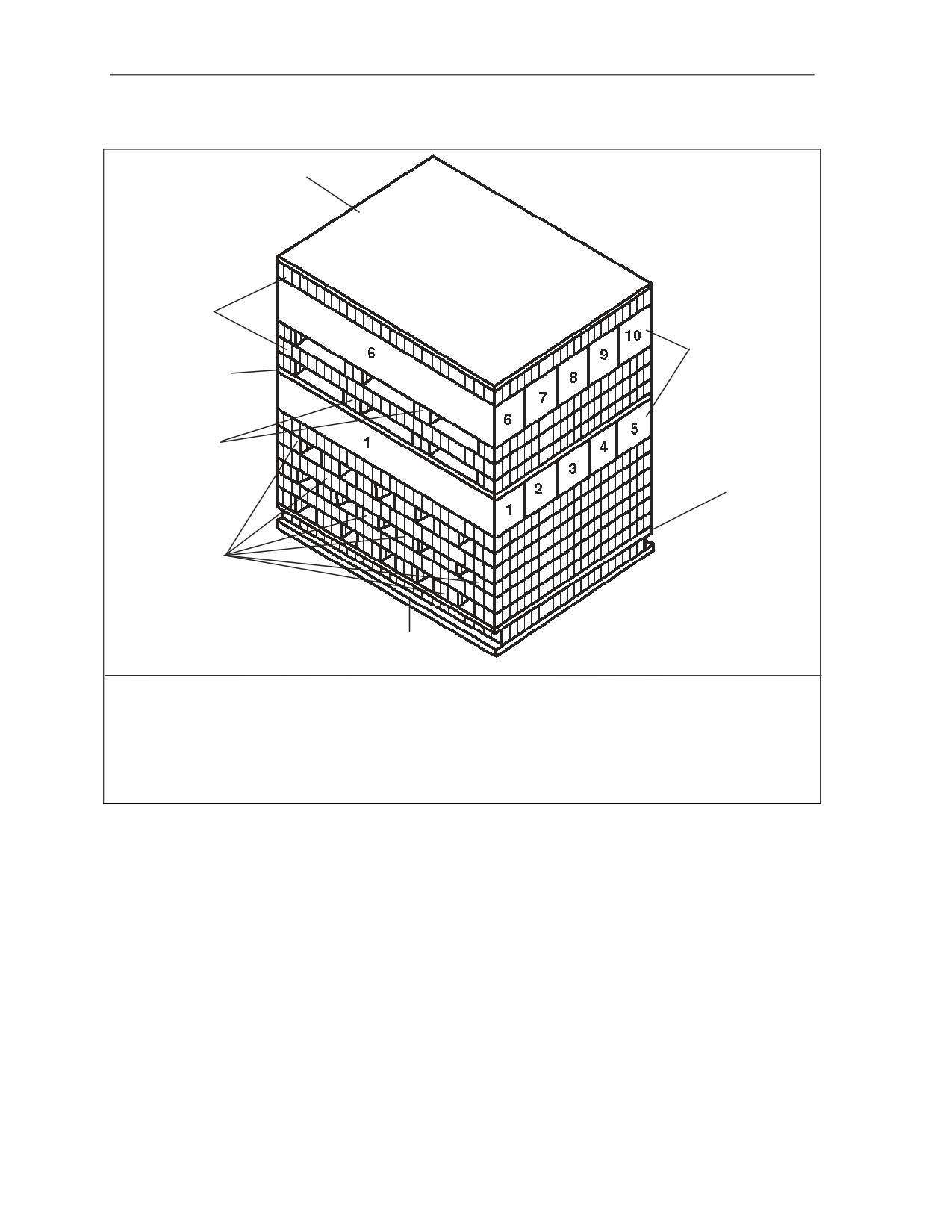

Figure 3-49. Ammunition Layout in a Stretch A-22 Cargo Bag for High-Velocity Airdrop
3-54
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Rigging High-Velocity A-22 Cargo Bag Loads
HONEYCOMB
FILLERS
AMMUNITION
BOXES
HONEYCOMB
LAYERS
SKID
The following ammunition items are rigged in an A-22 cargo bag for high-velocity airdrop as shown in
Figure 3-50.
Rockets
Rocket, 2.75-in, Flare, IR, (DODIC 1340-H154)
Rocket, 2.75-in, Flare, HYDRA, (DODIC 1340-H181)
Figure 3-50. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
3-55
Chapter 3
HONEYCOMB
FILLERS
¾-IN PLYWOOD
LAYERS 1 & 2
LAYER 3
HONEYCOMB
FILLERS
AMMUNITION
BOXES
HONEYCOMB
LAYERS
LOAD SPREADER
(¾-IN PLYWOOD)
HONEYCOMB
STRIPS
(6-IN WIDE)
SKID

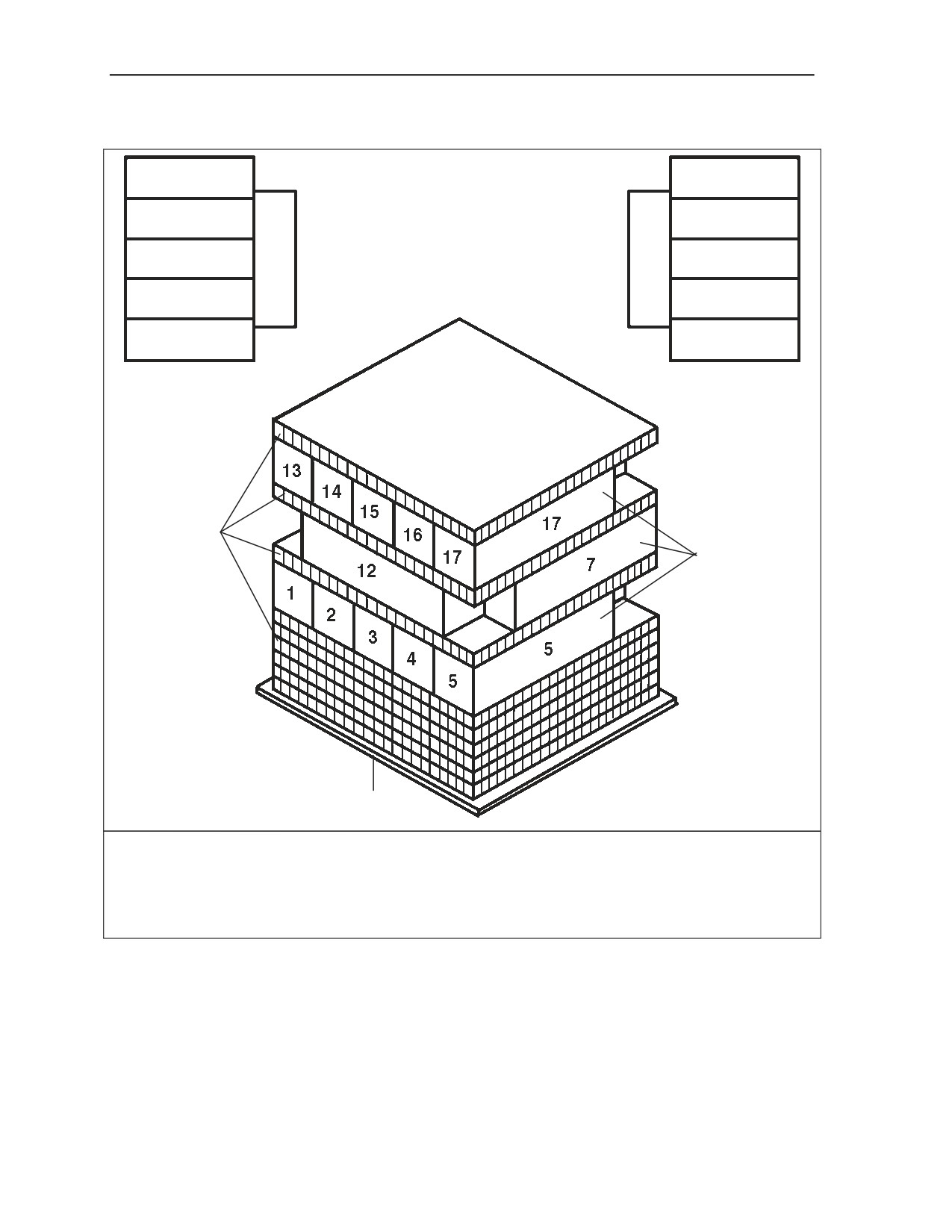

The following ammunition items are rigged in an A-22 cargo bag for high-velocity airdrop as shown in
Figure 3-51.
Rockets
(4-Pack Boxes Only)
CAUTION
This load cannot be dropped in a double stick. It must be dropped in a
single stick or single bundle.

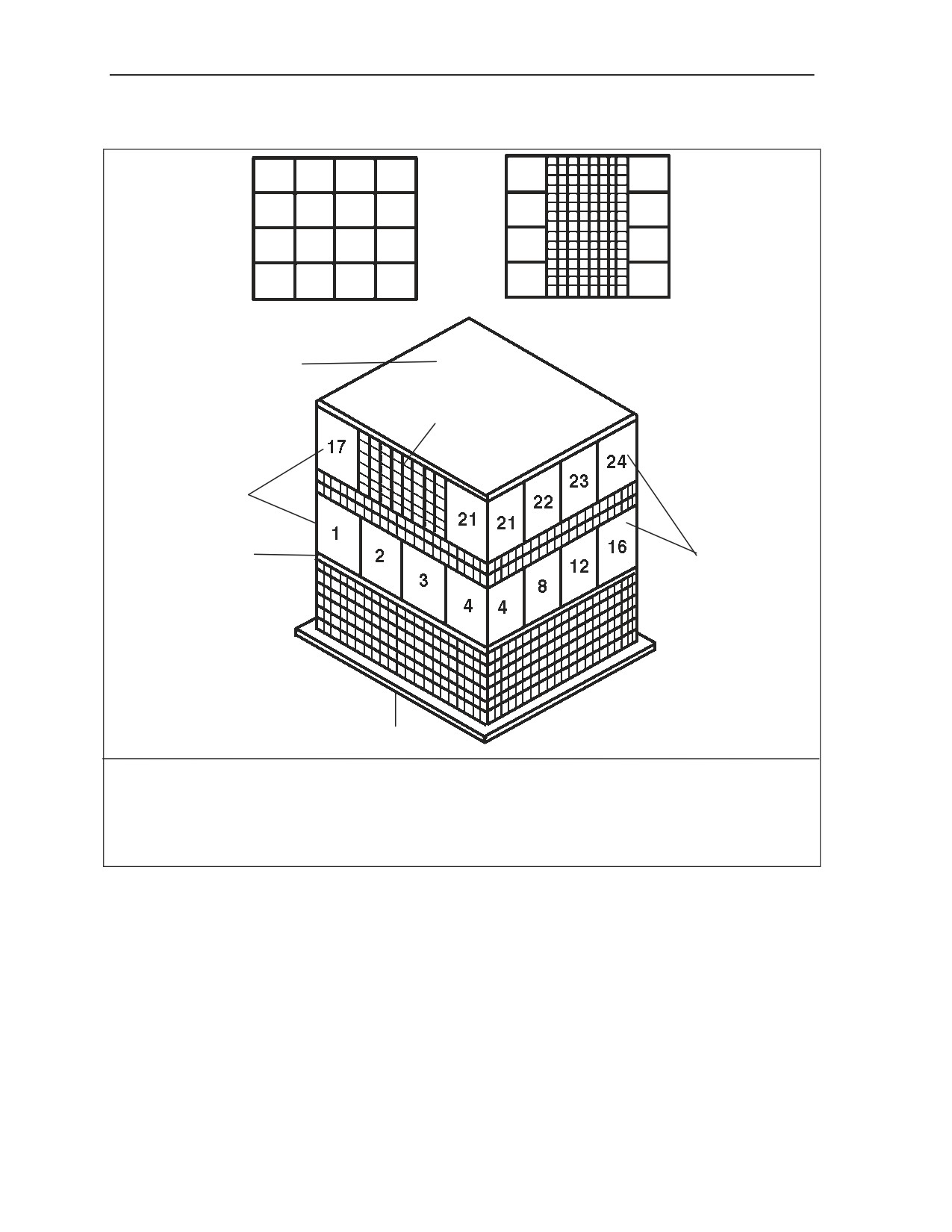

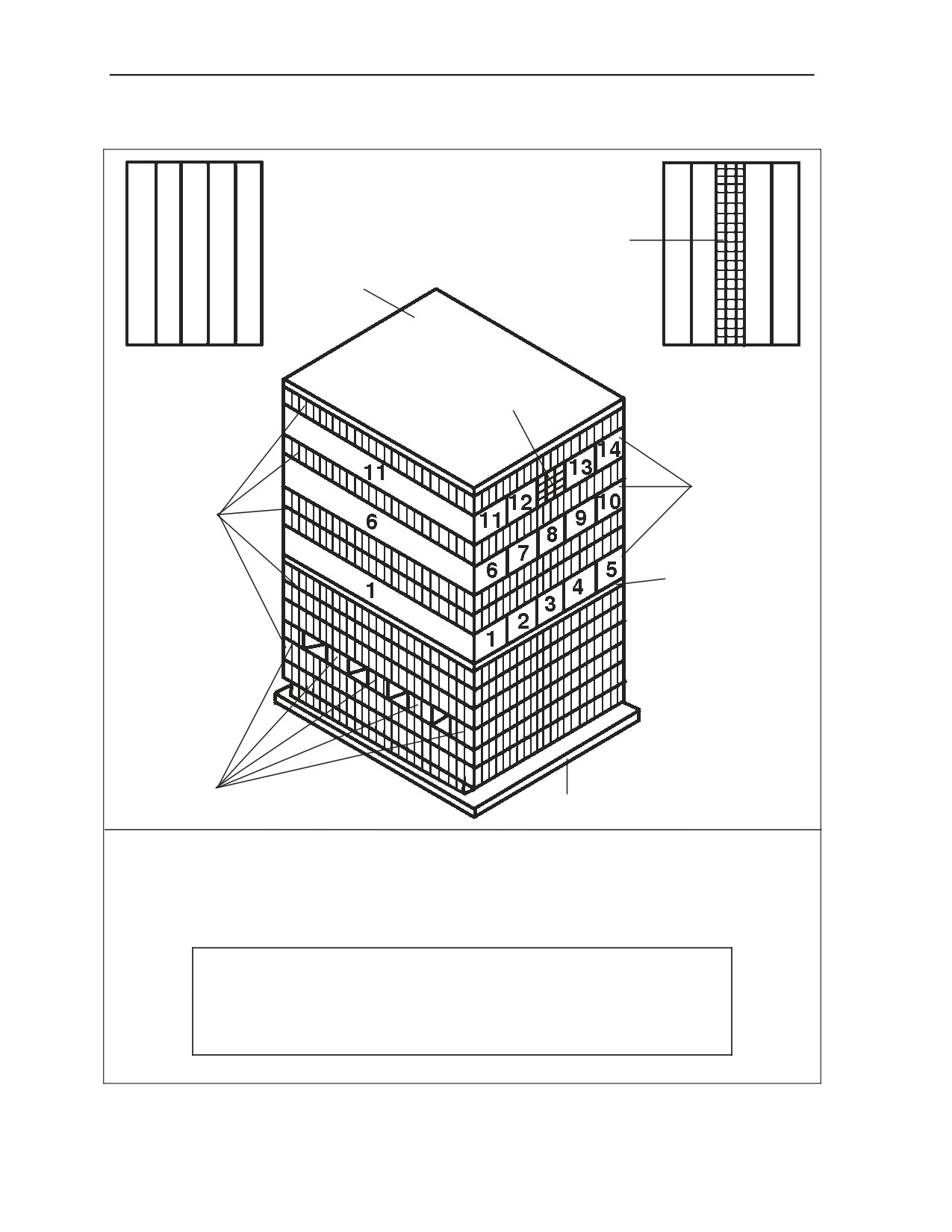

Figure 3-51. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
3-56
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Rigging High-Velocity A-22 Cargo Bag Loads
Rocket, 2.75-in, with WHD, HE, M151 with Fuze M440 and Motor MK40 Mod 3,
(DODIC 1340-H161)
Rocket, 2.75-in, with WHD, WDU-4A/A and Motor MK40 Mod 3,
(DODIC 1340-H459)
Rocket, 2.75-in, WHD, HE, M151 with Fuze M429 and Motor MK40 Mod 3,
(DODIC 1340-H489)
Rocket, 2.75-in, WHD, HE, M151 with Fuze M423 and Motor MK40 Mod 3,
(DODIC 1340-H490)
Rocket, 2.75-in, Smoke, WP, M156 with Fuze M423 and Motor MK40 Mod 3,
(DODIC 1340-H519)
Rocket, 2.75-in, WHD, HE, M229 with Fuze M423 and Motor MK40 Mod 3,
(DODIC 1340-H534)
Rocket, 2.75-in, WHD, HEDP, M247 with Fuze M438 and Motor MK40 Mod 3,
(DODIC 1340-H826)
Figure 3-51. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop (continued)
¾-IN PLYWOOD
HONEYCOMB
HONEYCOMB
FILLERS
LAYER
HONEYCOMB
LAYERS
AMMUNITION
BOXES
LOAD SPREADERS
(¾-IN PLYWOOD)
HONEYCOMB
STRIPS
(6-IN WIDE)
SKID

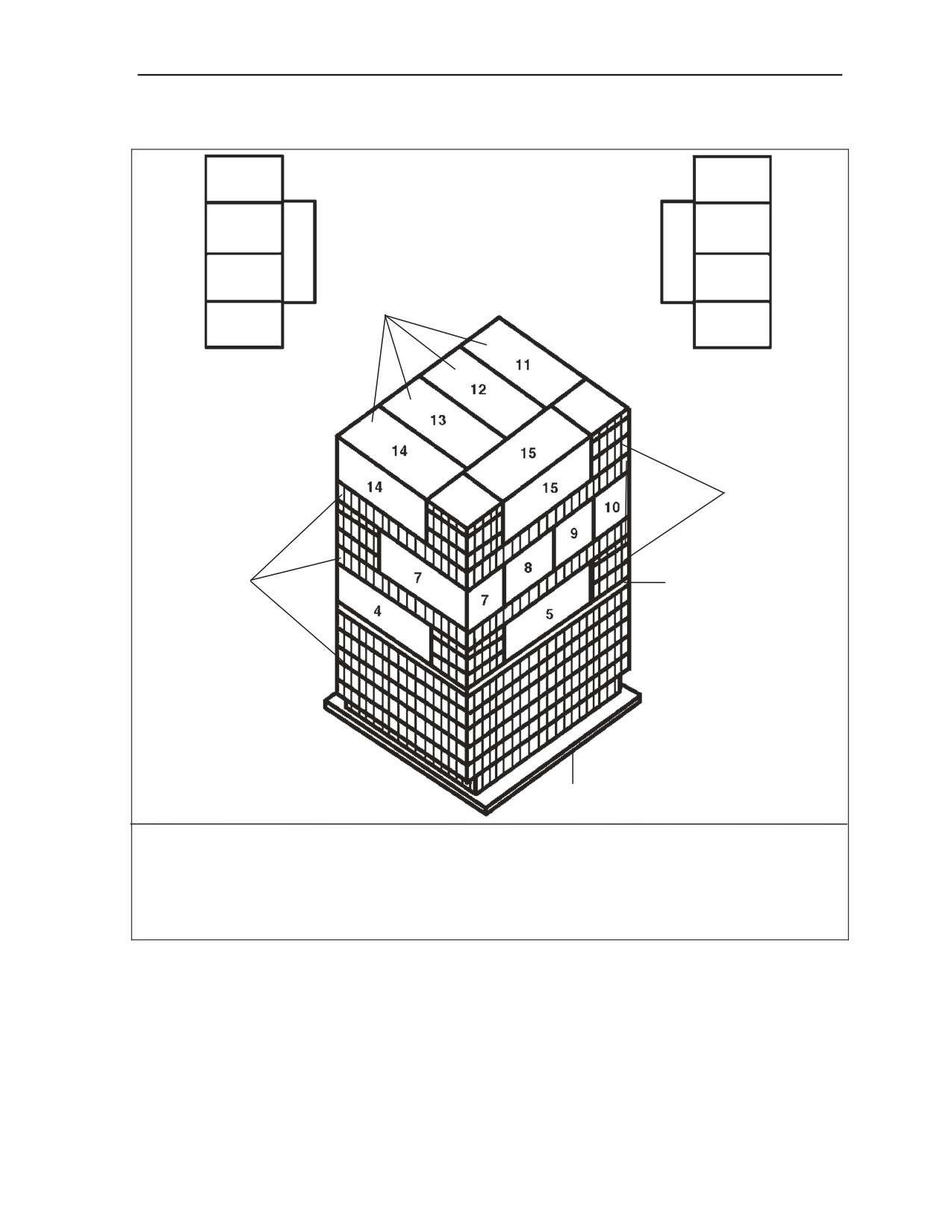

The following ammunition items are rigged in an A-22 cargo bag for high-velocity airdrop as shown in
Figure 3-52.
Rockets
(25-Pack Boxes Only)
Rocket, 2.75-in, with WHD, HE, M151 with Fuze M440 and Motor MK40
Mod 3, (DODIC 1340-H161)
Rocket, 2.75-in, with WHD, WDU-4A/A and Motor MK40 Mod 3,
(DODIC 1340-H459)

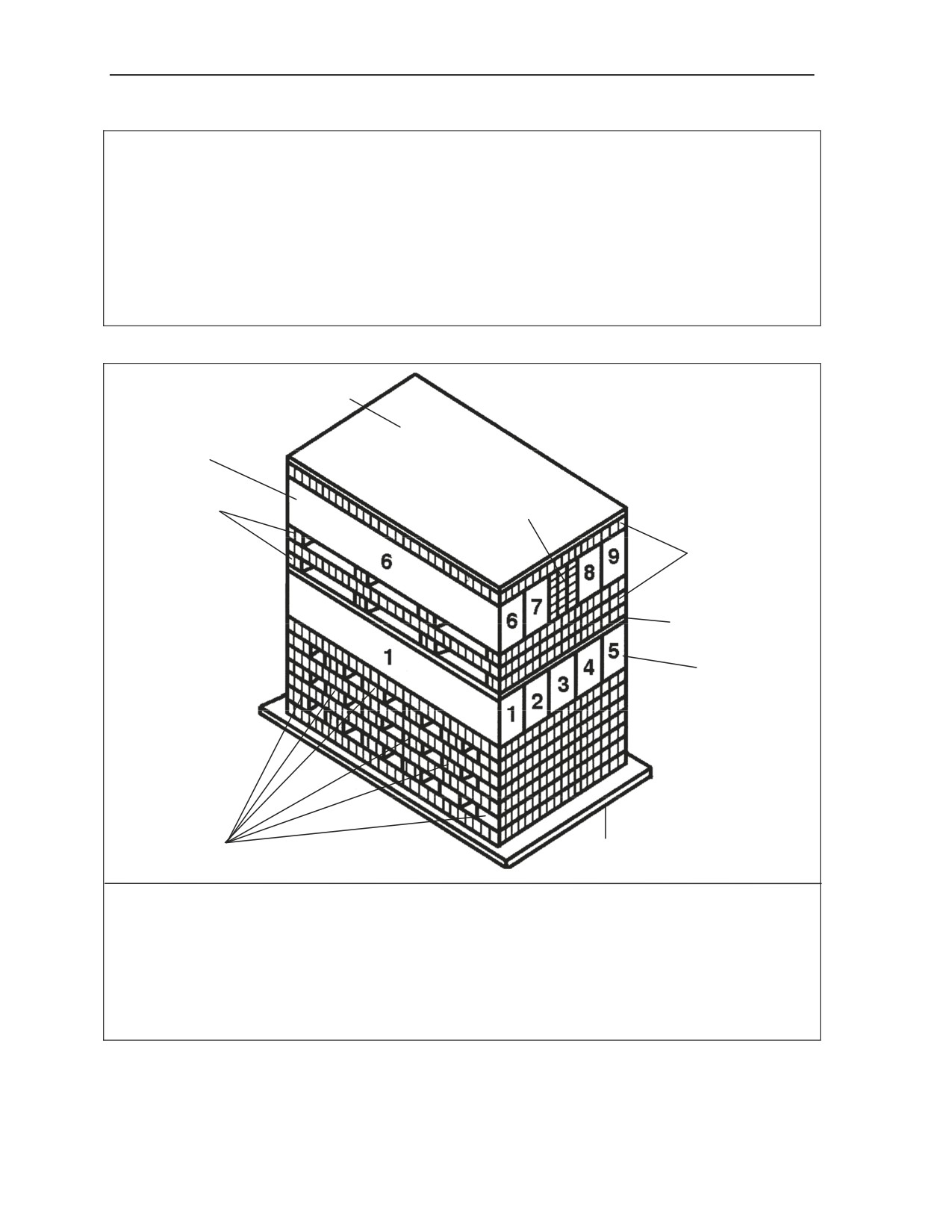

Figure 3-52. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
3-57
Chapter 3
Rocket, 2.75-in, WHD, HE, M229, with Liner and Fuze M429 and Motor MK40
Mod 3, (DODIC 1340-H488)
Rocket, 2.75-in, WHD, HE, M151 with Fuze M429 and Motor MK40 Mod 3,
(DODIC 1340-H489)
Rocket, 2.75-in, WHD, HE, M151 with Fuze M423 and Motor MK40 Mod 3,
(DODIC 1340-H490)
Rocket, 2.75-in, WHD, HE, M229 with Fuze M423 and Motor MK40 Mod 3,
(DODIC 1340-H534)
Figure 3-52. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop (continued)
¾-IN PLYWOOD
AMMUNITION
BOXES
HONEYCOMB
HONEYCOMB
STRIPS
FILLERS
(4-IN WIDE)
HONEYCOMB
LAYERS
LOAD SPREADERS
(¾-IN PLYWOOD)
AMMUNITION
BOXES
HONEYCOMB
STRIPS
(7-IN WIDE)
SKID

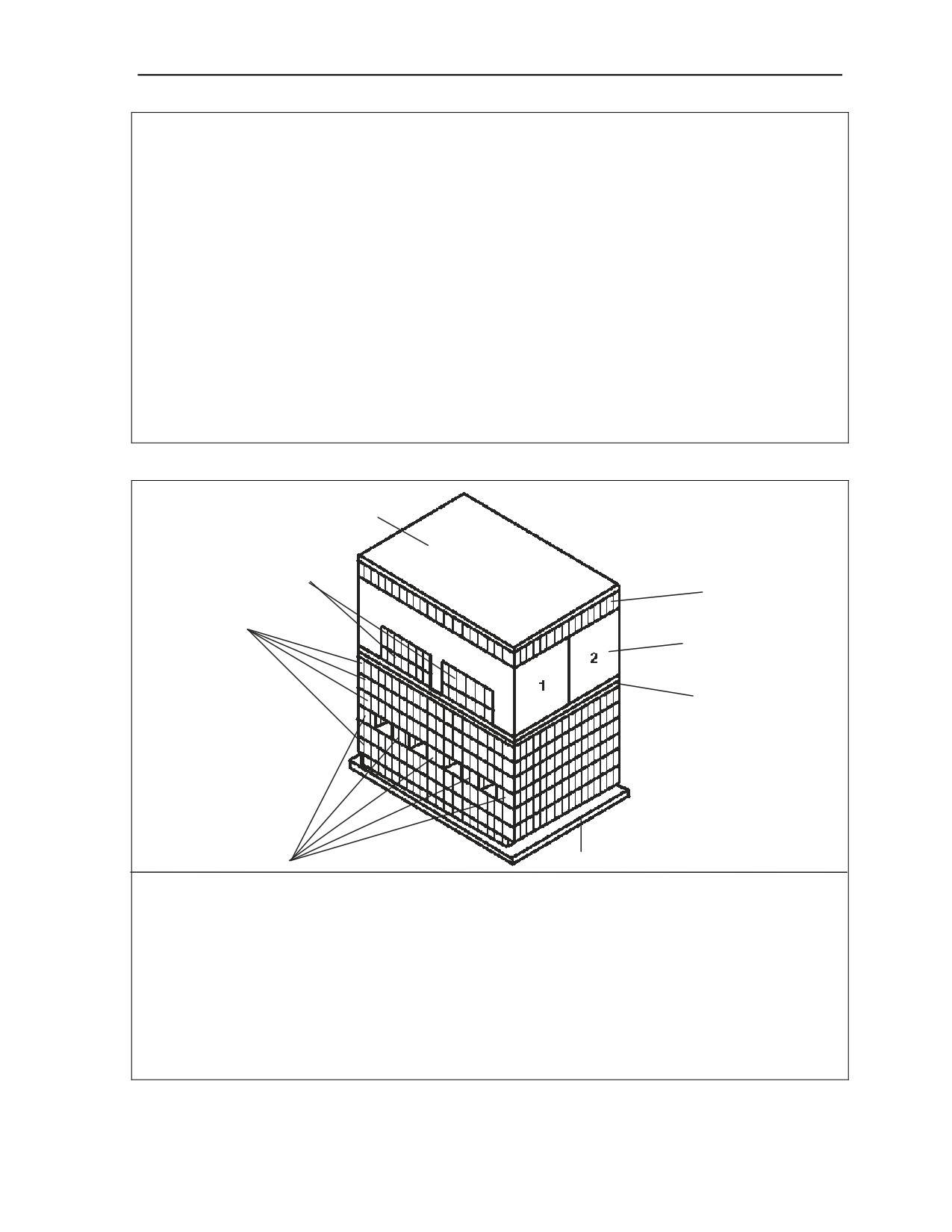

The following ammunition items are rigged in a double A-22 cargo bag for high-velocity airdrop as shown
in Figure 3-53. Prepare the double A-22 cargo bag according to FM 4-20.103/MCRP 4-11.3C/TO 13C7-1-
11.
Rockets
Rocket, Flechette, (DODIC 1340-H462)
Rocket, 2.75-in, MPSM, w/ MK66, MOD 1, M261, (DODIC 1340-H464)
Figure 3-53. Ammunition Layout in a Double A-22 Cargo Bag for High-Velocity Airdrop
3-58
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Rigging High-Velocity A-22 Cargo Bag Loads
¾-IN PLYWOOD
HONEYCOMB
FILLERS
HONEYCOMB
LAYER
AMMUNITION
BOXES
LOAD SPREADERS
(¾-IN PLYWOOD)
HONEYCOMB
STRIPS
(6-IN WIDE)
SKID

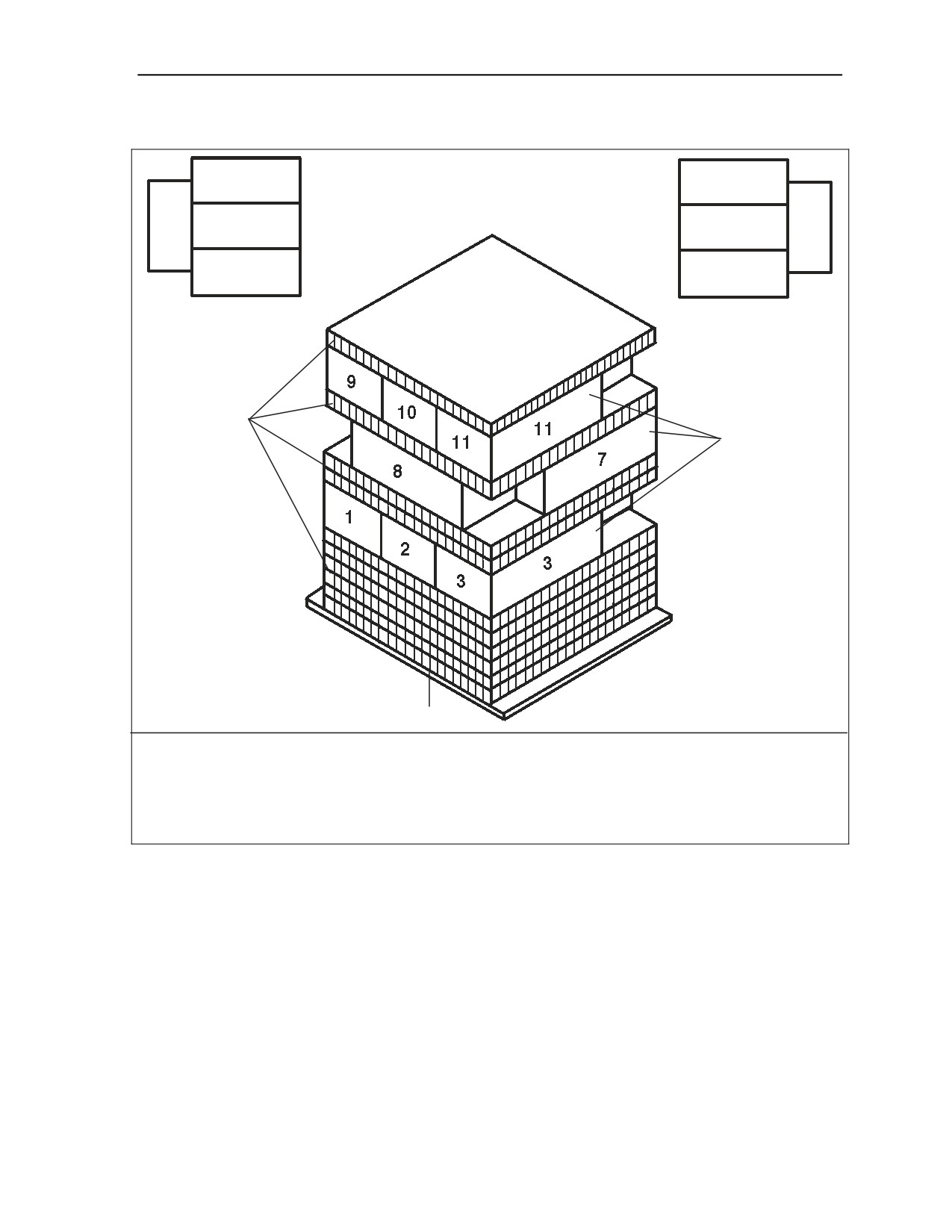

The following ammunition item is rigged in an A-22 cargo bag for high-velocity airdrop as shown in
Figure 3-54.
Rockets
(4-Pack Boxes Only)
Rocket, 2.75-in, WHD, HE, M229, with Liner and Fuze M429 and Motor
MK40 Mod 3, (DODIC 1340-H488)
Figure 3-54. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
3-59
Chapter 3
¾-IN PLYWOOD
HONEYCOMB
¾-IN PLYWOOD
LAYER
AMMUNITION
BOXES
HONEYCOMB
HONEYCOMB
LAYER
LAYER
SKID
SKID
The following ammunition item is rigged in an A-22 cargo bag for high-velocity airdrop as shown in
Figure 3-55.
Rocket
Note: This item must be rigged in the base-down position.
Rocket, 66-mm, HEAT, M72A2 with Launcher, (DODIC 1340-H557)
Figure 3-55. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
3-60
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Rigging High-Velocity A-22 Cargo Bag Loads
LAYERS 1 & 2
HONEYCOMB
LAYER
AMMUNITION
BOXES
HONEYCOMB
STRIPS
(6-IN WIDE)
HONEYCOMB
LAYER
HONEYCOMB
HONEYCOMB
STRIPS
STRIPS
(4-IN WIDE)
SKID
(6-IN WIDE)
The following ammunition item is rigged in an A-22 cargo bag for high-velocity airdrop as shown in
Figure 3-56.
Antipersonnel and Antitank Mine
Mine, Antipersonnel, M18A1 with Accessories, (DODIC 1345-K143)

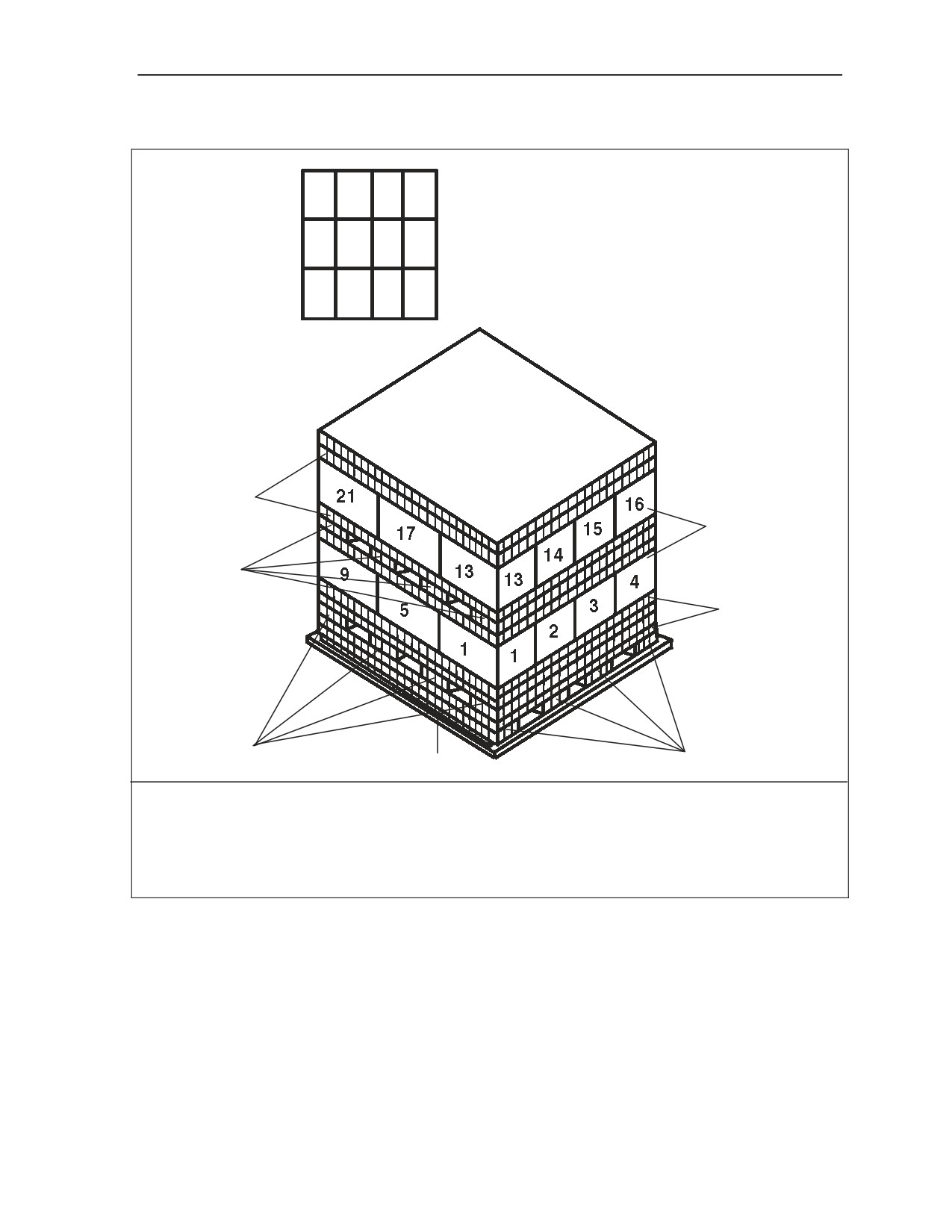

Figure 3-56. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
3-61
Chapter 3
LAYER 1
LAYER 2
AMMUNITION
BOXES
HONEYCOMB
LAYER
HONEYCOMB
HONEYCOMB
STRIPS
STRIPS
(7-IN WIDE)
(6-IN WIDE)
SKID
The following ammunition is rigged in an A-22 cargo bag for high-velocity airdrop as shown in Figure 3-
57.
Antipersonnel and Antitank Mine
Mine, Antitank, HE, M121, Heavy with Fuze Combination M607,
(DODIC 1345-K181)
Figure 3-57. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
3-62
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Rigging High-Velocity A-22 Cargo Bag Loads
LAYER 2
LAYERS 1 & 3
HONEYCOMB
LAYERS
AMMUNITION
BOXES
SKID
The following ammunition item is rigged in an A-22 cargo bag for high-velocity airdrop as shown in
Figure 3-58.
Antipersonnel and Antitank Mine
Mine, AT, HE, M19, (DODIC 1345-K250)
Figure 3-58. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
3-63
Chapter 3
AMMUNITION
HONEYCOMB
BOXES
LAYERS
SKID
The following ammunition item is rigged in an A-22 cargo bag for high-velocity airdrop as shown in
Figure 3-59.
Incendiary Items
Smoke Pot, Hexachloroethane, M5, (DODIC 1365-K866)

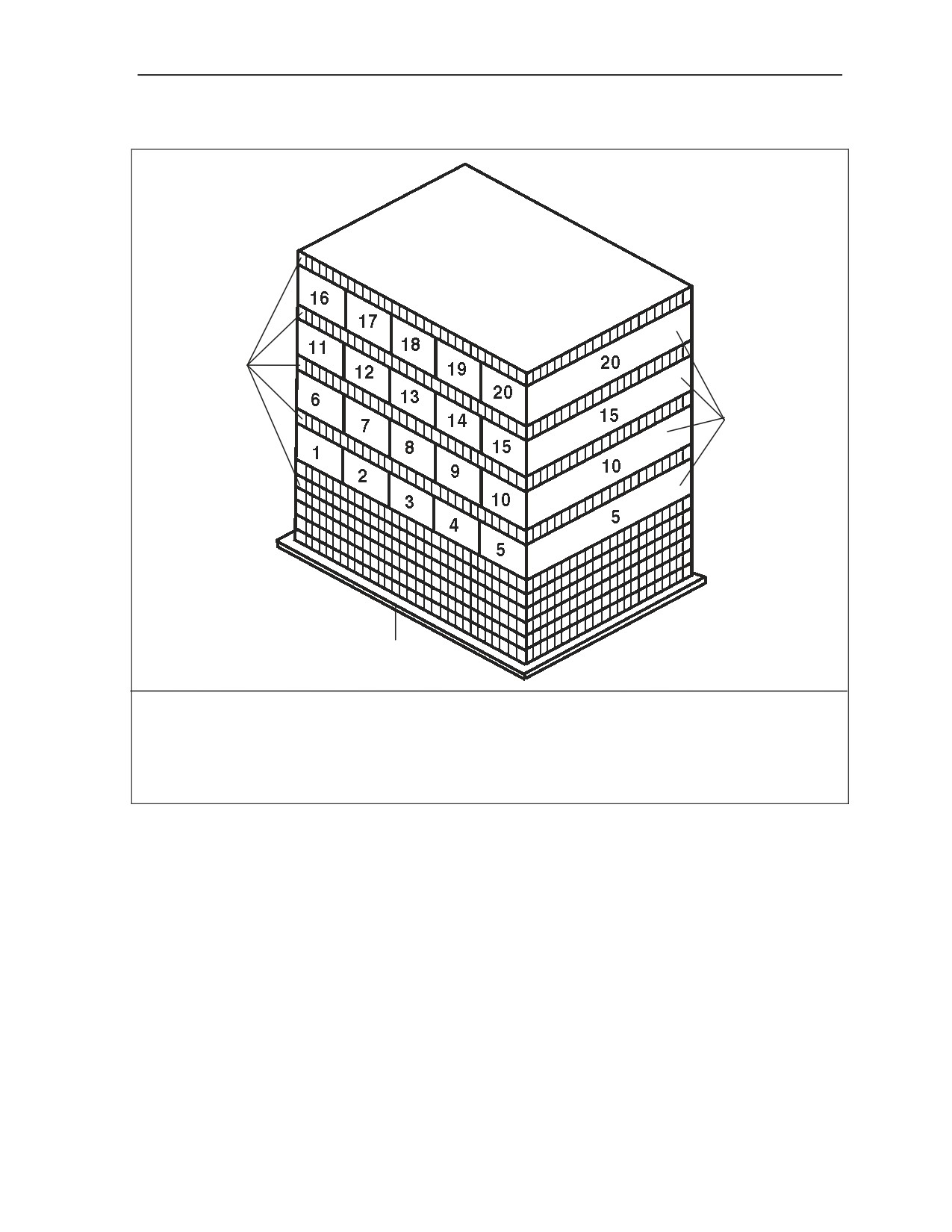

Figure 3-59. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
3-64
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Rigging High-Velocity A-22 Cargo Bag Loads
AMMUNITION
BOXES
HONEYCOMB
LAYERS
SKID
The following ammunition item is rigged in an A-22 cargo bag for high-velocity airdrop as shown in
Figure 3-60.
Incendiary Items
Smoke Pot, Floating, HC, M4A2, (DODIC 1365-K867)
Figure 3-60. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
3-65
Chapter 3
LAYERS 1
& 2
HONEYCOMB
AMMUNITION
LAYER
BOXES
HONEYCOMB
STRIPS
(6-IN WIDE)
SKID
The following ammunition items are rigged in an A-22 cargo bag for high-velocity airdrop as shown in
Figure 3-61.
Incendiary Item
Thickener, Incendiary Oil, M4, (DODIC 1365-K917)
Demolition Item
Charge, Demolition, Block, 1/4-lb TNT, (DODIC 1375-M030)
Figure 3-61. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
3-66
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Rigging High-Velocity A-22 Cargo Bag Loads
IMPULSE
LAYERS 1 & 2
CARTRIDGES
FLARES
HONEYCOMB
LAYER
SKID
The following ammunition item is rigged in an A-22 cargo bag for high-velocity airdrop as shown in
Figure 3-62.
Flare and Signal Items
Flare, M206, Rigged w/ Cartridge, Impulse, M796
Flare (DODIC 1370-L410)
Cartridge (DODIC 1377-MD73)
Figure 3-62. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
3-67
Chapter 3
LAYERS 1 & 2
AMMUNITION
HONEYCOMB
BOXES
LAYER
SKID
The following ammunition items are rigged in an A-22 cargo bag for high-velocity airdrop as shown in
Figure 3-63.
Demolition Items
Charge, Demolition, Roll Type, M186, (DODIC 1375-M060)
Cap, Blasting, Special Electric, M6, (DODIC 1375-M130)
Figure 3-63. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
3-68
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Rigging High-Velocity A-22 Cargo Bag Loads
LAYERS 1 & 2
AMMUNITION
HONEYCOMB
BOXES
LAYER
HONEYCOMB
STRIPS
(6-IN WIDE)
SKID
The following ammunition items are rigged in an A-22 cargo bag for high-velocity airdrop as shown in
Figure 3-64.
60-Millimeter Ammunition
Cartridge, 60-mm, HE, M720, (DODIC 1310-B642)
Cartridge, 60-mm, Smoke, WP, M722, (DODIC 1310-B646)
Cartridge, 60-mm, Illuminating, M721, (DODIC 1310-B647)
Cartridge, 60-mm, Illuminating, Infrared, M767, (DODIC 1310-BA04)
Cartridge, 60-mm, Smoke, WP, M722A1, (DODIC 1310-BA14)
Flare and Signal Items
Signal, Illuminating, Ground, M195, Green Star, (DODIC 1370-L305)
Signal, Illuminating, Ground, M158, Red Star, (DODIC 1370-L306)
Signal, Illuminating, Ground, M159, White Star, (DODIC 1370-L307)
Signal, Illuminating, Ground Parachute, M126A1, (DODIC 1370-L311)
Signal, Illuminating, Parachute, M127A1, White Star, (DODIC 1370-L312)
Signal, Illuminating, Ground, Cluster, M125A1, (DODIC 1370-L314)
Signal, Smoke, Parachute, M129A1, Red, (DODIC 1370-L323)
Signal, Smoke, Parachute, M128A1, Green, (DODIC 1370-L324)
Demolition Item
Destructor, Explosive, Universal, M10, (DODIC 1375-M241)

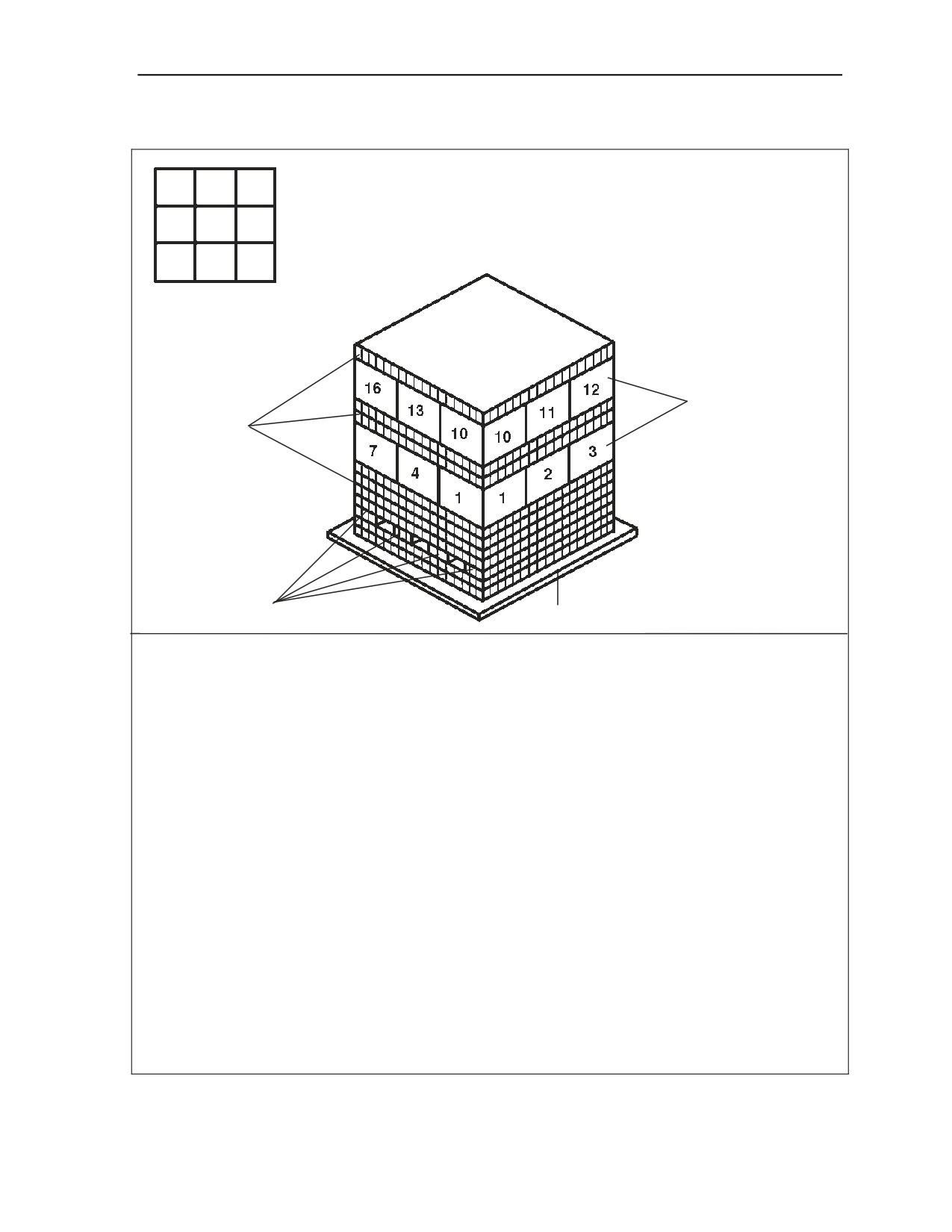

Figure 3-64. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
3-69
Chapter 3
AMMUNITION
BOXES
HONEYCOMB
LAYER
HONEYCOMB
STRIPS
(5-IN WIDE)
SKID
The following ammunition item is rigged in an A-22 cargo bag for high-velocity airdrop as shown in
Figure 3-65.
60-Millimeter Ammunition
Cartridge, 60-mm, HE, M720E1 with M734A1 Fuze, (DODIC 1310-B642)

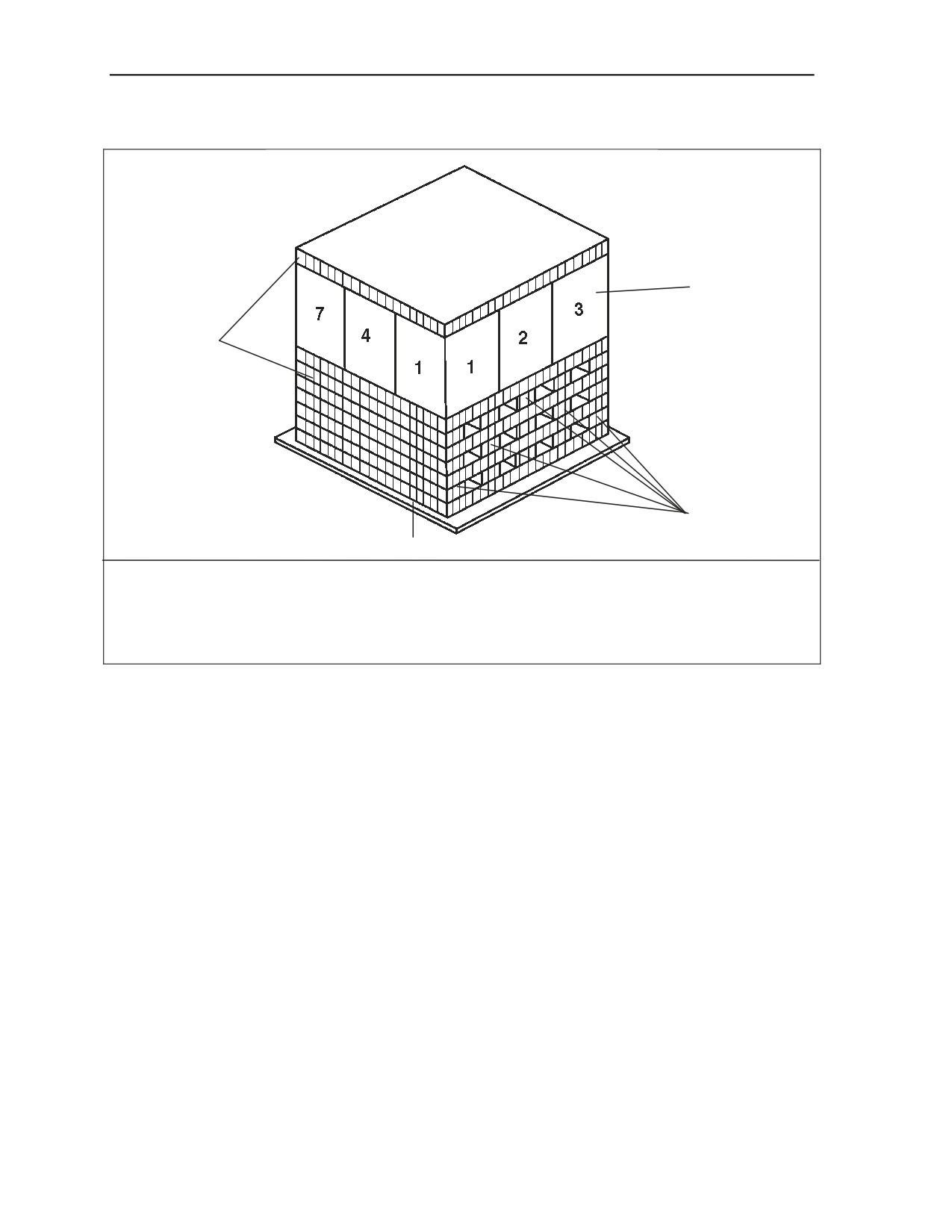

Figure 3-65. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
3-70
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Rigging High-Velocity A-22 Cargo Bag Loads
LAYERS 2 & 4
LAYERS 1 & 3
AMMUNITION
HONEYCOMB
BOXES
LAYER
SKID
The following ammunition items are rigged in an A-22 cargo bag for high-velocity airdrop as shown in
Figure 3-66.
Demolition Items
Charge, Demolition, Block, PETN, M118, (DODIC 1375-M024)
Firing Device, Demolition, M1, Release Type, (DODIC 1375-M631)

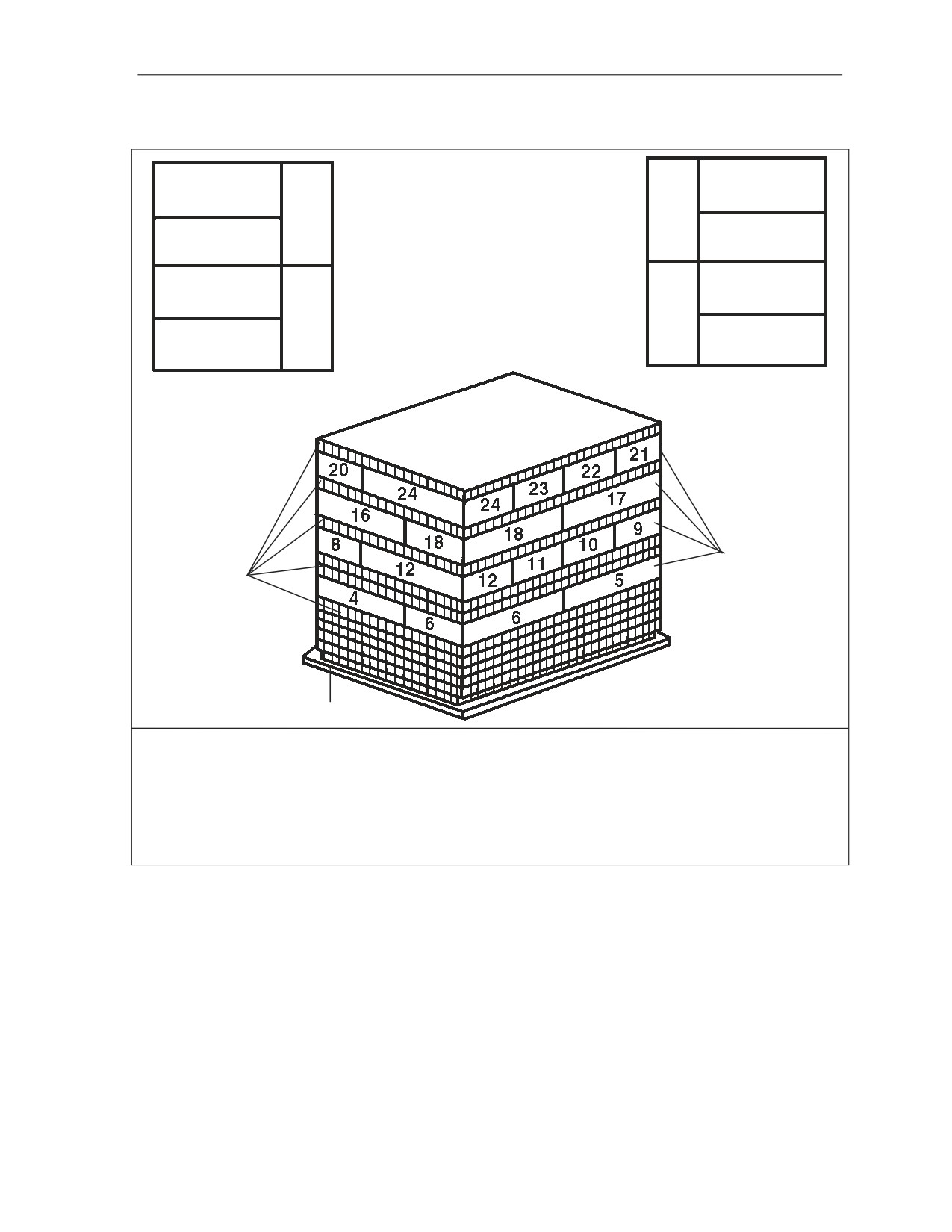

Figure 3-66. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
3-71
Chapter 3
LAYER 1
LAYER 2
¾-IN PLYWOOD
HONEYCOMB
FILLER
HONEYCOMB
LAYER
LOAD SPREADERS
AMMUNITION
(¾-IN PLYWOOD)
BOXES
SKID
The following ammunition item is rigged in an A-22 cargo bag for high-velocity airdrop as shown in
Figure 3-67.
Demolition Item
Charge, Demolition, Block, 55-lb, (DODIC 1375-M040)
Figure 3-67. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
3-72
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Rigging High-Velocity A-22 Cargo Bag Loads
LAYER 3
LAYERS 1 & 2
¾-IN PLYWOOD
HONEYCOMB
LAYER
AMMUNITION
BOXES
SKID
The following ammunition item is rigged in an A-22 cargo bag for high-velocity airdrop as shown in
Figure 3-68.
Demolition Item
Charge, Demolition, Block, M541, (DODIC 1375-M038)
Figure 3-68. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
3-73
Chapter 3
LAYERS 1 & 3
LAYER 2
HONEYCOMB
LAYER
AMMUNITION
BOXES
SKID
The following ammunition item is rigged in an A-22 cargo bag for high-velocity airdrop as shown in
Figure 3-69.
Demolition Item
Charge, Demolition, Shaped, HJE, 15-lb, M2A3, (DODIC 1375-M420)
Figure 3-69. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
3-74
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Rigging High-Velocity A-22 Cargo Bag Loads
HONEYCOMB
LAYER
AMMUNITION
BOXES
SKID
The following ammunition item is rigged in an A-22 cargo bag for high-velocity airdrop as shown in
Figure 3-70.
Demolition Item
Firing Device, Demolition, M1A1, Pressure Type, (DODIC 1375-M626)
Figure 3-70. Ammunition Layout in an A-22 Cargo Bag for High-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
3-75
|
|
