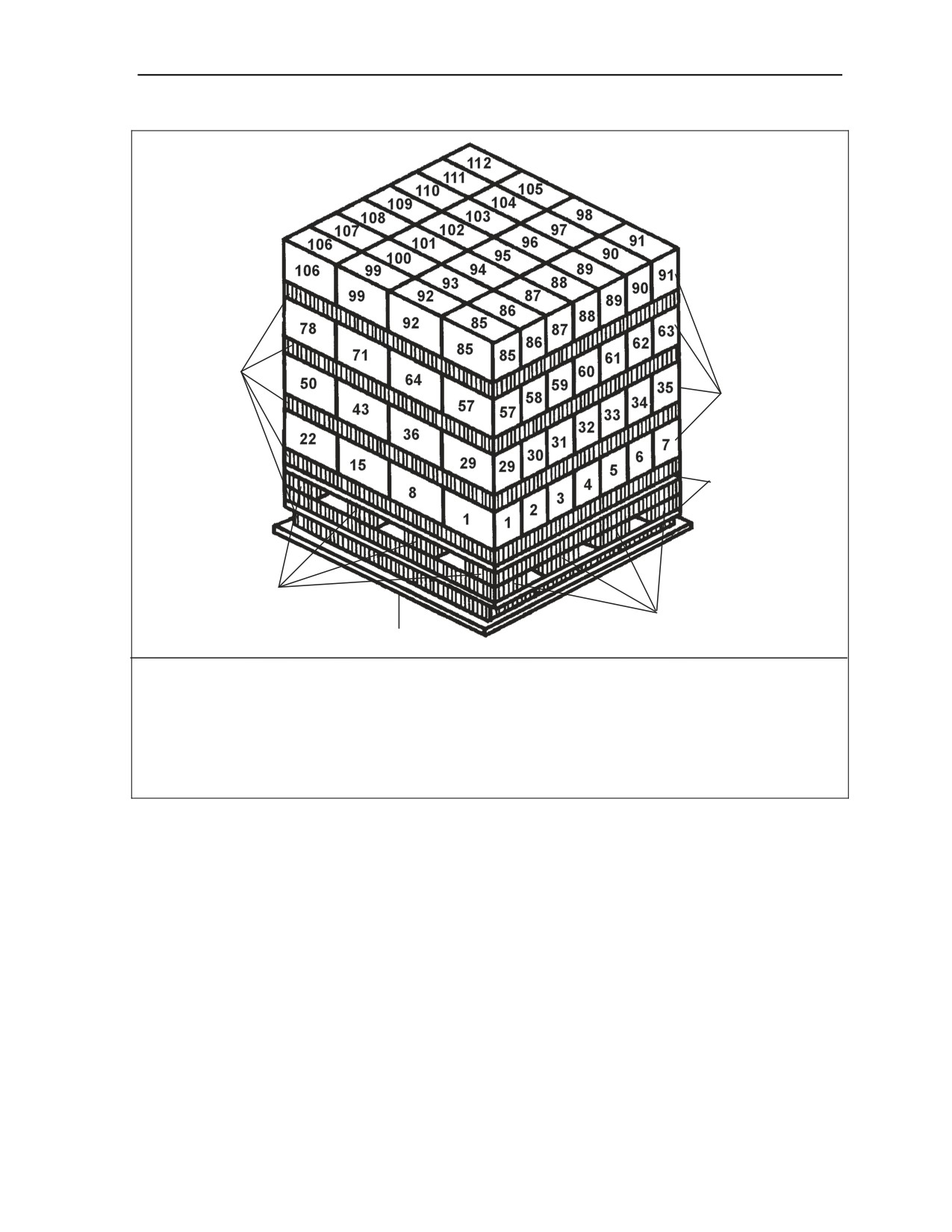

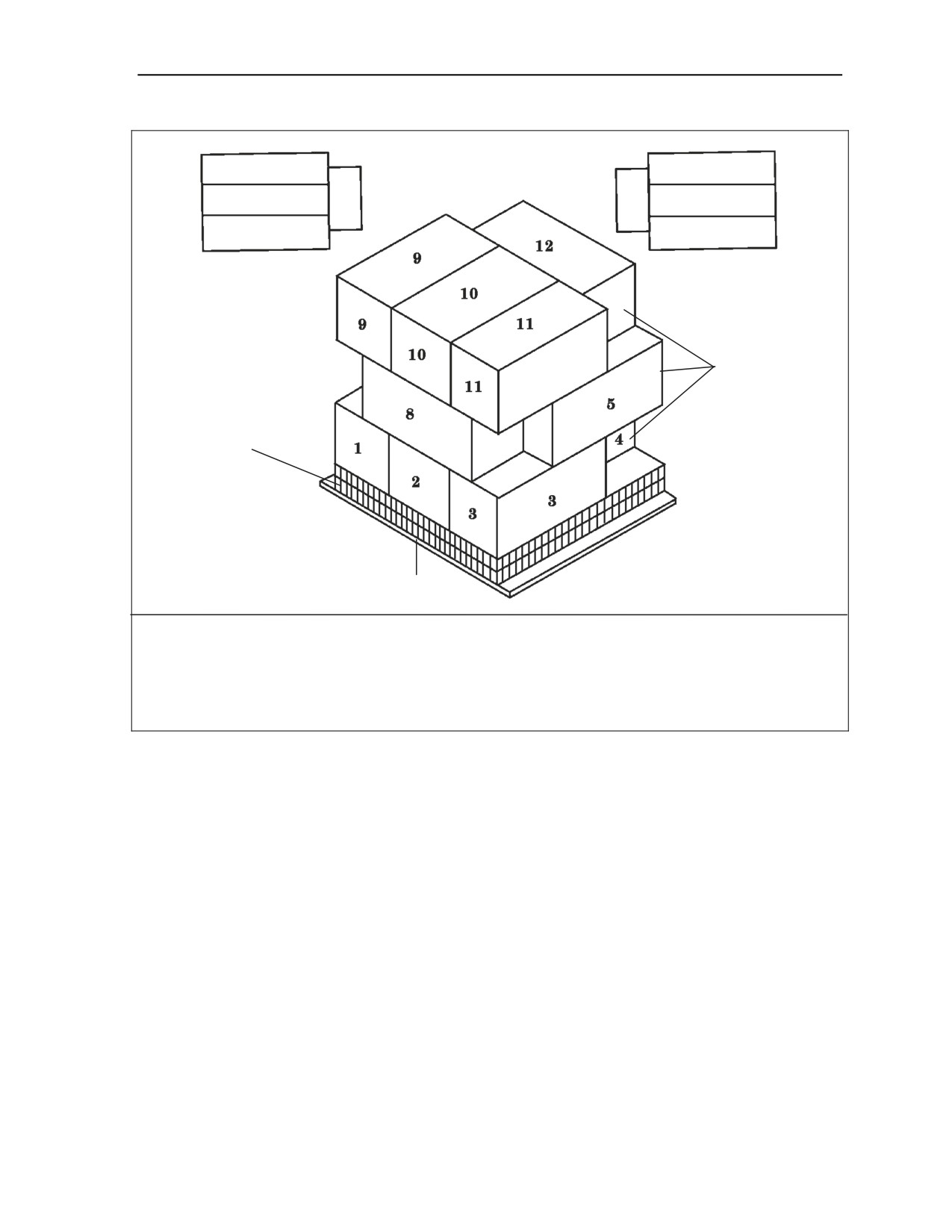

Chapter 2
AMMUNITION
BOXES

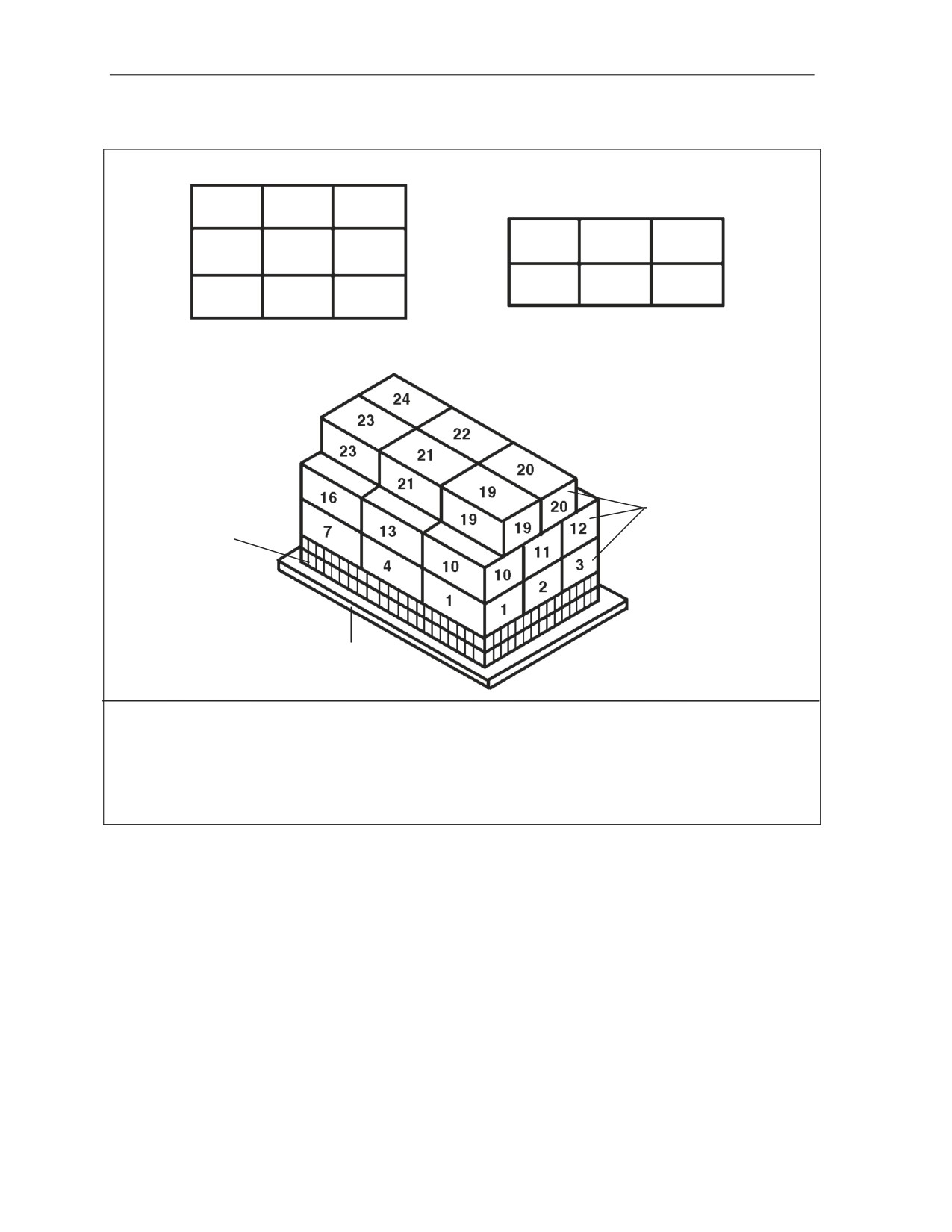

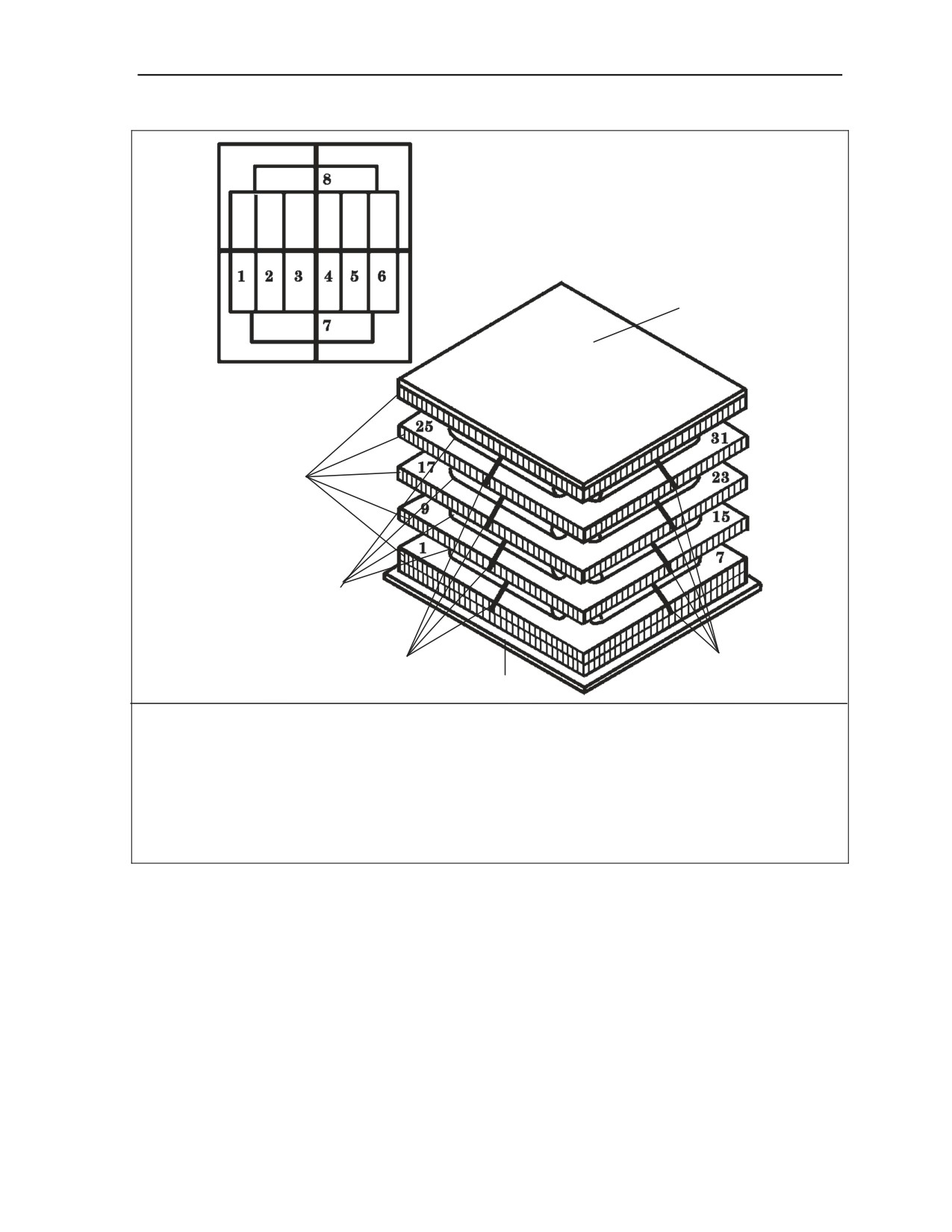

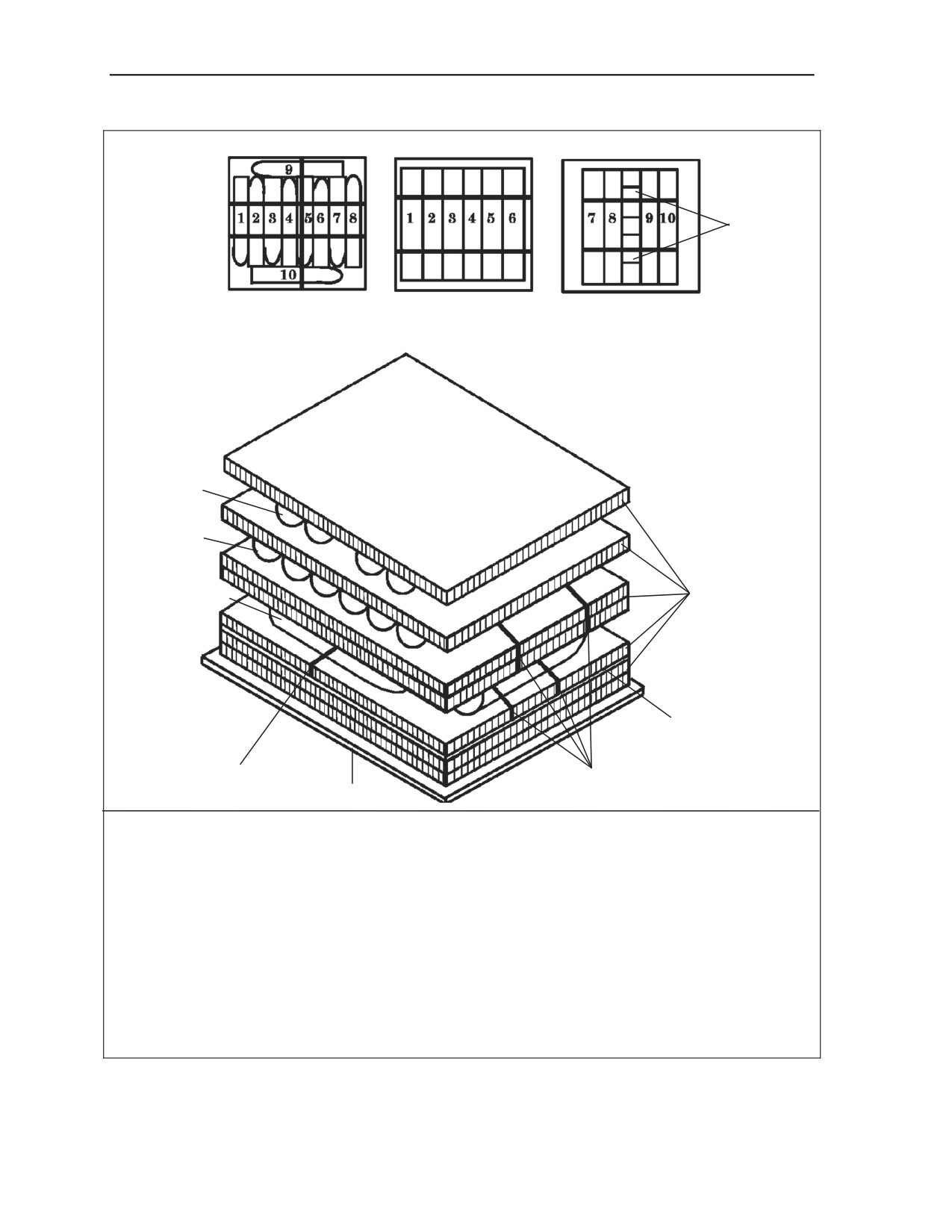

HONEYCOMB
LAYERS
SKID
The following ammunition items are rigged in an A-22 cargo bag for low-velocity airdrop as shown in
Figure 2-33.
152-Millimeter Ammunition
Cartridge, 152-mm, HEAT-MP, M409E6, (DODIC 1320-D381)
Cartridge, 152-mm, Canister, M625A1, (DODIC 1320-D390)

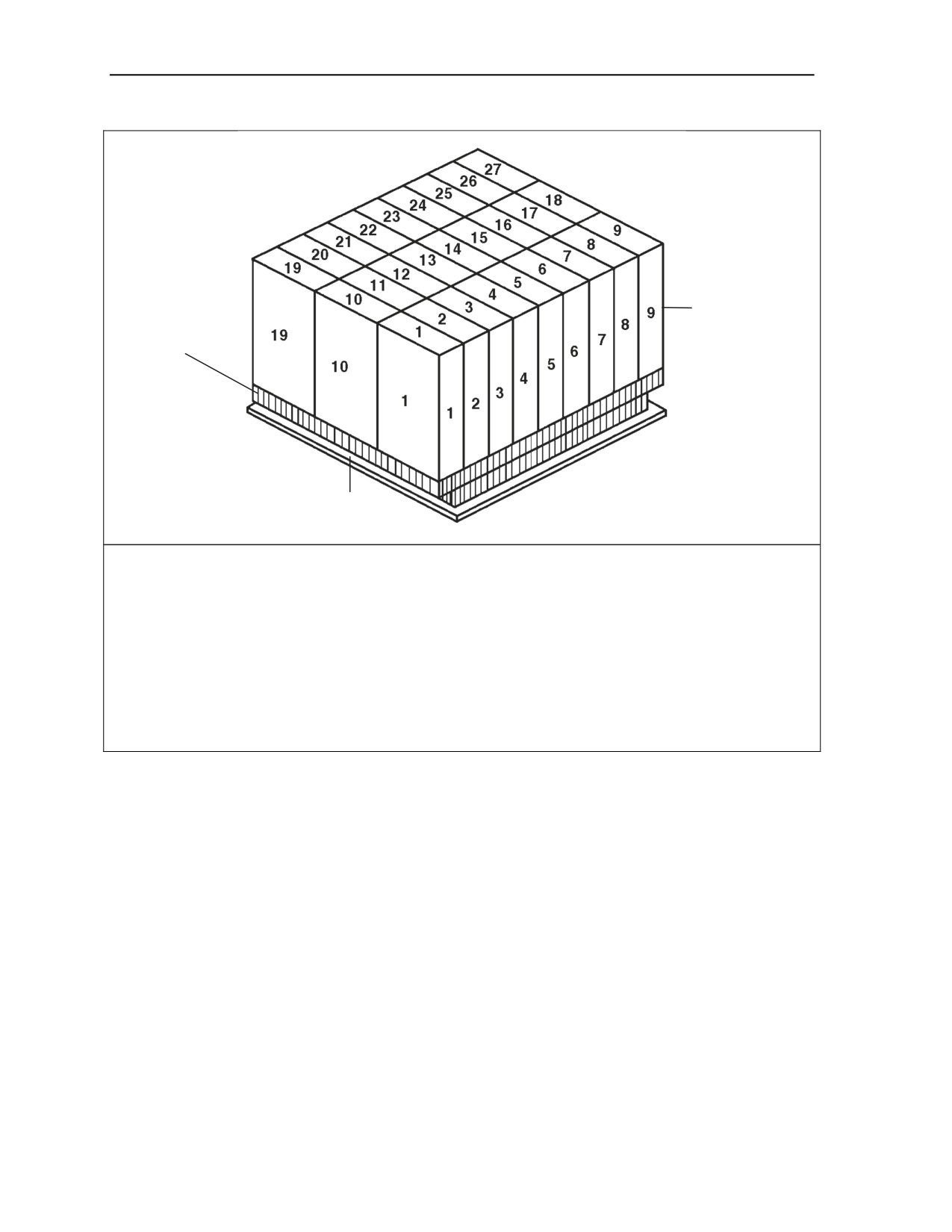

Figure 2-33. Ammunition Layout in an A-22 Cargo Bag for Low-Velocity Airdrop
2-36
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Preparing Low-Velocity A-22 Cargo Bag Loads

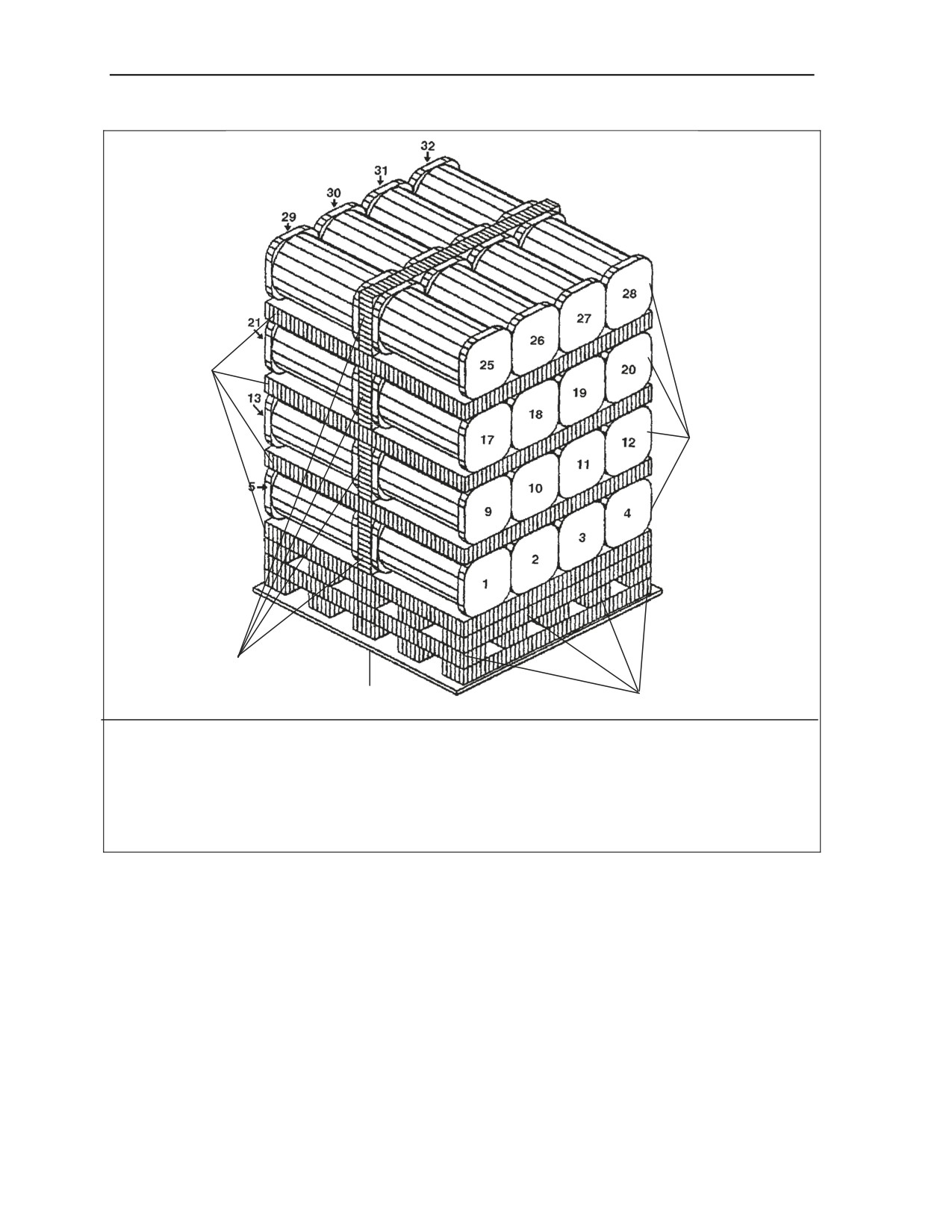

¾-IN PLYWOOD
HONEYCOMB
LAYERS
AMMUNITION
STEEL
STEEL
STRAPPING
SKID
STRAPPING

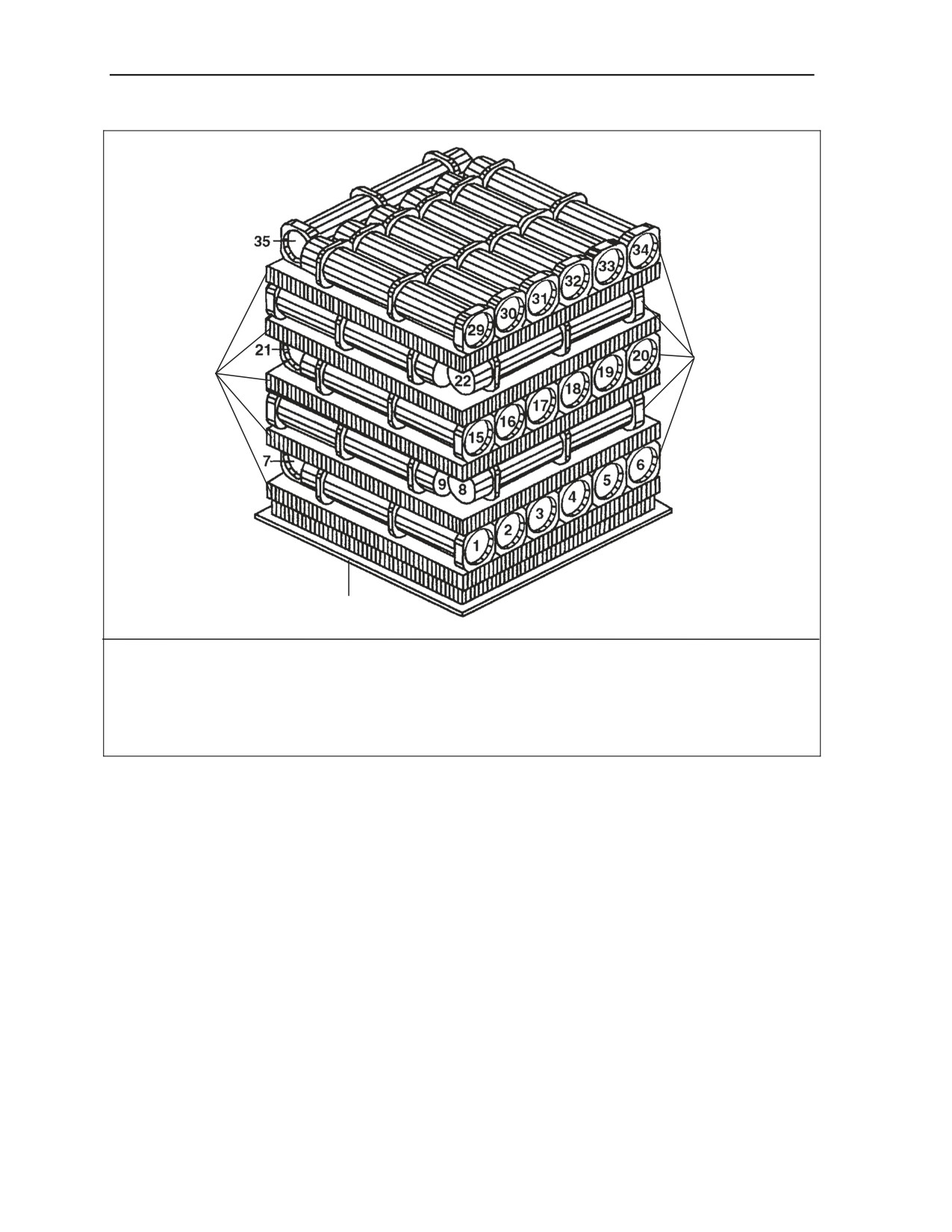

The following ammunition items are rigged in an A-22 cargo bag for low-velocity airdrop as shown in
Figure 2-34.
152-Millimeter Ammunition
(Rigging Fiber Containers)
Cartridge, 152-mm, HEAT-MP, M409E6, (DODIC 1320-D381)
Cartridge, 152-mm, Canister, M625A1, (DODIC 1320-D390)
Figure 2-34. Ammunition Layout in an A-22 Cargo Bag for Low-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
2-37
Chapter 2

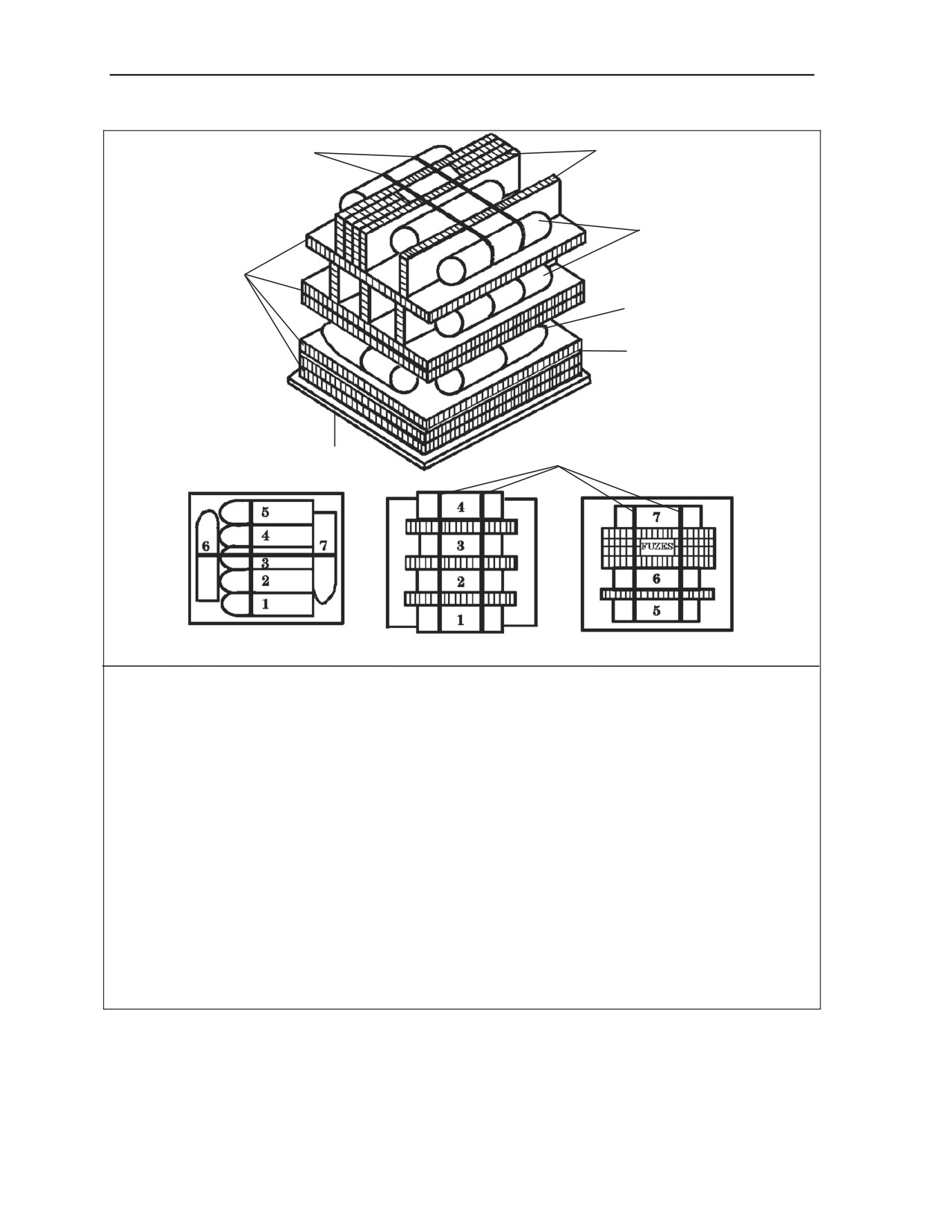

FUSES
LAYER 1
LAYER 2
LAYER 3
PROJECTILES
CHARGES
CHARGES AND
FUSES
CHARGES
AND FUSES
CHARGES
HONEYCOMB
PROJECTILES
LAYERS
LOAD SPREADER
¾-IN PLYWOOD
STEEL
STEEL
STRAPPING
SKID
STRAPPING

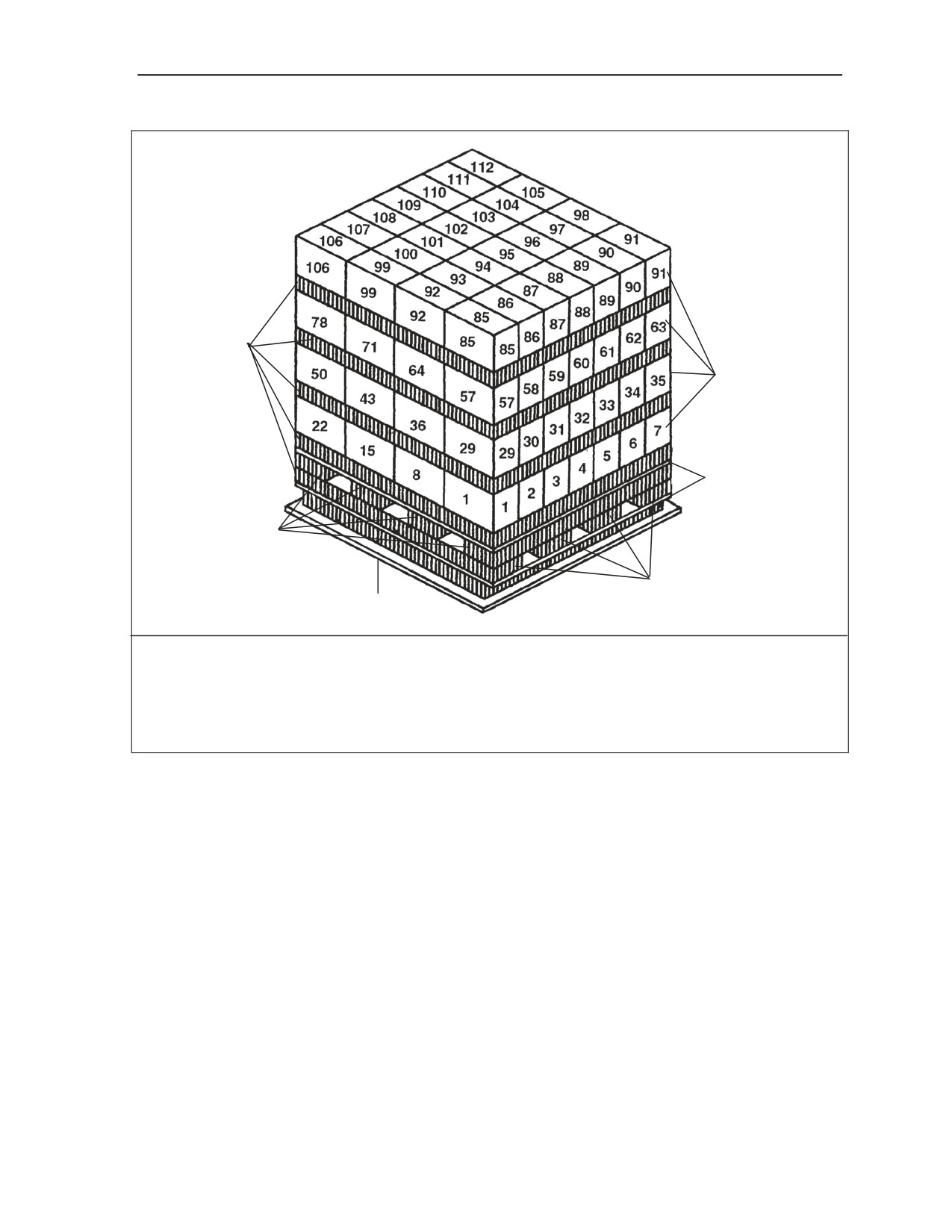

The following ammunition items are rigged in an A-22 cargo bag for low-velocity airdrop as shown in
Figure 2-35.
155-Millimeter Ammunition
Charge, Propelling, 155-mm, M19, (DODIC 1320-D480)
Projectile, 155-mm, Gas, Persistent, HD, M104, (DODIC 1320-D484)
Projectile, 155-mm, HE, M101, (DODIC 1320-D485)
Projectile, 155-mm, Smoke, WP, M104, (DODIC 1320-D487)
Reducer, Flash, Propelling Charge, M1, (DODIC 1320-D490)
Projectile, 155-mm, HE, ADAM, M692, (DODIC 1320-D501)
Projectile, 155-mm, HE, ADAM, M731, (DODIC 1320-D502)
Figure 2-35. Ammunition Layout in an A-22 Cargo Bag for Low-Velocity Airdrop
2-38
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Preparing Low-Velocity A-22 Cargo Bag Loads
Projectile, 155-mm, AT, RAAMS, M718, (DODIC 1320-D503)
Projectile, 155-mm, Illuminating, M485A2, (DODIC 1320-D505)
Projectile, 155-mm, HC, HE, M116E2, (DODIC 1320-D506)
Projectile, 155-mm, AT, RAAMS, M741, (DODIC 1320-D509)
Projectile, 155-mm, HE, RAAM-L, M718A1, (DODIC 1320-D515)
Projectile, 155-mm, Smoke, M795, (DODIC 1320-D529)
*Charge, Propelling, 155-mm, M203A1, (DODIC 1320-D532)
*Charge, Propelling, 155-mm, M119A1 and M119A2, (DODIC 1320-D533)
*Charge, Propelling, 155-mm, M3 and M3A1, (DODIC 1320-D540)
*Charge, Propelling, 155-mm, M4A1 and M4A2, (DODIC 1320-D541)
Projectile, 155-mm, HE, M107, (DODIC 1320-D544)
Projectile, 155-mm, Smoke, HC, BE, M116, (DODIC 1320-D548)
*Projectile, 155-mm, Smoke, WP, M110, (DODIC 1320-D550)
Reducer, Flash, Propelling Charge, M2, (DODIC 1320-D552)
Dummy, Projectile, 155-mm, M7, (DODIC 1320-D553)
Projectile, 155-mm, HE, M449A1, (DODIC 1320-D562)
Projectile, 155-mm, HE, M483A1, (DODIC 1320-D563)
Projectile, 155-mm, HE, RA, M549, (DODIC 1320-D579)
Projectile, 155-mm, M864, (DODIC 1320-D684)
Projectile, 155-mm, Smoke, WP, M825, (DODIC 1320-D528)
Charge, Propelling, 155-mm, MACS, M231, (DODIC 1320-DA12)
Charge, Propelling, 155-mm, MACS, M232, (DODIC 1320-DA13)
Projectile, 155-mm, RADAM, Short SD, with RAAMS A1, M1025,
(DODIC 1320-DA19)
Projectile, 155-mm, RADAM, Short SD, M1023 (DODIC 1320-DA20)
Projectile, 155-mm, RADAM, Long SD, M1024 (DODIC 1320-DA21)
Projectile, 155-mm, RADAM, Long SD with RAAMS A1, M1026,
(DODIC 1320-DA22)
Fuzes and Primers
Fuze, Electronic Time, M762, (DODIC 1390-N289)
Fuze, Electronic Time, M767, (DODIC 1390-N290)
Fuze, Delay, PD, MOD 1, MK399, (DODIC 1390-N659)
Fuze, Multi-Option for Artillery, M782, (DODIC 1390-NA09)
Note: The required fuzes and primers may be rigged as part of the load; however, only those fuzes and primers listed in Table
1-3 are authorized to be airdropped.
*The old or new type propelling charge container may be rigged.
Figure 2-35. Ammunition Layout in an A-22 Cargo Bag for Low-Velocity Airdrop (continued)
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
2-39
Chapter 2

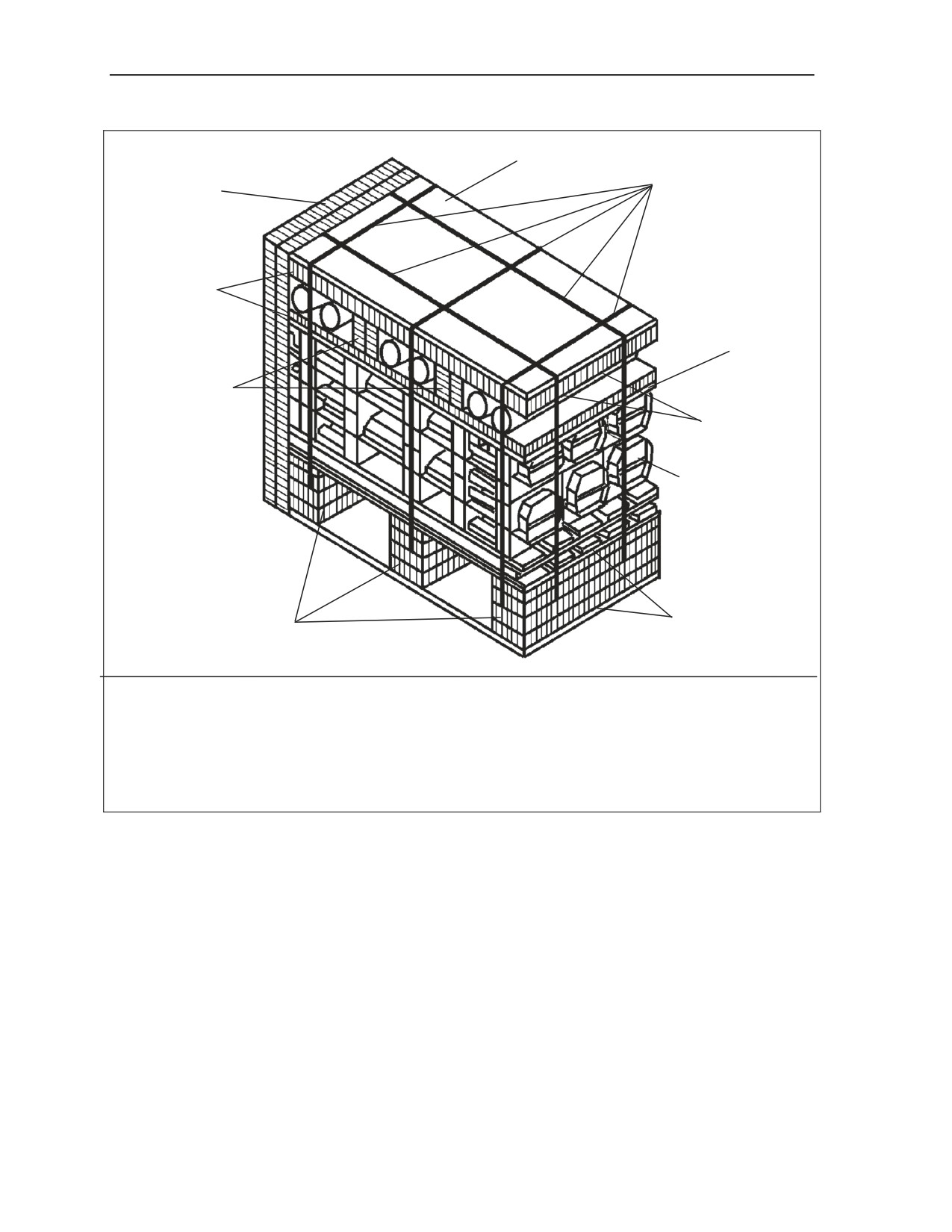

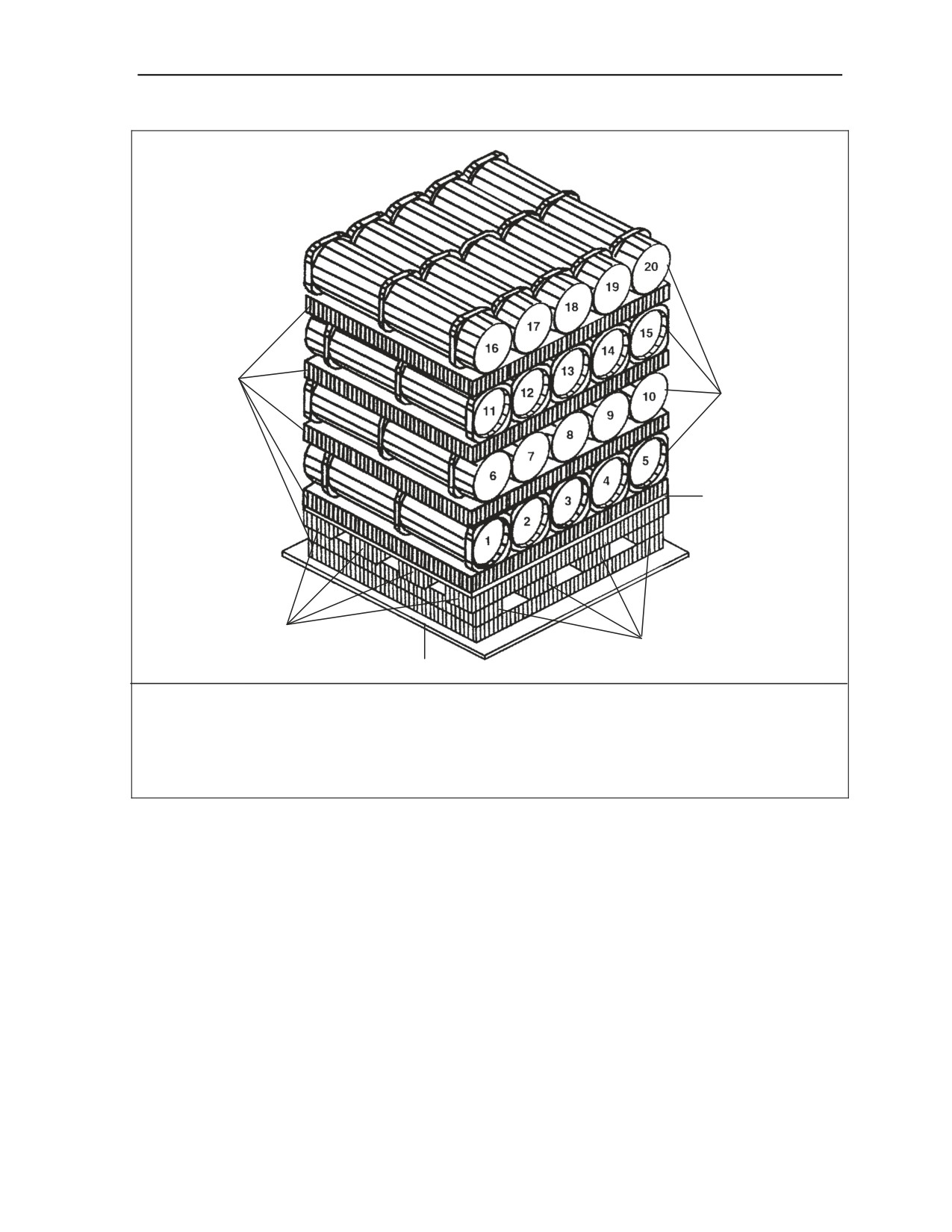

Note: Each end requires two vertical layers of honeycomb.
¾-IN PLYWOOD
HONEYCOMB LAYERS
STEEL
STRAPPING
2 PER END
HONEYCOMB
LAYERS
¾-IN PLYWOOD

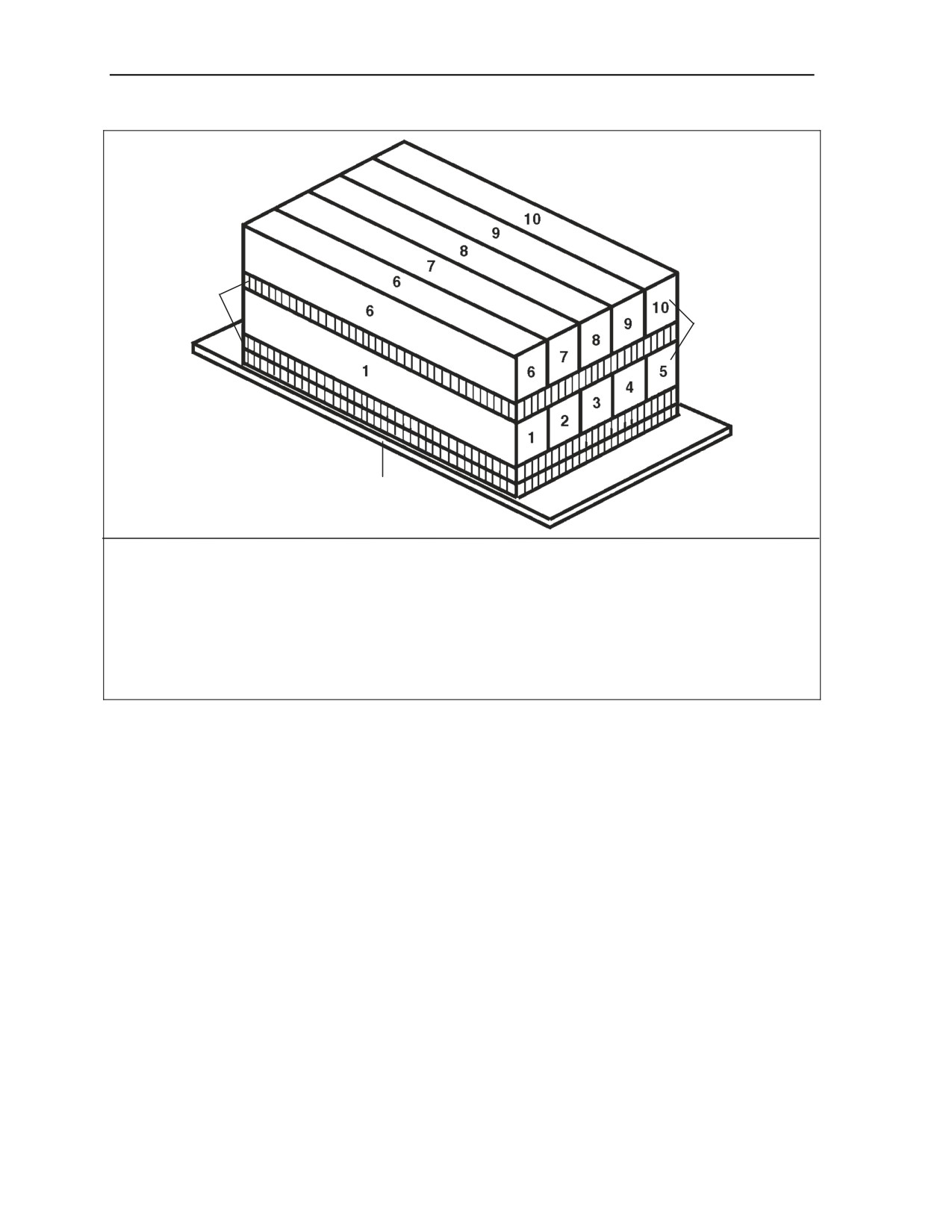

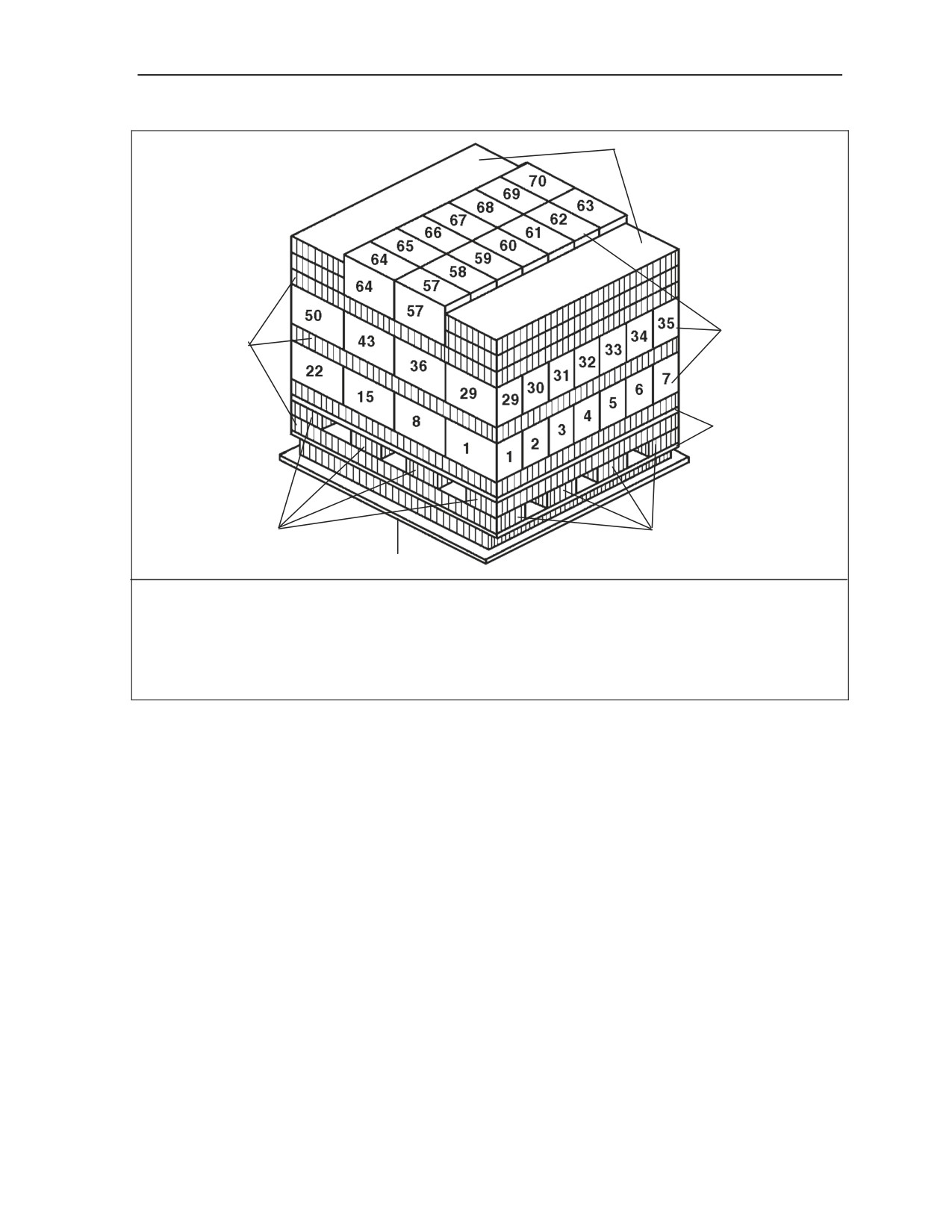

HONEYCOMB
FILLERS
TYPE III
NYLON CORD
M712
PALLETIZED
PROJECTILES
HONEYCOMB
LAYERS
¾-IN PLYWOOD
(8” X 33”)
The following ammunition item is rigged in a double A-22 cargo bag for low-velocity airdrop as shown in
Figure 2-36. Construct a double A-22 skid according to FM 4-20.103/MCRP 4-11.3C/TO 13C7-1-
11.
155-Millimeter Ammunition
Projectile, 155-mm, HEAT, M712, (Copperhead), (DODIC 1320-D510)
Figure 2-36. Ammunition Layout in a Double A-22 Cargo Bag for Low-Velocity Airdrop
2-40
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Preparing Low-Velocity A-22 Cargo Bag Loads
STEEL
STRAPPING
PROPELLENT
CHARGES
HONEYCOMB
LAYERS
PROJECTILES
LOAD SPREADER
(¾-IN PLYWOOD)
STEEL
STRAPPING
LAYER 1
LAYER 2
LAYER 3
The following ammunition items are rigged in an A-22 cargo bag for low-velocity airdrop as shown in
Figure 2-37.
175-Millimeter Ammunition
Charge, Propelling, 175-mm, WB, M86A2, with Additive Jacket M1 and
Primer Percussion M82, (DODIC 1320-D361)
Projectile, 175-mm, HE, M437A2, (DODIC 1320-D572)
Note: Required fuses are rigged with the load.
Figure 2-37. Ammunition Layout in an A-22 Cargo Bag for Low-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
2-41
Chapter 2

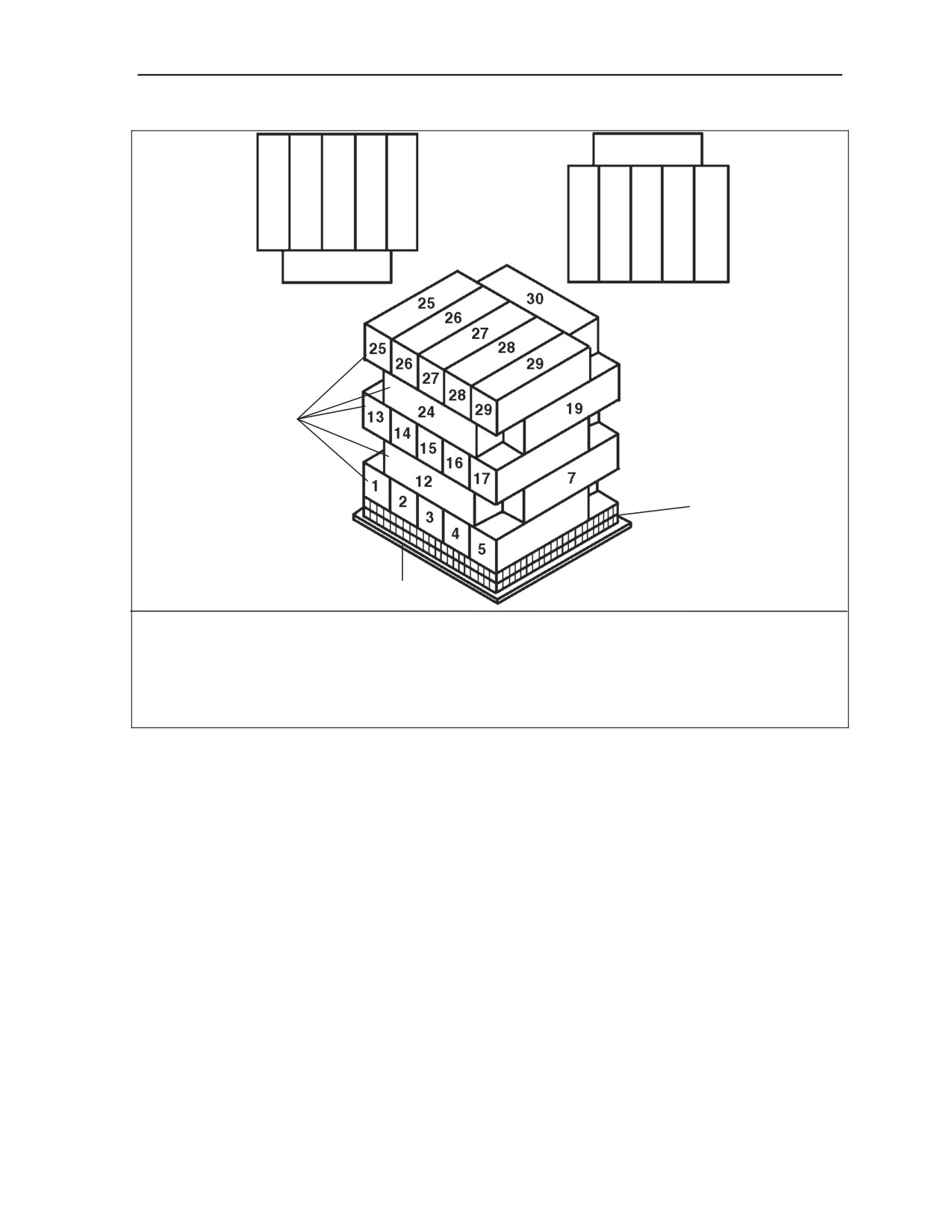

STEEL
HONEYCOMB
STRAPPING
FILLERS
CHARGES
HONEYCOMB
LAYERS
PROJECTILES
LOAD SPREADER
(¾-IN PLYWOOD)
STEEL
SKID
STRAPPING
LAYER 1
LAYER 2
LAYER 3
The following ammunition items are rigged in an A-22 cargo bag for low-velocity airdrop as shown in
Figure 2-38.
8-Inch Ammunition
*Charge, Propelling, 8-in, WB, M188, (DODIC 1320-D661)
Charge, Propelling, 8-in, WB, M188A1, (DODIC 1320-D662)
Charge, Propelling, 8-in, M1, (DODIC 1320-D675)
Charge, Propelling, 8-in, M2, (DODIC 1320-D676)
Projectile, 8-in, HE, M106, (DODIC 1320-D680)
Reducer, Flash, Propelling Charge, M3, (DODIC 1320-D681)
Projectile, 8-in, HE, M404, (DODIC 1320-D684)
Fuzes and Primers
Fuze, Delay, PD, MOD 1, MK399, (DODIC 1390-N659)
Note: Required fuzes are rigged with the load.
*The old or new type propelling charge containers may be rigged.
Figure 2-38. Ammunition Layout in an A-22 Cargo Bag for Low-Velocity Airdrop
2-42
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Preparing Low-Velocity A-22 Cargo Bag Loads

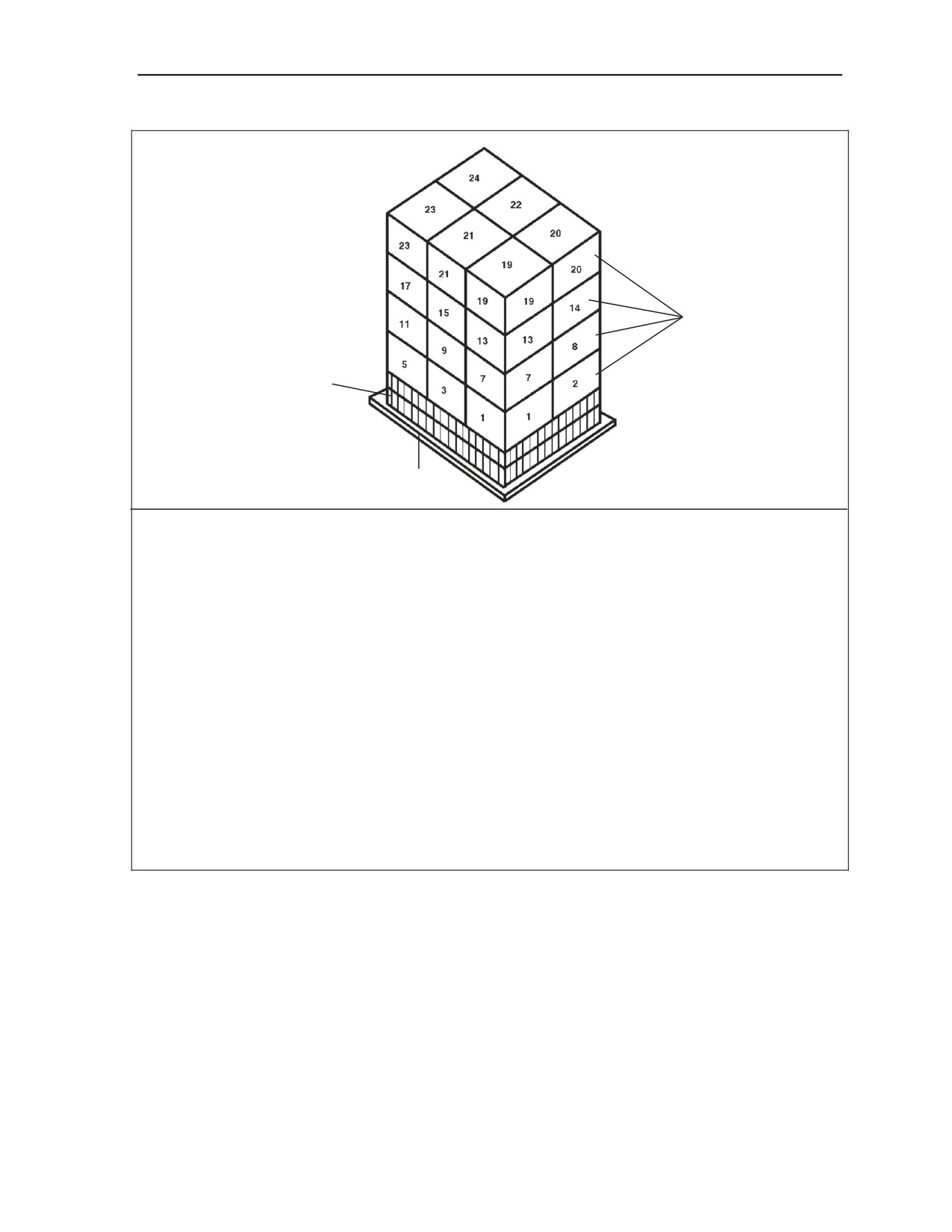

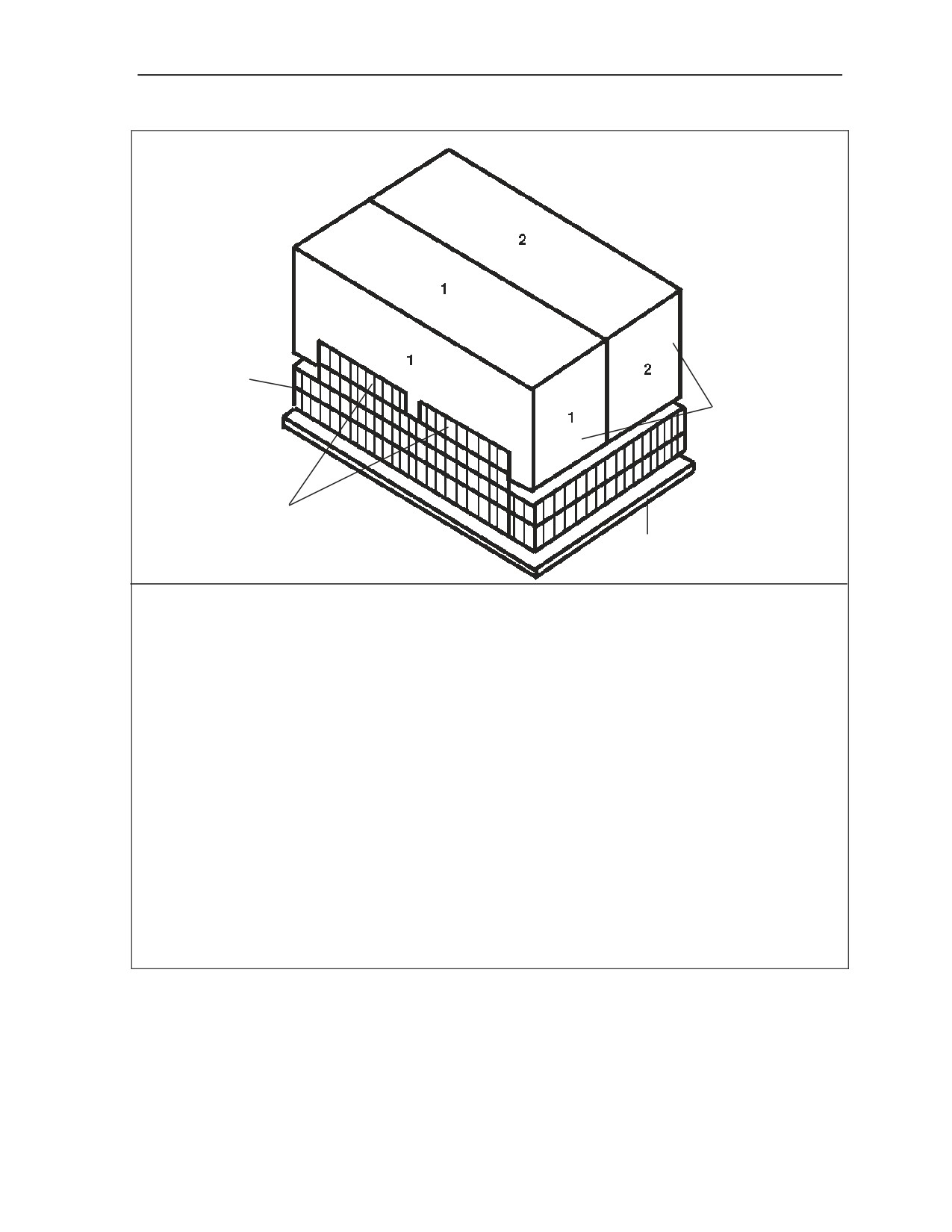

LAYER 2
LAYERS 1 & 2
AMMUNITION
BOXES
HONEYCOMB
LAYERS
SKID
The following ammunition item is rigged in an A-22 cargo bag for low-velocity airdrop as shown in Figure
2-39.
Antipersonnel and Antitank Mine
Mine, AT, HE, M19, (DODIC 1345-K250)
Figure 2-39. Ammunition Layout in an A-22 Cargo Bag for Low-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
2-43
Chapter 2
HONEYCOMB
LAYERS
AMMUNITION
BOXES
LOAD SPREADER
(¾-IN PLYWOOD)
SKID
The following ammunition item is rigged in an A-22 cargo bag for low-velocity airdrop as shown in Figure
2-40.
Grenades
Grenade, 40-mm, Smoke, Screening, L8A3, (DODIC 1330-G815)
Figure 2-40. Ammunition Layout in an A-22 Cargo Bag for Low-Velocity Airdrop
2-44
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Preparing Low-Velocity A-22 Cargo Bag Loads

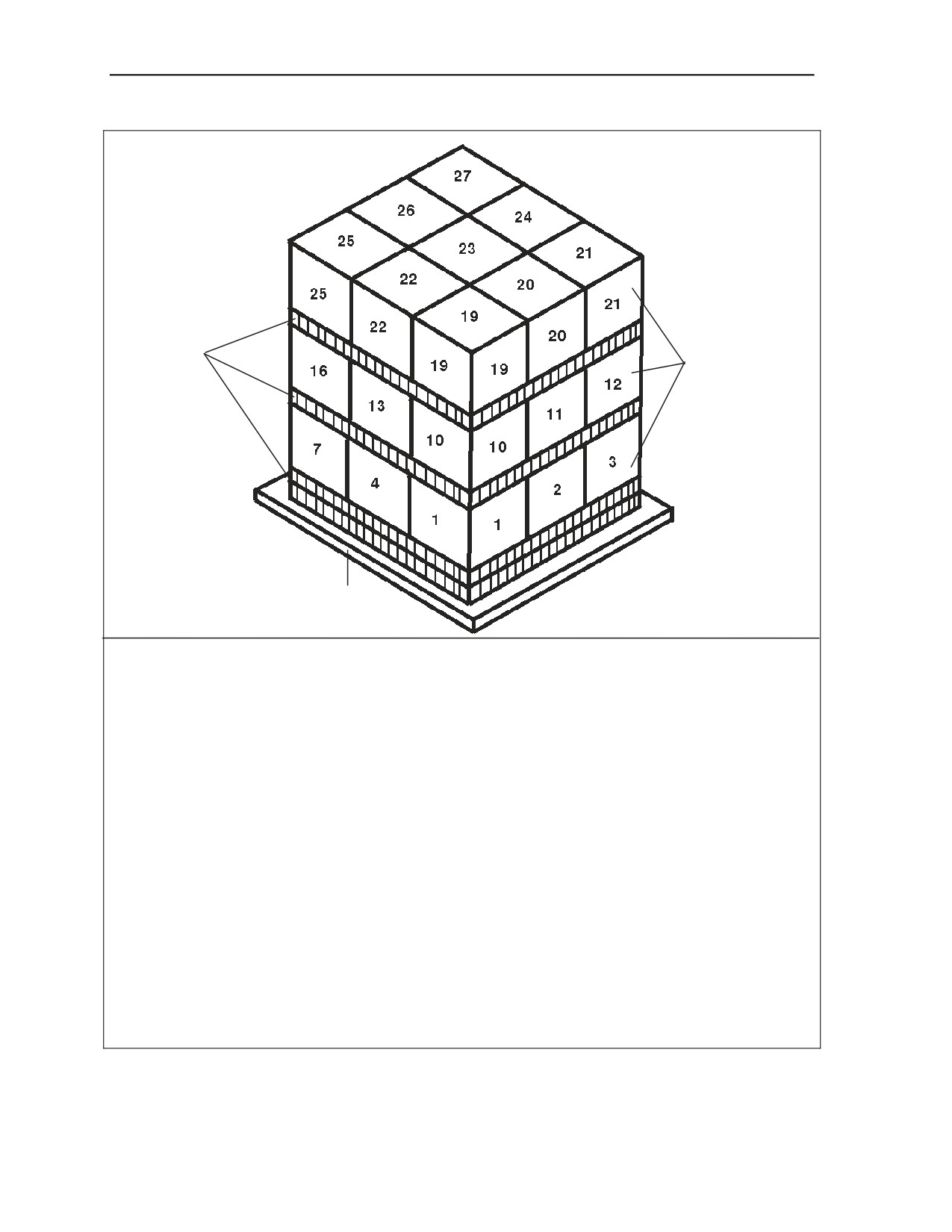

AMMUNITION
HONEYCOMB
BOXES
LAYERS
LOAD SPREADER
(¾-IN PLYWOOD)
SKID
The following ammunition item is rigged in an A-22 cargo bag for low-velocity airdrop as shown in Figure
2-41.
Grenades
Launcher, Grenade, 40-mm, Smoke, IR Screening, M76, (DODIC 1330-G826)
Figure 2-41. Ammunition Layout in an A-22 Cargo Bag for Low-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
2-45
Chapter 2

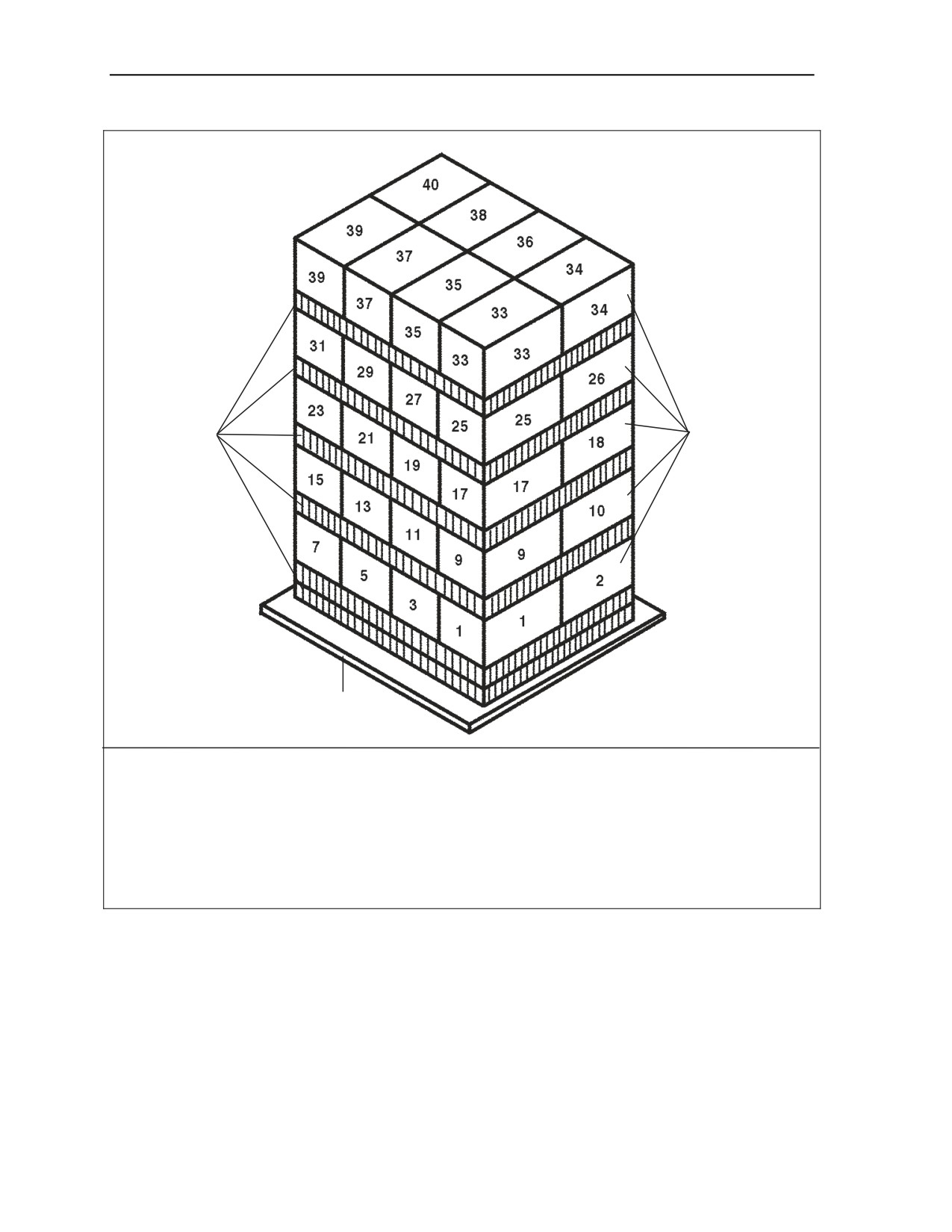

HONEYCOMB
AMMUNITION
LAYERS
BOXES
SKID
The following ammunition items are rigged in an A-22 cargo bag for low-velocity airdrop as shown in
Figure 2-42.
Grenade
Grenade, Hand, Offensive, MK3A2 with Fuze, (DODIC 1330-G911)
Demolition Item
Firing Device, Demolition, M5, Pressure Release Type, (DODIC 1375-M627)

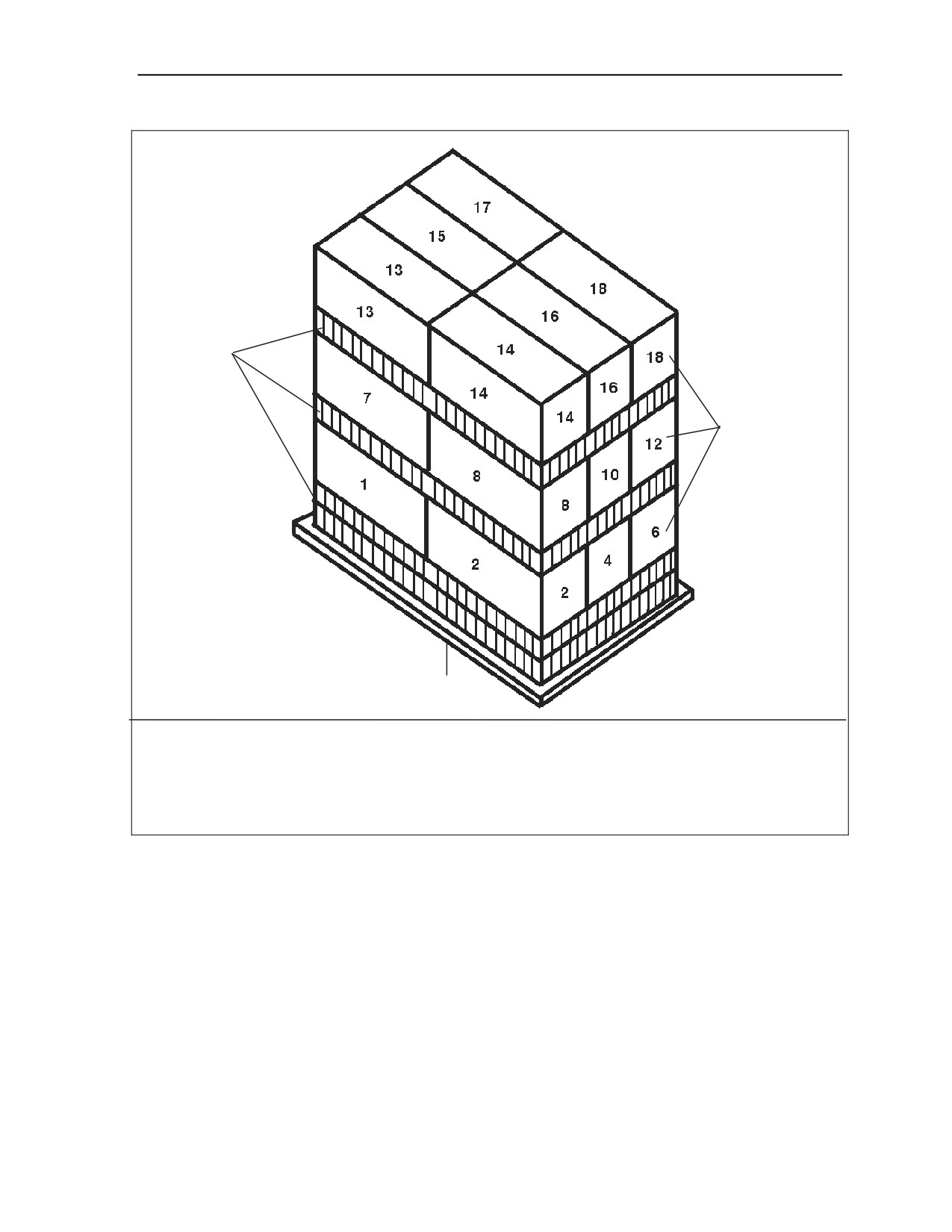

Figure 2-42. Ammunition Layout in an A-22 Cargo Bag for Low-Velocity Airdrop
2-46
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Preparing Low-Velocity A-22 Cargo Bag Loads
HONEYCOMB
AMMUNITION
LAYERS
BOXES
SKID
The following ammunition items are rigged in an A-22 cargo bag for low-velocity airdrop as shown in
Figure 2-43.
Grenades
Grenade, Hand, Smoke, HC, ABC, AN-M18 with Fuze, (DODIC 1330-G930)
Grenade, Hand, Green Smoke, M18 with Fuze, (DODIC 1330-G940)
Grenade, Hand, Yellow Smoke, M18 with Fuze, (DODIC 1330-G945)
Grenade, Hand, Red Smoke, M18 with Fuze, (DODIC 1330-G950)
Grenade, Hand, Violet Smoke, M18 with Fuze M201A1, (DODIC 1330-G955)
Grenade, Hand, Riot Control, M7A3 with Fuze, (DODIC 1330-G963)

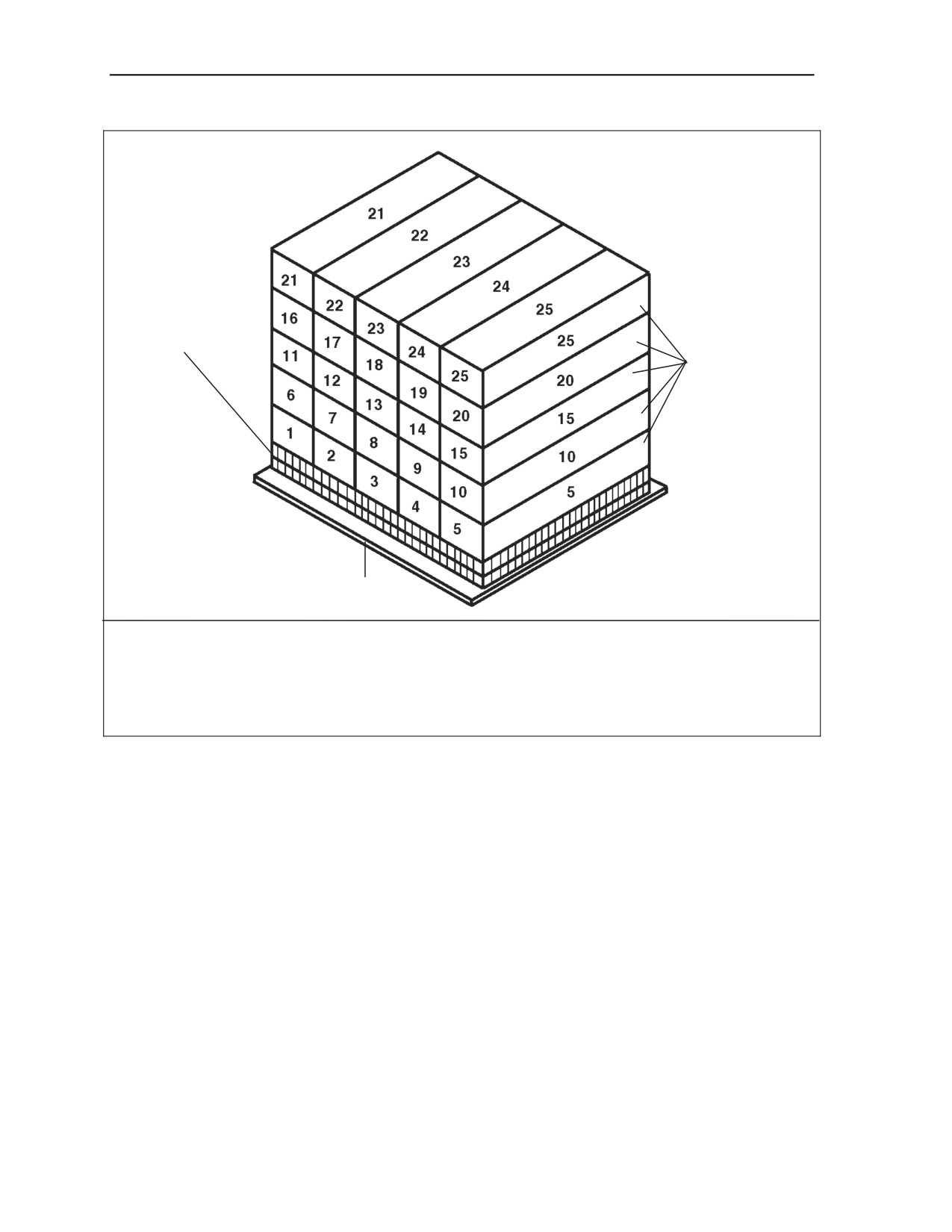

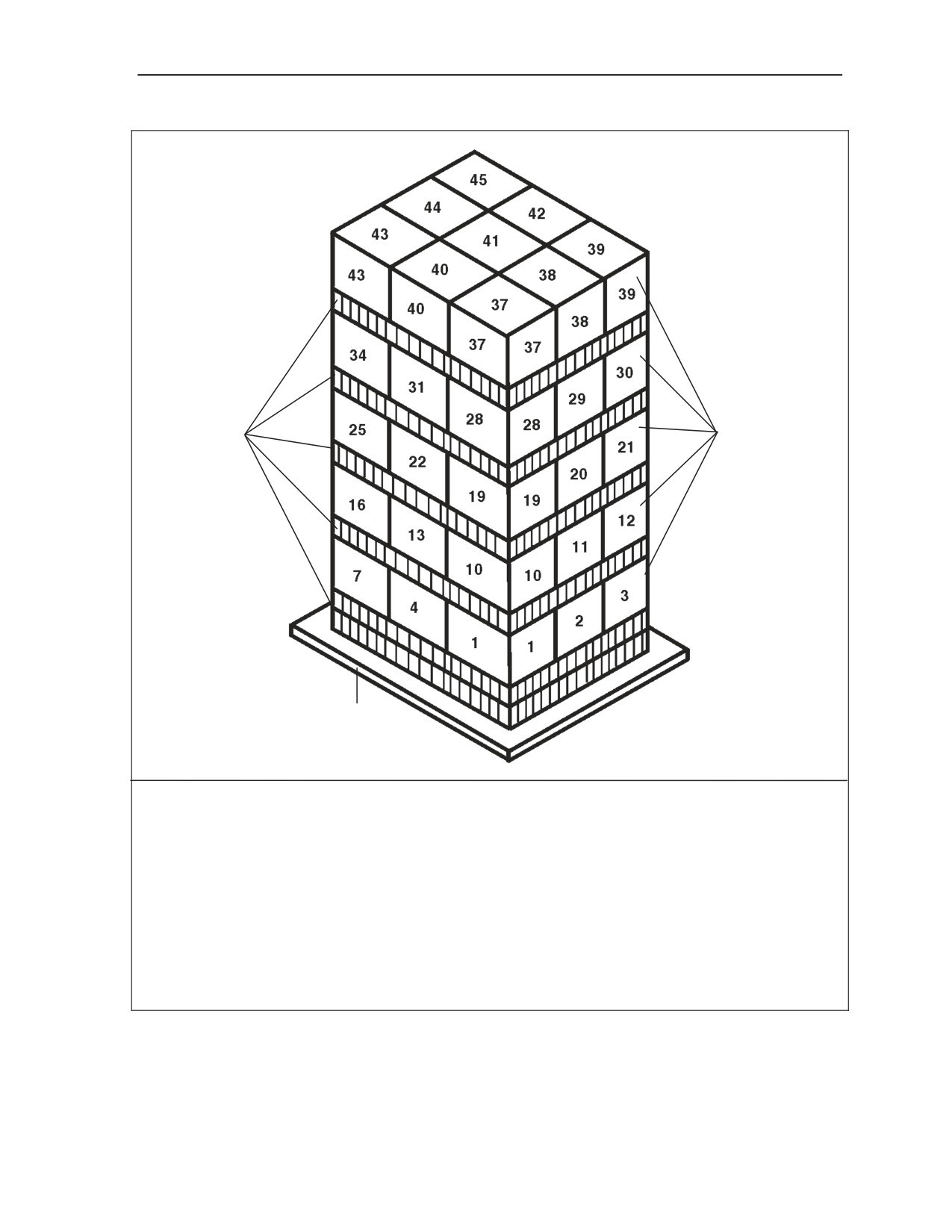

Figure 2-43. Ammunition Layout in an A-22 Cargo Bag for Low-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
2-47
Chapter 2
AMMUNITION
HONEYCOMB
BOXES
LAYERS
LOAD SPREADER
(¾-IN PLYWOOD)
SKID
HONEYCOMB STRIPS
(5-IN WIDE)
The following ammunition item is rigged in an A-22 cargo bag for low-velocity airdrop as shown in Figure
2-44.
Grenade
Grenade, Launcher, Smoke, MM/IR, Screening, M81, (DODIC 1330-GG01)

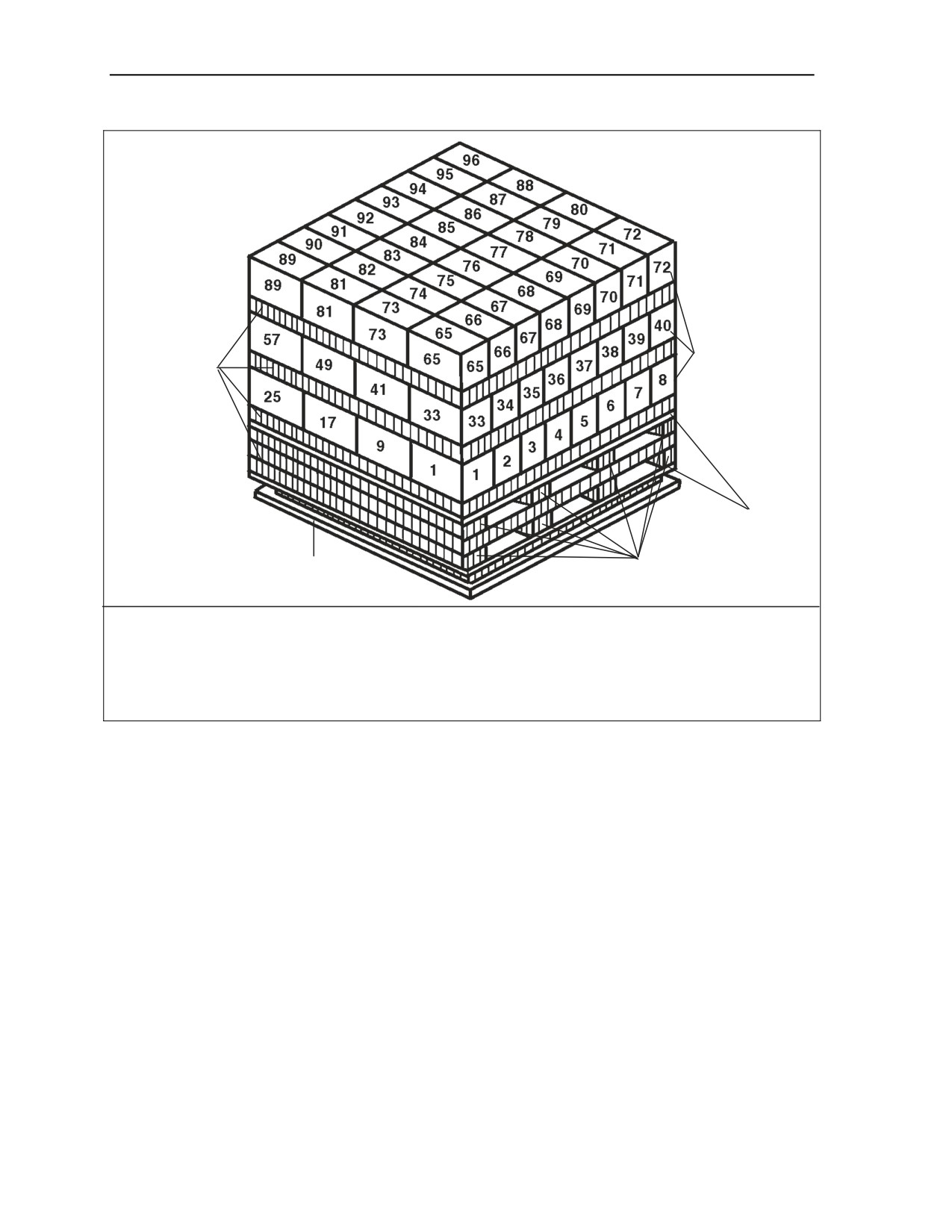

Figure 2-44. Ammunition Layout in an A-22 Cargo Bag for Low-Velocity Airdrop
2-48
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Preparing Low-Velocity A-22 Cargo Bag Loads
AMMUNITION
BOXES
HONEYCOMB
LAYERS
SKID
The following ammunition items are rigged in an A-22 cargo bag for low-velocity airdrop as shown in
Figure 2-45.
84-Millimeter Ammunition
Cartridge, 84-mm, Practice, with Tracer, TPT141, (DODIC 1315-CA10)
Cartridge, 84-mm, HEDP, IM, 502, (DODIC 1315-CA21)
Cartridge, 84-mm, MAAWS, Reduced Sensitivity (RS), 441D,
(DODIC 1315-CA27)
Cartridge, 84-mm, MAAWS, 545C, Illumination (DODIC 1315-CA36)
Grenade
Launcher and Grenade, Smoke, HC, WP, M176, (DODIC 1330-H050)
Flare and Signal Items
Flare, Surface, M49A1, Trip, (DODIC 1370-L495)
Demolition Items
Charge, Demolition, Block, 1/4-lb TNT, (DODIC 1375-M030)
Cap, Blasting, Special Non-Electric, M7, (DODIC 1375-M131)

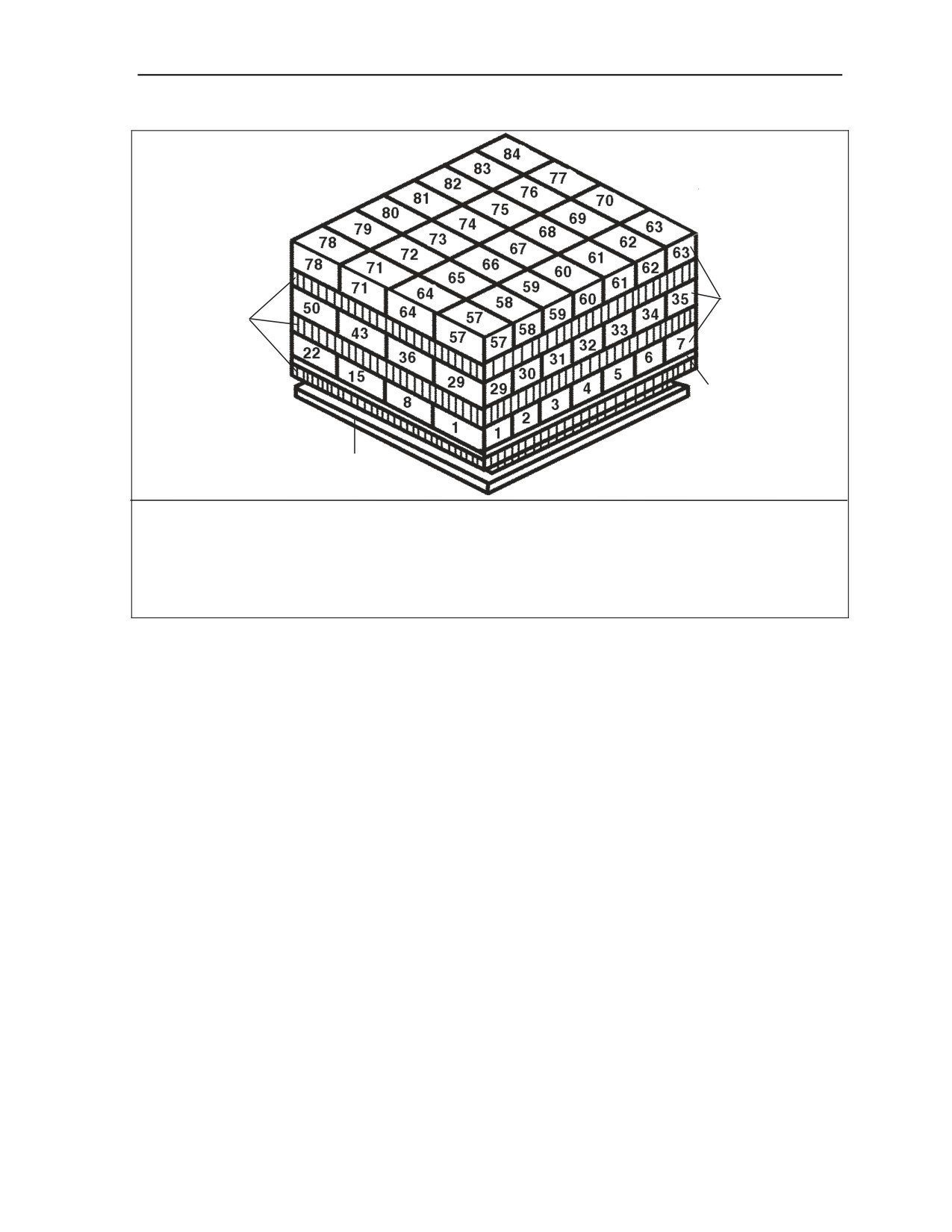

Figure 2-45. Ammunition Layout in an A-22 Cargo Bag for Low-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
2-49
Chapter 2
HONEYCOMB
FILLERS
AMMUNITION
BOXES
HONEYCOMB
LAYERS
SKID
The following ammunition items are rigged in an A-22 cargo bag for low-velocity airdrop as shown in
Figure 2-46.
Rockets
Rocket, 2.75-in, Flare, IR, (DODIC 1340-H154)
Rocket, 2.75-in, Flare, HYDRA, (DODIC 1340-H181)

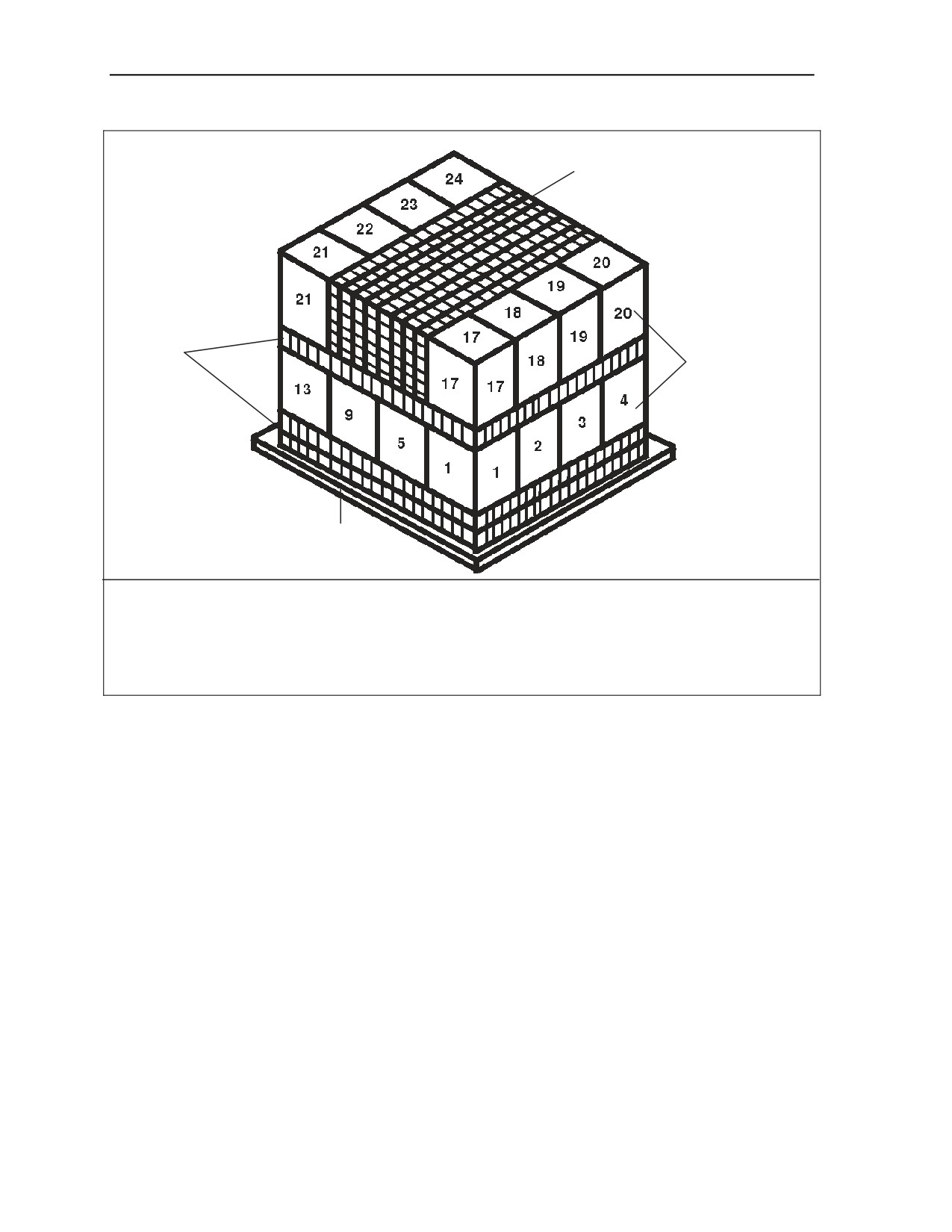

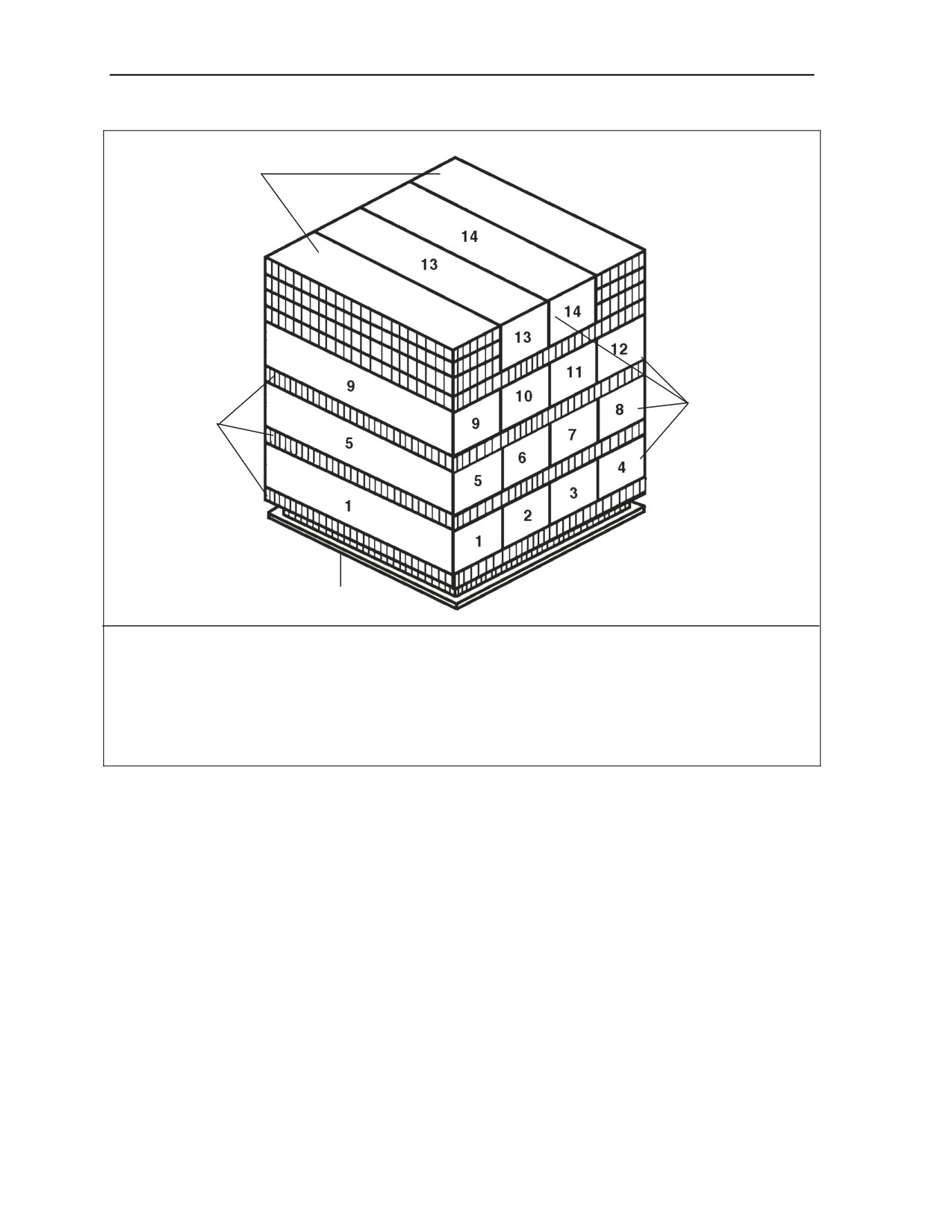

Figure 2-46. Ammunition Layout in an A-22 Cargo Bag for Low-Velocity Airdrop
2-50
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Preparing Low-Velocity A-22 Cargo Bag Loads
HONEYCOMB
FILLERS
HONEYCOMB
LAYERS
AMMUNITION
BOXES
SKID
The following ammunition items are rigged in an A-22 cargo bag for low-velocity airdrop as shown in
Figure 2-47.
Rockets
(4-Pack Boxes Only)
Rocket, 2.75-in, WP, M259, (DODIC 1340-H116)
Rocket, 2.75-in, with WHD, HE, M151 with Fuze M440 and Motor MK40 Mod 3,
(DODIC 1340-H161)
Rocket, 2.75-in, HE, w/M151 HYDRA, (DODIC 1340-H163)
Rocket, 2.75-in, with WHD, WDU-4A/A and Motor MK40 Mod 3,
(DODIC 1340-H459)
Rocket, 2.75-in, WHD, HE, M151 with Fuze M429 and Motor MK40 Mod 3,
(DODIC 1340-H489)
Rocket, 2.75-in, WHD, HE, M151 with Fuze M423 and Motor MK40 Mod 3,
(DODIC 1340-H490)
Rocket, 2.75-in, Smoke, WP, M156 with Fuze M423 and Motor MK40 Mod 3,
(DODIC 1340-H519)
Rocket, 2.75-in, WHD, HE, M229 with Fuze M423 and Motor MK40 Mod 3,
(DODIC 1340-H534)
Rocket, 2.75-in, WHD, HEDP, M247 with Fuze M438 and Motor MK40 Mod 3,
(DODIC 1340-H826)
Figure 2-47. Ammunition Layout in an A-22 Cargo Bag for Low-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
2-51
Chapter 2
HONEYCOMB
LAYERS
AMMUNITION
BOXES
SKID
The following ammunition items are rigged in a double A-22 cargo bag for low-velocity airdrop as shown
in Figure 2-48. Construct a double A-22 skid according to FM 4-20.103/MCRP 4-11.3C/TO 13C7-1-11.
Rockets
(4-Pack Boxes Only)
Rocket, Flechette, (DODIC 1340-H462)
Rocket, 2.75-in, MPSM, w/ MK66, MOD 1, M261, (DODIC 1340-H464)
Figure 2-48. Ammunition Layout in a Double A-22 Cargo Bag for Low-Velocity Airdrop
2-52
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Preparing Low-Velocity A-22 Cargo Bag Loads
HONEYCOMB
LAYERS
AMMUNITION
BOXES
HONEYCOMB
FILLERS
SKID

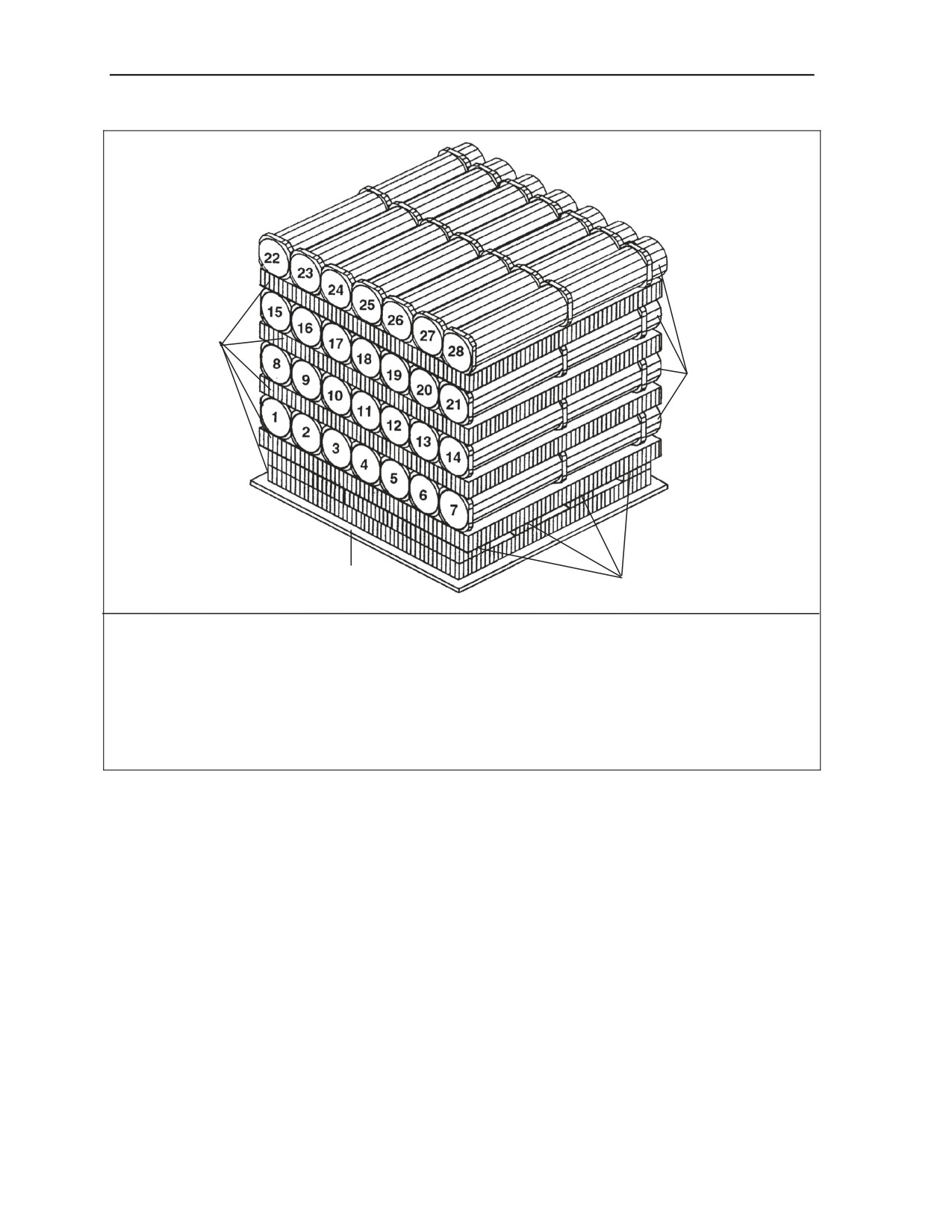

The following ammunition items are rigged in an A-22 cargo bag for low-velocity airdrop as shown in
Figure 2-49.
Rockets
(25-Pack Boxes Only)
Rocket, 2.75-in, with WHD, HE, M151 with Fuze M440 and Motor MK40
Mod 3, (DODIC 1340-H161)
Rocket, 2.75-in, with WHD, WDU-4A/A and Motor MK40 Mod 3,
(DODIC 1340-H459)
Rocket, 2.75-in, WHD, HE, M229, with Liner and Fuze M429 and Motor
MK40 Mod 3, (DODIC 1340-H488)
Rocket, 2.75-in, WHD, HE, M151 with Fuze M429 and Motor MK40 Mod 3,
(DODIC 1340-H489)
Rocket, 2.75-in, WHD, HE, M151 with Fuze M423 and Motor MK40 Mod 3,
(DODIC 1340-H490)
Rocket, 2.75-in, WHD, HE, M229 with Fuze M423 and Motor MK40 Mod 3,
(DODIC 1340-H534)
Figure 2-49. Ammunition Layout in an A-22 Cargo Bag for Low-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
2-53
Chapter 2
HONEYCOMB
FILLERS
HONEYCOMB
AMMUNITION
LAYERS
BOXES
SKID
The following ammunition item is rigged in an A-22 cargo bag for low-velocity airdrop as shown in
Figure 2-50.
Rockets
(4-Pack Boxes Only)
Rocket, 2.75 in, WHD, HE, M229, with Liner and Fuze M429 and Motor
MK40 Mod 3, (DODIC 1340-H488)
Figure 2-50. Ammunition Layout in an A-22 Cargo Bag for Low-Velocity Airdrop
2-54
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Preparing Low-Velocity A-22 Cargo Bag Loads
¾-IN PLYWOOD
¾-IN PLYWOOD
AMMUNITION
BOXES
AMMUNITION
BOXES
HONEYCOMB
SKID
HONEYCOMB SKID
LAYERS
LAYERS
RIGGED WITH WOODEN OVERPACK
RIGGED WITHOUT WOODEN OVERPACK

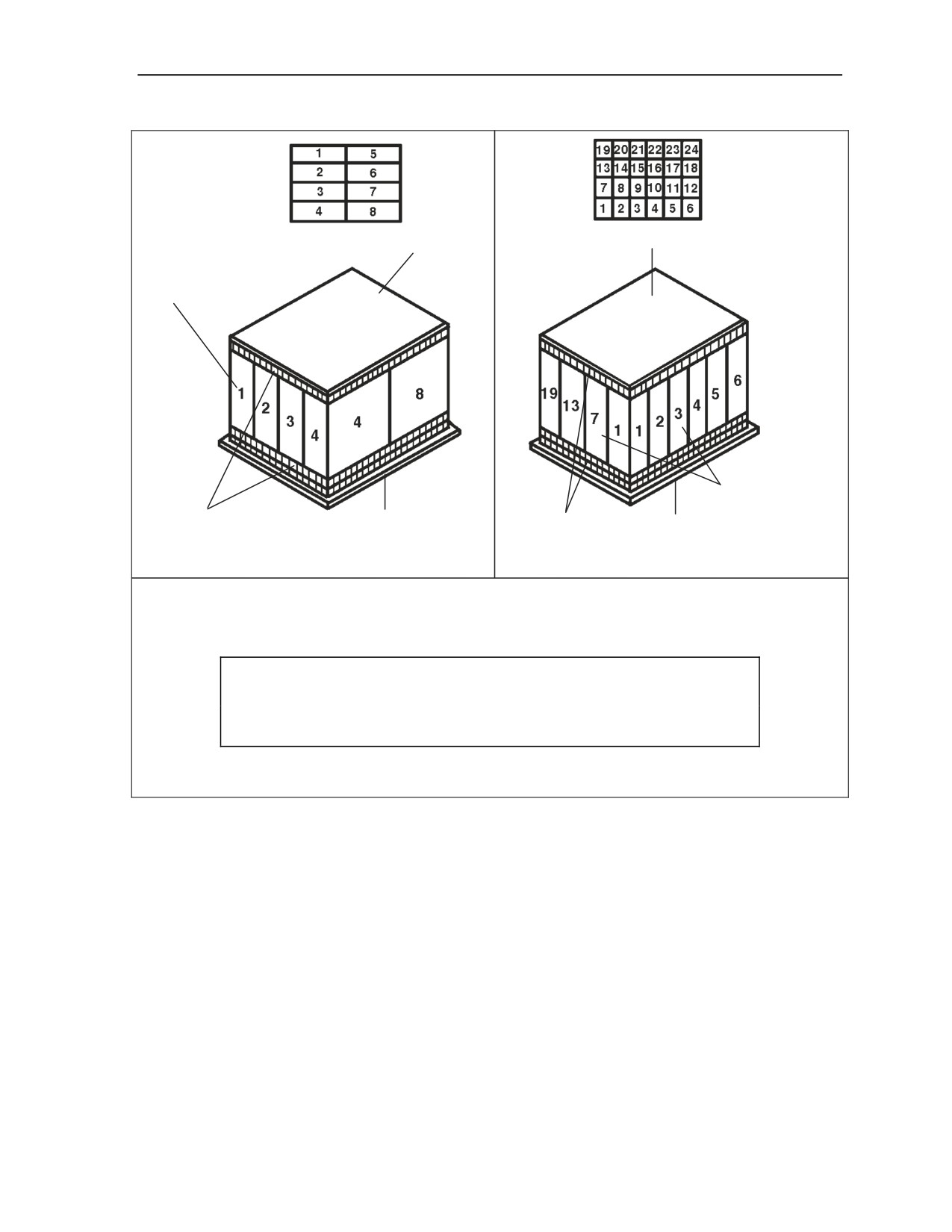

The following ammunition item is rigged in an A-22 cargo bag for low-velocity airdrop as shown in Figure
2-51.
66-Millimeter Rocket
CAUTION
This item must be rigged in the base down position.
Rocket, 66-mm, HEAT, M72A2 with Launcher, (DODIC 1340-H557)
Figure 2-51. Ammunition Layout in an A-22 Cargo Bag for Low-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
2-55
Chapter 2
AMMUNITION
BOXES
HONEYCOMB
LAYERS
SKID
LAYERS 2 & 4
LAYERS 1 & 3

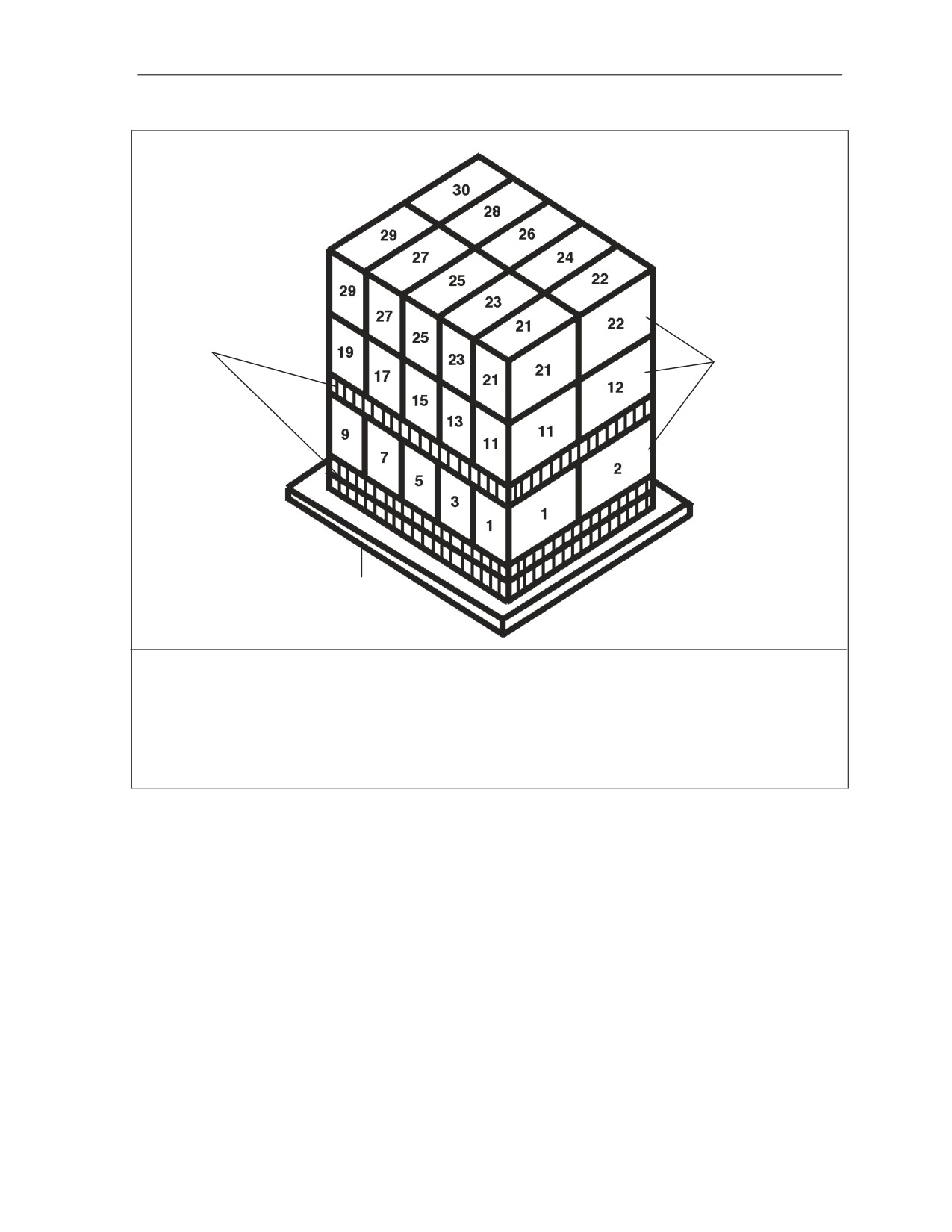

The following ammunition items are rigged in an A-22 cargo bag for low-velocity airdrop as shown in
Figure 2-52.
Antipersonnel and Antitank Mine
Mine, AP, M26, (DODIC 1345-K146)
Demolition Items
Charge, Demolition, Block, PETN, M118, (DODIC 1375-M024)
Charge, Demolition, Block, 1/2-lb TNT, (DODIC 1375-M031)
Charge, Demolition, Block, 1-lb TNT, (DODIC 1375-M032)
Detonator, Percussion, M1A2, 15-sec Delay, (DODIC 1375-M450)
Firing Device, Demolition, M1, Pull Type, (DODIC 1375-M630)
Firing Device, Demolition, M1, Release Type, (DODIC 1375-M631)

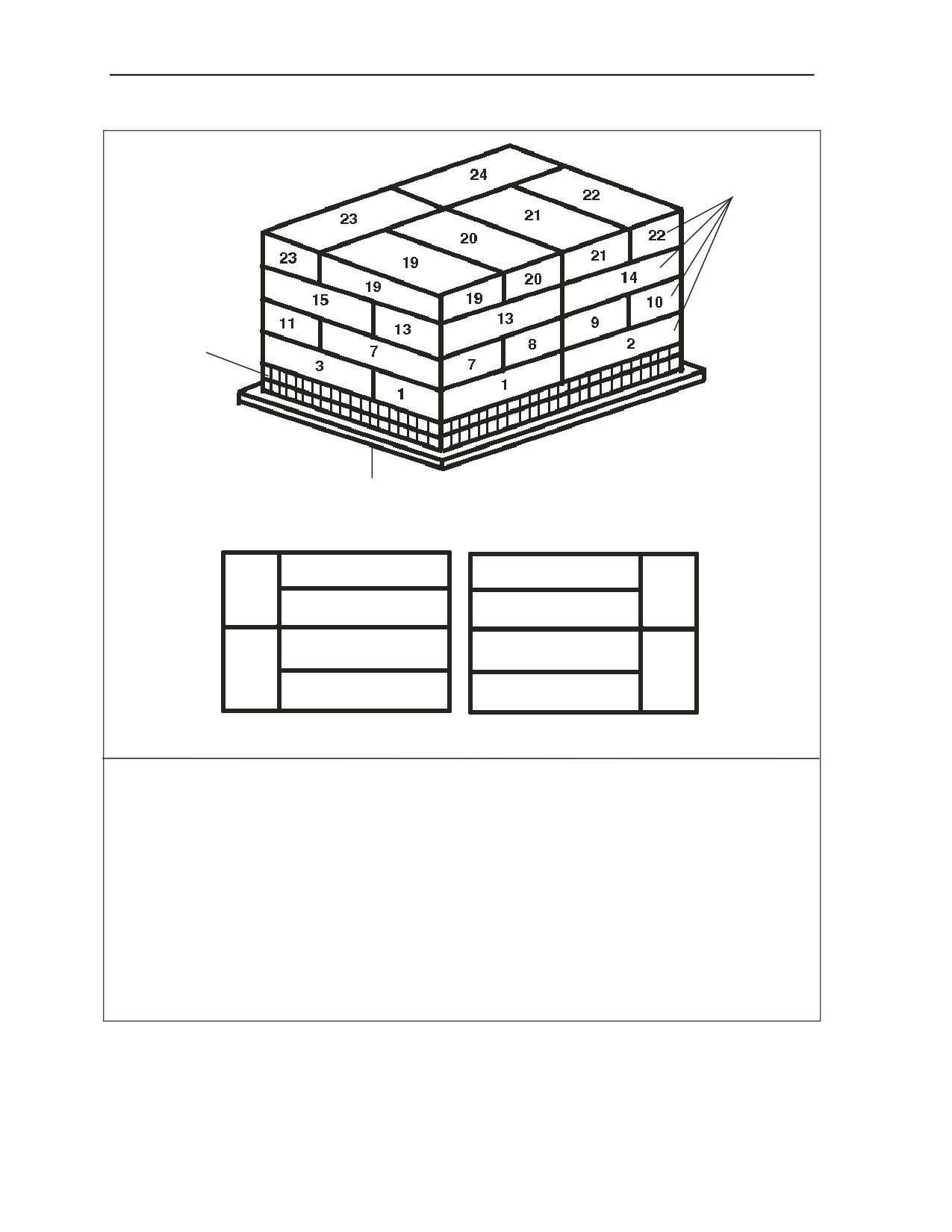

Figure 2-52. Ammunition Layout in an A-22 Cargo Bag for Low-Velocity Airdrop
2-56
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Preparing Low-Velocity A-22 Cargo Bag Loads
HONEYCOMB
LAYERS
AMMUNITION
BOXES
SKID
The following ammunition item is rigged in an A-22 cargo bag for low-velocity airdrop as shown in Figure
2-53.
Incendiary Item
Thickener, Incendiary Oil, M4, (DODIC 1365-K917)
Figure 2-53. Ammunition Layout in an A-22 Cargo Bag for Low-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
2-57
Chapter 2
HONEYCOMB
LAYERS
AMMUNITION
BOXES
SKID

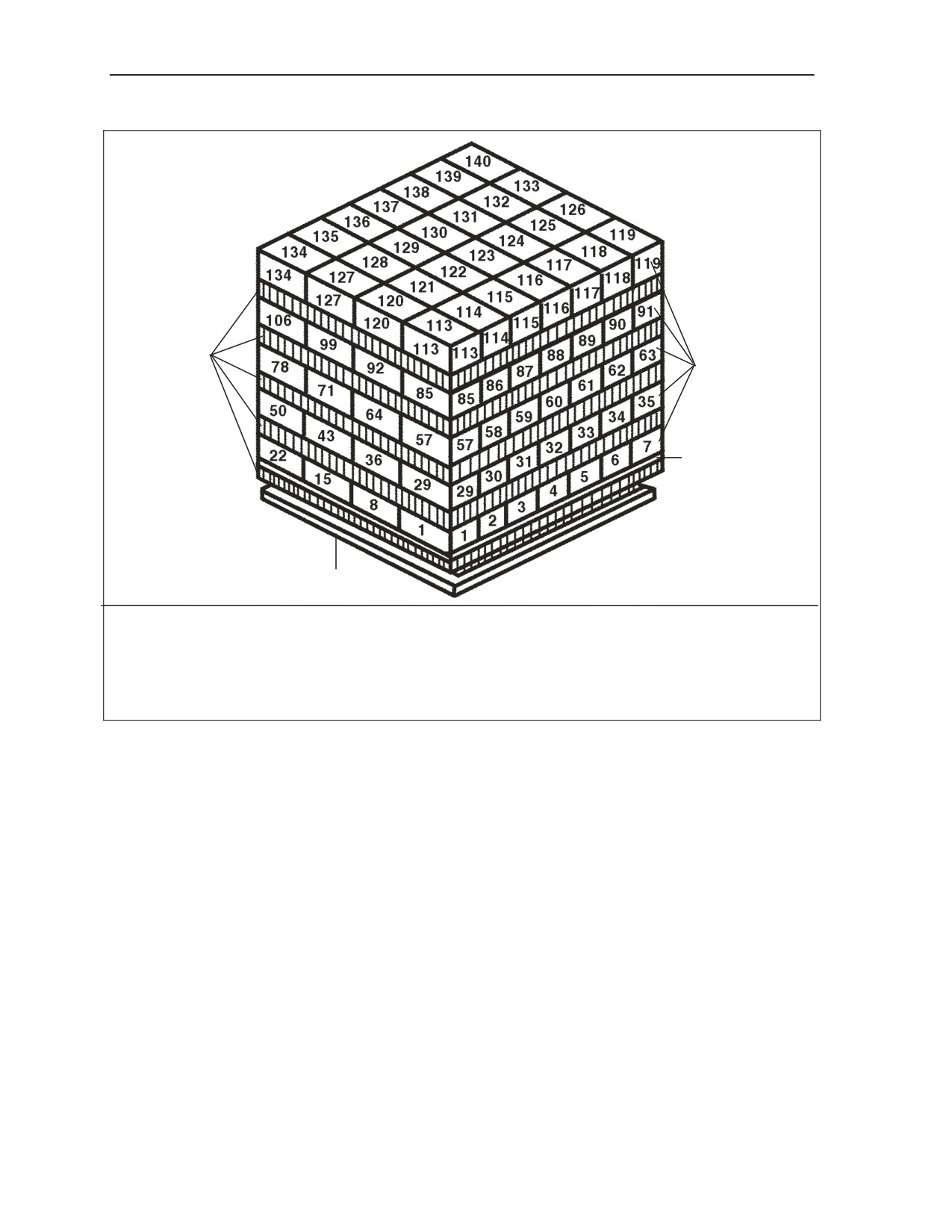

The following ammunition items are rigged in an A-22 cargo bag for low-velocity airdrop as shown in
Figure 2-54.
Flare and Signal Items
Signal, Illuminating, Ground, M195, Green Star, (DODIC 1370-L305)
Signal, Illuminating, Ground, M158, Red Star, (DODIC 1370-L306)
Signal, Illuminating, Ground, M159, White Star, (DODIC 1370-L307)
Signal, Illuminating, Ground Parachute, M126A1, (DODIC 1370-L311)
Signal, Illuminating, Parachute, M127A1, White Star, (DODIC 1370-L312)
Signal, Illuminating, Ground, Cluster, M125A1, (DODIC 1370-L314)
Signal, Smoke, Parachute, M129A1, Red, (DODIC 1370-L323)
Signal, Smoke, Parachute, M128A1, Green, (DODIC 1370-L324)
Demolition Item
Destructor, Explosive, Universal, M10, (DODIC 1375-M241)
5.56-Millimeter Ammunition
Cartridge, 5.56-mm, Ball, M855 and Tracer, M856 Linked, (DODIC 1305-A064)
25.4-Millimeter Ammunition
Cartridge, 25.4-mm, Decoy, M839, (DODIC 1305-A965)
Figure 2-54. Ammunition Layout in an A-22 Cargo Bag for Low-Velocity Airdrop
2-58
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Preparing Low-Velocity A-22 Cargo Bag Loads
60-Millimeter Ammunition
Note: When rigging 60-mm ammunition, reduce the number of layers of ammunition boxes from three to two.
Cartridge, 60-mm, HE, M720, (DODIC 1310-B642)
Cartridge, 60-mm, HE, M720E1, with M734A1 Fuze, (DODIC 1310-B642)
Cartridge, 60-mm, Smoke, WP, M722, (DODIC 1310-B646)
Cartridge, 60-mm, Illuminating, M721, (DODIC 1310-B647)
Cartridge, 60-mm, Illuminating, Infrared, M767, (DODIC 1310-BA04)
Cartridge, 60-mm, Smoke, WP, M722A1, (DODIC 1310-BA14)
Incendiary Items
Smoke Pot, Floating, HC, M4A2, (DODIC 1365-K867)
Figure 2-54. Ammunition Layout in an A-22 Cargo Bag for Low-Velocity Airdrop (continued)
CARTRIDGES
HONEYCOMB
LAYERS
FLARES
SKID
The following ammunition items are rigged in an A-22 cargo bag for low-velocity airdrop as shown in
Figure 2-55.
Flare and Signal Items
Flare, M206, Rigged w/ Cartridge, Impulse, M796
Flare (DODIC 1370-L410)
Cartridge (DODIC 1377-MD73)

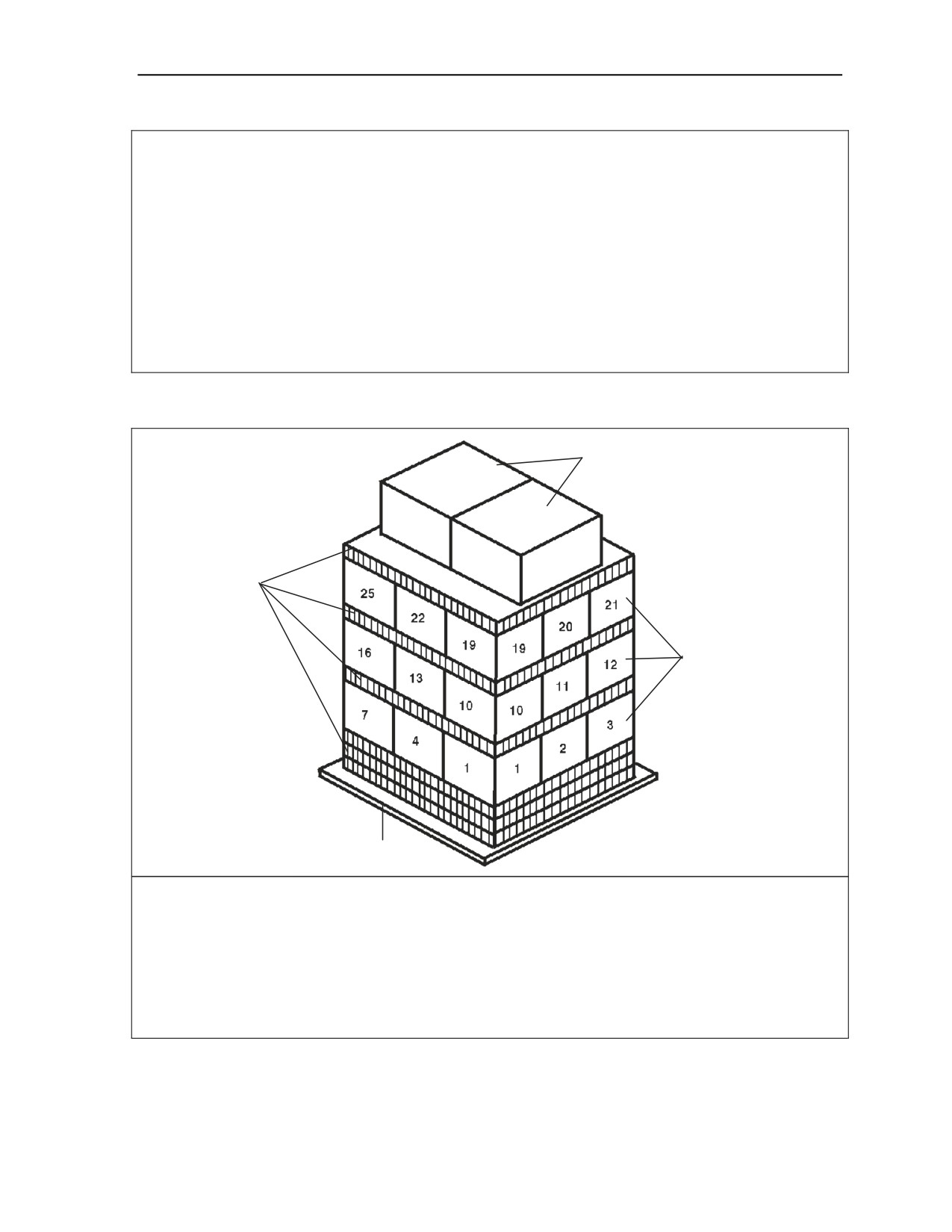

Figure 2-55. Ammunition Layout in an A-22 Cargo Bag for Low-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
2-59
Chapter 2
LAYER 1
LAYERS 1 & 2
CHARGE
BOXES
HONEYCOMB
LAYERS
SKID
The following ammunition item is rigged in an A-22 cargo bag for low-velocity airdrop as shown in Figure
2-56.
Demolition Item
Charge, Demolition, Block, M541, (DODIC 1375-M038)
Figure 2-56. Ammunition Layout in an A-22 Cargo Bag for Low-Velocity Airdrop
2-60
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Preparing Low-Velocity A-22 Cargo Bag Loads
LAYERS 2 & 4
LAYERS 1, 3, & 5
AMMUNITION
BOXES
HONEYCOMB
LAYERS
SKID

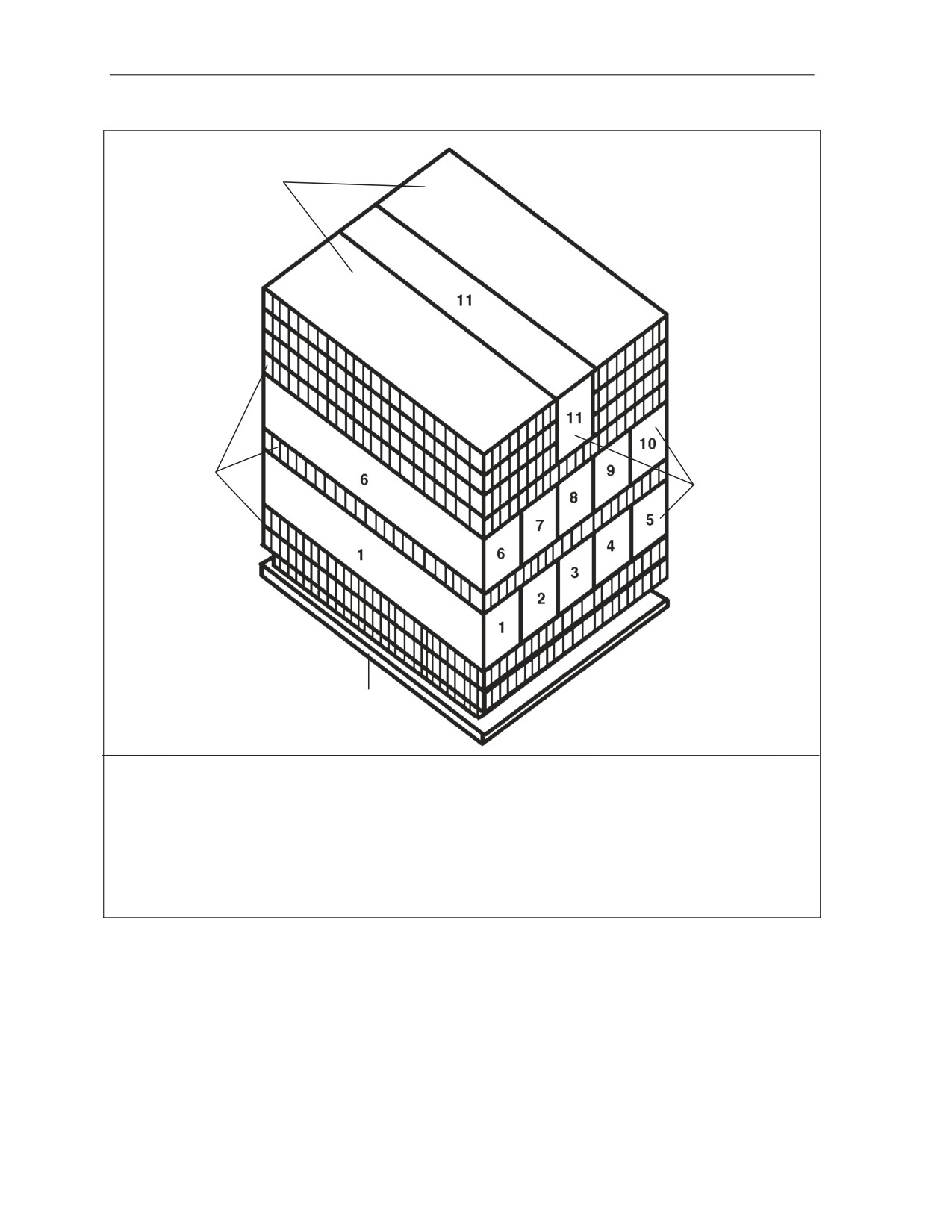

The following ammunition item is rigged in an A-22 cargo bag for low-velocity airdrop as shown in Figure
2-57.
Demolition Item
Charge, Demolition, Shaped, HJE, 15-lb, M2A3, (DODIC 1375-M420)
Figure 2-57. Ammunition Layout in an A-22 Cargo Bag for Low-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
2-61
Chapter 2
HONEYCOMB
LAYERS
AMMUNITION
BOXES
SKID
The following ammunition item is rigged in an A-22 cargo bag for low-velocity airdrop as shown in Figure
2-58.
Demolition Item
Firing Device, Demolition, M1A1, Pressure Type, (DODIC 1375-M626)
Figure 2-58. Ammunition Layout in an A-22 Cargo Bag for Low-Velocity Airdrop
2-62
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Preparing Low-Velocity A-22 Cargo Bag Loads
LAYER 1
LAYER 2
HONEYCOMB
HONEYCOMB
FILLERS
FILLERS
FUZES &
PRIMERS
HONEYCOMB
LAYERS
HONEYCOMB
FILLERS
SKID
The following ammunition items are rigged in an A-22 cargo bag for low-velocity airdrop as shown in
Figure 2-59.
Note: Dropping these items as a single item load may not be practical; however, they can be contained in an A-22 cargo bag
with other compatible items and airdropped. Quantity and type of items that can be rigged in an A-22 cargo bag are
determined by the individual ammunition container dimensions and weight.
Incendiary Item
Starter, Fire, NP3, M2, (DODIC 1370-L621)

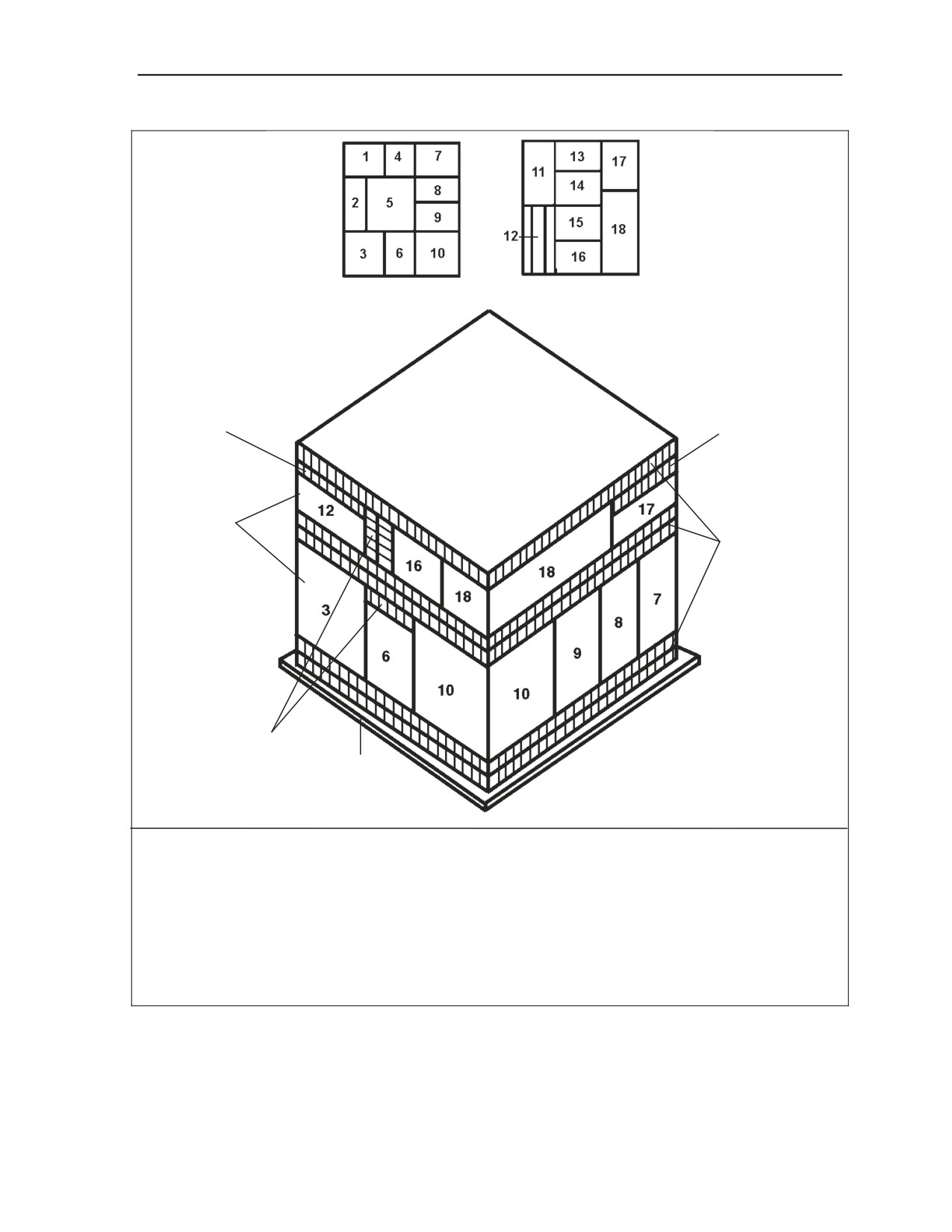

Figure 2-59. Ammunition Layout in an A-22 Cargo Bag for Low-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
2-63
Chapter 2
Fuzes and Primers
CAUTION
When proximity fuzes are airdropped, the boxed fuzes must be
dropped in the nose-down position. If the boxes are damaged, the
fuzes must not be used.
Fuze, MT, M565, (DODIC 1390-N248)
Fuze, MTSQ, M500 or M500A1, (DODIC 1390-N275)
Fuze, MTSQ, M501 or M501A1, (DODIC 1390-N276)
Fuze, MT, M564, (DODIC 1390-N278)
Fuze, MTSQ, M520, (DODIC 1390-N280)
Fuze, MTSQ, M577, (DODIC 1390-N285)
Fuze, MTSQ, M582A1, (DODIC 1390-N286)
Fuze, PD, M572, (DODIC 1390-N311)
Fuze, PD, M48A3, (DODIC 1390-N318)
Fuze, PD, M535, (DODIC 1390-N323)
Fuze, PD, M557, (DODIC 1390-N335)
Fuze, PD, M739, (DODIC 1390-N340)
Fuze, Proximity, M532, (DODIC 1390-N402)
Fuze, Proximity, M514, M514A1, or M514B1, (DODIC 1390-N411)
Fuze, Proximity, M513A1 or M513B1, (DODIC 1390-N412)
Fuze, Proximity, M517, (DODIC 1390-N417)
Fuze, Proximity, M728, (DODIC 1390-N463)
Fuze, Proximity, M514A1, (DODIC 1390-N477)
Primer, Percussion, M82, (DODIC 1390-N523)
Primer, Percussion, MK2A4, (DODIC 1390-N525)
Figure 2-59. Ammunition Layout in an A-22 Cargo Bag for Low-Velocity Airdrop (continued)
2-64
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Preparing Low-Velocity A-22 Cargo Bag Loads
HONEYCOMB
LAYERS
AMMUNITION
BOXES
SKID
The following ammunition items are rigged in an A-22 cargo bag for low-velocity airdrop as shown in
Figure 2-60.
Flare and Signal Items
Signal, Underwater Sound, MK61, Mod O, (NALC SWO8)
Signal, Underwater Sound, MK82, Mod O, (NALC SW32)

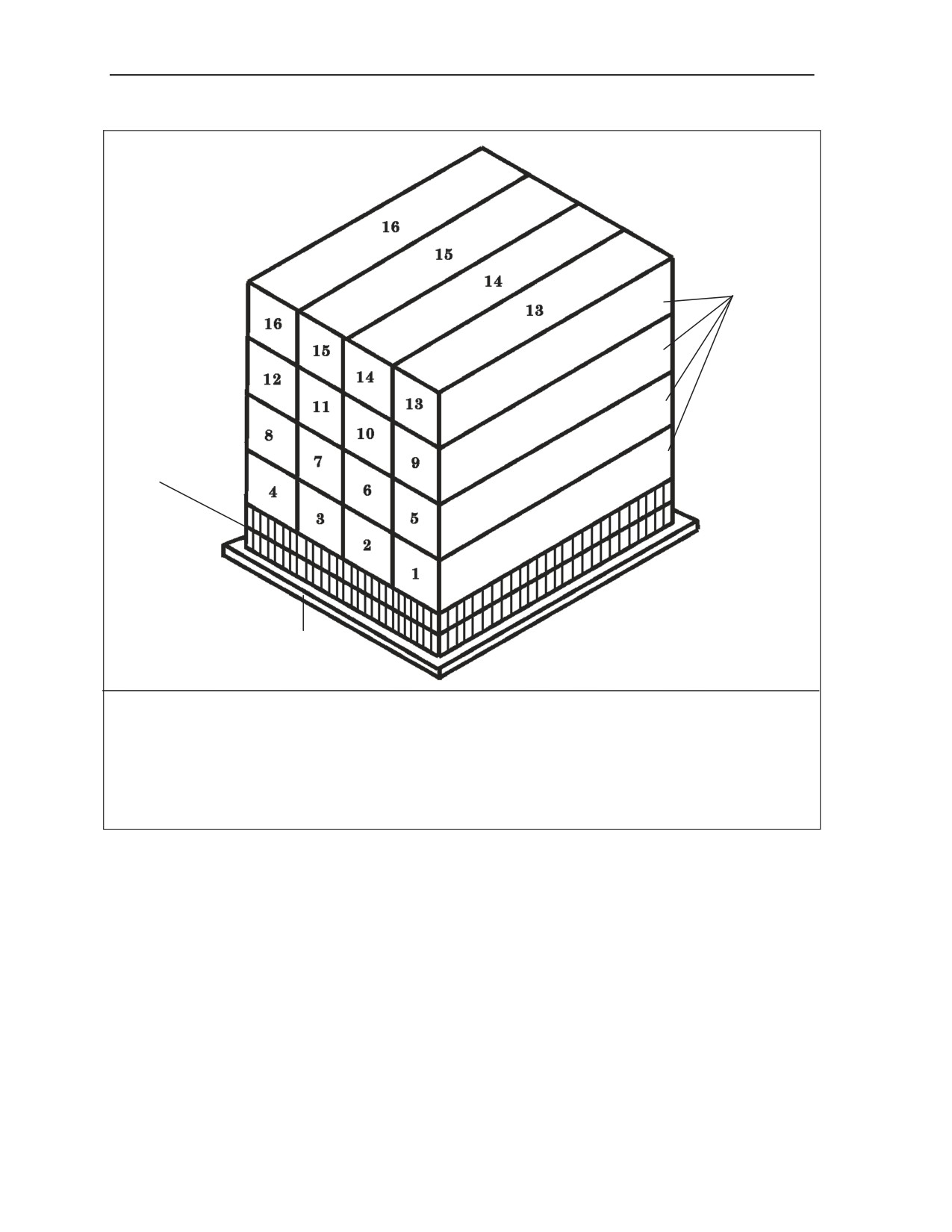

Figure 2-60. Ammunition Layout in an A-22 Cargo Bag for Low-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
2-65
Chapter 2
HONEYCOMB
FILLERS
HONEYCOMB
LAYERS
AMMUNITION
BOXES
SKID
The following ammunition item is rigged in an A-22 cargo bag for low-velocity airdrop as shown in Figure
2-61.
Demolition Item
Charge, Demolition, Block, 55-lb, (DODIC 1375-M040)
Figure 2-61. Ammunition Layout in an A-22 Cargo Bag for Low-Velocity Airdrop
2-66
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Preparing Low-Velocity A-22 Cargo Bag Loads
HONEYCOMB
FILLERS
AMMUNITION
HONEYCOMB
BOXES
LAYERS
LOAD SPREADER
(¾-IN PLYWOOD)
HONEYCOMB STRIPS
HONEYCOMB STRIPS
(7-IN WIDE)
(7-IN WIDE)
SKID

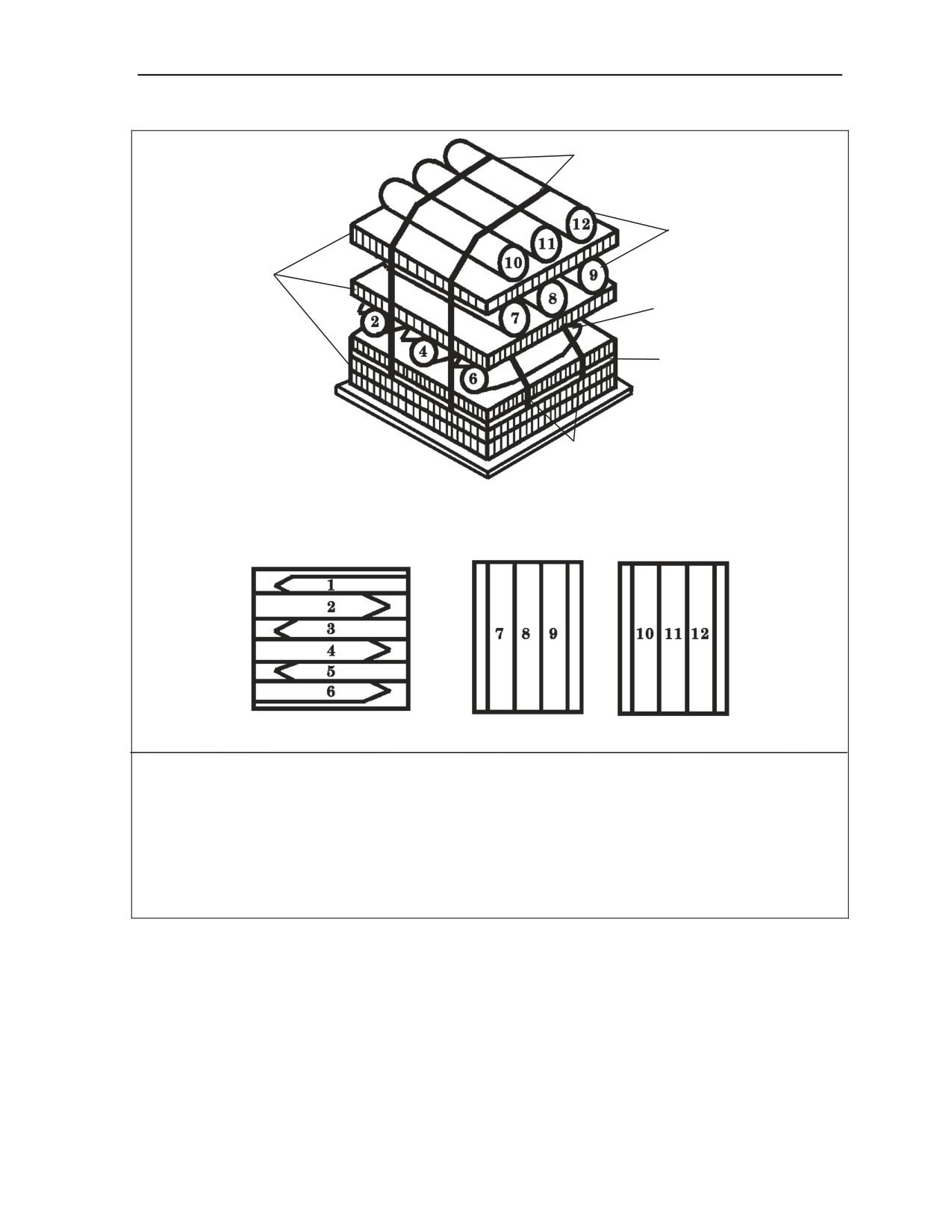

The following ammunition item is rigged in an A-22 cargo bag for low-velocity airdrop as shown in Figure
2-62.
Fuzes and Primers
Fuze, Delay, Mod 1, PD, MK399, (DODIC 1390-N659)
Figure 2-62. Ammunition Layout in an A-22 Cargo Bag for Low-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
2-67
Chapter 2
AMMUNITION
BOXES
HONEYCOMB
LAYERS
SKID
The following ammunition items are rigged in an A-22 cargo bag for low-velocity airdrop as shown in
Figure 2-63.
81-Millimeter Ammunition
Cartridge, 81-mm, HE, M821A1/M821A2 with Fuze M734A1,
(DODIC 1315-C868)
Cartridge, 81-mm, HE, M889A1/M889A2 with Fuze M734A1,
(DODIC 1315-C869)
Cartridge, 81-mm, FRP, M879 (DODIC 1315-C875)
Figure 2-63. Ammunition Layout in an A-22 Cargo Bag for Low-Velocity Airdrop
2-68
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Preparing Low-Velocity A-22 Cargo Bag Loads
HONEYCOMB
LAYERS
AMMUNITION
BOXES
LOAD SPREADER
(¾-IN PLYWOOD)
HONEYCOMB STRIPS
(7-IN WIDE)
HONEYCOMB STRIPS
(7-IN WIDE)
SKID
The following ammunition item is rigged in an A-22 cargo bag for low-velocity airdrop as shown in Figure
2-64.
Grenades
Grenade, Launcher, Smoke, Screening, TA, M90, (DODIC 1330-GG03)
Figure 2-64. Ammunition Layout in an A-22 Cargo Bag for Low-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
2-69
Chapter 2
HONEYCOMB
LAYERS
AMMUNITION
SKID
HONEYCOMB STRIPS
(6-IN WIDE)
The following ammunition items are rigged in an A-22 cargo bag for low-velocity airdrop as shown in
Figure 2-65.
105-Millimeter Ammunition
Cartridge, 105-mm, HERA, M913 in PA117 Containers, (DODIC 1315-C546)
Cartridge, 105-mm, DPICM, M915, (DODIC 1315-CA11)
Cartridge, 105-mm, HE-T/TP-T, M393A3 (DODIC 1315-CA32)
Figure 2-65. Ammunition Layout in an A-22 Cargo Bag for Low-Velocity Airdrop
2-70
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Preparing Low-Velocity A-22 Cargo Bag Loads
HONEYCOMB
LAYERS
AMMUNITION
LOAD SPREADER
(¾-IN PLYWOOD)
HONEYCOMB STRIPS
HONEYCOMB STRIPS
(6-IN WIDE)
(6-IN WIDE)
SKID
The following ammunition item is rigged in an A-22 cargo bag for low-velocity airdrop as shown in Figure
2-66.
Rockets
Rocket, 83-mm, HEDP, BDM, (DODIC 1340-HA08)
Figure 2-66. Ammunition Layout in an A-22 Cargo Bag for Low-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
2-71
Chapter 2
AMMUNITION
HONEYCOMB
LAYERS
SKID
The following ammunition item is rigged in an A-22 cargo bag for low-velocity airdrop as shown in Figure
2-67.
Demolition Items
Demolition Kit, Fighting Position Excavator, M300, (DODIC 1375-MN26)
Figure 2-67. Ammunition Layout in an A-22 Cargo Bag for Low-Velocity Airdrop
2-72
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Preparing Low-Velocity A-22 Cargo Bag Loads
HONEYCOMB
LAYERS
AMMUNITION
BOXES
LOAD SPREADER
(¾-IN PLYWOOD)
HONEYCOMB STRIPS
(7-IN WIDE)
HONEYCOMB STRIPS
SKID
(7-IN WIDE)

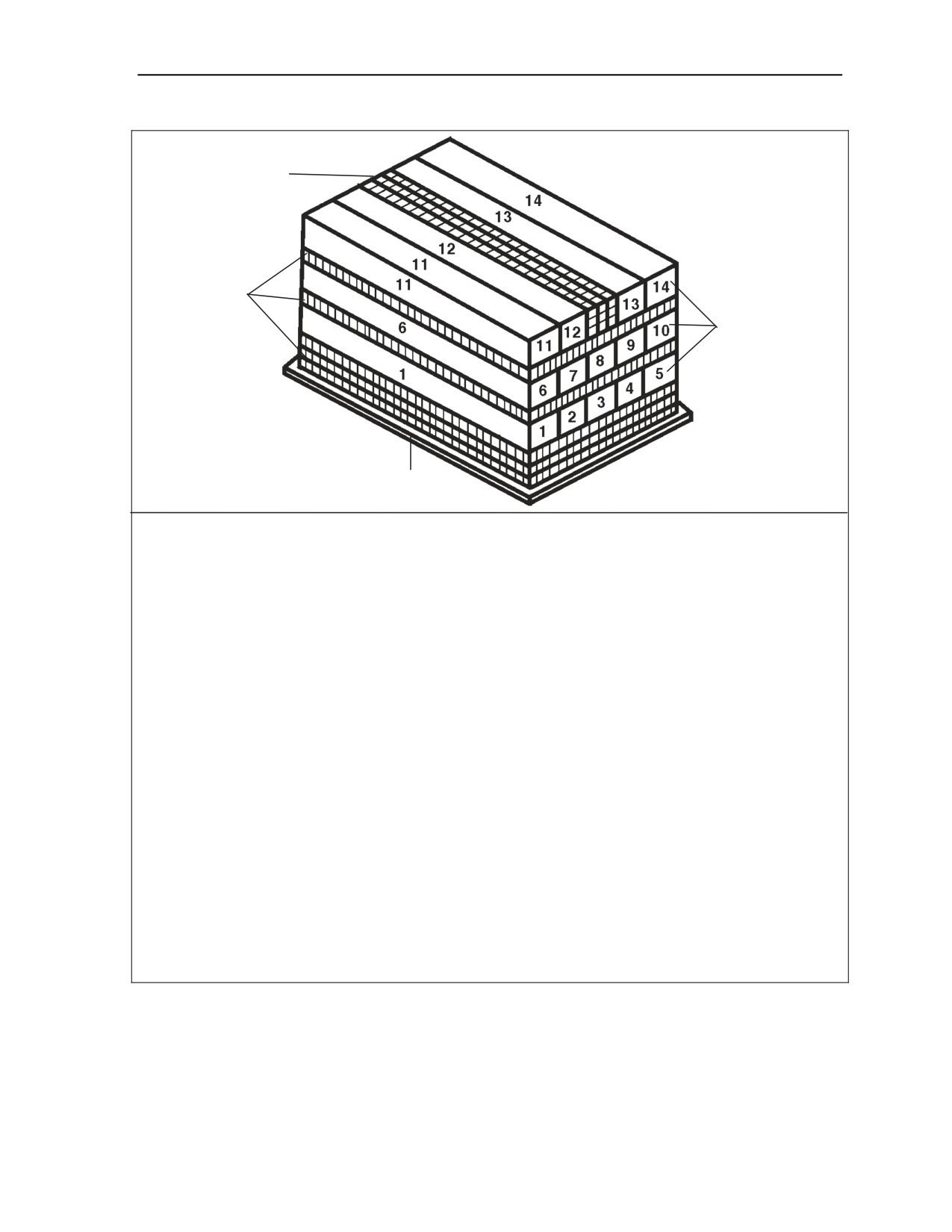

The following ammunition items are rigged in an A-22 cargo bag for low-velocity airdrop as shown in
Figure 2-68.
Grenades
Grenade, Discharger, Anti-Riot, Irritant, L96E1, (DODIC 1330-FZ14)
Grenade, Discharger, Anti-Riot, Irritant, L97E1, (DODIC 1330-FZ15)
Figure 2-68. Ammunition Layout in an A-22 Cargo Bag for Low-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
2-73
Chapter 2
HONEYCOMB
LAYERS
AMMUNITION
HONEYCOMB
HONEYCOMB
FILLERS
STRIPS
SKID
(5-IN WIDE)
The following ammunition item is rigged in an A-22 cargo bag for low-velocity airdrop as shown in Figure
2-69.
Munition
Munition, Wide Area, Hornet, M93 (DODIC 1377-SQ20)
Figure 2-69. Ammunition Layout in an A-22 Cargo Bag for Low-Velocity Airdrop
2-74
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
23 October 2006
Preparing Low-Velocity A-22 Cargo Bag Loads
AMMUNITION
HONEYCOMB
BOXES
FILLERS
HONEYCOMB
LAYERS
HONEYCOMB
SKID
STRIPS
(5-IN WIDE)
The following ammunition items are rigged in an A-22 cargo bag for low-velocity airdrop as shown in
Figure 2-70.
120-Millimeter Ammunition
Cartridge, 120-mm, Visible Illuminating, M930 w/ M230 Propellant Charge and
M981 Ignition Charge, (DODIC 1315-C625)
Cartridge, 120-mm, Illuminating, Infrared (IR), M983, (DODIC 1315-CA07)

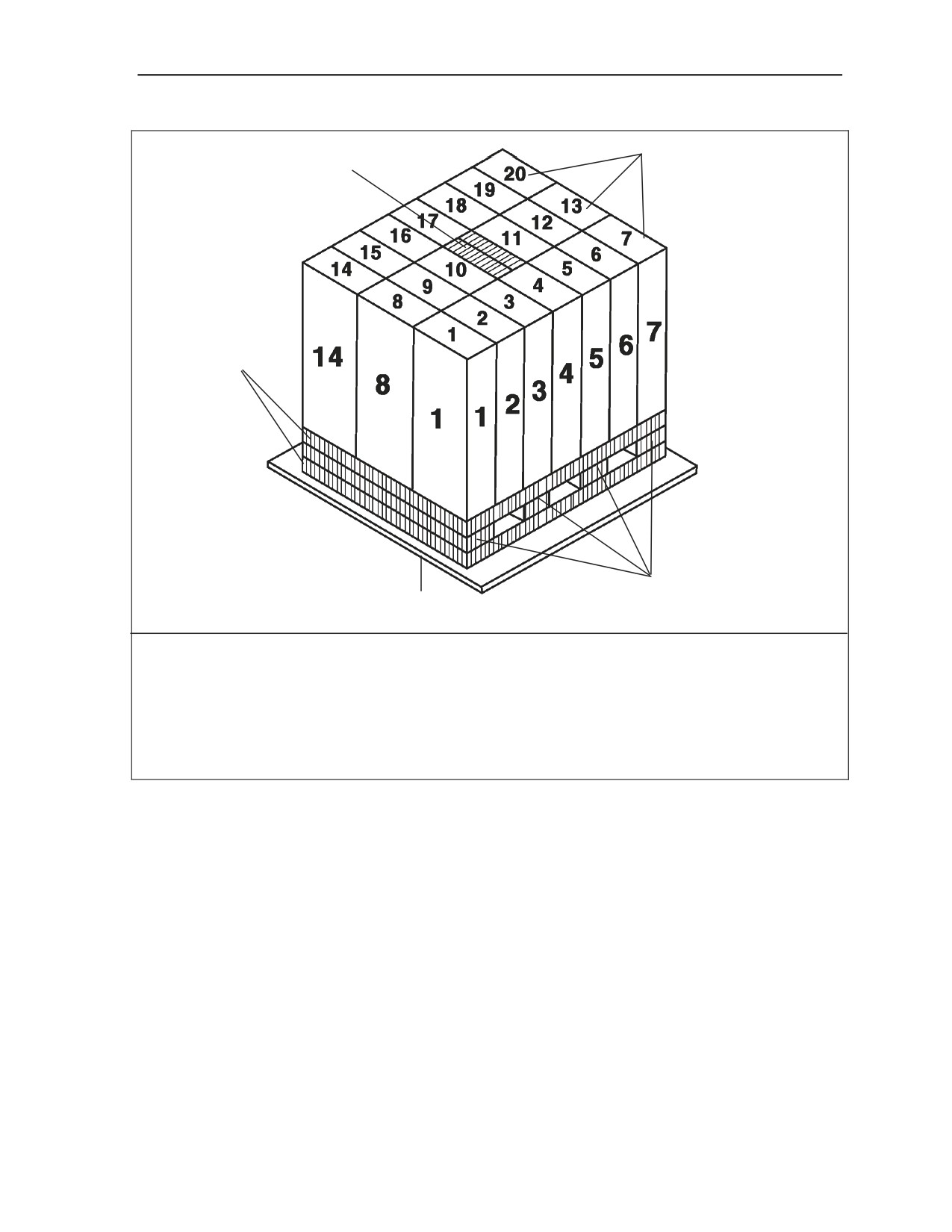

Figure 2-70. Ammunition Layout in an A-22 Cargo Bag for Low-Velocity Airdrop
23 October 2006
FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
2-75
|
|
