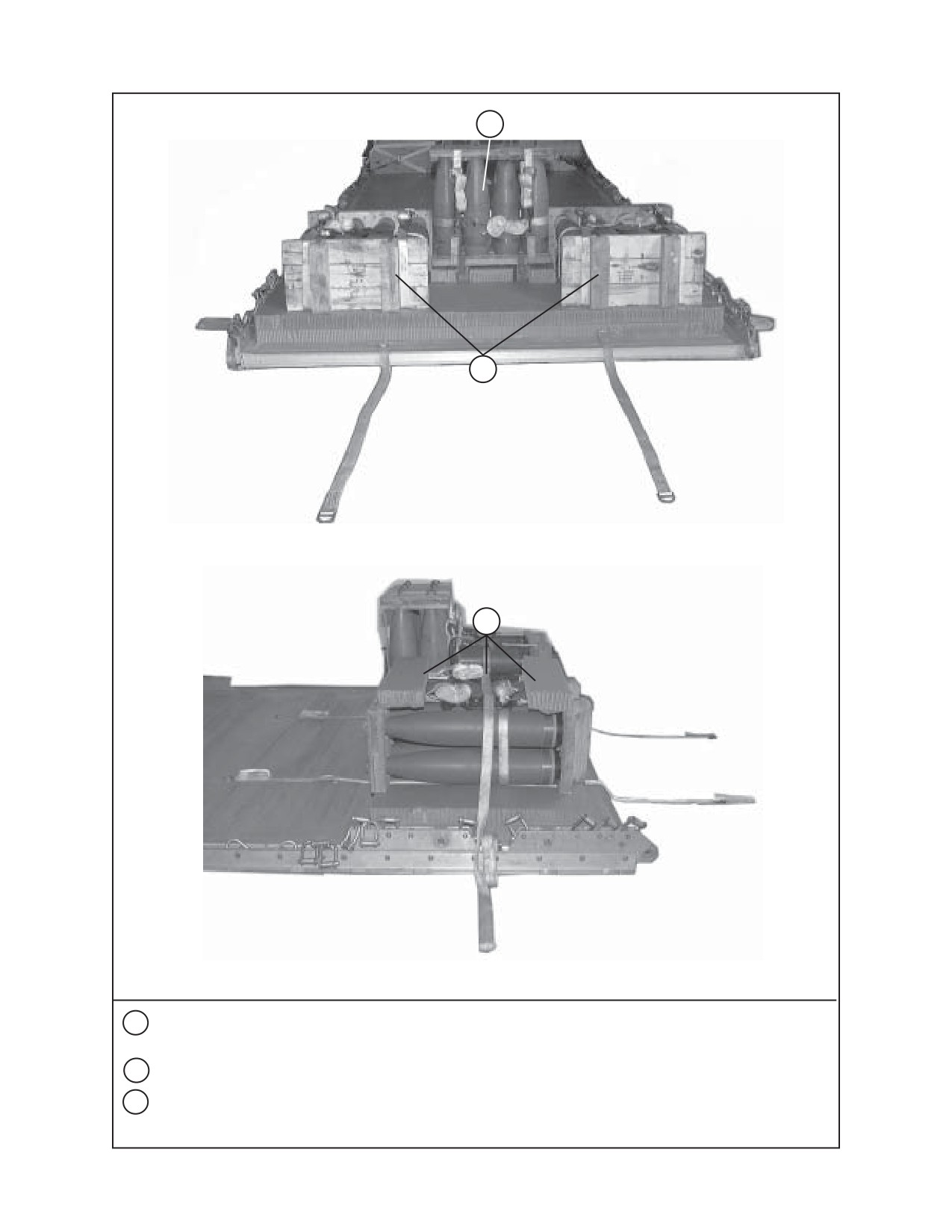

C2, ARMY FM 10-500-71 RIGGING THE FAMILY OF MEDIUM TACTICAL VEHICLES (FMTV) (DECEMBER 2003) - page 8





C2, FM 10-500-71/TO 13C7-6-141
33
34
FRONT
35
FRONT
RIGHT
33
Position one M110A1 WP rack standing upright, centered and aligned with the rear edge of the honeycomb.
Cut honeycomb to fit under the rack.
34
Position a M483 A1 rack lying with the footer facing forward on each side of the M110A1 WP rack.
35
Place a 15-foot lashing centered across the right side of the M483A1 rack and place a 6- by 29-inch piece of
honeycomb across the front and rear of the rack.
Figure 5-3. Accompanying load on the platform prepared (Continued)
5-15
C2, FM 10-500-71/TO 13C7-6-141
36
RIGHT
37
FRONT
RIGHT
36

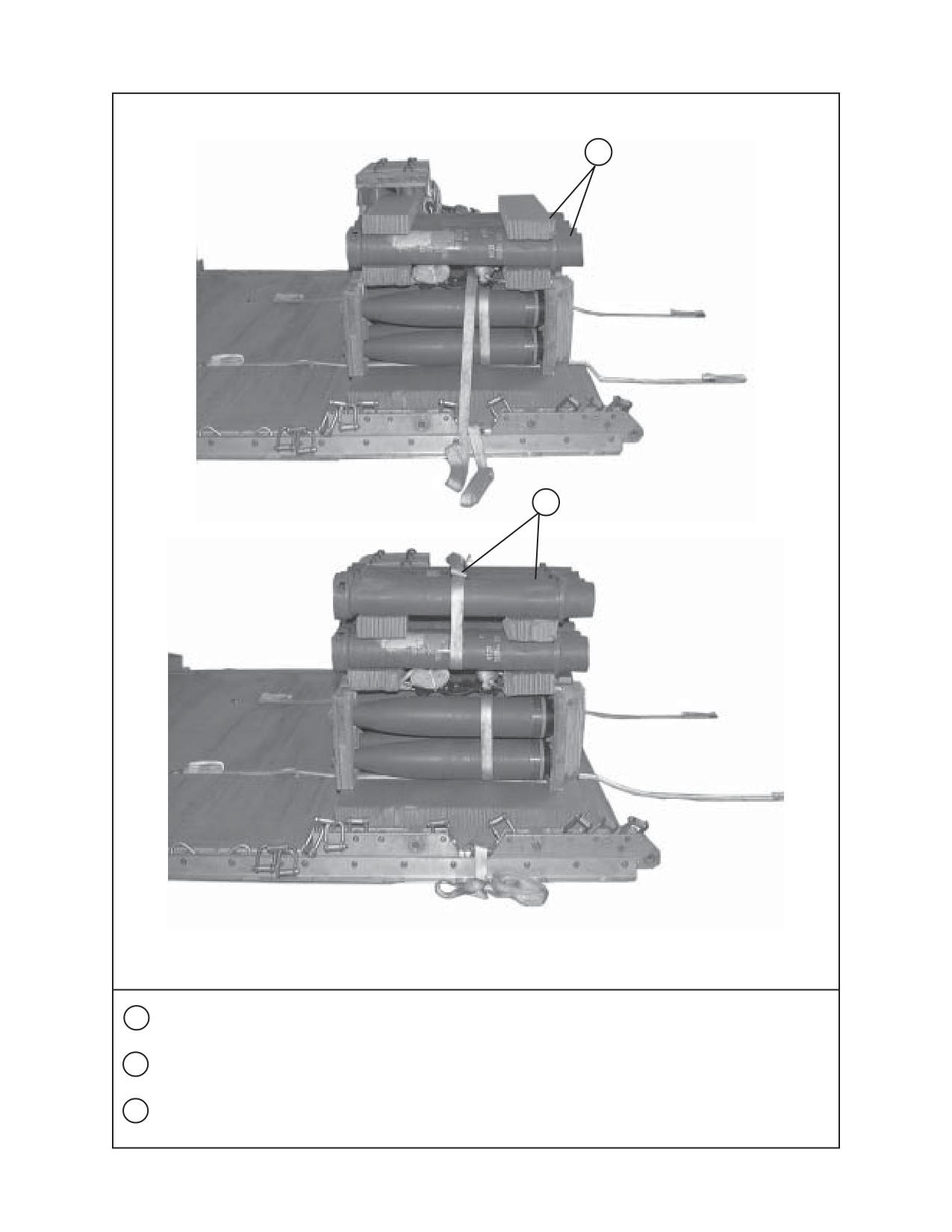

Position four green bag canisters (large) on the honeycomb and place a 6- by 29-inch piece of honeycomb
across the front and rear of the four green bag canisters (large).
37
Position four green bag canisters (large) on the honeycomb and secure the lashing with a loadbinder on top
of the canisters.
38
Repeat steps 30 through 32 on the left side of the M483A1 rack. (Not Shown)
Figure 5-3. Accompanying load on the platform prepared (Continued)
5-16
C2, FM 10-500-71/TO 13C7-6-141

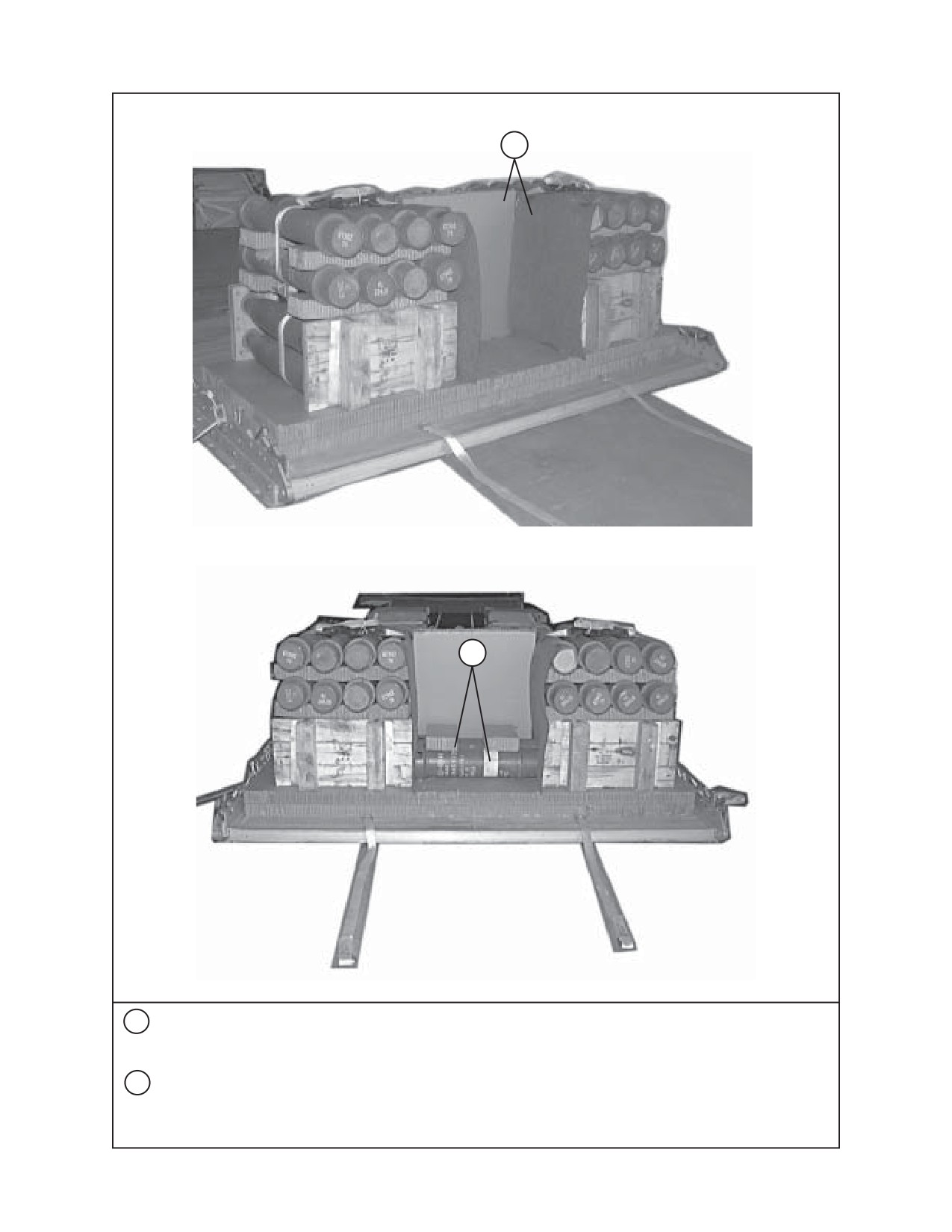

39
FRONT
40
FRONT
39

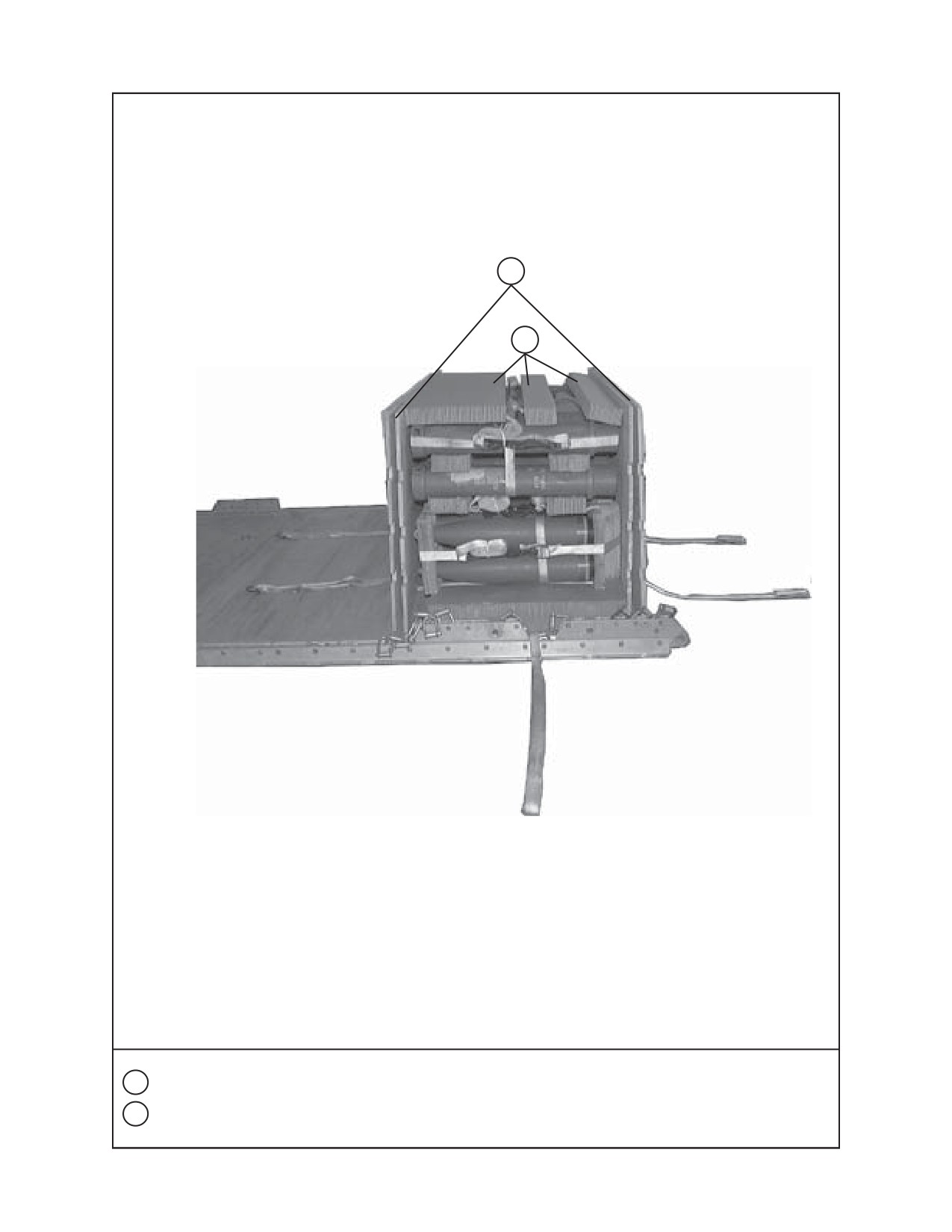

Position a 27- by 31-inch piece of honeycomb against the front of the M110 A1 WP rack and a 21- by
31-inch piece of felt against each inside edge of the M483A1 racks and green bag canisters (large). Tape
may be used to hold felt in place.
40
Position two white bag canisters (small) between felt pieces and place two 6- by 12-inch pieces of
honeycomb across white bag canisters (small).
Note: Alternate the white bag canisters (small) when positioning.
Figure 5-3. Accompanying load on the platform prepared (Continued)
5-17
C2, FM 10-500-71/TO 13C7-6-141
42
41
FRONT
43
FRONT
41
Position two additional white bag canisters (small) with two more pieces of 6- by 12-inch honeycomb
between them.
42
Cut and place a layer of felt on top of the white bag canisters (small). Place two additional white bag
canisters (small) on top.
43
Position two pieces of 13- by 31-inch felt on the left side of the white bag canisters. Tape may be used to
hold felt in place.
Figure 5-3. Accompanying load on the platform prepared (Continued)
5-18
C2, FM 10-500-71/TO 13C7-6-141

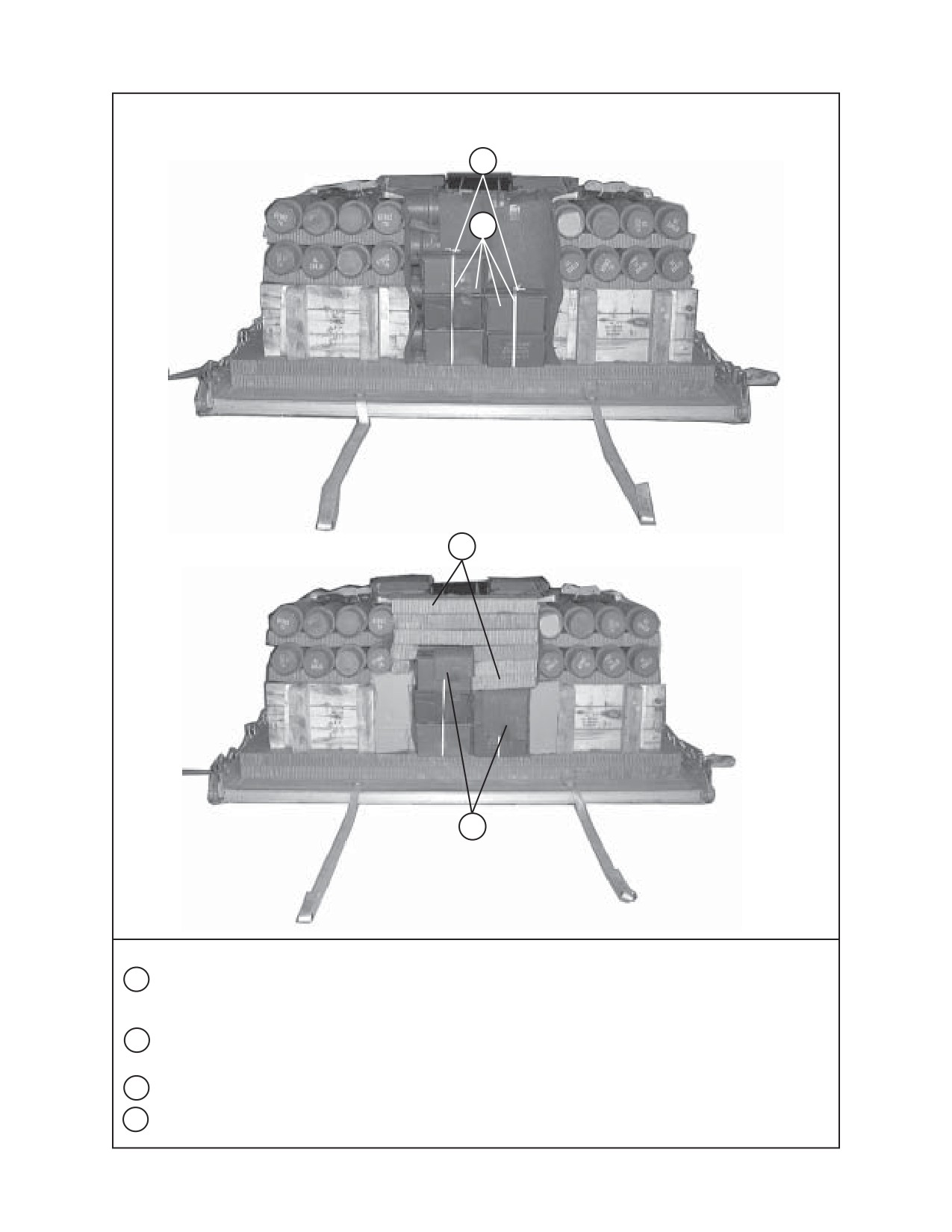

45
44
FRONT
47
46
FRONT
44

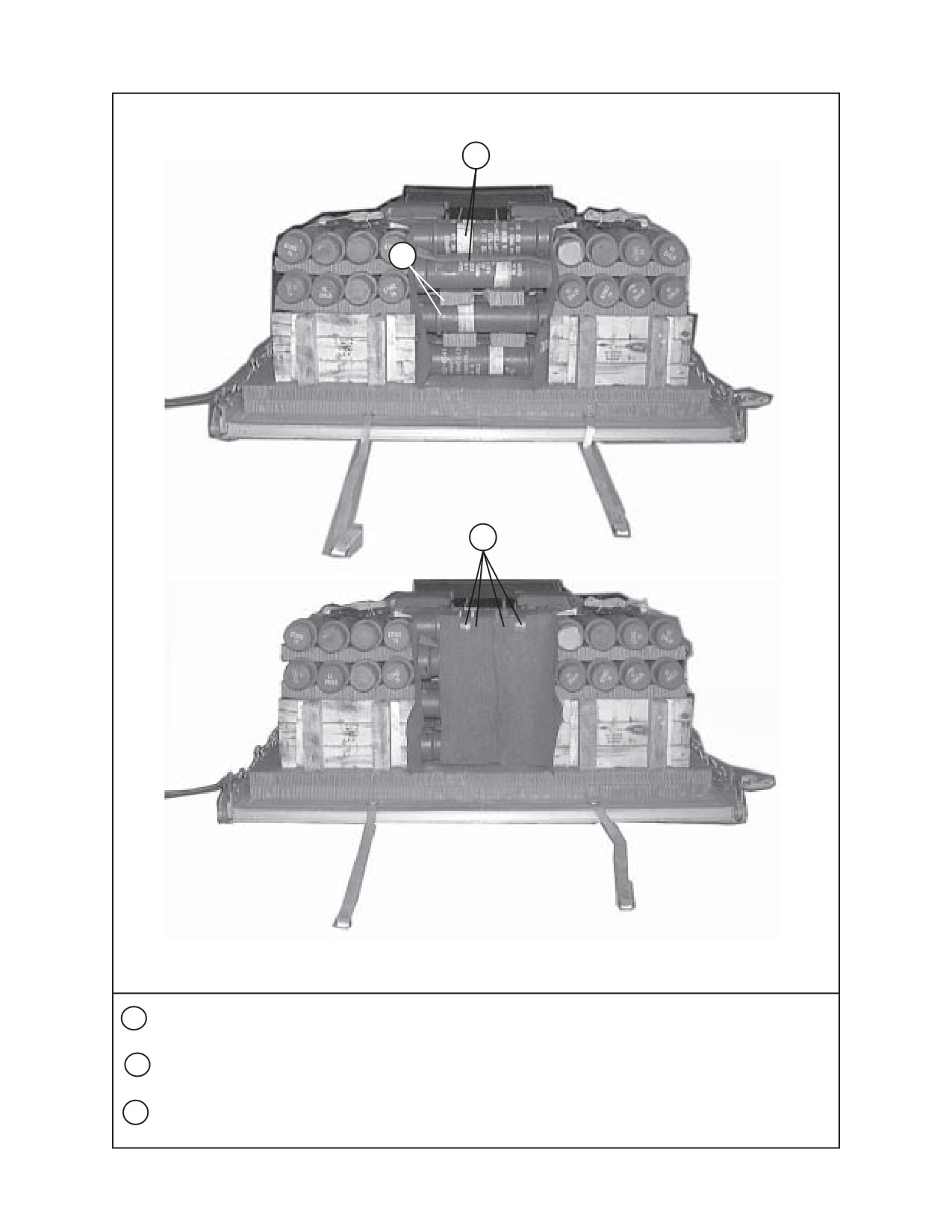

Position five fuse ammo boxes in two sets in front of white bag canisters (small) folding the 13- by 31-inch
`
piece of felt between each set of fuse ammo boxes and on left side. Route lengths of 1/2-inch tubular nylon
webbing around each set of fuse ammo boxes.
45
Secure the lengths of 1/2-inch tubular nylon webbing around each set of fuse ammo boxes folding the
13- by 31-inch piece of felt between the fuse ammo boxes and on left side.
46
Fold the 13- by 31-inch piece of felt onto the front of each set of fuse ammo boxes and tape into place.
47
Fill in all remaining spaces with honeycomb making it level with the green bag canisters (large).
Figure 5-3. Accompanying load on the platform prepared (Continued)
5-19
C2, FM 10-500-71/TO 13C7-6-141
49
48
FRONT

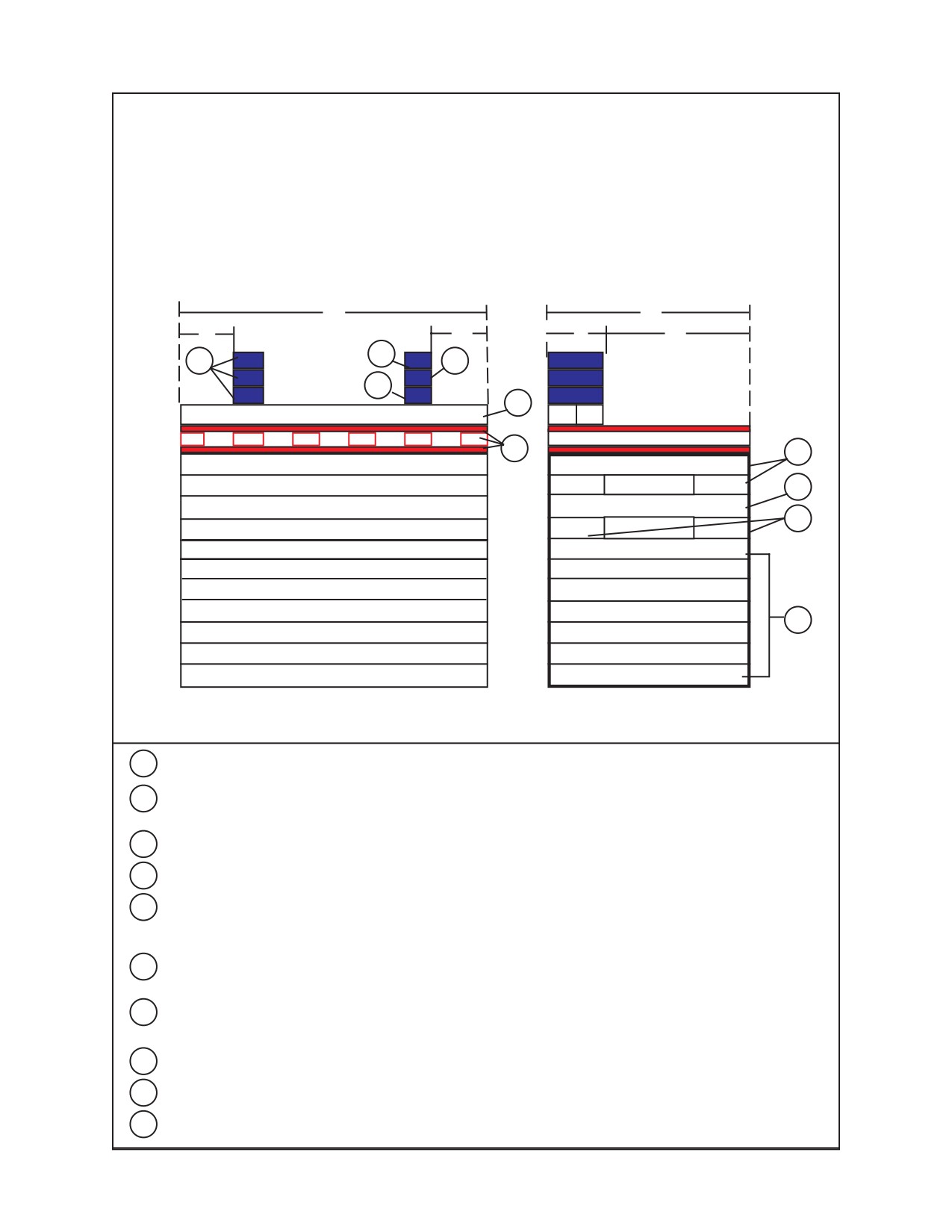

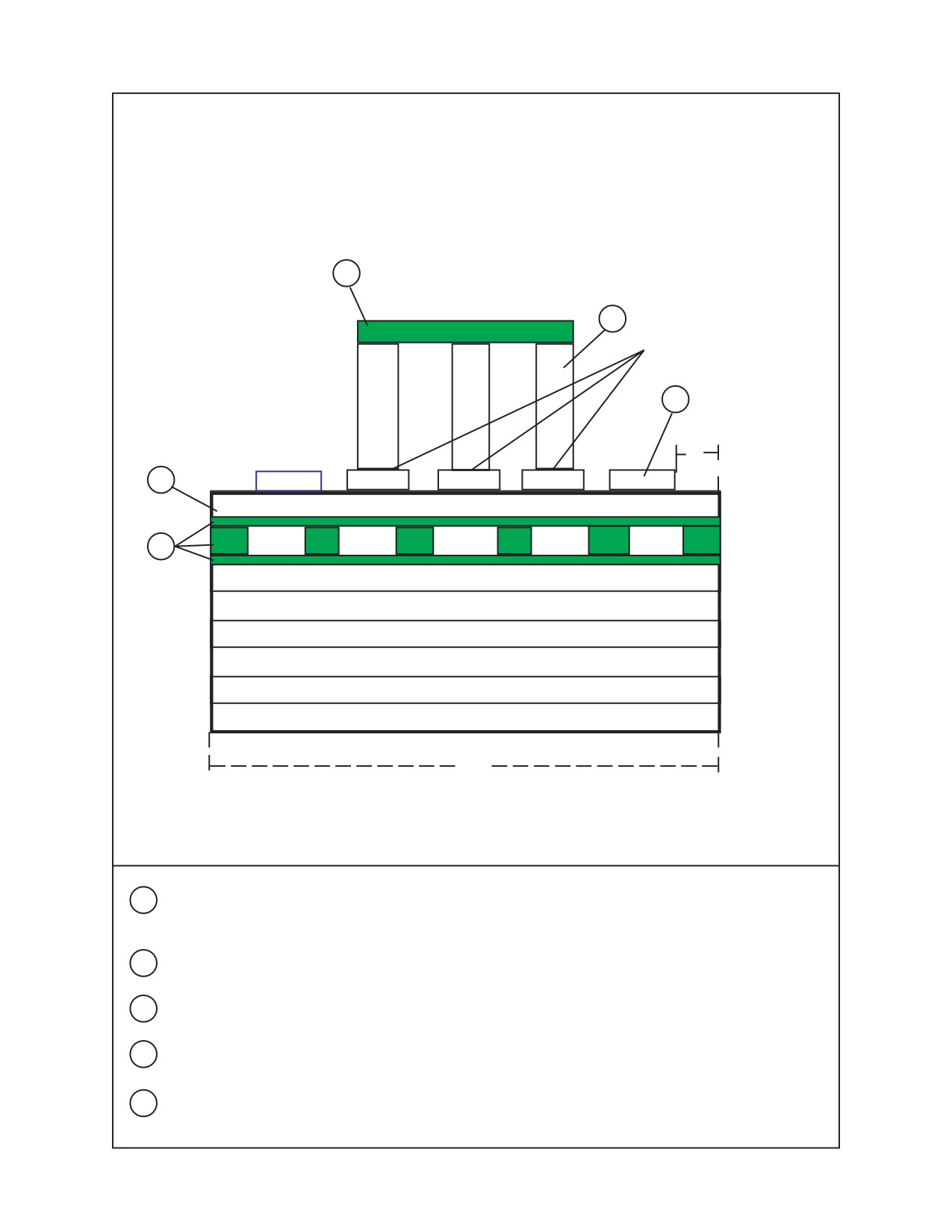

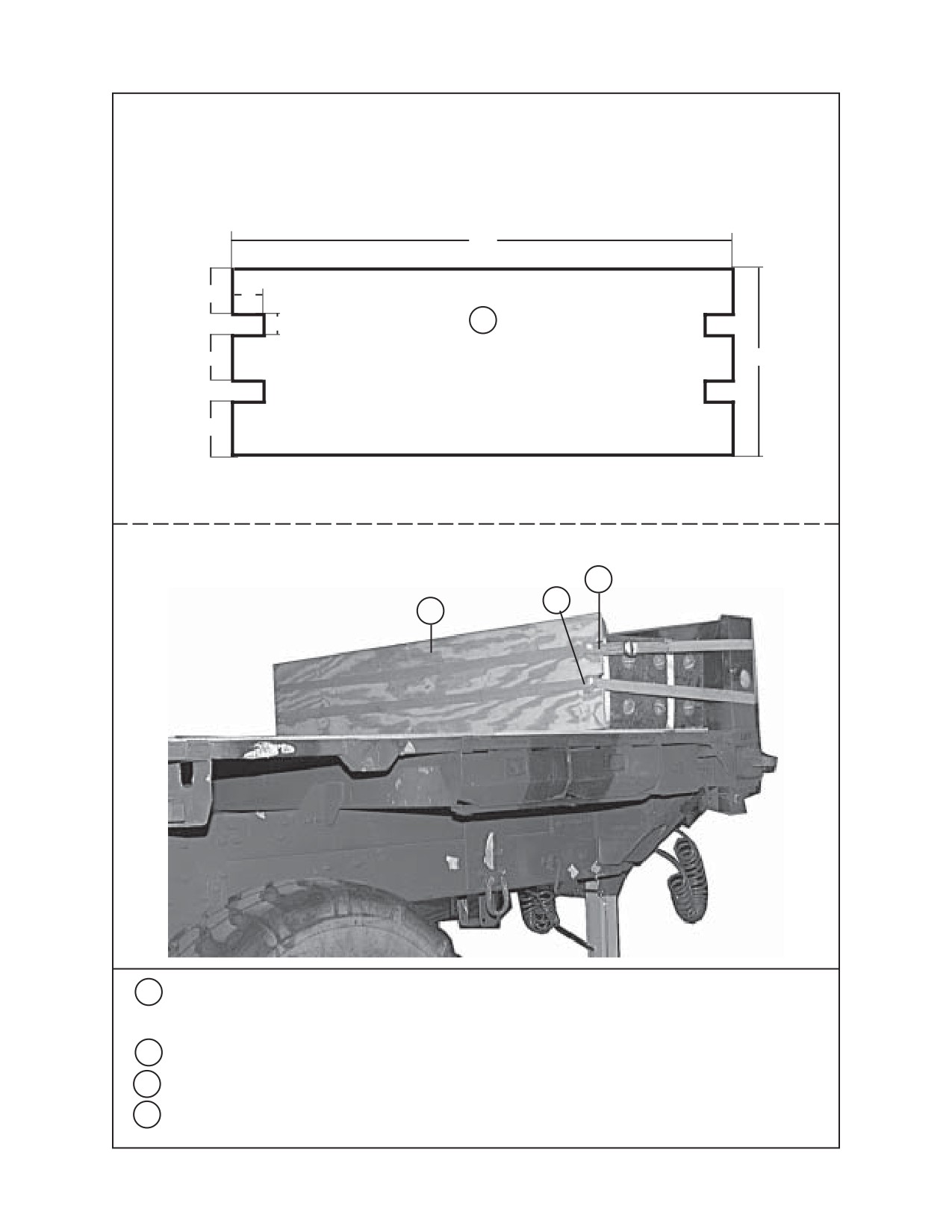

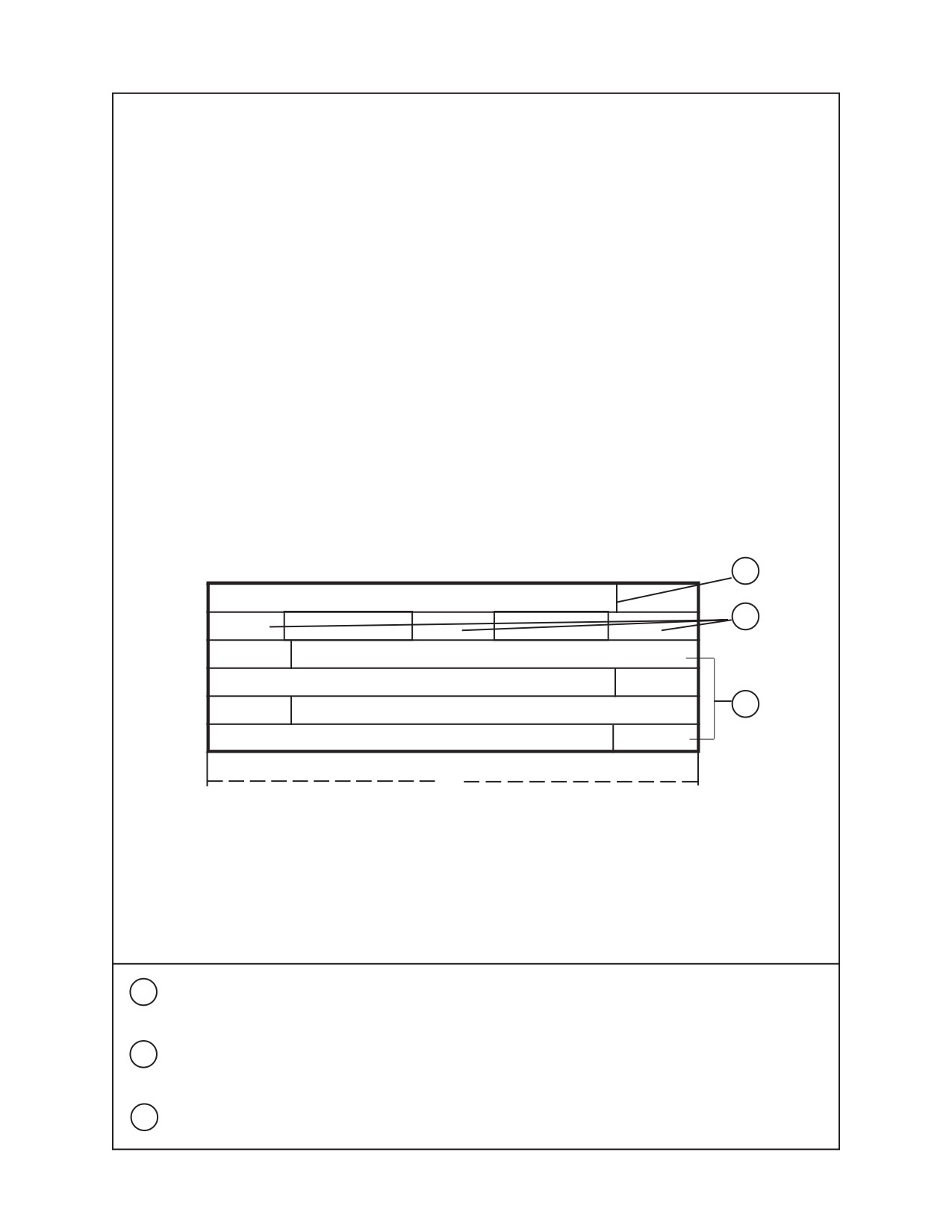

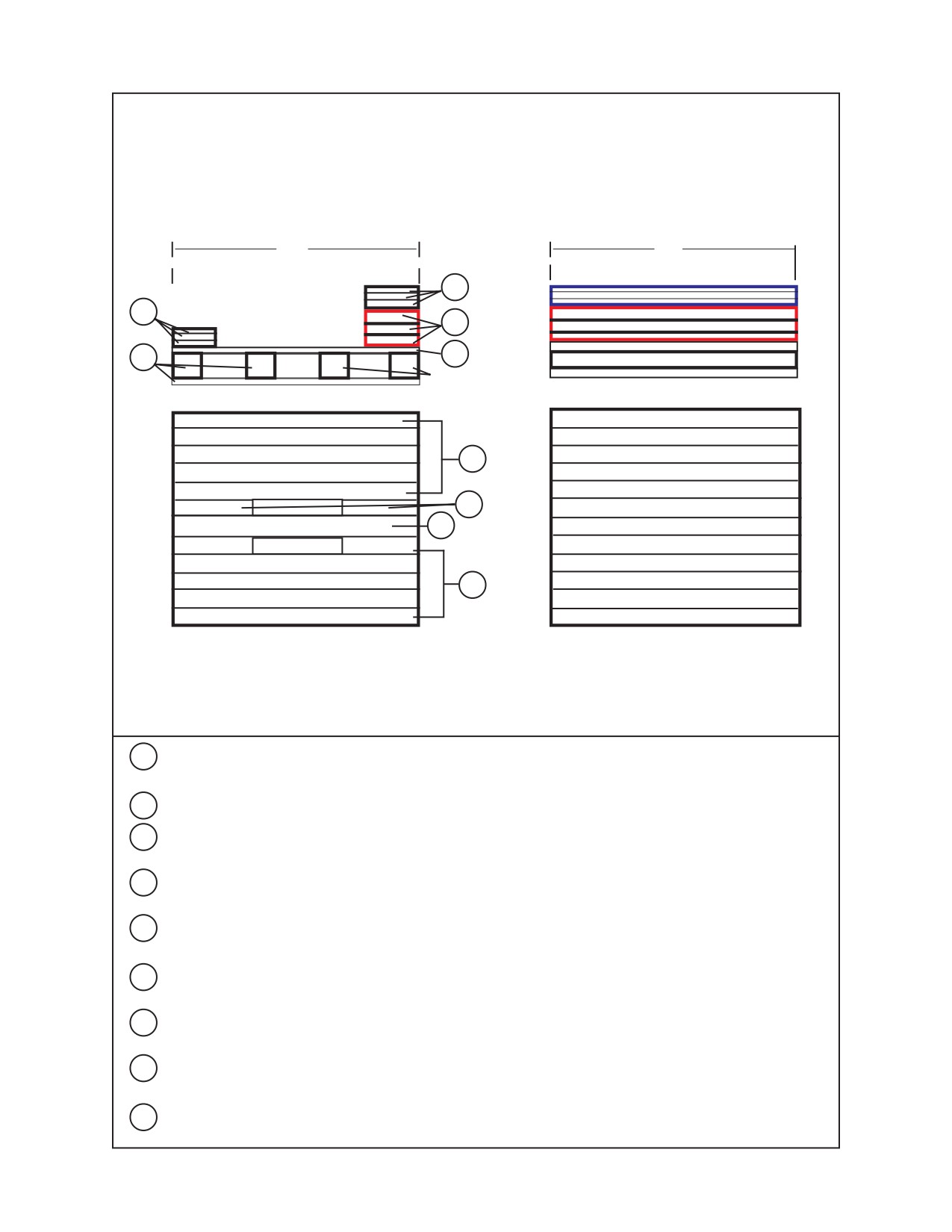

Notes: 1. This drawing is not drawn to scale.
2. All measurements are given in inches.
94"
11"
50
3"
2"
11"
3/4" Plywood
48"
11"
9"
48

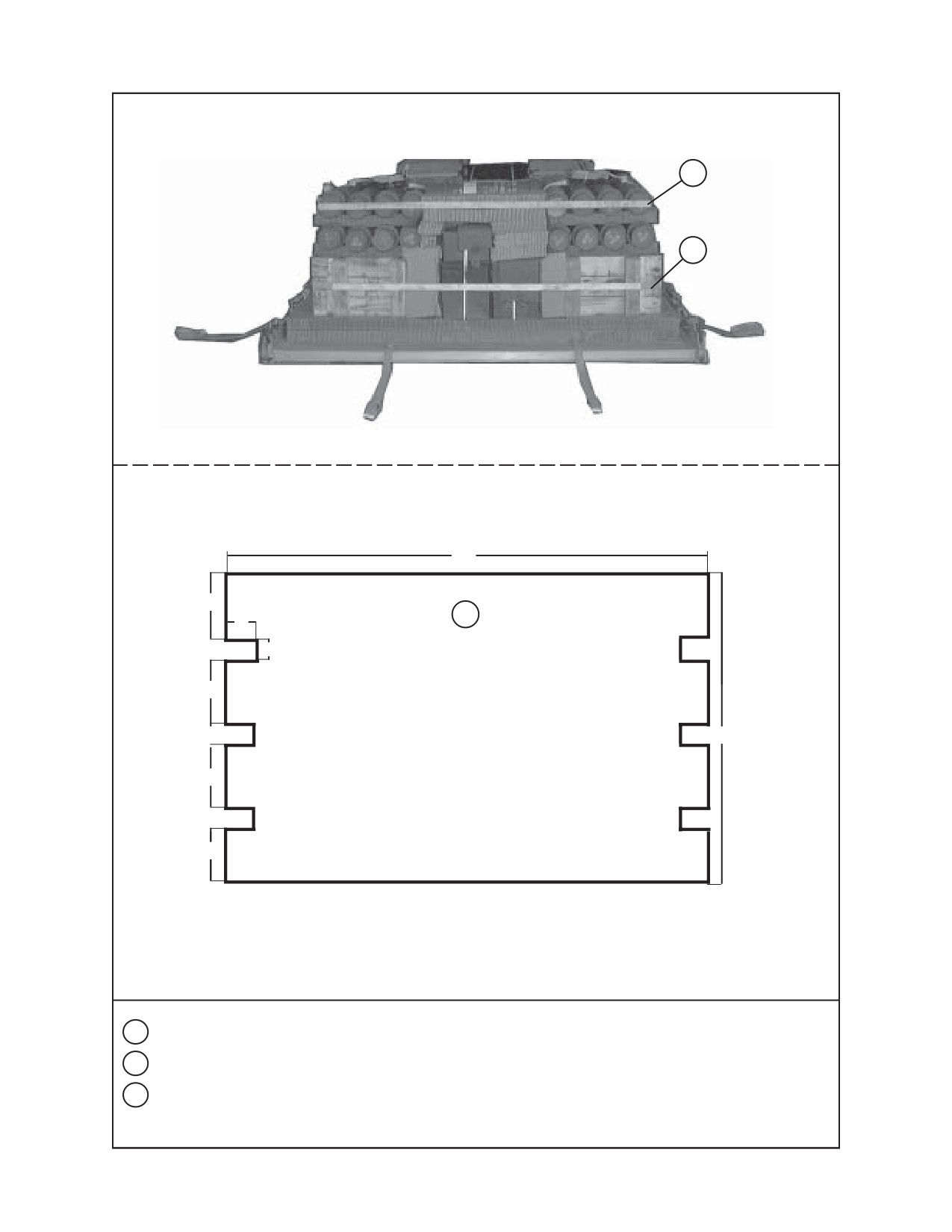

Route a 30-foot lashing around the M483 racks and secure with loadbinder on the side.
49
Route a 30-foot lashing around the top layer of green bag canisters and secure with loadbinder on the side.
50
Construct four endboards as shown in diagram above with 2- by 3-inch deep cutouts.
Note: Use two endboards per side.
Figure 5-3. Accompanying load on the platform prepared (Continued)
5-20
C2, FM 10-500-71/TO 13C7-6-141
51
52
FRONT
RIGHT
51
Position two endboards to the front and two to the rear of the accompanying load.
52
Place cut-to- fit honeycomb on top of the green bag canisters to make it level with the top of the endboards.
Figure 5-3. Accompanying load on the platform prepared (Continued)
5-21
C2, FM 10-500-71/TO 13C7-6-141
53
FRONT
FRONT
54
FRONT

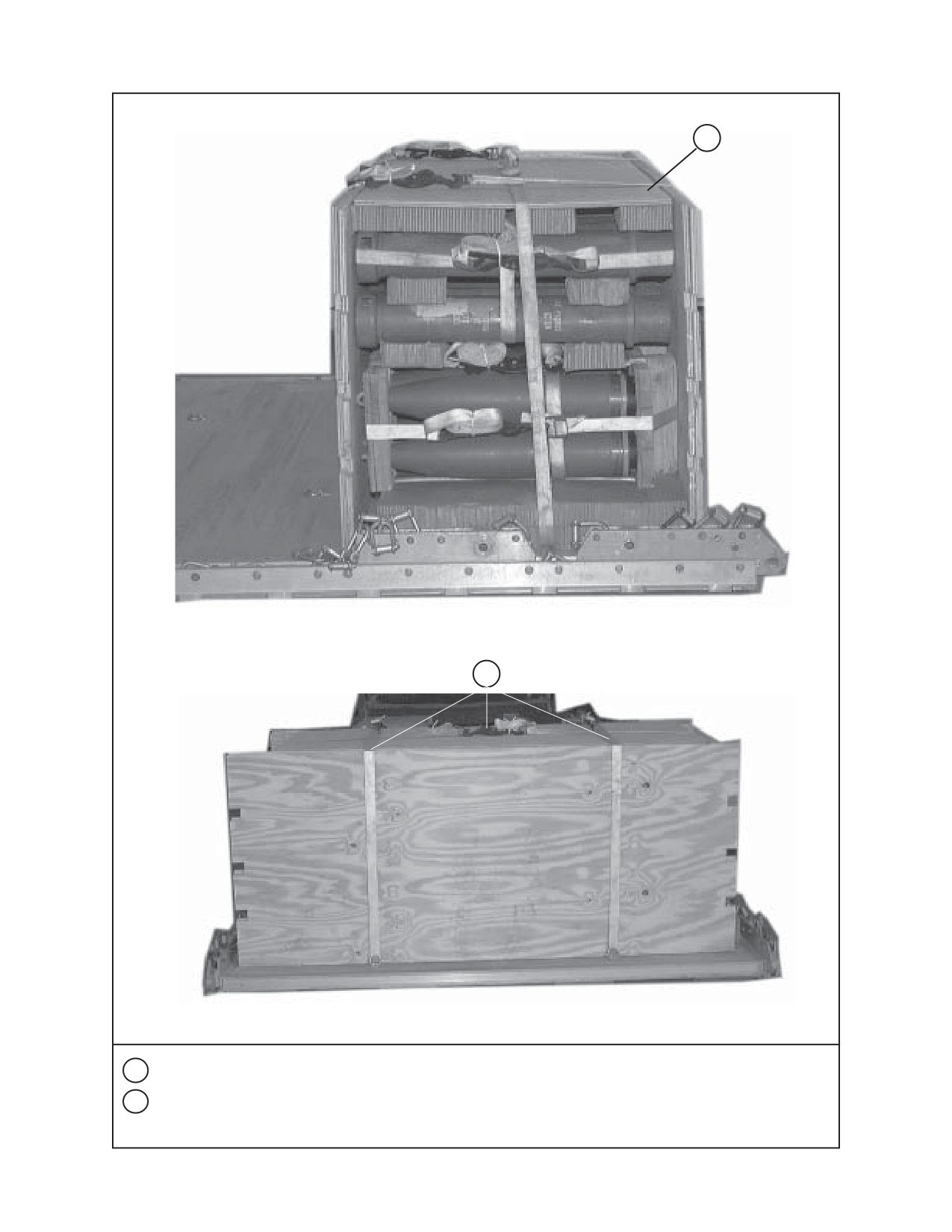

53

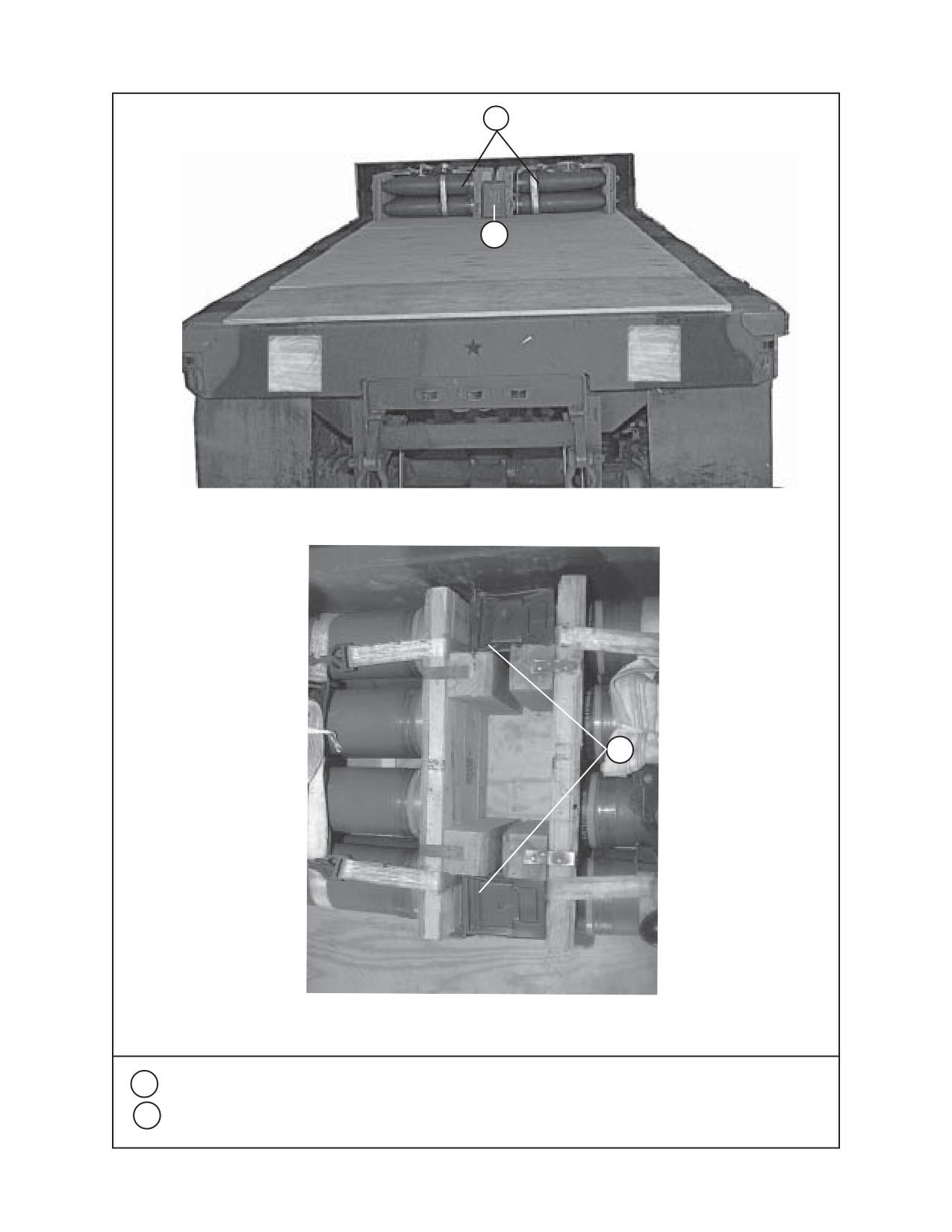

Position a 39- by 79- by 3/4-inch piece of plywood on top of the honeycomb.
54
Secure the plywood by securing the 30-foot lashings and the two 15-foot lashings routed through the
tiedown deck rings (pre-positioned in steps 25 and 26) over the accompanying load. Secure on top with
loadbinders.
Figure 5-3. Accompanying load on the platform prepared (Continued)
5-22
C2, FM 10-500-71/TO 13C7-6-141
55
FRONT
REAR
5
RIGHT
56
LEFT
FRONT
3
RIGHT

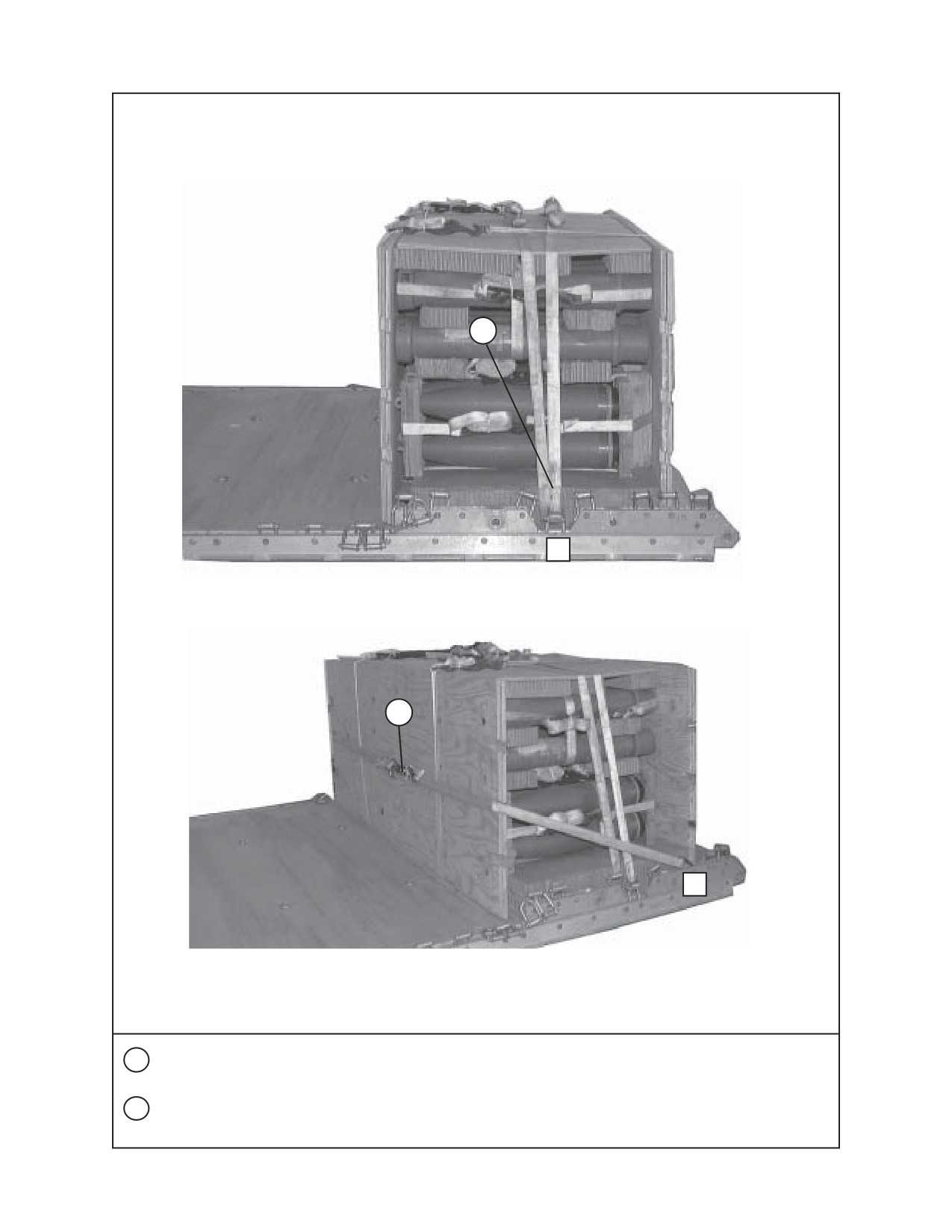

55

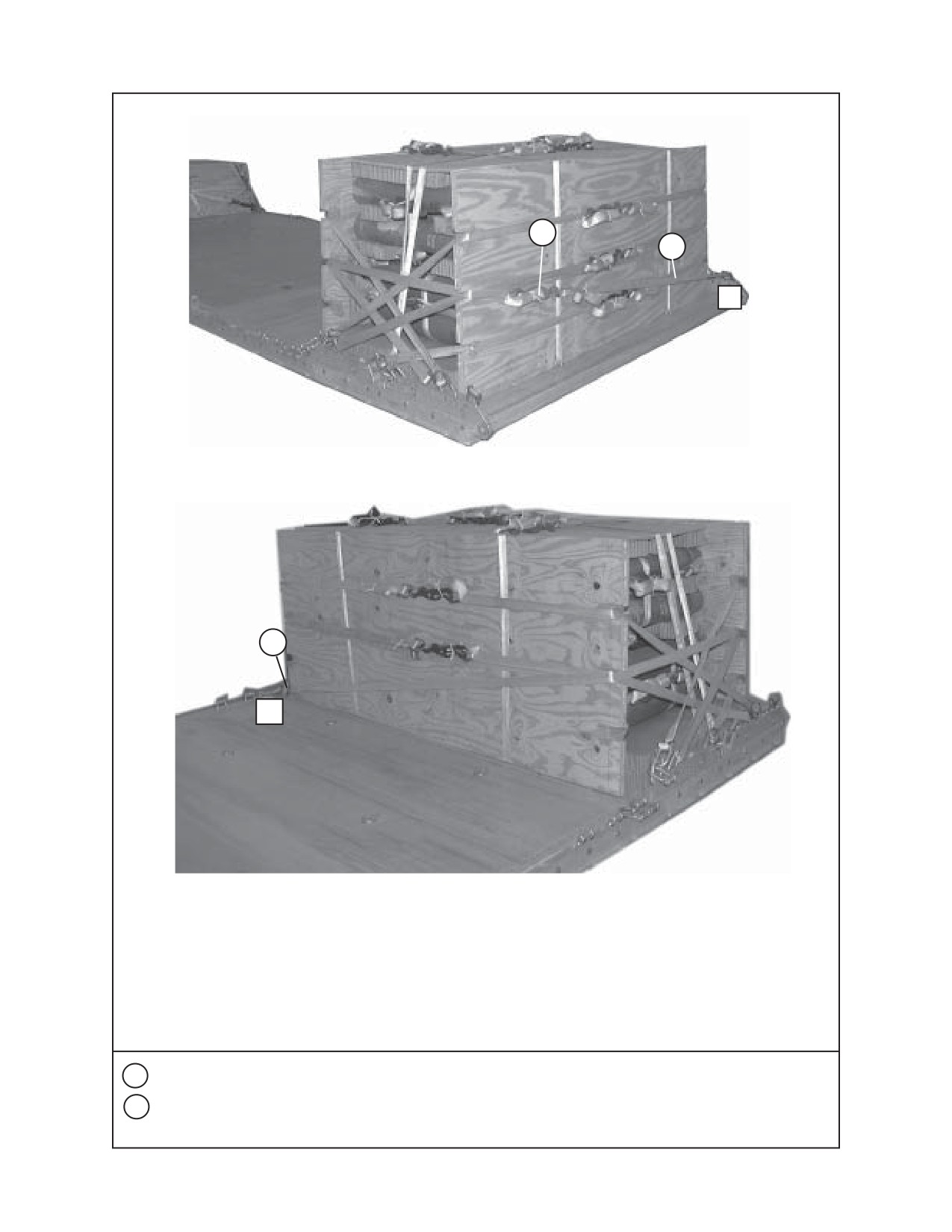

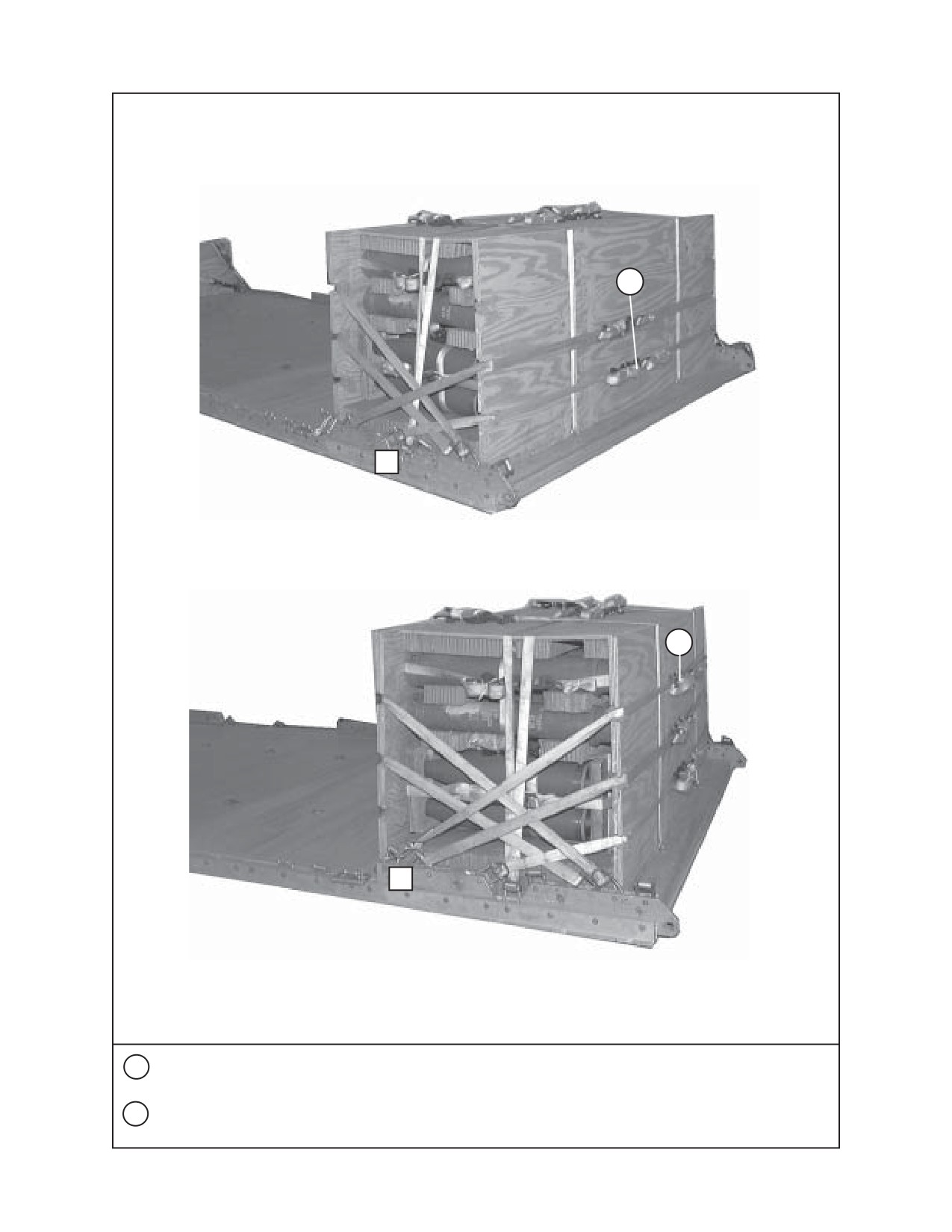

Route a 15-foot lashing through its own D-ring on clevis 5. Repeat on clevis 5A and secure with a
loadbinder on top of the accompanying load.
56
Route a 30-foot lashing through clevis 3 through both rear middle cutouts through clevis 3A and secure
with loadbinder in the rear of the accompanying load.
Figure 5-3. Accompanying load on the platform prepared (Continued)
5-23
C2, FM 10-500-71/TO 13C7-6-141
57
LEFT
FRONT
2
REAR
RIGHT
58
7
FRONT
RIGHT

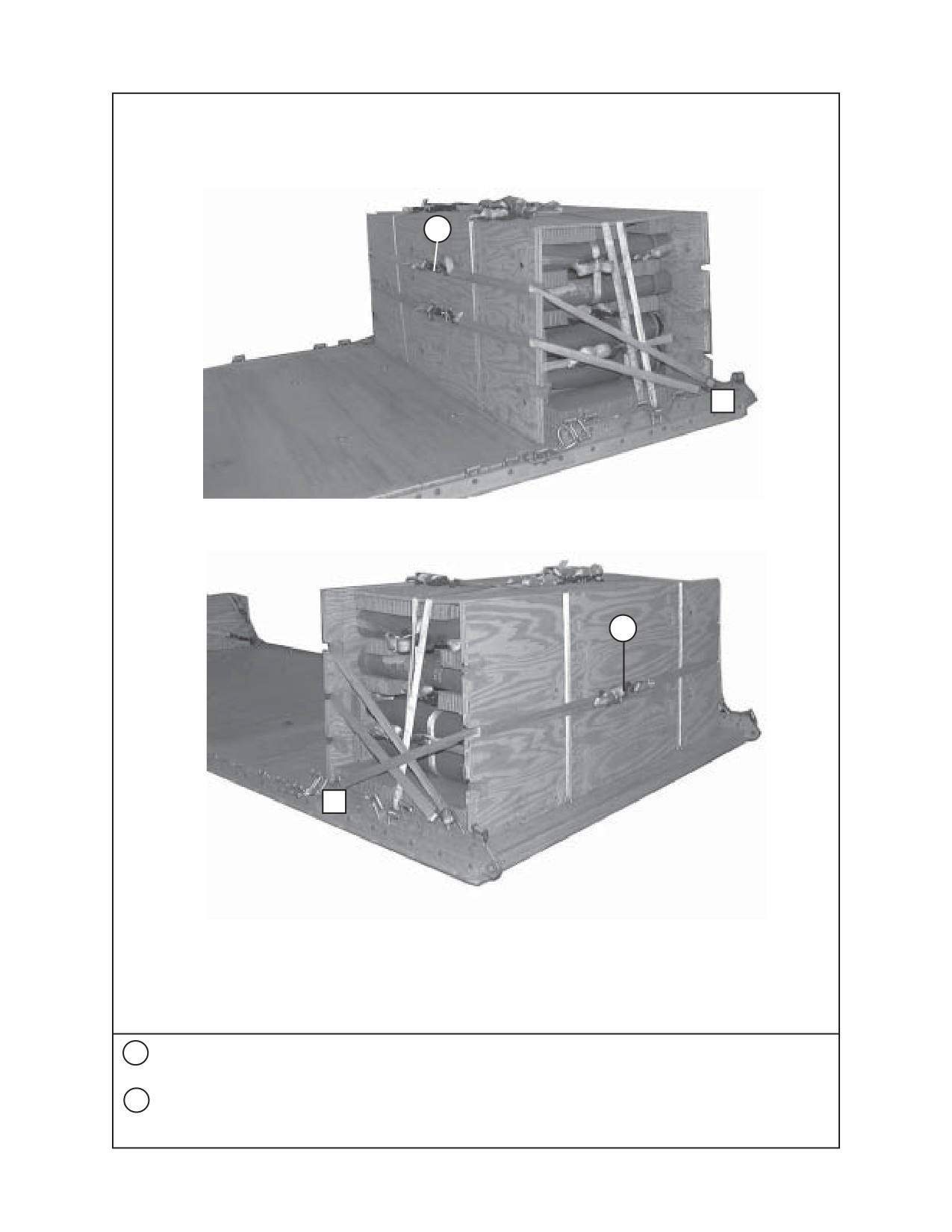

57
Route a 15-foot lashing through its own D-ring on clevis 2. Repeat on clevis 2A and route them through the
rear upper cutouts. Secure them together with a loadbinder in the rear of the accompanying load.
58
Route a 30-foot lashing through clevis 7 through both front middle cutouts through clevis 7A and secure
with loadbinder in the front of the accompanying load.
Figure 5-3. Accompanying load on the platform prepared (Continued)
5-24
C2, FM 10-500-71/TO 13C7-6-141
59
6
FRONT
RIGHT
60
8
FRONT
RIGHT
59
Route a 15-foot lashing through its own D-ring on clevis 6. Repeat on clevis 6A and route them through the
front lower cutouts. Secure them together with a loadbinder in front of the accompanying load.
60
Route a 15-foot lashing through its own D-ring on clevis 8. Repeat on clevis 8A and route them through the
front upper cutouts. Secure with loadbinder in the front of the accompanying load.
Figure 5-3. Accompanying load on the platform prepared (Continued)
5-25
C2, FM 10-500-71/TO 13C7-6-141

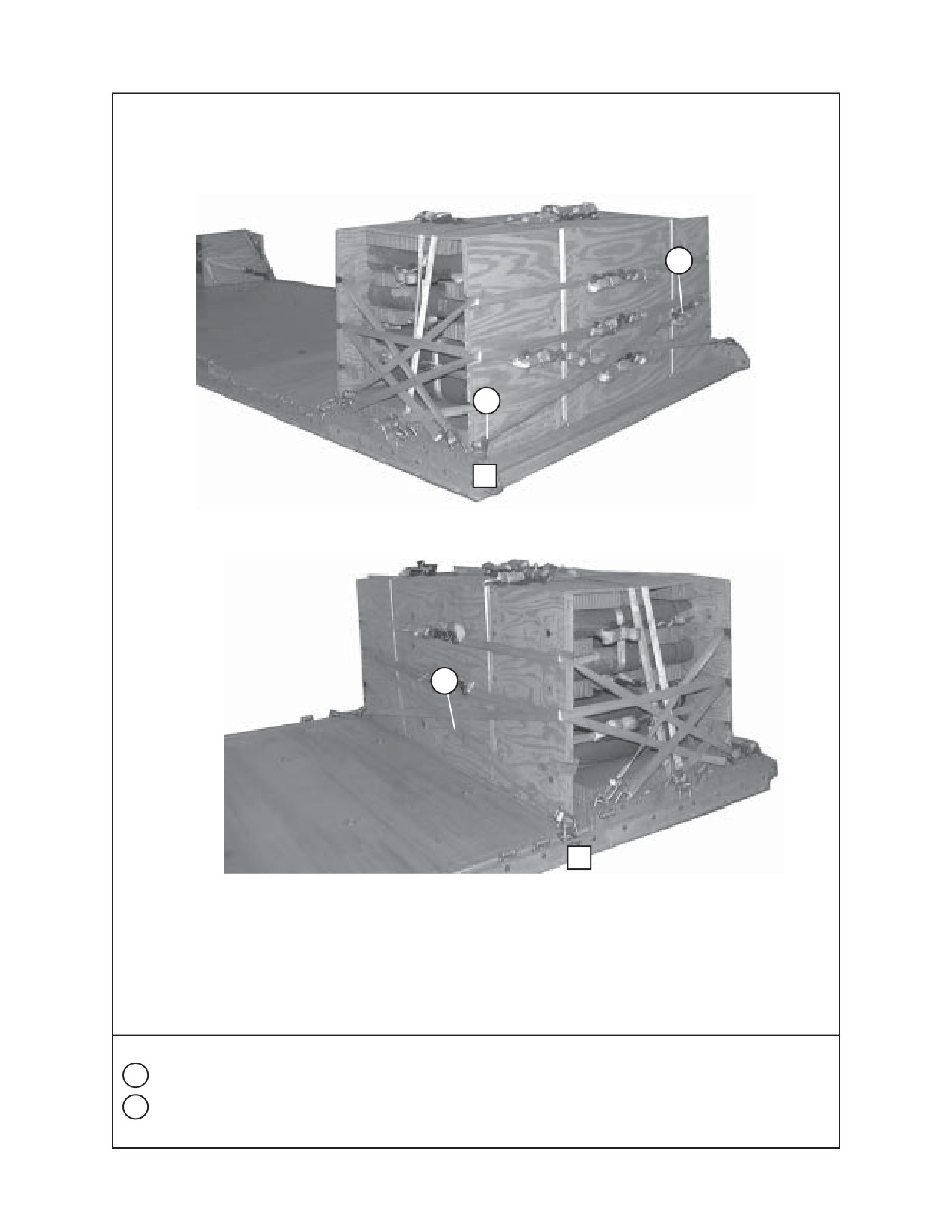

62
61
1A
FRONT
RIGHT
62
10A
RIGHT
61
Route a 15-foot lashing through its own D-ring on clevis 1A. Repeat on clevis 10A.
62
Route lashing from clevis 10A through the rear and front middle cutouts. Secure lashing from 1A and 10A
with a loadbinder in the front of the accompanying load.
Figure 5-3. Accompanying load on the platform prepared (Continued)
5-26
C2, FM 10-500-71/TO 13C7-6-141
64
63
RIGHT
FRONT
1
64
FRONT
10
RIGHT
63
Route a 15-foot lashing through its own D-ring on clevis 1. Repeat on clevis 10.
64
Route lashing from clevis 10 through the rear and front middle cutouts. Secure lashings from clevises 1and
10 with a loadbinder in the front of the accompanying load.
Figure 5-3. Accompanying load on the platform prepared (Continued)
5-27
C2, FM 10-500-71/TO 13C7-6-141

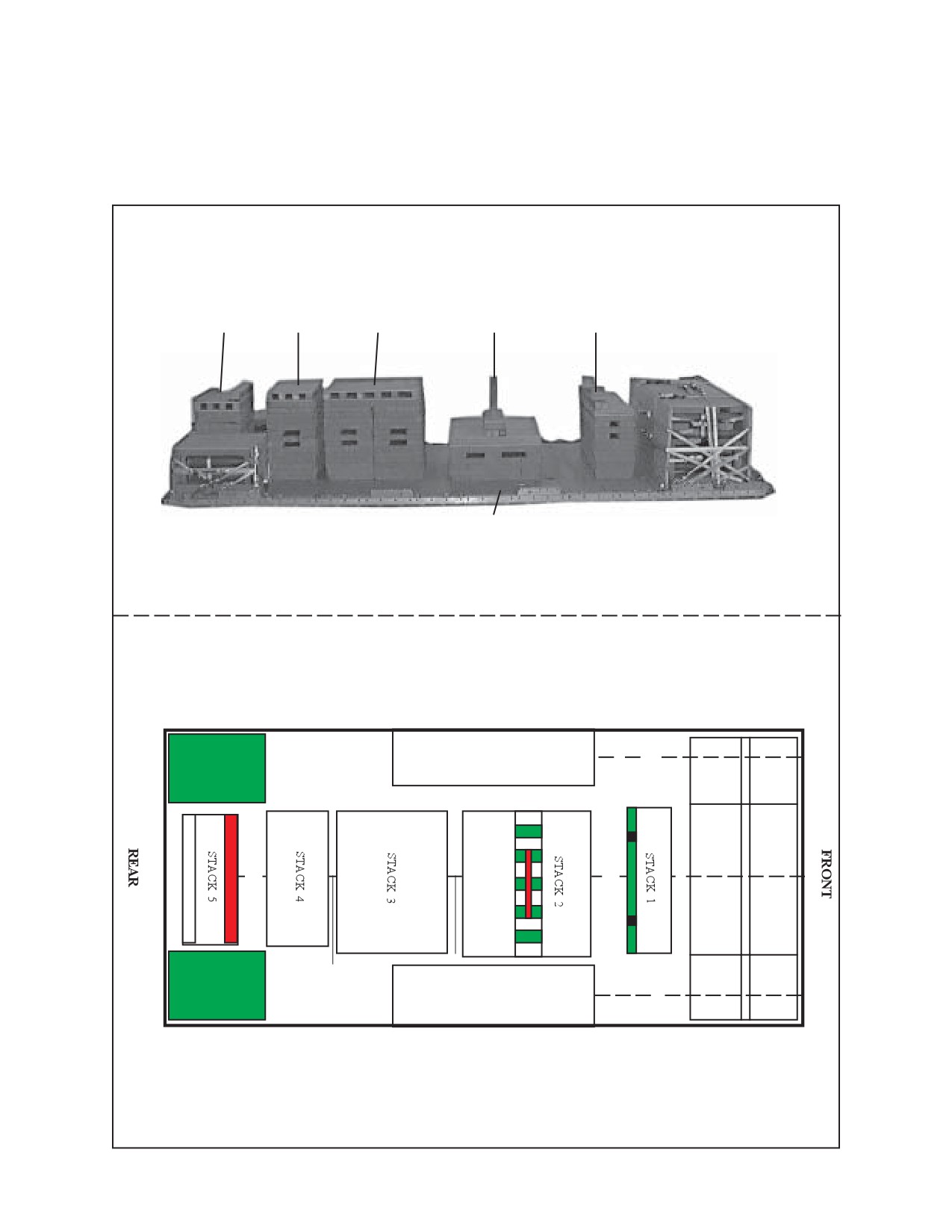

5-4. Preparing Honeycomb Stacks
Use the material in Table 5-1 to prepare
seven honeycomb stacks as shown in
Figures 5-4 through 5-9.
Table 5-1. Material needed to build honeycomb stacks.
Stack
Width
Length
Number
Pieces
(Inches)
(Inches)
Material
Instructions
1
9
20
52
Honeycomb
See Figure 5-4.
4
8
52
Honeycomb
2
20
52
3/4-inch plywood
6
2- by 4
20
Lumber
2
4- by 4
52
Lumber
2
4- by 4
7
Lumber
4
2- by 4
7
Lumber
2
5
36
48
Honeycomb
See Figure 5-5.
5
10
48
Honeycomb
3
9
48
Honeycomb
2
46
48
3/4-inch plywood
6
4- by 4
46
Lumber
3
4- by 4
48
Lumber
5
2- by 6
10 1/2
Lumber
3
4- by 4
19
Lumber
1
2- by 4
18
Lumber
3
24
24
40
Honeycomb
See Figure 5-6.
8
8
40
Honeycomb
6
4- by 4
40
Lumber
2
40
48
3/4-inch plywood
4
12
24
40
Honeycomb
See Figure 5-7.
4
8
40
Honeycomb
2
24
40
3/4-inch plywood
4
4- by 4
40
Lumber
5
10
24
30
Honeycomb
See Figure 5-8.
4
8
30
Honeycomb
4
4- by 4
30
Lumber
2
24
30
3/4-inch plywood
3
2- by 6
30
Lumber
3
6
30
3/4-inch plywood
3
5 1/2
30
3/4-inch plywood
6
2
18
96
Honeycomb
See Figure 5-9.
7
2
18
96
Honeycomb
See Figure 5-9.
5-28
C2, FM 10-500-71/TO 13C7-6-141
Notes: 1. This drawing is not drawn to scale.
2. All measurements are given in inches.
3. Do NOT glue wooden stack to honeycomb.
4. All nails used are size 8d.
52"
20"
8"
8"
7"
13"
9
10
8
7
1234567890123456789012345678901212345678901234567890
6
1234567890
1234567890123456789012345678901212345678901234567890
1234567890
1234567890123456789012345678901212345678901234567890
1234567890
12345678901234567890123456789012123
12345
123456
12345
12345
123456
12345
12345678901234567890123456789012123
12345
123456
12345
12345
123456
12345
12345678901234567890123456789012123
5
4
3
2
1
Front view
Side view
1
Glue seven 20- by 52-inch pieces of honeycomb together.
2
Glue two 8- by 52-inch pieces of honeycomb flush front and rear on the 52-inch sides of the top of the
20- by 52-inch pieces of honeycomb.
3
Glue a 20- by 52-inch piece of honeycomb on top of the two 8- by 52-inch pieces of honeycomb.
4
Repeat steps 2 and 3 to complete the base.
5
Nail six 2- by 4- by 20-inch pieces of lumber evenly spaced across the 20-inch width of a 20- by 52-inch
piece of 3/4-inch plywood. Nail another 20- by 52-inch piece of 3/4-inch plywood on top of the six
2- by 4- by 20-inch pieces of lumber.
6
Nail two 4- by 4- by 52-inch pieces of lumber to the rear top edge of the 20- by 52-inch piece of 3/4-inch
plywood a long the 52 inch side.
7
Nail a 2- by 4- by 7-inch piece of lumber across the top of the two 4- by 4- by 52-inch pieces of lumber,
8 inches in from the 20 inch side of the stack.
8
Nail a 4- by 4- by 7-inch piece of lumber to the top of the 2- by 4- by 7-inch pieces of lumber.
9
Nail a 2- by 4- by 7-inch piece of lumber to the top of the 4- by 4- by 7-inch piece of lumber.
10
Repeat steps 7 through 9 for the other side.
Figure 5-4. Stack 1 prepared
5-29
C2, FM 10-500-71/TO 13C7-6-141
11
11

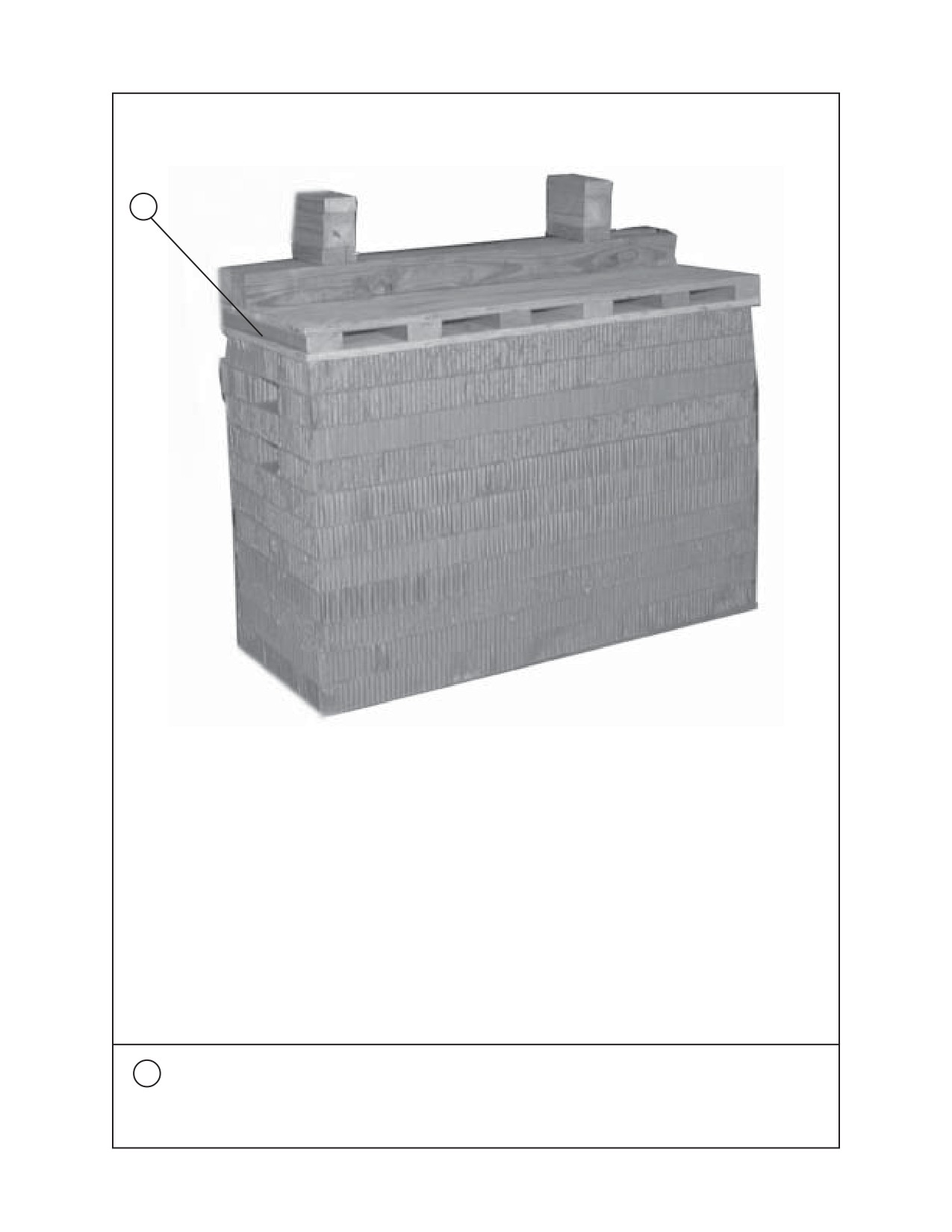

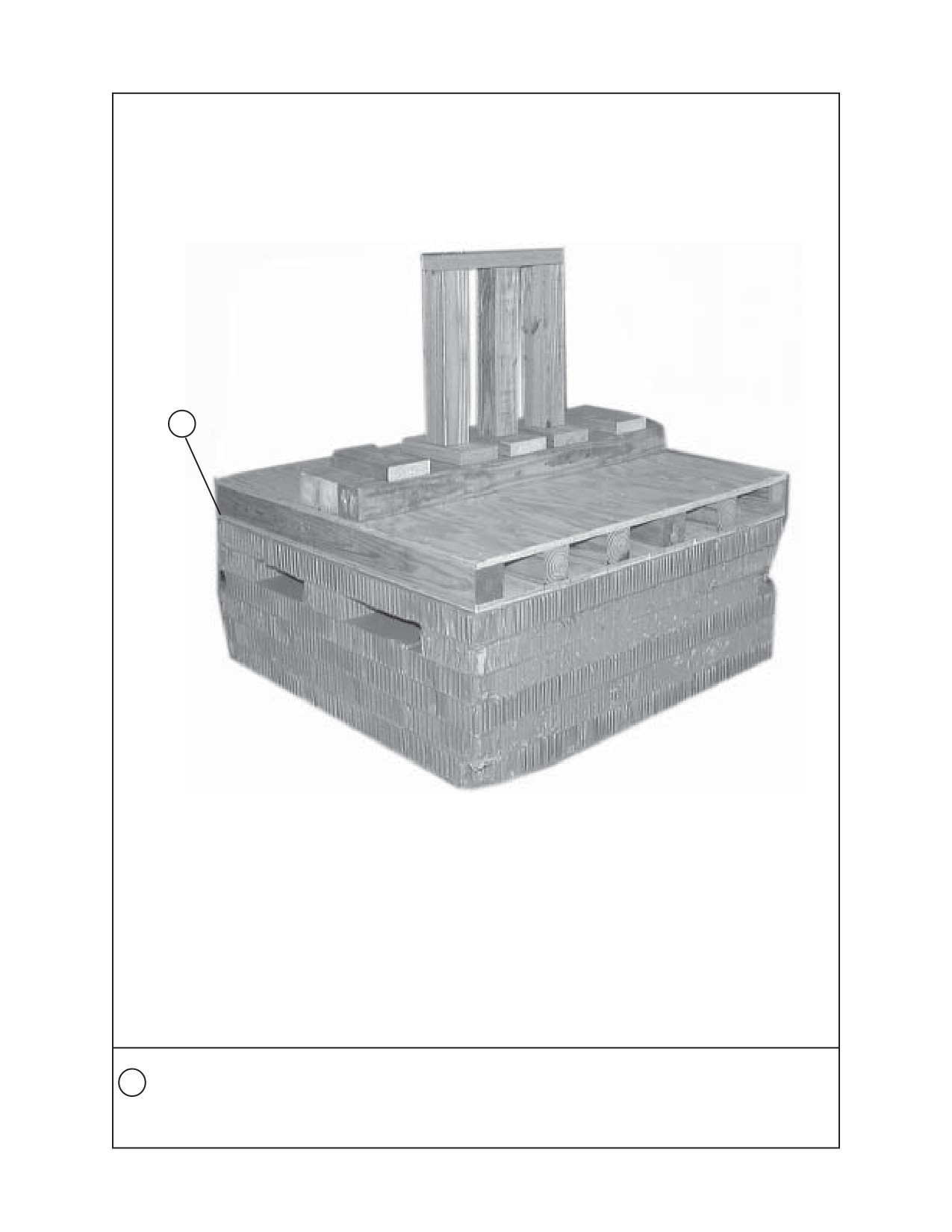

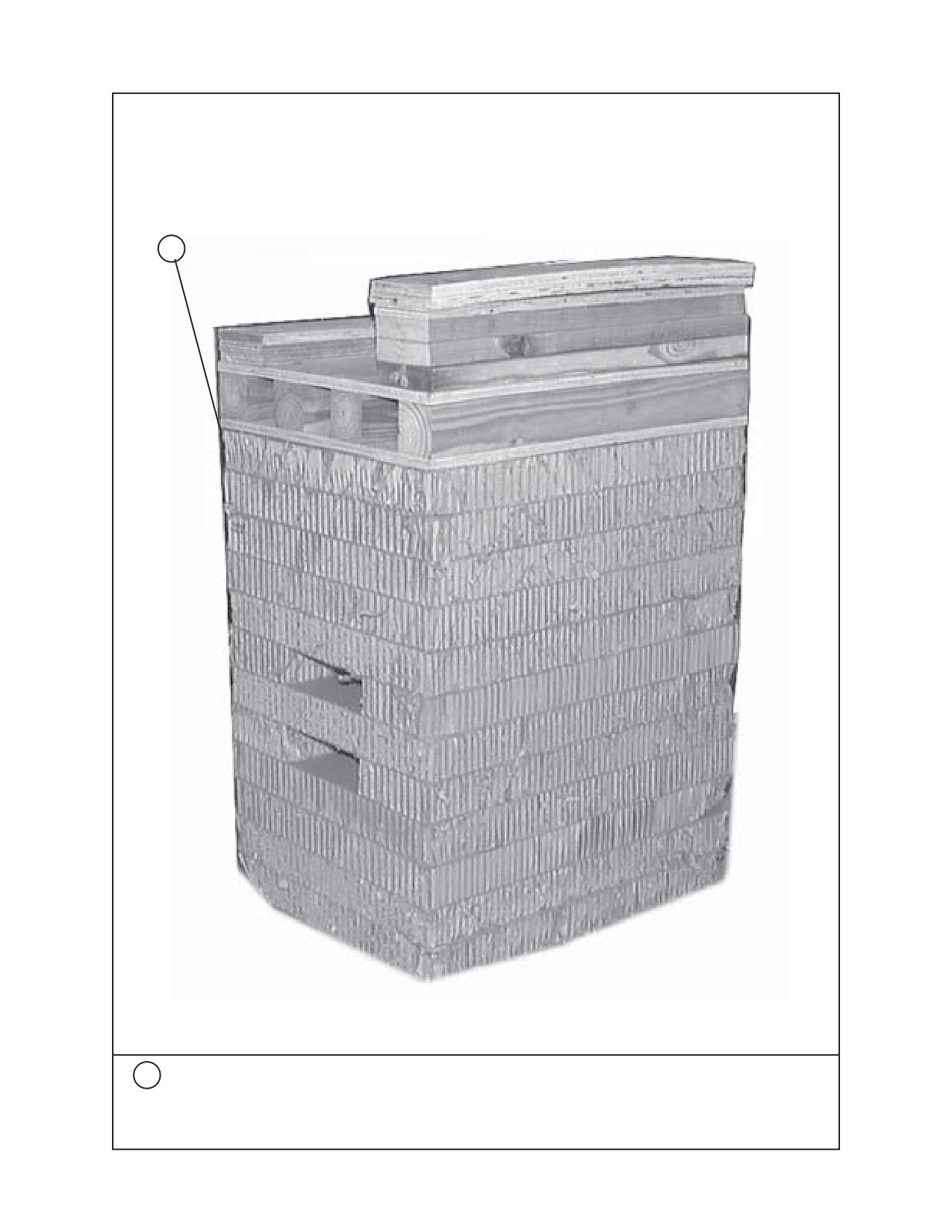

Place the wooden stack on top of the honeycomb base.
Note: Do not glue to honeycomb base.
Figure 5-4. Stack 1 prepared (Continued)
5-30
C2, FM 10-500-71/TO 13C7-6-141
Notes: 1. This drawing is not drawn to scale.
2. All measurements are given in inches.
3. Do NOT glue wooden stack to honeycomb.
4. All nails used are size 8d.
3
123456789012345678901234567890121234567890
123456789012345678901234567890121234567890
123456789012345678901234567890121234567890
1234567
901234
34567890
2
1234567
901234
34567890
123456789012345678901234567890121234567890
123456789012345678901234567890121234567890
123456789012345678901234567890121234567890
123456789012345678901234567890121234567890
123456789012345678901234567890121234567890
123456789012345678901234567890121234567890
1
123456789012345678901234567890121234567890
123456789012345678901234567890121234567890
REAR
123456789012345678901234567890121234567890
FRONT
46"
Side View
1
Position a 36- by 48-inch piece of honeycomb beside a 10- by 48-inch piece of honeycomb. Alternate and
glue three 36- by 48-inch pieces of honeycomb and three 10- by 48-inch pieces of honeycomb together to
form the base.
2
Glue two 9- by 48-inch piece of honeycomb flush with front and rear on the 48-inch side and on top of the
46- by 48-inch base. Position and glue a 9- by 48-inch piece of honeycomb centered on the 36- by 48-inch
and 10- by 48-inch honeycomb stack.
3

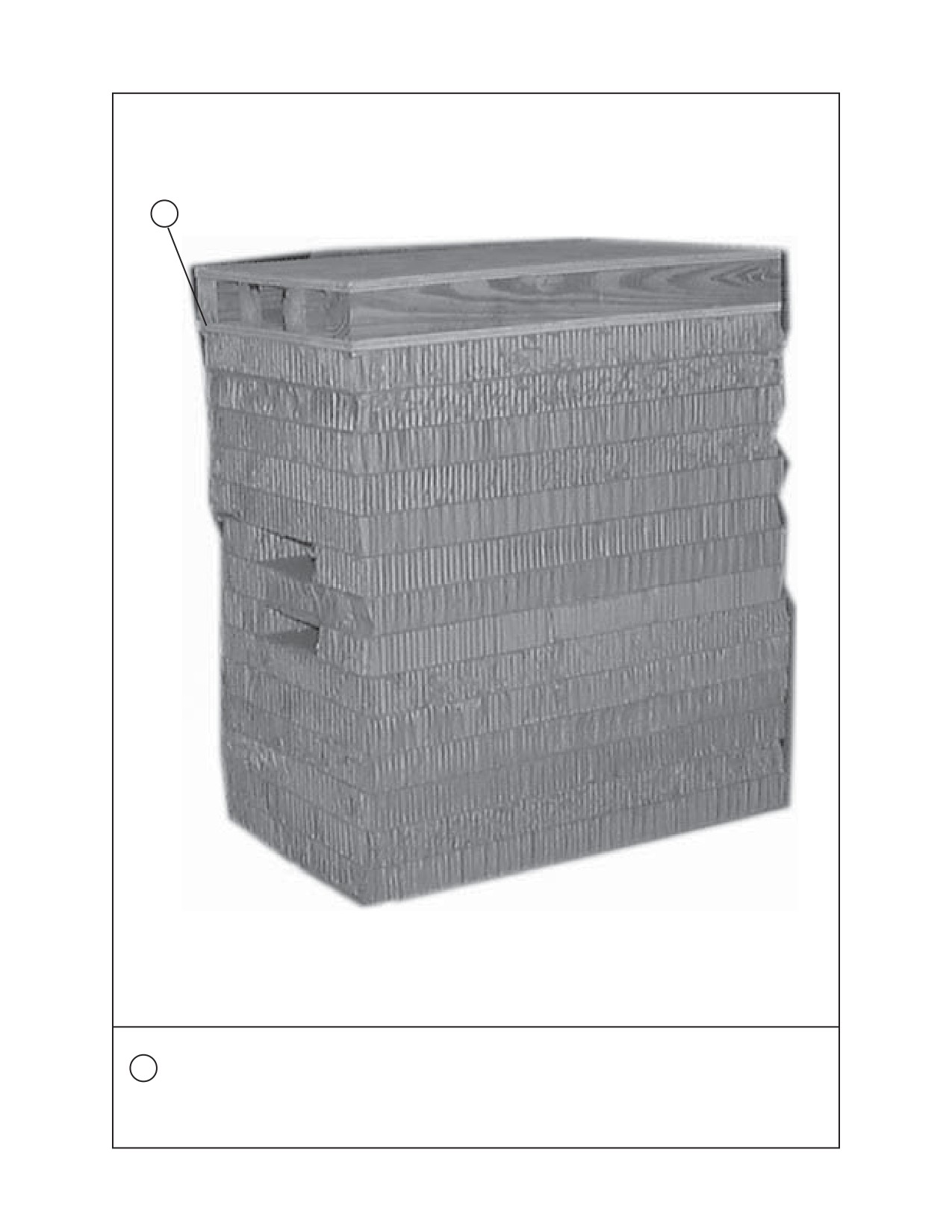

Position and glue the third 36- by 48-inch piece of honeycomb centered on stack.
Figure 5-5. Stack 2 prepared
5-31
C2, FM 10-500-71/TO 13C7-6-141
Notes: 1. This drawing is not drawn to scale.
2. All measurements are given in inches.
3. Do NOT glue wooden stack to honeycomb.
4. All nails are used size 8d.
8
7
Centered
6
4"
5
12345678901234567890123456789012123456789012
12345678901234567890123456789012123456789012
12345678901234567890123456789012123456789012
1
56789
23456
012345
89012
5678
2
4
1
56789
23456
012345
89012
5678
2
1
2
12345678901234567890123456789012123456789012
12345678901234567890123456789012123456789012
12345678901234567890123456789012123456789012
12345678901234567890123456789012123456789012
12345678901234567890123456789012123456789012
12345678901234567890123456789012123456789012
12345678901234567890123456789012123456789012
12345678901234567890123456789012123456789012
12345678901234567890123456789012123456789012
12345678901234567890123456789012123456789012
12345678901234567890123456789012123456789012
12345678901234567890123456789012123456789012
12345678901234567890123456789012123456789012
12345678901234567890123456789012123456789012
48"
Front View
4
Nail six 4- by 4- by 46-inch pieces of lumber evenly spaced with the 46-inch side of a 46- by 48-inch piece of
3/4-inch plywood. Nail another 46- by 48-inch piece of 3/4-inch plywood on top of the six 4- by 4- by 46-
inch pieces of lumber.
5
Position and nail three 4- by 4- by 48-inch pieces of lumber on top and centered on the 46- by 48-inch piece
of 3/4-inch plywood along the 48 inch length.
6
Position and nail five 2- by 6- by 10-inch piece of lumber across the top of the three 4- by 4- by 48-inch
pieces of lumber, 4 inches in from the 48-inch side.
7
Position and nail three 4- by 4- by 19-inch pieces of lumber upright and centered on top of the center three
2- by 6- by 10 1/2-inch pieces of lumber.
8
Position and nail a 2- by 4- by 18-inch piece of lumber on top of the three 4- by 4- by 19-inch pieces of
lumber.
Figure 5-5 Stack 2 prepared (Continued)
5-32
C2, FM 10-500-71/TO 13C7-6-141
9
SIDE
FRONT
9
Place the wooden stack on top of the honeycomb stack base.
Note: Do not glue to honeycomb base.
Figure 5-5. Stack 2 prepared (Continued)
5-33
C2, FM 10-500-71/TO 13C7-6-141

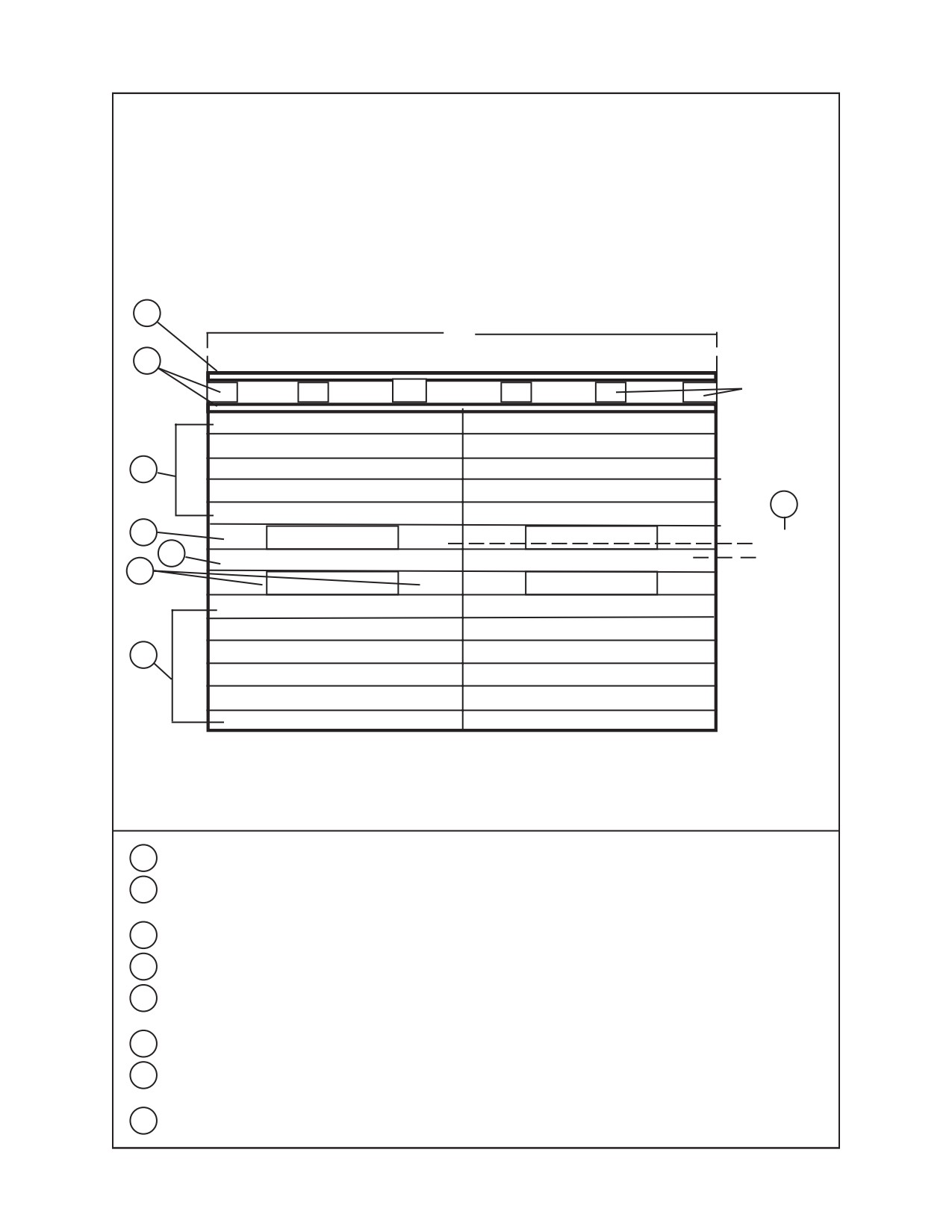

Notes: 1. This drawing is not drawn to scale.
2. All measurements are given in inches.
3. Do NOT glue wooden stack to honeycomb.
4. All nails usde are size 8d.
8
48"
7
123456
123456
1234567
123456
123456
123456
123456
123456
1234567
123456
123456
123456
123456
123456
1234567
123456
123456
123456
Evenly spaced
5
6
4
Two separate
honeycomb
3
base stacks
2
1
Side view
1
Build two separate honeycomb stacks. Glue six 24- by 40-inch pieces of honeycomb together.
2
Glue two 8- by 40-inch pieces of honeycomb on each 40 inch side of the six 24- by 40-inch pieces of
honeycomb.
3
Glue a 24- by 40-inch piece of honeycomb on top of the two 8- by 40-inch pieces of honeycomb.
4
Glue two 8- by 40-inch pieces of honeycomb on each 40 inch side of the 24- by 40-inch piece of honeycomb.
5
Glue five 24- by 40-inch pieces of honeycomb together and on top of the two 8- by 40-inch pieces of
honeycomb to form half of the honeycomb base.
6
Repeat steps 1 through 5 for the second honeycomb stack.
7
Nail six 4- by 4- by 40-inch pieces of lumber evenly spaced to a 40- by 48-inch piece of 3/4-inch plywood
across the 40 inch side of the plywood.
8
Nail another 40- by 48-inch piece of 3/4-inch plywood on the top of the six 4- by 4- by 40-inch pieces of
lumber.
Figure 5-6. Stack 3 prepared
5-34
C2, FM 10-500-71/TO 13C7-6-141

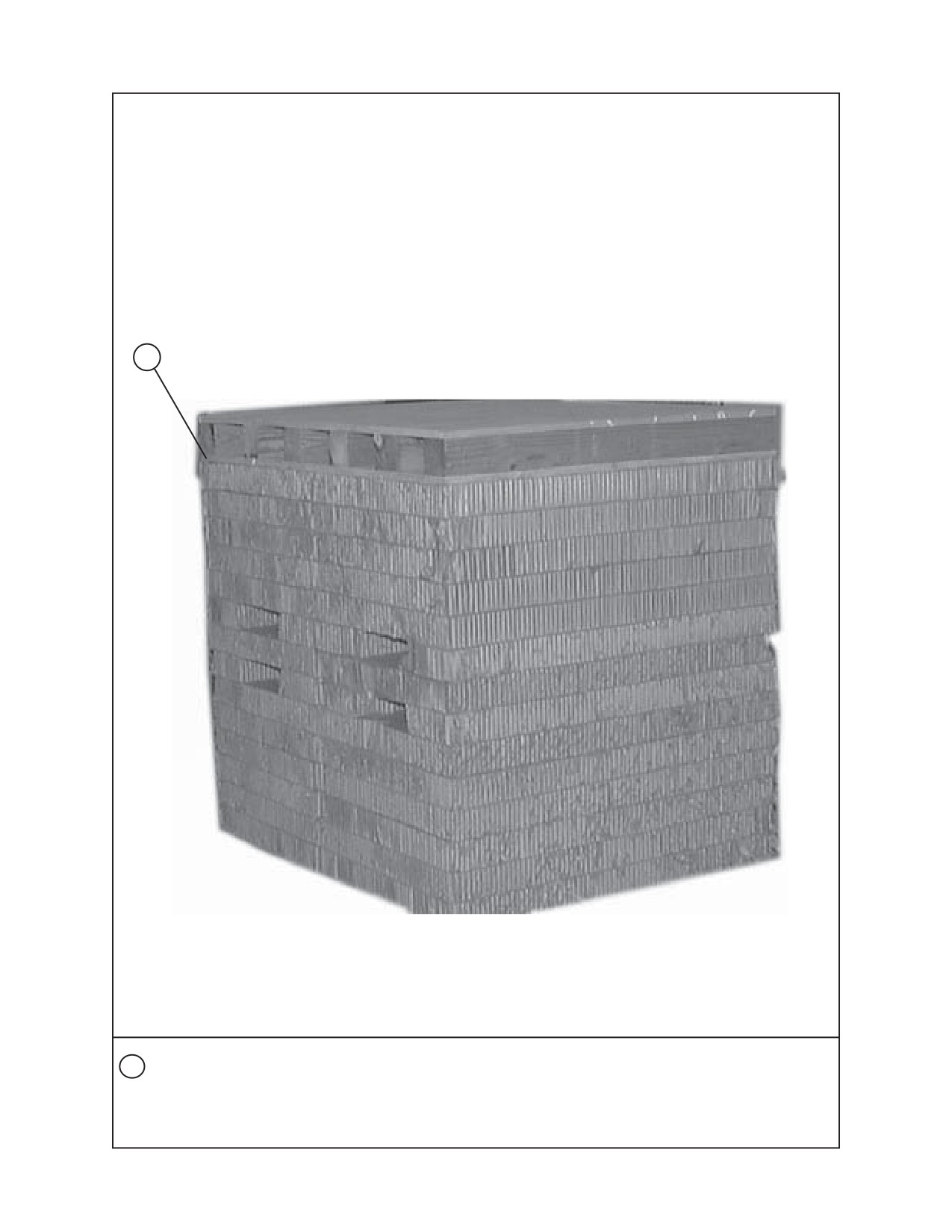

9
9
Place the wooden stack on top of the two honeycomb stacks base.
Note: Do not glue to honeycomb base.
Figure 5-6. Stack 3 prepared (Continued)
5-35
C2, FM 10-500-71/TO 13C7-6-141
Notes: 1. This drawing is not drawn to scale.
2. All measurements are given in inches.
3. Do NOT glue wood to honeycomb.
4. All nails used are size 8d.
24"
40"
7
12345
1234
12345
12345
123456789012345678901234567890121234567890123456
12345
1234
12345
12345
123456789012345678901234567890121234567890123456
6
123456789012345678901234567890121234567890123456
5
4
3
2
1
Side view
Front view
1
Glue six 24- by 40-inch pieces of honeycomb together.
2
Glue two 8- by 40-inch pieces of honeycomb on each 40 inch side of the six 24- by 40-inch pieces of
honeycomb.
3
Glue a 24- by 40-inch piece of honeycomb on top of the two 8- by 40-inch pieces of honeycomb.
4
Glue two 8- by 40-inch pieces of honeycomb on each 40 inch side of the 24- by 40-inch piece of honeycomb.
5
Glue five 24- by 40-inch pieces of honeycomb together and on top of the two 8- by 40-inch pieces of
honeycomb to form the honeycomb base.
6
Nail four 4- by 4- by 40-inch pieces of lumber evenly spaced on a 24- by 40-inch piece of 3/4-inch plywood
across the 40 inch side of the plywood.
7
Nail another 24- by 40-inch piece of 3/4-inch plywood on the top of the four 4- by 4- by 40-inch pieces
of lumber.
Figure 5-7. Stack 4 prepared
5-36
C2, FM 10-500-71/TO 13C7-6-141
8
8
Place the wooden stack on top of the honeycomb stack base.
Note: Do not glue to honeycomb base.
Figure 5-7. Stack 4 prepared (Continued)
5-37
C2, FM 10-500-71/TO 13C7-6-141
Notes: 1. This drawing is not drawn to scale.
2. All measurements are given in inches.
3. Do NOT glue wooden stack to honeycomb.
4. All nails used are size 8d.
24"
30"
1234567890
123456789012345678901234567890
1234567890
9
123456789012345678901234567890
12345678901234567890
123456789012345678901234567890
123456789012
123456789012345678901234567890
7
123456789012
123456789012345678901234567890
123456789012
123456789012
8
123456789012345678901234567890
12345
123456789012123456789012
123456789012345678901234567890
123456789012345678901234567890121234567890
567890123456789012
123456789012345678901234567890121234567890
123456
123456
123456
123456
5
123456
123456
123456
123456
6
123456789012345678901
123456
123456
123456
123456
123456
123456
123456
123456
123456789012345678901234567890121234567890
1234567890123456789012
Evenly Spaced
4
REAR
3
2
1
SIDE VIEW
FRONT VIEW
1
Glue four 24- by 30-inch pieces of honeycomb together. Glue two 8- by 30-inch pieces of honeycomb flush
with the front and rear on the 30-inch sides and on top of the 24- by 30-inch pieces of honeycomb.
2
Glue a 24- by 30-inch piece of honeycomb on top of the two 8- by 30-inch pieces of honeycomb.
3
Glue two 8- by 30 inch pieces of honeycomb flush with the front and rear on the 30-inch side and on top of
the 24- by 30-inch piece of honeycomb.
4
Glue five 24- by 30-inch pieces of honeycomb flush front and rear together and on top of the two 8- by
30-inch pieces of honeycomb to form the honeycomb base.
5
Nail four 4- by 4- by 30-inch pieces of lumber evenly spaced to a 24- by 30-inch piece of 3/4-inch plywood
along the 30 inch side of the plywood.
6
Nail another 24- by 30-inch piece of 3/4-inch plywood on the top of the four 4- by 4- by 30-inch pieces
of lumber.
7
Nail three 62- by 30-inch pieces of 3/4-inch plywood to the rear and flush on the 30 inch side and on top
of the 24- by 30-inch 3/4-inch plywood.
8
Nail three 2- by 6- by 30-inch pieces of lumber to the front and flush on the 30 inch side and on top of the
24- by 30-inch 3/4-inch plywood.
9
Nail three 5 1/2- by 30-inch piece of 3/4-inch plywood centered and on top of the 2- by 6- by 30 inch pieces
of lumber.
Figure 5-8. Stack 5 prepared
5-38
C2, FM 10-500-71/TO 13C7-6-141
10
10
Place the wooden stack on top of the honeycomb base.
Note: Do not glue to honeycomb base.
Figure 5-8. Stack 5 prepared (Continued)
5-39
C2, FM 10-500-71/TO 13C7-6-141
Notes: 1. This drawing is not drawn to scale.
2. All measurements are given in inches.
96"
18"
STACK 6
1
STACK 7
1

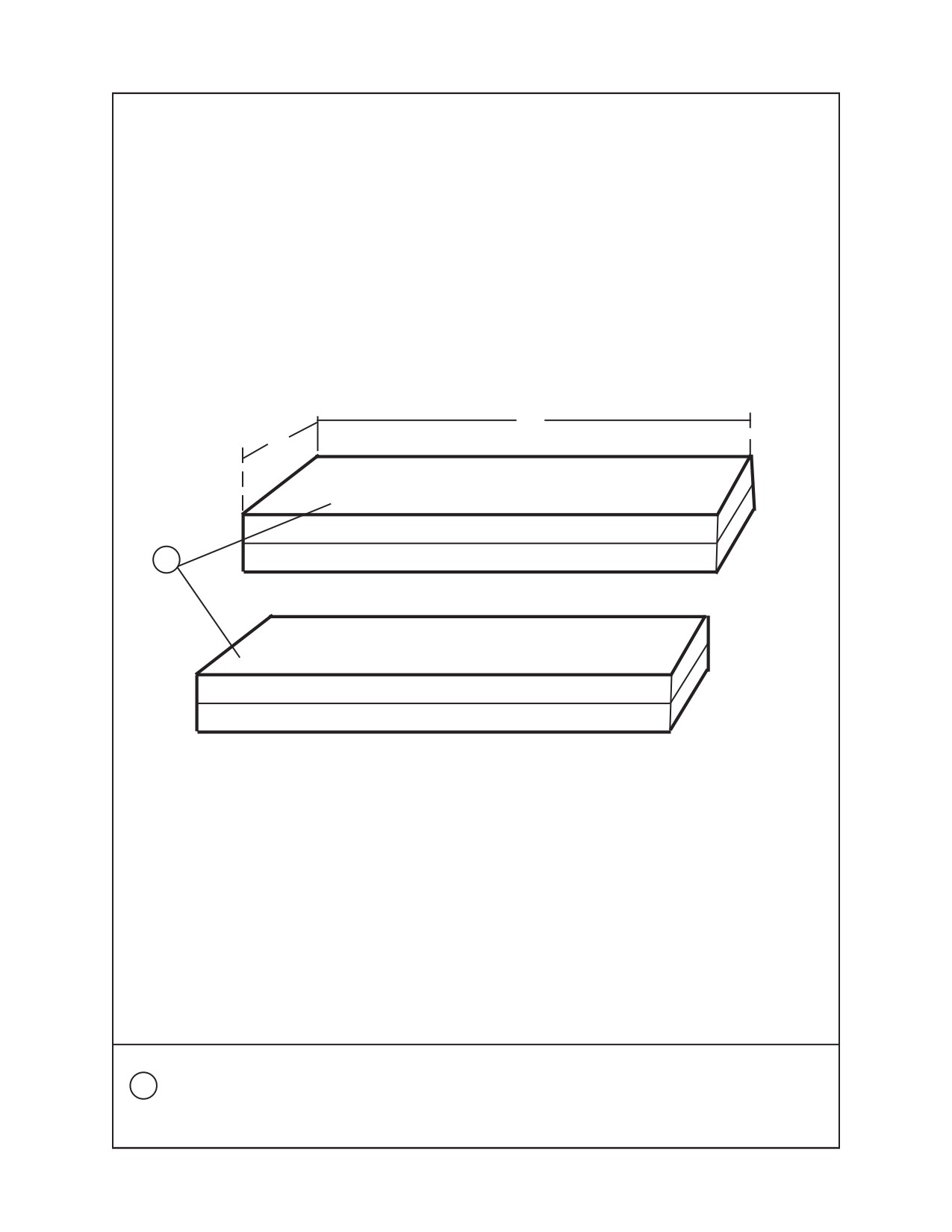

Glue two stacks of two 18- by 96-inch pieces of honeycomb together.
Figure 5-9. Stacks 6 and 7 prepared
5-40
C2, FM 10-500-71/TO 13C7-6-141
5-5. Positioning Honeycomb Stacks
Position the honeycomb stacks as shown in
Figure 5-10.
STACK 5
STACK 4
STACK 3
STACK 2
STACK 1
REAR
FRONT
STACK 6
SIDE VIEW
Note: This drawing is not drawn to scale.
LEFT
STACK 7
77"
123
123
123
123
123
123
123
123
123
123
123
16"
32"
55"
123
123
123
123
123
123
123
123
123
123
16"
4"
STACK 6
77"
RIGHT
TOP VIEW
Figure 5-10. Honeycomb stacks positioned on platform
5-41
C2, FM 10-500-71/TO 13C7-6-141
Stack
Number
Instructions
1
Position stack 1, centered and 55 inches from the front of the platform edge.
2
Position stack 2, centered and 32 inches from stack 1, (107 inches from the front of the platform edge).
3
Position stack 3, centered and 16 inches from stack 2, (169 inches from the front of the platform edge).
4
Position stack 4, centered and 4 inches from stack 3, (221 inches from the front of the platform edge).
5
Position stack 5, centered and 16 inches from stack 4, (261 inches from the front of the platform edge).
6
Position stack 6, 77 inches from the front of the platform edge and along the right side rail.
7
Position stack 7, 77 inches from the front of the platform edge and along the left side rail.
Figure 5-10. Honeycomb stacks positioned on platform (Continued)
5-42
C2, FM 10-500-71/TO 13C7-6-141
5-6. Preparing Trailer
Prepare the M1095 trailer as shown in Figure 5-11
and as described below.
Notes:
1. Pad and tape all sharp edges that a lashing or sling might make contact with during rigging.
2. Remove the panel side and supports and place in the panel stowage compartments.
3. Ensure the tires have no more than 58 PSI tire pressure.
1
2
3
1
Tape all lights and reflectors.
2
Extract the lift/sling guides. Ensure the lift/sling guides are in the horizontal position. Insert pins and tape
over the pins.
3
Pad with cellulose wadding and tape lift/sling guides.
Figure 5-11. Trailer prepared
5-43
C2, FM 10-500-71/TO 13C7-6-141
4
5
6
7

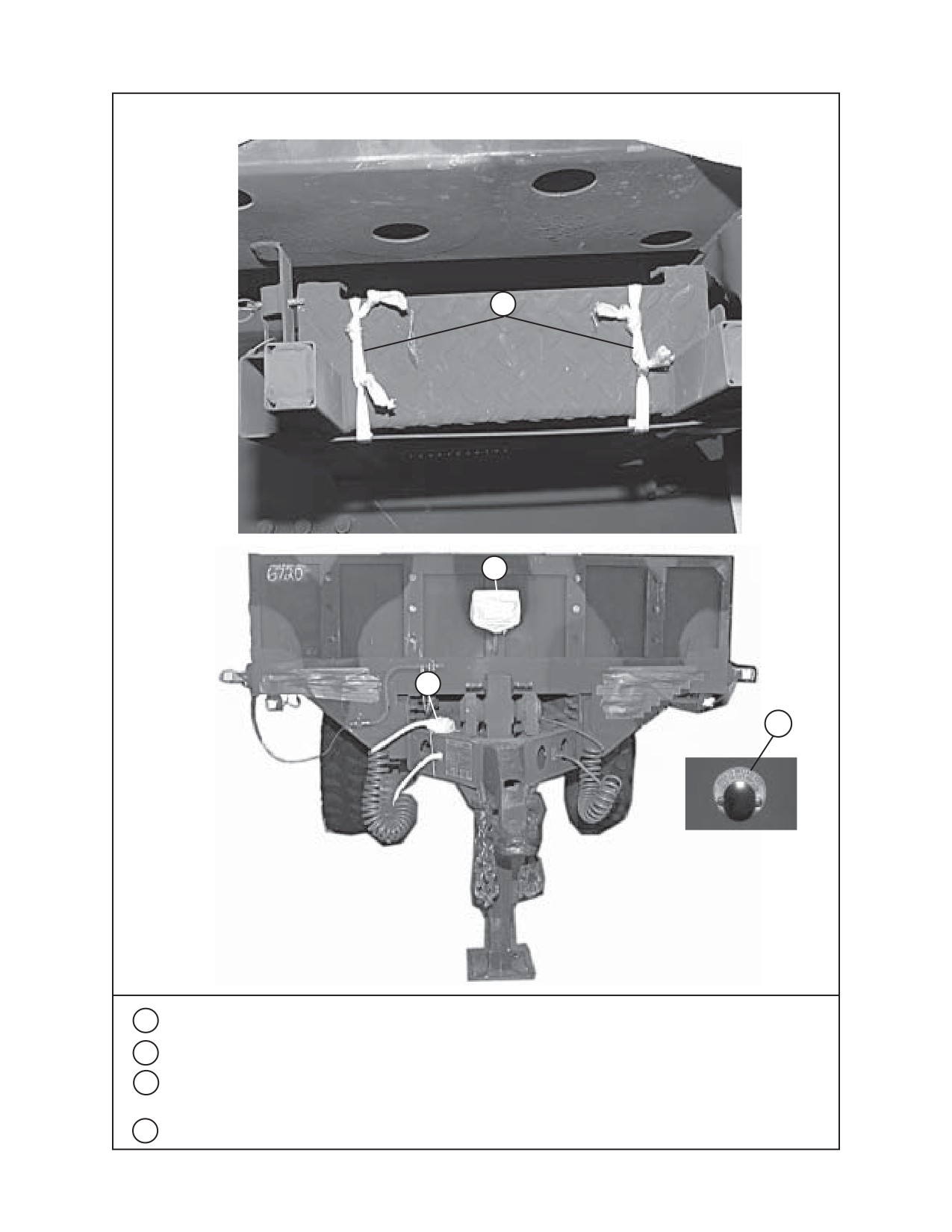

4
Secure the ladder with 1/2-inch tubular nylon webbing.
5
Cellulose pad and tape the trailer lights connector box.
6
Cellulose pad and tape right side air supply hose and connector.
Note: Do not secure left side at this time.
7
The trailer must be drained of all air in the system by using the control knob.
Figure 5-11. Trailer prepared (Continued)
5-44
C2, FM 10-500-71/TO 13C7-6-141

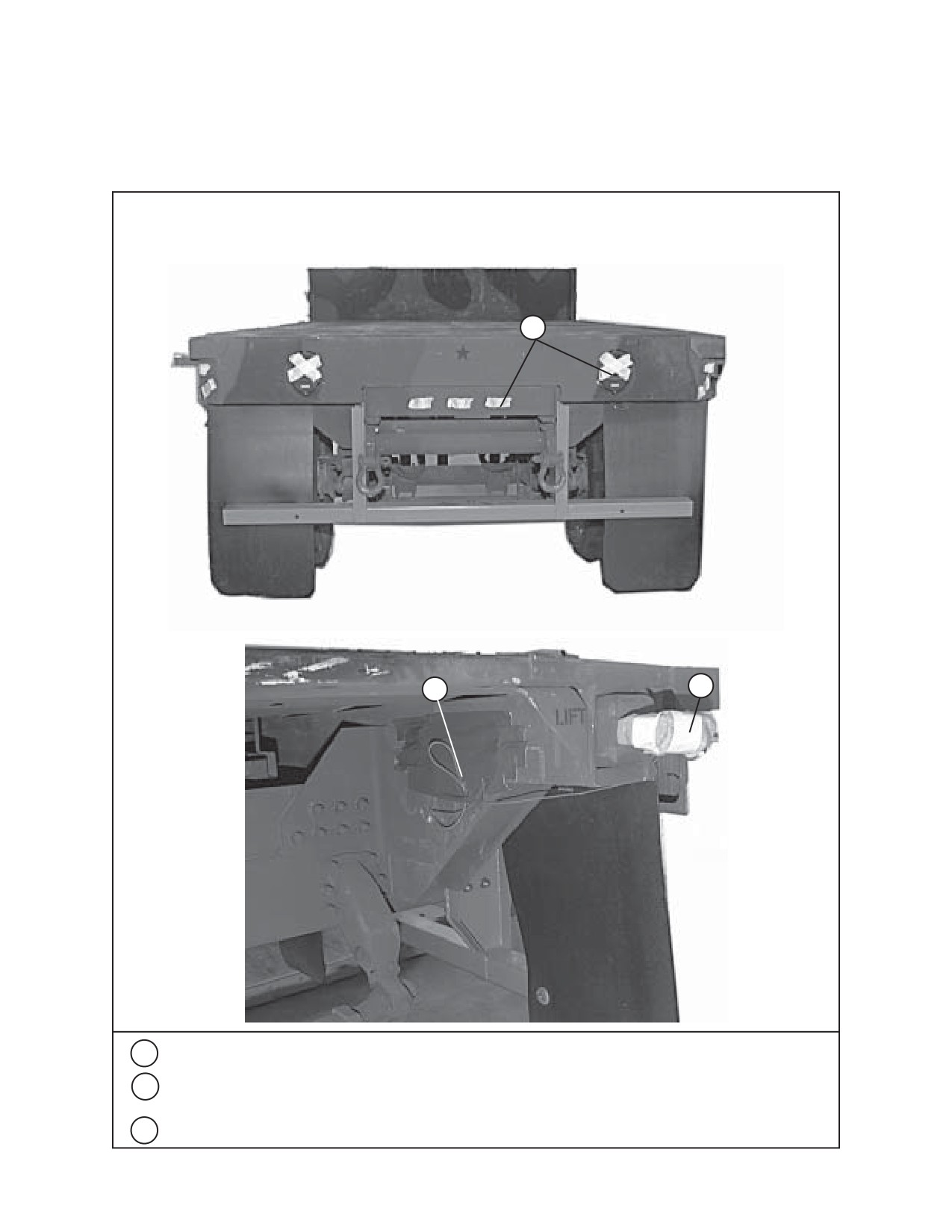

9
8
8

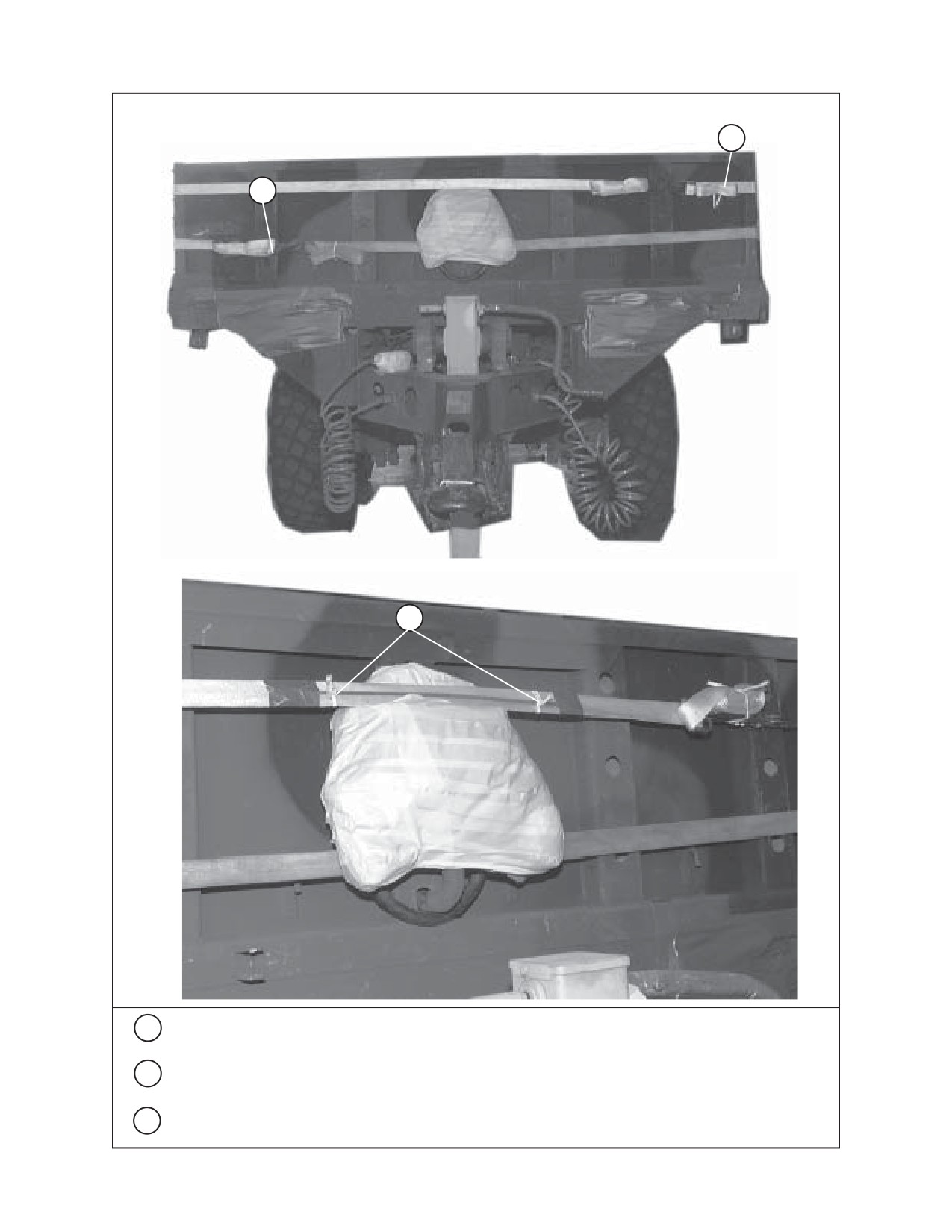

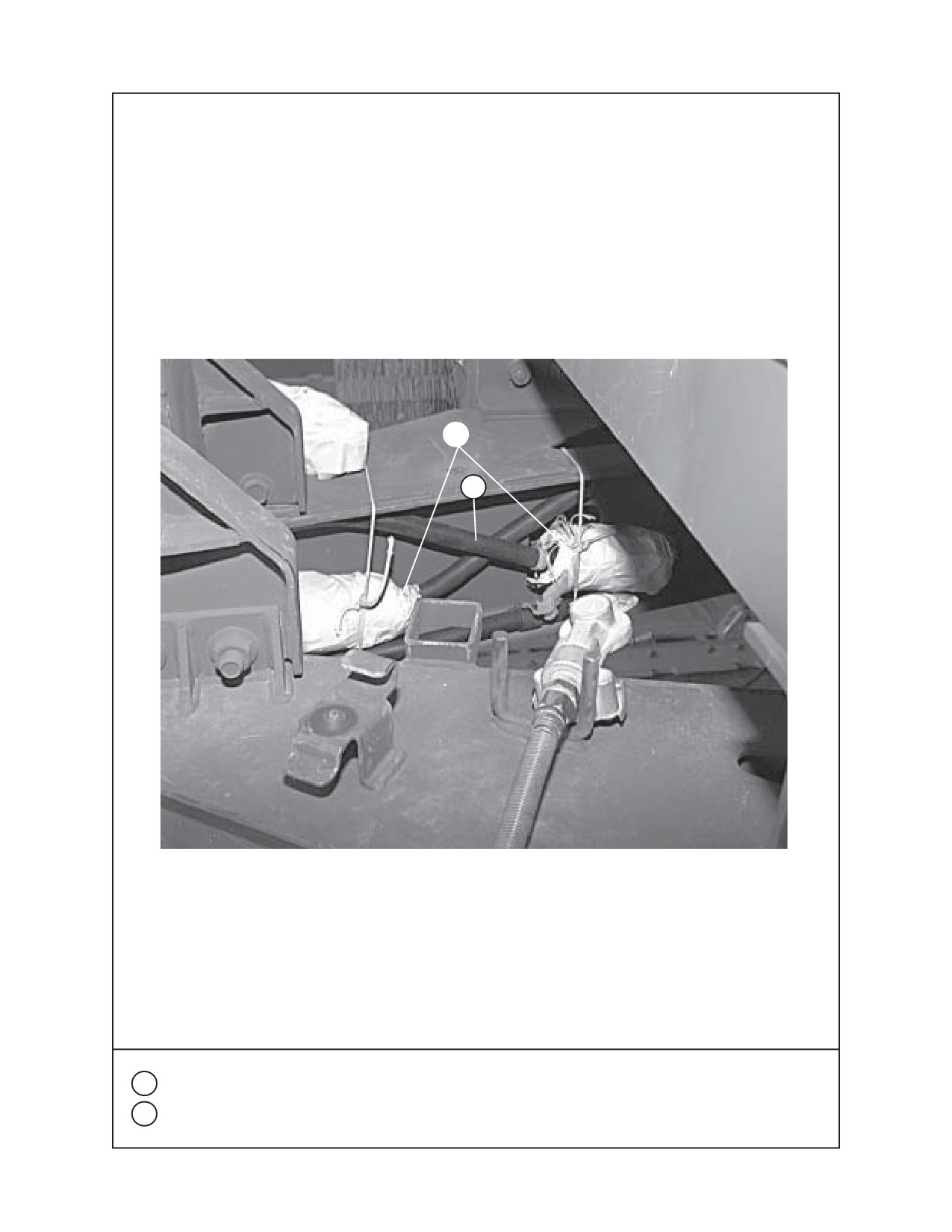

Remove the trailer light cable. Wrap the connectors with cellulose wadding and tape.
9
Secure with type III nylon cord inside frame behind the towing tongue.
Figure 5-11. Trailer prepared (Continued)
5-45
C2, FM 10-500-71/TO 13C7-6-141
Note: This drawing is not drawn to scale.
FRONT
10
A
A 1
B
B 1
C
C 1
LEFT
RIGHT
D
D 1
E
E 1
F
F 1
G
G 1
H
H1
REAR
10

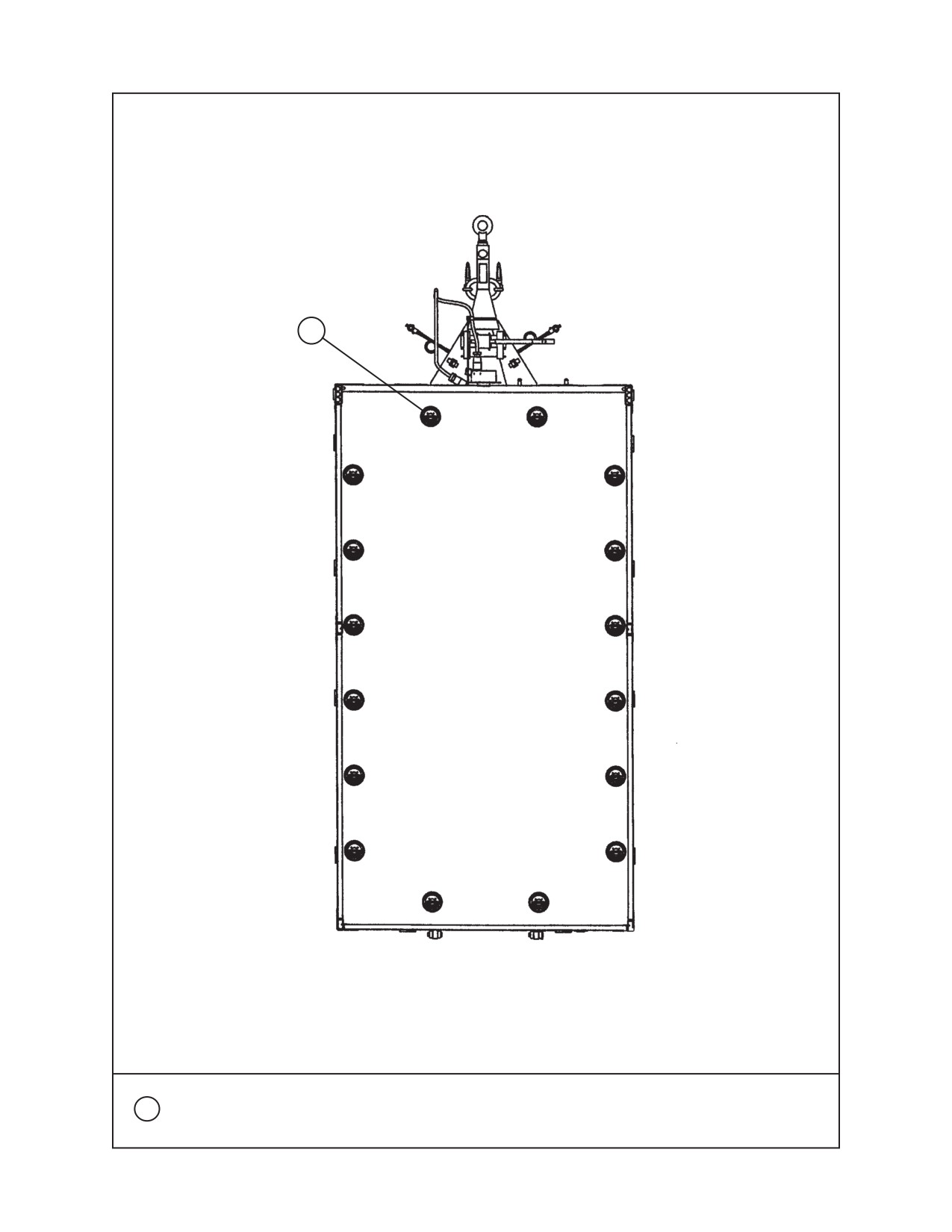

Label the trailer bed tiedown rings as shown in above diagram.
Figure 5-11. Trailer prepared (Continued)
5-46
C2, FM 10-500-71/TO 13C7-6-141
11
12
11

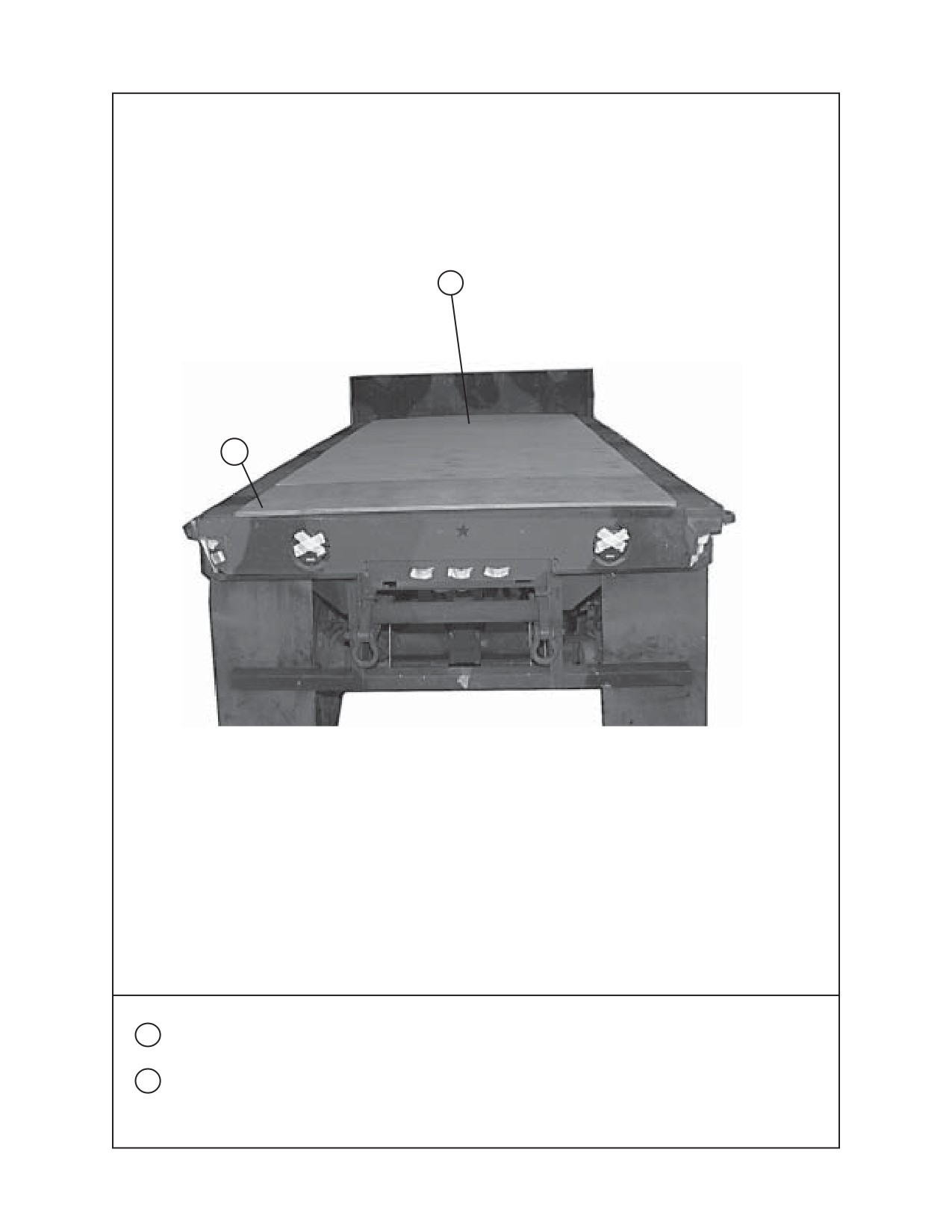

Place three 48- by 79-inch pieces of 3/4-inch plywood centered left to right from the front edge of the trailer
bed.
12
Place a 27- by 79-inch piece of 3/4-inch plywood centered left to right against the 48- by 79-inch piece of
3/4-inch plywood.
Note: These will be used as load spreaders.
Figure 5-11. Trailer prepared (Continued)
5-47
C2, FM 10-500-71/TO 13C7-6-141
5-7. Stowing Trailer Accompanying Load
Stow the trailer accompanying load which consists of
three cells of ammunition and the tarp, bow, poles and
speaders in the trailer bed as shown in Figure 5-12.
CAUTION
Only ammunition listed in FM 10-500-53/MCRP 4-3.8/TO 13C7-18-41
may be airdropped. Package, mark, and label hazardous material according to
AFMAN(I) 24-204/TM 38-250.
5
6
3
4
2
1
1
Trailer accompanying load consists of tarps, bows, poles and spreaders.
2
Eight fuse ammo boxes.
3
Twenty M4A2 white canisters (short).
4
Twenty-two M3A1 green canisters (long).
5

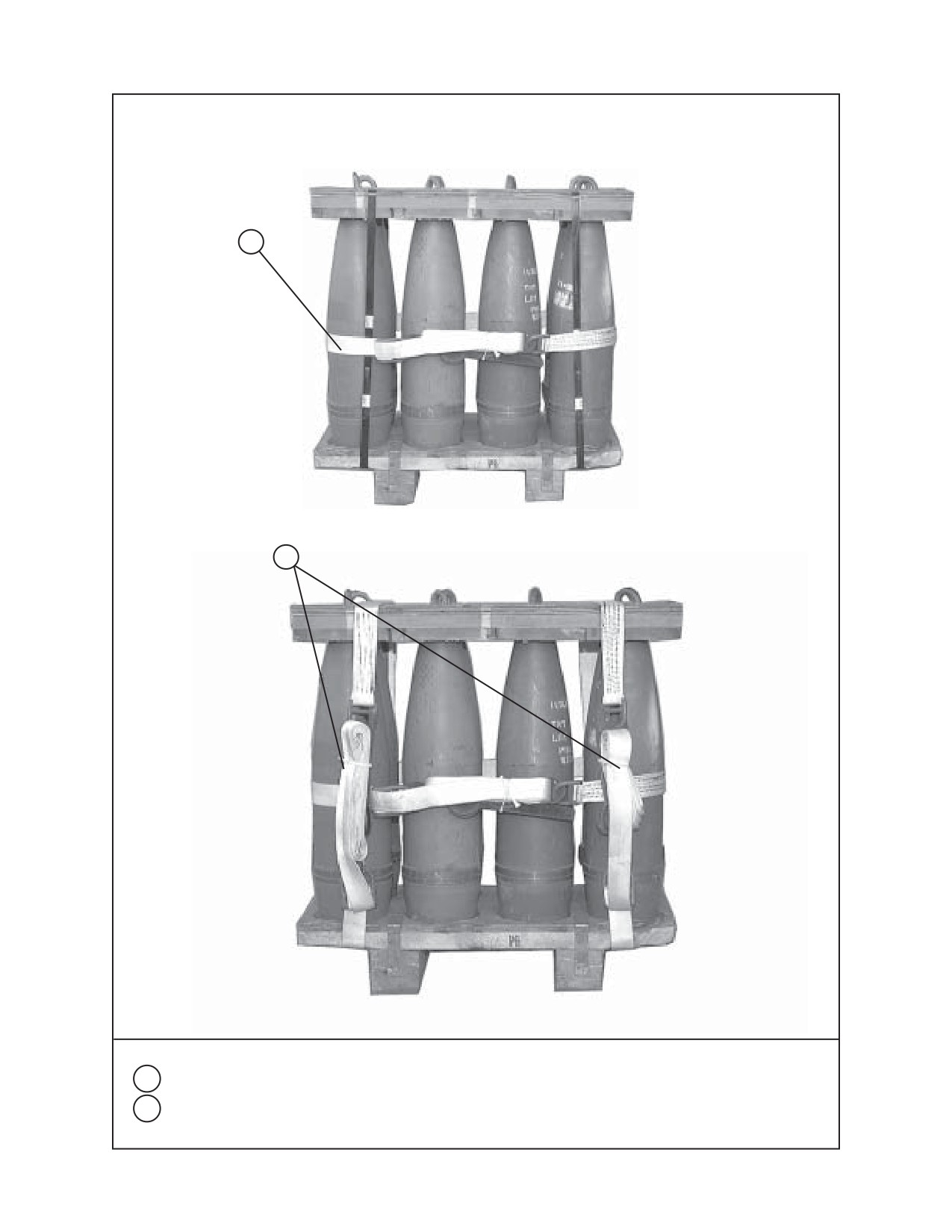

Five M483A1 round racks (Prepare the rounds as shown in Figure 5-3, steps 7 through 10).
6
Three M107 HE round racks (Prepare the rounds as shown in Figure 5-3, steps 7 through 10).
Figure 5-12. Trailer accompanying load stowed
5-48
C2, FM 10-500-71/TO 13C7-6-141
7
8
7

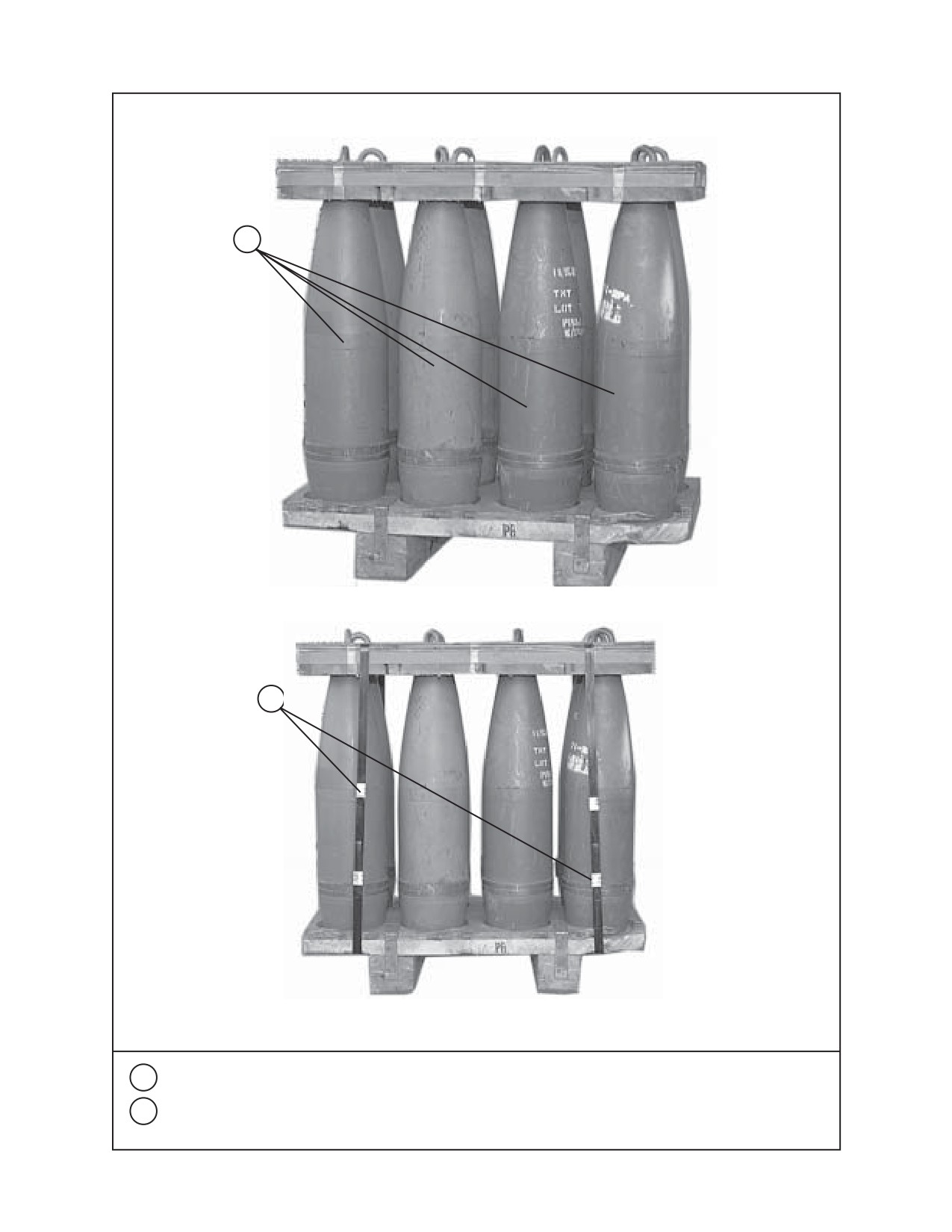

Place eight rounds in wooden shipping rack with footers.
8
If the banding is on the rounds wooden shipping rack, it may be left on. However it is not needed for
rigging.
Figure 5-12. Trailer accompanying load stowed (Continued)
5-49
C2, FM 10-500-71/TO 13C7-6-141
9
10
9
Route and secure a 15-foot lashing around the eight rounds.
10
Route and secure two 15-foot lashings vertically around the eight rounds.
Figure 5-12. Trailer accompanying load stowed (Continued)
5-50
C2, FM 10-500-71/TO 13C7-6-141
11
12
12
11
Place two M483A1 racks against the trailer bed front with footers centered.
12
Place one fuse ammo box each on the outside of the footers of the M483A1 racks.
Figure 5-12. Trailer accompanying load stowed (Continued)
5-51
C2, FM 10-500-71/TO 13C7-6-141
Notes: 1. This drawing is not drawn to scale.
2. All measurements are given in inches.
86"
4"
3"
2"
13
4"
17"
3/4" Plywood
5"
CELL #1 ENDBOARD
15
16
14
13
Construct two endboards as shown in diagram above with 2- by 3-inch deep cutouts.
Note: One endboard will be used on cell #2.
14
Place one endboard against the M483A1 racks.
15
Route a 30-foot lashing through the upper cutouts of cell #1 endboard.
16
Route a 30-foot lashing through the lower cutouts of cell #1 endboard.
Figure 5-12. Trailer accompanying load stowed (Continued)
5-52
C2, FM 10-500-71/TO 13C7-6-141

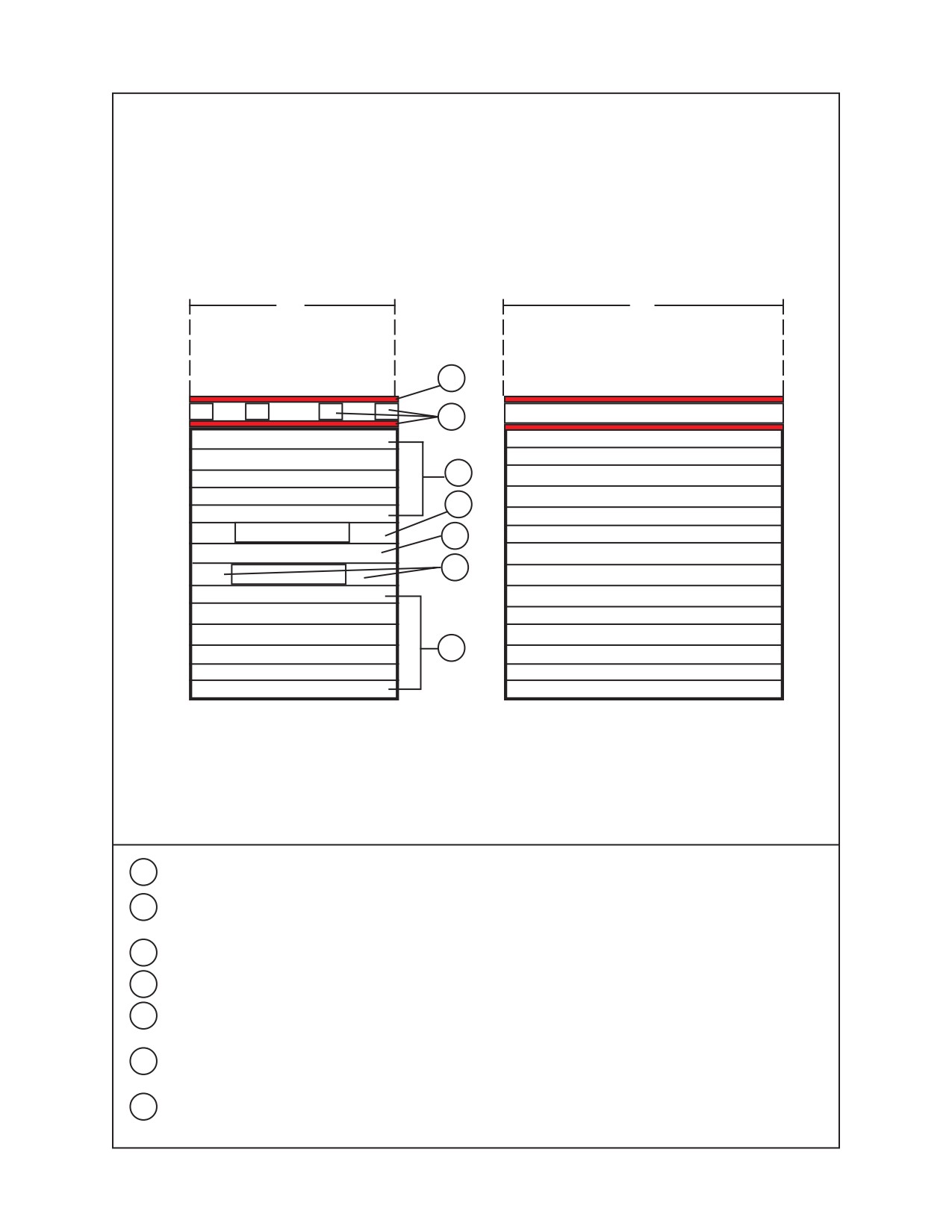

18
17
19
17
Route lashing through lower cutouts of endboard, around front of trailer bed through the electrical cable
assembly and trailer bulk head. Secure with loadbinder to trailer's right side.
18
Route lashing through upper cutouts of endboard, around front of trailer bed above the electrical cable
assembly and trailer bulk head. Secure with loadbinder to trailer's left side.
19
Secure cable guide rod to upper lashing using type I, 1/4-inch cotton webbing and tape.
Figure 5-12. Trailer accompanying load stowed (Continued)
5-53
C2, FM 10-500-71/TO 13C7-6-141

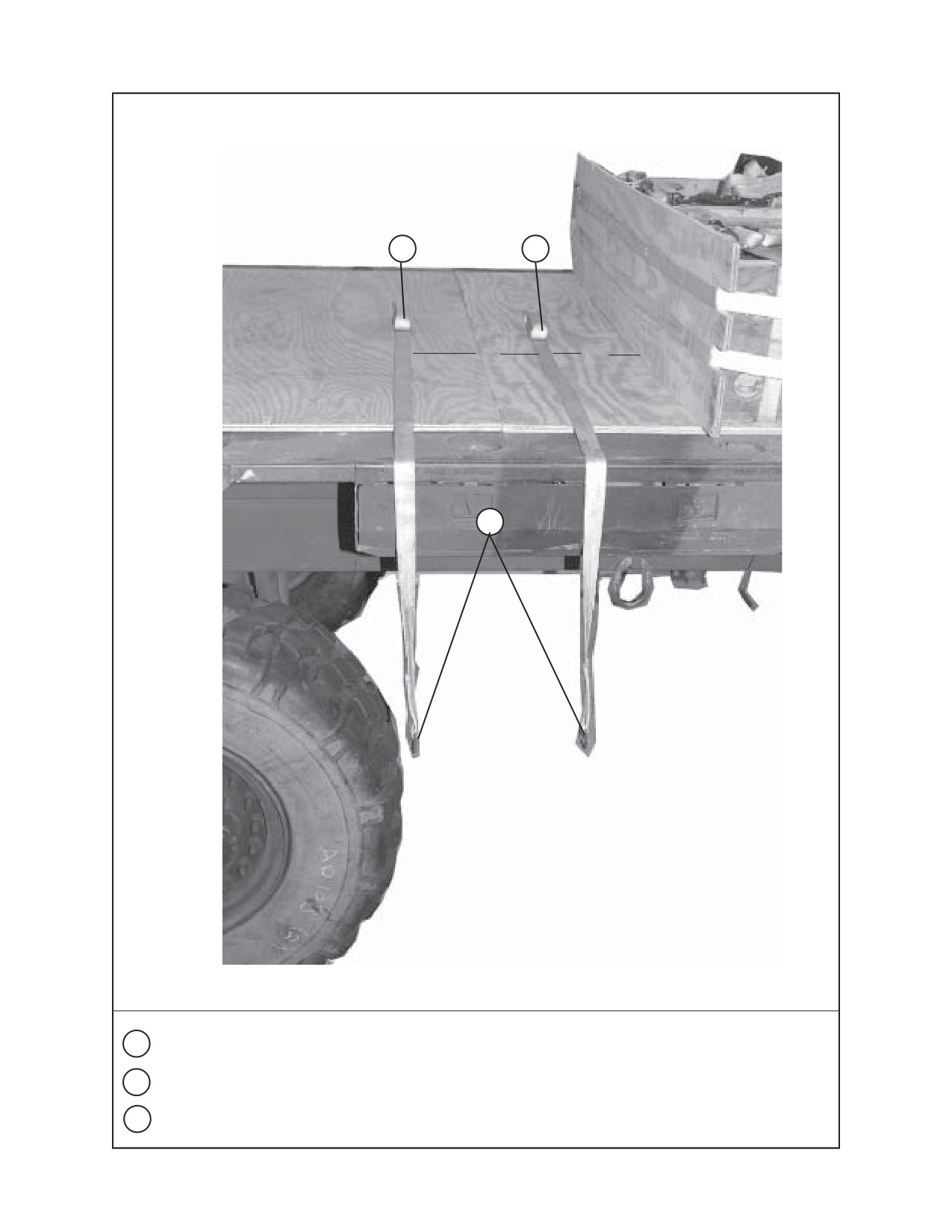

21
20
16"
10"
22
20
Position a 15-foot lashing 10 inches from the endboard of cell #1 on the right side of the trailer bed.
21
Position a second 15-foot lashing 16 inches from the lashing previously positioned.
22
Ensure the lashings D-ring is 36 inches over the edge of the trailer.
Figure 5-12. Trailer accompanying load stowed (Continued)
5-54















Content      ..     6      7      8      9     ..
