Rigging Forward Area Surgical Team (FAST) Equipment on a 12-Foot, Type V Platform for Low-Velocity
Airdrop

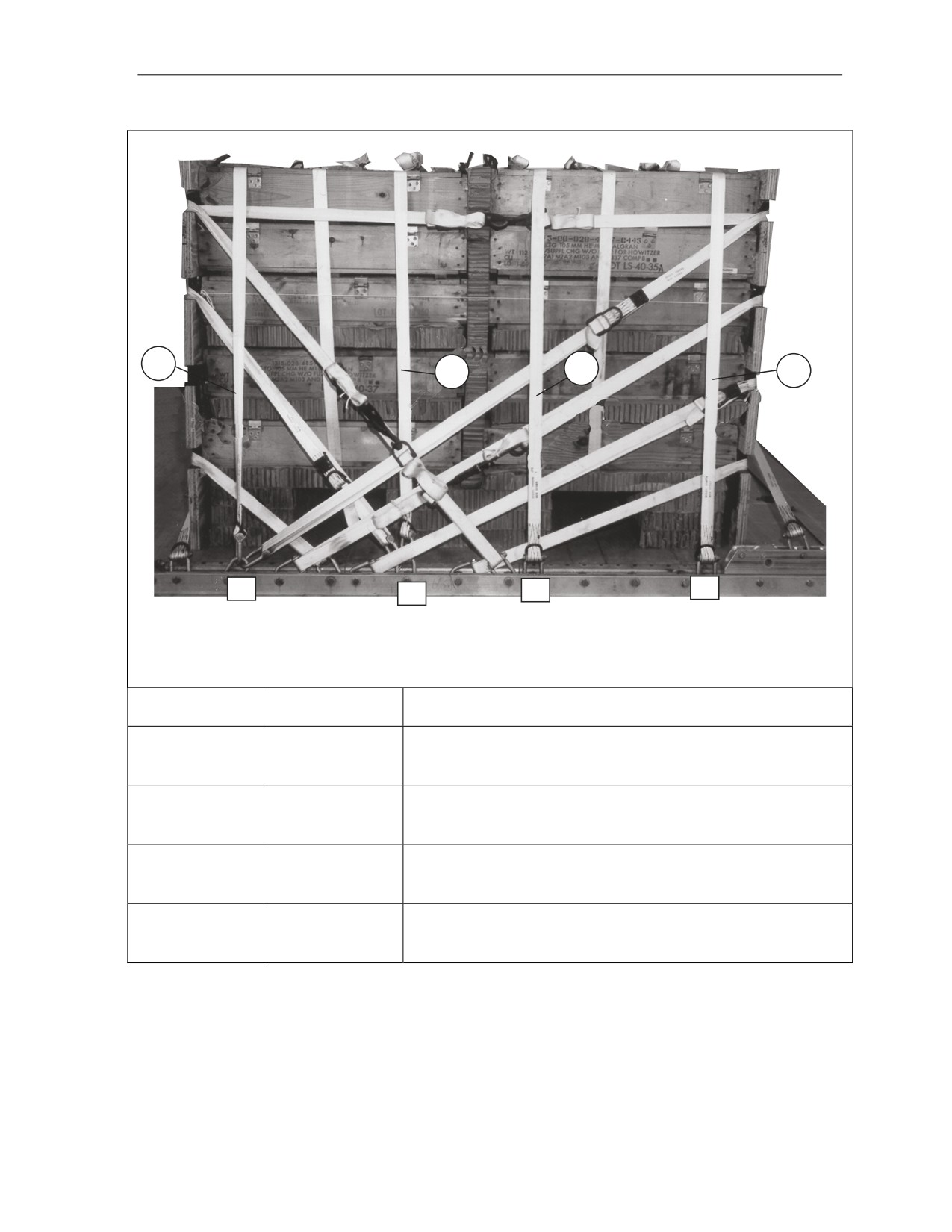

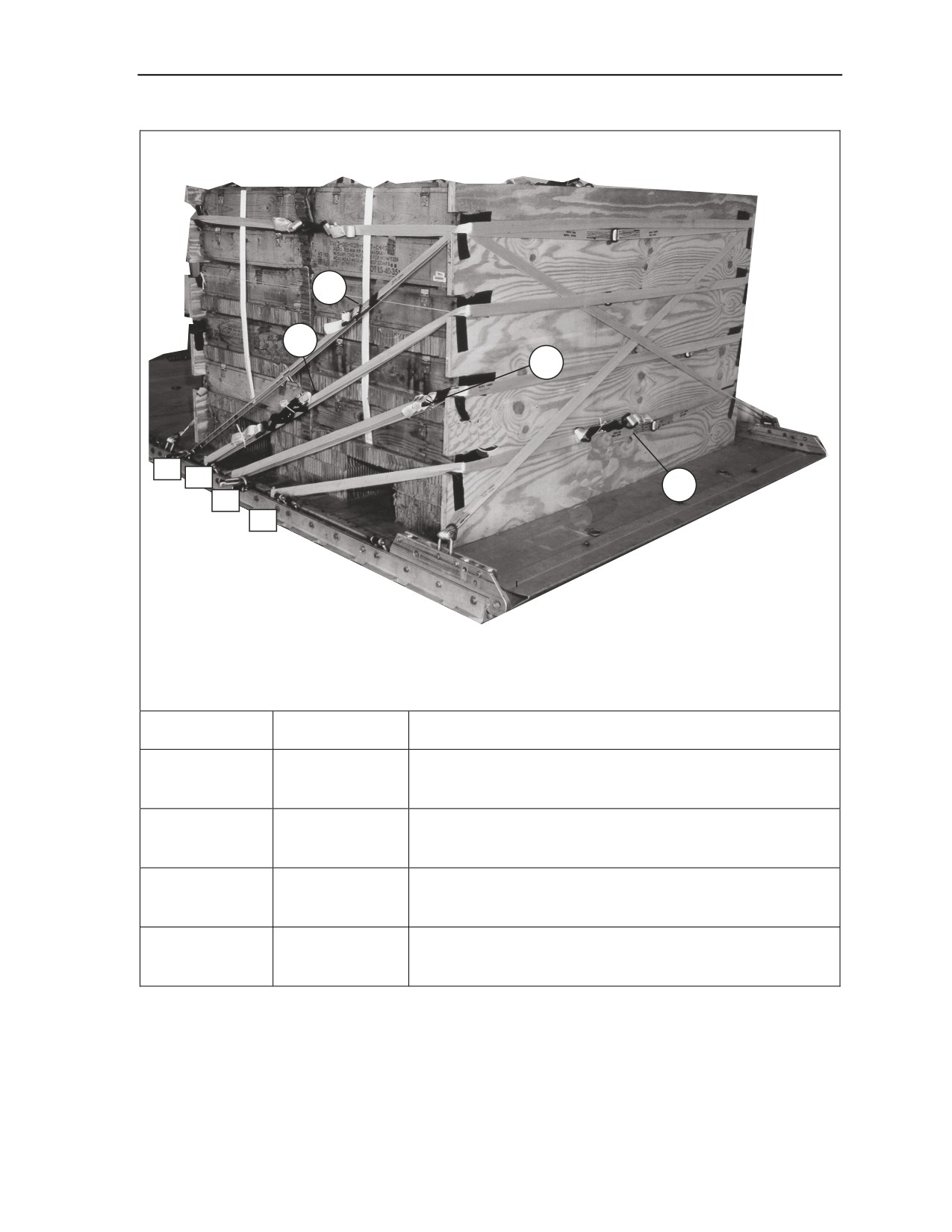

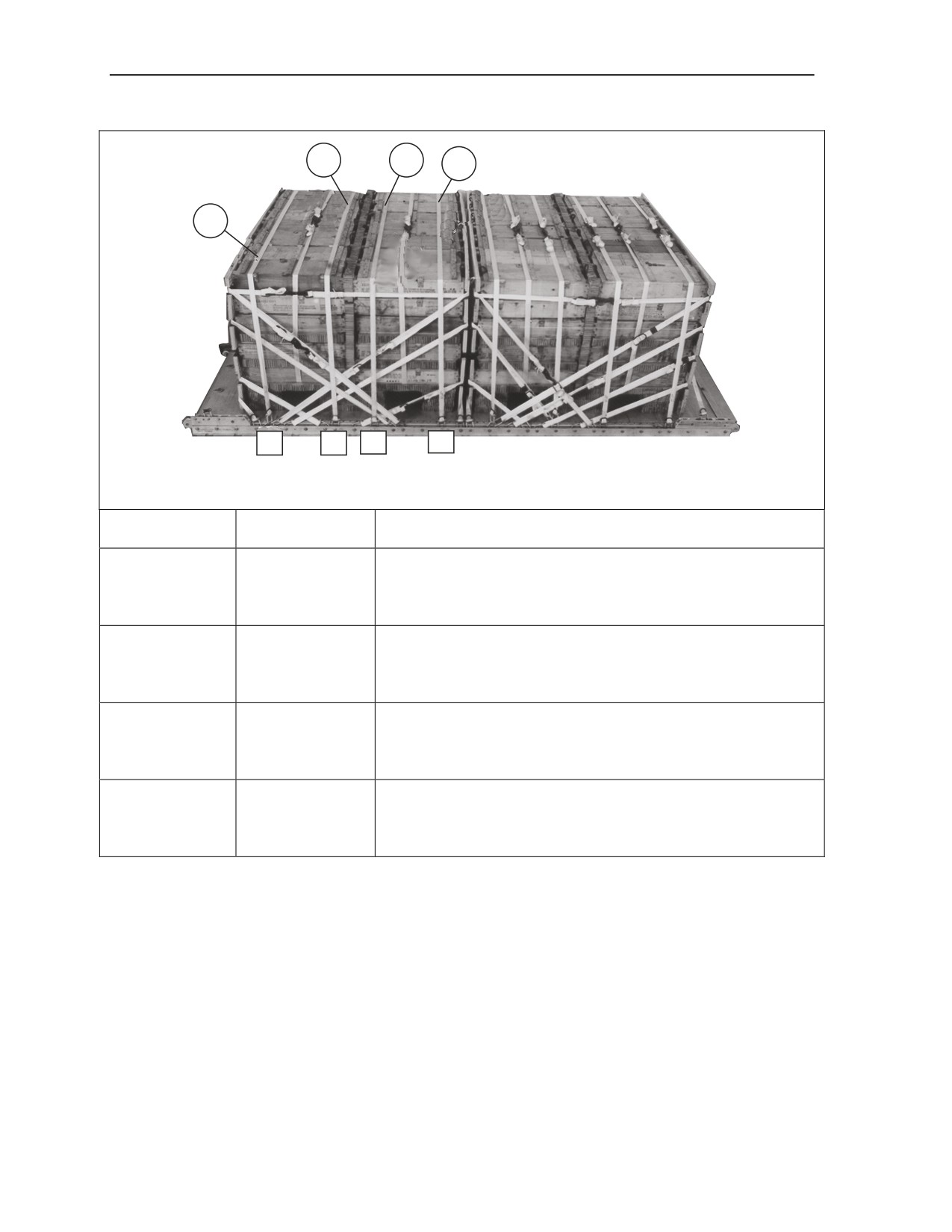

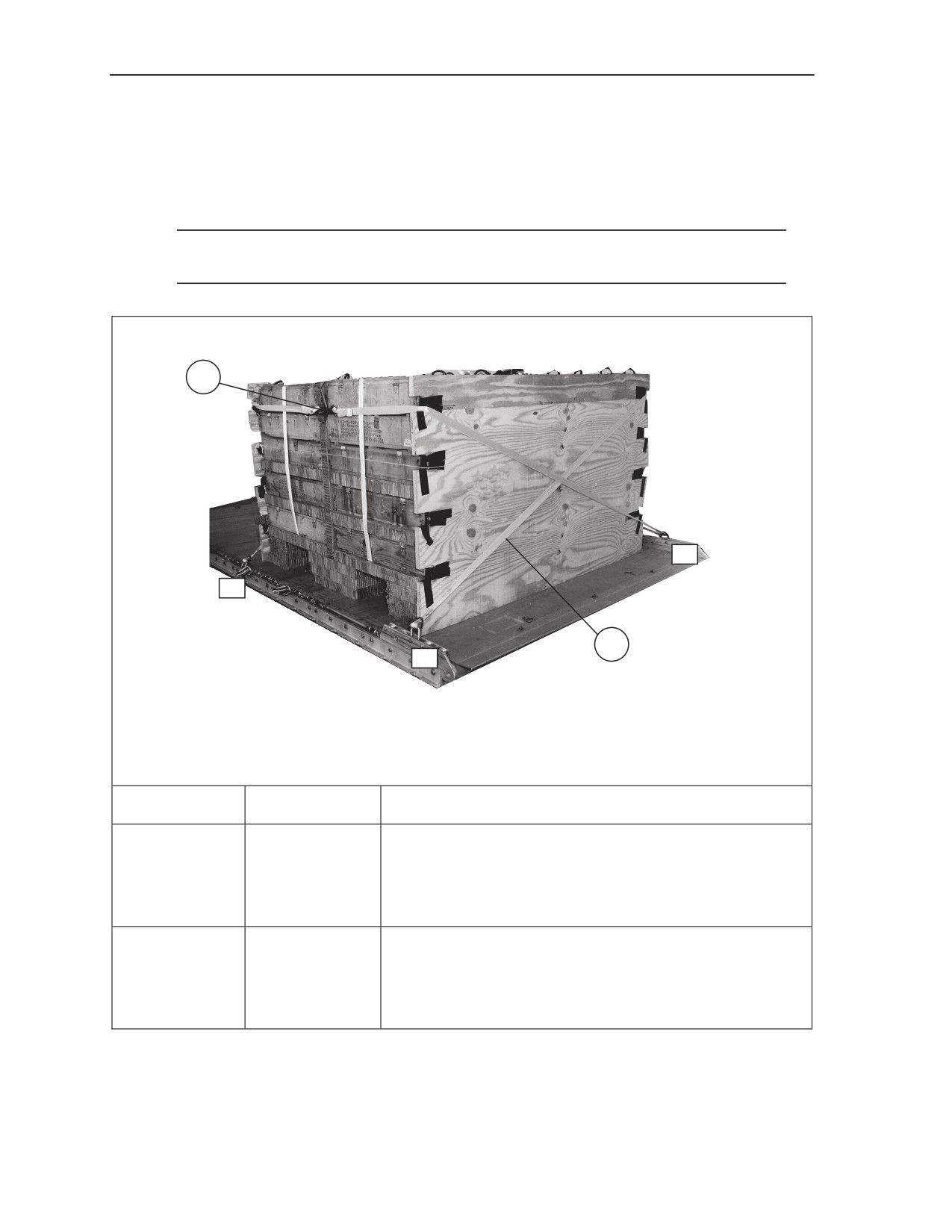

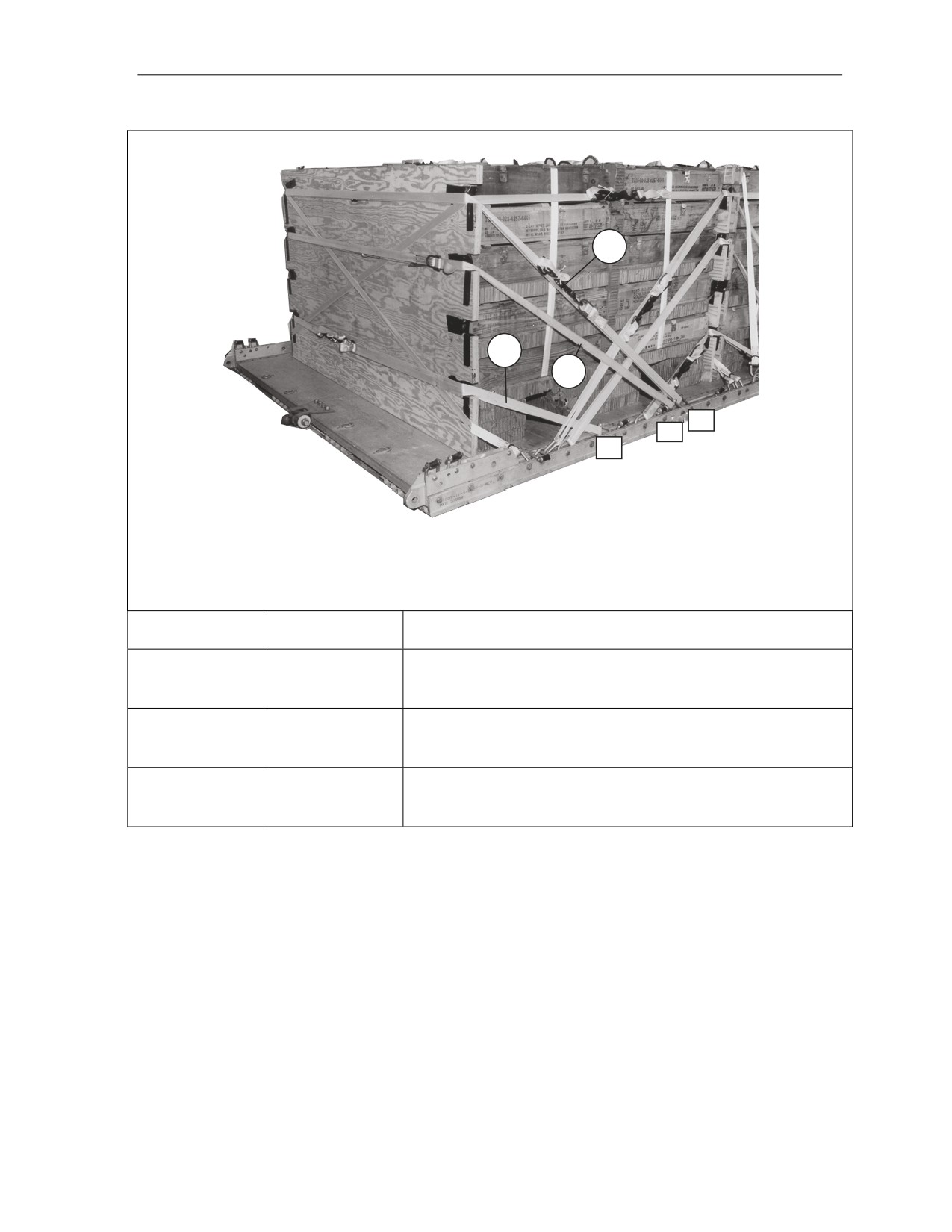

INSTALLING LASHINGS

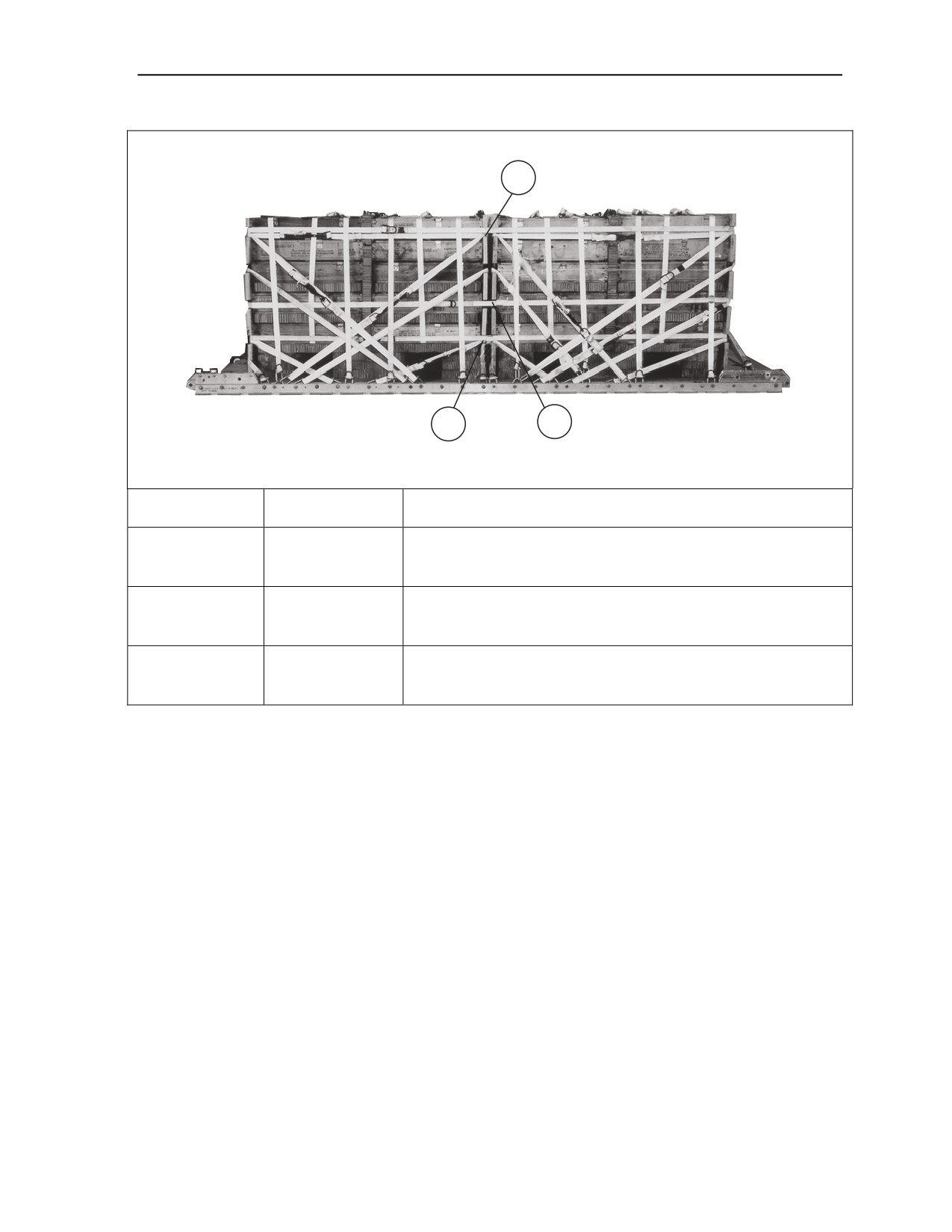

4-9. Install the lashings according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO
13C7-1-5 and as shown in Figure 4-10.
REAR
FRONT
14
9
6
1
1
4
3
2
1 Form a 30-foot tiedown strap. Pass the free ends of the strap through clevises 1 and 1A.
Bring the free ends to the top of the box and secure with two D-rings and a load binder.
2 Form a 30-foot tiedown strap. Pass the free ends of the strap through clevises 6 and 6A.
Bring the free ends to the top of the box and secure with two D-rings and a load binder.
3 Form a 30-foot tiedown strap. Pass the free ends of the strap through clevises 9 and 9A.
Bring the free ends to the top of the box and secure with two D-rings and a load binder.
4 Form a 30-foot tiedown strap. Pass the free ends of the strap through clevises 14 and 14A.
Bring the free ends to the top of the box and secure with two D-rings and a load binder.

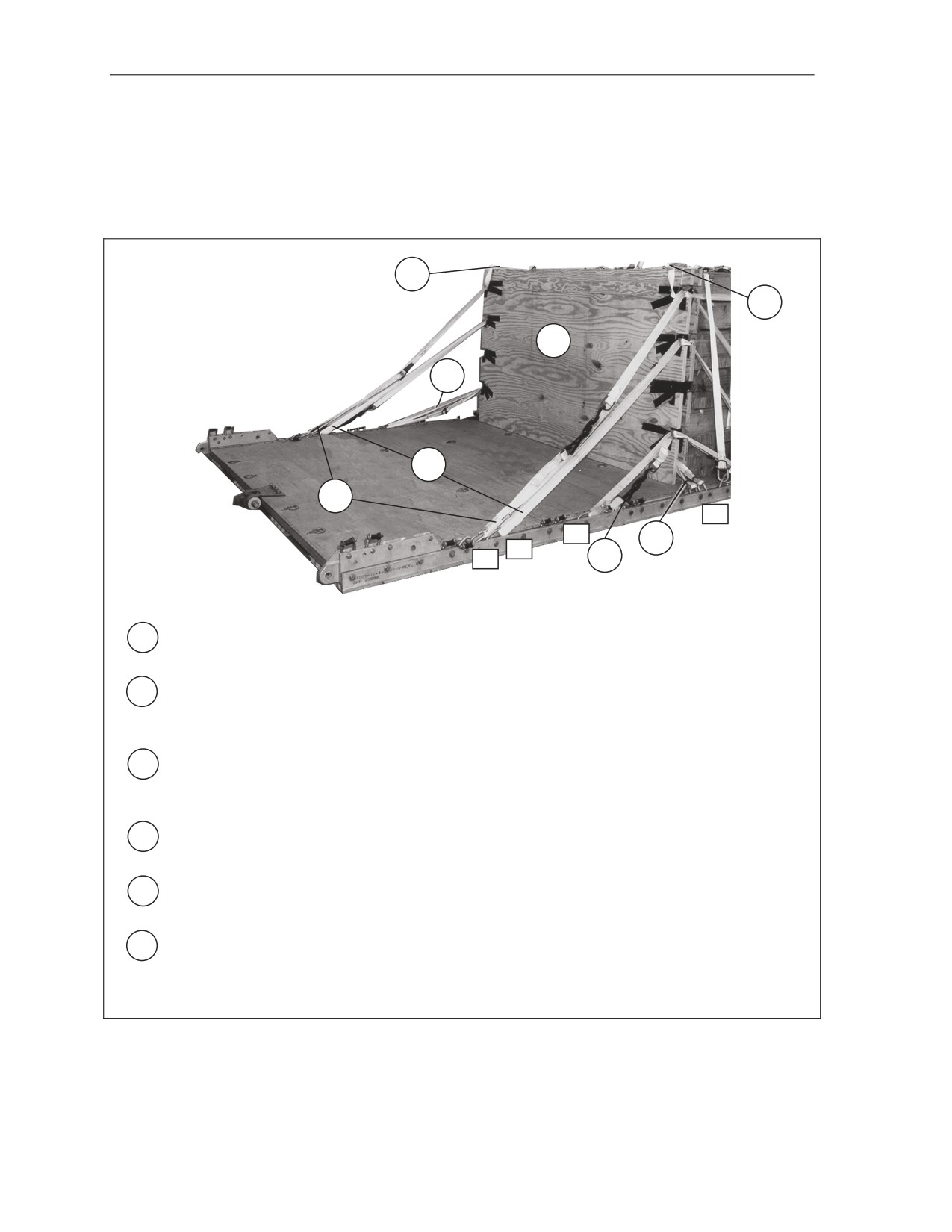

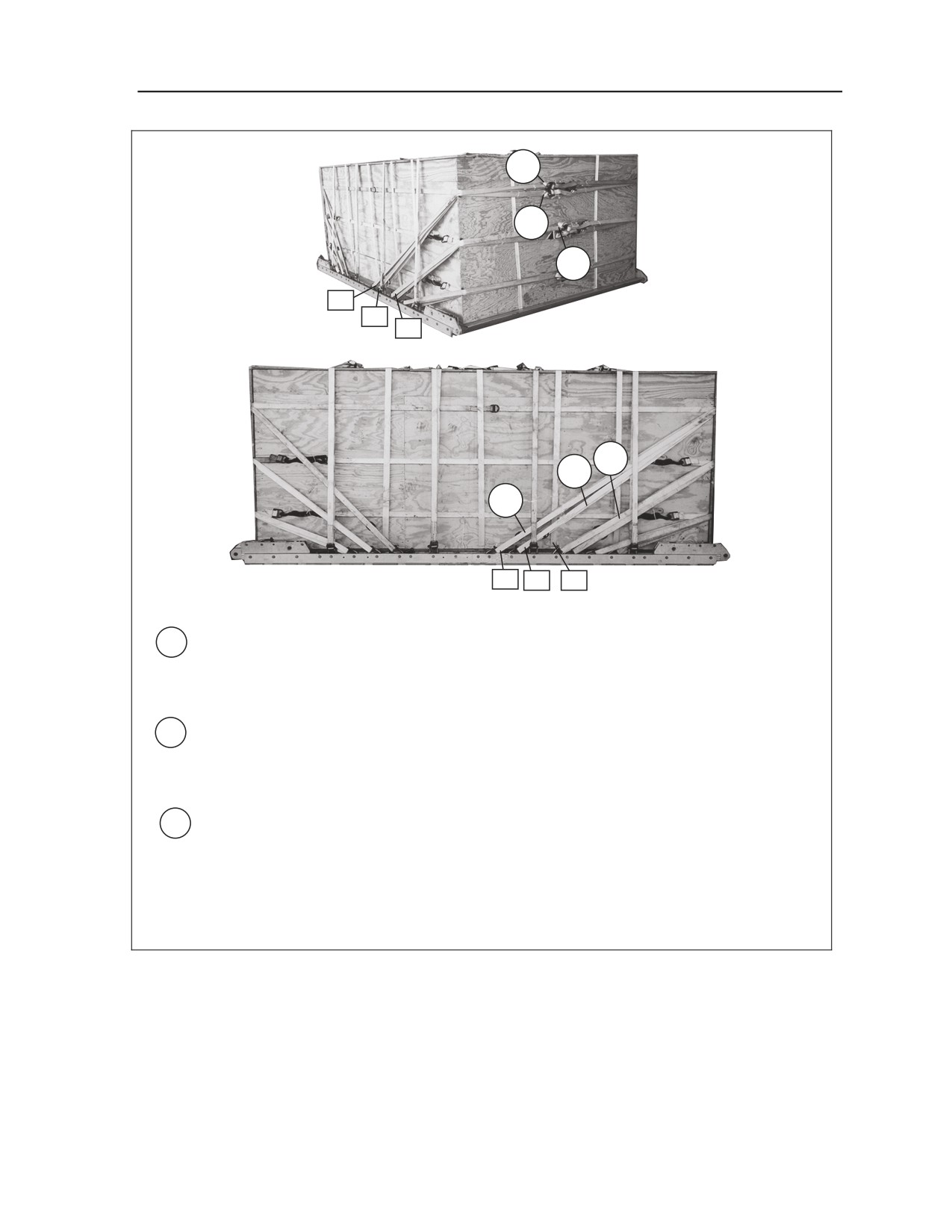

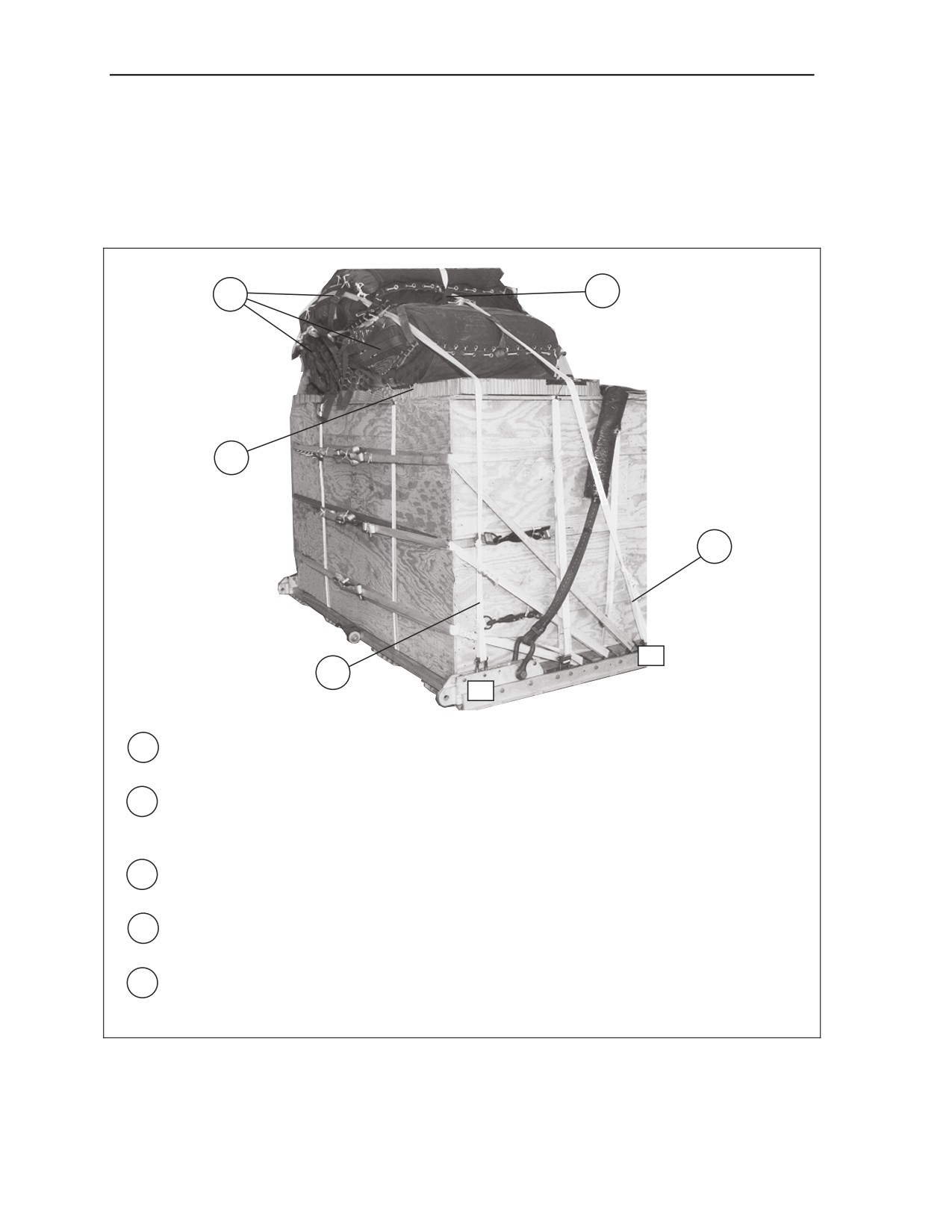

Figure 4-10. Lashings Installed
20 February 2009
FM 4-20.112/TO 13C7-1-8
4-15
Chapter 4
7
4
3
2
FRONT
6
5
FRONT
7
6
5
4
3
2
5 Form a 30-foot tiedown strap. Pass the free ends of the strap through the lower cutouts in the
front of the storage box, through clevises 2 and 2A and back through the lower cutouts to the
front of the storage box. Secure the free ends of the strap with two D-rings and a load binder.
6 Form a 30-foot tiedown strap. Pass the free ends of the strap through the lower cutouts in the
front of the storage box, through clevises 3 and 3A and back through the lower cutouts to the
front of the storage box. Secure the free ends of the strap with two D-rings and a load binder.
7 Form a 30-foot tiedown strap. Pass the free ends of the strap through the center cutouts in
the front of the storage box, through clevises 4 and 4A and back through the center cutouts
to the front of the storage box. Secure the free ends of the strap with two D-rings and a load
binder.

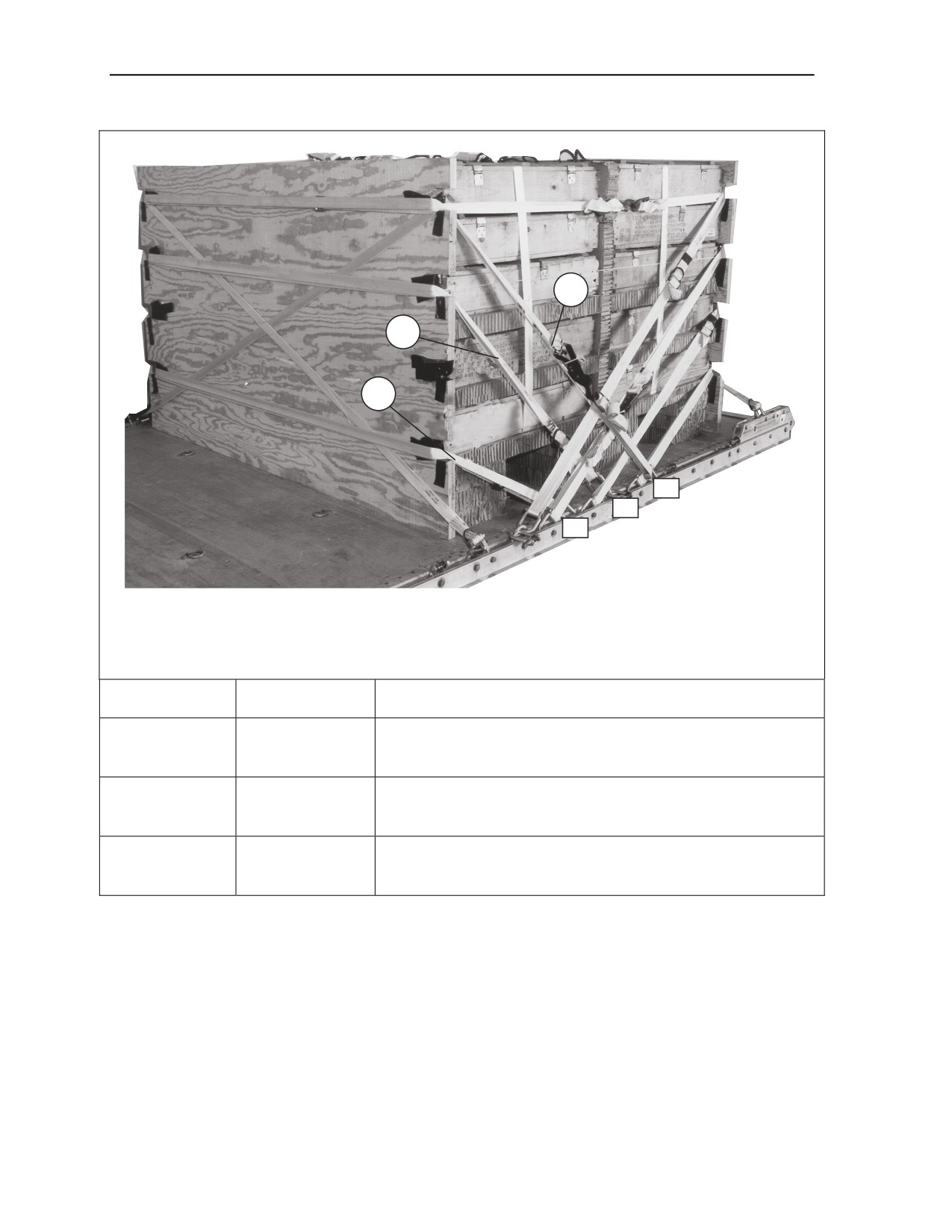

Figure 4-10. Lashings Installed (Continued)
4-16
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Forward Area Surgical Team (FAST) Equipment on a 12-Foot, Type V Platform for Low-Velocity
Airdrop
10
9
8
8
7
FRONT
5
REAR
8
FRONT
9
10
8
7
5
8 Form a 30-foot tiedown strap. Pass the free ends of the strap through the center cutouts in
the front of the storage box, through clevises 5 and 5A, and back through the center
cutouts to the front of the storage box. Secure the free ends of the strap with two D-rings
and a load binder.
9 Form a 30-foot tiedown strap. Pass the free ends of the strap through the top cutouts in the
front of the storage box, through clevises 7 and 7A and back through the top cutouts to the
front of the storage box. Secure the free ends of the strap with two D-rings and a load
binder.
10 Form a 30-foot tiedown strap. Pass the free ends of the strap through the top cutouts in the
front of the storage box, through clevises 8 and 8A and back through the top cutouts to the
front of the storage box. Secure the free ends of the strap with two D-rings and a load
binder.

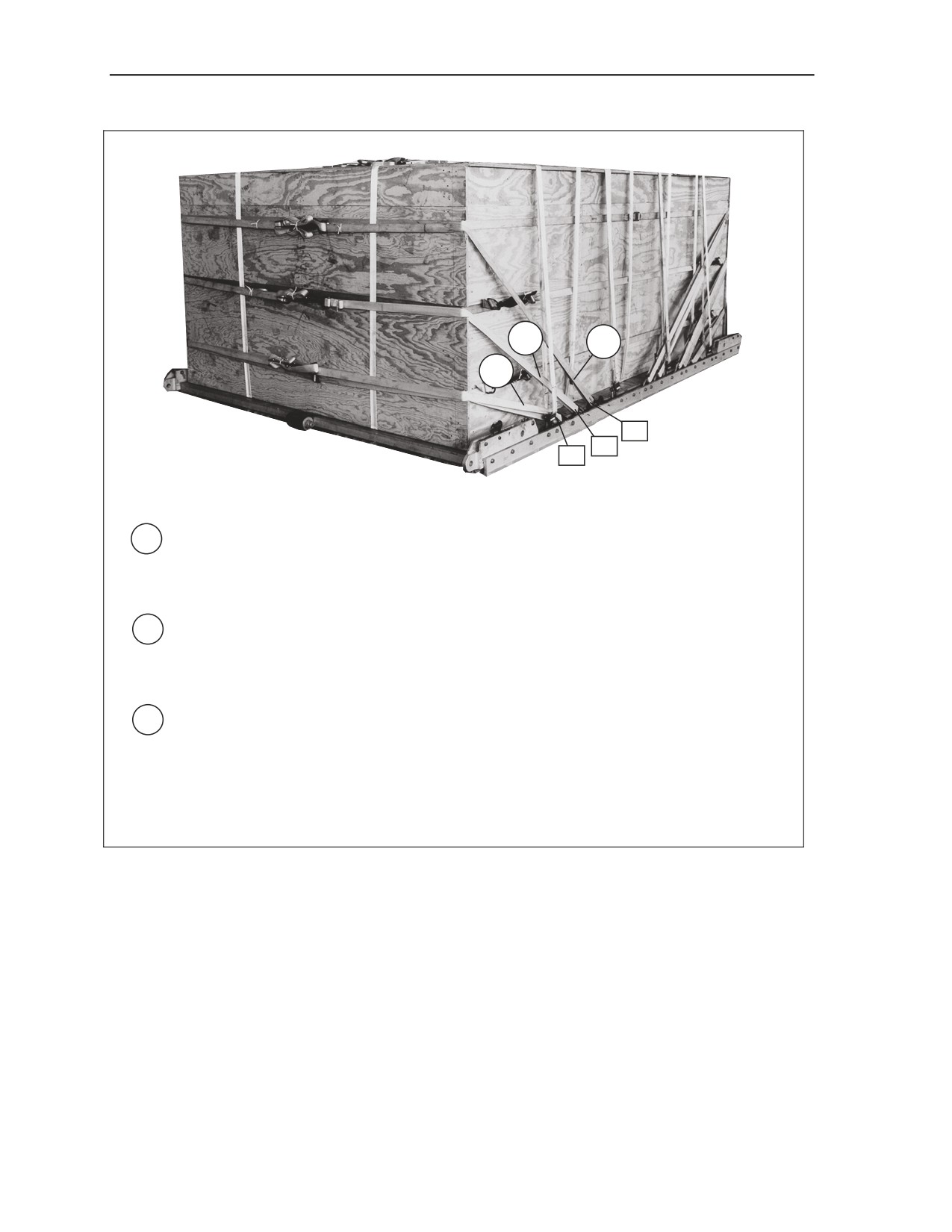

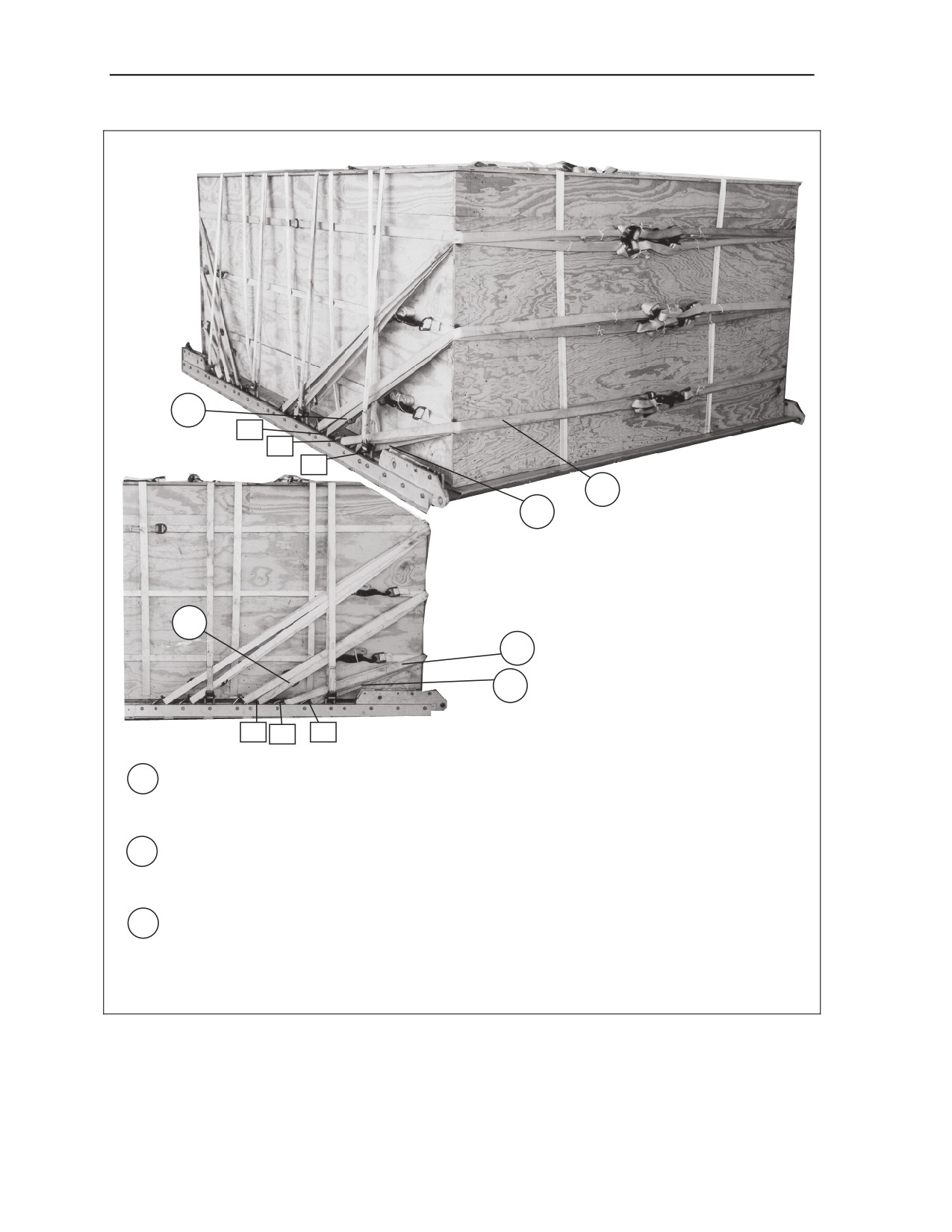

Figure 4-10. Lashings Installed (Continued)
20 February 2009
FM 4-20.112/TO 13C7-1-8
4-17
Chapter 4
12
11
13
REAR
11
12
13
11 Form a 30-foot tiedown strap. Pass the free ends of the strap through the top cutouts in the
rear of the storage box, through clevises 11 and 11A and back through the top cutouts to
the front of the storage box. Secure the free ends of the strap with two D-rings and a load
binder.
12 Form a 30-foot tiedown strap. Pass the free ends of the strap through the center cutouts in
the rear of the storage box, through clevises 12 and 12A and back through the center
cutouts to the rear of the storage box. Secure the free ends of the strap with two D-rings
and a load binder.
13 Form a 30-foot tiedown strap. Pass the free ends of the strap through the lower cutouts in
the rear of the storage box, through clevises 13 and 13A and back through the lower
cutouts to the rear of the storage box. Secure the free ends of the strap with two D-rings
and a load binder.

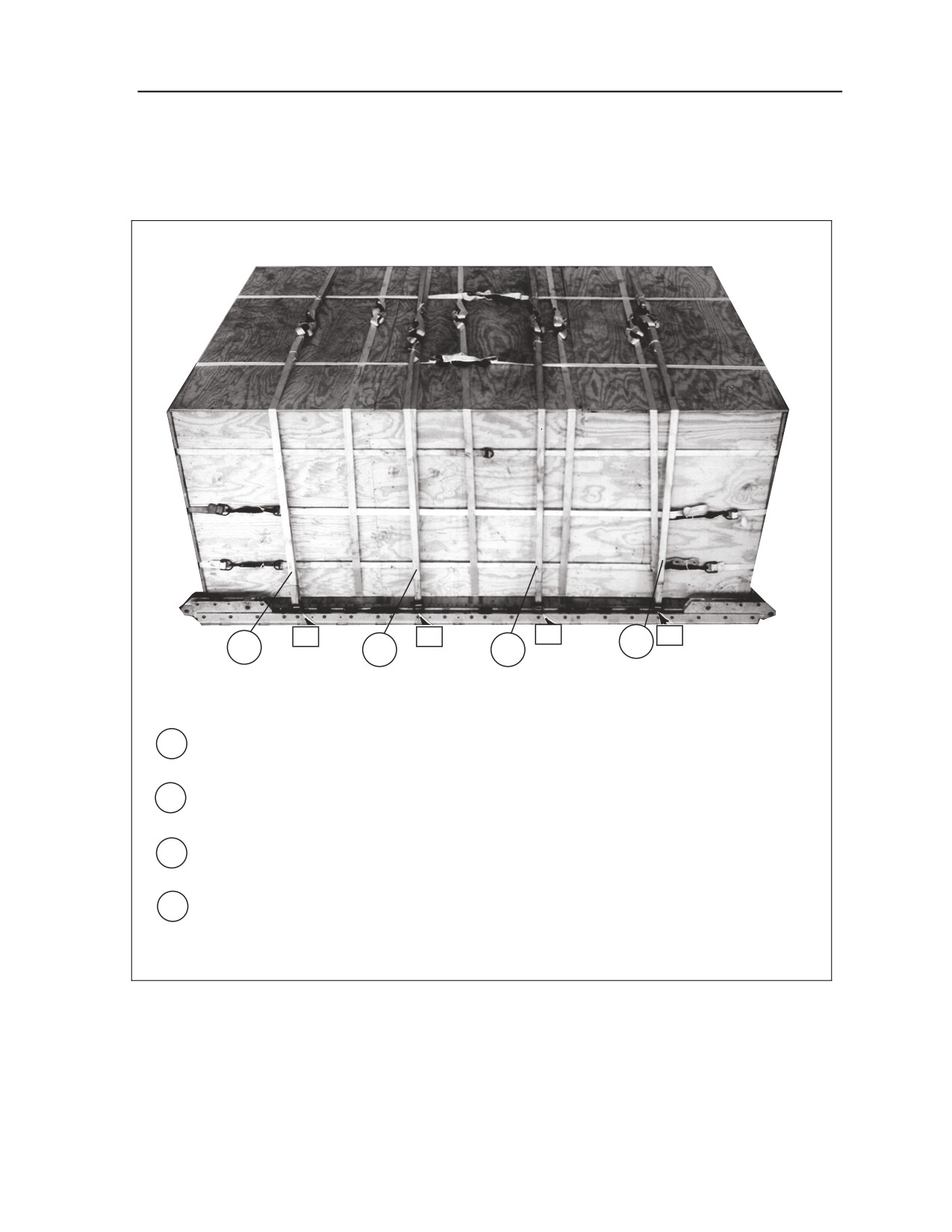

Figure 4-10. Lashings Installed (Continued)
4-18
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Forward Area Surgical Team (FAST) Equipment on a 12-Foot, Type V Platform for Low-Velocity
Airdrop

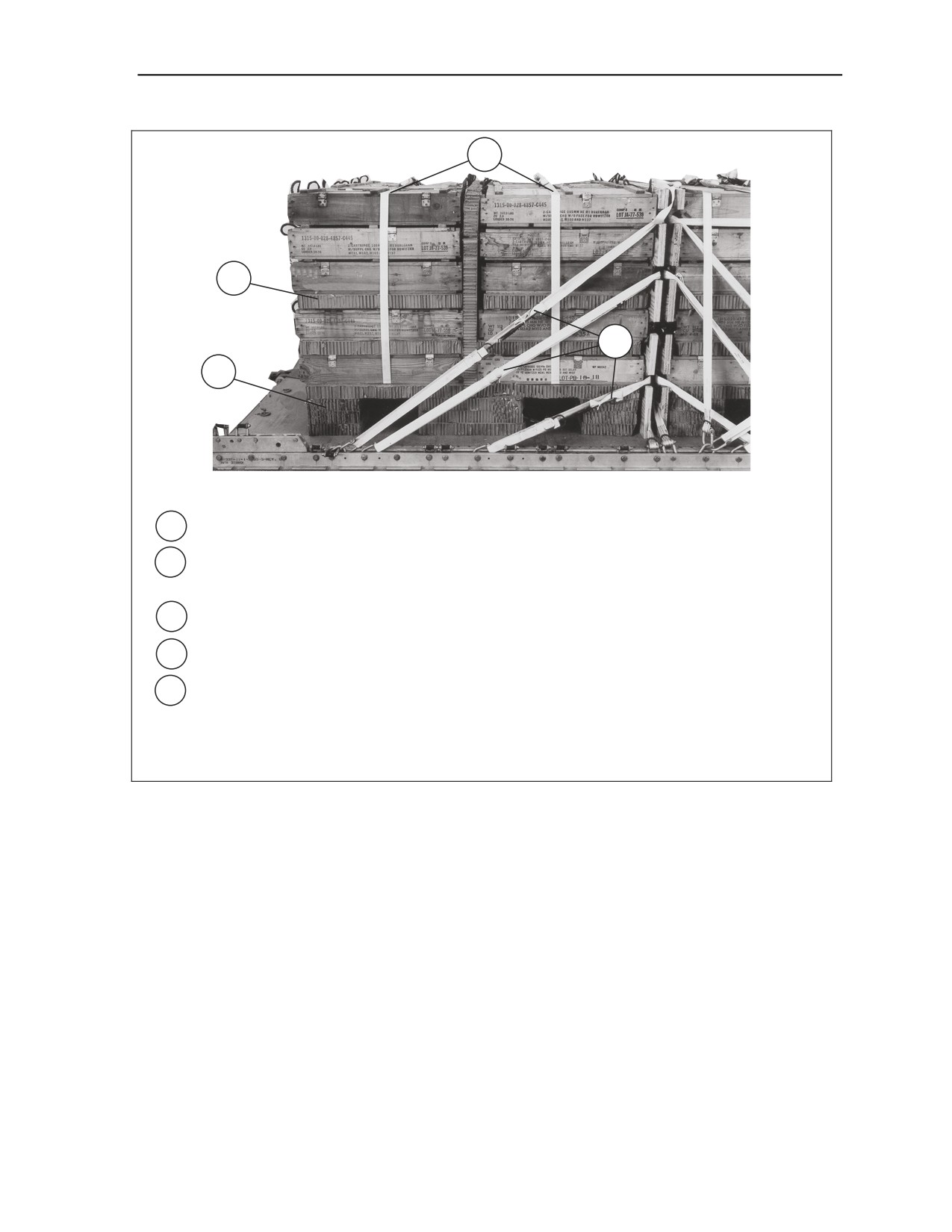

INSTALLING SUSPENSION SLINGS AND DEADMAN’S TIE

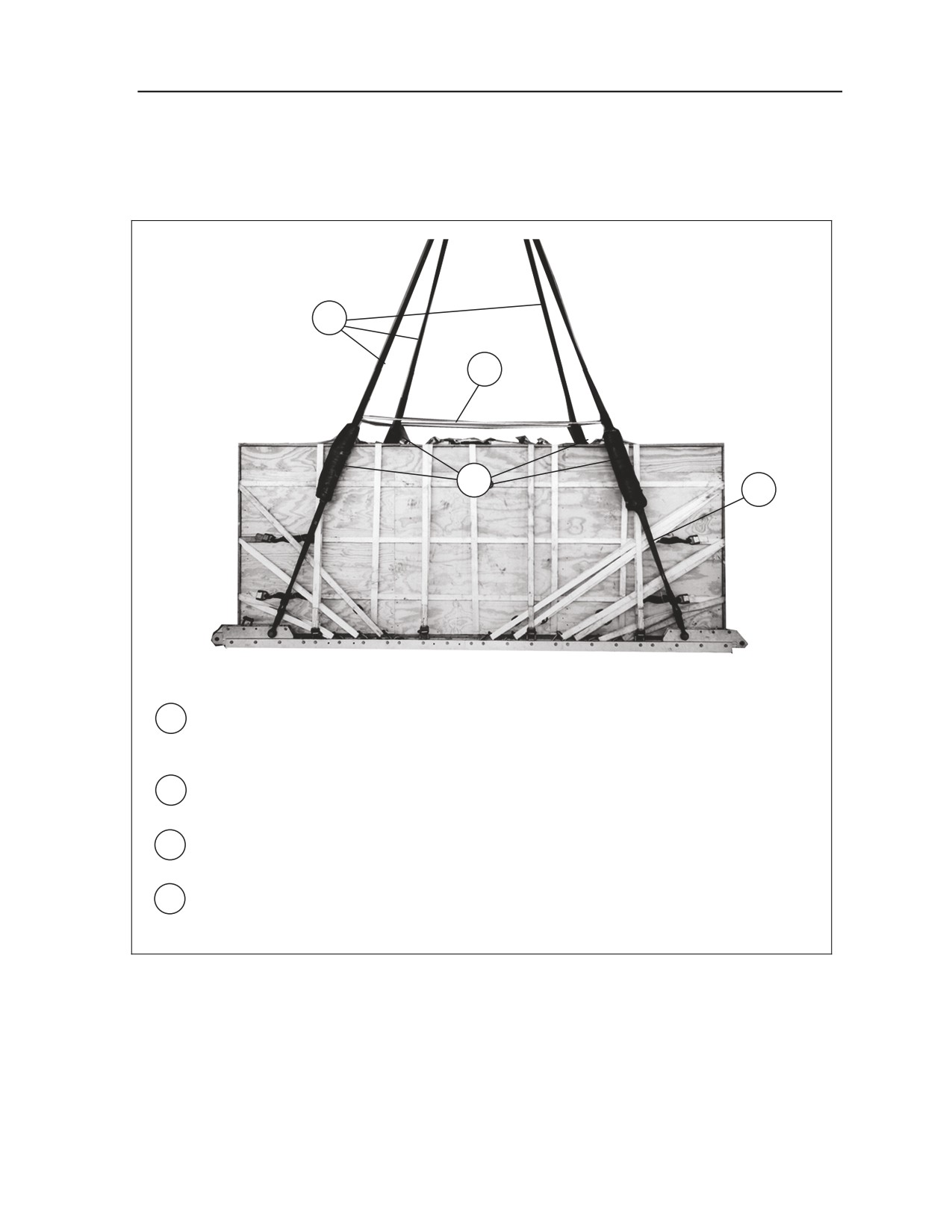

4-10. Install the suspension slings and deadman’s tie as shown in Figure 4-11.
2
4
3
1
1 Pass one end of a 16-foot (2-loop), type XXVI nylon suspension sling through the bell
portion of a large suspension clevis. Bolt the clevis to the suspension hole of the right front
tandem link.
2 Install on the left front tandem link and the right rear and left rear tandem links a 16-foot (2-
loop), type XXVI nylon suspension sling as in step 1.
3 Pad each suspension sling with a 9- by 24-inch piece of felt from a point 44 inches above
the suspension clevis. Tape the felt 2 inches above and below the padding.
4 Raise the slings and install the deadman's tie according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.

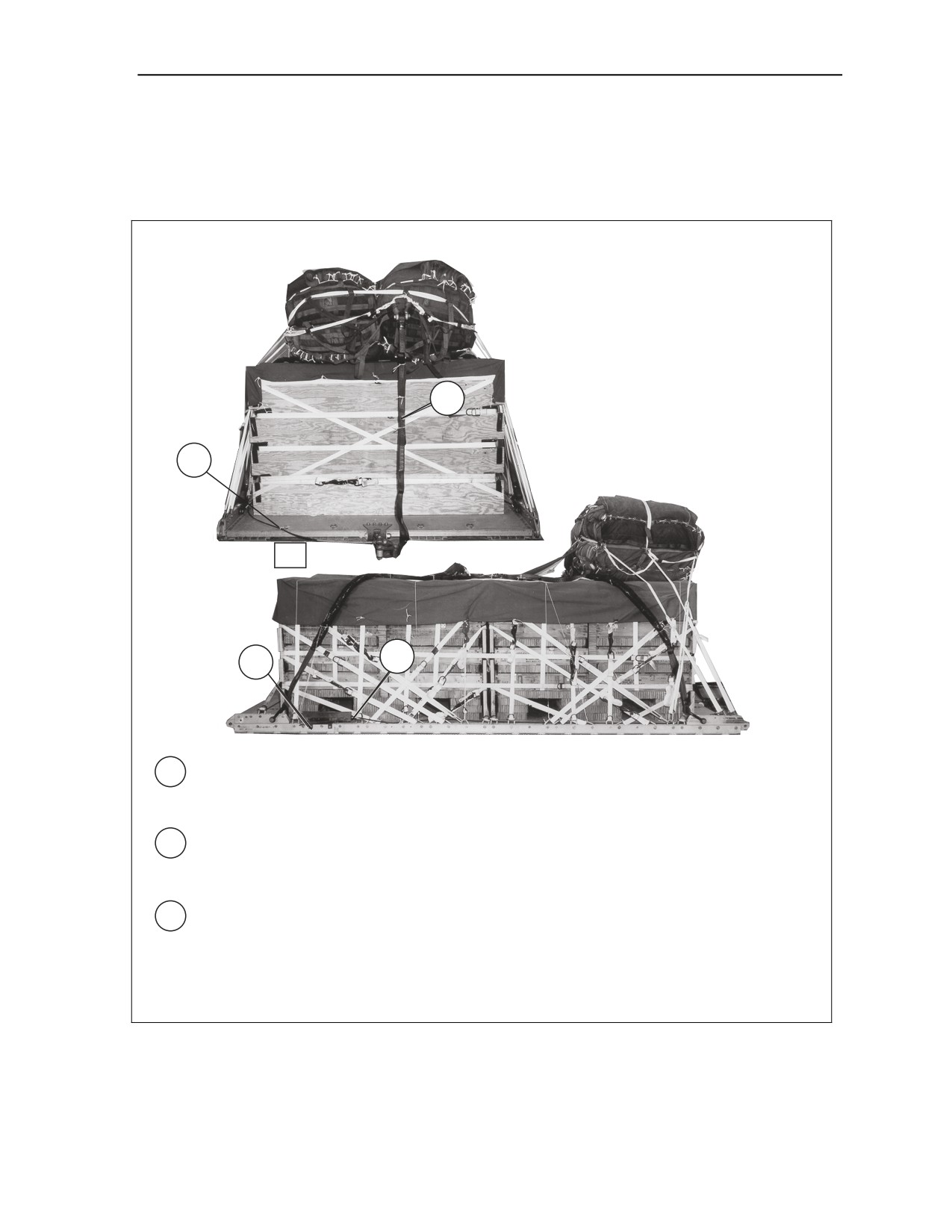

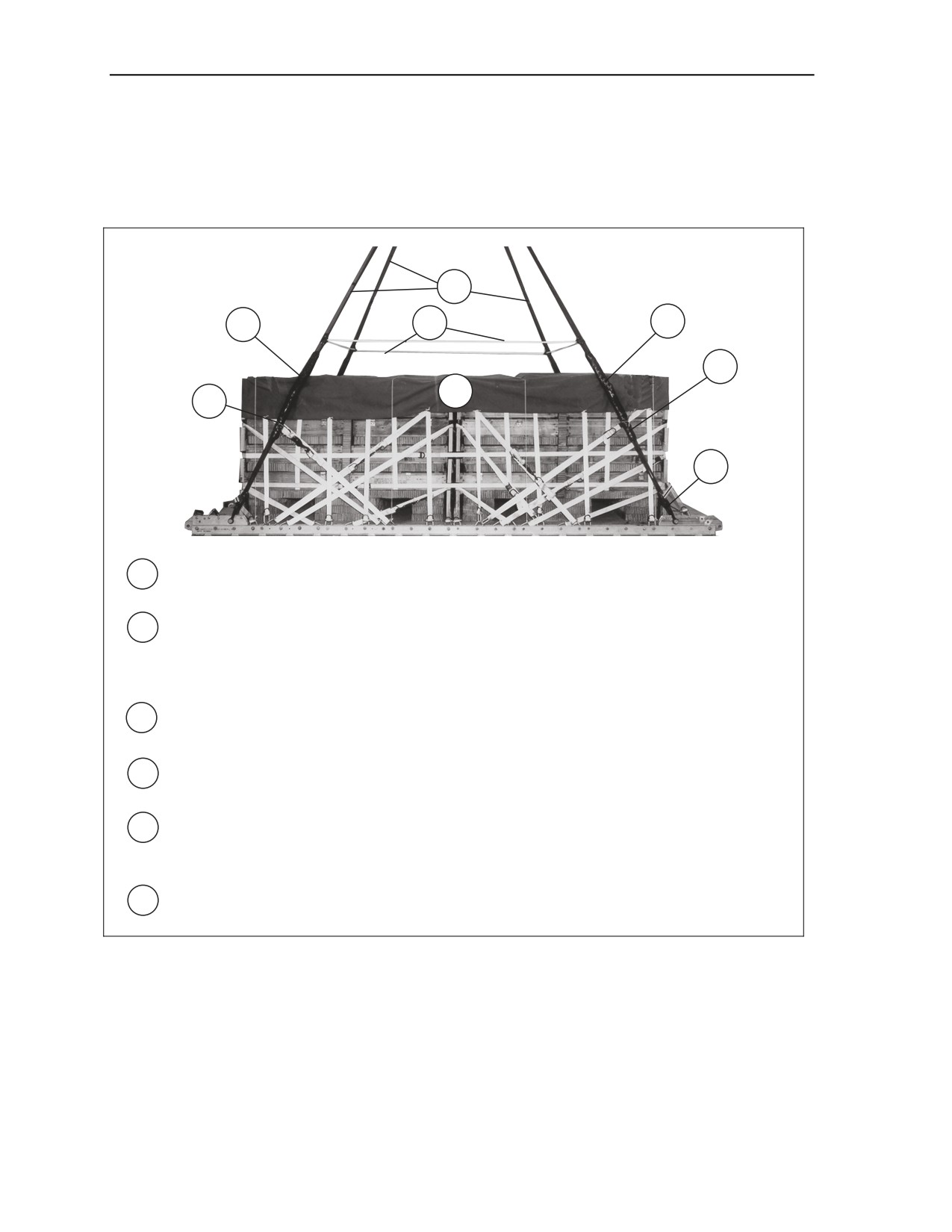

Figure 4-11. Suspension Slings and Deadman’s Tie Installed
20 February 2009
FM 4-20.112/TO 13C7-1-8
4-19
Chapter 4

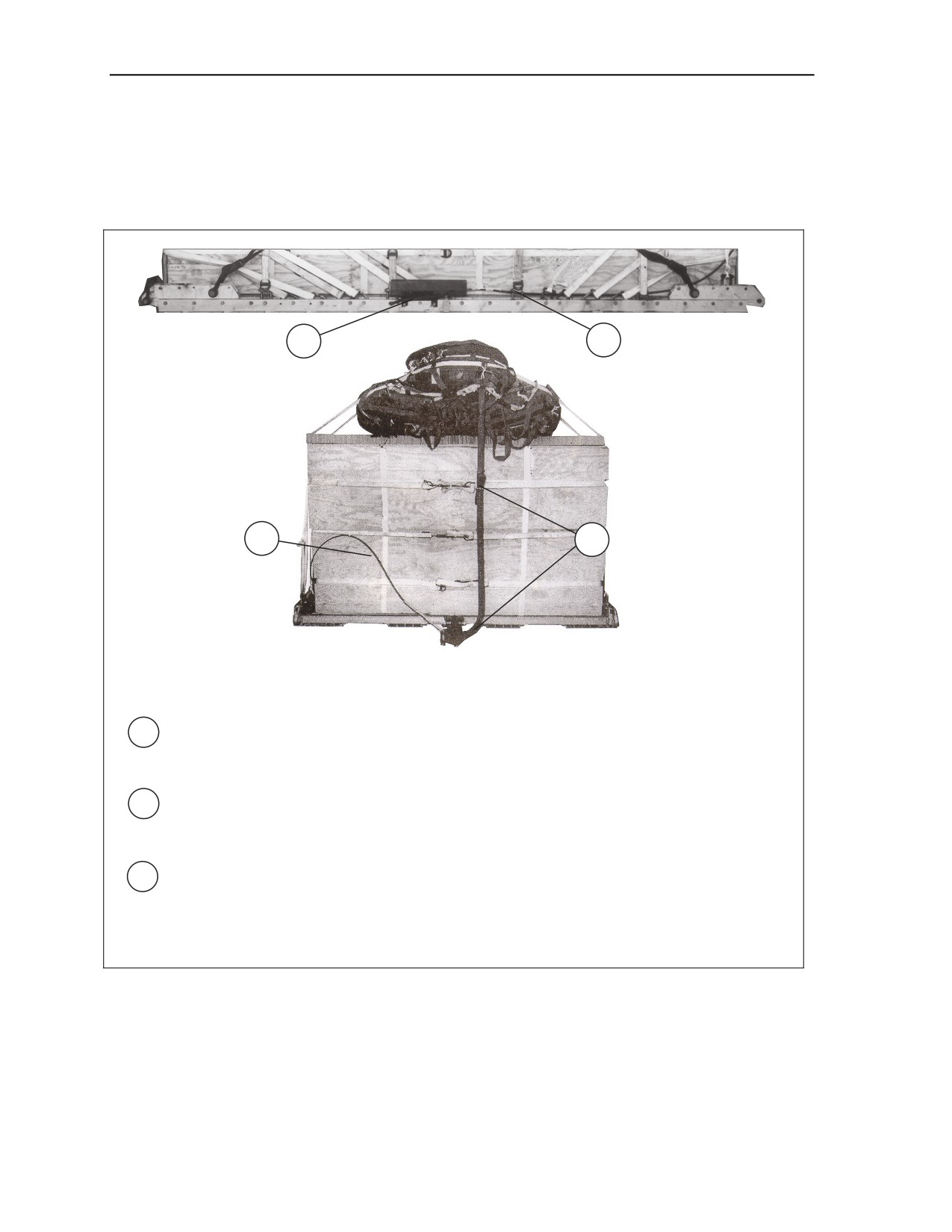

PREPARING AND STOWING CARGO PARACHUTES
4-11. Compute the parachute requirements for the load being rigged. Prepare and stow the cargo
parachutes according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 and
as shown in Figure 4-12.
2
5
1
4
10
3
15
1 Place a 96- by 36-inch piece of honeycomb at the rear of the load. Tie the honeycomb in
place with type III nylon cord. Tape the honeycomb where the cord passes.
2 Prepare, position, and stow three G-11B cargo parachutes on top of the pre-positioned
honeycomb according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO
13C7-1-5.
3 Install the rear cargo parachute restraint according to FM 4-20.102/MCRP 4-11.3J/NAVSEA
SS400-AB-MMO-010/TO 13C7-1-5 using type VIII nylon webbing to clevises 15 and 15A.
4 Install the front cargo parachute restraint according to FM 4-20.102/MCRP 4-11.3J/NAVSEA
SS400-AB-MMO-010/TO 13C7-1-5 using type VIII nylon webbing to clevises 10 and 10A.
5 Install the parachute release strap according to FM 4-20.102/MCRP 4-11.3J/NAVSEA
SS400-AB-MMO-010/TO 13C7-1-5SS400-AB-MMO-010/TO 13C7-1-5. (Not shown)

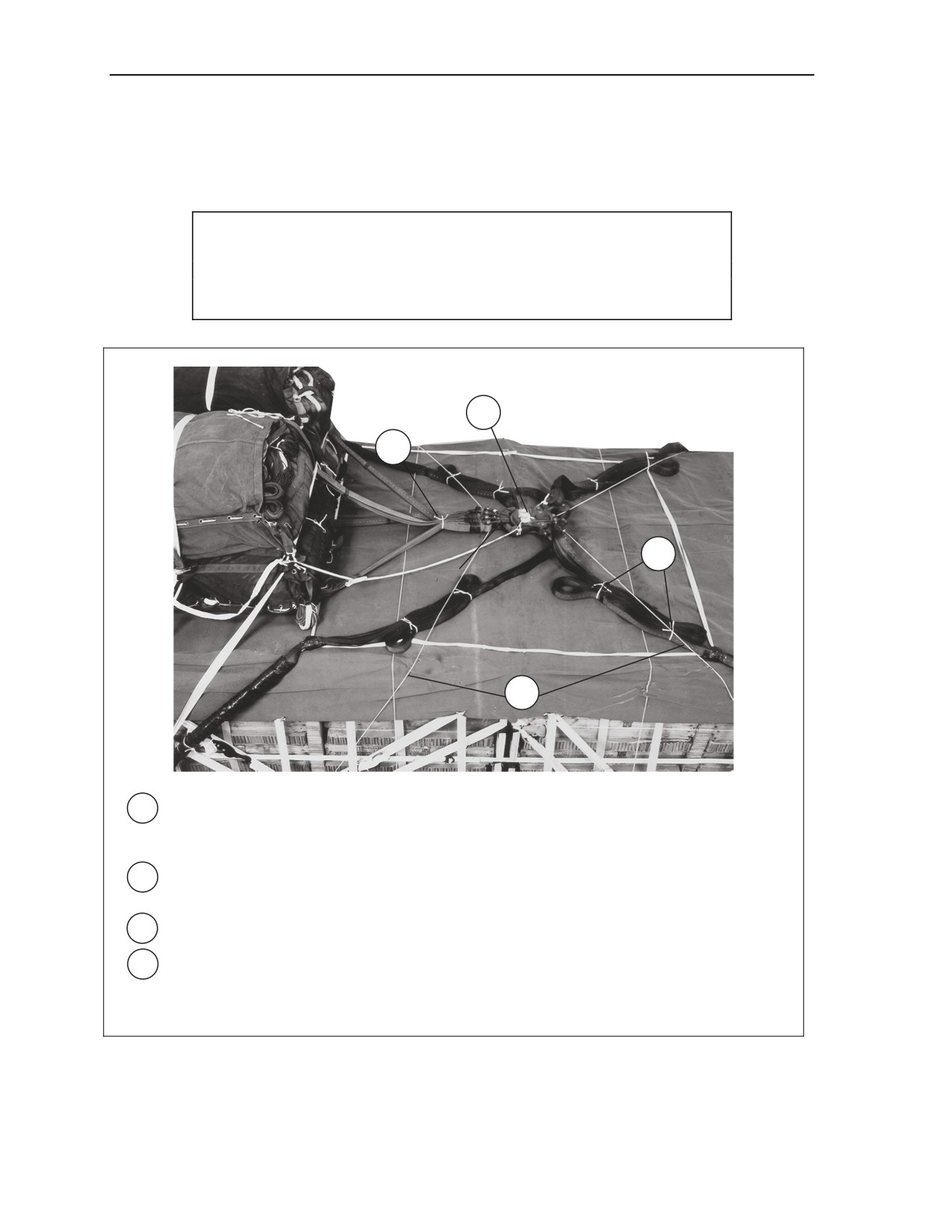

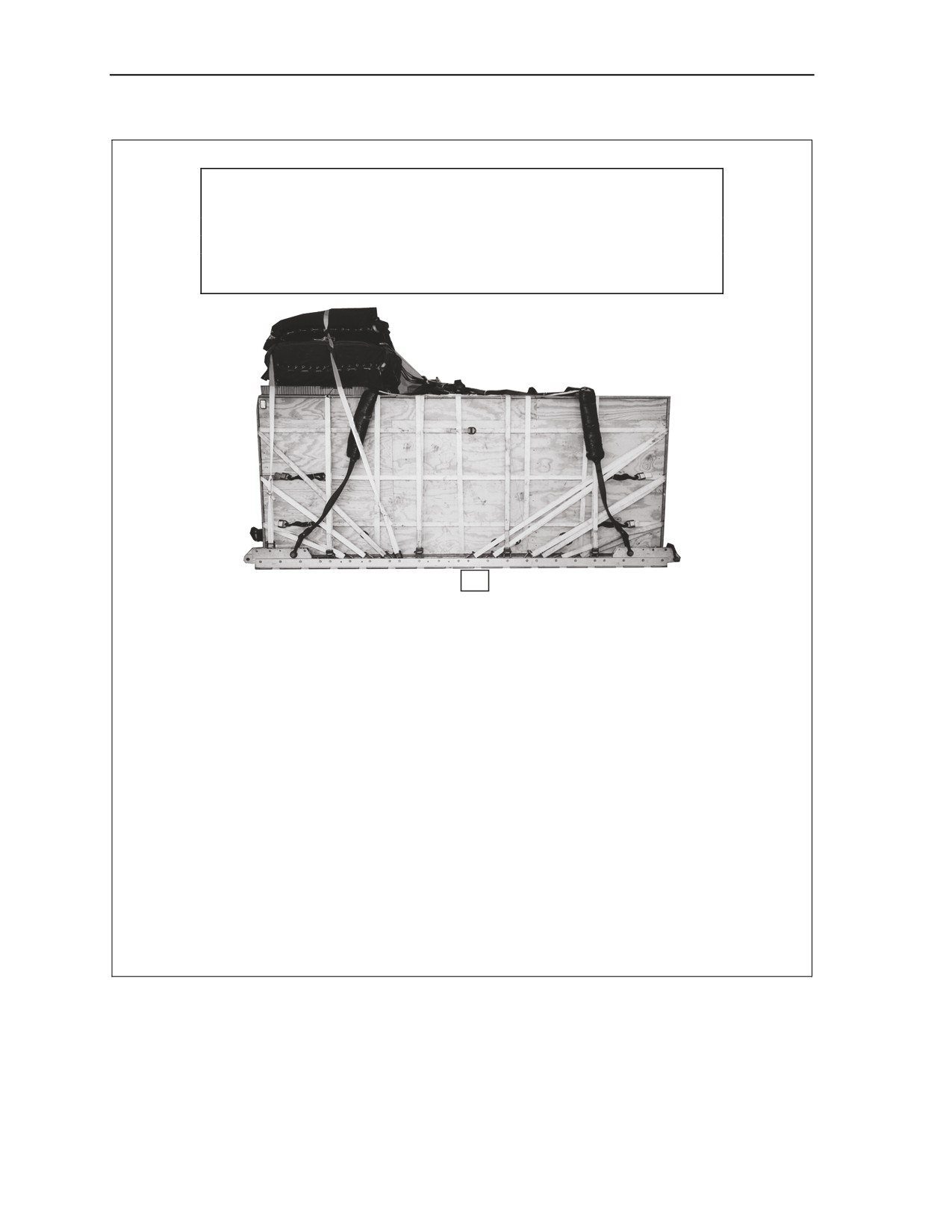

Figure 4-12. Cargo Parachutes Prepared and Stowed
4-20
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Forward Area Surgical Team (FAST) Equipment on a 12-Foot, Type V Platform for Low-Velocity
Airdrop
INSTALLING THE RELEASE SYSTEM
4-12. Prepare, attach, and safety an M-1 cargo parachute release according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 and as shown in Figure 4-13.
CAUTION
When rigging a single parachute load, ensure the rear parachute release safety
tie is routed under the parachute securing ties.
1
3
2
2
4
3
5
1 Center a 12- by 24-inch piece of honeycomb 12 inches in front of the parachutes. Tape the edges of the
honeycomb and secure it to the load with two lengths of type III nylon cord.
Note. Do not cover the deadman’s tie with the release platform.
2 Prepare and install the M-1 cargo parachute release on the honeycomb release platform and attach the
suspension slings and riser extensions.
3 Safety the bottom of the release to tiedown rings A1 and B1 with a length of type III nylon cord according to FM 4-
20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
4 Safety the top of the release assembly to clevises 8 and 8A with a length of type III nylon cord according to FM 4-
20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
5 S-fold and tie any excess suspension slings with one turn of type I, 1/4-inch cotton webbing.

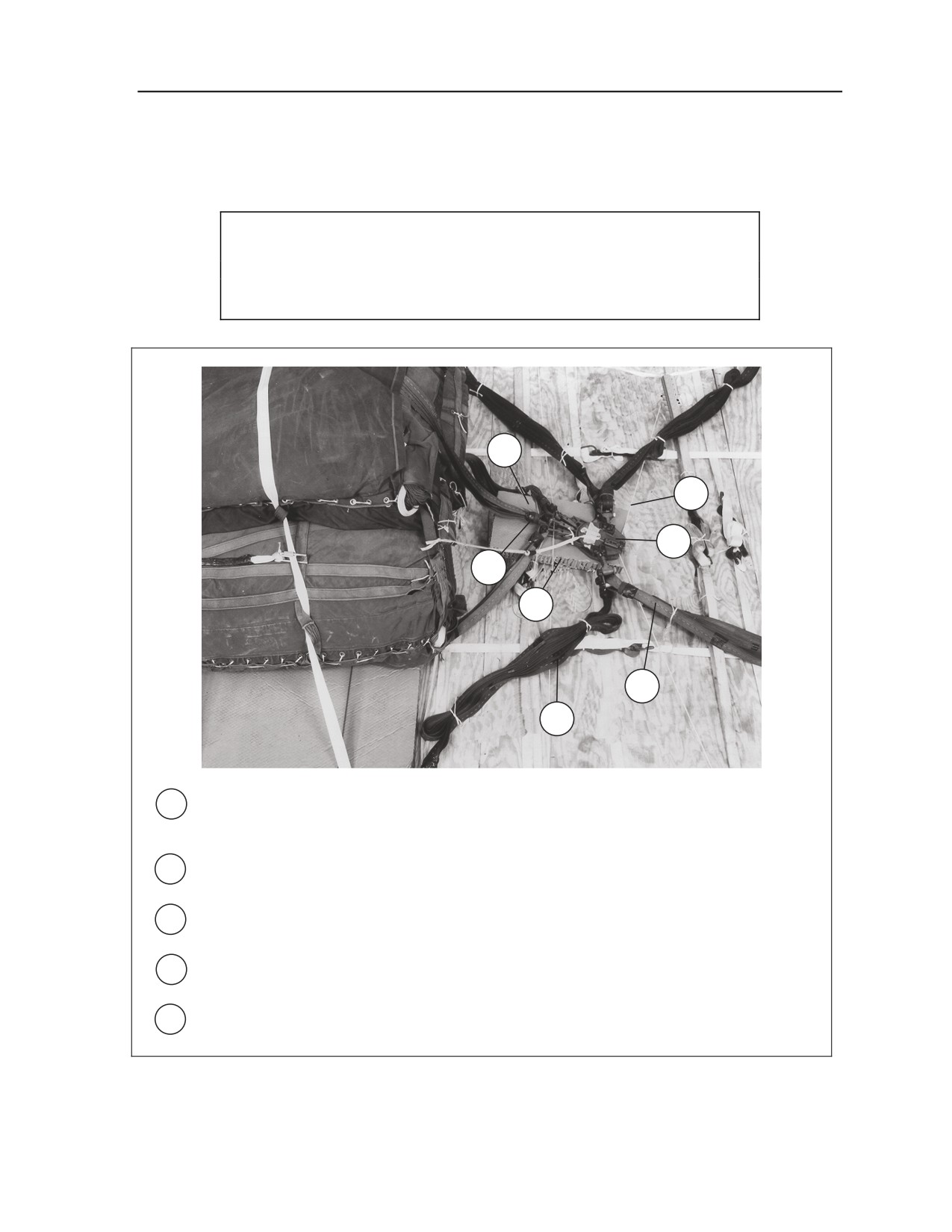

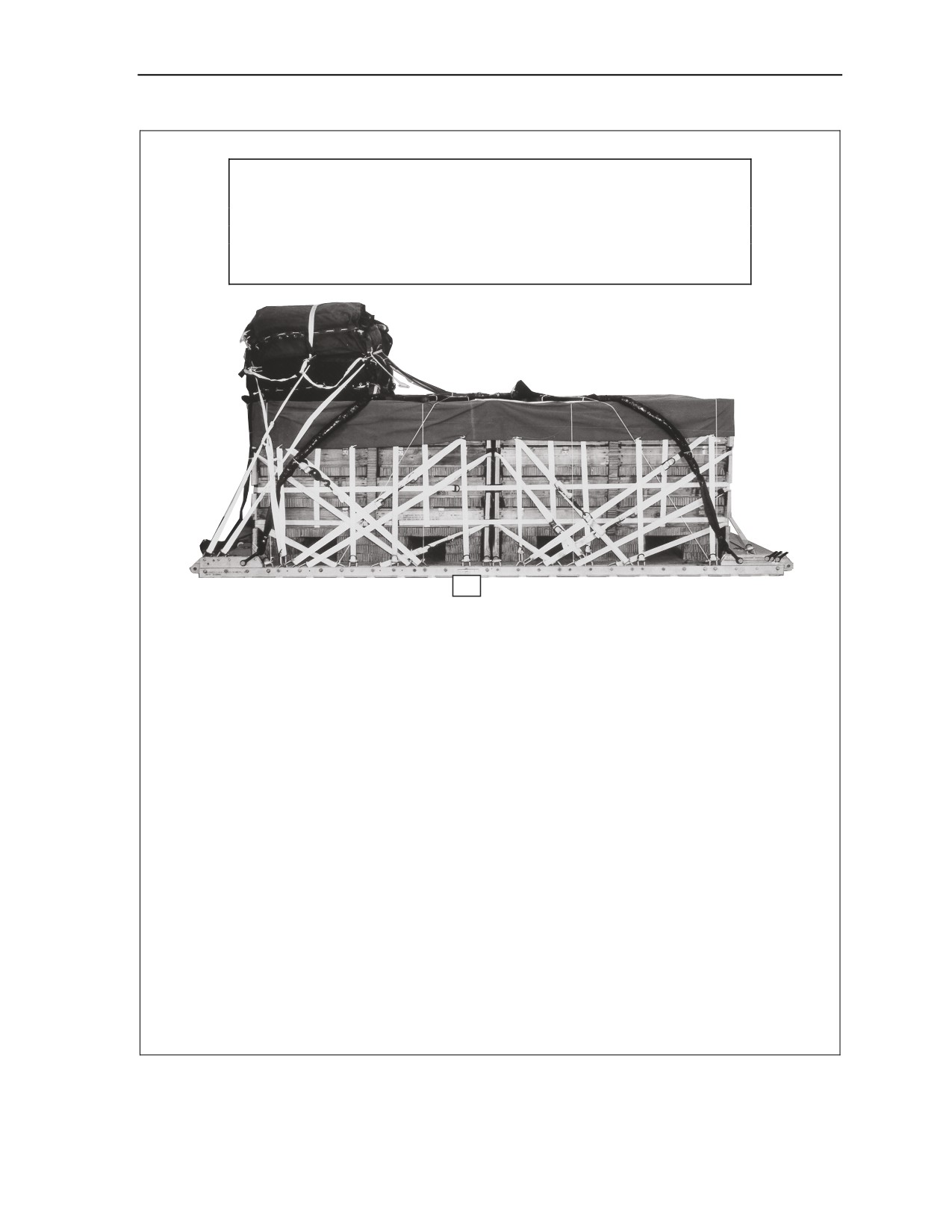

Figure 4-13. Release System Installed
20 February 2009
FM 4-20.112/TO 13C7-1-8
4-21
Chapter 4
INSTALLING THE EXTRACTION SYSTEM
4-13. Install the extraction system as shown in Figure 4-14.
1
2
2
3
1 Install the components of the extraction force transfer coupling (EFTC) according to FM 4-
20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5. Use the rear
mounting holes for the EFTC brackets.
2 Install a 12-foot EFTC cable according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-
AB-MMO-010/TO 13C7-1-5 and safety the cable to convenient places on the platform with
one turn of type I, 1/4-inch cotton webbing.
3 Attach a 9-foot (2-loop), type XXVI nylon sling according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 to be used as a deployment line. S-fold
the excess and tie it in two places with type I, 1/4-inch cotton webbing.

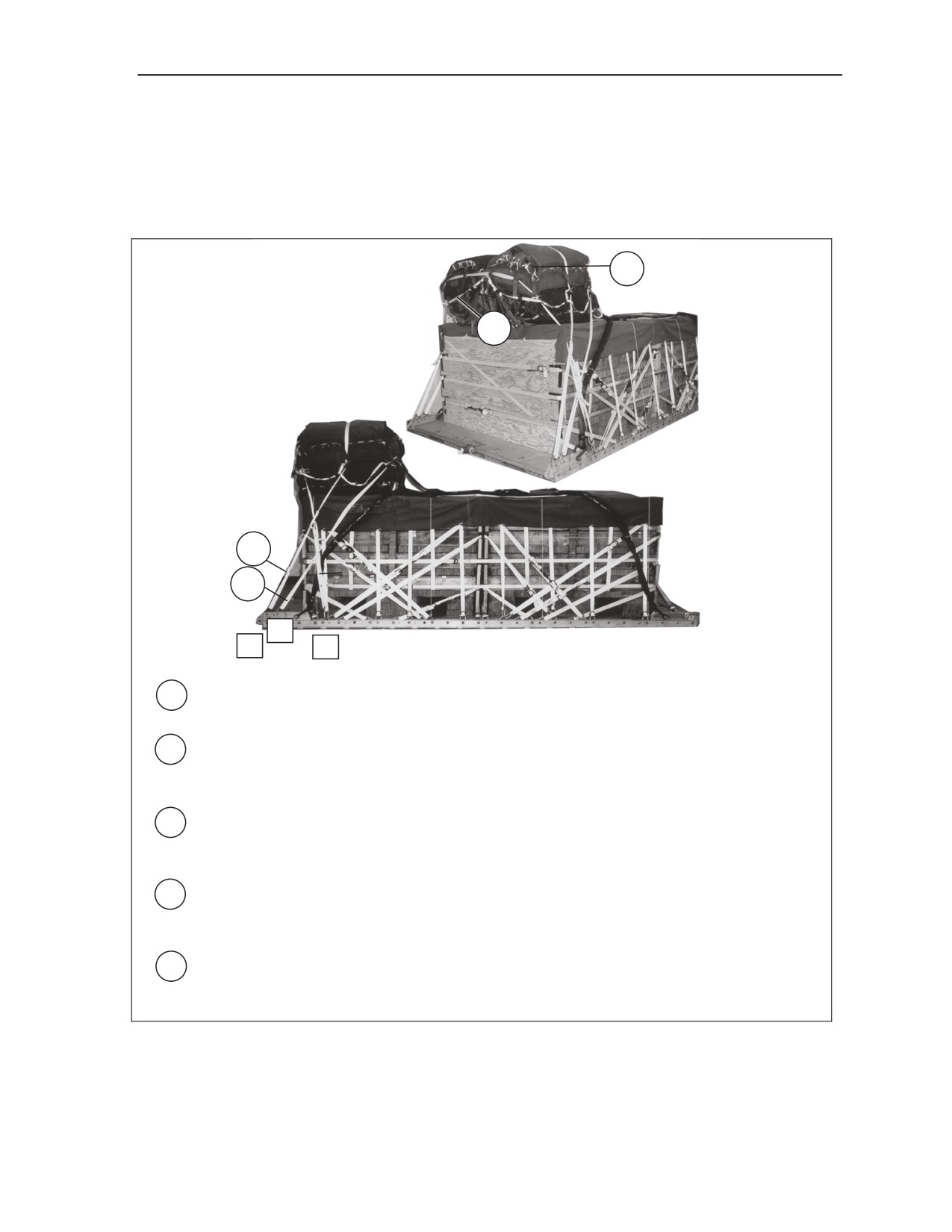

Figure 4-14. Extraction System Installed
4-22
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Forward Area Surgical Team (FAST) Equipment on a 12-Foot, Type V Platform for Low-Velocity
Airdrop
PLACING EXTRACTION PARACHUTE
4-14. Select the extraction parachute and extraction line needed using the extraction line requirements
table in FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5. Place the extraction
parachute and line on the load for installation in the aircraft.
INSTALLING PROVISIONS FOR EMERGENCY RESTRAINTS
4-15. Select and install the provisions for the emergency aft restraints according to the emergency aft
restraint requirements table in FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-
5.
MARKING RIGGED LOAD
4-16. Mark the rigged load according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-
010/TO 13C7-1-5, and as shown in Figure 4-15. Complete Shipper’s Declaration for Dangerous Goods. If
the load varies from the one shown, the weight, height, CB, and parachute requirements must be
recomputed.
EQUIPMENT REQUIRED
4-17. Use the equipment listed in Table 4-1 to rig this load.
20 February 2009
FM 4-20.112/TO 13C7-1-8
4-23
Chapter 4
CAUTION
Make the final rigger inspection required by AR 59-4 and FM 4-
20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5
before the load leaves the rigging site.
CB
RIGGED LOAD DATA
Weight: Load shown
12,000 pounds
Maximum Suspended Weight
14,000 pounds
Height
92 inches
Width
108 inches
Overall Length
168 inches
Overhang: Front
0 inches
Rear
0 inches
Center of Balance (from front edge of the platform)
84 inches
Extraction System with 16-foot cable (adds 18 inches to length of platform)
EFTC
Figure 4-15. FAST Equipment Rigged on a 12-Foot, Type V Platform for Low-Velocity Airdrop
4-24
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Forward Area Surgical Team (FAST) Equipment on a 12-Foot, Type V Platform for Low-Velocity
Airdrop
Table 4-1. Equipment Required for Rigging FAST Equipment Rigged on a 12-Foot, Type V
Platform for Low-Velocity Airdrop
National Stock Number
Item
Quantity
8040-00-273-8713
Adhesive, paste, 1-gallon
As required
Clevis, suspension:
4030-00-678-8562
3/4-inch (medium) emergency restraint
6
4030-00-090-5354
1-inch (large)
5
4020-00-240-2146
Cord, nylon, type III
As required
1670-00-434-5783
Coupling, airdrop, extraction force transfer with
1
12-foot cable
1670-00-360-0328
Cover, clevis, large
1
8135-00-664-6958
Cushioning material, packaging, cellulose wadding
As required
8305-00-191-1101
Felt, 1/2-inch thick
As required
1670-01-183-2678
Leaf, extraction line (line bag) (add 2 for C-17)
2
Line, extraction, type XXVI nylon webbing:
1670-01-064-4452
60-foot (1-loop), type XXVI or
1
1670-01-062-6313
60-foot (3-loop) ), type XXVI
1
1670-01-107-7651
140-foot (3-loop), type XXVI
1
1670-01-064-4452
60-foot (1-loop), type XXVI for C-17 drogue line
1
1670-01-493-6418
Link assembly, two-point:
1
5351-00-010-4659
Nail, steel wire, common 8d
As required
1670-00-753-3928
Pad, energy-dissipating, honeycomb
7 sheets
Parachute:
1670-01-016-7841
Cargo, G-11B
3
1670-01-063-3716
Cargo, extraction, 22-foot
1
1670-01-063-3715
Cargo, extraction, 15-foot for C-17
1
Platform, airdrop, type V, 12-foot
1670-01-353-8425
Bracket assembly, EFTC
1
1670-01-162-2372
Bracket assembly, extraction
1
1670-01-162-2376
Clevis assembly
30
1670-01-162-2381
Tandem link
4
5530-00-128-4981
Plywood, 3/4-inch
As required
1670-01-097-8816
Release, cargo parachute, M-1
1
20 February 2009
FM 4-20.112/TO 13C7-1-8
4-25
Chapter 4
Table 4-1. Equipment Required for Rigging FAST Equipment Rigged on a 12-Foot, Type V
Platform for Low-Velocity Airdrop (Continued)
National Stock Number
Item
Quantity
Sling, cargo airdrop:
1670-01-062-6304
9-foot (2-loop), type XXVI nylon webbing
1
1670-01-063-7761
16-foot (2-loop), type XXVI nylon webbing
4
1670-01-062-6313
60-foot (3-loop), type XXVI nylon webbing
3
5340-00-040-8219
Strap parachute release, multicut
2
7501-00-266-5016
Tape, adhesive, 2-inch
As required
7501-00-266-6710
Tape, masking
As required
1670-00-937-0271
Tiedown assembly, 15-foot
47
1670-01-483-8259
Towplate release mechanism (H-block) (C-17)
1
Webbing:
8305-00-268-2411
Cotton, 1/4-inch, type I
As required
Nylon:
8305-00-082-5752
Tubular, 1/2-inch
As required
8305-00-263-3591
Type VIII webbing
As required
4-26
FM 4-20.112/TO 13C7-1-8
20 February 2009
Chapter 5
Rigging Supply Loads on a 16-Foot, Type V Platform for
Low-Velocity Airdrop
SECTION I-RIGGING 105-MILLIMETER (MM) AMMUNITION
DESCRIPTION OF LOAD
5-1. Bulk supplies consisting of rations, equipment, fuel, ammunition, or other items of general supply
are rigged on a 16-foot, type V airdrop platform with G-11 cargo parachutes. One hundred and forty boxes
of 105-mm ammunition are shown. All 105-mm ammunition packaged as shown and listed in FM 4-
20.153/MCRP 4-11.3B/TO 13C7-18-41, as certified for low-velocity airdrop, may be rigged using these
procedures. Each load must weigh at least
5,040 pounds, including parachutes. Refer to FM
4-
20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 for the weight limitations for the
number of parachutes to be used.
PREPARING PLATFORM

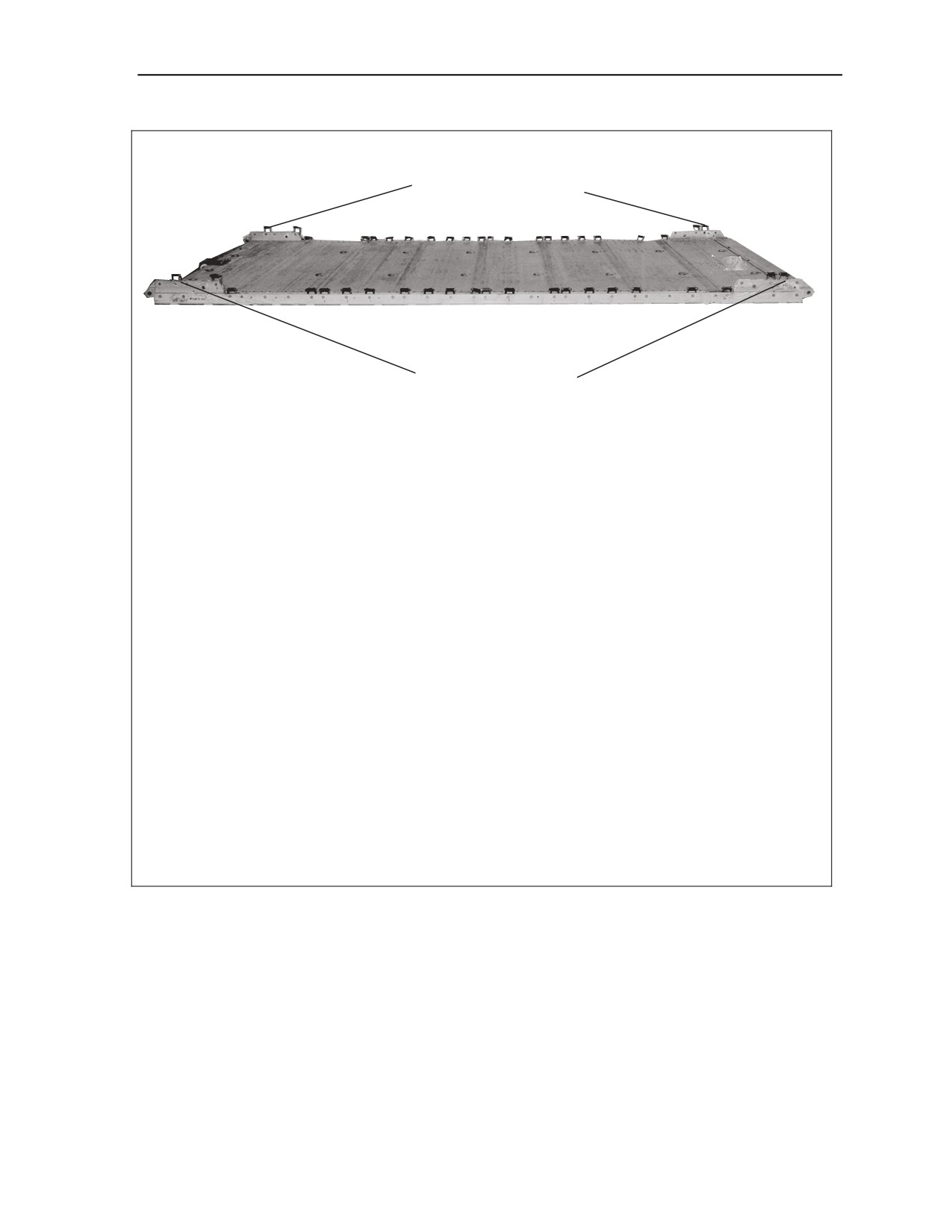

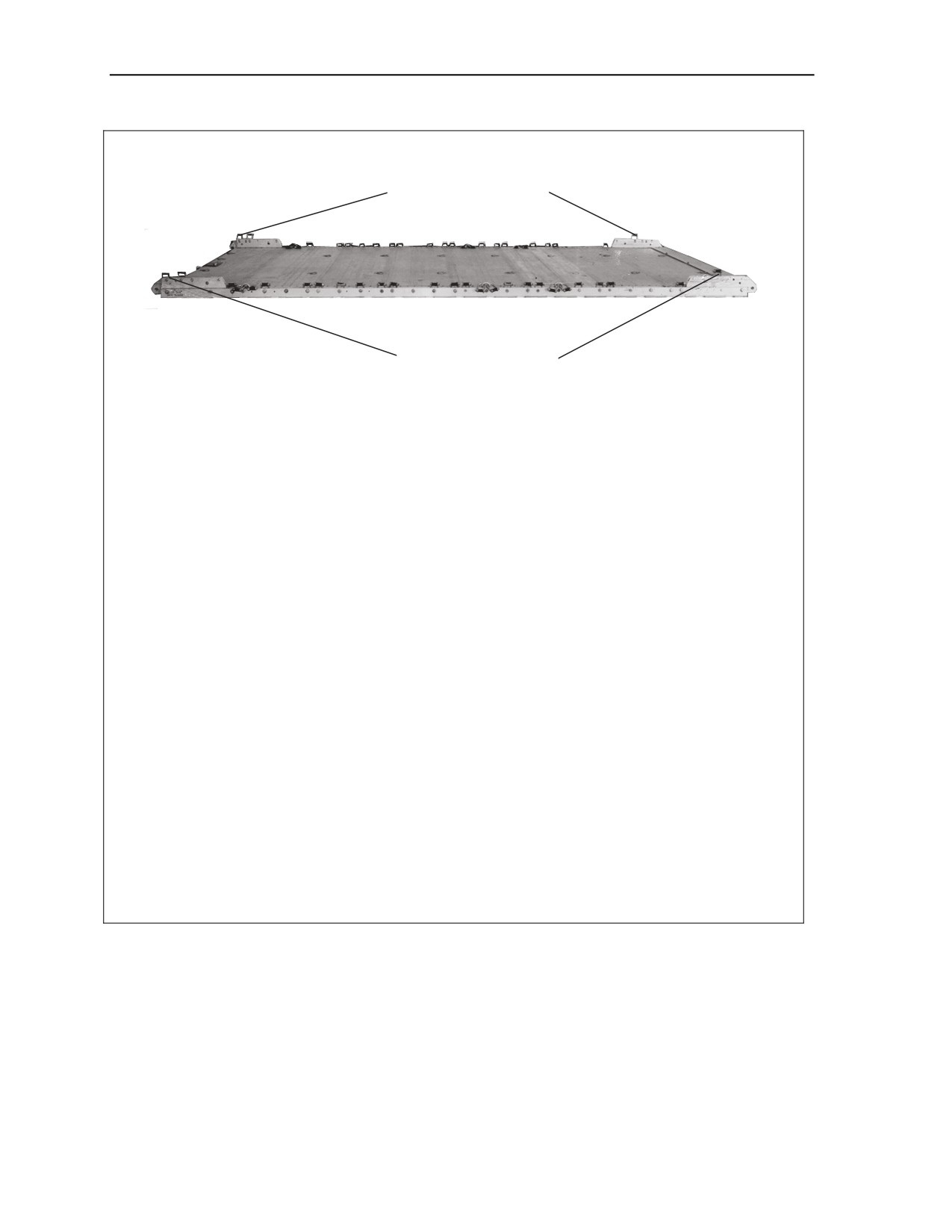

5-2. Prepare a 16-foot, type V platform as shown in Figure 5-1.
20 February 2009
FM 4-20.112/TO 13C7-1-8
5-1
Chapter 5
CLEVISES
27A THROUGH 1A
LEFT
REAR
FRONT
RIGHT
CLEVISES
27 THROUGH 1
Step:
1. Inspect, or assemble and inspect, a 16-foot, type V platform as outlined in TM 10-1670-
268-20&P/TO 13C7-52-22.
2. Install a tandem link to the front of each platform side rail using holes 1, 2, and 3.
3. Install a tandem link to the rear of each platform side rail using holes 30, 31, and 32.
4. Install clevises on bushing 3 of each front tandem link.
5. Install clevises on bushings 3 and 4 of each rear tandem link.
6. Starting at the front of each platform side rail, install clevises on the bushings bolted to
holes 4, 8, 9, 10, 11 (triple), 12, 13, 14, 15 (triple), 16, 17, 18, 20, 21, 22, 23, 24, 25, 27,
28, (triple), and 29.
7. Starting at the front of the platform, number the clevises 1 through 27 on the right side, and
1A through 27A on the left side.
8. Label the tiedown rings according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5.
Note. Refer to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 (Table 2-
2) when adding additional parachutes for heavier loads for the suspension/tandem link positioning.
Figure 5-1. Platform Prepared
5-2
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Supply Loads on a 16-Foot, Type V Platform for Low-Velocity Airdrop
BUILDING HONEYCOMB STACKS AND PLACING FIRST STACK

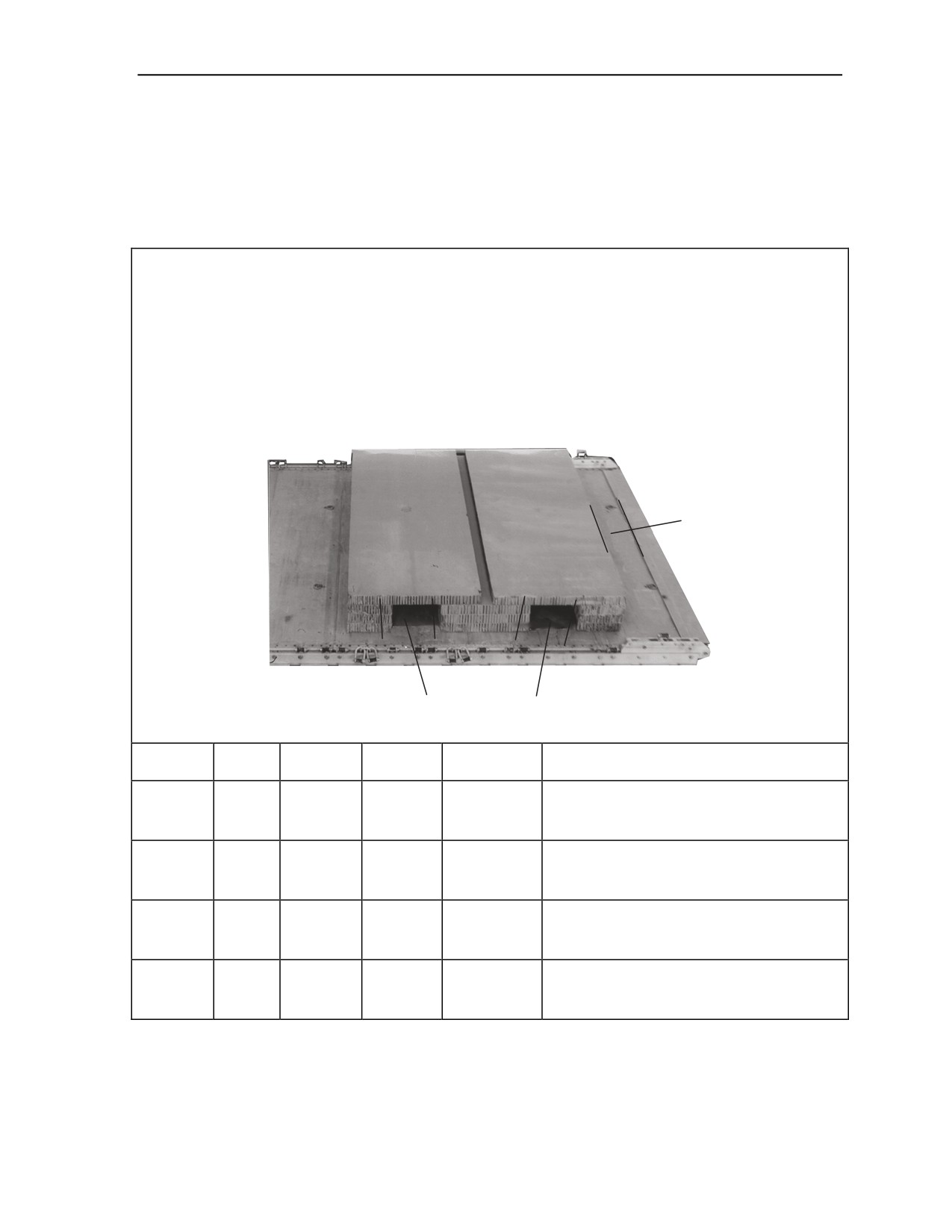

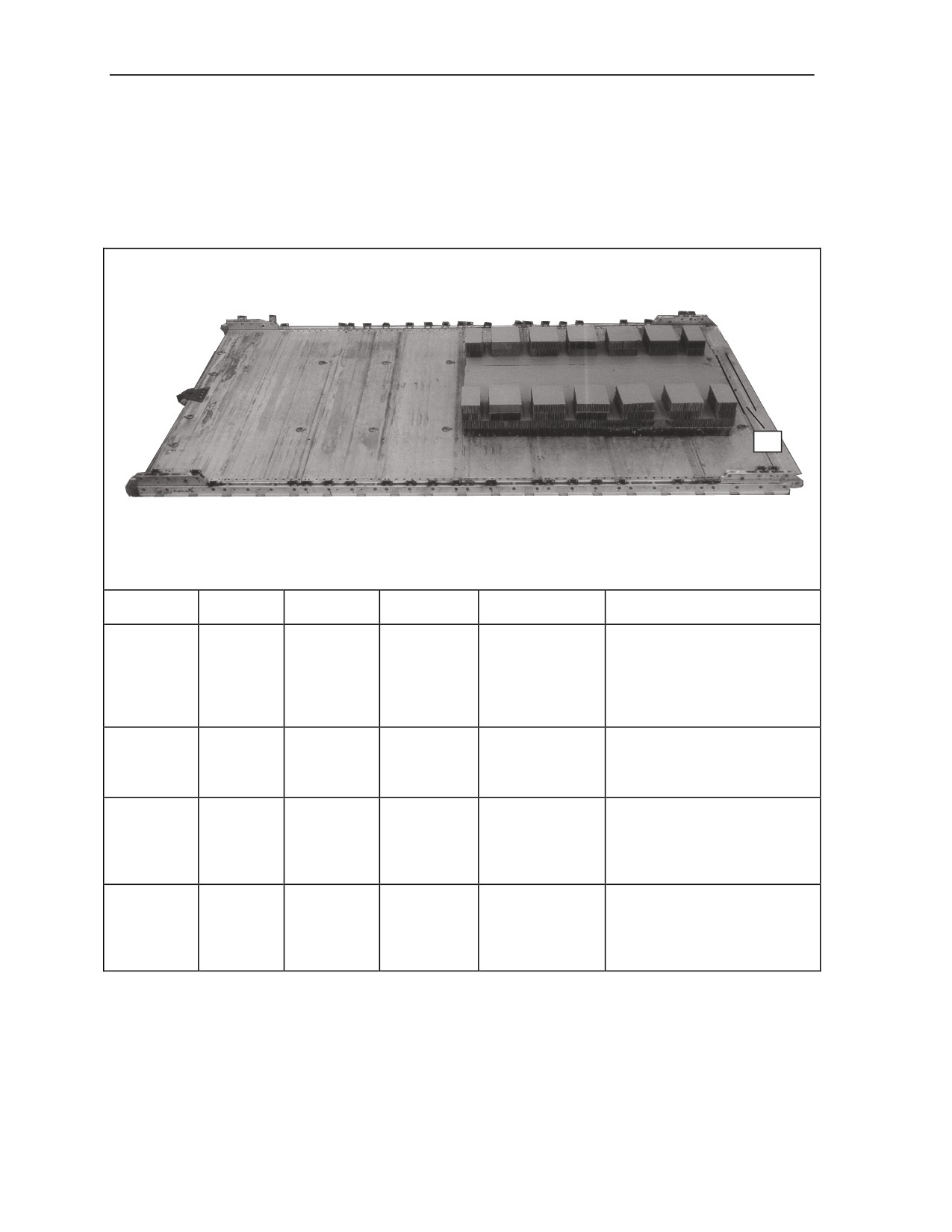

5-3. Build the honeycomb stack for the first stack of ammunition and place it on the platform as shown in
Figure 5-2. Build the stack for the second stack of ammunition as shown in Figure 5-2. Set the second
honeycomb stack aside.
Notes.
1. When ammunition is dropped, two layers of honeycomb are required as shown in Figure 5-3.
2. When rigging this load for airdrop on a drop zone with ground elevation of 6,000 to 10,000 feet, add an
additional layer of honeycomb. However, the height of this load cannot exceed 100 inches.
3. Adjust the dimensions of the honeycomb to fit the items being dropped.
4. Do not cover the extraction bracket with honeycomb.
5.
All dimensions are in inches.
17 1/2
13 1/2
13 1/2
Stack
Pieces
Width
Length
Material
Instructions
Number
(Inches)
(Inches)
1 and 2
3
87
12
Honeycom
Glue honeycomb flush together and
b
center 17 ½ inches from the front edge of
the platform.
3
87
24
Honeycom
Glue honeycomb flush together and
b
center 13 1/2 inches from the rear of the
stack placed above.
3
87
12
Honeycom
Glue honeycomb flush together and
b
center 13 1/2 inches from the rear of the
stack placed above.
2
87
36
Honeycom
Glue one piece flush with the front edge.
b
Glue one piece flush with the rear edge,
leaving a 3-inch gap in the center.
Figure 5-2. Honeycomb for First Ammunition Stack Prepared and Placed
20 February 2009
FM 4-20.112/TO 13C7-1-8
5-3

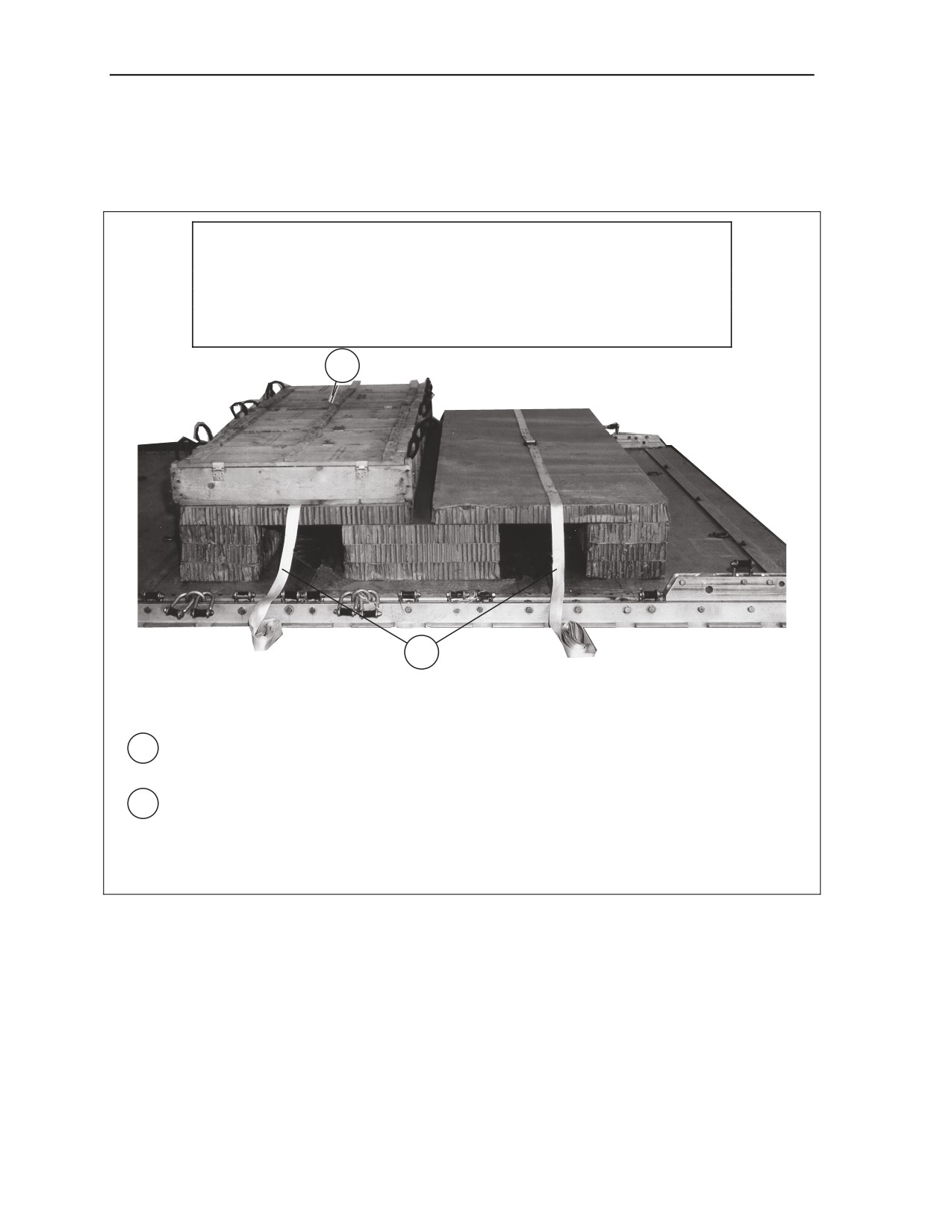

Chapter 5

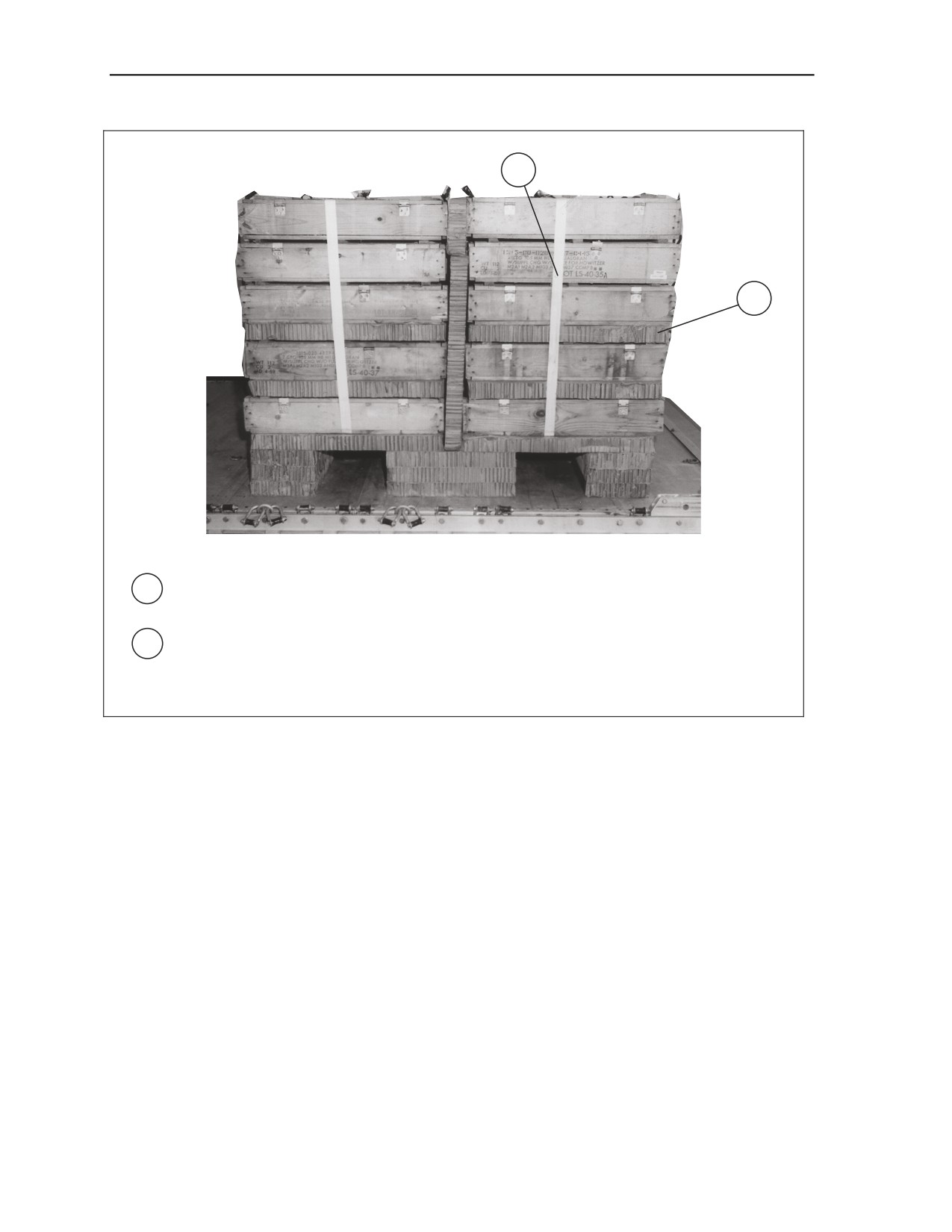

POSITIONING AND SECURING FIRST AMMUNITION STACK
5-4. Position and secure the first stack of 105-mm ammunition as shown in Figure 5-3.
CAUTION
Only ammunition listed in FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
may be airdropped. Hazardous material must be packaged, marked,
and labeled as required by AFMAN(I) 24-204/TM 38-250.
2
1
1 Form two 30-foot lashings according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5. Center them over the honeycomb as shown.
2 Place seven ammunition boxes on the rear side of stack 1. Let the boxes overhang the rear
edge by 1 inch.
Figure 5-3. Ammunition Positioned and Secured
5-4
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Supply Loads on a 16-Foot, Type V Platform for Low-Velocity Airdrop
9
7
8
6
5
4
3

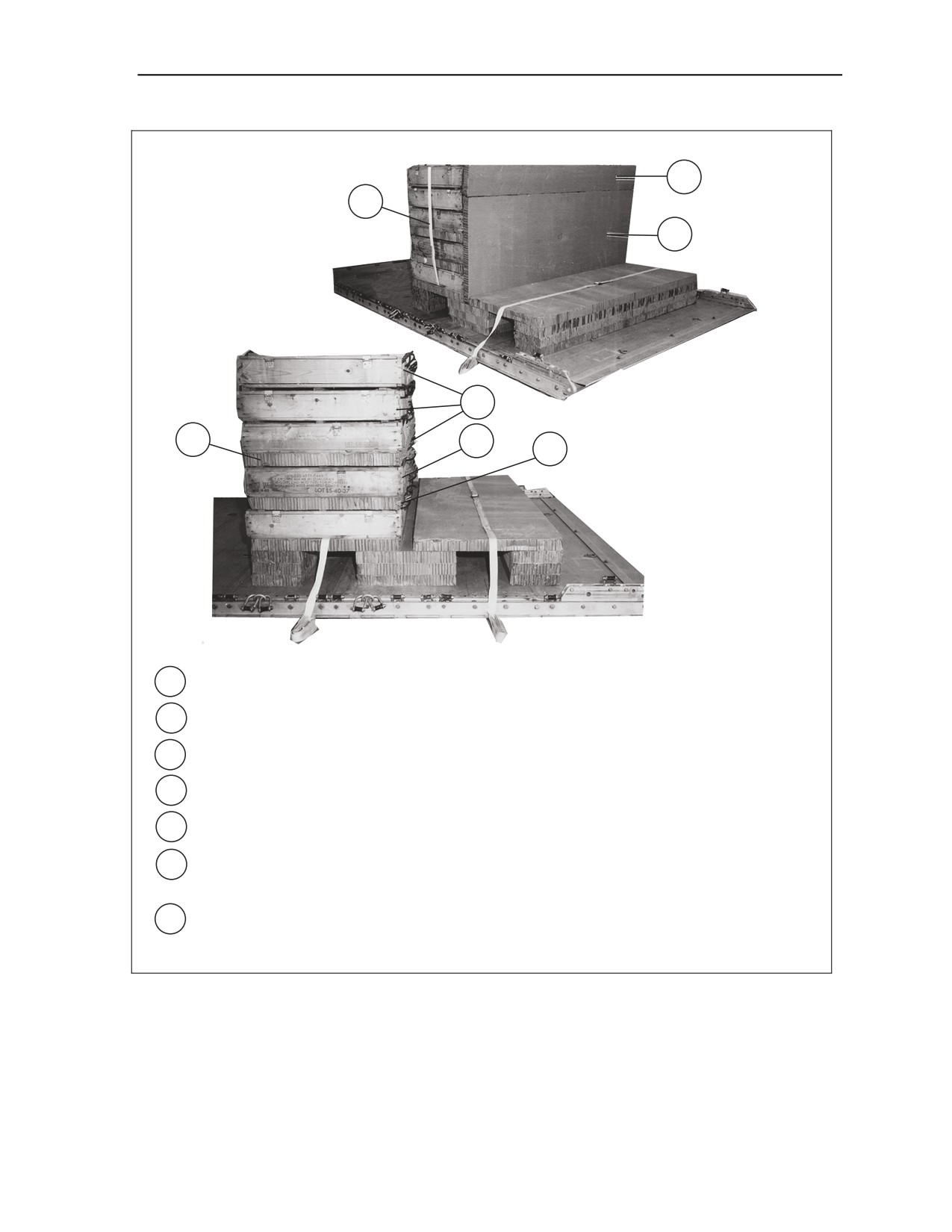

3 Place a 36- by 87-inch piece of honeycomb over the boxes.
4 Place seven ammunition boxes flush with the first layer of boxes.
5 Place a 36- by 87-inch piece of honeycomb over the boxes placed in step 4.
6 Place three layers of boxes flush over the layers already placed.
7 Secure the pre-positioned lashing over the boxes with two D-rings and a load binder.
8 Place a 36- by 87-inch piece of honeycomb on edge against the boxes. Fit the honeycomb
into the 3-inch slot in the center of the honeycomb stack.
9 Place a 10- by 87-inch piece of honeycomb on edge over the piece placed in step 8.
Figure 5-3. Ammunition Positioned and Secured (Continued)
20 February 2009
FM 4-20.112/TO 13C7-1-8
5-5
Chapter 5
11
10
10 Place 35 boxes of ammunition and two 36- by 87-inch pieces of honeycomb as described
in steps 2 through 6 to complete stack 1.
11 Secure the pre-positioned lashing over the boxes with two D-rings and a load binder.
Figure 5-3. Ammunition Positioned and Secured (Continued)
5-6
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Supply Loads on a 16-Foot, Type V Platform for Low-Velocity Airdrop

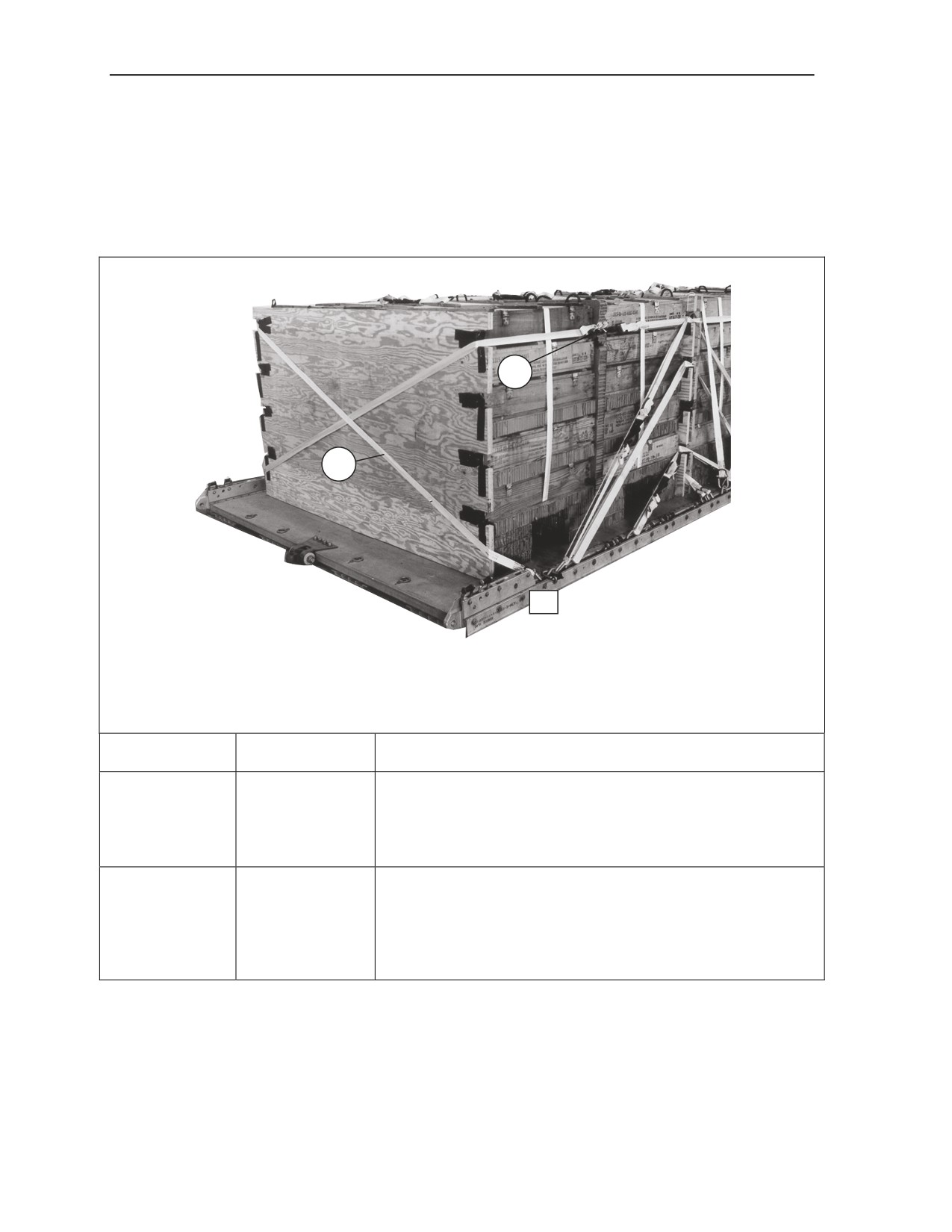

CONSTRUCTING AND PLACING ENDBOARDS
5-5. Construct the endboards and install them on the load as shown in Figure 5-4.
Notes.
1. This drawing is not to scale
2. All dimensions are in inches.
1 Cut two 3/4- by 48- by 90-inch and two 3/4- by 7- by 90-inch pieces of plywood. Nail the
four pieces flush together so that a single piece of 1 1/2- by 55- by 90-inch plywood
results.
Note: On the endboard shown (Figure 5-5), the 7-inch piece is on top. On the other side of the
endboard shown, the 7-inch piece is at the bottom.
2 Make 2- by 3-inch cutouts as shown. Pad all cutouts with cellulose wadding and tape.
3 Repeat steps 1 and 2 making a total of four endboards.
4 Place an endboard against the front of the boxes and place one against the rear. Tie them
in place with a length of type III nylon cord. (Not shown)
Figure 5-4. Endboards for 105-mm Ammunition Constructed
20 February 2009
FM 4-20.112/TO 13C7-1-8
5-7
Chapter 5
INSTALLING LASHINGS ON FIRST AMMUNITION STACK
5-6. Lash the first stack to the platform according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5 and as shown in Figure 5-5.
Note. This load requires lashings over 30 feet in length. Lashings must be positioned through
clevises before sections are joined together.
2
LEFT
1A
13
FRONT
RIGHT
1
1
Lashing Number
Tiedown Clevis
Instructions
Number
1
1 and 13
Pass a 15-foot lashing through clevis 1 and through its own D-ring.
Pass the lashing through the top left cutout in the front endboard.
Pass a 15-foot lashing through clevis 13 and through its own D-
ring. Pass the lashing through the top left cutout in the rear
endboard. Secure the lashings on the left side with two D-rings and
a load binder.
2
1A and 13A
Pass a 15-foot lashing through clevis 1A and through its own D-
ring. Pass the lashing through the top right cutout in the front
endboard. Pass a 15-foot lashing through clevis 13A and through
its own D-ring. Pass the lashing through the top right cutout in the
rear endboard. Secure the lashings on the right side with two D-
rings and a load binder.
Figure 5-5. Lashings Installed for First Stack
5-8
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Supply Loads on a 16-Foot, Type V Platform for Low-Velocity Airdrop
6
5
4
11
10
3
8
5
Lashing Number
Tiedown Clevis
Instructions
Number
3
5 and 5A
Pass a 30-foot lashing through both clevises and through
the bottom cutouts in the front endboard. Secure the lashing
in the front with two D-rings and a load binder.
4
8 and 8A
Pass a 45-foot lashing through both clevises and through
the second cutouts in the front endboard. Secure the
lashing on the right side with two D-rings and a load binder.
5
10 and 10A
Pass a 45-foot lashing through both clevises and through
the third cutouts in the front endboard. Secure the lashing
on the right side with two D-rings and a load binder.
6
11 and 11A
Pass a 45-foot lashing through both clevises and through
the top cutouts in the front endboard. Secure the lashing on
the right side with two D-rings and a load binder.
Figure 5-5. Lashings Installed for First Stack (Continued)
20 February 2009
FM 4-20.112/TO 13C7-1-8
5-9
Chapter 5
9
8
7
4
7
9
Lashing Number
Tiedown Clevis
Instructions
Number
7
9 and 9A
Pass a 30-foot lashing through both clevises and through the
bottom cutouts in the rear endboard. Secure the lashing on the
left side with two D-rings and a load binder.
8
7 and 7A
Pass a 45-foot lashing through both clevises and through the
third cutouts in the rear endboard. Secure the lashing on the
left side with two D-rings and a load binder.
9
4 and 4A
Pass a 45-foot lashing through both clevises and through the
upper cutouts in the rear endboard. Secure the lashing on the
left side with two D-rings and a load binder.
Figure 5-5. Lashings Installed for First Stack (Continued)
5-10
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Supply Loads on a 16-Foot, Type V Platform for Low-Velocity Airdrop
13
12
11
10
12
3
2
6
Lashing Number
Tiedown Clevis
Instructions
Number
10
2 and 2A
Pass a 15-foot lashing through each clevis and through its
own D-ring. Pass both lashings over the load and secure them
on top with two D-rings and a load binder.
11
3 and 3A
Pass a 15-foot lashing through each clevis and through its
own D-ring. Pass both lashings over the load and secure them
on top with two D-rings and a load binder.
12
6 and 6A
Pass a 15-foot lashing through each clevis and through its
own D-ring. Pass both lashings over the load and secure them
on top with two D-rings and a load binder.
13
12 and 12A
Pass a 15-foot lashing through each clevis and through its
own D-ring. Pass both lashings over the load and secure them
on top with two D-rings and a load binder.
Figure 5-5. Lashings Installed for First Stack (Continued)
20 February 2009
FM 4-20.112/TO 13C7-1-8
5-11
Chapter 5
POSITIONING AND SECURING SECOND AMMUNITION STACK
5-7. Place the first endboard for the second ammunition stack and pre-position lashings according to FM
4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 and as shown in Figure 5-6.
Position the honeycomb stack, lashings, and ammunition boxes as shown in Figure 5-7.
2
3
1
4
22A
23A
19A
5
6
14
19
2
22
4
23
1 Stand an endboard against the rear endboard of the first stack. Temporarily secure it to the
rear endboard with type III nylon cord.
2 Pass a 15-foot lashing through clevis 14 and through its own D-ring. Pass the lashing through
the top cutout on the left side of the endboard placed in step 1. Fold the free end and place it
on top of the endboards.
3 Pass a 15-foot lashing through clevis 14A and through its own D-ring. Pass the lashing
through the top cutout on the right side of the endboard placed in step 1. Fold the free end
and place it on top of the endboards.
4 Pass a 30-foot lashing through clevises 19 and 19A and through the bottom slots of the
endboards. Position the load binder on one side. Leave the load binder open.
5 Pass a 45-foot lashing through clevises 22 and 22A and through the second slots from the
top of the endboards. Position the load binder on one side. Leave the load binder open.
6 Pass a 45-foot lashing through clevises 23 and 23A and through the top slots of the
endboards. Position the load binder on one side. Leave the load binder open.
Figure 5-6. Endboard for Second Stack Placed and Lashings Pre-positioned
5-12
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Supply Loads on a 16-Foot, Type V Platform for Low-Velocity Airdrop
4
3
5
1
1 Center the second honeycomb stack 17 ½ inches from the rear edge of the platform.
2 Position two 30-foot lashings over the honeycomb according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 and as shown in Figure 5-3, step 1.
3 Stack honeycomb and 70 ammunition boxes as shown for the first stack.
4 Secure the lashings placed in step 2 over the boxes with two D-rings and a load binder.
5 Secure the load binders on the lashings placed in Figure 5-6, steps 4, 5, and 6 with two D-
rings and a load binder.
Figure 5-7. Honeycomb, Lashings, and Ammunition Placed for Second Stack
20 February 2009
FM 4-20.112/TO 13C7-1-8
5-13
Chapter 5
INSTALLING LASHINGS ON SECOND AMMUNITION STACK
5-8. Place the fourth endboard and lash the second ammunition stack to the platform as shown in Figure
5-8. Make sure that the pre-positioned lashings are taut and install additional lashings according to FM 4-
20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5, and as shown in Figure 5-8.
15
14
25
Lashing Number
Tiedown Clevis
Instructions
Number
14
14 and 25
Pass the pre-positioned lashing in Figure 5-6, step 2, around
the left side of the stack. Pass a 15-foot lashing through clevis
25 and through its own D-ring. Pass the lashing through the
top left cutout in the rear endboard. Secure the two lashings
on the left side with two D-rings and a load binder.
15
14A and 25A
Pass the pre-positioned lashing in Figure 5-6, step 3, around
the right side of the stack. Pass a 15-foot lashing through
clevis 25A and through its own D-ring. Pass the lashing
through the top right cutout in the rear endboard. Secure the
two lashings on the left side with two D-rings and a load
binder.
Figure 5-8. Lashings Installed for Second Stack
5-14
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Supply Loads on a 16-Foot, Type V Platform for Low-Velocity Airdrop
16
18
17
16
17
21
Lashing Number
Tiedown Clevis
Instructions
Number
16
16 and 16A
Pass a 45-foot lashing through both clevises and through the
top cutouts in the rear endboard. Secure the lashing on the
side with two D-rings and a load binder.
17
17 and 17A
Pass a 45-foot lashing through both clevises and through the
third cutouts from the bottom in the rear endboard. Secure the
lashing on the side with two D-rings and a load binder.
18
21 and 21A
Pass a 30-foot lashing through both clevises and through the
bottom cutouts of the rear endboard. Secure the lashing at the
rear with two D-rings and a load binder.
Figure 5-8. Lashings Installed for Second Stack (Continued)
20 February 2009
FM 4-20.112/TO 13C7-1-8
5-15
Chapter 5
21
20
19
22
24
20
18
15
Lashing Number
Tiedown Clevis
Instructions
Number
19
15 and 15A
Pass a 15-foot lashing through each clevis and through its
own D-ring. Pass the lashing on the right over the load, and
secure it to the left lashing on the side with two D-rings and a
load binder.
20
18 and 18A
Pass a 15-foot lashing through each clevis and through its
own D-ring. Pass the lashing on the right over the load, and
secure it to the left lashing on the side with two D-rings and a
load binder.
21
20 and 20A
Pass a 15-foot lashing through each clevis and through its
own D-ring. Pass the lashing on the right over the load, and
secure it to the left lashing on the side with two D-rings and a
load binder.
22
24 and 24A
Pass a 15-foot lashing through each clevis and through its
own D-ring. Pass the lashing on the right over the load, and
secure it to the left lashing on the side with two D-rings and a
load binder.
Figure 5-8. Lashings Installed for Second Stack (Continued)
5-16
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Supply Loads on a 16-Foot, Type V Platform for Low-Velocity Airdrop
25
24
23
Lashing Number
Tiedown Clevis
Instructions
Number
23
Pass a 45-foot lashing around the load, through the second
slots from the bottom of all four endboards. Secure the free
ends of the lashings with two D-rings and a load binder.
24
Pass a 45-foot lashing around the load, through the bottom
slots of all four endboards. Secure the free ends of the
lashings with two D-rings and a load binder.
25
Pass a 45-foot lashing around the load, through the top slots
of all four endboards. Secure the free ends of the lashings with
two D-rings and a load binder.
Figure 5-8. Lashings Installed for Second Stack (Continued)
20 February 2009
FM 4-20.112/TO 13C7-1-8
5-17
Chapter 5
INSTALLING LOAD COVER, SUSPENSION SLINGS AND
DEADMAN’S TIE
5-9. Install the load cover, suspension slings and deadman’s tie as shown in Figure 5-9.
3
5
4
5
6
1
6
2
1 Cover the load with an 8- by 15-foot piece of cloth coated nylon. Secure the cover to the
load with type III nylon cord.
2 Pass one end of a 16-foot (4-loop), type XXVI nylon suspension sling through the bell
portion of a large suspension clevis. Bolt the clevis to the suspension hole of the right front
tandem link.
Note. If the load weighs over 14,000 pounds, use 4-loop slings.
3 Install on the left front tandem link and the right rear and left rear tandem links a 16-foot (4-
loop), type XXVI nylon suspension sling as shown in step 2.
4 Raise the slings and install the deadman's tie according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
5 Pad the suspension slings with felt tied and taped in place 24 inches above the suspension
clevises to a point 6 inches above the top of the load. Extend the tape 6 inches beyond the
top and bottom of the felt.
6 Safety each suspension sling to an adjacent lashing with a length of type III nylon cord.
Figure 5-9. Load Cover, Suspension Slings, and Deadman’s Tie Installed
5-18
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Supply Loads on a 16-Foot, Type V Platform for Low-Velocity Airdrop
INSTALLING PARACHUTES
5-10. Compute the parachute requirements for the load being rigged. Prepare and install the cargo
parachutes according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 and
as shown in Figure 5-10.
1
5
3
4
26
27
24
1
Prepare, position, and stow four G-11 cargo parachutes on the rear of the load according
to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
2
Install the rear cargo parachute restraints according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 using type VIII nylon webbing to
clevises 24 and 24A.
3
Install the center cargo parachute restraints according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 using type VIII nylon webbing to
clevises 27 and 27A.
4
Install the front cargo parachute restraints according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 using type VIII nylon webbing to
clevises 26 and 26A.
5
Install the parachute release straps according to FM 4-20.102/MCRP 4-11.3J/NAVSEA
SS400-AB-MMO-010/TO 13C7-1-5.
Figure 5-10. Cargo Parachutes Installed
20 February 2009
FM 4-20.112/TO 13C7-1-8
5-19
Chapter 5
INSTALLING THE RELEASE SYSTEM
5-11. Prepare, attach, and safety an M-2 cargo parachute release according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 and as shown in Figure 5-11.
CAUTION
When rigging a single parachute load, ensure the rear parachute release safety
tie is routed under the parachute securing ties.
1
4
3
2
1 Prepare and install the M-2 cargo parachute release according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5. Place the assembly in front of the parachutes as
shown.
2 Safety the release to convenient points on the load with type III nylon cord according to FM 4-
20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
3 S-fold and tie any excess suspension slings with one turn of type I, 1/4-inch cotton webbing.
4 Safety tie the risers with type I, ¼-inch cotton webbing 12 inches above the parachute release
connectors.
Figure 5-11. Release System Installed
5-20
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Supply Loads on a 16-Foot, Type V Platform for Low-Velocity Airdrop
INSTALLING THE EXTRACTION SYSTEM
5-12. Install the extraction system according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-
010/TO 13C7-1-5 and as shown in Figure 5-12.
3
2
D8
2
1
1 Install the components of the extraction force transfer coupling (EFTC) according to FM 4-
20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5. Use the front
mounting holes for the EFTC brackets.
2 Install a 16-foot EFTC cable according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-
AB-MMO-010/TO 13C7-1-5 and safety the cable to tiedown ring D8 with one turn of type I,
1/4-inch cotton webbing.
3 Attach a 9-foot (2-loop) type XXVI nylon sling according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 to be used as a deployment line. S-fold
the excess and tie it in two places with type I, 1/4-inch cotton webbing.
Figure 5-12. Extraction System Installed
20 February 2009
FM 4-20.112/TO 13C7-1-8
5-21
Chapter 5
PLACING EXTRACTION PARACHUTE
5-13. Select the extraction parachute and extraction line needed using the extraction line requirements
table in FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5. Place the extraction
parachute and line on the load for installation in the aircraft.
INSTALLING PROVISIONS FOR EMERGENCY RESTRAINTS
5-14. Select and install the provisions for the emergency aft restraints according to the emergency aft
restraint requirements table in FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-
5.
MARKING RIGGED LOAD
5-15. Mark the rigged load according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-
010/TO 13C7-1-5, and as shown in Figure 5-13. Complete Shipper’s Declaration for Dangerous Goods. If
the load varies from the one shown, the weight, height, CB, and parachute requirements must be
recomputed.
EQUIPMENT REQUIRED
5-16. Use the equipment listed in Table 5-1 to rig this load.
5-22
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Supply Loads on a 16-Foot, Type V Platform for Low-Velocity Airdrop
CAUTION
Make the final rigger inspection required by AR 59-4 and FM 4-
20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5
before the load leaves the rigging site.
CB
RIGGED LOAD DATA
Weight: Load shown
18,560 pounds
Minimum Weight:
5,040 pounds
Maximum Suspended Weight
20,000 pounds
Height
97 1/2 inches
Width
108 inches
Overall Length
192 inches
Overhang: Front
0 inches
Rear
0 inches
Center of Balance (from front edge of the platform)
106 inches
Extraction System with 16-foot cable (adds 18 inches to length of platform)
EFTC
Note. Refer to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 (Table 2-2)
when adding additional parachutes for heavier loads for the suspension/tandem link positioning.
Figure 5-13. Supply Load Rigged on a 16-Foot, Type V Platform for Low-Velocity Airdrop
20 February 2009
FM 4-20.112/TO 13C7-1-8
5-23
Chapter 5
Table 5-1. Equipment Required for Rigging Typical Loads on a 16-Foot, Type V Platform for
Low-Velocity Airdrop
National Stock Number
Item
Quantity
8040-00-273-8713
Adhesive, paste, 1-gallon
As required
Clevis, suspension:
4030-00-678-8562
3/4-inch (medium) emergency restraint
6
4030-00-090-5354
1-inch (large)
5
8305-00-880-8155
Cloth, coated (nylon, type II, green, 60-in)
As required
4020-00-240-2146
Cord, nylon, type III
As required
1670-00-434-5785
Coupling, airdrop, extraction force transfer with
16-foot cable
1
1670-00-360-0328
Cover, clevis, large
4
8135-00-664-6958
Cushioning material, packaging, cellulose wadding
As required
8305-00-191-1101
Felt, ½-inch thick
As required
1670-01-183-2678
Leaf, extraction line (line bag) (add 2 for C-17)
2
Line, extraction, type XXVI nylon webbing:
1670-01-062-6313
60-foot (3-loop), type XXVI
1
1670-01-107-7651
140-foot (3-loop), type XXVI
1
1670-01-062-6313
60-foot (3-loop), type XXVI for C-17 drogue line
1
1670-01-493-6418
Link assembly, two-point:
1
5351-00-010-4659
Nail, steel wire, common 8d
As required
1670-00-753-3928
Pad, energy-dissipating, honeycomb
7 sheets
Parachute:
1670-01-016-7841
Cargo, G-11B
4
1670-00-040-8135
Cargo, extraction, 28-foot
1
1670-01-063-3715
Cargo, extraction, 15-foot for C-17
1
Platform, airdrop, type V, 16-foot
1670-01-353-8425
Bracket assembly, EFTC
1
1670-01-162-2372
Bracket assembly, extraction
1
1670-01-162-2376
Clevis assembly
60
1670-01-162-2381
Tandem link
4
5530-00-128-4981
Plywood, 3/4-inch
As required
1670-01-097-8817
Release, cargo parachute, M-2
1
5-24
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Supply Loads on a 16-Foot, Type V Platform for Low-Velocity Airdrop
Table 5-1. Equipment Required for Rigging Typical Loads on a 16-Foot, Type V Platform for
Low-Velocity Airdrop (Continued)
National Stock Number
Item
Quantity
Sling, cargo airdrop:
1670-01-062-6304
9-foot (2-loop), type XXVI nylon webbing
1
1670-01-063-7761
16-foot (2-loop), type XXVI nylon webbing
4
1670-01-062-6302
20-foot (3-loop), type XXVI nylon webbing
3
5340-00-040-8219
Strap parachute release, multicut
2
7501-00-266-5016
Tape, adhesive, 2-inch
As required
7501-00-266-6710
Tape, masking
As required
1670-00-937-0271
Tiedown assembly, 15-foot
76
1670-01-483-8259
Towplate release mechanism (H-block) (C-17)
1
Webbing:
8305-00-268-2411
Cotton, 1/4-inch, type I
As required
Nylon:
8305-00-082-5752
Tubular, 1/2-inch
As required
8305-00-263-3591
Type VIII webbing
As required
20 February 2009
FM 4-20.112/TO 13C7-1-8
5-25
Chapter 5
SECTION II-RIGGING 155-MILLIMETER (MM) AMMUNITION
DESCRIPTION OF LOAD
5-17. Ninety-six 155-mm projectiles and 72 powder canisters are rigged for low-velocity airdrop on a 16-
foot, type V airdrop platform. All
155-mm ammunition packaged as shown and listed in FM 4-
20.153/MCRP 4-11.3B/TO 13C7-18-41, as certified for low-velocity airdrop, may be rigged using these
procedures. The load uses three G-11 cargo parachutes. Each load must weigh at least 5,040 pounds,
including parachutes. Refer to 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 for
the weight limitations for the number of parachutes to be used.
PREPARING PLATFORM
5-18. Prepare a 16-foot, type V platform as shown in Figure 5-14.
5-26
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Supply Loads on a 16-Foot, Type V Platform for Low-Velocity Airdrop
CLEVISES
22A THROUGH 1A
LEFT
FRONT
REAR
RIGHT
CLEVISES
22 THROUGH 1
Step:
1. Inspect, or assemble and inspect, a 16-foot, type V platform as outlined in TM 10-1670-
268-20&P/TO 13C7-52-22.
2. Install a tandem link to the front of each platform side rail using holes 1, 2, and 3.
3. Install a tandem link to the rear of each platform side rail using holes 30, 31, and 32.
4. Install clevises on bushings 2 and 3 of each front tandem link.
5. Install clevises on bushings 1 and 3 of each rear tandem link.
6. Starting at the front of each platform side rail, install clevises on the bushings bolted to
holes 4, 6, 9, 10, 11, 12, 13, 15 , 16, 17, 18, 19, 20, 22, 23, 24, 25, and 29.
7. Starting at the front of the platform, number the clevises 1 through 22 on the right side, and
1A through 22A on the left side.
8. Label the tiedown rings according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5.
Note. Refer to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 (Table 2-
2) when adding additional parachutes for heavier loads for the suspension/tandem link positioning.
Figure 5-14. Platform Prepared
20 February 2009
FM 4-20.112/TO 13C7-1-8
5-27
Chapter 5
BUILDING HONEYCOMB STACKS AND PLACING FIRST STACK
5-19. Build the honeycomb stack for the first stack of ammunition and place it on the platform as shown in
Figure 5-15. Build the stack for the second stack of ammunition as shown in Figure 5-15. Set the second
honeycomb stack aside.
Note. All dimensions are in inches.
10
Stack
Pieces
Width
Length
Material
Instructions
Number
(Inches)
(Inches)
1 and 2
2
36
84
Honeycomb
Form and glue together a two
layer base 84 inches long and
2
18
84
Honeycomb
54 inches wide. Alternate the
layers of honeycomb. Center
the stack 10 inches from the
front edge of the platform.
8
12
5
Honeycomb
Glue two pieces of honeycomb
on each corner of the base with
the 5-inch sides facing the left
and right sides of the platform.
4
12
10
Honeycomb
Center and two pieces of
honeycomb along each side of
the base with the 10-inch sides
facing the left and right sides of
the platform.
16
12
10
Honeycomb
Evenly space the two layer
pieces of honeycomb between
the center and corner pieces.
The spaces between the pieces
are 4 inches.
Figure 5-15. Honeycomb for First Ammunition Stack Prepared and Placed
5-28
FM 4-20.112/TO 13C7-1-8
20 February 2009
|
|
