Rigging Supply Loads on an 8-Foot, Type V Platform for Low-Velocity Airdrop
INSTALLING THE RELEASE SYSTEM
2-25. Prepare, attach, and safety an M-1 cargo parachute release according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 and as shown in Figure 2-23.
CAUTION
When rigging a single parachute load, ensure the rear parachute release
safety tie is routed under the parachute securing ties.
3
5
2
1
5
4
B1
A1
7

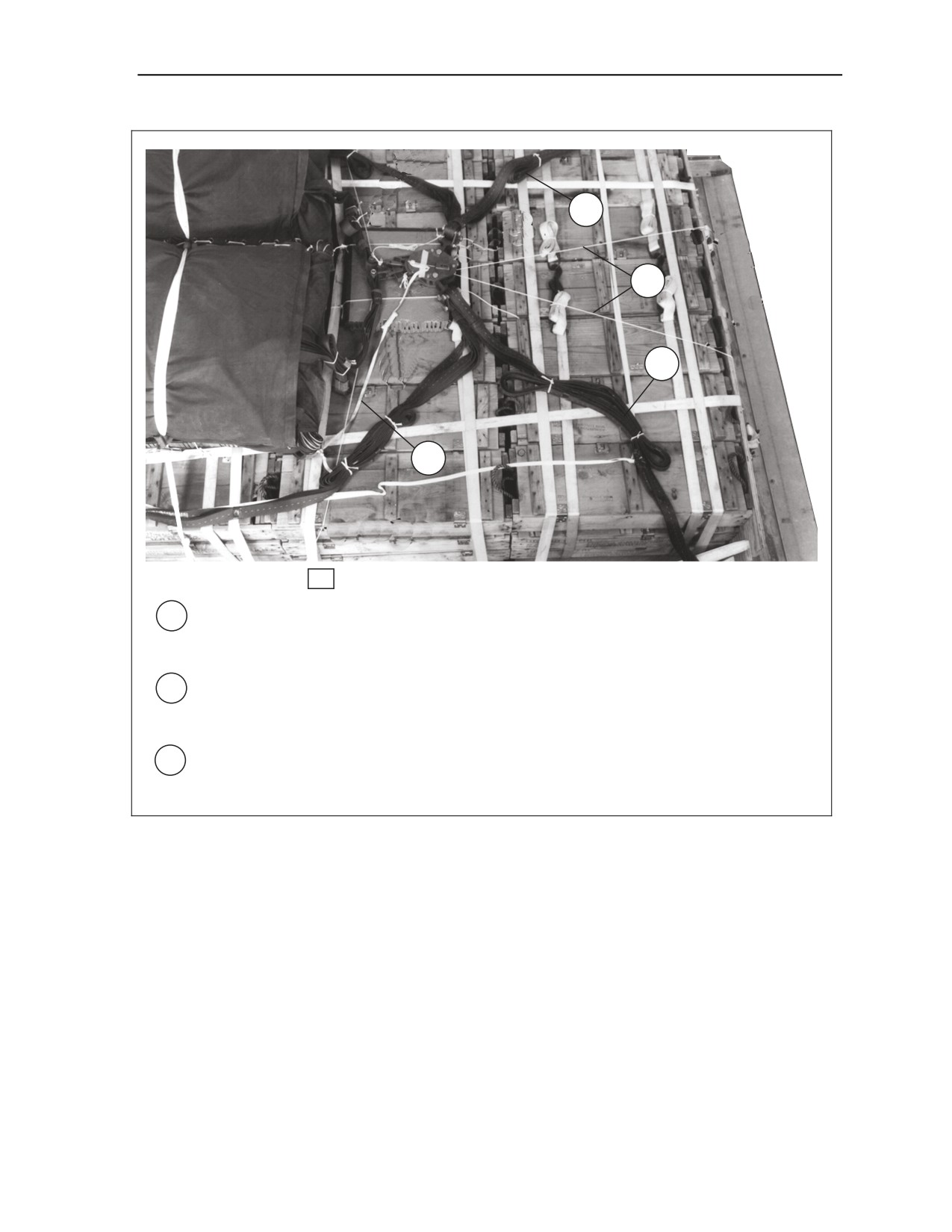

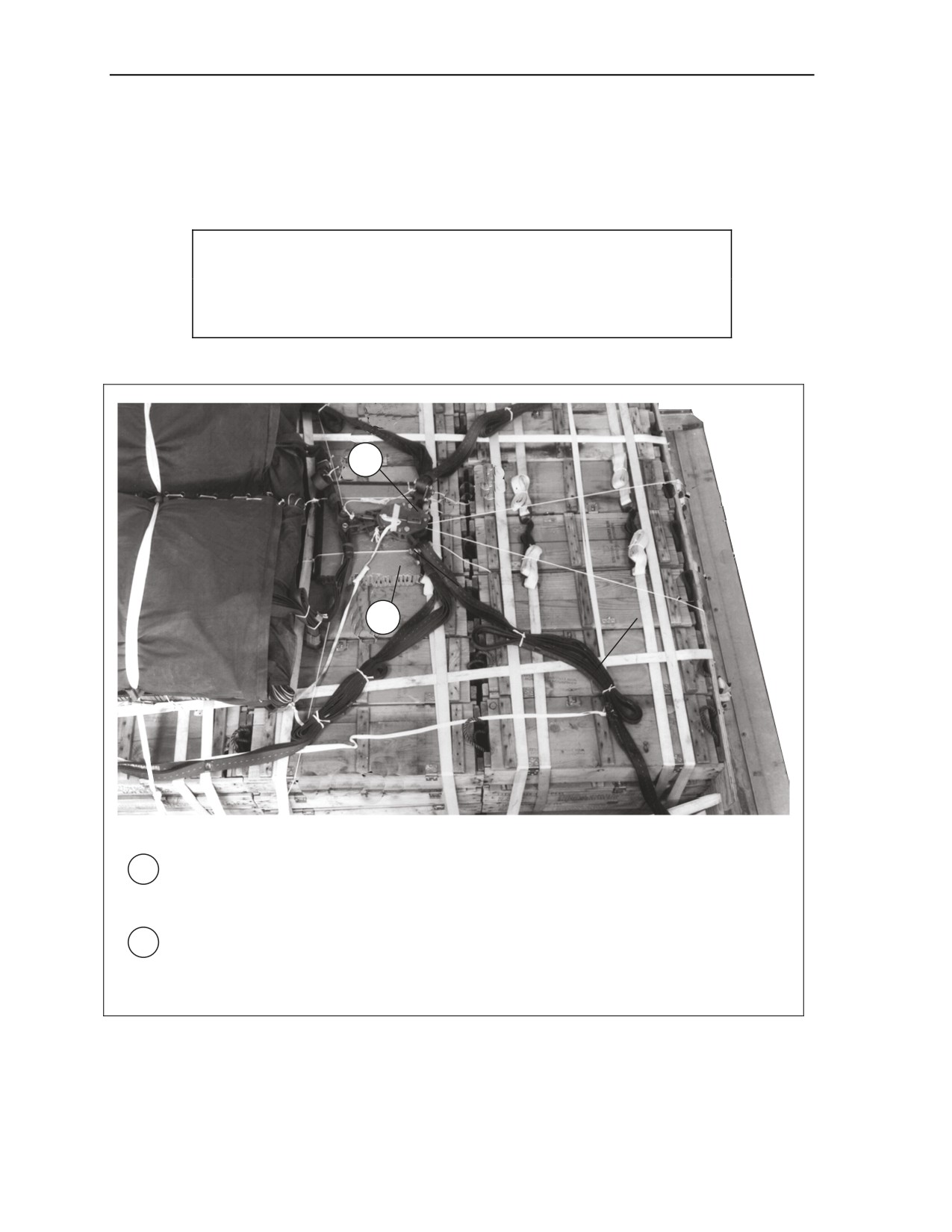

1 Center an 18- by 20-inch piece of honeycomb in front of the parachutes. Tape the edges of the
honeycomb and secure it to the load with two lengths of type III nylon cord.
Note. Do not cover the deadman’s tie with the release platform.

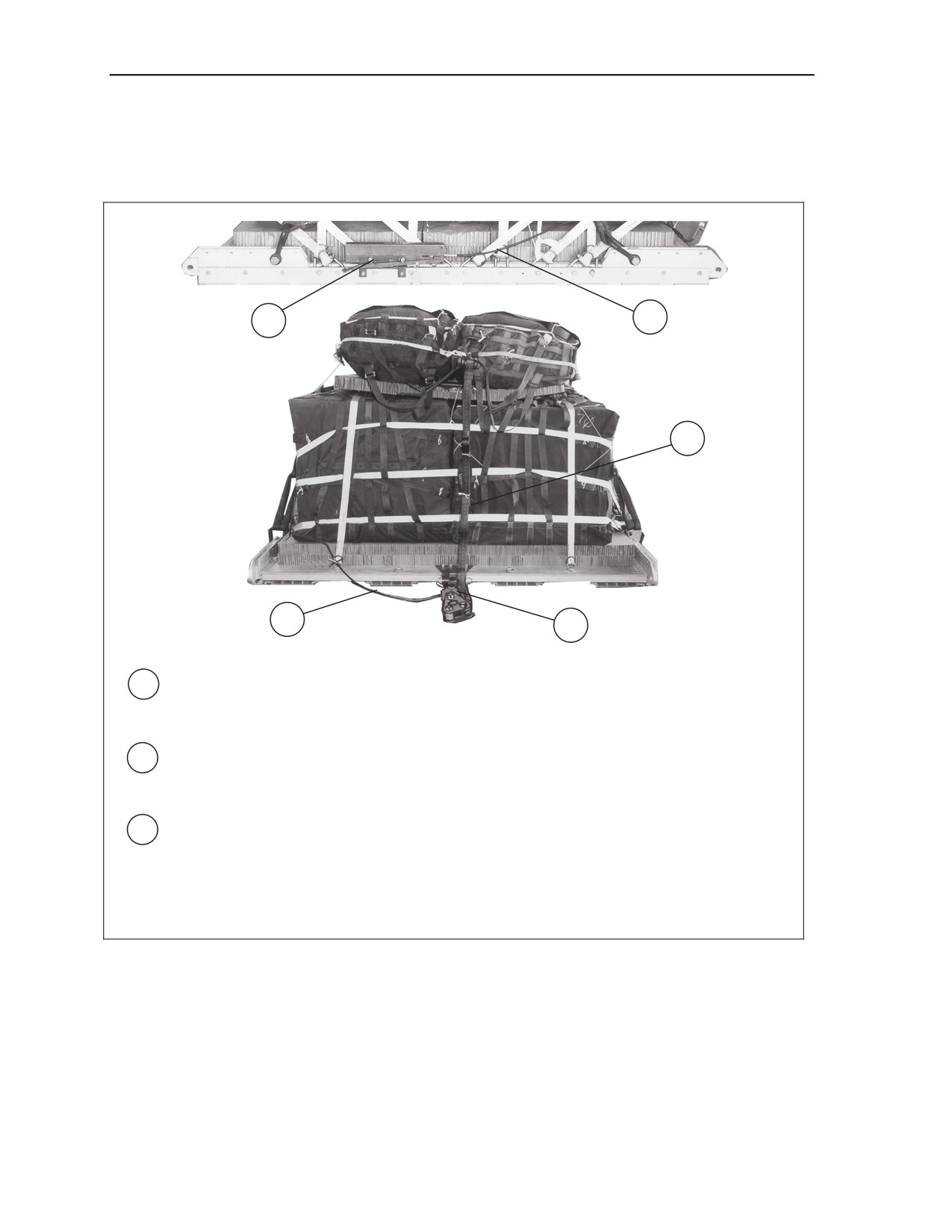

2 Prepare and install the M-1 cargo parachute release on the honeycomb release platform and attach
the suspension slings and riser extensions.
3 Safety the bottom of the release to tie-down rings A1 and B1 with a length of type III nylon cord
according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
4 Safety the top of the release assembly to clevises 7 and 7A with a length of type III nylon cord
according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
5 S-fold and tie any excess suspension slings with one turn of type I, 1/4-inch cotton webbing.

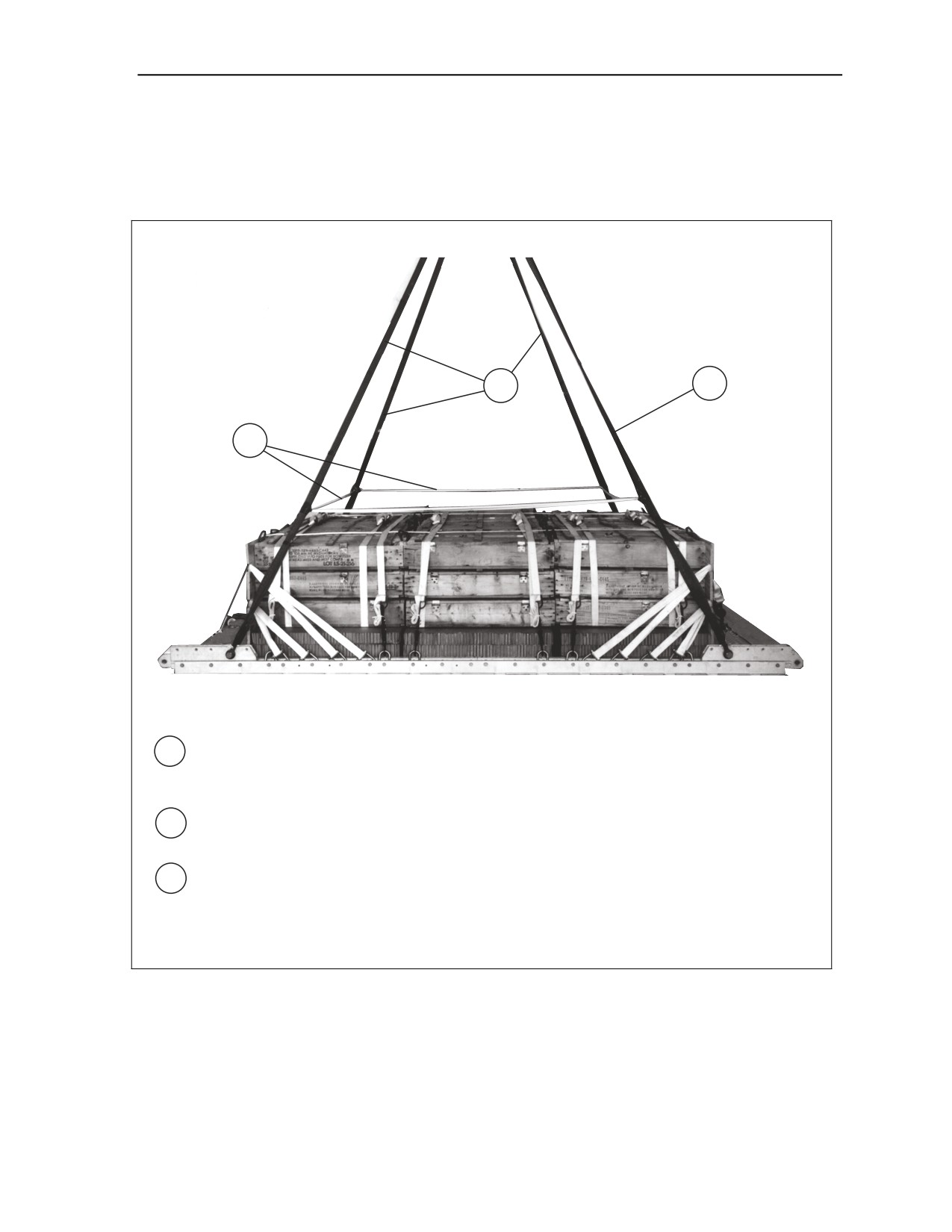

Figure 2-23. Cargo Parachute Release System Installed
20 February 2009
FM 4-20.112/TO 13C7-1-8
2-29
Chapter 2
INSTALLING THE EXTRACTION SYSTEM
2-26. Install the extraction system as shown in Figure 2-24.
1
2
3
2
1

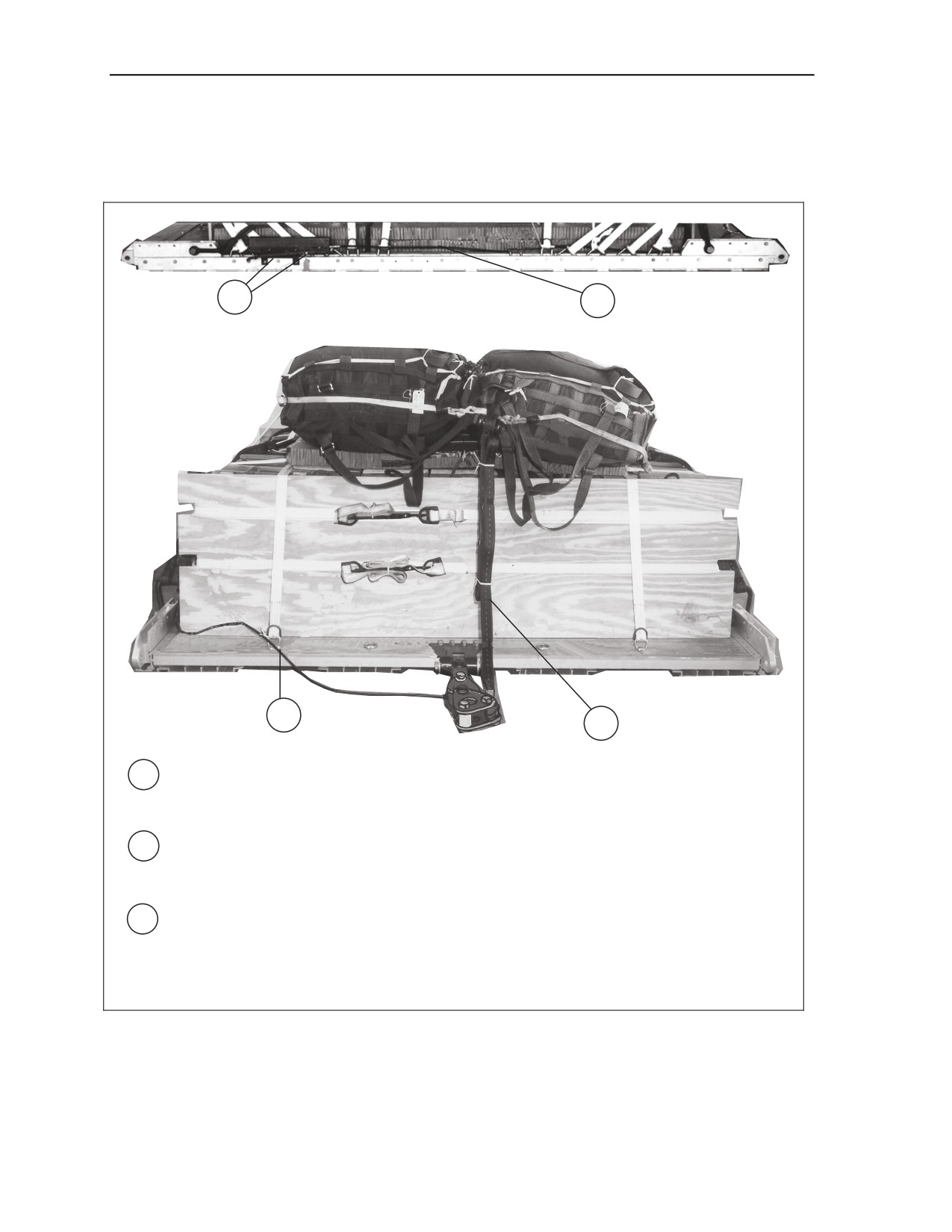

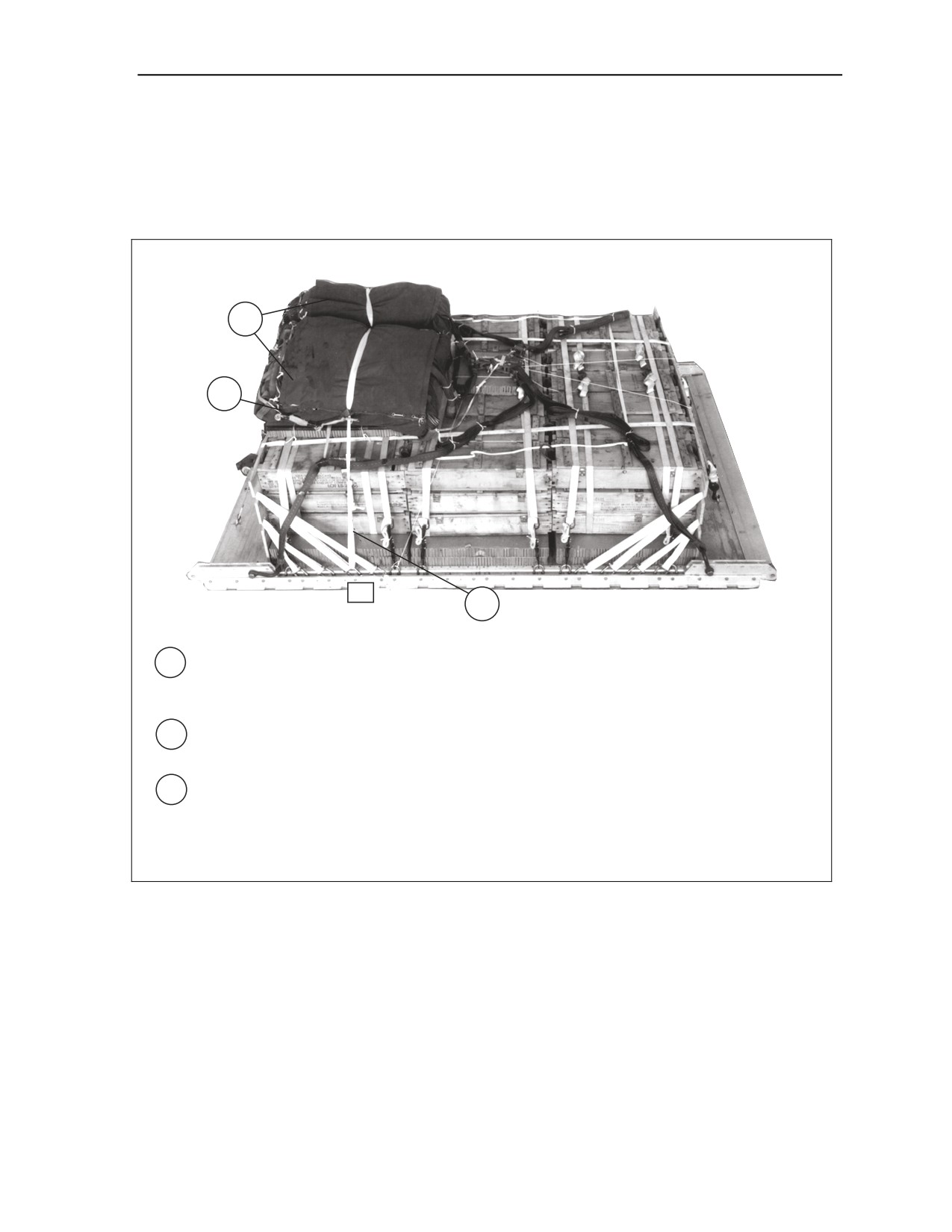

1 Install the components of the extraction force transfer coupling (EFTC) according to FM 4-
20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5. Use the front
mounting holes for the EFTC brackets.
2 Install a 12-foot EFTC cable according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-
AB-MMO-010/TO 13C7-1-5 and safety the cable to convenient places on the platform with
one turn of type I, 1/4-inch cotton webbing.
3 Attach a 9-foot (2-loop), type XXVI nylon sling according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 to be used as a deployment line. S-fold
the excess and tie it in two places with type I, 1/4-inch cotton webbing.

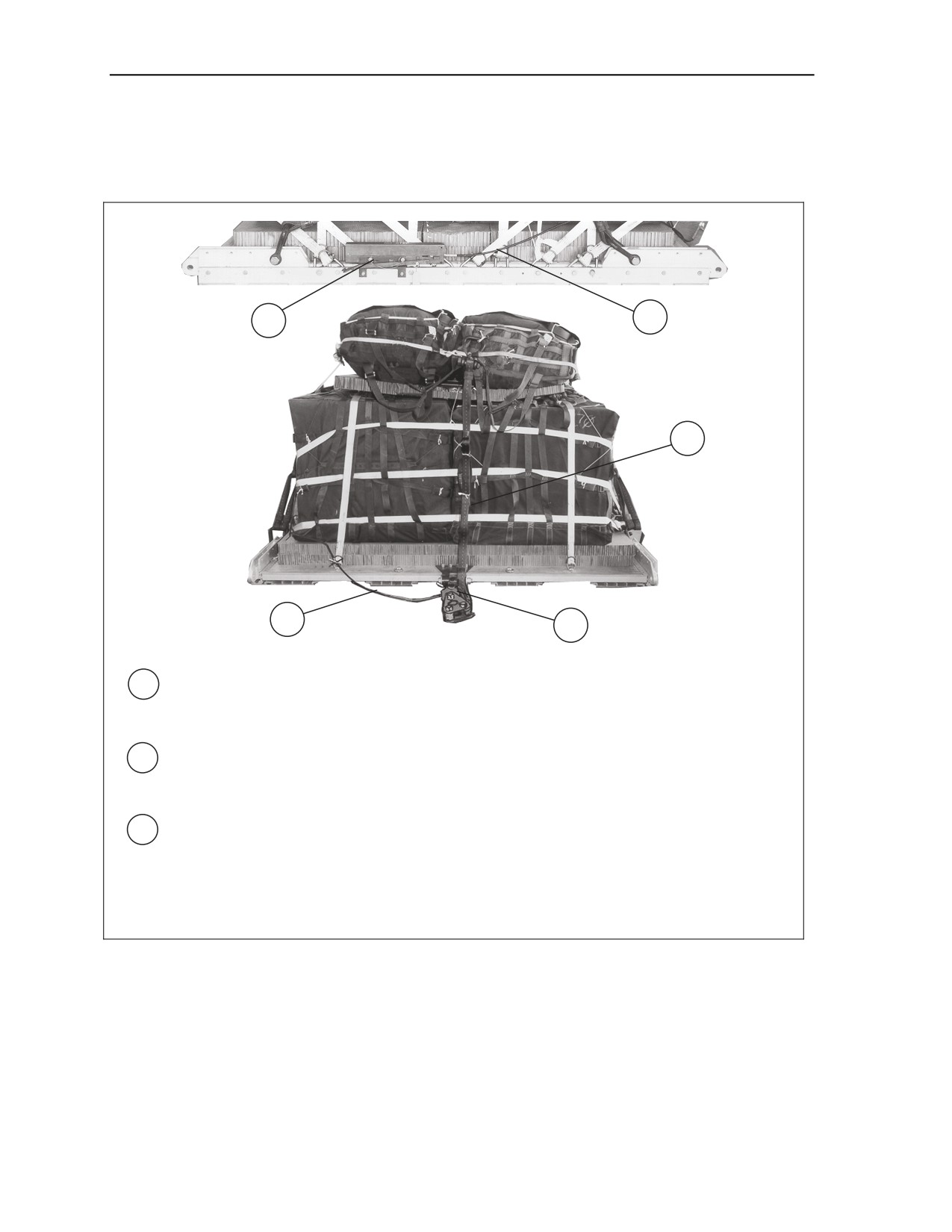

Figure 2-24. Extraction System Installed
2-30
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Supply Loads on an 8-Foot, Type V Platform for Low-Velocity Airdrop
PLACING EXTRACTION PARACHUTE
2-27. Select the extraction parachute and extraction line needed using the extraction line requirements
table in FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5. Place the extraction
parachute and line on the load for installation in the aircraft.
INSTALLING PROVISIONS FOR EMERGENCY RESTRAINTS
2-28. Select and install the provisions for the emergency aft restraints according to the emergency aft
restraint requirements table in FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-
5.
MARKING RIGGED LOAD
2-29. Mark the rigged load according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-
010/TO 13C7-1-5, and as shown in Figure 2-25. Complete Shipper’s Declaration for Dangerous Goods. If
the load varies from the one shown, the weight, height, CB, and parachute requirements must be
recomputed.
EQUIPMENT REQUIRED
2-30. Use the equipment listed in Table 2-2 to rig this load.
20 February 2009
FM 4-20.112/TO 13C7-1-8
2-31
Chapter 2
CAUTION
Make the final rigger inspection required by AR 59-4 and FM 4-
20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5
before the load leaves the rigging site.
CB
RIGGED LOAD DATA
Weight: Load shown
6,750 pounds
Maximum Suspended Weight
14,250 pounds
Height
71 inches
Width
108 inches
Overall Length
119 inches
Overhang: Front
0 inches
Rear
0 inches
Center of Balance (from front edge of the platform)
50 inches
Extraction System with 16-foot cable (adds 18 inches to length of platform)
EFTC

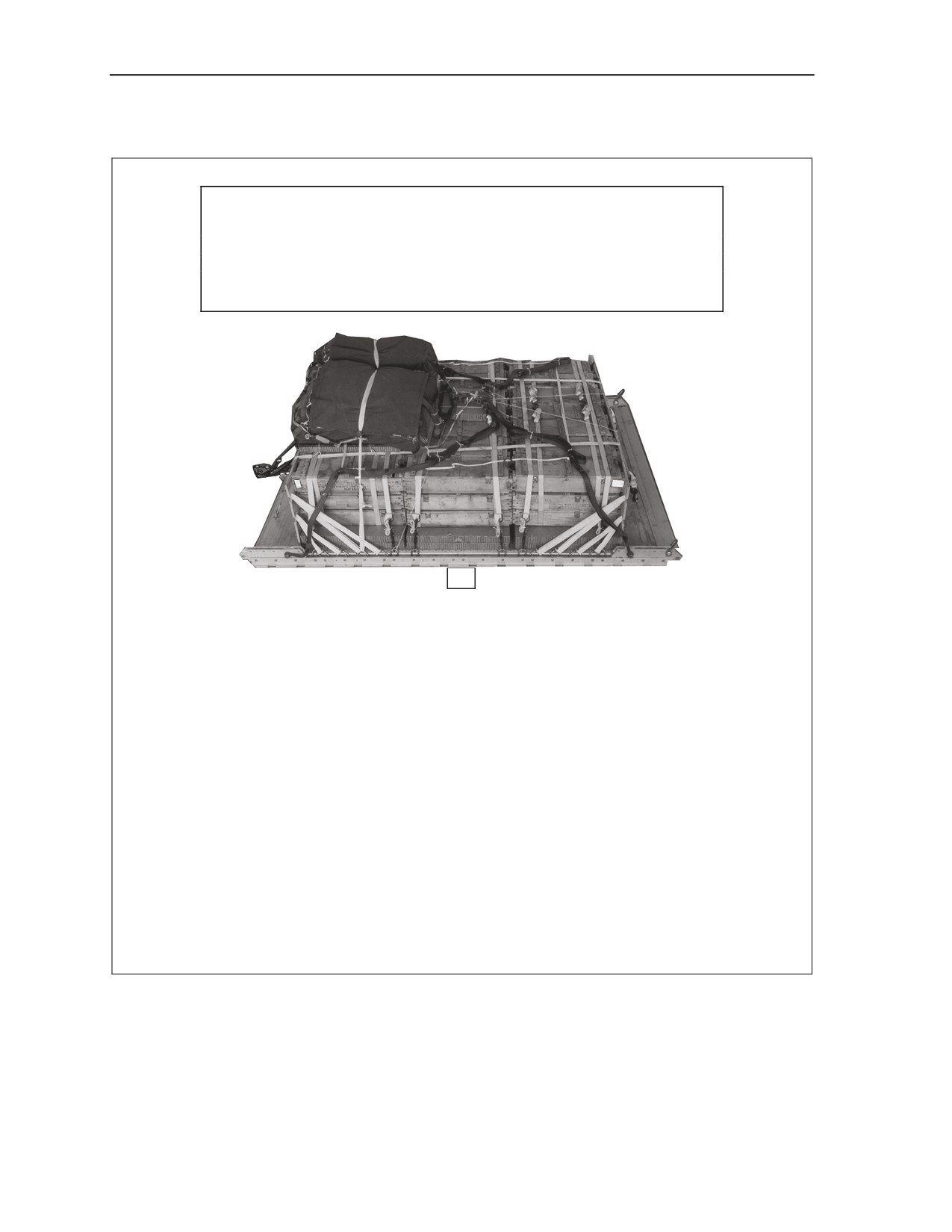

Figure 2-25. A-22 Cargo Bags Rigged on an 8-Foot, Type V Platform for Low-Velocity Airdrop
2-32
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Supply Loads on an 8-Foot, Type V Platform for Low-Velocity Airdrop
Table 2-2. Equipment Required for Rigging A-22 Cargo Bags Rigged on an 8-Foot, Type V
Platform for Low-Velocity Airdrop
National Stock Number
Item
Quantity
8040-00-273-8713
Adhesive, paste, 1-gallon
As required
1670-00-587-3421
Bag, cargo, (A-22)
4
Clevis, suspension:
4030-00-678-8562
3/4-inch (medium) emergency restraint
8
4030-00-090-5354
1-inch (large)
5
4020-00-240-2146
Cord, nylon, type III
As required
1670-00-434-5783
Coupling, airdrop, extraction force transfer with
1
12-foot cable
1670-00-360-0328
Cover, clevis, large
1
8135-00-664-6958
Cushioning material, packaging, cellulose wadding
As required
8305-00-191-1101
Felt, 1/2-inch thick
As required
1670-01-183-2678
Leaf, extraction line (line bag) (add 2 for C-17)
2
Line, extraction, type XXVI nylon webbing:
1670-01-064-4452
60-foot (1-loop), type XXVI or
1
1670-01-062-6313
60-foot (3-loop), type XXVI
1
1670-01-107-7652
160-foot (1-loop), type XXVI
1
1670-01-064-4452
60-foot (1-loop), type XXVI for C-17 drogue line
1
1670-01-493-6418
Link assembly, two-point:
1
5351-00-010-4659
Nail, steel wire, common 8d
As required
1670-00-753-3928
Pad, energy-dissipating, honeycomb
6 sheets
Parachute:
1670-01-016-7841
Cargo, G-11B
2
1670-01-063-3716
Cargo, extraction, 22-foot
1
1670-01-063-3715
Cargo, extraction, 15-foot for C-17
1
Platform, airdrop, type V, 8-foot
1670-01-353-8425
Bracket assembly, EFTC
1
1670-01-162-2372
Bracket assembly, extraction
1
1670-01-162-2376
Clevis assembly
20
1670-01-162-2381
Tandem link
4
5530-00-128-4981
Plywood, 3/4-inch
As required
1670-01-097-8816
Release, cargo parachute, M-1
1
20 February 2009
FM 4-20.112/TO 13C7-1-8
2-33
Chapter 2
Table 2-2. Equipment Required for Rigging A-22 Cargo Bags Rigged on an 8-Foot, Type V
Platform for Low-Velocity Airdrop (Continued)
National Stock Number
Item
Quantity
Sling, cargo airdrop:
1670-01-062-6304
9-foot (2-loop), type XXVI nylon webbing
1
1670-01-063-7760
11-foot (2-loop), type XXVI nylon webbing
4
1670-01-062-6302
20-foot (2-loop), type XXVI nylon webbing
2
5340-00-040-8219
Strap parachute release, multicut
2
7501-00-266-5016
Tape, adhesive, 2-inch
As required
7501-00-266-6710
Tape, masking
As required
1670-00-937-0271
Tiedown assembly, 15-foot
12
1670-01-483-8259
Towplate release mechanism (H-block) (C-17)
1
Webbing:
8305-00-268-2411
Cotton, 1/4-inch, type I
As required
Nylon:
8305-00-082-5752
Tubular, 1/2-inch
As required
8305-00-263-3591
Type VIII webbing
As required
2-34
FM 4-20.112/TO 13C7-1-8
20 February 2009
Chapter 3
Rigging Supply Loads on a 12-Foot, Type V Platform for
Low-Velocity Airdrop
DESCRIPTION OF LOAD
3-1. Bulk supplies consisting of rations, equipment, fuel, ammunition, or other items of general supply
are rigged on a 12-foot, type V airdrop platform with G-11 cargo parachutes. Items packaged or configured
so that they can be restrained by endboards and lashings can be airdropped using these procedures.
Modifications to the honeycomb, endboards, and lashings may be necessary to allow for items of different
sizes and shapes from those shown. For extraction purposes, the rigged load must weigh at least 3,780
pounds. Refer to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 for the
weight limitations for the number of parachutes to be used.
PREPARING PLATFORM
3-2. Prepare a 12-foot, type V platform as shown in Figure 3-1.
20 February 2009
FM 4-20.112/TO 13C7-1-8
3-1
Chapter 3
CLEVISES
14A THROUGH 1A
LEFT

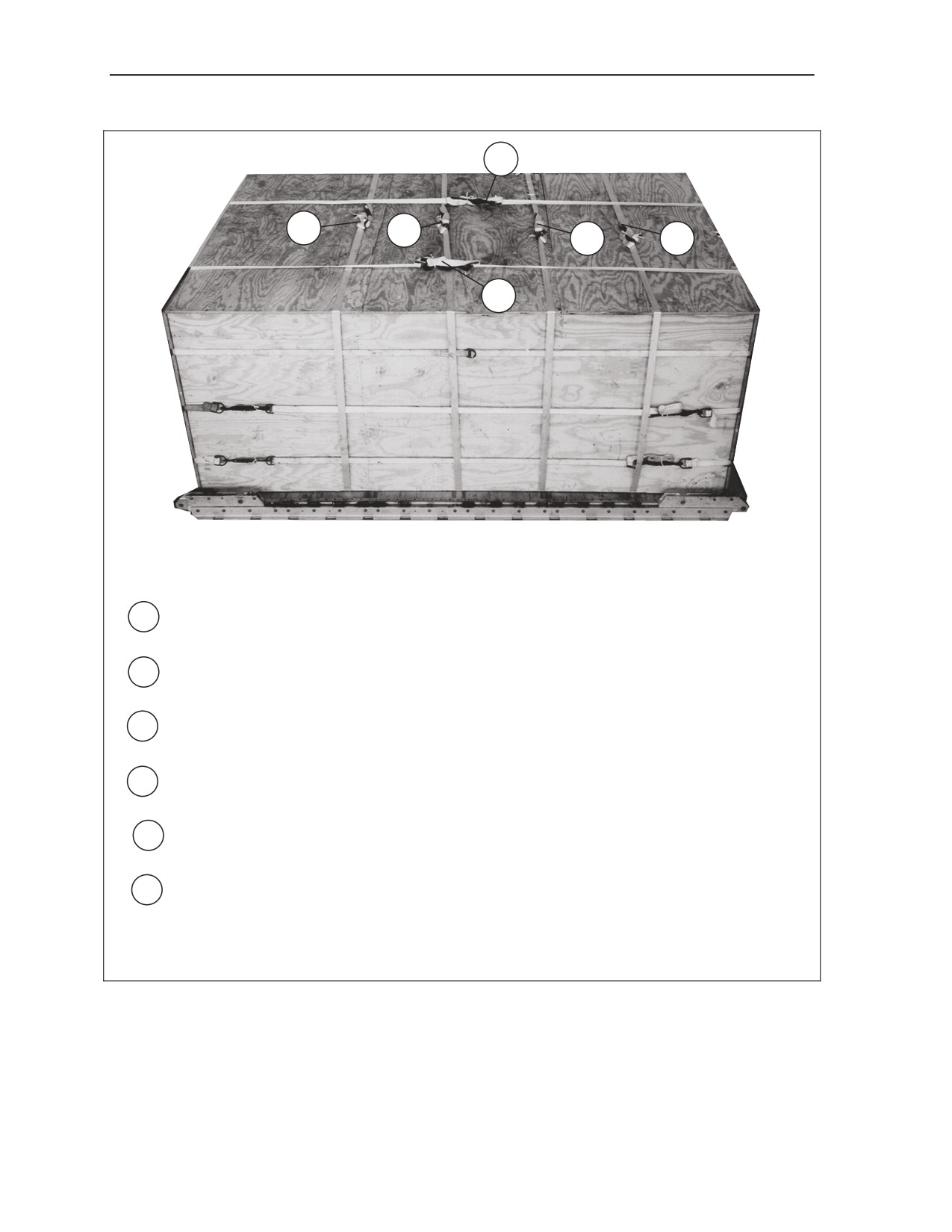

REAR
FRONT
RIGHT
CLEVISES
14 THROUGH 1
Step:

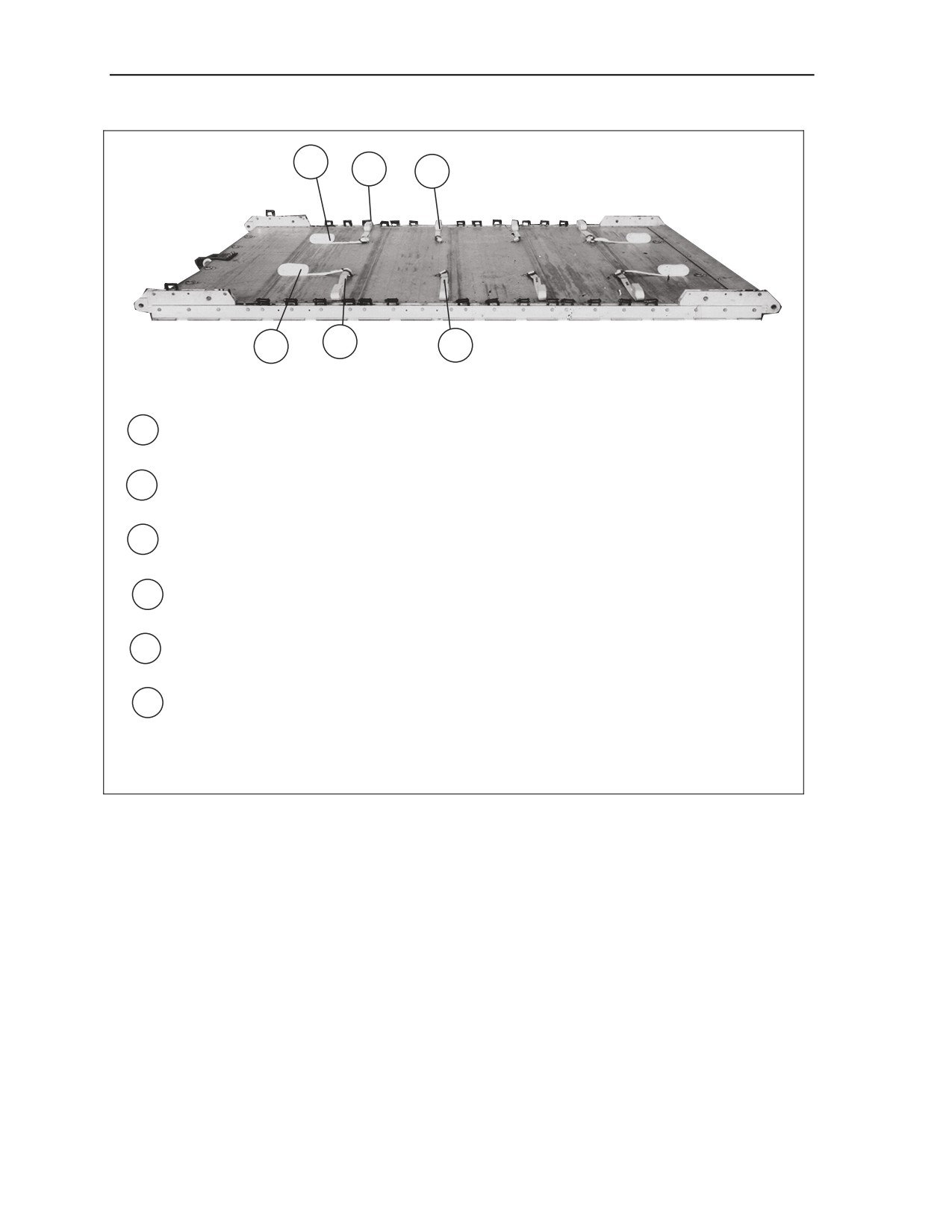

1. Inspect, or assemble and inspect, a 12-foot, type V platform as outlined in TM 10-1670-
268-20&P/TO 13C7-52-22.
2. Install a tandem link to the front of each platform side rail using holes 1, 2, and 3.
3. Install a tandem link to the rear of each platform side rail using holes 22, 23, and 24.
4. Starting at the front of each platform side rail, install clevises on the bushings bolted to
holes 4, 5, 6, 7, 8, 9, 10, 15, 16, 17, 18, 19, 20, and 21.
5. Starting at the front of the platform, number the clevises 1 through 14 on the right side,
and 1A through 14A on the left side.
6. Label the tiedown rings according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5.

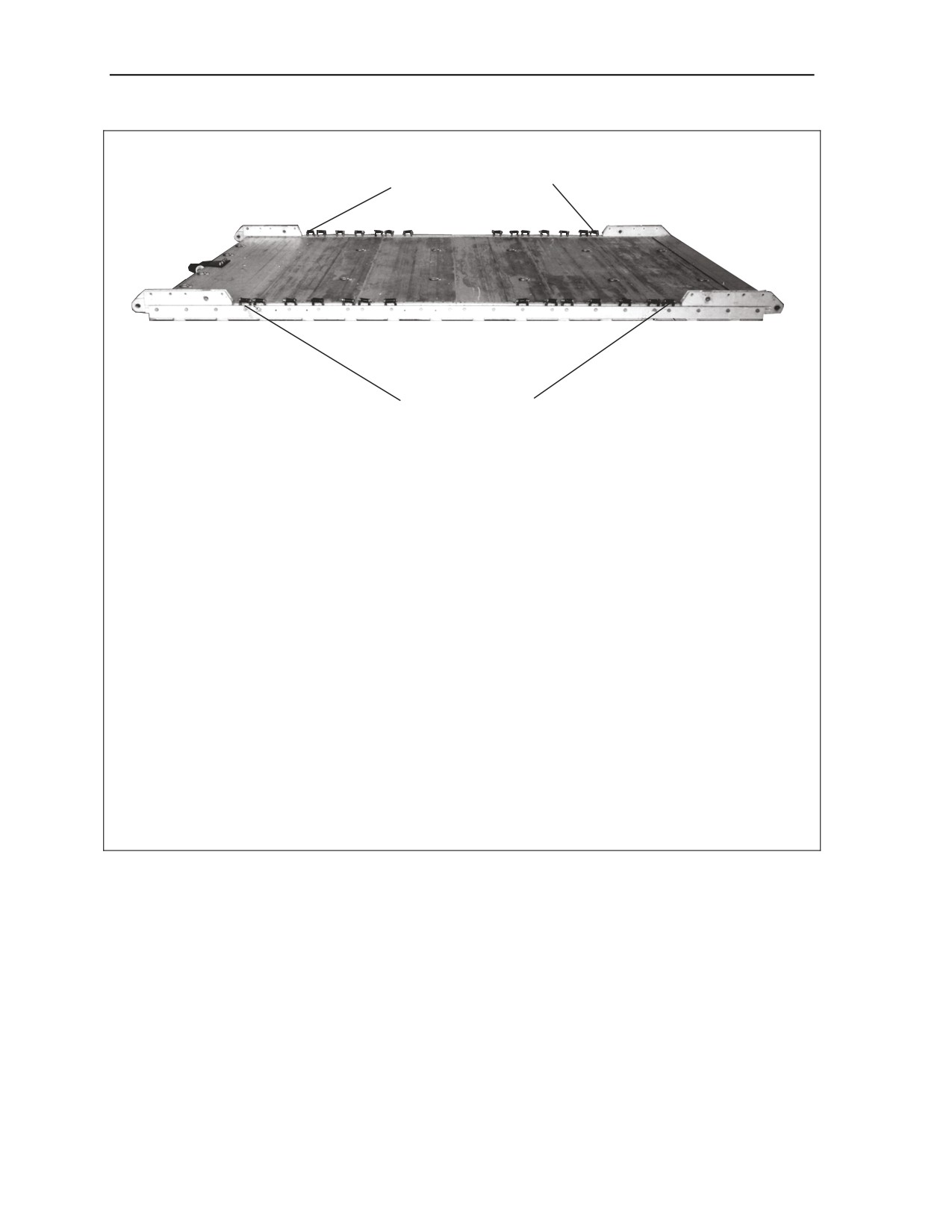

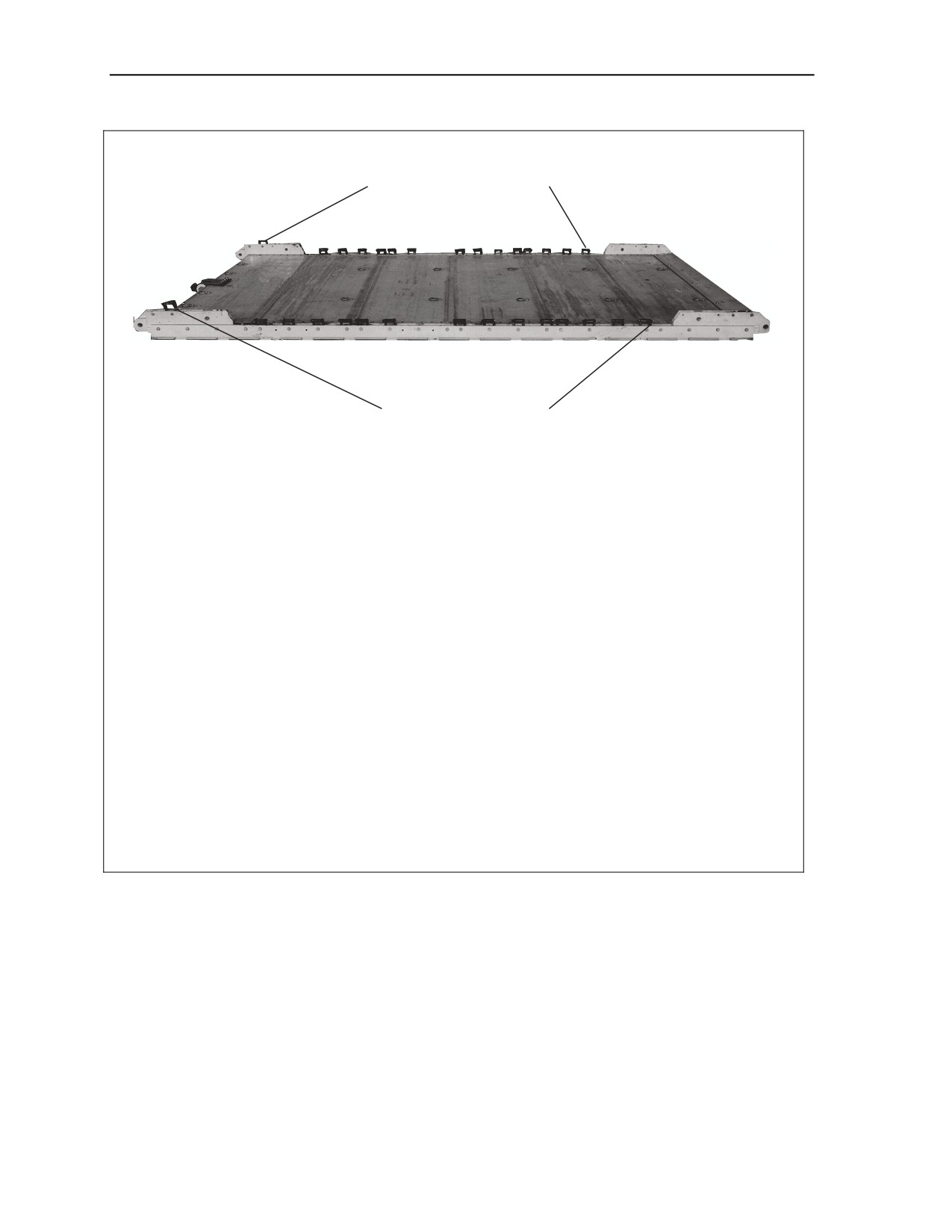

Figure 3-1. Platform Prepared
3-2
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Supply Loads on a 12-Foot, Type V Platform for Low-Velocity Airdrop
PLACING HONEYCOMB
3-3. Place the honeycomb on the platform as shown in Figure 3-2.
Notes.
1. When ammunition is dropped, two layers of honeycomb are required.
2. When rigging this load for airdrop on a drop zone with ground elevation of 6,000 to 10,000
feet, add an additional layer of honeycomb.
3. Adjust the dimensions of the honeycomb to fit the items being dropped.
4. Do not cover the extraction bracket with honeycomb.
3
1
2

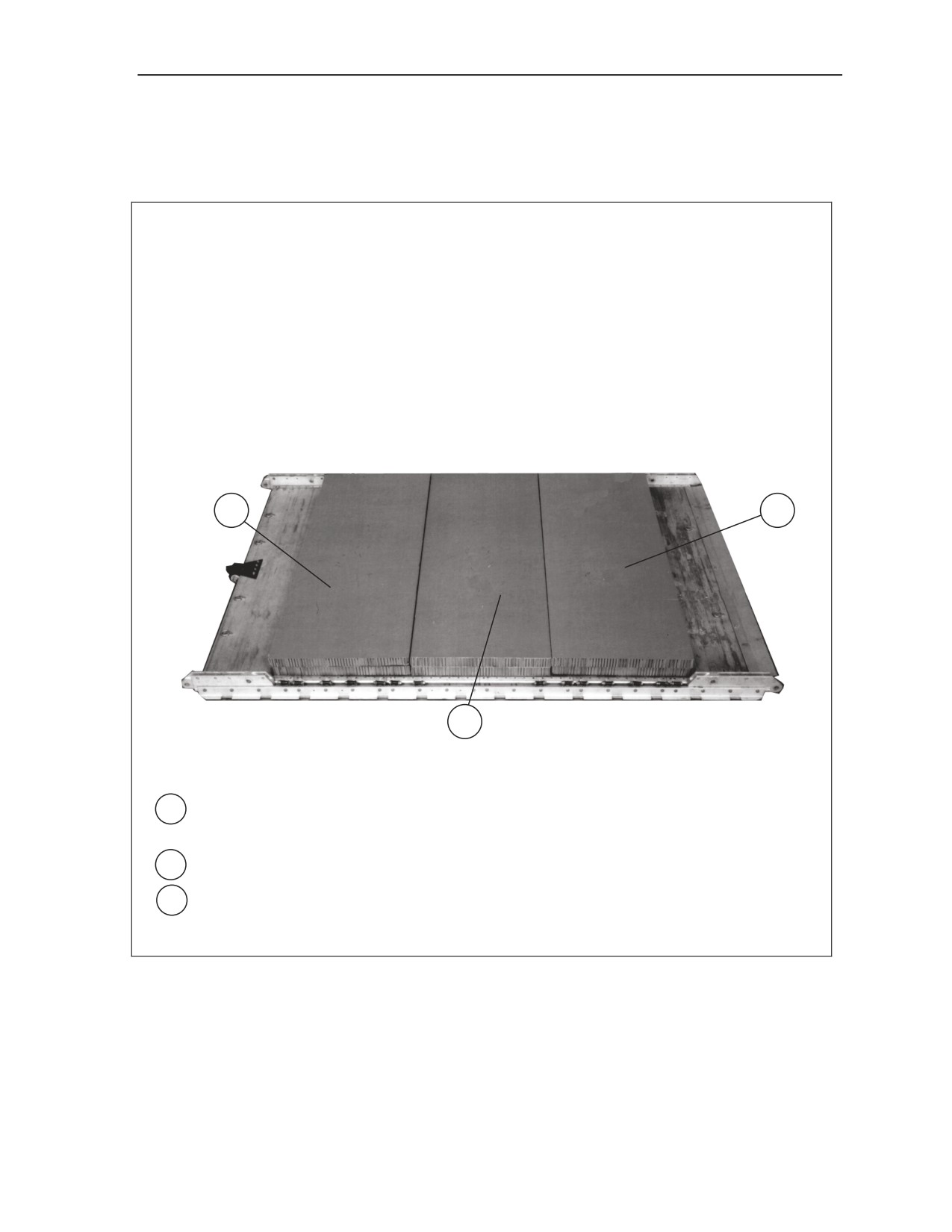

1 Glue two full 36- by 96-inch sheets of honeycomb together. Center them 16 inches from
the front edge of the platform.
2 Make a stack as in step 1 above and place it flush against the stack placed in step 1.
3 Make a stack as in step 1 above and place it flush against the stack placed in step 2.

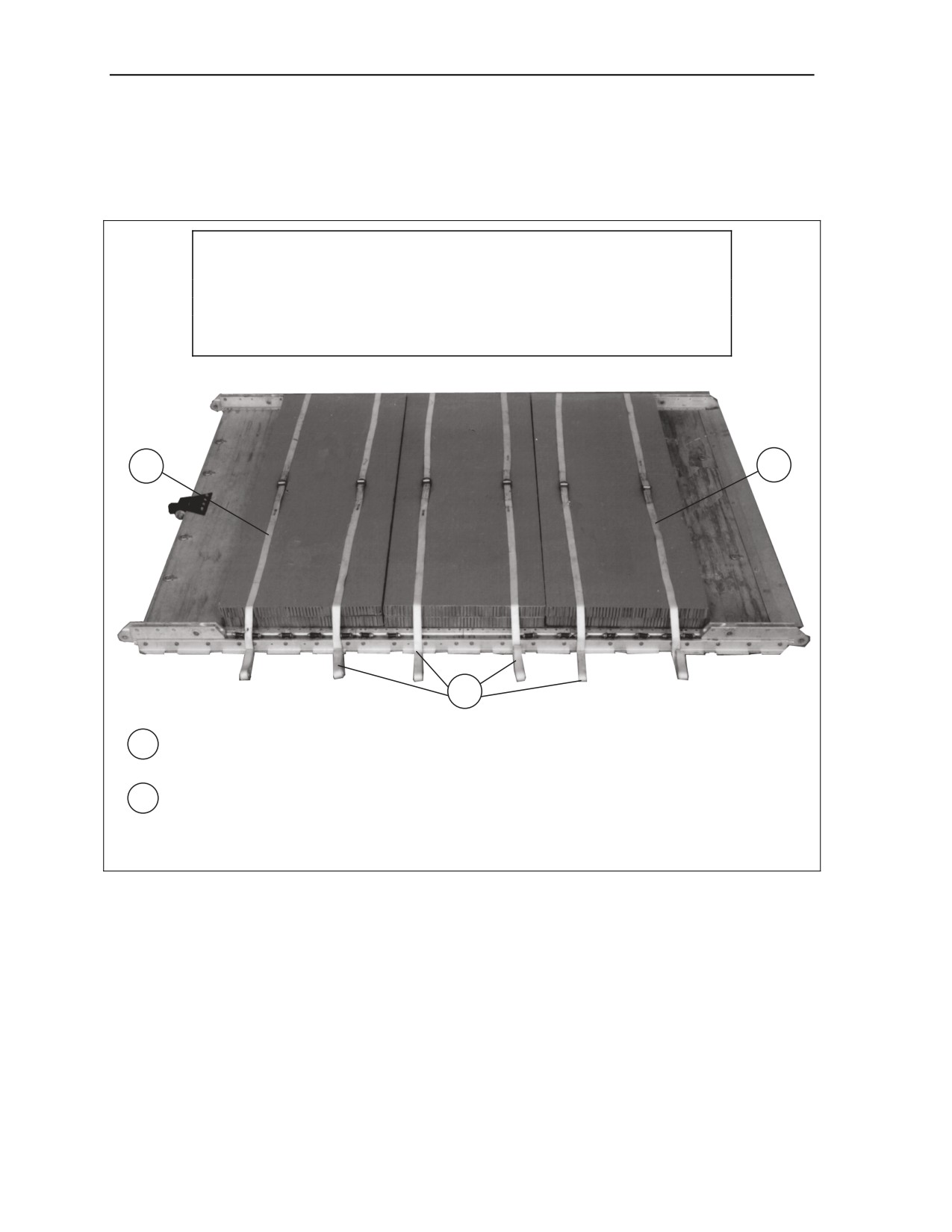

Figure 3-2. Honeycomb Placed
20 February 2009
FM 4-20.112/TO 13C7-1-8
3-3
Chapter 3
POSITIONING AND SECURING LOAD
3-4. Place six 30-foot lashings on the honeycomb, place the load on the honeycomb, and secure the
lashings as shown in Figure 3-3. Adapt the procedures shown for loads configured differently.
CAUTION
Only ammunition listed in FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
may be airdropped. Hazardous material must be packaged, marked,
and labeled as required by AFMAN(I) 24-204/TM 38-250.
1
1
2
1 Form six 30-foot lashings according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5. Center a lashing across the honeycomb 6 inches from each end.
2 Center two lashings on the joint in the honeycomb, 12 inches apart.

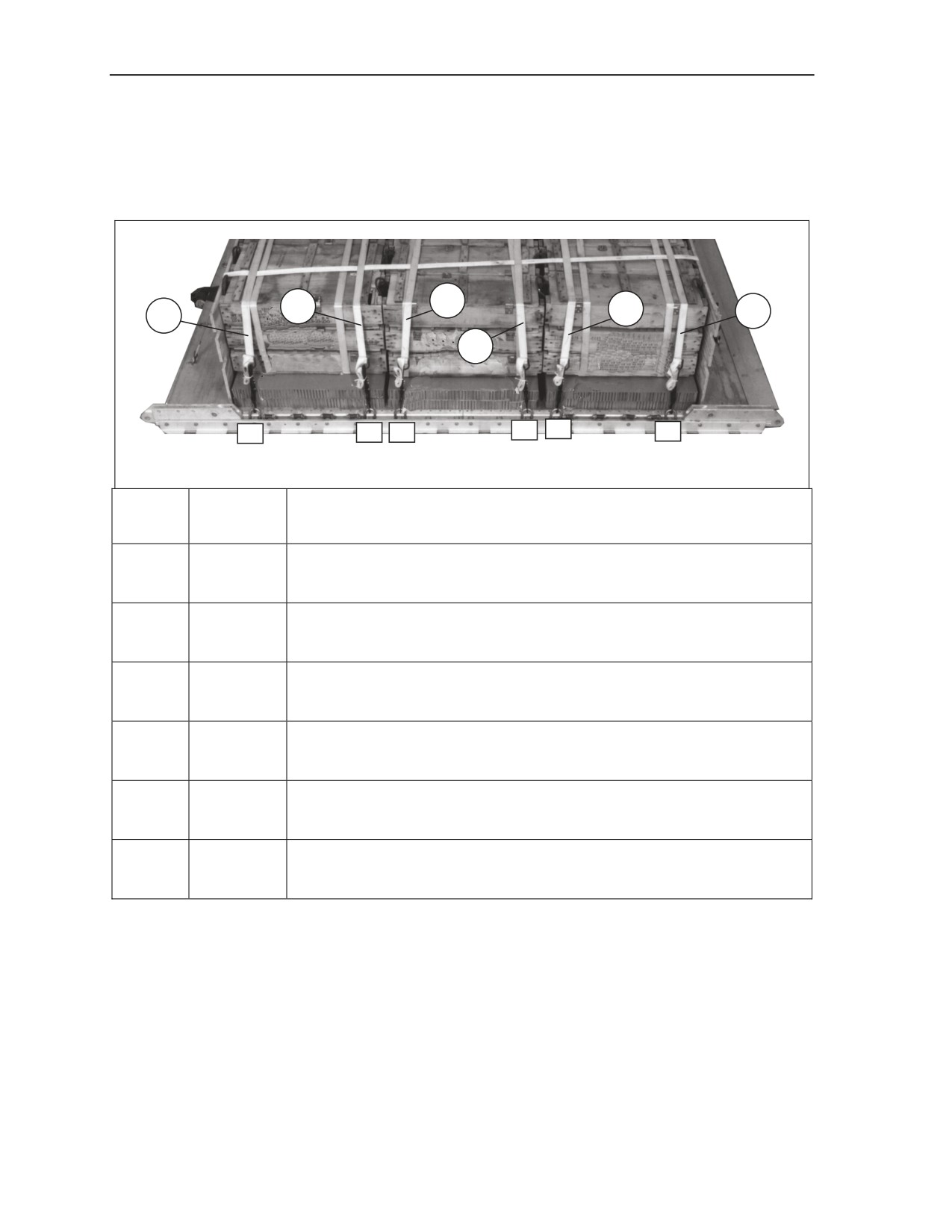

Figure 3-3. Load Positioned and Secured
3-4
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Supply Loads on a 12-Foot, Type V Platform for Low-Velocity Airdrop
3
4
3 Position the load on the honeycomb with the weight evenly distributed.
4 Pass both ends of each lashing to the top of the load. Secure each lashing with two D-
rings and a load binder.
Figure 3-3. Load Positioned and Secured (Continued)
20 February 2009
FM 4-20.112/TO 13C7-1-8
3-5
Chapter 3
CONSTRUCTING AND INSTALLING ENDBOARDS

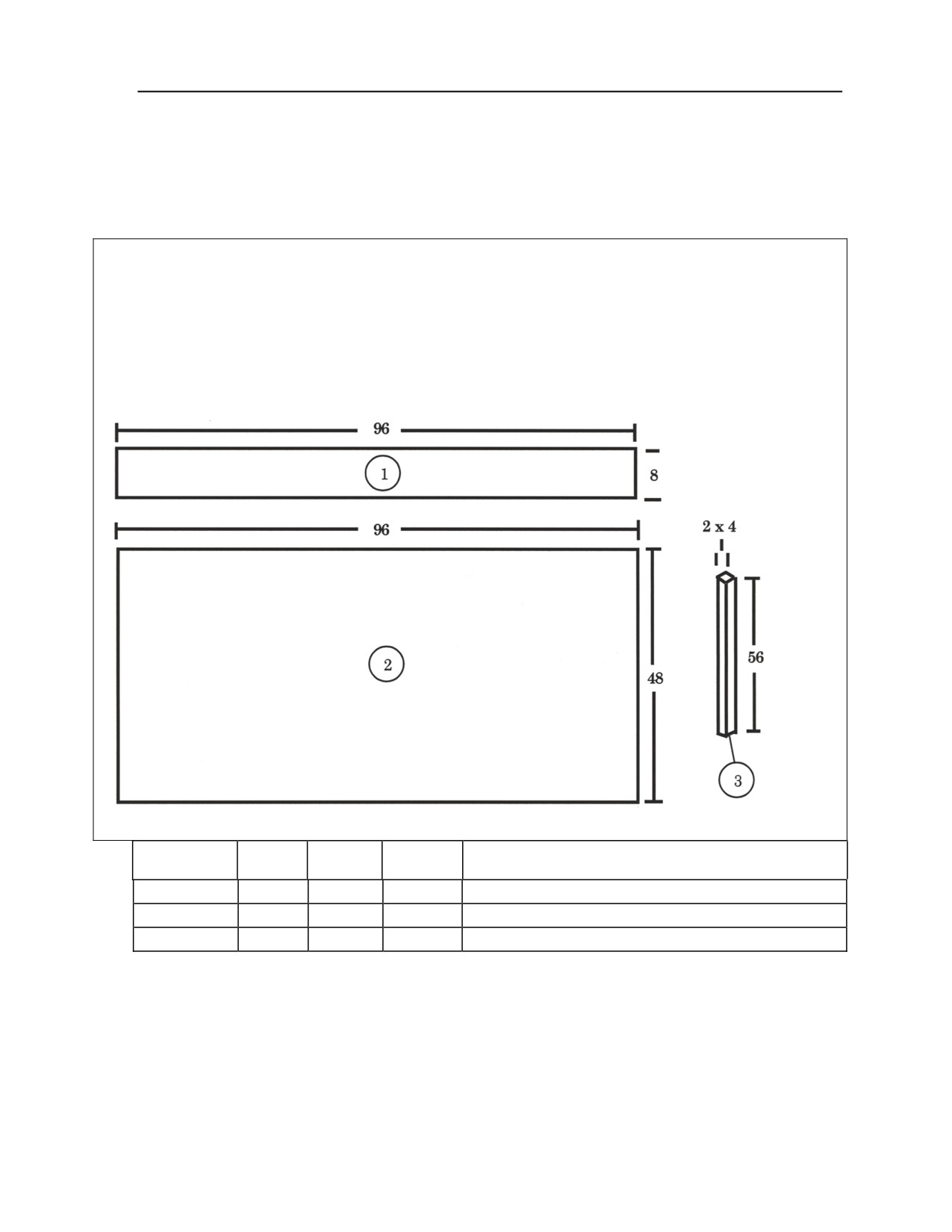

3-5. Construct the endboards and install them on the load as shown in Figure 3-4.
Notes.
1. This drawing is not to scale.
2. All dimensions are in inches.
3. The dimensions of the endboards will vary, depending on the load being rigged. The
endboards must be even with the top of the load.
1

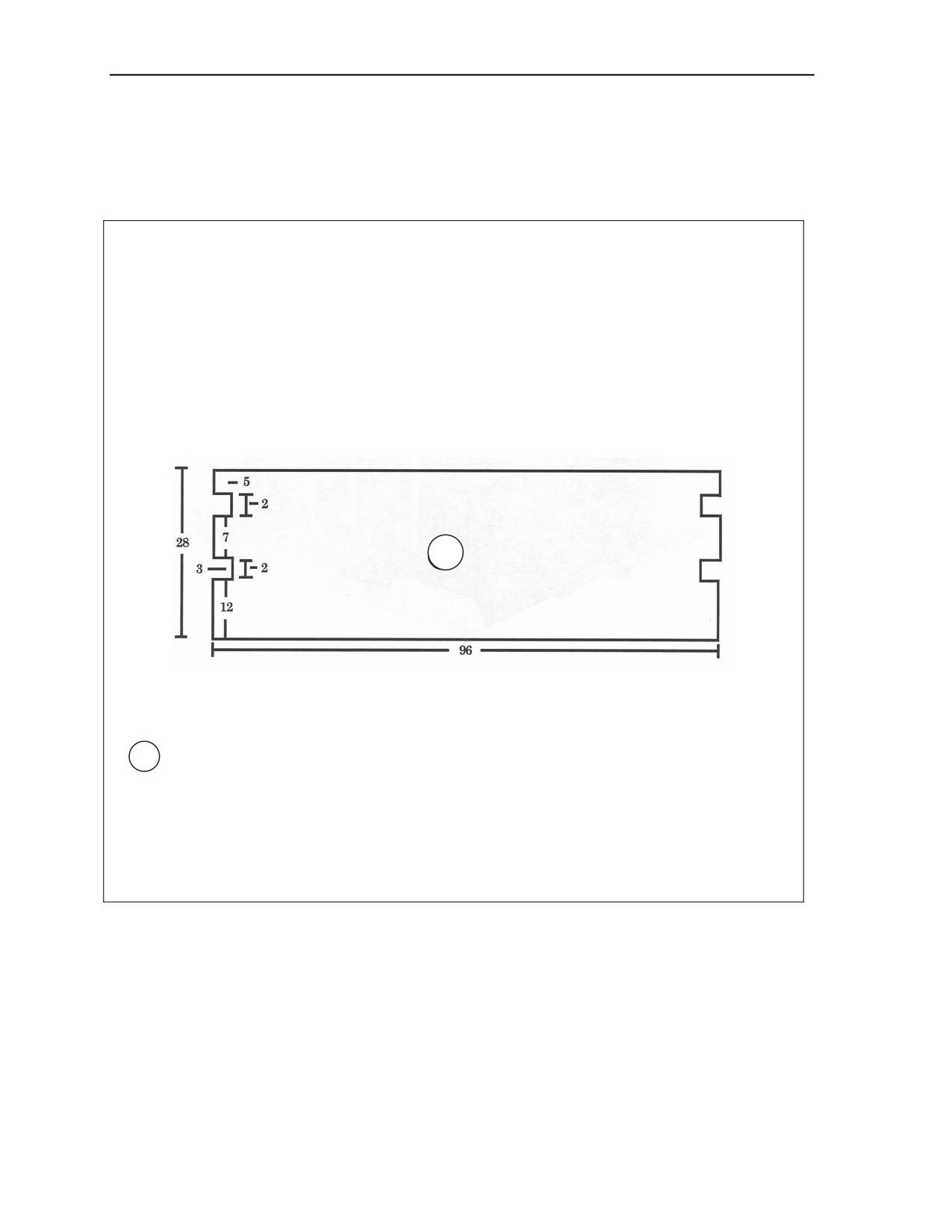

1 Construct two endboards using one 3/4- by 28- by 96-inch piece of plywood for each
endboard. Make cutouts as shown.
Note. Tape or pad the cutouts in the endboards to protect the lashings from sharp edges.

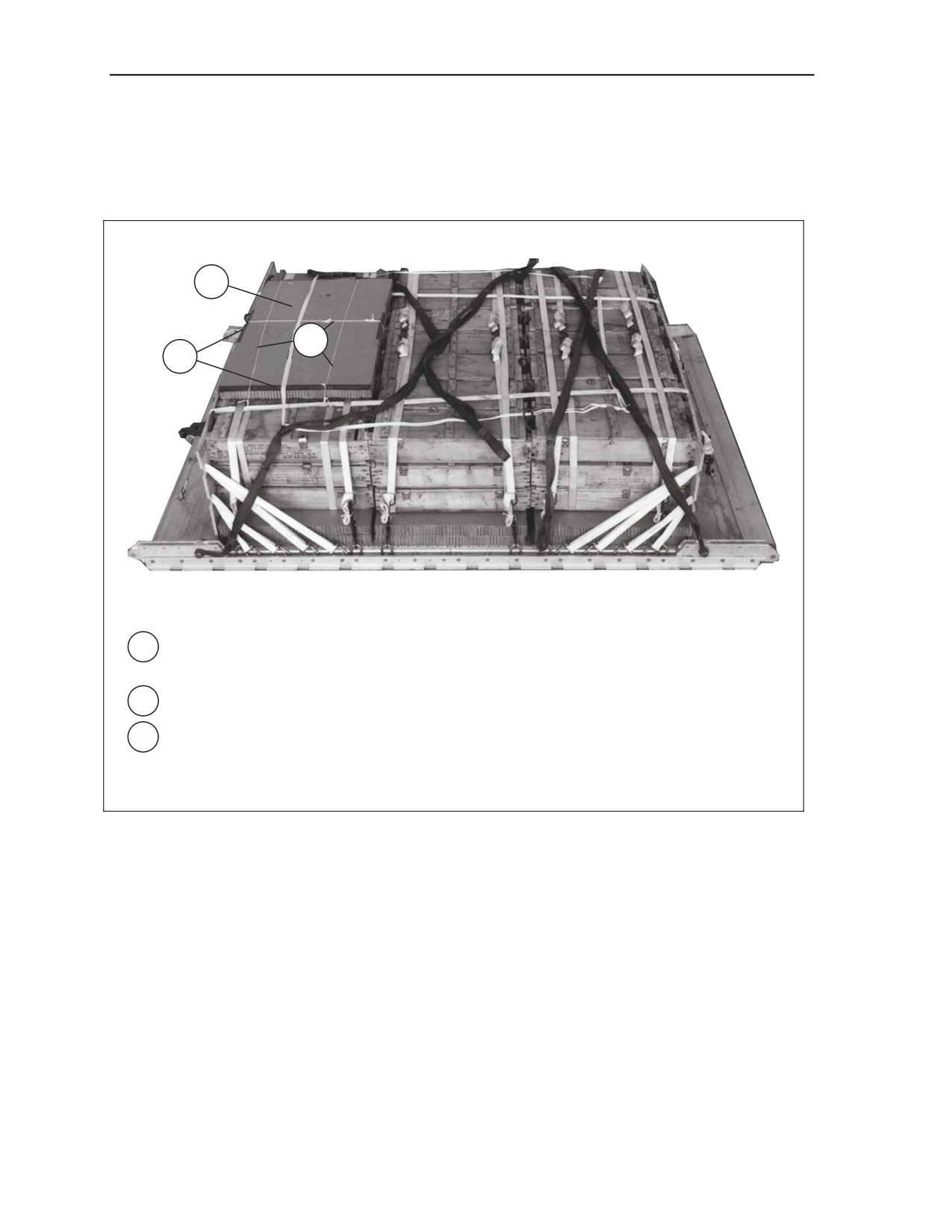

Figure 3-4. Endboards Constructed and Installed
3-6
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Supply Loads on a 12-Foot, Type V Platform for Low-Velocity Airdrop
2
7
6
4
B1
A1
3
5
D6
A6
Note. Loads longer than the one shown may be secured in this way, if the lashings are pre-
positioned under the honeycomb and endboards, and secured at both ends to the tie-down rings as
shown in steps 4 and 5. Do not cover the extraction bracket.

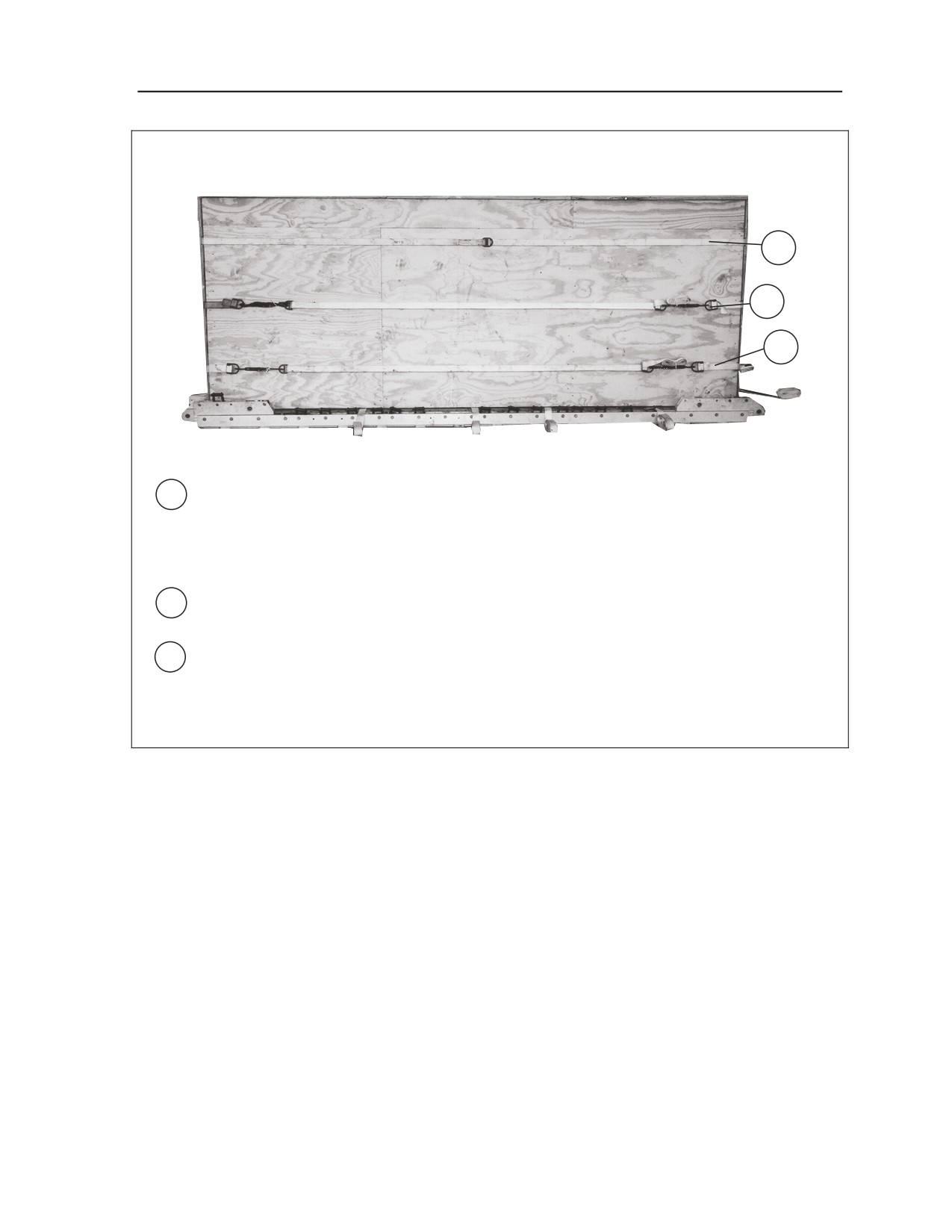

2 Place one endboard against the front of the load.
3 Place one endboard against the rear of the load.
4 Pass the free end of a 15-foot lashing through tie-down ring A6 and through its own D-ring.
Pull the free end of the lashing over the top of the load.
5 Pass the free end of a 15-foot lashing through tie-down ring D6 and through its own D-ring.
Pull the free end of the lashing over the top of the load.
6 Secure the end of the lashing positioned in step 4 to tie-down ring A1 with a D-ring and a
load binder.
7 Secure the end of the lashing positioned in step 5 to tie-down ring B1 with a D-ring and a
load binder.
Figure 3-4. Endboards Constructed and Installed (Continued)
20 February 2009
FM 4-20.112/TO 13C7-1-8
3-7
Chapter 3
INSTALLING LASHINGS
3-6. Lash the load to the platform according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5 and as shown in Figures 3-5 through 3-7.
4
5
2
1
6
3
7
6
1
14
9
8
Lashing
Tiedown
Instructions
Number
Clevis
Number
1
1A and 1
Pass a lashing through clevis 1A and through its own D-ring, over the top
of the load, and to clevis 1. Secure the lashing to clevis 1 with a D-ring
and a load binder.
2
6A and 6
Pass a lashing through clevis 6A and through its own D-ring, over the top
of the load, and to clevis 6. Secure the lashing to clevis 6 with a D-ring
and a load binder.
3
7A and 7
Pass a lashing through clevis 7A and through its own D-ring, over the top
of the load, and to clevis 7. Secure the lashing to clevis 7 with a D-ring
and a load binder.
4
8A and 8
Pass a lashing through clevis 8A and through its own D-ring, over the top
of the load, and to clevis 8. Secure the lashing to clevis 8 with a D-ring
and a load binder.
5
9A and 9
Pass a lashing through clevis 9A and through its own D-ring, over the top
of the load, and to clevis 9. Secure the lashing to clevis 9 with a D-ring
and a load binder.
6
14A and 14
Pass a lashing through clevis 14A and through its own D-ring, over the
top of the load, and to clevis 14. Secure the lashing to clevis 14 with a D-
ring and a load binder.

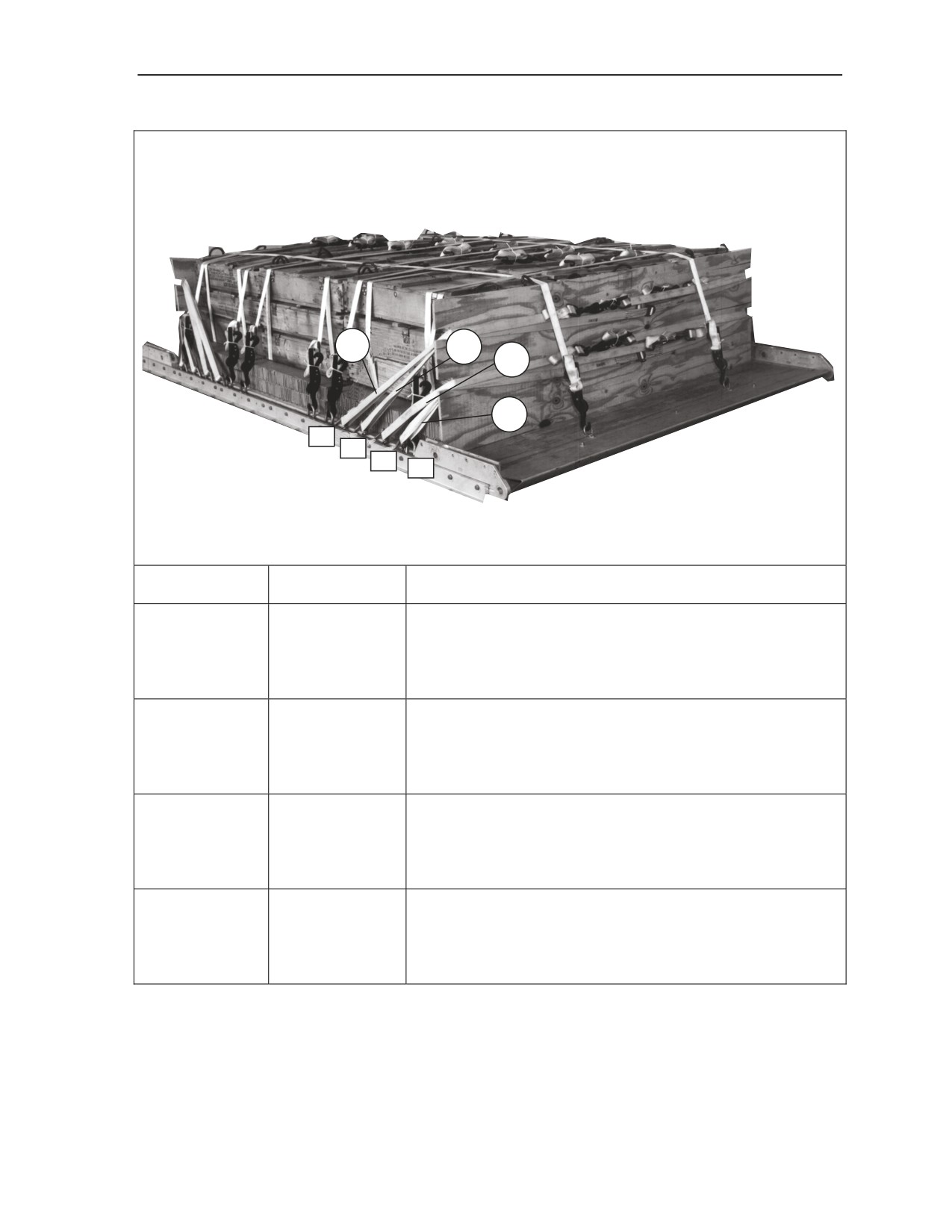

Figure 3-5. Lashings 1 Through 6 Installed
3-8
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Supply Loads on a 12-Foot, Type V Platform for Low-Velocity Airdrop
Note. Position the load binders so that they will be accessible for retightening and inspection when
the load is fully rigged.
10
9
8
7
5

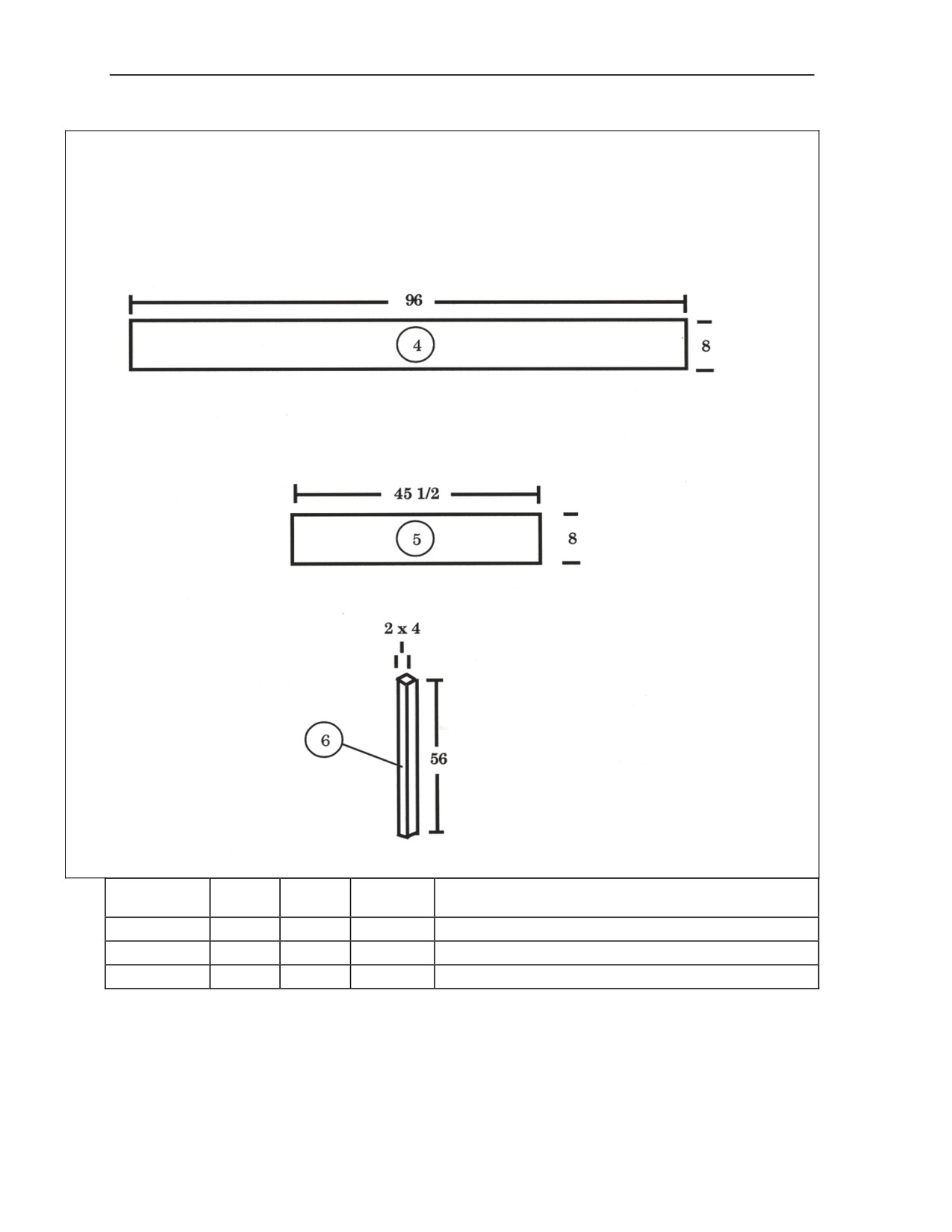

4
2
2
Lashing Number
Tiedown Clevis
Instructions
Number
7
2 and 2A
Form a 30-foot tiedown strap. Pass the free ends of the strap
through the lower cutouts in the front endboard, through
clevises 2 and 2A, and back through the lower cutouts of the
front endboard. Secure the free ends of the strap with two D-
rings and a load binder.
8
3 and 3A
Form a 30-foot tiedown strap. Pass the free ends of the strap
through the lower cutouts in the front endboard, through
clevises 3 and 3A, and back through the lower cutouts of the
front endboard. Secure the free ends of the strap with two D-
rings and a load binder.
9
4 and 4A
Form a 30-foot tiedown strap. Pass the free ends of the strap
through the upper cutouts in the front endboard, through
clevises 4 and 4A, and back through the upper cutouts of the
front endboard. Secure the free ends of the strap with two D-
rings and a load binder.
10
5 and 5A
Form a 30-foot tiedown strap. Pass the free ends of the strap
through the upper cutouts in the front endboard, through
clevises 5 and 5A, and back through the upper cutouts of the
front endboard. Secure the free ends of the strap with two D-
rings and a load binder.

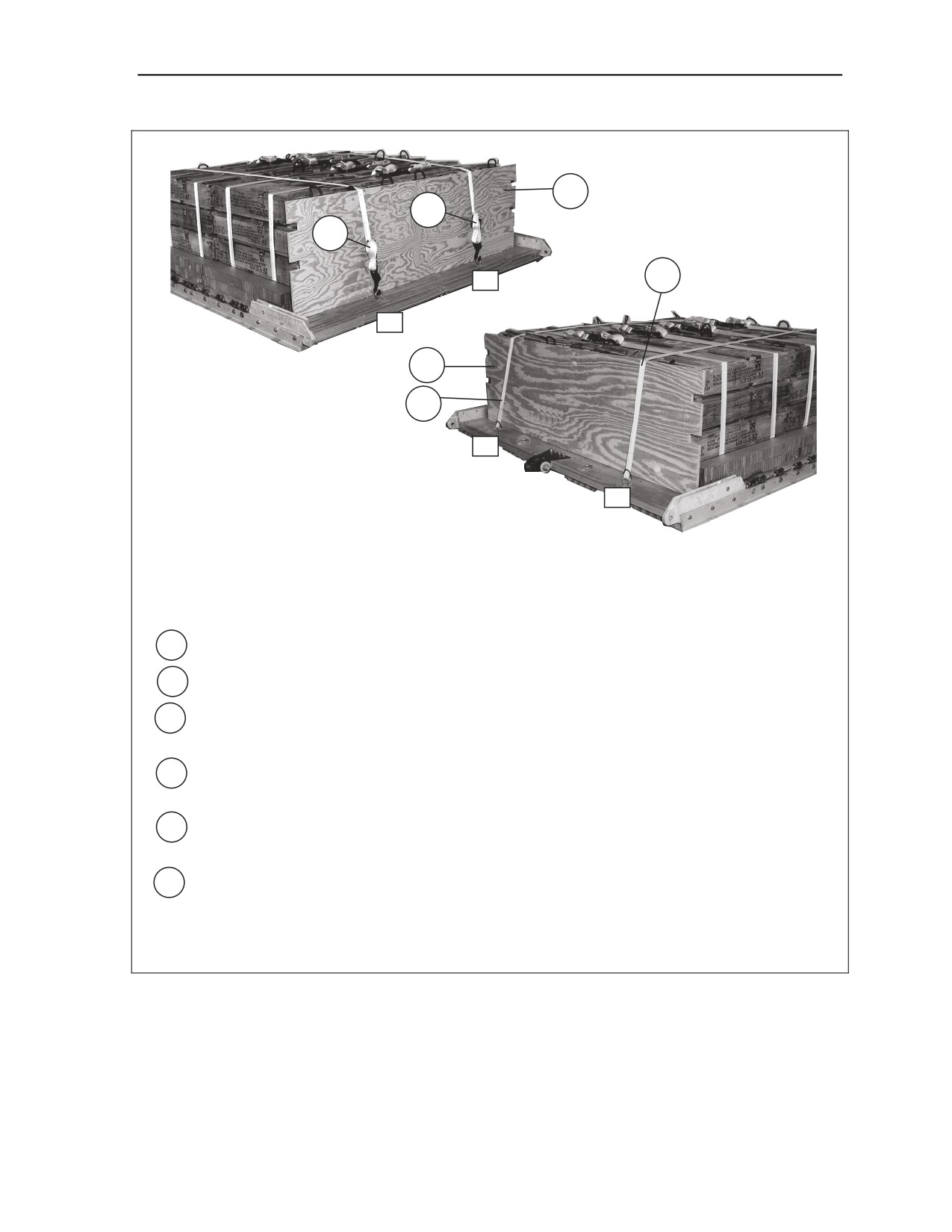

Figure 3-6. Lashings 7 Through 10 Installed
20 February 2009
FM 4-20.112/TO 13C7-1-8
3-9
Chapter 3
11
12
13
14
10
11
12
13
Lashing Number
Tiedown Clevis
Instructions
Number
11
10 and 10A
Form a 30-foot tiedown strap. Pass the free ends of the
strap through the upper cutouts in the rear endboard,
through clevises 10 and 10A, and back through the upper
cutouts of the rear endboard. Secure the free ends of the
strap with two D-rings and a load binder.
12
11 and 11A
Form a 30-foot tiedown strap. Pass the free ends of the
strap through the lower cutouts in the rear endboard,
through clevises 11 and 11A, and back through the upper
cutouts of the rear endboard. Secure the free ends of the
strap with two D-rings and a load binder.
13
12 and 12A
Form a 30-foot tiedown strap. Pass the free ends of the
strap through the lower cutouts in the rear endboard,
through clevises 12 and 12A, and back through the lower
cutouts of the rear endboard. Secure the free ends of the
strap with two D-rings and a load binder.
14
13 and 13A
Form a 30-foot tiedown strap. Pass the free ends of the
strap through the lower cutouts in the rear endboard,
through clevises 13 and 13A, and back through the lower
cutouts of the rear endboard. Secure the free ends of the
strap with two D-rings and a load binder.

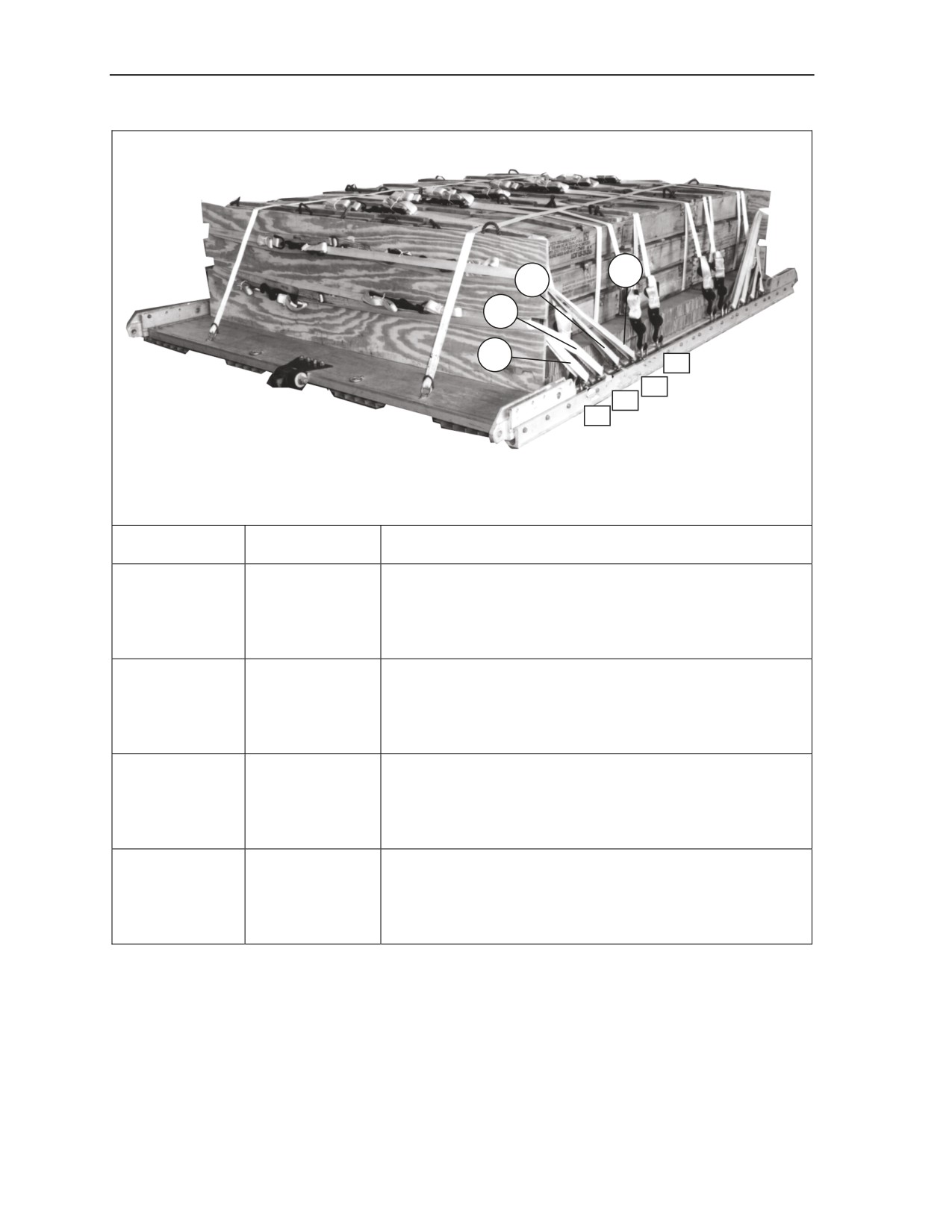

Figure 3-7. Lashings 11 Through 14 Installed
3-10
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Supply Loads on a 12-Foot, Type V Platform for Low-Velocity Airdrop
INSTALLING SUSPENSION SLINGS AND DEADMAN’S TIE
3-7. Install the suspension slings and deadman’s tie as shown in Figure 3-8.
2
1
3
1 Pass one end of an 11-foot (2-loop), type XXVI nylon suspension sling through the bell
portion of a large suspension clevis. Bolt the clevis to the suspension hole of the right front
tandem link.
2 Install on the left front tandem link and the right rear and left rear tandem links an 11-foot
(2-loop), type XXVI nylon suspension sling as in step 1.
3 Raise the slings and install the deadman's tie according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
Figure 3-8. Suspension Slings and Deadman’s Tie Installed
20 February 2009
FM 4-20.112/TO 13C7-1-8
3-11
Chapter 3
INSTALLING PARACHUTE STOWAGE PLATFORM
3-8. Install the parachute stowage platform as shown in Figure 3-9.
1
3
2
1 Position a 60- by 36-inch piece of honeycomb along the rear endboard so that it is
centered across the load and even with the rear endboard.
2 Tape the edges of the honeycomb.
3 Tie the honeycomb to the nearest lashings with three lengths of type III nylon cord.
Figure 3-9. Parachute Stowage Platform Installed
3-12
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Supply Loads on a 12-Foot, Type V Platform for Low-Velocity Airdrop
PREPARING AND STOWING CARGO PARACHUTES
3-9. Compute the parachute requirements for the load being rigged. Prepare and stow the cargo
parachutes according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 and
as shown in Figure 3-10.
1
3
11
2
1 Prepare, position, and stow two G-11B cargo parachutes on top of the parachute stowage
platform according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO
13C7-1-5.
2 Install the cargo parachute restraints according to FM 4-20.102/MCRP 4-11.3J/NAVSEA
SS400-AB-MMO-010/TO 13C7-1-5 using type VIII nylon webbing to clevises 11 and 11A.
3 Install the parachute release strap according to FM 4-20.102/MCRP 4-11.3J/NAVSEA
SS400-AB-MMO-010/TO 13C7-1-5.

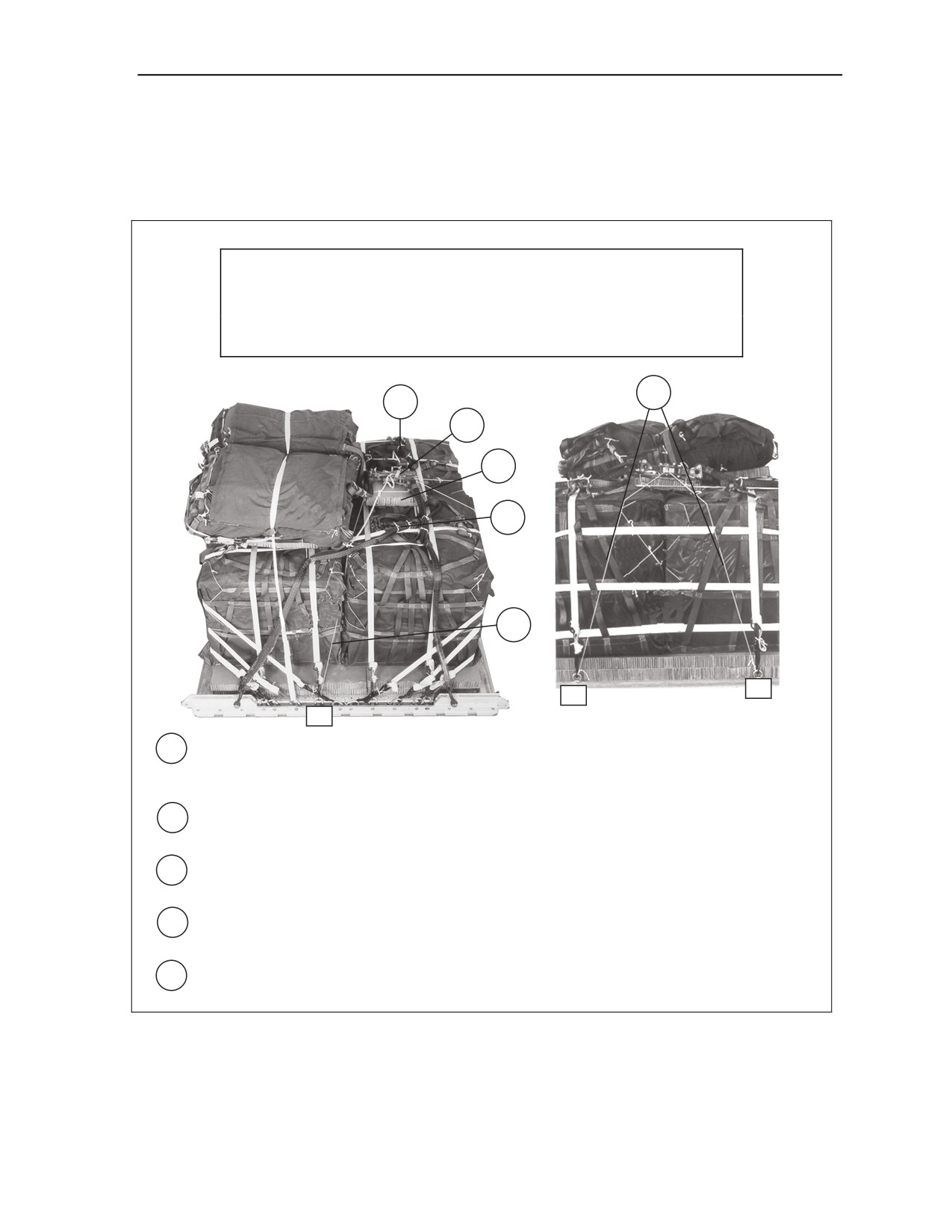

Figure 3-10. Cargo Parachutes Prepared and Stowed
20 February 2009
FM 4-20.112/TO 13C7-1-8
3-13
Chapter 3
INSTALLING THE RELEASE SYSTEM
3-10. Prepare, attach, and safety an M-1 cargo parachute release according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 and as shown in Figure 3-11.
CAUTION
When rigging a single parachute load, ensure the rear parachute release safety
tie is routed under the parachute securing ties.
2
1
1 Center an 18- by 20-inch piece of honeycomb in front of the parachutes. Tape the edges of
the honeycomb and secure it to the load with two lengths of type III nylon cord.
Note. Do not cover the deadman’s tie with the release platform.
2 Prepare and install the M-1 cargo parachute release on the honeycomb release platform
and attach the suspension slings and riser extensions.
Figure 3-11. M-1 Cargo Parachute Release Installed
3-14
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Supply Loads on a 12-Foot, Type V Platform for Low-Velocity Airdrop
5
3
5
4
8
3 Safety the bottom of the release to tiedown rings A1 and B1 with a length of type III nylon
cord according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-
5.
4 Safety the top of the release assembly to clevises 8 and 8A with a length of type III nylon
cord according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-
5.
5 S-fold and tie any excess suspension slings with one turn of type I, 1/4-inch cotton
webbing.
Figure 3-11. M-1 Cargo Parachute Release Installed (Continued)
20 February 2009
FM 4-20.112/TO 13C7-1-8
3-15
Chapter 3
INSTALLING THE EXTRACTION SYSTEM
3-11. Install the extraction system as shown in Figure 3-12.
1
2
2
3
1 Install the components of the extraction force transfer coupling (EFTC) according to FM 4-
20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5. Use the front
mounting holes for the EFTC brackets.
2 Install a 12-foot EFTC cable according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-
AB-MMO-010/TO 13C7-1-5 and safety the cable to convenient places on the platform with
one turn of type I, 1/4-inch cotton webbing.
3 Attach a 9-foot (2-loop), type XXVI nylon sling according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 to be used as a deployment line. S-fold
the excess and tie it in two places with type I, 1/4-inch cotton webbing.
Figure 3-12. Extraction System Installed
3-16
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Supply Loads on a 12-Foot, Type V Platform for Low-Velocity Airdrop
PLACING EXTRACTION PARACHUTE
3-12. Select the extraction parachute and extraction line needed using the extraction line requirements
table in FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5. Place the extraction
parachute and line on the load for installation in the aircraft.
INSTALLING PROVISIONS FOR EMERGENCY RESTRAINTS
3-13. Select and install the provisions for the emergency aft restraints according to the emergency aft
restraint requirements table in FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-
5.
MARKING RIGGED LOAD
3-14. Mark the rigged load according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-
010/TO 13C7-1-5, and as shown in Figure 3-13. Complete Shipper’s Declaration for Dangerous Goods. If
the load varies from the one shown, the weight, height, CB, and parachute requirements must be
recomputed.
EQUIPMENT REQUIRED
3-15. Use the equipment listed in Table 3-1 to rig this load.
20 February 2009
FM 4-20.112/TO 13C7-1-8
3-17
Chapter 3
CAUTION
Make the final rigger inspection required by AR 59-4 and FM 4-
20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5
before the load leaves the rigging site.
CB
RIGGED LOAD DATA
Weight: Load shown
8,904 pounds
Maximum Suspended Weight
14,000 pounds
Height
56 inches
Width
108 inches
Overall Length
144 inches
Overhang: Front
0 inches
Rear
0 inches
Center of Balance (from front edge of the platform)
74 inches
Extraction System with 16-foot cable (adds 18 inches to length of platform)
EFTC
Figure 3-13. A-22 Bulk Supply Load Rigged on a 12-Foot, Type V Platform for Low-Velocity
Airdrop
3-18
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Supply Loads on a 12-Foot, Type V Platform for Low-Velocity Airdrop
Table 3-1. Equipment Required for Rigging Bulk Supply on a 12-Foot, Type V Platform for
Low-Velocity Airdrop
National Stock Number
Item
Quantity
8040-00-273-8713
Adhesive, paste, 1-gallon
As required
Clevis, suspension:
4030-00-678-8562
3/4-inch (medium) emergency restraint
6
4030-00-090-5354
1-inch (large)
5
4020-00-240-2146
Cord, nylon, type III
As required
1670-00-434-5783
Coupling, airdrop, extraction force transfer with
1
12-foot cable
1670-00-360-0328
Cover, clevis, large
1
8135-00-664-6958
Cushioning material, packaging, cellulose wadding
As required
8305-00-191-1101
Felt, ½-inch thick
As required
1670-01-183-2678
Leaf, extraction line (line bag) (add 2 for C-17)
2
Line, extraction, type XXVI nylon webbing:
1670-01-064-4452
60-foot (1-loop), type XXVI or
1
1670-01-062-6313
60-foot (3-loop), type XXVI
1
1670-01-107-7651
140-foot (3-loop), type XXVI
1
1670-01-064-4452
60-foot (1-loop), type XXVI for C-17 drogue line
1
1670-01-493-6418
Link assembly, two-point:
1
5351-00-010-4659
Nail, steel wire, common 8d
As required
1670-00-753-3928
Pad, energy-dissipating, honeycomb
7 sheets
Parachute:
1670-01-016-7841
Cargo, G-11B
2
1670-01-063-3716
Cargo, extraction, 22-foot
1
1670-01-063-3715
Cargo, extraction, 15-foot for C-17
1
Platform, airdrop, type V, 12-foot
1670-01-353-8425
Bracket assembly, EFTC
1
1670-01-162-2372
Bracket assembly, extraction
1
1670-01-162-2376
Clevis assembly
36
1670-01-162-2381
Tandem link
4
5530-00-128-4981
Plywood, 3/4-inch
As required
1670-01-097-8816
Release, cargo parachute, M-1
1
20 February 2009
FM 4-20.112/TO 13C7-1-8
3-19
Chapter 3
Table 3-1. Equipment Required for Rigging Bulk Supply on a 12-Foot, Type V Platform for
Low-Velocity Airdrop (Continued)
National Stock Number
Item
Quantity
Sling, cargo airdrop:
1670-01-062-6304
9-foot (2-loop), type XXVI nylon webbing
1
1670-01-063-7760
11-foot (2-loop), type XXVI nylon webbing
4
1670-01-062-6302
20-foot (2-loop), type XXVI nylon webbing
2
5340-00-040-8219
Strap parachute release, multicut
2
7501-00-266-5016
Tape, adhesive, 2-inch
As required
7501-00-266-6710
Tape, masking
As required
1670-00-937-0271
Tiedown assembly, 15-foot
36
1670-01-483-8259
Towplate release mechanism (H-block) (C-17)
1
Webbing:
8305-00-268-2411
Cotton, 1/4-inch, type I
As required
Nylon:
8305-00-082-5752
Tubular, 1/2-inch
As required
8305-00-263-3591
Type VIII webbing
As required
3-20
FM 4-20.112/TO 13C7-1-8
20 February 2009
Chapter 4
Rigging Forward Area Surgical Team (FAST) Equipment on
a 12-Foot, Type V Platform for Low-Velocity Airdrop
DESCRIPTION OF LOAD
4-1. The FAST equipment is rigged as a bulk supply load on a 12-foot, type V airdrop platform with G-
11 cargo parachutes. These procedures may be used to rig other bulk supply loads consisting of rations,
equipment, fuel, lubricants, ammunition or other items of general supply. As load weights can vary widely,
the parachute requirements must be computed for each load. For extraction purposes, the rigged load must
weigh at least 3,780 pounds. Refer to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO
13C7-1-5 for the weight limitations for the number of parachutes to be used.
PREPARING PLATFORM
4-2. Prepare a 12-foot, type V platform as shown in Figure 4-1.
20 February 2009
FM 4-20.112/TO 13C7-1-8
4-1
Chapter 4
CLEVISES
15A THROUGH 1A
LEFT
REAR
FRONT
RIGHT
CLEVISES
15 THROUGH 1
Step:
1. Inspect, or assemble and inspect, a 12-foot, type V platform as outlined in TM 10-
1670-268-20&P/TO 13C7-52-22.
2. Install a tandem link to the front of each platform side rail using holes 1, 2, and 3.
3. Install a tandem link to the rear of each platform side rail using holes 22, 23, and 24.
4. Install a clevis on bushing 3 of each rear tandem link.
5. Starting at the front of each platform side rail, install clevises on the bushings bolted to
holes 5, 6, 7, 8, 9, 10, 11, 12, 15, 16, 17, 18, 19, and 20.
6. Starting at the front of the platform, number the clevises 1 through 15 on the right side,
and 1A through 15A on the left side.
7. Label the tiedown rings according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5.
Figure 4-1. Platform Prepared
4-2
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Forward Area Surgical Team (FAST) Equipment on a 12-Foot, Type V Platform for Low-Velocity
Airdrop
POSITIONING LASHINGS

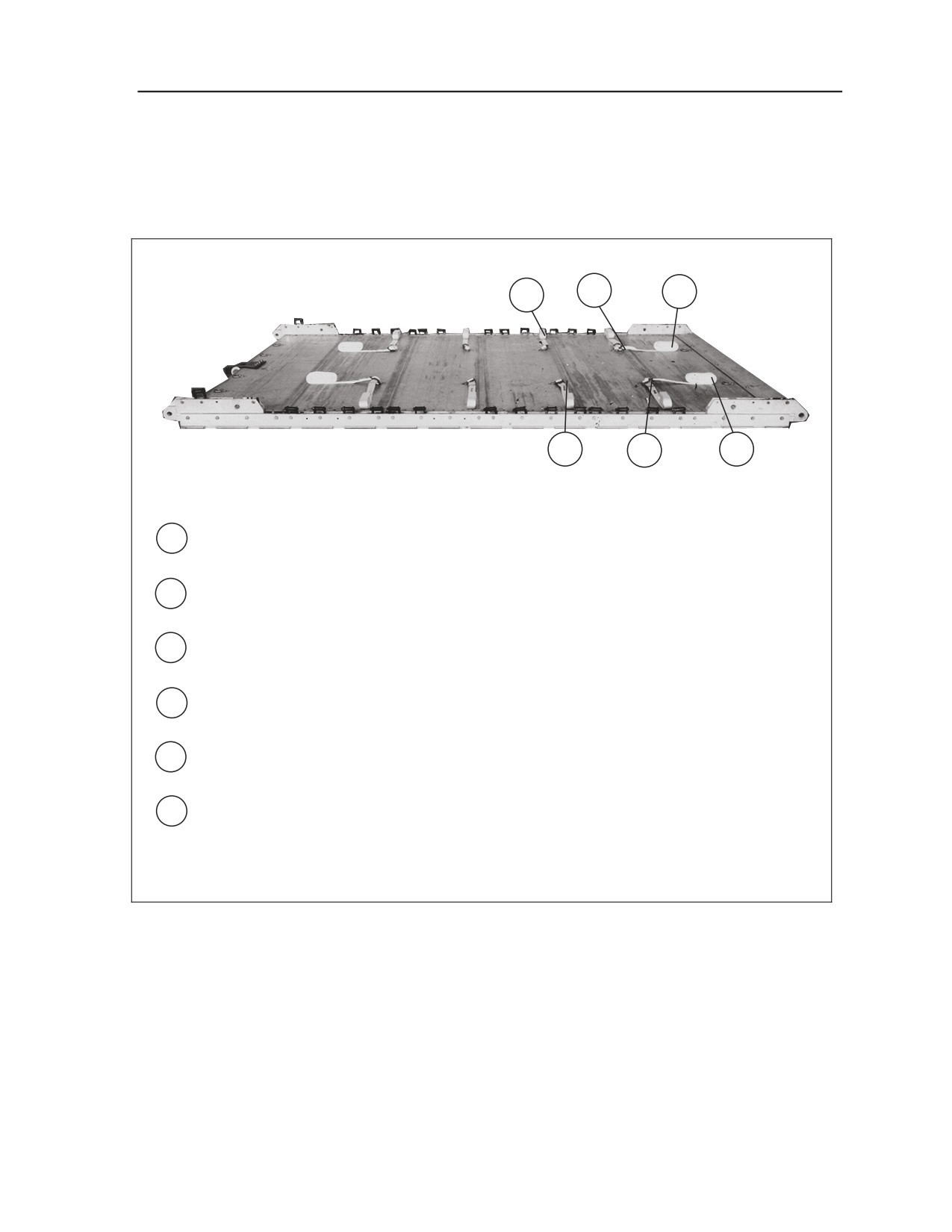

4-3. Use twelve 15-foot tiedown lashings, and position the lashings on the platform according to FM 4-
20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 and as shown in Figure 4-2.
4
2
6
REAR
FRONT
5
3
1
1 Pass the free end of a 15-foot tiedown lashing through tiedown ring A2 and through its own
D-ring. Pull the free end of the strap toward the front of the platform.
2 Pass the free end of a 15-foot tiedown lashing through tiedown ring B2 and through its own
D-ring. Pull the free end of the strap toward the front of the platform.
3 Pass the free end of a 15-foot tiedown lashing through tiedown ring A2 and through its own
D-ring. Pull the free end of the strap toward the right side of the platform.
4 Pass the free end of a 15-foot tiedown lashing through tiedown ring B2 and through its own
D-ring. Pull the free end of the strap toward the left side of the platform.
5 Pass the free end of a 15-foot tiedown lashing through tiedown ring A3 and through its own
D-ring. Pull the free end of the strap toward the right side of the platform.
6 Pass the free end of a 15-foot tiedown lashing through tiedown ring B3 and through its own
D-ring. Pull the free end of the strap toward the left side of the platform.
Figure 4-2. Lashings Positioned
20 February 2009
FM 4-20.112/TO 13C7-1-8
4-3
Chapter 4
12
10
8
REAR
FRONT
11
9
7
7 Pass the free end of a 15-foot tiedown lashing through tiedown ring A4 and through its own
D-ring. Pull the free end of the strap toward the right side of the platform.
8 Pass the free end of a 15-foot tiedown lashing through tiedown ring B4 and through its own
D-ring. Pull the free end of the strap toward the left side of the platform.
9 Pass the free end of a 15-foot tiedown lashing through tiedown ring A5 and through its own
D-ring. Pull the free end of the strap toward the right side of the platform.
10 Pass the free end of a 15-foot tiedown lashing through tiedown ring B5 and through its own
D-ring. Pull the free end of the strap toward the left side of the platform.
11 Pass the free end of a 15-foot tiedown lashing through tiedown ring A5 and through its own
D-ring. Pull the free end of the strap toward the rear of the platform.
12 Pass the free end of a 15-foot tiedown lashing through tiedown ring B5 and through its own
D-ring. Pull the free end of the strap toward the rear of the platform.
Figure 4-2. Lashings Positioned (Continued)
4-4
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Forward Area Surgical Team (FAST) Equipment on a 12-Foot, Type V Platform for Low-Velocity
Airdrop
CONSTRUCTING AND FORMING STORAGE BOX COMPONENTS

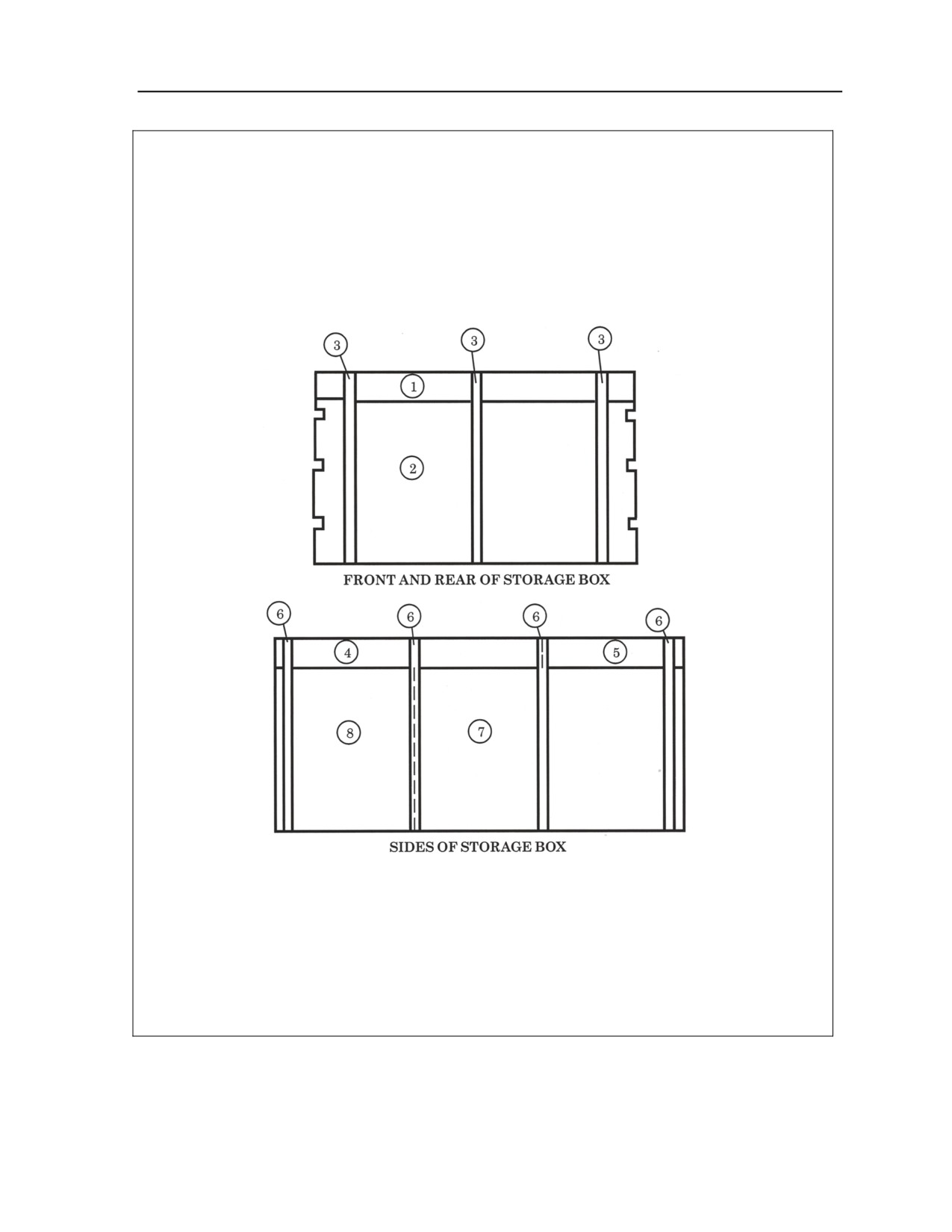

4-4. Construct the individual components of a storage box as shown in Figures 4-3 through 4-5.
Assemble the individual components of the front, rear and sides of the box as shown in Figure 4-6 for later
assembly on the platform.
Notes.
1. This drawing is not to scale.
2.
All dimensions are in inches.
3.
Circled numbers refer to item numbers.

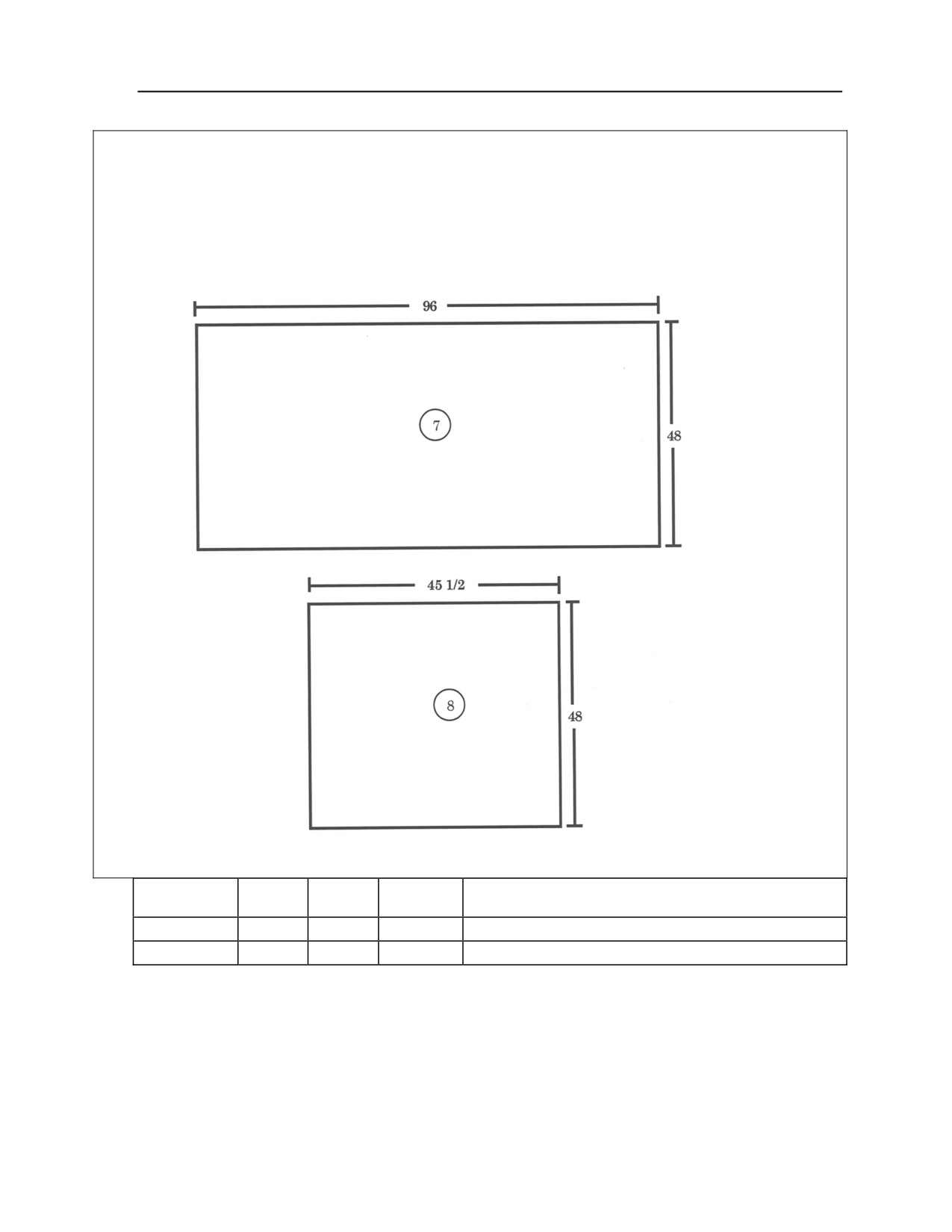

Item Number
Pieces
Width
Length
Materials
(Inches)
(Inches)
1
2
8
96
3/4-inch plywood
2
2
48
96
3/4-inch plywood
3
6
56
2- by 4-inch lumber
Figure 4-3. Front and Rear Components of Storage Box Constructed
20 February 2009
FM 4-20.112/TO 13C7-1-8
4-5
Chapter 4
Notes.
1. This drawing is not to scale.
2. All dimensions are in inches.
3. Circled numbers refer to item numbers.
Item Number
Pieces
Width
Length
Materials
(Inches)
(Inches)
4
2
8
96
3/4-inch plywood
5
2
8
45 1/2
3/4-inch plywood
6
8
56
2- by 4-inch lumber
Figure 4-4. Side Components of Storage Box Constructed
4-6
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Forward Area Surgical Team (FAST) Equipment on a 12-Foot, Type V Platform for Low-Velocity
Airdrop
Notes.
1. This drawing is not to scale.
2. All dimensions are in inches.
3. Circled numbers refer to item numbers.
Item Number
Pieces
Width
Length
Materials
(Inches)
(Inches)
7
2
48
96
3/4-inch plywood
8
2
48
45 1/2
3/4-inch plywood
Figure 4-4. Side Components of Storage Box Constructed (Continued)
20 February 2009
FM 4-20.112/TO 13C7-1-8
4-7
Chapter 4
Notes.
1. This drawing is not to scale.
2. All dimensions are in inches.
3. Circled numbers refer to item numbers.
Item Number
Pieces
Width
Length
Materials
(Inches)
(Inches)
9
3
47
96
3/4-inch plywood

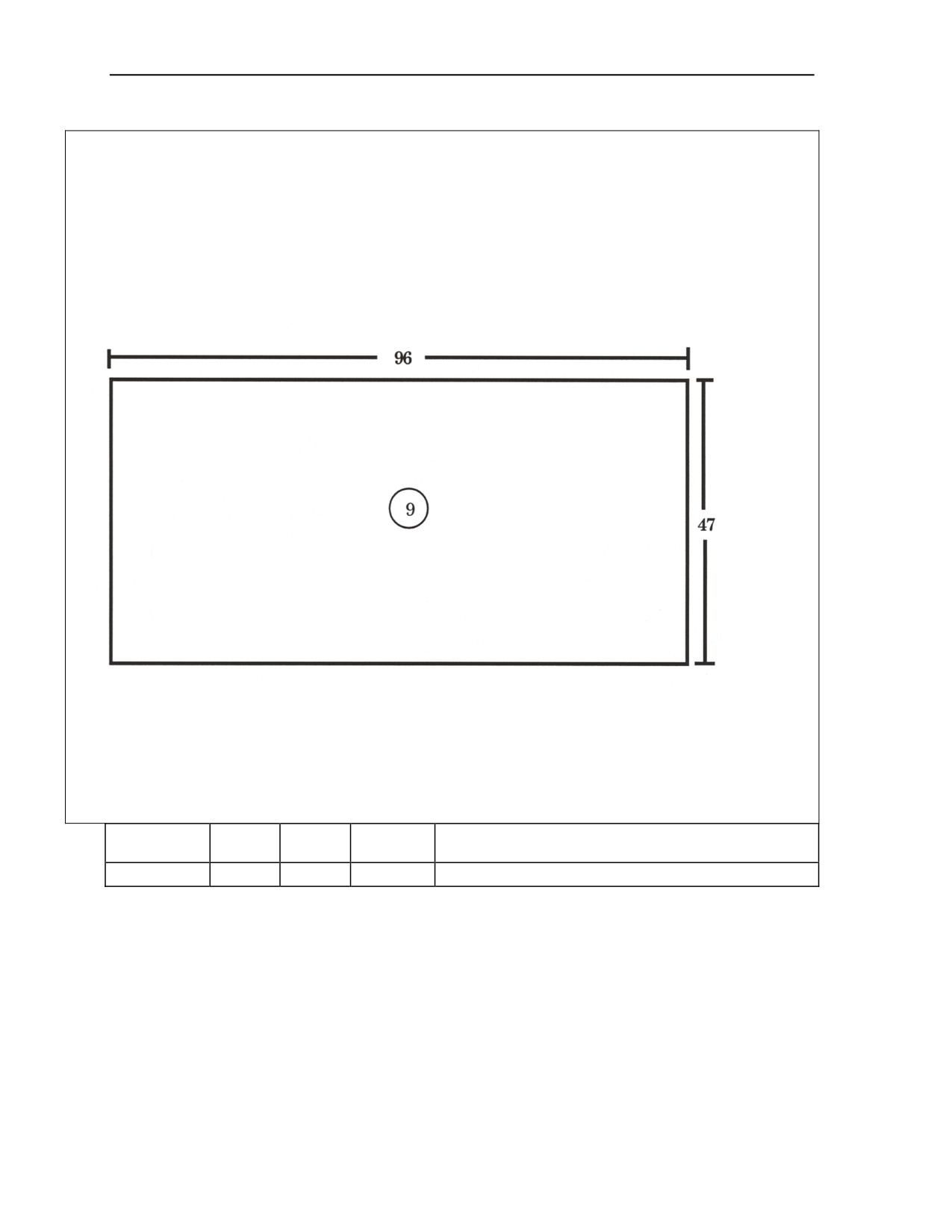

Figure 4-5. Top Components of Storage Box Constructed
4-8
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Forward Area Surgical Team (FAST) Equipment on a 12-Foot, Type V Platform for Low-Velocity
Airdrop
Notes.
1. This drawing is not to scale.
2. All dimensions are in inches.
3. Make three evenly spaced 2-inch cutouts on each 48-inch side of the plywood used for
the front and rear components before assembling the box.
4. Circled numbers refer to item numbers.
Step:
1. Nail the components of the storage box together with sixteen-penny nails to form the
sides.
2. Bend the ends of the nails to hold the components in place securely.
Figure 4-6. Front, Rear, and Sides of Storage Box Constructed
20 February 2009
FM 4-20.112/TO 13C7-1-8
4-9
Chapter 4
PREPARING HONEYCOMB STACKS
4-5. Prepare the honeycomb stacks as shown in Figure 4-7.
Note.
1. This drawing is not to scale.
Stack
Pieces
Width
Length
Material
Instructions
Number
(Inches)
(Inches)
1
2
96
30
Honeycom
Place one piece on top of the other.
b
2
2
96
36
Honeycom
Same as stack 1.
b
3
2
96
36
Honeycom
Same as stack 1.
b
4
2
96
36
Honeycom
Same as stack 1.
b
Figure 4-7. Honeycomb Stacks Prepared
4-10
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Forward Area Surgical Team (FAST) Equipment on a 12-Foot, Type V Platform for Low-Velocity
Airdrop
POSITIONING HONEYCOMB STACKS AND ASSEMBLING SIDES OF
STORAGE BOX

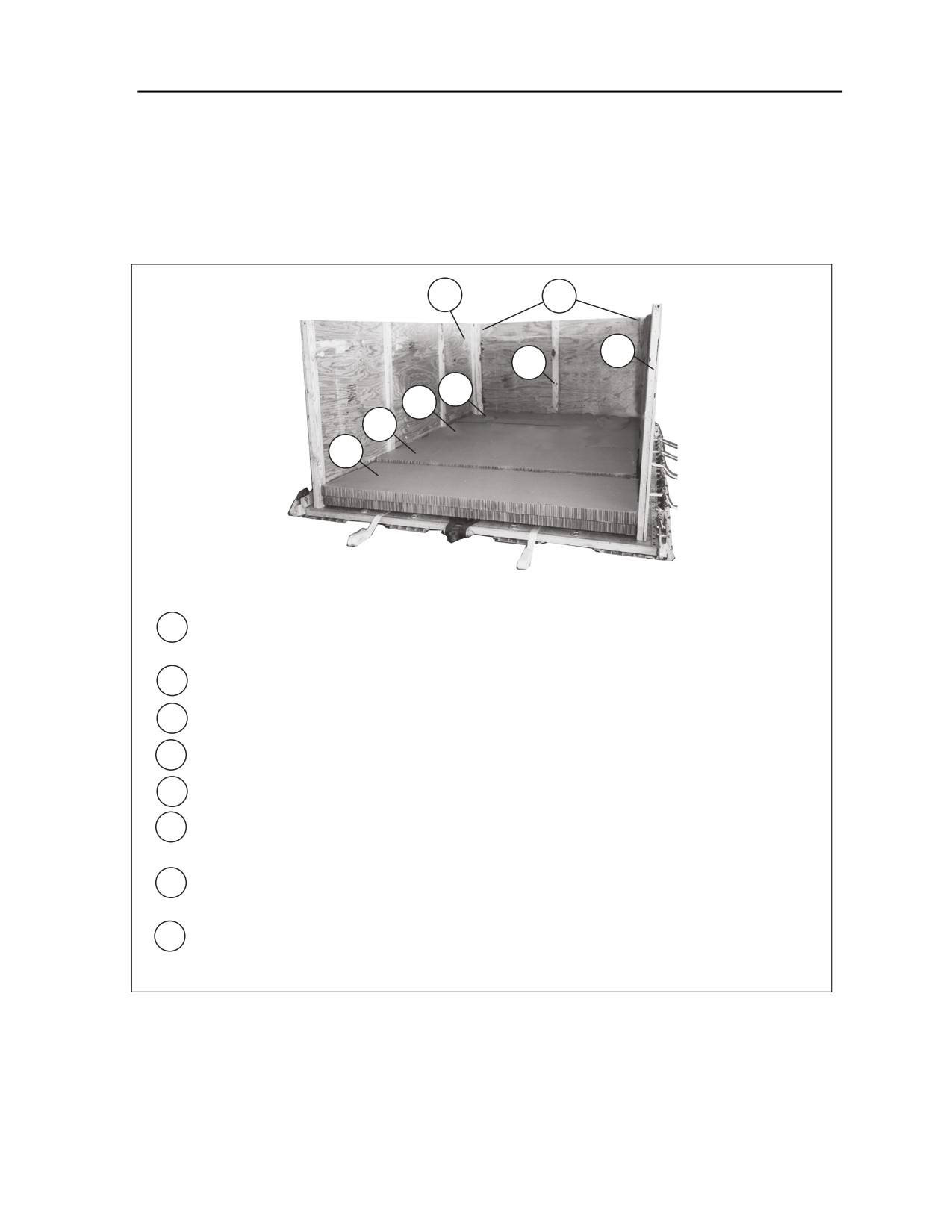

4-6. Position the honeycomb stacks and position and assemble the front and sides of the storage box on
the platform as shown in Figure 4-8.
7
8
6
5
1
2
3
4
REAR
1 Center stack 1 on the platform with the 96-inch edge of the honeycomb 1 1/2 inches from
the front of the platform.
2 Center stack 2 on the platform with one 96-inch edge of the honeycomb against stack 1.
3 Center stack 3 on the platform with one 96-inch edge of the honeycomb against stack 2.
4 Center stack 4 on the platform with one 96-inch edge of the honeycomb against stack 3.
5 Center the front of the storage box on the platform against the front of stack 1.
6 Place the right side of the storage box on the platform even with the honeycomb stacks
and the front of the storage box.
7 Place the left side of the storage box on the platform even with the honeycomb stacks and
the front of the storage box.
8 Nail the sides of the storage box to the front of the storage box with sixteen-penny nails.
Figure 4-8. Honeycomb Stacks Positioned and Front and Sides of the Storage Box Assembled
20 February 2009
FM 4-20.112/TO 13C7-1-8
4-11
Chapter 4
POSITIONING DROP ITEMS
4-7. Position the drop items in the storage box on the honeycomb stacks. Distribute the weight of the
drop items evenly on the honeycomb stacks. Pad the drop items as necessary, with honeycomb and
cellulose wadding. Fill in empty areas with honeycomb to prevent shifting or movement.
CLOSING AND SECURING BOX

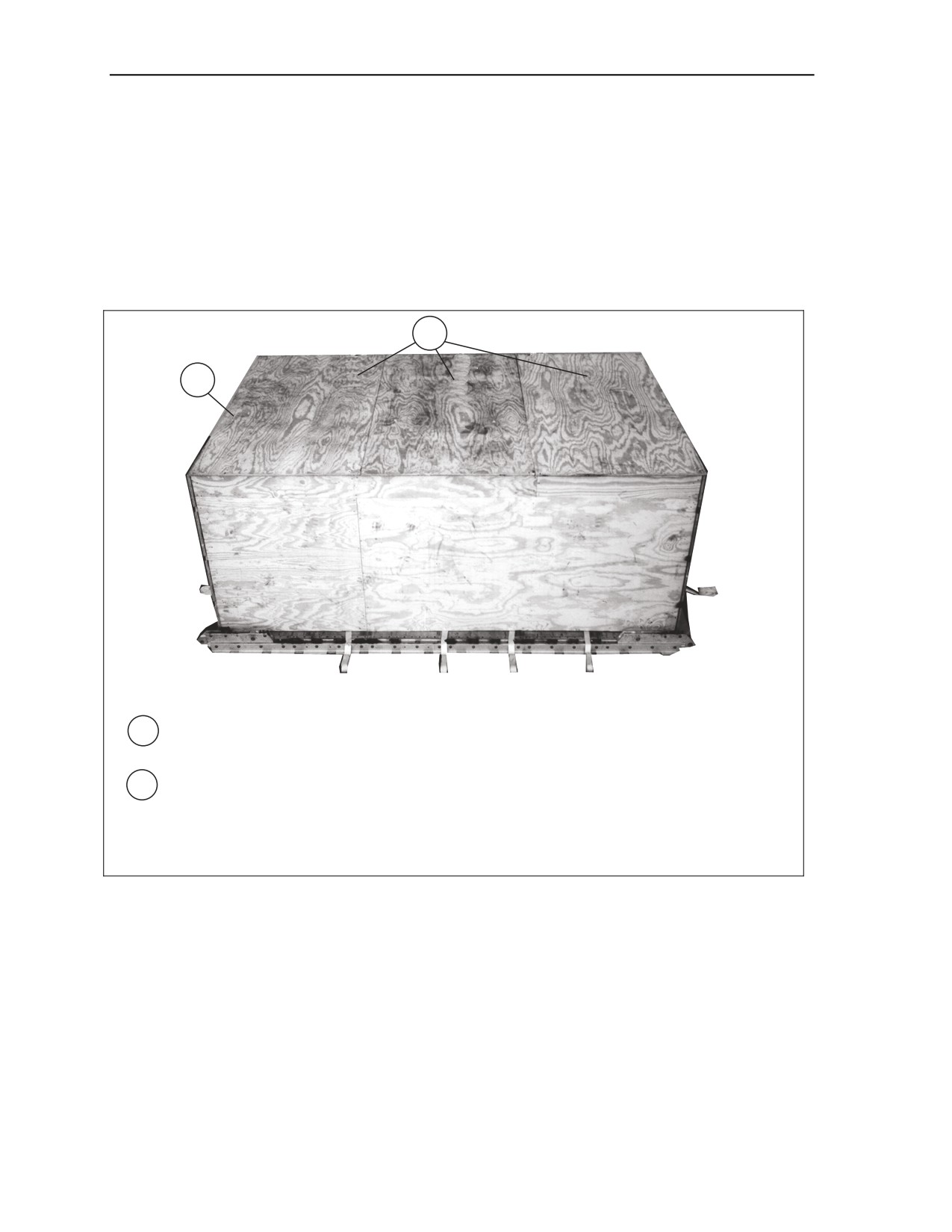

4-8. Close and secure the box as shown in Figure 4-9.
2
1
REAR
FRONT
1 Center the rear of the storage box on the platform against the rear of stack 4. Nail the
sides of the box to the rear of the box with sixteen-penny nails.
2 Place three 3/4- by 47- by 96-inch pieces of plywood side by side on top of the box. Nail
each 47- by 96-inch piece of plywood to the sides of the box.
Figure 4-9. Box Closed and Secured
4-12
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Forward Area Surgical Team (FAST) Equipment on a 12-Foot, Type V Platform for Low-Velocity
Airdrop
REAR
FRONT
5
4
3
3 Form a 30-foot tiedown strap according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5. Fit a D-ring on each end of the strap. Pass the strap around the load
and through the bottom cutout. Fit a D-ring on the free end of a 15-foot tiedown strap. Place
the 15-foot strap against the storage box between the ends of the 30-foot strap. Hook each
end of the 15-foot tiedown strap to the 30-foot tiedown strap with a load binder.
4 Install a 30-foot tiedown strap and a 15-foot tiedown strap around the load and through the
center cutout as in step 3.
5 Install a 30-foot tiedown strap and a 15-foot tiedown strap around the load and through the
top cutout as in step 3.

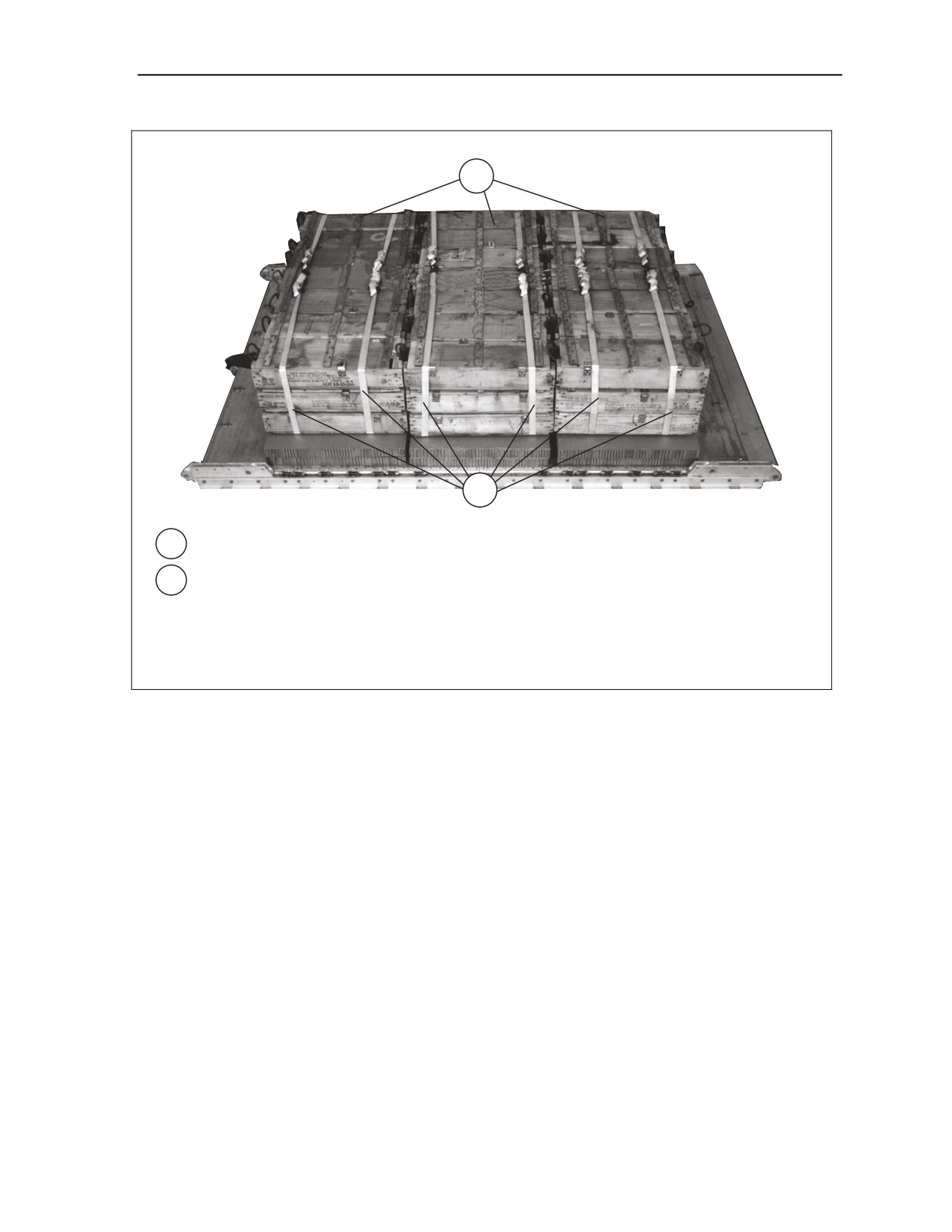

Figure 4-9. Box Closed and Secured (Continued)
20 February 2009
FM 4-20.112/TO 13C7-1-8
4-13
Chapter 4
11
REAR
FRONT
9
8
7
6
10
6 Pass the ends of the straps attached to tiedown rings A2 and B2 to the top of the load. Hook
the ends of the straps together with two D-rings and a load binder.
7 Pass the ends of the straps attached to tiedown rings A3 and B3 to the top of the load. Hook
the ends of the straps together with two D-rings and a load binder.
8 Pass the ends of the straps attached to tiedown rings A4 and B4 to the top of the load. Hook
the ends of the straps together with two D-rings and a load binder.
9 Pass the ends of the straps attached to tiedown rings A5 and B5 to the top of the load. Hook
the ends of the straps together with two D-rings and a load binder.
10 Pass the ends of the straps attached to tiedown rings A2 and A5 to the top of the load. Hook
the ends of the straps together with two D-rings and a load binder.
11 Pass the ends of the straps attached to tiedown rings B2 and B5 to the top of the load. Hook
the ends of the straps together with two D-rings and a load binder.
Figure 4-9. Box Closed and Secured (Continued)
4-14
FM 4-20.112/TO 13C7-1-8
20 February 2009
|
|
