Rigging Supply Loads on a 16-Foot, Type V Platform for Low-Velocity Airdrop

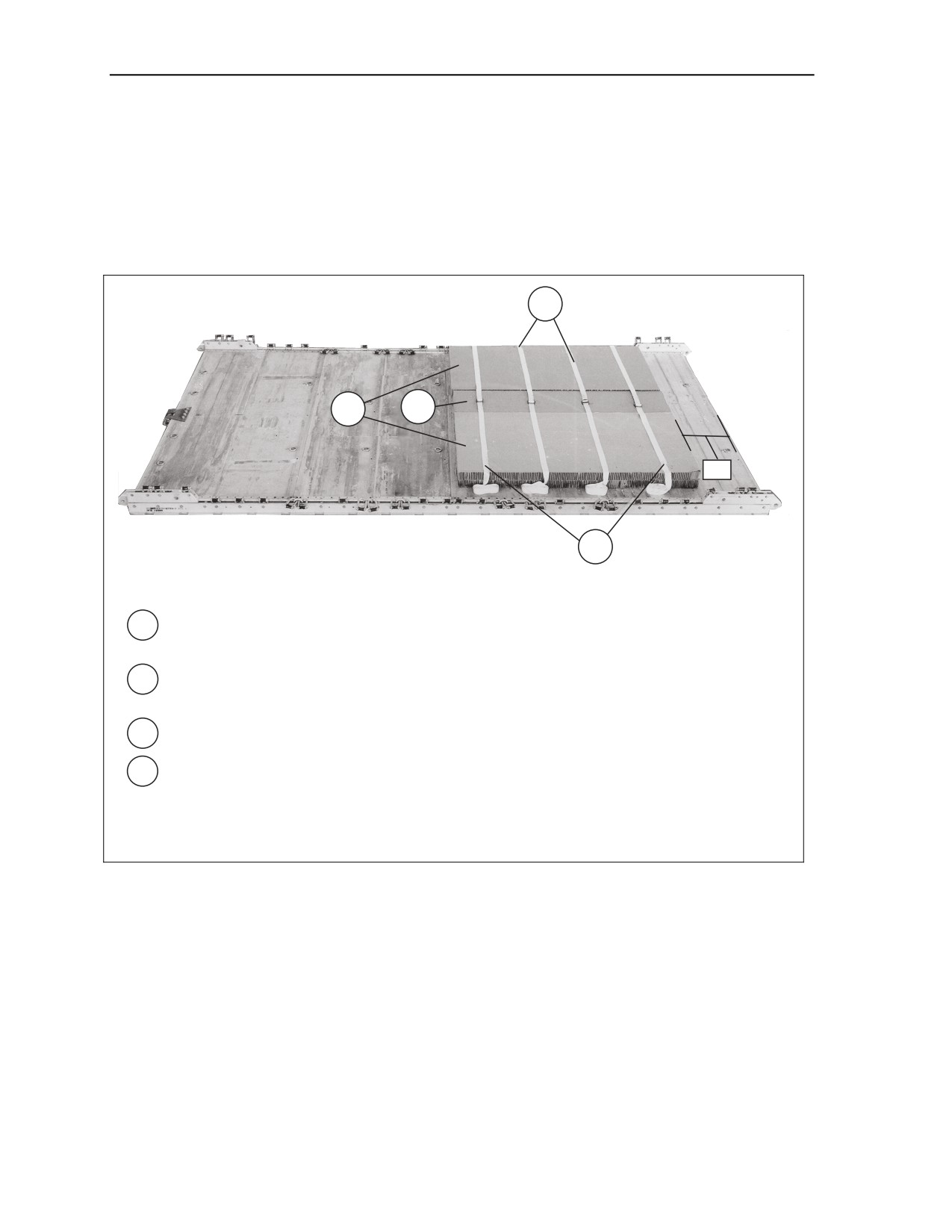

POSITIONING AND SECURING FIRST AMMUNITION STACK
5-20. Set six sets of projectiles on the honeycomb and pre-position three lashings as shown in Figure 5-16.
Stow 36 powder canisters and secure them as shown in Figure 5-17.
CAUTION
Only ammunition listed in FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-
41 may be airdropped. Hazardous material must be packaged,
marked, and labeled as required by AFMAN(I) 24-204/TM 38-250.
1
3
2
3
1 Set three bundles of projectiles flush on the honeycomb on each side. Fit the skids at the
bottom of the bundles into the slots in the honeycomb stack.
2 Center a 15-foot lashing on the base layer of honeycomb from left to right.
3 Place a 15-foot lashing 14 inches from each end of the stack in a right-to-left direction.

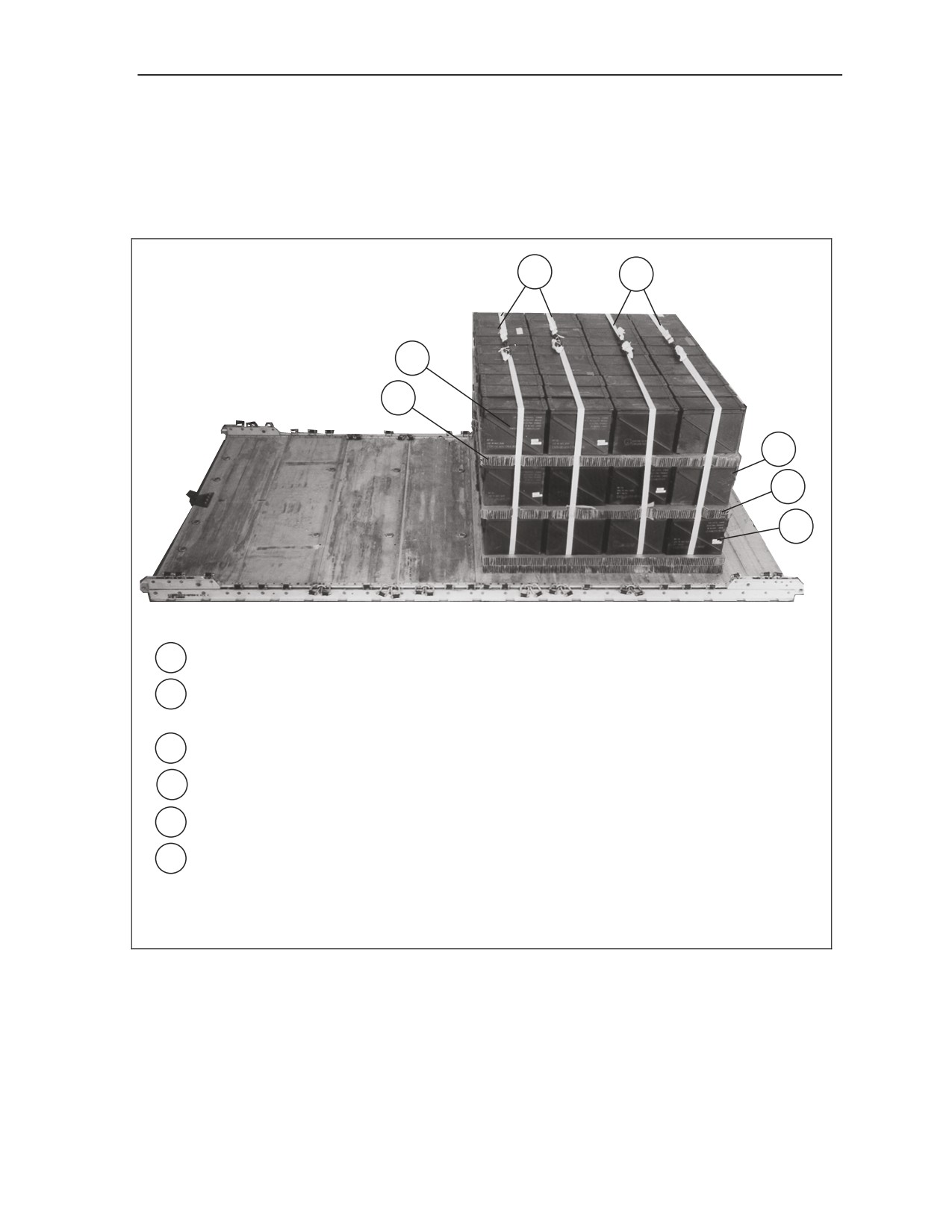

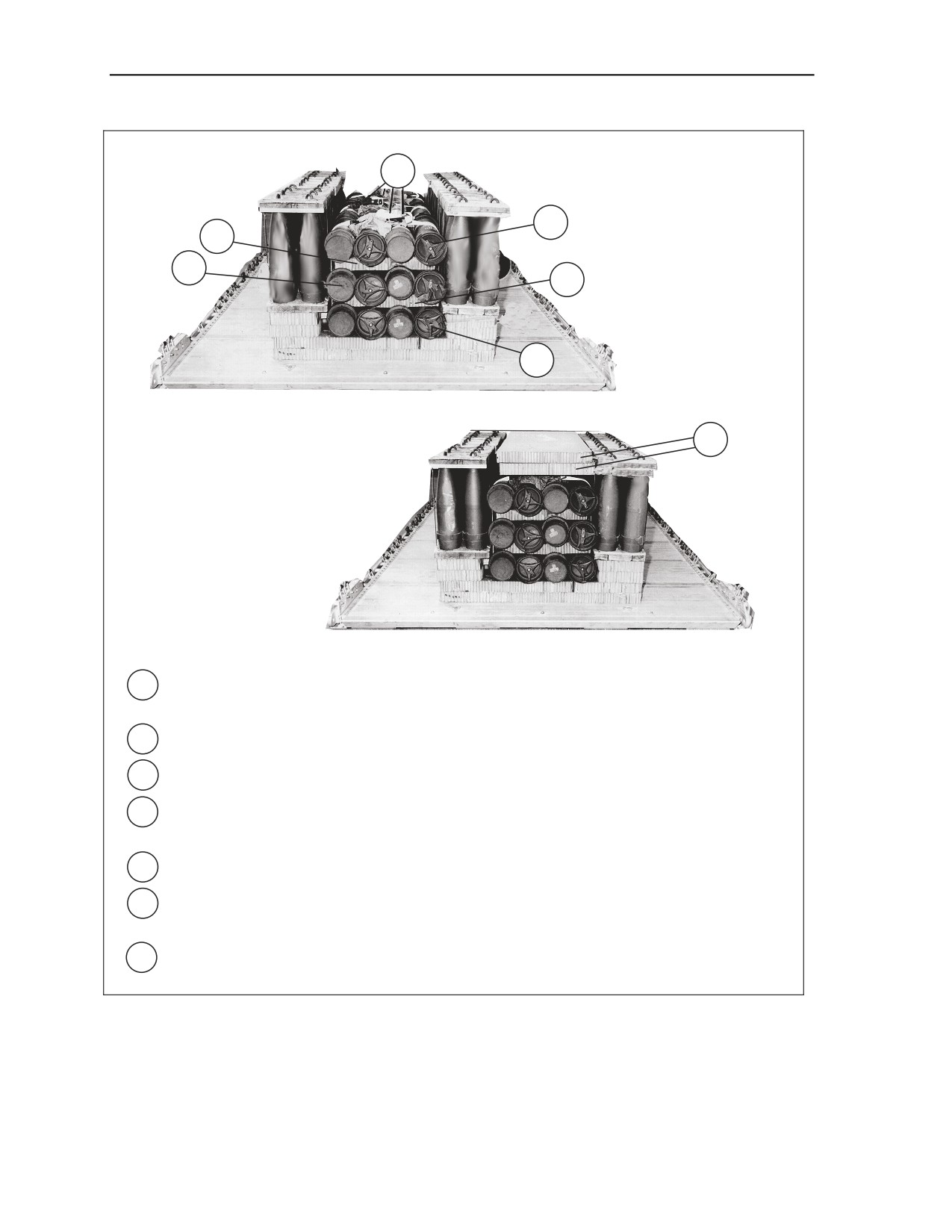

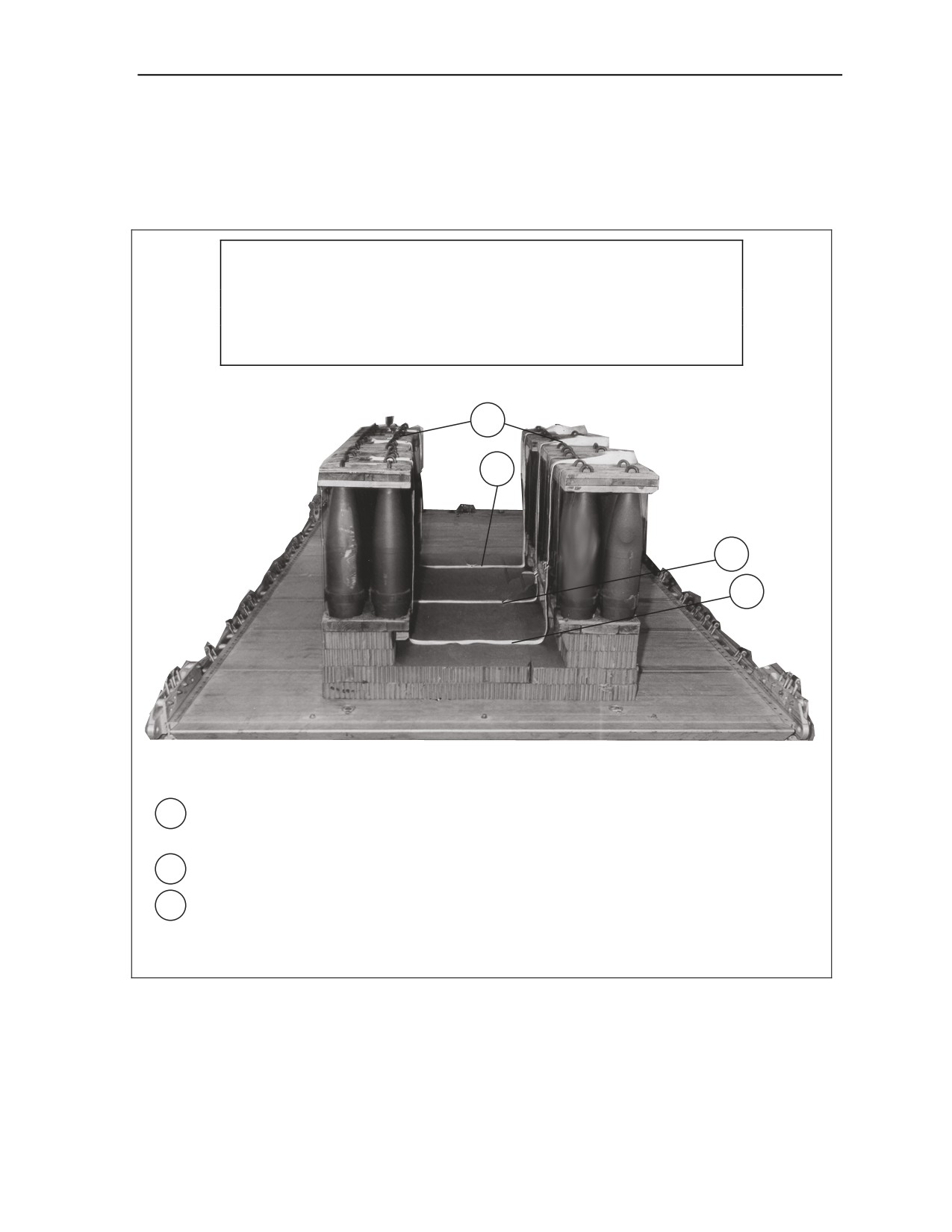

Figure 5-16. Projectiles Placed on Honeycomb and Lashings Pre-positioned
20 February 2009
FM 4-20.112/TO 13C7-1-8
5-29
Chapter 5
6
5
4
3
2
1
7
1 Center four powder canisters on each of the pre-positioned lashings in Figure 5-16, steps
2 and 3. Alternate the ends of the canisters as shown.
2 Place a 24- by 24-inch piece of honeycomb over each group of four canisters.
3 Place a second layer of 12 canisters over the honeycomb placed in step 2.
4 Place a second layer of three 24- by 24-inch pieces of honeycomb over the second layer
of canisters.
5 Place a third layer of canisters over the honeycomb placed in step 4.
6 Secure the three pre-positioned lashings over the canisters. Pad between the load binders
and canisters with cellulose wadding.
7 Center two 28- by 84-inch pieces of honeycomb over the canisters.
Figure 5-17. Canisters Stowed and Secured
5-30
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Supply Loads on a 16-Foot, Type V Platform for Low-Velocity Airdrop
CONSTRUCTING ENDBOARDS
5-21. Construct four endboards as shown in Figure 5-18.
CAUTION
The endboards must be the same height as the ends of the load.
Notes.
1. This drawing is not to scale.
2. All dimensions are in inches.
1 Cut eight 3/4- by 60- by 38-inch pieces of plywood.
2 Make 2- by 3-inch cutouts as shown and number 1 through 4.
3 Nail two pieces of plywood flush together with 6d nails to make four endboards. Pad the
cutouts with cellulose wadding and tape. (Not shown)

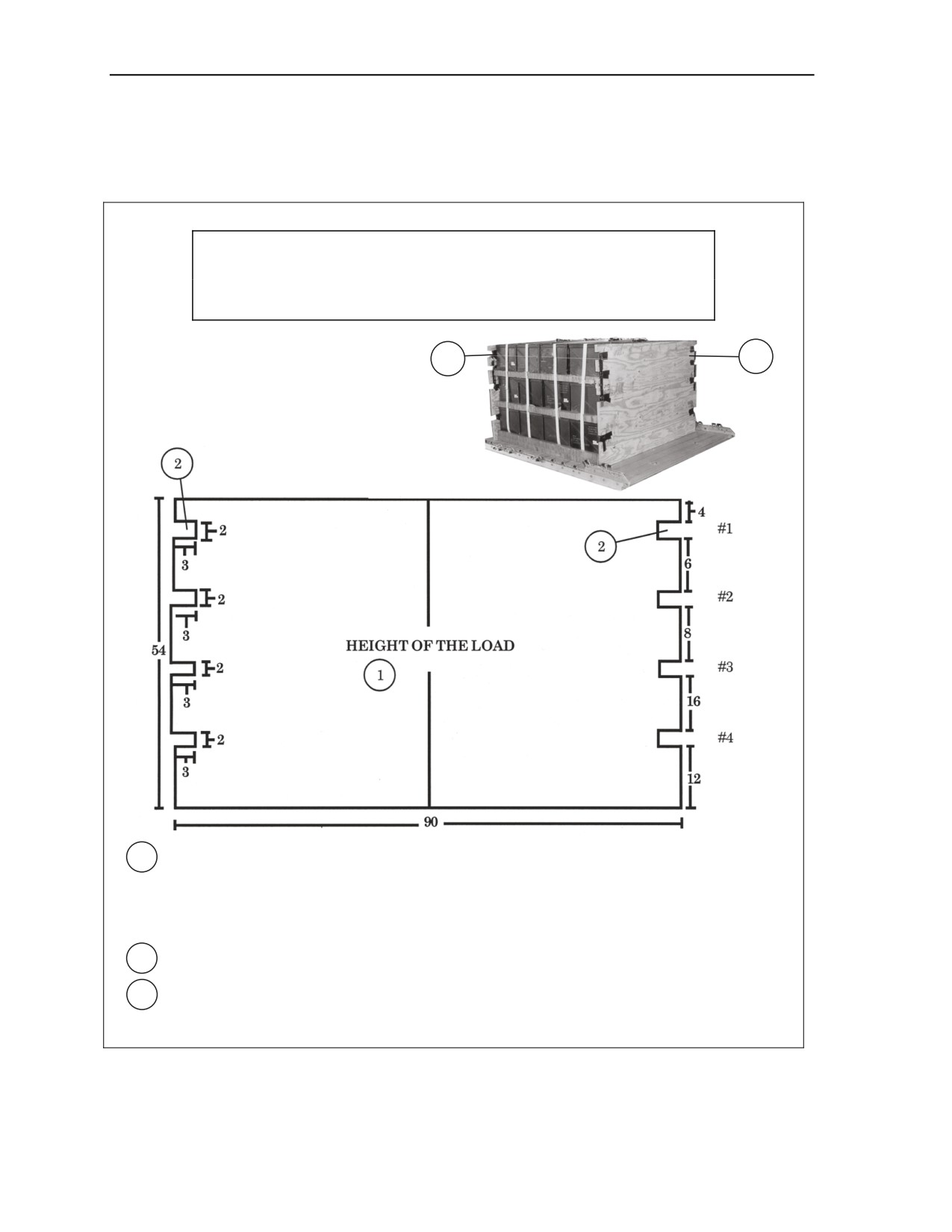

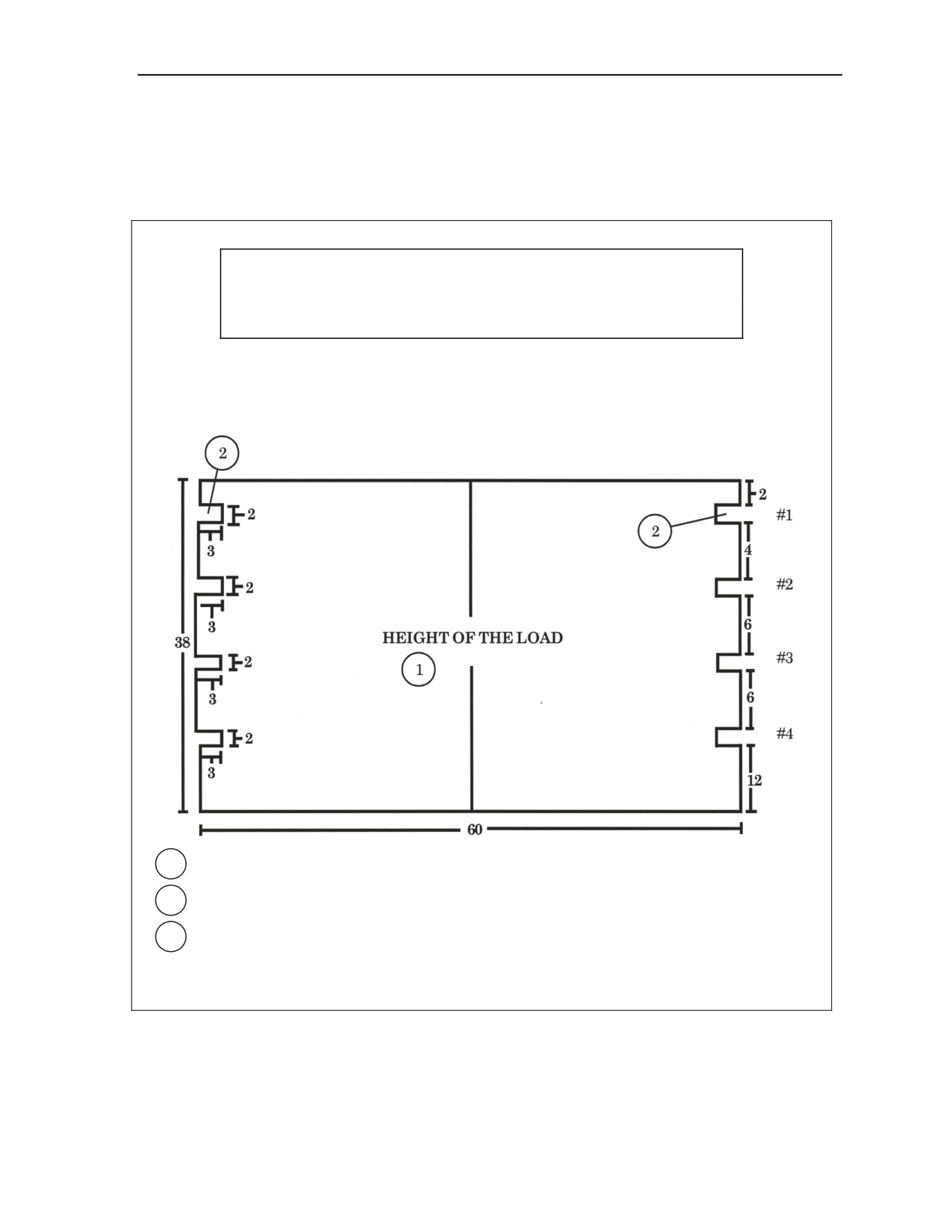

Figure 5-18. Endboards for 155-mm Ammunition Constructed
20 February 2009
FM 4-20.112/TO 13C7-1-8
5-31
Chapter 5
INSTALLING LASHINGS ON FIRST AMMUNITION STACK AND
FIRST AND SECOND ENDBOARDS
5-22. Lash the load and the first and second endboard to the platform according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5, and as shown in Figure 5-19
3
2
1
4
8
7
6
4
Lashing Number
Tiedown Clevis
Instructions
Number
1
4 and 4A
Pass a 30-foot lashing through both clevises and through
the third cutout in the first endboard. Secure the lashing in
the front with two D-rings and a load binder.
2
6 and 6A
Pass a 30-foot lashing through both clevises and through
the second cutout in the first endboard. Secure the lashing
in the front with two D-rings and a load binder.
3
7 and 7A
Pass a 30-foot lashing through both clevises and through
the top cutout in the second endboard. Secure the lashing
on the left side with two D-rings and a load binder.
4
8 and 8A
Pass a 30-foot lashing through both clevises and through
the third cutout from the top of the second endboard.
Secure the lashing on the right side with two D-rings and a
load binder.

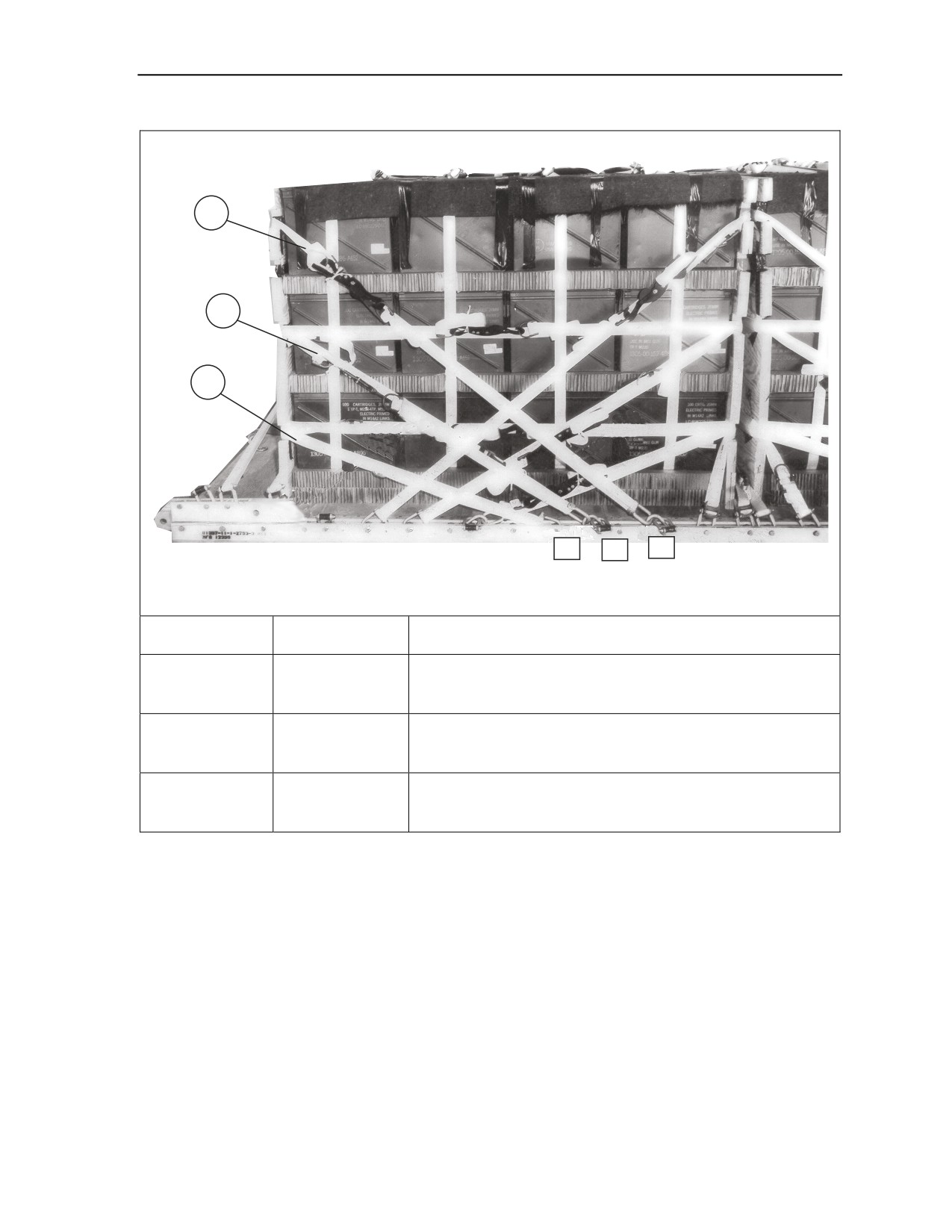

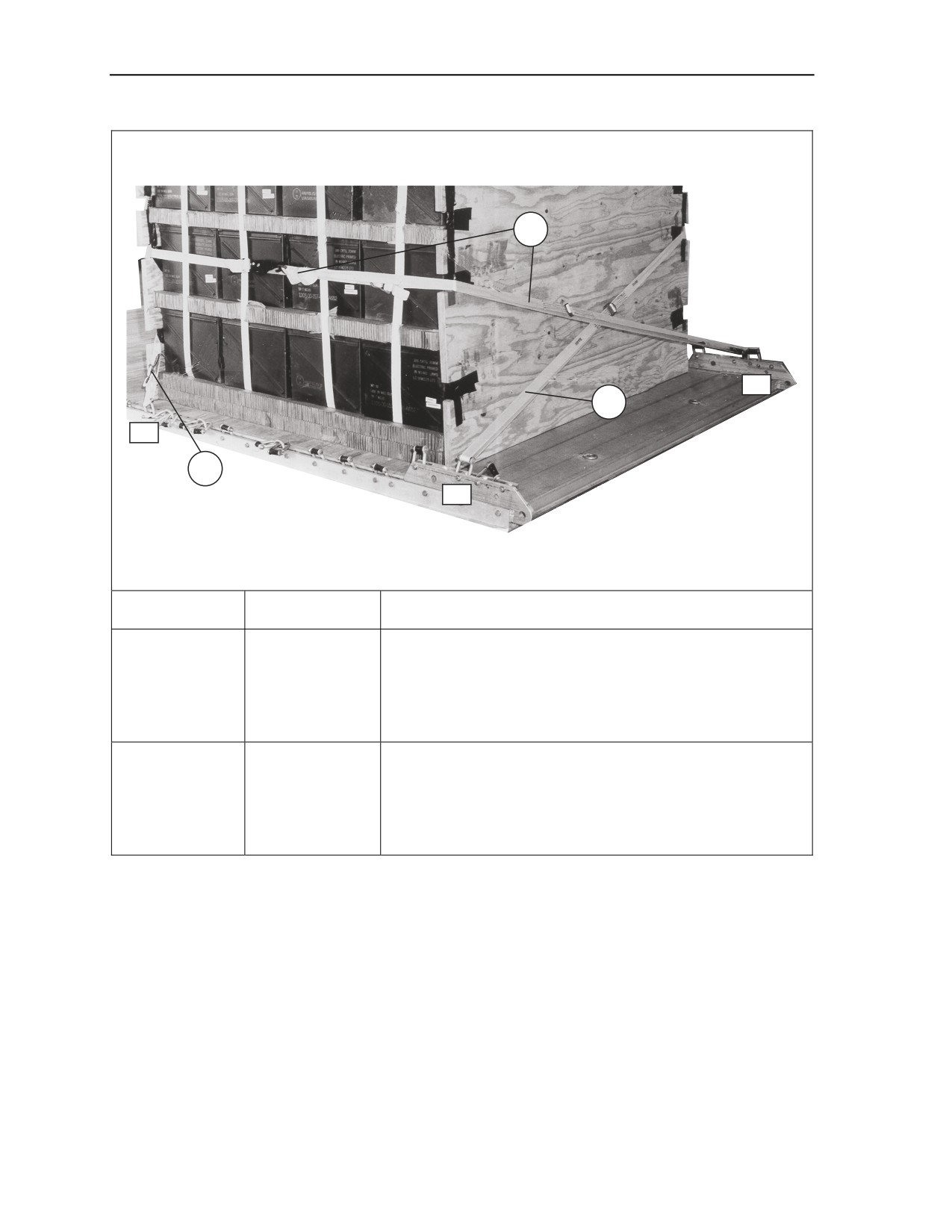

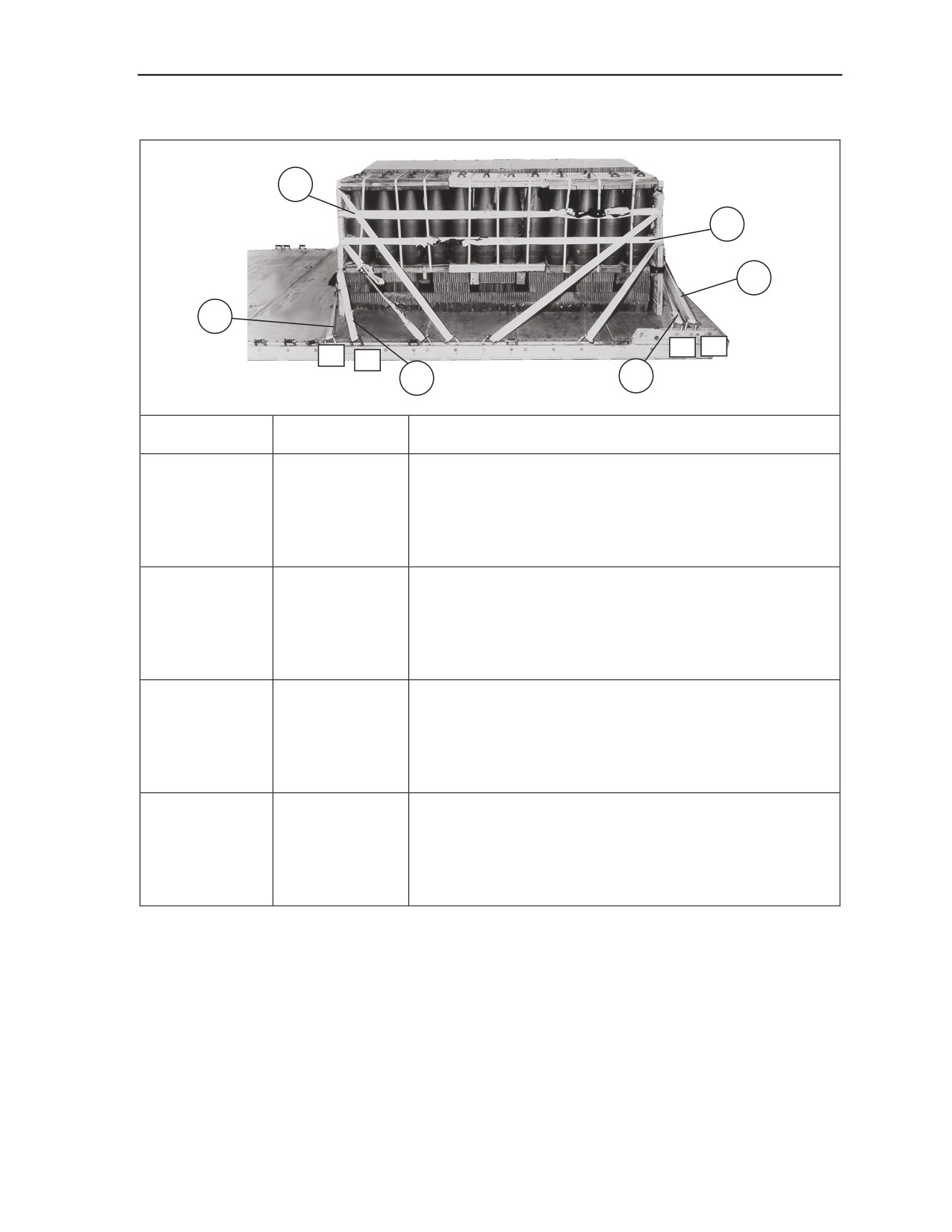

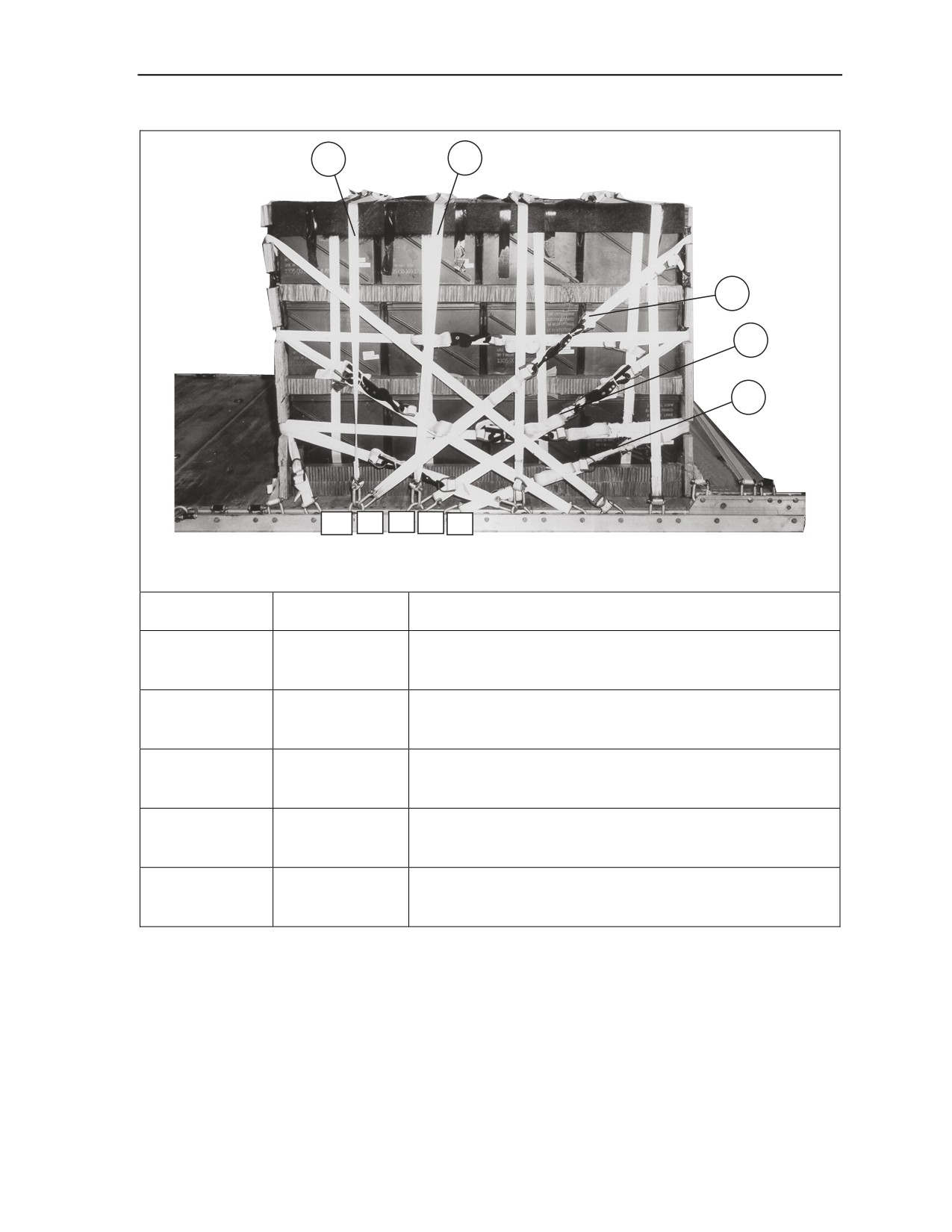

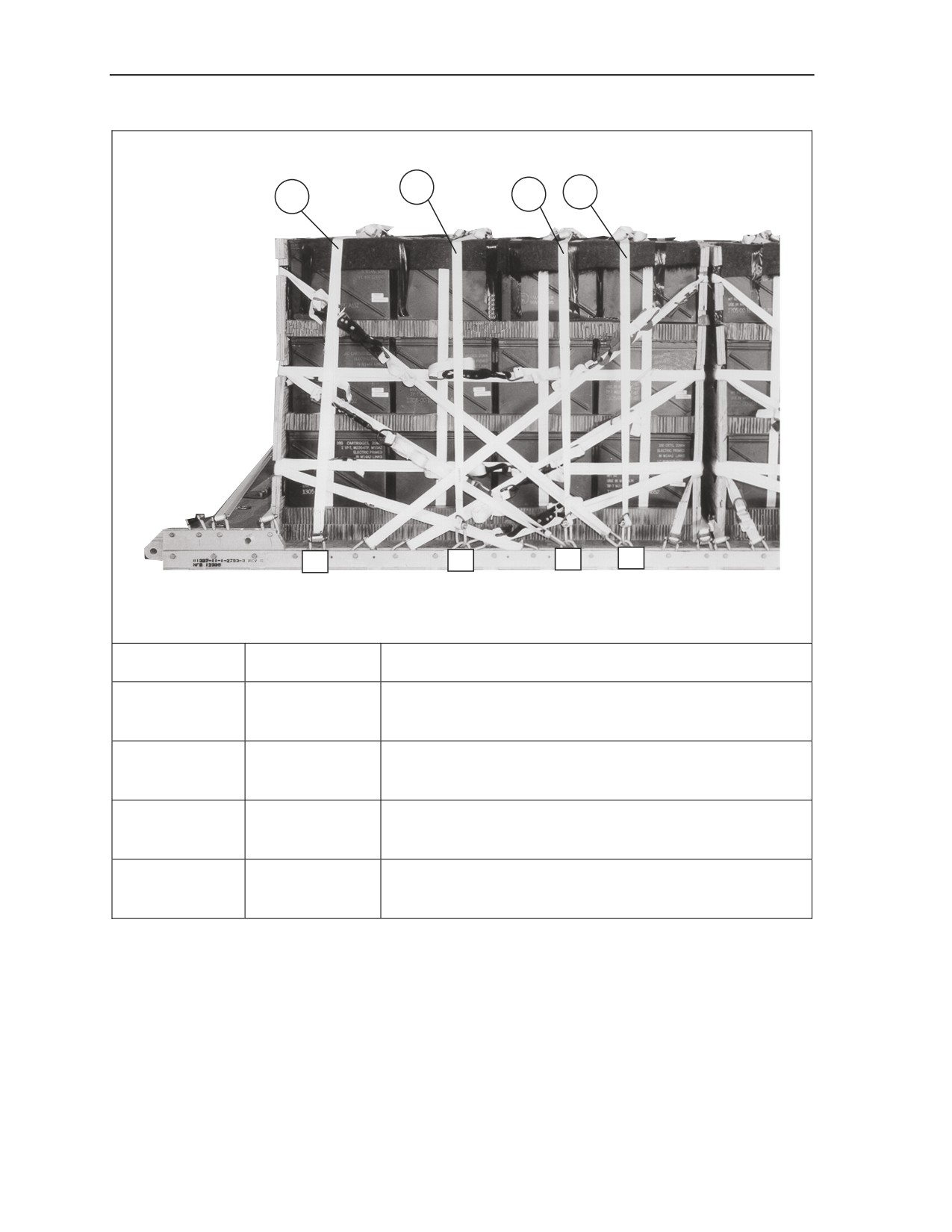

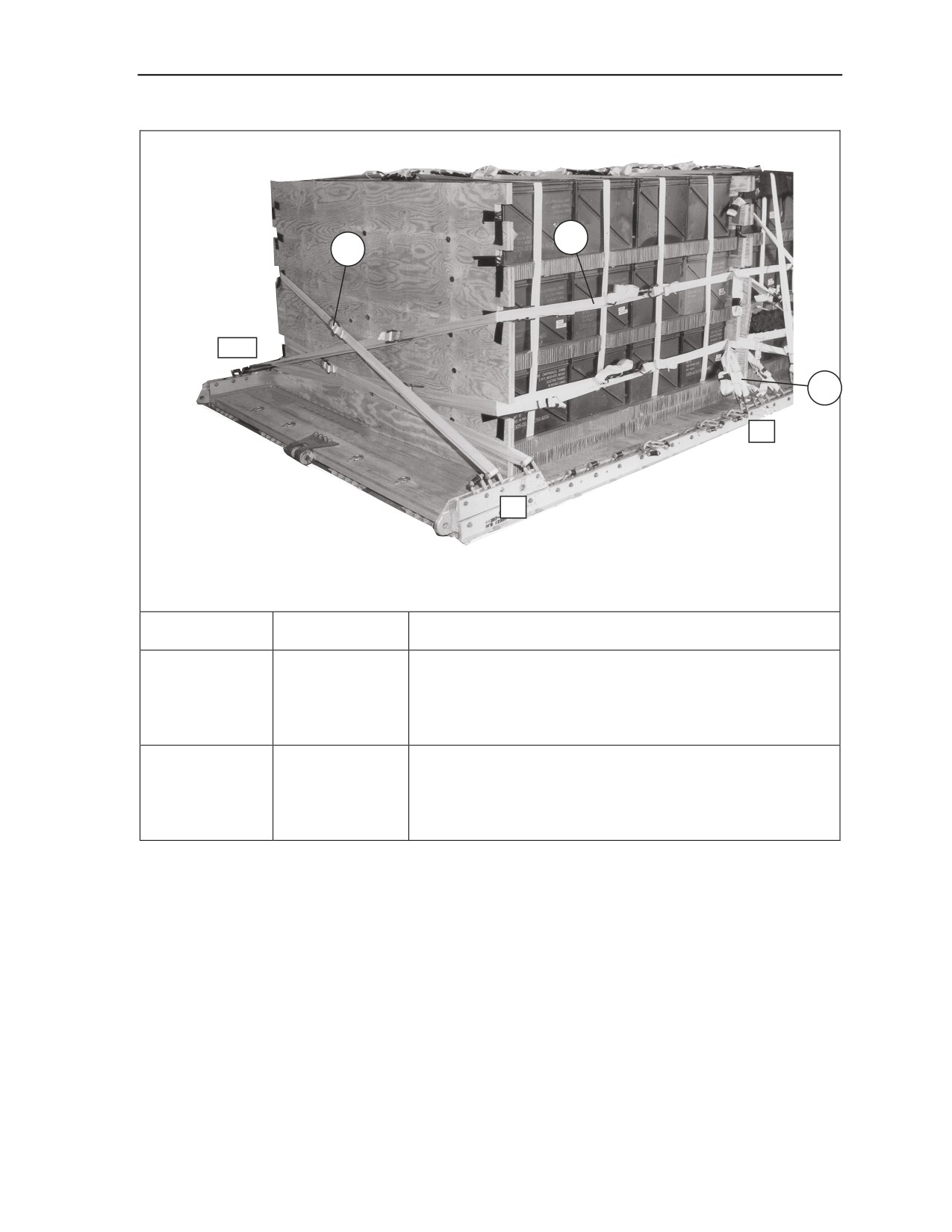

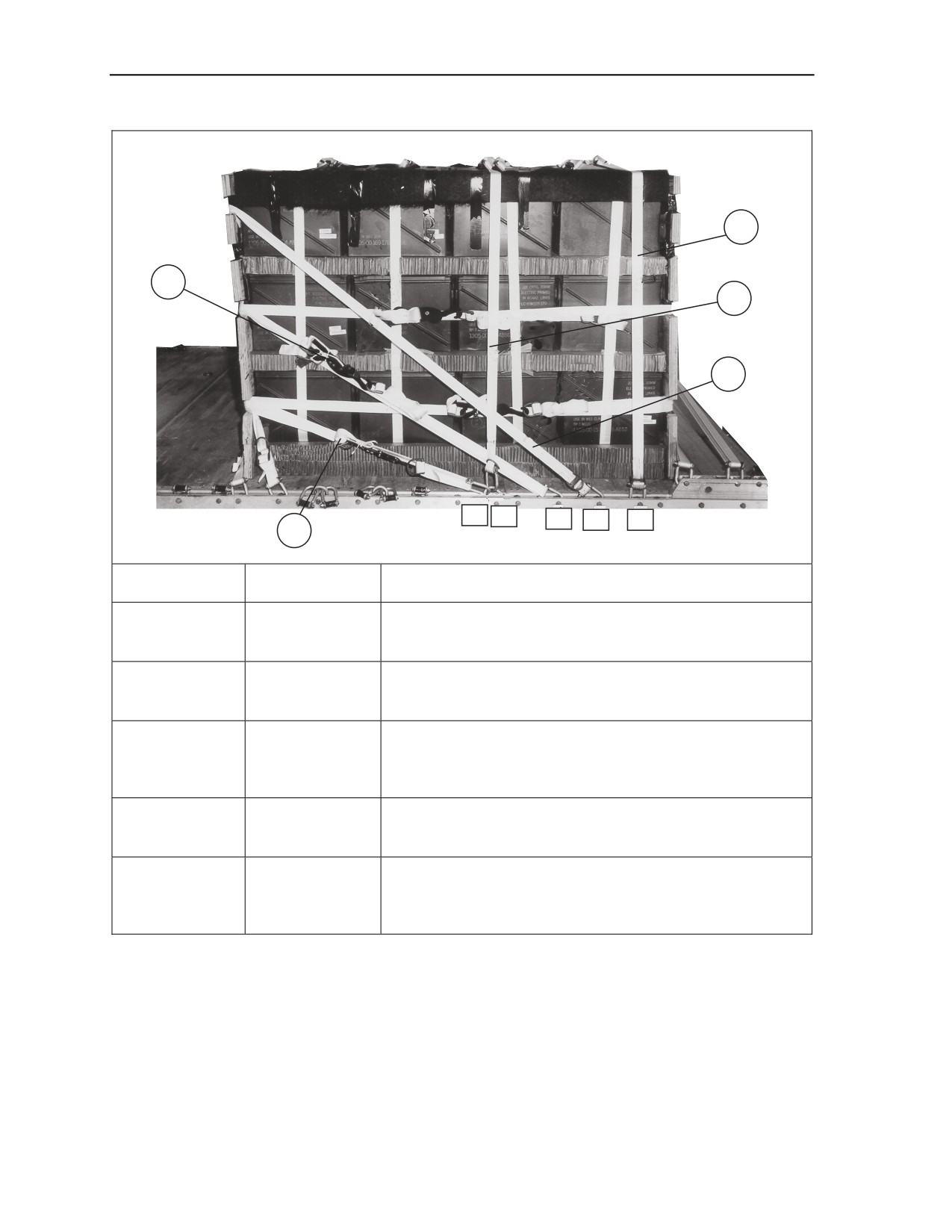

Figure 5-19. Lashings Installed for First Stack
5-32
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Supply Loads on a 16-Foot, Type V Platform for Low-Velocity Airdrop
6
8
5
7
2
1
11
10
5
7
Lashing Number
Tiedown Clevis
Instructions
Number
5
1 and 10
Pass a 30-foot lashing through clevis 1, through the second
cutout on the left side of the first endboard, and around the
left side of the ammunition stack. Pass the lashing through
the second cutout from the top in the left side of the second
endboard and through clevis 10. Secure the lashing on the
left side with two D-rings and a load binder.
6
1A and 10A
Pass a 30-foot lashing through clevis 1A, through the top
cutout on the right side of the first endboard, and around the
right side of the ammunition stack. Pass the lashing through
the second cutout from the top in the right side of the
second endboard and through clevis 10A. Secure the
lashing on the right side with two D-rings and a load binder.
7
2 and 11
Pass a 30-foot lashing through clevis 2, through the third
cutout on the left side of the first endboard, and around the
left side of the ammunition stack. Pass the lashing through
the third cutout on the left side of the second endboard and
through clevis 11. Secure the lashing on the left side with
two D-rings and a load binder.
8
2A and 11A
Pass a 30-foot lashing through clevis 2A, through the third
cutout on the right side of the first endboard, and around the
right side of the ammunition stack. Pass the lashing through
the third cutout on the right side of the second endboard
and through clevis 11A. Secure the lashing on the right side
with two D-rings and a load binder.

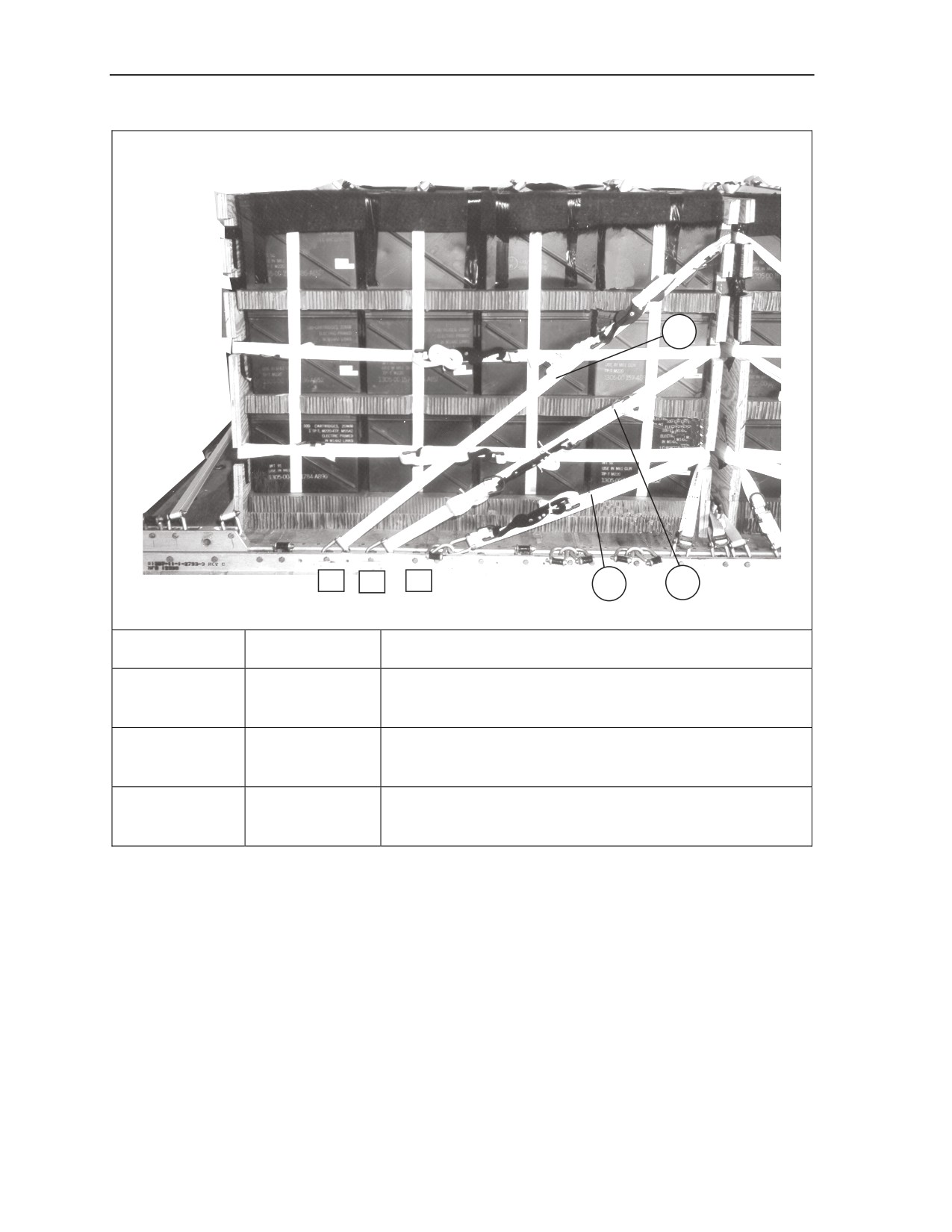

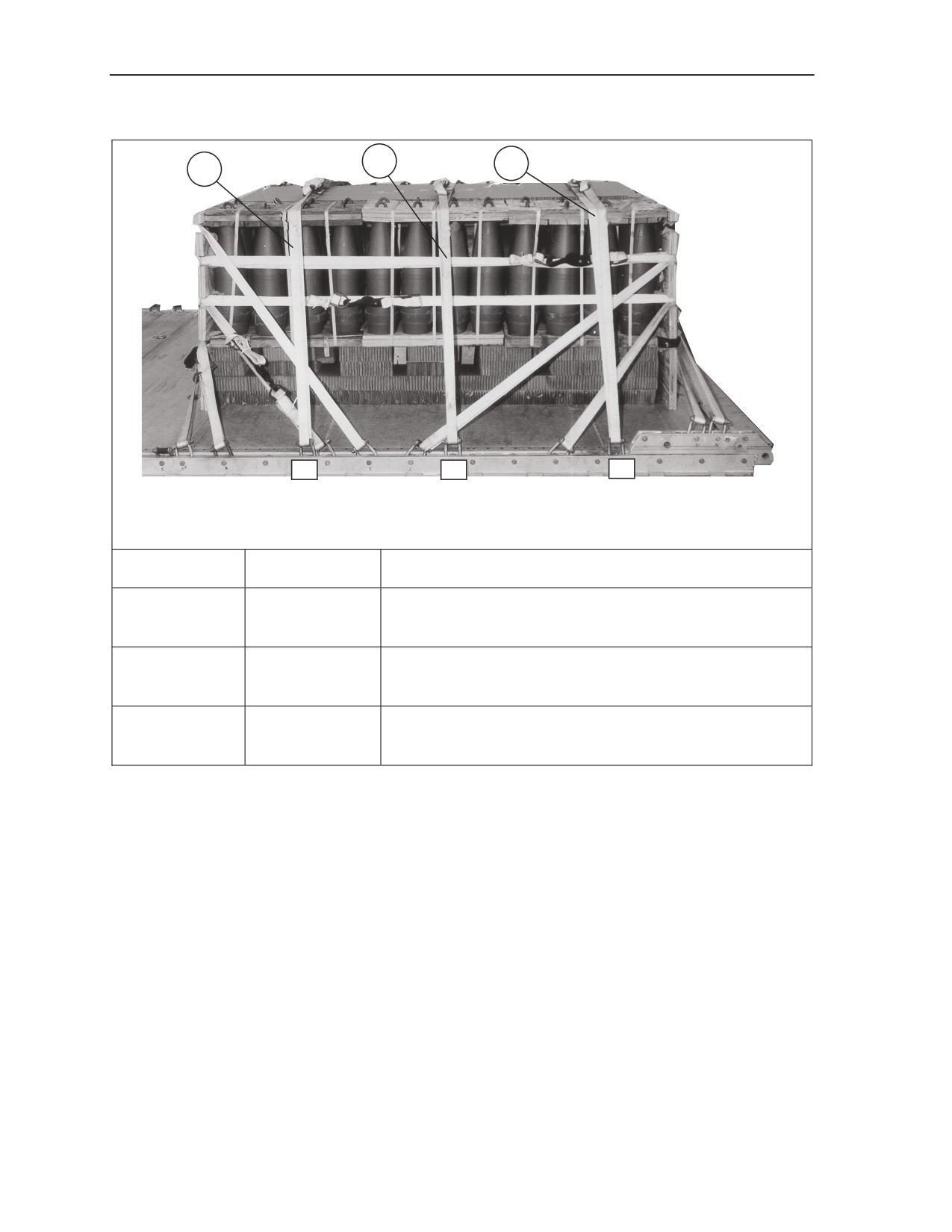

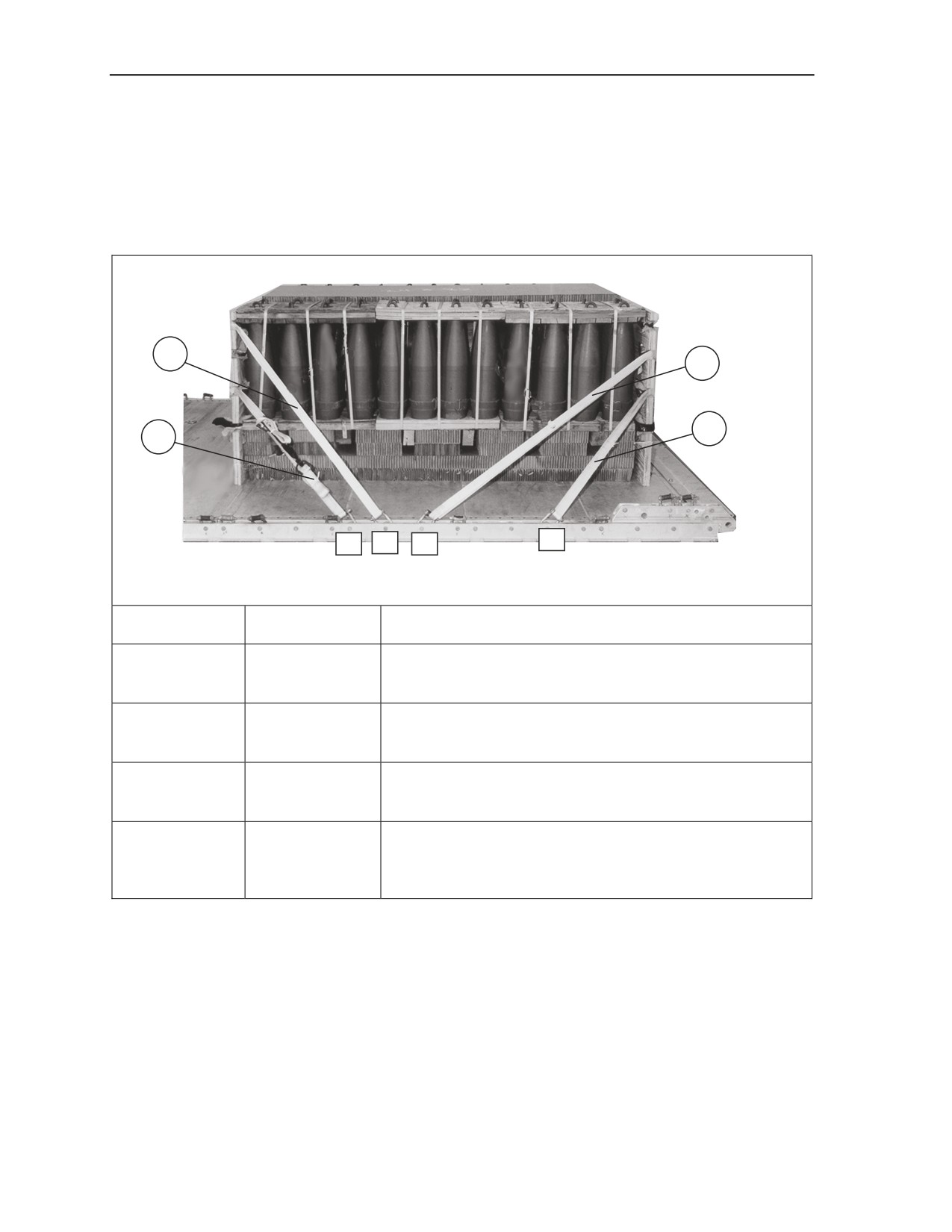

Figure 5-19. Lashings Installed for First Stack (Continued)
20 February 2009
FM 4-20.112/TO 13C7-1-8
5-33
Chapter 5
10
9
11
9
5
3
Lashing Number
Tiedown Clevis
Instructions
Number
9
3 and 3A
Pass a 30-foot lashing through both clevises and over the
top of the load. Secure the lashing on top with two D-rings
and a load binder.
10
5 and 5A
Pass a 30-foot lashing through both clevises and over the
top of the load. Secure the lashing on top with two D-rings
and a load binder.
11
9 and 9A
Pass a 30-foot lashing through both clevises and over the
top of the load. Secure the lashing on top with two D-rings
and a load binder.
Figure 5-19. Lashings Installed for First Stack (Continued)
5-34
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Supply Loads on a 16-Foot, Type V Platform for Low-Velocity Airdrop
POSITIONING SECOND AMMUNITION STACK AND THIRD AND
FOURTH ENDBOARDS
5-23. Position and secure the second ammunition stack and its endboards as described below.
• Center the honeycomb for the second ammunition stack 6 inches from the rear edge of the platform.
• Stow and secure six sets of projectiles and 36 powder canisters on the honeycomb as shown in Figures 5-16
and 5-17.
• Set an endboard against each end of the second ammunition stack.
LASHING SECOND AMMUNITION STACK AND THIRD AND
FOURTH ENDBOARDS
5-24. Lash the second ammunition stack and the third and fourth endboards to the platform according to
FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 and as shown in Figure 5-20.
15
13
14
12
19
17
16
15
Lashing Number
Tiedown Clevis
Instructions
Number
12
15 and 15A
Pass a 30-foot lashing through both clevises and through
the third cutout in the third endboard. Secure the lashing on
the right side with two D-rings and a load binder.
13
16 and 16A
Pass a 30-foot lashing through both clevises and through
the second cutout in the third endboard. Secure the lashing
on the right side with two D-rings and a load binder.
14
17 and 17A
Pass a 30-foot lashing through both clevises and through
the third cutout in the fourth endboard. Secure the lashing
on the left side with two D-rings and a load binder.
15
19 and 19A
Pass a 30-foot lashing through both clevises and through
the second cutout from the top of the fourth endboard.
Secure the lashing on the right side with two D-rings and a
load binder.

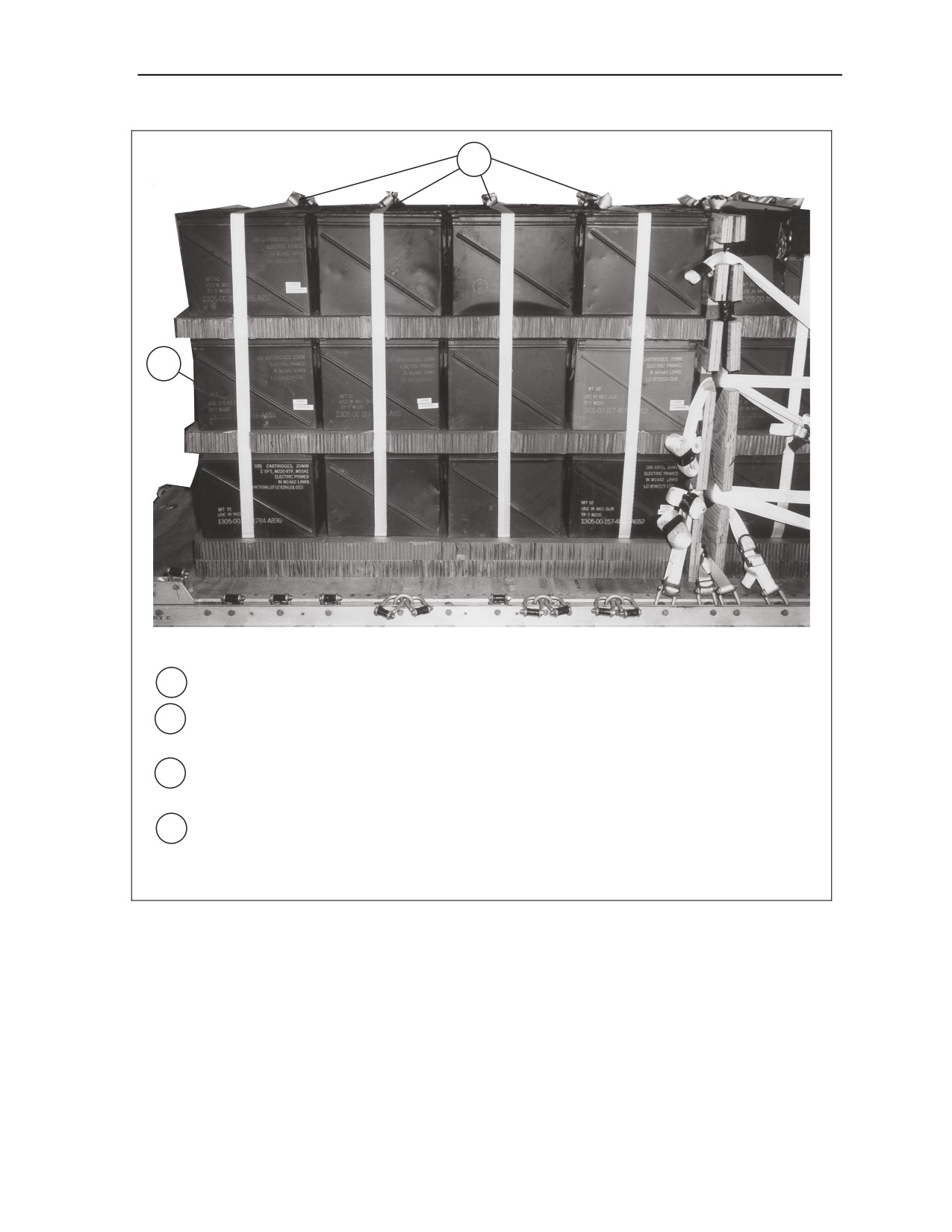

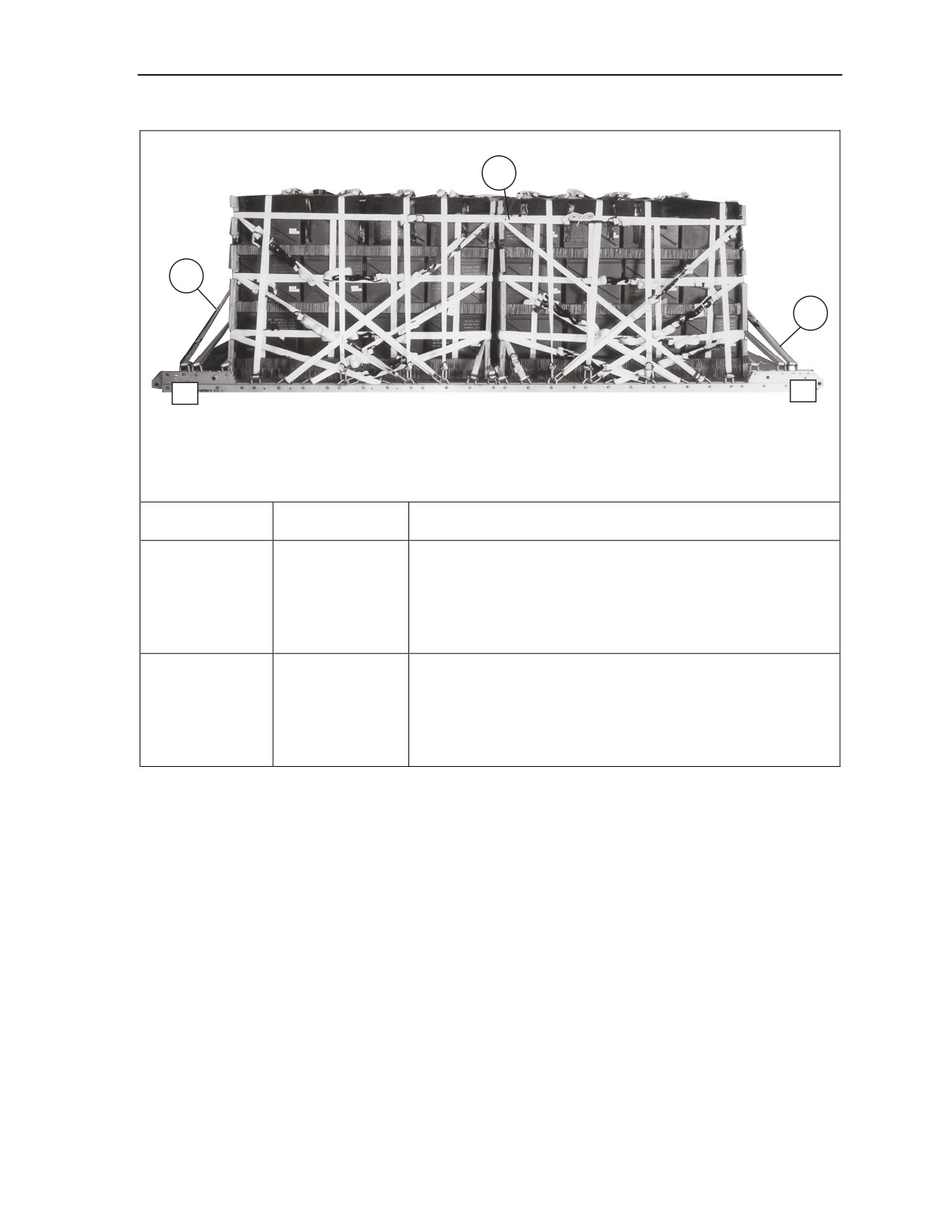

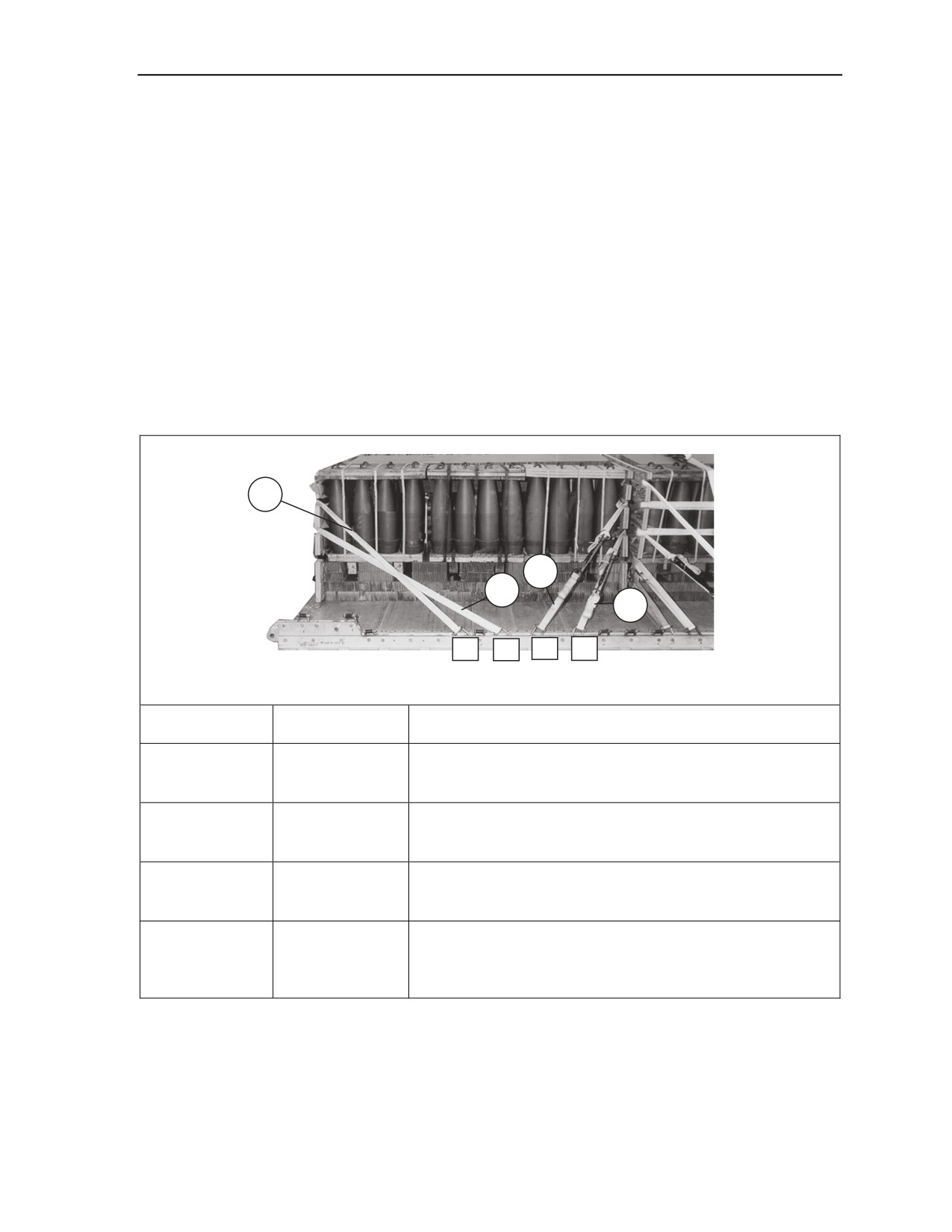

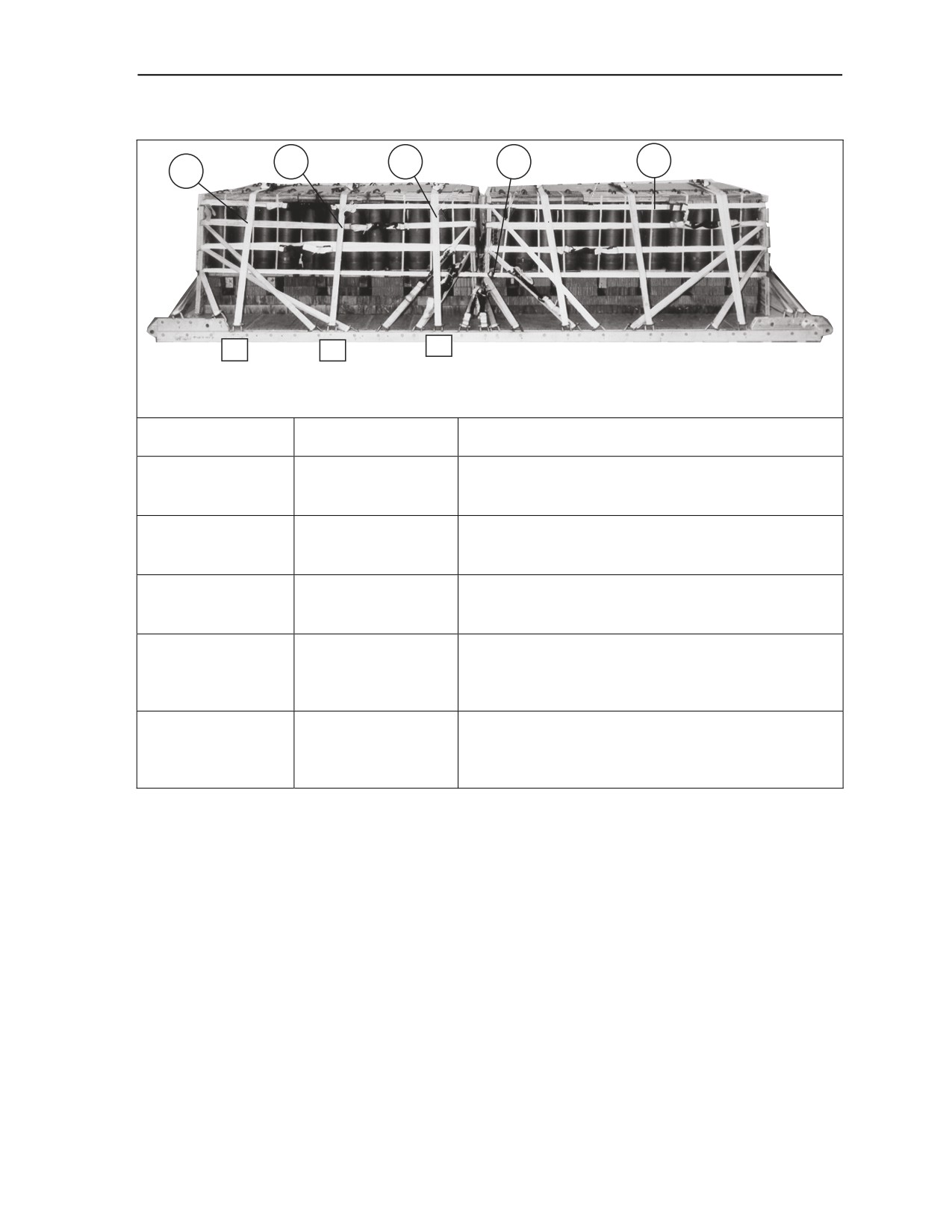

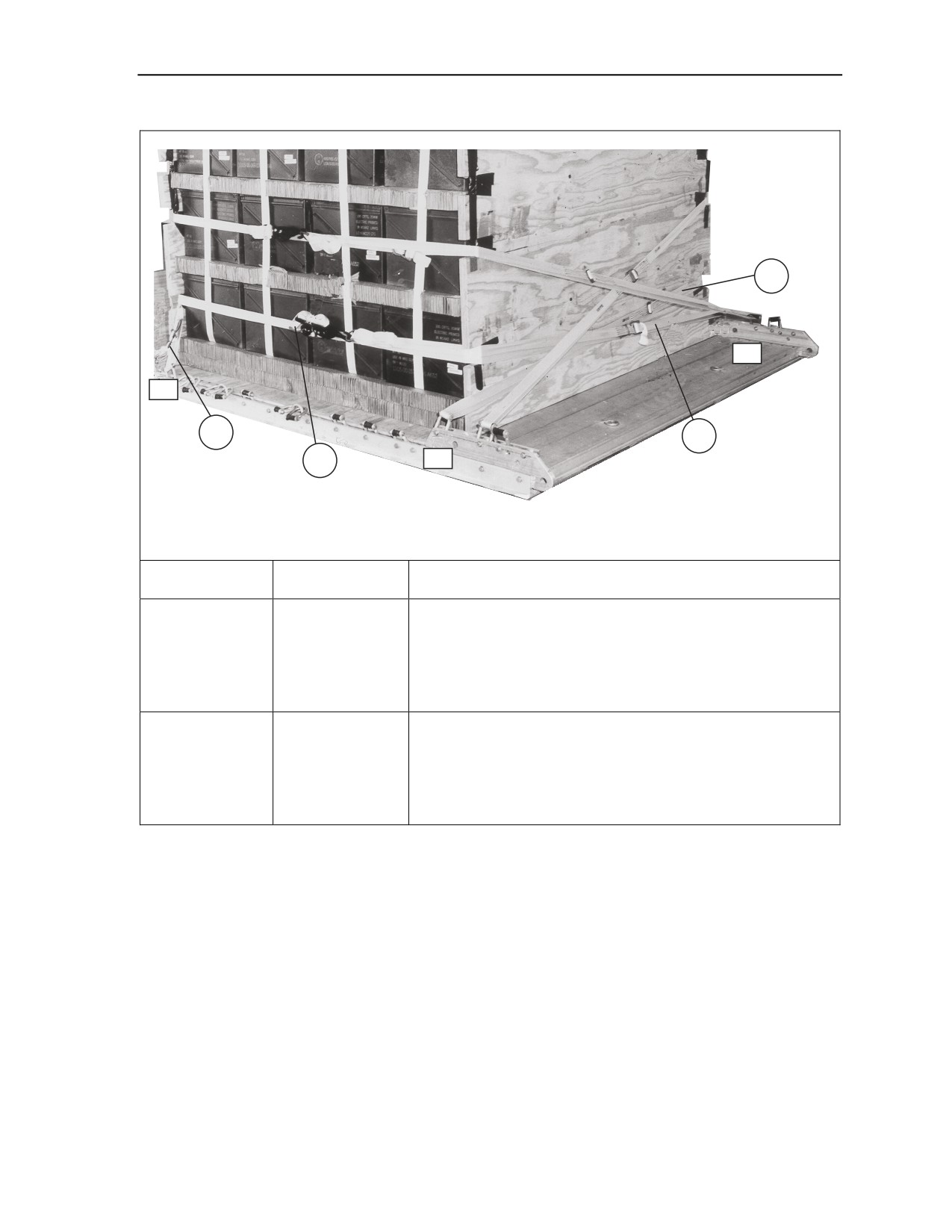

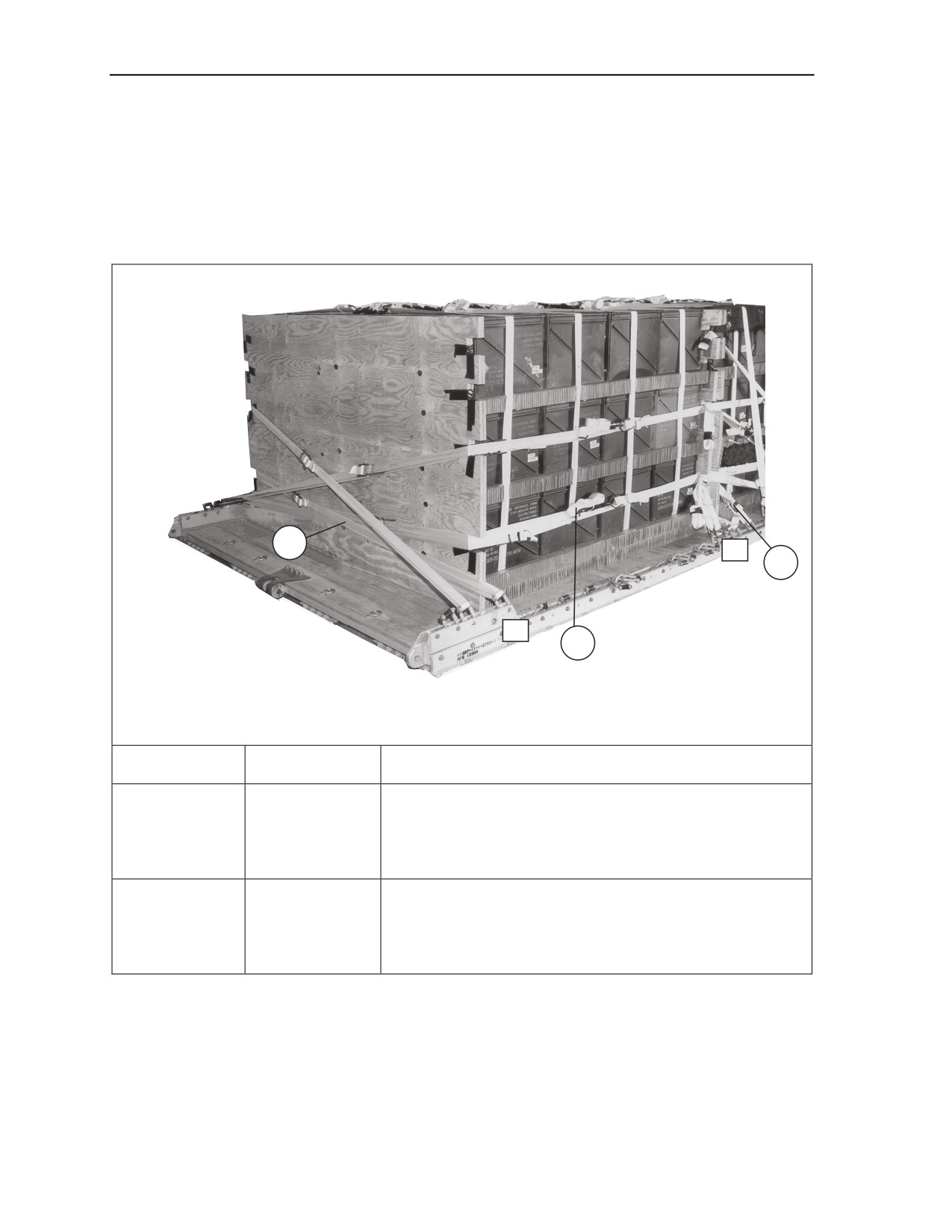

Figure 5-20. Lashings Installed for Second Stack
20 February 2009
FM 4-20.112/TO 13C7-1-8
5-35
Chapter 5
19
17
16
18
22
21
13
12
18
16
Lashing Number
Tiedown Clevis
Instructions
Number
16
12 and 21
Pass a 30-foot lashing through clevis 12, through the
second cutout on the left side of the third endboard, and
around the left side of the ammunition stack. Pass the
lashing through the second cutout from the top in the left
side of the fourth endboard and through clevis 21. Secure
the lashing on the left side with two D-rings and a load
binder.
17
12A and 21A
Pass a 30-foot lashing through clevis 12A, through the top
cutout on the right side of the third endboard, and around
the right side of the ammunition stack. Pass the lashing
through the second cutout from the top in the right side of
the fourth endboard and through clevis 21A. Secure the
lashing on the right side with two D-rings and a load binder.
18
13 and 22
Pass a 30-foot lashing through clevis 13, through the third
cutout on the left side of the third endboard, and around the
left side of the ammunition stack. Pass the lashing through
the third cutout on the left side of the fourth endboard and
through clevis 22. Secure the lashing on the left side with
two D-rings and a load binder.
19
13A and 22A
Pass a 30-foot lashing through clevis 13A, through the third
cutout on the right side of the third endboard, and around
the right side of the ammunition stack. Pass the lashing
through the third cutout on the right side of the fourth
endboard and through clevis 22A. Secure the lashing on the
right side with two D-rings and a load binder.

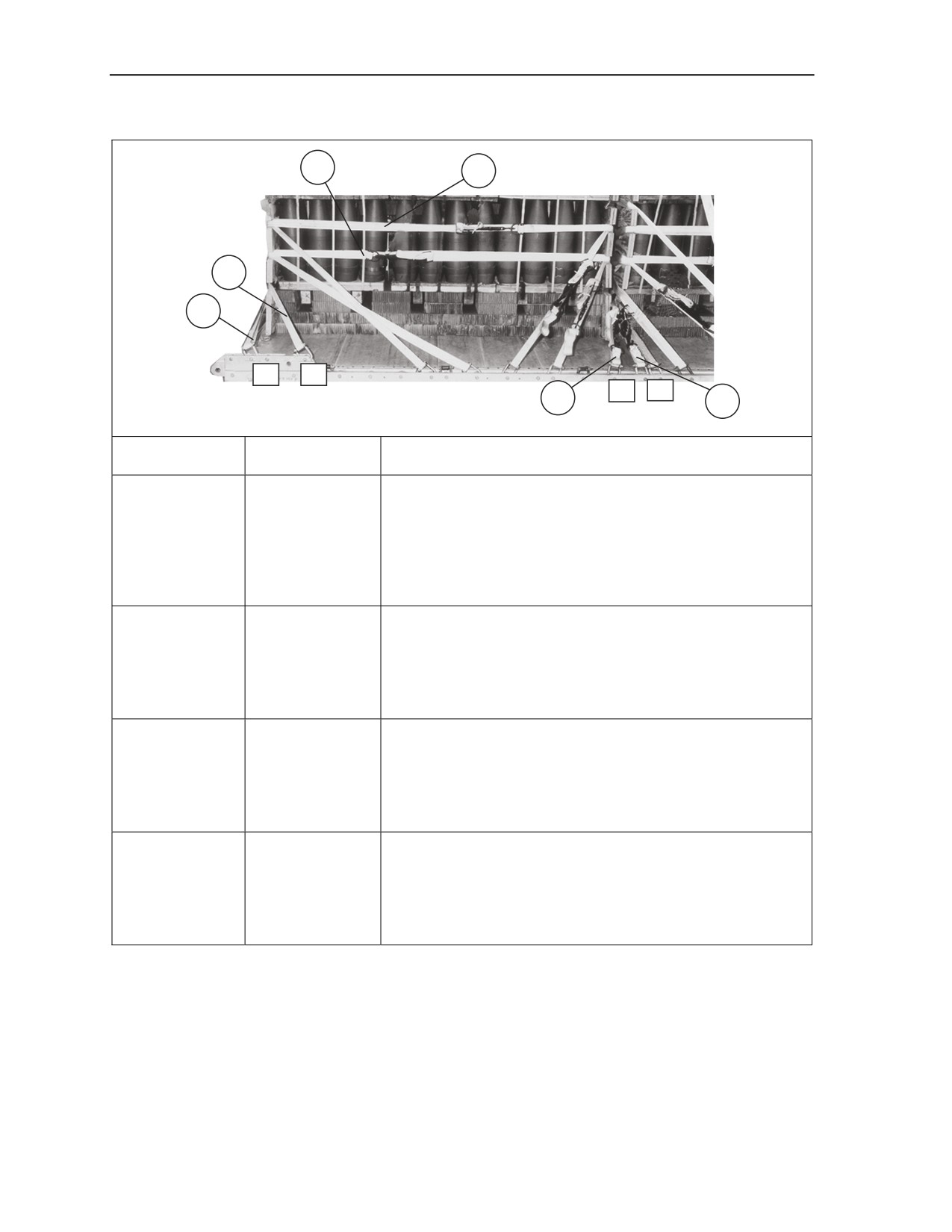

Figure 5-20. Lashings Installed for Second Stack (Continued)
5-36
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Supply Loads on a 16-Foot, Type V Platform for Low-Velocity Airdrop
21
20
24
23
22
20
18
14
Lashing Number
Tiedown Clevis
Instructions
Number
20
14 and 14A
Pass a 30-foot lashing through both clevises and
over the top of the load. Secure the lashing on top
with two D-rings and a load binder.
21
18 and 18A
Pass a 30-foot lashing through both clevises and
over the top of the load. Secure the lashing on top
with two D-rings and a load binder.
22
20 and 20A
Pass a 30-foot lashing through both clevises and
over the top of the load. Secure the lashing on top
with two D-rings and a load binder.
23
Pass a 45-foot lashing around the entire load through
the top cutouts in all four endboards. Secure the
lashing on the side with two D-rings and a load
binder.
24
Pass a 45-foot lashing around the entire load through
the bottom cutouts in all four endboards. Secure the
lashing on the side with two D-rings and a load
binder.

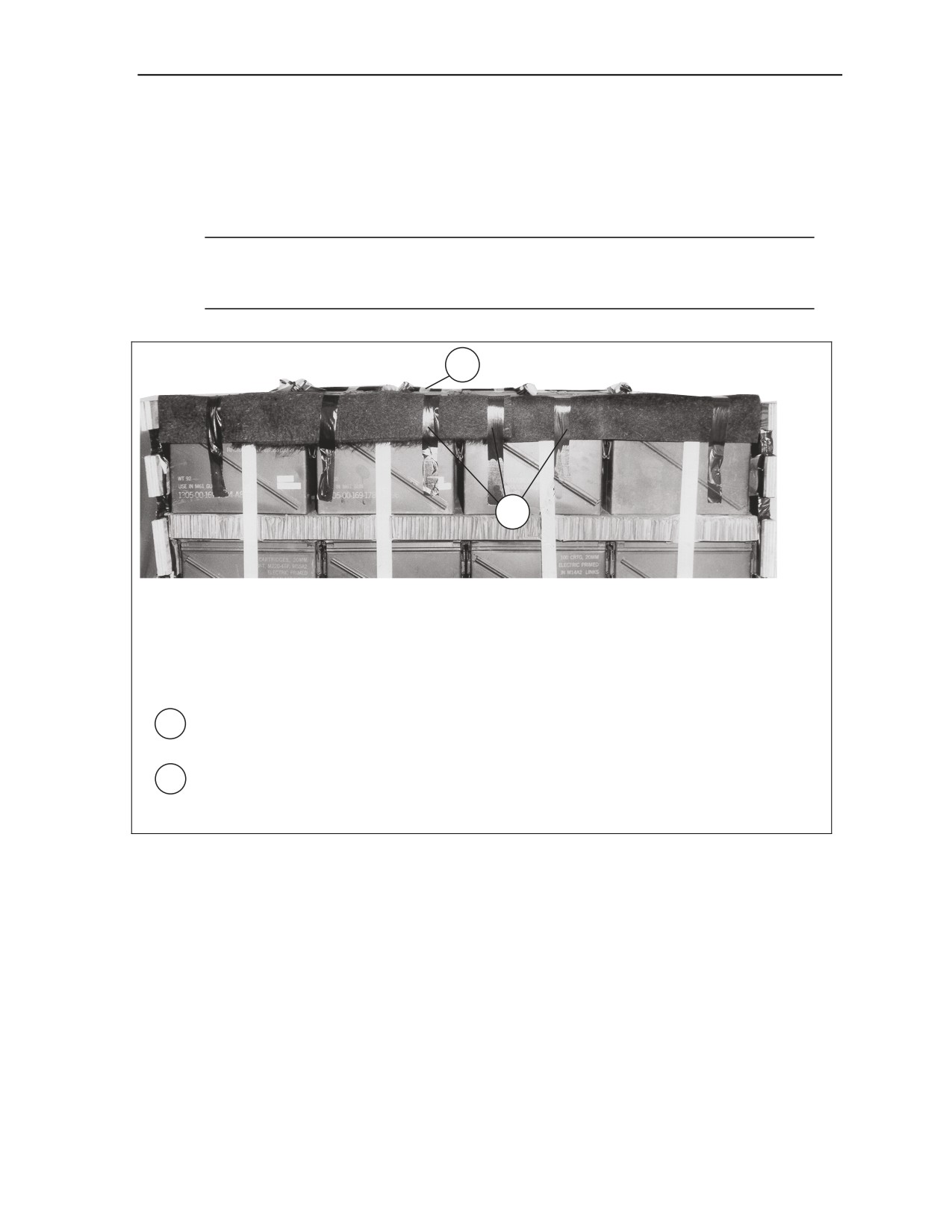

Figure 5-20. Lashings Installed for Second Stack (Continued)
20 February 2009
FM 4-20.112/TO 13C7-1-8
5-37
Chapter 5
INSTALLING SUSPENSION SLINGS AND DEADMAN’S TIE

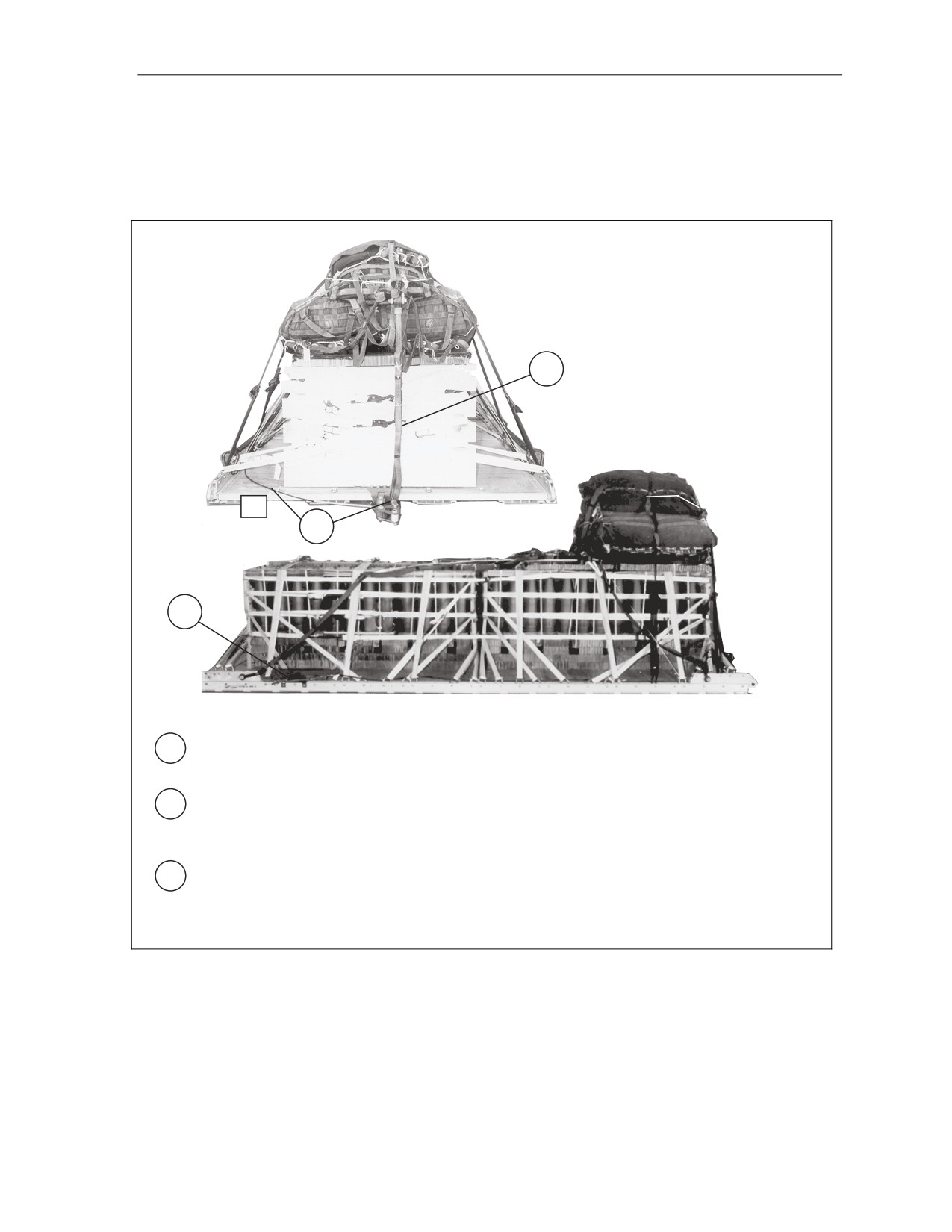

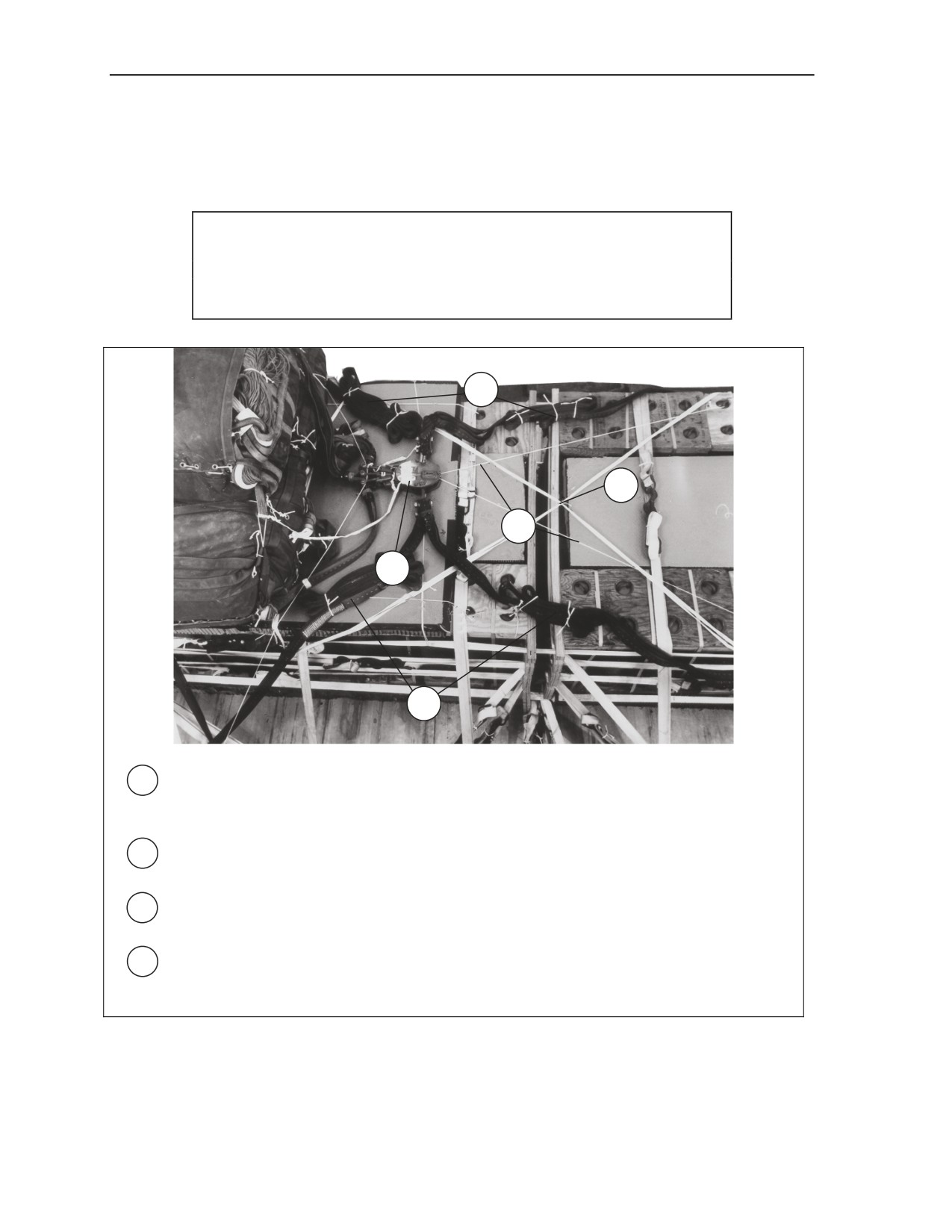

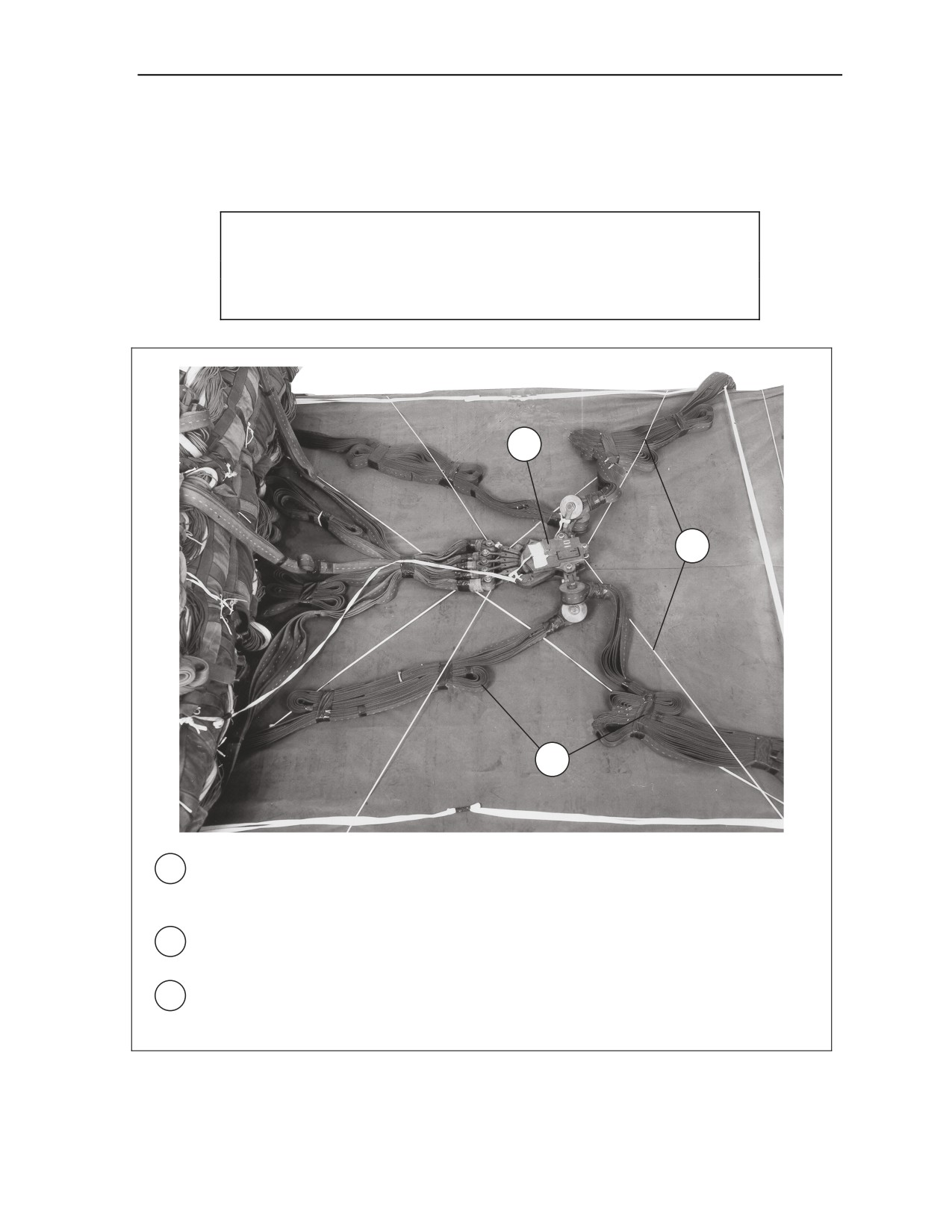

5-25. Install the suspension slings and deadman’s tie as shown in Figure 5-21.
2
3
1
1 Pass one end of a 16-foot (2-loop), type XXVI nylon suspension sling through the bell
portion of a large suspension clevis. Bolt the clevis to the suspension hole of the right front
tandem link.
2 Install on the left front tandem link and the right rear and left rear tandem links a 16-foot (2-
loop), type XXVI nylon suspension sling as in step 1.
Note. Use (4-loop) slings if the load is over 14,000 pounds.
3 Raise the slings and install the deadman's tie according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.

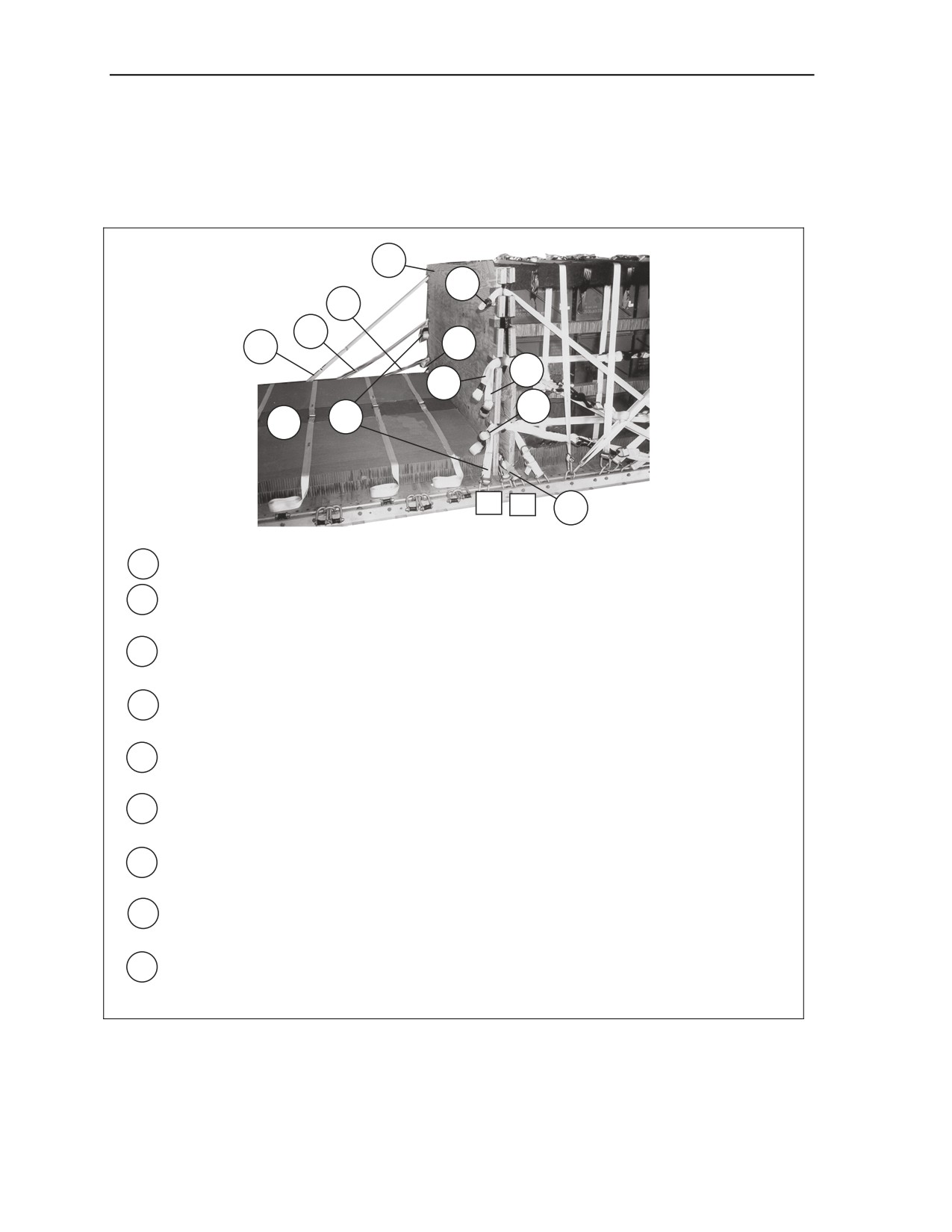

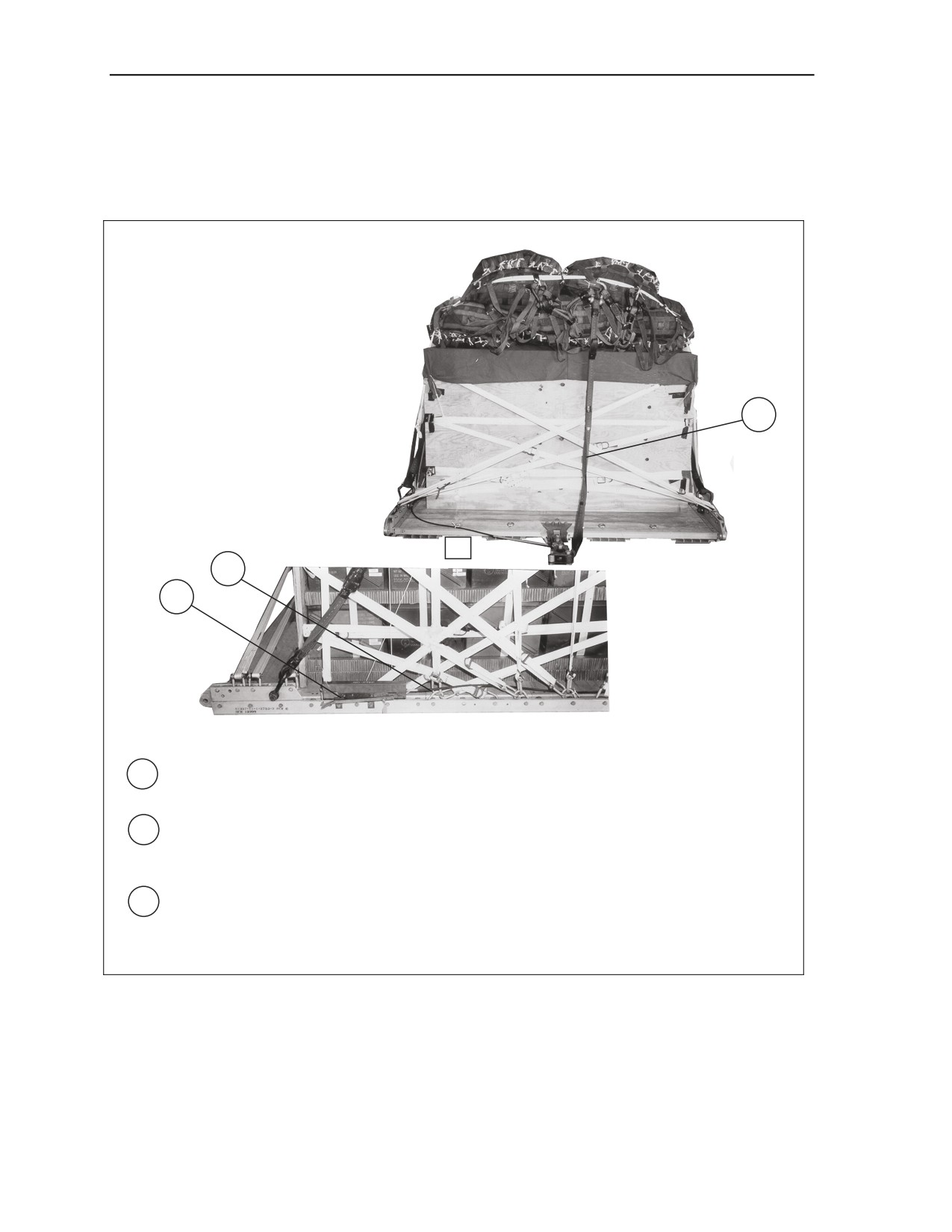

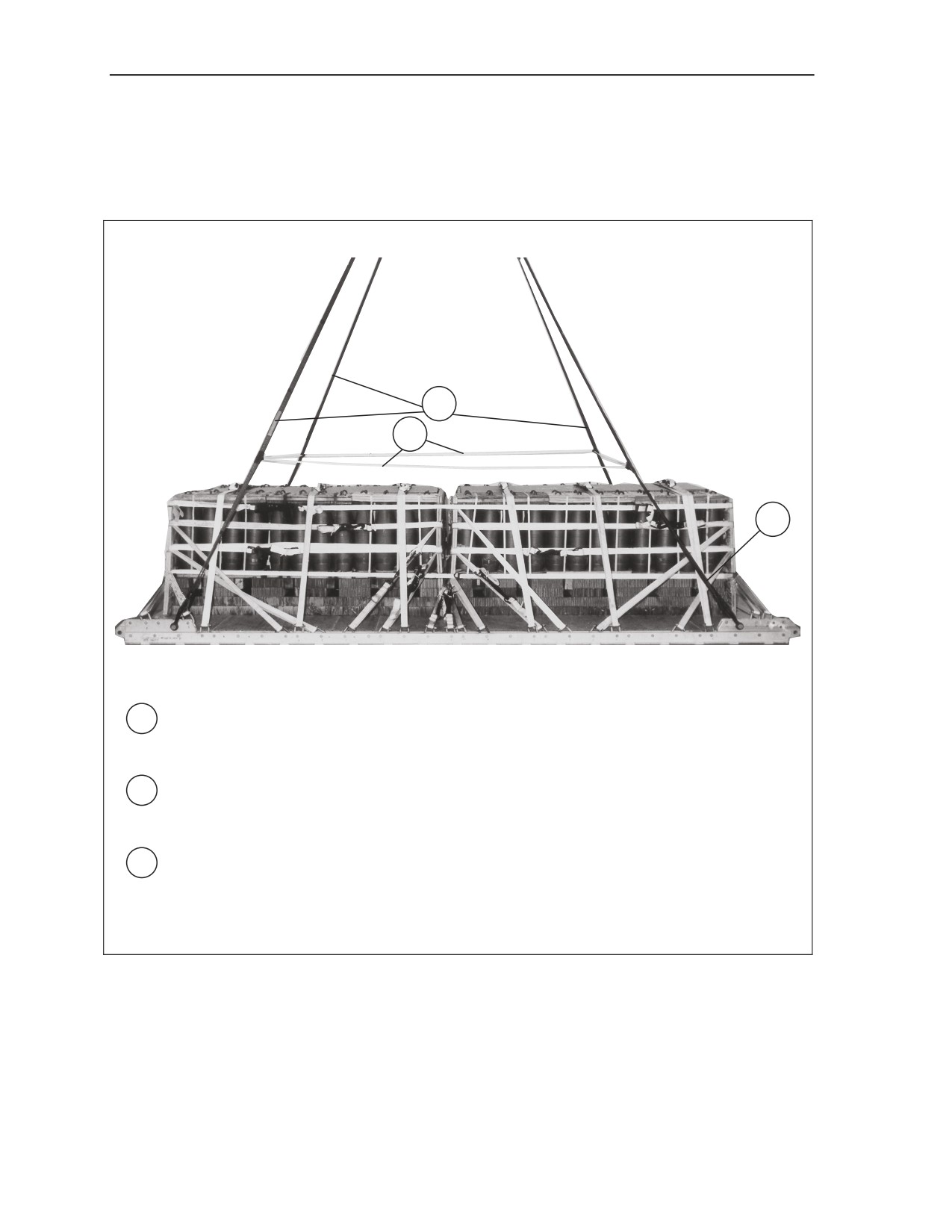

Figure 5-21. Suspension Slings and Deadman’s Tie Installed
5-38
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Supply Loads on a 16-Foot, Type V Platform for Low-Velocity Airdrop

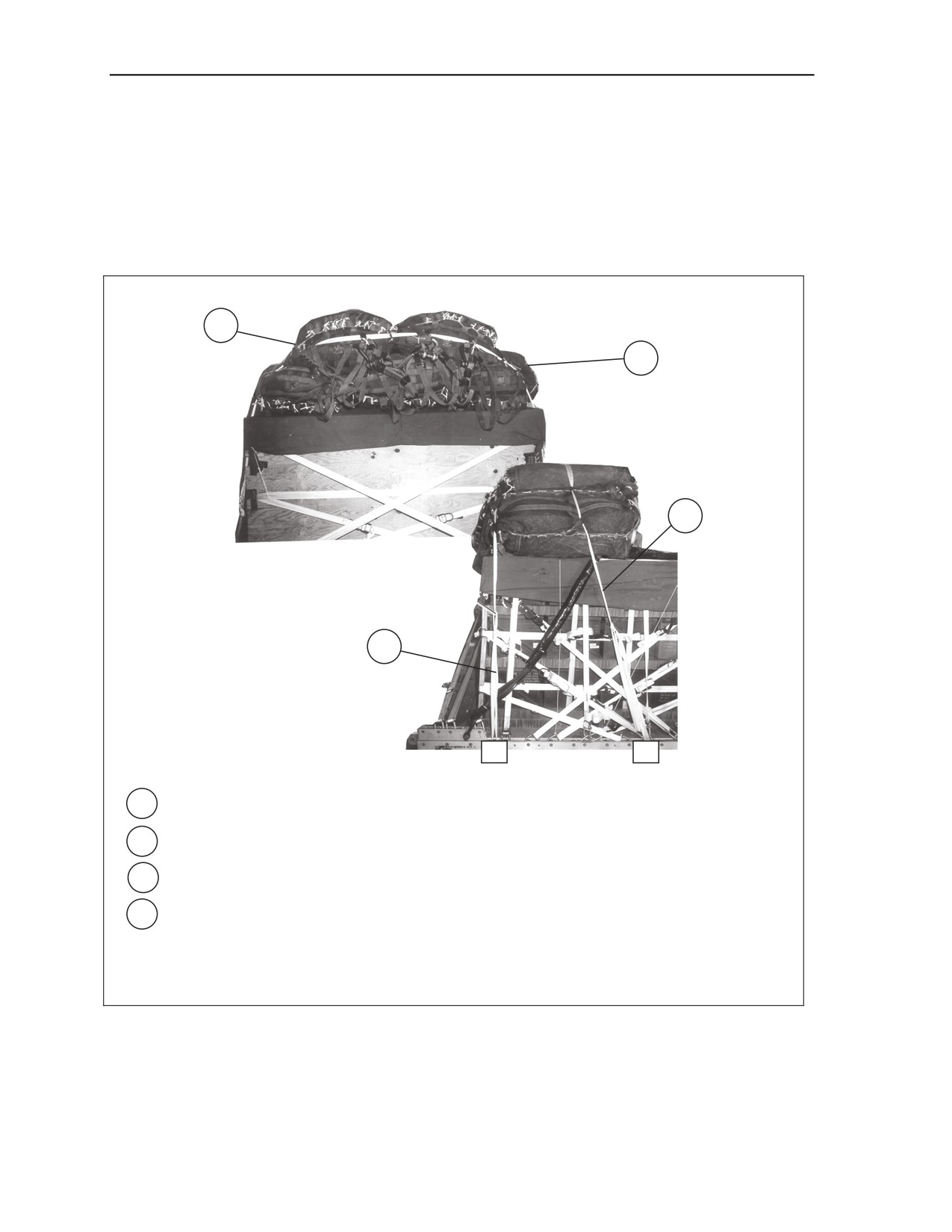

INSTALLING PARACHUTES
5-26. Compute the parachute requirements for the load being rigged. Prepare and install the cargo
parachutes according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 and
as shown in Figure 5-22.
2
5
1
3
3
27
4
1 Lay two 27- by 75-inch pieces of honeycomb side-by-side and flush with the rear edge of
the ammunition stack. Tape the edges of the honeycomb and tie it to the load with type III
nylon cord.
2 Prepare, position, and stow three G-11B cargo parachutes on the rear of the load
according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
3 Install the rear cargo parachute restraints according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 using type VIII nylon webbing to the
second bushings on the rear tandem links.
4 Install the front cargo parachute restraints according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 using type VIII nylon webbing to
clevises 27 and 27A.
5 Install the parachute release straps according to FM 4-20.102/MCRP 4-11.3J/NAVSEA
SS400-AB-MMO-010/TO 13C7-1-5.

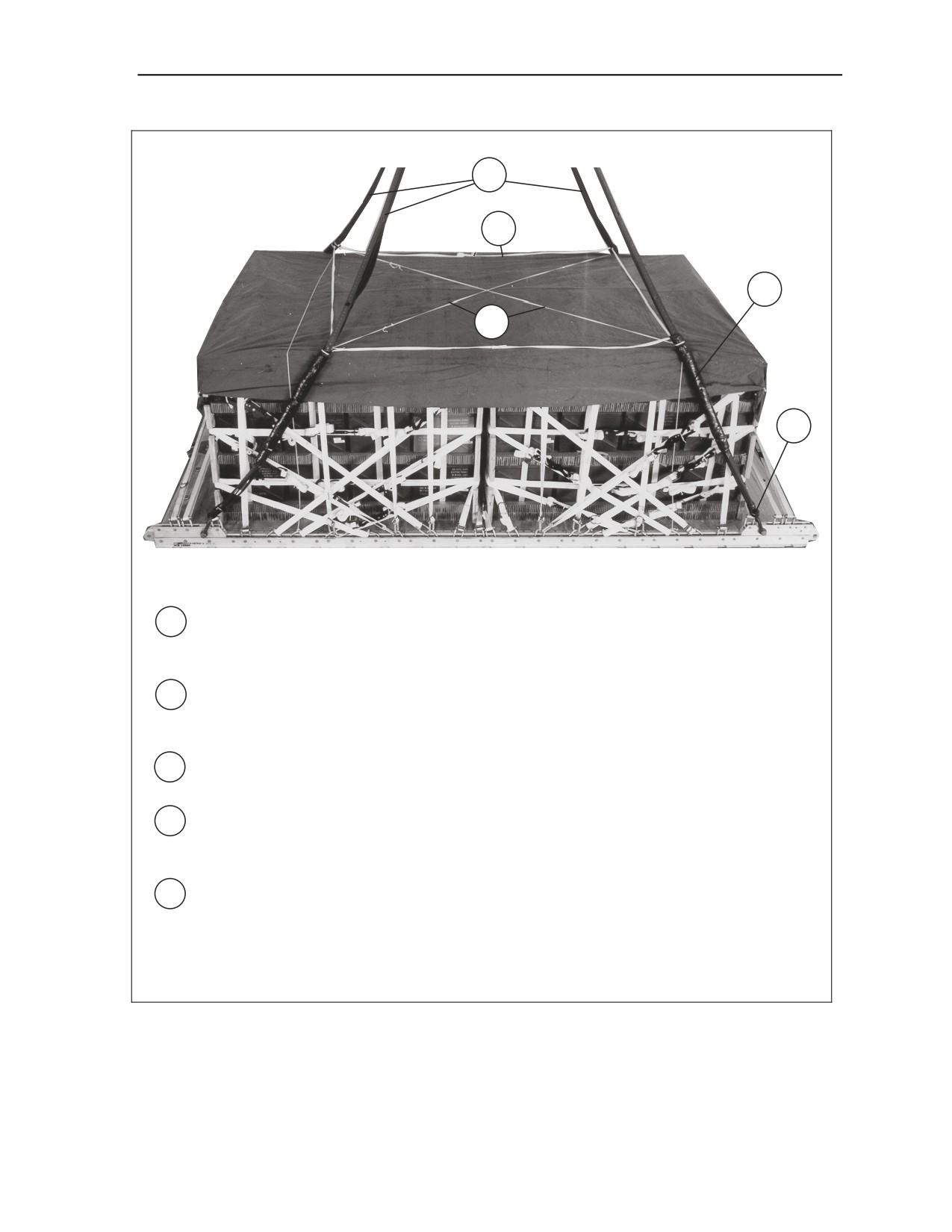

Figure 5-22. Cargo Parachutes Installed
20 February 2009
FM 4-20.112/TO 13C7-1-8
5-39
Chapter 5
INSTALLING THE RELEASE SYSTEM
5-27. Prepare, attach, and safety an M-1 cargo parachute release according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 and as shown in Figure 5-23.
CAUTION
When rigging a single parachute load, ensure the rear parachute
release safety tie is routed under the parachute securing ties.
3
4
2
1
3
1 Prepare and install the M-1 cargo parachute release according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5. Place the assembly in front of the
parachutes as shown.
2 Safety the release to convenient points on the load with type III nylon cord according to FM
4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
3 S-fold and tie any excess suspension slings with one turn of type I, 1/4-inch cotton
webbing.
4 Tie the two side sections of the deadman’s tie together in the center with a length of type I,
1/4-inch cotton webbing.

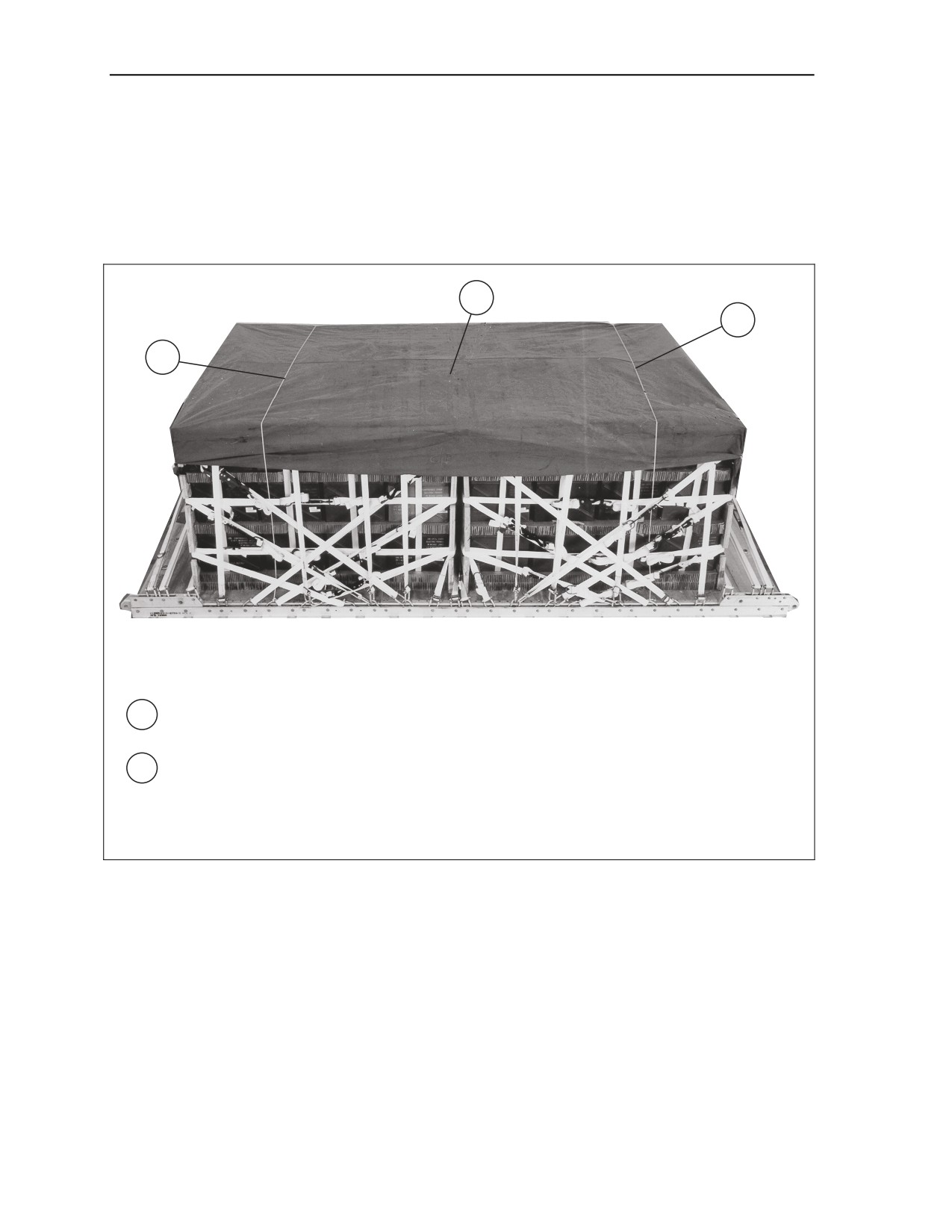

Figure 5-23. Release System Installed
5-40
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Supply Loads on a 16-Foot, Type V Platform for Low-Velocity Airdrop
INSTALLING THE EXTRACTION SYSTEM
5-28. Install the extraction system according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-
010/TO 13C7-1-5 and as shown in Figure 5-24.
3
D8
2
1
1 Install the components of the EFTC according to FM 4-20.102/MCRP 4-11.3J/NAVSEA
SS400-AB-MMO-010/TO 13C7-1-5. Use the front mounting holes for the EFTC brackets.
2 Install a 16-foot EFTC cable according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-
AB-MMO-010/TO 13C7-1-5 and safety the cable to tiedown ring D8 with one turn of type I,
1/4-inch cotton webbing.
3 Attach a 9-foot (2-loop) type XXVI nylon sling according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 to be used as a deployment line. S-fold
the excess and tie it in two places with type I, 1/4-inch cotton webbing.
Figure 5-24. Extraction System Installed
20 February 2009
FM 4-20.112/TO 13C7-1-8
5-41
Chapter 5
PLACING EXTRACTION PARACHUTE
5-29. Select the extraction parachute and extraction line needed using the extraction line requirements
table in FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5. Place the extraction
parachute and line on the load for installation in the aircraft.
INSTALLING PROVISIONS FOR EMERGENCY RESTRAINTS
5-30. Select and install the provisions for the emergency aft restraints according to the emergency aft
restraint requirements table in FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-
5.
MARKING RIGGED LOAD
5-31. Mark the rigged load according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-
010/TO 13C7-1-5, and as shown in Figure 5-25. Complete Shipper’s Declaration for Dangerous Goods. If
the load varies from the one shown, the weight, height, CB, and parachute requirements must be
recomputed.
EQUIPMENT REQUIRED
5-32. Use the equipment listed in Table 5-2 to rig this load.
5-42
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Supply Loads on a 16-Foot, Type V Platform for Low-Velocity Airdrop
CAUTION
Make the final rigger inspection required by AR 59-4 and FM 4-
20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5
before the load leaves the rigging site.
CB
RIGGED LOAD DATA
Weight: Load shown
13,300 pounds
Minimum Weight:
5,040 pounds
Maximum Suspended Weight
14,250 pounds
Height
86 inches
Width
108 inches
Overall Length
192 inches
Overhang: Front
0 inches
Rear
0 inches
Center of Balance (from front edge of the platform)
101 inches
Extraction System with 16-foot cable (adds 18 inches to length of platform)
EFTC
Note. Refer to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 (Table 2-2)
when adding additional parachutes for heavier loads for the suspension/tandem link positioning.

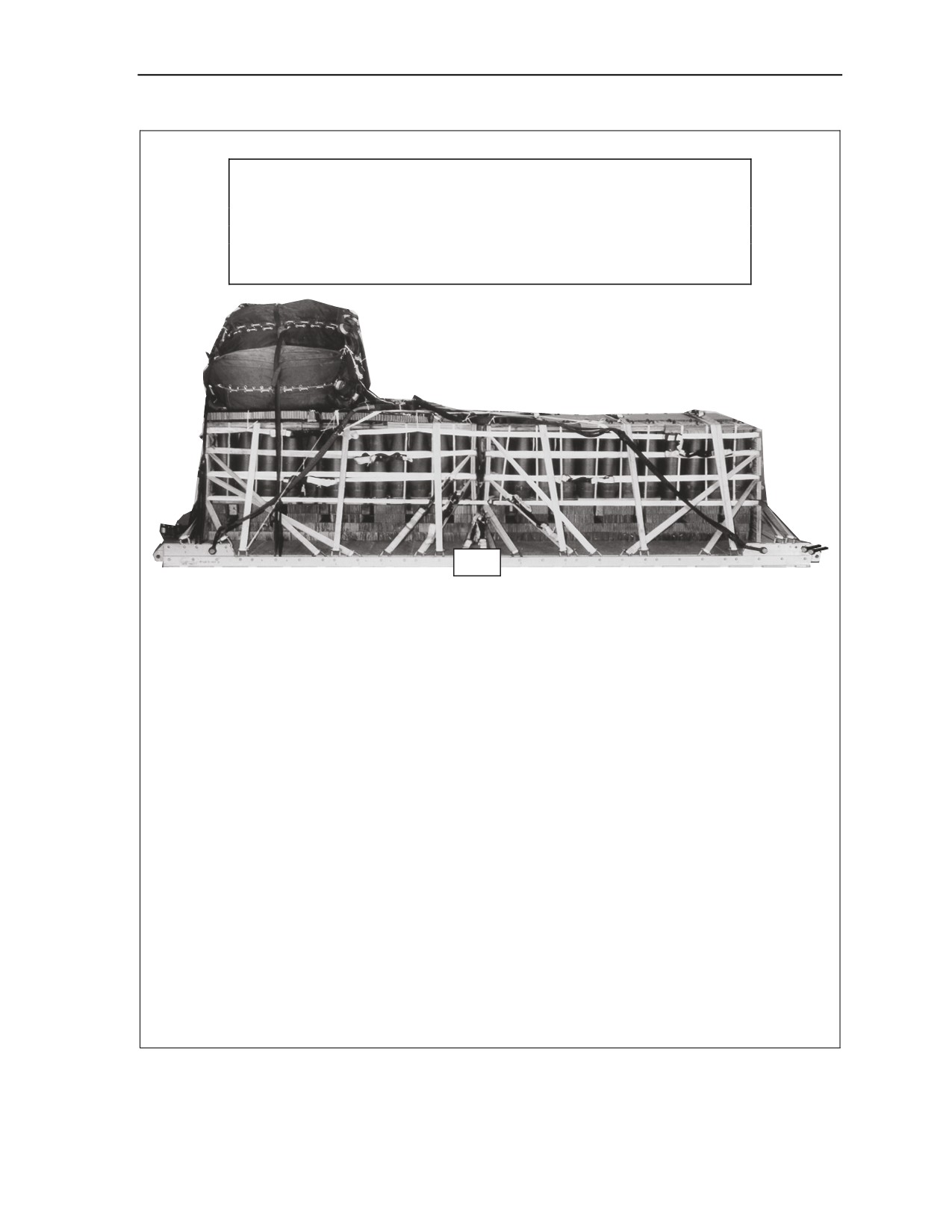

Figure 5-25. 155-mm Ammunition Rigged on a 16-Foot, Type V Platform for Low-Velocity
Airdrop
20 February 2009
FM 4-20.112/TO 13C7-1-8
5-43
Chapter 5
Table 5-2. Equipment Required for Rigging 155-mm Ammunition on a 16-Foot, Type V
Platform for Low-Velocity Airdrop
National Stock Number
Item
Quantity
8040-00-273-8713
Adhesive, paste, 1-gallon
As required
Clevis, suspension:
4030-00-678-8562
3/4-inch (medium) emergency restraint
4
4030-00-090-5354
1-inch (large)
5
8305-00-880-8155
Cloth, coated (nylon, type II, green, 60-in)
As required
4020-00-240-2146
Cord, nylon, type III
As required
1670-00-434-5785
Coupling, airdrop, extraction force transfer with
16-foot cable
1
1670-00-360-0328
Cover, clevis, large
3
8135-00-664-6958
Cushioning material, packaging, cellulose wadding
As required
8305-00-191-1101
Felt, ½-inch thick
As required
1670-01-183-2678
Leaf, extraction line (line bag) (add 2 for C-17)
2
Line, extraction, type XXVI nylon webbing:
1670-01-062-6313
60-foot (3-loop), type XXVI
1
1670-01-107-7651
140-foot (3-loop), type XXVI
2
1670-01-062-6313
60-foot (3-loop), type XXVI for C-17 drogue line
1
1670-01-493-6418
Link assembly, two-point:
1
5351-00-010-4659
Nail, steel wire, common 8d
As required
1670-00-753-3928
Pad, energy-dissipating, honeycomb
13 sheets
Parachute:
1670-01-016-7841
Cargo, G-11
3
1670-01-063-3716
Cargo, extraction, 22-foot
1
1670-01-063-3715
Cargo, extraction, 15-foot for C-17
1
Platform, airdrop, type V, 16-foot
1670-01-353-8425
Bracket assembly, EFTC
1
1670-01-162-2372
Bracket assembly, extraction
1
1670-01-162-2376
Clevis assembly
44
1670-01-162-2381
Tandem link
4
5530-00-128-4981
Plywood, 3/4-inch
As required
1670-01-097-8817
Release, cargo parachute, M-1
1
5-44
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Supply Loads on a 16-Foot, Type V Platform for Low-Velocity Airdrop
Table 5-2. Equipment Required for Rigging 155-mm Ammunition on a 16-Foot, Type V
Platform for Low-Velocity Airdrop (Continued)
National Stock Number
Item
Quantity
Sling, cargo airdrop:
1670-01-062-6304
9-foot (2-loop), type XXVI nylon webbing
1
1670-01-063-7761
16-foot (2-loop), type XXVI nylon webbing
4
1670-01-062-6313
60-foot (3-loop), type XXVI nylon webbing
3
5340-00-040-8219
Strap parachute release, multicut
2
7501-00-266-5016
Tape, adhesive, 2-inch
As required
7501-00-266-6710
Tape, masking
As required
1670-00-937-0271
Tiedown assembly, 15-foot
56
1670-01-483-8259
Towplate release mechanism (H-block) (C-17)
1
Webbing:
8305-00-268-2411
Cotton, 1/4-inch, type I
As required
Nylon:
8305-00-082-5752
Tubular, 1/2-inch
As required
8305-00-263-3591
Type VIII webbing
As required
20 February 2009
FM 4-20.112/TO 13C7-1-8
5-45
Chapter 5
SECTION III-RIGGING 20-MILLIMETER (MM) AMMUNITION
DESCRIPTION OF LOAD
5-33. Two hundred forty boxes of 20-mm ammunition are rigged for low-velocity airdrop on a 16-foot,
type V airdrop platform. All 20-mm ammunition packaged as shown and listed in FM 4-20.153/MCRP 4-
11.3B/TO 13C7-18-41, as certified for low-velocity airdrop, may be rigged using these procedures. This
load uses five G-11 cargo parachutes. Each load must weigh at least 5,040 pounds, including parachutes.
Refer to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 for the weight
limitations for the number of parachutes to be used.
PREPARING PLATFORM
5-34. Prepare a 16-foot, type V platform as shown in Figure 5-26.
5-46
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Supply Loads on a 16-Foot, Type V Platform for Low-Velocity Airdrop
CLEVISES
30A THROUGH 1A
LEFT
REAR
FRONT
RIGHT
CLEVISES
30 THROUGH 1
Step:
1. Inspect, or assemble and inspect, a 16-foot, type V platform as outlined in TM 10-1670-
268-20&P/TO 13C7-52-22.
2. Install a tandem link to the front of each platform side rail using holes 1, 2, and 3.
3. Install a tandem link to the rear of each platform side rail using holes 30, 31, and 32.
4. Install clevises on bushings 2, 3, and 4 of each front tandem link.
5. Install clevises on bushings 1, 2, and 3 of each rear tandem link.
6. Starting at the front of each platform side rail, install clevises on the bushings bolted to
holes 5, 6, 7, 11, 15, 16, 17, 18, 22, 26, 27, and 28. Install triple clevises on holes 9, 12,
14, 19, 21, and 24 according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-
010/TO 13C7-1-5.
7. Starting at the front of the platform, number the clevises 1 through 30 on the right side, and
1A through 30A on the left side.
8. Label the tiedown rings according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5.
Note. Refer to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 (Table 2-
2) when adding additional parachutes for heavier loads for the suspension/tandem link positioning.

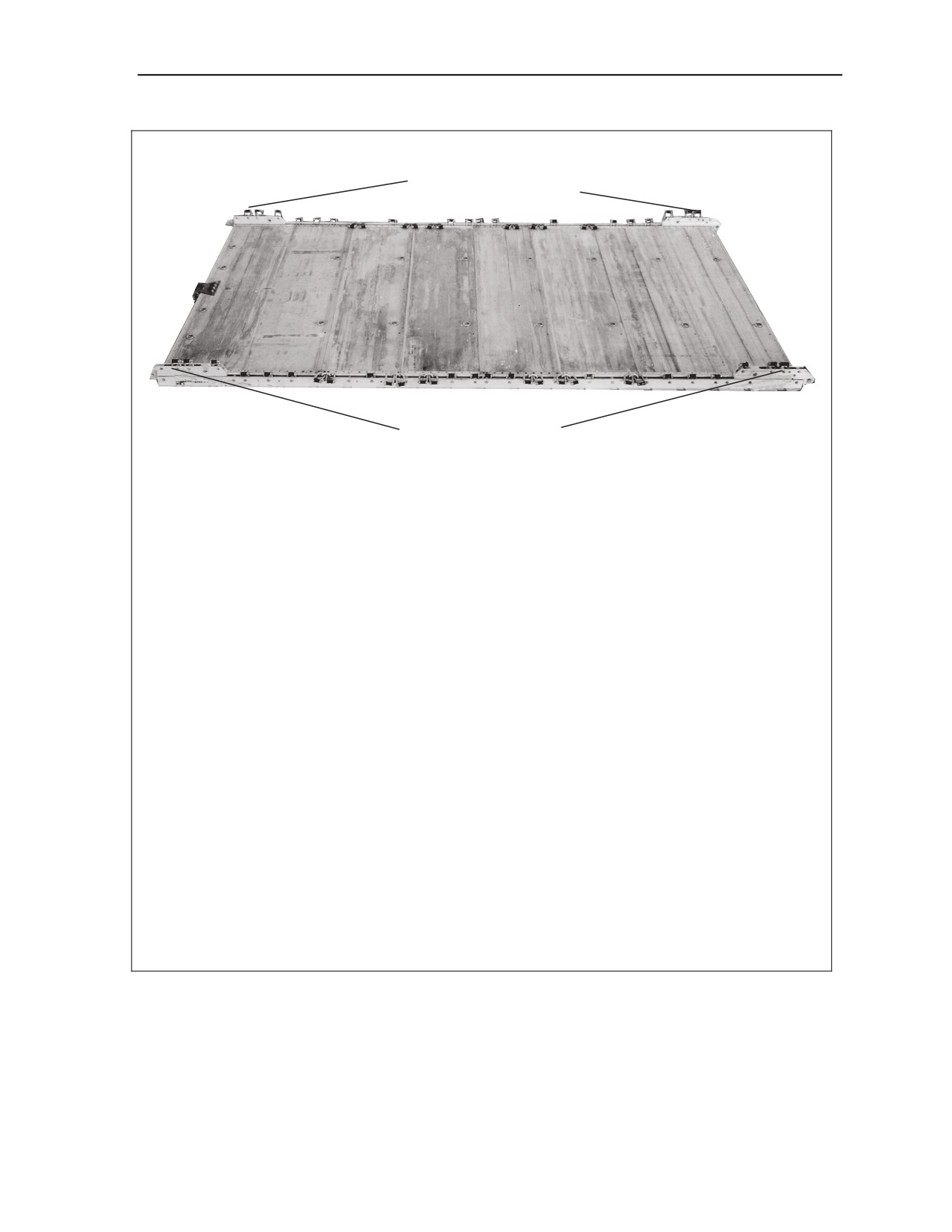

Figure 5-26. Platform Prepared
20 February 2009
FM 4-20.112/TO 13C7-1-8
5-47
Chapter 5
BUILDING HONEYCOMB STACKS AND PLACING FIRST STACK
5-35. Build the honeycomb stack for the first stack of ammunition and place it on the platform according
to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 and as shown in Figure 5-
27. Build the stack for the second stack of ammunition as shown in Figure 5-27. Set the second honeycomb
stack aside.
4
REAR
FRONT
2
1
19”
3
1 Center two 15- by 75-inch pieces of honeycomb lengthwise on the platform, 19 inches
from the front edge.
2 Place two 36- by 75-inch pieces of honeycomb flush on each side of the pieces placed in
step 1.
3 Center a 30-foot lashing 10 inches from each end of the honeycomb.
4 Center a 30-foot lashing 26 inches from the front edge of the honeycomb, and another 30-
foot lashing 26 inches from the rear.
Figure 5-27. Honeycomb for First Ammunition Stack Prepared and Placed
5-48
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Supply Loads on a 16-Foot, Type V Platform for Low-Velocity Airdrop
POSITIONING AND SECURING FIRST AMMUNITION STACK
5-36. Set 120 boxes of 20-mm ammunition on the honeycomb and pre-positioned lashings. Secure the
lashings as shown in Figure 5-28.
6
6
5
4
3
2
1
1 Set 40 boxes of ammunition on the honeycomb.
2 Place one layer of honeycomb cut to the dimensions in Figure 5-27, steps 1 and 2, over
the boxes.
3 Place 40 boxes of ammunition over the honeycomb placed in step 2.
4 Place a layer of honeycomb over the second layer of boxes.
5 Place a third layer of boxes over the honeycomb placed in step 4.
6 Secure each of the pre-positioned lashings in Figure 5-27, steps 3 and 4, on top of the
boxes with two D-rings and a load binder.
Figure 5-28. First Ammunition Stack Placed and Secured
20 February 2009
FM 4-20.112/TO 13C7-1-8
5-49
Chapter 5
CONSTRUCTING AND PLACING ENDBOARDS
5-37. Construct four endboards and place them as shown in Figure 5-29.
CAUTION
The endboards must be the same height as the ends of the load.
Notes.
1. This drawing is not to scale
3
3
2. All dimensions are in inches.
1 Cut two 3/4- by 48- by 90-inch and two 3/4- by 6- by 90-inch pieces of plywood. Nail the four pieces
flush together so that a single piece of 1 1/2- by 54- by 90-inch plywood results. Construct three other
endboards the same way.
Note. On the endboard shown, the 6-inch piece is at the bottom. On the other side of the endboard shown, the
6-inch piece is at the top.
2 Make 2- by 3-inch cutouts as shown. Pad all cutouts with cellulose wadding and tape.
3 Place an endboard against the front of the boxes and place one against the rear. Tie them in place
with a length of type III nylon cord.
Figure 5-29. Endboards for 20-mm Ammunition Constructed and Placed
5-50
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Supply Loads on a 16-Foot, Type V Platform for Low-Velocity Airdrop
LASHING FIRST AMMUNITION STACK AND FIRST AND SECOND
ENDBOARDS
5-38. Cover the left and right upper edges of the stack of boxes with felt as shown in Figure 5-30. Lash the
first and second endboards and the first ammunition stack to the platform as shown in Figure 5-31.
Note. This load requires lashings over 30 feet in length according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5. Lashings must be positioned through
clevises before sections are joined together.
1
2
1 Center a piece of felt, 75 inches long, over the left and right upper corners of the stack of
boxes.
2 Tape the felt in place.
Figure 5-30. Boxes Padded with Felt
20 February 2009
FM 4-20.112/TO 13C7-1-8
5-51
Chapter 5
2
2A
1
14
1
2
Lashing Number
Tiedown Clevis
Instructions
Number
1
2 and 14
Pass a 60-foot lashing through clevis 2, through the third
cutout in the left side of the first endboard, and around the
left side of the ammunition stack. Pass the lashing through
the third cutout in the left side of the second endboard and
through clevis 14. Secure the lashing on the left side with
two D-rings and a load binder.
2
2A and 14A
Pass a 60-foot lashing through clevis 2A, through the third
cutout from the top in the right side of the first endboard,
and around the right side of the ammunition stack. Pass the
lashing through the third cutout in the right side of the
second endboard and through clevis 14A. Secure the
lashing on the right side with two D-rings and a load binder.
Figure 5-31. First Ammunition Stack and Endboards Lashed to Platform
5-52
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Supply Loads on a 16-Foot, Type V Platform for Low-Velocity Airdrop
3
3A
15
3
4
4
3
Lashing Number
Tiedown Clevis
Instructions
Number
3
3 and 15
Pass a 60-foot lashing through clevis 3, through the bottom
cutout in the left side of the first endboard, and around the
left side of the ammunition stack. Pass the lashing through
the bottom cutout in the left side of the second endboard,
and through clevis 15. Secure the lashing on the left side
with two D-rings and a load binder.
4
3A and 15A
Pass a 60-foot lashing through clevis 3A, through the
bottom cutout in the right side of the first endboard, and
around the right side of the ammunition stack. Pass the
lashing through the bottom cutout in the right side of the
second endboard, and through clevis 15A. Secure the
lashing on the right side with two D-rings and a load binder.
Figure 5-31. First Ammunition Stack and Endboards Lashed to Platform (Continued)
20 February 2009
FM 4-20.112/TO 13C7-1-8
5-53
Chapter 5
5
7
8
6
8
7
6
5
4
9
Lashing Number
Tiedown Clevis
Instructions
Number
5
4 and 4A
Pass a 15-foot lashing through each clevis and through its
own D-ring. Secure the lashings on top of the boxes with
two D-rings and a load binder.
6
5 and 5A
Pass a 45-foot lashing through both clevises and through
the top cutouts in the second endboard. Secure the lashing
on the side of the load with two D-rings and a load binder.
7
6 and 6A
Pass a 45-foot lashing through both clevises and through
the third cutouts in the second endboard. Secure the
lashing on the side of the load with two D-rings and a load
binder.
8
7 and 7A
Pass a 15-foot lashing through each clevis and through its
own D-ring. Secure the lashings on top of the boxes with
two D-rings and a load binder.
9
8 and 8A
Pass a 30-foot lashing through both clevises and through
the bottom cutouts in the second endboard. Secure the
lashing on the side of the load with two D-rings and a load
binder.
Figure 5-31. First Ammunition Stack and Endboards Lashed to Platform (Continued)
5-54
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Supply Loads on a 16-Foot, Type V Platform for Low-Velocity Airdrop
14
12
13
11
10
13
12
11
10
9
Lashing Number
Tiedown Clevis
Instructions
Number
10
9 and 9A
Pass a 30-foot lashing through both clevises and through
the bottom cutouts in the first endboard. Secure the lashing
on the side of the load with two D-rings and a load binder.
11
10 and 10A
Pass a 45-foot lashing through both clevises and through
the third cutout in the first endboard. Secure the lashing on
the side of the load with two D-rings and a load binder.
12
11 and 11A
Pass a 15-foot lashing through each clevis and through its
own D-ring. Secure the lashing on top of the boxes with two
D-rings and a load binder.
13
12 and 12A
Pass a 45-foot lashing through both clevises and through
the top cutout in the first endboard. Secure the lashing on
the side of the load with two D-rings and a load binder.
14
13 and 13A
Pass a 15-foot lashing through each clevis and through its
own D-ring. Secure the lashings on top of the boxes with
two D-rings and a load binder.
Figure 5-31. First Ammunition Stack and Endboards Lashed to Platform (Continued)
20 February 2009
FM 4-20.112/TO 13C7-1-8
5-55
Chapter 5
POSITIONING ENDBOARDS, PLACING SECOND AMMUNITION
STACK, AND PRE-POSITIONING LASHINGS
5-39. Position the third endboard and lashings as shown in Figure 5-32. Position the second stack of
ammunition as shown in Figure 5-33.
1
6
8
7
2
6
5
7
3
4
9
17
16
2
1
Set the third endboard against the rear of the load.
2
Pass a 60-foot lashing through clevis 16 and through the bottom left cutout in the third endboard. Roll
and tape the ends.
3
Pass a 60-foot lashing through clevis 16A and through the bottom right cutout in the third endboard.
Roll and tape the ends.
4
Pass a 60-foot lashing through clevis 17, through the bottom right cutout, and the third cutout in the
left side of the third endboard. Roll and tape the ends.
5
Pass a 60-foot lashing through clevis 17A, through the bottom left cutout, and the third cutout in the
right side of the third endboard. Roll and tape the ends.
6
Pass a 45-foot lashing through clevis 26A and through both top cutouts in the third endboard. Roll
and tape the ends.
7
Pass a 45-foot lashing through clevis 25A and through the third cutout from the top on both sides of
the third endboard. Roll and tape the ends.
8
Pass a 30-foot lashing through clevis 23A and through both bottom cutouts in the third endboard. Roll
and tape the ends.
9
Position a second honeycomb stack 17 inches from the rear edge of the platform. Pre-position four
30-foot lashings on the honeycomb as shown in Figure 5-27, steps 3 and 4.
Figure 5-32. Lashings Pre-positioned on Third Endboard
5-56
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Supply Loads on a 16-Foot, Type V Platform for Low-Velocity Airdrop
2
1
1 Stow 120 boxes of ammunition on the honeycomb as shown in Figure 5-28.
2 Secure each of the pre-positioned lashings on top of the boxes with two D-rings and a load
binder.
3 Pad the left and right upper edges of the boxes with felt as shown in Figure 5-30. (Not
shown)
4 Place the fourth endboard against the rear of the load. Safety tie it to convenient points for
temporary support. (Not shown)
Figure 5-33. Second Stack of Ammunition Positioned
20 February 2009
FM 4-20.112/TO 13C7-1-8
5-57
Chapter 5
LASHING SECOND AMMUNITION STACK AND THIRD AND
FOURTH ENDBOARDS
5-40. Lash the third and fourth endboards and the second ammunition stack to the platform as shown in
Figure 5-34.
15
16
15
28
16
Lashing Number
Tiedown Clevis
Instructions
Number
15
16 and 28
Pass the pre-positioned lashing in Figure 5-32, step 2,
around the left side of the boxes, through the bottom left
cutout in the fourth endboard and through clevis 28. Secure
the lashing on the left side with two D-rings and a load
binder.
16
16A and 28A
Pass the pre-positioned lashing in Figure 5-32, step 3,
around the right side of the boxes, through the bottom right
cutout in the fourth endboard and through clevis 28A.
Secure the lashing on the right side with two D-rings and a
load binder.
Figure 5-34. Second Ammunition Stack and Endboards Lashed to Platform
5-58
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Supply Loads on a 16-Foot, Type V Platform for Low-Velocity Airdrop
18
17
29A
17
17
29
Lashing Number
Tiedown Clevis
Instructions
Number
17
17 and 29
Pass the pre-positioned lashing in Figure 5-32, step 4,
around the left side of the boxes, through the third cutout in
the left side of the fourth endboard and through clevis 29.
Secure the lashing on the left side with two D-rings and a
load binder.
18
17A and 29A
Pass the pre-positioned lashing in Figure 5-32, step 5,
around the right side of the boxes, through the third cutout
in the right side of the fourth endboard and through clevis
29A. Secure the lashing on the right side with two D-rings
and a load binder.
Figure 5-34. Second Ammunition Stack and Endboards Lashed to Platform (Continued)
20 February 2009
FM 4-20.112/TO 13C7-1-8
5-59
Chapter 5
21
26
25
23
19
20
Lashing Number
Tiedown Clevis
Instructions
Number
19
23 and 23A
Pass the pre-positioned lashing in Figure 5-32, step 8
through clevis 23. Secure the lashing on the right side with
two D-rings and a load binder.
20
25 and 25A
Pass the pre-positioned lashing in Figure 5-32, step 7
through clevis 25. Secure the lashing on the right side with
two D-rings and a load binder.
21
26 and 26A
Pass the pre-positioned lashing in Figure 5-32, step 6
through clevis 26. Secure the lashing on the right side with
two D-rings and a load binder.
Figure 5-34. Second Ammunition Stack and Endboards Lashed to Platform (Continued)
5-60
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Supply Loads on a 16-Foot, Type V Platform for Low-Velocity Airdrop
22
23
24
22
21
19
Lashing Number
Tiedown Clevis
Instructions
Number
22
19 and 19A
Pass a 45-foot lashing through both clevises and through
the top cutouts in the fourth endboard. Secure the lashing
on the side with two D-rings and a load binder.
23
21 and 21A
Pass a 45-foot lashing through both clevises and through
the top cutouts in the fourth endboard. Secure the lashing
on the side with two D-rings and a load binder.
24
22 and 22A
Pass a 30-foot lashing through both clevises and through
the bottom cutouts in the fourth endboard. Secure the
lashing on the side with two D-rings and a load binder.
Figure 5-34. Second Ammunition Stack and Endboards Lashed to Platform (Continued)
20 February 2009
FM 4-20.112/TO 13C7-1-8
5-61
Chapter 5
27
28
26
25
27
24
20
18
Lashing Number
Tiedown Clevis
Instructions
Number
25
18 and 18A
Pass a 15-foot lashing through each clevis and through its
own D-ring. Secure the lashing on top with two D-rings and
a load binder.
26
20 and 20A
Pass a 15-foot lashing through each clevis and through its
own D-ring. Secure the lashing on top with two D-rings and
a load binder.
27
24 and 24A
Pass a 15-foot lashing through each clevis and through its
own D-ring. Secure the lashing on top with two D-rings and
a load binder.
28
27 and 27A
Pass a 15-foot lashing through each clevis and through its
own D-ring. Secure the lashing on top with two D-rings and
a load binder.
Figure 5-34. Second Ammunition Stack and Endboards Lashed to Platform (Continued)
5-62
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Supply Loads on a 16-Foot, Type V Platform for Low-Velocity Airdrop
30
29
29
30
1
Lashing Number
Tiedown Clevis
Instructions
Number
29
1 and 30
Pass a 75-foot lashing through clevis 1, through the top
cutout in the left side of the first endboard, and around the
left side of both ammunition stacks. Pass the lashing
through the top cutout in the left side of the fourth endboard
and through clevis 30. Secure the lashing on the left side
with two D-rings and a load binder.
30
1A and 30A
Pass a 75-foot lashing through clevis 1A, through the top
cutout in the right side of the first endboard, and around the
right side of both ammunition stacks. Pass the lashing
through the top cutout in the right side of the fourth
endboard and through clevis 30A. Secure the lashing on the
right side with two D-rings and a load binder.
Figure 5-34. Second Ammunition Stack and Endboards Lashed to Platform (Continued)
20 February 2009
FM 4-20.112/TO 13C7-1-8
5-63
Chapter 5
INSTALLING LOAD COVER, SUSPENSION SLINGS AND
DEADMAN’S TIE
5-41. Install the load cover as shown in Figure 5-35. Install, safety and pad the suspension slings according
FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 and as shown in Figure 5-36.
1
2
2
1 Cover the load with two pieces of 5- by 15-foot coated nylon to form a piece 10 feet wide
and 15 feet long.
2 Tie the corners of the cover to convenient points on the load. Secure the cover to the load
with two lengths of type III nylon cord tied to tiedown clevises.
Figure 5-35. Load Cover Installed
5-64
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Supply Loads on a 16-Foot, Type V Platform for Low-Velocity Airdrop
2
3
4
5
1
1 Pass one end of a 16-foot (2-loop), type XXVI nylon suspension sling through the bell
portion of a large suspension clevis. Bolt the clevis to the suspension hole of the right front
tandem link.
2 Install on the left front tandem link and the right rear and left rear tandem links a 16-foot (4-
loop), type XXVI nylon suspension sling as in step 1.
Note. Use (2-loop) slings if the load is under 14,000 pounds.
3 Raise the slings and install the deadman's tie according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
4 Pad the suspension slings with felt tied and taped in place 24 inches above the suspension
clevises to 8 inches above the top of the load. Extend the tape 2 inches beyond the top
and bottom of the felt.
5 Tie a single length of 1/2-inch tubular nylon webbing between the right front and left rear
suspension slings at the same level as the deadman’s tie. Tie the right rear and left front
suspension slings together in the same way.
Figure 5-36. Suspension Slings and Deadman’s Tie Installed
20 February 2009
FM 4-20.112/TO 13C7-1-8
5-65
Chapter 5
INSTALLING PARACHUTES
5-42. Compute the parachute requirements for the load being rigged according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5. Prepare and install the cargo parachutes according
to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 and as shown in Figure 5-
37.
4
1
3
2
29
21
1 Install five G-11C cargo parachutes at the rear of the load.
2 Tie the rear parachute restraint strap to platform bushings 29 and 29A.
3 Tie the front parachute restraint strap to clevises 21 and 21A.
4 Install the parachute release straps according to FM 4-20.102/MCRP 4-11.3J/NAVSEA
SS400-AB-MMO-010/TO 13C7-1-5.
Figure 5-37. G-11 Cargo Parachutes Installed
5-66
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging Supply Loads on a 16-Foot, Type V Platform for Low-Velocity Airdrop
INSTALLING THE RELEASE SYSTEM
5-43. Prepare, attach, and safety an M-2 cargo parachute release according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 and as shown in Figure 5-38.
CAUTION
When rigging a single parachute load, ensure the rear parachute release safety
tie is routed under the parachute securing ties.
1
2
3
1 Prepare and install the M-2 cargo parachute release according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5. Place the assembly in front of the
parachutes as shown.
2 Safety the release to convenient points on the load with type III nylon cord according to FM
4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
3 S-fold and tie any excess suspension slings with one turn of type I, 1/4-inch cotton
webbing.
Figure 5-38. Release System Installed
20 February 2009
FM 4-20.112/TO 13C7-1-8
5-67
Chapter 5
INSTALLING THE EXTRACTION SYSTEM
5-44. Install the extraction system according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-
010/TO 13C7-1-5 and as shown in Figure 5-39.
3
D8
2
1
1 Install the components of the EFTC according to FM 4-20.102/MCRP 4-11.3J/NAVSEA
SS400-AB-MMO-010/TO 13C7-1-5. Use the front mounting holes for the EFTC brackets.
2 Install a 16-foot EFTC cable according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-
AB-MMO-010/TO 13C7-1-5 and safety the cable to tiedown ring D8 with one turn of type I,
1/4-inch cotton webbing.
3 Attach a 9-foot (2-loop), type XXVI nylon sling according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 to be used as a deployment line. S-fold
the excess and tie it in two places with type I, 1/4-inch cotton webbing.
Figure 5-39. Extraction System Installed
5-68
FM 4-20.112/TO 13C7-1-8
20 February 2009
|
|
