FM 4-20.152 Airdrop of Supplies and Equipment: Rigging Dragon and Javelin Missiles (SEPTEMBER 2007) - page 4





Chapter 3
SECURING THE LATERAL STRAPS AND INSTALLING
SUSPENSION SLINGS
3-16. Secure the lateral straps according to FM 4-20.103/MCRP 4-11.3C/TO 13C7-1-11 and install the
suspension slings as shown in Figure 3-11.
3
2
3
4
1
2

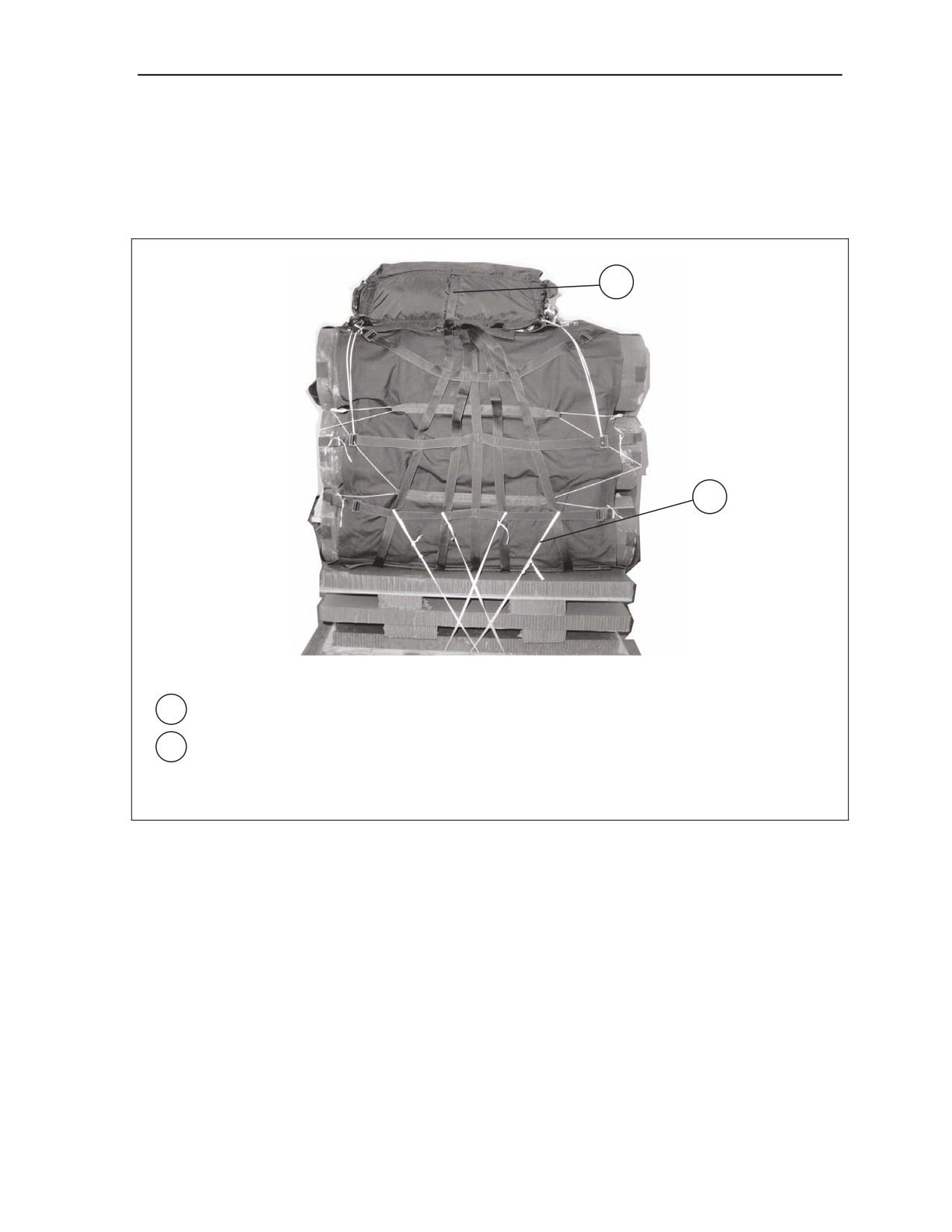

1. Secure the lateral straps according to FM 4-20.103/MCRP 4-11.3C/TO 13C7-1-11.
Note. Due to the unequal length of this load and in order to balance the slings evenly, it is necessary
to use two different sizes of clevises.
2. Attach a type V platform clevis and a G-13 clevis to each D-ring of the A-22 suspension point
on the 60-inch side of the load.
3. On the other connector straps attach a medium clevis.
4. On the other ends of the slings in step 2, attach another type V platform clevis and attach
each platform clevis to the medium clevis to keep the slings balanced.

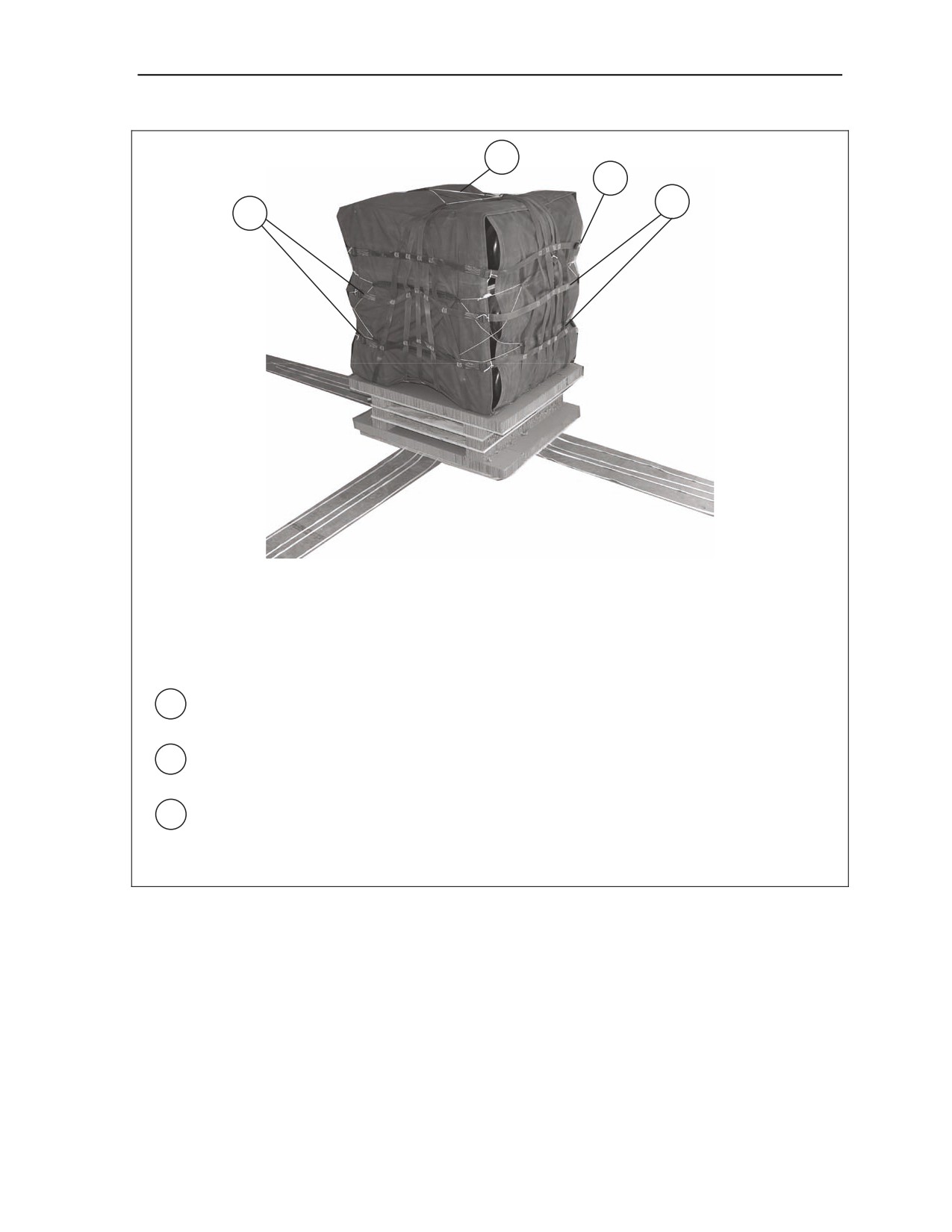

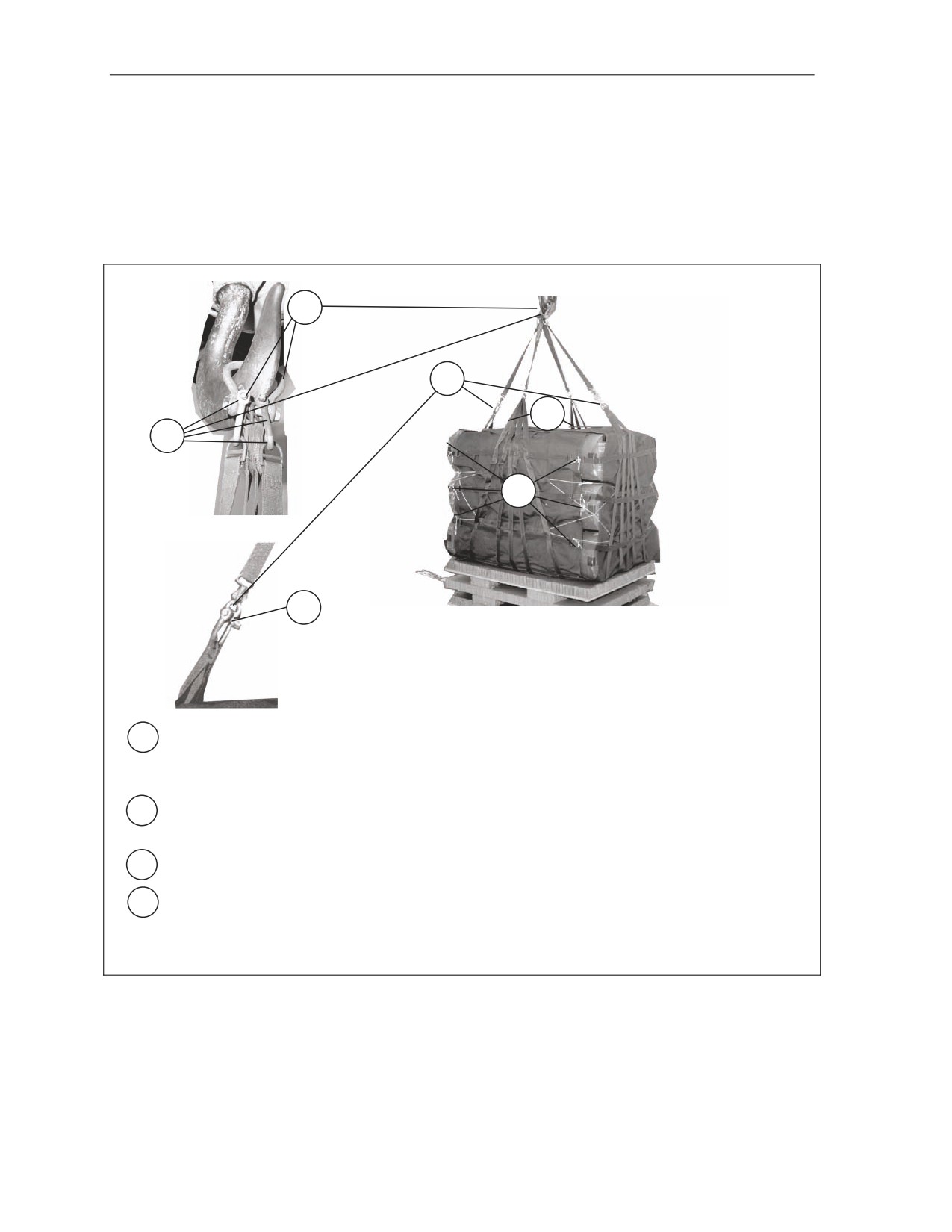

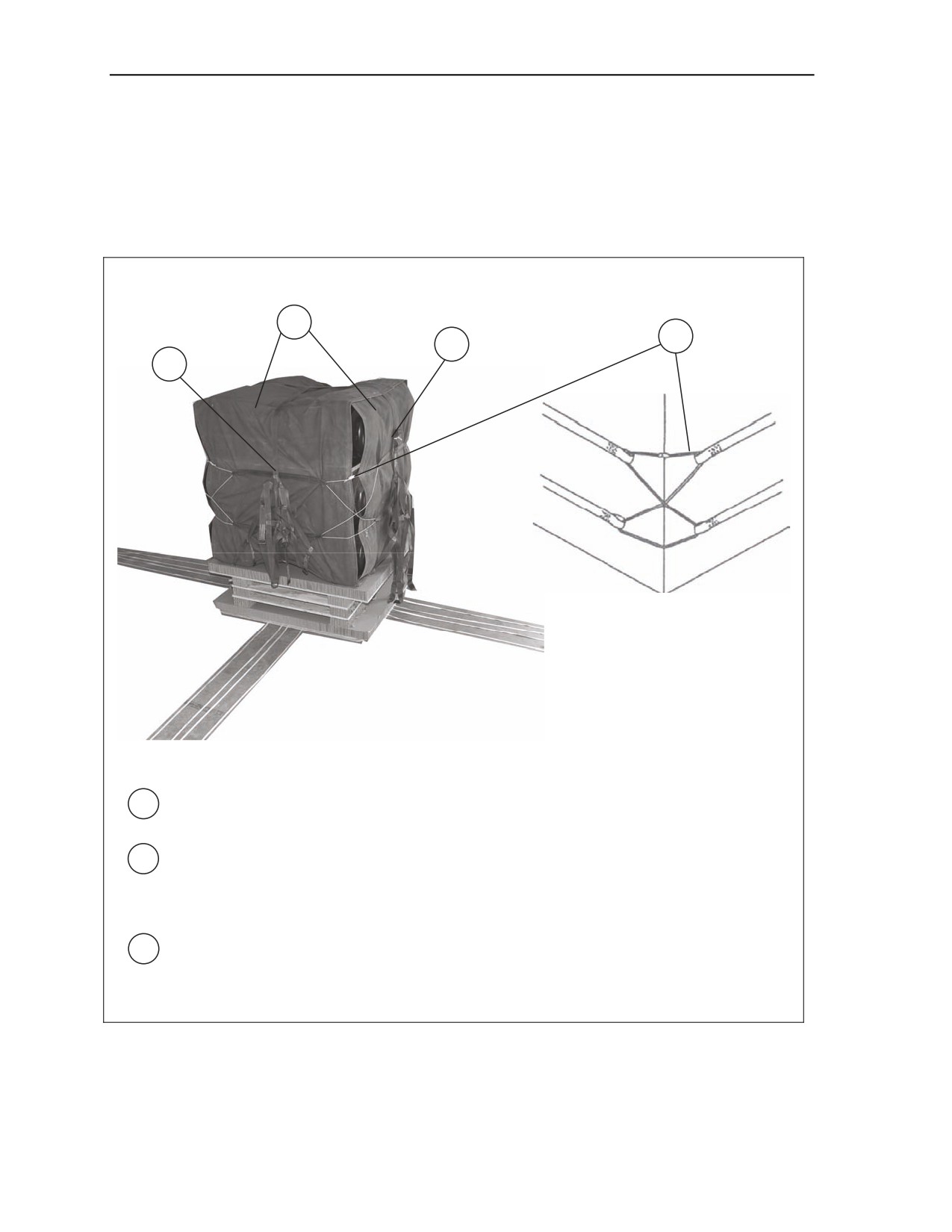

Figure 3-11. Lateral Straps Secured and Suspension Slings Installed
3-36
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging the Advanced Antitank Weapon System-Medium (Javelin) for Low-Velocity Airdrop
SECURING SKID BOARD TIES AND INSTALLING PARACHUTE
3-17. Secure the skid board ties according to FM 4-20.103/MCRP 4-11.3C/TO 13C7-1-11. Install a G-12E
cargo parachute as shown in Figure 3-12.
2
1
1. Secure the skid board ties according to FM 4-20.103/MCRP 4-11.3C/TO 13C7-1-11.
2. Install one G-12E cargo parachute according to FM 4-20.103/MCRP 4-11.3C/TO 13C7-1-11.

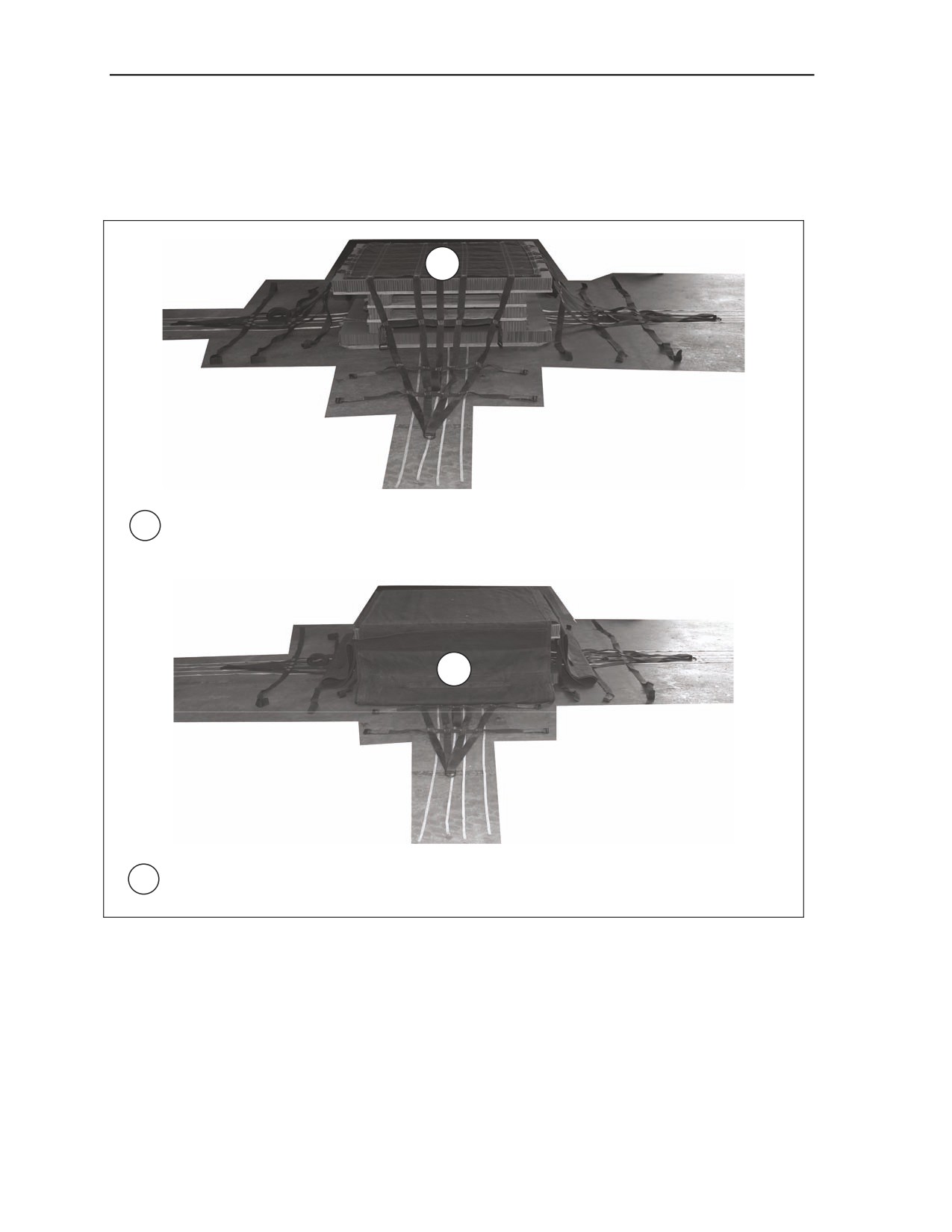

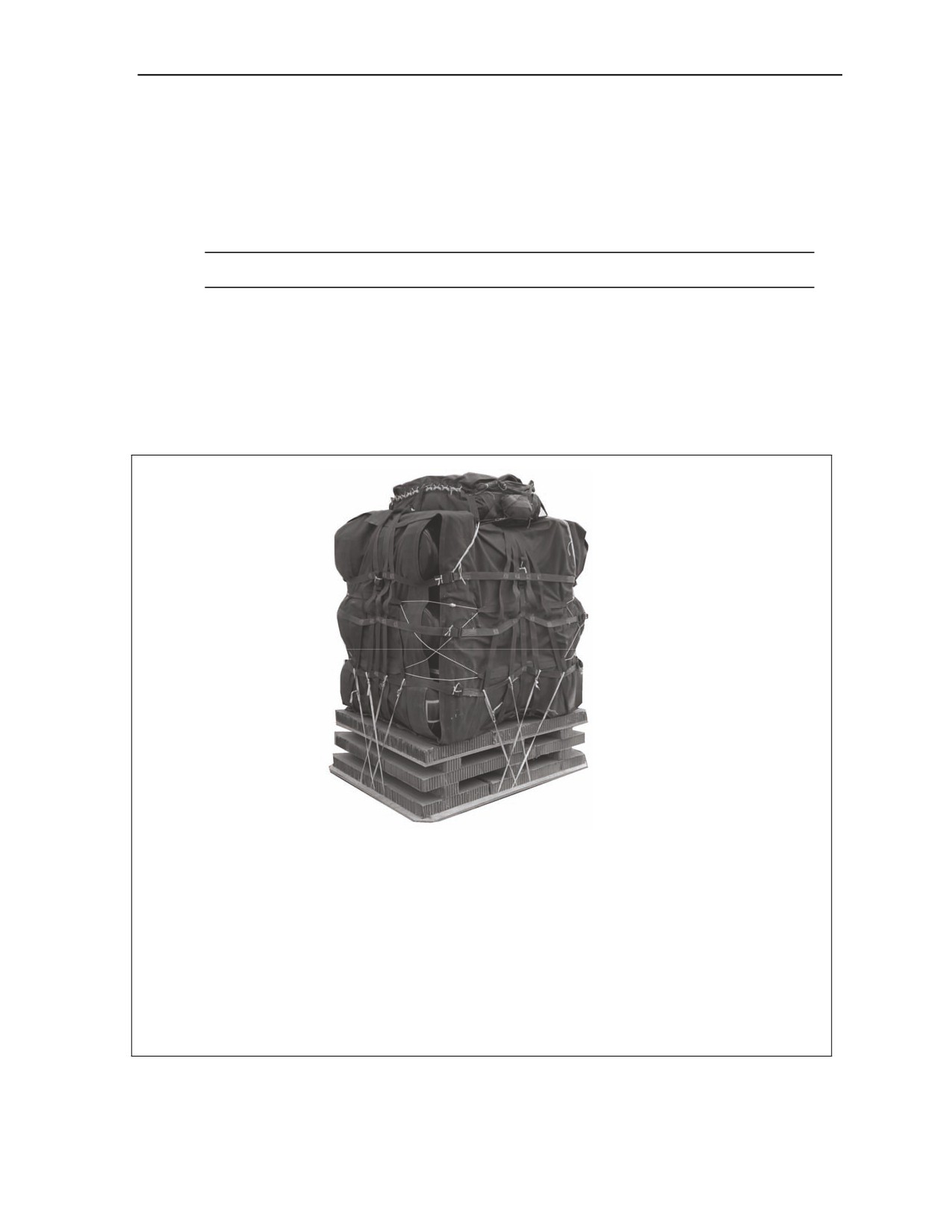

Figure 3-12. Skid Board Ties Secured and Parachute Installed
6 September 2007
FM 4-20.152/TO 13C7-22-61
3-37
Chapter 3
MARKING RIGGED LOAD
3-18. Mark the rigged load according to FM
4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-
010/TO 13C7-1-5 and as shown in Figure 3-13. Complete Shippers Declaration for Dangerous Goods and
affix to load.
EQUIPMENT REQUIRED
3-19. Use the equipment in Table 3-3 to rig this load.
3-38
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging the Advanced Antitank Weapon System-Medium (Javelin) for Low-Velocity Airdrop
CAUTION
Make the final rigger inspection required by AR 59-4 and FM 4-
20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5
before the load leaves the rigging site.

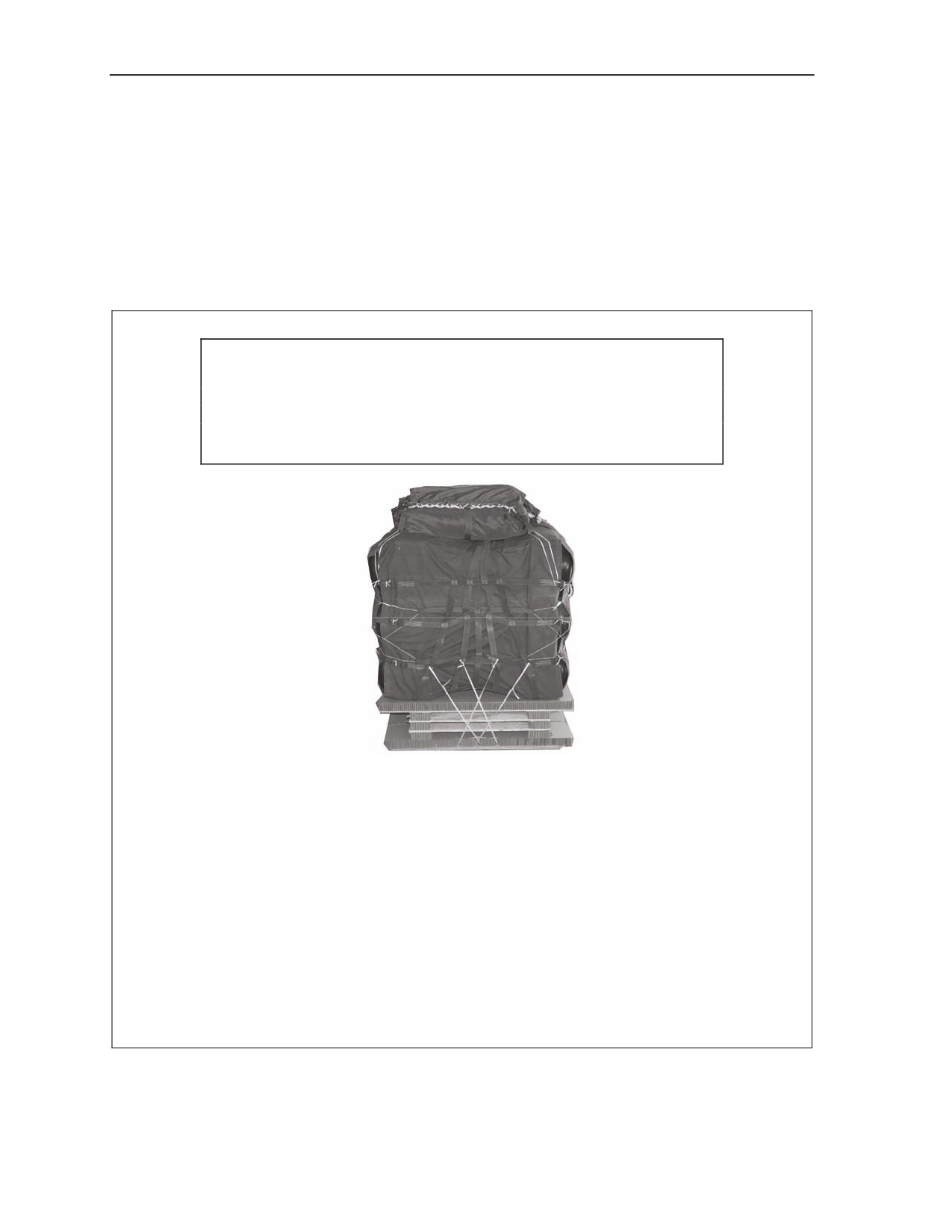

RIGGED LOAD DATA
Weight: Load shown
810 pounds
Height
65 1/2 inches
Width
48 inches
Overall Length
60 inches
Parachute
G-12E

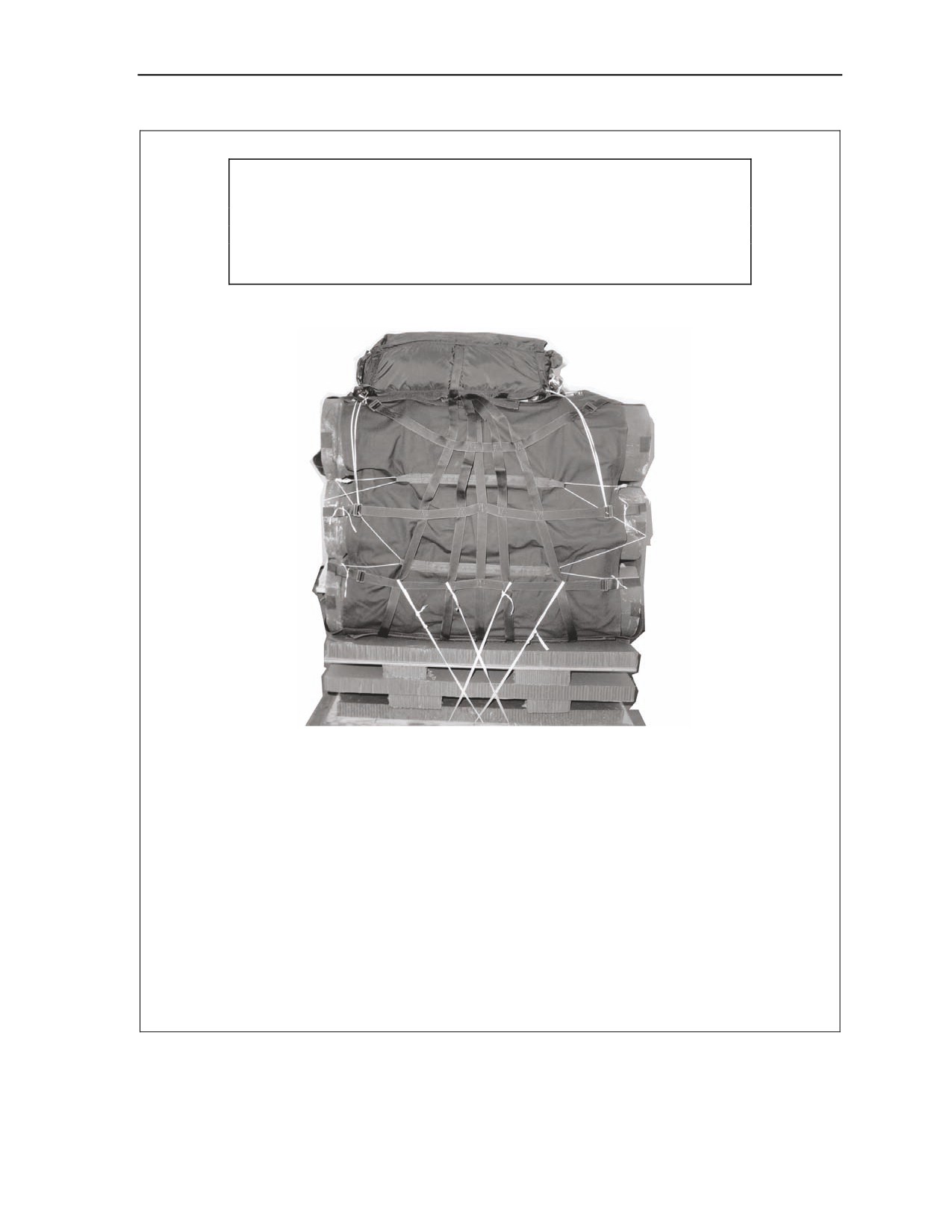

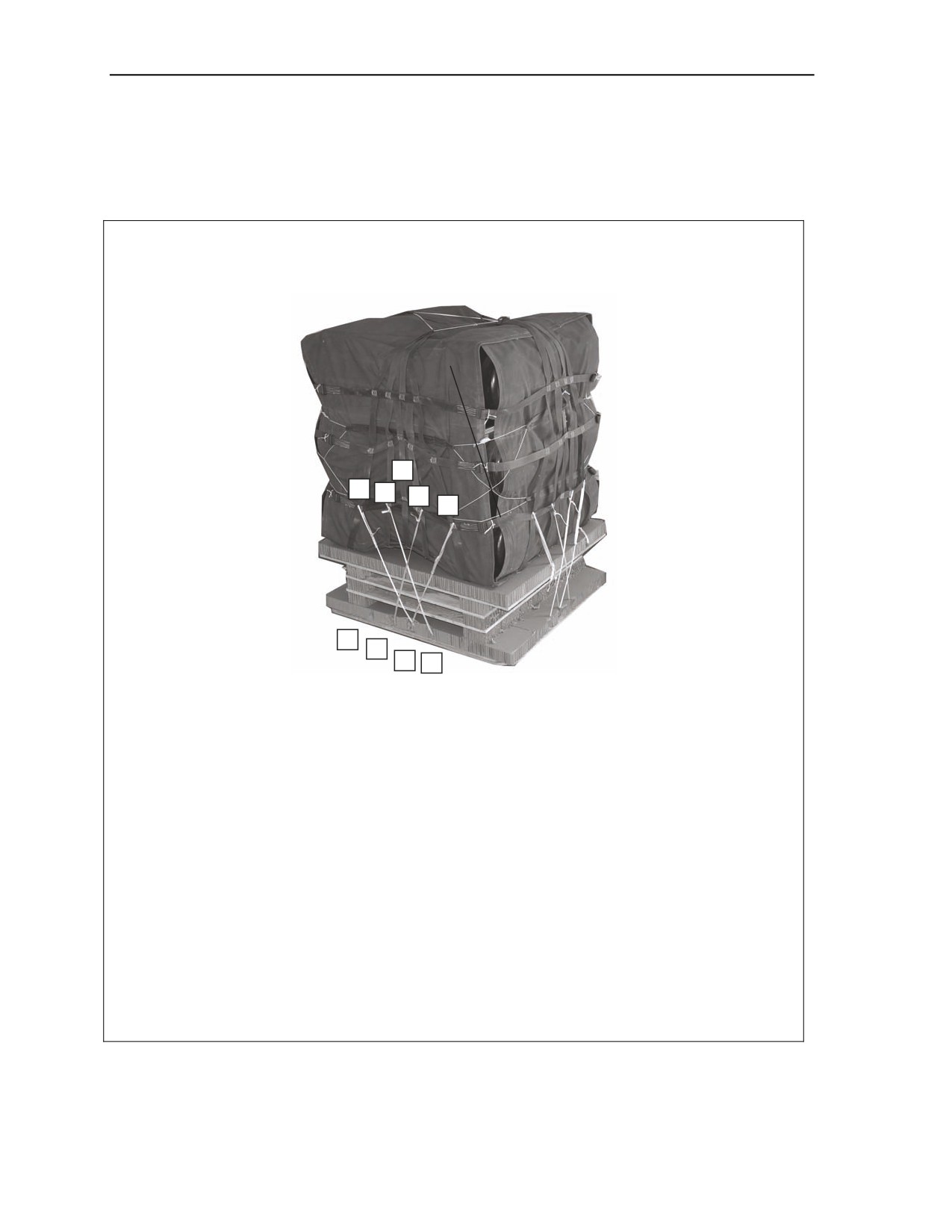

Figure 3-13. Javelin Nine-Round CDS in an A-22 Container Rigged
6 September 2007
FM 4-20.152/TO 13C7-22-61
3-39
Chapter 3
Table 3-3. Equipment Required for Rigging the Javelin Nine-Round CDS on an A-22
Container for Low-Velocity Airdrop
National Stock Number
Item
Quantity
8040-00-273-8713
Adhesive, paste, 1-gal
As required
4030-00-678-8562
Clevis, suspension, 3/4-in (medium)
2
4020-00-240-2146
Cord, nylon, type III, 550-lb
As required
1670-00-753-3928
Pad, energy-dissipating, honeycomb
3 sheets
Parachute:
1670-01-065-3755
G-12 cargo
1
5530-00-128-4981
Plywood, 3/4- by 48- by 96-in
2 sheets
1670-00-937-0271
Tie-down, assembly 15-ft
2
1670-01-062-6301
Sling, cargo, airdrop, 3-ft (2-loop)
2
Webbing:
Cotton, 1/4-in
8305-00-268-2411
As required
Nylon:
Tubular, 1/2-in
8305-00-082-5752
As required
Type VIII
8305-00-263-3591
As required
3-40
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging the Advanced Antitank Weapon System-Medium (Javelin) for Low-Velocity Airdrop
SECTION IV-RIGGING JAVELIN MISSILE CONTAINERS (PLASTIC / LC-RSSC)
IN AN A-22 CONTAINER CARGO BAG ASSEMBLY FOR LOW-VELOCITY
AIRDROP
DESCRIPTION OF LOAD
3-20. The Javelin Missile System (Plastic Containers / LC-RSSC) is a man-portable surface to surface anti-
tank missile made up of a tactical round in a disposable launch tube. The Javelin nine-round missile system
is rigged in an A-22 cargo bag for low-velocity airdrop on a ¾- by 48- by 55 ½ -inch skid board. The load
uses one G-12E cargo parachute with a 68-inch pilot parachute only. Each missile is 20 inches in diameter,
55 ½ inches in length and weighs approximately 96 pounds. The load has an approximate suspended
weight of 1061 pounds. It has a total height of 85 inches, a width of 48 inches and a length of 55 ½ inches.
The load has a total rigged weight of 1189 pounds.
PREPARING SKID BOARD AND TIES
3-21. Construct and prepare a skid board, and ties according to FM 4-20.103/MCRP 4-11.3C/TO 13C7-1-
11 and as shown in Figure 3-14. Use the measurements in this manual if they should differ from FM 4-
20.103/MCRP 4-11.3C/TO 13C7-1-11.
Note. These dimensions and instructions are load specific.
6 September 2007
FM 4-20.152/TO 13C7-22-61
3-41
Chapter 3
Notes.
1. Drawing not to scale.
2. All dimensions are given in inches.
3. Always use A/C grade plywood.
Step:

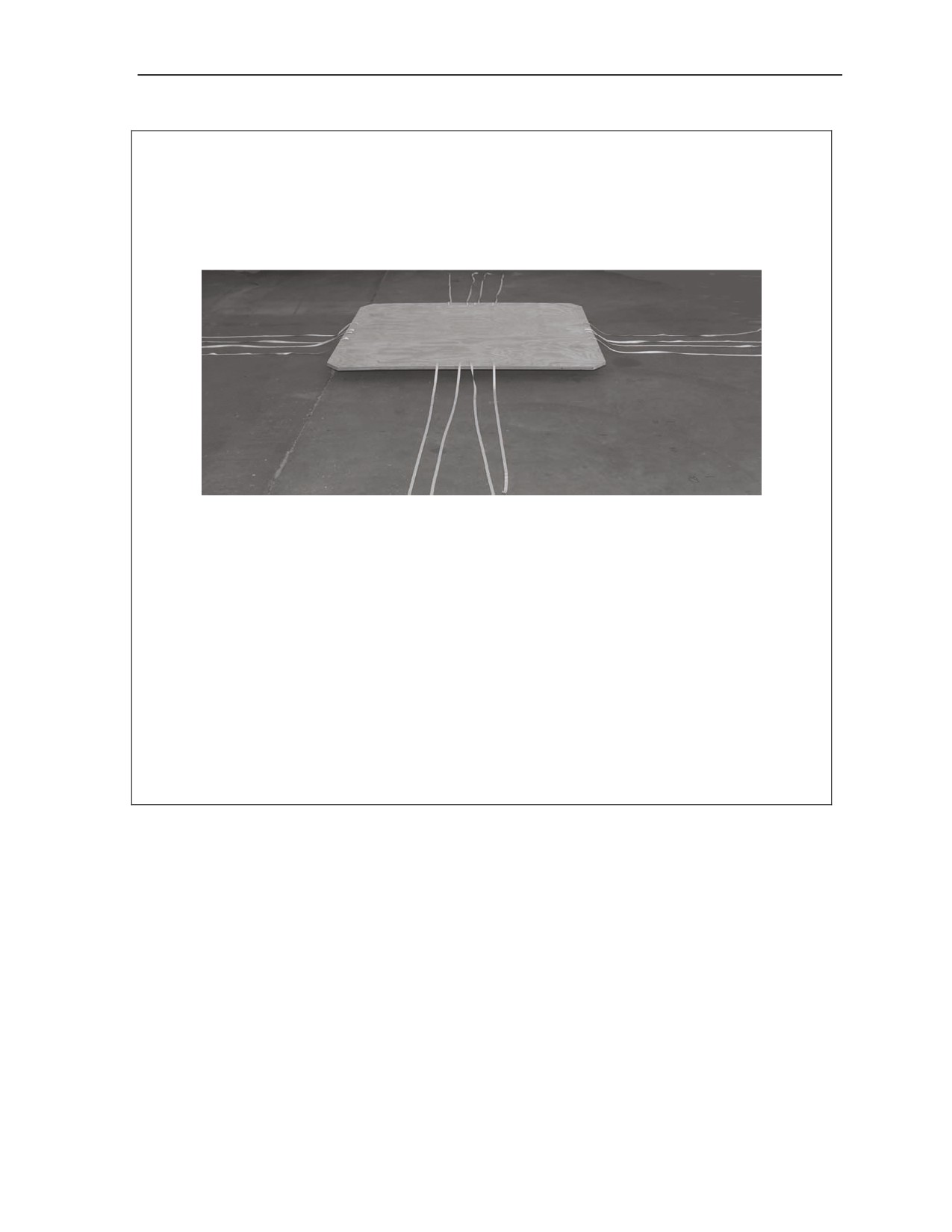

1. Construct and prepare a skid board as shown above.
Note. These instructions are load specific.

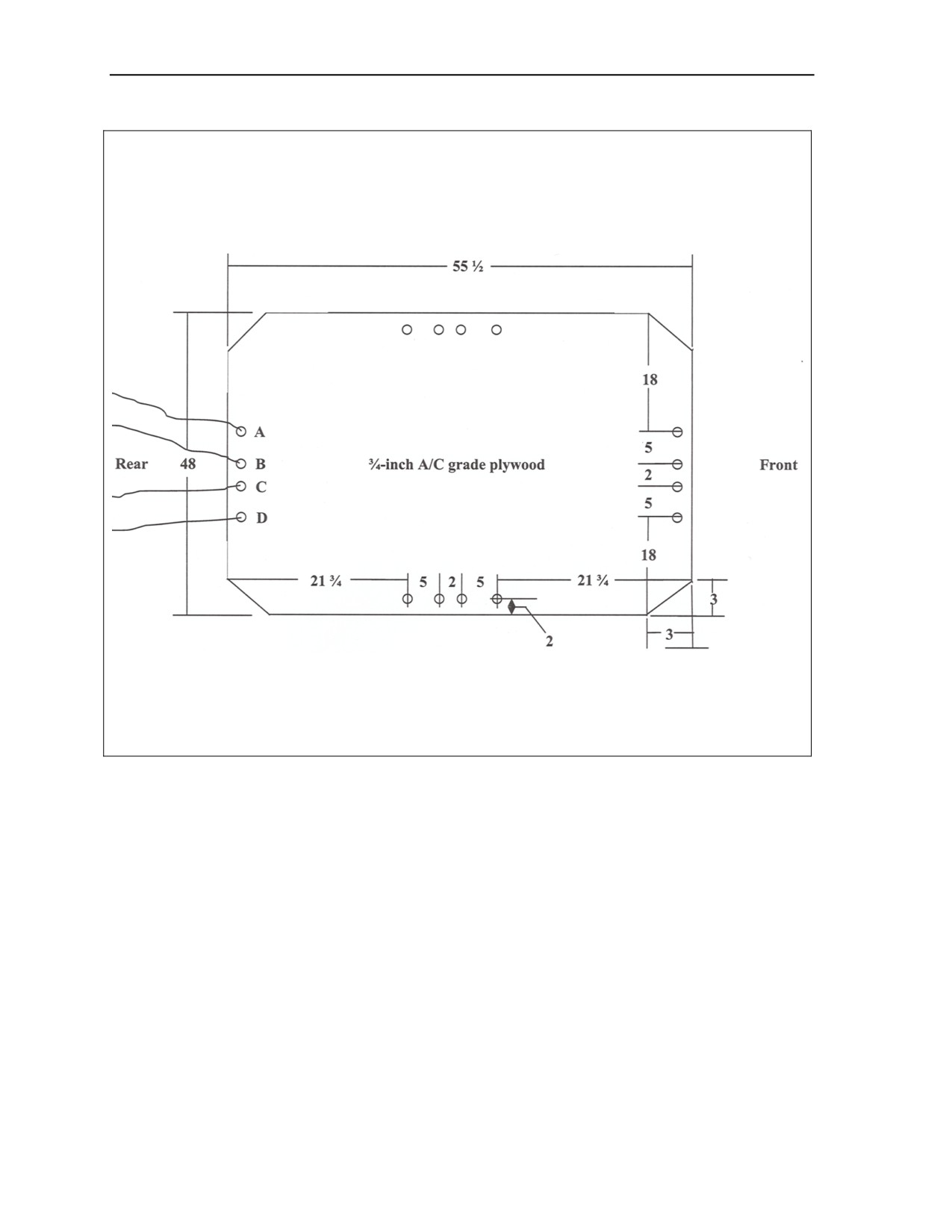

Figure 3-14. Skid Board and Ties Prepared
3-42
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging the Advanced Antitank Weapon System-Medium (Javelin) for Low-Velocity Airdrop
Notes.
1. Drawing not to scale.
2. All dimensions are given in inches.
3. Always use A/C grade plywood.
Step:
2. Cut and place a ¾- by 48- by 55 1/2-inch piece of A/C grade plywood on a flat surface.
3. Drill sixteen ½-inch holes.
4. Measure 3 inches in from each corner of the skid board and make a diagonal cut.
5. Prepare and route the skid board ties according to FM 4-20.103/MCRP 4-11.3C/TO 13C7-
1-11 and as described below.
6. Cut eight each, 10-foot lengths of ½-inch tubular, nylon webbing. Route one length through
hole A from the bottom and the other through hole B from the bottom. Even the ends.
7. Repeat step 6 for holes C and D and the remaining sides.
Figure 3-14. Skid Board and Ties Prepared (Continued)
6 September 2007
FM 4-20.152/TO 13C7-22-61
3-43
Chapter 3
PREPARING AND POSITIONING HONEYCOMB STACK
3-22. Prepare the honeycomb and position the honeycomb stack as shown in Figure 3-15. Cut two pieces
of honeycomb 36 by- 55 ½-inches, two pieces of honeycomb 8- by 55 ½-inches, six pieces of honeycomb
6 by- 44-inches, two pieces of 40 ½ by- 44 by- ¾-inch A/C grade plywood, and one 44 by- 55 ½-inch by-
¾- A/C grade plywood.
Stack
Pieces
Width
Length
Material
Instructions
Number
(Inches)
(Inches)
1
1
36
55 ½
Honeycomb
Form a base stack 44- by
55 ½. Center and glue the
pieces on the skid board.
Ensure the 55 ½ -inch
edges of the honeycomb
pieces are flush and facing
the 55 ½ -inch edge of the
skid board.
1
8
55 ½
Honeycomb
Used to form the base stack
in the previous step.

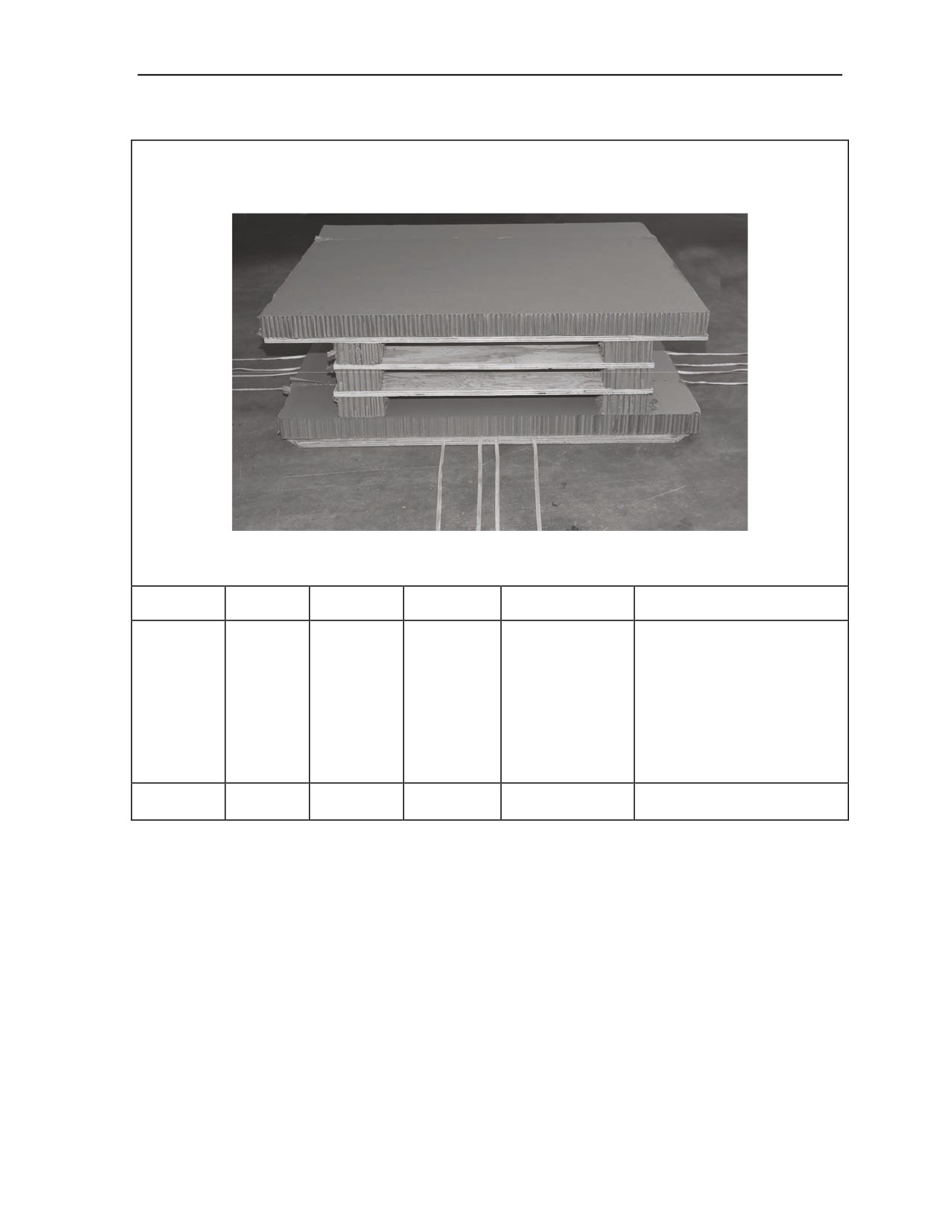

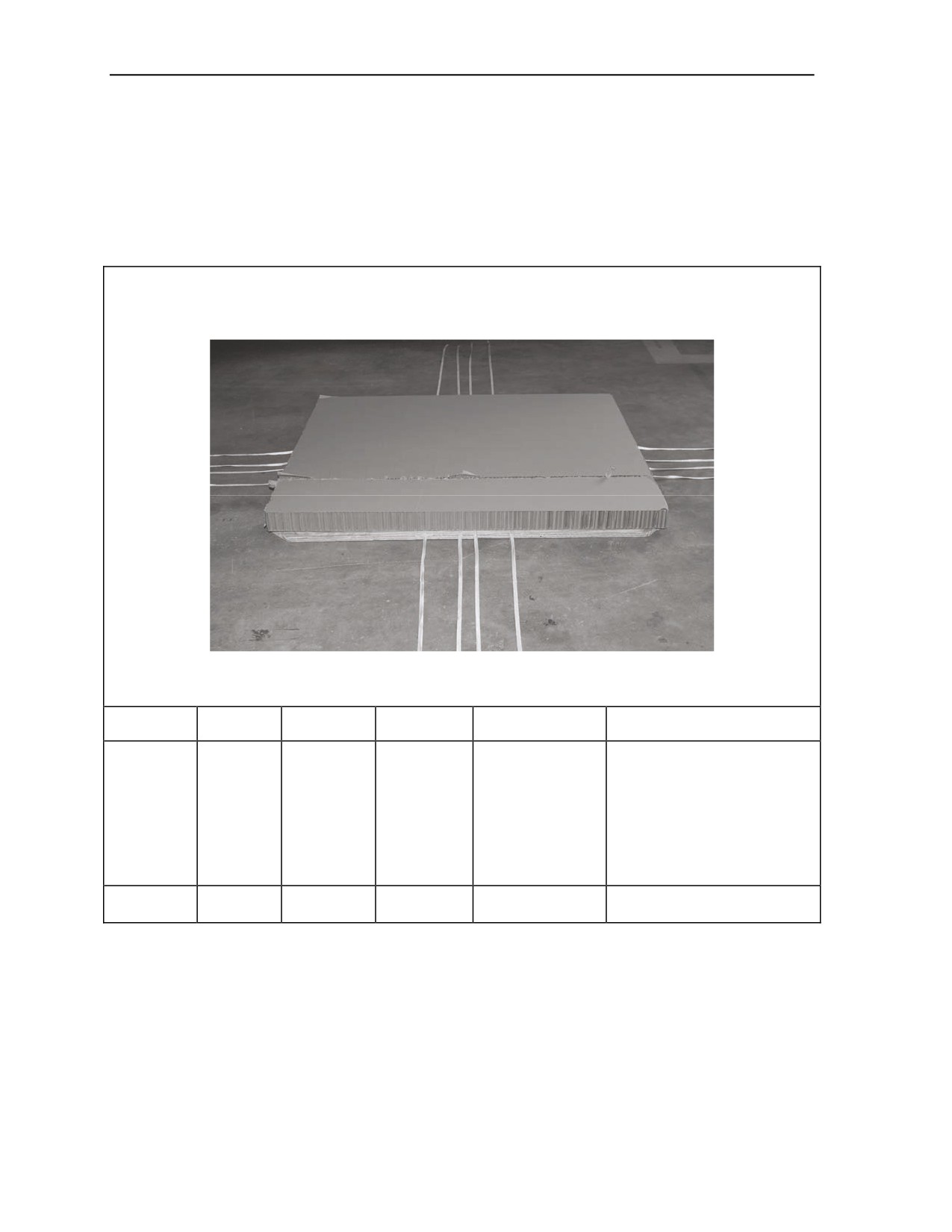

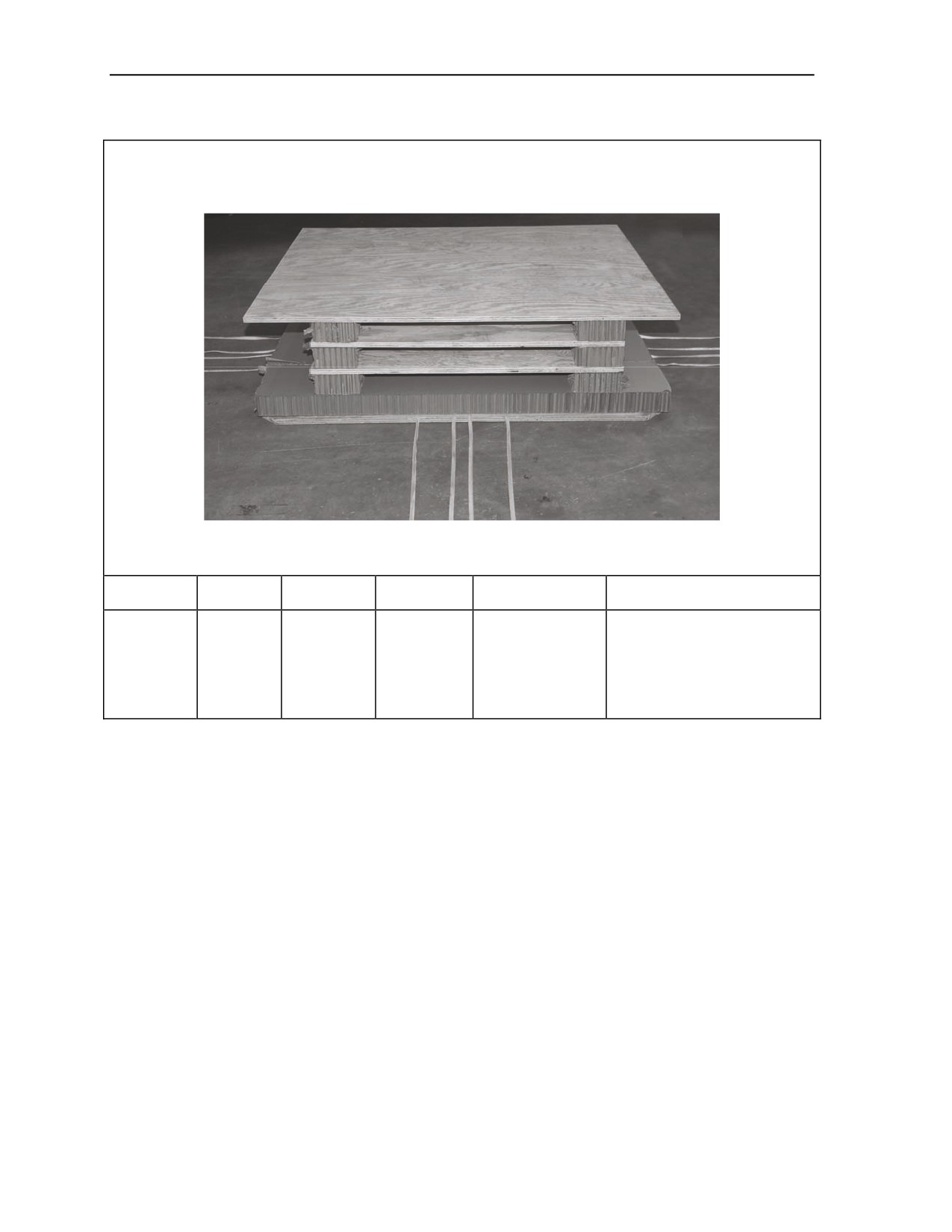

Figure 3-15. Honeycomb Stack Prepared and Positioned
3-44
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging the Advanced Antitank Weapon System-Medium (Javelin) for Low-Velocity Airdrop
Stack
Pieces
Width
Length
Material
Instructions
Number
(Inches)
(Inches)
2
44
6
Honeycomb
Position and glue one the
pieces 6-inches from one of
the 44-inch edges of the
base stack. Position and
glue the second piece 9-
inches from the opposite
edge of the base stack.
Ensure the 6-inch edges are
flush along the 55 ½-inch
edges.

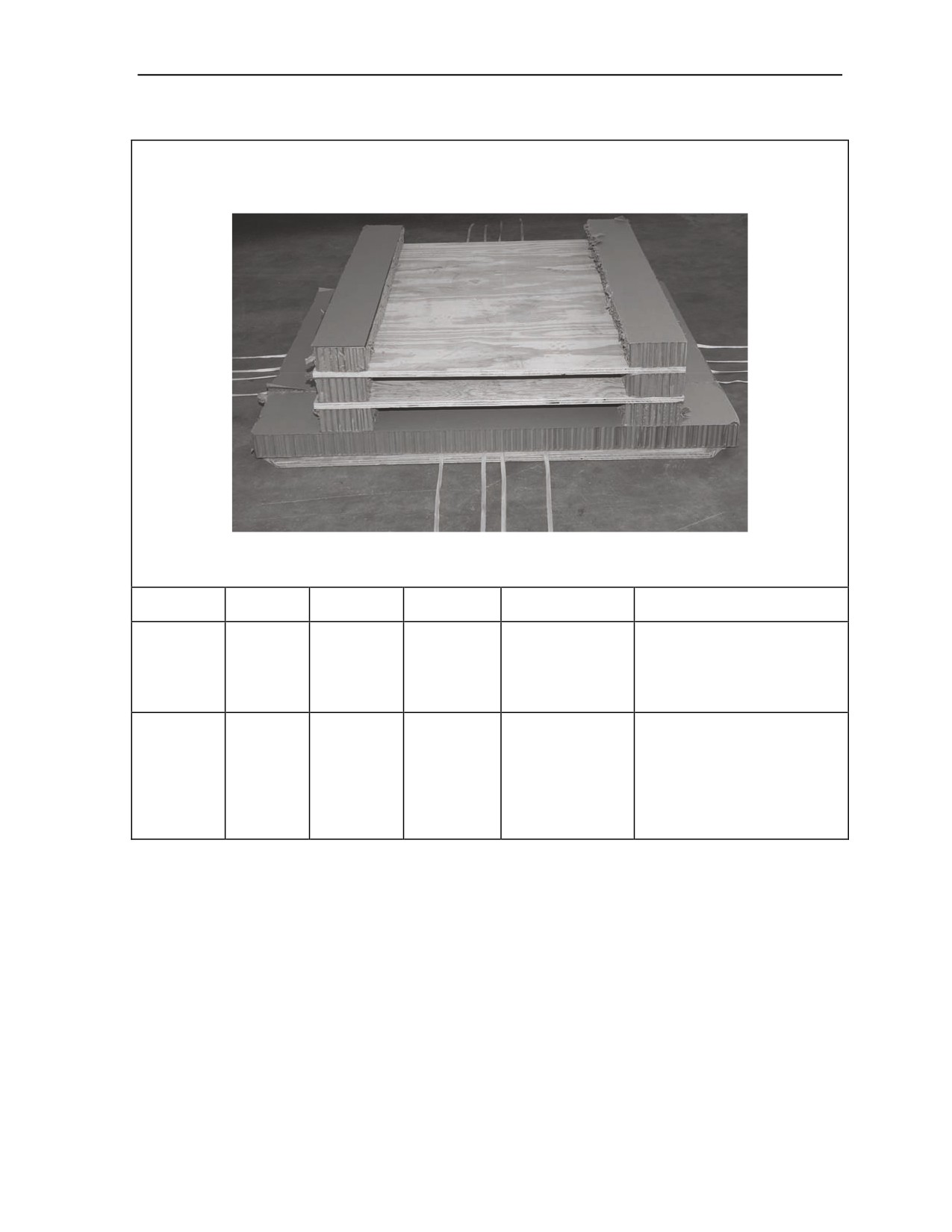

Figure 3-15. Honeycomb Stack Prepared and Positioned (Continued)
6 September 2007
FM 4-20.152/TO 13C7-22-61
3-45
Chapter 3
Stack
Pieces
Width
Length
Material
Instructions
Number
(Inches)
(Inches)
1
44
40 ½
¾-inch Plywood
Center and glue the
plywood piece on top of the
previously positioned
honeycomb pieces. Ensure
the 44-inch edges are flush.
2
44
6
Honeycomb
Position and glue each
piece flush along the 44-
inch edge of the previously
positioned plywood piece.
Ensure the 6-inch edges are
flush along the 40 ½-inch
edges.

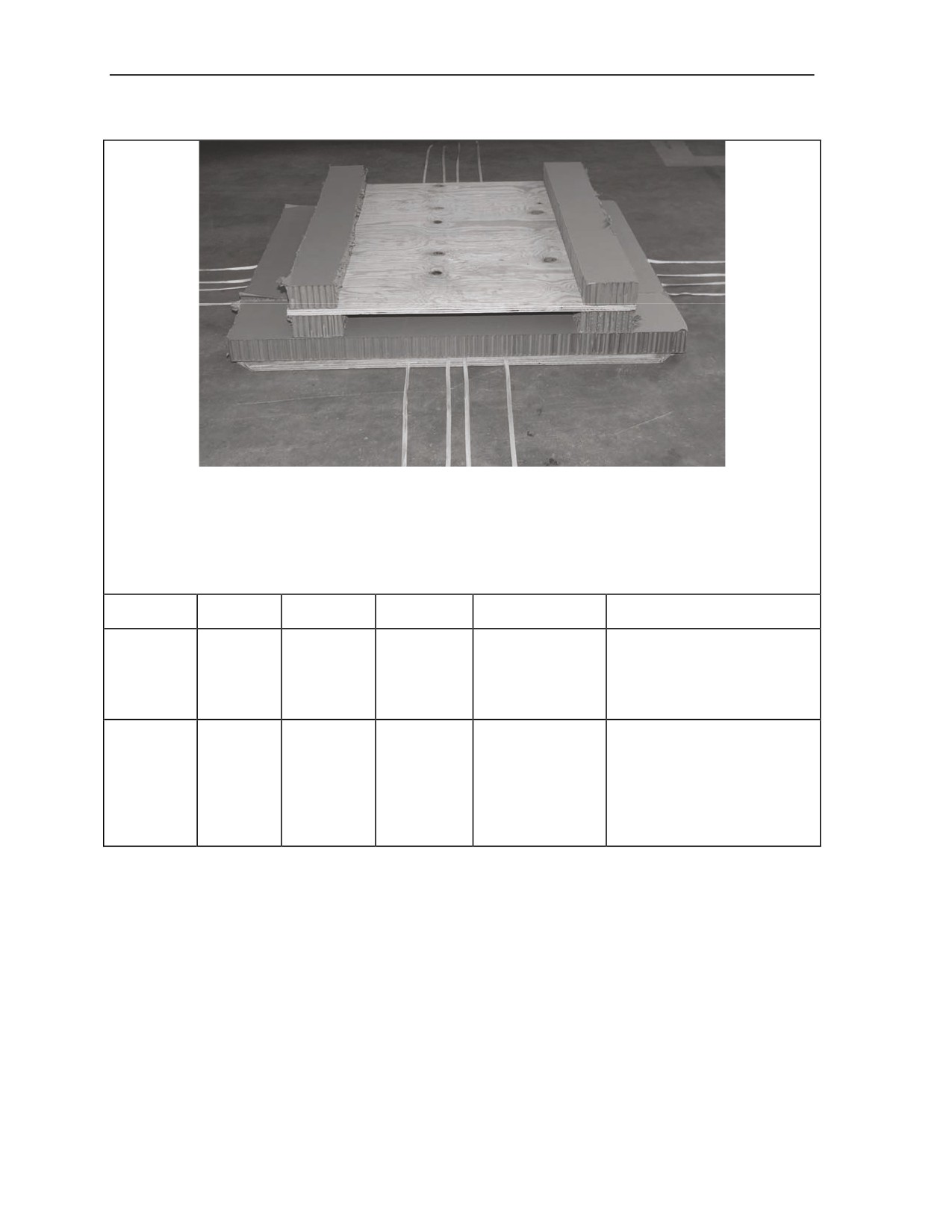

Figure 3-15. Honeycomb Stack Prepared and Positioned (Continued)
3-46
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging the Advanced Antitank Weapon System-Medium (Javelin) for Low-Velocity Airdrop
Stack
Pieces
Width
Length
Material
Instructions
Number
(Inches)
(Inches)
1
44
40 ½
¾-inch Plywood
Center and glue the
plywood piece on top of the
previously positioned
honeycomb pieces. Ensure
the 44-inch edges are flush.
2
44
6
Honeycomb
Position and glue each
piece flush along the 44-
inch edge of the previously
positioned plywood piece.
Ensure the 6-inch edges are
flush along the 40 ½-inch
edges.
Figure 3-15. Honeycomb Stack Prepared and Positioned (Continued)
6 September 2007
FM 4-20.152/TO 13C7-22-61
3-47
Chapter 3
Stack
Pieces
Width
Length
Material
Instructions
Number
(Inches)
(Inches)
1
44
55 ½
¾-inch Plywood
Center and glue the
plywood piece on top of the
previously positioned
honeycomb pieces. Ensure
the piece is aligned with the
honeycomb base stack.
Figure 3-15. Honeycomb Stack Prepared and Positioned (Continued)
3-48
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging the Advanced Antitank Weapon System-Medium (Javelin) for Low-Velocity Airdrop
Stack
Pieces
Width
Length
Material
Instructions
Number
(Inches)
(Inches)
1
36
55 ½
Honeycomb
Form a top stack 44- by 55
½. Center and glue the
pieces on top of the
previous positioned plywood
piece. Ensure the 55 ½ -
inch edges of the
honeycomb pieces are flush
and facing the 55 ½ -inch
edge of the plywood.
1
8
55 ½
Honeycomb
Used to form the top stack
in the previous step.
Figure 3-15. Honeycomb Stack Prepared and Positioned (Continued)
6 September 2007
FM 4-20.152/TO 13C7-22-61
3-49
Chapter 3
POSITIONING A-22 CARGO BAG SLING, COVER AND LOAD
3-23. Position and prepare the A-22 cargo bag sling and cover according to FM 4-20.103/MCRP 4-
11.3C/TO 13C7-1-11 and as shown in Figure 3-16.
1
1. Center the A-22 cargo bag sling facing down on the honeycomb. When the webbing is laid
facing down, the webbing sewn to the scuff pad will be on the bottom.
2
2. Center the A-22 cargo bag cover on the sling assembly (required).
Figure 3-16. A-22 Cargo Bag Sling, Cover and Load Positioned
3-50
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging the Advanced Antitank Weapon System-Medium (Javelin) for Low-Velocity Airdrop
3
3. Position a 15-foot Dacron lashing 6-inches to the left or right of the center of the
honeycomb stack. Ensure the lashing is positioned parallel along the 44-inch edge of the
honeycomb stack (used to secure Javelin stack 1 and stack 2 after placement).
4

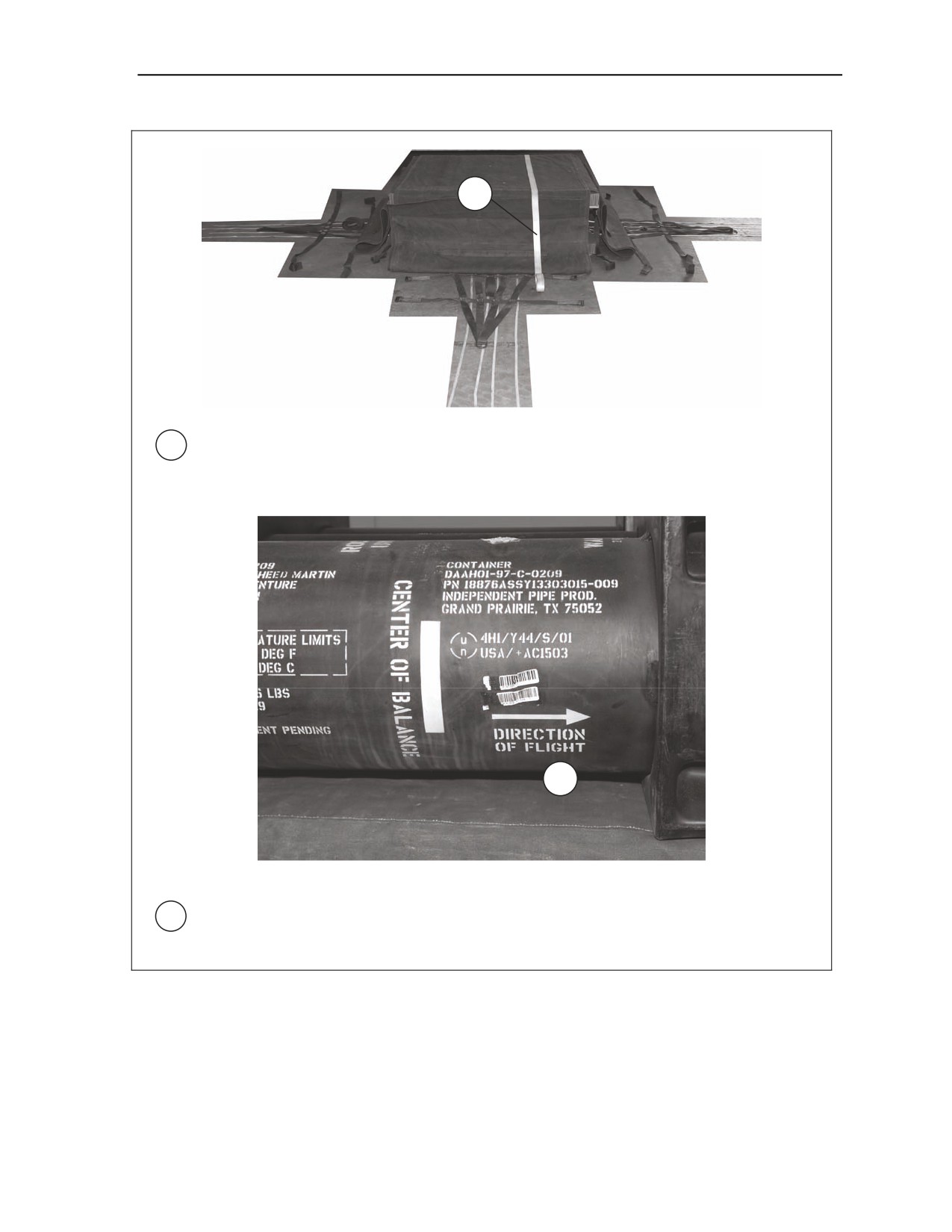

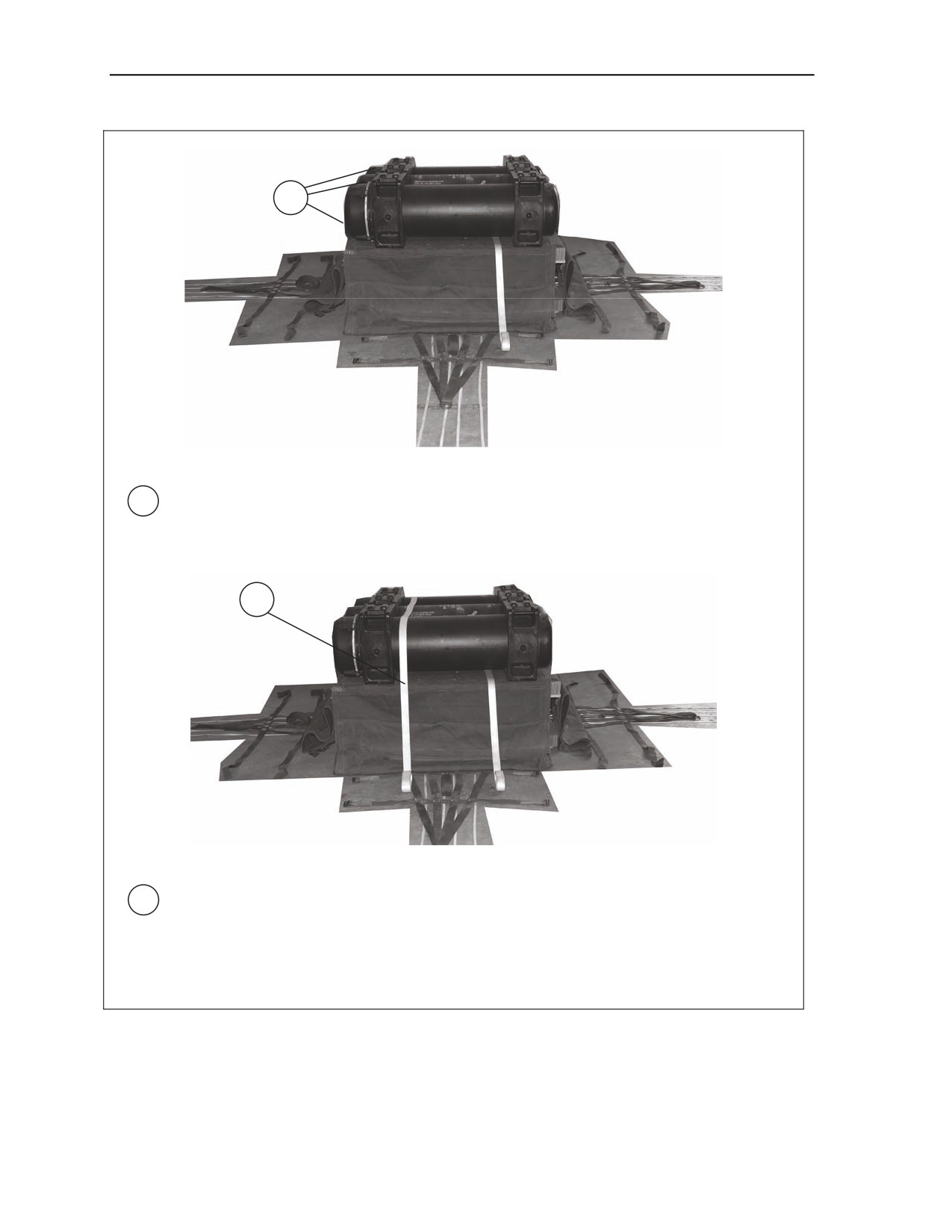

4. When positioning the Javelin missiles, ensure the direction of flight arrow is facing toward
the front of the skid board along the 44-inch edge of the honeycomb stack.
Figure 3-16. A-22 Cargo Bag Sling, Cover and Load Positioned (Continued)
6 September 2007
FM 4-20.152/TO 13C7-22-61
3-51
Chapter 3
5
5. Center and position three Javelin missiles on the load so that the stacking lugs of the
missile cases are aligned over the 44- by 6-inch honeycomb blowouts.
6
6. Position a second 15-foot Dacron lashing across the top of the first row of Javelin missiles
approximately 6-inches from center and to the opposite side of the first Dacron lashing that
was used to secure Javelin stack 2 and 3 after placement.
Figure 3-16. A-22 Cargo Bag Sling, Cover and Load Positioned (Continued)
3-52
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging the Advanced Antitank Weapon System-Medium (Javelin) for Low-Velocity Airdrop
7
7

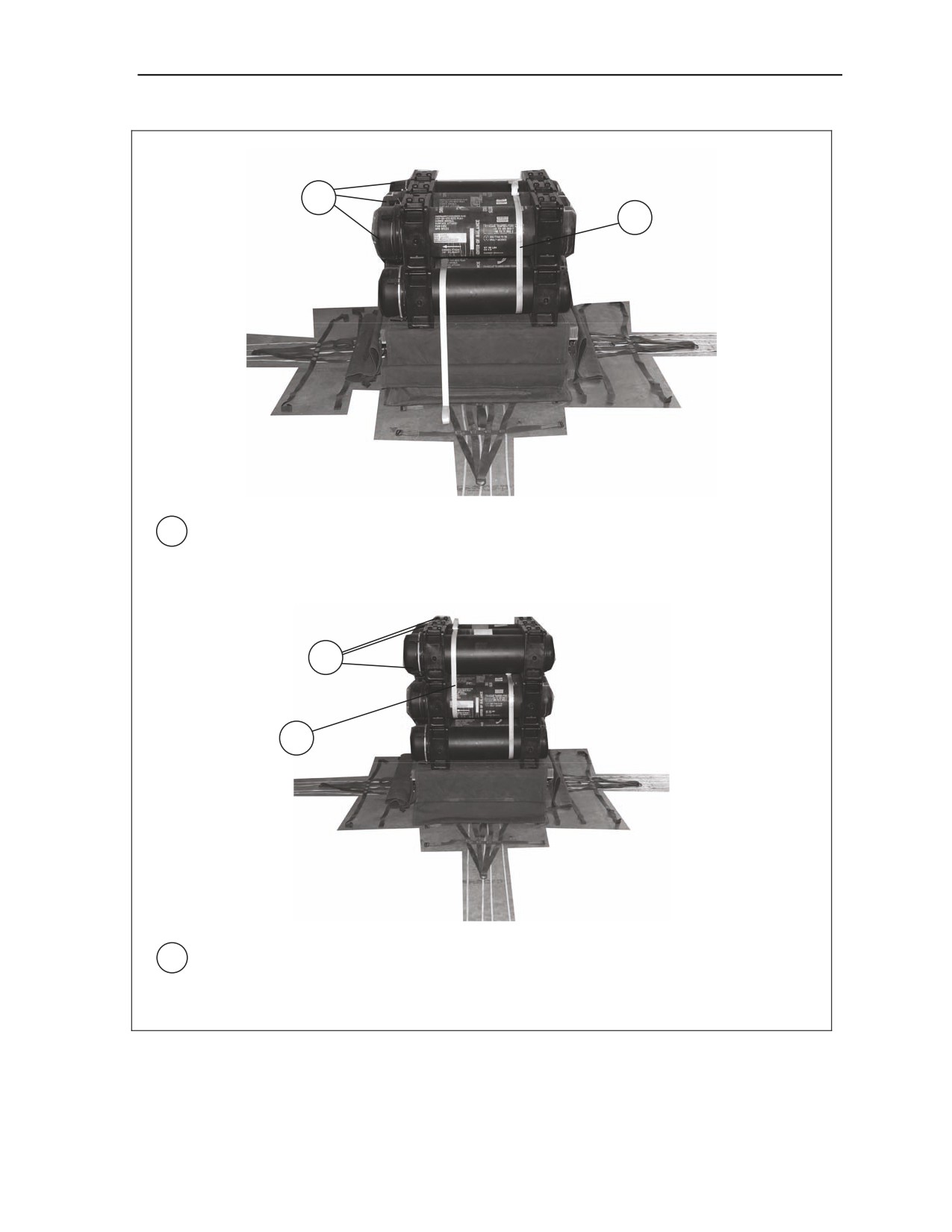

7. Center and position three more Javelin missiles on top of the first three containers
(aligning the stacking lugs) to form a second row. Secure the first (bottom) lashing around
the containers and secure on top using a D-ring and loadbinder.
8
8
8. Center and position three more Javelin missiles on top of the second row of containers
(aligning the stacking lugs) to form a third row. Secure the second (top) lashing around the
second and third row of containers and secure on top using a D-ring and loadbinder.
Figure 3-16. A-22 Cargo Bag Sling, Cover and Load Positioned (Continued)
6 September 2007
FM 4-20.152/TO 13C7-22-61
3-53
Chapter 3
SECURING THE A-22 BAG COVER AND SLING ASSEMBLY
3-24. Secure the A-22 cargo bag sling and cover according to FM 4-20.103/MCRP 4-11.3C/TO 13C7-1-
11 and as shown in Figure 3-17.
1
2
3
3
1. Bring up sides to cover the load. Fold under any side that will obstruct the bag cover
securing ties.
2. Using a length of type III nylon cord, route the cord as shown above. Pull it tight and make
a surgeon’s knot and bow knot. Secure the knot and excess with masking tape. Make sure
one running end is exposed.
Note. The middle support web should remain vertical.
3. Bring the short tie-down strap over the load and route it through the friction adapter. Route
the long tie-down strap the same way. Apply tension to the friction adapter and fold the
excess webbing. Secure the excess using ¼-inch cotton webbing.
Figure 3-17. A-22 Bag Cover and Sling Assembly Secured
3-54
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging the Advanced Antitank Weapon System-Medium (Javelin) for Low-Velocity Airdrop
6
54
4
4
Note. The friction adapters cannot be on the corners.
4. Route the two lower lateral straps through the friction adapter. Apply uniform tension and
secure the excess using ¼-inch cotton webbing.
5. Route the top lateral strap around the load sides. Apply uniform tension and secure the
excess using ¼-inch cotton webbing.
6. Pass a length of type I, 1/4-inch cotton webbing through each rectangle portion of the
suspension web D-rings and tie the ends together with a surgeon’s knot and locking knot.
Figure 3-17. A-22 Bag Cover and Sling Assembly Secured (Continued)
6 September 2007
FM 4-20.152/TO 13C7-22-61
3-55
Chapter 3
SECURING THE SKID BOARD TO A-22 CARGO BAG
3-25. Secure the skid board ties to the A-22 cargo bag according to FM 4-20.103/MCRP 4-11.3C/TO
13C7-1-11 and as shown in Figure 3-18.
Note. When tightening skid board tie, make sure excess tension is not applied causing the sewn
portion at the intersection of lateral straps and support web to separate.
3
1
2
4
5
A
B
C
D
Step:
1. Starting at the left side take tie-down A and diagonally tie it around the intersection of lower
lateral strap and fourth support web. Use three half-hitch knots and an overhand knot in
the running end according to FM 4-20.103/MCRP 4-11.3C/TO 13C7-1-11.
2. Route tie-down B around the fifth support web and lower lateral strap intersection
diagonally. Pull the excess slack out and tie it with a trucker’s hitch knot and an overhand
knot in the running end. Cut excess webbing, leaving end approximately 6 inches long
according to FM 4-20.103/MCRP 4-11.3C/TO 13C7-1-11.
3. Repeat step 1 for skid board tie D and secure it to the second intersection on the lower
lateral strap according to FM 4-20.103/MCRP 4-11.3C/TO 13C7-1-11.
4. Repeat step 2 for skid board tie C, and secure it to the first intersection on the lower lateral
strap according to FM 4-20.103/MCRP 4-11.3C/TO 13C7-1-11.
5. Repeat steps 1 through 4 for the other skid board ties according to FM 4-20.103/MCRP 4-
11.3C/TO 13C7-1-11.

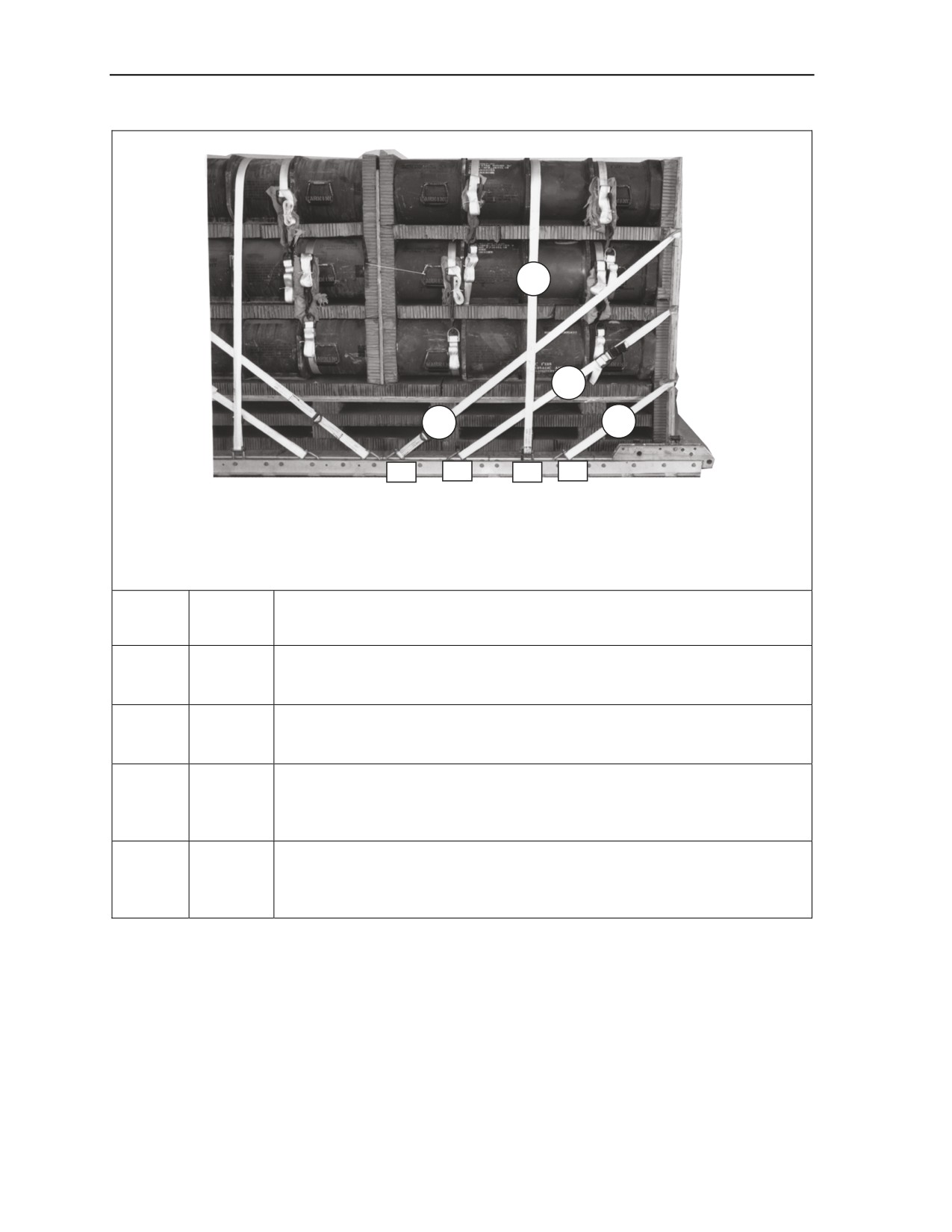

Figure 3-18. Skid Board Secured to the A-22 Cargo Bag
3-56
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging the Advanced Antitank Weapon System-Medium (Javelin) for Low-Velocity Airdrop
ATTACHING THE SUSPENSION WEBS
3-26. Attach the suspension webs to the A-22 cargo bag sling according to FM 4-20.103/MCRP 4-
11.3C/TO 13C7-1-11 and as described below.
Attach a suspension web to each D-ring of the cargo sling. Route the snap fasteners from outside
to inside. Wrap masking tape around the snap fastener.
Note. Prior to securing the suspension webs with masking tape ensure the webs are not twisted.
Tape all suspension webs together near the free end using masking tape.
Tape all suspension webs together 2 inches above the snap fasteners using masking tape.
ATTACHING AND SECURING THE G-12E CARGO PARACHUTE
3-27. Attach and secure the cargo parachute to the load according to FM 4-20.103/MCRP 4-11.3C/TO
13C7-1-11 and as shown in Figure 3-19.
Note. Any overhang mus
container; overhang to the left or
right will not fit in the Centerline Vertical Restraint System (CVRS) or logistic rails.
Step:
1. Place a G-12E cargo parachute on the load. When the front and rear have been
designated, the parachute sides should run parallel to the front and rear.
2. Place the four D-rings of the suspension webs on the clevis bolt. Replace the nut.
3. Secure the parachute to the load using one turn single of type I, 1/4-inch cotton webbing.
Note. Ensure that a 68-inch pilot parachute is attached and secured to the G-12E cargo parachute
according to TM 10-1670-281-23&P/TO 13C5-32-2/NAVAIR 13-1-32.
Figure 3-19. G-12E Cargo Parachute Attached and Secured
6 September 2007
FM 4-20.152/TO 13C7-22-61
3-57
Chapter 3
MARKING RIGGED LOAD
3-28. Mark the rigged load according to FM
4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-
010/TO 13C7-1-5 and as shown in Figure 3-20. Complete Shippers Declaration for Dangerous Goods and
affix to load.
EQUIPMENT REQUIRED
3-29. Use the equipment in Table 3-4 to rig this load.
CAUTION
Make the final rigger inspection required by AR 59-4 and FM 4-
20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5
before the load leaves the rigging site.
RIGGED LOAD DATA
Weight: Load shown
1,189 pounds
Suspended Weight
1,061 pounds
Height
85 inches
Width
48 inches
Overall Length
55 1/2 inches
Parachute
G-12E only with a 68-inch pilot parachute
Figure 3-20. Javelin Missile Containers (Plastic) in an A-22 Stretch Container Cargo Bag
Rigged for Low-Velocity Airdrop
3-58
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging the Advanced Antitank Weapon System-Medium (Javelin) for Low-Velocity Airdrop
Table 3-4. Equipment Required for Rigging the Javelin Missile Containers (Plastic) in an A-
22 Stretch Container Cargo Bag for Low-Velocity Airdrop
National Stock Number
Item
Quantity
8040-00-273-8713
Adhesive, paste, 1-gal
As required
4030-00-678-8562
Clevis, suspension, 3/4-in (medium)
1
4020-00-240-2146
Cord, nylon, type III, 550-lb
As required
1670-00-753-3928
Pad, energy-dissipating, honeycomb
4 sheets
Parachute:
1670-01-065-3755
G-12E cargo
1
5530-00-128-4981
Plywood, 3/4- by 48- by 96-in
2 sheets
Webbing:
8305-00-268-2411
Cotton, 1/4-in
As required
Nylon:
8305-00-082-5752
Tubular, 1/2-in
As required
6 September 2007
FM 4-20.152/TO 13C7-22-61
3-59
This page intentionally left blank.
Chapter 4
Rigging Thirty-Six Javelin Rounds as a Mass Supply Load
on a 12-Foot, Type V Airdrop Platform for Low-Velocity
Airdrop
DESCRIPTION OF LOAD
4-1. The Javelin mass supply load consists of 36 Javelin rounds in shipping containers rigged on a 12-
foot, type V platform. Each round in its container weighs approximately 77 pounds and has a length of 59
inches and diameter of 15 1/4 inches. The load rigged has a total rigged weight of 5,976 pounds, a length
of 166 inches with a 5-inch front overhang and a 17-inch rear overhang. The width is 108 inches and the
height is 86 inches. The center of balance is 76 inches from the front end of the platform and is rigged
using two G-11B cargo parachutes.
PREPARING PLATFORM
4-2. Prepare a 12-foot, type V platform as shown in Figure 4-1.
6 September 2007
FM 4-20.152/TO 13C7-22-61
4-1
Chapter 4
CLEVISES
10A THROUGH 1
FRONT
REAR
RIGHT
CLEVISES
10 THROUGH 1
Step:
1. Inspect, or assemble and inspect, a 12-foot, type V platform as outlined in TM 10-1670-
268-20&P/TO 13C7-52-22.
2. Install a tandem link to the front of each platform side rail using holes 1, 2, and 3.
3. Install a tandem link to the rear of each platform side rail using holes 22, 23, and 24.
4. Install clevises on bushing 2 of each front tandem link.
5. Install clevises on bushing
3 of each rear tandem link.
6. Starting at the front of the right platform side rail, install clevises on the bushings bolted to
holes 6, 7, 10, 12, 13, 15, 18, and 19. Repeat for the left side.
7. Starting at the front of the platform, number the clevises 1 through 10 on the right side, and
1A through 10A on the left side.
8. Label the tiedown rings according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5.

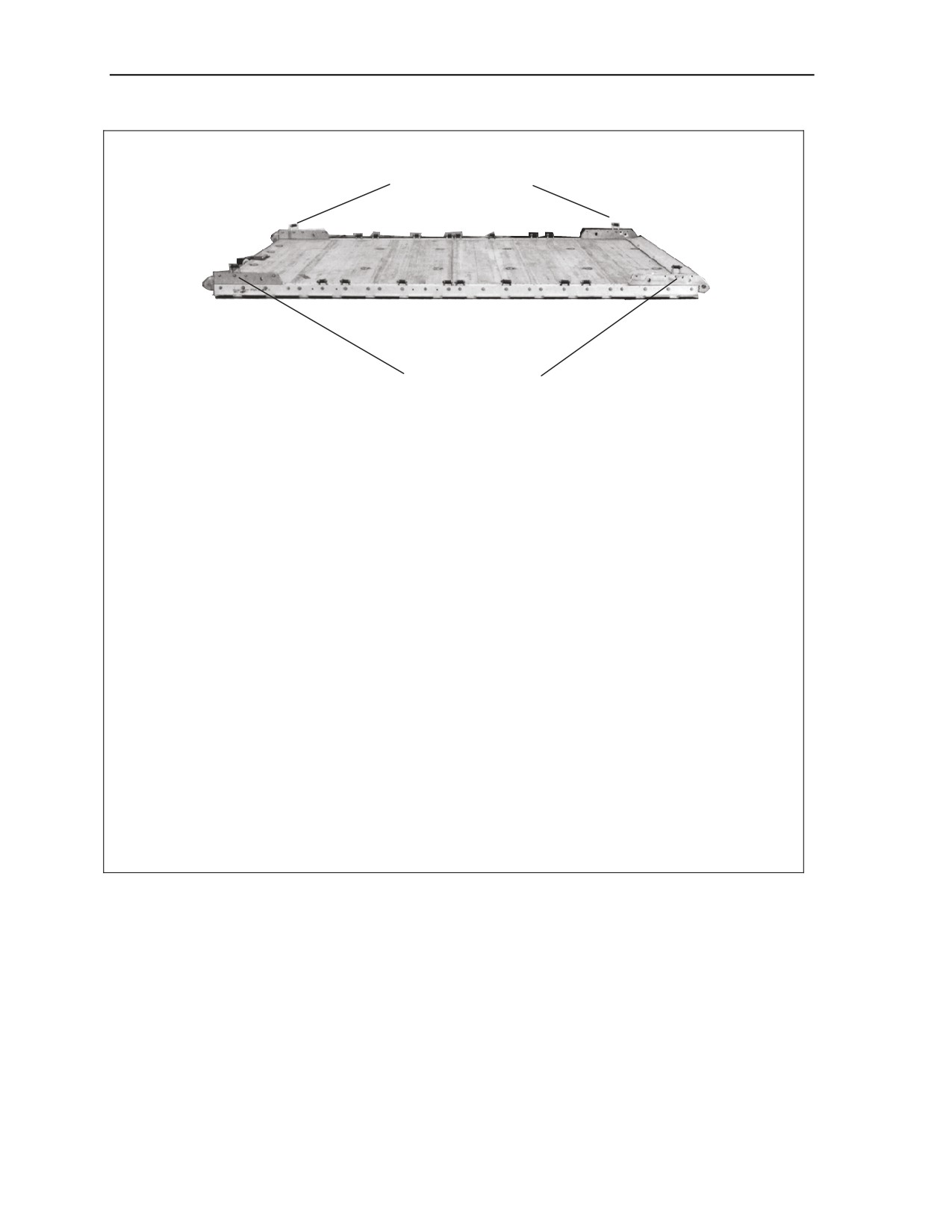

Figure 4-1. Platform Prepared
4-2
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging Thirty-Six Javelin Rounds as a Mass Supply Load on a 12-Foot, Type V Airdrop Platform for
Low-Velocity Airdrop
BUILDING AND POSITIONING HONEYCOMB STACKS
4-3. Build and position the honeycomb stacks as shown in Figure 4-2.
Notes. 1. This drawing is not to scale.
2. All dimensions are in inches.
REAR
36x76
36x76
20x76
36x49
36x49
20x49
FRONT
10
27
REAR
1
27
FRONT
12
12
2

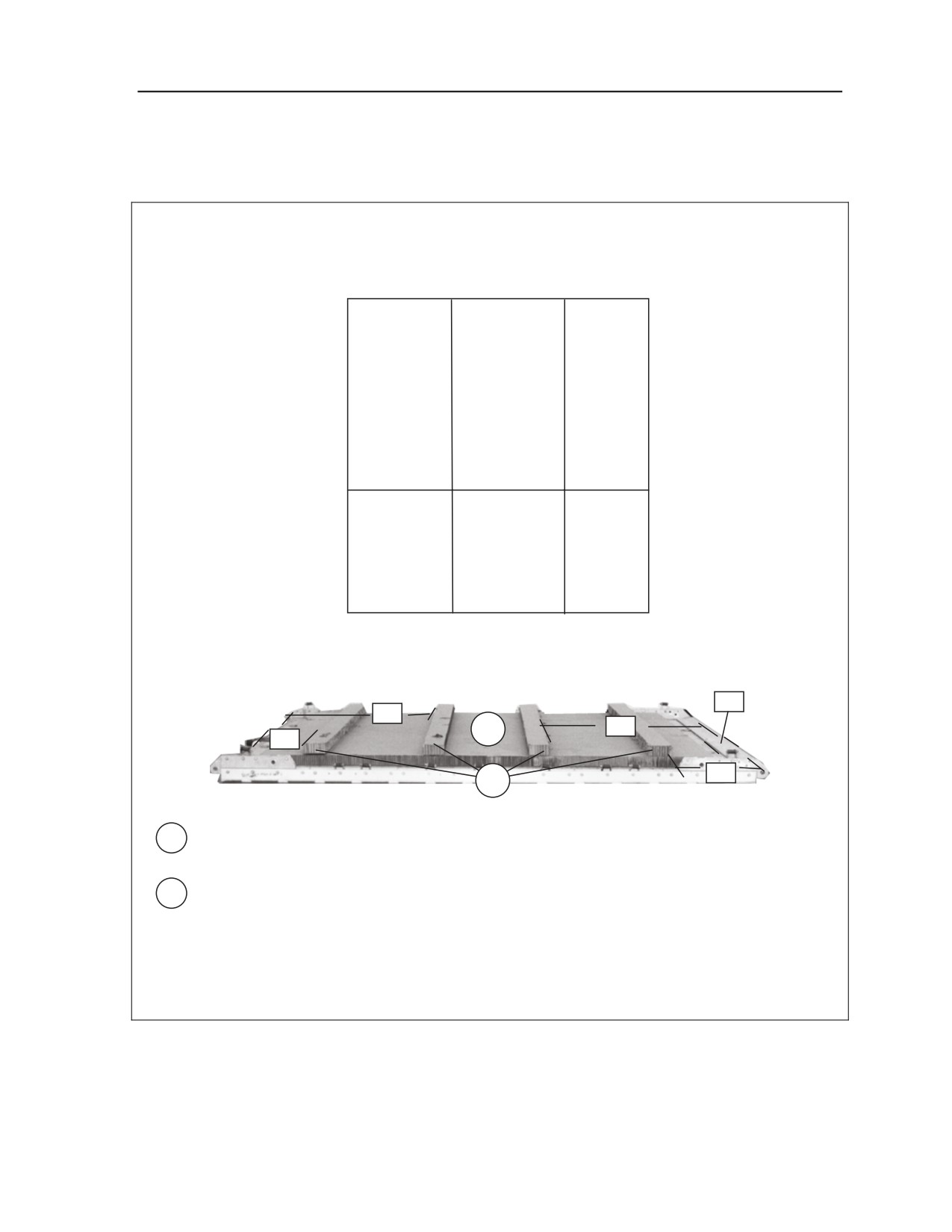

1. Cut six pieces of honeycomb as shown in the diagram above and position the honeycomb on
the platform centered and 10 inches from the front edge of the platform.
2. Cut four 6- by 92-inch pieces of honeycomb. Position and glue the first piece 12 inches from
the front edge of the honeycomb stack in step 1. Position and glue the second piece 27
inches from the front edge. Position and glue the third piece 27 inches from the rear edge
and the fourth piece 12 inches from the rear edge.
Figure 4-2. Honeycomb Stacks Built and Positioned
6 September 2007
FM 4-20.152/TO 13C7-22-61
4-3
Chapter 4
4
3
3. Cut, glue and position a third layer of honeycomb as described in step 1.
4. Cut, glue and position a fourth layer of honeycomb as described in step 2 on top of the third layer.
Figure 4-2. Honeycomb Stacks Built and Positioned (Continued)
4-4
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging Thirty-Six Javelin Rounds as a Mass Supply Load on a 12-Foot, Type V Airdrop Platform for
Low-Velocity Airdrop
Notes. 1. This drawing is not to scale.
2. All dimensions are in inches.
5
5

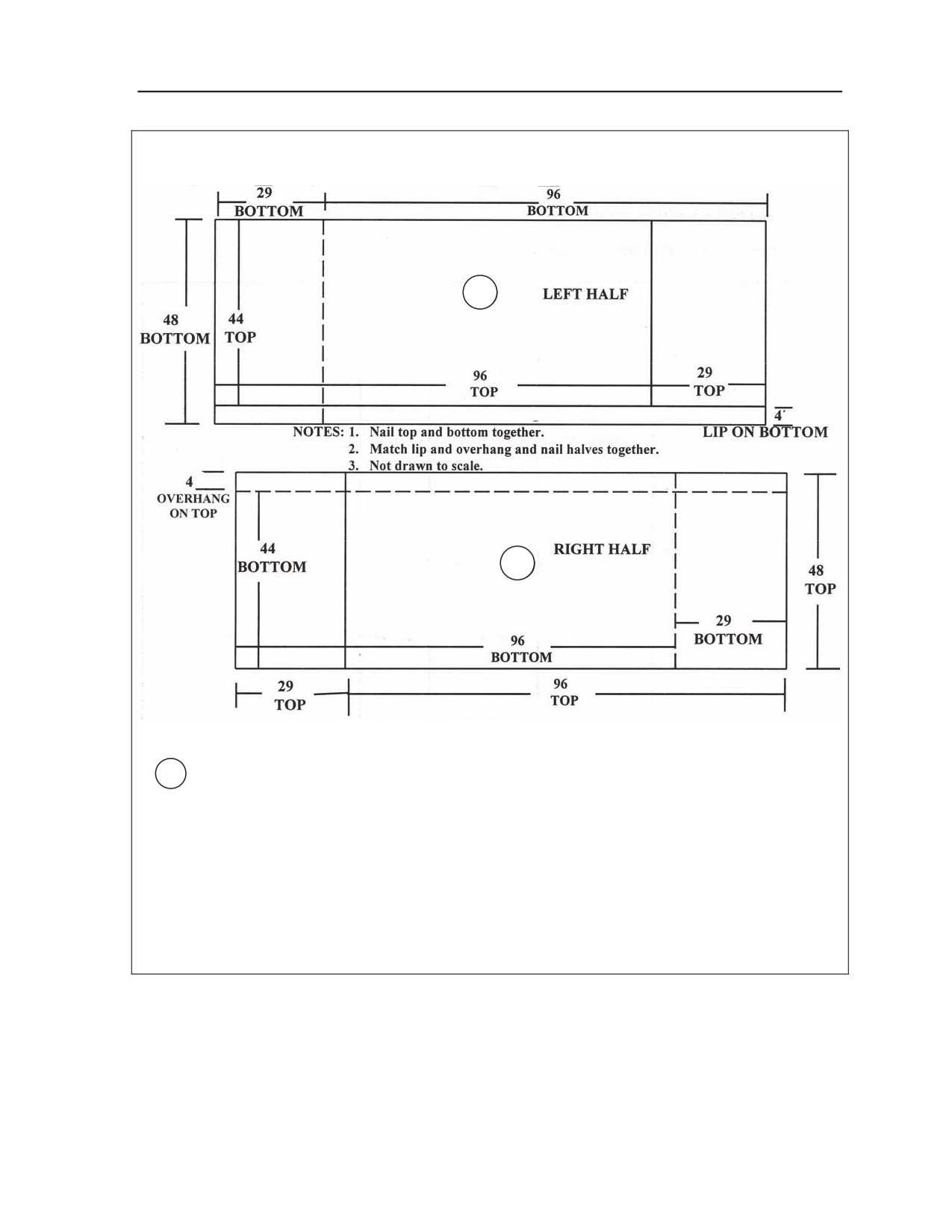

5. The fifth layer is constructed of doubled 3/4-inch plywood. Using two 48- by 96-inch pieces of 3/4-inch
plywood, cut two 48- by 29-inch pieces, two 44- by 49-inch pieces and two 44- by 96-inch pieces. Nail
the plywood together as shown in the above diagrams. Position one 48- by 96-inch piece of plywood
and one 48- by 29-inch piece of plywood end to end forming one layer 125-inches in length. Position
one 44- by 96-inch piece of plywood and one 44- by 29-inch piece of plywood end to end on top of the
first layer even with one of the long sides of the section. There should be a 4 inch lip when the plywood
is in place. Nail the plywood together. Position one 44- by 96-inch piece of plywood and one 44- by 29-
inch piece of plywood end to end and even with the lip. Position one 48- by 96-inch piece of plywood
and one 48- by 29-inch piece of plywood end to end and even on top of the last pieces and nail all the
plywood together.

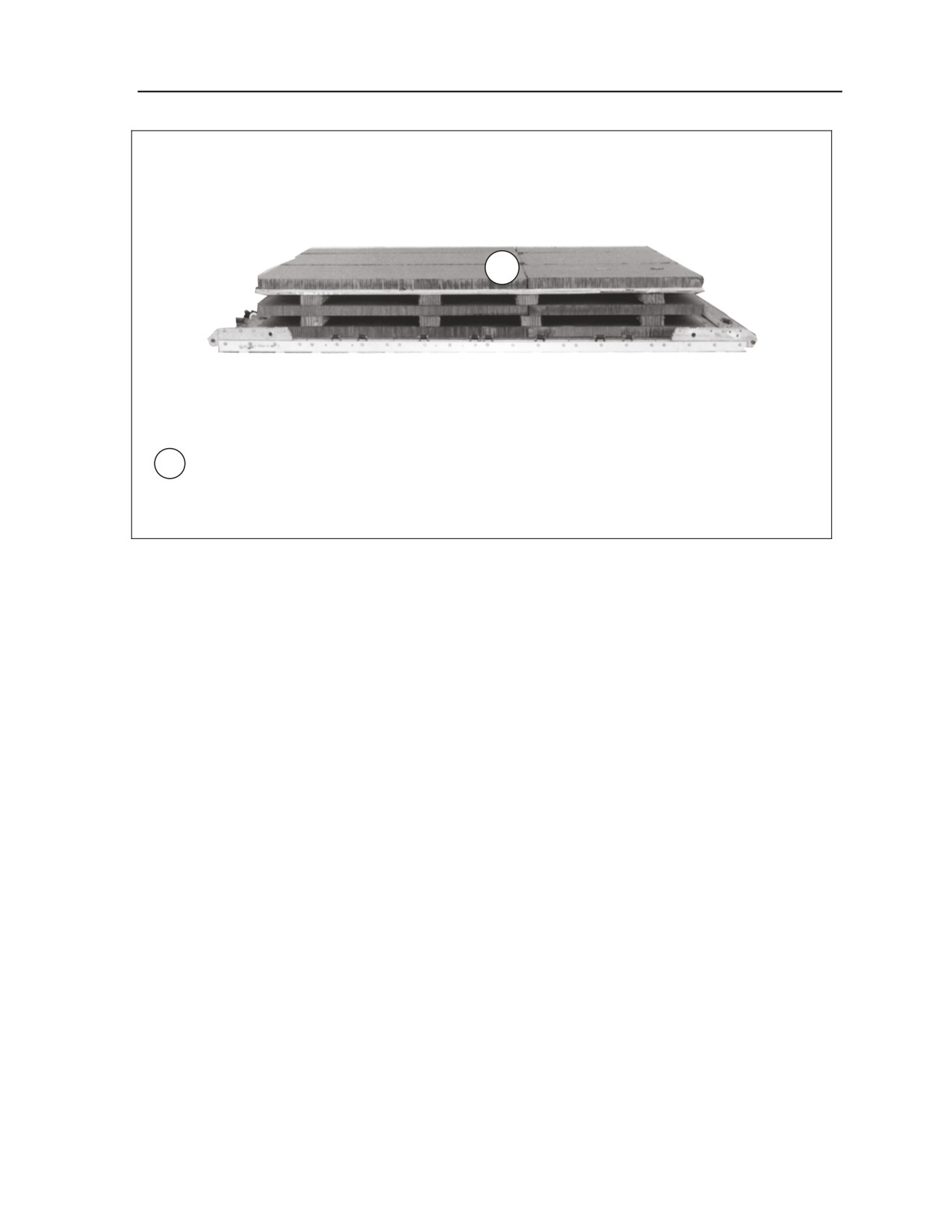

Figure 4-2. Honeycomb Stacks Built and Positioned (Continued)
6 September 2007
FM 4-20.152/TO 13C7-22-61
4-5
Chapter 4
6

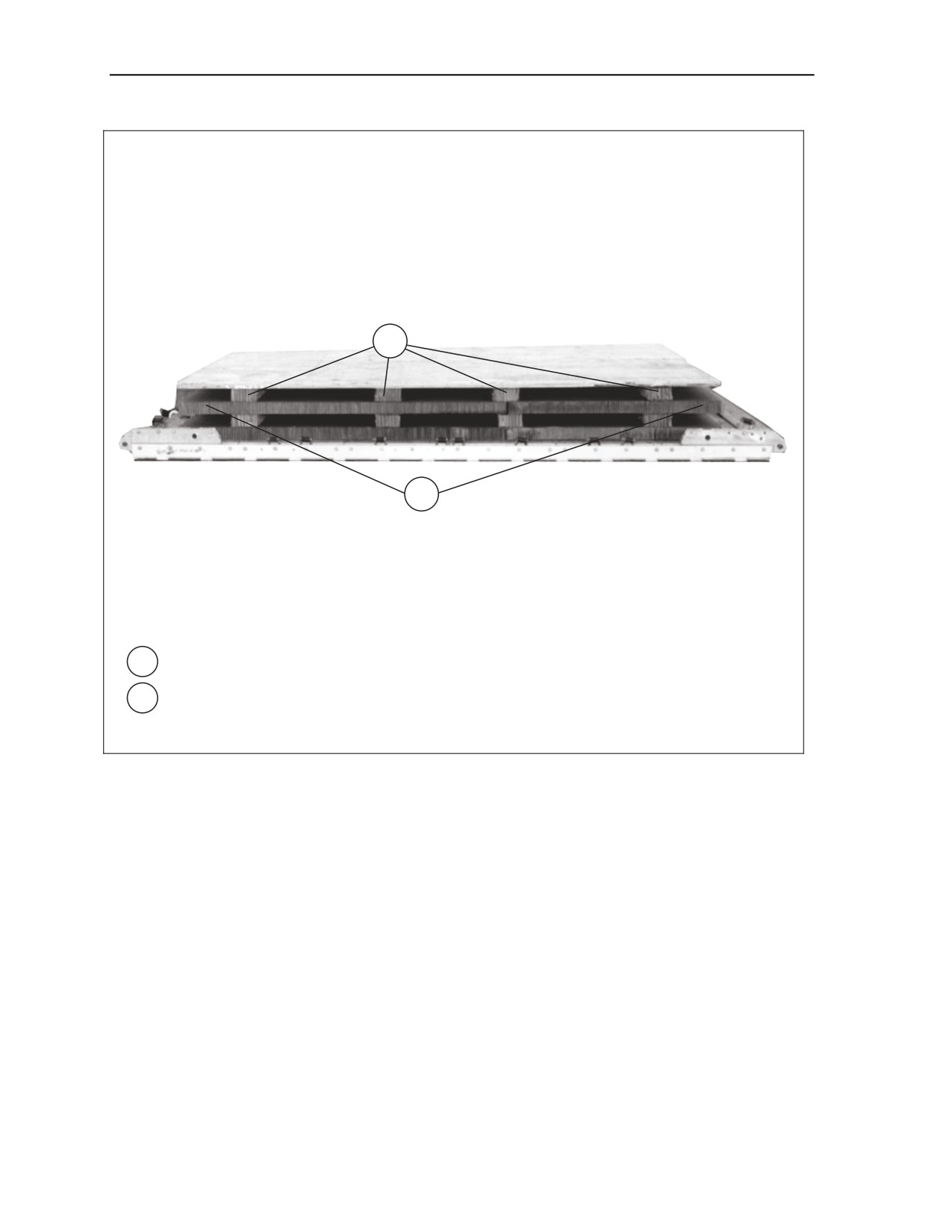

6. Glue and position the plywood centered on top of the honeycomb.

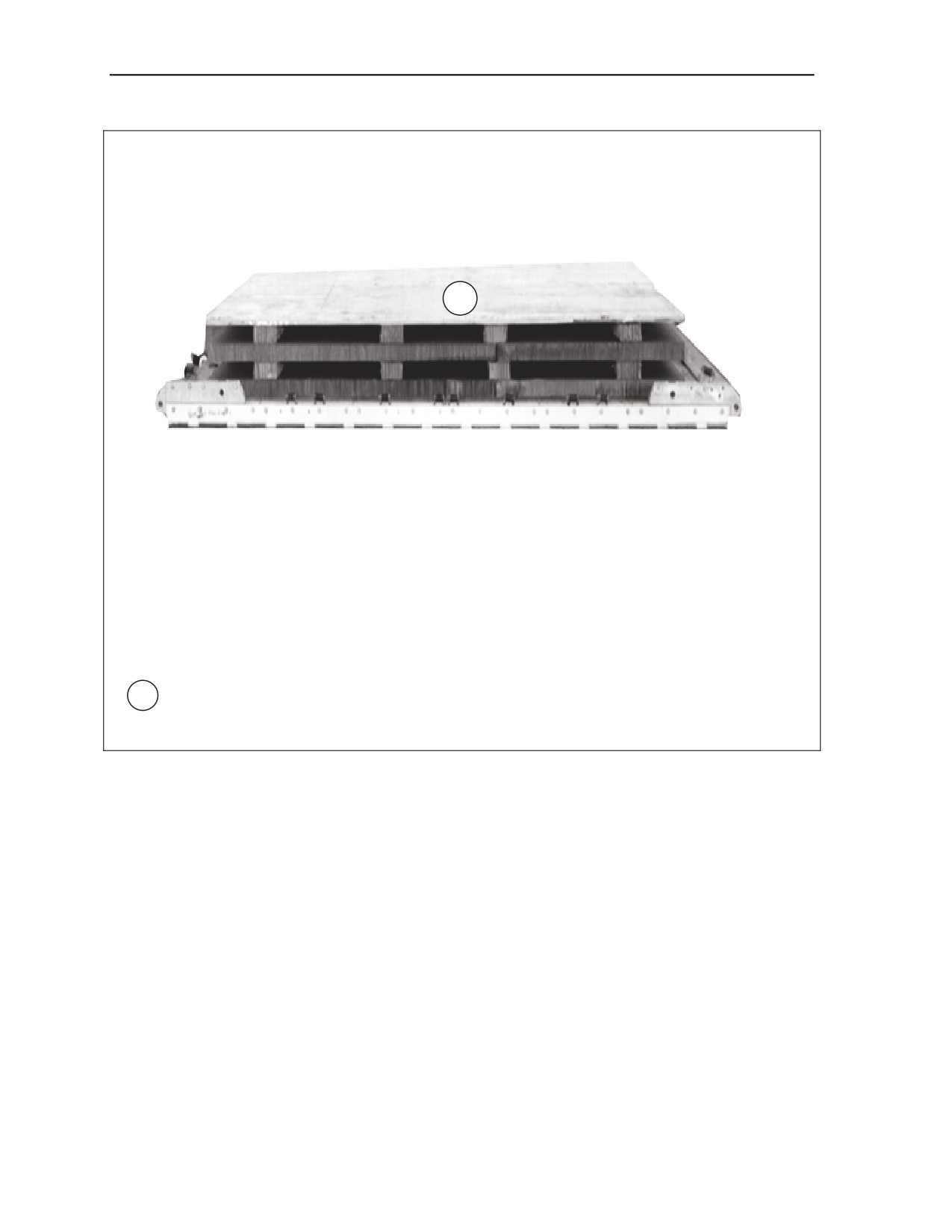

Figure 4-2. Honeycomb Stacks Built and Positioned (Continued)
4-6
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging Thirty-Six Javelin Rounds as a Mass Supply Load on a 12-Foot, Type V Airdrop Platform for
Low-Velocity Airdrop
7
7. Form another layer of honeycomb on top of the plywood as described in step 1.
Figure 4-2. Honeycomb Stacks Built and Positioned (Continued)
6 September 2007
FM 4-20.152/TO 13C7-22-61
4-7
Chapter 4
POSITIONING AND SECURING JAVELIN ROUNDS
4-4. Position and secure 36 Javelin rounds as shown in Figure 4-3.
4
2
3
1

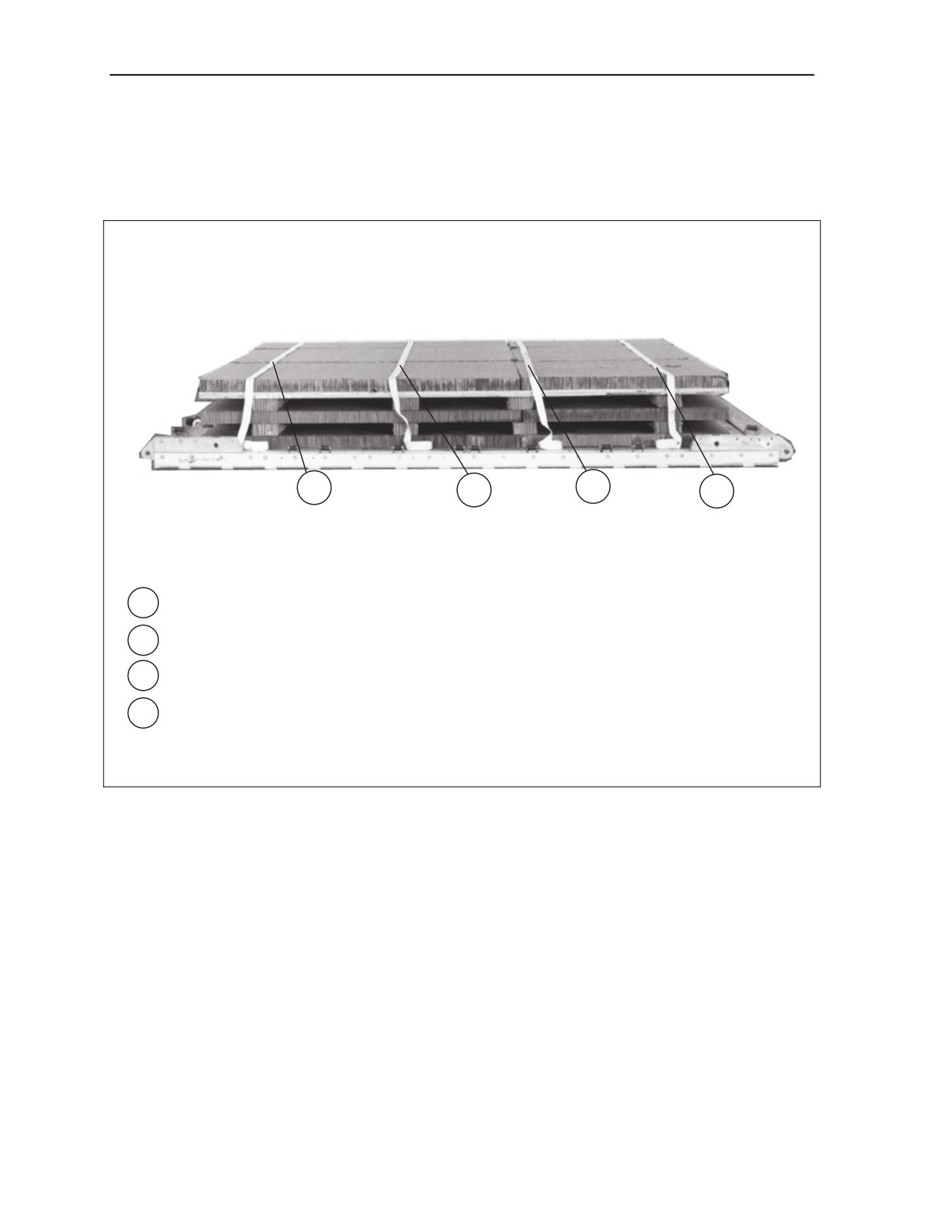

1. Preposition the first 30-foot lashing 13 inches from the front edge of the platform.
2. Preposition the second 30-foot lashing 45 inches from the front edge of the platform.
3. Preposition the third 30-foot lashing 45 inches from the rear edge of the platform.
4. Preposition the fourth 30-foot lashing 13 inches from the rear edge of the platform.

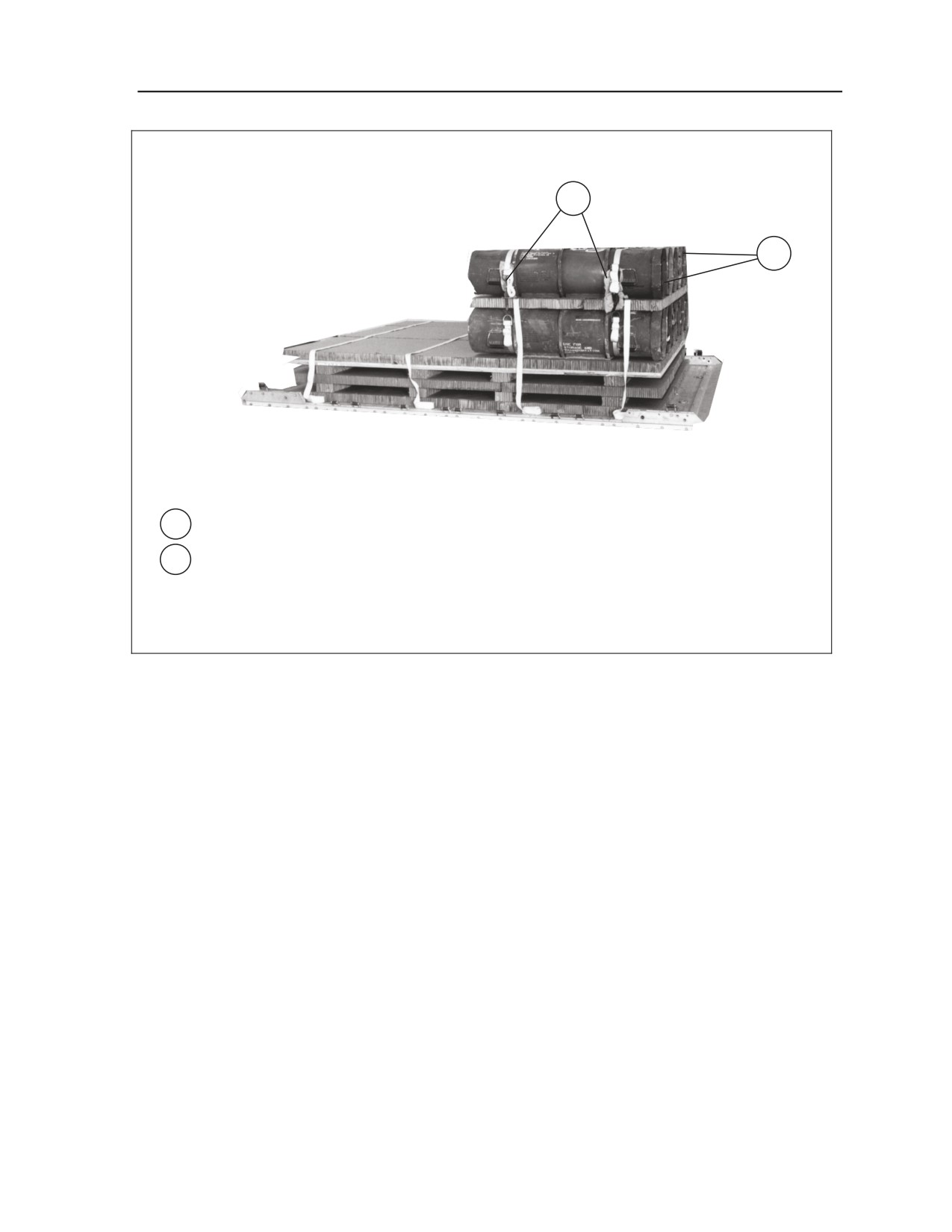

Figure 4-3. Javelin Rounds Positioned and Secured
4-8
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging Thirty-Six Javelin Rounds as a Mass Supply Load on a 12-Foot, Type V Airdrop Platform for
Low-Velocity Airdrop
5
6

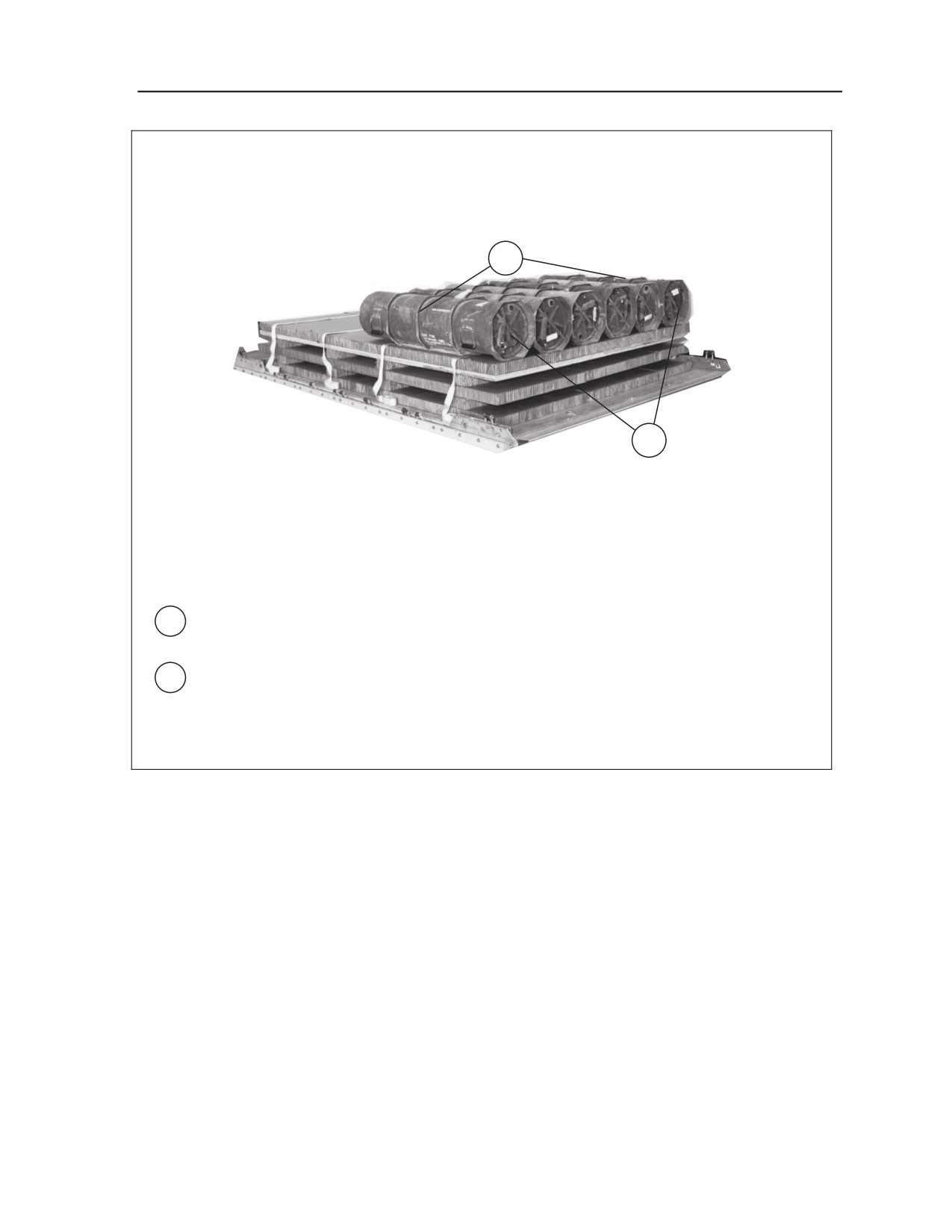

5. Position six Javelin containers on the front section of the honeycomb centered and even
with the front edge of the honeycomb.
6. Position the container opening ends to the front of the platform.

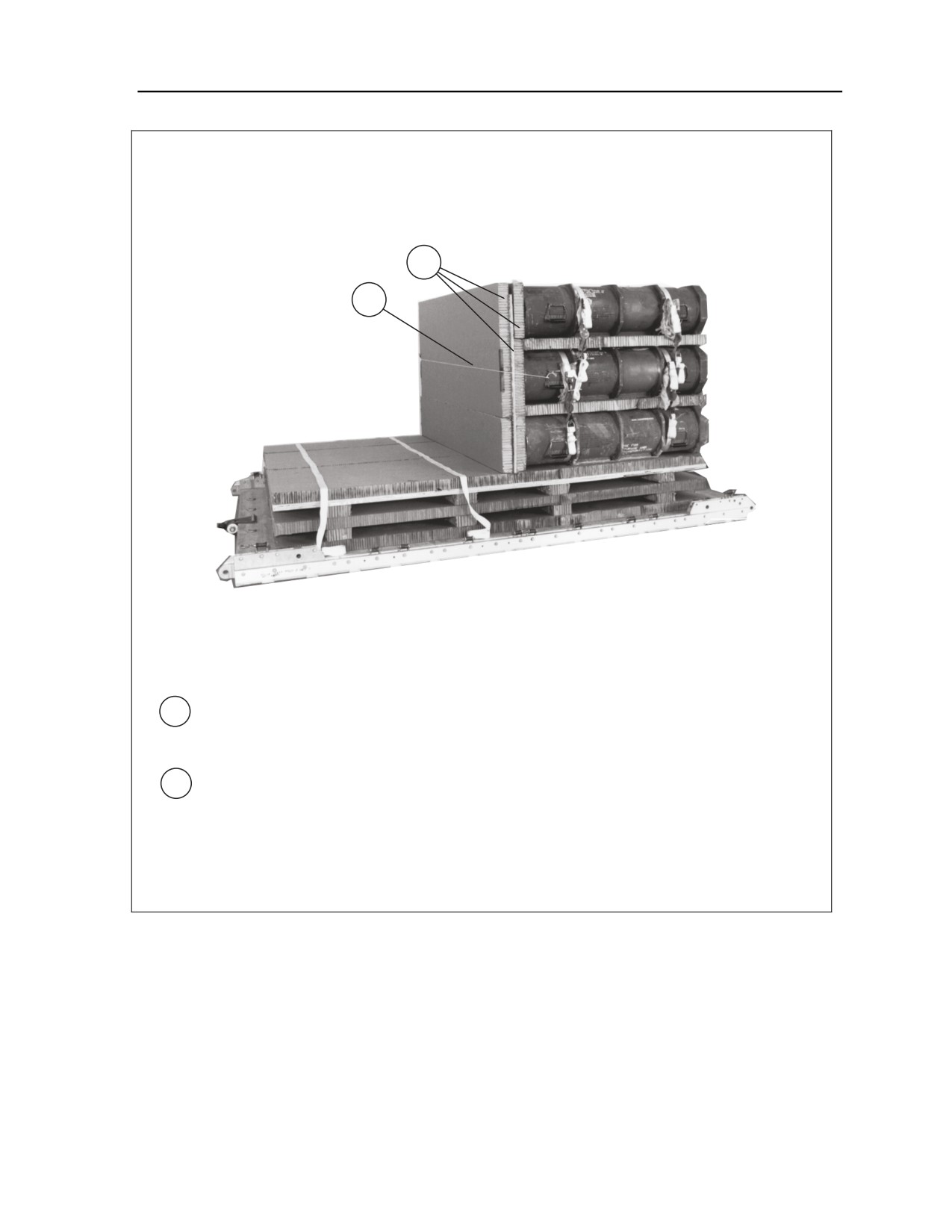

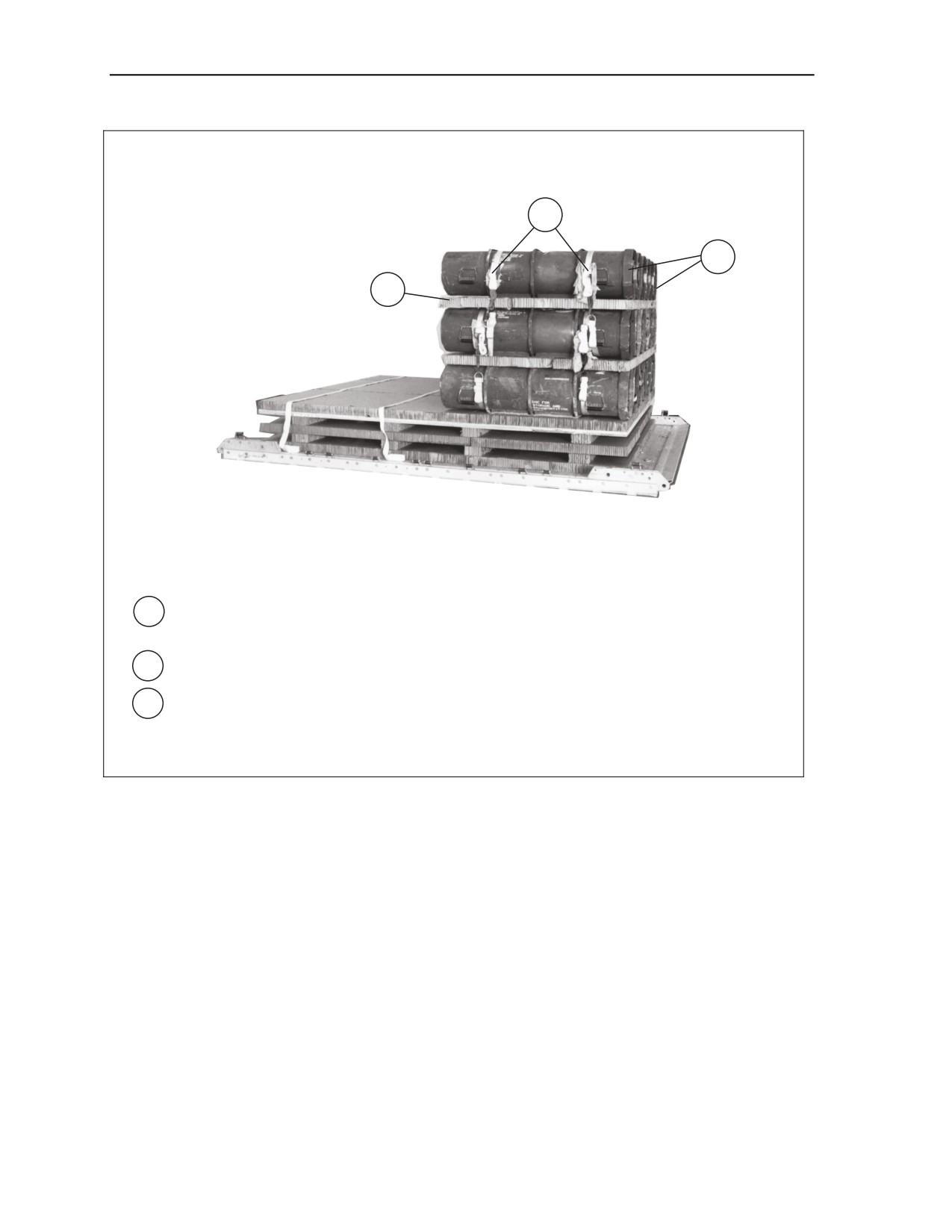

Figure 4-3. Javelin Rounds Positioned and Secured (Continued)
6 September 2007
FM 4-20.152/TO 13C7-22-61
4-9
Chapter 4

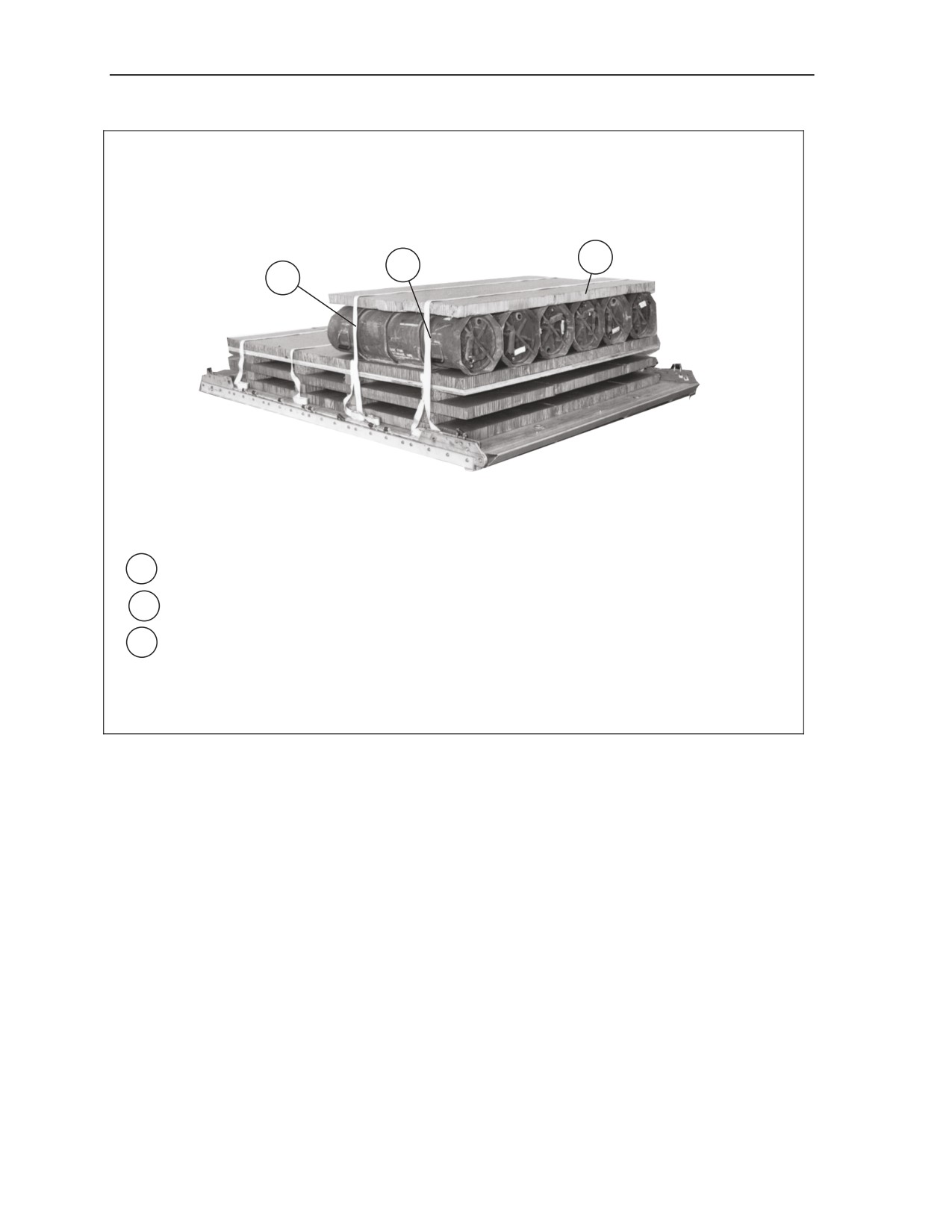

7
8
9
7. Cut and position a 59- by 92-inch piece of honeycomb centered on top of the containers.
8. Pre-position one 30-foot lashing 16 inches from the front edge of the honeycomb.
9. Pre-position a second 30-foot lashing 40 inches from the front of the honeycomb.
Figure 4-3. Javelin Rounds Positioned and Secured (Continued)
4-10
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging Thirty-Six Javelin Rounds as a Mass Supply Load on a 12-Foot, Type V Airdrop Platform for
Low-Velocity Airdrop
11
10
10. Position six more containers as described in step 5.
11. Secure all twelve containers with the front two pre-positioned lashings from steps 1 and 2.
Figure 4-3. Javelin Rounds Positioned and Secured (Continued)
6 September 2007
FM 4-20.152/TO 13C7-22-61
4-11
Chapter 4
14
13
12
12. Cut and position another 59- by 92-inch piece of honeycomb on top of the first 12
containers.
13. Position six more containers on top of the honeycomb.
14. Secure the top 12 containers with the lashings from steps 8 and 9.
Figure 4-3. Javelin Rounds Positioned and Secured (Continued)
4-12
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging Thirty-Six Javelin Rounds as a Mass Supply Load on a 12-Foot, Type V Airdrop Platform for
Low-Velocity Airdrop
15
16
15. Position two layers of 51- by 92-inch honeycomb with a 3/4- by 48- by 92-inch pieces of
plywood between the honeycomb, centered and flush with the rear of the sixteen
containers.
16. Secure the honeycomb and plywood to the containers with type III nylon cord.
Figure 4-3. Javelin Rounds Positioned and Secured (Continued)
6 September 2007
FM 4-20.152/TO 13C7-22-61
4-13
Chapter 4
17

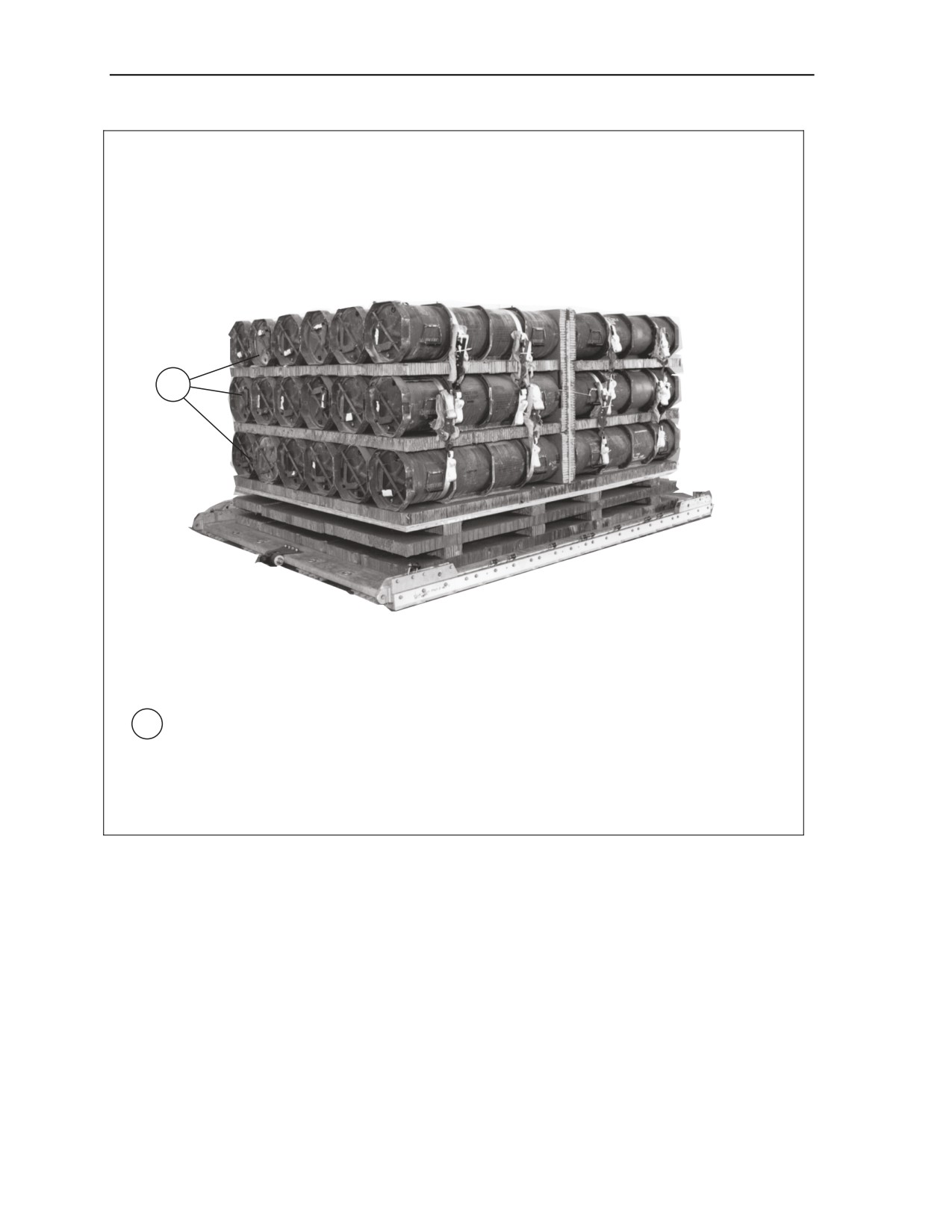

17. Position and secure 18 more containers on the platform following steps 5 through 14.
Place the containers with the open ends to the rear of the platform and make the
measurements from the rear edge of the platform honeycomb.
Figure 4-3. Javelin Rounds Positioned and Secured (Continued)
4-14
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging Thirty-Six Javelin Rounds as a Mass Supply Load on a 12-Foot, Type V Airdrop Platform for
Low-Velocity Airdrop
LASHING LOAD TO PLATFORM
4-5. Lash the load to the platform as shown in Figure 4-4.
Notes. 1. This drawing is not to scale.
2. All dimensions are in inches.
1
2

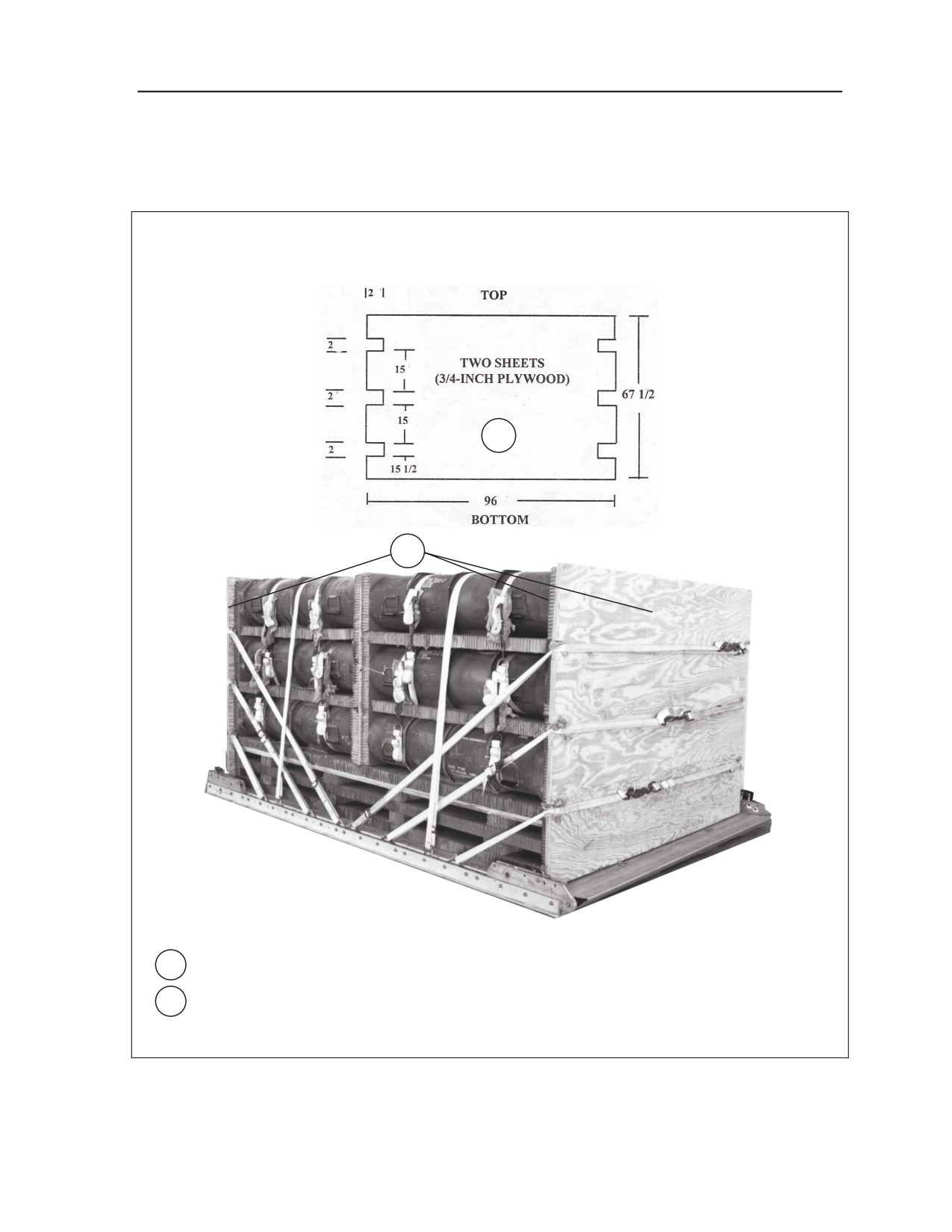

1. Cut two endboards as shown in the diagram above.
2. Cut two pieces of 36- by 92-inch honeycomb and two pieces of 31 1/2- by 96-inch
honeycomb and place one piece of each size on each end of the load with one endboard.
Figure 4-4. Load Lashed to Platform
6 September 2007
FM 4-20.152/TO 13C7-22-61
4-15
Chapter 4
3
2
4
1
5
4
3
2
Lashing
Tiedown
Instructions
Number
Clevis
Number
1
2 and 2A
Run a 15-foot lashing from clevis 2 and a 15-foot lashing from clevis 2A.
Pass the lashings through the bottom notch of the front end board. Secure
the lashings on the front using two D-rings and a load binder.
2
4 and 4A
Run a 15-foot lashing from clevis 4 and a 15-foot lashing from clevis 4A.
Pass the lashings over the top of the load. Secure the lashings on top using
another 15-foot lashing and two D-rings and a load binder.
3
3 and 3A
Run a 15-foot lashing from clevis 3 and a 15-foot lashing from clevis 3A.
Pass the lashings through the middle notch of the front end board. Secure
the lashings on the front using another 15-foot lashing and two D-rings and
a load binder.
4
5 and 5A
Run a 15-foot lashing from clevis 5 and a 15-foot lashing from clevis 5A.
Pass the lashings through the top notch of the front end board. Secure the
lashings on the front using another 15-foot lashing and two D-rings and a
load binder.
Figure 4-4. Load Lashed to Platform (Continued)
4-16
FM 4-20.152/TO 13C7-22-61
6 September 2007















Content      ..     2      3      4      5     ..
