Rigging Dragon or Dragon II Missile Containers on an 8-Foot, Type V Platform for Low-Velocity Airdrop
INSTALLING EXTRACTION SYSTEM
2-50. Attach the components of the Extraction Force Transfer Coupling (EFTC) according to FM 4-
20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 and as shown in Figure 2-53.
1
2
3
1. Attach the EFTC mounting brackets to the front holes on the left rail.
2. Install the actuator according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-
010/TO 13C7-1-5.
3. Install a 12-foot cable according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5. Safety the cable to the lashing with type I, 1/4-inch cotton
webbing.

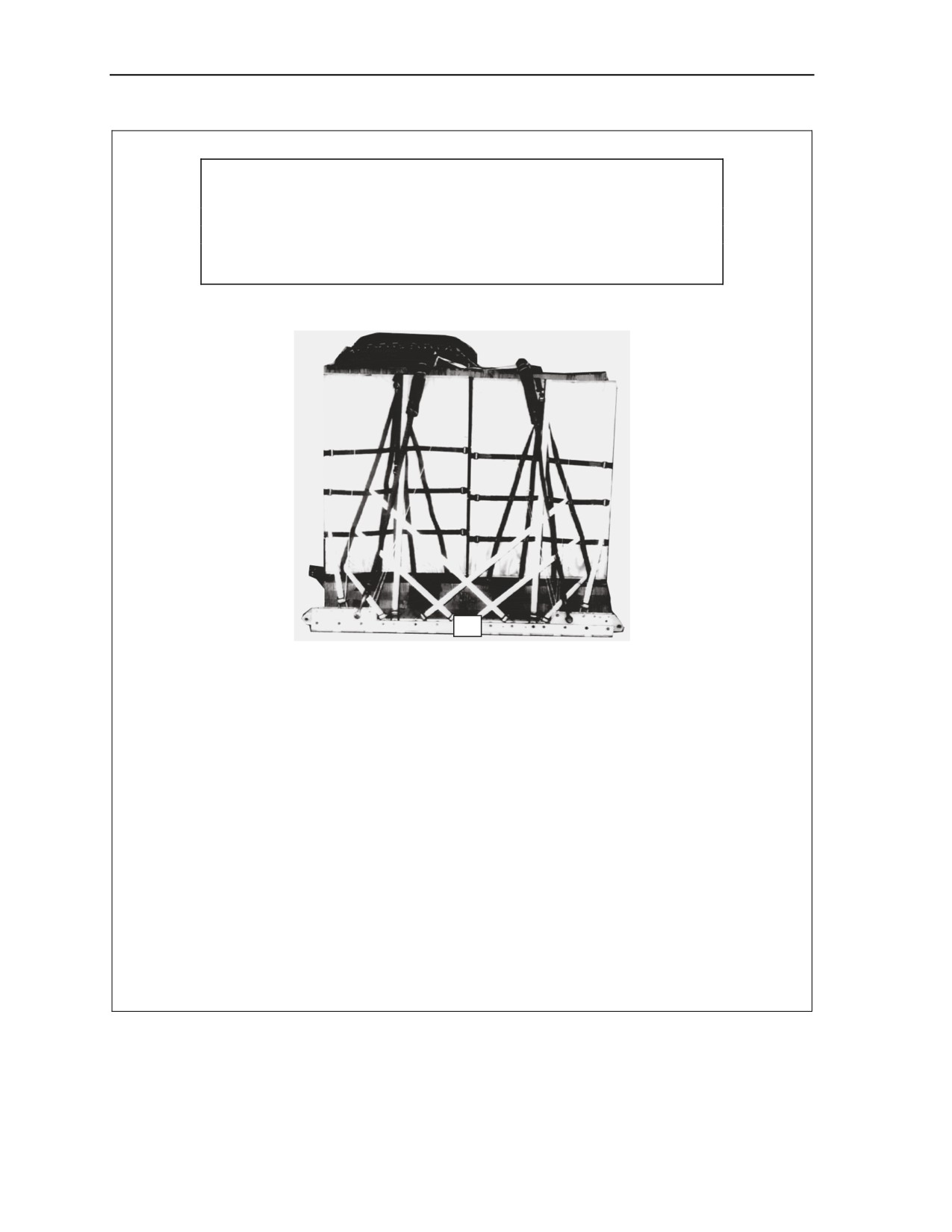

Figure 2-53. EFTC Installed
6 September 2007
FM 4-20.152/TO 13C7-22-61
2-63
Chapter 2
INSTALLING PARACHUTE RELEASE
2-51. Prepare, attach, and safety an M-1 cargo parachute release according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 and as shown in Figure 2-54.
1
2
3
4. Place the M-1 release on top of the honeycomb, and attach the suspension slings and the
parachute riser extensions.
5. Secure the M-1 release to the load with type III nylon cord.
6. S-fold and tie any excess suspension slings with type I, 1/4-inch cotton webbing.

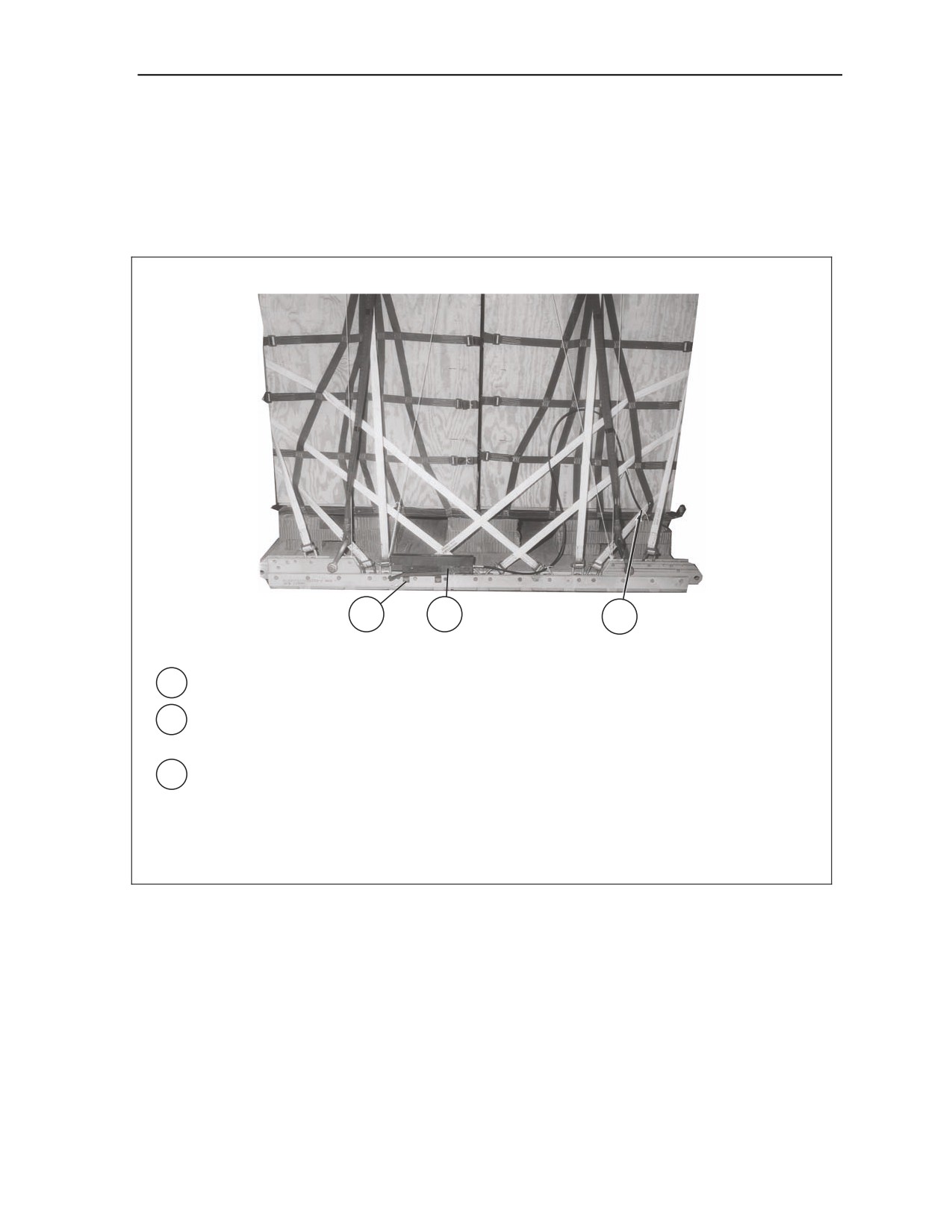

Figure 2-54. M-1 Cargo Parachute Release Installed
2-64
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging Dragon or Dragon II Missile Containers on an 8-Foot, Type V Platform for Low-Velocity Airdrop
PLACING EXTRACTION PARACHUTE
2-52. Select the extraction parachute and extraction line needed using the extraction line requirements
table in FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5. Place the extraction
parachute and line on the load for installation in the aircraft.
INSTALLING PROVISIONS FOR EMERGENCY RESTRAINTS
2-53. Select and install the provisions for the emergency aft restraints according to the emergency aft
restraint requirements table in FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-
5.
MARKING RIGGED LOAD
2-54. Mark the rigged load according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-
010/TO 13C7-1-5, and as shown in Figure 2-55. Complete Declaration for Dangerous Goods. If the load
varies from the one shown, the weight, height, CB, and parachute requirements must be recomputed.
EQUIPMENT REQUIRED
2-55. Use the equipment listed in Table 2-4 to rig this load.
6 September 2007
FM 4-20.152/TO 13C7-22-61
2-65
Chapter 2
CAUTION

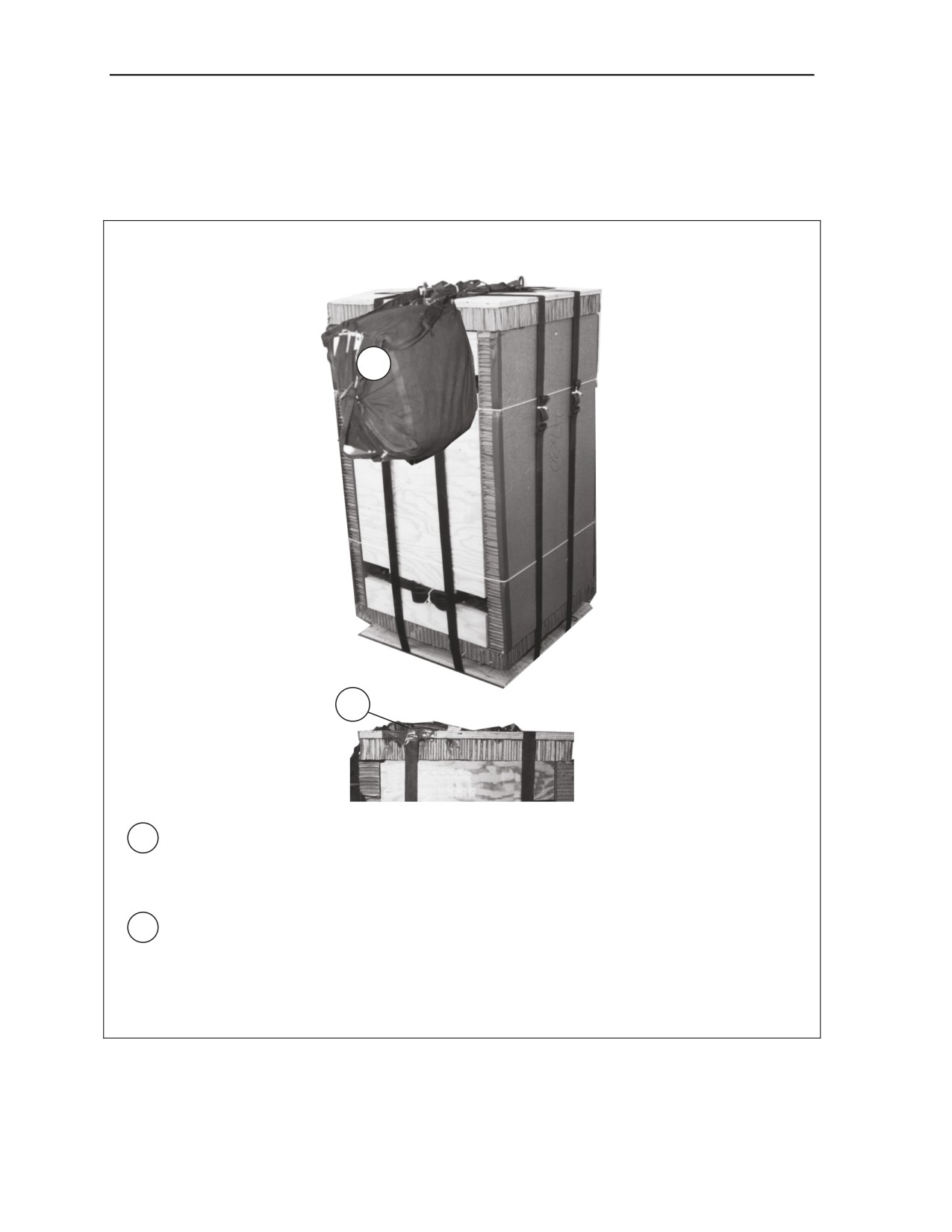

Make the final rigger inspection required by AR 59-4 and FM 4-
20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5
before the load leaves the rigging site.
CB
RIGGED LOAD DATA
Weight: Load shown
4,440 pounds
Height
83 inches
Width
108 inches
Overall Length
96 inches
Overhang: Front
0 inches
Rear
0 inches
Center of Balance (from front edge of the platform)
51 inches
Extraction System with 12-foot cable (adds 18 inches to length of platform)
EFTC

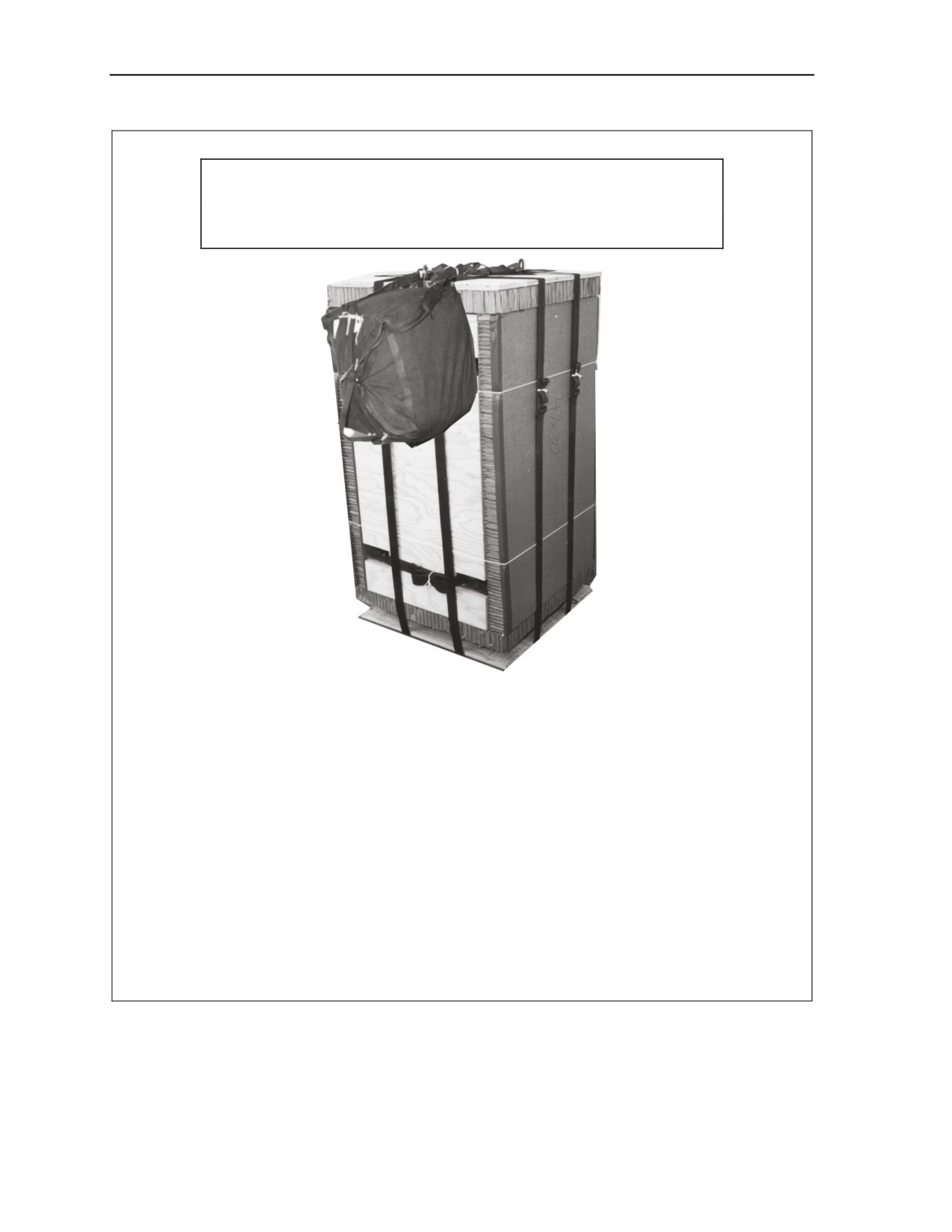

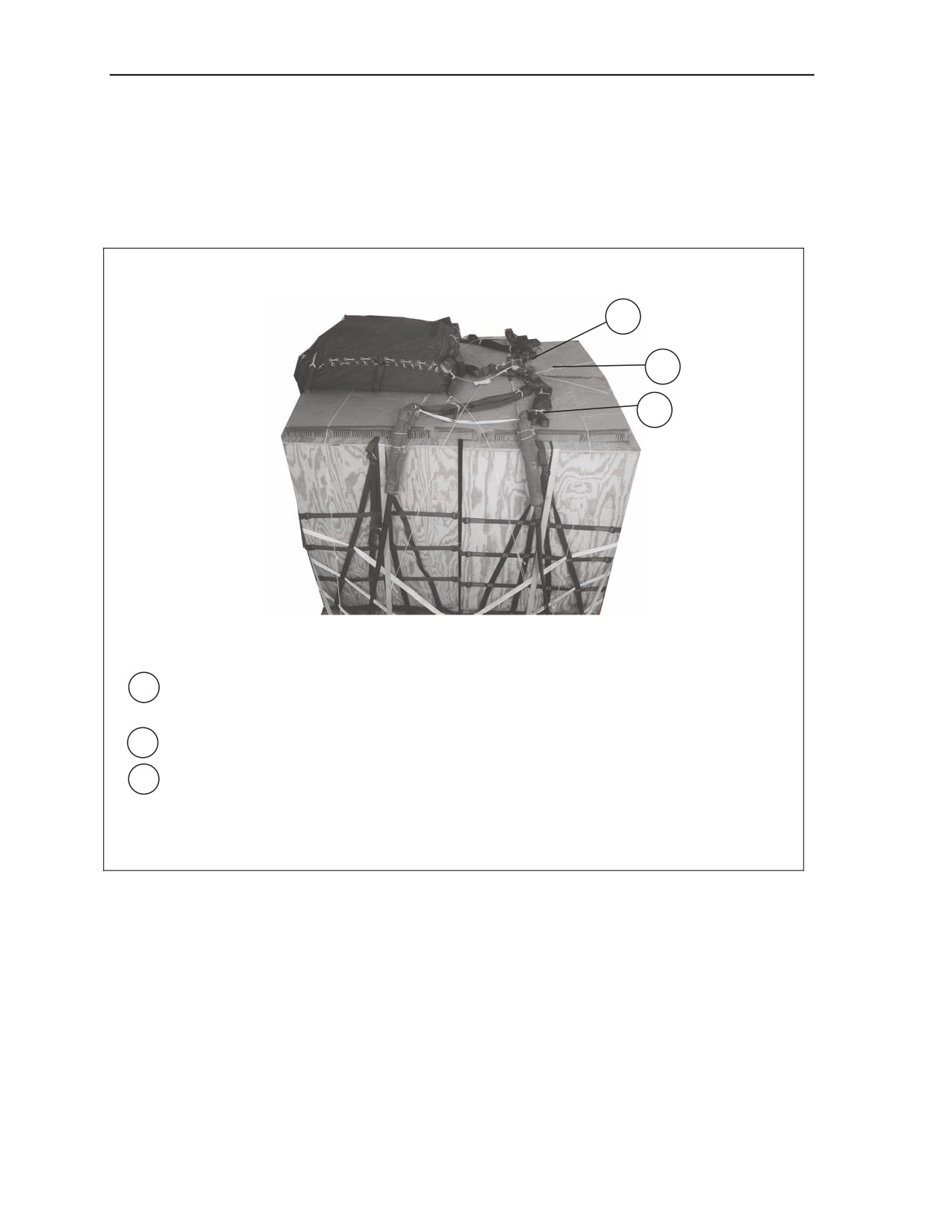

Figure 2-55. Four Fifteen-Round Containers Rigged in A-22 Cargo Slings on Type V Platform
for Low-Velocity Airdrop
2-66
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging Dragon or Dragon II Missile Containers on an 8-Foot, Type V Platform for Low-Velocity Airdrop
Table 2-4. Equipment Required for Rigging Four 15 -Round Dragon or Dragon II Missile
Containers in Four A-22 Cargo Slings on an 8-Foot, Type V Platform for Low-Velocity Airdrop
National Stock Number
Item
Quantity
8040-00-273-8713
Adhesive, paste, 1-gallon
As required
8465-00-587-3421
Bag, cargo, aerial delivery, type A-22
4
Clevis, suspension:
4030-00-678-8562
3/4-inch (medium) emergency restraint
2
4030-00-090-5354
1-inch (large)
5
4020-00-240-2146
Cord, nylon, type III
As required
1670-00-434-5783
Coupling, airdrop, extraction force transfer with
1
12-foot cable
1670-00-360-0328
Cover, clevis, large
1
8135-00-664-6958
Cushioning material, packaging, cellulose wadding
As required
8305-00-958-3685
Felt, 1/2-inch thick
As required
1670-01-183-2678
Leaf, extraction line
2
Line, extraction, type XXVI nylon webbing:
1670-01-062-6313
60-foot (1-loop)
1
Or
1670-01-107-7652
160-foot (1-loop)
2
1670-01-064-4452
60-foot (1-loop), type XXVI for C-17 drogue line
1
Link assembly, two-point:
5306-00-435-8994
Bolt, 1-inch diameter, 4-inch long
1
5310-00-232-5165
Nut, 1-inch, hexagonal
1
1670-00-003-1953
Plate, side 3 3/4-inch
1
5365-00-007-3414
Spacer, large
1
1670-00-753-3928
Pad, energy-dissipating, honeycomb
8 sheets
Parachute:
1670-01-016-7841
Cargo, G-11B
1
1670-01-063-3715
Cargo, extraction, 15-foot
1
Platform, airdrop, type V, 8-foot
1670-01-353-8425
Bracket assembly, EFTC
1
1670-01-162-2376
Bracket assembly, extraction
1
1670-01-162-2372
Clevis assembly
20
1670-01-162-2381
Tandem link
4
5530-00-128-4981
Plywood, 3/4-inch
2 sheets
1670-01-097-8816
Release, cargo parachute, M-1
1
6 September 2007
FM 4-20.152/TO 13C7-22-61
2-67
Chapter 2
Table 2-4. Equipment Required for Rigging Four 15 -Round Dragon or Dragon II Missile
Containers in Four A-22 Cargo Slings on an 8-Foot, Type V Platform for Low-Velocity
Airdrop (Continued)
National Stock Number
Item
Quantity
Sling, cargo airdrop:
For deployment line:
1670-00-753-3792
12-foot (2-loop), type XXVI nylon webbing
1
For riser extension:
1670-01-062-6301
3-foot (2-loop), type XXVI nylon webbing
5
For suspension:
1670-01-063-7761
16-foot (2-loop), type XXVI nylon webbing
4
Strap parachute release, multicut
1670-00-040-8219
1
Tape, adhesive, 2-inch
7515-00-266-5016
As required
Tape, masking
7501-00-266-6710
As required
Tie-down assembly, 15-foot
1670-00-937-0271
20
Webbing:
Cotton, 1/4-inch, type I
8305-00-268-2411
As required
Nylon:
Tubular, 1/2-inch
8305-00-082-5752
As required
Type VIII webbing
8305-00-263-3591
As required
2-68
FM 4-20.152/TO 13C7-22-61
6 September 2007
Chapter 3
Rigging the Advanced Antitank Weapon System-Medium
(Javelin) for Low-Velocity Airdrop
SECTION I-RIGGING TWO-ROUND A-7A DOOR BUNDLE
DESCRIPTION OF LOAD
3-1. The Javelin Missile System is a man-portable antitank weapon system made up of a tactical round in
a disposable launch tube and a reusable Command Launch Unit (CLU). The CLU is not rigged with the
tactical rounds. The Javelin can be airdropped as a door bundle in two-round and four-round
configurations. As a door bundle, the Javelin can be dropped only from C-130 and C-17 aircrafts. The
Javelin two-round A-7A door bundle has an approximate rigged weight of 146 pounds. It has an
approximate height of 65 1/2 inches, a width of 17 1/2 inches and a length of 30 1/4 inches. The two-round
bundle uses the T-10 cargo parachute.
PREPARING TWO-ROUND A-7A DOOR BUNDLE
3-2. Prepare the two-round A-7A door bundle according to FM 4-20.103/MCRP 4-11.3C/TO 13C7-1-11
and as shown in Figure 3-1.
6 September 2007
FM 4-20.152/TO 13C7-22-61
3-1
Chapter 3

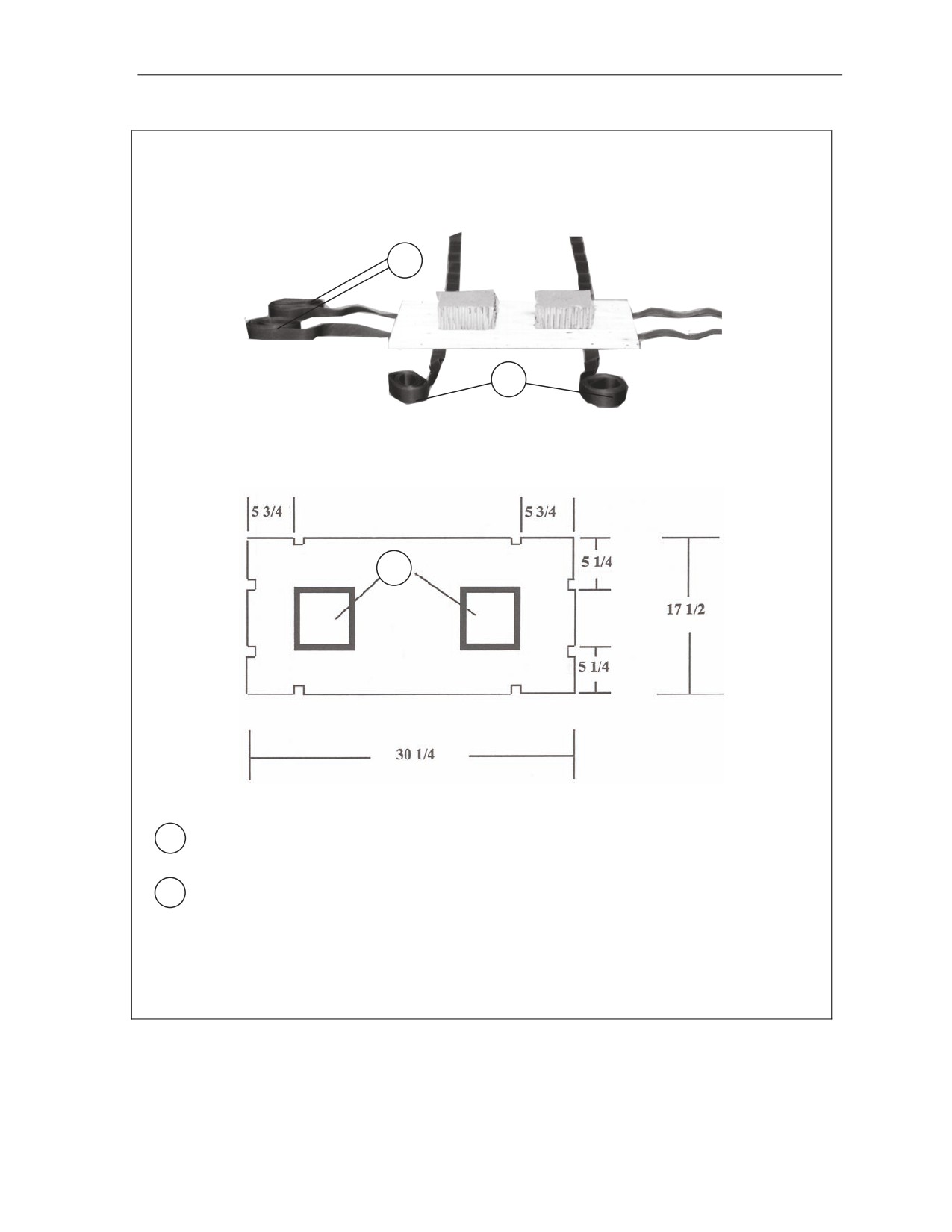

Notes. 1. This drawing is not to scale.
2. All dimensions are in inches.
1
1

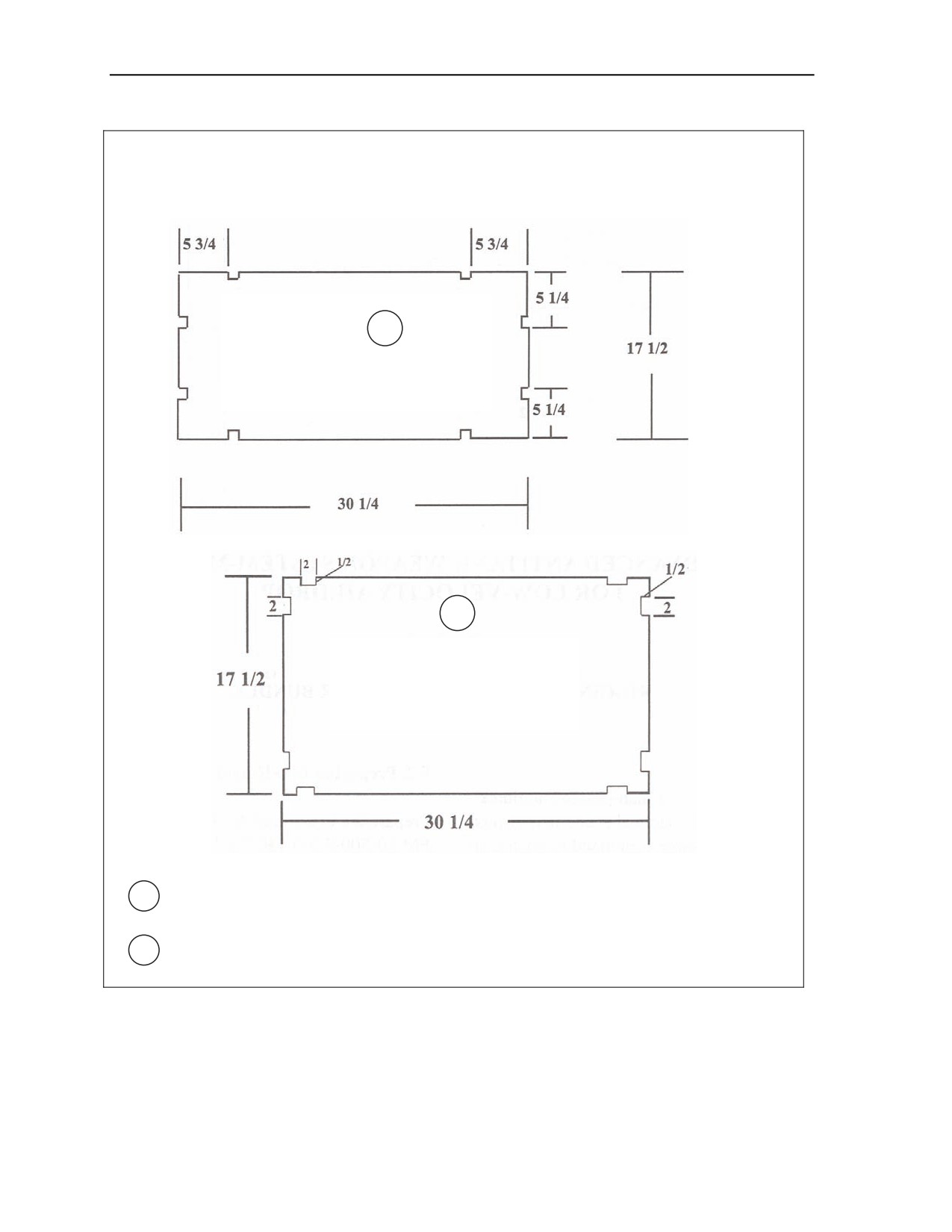

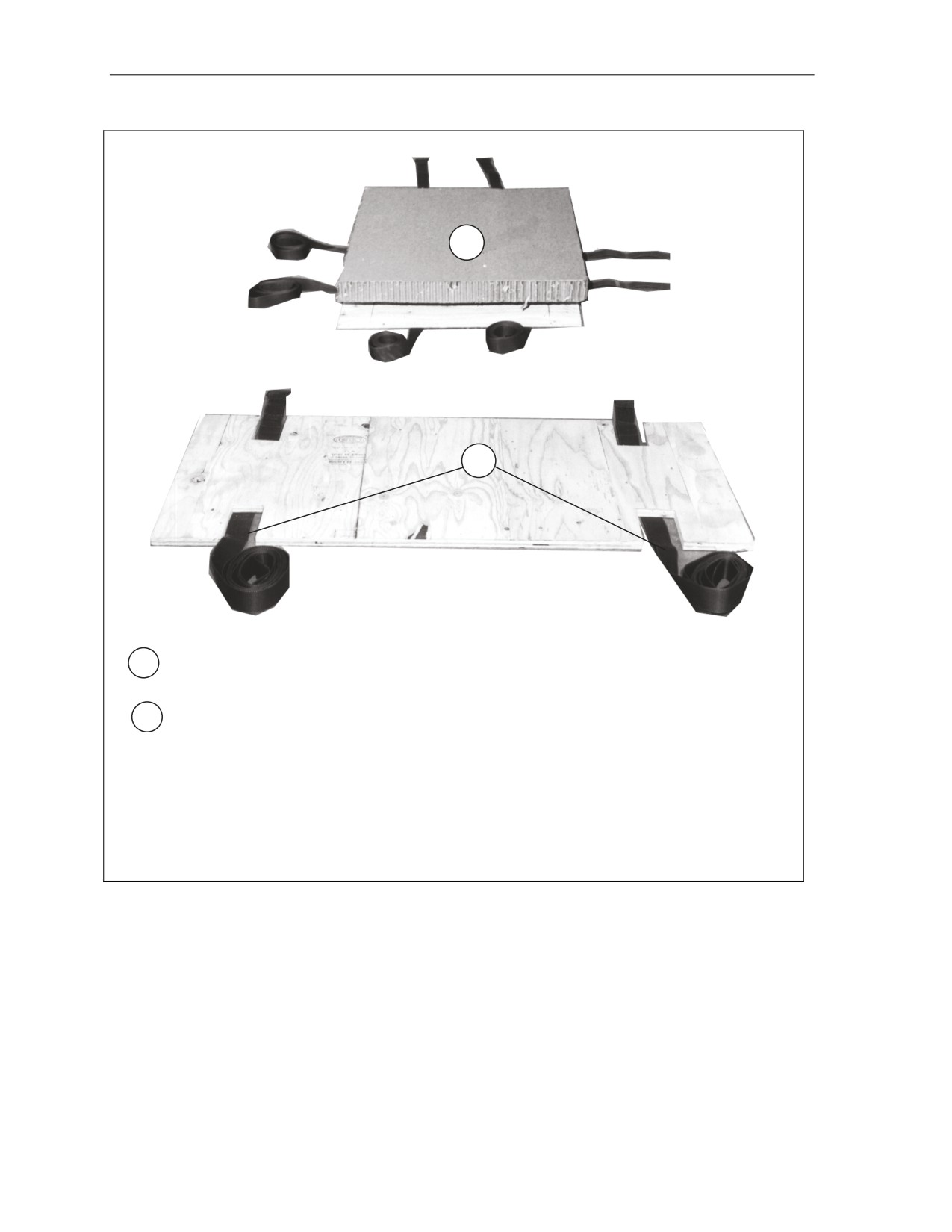

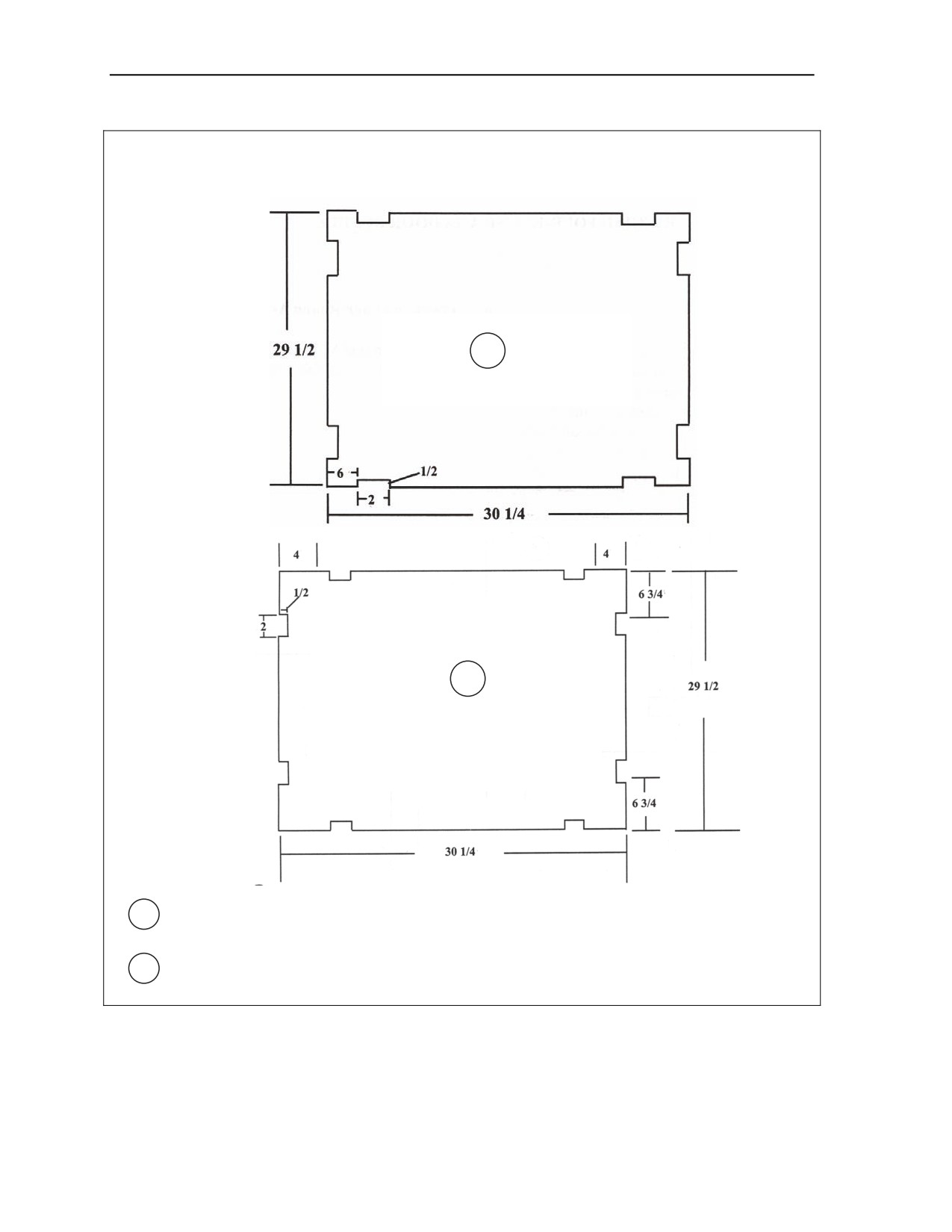

1. Cut two 17 1/2- by 30 1/4-inch pieces of 3/4-inch plywood with eight 1/2-inch by 2-inch
cutouts. Pad and tape sharp edges of the cutout.
2. Cut two 17 1/2- by 30 1/4-inch pieces of honeycomb. (Not shown)
Figure 3-1. Two-Round A-7A Door Bundle Prepared
3-2
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging the Advanced Antitank Weapon System-Medium (Javelin) for Low-Velocity Airdrop
Notes. 1. This drawing is not to scale.
2. All dimensions are in inches.
7
3
7

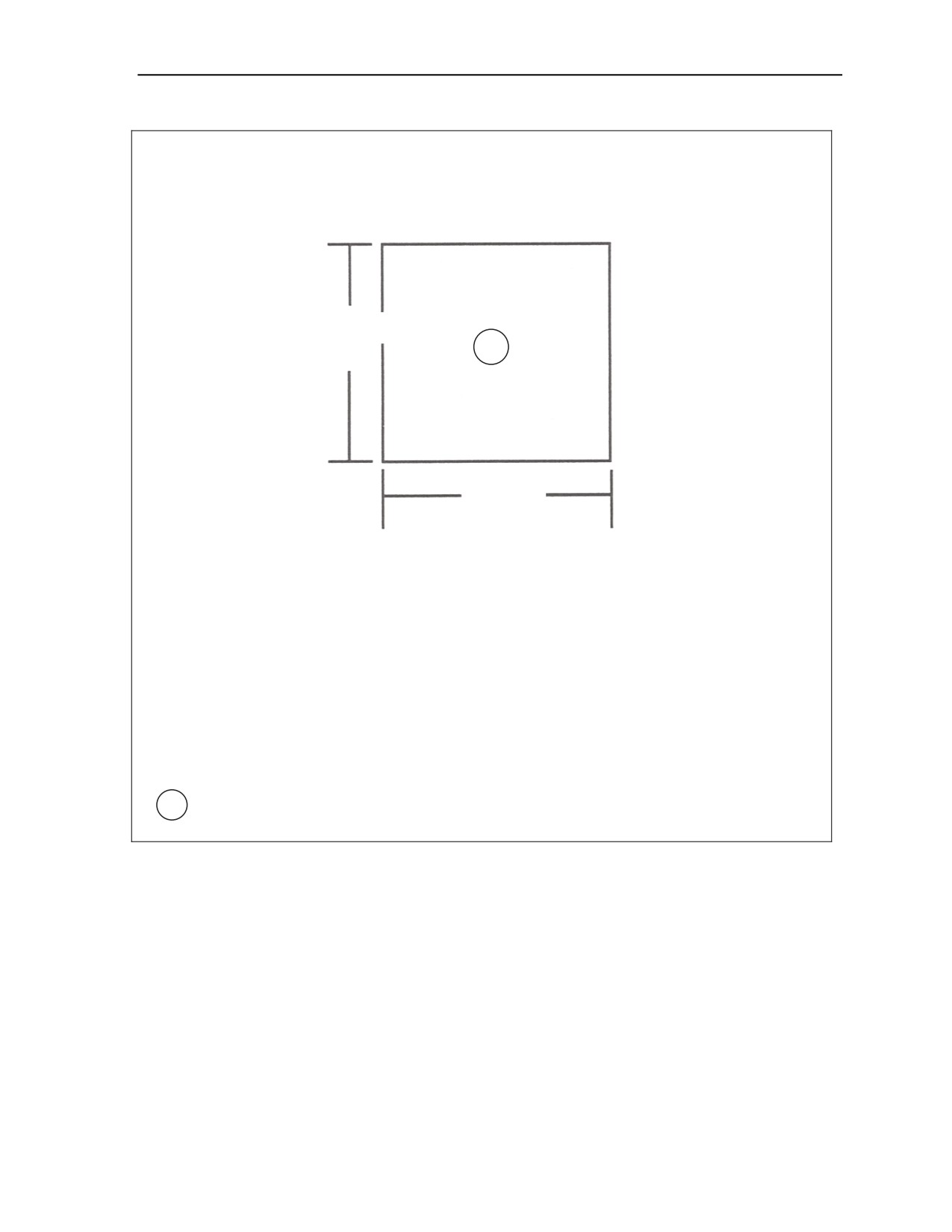

3. Cut two 7- by 7-inch pieces of honeycomb.
Figure 3-1. Two-Round A-7A Door Bundle Prepared (Continued)
6 September 2007
FM 4-20.152/TO 13C7-22-61
3-3
Chapter 3

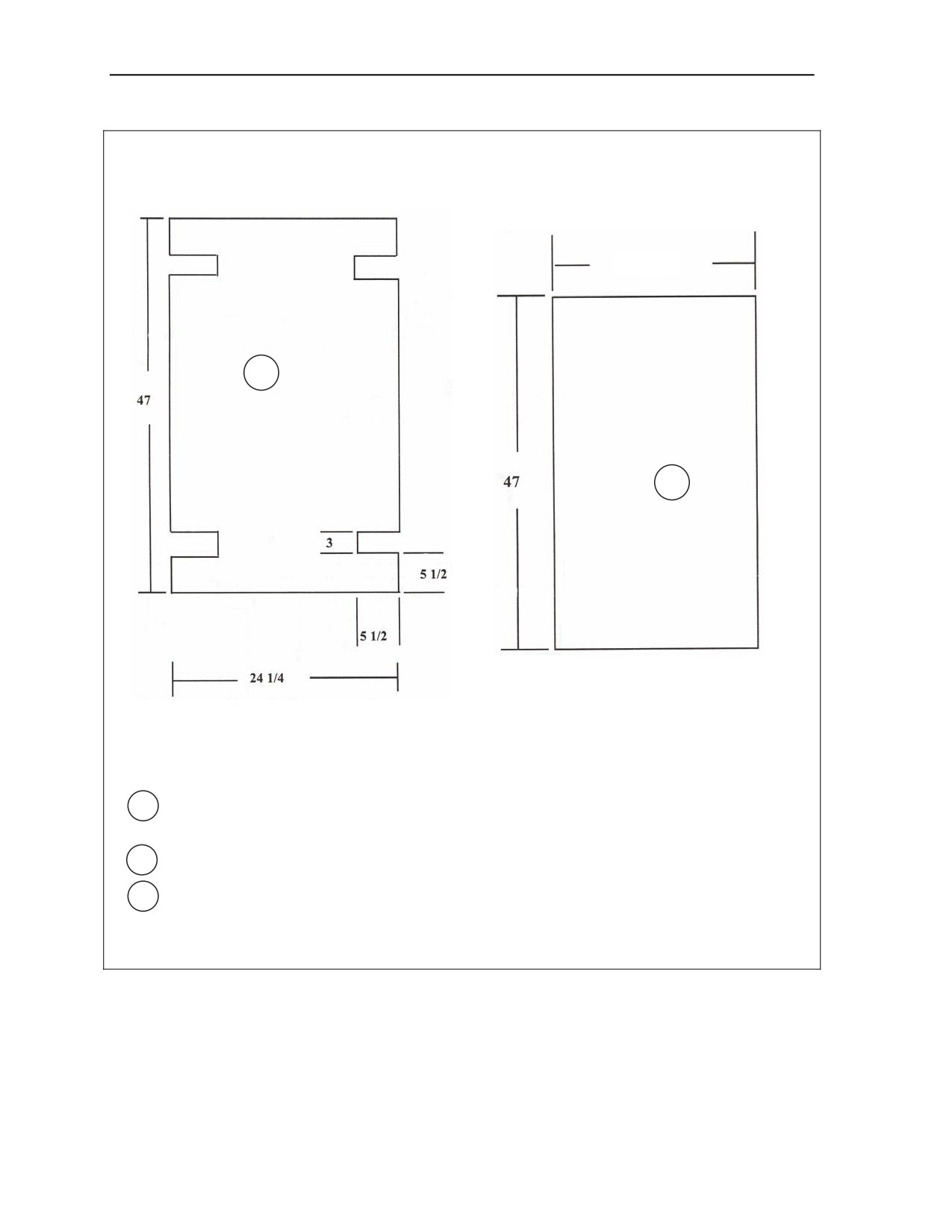

Notes. 1. This drawing is not to scale.
2. All dimensions are in inches.
4
6

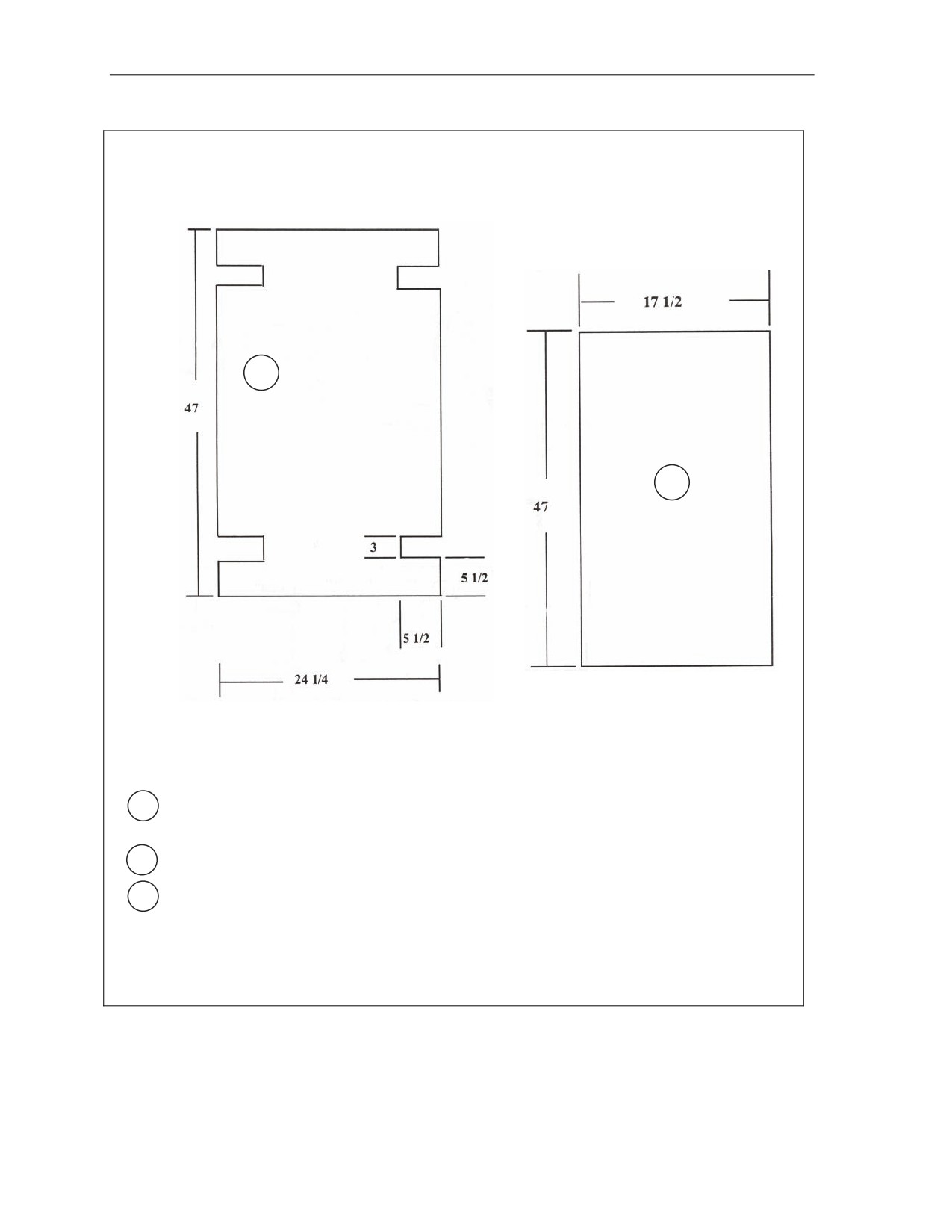

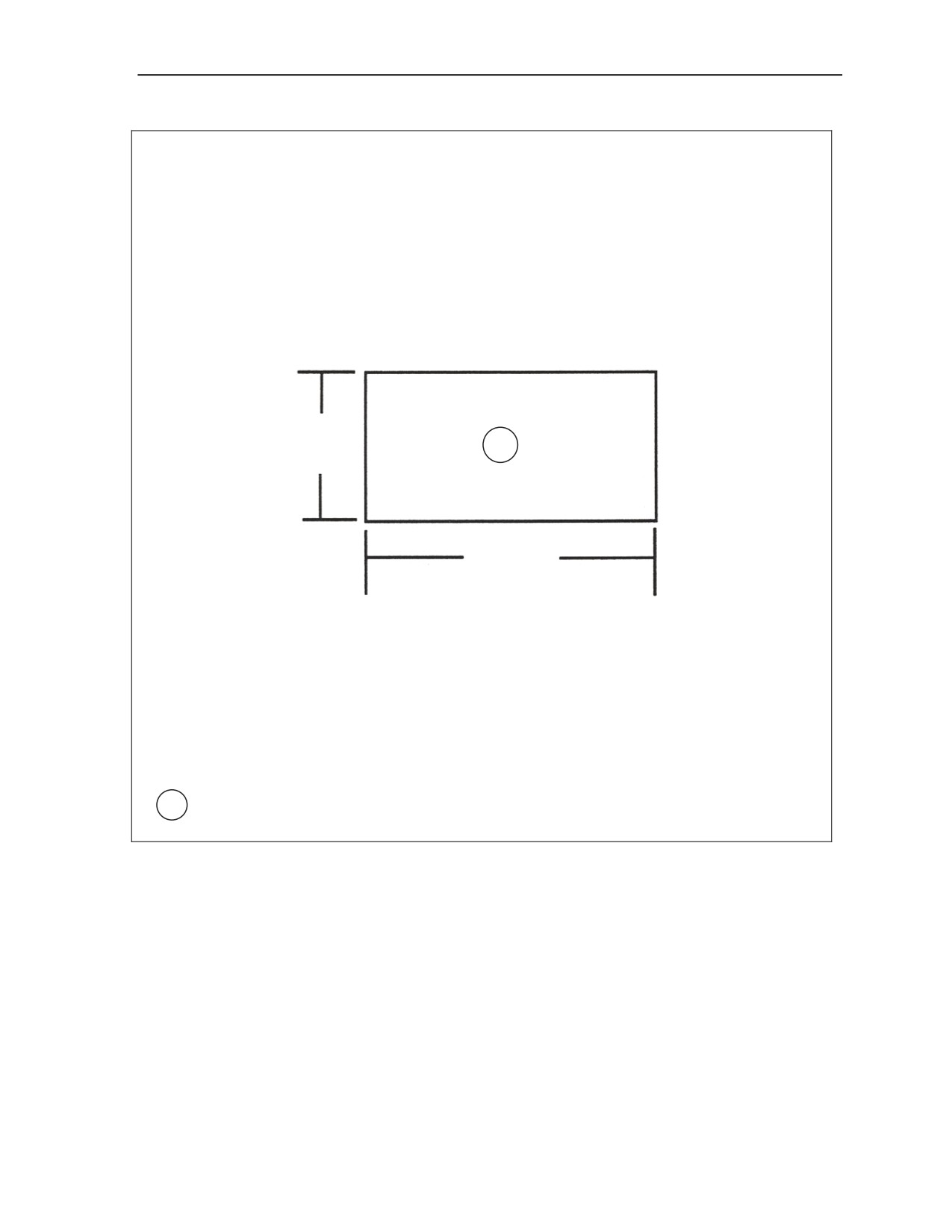

4. Cut two 3/4- by 24 1/4- by 47-inch pieces of plywood with four 3- by 5 1/2-inch cutouts.
Pad and tape sharp edges of the cutouts.
5. Cut two pieces of honeycomb to match step 4. (Not shown)
6. Cut two 17 ½- by 47-inch pieces of honeycomb.
Figure 3-1. Two-Round A-7A Door Bundle Prepared (Continued)
3-4
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging the Advanced Antitank Weapon System-Medium (Javelin) for Low-Velocity Airdrop
Notes. 1. This drawing is not to scale.
2. All dimensions are in inches.
7
7
LEFT
8
REAR
FRONT
RIGHT

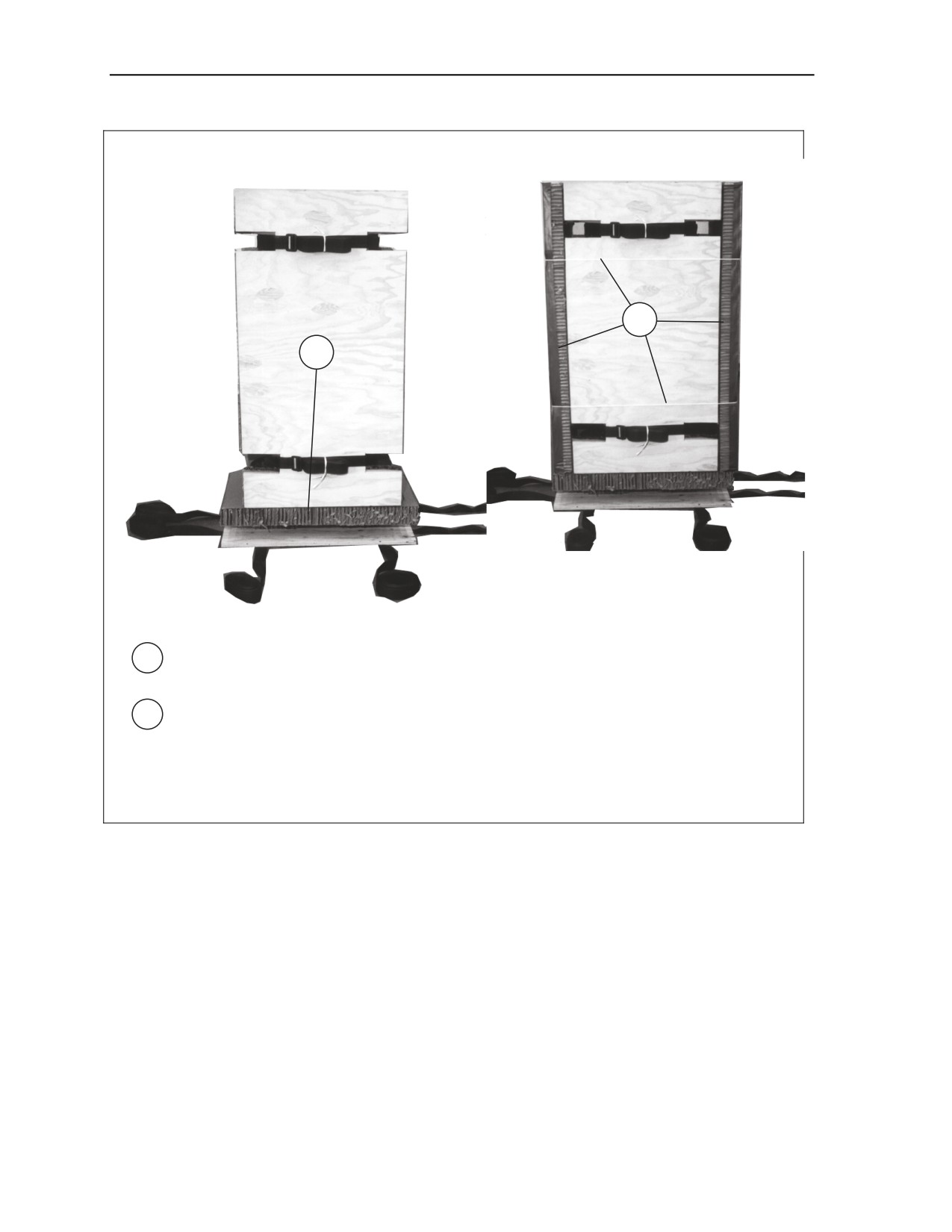

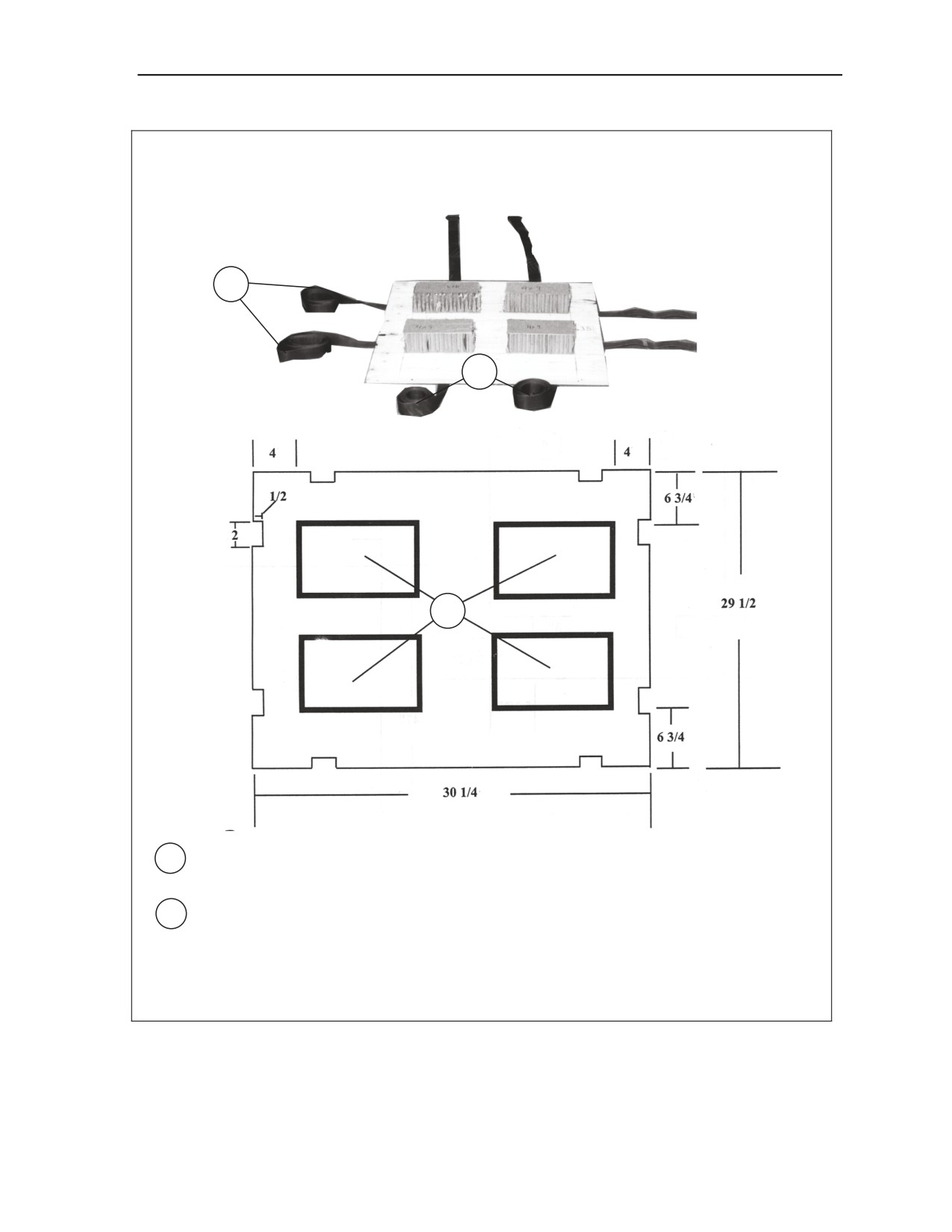

7. Position four A-7A straps under one of the 17 1/2- by 30 1/4-inch pieces of plywood.
Position each strap about 5 inches from each edge of the platform.
8. Position and glue the two 7- by 7-inch pieces of honeycomb on top of the plywood. Each
piece should be 5 1/4 inches from the right and left edges of the plywood. Each piece
should also be 5 3/4 inches from the forward edge and 5 3/4 inches from the rear edge of
the plywood.
Figure 3-1. Two-Round A-7A Door Bundle Prepared (Continued)
6 September 2007
FM 4-20.152/TO 13C7-22-61
3-5
Chapter 3
9
9. Position and glue one of the 17 ½-inch by 30 ¼-inch pieces of honeycomb centered on the
plywood in step 8.
Figure 3-1. Two-Round A-7A Door Bundle Prepared (Continued)
3-6
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging the Advanced Antitank Weapon System-Medium (Javelin) for Low-Velocity Airdrop
10
11

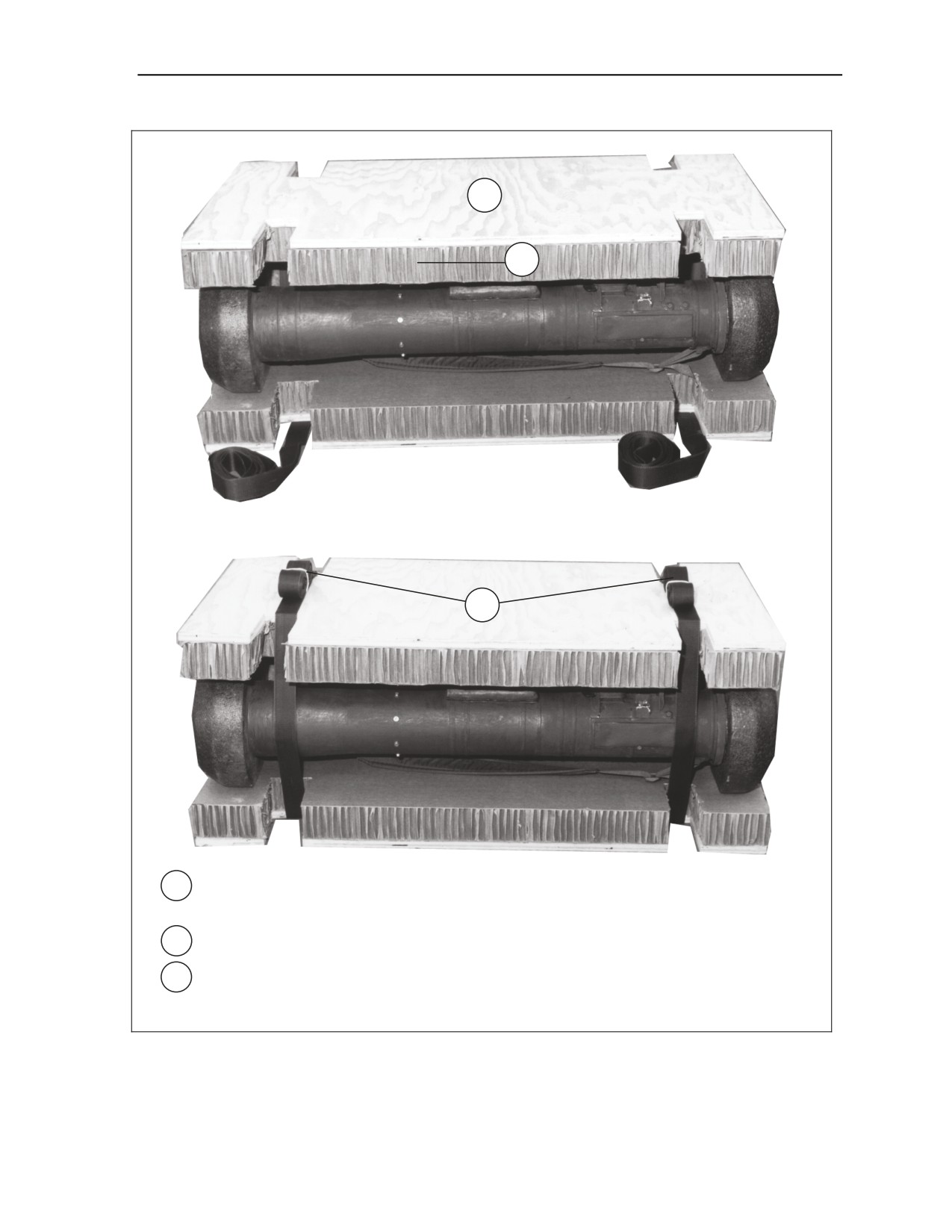

10. Position two A-7A straps, one in each set of cutouts on the 24 ¼-inch by 47-inch piece of
plywood.

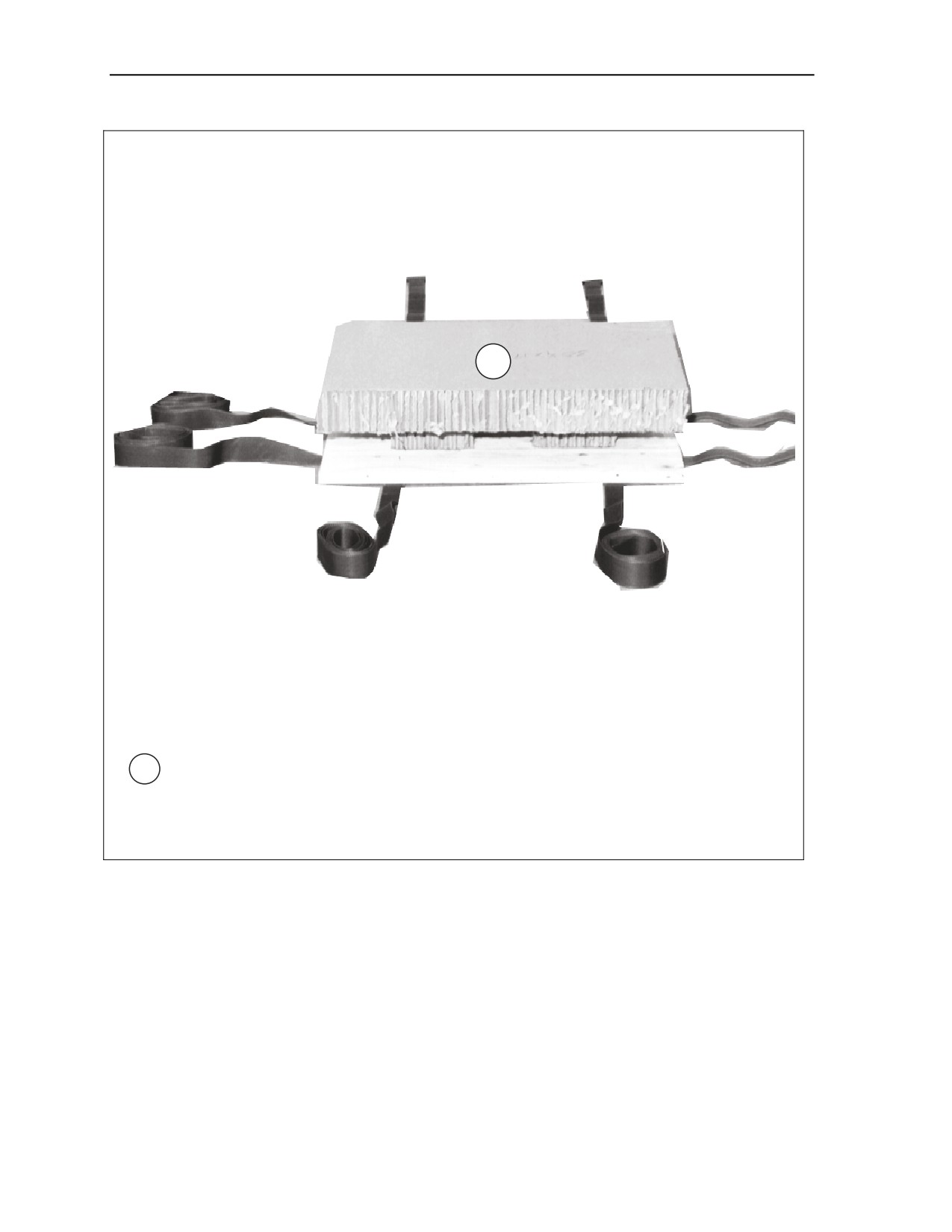

11. Position and glue one of the matching pieces of honeycomb on the top of the plywood in
step 10.
Figure 3-1. Two-Round A-7A Door Bundle Prepared (Continued)
6 September 2007
FM 4-20.152/TO 13C7-22-61
3-7
Chapter 3
COMMAND
LAUNCH UNIT
CONNECTION
12

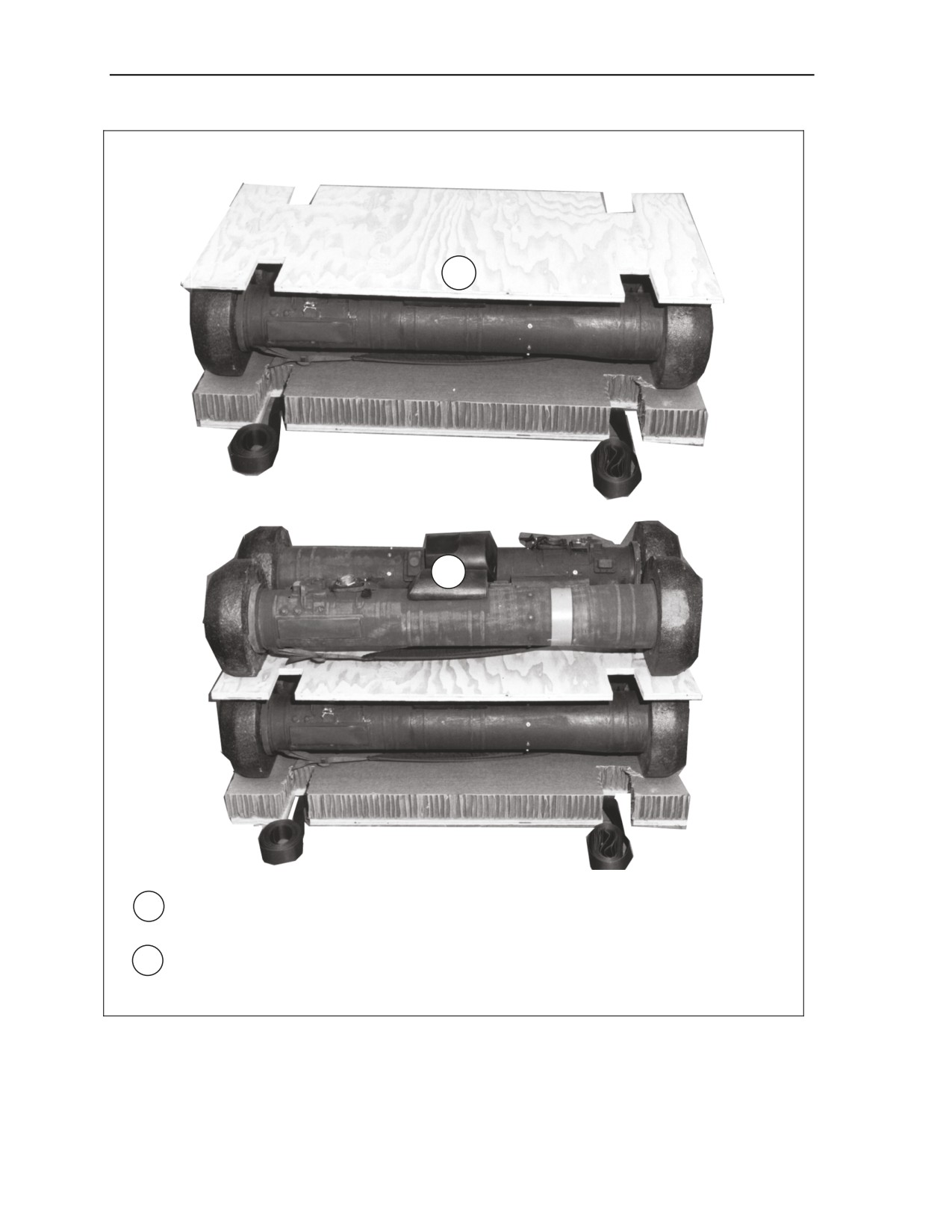

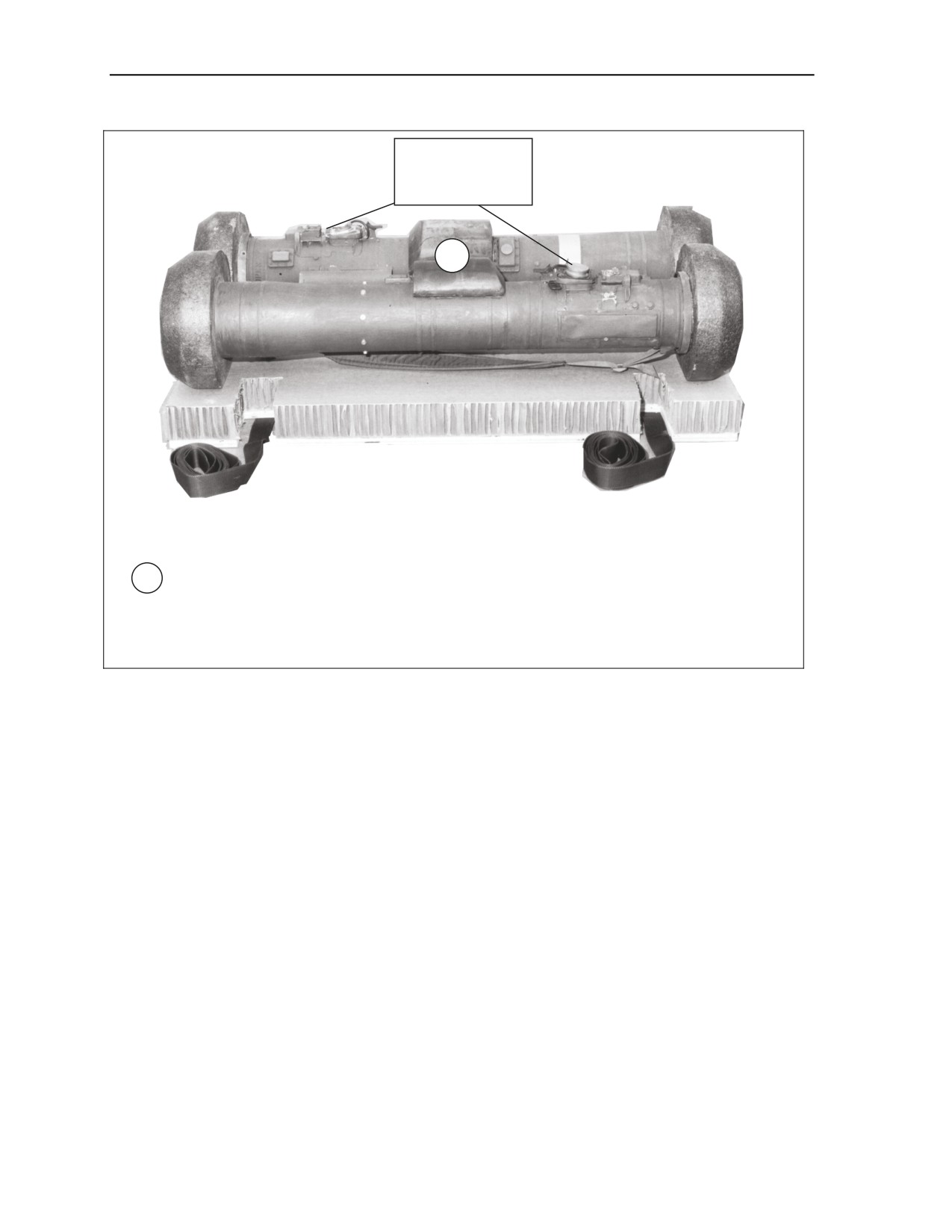

12. With the CLU connectors on opposite ends, position two Javelin rounds on the
honeycomb. Lay the rounds with the flat side of the protective foam down making sure the
battery coolant units (BCU) face inward.
Figure 3-1. Two-Round A-7A Door Bundle Prepared (Continued)
3-8
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging the Advanced Antitank Weapon System-Medium (Javelin) for Low-Velocity Airdrop
14
13
15

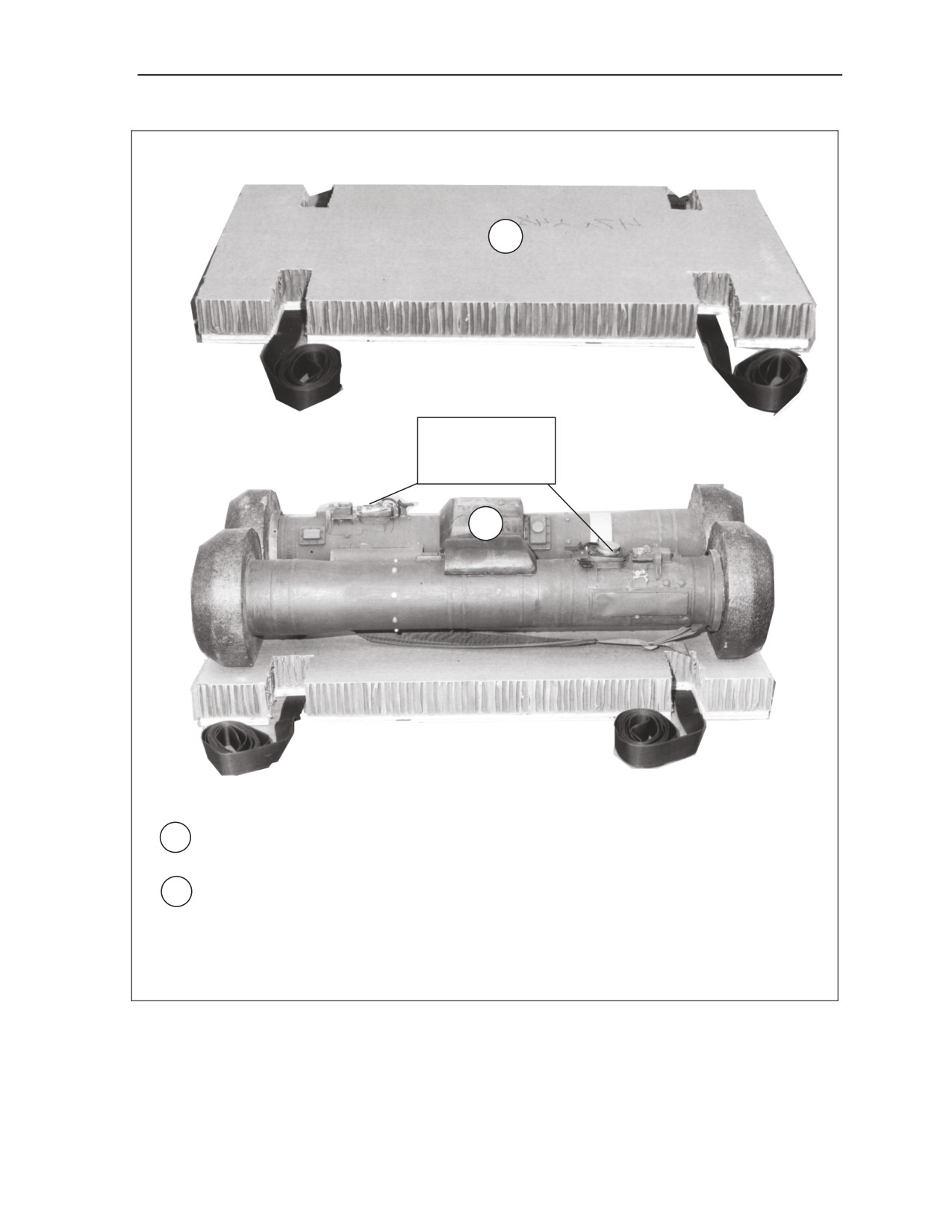

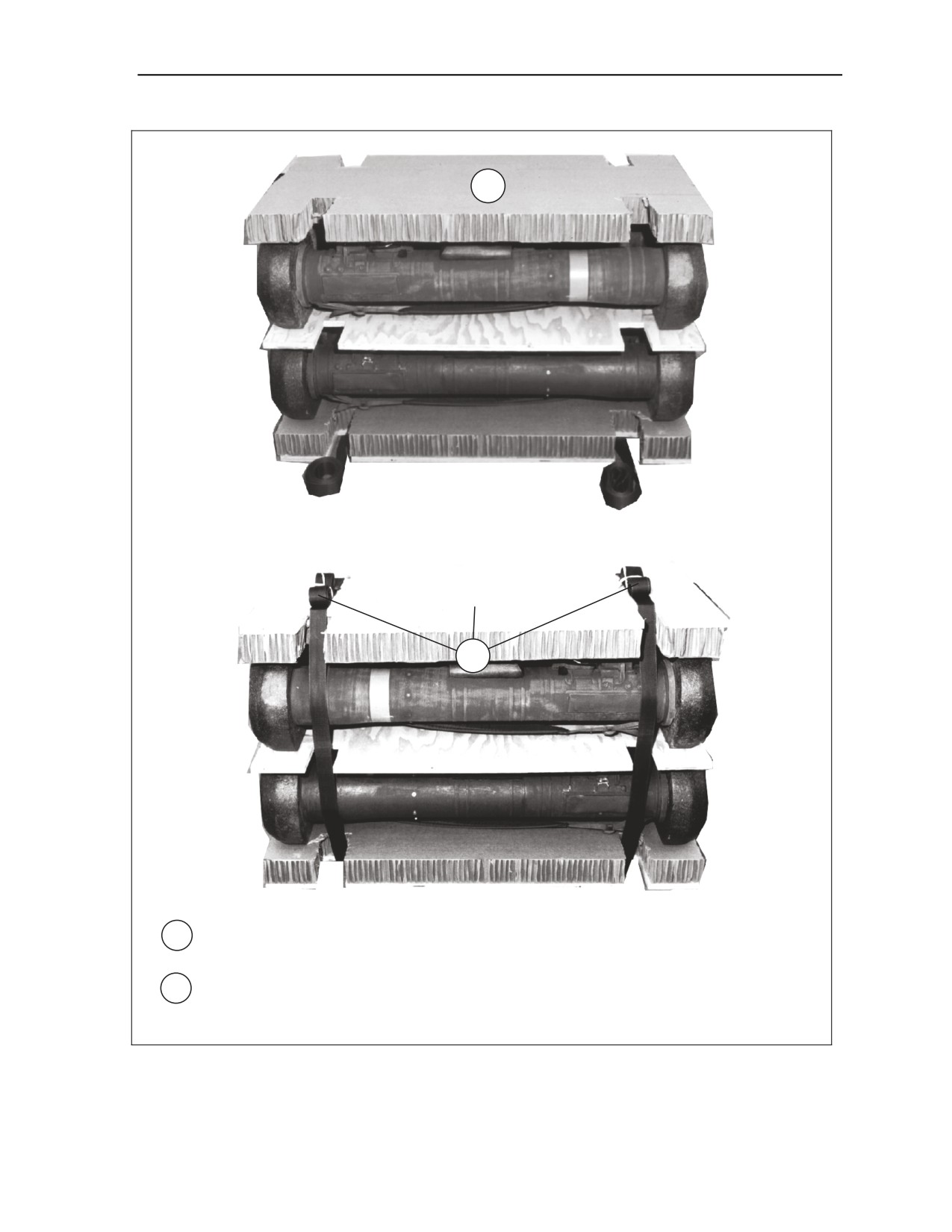

13. Position the other piece of 24 ¼- by 47-inch honeycomb with the cutouts evenly on top of
the launch tubes.
14. Position and glue the matching piece of plywood on top of the honeycomb.
15. Secure the A-7A straps. Fold and secure excess straps with one turn single type I, 1/4-inch
cotton webbing.
Figure 3-1. Two-Round A-7A Door Bundle Prepared (Continued)
6 September 2007
FM 4-20.152/TO 13C7-22-61
3-9
Chapter 3
17
16

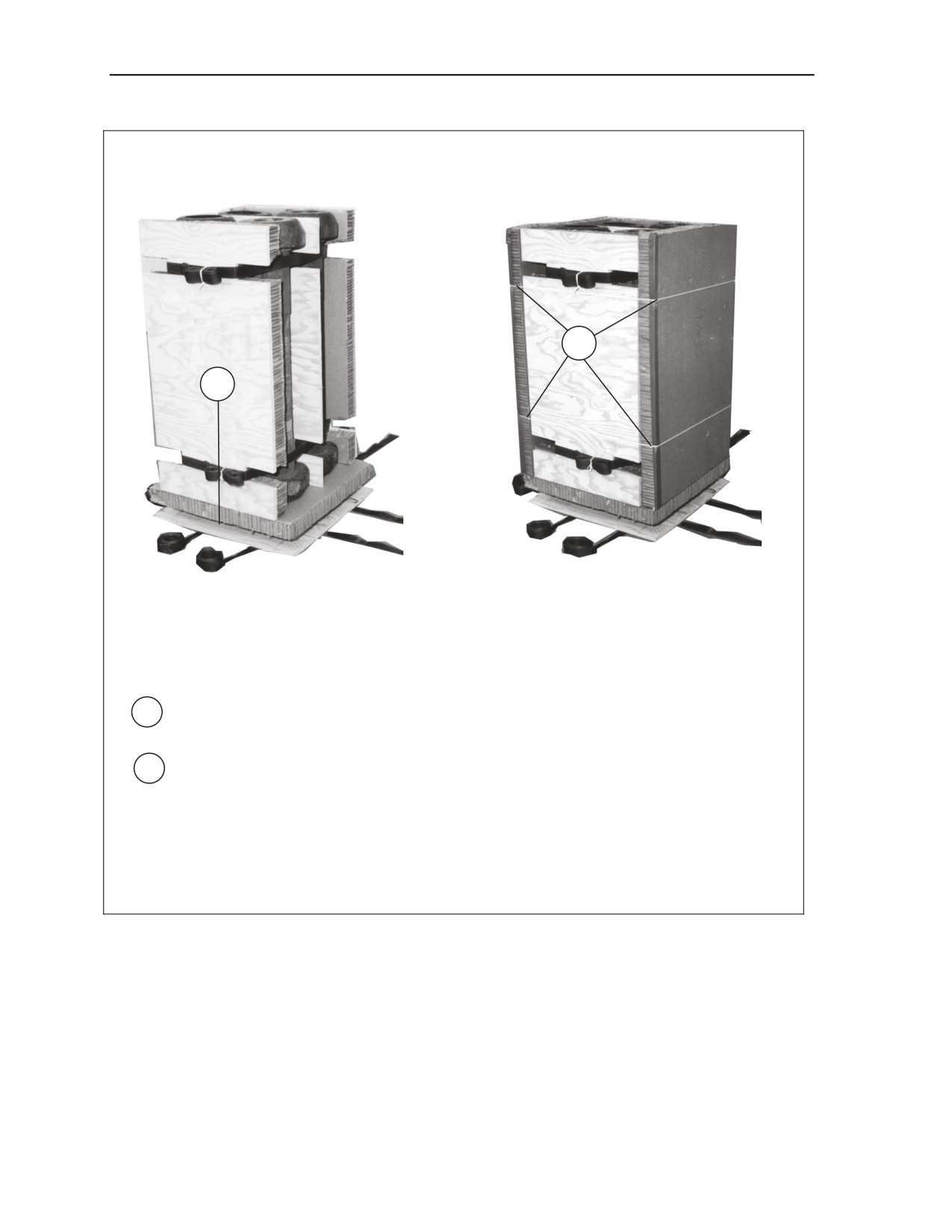

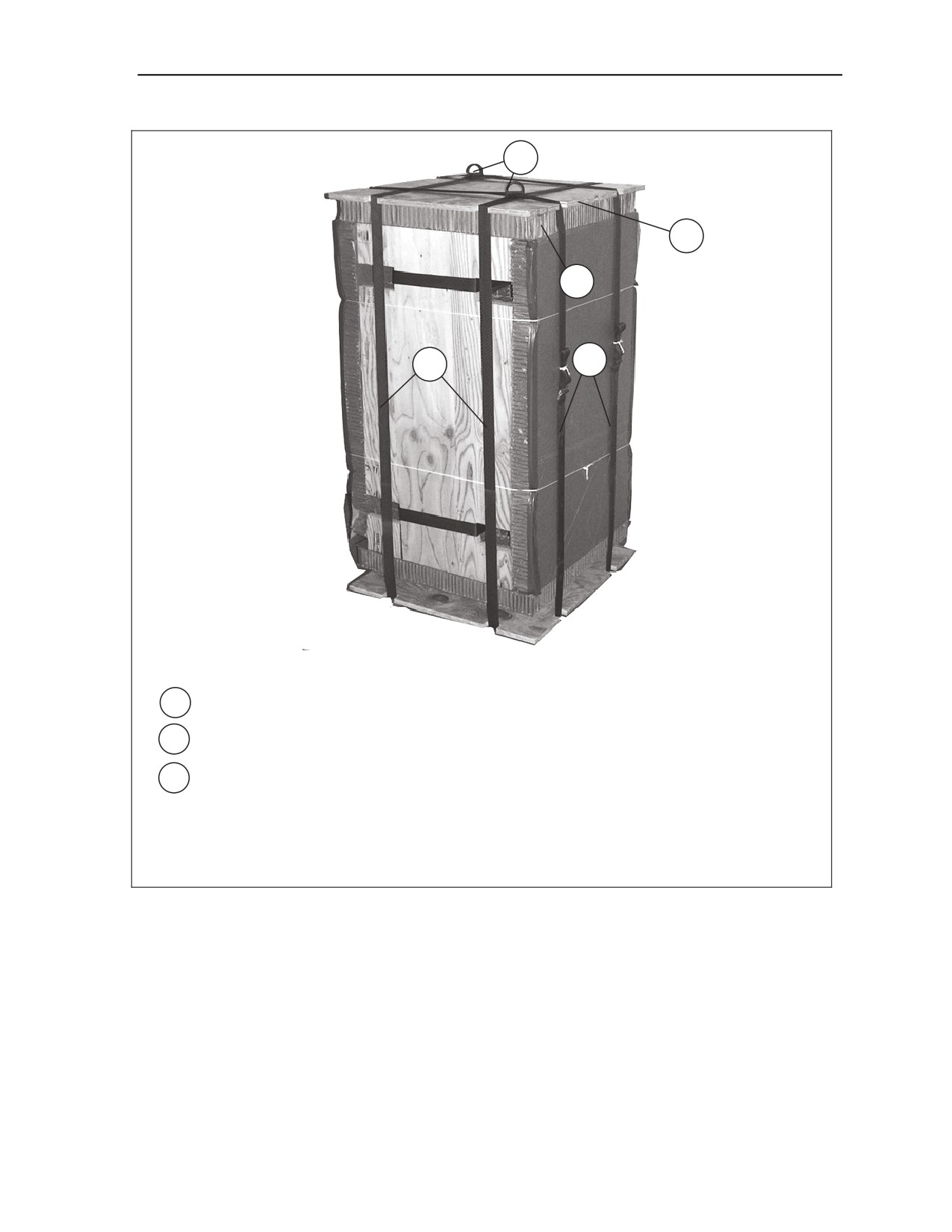

16. Using the materials from steps 7 through 9 as a base, position the materials from steps 10
through 15 on one end centered on the base.
17. Position one of the 17 1/2- by 47-inch pieces of honeycomb flush with the front of the load
and one flush with the rear of the load. Tape the edges of the honeycomb and secure it in
place with two lengths of type III nylon cord.
Figure 3-1. Two-Round A-7A Door Bundle Prepared (Continued)
3-10
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging the Advanced Antitank Weapon System-Medium (Javelin) for Low-Velocity Airdrop
20
19
18
20

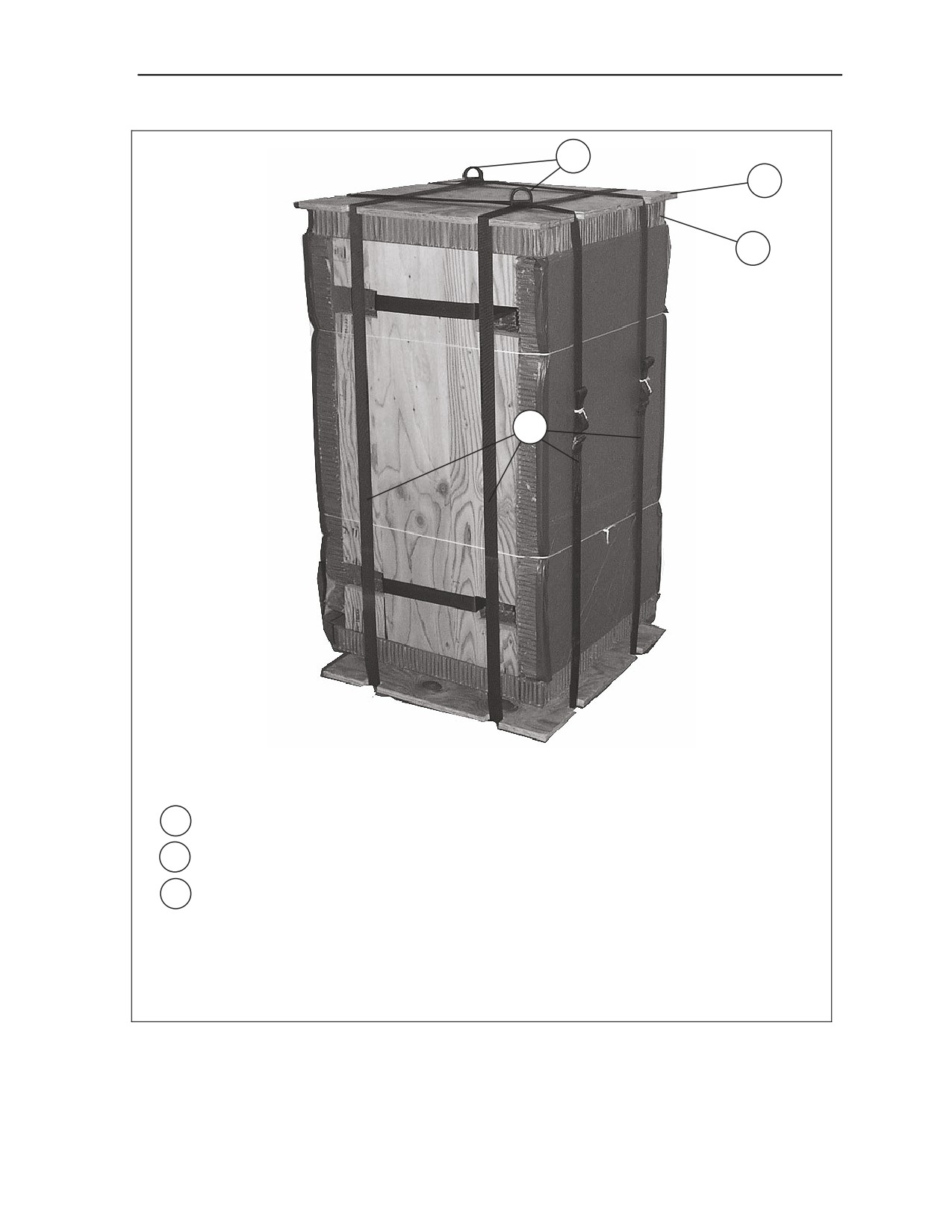

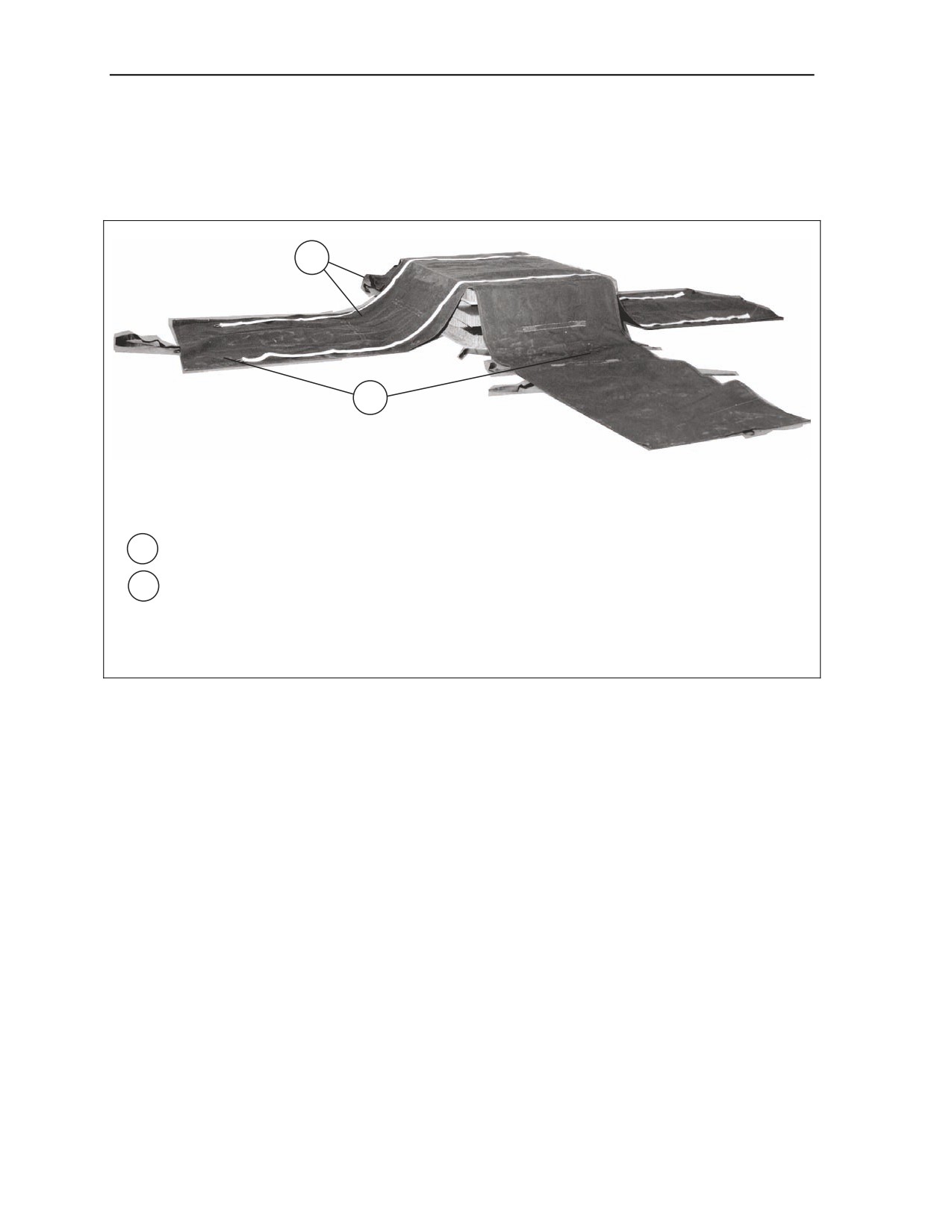

18. Position one 17 1/2- by 30 1/4-inch piece of honeycomb on top of the load.
19. Position and glue one 17 1/2- by 30 1/4-inch piece of plywood on the honeycomb.
20. Position two D-rings on top of the load. Place one in the left front corner and the other in
the right rear corner of the load. Secure in place by passing the running ends of two of the
A-7A straps in those corners through the D-rings. Secure all the A-7A straps.
Figure 3-1. Two-Round A-7A Door Bundle Prepared (Continued)
6 September 2007
FM 4-20.152/TO 13C7-22-61
3-11
Chapter 3
ATTACHING PARACHUTE TO LOAD

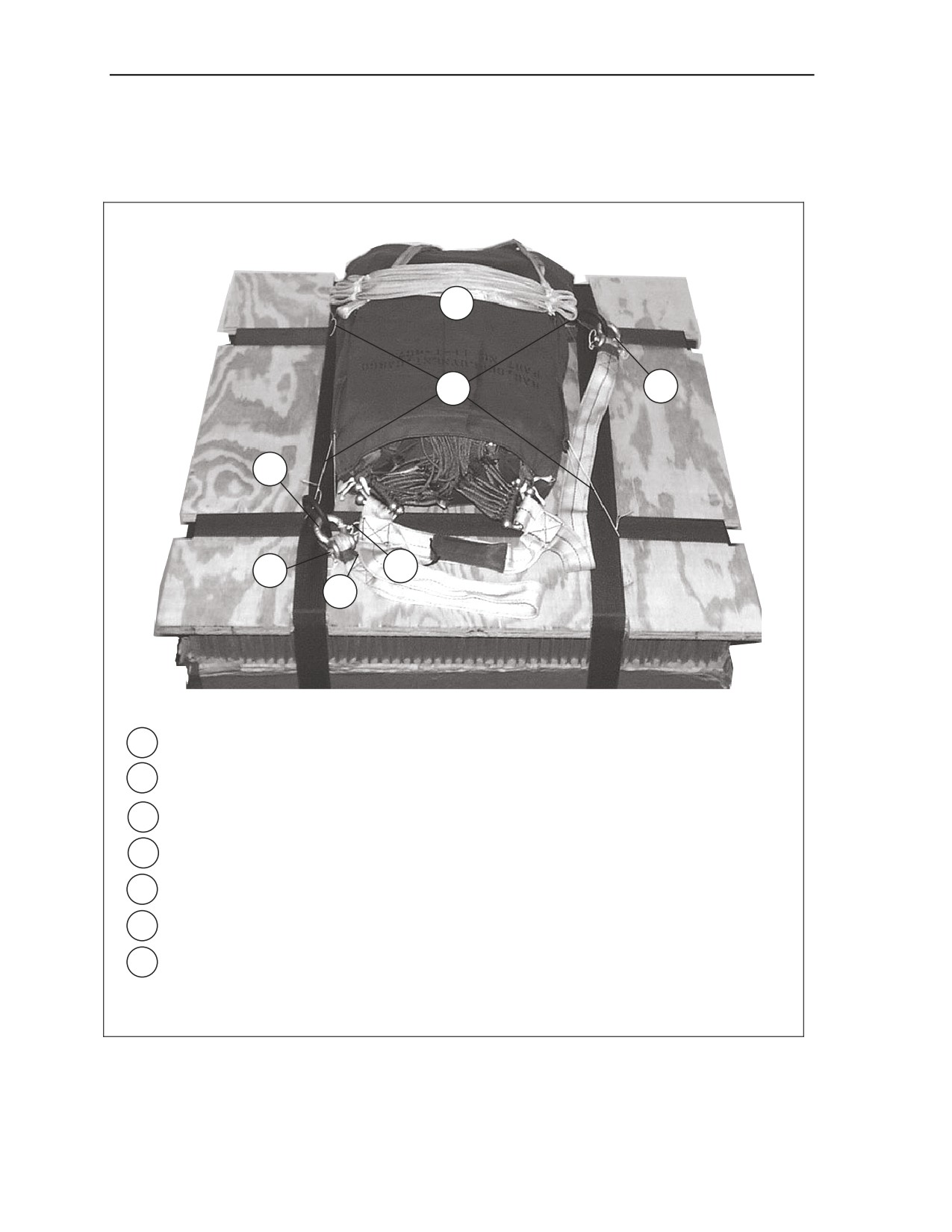

3-3. Attach a T-10 cargo parachute as shown in Figure 3-2.
1
7
6
2
5
4
3
21. Center the parachute on top of the load between the D-rings.
22. Place the bell portion of a small clevis on one D-ring.
23. Place the loop end of a riser between the clevis arms.
24. Insert the clevis pin through the holes in the clevis arms and the loop of the riser.
25. Install the cotter pin. Spread the ends of the cotter pin to secure it in place.
26. Attach the other riser to the other D-ring as described in steps 1 through 5.
27. Secure the parachute from the retainer straps to the A-7A straps with lengths of ticket
number 8/7 cotton thread.
Figure 3-2. Parachute Attached to Load
3-12
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging the Advanced Antitank Weapon System-Medium (Javelin) for Low-Velocity Airdrop
MARKING RIGGED LOAD
3-4. Mark the rigged load according to FM
4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-
010/TO 13C7-1-5 and as shown in Figure 3-3. Complete Shippers Declaration for Dangerous Goods and
affix to load.
EQUIPMENT REQUIRED
3-5. Use the equipment in Table 3-1 to rig this load.
CAUTION
Mark the load “Door Bundle Only, Do Not Drop From ATF Ramp”
RIGGED LOAD DATA
Weight: Load shown
146 pounds
Height
65 1/2 inches
Width
17 1/2 inches
Overall Length
30 1/4 inches
Parachute
T-10 Cargo

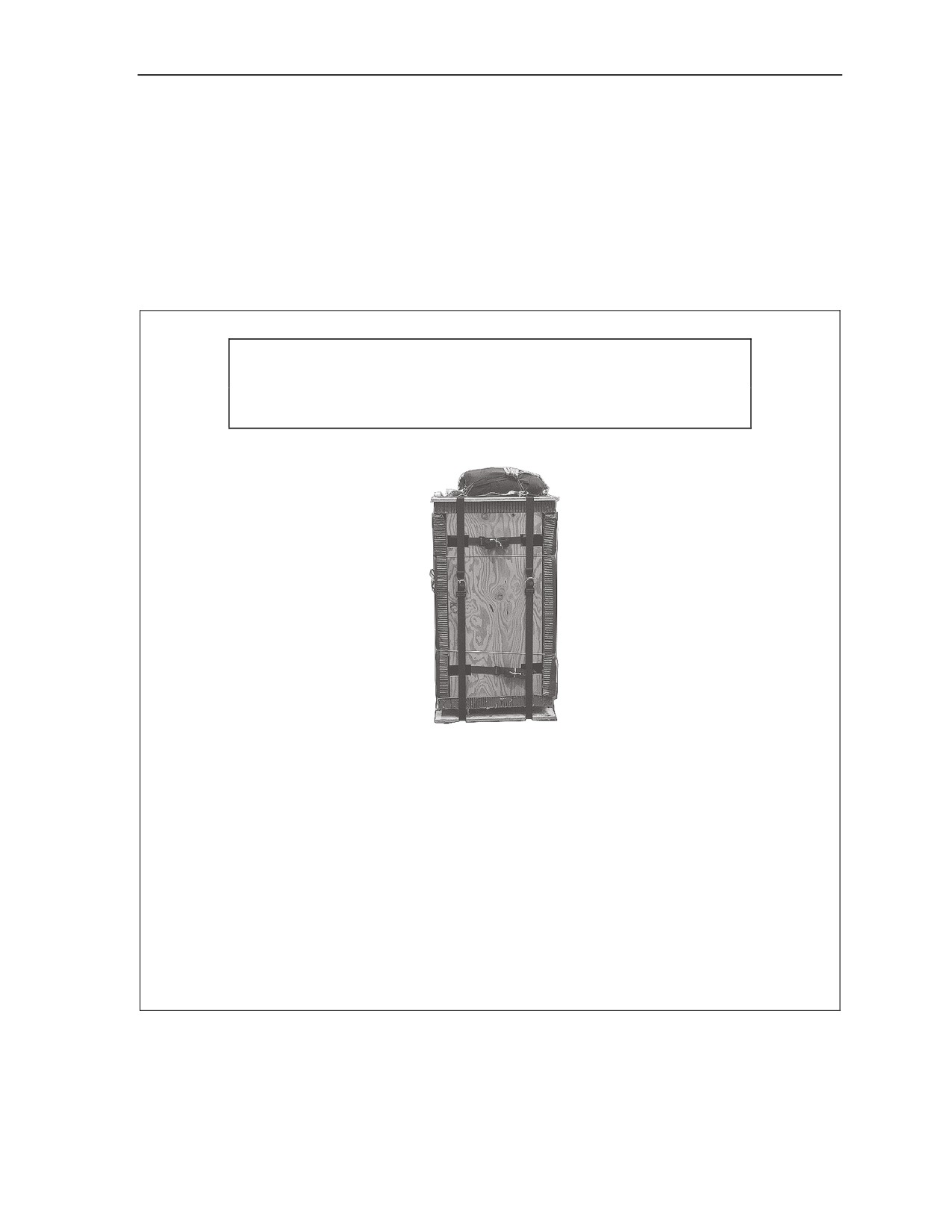

Figure 3-3. Javelin Two-Round A-7A Door Bundle Rigged
6 September 2007
FM 4-20.152/TO 13C7-22-61
3-13
Chapter 3
Table 3-1. Equipment Required for Rigging the Javelin Two-Round A-7A Door Bundle for
Low-Velocity Airdrop
National Stock Number
Item
Quantity
8040-00-273-8713
Adhesive, paste, 1-gal
As required
4020-00-240-2146
Cord, nylon, type III, 550-lb
As required
1670-00-753-3928
Pad, energy-dissipating, honeycomb
3 sheets
Parachute:
No NSN
T-10 cargo with 20-ft USL for C-17
1
5530-00-128-4981
Plywood, 3/4- by 48- by 96-in
2 sheets
1670-00-251-1153
Sling, assembly, cargo, airdrop, A-7A
6
8310-01-102-4487
Strap parachute release, multicut
1
Tape, masking
7501-00-266-6710
As required
Thread, cotton, ticket 8/7
7515-00-266-5016
As required
Webbing, cotton, 1/4-in, 80-lb
8305-00-268-2411
As required
3-14
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging the Advanced Antitank Weapon System-Medium (Javelin) for Low-Velocity Airdrop
SECTION II-RIGGING FOUR-ROUND A-7A DOOR BUNDLE
DESCRIPTION OF LOAD
3-6. The Javelin Missile System is a man-portable antitank weapon system made up of a tactical round in
a disposable launch tube and a reusable Command Launch Unit (CLU). The CLU is not rigged with the
tactical rounds. The Javelin four-round A-7A door bundle has an approximate rigged weight of 271
pounds. It has an approximate height of 57 1/2 inches (G-14) and 65 ½ inches (T-10), a width of 37 1/2
inches and a length of 44 1/4 inches. The four-round bundle uses the G-14 or T-10 cargo parachute.
PREPARING FOUR-ROUND A-7A DOOR BUNDLE
3-7. Prepare the four-round A-7A door bundle according to FM 4-20.103/MCRP 4-11.3C/TO 13C7-1-11
and as shown in Figure 3-4.
6 September 2007
FM 4-20.152/TO 13C7-22-61
3-15
Chapter 3
Notes. 1. This drawing is not to scale.
2. All dimensions are in inches.
1
1
1. Cut two 29 1/2- by 30 1/4-inch pieces of 3/4-inch plywood with eight 2-inch cutouts. Pad and
tape sharp edges of the cutout.
2. Cut two 29 1/2- by 30 1/4-inch pieces of honeycomb. (Not shown)
Figure 3-4 Four -Round A-7A Door Bundle Prepared
3-16
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging the Advanced Antitank Weapon System-Medium (Javelin) for Low-Velocity Airdrop
Notes. 1. This drawing is not to scale.
2. All dimensions are in inches.
4
3
9
3. Cut four 4- by 9-inch pieces of honeycomb.
Figure 3-4. Four-Round A-7A Door Bundle Prepared (Continued)
6 September 2007
FM 4-20.152/TO 13C7-22-61
3-17
Chapter 3
Notes. 1. This drawing is not to scale.
2. All dimensions are in inches.
30
4
6
4. Cut three 3/4- by 24 1/4- by 47-inch pieces of plywood with four 3- by 5 1/2-inch cutouts. Pad
and tape sharp edges of the cutouts.
5. Cut two pieces of honeycomb to match those prepared in step 4. (Not shown)
6. Cut two 30- by 47-inch pieces of honeycomb.
Figure 3-4. Four-Round A-7A Door Bundle Prepared (Continued)
3-18
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging the Advanced Antitank Weapon System-Medium (Javelin) for Low-Velocity Airdrop
Notes. 1. This drawing is not to scale.
2. All dimensions are in inches.
7
7
LEFT
REAR
8
FRONT
FRONT

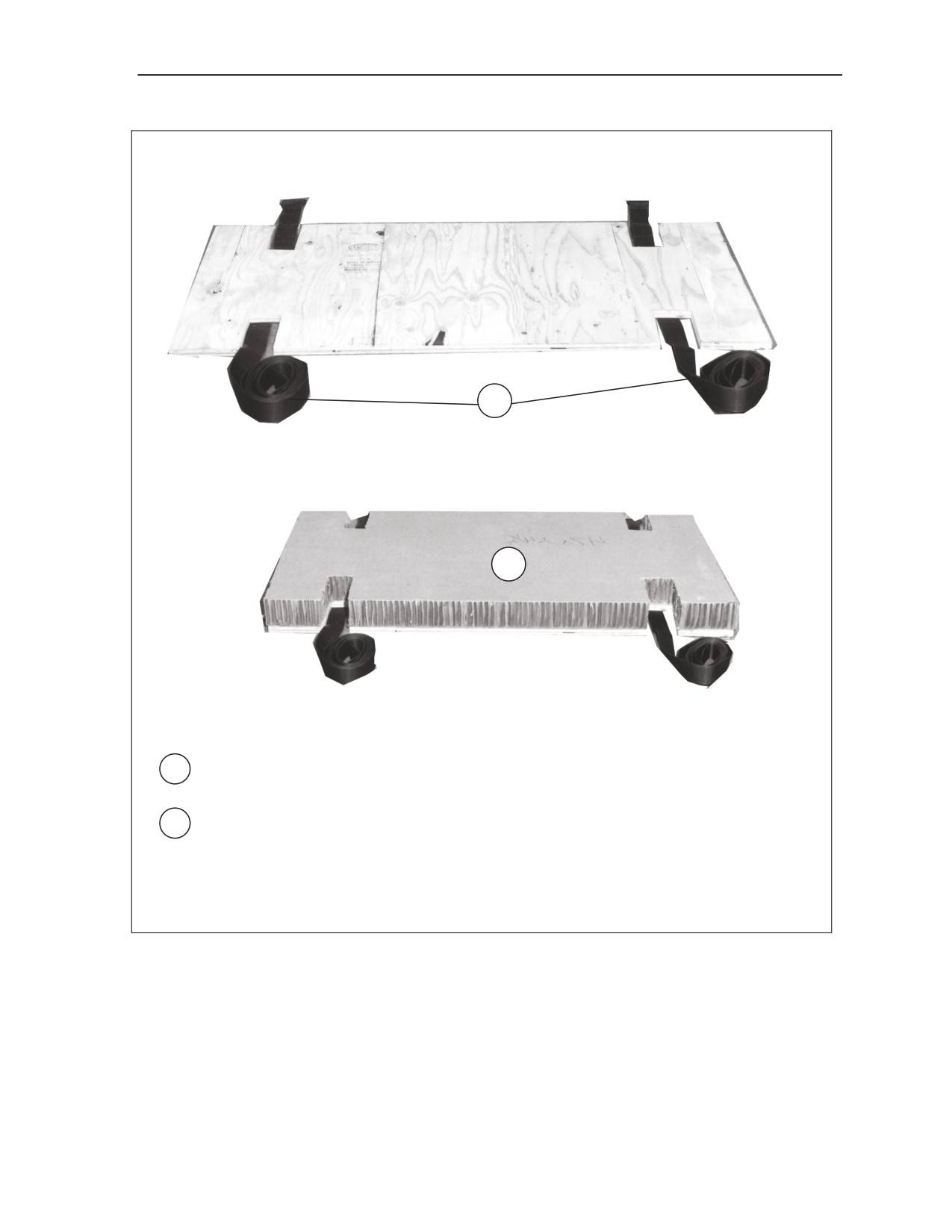

7. Position four A-7A straps under one of the 29 1/2- by 30 1/4-inch pieces of plywood.
Position each strap in each set of cutouts of the plywood.
8. Position and glue the four 4- by 9-inch pieces of honeycomb on top of the plywood. The
pieces on the left side should be 6 3/4 inches from the left edge of the plywood and the
right side pieces should be 6 3/4 inches from the right edge of the plywood. The forward
pieces should be 4 inches from the forward edge of the plywood and the rear pieces
should be 4 inches from the rear edge of the plywood.
Figure 3-4. Four-Round A-7A Door Bundle Prepared (Continued)
6 September 2007
FM 4-20.152/TO 13C7-22-61
3-19
Chapter 3
9
10
9. Position and glue one of the 29 1/2- by 30 1/4-inch pieces of honeycomb centered on the
plywood in step 8.
10. Position two A-7A straps, one in each set of cutouts on the 24 1/4- by 47-inch piece of
plywood.
Figure 3-4. Four-Round A-7A Door Bundle Prepared (Continued)
3-20
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging the Advanced Antitank Weapon System-Medium (Javelin) for Low-Velocity Airdrop
11
COMMAND
LAUNCH UNIT
CONNECTION
12
11. Position and glue one of the matching pieces of honeycomb on the top of the plywood in
step 10.
12. With the CLU connectors on opposite ends, position two Javelin rounds on the honeycomb.
Lay the rounds with the flat side of the protective foam down making sure the BCUs face
inward.
Figure 3-4. Four-Round A-7A Door Bundle Prepared (Continued)
6 September 2007
FM 4-20.152/TO 13C7-22-61
3-21
Chapter 3
13
14
13. Position the other piece of 24 1/4-inch by 47-inch plywood with the cutouts evenly on top of
the launch tubes.
14. Position two more rounds on top of the plywood as outlined in step 12.
Figure 3-4. Four-Round A-7A Door Bundle Prepared (Continued)
3-22
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging the Advanced Antitank Weapon System-Medium (Javelin) for Low-Velocity Airdrop
15
16
15. Position a piece of 24 1/4- by 47-inch honeycomb with the cutouts evenly on top of the
launch top.
16. Position and glue the matching piece of plywood on top of the honeycomb. Secure the A-
7A straps.
Figure 3-4. Four-Round A-7A Door Bundle Prepared (Continued)
6 September 2007
FM 4-20.152/TO 13C7-22-61
3-23
Chapter 3
18
27
17. Using the materials from steps 7 through 9 as a base, position the materials from steps 10
through 16 on one end centered on the base.
18. Position one of the 30-inch by 47-inch pieces of honeycomb flush with the front of the load
and one flush with the rear of the load. Tape the edges of the honeycomb and secure it in
place with two lengths of type III nylon cord.
Figure 3-4. Four-Round A-7A Door Bundle Prepared (Continued)
3-24
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging the Advanced Antitank Weapon System-Medium (Javelin) for Low-Velocity Airdrop
21
20
19
21
21
19. Position one 29 1/2- by 30 1/4-inch piece of honeycomb on top of the load.
20. Position and glue one 29 1/2- by 30 1/4-inch piece of plywood on the honeycomb.
21. Position two D-rings on top of the load. Place one in the left front corner and the other in
the right rear corner of the load. Secure in place by passing the running ends of two of the
A-7A straps in those corners through the D-rings. Secure all the A-7A straps.
Figure 3-4. Four-Round A-7A Door Bundle Prepared (Continued)
6 September 2007
FM 4-20.152/TO 13C7-22-61
3-25
Chapter 3
ATTACHING PARACHUTE
3-8. Attach a T-10 cargo parachute as shown in paragraph 3-3, Figure 3-2 or a G-14 cargo parachute as
shown in Figure 3-5.
1
2

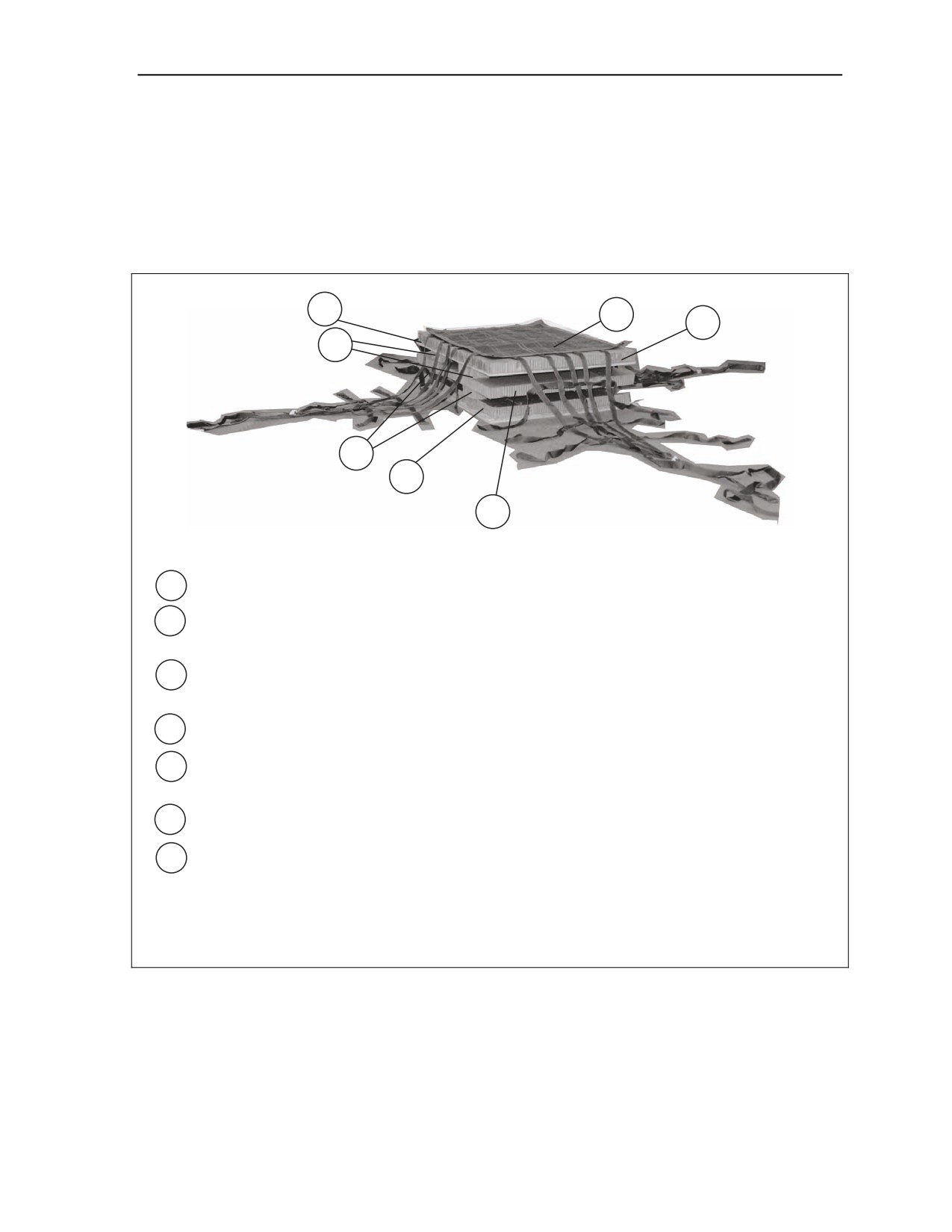

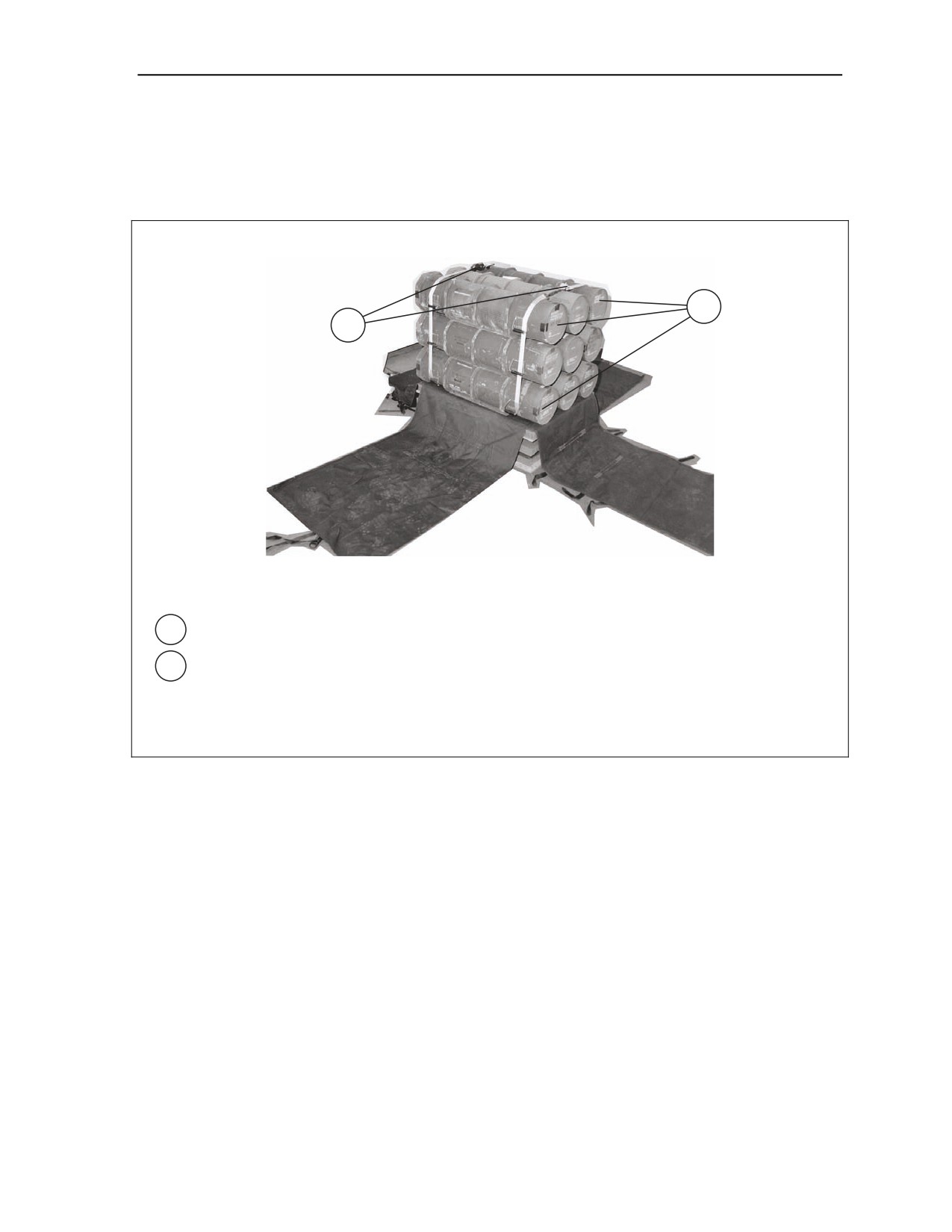

1. Attach a G-14 cargo parachute to a plywood side of the container with the tie tapes on the
deployment bag. This will be the rear side of the load. Tie the upper tie tapes to the A-7A
straps even with the edge of the vertical piece of honeycomb. Tie the lower tie tapes to the
same A-7A straps directly under the bag attachment points.
2. Attach each riser clevis of the parachute to a D-ring on an A-22 suspension web. Attach the
clips on the suspension webs to the D-rings on the A-7A straps, and tape the clips.
Figure 3-5. Parachute Attached to Load
3-26
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging the Advanced Antitank Weapon System-Medium (Javelin) for Low-Velocity Airdrop
MARKING RIGGED LOAD
3-9. Mark the rigged load according to FM
4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-
010/TO 13C7-1-5 and as shown in Figure 3-6. Complete Shippers Declaration for Dangerous Goods and
affix to load.
EQUIPMENT REQUIRED
3-10. Use the equipment in Table 3-2 to rig this load.
6 September 2007
FM 4-20.152/TO 13C7-22-61
3-27
Chapter 3
CAUTION
Mark the load “Door Bundle Only, Do Not Drop From ATF Ramp”
RIGGED LOAD DATA
Weight: Load shown
271 pounds
Height
57 1/2 inches (G-14)
.....................................................................................................................65 1/2 inches (T-10)
Width
37 1/2 inches
Overall Length
44 1/2 inches (Plus the length of a G-14)
Parachute
T-10 or G-14
Figure 3-6. Javelin Four-Round A-7A Door Bundle Rigged (G-14)
3-28
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging the Advanced Antitank Weapon System-Medium (Javelin) for Low-Velocity Airdrop
Table 3-2. Equipment Required for Rigging the Javelin Four-Round A-7A Door Bundle for
Low-Velocity Airdrop
National Stock Number
Item
Quantity
8040-00-273-8713
Adhesive, paste, 1-gal
As required
4020-00-240-2146
Cord, nylon, type III, 550-lb
As required
1670-00-753-3928
Pad, energy-dissipating, honeycomb
3 sheets
Parachute:
No NSN
T-10 cargo with 20-ft USL for C-17
1
5530-00-128-4981
Plywood, 3/4- by 48- by 96-in
2 sheets
1670-00-251-1153
Sling, assembly, cargo, airdrop, A-7A
6
8310-01-102-4487
Strap parachute release, multicut
2
Tape, masking
7501-00-266-6710
As required
Thread, cotton, ticket 8/7
7515-00-266-5016
As required
Webbing, cotton, 1/4-in, 80-lb
8305-00-268-2411
As required
6 September 2007
FM 4-20.152/TO 13C7-22-61
3-29
Chapter 3
SECTION III-RIGGING NINE-ROUND CONTAINER DELIVERY SYSTEM (CDS)
RIGGED IN AN A-22 CONTAINER
DESCRIPTION OF LOAD
3-11. The Javelin Missile System is a man-portable antitank weapon system made up of a tactical round in
a disposable launch tube and a reusable Command Launch Unit (CLU). The CLU is not rigged with the
tactical rounds. The Javelin missile system rigged in an A-22 container has an approximate rigged weight
of 810 pounds. It has an approximate height of 65 1/2 inches, a width of 48 inches and a length of 60
inches. The nine-round Javelin missile system rigged in an A-22 stretch container uses the G-12E cargo
parachute.
PREPARING SKID BOARD AND TIES
3-12. Construct and prepare the skid board, and ties according to FM 4-20.103/MCRP 4-11.3C/TO 13C7-
1-11 and as shown in Figure 3-7. Use the measurements in this manual if they should differ from FM 4-
20.103/MCRP 4-11.3C/TO 13C7-1-11.
Note. These dimensions and instructions are load specific.
3-30
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging the Advanced Antitank Weapon System-Medium (Javelin) for Low-Velocity Airdrop
Notes.
1. Drawing not to scale.
2. All dimensions are given in inches.
3. Always use A/C grade plywood.
Step:
1. Construct and prepare a skid board as shown above.
Note. These instructions are load specific.

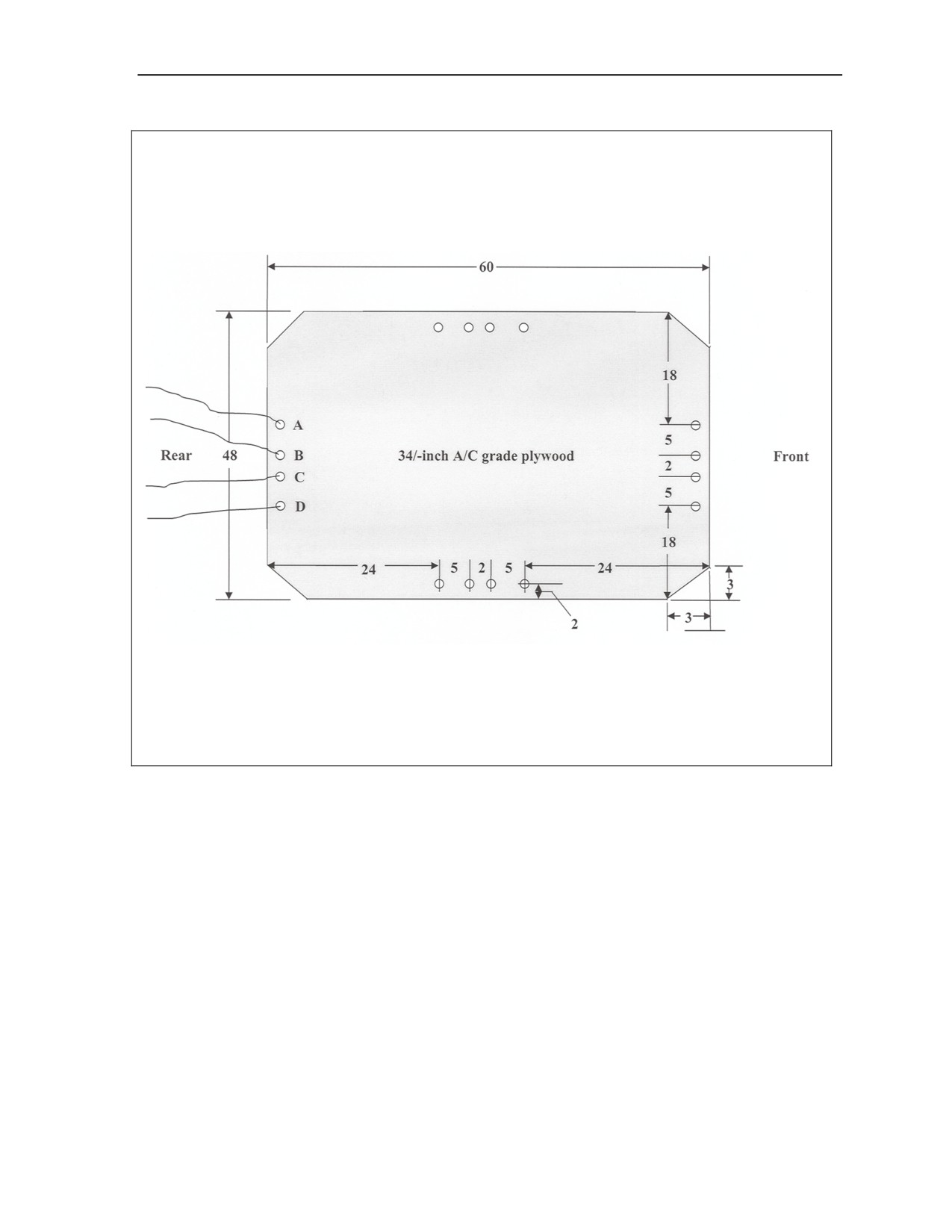

Figure 3-7. Skid Board and Ties Prepared
6 September 2007
FM 4-20.152/TO 13C7-22-61
3-31
Chapter 3
Notes.
1. Drawing not to scale.
2. All dimensions are given in inches.
3. Always use A/C grade plywood.
Step:
2. Cut and place a ¾- by 48- by 60-inch piece of A/C grade plywood on a flat surface.
3. Drill sixteen ½-inch holes as shown.
4. Measure 3 inches in from each corner of the skid board and make a diagonal cut.
5. Prepare and route the skid board ties according to FM 4-20.103/MCRP 4-11.3C/TO 13C7-
11 and as described below.

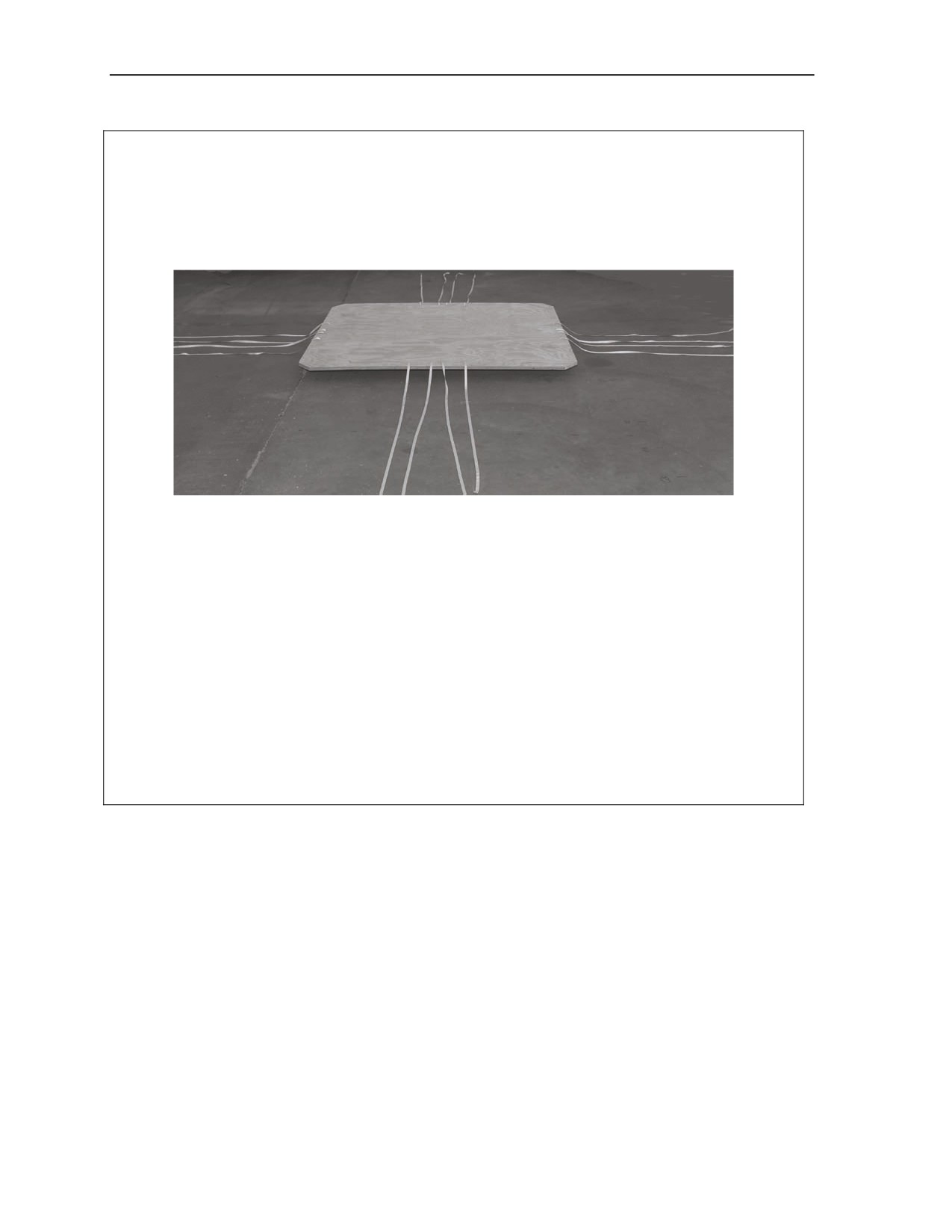

6. Cut sixteen, 10-foot lengths of ½-inch tubular, nylon webbing. Route one length through
hole A from the bottom and the other through hole B from the bottom. Even the ends.
7. Repeat step 6 for holes C and D and the remaining sides.
Figure 3-7. Skid Board and Ties Prepared (Continued)
3-32
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging the Advanced Antitank Weapon System-Medium (Javelin) for Low-Velocity Airdrop
PREPARING AND POSITIONING HONEYCOMB AND A-22 SLING
ASSEMBLIES
3-13. Prepare and position honeycomb and position two A-22 sling assemblies on the load according to
FM 4-20.103/MCRP 4-11.3C/TO 13C7-1-11 and as shown in Figure 3-8.
5
7
6
4
2
1
3
1. Cut a 44- by 56-inch piece of honeycomb and center it on the plywood.
2. Cut two 5- by 56-inch pieces of honeycomb and place each piece on top of the honeycomb
12 inches from each edge.
3. Cut a 44- by 56-inch piece of honeycomb and place it on top of the two previous pieces
centered.
4. Repeat step 2.
5. Cut a 3/4- by 44- by 56-inch piece of plywood and place it on top of the two previous pieces
centered.
6. Repeat step 1 and place the honeycomb on top of the plywood.
7. Position the sling assemblies and make the appropriate ties according to FM 4-20.103/MCRP
4-11.3C/TO 13C7-1-11.
Figure 3-8. Honeycomb and A-22 Sling Assemblies Positioned
6 September 2007
FM 4-20.152/TO 13C7-22-61
3-33
Chapter 3
POSITIONING COVERS AND A-7A STRAPS
3-14. Position two covers and two A-7A straps on top of the sling assemblies as shown in Figure 3-9.
2
1
8. Position one cover to the front and the other cover to the rear of the load.
9. Place two tiedown lashings approximately 10 inches from each edge of the 59 inch side.
Figure 3-9. Covers and A-7A Straps Positioned
3-34
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging the Advanced Antitank Weapon System-Medium (Javelin) for Low-Velocity Airdrop
POSITIONING AND SECURING JAVELIN MISSILES
3-15. Position nine Javelin missiles and secure them as shown in Figure 3-10.
1
2
10. Place nine Javelin missiles on the load as shown above.
11. Run the pre-positioned tiedown lashings through the handles of the missiles and secure them
on top with a D-ring and loadbinder.
Figure 3-10. Javelin Missiles Positioned and Secured
6 September 2007
FM 4-20.152/TO 13C7-22-61
3-35
|
|
